Sport PRO™
Owner’s Manual
July 2015 Printed in Taiwan 190-01893-00_0A
All rights reserved. Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of Garmin. Garmin reserves the
right to change or improve its products and to make changes in the content of this manual without obligation to notify any person or organization of such
changes or improvements. Go to www.garmin.com for current updates and supplemental information concerning the use of this product.
Garmin® and the Garmin logo are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. Sport PRO™
is a trademark of
Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express permission of Garmin.
CAN ICES-3(B)/NMB-3(B)
Table of Contents
Getting Started............................................................... 1
Setting Up the Sport PRO System..............................................1
Device Overviews....................................................................... 1
Sport PRO Handheld Device................................................. 1
Sport PRO Dog Device.......................................................... 1
Attaching the Dog Collar Device to the Collar Strap................... 1
Charging the Handheld Device................................................... 1
Charging the Dog Collar Device................................................. 1
Turning On the Dog Collar Device.............................................. 2
Turning Off the Device........................................................... 2
Dog Collar Device....................................................................... 2
Pairing a Dog Collar Device with the Handheld Device......... 2
Selecting a Dog Collar Device............................................... 2
Fitting the Collar on Your Dog.................................................... 2
Selecting and Installing the Contact Points........................... 2
Dog Training................................................................... 3
Training Methods........................................................................ 3
Choosing the Correct Intensity Level.......................................... 3
Changing the Intensity Level................................................. 3
BarkLimiter..................................................................................3
Automatic Intensity.................................................................3
Status LED............................................................................. 3
Enabling the BarkLimiter Feature from the Handheld
Device.................................................................................... 3
Enabling the Independent BarkLimiter Feature from the Dog
Collar Device..........................................................................4
Bark Odometer™................................................................... 4
Using the Light............................................................................ 4
Device Information......................................................... 4
Handheld Device Specifications................................................. 4
Dog Collar Device Specifications................................................4
Sport PRO Battery Replacement Instructions............................ 4

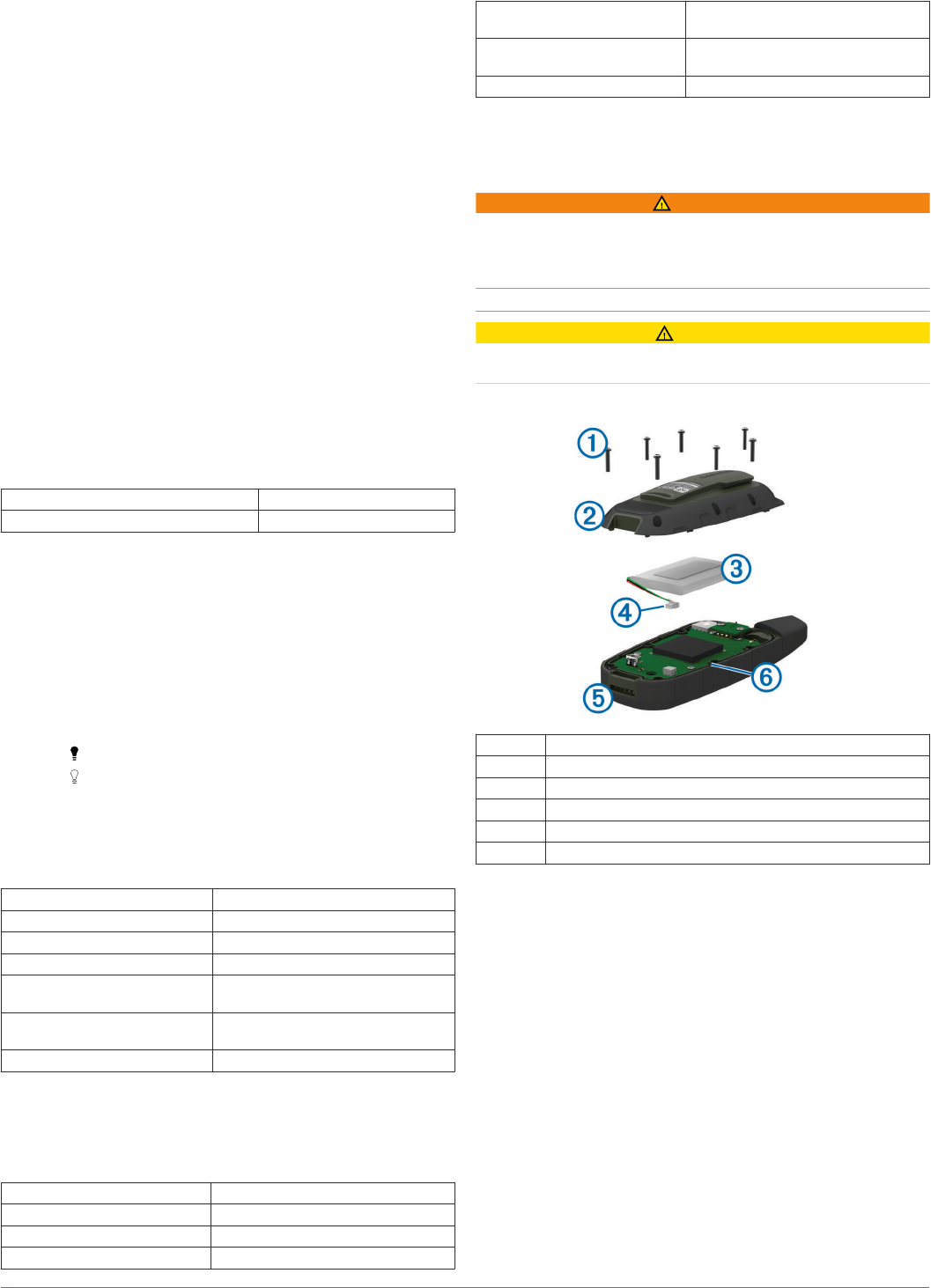

Sport PRO Handheld Device Components............................ 4
Replacing the Handheld Device Battery................................ 4

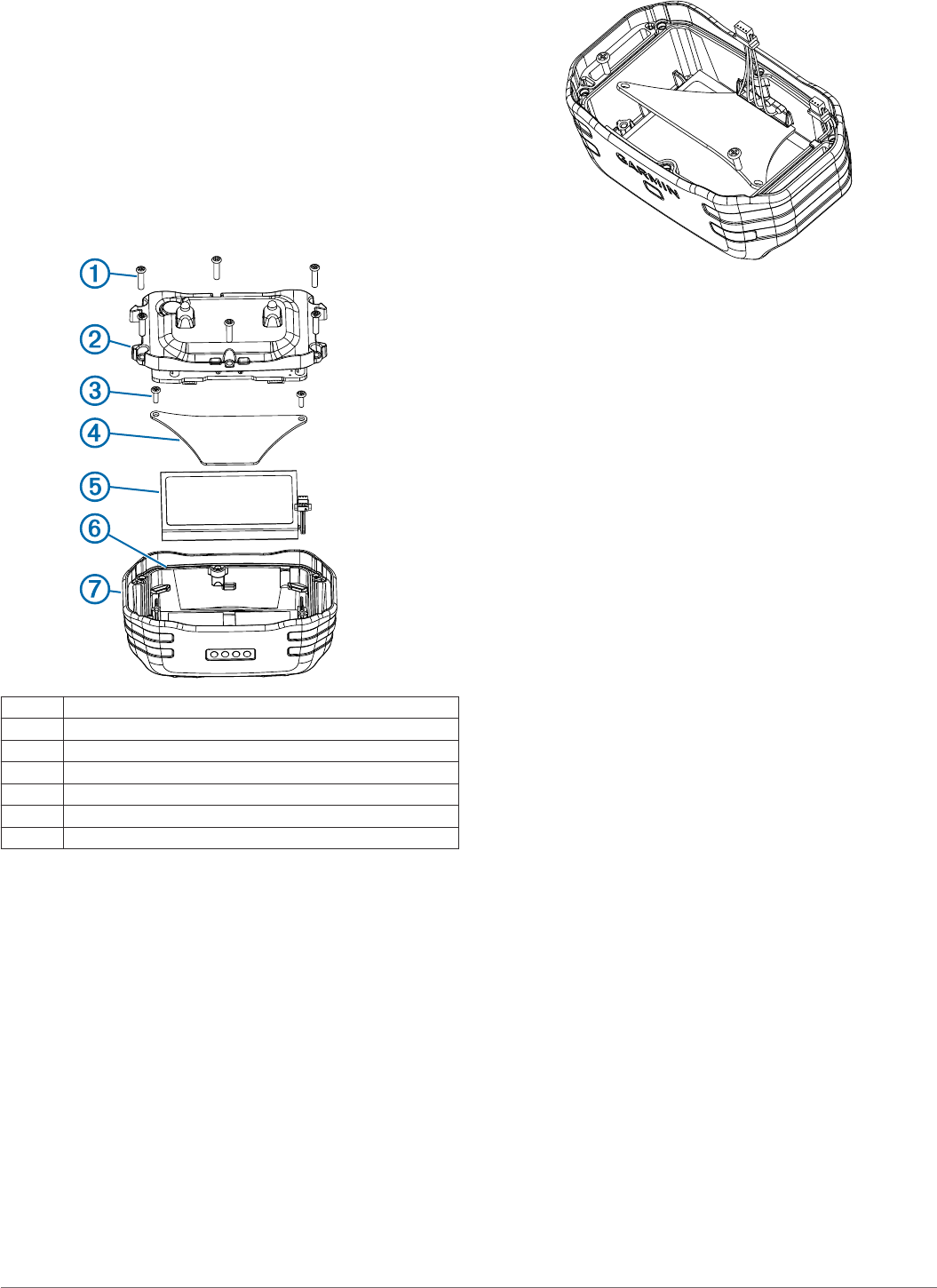

Sport PRO Dog Collar Device Components.......................... 5
Replacing the Dog Collar Device Battery...............................5
Registering Your Device............................................................. 5
Getting More Information............................................................ 5
Getting the Owner's Manual....................................................... 5
Index................................................................................ 6
Table of Contents i
Getting Started
WARNING
See the Important Safety and Product Information guide in the
product box for product warnings and other important
information.
Setting Up the Sport PRO System
Before you can use the Sport PRO system, you must set up the
devices.
1Attach the dog collar device to the collar strap (Attaching the
Dog Collar Device to the Collar Strap, page 1).
2Charge the handheld device (Charging the Handheld Device,
page 1).
3Charge the dog collar device (Charging the Dog Collar
Device, page 1).
4Turn on the devices (Turning On the Dog Collar Device,
page 2).
5If necessary, pair the dog collar device with the handheld
device (Pairing a Dog Collar Device with the Handheld
Device, page 2).

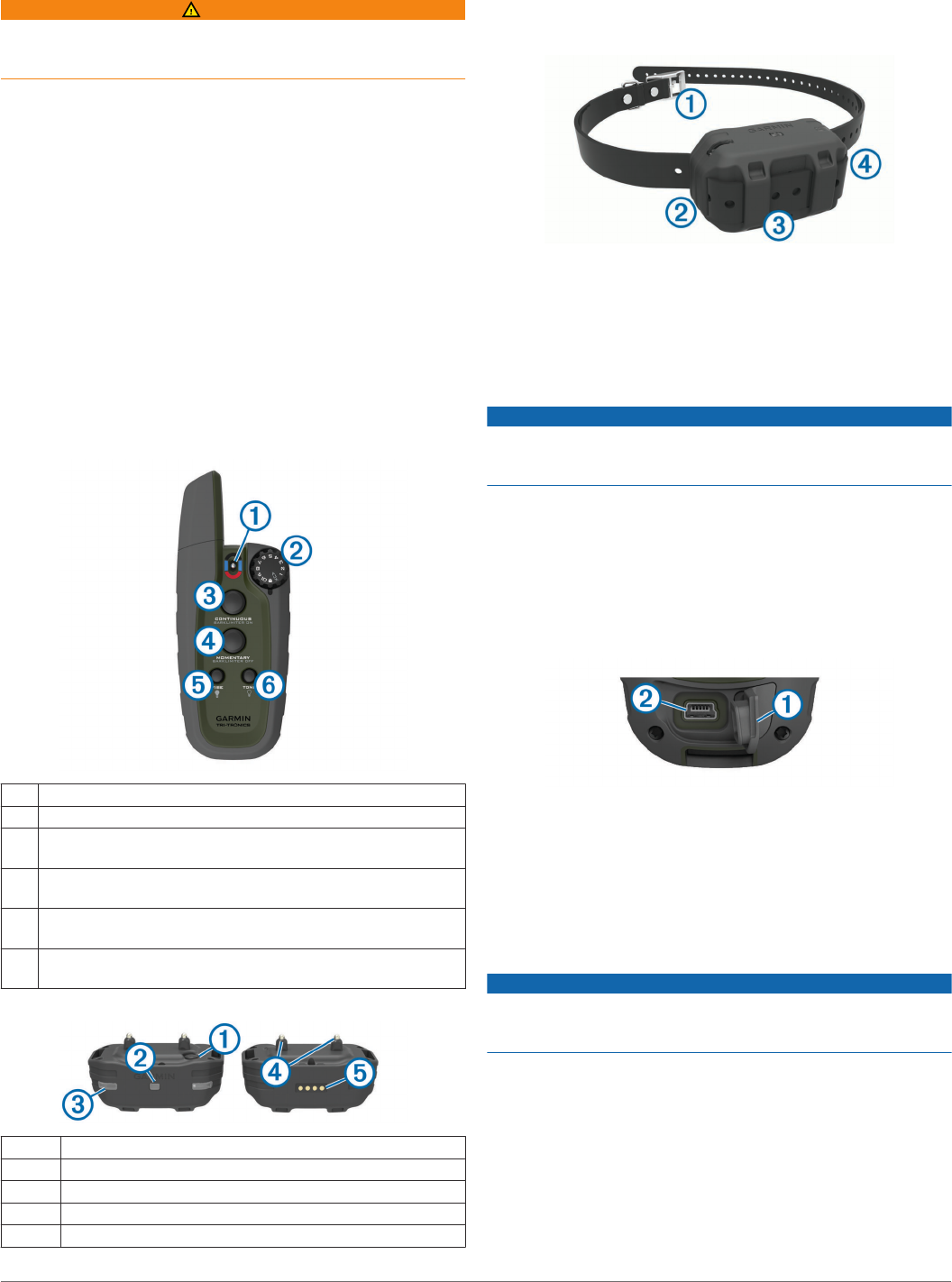

Device Overviews
Sport PRO Handheld Device
ÀDog collar device toggle switch
ÁIntensity level and operating mode dial
ÂContinuous stimulation key
BarkLimiter™
on key (AUX mode)
ÃMomentary stimulation key
BarkLimiter off key (AUX mode)
ÄVibration key
Light on key (AUX mode)
ÅTone key
Light off key (AUX mode)
Sport PRO Dog Device
ÀPower key
ÁStatus LED
ÂLights
ÃContact points
ÄCharging clip contacts
Attaching the Dog Collar Device to the Collar
Strap
1With the buckle À facing outward, insert the end of the collar
strap through the slot Á on the collar device.
2Pull most of the collar strap through the two slots  on the
dog device.
3Insert the end of the collar strap through the slot à on the
opposite side of the device.
4Pull the strap until it is tight across the front of the device.
Charging the Handheld Device
NOTICE
To prevent corrosion, thoroughly dry the USB port, the weather
cap, and the surrounding area before charging or connecting to
a computer.
You should fully charge the battery before you use the device for
the first time or whenever the battery is low. It is normal for the
battery to discharge in approximately 7 to 10 weeks when the
device is not in use. Charging a fully depleted battery takes
about 2 hours.
NOTE: The device will not charge when it is outside the
temperature range of 0° to 40°C (32° to 104°F).
1Lift the weather cap À.
2Plug the small end of the power cable into the mini-USB port
Á on the device.
3Plug the other end of the power cable into a power source.
The status LED is solid red when the device is charging.
4After the status LED turns solid green, unplug the power
cable from the device.
Charging the Dog Collar Device
NOTICE
To prevent corrosion, thoroughly dry the USB port, the weather
cap, and the surrounding area before charging or connecting to
a computer.
You should fully charge the battery before you use the device for
the first time or whenever the battery is low. It is normal for the
battery to discharge in approximately 7 to 10 weeks when the
device is not in use. Charging a fully depleted battery takes
about 2 hours.
NOTE: The device will not charge when it is outside the
temperature range of 0° to 40°C (32° to 104°F).

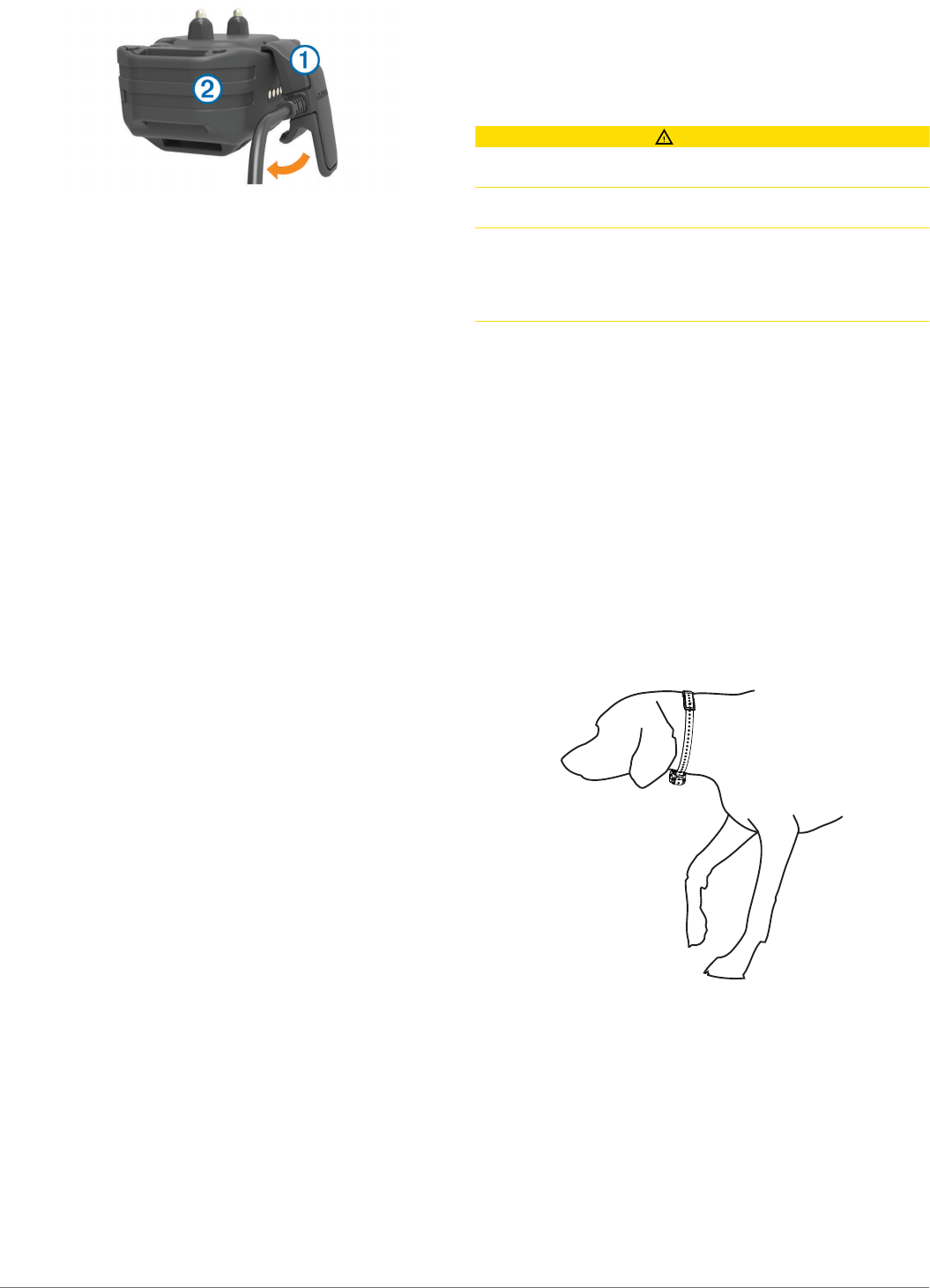

1Snap the charging clip À onto the device Á.
Getting Started 1
2Plug the power cable into a power source.
The status LED is solid red when the collar is charging.
3After the status LED turns solid green, remove the charging
clip from the collar.
Turning On the Dog Collar Device
• To turn on the dog collar device in training mode, hold the
power key until the status LED turns green and the collar
beeps.
• To turn on the dog collar device in independent BarkLimiter
mode, hold the power key until the status LED turns blue
(Enabling the Independent BarkLimiter Feature from the Dog
Collar Device, page 4).
• To turn on the dog collar device in pairing mode, hold the
power key until the status LED turns yellow (Pairing a Dog
Collar Device with the Handheld Device, page 2).
Turning Off the Device
1On the dog collar device, hold the power key until the status
LED turns red.
2Release the power key.
The dog collar device beeps to confirm powering off.
NOTE: If the device is powered off in BarkLimiter mode, the
LED flashes the number of corrected barks before powering
off (Bark Odometer™
, page 4).
Dog Collar Device
You can use up to 3 dog collar devices with a single handheld
device.
Each dog collar device must be paired with the handheld device
before it can be used. During the pairing process, each dog
collar device is associated with a different color on the handheld
device.
Pairing a Dog Collar Device with the Handheld Device
NOTE: If your handheld device and dog collar device were
included in the same package, the devices are paired from the
factory.
1On the handheld device, move the toggle switch to choose
the color associated with the dog collar device.
2On the handheld device, set the intensity level to a numbered
position.
3On the dog collar device, hold the power key for about 5
seconds until the status LED turns yellow.
4While the dog collar device status LED is yellow, select a
training key on the handheld device.
The dog collar device beeps when the devices have paired
successfully.
TIP: If the devices did not pair successfully, you should verify
the batteries in both devices are fully charged and the intensity
level is set to a numbered position.
Selecting a Dog Collar Device
Before you can select and control a dog collar device, you must
pair the dog collar device with the handheld device (Pairing a
Dog Collar Device with the Handheld Device, page 2).
Move the dog collar device toggle switch to select the color
associated with a dog collar device.
The training keys control the dog collar device associated with
the selected color.
Fitting the Collar on Your Dog
CAUTION
To prevent irritation from the contact points, remove the collar
for at least eight hours out of every 24-hour period.
This device is not intended for human use. Do not attempt to
use on any person.
Do not spray the device or collar with harsh chemicals including
but not limited to flea or tick spray. Always ensure that any flea
or tick spray that is applied to the dog is completely dry before
placing the collar on the dog. Small amounts of harsh chemicals
can damage the plastic components and collar laminate.
In order to effectively train the dog, the collar and device must fit
the dog properly. If the collar is too loose or positioned
incorrectly, stimulation may be inconsistent. This can delay or
prevent successful training.
1Position the device at the front of the dog's neck, with the
status LED facing toward the dog's chin and the contact
points against the throat.
TIP: For bark correction, the device contact points should be
positioned near the dog's vocal cords. This location varies
based on the breed of dog. If the device does not seem to
detect the dog's barks, you should move the device closer to
or farther from the dog's body to find the ideal location.
2Tighten the strap so that it is very snug around the dog's
neck, and fasten the buckle.
NOTE: The collar should fit tightly and should not be able to
rotate or slide on the dog's neck. The dog must be able to
swallow food and water normally. You should observe your
dog's behavior to verify that the collar is not too tight.
3Wiggle the device to work the contact points through the
dog's coat.
NOTE: The contact points must have contact with the dog's
skin to be effective.
4If the strap is too long, cut off the excess, leaving at least
8 cm (3 in.) to spare.
TIP: You can mark the hole used to fasten the buckle for
future reference.
Selecting and Installing the Contact Points
For best results, select the correct contact points based on your
dog's coat.
2 Getting Started
1Select the correct contact point length for your dog's coat
type:
• For dogs with thicker coats, use the longer contact points.
• For dogs with shorter coats, use the shorter contact
points.
2If necessary, use the included wrench to remove the contact
points.
3Twist the contact points into the collar.
4Tighten with the included wrench, but do not overtighten.
When you put the collar on the dog, make sure the contact
points are tight against the neck.
Dog Training
You should research and investigate the training methods best
suited for you, your dog, and your needs.
When used properly, the Sport PRO training system is an
effective training tool to aid your dog in reaching its full potential.
The use of the training system should be part of an overall
training program.
Training Methods
Momentary stimulation: Applies a brief stimulation when you
press the training key, regardless of how long the key is
depressed.
Continuous stimulation: Applies stimulation to the dog the
entire time you press the training key, for a maximum of 8
seconds. Your stimulations should typically be much shorter
than 8 seconds.
Tone: Activates an audible tone instead of stimulation. A tone
can be used as either a positive or negative training cue,
depending on your training program.
Vibration: Applies vibration instead of stimulation to the dog the
entire time you press the training key, for a maximum of 8
seconds. The effectiveness of vibration may vary based on
the dog's temperament and experience.
Choosing the Correct Intensity Level
1Set the intensity to the lowest level.
2Select a training key.
3Observe the dog for a reaction, such as a head shake, neck
movement, or just a change in expression.
Sometimes dogs will vocalize due to the surprise of the
electrical stimulation. If the dog vocalizes more than once,
the intensity level is too high for beginning training.
4If there is no reaction, increase the intensity level by one level
until the dog has a slight but recognizable reaction to the
stimulation.
The intensity level that causes a slight but recognizable reaction
is your dog's baseline level for beginning collar training. You do
not need to, and should not, apply this intensity selection test
again.
After you begin training, the dog’s performance guides your
intensity selection. As the dog advances in training, you may
need to change the level depending upon the training situation.
Changing the Intensity Level
You can select a different intensity level for each dog collar
device.
1Select a dog collar device (Selecting a Dog Collar Device,
page 2).
2Adjust the dial to increase or decrease the intensity level.
BarkLimiter
NOTICE
Before playing with your dog, you should remove the dog collar
device or deactivate the BarkLimiter feature.
When using the BarkLimiter feature, you should remove all other
collars, tags, or other items from your dog. These other items
can cause the BarkLimiter feature to activate when the dog is
not barking.
The BarkLimiter feature can correct your dog automatically
when the dog barks. The device detects vibrations to distinguish
between barking and other vocalizations. You can use these
methods when correcting your dog with the BarkLimiter feature.
• Vibration instead of stimulation
• Fixed stimulation
• An automatic, gradual increase in stimulation intensity
Automatic Intensity
The device can set the stimulation intensity level automatically
based on the barking behavior of the dog. The device starts at
the lowest intensity level and increases the intensity level
gradually until the dog stops barking. When the dog is quiet, the
intensity decreases over time.
The automatic intensity feature is designed to eliminate
excessive nuisance barking. To stop barks more immediately,
you should set the intensity level manually.
Status LED
The status LED flashes briefly when the dog collar device
detects motion or corrects a bark.
Green, yellow, or red
flash
Motion was detected, and no correction was
applied.
Blue flash A bark was detected, and a correction was
applied.
NOTE: A green, yellow, or red flash denotes how much charge
is left in the dog device battery, ranging from high to low.
Enabling the BarkLimiter Feature from the Handheld
Device
You can use your handheld device to enable BarkLimiter
features. When you enable BarkLimiter mode from the handheld
device, you can set the dog collar device to use auto-rise,
vibration, or fixed stimulation levels.
1Set the operating mode dial to AUX.
2Select BARKLIMITER ON.
The green LED flashes.
3While the green LED is flashing, select an option:
• To set vibration, select VIBE.
• To set a fixed stimulation level, set the dial to a stimulation
level and select CONTINUOUS.
• To set auto-rise, select BARKLIMITER ON.
A blue LED on the dog collar device indicates that it is in
BarkLimiter mode.
Turning Off the BarkLimiter Feature from the Handheld
Device
NOTE: If you enabled the BarkLimiter feature from the dog
device, you cannot turn it off from the handheld device.
1Set the dial to AUX.
2Select BARKLIMITER OFF.
Overriding the BarkLimiter Feature
NOTE: If you enabled the BarkLimiter feature from the dog
collar device, you cannot override it using the handheld device.
If you need to apply a quick stimulation when your dog collar
device is in BarkLimiter mode, you can override the BarkLimiter
feature using the handheld device. You can return to BarkLimiter
Dog Training 3
mode by enabling it from the handheld device (Enabling the
BarkLimiter Feature from the Handheld Device, page 3).
Hold CONTINUOUS, TONE, or VIBE for 4 seconds.
The dog collar device returns to training mode.
Enabling the Independent BarkLimiter Feature from
the Dog Collar Device
The dog collar device can operate independently as a bark
correction device. You can enable the BarkLimiter feature in
auto-rise mode directly from the dog collar device. This provides
longer battery life than enabling the BarkLimiter feature from the
handheld device.
NOTE: When using the device in this mode, the radio signal is
disabled and you cannot control the dog collar device with the
handheld device.
1On the dog collar device, hold the power key until the LED
flashes blue.
2To return to training mode, turn off the dog collar device and
turn it back on in training mode (Turning On the Dog Collar
Device, page 2).
Bark Odometer™
When you turn off the dog collar device in independent
BarkLimiter mode, the LED flashes red and green to report the
number of times the device detected a bark since it was last
turned on. This can help you track your dog's barking behavior.
Red flash 10 barks
Green flash 1 bark
For example, one red flash followed by four green flashes
indicates the device detected 14 barks.
Zero flashes indicates the device detected zero barks.
Using the Light
You can use the light feature on your device to verify pairing,
help locate your dog, and provide safety for your dog at night.
1Select a dog collar device (Selecting a Dog Collar Device,
page 2).
2Set the dial to AUX.
3Select to turn the light on.
4Select to turn the light off.
Device Information
Handheld Device Specifications
Battery type Rechargeable lithium-ion
Battery life Up to 60 hr. of typical use
Operating temperature range From -20° to 60°C (from -4° to 140°F)
Charging temperature range From 0° to 40°C (from 32° to 104°F)
Storage temperature range (up
to 1 mo.)
From -20° to 50°C (from -4° to 122°F)
Storage temperature range (up
to 3 mo.)
From -20° to 35°C (from -4° to 95°F)
Water rating IEC 60529 IPX7*
*The device withstands incidental exposure to water of up to 1 m
for up to 30 min. For more information, go to www.garmin.com
/waterrating.
Dog Collar Device Specifications
Battery type Rechargeable, replaceable lithium-ion
Battery life Up to 60 hr. of typical use
Operating temperature range From -20° to 60°C (from -4° to 140°F)
Charging temperature range From 0° to 40°C (from 32° to 104°F)
Storage temperature range (up
to 1 mo.)
From -20° to 50°C (from -4° to 122°F)
Storage temperature range (up
to 3 mo.)
From -20° to 35°C (from -4° to 95°F)
Water rating 1 ATM*
*The device withstands pressure equivalent to a depth of 10 m.
For more information, go to www.garmin.com/waterrating.
Sport PRO Battery Replacement Instructions
WARNING
This product contains a lithium-ion battery. To prevent the
possibility of personal injury or product damage caused by
battery exposure to extreme heat, store the device out of direct
sunlight.
Do not use a sharp object to remove batteries.
CAUTION
Contact your local waste disposal department to properly
recycle the batteries.
Sport PRO Handheld Device Components
ÀSecurity screws
ÁBack plate
ÂBattery
ÃBattery connector
ÄFront plate
ÅGasket
Replacing the Handheld Device Battery
Before you can replace the battery, you must remove all dirt,
water, and debris from the device. You also need the security
screwdriver included in the battery replacement kit.
1Remove the security screws from the back of the device.
2Lift up the back plate.
3Grip the battery connector wires close to the connector, and
pull the connector perpendicular to the circuit board to
disconnect the battery connector from the device.
4Remove the old battery from the back plate, noting the
orientation of the battery.
The battery fits tightly. It may be necessary to pry the battery
out of the back plate using a non-sharp, non-metal object.
5Install the new battery into the back plate with the label side
up, using the same orientation as the old battery.
6With the new battery, connect the battery connector to the
device.
When properly installed, the connector plug snaps into the
port.
4 Device Information
7Verify the gasket is not damaged and is completely seated in
the groove on the front half of the device.
8Verify the USB gasket is not damaged and is completely
positioned around the USB opening on the back half of the
device.
9While ensuring the battery wires are not pinched, hold the
back plate and the device firmly together, and replace all
security screws without tightening them.
10Verify the back plate and the device are aligned with no gaps.
11Tighten the screws evenly.
12Verify the gasket is not sticking out of the device.
Sport PRO Dog Collar Device Components
ÀSecurity screws
ÁTop plate
ÂBattery plate screws
ÃBattery plate
ÄBattery
ÅGasket
ÆFront enclosure
Replacing the Dog Collar Device Battery
Before you can replace the battery, you must remove all dirt,
water, and debris from the device. You also need a small
Phillips screwdriver and the security screwdriver included in the
battery replacement kit.
1Remove the six screws from the top plate, and remove the
top plate.
2Remove the two screws from the battery plate, and remove
the battery plate.
3Grip the battery connector wires close to the connector, and
pull the connector parallel to the circuit board to disconnect
the battery connector from the device.
4Remove the battery.
The battery fits tightly. It may be necessary to pry the battery
out of the back plate using a non-sharp, non-metal object.
5Install the new battery into the front enclosure with the label
side of the battery facing up, and the leading edge of the
battery placed under the charging contact ledge of the
device.
6Replace the battery plate, and replace and tighten the two
screws.
7Verify the gasket is not damaged and is completely seated in
the groove.
8With the new battery, connect the battery connector to the
device.
When properly installed, the connector plug snaps into the
port.
9Replace the front plate, and replace and tighten the six
screws to secure the front plate.
10Verify the gasket is not sticking out of the device.
Registering Your Device
Help us better support you by completing our online registration
today.
• Go to http://my.garmin.com.
• Keep the original sales receipt, or a photocopy, in a safe
place.
Getting More Information
You can find more information about this product on the Garmin®
website.
• Go to www.garmin.com/outdoor.
• Go to http://buy.garmin.com, or contact your Garmin dealer
for information about optional accessories and replacement
parts.
Getting the Owner's Manual
You can get the most recent owner's manual from the web.
1Go to www.garmin.com/manuals/sportpro.
2View or download the full owner's manual in your preferred
format.
Device Information 5
Index
A
accessories 5
B
bark correction 3, 4
bark odometer 4
battery
charging 1
replacing 4, 5
C
charging
collar 1
handheld 1
collar
attaching strap 1
charging 1
contact points 1, 2
fitting 2
light 4
pairing 2
contact points 1, 2
D
device, registration 5
dog
status 3
training 2
training basics 3
training intensity levels 3
dog collar device 1, 2
I
intensity level
automatic 3
changing 3
choosing 3
K
keys 1
P
pairing, collar 2
power key 1, 2
product registration 5
R
registering the device 5
replacing the battery 4
S
specifications 4
T
training
stimulation 3
tone 3
vibration 3
troubleshooting 5
6 Index
www.garmin.com/support
+43 (0) 820 220230 + 32 2 672 52 54
0800 770 4960 1-866-429-9296
+385 1 5508 272
+385 1 5508 271
+420 221 985466
+420 221 985465
+ 45 4810 5050 + 358 9 6937 9758
+ 331 55 69 33 99 + 39 02 36 699699
(+52) 001-855-792-7671 0800 0233937
+47 815 69 555 00800 4412 454
+44 2380 662 915
(+35) 1214 447 460 +386 4 27 92 500
0861 GARMIN (427 646)
+27 (0)11 251 9999 +34 93 275 44 97
+ 46 7744 52020 +886 2 2642-9199 ext 2
0808 238 0000
+44 (0) 870 8501242
+49 (0) 89 858364880
zum Ortstarif - Mobilfunk
kann abweichen
913-397-8200
1-800-800-1020
© 2015 Garmin Ltd. or its subsidiaries

Navigation menu
