FUSION® BB100 Black Box
Entertainment System with Wired
Remote Control Installation
Instructions
Important Safety Information
WARNING
Failure to follow these warnings and cautions could result in
personal injury, damage to the vessel, or poor product
performance.
See the Important Safety and Product Information guide in the
product box for product warnings and other important
information.
This device must be installed according to these instructions.
Disconnect the vessel's power supply before beginning to install
this product.
Before applying power to this product, make sure it has been
correctly grounded, following the instructions in the guide.
CAUTION
Always wear safety goggles, ear protection, and a dust mask
when drilling, cutting, or sanding.
NOTICE
When drilling or cutting, always check what is on the opposite
side of the surface.
You must read all installation instructions before beginning the
installation. If you experience difficulty during the installation,
contact FUSION Product Support.
Software Updates
For best results, you should update the software in all FUSION
devices at the time of installation to ensure compatibility.
Go to www.fusionentertainment.com/marine to download the
latest software. Software updates and instructions are available
on your device product page.
Tools Needed
• Phillips screwdriver
• Electric drill
• Drill bit (size varies based on surface material and screws
used)
• Rotary cutting tool or jigsaw
• Marine sealant (optional)
Mounting Considerations
CAUTION
In high ambient temperatures and after extended use, the
device enclosure may reach temperatures deemed dangerous
to touch. As a result, the unit must be installed in a location
where it cannot be touched during operation.
NOTICE
This device should be mounted in a location that is not exposed
to extreme temperatures or conditions. The temperature range
for this device is listed in the product specifications. Extended
exposure to temperatures exceeding the specified temperature
range, in storage or operating conditions, may cause device
failure. Extreme-temperature-induced damage and related
consequences are not covered by the warranty.
When selecting a mounting location for the black box device,
observe these considerations.
• The device must be mounted in a location where it is not
submerged.
• The device must be mounted in a location with adequate
ventilation where it is not exposed to extreme temperatures.
• The device should be mounted so the cables can be
connected easily.
• To achieve IPX3 water ingress protection and optimal heat
sink cooling, the device must be mounted on a vertical
surface with the connectors pointing downward.
• The device can be mounted on a horizontal surface, but such
positioning might not achieve IPX3 water ingress protection.
• To avoid interference with a magnetic compass, the device
should be installed at least 15 cm (5.91 in.) away from a
compass.
When selecting a mounting location for the remote control,
observe these considerations.
• The remote control must be mounted in a location where
there is at least 70 mm (2.75 in.) of clearance behind the
mounting surface and you can access the controls after it is
mounted.
• If you need to mount the remote control outside the cabin, it
must be mounted in a location well above the waterline,
where it is not submerged.
• If you need to mount the remote control outside the boat, it
should be mounted in a location where it will not be damaged
by a docks, pilings, or other pieces of equipment.
Mounting the BB100 Device
NOTICE
If you are mounting the device in fiberglass, when drilling the
four pilot holes, it is recommended to use a countersink bit to
drill a clearance counterbore through only the top gel-coat layer.
This will help to avoid any cracking in the gel-coat layer when
the screws are tightened.
NOTE: Stainless-steel screws may bind when screwed into
fiberglass and overtightened. It is recommended to apply an
anti-seize lubricant to the screws before installing them.
NOTE: Screws are included with the device, but they may not
be suitable for the mounting surface.
Before you mount the device, you must select a mounting
location and determine what screws and other mounting
hardware are needed for the surface.
1Place the device in the mounting location and mark the
location of the pilot holes.
2Drill a pilot hole for one corner of the device.
3Loosely fasten the device to the mounting surface with one
corner and examine the other three pilot-hole marks.
4Mark new pilot-hole locations if necessary, and remove the
device from the mounting surface.
5Drill the remaining pilot holes.
6Secure the device to the mounting location.
Mounting the Wired Remote Control
1At the mounting location, use a 57 mm (2.25 in.) hole saw to
cut through the mounting surface.
2Apply marine sealant around the cutout (optional).
3Place the gasket on the back of the remote control.
4Feed the attached cable through the cutout.
5Place the remote control in the cutout.
December 2015 Printed in Taiwan 190-01953-02_0A
6Secure the remote control to the mounting surface using the
mounting nut.
7Route the cable away from sources of interference.
8Connect the cable to the port on the BB100 black box.
Connection Considerations
The stereo must be connected to power, to speakers, and to
media input sources to function correctly. You should carefully
plan the layout of the stereo, wired remote, speakers, optional
NMEA 2000® network, and your input sources before making
any connections.

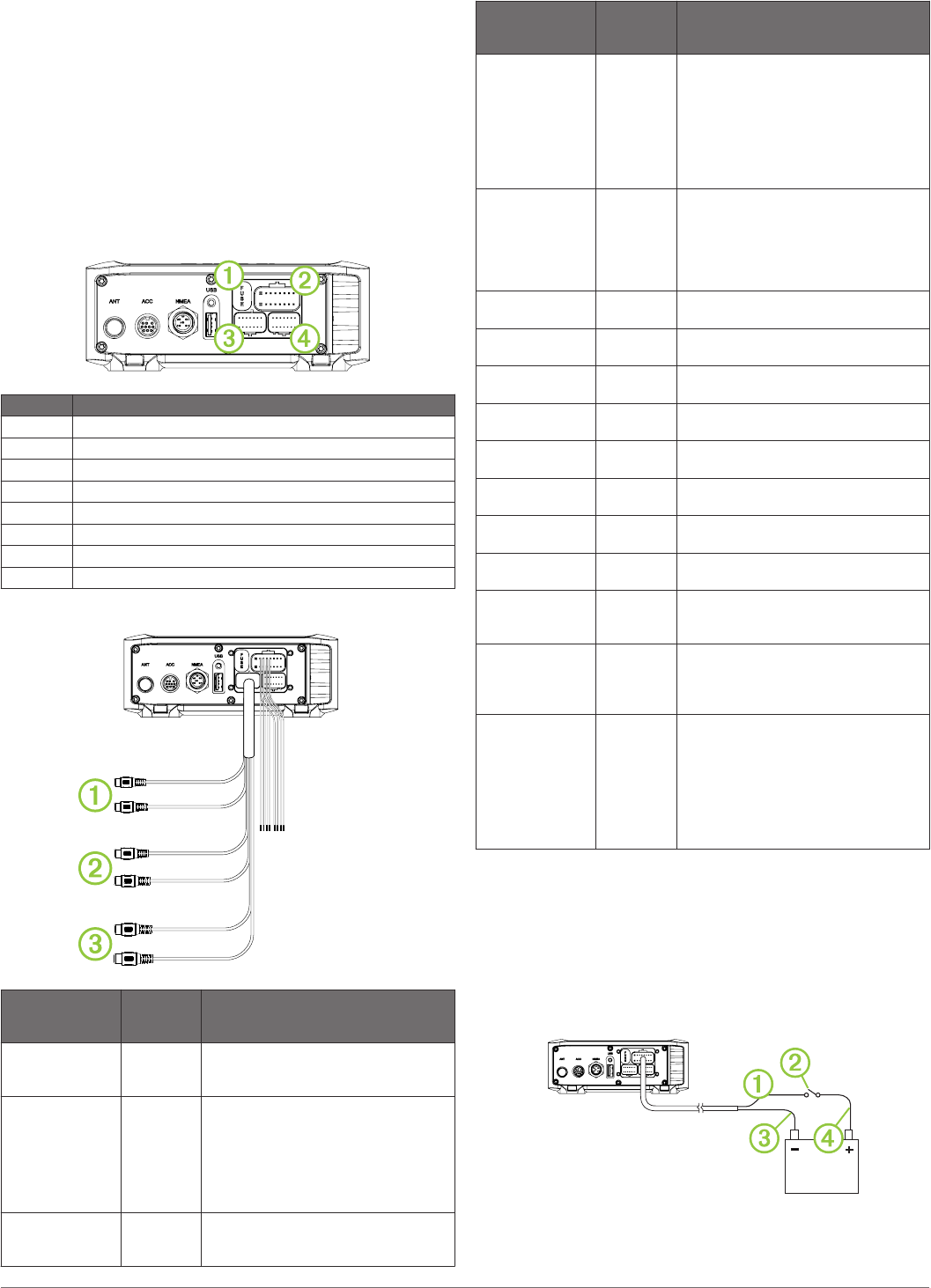

Port Identification
Port Connects to
ANT External AM/FM antenna
ACC For future use
NMEA NMEA 2000 network
USB USB-compatible media device
À15 A fuse
ÁPower and speakers
ÂSubwoofer, zone 1, and auxiliary device
ÃRemote control
Wiring Harness Wire and Connector Identification
Wire Function Wire
Color/
Number
Notes
Power (+) Yellow Connects to the positive terminal of a
12 Vdc power source capable of
supplying 15 A.
Ground (-) Black Connects to the negative terminal of a
12 Vdc power source capable of
supplying 15 A. This wire should be
connected before connecting the
yellow wire. All accessories connected
to the stereo must share a common
ground location.
Amplifier on Blue Connects to an optional external
amplifier to turn it on when the stereo
turns on.
Wire Function Wire
Color/
Number
Notes
Mute Brown Activates when connected to ground.
For example, when connected to a
compatible hands-free mobile phone,
the audio mutes or the input switches
to AUX IN when a call is received and
the phone connects this wire to
ground. This functionality can be
configured from the settings menu.
Dim Orange Connects to the boat's illumination wire
to dim the stereo screen when the
lights are on.
The gauge of the illumination wire must
be suitable for the fuse supplying the
circuit it is connected to.
Speaker zone 1
left (+)
White
Speaker zone 1
left (-)
White/black
Speaker zone 1
right (+)
Gray
Speaker zone 1
right (-)
Gray/black
Speaker zone 2
left (+)
Green
Speaker zone 2
left (-)
Green/
black
Speaker zone 2
right (+)
Purple
Speaker zone 2
right (-)
Purple/
black
Auxiliary in left
Auxiliary in right
ÀProvides a red and white RCA stereo
line input for audio sources, such as a
CD or MP3 player.
Zone 1 line out
(left)
Zone 1 line out
(right)
ÁProvides a full-range output to an
external amplifier, and is associated
with the volume control for zone 1.
Subwoofer out ÂEach cable provides a single mono
output to a powered subwoofer or
subwoofer amplifier, and one or both
cables can be used, depending on the
connection requirements of the
subwoofer or amplifier.
A connected subwoofer is associated
with the volume control for zone 1.
Connecting to Power
When connecting the stereo to power, you should connect it
through the ignition or another manual switch.
If it is necessary to extend the power and ground wires, use
14 AWG (2.08 mm2) wire. For extensions longer than 1 m (3 ft.),
use 12 AWG (3.31 mm2) wire.
1Route the power wire À to the ignition or another manual
switch Á, and route the black ground wire  to the battery.
2If necessary, route a wire à between the switch and the
battery .
3Route the wiring-harness plug to the stereo.
2 BB100 Installation Instructions
Do not connect the wiring harness to the stereo until after all
of the bare wire connections have been made.
4Connect the black wire to the negative (-) battery terminal.
5Connect the power wire to the ignition or another manual
switch, and connect the switch to the positive (+) battery
terminal if necessary.
6Connect the wiring harness plug to the stereo.

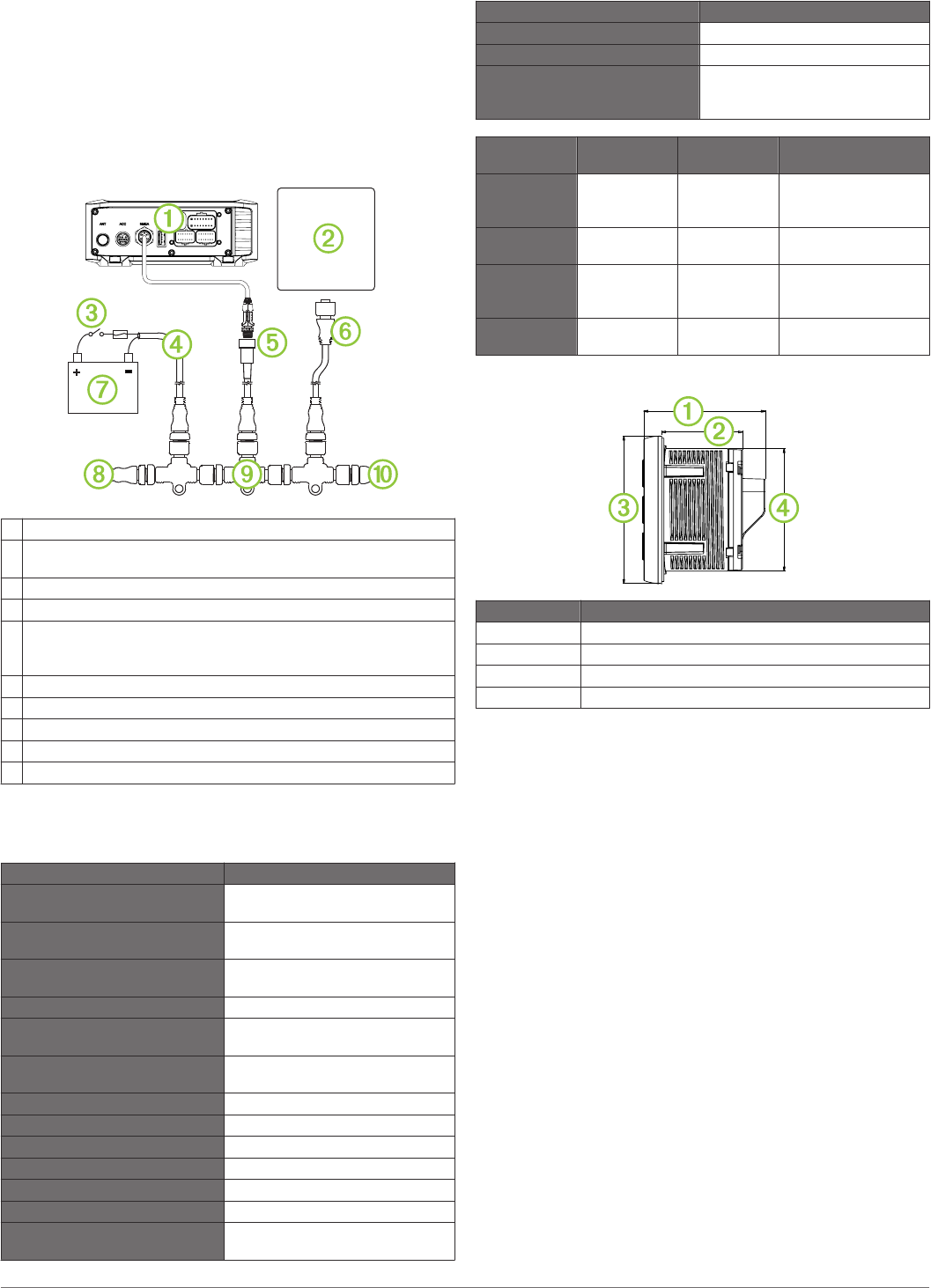

NMEA 2000 System Wiring Diagram
ÀStereo
ÁNMEA 2000, such as a supported chartplotter MFD or NRX200i
remote
ÂIn-line switch
ÃNMEA 2000 power cable
ÄNMEA 2000 cable from the stereo
This can be extended to a maximum length of 6 m (20 ft.) using a
NMEA 2000 cable.
ÅNMEA 2000 drop cable from the chartplotter MFD
Æ9 to 16 Vdc power supply
ÇNMEA 2000 terminator or backbone cable
ÈNMEA 2000 T-connector
ÉNMEA 2000 terminator or backbone cable
Stereo Information
Specifications
Specification Measurement
Dimensions (black box stereo)
(W × H × D)
Approximately 55 mm (2.17 in.) ×
60 mm (2.63 in.) × 94 mm (3.70 in.)
Water resistance (black box
stereo)
IEC 60529 IPX3
Water resistance (remote
control)
IEC 60529 IPX7 (front), IEC 60529
IPX3 (rear)
Operating temperature From 0 to 50°C (from 32 to 122°F)
Storage temperature From -20 to 70°C (from -4 to
158°F)
Input voltage From 10.8 to 16 Vdc negative
ground
Fuse rating 15 A
NMEA 2000 LEN 1 (50 mA)
Compass-safe distance 15 cm (5.91 in.)
Pre-output voltage 3 V peak
Current (standby) less than 15 mA
Current (max.) 15 A
Output music power per
channel
50 W
Specification Measurement
Total output music power 200 W
Speaker impedance 4 Ohm per channel
Total harmonic distortion (1 W
output, 4 ohm load, from 20 Hz
to 20 kHz)
0.04 typical
Less than 0.1% max.
Tuner Europe and
Australasia
USA Japan
FM radio
frequency
range
87.5 to
108 MHz
87.5 to
107.9 MHz
76 to 90 MHz
FM frequency
step
50 kHz 200 kHz 50 kHz
AM radio
frequency
range
522 to
1620 kHz
530 to
1,710 kHz
522 to 1,620 kHz
AM frequency
step
9 kHz 10 kHz 9 kHz
Remote Control Dimensions
Item Measurement
À54 mm (2.13 in.)
Á46 mm (1.81 in.)
Â65 mm (2.56 in.)
Ã56.5 mm (2.22 in.)
USB Device Compatibility
You can use a USB flash drive or the USB cable included with
your media player to connect a media player or mobile device to
the USB port.
The stereo is compatible with iAP2 Apple® devices such as the
iPhone® 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone 5s,
iPhone 5c, iPhone 5, and iPod touch® (5th and 6th generation).
The stereo is compatible with Android™ devices that support the
Android Open Accessory (AOA) protocol.
NOTE: The stereo is not compatible with Android devices in
MTP or PTP mode. See the instructions for your Android device
to connect using AOA, if necessary.
The stereo is compatible with media players and other USB
mass storage devices, including USB flash drives. Music on
USB drives must meet these conditions:
• The USB mass storage device must be formatted using the
FAT32 file system.
• The music files must be formatted as MP3 files.
• Each folder on the storage device can contain a maximum of
250 MP3 files.
Registering Your BB100
Help us better support you by completing our online registration
today.
• Go to www.fusionentertainment.com.
• Keep the original sales receipt, or a photocopy, in a safe
place.
BB100 Installation Instructions 3
Garmin®, the Garmin logo, FUSION®, and the Fusion logo are trademarks of Garmin Ltd.
or its subsidiaries, registered in the USA and other countries. These trademarks may not
be used without the express permission of Garmin.
M/N: C02834
© 2015 Garmin Ltd. or its subsidiaries www.garmin.com/support
