Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev. 1

Page 2 of 137

GARMIN Ltd. or its subsidiaries

Except as expressly provided herein, no part of this manual may be reproduced, copied, transmitted,

disseminated, downloaded or stored in any storage medium, for any purpose without the express prior

written consent of GARMIN. GARMIN hereby grants permission to download a single copy of this

manual and of any revision to this manual onto a hard drive or other electronic storage medium to be

viewed and to print one copy of this manual or of any revision hereto, provided that such electronic or

printed copy of this manual or revision must contain the complete text of this copyright notice and

provided further that any unauthorized commercial distribution of this manual or any revision hereto is

strictly prohibited.

GARMIN International, Inc.

1200 E. 151st Street

Olathe, KS 66062 USA

Telephone: 913-397-8200

www.garmin.com

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

Page 3 of 137

GARMIN International, Inc

Log of Revisions

Pilot’s Operating Handbook and FAA Approved Airplane Flight Manual

Supplement for

G1000 Integrated Avionics System and GFC 700 AFCS In

Hawker Beechcraft King Air 300/300LW Aircraft

REV

NO. PAGE

NO(S) DESCRIPTION DATE OF

APPROVAL FAA APPROVED

1 ALL Original Issue See Cover See Cover

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev. 1

Page 4 of 137

This page intentionally left blank.

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

FAA APPROVED Page 5 of 137

Table of Contents

Section 1 - General ........................................................................................................ 7

Section 2 - Limitations ................................................................................................ 15

Section 3 - Emergency Procedures ........................................................................... 31

Section 3A - Abnormal Procedures ........................................................................... 43

Section 4 - Normal Procedures .................................................................................. 70

Section 5 – Performance ............................................................................................ 98

Section 6 - Weight and Balance ............................................................................... 101

Section 7 - Systems Description .............................................................................. 102

Section 8 – Handling, Service, and Maintenance ................................................... 137

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev.1

Page 6 of 137 FAA APPROVED

This page intentionally left blank.

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

FAA APPROVED Page 7 of 137

Section 1 - General

The information in this supplement is FAA-approved material and must be attached to the Pilot’s

Operating Handbook and FAA Approved Airplane Flight Manual (POH/AFM) when the airplane has been

modified by installation of the GARMIN G1000 Integrated Avionics System and GFC 700 Digital

Automatic Flight Guidance System in accordance with GARMIN International, Inc. approved data.

The information in this supplement supersedes or adds to the basic POH/AFM only as set forth below.

Users of the manual are advised to always refer to the supplement for possibly superseding information

and placarding applicable to operation of the airplane.

The GARMIN G1000 system installed in the Hawker Beechcraft King Air 300 Aircraft provides a fully

integrated Display, Communications, Navigation and Flight Control system. Functions provided by the

G1000 system include: Primary Flight Information, Powerplant Monitoring, Navigation, Communication,

Traffic Surveillance, TAWS Class A or B, Weather Avoidance, and a three-axis automatic flight control /

flight director system with optional Electronic Stability & Protection.

USE OF THE HANDBOOK

The following definitions apply to WARNINGS, CAUTIONS and NOTES found throughout the handbook:

Operating procedures, techniques, etc., which could result in personal injury or loss of life if

not carefully followed.

CAUTION

Operating procedures, techniques, etc., which could result in damage to equipment if not

carefully followed.

NOTE

Operating procedures, techniques, etc., which is considered essential to emphasize.

WARNING

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev.1

Page 8 of 137 FAA APPROVED

OPERATIONAL APPROVALS

G1000 GNSS (GPS/SBAS) NAVIGATION SYSTEM EQUIPMENT

APPROVALS

The Garmin G1000 Integrated Avionics GNSS navigation system installed in this aircraft is a GPS system

with a Satellite Based Augmentation System (SBAS) comprised of two TSO-C145a Class 3 approved

Garmin GIA 63Ws, TSO-C146a Class 3 approved Garmin GDU 104X Display Units, GARMIN GA36 and

GA37 antennas, and GPS software version 3.2 or later approved version. The G1000 GNSS navigation

system in this aircraft is installed in accordance with AC 20-138A.

The Garmin G1000 Integrated Avionics GNSS navigation system as installed in this aircraft complies with

the requirements of AC 20-138A and is approved for navigation using GPS and SBAS (within the

coverage of a Satellite Based Augmentation System complying with ICAO Annex 10) for IFR en route,

terminal area, and non-precision approach operations (including those approaches titled “GPS”, “or GPS”,

and “RNAV (GPS)” approaches). The G1000 Integrated Avionics GNSS navigation system installed in

this aircraft is approved for approach procedures with vertical guidance including “LPV” and

“LNAV/VNAV”, within the U.S. National Airspace System.

The Garmin G1000 Integrated Avionics GNSS navigation system as installed in this aircraft complies with

the equipment requirements of AC 90-105 and meets the equipment performance and functional

requirements to conduct RNP terminal departure and arrival procedures and RNP approach procedures

without RF (radius to fix) legs. Part 91 subpart K, 121, 125, 129, and 135 operators require a Letter of

Authorization for operational approval from the FAA

The Garmin G1000 Integrated Avionics GNSS navigation system as installed in this aircraft complies with

the equipment requirements of AC 90-100A for RNAV 2 and RNAV 1 operations. In accordance with AC

90-100A, Part 91 operators (except subpart K) following the aircraft and training guidance in AC 90-100A

are authorized to fly RNAV 2 and RNAV 1 procedures. Part 91 subpart K, 121, 125, 129, and 135

operators require a Letter of Authorization for operational approval from the FAA.

The Garmin G1000 Integrated Avionics GNSS navigation system as installed in this aircraft has been

found to comply with the requirements for primary means of Class II navigation in oceanic and remote

navigation (RNP-10) without time limitations in accordance with AC 20-138A and FAA Order 8400.12A.

The G1000 can be used without reliance on other long-range navigation systems. This does not

constitute an operational approval.

The Garmin G1000 Integrated Avionics GNSS navigation system as installed in this aircraft has been

found to comply with the navigation requirements for primary means of Class II navigation in oceanic and

remote navigation (RNP-4) in accordance with AC 20-138A and FAA Order 8400.33. The G1000 can be

used without reliance on other long-range navigation systems. Additional equipment may be required to

obtain operational approval to utilize RNP-4 performance. This does not constitute an operational

approval.

The Garmin G1000 Integrated Avionics GNSS navigation system as installed in this aircraft complies with

the accuracy, integrity, and continuity of function, and contains the minimum system functions required for

PRNAV operations in accordance with JAA Administrative & Guidance Material Section One: General

Part 3: Temporary Guidance Leaflets, Leaflet No 10 (JAA TGL-10 Rev 1). The GNSS navigation system

has two ETSO-145 / TSO-C145a Class 3 approved Garmin GIA 63Ws, and ETSO-146 / TSO-C146a

Class 3 approved Garmin GDU 104X Display Units. The G1000 Integrated Avionics GNSS navigation

system as installed in this aircraft complies with the equipment requirements for PRNAV and BRNAV

operations in accordance with AC 90-96A and JAA TGL-10 Rev 1. This does not constitute an

operational approval.

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

FAA APPROVED Page 9 of 137

Garmin International holds an FAA Type 2 Letter of Acceptance (LOA) in accordance with AC 20-153 for

database Integrity, quality, and database management practices for the Navigation database. Pilots and

operators can view the LOA status at www.Garmin.com > Aviation Databases > Type 2 LOA Status.

Navigation information is referenced to WGS-84 reference system.

ELECTRONIC FLIGHT BAG

The G1000 Integrated Avionics System as installed in this aircraft supports approval of AC 120-76A

Hardware Class 3, Software Type C Electronic Flight Bag (EFB) electronic aeronautical chart applications

when using current FliteChart or ChartView data. Additional operational approvals may be required.

For operations under 14 CFR Part 91, it is suggested that a secondary or back up source of aeronautical

information necessary for the flight be available to the pilot in the aircraft. The secondary or backup

information may be either traditional paper-based material or displayed electronically. If the source of

aeronautical information is in electronic format, operators must determine non-interference with the

G1000 system and existing aircraft systems for all flight phases.

REDUCED VERTICAL SEPARATION MINIMUMS (RVSM)

This aircraft has been evaluated in accordance with 14 CFR Part 91, Appendix G, “Operations in

Reduced Vertical Separation Minimum (RVSM) Airspace,” and FAA Advisory Circular 91-85,

“Authorization of Aircraft and Operators for Flight in Reduced Vertical Separation Minimums Airspace,”

and is qualified for RVSM operations as a group aircraft. This finding does not constitute approval to

conduct RVSM operations.

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev.1

Page 10 of 137 FAA APPROVED

ABBREVIATIONS AND TERMINOLOGY

The following glossary is applicable within the airplane flight manual supplement

AC Advisory Circular

ADC Air Data Computer

ADF Automatic Direction Finder

AFCS Automatic Flight Control System

AFM Airplane Flight Manual

AFMS Airplane Flight Manual Supplement

AGL Above Ground Level

Ah Amp hour

AHRS Attitude and Heading Reference System

AIRAC Aeronautical Information Regulation And Control

ALT Altitude, or AFCS altitude hold mode, or ALT button on the GMC 710 AFCS

Mode Controller

ALTS AFCS altitude capture using the altitude in the altitude preselect window

ALTV AFCS altitude capture using the altitude from the VNAV profile vertical

constraint

AMMD Airport Moving Map Display

AP Autopilot

APR AFCS Approach mode, or APR button of GMC 710 AFCS mode controller

APTSIGNS Airport Signs (SVS softkey on the PFD)

APV Approach with Vertical Guidance

ATC Air Traffic Control

AUX Auxiliary

BANK Low-bank mode of the AFCS

BARO Barometric Setting

BAT Battery

BC Back Course

BRNAV Basic Area Navigation

BRT Bright

CB Circuit Breaker

CDI Course Deviation Indicator

CFR Code of Federal Regulations

CLR Clear

COM Communication radio

CRS Course

CWS Control Wheel Steering

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

FAA APPROVED Page 11 of 137

DA Decision Altitude

DC Direct Current

DL LTNG GFDS Data Link Lightning

DME Distance Measuring Equipment

DN Down

DR Dead Reckoning

EC Error Correction

EFB Electronic Flight Bag

EIS Engine Indication System

ELEC Electrical

ENT Enter

ESP Electronic Stability and Protection

FAF Final Approach Fix

FD Flight Director

FLC AFCS Flight Level Change mode, or FLC button on the GMC 710 AFCS

mode controller

FLTA Forward Looking Terrain Awareness

FMS Flight Management System

FPM Flight Path Marker or Feet Per Minute

FSB Fasten Seat Belts

ft Feet

ft/min Feet/Minute

GA Go-around

GCU Garmin Control Unit

GDC Garmin Air Data Computer

GDU Garmin Display Unit

GEA Garmin Engine/Airframe Unit

GEN Generator

GEO Geographic

GFC Garmin Flight Control

GFDS Garmin Flight Data Services

GIA Garmin Integrated Avionics Unit

GMC Garmin Mode Control Unit

GP GPS Glide Path

GPS Global Positioning System

GPWS Ground Proximity Warning System

GRS Garmin Reference System (AHRS)

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev.1

Page 12 of 137 FAA APPROVED

GS Glide Slope

GSA Garmin Servo Actuator

GSR Garmin Iridium Satellite Radio

HDG AFCS heading mode or the HDG button on the GMC 710 AFCS Mode

Controller

HITS Highway in the Sky

HPa Hectopascal

HSI Horizontal Situation Indicator

IAF Initial Approach Fix

IAP Instrument Approach Procedure

IAS Indicated Airspeed

ICAO International Civil Aviation Organization

IFR Instrument Flight Rules

ILS Instrument Landing System

in-Hg inches of mercury

INH Inhibit

ITT Interstage Turbine Temperature

KIAS Knots Indicated Air Speed

LCD Liquid Crystal Display

LDA Localizer Type Directional Aid

LNAV Lateral Navigation

LNAV + V Lateral Navigation with Advisory Vertical Guidance

LNAV/VNAV Lateral Navigation / Vertical Navigation

LOA Letter of Acceptance

LOC Localizer

LOI Loss of Integrity (GPS)

LPV Localizer Performance with Vertical Guidance

LRU Line Replaceable Unit

LTNG Lightning (XM Weather Product)

M Mach

MAP Missed Approach Point

MAXSPD Maximum Speed, AFCS Overspeed Protection mode

MDA barometric minimum descent altitude

MEL Minimum Equipment List

MFD Multi Function Display

MLS Microwave Landing System

MMO Maximum operation limit speed in mach

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

FAA APPROVED Page 13 of 137

MNPS Minimum Navigational Performance Specifications

MSL Mean Sea Level

NAT North Atlantic Track

NAV Navigation, or AFCS navigation mode, or NAV button on the GMC710 AFCS

Mode Controller

NEXRAD Next Generation Radar (XM Weather Product)

NM Nautical Mile

NPA Non-precision Approaches

OAT Outside Air Temperature

OBS Omni Bearing Selector

OVR Override

P/N Part Number

PDA Premature Descent Alert

PFD Primary Flight Display

PFT Pre-Flight Test

PIT AFCS pitch mode

POH Pilot’s Operating Handbook

PRNAV Precision Area Navigation

PROC Procedure button on the GDU or GCU 477

PSI Pounds per Square Inch

PTCH Pitch

RA Radar Altimeter, or Radar Altitude, or traffic Resolution Advisory

RNAV Area Navigation

RNP Required Navigation Performance

ROL AFCS roll mode

RPM Revolutions per Minute

RVSM Reduced Vertical Separation Minimums

SBAS Satellite Based Augmentation System

SDF Simplified Directional Facility

SID Standard Instrument Departure

SPD Speed button on the GMC 710 AFCS Mode Controller. Toggles the FLC

speed between Mach and IAS references.

STAR Standard Terminal Arrival Route

STBY Standby

STC Supplemental Type Certificate

STD Standard

SUSP Suspend

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev.1

Page 14 of 137 FAA APPROVED

SVS Synthetic Vision System

SYN TERR Synthetic Terrain softkey

SYN VIS Synthetic Vision softkey

TA Traffic Advisory

TAWS Terrain Awareness and Warning System

TCAS Traffic Alert and Collision Avoidance System

TEMP Temperature

TIS Traffic Information System

TMR Timer

TO Take off

TOD Top of Descent

TSO Technical Standard Order

VAPP AFCS VOR Approach Mode

VCO Voice Call Out

Vdc Volts DC

VDP Visual Descent Point

VFR Visual Flight Rules

VHF Very High Frequency

VMC Visual Meteorological Conditions

VMO Maximum operation limit speed in knots

VNAV Vertical Navigation

VNV Vertical Navigation button on the GMC 710 AFCS Mode Controller

VOR VHF Omni-directional Range

VPTH Vertical path

VS Vertical Speed

WAAS Wide Area Augmentation System

WFDE WAAS Fault Detection/Exclusion

WGS-84 World Geodetic System – 1984

WSHLD Windshield

XFR Transfer button on the GMC 710 AFCS Mode Controller

XM XM satellite system

XPDR Transponder

YD Yaw Damper

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

FAA APPROVED Page 15 of 137

Section 2 - Limitations

INTRODUCTION

The G1000 Cockpit Reference Guide for Hawker Beechcraft King Air 300/B300 series, GARMIN part

number 190-01344-00 Revision A or later, must be immediately available to the flight crew during all

phases of flight.

AIRSPEED LIMITATIONS AND INDICATOR MARKINGS

No changes were made to the airplane’s airspeed limitations. The airspeed indicators on the Primary

Flight Displays (PFDs) and the standby airspeed indicator are marked in accordance with the airplane’s

POH/AFM.

A red low speed awareness band is marked on the PFDs in red from 20 – 81 KIAS. The low-speed

awareness band is suppressed while the airplane is on the ground. The low-speed awareness band

appears in flight two seconds after main gear liftoff.

The standby airspeed indicator is marked in accordance with the airspeed markings called out in the

airplane’s AFM/POH. The standby airspeed indicator is not marked with a low speed awareness band.

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev.1

Page 16 of 137 FAA APPROVED

POWER PLANT LIMITATIONS AND INDICATOR MARKINGS

No changes were made to the airplane’s engine operating limits. The engine gauges are marked as

shown in the following table. Refer to the latest Airplane Flight Manual or appropriate Airplane Flight

Manual Supplement for engine and propeller limitations.

NOTE

The gauge indicator pointer and digital display will flash inverse red/white video for 5

seconds, then remain steady red, if the indicated engine parameter exceeds its

established limit. The gauge indicator digital display will change to yellow for “caution”

conditions.

OPERATING

PARAMETER

PT6A-60A ENGINES COLOR MARKINGS & RANGES

Red Arc/Radial

(Minimum Limit)

Green Arc

(Normal)

Yellow Arc

(Caution)

Red Arc/Radial

(Maximum Limit)

Torquemeter (%) -- 0 to 100 (a) -- 100 (b)

ITT (ºC) -- 400 to 820 (c) -- 820 (d)(e)

Prop N2 (rpm) -- 1050 to 1700 -- 1700

Gas Generator N1 (%) -- 62 to 104 -- 104

Oil Temperature. (ºC) (g) -- 0 to 99 -- 99

Oil Pressure (psi) (f) 60 90 to 135 60 to 90 135

Footnotes:

(a) Torque limit applies within range of 1000 - 1700 propeller rpm (N2).

(b) Torque indications between 100% and 156% are time limited to 20 seconds.

load and/or increasing N1 rpm.

(d) ITT indication between 820ºC and 850ºC is time limited to 20 seconds.

(e) ITT starting limit at 1000ºC (red triangle) is time limited to 5 seconds.

(f) Normal oil pressure is 90 to 135 psig at gas generator speeds above 72%. With engine torque

below 62%, minimum oil pressure is 60 psig at normal oil temperature (60º to 70ºC). Oil pressures

under 90 psi are undesirable. Under emergency conditions, to complete a flight, a lower oil pressure

limit of 60 psig is permissible at a reduced power level not exceeding 62% torque. Oil pressures

below 60 psig are unsafe and require that either the engine be shut down or a landing be made at the

nearest suitable airport, using the minimum power required to sustain flight. Fluctuations of plus or

minus 10 psi are acceptable.

During extremely cold starts, oil pressure may reach 200 psi (red triangle). In flight, oil pressures

above 135 psi but not exceeding 200 psi are permitted only for the duration of the flight.

(g) Oil temperature limits are -40ºC and +110 ºC. However, temperatures between 99ºC and 110 ºC

are limited to a maximum of 10 minutes.

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

FAA APPROVED Page 17 of 137

MANEUVER LIMITS

No changes have been made to the aircraft’s maneuver limits. The Hawker Beechcraft Super King Air

300 is a Normal Category airplane. Acrobatic maneuvers, including spins, are prohibited.

OPERATIONS IN RVSM AIRSPACE

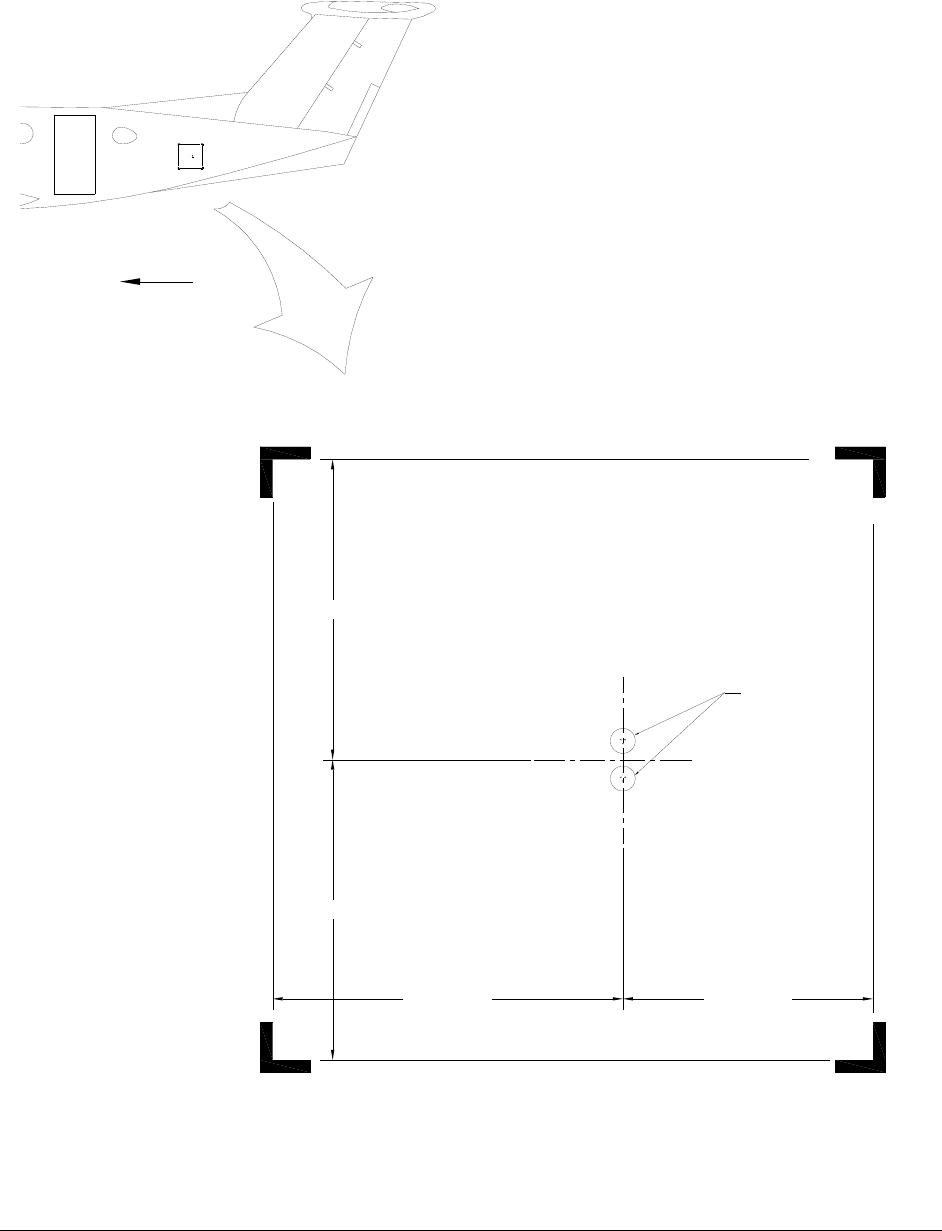

The airplane is not permitted to operate in RVSM airspace if the static ports are damaged, or if damage or

surface irregularities are found within the RVSM critical region.

The pilot and copilot PFDs must display the on-side ADC information for operations in RVSM airspace.

G1000 INTEGRATED AVIONICS SYSTEM

The GARMIN G1000 Cockpit Reference Guide P/N 190-01344-00, Rev A, or later FAA accepted revision,

must be immediately available to the flight crew during all phases of flight.

Tuning of the COM and NAV radios using the GCU477 controller must be done from the left seat pilot’s

station and only referencing the pilot’s PFD.

Required flight crewmembers must wear and use headsets when the overhead cockpit speaker audio is

selected OFF.

Do not take off unless all display units are installed and operational.

Do not take off with any display in reversionary mode.

Do not take off with any of the following messages displayed in the ALERTS window:

GPS1 FAIL and GPS2 FAIL simultaneously PFD1 SERVICE

GPS NAV LOST PFD2 SERVICE

GIA1 SERVICE GMA1 SERVICE

GIA2 SERVICE GMA2 SERVICE

MFD SERVICE GEO LIMITS

Operation of the G1000 system is prohibited if the PFD1 FAN FAIL, PFD2 FAN FAIL or MFD FAN FAIL is

displayed in the ALERTS window AND the Outside Air Temperature is greater than 41°C (106°F) AND

cabin air conditioning is inoperative.

Do not takeoff if GIA1 FAN FAIL or GIA2 FAN FAIL is displayed in the ALERTS window AND the Outside

Air Temperature is greater than 42°C (107°F).

Ground operation of the G1000 system is not allowed when the Outside Air Temperature is greater than

47°C (116°F) AND cabin air conditioning is inoperative.

The G1000 system must be turned on and operated for at least 30 minutes before takeoff if ground

outside air temperature is -40°C (-40°F) or below.

Use of VNAV is prohibited during the intermediate segment of an approach that includes a teardrop

course reversal. VNAV will become ‘Unavailable’ at the beginning of the teardrop segment of the course

reversal.

The fuel quantity, fuel required, fuel remaining, and gross weight estimate functions of the G1000 are

supplemental information only and must be verified by the flight crew.

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev.1

Page 18 of 137 FAA APPROVED

Do not use SafeTaxi or Chartview functions as the basis for ground maneuvering. SafeTaxi and

Chartview functions do not comply with the requirements of AC 20-159 and are not qualified to be used

as an airport moving map display (AMMD). SafeTaxi and Chartview are to be used by the flight crew to

orient themselves on the airport surface to improve pilot situational awareness during ground operations.

The use of the colors red and amber within the checklist function has not been evaluated or approved by

this STC. Use of the colors red and/or amber within user created checklists may require separate

evaluation and approval by the FAA

G1000 GNSS (GPS/SBAS) NAVIGATION SYSTEM LIMITATIONS

NOTE

Limitations are in bolded text for this section only

The pilot must confirm at system initialization that the Navigation database is current.

Navigation database is expected to be current for the duration of the flight. If the AIRAC cycle will

change during flight, the pilot must ensure the accuracy of navigation data, including suitability of

navigation facilities used to define the routes and procedures for flight. If an amended chart

affecting navigation data is published for the procedure, the database must not be used to

conduct the procedure.

GPS/SBAS based IFR enroute, oceanic, and terminal navigation is prohibited unless the pilot

verifies and uses a valid, compatible, and current Navigation database or verifies each waypoint

for accuracy by reference to current approved data.

Discrepancies that invalidate a procedure should be reported to Garmin International. The affected

procedure is prohibited from being flown using data from the Navigation database until a new

Navigation database is installed in the aircraft and verified that the discrepancy has been

corrected. Contact information to report Navigation database discrepancies can be found at

www.Garmin.com>Support>Contact Garmin Support>Aviation. Pilots and operators can view navigation

data base alerts at www.Garmin.com > In the Air> NavData Alerts.

For flight planning purposes, in areas where SBAS coverage is not available, the pilot must check

RAIM availability. Within the United States, RAIM availability can be determined using the G1000

WFDE Prediction program, part number 006-A0154-01 (010-G1000-00) or later approved version with

GARMIN GA36 and GA37 antennas selected, or the FAA’s en route and terminal RAIM prediction

website: www.raimprediction.net, or by contacting a Flight Service Station. Within Europe, RAIM

availability can be determined using the G1000 WFDE Prediction program or Europe’s AUGER GPS

RAIM Prediction Tool at http://augur.ecacnav.com/augur/app/home. For other areas, use the G1000

WFDE Prediction program. This requirement is not necessary if SBAS coverage is confirmed to be

available along the entire route of flight. The route planning and WFDE prediction program may be

downloaded from the GARMIN G1000 website on the internet. For information on using the WFDE

Prediction Program, refer to GARMIN WAAS FDE Prediction Program, part number 190-00643-01,

‘WFDE Prediction Program Instructions’.

For flight planning purposes, operations within the U.S. National Airspace System on RNP and

RNAV procedures when SBAS signals are not available, the availability of GPS integrity RAIM

shall be confirmed for the intended route of flight. In the event of a predicted continuous loss of

RAIM of more than five minutes for any part of the intended route of flight, the flight should be delayed,

canceled, or re-routed on a track where RAIM requirements can be met.

For flight planning purposes for operations within European B-RNAV and P-RNAV airspace, if

more than one satellite is scheduled to be out of service, then the availability of GPS integrity

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

FAA APPROVED Page 19 of 137

RAIM shall be confirmed for the intended flight (route and time). In the event of a predicted

continuous loss of RAIM of more than five minutes for any part of the intended flight, the flight should be

delayed, canceled, or re-routed on a track where RAIM requirements can be met.

For flight planning purposes, operations where the route requires Class II navigation the aircraft’s

operator or flight crew must use the Garmin WFDE Prediction program to demonstrate that there

are no outages on the specified route that would prevent the G1000 from providing primary means

of Class II navigation in oceanic and remote areas of operation that requires (RNP-10 or RNP-4)

capability. If the Garmin WFDE Prediction program indicates fault exclusion (FDE) is unavailable for

more than 34 minutes in accordance with FAA Order 8400.12B for RNP-10 requirements, or 25 minutes

in accordance with FAA Order 8400.33 for RNP-4 requirements, then the operation must be rescheduled

when FDE is available.

Both GIA 63Ws GPS navigation receivers must be operating and providing GPS navigation

guidance to their respective PFD for operations requiring RNP-4 performance.

North Atlantic (NAT) Minimum Navigational Performance Specifications (MNPS) Airspace operations per

AC 91-49 and AC 120-33 require both GPS/SBAS receivers to be operating and receiving usable signals

except for routes requiring only one Long Range Navigation sensor. Each display computes an

independent navigation solution based on the on-side GPS sensor. However, either display will

automatically revert to the cross-side sensor if the on-side sensor fails or if the cross-side sensor is

determined to be more accurate. A “BOTH ON GPS1” or “BOTH ON GPS2” message does not

necessarily mean that one GPS has failed. Refer to the MFD AUX-GPS STATUS page to determine the

state of the unused GPS.

Whenever possible, RNP and RNAV routes including Standard Instrument Departures (SIDs) and

Obstacle Departure Procedures (ODPs), Standard Terminal Arrival (STAR), and enroute RNAV “Q” and

RNAV “T” routes should be loaded into the flight plan from the database in their entirety, rather than

loading route waypoints from the database into the flight plan individually. Selecting and inserting

individual named fixes from the database is permitted, provided all fixes along the published route to be

flown are inserted. Manual entry of waypoints using latitude/longitude or place/bearing is

prohibited.

“GPS”, “or GPS”, and “RNAV (GPS)” instrument approaches using the G1000 System are

prohibited unless the pilot verifies and uses the current Navigation database. GPS based

instrument approaches must be flown in accordance with an approved instrument approach

procedure that is loaded from the Navigation database.

Not all published Instrument Approach Procedures (IAP) are in the Navigation database. Pilots

planning on flying an RNAV instrument approach must ensure that the Navigation database

contains the planned RNAV Instrument Approach Procedure and that approach procedure must

be loaded from the Navigation database into the FMS flight plan by its name.

IFR non-precision approach approval using the GPS/SBAS sensor is limited to published

approaches within the U.S. National Airspace System. Approaches to airports in other airspace

are not approved unless authorized by the appropriate governing authority.

When operating under instrument flight rules, flight plan selection of any required alternate airport must

not be based on an RNAV (GPS) LP/LPV or LNAV/VNAV approach. Alternate airport selection must be

based upon an LNAV approach or an available ground-based approach for which the aircraft is equipped

to fly.

The navigation equipment required to join and fly an instrument approach procedure is indicated by the

title of the procedure and notes on the IAP chart. Use of the GARMIN G1000 GPS/SBAS receivers to

provide navigation guidance during the final approach segment of an ILS, LOC, LOC-BC, LDA,

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev.1

Page 20 of 137 FAA APPROVED

SDF, MLS or any other type of approach not approved for “or GPS” navigation is prohibited.

When using the G1000 VOR/LOC/GS receivers to fly the final approach segment, VOR/LOC/GS

navigation data is must be selected and presented on the CDI of the pilot flying.

Navigation information is referenced to WGS-84 reference system, and should only be used where the

Aeronautical Information Publication (including electronic data and aeronautical charts) conform to

WGS-84 or equivalent.

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

FAA APPROVED Page 21 of 137

AHRS AREAS OF OPERATION

The GARMIN G1000 system is not designed for use as a polar navigator. Operation outside the approved

operating area is prohibited. Refer to Figure 1. Flight operations with the G1000 Integrated Avionics

installed are prohibited in the following regions due to unsuitability of the Earth’s magnetic fields:

1.IntheNorthernhemisphere,Northofthelinebeginningat:

N069°48'57.14"W180°00'00.00" to

N067°09'04.64"W180°00'00.00" to

N067°09'04.64"W151°00'00.00" to

N060°34'40.96"W123°00'00.00" to

N054°43'13.96"W123°00'00.00" to

N054°43'13.96"W094°30'00.00" to

N054°43'13.96"W065°30'00.00" to

N060°03'03.37"W065°30'00.00" to

N067°13'16.31"W038°00'00.00" to

N067°13'16.31"W007°00'00.00" to

N069°52'01.37"W007°00'00.00" to

N069°52'01.37"E026°30'00.00"to

N065°49'54.43"E026°30'00.00"to

N065°49'54.43"E057°00'00.00"to

N060°59'40.52"E057°00'00.00"to

N060°59'40.52"E086°30'00.00"to

N060°59'40.52"E118°00'00.00"to

N062°30'03.55"E118°00'00.00"to

N062°30'03.55"E147°00'00.00"to

N068°00'43.26"E147°00'00.00"to

N068°00'43.26"E180°00'00.00"to

N069°48'57.15"E180°00'00.00"topointofbeginning;



2.IntheSouthernhemisphere,Southofthelinebeginningat:

S070°00'00.00"W180°00'00.00" to

S070°00'00.00"E097°00'00.00"to

S047°00'00.00"E097°00'00.00"to

S047°00'00.00"E155°00'00.00"to

S053°00'00.00"E155°00'00.00"to

S053°00'00.00"E180°00'00.00"topointofbeginning

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev.1

Page 22 of 137 FAA APPROVED

Figure 1, GRS 77 Geographic Limits

Geographic Longitude

Geographic Latitude

180

oW 120

oW 60

oW 0

o 60

oE 120

oE 180

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

FAA APPROVED Page 23 of 137

AUTOPILOT OPERATION LIMITS

One pilot must remain seated at the controls, with seatbelt fastened, during all autopilot operations.

Do not use autopilot or yaw damper during takeoff and landing.

The GFC 700 AFCS preflight test must complete successfully prior to use of the autopilot, flight director or

manual electric trim.

The maximum fuel imbalance with the autopilot engaged is 300 pounds.

Minimum speed for autopilot operation is 100 KIAS.

Maximum speed limit for autopilot operation is unchanged from the airplane’s maximum airspeed limit

(VMO/MMO).

Autopilot coupled ILS, LOC, LPV, or LNAV/VNAV approaches with the yaw damper inoperative or not

engaged is prohibited.

Do not use autopilot below the following altitudes:

1. On takeoff, do not engage the autopilot below ....................................................... 400 feet AGL

2. Cruise .................................................................................................................... 1000 feet AGL

3. Approach (GP or GS mode) .................................................................................... 200 feet AGL

4. Approach (FLC, VS, PIT or ALT mode) .................... Higher of 400 feet AGL or Approach MDA

SYNTHETIC VISION AND PATHWAYS LIMITS

Use of the Synthetic Vision system display elements alone for aircraft control without reference to the

G1000 primary flight instruments or the aircraft standby instruments is prohibited.

Use of the Synthetic Vision system alone for navigation, or obstacle or terrain avoidance is prohibited.

Use of the SVS traffic display alone to avoid other aircraft is prohibited.

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev.1

Page 24 of 137 FAA APPROVED

TAWS, GPWS, AND TERRAIN SYSTEM LIMITS

Pilots are authorized to deviate from their current ATC clearance to the extent necessary to comply with

TAWS or GPWS warnings.

The TAWS databases have an area of coverage as detailed below:

1. The terrain database coverage area is from North 75° Latitude to South 60° Latitude in all

longitudes.

2. The Airport Terrain Database coverage area includes airports from North 75° Latitude to South

60° Latitude in all longitudes.

3. The Obstacle Database coverage area includes the United States and Europe.

Use of the TAWS or GPWS for navigation or terrain and/or obstacle avoidance is prohibited.

NOTE

The TAWS page and terrain display is intended to serve as a situational awareness tool only. It

may not provide the accuracy, fidelity, or both, on which to solely base decisions and plan

maneuvers to avoid terrain or obstacles.

To avoid unwanted alerts, TAWS and/or GPWS should be inhibited when landing at an airport that is not

included in the airport database.

TRAFFIC AVOIDANCE SYSTEM LIMITS

Use of the MAP - TRAFFIC MAP to maneuver the airplane for traffic avoidance without outside visual

reference is prohibited. The Traffic Information System (TIS) or optional Skywatch HP, Skywatch TAS,

Honeywell KTA-870 TAS, Garmin GTS 820/850 TAS, or Collins TCAS-94 or TCAS-4000 Systems are

intended as an aid for the pilot to visually locate traffic. It is the responsibility of the pilot to see and

manually maneuver the airplane to avoid other traffic. Maneuvers based solely on a traffic advisory (TA)

or on information displayed on a traffic display are not authorized.

For airplanes that have a Collins TCAS-94 or TCAS-4000 TCAS II system installed, pilots are authorized

to deviate from their current ATC clearance to comply with a TCAS II resolution advisory (RA).

DATA LINK WEATHER (XM OR GFDS WEATHER)

Datalink weather information displayed by the G1000 system is limited to supplemental use only. XM or

Garmin Flight Data Service (GFDS) weather data is not a source of official weather information. Use of

the NEXRAD, PRECIP, XM LTNG and DL LTNG (Datalink Lightning) data on the MAP – NAVIGATION

MAP, MAP – XM WEATHER DATA LINK or MAP – GFDS WEATHER DATA LINK pages for hazardous

weather, e.g., thunderstorm penetration is prohibited.

NEXRAD, PRECIP, XM LTNG and DL LTNG information on the MAP – NAVIGATION, MAP – XM

WEATHER DATA LINK, or MAP – GFDS WEATHER DATA LINK pages is intended only as an aid to

enhance situational awareness of hazardous weather, not penetration. It is the pilot’s responsibility to

avoid hazardous weather using official weather data sources and the airplane’s in-flight weather radar.

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

FAA APPROVED Page 25 of 137

OPTIONAL L3 COMMUNICATIONS AVIONICS SYSTEM WX-500 STORMSCOPE

Stormscope lightning information displayed by the G1000 system is limited to supplemental use only.

The use of the Stormscope lightning data on the MAP – NAVIGATION MAP and/or MAP –

STORMSCOPE page for hazardous weather (thunderstorm) penetration is prohibited. Stormscope

lightning data on the MAP - NAVIGATION or MAP – STORMSCOPE page is intended only as an aid to

enhance situational awareness of hazardous weather, not penetration. It is the pilot’s responsibility to

avoid hazardous weather using official weather data sources and the airplane’s weather radar.

PLACARDS

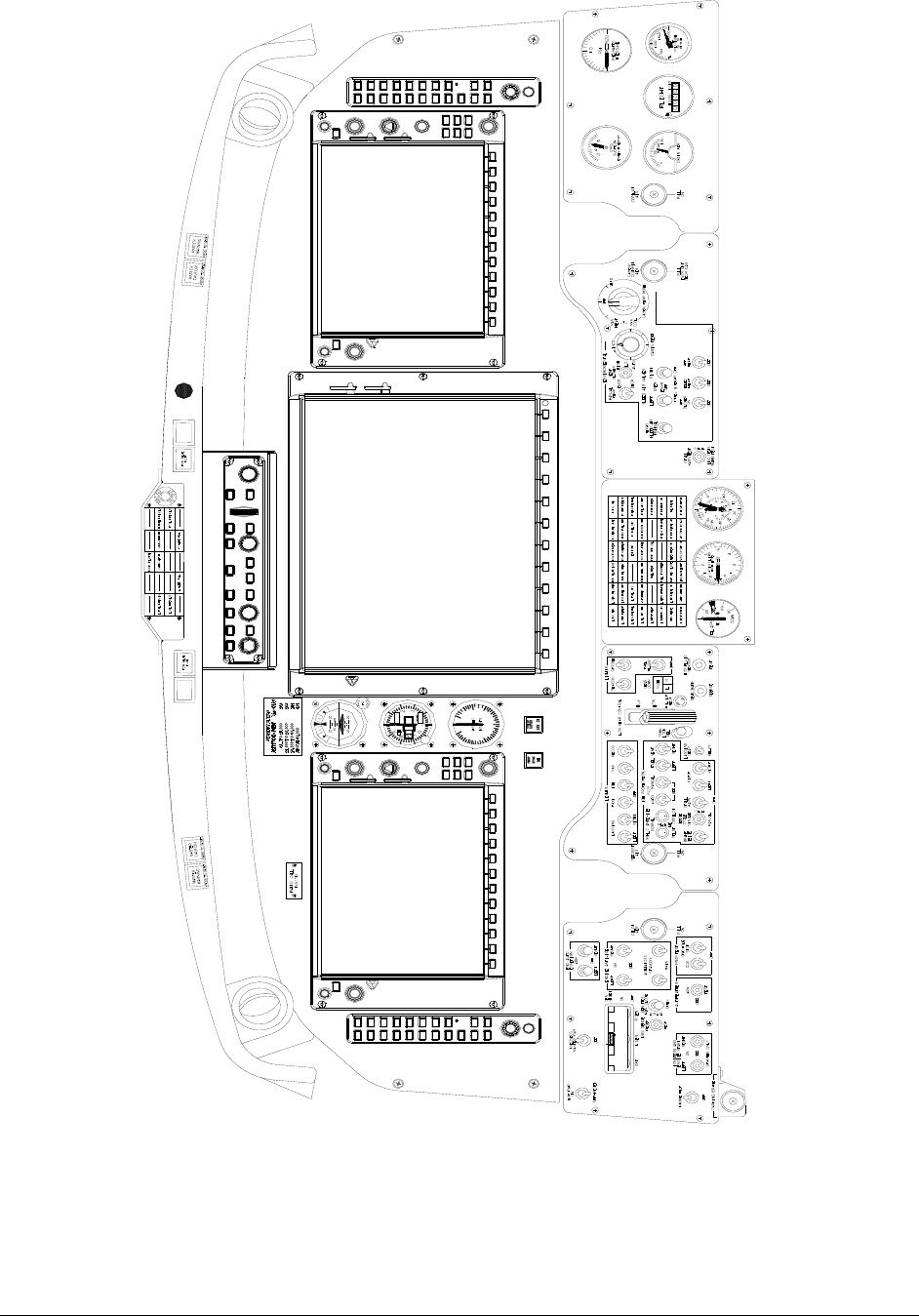

On Instrument Panel above the Standby Attitude Indicator:

STANDBY ALT/AS

ALTITUDE – FEET V

MO-KIAS

S.L TO 21,000 259

21,000 TO 25,000 239

25,000 TO 30,000 214

ABOVE 30,000 191

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev.1

Page 26 of 137 FAA APPROVED

KINDS OF OPERATION LIMITS

The Hawker Beechcraft King Air 300 is approved for the following types of operations when the required

equipment, as shown in the airplane AFM/POH Kinds of Operations Equipment List, supplemented by the

Kinds of Operations Equipment List from other applicable Airplane Flight Manual Supplements, and the

Kinds of Operations Equipment List contained in this Airplane Flight Manual Supplement, is installed and

operable.

1. VFR Day

2. VFR Night

3. IFR Day

4. IFR Night

5. Icing Conditions

KINDS OF OPERATIONS EQUIPMENT LIST

This airplane may be operated in day or night VFR, day or night IFR, and icing conditions when the

required systems and equipment are installed and operable.

The following equipment list identifies the systems and equipment upon which type certification for each

kind of operation was predicated. The system and equipment listed must be installed and operable for

the particular kind of operation indicated unless:

The airplane is approved to be operated in accordance with a current Minimum Equipment List (MEL)

issued by the FAA.

Or:

An alternate procedure is provided in the Pilots Operating Handbook and FAA Approved Flight Manual for

the inoperative state of the listed system or equipment and all limitations are complied with.

Numbers in the Kinds of Operations Equipment List refer to quantities required to be operative for the

specified condition. The list does not include all equipment that may be required by specific operating

rules. It also does not include components obviously required for the airplane to be airworthy such as

wings, empennage, engines, etc.

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

FAA APPROVED Page 27 of 137

VFR

Day

VFR

Night

IFR

Day

IFR

Night

System and/or Equipment

Icing

Conditions

Remarks and/or Exceptions

ELECTRICAL POWER

Inverter 0 0 0 0 0 Removed by G1000 modification

INVERTER Annunciator 0 0 0 0 0 Removed by G1000 modification

Standby Battery 0 1 1 1 1

ENGINE INDICATIONS

No Changes - Refer to Aircraft Flight

Manual

ENGINE OIL

No Changes - Refer to Aircraft Flight

Manual

ENVIRONMENTAL

No Changes – Refer to Aircraft Flight

Manual

EQUIPMENT/FURNISHINGS

No Changes – Refer to Aircraft Flight

Manual

FIRE PROTECTION

No Changes – Refer to Aircraft Flight

Manual

FLIGHT CONTROLS

No Changes - Refer to Aircraft Flight

Manual

FUEL

No Changes - Refer to Aircraft Flight

Manual

ICE AND RAIN PROTECTION

No Changes - Refer to Aircraft Flight

Manual

LANDING GEAR

No Changes - Refer to Aircraft Flight

Manual

LIGHTS

No Changes - Refer to Aircraft Flight

Manual

MISCELLANEOUS EQUIPMENT

(Single Pilot Operation Only)

No Changes – Refer to Aircraft Flight

Manual

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev.1

Page 28 of 137 FAA APPROVED

VFR

Day

VFR

Night

IFR

Day

IFR

Night

System and/or Equipment

Icing

Conditions

Remarks and/or Exceptions

NAVIGATION INSTRUMENTS

Magnetic Compass 1 1 1 1 1

Outside Air Temperature 1 1 1 1 1

G1000 Integrated Avionics

GARMIN G1000 Cockpit Reference

Guide 1 1 1 1 1

Autopilot 0 0 1 1 0

Required only for operations in RVSM

airspace.

Electronic Stability & Protection

(ESP) 0 0 0 0 0

Yaw Damper/Rudder Boost System 1 1 1 1 1

Yaw damper is required for flight

above a certain altitude. Refer to

Aircraft’s POH or AFMS for any

installed modifications that affect this

requirement. Rudder Boost is

required for all flights.

Control Wheel Autopilot

Disconnect/Trim Interrupt Switches 1 1 1 1 1

Left side is required. Both sides

required for two-crew operation.

VHF Communications System 0 0 1 1 1 Or as required by operating

regulation.

Audio Control Panel 1 1 1 1 1 Pilot's audio panel required for single

pilot operation. Both sides required

for two-crew operation.

Primary Flight Display 2 2 2 2 2

Multi Function Display 1 1 1 1 1

Air Data Computer 2 2 2 2 2

Attitude/Heading Reference System

(AHRS) 2 2 2 2 2

Standby Attitude Indicator 0 0 1 1 1

Standby Altimeter 1 1 1 1 1

Standby Airspeed Indicator 1 1 1 1 1

ATC Transponder 0 0 1 1 1

Required for RVSM operations, or as

required by operating regulation.

VHF Navigation Receiver 0 0 0 0 0 Or as required by operating

regulation.

GPS/SBAS Receiver 1 1 2 2 2 Or as required by operating

regulation.

Automatic Direction Finder (ADF) 0 0 0 0 0 Or as required by operating

regulation.

Distance Measuring Equipment

(DME) 0 0 0 0 0

Or as required by operating

regulation.

Radar (Radio) Altimeter 0 0 0 0 0

Or as required by operating

regulation.

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

FAA APPROVED Page 29 of 137

VFR

Day

VFR

Night

IFR

Day

IFR

Night

System and/or Equipment

Icing

Conditions

Remarks and/or Exceptions

Marker Beacon Receiver 0 0 0 0 0

Or as required by operating

regulation.

Terrain Awareness and Warning

System (TAWS) 0 0 0 0 0

Or as required by operating

regulation.

Ground Proximity Warning System

(GPWS) 0 0 0 0 0

Or as required by operating

regulation.

Weather Radar 0 0 0 0 0

Or as required by operating

regulation.

XM or GFDS Datalink Weather

GSR 56 Satellite Receiver

GDU Cooling Fans (3 total) 2 2 2 2 2 All fans are required if OAT is above

41°C (106°F).

GIA Cooling Fans (2 total) 0 0 0 0 0 Both fans are required if OAT is above

42°C (107°F).

RNAV Operations, Equipment and

Components

GPS/SBAS receiver with GPS

Software 3.2 or later approved

version **Note 1, 2

GDU 104X Display

GDU 1500 Display

GA36 antenna

GA37 antenna

Equipment and components required for

RNAV 2, RNAV 1, B-RNAV, P-RNAV, Class II

navigation, RNP and RNAV routes including

Standard Instrument Departures (SIDs) and

Obstacle Departure Procedures (ODPs),

Standard Terminal Arrival (STAR), and

enroute RNAV “Q” and RNAV “T” routes,

and “GPS”, “or GPS”, and “RNAV (GPS)”

instrument approach operations.

NOTE 1: Some operations require two

functioning GPS/SBAS receivers.

NOTE 2: If only one is required, and only

one is operative, it must be #1.

OXYGEN

No Changes - Refer to Aircraft Flight

Manual

PROPELLER

No Changes - Refer to Aircraft’s POH or AFMS for

any installed modifications

VACUUM SYSTEM

Gyro Suction Gage 0 0 0 0 1

Instrument Air System 0 0 0 0 1

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev.1

Page 30 of 137 FAA APPROVED

This page intentionally left blank.

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

FAA APPROVED Page 31 of 137

Section 3 - Emergency Procedures

Table of Contents

AUTOMATIC FLIGHT CONTROL SYSTEM ................................................................ 32

AUTOPILOT MALFUNCTION / PITCH TRIM RUNAWAY ..................................................................... 32

UNSCHEDULED RUDDER BOOST ACTIVATION ............................................................................... 33

MANUAL AUTOPILOT DISCONNECT .................................................................................................. 34

AUTOPILOT ABNORMAL DISCONNECT ............................................................................................. 34

AUTOPILOT FAILURE ........................................................................................................................... 35

PITCH AXIS FAILURE ............................................................................................................................ 36

ROLL AXIS FAILURE ............................................................................................................................. 36

PITCH TRIM FAILURE ........................................................................................................................... 37

AUTOPILOT PRE-FLIGHT TEST FAIL .................................................................................................. 37

AUTOPILOT OVERSPEED RECOVERY ............................................................................................... 38

AUTOPILOT UNDERSPEED PROTECTION ACTIVATION AND RECOVERY (ESP-Equipped

Aircraft Only) ................................................................................................ Error! Bookmark not defined.

ENGINE FAILURE (AUTOPILOT ENGAGED) ...................................................................................... 39

ELECTRICAL SYSTEM ................................................................................................ 39

DUAL GENERATOR FAILURE [L DC GEN] [R DC GEN] .................................................................... 39

LOAD MANAGEMENT TABLE .............................................................................................................. 40

TAWS AND GPWS ....................................................................................................... 41

TAWS OR GPWS WARNING ................................................................................................................. 41

TCAS II ......................................................................................................................... 41

TCAS II RESOLUTION ADVISORY ....................................................................................................... 41

WINDSHEAR ENCOUNTER ........................................................................................ 42

ESP ENGAGEMENT .................................................................................................... 42

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev.1

Page 32 of 137 FAA APPROVED

Bolded checklist steps in the EMERGENCY PROCEDURES section indicate pilot

memory action items. The pilot shall perform these items without reference to the

checklist in this section.

AUTOMATIC FLIGHT CONTROL SYSTEM

AUTOPILOT MALFUNCTION / PITCH TRIM RUNAWAY

These procedures supersede the airplane’s UNSCHEDULED ELECTRIC ELEVATOR TRIM

ACTIVATION AFM checklist items.

If the airplane deviates unexpectedly from the planned flight path:

1. Control Wheel .................................................................................................................. GRIP FIRMLY

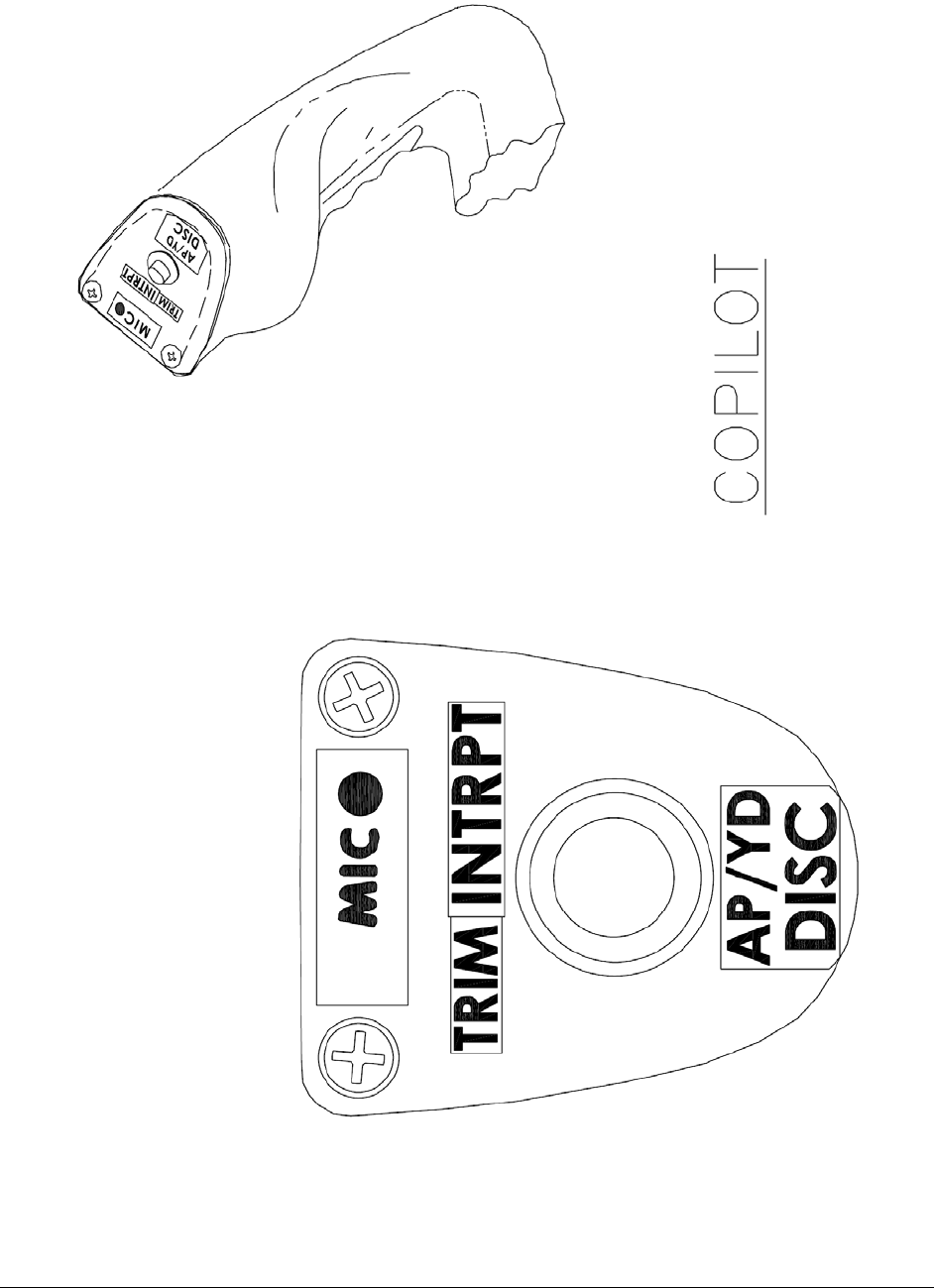

2. AP/YD DISC / TRIM INTRPT Button ....................................................................... PRESS AND HOLD

(Be prepared for possible high elevator control forces)

3. Aircraft Attitude ............................................................... MAINTAIN/REGAIN AIRCRAFT CONTROL

use standby attitude indicator if necessary

NOTE

Do not release the AP/YD DISC / TRIM INTRPT Button until after pulling the AFCS SERVOS Circuit

Breaker. The rudder boost will also be interrupted when the disconnect button is depressed.

4. Elevator Trim .............................................................. RE-TRIM if necessary using Elevator Tab Wheel

5. AFCS SERVOS Circuit Breaker ...................................................................................................... PULL

(Right circuit breaker panel)

NOTE

Pulling the AFCS SERVOS circuit breaker will render the autopilot, yaw damper and rudder boost

systems inoperative.

6. AP/YD DISC / TRIM INTRPT Button ....................................................................................... RELEASE

IN FLIGHT, DO NOT OVERPOWER THE AUTOPILOT. THE TRIM WILL OPERATE IN THE

DIRECTION OPPOSING THE OVERPOWER FORCE, WHICH WILL RESULT IN LARGE

OUT-OF-TRIM FORCES.

DO NOT ATTEMPT TO RE-ENGAGE THE AUTOPILOT OR USE MANUAL ELECTRIC PITCH

TRIM UNTIL THE CAUSE OF THE MALFUNCTION HAS BEEN CORRECTED.

WARNING

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

FAA APPROVED Page 33 of 137

NOTE

The maximum altitude lost during malfunction tests was:

Cruise – 230 Feet

Descent – 555 Feet

Maneuvering – 170 Feet

Glideslope/Glidepath Approach – 79 Feet

Non-Precision Approach – 100 Feet

UNSCHEDULED RUDDER BOOST ACTIVATION

These procedures supersede the airplane’s UNSCHEDULED RUDDER BOOST ACTIVATION

AFM checklist items.

Rudder boost operation without a large variation of power between the engines indicates a failure of

the system.

1. AP/YD DISC / TRIM INTRPT Button ................................................................ PRESS AND HOLD

2. Rudder Boost ............................................................................................................................ OFF

If Condition Persists:

3. AFCS SERVOS Circuit Breaker ....................................................................................... PULL, or

4. Either Bleed Valve .......................................................................................... PNEU & ENVIR OFF

5. Perform Normal Landing

NOTE

Pulling the AFCS SERVOS circuit breaker will render the autopilot, yaw damper and rudder boost

systems inoperative.

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev.1

Page 34 of 137 FAA APPROVED

MANUAL AUTOPILOT DISCONNECT

If necessary, the autopilot may be manually disconnected using any one of the following

methods.

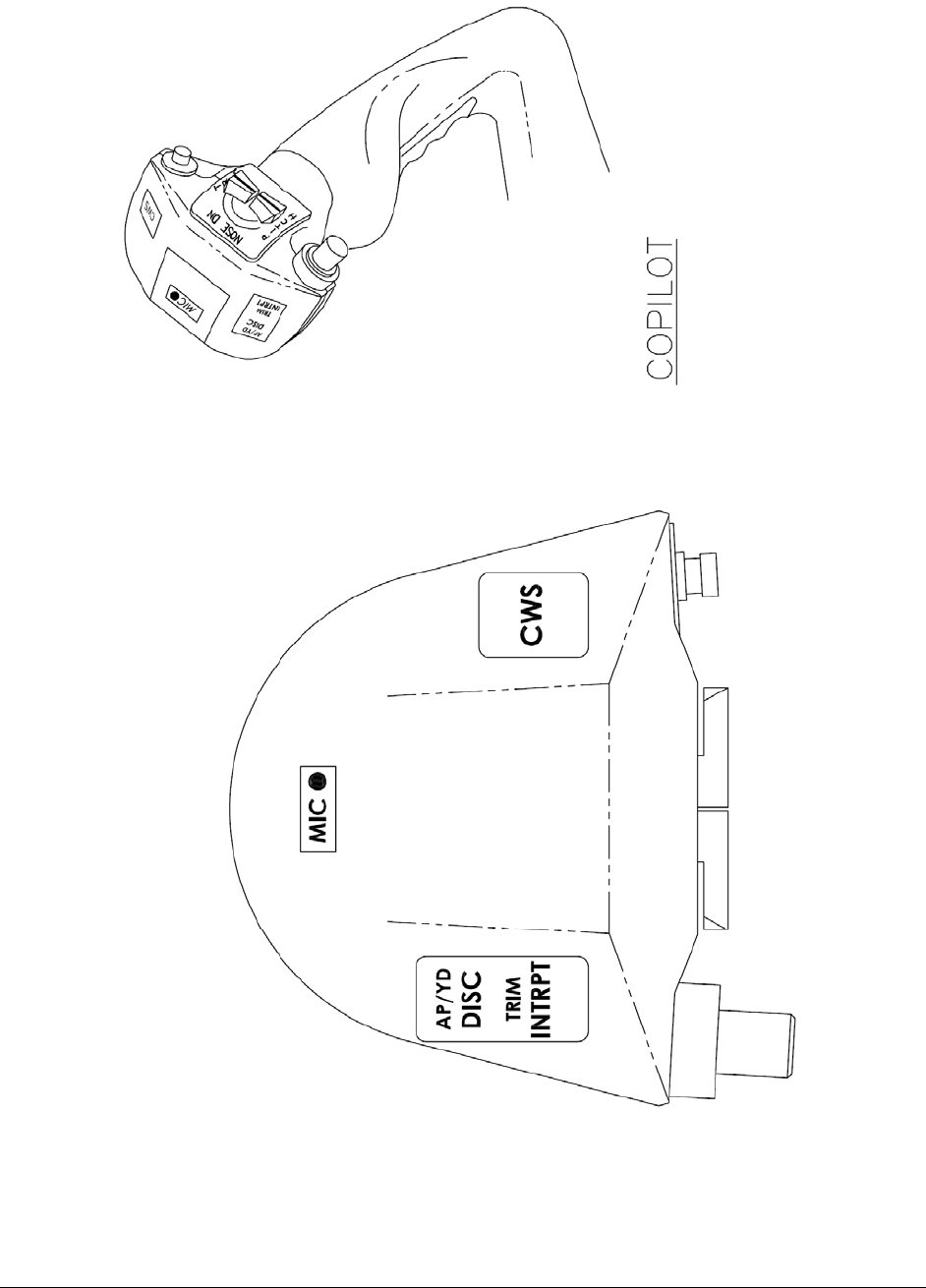

1. AP/YD DISC / TRIM INTRPT Button ............................................................ PRESS and RELEASE

(Pilot’s or Copilot’s control wheel)

2. AP Button (Autopilot mode control panel) .............................................................................. PRESS

(Yaw damper remains engaged)

3. Pitch Trim Switch (Pilot’s or, if installed, Copilot’s control wheel) .................................... ACTIVATE

(Yaw damper remains engaged)

4. Go-Around (GA) switch (For airplanes without ESP Installed) .............................................. PRESS

(Left power lever - yaw damper remains engaged)

5. AFCS SERVOS Circuit Breaker ................................................................................................ PULL

(Right circuit breaker panel)

AUTOPILOT ABNORMAL DISCONNECT

(Red ‘AP’ flashing on PFD, Continuous high-low aural tone)

1. A/P DISC/TRIM INTRPT Button ..................................................................PRESS AND RELEASE

(to cancel disconnect tone)

2. Aircraft Attitude ............................................................. MAINTAIN/REGAIN AIRCRAFT CONTROL

NOTE

The autopilot disconnect may be accompanied by a red boxed PTCH (pitch), ROLL, YAW or

AFCS on the PFD, indicating the axis which has failed, or that the automatic flight control

system has failed. The autopilot cannot be re-engaged with any of these annunciations

present.

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

FAA APPROVED Page 35 of 137

AUTOPILOT FAILURE

(Red annunciator on PFD, Red ‘AP’ flashing on PFD, Continuous high-low aural tone)

1. AP/YD DISC / TRIM INTRPT Button ..................................................................................... PRESS

(to cancel disconnect tone)

If red ‘AFCS’ is displayed, the autopilot, yaw damper, and manual electric pitch trim will be

inoperative.

2. Advise ATC of loss of autopilot system.

NOTE

A loss of the autopilot may also cause yaw damper and rudder boost to be inoperative. Many

King Air 300 aircraft require the yaw damper to be operative above 11,000 feet MSL, and rudder

boost continuously. Refer to the Limitations section of the Aircraft Flight Manual, or appropriate

Airplane Flight Manual Supplement for further information.

3. Altitude ........................................ MONITOR AND MAINTAIN ASSIGNED ALTITUDE MANUALLY

Record each altimeter reading for contingency procedure use

NOTE

The standby altimeter must be corrected for position error using the Altimeter Correction –

Standby System chart in the Performance section of this supplement.

4. Perform appropriate RVSM contingency procedures outlined in the operator’s RVSM manual for

the loss of automatic altitude hold capability.

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev.1

Page 36 of 137 FAA APPROVED

PITCH AXIS FAILURE

(Red annunciator on PFD)

1. Indicates a failure of the pitch axis of the autopilot. The autopilot will be inoperative. The yaw

damper will be operative.

NOTE

If the red annunciator illuminates without the autopilot engaged, it may indicate a

faulted AHRS. Monitor both PFDs and the standby attitude indicator for abnormal attitude

indications.

2. Advise ATC of loss of autopilot system.

3. Yaw Damper ............................................................................................. ENGAGE AS REQUIRED

4. Altitude ........................................ MONITOR AND MAINTAIN ASSIGNED ALTITUDE MANUALLY

Record each altimeter reading for contingency procedure use

NOTE

The standby altimeter must be corrected for position error using the Altimeter Correction –

Standby System chart in the Performance section of this supplement.

5. Perform appropriate RVSM contingency procedures outlined in the operator’s RVSM manual for

the loss of automatic altitude hold capability.

ROLL AXIS FAILURE

(Red annunciator on PFD)

1. Indicates a failure of the roll axis of the autopilot. The autopilot will be inoperative. The yaw

damper will be operative.

NOTE

If the red annunciator illuminates without the autopilot engaged, it may indicate a

faulted AHRS. Monitor both PFDs and the standby attitude indicator for abnormal attitude

indications.

2. Advise ATC of loss of autopilot system.

3. Yaw Damper ............................................................................................. ENGAGE AS REQUIRED

4. Altitude ........................................ MONITOR AND MAINTAIN ASSIGNED ALTITUDE MANUALLY

Record each altimeter reading for contingency procedure use

NOTE

The standby altimeter must be corrected for position error using the Altimeter Correction –

Standby System chart in the Performance section of this supplement.

5. Perform appropriate RVSM contingency procedures outlined in the operator’s RVSM manual for

the loss of automatic altitude hold capability.

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

FAA APPROVED Page 37 of 137

PITCH TRIM FAILURE

(Red annunciator on PFD)

1. Indicates a failure of the pitch trim servo of the autopilot. The autopilot will be inoperative. The

yaw damper will remain operative.

2. Control Wheel ............................................................................................................. GRIP FIRMLY

3. AP/YD DISC / TRIM INTRPT Button ............................................................ PRESS and RELEASE

(Be prepared for possible high elevator control forces)

4. Elevator Trim ...................................................... AS REQUIRED USING ELEVATOR TAB WHEEL

If Red Message Clears

5. Autopilot ....................................................................................................................... RE-ENGAGE

If Red Message Remains

5. Autopilot ........................................................................................................ DO NOT RE-ENGAGE

6. Elevator Trim .......................................................... CONTINUE TO USE ELEVATOR TAB WHEEL

7. Yaw Damper ............................................................................................. ENGAGE AS REQUIRED

In RVSM Airspace:

8. Advise ATC of loss of autopilot system.

9. Altitude ....................................... MONITOR AND MAINTAIN ASSIGNED ALTITUDE MANUALLY

Record each altimeter reading for contingency procedure use

NOTE

The standby altimeter must be corrected for position error using the Altimeter Correction –

Standby System chart in the Performance section of this supplement.

10. Perform appropriate RVSM contingency procedures outlined in the operator’s RVSM manual for

the loss of automatic altitude hold capability.

AUTOPILOT PRE-FLIGHT TEST FAIL

(Red annunciator on PFD)

1. Indicates the AFCS system failed the automatic Pre-Flight test. The autopilot, yaw damper and

electric elevator trim are inoperative, and the rudder boost system may be inoperative. The

Flight Director may still function.

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev.1

Page 38 of 137 FAA APPROVED

AUTOPILOT OVERSPEED RECOVERY

(Amber annunciation on PFD)

1. Power Levers ..................................................................................................................... REDUCE

When overspeed condition is corrected:

2. Autopilot ..................................................................... RESELECT VERTICAL MODE (if necessary)

NOTE

Overspeed recovery mode provides a pitch up command to decelerate the airplane at or

below the maximum autopilot operating speed (259 KIAS / 0.58 M) or VFE (200 or 157 KIAS)

if the flaps are extended. Overspeed recovery is not active in altitude hold (ALT), glideslope

(GS), or glidepath (GP) modes.

AUTOPILOT UNDERSPEED PROTECTION ACTIVATION AND RECOVERY

(ESP-Equipped Aircraft Only)

(Red Warning Annunciator on the PFDs on ESP-equipped aircraft. May also be

accompanied by an amber annunciator above the airspeed tape display and aural

“AIRSPEED” alert)

1. Power Levers ..................... INCREASE POWER AS REQUIRED TO CORRECT UNDERSPEED

2. Aircraft Attitude and Altitude ......................................................................................... MONITOR

After underspeed condition is corrected:

3. Autopilot .........................................RESELECT VERTICAL AND LATERAL MODES (if necessary)

4. Power Levers .......................................................................................... ADJUST AS NECESSARY

NOTE

Autopilot Underspeed Protection Mode provides a pitch down command to maintain 100 +/-2

KIAS, or 2 KIAS above stall warning airspeed, depending on the vertical mode selected.

Underspeed recovery is not available below 200 feet AGL, except in go-around (GA) mode.

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

FAA APPROVED Page 39 of 137

ENGINE FAILURE (AUTOPILOT ENGAGED)

1. AP/YD DISC / TRIM INTRPT Button .......................................................... PRESS and RELEASE

2. Engine Failure Procedure in

EMERGENCY PROCEDURES Section of AFM ........................................................ COMPLETE

3. Trim Tabs .............................. MANUALLY ADJUST ELEVATOR, AILERON, AND RUDDER TABS

4. Autopilot ............................................................. PRESS ‘AP’ BUTTON (if desired) to RE-ENGAGE

5. Rudder Tab ............................................................... MANUALLY ADJUST AS REQUIRED AFTER

POWER AND CONFIGURATION CHANGES

ELECTRICAL SYSTEM

DUAL GENERATOR FAILURE [L DC GEN] [R DC GEN]

This procedure should be performed prior to completing the respective section of the AFM checklist.

If Neither Generator Will Reset:

1. Standby Battery Switch ............................................................................... INDICATES ARM or ON

2. The following equipment will be functional while the G1000 is powered from the aircraft’s battery

power, Avionics Master Power Switch is ON, and the [L GEN TIE OPEN], [R GEN TIE OPEN],

[L DC GEN] and [R DC GEN] annunciators are illuminated.

Pilot’s Attitude, Heading, Air Data, and Nav CDI

Copilot’s Attitude, Heading, Air Data, and Nav CDI

MFD, Engine Gauges

Com 1, Pilot’s Audio Panel, GPS 1, GPS 2, VHF Nav 1, VHF Nav 2, Transponder 1

Autopilot, Flight Director, Yaw Damper/Rudder Boost

NOTE

Inoperative G1000 equipment items will be displayed in the ALERTS window on both PFDs.

NOTE

The aircraft’s battery will continue to power the G1000 equipment for at least 30 minutes following

complete loss of normal electrical power generation. Once the aircraft’s battery can no longer

power the G1000, the standby battery will automatically power the standby attitude indicator,

altimeter vibrator, the instrument emergency lights, and the internal lighting of the three standby

instruments and magnetic compass for an additional 30 minutes.

NOTE

The Copilot and Standby Altimeter and Airspeed indicators may be unreliable in visible moisture

because the Right Pitot Heat is not powered by the aircraft battery. The Left Pitot Heat remains

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev.1

Page 40 of 137 FAA APPROVED

LOAD MANAGEMENT TABLE

This table replaces the Load Management Table published in the AFM. Use of the following

equipment will reduce battery duration by the approximate times listed below. Multiple usage of the

following equipment is additive.

EQUIPMENT OPERATING TIME

(Minutes) REDUCTION IN MAIN BATTERY

DURATION (Minutes)

Standby Altimeter Continuous None*

Standby Airspeed Indicator Continuous None*

Standby Attitude Indicator Continuous None*

Comm 1 Xmit Continuous -----

Pilot Audio Continuous -----

Nav 1 Continuous -----

ADC 1 Continuous -----

Pilot PFD Continuous -----

AHRS 1 Continuous -----

Transponder 1 Continuous -----

GEA 1 Continuous -----

MFD Continuous -----

Copilot PFD Continuous -----

Nav 2 Continuous -----

ADC 2 Continuous -----

AHRS 2 Continuous -----

GEA 2 Continuous -----

Instrument Indirect /Emergency Lights Continuous None*

Cabin Lights 5 3

Ice Lights 5 0.6

NAV Lights 60 7

Taxi Lights 5 2

Digital OAT Continuous -----

Single Standby Fuel Pump 5 2

Left Bleed Air Valve Continuous -----

Pressurization Control Continuous -----

Cabin Temperature Control Continuous -----

Surface Deice 1 0.1

Left and Right Main Engine Anti-ice Single Operation 0.1

Manual Prop Deice 5 6

Windshield Wiper 5 1

Left Pitot Heat Continuous -----

*Powered by standby battery.

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

FAA APPROVED Page 41 of 137

TAWS AND GPWS

TAWS OR GPWS WARNING

(Red on PFD and aural “PULL UP” or “[Whoop, Whoop], PULL UP”

1. AP/YD DISC / TRIM INTRPT Button ............................................. PRESS and RELEASE

(To disconnect the autopilot)

2. Aircraft Attitude ....................................................... PULL BACK ON CONTROL WHEEL

3. Power.......................................................................................... MAXIMUM ALLOWABLE

4. Airspeed ........................................................................ BEST ANGLE OF CLIMB SPEED

After Warning Ceases:

5. Power ......................................................................................... MAXIMUM CONTINUOUS

6. Altitude ............................................................... CLIMB AND MAINTAIN SAFE ALTITUDE

7. Advise ATC of Altitude Deviation, if appropriate.

NOTE

Only vertical maneuvers are recommended, unless either operating in visual meteorological

conditions (VMC), or the pilot determines, based on all available information, that turning in

addition to the escape maneuver is the safest course of action, or both.

TCAS II

Refer to the GARMIN Pilot’s Guide, P/N 190-01343-00 Rev. A or later FAA approved revision for a

detailed description of the TCAS II display and control elements as implemented in the G1000.

The following procedure should be performed in conjunction with the respective section of the TCAS-II

AFMS checklist.

TCAS II RESOLUTION ADVISORY

(Red on PFD and aural resolution advisory)

1. Perform Resolution Advisory Procedures in the NORMAL PROCEDURES Section of the

TCAS II AFMS.

2. Follow the green cues on the PFD VSI display as required to comply with the RA.

Compliance with a TCAS II resolution advisory (RA) is necessary unless the pilot considers it

unsafe to do so, or unless the pilot has information about the cause of the RA and can

maintain safe separation for example visual acquisition of, and safe separation from, a nearby

aircraft on a parallel approach.

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev.1

Page 42 of 137 FAA APPROVED

WINDSHEAR ENCOUNTER

For airplanes equipped with Electronic Stability and Protection (ESP):

1. AP/YD DISC / TRIM INTRPT Button .................................................... PRESS and HOLD

(To prevent automatic autopilot

engagement)

2. Perform established windshear escape procedures.

After Exiting Windshear:

3. AP/YD DISC / TRIM INTRPT Button ................................................................... RELEASE

4. Autopilot/Yaw Damper .................................................................................... AS DESIRED

NOTE

Refer to FAA Advisory Circular 00-54, Pilot Windshear Guide for additional information on

windshear avoidance and escapement techniques.

ESP ENGAGEMENT

For airplanes equipped with Electronic Stability and Protection (ESP):

1. Use the flight controls and power levers as required to correct the abnormal flight

condition.

NOTE

If the airplane remains within the ESP engagement envelope for more than approximately 10

seconds, the autopilot will automatically engage in LVL mode, and will be accompanied by an

aural “ENGAGING AUTOPILOT” alert. Refer to Section 7 – Systems Description, “Electronic

Stability & Protection” (ESP) for further information.

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

FAA APPROVED Page 43 of 137

Section 3A - Abnormal Procedures

Table of Contents

AUTOMATIC FLIGHT CONTROL SYSTEM ................................................................ 45

AILERON MIS-TRIM ............................................................................................................................... 45

ELECTRIC PITCH TRIM INOPERATIVE ............................................................................................... 46

ELEVATOR MIS-TRIM ............................................................................................................................ 47

RUDDER MIS-TRIM ................................................................................................................................ 48

FLASHING AMBER MODE ANNUNCIATION ....................................................................................... 49

YAW DAMPER AUTOMATIC DISCONNECT (Amber Flashing ‘YD’) ................................................. 49

YAW AXIS FAILURE .............................................................................................................................. 50

ELECTRONIC STABILITY AND PROTECTION .......................................................... 50

MANUAL ESP DISENGAGEMENT ........................................................................................................ 50

G1000 INTEGRATED AVIONICS SYSTEM ................................................................. 51

ALTITUDE MISCOMPARE ..................................................................................................................... 51

AIRSPEED MISCOMPARE .................................................................................................................... 54

PITCH MISCOMPARE ............................................................................................................................ 55

ROLL MISCOMPARE ............................................................................................................................. 55

HEADING MISCOMPARE ...................................................................................................................... 56

LOSS OF ALTITUDE REPORTING IN RVSM AIRSPACE .................................................................... 56

LOSS OF ALTITUDE ERROR CORRECTION....................................................................................... 56

DISPLAY UNIT FAILURE ............................................................................................. 57

PFD FAILURE ......................................................................................................................................... 57

MFD FAILURE ........................................................................................................................................ 58

DUAL GPS/SBAS FAILURE (AMBER “DR” OR “LOI” ON HSI) ......................................................... 58

GPS APPROACH ALARM LIMITS EXCEEDED ................................................................................... 59

ILS DATABASE FREQUENCY AND/OR COURSE MISMATCH .......................................................... 60

LOSS OF RADIO TUNING FUNCTIONS ............................................................................................... 60

FAILED AIRSPEED, ALTITUDE, AND/OR VERTICAL SPEED ............................................................ 61

FAILED ATTITUDE AND/OR HEADING ................................................................................................ 62

ENGINE INDICATION SYSTEM (EIS) FAILURE ................................................................................... 64

LOSS OF NAVIGATION DATA .............................................................................................................. 64

INACCURATE FLIGHT DIRECTOR DISPLAY ...................................................................................... 64

BOTH ON ADC1, BOTH ON ADC2 ........................................................................................................ 65

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev. 1

Page 44 of 137 FAA APPROVED

BOTH ON AHRS 1, BOTH ON AHRS 2 ................................................................................................. 65

BOTH ON GPS 1, BOTH ON GPS 2 ...................................................................................................... 65

USING ADC1 or ADC2 ........................................................................................................................... 66

USING AHRS1 or AHRS2 ...................................................................................................................... 66

SYNTHETIC VISION ..................................................................................................... 66

TAWS AND GPWS ....................................................................................................... 67

TAWS or GPWS CAUTION .................................................................................................................... 67

TAWS INHIBIT ........................................................................................................................................ 67

GPWS INHIBIT (TAWS-A Only) ..................................................................................... 68

FLAP OVERRIDE (TAWS-A Only) ................................................................................ 68

GLIDESLOPE/GLIDEPATH DEVIATION INHIBIT (TAWS-A Only) ...................................................... 69

TAWS N/A and TAWS FAIL ................................................................................................................... 69

GPWS FAIL (TAWS-A only) .................................................................................................................. 69

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

FAA APPROVED Page 45 of 137

AUTOMATIC FLIGHT CONTROL SYSTEM

AILERON MIS-TRIM (amber or annunciation on PFD)

Indicates a mis-trim of the ailerons while the autopilot is engaged. The autopilot cannot trim the

airplane in roll. During large changes in airspeed, engine failure, or single engine operation,

illumination of this message may occur. If the autopilot is disconnected while this message is

displayed, high roll forces are possible. The following procedure should be followed:

1. Control Wheel ............................................................................................................. GRIP FIRMLY

2. Aileron Tab Knob ............................................ ROTATE SLOWLY IN DIRECTION OF INDICATED

MIS-TRIM UNTIL THE ANNUNCIATION EXTINGUISHES

If the annunciator stays extinguished and no other annunciations illuminate:

3. Continue to operate the autopilot in a normal manner after the annunciation extinguishes.

If the annunciator remains illuminated or reappears with no changes in airspeed or configuration from the

previous trimmed condition:

3. Control Wheel ............................................................................................................. GRIP FIRMLY

4. Aileron Tab Knob .................................... ROTATE SLOWLY IN THE DIRECTION OF INDICATED

MIS-TRIM UNTIL ANNUNCIATION EXTINGUISHES

5. AP/YD DISC / TRIM INTRPT Button ............................................................ PRESS and RELEASE

(Pilot’s or Copilot’s control wheel)

6. Aileron Trim ................................ USING AILERON TAB KNOB, MANUALLY RE-TRIM AIRPLANE

The autopilot should be considered inoperative until the cause of the mis-trim has been investigated

and corrected. Yaw damper may be re-engaged and used normally.

In RVSM Airspace and Autopilot Inoperative:

7. Altitude ....................................... MONITOR AND MAINTAIN ASSIGNED ALTITUDE MANUALLY

Record each altimeter reading for contingency procedure use

NOTE

The standby altimeter must be corrected for position error using the Altimeter Correction –

Standby System chart in the Performance section of this supplement.

8. Advise ATC of loss of autopilot system. Perform appropriate RVSM contingency procedures

outlined in the operator’s RVSM manual for the loss of automatic altitude hold capability.

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev. 1

Page 46 of 137 FAA APPROVED

ELECTRIC PITCH TRIM INOPERATIVE

NOTE

This condition may be accompanied by a red or annunciation on the PFDs.

1. Move both halves of pilot and copilot pitch trim switches to check for stuck switch.

2. AFCS SERVOS Circuit Breaker ............................................................................ PULL and RESET

(Right circuit breaker panel)

The autopilot will enter Pre-Flight Test (PFT) mode when the AFCS SERVOS circuit breaker is reset.

If the autopilot successfully completes the Pre-Flight Test, re-engage the autopilot, reselect the

desired autopilot modes, and continue to use normally. If the Pre-Flight Test fails, indicated by a red

on the PFDs, the autopilot, yaw damper, and electric pitch trim will be inoperative for the

remainder of the flight.

If Operative:

3. Use as required.

If still inoperative:

3. Pitch Trim .......................................................................... MANUALLY TRIM AIRPLANE IN PITCH

(Using Elevator Tab Wheel)

NOTE

The autopilot, yaw damper and rudder boost may also be inoperative. Many King Air 300

aircraft require the yaw damper to be operative above 11,000 feet MSL, and rudder boost

continuously. Refer to the Limitations section of the Aircraft Flight Manual, or appropriate

Airplane Flight Manual Supplement for further information.

In RVSM Airspace and Autopilot Inoperative:

4. Altitude ....................................... MONITOR AND MAINTAIN ASSIGNED ALTITUDE MANUALLY

Record each altimeter reading for contingency procedure use

NOTE

The standby altimeter must be corrected for position error using the Altimeter Correction –

Standby System chart in the Performance section of this supplement.

5. Advise ATC of loss of the autopilot system. Perform appropriate RVSM contingency procedures

outlined in the operator’s RVSM manual for the loss of automatic altitude hold capability.

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

FAA APPROVED Page 47 of 137

ELEVATOR MIS-TRIM (amber or annunciation on PFD)

Indicates a mis-trim of the elevator tab while the autopilot is engaged. The autopilot will normally

trim the airplane as required. However, during rapid acceleration, deceleration, or configuration

changes, momentary illumination of this message may occur accompanied by minor fluctuations

in flight path. If the autopilot is disconnected while this message is displayed, high elevator

control forces are possible. In the event of sustained illumination, the following procedure

should be followed:

1. Control Wheel ............................................................................................................. GRIP FIRMLY

2. Elevator Tab Wheel ................................. ROTATE SLOWLY IN THE DIRECTION OF INDICATED

MIS-TRIM UNTIL ANNUNCIATION EXTINGUISHES

If the annunciator stays extinguished and no other annunciations illuminate:

3. Continue to operate the autopilot in a normal manner after the annunciation extinguishes.

If the annunciator remains illuminated or reappears with no changes in airspeed or configuration from the

previous trimmed condition:

3. Control Wheel ............................................................................................................. GRIP FIRMLY

4. Elevator Tab Wheel ................................. ROTATE SLOWLY IN THE DIRECTION OF INDICATED

MIS-TRIM UNTIL ANNUNCIATION EXTINGUISHES

5. AP/YD DISC / TRIM INTRPT Button ............................................................ PRESS and RELEASE

(Pilot’s or Copilot’s control wheel)

6. Pitch Trim ............................. USING ELEVATOR TAB WHEEL, MANUALLY RE-TRIM AIRPLANE

Autopilot should be considered inoperative until the cause of the mis-trim has been investigated and

corrected. Yaw damper may be re-engaged and used normally.

In RVSM Airspace and Autopilot Inoperative:

7. Altitude ....................................... MONITOR AND MAINTAIN ASSIGNED ALTITUDE MANUALLY

Record each altimeter reading for contingency procedure use

NOTE

The standby altimeter must be corrected for position error using the Altimeter Correction –

Standby System chart in the Performance section of this supplement.

8. Advise ATC of loss of the autopilot system. Perform appropriate RVSM contingency procedures

outlined in the operator’s RVSM manual for the loss of automatic altitude hold capability.

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev. 1

Page 48 of 137 FAA APPROVED

RUDDER MIS-TRIM (amber or annunciation on PFD)

Indicates a mis-trim of the rudder while the autopilot is engaged. The autopilot cannot trim the

airplane in yaw. During large changes in airspeed, engine failure, or single engine operation,

illumination of this message may occur. If the autopilot is disconnected while this message is

displayed, high rudder pedal forces and yawing motion are possible. The following procedure

should be followed:

1. Rudder Pedals ........................................................................................................... HOLD FIRMLY

2. Rudder Tab Knob .................................... ROTATE SLOWLY IN THE DIRECTION OF INDICATED

MIS-TRIM UNTIL ANNUNCIATION EXTINGUISHES

If the annunciator stays extinguished and no other annunciations illuminate:

3. Continue to operate the autopilot in a normal manner after the annunciation extinguishes.

If the annunciator remains illuminated or reappears with no changes in airspeed or configuration from the

previous trimmed condition:

3. Rudder Pedals ........................................................................................................... HOLD FIRMLY

4. Rudder Tab Knob .................................... ROTATE SLOWLY IN THE DIRECTION OF INDICATED

MIS-TRIM UNTIL ANNUNCIATION EXTINGUISHES

5. Autopilot ..................................................................................................................... DISCONNECT

6. Rudder Tab Knob ......................................................................... MANUALLY RE-TRIM AIRPLANE

NOTE

Yaw Damper should be considered inoperative until the cause of the mis-trim has been

investigated and corrected. The rudder boost may also be inoperative. Many King Air 300

aircraft require the yaw damper to be operative above 11,000 feet MSL, and rudder boost

continuously. Refer to the Limitations section of the Aircraft Flight Manual, or appropriate

Airplane Flight Manual Supplement for further information.

7. Autopilot .............................................................................................................................. ENGAGE

In RVSM Airspace and Autopilot Inoperative:

8. Altitude ....................................... MONITOR AND MAINTAIN ASSIGNED ALTITUDE MANUALLY

Record each altimeter reading for contingency procedure use

NOTE

The standby altimeter must be corrected for position error using the Altimeter Correction –

Standby System chart in the Performance section of this supplement.

9. Advise ATC of loss of the autopilot system. Perform appropriate RVSM contingency procedures

outlined in the operator’s RVSM manual for the loss of automatic altitude hold capability.

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

FAA APPROVED Page 49 of 137

FLASHING AMBER MODE ANNUNCIATION

NOTE

Abnormal mode transitions (those not initiated by the pilot or by normal sequencing of the AFCS)

will be annunciated by flashing the disengaged mode in amber on the PFD. Upon loss of a

selected mode, the system will revert to the default mode for the affected axis, either ROL or PIT.

After 10 seconds, the new mode (PIT or ROL) will be annunciated in green.

LOSS OF SELECTED VERTICAL MODE (FLC, VS, VPTH, ALT, GS, GP)

1. Autopilot mode controls ....................................................... SELECT ANOTHER VERTICAL MODE

If on an instrument approach, disconnect autopilot and continue manually or execute missed approach:

2. AP/YD DISC / TRIM INTRPT Button ............................................................ PRESS and RELEASE

LOSS OF SELECTED LATERAL MODE (HDG, VOR, GPS, LOC, VAPP, BC)

1. Autopilot mode controls.................. ............................... ......SELECT ANOTHER LATERAL MODE

If on an instrument approach, disconnect autopilot and continue manually or execute missed approach:

2. AP/YD DISC / TRIM INTRPT Button ............................................................ PRESS and RELEASE

YAW DAMPER AUTOMATIC DISCONNECT (Amber Flashing ‘YD’)

Flashing amber ‘YD’ in flight indicates that yaw damper has disconnected. If the disconnect was

not pilot initiated, the yaw servo has failed. The autopilot may be re-engaged after a yaw servo

failure.

NOTE

Many King Air 300 aircraft require the yaw damper to be operative above 11,000 feet MSL, and

rudder boost continuously. Refer to the Limitations section of the Aircraft Flight Manual, or

appropriate Airplane Flight Manual Supplement for further information.

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev. 1

Page 50 of 137 FAA APPROVED

YAW AXIS FAILURE (Amber annunciator on PFD)

1. Indicates a failure of the yaw axis of the autopilot. The yaw damper will disconnect. The

autopilot may be engaged and disengaged normally, but the yaw damper and rudder boost will be

inoperative.

2. Autopilot .......................................................................................................... AS DESIRED

DO NOT USE THE AUTOPILOT ON A COUPLED ILS APPROACH WITH A FAILED YAW

SERVO. THE AUTOPILOT MAY NOT BE ABLE TO MAINTAIN DIRECTIONAL CONTROL IN

THE EVENT OF AN ENGINE FAILURE.

NOTE

If the amber annunciator illuminates without the autopilot engaged, it may indicate a

faulted AHRS. Monitor both PFDs and the standby attitude indicator for abnormal attitude

indications.

NOTE

Many King Air 300 aircraft require the yaw damper to be operative above 11,000 feet MSL, and

rudder boost continuously. Refer to the Limitations section of the Aircraft Flight Manual, or

appropriate Airplane Flight Manual Supplement for further information.

ELECTRONIC STABILITY AND PROTECTION

MANUAL ESP DISENGAGEMENT

If necessary, ESP may be manually disconnected using any one of the following methods.

1. AP/YD DISC / TRIM INTRPT Button ................................................................... PRESS and HOLD

(Pilot’s or Copilot’s control wheel)

2. CWS Button (Pilot’s or Copilot’s control wheel) ................................................... PRESS and HOLD

3. AFCS SERVOS Circuit Breaker ................................................................................................ PULL

(Right circuit breaker panel)

4. AUX – SYSTEM SETUP 2 Page on MFD ...................... DISABLE STABILITY AND PROTECTION

WARNING

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

FAA APPROVED Page 51 of 137

G1000 INTEGRATED AVIONICS SYSTEM

ALTITUDE MISCOMPARE

This message is displayed when the G1000 detects a difference of 200 feet or greater between

the pilot’s and copilot’s altitude information. Refer to the G1000 Cockpit Reference Guide for

additional information.

1. Altimeter Settings ................................................................. VERIFY both pilot and copilot have the

correct barometric altimeter setting.

2. Pilot’s and Copilot’s Altitude ........................................................ COMPARE with Standby Altimeter

THE STANDBY ALTIMETER USES THE SAME STATIC SOURCE AS THE COPILOT’S SIDE

AIR DATA COMPUTER (ADC2). DO NOT USE STANDBY ALTIMETER AS SOLE SOURCE

IN DETERMINING CORRECT ALTITUDE.

If Pilot and Standby Altimeter Agree (Copilot Altimeter Differs):

NOTE

The standby altimeter must be corrected for position error using the Altimeter Correction –

Standby System chart in the Performance section of this supplement.

3. SENSOR Softkey (Copilot PFD) ............................................................................................ PRESS

4. ADC1 Softkey ......................................................................................................................... PRESS

5. PFD Displays ............................ CONFIRM annunciator is displayed on both PFDs.

• In RVSM Airspace:

6. Altitude ............................................................... CROSS-CHECK USING STANDBY ALTIMETER

Record each altimeter reading for contingency procedure use

7. Advise ATC of loss of redundancy of primary altimetry systems. Perform appropriate RVSM

contingency procedures outlined in the operator’s RVSM manual for the loss of primary altimetry

systems.

WARNING

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev. 1

Page 52 of 137 FAA APPROVED

If Copilot and Standby Altimeter Agree (Pilot Altimeter Differs):

NOTE

The standby altimeter must be corrected for position error using the Altimeter Correction –

Standby System chart in the Performance section of this supplement.

3. Autopilot ALT Mode .................................................................................................... DISENGAGED

4. Pilot’s Static Air Source .................................................................................. SELECT ALTERNATE

A sudden sustained change in rate-of-climb indication accompanied by abnormal indicated

airspeed and altitude changes beyond normal calibrated differences observed on the Pilot’s

PFD would indicate a blockage of the pilot’s static system.

• If Pilot’s and Copilot’s altimeters agree within normal calibrated differences with Pilot’s Alternate

Static Air Source in the ALTERNATE position:

Refer to Section 5, PERFORMANCE in the aircraft AFM for Airspeed Calibration-Alternate

System and Altimeter Correction–Alternate System for the Pilot’s Altimeter.

• In RVSM Airspace:

5. Altitude ............................................................... CROSS-CHECK USING STANDBY ALTIMETER

Record each altimeter reading for contingency procedure use

6. Advise ATC of loss of redundancy of primary altimetry systems. Perform appropriate RVSM

contingency procedures outlined in the operator’s RVSM manual for the loss of redundancy of

primary altimetry systems.

If no change in rate-of-climb, airspeed, or altitude is observed:

7. Pilot’s Static Air Source ........................................................................................ SELECT NORMAL

8. Compare indicated altitude to GPS altitude on MFD AUX-GPS STATUS page to aid in

determining which primary system is most accurate.

NOTE

When comparing indicated altitude to GPS altitude, deviations from standard temperature or

pressure can cause indicated altitude to deviate from GPS altitude. Those errors are largest at high

altitude. Below 10,000 feet with the correct local altimeter setting set, GPS altitude will usually be

within 600 feet or better of the correct indicated altitude. Use the following guidelines to help

estimate correct altitude from non-standard conditions:

• Temperatures WARMER than standard can cause GPS altitude to read HIGHER than indicated

altitude.

• Pressures LOWER than standard can cause GPS altitude to read HIGHER than indicated

altitude.

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

FAA APPROVED Page 53 of 137

If Able to Identify Accurate Altitude Source:

1. Autopilot ALT Mode .................................................................................................... DISENGAGED

2. Use SENSOR softkey to select most accurate ADC on both PFD’s.

3. Confirm or annunciators are displayed on both PFDs

4. Autopilot ALT Mode ...................................................................................... ENGAGE AS DESIRED

• In RVSM Airspace:

5. Altitude ................................................................ CROSS-CHECK USING STANDBY ALTIMETER

Record each altimeter reading for contingency procedure use

NOTE

The standby altimeter must be corrected for position error using the Altimeter Correction –

Standby System chart in the Performance section of this supplement.

6. Advise ATC of loss of redundancy of primary altimetry systems. Perform appropriate RVSM

contingency procedures outlined in the operator’s RVSM manual for the loss of redundancy of

primary altimetry systems.

If Unable to Identify Accurate Altitude Source:

1. Avoid IFR conditions if possible; consider diversion to visual conditions and LAND AS SOON AS

PRACTICAL.

2. Maintain altitudes based on LOWEST indicated altitude.

3. Advise ATC of inability to verify correct altitude. If in RVSM airspace, perform appropriate

RVSM contingency procedures for loss of all primary altimetry systems and accurate altitude

reporting capability.

4. If unable to descend in visual conditions, plan an ILS, LPV, or RNAV (GPS) LNAV/VNAV

approach with course intercept well outside the Final Approach Fix (FAF).

5. Once glideslope or glidepath is captured, determine most accurate altitude source when crossing

FAF.

6. Reference ILS Decision Altitude or GPS based approach Minimum Descent Altitude to most

accurate altimeter based on FAF crossing.

VARIOUS TAWS ALERTS ARE BASED ON GPS ALTITUDE AND POSITION INFORMATION.

TAWS WARNINGS AND CAUTIONS ARE INDEPENDENT OF ADC DATA. IF A TAWS

WARNING OR CAUTION IS RECEIVED, CONSIDER IT ACCURATE AND TAKE IMMEDIATE

AVOIDANCE ACTION.

WARNING

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev. 1

Page 54 of 137 FAA APPROVED

AIRSPEED MISCOMPARE

This message is displayed when the G1000 detects a difference of 7 KIAS or greater between the

pilot’s and copilot’s airspeed indicators (10 KIAS difference during takeoff or landing roll). Refer to

the G1000 Cockpit Reference Guide for additional information.

1. Pilot’s and Copilot’s Airspeed ...................................... COMPARE with Standby Airspeed Indicator

THE STANDBY AIRSPEED INDICATOR USES THE SAME PITOT-STATIC SOURCES AS THE

COPILOT’S SIDE AIR DATA COMPUTER (ADC2). DO NOT USE STANDBY AIRSPEED

INDICATOR OR STANDBY ALTIMETER AS SOLE SOURCE IN DETERMINING CORRECT

AIR DATA INFORMATION.

If Pilot and Standby Airspeed Indicator Agree (Copilot Airspeed Differs):

NOTE

The standby altimeter must be corrected for position error using the Altimeter Correction – Standby

System chart in the Performance section of this supplement.

2. SENSOR Softkey (Copilot’s PFD) ......................................................................................... PRESS

3. ADC1 Softkey ......................................................................................................................... PRESS

4. PFD Displays ........................... CONFIRM annunciator is displayed on both PFDs

• In RVSM airspace:

5. Altitude ................................................................ CROSS-CHECK USING STANDBY ALTIMETER

Record each altimeter reading for contingency procedure use

NOTE

The standby altimeter must be corrected for position error using the Altimeter Correction –

Standby System chart in the Performance section of this supplement.

6. Advise ATC of loss of redundancy of primary altimetry systems. Perform appropriate RVSM

contingency procedures outlined in the operator’s RVSM manual for the loss of redundancy of

primary altimetry systems.

If Copilot and Standby Airspeed Indicator Agree (Pilot Airspeed Differs):

NOTE

The standby altimeter must be corrected for position error using the Altimeter Correction – Standby

System chart in the Performance section of this supplement.

2. Pilot and Copilot ALTITUDE .................................................................................................... NOTE

WARNING

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

FAA APPROVED Page 55 of 137

If Pilot’s and Copilot’s Altitude Agree:

3. Airspeed 120 KIAS MINIMUM on slowest indicator.

4. Monitor all three airspeed indicators during changes in power or altitude to determine which

indicators are inaccurate. Indications of inaccurate airspeed include:

• No change in indicated airspeed when power change and altitude maintained.

• Indicated airspeed increases when climbing or decreases when descending.

5. Use SENSOR softkey to select most accurate ADC on the affected PFDs.

6. Airspeed ……………………………………………………….RESUME NORMAL SPEEDS

If Pilot’s and Copilot’s Altitude Do Not Agree:

3. Refer to Abnormal Procedures, ALT MISCOMP procedure to determine most accurate ADC.

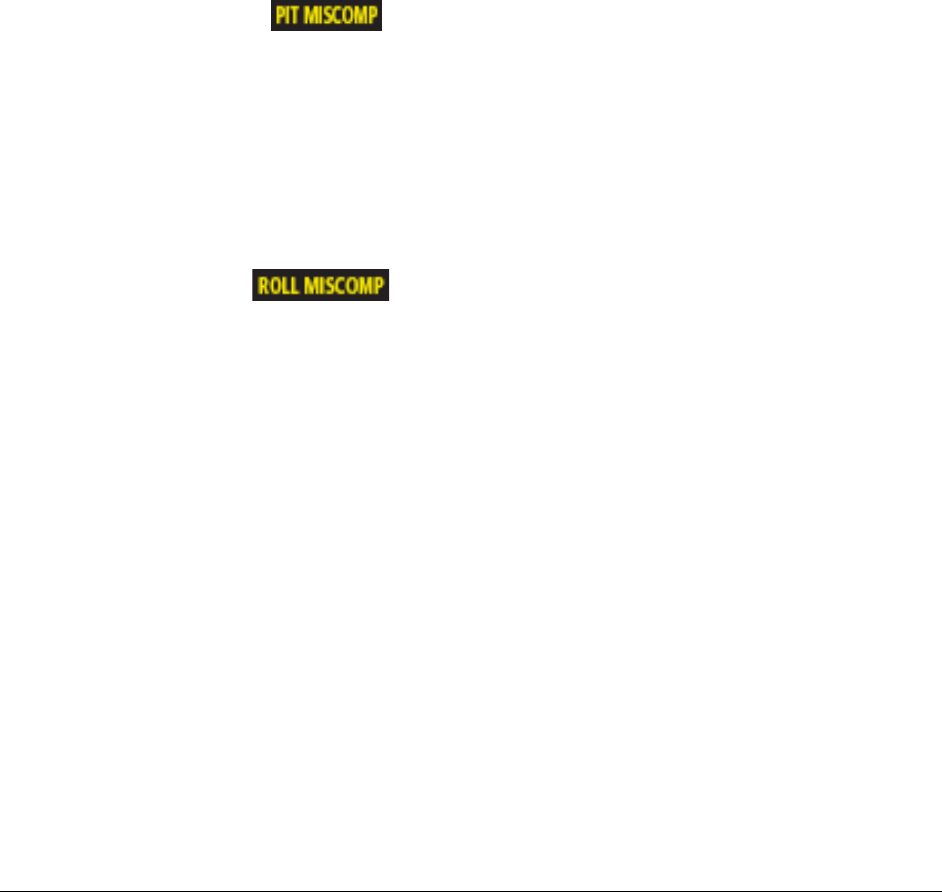

PITCH MISCOMPARE

This message is displayed in the upper right corner of the PFD when the G1000 detects a

difference between the pilot’s and copilot’s pitch attitude of more than 5 degrees. Refer to

GARMIN G1000 Cockpit Reference Guide for additional information.

1. Refer to STANDBY ATTITUDE indicator to determine which AHRS is providing the most accurate

data.

2. Use SENSOR softkey to select the most accurate AHRS on the affected PFD.

ROLL MISCOMPARE

This message is displayed in the upper right corner of the PFD when the G1000 detects a

difference between the pilot’s and copilot’s roll attitude of more than 6 degrees. Refer to the

GARMIN G1000 Cockpit Reference Guide for additional information.

1. Refer to STANDBY ATTITUDE indicator to determine which AHRS is providing the most accurate

data.

2. Use SENSOR softkey to select the most accurate AHRS on the affected PFD.

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev. 1

Page 56 of 137 FAA APPROVED

HEADING MISCOMPARE

This message is displayed in the upper right corner of the PFD when the G1000 detects a

difference between the pilot’s and copilot’s heading information. Refer to the GARMIN G1000

Cockpit Reference Guide for additional information.

1. WSHLD ANTI-ICE Switches (PILOT and COPILOT) ................................................................. OFF

2. CABIN TEMP MODE selector ..................................................................................................... OFF

3. ELEC HEAT ................................................................................................................................ OFF

4. Refer to Magnetic Compass to determine which AHRS is providing the most accurate heading

information.

5. Use SENSOR softkey to select the most accurate AHRS on the affected PFD.

6. WSHLD ANTI-ICE Switches ..................................................................................... AS REQUIRED

7. CABIN TEMP MODE ................................................................................................... AS DESIRED

8. ELEC HEAT .............................................................................................................. AS REQUIRED

NOTE

The magnetic compass is affected by windshield anti-ice and/or air conditioner operation.

These items must be turned OFF prior to referencing magnetic compass heading, and then

may be reselected ON. With windshield anti-ice OFF, fog or frost may form on the inside

surface of the windshield. The windshield anti-ice should be turned off only long enough to

reference magnetic compass or the pilot should descend to a warmer altitude if terrain, fuel,

and endurance permit.

LOSS OF ALTITUDE REPORTING IN RVSM AIRSPACE

If ATC is not receiving altitude reporting information while in RVSM airspace:

1. XPDR Softkey ............................................................................ SELECT OTHER TRANSPONDER

2. Verify selected transponder is in ALT mode.

LOSS OF ALTITUDE ERROR CORRECTION

Loss of altitude (static source) error correction in the air data computers is indicated by an advisory

message in the alerts window of the PFD. The static source error correction is effective only above

18,000 feet MSL. The following advisory messages will post:

ADC1 ALT EC - ADC1 altitude error correction is unavailable.

and/or

ADC2 ALT EC - ADC2 altitude error correction is unavailable.

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

FAA APPROVED Page 57 of 137

If a loss of altitude error correction advisory is received:

• Above 18,000 feet MSL:

1. Altitude ....................... MAINTAIN USING CROSS-SIDE ALTIMETER OR STANDBY ALTIMETER

NOTE

The standby altimeter must be corrected for position error using the Altimeter Correction –

Standby System chart in the Performance section of this supplement.

• In RVSM Airspace:

1. Advise ATC of loss of redundancy of primary altimetry systems. Perform appropriate RVSM

contingency procedures outlined in the operator’s RVSM manual for the loss of redundancy of

primary altimetry systems.

2. Record each altimeter reading for RVSM contingency procedure use.

DISPLAY UNIT FAILURE

PFD FAILURE

PFD failure is indicated by a complete loss of image on a display. The pilot should use the cross

side PFD and the standby flight instruments for information to fly the airplane. If only individual

elements of the display are failed, refer to appropriate procedures for the individual failures.

To display composite primary flight information and the engine instruments on the MFD:

1. DISPLAY BACKUP Button (on audio panel of affected side) ................................................ PRESS

The DISPLAY BACKUP button may be pressed again to return the MFD to its normal

presentation. With the MFD in its normal display presentation, the pilot has access to

functions and pages unique to the MFD that are not accessible when the MFD is in the

composite display. NOTE

The CDI SYNC and BARO SYNC settings must be ON to allow the operating PFD controls to

affect settings on the MFD when the MFD is in the Display Backup mode. These settings are

accessible on the MFD when in the normal display presentation on the AUX – SYSTEM

SETUP page.

2. Autopilot Mode Panel ....................................................TRANSFER (XFR button) to operating PFD

3. Autopilot .......................................................................................... RE-ENGAGE and select modes

4. Transponder ..................................................................................... SELECT operating transponder

5. Audio Panels .................................................................................... SELECT operating COM Radio

NOTE

Use the operating PFD to control Com frequency selection, Com and Nav volume, and

Altimeter Barometric Pressure setting.

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev. 1

Page 58 of 137 FAA APPROVED

MFD FAILURE

MFD failure is indicated by a complete loss of image on the center display. A failed MFD will

auto-revert to PFD 1 to display engine data on PFD 1. Engine data may be displayed on PFD 2 by

pressing the Copilot’s Audio Panel DISPLAY BACKUP button.

If MFD auto-reversion does not occur, or to manually revert the PFD 2 display:

1. Audio Panel DISPLAY BACKUP Button ................................................................................ PRESS

2. Electronic Chart Data will not be available following an MFD failure. Use the following procedure

if a secondary source of aeronautical information is not available in the airplane.

a. Load approaches, arrivals, and departures into the Active Flight Plan using the PROC button

on either PFD. The procedure’s course can be displayed on either PFD Inset Map window.

Navigate using the course pointer and CDI on the PFDs.

b. For instrument approach procedures, obtain altitude information from ATC.

DUAL GPS/SBAS FAILURE (AMBER “DR” OR “LOI” ON HSI)

LOSS OF GPS/SBAS NAVIGATION DATA

When both GPS/SBAS receivers are inoperative or GPS navigation information is not available or

invalid, the G1000 system will enter one of two modes: Dead Reckoning mode (DR) or Loss Of

Integrity mode (LOI). The mode is indicated on the HSI by an amber “DR” or “LOI”. Which mode

is active depends on the distance from the destination airport in the active flight plan.

If the LOI annunciation is displayed, revert to an alternate means of navigation appropriate to the

route and phase of flight. In Dead Reckoning mode, the MAP – NAVIGATION MAP will continue

to be displayed with a ghosted aircraft icon in the center and an amber ‘DR’ overwriting the icon.

Aircraft position will be based upon the last valid GPS position, then estimated by Dead

Reckoning methods. Changes in true airspeed, altitude, or winds aloft can affect the estimated

position substantially. Dead Reckoning is only available in Enroute mode; Terminal and Approach

modes do not support DR. Course deviation information will be displayed as an amber CDI on

both PFDs and will remain for up to 20 minutes after GPS position data has been lost. The

autopilot and/or flight director may be coupled in GPS mode while the system is in Dead

Reckoning mode. Refer to the G1000 Cockpit Reference Guide for further information. Revert

to an alternate means of navigation appropriate to the route and phase of flight.

If Alternate Navigation Sources (ILS, LOC, VOR, DME, ADF) Are Available:

1. Navigation ............................................................................. USE ALTERNATE SOURCES

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

FAA APPROVED Page 59 of 137

If No Alternate Navigation Sources Are Available:

DEAD RECKONING (DR) MODE - ACTIVE WHEN THE AIRPLANE IS GREATER THAN 30 NM FROM

THE DESTINATION AIRPORT:

1. Navigation - Use the airplane symbol, magenta course line on the map display and the amber

CDI for course information.

NOTE

• ALL INFORMATION NORMALLY DERIVED FROM GPS TURNS AMBER. ALL OF THIS

INFORMATION WILL BECOME LESS ACCURATE OVER TIME.

• TAWS is inoperative.

• DR mode uses heading, true airspeed, last known wind data, and the last known GPS

position to estimate the airplane’s current position. DR information will be available for a

maximum of 20 minutes.

• MAP – TRAFFIC MAP display is not dependent on GPS information. The position of

displayed traffic relative to the airplane symbol on the map is still accurate.

LOSS OF INTEGRITY (LOI) MODE - ACTIVE WHEN THE AIRPLANE IS WITHIN 30NM OF THE

DESTINATION OR DEPARTURE AIRPORT (AS CALCULATED FROM THE PREVIOUS GPS OR DR

POSITION):

1. Navigation - Fly toward known visual conditions. Use ATC or other information sources as

available.

NOTE

• All information derived from GPS or DR will be removed from the displays.

• TAWS is inoperative.

• The airplane symbol is removed from all maps. The map will remain centered at the last

known position. “NO GPS POSITION” will be annunciated in the center of the map.

GPS APPROACH ALARM LIMITS EXCEEDED

During a GPS LPV, LNAV/VNAV, or LNAV+V approach, if the Horizontal or Vertical alarm limits

are exceeded, the G1000 System will downgrade the approach. This will be annunciated in the

ALERTS window and by an annunciation change on the HSI from LPV, L/VNAV, or LNAV+V to

LNAV. GPS glide path vertical guidance will be removed from the PFD. The approach may be

continued using the LNAV only minimums.

During any GPS approach in which both precision and non-precision alarm limits are exceeded,

the G1000 System will flag the lateral guidance and display a system message “ABORT

APPROACH loss of navigation”. Immediately upon viewing the message, the unit will revert to

Terminal navigation mode alarm limits. If the position integrity is within these limits lateral

guidance will be restored and the GPS may be used to execute the missed approach, otherwise

alternate means of navigation must be utilized.

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev. 1

Page 60 of 137 FAA APPROVED

ILS DATABASE FREQUENCY AND/OR COURSE MISMATCH

In some rare instances, the actual course and/or frequency for an ILS localizer may not match the

course or frequency stored in the G1000 database. This occurs most often when an ILS course or

frequency change is made by the FAA in between Jeppesen database update cycles. Manual

course or frequency changes can be made to override the auto-loaded values in the G1000 database

whenever an ILS approach is loaded into the G1000 via the FMS. ADVISORY messages will post in

the ALERTS window on the PFDs prompting the pilot verify course and/or frequency information.

Use the latest published instrument approach procedure information to verify all course and

frequency information.

While flying ILS approaches with manually overridden course or frequency information:

• For airplanes with TAWS-A installed, the Glideslope Deviation Alerting (GSD) will be

function normally.

• If SVS Pathways are turned on for display, they must be turned off prior to turning

inbound onto the final approach course to prevent possible confusion. This is because

the pathway display is also dependent on accurate database information to display

proper guidance.

If SVS Pathways are Displayed While Flying a Manually Overriden Frequency or Course on an ILS

Approach:

Prior to Turning Inbound on the Final Approach Course:

1. PFD Softkey on PFD1 and/or PFD2 .................................................................................... PRESS

2. SYN VIS Softkey .................................................................................................................... PRESS

3. PATHWAY Softkey ...................................................... PRESS TO REMOVE PATHWAY DISPLAY

LOSS OF RADIO TUNING FUNCTIONS

1. COM Frequency Toggle Button ........................................... PRESS AND HOLD FOR 2 SECONDS

NOTE

The above procedure will tune the active COM field to the emergency frequency 121.5.

Certain failures of the tuning system will automatically tune 121.5 without pilot action.

If the EMERG FREQ switch is installed, the following alternate procedure may be used:

1. EMERG FREQ switch ............................................................................. LIFT COVER AND PRESS

NOTE

The above procedure will tune the active COM 1 field to the emergency frequency 121.5.

COM 2 operation is not controlled by the EMERG FREQ switch.

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

FAA APPROVED Page 61 of 137

FAILED AIRSPEED, ALTITUDE, AND/OR VERTICAL SPEED

(RED "X" ON PFD AIRSPEED, ALTITUDE, AND/OR VERTICAL SPEED

INDICATORS)

This indicates a loss of valid air data computer information to the respective system.

If Both Sides:

1. Airspeed, Altitude and Attitude ................................................ MONITOR using standby indicators

NOTE

The standby altimeter must be corrected for position error using the Altimeter Correction –

Standby System chart in the Performance Section of this Supplement.

2. Autopilot ALT Mode ................................................................................................... DIS-ENGAGED

3. Advise ATC of loss of all primary altimetry systems and if in RVSM airspace perform the

appropriate RVSM contingency procedures for loss of all primary altimetry systems and accurate

altitude reporting capability outlined in the operator’s RVSM procedures manual.

4. Land as soon as practical.

If One Side Only:

1. Autopilot ALT Mode .................................................................................................... DISENGAGED

2. Affected PFD SENSOR Softkey ............................................................................................ PRESS

3. ADC Softkey ...................... PRESS the ADC softkey to select the functional ADC (ADC1 or ADC2)

4. Both PFDs .................................................................................... CONFIRM “BOTH ON ADC1” OR

“BOTH ON ADC2” annunciated on both PFDs.

5. Autopilot ALT Mode .................................................................................. RESELECT AS DESIRED

• In RVSM Airspace:

6. Altitude ............................................................... CROSS-CHECK USING STANDBY ALTIMETER

Record each altimeter reading for contingency procedure use

NOTE

The standby altimeter must be corrected for position error using the Altimeter Correction –

Standby System chart in the Performance section of this supplement.

7. Perform appropriate RVSM contingency procedures for loss of redundancy of primary altimetry

systems, outlined in the operator’s RVSM procedures manual.

LOSS OF ALTITUDE ALERTER IN RVSM AIRSPACE

1. Autopilot ALT Mode ......................................................................................................... ENGAGED.

2. Altitude ........................................................... MONITOR AND MAINTAIN ASSIGNED ALTITUDE

3. Perform appropriate RVSM contingency procedures for the loss of altitude alerting, outlined in the

operator’s RVSM procedures manual.

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev. 1

Page 62 of 137 FAA APPROVED

FAILED ATTITUDE AND/OR HEADING

(ATTITUDE FAIL AND/OR RED "X" OVER HEADING DISPLAY ON PFD)

This indicates a loss of pitch, roll, and/or heading information from AHRS. Refer to GARMIN

G1000 Cockpit Reference Guide and Pilot’s Guide for additional information. Interference from

GPS repeaters operating inside nearby hangars or magnetic anomalies caused by nearby

structures can cause an intermittent loss of attitude and heading displays while the aircraft is on

the ground. This is usually accompanied by a BOTH ON GPS 1, BOTH ON GPS 2, or LOI

annunciation. Moving the aircraft more than 100 yards away from the source of the interference

should alleviate the condition.

Taxiing the aircraft before a valid GPS position has been acquired can cause attitude and/or

heading display to indicate a failed condition. As soon as the aircraft acquires a valid GPS

position, attitude and heading should return to normal.

DO NOT TAKE OFF WITHOUT VALID, NORMAL ATTITUDE AND HEADING DISPLAYS

In Flight, If Both Sides:

1. Attitude .................................................................................. MONITOR using standby attitude gyro

2. WSHLD ANTI-ICE Switches (Pilot and Copilot).......................................................................... OFF

NOTE

The magnetic compass is erratic during windshield anti-ice and/or air conditioner operation.

With windshield anti-ice OFF, windshield may form fog or frost on the inside surface. The

windshield anti-ice should be turned off only long enough to reference magnetic compass or

the pilot should descent to a warmer altitude if terrain, fuel, and endurance permit.

3. ELEC HEAT ................................................................................................................................ OFF

4. CABIN TEMP MODE switch ....................................................................................................... OFF

5. Heading .................................................................................... MONITOR using magnetic compass

If in RVSM airspace:

6. Altitude ........................................ MONITOR AND MAINTAIN ASSIGNED ALTITUDE MANUALLY

Record each altimeter reading for contingency procedure use

NOTE

The standby altimeter must be corrected for position error using the Altimeter Correction –

Standby System chart in the Performance section of this supplement.

7. Advise ATC of loss of autopilot system. Perform appropriate RVSM contingency procedures for

loss of altitude hold capability, outlined in the operator’s RVSM procedures manual.

8. Land as soon as practical.

WARNING

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

FAA APPROVED Page 63 of 137

NOTE

• The autopilot will disconnect and will not re-engage. ESP (if installed) will be inoperative.

• Reference the GPS track on MFD/PFD map to improve situational awareness. GPS will

continue to display correct GPS based map, position, and track.

• Magnetic compass is influenced by windshield anti-ice and/or air conditioner operation.

These items must be turned OFF prior to referencing magnetic compass heading. Leave

these items OFF when maneuvering the aircraft by reference to the magnetic compass.

In Flight, If One Side Only:

1. Standby Attitude Gyro ....................................................................................................... MONITOR

2. Affected PFD SENSOR softkey ............................................................................................. PRESS

3. AHRS softkey .......................................................................... PRESS Opposite Side AHRS softkey

4. Both PFDs ................................... CONFIRM VALID ATTITUDE AND HEADING ARE DISPLAYED

CONFIRM “BOTH ON AHRS1” or

“BOTH ON AHRS2” annunciated on both PFDs

NOTE

The autopilot will disconnect and will not re-engage. ESP (if installed) will be inoperative.

If in RVSM airspace and autopilot inoperative:

5. Altitude ........................................ MONITOR AND MAINTAIN ASSIGNED ALTITUDE MANUALLY

Record each altimeter reading for contingency procedure use

NOTE

The standby altimeter must be corrected for position error using the Altimeter Correction –

Standby System chart in the Performance section of this supplement.

6. Advise ATC of loss of autopilot system. Perform appropriate RVSM contingency procedures for

loss of altitude hold capability, outlined in the operator’s RVSM procedures manual.

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev. 1

Page 64 of 137 FAA APPROVED

ENGINE INDICATION SYSTEM (EIS) FAILURE

(RED 'X' ON ENGINE DISPLAY)

If All Engine Gauges on One Engine Red ‘X’:

Indicates failure of the GEA for that engine

1. Check GEA circuit breakers ........................................................................... RESET once if tripped

If unable to restore engine gauges:

2. Move both power levers together using the engine with operating engine gauges to set power.

If One or More Engine Parameter Indications Are Flagged On Only One Engine:

1. Adjust power using the remaining indications and comparing to the opposite engine.

LOSS OF NAVIGATION DATA

(LATERAL DEVIATION BAR NOT PRESENT AND/OR GLIDESLOPE INDEX

CLEARS)

This indicates a loss of data from the selected NAV source. Refer to GARMIN G1000 Cockpit

Reference Guide for additional information.

1. CDI Softkey ......................................... PRESS TO SELECT ALTERNATE NAVIGATION SOURCE

2. CONFIRM a valid navigation source is displayed giving valid navigation guidance.

INACCURATE FLIGHT DIRECTOR DISPLAY

Indicated by one or both flight directors commanding attitude contrary to intended flight path:

1. AP/YD DISC / TRIM INTRPT Button ..................................................................................... PRESS

(Pilot’s or Copilot’s control wheel)

2. Attitude ........................................ CROSSCHECK BOTH PFDs with the Standby Attitude Indicator

3. Flight Director Modes ............................................................................... RESELECT AS DESIRED

NOTE

If continued use of the flight director is desired, it is recommended that only basic modes (i.e.,

ROL and PIT) be selected initially. If this proves satisfactory, HDG and ALT may then be

selected. Ensure navigation systems are set up correctly prior to attempting to engage NAV

mode.

4. Autopilot .................................. ENGAGE AS DESIRED if flight director commands are appropriate

If unable to restore Flight Director:

5. FD Button .................................................................... PRESS to remove Flight Director from PFDs

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

FAA APPROVED Page 65 of 137

BOTH ON ADC1, BOTH ON ADC2

This message is displayed on both PFDs and indicates that both pilot and copilot PFDs are

displaying data from the same Air Data Computer. Normally the pilot’s side displays ADC 1

information and the copilot’s side displays ADC 2 information. Refer to GARMIN G1000 Cockpit

Reference Guide and Pilot’s Guide for additional information.

1. PFD (displaying data from opposite ADC) SENSOR softkey ................................................ PRESS

2. ADC1 or ADC 2 softkey .................................................................................. SELECT on-side ADC

(ADC1 for Pilot PFD, ADC2 for copilot PFD)

3. PFD Displays ................................................. CONFIRM “BOTH ON ADC 1” or “BOTH ON ADC 2”

message clears on both PFDs

4. If message does not clear, refer to Abnormal Procedures - FAILED AIRSPEED, ALTITUDE,

AND/OR VERTICAL SPEED.

BOTH ON AHRS 1, BOTH ON AHRS 2

This message is displayed on both PFDs and indicates that both pilot and copilot PFDs are

displaying data from the same Attitude Heading Reference System. Normally the pilot’s side

displays AHRS 1 information and the copilot’s side displays AHRS 2 information. Refer to GARMIN

G1000 Cockpit Reference Guide for additional information.

1. PFD (displaying data from opposite AHRS) SENSOR softkey .............................................. PRESS

2. AHRS1 or AHRS2 softkey ............................................................................... Select on-side AHRS

(AHRS1 for Pilot PFD, AHRS2 for copilot PFD)

3. PFD Displays ............................................ CONFIRM “BOTH ON AHRS 1” or “BOTH ON AHRS 2”

message clears on both PFDs

4. If message does not clear, refer to Abnormal Procedures - FAILED ATTITUDE AND/OR

HEADING

BOTH ON GPS 1, BOTH ON GPS 2

This message is displayed on both PFDs and indicates that both pilot and copilot PFDs are

displaying data from the same GPS/SBAS receiver. Normally the pilot’s side displays GPS 1 and

the copilot’s side displays GPS 2 and is not pilot selectable. This may be caused by operation

outside of SBAS satellite coverage in which case the non-selected GPS is still available in the

event the active GPS fails. Refer to GARMIN G1000 Cockpit Reference Guide for additional

information.

1. GPS/SBAS Status ................................................................................................................. CHECK

a. Select AUX - GPS STATUS page on MFD.

b. Select GPS1 then GPS2 softkeys and verify sufficient satellite reception.

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev. 1

Page 66 of 137 FAA APPROVED

USING ADC1 or ADC2

This message is displayed on both PFDs and indicates that both PFDs are displaying data from

the opposite side air data computer. Normally the pilot’s side displays ADC 1 and the copilot’s

side displays ADC 2. Refer to GARMIN G1000 Cockpit Reference Guide for additional

information.

1. PILOT’S PFD SENSOR Softkey ............................................................................................ PRESS

2. PILOT’S PFD ADC1 Softkey .................................................................................................. PRESS

3. PFD Displays .............................. CONFIRM “BOTH ON ADC1” message displayed on both PFDs

4. COPILOT’S PFD SENSOR Softkey ....................................................................................... PRESS

5. COPILOT’S PFD ADC2 Softkey ............................................................................................ PRESS

6. PFD Displays ................................... CONFIRM “BOTH ON ADC 1” message clears on both PFDs

USING AHRS1 or AHRS2

This message is displayed on both PFDs and indicates that both PFDs are displaying data from

the opposite side Attitude Heading Reference System. Normally the pilot’s side displays AHRS 1

and the copilot’s side displays AHRS 2. Refer to GARMIN G1000 Cockpit Reference Guide for

additional information.

1. PILOT’S PFD SENSOR Softkey ............................................................................................ PRESS

2. PILOT’S PFD AHRS1 Softkey ............................................................................................... PRESS

3. PFD Displays ............................ CONFIRM “BOTH ON AHRS1” message displayed on both PFDs

4. COPILOT’S PFD SENSOR Softkey ....................................................................................... PRESS

5. COPILOT’S PFD AHRS2 Softkey .......................................................................................... PRESS

6. PFD Displays ................................. CONFIRM “BOTH ON AHRS 1” message clears on both PFDs

SYNTHETIC VISION

If SVS displays information inconsistent with G1000 primary flight instrumentation:

On the PFD:

1. PFD softkey ............................................................................................................................ PRESS

2. SYN VIS softkey ..................................................................................................................... PRESS

3. SYN TERR key ...................................................................................................................... PRESS

4. SVS is removed from both PFD displays .............................................................................. VERIFY

Use G1000 primary displays for navigation and aircraft control.

If G1000 operation in display backup mode is required:

Select display backup mode on the G1000 system. When display backup mode is selected, the

MFD will initially present a non-SVS (blue sky over solid brown ground) display. SVS will be

presented on the backup display within 20 seconds if it was enabled on the PFD when display backup

was selected.

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

FAA APPROVED Page 67 of 137

TAWS AND GPWS

TAWS or GPWS CAUTION

When a TAWS or GPWS CAUTION occurs, take positive corrective action until the alert ceases. Stop

descending or initiate either a climb or a turn, or both as necessary, based on analysis of all available

instruments and information.

GPWS CAUTION advisories may also be generated when the aircraft’s flaps and landing gear are not

in the landing position at low altitudes at groundspeeds less than 157 knots. Ensure the aircraft’s

landing gear and flaps are in the desired configuration.

TAWS INHIBIT

The TAWS Forward Looking Terrain Avoidance (FLTA) and Premature Descent Alerts (PDA)

functions may be inhibited to stop alerting if desired. Refer to GARMIN G1000 Cockpit Reference

Guide for additional information.

To Inhibit TAWS:

1. Display the MAP – TAWS-A or MAP – TAWS-B page.

2. TAWS INH or INHIBIT Softkey .............................................................................................. PRESS

3. Verify a annunciation displays on both PFDs and in the lower right corner of the

MFD.

To Enable TAWS If Inhibited:

1. Display the MAP – TAWS-A or MAP – TAWS-B page.

2. TAWS INH or INHIBIT Softkey .............................................................................................. PRESS

3. Verify the annunciations are removed from both PFDs and the MFD.

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev. 1

Page 68 of 137 FAA APPROVED

GPWS INHIBIT (TAWS-A Only)

For airplanes equipped with TAWS-A, some GPWS functions may be inhibited to stop alerting if

desired. Refer to GARMIN G1000 Cockpit Reference Guide for additional information.

To Inhibit GPWS:

1. Display the MAP – TAWS A page

2. GPWS INH Softkey ................................................................................................................ PRESS

3. Verify a

annunciation displays on both PFDs and in the lower right corner of the

MFD.

To Enable GPWS if Inhibited:

1. Display the MAP – TAWS A page

2. GPWS INH Softkey ................................................................................................................ PRESS

3. Verify the annunciation is removed from both PFDs and the MFD.

NOTE

The GPWS INHIBIT feature will not inhibit altitude voice callouts or Glideslope/Glidepath

deviation alerting.

FLAP OVERRIDE (TAWS-A Only)

For airplanes equipped with TAWS-A, the GPWS flap configuration alerting function may be inhibited

to stop alerting if desired. Refer to GARMIN G1000 Cockpit Reference Guide for additional

information.

To Override Flap Altering:

1. Display the MAP – TAWS A page

2. FLAP OVR Softkey ................................................................................................................ PRESS

3. Verify a

annunciation displays on both PFDs and in the lower right corner of the

MFD.

To Enable Flap Alerting if Overridden:

1. Display the MAP – TAWS A page

2. FLAP OVR Softkey ................................................................................................................ PRESS

3. Verify the annunciation is removed from both PFDs and the MFD.

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

FAA APPROVED Page 69 of 137

GLIDESLOPE/GLIDEPATH DEVIATION INHIBIT (TAWS-A Only) or

For airplanes equipped with TAWS-A, the glideslope or glidepath deviation alerting function may be

inhibited to stop alerting if desired. Refer to GARMIN G1000 Cockpit Reference Guide for additional

information.

To Inhibit Glideslope or Glidepath Alerting:

1. Display the MAP – TAWS A page

2. GS INH or GP INH Softkey .................................................................................................... PRESS

3. Verify a

or a annunciation displays on both PFDs and in the lower right corner

of the MFD.

To Enable Glideslope or Glidepath Alerting if Inhibited:

1. Display the MAP – TAWS A page

2. GS INH or GP INH Softkey .................................................................................................... PRESS

3. Verify the or annunciation is removed from both PFDs and the MFD.

NOTE

The GS INH or GP INH softkeys are only available for selection below 1000’ radar altitude with

the landing gear DOWN and the aircraft sufficiently below the Glideslope or Glidepath to generate

a deviation alert.

TAWS N/A and TAWS FAIL

1. If the amber status annunciator is displayed on the PFDs and MFD, the system will

no longer provide TAWS alerting or display relative terrain and obstacle elevations. The crew

must maintain compliance with procedures that ensure minimum terrain and obstacle separation.

2. If the amber status annunciator is displayed on the PFDs and MFD, the system will

no longer provide TAWS alerting or display relative terrain and obstacle elevations. The crew

must maintain compliance with procedures that ensure minimum terrain and obstacle separation.

NOTE

The GPWS functions will continue to function if GPWS is available on a Class A TAWS system.

Forward Looking Terrain Awareness alerts and Premature Descent Alerts will be unavailable.

GPWS FAIL (TAWS-A only)

(Yellow on PFD and MFD)

If the amber status annunciator is displayed on the PFDs and MFD, the G1000 will no

longer provide GPWS alerting. The crew must maintain compliance with procedures that ensure

minimum terrain separation as well proper aircraft landing gear and flap configuration.

NOTE

Forward Looking Terrain Awareness alerts, Premature Descent Alerts, and Altitude Voice

Callouts will continue to function if TAWS is available.

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev. 1

Page 70 of 137 FAA APPROVED

This page intentionally left blank.

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

FAA APPROVED Page 71 of 137

Section 4 - Normal Procedures

Table of Contents

COM RADIO COMMUNICATIONS BEFORE STARTING ENGINES ........................... 73

PREFLIGHT INSPECTION ........................................................................................... 73

BEFORE ENGINE STARTING ..................................................................................... 75

BEFORE TAXI .............................................................................................................. 76

TAXI .............................................................................................................................. 76

BEFORE TAKEOFF (RUN-UP) .................................................................................... 77

BEFORE TAKEOFF (FINAL ITEMS) ............................................................................ 78

TAKEOFF ..................................................................................................................... 78

CRUISE WITHIN RVSM AIRSPACE ............................................................................ 78

CLIMB, CRUISE, AND DESCENT................................................................................ 79

ICING FLIGHT .............................................................................................................. 79

SHUTDOWN AND SECURING .................................................................................... 79

OTHER PROCEDURES ............................................................................................... 79

AUTOPILOT OPERATION ........................................................................................... 79

VERTICAL MODES ................................................................................................................................ 80

VERTICAL SPEED (VS) MODE .......................................................................................................... 80

FLIGHT LEVEL CHANGE (FLC) MODE ............................................................................................. 80

ALTITUDE HOLD (ALT) MODE, MANUAL CAPTURE ....................................................................... 80

VERTICAL NAVIGATION (VNAV) ....................................................................................................... 81

LATERAL MODES .................................................................................................................................. 82

HEADING MODE (HDG) ..................................................................................................................... 82

NAVIGATION (VOR) ............................................................................................................................ 82

NAVIGATION (GPS DIRECT TO) ....................................................................................................... 82

NAVIGATION (GPS OBS Mode) ......................................................................................................... 83

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev. 1

Page 72 of 137 FAA APPROVED

APPROACHES ....................................................................................................................................... 83

ILS ........................................................................................................................................................ 83

ILS GLIDE SLOPE INOPERATIVE ..................................................................................................... 85

RNAV (GPS) (LPV or LNAV/VNAV) .................................................................................................... 86

RNAV (GPS) (LNAV, LNAV + V) ......................................................................................................... 87

VOR APPROACH ................................................................................................................................ 89

BACK COURSE (BC) .......................................................................................................................... 91

GO AROUND (GA) ................................................................................................................................. 92

AUTOPILOT COUPLED GO AROUND (GA) (ESP Equipped Airplanes Only) ............................... 94

SYNTHETIC VISION ............................................................................................................................... 95

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

FAA APPROVED Page 73 of 137

COM RADIO COMMUNICATIONS BEFORE STARTING ENGINES

To obtain an ATC clearance before starting the engines:

1. BAT Switch (Master Switch) ......................................................................................................... ON

Use Pilot’s Audio Panel and Com 1 to Obtain ATC Clearance, then:

2. BAT Switch (Master Switch) ....................................................................................................... OFF

PREFLIGHT INSPECTION

The following procedure is in addition to the AFM PREFLIGHT INSPECTION procedure and required

only if the airplane is RVSM compliant and will be operated in an RVSM environment.

RIGHT AFT FUSELAGE

1. Right Side Fuselage Skin and Static Ports ...................................................................... CHECKED

2. Verify that the static port openings are smooth and round, and that there is no foreign material in

the static port openings. Visually inspect the fuselage skin in the RVSM critical region (defined

by markings in the vicinity of the static ports) to verify the absence of skin defects, physical

damage, or large gaps and steps in the skin surface caused by improperly seated access panels

or hatches. Refer to Figure 2 – Right side mirrors the Left.

LEFT AFT FUSELAGE

1. Left Side Fuselage Skin and Static Ports ......................................................................... CHECKED

2. Verify that the static port openings are smooth and round, and that there is no foreign material in

the static port openings. Visually inspect the fuselage skin in the RVSM critical region (defined

by markings in the vicinity of the static ports) to verify the absence of skin defects, physical

damage, or large gaps and steps in the skin surface caused by improperly seated access panels

or hatches. Refer to Figure 2.

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev. 1

Page 74 of 137 FAA APPROVED

12 INCHES

14 INCHES 10 INCHES

FWD

STATIC PORTS

Figure 2, RVSM Critical Region

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

FAA APPROVED Page 75 of 137

BEFORE ENGINE STARTING

These procedures should be conducted during the airplane’s AFM BEFORE ENGINE STARTING

checklist items, after the battery has been turned on and both AHRS have aligned.

NOTE

Autopilot preflight test will not begin until both AHRS have aligned. Autopilot Pre-Flight test

begins when the white PFT message is displayed on each PFD. Autopilot Pre-Flight test has

successfully completed when the white PFT message extinguishes and the autopilot disconnect

tone sounds.

CAUTION

A red PFT or AFCS annunciator indicates a malfunction within the autopilot system. The

autopilot, yaw damper, and electric elevator trim will be inoperative. The rudder boost may be

inoperative.

1. Automatic Autopilot Preflight Test .................................................................................. COMPLETE

a. Red AFCS Annunciator......................................... ILLUMINATED DURING AHRS ALIGNMENT

b. Red AFCS Annunciator.......................... EXTINGUISHES When Autopilot Preflight Test Begins

c. White PFT Annunciator .................................................................. ILLUMINATED (~ 5 Seconds)

d. White PFT Annunciator ........................................ EXTINGUISHES when preflight test complete

e. Autopilot Disconnect Tone ............................................................................................. SOUNDS

These procedures should be conducted after completing the airplane’s AFM BEFORE ENGINE

STARTING checklist items.

1. Standby Battery Switch ............................................................................................................ PUSH

[ON] illuminated if Aircraft Battery is OFF,

[ARM] illuminated if Aircraft Battery is ON

2. Standby Attitude Gyro Fail Flag ............................................................................ NOT DISPLAYED

(listen for standby altimeter vibrator operation)

3. Database ................................ REVIEW FOR VALID OPERATING DATES AND CYCLE NUMBER

4. ENT key on the MFD Control Panel ........................................... PRESS to acknowledge the G1000

database information and activate the selected pilot profile.

5. AUX – Weight Planning ...................................................................................... INPUT LOAD DATA

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev. 1

Page 76 of 137 FAA APPROVED

BEFORE TAXI

These procedures should be conducted after completing the airplane’s AFM BEFORE TAXI

checklist items before brake release.

1. Standby Attitude Indicator ..................................................................................................... CHECK

a. PULL TO CAGE Knob ............................................................... PULL KNOB TO ERECT GYRO

b. Instrument Fail Flag ................................................. NOT DISPLAYED IN INSTRUMENT FACE

c. PFD1, PFD2, and Standby Attitude Indicator .......................... COMPARE and CROSS CHECK

2. Altimeters ................................................................................................. SET and CROSS CHECK

PFD 1, PFD 2, Standby Altimeter

If barometric pressure settings on the PFD1 and PFD2 altimeters differ by more than 0.03 in-Hg

(1 HPa), the baro display on both PFDs will be amber.

3. Radar Altimeter ......................................................................................................................... TEST

a. RA TEST Softkey .............................................................................................................. PRESS

(MFD AUX – SYSTEM STATUS Page)

b. RA TEST Annunciation ......................................................... ILLUMINATED on PFD1 and PFD2

c. RA Display Window .................................................... 50 feet radar altitude on PFD1 and PFD2

d. RA Ground Reference ...................................................... Correlates to 50 feet radar altitude on

PFD 1 and PFD 2 Altimeter displays

e. RA TEST Softkey ................................................................................... PRESS TO STOP TEST

f. PFD1 and PFD2 Radar Altimeter Displays ......................................................................... 0 Feet

g. RA Ground Reference ........................................................ Correlates to 0 feet radar altitude on

PFD 1 and PFD 2 Altimeter displays

h. RA TEST Annunciation ........................................................... REMOVED from PFD1 and PFD2

TAXI

The following procedure should be accomplished while the aircraft is taxiing and prior to

conducting the airplane’s AFM BEFORE TAKEOFF (RUNUP) checklist.

NOTE

Taxiing the aircraft before a valid GPS position has been acquired can cause attitude and/or

heading display to indicate a failed condition. Interference from GPS repeaters or magnetic

anomalies can cause an intermittent loss of attitude and heading displays while the aircraft in on

the ground.

1. Flight Instruments .................................................................................................................. CHECK

a. Compare attitude displayed by PFD1, PFD2, and Standby Attitude Indicator.

b. Verify the correct barometric pressure is set in the PFD1, PFD2, and Standby Altimeters.

c. Compare altitude displayed by PFD1, PFD2, and Standby Altimeter. Cross-check and verify

the altitudes agree within 75 feet.

d. Compare heading displayed by PFD1, PFD2, and Magnetic Compass.

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

FAA APPROVED Page 77 of 137

NOTE

The standby compass is erratic during windshield anti-ice and/or air conditioner operation.

Windshield anti-ice and air conditioner must be OFF for heading verification check.

e. Verify turn rate and slip indicator display appropriately.

BEFORE TAKEOFF (RUN-UP)

The following procedures supersede the same procedures in the airplane’s AFM BEFORE

TAKEOFF (RUNUP) checklist items.

1. Yaw Damp ............................................................................................................................. CHECK

a. Yaw Damp .............................................................................................................................. ON

b. Rudder Pedals .................................................................. CHECK FOR ADDED RESISTANCE

c. AP/YD DISC/TRIM INTRPT Button ................................................................................. PRESS

d. [RUD BOOST OFF] ............................................................................................. ILLUMINATES

e. Yaw Damp ........................................................................................ VERIFY DISCONNECTED

f. Repeat Items a through c for copilot’s side

g. Rudder Boost Switch ............................................................................................................ OFF

[RUD BOOST OFF] - ILLUMINATED

h. Rudder Boost Switch ...................................................................................... RUDDER BOOST

[RUD BOOST OFF] - EXTINGUISHED

2. Electric Elevator Trim Control ............................................................................................... CHECK

a. Pilot’s Control Wheel

• Left and Right Segments .............................................................. ACTUATE INDIVIDUALLY

(Verify there is no elevator tab wheel movement)

• Left and Right Segments ................................................................... ACTUATE TOGETHER

(Verify proper elevator tab wheel movement)

• With Elevator Tab Wheel in Motion,

AP/YD DISC / TRIM INTRPT Button ....................................................... PRESS AND HOLD

(verify elevator tab wheel motion stops)

• Manually Operate Elevator Tab Wheel ... VERIFY Pitch Trim Servo is Not Engaged

b. Copilot’s Control Wheel (If Installed)

• Left and Right Segments .............................................................. ACTUATE INDIVIDUALLY

(Verify there is no elevator tab wheel movement)

• Left and Right Segments ................................................................... ACTUATE TOGETHER

(Verify proper elevator tab wheel movement)

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev. 1

Page 78 of 137 FAA APPROVED

• With Elevator Tab Wheel in Motion,

AP/YD DISC / TRIM INTRPT Button ....................................................... PRESS AND HOLD

(verify elevator tab wheel motion stops)

• Pilot’s Trim Override ................................................................................................. CHECK

Activate the copilot’s Pitch Trim Switches nose down. Verify elevator tab wheel is

moving nose down. While the tab wheel is moving in the DN direction, activate the

pilot’s Pitch Trim Switches nose up. Verify the elevator tab wheel begins to move in the

UP direction. Release both pilot’s and copilot’s Pitch Trim switches and reset elevator

tab as required.

• Manually Operate Elevator Tab Wheel .................VERIFY Pitch Trim Servo is Not Engaged

c. Press GA Button on Left power lever ......... VERIFY FD Command Bars show Takeoff Attitude

‘TO / / TO’ is Annunciated in Mode Window on Both PFDs

BEFORE TAKEOFF (FINAL ITEMS)

The following procedures supersede the same procedures in the airplane’s AFM BEFORE

TAKEOFF (FINAL ITEMS) checklist items.

1. V1, V2, Minimum Takeoff Power .......................................................................... SET OR CONFIRM

These procedures should be conducted after completing the airplane’s AFM BEFORE TAKEOFF

(FINAL ITEMS) checklist.

2. PFD Attitude and Heading .................................................................................................. NORMAL

3. GPS Position .................................................................. VALID, ‘LOI’ NOT ANNUNCIATED on HSI

4. Standby Attitude Indicator .......................................... ERECT and NORMAL, Fail Flag not in view

TAKEOFF

This procedure should be conducted after brake release during the takeoff roll but before

becoming airborne.

1. Verify correspondence of PFD airspeed display and standby airspeed.

CRUISE WITHIN RVSM AIRSPACE

1. Altimeters ................................................................................................................ CROSS-CHECK

Maximum Difference: 200 Feet

Ensure Matched barometric pressure settings (29.92 inHg, STD BARO, or 1013 mb).

2. Altitude ........................................................................................................... RECORD as Required

Record pilot, copilot and standby altimeter readings upon entering RVSM airspace and as

required thereafter while in RVSM airspace for contingency situations.

3. Autopilot ALT Mode ............................................................ Maximum Altitude Deviation: +/- 65 Feet

During normal operations, the ADC coupled to the autopilot will supply altitude data to the active

transponder.

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

FAA APPROVED Page 79 of 137

WARNING

CLIMB, CRUISE, AND DESCENT

Disengage autopilot and yaw damper and re-trim the airplane in roll and/or yaw, if slight dutch roll

activity is observed. Re-engage the autopilot and yaw damper after trimming the airplane.

ICING FLIGHT

IN FLIGHT

DUE TO DISTORTION OF THE WING AIRFOIL, ICE ACCUMULATION ON THE LEADING EDGES

CAN CAUSE A SIGNIFICANT LOSS IN RATE OF CLIMB AND IN SPEED PERFORMANCE, AS

WELL AS INCREASES IN STALL SPEED. EVEN AFTER CYCLING THE DEICE BOOTS, THE

ICE ACCUMULATION REMAINING ON THE BOOTS AND UNPROTECTED AREAS OF THE

AIRPLANE CAN CAUSE LARGE PERFORMANCE LOSSES. FOR THE SAME REASON, THE

AURAL STALL WARNING SYSTEM MAY NOT BE ACCURATE AND SHOULD NOT BE RELIED

UPON. UNDER THESE CONDITIONS, ESP AND AUTOPILOT UNDERSPEED PROTECTION

MAY ALSO NOT BE ACCURATE AND SHOULD NOT BE RELIED UPON.

SHUTDOWN AND SECURING

These procedures should be conducted after the Battery and Generator Switches have been

turned OFF in the AFM Shutdown and Securing checklist, and before the flight crew vacates the

cockpit.

1. Standby Battery Switch .................................................................................................. PRESS OFF

a. Standby Battery Switch ...................................................... [ARMED] and [ON] EXTINGUISHED

b. Standby attitude fail flag ........................................................................................... DISPLAYED

c. Standby altimeter vibrator should not be heard (BAT – MASTER SWITCH OFF).

OTHER PROCEDURES

AUTOPILOT OPERATION

Autopilot/Flight Director mode annunciations on the PFDs displayed in green indicate active

autopilot/flight director modes. Annunciations displayed in white indicate armed autopilot/flight

director modes. Normal mode transitions will flash inverse video green/black for 10 seconds

before becoming steady green. Abnormal mode transitions will flash amber for 10 seconds

before the default mode is annunciated as the active mode.

Default autopilot/flight director modes are Pitch (PIT) and Roll (ROL) modes.

The XFR button on the mode control panel selects the navigation, attitude, and air data inputs the

autopilot / flight director uses. Pressing the XFR button transfers these selections to the

opposite side and causes the autopilot / flight director to drop selected lateral and vertical modes

and engage the default PIT and ROL modes. The pilot must re-select the desired modes.

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev. 1

Page 80 of 137 FAA APPROVED

VERTICAL MODES

VERTICAL SPEED (VS) MODE

1. Altitude Preselect ....................................................................................SET to Desired Altitude

2. Press VS Button ............................................. GREEN ‘VS’, White ‘ALTS’ annunciated on PFD

3. Vertical Speed Reference ........................................................... ADJUST using UP / DN Wheel

4. Green ‘ALT’ ..................................................................... VERIFY UPON ALTITUDE CAPTURE

FLIGHT LEVEL CHANGE (FLC) MODE

1. Altitude Preselect ....................................................................................SET to Desired Altitude

2. Press FLC Button ......................................... GREEN ‘FLC’, White ‘ALTS’ annunciated on PFD

3. AIRSPEED Reference ................................................................ ADJUST using UP / DN Wheel

4. Green ‘ALT’ ..................................................................... VERIFY UPON ALTITUDE CAPTURE

NOTE

If the altitude preselect is not changed before selecting FLC, the autopilot may re-capture

the current altitude immediately after entering FLC mode. Always ensure that the altitude

preselect is adjusted prior to selecting FLC.

Pressing the SPD button while in FLC Mode toggles the airspeed reference between

KIAS and Mach. FLC will automatically transition from Mach to KIAS reference during a

descent when the current Mach reference equals 250 KIAS. FLC will not automatically

transition from KIAS to a Mach reference during a climb.

ALTITUDE HOLD (ALT) MODE, MANUAL CAPTURE

1. At the desired altitude ................................................... PRESS ALT Button on Mode Controller

2. Green ‘ALT’ ........................................................................................................ VERIFY on PFD

If climbing or descending when the ALT button is pressed, the aircraft will overshoot the

reference altitude and then return to it. The amount of overshoot will depend on the

vertical speed when the ALT button is pressed.

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

FAA APPROVED Page 81 of 137

VERTICAL NAVIGATION (VNAV)

VNAV Descent

Vertical navigation will only function when the navigation source is GPS navigation. VNAV will

not function if the navigation source is VOR, Localizer, or ADF. The airplane’s heading must

be within 75° of the desired GPS course and within 10 NM cross track error in order for VNAV

to function.

VNAV functions only for enroute and terminal descents. Vertical navigation is not available

during climbs or descents between the final approach fix (FAF) and the missed approach

point (MAP). Refer to the G1000 Cockpit Reference Guide and Pilot’s Guide for additional

information.

1. Once clearance from ATC has been received ................................... RESET Altitude Preselect

to the vertical clearance limit.

2. VNV Button .............................................. PRESS within 5 minutes of the top of descent (TOD)

NOTE

If the VNV button is pressed more than 5 minutes before the TOD or the altitude preselect is

not reset to a lower altitude, VPTH will begin to flash inverse video, white/black, when the

aural alert ‘Vertical Track’ annunciation sounds.

Pressing the VNV button and/or resetting the altitude preselect to a lower altitude cancels the

flashing and the AFCS will capture and track the vertical profile.

If VNV button is not pressed, or the altitude preselect is not reset to a lower altitude, VPTH

stops flashing at the TOD and the airplane will remain in ALT mode and not descend.

ALTV will be the armed vertical mode during the descent if the altitude preselect is set to a

lower altitude than the VNAV reference altitude. This indicates the autopilot / flight director

will capture the VNAV altitude reference. ALTS will be the armed mode during the descent if

the altitude preselect is set at or above the VNAV reference altitude indicating that the

autopilot / flight director will capture the altitude preselect altitude reference.

Vertical DIRECT TO

To descend from the present position to a waypoint:

1. Altitude Preselect ............................................................................................................. RESET

2. VNV Button ...................................................................................................................... PRESS

3. Waypoint .......................................................................................... SELECT desired waypoint

4. VNV D Softkey (MFD Flight Plan Page) ................................................................... PRESS

5. Vertical DIRECT TO .................................................................................................. ACTIVATE

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev. 1

Page 82 of 137 FAA APPROVED

LATERAL MODES

HEADING MODE (HDG)

1. HDG Knob ....................................................... PUSH to synch heading bug to current heading

2. HDG BUTTON ......................................................................... PUSH , HDG mode annunciated

3. HDG Knob ........................................................... Rotate to set heading bug to desired heading

NAVIGATION (VOR)

1. Navigation Source. ................................... SELECT VOR1 or VOR2 using CDI softkey on PFD

2. Course Pointer ........................................................................................... SET using CRS knob

3. Intercept Heading ................................................................. ESTABLISH in HDG or ROL mode

4. Mode Controller ....................................................................... PRESS NAV on mode controller

5. VOR will be annunciated in WHITE if the mode is armed or in GREEN if the VOR is the active

lateral mode.

NOTE

If the Course Deviation Indicator (CDI) is greater than one dot from center, the autopilot

will arm the NAV mode and indicate VOR in white on the PFD. The pilot must ensure that

the current heading will result in a capture of the selected course. If the CDI is one dot or

less from center, the autopilot will enter the capture mode when the NAV button is

pressed and annunciate VOR in green on the PFD.

NAVIGATION (GPS DIRECT TO)

1. Navigation Source .............................................. SELECT GPS Using the CDI Softkey on PFD

2. Select Waypoint .................................................. PRESS the D button on the PFDs or GCU

From the DIRECT TO page, activate DIRECT TO a waypoint.

3. Mode Controller ...................................................................... SELECT NAV on mode controller

GPS will be annunciated in GREEN on the PFDs

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

FAA APPROVED Page 83 of 137

NAVIGATION (GPS OBS Mode)

1. Navigation Source ................................................ SELECT GPS using the CDI softkey on PFD

2. Select Waypoint .................................................. PRESS the D button on the PFDs or GCU

From the DIRECT TO page, activate DIRECT TO a waypoint.

3. OBS Softkey ............................................................................... ON PFD, PRESS OBS softkey

4. Course Pointer ........................................................................................... SET using CRS knob

5. Intercept Heading ................................................................. ESTABLISH in HDG or ROL mode

6. Mode Controller ...................................................................... SELECT NAV on mode controller

7. GPS will be annunciated in WHITE if the mode is armed or in GREEN if the GPS is the active

lateral mode.

NOTE

If the Course Deviation Indicator (CDI) is greater than one dot from center, the autopilot

will arm the NAV mode and indicate GPS in white on the PFD. The pilot must ensure that

the current heading will result in a capture of the selected course. If the CDI is one dot or

less from center, the autopilot will enter the capture mode when the NAV button is

pressed and annunciate GPS in green on the PFD.

APPROACHES

The G1000 is capable of performing many tasks for the pilot to reduce pilot workload

during the approach and landing phases of flight. The G1000 system references the

Flight Plan to predict the pilot’s intended actions. Time permitting, the pilot should keep

the Flight Plan updated with the destination airport and the instrument approach to be

flown. This will keep the G1000 from performing tasks associated with the approach

procedures entered in the flight plan if the approach plan changes.

ILS

1. Load the approach into the Active Flight Plan .................................... VERIFY the G1000 tunes

the proper ILS frequency

2. Approach Minimums ................................................ SET on TMR/REF page (if not already set)

If Flying Vectors-To-Final:

3. Airplane on Vectors-To-Final

a. Mode Control Panel .................................................. PRESS HDG to fly ATC radar vectors

b. PROC button on PFDs or MFD .......................SELECT ‘ACTIVATE VECTORS-TO-FINAL’

NOTE

SUSP may annunciate on the HSI when Vectors-To-Final is selected. The flight plan will

automatically un-suspend when the airplane intercepts and turns inbound on the final

approach course. When automatic flight plan waypoint sequencing resumes, SUSP will

extinguish.

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev. 1

Page 84 of 137 FAA APPROVED

c. HSI CDI ......................................................... VERIFY CDI automatically changes to LOC

Course pointer slews to the front course

d. Pathways ......................................................................................................... AS DESIRED

e. Mode Control Panel ............................................. PRESS APR, Verify LOC and GS armed

If Flying Full Approach Including Transition:

3. Airplane cleared to an initial approach fix

a. ACTIVATE THE APPROACH from the PROC page,

ACTIVATE a DIRECT TO ( D ) the IAF

b. HSI CDI ...................................................................................... SELECT GPS Nav Source

c. Mode Control Panel .................................................................... PRESS NAV (GPS Mode)

d. Mode Control Panel ............................................. PRESS APR, Verify LOC and GS armed

NOTE

The airplane will navigate in GPS mode throughout the intermediate portion of the approach

procedure. When the airplane is inbound towards the final approach course, the CDI will

automatically switch from GPS navigation to LOC navigation.

e. Pathways ......................................................................................................... AS DESIRED

f. VERIFY ................................................................. Course pointer slews to the front course

4. Established inbound on Final Approach Course ........................ SET Missed Approach Altitude

In Altitude Preselect

5. Airspeed ................................................. MAINTAIN 120 KIAS OR GREATER (Recommended)

6. VERIFY .................................................................. Airplane Captures and Tracks LOC and GS

7. At Decision Altitude (DA),

a. A/P Y/D DISC TRIM INTRPT Switch ........................................................................ PRESS

Continue visually for a normal landing

b. GO AROUND button

(on left power lever) ............................................... PRESS, Execute Go Around Procedure

NOTE

For TAWS-A equipped aircraft: When executing a missed approach from an ILS approach,

occasional Glideslope Deviation cautions may be received while establishing the missed

approach climb, even if the aircraft is not below the ILS glideslope. This is caused by

transitioning through ILS glideslope side lobe signals. If the Glideslope Deviation alert

annunciates during the initial portion of the go-around, continue to execute the go-around

procedure and fly the appropriate missed approach procedure.

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

FAA APPROVED Page 85 of 137

ILS GLIDE SLOPE INOPERATIVE

1. Load the approach into the Active Flight Plan .................................... VERIFY the G1000 tunes

the proper ILS frequency

2. Approach Minimums ................................................ SET on TMR/REF page (if not already set)

If Flying Vectors-To-Final:

3. Airplane on Vectors-To-Final

a. Mode Control Panel .................................................. PRESS HDG to fly ATC radar vectors

b. PROC button on PFDs or GCU ......................SELECT ‘ACTIVATE VECTORS-TO-FINAL’

NOTE

SUSP may annunciate on the HSI when Vectors-To-Final is selected. The flight plan will

automatically un-suspend when the airplane intercepts and turns inbound on the final

approach course. When automatic flight plan waypoint sequencing resumes, SUSP will

extinguish.

c. HSI CDI ......................................................... VERIFY CDI automatically changes to LOC

Course pointer slews to the front course

d. Pathways ......................................................................................................... AS DESIRED

e. Mode Control Panel ........................................................... PRESS NAV, verify LOC armed

Pressing the NAV button will arm the autopilot / flight director to capture Localizer and

prevent Glideslope from arming or capturing if the glideslope is inoperative or out of

service.

If Flying Full Approach Including Transition:

3. Airplane cleared to an initial approach fix

a. ACTIVATE THE APPROACH from the PROC page,

ACTIVATE a DIRECT TO ( D ) the IAF

b. HSI CDI ...................................................................................... SELECT GPS Nav Source

c. Mode Control Panel .................................................................... PRESS NAV (GPS Mode)

NOTE

The airplane will navigate in GPS mode throughout the intermediate portion of the

approach procedure. When the airplane is inbound towards the final approach course,

the CDI will automatically switch from GPS navigation to LOC navigation.

d. Pathways ......................................................................................................... AS DESIRED

e. VERIFY ................................................................. Course pointer slews to the front course

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev. 1

Page 86 of 137 FAA APPROVED

4. Established inbound on Final Approach Course (FAF Active Waypoint)

a. VERIFY ................................................ Course Pointer is set to the final approach course

b. VERIFY ............................................................................. LOC is annunciated on the HSI

5. Airspeed ................................................. MAINTAIN 120 KIAS OR GREATER (Recommended)

6. At the FAF ..................................Use desired vertical mode to fly the approach’s vertical profile

Use Altitude Preselect to level off at intermediate altitudes and at the MDA

NOTE

It is recommended to descend at 1000 ft/min or less. Descending at a higher rate or

reaching MDA too far before the Visual Descent Point (VDP) could cause TAWS or GPWS

alerts. If a TAWS or GPWS WARNING is issued, immediately follow the TAWS OR GPWS

WARNING procedure in the EMERGENCY PROCEDURES Section of this AFMS.

7. After Leveling at MDA ................................ SET Missed Approach Altitude In Altitude Preselect

RNAV (GPS) (LPV or LNAV/VNAV)

1. Load the approach into the Active Flight Plan.

2. Approach Minimums ...............................................SET ON TMR/REF page (if not already set)

If Flying Vectors-To-Final:

3. Airplane on Vectors-To-Final

a. Mode Control Panel .................................................. PRESS HDG to fly ATC radar vectors

b. PROC button on PFDs or MFD .......................SELECT ‘ACTIVATE VECTORS-TO-FINAL’

NOTE

SUSP may annunciate on the HSI when Vectors-To-Final is selected. The flight plan will

automatically un-suspend when the airplane intercepts and turns inbound on the final

approach course. When automatic flight plan waypoint sequencing resumes, SUSP will

extinguish.

c. VERIFY ................................................................. Course pointer slews to the front course

d. Pathways ......................................................................................................... AS DESIRED

e. Mode Control Panel ............................................. PRESS APR, Verify GPS and GP armed

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

FAA APPROVED Page 87 of 137

If Flying Full Approach Including Transition:

3. Airplane cleared to an initial approach fix

a. ACTIVATE THE APPROACH from the PROC page,

ACTIVATE a DIRECT TO ( D ) the IAF

b. HSI CDI ...................................................................................... SELECT GPS Nav Source

c. Mode Control Panel .............................. PRESS APR, Verify GPS mode active, GP armed

d. Pathways ......................................................................................................... AS DESIRED

e. VERIFY ................................................................. Course pointer slews to the front course

4. Established inbound on Final Approach Course

a. VERIFY ................................................ Course Pointer is set to the final approach course

b. VERIFY ............................................................ LPV or L/VNAV is annunciated on the HSI

c. VERIFY ............................................................................................ GP Indicator Displays

d. VERIFY ............................................................................... SUSP is not displayed on HSI

e. SET ........................................................... Missed Approach Altitude In Altitude Preselect

5. Airspeed ................................................. MAINTAIN 120 KIAS OR GREATER (Recommended)

6. VERIFY ...................................................... Airplane Captures and Tracks GPS Course and GP

7. At Decision Altitude (DA):

a. A/P Y/D DISC TRIM INTRPT Switch ........................................................................ PRESS

Continue visually for a normal landing

b. GO AROUND button

(on left power lever) ............................................... PRESS, Execute Go Around Procedure

RNAV (GPS) (LNAV, LNAV + V)

1. Load the approach into the Active Flight Plan.

2. Approach Minimums ...............................................SET ON TMR/REF page (if not already set)

If Flying Vectors-To-Final:

3. Airplane on Vectors-To-Final

a. Mode Control Panel .................................................. PRESS HDG to fly ATC radar vectors

b. PROC button on PFDs or MFD .......................SELECT ‘ACTIVATE VECTORS-TO-FINAL’

NOTE

SUSP may annunciate on the HSI when Vectors-To-Final is selected. The flight plan will

automatically un-suspend when the airplane intercepts and turns inbound on the final

approach course. When automatic flight plan waypoint sequencing resumes, SUSP will

extinguish.

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev. 1

Page 88 of 137 FAA APPROVED

c. VERIFY ........................................................... Course pointer slews to the inbound course

d. Pathways ......................................................................................................... AS DESIRED

e. Mode Controller ..................................................................................... PRESS APR Button

GPS will be the active lateral mode,

GP will ARM if the procedure provides a glidepath

If Flying Full Approach Including Transition:

3. Airplane cleared to an initial approach fix

a. ACTIVATE THE APPROACH from the PROC page,

ACTIVATE a DIRECT TO ( D ) the IAF

b. HSI CDI ...................................................................................... SELECT GPS Nav Source

c. Mode Controller ..................................................................................... PRESS APR Button

GPS will be the active lateral mode,

GP will ARM if the procedure provides a glidepath

d. Pathways ......................................................................................................... AS DESIRED

4. Established inbound on Final Approach Course (FAF Active Waypoint)

a. VERIFY ................................................ Course Pointer is set to the final approach course

b. VERIFY ........................................................ LNAV+V or LNAV is annunciated on the HSI

c. VERIFY ...........................................................GP Deviation Scale Displays (if applicable)

d. PRESELECT .................................................................. Minimum Descent Altitude (MDA)

5. Airspeed ................................................. MAINTAIN 120 KIAS OR GREATER (Recommended)

NOTE

Some RNAV (GPS) approaches provide a vertical descent angle as an aid in flying a stabilized

approach. These approaches are NOT considered Approaches with Vertical Guidance (APV).

Approaches that are annunciated on the HSI as LNAV or LNAV+V are considered Non-precision

Approaches (NPA) and are flown to an MDA even though vertical glidepath (GP) information may

be provided.

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

FAA APPROVED Page 89 of 137

6. At the FAF ........................................................................ Descend via GP if LNAV+V approach

Use desired vertical mode to fly the approach’s vertical profile if LNAV approach

Use Altitude Preselect to level off at intermediate altitudes and at the MDA

NOTE

It is recommended to descend at 1000 ft/min or less. Descending at a higher rate or

reaching MDA too far before the Visual Descent Point (VDP) could cause TAWS or GPWS

alerts. If a TAWS or GPWS WARNING is issued, immediately follow the TAWS OR GPWS

WARNING procedure in the EMERGENCY PROCEDURES Section of this AFMS.

CAUTION

The autopilot/flight director will not capture ALT if descending in GP mode.

7. Level airplane in ALT mode at MDA .............................. PRESS NAV button 200 ft above MDA

If airplane is descending via GP, GP will extinguish and PIT mode will be active and

airplane will capture MDA.

8. AFTER LEVELING AT MDA ...................... SET Missed Approach Altitude In Altitude Preselect

VOR APPROACH

1. Load the approach into the Active Flight Plan .................................... VERIFY the G1000 tunes

the proper VOR frequency

2. Approach Minimums ...............................................SET ON TMR/REF page (if not already set)

If Flying Vectors-To-Final:

3. Airplane on Vectors-To-Final

a. Mode Control Panel .................................................. PRESS HDG to fly ATC radar vectors

b. PROC button on PFDs or GCU ......................SELECT ‘ACTIVATE VECTORS-TO-FINAL’

NOTE

SUSP may annunciate on the HSI when Vectors-To-Final is selected. The flight plan will

automatically un-suspend when the airplane intercepts and turns inbound on the final

approach course. When automatic flight plan waypoint sequencing resumes, SUSP will

extinguish.

c. HSI CDI ....................................................................... PRESS until VOR navigation source

To be used for the approach displays

d. Course Pointer ..................................................... Set to inbound course (if not already set)

e. Mode Control Panel ......................................................... PRESS APR, verify VAPP armed

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev. 1

Page 90 of 137 FAA APPROVED

If Flying Full Approach Including Transition:

3. Airplane cleared to an initial approach fix:

a. ACTIVATE THE APPROACH from the PROC page,

ACTIVATE a DIRECT TO ( D ) the IAF

b. HSI CDI .......................................................................................................... SELECT GPS

c. Mode Control Panel .................................................................... PRESS NAV (GPS mode)

d. Pathways ......................................................................................................... AS DESIRED

e. When Established Inbound to the FAF ................................................. PRESS CDI softkey

until VOR navigation source to be used for the approach displays

(Autopilot / Flight Director Mode will automatically change to ROL)

f. Course Pointer ..................................................... Set to inbound course (if not already set)

g. Mode Control Panel .......................................... PRESS APR, verify VAPP active or armed

4. Established Inbound on Final Approach Course:

a. VERIFY .......................................................... Course Pointer is set to the inbound course

b. VERIFY ............................................................................. VOR is annunciated on the HSI

NOTE

If the Course Deviation Indicator (CDI) is greater than one dot from center, the autopilot

will arm the VAPP mode and indicate VAPP in white on the PFD. The pilot must ensure

that the current heading will result in a capture of the selected course. If the CDI is one

dot or less from center, the autopilot will enter the capture mode when the APR button is

pressed and annunciate VAPP in green on the PFD.

5. Airspeed ................................................. MAINTAIN 120 KIAS OR GREATER (Recommended)

6. At the FAF ..................................Use desired vertical mode to fly the approach’s vertical profile

Use Altitude Preselect to level off at intermediate altitudes and at the MDA

NOTE

It is recommended to descend at 1000 ft/min or less. Descending at a higher rate or

reaching MDA too far before the Visual Descent Point (VDP) could cause TAWS or GPWS

alerts. If a TAWS or GPWS WARNING is issued, immediately follow the TAWS OR GPWS

WARNING procedure in the EMERGENCY PROCEDURES Section of this AFMS.

7. AFTER LEVELING AT MDA ...................... SET Missed Approach Altitude In Altitude Preselect

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

FAA APPROVED Page 91 of 137

BACK COURSE (BC)

1. Load the approach into the Active Flight Plan .................................... VERIFY the G1000 tunes

the proper LOC frequency

2. Approach Minimums ...............................................SET ON TMR/REF page (if not already set)

If Flying Vectors-To-Final:

3. Airplane on Vectors-To-Final

a. Mode Control Panel .......................................................... PRESS HDG to fly radar vectors

b. PROC button on PFDs or MFD .......................SELECT ‘ACTIVATE VECTORS-TO-FINAL’

NOTE

SUSP may annunciate on the HSI when Vectors-To-Final is selected. The flight plan will

automatically un-suspend when the airplane intercepts and turns inbound on the final

approach course. When automatic flight plan waypoint sequencing resumes, SUSP will

extinguish.

c. HSI CDI ...................................................................... PRESS until LOC Navigation Source

to be used for the Approach Displays

d. VERIFY ............................................................. Course Pointer is Set to the Front Course

e. Mode Control Panel ............................................................................................ PRESS BC

Verify BC mode is armed

IF Flying Full Approach Including Transition:

3. Airplane cleared to an initial approach fix:

a. ACTIVATE THE APPROACH from the PROC page,

ACTIVATE a DIRECT TO ( D ) the IAF

b. HSI CDI .......................................................................................................... SELECT GPS

c. Mode Control Panel .................................................................... PRESS NAV (GPS Mode)

d. Pathways ......................................................................................................... AS DESIRED

e. When Established Inbound to the FAF ................................................. PRESS CDI softkey

until LOC navigation source to be used for the approach displays

(Autopilot / Flight Director Mode will automatically change to ROL)

f. VERIFY ............................................................. Course Pointer is set to the Front Course

g. Mode Control Panel ............................................................................................ PRESS BC

Verify BC mode is armed or active

4. Established inbound on Final Approach Course:

a. VERIFY ................................................................ Course Pointer is set to the front course

b. VERIFY ............................................................................. LOC is annunciated on the HSI

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev. 1

Page 92 of 137 FAA APPROVED

NOTE

If the Course Deviation Indicator (CDI) is greater than one dot from center, the autopilot

will arm the BC mode and indicate BC in white on the PFD. The pilot must ensure that

the current heading will result in a capture of the selected course. If the CDI is one dot or

less from center, the autopilot will enter the capture mode when the APR button is

pressed and annunciate BC in green on the PFD.

5. Airspeed ................................................. MAINTAIN 120 KIAS OR GREATER (Recommended)

6. At the FAF ..................................Use desired vertical mode to fly the approach’s vertical profile

Use Altitude Preselect to level off at intermediate altitudes and at the MDA

NOTE

It is recommended to descend at 1000 ft/min or less. Descending at a higher rate or

reaching MDA too far before the Visual Descent Point (VDP) could cause TAWS or GPWS

alerts. If a TAWS or GPWS WARNING is issued, immediately follow the TAWS OR GPWS

WARNING procedure in the EMERGENCY PROCEDURES Section of this AFMS.

7. AFTER LEVELING AT MDA ...................... SET Missed Approach Altitude In Altitude Preselect

GO AROUND (GA)

1. Control Wheel ................................................................................................... GRASP FIRMLY

2. GO AROUND button (left power lever) .................................. PUSH – Verify GA / / GA on PFD

in lateral and vertical mode fields

3. Rotate to Go Around attitude ........................................... Follow Flight Director Command Bars

4. Balked Landing ........................................................................................................... EXECUTE

5. Mode Control Panel ....................... PRESS NAV to Fly Published Missed Approach Procedure

PRESS HDG to Fly ATC Assigned Missed Approach Heading

NOTE

The pilot is responsible for initial missed approach guidance in accordance with published

procedure. The G1000 may not provide correct guidance until the aircraft is established

on a defined leg of the procedure.

6. Altitude Preselect .................................................................. VERIFY Set to appropriate altitude

At An Appropriate Safe Altitude:

7. Mode Control Panel ................................................................................ AP to Engage Autopilot

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

FAA APPROVED Page 93 of 137

NOTE

When the GA button is pressed, the Flight Director command bars will command 8° nose

up and wings level, the HSI nav source automatically switches to GPS, the flight plan

sequences to the first published missed approach leg, and automatic leg sequencing

resumes. The autopilot will disconnect if the ESP option is not installed. If ESP is

installed, the autopilot will not disconnect with a GA button press. The AFCS will fly the

published missed approach procedure once the aircraft is established on a segment of

the missed approach procedure, the autopilot is engaged, and NAV mode is selected.

The flight plan can only contain one approach procedure at a time. If the pilot attempts

to load another instrument approach at this time, the airplane will depart from the missed

approach procedure and turn directly towards the first waypoint in the new approach.

Do not attempt to load or activate a new approach while flying the missed approach

procedure until ready to fly the new approach.

Recommended Procedures Following a Missed Approach:

1. To repeat the instrument approach procedure currently loaded into the flight plan:

a. Activate Vectors-To-Final if being radar vectored by ATC,

b. If flying the entire instrument approach procedure, activate a DIRECT TO the

desired initial waypoint. Follow the appropriate procedure for the instrument

approach being flown.

2. To proceed to an alternate airport (This procedure will allow the pilot to enter the route to the

alternate before leaving the missed approach holding fix):

a. Highlight the first enroute waypoint in the flight plan

b. Begin entering waypoints in the desired route order. Do not attempt to load a new

approach at this time.

c. CLR all waypoints after the last waypoint in the route to the alternate and the

currently loaded instrument approach header.

d. When ready to proceed to the alternate, highlight the first enroute waypoint in the

route to the alternate airport. ACTIVATE a DIRECT TO that waypoint.

e. When enroute to the alternate, a new instrument approach may be loaded into the

flight plan.

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev. 1

Page 94 of 137 FAA APPROVED

AUTOPILOT COUPLED GO AROUND (GA) (ESP Equipped Airplanes Only)

1. Control Wheel ................................................................................................... GRASP FIRMLY

2. GO AROUND button (left power lever) .................................. PUSH – Verify GA / / GA on PFD

in lateral and vertical mode fields, autopilot will not disengage.

3. Autopilot ............................. VERIFY airplane pitches up following flight director command bars

4. Balked Landing ........................................................................................................... EXECUTE

5. Mode Control Panel ....................... PRESS NAV to Fly Published Missed Approach Procedure

PRESS HDG to Fly ATC Assigned Missed Approach Heading

NOTE

The pilot is responsible for initial missed approach guidance in accordance with published

procedure. The G1000 may not provide correct guidance until the airplane is

established on a defined leg of the procedure.

6. Altitude Preselect .................................................................. VERIFY Set to appropriate altitude

NOTE

In ESP equipped airplanes, when the GA button is pressed the Flight Director command

bars will command 8° nose up and wings level, the HSI nav source automatically

switches to GPS, the flight plan sequences to the first published missed approach leg,

and automatic leg sequencing resumes. The autopilot will remain engaged, and fly the

published missed approach procedure once the airplane is established on a segment of

the missed approach procedure and NAV mode is selected.

The flight plan can only contain one approach procedure at a time. If the pilot attempts

to load another instrument approach at this time, the airplane will depart from the missed

approach procedure and turn directly towards the first waypoint in the new approach.

Do not attempt to load or activate a new approach while flying the missed approach

procedure until ready to fly the new approach.

Recommended Procedures Following a Missed Approach:

1. To repeat the instrument approach procedure currently loaded into the flight plan:

a. Activate Vectors-To-Final if being radar vectored by ATC,

b. If flying the entire instrument approach procedure, activate a DIRECT TO the

desired initial waypoint. Follow the appropriate procedure for the instrument

approach being flown.

2. To proceed to an alternate airport (This procedure will allow the pilot to enter the route to the

alternate before leaving the missed approach holding fix):

a. Highlight the first enroute waypoint in the flight plan

b. Begin entering waypoints in the desired route order. Do not attempt to load a new

approach at this time.

c. CLR all waypoints after the last waypoint in the route to the alternate and the

currently loaded instrument approach header.

d. When ready to proceed to the alternate, highlight the first enroute waypoint in the

route to the alternate airport. ACTIVATE a DIRECT TO that waypoint.

e. When enroute to the alternate, a new instrument approach may be loaded into the

flight plan.

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

FAA APPROVED Page 95 of 137

SYNTHETIC VISION

Use of Pathways

If Synthetic Terrain is displayed on the PFD, the Pathways may be used to assist the pilot’s awareness of

the programmed lateral and vertical navigation path. The following sections describe the basic use of

the Pathways in various flight segments. For more detailed information, consult the G1000 Pilot’s Guide.

Departure

Prior to departure, load and activate the desired flight plan into the G1000 FMS, set the initial altitude on

the G1000 altitude selector and select GPS on the HSI display just as you would without the SVS system.

The programmed flight path will be displayed as a series of magenta boxes along the path at the flight

plan altitude subject to the following conditions;

• If the first segment of the flight plan is a heading to altitude leg, the Pathway will not be displayed

for that segment. The first Pathway segment displayed will be the first GPS course leg.

• The Pathway must be within the SVS field of view of 30 degrees left and 35 degrees right. If the

programmed path is outside that field of view, the Pathways will not be visible on the display until

the aircraft has turned toward the course.

• The Pathway will be displayed at either the altitude selected on the G1000 selector OR the

altitude published for the procedure (e.g. SID) WHICHEVER IS HIGHER.

After departure, the primary aircraft control must be by reference to the primary aircraft instruments. The

SVS and Pathway displays should be used to aid in awareness of the terrain and programmed flight path.

Prior to intercepting the programmed course, the Pathway will be displayed as a series of magenta

“boxes” with pointers at each corner that point in the direction of the programmed course. The Pathway

boxes will not be displayed on portions of the course line that would lead the pilot to intercept the course

in the wrong direction.

As the aircraft approaches the center of the programmed course and altitude, the number of Pathway

boxes will decrease to a minimum of four.

Enroute

When enroute, the Pathway will be displayed along the lateral path defined by the flight plan, at the

altitude selected on the G1000 altitude selector.

Flight plan changes in altitude that require a climb will be indicated by the Pathway being displayed as a

level path at the altitude entered for the current flight plan leg. Because the G1000 system does not

have information available to it about aircraft performance, climb profiles are not displayed by the

Pathway.

If the programmed flight plan includes one or more defined VNAV descent segments, the descent path(s)

will be displayed by the Pathway as prompted by the G1000 FMS.

If the flight plan includes a significant change in course at a waypoint, the Pathway boxes toward the

currently active waypoint will be magenta in color. The boxes defining the next flight plan segment may

be visible, but will be displayed in a white color.

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev. 1

Page 96 of 137 FAA APPROVED

Climb NOT displayed by Pathway

VPTH displayed by Pathway

TOD

Leg 1

Leg 2

Leg 3

Enroute Pathway Altitude Display

Approach

During an approach transition with the GPS CDI active, the Pathway will be displayed along the lateral

path defined by the flight plan, at the altitude selected on the G1000 altitude selector. Pathway will be

displayed at least up to the Final Approach Fix on all instrument approach procedures.

For ILS, LNAV/VNAV, LNAV+V and LPV approaches, the Pathway will display the lateral and vertical

descent segments from the glideslope or glidepath intercept altitude, down to the Decision Altitude. For

all other non-precision approaches, Pathway will not display beyond the Final Approach Fix until the

missed approach segment become active.

In all cases, the pilot must still ensure that the aircraft complies with the requirements of the published

instrument approach procedure.

Missed approach

When the missed approach is selected on the G1000 FMS, the Pathway to the Missed Approach Holding

Point will be displayed just as described for the departure segment.

The pilot must assure that the aircraft path will, at all times, comply with the requirements of the published

missed approach procedure.

If the initial missed approach leg is heading-to-altitude or a leg defined by other than a GPS course, the

Pathway will not be displayed for that segment.

If the course to the Missed Approach Holding Point is out of the SVS field of view during the initial missed

approach climb, the Pathway will not be visible on the PFD until the aircraft is turned toward the course.

The Pathway will be displayed at the published missed approach altitude OR the altitude set on the

G1000 altitude selector WHICHEVER IS HIGHER. If the G1000 altitude selector is set to MDA on the

final approach segment and not reset during the initial missed approach, the Pathway will still be

displayed at the published missed approach altitude.

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

FAA APPROVED Page 97 of 137

FAF MAP ALTITUDE

MAHP

Pathway NOT displayed on heading

and turn segments

Heading

Missed Approach Pathway Display

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev. 1

Page 98 of 137 FAA APPROVED

This page intentionally left blank.

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

FAA APPROVED Page 99 of 137

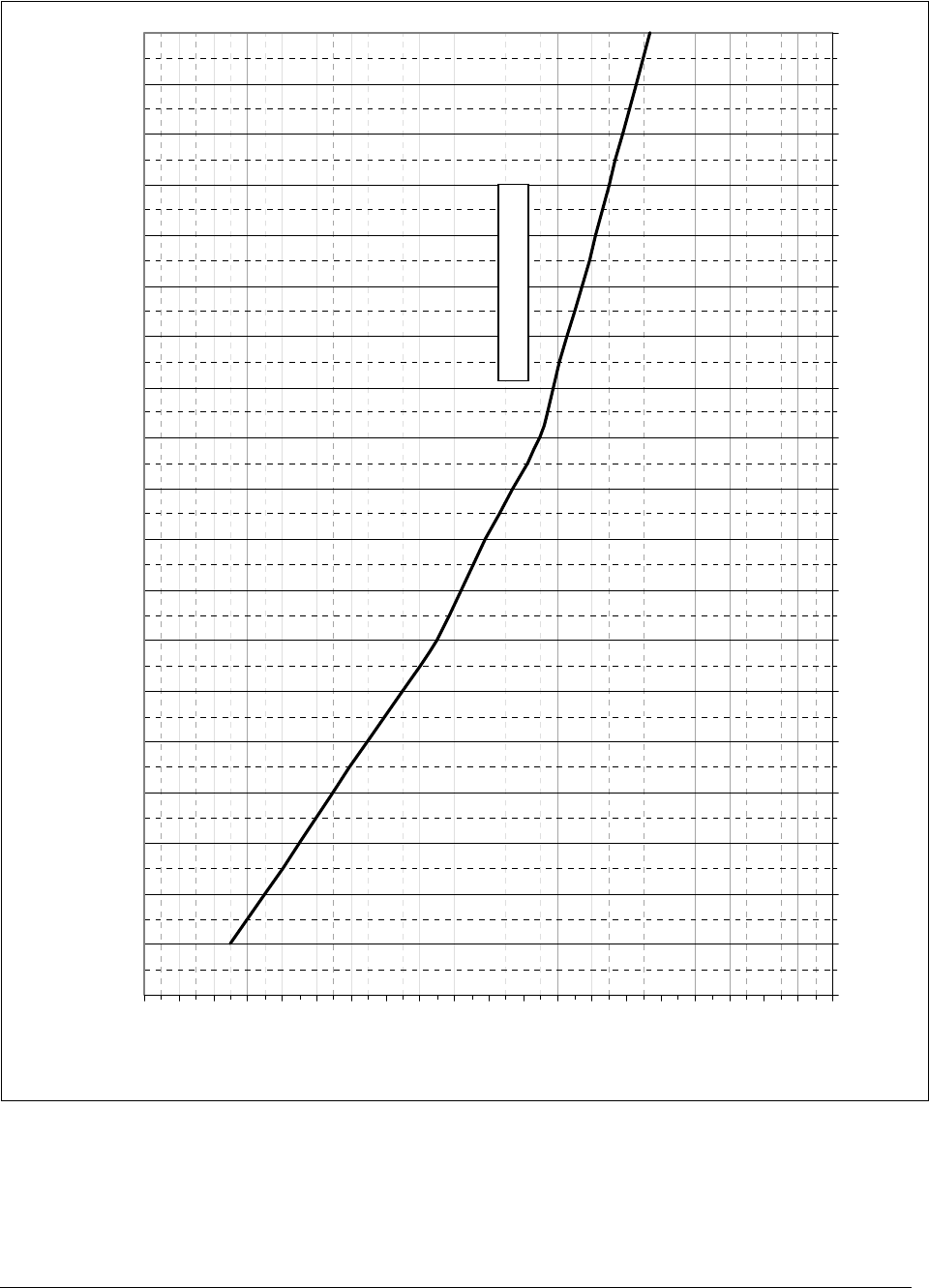

LTIMETER CORRECTION - NORMAL SYSTEM

FLAPS UP

NOTE Above 18,000 ft, Corrected Altitude = Indicated Altitude

-150

-140

-130

-120

-110

-100

-90

-80

-70

-60

-50

-40

-30

-20

-10

80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270

Indicated Airspeed - Kt

Altimeter Correction - Ft

(Add to Indicated Altitude)

Valid for Altitudes

Below 18,000 ft

Section 5 – Performance

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev. 1

Page 100 of 137 FAA APPROVED

ALTIMETER CORRECTION - STANDBY ALTIMETER

FLAPS UP

-150

-140

-130

-120

-110

-100

-90

-80

-70

-60

-50

-40

-30

-20

-10

80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270

Indicated Airspeed - Kt

Altimeter Correction - Ft

(Add to Indicated Altitude)

Valid at All Altitudes

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

FAA APPROVED Page 101 of 137

Section 6 - Weight and Balance

No Change. Refer to basic Aircraft Flight Manual or appropriate supplement.

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev. 1

Page 102 of 137

This page intentionally left blank.

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

Page 103 of 137

Section 7 - Systems Description

Table of Contents

GENERAL ................................................................................................................... 104

G1000 INTEGRATED AVIONICS ............................................................................... 104

SYSTEM OVERVIEW ........................................................................................................................... 104

INSTRUMENT PANEL .......................................................................................................................... 104

FLIGHT CONTROLS .................................................................................................. 113

AFCS, AUTOPILOT AND FLIGHT DIRECTOR ................................................................................... 113

ELECTRIC ELEVATOR TRIM .............................................................................................................. 117

ELECTRONIC STABILITY & PROTECTION (ESP) ............................................................................ 118

FLIGHT INSTRUMENTS ............................................................................................ 122

G1000 FLIGHT INSTRUMENTS ........................................................................................................... 122

STANDBY FLIGHT INSTRUMENTS .................................................................................................... 122

ENGINE INSTRUMENTATION ................................................................................... 123

PROPELLER SYNCHROPHASER ...................................................................................................... 124

ELECTRICAL SYSTEM .............................................................................................. 124

INVERTERS .......................................................................................................................................... 124

POWER DISTRIBUTION ...................................................................................................................... 124

STANDBY BATTERY POWER SUPPLY ............................................................................................. 128

LIGHTING SYSTEMS ................................................................................................. 129

COCKPIT .............................................................................................................................................. 129

PITOT AND STATIC SYSTEM ................................................................................... 129

PITOT .................................................................................................................................................... 129

STATIC .................................................................................................................................................. 130

GROUND COMMUNICATIONS .................................................................................. 130

SYNTHETIC VISION ................................................................................................... 131

TAWS AND GPWS ..................................................................................................... 135

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev. 1

Page 104 of 137

GENERAL

This section supplements the Systems Description chapter in the aircraft’s original Pilot’s Operating

Handbook and FAA Approved Airplane Flight Manual. This section will follow the format and layout of

the chapter in the original manual. Only topics changed by the installation of the G1000 integrated

avionics system will be addressed in this supplement.

The G1000 system is an integrated system that presents flight instrumentation, navigation,

communication, weather avoidance, engine instrumentation, and supplemental flight information to the

pilot for enhanced situational awareness through large-format displays. The G1000 also incorporates an

automatic flight control system that includes autopilot and flight director functions, as well as an optional

Electronic Stability & Protection (ESP) system. Refer to the GARMIN Pilot’s Guide and Cockpit

Reference Guide, P/N 190-01343-00 and 190-01344-00 Rev. A or later FAA accepted revision for

detailed descriptions of the GARMIN G1000 system including its components, detailed descriptions of

functions, and operating instructions.

G1000 INTEGRATED AVIONICS

SYSTEM OVERVIEW

The main components of the G1000 Integrated Avionics system consists of 14 Line Replaceable Units

(LRU)s. Seven of those LRUs are mounted in the cockpit and interface the pilot to the G1000 system.

There are two Primary Flight Displays (PFDs) that display primary flight information to the pilot, including

attitude, airspeed, altitude, heading, vertical speed, navigation information, system information, and pilot

situational awareness information. In the center of the cockpit, a 15 inch Multi-Function Display (MFD)

displays engine gauges, flight plan data, various map displays, and access to aviation and weather

information. Information access and data entry through the MFD is via the GCU 477 MFD controller

mounted in the pedestal between the pilot and copilot seats.

Communications are interfaced through the PFDs and two audio panels mounted outside each PFD.

Radio tuning controlled through both PFDs and the GCU 477 controller. Audio levels for the Com and

Nav radios, ADF, intercom, and XM music are controlled by the two audio panels.

The G1000 incorporates a fully digital integrated autopilot and flight director. Pilot interface to the AFCS

is through the GMC 710 Autopilot Mode controller mounted in the center of the cockpit just below the

airplane’s glareshield.

In addition to dual Primary Flight Displays, the system incorporates dual Air Data Computers (GDC), Dual

AHRS (GRS), and Dual Integrated Avionics (GIA) units for system redundancy. Each GIA contains a

VHF Com radio, a VHF Nav radio, Glide Slope receiver, Marker Beacon receiver, and a SBAS

augmented GPS receiver.

Finally, the G1000 system includes weather radar and satellite downlinked weather information for

weather avoidance and situational awareness.

INSTRUMENT PANEL

The G1000 Instrument Panel consists of two 10 inch LCD Primary Flight Displays, one 15 inch LCD

Multi-Function Display, two audio panels, autopilot / flight director mode control panel, an MFD controller,

and three 2 ¼ inch standby instruments. The ADF control head was relocated from the radio stack

location on the instrument panel to the pedestal.

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

Page 105 of 137

ALT

2992

1000

300

100

150

200

250

1013

Figure 3, Instrument Panel

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev. 1

Page 106 of 137

Figure 4, Pilot's Control Wheel

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

Page 107 of 137

Figure 5, Copilot's Control Wheel With Trim Switches

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev. 1

Page 108 of 137

Figure 6, Copilot's Control Wheel Without Trim Switches

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

Page 109 of 137

STANDBY

INSTRUMENT

LIGHTS

WINDSHIELD WIPER

OFF

PARK SLOW

FAST

PILOT

PFD

BRT

OFF

DO NOT OPERATE ON

DRY GLASS

MFD CLOCKS

COPILOT

PFD

MASTER

PANEL

LIGHTS

OFF

BRT

OFF

BRT

OFF

BRT BRT BRT

OFF

BRT

OFF

BRTBRTBRT

OVHD PED

& SUBPANEL

SIDE

PANEL

OFF OFF

PILOT

MIC

NORMAL

OXYGEN

MASK

COPILOT

MIC

NORMAL

OXYGEN

MASK

CABIN

LIGHTS

BRIGHT

OFF

FURN

COFFEE

OFF

NO SMK

FSB

PILOT

OVHD

FLOOD

OFF

INSTR

INDIRECT

OFF

COPILOT

OVHD

FLOOD

OFF

Figure 7, Overhead Panel

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev. 1

Page 110 of 137

1 5

5 1

25 5 5

25 55 5

PRIMARY POWER

AVIONICS

MASTER

AVIONICS

RCDR

VOICE

AUDIO

CABIN

WARN

AURAL

AUX BAT

STBY

MFD

FAN

TPL FED

BUS

FMS

CTL

COMM

NO 2 NO 2

COMM

NO 1

AUDIO

NO 1

XPDR

NO 1

PFD 1

AHRS 1

GIA 1

MFD

RADAR

LEFT

RIGHT

AUDIO XPDR

NO 2

CTL

MODE

AFCS

SERVOS

PFD 2

AHRS 2

ADC 2

GIA 2

PFD 1

AHRS 1

GIA 1

ADC 1

SECONDARY POWER

LINK

DATA

ATT

STBY

TRFC

ALTM

STBY

FANS

PFD/GIA

57.5 5 5 55

5 5 5 55

20 57.5 5 55

7.5 5 55

515 5

5 5 5 57.5

5 5 0.5 7.55

7.55

7.5

TPL FED

L GEN

R GEN

TPL FED

WARNING

FLIGHT

ENVIRONMENTAL

LIGHTS

ENGINES

ELECTRICAL

FURNISHING

WEATHER

WARN POWER LEFT

LANDING

GEAR ANN

BLEED

IND IND

FLAP FLAP

MOTOR IND &

CONTROL

BLEED

AIR

CONTROL

LEFT TEMP PRESS

RIGHT

CONTROL

FEATHER

AUTO LEFT LEFT

WARN RIGHT RIGHT

READING

OVHD &

CONSOLE

INSTR

INDIRECT

CABIN

LIGHTS

STBY ENG

LEFT

RIGHT

CIGAR

LIGHTER PILOT WSHLD BUS

TIE

POWER

BUS

TIE

POWER

TIE

BUS

GEN IND

RIGHT

LEFT

RESET

WARN

RIGHT

AIR

LEFT

OIL

WARN

RIGHT

PRESS

7.5 5

START

CONTROL

IGNITOR

POWER

LEFT LEFT

RIGHT RIGHT

STALL

OIL

PRESS

FIRE

DET

LEFT

METER

RIGHT

DETR

CHIP

NO SMK

FSB &

SYNC

PROP

TEST

GOV

PROP

SUB PNL

MN ENG

DEICE

LEFT

SURF

ICE

ANTI

WIPER

WSHLD

CONTROL

POWER

ANTI-ICE

PROP

0.5

RIGHT

DEICE

CONTROL

ANTI-ICE

DEICE

BRAKE

FUEL

LEFT

RIGHT

VENT

MASTER

CONTROL

OXY

TPL FED

L GEN

R GEN

TPL FED

TORQUE

LEFT

RIGHT

GEA

CONTROL

WIFI

IRIDIUM

AVIONICS

L GEN

BUS

AVIONICS

R GEN

BUS

AVIONICS

IRIDIUM

HEATER

MFD

& STBY

PLT PFD

SIDE PNL

CP PFD

CLKS

INSTR

AVIONICS

GSD

AIR

TEMP

OUTSIDE

LEFT

RIGHT

COND

SIGNAL

FDR

215 2

SMS ADF

DMERADIO

ALTM

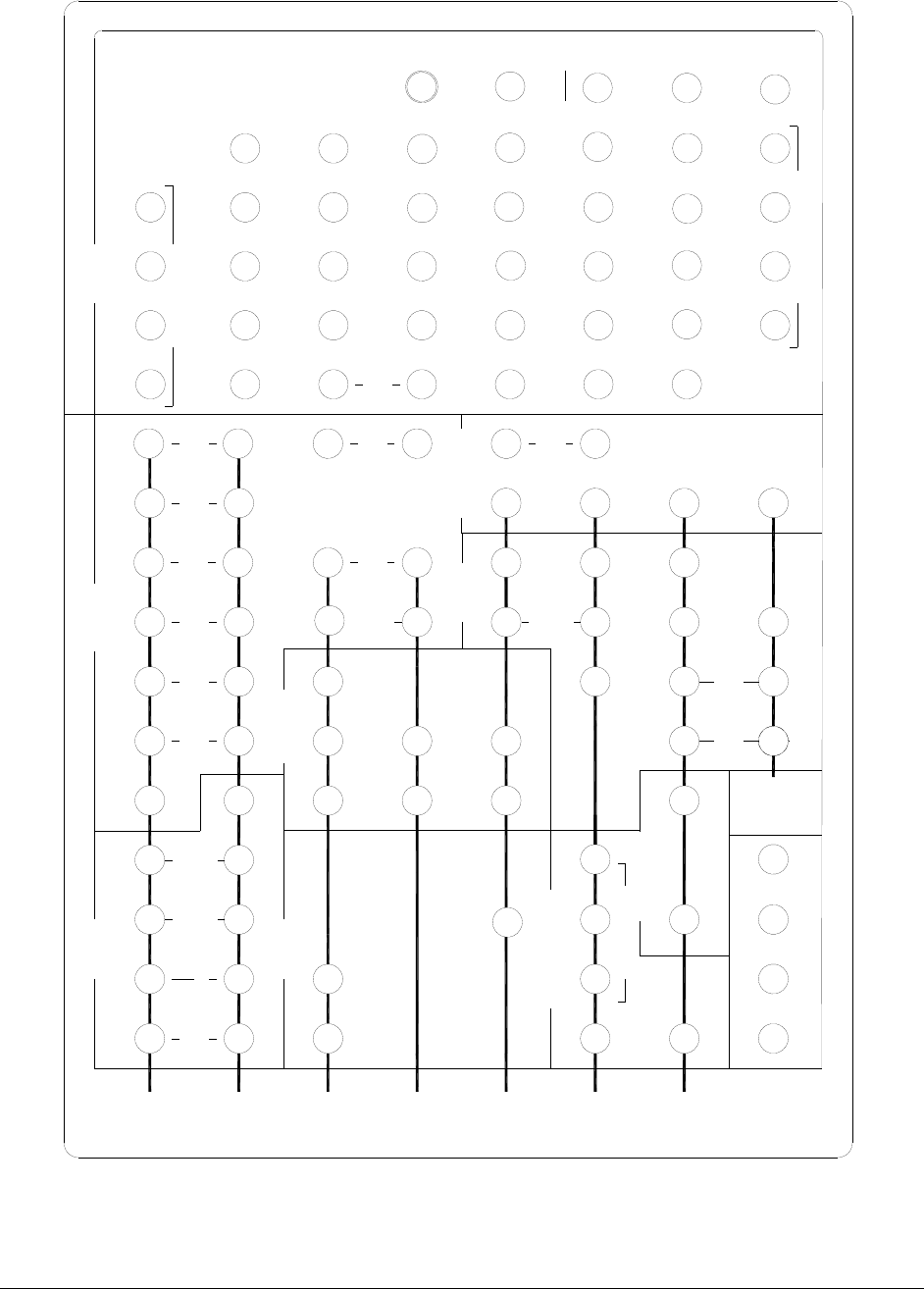

Figure 8, Right Side Circuit Breaker Panel

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

Page 111 of 137

Figure 9, Pedestal Configuration

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev. 1

Page 112 of 137

Figure 10, GFC 700 System Interface

GDU 1040A

PFD2

No. 2

GIA 63W

AFCS Mode

Logic

Flight Director

Servo Mgt

GDU 1500

Multi-Function Display

GSA 80

Roll Servo

No. 1

GIA 63W

AFCS Mode

Logic

Flight Director

Servo Mgt

GMC 710

AFCS Mode Controller

GDU 1040A

PFD1

GSA 80

High-Speed

Pitch Trim

Servo

GSA 80

Pitch Servo

GSA 9000

Yaw Servo

Copilot’s

Control Wheel

Pilot’s

Control Wheel

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

Page 113 of 137

FLIGHT CONTROLS

AFCS, AUTOPILOT, FLIGHT DIRECTOR AND RUDDER BOOST

The GFC 700 is a digital Automatic Flight Control System (AFCS), fully integrated within the G1000

System avionics architecture. The GFC 700 is a three-axis autopilot and flight director system which

provides the pilot with the following features:

Autopilot (AP) — Autopilot operation occurs within the pitch, roll, and pitch trim servos. It also provides

servo monitoring and automatic flight control in response to flight director steering commands, AHRS

attitude and rate information, and airspeed.

Flight Director (FD) - Two flight directors, each operating independently within their respective GIA and

referred to as pilot-side and copilot-side. Commands for the selected flight director are displayed on both

PFDs.

The flight director provides:

• Command Bars showing pitch/roll guidance

• Vertical/lateral mode selection and processing

• Autopilot communication

Yaw Damper (YD) — The yaw servo is self-monitoring and provides Dutch Roll damping and turn

coordination in response to yaw rate, roll angle, vertical acceleration, and airspeed.

Rudder Boost — The GFC 700 incorporates the rudder boost capabilities. The rudder boost is enabled

by setting the pedestal mounted control switch, placarded RUDDER BOOST – OFF, to the RUDDER

BOOST position. The system senses bleed air pressure from both engines. When the difference in

these pressures exceeds a preset level, the yaw servo is activated and deflects the rudder to assist pilot

effort in maintaining directional control. The servo contribution is proportional to the bleed air pressure

differential. Trimming of the rudder must be accomplished by the pilot. The rudder boost system is

disabled if the RUDDER BOOST switch is OFF, or when one of the bleed air switches is in the PNEU &

ENVIR OFF position. Rudder boost is interrupted when the AP/YD DISC/TRIM INTRPT button is

pressed.

An amber caution annunciator, [RUD BOOST OFF], is provided on the caution/advisory/status

annunciator panel as illustrated below to indicate that the rudder boost system is unavailable due to the

rudder boost control switch being in the OFF position, the AP/YD DISC/TRIM INTRPT has been pressed

on either yoke, or if a fault in the rudder boost system has rendered it inoperative.

CAUTION /ADVISORY PANEL ILLUSTRATION

**RUD BOOST

OFF RUD BOOST

OFF

**FA-226 and after, or airplanes with Raytheon Aircraft Kit P/N 130-9600 installed.

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev. 1

Page 114 of 137

Electric Pitch Trim — The pitch trim servo provides manual electric pitch trim capability when the autopilot

is not engaged.

Pilot commands to the AFCS are entered through the GMC 710 Autopilot Mode Controller mounted in the

center of the cockpit under the airplane’s glareshield. The GMC 710 controller also controls the heading

bug, navigation course selector on each PFD, and the altitude preselect.

Other components of the autopilot include four servos that also contain autopilot processor, control

wheel-mounted elevator trim switches (copilot’s side optional), control wheel-mounted autopilot/yaw

damper disconnect and trim interrupt switch (AP/YD DISC/TRIM INTRPT), control wheel-mounted CWS

(Control Wheel Steering) switch, and a Go-Around switch mounted in the left power lever knob.

The following conditions will cause the autopilot to disconnect:

• Electrical power failure, including pulling the AFCS SERVOS circuit breaker

• Electrical power failure to the GMC 710 Autopilot Mode Controller, including pulling the MODE CTL

circuit breaker

• Internal autopilot system failure

• Malfunction of either AHRS (two fully functional AHRS are required for the autopilot to function)

• Failure of the on-side PFD

• Depressing the red A/P Y/D DISC/TRIM INTRPT button on the pilot’s or copilot’s (if installed)

control wheel

• Actuating the left section of the manual electric trim split switch, pilot’s and copilot’s control wheel

• Pushing the AP button on the autopilot mode controller when the autopilot is engaged

• Pushing the GO AROUND button on the left power lever (non-ESP equipped airplanes)

NOTE

Pressing and holding the CWS (control wheel steering) switch on the left grip of the pilot’s control

wheel will disconnect the autopilot servos from the airplane flight controls as long as the CWS

switch is depressed. Upon release of the CWS switch, the system will synchronize to the existing

pitch and roll modes selected. Review the Cockpit Reference Guide for more information.

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

Page 115 of 137

The following tables list the available AFCS vertical and lateral modes with their corresponding controls

and annunciations. The mode reference is displayed next to the active mode annunciation for Altitude

Hold, Vertical Speed, and Flight Level Change modes. The NOSE UP/DN Wheel can be used to change

the vertical mode reference while operating under Pitch Hold, Vertical Speed, or Flight Level Change

Mode. Increments of change and acceptable ranges of values for each of these references using the

NOSE UP/DN Wheel are also listed in the table.

AFCS VERTICAL MODES

Vertical Mode Control Annunciation Reference Range Reference Change

Increment

Pitch Hold (default) PIT 25O Nose up

20O Nose Down 0.5O

Level *** LVL 0 fpm

Selected Altitude

Capture * ALTS

Altitude Hold ALT Key ALT nnnnn FT

Vertical Speed VS Key VS nnnn FPM -4000 to +4000 fpm 100 fpm

Flight Level

Change, IAS Hold FLC Key

FLC nnn KT 100 to 263 kt 1 kt

Flight Level

Change, Mach

Hold FLC M 0.nn M 0.25 to 0.58 M0.01

Vertical Path

Tracking (VNAV) VNV Key VPTH

VNV Target

Altitude Capture ** ALTV

Glidepath APR Key GP

Glideslope GS

Takeoff (on

ground) GA Switch TO

Go Around (in air) GA

* ALTS arms automatically when PIT, VS, FLC, TO, or GA is active, and under VPTH when the Selected

Altitude is to be captured instead of the VNV Target Altitude.

** ALTV arms automatically under VPTH when the VNV Target Altitude is to be captured instead of the

Selected Altitude.

*** ESP equipped aircraft only. LVL mode is entered from an automatic engagement of the autopilot due

to the aircraft remaining outside of the normal flight envelope for an extended amount of time.

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev. 1

Page 116 of 137

AFCS LATERAL MODES

Lateral Mode Control Annunciation Maximum Roll

Command Limit

Roll Mode (default) ROL

25° Left Bank

25° Right Bank

Level ** LVL 0° Roll

Low Bank BANK Key * 15° Left Bank

15° Right Bank

Heading Select HDG Key HDG 25° Left Bank

25° Right Bank

Navigation, GPS Arm/Capture/Track

NAV Key

GPS 30° Left Bank

30° Right Bank

Navigation, VOR Enroute Arm/Capture/Track VOR 25° Left Bank

25° Right Bank

Navigation, LOC Arm/Capture/Track (No

Glideslope) LOC 25° Left Bank

25° Right Bank

Backcourse Arm/Capture/Track BC Key BC 25° Left Bank

25° Right Bank

Approach, GPS Arm/Capture/Track (Glidepath

Mode Automatically Armed, if available)

APR Key

GPS 30° Left Bank

30° Right Bank

Approach, VOR Arm/Capture/Track VAPP 25° Left Bank

25° Right Bank

Approach, ILS Arm/Capture/Track (Glideslope

Mode Automatically Armed) LOC 25° Left Bank

25° Right Bank

Takeoff (on ground) GA Switch TO Wings Level

Go Around (in air) GA Wings Level

* No annunciation appears in the AFCS Status Box. The commandable bank angle range is indicated by

a green band along the Roll Scale of the Attitude Indicator.

** ESP equipped aircraft only. LVL mode is entered from an automatic engagement of the autopilot due

to the aircraft remaining outside of the normal flight envelope for an extended amount of time.

The CWS Button does not change lateral references for Heading Select, Navigation, Backcourse, or

Approach modes. The autopilot guides the aircraft back to the Selected Heading/Course upon release of

the CWS Button.

The autopilot may be engaged within the following ranges:

Pitch 50° nose up to 50° nose down

Roll ±75°

If the above pitch or roll limits are exceeded while the autopilot is engaged, the autopilot will disconnect.

Engaging the autopilot outside of its command limits, but within its engagement limits, will cause the

autopilot to return the aircraft within command limits. The autopilot is capable of commanding the aircraft

in the following ranges:

Pitch 25° nose up to 20° nose down

Roll ±25°, or ±30° while using a GPS lateral mode

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

Page 117 of 137

The Flight Director is not designed to perform unusual attitude recoveries from attitudes outside the

following range:

Pitch 50° nose up to 50° nose down

Roll ±75°

If the above pitch or roll limits are exceeded with the flight director displayed on either PFD or the MFD,

the flight director will be removed (de-cluttered) from the display until the aircraft is within display limits.

ELECTRIC ELEVATOR TRIM

Electric elevator trim is standard with the G1000 system installation. The electric elevator trim can be

operated manually by the pilot using the pitch trim switches on the control wheel, or, automatically by the

autopilot. Electric Elevator trim switches are optional on the copilot’s control wheel. If pitch trim

switches are installed on the copilot’s control wheel, the pilot’s pitch trim inputs override those made by

the copilot

The ON/OFF toggle switch on the pedestal has been removed. Electric elevator trim will function if the

AFCS SERVOS circuit breaker (right side circuit breaker panel) is set and the autopilot has satisfactorily

completed a preflight test.

Pitch trim rocker switches on the pilot’s control wheel manually control the electric elevator trim system.

NOSE DN at the top of the rocker switch, when depressed causes the elevator pitch trim servo to move

the trim tab in the upward direction resulting in the nose of the airplane pitching downward. The control

column will move in the forward direction and the pitch trim wheel will move forward in the nose down

direction. Depressing NOSE UP at the bottom of the rocker switch results in the opposite of the previous

motions with the airplane nose pitching up.

Runaway or malfunctioning trim can be interrupted by pressing and holding the red A/P Y/D DISC TRIM

INTRPT switch on either control wheel. Pulling the AFCS SERVOS circuit breaker on the right side

circuit breaker panel will disable the electric elevator trim so it will not move when the TRIM INTRPT

switch is released.

Figure 11, Electric Trim Switches, Pilot's Control Wheel

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev. 1

Page 118 of 137

ELECTRONIC STABILITY & PROTECTION (ESP)

Electronic Stability and Protection (ESP) is an optional function on a GFC-700-equipped airplane that

uses the autopilot servos to assist the pilot in maintaining the airplane in a safe flight condition within the

aircraft’s normal pitch, roll and airspeed envelopes. Additionally, ESP uses the aircraft’s existing lift

computer and stall warning system to protect against stalling the aircraft.

Electronic Stability and Protection is invoked when the pilot allows the airplane to enter one or more

conditions beyond normal flight defined below:

• Pitch attitude beyond normal flight (+22°, -17°)

• Roll attitude beyond normal flight (45°)

• High airspeed beyond normal flight (Above 263 KIAS or .58M)

The conditions that are required for ESP to be available are:

• Pitch and Roll servos available

• Autopilot not engaged

• The Global Positioning System (GPS) altitude above ground (based on TAWS terrain data base)

is more than 200 feet

• Aircraft is within the autopilot engagement envelope (+/-50° in pitch and +/-75° in roll)

Protection for excessive Pitch, Roll, and Airspeed is provided when the limit thresholds are first exceeded,

which engages the appropriate servo in ESP mode at a nominal torque level to bring the airplane back

within the normal flight envelope. If the airplane deviates further from the normal flight envelope, the

servo torque will increase until the maximum torque level is reached in an attempt to return the aircraft

into the normal flight envelope. Once the aircraft returns to within the normal flight envelope, ESP will

deactivate the autopilot servos.

When the normal flight envelope thresholds have been exceeded for more than approximately 10

seconds, ESP Autolevel Mode is activated. Autolevel Mode engages the AFCS to bring the airplane

back into straight and level flight based on 0° roll angle and 0 fpm vertical speed. An aural “ENGAGING

AUTOPILOT” alert sounds and the Flight Director mode annunciation will indicate LVL for the pitch and

roll modes.

Anytime an ESP mode is active, the pilot can interrupt ESP by using either the Control Wheel Steering

(CWS) or Autopilot Disconnect (AP DISC) switch, or simply override ESP by overpowering the AFCS

servos. The pilot may also disable ESP by accessing the Multi-Function Display (MFD) AUX – SYSTEM

SETUP 2 page on the MFD and manually disabling ESP. Once the flight has ended and power is

removed from the G1000 system, ESP will default to “Enabled” on the next power-up.

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

Page 119 of 137

PFD display symbology implemented for ESP is illustrated in Figures 12 thru 14. All other indications on

the GDU displayed in the examples are to provide position reference for the ESP system symbology.

The values indicated are not representative of a condition required to activate ESP.

• When the GDU receives information from the GIA indicating that ESP is not armed, the GDU will

not display ESP indications.

• When the GDU receives information from the GIA indicating that ESP is armed, the GDU will

display the ESP roll limit indices.

• The engagement and disengagement attitude limits are displayed with double hash marks on the

roll indicator depending on the aircraft attitude and whether or not ESP is active in roll. When

ESP is inactive (roll attitude within nominal limits) only the engagement limit indications are

displayed in order to reduce clutter on the roll indicator. See Figure 12 for an example of the

ESP engagement limit indications.

Figure 12 – Nominal Roll Attitude ESP Engagement Limit Indications

Engagement Limit

Indication at 45°

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev. 1

Page 120 of 137

Once ESP becomes active in roll, the engagement limit indication that was crossed (either left or right) will

move to the lower disengagement limit indication over a period of 1 second. The opposite roll limit

remains at the engagement limit. Figure 13 shows the engagement limit indication just prior to ESP

activation (left image) and just after ESP activation (right image 1 second after ESP activation).

Figure 13 – Engagement Limit Indications Upon ESP Activation

If an attitude becomes extreme enough for the upper disengagement limit indication to be shown it will be

drawn in a similar fashion to the engagement limit indication. See Figure 14 for an example of the ESP

roll indication when ESP is active with an extreme roll attitude. In this case, the left roll limit is the

engagement limit and the two right roll ESP limits are the lower and upper disengagement limit

indications.

Figure 14 – Minimum and Maximum Roll Attitude ESP Disengagement Limit Indications

Engagement Limit Indication still at

45° just prior to activation

Lower Disengagement Limit

Indication depicted at 30° after ESP

activation

Upper Disengagement

Limit Indication

depicted at 75°.

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

Page 121 of 137

The ESP roll limit indications are not de-cluttered when the aircraft is in an extreme attitude. ESP roll

limit indications are not shown when ESP is not configured for a given installation, ESP is not available as

determined by the active GIA, or the autopilot is engaged.

Autopilot Underspeed Protection

For aircraft that have ESP installed, the AFCS is able to detect and protect against underspeed situations

while the autopilot is engaged.

When the AFCS is engaged in a non-altitude critical mode (LVL, PIT, FLC, VS, VNV) and airspeed falls

below the minimum threshold of 100 KIAS, the AFCS automatically enters minimum airspeed mode. A

MINSPD annunciation appears above the airspeed tape, and the AFCS causes the airplane to pitch down

to maintain 100 KIAS. An aural “AIRSPEED” alert will sound once when entering non-altitude critical

Underspeed Protection.

If the AFCS is engaged in an altitude critical mode ( ALT, GS, GP and GA) and the aural stall warning is

played for more than 1 second, the AFCS will maintain a wings-level roll attitude and pitch the aircraft

down at ~1kt/sec to maintain an airspeed that will cause the aural stall warning to stop playing, plus 2

KIAS. Also, an aural “AIRSPEED” alert will sound every 5 seconds.

All Underspeed Protection modes are exited automatically when there is enough aircraft performance to

follow the originally selected flight director mode and reference.

Coupled Go-Around

ESP equipped aircraft are capable of flying fully coupled go-around maneuvers. Pressing the GA button

on the left power lever does not disengage the autopilot. Instead, the AP will attempt to capture and

track the flight director command bars. If insufficient aircraft performance is available to follow the

commands, the AFCS will enter altitude-critical Underspeed Protection mode after approximately 10

seconds. GA mode is the only ESP-associated mode that can be engaged below 200’ AGL GPS

altitude.

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev. 1

Page 122 of 137

FLIGHT INSTRUMENTS

G1000 FLIGHT INSTRUMENTS

Flight instruments are an integrated part of the G1000 system. For system descriptions, operating

instructions, and abnormal failure indication refer to the Cockpit Reference and Pilot’s Guides.

STANDBY FLIGHT INSTRUMENTS

There are three 2 ¼ inch standby instruments that are arranged vertically

directly to the right of the pilot’s Primary Flight Display:

• Standby attitude indicator

• Standby altimeter

• Standby airspeed indicator

The standby attitude indicator located at the top of the stack is normally

electrical power, there is a standby battery that will power the standby

attitude indicator for at least 30 minutes.

The second instrument in the stack is a standby altimeter. It is a

mechanical instrument that requires no electrical power to display

altitude. Electrical power is used for internal instrument lighting, and for

an internal vibrator that is used to minimize indicator pointer sticking.

The vibrator is normally powered from the Triple Fed Bus. In the event

of total loss of normal aircraft electrical power, the vibrator and internal

lighting are powered by the standby battery. The standby altimeter

uses the copilot’s static system for its source of static air pressure.

The bottom instrument is a mechanical airspeed indicator. It is a

mechanical instrument that requires no electrical power to operate.

Electrical power is used for internal lighting. In normal operation, power

for standby instrument lighting comes from the Triple Fed Bus. In the

event of a total loss of aircraft electrical power, the standby battery will

power the instrument’s internal lighting. The standby airspeed indicator

uses the copilot’s static system for its source of static air pressure, and

the copilot’s pitot system for its source of impact air pressure.

Figure 15, Standby Flight Instruments

ALT

2992

1000

300 60

100

150

200

250

1013

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

Page 123 of 137

ENGINE INSTRUMENTATION

Engine instruments, located in a window on the left side of the MFD, are grouped according to their

function. The G1000 engine gauges are constructed and arranged to emulate the mechanical gauges

they replaced. At the top, the ITT (Interstage Turbine Temperature) indicators and torquemeters are

used to set take-off power. Climb and cruise power are established using the torquemeters and

propeller tachometers while observing ITT limits. Gas generator (N1) operation is monitored by the gas

generator tachometers. The lower grouping consists of the fuel flow indicators and the oil

pressure/temperature indicators.

The engine transducers send their signals to the GARMIN GEAs (Engine and Airframe LRU) which

process the signals and allow the engine parameters to be displayed on the MFD. There are two GEAs;

one for each engine. Operating on 28vdc power, both GEAs receive power from the Triple Fed Bus.

The GEAs are protected by circuit breakers located on the left side circuit breaker panel labeled GEA.

The ITT indicator gives a reading of engine gas temperature between the compressor turbine and the

power turbines. A digital indication combined with the pointer gives a resolution of 1OC.

The torquemeters give an indication in percent (%) torque being applied to the propeller. A digital

indication combined with the pointer gives a resolution of 0.2%.

Propeller Autofeather annunciations are located adjacent the torquemeters, to the upper right of each

indicator. When the autofeather system is armed, the green ‘AFX’ annunciations will be posted.

The propeller tachometer reads directly in revolutions per minute. A digital indication combined with the

pointer gives a resolution of 10 rpm.

The N1 or gas generator tachometer is in percent of rpm, based on a figure of 37,500 rpm at 100%.

Maximum continuous gas generator speed is limited to 39,000 rpm or 104.0% N1. A digital indication

combined with the pointer gives a resolution of 0.1% rpm.

The fuel flow indicators give an indication of fuel consumption in pounds of fuel per hour. A digital

indication combined with the pointer gives a resolution of 1 lb/hr.

The oil pressure indicator displays oil pressure (in PSI). A digital indication combined with the pointer

gives oil pressure a resolution of 1 psi.

The oil temperature indicator displays oil temperature (in Degrees Celsius). A digital indication

combined with the pointer gives oil temperature a resolution of 1°C

A propeller synchroscope, located above and between the propeller tachometers, indicates propeller

synchronization. When the propellers are operating at the same rpm, the display will show stationary

diamond symbols. As one propeller begins to turn faster than the other propeller, the diamonds will

begin to move towards the faster turning propeller and transition into an arrowhead pointing towards the

faster turning propeller. The transition to a full arrowhead is complete when the propeller speed

difference is equal to 50 rpm. This instrument aids the pilot in obtaining synchronization of the

propellers.

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev. 1

Page 124 of 137

PROPELLER SYNCHROPHASER

A push button ON/OFF switch is located on the instrument panel below the pilot’s PFD that

turns the propeller synchrophaser ON and OFF. To turn the propeller synchrophaser ON,

push the PROP SYNC switch. A green ON annunciator will illuminate when the system is on.

To turn the propeller synchrophaser OFF, push the PROP SYNC switch.

Refer to the Systems Description section in the airplane’s original Pilot’s Operating Handbook and FAA

Approved Airplane Flight Manual for a description of the synchrophaser and its operation.

ELECTRICAL SYSTEM

INVERTERS

The two solid-state inverters are not needed with the G1000 system and have been removed.

POWER DISTRIBUTION

There are no changes to the electrical power generation, power feeders, control, or fault protection.

AVIONICS/ELECTRICAL EQUIPMENT BUS CONNECTION

LEFT GENERATOR BUS

(GEN No. 1) CENTER BUS RIGHT GENERATOR BUS

(GEN No. 2)

No. 2 Avionics Bus AHRS 1 Secondary Power No. 3 Avionics Bus

COM 2 ADC 1 Secondary Power Datalink

AUDIO 2 Condenser Blower Traffic

XPDR 2 Electric Heat (Aft) WIFI

RADAR Electric Heat (Fwd) IRIDIUM

DME GIA 1 Secondary Power IRIDIUM Heater

ADF Ice Lights Air Conditioner Clutch

Radio Altimeter Landing Gear Motor Blower, Aft Evaporator

WX-500 Stormscope (OPT) Navigation Lights Brake Deice (OPT)

Beacon Lights PFD 1 Secondary Power Bus Tie Power, R Gen

Bleed Air Control, R Prop Deice Power (Manual),

L & R Bus Tie Control

Blower, Vent Taxi Lights Bus Tie Indicator

Bus Tie Power, L Gen Chip Detector, R

Chip Detector, L Copilot PFD & Clock Lights

Cigar Lighter Engine Anti-Ice, R Standby

Engine Anti-Ice, L Standby Firewall Shutoff Valve, R

Firewall Shutoff Valve, L Fuel Crossfeed

Flap Indicator & Control Fuel Pressure Warning, R

Flap Motor Fuel Qty, R

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

Page 125 of 137

LEFT GENERATOR BUS

(GEN No. 1) CENTER BUS RIGHT GENERATOR BUS

(GEN No. 2)

Flight Inst (Pilot) & Side Panel

Lights Fuel Qty Warning, R

Fuel Pressure Warning, L Fuel Qty Warning & Transfer, Aux R

Fuel Qty, L Fuel Vent Heat, R

Fuel Qty Warning, L Landing Light, R

Fuel Qty Warning & Transfer, Aux

L Pitot Heat, R

Fuel Vent Heat, L Prop Sync (OPT)

Furnishings Master Control PROP GOV TEST (FA-111 & AFT)

Landing Light, L Reading Lights

MFD Standby Lights Recognition Lights

No Smoking, FSB & Reading

Lights Refreshment Bar, R

Prop Deice, Auto Signal Conditioner, R

PROP GOV TEST (FA-2 thru

FA-110) Stall Warning Heat

Refreshment Bar, L Strobe Lights

Signal Conditioner, L Sub Panel, Overhead, Console

Lights

Tail Flood Lights Toilet

Windshield Anti-Ice Control, Pilots Window Defog

Windshield Anti-Ice Power, Pilots Windshield Anti-Ice, Copilot

TRIPLE FED BUS HOT BATTERY BUS STANDBY BATTERY

Avionics No. 1 Bus Battery Relay Compass Light

XPDR 1 Battery Bus Tie Instrument Indirect Lights

ADC 1 Primary Power Voltmeter Standby Altimeter Vibrator

ADC 2 Cabin Entry Lights Standby Attitude

AFCS Servos Door Lock Lights Standby Battery Indicator

AHRS 1 Primary Power Engine Fire Extinguisher,

L & R Standby Instrument Backlighting

AHRS 2

Annunciator Indicator

Annunciator Power

Audio 1

Aural Warning

Autofeather

Avionics Master

Bleed Air Control, L

Bleed Air Warning, L & R

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev. 1

Page 126 of 137

TRIPLE FED BUS

Bus Tie Power, TPL FED

Cabin Audio

Cabin Lights

Cabin Pressurization Control

Cabin Temperature Control

COM 1

Eng Anti-Ice, L & R Main

Fan – PFD/GIA, L & R

Fire Detection L & R

Firewall Valve L & R (Alternate)

FMS Control

GEA, L & R

GIA 1 Primary Power

GIA 2

GSD

Ignitor Power L & R

Instrument Indirect Lights

Landing Gear Control

Landing Gear Indication

Landing Gear Relay

Landing Gear Warning

MFD

MFD Fan

Mode Control

Oil Pressure, L & R

Oil Pressure Warning, L & R

Outside Air Temperature (OAT)

Oxygen Control

PFD 1 Primary Power

PFD 2

Pitot Heat, L

Prop Deice Control, Manual

Signal Conditioner, L & R

Start Control, L & R

Stall Warning

Standby Pump L & R

Standby Attitude

Standby Altimeter Vibrator

Standby Auxiliary Battery

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

Page 127 of 137

TRIPLE FED BUS

Surface Deice

Torquemeter, L & R

Voice Recorder

Windshield Wiper

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev. 1

Page 128 of 137

STANDBY BATTERY POWER SUPPLY

The G1000 installation incorporates a 24 vdc, 5 Ah L-3 Avionics model PS-835 Standby

Battery that provides electrical power for the standby attitude gyro, standby altimeter

vibrator, and internal lighting for the three standby instruments and magnetic compass

for a minimum of 30 minutes following a total loss of aircraft power including the

aircraft’s battery.

A push button switch located directly below the standby airspeed indicator controls the standby battery

power system. The switch is a push ON (switch latches in), push OFF (switch pops out) type of switch.

The system has three modes: OFF, ON, and ARM.

OFF The system is OFF when the Standby Battery switch is not depressed. There are no

internal switch annunciators illuminated in the switch when the system is OFF.

ON (Amber) Illuminates when the standby battery is powering the standby instruments. The Standby

Battery switch must be latched ‘IN’ and the airplane has no source of normal electrical

power for the standby battery to power the standby instruments. When the ON

annunciator is illuminated, the standby battery will provide electrical power for the three

standby instruments for at least 30 minutes.

ARM (Green) The system is armed for automatic operation when the Standby Battery switch is latched

‘IN’ and the airplane is being powered by a normal source of electrical power. Normal

power sources include the airplane’s battery, at least one generator, or external power.

During normal operations, the standby battery remains in a fully charged state by its own trickle charger,

which is powered from the electrical system through the STBY AUX BAT circuit breaker located on the

right side circuit breaker panel.

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

Page 129 of 137

LIGHTING SYSTEMS

COCKPIT

An overhead light control panel, accessible to both pilots, incorporates a functional arrangement of all

lighting systems. Each light group has its own rheostat switch placarded BRT – OFF. The MASTER

PANEL LIGHTS – ON – OFF switch is the master switch for: PILOT PFD, STANDBY INSTRUMENT

LIGHTS, MFD, OVERHEAD PED & SUBPANEL LIGHTS, SIDE PANEL, CLOCKS, and COPILOT PFD.

PILOT PFD – Controls the brightness of the pilot’s PFD.

STANDBY INSTRUMENT LIGHTS - Controls the brightness of the internal lighting for the

standby attitude indicator, standby altimeter, and standby airspeed indicator.

MFD – Controls the brightness of the Multi-Function Display (MFD).

OVERHEAD PED & SUBPANEL LIGHTS - Controls the brightness of the backlighting of the

overhead light control panel and internal lighting of the overhead electrical gauges, throttle

quadrant backlighting, internal lighting for pedestal-mounted gauges, and the MFD Controller

panel backlighting, and the subpanel backlighting.

SIDE PANEL - Controls the brightness of the backlighting of the right side circuit breaker panel,

the left side circuit breaker panel and the fuel gauge panel.

CLOCKS – Controls the brightness of the clocks mounted in the pilot’s and copilot’s control

wheels.

COPILOT PFD – Controls the brightness of the copilot’s PFD.

Separate rheostat switches individually control the instrument indirect lights in the glareshield and

overhead map lights.

PITOT AND STATIC SYSTEM

PITOT

The pitot heads are the sources of impact air for the operation of the flight instruments.

A heated pitot mast is located on each side of the lower portion of the nose. Tubing from the left pitot

mast is connected to the pilot’s Air Data Computer (ADC1), and tubing from the right pitot mast is

connected to the copilot’s Air Data Computer (ADC2) and the standby airspeed indicator. The switch for

the PITOT – LEFT – RIGHT – OFF is located in the ICE PROTECTION group on the pilot’s right

subpanel.

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev. 1

Page 130 of 137

STATIC

The normal static system has two separate sources of static air. One source is connected to the pilot’s Air

Data Computer (ADC1), and the other is connected to the copilot’s Air Data Computer (ADC2) and the

standby instruments. Each of the normal static air lines opens to the atmosphere through two static air

ports—one on each side of the aft fuselage, four ports total.

An alternate static air line is also provided for the pilot’s Air Data Computer (ADC1). In the event of a

failure of the pilot’s normal static air source (e.g., if ice accumulations should obstruct the static air ports),

the alternate source can be selected by lifting the spring-clip retainer off the PILOT’S EMERGENCY

STATIC AIR SOURCE valve handle, located on the right side panel, and moving the handle aft to the

ALTERNATE position. This will connect the alternate static air line to the pilot’s Air Data Computer

(ADC1). The alternate line is open to the unpressurized area just aft of the rear pressure bulkhead.

When the alternate static air source is not needed, ensure that PILOT’S EMERGENCY STATIC AIR

SOURCE valve handle is held in the forward (NORMAL) position by the spring-clip retainer.

THE PILOT’S AIRSPEED AND ALTIMETER INDICATIONS CHANGE WHEN THE

ALTERNATE STATIC AIR SOURCE IS IN USE. REFER TO THE AIRSPEED

CALIBRATION – ALTERNATE SYSTEM, AND THE ALTIMETER CORRECTION –

ALTERNATE SYSTEM GRAPHS IN SECTION 5, PERFORMANCE, OF THE

AIRPLANE’S ORIGINAL PILOT’S OPERATION HANDBOOK AND FAA

APPROVED AIRPLANE FLIGHT MANUAL FOR OPERATION WHEN THE

ALTERNATE STATIC AIR SOURCE IS IN USE.

There are three drain petcocks for draining the static air lines located below the side panel on the right

sidewall behind an access cover. These drain petcocks should be opened to release any trapped

moisture at each inspection interval or after exposure to visible moisture on the ground, and must be

closed after draining.

For RVSM compliant aircraft that operate in RVSM airspace, special care must be taken when inspecting

the static ports and surrounding regions during preflight inspection. The static port openings should be

smooth and round, and free of foreign material. The fuselage skin in the RVSM critical region, which is

defined by markings in the vicinity of the static ports, should have no skin defects, physical damage, or

large gaps and steps in the skin surface caused by improperly seated access panels or hatches.

GROUND COMMUNICATIONS

Ground communication is provided by the G1000 system by turning ON the airplane’s battery. COM 1

and the pilot’s audio panel will be powered. The pilot may use the airplane’s speaker and hand

microphone or a headset for communication.

WARNING

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

Page 131 of 137

SYNTHETIC VISION

General

The SVS sub system is dependent upon terrain data provided by the underlying G1000 system. If, for

some reason, the terrain data is not available from the G1000, all of the components of the SVS system

will be unavailable. The flight path marker, horizon heading, and airport signs are all sub-components of

the Synthetic Terrain display and are only available when Synthetic Terrain is enabled. Those features

are selected or de-selected using the PFD softkeys on the SVS menu.

Synthetic Terrain

The synthetic (3D) terrain display on the PFD provides a perspective view of the terrain ahead of the

aircraft showing ground features up to 30 degrees left and 35 degrees right of the airplane heading. The

terrain display is derived from the same terrain data contained in the G1000 system that is optionally used

to display terrain on the MFD map display. The terrain data has a resolution of 9 arc-seconds, this

means that the terrain elevation contours in the database are stored broken down into squares

9 arc-seconds on each side. That data is processed and smoothed by the G1000 system to provide the

synthetic terrain display. In some instances, terrain features such as lakes in mountainous areas may be

presented by the SVS system as if the lake water extends somewhat up the mountainside. This is due

to the limitations of the terrain database resolution but is not significant for the approved uses of the SVS

system.

The SVS terrain display will show land contours; large water features; and, towers and other obstacles

over 200 ft AGL (including buildings), that are included in the G1000 obstacle database. In order to

provide a clean, uncluttered PFD display, cultural features on the ground such as; roads and highways,

railroad tracks, cities, and political boundaries (state / county lines) are not displayed on the PFD even if

those features are selected for display on the MFD. The colors used to display the terrain elevation

contours are similar to those used on the MFD map. The terrain display also includes a north-south,

east-west grid to assist in orientation relative to the terrain.

The terrain display is intended to serve as an awareness tool only. It may not provide either the accuracy

or fidelity, or both, on which to solely base decisions and plan maneuvers to avoid terrain or obstacles.

Navigation must not be predicated solely upon the use of the TAWS, Terrain or Obstacle data displayed

by the G1000 SVS system.

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev. 1

Page 132 of 137

The Terrain/Obstacle/Airport databases have an area of coverage as detailed below:

• The Terrain Database has an area of coverage from North 75° Latitude to South 60° Latitude in all

longitudes.

• The Airport Terrain Database has an area of coverage that includes the United States, Canada,

Mexico, Latin America, and South America.

• The Obstacle Database has an area of coverage that includes the United States.

NOTE

The area of coverage may be modified, as additional terrain data sources become

available.

Obstacle and Terrain Alerts and Warnings

Obstacles and terrain displayed on the SVS system may be highlighted if an alert or warning is generated

by the G1000 Terrain or TAWS system. If an obstacle alert is presented for an obstacle that is in the

SVS field of view, the obstacle symbol on the PFD will turn yellow in color. If an obstacle warning is

generated by the G1000 system, the obstacle symbol on the PFD will turn red.

If the G1000 Terrain or TAWS system generates a terrain alert or warning, the terrain feature displayed

on the PFD will be colored yellow for an alert or red for a warning for as long as the alert remains valid.

Because the area monitored by the Terrain or TAWS system can be wider than the field of view that can

be displayed by the SVS system, it is possible to receive an obstacle or terrain audible alert for an

obstacle or terrain that is not shown on the SVS display. In those cases, the object generating the alert

will be left or right of the aircraft. Refer to the other displays in the aircraft to determine the cause of the

message.

Flight Path Marker

The SVS display includes a green circular barbed symbol called the Flight Path Marker (FPM) that

represents the current path of the airplane relative to the terrain display. The FPM is always displayed

when synthetic terrain is displayed and the aircraft ground speed exceeds 30 kt. The FPM indicates the

current lateral and vertical path of the airplane as determined by the GPS sensor. If the FPM is above

the horizon line, the airplane is climbing, and similarly if the FPM is below the horizon line, the airplane is

descending. If the airplane is flying in a crosswind, the FPM will be offset from the center of the display.

In that case, the center of the PFD airplane reference symbol indicates the airplane heading and the FPM

indicates the direction that the airplane is actually moving, taking into account the crosswind.

The FPM indicates the current path of the airplane but does not predict the future path. If aircraft

attitude, power setting, airspeed, crosswind, etc. are changed, the FPM will move to indicate the new path

resulting from those changes.

If the FPM is below the terrain or obstacle displayed behind it on the PFD, the current aircraft path will not

clear that terrain or obstacle. If the FPM is above that terrain or obstacle, the aircraft will clear the terrain

or obstacle IF, AND ONLY IF, THE CURRENT AIRCRAFT CONFIGURATION IS MAINTAINED, AND

THE AIRCRAFT PERFORMANCE WILL PERMIT YOU TO MAINTAIN THE CURRENT VERTICAL

(CLIMB) GRADIENT UNTIL PAST THE TERRAIN OR OBSTACLE.

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

Page 133 of 137

Pathway

If PATHWAY is enabled on the SVS menu of the PFD and a defined navigation path has been entered on

the G1000, the SVS system will display a pathway, sometimes called a “highway in the sky” or HITS.

The pathway is a perspective representation of the programmed flight path. When the aircraft is well off

course, the pathway will be displayed as a number boxes floating in the sky along the programmed lateral

and vertical path. As the aircraft intercepts the programmed flight path, the number of boxes displayed

will be reduced to a maximum of four to avoid cluttering the PFD display. The pathway is only displayed

for navigation paths that are fully defined by the sensor in use. Because a fully defined lateral and

vertical path through space is not defined by them, a Pathway is not displayed for heading legs, VOR,

LOC, BC or ADF segments. When the Pathway is displayed, the color of the boxes indicates the sensor

generating the path. If the GPS sensor is in use, the boxes will be magenta colored. If the LOC sensor

is defining the path in use, the boxes will be green.

The Pathway boxes are +- 100 ft in vertical dimension and approximately +-380 ft horizontally from the

center of the box. The Pathway presentation is intended only to aid the pilot in awareness of the

programmed flight path location relative to the airplane’s current position. The pathway is not intended for

use as a primary reference in tracking the navigation path.

If a GPS based descent profile has been programmed either on the G1000 flight plan page or as part of

an approach or STAR, the descent will be displayed by the Pathway. Climb paths are never displayed

by the Pathway. If a profile requires a climb, the Pathway will be displayed as a level segment at the

higher of the altitude defined by the programmed path or the G1000 altitude selector.

Traffic

If traffic that is within the SVS field of view is detected by the G1000 system, a symbol will be displayed

on the PFD indicating the direction and relative altitude of the traffic. The traffic will be displayed as a

white diamond unless it generates a traffic alert. Traffic that causes an alert will be displayed as a solid

yellow circle accompanied by a yellow TRAFFIC annunciator to the right of top of the airspeed display

tape.

Horizon line

The SVS display includes an always visible white horizon line that represents the true horizon. Terrain

will be presented behind the horizon line, and terrain shown above the horizon line is above the current

aircraft altitude. Terrain that is shown below the horizon line is below the aircraft altitude.

Horizon Heading

A heading scale may be displayed on the PFD horizon line, if selected by the pilot. The heading marks

are spaced in even 30 degree increments and are presented just above the horizon line with tic marks

that intersect the horizon line. The horizon heading will correspond to that presented by the HSI.

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev. 1

Page 134 of 137

Because the horizon heading is only displayed in 30 degree increments, it should only be used for

general heading awareness and not be used to establish the aircraft heading.

Airport Signs and runway highlight

If APTSIGNS is selected, a “sign post” along with a representation of the runways will be plotted on the

SVS display for nearby airports that are contained in the G1000 airport database. The signpost will

become visible when you are within approximately 15nm of the airport. The text identifier for the airport

will be displayed inside the airport sign when the aircraft reaches approximately 8 nm from the airport.

Once the aircraft reaches approximately 4.5 nm from the airport, the airport sign will be removed but the

runways presentation will remain. If an approach to a specific runway has been loaded and activated,

that runway will be highlighted on the SVS display.

When on an approach, the highlight for the approach runway will be considerably larger than “normal” to

assist in visually acquiring the runway. The oversized highlight will automatically shrink around the

runway depiction so that the runway is proportionally displayed when the aircraft is within approximately

½ nm of the threshold. Runway highlighting is displayed even if APTSIGNS are turned off.

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

Page 135 of 137

TAWS AND GPWS

Refer to the GARMIN Pilot’s Guide and Cockpit Reference Guide, P/N 190-01343-001 and 190-01344-00

Rev. A or later FAA accepted revision for complete detailed descriptions of the GARMIN G1000 TAWS

and GPWS system functions and operating instructions.

Most of the G1000 Class A TAWS and GPWS functions depend upon either GPS or radar (radio) altitude

to function properly. The Altitude Voice Callout (VCO) GPWS function is one of the few that may use

both altitudes for normal operation. Because of the unique functional nature of the VCO function, its

description is contained in this section.

VCO Description

The advisory aural Voice Callouts (VCO) are part of the TAWS GPWS functionality. In Class A TAWS

configurations, aural altitude callouts “Five Hundred,” “Four Hundred,” “Three Hundred,” “Two Hundred,”

and “One Hundred” are generated based on inputs from the radar altimeter and GPS altitude. When the

aircraft is more than 5 NM from an airport, the VCO messages are triggered solely on radar altitude and

will not function if radar altitude is unavailable.

Inside of 5 NM to an airport, the callouts are based on the aircraft’s GPS altitude above the runway

threshold as obtained from the G1000 aviation database. Loss of GPS altitude will cause TAWS to

become unavailable. If TAWS is not available, and radar altitude is available, VCO messages will be

derived strictly from radar altitude. If TAWS and radar altitude are both unavailable, VCO is inoperative.

In Class B TAWS configurations, VCO issues the “Five Hundred” aural message only . The messages

are based only on GPS altitude, even if the aircraft has an operable radar altimeter. VCO messages are

not available when the system status annunciations shown below are posted.

System Status

Type

Visual

Annunciation

Aural

Annunciation

TAWS System Test in Progress None

TAWS System Failure “TAWS System Failure”

TAWS Not Available

“TAWS Not Available”

VCO callouts are inactive at the initialization of the TAWS-A or TAWS-B system. When the aircraft’s

height above terrain exceeds 675 feet, the function becomes enabled and is provided during all flight

phases. Alerts are issued, one time only, when the height above terrain becomes less than 500 feet

down to 100 feet (TAWS-A), at which time the VCO is disabled until the aircraft climbs at least 175 above

the altitude associated with the last VCO callout that was issued. VCO alerts cannot be inhibited in any

TAWS configuration.

Hawker Beechcraft King Air 300/300LW 190-00716-02 Rev. 1

Page 136 of 137

This page intentionally left blank.

190-00716-02 Rev. 1 Hawker Beechcraft King Air 300/300LW

Page 137 of 137

Section 8 – Handling, Service, and Maintenance

Refer to the G1000/GFC 700 System Maintenance Manual (contains Instructions for Continued

Airworthiness) P/N 190-00716-01 Rev. 1 or later FAA approved revision for maintenance requirements for

the G1000 system and components.

Garmin Mdl Rev 2 Sa01535Wi D Faa Approved Airplane Flight Manual Supplement 190 00716 02

Navigation menu

Versions of this User Manual:

Views

Navigation
