Garmin Software Version 0563 05 Cockpit Reference Guide 190 00384 08_0A

2015-05-27

: Garmin Garmin-Software-Version-0563-05-Cockpit-Reference-Guide-720737 garmin-software-version-0563-05-cockpit-reference-guide-720737 garmin pdf

Open the PDF directly: View PDF PDF.
Page Count: 190 [warning: Documents this large are best viewed by clicking the View PDF Link!]

Integrated Flight Deck
Cockpit Reference Guide
Cessna
Nav III
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
Copyright © 2004-2007 Garmin Ltd. or its subsidiaries. All rights reserved.
This manual reflects the operation of System Software version 0563.05 or later for Cessna 172R, 172S, 182T, T182T, 206H, and T206H
aircraft. Some differences in operation may be observed when comparing the information in this manual to earlier or later software
versions.
Garmin International, Inc., 1200 East 151st Street, Olathe, Kansas 66062, U.S.A.
Tel: 913/397.8200 Fax: 913/397.8282
Garmin AT, Inc., 2345 Turner Road SE, Salem, OR 97302, U.S.A.
Tel: 503/391.3411 Fax 503/364.2138
Garmin (Europe) Ltd, Liberty House, Bulls Copse Road, Hounsdown Business Park, Southampton, SO40 9RB, U.K.
Tel: 44/0870.8501241 Fax: 44/0870.8501251
Garmin Corporation, No. 68, Jangshu 2nd Road, Shijr, Taipei County, Taiwan
Tel: 886/02.2642.9199 Fax: 886/02.2642.9099
Web Site Address: www.garmin.com
Except as expressly provided herein, no part of this manual may be reproduced, copied, transmitted, disseminated, downloaded or
stored in any storage medium, for any purpose without the express written permission of Garmin. Garmin hereby grants permission
to download a single copy of this manual and of any revision to this manual onto a hard drive or other electronic storage medium to
be viewed for personal use, provided that such electronic or printed copy of this manual or revision must contain the complete text
of this copyright notice and provided further that any unauthorized commercial distribution of this manual or any revision hereto is
strictly prohibited.
Garmin® and G1000® are registered trademarks of Garmin Ltd. or its subsidiaries. FliteCharts™, and SafeTaxi™ are trademarks of
Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express permission of Garmin.
NavData® is a registered trademark of Jeppesen, Inc.; Stormscope® is a registered trademark of L-3 Communications; and XM®
is a registered trademark of XM Satellite Radio, Inc.; Honeywell® and Bendix/King® are registered trademarks of Honeywell
International, Inc.; CO Guardian is a trademark of CO Guardian, Inc.
November, 2007 190-00384-08 Rev. A Printed in the U.S.A.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
WARNINGS,
CAUTIONS, & NOTES
WARNING: Navigation and terrain separation must NOT be predicated upon the use of the terrain function.
The G1000 Terrain Proximity feature is NOT intended to be used as a primary reference for terrain avoidance
and does not relieve the pilot from the responsibility of being aware of surroundings during flight. The Terrain
Proximity feature is only to be used as an aid for terrain avoidance and is not certified for use in applications
requiring a certified terrain awareness system. Terrain data is obtained from third party sources. Garmin is
not able to independently verify the accuracy of the terrain data.
WARNING: The displayed minimum safe altitudes (MSAs) are only advisory in nature and should not be relied
upon as the sole source of obstacle and terrain avoidance information. Always refer to current aeronautical
charts for appropriate minimum clearance altitudes.
WARNING: The altitude calculated by G1000 GPS receivers is geometric height above Mean Sea Level and could
vary significantly from the altitude displayed by pressure altimeters, such as the GDC 74A Air Data Computer,
or other altimeters in aircraft. GPS altitude should never be used for vertical navigation. Always use pressure
altitude displayed by the G1000 PFD or other pressure altimeters in aircraft.
WARNING: Do not use outdated database information. Databases used in the G1000 system must be updated
regularly in order to ensure that the information remains current. Pilots using any outdated database do so
entirely at their own risk.
WARNING: Do not use basemap (land and water data) information for primary navigation. Basemap data is
intended only to supplement other approved navigation data sources and should be considered as an aid to
enhance situational awareness.
WARNING: Traffic information shown on the G1000 Multi Function Display is provided as an aid in visually
acquiring traffic. Pilots must maneuver the aircraft based only upon ATC guidance or positive visual acquisition
of conflicting traffic.
WARNING: Use of the Stormscope is not intended for hazardous weather penetration (thunderstorm penetration).
Stormscope information, as displayed on the G1000 MFD, is to be used only for weather avoidance, not
penetration.
WARNING: GDL 69 Weather should not be used for hazardous weather penetration. Weather information
provided by the GDL 69 is approved only for weather avoidance, not penetration.
WARNING: NEXRAD weather data is to be used for long-range planning purposes only. Due to inherent delays
in data transmission and the relative age of the data, NEXRAD weather data should not be used for short-range
weather avoidance.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A
WARNINGS,
CAUTIONS, & NOTES
WARNING: The Garmin G1000, as installed in Cessna Nav III aircraft, has a very high degree of functional
integrity. However, the pilot must recognize that providing monitoring and/or self-test capability for all
conceivable system failures is not practical. Although unlikely, it may be possible for erroneous operation to
occur without a fault indication shown by the G1000. It is thus the responsibility of the pilot to detect such an
occurrence by means of cross-checking with all redundant or correlated information available in the cockpit.
WARNING: For safety reasons, G1000 operational procedures must be learned on the ground.
WARNING: The United States government operates the Global Positioning System and is solely responsible
for its accuracy and maintenance. The GPS system is subject to changes which could affect the accuracy
and performance of all GPS equipment. Portions of the Garmin G1000 utilize GPS as a precision electronic
NAVigation AID (NAVAID). Therefore, as with all NAVAIDs, information presented by the G1000 can be misused
or misinterpreted and, therefore, become unsafe.
WARNING: To reduce the risk of unsafe operation, carefully review and understand all aspects of the G1000
Pilot’s Guide documentation. Thoroughly practice basic operation prior to actual use. During flight operations,
carefully compare indications from the G1000 to all available navigation sources, including the information
from other NAVAIDs, visual sightings, charts, etc. For safety purposes, always resolve any discrepancies before
continuing navigation.
WARNING: The illustrations in this guide are only examples. Never use the G1000 to attempt to penetrate
a thunderstorm. Both the FAA Advisory Circular, Subject: Thunderstorms, and the Aeronautical Information
Manual (AIM) recommend avoiding “by at least 20 miles any thunderstorm identified as severe or giving an
intense radar echo.”
WARNING: Lamp(s) inside this product may contain mercury (HG) and must be recycled or disposed of according
to local, state, or federal laws. For more information, refer to our website at www.garmin.com/aboutGarmin/
environment/disposal.jsp.
WARNING: Because of anomalies in the earth’s magnetic field, operating the G1000 within the following areas
could result in loss of reliable attitude and heading indications. North of 70° North latitude and south of 70°
South latitude. An area north of 65° North latitude between longitude 75º West and 120º West. An area south
of 55° South latitude between longitude 120º East and 165º East.
CAUTION: The PFD and MFD displays use a lens coated with a special anti-reflective coating that is very
sensitive to skin oils, waxes, and abrasive cleaners. CLEANERS CONTAINING AMMONIA WILL HARM THE ANTI-
REFLECTIVE COATING. It is very important to clean the lens using a clean, lint-free cloth and an eyeglass lens
cleaner that is specified as safe for anti-reflective coatings.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
WARNINGS,
CAUTIONS, & NOTES
CAUTION: The Garmin G1000 does not contain any user-serviceable parts. Repairs should only be made by
an authorized Garmin service center. Unauthorized repairs or modifications could void both the warranty and
the pilot’s authority to operate this device under FAA/FCC regulations.
NOTE: When using Stormscope, there are several atmospheric phenomena in addition to nearby thunderstorms
that can cause isolated discharge points in the strike display mode. However, clusters of two or more discharge
points in the strike display mode do indicate thunderstorm activity if these points reappear after the screen has
been cleared.
NOTE: All visual depictions contained within this document, including screen images of the G1000 panel and
displays, are subject to change and may not reflect the most current G1000 system and aviation databases.
Depictions of equipment may differ slightly from the actual equipment.
NOTE: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
NOTE: The GDU 1040 and GDU 1044B PFD/MFD may require a warm-up time of up to 30 minutes when exposed
to -40˚C for an extended period. A warm-up time of up to 15 minutes may be required when exposed to -30˚C
for an extended period.
NOTE: This product, its packaging, and its components contain chemicals known to the State of California to
cause cancer, birth defects, or reproductive harm. This notice is being provided in accordance with California’s
Proposition 65. If you have any questions or would like additional information, please refer to our web site at
www.garmin.com/prop65.
NOTE: Interference from GPS repeaters operating inside nearby hangars can cause an intermittent loss of
attitude and heading displays while the aircraft is on the ground. Moving the aircraft more than 100 yards
away from the source of the interference should alleviate the condition.
NOTE: Use of polarized eyewear may cause the flight displays to appear dim or blank.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A RR-1
RECORD OF REVISIONS
Part Number Change Summary
190-00384-03
(Rev. A)
Added XM Radio and XM Weather
Added ADF capability
Added DME capability
Added BRG1/BRG2 pointers
Added dual audio panel operation
Added C172 parameters
Changed Airspeed Trend Vector
Changed Altitude Trend Vector
Added Checklist capability
Added Flight ID capability
190-00384-03
(Rev. B)
Updated system software numbers
190-00384-04
(Rev. A)
Reformatted manual to new format
Added TAS capability
190-00384-04
(Rev. B)
Added DONE Softkey, XM-INFORMATION Page, and XM-RADIO
Page operation.
190-00384-05
(Rev. A)
Added explanation of EIS display behavior upon exceedances
Added better explanation of Intercom System Isolation
Added Stormscope operation upon loss of heading input
Added TAWS-B
Added CO Guardian
Added new Fuel Totalizer
Updated G1000 System Messages
190-00384-06
(Rev A)
Added GDU 7.00 (WAAS, VNAV & Charts) software parameters.
Added AFCS for the 182 and 206
Added database loading instructions
Updated G1000 System Messages
Combined previous system software numbers into 0563.00
190-00384-07 Added GDU 8.02 parameters, Airways, and ADS-B
190-00384-08 Added GDU 8.20 parameters, including gradient background on
the PFD and GFC 700 for the C172.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
RR-2
RECORD OF REVISIONS
Revision Date of Revision Affected Pages Description
A November, 2007 i through Index-4 Production release
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A i
TABLE OF CONTENTS
SECTION 1: SYSTEM OVERVIEW .................................... 1-1
1.1 PFD/MFD Controls ................................................... 1-2
1.2 PFD Softkeys ............................................................ 1-5
1.3 MFD Softkeys .......................................................... 1-8
1.4 MFD Page Groups ................................................... 1-9
1.5 Vertical Navigation .............................................. 1-10
1.6 Backlighting ........................................................... 1-12
1.7 XM Radio - Automatic Muting ........................... 1-12
1.8 Database Updates ................................................ 1-12
Jeppesen Aviation Database ...................................... 1-12
Garmin Databases ..................................................... 1-13
SECTION 2: FLIGHT INSTRUMENTS .............................. 2-1
2.1 Airspeed Indicator .................................................. 2-3
Speed Indication ......................................................... 2-3
Speed Ranges ............................................................. 2-3
Airspeed Trend Vector ................................................. 2-3
Vspeed References ...................................................... 2-3
2.2 Attitude Indicator .................................................. 2-3
2.3 Altimeter .................................................................. 2-4
Selected Altitude Bug .................................................. 2-4
Altitude Trend Vector ................................................... 2-4
Barometric Setting Box ................................................ 2-4
Altitude Alerting .......................................................... 2-4
Metric Display ............................................................. 2-5
Low Altitude Annunciation ........................................... 2-5
2.4 Vertical Deviation/Glidepath/Glideslope
Indicator ................................................................... 2-6
2.5 Marker Beacon Annunciations ............................ 2-7
2.6 Vertical Speed Indicator ....................................... 2-7
2.7 Barometric Altitude Minimums ........................... 2-7

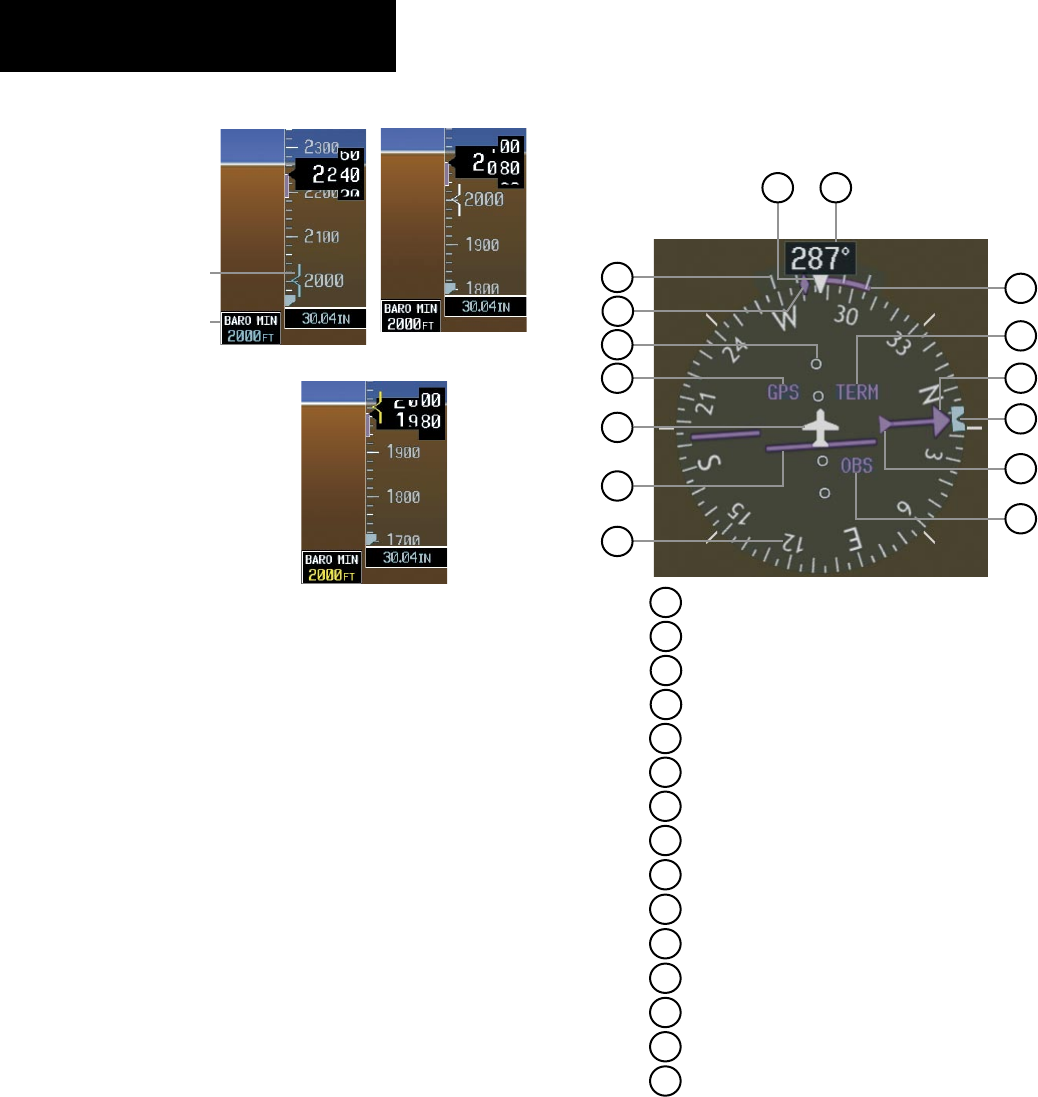

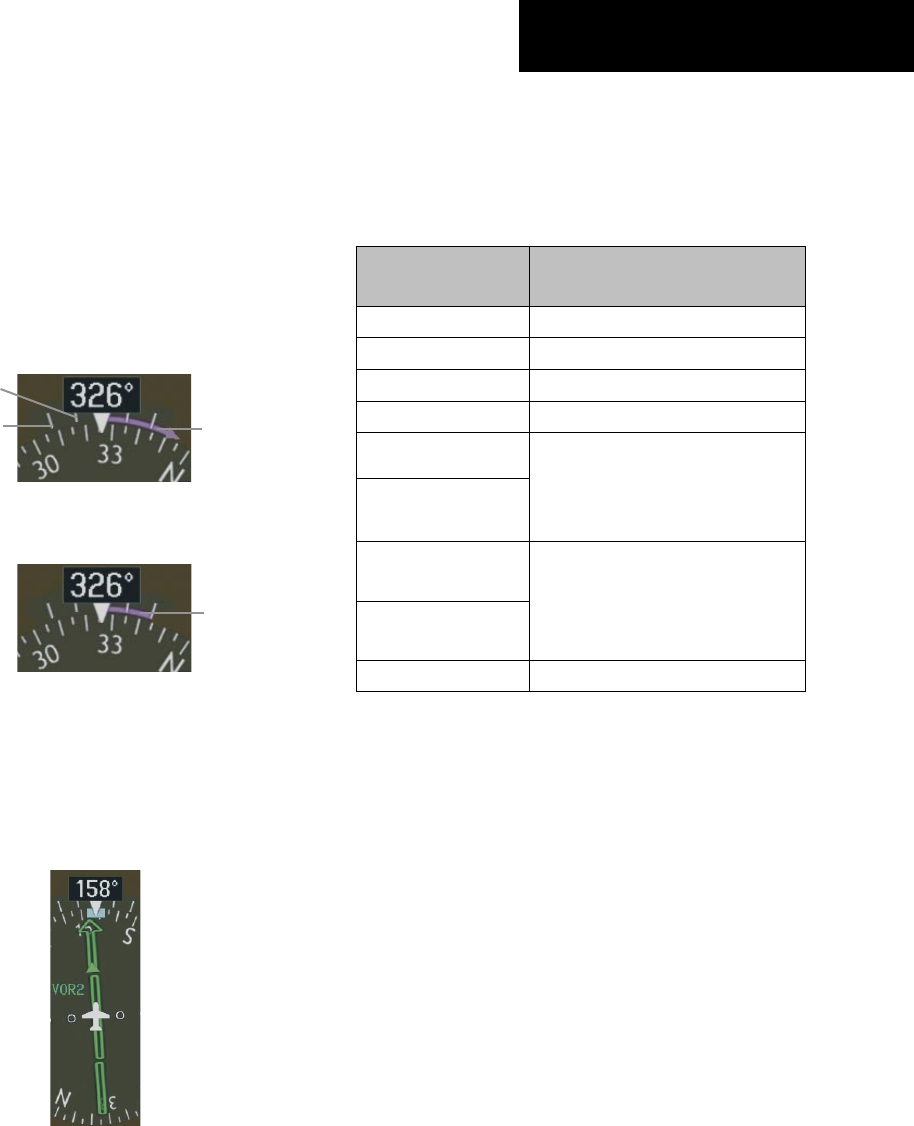

2.8 Horizontal Situation Indicator (HSI) ................... 2-8
Course Pointer ............................................................ 2-9
Course Deviation Indicator (CDI) .................................. 2-9
Bearing Pointers and Information Windows ................ 2-11
DME (optional) .......................................................... 2-11
Navigation Source ..................................................... 2-11
2.9 Wind Data ............................................................... 2-12
2.10 Generic Timer ........................................................ 2-13
SECTION 3: ENGINE INDICATION SYSTEM (EIS) .... 3-1

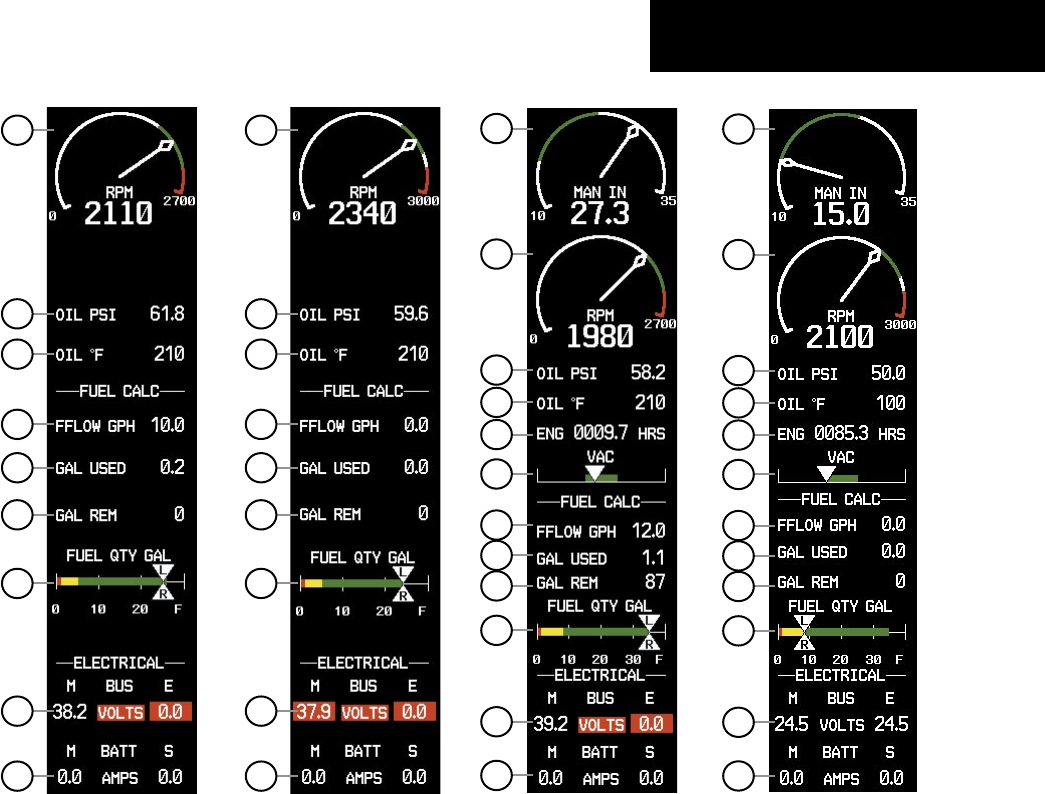

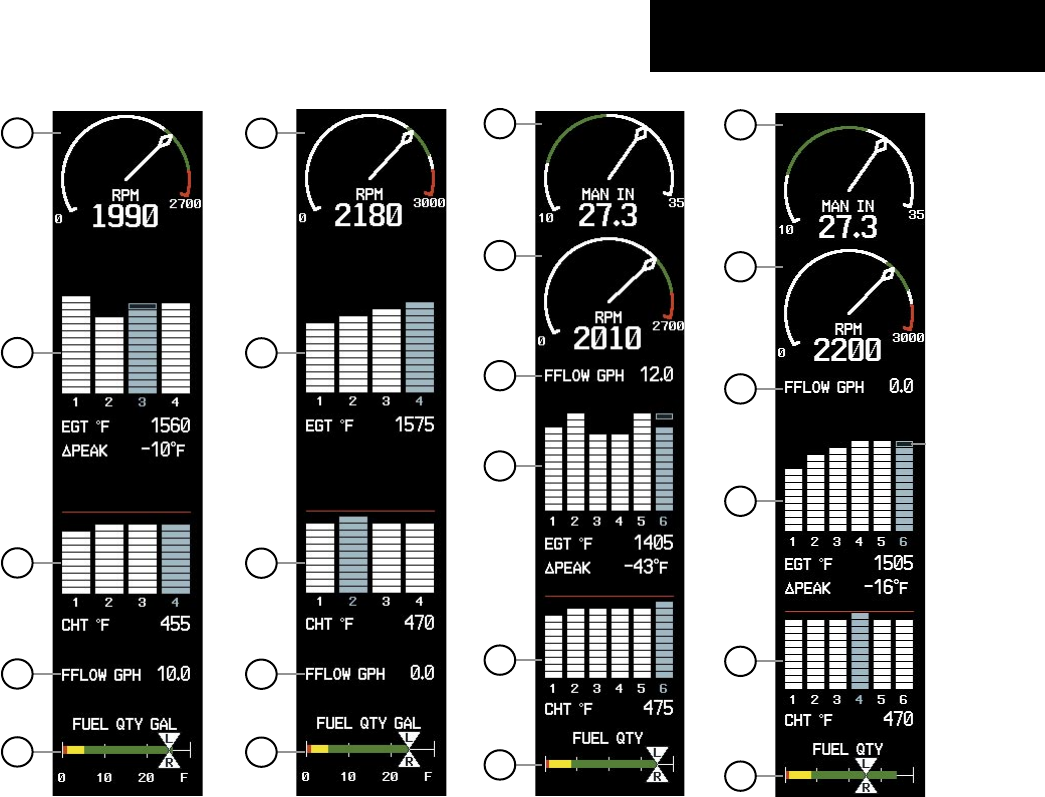

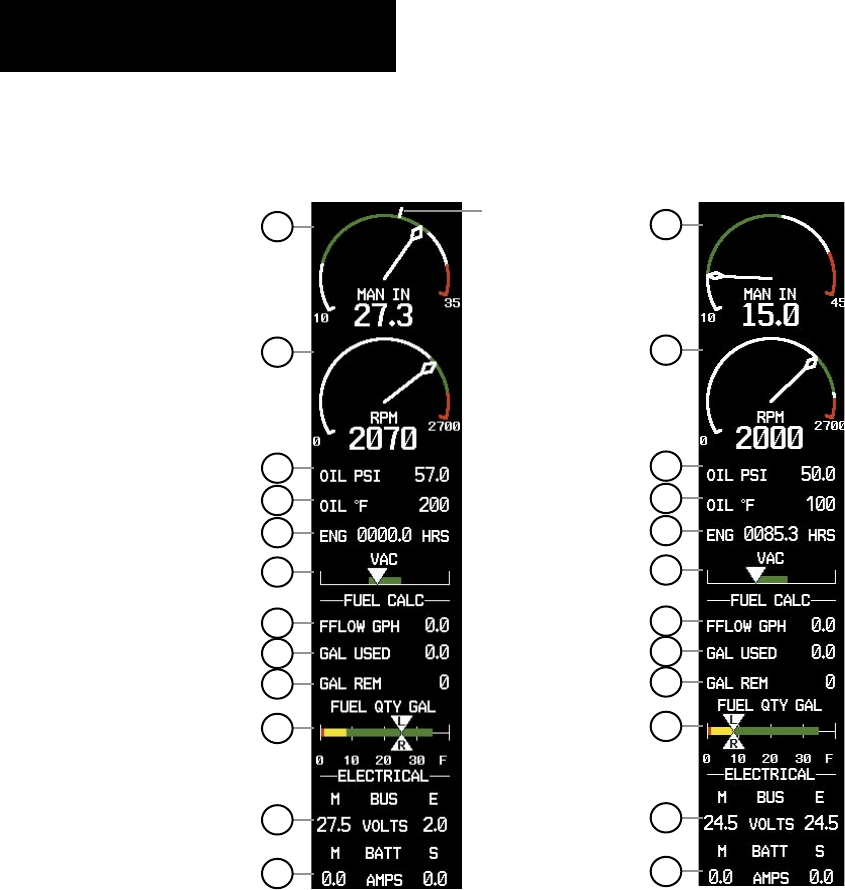

3.1 Engine Display ......................................................... 3-1

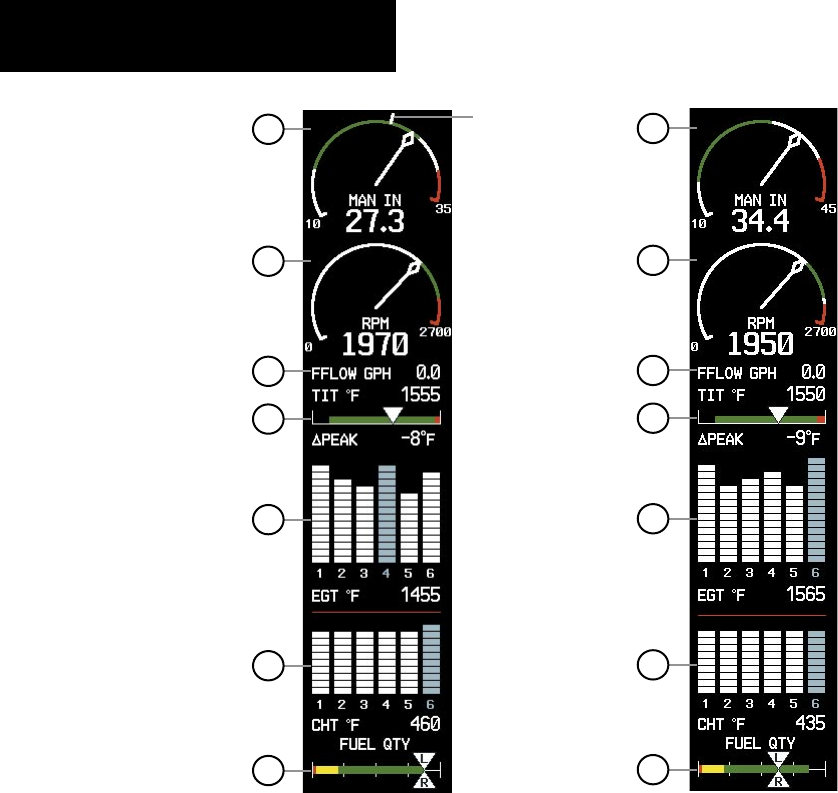

3.2 Lean Display ............................................................ 3-4
Normally-aspirated Aircraft .......................................... 3-7
Turbocharged Aircraft .................................................. 3-7
3.3 System Display ........................................................ 3-7
SECTION 4: NAV/COM AND TRANSPONDER .......... 4-1
4.1 Radio Status Indications ....................................... 4-3
4.2 Volume ...................................................................... 4-3
4.3 Automatic Squelch ................................................. 4-3
4.4 Quickly Activating 121.500 MHz .......................... 4-3
4.5 Optional NAV Radios .............................................4-3
DME Radio (optional) .................................................. 4-3
ADF Radio (optional) ................................................... 4-4
4.6 Frequency Auto-tuning .........................................4-4
Auto-tuning on the PFD .............................................. 4-4
Auto-tuning on the MFD ............................................. 4-4

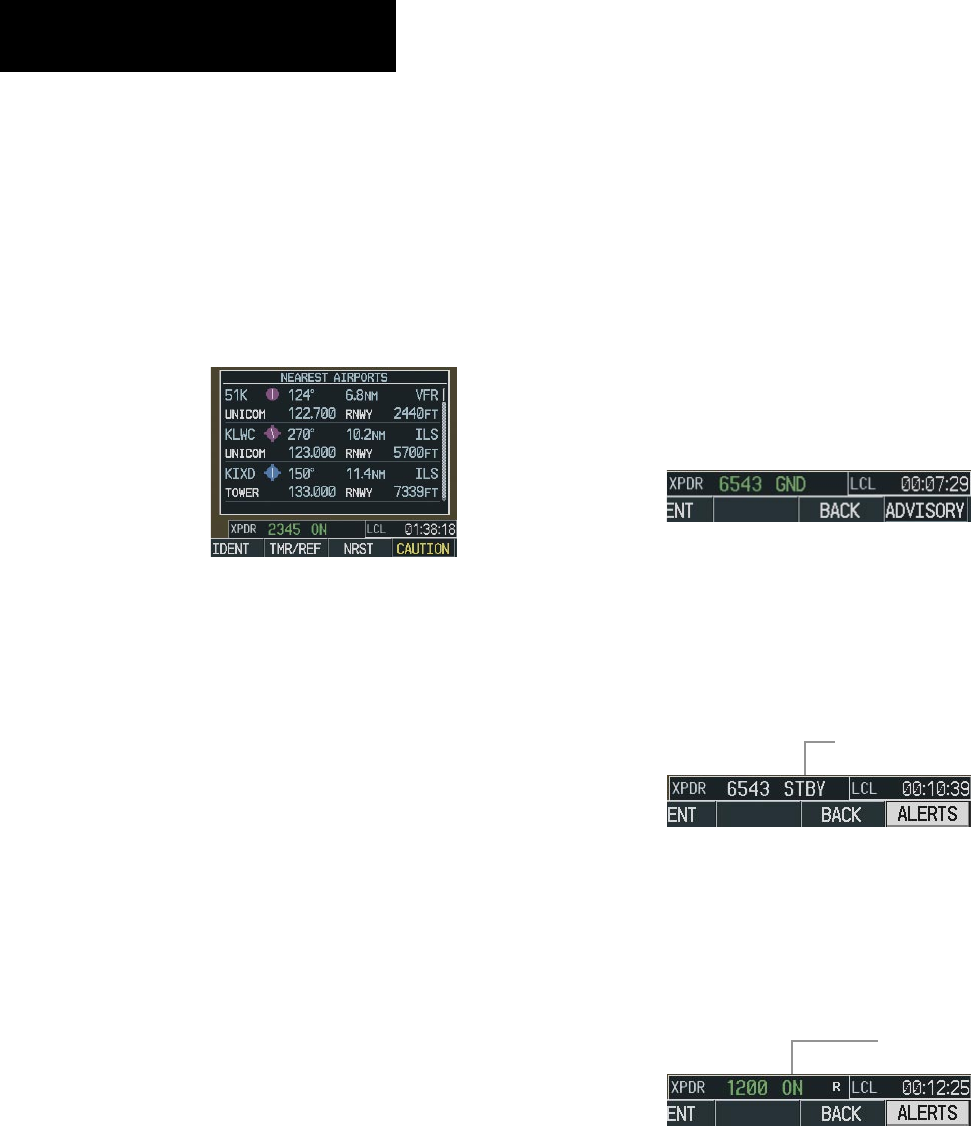

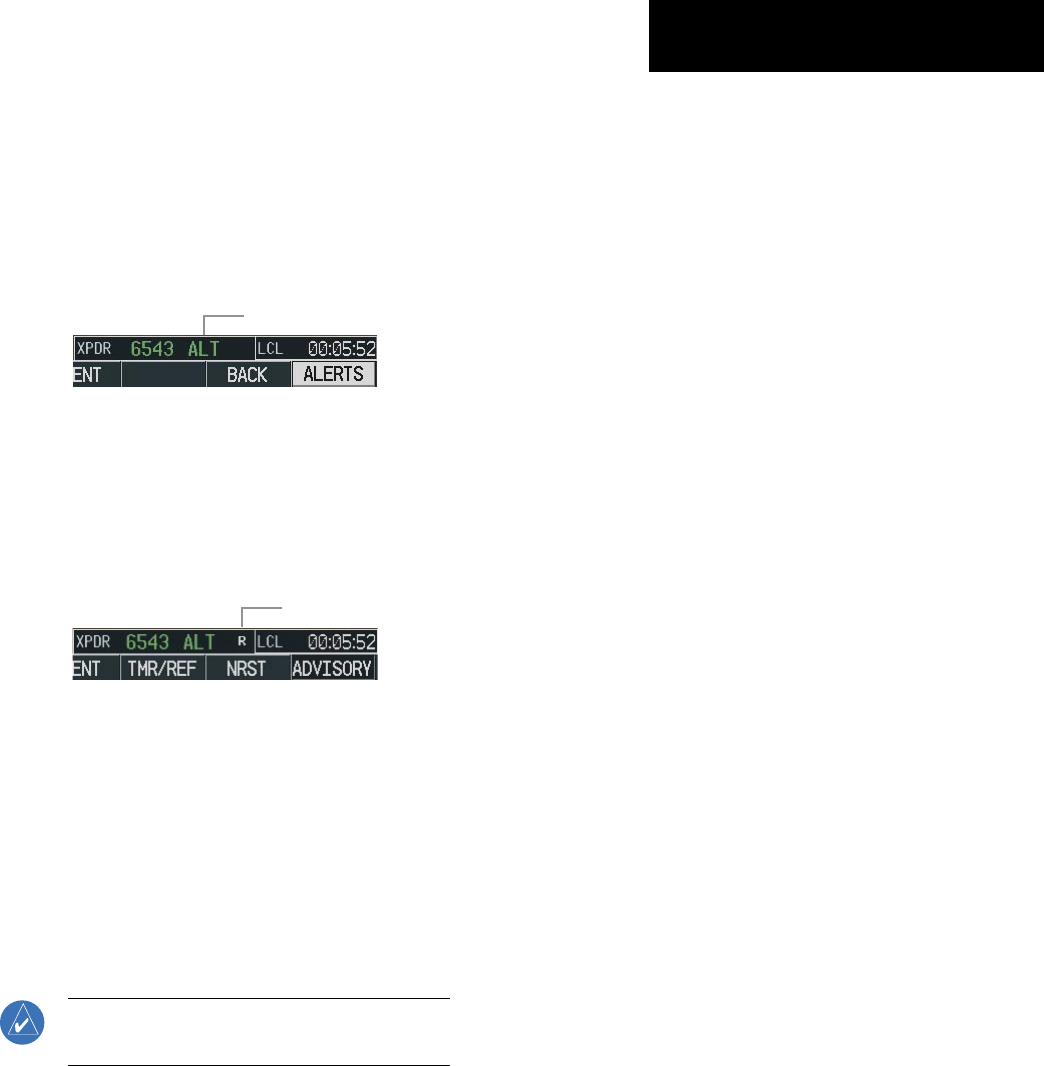

4.7 Transponder .............................................................4-4
Mode Selection ........................................................... 4-4
Reply Status ................................................................ 4-5
Code Selection ............................................................ 4-5
Flight ID Reporting ...................................................... 4-6
SECTION 5: AUDIO PANEL ................................................ 5-1

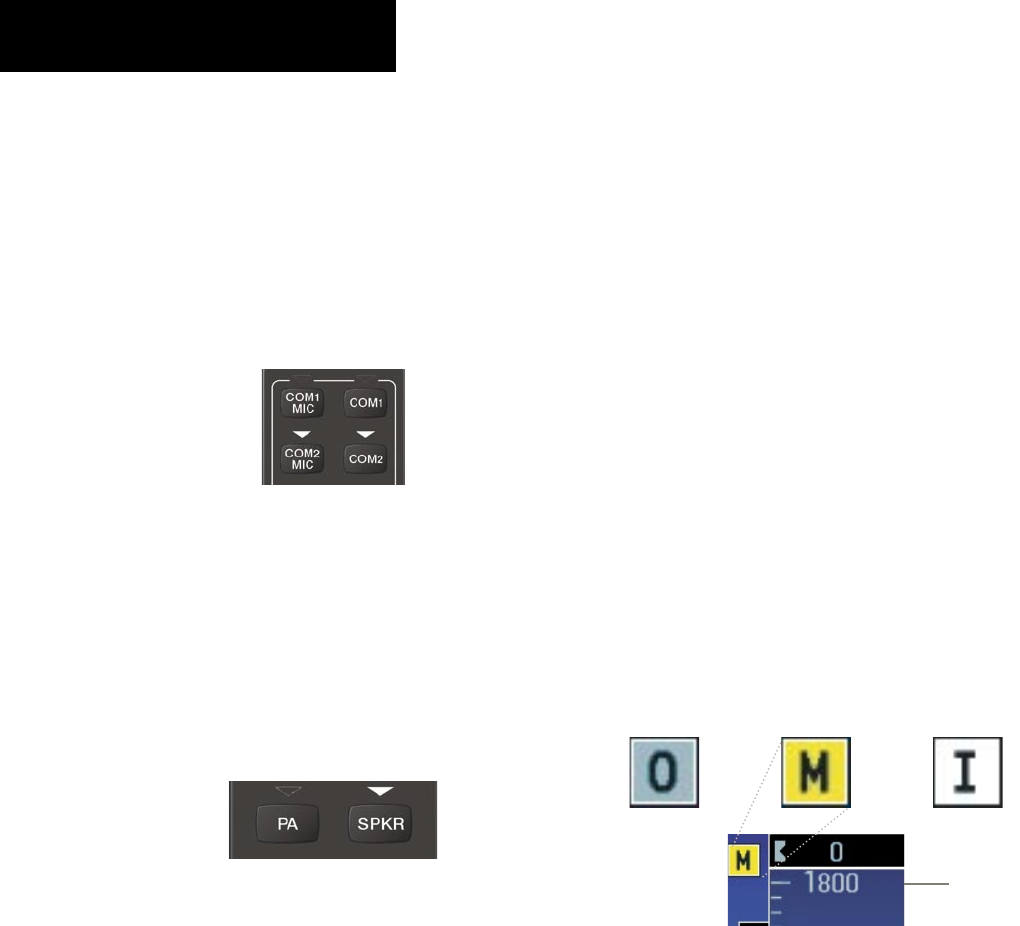

5.1 COM Radio Selection ............................................. 5-2
5.2 Cabin Speaker ......................................................... 5-2
5.3 Passenger Address (PA) System (T)182T and
(T)206H Only ............................................................ 5-2

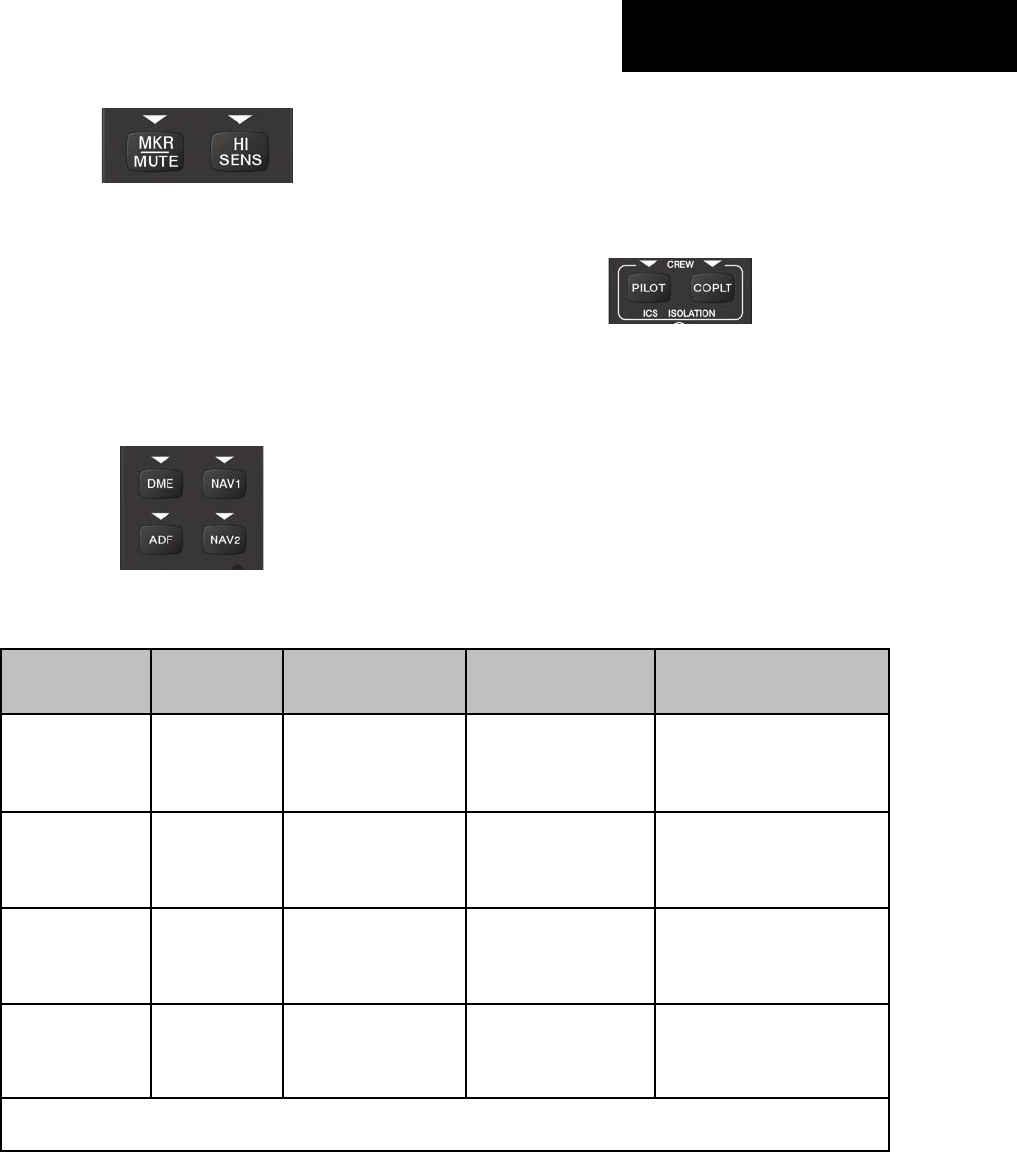

5.4 Marker Beacon Receiver ....................................... 5-2
Marker Beacon Signal Sensitivity ................................. 5-2
5.5 Nav Radio Audio Selection ................................... 5-3

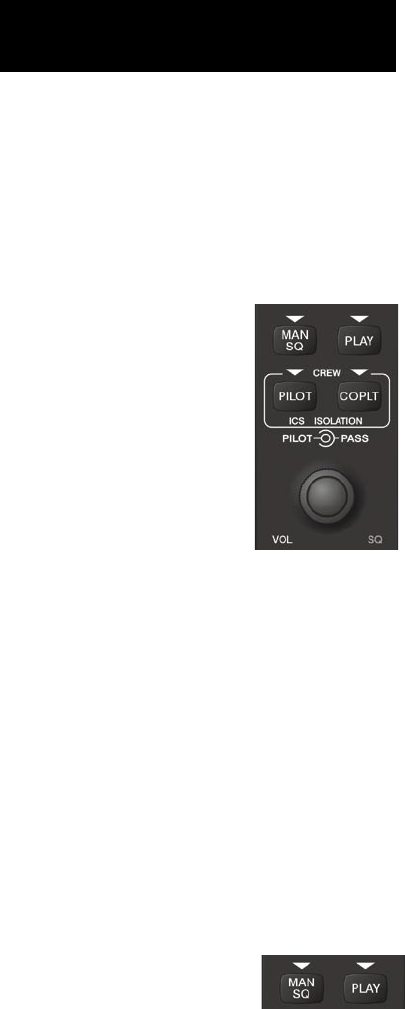

5.6 Intercom System (ICS) Isolation .......................... 5-3
5.7 Intercom Squelch Control ..................................... 5-4
5.8 Digital Clearance Recorder and Player .............5-4
SECTION 6: AUTOMATIC FLIGHT CONTROL ............. 6-1

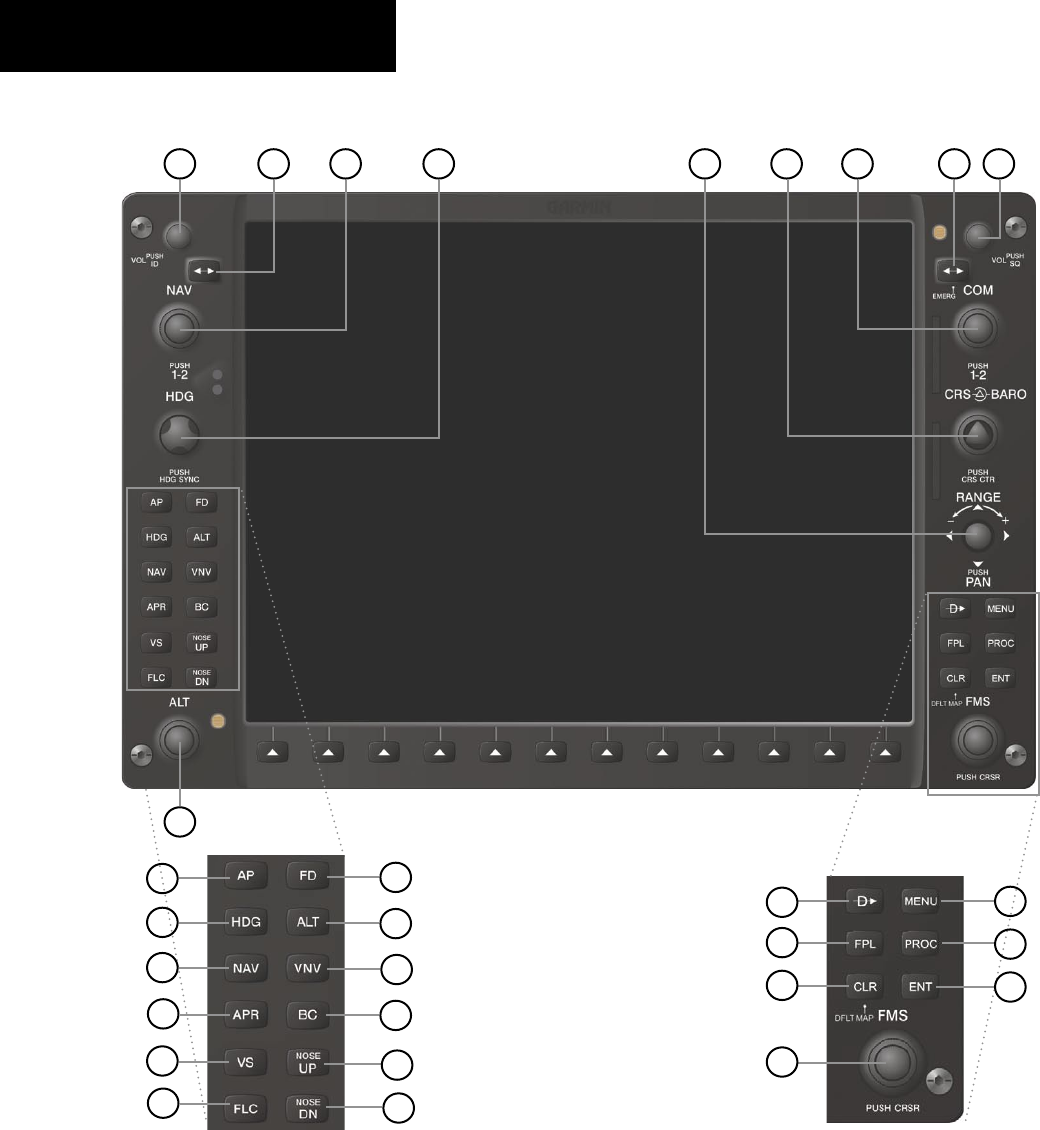

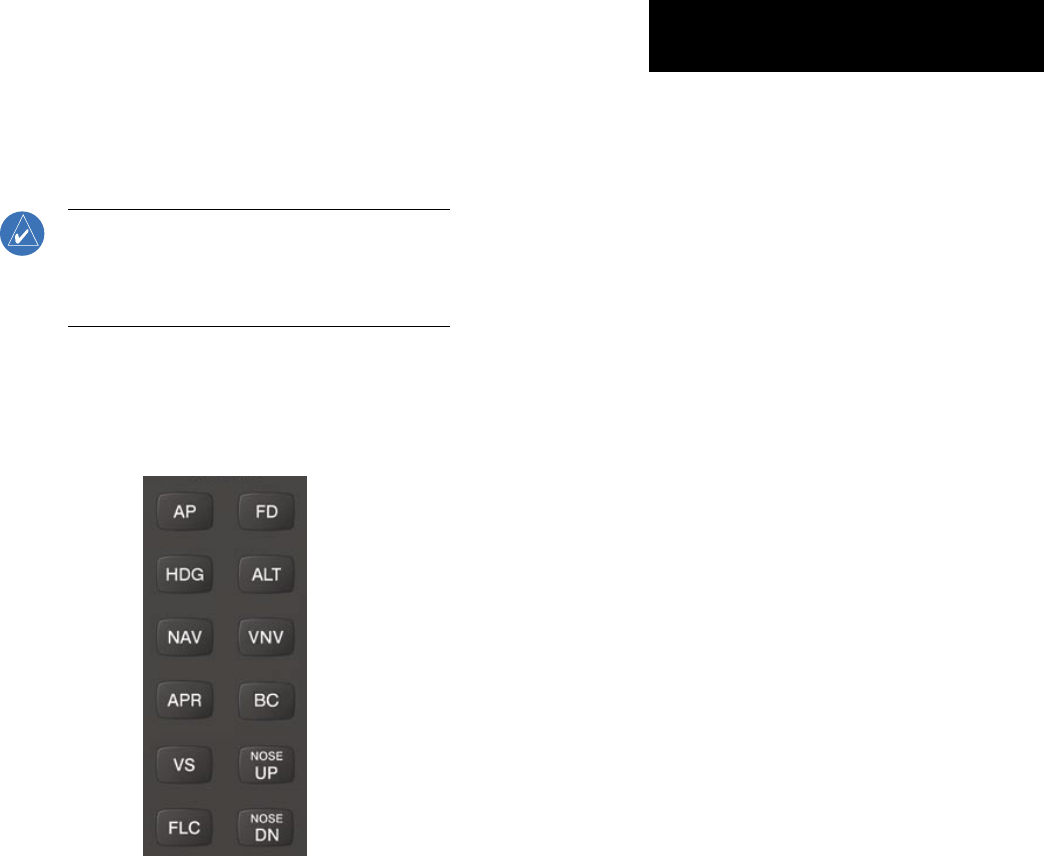

6.1 AFCS Controls .......................................................... 6-1
6.2 Flight Director Operation ..................................... 6-2
Activating the Flight Director ....................................... 6-2
Command Bars ........................................................... 6-2
AFCS Status Box .........................................................6-3
6.3 Flight Director Modes ............................................6-3
Pitch Modes ................................................................ 6-3
Roll Modes ................................................................ 6-17
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
ii
TABLE OF CONTENTS
6.4 Autopilot Operation ............................................ 6-22
Flight Control ............................................................ 6-22
Engaging the Autopilot .............................................. 6-22
Control Wheel Steering .............................................. 6-23
Disengaging the Autopilot ......................................... 6-23

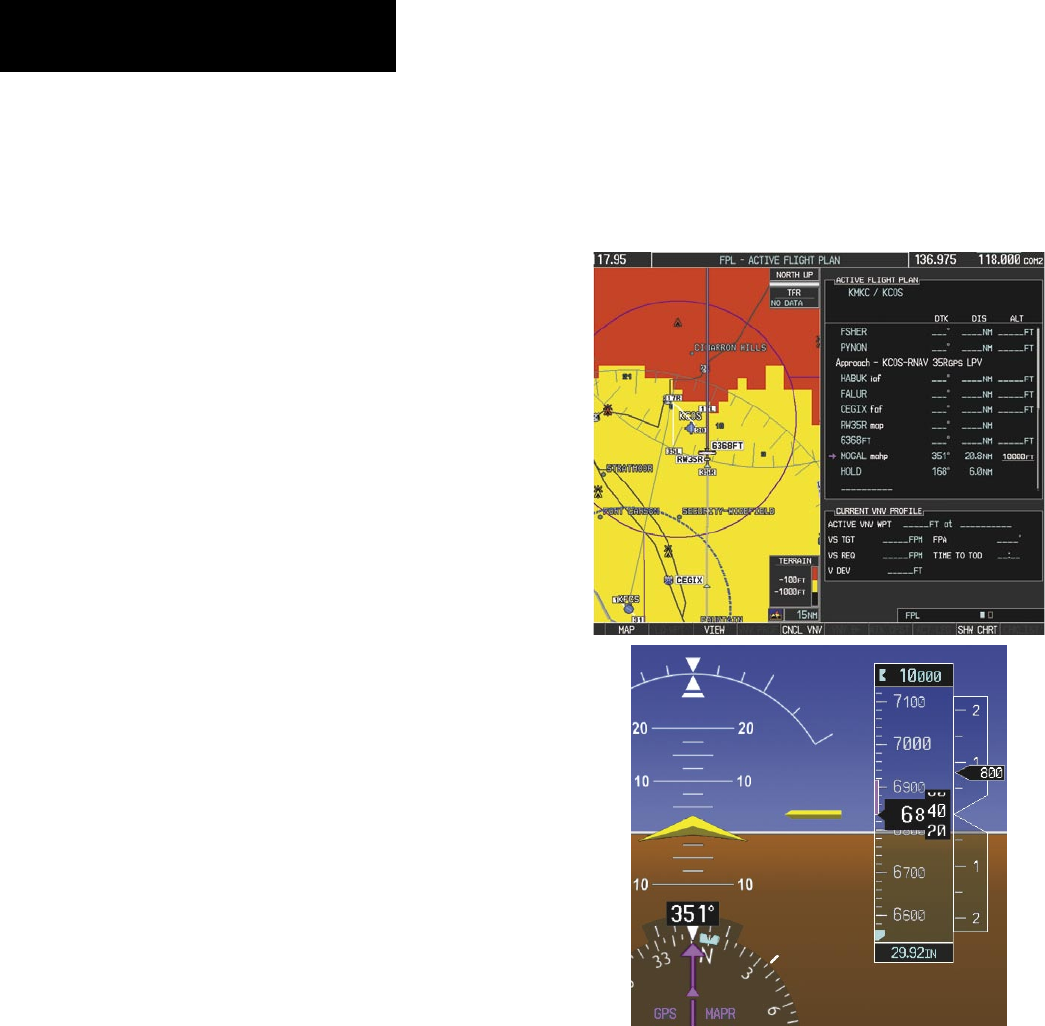

6.5 Example Procedures ............................................ 6-24
Departure ................................................................. 6-25
Intercepting a VOR Radial .......................................... 6-26

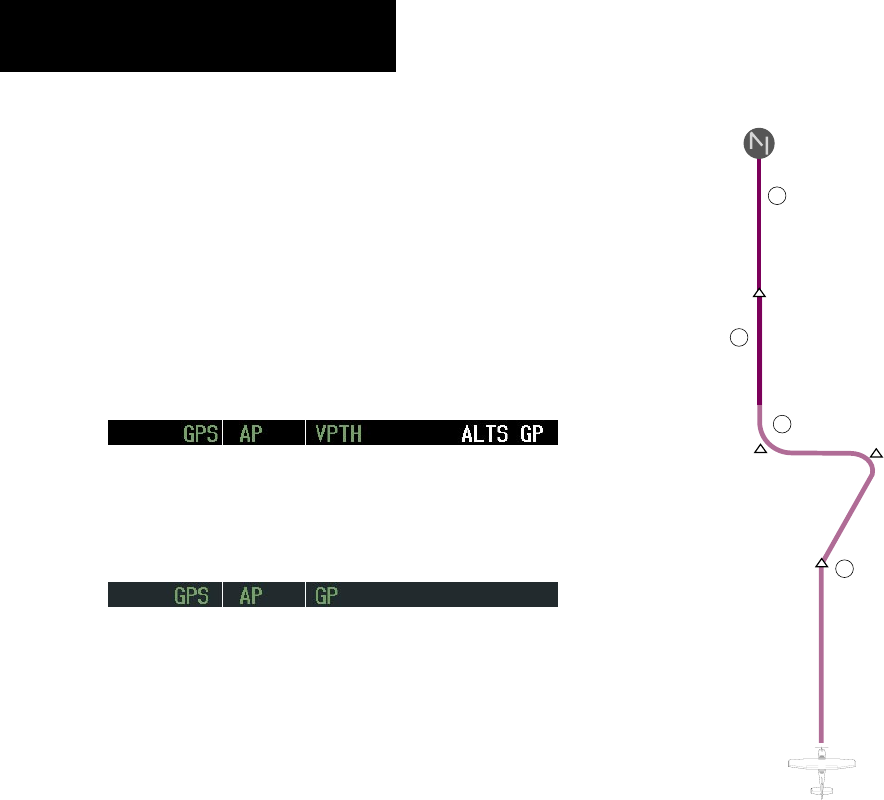

Flying a Flight Plan/GPS Course ................................. 6-27

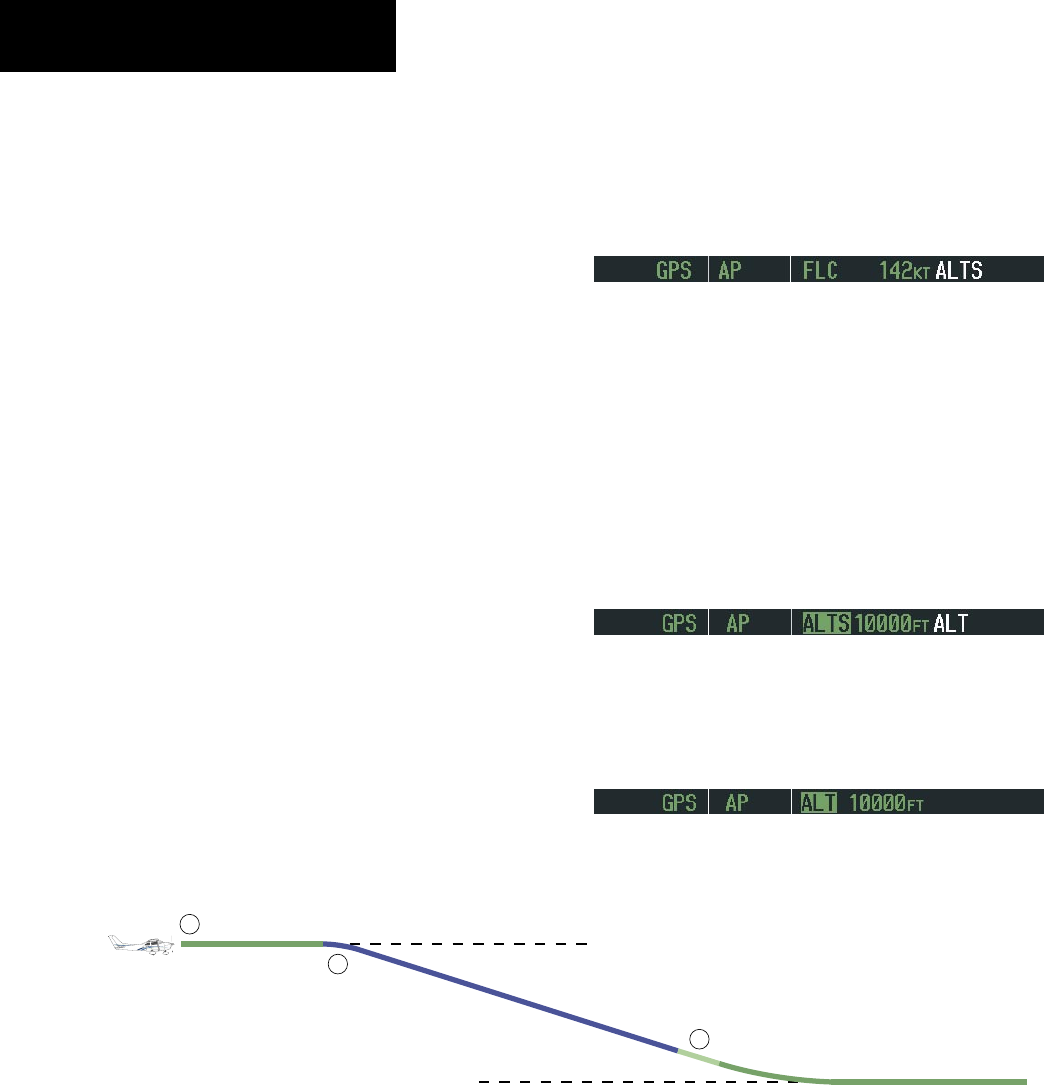

Descent .................................................................... 6-28
Approach .................................................................. 6-31
Go Around/Missed Approach ..................................... 6-33
6.6 AFCS Annunciations and Alerts ......................... 6-34
AFCS Status Alerts ..................................................... 6-34

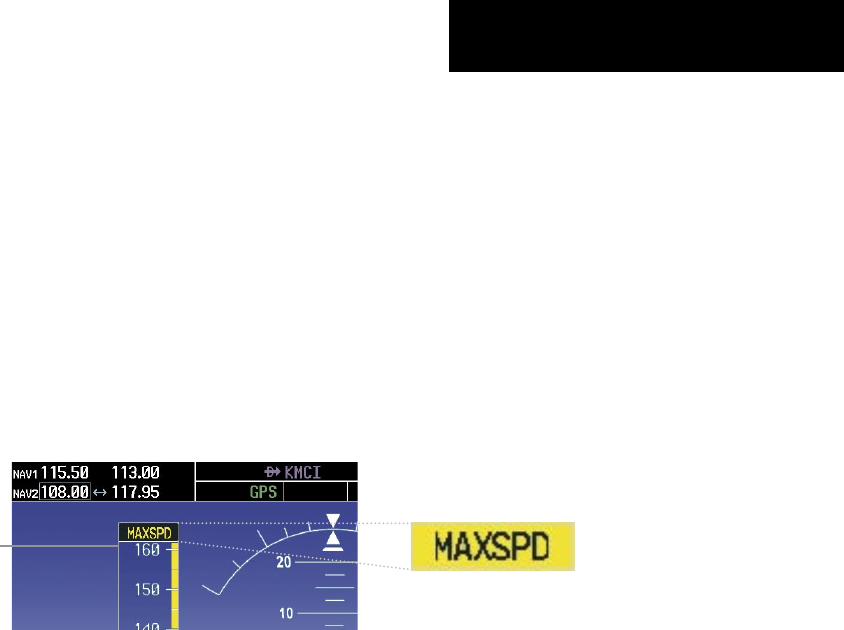

Overspeed Protection ................................................ 6-35
SECTION 7: NAVIGATION .................................................. 7-1
7.1 Navigation Map Page ............................................ 7-1

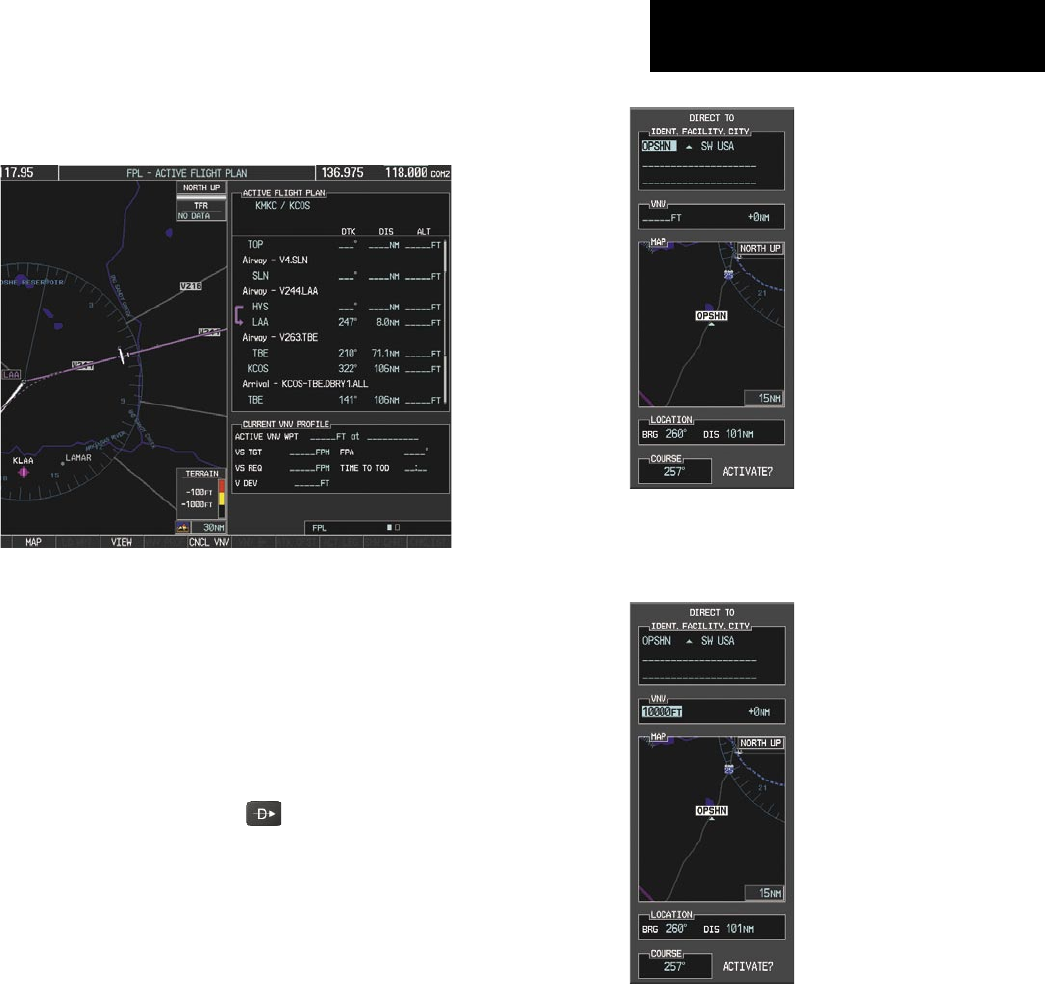

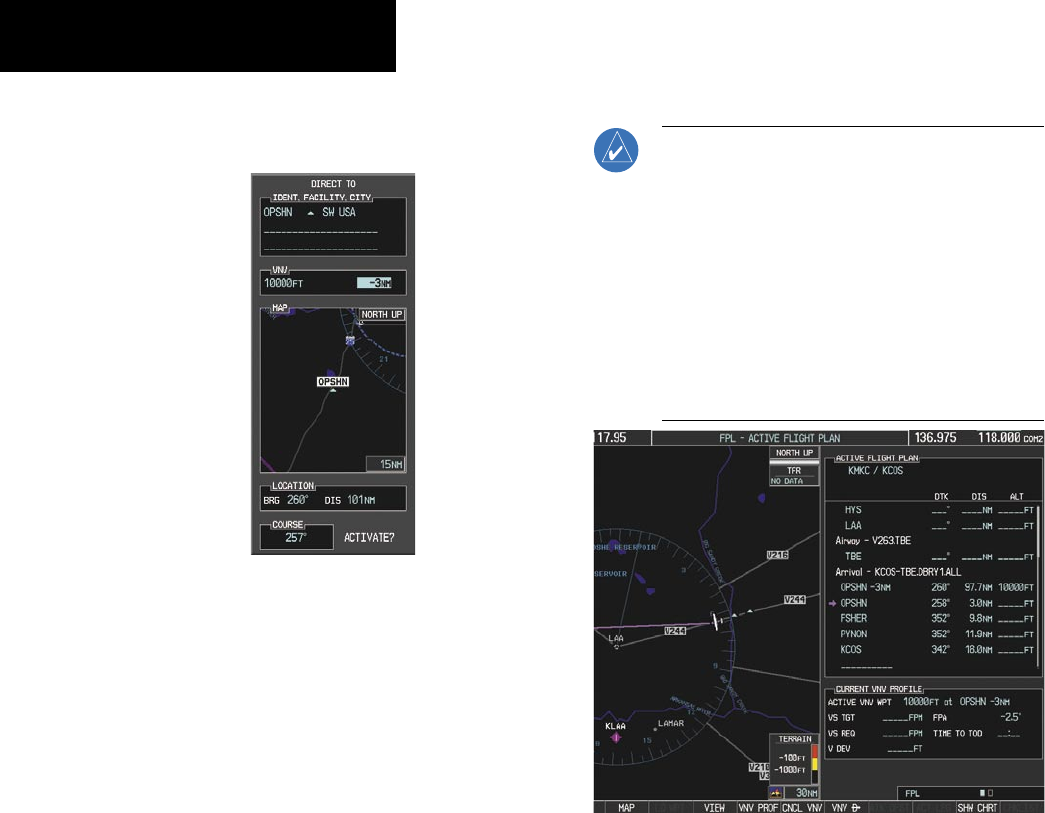

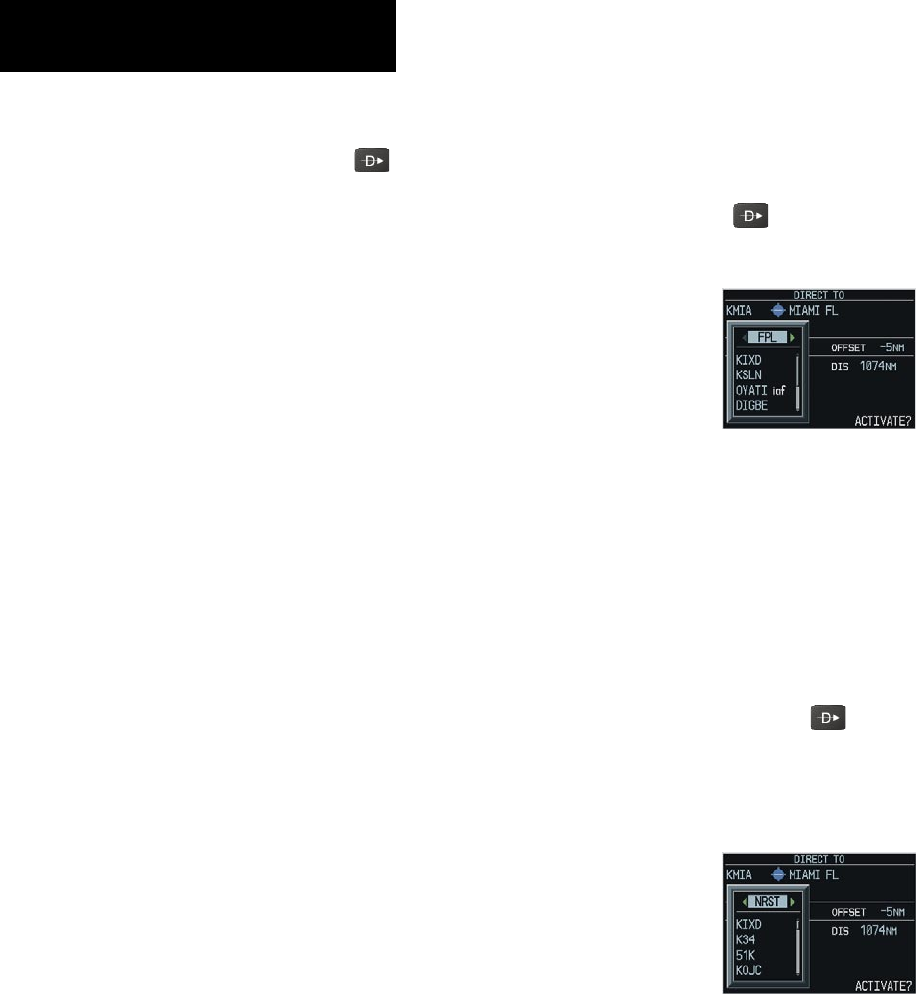

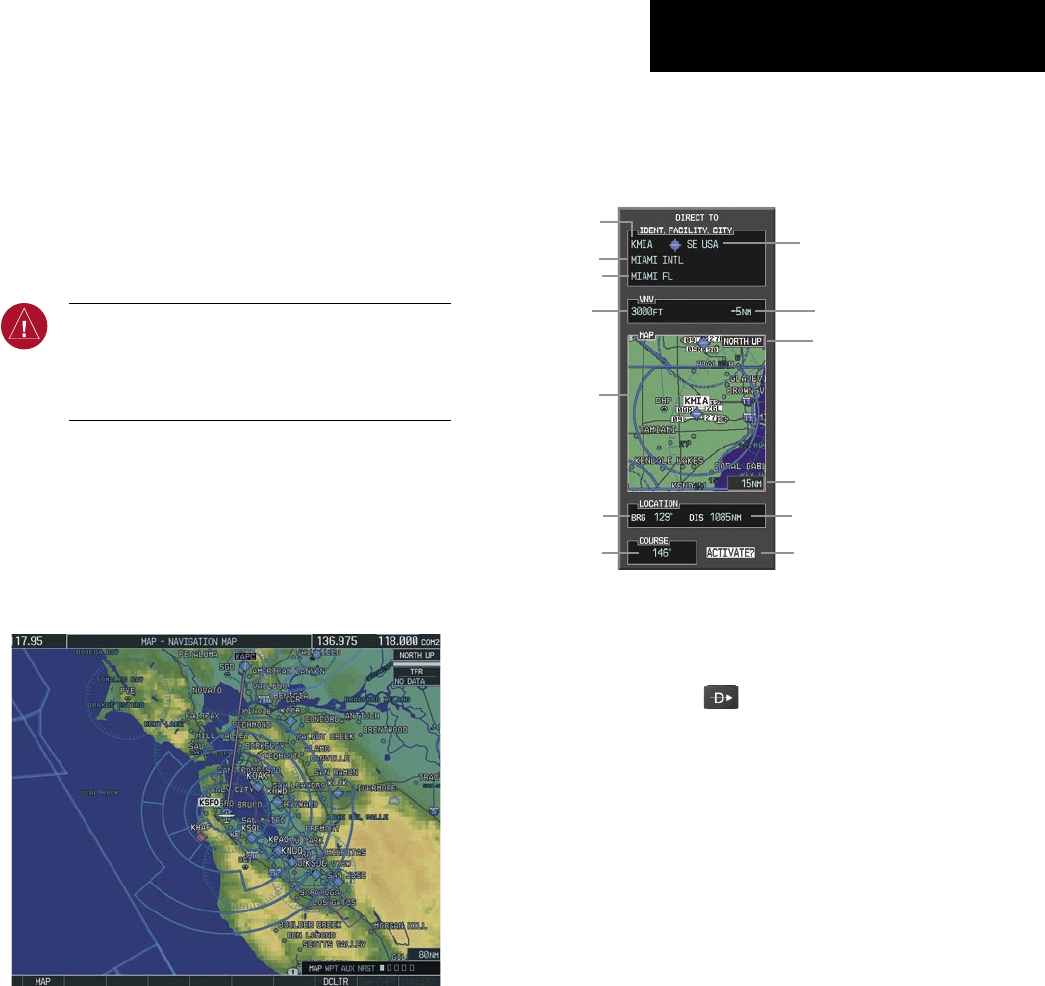

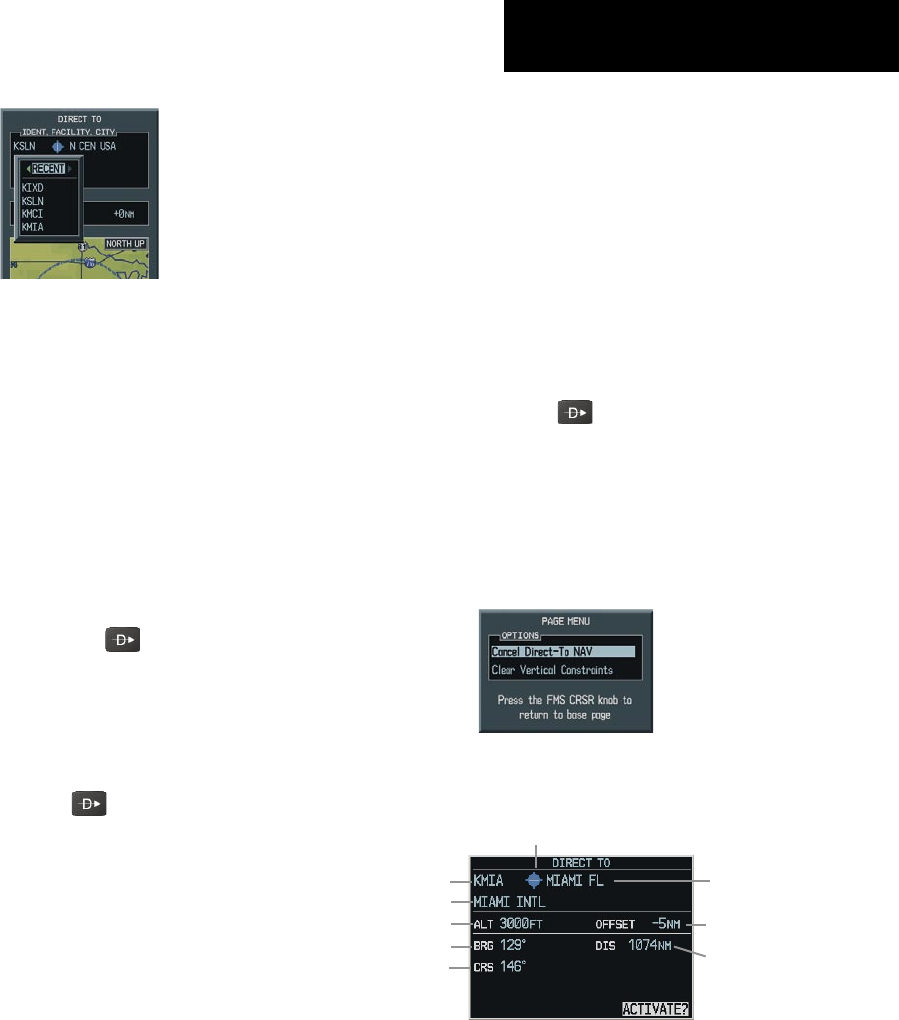

7.2 Direct-to Navigation .............................................. 7-1
Direct-to Navigation from the MFD .............................. 7-1

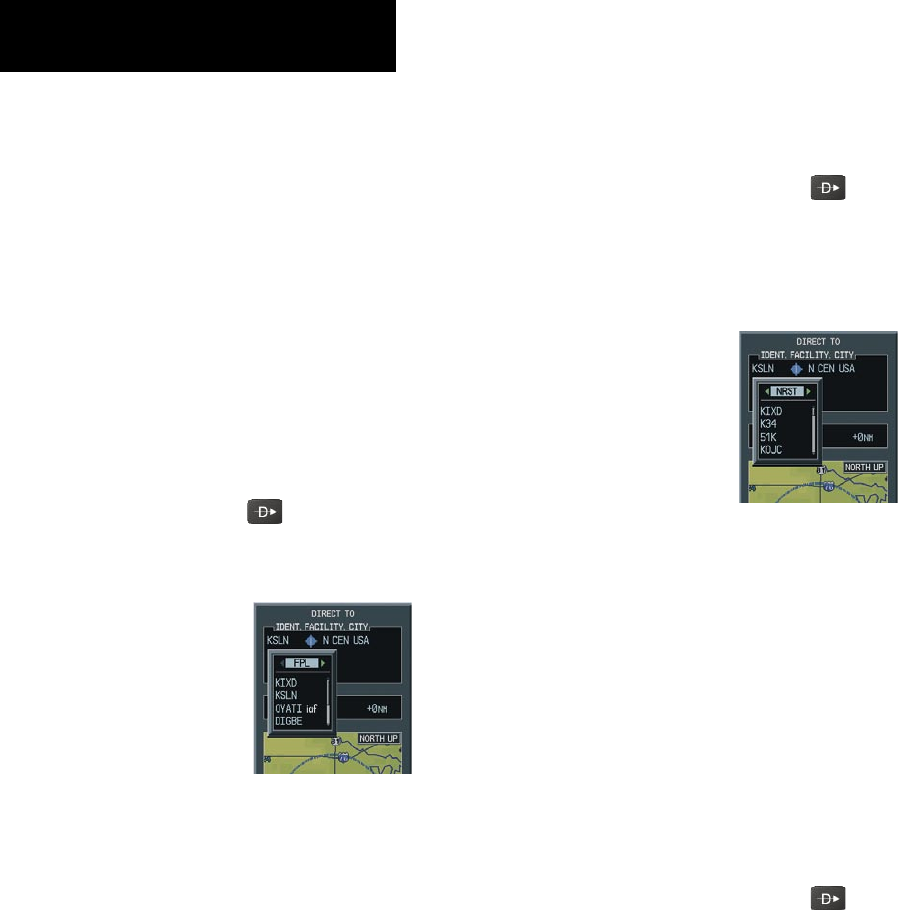

Direct-to Navigation from the PFD ............................... 7-3

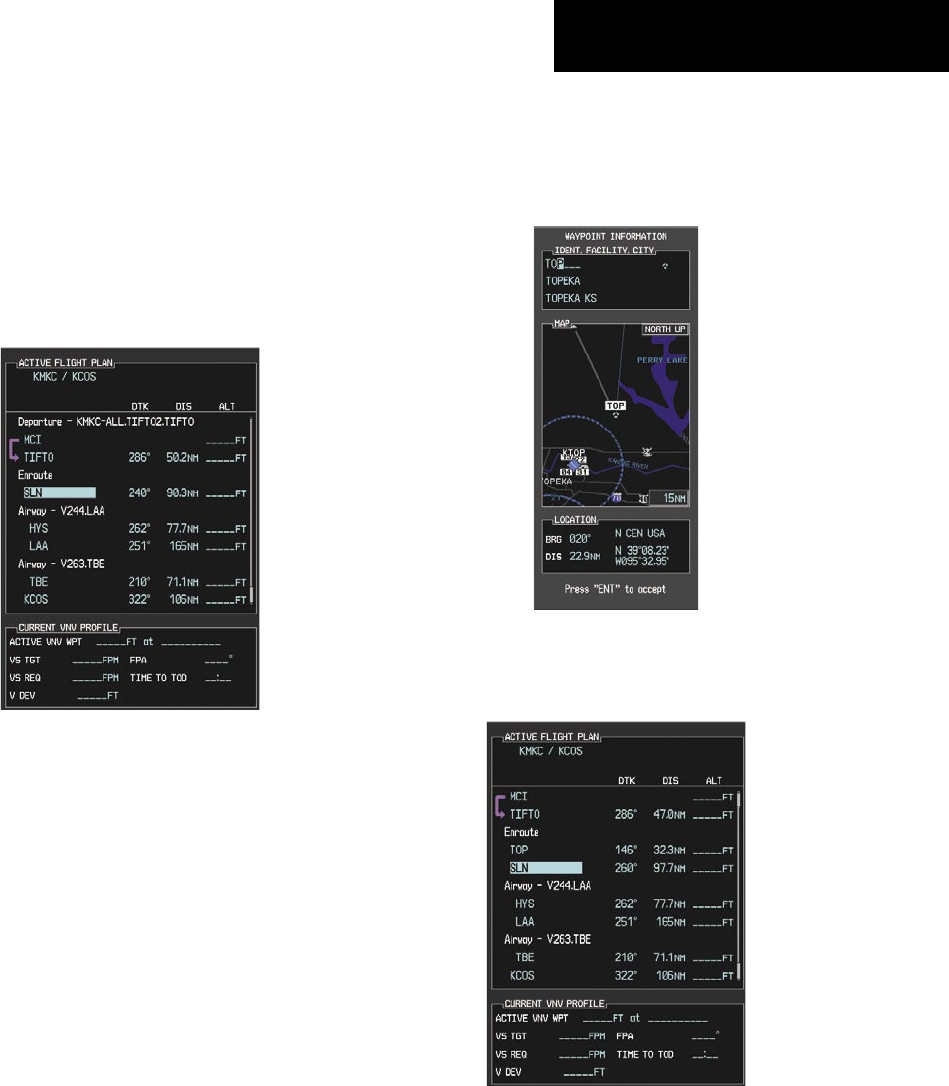

7.3 Navigating an Example Flight Plan .................... 7-5
7.4 Airport Information ............................................. 7-21

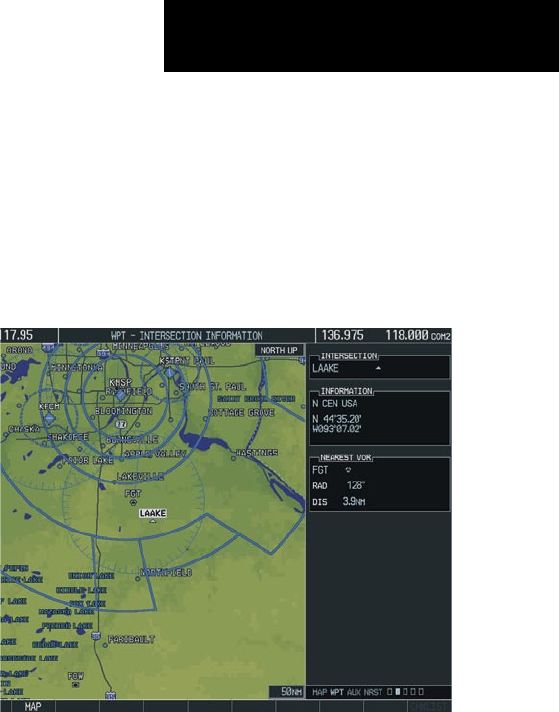

7.5 Intersection Information .................................... 7-23

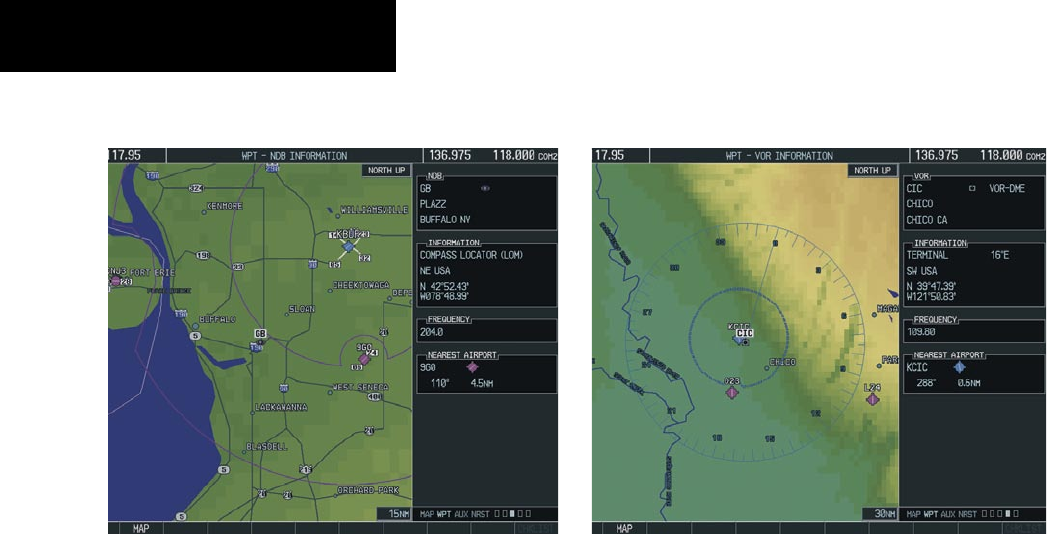

7.6 NDB Information ................................................... 7-24
7.7 VOR Information ................................................... 7-24
7.8 User Waypoint Information Page ..................... 7-25

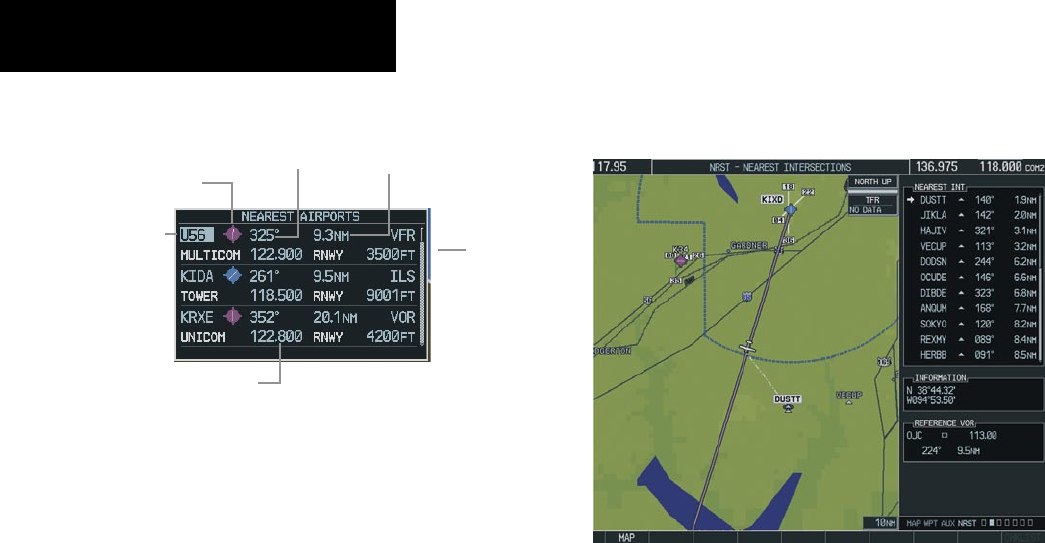

7.9 Nearest Airports ................................................... 7-25
Nearest Airport Information on the MFD .................... 7-25
Nearest Airports Information on the PFD .................... 7-26
7.10 Nearest Intersections .......................................... 7-26
7.11 Nearest NDB ..........................................................7-27
7.12 Nearest VOR ........................................................... 7-27
7.13 Nearest User Waypoint ........................................7-28
7.14 Nearest Frequencies ............................................ 7-28

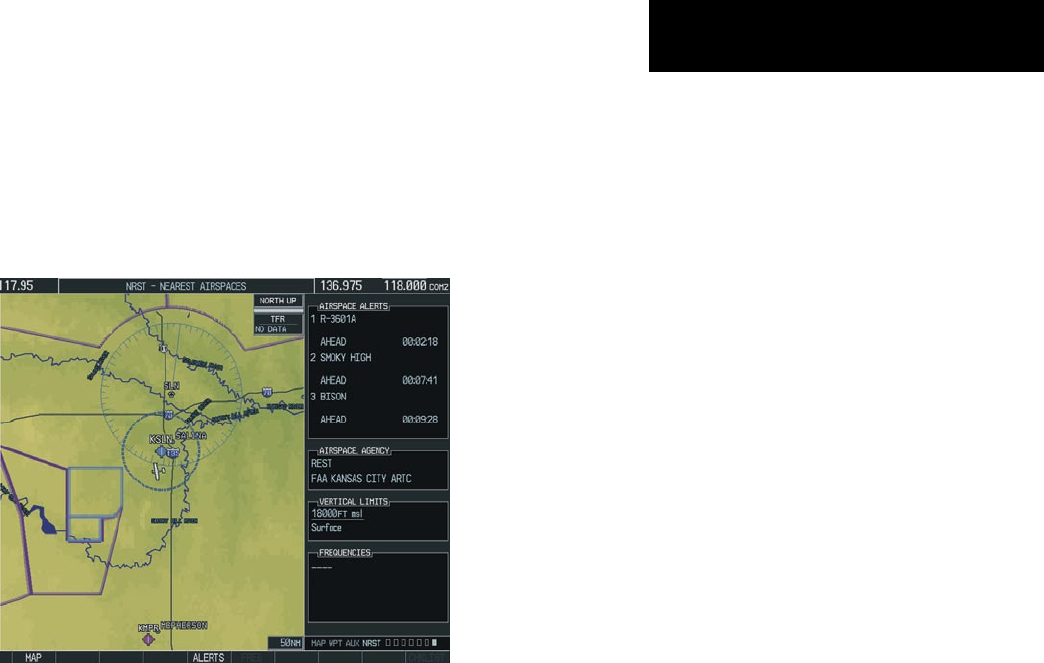

7.15 Nearest Airspaces ................................................. 7-29
SECTION 8: FLIGHT PLANNING ...................................... 8-1
8.1 User Defined Waypoints ........................................ 8-1
Select the User WPT Information Page ......................... 8-1
Create User Waypoints from the Navigation Map Page . 8-2

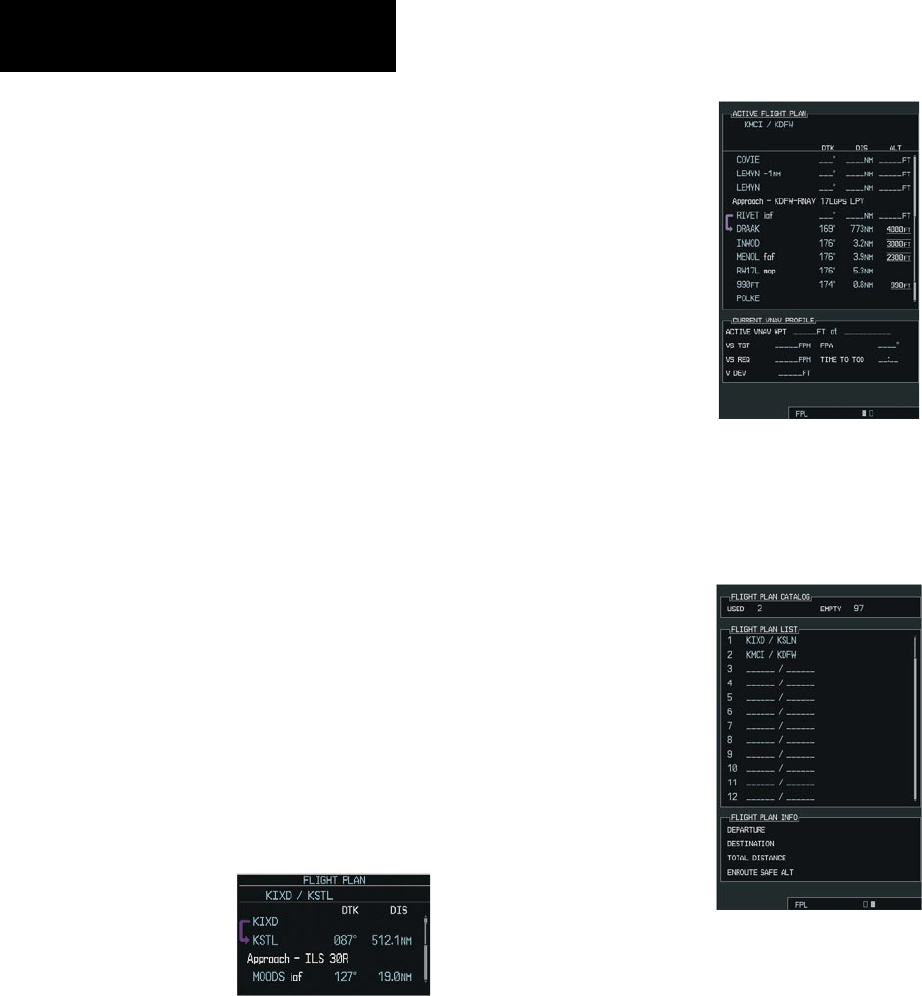

8.2 Viewing the Active Flight Plan ............................ 8-2
8.3 Activate a Stored Flight Plan ............................... 8-2
8.4 Activate a Flight Plan Leg ....................................8-3
8.5 Stop Navigating a Flight Plan .............................. 8-3

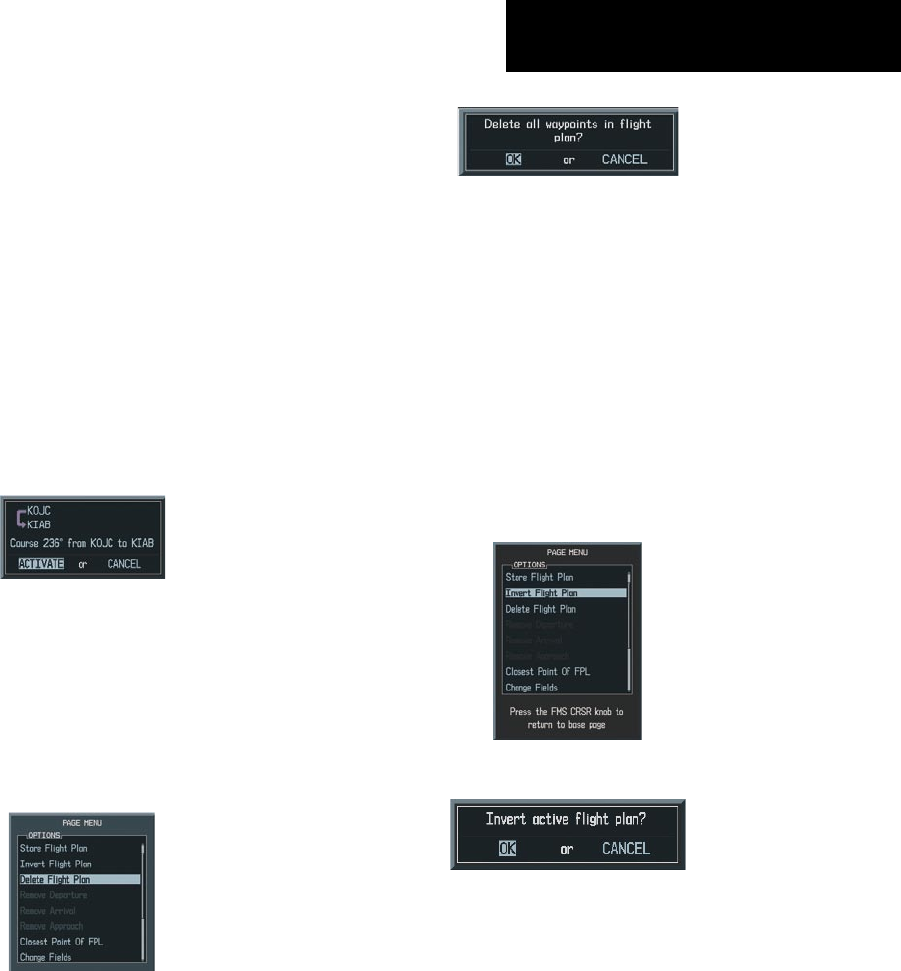

8.6 Invert Active Flight Plan ....................................... 8-3

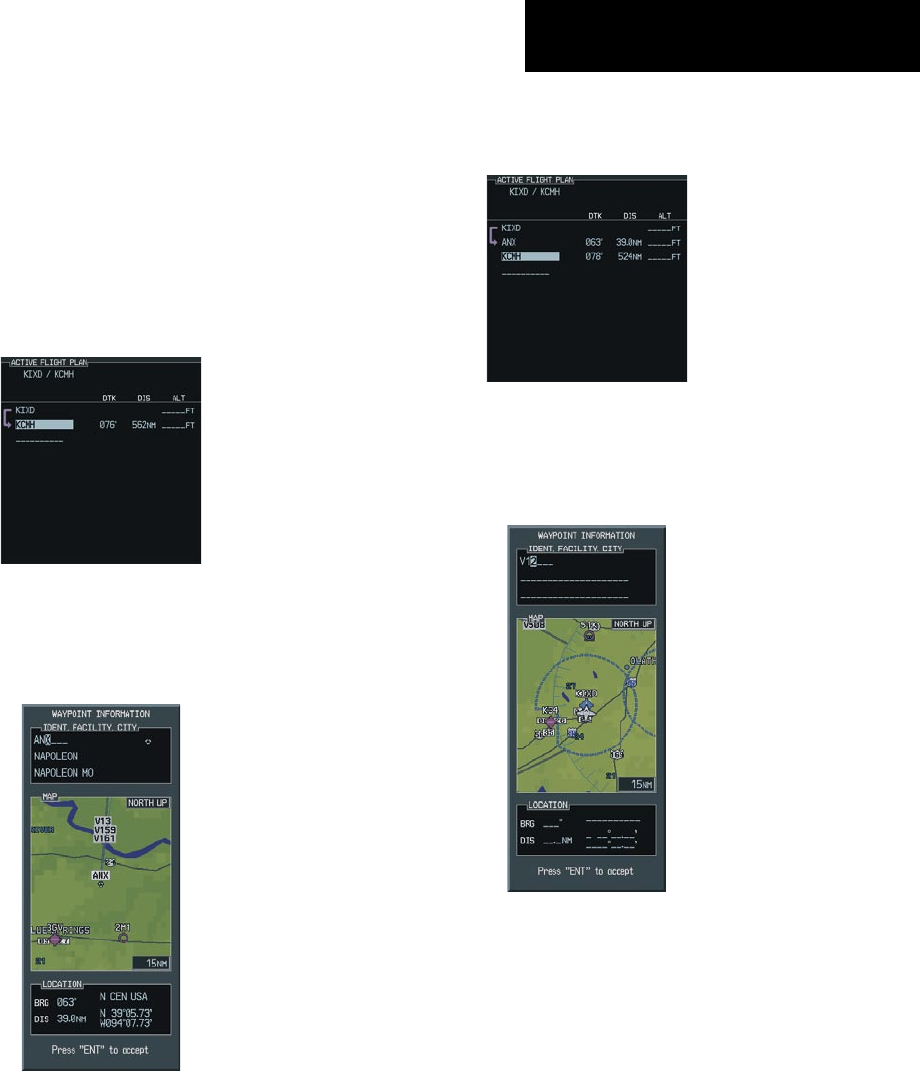

8.7 Create a New Flight Plan ...................................... 8-4
Create a New Flight Plan Using the MFD ..................... 8-4
Create a New Flight Plan Using the PFD ...................... 8-4

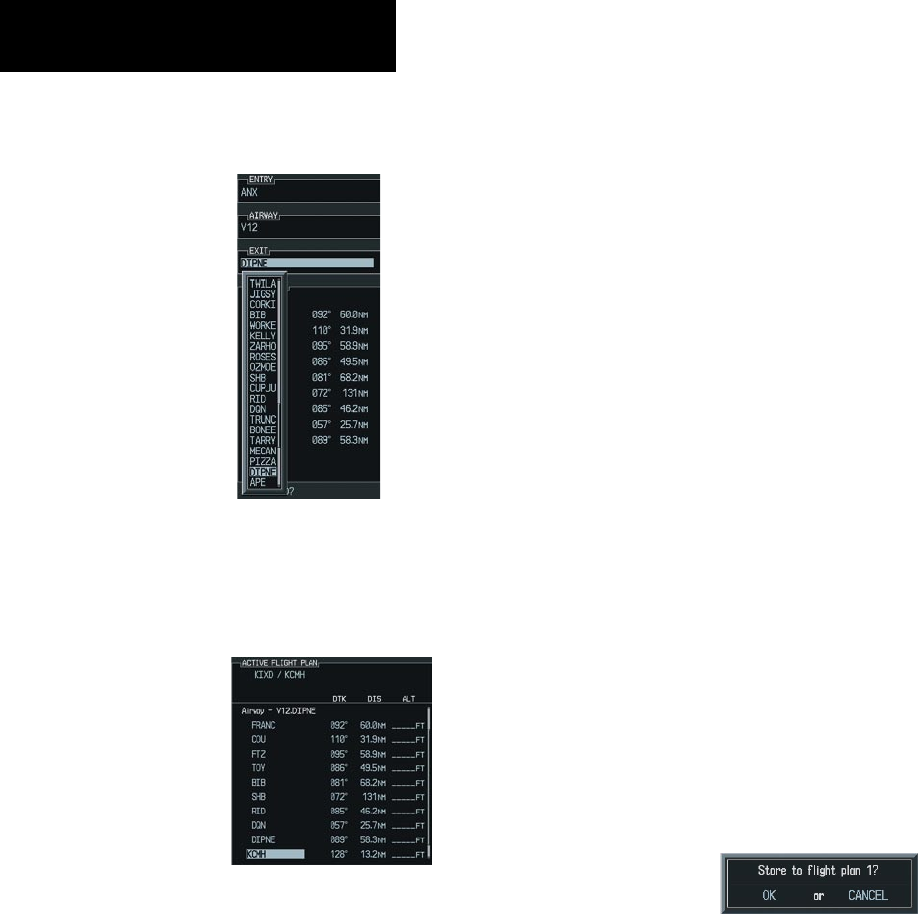

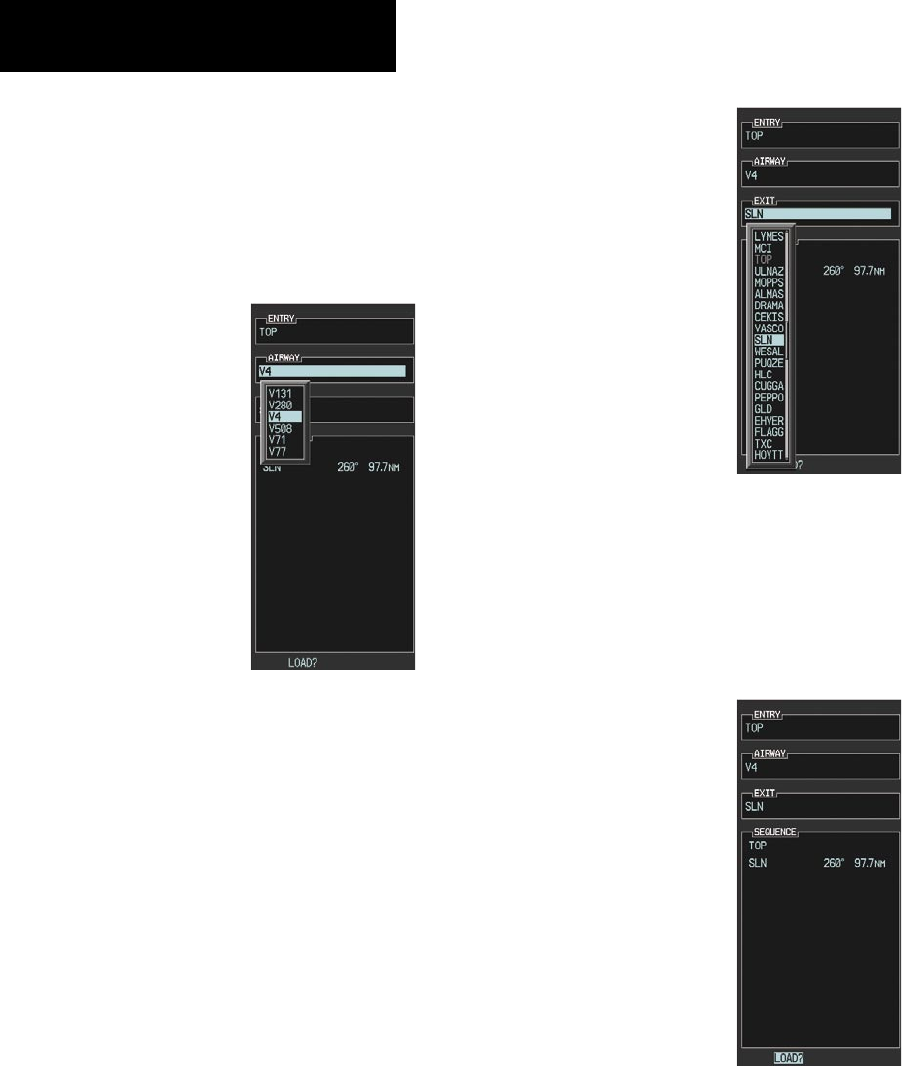

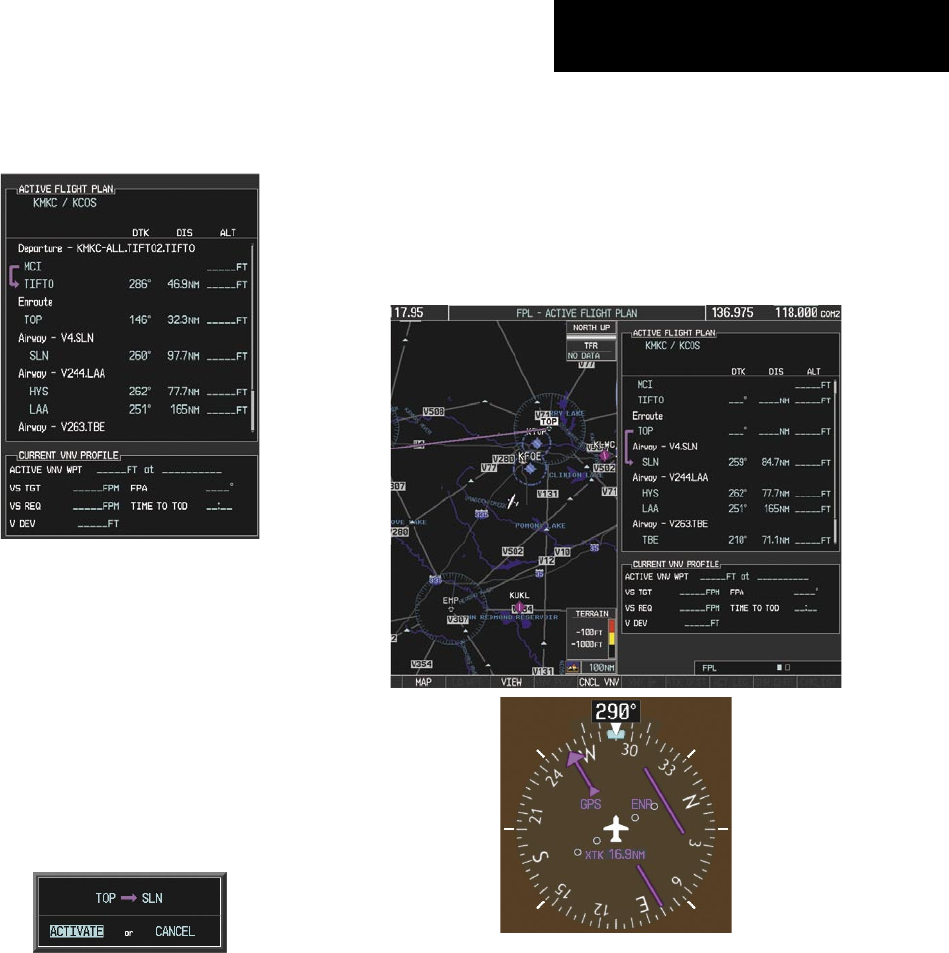

8.8 Enter an Airway in a Flight Plan .........................8-5
8.9 Load a Departure ...................................................8-6
8.10 Load an Arrival ........................................................ 8-6
8.11 Load an Approach .................................................. 8-6
8.12 Remove a Departure, Arrival, Approach, or
Airway from a Flight Plan ....................................8-6
8.13 Store a Flight Plan .................................................. 8-6
8.14 Edit a Stored Flight Plan ....................................... 8-7
8.15 Delete a Waypoint from the Flight Plan ............ 8-7
8.16 Invert and Activate a Stored Flight Plan .......... 8-7
8.17 Copy a Flight Plan .................................................. 8-7
8.18 Delete a Flight Plan ............................................... 8-8
8.19 Graphical Flight Plan Creation ............................ 8-8

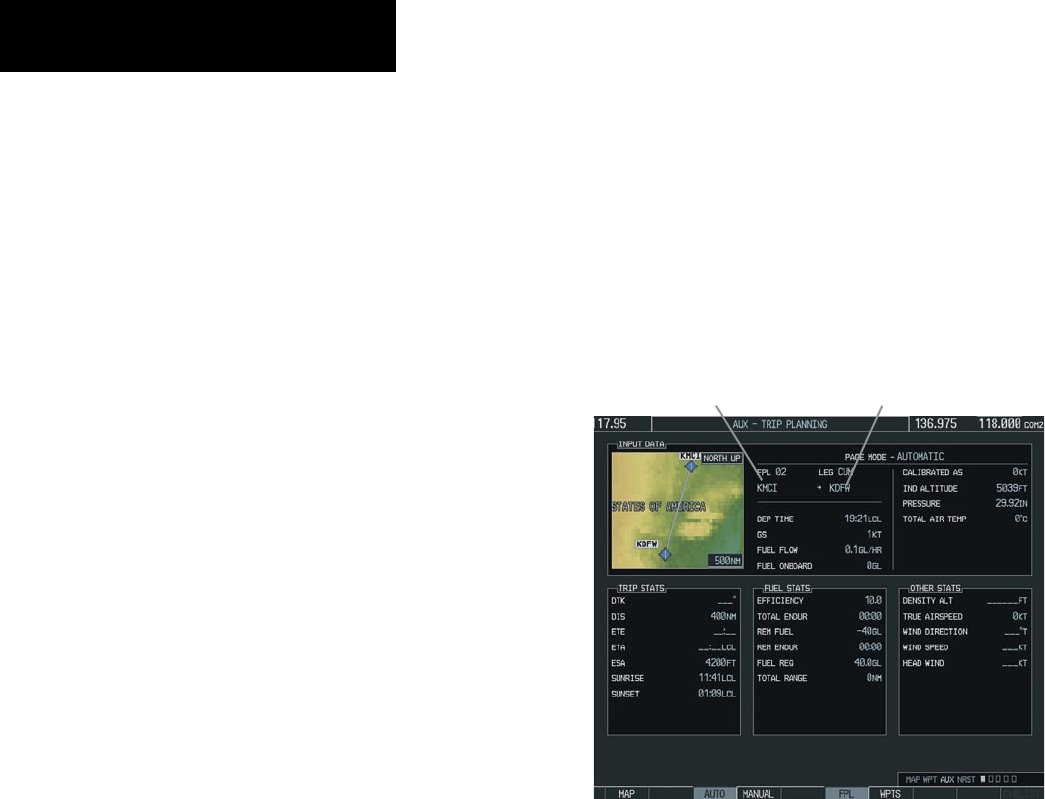

8.20 Trip Planning ............................................................ 8-8
SECTION 9: PROCEDURES ................................................ 9-1
9.1 Arrivals and Departures ........................................ 9-1

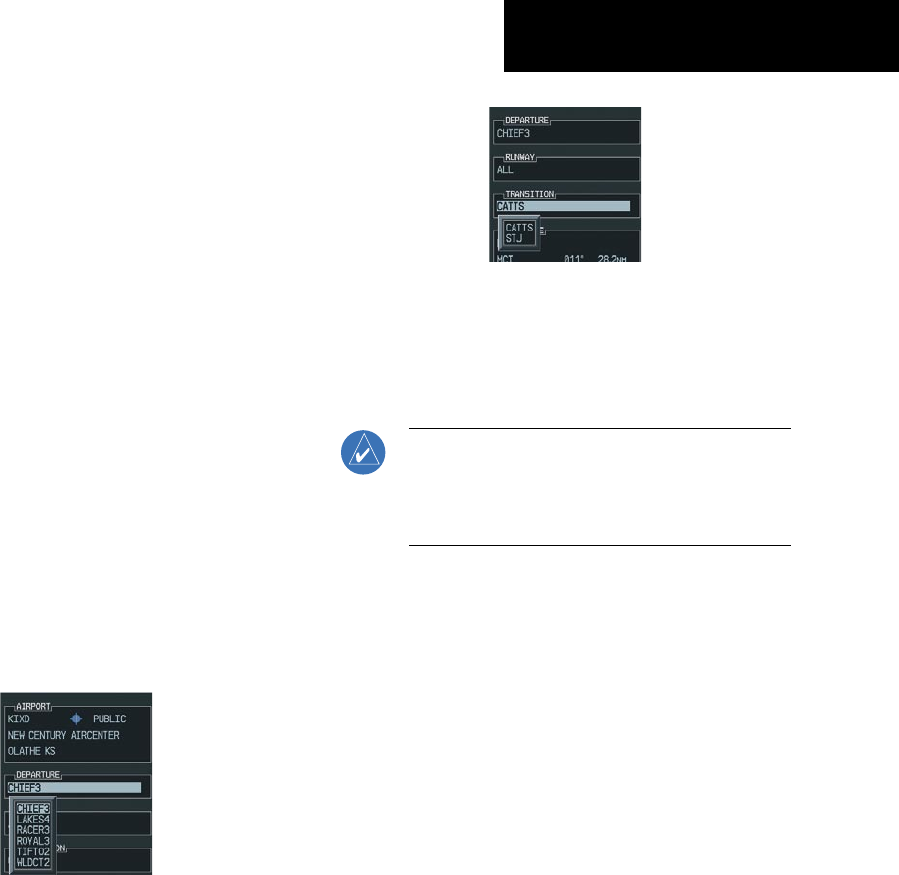

Load and Activate a Departure Procedure .................... 9-1

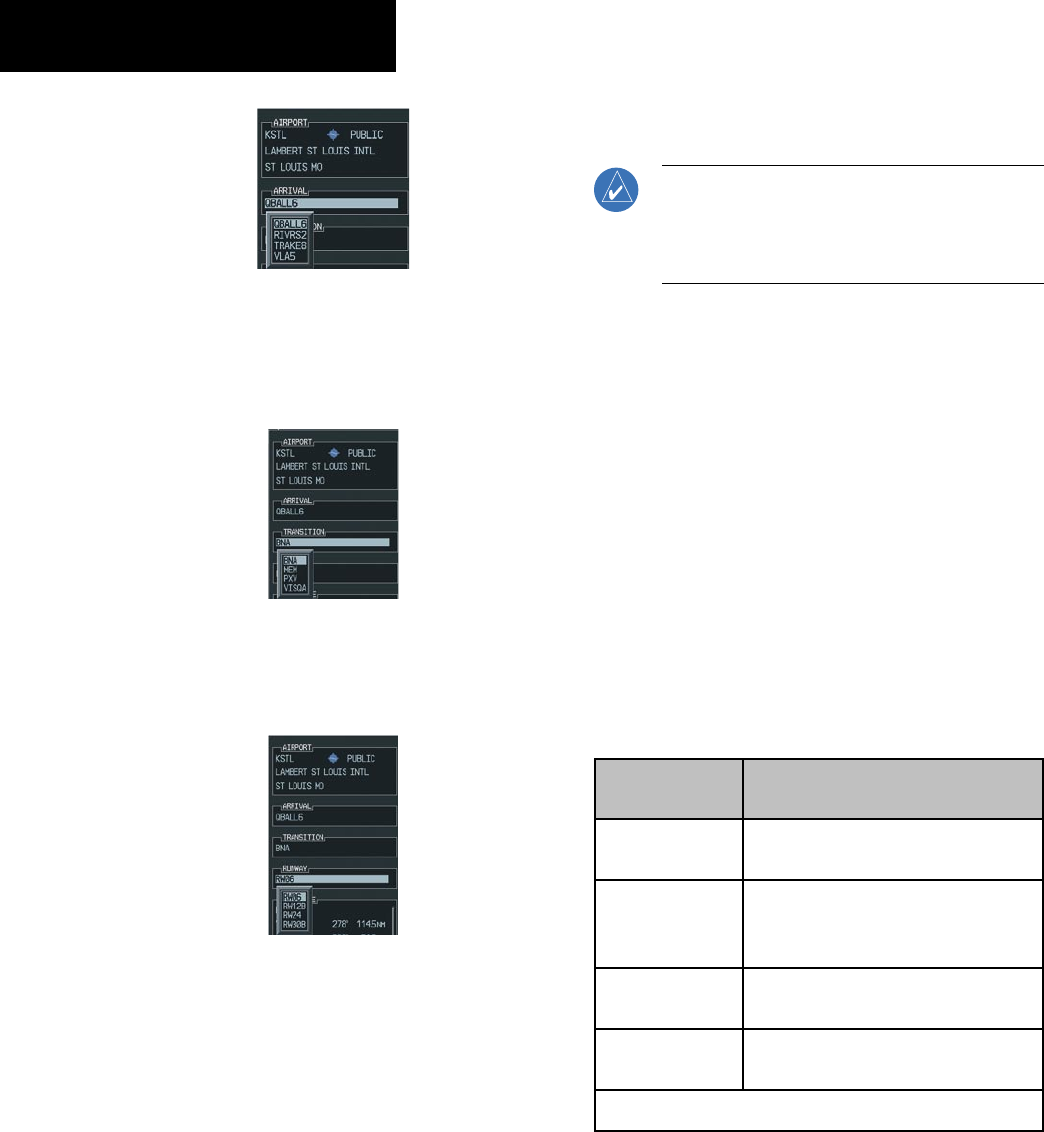

Load and Activate An Arrival Procedure ........................ 9-1

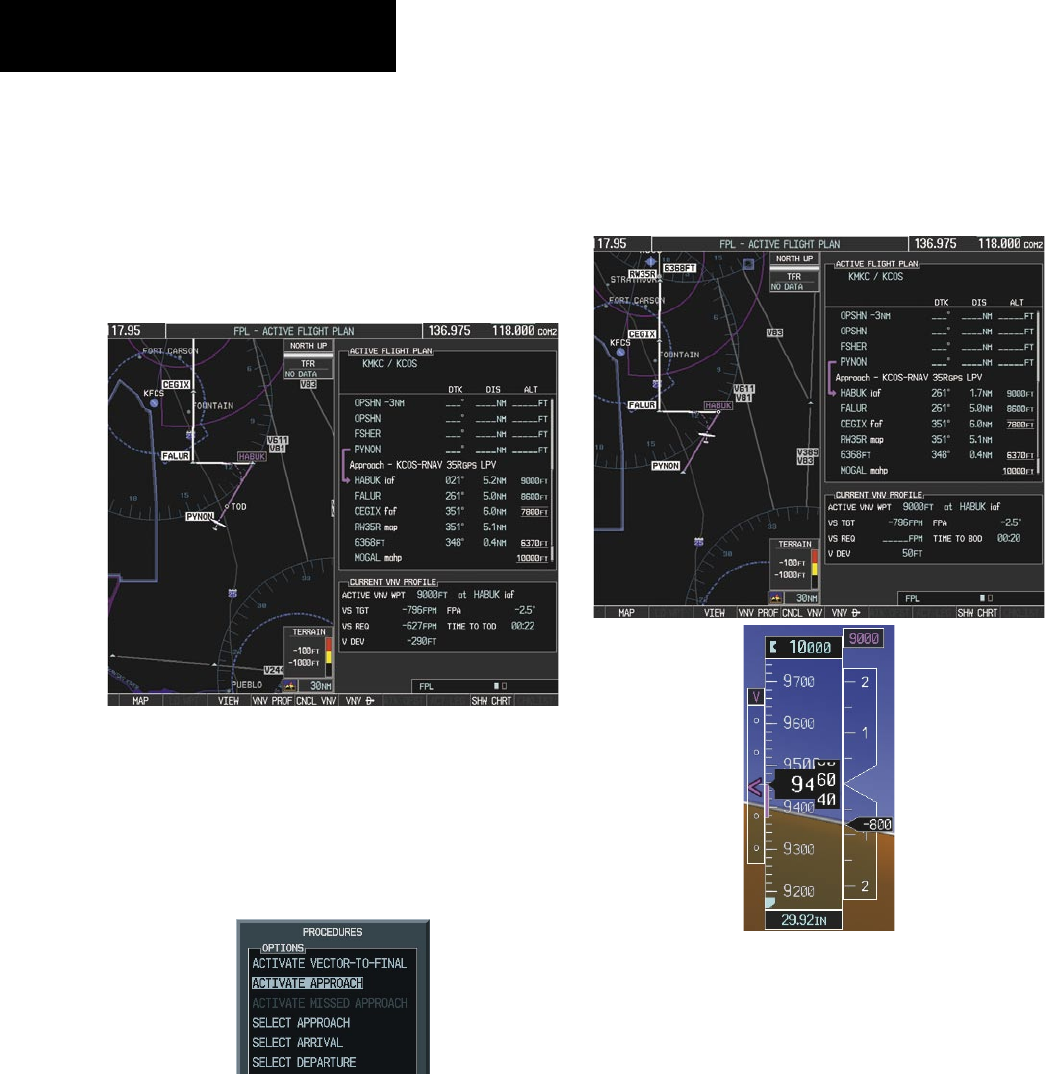

9.2 Approaches .............................................................. 9-2

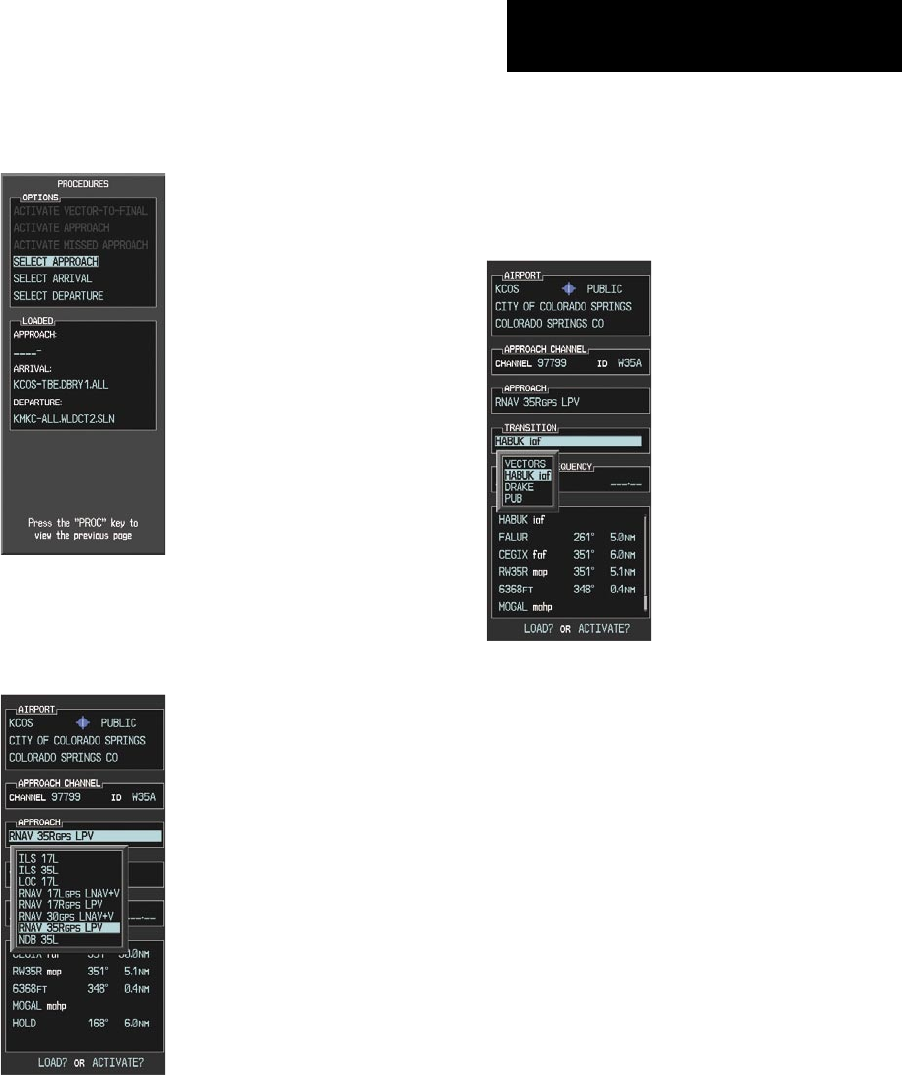

Load and/or Activate an Approach Procedure ............... 9-3
Activate An Approach in the Active Flight Plan ............. 9-3
SECTION 10: HAZARD AVOIDANCE ........................... 10-1
10.1 Customizing the Hazard Displays on the
Navigation Map .................................................... 10-1

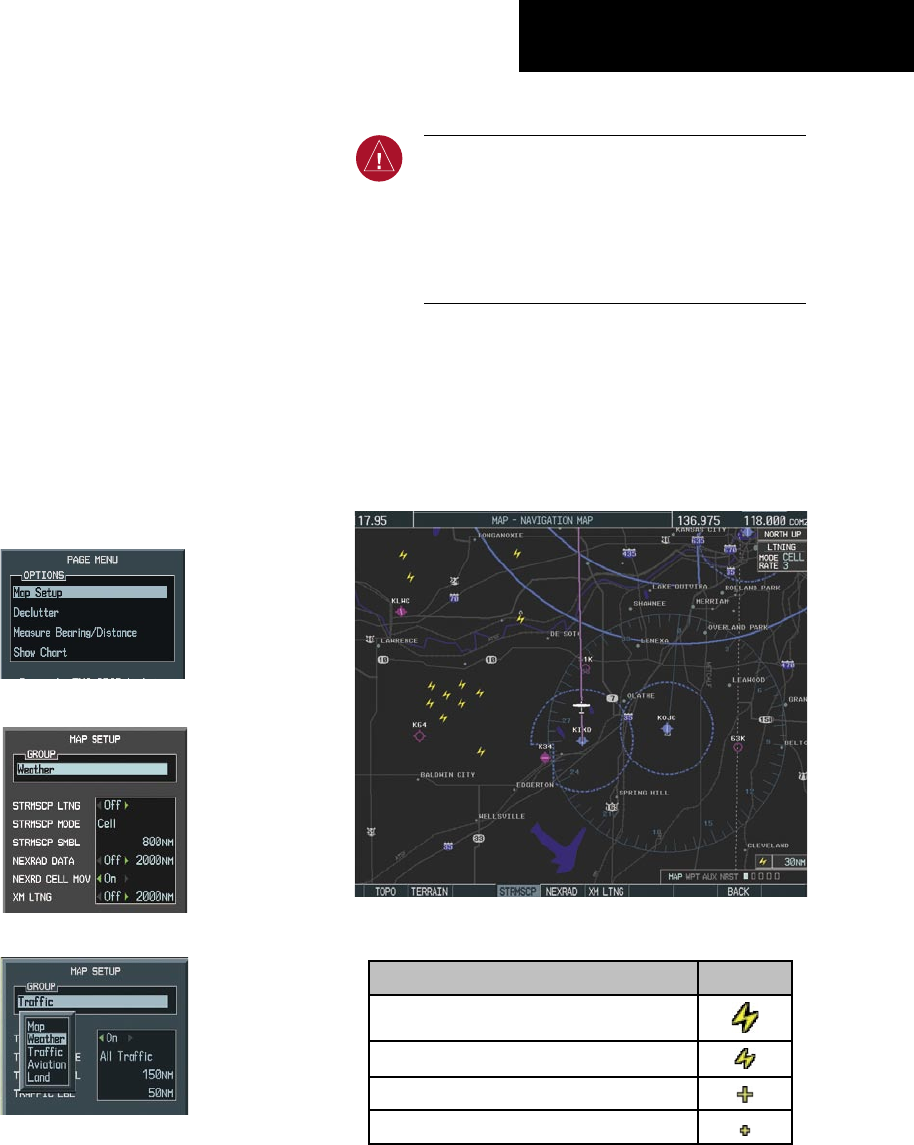

10.2 STORMSCOPE® (Optional) .................................. 10-1
Displaying Stormscope Lightning Data on the
Navigation Map Page ................................................ 10-1
Stormscope Page ....................................................... 10-2
10.3 XM Weather (Service Optional) ......................... 10-3
Displaying METAR and TAF information on the
Airport Information Page ........................................... 10-3
Displaying Weather on the Weather Data Link Page ... 10-4
Map Panning Information – Weather Data Link Page . 10-5
Weather Products & Symbols ..................................... 10-5
Weather Product Age ................................................ 10-6
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A iii
TABLE OF CONTENTS

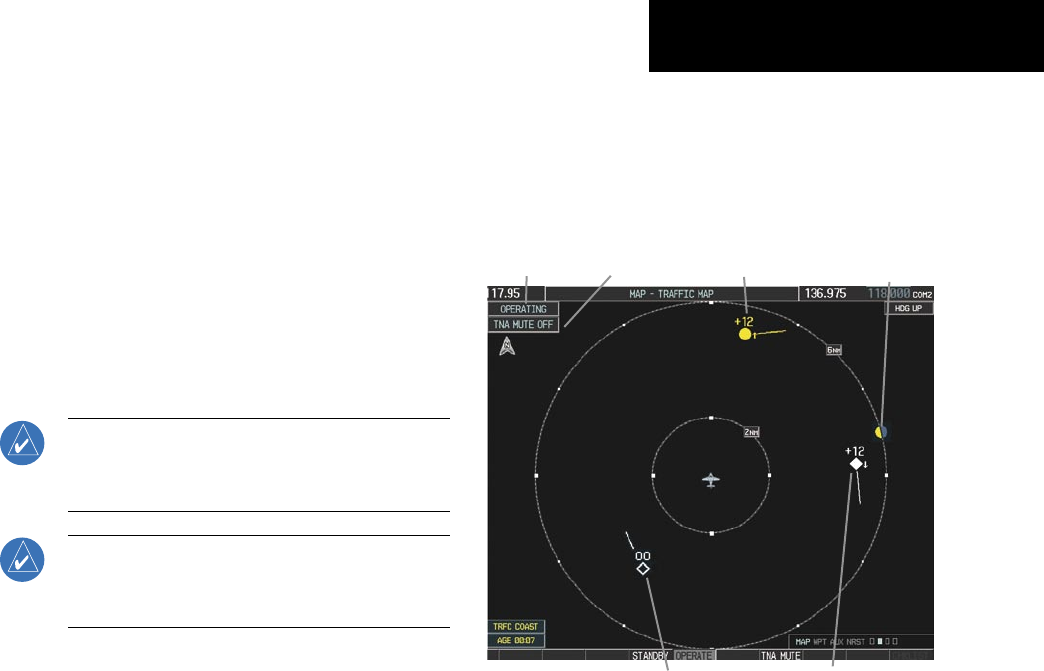

10.4 Traffic Systems ...................................................... 10-7
Traffic Information Service (TIS) .................................. 10-7

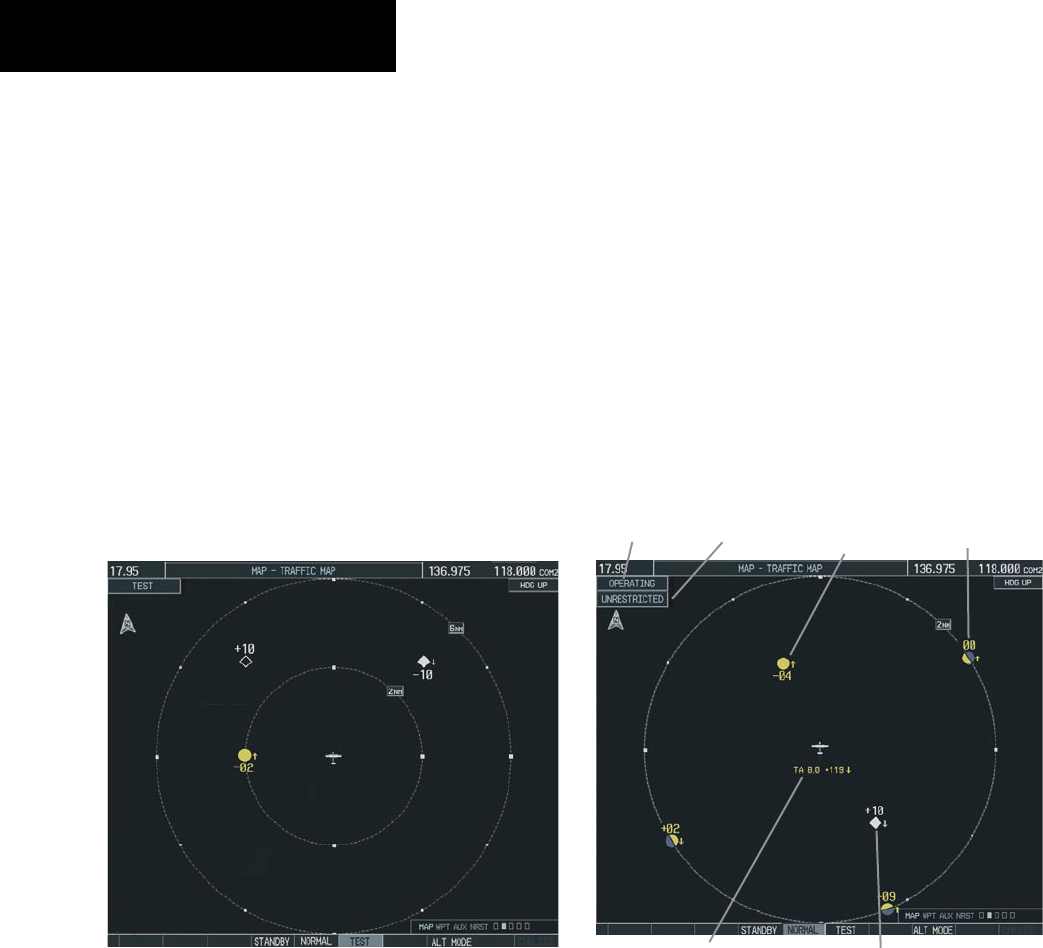

Traffic Advisory System (TAS) (Optional) ..................... 10-8
ADS-B Traffic (Optional) ............................................. 10-9

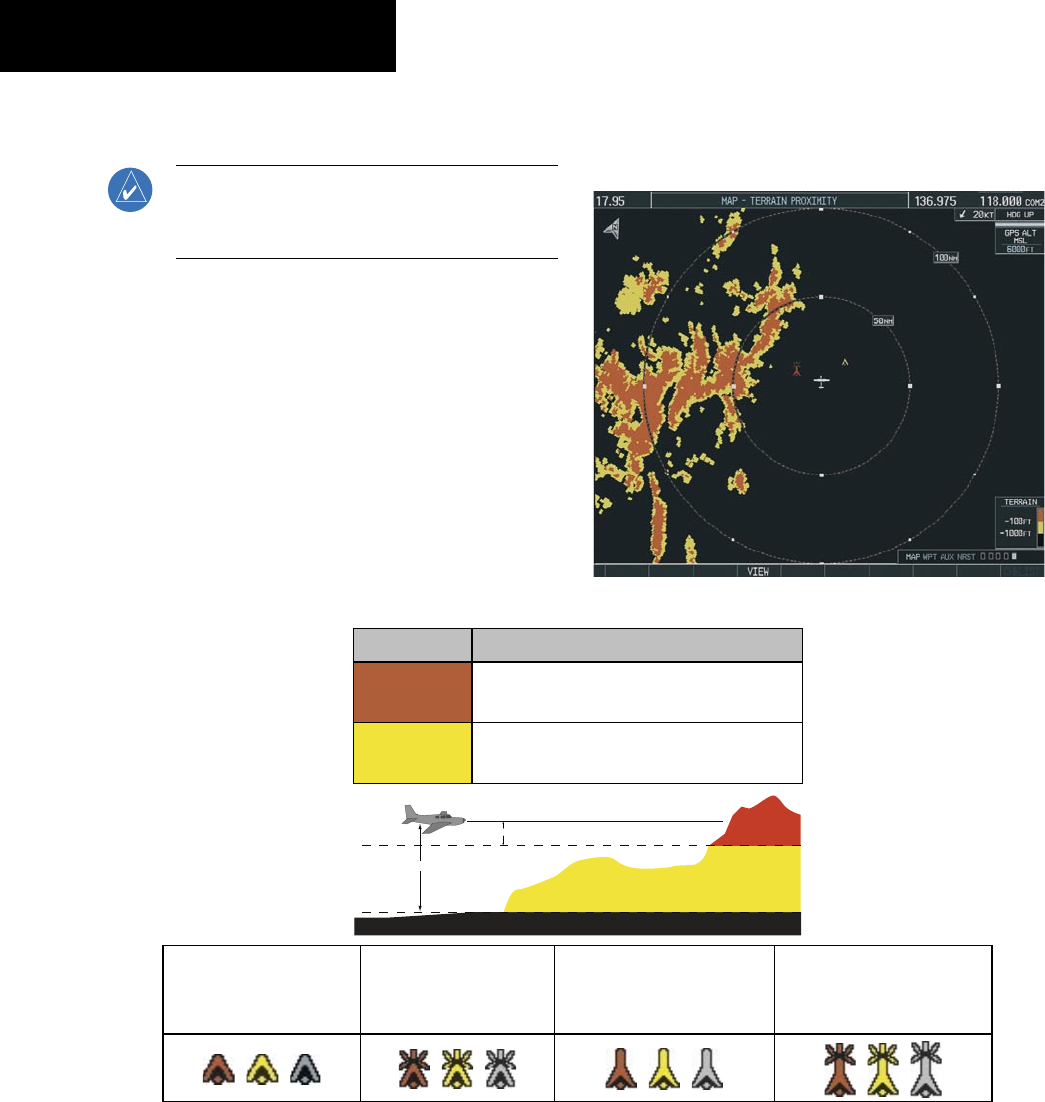

10.5 Terrain and Obstacle Proximity ....................... 10-10
Displaying Terrain and Obstacles on the Terrain
Proximity Page ........................................................ 10-10
Displaying Terrain and Obstacles on the Navigation
Map ........................................................................ 10-11
10.6 Terrain Awareness & Warning System
(TAWS) Display (Optional) ................................ 10-11
Displaying Terrain on the TAWS Page ....................... 10-11
Enable/Disable Aviation Data ................................... 10-12
TAWS Inhibit ........................................................... 10-12
Manual System Test ................................................. 10-13
Forward Looking Terrain Avoidance (FLTA) ................ 10-13

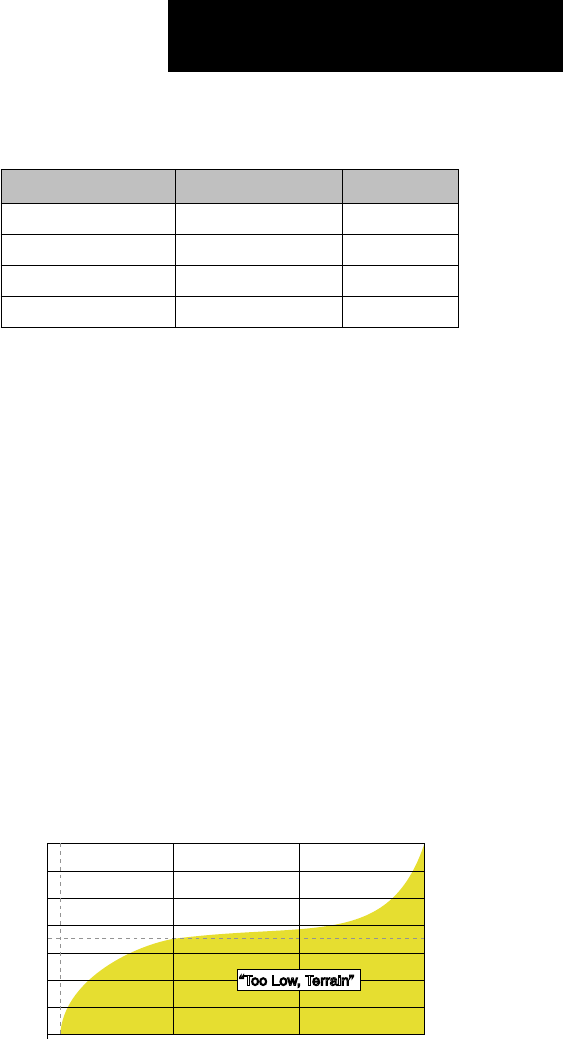

Premature Descent Alert (PDA) ................................ 10-13
Excessive Descent Rate Alert (EDR) .......................... 10-14
Negative Climb Rate After TakeoffAlert (NCR) .......... 10-14
“Five-Hundred” Aural Alert ...................................... 10-14
Displaying Terrain and Obstacles on the Navigation
Map ........................................................................ 10-14

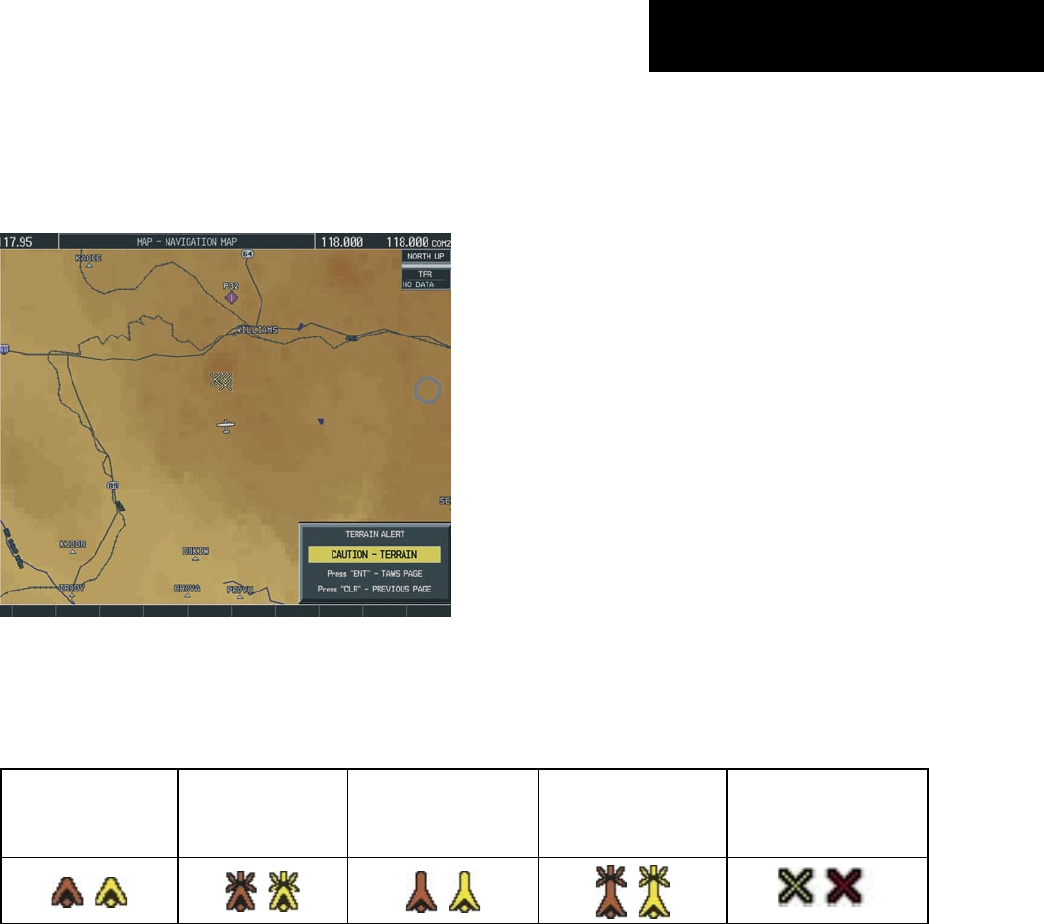

Pop-up Alerts .......................................................... 10-15

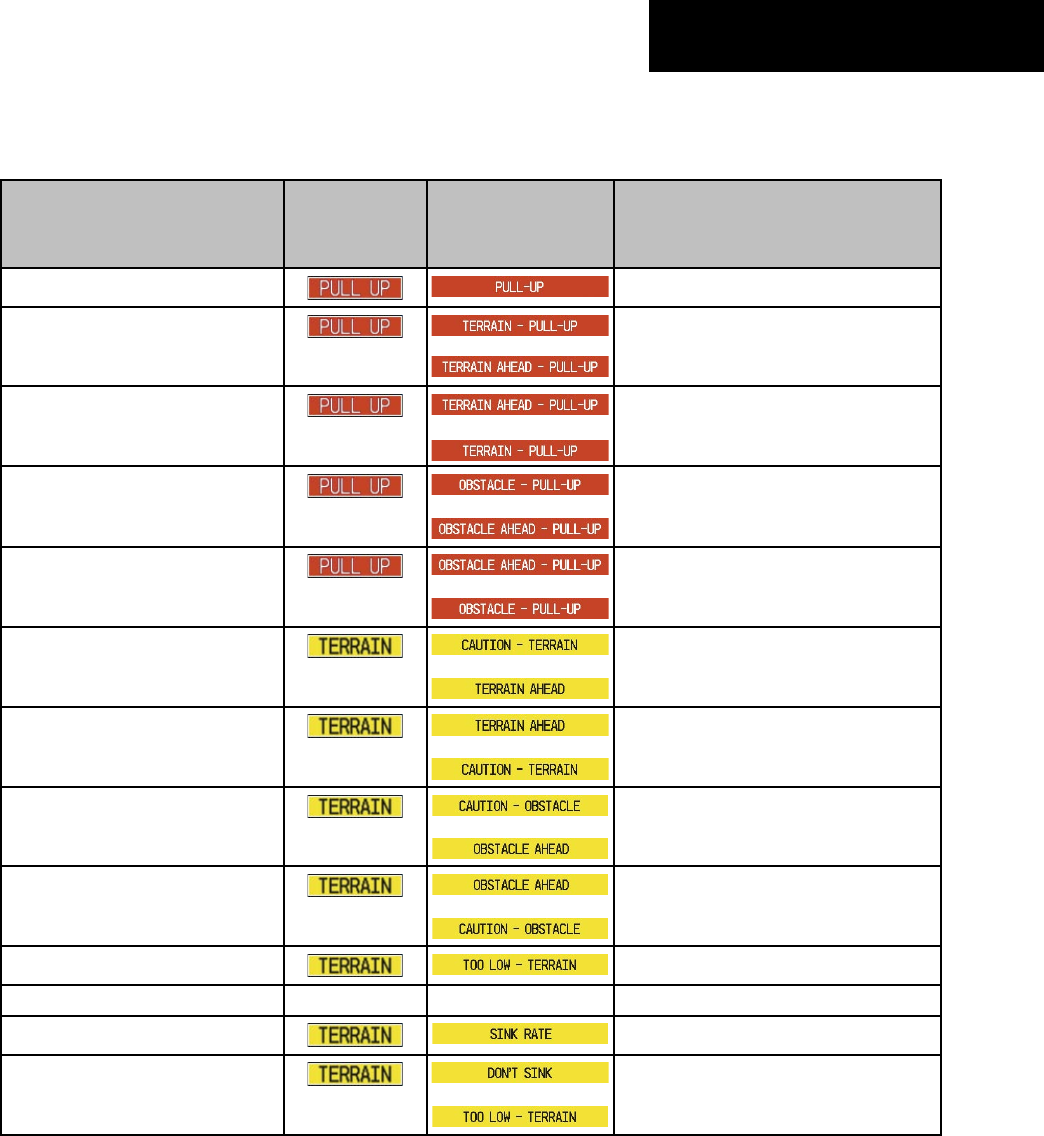

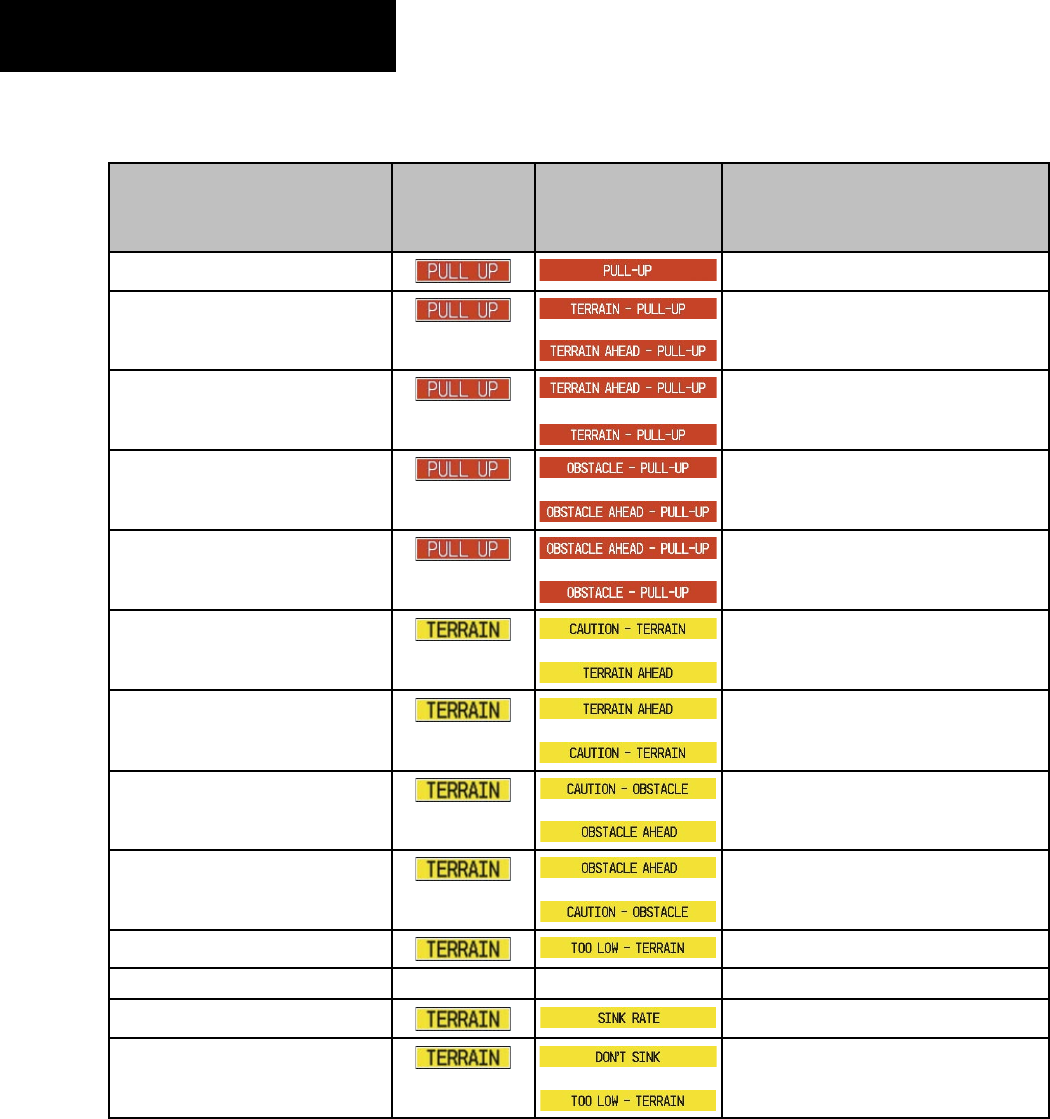

TAWS Alerts Summary ............................................. 10-16
Alert Annunciations ................................................. 10-17
SECTION 11: ABNORMAL OPERATION ..................... 11-1

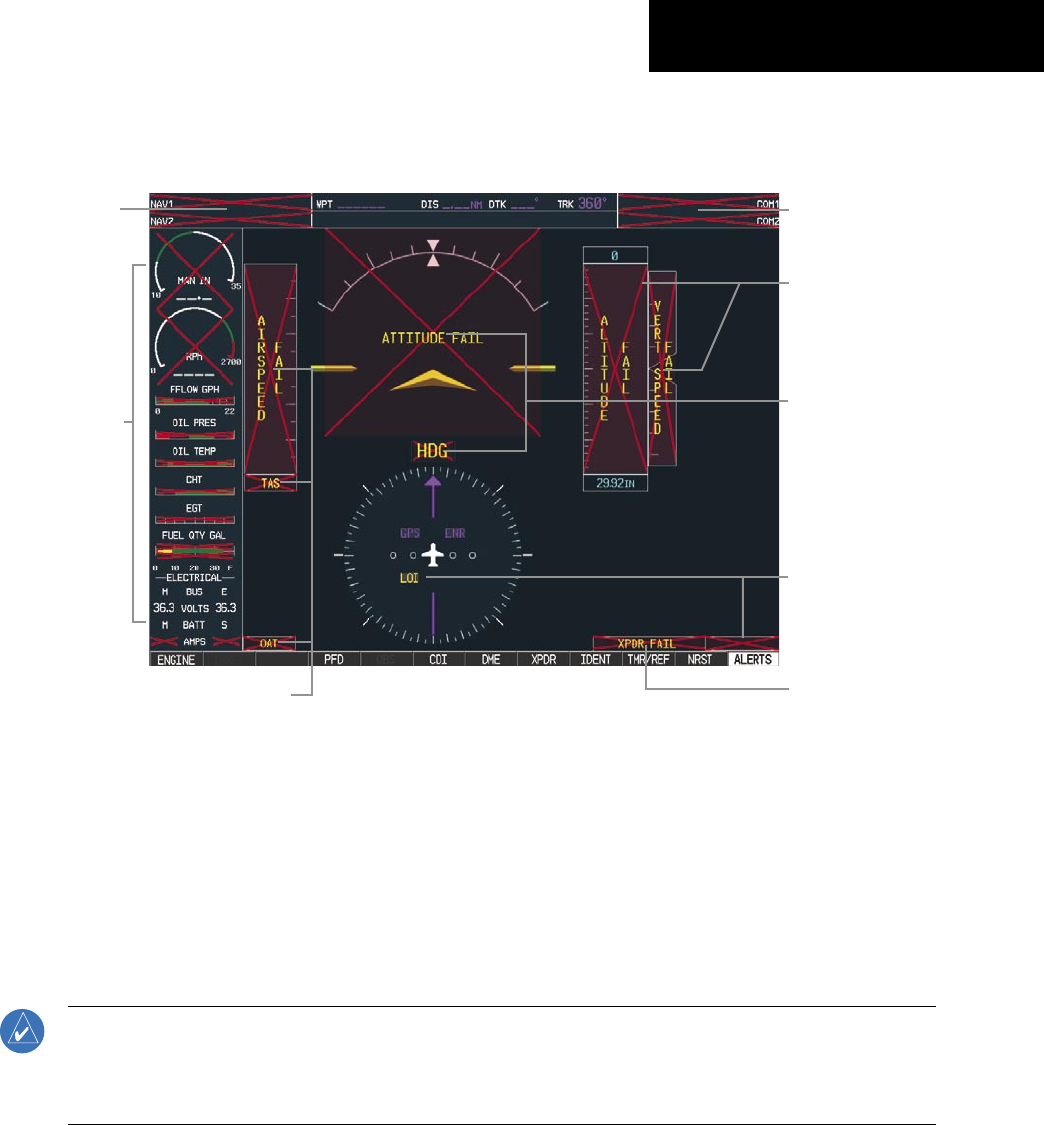

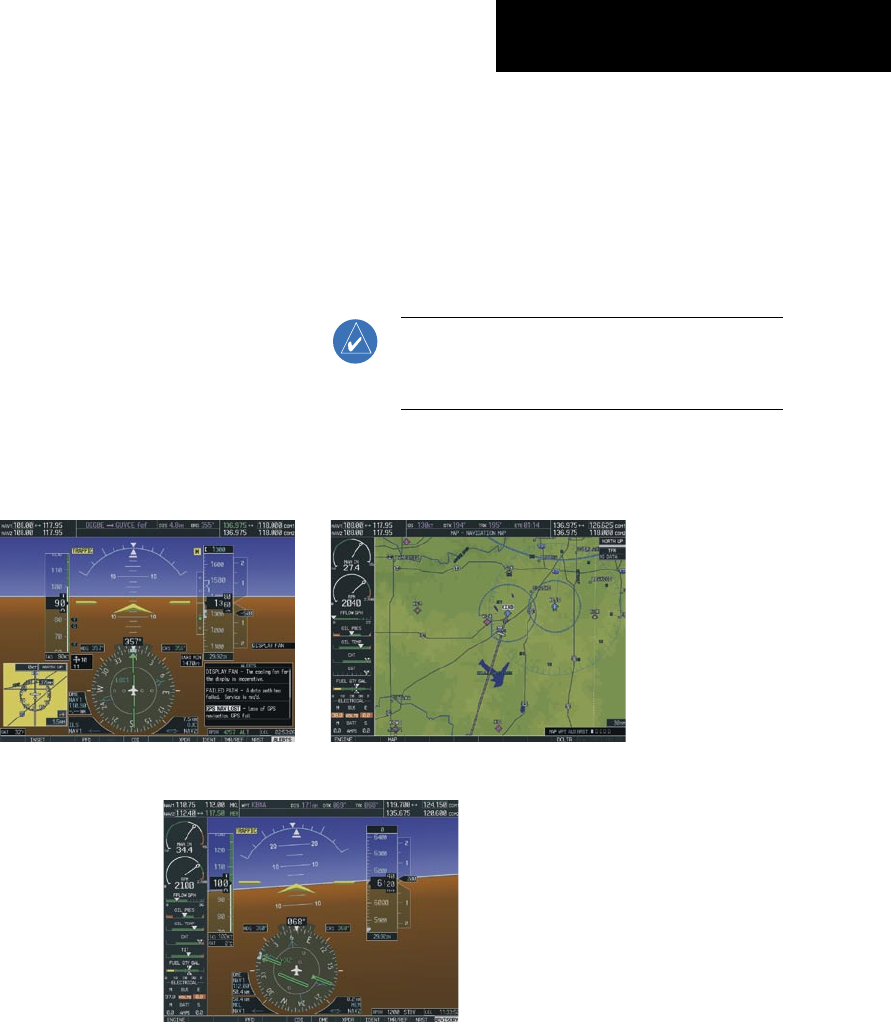

11.1 Reversionary Mode .............................................. 11-1
11.2 Abnormal COM Operation .................................. 11-2
11.3 Unusual Attitudes ................................................. 11-2
11.4 Stormscope Operation with loss of
Heading Input ........................................................ 11-2
11.5 Hazard Displays with Loss of GPS Position .... 11-2

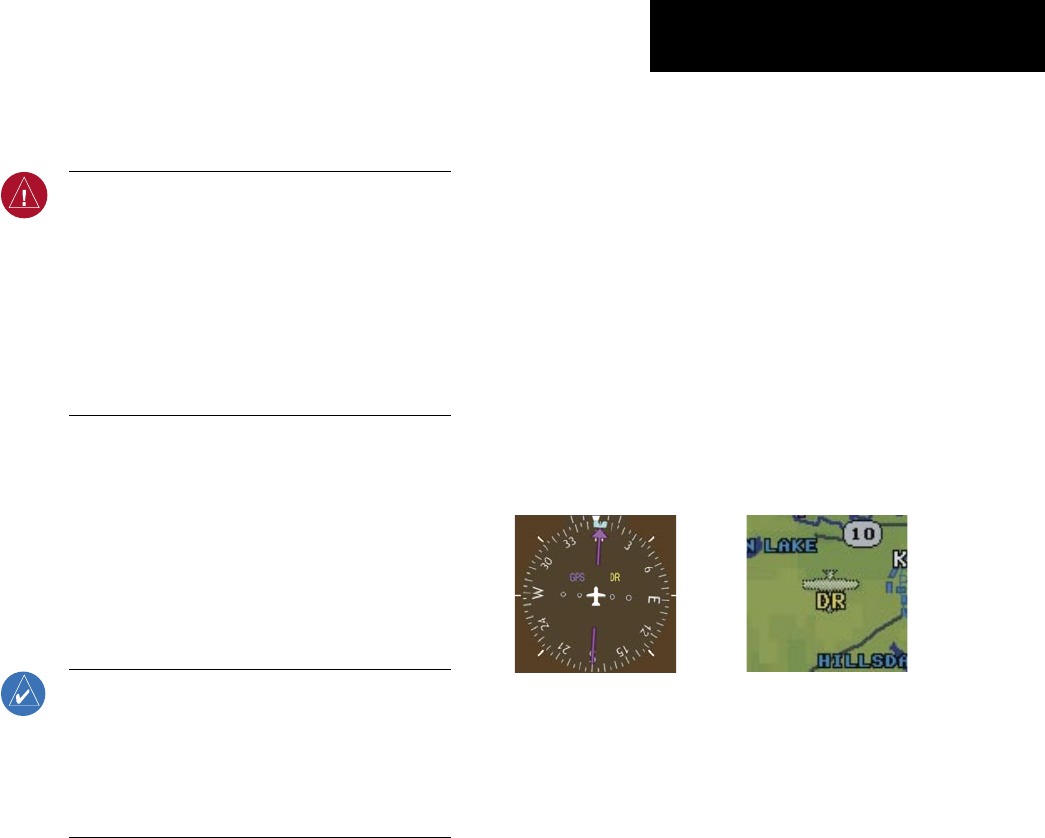

11.6 Dead Reckoning .................................................... 11-3
SECTION 12: ANNUNCIATIONS & ALERTS .............. 12-1

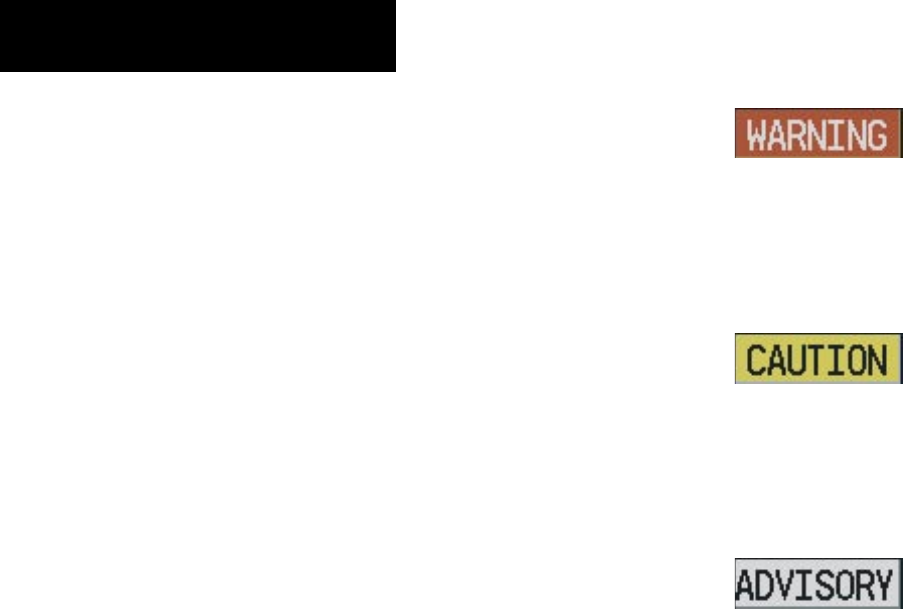

12.1 Alert Level Definitions ........................................ 12-2
12.2 NAV III Aircraft Alerts .......................................... 12-3
WARNING Alerts ....................................................... 12-3
CAUTION Alerts ........................................................ 12-3
CAUTION Alerts (T182, T206, and 206 with Prop
De-Ice Only) .............................................................. 12-3
Safe Operating Annunciation (T182, T206, and 206
with Prop De-Ice Only) .............................................. 12-3
12.3 CO Guardian Messages ....................................... 12-3
12.4 AFCS Alerts ............................................................. 12-4
System Status Annunciation ....................................... 12-4

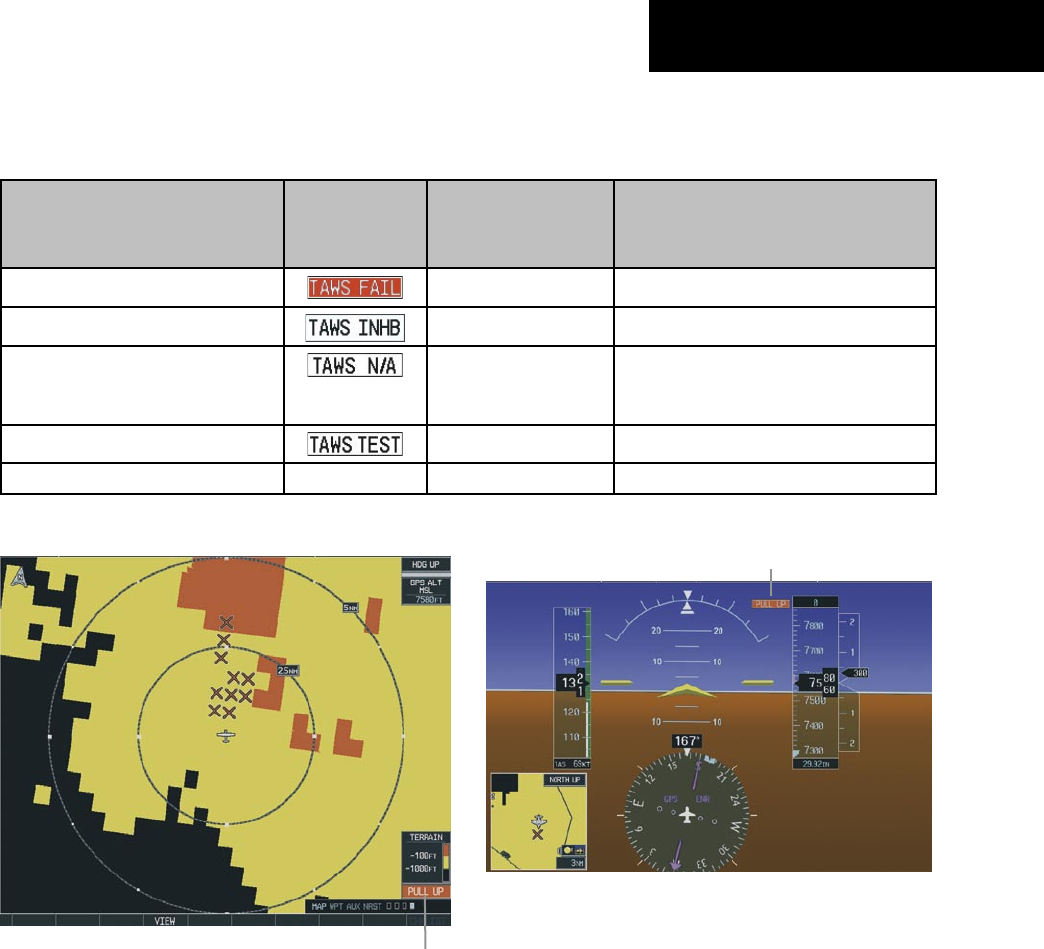

12.5 TAWS Alerts ............................................................ 12-5
12.6 Other G1000 Aural Alerts .................................... 12-6
12.7 G1000 System Annunciations ............................ 12-7
12.8 G1000 System Message Advisories .................. 12-9
MFD & PFD Message Advisories ............................... 12-10
Database Message Advisories ..................................12-11
GMA 1347 Message Advisories ............................... 12-13
GIA 63 Message Advisories ..................................... 12-13
GIA 63W Message Advisories .................................. 12-16
GEA 71 Message Advisories .................................... 12-18
GTX 33 Message Advisories ..................................... 12-19
GRS 77 Message Advisories ..................................... 12-19
GMU 44 Message Advisories ................................... 12-20
GDL 69A Message Advisories .................................. 12-20
GDC 74A Message Advisories .................................. 12-20
Miscellaneous Message Advisories ........................... 12-21
INDEX ...................................................................................Index-1
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
iv
TABLE OF CONTENTS
Blank Page
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A 1-1
SECTION 1
SYSTEM OVERVIEW
1-1
SECTION 1: SYSTEM OVERVIEW
The purpose of this Cockpit Reference Guide is
to provide the pilot a resource with which to find
operating instructions on the major features of the
G1000 system more easily. It is not intended to be a
comprehensive operating guide. Complete operating
procedures for the complete system are found in the
Garmin G1000 Pilot’s Guide for the Cessna Nav III (190-
00498-03).
This guide gives the pilot abbreviated operating
instructions for the Primary Flight Display (PFD), Multi
Function Display (MFD), and the GMA 1347 Audio Panel
System.
NOTE: The pilot should read and thoroughly
understand the Cessna Pilot’s Operating
Handbook (POH) for limitations, procedures and
operational information not contained in this
Cockpit Reference Guide. The Cessna POH always
takes precedence over the information found in
this guide.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
1-2
SECTION 1
SYSTEM OVERVIEW
1.1 PFD/MFD CONTROLS

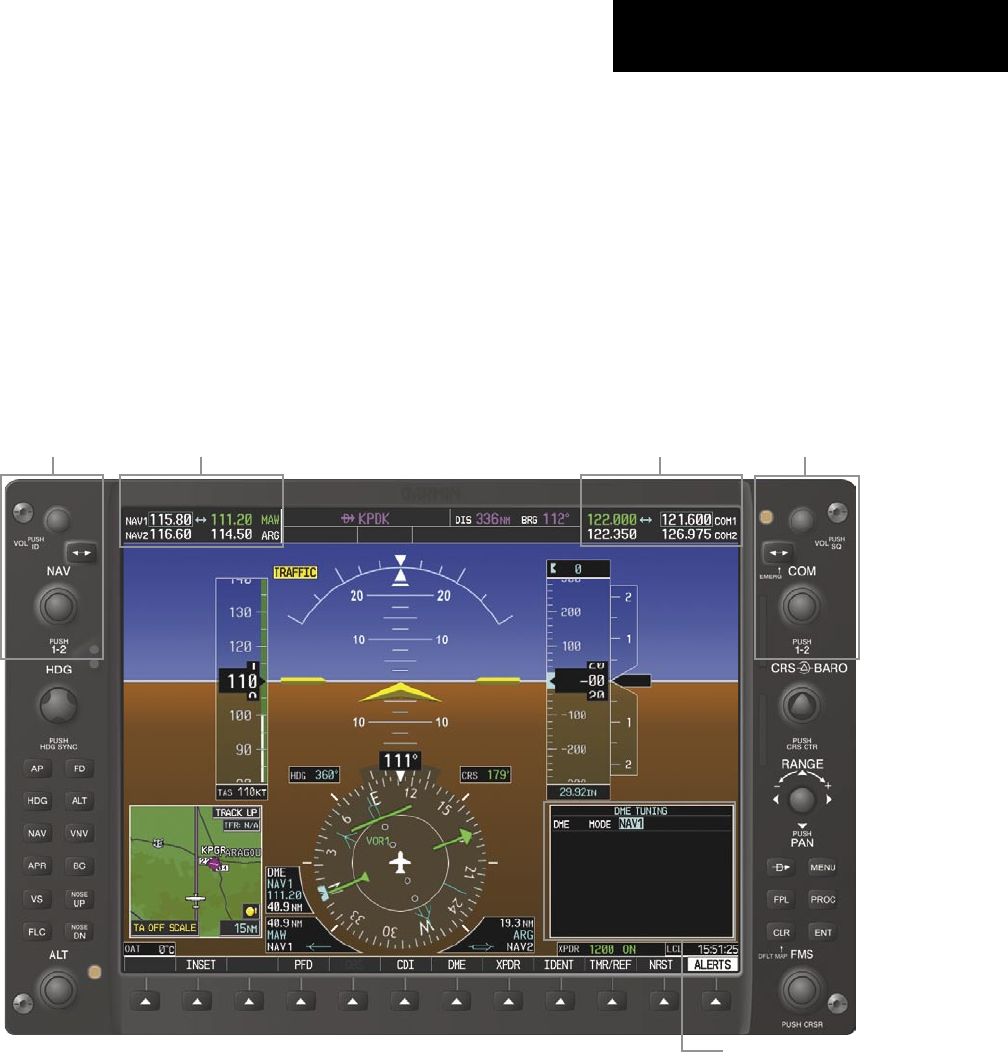

Figure 1-1 PFD/MFD Controls
42
16
579
8
3
17
12
13
11
10
27
25
24
28
16
15
14
20
21
19
23
18
22
26
29
GFC 700 AFCS Only
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A 1-3
SECTION 1
SYSTEM OVERVIEW
PFD and MFD controls function the same.
1
NAV VOL/ID Knob
– Controls the NAV audio
level. Press to turn the Morse code identifier ON
and OFF. Volume level is shown in the field as a
percentage.
2
NAV Frequency Transfer Key
– Transfers the
standby and active NAV frequencies.
3
Dual
NAV Knob
– Tunes the MHz (large knob)
and kHz (small knob) standby frequencies for
the NAV receiver. Press to switch the tuning box
(light blue box) between the NAV1 and NAV2
fields.
4
Heading Knob
– Turn to manually select a heading
on the HSI. When pressed, it synchronizes
the heading bug with the compass lubber line.
Selected Heading provides the heading reference
to the Flight Director while operating in Heading
Select Mode.
5
Joystick
– Changes the map range (distance top to
bottom of map display) when rotated. Activates
the map pointer when pressed.
6
CRS/BARO Knob
– The large
knob sets the
altimeter barometric pressure and the small
knob
adjusts the course. The course is only adjustable
when the HSI is in VOR1, VOR2, or OBS/SUSP
Mode. Pressing this knob centers the CDI on the
currently selected VOR. Selected Course provides
course reference to the Flight Director when
operating in Navigation and Approach Modes.
7
Dual COM Knob
– Tunes the MHz (large knob)
and kHz (small knob) standby frequencies for the
COM transceiver. Pressing this knob switches the
tuning box (light blue box) between the COM1
and COM2 fields.
8
COM Frequency Transfer Key
– Transfers the
standby and active COM frequencies. Pressing
and holding this key for two seconds automatically
tunes the emergency frequency (121.5 MHz) in
the active frequency field.
9
COM
VOL/SQ Knob
– Controls COM audio level.
Pressing this knob turns the COM automatic
squelch ON and OFF. Audio volume level is
shown in the field as a percentage.
10
Direct-to Key
– Allows the user to enter a
destination waypoint and establish a direct course
to the selected destination (specified by the
identifier, chosen from the active route, or taken
from the map pointer position).
11
FPL Key
– Displays the active Flight Plan Page for
creating and editing the active flight plan, or for
accessing stored flight plans.
12
CLR
Key (DFLT MAP)
– Erases information,
cancels an entry, or removes page menus. To
display the Navigation Map Page immediately,
press and hold
CLR
(MFD only).
13
Dual FMS Knob
– Used to select the page to
be viewed (only on the MFD). The large
knob
selects a page group (MAP, WPT, AUX, NRST),
while the small
knob selects a specific page within
the page group. Pressing the small
knob turns the
selection cursor ON and OFF. When the cursor
is ON, data may be entered in the different fields
using the small and large
knobs. The large
knob
is used to move the cursor on the page, while the
small
knob is used to select individual characters
for the highlighted cursor location. When the
G1000 displays a list that is too long for the
display screen, a scroll bar appears along the right
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
1-4
SECTION 1
SYSTEM OVERVIEW
side of the display, indicating the availability of
additional items within the selected category.
Press the small
FMS
Knob to activate the cursor
and turn the large
FMS
Knob to scroll through the
list.
14
MENU Key
– Displays a context-sensitive list
of options. This list allows the user to access
additional features, or to make setting changes
that relate to certain pages.
15
PROC Key
– Selects approaches, departures and
arrivals from the flight plan. If a flight plan is
used, available procedures for the departure and/
or arrival airport are automatically suggested. If
a flight plan is not used, the desired airport and
the desired procedure may be selected. This key
selects IFR departure procedures (DPs), arrival
procedures (STARs) and approaches (IAPs) from
the database and loads them into the active flight
plan.
16
ENT Key
– Accepts a menu selection or data
entry. This key is used to approve an operation
or complete data entry. It is also used to confirm
selections and information entries.
17
Dual
ALT Knob
– Sets the selected altitude in
the box located above the Altimeter. The
large
knob selects the thousands, while the small
knob
selects the hundreds. Altitude Select is used by
the Automatic Flight Control System in certain
modes, in addition to the standard G1000 Altitude
Alerter function.
The following are only available with the GFC 700
AFCS.
18
AP Key
– Engages/disengages the Autopilot and
Flight Director. Pressing the
AP
Key activates the
Flight Director and engages the Autopilot in the
default pitch axis and roll axis modes. Pressing
the
AP
Key again disengages the autopilot and
deactivates the Flight Director.
19
HDG Key
– Selects/deselects the Heading Select
Mode.
20
NAV Key
– Selects/deselects the Navigation
Mode.
21
APR Key
– Selects/deselects the Approach Mode.
22
VS Key
– Selects/deselects the Vertical Speed
Mode.
23 FLC Key
– Selects/deselects the Flight Level
Change Mode.
24
FD Key
– Activates/deactivates the Flight Director
only. Pressing the
FD
Key turns on the Flight
Director in the default pitch axis and roll axis
modes. Pressing the
FD
Key again deactivates the
Flight Director and removes the command bars,
unless the Autopilot is engaged. If the Autopilot
is engaged, the
FD
Key is disabled.
25
ALT Key
– Selects/deselects the Altitude Hold
Mode.
26
VNV Key
– Selects/deselects Vertical Navigation
Mode.
27

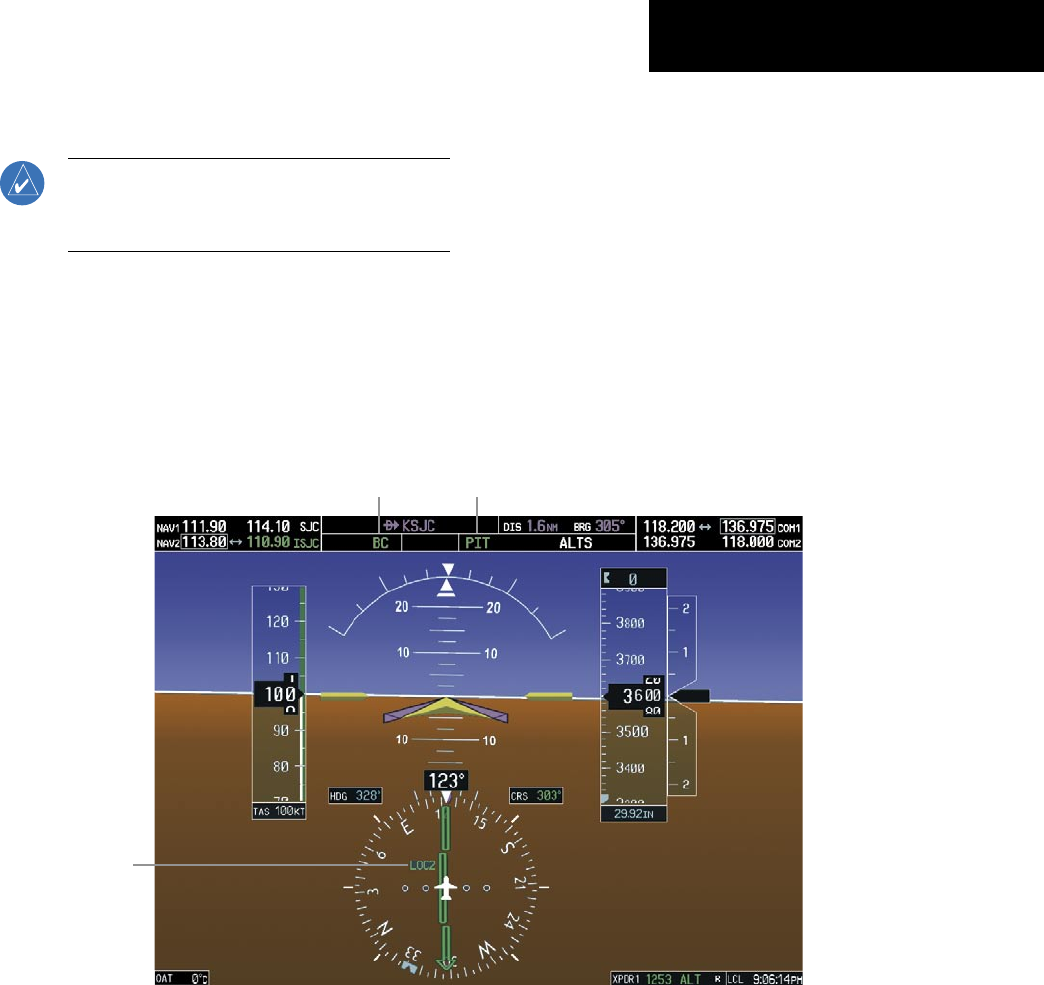

BC Key
– Selects/deselects Back Course Mode.
28 29
NOSE UP/NOSE DN Keys
– Controls the
active pitch reference for the Pitch Hold,
Vertical Speed, and Flight Level Change
Modes.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A 1-5
SECTION 1
SYSTEM OVERVIEW
1.2 PFD SOFTKEYS
Softkey OFF
Softkey ON

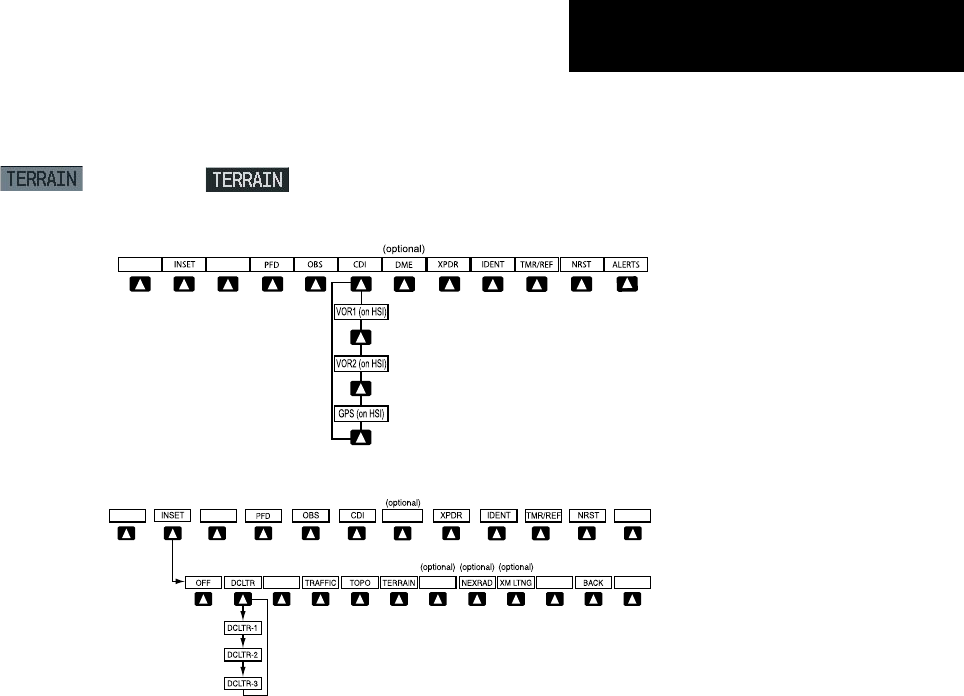

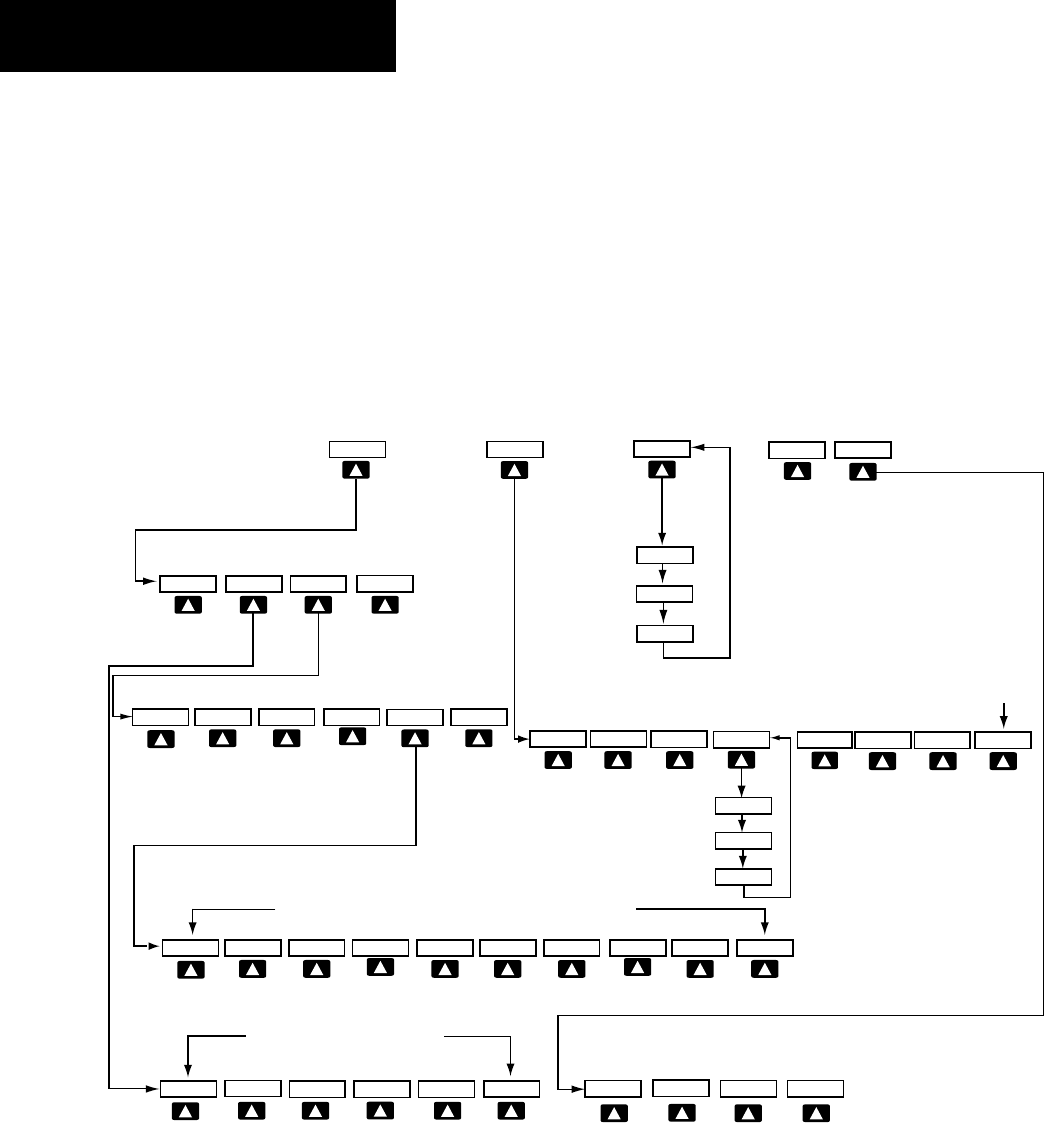

Figure 1-2 PFD Top Level Softkeys
Press the BACK or OFF Softkey
to return to the top-level softkeys.
ALERTSSTRMSCP
DME ALERTS
Figure 1-3 INSET Softkeys
INSET – Press to display the Inset Map in the lower
left corner of the PFD.
OFF
– Press to remove the Inset Map.
DCLTR
(3) – Press momentarily to select the desired
amount of map detail. The declutter level appears
adjacent to the DCLTR Softkey.
- No declutter: All map features are visible.
- Declutter – 1: Declutters land data.
- Declutter – 2: Declutters land and SUA data.
- Declutter – 3: Declutters large NAV data
remaining (removes everything except the
active flight plan).
TRAFFIC
– Press to display traffic on the map.
TOPO
– Press to display topographical data (i.e.,
coastlines, terrain, rivers, lakes, etc.) and
elevation scale on the Inset Map.
TERRAIN
– Press to display terrain information on
the Inset Map.
STRMSCP (optional)
– Press to display the
Stormscope lightning data on the Inset Map
(within a 200 nm radius of the aircraft).
NEXRAD
(optional)
– Press to display NEXRAD
weather and coverage information on the Inset
Map.
XM LTNG (optional) –
Press to display XM lightning
information on the Inset Map.
BACK
– Press to return to the previous level softkey
configuration.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
1-6
SECTION 1
SYSTEM OVERVIEW

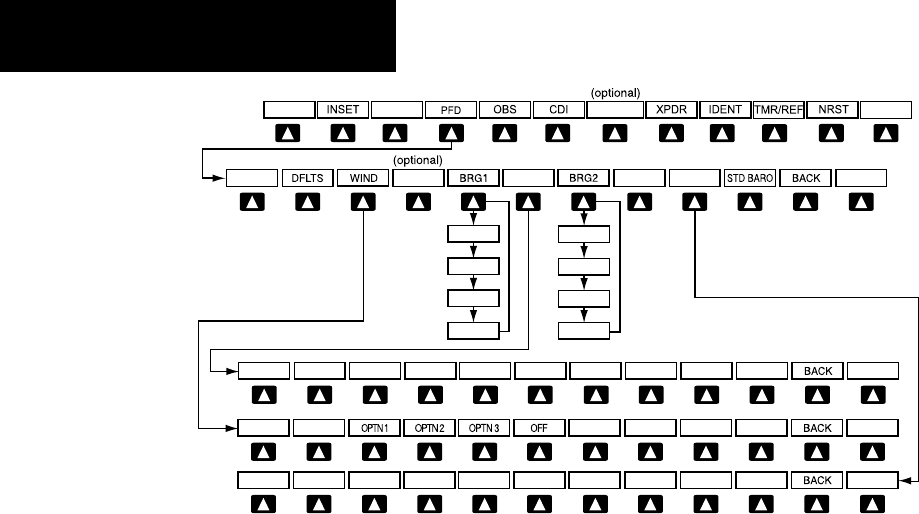

Figure 1-4 PFD Configuration Softkeys
Press the STD BARO or
BACK Softkey to return to
the top-level softkeys
BRG1 (NAV1)
BRG1 (GPS)
BRG1 (OFF)
DME ALT UNIT
METERS IN HPA
DME ALERTS
ALERTS
ALERTS
ALERTS
HSI FRMT
ALERTS
ARC HSI360 HSI
BRG1 (ADF)
BRG2 (NAV2)
BRG2 (GPS)
BRG2 (OFF)
BRG2 (ADF)
PFD – Press to display the additional softkeys for
additional configuration of the PFD.
DFLTS
– Press to reset default settings on the PFD.

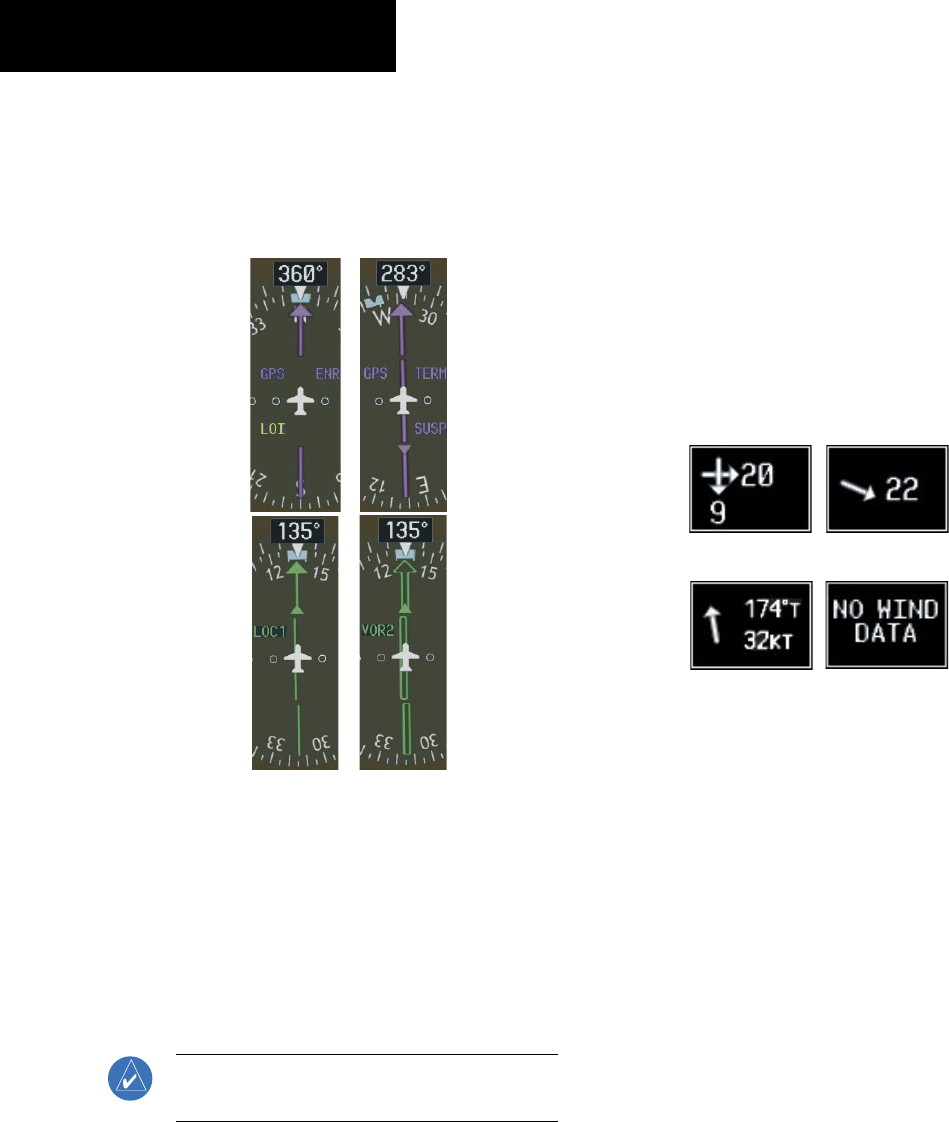

WIND
– Displays softkeys to select wind data
parameters.
OPTN 1
– Wind direction arrows with headwind
and crosswind components.
OPTN 2
– Wind direction arrow and speed.
OPTN 3
– Wind direction arrow with direction
and speed.
OFF
– Information not displayed.
DME
(optional) – Press to display the DME
Information Window.

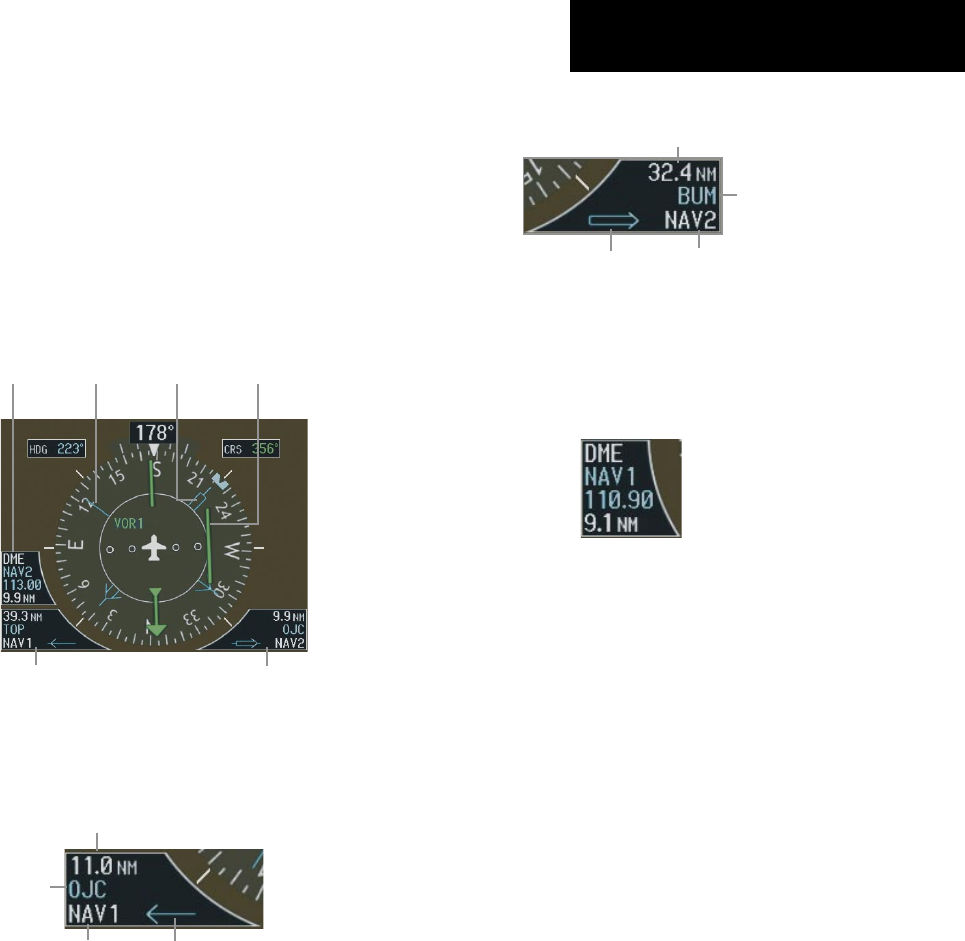

BRG1 (bearing)
– Press to cycle through the
following Nav sources, making the pointer the
indicator for the corresponding source and
displaying the appropriate information.
NAV1
– Displays NAV1 waypoint frequency or
identifier and DME information in the BRG1
Information Window.
GPS
– Displays GPS waypoint identifier and GPS
distance information in the BRG1 Information
Window.
ADF
– Displays ADF in the BRG1 Information
Window when an otional ADF is installed.
OFF
– Removes the BRG1 Information
Window.
HSI FRMT
– Press to display the HSI formatting
softkeys.
360 HSI
– Press to display the HSI in a 360
degree format.
ARC HSI
– Press to display the HSI in an arc
format.
BRG2 (bearing)
– Press to cycle through the
following Nav sources, making the pointer the
indicator for the corresponding source and
displaying the appropriate information.
NAV2
– Displays NAV2 waypoint frequency or
identifier and DME information in the BRG2
Information Window.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A 1-7
SECTION 1
SYSTEM OVERVIEW
GPS
– Displays GPS waypoint identifier and GPS
distance information in the BRG2 Information
Window.
ADF
– Displays ADF in the BRG2 Information
Window when an otional ADF is installed.
OFF
– Removes the BRG2 Information
Window.

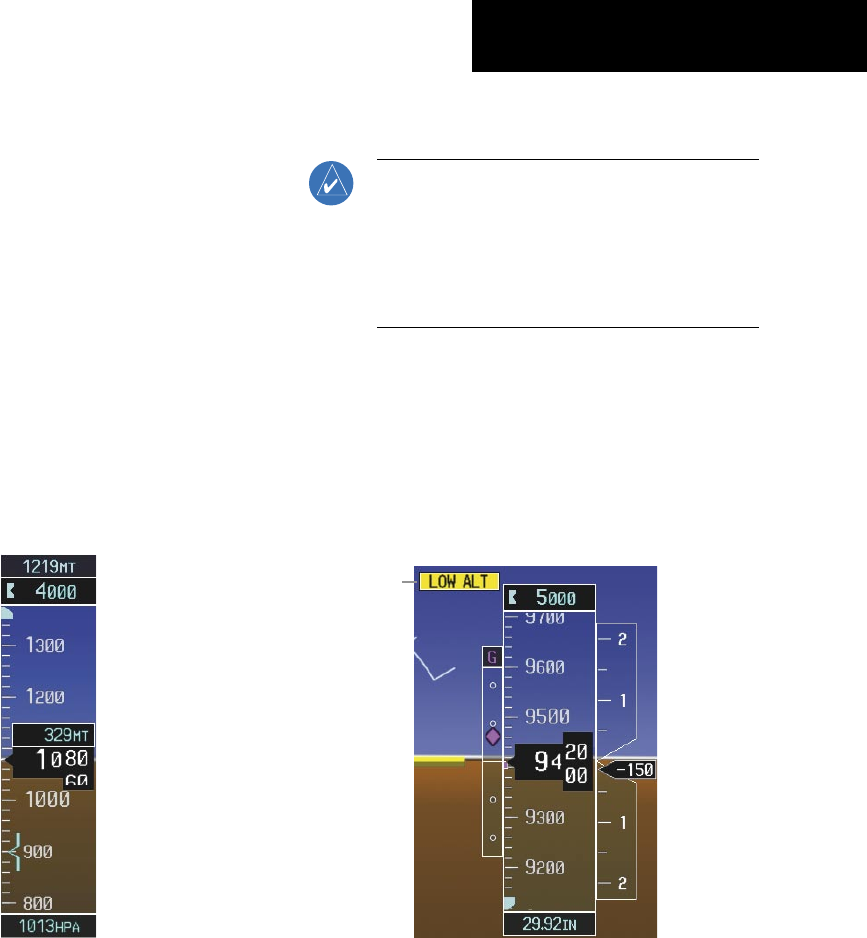

ALT UNIT
– Displays softkeys for setting the
altimeter and BARO settings to metric units:
METERS
– When enabled, displays altimeter in
meters.
IN
– Press to display the BARO setting as inches
of mercury.
HPA
– Press to display the BARO setting as
hectopacals.
STD BARO
– Press to set the barometric pressure
to standard pressure.
BACK
– Press to return to the previous level softkeys.
ALERTS
– Press to display the Alerts Window.
OBS – Press to select OBS Mode on the CDI when
navigating by GPS (only available with active leg).
CDI – Press to change navigation mode on the CDI
between GPS, VOR1, and VOR2.
DME (optional) – Press to display the DME Tuning
Window.
Press the BACK Softkey to return
to the top-level softkeys.
Press the BACK Softkey to return
to the top-level softkeys.
ALERTS
ALERTS
DME ALERTS
Figure 1-5 XPDR (Transponder) Softkeys
XPDR – Press to display the transponder mode
selection softkeys.
STBY
– Press to select Standby Mode.
ON
– Press to select Mode A.
ALT
– Press to select Altitude Reporting Mode.
GND
– Press to select Ground Mode.
VFR
– Press to automatically squawk 1200 (only
in the U.S.A., refer to ICAO standards for VFR
codes in other countries).
CODE
– Press to display transponder code selection
softkeys 0-7.
0 through 7
– Press numbers to enter code.
IDENT
– Press to provide special aircraft
position identification to Air Traffic Control
(ATC).
BKSP
– Press to remove numbers entered one
at a time.
BACK
– Press to return to the previous level
softkeys.
IDENT
– Press to provide special aircraft position
identification to Air Traffic Control (ATC).
BACK
– Press to return to the previous level
softkeys.
ALERTS
– Press to display the Alerts Window.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
1-8
SECTION 1
SYSTEM OVERVIEW
IDENT – Press to provide special aircraft position
identification to Air Traffic Control (ATC).

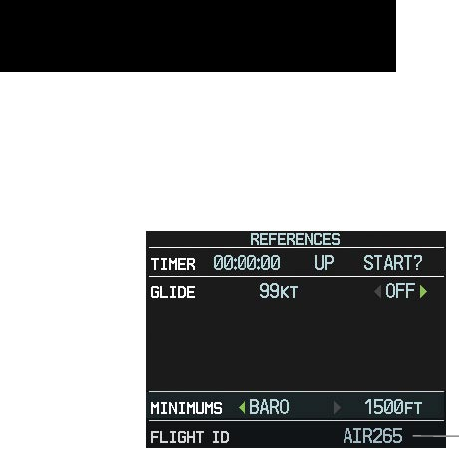

TMR/REF – Press to display the Timer/References
Window.
NRST – Press to display the Nearest Airports
Window.
ALERTS – Press to display the Alerts Window.
1.3 MFD SOFTKEYS
ENGINE – Pressing this softkey makes available the LEAN
and SYSTEM Softkeys which in turn access the Lean
Page and the System Page, respectively.
Figure 1-6 MFD Softkeys
BACK
RST FUEL
SYSTEM
ENGINE
LEAN
ENGINE
MAP DCLTR
BACK
SYSTEM
LEAN
ENGINE
ENGINE LEAN
BACK
SYSTEM
Press the ENGINE or BACK Softkey to
return to the default Engine Page level.
TRAFFIC TOPO
BACK
TERRAIN
DCLTR-2
DCLTR-3
DCLTR-1
Press the BACK Softkey on this
level to return to the top softkey level.
CHKLIST
ASSIST
CYL SLCT
EXIT EMERGCY
ENGINE DONE
The DONE Softkey changes to UNDO when the checklist
item is already checked.
(optional)
BACK
-10 GAL
SYSTEM
ENGINE LEAN
GAL REM
-1 GAL
XX GAL
+10 GAL
+1 GAL XX GAL
Press the ENGINE Softkey to
the default Engine Page level.
X = airframe specific values
STRMSCP
NEXRAD XM LTNG
(optional) (optional)
(optional)
SHW CHRT
(optional)
AIRWAYS
AIRWY LO
AIRWAY HI
AIRWY ON
(Default softkey
is dependant on
the selection made
in the map setup
options)
Press the BACK Softkey to return
to the previous softkey level.
MAP – Pressing this softkey enables the following
softkeys:

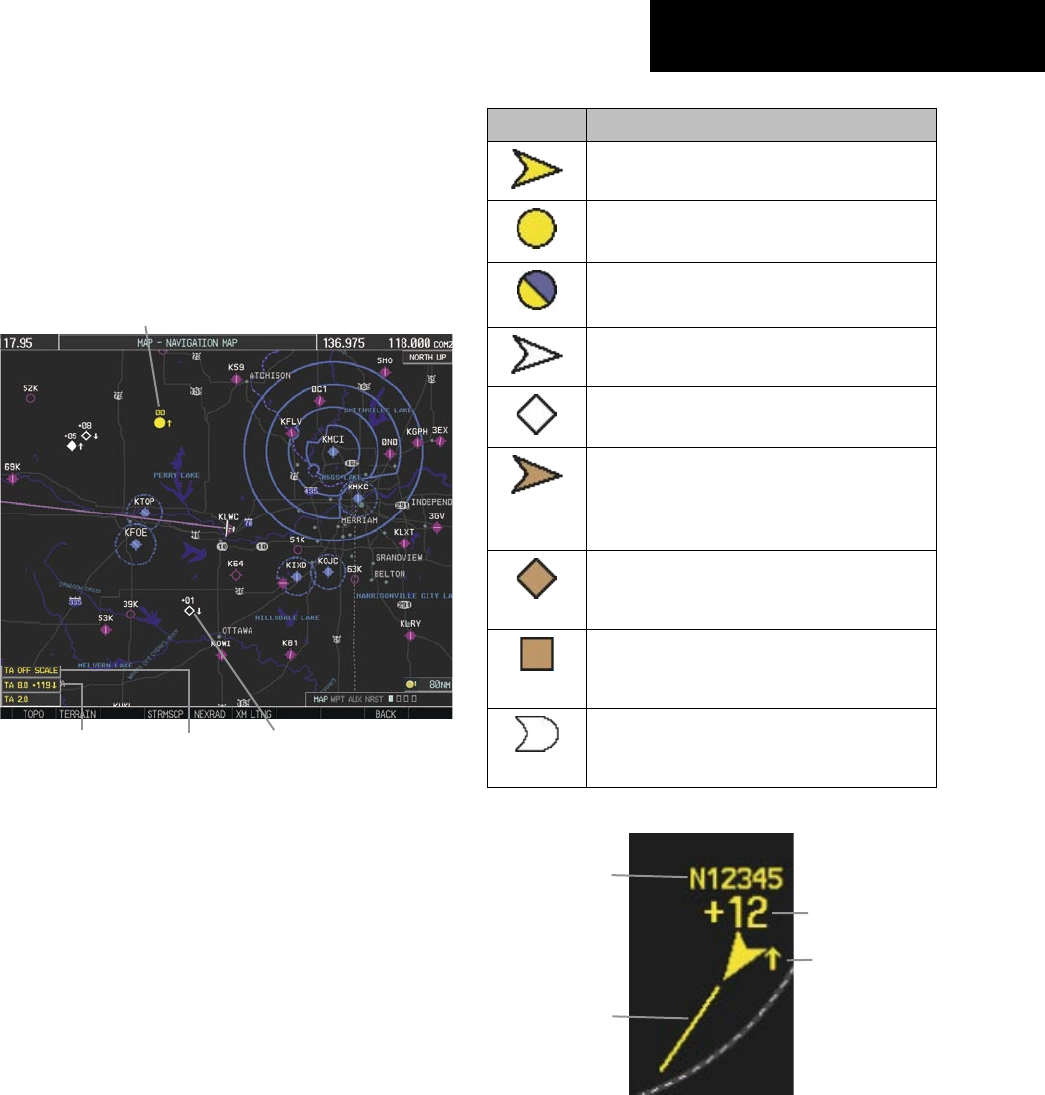

TRAFFIC – Pressing this softkey displays/removes
Traffic on the Navigation Map.
TOPO – Pressing this softkey displays or removes
topographic information on the Navigation Map.
TERRAIN – Pressing this softkey displays/removes
terrain and obstacle data on the Navigation Map.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A 1-9
SECTION 1
SYSTEM OVERVIEW

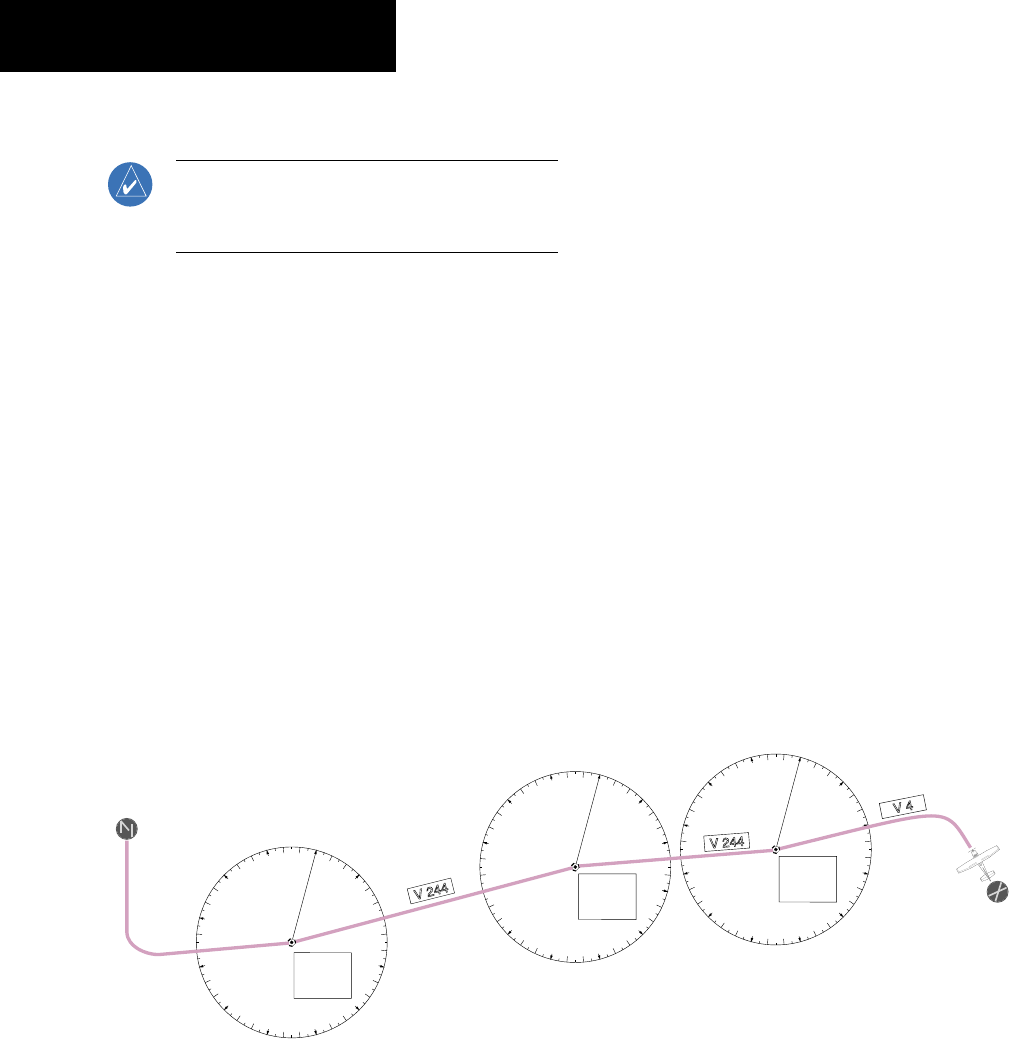

AIRWAYS – Pressing this softkey displays/removes
airways information. The default is dependent on
map setup option selected. Pressing cycles through
all airways displayed (AIRWY ON), low altitude
airways only (AIRWY LO), and high altitude airways
only (AIRWY HI).
STRMSCP (optional) – Pressing this softkey displays/
removes Stormscope lightning data on the Navigation
Map.

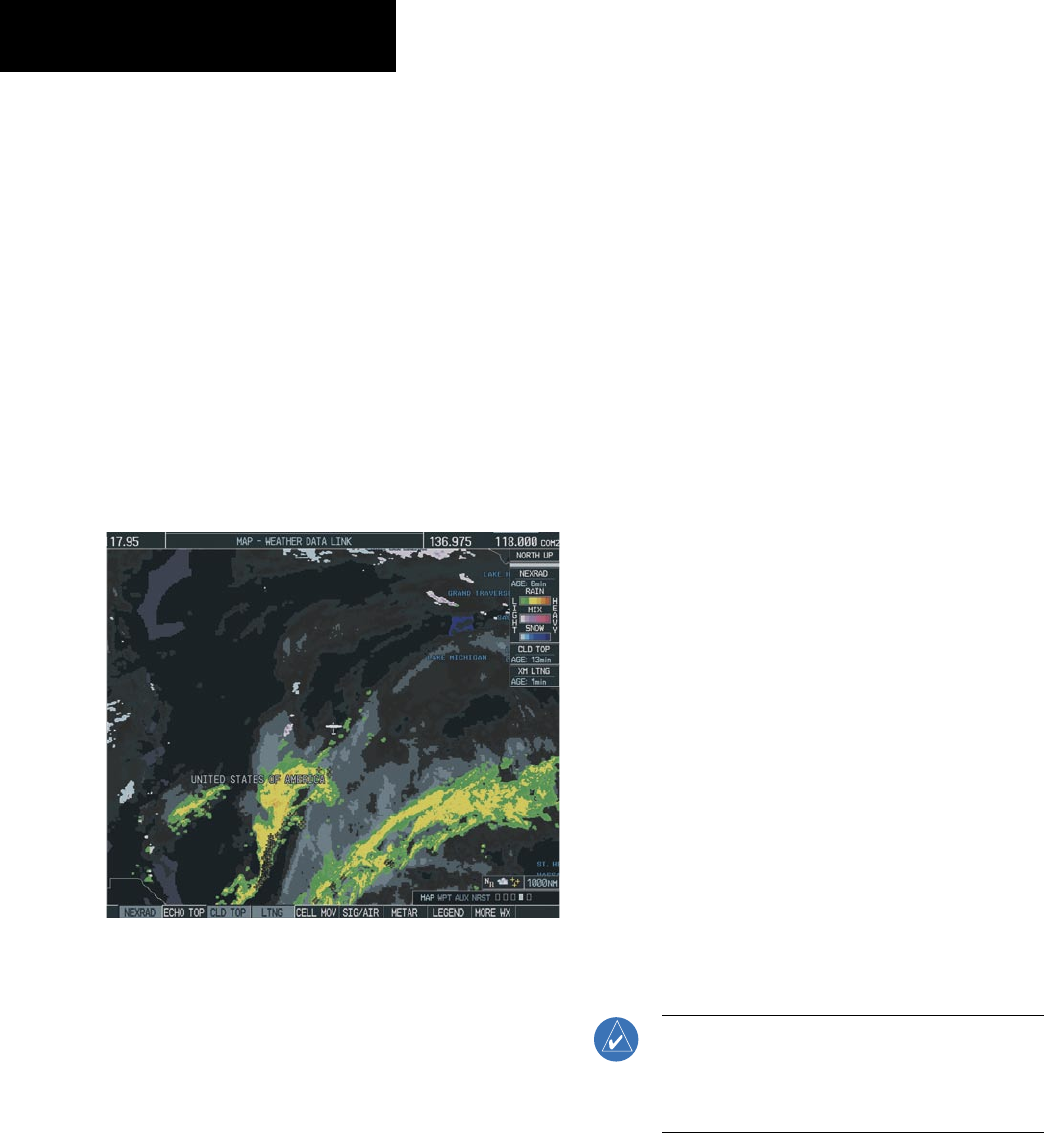

NEXRAD (optional) – Pressing this softkey displays/
removes precipitation data on the Navigation Map.
XM LTNG (optional) – Pressing this softkey displays/
removes XM Radio lightning data on the Navigation
Map.
BACK – Pressing this softkey displays the ENGINE and
MAP top level softkeys.
DCLTR (declutter) – Pressing this softkey removes map
information in three levels.
SHW CHRT (Show Chart)(optional) – Pressing this softkey
displays optional FliteCharts or ChartView charts.
CHKLIST (checklist)(optional) – Pressing the CHKLIST
Softkey displays the Checklist Page.
ENGINE – Displays engine softkeys.
DONE – Pressing this softkey checks off a checklist item.
If an item is already checked, an UNDO Softkey is
displayed.
EXIT – Press to exit the checklist.
EMERGCY – Pressing this softkey displays the
emergency checklist.
Figure 1-7 Page Group Icon
Map Page Group
Waypoint Page Group
Auxiliary Page Group
Nearest Group
Selected Page
Number of Pages in Current
Group
1.4 MFD PAGE GROUPS
1)
Turn the large
FMS
Knob until the desired page
group is selected.
2)
Turn the small
FMS
Knob to select pages within the
group. See Figure 1-7.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
1-10
SECTION 1
SYSTEM OVERVIEW

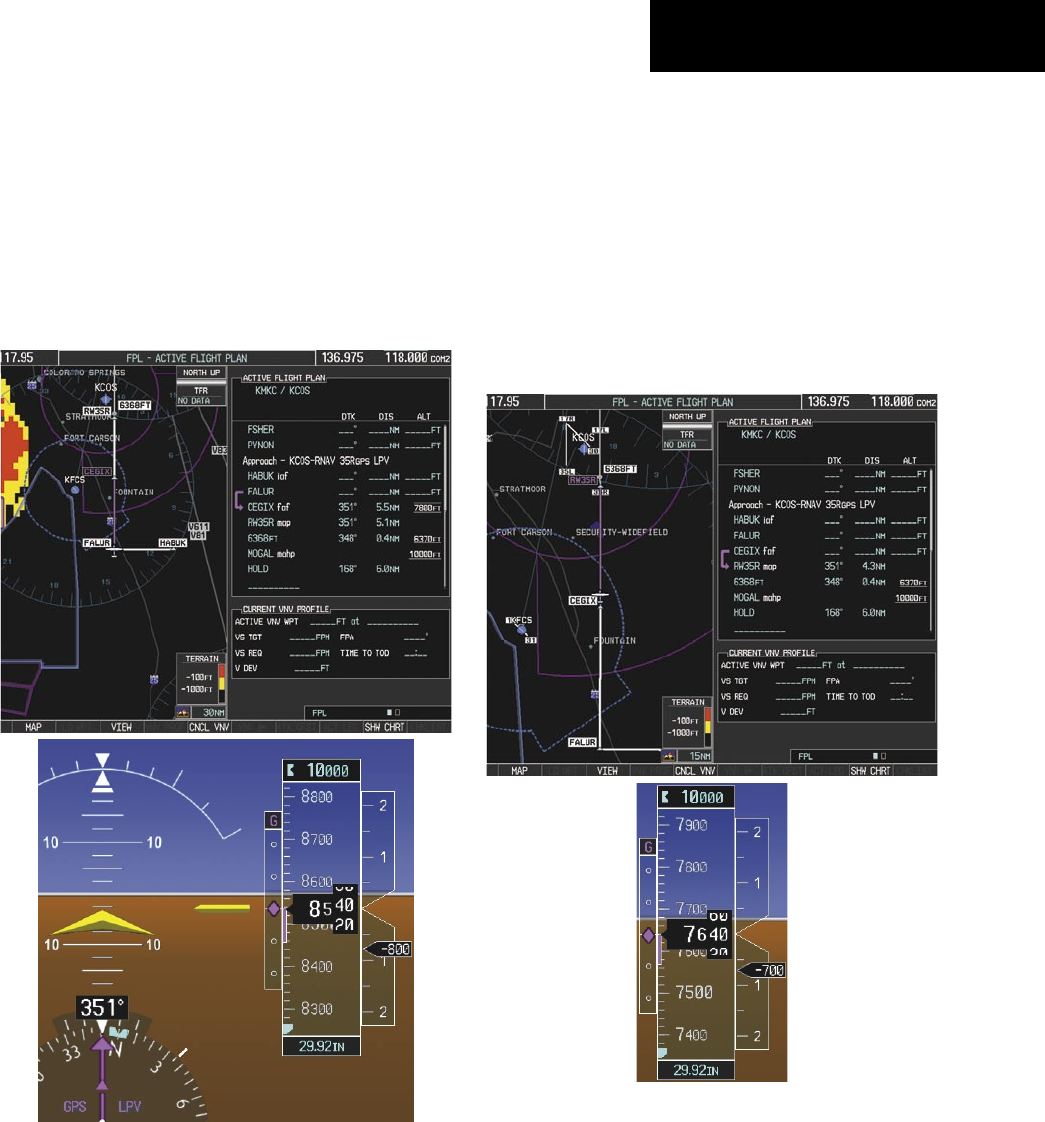

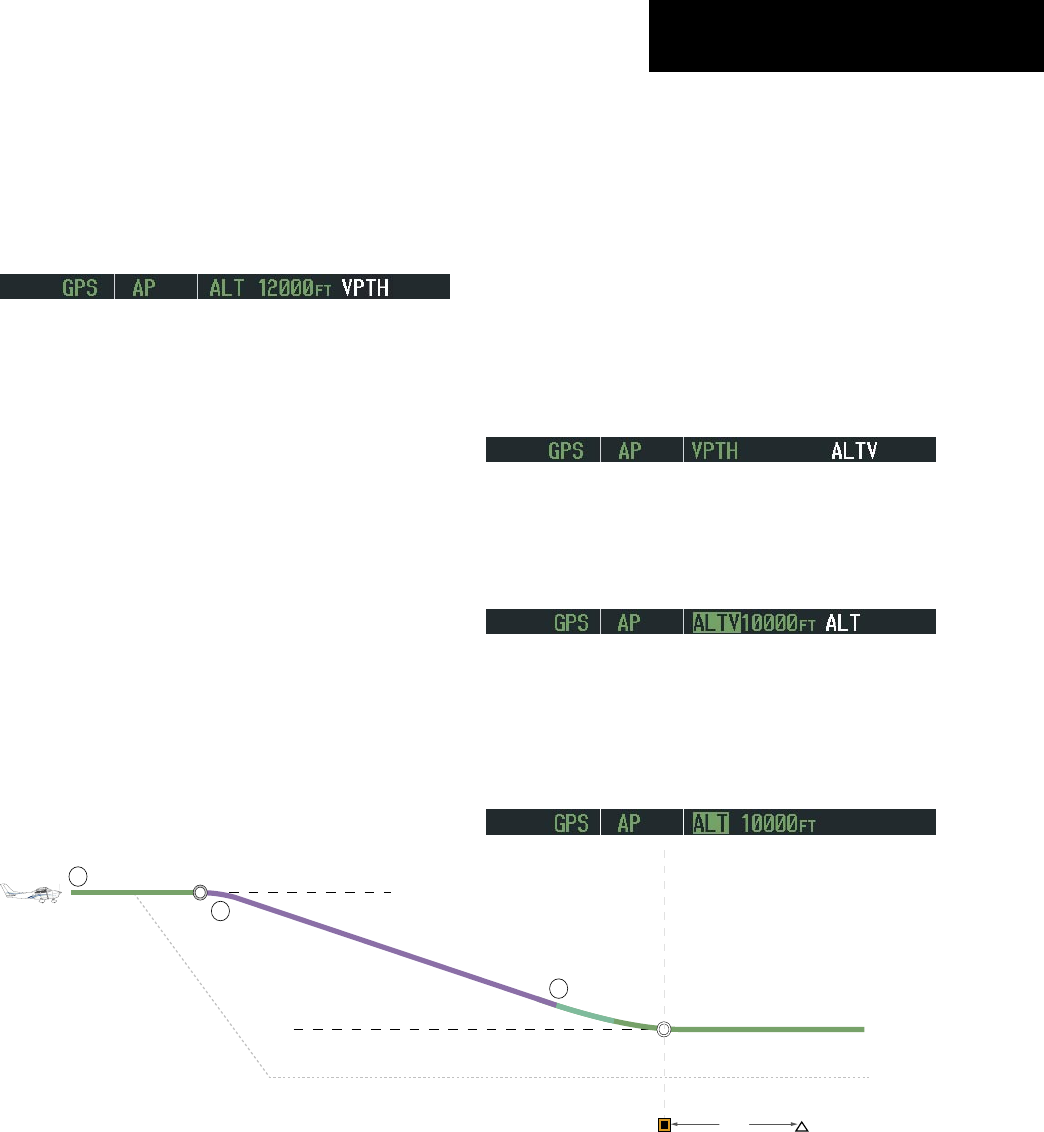

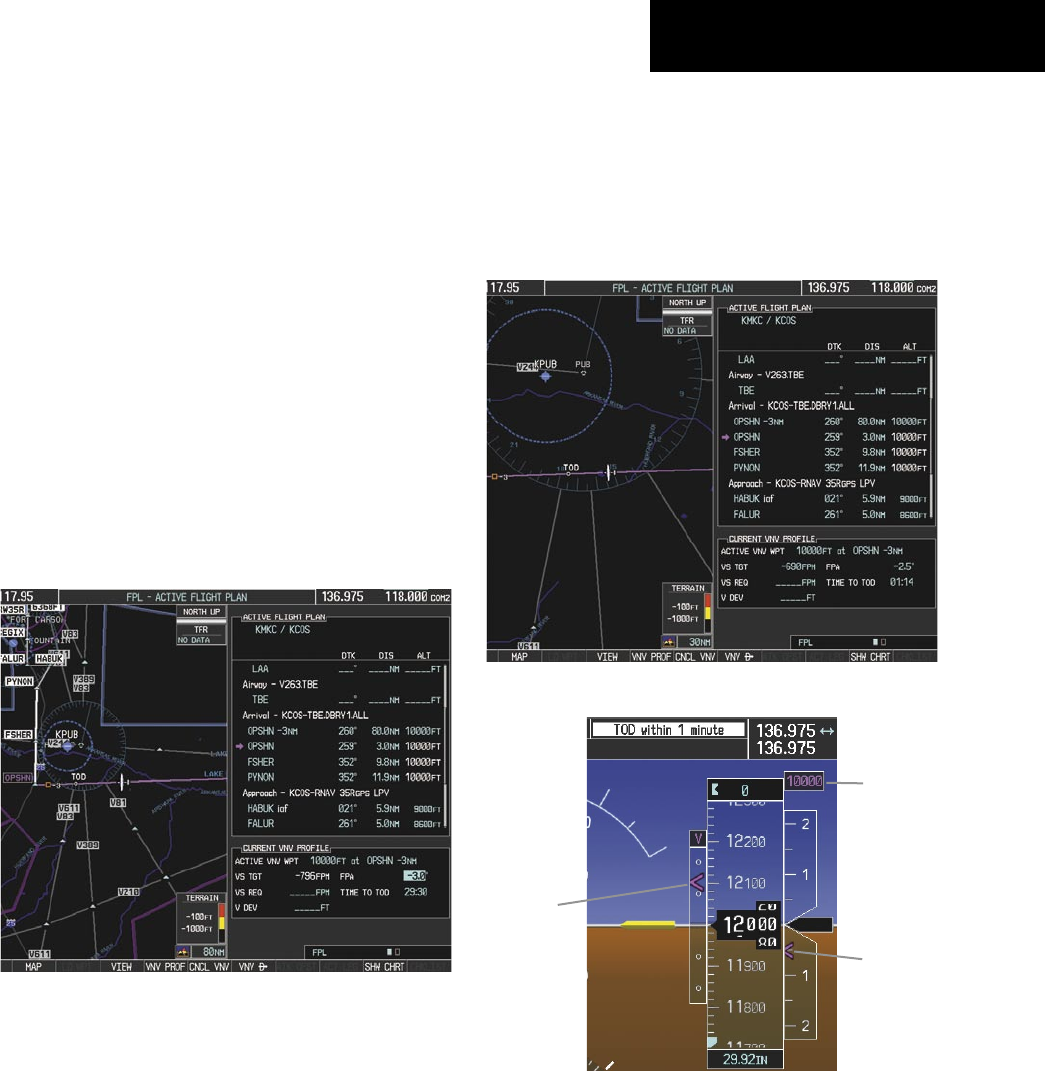

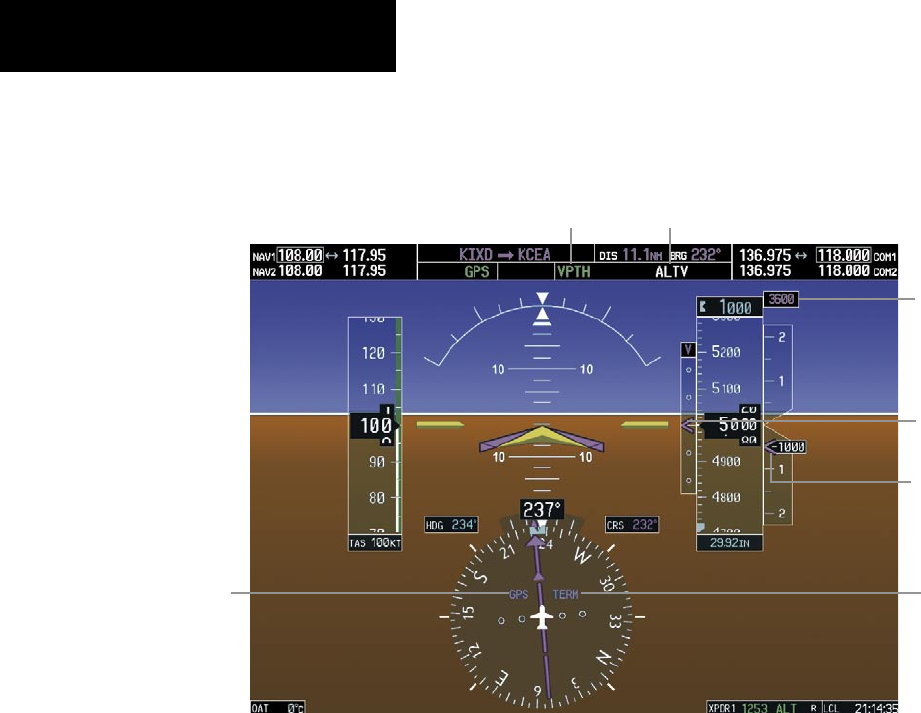

1.5 VERTICAL NAVIGATION
One of two altitude sources is used by the G1000 when
giving vertical navigation guidance. WAAS GPS altitude
is used when giving guidance for a WAAS approach after
the Final Approach Fix. Baro corrected altitude is used
when vertical guidance is given in all other situations and
in non-WAAS systems.
The G1000 system can use altitude constraints
associated with lateral waypoints to give guidance for
vertical navigation. These altitudes are, depending on the
specific instance, entered by the pilot or retrieved from the
published altitudes in the navigation database.
The navigation database only contains altitudes
for procedures that call for “Cross at” altitudes. If the
procedure states “Expect to cross at,” then the altitude
is not in the database. In this case the altitude may be
entered manually.
NOTE: All arrival procedure altitudes contained in
the navigation database are for turbojet aircraft only.
Alter or enter altitudes as desired to comply with the
ATC clearance.

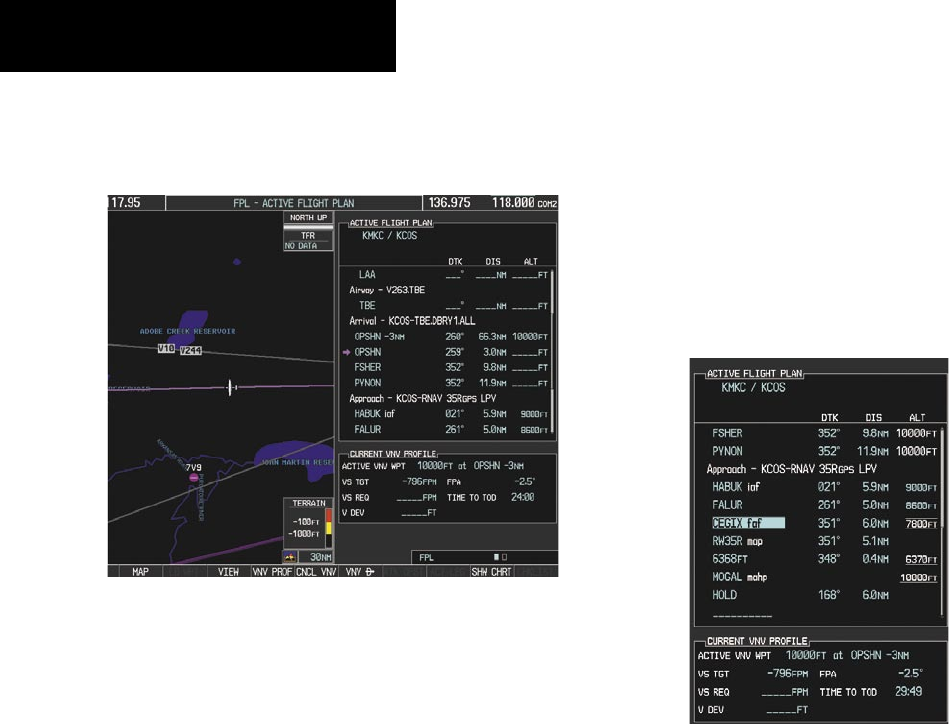

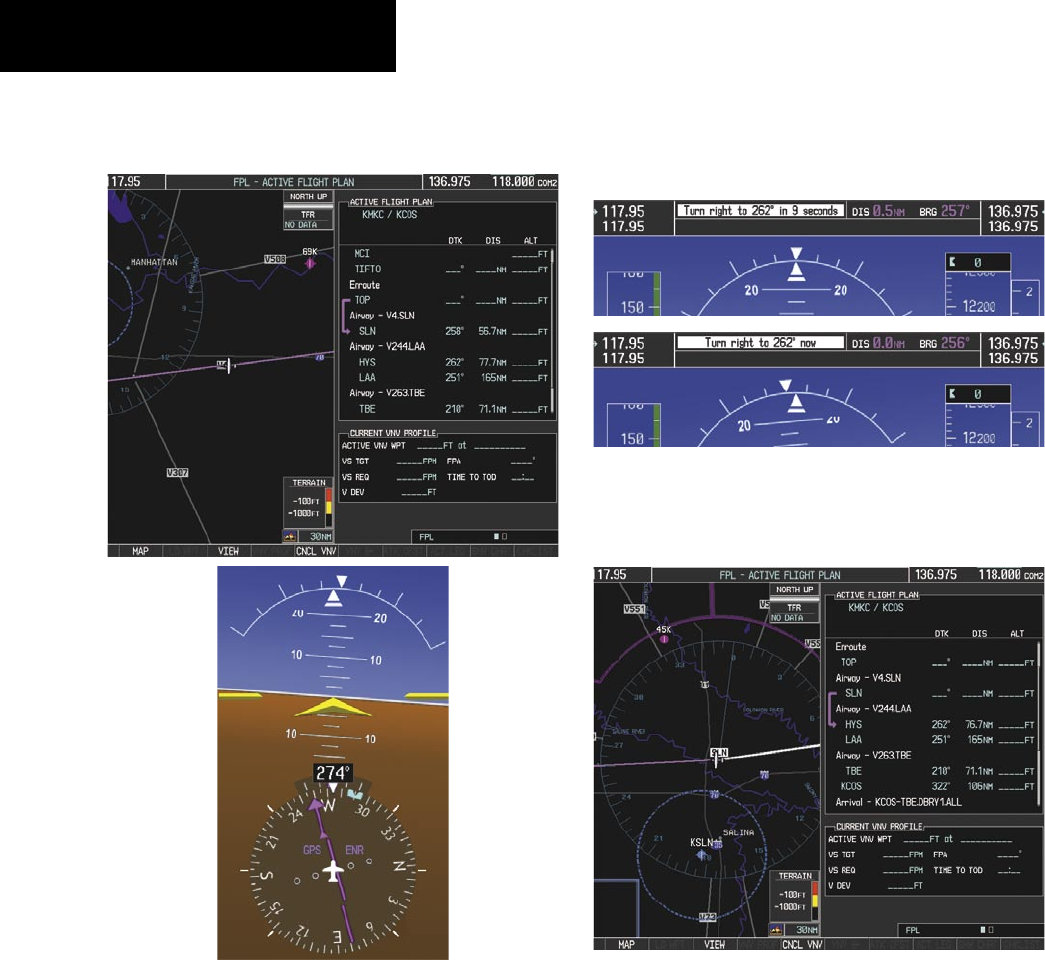

When activating or loading an arrival or approach
procedure into an active flight plan, the VNV ‘ALT’ fields
are populated with any altitudes that can be retrieved
from the navigation database.
Since altitudes loaded with an arrival procedure are
published only for turbojet aircraft, the altitudes are
displayed as white text indicating that the altitudes are
displayed for reference only. An arrival waypoint altitude
may be used (or “designated”) as is, or changed to a
different altitude. An altitude is designated by pressing the
FMS Knob and turning the large FMS Knob to place the
cursor on the desired altitude and pressing the ENT Key or
entering a different value and pressing the ENT Key. The
altitude is now displayed as light blue text, indicating that
the altitude is now designated to give vertical speed and
deviation guidance.
Approach waypoint altitude constraints are automatically
designated when the approach is loaded. These altitudes
are also displayed as light blue text. Waypoint altitude
constraints designated up to, but not including the FAF.
The FAF is always a “reference only” altitude and cannot be
designated, unless the selected approach does not provide
vertical guidance. In this case, the FAF altitude can be
designated manually.
Altitudes that have been designated for use in vertical
guidance may also be made “non-designated” by placing the
cursor over the desired altitude and pressing the CLR Key.
Other displayed altitudes may change due to re-calculations
or rendered invalid as a result of manually changing an
altitude to a non-designated altitude.
To help interpret the meanings of how the altitudes are
presented, keep the following points in mind:
• When the altitude is displayed in light blue,
the system is using that altitude (designated) to
determine vertical speed and deviation guidance.
• When the altitude is displayed in white, it is not being
used by the system (non-designated) to determine
the vertical speed and deviation guidance.
• An altitude displayed as small text is an altitude that
is published in the navigation database.
• Altitudes displayed as a light blue subdued text
cannot be used in the current vertical navigation
calculations.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A 1-11
SECTION 1
SYSTEM OVERVIEW

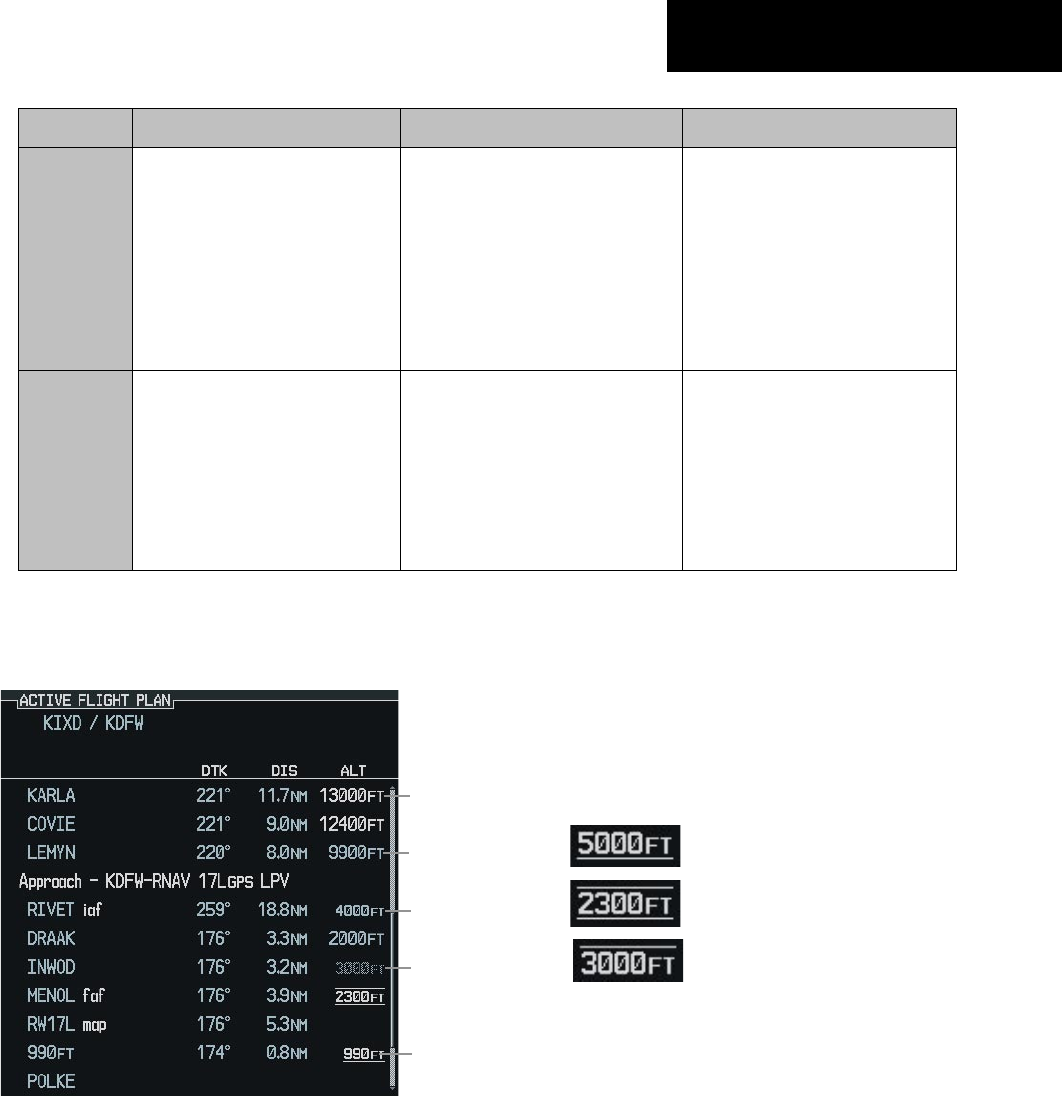

White Text Light Blue Text Light Blue Subdued Text
Large Text Altitude calculated by the system
estimating the altitude of the
aircraft as it passes over the
navigation point. This altitude
is provided as a reference and
is not designated to be used in
determining vertical speed and
deviation guidance.
Altitude has been entered by the
pilot. Altitude is designated for
use in giving vertical speed and
deviation guidance. Altitude does
not match the published altitude
in navigation database or no
published altitude exists.
The system cannot use this altitude
in determining vertical speed and
deviation guidance.
Small Text Altitude is not designated to
be used in determining vertical
speed and deviation guidance.
Altitude has been retrieved from
the navigation database and is
provided as a reference.
Altitude is designated for use in
giving vertical speed and deviation
guidance. Altitude has been
retrieved from the navigation
database or has been entered by
the pilot and matches a published
altitude in the navigation database.
The system cannot use this altitude
in determining vertical speed and
deviation guidance.
Table 1-1 VNV Altitude Text Size and Color
Refer to Figure 1-8 and Table 1-1 for more detail
regarding the significance of text size and color.
Figure 1-8 VNAV Altitudes
Large Light
Blue Text
Small White
Text with
Altitude
Restriction
Bar
Large White
Text
Small Light
Blue Subdued
Text
Small Light
Blue Text
Some altitudes retrieved from the database have
associated restrictions indicating to stay ‘At’, ‘At or Above’,
or ‘At or Below’ a specific altitude. These restrictions are
indicated using a ‘bar’ above and/or below the appropriate
altitude as shown in Figure 1-9.
Cross AT or ABOVE 5,000 ft
Cross AT or BELOW 3,000 ft
Cross AT 2,300 ft
Figure 1-9 Altitude Restrictions
See Section 7 - Navigation, for a sample flight plan
which further illustrates vertical navigation in more
detail.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
1-12
SECTION 1
SYSTEM OVERVIEW
1.6 BACKLIGHTING
Manually adjust the backlight for the PFD
and MFD:
1)
Press the MENU Key on the PFD to display the PFD
Setup Menu window.
2)
Press the small FMS Knob to activate the cursor.
‘PFD DSPL > AUTO’ is now highlighted.
3)
Turn the small FMS Knob to display the
selection window.
4)
Turn the small FMS Knob to select ‘MANUAL’, then
press the ENT Key.
5)
With the intensity value now highlighted, turn
the small FMS Knob to select the desired
backlighting.
6)
Turn the large FMS Knob to highlight ‘MFD DSPL
> AUTO’ and repeat steps 3 through 5.

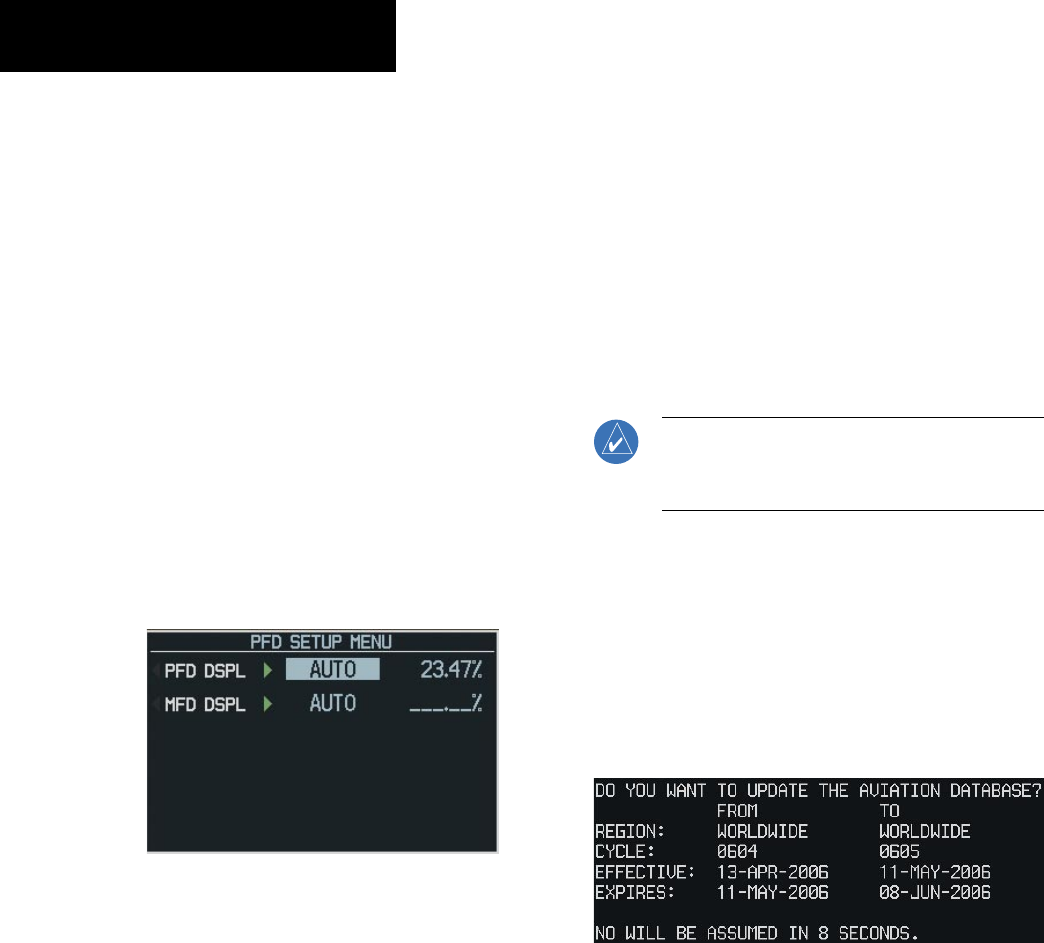

Figure 1-10 PFD Setup Menu Window
1.7 XM RADIO - AUTOMATIC MUTING
XM Radio audio is automatically muted when the
aircraft groundspeed exceeds approximately 30 kts and
the airspeed is less than approximately 80 kts. The audio
must be manually unmuted once the aircraft is outside
the applicable speed range. Refer to the G1000 Optional
Equipment section of the pilot’s guide.
1.8 DATABASE UPDATES
The G1000 System uses Secure Digital (SD) cards to
load and store various types of data. For basic flight op-
erations, SD cards are required for database storage as well
as Jeppesen aviation and ChartView database updates.
The following procedures pertain to updating the
G1000 system with SD cards as outlined in Appendix B of
the G1000 Cessna Nav III Pilot’s Guide.
Jeppesen Aviation Database
NOTE: After the aviation database is installed,
the card may be removed after loading the
update to each LRU.
Updating the Jeppesen aviation database:
1)
With the G1000 System OFF, insert the SD card
containing the aviation database update into the
top card slot of the PFD to be updated (Label of SD
card facing left).
2)
Turn the G1000 System ON. A prompt similar to
the following is displayed in the upper left corner
of the PFD:

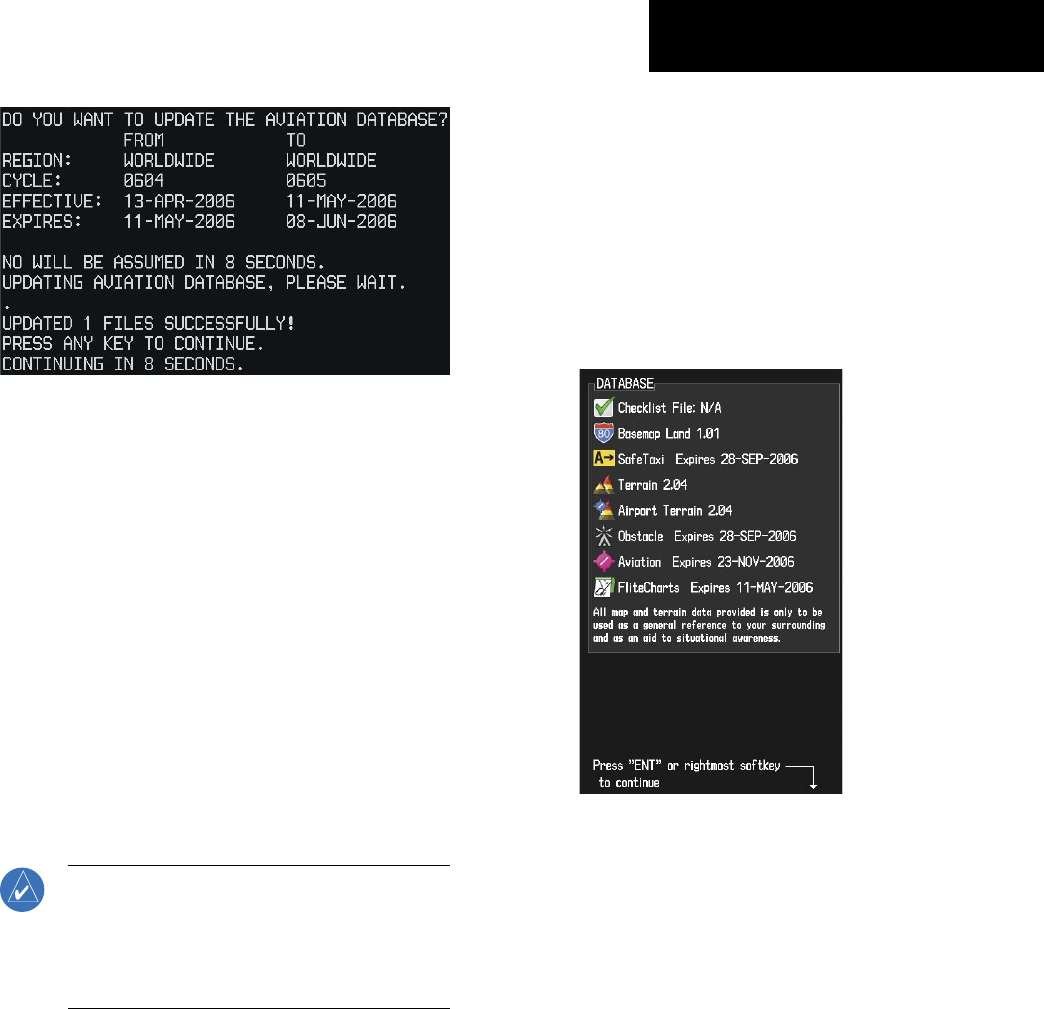

Figure 1-11 Database Update Prompt
3)
Press the ENT Key to start the database update. A
prompt similar to the following is displayed:
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A 1-13
SECTION 1
SYSTEM OVERVIEW
Figure 1-12 Database Update Confirmation
4)
After the update completes, the PFD starts in normal
mode.
5)
Turn the G1000 System OFF and remove the SD
card.
6)
Repeat steps 1 through 4 for the MFD. The MFD
and PFD databases are now updated. Remove the
SD card when finished.
7)
Verify that the correct update cycle is loaded during
startup of the MFD.
Garmin Databases
Since these databases are not stored internally in the
MFD or PFD, a Supplemental Data Card containing iden-
tical database versions must be kept in each display unit.
NOTE: The data contained in the terrain and
obstacle databases comes from government
agencies. Garmin accurately processes and
cross-validates the data, but cannot guarantee
the accuracy and completeness of the data.
1)
Insert one SD card in the bottom card slot of the
MFD and one in the bottom card slot of the PFD.
The SD card containing the ChartView or FliteCharts
database must be inserted into the bottom slot on
the MFD.
2)
Apply power to the G1000 System. View the MFD
power-up splash screen. Check that the databases
are initialized and displayed on the scrolling
window of the splash screen. When updating the
terrain and FliteCharts databases, an ‘in progress’
message may be seen. If this message is present,
wait for the system to finish loading before verifying
the correct databases are initialized, then proceed
to step 3.
Figure 1-13 Power-Up Splash Screen Window
3)
Acknowledge the Power-up Page agreement by
pressing the
ENT
Key or the right most softkey.
4)
At the MAP – NAVIGATION MAP Page, press the
MAP
Softkey and check to make sure that the
TOPO
and
TERRAIN
Softkeys are available (not dimmed)
and other database features are functioning.
5)
Power down the G1000.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
1-14
SECTION 1
SYSTEM OVERVIEW
Blank Page
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A 2-1
SECTION 2
FLIGHT INSTRUMENTS
SECTION 2: FLIGHT INSTRUMENTS
The following discussions pertain to the Primary Flight
Display, unless otherwise indicated.
78
12
15
16
9
14
13
6
3
4
2
117

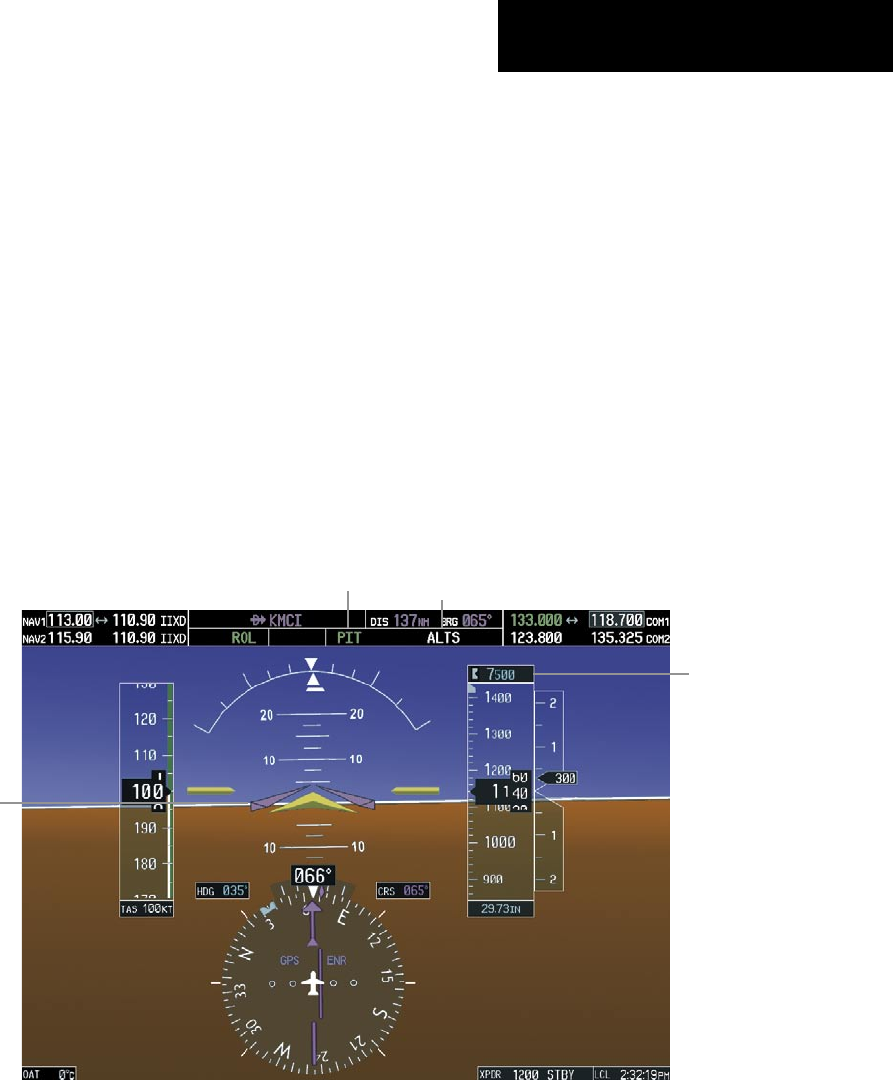

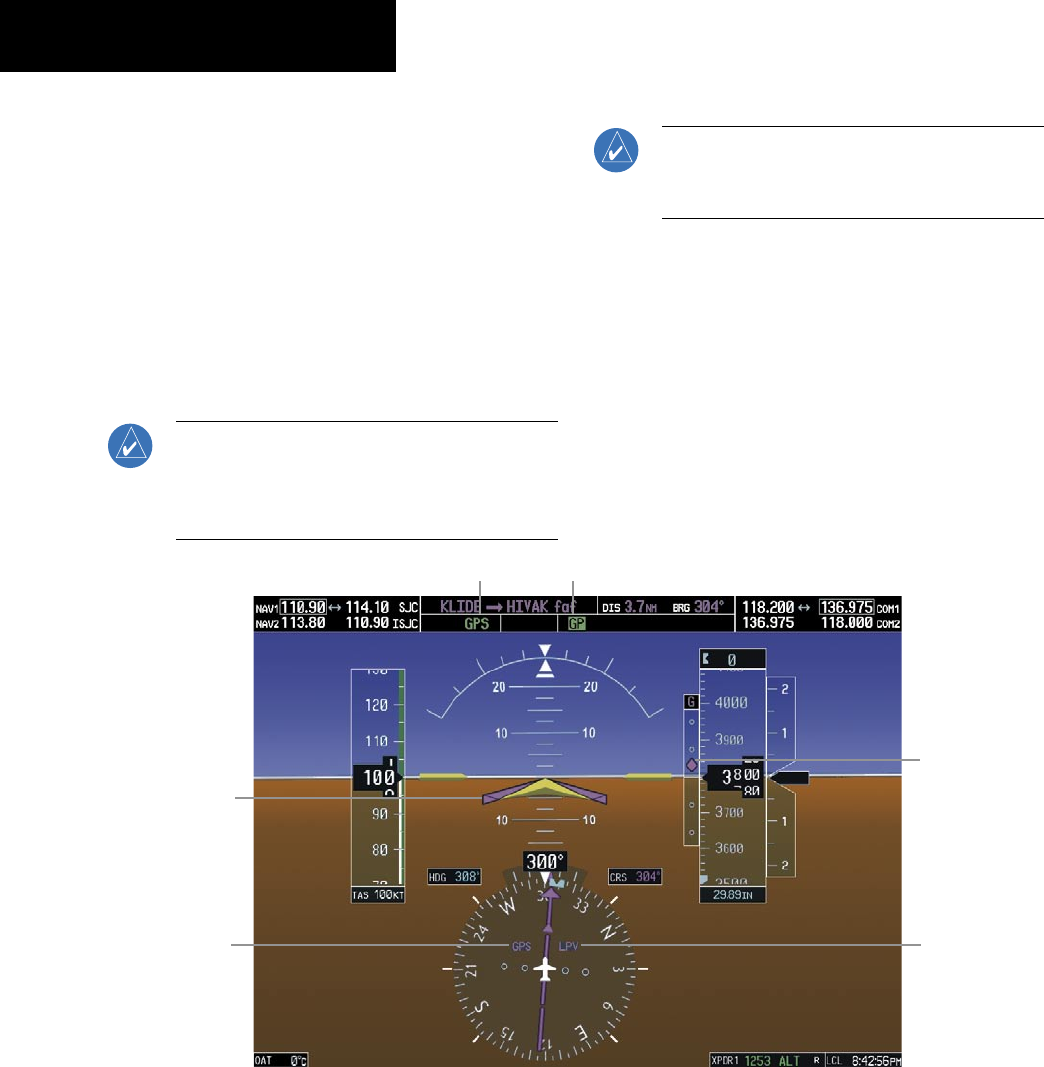

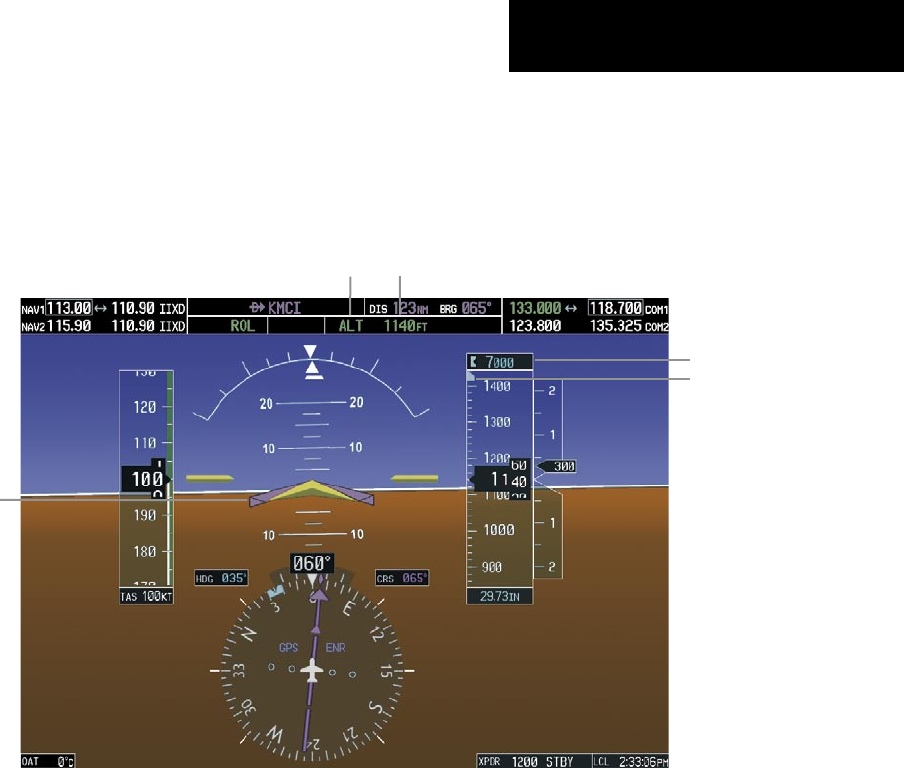

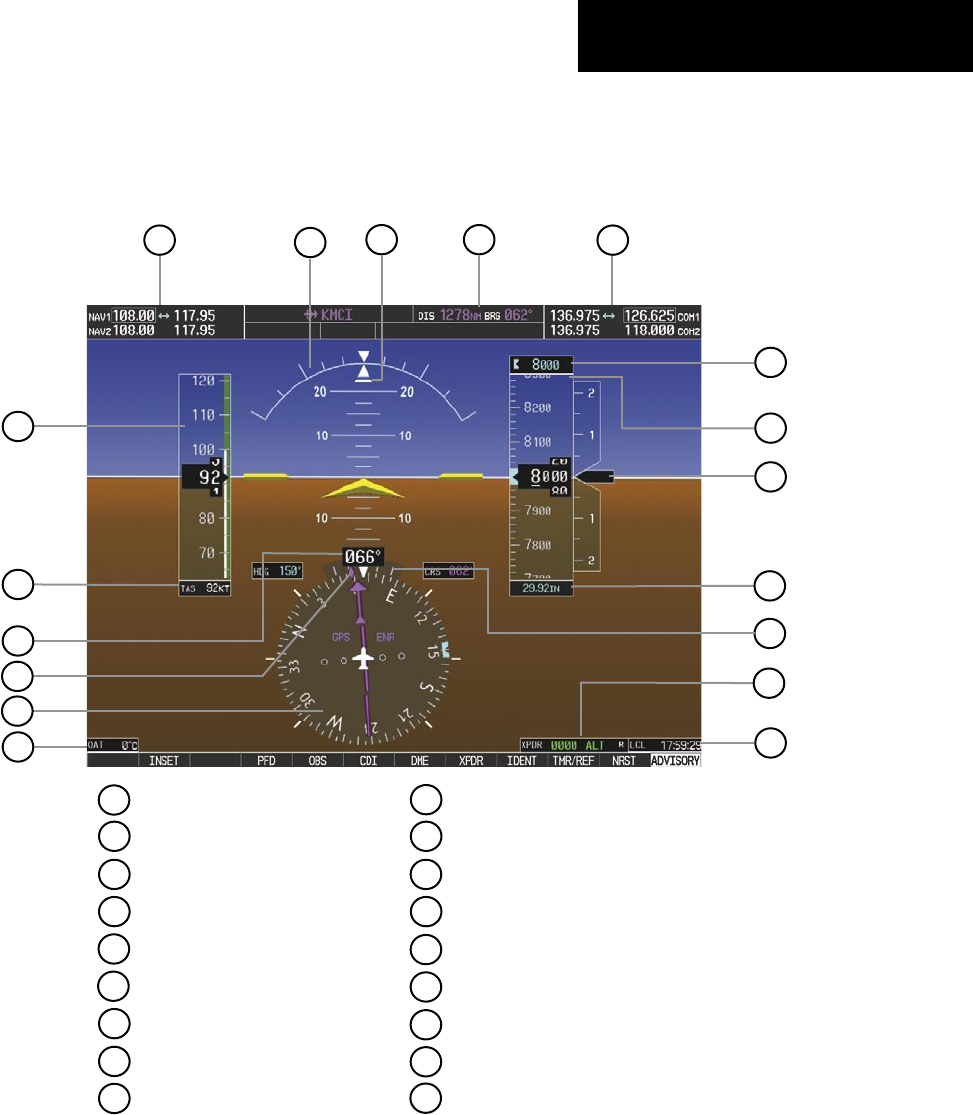

Figure 2-1 Default PFD Information
15
16
12
14
13
10
7
4
2
6
17
8
3
1
NAV Frequency Box
Airspeed Indicator
True Airspeed Box
Outside Air Temperature Box
Selected Altitude Box
Horizontal Situation Indicator
Heading Box
System Time Box
Transponder Status Box
Barometric Setting Box
Vertical Speed Indicator
Altimeter
COM Frequency Box
Navigation Status Box
11
9
Slip/Skid Indicator
Turn Rate Indicator
11
10
18
18
Attitude Indicator
5
5
Ground Track Bug
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
2-2
SECTION 2
FLIGHT INSTRUMENTS

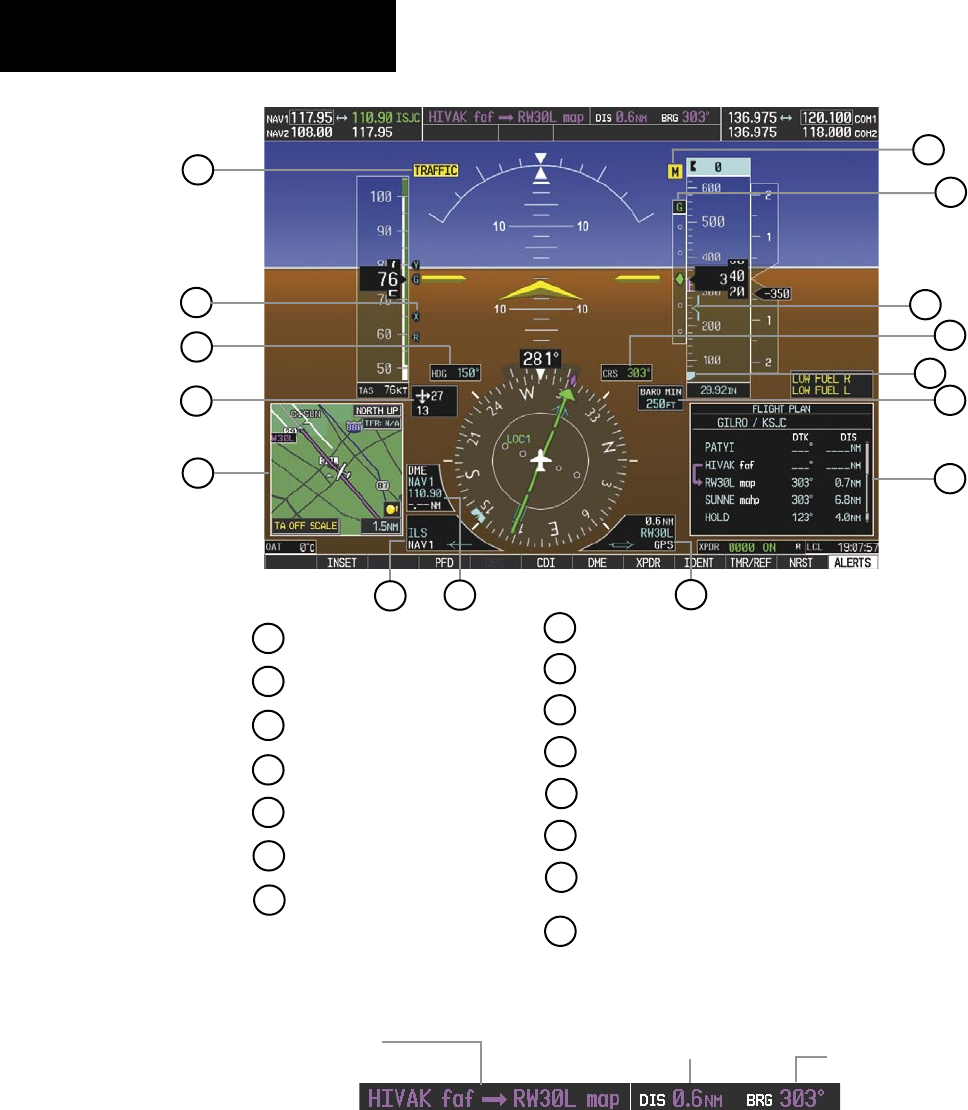

Figure 2-2 Additional PFD Information
2
1
5
3
4
8
6
Traffic Annunciation
2
4
3
1
Selected Heading Box
9
Flight Plan Window
10
Barometric Minimums Box
8
BRG2 Information Window
Vspeed References
5
Vertical Deviation/Glidepath (WAAS en-
abled systems only)/Glidesope Indicator
14
Inset Map
Wind Data Window
BRG1 Information Window
Selected Altitude Bug
11
6
13
Barometric Minimums Bug
15
Marker Beacon Annunciation
12
Selected Course Box
7
7
DME Information Window
10
9
12
14
13
11
15
Figure 2-3 PFD Navigation Status Box
Active Flight Plan Leg Distance to Next
Waypoint Bearing to Next
Waypoint
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A 2-3
SECTION 2
FLIGHT INSTRUMENTS

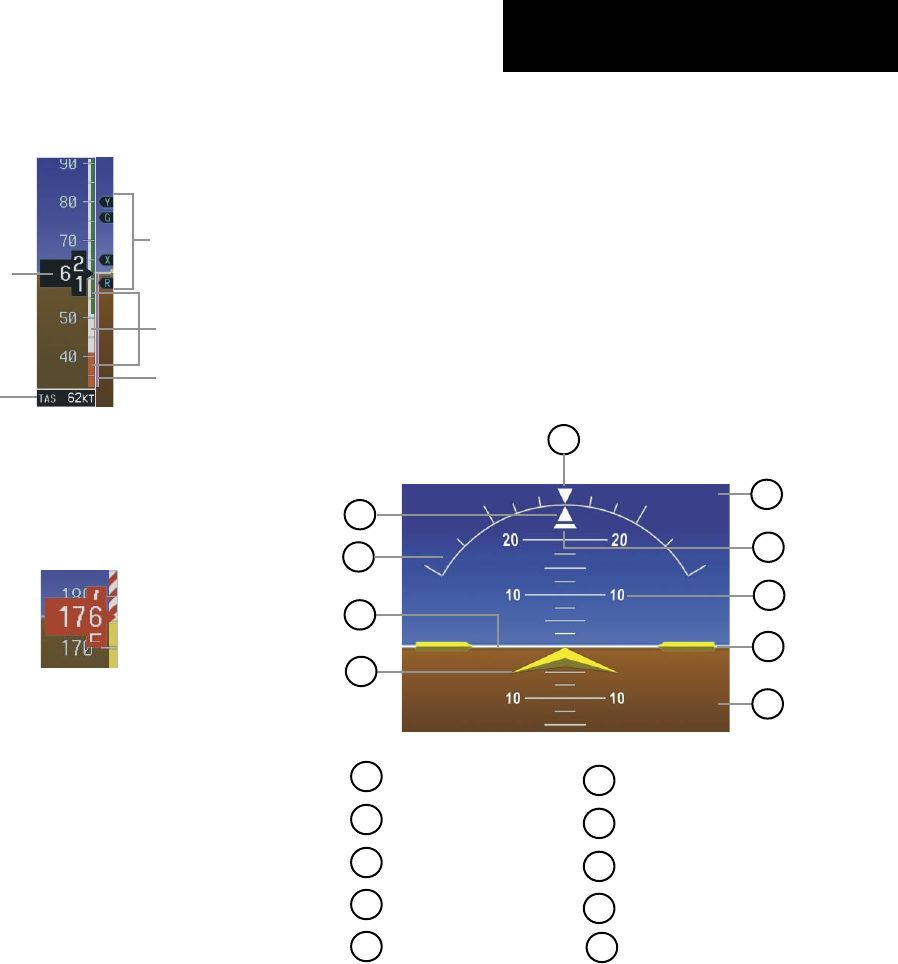

2.1 AIRSPEED INDICATOR
Figure 2-4 Airspeed Indicator
Actual Airspeed
True Airspeed
Box
Airspeed Trend
Vector
Speed Ranges
Vspeed
References
Speed Indication
The indicated airspeed is displayed inside the black
pointer. The pointer becomes red upon reaching Vne.
Figure 2-5 Red Pointer at Vne
Speed Ranges
The color coded speed range strip denotes flaps
operating range, normal operating range, and never
exceed speed (Vne). A red range is also present for low
speed awareness. Refer to the Pilot’s Operating Handbook
(POH) for airspeed limitations and indicator markings.
Airspeed Trend Vector
The end of the trend vector displays approximately
what the airspeed will be in 6 seconds if the current rate
of acceleration/deceleration is maintained.
Vspeed References
Vspeed References are turned on or off in the
Timer/References Window. Press the TMR/REF Softkey
to display the widow. When active (ON), the Vspeeds are
displayed at their respective locations to the right of the
airspeed scale. To activate the Vspeed References, display
the Timer/Reference Window and turn the large FMS
Knob to place the cursor in the ON/OFF field. Turn the
small FMS Knob to select ON or OFF.
2.2 ATTITUDE INDICATOR
Figure 2-6 Attitude Indicator
3
2
1
9
8
7
6
5
4
1
2
3
4
5
Roll Scale
Horizon Line
Aircraft Symbol
Land Representation
Roll Pointer
6
7
8
9
Aircraft Wing Tips
Pitch Scale
Sky Representation
Slip/Skid Indicator
Roll Index Zero
10
10
The Slip/Skid Indicator is located under the roll pointer
and moves laterally away from the pointer to indicate
lateral acceleration. One Slip/Skid indicator displacement
is equal to one ball displacement when compared to a
traditional slip/skid indicator.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
2-4
SECTION 2
FLIGHT INSTRUMENTS

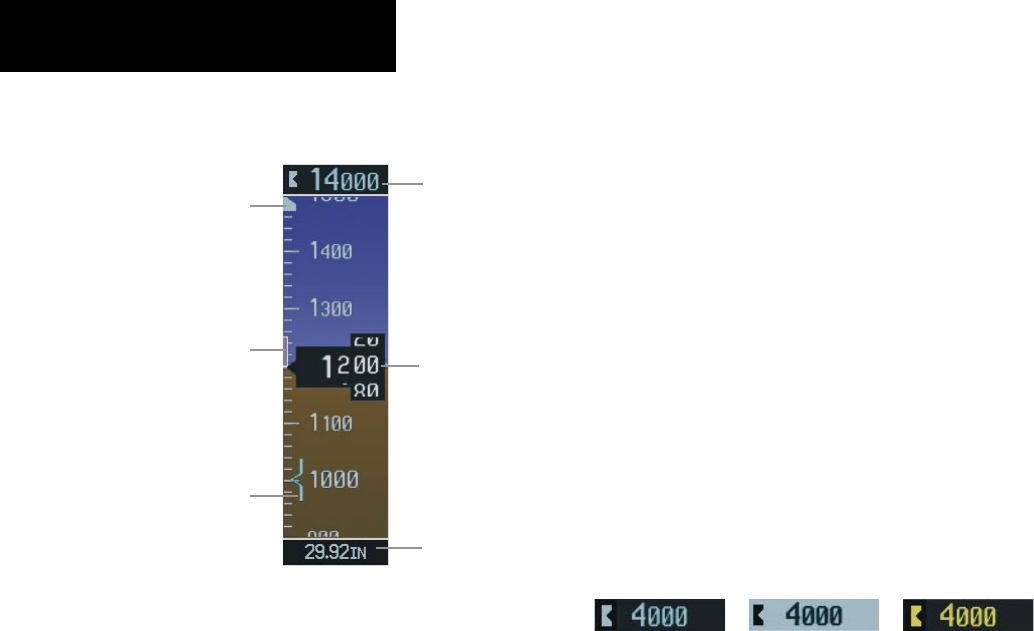

2.3 ALTIMETER
Altitude
Reference
Box
Altitude
Trend
Vector Current
Altitude
Barometric
Setting
Box
Altitude
Reference
Bug
Figure 2-7 Altimeter
Barometric
Altitude
Minimums Bug
Selected Altitude Bug
The Selected Altitude Bug is displayed at the Selected
Altitude or the edge of the tape (whichever is closer to the
current altitude) to provide increased altitude awareness
and to set the desired hold altitude for the autopilot.
Set the Selected Altitude Bug:
Turn the
ALT
Knobs to set the Selected Altitude Bug.
The
small ALT
Knob sets the hundreds and the
large
ALT
Knob sets the thousands. This altitude also
appears in the Selected Altitude Box above the
Altimeter.
Altitude Trend Vector
The end of the trend vector displays approximately
what the altitude will be in six seconds if the current rate
of vertical speed is maintained.
Barometric Setting Box
Select barometric pressure:
Turn the BARO Knob to select the desired
setting.
Quickly enter standard pressure:
1)
Press the PFD Softkey.
2)
Press the STD BARO Softkey.
Altitude Alerting
Figure 2-8 Altitude Alerting Visual Annunciations
Within 1000 ft Within 200 ft Deviation of ±200 ft
Visual annunciations appear in the Altitude Reference
Box. Whenever the setting is changed, the Altitude
Alerter is reset. The Altitude Alerter is independent of the
Automatic Flight Control System.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A 2-5
SECTION 2
FLIGHT INSTRUMENTS
Metric Display
Display altitude in meters and barometric
pressure in hectopascals:
1)
Press the PFD Softkey to display the second level
softkeys.
2)
Press the ALT UNIT Softkey.
3)
Press the METERS Softkey to display altitude in
meters.
4)
Press the HPA Softkey to display the barometric
setting in hectopascals. Press the IN Softkey
to display the barometric setting in inches of
mercury.
5)
Press the BACK Softkey to return to the previous
level softkeys.
Figure 2-9 Altimeter (Metric)
Low Altitude Annunciation
NOTE: The LOW ALT annunciation is only available
in G1000 systems configured with WAAS-capable
GPS. Also, the LOW ALT annunciation is not
available when the G1000 is configured with
TAWS (Terrain Awareness & Warning System),
unless TAWS is inhibited.
When the Final Approach Fix (FAF) is the active
waypoint in a GPS WAAS approach using vertical guidance,
a LOW ALT (Low Altitude) annunciation may appear if
the current aircraft altitude is at least 164 feet below the
prescribed altitude at the FAF. The annunciation initially
flashes. After a few seconds the flashing stops and the
annunciation is displayed as shown in Figure 2-10.
Figure 2-10 Low Altitude on GPS Approach
Low Altitude
Annunciation
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
2-6
SECTION 2
FLIGHT INSTRUMENTS
2.4 VERTICAL DEVIATION/GLIDEPATH/
GLIDESLOPE INDICATOR

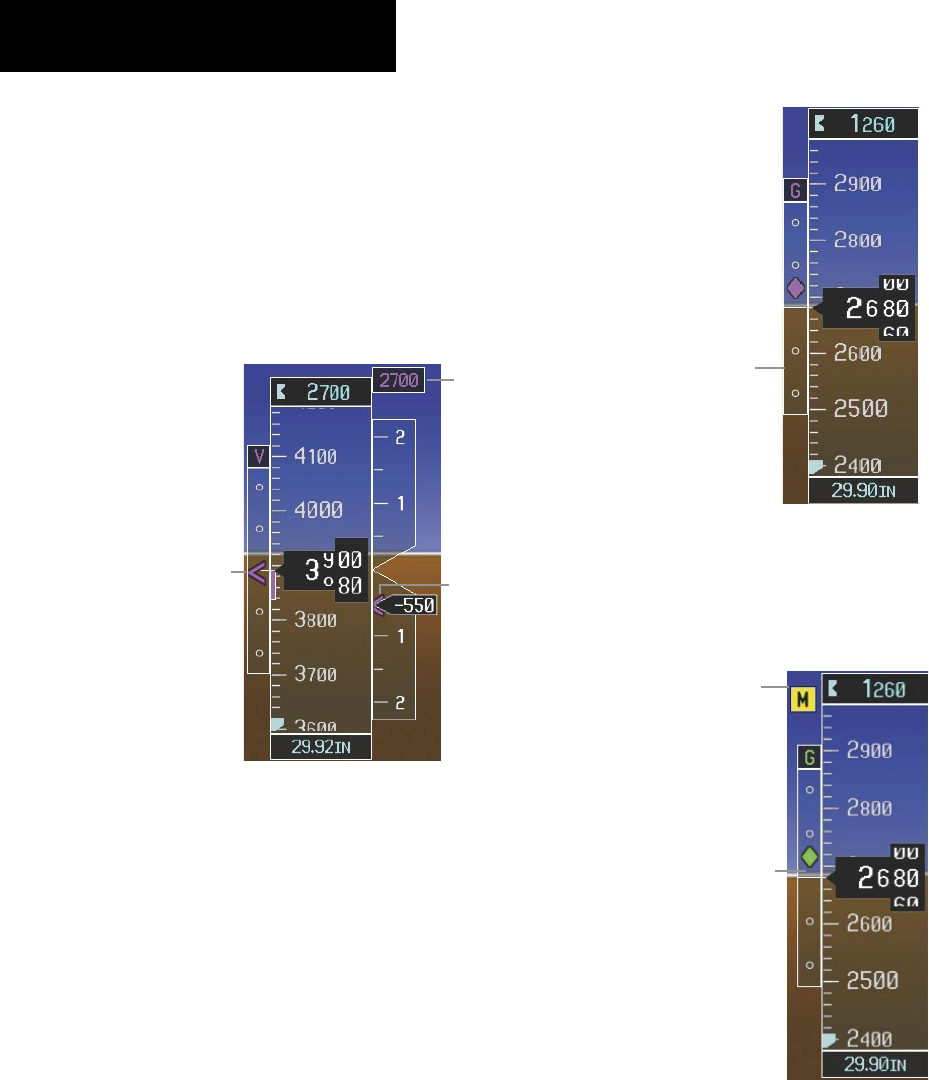

The Vertical Deviation and Required Vertical Speed
Indicators appear when vertical guidance is being given
prior to executing an approach (see Figure 2-11). In
systems that are WAAS enabled, the Glidepath Indicator
appears at a point prior to the FAF when executing an LPV,
LNAV/VNAV, or LNAV+V approach (see Figure 2-12).
Figure 2-11 Vertical Deviation Indications
Vertical
Deviation
Indicator
VNAV
Target
Altitude
Required
Vertical
Speed
Figure 2-12 Glidepath Indicator
Glidepath
Indicator
The Glideslope Indicator appears when an ILS approach
has been activated and an ILS is tuned in the active NAV
receiver field (see Figure 2-13).
Figure 2-13 Glideslope Indicator
Marker Beacon
Annunciation
Glideslope
Indicator
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A 2-7
SECTION 2
FLIGHT INSTRUMENTS
2.5 MARKER BEACON ANNUNCIATIONS

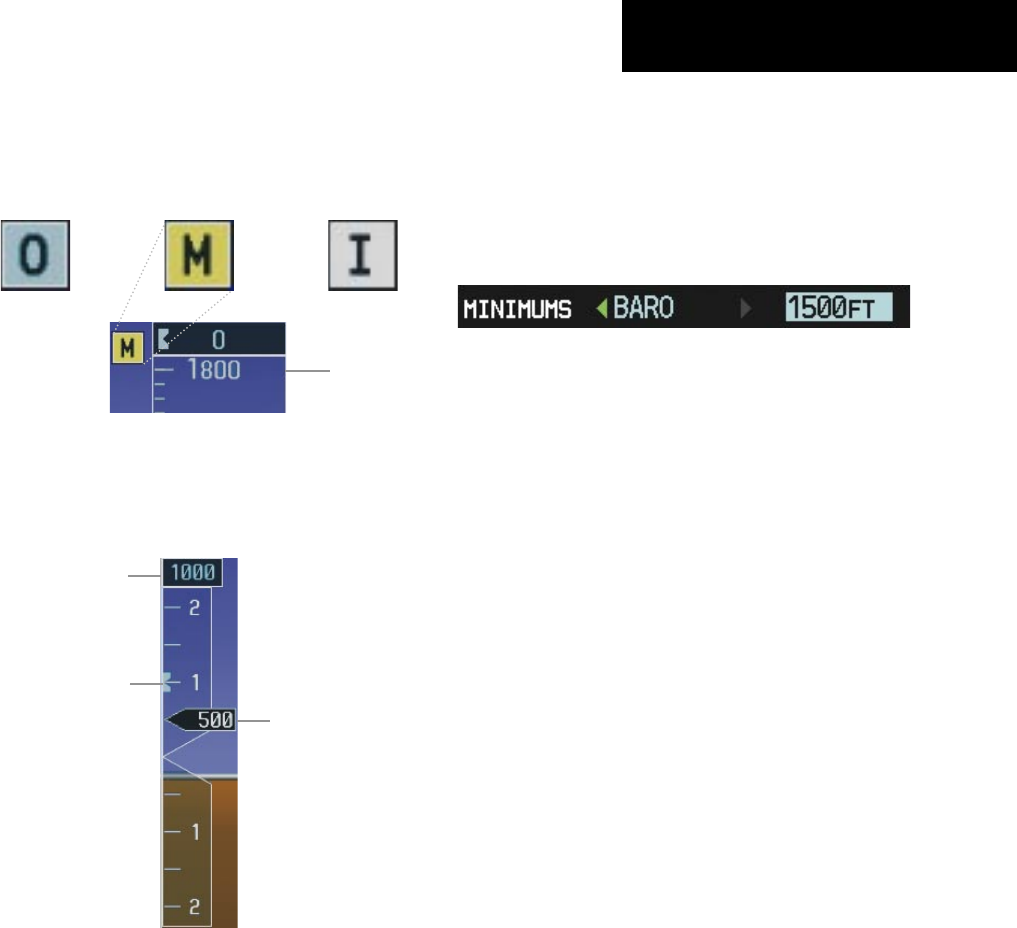

Figure 2-14 Marker Beacon Annunciations
Outer Marker Middle Marker Inner Marker
Altimeter
2.6 VERTICAL SPEED INDICATOR
Figure 2-15 Vertical Speed Indicator
Vertical Speed Pointer
Vertical Speed Bug
Selected Vertical Speed
The actual vertical speed is displayed inside the
pointer.
When the Flight Director is placed in Vertical Speed
Mode (by pressing the VS Key) the Vertical Speed Bug
is displayed. Press the NOSE UP or NOSE DN Key to
adjust.
2.7 BAROMETRIC ALTITUDE MINIMUMS
The desired barometric altitude minimums can be set in
the Timer/References Window. The altitude ranges from 0
to 16,000 feet in 10-foot increments. The minimums are
reset anytime the power is cycled.
Figure 2-16 Barometric Minimum Descent Altitude Settings
The desired barometric minimum descent altitude
(MDA, or Decision Height, DH) can be set in the Timer/
References Window.
Visual annunciations alert the pilot when approaching
the MDA:
• When the aircraft altitude descends to within 2500
feet of the MDA setting, the Barometric Minimum
Box appears with the altitude in light blue text.
The bug appears on the tape in light blue once in
range.
• When the aircraft passes through 100 feet of the
MDA, the bug and text turn white.
• Once the aircraft descends past the MDA, the bug
and text turn yellow and the aural alert, “Minimums
Minimums”, is generated.
Alerting is inhibited while the aircraft is on the ground.
If the aircraft climbs after having reached the MDA, once it
reaches 50 feet above the MDA, alerting is disabled.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
2-8
SECTION 2
FLIGHT INSTRUMENTS
Figure 2-17 Barometric Minimum Descent Altitude
Alerting Visual Annunciations
Within 100 ft
Altitude Reached
Within 2500 ft
Barometric
Minimum Box
Barometric
Minimum Bug
Set the barometric altitude minimums:
1)
Press the
TMR/REF
Softkey.
2)
Turn the large FMS Knob to highlight the
‘Minimums’ field (Figure 2-16).
3)
Turn the small FMS Knob to select BARO. OFF is
selected by default. Press the ENT Key or turn the
large FMS Knob to highlight the next field.
4)
Use the small FMS Knob to enter the desired
altitude (from zero to 16,000 feet).
5)
To remove the window, press the
CLR
Key or the
TMR/REF
Softkey.
2.8 HORIZONTAL SITUATION INDICATOR
(HSI)
The HSI compass can be displayed as a 360° rose or
140° arc by pressing the PFD Softkey, followed by the
HSI FRMT Softkey, followed by the 360 HSI or the ARC
HSI Softkey.
Figure 2-18 Horizontal Situation Indicator
9
15
10
7
6
5
4
3
1
8
14
13
12
11
Heading Bug
3
4
7
5
6
8
1
Turn Rate Indicator
Navigation Source
Course Deviation Indicator
TO/FROM Indicator
Course Pointer
Rotating Compass Rose
12
11
13
14
15
10
9
OBS Mode
Lateral Deviation Scale
Flight Phase
Aircraft Symbol
Lubber Line
Heading
Turn Rate and Heading Trend Vector
2
2
Ground Track Bug
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A 2-9
SECTION 2
FLIGHT INSTRUMENTS
Turn Rate Indicator and Heading Trend Vector
Tick marks to the left and right of the lubber line
denote half-standard and standard turn rates. A magenta
turn rate trend vector shows the current turn rate. The
end of the trend vector gives the heading predicted in six
seconds, based on the present turn rate. At rates greater
than 4 deg/sec, an arrowhead appears at the end of the
magenta trend vector and the prediction is no longer
valid.
Figure 2-20 Standard-Rate Turn Indication
Turn Rate
Trend Vector
(standard rate)
Figure 2-19 Turn Rate Indicator and Trend Vector
Half-Standard Turn
Rate Tick Mark
Standard Turn
Rate Tick Mark
Turn Rate
Trend Vector
(rate > 4
deg/sec)
Course Pointer
The course pointer is a single line arrow (GPS, VOR1
and LOC1) or double line arrow (VOR2 and LOC2) which
points in the direction of the set course.
Figure 2-21 Course Pointer
Course Deviation Indicator (CDI)
The CDI scale automatically adjusts to the current
phase of flight as seen in Figure 2-22. Scaling may be
selected manually from the MFD System Setup Page.
Flight Phase Automatic CDI Full-scale
Deflection
Departure (DRPT) 0.3 nm
Terminal (TERM) 1.0 nm
Enroute (ENR) 2.0 nm
Oceanic (OCN) 2.0 nm
Approach (LNAV) 1.0 nm decreasing to 350 feet
depending on variables (see
Figure 2-23)
Approach (LNAV+V)
(WAAS systems only)
Approach (LNAV/
VNAV)(WAAS only)
1.0 nm decreasing to a specified
course width, then 0.3 nm,
depending on variables (see
Figure 2-24)
Approach
(LPV)(WAAS only)
Missed Approach 0.3 nm
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
2-10
SECTION 2
FLIGHT INSTRUMENTS
2.0 nm
Enroute
(Oceanic if >200 nm
from nearest airport)
0.3 nm
Missed
Approach
1.0 nm
Approach
1.0 nm
Terminal
1.0 nm
Terminal
0.3 nm
Departure

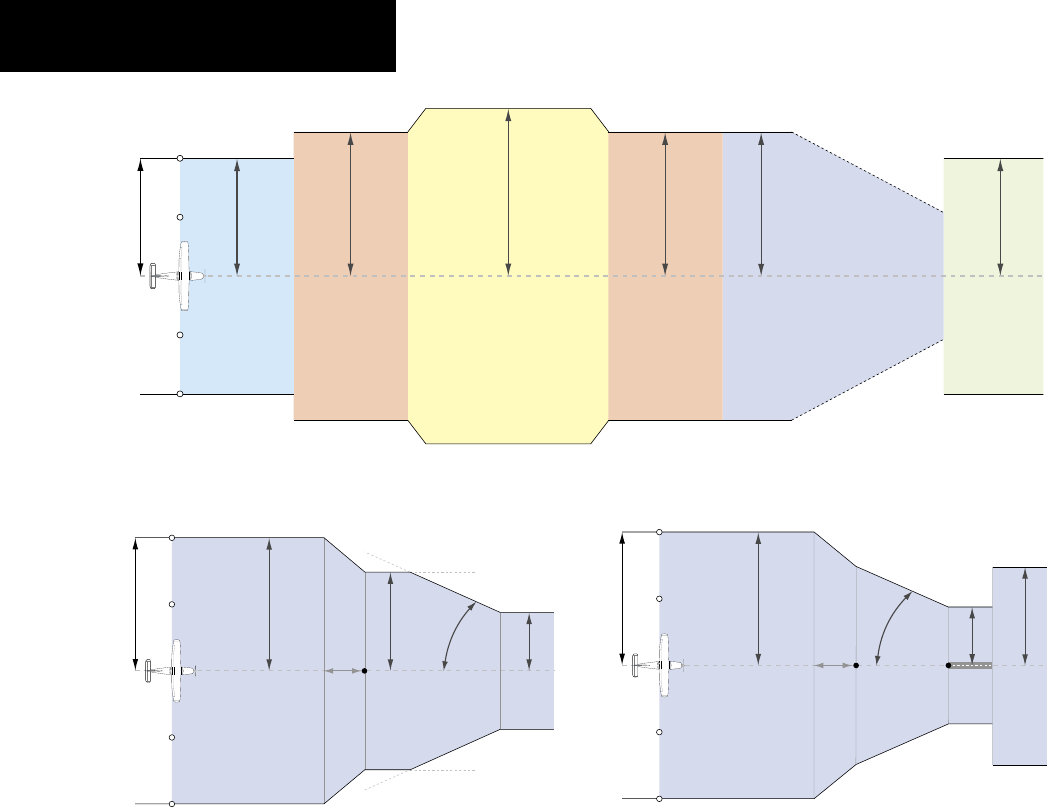

CDI Full-scale Deflection
Refer to accompanying
approach CDI scaling figures
Drawing not to scale
Figure 2-22 Phases of Flight/CDI Scaling
1.0 nm
2 nm
350 ft
angle set
by system
0.3 nm
FAF
CDI Full-scale Deflection
CDI scale is set to the smaller of 0.3 nm
or an angle set by the system
CDI scale varies if Vectors-To-Final is activated
Drawing not to scale
Figure 2-23 Typical LNAV and LNAV+V Approach CDI Scaling
1.0 nm
2 nm
FAF
0.3 nm
course width
Landing
Threshold
CDI Full-scale Deflection
angle based
on database
information
CDI scale varies if Vectors-To-Final is activated
Drawing not to scale
Figure 2-24 Typical LNAV/VNAV and LPV Approach CDI Scaling
(WAAS Systems Only)
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A 2-11
SECTION 2
FLIGHT INSTRUMENTS
Bearing Pointers and Information Windows
Pressing the PFD Softkey provides access to the BRG1
and BRG2 Softkeys. The BRG1 pointer is a single line
pointer. The BRG2 pointer is a double line pointer. Press
the BRG1 or BRG2 Softkey to cycle through selecting
NAV1/2, GPS, or ADF for display using the corresponding
pointer.
Bearing 2
Pointer
Bearing 1
Information
Window
Bearing 1
Pointer
Bearing 2
Information
Window
Figure 2-25 HSI with Bearing Information
DME
Information
Window CDI
Distance to
Bearing Source
Waypoint
Identifier
Bearing
Source Pointer
Icon
Figure 2-26 BRG1 Information Window
Distance to
Bearing Source
Waypoint
Identifier
Pointer
Icon
Bearing
Source
Figure 2-27 BRG2 Information Window
DME (optional)
To display the DME Information Window, press the
PFD Softkey followed by the DME Softkey.
Figure 2-28 DME Information Window
Navigation Source
Change CDI navigation sources:
1)
Press the CDI Softkey to change from GPS to
VOR1/LOC1.
2)
Press the CDI Softkey again to change from VOR1/
LOC1 to VOR2/LOC2.
3)
Press the
CDI
Softkey a third time to return to
GPS.
When using GPS as the navigation source, the following
may appear:
• LOI - GPS position integrity is inadequate for the
current procedure being flown. If GPS is being
used as primary navigation, and LOI is annunciated,
other means of primary navigation is required, such
as VHF. LOI is also displayed during GPS position
initialization.
• WARN – GPS detects a position error.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
2-12
SECTION 2
FLIGHT INSTRUMENTS
• OBS – Displayed when operating in OBS Mode.
• SUSP – Displayed when in OBS Mode indicating
GPS waypoint sequencing is suspended.
• DR – Navigating using Dead Reckoning due to an
error in the GPS solution.
Figure 2-29 GPS LOI, GPS SUSP, LOC1 and VOR2
Enable/disable OBS Mode while navigating
with GPS:
1)
Press the OBS Softkey to select OBS Mode.
2)
Turn the CRS Knob to select the desired course
to/from the waypoint.
3)
Press the OBS Softkey again to disable OBS
Mode.
NOTE: The OBS Softkey is only displayed when
navigating an active leg using GPS.
2.9 WIND DATA
When the window is selected for display, but wind
information is invalid or unavailable, the window shows
“NO WIND DATA”. Wind data can be displayed in three
different ways:
• Wind direction arrows with headwind and crosswind
components (Option 1)
• Wind direction arrow and speed (Option 2)
• Wind direction arrow with direction and speed
(Option 3)
Option 1 Option 2
Option 3 No Data
Figure 2-30 Wind Data Window
Displaying wind data:
1)
Press the PFD Softkey.
2)
Press the WIND Softkey to display wind data below
the Selected Heading.
3)
Press one of the OPTN softkeys to change how
wind data is displayed.
4)
To remove the Wind Data Window, press the OFF
Softkey.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A 2-13
SECTION 2
FLIGHT INSTRUMENTS
2.10 GENERIC TIMER
Figure 2-31 Timer Status Prompts
Change the Generic Timer:
1)
Press the
TMR/REF
Softkey, then turn the large
FMS
Knob to select the time field (hh/mm/ss). Turn the
FMS
Knobs to set the desired time, then press the
ENT
Key. The UP/DOWN field is now highlighted.
2)
Turn the small
FMS
Knob to display the UP/DOWN
window. Turn the
FMS
Knob to select ‘UP’ or
‘DOWN’, then press the
ENT
Key. ‘START?’ is now
highlighted.
3)
Press the
ENT
Key to START, STOP, or RESET the
timer (if the timer is counting DOWN, it must be
reset manually). Press the
CLR
Key or the
TMR/REF
Softkey to remove the window.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
2-14
SECTION 2
FLIGHT INSTRUMENTS
Blank Page
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A
SECTION 3 – ENGINE
INDICATION SYSTEM (EIS)
3-1
SECTION 3: ENGINE INDICATION
SYSTEM (EIS)
NOTE: Refer to the Pilot’s Operating Handbook
(POH) for limitations.
EIS information is presented in three displays, accessed
using the ENGINE Softkey on the MFD:
• Engine Display – Default display, shows all critical
engine, fuel, and electrical indicators
• Lean Display – Provides engine leaning
information
• System Display – Shows numeric readouts of
critical engine, fuel, and electrical indicators
Green and white bands indicate normal ranges of
operation; yellow and red bands indicate caution and
warning, respectively. If sensory data to an instrument
becomes invalid or unavailable, a red “X” is shown across
the instrument.
3.1 ENGINE DISPLAY
The Engine Display is the default EIS display and can
be displayed after viewing other EIS displays by pressing
the ENGINE Softkey.
The EIS automatically defaults back to the Engine
Display from the Lean or System Display when certain
parameters are exceeded. Fluctuations in engine speed
and fuel quantity above certain levels, depending on the
airframe, also cause reversion back to the Engine Display.
1
Engine Manifold Pressure Gauge (MAN IN)
Models 182T, T182T, 206H, T206H – Displays
engine power in inches of mercury (in Hg).
Turbocharged aircraft have a red portion of the
gauge indicating the maximum manifold pressure
range. A white tick mark is displayed indicating
the cruise manifold pressure (Model T182T only).
2
Tachometer (RPM) – Shows propeller speeds
in revolutions per minute (rpm). Red range
indicates propeller overspeed warning; a white
high-rpm range indicates above normal operating
speeds (Models 172S, 206H, and T206H)
3
Fuel Flow Indicator (FFLOW GPH) – Shows
the current fuel flow in gallons per hour (gph).
For turbocharged aircraft, the indicator displays
a small stand-alone green band indicating
maximum takeoff fuel flow. A white tick mark
indicates the maximum cruise fuel flow (Model
T182T only).
4
Oil Pressure Indicator (OIL PRES) – Displays
pressure of the oil supplied to the engine in
pounds per square inch (psi).
5
Oil Temperature Indicator (OIL TEMP)
– Displays the engine oil temperature in degrees
Fahrenheit (°F).
6
Cylinder Head Temperature Indicator (CHT)
Models 182T, T182T, 206H, T206H – Shows
the head temperature of the hottest cylinder
(number shown in triangular pointer) in degrees
Fahrenheit (°F).
7
Exhaust Gas Temperature Indicator (EGT)
Normally-aspirated Aircraft
– Displays the
exhaust gas temperature of the hottest cylinder
(number shown in triangular pointer) in degrees
Fahrenheit (°F).
8
Turbine Inlet Temperature Indicator (TIT)
Turbocharged Aircraft – Displays the temperature
at the turbine inlet in degrees Fahrenheit (°F).
9
Vacuum Pressure Indicator (VAC) Models
172R and 172S
– Displays vacuum pressure.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
SECTION 3 – ENGINE
INDICATION SYSTEM (EIS)
3-2
10
Fuel Quantity Indicator (FUEL QTY GAL)
– Shows the quantity of fuel in the tanks, in
gallons, ranging from zero to full (F) for each fuel
tank (left–L and right–R). When full, the indicator
displays to 35 gallons per side (26 gallons for the
Models 172R and 172S).
11
Engine Hours (Tach) (ENG HRS) Models 172R
and 172S – A numeric readout gives the time (in
hours) the engine has been in service.

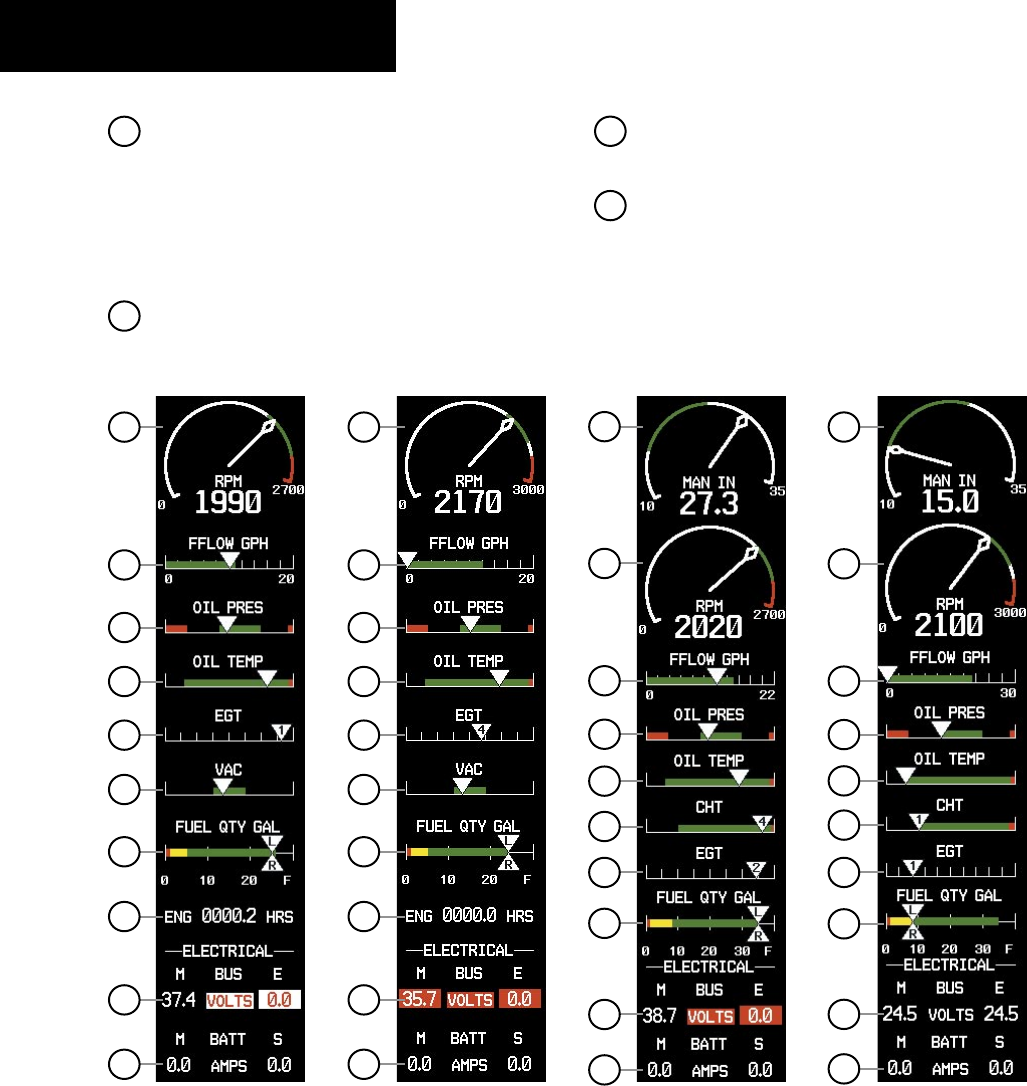

Figure 3-1 Engine Display (Normally-aspirated Aircraft)
Model 206H
12
10
13
1
5
4
3
2
6
7
Model 172R
9
2
3
4
5
7
13
10
12
11
Model 172S
9
2
3
4
5
7
13
10
12
11
Model 182T
7
6
2
3
4
5
1
13
10
12
12
Voltmeter (M, E BUS VOLTS) – Displays the
main and essential bus voltages.
13
Ammeter (M, S BATT AMPS) – Shows the
main and standby battery load in amperes.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A
SECTION 3 – ENGINE
INDICATION SYSTEM (EIS)
3-3
Figure 3-2 Engine Display (Turbocharged Aircraft)
Model T206H
Maximum
Takeoff Fuel
Flow
8
6
2
3
4
5
1
13
10
12
Model T182T
Cruise
Fuel Flow
Cruise
Manifold
Pressure
8
6
2
3
4
5
1
13
10
12
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
SECTION 3 – ENGINE
INDICATION SYSTEM (EIS)
3-4
3.2 LEAN DISPLAY
NOTE: The pilot should follow the engine man-
ufacturer’s recommended leaning procedures in
the Pilot’s Operating Handbook (POH).
1
Engine Manifold Pressure Gauge (MAN IN)
Models 182T, T182T, 206H, T206H – Displays
engine power in inches of mercury (in Hg).
Turbocharged aircraft have a red portion of the
gauge indicating the maximum manifold pressure
range. A white tick mark is displayed indicating
the cruise manifold pressure (Model T182 only).
2
Tachometer (RPM) – Shows propeller speeds
in revolutions per minute (rpm). Red range
indicates propeller overspeed warning; a white
high-rpm range indicates above normal operating
speeds (Models 172S, 206H and T206H).
3
Fuel Flow (FFLOW GPH) – Shows the current
fuel flow in gallons per hour (gph).
4
Turbine Inlet Temperature Indicator
(TIT) Models T182T and T206H – Displays
the temperature at the turbine inlet in degrees
Fahrenheit (°F). When the ASSIST Softkey is
pressed, the TIT deviation from peak (∆PEAK) is
displayed below the indicator.
5
Exhaust Gas Temperature Bar Graph (EGT
°F) – Displays the exhaust gas temperature of all
cylinders in degrees Fahrenheit (°F); a readout
for the selected cylinder (by default, the hottest
cylinder) is shown below the bar graph. The
selected cylinder is indicated in light blue.
Cylinders whose EGTs are in the normal range
appear in white. Pressing the ASSIST Softkey
causes the EGT deviation from peak (∆PEAK)
for the selected cylinder to be displayed below
the indicator.
6
Cylinder Head Temperature Indicator (CHT)
– Shows the head temperatures of all cylinders
in degrees Fahrenheit (°F); a readout for the
selected cylinder (by default, the hottest cylinder)
is shown below the bar graph. The selected
cylinder is indicated in light blue. Cylinders
whose CHTs are in the normal range appear in
white. Cylinders whose CHTs enter the caution
and warning ranges appear in yellow and red,
respectively.
7
Fuel Quantity Indicator (FUEL QTY GAL)
– Shows the quantity of fuel in the left and right
fuel tanks (left–L and right–R). When full, the
indicator displays to 35 gallons per side (26
gallons for the Models 172R and 172S).
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A
SECTION 3 – ENGINE
INDICATION SYSTEM (EIS)
3-5
Figure 3-3 Lean Display (Normally-aspirated Aircraft)
Model 206H
6
3
1
2
5
7
Hollow Block
Represents
Peak
Model 172R
7
2
3
6
5
Model 172S
2
5
3
7
6
Model 182T
6
3
1
2
5
7
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
SECTION 3 – ENGINE
INDICATION SYSTEM (EIS)
3-6
Model T206H
6
3
4
1
2
5
7
Cruise
Manifold
Pressure
Model T182T
6
3
4
1
2
5
7
Figure 3-4 Lean Display (Turbocharged Aircraft)
The Lean Display is accessed by pressing the ENGINE
Softkey followed by the LEAN Softkey and provides
information for performing engine leaning.
From the Lean Display, the pilot can utilize the CYL
SLCT and ASSIST softkeys to obtain information about
specific cylinders. Pressing the CYL SLCT (Cylinder
Select) Softkey cycles through the cylinders (i.e., changes
the cylinder indicated on the bar graphs in light blue).
This softkey is disabled when the ASSIST Softkey is
pressed or when a cylinder experiences a caution or
warning condition; the softkey remains disabled until the
temperature returns to normal.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A
SECTION 3 – ENGINE
INDICATION SYSTEM (EIS)
3-7
The ASSIST Softkey aids in the leaning process by
identifying the peak of the first cylinder whose temperature
falls. If the temperature of the peaked cylinder exceeds
the peak value, the peak value is not updated. Press the
ASSIST Softkey to stop peak monitoring.
Normally-aspirated Aircraft
For normally-aspirated aircraft, when a cylinder peaks,
its peak is represented by a hollow block on the EGT Bar
Graph. The EGT readout for the peaked cylinder, indicat-
ed on the bar graph in light blue, appears directly beneath
the bar graph. The system automatically switches to the
first peak obtained and displays the temperature deviation
from peak (∆PEAK) in degrees Fahrenheit (°F) below the
EGT readout.
Turbocharged Aircraft
Leaning for turbocharged aircraft is done with refer-
ence to the Turbine Inlet Temperature (TIT). When the
temperature peaks, the numeric readout (∆PEAK) appears
below the TIT Indicator and displays the difference be-
tween peak and current TITs, in degrees Fahrenheit (°F).
If a peak is not displayed, underscores are shown until
one is established.
3.3 SYSTEM DISPLAY
NOTE: Fuel calculations do not use the aircraft
fuel quantity indicators and are calculated from
the last time the fuel was reset.
NOTE: The pilot should refer to the Pilot’s
Operating Handbook (POH) for fuel values and
limitations. The displayed fuel remaining can be
adjusted up to 53 gal (Models 172R, 172S) or 87
gal (Models 182T, T182T, 206H, T206H).
The System Display is accessed by pressing the
ENGINE Softkey followed by the SYSTEM Softkey and
shows critical engine, fuel, and electrical parameters.
Fuel calculations are based on the fuel flow totalizer
and the displayed fuel remaining, adjusted by the pilot
using the following softkeys:
• RST FUEL – Resets totalizer-based fuel remaining
(GAL REM) to zero and the fuel used (GAL USED)
to zero
• GAL REM – Gives access to softkeys for adjusting
the amount of fuel remaining for purposes of fuel
calculations
Fuel remaining can be adjusted in one or ten-gallon
increments using the appropriate softkeys. Softkeys also
allow entering the full tank quantity for the aircraft or the
tab quantity, which is 35 gallons (Models 172R and 172S)
or 64 gallons (Models 182T, T182T, 206H, and T206H).
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
SECTION 3 – ENGINE
INDICATION SYSTEM (EIS)
3-8
1
Engine Manifold Pressure Gauge (MAN IN)
Models 182, T182, 206, T206 – Displays engine
power in inches of mercury (in Hg). Turbocharged
aircraft have a red portion of the gauge indicating
the maximum manifold pressure range. A white
tick mark is displayed indicating the cruise
manifold pressure (Model T182 only).
2
Tachometer (RPM) – Shows propeller speeds
in revolutions per minute (rpm). Red range
indicates propeller overspeed warning; a white
high-rpm range indicates above normal operating
speeds (Models 172S, 206 and T206).
3
Oil Pressure (OIL PSI) – Displays pressure
of the oil supplied to the engine in pounds per
square inch (psi).
4
Oil Temperature (OIL °F) – Displays the engine
oil temperature in degrees Fahrenheit (°F).
5
Engine Hours (Tach) (ENG HRS) Models 182,
T182, 206, T206 – A numeric readout gives the
time (in hours) the engine has been in service.
6
Vacuum Pressure Indicator (VAC) Models 182,
T182, 206, T206 – Displays vacuum pressure.
7
Fuel Flow (FFLOW GPH)
– Shows the current
fuel flow in gallons per hour (gph).
8
Calculated Fuel Used (GAL USED) – Shows
quantity of fuel used in gallons based on fuel flow
since last reset.
9
Set Fuel Remaining (GAL REM) – Shows
current fuel remaining in gallons as set by the
pilot and adjusted for fuel burn since last set.
10
Fuel Quantity Indicator (FUEL QTY GAL)
– Shows the quantity of fuel in the tanks, in
gallons, ranging from zero to full (F) for each fuel
tank (left–L and right–R). When full, the indicator
displays to 35 gallons per side (26 gallons for the
Models 172R and 172S).
11
Voltmeter (M, E BUS VOLTS) – Displays the
main and essential bus voltages.
12
Ammeter (M, S BATT AMPS) – Shows the
main and standby battery load in amperes.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A
SECTION 3 – ENGINE
INDICATION SYSTEM (EIS)
3-9
Figure 3-5 System Display (Normally-aspirated Aircraft)
Model 182T
1
8
10
9
5
4
3
2
6
7
11
12
Model 172S
12
7
4
3
2
8
9
10
11
Model 172R
12
7
4
3
2
8
9
10
11
Model 206H
1
8
10
9
5
4
3
2
6
7
11
12
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
SECTION 3 – ENGINE
INDICATION SYSTEM (EIS)
3-10
Figure 3-6 System Display (Turbocharged Aircraft)
Model T206H
1
8
10
9
5
4
3
2
6
7
11
12
Model T182T
1
8
10
9
5
4
3
2
6
7
11
12
Cruise
Manifold
Pressure
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A 4-1
SECTION 4 – NAV/COM &
TRANSPONDER
SECTION 4: NAV/COM AND
TRANSPONDER
The NAV/COM controls and frequency boxes share the
same locations on the on the Primary Flight Display and
the Multi-Function Display.
Figure 4-1 G1000 VHF NAV/COM Interface (PFD shown) DME Tuning Window
NAV
Controls COM
Controls
NAV Frequency Box COM Frequency Box
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
4-2
SECTION 4 – NAV/COM &
TRANSPONDER

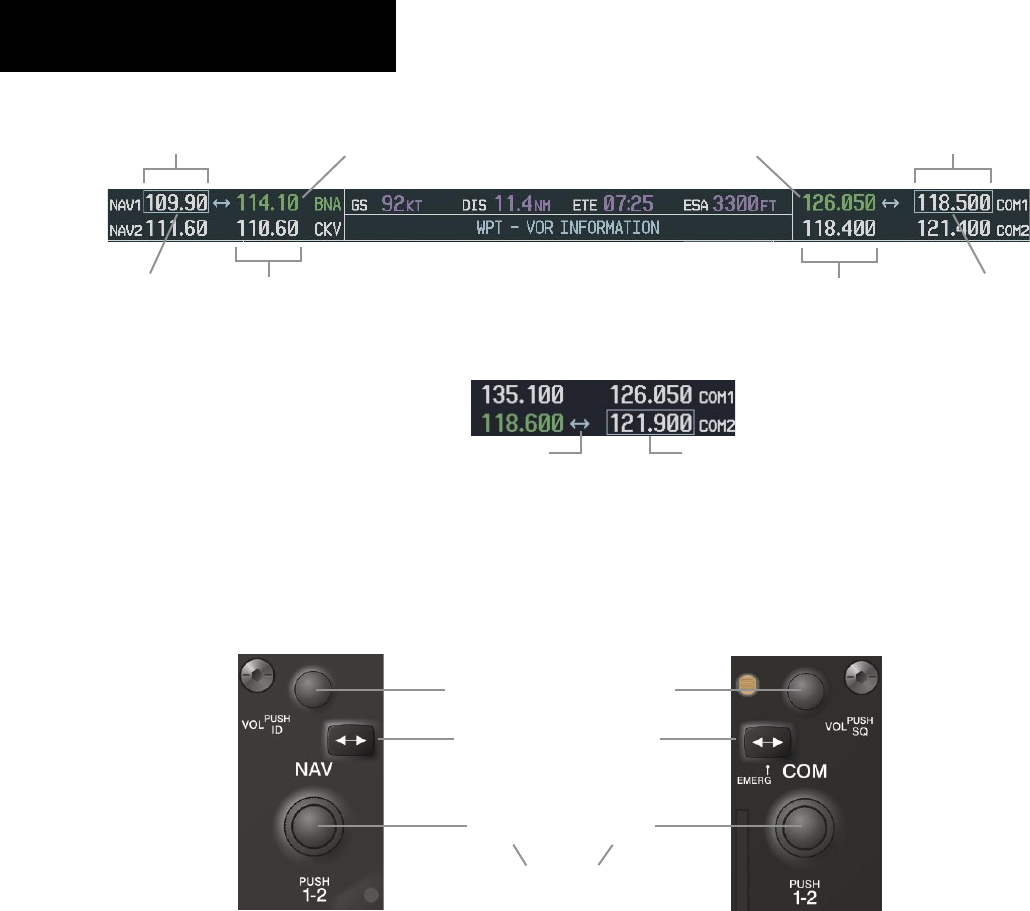

Standby NAV
Frequency Field
Active NAV
Frequency Field Active COM
Frequency Field
Standby COM
Frequency Field
Figure 4-2 Frequency Fields
Selected NAV
Frequency
Tuning Box
Tuning Box
Selected COM
Frequency
Frequency Transfer Arrow Tuning Box
Figure 4-3 Frequency Transfer Arrow and Tuning Box
Figure 4-4 NAV/COM Controls
Frequency Transfer Key
Dual NAV
Knob Dual COM
Knob
VOL/PUSH
ID Knob VOL/PUSH
SQ Knob
NAV Controls COM Controls
• Turn to tune in desired
frequencies.
• Press to change tuning box
positions.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A 4-3
SECTION 4 – NAV/COM &
TRANSPONDER
4.1 RADIO STATUS INDICATIONS
• RX – When a COM signal is received, a white ‘RX’
appears by the active COM frequency during signal
reception.
• TX – When a COM radio is transmitting, a white ‘TX’
indication appears to the right of the corresponding
COM frequency.
• ID – When the Morse code identifier is ON for a
NAV radio, a white ‘ID’ indication appears to the
left of the corresponding active NAV frequency.
The Morse code identifier can be heard if the
corresponding NAV radio is selected on the audio
panel.
Figure 4-5 Radio Status Indications
4.2 VOLUME
‘VOLUME’ is displayed in place of the associated radio
name (i.e., ‘COM1’ or ‘NAV2’) for two seconds after the
volume level is last changed. The percentage of maximum
volume is displayed in place of the standby frequency
selected by the tuning box.
Figure 4-6 COM Volume Level
4.3 AUTOMATIC SQUELCH
Automatic squelch can be disabled for a COM radio by
pressing the COM Knob to place the tuning box on the
desired COM’s standby frequency, then by pressing the
VOL/PUSH SQ Knob.
When Automatic Squelch is disabled, a white ‘SQ’
appears next to the COM frequency.
Squelch
Indication
Figure 4-7 Squelch Indication
4.4 QUICKLY ACTIVATING 121.500 MHZ
Pressing and holding the COM Frequency Transfer
Key for approximately two (2) seconds automatically tunes
the selected COM radio to the emergency frequency.
4.5 OPTIONAL NAV RADIOS
DME Radio (optional)
The DME Tuning Window is displayed by pressing the
DME Softkey.
Figure 4-8 Radio Tuning Window
Changing the DME tuning source:
1)
From the tuning window, turn the large
FMS
Knob
to highlight the DME source field.
2)
Turn the small
FMS
Knob to display the selection
window. Turn the
FMS
Knob to select the desired
mode and press the
ENT
Key.
Figure 4-9 DME Selection Window
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
4-4
SECTION 4 – NAV/COM &
TRANSPONDER
ADF Radio (optional)
The G1000 does not support tuning of the ADF in
Nav III aircraft. ADF tuning is accomplished through the
Bendix/King KR 87 ADF Radio. ADF volume must also be
adjusted through the KR 87.
4.6 FREQUENCY AUTO-TUNING
Auto-tuning on the PFD
Figure 4-10 Nearest Airports Window (PFD)
1)
Press the
NRST
Softkey to display the Nearest
Airports Window.
2)
Turn either
FMS
Knob to highlight the desired
frequency.
3)
Press the
ENT
Key to place the frequency in the
standby field of the active COM.
4)
Press the
Frequency Transfer
Key to place the
frequency in the active field.
NAV frequencies are entered automatically in the
NAV frequency active or standby field (depending in CDI
selection) upon approach loading or approach activation.
Auto-tuning on the MFD
Auto-tuning on the MFD is done in much the same way
as on the PFD. Use the FMS Knobs to select the desired
frequency on any of the information pages. Pressing the
ENT Key then loads the selected frequency in the tuning
box as a standby frequency.
4.7 TRANSPONDER
Mode Selection
The STBY, ON, ALT, GND, VFR, CODE, and IDENT
Softkeys can be accessed by pressing the XPDR Softkey.
Ground Mode (Automatic or Manual)
GND is displayed when the aircraft is on the ground or
when the GND Softkey is pressed. The transponder does
not allow Mode A and Mode C replies, but it does permit
acquisition squitter and replies to discretely address
Mode S interrogations.
Figure 4-11 Ground Mode
Standby Mode (Manual)
Press the STBY Softkey. In Standby Mode, the tran-
sponder does not reply to interrogations, but new codes
can be entered.
STBY Mode (White
Code Number and
Mode)
Figure 4-12 Standby Mode
Manual ON Mode
Press the ON Softkey. ON Mode generates Mode A
and Mode S replies, but Mode C altitude reporting is in-
hibited. ON Mode
(No Altitude
Reporting)
Figure 4-13 ON Mode
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A 4-5
SECTION 4 – NAV/COM &
TRANSPONDER
Altitude Mode (Automatic or Manual)
Altitude Mode is automatically selected when the
aircraft becomes airborne. Altitude Mode may also be
selected manually by pressing the ALT Softkey.
All transponder replies requesting altitude information
are provided with pressure altitude information.
ALT Mode (Mode C
Altitude Reporting)
Figure 4-14 Altitude Mode
Reply Status
When the transponder sends replies to interrogations,
an “R” indication appears momentarily in the reply status
field.
Figure 4-15 Reply Indication
Reply
Indication
Code Selection
VFR Code Selection
1)
Press the
XPDR
Softkey to display the transponder
Mode Selection softkeys.
2)
Press the
VFR
Softkey to enter the VFR code.
Pressing the
VFR
Softkey again restores the previous
identification code.
NOTE: The pre-programmed VFR Code is set at
the factory to 1200.
Enter Code Using Softkeys
1)
Press the
XPDR
Softkey to display the transponder
Mode Selection softkeys.
2)
Press the
CODE
Softkey to display the transponder
Code Selection softkeys, which includes the digit
softkeys.
3)
Press the appropriate digit softkeys to enter the
code in the four-digit code field of the Transponder
Status Box. When the last digit is entered, the
transponder code becomes active.
When entering a code, press the
BKSP
Softkey as
needed to back up and change code digits.
Enter Code Using the FMS Knob
1)
Press the
XPDR
Softkey to display the transponder
Mode Selection softkeys.
2)
Press the
CODE
Softkey to display the transponder
Code Selection softkeys, which includes the digit
softkeys.
3)
Turn the small FMS Knob to enter the first two
digits.
4)
Turn the large FMS Knob to place the cursor in
position to change the second two digits.
5)
Turn the small FMS Knob to enter the second two
digits.
6)
Press the ENT Key to activate the code immediately,
or wait 10 seconds and the code will become
active.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
4-6
SECTION 4 – NAV/COM &
TRANSPONDER
Flight ID Reporting
If so configured, the Flight ID may be entered in the
Timer/Reference Window.
Figure 4-16 Timer/References Window
Flight ID
1)
Press the
TMR/REF
Softkey to display the Timer/
References Window.
2)
Turn the large FMS Knob to place the cursor in the
Flight ID field.
3)
Turn the small FMS Knob to enter the desired first
character.
4)
Turn the large FMS Knob to place the cursor in the
next desired field.
5)
Turn the small FMS Knob to enter the next desired
character.
6)
Repeat steps 4 and 5 until the desired Flight ID is
entered.
7)
Press the ENT Key. ‘updating’ is displayed as the
Flight ID is loaded into the system.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A 5-1
SECTION 5 – AUDIO PANEL
SECTION 5: AUDIO PANEL
Transmitters Receiver Audio
Marker Beacon/Mute Marker Beacon Signal Sensitivity
Cabin Speaker
VOL/SQ
Manual Squelch
Aircraft Navigation Radio Audio
(Optional, disabled if ADF and/or DME
are not installed)
Reversionary Mode
Aircraft Navigation Radio Audio
Figure 5-1 Front Panel Controls
ICS Isolation
VOL Annunciation SQ Annunciation
Disabled
Disabled
Digital Clearance Recorder Play Key
Passenger Address
(Disabled on 172R/S)
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
5-2
SECTION 5 – AUDIO PANEL
5.1 COM RADIO SELECTION
Pressing the COM1 MIC or COM2 MIC Key selects
the active transmitter (i.e., microphone). The associated
receiver audio (COM1 or COM2) also becomes selected
when the COM MIC Key is pressed.
To prevent deselecting the desired received audio
when pressing another COM MIC Key, press the already
selected COM1 or COM2 Key before pressing the other
COM MIC Key.
Figure 5-2 Transceivers
5.2 CABIN SPEAKER
Pressing the SPKR Key selects and deselects the cabin
speaker. All of the radios can be heard over the cabin
speaker. Speaker audio is muted when the PTT is pressed.
Certain aural alerts and warnings (autopilot, traffic,
altitude) are always heard on the speaker, even when the
speaker is not selected.
Figure 5-3 Passenger Address and Speaker Keys
5.3 PASSENGER ADDRESS (PA) SYSTEM
(T)182T AND (T)206H ONLY
A passenger address system is available for delivering
voice messages over the cabin speaker. When the PA Key
is selected on the Audio Panel, the COM MIC Annunciator
is extinguished, and the active COM frequency changes to
white, indicating that there is no COM selected. A Push-to-
Talk (PTT) must be pressed to deliver PA announcements.
The PA Annunciator flashes about once per second while
the PTT is depressed.
5.4 MARKER BEACON RECEIVER
The marker beacon receiver is always on. Only the
marker beacon audio can be turned off. Figure 5-4 shows
the marker beacon annunciators on the PFD.
When the MKR/MUTE Key is pressed, the key an-
nunciator is lit and the audio tone can be heard over the
speaker or headsets during marker beacon reception.
When the tone is active, pressing the MKR/MUTE Key
once mutes the audio but does not affect the marker an-
nunciator. The audio returns when the next marker signal
is received.
To turn off the marker beacon audio, press the MKR/
MUTE Key once when there is no marker indication pres-
ent, or press twice when an indication is present. The key
annunciator extinguishes when the marker beacon audio
is turned off.
Outer Marker Inner Marker
Altimeter
Middle Marker
Figure 5-4 Marker Beacon Annunciators on the PFD
Marker Beacon Signal Sensitivity
The HI SENS Key can be pressed for increased marker
beacon signal sensitivity.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A 5-3
SECTION 5 – AUDIO PANEL
Figure 5-5 Marker Beacon
5.5 NAV RADIO AUDIO SELECTION
Pressing DME, ADF, NAV1, or NAV2 selects and
deselects the audio source and activates the annunciator.
Selected audio can be heard over the headset and the
speakers. These four keys can be selected individually
or together.
Figure 5-6 Navigation Radios
PILOT KEY
Annunciator
COPLT KEY
Annunciator Pilot Hears Copilot Hears Passenger Hears
OFF OFF
Selected radios, aural
alerts, pilot, copilot,
passengers, music
Selected radios, aural
alerts, pilot, copilot,
passengers, music
Selected radios, aural alerts,
pilot, copilot, passengers,
music
ON OFF Selected radios, aural
alerts, pilot
Copilot, passengers,
music Copilot, passengers, music
OFF ON
Selected radios,
aural alerts, pilot,
passengers, music
Copilot Selected radios, aural alerts,
pilot, passengers, music
ON ON Selected radios, aural
alerts, pilot, copilot
Selected radios, aural
alerts, pilot, copilot Passengers, music
Table 5-1 ICS Isolation Modes
5.6 INTERCOM SYSTEM (ICS) ISOLATION
Press the PILOT and/or COPLT Key to select who
is isolated from hearing the Nav/Com radios and music.
Selection scenarios are addressed in Table 5-1.
Figure 5-7 ICS Isolation
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
5-4
SECTION 5 – AUDIO PANEL
5.7 INTERCOM SQUELCH CONTROL
Select manual squelch for intercom audio by pressing
the MAN SQ Key to light the annunciator.
Pressing the small VOL/SQ Knob now switches be-
tween volume and squelch adjustment by lighting VOL
or SQ respectively.
Figure 5-8 Volume/Squelch Control
5.8 DIGITAL CLEARANCE RECORDER
AND PLAYER
Each reception of primary active COM audio is
automatically recorded in a memory block. When the next
transmission is received, it is recorded in the next memory
block, and so on. Once the 2.5 minutes of recording time
has been reached, the recorder begins recording over the
stored memory blocks, starting from the oldest block.
Powering off the unit automatically clears all recorded
blocks.
Figure 5-9 Clearance Recorder Play Key
• Pressing the PLAY Key once plays the latest recorded
memory block, then returns to normal operation.
• Pressing the MKR/MUTE Key while playing a
memory block stops play.
• Pressing the PLAY Key during play begins playing
the previously recorded memory block. Each
subsequent press of the PLAY Key begins playing
the next previously recorded block.
If a COM input signal is detected while playing, play
is halted and the new COM input signal is recorded as the
latest block.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A
SECTION 6 – AUTOMATIC
FLIGHT CONTROL
6-1
SECTION 6: AUTOMATIC FLIGHT
CONTROL
NOTE: The Aircraft Flight Manual (AFM) always
supersedes the information in this guide. This
section only applies to the GFC 700 Automatic
Flight Control System (AFCS).
6.1 AFCS CONTROLS
The following dedicated AFCS keys are located on the
bezels of the PFD and MFD:
Figure 6-1 Dedicated AFCS Controls
The following AFCS controls are located in the cockpit
separately from the MFD:
• AP DISC Switch (Autopilot Disconnect)
Disengages the autopilot and interrupts pitch trim
operation. The red AP DISC Switch is located
forward of the MET Switch on the pilot’s control
wheel left grip. This switch may be used to
acknowledge an autopilot disconnect and mute the
associated aural tone.
•
CWS Button (Control Wheel Steering)
Momentarily disengages the autopilot and
synchronizes the flight director’s Command Bars
with the current aircraft pitch (if not in Glideslope
Mode) and roll (if in Roll Hold Mode).
The CWS
Button is located on the top of the pilot’s control
wheel right grip. Upon release of the CWS
Button, the flight director may establish new
reference points, depending on the current
pitch and roll modes.
• GA Switch (Go-Around)
Disengages the autopilot, selects flight director Go-
Around Mode, and activates the missed approach.
The GA Switch is located on the instrument
panel above the throttle.
•
MET Switch (Manual Electric Trim)
The MET Switch is located on the pilot’s control
wheel left grip. This composite switch is split
into left and right sides. The left switch is the
ARM contact and the right switch controls the DN
(forward) and UP (rearward) contacts. The MET
ARM switch can be used to disengage the autopilot
and to acknowledge an autopilot disconnect alert
and mute the associated aural tone. Manual trim
commands are generated only when both sides of
the switch are operated simultaneously. If either
side of the switch is active separately for more than

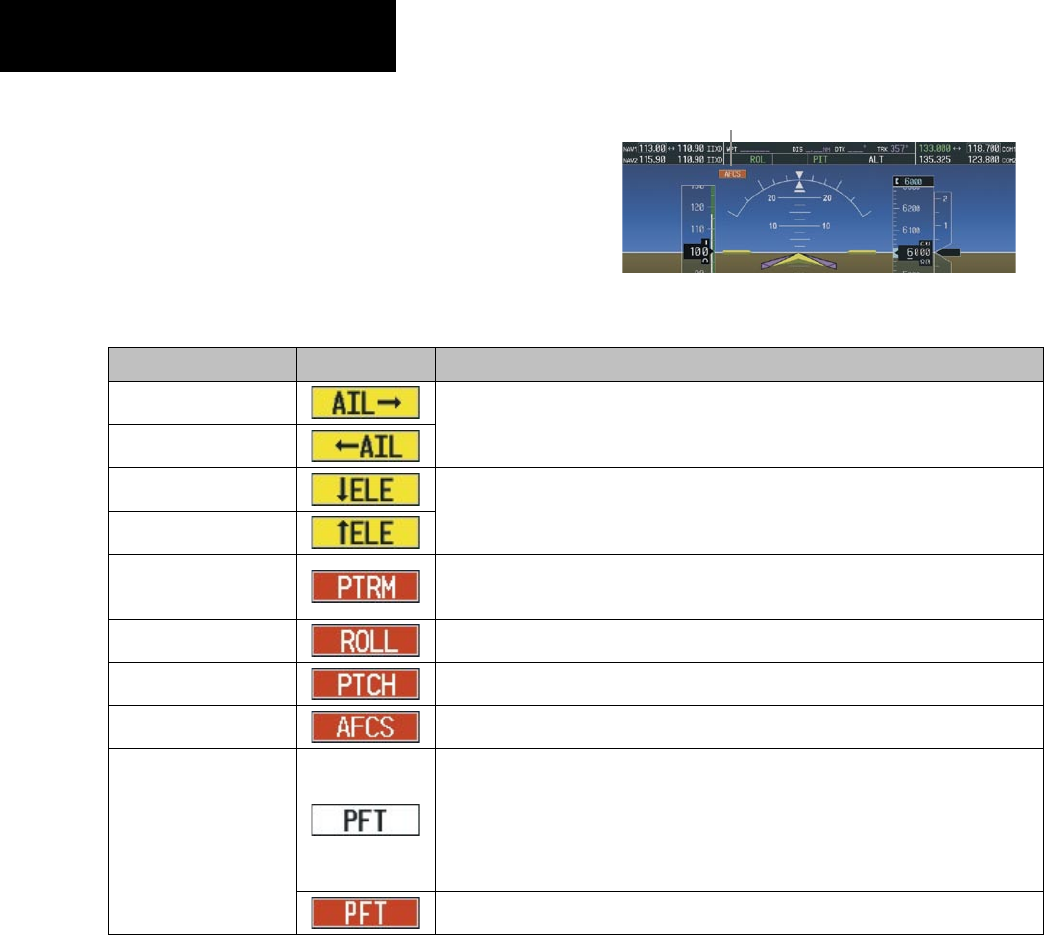

three seconds, MET function is disabled and ‘PTRM’
is displayed as the AFCS Status Annunciation on the
PFD. The function remains disabled until both sides
of the switch are inactivated.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
SECTION 6 – AUTOMATIC
FLIGHT CONTROL
6-2
6.2 FLIGHT DIRECTOR OPERATION
With the flight director activated, the aircraft can be
hand-flown to follow the path shown by the Command
Bars. Maximum commanded pitch (+20°/-15°) and bank
(22°) angles, vertical acceleration, and roll rate are limited
to values established during AFCS certification. The flight
director also provides commands to the autopilot.
Activating the Flight Director
Pressing the FD or AP Key (when the flight director is
not active) activates the flight director in default pitch/roll
modes. Pushing the GA Switch or any flight director mode
key activates the flight director in the respective mode(s).

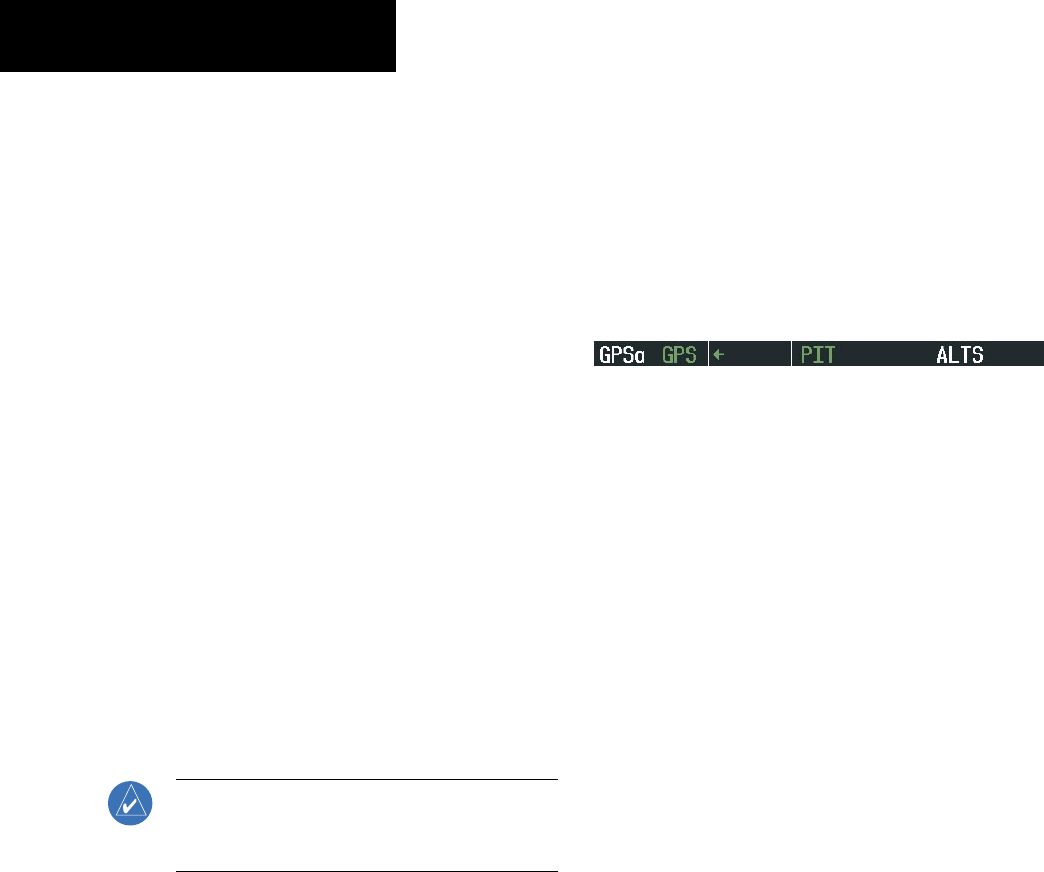

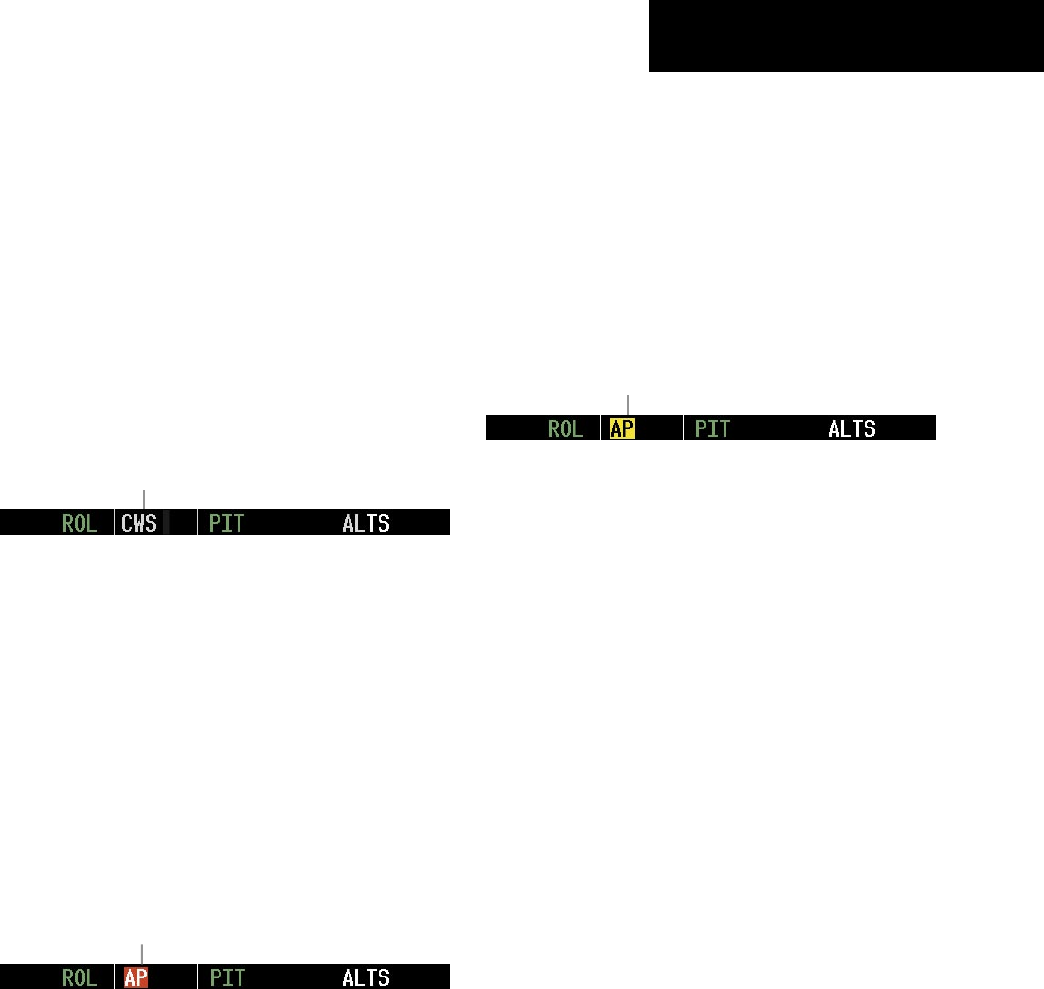

AFCS Status Box
Roll Modes
Active
Autopilot
Status
Active
Pitch Modes
Armed
Mode
Reference
Armed
Selected Altitude
Command Bars

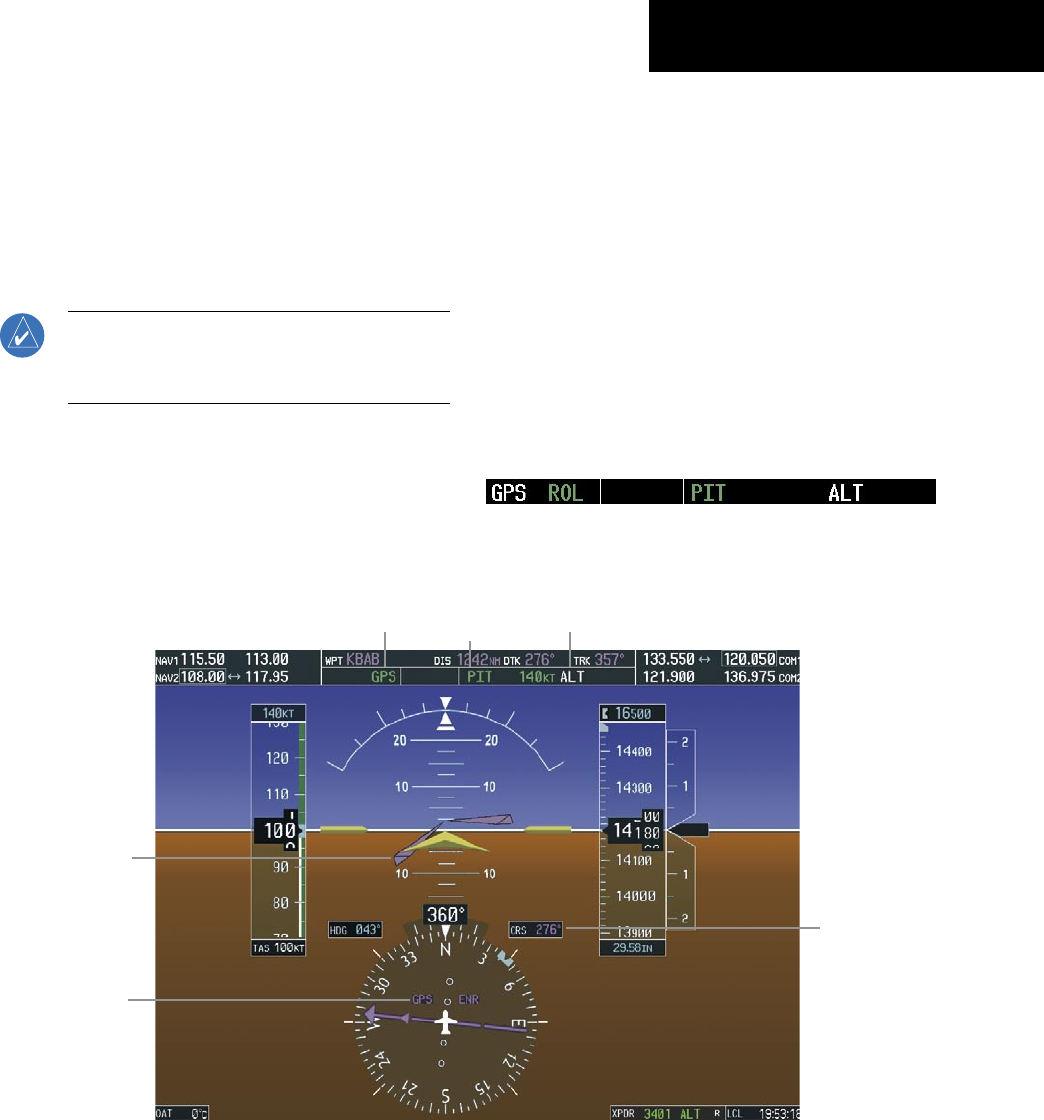

Figure 6-3 PFD AFCS Display
GPS is Selected
Navigation Source
Selected Course
Selected Heading
The flight director may be turned off by pressing the
FD Key.
Command Bars
Upon activation of the flight director, Command Bars
are displayed on the PFD as a single cue. If the attitude
information sent to the flight director becomes invalid or
unavailable, the Command Bars are removed from the
display. The Command Bars do not override the aircraft
symbol.
Figure 6-2 Command Bars
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A
SECTION 6 – AUTOMATIC
FLIGHT CONTROL
6-3
AFCS Status Box
Flight director roll modes are shown on the left and
pitch on the right. Armed modes are annunciated in
white and active in green. Autopilot status is displayed in
the center of the AFCS Status Box.
6.3 FLIGHT DIRECTOR MODES
Flight director modes are normally selected
independently for the pitch and roll axes. Unless
otherwise specified, all mode keys are alternate action
(i.e., press on, press off). In the absence of specific mode
selection, the flight director reverts to the default pitch
and/or roll mode(s).
Armed modes are annunciated in white and active in
green in the AFCS Status Box. Under normal operation,
when the control for the active flight director mode is
pressed, the flight director reverts to the default mode(s)
for the axis(es). Automatic transition from armed to active
mode is indicated by the white armed mode annunciation
moving to the green active mode field and flashing for ten
seconds.
A flashing yellow mode annunciation and annunciator
light indicate loss of sensor (AHRS, ADC, IAU) or
navigation data (VOR, LOC, GPS, VNAV, WAAS) required
to compute commands. When such a loss occurs, the
system automatically begins to roll the wings level or
maintain the pitch angle, depending on the affected axis.
The flashing annunciation stops when the affected mode
key is pressed or another mode for the axis is selected.
If after ten seconds no action is taken, the flashing
annunciation stops and the flight director enters the
default mode for the affected axis.

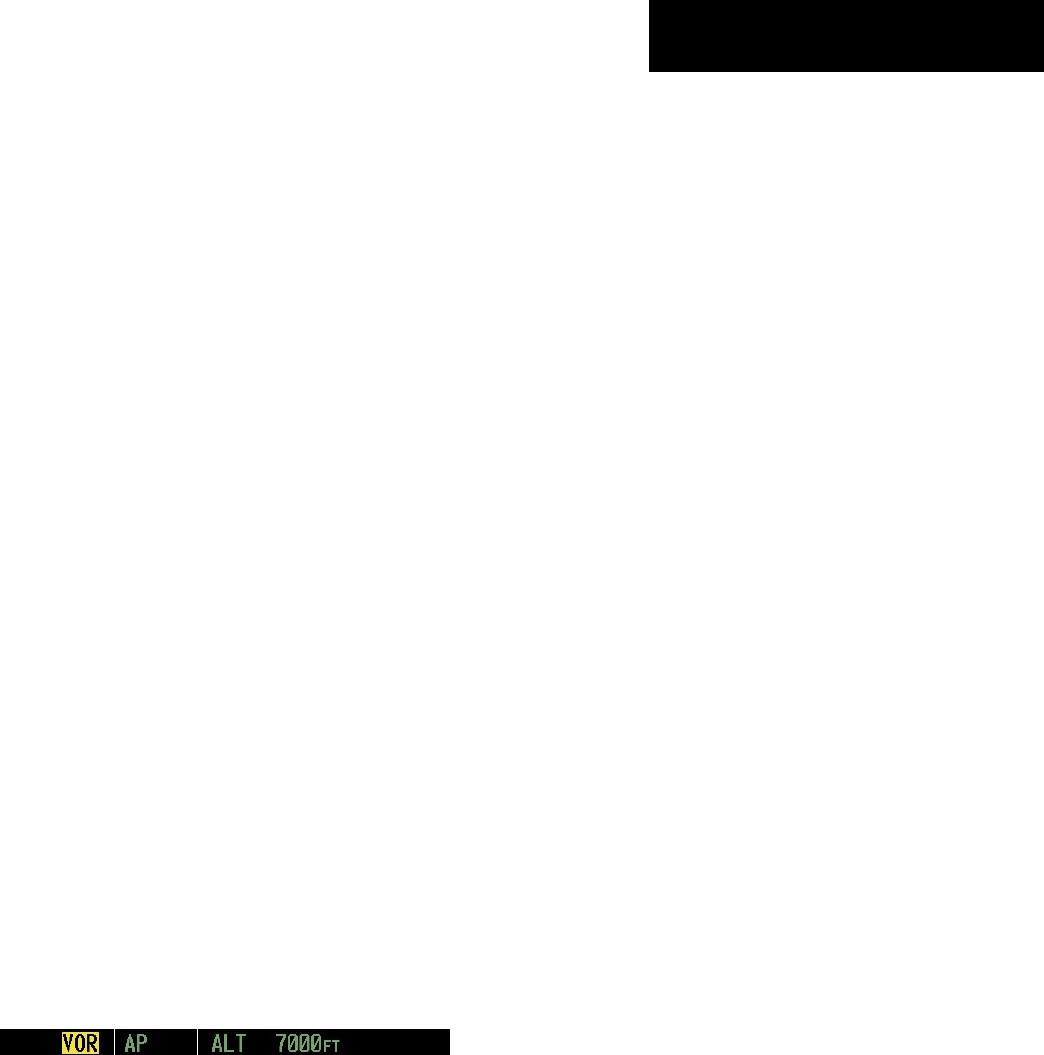

Figure 6-4 Loss of VOR Signal
If the information required to compute a flight director
mode becomes invalid or unavailable, the flight director
automatically reverts to the default mode for that axis.
The flight director is automatically disabled if the attitude
information required to compute the default flight director
modes becomes invalid or unavailable.
Pitch Modes
• Pitch Hold (default mode)— Holds the current
aircraft pitch attitude; may be used to climb/descend
to the Selected Altitude
• Selected Altitude Capture — Captures the
Selected Altitude
• Altitude Hold — Holds the current Altitude
Reference
• Vertical Speed — Maintains the current aircraft
vertical speed; may be used to climb/descend to the
Selected Altitude
• Flight Level Change — Maintains the current
aircraft airspeed while the aircraft is climbing/
descending to the Selected Altitude
• Vertical Path Tracking — Follows an active
vertical profile for enroute and terminal phases of
flight
• VNAV Target Altitude Capture — Captures the
VNAV Target Altitude
• Glidepath — Intercepts and tracks the WAAS
glidepath on approach (only available in installations
with GIA 63W Integrated Avionics Units and when
WAAS is available)
• Glideslope — Intercepts and tracks the ILS
glideslope on approach
• Go Around — Automatically disengages the
autopilot and commands a constant pitch angle and
wings level while in the air
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
SECTION 6 – AUTOMATIC
FLIGHT CONTROL
6-4
Table 6-1 lists the pitch modes with their corresponding
controls and annunciations. The mode reference (shown
with default measurement units) is displayed next to the
active mode annunciation for Altitude Hold, Vertical
Speed, and Flight Level Change modes. The NOSE UP/
NOSE DN Keys can be used to change the pitch mode
reference while operating under Pitch Hold, Vertical
Speed, or Flight Level Change Mode.
Pitch Mode Control Annunciation Reference Range
Reference
Change
Increment
Pitch Hold (default) PIT -20° to +15° 0.5°
Selected Altitude Capture * ALTS
Altitude Hold ALT Key ALT nnnnn FT
Vertical Speed VS Key VS nnnn FPM -3000 to +1500 fpm 100 fpm
Flight Level Change, IAS
Hold FLC Key FLC nnn KT 70 to 165 kt 1 kt
Vertical Path Tracking VNV Key VPTH
VNAV Target Altitude
Capture ** ALTV
Glidepath APR Key GP
Glideslope GS
Go Around (in air) GA Switch GA
* ALTS is armed automatically when PIT, VS, FLC, or GA is active, and under VPTH when the Selected
Altitude is to be captured instead of the VNAV Target Altitude.
** ALTV is armed automatically under VPTH when the VNAV Target Altitude is to be captured instead of
the Selected Altitude.
Table 6-1 Flight Director Pitch Modes
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A
SECTION 6 – AUTOMATIC
FLIGHT CONTROL
6-5
Pitch Hold Mode (PIT)
When the flight director is activated (the FD Key is
pressed), Pitch Hold Mode is selected by default. Pitch
Hold Mode is indicated as the active pitch mode by the
green annunciation ‘PIT’. This mode may be used for
climb or descent to the Selected Altitude (shown above
the Altimeter), since Selected Altitude Capture Mode is
automatically armed when the mode is activated.
In Pitch Hold Mode, the flight director maintains a
constant pitch attitude, the pitch reference. The pitch
reference is set to the aircraft attitude at the moment
of mode selection. If the aircraft pitch attitude exceeds
the flight director pitch command limitations, the flight
director commands a pitch angle equal to the nose-up/
down limit.
Command Bars Main-
tain Desired Pitch
Reference
Pitch Hold Mode Active Selected Altitude Capture
Mode Armed

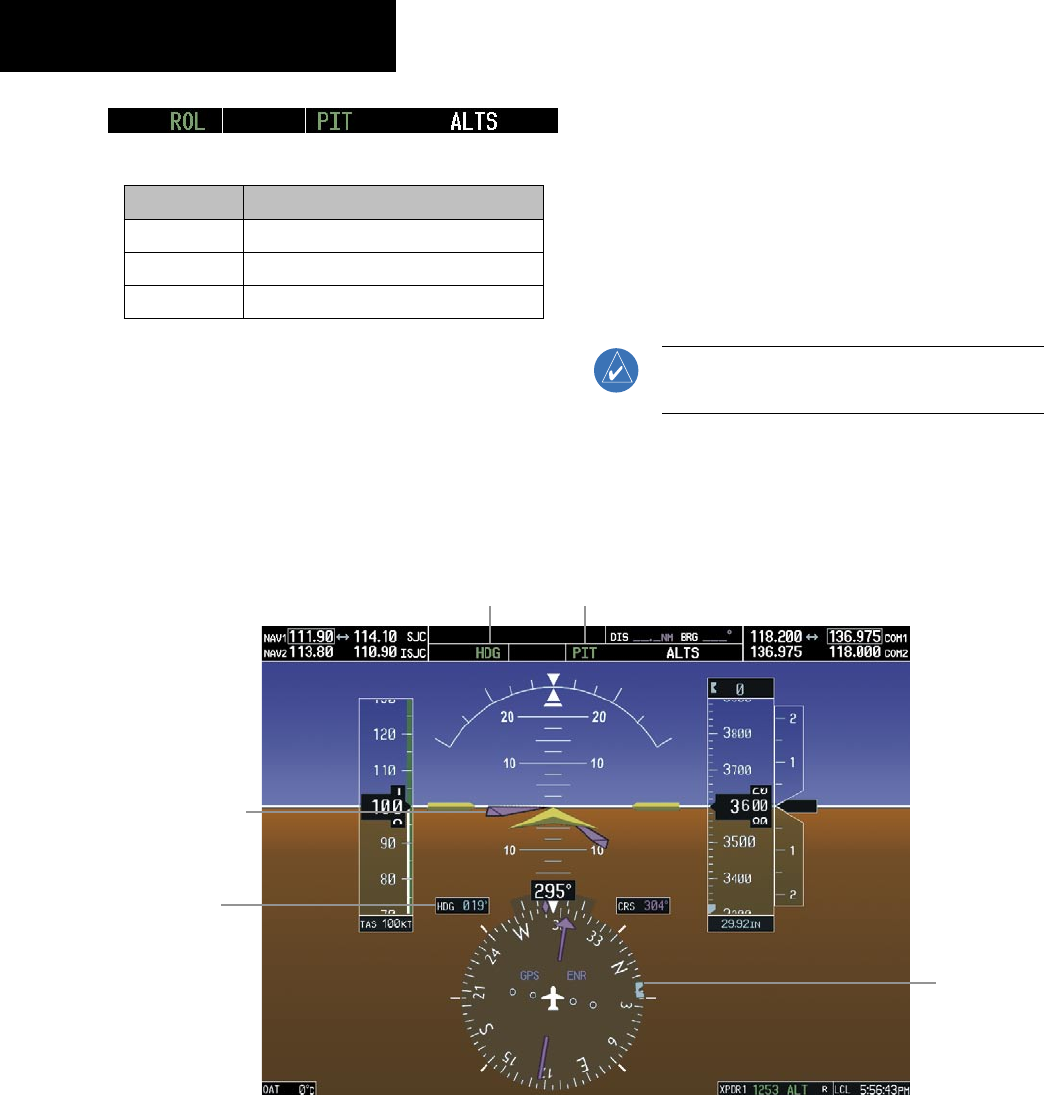

Figure 6-5 Pitch Hold Mode
Selected
Altitude
Changing the Pitch Reference
When operating in Pitch Hold Mode, the pitch
reference can be adjusted by:
• Using the NOSE UP/NOSE DN Keys
• Pressing the CWS Button, hand-flying the aircraft
to establish a new pitch reference, then releasing
the CWS Button
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
SECTION 6 – AUTOMATIC
FLIGHT CONTROL
6-6
Selected Altitude Capture Mode (ALTS)
Selected Altitude Capture Mode arms automatically
when the flight director is in Pitch Hold, Vertical Speed,
Flight Level Change, or Go Around Mode. This mode
is also armed automatically under Vertical Path Tracking
Mode when the Selected Altitude is to be captured
instead of the VNAV Target Altitude. The white ‘ALTS’
annunciation indicates Selected Altitude Capture Mode is
armed (see Figure 6-5 for example).
The ALT Knob is used to set the Selected Altitude,
shown above the Altimeter until Selected Altitude Capture
Mode becomes active.
As the aircraft nears the Selected Altitude, the flight
director automatically transitions to Selected Altitude
Capture Mode with Altitude Hold Mode armed (Figure
6-7). This automatic transition is indicated by the green
‘ALTS’ annunciation flashing for up to ten seconds and the
appearance of the white ‘ALT’ annunciation. The Selected
Altitude is shown as the Altitude Reference beside the
‘ALTS’ annunciation.
At 50 ft from the Selected Altitude, the flight director
automatically transitions from Selected Altitude Capture
to Altitude Hold Mode and holds the Selected Altitude
(shown as the Altitude Reference). As Altitude Hold Mode
becomes active, the white ‘ALT’ annunciation moves to the
active pitch mode field and flashes green for ten seconds
to indicate the automatic transition.

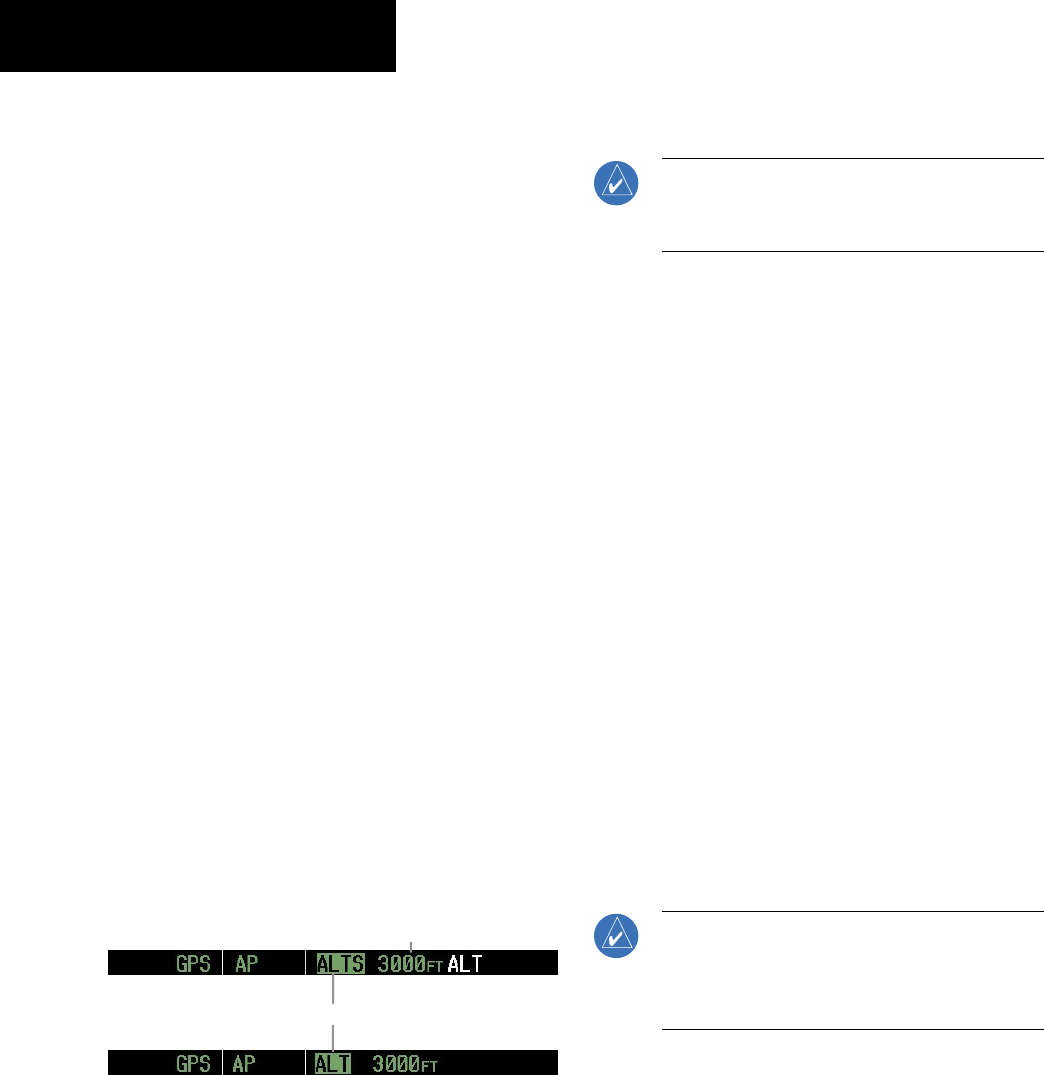

Figure 6-6 Automatic Mode Transitions During Altitude Capture
Flash Up to 10 sec, Indicating Automatic Transition
Altitude Reference (In
This Case, Equal to
Selected Altitude)
Changing the Selected Altitude
NOTE: Pressing the CWS Button while in Selected
Altitude Capture Mode does not cancel the
mode.
Use of the ALT Knob to change the Selected Altitude
while Selected Altitude Capture Mode is active causes the
flight director to revert to Pitch Hold Mode with Selected
Altitude Capture Mode armed for the new Selected
Altitude.
Altitude Hold Mode (ALT)
Altitude Hold Mode can be activated by pressing the
ALT Key; the flight director maintains the current aircraft
altitude (to the nearest ten feet) as the Altitude Reference.
The flight director’s Altitude Reference is shown in the
AFCS Status Box and is independent of the Selected
Altitude, displayed above the Altimeter. Altitude Hold
Mode active is indicated by a green ‘ALT’ annunciation in
the AFCS Status Box.
Altitude Hold Mode is automatically armed when
the flight director is in Selected Altitude Capture Mode.
Selected Altitude Capture Mode automatically transitions
to Altitude Hold Mode when the altitude error is less than
50 ft. In this case, the Selected Altitude becomes the flight
director’s Altitude Reference.
Changing the Altitude Reference
NOTE: Turning the ALT Knob while in Altitude
Hold Mode changes the Selected Altitude, but
not the flight director’s Altitude Reference and
does not cancel the mode.
With the CWS Button depressed, the aircraft can be
hand-flown to a new Altitude Reference. When the CWS
Button is released at the desired altitude, the new altitude
is established as the Altitude Reference.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A
SECTION 6 – AUTOMATIC
FLIGHT CONTROL
6-7
If the Selected Altitude is reached during CWS
maneuvering, the Altitude Reference is not changed.
To adjust the Altitude Reference in this case, the CWS
Button must be pressed again after the Selected Altitude
is reached.
Figure 6-7 Altitude Hold Mode
Altitude Hold
Mode Active Flight Director Alti-
tude Reference
Selected Altitude
Selected Altitude Bug
Command Bars Hold
Pitch Attitude to Main-
tain Altitude Reference
Vertical Speed Mode (VS)
In Vertical Speed Mode, the flight director acquires
and maintains a Vertical Speed Reference. Current aircraft
vertical speed (to the nearest 100 fpm) becomes the
Vertical Speed Reference at the moment of Vertical Speed
Mode activation. Vertical Speed Mode does not consider
the relative position of the Selected Altitude in relation to
the current aircraft altitude at the time of mode activation,
so it is possible to use Vertical Speed Mode while not
climbing/descending to the Selected Altitude.
Vertical Speed Mode is activated by pressing the VS
Key; the ‘VS’ annunciation appears in the AFCS Status Box
to indicate the active pitch mode, along with the Vertical
Speed Reference to the right. The Vertical Speed Reference
is also displayed above the Vertical Speed Indicator. A
Vertical Speed Reference Bug corresponding to the Vertical
Speed Reference is shown on the indicator.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
SECTION 6 – AUTOMATIC
FLIGHT CONTROL
6-8

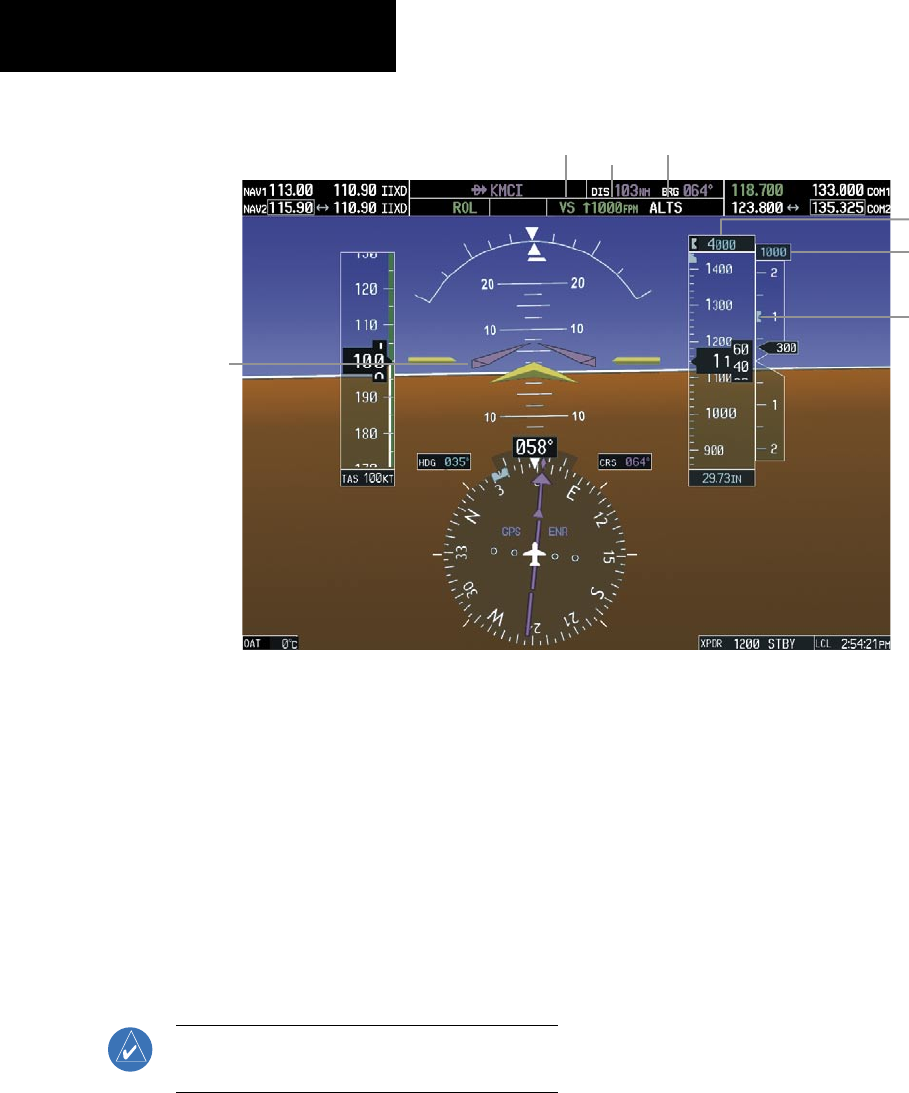

Figure 6-8 Vertical Speed Mode
Vertical Speed
Reference Bug
Selected Altitude
Command Bars
Indicate Climb
to Attain Vertical
Speed
Vertical Speed
Mode Active
Vertical
Speed
Reference
Selected Altitude Capture
Mode Armed
Vertical Speed
Reference
Changing the Vertical Speed Reference
The Vertical Speed Reference (shown both in the AFCS
Status Box and above/below the Vertical Speed Indicator)
may be changed by:
• Using the NOSE UP/NOSE DN Keys
• By pressing the CWS Button, hand-flying the
aircraft to attain a new Vertical Speed Reference,
then releasing the CWS Button
Flight Level Change Mode (FLC)
NOTE: The Selected Altitude should be set before
selecting Flight Level Change Mode.
Flight Level Change Mode is selected by pressing the
FLC Key. When Flight Level Change Mode is active, the
flight director continuously monitors Selected Altitude,
airspeed, and altitude. This mode acquires and maintains
the Airspeed Reference while climbing or descending to
the Selected Altitude (shown above the Altimeter). The
Airspeed Reference is set to the current airspeed upon
mode activation. Flight Level Change Mode is indicated
by an ‘FLC’ annunciation beside the Airspeed Reference
in the AFCS Status Box. The Airspeed Reference is also
displayed directly above the Airspeed Indicator, along
with a bug corresponding to the Airspeed Reference along
the tape.
Engine power must be adjusted to allow the autopilot
to fly the aircraft at a pitch attitude corresponding to the
Airspeed Reference and the desired flight profile (climb or
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A
SECTION 6 – AUTOMATIC
FLIGHT CONTROL
6-9
descent). The flight director maintains the current altitude
until either engine power or the Airspeed Reference
are adjusted and does not allow the aircraft to climb or
descend away from the Selected Altitude.
Changing the Airspeed Reference
The Airspeed Reference (shown in both the AFCS
Status Box and above the Airspeed Indicator) may be
adjusted:
• Using the NOSE UP/NOSE DN Keys
• By pressing the CWS Button, hand-flying the aircraft
to a new airspeed, then releasing the CWS Button
to establish the new Airspeed Reference
Figure 6-9 Flight Level Change Mode
Flight Level Change
Mode Active
Airspeed Reference
Airspeed Reference Bug
Airspeed
Reference Altitude Hold
Mode Armed
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
SECTION 6 – AUTOMATIC
FLIGHT CONTROL
6-10
Vertical Navigation Modes (VPTH, ALTV)
NOTE: Pressing the CWS Button while Vertical
Path Tracking Mode is active does not cancel
the mode. The autopilot guides the aircraft back
to the descent path upon release of the CWS
Button.
NOTE: VNAV flight director pitch modes are
available only in conjunction with GPS roll
modes.
NOTE: The Selected Altitude takes precedence
over any other vertical constraints.
Vertical Navigation (VNAV) flight control is available
for enroute/terminal cruise and descent operations when
VNAV has been enabled and a VNAV flight plan (with at
least one vertical waypoint) or direct-to with a vertical
constraint has been activated. Refer to the Navigation
section for more information on VNAV flight plans. The
flight director may be armed for VNAV at any time, but no
target altitudes are captured during a climb.
The Command Bars provide vertical profile guidance
based on specified altitudes (entered manually or loaded
from the database) at waypoints in the active flight plan
or vertical direct-to. The appropriate VNAV flight control
modes are sequenced by the flight director to follow the
path defined by the vertical profile. Upon reaching the
last waypoint in the VNAV flight plan, the flight director
transitions to Altitude Hold Mode and cancels any armed
VNAV modes.
Vertical Path Tracking Mode (VPTH)
NOTE: If another pitch mode key is pressed while
Vertical Path Tracking Mode is selected, Vertical
Path Tracking Mode reverts to armed.
When a vertical profile (VNAV flight plan) is active and
the VNV Key is pressed, Vertical Path Tracking Mode is
armed in preparation for descent path capture. ‘VPTH’ (or
‘/V’ when Glidepath or Glideslope Mode is concurrently
armed) is annunciated in white in addition to previously
armed modes. If applicable, the appropriate altitude
capture mode is armed for capture of the next VNAV
Target Altitude (ALTV) or the Selected Altitude (ALTS),
whichever is greater.

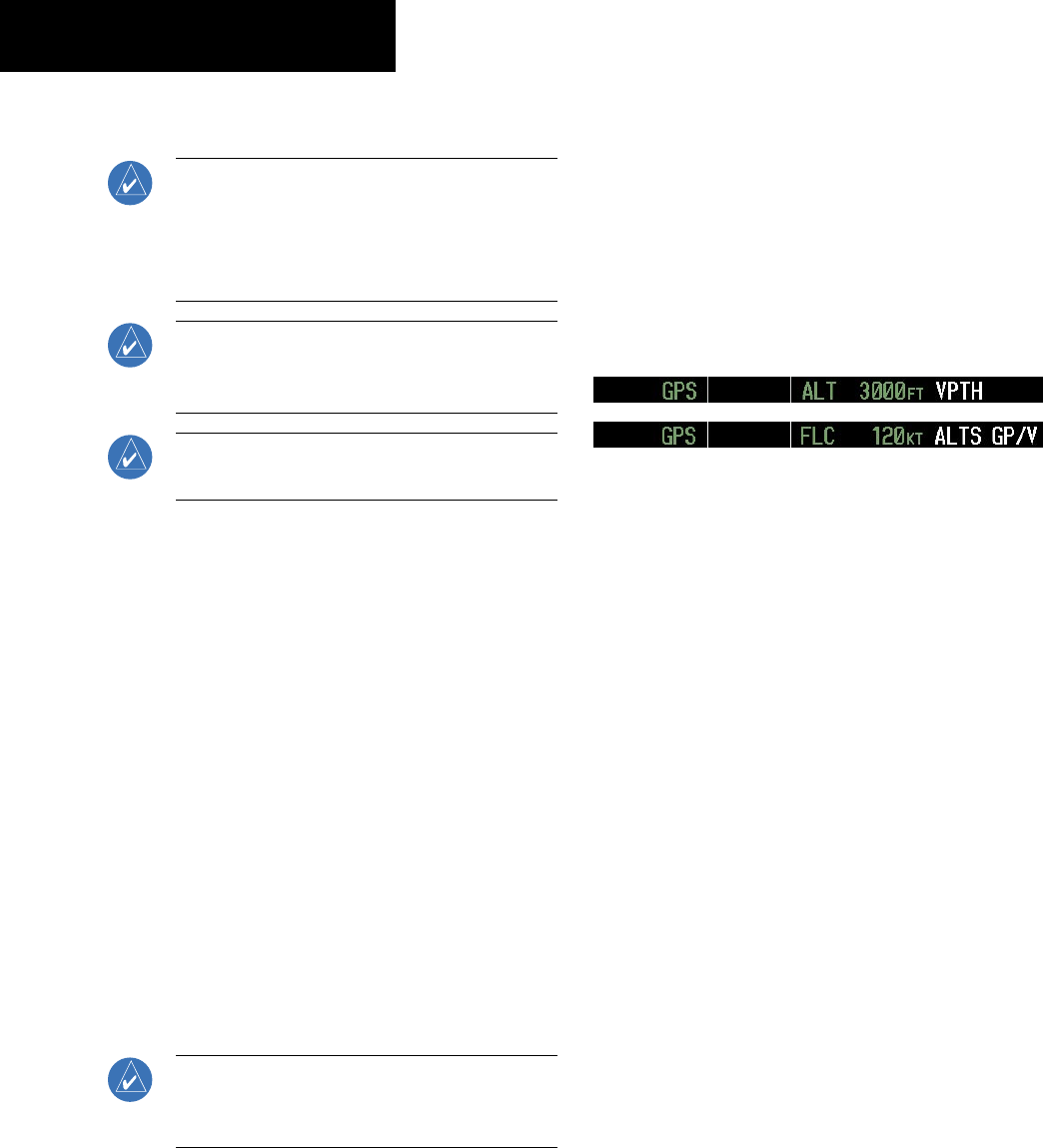

Figure 6-10 Vertical Path Tracking Armed Annunciations
Prior to descent path interception, the Selected Altitude
must be set below the current aircraft altitude by at least
75 ft. For the flight director to transition from Altitude
Hold to Vertical Path Tracking Mode, acknowledgment is
required within five minutes of descent path capture by:
• Pressing the VNV Key
• Adjusting the Selected Altitude
If acknowledgment is not received within one minute of
descent path interception, the white ‘VPTH’ annunciation
and the VNV Key annunciator light start to flash. Flashing
continues until acknowledged or the descent path is
intercepted. If the descent is not confirmed by the time of
interception, Vertical Path Tracking Mode remains armed
and the descent is not captured.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A
SECTION 6 – AUTOMATIC
FLIGHT CONTROL
6-11

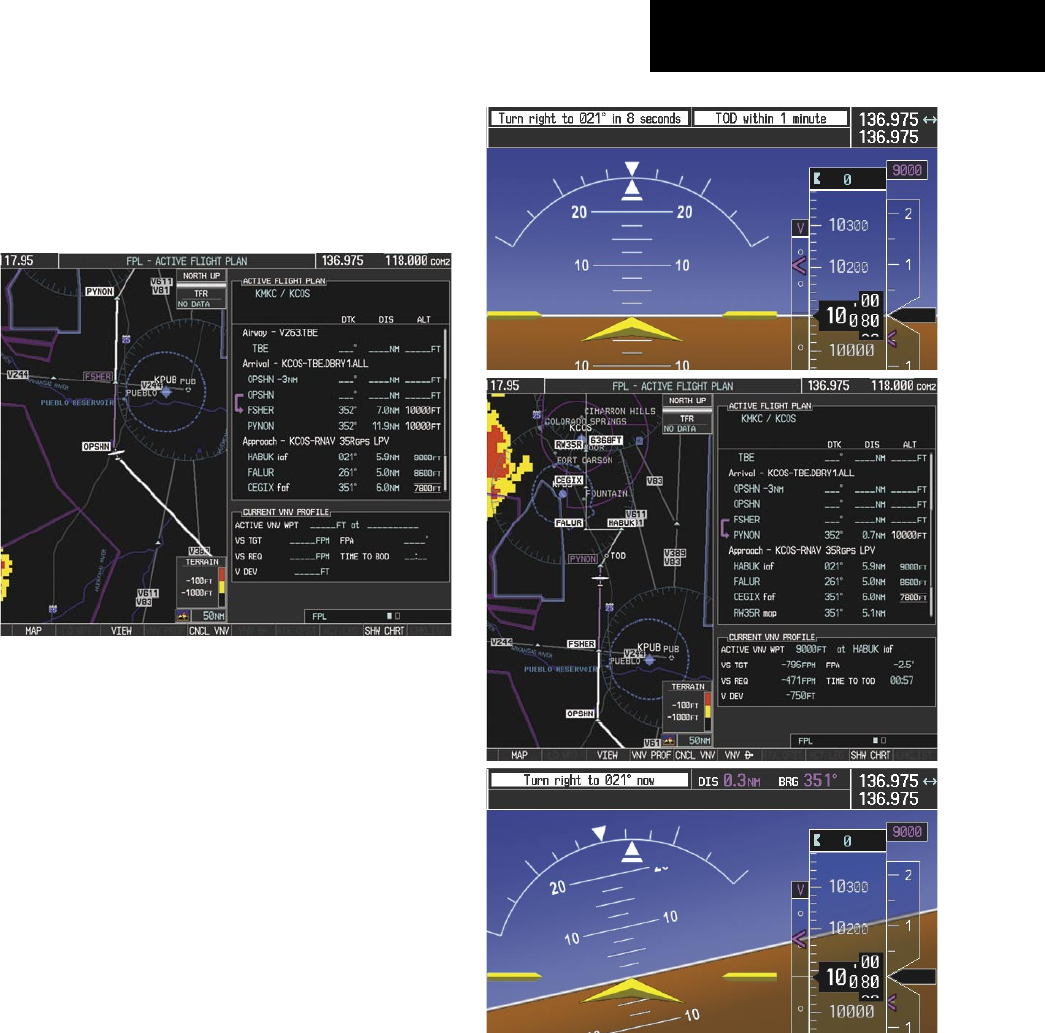

In conjunction with the “TOD [top of descent] within 1
minute” annunciation in the Navigation Data Box, VNAV
indications (VNAV Target Altitude, vertical deviation, and
vertical speed required) appear on the PFDs in magenta
(Figure 6-11).

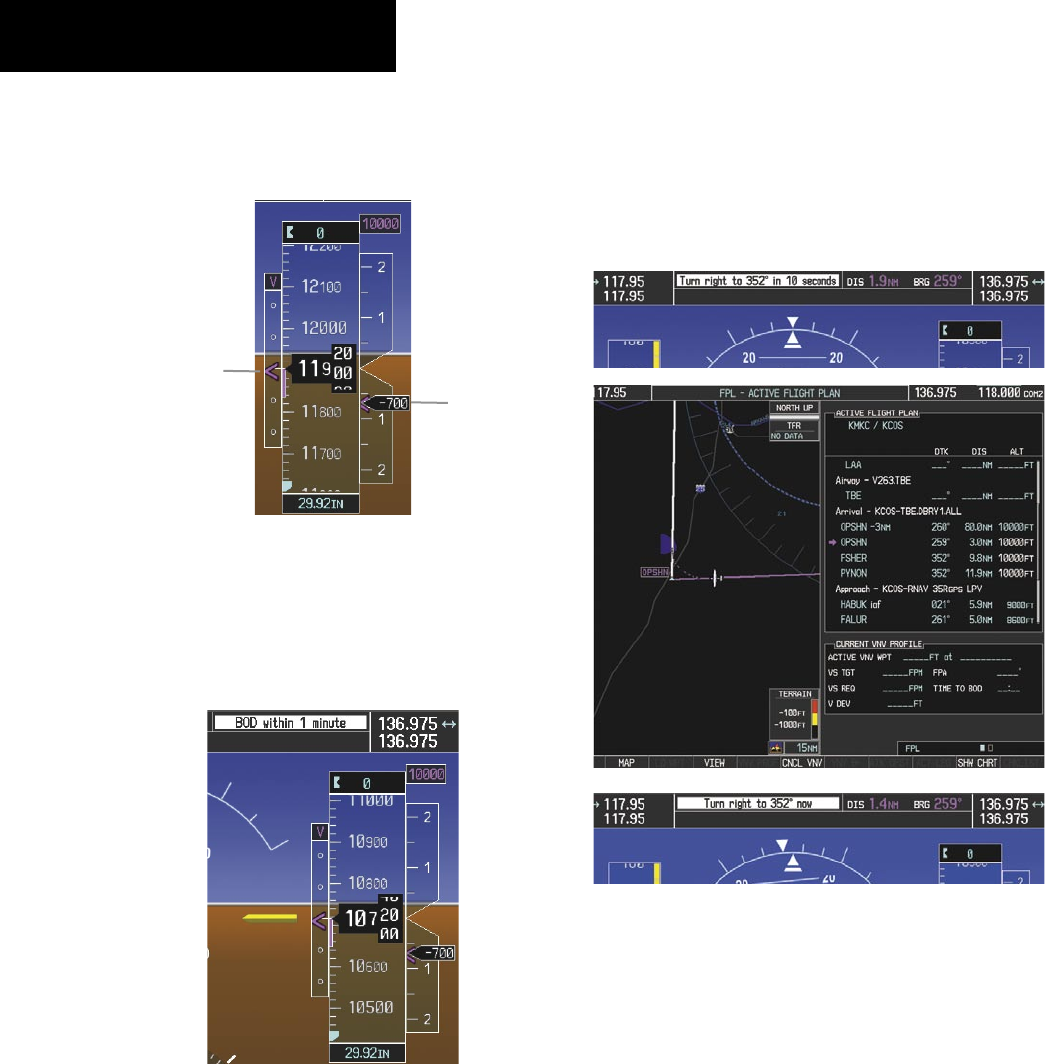

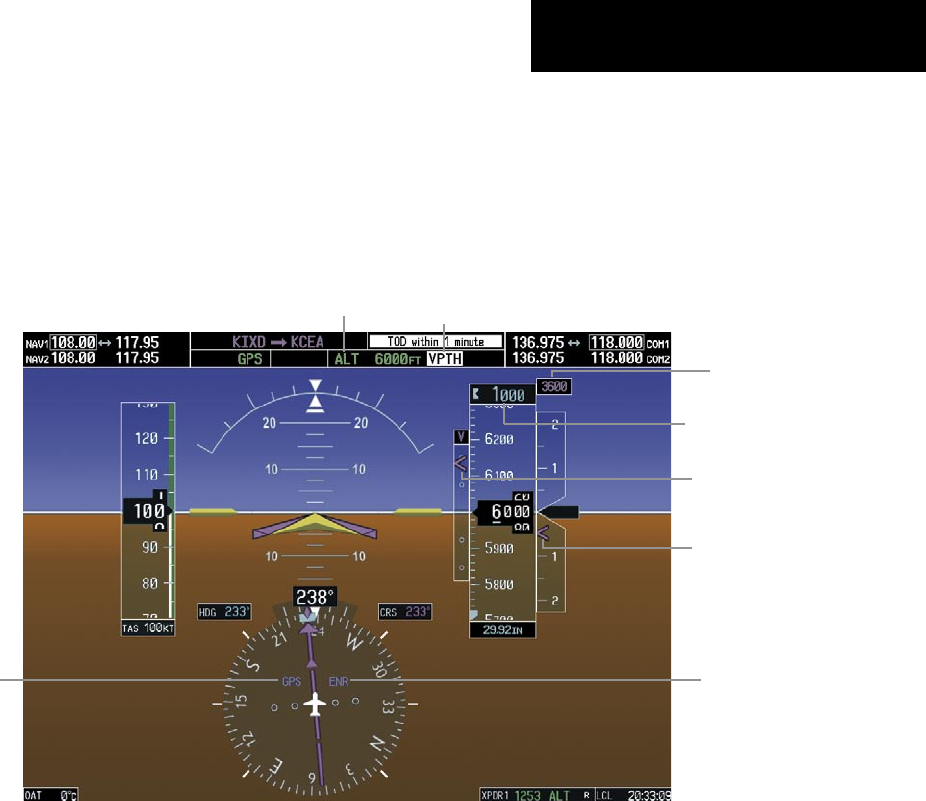

Figure 6-11 Vertical Path Capture
Vertical Path Tracking Armed, (Flashing Indi-
cates Acknowledgment Required)
Altitude Hold Mode Active
VNAV Target
Altitude
Vertical Deviation
Indicator
Required Vertical
Speed Bug
HSI Set to GPS Enroute Phase of
Flight
Selected Altitude Below
VNAV Target
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
SECTION 6 – AUTOMATIC
FLIGHT CONTROL
6-12
When a descent leg is captured (Figure 6-12), Vertical
Path Tracking becomes active and tracks the descent pro-
file. An altitude capture mode (‘ALTS’ or ‘ALTV’) is armed
as appropriate.
Figure 6-12 Vertical Path Tracking Mode
VNAV Target Altitude Capture ArmedVertical Path Tracking Active
VNAV
Target
Altitude
Vertical
Deviation
Indicator
Required
Vertical
Speed Bug
HSI Set to GPS Terminal
Phase of
Flight
Automatic Pitch Hold Reversion
Several situations can occur while Vertical Path
Tracking Mode is active which cause the flight director to
revert to Pitch Hold Mode. Vertical Path Tracking and the
appropriate altitude capture modes are armed for possible
descent profile recapture if the vertical deviation:
• Exceeds 200 ft during an overspeed condition
• Experiences a discontinuity exceeding 200 ft due to
a flight plan change
• Becomes invalid due to excessive cross-track error,
track angle error
• Cannot be computed for a leg type (such as a hold
or procedure turn)
The following circumstances cause mode reversion
without arming Vertical Path Tracking Mode:
• Navigation source manually changed from GPS
• CNCL VNV Softkey selected on the Active Flight
Plan Page (MFD)
• All remaining vertical waypoints deleted from the
flight plan
• Displays entering Reversionary Mode
Non-Path Descents
Pitch Hold, Vertical Speed, and Flight Level Change
modes can also be used to fly non-path descents while
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A
SECTION 6 – AUTOMATIC
FLIGHT CONTROL
6-13
VNAV flight control is selected. If the VS or FLC Key
is pressed while Vertical Path Tracking Mode is selected,
Vertical Path Tracking Mode reverts to armed along with
the appropriate altitude capture mode to allow profile re-
capture.

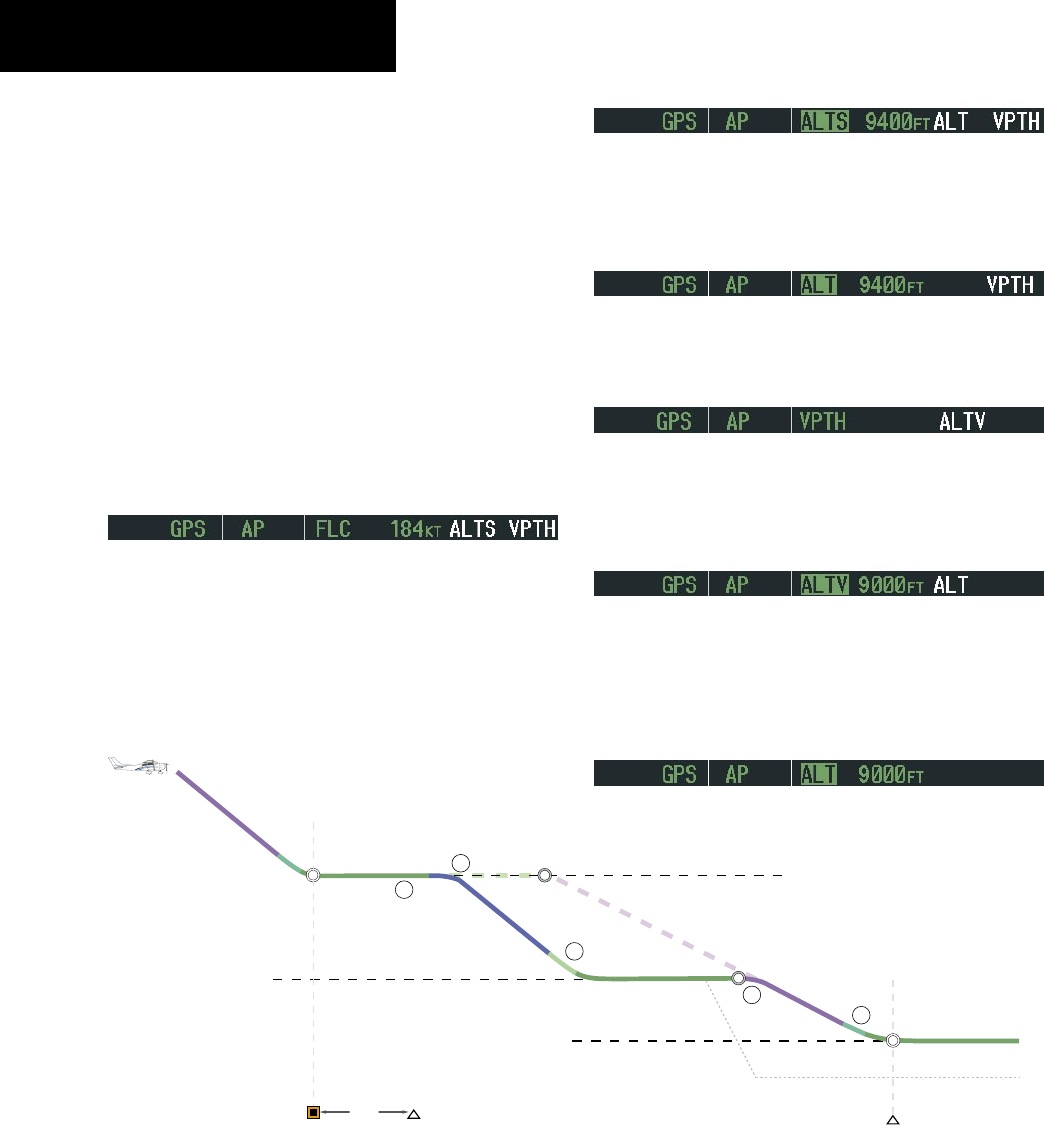

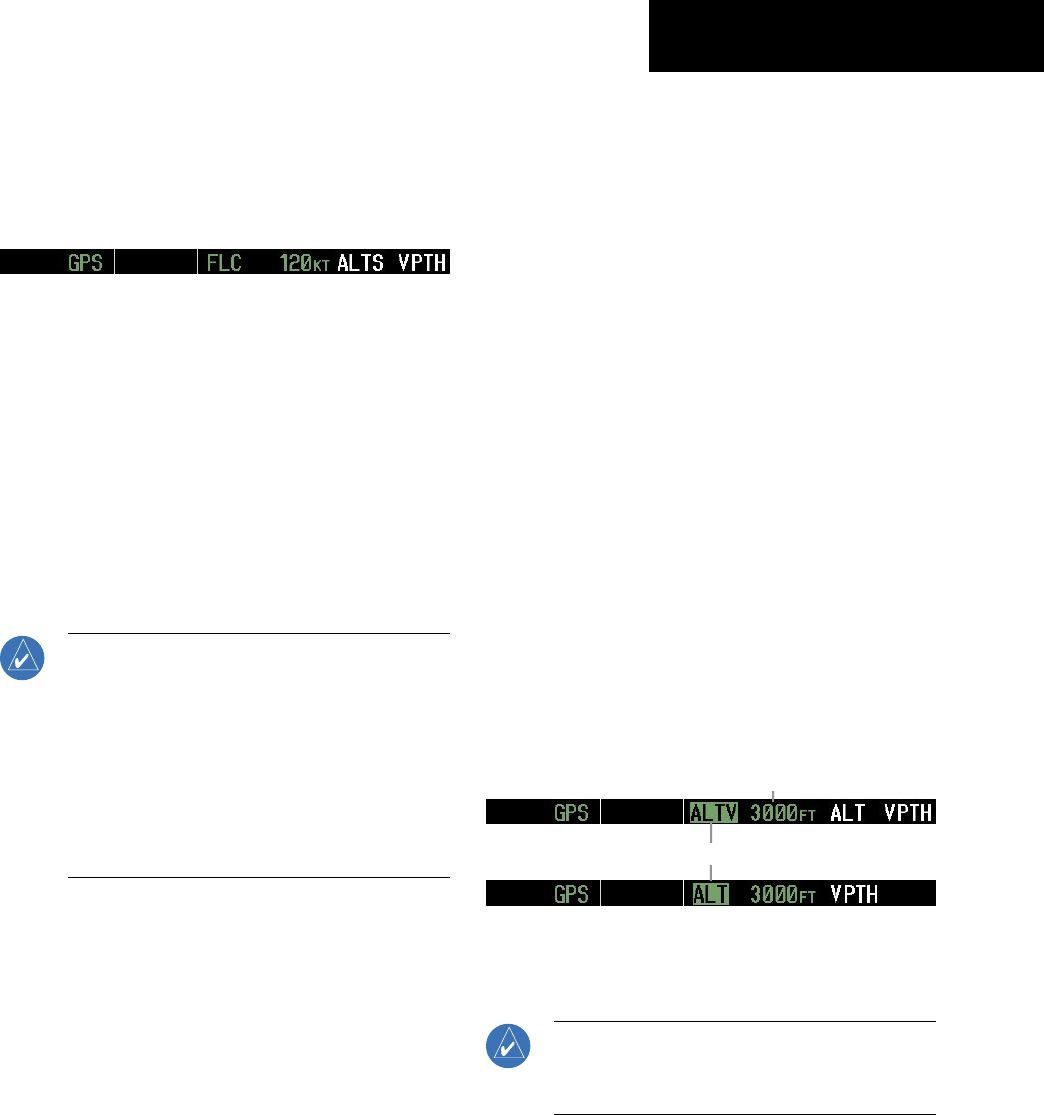

Figure 6-13 Flight Level Change VNAV Non-Path Descent
To prevent immediate profile re-capture, the following
must be satisfied:
• At least ten seconds have passed since the non-path
transition was initiated
• Vertical deviation from the profile has exceeded 250
ft, but is now less than 200 ft
Pressing the VNV Key twice re-arms Vertical Path
Tracking for immediate profile re-capture.
VNAV Target Altitude Capture Mode (ALTV)
NOTE: Armed VNAV Target Altitude and Selected
Altitude capture modes are mutually exclusive.
However, Selected Altitude Capture Mode is
armed implicitly (not annunciated) whenever
VNAV Target Altitude Capture Mode is armed.
This ensures the Selected Altitude is not violated
during a change from VNAV Target Altitude
Capture to Selected Altitude Capture Mode close
to Selected Altitude interception.
VNAV Target Altitude Capture is analogous to Selected
Altitude Capture Mode and is armed automatically
after the VNV Key is pressed and the next VNAV Target
Altitude is to be intercepted before the Selected Altitude.
The annunciation ‘ALTV’ indicates that the VNAV Target
Altitude is to be captured. VNAV Target Altitudes are
shown in the active flight plan or vertical direct-to, and
can be entered manually or loaded from a database (see
the Navigation section for details). At the same time as
“TOD within 1 minute” is annunciated in the Navigation
Data Box, the VNAV Target Altitude is displayed above the
Vertical Speed Indicator (see Figure 6-12). VNAV Target
Altitudes can be modified until VNAV Target Altitude
Capture Mode becomes active.
As the aircraft nears the VNAV Target Altitude, the
flight director automatically transitions to VNAV Target
Altitude Capture Mode with Altitude Hold Mode armed.
This automatic transition is indicated by the green ‘ALTV’
annunciation flashing for up to ten seconds and the
appearance of the white ‘ALT” annunciation. The VNAV
Target Altitude is shown as the Altitude Reference beside
the ‘ALTV’ annunciation.
At 50 ft from the VNAV Target Altitude, the flight
director automatically transitions from VNAV Target
Altitude Capture to Altitude Hold Mode and tracks the
level leg. As Altitude Hold Mode becomes active, the
white ‘ALT’ annunciation moves to the active pitch mode
field and flashes green for ten seconds to indicate the
automatic transition. The flight director automatically
arms Vertical Path Tracking, allowing upcoming descent
legs to be captured and subsequently tracked.
Flash up to 10 sec, Indicating Automatic Transition
Altitude Reference (In This
Case, Equal To VNAV
Altitude Target)
Figure 6-14 VNAV Altitude Capture
Changing the VNAV Target Altitude
NOTE: Pressing the CWS Button while in VNAV
Target Altitude Capture Mode does not cancel
the mode.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
SECTION 6 – AUTOMATIC
FLIGHT CONTROL
6-14
Changing the current VNAV Target Altitude while
VNAV Target Altitude Capture Mode is active causes the
flight director to revert to Pitch Hold Mode. Vertical Path
Tracking and the appropriate altitude capture mode are
armed in preparation to capture the new VNAV Target
Altitude or the Selected Altitude, depending on which
altitude is to be intercepted first.
VNAV target altitudes can be changed while editing the
active flight plan (see the Navigation section for details).
Glidepath Mode (GP)
NOTE: Pressing the CWS Button while Glidepath
Mode is active does not cancel the mode. The
autopilot guides the aircraft back to the glidepath
upon release of the CWS Button.
Figure 6-15 Glidepath Mode
Glidepath Mode Active
Command Bars
Indicate Descent on
Glidepath
GPS Approach Mode Active
Glidepath
Indicator
HSI Set to GPS LPV Ap-
proach
Active
NOTE: Glidepath Mode is available only in
installations with GIA 63W Integrated Avionics
Units and WAAS currently available.
Glidepath mode is used to track the WAAS-based
glidepath. Arming Glidepath Mode (annunciated in white
as ‘GP’) requires:
• Approach supporting WAAS vertical guidance is
loaded into the flight plan
• Expected availability of vertical guidance
• GPS Approach Mode is armed, after acquiring
clearance for approach, prior to intercepting the
WAAS glidepath (GPS is the selected navigation
source and the APR Key is pressed; see GPS
Approach Mode)
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A
SECTION 6 – AUTOMATIC
FLIGHT CONTROL
6-15

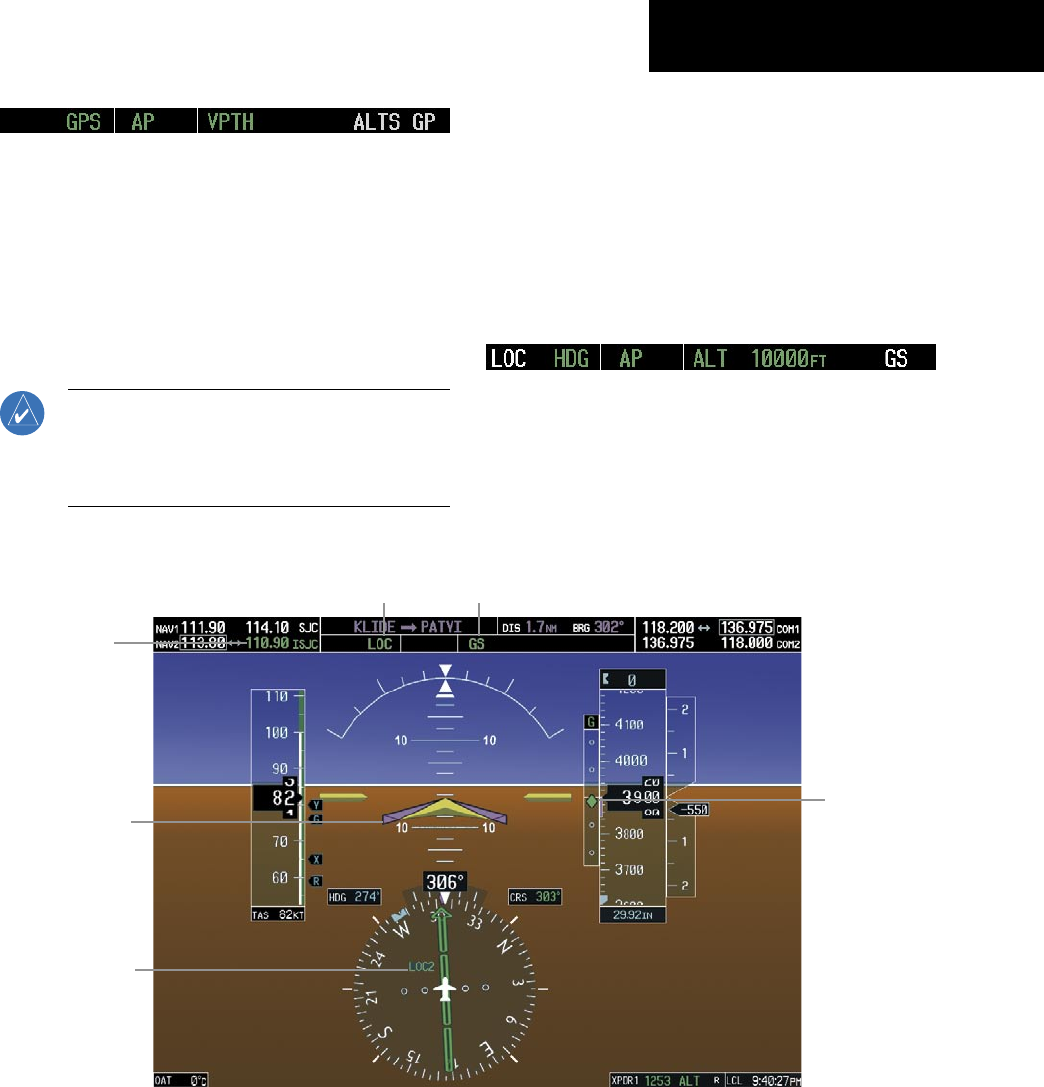

Figure 6-16 Glidepath Mode Armed
If vertical guidance becomes or is expected to become
unavailable and the approach downgrades, Glidepath
Mode is disarmed. When vertical guidance becomes
available again, Glidepath Mode is automatically re-armed
under GPS Approach Mode.
Glideslope Mode (GS)
NOTE: Pressing the CWS Button while Glideslope
Mode is active does not cancel the mode. The
autopilot guides the aircraft back to the glides-
lope upon release of the CWS Button.
Figure 6-17 Glideslope Mode
Glideslope Mode Active
Command Bars
Indicate Descent on
Localizer/Glides-
lope Path
Approach Mode Active
Active ILS
Frequency
Tuned
HSI Set to LOC2
Glideslope
Indicator
Glideslope Mode is available for LOC/ILS approaches
to capture and track the glideslope. Glideslope Mode is
armed when:
• A valid localizer frequency is tuned
• LOC Approach Mode is armed (the APR Key is
pressed and either LOC is the selected navigation
source or a LOC/ILS approach is loaded into the
flight plan; see LOC Approach Mode)

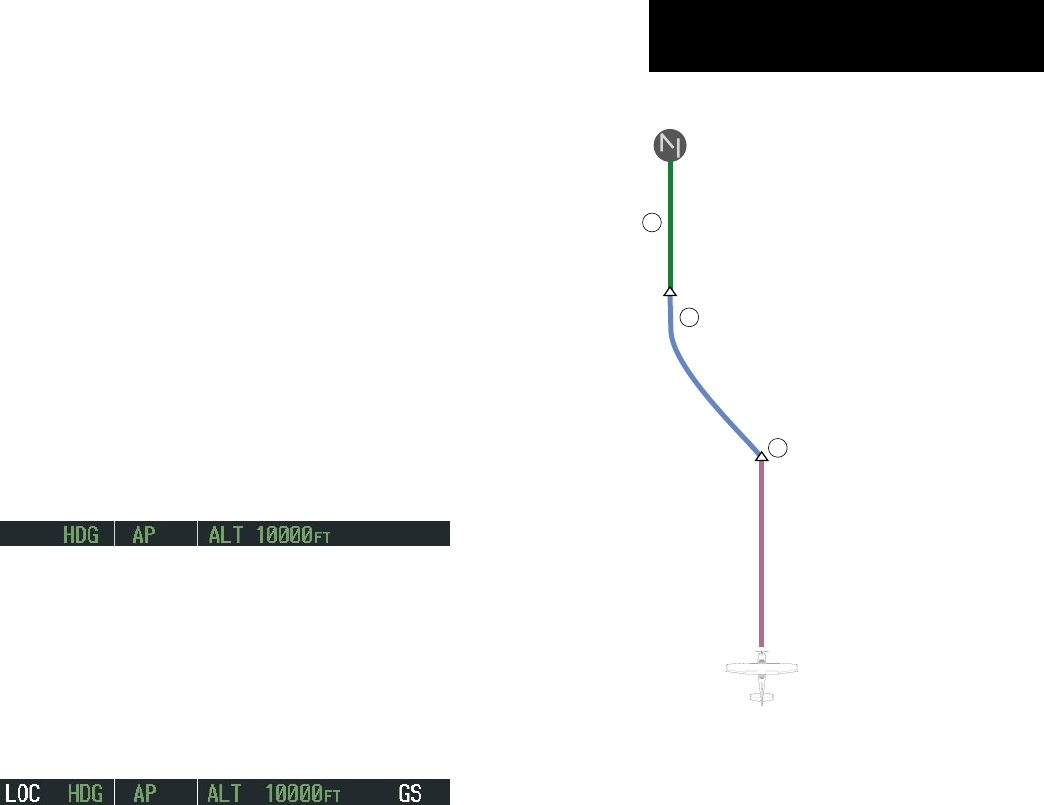

Figure 6-18 Glideslope Mode Armed
Once the localizer has been set as the navigation
source, the localizer and glideslope can be captured. Upon
reaching the glideslope, the flight director transitions to
Glideslope Mode and begins to intercept and track the
glideslope.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
SECTION 6 – AUTOMATIC
FLIGHT CONTROL
6-16
Go Around (GA) Mode
Pushing the GA Switch engages the flight director in a
wings level, 7° pitch-up attitude, allowing the execution
of a missed approach or a go around. This mode is a
coupled pitch and roll mode and is annunciated as ‘GA’
in both the pitch and roll active mode fields. Go Around
Mode disengages the autopilot and arms Altitude Hold
Mode automatically. Subsequent autopilot engagement
is allowed. Attempts to modify the aircraft attitude (i.e.,
with the CWS Button or NOSE UP/NOSE DN keys)
result in reversion to Pitch and Roll Hold modes.
Command Bars
Indicate Climb
Go Around Mode Active
Autopilot Disconnect
Annunciation Flashes
Yellow 5 sec

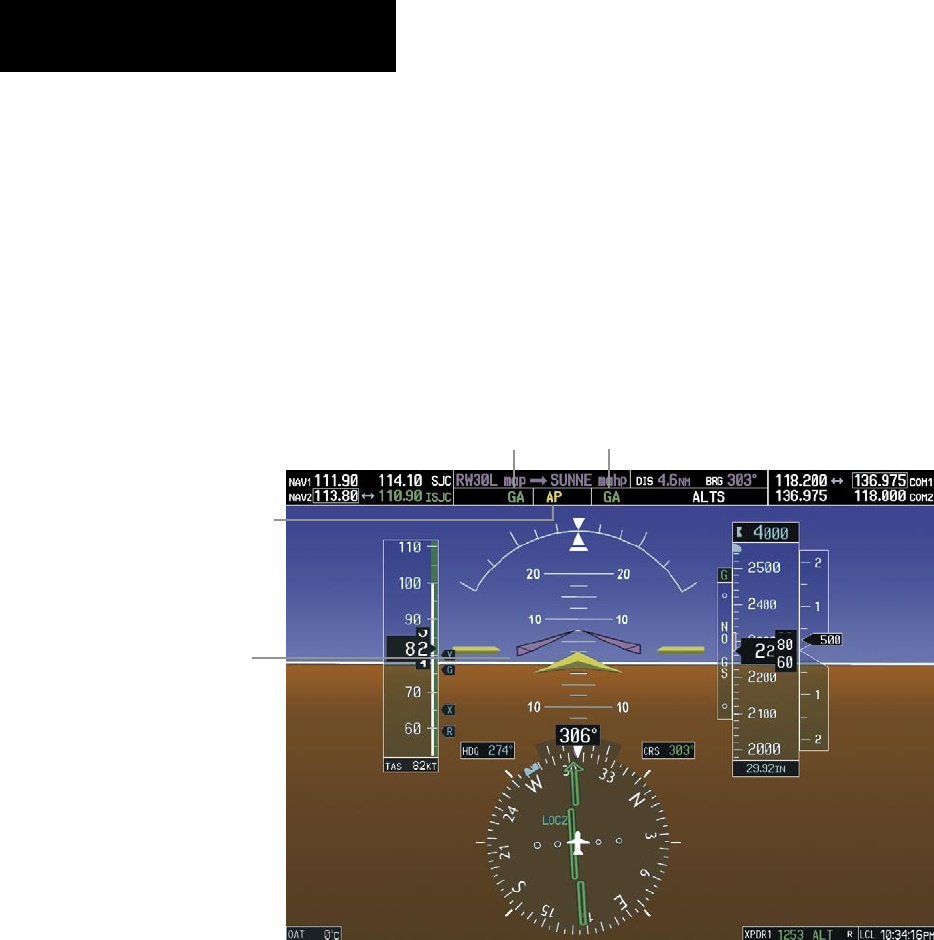

Figure 6-19 Go Around Mode
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A
SECTION 6 – AUTOMATIC
FLIGHT CONTROL
6-17
Roll Modes
• Roll Hold (default mode) — Holds the current
aircraft roll attitude or rolls the wings level,
depending on the commanded bank angle
• Heading Select — Captures and tracks the Selected
Heading
• Navigation (GPS, VOR, LOC) — Captures and
tracks the selected navigation source
• Backcourse — Captures and tracks a localizer
signal for backcourse approaches
• Approach (GPS, VAPP, LOC) — Captures and tracks
the selected navigation source with greater sensitivity
for approach
• Go Around — Commands a constant pitch angle
and wings level while in the air
The following table relates each roll mode to its
respective control and annunciation. Refer to the pitch
modes section for information regarding Go Around and
Takeoff Modes.
Roll Mode Control Annunciation
Roll Hold (default) ROL
Heading Select HDG Key HDG
Navigation, GPS Arm/Capture/Track
NAV Key
GPS
Navigation, VOR Enroute Arm/Capture/Track VOR
Navigation, LOC Arm/Capture/Track
(No Glideslope) LOC
Backcourse Arm/Capture/Track BC Key BC
Approach, GPS Arm/Capture/Track
APR Key
GPS
Approach, VOR Arm/Capture/Track VAPP
Approach, ILS Arm/Capture/Track
(Glideslope Mode automatically armed) LOC
Go Around (in air) GA Switch GA
Table 6-2 Roll Modes
The CWS Button does not change lateral references
for Heading Select, Navigation, Backcourse, or Approach
modes. The autopilot guides the aircraft back to the
Selected Heading/Course upon release of the CWS
Button.
Roll Hold Mode (ROL)
NOTE: If Roll Hold Mode is activated as a result
of a mode reversion, the flight director rolls the
wings level.
When the flight director is activated (the FD or AP Key
is pressed), Roll Hold Mode is selected by default. This
mode is annunciated as ‘ROL’ in the AFCS Status Box. The
current aircraft bank angle is held, subject to the bank
angle conditions listed in Table 6-3.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
SECTION 6 – AUTOMATIC
FLIGHT CONTROL
6-18
Bank Angle Flight Director Response
< 6° Rolls wings level
6° to 22° Maintains current aircraft roll attitude
> 22° Limits bank to 22°
Table 6-3 Roll Hold Mode Responses
Figure 6-20 Roll Hold Mode Annunciation
Changing the Roll Reference
The roll reference can be changed by pressing the CWS
Button, establishing the desired bank angle, then releasing
the CWS Button.
Figure 6-21 Heading Select Mode
Pitch Hold Mode Active
Command Bars
Track Selected
Heading
Heading Select Mode Active
Selected
Heading
Selected
Heading
Bug
Heading Select Mode (HDG)
Heading Select Mode is activated by pressing HDG
Key. Heading Select Mode acquires and maintains the
Selected Heading. The Selected Heading is shown by a
light blue bug on the HSI and in the box to the upper left
of the HSI.
Changing the Selected Heading
NOTE: Pressing the HDG Knob synchronizes the
Selected Heading to the current heading.
The Selected Heading is adjusted using the HDG Knob
on either display. Pressing the CWS Button and hand-
flying the aircraft does not change the Selected Heading.
The autopilot guides the aircraft back to the Selected
Heading upon release of the CWS Button.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A
SECTION 6 – AUTOMATIC
FLIGHT CONTROL
6-19
Turns are commanded in the same direction as Selected
Heading Bug movement, even if the bug is turned more
than 180° from the present heading (e.g., a 270° turn to
the right). However, Selected Heading changes of more
than 330° at a time result in turn reversals.
Navigation Mode (GPS, VOR, LOC)
NOTE: The selected navigation receiver must have
a valid VOR or LOC signal or active GPS course for
the flight director to enter Navigation Mode.
Pressing the NAV Key selects Navigation Mode.
Navigation Mode acquires and tracks the selected
navigation source on the HSI (GPS, VOR, LOC). The
flight director follows GPS roll steering commands when
GPS is the selected navigation source.
Figure 6-22 Navigation Mode
Command Bars
Indicate Left Turn to
Track GPS Course
and Climb to Inter-
cept Selected Altitude
GPS Navigation
Mode Active
GPS is Active
Navigation Receiver
on HSI
Selected Course
Flight Level
Change Mode
Active
Altitude Hold
Mode Armed
When the HSI is coupled to VOR or LOC, the flight
director creates roll steering commands from the Selected
Course and deviation. Navigation Mode can also be used
to fly non-precision GPS and LOC approaches where
glideslope capture is not required.
If the Course Deviation Indicator (CDI) shows greater
than one dot when the NAV Key is pressed, the selected
mode is armed. The armed annunciation appears in white
to the left of the active roll mode. For cases where the
projected course is offset a large distance from the present
course for turn anticipation, GPS Navigation Mode can
be activated with crosstrack error up to 10 nm when the
NAV Key is pressed.
Figure 6-23 GPS Navigation Mode Armed
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
SECTION 6 – AUTOMATIC
FLIGHT CONTROL
6-20
When the CDI has automatically switched from GPS to
LOC during a LOC/ILS approach, GPS Navigation Mode
remains active, providing GPS steering guidance until
the localizer signal is captured. LOC Navigation Mode is
armed in anticipation of localizer signal capture if the APR
Key is not pressed prior to the automatic source switch.
If Navigation Mode is active and either of the following
occur, the flight director reverts to Roll Hold Mode (wings
rolled level):
• Different VOR is tuned while in VOR Navigation
Mode (VOR Navigation Mode reverts to armed)
• Navigation source is manually switched
• Localizer signal is not captured by the final approach
fix (FAF) while in LOC Navigation Mode
Changing the Selected Course
The Selected Course on the PFD is controlled using the
CRS Knob. Pressing the CWS Button and hand-flying
the aircraft does not change the Selected Course while in
Navigation Mode. The autopilot guides the aircraft back
to the Selected Course (or GPS flight plan) when the CWS
Button is released.
Approach Mode (GPS, VAPP, LOC)
NOTE: The selected navigation receiver must have
a valid VOR or LOC signal or active GPS course
for the flight director to enter Approach Mode.
Approach Mode is activated when the APR Key is
pressed. Approach Mode acquires and tracks the selected
navigation receiver on the HSI (GPS, VOR, or LOC),
depending on the loaded approach. This mode uses the
selected navigation receiver deviation and desired course
inputs to fly the approach. Approach Mode provides
greater sensitivity for signal tracking than Navigation
Mode.
Pressing the APR Key when the CDI is greater than
one dot arms the selected approach mode (annunciated
in white to the left of the active roll mode). If the selected
navigation receiver is GPS, pressing the APR Key arms
GPS Approach Mode, provided that a GPS approach has
been loaded into the flight plan. If the loaded approach
provides WAAS-based vertical guidance, Glidepath Mode
is also armed (Figure 6-16). If GPS Approach Mode is
selected while in GPS Navigation Mode, capture can occur
with crosstrack error of up to 2 nm.
Figure 6-24 GPS Approach Mode Armed
LOC Approach Mode allows the autopilot to fly a LOC/
ILS approach with a glideslope. LOC Approach Mode is
armed (along with Glideslope Mode; see Figure 6-17)
when the APR Key is pressed and either of the following
have been done:
• Navigation source is set to LOC
• A LOC/ILS approach is loaded into the flight plan
and the corresponding localizer frequency tuned
(even if the selected navigation source is GPS)
Localizer capture is suppressed until the navigation
source is changed to LOC.
If Approach Mode is active and either of the following
occur, the flight director reverts to Roll Hold Mode (wings
rolled level):
• Vectors-to-Final is activated
• Navigation source is manually switched
• Localizer signal is not captured by the final approach
fix (FAF) while in LOC Navigation Mode
Changing the Selected Course
The Selected Course on the PFD is controlled using the
CRS Knob. Pressing the CWS Button and hand-flying
the aircraft does not change the Selected Course while in
Approach Mode. The autopilot guides the aircraft back to
the Selected Course (or GPS flight plan) when the CWS
Button is released.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A
SECTION 6 – AUTOMATIC
FLIGHT CONTROL
6-21
Backcourse Mode (BC)
NOTE: When making a backcourse approach,
set the Selected Course to the localizer front
course.
Backcourse Mode captures and tracks a localizer
signal. The mode may be selected by pressing the BC
Key. Backcourse Mode is armed if the CDI is greater than
one dot when the mode is selected. The flight director
creates roll steering commands from the Selected Course
and deviation when in Backcourse Mode.
Glideslope Mode Active
Backcourse Mode Active
LOC2 is Active
Navigation Receiver
on HSI
Figure 6-25 Backcourse Mode
Changing the Selected Course
The Selected Course on the PFD is controlled using the
CRS Knob. Pressing the CWS Button and hand-flying
the aircraft does not reset any reference data while in
Backcourse Mode. The autopilot guides the aircraft back
to the Selected Course (or GPS flight plan) when the CWS
Button is released.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
SECTION 6 – AUTOMATIC
FLIGHT CONTROL
6-22
6.4 AUTOPILOT OPERATION
NOTE: Refer to the AFM for specific instructions
regarding emergency procedures.
Cessna Nav III’s autopilot operates flight control
surface servos to provide automatic flight control. The
autopilot controls the aircraft pitch and roll attitudes
following commands received from the flight director.
Pitch autotrim provides trim commands to the pitch trim
adapter to relieve any sustained effort required by the
pitch servo.
Flight Control
Pitch and roll commands are provided to the servos,
based on the active flight director modes. Servo motor
control limits the maximum servo speed and torque. The
servo gearboxes are equipped with slip-clutches set to
certain values. This allows the servos to be overridden in
case of an emergency.
Pitch Axis and Pitch Trim
The autopilot pitch axis uses pitch rate to stabilize the
aircraft pitch attitude during upsets and flight director
maneuvers. Flight director pitch commands are rate- and
attitude-limited, combined with pitch damper control, and
sent to the pitch servo motor. The pitch servo measures
the output effort (torque) and provides this signal to the
pitch trim servo. The pitch trim servo commands the
motor to reduce the average pitch servo effort.
When the autopilot is not engaged, the pitch trim servo
may be used to provide manual electric trim. This allows
the aircraft to be trimmed using a control stick switch
rather than the trim wheel. Manual trim commands are
generated with the MET Switch. Trim speeds are scheduled
with airspeed to provide more consistent response.
Roll Axis
The autopilot roll axis uses roll rate to stabilize aircraft
roll attitude during upsets and flight director maneuvers.
The flight director roll commands are rate- and attitude-
limited, combined with roll damper control, and sent to
the roll servo motor.
Engaging the Autopilot
NOTE: Autopilot engagement/disengagement is
not equivalent to servo engagement/disengage-
ment. Use the CWS Button to disengage the
pitch and roll servos while the autopilot remains
active.
When the AP Key is pressed, the autopilot and flight
director (if not already engaged) are activated. Engagement
is indicated by a green ‘AP’ annunciation in the center of
the AFCS Status Box. The flight director engages in Pitch
and Roll Hold modes when initially activated.
Figure 6-26 Autopilot Engaged
Autopilot Engaged
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A
SECTION 6 – AUTOMATIC
FLIGHT CONTROL
6-23
Control Wheel Steering
During autopilot operation, the aircraft may be hand-
flown without disengaging the autopilot. Pressing and
holding the CWS Button disengages the pitch and roll
servos from the flight control surfaces and allows the
aircraft to be hand-flown. At the same time, the flight
director is synchronized to the aircraft attitude during the
maneuver. The ‘AP’ annunciation is temporarily replaced
by ‘CWS’ in white for the duration of CWS maneuvers.
In most scenarios, releasing the CWS Button reengages
the autopilot with a new reference. Refer to the flight
director modes section for CWS behavior in each mode.
Figure 6-27 CWS Annunciation
Control Wheel Steering
Disengaging the Autopilot
Automatic disengagement occurs due to:
• System failure
• Inability to compute default flight director modes
(FD also disengages automatically)
• Invalid sensor data
Automatic autopilot disengagement is indicated by
a flashing red ‘AP’ annunciation and by the autopilot
disconnect aural alert, which continue until acknowledged
by pushing the AP DISC or MET Switch.
Figure 6-28 Automatic Autopilot Disengagement
Autopilot Automatically Disengaged
The autopilot is manually disengaged by pushing the
AP DISC Switch, GA Switch, MET ARM Switch, or the
AP Key on the MFD. Manual disengagement is indicated
by a five-second flashing yellow ‘AP’ annunciation and a
three-second autopilot disconnect aural alert. After man-
ual disengagement, the autopilot disconnect aural alert
may be cancelled by pushing the MET ARM or AP DISC
Switch (AP DISC Switch also cancels the flashing ‘AP’ an-
nunciation).
Figure 6-29 Manual Autopilot Disengagement
Autopilot Manually Disengaged
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
SECTION 6 – AUTOMATIC
FLIGHT CONTROL
6-24
6.5 EXAMPLE PROCEDURES
NOTE: The diagrams in this section are for instruc-
tional purposes only and should not be used for
navigation.
This section provides a scenario-based set of procedures
showing various GFC 700 AFCS modes used while
following a previously entered flight plan. The following
example closely follows the example flight plan discussed
in the Navigation section. Refer to the example in Section
7 - Navigation when studying the this example.
In this scenario, the aircraft departs Charles B. Wheeler
Downtown Airport (KMKC), enroute to Colorado Springs
Airport (KCOS). After departure, the aircraft climbs to
12,000 ft and airway V4 is intercepted after following
heading vectors of 240˚ and 290˚ assigned by ATC . Airway
V4 is flown to Salina VOR (SLN) using VOR navigation,
then airway V244 is flown using a GPS flight plan. The
ILS approach for runway 35L and LPV (WAAS) approach
for runway 35R are shown and a missed approach is
executed.
Figure 6-30 Flight Plan Overview
0
3
6
9
12
15
18
21
24
27
30
33
0
3
6
9
12
15
18
21
24
27
30
33
Salina
VOR
(SLN)
KMKC
Lamar
VOR
(LAA)
0
3
6
9
12
15
18
21
24
27
30
33
Hays
VOR
(HYS)
KCOS
V 244
V 4
V 244
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A
SECTION 6 – AUTOMATIC
FLIGHT CONTROL
6-25
Departure
Climbing to the Selected Altitude and flying
an assigned heading:
1)
Use the ALT Knob to set the Selected Altitude to
12,000 feet after takeoff. Depart KMKC:
2)
In this example, Vertical Speed Mode is used to
capture the Selected Altitude (Pitch Hold, Vertical
Speed, or Flight Level Change Mode may be
used).
a) Adjust the aircraft’s vertical speed to the desired
1,000 fpm.
b) Press the VS Key to activate Vertical Speed and
Roll Hold modes and arm Selected Altitude
Capture Mode.
The Vertical Speed Reference may be adjusted
after Vertical Speed Mode is selected using the
NOSE UP/DN Key or pushing the CWS Button
while hand-flying the aircraft to establish a new
Vertical Speed Reference.
Figure 6-31 Departure
Selected Altitude of 12,000 MSL
1
2
3
4
HDG Mode
VS Mode
ALT Mode
TO Mode
KMKC
c) Press the
AP
Key to engage the autopilot in a
climb using Vertical Speed Mode.
3)
Press the HDG Key to activate Heading Select Mode
while the autopilot is engaged in the climb.
Use the
HDG
Knob to set the Selected Heading,
complying with ATC vectors to intercept Airway
V4. The autopilot follows the Selected Heading
Bug on the HSI and turns the aircraft to the desired
heading.
4)
As the aircraft nears the Selected Altitude, the flight
director transitions to Selected Altitude Capture
Mode, indicated by the green ‘ALTS’ annunciation
flashing for up to 10 seconds.
At 50 feet from the Selected Altitude, the green
‘ALT’ annunciation flashes for up to 10 seconds;
the autopilot transitions to Altitude Hold Mode and
levels the aircraft.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
SECTION 6 – AUTOMATIC
FLIGHT CONTROL
6-26
Intercepting a VOR Radial
During climb-out, the autopilot continues to fly the
aircraft in Heading Select Mode. Airway V4 to Salina
VOR (SLN) should now be intercepted. Since the
enroute flight plan waypoints correspond to VORs, flight
director Navigation Mode using either VOR or GPS as the
navigation source may be used. In this scenario, VOR
Navigation Mode is used for navigation to the first VOR
waypoint in the flight plan.
Intercepting a VOR radial:
1)
Arm VOR Navigation Mode:
a) Tune the VOR frequency.
b) Press the CDI Softkey to set the navigation
source to VOR.
c) Use the CRS Knob to set the Selected Course to
255°. Note that at this point, the flight director
is still in Heading Select Mode and the autopilot
continues to fly 290°.
0
3
6
9
12
15
18
21
24
27
30
33
HDG Mode, VOR Armed
VOR NAV Mode
V 4
Salina
VOR
(SLN)
1
2
3
Hdg
290o
255o

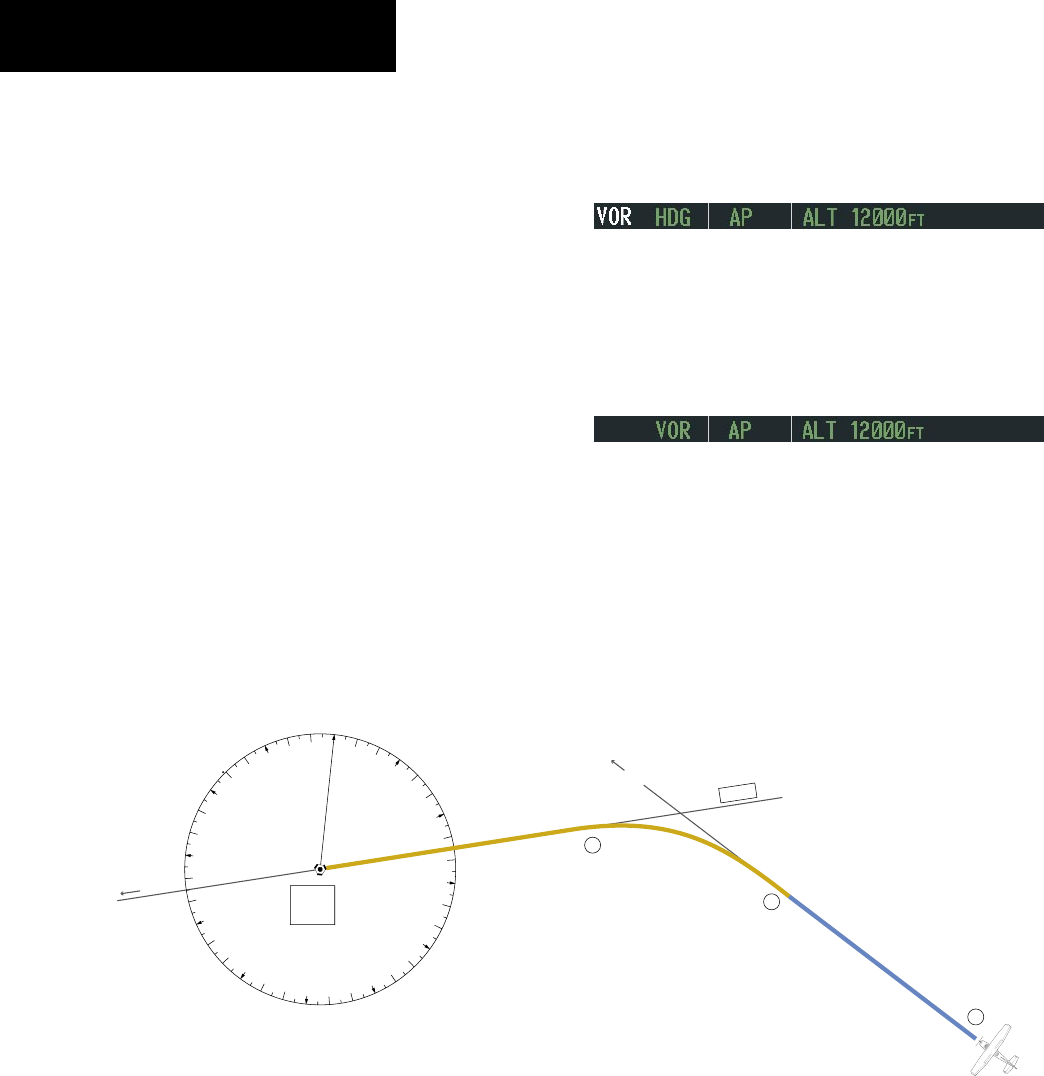

Figure 6-32 Intercepting a VOR Radial
d) Press the
NAV
Key. This arms VOR Navigation
Mode and the white ‘VOR’ annunciation appears
to the left of the active lateral mode.
2)
Once the CDI shows less than one dot, the flight
director transitions from Heading Select to VOR
Navigation Mode and the ‘VOR’ annunciation
flashes green. The autopilot begins turning to
intercept the Selected Course.
3)
The autopilot continues the turn until the aircraft
is established on the Selected Course.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A
SECTION 6 – AUTOMATIC
FLIGHT CONTROL
6-27
Flying a Flight Plan/GPS Course
NOTE: Changing the navigation source cancels
Navigation Mode and causes the flight director
to revert back to Roll Hold Mode (wings rolled
level).
As the aircraft closes on Salina VOR, GPS is used to
navigate the next leg, airway V244. The aircraft is cur-
rently tracking inbound on Airway V4.
Flying a GPS flight plan:
1)
Enter Salina VOR (SLN) into the GPS flight plan.
2)
Transition from VOR to GPS Navigation Mode:
a) Press the
CDI
Softkey until GPS is the selected
navigation source. Due to VOR signal loss,
VOR Navigation Mode is cancelled. The ‘VOR’
annunciation flashes yellow.
Flashes up to 10 sec, Transitions to Roll Hold
Mode Unless NAV Key is Pressed

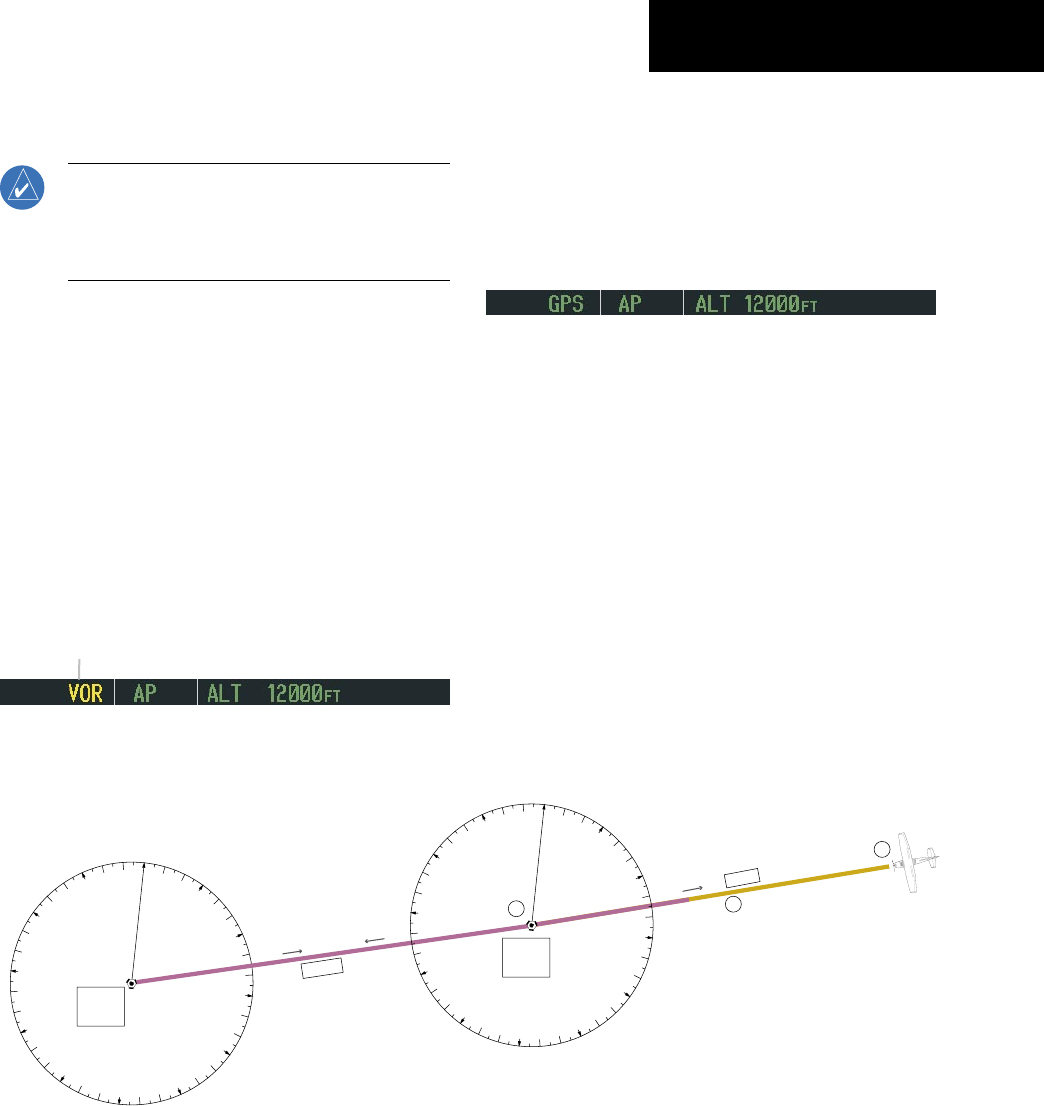

Figure 6-33 Transition to GPS Flight Plan
0
3
6
9
12
15
18
21
24
27
30
33
VOR NAV Mode
GPS NAV Mode
V 244
Hays
VOR
(HYS)
1
2
3
Salina
VOR
(SLN)
V 4
076o
075
o
260o
0
3
6
9
12
15
18
21
24
27
30
33
b) Press the
NAV
Key to activate GPS Navigation
Mode. The autopilot guides the aircraft along
the active flight plan leg.
If the NAV Key is not pressed within 10 seconds
of VOR signal loss, the flight director reverts to
Roll Hold Mode (wings rolled level).
3)
Following the flight plan, the autopilot continues
to steer the aircraft under GPS guidance. Note that
in GPS Navigation Mode, course changes defined
by the flight plan are automatically made without
pilot action required.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
SECTION 6 – AUTOMATIC
FLIGHT CONTROL
6-28
Descent
While flying the arrival procedure, the aircraft is
cleared for descent in preparation for the approach to
KCOS. Three methods are presented for the descent from
12,000 ft:
• Flight Level Change descent – Flight Level Change
Mode can be used to descend to the Selected Alti-
tude at a constant airspeed. This descent method
does not account for flight plan waypoint altitude
constraints.
• Vertical Path Tracking descent – Vertical Path Track-
ing Mode is used to follow the vertical descent path
defined in the GPS flight plan. Altitude constraints
correspond to waypoints in the flight plan. Before
VNV flight control can provide vertical profile
guidance, a VNV flight plan must be entered and
enabled.
• Non-path descent in a VNV scenario – While
the flight director is following VNV guidance for
descent, Pitch Hold, Vertical Speed, or Flight Level
Change Mode can be used to descend to the VNV
Target Altitude prior to reaching the planned TOD.
Flight Level Change Mode is used in the example.
Flight Level Change descent:
1)
Select Flight Level Change Mode:
a) Using the ALT Knob, set the Selected Altitude to
10,000 feet.
Figure 6-34 FLC Descent
Cruise Altitude of 12,000 MSL
Selected Altitude of 10,000 MSL
ALT Mode
FLC Mode
ALT Mode
1
2
3
b) Press the
FLC
Key to activate Flight Level Change
Mode. The annunciation ‘FLC’ appears next
to the Airspeed Reference, which defaults to
the current aircraft airspeed. Selected Altitude
Capture Mode is armed automatically.
2)
Use the NOSE UP/NOSE DN keys or push the CWS
Button while hand-flying the aircraft to adjust the
commanded airspeed while maintaining the same
power, or reduce power to allow descent in Flight
Level Change Mode while the autopilot maintains
the current airspeed.
3)
As the aircraft nears the Selected Altitude, the flight
director transitions to Selected Altitude Capture
Mode, indicated by the green ‘ALTS’ annunciation
flashing for up to 10 seconds.
The green ‘ALT’ annunciation flashes for up to 10
seconds upon reaching 50 feet from the Selected
Altitude; the autopilot transitions to Altitude Hold
Mode and levels the aircraft.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A
SECTION 6 – AUTOMATIC
FLIGHT CONTROL
6-29
Vertical Path Tracking descent to VNV
Target Altitude:
1)
Select VNV flight control:
a) Press the
VNV
Key to arm Vertical Path Tracking
Mode. The white annunciation ‘VPTH’ appears.
b) Using the ALT Knob, set the Selected Altitude
at least 75 feet below the flight plan’s VNV
Target Altitude of 10,000 feet.
If the Selected Altitude is not adequately adjusted
below the VNV Target Altitude, the flight director
commands descent to the Selected Altitude rather
than the VNV Target Altitude once Vertical Path
Tracking Mode becomes active (ALTS is armed
rather than ALTV).
c) If Vertical Path Tracking Mode is armed more
than 5 minutes prior to descent path capture,
acknowledgment is required for the flight director
to transition from Altitude Hold to Vertical Path
Tracking Mode. To proceed with descent path
capture if the white ‘VPTH’ annunciation begins
flashing, do one of the following:
Figure 6-35 VPTH Descent
Cruise Altitude of 12,000 MSL
VNAV Target Altitude of 10,000 MSL ALT Mode
VPTH Mode
Selected Altitude (set below VNAV Target Altitude)
1
2
3
TOD
BOD
ALT Mode
3 nm
Along-track Offset, 3 nm before OPSHN
• Turn the ALT Knob to adjust the Selected
Altitude
• Press the VNV Key
If the descent is not confirmed by the time of
interception, Vertical Path Tracking Mode remains
armed and the descent is not captured.
2)
When the top of descent (TOD) is reached, the flight
director transitions to Vertical Path Tracking Mode
and begins the descent to the VNV Target Altitude.
Intention to capture the VNV Target Altitude is
indicated by the white ‘ALTV’ annunciation.
3)
As the aircraft nears the VNV Target Altitude, the
flight director transitions to VNV Target Altitude
Capture Mode, indicated by the green ‘ALTV’
annunciation flashing for up to 10 seconds.
The green ‘ALT’ annunciation flashes for up to
10 seconds upon reaching 50 feet from the VNV
Target Altitude; the autopilot transitions to Altitude
Hold Mode and levels the aircraft at the vertical
waypoint.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
SECTION 6 – AUTOMATIC
FLIGHT CONTROL
6-30
Non-path descent using Flight Level
Change Mode:
1)
Command a non-path descent using Flight Level
Change Mode:
a) Using the ALT Knob, set the Selected Altitude
below the current aircraft altitude to an alti-
tude (in this case, 9,400 feet) at which to level
off between VNV flight plan altitudes.
b) Press the FLC Key before the planned TOD
during an altitude hold while VPTH is armed.
The Airspeed Reference defaults to the current
aircraft airspeed. Vertical Path Tracking and
Selected Altitude Capture Mode are armed
automatically.
2)
Reduce power to allow descent in Flight Level
Change Mode. The autopilot maintains the
Airspeed Reference.
3)
As the aircraft nears the Selected Altitude, the flight
director transitions to Selected Altitude Capture
Mode, indicated by the green ‘ALTS’ annunciation
flashing for up to 10 seconds.
Figure 6-36 Non-path Descent
HABUK
VNAV Target Altitude of 10,000 MSL
VNAV Target Altitude of 9,000 MSL ALT Mode
Planned Descent Path
Selected Altitude of 9,400 MSL
ALT Mode
VPTH Mode
1
2
3
FLC Mode
4
VPTH Mode
ALT Mode
Selected Altitude
5
TOD
Planned
TOD
BOD
BOD
OPSHN
3 nm
The green ‘ALT’ annunciation flashes for up to 10
seconds upon reaching 50 feet from the Selected
Altitude; the autopilot transitions to Altitude Hold
Mode and levels the aircraft.
4)
When the next TOD is reached, Vertical Path Tracking
becomes active (may require acknowledgment to
allow descent path capture).
5)
As the aircraft nears the VNV Target Altitude, the
flight director transitions to VNV Target Altitude
Capture Mode, indicated by the green ‘ALTV’
annunciation flashing for up to 10 seconds.
The green ‘ALT’ annunciation flashes for up to
10 seconds upon reaching 50 feet from the VNV
Target Altitude; the autopilot transitions to Altitude
Hold Mode and levels the aircraft at the vertical
waypoint.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A
SECTION 6 – AUTOMATIC
FLIGHT CONTROL
6-31
Approach
Flying an ILS approach:
1)
Transition from GPS Navigation Mode to Heading
Select Mode.
a) Load the Runway 35L ILS approach for KCOS
into the flight plan and select ‘VECTORS’ for the
transition.
b) Use the HDG Knob to set the Selected Heading
after getting vectors from ATC.
c) Press the HDG Key. The autopilot turns the
aircraft to the desired heading.
d) Use Heading Select Mode to comply with ATC
vectors as requested.
2)
Arm LOC Approach and Glideslope modes.
a) Ensure the appropriate localizer frequency is
tuned.
b) Press the APR Key when cleared for approach
to arm Approach and Glideslope modes. ‘LOC’
and ‘GS’ appear in white as armed mode
annunciations.
c)
The navigation source automatically switches to LOC.
After this switch occurs, the localizer signal can be
captured and the autopilot and flight director determine
when to begin the turn to intercept the final approach
course.
3)
There are two options available at this point, as the
autopilot flies the ILS approach:
• Push the AP DISC Switch at the decision
height and land the aircraft.
• Use the
GA Switch
to execute a missed
approach.
HDG Mode
LOC APR/
GS Mode
PETEY
1
2
3
GPS NAV Mode
KCOS
PYNON
Figure 6-37 ILS Approach to KCOS
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
SECTION 6 – AUTOMATIC
FLIGHT CONTROL
6-32
Flying a WAAS precision approach:
1)
Arm flight director modes for a precision
approach:
a) Make sure the navigation source is set to GPS
(use CDI Softkey to change navigation source).
b) Load the Runway 35R LPV approach for KCOS
into the flight plan.
2)
Press the APR Key once clearance for approach has
been acquired. GPS Approach Mode is activated
and Glidepath Mode is armed.
3)
Once the glidepath is captured, Glidepath Mode
becomes active. The flight director now provides
guidance to the Missed Approach Point.
4)
There are two options available at this point, as the
autopilot flies the approach:
• Push the AP DISC Switch at the Decision
height and land the aircraft.
• Use the
GA Switch
to execute a missed
approach.
4
GPS APR/
GP Mode
FALUR
1
2
3
GPS NAV Mode
KCOS
HABUK
PYNON
CEGIX
Figure 6-38 LPV Approach to KCOS
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A
SECTION 6 – AUTOMATIC
FLIGHT CONTROL
6-33
Go Around/Missed Approach
NOTE: As a result of calculations performed by
the system while flying the holding pattern, the
display may re-size automatically and the aircraft
may not precisely track the holding pattern.
Flying a missed approach:
1)
Push the GA Switch at the Decision height and
apply full power to execute a missed approach. The
flight director Command Bars establish a nose-up
climb to follow.
Note that when the
GA Switch
is pushed, the missed
approach is activated and the autopilot disconnects,
indicated by the ‘AP’ annunciation flashing yellow
for 5 seconds and the autopilot disconnect aural
alert.
Flashes 5 sec
2)
Start the climb to the prescribed altitude in the
published Missed Approach Procedure (in this case,
10,000 ft).
a) Press the
AP
Key to re-engage the autopilot.
b) If navigating an ILS approach, press the CDI
Softkey to select GPS as the navigation source.
c) Press the
NAV
Key to have the autopilot fly to
the hold.
3)
Use the
ALT Kno
b to set a Selected Altitude to
hold.
To hold the current airspeed during the climb, press
the FLC Key.
As the aircraft nears the Selected Altitude, the
flight director transitions to Selected Altitude
Capture Mode, indicated by the green ‘ALTS’
annunciation flashing for up to 10 seconds.
The green ‘ALT’ annunciation flashes for up to 10
seconds upon reaching 50 feet from the Selected
Altitude; the autopilot transitions to Altitude Hold
Mode and levels the aircraft.
4)
The autopilot flies the holding pattern after the
missed approach is activated. Annunciations are
displayed in the Navigation Status Box, above the
AFCS Status Box.

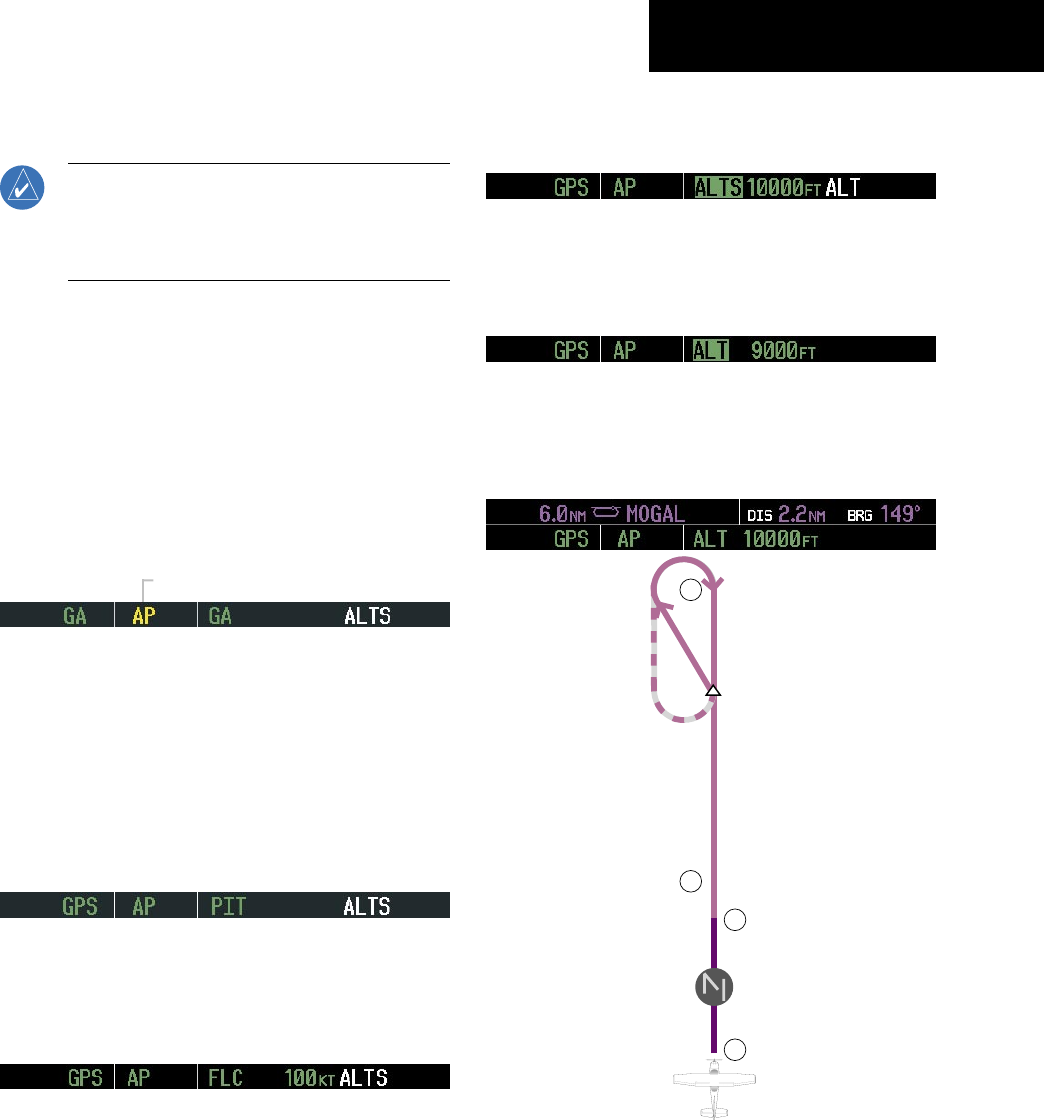

Figure 6-39 Go Around/Missed Approach
3
4
1
2
KCOS
MOGAL
GA Mode
GPS NAV Mode
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
SECTION 6 – AUTOMATIC
FLIGHT CONTROL
6-34
6.6 AFCS ANNUNCIATIONS AND ALERTS
AFCS Status Alerts
The following annunciations (listed in order of increasing priority) can appear on the PFD above the Airspeed and
Attitude indicators. Only one annunciation may occur at a time, and messages are prioritized by criticality.

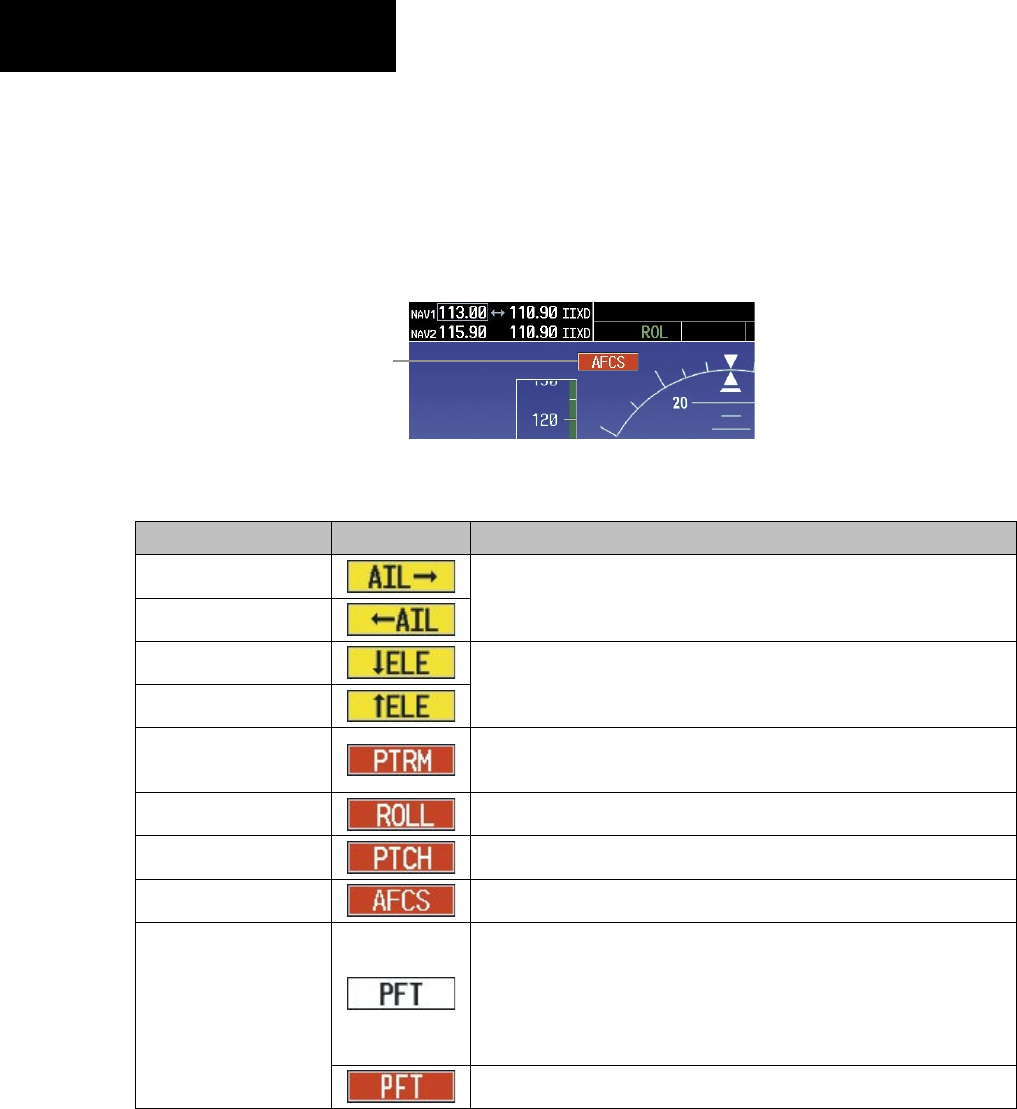

Figure 6-40 AFCS Status Annunciation
AFCS Status
Annunciation
Alert Condition Annunciation Description
Aileron Mistrim Right Roll servo providing sustained force in the indicated direction
Aileron Mistrim Left
Elevator Mistrim Down Pitch servo providing sustained force in the indicated direction
Elevator Mistrim Up
Pitch Trim Failure
(or stuck MET Switch)
If AP engaged, take control of the aircraft and disengage AP
If AP disengaged, move MET switches separately to unstick
Roll Failure Roll axis control failure; AP inoperative
Pitch Failure Pitch axis control failure; AP inoperative
System Failure AP and MET are unavailable; FD may still be available
Preflight Test
Performing preflight system test; aural alert sounds at completion
Do not press the AP DISC Switch during servo power-up and preflight
system tests as this may cause the preflight system test to fail or never
to start (if servos fail their power-up tests). Power must be cycled to
the servos to remedy the situation.
Preflight system test failed; aural alert sounds at failure
Table 6-4 AFCS Status Field Alerts
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A
SECTION 6 – AUTOMATIC
FLIGHT CONTROL
6-35
Overspeed Protection
Overspeed protection is provided in situations where
the flight director cannot acquire and maintain the vertical
Mode Reference for the selected vertical mode without
exceeding the certified maximum autopilot airspeed.
When an autopilot overspeed condition occurs, the
Airspeed Reference appears in a box above the Airspeed
Indicator, flashing a yellow ‘MAXSPD’ annunciation.
Engine power should be reduced and/or the pitch
reference adjusted to slow the aircraft. The annunciation
disappears when the overspeed condition is resolved.
Figure 6-41 Overspeed Annunciation
Airspeed
Indicator
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
SECTION 6 – AUTOMATIC
FLIGHT CONTROL
6-36
Blank Page
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A
SECTION 7 – NAVIGATION
7-1
SECTION 7: NAVIGATION
The majority of the following discussions pertain to
the Multi Function Display. In discussions pertaining to
the PFD, the controls are located on the PFD.
7.1 NAVIGATION MAP PAGE
WARNING: The map display should only be
used for situational awareness. Any map display
indication should be compared with approved
navigation sources.
Select the MAP Page Group
1)
Turn the large
FMS
Knob until
‘
MAP’ is highlighted
in the page group box in the lower right of the MFD
display.
2)
Turn the small
FMS
Knob to select the first MAP
page (indicated by a solid rectangular icon).
Figure 7-1 Navigation Map Page (Enroute)
7.2 DIRECT-TO NAVIGATION
Direct-to Navigation from the MFD
Identifier
Facility Name
City
Map of the
Selected
Waypoint
Bearing Distance
Direct-to
Course
Geographic
Region
VNAV Target Altitude
Offset Before Selected
Direct-to
Map Orientation
Map Range
VNAV
Target Altitude
Activate Field
Figure 7-2 MFD Direct-to Window
Enter a Direct-to Destination
1)
Press the
Direct-to
( )
Key.
2)
Enter the destination waypoint identifier.
3)
Press the
ENT
Key to confirm the identifier. The
‘Activate?’ field is highlighted.
4)
If no altitude constraint or course is desired, press
the
ENT
Key to activate. To enter an altitude
constraint, proceed to step 5.
5)
Turn the large
FMS
Knob to place the cursor over
the ‘VNAV’ altitude field.
6)
Enter the desired altitude.
7)
Press the
ENT
Key. The option to select ‘MSL’ or
‘AGL’ is now displayed.
8)
Turn the small
FMS
Knob to select ‘MSL’ or ‘AGL’.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
SECTION 7 – NAVIGATION
7-2
9)
Press the
ENT
Key. The cursor is placed in the ‘VNV’
offset distance field.
10)
Enter the desired target altitude offset from the
selected Direct-to.
11)
Press the
ENT
Key to highlight ‘Activate?’ or turn the
large
FMS
Knob to highlight the ‘COURSE’ field.
12)
Enter the desired course to the waypoint.
13)
Press the
ENT
Key to highlight ‘ACTIVATE?’.
14)
Press the
ENT
Key again to activate the Direct-to.
Select a Direct-to Destination to a Flight Plan
Waypoint
1)
While navigating an active flight plan, press the
Direct-to
( )
Key.
2)
Turn the small
FMS
Knob to the left to display a list
of flight plan waypoints as shown in Figure 7-3.

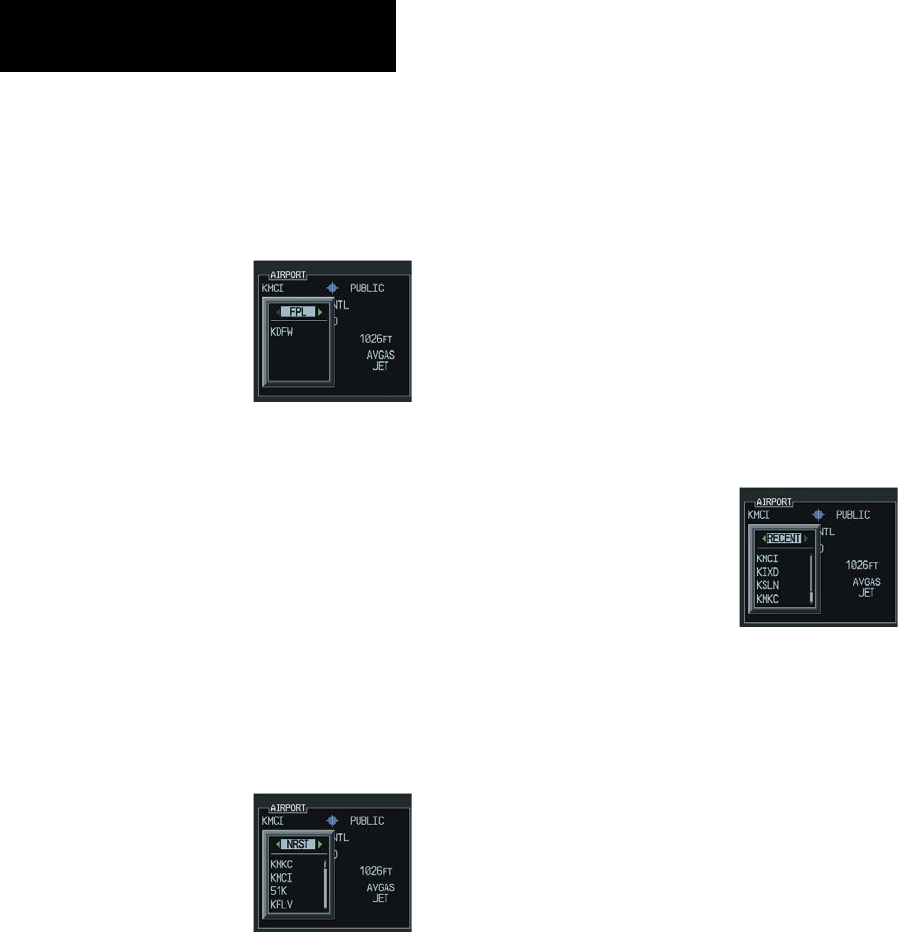

Figure 7-3 Flight Plan Waypoint List (MFD)
3)
Turn the large
FMS
Knob to select the desired
waypoint.
4)
Press the
ENT
Key. The cursor is now displayed on
‘ACTIVATE?’.
5)
Press the
ENT
Key again to activate a Direct-to.
Select a Direct-to Destination to a Nearest
Airport
1)
Press the
Direct-to
( )
Key.
2)
Turn the small
FMS
Knob to the left. Initially, a
flight plan waypoint list is displayed as in Figure
7-3. The list is populated only when navigating a
flight plan.
Figure 7-4 Nearest Airport List (MFD)
3)
Turn the small
FMS
Knob to the right to display the
‘NRST’ airports to the aircraft’s current position as
shown in Figure 7-4.
4)
Turn the large
FMS
Knob to select the desired
airport.
5)
Press the
ENT
Key. The cursor is now displayed on
‘ACTIVATE?’.
6)
Press the
ENT
Key again to activate a Direct-to.
Select a Direct-to Destination to a Recently
Entered Identifier
1)
Press the
Direct-to
( )
Key.
2)
Turn the small
FMS
Knob to the left. Initially, a
flight plan waypoint list is displayed as in Figure
7-3. The list is populated only when navigating a
flight plan.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A
SECTION 7 – NAVIGATION
7-3
Figure 7-5 Recently Entered Waypoints List (MFD)
3)
Turn the small
FMS
Knob to the right to display the
‘RECENT’ waypoints as shown in Figure 7-5.
4)
Turn the large
FMS
Knob to select the desired
airport.
5)
Press the
ENT
Key. The cursor is now displayed on
‘ACTIVATE?’.
6)
Press
ENT
again to activate a Direct-to.
Re-center the CDI to the Destination
Waypoint
Press the Direct-to
( )
Key, followed by
pressing the
ENT
Key twice. If a missed approach
point (MAP) is the current destination, the approach
is canceled.
Manually Define the Active Direct-to
1)
Press the
Direct-to
( )
Key.
2)
Turn the large
FMS
Knob to highlight the ‘VNAV’
altitude field.
3)
Enter the desired altitude.
4)
Press the
ENT
Key. The option to select ‘MSL’ or
‘AGL’ is now displayed.
5)
Turn the small
FMS
Knob to select ‘MSL’ or ‘AGL’.
6)
Press the
ENT
Key. The cursor now highlights the
VNAV offset field.
7)
Enter the desired offset distance.
8)
Press the
ENT
Key.
9)
Turn the large
FMS
Knob to place the cursor in the
‘COURSE’ field.
10)
Enter the desired course.
11)
Press the
ENT
Key. The cursor now highlights
‘ACTIVATE?’.
12)
Press the
ENT
Key again to begin navigation using
the selected destination, altitude constraint, and
course.
Canceling Direct-to Navigation
1)
Press the
Direct-to
( )
Key.
2)
Press the
MENU
Key to display the Direct-to options
menu.
3)
With ‘Cancel Direct-To NAV’ highlighted, press the
ENT
Key. If a flight plan is still active, the G1000
resumes navigating the flight plan along the closest
leg.
Figure 7-6 Canceling Direct-to Navigation
Direct-to Navigation from the PFD
Figure 7-7 PFD Direct-to Window
WPT Symbol
Identifier
Facility Name
WPT Location
Offset Distance
Bearing to WPT Distance from WPT
Course to Selected WPT
VNAV Target Altitude
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
SECTION 7 – NAVIGATION
7-4
Enter a Direct-to Destination
1)
Press the Direct-to Key
( )
.
2)
Turn the large
FMS
Knob to place the cursor in the
desired selection field.
3)
Turn the small
FMS
Knob to begin selecting the
desired identifier, location, etc.
4)
Press the
ENT
Key.
5)
The cursor is now flashing on ‘ACTIVATE?’. If no
altitude constraint or course is desired, press the
ENT
Key to activate. To enter an altitude constraint,
proceed to step 6.
6)
Turn the large
FMS
Knob to place the cursor over
the ‘VNAV’ altitude field.
7)
Turn the small
FMS
Knob to enter the desired VNAV
altitude.
8)
Press the
ENT
Key. The option to select ‘MSL’ or
‘AGL’ is now displayed.
9)
Turn the small
FMS
Knob to select ‘MSL’ or ‘AGL’.
10)
Press the
ENT
Key. The cursor is placed in the
‘VNAV’ offset distance field.
11)
Turn the small
FMS
Knob to enter the desired target
altitude offset from the selected Direct-to.
12)
Press the
ENT
Key to highlight ‘Activate?’ or turn the
large
FMS
Knob to highlight the ‘COURSE’ field.
13)
Turn the small
FMS
Knob to enter the desired course
to the waypoint.
14)
Press the
ENT
Key to highlight ‘ACTIVATE?’.
15)
Press the
ENT
Key again to activate the Direct-to.
Select a Direct-to Destination to a Flight Plan
Waypoint
1)
While navigating an active flight plan, press the
Direct-to
( )
Key.
2)
Turn the small
FMS
Knob to the left to display a list
of flight plan waypoints as shown in Figure 7-8.
Figure 7-8 Flight Plan Waypoint List (PFD)
3)
Turn the large
FMS
Knob to select the desired
waypoint.
4)
Press the
ENT
Key. The cursor is now displayed on
‘ACTIVATE?’.
5)
Press the
ENT
Key again to activate a Direct-to.
Select a Direct-to Destination to a Nearest
Airport
1)
Press the
Direct-to
( )
Key.
2)
Turn the small
FMS
Knob to the left. Initially, a
flight plan waypoint list is displayed as in Figure
7-8. The list is only populated when navigating a
flight plan.
Figure 7-9 Nearest Airport List (PFD)
3)
Turn the small
FMS
Knob to the right to display the
‘NRST’ airports to the aircraft’s current position as
shown in Figure 7-9.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A
SECTION 7 – NAVIGATION
7-5
4)
Turn the large
FMS
Knob to select the desired
airport.
5)
Press the
ENT
Key. The cursor is now displayed on
‘ACTIVATE?’.
6)
Press the
ENT
Key again to activate a Direct-to.
Select a Direct-to Destination to a Recently
Entered Identifier
1)
Press the
Direct-to
( )
Key.
2)
Turn the small
FMS
Knob to the left. Initially, a
flight plan waypoint list is displayed as in Figure
7-8. The list is only populated when navigating a
flight plan.
Figure 7-10 Recently Entered Waypoints List (PFD)
3)
Turn the small
FMS
Knob to the right to display the
‘RECENT’ waypoints as shown in Figure 7-10.
4)
Turn the large
FMS
Knob to select the desired
airport.
5)
Press the
ENT
Key. The cursor is now displayed on
‘ACTIVATE?’.
6)
Press the
ENT
Key again to activate a Direct-to.
Cancelling Direct-to Navigation
1)
Press the Direct-to
( )
Key.
2)
Press the
MENU
Key to display the Options Window.
The cursor flashes on ‘Cancel Direct-to NAV’.
3)
Press the
ENT
Key to cancel the direct-to.
7.3 NAVIGATING AN EXAMPLE FLIGHT
PLAN
NOTE: The following example flight plan is
for instructional purposes only. All database
information depicted should be considered not
current.
The following discussion is an example of navigating a
flight plan with the WAAS capable GPS system while the
G1000 provides vertical guidance through descents. A
lateral flight plan (LNAV) would be navigated in much the
same way, but would not include vertical guidance when
the final approach course is active.
The example is a flight plan from KMKC to KCOS filed
using the TIFTO2 departure, various Victor Airways, and
the DBRY1 arrival with the transition at TBE. Enroute
altitude will be 12,000 feet. An LPV (WAAS) approach
will be selected for runway 35R. A missed approach will
be executed at the Missed Approach Point (MAP). A few
enroute changes are demonstrated.
NOTE: If the loaded arrival procedure has
published altitudes contained in the navigation
database, these are for turbojet aircraft only.
Accept or change these values as desired to meet
the requirements of the clearance.
1)
Prior to departure, the TIFTO2 departure, the
airways, and the DBRY1 arrival at KCOS are loaded.
See the Procedures section for loading departures
and arrivals. Note the magenta arrow in Figure
7-11 indicating the active departure leg.
After takeoff, ATC assigns a heading of 240º.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
SECTION 7 – NAVIGATION
7-6
2)
Figure 7-11 shows the aircraft on the assigned
heading of 240º. ‘TERM’ (Terminal) is the current
CDI flight phase displayed on the HSI indicating 1.0
nm CDI scaling.

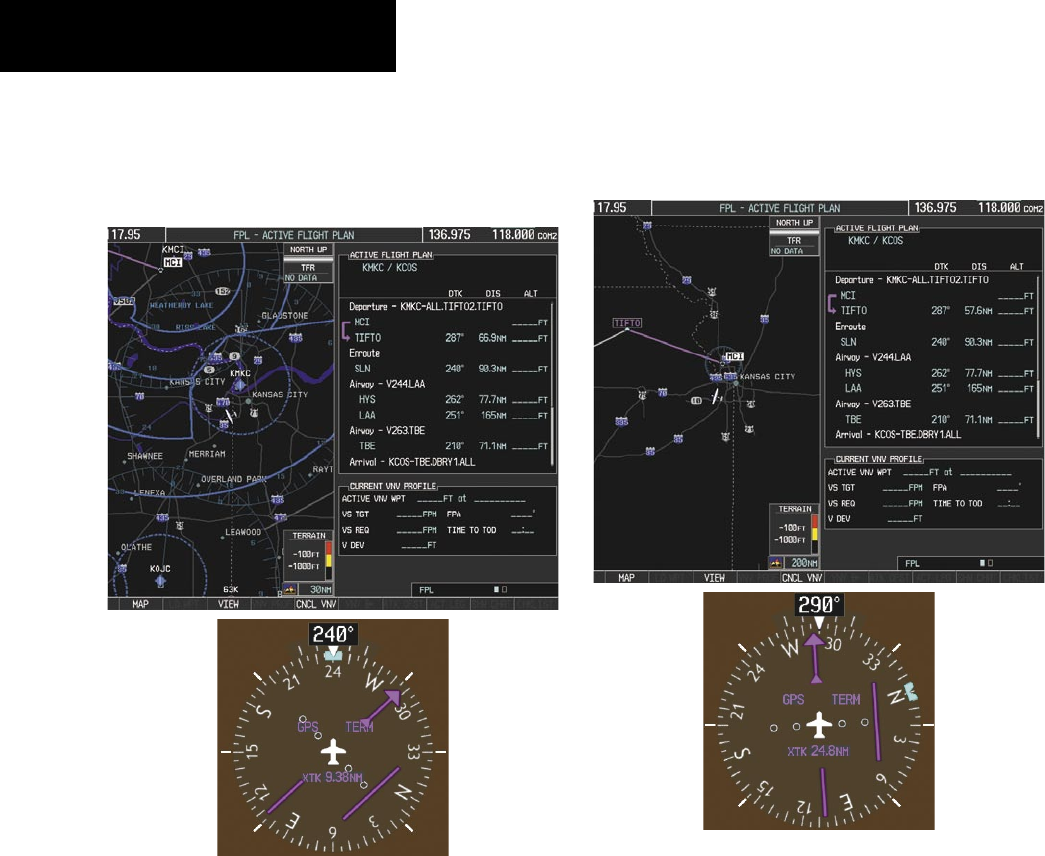

Figure 7-11 Assigned Heading of 240º
3)
ATC now assigns routing to join V4. A heading of
290º is assigned to intercept V4. The aircraft turns
to heading 290° as seen in Figure 7-12.
Figure 7-12 Assigned Heading of 290º
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A
SECTION 7 – NAVIGATION
7-7
4)
V4 is now entered into the flight plan.
a) Press the FMS Knob to activate the cursor.
b) The desired entry point for V4 (TOP) must now be
entered. Turn the large FMS Knob to highlight
the desired flight plan insertion point as shown
in Figure 7-13. The V4 entry point (TOP) is placed
immediately above the highlighted waypoint
(SLN).
Figure 7-13 Begin Adding V4 to the Flight Plan
c) Turn the small FMS Knob to display the Waypoint
Information Window. Enter the desired beginning
point for V4 leg, in this example, Topeka VOR
(TOP) is used as shown in Figure 7-14.
Figure 7-14 Entering V4 Entry Point
d) Press the ENT Key. TOP is now inserted into the
flight plan as in Figure 7-15.
Figure 7-15 TOP Inserted into the Flight Plan
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
SECTION 7 – NAVIGATION
7-8
e) With SLN still highlighted as in Figure 7-15, turn
the small FMS Knob to the right. The Waypoint
Information Page is displayed and the LD AIRWY
Softkey is now available.
f) Press the LD AIRWY Softkey to display the list
of available airways for TOP as seen in Figure
7-16.
Figure 7-16 List of Available Airways for TOP
g) Turn either FMS Knob to highlight V4 in the list
as seen in Figure 7-16.
h) Press the ENT Key. The list of V4 airway exit
points is now displayed as in Figure 7-17.
Figure 7-17 List of Available Exits for V4
i) If necessary, turn either FMS Knob to select the
desired exit. In this case Salina VOR (SLN) is
selected as seen in Figure 7-17.
j) Press the ENT Key. The selected airway and exit
are displayed the prompt “LOAD?” highlighted
as in Figure 7-18.
Figure 7-18 Ready to Load V4
k) Press the ENT Key.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A
SECTION 7 – NAVIGATION
7-9
l) V4 is now loaded into the flight plan as shown
in Figure 7-19.
Figure 7-19 V4 is Loaded in the Flight Plan
5)
V4 is now made the active leg of the flight plan.
a) Press the FMS Knob to activate the cursor.
b) Turn the large FMS Knob to highlight SLN. The
TO waypoint of the leg is selected in order to
activate the leg.
c) Press the ACT LEG Softkey. The confirmation
window is now displayed as in Figure 7-20. Note
the TOP to SLN leg is actually part of V4.
Figure 7-20 Comfirm Active Leg
d) Verify the displayed leg is the desired leg and
press the ENT Key. Note in Figure 7-21, the
magenta arrow in the flight plan window and
magenta line on the map indicating V4 is now the
active flight plan leg. Note also, the crosstrack
(XTK) distance on the HSI indicating 16.9 nm
to the intercept point. Note the phase of flight
remained in Terminal (TERM) mode up to this
point because a departure leg was active. Since
a leg after the departure is now active, the current
CDI flight phase is ENR (Enroute) and CDI scaling
has changed to 2.0 nm.
Figure 7-21 V4 Now Active Leg
6)
The aircraft continues on heading 290º. When the
crosstrack distance is less than 2.0 nm, the XTK
disappears from the HSI and the CDI is positioned
on the last dot indicating a 2.0 nm distance from
the centerline of the next course.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
SECTION 7 – NAVIGATION
7-10
7)
As the CDI approaches center, the aircraft turns
onto the active leg as seen in Figure 7-22.
Figure 7-22 Turn on to Active Leg
8)
At SLN, Victor Airway 244 (V244) is intercepted.
Turn prompts are displayed in the PFD Navigation
Status Box as seen in Figure 7-23.
Figure 7-23 Turn to Intercept V244
9)
As seen in Figure 7-24, V244 is now the active flight
plan leg.
Figure 7-24 V244 Now Active Leg
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A
SECTION 7 – NAVIGATION
7-11
10)
At Lamar VOR (LAA) V263 is intercepted. See Figure
7-25.
Figure 7-25 HYS to LAA Leg Active
11)
ATC grants clearance to proceed direct to OPSHN
intersection to begin the arrival procedure and
issues a crossing altitude restriction of 10,000 feet
at OPSHN.
a) Press the FMS Knob to activate the cursor.
b) Turn the large FMS Knob to select OPSHN in the
flight plan list.
c) Press the
Direct-to
( )
Key. The Direct-to
Window is now displayed as shown in Figure
7-26.
Figure 7-26 Direct To OPSHN
d) Turn the large FMS Knob to place the cursor in
the VNV altitude field as shown in Figure 7-27.
Figure 7-27 Enter VNV Altitude
e) An altitude of 10,000 feet is entered as requested
by ATC.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
SECTION 7 – NAVIGATION
7-12
f) Press the ENT Key. The cursor is now displayed in
the VNV offset field as shown in Figure 7-28.
Figure 7-28 Enter VNV Offset Distance
g) Enter the offset, or distance from the waypoint
at which the selected altitude will be reached. In
this case, three miles prior to OPSHN is entered.
In other words, the G1000 gives vertical guidance
so the aircraft will arrive at an altitude of 10,000
feet three miles prior to OPSHN.
h) Press the ENT Key twice to activate the direct-to.
Note, in Figure 7-29, the magenta arrow in the
Active Flight Plan Window indicating the direct-to
OPSHN after the offset waypoint for OPSHN. The
preceding offset waypoint indicates the offset
distance and altitude that was previously entered.
The remaining waypoints in the loaded arrival
procedure have no database specified altitudes,
therefore, dashes are displayed. Keep the CDI
centered and maintain a track along the magenta
line to OPSHN.
Note the Direct-to waypoint is within the loaded
arrival procedure, therefore, phase of flight scaling
for the CDI changes to Terminal Mode and is
annunciated by displaying ‘TERM’ on the HSI.
NOTE: If the loaded arrival procedure has
waypoints with altitude constraints retrieved
from the database, those altitudes are displayed
as white numerals. This indicates the altitudes will
not be used by the system for vertical guidance
until manually accepted by the pilot. To accept
the displayed altitude, place the cursor over the
altitude and press the ENT Key. The altitude entry
then changes to light blue numerals, indicating
the altitude will now be used by the system for
providing vertical guidance.
Figure 7-29 Direct-to Active
12)
The aircraft is proceeding to OPSHN. The expected
approach is the RNAV LPV approach to runway 35R,
so it is selected.
a) Press the
PROC
Key to display the Procedures
Window.
If the GPS system is not WAAS capable, or WAAS
is not available, the LPV approach will not be
displayed in the list of available approaches.
Selecting the LNAV approach for runway 35R gives
vertical guidance up to the IAF.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A
SECTION 7 – NAVIGATION
7-13
b) ‘SELECT APPROACH’ should be highlighted as
shown in Figure 7-30.
Figure 7-30 Procedures Window
c) Press the ENT Key. A list of available approaches
for the destination airport is displayed as in Figure
7-31.
Figure 7-31 List of Available Approaches
d) Turn either
FMS
Knob to select the LPV approach
for 35R as shown in Figure 7-31.
e) Press the ENT Key. A list of available transitions
for the selected approach is displayed as shown
on Figure 7-32.
Figure 7-32 List of Available Transitions
f) Turn either FMS Knob to select the desired
transition. In this case, the Initial Approach Fix
(IAF) at HABUK is used.
g) Press the ENT Key.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
SECTION 7 – NAVIGATION
7-14
h) With ‘LOAD?’ highlighted, again press the ENT
Key. The selected approach is added to the flight
plan as seen in Figure 7-33.
Figure 7-33 Loaded Approach
13)
Note the altitude constraints associated with each
of the approach waypoints as seen in Figure 7-33.
These altitudes are loaded from the database and
are displayed as light blue text, indicating these
values are “designated” for use in computing
vertical deviation guidance.
If it is desirable not to use the displayed altitude
for calculating vertical deviation guidance, perform
the following:
a) Press the FMS Knob to activate the cursor.
b) Turn the small FMS Knob to highlight the desired
altitude.
c) Press the CLR Key.
d) Press the FMS Knob to deactivate the cursor.
After making the altitude “non-designated”, it is
displayed as white text.
Altitude constraint values associated with the
Final Approach Fix (FAF) and waypoints beyond
the FAF cannot be designated for vertical
guidance. These altitude values are always
displayed as white text, as in Figure 7-34. Vertical
guidance from the FAF to the Missed Approach
Point (MAP) is given using the WAAS GPS altitude
source, therefore, the displayed altitude values
are for reference only.
Figure 7-34 Vertical Guidance is Active to the FAF
14)
As the aircraft approaches OPSHN, it may be
desirable to adjust how fast, or steep, the upcoming
descent will be. The default Flight Path Angle (FPA)
is -2.5 degrees and a required vertical speed is
computed to maintain the -2.5 FPA. To change the
vertical flight path, perform the following steps.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A
SECTION 7 – NAVIGATION
7-15
a) Press the VNV PROF Softkey to place the cursor
in the target vertical speed field (VS TGT) as
shown in Figure 7-35.
b) At this point, the descent vertical speed can be
selected, or the FPA can be selected. Turn the
large FMS Knob to select the desired selection
field, then turn the small FMS Knob to enter the
desired value.
Note the information now displayed in the
‘CURRENT VNV PROFILE’ box. Also, note the
offset waypoint and a gray circle labeled ‘TOD’
are now displayed on the map. The gray circle
marks the Top of Descent (TOD). In this example,
after passing the TOD point, vertical guidance
is provided that results in a -3.0 degree FPA
descent to an altitude of 10,000 feet at the offset
waypoint.
Figure 7-35 Adjusting the Descent
c) Press the ENT Key.
15)
As seen in Figure 7-36, the aircraft is approaching
TOD. Note the target vertical speed required to
reach the selected altitude. The Vertical Deviation
Indicator (VDI) and the Required Vertical Speed
Indicator (RVSI) are now displayed on the PFD as
shown in Figure 7-37.
Figure 7-36 Approaching Top of Descent (TOD)
Figure 7-37 VDI & RVSI Upon Reaching Top of Descent (TOD)
Required
Vertical
Speed
Indicator
(RVSI)
Vertical
Deviation
Indicator
(VDI)
Target
Altitude
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
SECTION 7 – NAVIGATION
7-16
16)
Upon reaching TOD, a descent vertical speed is
established which places the VSI pointer in line
with the RVSI as shown in Figure 7-38.
Figure 7-38 VDI & RVSI Showing Correctly Established Descent
Align Actual
Vertical Speed
with Required
Vertical Speed
Keep Vertical
Deviation Pointer
Centered
17)
When the aircraft is one minute from the bottom
of descent (BOD) this is annunciated as shown
in Figure 7-39. Upon reaching the OPSHN offset
waypoint (three miles before OPSHN), the aircraft
will be at 10,000 feet.
Figure 7-39 Approaching Bottom of Descent (BOD) at OPSHN
18)
The aircraft is approaching OPSHN. The upcoming
turn and next heading is annunciated at the top
left of the PFD as seen in Figure 7-40. Initiate the
turn and maneuver the aircraft on a track through
the turn radius to intercept the magenta line for
the OPSHN to FSHER leg and center the CDI.
Figure 7-40 Turn to intercept OPSHN to FSHER Leg
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A
SECTION 7 – NAVIGATION
7-17
19)
After passing OPSHN, the next leg of the arrival
turns magenta as shown in Figure 7-41. The
magenta arrow in the flight plan list now indicates
the OPSHN to FSHER leg of the arrival procedure is
now active.
Figure 7-41 Tracking the OPSHN to FSHER Leg
20)
The flight continues through the arrival procedure
to PYNON (see Figure 7-42). At a point 31 nautical
miles from the destination airport, the phase of
flight scaling for the CDI changes to Terminal Mode
and is annunciated by displaying ‘TERM’ on the
HSI.
There will be a descent to HABUK in the next leg.
Note the TOD point on the map. Annunciations
for the upcoming turn and descent, as well as
the VDI and RVSI, appear on the PFD as the flight
progresses.
Figure 7-42 Approaching PYNON
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
SECTION 7 – NAVIGATION
7-18
21)
Upon passing PYNON the approach procedure
automatically becomes active. The approach may
be activated at any point to proceed directly to the
IAF. In this example, the aircraft has progressed
through the final waypoint of the arrival and the
flight plan has automatically sequenced to the IAF
as the active leg, activating the approach procedure
(see Figure 7-43).
Figure 7-43 Approach Leg is Now Active
To manually activate the approach procedure,
perform the following steps:
a) Press the
PROC
Key.
b) Turn the large
FMS
Knob to highlight ‘ACTIVATE
APPROACH’ as shown in Figure 7-44.
Figure 7-44 Activate Missed Approach
c) Press the
ENT
Key to activate the approach.
22)
The IAF is the next waypoint. At the TOD, establish
a descent vertical speed as previously discussed in
Step 16. The aircraft altitude will be 9,000 feet
upon reaching HABUK.
Figure 7-45 Descending Turn to the Initial Approach Fix (IAF)
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A
SECTION 7 – NAVIGATION
7-19
23)
After crossing FALUR the next waypoint is the
FAF. The flight phase changes to LPV on the HSI
indicating the current phase of flight is in Approach
Mode and the approach type is LPV. CDI scaling
changes accordingly and is used much like a localizer
when flying an ILS approach. The RVSI is no longer
displayed and the VDI changes to the Glidepath
Indicator (as shown in Figure 7-46) when the final
approach course becomes active.
Figure 7-46 Descending to the FAF
The descent continues through the FAF (CEGIX)
using the Glidepath Indicator, as one would use
a glideslope indicator, to obtain an altitude “AT”
7,800 feet at the FAF. Note the altitude restriction
lines over and under (‘At’) the altitude in the ‘ALT’
field in Figure 7-46.
24)
After crossing CEGIX, the aircraft continues
following the glidepath to maintain the descent to
“AT or ABOVE” 6,370 feet at the Missed Approach
Point (MAP) (RW35R) as seen in Figure 7-47.
Figure 7-47 Descending to the Missed Approach Point
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
SECTION 7 – NAVIGATION
7-20
In this missed approach procedure, the fix
immediately following the MAP (in this case
‘6368FT’) is not part of the published procedure.
It is simply a fix that defines a leg which guides
the aircraft along the runway centerline until
the required altitude to make the first turn on
the missed approach is exceeded. In this case,
if the aircraft altitude is below the specified
altitude (6,368 feet) after crossing the MAP, a
direct-to is established to this fix until an altitude
of 6,368 feet reached. After reaching 6,368
feet, a direct-to is established to the published
fix (in this case MOGAL). If the aircraft altitude
is above the specified altitude after crossing the
MAP, a direct-to is established to the published
fix (MOGAL) to begin the missed approach
procedure. The altitude constraint value defaults
to 400 feet AGL when the fix is not part of the
published procedure.
In some missed approach procedures this altitude
fix may be part of the published procedure. For
example, the procedure dictates a climb to 5,500
feet, then turn left and proceed to the Missed
Approach Hold Point (MAHP). In this case, the
altitude fix would be labeled ‘5500FT’. Again, if
the aircraft altitude is lower than this prescribed
altitude, a direct-to is established to this fix when
the missed approach procedure is activated.
25)
Upon reaching the MAP, it is decided to execute a
missed approach. Automatic waypoint sequencing is
suspended past the MAP. Press the
SUSP
Softkey on
the PFD to resume automatic waypoint sequencing
through the missed approach procedure.
A direct-to is initiated to MOGAL, which is the
Missed Approach Hold Point (MAHP) as seen in
Figure 7-48. The aircraft is climbing to 10,000
feet. The CDI flight phase now changes from LPV
to MAPR as seen on the HSI.
Figure 7-48 Missed Approach Active
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A
SECTION 7 – NAVIGATION
7-21
26)
The aircraft continues climbing to “AT or ABOVE”
10,000 feet at MOGAL. A holding pattern is
established at the MAHP (MOGAL) as shown in
Figure 7-49.

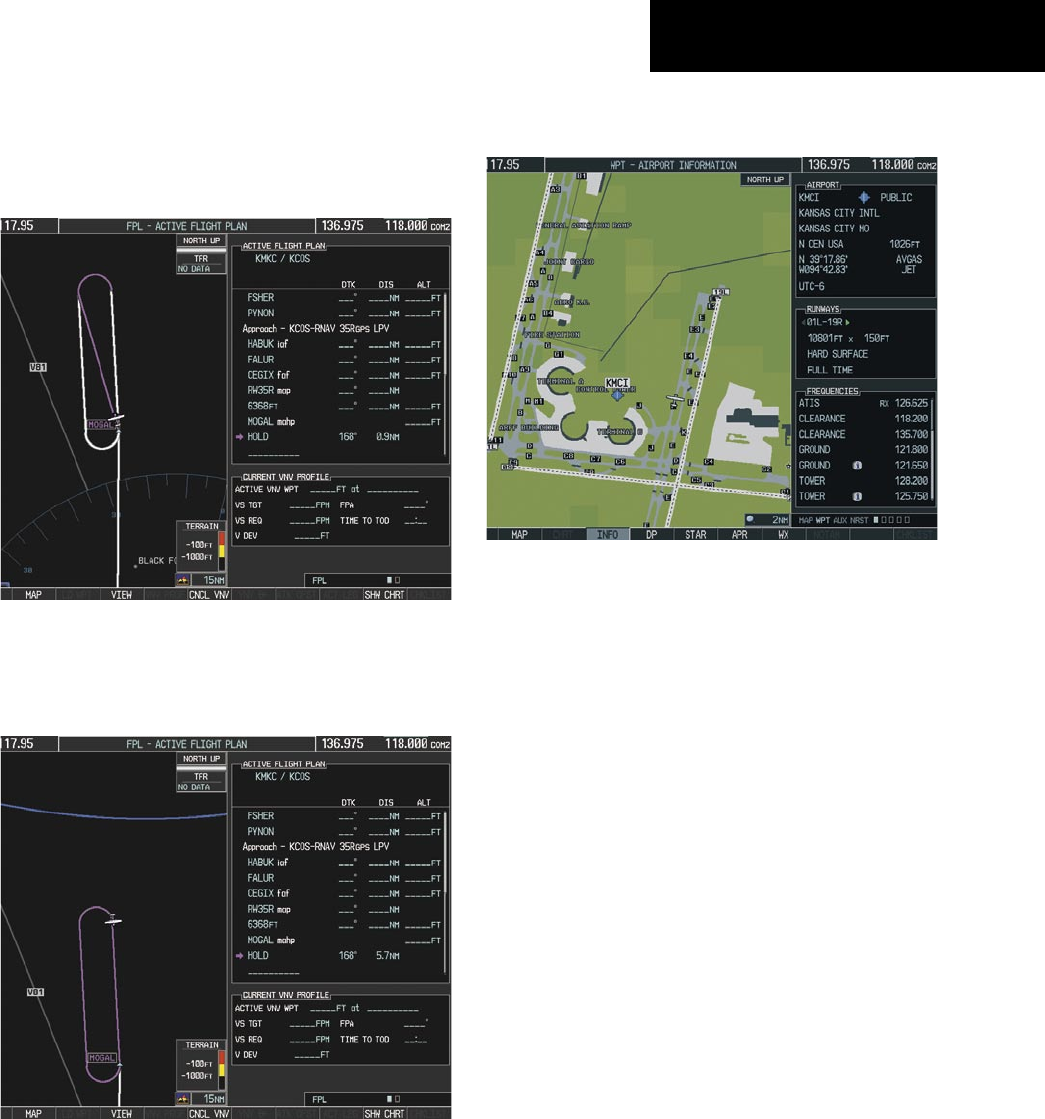

Figure 7-49 Establishing the Holding Pattern
27)
The aircraft maintains 10,000 feet while following
the magenta line through the hold as in Figure
7-50.
Figure 7-50 Hold Established
7.4 AIRPORT INFORMATION
Figure 7-51 Airport Information Page
Select the Airport Information Page
1)
Turn the large
FMS
Knob to select the ‘WPT’ page
group.
2)
Turn the small
FMS
Knob to select the first
rectangular page icon. Initially, information for the
airport closest to the aircraft’s present position is
displayed.
Select an Airport from the Database
1)
With the Airport Information Page displayed, press
the
FMS
Knob to activate the cursor.
2)
Enter the desired airport identifier.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
SECTION 7 – NAVIGATION
7-22
Select an Airport from the Active Flight Plan
1)
With the Airport Information Page displayed, press
the
FMS
Knob to activate the cursor.
2)
Turn the small
FMS
Knob to the left to display a list
of flight plan airports as shown in Figure 7-52.
Figure 7-52 Flight Plan Airport List
3)
Turn the large
FMS
Knob to select the desired
airport.
4)
Press the
ENT
Key.
Select a Nearest Airport
1)
With the Airport Information Page displayed, press
the
FMS
Knob to activate the cursor.
2)
Turn the small
FMS
Knob to the left. Initially, a
flight plan airport list is displayed as in Figure 7-52.
The list is populated only when navigating a flight
plan.
Figure 7-53 Nearest Airport List
3)
Turn the small
FMS
Knob to the right to display the
‘NRST’ airports to the aircraft’s current position as
shown in Figure 7-53.
4)
Turn the large
FMS
Knob to select the desired
airport.
5)
Press the
ENT
Key.
Select a Recently Entered Airport Identifier
1)
With the Airport Information Page displayed, press
the
FMS
Knob to activate the cursor.
2)
Turn the small
FMS
Knob to the left. Initially, a flight
plan waypoint list is displayed as in Figure 7-52.
The list is populated only when navigating a flight
plan.
3)
Turn the small
FMS
Knob to the right to display the
‘RECENT’ airports as shown in Figure 7-54.
Figure 7-54 Recently Entered Airports List
4)
Turn the large
FMS
Knob to select the desired
airport.
5)
Press the
ENT
Key.
Select an Airport by Facility Name or City
Location
1)
With the Airport Information Page displayed, press
the
FMS
Knob to activate the cursor.
2)
Turn the large
FMS
Knob to the right to select the
facility name or location (city) field.
3)
Enter the desired facility name or city.
5)
Press the ENT Key. If there are duplicate names
in the database, a list is displayed from which to
choose the desired location.
6)
To remove the flashing cursor, press the
FMS
Knob.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A
SECTION 7 – NAVIGATION
7-23
Access Runway Information
1)
With the Airport Information Page displayed, press
the
FMS
Knob to activate the cursor.
2)
Turn the large
FMS
Knob to place the cursor on the
‘RUNWAYS’ identifier field.
3)
Turn the small
FMS
Knob in the direction of the
green arrow to display the next runway for the
selected airport. Continue turning the small
FMS
Knob to select the desired runway.
4)
To remove the flashing cursor, press the
FMS
Knob.
Access Frequency Information
1)
With the Airport Information Page displayed, press
the
FMS
Knob to activate the cursor.
2)
Turn the large
FMS
Knob to move the cursor to the
Frequencies box.
3)
Turn either
FMS
Knob to scroll through the list,
placing the cursor on the desired frequency. If a
listed frequency has sector or altitude restrictions,
the frequency is preceded by an info (‘i’) designation.
Press the
ENT
Key to view the information. The
following may be displayed with the frequency:
• ‘TX’ – transmit only
• ‘RX’ – receive only
• ‘PT’ – part time frequency
4)
Press the
ENT
Key to place the selected frequency
in the standby field of the COM or NAV box.
5)
To remove the cursor, press the
FMS
Knob.
7.5 INTERSECTION INFORMATION
Select the Intersection Information Page
1)
Turn the large
FMS
Knob to select the ‘WPT’ page
group.
2)
Turn the small
FMS
Knob to select the second
rectangular page icon.
Figure 7-55 Intersection Information Page
Access Information on an Intersection
1)
With the Intersection Information Page displayed,
press the
FMS
Knob to activate the cursor.
2)
Enter an intersection identifier and press the
ENT
Key.
3)
Press the
FMS
Knob to remove the flashing
cursor.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
SECTION 7 – NAVIGATION
7-24
7.6 NDB INFORMATION
Figure 7-56 NDB Information Page
Select the NDB Information Page
1)
Turn the large
FMS
Knob to select the ‘WPT’ page
group.
2)
Turn the small
FMS
Knob to select the third
rectangular page icon
View Information on a Specific NDB
1)
With the NDB Information Page displayed, press
the
FMS
Knob to activate the cursor.
2)
Turn the large
FMS
Knob to highlight the desired
selection field (identifier, name or closest city).
3)
Enter an identifier, name or city and press the
ENT
Key.
4)
Press the
FMS
Knob to remove the flashing
cursor.
7.7 VOR INFORMATION
Figure 7-57 VOR Information Page
Select the VOR Information Page
1)
Turn the large
FMS
Knob to select the ‘WPT’ page
group.
2)
Turn the small
FMS
Knob to select the fourth
rectangular page icon.
Access Information on a VOR
1)
With the VOR Information Page displayed, press
the
FMS
Knob to activate the cursor.
2)
Turn the large
FMS
Knob to highlight the desired
selection field (identifier, name or closest city).
3)
Enter an identifier, name or city and press the
ENT
Key.
4)
The ‘FREQUENCY’ field is now highlighted. If
desired, press the
ENT
Key to place the frequency
in the NAV receiver standby field.
5)
Press the
FMS
Knob to remove the flashing
cursor.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A
SECTION 7 – NAVIGATION
7-25
7.8 USER WAYPOINT INFORMATION
PAGE
See the Flight Planning section for a discussion on
creating and modifying user defined waypoints.
7.9 NEAREST AIRPORTS

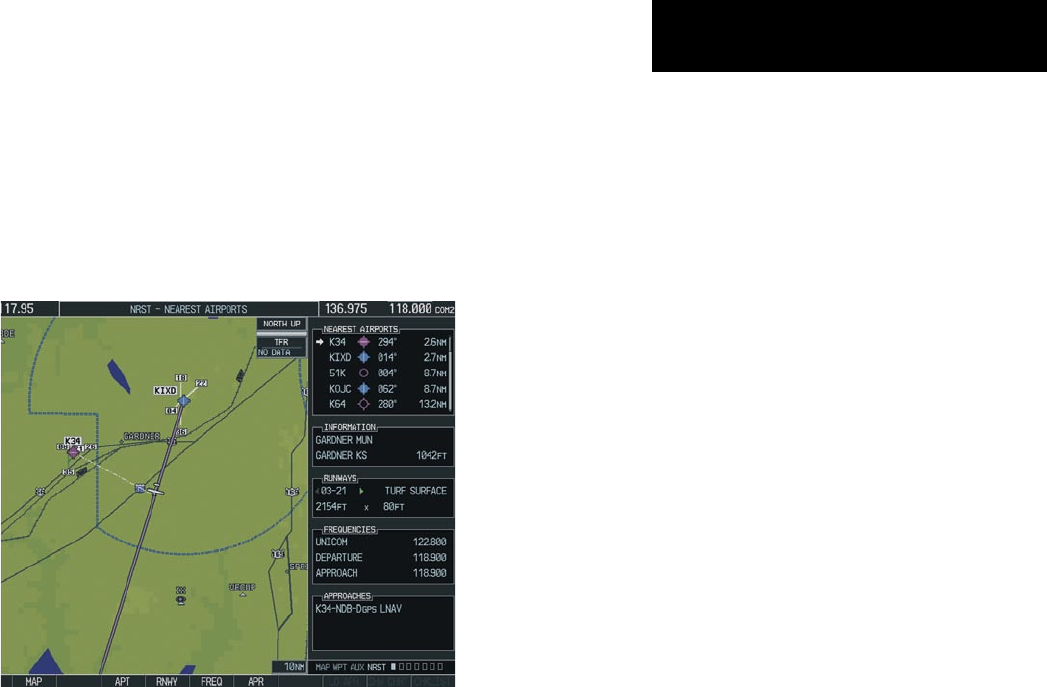

Figure 7-58 Nearest Airports Page
Nearest Airport Information on the MFD
Select the Nearest Airports Page
1)
Turn the large
FMS
Knob to select the ‘NRST’ page
group.
2)
Turn the small
FMS
Knob to select the first
rectangular page icon.
Initially, the closest airport to the aircraft’s present
position is displayed.
Access Information on a Specific Airport
1)
With the Nearest Airports Page displayed, press the
APT
Softkey to place the cursor in the ‘NEAREST
AIRPORTS’ field. The first airport in the nearest
airports list is highlighted.
2)
Turn either
FMS
Knob to highlight the desired
airport.
3)
Press the
FMS
Knob to remove the flashing
cursor.
Access Runway Information for the Selected
Airport
1)
With the Nearest Airports Page displayed, press the
RNWY
Softkey to place the cursor in the ‘RUNWAYS’
field.
2)
Turn the small
FMS
Knob to select the desired
runway.
3)
Press the
FMS
Knob to remove the flashing
cursor.
Quickly Tune the COM Transceiver to a
Nearby Airport Frequency
1)
With the Nearest Airports Page displayed, press
the
FREQ
Softkey to place the cursor in the
‘FREQUENCIES’ field.
2)
Turn either
FMS
Knob to select the desired
frequency.
3)
Press the
ENT
Key. The selected frequency is placed
in the COM standby frequency field.
4)
Press the
Frequency Transfer
Key to place the
frequency in the active field.
5)
Press the
FMS
Knob to remove the flashing
cursor.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
SECTION 7 – NAVIGATION
7-26
Nearest Airports Information on the PFD
Primary COM Frequency
Identifier
Airport Symbol
Bearing TO Distance
Runway Length
Figure 7-59 Nearest Airports Window
Press the NRST Softkey to display the PFD Nearest Air-
ports Window.
View Information on a Specific Airport in the
List
1)
With the Nearest Airports Window displayed, turn
either
FMS
Knob to place the cursor on the desired
airport identifier.
2)
Press the
ENT
Key to display airport information.
3)
Press the
ENT
Key again (cursor is on ‘BACK’) to
return to the list.
Load an Airport COM Frequency into the
Active COM
1)
With the Nearest Airports Window displayed, turn
either
FMS
Knob to place the cursor on the desired
airport frequency shown in the window.
2)
Press the
ENT
Key and the selected frequency is
placed in the COM standby frequency field.
3)
Press the
Frequency Transfer
Key to make the
frequency the active frequency.
7.10 NEAREST INTERSECTIONS
Figure 7-60 Nearest Intersections Page
Select the Nearest Intersections Page
1)
Turn the large
FMS
Knob to select the ‘NRST’ page
group.
2)
Turn the small
FMS
Knob to select the second
rectangular page icon.
View Information on the Nearest Intersection
1)
With the Nearest Intersections Page displayed, press
the
FMS
Knob to activate the cursor.
2)
Turn either
FMS
Knob to select the desired
intersection.
3)
Press the
FMS
Knob to remove the flashing
cursor.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A
SECTION 7 – NAVIGATION
7-27
7.11 NEAREST NDB
Figure 7-61 Nearest NDB Page
Select the Nearest NDB Page
1)
Turn the large
FMS
Knob to select the ‘NRST’ page
group.
2)
Turn the small
FMS
Knob to select the third
rectangular page icon.
Access Information on a Specific NDB
1)
With the Nearest NDB Page displayed, press the
FMS
Knob to activate the cursor.
2)
Turn either
FMS
Knob to select the desired NDB.
The remaining information on the Nearest NDB
Page pertains to the selected NDB.
3)
Press the
FMS
Knob to remove the flashing
cursor.
7.12 NEAREST VOR
Figure 7-62 Nearest VOR Page
Select the Nearest VOR Page
1)
Turn the large
FMS
Knob to select the ‘NRST’ page
group.
2)
Turn the small
FMS
Knob to select the fourth
rectangular page icon.
View Information on the Nearest VOR
1)
With the Nearest VOR Page displayed, press the
VOR
Softkey to place the cursor in the ‘NEAREST
VOR’ box.
2)
Turn either
FMS
Knob to select a VOR.
3)
Press the
FMS
Knob to remove the flashing
cursor.
Select and Load a VOR Frequency
1)
With the Nearest VOR Page displayed, press the
FREQ
Softkey to highlight the VOR frequency in the
‘FREQUENCY’ field.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
SECTION 7 – NAVIGATION
7-28
2)
Press the
ENT
Key. The selected VOR frequency is
placed in the NAV standby frequency field.
3)
Press the
FMS
Knob to remove the flashing
cursor.
7.13 NEAREST USER WAYPOINT
Figure 7-63 Nearest User Waypoints Page
Select the Nearest User Waypoint Page
1)
Turn the large
FMS
Knob to select the ‘NRST’ page
group.
2)
Turn the small
FMS
Knob to select the fifth
rectangular page icon.
Select a Nearest User Waypoint
1)
With the Nearest User Waypoint Page displayed,
press the
FMS
Knob to activate the cursor. If
any previously entered User Waypoints are within
200 nm, they are displayed with the closest listed
first.
2)
Turn either
FMS
Knob to select the desired waypoint.
The remaining information on the Nearest User
Waypoint Page pertains to the selected Nearest
User Waypoint.
3)
Press the
FMS
Knob to remove the flashing
cursor.
7.14 NEAREST FREQUENCIES
Figure 7-64 Nearest Frequencies Page
Select the Nearest Frequencies Page
1)
Turn the large
FMS
Knob to select the ‘NRST’ page
group.
2)
Turn the small
FMS
Knob to select the sixth
rectangular page icon.
Select and Load the Nearest ARTCC, FSS, or
Weather Frequency
1)
With the Nearest Frequencies Page displayed, press
the
ARTCC, FSS,
or
WX
Softkey to place the cursor
in the appropriate field.
2)
Turn the
FMS
Knobs to select the desired facility or
frequency.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A
SECTION 7 – NAVIGATION
7-29
3)
Press the
ENT
Key to load the frequency into the
COM frequency standby field.
4)
Press the
FMS
Knob to remove the flashing
cursor.
7.15 NEAREST AIRSPACES
Figure 7-65 Nearest Airspaces Page
Select the Nearest Airspaces Page
1)
Turn the large
FMS
Knob to select the ‘NRST’ page
group.
2)
Turn the small
FMS
Knob to select the seventh
rectangular page icon.
Airspace Alerts Box
• If the projected course takes the aircraft inside an
airspace within the next ten minutes, ‘Ahead’ is
displayed.
• If the aircraft is within two nautical miles of an
airspace and the current course takes the aircraft
inside, ‘Ahead < 2 nm’ is displayed.
• If the aircraft is within two nautical miles of an
airspace and the current course will not take the
aircraft inside, ‘Within 2 nm’ is displayed.
• If the aircraft has entered an airspace, ‘Inside’ is
displayed.
View Additional Details for a Listed Airspace
1)
With the Nearest Airspace Page displayed, press
the
FMS
Knob to activate the cursor.
2)
Turn the large
FMS
Knob to scroll through the list,
highlighting the desired airspace.
3)
Press the
ALERTS
Softkey to place the cursor in the
‘AIRSPACE ALERTS’ field.
4)
Turn either
FMS
Knob to select the desired
airspace.
5)
Press the
FMS
Knob to remove the flashing
cursor.
View and Quickly Load the Frequency for a
Controlling Agency
1)
With the Nearest Airspace Page displayed, press the
FREQ
Softkey to place the cursor in ‘FREQUENCIES’
field.
2)
Turn either
FMS
Knob to select the desired
frequency.
3)
Press the
ENT
Key to load the frequency into the
COM frequency standby field.
4)
Press the
FMS
Knob to remove the flashing
cursor.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
SECTION 7 – NAVIGATION
7-30
Blank Page
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A 8-1
SECTION 8 – FLIGHT PLANNING
SECTION 8: FLIGHT PLANNING
The following discussions pertain to the Multi Function
Display, unless otherwise indicated.
8.1 USER DEFINED WAYPOINTS
Figure 8-1 User WPT Information Page
Select the User WPT Information Page
1)
Turn the large
FMS
Knob to select the ‘WPT’ page
group.
2)
Turn the small
FMS
Knob to select the fifth
rectangular page icon.
Create a New User Waypoint
1)
With the User Waypoint Information Page displayed,
press the
NEW
Softkey. A waypoint is created at
the current aircraft position.
2)
Turn the small
FMS
Knob to enter first character of
the waypoint name.
3)
Turn the large
FMS
Knob to move the cursor to the
next character field.
4)
Repeat steps 2 and 3 until the desired name is
entered.
5)
Press the
ENT
Key.
6)
Press the
ENT
Key again to accept the new waypoint
identifier.
7)
The cursor is now in the ‘REFERENCE WAYPOINTS’
field. If desired, the waypoint can be defined by a
reference waypoint. Turn the
FMS
Knobs to enter
the position coordinates or the radial and distance
from the reference waypoint.
8)
Press the
FMS
Knob to remove the flashing
cursor.
Modify a User Waypoint
1)
With the User Waypoint Information Page displayed,
press the
FMS
Knob to activate the cursor.
2)
Turn the large
FMS
Knob to move the cursor to the
desired field and turn the small
FMS
Knob to make
changes.
3)
Press the
ENT
Key to accept the changes.
4)
Press the
FMS
Knob to remove the flashing
cursor.
Delete a User Waypoint
1)
Select the User Waypoint Information Page and
press the
MENU
Key to display the User Waypoint
Information Page Options or press the
DELETE
Softkey.
2)
Turn the large
FMS
Knob to select ‘Delete User
Waypoint’ and press the
ENT
Key. The message
‘Would you like to delete the user waypoint’ is
displayed. With ‘YES’ highlighted, press the
ENT
Key.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
8-2
SECTION 8 – FLIGHT PLANNING
Create User Waypoints from the Navigation
Map Page
1)
With the Navigation Map Page displayed, push
the
Joystick
to activate the panning function. The
target pointer is displayed at the present aircraft
position.
2)
Move the
Joystick
to place the pointer at the
desired position
3)
Press the
ENT
Key. The User Waypoint Information
Page is now displayed with the captured position.
If the pointer is inside an airspace, a dialog box will
appear giving the choice to review the airspace
information, or create a waypoint.
4)
Turn the
FMS
Knobs to select a waypoint name.
5)
Press the
ENT
Key to accept the selected name. The
first reference waypoint field is highlighted.
6)
If desired, turn the
FMS
Knobs to enter the identifier
of the reference waypoint and the radial and
distance to the reference waypoint. Press the
ENT
Key to accept.
7)
Press the
FMS
Knob to remove the flashing cursor or
press the GO BACK Softkey to return to the map.
8.2 VIEWING THE ACTIVE FLIGHT PLAN
Press the
FPL
Key.
Figure 8-2 Active Flight Plan Window on the PFD
Figure 8-3 Active Flight Plan Page on the MFD
8.3 ACTIVATE A STORED FLIGHT PLAN
1)
Press the
FPL
Key and turn the small
FMS
Knob to
display the Flight Plan Catalog Page.
Figure 8-4 Flight Plan Catalog Page
2)
Press the
FMS
Knob to activate the cursor.
3)
Turn the large
FMS
Knob to highlight the desired
flight plan and press the
ACTIVE
Softkey.
4)
With ‘OK’ highlighted, press the
ENT
Key to activate
the flight plan. To cancel the flight plan activation,
turn the large
FMS
Knob to highlight ‘CANCEL’ and
press the
ENT
Key.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A 8-3
SECTION 8 – FLIGHT PLANNING
8.4 ACTIVATE A FLIGHT PLAN LEG
1)
From the Active Flight Plan Page, press the
FMS
Knob to activate the cursor and turn the large
FMS
Knob to highlight the desired destination
waypoint.
2)
Press the
ACT LEG
Softkey (using MFD only).
Or
:
Press the
MENU
Key, select the ‘Activate Leg’ option
from the page menu and press the
ENT
Key. This
step must be used when activating a leg from
the PFD.
3)
With ‘Activate’ highlighted, press the
ENT
Key.
Figure 8-5 Activate Flight Plan Leg Confirmation
8.5 STOP NAVIGATING A FLIGHT PLAN
1)
Press the
FPL
Key to display the Active Flight Plan
Page.
2)
Press the
MENU
Key to display the Page Menu
window.
Figure 8-6 Delete Flight Plan
3)
Turn the large
FMS
Knob to highlight ‘Delete Flight
Plan’ and press the
ENT
Key. With ‘OK’ highlighted,
press the
ENT
Key to deactivate the flight plan. This
will not delete the stored flight plan, only the active
flight plan.
Figure 8-7 Delete Flight Plan Confirmation
8.6 INVERT ACTIVE FLIGHT PLAN
1)
From the Active Flight Plan Page, press the
MENU
Key to display the Page Menu.
2)
Turn the large
FMS
Knob to highlight ‘Invert Flight
Plan’ and press the
ENT
Key. The original flight
plan remains intact in its flight plan catalog storage
location.
3)
With ‘OK’ highlighted, press the
ENT
Key to invert
the flight plan.
Figure 8-8 Invert Flight Plan
Figure 8-9 Invert Flight Plan Confirmation
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
8-4
SECTION 8 – FLIGHT PLANNING
8.7 CREATE A NEW FLIGHT PLAN
Create a New Flight Plan Using the MFD
1)
Press the
FPL
Key and turn the small
FMS
Knob to
display the Flight Plan Catalog Page.
2)
Press the
NEW
Softkey to display a blank flight plan
page for the first empty storage location.
Figure 8-10 Create FPL on MFD
3)
Turn the small
FMS
Knob to display the Waypoint
Information Window.
4)
Turn the small
FMS
Knob to the right enter the
first character of the identifier of the departure
waypoint. Turning the knob to the left accesses
the FPL, NRST, and RECENT waypoint list.
5)
Turn the large
FMS
Knob to move the cursor to the
next character field. Repeat steps 4 and 5 until the
desired identifier has been entered.
Figure 8-11 Waypoint Info Window
6)
Press the
ENT
Key.
7)
Repeat step number 3, 4, and 5 to enter the
identifier for each additional flight plan waypoint.
8)
When all waypoints have been entered, press the
FMS
Knob to return to the Flight Plan Catalog Page.
The new flight plan is now in the list.
Create a New Flight Plan Using the PFD
NOTE: A flight plan cannot be entered using the
PFD if another flight plan is active.
NOTE: After the first leg is entered (using the
PFD only), it is immediately activated.
1)
Press the
FPL
Key, then press the
FMS
Knob to
activate the cursor.
2)
Turn the small
FMS
Knob to enter the first letter of
the destination waypoint identifier. Turn the large
FMS
Knob to the right to move the cursor to the
next character position.
3)
Repeat step 2 to spell out the rest of the waypoint
identifier.
4)
Press the
ENT
Key and the cursor is now ready for
entering of the next flight plan waypoint.
5)
Repeat steps 2 through 4 to enter the identifier for
each additional flight plan waypoint.
6)
Once all waypoints have been entered, press the
FMS
Knob remove the cursor. The new flight plan
is now active.
Figure 8-12 Creating Flight Plan on the PFD
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A 8-5
SECTION 8 – FLIGHT PLANNING
8.8 ENTER AN AIRWAY IN A FLIGHT
PLAN
1)
Press the
FPL
Key to display the active flight plan
or display a stored flight plan.
2)
Press the
FMS
Knob to activate the cursor.
3)
Turn the large
FMS
Knob to highlight the waypoint
before which the airway is to be entered.
Figure 8-13 Airway Insertion Point
4)
Turn the small
FMS
Knob to display the Waypoint
Information Window and begin entering the desired
airways entry point.
Figure 8-14 Load Airway Entry Point
5)
When the desired entry point is entered, press the
ENT Key.
Figure 8-15 Airway Entry Point Loaded
6)
Turn the small
FMS
Knob to display the Waypoint
Information Window and begin entering the desired
airway identifier.
Figure 8-16 Enter Airway Identifier
7)
When the desired airway is entered, press the
LD
AIRWY
Softkey.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
8-6
SECTION 8 – FLIGHT PLANNING
8)
Turn either
FMS
Knob to scroll through the list of
available exit points.
Figure 8-17 Select Desired Exit Point
9)
With the desired exit point highlighted, press the
ENT
Key.
10)
With ‘LOAD?’ highlighted, press the
ENT
Key.
Figure 8-18 Airway Added to Flight Plan
8.9 LOAD A DEPARTURE
See the Procedures section for a discussion on loading
and activating departure procedures.
8.10 LOAD AN ARRIVAL
See the Procedures section for a discussion on loading
and activating arrival procedures.
8.11 LOAD AN APPROACH
See the Procedures section for a discussion on loading
and activating approach procedures.
8.12 REMOVE A DEPARTURE, ARRIVAL,
APPROACH, OR AIRWAY FROM A
FLIGHT PLAN
1)
With the Active or Stored Flight Plan Page displayed,
press the
FMS
Knob to activate the cursor.
2)
Turn the large
FMS
Knob to highlight the title for
the approach, departure, arrival, or airway to be
deleted. Titles appear in white directly above the
procedure’s waypoints.
3)
Press the
CLR
Key to display a confirmation window.
With ‘OK’ highlighted, press the
ENT
Key to remove
the selected procedure or airway.
8.13 STORE A FLIGHT PLAN
1)
After creating a flight plan on either the PFD or
MFD, it may be saved by pressing the
MENU
Key.
2)
Turn the large
FMS
Knob to highlight ‘Store Flight
Plan’ and press the
ENT
Key.
3)
With ‘OK’ highlighted, press the
ENT
Key to store
the flight plan.
Figure 8-19 Store Flight Plan Confirmation
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A 8-7
SECTION 8 – FLIGHT PLANNING
8.14 EDIT A STORED FLIGHT PLAN
1)
Press the
FPL
Key and turn the small
FMS
Knob to
display the Flight Plan Catalog Page.
2)
Press the
FMS
Knob to activate the cursor.
3)
Turn the large
FMS
Knob to highlight the desired
flight plan and press the
ENT
Key.
4)
Turn the large
FMS
Knob to place the cursor in the
desired locations for entering changes.
5)
Turn the
FMS
Knobs to make the desired changes,
then press the
ENT
Key.
6)
Press the
FMS
Knob to return to the Flight Plan
Catalog Page.
8.15 DELETE A WAYPOINT FROM THE
FLIGHT PLAN
1)
With either the Active or Stored Flight Plan
displayed, press the
FMS
Knob to activate the
cursor.
2)
Turn the large
FMS
Knob to select the waypoint to
be deleted.
3)
Press the
CLR
Key to display a ‘REMOVE (Wpt
Name)’ confirmation window.
Figure 8-20 Remove Waypoint Confirmation
4)
With ‘OK’ highlighted, press the
ENT
Key to remove
the waypoint. To cancel the delete request, turn the
large
FMS
Knob to highlight ‘CANCEL’ and press
the
ENT
Key.
5)
Once all changes have been made, press the
FMS
Knob to remove the cursor.
8.16 INVERT AND ACTIVATE A STORED
FLIGHT PLAN
1)
From the Flight Plan Catalog Page, press the
FMS
Knob to activate the cursor.
2)
Turn the large
FMS
Knob to highlight the desired
flight plan.
3)
Press the
INVERT
Softkey. ‘Invert and activate
stored flight plan?’ is displayed.
4)
With ‘OK’ highlighted, press the
ENT
Key. The
selected flight plan is now inverted and activated.
The original flight plan remains intact in its flight
plan catalog storage location.
8.17 COPY A FLIGHT PLAN
1)
From the Flight Plan Catalog press the
FMS
Knob
to activate the cursor
2)
Turn the large
FMS
Knob to highlight the flight plan
to be copied.
3)
Press the
COPY
Softkey.
4)
A ‘Copy to flight plan #?’ confirmation window is
displayed. With ‘OK’ highlighted, press the
ENT
Key
to copy the flight plan. To cancel, turn the large
FMS
Knob to highlight ‘CANCEL’ and press the
ENT
Key.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
8-8
SECTION 8 – FLIGHT PLANNING
8.18 DELETE A FLIGHT PLAN
1)
From the Flight Plan Catalog Page, press the
FMS
Knob to activate the cursor.
2)
Turn the large
FMS
Knob to highlight the flight plan
to be deleted.
3)
Press the
DELETE
Softkey.
4)
A ‘Delete flight plan #?’ confirmation window is
displayed. With ‘OK’ highlighted, press the
ENT
Key to delete the flight plan. To cancel, turn the
large
FMS
Knob to highlight ‘CANCEL’ and press
the
ENT
Key.
8.19 GRAPHICAL FLIGHT PLAN CREATION
1)
Press the
FPL
Key to display the Active Flight Plan
Page.
2)
Press the
Joystick
to activate the map pointer. Use
the
Joystick
to move the pointer to the desired
point on the map to be inserted as a waypoint in
the flight plan.
3)
Press the
LD WPT
Softkey. The selected waypoint is
inserted at the end of the flight plan. The default
user waypoint naming is USR000, USR001, USR002
and so on.
4)
If the selected waypoint is to be placed elsewhere in
the flight plan, press the
FMS
Knob to activate the
cursor. Waypoints are inserted
ABOVE
the cursor.
5)
After placing the cursor at the desired point in the
list of waypoints, press the
LD WPT
Softkey.
6)
To change the user waypoint name, follow the
procedure for modifying a user waypoint.
8.20 TRIP PLANNING
1)
Turn the large
FMS
Knob to select the ‘AUX’ page
group.
2)
Turn the small
FMS
Knob to select the first
rectangular page icon.
3)
The current page mode is displayed at the top of the
page: ‘AUTOMATIC’ or ‘MANUAL’. To change the
page mode, press the
AUTO
or
MANUAL
Softkey.
Figure 8-21 Trip Planning Page
Starting WPT Ending WPT
4)
For Direct-to planning, press the
WPTS
Softkey and
verify that the starting waypoint field indicates
‘P.POS’ (present position). If necessary, press the
MENU
Key and select ‘Set WPT to Present Position’
to display ‘P.POS’. Press the
ENT
Key and the
flashing cursor moves to the ending waypoint field.
Turn the
FMS
Knobs to enter the identifier of the
ending waypoint and press the
ENT
Key to accept
the waypoint.
Or
:
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A 8-9
SECTION 8 – FLIGHT PLANNING
For point-to-point planning, turn the
FMS
Knobs to
enter the identifier of the starting waypoint. Once
the waypoints identifier is entered, press the
ENT
Key to accept the waypoint. The flashing cursor
moves to the ending waypoint. Again, turn the
FMS
Knobs to enter the identifier of the ending waypoint
and press the
ENT
Key to accept the waypoint.
Or
:
For flight plan leg planning, press the
FPL
Softkey (at
the bottom of the display) and turn the small
FMS
Knob to select the desired flight plan (already stored
in memory), by number. Turn the large
FMS
Knob
to highlight the ‘LEG’ field and turn the small
FMS
Knob to select the desired leg of the flight plan, or
select ‘CUM’ to apply trip planning calculations to
the entire flight plan. Selecting ‘FPL 00’ displays the
active flight plan. If the active flight plan is selected,
‘REM’ is an available option to display planning
data for the remainder of the flight plan.
NOTE: The Page Mode must be set to MANUAL
to perform the following steps.
5)
Turn the large
FMS
Knob to highlight the departure
time (DEP TIME) field.
NOTE: The departure time on the Trip Planning
Page is used for preflight planning. Refer to the
Utility Page for the actual flight departure time.
6)
Turn the
FMS
Knobs to enter the departure time.
Press the
ENT
Key when finished. (Departure time
may be entered in local or UTC time, depending
upon system settings).
7)
Turn the
FMS
Knobs to enter the fuel flow. Press
the
ENT
Key when finished. Note that in automatic
page mode, fuel flow is provided by the system.
8)
The flashing cursor moves to the fuel on board field.
Turn the
FMS
Knobs to modify the fuel on board.
Press the
ENT
Key when finished. In ‘AUTOMATIC’
mode, fuel onboard is provided by the entry made
in ‘GAL REM’ on the EIS System Page.
9)
The flashing cursor moves to the calibrated airspeed
field. Turn the
FMS
Knobs to enter a calibrated
airspeed. Press the
ENT
Key when finished.
10)
The flashing cursor moves to the indicated altitude
field. Turn the
FMS
Knobs to enter indicated
altitude. Press the
ENT
Key when finished.
11)
The flashing cursor moves to the barometric
pressure field. Turn the
FMS
Knobs to enter the
altimeter barometric pressure setting. Press the
ENT
Key when finished.
12)
The flashing cursor moves to the total air
temperature field. Turn the
FMS
Knobs to enter
the total air temperature. Press the
ENT
Key when
finished.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
8-10
SECTION 8 – FLIGHT PLANNING
Blank Page
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A 9-1
SECTION 9 – PROCEDURES
SECTION 9: PROCEDURES
9.1 ARRIVALS AND DEPARTURES
Load and Activate a Departure Procedure
1)
Press the
PROC
Key.
2)
Turn the large
FMS
Knob to highlight ‘SELECT
DEPARTURE’.
3)
Press the
ENT
Key.
4)
If a flight plan is active, the departure airport
is displayed as the default. A list of available
departures is also displayed. If no flight plan is
active, use the
FMS
Knobs to enter the identifier
of the desired airport. Press the
ENT
Key.
5)
Turn the large
FMS
Knob to highlight the Departure
field. Turn the small
FMS
Knob to display a list of
available departures.
6)
Turn either
FMS
Knob to select the desired departure
and press the
ENT
Key.
Figure 9-1 Select Departure
7)
A list of runways may be displayed for the departure.
Turn either
FMS
Knob to select the desired runway
and press the
ENT
Key.
8)
A list of available transitions is displayed for the
departure. Turn either
FMS
Knob to highlight the
desired transition waypoint and press the
ENT
Key.
Figure 9-2 Select Departure Transition
9)
With ‘LOAD?’ highlighted, press the
ENT
Key. The
departure is active when the flight plan is active.
Load and Activate An Arrival Procedure
NOTE: If any portion of an arrival procedure is
the active leg of a flight plan, the existing arrival
procedure must be deleted before changing to a
different arrival procedure.
1)
Press the
PROC
Key.
2)
Turn the large
FMS
Knob to highlight ‘SELECT
ARRIVAL’.
3)
Press the
ENT
Key.
4)
If a flight plan is active, the destination airport is
displayed as the default. A list of available arrivals
is also displayed. If no flight plan is active, use the
FMS
Knobs to enter the identifier of the desired
airport. Press the
ENT
Key.
5)
Turn the large
FMS
Knob to highlight the Arrival
field. Turn the small
FMS
Knob to display a list of
available arrivals.
6)
Turn either
FMS
Knob to select the desired arrival
and press the
ENT
Key.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
9-2
SECTION 9 – PROCEDURES
Figure 9-3 Select Arrival
7)
A second window is displayed listing available
transitions for the arrival. Turn either
FMS
Knob to
highlight the desired transition waypoint and press
the
ENT
Key.
Figure 9-4 Select Arrival Transition
8)
A third window is displayed listing the available
runways. Turn either
FMS
Knob to select the desired
runway and press the
ENT
Key.
Figure 9-5 Select Arrival Runway
9)
With ‘LOAD?’ highlighted, press the
ENT
Key. If a
flight plan is active, the selected arrival procedure is
inserted after the destination airport and becomes
part of the active flight plan. If no flight plan is active
when the arrival is loaded, the arrival procedure
becomes the active flight plan.
9.2 APPROACHES
NOTE: If certain GPS parameters (WAAS, RAIM,
etc.) are not available, some published approach
procedures for the desired airport may not be
displayed in the list of available approaches.
Not all approaches in the database are approved for GPS
use. When selecting an approach, a “GPS” designation to
the right of the procedure name indicates the procedure
can be flown using the GPS receiver. Some procedures do
not have this designation, meaning the GPS receiver can
be used for supplemental navigation guidance only. If the
GPS receiver cannot be used for primary guidance, the ap-
propriate navigation receiver must be used for the selected
approach (e.g., VOR or ILS). The final course segment of
ILS approaches, for example, must be flown by tuning the
Nav receiver to the proper frequency and selecting that
Nav receiver on the CDI.
The G1000 GPS allows for flying LNAV, LNAV/VNAV
(WAAS only), and LPV (WAAS only) approaches accord-
ing to the published chart. The active appoach type is
annunciated on the HSI as shown in the following table:
HSI
ANNUNCIATION
DESCRIPTION
LNAV GPS approach using published
LNAV minima.
LNAV+V* GPS approach using published
LNAV minima. Advisory vertical
guidance is provided.
L/VNAV* GPS approach using published
LNAV/VNAV minima.
LPV* GPS approach using published
LPV minima.
* WAAS systems only
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A 9-3
SECTION 9 – PROCEDURES
Load and/or Activate an Approach Procedure
1)
Press the
PROC
Key.
2)
Turn the large
FMS
Knob to highlight ‘SELECT
APPROACH’.
3)
Press the
ENT
Key.
4)
If a flight plan is active, the destination airport
is displayed as the default. A list of available
approaches is also displayed. If no flight plan is
active, use the
FMS
Knobs to enter the identifier of
the desired airport. Press the
ENT
Key.
5)
Turn the large
FMS
Knob to highlight the Approach
field. Turn the small
FMS
Knob to display a list of
available approaches.
Figure 9-6 Selecting an Approach Procedure
6)
Turn either
FMS
Knob to highlight the desired
approach. Press the
ENT
Key.
7)
The cursor moves to the TRANSITIONS field. Turn
the large
FMS
Knob to highlight the desired
transition waypoint and press the
ENT
Key. (The
“Vectors” option assumes vectors will be received
to the final course segment of the approach and
will provide navigation guidance relative to the final
approach course.)
Figure 9-7 Selecting an Approach Transition
8)
Turn the large
FMS
Knob to highlight ‘Activate?’
and press the
ENT
Key to activate the approach.
Activating the approach initiates a direct-to for
IAF and the G1000 immediately begins navigating
to the IAF. Selecting ‘Load?’ adds the procedure
to the flight plan without immediately using it for
navigation guidance.
Activate An Approach in the Active Flight Plan
1)
With the Navigation Map Page displayed, press the
PROC
Key.
2)
Turn the large
FMS
Knob to highlight ‘ACTIVATE
APPROACH’.
3)
Press the
ENT
Key. The approach procedure is now
active and a direct-to is initiated to the IAF.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
9-4
SECTION 9 – PROCEDURES
Blank Page
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A 10-1
SECTION 10 – HAZARD
AVOIDANCE
SECTION 10: HAZARD AVOIDANCE
10.1 CUSTOMIZING THE HAZARD
DISPLAYS ON THE NAVIGATION MAP
1)
With the Navigation Map Page displayed, press
the
MENU
Key to display the Navigation Map
Page Menu. The cursor flashes on the ‘Map Setup’
option.
2)
Press the
ENT
Key. The Map Setup Menu is
displayed. Turn the small
FMS
Knob to select the
‘Weather’ group (Figure 10-2) to customize the
display of weather features. Select ‘Traffic’ to
customize the display of traffic.
3)
Press the small
FMS
Knob to return to the
Navigation Map Page.
Figure 10-1 Page Menu
Figure 10-2 Map Setup Menu
Figure 10-3 Map Setup Group List
10.2 STORMSCOPE® (OPTIONAL)
WARNING: The Stormscope system is not
intended to be used for hazardous thunderstorm
penetration. Weather information on the G1000
MFD is approved for weather avoidance only.
Refer to the WX-500 Pilot’s Guide for detailed
operation.
Displaying Stormscope Lightning Data on the
Navigation Map Page
1)
Press the
MAP
Softkey.
2)
Press the
STRMSCP
Softkey. Press the
STRMSCP
Softkey again to remove Stormscope Lightning Data
from the Navigation Map Page.
Figure 10-4 In-Flight Navigation Map Page Displaying
Stormscope Lightning Data
Lightning Age Symbol
Strike is less than 6 seconds old
Strike is between 6 and 60 seconds old
Strike is between 1 and 2 minutes old
Strike is between 2 and 3 minutes old
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
10-2
SECTION 10 – HAZARD
AVOIDANCE
At a map range of less than 25 nm, Stormscope
lightning data is not displayed, but can still be present.
The presence of Stormscope lightning data is indicated
by the annunciation ‘LTNG < 25 nm’ in the upper right
corner.
Figure 10-5 Lightning Display Range Annunciation
Select ‘cell’ or ‘strike’ as the Stormscope
lightning mode:
1)
With the Weather Group selected, press the
ENT
Key. The cursor flashes on ‘STRMSCP LTNG’.
2)
Turn the large
FMS
Knob to select ‘STRMSCP
MODE’.
3)
Turn the small
FMS
Knob to display the ‘Cell/Strike’
window.
4)
Turn either
FMS
Knob to select ‘Cell’ or ‘Strike’.
Press the
ENT
Key.
5)
Push the
FMS
Knob to return to the Navigation
Map Page.
Clear Stormscope lightning data from the
Navigation Map Page:
1)
Press the
MENU
Key (with the Navigation Map Page
displayed).
2)
Turn either
FMS
Knob to highlight the ‘Clear
Stormscope® Lightning’ field and press the
ENT
Key.
NOTE:
If heading input is lost, strikes and/or cells
must be cleared manually after the execution of
each turn. This is to ensure that the strike and/or
cell positions are depicted accurately in relation
to the nose of the aircraft.
Stormscope Page
1)
Turn the large
FMS
Knob until the Map Page group
is selected.
2)
Turn the small
FMS
Knob until the Stormscope
Page is selected. This is the third rectangular page
icon.
Figure 10-6 Stormscope Page
Change the Stormscope lightning mode
between ‘cell’ and ‘strike’:
1)
Select the Stormscope Page.
2)
Press the
MODE
Softkey. The
CELL
and
STRIKE
Softkeys are displayed. Press the
CELL
Softkey to
display ‘CELL’ data or press the
STRIKE
Softkey to
display ‘STRIKE’ data. ‘CELL’ or ‘STRIKE’ is displayed
in the mode box located in the upper left corner of
the Stormscope Page.
NOTE: “Cell mode” uses a clustering program to
identify clusters of electrical activity that indicate
cells.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A 10-3
SECTION 10 – HAZARD
AVOIDANCE
Change the viewing mode between 360
˚
and
120˚:
1)
Select the Stormscope Page.
2)
Press the
VIEW
Softkey. The
360
and
ARC
Softkeys
are displayed. Press the 360 Softkey to display
a 360˚ viewing area or press the ARC Softkey to
display a 120˚ viewing area.
Press the
CLEAR
Softkey to remove all Stormscope
lightning data from the display.
10.3 XM WEATHER (SERVICE OPTIONAL)
WARNING: XM Weather is not intended to
be used for hazardous weather penetration.
Weather information provided by XM Radio
Service is approved only for weather avoidance,
not penetration.
1)
From the Navigation Map Page, press the
MAP
Softkey.
2)
Press the
NEXRAD or XM LTNG
Softkey to display
the desired weather. Press the applicable softkey
again to remove weather data from the Navigation
Map Page.
Figure 10-7 Navigation Map Page Displaying NEXRAD Weather
NOTE: Weather is not displayed on the Navigation
Map Page at zoom levels less than 10 nm.
Displaying METAR and TAF information on the
Airport Information Page
1)
Turn the large
FMS
Knob to select the WPT Page
Group.
2)
Turn the small
FMS
Knob to select the Airport
Information Page.
3)
Press the WX Softkey to display METAR and TAF
text (METAR and TAF information is updated every
12 minutes).
Figure 10-8 METAR and TAF Text Displayed on the
Airport (Weather) Information Page
METAR
Text
TAF
Text
WX
Softkey
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
10-4
SECTION 10 – HAZARD
AVOIDANCE
Displaying Weather on the Weather Data Link
Page
Select the Weather Data Link Page:
1)
Turn the large
FMS
Knob to select the Map Page
Group.
2)
Turn the small
FMS
Knob to select the fourth
rectangular page icon.
3)
Press the available softkeys to select the desired
XM weather product.
4)
Press the
LEGEND
Softkey to view the legends for
the selected products. If necessary, turn either
FMS
Knob to scroll through the list. Press the small
FMS
Knob or the
ENT
Key to return to the map.
Figure 10-9 Weather Data Link Page
NEXRAD – Press the NEXRAD Softkey to show
NEXRAD weather and radar coverage information.
Areas where radar coverage is not available are
shown in grayish-purple. The display is updated
every five minutes.
NEXRAD Limitations
Certain limitations exist regarding the NEXRAD radar
displays. Some, but not all, are listed here:
• NEXRAD base reflectivity does not provide
sufficient information to determine cloud layers or
precipitation characteristics (hail vs. rain, etc).
• An individual NEXRAD site cannot depict high
altitude storms at close ranges, and has no
information about storms directly over the site.
• The resolution of displayed NEXRAD data is 4 square
kilometers. Therefore, when zoomed in on the
display, each square block is 2 kilometers on each
side. The intensity level reflected by the square is
the highest level sampled within the square area.
ECHO TOP – Press the ECHO TOP Softkey to show
the location, elevation, and direction the highest
radar echo. This may not indicate the top of a
storm or clouds, only the highest radar return
echo. ECHO TOPS cannot be displayed along
with NEXRAD and CLOUD TOPS. When ECHO
TOPS is activated, NEXRAD and CLOUD TOPS are
removed. Refer to the Legend for a description of
the ECHO TOPS coding. The display is updated
every 7.5 minutes.
CLD TOP – Press the CLD TOP Softkey to show the
cloud top altitude determined from satellite imagery.
The display is updated every 15 minutes.
LTNG – Pressing the LTNG Softkey shows the location
of cloud-to-ground lightning strikes. The display is
updated every five minutes.
NOTE: Strikes depicted represent cloud to ground
strikes within a 2 kilometer radius of the actual
strike location. Therefore, the exact location of
the strike is not displayed.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A 10-5
SECTION 10 – HAZARD
AVOIDANCE
CELL MOV – Pressing the CELL MOV Softkey
shows storm cell movement by displaying an arrow
pointing in the direction of predicted movement.
The display is updated every 12 minutes.
SIG/AIR – Pressing the SIG/AIR Softkey shows
SIGMET and AIRMET information. The display is
updated every 12 minutes.
METAR – Press the METAR Softkey to graphically
display METARs. METARS are shown as colored
flags at airports providing METAR reports. The
display is updated every 12 minutes.
MORE WX – Press the MORE WX Softkey to display
the following group of softkeys for additional
weather control:
SFC – Pressing the SFC Softkey for Surface Analysis
shows current or forecast conditions. Forecasts
are available for intervals of Current, 12, 24, 36,
and 48 hours. Press the softkey corresponding
to the desired forecast. The closest city forecast
information is displayed in the legend. The
display is updated every 12 minutes.
FRZ LVL – Press the FRZ LVL Softkey to display
contour lines for freezing levels. The display is
updated every 12 minutes.
WIND – Press the WIND Softkey to show wind
speed and direction at a selected altitude from
the ground up to 42,000 feet in 3,000 foot
increments. After pressing the WIND Softkey,
press the softkey corresponding to the desired
winds aloft altitude. The display is updated every
12 minutes.
COUNTY – Pressing the COUNTY Softkey provides
specific public awareness and protection weather
warnings for Tornado, Severe Thunderstorm,
and Flood conditions provided by the National
Weather Service (NWS). The display is updated
every 5 minutes.
CYCLONE – Pressing the CYCLONE Softkey shows
the current location of cyclones (hurricanes and
tropical storms) and their projected track at
various time intervals. The update rate is every
12 minutes.
Map Panning Information – Weather Data Link
Page
1)
Push in the
Joystick
to display the panning
arrow.
2)
Move the
Joystick
to place the panning arrow on
AIRMETs, TFRs, METARs, or SIGMETs. Press the
ENT Key to display pertinent information for the
selected product.
Note that pressing the ENT Key when panning over
an AIRMET or a SIGMET displays an information box
that displays the text of the report. Panning over
an airport with METAR information does not display
more information but allows the user to press the
ENT Key and select that Airport’s Information Page
to display the text of the report. Pressing the ENT
Key when panning over a TFR displays TFR specific
information.
Weather Products & Symbols
Figure 10-10 depicts the symbol for each weather
product (read from left to right). When a weather product
is active, the product symbol is displayed in the lower
right of the screen.
• NEXRAD
• Cloud Top/Echo Top
• XM Lightning
• Cell Movement
• SIGMETs/AIRMETs
• METARs
• City Forecast
• Surface Analysis
• Freezing Levels
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
10-6
SECTION 10 – HAZARD
AVOIDANCE
• Winds Aloft
• County Warnings
• Cyclone Warnings
Figure 10-10 Weather Product Symbols
Echo Top (Cloud Top and Echo Top Mutually Exclusive)
The XM Information Page in the AUX Page Group
displays the weather products available for the current
subscription. A green box by the weather product means
that it is available.
From within the AUX - XM INFORMATION Page, the pilot
may switch to the AUX - XM RADIO Page by pressing the
RADIO Softkey. Alternatively, the pilot may switch to the AUX
- XM INFORMATION Page from the AUX - XM RADIO Page by
pressing the INFO Softkey.
NOTE: The LOCK Softkey on the AUX - XM
INFORMATION Page is used to save the GDL
69(A) activation data when the XM services
are initially set up. It is not used during normal
operation of the GDL 69(A), but it should have no
adverse effects if inadvertently selected during
flight. Refer to the GDL 69/69A XM Satellite
Radio Activation Instructions (190-00355-04, Rev
E or later) for further information.
Weather Product Age
The age for each of the enabled products is displayed
on the right side of the display. Times are based on GMT
time when the data was assembled on the ground, not the
time the data was received by the XM receiver. When the
age of a weather product has exceeded half of the expiration
time, the product time changes from light blue to amber in
color.
Weather Product Expires After
(minutes)
SIGMETs/AIRMETs 60
City Forecasts 90
County Warnings 60
Cyclone Warnings 60
Echo Tops 30
Freezing Levels 60
METARs 90
Lightning 30
NEXRAD 30
Radar Coverage 30
Cell Movement 30
Surface Analysis 60
TFRs 60
Winds Aloft 60
TAFs 60
Clouds Tops 60
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A 10-7
SECTION 10 – HAZARD
AVOIDANCE
10.4 TRAFFIC SYSTEMS
• If Traffic information Service (TIS) is configured, a
STANDBY, OPERATE, and TNA MUTE Softkey
are displayed.
• If a Traffic Advisory System (TAS) is configured, a
STANDBY, NORMAL, TEST, and ALT MODE
Softkey are displayed.
• If an ADS-B traffic system is configured, only the
ALT MODE Softkey is displayed.
Traffic Information Service (TIS)
NOTE: Traffic Information Service (TIS) is only
available when the aircraft is within the service
volume of a TIS capable terminal radar site.
NOTE: If the G1000 is configured to use a Traffic
Advisory System (TAS), TIS is not available for
use.
Displaying Traffic on the Traffic Map Page
1)
Turn the large
FMS
Knob to select the Map Page
Group.
2)
Turn the small
FMS
Knob to select the second
rectangular page icon.
3)
Press the
OPERATE
Softkey to begin displaying
traffic. ‘OPERATIING’ is displayed in the Traffic
Mode field.
4)
Press the
STANDBY
Softkey to place the system in
the Standby Mode. ‘STANDBY’ is displayed in the
Traffic Mode field.
5)
Rotate the
Joystick
clockwise to display a larger
area or rotate counter-clockwise to display a smaller
area.
If data is not received for a period longer than 6 seconds,
the age of the present data is displayed in the lower left of
the screen along with the annunciation that the system
has entered Coast Mode. The system maintains the traffic
display (up to 60 seconds) until the next data reception.
If no data is received after 60 seconds, traffic is removed
from the display.
Traffic out of
range
ProximityTraffic 1200’ above
& descending, moving in the
direction of the line
Traffic Mode
Figure 10-11 Traffic Map Page
Traffic at same altitude,
level flight & moving in the
direction of the line
Traffic Advisory, aircraft is 1200’
above & climbing, moving in the
direction of the line
Last data update
is older than 6
sec. resulting in
Coast Mode
TNA Mute
Status
Displaying Traffic on the Navigation Map
1)
Ensure TIS is operating. With the Navigation Map
displayed, press the
MAP
Softkey.
2)
Press the
TRAFFIC
Softkey. Traffic is now displayed
on the map.
TIS Voice Alert
When a Traffic Advisory (TA) is displayed, a voice alert
“Traffic” is given.
“Traffic Not Available” is heard whenever TIS service
becomes unavailable. This alert can be muted by pressing
the TNA MUTE Softkey. ‘TNA MUTE ON’ is displayed in
the upper left of the display.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
10-8
SECTION 10 – HAZARD
AVOIDANCE
Traffic Advisory System (TAS) (Optional)
Refer to the Honeywell KTA 870 Pilot’s Guide for a
detailed discussion of the KTA 870 system.
System Self Test
1)
Set the range to 2/6 nm.
2)
Press the
STANDBY
Softkey.
3)
Press the
TEST
Softkey.
4)
Self test takes approximately eight seconds to
complete. When completed successfully, traffic
symbols are displayed as shown in Figure 10-12
and a voice alert “TAS System Test OK” is heard.
If the self test fails, the system reverts to Standby
Mode and a voice alert “TAS System Test Fail” is
heard.
Figure 10-12 Self Test OK Display
Displaying Traffic on the Traffic Map Page
1)
Turn the large
FMS
Knob to select the Map Page
Group.
2)
Turn the small
FMS
Knob to select the second
rectangular page icon.
3)
Press the
NORMAL
Softkey to begin displaying
traffic. ‘OPERATING’ is displayed in the Traffic Mode
field.
4)
Press the
ALT MODE
Softkey to change the altitude
volume. Select the desired altitude volume by
pressing the
BELOW
,
NORMAL
,
ABOVE
, or
UNREST
(unrestricted) Softkey. The selection is displayed in
the Altitude Mode field.
5)
Press the
STANDBY
Softkey to place the system in
the Standby Mode. ‘STANDBY’ is displayed in the
Traffic Mode field.
6)
Rotate the
Joystick
clockwise to display a larger
area or rotate counter-clockwise to display a smaller
area.
Traffic, Out of
Range
Proximity Traffic,
1000’ above &
descending
Traffic Mode
Figure 10-13 Traffic Map Page
“Non-Bearing” Traffic (system
is unable to determine bearing),
distance is 8.0 nm, 1190’ above
and descending
Traffic Advisory,
aircraft is 400’ below
& climbing
Altitude Mode
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A 10-9
SECTION 10 – HAZARD
AVOIDANCE
Displaying Traffic on the Navigation Map
1)
Ensure the KTA 870 system is operating. With
the Navigation Map displayed, press the
MAP
Softkey.
2)
Press the
TRAFFIC
Softkey. Traffic is now displayed
on the map.
Figure 10-14 TAS Traffic on Navigation Map
Traffic Advisory
Traffic Off Scale
Banner
Non-Bearing
Traffic Advisories
Non-Threat
Traffic
ADS-B Traffic (Optional)
ADS-B is limited to displaying traffic in the G1000.
Operation is similar to the TAS system discussed
previously, with the exception of symbology. The
following traffic symbols are used to display traffic with
the ADS-B system.
Symbol Description
Traffic Advisory with directional information. Points in
the direction of the intruder aircraft track.
Traffic Advisory without directional information.
Traffic Advisory out of the selected display range.
Displayed at outer range range ring at proper bearing.
Non-threat traffic with directional information. Points
in the direction of the aircraft track.
Non-threat traffic with no directional information.
Traffic located on the ground with directional
information. Points in the direction of the aircraft
track. Ground traffic is only displayed when own
aircraft is below 1,000 feet AGL or on the ground.
Ground traffic without directional information.
Ground traffic is only displayed when own aircraft is
below 1,000 feet AGL or on the ground.
Non-aircraft ground traffic. Ground traffic is only
displayed when own aircraft is below 1,000 feet AGL
or on the ground.
Traffic with directional information, but positional
accuracy is degraded. Points in the direction of the
aircraft track.
Aircraft
Identification
(tail number
or Flight ID
number)
Relative Altitude
(in this case 1200
feet above own
aircraft)
Altitude Trend
(up arrow
indicates
climbing, down
arrow indicates
descending)
Intruder
Aircraft
Heading
(extends in
the direction
of the aircraft
heading)
Figure 10-15 Example ADS-B Traffic Advisory
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
10-10
SECTION 10 – HAZARD
AVOIDANCE
10.5 TERRAIN AND OBSTACLE PROXIMITY
NOTE: Terrain data is not displayed when the
aircraft latitude is greater than 75 degrees north
or 60 degrees south.
Displaying Terrain and Obstacles on the Terrain
Proximity Page
1)
Turn the large
FMS
Knob to select the Map Page
Group.
2)
Turn the small
FMS
Knob to select the last
rectangular page icon.
3)
If desired, press the
VIEW
Softkey to access the
ARC
and
360
Softkeys. When the
ARC
Softkey is pressed,
a radar-like 120° view is displayed. Press the
360
Softkey to return to the 360° default display.
Color Indication
RED Terrain/Obstacle above or within 100’
below or above aircraft altitude.
YELLOW Terrain/Obstacle between 100’ and 1000’
below current aircraft altitude.
1000'
Aircraft Altitude
100' Threshold
Unlighted Obstacle
(Height is less than
1000’ AGL)
Lighted Obstacle
(Height is less than
1000’ AGL)
Unlighted Obstacle
(Height is greater than
1000’ AGL)
Lighted Obstacle
(Height is greater than
1000’ AGL)
Figure 10-16 Obstacle Symbols
4)
Rotate the
Joystick
clockwise to display a larger
area or rotate counter-clockwise to display a smaller
area.
Figure 10-17 Terrain Proximity Page
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A 10-11
SECTION 10 – HAZARD
AVOIDANCE
Displaying Terrain and Obstacles on the
Navigation Map
1)
With the Navigation Map displayed, press the
MAP
Softkey.
2)
Press the
TERRAIN
Softkey. Terrain and obstacle
proximity is now displayed on the map.
10.6 TERRAIN AWARENESS & WARNING
SYSTEM (TAWS) DISPLAY
(OPTIONAL)
NOTE: Terrain data is not displayed when the
aircraft latitude is greater than 75 degrees north
or 60 degrees south.
NOTE: TAWS operation is only available when the
G1000 is configured for a TAWS-B installation.
Color Terrain/Obstacle Location
Red Terrain/Obstacle above or within 100’
below or above aircraft altitude.
Yellow Terrain/Obstacle between 100’ and
1000’ below current aircraft altitude.
Black Terrain/Obstacle is more than 1000’
below aircraft altitude.
Potential Impact Point
Unlighted Obstacle
Projected Flight Path
1000'
100' Threshold
Displaying Terrain on the TAWS Page
1)
Turn the large
FMS
Knob to select the Map Page
Group.
2)
Turn the small
FMS
Knob to select the TAWS
Page.
3)
If desired, press the
VIEW
Softkey to access the
ARC
and
360
Softkeys. When the
ARC
Softkey is pressed,
a radar-like 120° view is displayed. Press the
360
Softkey to return to the 360° default display.
4)
Rotate the
Joystick
clockwise to display a larger
area or rotate counter-clockwise to display a smaller
area.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
10-12
SECTION 10 – HAZARD
AVOIDANCE
Figure 10-18 TAWS Page (360˚ View)
Figure 10-19 TAWS Page (ARC View)
Enable/Disable Aviation Data
1)
While the TAWS Page is displayed, press the
MENU
Key.
2)
Turn the small
FMS
Knob to select “Show (or Hide)
Aviation Data”.
3)
Press the
ENT
Key.
Figure 10-20 TAWS Page Menu
TAWS Inhibit
Flying VFR into an area where unique terrain exists
could cause the system to annunciate a nuisance alert.
When TAWS is inhibited, only FLTA and PDA alerts are
disabled.
Inhibit TAWS:
While the TAWS Page is displayed, press the
INHIBIT
Softkey. ‘TAWS INHB’ is annunciated in the lower
right of portion of the screen.
Enable TAWS:
If TAWS has been inhibited, from the TAWS Page
press the
INHIBIT
Softkey. The ‘TAWS INHB”
annunciation is removed.
NOTE: If TAWS alerts are inhibited when the Final
Approach Fix is the active waypoint in a GPS WAAS
approach, a LOW ALT annunciation may appear on
the PFD next to the altimeter if the current aircraft
altitude is at least 164 feet below the prescribed
altitude at the Final Approach Fix.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A 10-13
SECTION 10 – HAZARD
AVOIDANCE
Manual System Test
A system test is automatically performed at power-up.
After successful completion of the test, “TAWS System
Test, OK” is heard.
The system test may also be initiated manually, but
only when the aircraft is on the ground. To manually verify
proper operation of the aural and visual annunciations
of the system, perform the following steps.
1)
While the TAWS Page is displayed, press the
MENU
Key.
2)
Turn the small
FMS
Knob to select ‘Test TAWS’.
3)
Press the
ENT
Key. During the test ‘TAWS TEST’ is
displayed in the center of the TAWS Page.
When all is in working order, “TAWS System Test,
OK” is heard.
Forward Looking Terrain Avoidance (FLTA)
The Forward Looking Terrain Avoidance alert is
composed of two sub-functions:
Reduced Required Terrain Clearance (RTC) and
Reduced Required Obstacle Clearance (ROC)
This provides alerts when the aircraft flight path
is above terrain and/or obstacles, yet is projected to
come within minimum clearance values outlined in the
following table. When an RTC or ROC alert is issued, a
potential impact point is displayed on the TAWS Page as
a yellow or red ‘X’.
Imminent Terrain Impact (ITI) and Imminent
Obstacle Impact (IOI)
This provides alerts when the aircraft is below the
elevation of terrain in the aircraft’s projected path. ITI and
IOI alerts are accompanied by a potential impact point
displayed on the TAWS Page as a yellow or red ‘X’. The
alert is given when the projected vertical flight path is
calculated to come within minimum clearance altitudes
in the following table.
Phase of Flight Level Flight Descending
Enroute 700 ft. 500 ft.
Terminal 350 ft. 300 ft.
Approach 150 ft. 100 ft.
Departure 100 ft. 100 ft.
During the final approach phase of flight, RTC/ROC/
ITI/IOI alerts are automatically inhibited when the aircraft
is below 200 feet AGL while within 0.5 nm of the approach
runway or is below 125 feet AGL while within 1 nm of the
runway.
Premature Descent Alert (PDA)
A Premature Descent Alert is issued when the system
detects that the aircraft is significantly below the normal
approach path to a runway. The PDA alert mode functions
only during descent to land.
PDA alerting begins when the aircraft is within 15 nm
of the destination airport and ends when the aircraft is
either 0.5 nm from the runway threshold OR is at an alti-
tude of 125 feet AGL while within 1 nm of the threshold.
During the final descent, algorithms set a threshold for
alerting based on speed, distance, and other parameters.
700
600
500
400
300
200
100
Height Above Terrain (Feet)
Distance From Destination Airport (nm)
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
“Too Low, Terrain”“Too Low, Terrain”
Runway
Threshold
Figure 10-21 PDA Alerting
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
10-14
SECTION 10 – HAZARD
AVOIDANCE
Excessive Descent Rate Alert (EDR)
The purpose of the Excessive Descent Rate alert is to
provide suitable alerts when the aircraft is determined
to be closing (descending) upon terrain at an excessive
speed. Figure 10-22 displays the correlation between
height above terrain and descent rate, resulting in the two
EDR alerts. EDR alerts have two levels of severity, caution
(sink rate) and warning (pull-up).
6000
5500
5000
4500
4000
3500
3000
2500
2000
1500
1000
500
02000 4000 6000 8000 10000 12000
"PULL UP""PULL UP"
"SINK RATE"
Descent Rate
Height Above Terrain (Feet)
Figure 10-22 Excessive Descent Rate
Negative Climb Rate After Takeoff
Alert (NCR)
The purpose of the Negative Climb Rate After Takeoff
alert is to provide suitable alerts to the pilot when the
system determines that the aircraft is losing altitude
(closing upon terrain) after takeoff. The aural message
“Don’t Sink” is given for NCR alerts, accompanied by an
annunciation and a pop-up terrain alert on the display.
Figure 10-23 illustrates the envelope for alerts.
1000
800
600
400
200
Height Above Terrain (Feet)
Altitude Loss (Feet)
0 20 40 60 80 100 120 140
“DON’T SINK”“DON’T SINK”
Figure 10-23 Negative Climb Rate
1000
900
800
700
600
500
400
300
200
100
Height Above Terrain (Feet)
Sink Rate (Feet Per Minute)
0
“DON’T SINK”“DON’T SINK”
500 1000 1500 2500 35002000 3000 4000
“Five-Hundred” Aural Alert
The purpose of the aural alert message “Five-hundred”
is to provide an advisory alert to the air crew that the
aircraft is five-hundred feet above terrain. When the
aircraft descends within 500 feet of terrain, the aural
message “Five-hundred” is heard. There are no display
annunciations or pop-up alerts that accompany the aural
message.
Displaying Terrain and Obstacles on the
Navigation Map
1)
With the Navigation Map displayed, press the
MAP
Softkey.
2)
Press the
TERRAIN
Softkey. Terrain and obstacle
proximity are now displayed on the map.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A 10-15
SECTION 10 – HAZARD
AVOIDANCE
Pop-up Alerts
When a terrain or obstacle alert is issued, a pop-up
window is displayed on the MFD with the appropriate
alert.
Figure 10-24 TAWS Alert Pop-Up
Press the ENT Key to display the TAWS Page, or press
the CLR Key to remain on the existing page.
Unlighted Obstacle
(Height is less than
1000’ AGL)
Lighted Obstacle
(Height is less than
1000’ AGL)
Unlighted Obstacle
(Height is greater than
1000’ AGL)
Lighted Obstacle
(Height is greater than
1000’ AGL)
Potential Impact Points
Figure 10-25 TAWS Symbols
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
10-16
SECTION 10 – HAZARD
AVOIDANCE
TAWS Alerts Summary
The following table shows the possible TAWS alert types with corresponding annunciations and aural messages.
Alert Type
PFD/MFD TAWS
Page
Annunciation
MFD
Pop-Up Alert Aural Message
Excessive Descent Rate Warning (EDR) “Pull Up”
Reduced Required Terrain Clearance
Warning (RTC) or
“Terrain, Terrain; Pull Up, Pull Up”
or
“Terrain Ahead, Pull Up; Terrain Ahead, Pull Up”
Imminent Terrain Impact Warning (ITI)
or
“Terrain Ahead, Pull Up; Terrain Ahead, Pull Up”
or
“Terrain, Terrain; Pull Up, Pull Up”
Reduced Required Obstacle Clearance
Warning (ROC)or
“Obstacle, Obstacle; Pull Up, Pull Up”
or
“Obstacle Ahead, Pull Up; Obstacle Ahead, Pull Up”
Imminent Obstacle Impact Warning (IOI)
or
“Obstacle Ahead, Pull Up; Obstacle Ahead, Pull Up”
or
“Obstacle, Obstacle; Pull Up, Pull Up”
Reduced Required Terrain Clearance Caution
(RTC) or
“Caution, Terrain; Caution, Terrain”
or
“Terrain Ahead; Terrain Ahead”
Imminent Terrain Impact Caution (ITI)
or
“Terrain Ahead; Terrain Ahead”
or
“Caution, Terrain; Caution, Terrain”
Reduced Required Obstacle Clearance
Caution (ROC) or
“Caution, Obstacle; Caution, Obstacle”
or
“Obstacle Ahead; Obstacle Ahead”
Imminent Obstacle Impact Caution (IOI)
or
“Obstacle Ahead; Obstacle Ahead”
or
“Caution, Obstacle; Caution, Obstacle”
Premature Descent Alert Caution (PDA) “Too Low, Terrain”
Altitude Callout “500” None None “Five-Hundred”
Excessive Descent Rate Caution (EDR) “Sink Rate”
Negative Climb Rate Caution (NCR)
or
“Don’t Sink”
or
“Too Low, Terrain”
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A 10-17
SECTION 10 – HAZARD
AVOIDANCE
The following system status annunciations may also be
issued.
Alert Type
PFD/MFD TAWS
Page
Annunciation
MFD
Pop-Up Alert Aural Message
TAWS System Test Fail None “TAWS System Failure”
TAWS Alerting is disabled None None
No GPS position or excessively degraded
GPS signal
None “TAWS Not Available”
“TAWS Available” will be heard when sufficient
GPS signal is re-established.
System Test in progress None None
System Test pass None None “TAWS System Test OK”
Alert Annunciations
Figure 10-26 Alert Annunciation on the TAWS Page
Alert Annunciation
Alert Annunciation
Figure 10-27 TAWS Alert Annunciation on the PFD
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
10-18
SECTION 10 – HAZARD
AVOIDANCE
Blank Page
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A
SECTION 11 – ABNORMAL
OPERATION
11-1
SECTION 11: ABNORMAL
OPERATION
11.1 REVERSIONARY MODE
Should a system detected failure occur in either display,
the G1000 automatically enters Reversionary Mode. In
Reversionary Mode, critical flight instrumentation is
combined with engine instrumentation on the remaining
display. Minimal navigation capability is available on the
Reversionary Mode display.
Normal PFD Display
MFD in Reversionary Mode
Normal MFD Display
Figure 11-1 G1000 Reversionary Mode: Failed PFD
Reversionary display mode can also be manually
activated by the pilot if the system fails to detect a display
problem. The Reversionary Mode is activated manually
by pressing the red DISPLAY BACKUP Button on the
bottom of the audio panel (GMA 1347). Pressing the red
DISPLAY BACKUP Button again deactivates Reversionary
Mode.
NOTE: The Cessna Pilot’s Operating Handbook
(POH) always takes precedence over the
information found in this section.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
SECTION 11 – ABNORMAL
OPERATION
11-2
11.2 ABNORMAL COM OPERATION
When a COM tuning failure is detected by the system,
the emergency frequency (121.500 MHz) is automatically
loaded into the active frequency field of the COM radio
for which the tuning failure was detected. In the event of
a dual display failure, the emergency frequency (121.500
MHz) automatically becomes the active frequency to the
pilot through the pilot headset.
11.3 UNUSUAL ATTITUDES
The PFD ‘declutters’ when the aircraft enters an unusual
attitude. Only the primary functions are displayed in
these situations.
The following information is removed from the PFD
(and corresponding softkeys are disabled) when the air-
craft experiences unusual attitudes:
• Traffic Annunciations
• AFCS Annunciations
• Flight director Com-
mand Bars
• Inset Map
• Temperatures
• DME Information
Window
• Wind Data
• Selected Heading Box
• Selected Course Box
• Transponder Status
Box
• System Time
• PFD Setup Menu
• Windows displayed in
the lower right corner
of the PFD:
– Timer/References
– Nearest Airports
– Flight Plan
– Messages
– Procedures
– DME Tuning
• Barometric Minimum
Descent Altitude Box
• Glideslope, Glidepath,
and Vertical Deviation
Indicators
• Altimeter Barometric
Setting
• Selected Altitude
• VNV Target Altitude
Red extreme pitch warning chevrons pointing toward
the horizon are displayed starting at 50 degrees above and
30 degrees below the horizon line.
Figure 11-2 Extreme Pitch Indication
11.4 STORMSCOPE OPERATION WITH
LOSS OF HEADING INPUT
If heading is lost, strikes and/or cells must be cleared
manually after the execution of each turn. This is to
ensure that the strike and/or cell positions are depicted
accurately in relation to the nose of the aircraft.
11.5 HAZARD DISPLAYS WITH LOSS OF
GPS POSITION
If GPS position is lost, or becomes invalid, selected
hazards being displayed on the Navigation Map Page are
removed until GPS position is again established. The
icons in the lower right of the screen, indicating the
selected functions for display, will show an ‘X’, as shown
in Figure 11-3.
Figure 11-3 Loss of Hazard Functions
with Loss of GPS Position
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A
SECTION 11 – ABNORMAL
OPERATION
11-3
11.6 DEAD RECKONING
WARNING: DR Mode is inherently less accurate
than the standard GPS/WAAS Mode due to the
lack of satellite measurements needed to deter-
mine a position. Changes in wind speed and/or
wind direction compound the relative inaccuracy
of DR Mode. Because of this degraded accuracy,
the crew must maintain position awareness using
other navigation equipment until GPS-derived
position data is restored.
While in Enroute or Oceanic phase of flight, if the
G1000 detects an invalid GPS solution or is unable to
calculate a GPS position, the system automatically reverts
to Dead Reckoning (DR) Mode. In DR Mode, the G1000
uses its last-known position combined with continuously
updated airspeed and heading data (when available) to
calculate and display the aircraft’s current estimated
position.
NOTE: Dead Reckoning Mode only functions in
Enroute (ENR) or Oceanic (OCN) phase of flight.
In all other phases, an invalid GPS solution
produces a ‘NO GPS POSITION’ annunciation on
the map and the G1000 stops navigating in GPS
Mode.
DR Mode is indicated on the G1000 by the appearance
of the letters ‘DR’ superimposed in yellow over the ‘own
aircraft’ symbol as shown in Figure 11-4. In addition,
‘DR’ is prominently displayed, also in yellow, on the HSI
slightly above and to the right of the aircraft symbol on the
CDI as shown in Figure 11-4. Also, the CDI deviation bar
is removed from the display. Lastly, but at the same time,
a ‘GPS NAV LOST’ alert message appears on the PFD.
Normal navigation using GPS/WAAS source data
resumes automatically once a valid GPS solution is
restored.
It is important to note that estimated navigation
data supplied by the G1000 in DR Mode may become
increasingly unreliable and must not be used as a sole
means of navigation. If while in DR Mode airspeed and/or
heading data is also lost or not available, the DR function
may not be capable of accurately tracking your estimated
position and, consequently, the system may display a path
that is different than the actual movement of the aircraft.
Estimated position information displayed by the G1000
through DR while there is no heading and/or airspeed
data available should not be used for navigation.
Figure 11-4 Dead Reckoning Indications
Symbolic Aircraft
(Map pages and Inset Map)
CDI ‘DR’ Indication on PFD
As a result of operating in DR Mode, all GPS-derived
data is computed based upon an estimated position and is
displayed as yellow text on the display to denote degraded
navigation source information. This data includes the
following:
• Navigation Status Box fields except Active Leg, TAS,
and DTK
• GPS Bearing Pointer
• Wind data and pointers in the Wind Data Box on
the PFD and MFD
• Track Bug
• All Bearing Pointer Distances
• Active Flight Plan distances, bearings, and ETE
values
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
SECTION 11 – ABNORMAL
OPERATION
11-4
Also, while the G1000 is in DR Mode, the autopilot
will not couple to GPS, and both TAWS and Terrain
Proximity are disabled. Additionally, the accuracy of all
nearest information (airports, airspaces, and waypoints) is
questionable. Finally, airspace alerts continue to function,
but with degraded accuracy.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A 12-1
SECTION 12 – ANNUNCIATIONS
& ALERTS
SECTION 12: ANNUNCIATIONS &
ALERTS
NOTE: The Cessna aircraft Pilot’s Operating
Handbook (POH) supersedes information found
in this document.
The G1000 Alerting System conveys alerts to the pilot
using a combination of the following items:
• Annunciation Window: The Annunciation Window
displays abbreviated annunciation text. Text color is
based on alert levels described later in the Alert Levels
Definitions section. The Annunciation Window
is located to the right of the Altimeter and Vertical
Speed Indicator on the display. All Cessna Nav III
annunciations can be displayed simultaneously in
the Annunciation Window. A white horizontal line
separates annunciations that are acknowledged from
annunciations that are not yet acknowledged. Higher
priority annunciations are displayed towards the top
of the window. Lower priority annunciations are
displayed towards the bottom of the window.
• Alerts Window: The Alerts Window displays alert
text messages. Up to 64 prioritized alert messages
can be displayed in the Alerts Window. Pressing
the ALERTS Softkey displays the Alerts Window.
Pressing the ALERTS Softkey a second time removes
the Alerts Window from the display. When the Alerts
Window is displayed, the pilot can use the large FMS
Knob to scroll through the alert message list.
• Softkey Annunciation: During certain alerts,
the ALERTS Softkey may appear as a flashing
annunciation to accompany an alert. The ALERTS
Softkey assumes a new label consistent with the
alert level (WARNING, CAUTION, or ADVISORY).
By pressing the softkey annunciation, the pilot
acknowledges awareness of the alert. The softkey
then returns to the previous ALERTS label. If alerts
are still present, the ALERTS label is displayed in
inverse video (white background with black text).
The pilot can press the ALERTS Softkey a second
time to view alert text messages.
• System Annunciations: Typically, a large red ‘X’
appears in windows when a failure is detected in the
LRU providing the information to the window. See
the G1000 System Annunciations section for more
information.
• Audio Alerting System: The G1000 system issues
audio alert tones when specific system conditions are
met. See the Alert Levels Definitions section for more
information.
Figure 12-1 G1000 Alerting System
Annunciation
Window
Alerts Window
ALERTS Softkey
Annunciation
System
Annunciation
Red ‘X’
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
12-2
SECTION 12 – ANNUNCIATIONS
& ALERTS
12.1 ALERT LEVEL DEFINITIONS
The G1000 Alerting System, as installed in Cessna Nav
III aircraft, uses three alert levels.
• WARNING: This level of alert requires immediate
pilot attention. A warning alert is annunciated in
the Annunciation Window and is accompanied
by a continuous aural tone. Text appearing in the
Annunciation Window is RED. A warning alert is
also accompanied by a flashing WARNING Softkey
annunciation, as shown in Figure 12-2. Pressing
the WARNING Softkey acknowledges the presence
of the warning alert and stops the aural tone, if
applicable.
• CAUTION: This level of alert indicates the
existence of abnormal conditions on the aircraft
that may require pilot intervention. A caution alert
is annunciated in the Annunciation Window and is
accompanied by a single aural tone. Text appearing
in the Annunciation Window is YELLOW. A caution
alert is also accompanied by a flashing CAUTION
Softkey annunciation, as shown in Figure 12-3.
Pressing the CAUTION Softkey acknowledges the
presence of the caution alert.
• MESSAGE ADVISORY: This level of alert provides
general information to the pilot. A message
advisory alert does not issue annunciations in the
Annunciation Window. Instead, message advisory
alerts only issue a flashing ADVISORY Softkey
annunciation, as shown in Figure 12-4. Pressing
the ADVISORY Softkey acknowledges the presence
of the message advisory alert and displays the alert
text message in the Alerts Window.
Figure 12-2 WARNING Softkey
Annunciation
Figure 12-3 CAUTION Softkey
Annunciation
Figure 12-4 ADVISORY Softkey
Annunciation
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A 12-3
SECTION 12 – ANNUNCIATIONS
& ALERTS
12.2 NAV III AIRCRAFT ALERTS
The following alerts are configured specifically for the
Cessna Nav III aircraft. See the Cessna Pilot’s Operating
Handbook (POH) for information regarding pilot
responses.
WARNING Alerts
Annunciation Window Text Audio Alert
OIL PRESSURE Continuous Aural Tone
LOW VOLTS Continuous Aural Tone*
HIGH VOLTS Continuous Aural Tone
CO LVL HIGH Continuous Aural Tone
PITCH TRIM** No Tone
* Aural tone is inhibited while the aircraft is on the ground.
** KAP 140 installations only
CAUTION Alerts
Annunciation Window Text Audio Alert
LOW VACUUM Single Aural Tone
LOW FUEL L Single Aural Tone
LOW FUEL R Single Aural Tone
STBY BATT Single Aural Tone
CAUTION Alerts (T182, T206, and 206 with Prop
De-Ice Only)
Annunciation Window Text Audio Alert
PROP HEAT Single Aural Tone
Safe Operating Annunciation (T182, T206, and
206 with Prop De-Ice Only)
Annunciation Window Text Audio Alert
PROP HEAT
No Tone
12.3 CO GUARDIAN MESSAGES
Alerts Window Message Comments
CO DET SRVC – The carbon
monoxide detector needs
service.
There is a problem within
the CO Guardian that
requires services.
CO DET FAIL – The carbon
monoxide detector is inopera-
tive.
Loss of communication
between the G1000 and
the CO Guardian.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
12-4
SECTION 12 – ANNUNCIATIONS
& ALERTS
12.4 AFCS ALERTS
System Status Annunciation
The following alert annunciations appear in the AFCS
System Status Annunciation on the PFD.
Condition Annunciation Description
Aileron Mistrim Right Roll servo providing sustained force in the indicated direction
Aileron Mistrim Left
Elevator Mistrim Down Pitch servo providing sustained force in the indicated direction
Elevator Mistrim Up
Pitch Trim Failure If AP engaged, take control of the aircraft and disengage AP
Roll Failure Roll axis control failure; AP inoperative
Pitch Failure Pitch axis control failure; AP inoperative
System Failure AP and MET are unavailable; FD may still be available
Preflight Test
Performing preflight system test; aural alert sounds at completion
Do not press the AP DISC Switch during servo power-up and preflight system
tests as this may cause the preflight system test to fail or never to start (if
servos fail their power-up tests). Power must be cycled to the servos to
remedy the situation.
Preflight system test failed; aural alert sounds at failure
Figure 12-5 AFCS System Status Annunciation
System Status Annunciation
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A 12-5
SECTION 12 – ANNUNCIATIONS
& ALERTS
12.5 TAWS ALERTS
The following table shows the possible TAWS alert types with corresponding annunciations and aural messages.
Alert Type
PFD/MFD TAWS
Page
Annunciation
MFD
Pop-Up Alert Aural Message
Excessive Descent Rate Warning (EDR) “Pull Up”
Reduced Required Terrain Clearance Warn-
ing (RTC) or
“Terrain, Terrain; Pull Up, Pull Up”
or
“Terrain Ahead, Pull Up; Terrain Ahead, Pull Up”
Imminent Terrain Impact Warning (ITI)
or
Terrain Ahead, Pull Up; Terrain Ahead, Pull Up”
or
“Terrain, Terrain; Pull Up, Pull Up”
Reduced Required Obstacle Clearance
Warning (ROC)or
“Obstacle, Obstacle; Pull Up, Pull Up”
or
“Obstacle Ahead, Pull Up; Obstacle Ahead, Pull Up”
Imminent Obstacle Impact Warning (IOI)
or
“Obstacle Ahead, Pull Up; Obstacle Ahead, Pull Up”
or
“Obstacle, Obstacle; Pull Up, Pull Up”
Reduced Required Terrain Clearance Caution
(RTC) or
“Caution, Terrain; Caution, Terrain”
or
“Terrain Ahead; Terrain Ahead”
Imminent Terrain Impact Caution (ITI)
or
“Terrain Ahead; Terrain Ahead”
or
“Caution, Terrain; Caution, Terrain”
Reduced Required Obstacle Clearance
Caution (ROC) or
“Caution, Obstacle; Caution, Obstacle”
or
“Obstacle Ahead; Obstacle Ahead”
Imminent Obstacle Impact Caution (IOI)
or
“Obstacle Ahead; Obstacle Ahead”
or
“Caution, Obstacle; Caution, Obstacle”
Premature Descent Alert Caution (PDA) “Too Low, Terrain”
Altitude Callout “500” None None “Five-Hundred”
Excessive Descent Rate Caution (EDR) “Sink Rate”
Negative Climb Rate Caution (NCR)
or
“Don’t Sink”
or
“Too Low, Terrain”
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
12-6
SECTION 12 – ANNUNCIATIONS
& ALERTS
The following system status annunciations may also be issued.
Alert Type
PFD/MFD TAWS
Page
Annunciation
MFD
Pop-Up Alert Aural Message
TAWS System Test Fail None “TAWS System Failure”
TAWS Alerting is disabled None None
No GPS position or excessively degraded
GPS signal
None “TAWS Not Available”
“TAWS Available” will be heard when sufficient
GPS signal is re-established.
System Test in progress None None
System Test pass None None “TAWS System Test OK”
12.6 OTHER G1000 AURAL ALERTS
Aural Alert Description
“Minimums, minimums” The aircraft has descended below the preset barometric minimum descent
altitude.
“Vertical track” The aircraft is one minute from Top of Descent. Issued only when vertical
navigation is enabled.
“Traffic” The Traffic Information Service (TIS) or ADS-B traffic system has issued a Traffic
Advisory alert
“Traffic not available” The aircraft is outside the Traffic Information Service (TIS) or ADS-B coverage area.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A 12-7
SECTION 12 – ANNUNCIATIONS
& ALERTS
12.7 G1000 SYSTEM ANNUNCIATIONS
When an LRU or an LRU function fails, a large red ‘X’ is typically displayed on areas associated with the failed data.
Refer to the POH for additional information regarding pilot responses to these annunciations.
NOTE: Upon power-up of the G1000 system, certain boxes remain invalid as G1000 equipment begins to
initialize. All boxes should be operational within one minute of power-up. Should any box continue to remain
flagged, the G1000 system should be serviced by a Garmin-authorized repair facility.
System Annunciation Comment
Attitude and Heading Reference System is aligning.
Display system is not receiving attitude information from the AHRS.
Indicates a configuration module failure.
This annunciation is only seen when the autopilot is engaged. The
annunciation indicates an AHRS monitor has detected an abnormal
flight parameter, possibly caused by strong turbulence. In this case, the
situation should correct itself within a few seconds. If there is an actual
failure, a red “X” soon appears over the Attitude Indicator.
Display system is not receiving airspeed input from air data computer.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
12-8
SECTION 12 – ANNUNCIATIONS
& ALERTS
System Annunciation Comment
Display is not receiving altitude input from the air data computer.
Display is not receiving vertical speed input from the air data computer.
Display is not receiving valid heading input from AHRS.
Display is not receiving valid transponder information.
‘LOI’ Indicates Loss of Integrity of GPS information. GPS information is
either not present or is invalid for navigation use. ‘DR’ may also be seen
indicating that GPS is in Dead Reckoning Mode. Note that AHRS utilizes GPS
inputs during normal operation. AHRS operation may be degraded if GPS
signals are not present (see AFMS).
Other Various Red X Indications A red ‘X’ through any other display field, such as engine instrumentation
fields, indicates that the field is not receiving valid data.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A 12-9
SECTION 12 – ANNUNCIATIONS
& ALERTS
A red ‘X’ may be the result of an LRU or an LRU function failure. The Figure 12-6 illustrates all possible flags and the
responsible LRUs.
Figure 12-6 G1000 System Failure Annunciations
GDC 74A Air Data
Computer
GTX 33 Transponder
Or
GIA 63/63W
Integrated Avionics
Units
GDC 74A Air Data
Computer
GEA 71 Engine
Airframe Unit
Or
GIA 63/63W
Integrated Avionics
Unit
GIA 63/63W
Integrated Avionics
Units
GRS 77 AHRS
Or
GMU 44
Magnetometer
GIA 63/63W
Integrated Avionics
Units
GIA 63/63W
Integrated Avionics
Units
12.8 G1000 SYSTEM MESSAGE ADVISORIES
This section describes various G1000 system message advisories. Certain messages are issued due to an LRU or an LRU
function failure. Such messages are normally accompanied by a corresponding red ‘X’ annunciation as shown previously in
the G1000 System Annunciation section.
NOTE: This section provides information regarding G1000 message advisories that may be displayed by the
system. Knowledge of the aircraft, systems, flight conditions, and other existing operational priorities must
be considered when responding to a message. Always use sound pilot judgment. The Cessna aircraft Pilot’s
Operating Handbook (POH) takes precedence over any conflicting guidance found in this section.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
12-10
SECTION 12 – ANNUNCIATIONS
& ALERTS
MFD & PFD Message Advisories
Message Comments
DATA LOST
– Pilot stored data was
lost. Recheck settings.
The pilot profile data was lost. System reverts to default pilot profile and settings.
The pilot may reconfigure the MFD & PFD with preferred settings, if desired.
XTALK ERROR
– A flight display
crosstalk error has occurred.
The MFD and PFD are not communicating with each other. The G1000 system
should be serviced.
PFD1 SERVICE
– PFD1 needs service.
Return unit for repair. The PFD and/or MFD self-test has detected a problem. The G1000 system should
be serviced.
MFD1 SERVICE
– MFD1 needs
service. Return unit for repair.
MANIFEST
– PFD1 software
mismatch, communication halted. The PFD and/or MFD has incorrect software installed. The G1000 system should
be serviced.
MANIFEST
– MFD1 software
mismatch, communication halted.
PFD1 CONFIG
– PFD1 config error.
Config service req’d. The PFD and/or MFD configuration settings do not match backup configuration
memory. The G1000 system should be serviced.
MFD1 CONFIG
– MFD1 config error.
Config service req’d.
SW MISMATCH
– GDU software
version mismatch. Xtalk is off.
The MFD and PFD have different software versions installed. The G1000 system
should be serviced.
PFD1 COOLING
– PFD1 has poor
cooling. Reducing power usage. The PFD and/or MFD is overheating and is reducing power consumption by
dimming the display. If problem persists, the G1000 system should be serviced.
MFD1 COOLING
– MFD1 has poor
cooling. Reducing power usage.
PFD1 KEYSTK
– PFD1 [key name] Key
is stuck. A key is stuck on the PFD and/or MFD bezel. Attempt to free the stuck key by
pressing it several times. The G1000 system should be serviced if the problem
persists.
MFD1 KEYSTK
– MFD [key name] Key
is stuck.
CNFG MODULE
– PFD1 configuration
module is inoperative.
The PFD1 configuration module backup memory has failed. The G1000 system
should be serviced.
PFD1 VOLTAGE
– PFD1 has low
voltage. Reducing power usage The PFD and/or MFD voltage is low. The G1000 system should be serviced.
MFD1 VOLTAGE
– MFD1 has low
voltage. Reducing power usage
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A 12-11
SECTION 12 – ANNUNCIATIONS
& ALERTS
Database Message Advisories
Message Comments
MFD1 DB ERR
– MFD1 aviation
database error exists. The MFD and/or PFD detected a failure in the aviation database. Attempt to
reload the aviation database. If problem persists, the G1000 system should be
serviced.
PFD1 DB ERR
– PFD1 aviation
database error exists.
MFD1 DB ERR
– MFD1 basemap
database error exists. The MFD and/or PFD detected a failure in the basemap database.
PFD1 DB ERR
– PFD1 basemap
database error exists.
MFD1 DB ERR
– MFD1 terrain
database error exists. The MFD and/or PFD detected a failure in the terrain database. Ensure that
the terrain card is properly inserted in display. Replace terrain card. If problem
persists, the G1000 system should be serviced.
PFD1 DB ERR
– PFD1 terrain
database error exists.
MFD1 DB ERR
– MFD1 terrain
database missing. The terrain database is present on another LRU, but is missing on the specified
LRU.
PFD1 DB ERR
– PFD1 terrain
database missing.
MFD1 DB ERR
– MFD1 obstacle
database error exists. The MFD and/or PFD detected a failure in the obstacle database. Ensure that the
data card is properly inserted. Replace data card. If problem persists, the G1000
system should be serviced.
PFD1 DB ERR
– PFD1 obstacle
database error exists.
MFD1 DB ERR
– MFD1 obstacle
database missing. The obstacle database is present on another LRU, but is missing on the specified
LRU.
PFD1 DB ERR
– PFD1 obstacle
database missing.
MFD1 DB ERR
– MFD1 airport terrain
database error exists. The MFD and/or PFD detected a failure in the airport terrain database. Ensure
that the data card is properly inserted. Replace data card. If problem persists,
the G1000 system should be serviced.
PFD1 DB ERR
– PFD1 airport terrain
database error exists.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
12-12
SECTION 12 – ANNUNCIATIONS
& ALERTS
Database Message Advisories (Cont.)
Message Comments
MFD1 DB ERR
– MFD1 airport terrain
database missing. The airport terrain database is present on another LRU, but is missing on the
specified LRU.
PFD1 DB ERR
– PFD1 airport terrain
database missing.
MFD1 DB ERR
– MFD1 SafeTaxi
database error exists. The MFD and/or PFD detected a failure in the SafeTaxi database. Ensure that the
data card is properly inserted. Replace data card. If problem persists, the G1000
system should be serviced.
PFD1 DB ERR
– PFD1 SafeTaxi
database error exists.
MFD1 DB ERR
– MFD1 Chartview
database error exists.
The MFD and/or PFD detected a failure in the ChartView database (optional
feature). Ensure that the data card is properly inserted. Replace data card. If
problem persists, the G1000 system should be serviced.
MFD1 DB ERR
– MFD1 FliteCharts
database error exists.
The MFD and/or PFD detected a failure in the FliteCharts database (optional
feature). Ensure that the data card is properly inserted. Replace data card. If
problem persists, the G1000 system should be serviced.
DB MISMATCH
– Aviation database
version mismatch. Xtalk is off.
The PFD and MFD have different aviation database versions installed. Crossfill is
off. Install correct aviation database version in both displays.
DB MISMATCH
– Aviation database
type mismatch. Xtalk is off.
The PFD and MFD have different aviation database types installed (Americas,
European, etc.). Crossfill is off. Install correct aviation database type in both
displays.
DB MISMATCH
– Terrain database
version mismatch.
The PFD and MFD have different terrain database versions installed. Install
correct terrain database version in both displays.
DB MISMATCH
– Terrain database
type mismatch.
The PFD and MFD have different terrain database types installed. Install correct
terrain database type in both displays.
DB MISMATCH
– Obstacle database
version mismatch.
The PFD and MFD have different obstacle database versions installed. Install
correct obstacle database version in both displays.
DB MISMATCH
– Airport Terrain
database mismatch.
The PFD and MFD have different airport terrain databases installed. Install
correct airport terrain database in both displays.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A 12-13
SECTION 12 – ANNUNCIATIONS
& ALERTS
GMA 1347 Message Advisories
Message Comments
GMA1 FAIL
– GMA1 is inoperative. The audio panel self-test has detected a failure. The audio panel is unavailable.
The G1000 system should be serviced.
GMA1 CONFIG
– GMA1 config error.
Config service req’d.
The audio panel configuration settings do not match backup configuration
memory. The G1000 system should be serviced.
MANIFEST
– GMA1 software
mismatch, communication halted.
The audio panel has incorrect software installed. The G1000 system should be
serviced.
GMA1 SERVICE
– GMA1 needs
service. Return unit for repair.
The audio panel self-test has detected a problem in the unit. Certain audio
functions may still be available, and the audio panel may still be usable. The
G1000 system should be serviced when possible.
GIA 63 Message Advisories
Message Comments
GIA1 CONFIG – GIA1 config error.
Config service req’d. The GIA1 and/or GIA2 configuration settings do not match backup configuration
memory. The G1000 system should be serviced.
GIA2 CONFIG – GIA2 config error.
Config service req’d.
GIA1 CONFIG – GIA1 audio config
error. Config service req’d. The GIA1 and/or GIA2 have an error in the audio configuration. The G1000 system
should be serviced.
GIA2 CONFIG – GIA2 audio config
error. Config service req’d.
GIA1 COOLING – GIA1 temperature
too low. The GIA1 and/or GIA2 temperature is too low to operate correctly. Allow units to
warm up to operating temperature.
GIA2 COOLING – GIA2 temperature
too low.
GIA1 COOLING – GIA1 over
temperature. The GIA1 and/or GIA2 temperature is too high. If problem persists, the G1000
system should be serviced.
GIA2 COOLING – GIA2 over
temperature.
GIA1 SERVICE – GIA1 needs service.
Return the unit for repair. The GIA1 and/or GIA2 self-test has detected a problem in the unit. The G1000
system should be serviced.
GIA2 SERVICE – GIA2 needs service.
Return the unit for repair.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
12-14
SECTION 12 – ANNUNCIATIONS
& ALERTS
GIA 63 Message Advisories (Cont.)
Message Comments
MANIFEST – GIA1 software mismatch,
communication halted. The GIA1 and/or GIA 2 has incorrect software installed. The G1000 system should
be serviced.
MANIFEST – GIA2 software mismatch,
communication halted.
COM1 TEMP – COM1 over temp.
Reducing transmitter power. The system has detected an over temperature condition in COM1 and/or COM2. The
transmitter is operating at reduced power. If the problem persists, the G1000 system
should be serviced.
COM2 TEMP – COM2 over temp.
Reducing transmitter power.
COM1 SERVICE – COM1 needs
service. Return unit for repair. The system has detected a failure in COM1 and/or COM2. COM1 and/or COM2 may
still be usable. The G1000 system should be serviced when possible.
COM2 SERVICE – COM2 needs
service. Return unit for repair.
COM1 PTT – COM1 push-to-talk key
is stuck. The COM1 and/or COM2 external push-to-talk switch is stuck in the enable (or
“pressed”) position. Press the PTT switch again to cycle its operation.
If the problem persists, the G1000 system should be serviced.
COM2 PTT – COM2 push-to-talk key
is stuck.
COM1 RMT XFR – COM1 remote
transfer key is stuck. The COM1 and/or COM2 transfer switch is stuck in the enabled (or “pressed”) posi-
tion. Press the transfer switch again to cycle its operation. If the problem persists,
the G1000 system should be serviced.
COM2 RMT XFR – COM2 remote
transfer key is stuck.
RAIM UNAVAIL – RAIM is not
available from FAF to MAP waypoints.
GPS satellite coverage is insufficient to perform Receiver Autonomous Integrity
Monitoring (RAIM) from the FAF to the MAP waypoints.
LOI – GPS integrity lost. Crosscheck
with other NAVS. Loss of GPS integrity monitoring.
GPS NAV LOST – Loss of GPS naviga-
tion. Insufficient satellites. Loss of GPS navigation due to insufficient satellites.
GPS NAV LOST – Loss of GPS
navigation. Position error. Loss of GPS navigation due to position error.
GPS NAV LOST – Loss of GPS
navigation. GPS fail. Loss of GPS navigation due to GPS failure.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A 12-15
SECTION 12 – ANNUNCIATIONS
& ALERTS
GIA 63 Message Advisories (Cont.)
Message Comments
ABORT APR – Loss of GPS navigation.
Abort approach. Abort approach due to loss of GPS navigation.
TRUE APR – True north approach.
Change hdg reference to TRUE.
Displayed after passing the first waypoint of a true north approach when the nav
angle is set to ‘AUTO’.
GPS1 FAIL – GPS1 is inoperative. A failure has been detected in the GPS1 and/or GPS2 receiver. The receiver is
unavailable. The G1000 system should be serviced.
GPS2 FAIL – GPS2 is inoperative.
GPS1 SERVICE – GPS1 needs service.
Return unit for repair. A failure has been detected in the GPS1 and/or GPS2 receiver. The receiver may still
be available. The G1000 system should be serviced.
GPS2 SERVICE – GPS2 needs service.
Return unit for repair.
NAV1 SERVICE – NAV1 needs service.
Return unit for repair. A failure has been detected in the NAV1 and/or NAV2 receiver. The receiver may still
be available. The G1000 system should be serviced.
NAV2 SERVICE – NAV2 needs service.
Return unit for repair.
NAV1 RMT XFR – NAV1 remote
transfer key is stuck. The remote NAV1 and/or NAV2 transfer switch is stuck in the enabled (or “pressed”)
state. Press the transfer switch again to cycle its operation. If the problem persists,
the G1000 system should be serviced.
NAV2 RMT XFR – NAV2 remote
transfer key is stuck.
G/S1 FAIL – G/S1 is inoperative. A failure has been detected in glideslope receiver 1 and/or receiver 2. The G1000
system should be serviced.
G/S2 FAIL – G/S2 is inoperative.
G/S1 SERVICE – G/S1 needs service.
Return unit for repair. A failure has been detected in glideslope receiver 1 and/or receiver 2. The receiver
may still be available. The G1000 system should be serviced when possible.
G/S2 SERVICE – G/S2 needs service.
Return unit for repair.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
12-16
SECTION 12 – ANNUNCIATIONS
& ALERTS
GIA 63W Message Advisories
Message Comments
GIA1 CONFIG
– GIA1 configuration
error. Config service req’d. The GIA1 and/or GIA2 configuration settings do not match backup configuration
memory. The G1000 system should be serviced.
GIA2 CONFIG
– GIA2 configuration
error. Config service req’d.
GIA1 CONFIG
– GIA1 audio config
error. Config service req’d. The GIA1 and/or GIA2 have an error in the audio configuration. The G1000
system should be serviced.
GIA2 CONFIG
– GIA2 audio config
error. Config service req’d.
GIA1 COOLING
– GIA1 temperature
too low. The GIA1 and/or GIA2 temperature is too low to operate correctly. Allow units to
warm up to operating temperature.
GIA2 COOLING
– GIA2 temperature
too low.
GIA1 COOLING
– GIA1 over
temperature. The GIA1 and/or GIA2 temperature is too high. If problem persists, the G1000
system should be serviced.
GIA2 COOLING
– GIA2 over
temperature.
GIA1 SERVICE
– GIA1 needs service.
Return the unit for repair. The GIA1 and/or GIA2 self-test has detected a problem in the unit. The G1000
system should be serviced.
GIA2 SERVICE
– GIA2 needs service.
Return the unit for repair.
HW MISMATCH
– GIA hardware
mismatch. GIA1 communication
halted. A GIA mismatch has been detected, where only one is WAAS capable.
HW MISMATCH
– GIA hardware
mismatch. GIA2 communication
halted.
MANIFEST
– GIA1 software
mismatch, communication halted. The GIA1 and/or GIA 2 has incorrect software installed. The G1000 system
should be serviced.
MANIFEST
– GIA2 software
mismatch, communication halted.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A 12-17
SECTION 12 – ANNUNCIATIONS
& ALERTS
GIA 63W Message Advisories (Cont.)
Message Comments
COM1 TEMP
– COM1 over temp.
Reducing transmitter power. The system has detected an over temperature condition in COM1 and/or COM2.
The transmitter is operating at reduced power. If the problem persists, the G1000
system should be serviced.
COM2 TEMP
– COM2 over temp.
Reducing transmitter power.
COM1 SERVICE
– COM1 needs
service. Return unit for repair. The system has detected a failure in COM1 and/or COM2. COM1 and/or COM2
may still be usable. The G1000 system should be serviced when possible.
COM2 SERVICE
– COM2 needs
service. Return unit for repair.
COM1 PTT
– COM1 push-to-talk key
is stuck. The COM1 and/or COM2 external push-to-talk switch is stuck in the enable (or
“pressed”) position. Press the PTT switch again to cycle its operation.
If the problem persists, the G1000 system should be serviced.
COM2 PTT
– COM2 push-to-talk key
is stuck.
COM1 RMT XFR
– COM1 remote
transfer key is stuck. The COM1 and/or COM2 transfer switch is stuck in the enabled (or “pressed”)
position. Press the transfer switch again to cycle its operation. If the problem
persists, the G1000 system should be serviced.
COM2 RMT XFR
– COM2 remote
transfer key is stuck.
LOI
– GPS integrity lost. Crosscheck
with other NAVS. GPS integrity is insufficient for the current phase of flight.
GPS NAV LOST
– Loss of GPS
navigation. Insufficient satellites. Loss of GPS navigation due to insufficient satellites.
GPS NAV LOST
– Loss of GPS
navigation. Position error. Loss of GPS navigation due to position error.
GPS NAV LOST
– Loss of GPS
navigation. GPS fail. Loss of GPS navigation due to GPS failure.
ABORT APR
– Loss of GPS navigation.
Abort approach. Abort approach due to loss of GPS navigation.
APR DWNGRADE
– Approach
downgraded. Vertical guidance generated by WAAS is unavailable, use LNAV only minimums.
TRUE APR
– True north approach.
Change hdg reference to TRUE.
Displayed after passing the first waypoint of a true north approach when the nav
angle is set to ‘AUTO’.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
12-18
SECTION 12 – ANNUNCIATIONS
& ALERTS
GIA 63W Message Advisories (Cont.)
Message Comments
GPS1 SERVICE
– GPS1 needs service.
Return unit for repair. A failure has been detected in the GPS1 and/or GPS2 receiver. The receiver may
still be available. The G1000 system should be serviced.
GPS2 SERVICE
– GPS2 needs service.
Return unit for repair.
NAV1 SERVICE
– NAV1 needs service.
Return unit for repair. A failure has been detected in the NAV1 and/or NAV2 receiver. The receiver may
still be available. The G1000 system should be serviced.
NAV2 SERVICE
– NAV2 needs service.
Return unit for repair.
NAV1 RMT XFR
– NAV1 remote
transfer key is stuck. The remote NAV1 and/or NAV2 transfer switch is stuck in the enabled (or
“pressed”) state. Press the transfer switch again to cycle its operation. If the
problem persists, the G1000 system should be serviced.
NAV2 RMT XFR
– NAV2 remote
transfer key is stuck.
G/S1 FAIL
– G/S1 is inoperative.
A failure has been detected in glideslope receiver 1 and/or receiver 2. The
G1000 system should be serviced.
G/S2 FAIL
– G/S2 is inoperative.
G/S1 SERVICE
– G/S1 needs service.
Return unit for repair. A failure has been detected in glideslope receiver 1 and/or receiver 2. The
receiver may still be available. The G1000 system should be serviced when
possible.
G/S2 SERVICE
– G/S2 needs service.
Return unit for repair.
GEA 71 Message Advisories
Message Comments
GEA1 CONFIG
– GEA1 configuration
error. Config service req’d.
The GEA1 configuration settings do not match those of backup configuration
memory. The G1000 system should be serviced.
MANIFEST
– GEA1 software
mismatch, communication halted.
The #1 GEA 71 has incorrect software installed. The G1000 system should be
serviced.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A 12-19
SECTION 12 – ANNUNCIATIONS
& ALERTS
GTX 33 Message Advisories
Message Comments
XPDR1 CONFIG
– XPDR1 config error.
Config service req’d.
The transponder configuration settings do not match those of backup
configuration memory. The G1000 system should be serviced.
MANIFEST
– GTX1 software
mismatch, communication halted.
The transponder has incorrect software installed. The G1000 system should be
serviced.
XPDR1 SRVC
– XPDR1 needs service.
Return unit for repair. The #1 transponder should be serviced when possible.
XPDR1 FAIL
– XPDR1 is inoperative. There is no communication with the #1 transponder.
GRS 77 Message Advisories
Message Comments
AHRS1 TAS
– AHRS1 not receiving
airspeed.
The #1 AHRS is not receiving true airspeed from the air data computer. The AHRS
relies on GPS information to augment the lack of airspeed. The G1000 system
should be serviced.
AHRS1 GPS
– AHRS1 using backup
GPS source.
The #1 AHRS is using the backup GPS path. Primary GPS path has failed. The
G1000 system should be serviced when possible.
AHRS1 GPS
– AHRS1 not receiving
any GPS information.
The #1 AHRS is not receiving any or any useful GPS information. Check AFMS
limitations. The G1000 system should be serviced.
AHRS1 GPS
– AHRS1 not receiving
backup GPS information.
The #1 AHRS is not receiving backup GPS information. The G1000 system should
be serviced.
AHRS1 GPS
– AHRS1 operating
exclusively in no-GPS mode.
The #1 AHRS is operating exclusively in no-GPS mode. The G1000 system should
be serviced.
AHRS1 SRVC
– AHRS1 Magnetic-field
model needs update.
The #1 AHRS earth magnetic field model is out of date. Update magnetic field
model when practical.
GEO LIMITS
– AHRS1 too far North/
South, no magnetic compass.
The aircraft is outside geographical limits for approved AHRS operation. Heading
is flagged as invalid.
MANIFEST
– GRS1 software
mismatch, communication halted.
The #1 AHRS has incorrect software installed. The G1000 system should be
serviced.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
12-20
SECTION 12 – ANNUNCIATIONS
& ALERTS
GMU 44 Message Advisories
Message Comments
HDG FAULT
– AHRS1 magnetometer
fault has occurred.
A fault has occurred in the #1 GMU 44. Heading is flagged as invalid. The AHRS
uses GPS for backup mode operation. The G1000 system should be serviced.
MANIFEST
– GMU1 software
mismatch, communication halted.
The GMU 44 has incorrect software installed. The G1000 system should be
serviced.
GDL 69A Message Advisories
Message Comments
GDL69 CONFIG
– GDL 69 config
error. Config service req’d.
GDL 69 configuration settings do not match those of backup configuration
memory. The G1000 system should be serviced.
GDL69 FAIL
– GDL 69 has failed. A failure has been detected in the GDL 69. The receiver is unavailable. The
G1000 system should be serviced
MANIFEST
– GDL software mismatch,
communication halted.
The GDL 69 has incorrect software installed. The G1000 system should be
serviced.
GDC 74A Message Advisories
Message Comments
ADC1 ALT EC
– ADC1 altitude error
correction is unavailable. The GDC 74A is reporting that the altitude error correction is unavailable.
ADC1 AS EC
– ADC1 airspeed error
correction is unavailable. The GDC 74A is reporting that the airspeed error correction is unavailable.
MANIFEST
– GDC1 software
mismatch, communication halted.
The GDC 74A has incorrect software installed. The G1000 system should be
serviced.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A 12-21
SECTION 12 – ANNUNCIATIONS
& ALERTS
Miscellaneous Message Advisories
Message Comments
FPL WPT LOCK
– Flight plan waypoint
is locked.
Upon power-up, the G1000 system detects that a stored flight plan waypoint is
locked. This occurs when an aviation database update eliminates an obsolete
waypoint. The flight plan cannot find the specified waypoint and flags this
message. This can also occur with user waypoints in a flight plan that is deleted.
Remove the waypoint from the flight plan if it no longer exists in any database,
Or
update the waypoint name/identifier to reflect the new information.
FPL WPT MOVE
– Flight plan
waypoint moved.
The system has detected that a waypoint coordinate has changed due to a new
aviation database update. Verify that stored flight plans contain correct waypoint
locations.
TIMER EXPIRD
– Timer has expired. The system notifies the pilot that the timer has expired.
DB CHANGE
– Database changed.
Verify user modified procedures.
This occurs when a stored flight plan contains procedures that have been manually
edited. This alert is issued only after an aviation database update. Verify that the
user-modified procedures in stored flight plans are correct and up to date.
FPL TRUNC
– Flight plan has been
truncated.
This occurs when a newly installed aviation database eliminates an obsolete
approach or arrival used by a stored flight plan. The obsolete procedure is
removed from the flight plan. Update flight plan with current arrival or approach.
LOCKED FPL
– Cannot navigate
locked flight plan.
This occurs when the pilot attempts to activate a stored flight plan that contains
locked waypoint. Remove locked waypoint from flight plan. Update flight plan
with current waypoint.
WPT ARRIVAL
– Arriving at waypoint
-[xxxx] Arriving at waypoint [xxxx], where [xxxx] is the waypoint name.
STEEP TURN
– Steep turn ahead. A steep turn is 15 seconds ahead. Prepare to turn.
INSIDE ARSPC
– Inside airspace. The aircraft is inside the airspace.
ARSPC AHEAD
– Airspace ahead less
than 10 minutes.
Special use airspace is ahead of aircraft. The aircraft will penetrate the airspace
within 10 minutes.
ARSPC NEAR
– Airspace near and
ahead. Special use airspace is near and ahead of the aircraft position.
ARSPC NEAR
– Airspace near – less
than 2 nm. Special use airspace is within 2 nm of the aircraft position.
APR INACTV
– Approach is not active. The system notifies the pilot that the loaded approach is not active. Activate
approach when required.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
12-22
SECTION 12 – ANNUNCIATIONS
& ALERTS
Miscellaneous Message Advisories (Cont.)
Message Comments
SLCT FREQ
– Select appropriate
frequency for approach.
The system notifies the pilot to load the approach frequency for the appropriate
NAV receiver. Select the correct frequency for the approach.
SLCT NAV
– Select NAV on CDI for
approach.
The system notifies the pilot to set the CDI to the correct NAV receiver. Set the
CDI to the correct NAV receiver.
PTK FAIL
– Parallel track unavailable:
bad geometry Bad parallel track geometry.
PTK FAIL
– Parallel track unavailable:
invalid leg type. Invalid leg type for parallel offset.
PTK FAIL
– Parallel track unavailable:
past IAF. IAF waypoint for parallel offset has been passed.
UNABLE V WPT
– Can’t reach current
vertical waypoint.
The current vertical waypoint can not be reached within the maximum flight path
angle and vertical speed constraints. The system automatically transitions to the
next vertical waypoint.
VNV
– Unavailable. Unsupported leg
type in flight plan.
The lateral flight plan contains a procedure turn, vector, or other unsupported leg
type prior to the active vertical waypoint. This prevents vertical guidance to the
active vertical waypoint.
VNV
– Unavailable. Excessive
crosstrack error. The current crosstrack exceeds the limit, causing vertical deviation to go invalid.
VNV
– Unavailable. Excessive track
angle error.
The current track angle error exceeds the limit, causing the vertical deviation to
go invalid.
VNV
– Unavailable. Parallel course
selected. A parallel course has been selected, causing the vertical deviation to go invalid.
NO WGS84 WPT
– Non WGS 84
waypoint for navigation -[xxxx]
The selected waypoint [xxxx] does not use the WGS 84 datum. Cross-check
position with alternate navigation sources.
TRAFFIC FAIL
– Traffic device has
failed.
The G1000 is no longer receiving data from the traffic system. The traffic device
should be serviced.
STRMSCP FAIL
– Stormscope has
failed. Stormscope has failed. The G1000 system should be serviced.
FAILED PATH
– A data path has failed. A data path connected to the GDU or the GIA 63/W has failed.
MAG VAR WARN
– Large magnetic
variance. Verify all course angles.
The GDU’s internal model cannot determine the exact magnetic variance for
geographic locations near the magnetic poles. Displayed magnetic course angles
may differ from the actual magnetic heading by more than 2°.
SCHEDULER [#]
– <message>. Message criteria entered by the user.
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A Index-1
INDEX
A
Abnormal COM operation 11-2
Activate a flight plan 8-3
Active flight plan 8-2
ADF 1-6, 1-7, 5-3
ADS-B RR-1, 10-7, 10-9, 12-6
AFCS 12-4
Age 10-6
AHRS 12-19, 12-20
Aircraft alerts 12-3
AIRMET 10-5
Airport frequency 7-25
Airport information 7-21
Airspace alerts 7-29
Airspeed indicator 2-3
Airspeed Reference 6-8
Airspeed trend vector 2-3
Airways 8-5
Alerting system 12-1
Alerts 12-1
Alert levels 12-2
Alert Pop-Up 10-15
ALT 1-4, 1-7, 2-4, 6-4, 6-6, 6-13, 7-19,
10-8
Altitude alerting 2-4
Altitude constraints 1-10, 7-12
Altitude hold 1-4
Altitude Hold Mode 6-6
Altitude mode 10-8
Altitude Reference 6-6, 6-13
Altitude restrictions 1-11
Altitude trend vector 2-4
Altitude volume 10-8
ALT Knob 1-4
Ammeter 3-2, 3-8
AP 1-4
Approach
ILS 6-31
Missed 6-33
WAAS 6-32
Approaches 9-2
Approach activation 4-4
Approach markers
Signal augmentation 5-2
Approach Mode 6-20, 6-31
Approach Mode, AFCS 6-32
AP DISC Switch 6-1, 6-34
Arrivals 9-1
Assist 3-4, 3-6, 3-7
Attitude indicator 2-3
Audio alerting system 12-1
Audio panel 4-3, 5-1
Audio panel controls
ADF 5-3
DME 5-3
NAV1 5-3
NAV2 5-3
Aural alerts 12-6
Auto-tuning 4-4
Automatic Flight Control System (AFCS)
Status Annunciations 6-34
Status Box 6-2
Automatic squelch 4-3
Autopilot 6-22–6-23
Autopilot disconnect 6-16, 6-23
B
Backcourse Mode 6-21
Barometric minimum 2-8
Base reflectivity 10-4
BRG1 2-11
BRG2 2-11
C
CAUTION 12-2
Caution alerts 12-3
CDI 2-9, 2-11, 7-3, 7-6, 7-12, 7-16,
7-20, 9-2, 12-22
Cell 10-2
Cell mode 10-2
Cell movement 10-5
Cloud Tops 10-4
CLR 1-3, 3-8
Coast mode 10-7
Code selection 4-5
Command Bars, flight director 6-2
COM frequency window 4-1
COM Knob 4-3
Controls 1-2
Control Wheel Steering (CWS) 6-23
Create a new user waypoint 8-1
CWS Button 6-1, 6-5 – 6-10, 6-13
– 6-18, 6-20 – 6-23
Cyclones 10-5
Cylinder Head Temperature 3-1, 3-4
D
Databases 1-12
Dead Reckoning 2-12, 11-3, 12-8
Departures 9-1
Direct-to 7-1 – 7-5, 7-11, 7-12, 8-8
DME 1-7
DR 2-12
DR mode 11-3, 11-4
Dual CDU failure 11-2
E
ECHO TOPS 10-4
Edit a flight plan 8-7
EDR 10-14
Engine Hours 3-2, 3-8
Engine Leaning 3-6
Engine Page 3-1
Excessive Descent Rate 10-14
Exhaust Gas Temperature 3-1, 3-4
F
FD 1-4
Five-Hundred Aural Alert 10-14
FLC 1-4
Flight director 6-2–6-3
Pitch modes 6-3–6-9
Roll modes 6-17–6-19
Flight ID 4-5
Flight level change 1-4
Flight Level Change Mode 6-28, 6-30
Flight Level Change Mode (FLC) 6-8
Flight Plan Catalog 9-1, 9-2
FLTA 10-13
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III 190-00384-08 Rev. A
Index-2
INDEX
Forward Looking Terrain Avoidance
10-13
Freezing level 10-5
Frequency toggle key 1-3, 4-3
Fuel
Calculations 3-7
Flow totalizer 3-7
Remaining 3-8
Used 3-8
Fuel Flow 3-1, 3-3, 3-4, 3-8
Fuel Quantity 3-2, 3-4, 3-8
G
GA Switch (Go-Around) 6-1
Glidepath 2-2, 2-6, 7-19
Glidepath Mode 6-14, 6-20
Glidepath Mode (GP) 6-32
Glideslope 2-6, 7-19
Glideslope Mode 6-15, 6-20, 6-31
GMA 1347 1-1
Go Around Mode 6-33–6-34
Go Around Mode (GA) 6-16
H
Heading indication 2-9
Heading Select 1-3, 1-4
Heading Select Mode 6-18
Headset(s) 5-3
Horizontal situation indicator 2-8
HSI 2-8
Hurricanes 10-5
I
ID RR-1, 1-3, 4-2, 4-3, 4-6
IDENT function 4-5
ILS approach 6-31
Imminent Terrain Impact 10-13
Impact point 10-13
Inhibit 10-12
Interrogations 4-5
IOI 10-13, 10-16, 12-5
ITI 10-13
K
Key(s) 1-4
L
Leaning 3-7
Leaning, Engine 3-4
Lean Display 3-1, 3-4, 3-5, 3-6
Lighted obstacle 10-15
Lightning 1-5, 1-9, 10-2, 10-3, 10-4
LNAV 2-6, 7-5
Load approach 8-6
Load a VOR frequency 7-27
Load departure 8-6
Load the frequency for a controlling
agency 7-29
Load the nearest ARTCC frequency
7-28
LOI 2-11
LOW ALT 2-5
Low Altitude 2-5
LPV 2-6, 6-24, 7-5, 7-20
M
Manifold Pressure 3-1, 3-3, 3-4, 3-6,
3-8, 3-10
Manual Electric Trim (MET) 6-22
MAP 7-1
Map panning 10-5
Marker beacon 2-7
Message advisories 12-2, 12-10 – 12-
15, 12-17 – 12-22
METAR 10-3, 10-5
Metric display 2-4
MET Switch (Manual Electric Trim) 6-1
MFD 1-1, 4-4
Minimums 12-6
Missed approach 6-33
MKR/MUTE 5-2, 5-4
Mode S 4-4
Mode selection softkeys 4-5
Morse code identifier 4-3
N
Nav/Com controls 4-1
NAV1 5-3
NAV2 5-3
Navigation 7-1
Navigation database 1-10, 1-11, 7-5
Navigation Mode 6-19–6-20, 6-26–6-
27
Navigation status window 2-2
NAV frequency window 4-1
NCR 10-14
Nearest Airports Page 7-21, 7-25 – 7-
29, 8-1
Nearest ARTCC & FSS frequencies 7-28
Negative Climb Rate After Takeoff
10-14
NEXRAD 1-9, 10-3 – 10-6
Non-path descent 6-12, 6-30–6-31
O
OBS 2-12
Obstacles 10-10, 10-15, 12-12, 12-16
Oil Pressure 3-1, 3-8
Oil Temperature 3-1, 3-8
Operation 5-2
Optional
NAV radios 4-3
Overspeed protection, autopilot 6-35
P
Page group icon 1-9
PDA 10-13
Peak, Cylinder 3-7–3-8
Peak temperature 3-4, 3-7
PFD 1-1, 4-1, 4-4
Pitch hold 1-4
Pitch Hold Mode (PIT) 6-5
Pitch modes, flight director 6-3–6-9
Pitch Reference 6-5
Premature Descent Alert 10-13
Procedures
GFC 700 6-24–6-36
Procedure examples, AFCS 6-24–6-31
Garmin G1000 Cockpit Reference Guide for the Cessna Nav III
190-00384-08 Rev. A Index-3
INDEX
R
Red pointer 2-3
Remove departure, arrival, or approach
8-6
Replies 4-5
Required Vertical Speed 2-6, 7-15
Required Vertical Speed Indicator 7-15
Reversionary mode 5-1, 11-1
ROC 10-13, 10-16, 12-5
Roll Hold Mode (ROL) 6-17
Roll modes, flight director 6-17–6-20
Roll Reference 6-18
RTC 10-13
RVSI 7-15, 7-16
RX indicator 4-3
R indication 4-5
S
Secure Digital (SD) card 1-12
Selected Altitude 6-6, 6-10, 6-13
Selected Altitude Capture Mode 6-6,
6-10, 6-13
Selected Course 6-20, 6-21
Selected Heading 6-18
Selected vertical speed 2-7
Servos 6-22
Severe thunderstorm 10-5
SIGMET 10-5
Slip/Skid indicator 2-3
Softkey function (MFD) 1-5, 1-8
Speed ranges 2-3
SQ 1-3, 4-2, 4-3, 5-1, 5-4
Squelch 5-4
STBY Softkey 4-4
Store Flight Plan 8-6
Stormscope lightning data 1-5, 1-9,
10-1, 10-2, 10-3
Strike 10-2
Strike mode 10-2
System annunciations 12-1
System message advisories 12-9
T
TA 10-7
Tachometer 3-1, 3-4, 3-8
TAF 10-3
TAS 10-7, 10-8, 10-9, 12-19
TAWS 10-11 – 10-13, 10-15 – 10-17,
12-5, 12-6
TAWS-B 10-11
TAWS system test 10-13
Temperature
Peak Cylinder 3-7
Turbine Inlet 3-7
Terrain 10-10, 10-11, 10-15, 10-17,
11-2, 12-12
TIS 10-7
TNA Mute 10-7
TOD 7-15, 7-18
Top of Descent 7-15
Tornado 10-5
Traffic advisory 10-7, 10-8, 10-9,
10-17
Traffic map page 10-7, 10-8, 10-9,
10-11, 10-14
Transponder 4-4
Transponder standby mode 4-4
Transponder Status bar 4-5
Trim adapter 6-22
Tropical storms 10-5
Turbine Inlet Temperature 3-1, 3-4, 3-7
Turbine Inlet Temperature (TIT) 3-7
TX 4-3, 7-23
U
Unlighted obstacle 10-15
V
Vacuum Pressure 3-1, 3-8
VDI 7-15, 7-16
Vertical Descent Indicator 7-15
Vertical Deviation 2-2, 2-6
Vertical deviation guidance 1-10, 1-11
Vertical navigation 1-10, 1-11
Vertical Navigation flight control 6-
10–6-14
Vertical Path Tracking Mode 6-10–6-
11, 6-29
Vertical speed 1-4, 2-7
Vertical Speed Bug 2-7
vertical speed guidance 1-10, 1-11
Vertical Speed Mode 6-7
Vertical Speed Reference 6-7
Vertical track 12-6
VHF 4-1
VNAV 1-11, 7-1 – 7-4, 12-22
VNAV Target Altitude 6-10–6-13
VNAV Target Altitude Capture Mode
6-13
VNV 1-10, 1-11, 7-15
Voice alerts 12-3
VOL/PUSH ID 4-2
VOL/PUSH SQ 4-2, 4-3
Voltmeter 3-2, 3-8
Volume/squelch 5-4
VS 1-4
VSI 7-16
Vspeeds 2-3
W
WAAS 2-6, 6-24, 7-5, 12-16
WAAS precision approach 6-32
WARN 2-11, 2-12
WARNING 12-2
Warning alerts 12-3
Weather data link page 10-4
Weather product symbol 10-5
Weather product symbols 10-6
Weather warnings 10-5
Wind direction 10-5
Wind speed 10-5
Wings level 6-16, 6-18
