Embraer Prodigy® Flight Deck 300
Cockpit Reference Guide
Embraer Phenom 300
FLIGHT INSTRUMENTS
ENGINE & AIRFRAME SYSTEMS
NAV/COM/TRANSPONDER/AUDIO PANEL
AUTOMATIC FLIGHT CONTROL SYSTEM
GPS NAVIGATION
FLIGHT PLANNING
PROCEDURES
HAZARD AVOIDANCE
ADDITIONAL FEATURES
ABNORMAL OPERATION
ANNUNCIATIONS & ALERTS
APPENDIX
INDEX
Copyright © 2008-2010, 2012, 2013 Garmin Ltd. or its subsidiaries. All rights reserved.
This manual reflects the operation of System Software version 0734.63 or later for the Embraer
Phenom 300. Some differences in operation may be observed when comparing the information
in this manual to earlier or later software versions.
Garmin International, Inc., 1200 East 151st Street, Olathe, Kansas 66062, U.S.A.
Tel: 913/397.8200 Fax: 913/397.8282
Garmin AT, Inc., 2345 Turner Road SE, Salem, OR 97302, U.S.A.
Tel: 503/391.3411 Fax 503/364.2138
Garmin (Europe) Ltd, Liberty House, Bulls Copse Road, Hounsdown Business Park,
Southampton, SO40 9RB, U.K.
Tel: 44/0870.8501241 Fax: 44/0870.8501251
Garmin Corporation, No. 68, Jangshu 2nd Road, Shijr, Taipei County, Taiwan
Tel: 886/02.2642.9199 Fax: 886/02.2642.9099
For after-hours emergency, aircraft on ground (AOG) technical support for Garmin panel mount
and integrated avionics systems, please contact Garmin’s AOG Hotline at 913.397.0836.
Web Site Address: www.garmin.com
Except as expressly provided herein, no part of this manual may be reproduced, copied,
transmitted, disseminated, downloaded or stored in any storage medium, for any purpose
without the express written permission of Garmin. Garmin hereby grants permission to
download a single copy of this manual and of any revision to this manual onto a hard drive or
other electronic storage medium to be viewed for personal use, provided that such electronic
or printed copy of this manual or revision must contain the complete text of this copyright
notice and provided further that any unauthorized commercial distribution of this manual or any
revision hereto is strictly prohibited.
Prodigy® is a registered trademark of Embraer-Empresa Brasileira de Aeronautica S.A.
Garmin® is a registered trademark of Garmin Ltd. or its subsidiaries. WATCH®, FliteCharts®, and
SafeTaxi® are trademarks of Garmin Ltd. or its subsidiaries. These trademarks may not be used
without the express permission of Garmin.
NavData® is a registered trademark of Jeppesen, Inc.; Honeywell® and Bendix/King® are
registered trademarks of Honeywell International, Inc.; CO Guardian is a trademark of CO
Guardian, Inc.
SiriusXM Weather and SiriusXM Satellite Radio are provided by SiriusXM Satellite Radio, Inc.
AC-U-KWIK® is a registered trademark of Penton Business Media Inc.
AOPA Membership Publications, Inc. and its related organizations (hereinafter collectively
“AOPA”) expressly disclaim all warranties, with respect to the AOPA information included in this
data, express or implied, including, but not limited to, the implied warranties of merchantability
and fitness for a particular purpose. The information is provided “as is” and AOPA does not
warrant or make any representations regarding its accuracy, reliability, or otherwise. Under
no circumstances including negligence, shall AOPA be liable for any incidental, special or
consequential damages that result from the use or inability to use the software or related
documentation, even if AOPA or an AOPA authorized representative has been advised of the
possibility of such damages. User agrees not to sue AOPA and, to the maximum extent allowed
by law, to release and hold harmless AOPA from any causes of action, claims or losses related
to any actual or alleged inaccuracies in the information. Some jurisdictions do not allow the
limitation or exclusion of implied warranties or liability for incidental or consequential damages
so the above limitations or exclusions may not apply to you.
AC-U-KWIK and its related organizations (hereafter collectively “AC-U-KWIK Organizations”)
expressly disclaim all warranties with respect to the AC-U-KWIK information included in this
data, express or implied, including, but not limited to, the implied warranties of merchantability
and fitness for a particular purpose. The information is provided “as is” and AC-U-KWIK
Organizations do not warrant or make any representations regarding its accuracy, reliability, or
otherwise. Licensee agrees not to sue AC-U-KWIK Organizations and, to the maximum extent
allowed by law, to release and hold harmless AC-U-KWIK Organizations from any cause of
action, claims or losses related to any actual or alleged inaccuracies in the information arising
out of Garmin’s use of the information in the datasets. Some jurisdictions do not allow the
limitation or exclusion of implied warranties or liability for incidental or consequential damages
so the above limitations or exclusions may not apply to licensee.
May, 2013 190-00761-03 Rev. A Printed in the U.S.A.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
Warnings, Cautions & Notes
WARNING: Navigation and terrain separation must NOT be predicated upon
the use of the terrain avoidance feature. The terrain avoidance feature is NOT
intended to be used as a primary reference for terrain avoidance and does
not relieve the pilot from the responsibility of being aware of surroundings
during flight. The terrain avoidance feature is only to be used as an aid for
terrain avoidance. Terrain data is obtained from third party sources. Garmin
is not able to independently verify the accuracy of the terrain data.
WARNING: The displayed minimum safe altitudes (MSAs) are only advisory
in nature and should not be relied upon as the sole source of obstacle and
terrain avoidance information. Always refer to current aeronautical charts
for appropriate minimum clearance altitudes.
WARNING: Do not use outdated database information. Databases used in
the system must be updated regularly in order to ensure that the information
remains current. Pilots using any outdated database do so entirely at their
own risk.
WARNING: Do not use basemap (land and water data) information for
primary navigation. Basemap data is intended only to supplement other
approved navigation data sources and should be considered as an aid to
enhance situational awareness.
WARNING: Traffic information shown on system displays is provided as an
aid in visually acquiring traffic. Pilots must maneuver the aircraft based only
upon ATC guidance or positive visual acquisition of conflicting traffic.
WARNING: Do not use data link weather information for maneuvering in, near,
or around areas of hazardous weather. Information contained within data
link weather products may not accurately depict current weather conditions.
WARNING: Do not use the indicated data link weather product age to
determine the age of the weather information shown by the data link weather
product. Due to time delays inherent in gathering and processing weather
data for data link transmission, the weather information shown by the data
link weather product may be significantly older than the indicated weather
product age.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
Warnings, Cautions & Notes
WARNING: The Prodigy
®
Integrated Flight Deck, as installed in the Embraer
Phenom 300 aircraft, has a very high degree of functional integrity. However,
the pilot must recognize that providing monitoring and/or self-test capability
for all conceivable system failures is not practical. Although unlikely, it may
be possible for erroneous operation to occur without a fault indication
shown by the system. It is thus the responsibility of the pilot to detect such
an occurrence by means of cross-checking with all redundant or correlated
information available in the cockpit.
WARNING: For safety reasons, system operational procedures must be learned
on the ground.
WARNING: The United States government operates the Global Positioning
System and is solely responsible for its accuracy and maintenance. The
GPS system is subject to changes which could affect the accuracy and
performance of all GPS equipment. Portions of the system utilize GPS as a
precision electronic NAVigation AID (NAVAID). Therefore, as with all NAVAIDs,
information presented by the system can be misused or misinterpreted and,
therefore, become unsafe.
WARNING: To reduce the risk of unsafe operation, carefully review and
understand all aspects of the Prodigy
®
Pilot’s Guide documentation and the
Embraer Phenom 300 Airplane Flight Manual. Thoroughly practice basic
operation prior to actual use. During flight operations, carefully compare
indications from the system to all available navigation sources, including
the information from other NAVAIDs, visual sightings, charts, etc. For safety
purposes, always resolve any discrepancies before continuing navigation.
WARNING: The illustrations in this guide are only examples. Never use
the system to attempt to penetrate a thunderstorm. Both the FAA Advisory
Circular, Subject: Thunderstorms, and the Aeronautical Information Manual
(AIM) recommend avoiding “by at least 20 miles any thunderstorm identified
as severe or giving an intense radar echo.”
WARNING: Lamp(s) inside this product may contain mercury (HG) and must
be recycled or disposed of according to local, state, or federal laws. For
more information, refer to our website at www.garmin.com/aboutGarmin/
environment/disposal.jsp.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
Warnings, Cautions & Notes
WARNING: Because of variation in the earth’s magnetic field, operating the
system within the following areas could result in loss of reliable attitude and
heading indications. North of 72° North latitude at all longitudes. South of
70° South latitude at all longitudes. North of 65° North latitude between
longitude 75° W and 120° W. (Northern Canada). North of 70° North latitude
between longitude 70° W and 128° W. (Northern Canada). North of 70° North
latitude between longitude 85° E and 114° E. (Northern Russia). South of
55° South latitude between longitude 120° E and 165° E. (Region south of
Australia and New Zealand).
WARNING: Do not use GPS to navigate to any active waypoint identified as
a ‘NON WGS84 WPT’ by a system message. ‘NON WGS84 WPT’ waypoints are
derived from an unknown map reference datum that may be incompatible
with the map reference datum used by GPS (known as WGS84) and may be
positioned in error as displayed.
CAUTION: The PFD and MFD displays use a lens coated with a special
anti-reflective coating that is very sensitive to skin oils, waxes, and abrasive
cleaners. CLEANERS CONTAINING AMMONIA WILL HARM THE ANTI-
REFLECTIVE COATING. It is very important to clean the lens using a clean,
lint-free cloth and an eyeglass lens cleaner that is specified as safe for anti-
reflective coatings.
CAUTION: The system does not contain any user-serviceable parts. Repairs
should only be made by an authorized Garmin service center. Unauthorized
repairs or modifications could void both the warranty and the pilot’s authority
to operate this device under FAA/FCC regulations.
NOTE: All visual depictions contained within this document, including screen
images of the panel and displays, are subject to change and may not reflect
the most current system and databases. Depictions of equipment may differ
slightly from the actual equipment.
NOTE: This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
Warnings, Cautions & Notes
NOTE: The data contained in the terrain and obstacle databases comes from
government agencies. Garmin accurately processes and cross-validates the
data, but cannot guarantee the accuracy and completeness of the data.
NOTE: This product, its packaging, and its components contain chemicals
known to the State of California to cause cancer, birth defects, or reproductive
harm. This notice is being provided in accordance with California’s Proposition
65. If you have any questions or would like additional information, please
refer to our web site at www.garmin.com/prop65.
NOTE: Interference from GPS repeaters operating inside nearby hangars can
cause an intermittent loss of attitude and heading displays while the aircraft
is on the ground. Moving the aircraft more than 100 yards away from the
source of the interference should alleviate the condition.
NOTE: Use of polarized eyewear may cause the flight displays to appear dim
or blank.
NOTE: The purpose of this Cockpit Reference Guide is to provide the pilot a
resource with which to find operating instructions on the major features of
the Prodigy
®
system more easily. It is not intended to be a comprehensive
operating guide. Complete operating procedures for the system are found
in the Prodigy
®
Flight Deck 300 Pilot’s Guide.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A RR-1
Record of Revisions
Part Number Change Summary
190-00761-00 Initial release
190-00761-01 Added SMS texting
Updated database update procedures in the Appendix
Added other GDU 11.12 parameters
190-0761-02 Updated CAS messages
Updated SiriusXM Satellite Radio audio mute procedure
Added Pilot Profiles
Updated Database Update procedures
Added AC-U-KWIK Airport Directory capability
Updated GFDS registration procedure
Added Inset Map WX LGND Softkey
Added other GDU 12.11 parameters
190-0761-03 Added CPDLC
Added User Defined Holds
Added Maintenance Logs Page
Removed Reports Page
Added temperature compensated altitude
Added Steep Mode capability
Updated CAS and voice messages
Added other GDU 13.02 parameters
Revision Date of Revision Affected Pages Description
A May, 2013 All Production release
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
RR-2
Record of Revisions
Blank Page
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A i
Table of Contents
FLIGHT INSTRUMENTS ................................................................................................................ 1
Selecting the Altimeter Barometric Pressure Setting ...................................................... 1
Selecting Standard Barometric Pressure ............................................................................. 1
Change Altimeter Barometric Pressure Setting Units ...................................................... 1
Synchronizing the Altimeter Barometric Pressure Settings ........................................... 1
Synchronize CDI......................................................................................................................... 1
Change Navigation Sources ................................................................................................... 2
Enable/Disable OBS Mode While Navigating with GPS .................................................... 2
Generic Timer ............................................................................................................................. 2
Configure Vspeed Bugs Individually ..................................................................................... 2
Turn Vspeed Bugs On or Off by Category ............................................................................ 3
Set Minimum Descent Altitude/Decision Height ............................................................... 3
Displaying Wind Data .............................................................................................................. 3
ENGINE & AIRFRAME SYSTEMS ............................................................................................. 5

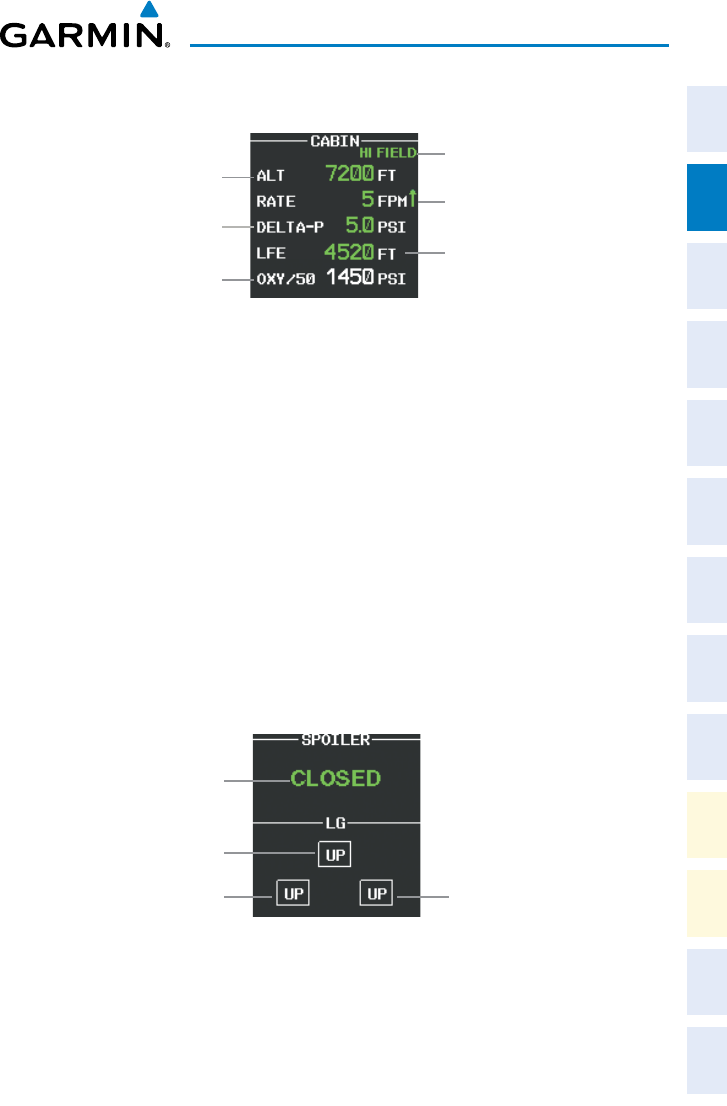

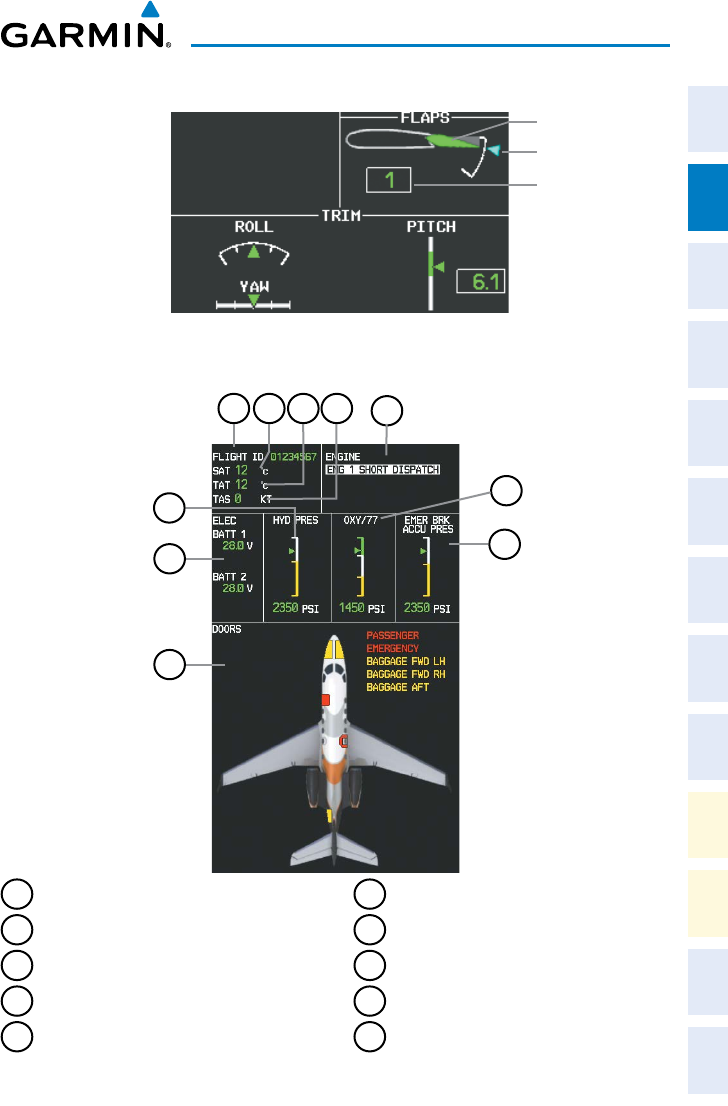

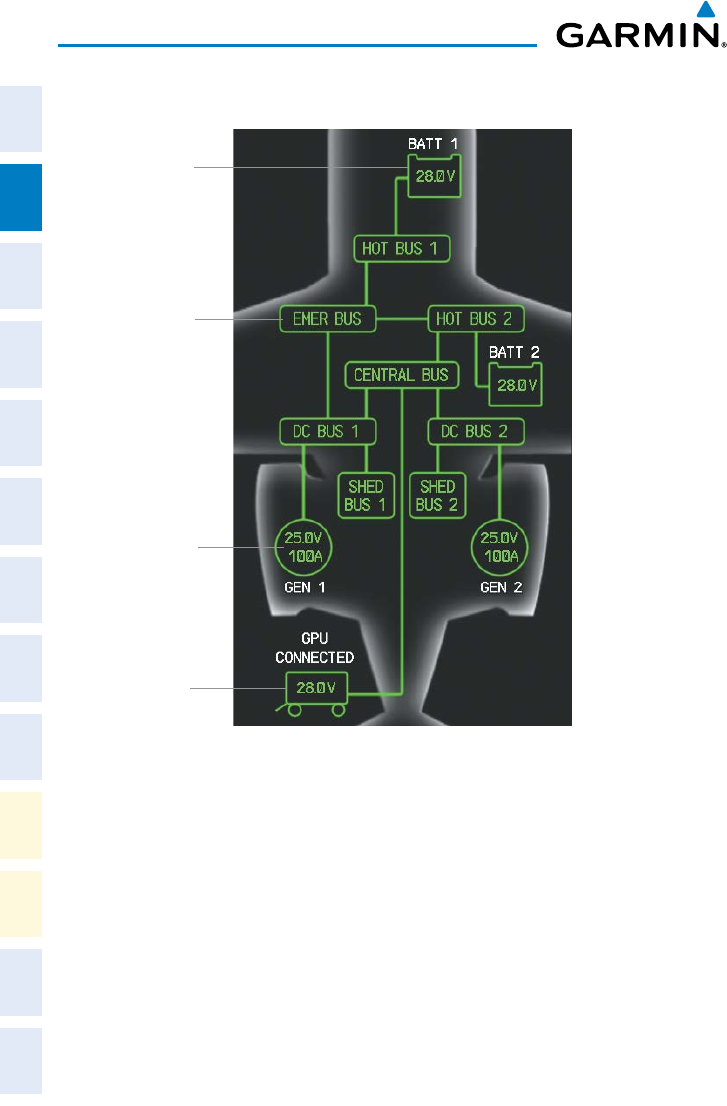

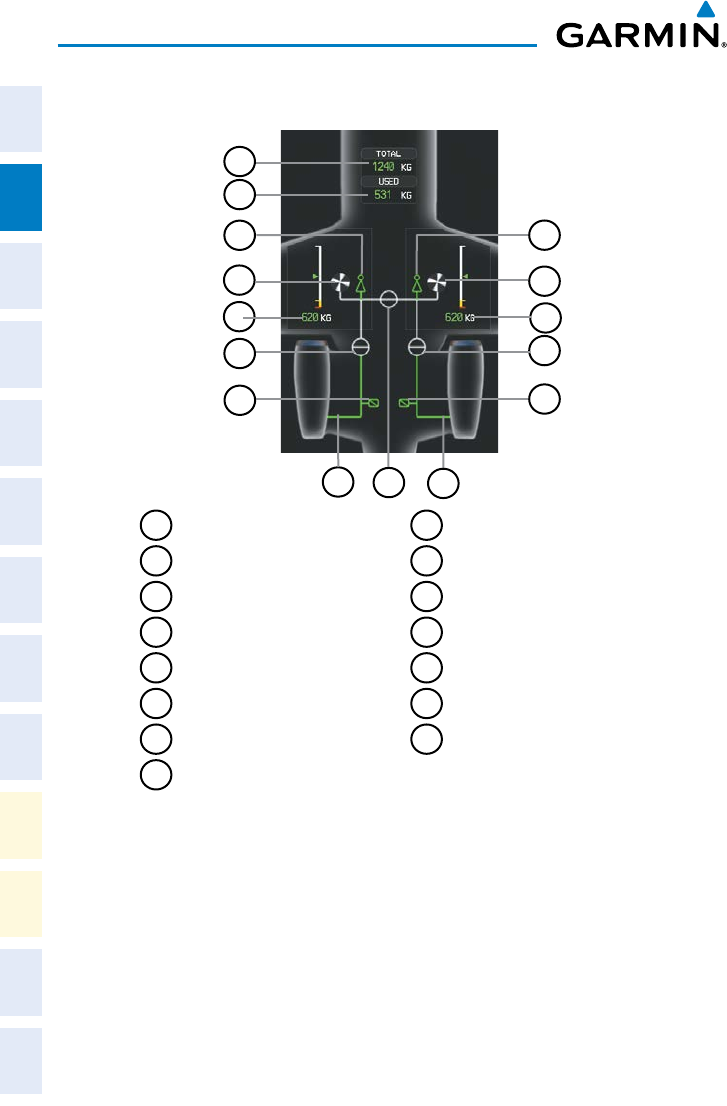

Synoptics .................................................................................................................................. 11
NAV/COM/TRANSPONDER/AUDIO PANEL ....................................................................... 21
Enter or Change Flight ID ..................................................................................................... 21
ADF Tuning (Optional) ............................................................................................................ 21
DME Tuning............................................................................................................................... 21
Enter a Transponder Code..................................................................................................... 22
Select Transponder Mode ..................................................................................................... 22
Selecting a COM Radio .......................................................................................................... 22
Selecting a NAV Radio ........................................................................................................... 23
NAV/COM Tuning ..................................................................................................................... 23
Intercom .................................................................................................................................... 23
Controller Pilot Data Link Communications (Optional) ................................................. 24
Passenger Address (PA) System ........................................................................................... 27
Clearance Recorder and Player ........................................................................................... 27
AUTOMATIC FLIGHT CONTROL SYSTEM .......................................................................... 29
Flight Director Activation ..................................................................................................... 29
Vertical Modes ......................................................................................................................... 30
Lateral Modes .......................................................................................................................... 31
GPS NAVIGATION ........................................................................................................................ 33
Direct-to Navigation .............................................................................................................. 33
Activate a Stored Flight Plan ............................................................................................... 34
Activate a Flight Plan Leg ..................................................................................................... 34
Stop Navigating a Flight Plan .............................................................................................. 35
Vertical Navigation (VNAV)................................................................................................... 35
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
ii
Table of Contents
FLIGHT PLANNING ...................................................................................................................... 39
Weight Planning ...................................................................................................................... 39
Trip Planning ............................................................................................................................ 39
Create a User Waypoint Defined by Latitude & Longitude ........................................... 41
Create a User Waypoint Defined by Radials from Other Waypoints ........................... 42
Create a User Waypoint Defined by a Radial & Distance from Another Waypoint .. 44
Delete a User Waypoint ......................................................................................................... 45
Create a Flight Plan ................................................................................................................ 46
Import a Flight Plan from an SD Card ................................................................................ 47
Insert a Waypoint in the Active Flight Plan ...................................................................... 47
Enter an Airway in a Flight Plan .......................................................................................... 48
Creating a User-Defined Hold at an Active Flight Plan Waypoint ................................ 49
Creating a User-Defined Hold at the Aircraft Present Position .................................... 49
Removing a User-Defined Hold (Created at the Aircraft P.POS) .................................. 50
Removing a User-Defined Hold (Created at an Active Waypoint) ............................... 50
Invert An Active Flight Plan .................................................................................................. 50
Remove a Departure, Arrival, Approach, or Airway from a Flight Plan ..................... 51
Store a Flight Plan .................................................................................................................. 51
Edit a Stored Flight Plan ....................................................................................................... 51
Delete a Waypoint from the Flight Plan ............................................................................ 52
Invert and Activate a Stored Flight Plan ........................................................................... 52
Copy a Flight Plan ................................................................................................................... 53
Delete a Flight Plan ................................................................................................................ 53
Graphical Flight Plan Creation ............................................................................................. 53
Export a Flight Plan to an SD Card ..................................................................................... 54
PROCEDURES ................................................................................................................................. 55
Load and Activate a Departure Procedure ....................................................................... 55
Activate A Departure Leg ..................................................................................................... 55
Load An Arrival Procedure .................................................................................................... 55
Activate An Arrival Leg ......................................................................................................... 56
Load and/or Activate an Approach Procedure ................................................................. 56
Activate An Approach in the Active Flight Plan ............................................................... 57
Activate a Vector to Final Approach Fix ............................................................................ 58
Activate A Missed Approach in the Active Flight Plan ................................................... 58
Temperature Compensated Altitude .................................................................................. 58
HAZARD AVOIDANCE ................................................................................................................ 61
Customizing the Hazard Displays on the Navigation Map ............................................ 61
SiriusXM Weather (Subscription Optional) ....................................................................... 61
Connext Weather (Optional) ................................................................................................ 63
Traffic Information Service (TIS) ......................................................................................... 75
Traffic Collision Avoidance System (TCAS II) (Optional) ................................................ 76
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A iii
Table of Contents
Terrain Awareness & Warning System ............................................................................... 78
Airborne Color Weather Radar ............................................................................................ 82
ADDITIONAL FEATURES ........................................................................................................... 87
Synthetic Vision (Optional) ................................................................................................... 87
Terminal Procedure Charts ................................................................................................... 89
Airport Directory .................................................................................................................... 91
Satellite Telephone and SMS Messaging........................................................................... 91
Maintenance Logs ................................................................................................................. 106
SiriusXM Satellite Radio (Subscription Optional) ......................................................... 106
Electronic Checklists (Optional) ......................................................................................... 108
Pilot Profiles........................................................................................................................... 110
ABNORMAL OPERATION........................................................................................................ 115
Engine ...................................................................................................................................... 115

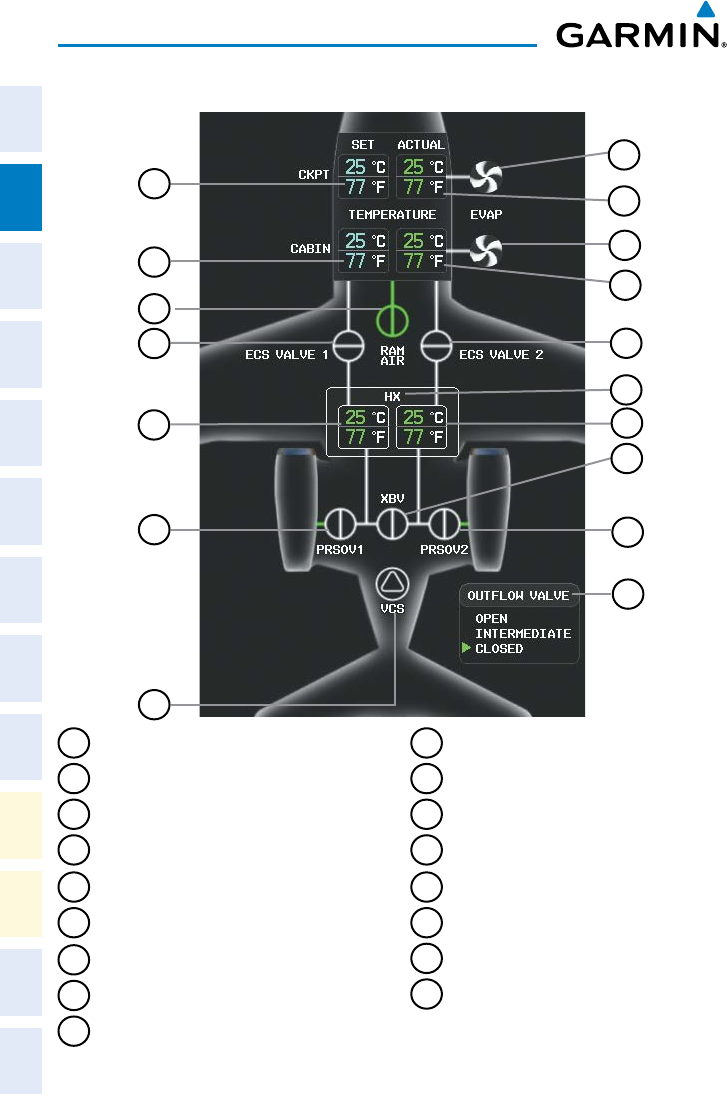

Cabin pressurization ............................................................................................................ 115
Flaps ......................................................................................................................................... 116
Trim .......................................................................................................................................... 117
Reversionary Mode .............................................................................................................. 117
Abnormal COM Operation .................................................................................................. 117
Audio Panel Fail-safe Operation........................................................................................ 118

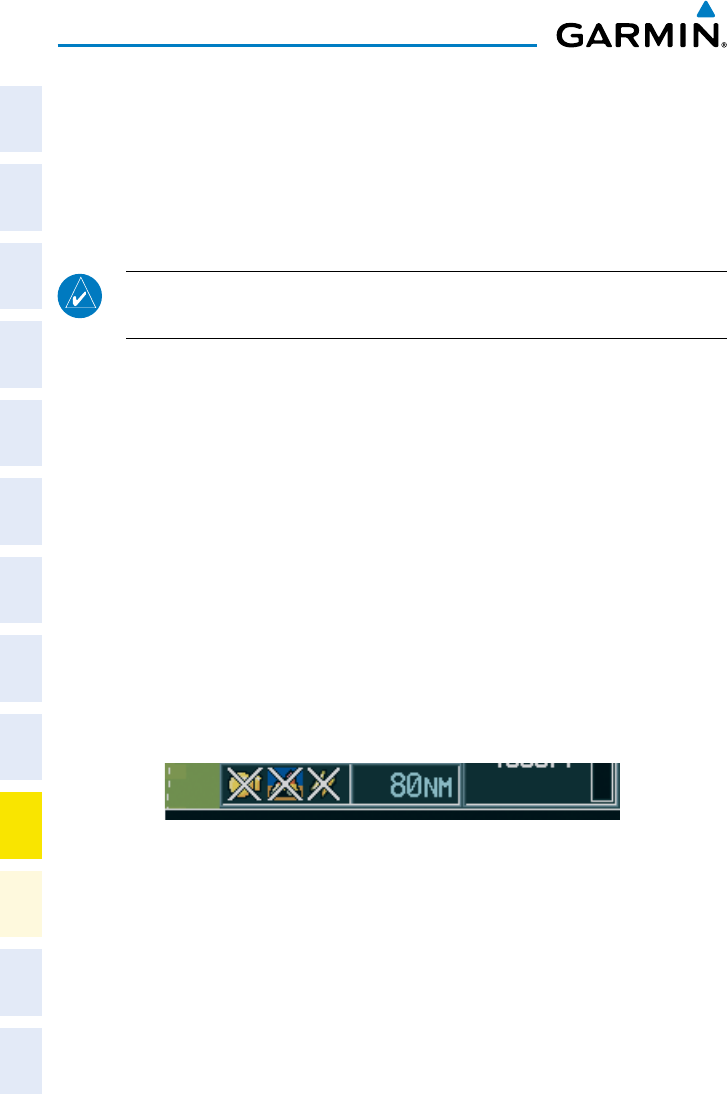

Hazard Displays with Loss of GPS Position ..................................................................... 118
Unusual Attitudes ................................................................................................................. 118

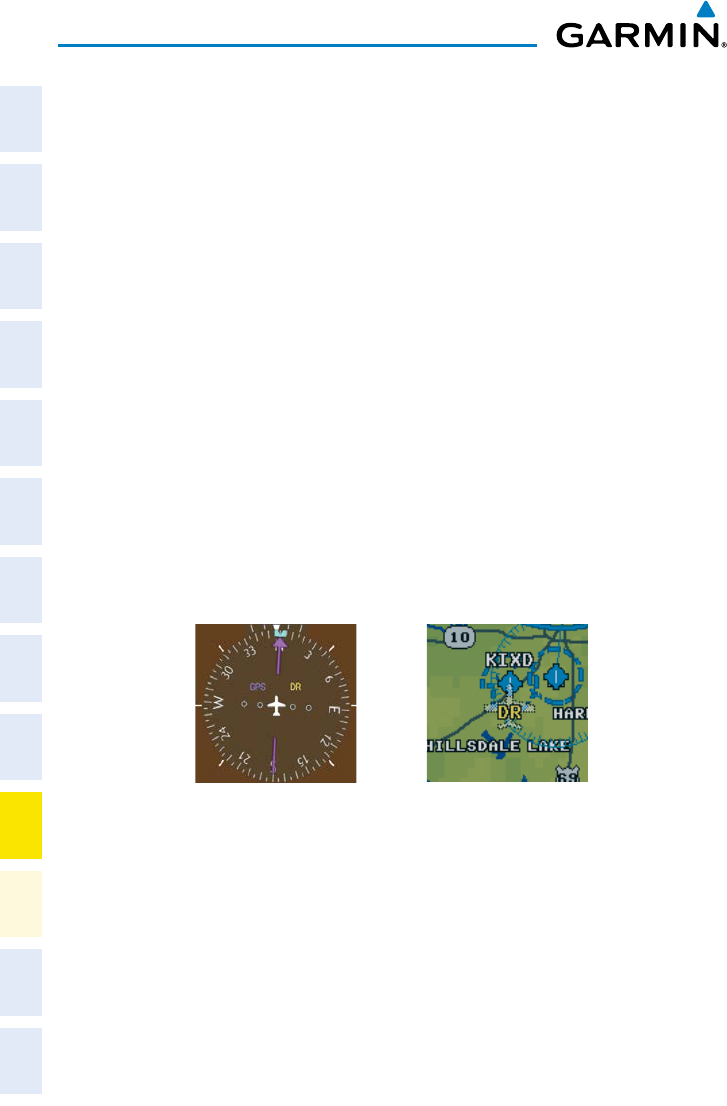

Dead Reckoning .................................................................................................................... 119
ANNUNCIATIONS & ALERTS ................................................................................................. 123
CAS Messages ........................................................................................................................ 123
Comparator Annunciations ................................................................................................. 129
Reversionary Sensor Annunciations ................................................................................. 130
TAWS-A Alerts ........................................................................................................................ 131
TAWS-B Alerts ........................................................................................................................ 134
TCAS II Alerts and Annunciations ...................................................................................... 136
Other Prodigy® Aural Alerts................................................................................................ 138
Flight Plan Import/Export Messages ................................................................................ 139
Pilot Profile Import/Export Messages .............................................................................. 140
MFD & PFD Message Advisories ........................................................................................ 141
Database Message Advisories ........................................................................................... 142
GMA 1347D Message Advisories ....................................................................................... 145
GIA 63W Message Advisories ............................................................................................. 146
GSD 41 Message Advisories................................................................................................ 149
GEA 71 Message Advisories ................................................................................................ 149
GTX 33 Message Advisories ................................................................................................ 150
GRS 77 Message Advisories ................................................................................................ 151
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
iv
Table of Contents
GMU 44 Message Advisories .............................................................................................. 152
GSR 56 Message Advisories ................................................................................................ 153
GDL 59 Message Advisories ................................................................................................ 153
GDL 69A Message Advisories ............................................................................................. 154
GDR 66 VHF Data link Transceiver System Messages ................................................... 154
GWX 68 Alert Messages ....................................................................................................... 155
GDC 74B Message Advisories ............................................................................................. 156
GCU 477 Message Advisories ............................................................................................. 156
GMC 715 Message Advisories ............................................................................................ 157
Miscellaneous Message Advisories ................................................................................... 157
APPENDIX ..................................................................................................................................... 163
PFD Softkey Map .................................................................................................................. 163
MFD Softkey Map ................................................................................................................. 173

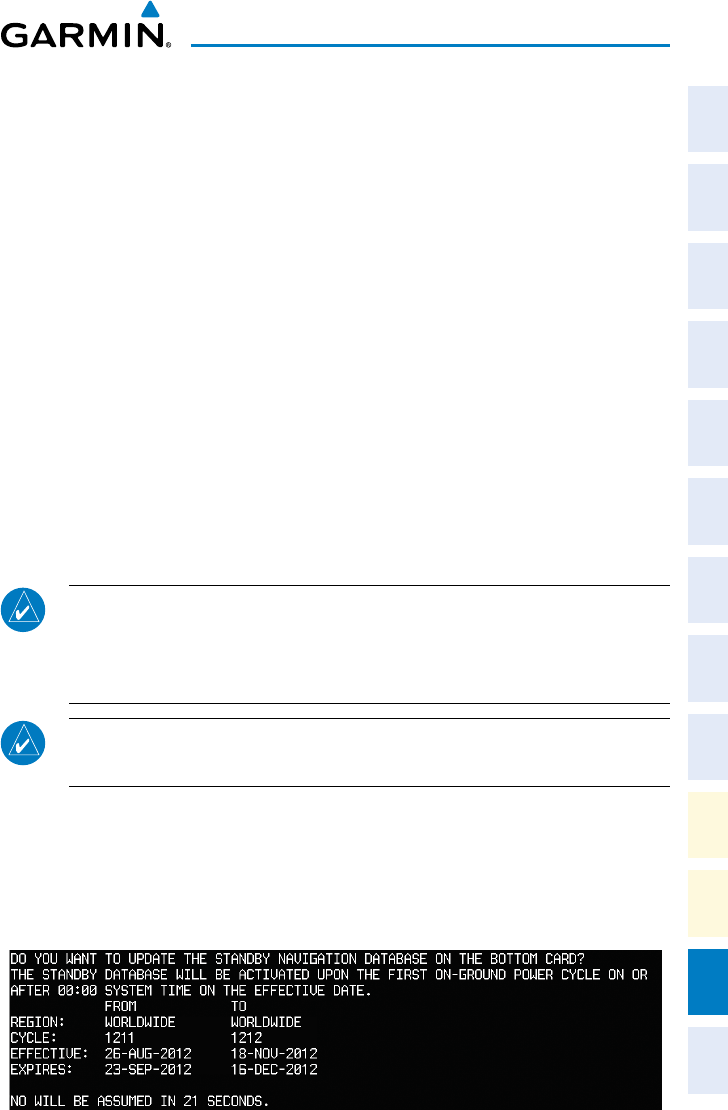

Updating Databases ............................................................................................................. 177
INDEX .........................................................................................................................................Index-1
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 1
Flight Instruments
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
FLIGHT INSTRUMENTS
SELECTING THE ALTIMETER BAROMETRIC PRESSURE SETTING
Turn the BARO Knob to select the desired setting.
SELECTING STANDARD BAROMETRIC PRESSURE
Press the BARO Knob.
CHANGE ALTIMETER BAROMETRIC PRESSURE SETTING UNITS
1)
Press the PFD Softkey to display the second-level softkeys.
2)
Press the ALT UNIT Softkey.
3)
Press the IN Softkey to display the barometric pressure setting in inches of
mercury (in Hg).
Or
:
Press the HPA Softkey to display the barometric pressure setting in
hectopascals.
4)
Press the BACK Softkey to return to the top-level softkeys.
SYNCHRONIZING THE ALTIMETER BAROMETRIC PRESSURE SETTINGS
1)
Select the AUX-SYSTEM SETUP Page on the MFD.
2)
Press the FMS Knob to activate the cursor.
3)
Turn the large FMS Knob to highlight BARO in the SYNCHRONIZATION
Window.
4)
Turn the
small
FMS Knob clockwise to ON or counterclockwise to OFF.
SYNCHRONIZE CDI
1)
Select the AUX-SYSTEM SETUP Page on the MFD.
2)
Press the FMS Knob to activate the cursor.
3)
Turn the large FMS Knob to highlight CDI in SYNCHRONIZATION Window.
4)
Turn the
small
FMS Knob clockwise to ON or counterclockwise to OFF.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
2
Flight Instruments
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
CHANGE NAVIGATION SOURCES
1)
Press the CDI Softkey to change from GPS to VOR1 or LOC1. This places
the light blue tuning box over the NAV1 standby frequency in the upper left
corner of the PFD.
2)
Press the CDI Softkey again to change from VOR1 or LOC1 to VOR2
or LOC2. This places the light blue tuning box over the NAV2 standby
frequency.
3)
Press the CDI Softkey a third time to return to GPS.
ENABLE/DISABLE OBS MODE WHILE NAVIGATING WITH GPS
1)
Press the OBS Softkey to select OBS Mode.
2)
Turn the CRS Knob to select the desired course to/from the waypoint. Press
the CRS Knob to slew the CDI Course Pointer to a course bearing directly
to the waypoint.
3)
Press the OBS Softkey again to disable OBS Mode.
GENERIC TIMER
1)
Press the TMR/REF Softkey, then turn the large FMS Knob to select the
time field (hh/mm/ss). Turn the FMS Knobs to set the desired time, then
press the ENT Key. The UP/DOWN field is now highlighted.
2)
Turn the small FMS Knob to display the UP/DOWN window. Turn the FMS
Knob to select ‘UP’ or ‘DOWN’, then press the ENT Key. ‘START?’ is now
highlighted.
3)
Press the ENT Key to START, STOP, or RESET the timer (if the timer is
counting DOWN, it will start counting UP after reaching zero). Press the
CLR Key or the TMR/REF Softkey to remove the window.
CONFIGURE VSPEED BUGS INDIVIDUALLY
1)
Press the TMR/REF Softkey.
2)
Turn the
large
FMS Knob to highlight the desired Vspeed.
3)
Use the small FMS Knob to change the Vspeed in 1-kt increments (when a
speed has been changed from a default value, an asterisk appears next to
the speed).
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 3
Flight Instruments
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
4)
Press the ENT Key or turn the large FMS Knob to highlight the ON/OFF
field.
5)
Turn the
small
FMS Knob clockwise to ON or counterclockwise to OFF.
6)
To remove the window, press the CLR Key or the TMR/REF Softkey.
TURN VSPEED BUGS ON OR OFF BY CATEGORY
1)
Press the TMR/REF Softkey.
2)
Press the MENU Key.
3)
Turn the FMS Knob to highlight the desired option.
4)
Press the ENT Key. Press the TMR/REF Softkey to remove the window.
SET MINIMUM DESCENT ALTITUDE/DECISION HEIGHT
1)
Press the
TMR/REF
Softkey.
2)
Turn the large FMS Knob to highlight the Minimums field.
3)
Turn the small FMS Knob to select BARO, RAD ALT (optional) or TEMP
COMP. OFF is selected by default. Press the ENT Key or turn the large
FMS Knob to highlight the next field.
4)
Use the small FMS Knob to enter the desired altitude. When BARO and
TEMP COMP are selected, values from zero to 16,000 feet may be entered.
When RAD ALT is selected, values from zero to 2,500 feet may be entered.
5)
If TEMP COMP was selected, press the ENT Key or turn the large FMS
Knob to highlight the next field and then enter the destination airport
temperature (-59˚C to 59˚C). The temperature compensated altitude
minimum is displayed below the previously enter minimum altitude value.
6)
To remove the window, press the
CLR
Key or the
TMR/REF
Softkey.
DISPLAYING WIND DATA
1)
Press the PFD Softkey.
2)
Press the WIND Softkey to display wind data below the Selected Heading.
3)
Press one of the OPTN softkeys to change how wind data is displayed.
4)
To remove the Wind Data Window, press the OFF Softkey.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
4
Flight Instruments
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
Blank Page
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 5
Engine & Airframe Systems
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
ENGINE & AIRFRAME SYSTEMS

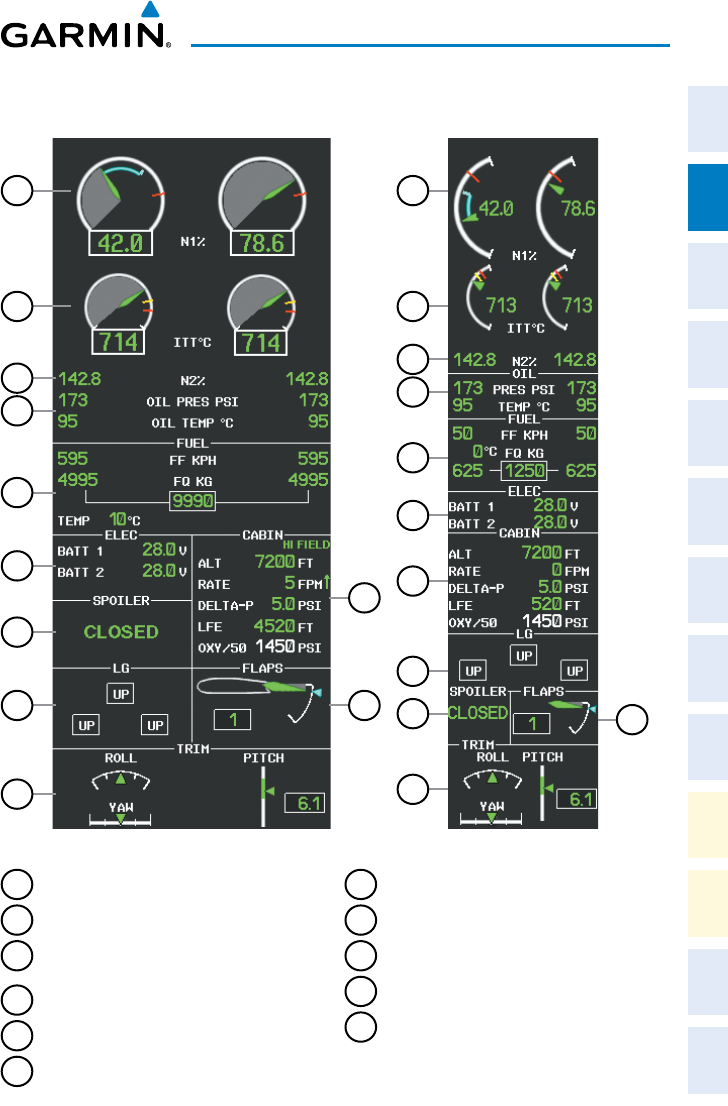

EIS Display (Normal Mode)
11
9
8
7
10
6
5
4
3
2
1
11
8
9
10
7
6
5
4
3
2
1
EIS Display (Reversionary Mode)
1
Engine Fan Rotation Speed
2
Interstage Turbine Temperature (ITT)
3
Engine High Pressure Compressor
Rotation Speed
4
Oil Pressure and Temperature
5
Fuel Display
6
Battery Voltmeter
7
Pressurization Display
8
Spoiler Status
9
Landing Gear Status
10
Flap Indicator
11
Trim Indicator
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
6
Engine & Airframe Systems
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex

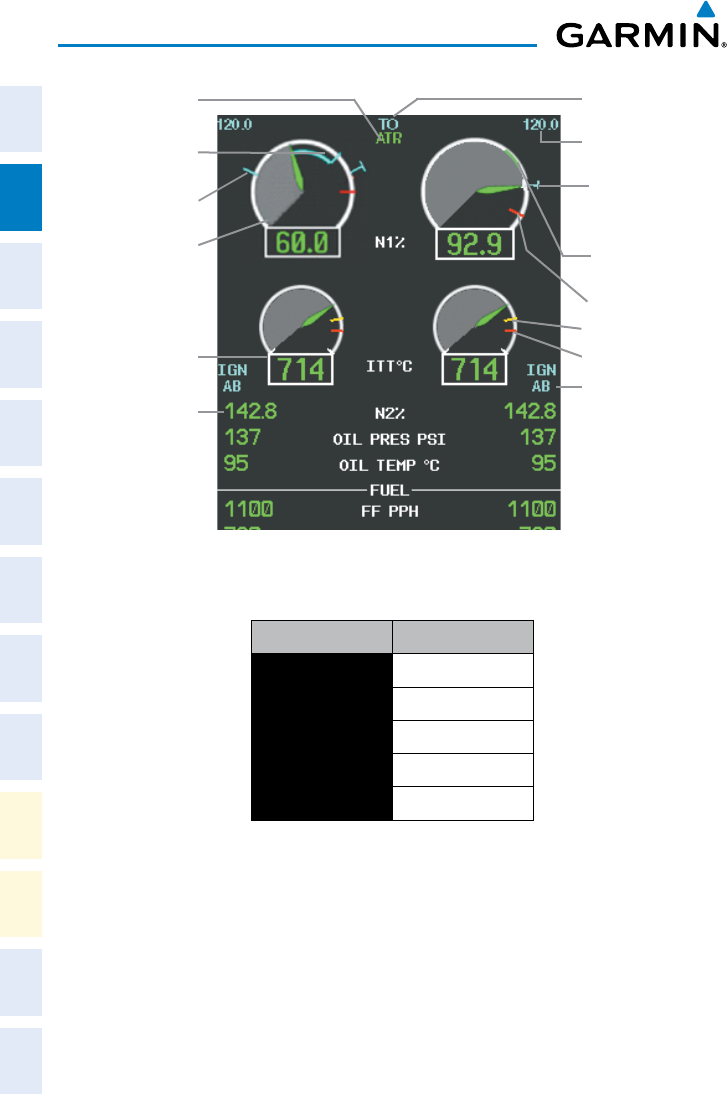

Automatic Thrust
Reserve Status
Commanded
N1 Rating
Engine Fan
Speed
Interstage Turbine
Temperature
Engine High Pressure
Compressor Speed
N1 for Thrust Rating
Max Speed
Current Speed
Control Arc
Thrust Rating
Max Speed
Engine Indications
Thrust Rating
Ignition Status
Minimum Anti-Ice
N1 Bug
N1 Transient Limit
ITT Transient Limit
ITT Steady State Limit
Thrust Rating
Indication Thrust Rating
CRZ Cruise
CLB Climb
CON Continuous
TO Takeoff
GA Go Around
Thrust Rating Indications
Selecting a thrust rating:
1)
Select the SYSTEM Softkey.
2)
Select the ENG SET Softkey
3)
To choose the continuous thrust rating, select the CON Softkey,
Or
:
To choose the maximum climb thrust rating, select the CLB Softkey.
4)
Select the BACK Softkey to return to the previous softkey level.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 7
Engine & Airframe Systems
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
Automatic Thrust Reserve
Indication* Description
ATR ATR enabled in both engines
ATR ATR armed in both engines, but inactive
TO - RSV ATR activated in at least one engine in
Take Off mode
GA - RSV ATR activated in at least one engine in
Go-Around Mode
* When no indication is shown, ATR has not been enabled or armed
in both engines.
Automatic Thrust Reserve (ATR) Status
Disabling/enabling Automatic Thrust Reserve (ATR):
1)
Select the SYSTEM Softkey.
2)
Select the ENG SET Softkey to display the Takeoff Data Set Window.
3)
To disable ATR, select the ATR OFF Softkey;
Or
:
To enable ATR, select the ATR ON Softkey.
4)
If desired, change the OAT while the Takeoff Data Set Window is displayed.
5)
To confirm the selected takeoff settings and close the Takeoff Data Set
Window, select the ACCEPT Softkey,
Or
:
To cancel the operation, select the BACK Softkey.
Takeoff Data Set Window
Takeoff Data Set Window
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
8
Engine & Airframe Systems
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
Setting the Outside Air Temperature (OAT):
1)
Select the SYSTEM Softkey.
2)
Select the ENG SET Softkey to display the Takeoff Data Set Window.
3)
To adjust the temperature in 1 °C increments, use the OAT and OAT
softkeys.
4)
If desired, change the ATR status while the Takeoff Data Set Window is
displayed.
5)
To confirm the selected takeoff settings and close the Takeoff Data Set
Window, select the ACCEPT Softkey,
Or
:
To cancel the operation, select the BACK Softkey.

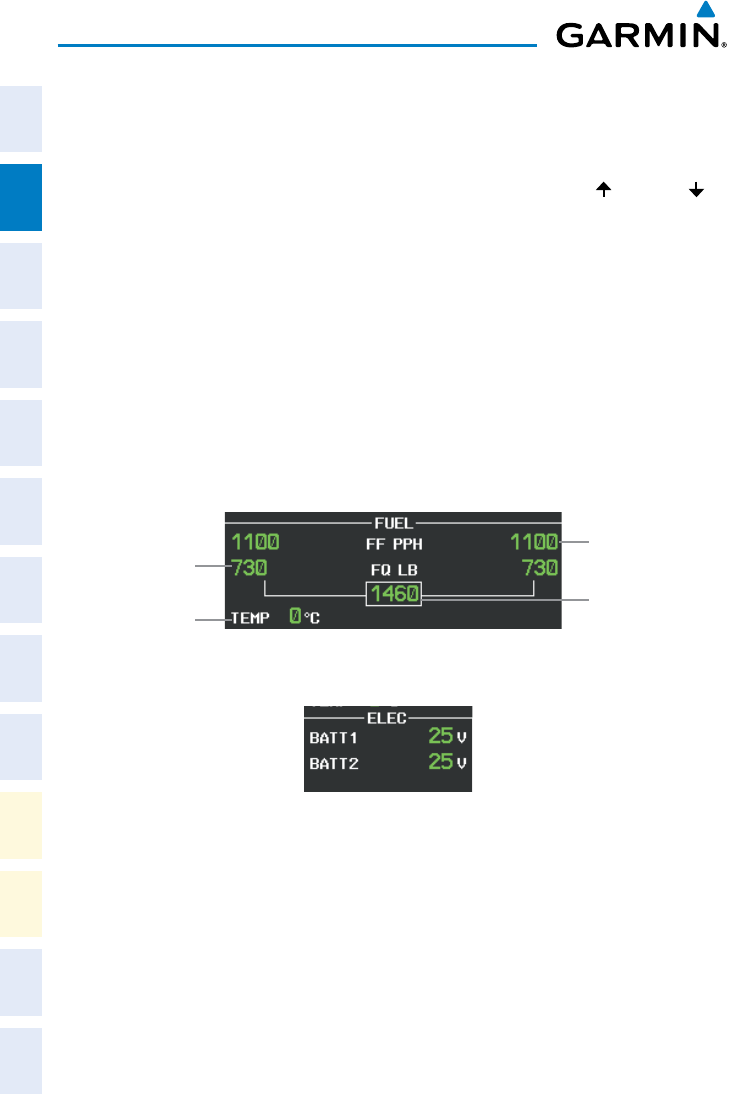

Fuel and Electrical Indications
Fuel Display
Total Fuel Quantity
Fuel Temperature
Tank Fuel Quantity
Engine Fuel Flow
Electrical Display
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 9
Engine & Airframe Systems
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
Cabin Pressurization
Cabin Pressure Display
Pressure Altitude
Pressure Differential
Oxygen System Pressure
Pressure Change Rate
Landing Field Elevation
High Landing Field Elevation
Setting the displayed landing field elevation:
1)
Select the
SYSTEM
Softkey.
2)
Select the
LFE
Softkey.
3)
Select the FMS LFE Softkey to set the LFE to the value for the destination
airport in the current flight plan.
Or
:
Use the ±500 and ±50 FT softkeys to set the desired elevation.
4)
To confirm the new LFE value, select the ACCEPT Softkey.
Spoiler and Landing Gear
Spoiler and Landing Gear
Indications
Spoiler Status
Main Landing Gear
Left-side Landing
Gear Right-side Landing
Gear
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
10
Engine & Airframe Systems
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
Indication Description
Landing Gear Down
Landing Gear Up
Landing Gear
Transitioning
(Normal)
Landing Gear Locked
Down
Landing Gear Locked
Up
Landing Gear
Transitioning
(Abnormal)
Landing Gear Position Indications
Indication Description
Invalid information
SPDBRK Spoilers out of takeoff
configuration
FAIL Spoilers failed
CLOSED Spoilers retracted
GND SPLR Ground spoilers deployed
SPDBRK Speedbrakes deployed
STEEP Steep Mode enabled (optional)
Spoiler Indications
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 11
Engine & Airframe Systems
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
Flaps and Trim
Flap and Trim Indications
Flap Lever Setting
Flap Selected Bug
Flap Position
SYNOPTICS
System Status Synoptics Page
1
Flight ID
2
Static Air Temperature (SAT)
3
Total Air Temperature (TAT)
4
True Airspeed (TAS)
5
Engine Dispatch Message Box
6
Oxygen
7
Emergency Brake Accumulator Pressure
8
Door Status
9
Electrical Status
10
Hydraulic Pressure
31 42 5
6
7
8
9
10
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
12
Engine & Airframe Systems
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
Environmental Control System (ECS)
1
Cockpit Temperature Setting
2
Cabin Temperature Setting
3
Ram Air Valve (RAV)
4
Environmental Control System Valve
(ECS) 1
5
Cockpit Duct Temperature Setting
6
Pressure Regulating Shutoff Valve (PRSOV)
1
7
Vapor Cycle System (VCS)
8
Outflow Valve (OFV) Status*
9
Pressure Regulating Shutoff Valve (PRSOV) 2
10
Crossbleed Valve Status (XBV)
11
Cabin Duct Temperature Setting
12
Heat Exchanger Cooling Pack Circuit
13
Environmental Control System Valve
(ECS) 2
14
Actual Cabin Temperature
15
Cabin Evaporator Fan
16
Actual Cockpit Temperature
17
Cockpit Evaporator Fan
Environmental Control System Synoptics Page
2
1
3
4
6
7
5
8
9
10
11
12
13
14
15
16
17
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 13
Engine & Airframe Systems
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
Unit Icons and Descriptions
Fan
On
Off
Heat Exchanger
On
Off
Vapor Cycle System
On
Off
ECS Valve
Ram Air Valve
Open with flow
Open, no flow
Closed
Pressure Regulating
Shutoff Valve (PRSOV)
Crossbleed Valve (XBV)
Open with flow
Open, no flow Closed
Environmental Control System Unit Status Indications
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
14
Engine & Airframe Systems
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
Electrical
Battery
Electrical Synoptics Page
Bus
Generator
Ground Power Unit
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 15
Engine & Airframe Systems
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
Unit Icons and Descriptions
Generator
N2>52%
Bus off
N2<52%
Bus
On
Bus off
Hot Bus
Normal
Abnormal
Battery
Normal
Abnormal
Electrical System Unit Status Indications
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
16
Engine & Airframe Systems
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
Fuel
1
Total Fuel
2
Fuel Used
3
Left Feed Ejector
4
Left DC Pump
5
Left Tank Fuel Quantity
6
Fuel 1 SOV
7
LH Pressure Switch
8
Left Engine Feed Line
9
Fuel Transfer SOV
10
Right Engine Feed Line
11
RH Pressure Switch
12
Fuel 2 SOV
13
Right Tank Fuel Quantity
14
Right DC Pump
15
Right Feed Ejector
Fuel Synoptics Page
1
2
4
5
3
6
14
15
7
8
12
11
10
13
9
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 17
Engine & Airframe Systems
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
Unit Icons and Descriptions
Fuel Line
Operating Not operating
Feed Ejector
Operating Not operating
Fuel Pressure
Switch
Operating Not operating
Valve
Open with flow
Open, no flow
In transit
Closed
DC Pump
Operating Not operating
Fuel Transfer Valve
Open with flow
Open, no flow
In transit
Closed
Fuel System Unit Status Indications
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
18
Engine & Airframe Systems
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
Ice Protection System
1
Windshield Heaters
2
Anti-Ice Lines
3
Anti-Ice Valve (AIV) 1
4
Bleed Duct and Skin 1
5
Engine Anti Ice Valve (EAIV) 1 Valve and
Bleed Line
6
Pressure Regulating Shut-Off Valve 1
(PRSOV 1)
7
Crossbleed Valve
8
Ice Protection Bleed Duct
9
Pressure Regulating Shut-Off Valve 2
(PRSOV 2)
10
Engine Anti Ice Valve (EAIV) 2 Valve and
Bleed Line
11
Bleed Duct and Skin 2
12
Anti Ice Valve (AIV) 2
Ice Protection Synoptics Page
1
2
6
5
8
7
4
3
11
12
10
9
2
2
1
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 19
Engine & Airframe Systems
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
Unit Icons and Descriptions
Anti Ice Line
Operating
Not operating
Crossbleed Valve (XBV)
Pressure Regulating Shutoff
Valve (PRSOV)
Open with flow
Open, no flow
Closed
Anti Ice Valve (AIV)
Engine Anti Ice Valve (EAIV)
Open with flow
Open, no flow
Closed
Ice Protection System Unit Status Indications
The Minimum Anti-Ice N1 Bug appears as a light blue tick mark on the N1 engine
gauges. It indicates which N1 should be commanded to achieve full anti-ice capability.
The bug is visible when the landing gear is extended and wing anti-ice is on, or when
an engine or engine bleed air is lost. If the anti-ice capacity is not fully operational, the
message “A-I LO CAPACITY” appears on the Crew Alerting System (CAS).
Engine Minimum N1 Anti-Ice Indication
Minimum Anti-Ice
N1 Bug
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
20
Engine & Airframe Systems
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
Blank Page
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 21
Nav/Com/XPDR/Audio Panel
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
NAV/COM/TRANSPONDER/AUDIO PANEL
ENTER OR CHANGE FLIGHT ID
1)
Press the TMR/REF Softkey, then turn the large FMS Knob to highlight the
Flight ID field.
2)
Turn the small FMS Knob to enter the first character.
3)
Turn the large FMS Knob to select the next field.
4)
Turn the small FMS Knob to enter the next desired character.
5)
Repeat steps 3 and 4 until the desired Flight ID is entered.
6)
Press the ENT Key to update the Flight ID.
ADF TUNING (OPTIONAL)
1)
Press the ADF/DME Softkey.
2)
Turn the small FMS Knob to enter the first digit of the desired ADF
frequency.
3)
Turn the large FMS Knob to select the next desired field.
4)
Turn the small FMS Knob to enter the desired number.
5)
Repeat steps 3 and 4 until the desired ADF frequency is entered.
6)
Press the ENT Key to accept the new frequency.
7)
Press the ENT Key again to transfer the frequency to the active field.
8)
Turn the large FMS Knob to select the MODE field.
9)
Turn the small FMS Knob to select ANT, ADF, ADF/BFO, or ANT/BFO.
10)
Press the ENT Key to complete the selection.
DME TUNING
1)
Press the ADF/DME Softkey.
2)
If two DMEs are installed, turn the large FMS to select the DME source
field.
3)
Turn the small FMS Knob to select the desired Nav radio.
4)
Press the ENT Key to complete the selection.
5)
If two DMEs are installed, press the AUX Key on the desired audio panel to
monitor DME2 audio.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
22
Nav/Com/XPDR/Audio Panel
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
ENTER A TRANSPONDER CODE
1)
Press the XPDR Softkey (XPDR/TFC if the TCAS II option is available).
2)
If the aircraft is equipped with two transponders, press the XPDR1 or
XPDR2 Softkey to select the active transponder. If these softkeys are not
present, proceed to step 3.
3)
Press the CODE Softkey to display the transponder code selection softkeys,
for digit entry.
4)
Press the digit softkeys to enter the code in the code field. When entering
the code, the next key in sequence must be pressed within 10 seconds, or
the entry is cancelled and restored to the previous code. Five seconds after
the fourth digit has been entered, the transponder code becomes active.
SELECT TRANSPONDER MODE
With TCAS II Option
1)
Press the XPDR/TFC Softkey.
2)
Press the MODE Softkey to display the transponder mode selection
softkeys.
3)
Press the desired transponder mode softkey (STBY, ON, or ALT).
Without TCAS II Option
1)
Press the XPDR Softkey.
2)
If the aircraft is equipped with two transponders, press the XPDR1 or
XPDR2 Softkey to select the active transponder.
3)
Press the desired transponder mode softkey (STBY, ON, ALT, or GND).
SELECTING A COM RADIO
Transmit/Receive
Press the COM1 MIC
,
COM2 MIC
, or
COM3 MIC Key (HF, if installed) on
the audio panel.
Receive Only
Press the COM1, COM2
, or
COM3 Key (HF, if installed) on the audio panel.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 23
Nav/Com/XPDR/Audio Panel
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
SELECTING A NAV RADIO
1)
To begin navigating using a navigation radio, press the CDI Softkey on the
PFD to select VOR1/LOC1 (NAV1) or VOR2/LOC2 (NAV2).
2)
Press the NAV1
,
NAV2
,
DME
,
or ADF
Key on the audio panel to select or
deselect the navigation radio audio source. All radio keys can be selected
individually or together.
NAV/COM TUNING
1)
Press the small tuning knob to select the desired radio for tuning. A light
blue box highlights the radio frequency to be tuned.
2)
Turn the respective tuning knobs to enter the desired frequency into the
standby frequency field. The large knob enters MHz and the small knob
enters kHz.
3)
Press the Frequency Transfer Key to place the frequency into the active
frequency field.
INTERCOM
Pressing the INTR COM Key on either Audio Panel selects and deselects the
intercom on both Audio Panels. The annunciator is lit when the intercom is active.
The intercom connects the pilot and copilot together. Either the pilot or copilot may
select or deselect the intercom.
The CABIN Key initiates two way communication between the pilot or copilot and
the passengers in the cabin. The annunciator is lit when the cabin intercom is active
on either Audio Panel.
When the flight crew wants to communicate with the passengers, the pilot or
copilot presses the CABIN Key to signal that communication is desired. The cabin
signal must be acknowledged to begin intercom conversation.
The MAN SQ Key allows either automatic or manual control of the intercom
squelch setting. Pressing the MAN SQ Key enables manual squelch control, indicated
by the MAN SQ annunciator.
• When the MAN SQ Annunciator is extinguished (Automatic Squelch is on),
the ICS Knob controls only the volume (pressing the ICS Knob has no effect
on the VOL/SQ selection).
• When the MAN SQ Annunciator is illuminated (Manual Squelch), the ICS
Knob controls either volume or squelch (selected by pressing the ICS Knob
and indicated by the VOL or SQ annunciation).
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
24
Nav/Com/XPDR/Audio Panel
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
CONTROLLER PILOT DATA LINK COMMUNICATIONS (OPTIONAL)
The CPDLC (Controller Pilot Data Link Communications) system provides data link
communication between the aircraft and an Air Traffic Control facility. Communication
is normally in the form of text message elements that resemble phraseology used in
voice communications with ATC.
Generally, messages are closed with an acknowledgement or acceptance. When a
message is acknowledged, the connection with the ATC facility is not terminated, but
kept active for future communication.
Communication hand-off to the next ATC facility is usually performed automatically,
but may also be accomplished manually by the pilot.
Connecting to the CPDLC System
A flight plan must be filed prior to logging on to the CPDLC system. After entering
flight plan information in the required fields and successfully logging on to the system,
messages may be sent and received.
The following parameters are used to log on to the system:
• Facility
• Flight ID
• Destination Airport
• Filed Departure Airport
• File Departure Time (Optional)
Performing the system log-on:
1)
From the MFD, select the
CPDLC
Softkey.
2)
Select the
LOGON
Softkey.
3)
Turn the large
FMS
Knob to place the selection cursor over the Facility field.
4)
Turn the small
FMS
Knob to select the desired ATC facility to which the
CPDLC connection will be established.
5)
Press the
ENT
Key to complete the entry.
6)
Turn the large
FMS
Knob to place the selection cursor over the Flight ID
field.
7)
Turn the small FMS Knob to enter the Flight ID or aircraft registration
number.
8)
Press the
ENT
Key to complete the entry.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 25
Nav/Com/XPDR/Audio Panel
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
9)
Turn the large
FMS
Knob to place the selection cursor over the Destination
Airport field.
10)
Enter the identifier of the destination airport used in the filed flight plan
and press the
ENT
Key.
11)
The Filed Departure Airport field is prefilled with the airport identifier
corresponding to the current aircraft location. If the flight plan was filed
using a different airport identifier, turn the large
FMS
Knob to place the
selection cursor over the Filed Departure Airport field, enter the departure
airport, and press the
ENT
Key.
12)
(Optional) Turn the large
FMS
Knob to place the selection cursor over the
Filed Departure Time field.
13)
(Optional) Enter the departure time used in the filed flight plan and press
the
ENT
Key.
14)
Turn the large
FMS
Knob to place the selection cursor over SEND and
press the
ENT
Key. The Status immediately indicates ‘Connecting’. After
successful log-on, the Status indicates ‘Waiting For CPDLC’. Once a CPDLC
session is initiated by ATC, the Status indicates ‘Connected’ and the Current
Facility field is populated with the name of the facility. If a transfer to
another facility is needed, the Next Facility field is populated. Pressing the
LOGOFF
Softkey terminates the log-on process.
Creating a Message
Creating a message consists of choosing from a pre-determined list of requests,
entering the required information, and sending the request.
To create messages:
1)
From the MFD, select the
CPDLC
Softkey.
2)
Select the
NEW
Softkey. The CPDLC Thread Window appears.
3)
With the Response/Request field highlighted, turn the small
FMS
Knob
to select the desired request from the list and press the
ENT
Key. For
discussion purposes, ‘Request [level]’ is selected.
4)
Highlight the Level field and enter the desired altitude. To toggle between
multiple units of measure (FT or FL), highlight the first numeric position and
turn the small
FMS
Knob counterclockwise.
5)
Press the
ENT
Key to complete the entry.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
26
Nav/Com/XPDR/Audio Panel
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
6)
Highlight the Reason field and enter the desired reason from the list.
7)
Press the
ENT
Key to complete the entry.
8)
Highlight the SEND Button and press the
ENT
Key.
Responding to an ATC Message
Responding to an ATC message consists of choosing from a pre-determined list
of responses or acknowledgements, then sending the response or acknowledgement.
To respond to a message:
1)
From the MFD, select the
CPDLC
Softkey.
2)
Turn the large
FMS
Knob to place the selection cursor over the desired
message and press the
ENT
Key.
3)
Turn the small
FMS
Knob to select the desired Response/Request from the
list and press the
ENT
Key.
4)
Highlight the SEND Button and press the
ENT
Key.
Viewing CPDLC Message Dialogs
The status of a string of messages, or dialog, may be checked and past message
dialogs viewed. When the system power is cycled, the list of message dialogs is deleted.
To view messages:
1)
From the MFD, select the
CPDLC
Softkey.
2)
Turn the large
FMS
Knob to place the selection cursor over the desired
message to view and press the
ENT
Key.
3)
Press the
ENT
Key to view the CPDLC Thread.
Deleting Message Dialogs
While the system deletes the list of message dialogs when power is turned off,
individual message dialogs may also be deleted manually. Message dialogs considered
closed may also be deleted.
To delete a single message dialog:
1)
From the MFD, select the
CPDLC
Softkey.
2)
Turn the large
FMS
Knob to place the selection cursor over the desired
message to delete.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 27
Nav/Com/XPDR/Audio Panel
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
3)
Select the
DELETE
Softkey. A confirmation window appears.
4)
Highlight OK and press the
ENT
Key.
To delete all closed message dialogs:
1)
From the MFD, select the
CPDLC
Softkey.
2)
Select the
DEL ALL
Softkey. A confirmation window appears.
3)
Highlight OK and press the
ENT
Key.
Disconnecting from the CPDLC System
After successfully initiating a CPDLC session, the LOGOFF Softkey becomes
available.
To Log-off the CPDLC System:
1)
From the MFD, select the
CPDLC
Softkey.
2)
Select the
LOGOFF
Softkey.
PASSENGER ADDRESS (PA) SYSTEM
A passenger address system is provided by pressing the PA Key to deliver messages
to the passengers. The message is heard by the other pilot on the headset only if the
PA Key is enabled on both audio panels. PA messages are one way from the flight deck
to the passengers.
CLEARANCE RECORDER AND PLAYER
NOTE: Pressing the play key on the pilot’s Audio Panel plays recorded audio
to the Pilot. Pressing the play key on the Copilot’s Audio Panel plays recorded
audio to the Copilot.
Recorded COM audio is stored in separate memory blocks. Once 2.5 minutes
of recording time have been reached, the recorder begins recording over the stored
memory blocks, starting from the oldest block.
The PLAY Key controls the play function. The PLAY annunciator is illuminated to
indicate when play is in progress. The PLAY annunciator extinguishes after playback
is finished.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
28
Nav/Com/XPDR/Audio Panel
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
Pressing the PLAY Key once plays the latest recorded memory block and then
returns to normal operation. Pressing the PLAY Key again during play of a memory
block stops play. If a COM input signal is detected during play of a recorded memory
block, play is halted.
Pressing the PLAY Key twice within one-half second while audio is playing plays
the previous block of recorded audio. Each subsequent two presses of the PLAY Key
within one-half second backtracks through the recorded memory blocks to reach and
play any recorded block.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 29
AFCS
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
AUTOMATIC FLIGHT CONTROL SYSTEM
NOTE: If sensor information (other than attitude) required for a flight director
mode becomes invalid or unavailable, the flight director automatically reverts
to the default mode for that axis.
NOTE: If the attitude information required for the default flight director modes
becomes invalid or unavailable, the autopilot automatically disengages.
FLIGHT DIRECTOR ACTIVATION
An initial press of a key listed in the following table (when the flight director is not
active) activates the pilot-side flight director in the listed modes.
Control Pressed Flight Director
Activated
Modes Selected
Lateral Vertical
FD Key (pilot-side) Pilot-side Roll Hold (default) ROL Pitch Hold (default) PIT
FD Key (copilot-side) Copilot-side Roll Hold (default) ROL Pitch Hold (default) PIT
AP Key Pilot-side Roll Hold (default) ROL Pitch Hold (default) PIT
TO/GA Switch Pilot-side Roll Hold (default)
Roll Hold (default)
ROL
ROL
Takeoff (on ground)
Go Around (in air)
TO
GA
ALT Key Pilot-side Roll Hold (default) ROL Altitude Hold ALT
VS Key Pilot-side Roll Hold (default) ROL Vertical Speed VS
VNV Key Pilot-side Roll Hold (default) ROL Vertical Path Tracking* VPTH
NAV Key Pilot-side Navigation**
GPS
VOR
LOC
BC
Pitch Hold (default) PIT
APR Key Pilot-side Approach**
GPS
VOR
LOC
Pitch Hold (default)
Glidepath
Glideslope
PIT
GP
GS
HDG Key Pilot-side Heading Select HDG Pitch Hold (default) PIT
*Valid VNV flight plan must be entered before VNV Key press activates flight director.
**The selected navigation receiver must have a valid VOR or LOC signal or active GPS course before
NAV
or
APR
Key press activates flight director.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
30
AFCS
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
VERTICAL MODES
Vertical Mode Description Control Annunciation
Pitch Hold
Holds the current aircraft pitch attitude;
may be used to climb/descend to the
Selected Altitude
(default) PIT
Selected Altitude
Capture
AFCS armed to capture the altitude
displayed in the Selected Altitude window *ALTS
Altitude Hold Holds the current Altitude Reference ALT Key ALT
Vertical Speed
Maintains the current aircraft vertical
speed; may be used to climb/descend to
the Selected Altitude
VS Key VS
Flight Level Change
Maintains the current aircraft airspeed (in
IAS or Mach) while the aircraft is climbing/
descending to the Selected Altitude
FLC Key
FLC
FLC
Vertical Path Tracking Captures and tracks descent legs of an
active vertical profile VNV Key VPTH
VNAV Target Altitude
Capture
Captures the Vertical Navigation (VNV)
Target Altitude ** ALTV
Glidepath Captures and tracks the SBAS glidepath on
approach
APR Key
GP
Glideslope
Captures and tracks the ILS glideslope
on approach. When a steep approach is
active, speedbrake open, and full flaps,
‘STEEP’ is annunciated on the right side of
the roll scale on the PFD.
GS
Takeoff
Commands a constant pitch angle and
wings level on the ground in preparation
for takeoff TO/GA
Switch
TO
Go Around Disengages the autopilot and commands
a constant pitch attitude and wings level GA
* ALTS armed automatically when PIT, VS, FLC, or GA active, and under VPTH when Selected Altitude
is to be captured instead of VNAV Target Altitude
** ALTV armed automatically under VPTH when VNAV Target Altitude is to be captured instead of
Selected Altitude
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 31
AFCS
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
LATERAL MODES
Lateral Mode Description Control Annunciation
Roll Hold
Holds the current aircraft roll attitude or
rolls the wings level, depending on the
commanded bank angle
(default) ROL
Low Bank Limits the maximum commanded roll angle BANK
Key *
Heading Select** Captures and tracks the Selected Heading HDG Key HDG
Navigation, GPS**
Captures and tracks the selected navigation
source (GPS, VOR, LOC) NAV Key
GPS
Navigation, VOR
Enroute Capture/
Track**
VOR
Navigation, LOC
Capture/Track
(No Glideslope)
LOC
Navigation, Backcourse
Arm/Capture/Track
Captures and tracks a localizer signal for
backcourse approaches BC
Approach, GPS
Captures and tracks the selected navigation
source (GPS, VOR, LOC) APR Key
GPS
Approach, VOR Arm/
Capture/Track VAPP
Approach, LOC
Capture/Track
(Glideslope Mode
automatically armed)
LOC
* No annunciation appears in the AFCS Status Box. The acceptable bank angle range is indicated in
green along the Roll Scale of the Attitude Indicator.
** The Heading, Navigation GPS and Navigation VOR mode maximum roll command limit will be
limited to the Low Bank mode value if it is engaged.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
32
AFCS
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
Blank Page
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 33
GPS Navigation
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
GPS NAVIGATION
DIRECT-TO NAVIGATION
Direct-to Navigation using the MFD
1)
Press the Direct-to
( )
Key on the MFD or MFD Controller.
2)
Enter the waypoint identifier.
3)
Press the ENT Key to confirm the identifier. The ‘Activate?’ field is
highlighted.
4)
If no altitude constraint or course is desired, press the ENT Key to activate.
To enter an altitude constraint, proceed to step 5.
5)
Turn the large FMS Knob counterclockwise to place the cursor over the
‘VNV’ altitude field.
6)
Enter the desired altitude.
7)
Press the ENT Key. If the waypoint entered is an airport, the option to
select MSL or AGL is now displayed. If the waypoint is not an airport,
proceed to step 9.
8)
Turn the small FMS Knob to select ‘MSL’ or ‘AGL’.
9)
Press the ENT Key. The cursor is now flashing in the VNV offset distance field.
10)
Enter the desired offset distance before (-) the waypoint.
11)
Press the ENT Key. The ‘Activate?’ field is highlighted.
12)
Press the ENT Key to activate.
Direct-to Navigation using the PFD
1)
Press the Direct-to Key
( )
on the PFD.
2)
Turn the large FMS Knob to place the cursor in the desired selection field.
3)
Turn the small FMS Knob to begin selecting the desired identifier, location,
etc.
4)
Press the ENT Key.
5)
The cursor is now flashing on ‘ACTIVATE?’. If no altitude constraint or
course is desired, press the ENT Key to activate. To enter an altitude
constraint, proceed to step 6.
6)
Turn the large FMS Knob counterclockwise to place the cursor over the
‘ALT’ altitude field.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
34
GPS Navigation
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
7)
Turn the small FMS Knob to enter the desired altitude constraint.
8)
Press the ENT Key. If the waypoint entered is an airport, the option to
select MSL or AGL is now displayed. If the waypoint is not an airport,
proceed to step 10.
9)
Turn the small FMS Knob to select ‘MSL’ or ‘AGL’.
10)
Press the ENT Key. The cursor is placed in the ‘OFFSET’ field.
11)
Turn the small FMS Knob to enter the desired offset distance (-) from the
selected Direct-to.
12)
Press the ENT Key to highlight ‘Activate?’ or turn the large FMS Knob to
highlight the ‘CRS’ field.
13)
Turn the small FMS Knob to enter the desired course to the waypoint.
14)
Press the ENT Key to highlight ‘ACTIVATE?’.
15)
Press the ENT Key again to activate the Direct-to.
ACTIVATE A STORED FLIGHT PLAN
1)
Press the FPL Key on the MFD, or MFD Controller, and turn the small FMS
Knob to display the Flight Plan Catalog Page.
2)
Press the FMS Knob to activate the cursor.
3)
Turn the large FMS Knob to highlight the desired flight plan
4)
Select the ACTIVE Softkey. The confirmation window is now displayed.
5)
With ‘OK’ highlighted, press the ENT Key to activate the flight plan. To cancel
the flight plan activation, turn the large FMS Knob to highlight ‘CANCEL’ and
press the ENT Key.
ACTIVATE A FLIGHT PLAN LEG
1)
From the Active Flight Plan Page, press the FMS Knob to activate the cursor
and turn the large FMS Knob to highlight the desired waypoint.
2)
Select the ACT LEG Softkey.
OR
Press the MENU Key, select the ‘Activate Leg’ option from the page menu
and press the ENT Key. This step must be used when activating a leg from
the PFD.
3)
With ‘Activate’ highlighted, press the ENT Key.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 35
GPS Navigation
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
STOP NAVIGATING A FLIGHT PLAN
1)
Press the FPL Key to display the Active Flight Plan Page.
2)
Press the MENU Key to display the Page Menu Window.
3)
Turn the large FMS Knob to highlight ‘Delete Flight Plan’ and press the ENT
Key. With ‘OK’ highlighted, press the ENT Key to deactivate the flight plan.
This will not delete the stored flight plan, only the active flight plan.

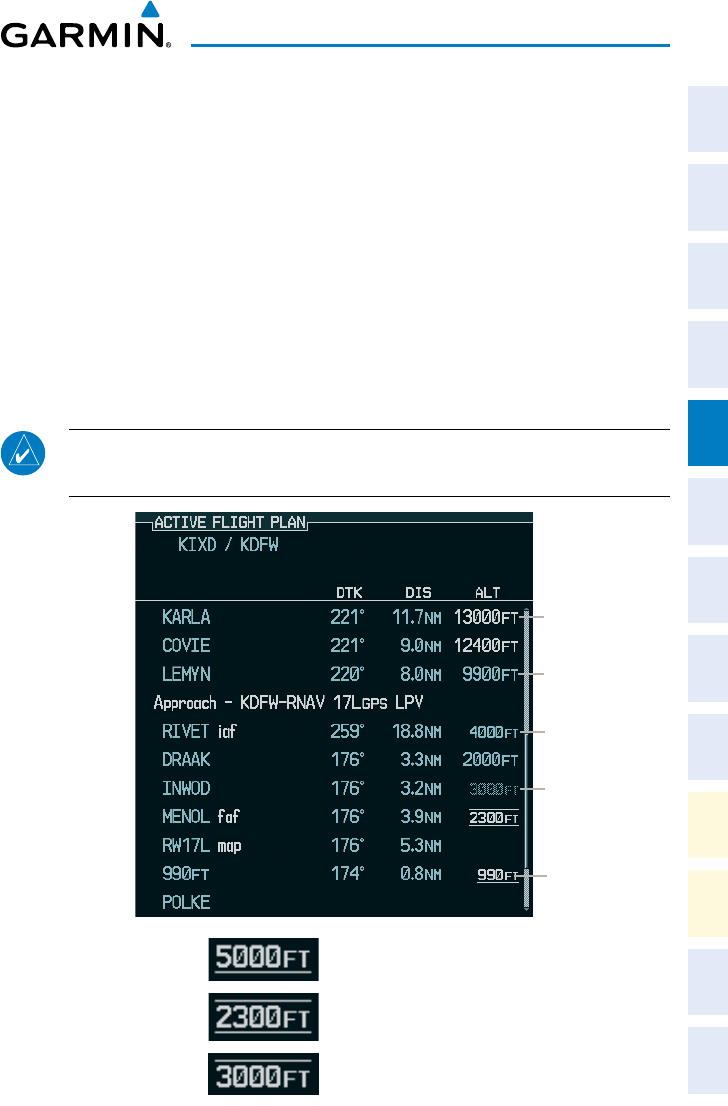

VERTICAL NAVIGATION (VNAV)
The navigation database only contains altitudes for procedures that call for “Cross
at” altitudes. If the procedure states “Expect to cross at,” the altitude is not in the
database. In this case the altitude may be entered manually.
NOTE: Temperature Compensated (TEMP COMP) altitudes are depicted as
slanted text.
Large Light
Blue Text
Small White Text
with Altitude
Restriction Bar
Large White
Text
Small Light
Blue Subdued
Text
Small Light
Blue Text
Cross AT or ABOVE 5,000 ft
Cross AT or BELOW 3,000 ft
Cross AT 2,300 ft
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
36
GPS Navigation
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
Altitudes associated with arrival and approach procedures are “auto-designated”.
This means the system will automatically use the altitudes loaded with the arrival
or approach for giving vertical flight path guidance outside the FAF. Note that these
altitudes will be displayed as small light blue text.
Altitudes that are designated for use in vertical navigation may also be made “non-
designated” by placing the cursor over the desired altitude and pressing the CLR Key.
The altitude is now displayed only as a reference. It will not be used to give vertical
flight path guidance. Other displayed altitudes may change due to re-calculations
or rendered invalid as a result of manually changing an altitude to a non-designated
altitude.
NOTE: Making course changes greater than 90° during a descent with vertical
guidance may cause excessive and rapid movement of the vertical deviation
indicator, and SVT Pathways.
The system updates vertical path guidance continuously using ground speed and
the calculated distance to the Bottom of Descent (BOD). Due to turn anticipation
guidance (turn-smoothing), distance to the BOD can be affected by course changes
greater than approximately 5 degrees. Ground speed can be affected by factors such as
shifts in wind direction, aircraft power management, pitch angle, and course changes.
Abrupt and/or substantial changes to either the distance to the BOD, ground speed, or
both can cause similarly abrupt/substantial changes in vertical path guidance.
Because of turn-smoothing, changes to both distance to the BOD and ground speed
tend to be more extreme when the BOD is also a waypoint that marks a large course
change. These speed and distance changes will be accounted for in the computed
required vertical path and reflected in the vertical guidance indications.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 37
GPS Navigation
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
White Text Light Blue Text Light Blue
Subdued Text
Large Text Altitude calculated by
the system estimating
the altitude of the
aircraft as it passes
over the navigation
point. This altitude
is provided as a
reference and is not
designated to be used
in determining vertical
flight path guidance.
Altitude has been
entered by the pilot.
Altitude is designated
for use in giving
vertical flight path
guidance. Altitude
does not match the
published altitude in
navigation database or
no published altitude
exists.
The system cannot
use this altitude in
determining vertical
flight path guidance.
Small Text Altitude is not
designated to be used
in determining vertical
flight path guidance.
Altitude has been
retrieved from the
navigation database
and is provided as a
reference.
Altitude is designated
for use in giving vertical
flight path guidance.
Altitude has been
retrieved from the
navigation database
or has been entered by
the pilot and matches
a published altitude
in the navigation
database.
The system cannot
use this altitude in
determining vertical
flight path guidance.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
38
GPS Navigation
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
Blank Page
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 39
Flight Planning
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
FLIGHT PLANNING
WEIGHT PLANNING
All procedures apply to the MFD unless otherwise stated.
Entering Weight Parameters
Turn the large
FMS
Knob to select the ‘AUX’ page group. Turn the small
FMS
Knob to select the Weight Planning Page.
1)
Select the EMPTY WT Softkey to place the cursor in the Basic Empty
Weight field.
2)
Enter the desired aircraft empty weight.
3)
Press the ENT Key. The cursor is now over the ‘PILOT & STORES’ field.
4)
Enter the desired weight of Pilot & Stores.
5)
Press the ENT Key.
6)
Continue repeating these steps until all desired weights have been entered.
Entering Fuel Parameters
1)
If necessary, press the FMS Knob to activate the cursor.
2)
Turn the large FMS Knob to place the cursor in the ‘FUEL ON BOARD’ field.
3)
Select the FOB SYNC Softkey to enter the fuel on board quantity as read
from the aircraft fuel quantity sensors.
Or:
Manually enter the desired fuel quantity.
4)
Press the ENT Key. The cursor is now in the ‘FUEL RESERVES’ field.
5)
Enter the desired reserve fuel quantity.
6)
Press the FMS Knob to remove the cursor.
TRIP PLANNING
1)
Turn the large FMS Knob to select the ‘AUX’ page group.
2)
Turn the small FMS Knob to select the Trip Planning Page.
3)
The current ‘PAGE MODE’ is displayed at the top of the page: ‘AUTOMATIC’
or ‘MANUAL’. To change the page mode, select the AUTO or MANUAL
Softkey.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
40
Flight Planning
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
4)
For Direct-to planning:
a)
Select the WPTS Softkey and verify that the starting waypoint field
indicates ‘P.POS’ (present position).
b)
If necessary, press the MENU Key and select ‘Set WPT to Present
Position’ to display ‘P.POS’.
c)
Press the ENT Key and the flashing cursor moves to the ending
waypoint field.
d)
Enter the identifier of the ending waypoint and press the ENT Key to
accept the waypoint.
Or:
For point-to-point planning:
a)
Enter the identifier of the starting waypoint.
b)
Once the waypoint’s identifier is entered, press the ENT Key to accept
the waypoint. The flashing cursor moves to the ending waypoint.
c)
Again, enter the identifier of the ending waypoint.
d)
Press the ENT Key to accept the waypoint.
Or:
For flight plan leg planning:
a)
Select the FPL Softkey (at the bottom of the display).
b)
Turn the small FMS Knob to select the desired flight plan (already
stored in memory), by number.
c)
Turn the large FMS Knob to highlight the ‘LEG’ field.
d)
Turn the small FMS Knob to select the desired leg of the flight plan, or
select ‘CUM’ to apply trip planning calculations to the entire flight plan.
Selecting ‘FPL 00’ displays the active flight plan. If an active flight plan
is selected, ‘REM’ will be an available option to display planning data
for the remainder of the flight plan.
NOTE: The page mode must be set to ‘MANUAL’ to perform the following
steps.
5)
Turn the large FMS Knob to highlight the departure time (DEP TIME) field.
NOTE: The departure time on the Trip Planning Page is used for preflight
planning. Refer to the Utility Page for the actual flight departure time.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 41
Flight Planning
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
6)
Enter the departure time. Press the ENT Key when finished. Departure time
may be entered in local or UTC time, depending upon system settings.
7)
The flashing cursor moves to the ground speed (GS) field. Enter the ground
speed. Press the
ENT
Key when finished. Note that in ‘automatic’ page
mode, ground speed is provided by the system.
8)
The flashing cursor moves to the fuel flow field. Enter the fuel flow. Press
the ENT Key when finished. Note that in ‘AUTOMATIC’ page mode, fuel flow
is provided by the system.
9)
The flashing cursor moves to the fuel onboard field. Modify the fuel onboard.
Press the ENT Key when finished. In ‘AUTOMATIC’ mode, fuel onboard is
provided by the entry made on the Weight Planning Page.
10)
The flashing cursor moves to the calibrated airspeed (CALIBRATED AS) field.
Enter the calibrated airspeed. Press the ENT Key when finished. Note that
in ‘AUTOMATIC’ page mode, calibrated airspeed is provided by the system.
11)
The flashing cursor moves to the altitude (IND ALTITUDE) field. Enter the
altitude. Press the ENT Key when finished. Note that in ‘AUTOMATIC’ page
mode, altitude is provided by the system.
12)
The flashing cursor moves to the barometric setting (PRESSURE) field. Enter
the desired baro setting. Press the ENT Key when finished. Note that in
‘AUTOMATIC’ page mode, the baro setting is provided by the setting entered
on the PFD.
13)
The flashing cursor moves to the air temperature (TOTAL AIR TEMP) field. Enter
the desired air temperature. Press the ENT Key when finished. Note that in
‘AUTOMATIC’ page mode, air temperature is provided by the system outside
air temperature.
CREATE A USER WAYPOINT DEFINED BY LATITUDE & LONGITUDE
1)
Turn the large FMS Knob on the Control Unit to select the ‘WPT’ page group.
2)
Turn the small FMS Knob to select the User WPT Information Page.
3)
Select the NEW Softkey. A waypoint is created at the current aircraft
position.
4)
Enter the desired waypoint name.
5)
Press the ENT Key.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
42
Flight Planning
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
6)
The cursor is now in the ‘WAYPOINT TYPE’ field. If desired, the waypoint
can be made temporary (deleted automatically when the system is turned
off). If the waypoint is to remain in the system, proceed to step 7.
a)
Turn the large FMS Knob one click to the left to highlight
‘TEMPORARY’.
b)
Press the ENT Key to place a check-mark in the box. Turn the large
FMS Knob to place the cursor back in the ‘WAYPOINT TYPE’ field.
7)
With the cursor in the ‘WAYPOINT TYPE’ field, turn the small FMS Knob to
display a list of waypoint types.
8)
Turn the small FMS Knob to select LAT/LON (latitude and longitude).
9)
Press the ENT Key.
CREATE A USER WAYPOINT DEFINED BY RADIALS FROM OTHER WAYPOINTS
1)
Turn the large FMS Knob on the Control Unit to select the ‘WPT’ page group.
2)
Turn the small FMS Knob to select the User WPT Information Page.
3)
Select the NEW Softkey. A waypoint is created at the current aircraft
position.
4)
Enter the desired waypoint name.
5)
Press the ENT Key.
6)
The cursor is now in the ‘WAYPOINT TYPE’ field. If desired, the waypoint
can be made temporary (deleted automatically when the system is turned
off). If the waypoint is to remain in the system, proceed to step 7.
a)
Turn the large FMS Knob one click to the left to highlight
‘TEMPORARY’.
b)
Press the ENT Key to place a check-mark in the box. Turn the large
FMS Knob to place the cursor back in the ‘WAYPOINT TYPE’ field.
7)
With the cursor in the ‘WAYPOINT TYPE’ field, turn the small FMS Knob to
display a list of waypoint types.
8)
Turn the small FMS Knob to select RAD/RAD (radial/radial).
9)
Press the ENT Key.
10)
The cursor moves to the ‘REFERENCE WAYPOINTS’ field. With the first
waypoint name highlighted, use the FMS Knobs to enter the desired
waypoint name. Waypoints may also be selected as follows:
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 43
Flight Planning
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
a)
When a flight plan is active, turning the small FMS Knob to the left will
display a list of the flight plan waypoints.
b)
Turn the large FMS Knob to select the desired waypoint.
c)
Press the ENT Key.
Or:
a)
Turn the small FMS Knob to the left. Initially, a flight plan waypoint list
is displayed.
b)
Turn the small FMS Knob to the right to display the ‘NRST’ airports to
the aircraft’s current position.
c)
Turn the large FMS Knob to select the desired waypoint.
d)
Press the ENT Key.
Or:
a)
Turn the small FMS Knob to the left. Initially, a flight plan waypoint list
is displayed.
b)
Turn the small FMS Knob to the right to display the ‘RECENT’
waypoints.
c)
Turn the large FMS Knob to select the desired waypoint.
d)
Press the ENT Key.
Or:
a)
Turn the small FMS Knob to the left. Initially, a flight plan waypoint list
is displayed.
b)
Turn the small FMS Knob to the right to display the ‘USER’ waypoints.
c)
Turn the large FMS Knob to select the desired waypoint.
d)
Press the ENT Key.
11)
Press the ENT Key. The cursor is displayed in the ‘RAD’ (radial) field. Enter
the desired radial from the reference waypoint.
12)
Press the ENT Key.
13)
Repeat step 10 to enter the next waypoint name.
14)
Press the ENT Key. The cursor is displayed in the ‘RAD’ (radial) field for the
second waypoint. Enter the desired radial from the reference waypoint.
15)
Press the ENT Key.
16)
Press the FMS Knob to remove the flashing cursor.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
44
Flight Planning
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
CREATE A USER WAYPOINT DEFINED BY A RADIAL & DISTANCE FROM
ANOTHER WAYPOINT
1)
Turn the large FMS Knob on the MFD Control Unit to select the ‘WPT’ page
group.
2)
Turn the small FMS Knob to select the User WPT Information Page.
3)
Select the NEW Softkey. A waypoint is created at the current aircraft
position.
4)
Enter the desired waypoint name.
5)
Press the ENT Key.
6)
The cursor is now in the ‘WAYPOINT TYPE’ field. If desired, the waypoint
can be made temporary (deleted automatically when the system is turned
off). If the waypoint is to remain in the system, proceed to step 7.
a)
Turn the large FMS Knob one click to the left to highlight
‘TEMPORARY’.
b)
Press the ENT Key to place a check-mark in the box. Turn the large
FMS Knob to place the cursor back in the ‘WAYPOINT TYPE’ field.
7)
With the cursor in the ‘WAYPOINT TYPE’ field, turn the small FMS Knob to
display a list of waypoint types.
8)
Turn the small FMS Knob to select RAD/DIS (radial/distance).
9)
Press the ENT Key.
10)
The cursor moves to the ‘REFERENCE WAYPOINTS’ field. With the first
waypoint name highlighted, use the FMS Knobs to enter the desired
waypoint name. Waypoints may also be selected as follows:
a)
When a flight plan is active, turning the small FMS Knob to the left will
display a list of the flight plan waypoints.
b)
Turn the large FMS Knob to select the desired waypoint.
c)
Press the ENT Key.
Or:
a)
Turn the small FMS Knob to the left. Initially, a flight plan waypoint list
is displayed.
b)
Turn the small FMS Knob to the right to display the ‘NRST’ airports to
the aircraft’s current position.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 45
Flight Planning
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
c)
Turn the large FMS Knob to select the desired waypoint.
d)
Press the ENT Key.
Or:
a)
Turn the small FMS Knob to the left. Initially, a flight plan waypoint list
is displayed.
b)
Turn the small FMS Knob to the right to display the ‘RECENT’
waypoints.
c)
Turn the large FMS Knob to select the desired waypoint.
d)
Press the ENT Key.
Or:
a)
Turn the small FMS Knob to the left. Initially, a flight plan waypoint list
is displayed.
b)
Turn the small FMS Knob to the right to display the ‘USER’ waypoints.
c)
Turn the large FMS Knob to select the desired waypoint.
d)
Press the ENT Key.
11)
Press the ENT Key. The cursor is displayed in the ‘RAD’ (radial) field. Enter
the desired radial from the reference waypoint.
12)
Press the ENT Key.
13)
The cursor is now displayed in the ‘DIS’ (distance) field. Enter the desired
distance from the reference waypoint.
14)
Press the ENT Key.
15)
Press the FMS Knob to remove the flashing cursor.
DELETE A USER WAYPOINT
1)
Turn the large FMS Knob to select the ‘WPT’ page group.
2)
Turn the small FMS Knob to select the User WPT Information Page.
3)
Press the FMS Knob to activate the cursor.
4)
Turn the large FMS Knob to the place the cursor in the ‘USER WAYPOINT LIST’
field.
5)
Turn the small FMS Knob to highlight the desired waypoint.
6)
Select the DELETE Softkey.
7)
The message ‘Would you like to delete the user waypoint?’ is displayed. With
‘YES’ highlighted, press the ENT Key.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
46
Flight Planning
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
CREATE A FLIGHT PLAN
NOTE: When creating a flight plan in the Active Flight Plan Window, the first
leg is activated automatically after it is created.
Creating an active flight plan:
1)
Press the FPL Key.
2)
Press the FMS Knob to activate the cursor (only on MFD).
3)
Turn the small FMS Knob to display the Waypoint Information Window.
(Turning it clockwise displays a blank Waypoint Information Window,
turning it counter-clockwise displays the Waypoint Information Window
with a waypoint selection submenu allowing selection of active flight plan,
nearest, recent, user, or airway waypoints).
4)
Enter the identifier, facility, or city name of the departure waypoint or select
a waypoint from the submenu of waypoints and press the ENT Key. The
active flight plan is modified as each waypoint is entered.
5)
Repeat step numbers 3 and 4 to enter each additional flight plan waypoint.
6)
When all waypoints have been entered, press the FMS Knob to remove the
cursor.
Creating a stored flight plan:
1)
Press the FPL Key.
2)
Turn the small FMS Knob clockwise to display the Flight Plan Catalog Page.
3)
Select the NEW Softkey; or press the MENU Key, highlight ‘Create New
Flight Plan’, and press the ENT Key to display a blank flight plan for the
first empty storage location.
4)
Turn the small FMS Knob to display the Waypoint Information Window.
(Turning it clockwise displays a blank Waypoint Information Window,
turning it counter-clockwise displays the Waypoint Information Window
with a waypoint selection submenu allowing selection of active flight plan,
nearest, recent, user, or airway waypoints).
5)
Enter the identifier, facility, or city name of the departure waypoint or select
a waypoint from the submenu of waypoints and press the ENT Key.
6)
Repeat step numbers 4 and 5 to enter each additional flight plan waypoint.
7)
When all waypoints have been entered, press the FMS Knob to return to
the Flight Plan Catalog Page. The new flight plan is now in the list.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 47
Flight Planning
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
IMPORT A FLIGHT PLAN FROM AN SD CARD
1)
Insert the SD card containing the flight plan in the top card slot on the
MFD.
2)
Press the FPL Key on the Control Unit to display the Active Flight Plan Page
on the MFD.
3)
Turn the small FMS Knob to select the Flight Plan Catalog Page.
4)
Press the FMS Knob to activate the cursor.
5)
Turn either FMS Knob to highlight an empty or existing flight plan.
6)
Select the IMPORT Softkey.
If an empty flight plan is selected, a list of the available flight plans on the
SD card will be displayed.
Or:
If an existing flight plan is selected, an ‘Overwrite existing flight plan? OK
or CANCEL’ prompt is displayed. Press the ENT Key to choose to overwrite
the selected flight plan and see a list of the available flight plans on the SD
card. If overwriting the existing flight plan is not desired, select ‘CANCEL’
using the FMS Knob, press the ENT Key, select another existing or empty
flight plan, and again select the IMPORT Softkey.
7)
Turn the small FMS Knob to highlight the desired flight plan for importing.
8)
Press the ENT Key.
INSERT A WAYPOINT IN THE ACTIVE FLIGHT PLAN
1)
Press the FPL Key to display the active flight plan.
2)
If necessary, press the FMS Knob to activate the cursor.
3)
Turn the large FMS Knob to highlight the desired flight plan waypoint. The
new waypoint is inserted before the highlighted waypoint.
4)
Turn the small FMS Knob. The Waypoint Information Window is now
displayed.
5)
Enter the new flight plan waypoint by one of the following:
a)
Enter the user waypoint identifier, facility, or city.
b)
Press the ENT Key.
Or:
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
48
Flight Planning
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
a)
Turn the small FMS Knob to the left. Initially, a flight plan waypoint list
is displayed.
b)
Turn the small FMS Knob to the right to display the ‘NRST’ airport
waypoints to the aircraft’s current position.
c)
Turn the large FMS Knob to select the desired waypoint.
d)
Press the ENT Key.
Or:
a)
Turn the small FMS Knob to the left. Initially, a flight plan waypoint list
is displayed.
b)
Turn the small FMS Knob to the right to display the ‘RECENT’
waypoints.
c)
Turn the large FMS Knob to select the desired waypoint.
d)
Press the ENT Key.
Or:
a)
Turn the small FMS Knob to the left. Initially, a flight plan waypoint list
is displayed.
b)
Turn the small FMS Knob to the right to display the ‘USER’ waypoints.
c)
Turn the large FMS Knob to select the desired user waypoint.
d)
Press the ENT Key.
6)
Press the
ENT
Key again to “accept” the waypoint.
ENTER AN AIRWAY IN A FLIGHT PLAN
1)
Press the FPL Key.
2)
Press the FMS Knob to activate the cursor (not required on the PFD).
3)
Turn the large FMS Knob to highlight the waypoint after the desired airway
entry point. If this waypoint is not a valid airway entry point, a valid entry
point should be entered at this time.
4)
Turn the small FMS Knob one click clockwise and select the LD AIRWY
Softkey, or press the MENU Key and select “Load Airway”. The Select
Airway Page is displayed. The LD AIRWY Softkey or the “Load Airway”
menu item is available only when an acceptable airway entry waypoint has
been chosen (the waypoint ahead of the cursor position).
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 49
Flight Planning
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
5)
Turn the FMS Knob to select the desired airway from the list, and press the
ENT Key. Low altitude airways are shown first in the list, followed by “all”
altitude airways, and then high altitude airways.
6)
Turn the FMS Knob to select the desired airway exit point from the list, and
press the ENT Key. ‘LOAD?’ is highlighted.
7)
Press the ENT Key. The system returns to editing the flight plan with the
new airway inserted.
CREATING A USER-DEFINED HOLD AT AN ACTIVE FLIGHT PLAN WAYPOINT
1)
Press the FPL Key to display the Active Flight Plan Page (MFD) or the Active
Flight Plan Window (PFD).
2)
Press the FMS Knob to activate the cursor (not required on the PFD) and
turn the large FMS Knob to highlight the waypoint for the hold.
3)
Press the MENU Key, highlight ‘Hold At Wpt’, and press the ENT Key. The
HOLD AT window appears with the course field highlighted.
4)
Use the FMS Knobs to edit the entry course, and press the ENT Key.
5)
Use the small FMS Knob to select ‘INBOUND’ or ‘OUTBOUND’ course
direction, and press the ENT Key.
6)
Use the small FMS Knob to select ‘TIME’ or ‘DIST’ length mode, and press
the ENT Key.
7)
Use the FMS Knobs to edit the length, and press the ENT Key.
8)
Use the small FMS Knob to select ‘RIGHT’ or ‘LEFT’ turn direction, and
press the ENT Key.
9)
Use the FMS Knobs to edit the Expect Further Clearance Time (EFC TIME),
and press the ENT Key.
10)
Press the ENT Key while ‘LOAD?’ is highlighted to add the hold into the
flight plan.
CREATING A USER-DEFINED HOLD AT THE AIRCRAFT PRESENT POSITION
1)
Press the FPL Key to display the Active Flight Plan Page (MFD) or the Active
Flight Plan Window (PFD).
2)
Press the MENU Key, highlight ‘Hold At Present Position’, and press the
ENT Key. The HOLD AT window appears with the Length mode highlighted.
3)
Use the small FMS Knob to select ‘TIME’ or ‘DIST’ length mode, and press
the ENT Key.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
50
Flight Planning
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
4)
Use the FMS Knobs to edit the length, and press the ENT Key.
5)
Use the small FMS Knob to select ‘RIGHT’ or ‘LEFT’ turn direction, and
press the ENT Key.
6)
Use the FMS Knobs to edit the Expect Further Clearance Time (EFC TIME),
and press the ENT Key.
7)
Press the ENT Key while ‘ACTIVATE?’ is highlighted to immediately activate
the hold.
REMOVING A USER-DEFINED HOLD (CREATED AT THE AIRCRAFT P.POS)
1)
Press the FPL Key to display the Active Flight Plan Page (MFD) or the Active
Flight Plan Window (PFD).
2)
Press the FMS Knob to activate the cursor (not required on the PFD) and
turn the large FMS Knob to highlight the PPOS-H waypoint.
3)
Press the CLR Key. A “Remove Holding Pattern?” confirmation window is
displayed.
4)
Select ‘OK’ and press the ENT Key. The holding pattern is removed from
the active flight plan. Select ‘CANCEL’ and press the ENT Key to cancel the
removal of the holding pattern.
REMOVING A USER-DEFINED HOLD (CREATED AT AN ACTIVE WAYPOINT)
1)
Press the FPL Key to display the Active Flight Plan Page (MFD) or the Active
Flight Plan Window (PFD).
2)
Press the FMS Knob to activate the cursor (not required on the PFD) and
turn the large FMS Knob to highlight the HOLD waypoint.
3)
Press the CLR Key. A ‘Remove Holding Pattern?’ confirmation window is
displayed.
4)
Select ‘OK’ and press the ENT Key. The holding pattern is removed from
the active flight plan. Select ‘CANCEL’ and press the ENT Key to cancel the
removal of the holding pattern.
INVERT AN ACTIVE FLIGHT PLAN
1)
Press the FPL Key to display the active flight plan.
2)
Press the MENU Key to display the Page Menu.
3)
Turn the large FMS Knob to highlight ‘Invert Flight Plan’.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 51
Flight Planning
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
4)
Press the ENT Key. The original flight plan remains intact in its flight plan
catalog storage location.
5)
With ‘OK’ highlighted, press the ENT Key to invert the flight plan.
REMOVE A DEPARTURE, ARRIVAL, APPROACH, OR AIRWAY FROM A FLIGHT
PLAN
1)
Press the FPL Key to display the active flight plan. Press the FMS Knob to
activate the cursor.
Or, for a stored flight plan:
a)
Press the MFD FPL Key and turn the small FMS Knob to select the
Flight Plan Catalog Page.
b)
Press the FMS Knob to activate the cursor.
c)
Turn the large FMS Knob to highlight the desired flight plan.
d)
Select the EDIT Softkey.
2)
Turn the large FMS Knob to highlight the title for the approach, departure,
arrival, or airway to be deleted. Titles appear in white directly above the
procedure’s waypoints.
3)
Press the CLR Key to display a confirmation window.
4)
With ‘OK’ highlighted, press the ENT Key to remove the selected procedure
or airway.
STORE A FLIGHT PLAN
1)
After creating a flight plan on either the PFD or MFD, it may be saved by
pressing the MENU Key.
2)
Turn the large FMS Knob to highlight ‘Store Flight Plan’ and press the ENT Key.
3)
With ‘OK’ highlighted, press the ENT Key to store the flight plan.
EDIT A STORED FLIGHT PLAN
1)
Press the FPL Key for the MFD and turn the small FMS Knob to display the
Flight Plan Catalog Page.
2)
Press the FMS Knob to activate the cursor.
3)
Turn the large FMS Knob to highlight the desired flight plan.
4)
Select the EDIT Softkey.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
52
Flight Planning
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
5)
Turn the large FMS Knob to place the cursor in the desired location.
6)
Enter the changes, then press the ENT Key.
7)
Press the FMS Knob to return to the Flight Plan Catalog Page.
DELETE A WAYPOINT FROM THE FLIGHT PLAN
1)
Press the FPL Key to display the active flight plan. Press the FMS Knob to
activate the cursor.
Or, for a stored flight plan:
a)
Press the FPL Key of the MFD and turn the small FMS Knob to select
the Flight Plan Catalog Page.
b)
Press the FMS Knob to activate the cursor.
c)
Turn the large FMS Knob to highlight the desired flight plan.
d)
Select the EDIT Softkey.
2)
Turn the large FMS Knob to highlight the waypoint to be deleted.
3)
Press the CLR Key to display a ‘REMOVE (Wpt Name)?’ confirmation
window.
4)
With ‘OK’ highlighted, press the ENT Key to remove the waypoint. To cancel
the delete request, turn the large FMS Knob to highlight ‘CANCEL’ and press
the ENT Key.
5)
Once all changes have been made, press the FMS Knob to remove the
cursor.
INVERT AND ACTIVATE A STORED FLIGHT PLAN
1)
Press the FPL Key on the MFD or MFD Control Unit.
2)
Turn the small FMS Knob to select the Flight Plan Catalog Page.
3)
Press the FMS Knob to activate the cursor.
4)
Turn the large FMS Knob to highlight the desired flight plan.
5)
Select the INVERT Softkey. ‘Invert and activate stored flight plan?’ is
displayed.
6)
With ‘OK’ highlighted, press the ENT Key. The selected flight plan is now
inverted and activated. The original flight plan remains intact in its flight plan
catalog storage location.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 53
Flight Planning
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
COPY A FLIGHT PLAN
1)
Press the FPL Key on the MFD or MFD Control Unit.
2)
Turn the small FMS Knob to select the Flight Plan Catalog Page.
3)
Press the FMS Knob to activate the cursor.
4)
Turn the large FMS Knob to highlight the flight plan to be copied.
5)
Select the COPY Softkey. A ‘Copy to flight plan #?’ confirmation window is
displayed.
6)
With ‘OK’ highlighted, press the ENT Key to copy the flight plan. To cancel,
turn the large FMS Knob to highlight ‘CANCEL’ and press the ENT Key.
DELETE A FLIGHT PLAN
1)
Press the FPL Key on the MFD or MFD Control Unit.
2)
Turn the small FMS Knob to select the Flight Plan Catalog Page.
3)
Press the FMS Knob to activate the cursor.
4)
Turn the large FMS Knob to highlight the flight plan to be deleted.
5)
Select the DELETE Softkey. A ‘Delete flight plan #?’ confirmation window is
displayed.
6)
With ‘OK’ highlighted, press the ENT Key to delete the flight plan. To cancel,
turn the large FMS Knob to highlight ‘CANCEL’ and press the ENT Key.
GRAPHICAL FLIGHT PLAN CREATION
1)
Press the FPL Key to display the Active Flight Plan Page on the MFD.
2)
Press the Joystick to activate the map pointer. Use the Joystick to move
the pointer to the desired point on the map to be inserted as a waypoint in
the flight plan.
3)
The default insertion point is at the end of the flight plan. If the selected
waypoint is to be placed anywhere other than the end of the flight plan,
press the FMS Knob to activate the cursor. Waypoints are inserted
ABOVE
the cursor. Turn the large FMS Knob to select the desired insertion point.
4)
Select the LD WPT Softkey. The selected waypoint is inserted at the selected
point. The default user waypoint naming is USR000, USR001, USR002, and
so on.
5)
To change the user waypoint name, follow the procedure for modifying a user
waypoint.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
54
Flight Planning
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
EXPORT A FLIGHT PLAN TO AN SD CARD
1)
Insert the SD card into the top card slot on the MFD.
2)
Press the FPL Key on the Contol Unit to display the Active Flight Plan Page
on the MFD.
3)
Turn the small FMS Knob to select the Flight Plan Catalog Page.
4)
Press the FMS Knob to activate the cursor.
5)
Turn the large FMS Knob to highlight the flight plan to be exported.
6)
Select the EXPORT Softkey.
7)
Press the ENT Key to confirm the export.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 55
Procedures
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
PROCEDURES
LOAD AND ACTIVATE A DEPARTURE PROCEDURE
1)
Press the PROC Key.
2)
Turn the large FMS Knob to highlight ‘SELECT DEPARTURE’.
3)
Press the ENT Key. The cursor is displayed in the ‘DEPARTURE’ field with a
list of available departures.
4)
Turn the large FMS Knob to highlight the desired departure.
5)
Press the ENT Key. A list of runways may be displayed for the departure. If
so, turn either FMS Knob to select the desired runway.
6)
Press the ENT Key. The cursor is displayed in the ‘TRANSITION’ field with a
list of available transitions.
7)
Turn the large FMS Knob to highlight the desired transition.
8)
Press the ENT Key.
9)
With ‘LOAD?’ highlighted, press the ENT Key. The departure is active when
the flight plan is active.
ACTIVATE A DEPARTURE LEG
1)
Press the FPL Key on the MFD or MFD Control Unit to display the active
flight plan.
2)
Press the FMS Knob to activate the cursor.
3)
Turn the large FMS Knob to highlight the TO waypoint of the desired leg
within the departure.
4)
Select the ACT LEG Softkey. A confirmation window showing the selected
leg is displayed.
5)
With ‘ACTIVATE’ highlighted, press the ENT Key.
LOAD AN ARRIVAL PROCEDURE
1)
Press the PROC Key.
2)
Turn the large FMS Knob to highlight ‘SELECT ARRIVAL’.
3)
Press the ENT Key. The cursor is displayed in the ‘ARRIVAL’ field with a list
of available arrivals.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
56
Procedures
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
4)
Turn the large FMS Knob to highlight the desired arrival.
5)
Press the ENT Key. A list of transitions is displayed for the selected arrival.
6)
Turn either FMS Knob to select the desired transition.
7)
Press the ENT Key. A list of runways may be displayed for the selected
arrival.
8)
Turn the large FMS Knob to highlight the desired runway.
9)
Press the ENT Key.
10)
With ‘LOAD?’ highlighted, press the ENT Key.
11)
The arrival becomes part of the active flight plan.
ACTIVATE AN ARRIVAL LEG
1)
Press the FPL Key to display the active flight plan.
2)
Press the FMS Knob to activate the cursor.
3)
Turn the large FMS Knob to highlight the TO waypoint of the desired leg
within the arrival.
4)
Select the ACT LEG Softkey. A confirmation window showing the selected
leg is displayed.
5)
With ‘ACTIVATE’ highlighted, press the ENT Key.
LOAD AND/OR ACTIVATE AN APPROACH PROCEDURE
NOTE: If certain GPS parameters (SBAS, RAIM, etc.) are not available, some
published approach procedures for the desired airport may not be displayed
in the list of available approaches.
1)
Press the PROC Key.
2)
Turn the large FMS Knob to highlight ‘SELECT APPROACH’.
3)
Press the ENT Key. A list of available approaches for the destination airport
is displayed.
4)
Turn either FMS Knob to highlight the desired approach.
5)
Press the ENT Key. A list of available transitions for the selected approach
procedure is now displayed.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 57
Procedures
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
6)
Turn either FMS Knob to select the desired transition. The “Vectors”
option assumes vectors will be received to the final course segment of
the approach and will provide navigation guidance relative to the final
approach course.
7)
Press the ENT Key. The cursor moves to the MINIMUMS field.
8)
If desired, the DA/MDA for the selected approach procedure may be
entered and displayed on the PFD. Turn the small
FMS
Knob in the
direction of the green arrow to change the display from OFF to BARO,
optional RAD ALT, or TEMP COMP.
9)
Press the
ENT
Key. The cursor moves to the altitude field. Turn the small
FMS
Knob to enter the published DA/MDA for the selected approach
procedure.
10)
Press the
ENT
Key. If BARO, RAD ALT, or OFF was selected step 8, proceed
to step 11. If TEMP COMP was selected in step 8, the cursor moves to the
‘TEMP AT....” field. Turn the small
FMS
Knob to enter the temperature at
the destination airport. The temperature compensated altitude minimum is
displayed below the previously enter minimum altitude value.
11)
Press the ENT Key. ‘LOAD? or ACTIVATE?’ is now displayed with ‘LOAD?’
highlighted.
12)
Turn the large FMS Knob to select either ‘LOAD?’ or ‘ACTIVATE?’.
Selecting ‘LOAD?’ enters the selected approach procedure into the active
flight plan, but is not currently active. Selecting ‘ACTIVATE?’ enters the
selected approach procedure into the active flight plan and activates the
first leg of the approach.
13)
Press the ENT Key.
ACTIVATE AN APPROACH IN THE ACTIVE FLIGHT PLAN
1)
Press the PROC Key.
2)
Turn the large FMS Knob to highlight ‘ACTIVATE APPROACH’.
3)
Press the ENT Key.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
58
Procedures
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
ACTIVATE A VECTOR TO FINAL APPROACH FIX
1)
Press the PROC Key.
2)
Turn the large FMS Knob to highlight ‘ACTIVATE VECTOR-TO-FINAL’.
3)
Press the ENT Key.
4)
The final approach course becomes the active leg.
ACTIVATE A MISSED APPROACH IN THE ACTIVE FLIGHT PLAN
1)
Press the PROC Key.
2)
Turn the large FMS Knob to highlight ‘ACTIVATE MISSED APPROACH’.
3)
Press the ENT Key. A confirmation window is displayed.
4)
With ‘ACTIVATE’ highlighted, press the ENT Key.
Or:
Press the TO/GA switch.
TEMPERATURE COMPENSATED ALTITUDE
When temperature compensated altitude is enabled for the loaded approach, the
altitudes associated with the approach waypoints are displayed in slanted text.
Altitudes Displayed Without
Temperature Compensation Altitudes Displayed With
Temperature Compensation
Enabling temperature compensated altitude:
1)
From the Active Flight Plan Page, press the MENU Key. The Page Menu is
displayed.
2)
Turn the FMS Knob to highlight ‘Temperature Compensation’.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 59
Procedures
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
3)
Press the ENT Key. The TEMPERATURE COMPENSATION Window is
displayed.
4)
Use the small FMS Knob to select the temperature at the <airport>. The
compensated altitude is computed as the temperature is selected.
5)
Press the ENT Key. ‘ACTIVATE COMPENSATION?’ is highlighted.
6)
Press the ENT Key. The compensated altitudes for the approach are
shown in the flight plan.
Disabling temperature compensated altitude:
1)
From the Active Flight Plan Page, press the MENU Key. The Page Menu is
displayed.
2)
Turn the FMS Knob to highlight ‘Temperature Compensation’.
3)
Press the ENT Key. The TEMPERATURE COMPENSATION Window is
displayed.
4)
Press the ENT Key. ‘CANCEL COMPENSATION?’ is highlighted.
5)
Press the ENT Key. The temperature compensated altitude at the FAF
is cancelled.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
60
Procedures
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
Blank Page
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 61
Hazard Avoidance
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
HAZARD AVOIDANCE
CUSTOMIZING THE HAZARD DISPLAYS ON THE NAVIGATION MAP
1)
With the Navigation Map Page displayed, press the MENU Key to display the
Navigation Map Page Menu. The cursor flashes on the ‘Map Setup’ option.
2)
Press the ENT Key. The Map Setup Menu is displayed. Turn the small FMS
Knob to select ‘Weather’ to customize the display of weather features. Select
‘Traffic’ to customize the display of traffic.
3)
Press the small FMS Knob to return to the Navigation Map Page.
SIRIUSXM WEATHER (SUBSCRIPTION OPTIONAL)
WARNING: Do not use data link weather information for maneuvering in, near,
or around areas of hazardous weather. Information contained within data
link weather products may not accurately depict current weather conditions.
Displaying SiriusXM Weather on the Navigation Map Page
1)
Select the MAP Softkey.
2)
Select the NEXRAD
or
XM LTNG Softkey to display the desired weather.
Select the applicable softkey again to remove weather data from the
Navigation Map Page.
Display METAR and TAF information on the Airport Information Page
1)
Turn the large FMS Knob to select the WPT Page Group.
2)
Turn the small FMS Knob to select the Airport Information Page.
3)
Select the WX Softkey to display METAR and TAF text (METAR and TAF
information is updated every 12 minutes).
Displaying Weather on the XM Weather Data Link Page
1)
Turn the large FMS Knob to select the Map Page Group.
2)
Turn the small FMS Knob to select the XM Weather Data Link Page.
3)
Select the available softkeys to select the desired SiriusXM Weather product.
4)
Select the LEGEND Softkey to view the legends for the selected products. If
necessary, turn either FMS Knob to scroll through the list. Press the small
FMS Knob or the ENT Key to return to the map.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
62
Hazard Avoidance
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
Map Panning Information – XM Weather Data Link Page
1)
Push in the Joystick to display the panning arrow.
2)
Move the Joystick to place the panning arrow on AIRMETs, TFRs, METARs,
SIGMETs, PIREPs or AIREPs.
3)
Press the ENT Key to display pertinent information for the selected product.
Note that pressing the ENT Key when panning over an AIRMET or a
SIGMET displays an information box that shows the text of the report.
Panning over an airport with METAR information does not display more
information but allows the user to press the ENT Key and select that
Airport’s Information Page to display the text of the report. Pressing the
ENT Key when panning over a TFR displays TFR specific information.
Weather Products and Symbols
Wx Product
Status Icons Description
NEXRAD - Available for the US and Canada. The age of the displayed data
for each is shown at the right.
ECHO TOP - The age of the displayed data is shown at the right. Not
displayed when CLOUD TOP is displayed.
CLOUD TOP - The age of the displayed data is shown at the right. Not
displayed when ECHO TOP is displayed.
XM LIGHTNING - The age of the displayed data is shown at the right.
CELL MOVEMENT - The age of the displayed data is shown at the right.
SIGMET & AIRMET - The age of the displayed data for each is shown at the
right.
METAR - Available for the US and Canada. The age of the displayed data for
each is shown at the right.
SURFACE ANALYSIS with CITY FORECAST - The upper symbol depicts
Surface Analysis. The lower symbol depicts City Forecast. The age of the
displayed data for each is shown at the right. The selected forecast period is
shown at the bottom.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 63
Hazard Avoidance
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
Wx Product
Status Icons Description
FREEZING LEVEL - The age of the displayed data is shown at the right.
WINDS ALOFT - Available for the US and Canada. The age of the displayed
data for each is shown at the right. The altitude selection is shown at the
bottom.
COUNTY WARNING - The age of the displayed data is shown at the right.
CYCLONE WARNING - The age of the displayed data is shown at the right.
AIREP - The age of the displayed data is shown at the right.
PIREP - The age of the displayed data is shown at the right. Urgent Pireps
are displayed in yellow.
TURBULENCE - The age of the displayed data is shown at the right. The
altitude selection is shown at the bottom.
ICING POTENTIAL - The age of the displayed data is shown at the right.
The altitude selection is shown at the bottom.
CONNEXT WEATHER (OPTIONAL)
WARNING: Do not use data link weather information for maneuvering in,
near or around areas of hazardous weather. Information contained within data
link weather products may not accurately depict current weather conditions.
WARNING: Do not use the indicated data link weather product age to determine
the age of the weather information shown by the data link weather product. Due
to time delays inherent in gathering and processing weather data for data link
transmission, the weather information shown by the data link weather product
may be significantly older than the indicated weather product age.
Weather data is provided when the pilot initiates either a manual or automatic
Connext data request on the Connext Weather Data Link Page on the MFD. No
weather data is displayed until the first Connext Weather Data Request is made.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
64
Hazard Avoidance
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
Registering with Garmin Connext
A subscriber account must be established prior to receiving Connext Weather
products. Contact Garmin Connext at https://fly.garmin.com/fly-garmin/support/
applications/satelliteservices/ or by calling 1-866-739-5687 in the United States or
(011) 913-440-1135. The following information is required to register for Connext
Weather services: G1000 System ID, GSR56 (GSR1/GSR2) Serial Number(s), Tail
Number, Serail/Airframe Number, Country of Registration, Aircraft Manufacturer, and
Aircraft Model.
1)
Turn the large FMS Knob on the MFD to select the AUX page group.
2)
Turn the small FMS Knob to select the AUX-SYSTEM STATUS. Note the
System ID and GSR1/GSR2 Serial Number in the AIRFRAME field.
Activating Connext Weather Registration
After a subscriber account has been established, the system must be activated for
data link features such as reporting services or Connext Weather. Activation is accom-
plished by entering the required access code. This process is only performed when
initially setting up the system for Connext services.
1)
Ensure the aircraft is outside and has a clear view of the sky (if registering
via an Iridium satellite telephone connection), or connected to a Wi-Fi
network. Refer to the Additional Features section for more information on
connecting to a Wi-Fi network.
2)
Turn the large FMS Knob on the MFD to select the MAP page group.
3)
Turn the small FMS Knob to select the MAP - WEATHER DATA LINK (CNXT
or XM) Page. If ‘XM’ is displayed in the page title, it will be necessary to
change the data link source to Garmin Connext (CNXT) before continuing.
Refer to ‘Viewing the Weather Data Link Page’ procedure to change the
data link source to Garmin Connext Weather prior to registration.
4)
If the system displays the ‘Connext Registration’ window, proceed to step 7.
Otherwise, press the MENU Key.
5)
Turn the large FMS Knob to highlight ‘Register With Connext’ in the menu
list.
6)
Press the ENT Key. The Connext Registration window is displayed.
7)
Enter the access code provided by customer service in the ACCESS CODE
field.
8)
Press the ENT Key. ‘REGISTER’ is highlighted.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 65
Hazard Avoidance
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
9)
Press the ENT Key. The system contacts the Garmin Connext service using
the GDL 59 Wi-Fi connection (if available) or through the Iridium satellite
network using the GSR 56. Registration is complete when the STATUS field
displays ‘REGISTERED’.
Accessing Connext Weather Products
1)
Turn the large
FMS
Knob to select the Map Page Group.
2)
Turn the small
FMS
Knob to select the Connext Weather Data Link Page.
When a weather product is selected for display on the Connext Weather Data Link
Page, a box containing a symbol for the product and its age (in minutes) are shown
in the upper right. If weather data has not been requested, ‘N/A’ is shown next to the
product symbol instead of age. The age of the weather product is based on the time
difference between when the data was assembled on the ground and the current GPS
time. Weather products are updated continuously or refreshed at specific intervals
(defined in the Refresh Rate column in the following table).
If for any reason, a weather product is not refreshed within the defined Expiration
Time intervals, the data is considered expired and is removed from the display. The
age of the expired product is replaced by dashes. If more than half of the expiration
time has elapsed, the color of the product age readout changes to yellow.
The refresh rate represents the interval at which the Connext servers make available
the most current known weather data. It does not necessarily represent the rate at
which new content is received from weather sources.
Weather Product Symbol
Expiration
Time
(Minutes)
Refresh Rate
(Minutes)
Radar Precipitation
(PRECIP) 30 U.S./Canada: 3*
Europe: 15
Infrared Satellite
(IR SAT) 60 30
Data Link Lightning
(DL LTNG) 30 Continuous
SIGMETs/AIRMETs
(SIG/AIR) 60 Continuous
Meteorological Aerodrome Report
(METARs) 90 Continuous
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
66
Hazard Avoidance
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
Weather Product Symbol
Expiration
Time
(Minutes)
Refresh Rate
(Minutes)
Winds Aloft
(WIND) 60 Continuous
Pilot Weather Report
(PIREPs) 90 Continuous
Temporary Flight Restrictions
(TFRs) no product image 60 Continuous
Terminal Aerodrome Reports
(TAFs) no product image 60 Continuous
* The composite precipitation image is updated every 3 minutes, but individual radar sites
may take between 3 and 10 minutes to provide new data.
Setting Up and Customizing the Connext Weather Data Link Page
1)
Select the Connext Weather Data Link Page.
2)
Press the
MENU
Key.
3)
With ‘Weather Setup’ highlighted, press the
ENT
Key.
4)
Turn the small
FMS
Knob to select ‘Product Group 1’ or ‘Product Group 2’,
and press the
ENT
Key.
5)
Turn the large
FMS
Knob or press the
ENT
Key to scroll through product
selections.
6)
Turn the small
FMS
Knob to scroll through options for each product (ON/
OFF, range settings, etc.).
7)
Press the
ENT
Key to select an option.
8)
Press the FMS Knob or CLR Key to return to the Connext Weather Data
Link Page with the changed settings.
Restoring Default Connext Weather Data Link Page Settings
1)
Select the Connext Weather Data Link Page.
2)
Press the MENU Key.
3)
With ‘Weather Setup’ highlighted, press the
ENT
Key.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 67
Hazard Avoidance
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
4)
Press the
MENU
Key.
5)
Highlight the desired default(s) to restore (all or for selection) and press
ENT Key.
Switching Between Connext, and SiriusXM Weather Sources
1)
Turn the large FMS Knob on the MFD to select the MAP page group.
2)
Turn the small FMS Knob to select the desired Weather Data Link Page.
3)
Press the MENU Key.
4)
Turn the large FMS Knob to select ‘Display Connext Weather’, or ‘Display
XM Weather’ (choice dependent on current weather source) and press the
ENT Key.
Viewing Legends for Displayed Connext Weather Products
1)
Select the Connext Weather Data Link Page.
2)
Select the LEGEND Softkey to display the legends for the displayed
weather products.
Or
:
a)
Press the MENU Key.
b)
Select ‘Weather Legend’ and press the ENT Key.
3)
Turn the FMS Knob to scroll through the legends if more are available than
fit in the window.
4)
To remove the Legend Window, select the LEGEND Softkey, the ENT or the
CLR Key, or press the FMS Knob.
Setting Up and Customizing Weather Data for the Navigation Map
Page
1)
Select the Navigation Map Page.
2)
Press the MENU Key.
3)
With ‘Map Setup’ highlighted, press the
ENT
Key.
4)
Turn the small FMS Knob to select the ‘Weather’ Group and press the ENT
Key.
5)
Turn the large
FMS
Knob or press the
ENT
Key to scroll through product
selections.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
68
Hazard Avoidance
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
6)
Turn the small
FMS
Knob to scroll through options for each product (ON/
OFF, range settings).
7)
Press the
ENT
Key to select an option.
8)
Press the FMS Knob or CLR Key to return to the Navigation Map Page with
the changed settings.
Connext Weather Data Requests
The Connext Data Request window provides the flight crew with the options to
define the requested weather coverage area(s), choose automatic weather update
intervals (if desired), and the ability to send or cancel weather data requests. The
window also displays the status of the Connext data request process.
Requesting Connext Weather Data Manually
1)
Select the Connext Weather Data Link Page.
2)
Press the MENU Key.
3)
With ‘Connext Weather Request’ highlighted, press the
ENT
Key.
4)
Turn the large FMS Knob to highlight the desired coverage option(s)
and press the
ENT
Key to check or uncheck one of more of the following
coverage selections:
•
PRESENT POSITION – Requests data based on current location.
•
DESTINATION – Requests data based on active flight plan destination
(if the flight plan contains no destination, dashes ‘------” are displayed.)
•
FPL – Requests data based on active flight plan. Turn the small FMS
Knob to select the desired flight plan look-ahead distance option (or
choose ‘REMAINING FPL’ to request the remainder of the flight plan).
•
WAYPOINT – Requests data based on any valid waypoint.
5)
Turn the large FMS Knob highlight to the ‘DIAMETER / RTE WIDTH’
distance field and turn the small FMS Knob to select the desired diameter
and route width of the request, then press the
ENT
Key.
6)
Turn the large FMS Knob until the ‘SEND REQ’ button is highlighted. Press
the
ENT
Key to initiate the request immediately or press the FMS Knob to
return to the Connext Data Link Page without requesting data.
During a Connext Data Request, the Request Status box initially displays
“Contacting Connext...”. Once a connection is established, the Request Status Box
displays “Receiving Wx Data... Time Remaining:” with an estimated data transfer time
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 69
Hazard Avoidance
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
(either minutes or seconds). If desired, the Connext Data Request window may be
closed while the data request is processing by pressing the FMS Knob; the data request
will continue to process in the background. Connext Data Requests typically take
between 1 to 4 minutes to complete depending on the size of the selected weather
coverage area and Iridium signal strength.
The system retrieves all available Connext Weather products within the selected
coverage area during an initial Connext Data Request, regardless of which products (if
any) are currently enabled for display. On subsequent requests, previously retrieved
textual data (such as METARs and TAFs) is retained if it has not expired, while new
textual weather data matching the current coverage area and all graphical weather data
is downloaded during every data request.
If the system cannot complete a Connext weather data request, one or more
messages will appear in the request status window as shown in the following table.
Weather Request Status
Message
Description
Auto requests inhibited
Send manual request to
reset.
The system has disabled automatic weather data requests
due to excessive errors. Automatic weather data requests
have stopped. Send a manual weather data request to
resume automatic updates.
Auto update retry: ##
Seconds
The system will attempt another automatic weather data
request after an error occurred during the previous request.
Timer counts down until the next automatic request occurs.
Connext Comm Error [2] A communications error has occurred with the GIA. The
system should be serviced.
Connext Comm Error [4] This occurs if multiple automatic weather data requests
have recently failed, or the GDL 59 or a GIA is off-line.
Connext Comm Error [5] The Iridium or Connext networks are not accessible. Check
Iridium signal strength. If this error persists, the system
should be serviced.
Connext Comm Error [6] A communications error has occurred. It this error persists,
the system should be serviced.
Connext Comm Error [7] A weather data transfer has timed out. Check Iridium
signal strength and re-send the data request.
Connext Comm Error [8] A server error has occurred or invalid data received.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
70
Hazard Avoidance
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
Weather Request Status
Message
Description
Connext Login Invalid There is a problem with the Connext registration. Contact
Garmin Connext at
1-866-739-5687 in the United States or
(011) 913-440-1135
for assistance.
Connext Server Temporarily
Inop
The Connext weather data server is temporarily out of
service, but is expected to return to service in less than 30
minutes.
Connext Server Inop The Connext weather data server will be out of service for
at least 30 minutes.
Invalid Coverage Area The weather data request coverage area does not contain
at least one of the following: a waypoint, a flight plan,
or a flight plan destination. Verify at least one of the
coverage options is enabled (checked) and contains
required criteria, then re-send the data request.
No Connext Subscription The system is not be currently subscribed to Connext,
or the access code is incorrect. Verify the access code.
Contact Garmin Connext at
1-866-739-5687 in the United
States or (011) 913-440-1135
for assistance.
Reduce Request Area The Connext weather data request area exceeds size limits.
Reduce weather coverage area and re-send data request.
Request Cancelled The user has cancelled a Connext weather data request.
Requested area too large.
Reduce coverage area.
The size of the Connext weather data request has exceeded
limits. Reduce the size of the coverage area and try the
weather data request again.
Request Failed - Try Again
The weather data request timed-out. Re-send data request.
Transfer Preempted
The data link is busy. Retry request later.
Cancelling a Connext Weather Data Request in Progress
1)
Select the Connext Weather Data Link Page.
2)
Press the
MENU
Key.
3)
With ‘Connext Data Request’ highlighted, press the
ENT
Key.
4)
Turn the large
FMS
Knob to select ‘CANCEL REQ’ and press the
ENT
Key.
The request status box indicates ‘Request Cancelled’.
5)
Press the FMS Knob to return to the Connext Weather Data Link Page.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 71
Hazard Avoidance
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
Enabling Automatic Connext Data Requests
1)
Select the Connext Weather Data Link Page.
2)
Press the MENU Key.
3)
With ‘Connext Weather Request’ highlighted, press the
ENT
Key.
4)
Choose the desired weather coverage options.
5)
Turn the large FMS Knob to select the ‘UPDATE RATE’ setting. Then turn
the small FMS Knob to highlight the desired automatic update frequency
(OFF, 5 Min, 10 Min, 15 Min, 20 Min, 25 Min, 30 Min, 45 Min, or 60 Min),
then press the ENT Key.
6)
The ‘SEND REQ” button is highlighted and a countdown timer is displayed
in the ‘REQUEST STATUS’ based on the currently selected update rate.
Press the ENT Key to immediately send an immediate Connext Data
Request.
Or
:
Press the FMS Knob to return to the Connext Weather Data Link Page.
Connext Weather Products
Precipitation
Precipitation data is not real-time. The lapsed time between collection, processing,
and dissemination of radar images can be significant and may not reflect the current
radar synopsis. Due to the inherent delays and the relative age of the data, it should
be used for long-range planning purposes only.
NOTE: Precipitation data cannot be displayed on the Navigation Map Page
at the same time as terrain.
Displaying Precipitation Weather Information
1)
Select the MAP Softkey (for the PFD Inset Map, select the INSET Softkey).
This step is not necessary on the Connext Weather Data Link Page.
2)
Select the PRECIP Softkey.
Radar data shown represents lowest level, base reflectivity, of radar returns. The
display of the information is color-coded to indicate the weather severity level. All
weather product legends can be viewed on the Connext Weather Data Link Page. For
the Precipitation legend, select the LEGEND Softkey when Precipitation is selected
for display.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
72
Hazard Avoidance
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
Precipitation Limitations
Radar images may have certain limitations:
• Radar base reflectivity does not provide sufficient information to determine cloud
layers or precipitation characteristics (wet hail vs. rain). For example, it is not
possible to distinguish between wet snow, wet hail, and rain.
• Radar base reflectivity is sampled at the minimum antenna elevation angle. An
individual radar site cannot depict high altitude storms at close ranges. It has
no information about storms directly over the site.
• When zoomed in to a range of 30 nm, each square block on the display represents
an area of four square kilometers.
The following may cause abnormalities in displayed radar images:
• Ground clutter
• Strobes and spurious radar data
• Sun strobes (when the radar antenna points directly at the sun)
• Interference from buildings or mountains, which may cause shadows
• Metallic dust from military aircraft, which can cause alterations in radar scans
Infrared Satellite
Infrared Satellite (IR SAT) data depicts cloud top temperatures from satellite
imagery. Brighter cloud top colors indicate cooler temperatures occurring at higher
altitudes.
Displaying Cloud Tops information
1)
Select the Connext Weather Data Link Page.
2)
Select the IR SAT Softkey.
To display the Infrared Satellite legend, select the LEGEND Softkey when Infrared
Satellite data is selected for display.
Data Link Lightning
Lightning data shows the approximate location of cloud-to-ground lightning strikes.
A strike icon represents a strike that has occurred within a two-kilometer region.
Neither cloud-to-cloud nor the exact location of the lightning strike is displayed.
If the aircraft is also equipped with an on-board lightning detection system (e.g.,
L-3 WX-500 Stormscope®), only one lightning product may be enabled for display at
a time.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 73
Hazard Avoidance
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
Displaying Data Link Lightning information
1)
Select the MAP Softkey (for the PFD Inset Map, select the INSET Softkey).
This step is not necessary on the Connext Weather Data Link Page.
2)
Select the DL LTNG Softkey.
To display the Data Link Lightning legend on the Connext Weather Data Link Page,
select the LEGEND Softkey when Data Link Lightning is selected for display.
SIGMETs and AIRMETs
The entire SIGMET or AIRMET is displayed as long as any portion of it is occurring
within the coverage area of the Connext data request.
Displaying SIGMETs and AIRMETs
1)
Select the Connext Weather Data Link Page.
2)
Select the SIG/AIR Softkey.
3)
To view the text of the
SIGMET or AIRMET, press the
RANGE Knob
and move
the Map Pointer over the icon.
4)
Press the ENT key.
To display the SIGMET and AIRMET legend, select the LEGEND Softkey when
SIGMETs and AIRMETs are selected for display.
METARs and TAFs
NOTE: METAR information is only displayed within the installed navigation
database service area.
METAR and TAF text are displayed on the WPT-Weather Information Page. TAF
information is displayed in its raw form when it is available.
Displaying METAR and TAF text
1)
On the Connext Weather Data Link Page, select the METAR Softkey.
2)
Press the RANGE Knob and pan to the desired airport.
3)
Press the ENT Key. The Weather Information Page is shown with METAR
and TAF text.
4)
Use the FMS Knob or the ENT Key to scroll through the METAR and TAF
text. METAR text must be completely scrolled through before scrolling
through the TAF text.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
74
Hazard Avoidance
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
5)
Press the FMS Knob or the CLR Key to return to the Connext Weather Data
Link Page.
Or
:
1)
Select the Weather Information Page.
a)
Turn the large
FMS
Knob to select the Waypoint Page Group.
b)
Select the WX Softkey to select the Weather Information Page.
2)
Press the FMS Knob to display the cursor.
3)
Use the FMS Knob to enter the desired airport and press the
ENT
Key.
4)
Use the FMS Knob or the ENT Key to scroll through the METAR and TAF
text. Note that the METAR text must be completely scrolled through before
scrolling through the TAF text.
To display the METAR legend on the Connext Weather Data Link Page, select the
LEGEND Softkey when METARs are selected for display.
Winds Aloft
Winds Aloft data shows the forecasted wind speed and direction at the surface and
at selected altitudes. Altitude can be displayed in 3,000-foot increments up to 42,000
feet MSL.
Displaying Winds Aloft data
1)
Select the Connext Weather Data Link Page.
2)
Select the
MORE WX
Softkey.
3)
Select the
WIND
Softkey.
4)
Select the desired altitude level: SFC (surface) up to 42,000 feet. Select
the
NEXT
or
PREV
Softkey to cycle through the altitude softkeys. The
WIND
Softkey label changes to reflect the altitude selected.
To display the Winds Aloft legend, select the LEGEND Softkey when Winds Aloft
is selected for display.
PIREPs
Pilot Weather Reports (PIREPs) describe in-flight weather encountered by pilots.
A PIREP may contain unforecast adverse weather conditions, such as low in-flight
visibility, icing conditions, wind shear, turbulence, and type of aircraft flown. PIREPs
are issued as either Routine (UA) or Urgent (UUA).
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 75
Hazard Avoidance
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
Displaying PIREP text
1)
Select the Connext Weather Data Link Page.
2)
Select the
MORE WX
Softkey.
3)
Select the
PIREPS
Softkey.
4)
Press the RANGE Knob and pan to the desired weather report. A gray
circle will appear around the weather report when it is selected.
5)
Press the ENT Key. The PIREP text is first displayed in a decoded fashion,
then as raw text.
6)
Use the FMS Knob or the ENT Key to scroll through the PIREP text.
7)
Press the FMS Knob or the CLR Key to close the PIREP text window and
return to the Connext Weather Data Link Page.
To display the PIREP or AIREP legend, select the LEGEND Softkey when PIREPs
or AIREPs are selected for display.
The PIREP color is determined by the type (routine or urgent).
TRAFFIC INFORMATION SERVICE (TIS)
NOTE: If the system is configured to use the optional TCAS II, TIS is not
available for use.
NOTE: Traffic Information Service (TIS) is only available when the aircraft is
within the service volume of a TIS capable terminal radar site.
Traffic Symbol Description
Non-Threat Traffic
(intruder is beyond 5 nm and greater than 1200’ vertical separation)
Traffic Advisory (TA)
(closing rate, distance, and vertical separation meet TA criteria)
Traffic Advisory Off Scale
Traffic Symbol Description
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
76
Hazard Avoidance
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
Displaying Traffic on the Traffic Map Page
1)
Turn the large FMS Knob to select the Map Page Group.
2)
Turn the small FMS Knob to select the Traffic Map Page.
3)
Select the OPERATE Softkey to begin displaying traffic. ‘OPERATING’ is
displayed in the Traffic Mode field.
4)
Select the STANDBY Softkey to place the system in the Standby Mode.
‘STANDBY’ will be displayed in the Traffic Mode field.
5)
Rotate the Joystick clockwise to display a larger area or rotate counter-
clockwise to display a smaller area.
6)
Select the TNA MUTE Softkey to mute the “TIS Not Available” aural alert.
Displaying Traffic on the Navigation Map
1)
Ensure TIS is operating. With the Navigation Map displayed, select the
MAP Softkey.
2)
Select the TRAFFIC Softkey. Traffic will now be displayed on the map.
TRAFFIC COLLISION AVOIDANCE SYSTEM (TCAS II) (OPTIONAL)
NOTE: If the system is configured to use TIS, the optional TCAS II is not
available for use.
WARNING: The TCAS II system is intended for advisory use only. TCAS II is
intended to help the pilot locate transponder-equipped traffic visually and
to provide advisory vertical maneuver guidance to avoid traffic. It is the
responsibility of the pilot to see and maneuver to avoid traffic, terrain, and
obstacles.
Traffic Symbol Description
Non-Threat Traffic
(intruder is beyond 5 nm and greater than 1200’ vertical separation)
Proximity Advisory (PA)
(intruder is within 5 nm and less than 1200’ vertical separation)
Traffic Advisory (TA)
(Potential collision area is within 20 to 48 seconds)
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 77
Hazard Avoidance
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
Traffic Symbol Description
Traffic Advisory Off Scale
Resolution Advisory (RA)
(Potential collision area is within 15 to 35 seconds)
Resolution Advisory Off Scale
Traffic Symbol Description
System Test
1)
Turn the large FMS Knob to select the Map Page Group.
2)
Turn the small FMS Knob to select the Traffic Map Page.
3)
Select the TEST Softkey. The aural annunciation “TCAS Test” will be
heard. A test pattern of traffic symbols is displayed on the Traffic Page
and inset map on the PFD. The VSI will display a red no descent indication
and a green climb indication of 2000 feet per min. and red from 2000
to 4000+. The pitch display will also display the appropriate indications
appropriate with the VSI. The self test takes approximately eight seconds
to complete, after which a voice alert “TCAS Test Passed” is heard. In the
event the system test fails, a voice alert “TCAS Test Failed” is heard and a
visual annunciation ‘TCAS FAIL’ appears on the PFD. In addition, a visual
annunciation ‘FAIL’ appears in the Operating Mode box on the Traffic Map
Page.
Displaying Traffic on the Traffic Map Page
1)
Turn the large FMS Knob to select the Map Page Group.
2)
Turn the small FMS Knob to select the Traffic Map Page.
3)
Select the TA ONLY or TA/RA Softkey to begin displaying traffic. ‘TA/RA’ or
‘TA ONLY’ respectively, is displayed in the TCAS Mode field.
4)
Select the STANDBY Softkey to place the system in the Standby Mode.
‘TFC STBY’ will be displayed in the TCAS Mode field.
5)
Select the ABS (absolute) or REL (relative) Softkey to display intruder
altitude as an absolute altitude or an altitude relative to own aircraft
altitude.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
78
Hazard Avoidance
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
6)
Rotate the Joystick clockwise to display a larger area or rotate counter-
clockwise to display a smaller area.
Changing the Altitude Range
1)
On the Traffic Page, select the
ALT RNG
Softkey.
2)
Select one of the following Softkeys:
AB
OVE: Displays non-threat and proximity traffic from 9900 feet above the
aircraft to 2700 feet below the aircraft. Typically used during climb phase
of flight.
NO
RMAL: Displays non-threat and proximity traffic from 2700 feet above
the aircraft to 2700 feet below the aircraft. Typically used during enroute
phase of flight.
BE
LOW: Displays non-threat and proximity traffic from 2700 feet above the
aircraft to 9900 feet below the aircraft. Typically used during descent phase
of flight.
UN
REST (unrestricted): All traffic is displayed.
3)
To return to the Traffic Page, select the BACK Softkey.
Displaying Traffic on the Navigation Map
1)
Ensure TCAS II system is operating. With the Navigation Map displayed,
select the MAP Softkey.
2)
Select the TRAFFIC Softkey. Traffic will now be displayed on the map.
TERRAIN AWARENESS & WARNING SYSTEM
TAWS-A (Optional)
WARNING: The TAWS display shows supplemental information only. It should
not be used for navigation.
NOTE: Terrain data is not displayed when the aircraft latitude is greater than
75 degrees north or 60 degrees south.
NOTE: TAWS operation is only available when the system is configured for
a TAWS-A installation.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 79
Hazard Avoidance
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
Manual System Test
1)
While the TAWS-A Page is displayed, press the MENU Key.
2)
Turn the small FMS Knob to select ‘Test TAWS System’.
3)
Press the ENT Key. During the test ‘TAWS TEST’ is displayed in the center
of the TAWS-A Page.
When all is in working order, “TAWS System Test, OK” is heard.
Displaying the TAWS-A Page
1)
Turn the large FMS Knob to select the Map Page Group.
2)
Turn the small FMS Knob to select the TAWS-A Page.
3)
If desired, select the VIEW Softkey to access the ARC and 360 softkeys.
When the ARC Softkey is selected, a radar-like 120° view is displayed.
Select the 360 Softkey to return to the 360° default display.
4)
Rotate the Joystick clockwise to increase the display range or rotate
counter-clockwise to decrease the display range.
Color Terrain/Obstacle Location
Red Terrain/Obstacle above or within 100’
below current aircraft altitude.
Yellow Terrain/Obstacle between 100’ and
1000’ below current aircraft altitude.
Black Terrain/Obstacle is more than 1000’
below aircraft altitude.
Enable/Disable Aviation Data
1)
While the TAWS-A Page is displayed, press the MENU Key.
2)
Turn the small FMS Knob to select “Show (or Hide) Aviation Data”.
3)
Press the ENT Key.
Inhibiting/Enabling FLTA and PDA Alerting
1)
Select the TAWS-A Page.
2)
Press the TAWS INH Softkey to inhibit or enable TAWS-A (choice
dependent on current state).
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
80
Hazard Avoidance
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
Overriding Flaps-based FIT Alerting
1)
Select the TAWS-A Page.
2)
Press the FLAP OVR Softkey.
Inhibiting/Enabling GPWS Alerting
1)
Select the TAWS-A Page.
2)
Press the GPWS INH Softkey to inhibit or enable GPWS alerts (choice
dependent on current state).
Inhibiting/Enabling GSD Alerting
NOTE: Only available during a GSD alert.
On the PFD, press the GS INH or GP INH Softkey (only displayed during
a GSD alert) to inhibit or enable GSD alerts (softkey choice dependent on
present GSD alert type).
TAWS-B
WARNING: The TAWS display shows supplemental information only. It should
not be used for navigation.
NOTE: Terrain data is not displayed when the aircraft latitude is greater than
75 degrees north or 60 degrees south.
NOTE: TAWS operation is only available when the system is configured for
a TAWS-B installation.
Manual System Test
1)
While the TAWS-B Page is displayed, press the MENU Key.
2)
Turn the small FMS Knob to select ‘Test TAWS System’.
3)
Press the ENT Key. During the test ‘TAWS TEST’ is displayed in the center
of the TAWS-B Page.
When all is in working order, “TAWS System Test, OK” is heard.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 81
Hazard Avoidance
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
Display Terrain and Obstacles on the TAWS-B Page
1)
Turn the large FMS Knob to select the Map Page Group.
2)
Turn the small FMS Knob to select the TAWS-B Page.
3)
If desired, select the VIEW Softkey to access the ARC and 360 softkeys.
When the ARC Softkey is selected, a radar-like 120° view is displayed.
Select the 360 Softkey to return to the 360° default display.
4)
Rotate the Joystick clockwise to increase the display range or rotate
counter-clockwise to decrease the display range.
Color Terrain/Obstacle Location
Red Terrain/Obstacle above or within 100’
below current aircraft altitude.
Yellow Terrain/Obstacle between 100’ and
1000’ below current aircraft altitude.
Black Terrain/Obstacle is more than 1000’
below aircraft altitude.
Enable/Disable Aviation Data
1)
While the TAWS-B Page is displayed, press the MENU Key.
2)
Turn the small FMS Knob to select “Show (or Hide) Aviation Data”.
3)
Press the ENT Key.
TAWS Inhibit
NOTE: If TAWS alerts are inhibited when the Final Approach Fix is the active
waypoint in a GPS SBAS approach, a LOW ALT annunciation may appear on
the PFD next to the altimeter if the current aircraft altitude is at least 164
feet below the prescribed altitude at the Final Approach Fix.
Inhibit TAWS
While the TAWS-B Page is displayed, select the INHIBIT Softkey.
Or
:
1)
Press the MENU Key.
2)
Turn the small FMS Knob to select ‘Inhibit TAWS’.
3)
Press the ENT Key.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
82
Hazard Avoidance
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
Enable TAWS
While the TAWS-B Page is displayed, select the INHIBIT Softkey.
Or
:
1)
While the TAWS-B Page is displayed, press the MENU Key.
2)
Turn the small FMS Knob to select ‘Enable TAWS’.
3)
Press the ENT Key.
Displaying Terrain and Obstacles on the Navigation Map
1)
With the Navigation Map displayed, press the MAP Softkey.
2)
Select the TERRAIN Softkey. Terrain and obstacles will now be displayed
on the map.
AIRBORNE COLOR WEATHER RADAR
WARNING: Begin transmitting only when it is safe to do so. If it is desired to
transmit while the aircraft is on the ground, no personnel or objects should
be within 11 feet of the antenna.
CAUTION: In Standby Mode, the antenna is parked at the center line. It
is always a good idea to put the radar in Standby Mode before taxiing the
aircraft to prevent the antenna from bouncing on the bottom stop and possibly
causing damage to the radar assembly.
Displaying Weather on the Weather Radar Page
1)
Turn the large FMS Knob to select the Map Page Group.
2)
Turn the small FMS Knob to select the Weather Radar Page.
3)
Select the MODE Softkey.
4)
If the aircraft is on the ground, select the STANDBY Softkey to initiate the
one minute warm-up period. After the warm-up is complete, the radar will
enter the Standby Mode. After the aircraft is airborne, select the WEATHER
Softkey.
Or
:
If the aircraft is already airborne, select the WEATHER or GROUND
Softkey. The one-minute warm-up period will be initiated, after which the
radar will begin transmitting. The horizontal scan is initially displayed.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 83
Hazard Avoidance
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
5)
Turn the Joystick to select the desired range.
6)
If desired, select the VERTICAL Softkey for vertical scanning.
Adjusting Antenna Tilt
Move the
Joystick
up or down to adjust the tilt of the antenna up or down. Moni-
tor the displayed tilt value in the TILT field.
When scanning vertically, a Tilt Line may be displayed to aid in positioning the tilt
of the antenna. If the Tilt Line is not displayed, perform the following steps:
1)
Press the MENU Key
2)
Turn the large FMS Knob to select ‘Show Tilt Line’.
3)
Press the ENT Key.
Adjusting Antenna Bearing
Move the
Joystick
right or left to adjust the azimuth position of the antenna right
or left. Monitor the displayed bearing value in the BEARING field.
When scanning horizontally, a Bearing Line may be displayed to aid in positioning
the antenna for the vertical scan. If the Bearing Line is not displayed, perform the fol-
lowing steps:
1)
Press the MENU Key
2)
Turn the large FMS Knob to select ‘Show Bearing Line’.
3)
Press the ENT Key.
Vertically Scan a Storm Cell
1) While in the Horizontal Scan view, move the Joystick to place the Bearing
Line on the desired storm cell, or other area, to be vertically scanned.
2)
Select the VERTICAL Softkey. A vertical “slice” of the selected area will
now be displayed.
3)
Move the Joystick right or left to move the scanned “slice” a few degrees
right or left.
4)
Turn the Joystick to adjust the range.
5)
To select a new area to be vertically scanned, select the HORIZON Softkey
to return to the Horizontal Scan view and repeat the previous steps.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
84
Hazard Avoidance
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
Adjusting Gain
WARNING: Changing the gain in Weather Mode will cause precipitation
intensity to be displayed as a color not representative of the true intensity.
Remember to return the gain setting to ‘Calibrated’ for viewing the actual
intensity of precipitation.
1)
Select the GAIN Softkey to activate the cursor in the ‘GAIN’ field.
2)
Turn the small FMS Knob to adjust the gain for the desirable level. The
gain setting is visible in the gain field as a movable horizontal bar in
a flashing box. The line pointer is a reference depicting the calibrated
position.
3)
Press the FMS Knob to remove the cursor.
4)
Select the GAIN Softkey again to recalibrate the gain. ‘CALIBRATED’ will be
displayed in the ‘GAIN’ field.
Ground Mapping
1)
Select the MODE Softkey.
2)
Select the GROUND Softkey to place the radar in Ground Map Mode.
3)
Select the BACK Softkey.
Sector Scan
1)
While in the Horizontal Scan Mode, move the Joystick right or left to place
the Bearing Line in the desired position. The location of the Bearing Line
will become the center point of the Sector Scan.
2)
Press the FMS Knob to display the cursor.
3)
Turn the large FMS Knob to place the cursor in the SECTOR SCAN field.
4)
Turn the small FMS Knob to select FULL, 60˚, 40˚, or 20˚ scan.
5)
If desired, readjust the Bearing Line with the Joystick to change the center
of the Sector Scan.
6)
Press the FMS Knob to remove the cursor.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 85
Hazard Avoidance
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
Antenna Stabilization
1)
To activate or deactivate the antenna stabilization, select the MODE
Softkey.
2)
Select the STAB ON Softkey to activate antenna stabilization or select
the STAB OFF Softkey to deactivate. The current stabilization condition is
shown in the upper right of the weather radar display.
Weather Attenuated Color Highlight (WATCH®)
To activate or deactivate the WATCH® feature, select the WATCH Softkey. This
feature is only available in the Horizontal Scan Mode.
Weather Alert
To activate or deactivate Weather Alert, select the WX ALRT Softkey. Activating
and deactivating will also enable or inhibit the alert on the PFD.
Automatic Standby
When the weather radar system is in the Weather or Ground Map Mode, upon
landing the system will automatically switch to Standby Mode.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
86
Hazard Avoidance
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
Blank Page
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 87
Additional Features
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
ADDITIONAL FEATURES
SYNTHETIC VISION (OPTIONAL)
WARNING: Use appropriate primary systems for navigation, and for terrain,
obstacle, and traffic avoidance. SVT is intended as an aid to situational
awareness only and may not provide either the accuracy or reliability upon
which to solely base decisions and/or plan maneuvers to avoid terrain,
obstacles, or traffic.
Synthetic Vision Technology (SVT) functionality is offered as an optional
enhancement to the Prodigy® Flight Deck 300.
SVT is primarily comprised of a computer-generated forward-looking, attitude
aligned view of the topography immediately in front of the aircraft from the pilot’s
perspective. SVT information is shown on the primary flight display (PFD).
SVT offers a three-dimensional view of terrain and obstacles. Terrain and
obstacles that pose a threat to the aircraft in flight are shaded yellow or red.
In addition to SVT enhancement to the PFD, the following feature enhancements
have been added to the PFD:
• Pathways
• Flight Path Marker
• Horizon Heading Marks
• Terrain and Obstacle Alerting
• Three-dimensional Traffic
• Airport Signs
• Runway Display
Displaying Synthetic Terrain
1)
Press the PFD Softkey.
2)
Press the SYN VIS Softkey.
3)
Press the SYN TERR Softkey.
4)
Press the BACK Softkey to return to the previous page.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
88
Additional Features
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
Displaying Pathways
NOTE: When the optional TCAS II system issues a Resolution Advisory (RA)
Pathways are automatically removed from the display. Pathways may again
be displayed by the pilot manually selecting Pathways.
NOTE: Pathways are not available when the cross-pointer (X-Pointer) flight
director format is selected.
1)
Press the PFD Softkey.
2)
Press the SYN VIS Softkey.
3)
If not already enabled, press the SYN TERR Softkey.
4)
Press the PATHWAY Softkey.
5)
Press the BACK Softkey to return to the previous page.
Displaying Heading on the Horizon
1)
Press the PFD Softkey.
2)
Press the SYN VIS Softkey.
3)
If not already enabled, press the SYN TERR Softkey.
4)
Press the HRZN HDG Softkey.
5)
Press the BACK Softkey to return to the previous page.
Displaying Airport Signs
1)
Press the PFD Softkey.
2)
Press the SYN VIS Softkey.
3)
If not already enabled, press the SYN TERR Softkey.
4)
Press the APTSIGNS Softkey.
5)
Press the BACK Softkey to return to the previous page.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 89
Additional Features
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
TERMINAL PROCEDURE CHARTS
NOTE: With the availability of SafeTaxi
®
, ChartView, or FliteCharts
®
, it may
be necessary to carry another source of charts on-board the aircraft.
SafeTaxi®
SafeTaxi® is an enhanced feature that gives greater map detail as the map range
is adjusted in on the airport. The airport display on the map reveals runways with
numbers, taxiways identifiers, and airport landmarks including ramps, buildings,
control towers, and other prominent features. Resolution is greater at lower map
ranges. The aircraft symbol provides situational awareness while taxiing.
Selecting the DCLTR Softkey (declutter) once removes the taxiway markings and
airport identification labels. Selecting the DCLTR Softkey twice removes VOR station
ID, the VOR symbol, and intersection names if within the airport plan view. Selecting
the DCLTR Softkey a third time removes the airport runway layout, unless the airport
in view is part of an active route structure. Selecting the DCLTR Softkey again cycles
back to the original map detail.
The SafeTaxi database contains detailed airport diagrams for selected airports.
These diagrams provide the pilot with situational awareness by displaying the aircraft
position in relation to taxiways, ramps, runways, terminals, and services. This
information should not be used by the pilot as the basis for maneuvering the aircraft
on the ground. This database is updated on a 56-day cycle.
ChartView (Optional)
ChartView resembles the paper version of Jeppesen terminal procedures charts.
The charts are displayed in full color with high-resolution. The MFD depiction shows
the aircraft position on the moving map in the plan view of most approach charts and
on airport diagrams.
The ChartView database is updated on a 14-day cycle. If the ChartView database
is not updated within 70 days of the expiration date, ChartView will no longer
function.
FliteCharts® (Optional)
FliteCharts® resemble the paper version of AeroNav Services terminal procedures
charts. The charts are displayed with high-resolution and in color for applicable
charts. The MFD depiction shows the aircraft position on the moving map in the plan
view of most approach charts and on airport diagrams.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
90
Additional Features
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
The FliteCharts database contains procedure charts for the United States only.
This database is updated on a 28-day cycle. If not updated within 180 days of the
expiration date, FliteCharts will no longer function.
View Charts from the Navigation Map Page
1)
Select the SHW CHRT Softkey when displayed.
Or
:
Move the map pointer to point to a desired point on the map and select the
SHW CHRT Softkey.
2)
Select the DP, STAR, APR, WX, and NOTAM softkeys to access charts for
departures, arrivals, approaches, weather and NOTAMs. Note that NOTAMS
are only available with ChartView.
3)
Select the GO BACK Softkey to return to the previous page.
View Charts from the Active Flight Plan Page
1)
While viewing the Active Flight Plan Page, press the FMS Knob to activate
the cursor.
2)
Turn the large FMS Knob to select the departure airport, destination
airport, departure, arrival, or approach.
3)
Select the SHW CHRT Softkey. The appropriate chart will be displayed, if
available for the item selected.
4)
Select the GO BACK Softkey to return to the previous page.
Change Day/Night View
1)
While viewing a chart press the MENU Key to display the Page Menu
OPTIONS.
2)
Turn the large FMS Knob to highlight the ‘Chart Setup’ Menu Option and
press the ENT Key.
3)
Turn the large FMS Knob to move between the ‘FULL SCREEN’ and ‘COLOR
SCHEME’ Options.
4)
Turn the small FMS Knob to choose between the ‘On’ and ‘Off’ Full Screen
Options.
5)
Turn the small FMS Knob to choose between ‘Day’, ‘Auto’, and ‘Night’
Options.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 91
Additional Features
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
6)
In Auto Mode, turn the large FMS Knob to select the percentage field and
change percentage with the small FMS Knob. The percentage of change is
the day/night crossover point based on backlighting intensity.
7)
Press the FMS Knob when finished to remove the Chart Setup Menu.
AIRPORT DIRECTORY
The AOPA or AC-U-KWIK Airport Directory adds enhanced airport information
when viewing airports on the WPT-Airport Information Page.
The Airport Directory databases are revised every 56 days.
Check fly.garmin.
com for the current database.
View Airport Directory Information
While viewing the WPT-Airport Information Page, if necessary, select the
INFO-1 Softkey to change the softkey label to display INFO-2. Airport
Directory information is displayed on the right half of the display.
SATELLITE TELEPHONE AND SMS MESSAGING
Operation of these features in the cockpit is accomplished through the AUX-
TELEPHONE, AUX-TEXT MESSAGING, AUX-REPORT STATUS, and AUX-WI-
FI SETUP Pages. For operation using the cabin handset, consult the instructions
provided with the handset.
Registering With Garmin Connext
A subscriber account must be established prior to using the Iridium Satellite
System. Before setting up an Iridium account, obtain the serial number of the Iridium
Transceiver and the System ID by viewing the AUX- SYSTEM STATUS Page. Contact
Garmin Connext at 1-866-739-5687 in the United States or 913-397-8200, ext. 1135.
Telephone Communication
The pilot or copilot can place and answer calls on the Iridium satellite network
as well as to or from the telephone handset in the cabin. Calls can also be answered
or made from the cabin phone, however, only actions initiated from the cockpit
phone will be discussed here. See the cabin handset user guide for more information.
Control and monitoring of telephone functions are accomplished through the AUX-
TELEPHONE Page.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
92
Additional Features
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
Viewing the Telephone Page
1)
Turn the large FMS Knob on the MFD to select the AUX page group.
2)
Turn the small FMS Knob to select SATELLITE PHONE.
3)
If necessary, select the TEL Softkey to display the AUX-TELEPHONE Page.
Internal
Phone
External
Phone Description
Phone is Idle
Phone is ringing
Phone has a dial tone (off hook) or connected to
another phone
Phone dialed is busy
Phone is dialing another phone
Phone has failed
Phone status not known
Phone is disabled
Phone is reserved for data transmission
Calling other phone or incoming call from other phone
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 93
Additional Features
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
Internal
Phone
External
Phone Description
Other phone is on hold
Phones are connected
Enable the Iridium Telephone System
1)
With the AUX-TELEPHONE Page displayed, select the MENU Key on the
MFD to display the Page Menu.
2)
Turn either FMS Knob to place the cursor on ‘Enable Iridium Transmission’.
3)
Press the ENT Key.
Disable the Iridium Telephone System
1)
With the AUX-TELEPHONE Page displayed, select the MENU Key on the
MFD to display the Page Menu.
2)
Turn either FMS Knob to place the cursor on ‘Disable Iridium Transmission’.
3)
Press the ENT Key.
Incoming Calls
When viewing MFD pages other than the AUX-TELEPHONE Page, a pop-up
alert will be displayed. If the call is from the cabin, CABIN will be displayed. If the
incoming call is an Iridium network call, IRIDIUM will be displayed. The pop-up alert
may be inhibited at times, such as during takeoff. In addition to the pop-up alert, a
ringing phone symbol will be displayed to the right of the MFD page title. Also, the
voice alert “Incoming Call” will be heard on the selected cockpit audio.
Answer an Incoming Call in the Cockpit
1)
Press the TEL Key on the appropriate audio panel.
2)
Select the ANSWER Softkey on the MFD.
Or
:
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
94
Additional Features
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
While viewing the AUX-TELEPHONE Page:
1)
Press the TEL Key on the appropriate audio panel.
2)
Press the MENU Key to display the Page Menu.
3)
Turn either FMS Knob to place the cursor on ‘Answer Incoming Call’.
4)
Press the ENT Key.
Selecting the IGNORE Softkey will extinguish the pop-up window and leave the
current call unanswered. Selecting the IGNRE ALL Softkey will extinguish the pop-
up window for the current and all future incoming calls and leave the current call
unanswered. Selecting the TEL Softkey will display the AUX-TELEPHONE Page
allowing additional call information to be viewed before answering.
Disabling Incoming Call Alerts
1)
With the AUX-TELEPHONE Page displayed, press the MENU Key on the
MFD to display the Page Menu.
2)
Turn either FMS Knob to place the cursor on ‘Disable Incoming Call Alerts’.
3)
Press the ENT Key. The voice and pop-up alert will not be displayed now
when an incoming call is received.
Outgoing Calls
Voice calls can be made from the cockpit to the handset in the cabin, or to an
external phone through the Iridium Satellite Network.
Make a Call to the Cabin:
1)
Press the TEL Key on the appropriate audio panel.
2)
Select the DIAL Softkey on the MFD.
3)
Press the ENT Key. The cursor will move from ‘CABIN’ to ‘OK’.
4)
Press the ENT Key again. The cabin phone will now ring.
To exit the call, select the HANGUP Softkey.
Make an External Call from the Cockpit
1)
Press the TEL Key on the appropriate audio panel.
2)
Select the DIAL Softkey on the MFD.
3)
Turn the small FMS Knob to select ‘IRIDIUM’.
4)
Press the ENT Key. The cursor has now moved to the phone number entry field.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 95
Additional Features
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
5)
Enter the desired telephone number by selecting the number softkeys on
the MFD or by pressing the numeric keys on the MFD Control Unit. The
International dialing sequence is necessary to place a call from the cockpit
to an external phone: Country Code + City/Area Code (if any) + Telephone
Number.
The following country codes may be used when calling other satellite
telephone systems.
Satellite System Country Code
Inmarsat 870
ICO 8810 or 8811
Ellipso 8812 or 8813
Iridium 8816 or 8817
Globalstar 8818 or 8819
6)
Press the ENT Key. ‘OK’ is highlighted.
7)
Press the ENT Key. The system will begin calling the number.
To exit the call, select the HANGUP Softkey.
Placing The Cockpit Phone on Hold
Select the HOLD Softkey on the MFD.
Or
:
1)
Press the MENU Key to display the Page Menu.
2)
Turn either FMS Knob to place the cursor on ‘Put Current Call On Hold’.
3)
Press the ENT Key.
Select the HOLD Softkey again to resume the call.
Transferring a Call from the Cockpit
From the cockpit phone, an external call can be transferred to the cabin phone,
or a call with the cabin phone can be transferred to an external phone, or (when
two Iridium Transceivers are installed) an external call can be transferred to another
external phone.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
96
Additional Features
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
To transfer a call:
1)
Select the TRANS Softkey on the MFD.
Or
:
a)
Press the MENU Key to display the Page Menu.
b)
Turn either FMS Knob to place the cursor on ‘Transfer Current Call’.
c)
Press the ENT Key.
2)
Press the ENT Key. The cursor now highlights the phone number entry
field.
3)
Enter the phone number as discussed earlier for making an external call on
the Iridium satellite network.
4)
Press the ENT Key. ‘OK’ is now highlighted.
5)
Press the ENT Key again to place the call.
Making a Conference Call from the Cockpit
1)
Select the CONF Softkey on the MFD.
Or
:
a)
Press the MENU Key to display the Page Menu.
b)
Turn either FMS Knob to place the cursor on ‘Conference Current Call’.
c)
Press the ENT Key.
2)
Press the ENT Key. The cursor now highlights the phone number entry
field.
3)
Enter the phone number as discussed earlier for making an external call on
the Iridium satellite network.
4)
Press the ENT Key. ‘OK’ is now highlighted.
5)
Press the ENT Key again to place the call.
Text Messaging (SMS)
Messages may be sent to an email address or text message capable cellular telephone.
Message length is limited to 160 characters, including the email address.
The text messaging user interface is mainly through the AUX-TEXT MESSAGING
Page.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 97
Additional Features
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
Viewing the Text Messaging Page
1)
Turn the large FMS Knob on the MFD to select the AUX page group.
2)
Turn the small FMS Knob to select SATELLITE PHONE.
3)
If necessary, select the SMS Softkey to display the AUX-TEXT MESSAGING
Page.
Message Symbol Description
Received text message that has not been opened
Received text message that has been opened
Saved text message, draft not sent
System is sending text message
Text message has been sent
System failed to send text message
Predefined text message
Viewing a Text Message When Received
When viewing MFD pages other than the AUX-TEXT MESSAGING Page, a pop-up
alert will be displayed when a new text message is received.
Select the VIEW Softkey to view the message. Selecting the IGNORE Softkey will
extinguish the pop-up window and leave the text message unopened. Selecting the
IGNR ALL Softkey will extinguish the pop-window and ignore all future incoming
text messages. Selecting the SMS Softkey will display the AUX-TEXT MESSAGING
Page.
The pop-up alerts may be enabled or disabled through the Page Menu.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
98
Additional Features
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
Enable/Disable Incoming Text Message Pop-Up Alerts
1)
With the AUX-TEXT MESSAGING Page displayed, press the MENU Key on
the MFD to display the Page Menu.
2)
Turn either FMS Knob to place the cursor on ‘Disable New Message
Popups’ or ‘Enable New Message Popups’.
3)
Press the ENT Key. The pop-up alert will not be displayed when an
incoming text message is received.
Reply to a Text Message
While viewing the text message, select the REPLY Softkey.
Or
:
a)
Press the MENU Key to display the Page Menu.
b)
Turn either FMS Knob to place the cursor on ‘Reply To Message’.
c)
Press the ENT Key.
Sending a Text Message
1)
While viewing the AUX-TEXT MESSAGING Page, select the NEW Softkey.
Or
:
a)
Press the MENU Key to display the Page Menu.
b)
Turn either FMS Knob to place the cursor on ‘Draft New Message’.
c)
Press the ENT Key.
2)
The TEXT MESSAGE DRAFT Window is now displayed with the cursor in the
‘TO’ field. Enter the desired telephone number or email address. Entry can
be accomplished through the alphanumeric keys on the MFD Controller,
or combination of the FMS Knob on the controller and softkeys on the
MFD. The FMS Knob is used to enter letters and numbers, or numbers
can be entered from the MFD by selecting the NUMBERS Softkey. Select
the CAP LOCK Softkey to create upper and lower case alpha characters.
Special characters can be accessed by selecting the SYMBOLS Softkey.
3)
Press the ENT Key. The cursor is now displayed in the ‘MESSAGE’ field.
4)
Enter the desired message using any combination of entry methods as
described in step 2.
5)
Press the ENT Key.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 99
Additional Features
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
6)
Select the SEND Softkey to send the message immediately, or select the
SAVE Softkey to save the message in Outbox for sending at a later time.
Select the CANCEL Softkey to delete the message.
Predefined Text Messages
Time and effort can be saved in typing text messages that are used repeatedly by
saving these messages as a predefined message.
Create a Predefined Text Message
1)
While viewing the AUX-TEXT MESSAGING Page, press the MENU Key to
display the Page Menu.
2)
Turn either FMS Knob to select ‘Edit Predefined Messages’.
3)
Press the ENT Key. The PREDEFINED MESSSAGES view is now displayed.
4)
Select the NEW Softkey.
Or
:
a)
Press the MENU Key to display the Page Menu.
b)
Turn either FMS Knob to place the cursor on ‘Draft New Predefined
Message’.
c)
Press the ENT Key. The PREDEFINED SMS TEXT MESSAGE Window is
now displayed.
5)
The cursor is displayed in the ‘TITLE’ field. Enter the desired message title.
Entry can be accomplished through the alphanumeric keys on the MFD
Controller, or combination of the FMS Knob on the controller and softkeys on
the MFD. The FMS Knob is used to enter letters and numbers, or numbers
can be entered from the MFD by selecting the NUMBERS Softkey. Select the
CAP LOCK Softkey to create upper and lower case alpha characters. Special
characters can be accessed by selecting the SYMBOLS Softkey.
6)
Press the ENT Key. The cursor is now displayed in the ‘MESSAGE’ field.
7)
Enter the desired message using any combination of entry methods as
described in step 5.
8)
Press the ENT Key.
9)
Select the SAVE Softkey. The new predefined message is now shown in
the displayed list. Selecting the CANCEL Softkey will delete the message
without saving.
10)
Press the MENU Key to display the Page Menu.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
100
Additional Features
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
11)
Turn either FMS Knob to place the cursor on ‘Stop Editing Predefined
Message’.
12)
Press the ENT Key.
Send a Predefined Text Message
1)
While viewing the AUX-TEXT MESSAGING Page, select the NEW Softkey.
2)
The TEXT MESSAGE DRAFT Window is now displayed with the cursor in the
‘TO’ field. Enter the desired telephone number or email address. Entry can
be accomplished through the alphanumeric keys on the MFD Controller, or
combination of the FMS Knob on the controller and softkeys on the MFD.
The FMS Knob is used to enter letters and numbers, or numbers can be
entered from the MFD by selecting the NUMBERS Softkey. Select the CAP
LOCK Softkey to create upper and lower case alpha characters. Special
characters can be accessed by selecting the SYMBOLS Softkey.
3)
Press the ENT Key. The cursor is now displayed in the ‘MESSAGE’ field.
4)
Select the PREDEFD Softkey. The PREDEFINED MESSAGE MENU Window is
displayed.
6)
Press the ENT Key. The predefined message text is inserted into the
message field. If desired, the message can be edited by using the FMS
Knobs.
7)
Press the ENT Key.
8)
Select the SEND Softkey to transmit the message.
Text Message Boxes
Received text messages reside in the Inbox as ‘Read’ or ‘Unread’ messages. The
Outbox contains ‘Sent” and ‘Unsent’ text messages. Saved messages that are meant to
be sent later are stored as Drafts. Each text message box may be viewed separately, or
together in any combination.
Show Inbox Messages
While viewing the AUX-TEXT MESSAGING Page, select the ARRANGE
Softkey, then select the INBOX Softkey.
Or
:
a)
Press the MENU Key to display the Page Menu.
b)
Turn either FMS Knob to place the cursor on ‘Show Inbox Messages’.
c)
Press the ENT Key. The message box selected for viewing is indicated
at the bottom left of the list window.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 101
Additional Features
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
Show Outbox Messages
While viewing the AUX-TEXT MESSAGING Page, select the ARRANGE
Softkey, then select the OUTBOX Softkey.
Or
:
a)
Press the MENU Key to display the Page Menu.
b)
Turn either FMS Knob to place the cursor on ‘Show Outbox Messages’.
c)
Press the ENT Key. The message box selected for viewing is indicated
at the bottom left of the list window.
Show Draft Messages
While viewing the AUX-TEXT MESSAGING Page, select the ARRANGE
Softkey, then select the DRAFTS Softkey.
Or
:
a)
Press the MENU Key to display the Page Menu.
b)
Turn either FMS Knob to place the cursor on ‘Show Draft Messages’.
c)
Press the ENT Key. The message box selected for viewing is indicated
at the bottom left of the list window.
Arranging Text Messages
The viewed messages may be listed according to the date/time the message was
sent or received, the type of message (read, unread, sent, unsent, etc.), or by message
address.
View Messages Sorted by Message Date/Time:
While viewing the AUX-TEXT MESSAGING Page, select the ARRANGE
Softkey, then select the TIME Softkey.
Or
:
a)
Press the MENU Key to display the Page Menu.
b)
Turn either FMS Knob to place the cursor on ‘Sort By Date/Time’.
c)
Press the ENT Key. The sorting selection is indicated at the bottom
center of the list window.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
102
Additional Features
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
View Messages Sorted by Message Type
While viewing the AUX-TEXT MESSAGING Page, select the ARRANGE
Softkey, then select the TYPE Softkey.
Or
:
a)
Press the MENU Key to display the Page Menu.
b)
Turn either FMS Knob to place the cursor on ‘Sort By Type’.
c)
Press the ENT Key. The sorting selection is indicated at the bottom
center of the list window.
View Messages Sorted by Address:
While viewing the AUX-TEXT MESSAGING Page, select the ARRANGE
Softkey, then select the ADDRESS Softkey.
Or
:
a)
Press the MENU Key to display the Page Menu.
b)
Turn either FMS Knob to place the cursor on ‘Sort By Address’.
c)
Press the ENT Key. The sorting selection is indicated at the bottom
center of the list window.
Viewing The Content of a Text Message
1)
While viewing the AUX-TEXT MESSAGING Page, select the desired message box.
2)
Press the FMS Knob to activate the cursor.
3)
Turn either FMS Knob to select the desired message.
4)
Select the VIEW Softkey.
Or
:
Press the ENT Key.
Or
:
a)
Press the MENU Key to display the Page Menu.
b)
Turn either FMS Knob to place the cursor on ‘View Selected Message’.
c)
Press the ENT Key.
5)
To close the text message, select the CLOSE Softkey.
Or
:
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 103
Additional Features
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
a)
Press the MENU Key to display the Page Menu.
b)
Turn either FMS Knob to place the cursor on ‘Close Message’.
c)
Press the ENT Key.
Mark Selected Message As Read
1)
While viewing the Inbox on the AUX-TEXT MESSAGING Page, press the
FMS Knob to activate the cursor.
2)
Turn either FMS Knob to select the desired message.
3)
Select the MRK READ Softkey.
Or
:
a)
Press the MENU Key to display the Page Menu.
b)
Turn either FMS Knob to place the cursor on ‘Mark Selected Message
As Read’.
c)
Press the ENT Key.
The message symbol now indicates the message has been opened.
Mark All Messages As Read
1)
While viewing the Inbox on the AUX-TEXT MESSAGING Page, press the
MENU Key to display the Page Menu.
2)
Turn either FMS Knob to place the cursor on ‘Mark All New Messages As
Read’.
3)
Press the ENT Key. A confirmation window is displayed.
4)
With cursor highlighting ‘YES’, press the ENT Key. The message symbols
now indicate all the message have been opened.
Delete a Message
1)
While viewing the Inbox on the AUX-TEXT MESSAGING Page, press the
FMS Knob to activate the cursor.
2)
Turn either FMS Knob to select the desired message.
3)
Select the DELETE Softkey.
Or
:
a)
Press the MENU Key to display the Page Menu.
b)
Turn either FMS Knob to place the cursor on ‘Delete Selected Message’.
c)
Press the ENT Key.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
104
Additional Features
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
WI-FI CONNECTIONS (OPTIONAL)
Control and monitoring of Wi-Fi functions are accomplished through the AUX-
WI-FI SETUP Page.
Viewing the Wi-Fi Setup Page
1)
Turn the large FMS Knob on the MFD to select the AUX page group.
2)
Turn the small FMS Knob to select REPORTS/DATA LINK.
3)
If necessary, select the WI-FI Softkey to display the AUX-WI-FI SETUP Page.
Setting Up a New Wi-Fi Connection
1)
Select the AVAIL Softkey on the MFD. A list of available networks will be
displayed in the AVAILABLE NETWORKS window. Signal strength is shown
for each network, as well as security methods and whether the network has
been saved in the system’s memory.
2)
If necessary, select the RESCAN Softkey to have the system scan again for
available networks.
3)
Press the FMS Knob to place the cursor in the list of networks.
4)
Turn either FMS Knob to select the desired network.
5)
Select the CONNECT Softkey.
6)
If the network is secured, enter the necessary passcode. Use the FMS
Knobs to enter the desired alpha numeric characters. Select the CAP LOCK
Softkey to enter upper case letters. If there is no security associated with
the network, proceed to step 9.
7)
Press the ENT Key. ‘OK’ will be highlighted.
8)
Press the ENT Key again.
9)
The SAVE SETTINGS window is now displayed with the cursor highlighting
‘SAVE CONNECTION’.
10)
The selected network can be saved to system memory to make reconnection
easier at a later time.
To connect the selected network without saving:
a)
Turn the large FMS Knob to move the cursor to highlight ‘CONNECT’.
b)
Press the ENT Key.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 105
Additional Features
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
To save and connect the selected network:
a)
Press the ENT Key. A checkmark is placed in the checkbox and the
cursor moves to the airport field.
b)
Using the FMS Knobs, enter an airport identifier to be associated with
the saved network. This aids in identifying the network later in the
event of duplicate network names.
c)
Press the ENT Key. The cursor moves to ‘CONNECT’.
d)
Press the ENT Key again to connect to the selected network.
Editing a Saved Network
1)
While viewing list of saved networks, press the FMS Knob to activate the
cursor.
2)
Turn either FMS Knob to highlight the network to be edited.
3)
Pressing the ENT Key at this point will check or uncheck the AUTO
CONNECT checkbox. When a checkmark is present, the system will
automatically connect to the network when within range.
4)
Select the EDIT Softkey. The cursor now appears in the CONNECTION
SETTINGS window.
5)
Turn the large FMS Knob to select the network attribute to be edited.
6)
Turn the small FMS Knob to begin editing the field.
7)
When the entry is complete, press the ENT Key.
8)
Turn the large FMS Knob or press the ENT Key until ‘SAVE’ is highlighted.
9)
Press the ENT Key.
Disconnecting a Wi-Fi Network
Select the DISCNCT Softkey.
Deleting a Saved Wi-Fi Network
1)
While viewing the list of saved networks, press the FMS Knob to activate
the cursor.
2)
Turn either FMS Knob to highlight the network to be deleted.
3)
Select the DELETE Softkey. The selected network is removed from the list.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
106
Additional Features
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
MAINTENANCE LOGS
The system provides recording of CAS, CMC, exceedances, and other critical air-
craft data that occur while the aircraft is on the ground or in flight. This information
may be used by aircraft maintenance personel in determining specific maintenance
requirements.
The Maintenance Logs feature is accessible by entering a password. No pilot action
is required.
Viewing the Maintenance Logs Page:
1)
Turn the large FMS Knob on the MFD to select the AUX page group.
2)
Turn the small FMS Knob to select ‘MAINTENANCE LOG’. The AUX-
MAINTENANCE LOGS Page is now displayed.
3)
Select the PSWD Key to enter the password.
4)
Enter the password.
5)
Press the ENT Key to access the page.
SIRIUSXM SATELLITE RADIO (SUBSCRIPTION OPTIONAL)
The XM Radio Page provides information and control of the audio entertainment
features of the SiriusXM Satellite Radio.
Selecting the XM Radio Page
1)
Turn the large FMS Knob to select the AUX Page Group.
2)
Turn the small FMS Knob to select XM RADIO.
3)
Select the RADIO Softkey to show the XM Radio Page where audio
entertainment is controlled.
Active Channel and Channel List
The Active Channel Box on the XM Radio Page displays the currently selected
channel. The Channels List Box of the XM Radio Page shows a list of the available
channels for the selected category.
Selecting a Category
The Category Box of the XM Radio Page displays the currently selected category
of audio.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 107
Additional Features
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
1)
Select the CATGRY Softkey on the XM Radio Page.
2)
Select the CAT + and CAT - softkeys to cycle through the categories.
Or
:
Turn the small FMS Knob to display the ‘Categories’ list. Highlight the
desired category with the small FMS Knob.
3)
Press the ENT Key.
Select an Available Channel within the Selected Category
1)
While on the XM Radio Page, select the CHNL Softkey.
2)
Select the CH + Softkey to go down through the list in the Channel Box, or
move up the list with the CH – Softkey.
Or
:
Press the FMS Knob to highlight the channel list and turn the large FMS
Knob to scroll through the channels.
3)
With the desired channel highlighted, press the ENT Key.
Entering a Channel Directly
1)
While on the XM Radio Page, select the CHNL Softkey.
2)
Select the DIR CH Softkey. The channel number in the Active Channel Box
is highlighted.
3)
Select the numbered softkeys located on the bottom of the display to
directly select the desired channel number.
4)
Press the ENT Key to activate the selected channel.
Assigning Channel Presets
Up to 15 channels from any category can be assigned a preset number.
1)
On the XM Radio Page, with the desired channel active, select the
PRESETS Softkey to access the first five preset channels (PS1 - PS5).
2)
Select the MORE Softkey to access the next five channels (PS6 – PS10),
and again to access the last five channels (PS11 – PS15). Selecting the
MORE Softkey repeatedly cycles through the preset channels.
3)
Select the SET Softkey.
4)
Select any one of the (PS1 - PS15) softkeys to assign a number to the
active channel.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
108
Additional Features
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
Adjusting Volume
1)
With the XM Radio Page displayed, press the VOL Softkey.
2)
Press the VOL – Softkey to reduce volume or press the VOL + Softkey to
increase volume. (Once the VOL Softkey is pressed, the volume can also be
adjusted using the small FMS Knob.)
Mute SiriusXM Audio
1)
Select the XM Radio Page or XM Information Page.
2)
Press the MUTE Softkey to mute the audio. Press the MUTE Softkey again
to unmute the audio.
ELECTRONIC CHECKLISTS (OPTIONAL)
The system accesses the checklists from an SD card inserted into the card slot.
If the SD card contains an invalid checklist file or no checklist, the Power-up Page
messages display ‘Checklist File: Invalid’ or ‘Checklist File: N/A’ (not available) and the
CHKLIST Softkey is not available.
The following colors are used for checklist items:
• Light Blue - Items not selected or
checked
• White - Item is selected
• Green - Item has been checked
• Gray - General notes
• Yellow - Caution notes
• Red - Warning notes
Accessing and Navigating Checklists
1)
From any page on the MFD, select the CHKLIST Softkey or turn the large
FMS Knob to select the Checklist Page.
2)
Turn the large FMS Knob to select the ‘GROUP’ field.
3)
Turn the small FMS Knob to select the desired procedure and press the
ENT Key.
4)
Turn the large FMS Knob to select the ‘CHECKLIST’ field.
5)
Turn the small FMS Knob to select the desired checklist and press the ENT
Key. The selected checklist item is indicated with white text surrounded by
a white box.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 109
Additional Features
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
6)
Press the ENT Key or select the CHECK Softkey to check the selected
checklist item. The line item turns green and a checkmark is placed in the
associated box. The next line item is automatically selected for checking.
Either FMS Knob can be used to scroll through the checklist and select the
desired checklist item.
Press the CLR Key or select the UNCHECK Softkey to remove a check mark
from an item.
7)
When all checklist items have been checked, ‘*Checklist Finished*’ is
displayed in green text at the bottom left of the checklist window and
‘GO TO NEXT CHECKLIST?’ is highlighted. If ‘GO TO NEXT CHECKLIST?’
is selected prior to checking all the checklist items, ‘*CHECKLIST NOT
FINISHED*’ will be displayed in yellow text.
8)
Press the ENT Key. If ‘GO TO NEXT CHECKLIST?’ is displayed when
pressing the ENT Key, the next checklist in the group will be displayed. If
‘EXIT CHECKLISTS?’ is displayed when pressing the ENT Key, the system
will exit the Checklist Page.
9)
Select the EXIT Softkey to exit the Checklist Page and return to the page
last viewed. When returning to the Checklist Page after pressing the EXIT
Softkey, the system will return to the last selected checklist item.
Immediately Accessing Emergency Procedures
1)
From any page on the MFD, select the CHKLIST Softkey or turn the large
FMS Knob to select the Checklist Page.
2)
Select the EMERGCY Softkey.
3)
Turn the FMS Knob to select the desired emergency checklist and press the
ENT Key.
4)
Press the ENT Key or select the CHECK Softkey to check the selected
emergency checklist item. The line item turns green and a checkmark is
placed in the box next to it. The next line item is automatically highlighted
for checking.
Either FMS Knob can be used to scroll through the checklist and select the
desired checklist item.
Press the CLR Key or select the UNCHECK Softkey to remove a check mark
from an item.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
110
Additional Features
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
5)
When all checklist items have been checked, ‘*Checklist Finished*’ is
displayed in green text at the bottom left of the checklist window and
‘GO TO NEXT CHECKLIST?’ is highlighted. If ‘GO TO NEXT CHECKLIST?’
is selected prior to checking all the checklist items, ‘*CHECKLIST NOT
FINISHED*’ will be displayed in yellow text.
6)
Press the ENT Key to advance to the next checklist.
7)
Select the RETURN Softkey to return to the previous checklist.
8)
Select the EXIT Softkey to exit the Checklist Page and return to the page
last viewed.
PILOT PROFILES
When the system is powered on, the last selected pilot profile is shown on the MFD
power-up screen. The system can store up to 25 profiles; the currently active profile,
the amount of memory used, and the amount of memory available are shown at the
top of the AUX - System Setup Page in the box labeled ‘Pilot Profile’.
Creating a Profile
1)
Use the FMS Knob to select the AUX - System Setup Page.
2)
Press the FMS Knob momentarily to activate the flashing cursor.
3)
Turn the large FMS Knob to highlight ‘CREATE’ in the Pilot Profile Box.
4)
Press the ENT Key. A ‘Create Profile’ window is displayed.
5)
Use the FMS Knob to enter a profile name up to 16 characters long and
press the ENT Key. Pilot profile names cannot begin with a blank as the
first letter.
6)
In the next field, use the small FMS Knob to select the desired settings
upon which to base the new profile. Profiles can be created based on
Garmin factory defaults, default profile settings (initially based on Garmin
factory defaults unless edited by the pilot), or current system settings.
7)
Press the ENT Key.
8)
With ‘CREATE’ highlighted, press the ENT Key to create the profile.
Or
:
Use the large FMS Knob to select ‘CREATE and ACTIVATE’ and press the
ENT Key to activate the new profile.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 111
Additional Features
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
9)
To cancel the process, select ‘CANCEL’ with the large FMS Knob and press
the ENT Key.
10)
Press the FMS Knob to deactivate the cursor.
Selecting an Active Profile
1)
Use the FMS Knob to select the AUX - System Setup Page.
2)
Press the FMS Knob momentarily to activate the flashing cursor.
3)
Turn the large FMS Knob to highlight the active profile field in the Pilot
Profile Box.
4)
Turn the small FMS Knob to display the pilot profile list and highlight the
desired profile.
5)
Press the ENT Key. The system loads and displays the system settings for
the selected profile.
6)
Press the FMS Knob to deactivate the cursor.
Renaming a Profile
1)
Use the FMS Knob to select the AUX - System Setup Page.
2)
Press the FMS Knob momentarily to activate the flashing cursor.
3)
Turn the large FMS Knob to highlight ‘RENAME’ in the Pilot Profile Box.
4)
Press the ENT Key.
5)
In the ‘Rename Profile’ window, turn the FMS Knob to select the profile to
rename.
6)
Press the ENT Key.
7)
Use the FMS Knob to enter a new profile name up to 16 characters long
and press the ENT Key.
8)
With ‘RENAME’ highlighted, press the ENT Key.
9)
To cancel the process, use the large FMS Knob to select ‘CANCEL’ and
press the ENT Key.
10)
Press the FMS Knob to deactivate the cursor.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
112
Additional Features
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
Deleting a Profile
NOTE
: The profile that is currently active cannot be deleted. If this is the
desired profile to delete, select another profile, then delete the desired
profile.
1)
Use the FMS Knob to select the AUX - System Setup Page.
2)
Press the FMS Knob momentarily to activate the flashing cursor.
3)
Turn the large FMS Knob to highlight ‘DELETE’ in the Pilot Profile Box.
4)
Press the ENT Key.
5)
In the ‘Delete Profile’ window, turn the FMS Knob to select the profile to
delete.
6)
Press the ENT Key.
7)
With ‘DELETE’ highlighted, press the ENT Key.
8)
To cancel the process, use the large FMS Knob to select ‘CANCEL’ and
press the ENT Key.
9)
Press the FMS Knob to deactivate the cursor.
Importing a Profile from an SD Card
1)
Insert an SD card containing the pilot profile(s) into the top card slot on the
MFD.
2)
Turn the FMS Knob to select the AUX - System Setup Page.
3)
Select the IMPORT Softkey.
4)
The system displays the Pilot Profile Importing Window with ‘IMPORT’
highlighted. To change the selected profile to be imported from the SD card
(shown as ‘SELECT FILE’), turn the large FMS Knob to highlight the profile
file name, then turn the small FMS Knob to highlight a profile from the list,
and press the ENT Key.
5)
If desired, the profile name to be used after profile has been imported can
be changed by turning the FMS Knob to highlight the ‘PROFILE NAME’
field, then use the large and small FMS Knobs to enter the name, and press
the ENT Key. Imported profile names cannot begin with a blank space or
be named ‘DEFAULT’, ‘GARMIN DEFAULTS’ or ‘DEFAULT SETTINGS’.
6)
With ‘IMPORT’ highlighted, press the ENT Key.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 113
Additional Features
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
7)
If the imported profile name is the same as an existing profile on the
system, the system displays an ‘Overwrite existing file? OK or CANCEL’
prompt. Press the ENT Key to replace profile on the system with the profile
imported from the SD card, or turn the FMS Knob to highlight ‘CANCEL’
and press the ENT Key to return to the Pilot Profile Importing Window.
8)
If successful, the system displays ‘Pilot profile import succeeded.’ in the
IMPORT RESULTS window below. With ‘OK’ highlighted, press the ENT or
CLR Keys or press the FMS Knob to return to the AUX - System Setup Page.
The imported profile becomes the active profile.
Exporting a Profile to an SD Card
1)
Insert the SD card for storing the Pilot Profile into the top card slot on the
MFD.
2)
Turn the FMS Knob to select the AUX - System Setup Page.
3)
If necessary, activate the desired pilot profile to export. Only the currently
active Pilot Profile can be exported.
4)
Select the EXPORT Softkey. The system displays the Pilot Profile Exporting
Window.
5)
To export the pilot profile using the current supplied name, press the ENT
Key with ‘EXPORT’ highlighted. To change the profile file name turn the
large FMS Knob to highlight the ‘SELECT FILE’ field, then enter the new
name with the large and small FMS Knobs, then press the ENT Key. Then
press the ENT Key with ‘EXPORT’ highlighted.
6)
If the profile name to be exported is the same as an existing profile file
name on the SD card, the system displays an ‘Overwrite existing file? OK
or CANCEL’ prompt. Press the ENT Key to replace the profile on the SD
card with the profile to be exported, or turn the FMS Knob to highlight
‘CANCEL’ and press the ENT Key to return to the Pilot Profile Exporting
Window without exporting the profile.
7)
If successful, the EXPORT RESULTS window displays ‘Pilot profile export
succeeded.’ With ‘OK’ highlighted, press the ENT or CLR Keys, or press the
FMS Knob to return to the AUX - System Setup Page.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
114
Additional Features
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
Blank Page
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 115
Abnormal Operation
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
ABNORMAL OPERATION
NOTE: The Embraer Phenom 300 Airplane Flight Manual (AFM) always takes
precedence over the information found in this section.
ENGINE
When an engine failure occurs, besides the CAS message corresponding to the
failed engine (“E1 FAIL” or “E2 FAIL”), the corresponding N1 gauge displays the
annunciation “FAIL” in yellow inverse video (black text on yellow background).
Detection of an engine fire causes the red inverse video (white text on red background)
annunciation “FIRE” to be displayed over the ITT gauge.
Engine Failure Indication Engine Fire Indication
CABIN PRESSURIZATION
If the cabin altitude (ALT) reaches a caution level, the readout displays black text
on a yellow background. When a high cabin altitude warning occurs, the readout is
displayed with white text on a red background, and the corresponding CAS message
“CAB ALTITUDE HI” is issued.
A cabin pressure change rate (RATE) caution readout is indicated with black text on
a yellow background. If low flow or a cabin leak is detected, the cabin pressure change
rate readout displays white text on a red background and the trend arrow turns red.
Cabin Leak Indication
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
116
Abnormal Operation
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
Excessive cabin differential pressure (DELTA-P) causes the pressure readout to dis-
play a yellow background and black text; warnings are indicated with red background
with white readout text. The CAS message “CAB DELTA-P FAIL” accompanies this
condition.
Low oxygen system pressure (OXY) is indicated by a yellow background and black
text. The CAS message “OXY LO PRES” is also issued.
If the pilot selected landing field elevation (LFE) differs by more than five feet from
the FMS LFE value, the LFE readout is shown as black text with a yellow background
for 30 seconds.
A red “X” is displayed in place of any readout on the Cabin Display that is invalid
or out of range.
FLAPS
The following denote abnormal flap conditions:
• Flaps not in position for takeoff – Flap pointer turns red and readout turns red
inverse video (white text on red background) (A and B).
• Flaps have failed or become jammed – Flap pointer turns yellow and readout turns
yellow inverse video (black text on yellow background) (C)
• Flaps unavailable – Flap pointer is removed and readout turns light blue inverse
video (black text on light blue background) (D)
• Flaps position data invalid – Flap pointer and readout displayed with a red “X”
A - Flaps Retracted
at Takeoff
B - Flaps at FULL
(Landing) Position at
Takeoff
C - Flaps Failed D - Flaps Unavailable
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 117
Abnormal Operation
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
TRIM
Aileron or rudder mistrim are denoted with yellow arrows pointing in the direction
of mistrim on the Roll and Yaw Trim indicators (A).
If takeoff configuration has been selected and the pitch trim position is not within
the green band on the pitch trim scale, the pointer turns red and readout turns red
inverse video (white text on red background) (B).
Rudder
Mistrim
Aileron
Mistrim
A - Mistrim
B - Pitch Trim
Outside Takeoff
Configuration
REVERSIONARY MODE
If the system detects a failure in PFD1 or MFD, reversionary mode is entered
automatically. Reversionary mode must be entered manually in the case of
PFD2 failure.
In reversionary mode, critical flight instrumentation is combined with
engine instrumentation on the remaining display.
Manual activation of reversionary display mode is accomplished by pressing the
DISPLAY BACKUP Button on the appropriate audio panel.
• PFD1 – By pressing the DISPLAY BACKUP Button on the left audio panel.
• MFD – By pressing the DISPLAY BACKUP Button on the left or the right
audio panel.
• PFD2 – By pressing the DISPLAY BACKUP Button on the right audio
panel.
ABNORMAL COM OPERATION
When a COM tuning failure is detected by the system, the emergency frequency
(121.500 MHz) is automatically loaded into the active frequency field of the COM
radio for which the tuning failure was detected. In the event of a failure of both PFDs,
the emergency frequency (121.500 MHz) automatically becomes the active frequency
on both COM radios.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
118
Abnormal Operation
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
AUDIO PANEL FAIL-SAFE OPERATION
If there is a failure of both Audio Panels, a fail-safe circuit connects the pilot’s
headset and microphone directly to the COM1 transceiver and the copilot’s headset
directly to the COM2 transceiver. Audio is not available on the speakers. If there is a
failure of one Audio Panel, that side only has access to their respective on-side fail-safe
COM.
NOTE: Audio is not available on the speakers in case of an Audio Panel and
its cross-side GIA unit simultaneous failure.
If there is a failure of one Audio Panel, the remaining Audio Panel does not have
access to the other side’s COM or NAV. For example, if the pilot side Audio Panel
fails, the copilot side Audio Panel has access to all the radios except for COM1 and
NAV1. In this case, the copilot can receive the audio from NAV2 and operate COM2
for transmission/reception.
In addition, if there is a failure of one Audio Panel, the following functions are no
longer available on the failed side; NAV/ILS audio, speaker, cockpit/cockpit-passengers
intercom, aural warning alerts on headset, entertainment inputs, and digital recording
radio. Also, if a stereo headset is in use, and an Audio Panel fails, only the left channel
will be heard in the headphones.
HAZARD DISPLAYS WITH LOSS OF GPS POSITION
If GPS position is lost, or becomes invalid, selected hazards being displayed on the
Navigation Map Page are removed until GPS position is again established.
Loss of Hazard Functions with Loss of GPS
Position
UNUSUAL ATTITUDES
The PFD ‘declutters’ when the aircraft enters an unusual attitude. Only the primary
functions are displayed in these situations.
The following information is removed from the PFD (and corresponding softkeys
are disabled) when the aircraft experiences unusual attitudes:
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 119
Abnormal Operation
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
• Traffic Annunciations
• AFCS Annunciations
• Flight Director
Command Bars
• Inset Map
• Temperatures
• DME Information
Window
• Wind Data
• Selected Heading Box
• Selected Course Box
• Transponder Status
Box
• System Time
• PFD Setup Menu
• Windows displayed in
the lower right corner
of the PFD:
– Timer/References
– Nearest Airports
– Flight Plan
– Messages
– Procedures
– ADF/DME Tuning
• Barometric Minimum
Descent Altitude Box
• Glideslope, Glide-
path, and Vertical
Deviation Indicators
• Altimeter Barometric
Setting
• Selected Altitude
• VNV Target Altitude
Extreme Pitch Indication
DEAD RECKONING
While in Enroute or Oceanic phase of flight, if the system detects an invalid GPS
solution or is unable to calculate a GPS position, the system automatically reverts to
Dead Reckoning (DR) Mode. In DR Mode, the system uses its last-known position
combined with continuously updated airspeed and heading data (when available) to
calculate and display the aircraft’s current estimated position.
NOTE: Dead Reckoning Mode only functions in Enroute (ENR) or Oceanic
(OCN) phase of flight. In all other phases, an invalid GPS solution produces
a “NO GPS POSITION” annunciation on the map and the system stops
navigating in GPS Mode.
DR Mode is indicated by the appearance of the letters ‘DR’ superimposed in yellow
over the ‘own aircraft’ symbol as shown in the following figure. In addition, ‘DR’ is
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
120
Abnormal Operation
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
prominently displayed, also in yellow, on the HSI slightly above and to the right of the
aircraft symbol on the CDI as shown in the following figure. Also, the CDI deviation
bar is removed from the display. Lastly, but at the same time, a ‘GPS NAV LOST’ alert
message appears on the PFD.
Normal navigation using GPS/SBAS source data resumes automatically once a valid
GPS solution is restored.
It is important to note that estimated navigation data supplied by the system in
DR Mode may become increasingly unreliable and must not be used as a sole means
of navigation. If, while in DR Mode, airspeed and/or heading data is also lost or
not available, the DR function may not be capable of estimating your position and,
consequently, the system may display a path that is different than the actual movement
of the aircraft. Estimated position information displayed by the system through
DR while there is no heading and/or airspeed data available should not be used for
navigation.
DR Mode is inherently less accurate than the standard GPS/SBAS Mode due to the
lack of satellite measurements needed to determine a position. Changes in wind speed
and/or wind direction compounds the relative inaccuracy of DR Mode. Because of this
degraded accuracy, the crew must maintain position awareness using other navigation
equipment until GPS-derived position data is restored.
Dead Reckoning Indications
Symbolic Aircraft
(Map pages and Inset Map)
CDI ‘DR’ Indication on PFD
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 121
Abnormal Operation
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
As a result of operating in DR Mode, all GPS-derived data is computed based upon
an estimated position and is displayed as yellow text on the display to denote degraded
navigation source information. This data includes the following:
• Navigation Status Box fields except Active Leg, TAS, and DTK
• GPS Bearing Pointer
• Wind data and pointers in the Wind Data Box on the PFD
• Current Track Indicator
• All Bearing Pointer Distances
• Active Flight Plan distances, bearings, and ETE values
Also, while the system is in DR Mode, the autopilot will not couple to GPS, and
TAWS is disabled. Additionally, the accuracy of all nearest information (airports,
airspaces, and waypoints) is questionable. Finally, airspace alerts continue to function,
but with degraded accuracy.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
122
Abnormal Operation
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
Blank Page
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 123
Annunciations & Alerts
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
ANNUNCIATIONS & ALERTS
CAS MESSAGES
Warning Messages
See the Airplane Flight Manual (AFM) for recommended pilot actions. Accompanied
by a triple chime tone which repeats until acknowledged.
Message Description
BAG SMK Smoke detected in baggage compartment
CAB ALTITUDE HI Cabin altitude pressure altitude high
DOOR EMER OPEN Emergency door open
DOOR PAX OPEN Passenger door open
E1 FIRE Fire in engine 1
E2 FIRE Fire in engine 2
E1 OIL LO PRES Low oil pressure in engine 1
E2 OIL LO PRES Low oil pressure in engine 2
ELEC EMERGENCY Generators offline
ELEC XFR FAIL Generators offline and electrical emergency transfer has failed
LG LEVER DISAG Landing gear position and control lever disagreement
NO TO CONFIG No takeoff configuration
Caution Messages
See the Airplane Flight Manual (AFM) for recommended pilot actions. Accompanied
by a single chime tone which repeats until acknowledged.
Message Description
ADS 1 FAIL ADS 1 offline or failed
ADS 2 FAIL ADS 2 offline or failed
ADS 1 HTR FAIL Pitot heater 1 offline or heater element failed
ADS 2 HTR FAIL Pitot heater 2 offline or heater element failed
AHRS 1 FAIL AHRS 1 failure
AHRS 2 FAIL AHRS 2 failure
A-I E1 FAIL Anti-ice system failure in engine 1
A-I E2 FAIL Anti-ice system failure in engine 2
A-I LO CAPACITY Not enough thermal energy available for WHSAIS (Wing and Horizontal
Stabilizer Anti-ice System) operation
A-I WINGSTB ARM WINGSTAB toggle switch has been armed prior to takeoff or WHSAIS
switched ON above 30,000 ft.
A-I WINGSTB FAIL Component failure (AIV, pressure transducers, AMS Controller, other)
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
124
Annunciations & Alerts
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
Message Description
A-I WINGSTB INHB
WHSAIS switched ON outside the icing envelope. Or, aircraft is in single
bleed configuration and above the 15,000 ft. icing envelope when
WHSAIS is switched on.
A-I WINGSTB LEAK Bleed hot air leakage at WHSAIS pneumatic ducting
AMS CTRL FAIL Pneumatic sources and icing protection are not available
ANTI-SKID FAIL Anti-skid function lost; main brake still available
AP FAIL Loss of AP function
AP PITCH MISTRIM Airplane mistrimmed in pitch axis when AP is engaged
AP ROLL MISTRIM Airplane mistrimmed in roll axis when AP is engaged
AUDIO PNL 1 FAIL Audio panel 1 is offline
AUDIO PNL 2 FAIL Audio panel 2 is offline
AURAL WRN FAIL Aural warning system failure due to non-communicating LRUs
AUTO PTRIM FAIL Auto pitch trim failure; other pitch trim functions still available
BAG SMK FAIL Baggage compartment smoke detector has failed
BATT DISCHARGE Battery discharging under normal operation
BATT 1 OFF BUS Battery 1 offline
BATT 2 OFF BUS Battery 2 offline
BATT EXCEEDANCE Battery voltage has exceeded 29 VDC
BLEED 1 FAIL Bleed 1 system not under control.
BLEED 2 FAIL Bleed 2 system not under control.
BLEED 1 LEAK Bleed 1 hot air leakage at some region of the ducting
BLEED 2 LEAK Bleed 2 hot air leakage at some region of the ducting
BLEED 1 OVERPRES Pressure in bleed ducting is higher than an acceptable value chosen to
not compromise ECS and Anti-ice components integrity
BLEED 2 OVERPRES Pressure in bleed ducting is higher than an acceptable value chosen to
not compromise ECS and Anti-ice components integrity
BRK FAIL Main brake system lost
CAB DELTA-P FAIL Excessive cabin pressure differential
CLUTCH PIT FAIL Pitch slip clutch maintenance test failed
CLUTCH ROL FAIL Roll slip clutch maintenance test failed
CLUTCH VNTRL FAIL Ventral slip clutch maintenance test failed
CLUTCH YAW FAIL Yaw slip clutch maintenance test failed
CONFIG MDL FAIL Master Configuration Module failed or non-communicative
DOORBAG AFT OPEN Crew baggage door open
DOORBAG LH OPEN Forward left-hand baggage door open
DOORBAG RH OPEN Forward right-hand baggage door open
DUCT 1 OVERTEMP Duct 1 temperature over specified safe value
DUCT 2 OVERTEMP Duct 2 temperature over specified safe value
E1 CTRL FAULT
Engine 1 responds slowly or not at all to thrust commands
E2 CTRL FAULT
Engine 2 responds slowly or not at all to thrust commands
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 125
Annunciations & Alerts
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
Message Description
E1 FAIL Uncommanded shutdown detected for engine 1
E2 FAIL Uncommanded shutdown detected for engine 2
E1 FIRE DET FAIL Fire detection system failure in engine 1
E2 FIRE DET FAIL Fire detection system failure in engine 2
E1 FIREX FAIL Fire extinguisher failure in engine 1
E2 FIREX FAIL Fire extinguisher failure in engine 2
E1 FUEL IMP BYP Fuel filter impending bypass condition for engine 1
E2 FUEL IMP BYP Fuel filter impending bypass condition for engine 2
E1 TLA FAIL Thrust Lever Angle failure for engine 1
E2 TLA FAIL Thrust Lever Angle failure for engine 2
E1 TT0 HTR FAIL Heater failure in engine 1
E2 TT0 HTR FAIL Heater failure in engine 2
E1 TT0 PROBE ICE Engine 1 probe frozen
E2 TT0 PROBE ICE Engine 2 probe frozen
EBAY LEAK Leak inside E-Bay
EBAY OVHT Electrical bay over temperature
ECS 1 VALVE FAIL Flow control valve monitor for ECS 1 detected improper valve operation
ECS 2 VALVE FAIL Flow control valve monitor for ECS 2 detected improper valve operation
EMER BRK LO PRES Few emergency brake functions available
EMER LT NOT ARM Emergency lights switch not in ARMED position
ENG EXCEEDANCE Limit exceeded in engine(s) during flight
ENG NO DISPATCH FADEC detected no dispatch fault condition in engine(s)
ENG NO TO DATA No takeoff data entered
FLAP FAIL Loss of flaps deployment or retraction
FUEL 1 LO LEVEL Low fuel level in tank 1
FUEL 2 LO LEVEL Low fuel level in tank 2
FUEL 1 LO PRES Fuel pressure low in engine 1 feed line
FUEL 2 LO PRES Fuel pressure low in engine 2 feed line
FUEL 1 SOV FAIL Fuel feed SOV 1 closed or unavailable
FUEL 2 SOV FAIL Fuel feed SOV 2 closed or unavailable
FUEL IMBALANCE Fuel is imbalanced between the tanks
FUEL PUMP 1 FAIL Fuel pump 1 failure
FUEL PUMP 2 FAIL Fuel pump 2 failure
FUEL XFEED FAIL Disagreement between valve command and its feedback
GEN 1 OFF BUS Generator 1 offline
GEN 2 OFF BUS Generator 2 offline
GEN OVLD Generator(s) overload
GEN START FAULT Generator start fault
GIA 1 FAIL Failure of GIA 1
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
126
Annunciations & Alerts
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
Message Description
GIA 2 FAIL Failure of GIA 2
GIA 1 OVHT GIA 1 over temperature
GIA 2 OVHT GIA 2 over temperature
GND SPLR FAIL Loss of ground spoilers
HYD HI TEMP Hydraulic temperature high
HYD LO PRES Hydraulic pressure low
HYD SOV 1 FAIL EDP 1 Fire Shutoff valve was commanded to close, but failed to close
HYD SOV 2 FAIL EDP 2 Fire Shutoff valve was commanded to close, but failed to close
ICE CONDITION*Aircraft is flying in icing conditions
LG WOW SYS FAIL Landing gear weight-on-wheels system failure
MFD CONFIG MFD configuration error
MFD FAULT Fault with the MFD
MFD OVHT MFD over temperature
OXY LO PRES Oxygen system pressure low
PARK BRK NOT REL Parking brake not released
PAX OXY NO PRES Cabin altitude high and passenger oxygen system pressure low
PFD 1 CONFIG PFD 1 configuration error
PFD 2 CONFIG PFD 2 configuration error
PFD 1 FAULT Fault with PFD 1
PFD 2 FAULT Fault with PFD 2
PFD 1 OVHT PFD 1 over temperature
PFD 2 OVHT PFD 2 over temperature
PRESN AUTO FAIL Pressurization controller failure
PTRIM BKP FAIL Loss of backup pitch trim actuator
PTRIM NML FAIL Loss of normally-operating pitch trim actuator
PUSHER FAIL Stall Warning & Protection System pusher has failed
PUSHER OFF Stall Warning Pusher is off
RUD OVERBOOST SLRB (Spring Loaded Rudder Booster) uncommanded actuation
STBY HTR FAIL Failure of standby heater
STEEP FAIL*Steep approach mode has failed
SWPS FAIL Stall Warning & Protection System inoperative
SWPS FAULT Stall Warning & Protection System activation angles anticipated to
conservative settings
SWPS UNTESTED Stall Warning & Protection System has not been tested
TCAS FAIL*Traffic & Collision Avoidance System failure. TCASII installations only.
WSHLD 1 HTR FAIL Windshield 1 heater failure
WSHLD 2 HTR FAIL Windshield 2 heater failure
YD FAIL Loss of yaw damper function
YD MISTRIM Airplane mistrimmed in yaw axis when YD is engaged
* Optional
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 127
Annunciations & Alerts
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
Advisory Messages
See the Airplane Flight Manual (AFM) for recommended pilot actions.
Message Description
A-I E1 FAULT Engine 1 Anti-ice system valve failed when commanded to close
A-I E2 FAULT Engine 2 Anti-ice system valve failed when commanded to close
A-I E1 ON Anti-ice system on in engine 1
A-I E2 ON Anti-ice system on in engine 2
A-I WINGSTB ARM WINGSTAB toggle switch has been armed prior to takeoff or WHSAIS
switched ON above 30,000 ft.
A-I WINGSTB ON WHSAIS is operating
ADS 1 SLIP FAIL ADS 1 side-slip compensation is off
ADS 2 SLIP FAIL ADS 2 side-slip compensation is off
ADS HTR SW ON ADS Probe switch is on
AHRS 1 FAULT Fault with AHRS 1
AHRS 2 FAULT Fault with AHRS 2
AMS CTRL FAULT One pneumatic and Anti-ice controller channel is inoperative
ATC DLK FAIL* CPDLC system has failed
AUDIO PNL 1 FAULT Fault with audio panel 1
AUDIO PNL 2 FAULT Fault with audio panel 2
AURAL WRN FAULT Partial loss of aural warning function
AVNX FAN FAIL Avionics fan failure
BAG SMK FAULT Two baggage compartment smoke detectors have failed
BLEED 1 OFF Bleed pressure regulator 1 and shut-off valve closed
BLEED 2 OFF Bleed pressure regulator 2 and shut-off valve closed
BRK CRTL 1 FAIL Brake control channel #1 is not available (failed or powered off)
BRK CRTL 2 FAIL Brake control channel #2 is not available (failed or powered off)
BRK FAULT Active channel of brake control system has failure(s) which reduce safety
margins without adversely affect the aircraft operation. Non-dispatchable.
CLUTCH PIT PASS Pitch slip clutch maintenance test passed
CLUTCH PIT PROG Pitch slip clutch maintenance test in progress
CLUTCH ROLL PASS Roll slip clutch maintenance test passed
CLUTCH ROLL PROG Roll slip clutch maintenance test in progress
CLUTCH VNTRL PASS Ventral slip clutch maintenance test passed
CLUTCH VNTRL PROG Ventral slip clutch maintenance test in progress
CLUTCH YAW PASS Yaw slip clutch maintenance test passed
CLUTCH YAW PROG Yaw slip clutch maintenance test in progress
DC BUS 1 OFF DC bus 1 offline
DC BUS 2 OFF DC bus 2 offline
DOOR REFUEL OPEN Refueling door is open
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
128
Annunciations & Alerts
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
Message Description
E1 CHIP DETECTED Chip detected by engine 1 oil chip detector
E2 CHIP DETECTED Chip detected by engine 2 oil chip detector
E1 FADEC FAULT FADEC fault in engine 1
E2 FADEC FAULT FADEC fault in engine 2
E1 OIL IMP BYP Engine 1 oil filter impending bypass set
E2 OIL IMP BYP Engine 2 oil filter impending bypass set
ECS 1 OFF Flow control valve monitor detected improper valve operation
ECS 2 OFF Flow control valve monitor detected improper valve operation
ELEC SYS FAULT Electrical system fault
EMER BUS OFF Emergency bus OFF
ENG FIREX DISCH Engine fire extinguisher discharge
FLAP NOT AVAIL Flaps not available
FUEL EQUAL Fuel quantity asymmetry corrected; XFEED SOV is open
FUEL 1 FEED FAULT DC pump on due to low fuel pressure
FUEL 2 FEED FAULT DC pump on due to low fuel pressure
FUEL 1 PSW FAIL Fuel pressure switch stuck in “high” position
FUEL 2 PSW FAIL Fuel pressure switch stuck in “high” position
GEA 1 FAIL Failure of GEA 1
GEA 2 FAIL Failure of GEA 2
GEA 3 FAIL Failure of GEA 3
GPU CONNECTED Ground power unit connected to the aircraft
GSD 1 FAIL GSD 1 non-communicative
GSD 2 FAIL GSD 2 non-communicative
HSDB FAULT An LRU has stopped communicating over an HSDB
HSDB SW REV POS HSDB switch in reversionary position
HYD SYS FAULT Degradation of hydraulic system available power
ICE DET FAIL* Ice Detector failure
MFD FAN FAIL Failure of MFD fan
OXY SW NOT AUTO Oxygen system switch in manual mode
PFD 1 FAN FAIL Failure of PFD 1 fan
PFD 2 FAN FAIL Failure of PFD 2 fan
PTRIM LO RATE Pitch trim is being actuated in low rate
PTRIM SW1 FAIL Failure of pilot pitch trim switch
PTRIM SW2 FAIL Failure of copilot pitch trim switch
RALT FAIL* Radar altitude failure
RAM AIR FAIL Ram air valve failure
RUD BOOST FAIL Loss of SLRB (Spring Loaded Rudder Booster) force assistance in case of
thrust asymmetry
SHED BUS OFF Shed bus off
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 129
Annunciations & Alerts
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
Message Description
SPDBRK SW DISAG Speed brake switch position disagrees with the spoiler surfaces position
SPOILER FAULT
Ground Spoiler arm logic failed
Ground Spoiler command disagree
Spoiler position disagree
Ground Spoiler Control Valve failed
Speed brake command failed
Speed brake command inhibit failed
STEEP NOT AVAIL* Steep approach mode is not available
SWPS ICE SPEED Stall Warning System activation angles anticipated due to icing conditions
VENTRAL RUD FAIL Ventral rudder has failed
XBLEED FAIL Cross bleed valve has failed closed or open
XBLEED SW OFF Cross bleed switch is in the OFF position
* Optional
COMPARATOR ANNUNCIATIONS
Note that operating the system in the vicinity of metal buildings or other metal
structures can cause sensor differences that may result in nuisance miscompare
annunciations during start up, shut down, or while taxiing.
Comparator
Window Text
Condition
ALT MISCOMP
Difference in altitude sensors is > 200 ft.
IAS MISCOMP
If both airspeed sensors detect < 35 knots, this is inhibited.
If either airspeed sensor detects > 35 knots, and the difference in sensors is > 15 kts.
If either airspeed sensor detects > 80 knots, and the difference in sensors is > 10 kts.
HDG MISCOMP
Difference in heading sensors is > 10 degrees.
PIT MISCOMP
Difference in pitch sensors is > 5 degrees.
ROL MISCOMP
Difference in roll sensors is > 6 degrees.
ALT NO COMP
No data from one or both altitude sensors.
IAS NO COMP
No data from one or both airspeed sensors.
HDG NO COMP
No data from one or both heading sensors.
PIT NO COMP
No data from one or both pitch sensors.
ROL NO COMP
No data from one or both roll sensors..
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
130
Annunciations & Alerts
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
REVERSIONARY SENSOR ANNUNCIATIONS
Reversionary
Sensor Window
Text
Condition
BOTH ON ADC1 Both PFDs are displaying data from the number one Air Data Computer.
BOTH ON ADC2 Both PFDs are displaying data from the number two Air Data Computer.
BOTH ON ADCSTBY Both PFDs are displaying data from the standby air data input.
BOTH ON AHRS1 Both PFDs are displaying data from the number one Attitude & Heading
Reference System.
BOTH ON AHRS2 Both PFDs are displaying data from the number two Attitude & Heading
Reference System.
BOTH ON ATTSTBY Both PFDs are displaying data from the standby attitude and heading reference
input.
BOTH ON GPS1 Both PFDs are displaying data from the number one GPS receiver.
BOTH ON GPS2 Both PFDs are displaying data from the number two GPS receiver.
USING ADC1 PFD2 is displaying data from the #1 Air Data Computer.
USING ADC2 PFD1 is displaying data from the #2 Air Data Computer.
USING ADCSTBY PFD1 or PFD2 is displaying data from the standby air data input.
USING AHRS1 PFD2 is displaying data from the #1 AHRS.
USING AHRS2 PFD1 is displaying data from the #2 AHRS.
USING ATTSTBY PFD1 or PFD2 is displaying data from the standby attitude and heading
reference input.
USING GPS1 PFD2 is displaying data from the #1 GPS.
USING GPS2 PFD1 is displaying data from the #2 GPS.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 131
Annunciations & Alerts
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
TAWS-A ALERTS
Alert Type
PFD/MFD
TAWS-A Page
Annunciation
MFD Map Page
Pop-Up Alert Aural Message
Reduced Required Terrain
Clearance Warning (RTC) “Terrain, Terrain; Pull
Up, Pull Up”
Imminent Terrain Impact
Warning (ITI) “Terrain, Terrain; Pull
Up, Pull Up”
Reduced Required Obstacle
Clearance Warning (ROC)“Obstacle, Obstacle;
Pull Up, Pull Up”
Imminent Obstacle Impact
Warning (IOI) “Obstacle, Obstacle;
Pull Up, Pull Up”
Excessive Descent Rate
Warning (EDR) “<whoop><whoop>
Pull Up”
Excessive Closure Rate
Warning (ECR) “<whoop><whoop>
Pull Up”
Reduced Required Terrain
Clearance Caution (RTC) “Caution, Terrain;
Caution, Terrain”
Imminent Terrain Impact
Caution (ITI) “Caution, Terrain;
Caution, Terrain”
Reduced Required Obstacle
Clearance Caution (ROC) “Caution, Obstacle;
Caution, Obstacle”
Imminent Obstacle Impact
Caution (IOI) “Caution, Obstacle;
Caution, Obstacle”
Premature Descent Alert
Caution (PDA) “Too Low, Terrain”
Excessive Descent Rate
Caution (EDR) “Sink Rate”
Excessive Closure Rate
Caution (ECR) “Terrain, Terrain”
Negative Climb Rate
Caution (NCR) “Don’t Sink”
Flight Into Terrain High
Speed Caution (FIT) “Too Low, Terrain”
Flight Into Terrain Gear
Caution (FIT) “Too Low, Gear”
Flight Into Terrain Flaps
Caution (FIT) “Too Low, Flaps”
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
132
Annunciations & Alerts
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
Alert Type
PFD/MFD
TAWS-A Page
Annunciation
MFD Map Page
Pop-Up Alert Aural Message
Flight Into Terrain Takeoff
Caution (FIT) “Too Low, Terrain”
Glide Slope/Glide Path
Deviation Caution (GSD)
(depends on approach
type)
or or
“Glide Slope”
or
“Glide Path”
Altitude Voice Callout
(VCO) None None “Five-Hundred”
“Four-Hundred”
“Three-Hundred”
“Two-Hundred”
“One-Hundred”
TAWS-A System Status Annunciations
Alert Type
PFD/MFD
TAWS-A Page
Annunciation
Additional TAWS-A Page
Annunciation
Aural
Message
TAWS System Fail,
Terrain or Obstacle
database unavailable or
invalid, invalid software
configuration, system
audio fault
TAWS FAIL “TAWS System
Failure”
GPWS System Fail None “GPWS System
Failure”
System Test in progress TAWS TEST None
System Test pass None None “TAWS System
Test OK”
MFD Terrain or Obstacle
database unavailable or
invalid. TAWS operating
with PFD Terrain or
Obstacle databases
None TERRAIN DATABASE FAILURE None
GPWS System Fail,
Radar Altimeter invalid,
Altitude or Vertical
Speed unavailable
None “GPWS System
Failure”
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 133
Annunciations & Alerts
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
Alert Type
PFD/MFD
TAWS-A Page
Annunciation
Additional TAWS-A Page
Annunciation
Aural
Message
No GPS position NO GPS POSITION “TAWS Not
Available”
Excessively degraded
GPS signal, Out of
database coverage area
None “TAWS Not
Available”
Out of database
coverage area
None “TAWS Not
Available”
“TAWS Available”
when aircraft
enters database
coverage area.
TAWS-A Alert Availability
TAWS-A Alert Type Available
TAWS-A
Status
Annunciation
Displayed
RTC
ITI
ROC IOI PDA EDR ECR NCR FIT GSD VCO
No No No No No No No No No No No
No No No No No Yes Yes Yes Yes *No **Yes
No No No No No Yes Yes Yes Yes Yes **Yes
No No No No No Yes Yes Yes Yes Yes Yes
Yes Yes Yes Yes Yes No No No No No **Yes
Yes Yes Yes Yes Yes Yes Yes Yes Yes No Yes
Yes Yes Yes Yes Yes Yes Yes Yes Yes No Yes
Yes Yes Yes Yes Yes Yes Yes Yes #Yes Yes Yes
*
GSD alert will be available if a valid ILS is being used for navigation, even if no valid GPS signal is being
received.
*
* VCO alerts are not issued if both TAWS and GPWS systems have failed or are not available.
#
Only the portions of FIT Alerting based on flap position are disabled when FLAP OVR annunciation is
displayed.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
134
Annunciations & Alerts
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
TAWS-B ALERTS
Alert Type
PFD/MFD
TAWS-B Page
Annunciation
MFD
Pop-Up Alert Aural Message
Excessive Descent
Rate Warning (EDR)
“Pull Up”
Reduced Required
Terrain Clearance
Warning (RTC)
“Terrain, Terrain; Pull Up,
Pull Up”
Imminent Terrain
Impact Warning (ITI)
“Terrain, Terrain; Pull Up,
Pull Up”
Reduced Required
Obstacle Clearance
Warning (ROC)
“Obstacle, Obstacle; Pull
Up, Pull Up”
Imminent Obstacle
Impact Warning
(IOI)
““Obstacle, Obstacle; Pull
Up, Pull Up”
Reduced Required
Terrain Clearance
Caution (RTC)
“Caution, Terrain; Caution,
Terrain”
Imminent Terrain
Impact Caution (ITI)
“Caution, Terrain; Caution,
Terrain”
Reduced Required
Obstacle Clearance
Caution (ROC)
“Caution, Obstacle;
Caution, Obstacle”
Imminent Obstacle
Impact Caution (IOI)
“Caution, Obstacle;
Caution, Obstacle”
Premature Descent
Alert Caution (PDA)
“Too Low, Terrain”
Altitude Callout
“500”
None None “Five-Hundred”
Excessive Descent
Rate Caution (EDR)
“Sink Rate”
Negative Climb
Rate Caution (NCR)
“Don’t Sink”
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 135
Annunciations & Alerts
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
TAWS-B System Status Annunciations
Alert Type
PFD/MFD
TAWS-A Page
Annunciation
Additional
TAWS-A Page
Annunciation
Aural Message
System Test in Progress TAWS TEST None
System Test Pass None None “TAWS System Test OK”
TAWS-B System Test
Fail, Terrain or Obstacle
database unavailable or
invalid, invalid software
configuration, system
audio fault
TAWS FAIL “TAWS System Failure”
MFD Terrain or Obstacle
database unavailable or
invalid. TAWS operating
with PFD Terrain or
Obstacle databases
None TERRAIN DATABASE
FAILURE None
No GPS position NO GPS POSITION “TAWS Not Available”
Excessively degraded GPS
signal, Out of database
coverage area
None “TAWS Not Available”
Sufficient GPS signal
received after loss None None “TAWS Available”
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
136
Annunciations & Alerts
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
TCAS II ALERTS AND ANNUNCIATIONS
Mode PFD Mode
Annunciation
MFD Traffic Map Page
Mode Annunciation
Traffic Display
Status Icon
(Other Maps)
TCAS II Self-test
Initiated (TEST) None
TEST
(‘TEST MODE’ also shown in
white on top center of page)
Traffic Advisory and
Resolution Advisory
(TA/RA)
None TA/RA
Traffic Advisory
Only (TA ONLY) TA ONLY
TCAS II Standby
(TFC STBY) *
STANDBY
(also shown in white in center
of page when aircraft on
ground, yellow in air)
TCAS II Failed FAIL
* Annunciation appears white when aircraft is on the ground and yellow while in the air.
TCAS II Modes
Traffic Map Page
Annunciation Description
NO DATA Data is not being received from the TCAS II unit
DATA FAILED Data is being received from the TCAS II unit, but the unit is self-
reporting a failure
FAILED Incorrect data format received from the TCAS II unit
TCAS II Failure Annunciations
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 137
Annunciations & Alerts
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
Traffic Status Banner
Annunciation Description
RA OFF SCALE
A Resolution Advisory is outside the selected display range*.
Annunciation is removed when traffic comes within the selected
display range
TA OFF SCALE
A Traffic Advisory is outside the selected display range*.
Annunciation is removed when traffic comes within the selected
display range.
RA X.X ± XX ↕
System cannot determine bearing of Resolution Advisory**.
Annunciation indicates distance in nm, altitude separation in hundreds
of feet, and altitude trend arrow (climbing/descending).
TA X.X ± XX ↕
System cannot determine bearing of Traffic Advisory**.
Annunciation indicates distance in nm, altitude separation in hundreds
of feet, and altitude trend arrow (climbing/descending).
TRFC FAIL TCAS II unit has failed (unit is self-reporting a failure or sending
incorrectly formatted data)
NO TCAS DATA Data is not being received from the TCAS II unit
*Shown as symbol on Traffic Map Page
**Shown in center of Traffic Map Page
TCAS II Traffic Status Annunciations
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
138
Annunciations & Alerts
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
OTHER PRODIGY® AURAL ALERTS
Message Priority Description
“Autopilot”
Warning
Warning – Autopilot is disengaged
Single alert for manual AP disengagement
Continuous alert for automatic AP disengagement; cancelled with
AP DISC Switch
“Cabin” High cabin altitude
“Fire, Fire” Engine fire
“Flight Director” Flight director has reverted to pitch or roll default mode
“High Speed” Maximum operating speed exceeded
“Landing Gear” Gear up in landing condition
“No Takeoff Brakes” No Takeoff Configuration due to brake status
“No Takeoff Flaps” No Takeoff Configuration due to flap status
“No Takeoff Spoilers” No Takeoff Configuration due to spoiler status
“No Takeoff Trim” No Takeoff Configuration due to trim status
“Rudder Overboost” SLRB (Spring Loaded Rudder Booster) uncommanded actuation
“Stall, Stall” Airplane in stall condition
“Altitude”
Advisory
Aircraft has deviated ±200 feet of the selected altitude
“Minimums, minimums” The aircraft has descended below the preset barometric minimum
descent altitude.
“Traffic” The Traffic Information Service (TIS) has issued a Traffic Advisory alert.
“Trim Trim Trim” Trim switch malfunction
“Vertical track” The aircraft is one minute from Top of Descent. Issued only when
vertical navigation is enabled.
“Aural Warning OK”
Status
Aural warning system test passes
“Aural Warning One Channel” Aural warning system test detects failure in one channel
“Incoming Call” Satellite telephone is receiving a call
“Message ATC” New Data Link message received from ATC
“SelCal” Incoming communication through the HF radio
“Takeoff OK” Takeoff configuration test passed
“Timer Expired” Countdown timer on the PFD has reached zero
“TIS not available” The aircraft is outside the Traffic Information Service (TIS) coverage
area.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 139
Annunciations & Alerts
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
FLIGHT PLAN IMPORT/EXPORT MESSAGES
In some circumstances, some messages may appear in conjunction with others.
Flight Plan Import/Export
Results
Description
‘Flight plan successfully imported.’ A flight plan file stored on the SD card was successfully
imported as a stored flight plan.
‘File contained user waypoints only.
User waypoints imported success-
fully. No stored flight plan data was
modified.’
The file stored on the SD card did not contain a flight plan,
only user waypoints. These waypoints have been saved to the
system user waypoints. No flight plans stored in the system
have been modified.
‘No flight plan files found to import.’ The SD card contains no flight plan data.
‘Flight plan import failed.’ Flight plan data was not successfully imported from the SD card.
‘Flight plan partially imported.’ Some flight plan waypoints were successfully imported from
the SD card, however others had errors and were not imported.
A partial stored flight plan now exists in the system.
‘File contained user waypoints only.’ The file stored on the SD card did not contain a flight plan,
only user waypoints. One or more of these waypoints did not
import successfully.
‘Too many points. Flight plan trun-
cated.’
The flight plan on the SD card contains more waypoints than
the system can support. The flight plan was imported with as
many waypoints as possible.
‘Some waypoints not loaded. Way-
points locked.’
The flight plan on the SD card contains one or more waypoints
that the system cannot find in the navigation database. The
flight plan has been imported, but must be edited within the
system before it can be activated for use.
‘User waypoint database full. Not all
loaded.’
The flight plan file on the SD card contains user waypoints.
The quantity of stored user waypoints has exceeded system
capacity, therefore not all the user waypoints on the SD card
have been imported. Any flight plan user waypoints that were
not imported are locked in the flight plan. The flight plan must
be edited within the system before it can be activated for use.
‘One or more user waypoints renamed.’ One or more imported user waypoints were renamed when
imported due to naming conflicts with waypoints already
existing in the system.
‘Flight plan successfully exported.’ The stored flight plan was successfully exported to the SD card.
‘Flight plan export failed.’ The stored flight plan was not successfully exported to the SD
card. The SD card may not have sufficient available memory or
the card may have been removed prematurely.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
140
Annunciations & Alerts
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
PILOT PROFILE IMPORT/EXPORT MESSAGES
Pilot Profile Import/Export Results Description
‘No pilot profile plan files found to
import.’
Displayed if the SD card does not have one
or more valid pilot profile filenames.
‘Overwrite existing profile?’ Displayed if the profile name matches the
name of existing profile.
‘Profile name invalid. Enter a different
profile name.’
Displayed if the profile name is invalid.
‘All available pilot profiles in use. Delete
a profile before importing another.’
Displayed if the maximum number for pilot
profiles has been reached.
‘Pilot profile import failed.’ Displayed if the importing operation fails
for any other reason.
‘Pilot profile import succeeded.’ Displayed if the importing operation
succeeds.
‘Overwrite existing file?’ Displayed if the filename matches the name
of an existing file on the SD card.
‘Pilot profile export failed.’ Displayed if the export operation fails.
‘Pilot profile export succeeded.’ Displayed if the export operation succeeds.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 141
Annunciations & Alerts
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
MFD & PFD MESSAGE ADVISORIES
Message Comments
DATA LOST
– Pilot stored data was
lost. Recheck settings.
The pilot profile data was lost. System reverts
to default pilot profile and settings. The pilot
may reconfigure the MFD & PFDs with preferred
settings, if desired.
XTALK ERROR
– A flight display
crosstalk error has occurred.
The MFD and PFDs are not communicating with
each other. The system should be serviced.
PFD1 SERVICE
– PFD1 needs
service. Return unit for repair.
The PFD and/or MFD self-test has detected a
problem. The system should be serviced.
PFD2 SERVICE
– PFD2 needs
service. Return unit for repair.
MFD1 SERVICE
– MFD1 needs
service. Return unit for repair.
MANIFEST
– PFD1 software
mismatch, communication halted.
The PFD and/or MFD has incorrect software
installed. The system should be serviced.
MANIFEST
– PFD2 software
mismatch, communication halted.
MANIFEST
– MFD1 software
mismatch, communication halted.
PFD1 CONFIG
– PFD1 config error.
Config service req’d. The PFD configuration settings do not match
backup configuration memory. The system
should be serviced.
PFD2 CONFIG
– PFD2 config error.
Config service req’d.
MFD1 CONFIG
– MFD1 config
error. Config service req’d.
The MFD configuration settings do not match
backup configuration memory. The system
should be serviced.
SW MISMATCH
– GDU software
version mismatch. Xtalk is off.
The MFD and PFDs have different software
versions installed. The system should be
serviced.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
142
Annunciations & Alerts
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
MFD & PFD MESSAGE ADVISORIES (CONT.)
Message Comments
PFD1 COOLING
– PFD1 has poor
cooling. Reducing power usage. The PFD and/or MFD is overheating and is
reducing power consumption by dimming the
display. If problem persists, the system should
be serviced.
PFD2 COOLING
– PFD2 has poor
cooling. Reducing power usage.
MFD1 COOLING
– MFD1 has poor
cooling. Reducing power usage.
PFD1 KEYSTK
– PFD1 [key name]
Key is stuck. A key is stuck on the PFD and/or MFD bezel.
Attempt to free the stuck key by pressing it
several times. The system should be serviced if
the problem persists.
PFD2 KEYSTK
– PFD2 [key name]
Key is stuck.
MFD1 KEYSTK
– MFD [key name]
Key is stuck.
CNFG MODULE
– PFD1
configuration module is
inoperative.
The PFD1 configuration module backup memory
has failed. The system should be serviced.
PFD1 VOLTAGE
– PFD1 has low
voltage. Reducing power usage
The PFD1 voltage is low. The system should be
serviced.
PFD2 VOLTAGE
– PFD2 has low
voltage. Reducing power usage
The PFD2 voltage is low. The system should be
serviced.
MFD1 VOLTAGE
– MFD1 has low
voltage. Reducing power usage
The MFD voltage is low. The system should be
serviced.
DATABASE MESSAGE ADVISORIES
Message Comments
MFD1 DB ERR
– MFD1 navigation
database error exists. The MFD and/or PFD detected a failure in the
navigation database. Attempt to reload the
navigation database. If problem persists, the
system should be serviced.
PFD1 DB ERR
– PFD1 navigation
database error exists.
PFD2 DB ERR
– PFD2 navigation
database error exists.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 143
Annunciations & Alerts
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
DATABASE MESSAGE ADVISORIES (CONT.)
Message Comments
MFD1 DB ERR
– MFD1 basemap
database error exists.
The MFD and/or PFD detected a failure in the
basemap database.
PFD1 DB ERR
– PFD1 basemap
database error exists.
PFD2 DB ERR
– PFD2 basemap
database error exists.
MFD1 DB ERR
– MFD1 terrain
database error exists. The MFD and/or PFD detected a failure in the
terrain database. Ensure that the terrain card
is properly inserted in display. Replace terrain
card. If problem persists, the system should be
serviced.
PFD1 DB ERR
– PFD1 terrain
database error exists.
PFD2 DB ERR
– PFD2 terrain
database error exists.
MFD1 DB ERR
– MFD1 terrain
database missing.
The terrain database is present on another LRU,
but is missing on the specified LRU.
PFD1 DB ERR
– PFD1 terrain
database missing.
PFD2 DB ERR
– PFD2 terrain
database missing.
MFD1 DB ERR
– MFD1 obstacle
database error exists. The MFD and/or PFD detected a failure in the
obstacle database. Ensure that the data card is
properly inserted. Replace data card. If problem
persists, the system should be serviced.
PFD1 DB ERR
– PFD1 obstacle
database error exists.
PFD2 DB ERR
– PFD2 obstacle
database error exists.
MFD1 DB ERR
– MFD1 obstacle
database missing.
The obstacle database is present on another LRU,
but is missing on the specified LRU.
PFD1 DB ERR
– PFD1 obstacle
database missing.
PFD2 DB ERR
– PFD2 obstacle
database missing.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
144
Annunciations & Alerts
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
DATABASE MESSAGE ADVISORIES (CONT.)
Message Comments
MFD1 DB ERR
– MFD1 airport
terrain database error exists. The MFD and/or PFD detected a failure in the
airport terrain database. Ensure that the data
card is properly inserted. Replace data card. If
problem persists, the system should be serviced.
PFD1 DB ERR
– PFD1 airport
terrain database error exists.
PFD2 DB ERR
– PFD2 airport
terrain database error exists.
MFD1 DB ERR
– MFD1 airport
terrain database missing.
The airport terrain database is present on
another LRU, but is missing on the specified LRU.
PFD1 DB ERR
– PFD1 airport
terrain database missing.
PFD2 DB ERR
– PFD2 airport
terrain database missing.
MFD1 DB ERR
– MFD1 Safe Taxi
database error exists. The MFD and/or PFD detected a failure in the
SafeTaxi database. Ensure that the data card is
properly inserted. Replace data card. If problem
persists, the system should be serviced.
PFD1 DB ERR
– PFD1 Safe Taxi
database error exists.
PFD2 DB ERR
– PFD2 Safe Taxi
database error exists.
MFD1 DB ERR
– MFD1 Chartview
database error exists.
The MFD detected a failure in the ChartView
database (optional feature). Ensure that the data
card is properly inserted. Replace data card. If
problem persists, the system should be serviced.
MFD1 DB ERR
– MFD1 FliteCharts
database error exists.
The MFD detected a failure in the FliteCharts
database (optional feature). Ensure that the data
card is properly inserted. Replace data card. If
problem persists, the system should be serviced.
MFD1 DB ERR
– MFD1 Airport
Directory database error exists.
The MFD detected a failure in the Airport Directory
database. Ensure that the data card is properly
inserted. Replace data card. If problem persists,
the system should be serviced.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 145
Annunciations & Alerts
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
DATABASE MESSAGE ADVISORIES (CONT.)
Message Comments
DB MISMATCH
– Navigation
database mismatch. Xtalk is off.
The PFDs and MFD have different navigation
database versions or types (Americas, European,
etc.) installed. Crossfill is off. Install correct
navigation database version or type in all displays.
DB MISMATCH
– Standby
Navigation database mismatch.
The PFDs and MFD have different standby
navigation database versions or types (Americas,
European, etc.) installed. Install correct standby
navigation database version or type in all displays.
DB MISMATCH
– Terrain database
mismatch.
The PFDs and MFD have different terrain database
versions or types installed. Install correct terrain
database version or type in all displays.
DB MISMATCH
– Obstacle
database mismatch.
The PFDs and MFD have different obstacle
database installed. Install correct obstacle
database in all displays.
DB MISMATCH
– Airport Terrain
database mismatch.
The PFDs and MFD have different airport terrrain
databases installed. Install correct airport terrain
database in all displays.
NAV DB UPDATED
– Active
navigation database updated.
System has updated the active navigation
database from the standby navigation database.
TERRAIN DSP
– [PFD1, PFD2 or
MFD1] Terrain awareness display
unavailable.
One of the terrain, airport terrain, or obstacle
databases required for TAWS in the specified PFD
or MFD is missing or invalid.
GMA 1347D MESSAGE ADVISORIES
Message Comments
GMA1 FAIL
– GMA1 is inoperative. The audio panel self-test has detected a failure.
The audio panel is unavailable. The system
should be serviced.
GMA2 FAIL
– GMA2 is inoperative.
GMA XTALK
– GMA crosstalk error
has occurred.
An error has occurred in transferring data
between the two GMAs. The system should be
serviced.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
146
Annunciations & Alerts
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
GMA 1347D MESSAGE ADVISORIES (CONT.)
Message Comments
GMA1 CONFIG
– GMA1 config
error. Config service req’d. The audio panel configuration settings do not
match backup configuration memory. The system
should be serviced.
GMA2 CONFIG
– GMA2 config
error. Config service req’d.
MANIFEST – GMA1 software
mismatch, communication halted. The audio panel has incorrect software installed. The
system should be serviced.
MANIFEST – GMA2 software
mismatch, communication halted.
GMA1 SERVICE – GMA1 needs
service. Return unit for repair.
The audio panel self-test has detected a problem
in the unit. Certain audio functions may still be
available, and the audio panel may still be usable.
The system should be serviced when possible.
GMA2 SERVICE – GMA2 needs
service. Return unit for repair.
GIA 63W MESSAGE ADVISORIES
Message Comments
GIA1 CONFIG
– GIA1 config error.
Config service req’d. The GIA1 and/or GIA2 configuration settings do
not match backup configuration memory. The
system should be serviced.
GIA2 CONFIG
– GIA2 config error.
Config service req’d.
GIA1 CONFIG
– GIA1 audio config
error. Config service req’d. The GIA1 and/or GIA2 have an error in the audio
configuration. The system should be serviced.
GIA2 CONFIG
– GIA2 audio config
error. Config service req’d.
GIA1 COOLING
– GIA1
temperature too low. The GIA1 and/or GIA2 temperature is too low
to operate correctly. Allow units to warm up to
operating temperature.
GIA2 COOLING
– GIA2
temperature too low.
GIA1 COOLING
– GIA1 over
temperature. The GIA1 and/or GIA2 temperature is too
high. If problem persists, the system should be
serviced.
GIA2 COOLING
– GIA2 over
temperature.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 147
Annunciations & Alerts
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
GIA 63W MESSAGE ADVISORIES (CONT.)
Message Comments
GIA1 SERVICE
– GIA1 needs service.
Return the unit for repair. The GIA1 and/or GIA2 self-test has detected
a problem in the unit. The system should be
serviced.
GIA2 SERVICE
– GIA2 needs service.
Return the unit for repair.
HW MISMATCH
– GIA hardware
mismatch. GIA1 communication halted. A GIA mismatch has been detected, where
only one is SBAS capable.
HW MISMATCH
– GIA hardware
mismatch. GIA2 communication halted.
MANIFEST
– GIA1 software
mismatch, communication halted. The GIA1 and/or GIA 2 has incorrect software
installed. The system should be serviced.
MANIFEST
– GIA2 software
mismatch, communication halted.
MANIFEST
– GFC software
mismatch, communication halted.
Incorrect servo software is installed, or gain
settings are incorrect.
COM1 TEMP
– COM1 over temp.
Reducing transmitter power.
The system has detected an over temperature
condition in COM1 and/or COM2. The
transmitter is operating at reduced power. If the
problem persists, the system should be serviced.
COM2 TEMP
– COM2 over temp.
Reducing transmitter power.
COM1 SERVICE
– COM1 needs
service. Return unit for repair.
The system has detected a failure in COM1
and/or COM2. COM1 and/or COM2 may still
be usable. The system should be serviced when
possible.
COM2 SERVICE
– COM2 needs
service. Return unit for repair.
COM1 PTT
– COM1 push-to-talk key
is stuck.
The COM1 and/or COM2 external push-to-talk
switch is stuck in the enable (or “pressed”)
position. Press the PTT switch again to cycle its
operation. If the problem persists, the system
should be serviced.
COM2 PTT
– COM2 push-to-talk key
is stuck.
COM1 RMT XFR
– COM1 remote
transfer key is stuck.
The COM1 and/or COM2 transfer switch is
stuck in the enabled (or “pressed”) position.
Press the transfer switch again to cycle its
operation. If the problem persists, the system
should be serviced.
COM2 RMT XFR
– COM2 remote
transfer key is stuck.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
148
Annunciations & Alerts
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
GIA 63W MESSAGE ADVISORIES (CONT.)
Message Comments
LOI
– GPS integrity lost. Crosscheck
with other NAVS.
GPS integrity is insufficient for the current phase
of flight.
GPS NAV LOST
– Loss of GPS
navigation. Insufficient satellites.
Loss of GPS navigation due to insufficient
satellites.
GPS NAV LOST
– Loss of GPS
navigation. Position error. Loss of GPS navigation due to position error.
GPS NAV LOST
– Loss of GPS
navigation. GPS fail. Loss of GPS navigation due to GPS failure.
ABORT APR
– Loss of GPS
navigation. Abort approach. Abort approach due to loss of GPS navigation.
APR DWNGRADE
– Approach
downgraded.
Vertical guidance generated by SBAS is
unavailable, use LNAV only minimums.
TRUE APR
– True north approach.
Change HDG reference to TRUE.
Displayed after passing the first waypoint of a true
north approach when the nav angle is set to ‘AUTO’.
GPS1 SERVICE
– GPS1 needs
service. Return unit for repair. A failure has been detected in the GPS1 and/
or GPS2 receiver. The receiver may still be
available. The system should be serviced.
GPS2 SERVICE
– GPS2 needs
service. Return unit for repair.
NAV1 SERVICE
– NAV1 needs
service. Return unit for repair. A failure has been detected in the NAV1 and/
or NAV2 receiver. The receiver may still be
available. The system should be serviced.
NAV2 SERVICE
– NAV2 needs
service. Return unit for repair.
NAV1 RMT XFR
– NAV1 remote
transfer key is stuck.
The remote NAV1 and/or NAV2 transfer switch
is stuck in the enabled (or “pressed”) state.
Press the transfer switch again to cycle its
operation. If the problem persists, the system
should be serviced.
NAV2 RMT XFR
– NAV2 remote
transfer key is stuck.
G/S1 FAIL
– G/S1 is inoperative. A failure has been detected in glideslope
receiver 1 and/or receiver 2. The system should
be serviced.
G/S2 FAIL
– G/S2 is inoperative.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 149
Annunciations & Alerts
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
GIA 63W MESSAGE ADVISORIES (CONT.)
Message Comments
G/S1 SERVICE
– G/S1 needs
service. Return unit for repair.
A failure has been detected in glideslope
receiver 1 and/or receiver 2. The receiver may
still be available. The system should be serviced
when possible.
G/S2 SERVICE
– G/S2 needs
service. Return unit for repair.
GSD 41 MESSAGE ADVISORIES
Message Comments
GSD1 CONFIG
– GSD1 config error.
Config service req’d.
GSD1 and the CDU have different copies of
the GSD1 configuration.
GSD1 COOLING
– GSD1
temperature too low.
GSD1 is reporting a low temperature
condition.
GSD1 COOLING
– GSD1 over
temperature.
GSD1 is reporting an over-temperature
condition.
GSD1 SERVICE
– GSD1 needs
service. Return unit for repair.
GSD1 is reporting an internal error condition.
The GSD may still be usable.
MANIFEST
– GSD1 software
mismatch. Communication halted.
GSD1 has incorrect software installed. The
system should be serviced.
GEA 71 MESSAGE ADVISORIES
Message Comments
GEA1 CONFIG
– GEA1 config error.
Config service req’d.
The GEA1 configuration settings do not match
those of backup configuration memory. The
system should be serviced.
GEA2 CONFIG
– GEA2 config error.
Config service req’d.
The GEA2 configuration settings do not match
those of backup configuration memory. The
system should be serviced.
GEA3 CONFIG
– GEA3 config error.
Config service req’d.
The GEA3 configuration settings do not match
those of backup configuration memory. The
system should be serviced.
MANIFEST
– GEA1 software
mismatch, communication halted.
The #1 GEA 71 has incorrect software installed.
The system should be serviced.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
150
Annunciations & Alerts
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
GEA 71 MESSAGE ADVISORIES (CONT.)
Message Comments
MANIFEST
– GEA2 software
mismatch, communication halted.
The #2 GEA 71 has incorrect software installed.
The system should be serviced.
MANIFEST
– GEA3 software
mismatch, communication halted.
The #3 GEA 71 has incorrect software installed.
The system should be serviced.
GTX 33 MESSAGE ADVISORIES
Message Comments
XPDR1 CONFIG
– XPDR1 config
error. Config service req’d.
The transponder configuration settings do not
match those of backup configuration memory.
The system should be serviced.
XPDR2 CONFIG
– XPDR2 config
error. Config service req’d.
The transponder configuration settings do not
match those of backup configuration memory.
The system should be serviced.
MANIFEST
– GTX1 software
mismatch, communication halted.
The transponder has incorrect software installed.
The system should be serviced.
MANIFEST
– GTX2 software
mismatch, communication halted.
The transponder has incorrect software installed.
The system should be serviced.
XPDR1 SRVC
– XPDR1 needs
service. Return unit for repair.
The #1 transponder should be serviced when
possible.
XPDR2 SRVC
– XPDR2 needs
service. Return unit for repair.
The #2 transponder should be serviced when
possible.
XPDR1 FAIL
– XPDR1 is
inoperative.
There is no communication with the #1
transponder.
XPDR2 FAIL
– XPDR2 is
inoperative.
There is no communication with the #2
transponder.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 151
Annunciations & Alerts
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
GRS 77 MESSAGE ADVISORIES
Message Comments
AHRS1 TAS
– AHRS1 not receiving
valid airspeed.
The #1 AHRS is not receiving true airspeed from
the air data computer. The AHRS relies on GPS
information to augment the lack of airspeed.
The system should be serviced.
AHRS2 TAS
– AHRS2 not receiving
valid airspeed.
The #2 AHRS is not receiving true airspeed from
the air data computer. The AHRS relies on GPS
information to augment the lack of airspeed.
The system should be serviced.
AHRS1 GPS
– AHRS1 using backup
GPS source.
The #1 AHRS is using the backup GPS path.
Primary GPS path has failed. The system should
be serviced when possible.
AHRS2 GPS
– AHRS2 using backup
GPS source.
The #2 AHRS is using the backup GPS path.
Primary GPS path has failed. The system should
be serviced when possible.
AHRS1 GPS
– AHRS1 not receiving
any GPS information.
The #1 AHRS is not receiving any or any useful
GPS information. Check AFMS limitations. The
system should be serviced.
AHRS2 GPS
– AHRS2 not receiving
any GPS information.
The #2 AHRS is not receiving any or any useful
GPS information. Check AFMS limitations. The
system should be serviced.
AHRS1 GPS
– AHRS1 not receiving
backup GPS information.
The #1 AHRS is not receiving backup GPS
information. The system should be serviced.
AHRS2 GPS
– AHRS2 not receiving
backup GPS information.
The #2 AHRS is not receiving backup GPS
information. The system should be serviced.
AHRS1 GPS
– AHRS1 operating
exclusively in no-GPS mode.
The #1 AHRS is operating exclusively in no-GPS
mode. The system should be serviced.
AHRS2 GPS
– AHRS2 operating
exclusively in no-GPS mode.
The #2 AHRS is operating exclusively in no-GPS
mode. The system should be serviced.
AHRS MAG DB
– AHRS magnetic
model database version mismatch.
The #1 AHRS and #2 AHRS magnetic model
database versions do not match.
AHRS1 SRVC
– AHRS1 Magnetic-
field model needs update.
The #1 AHRS earth magnetic field model is out of
date. Update magnetic field model when practical.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
152
Annunciations & Alerts
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
GRS 77 MESSAGE ADVISORIES (CONT.)
Message Comments
AHRS2 SRVC
– AHRS2 Magnetic-
field model needs update.
The #2 AHRS earth magnetic field model is out of
date. Update magnetic field model when practical.
GEO LIMITS
– AHRS1 too far
North/South, no magnetic compass. The aircraft is outside geographical limits for
approved AHRS operation. Heading is flagged
as invalid.
GEO LIMITS
– AHRS2 too far
North/South, no magnetic compass.
MANIFEST
– GRS1 software
mismatch, communication halted.
The #1 AHRS has incorrect software installed.
The system should be serviced.
MANIFEST
– GRS2 software
mismatch, communication halted.
The #2 AHRS has incorrect software installed.
The system should be serviced.
GMU 44 MESSAGE ADVISORIES
Message Comments
HDG FAULT
– AHRS1
magnetometer fault has occurred.
A fault has occurred in the #1 GMU 44.
Heading is flagged as invalid. The AHRS uses
GPS for backup mode operation. The system
should be serviced.
HDG FAULT
– AHRS2
magnetometer fault has occurred.
A fault has occurred in the #2 GMU 44.
Heading is flagged as invalid. The AHRS uses
GPS for backup mode operation. The system
should be serviced.
MANIFEST
– GMU1 software
mismatch, communication halted. The GMU 44 has incorrect software installed.
The system should be serviced.
MANIFEST
– GMU2 software
mismatch, communication halted.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 153
Annunciations & Alerts
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
GSR 56 MESSAGE ADVISORIES
Message Comments
GSR1 FAIL
– GSR1 has failed. A failure has been detected in the #1 GSR 56.
The system should be serviced.
GSR2 FAIL
– GSR2 has failed. A failure has been detected in the #2 GSR 56.
The system should be serviced.
REGISTER CONNEXT
– Data
services are inoperative, register w/
Connext.
The GDL 59 is not registered with Garmin
Connext, or its current registration data has
failed authentication.
GDL 59 MESSAGE ADVISORIES
Message Comments
GDL59 CONFIG
– GDL 59 config
error. Config service req’d.
GDL 59 configuration settings do not match
those of backup configuration memory. The
system should be serviced.
GDL59 FAIL
– GDL 59 has failed. A failure has been detected in the GDL 59. The
receiver is unavailable. The system should be
serviced.
GDL59 SERVICE
– GDL 59 needs
service. Return unit for repair.
A failure has been detected in the GDL 59. The
system should be serviced.
GDL59 RTR FAIL
– The GDL 59
router has failed.
A failure has been detected in the GDL 59
router. The system should be serviced.
MANIFEST
– GDL software
mismatch, communication halted.
The GDL 59 has incorrect software installed.
The system should be serviced.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
154
Annunciations & Alerts
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
GDL 69A MESSAGE ADVISORIES
Message Comments
GDL69 CONFIG
– GDL 69 config
error. Config service req’d.
GDL 69 configuration settings do not match
those of backup configuration memory. The
system should be serviced.
GDL69 FAIL
– GDL 69 has failed. A failure has been detected in the GDL 69. The
receiver is unavailable. The system should be
serviced
MANIFEST
– GDL software
mismatch, communication halted.
The GDL 69 has incorrect software installed.
The system should be serviced.
GDR 66 VHF DATA LINK TRANSCEIVER SYSTEM MESSAGES
System Message Comments
ATC MESSAGE
– <message>. Message has been received from ATC via CPDLC.
CPDLC
– CPDLC is available. Logon successful. Data link is available for use.
CPDLC
– CPDLC connection lost.
Establish new connection. Data link connection has been lost.
CPDLC
– CPDLC facility logon failed. Logon failed. Check pertinent entries for accuracy.
CPDLC
– CPDLC data link available.
Logon is still required.
The data link is ready for use, but logon to the
facility has not yet taken place.
GDR TEMP
– GDR over temp.
Reducing transmitter power.
The system has detected an over temperature
condition in the GDR. The transmitter operates at
reduced power. If the problem persists, the system
should be serviced.
GDR FAIL
– GDR is inoperative. A failure has been detected in the GDR. The
system should be serviced.
GDR TX FAIL
– GDR transmitter is
inoperative. The system should be serviced.
GDR PTT
– GDR push-to-talk key is
stuck.
The GDR push-to-talk switch is stuck in the
enable (or “pressed”) position. Press the PTT
switch again to cycle its operation. If the problem
persists, the system should be serviced.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 155
Annunciations & Alerts
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
GDR 66 VHF DATA LINK TRANSCEIVER SYSTEM MESSAGES (CONT.)
System Message Comments
GDR RMT XFR
– GDR remote
transfer key is stuck.
The GDR transfer switch is stuck in the enabled
(or “pressed”) position. Press the transfer switch
again to cycle its operation. If the problem
persists, the system should be serviced.
GDR SERVICE
– GDR needs service.
Return unit for repair. The GDR should be serviced when possible.
GDR CONFIG
– GDR config error.
Config service req’d.
GDR configuration settings do not match those of
backup configuration memory. The system should
be serviced.
GDR MANIFEST
– GDR software
mismatch, communication halted.
The GDR has incorrect software installed. The
system should be serviced.
GDR AUX MANIFEST
– GDR AUX
software mismatch, communication
halted.
The GDR secondary processor has incorrect
software installed. The system should be serviced.
GWX 68 ALERT MESSAGES
Message Comments
GWX CONFIG
– GWX config error.
Config service req’d.
GWX 68 configuration settings do not match
those of the GDU configuration. The system
should be serviced.
GWX FAIL
– GWX is inoperative. The GDU is not recieving status packet from the
GWX 68 or the GWX 68 is reporting a fault.
The GWX 68 radar system should be serviced.
GWX SERVICE
– GWX needs
service. Return unit for repair.
A failure has been detected in the GWX 68. The
GWX 68 may still be usable.
MANIFEST
– GWX software
mismatch, communication halted.
The GWX 68 has incorrect software installed.
The system should be serviced.
WX ALERT
– Possible severe
weather ahead.
Possible severe weather detected within +/- 10
degrees of the aircraft heading at a range of 80
to 320 nm.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
156
Annunciations & Alerts
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
GDC 74B MESSAGE ADVISORIES
Message Comments
ADC1 ALT EC
– ADC1 altitude error
correction is unavailable. GDC1 or GDC2 is reporting that the altitude
error correction is unavailable.
ADC2 ALT EC
– ADC2 altitude error
correction is unavailable.
ADC1 AS EC
– ADC1 airspeed error
correction is unavailable. GDC1 or GDC2 is reporting that the airspeed
error correction is unavailable.
ADC2 AS EC
– ADC2 airspeed error
correction is unavailable.
MANIFEST
– GDC1 software
mismatch, communication halted. The GDC 74B has incorrect software installed.
The system should be serviced.
MANIFEST
– GDC2 software
mismatch, communication halted.
GCU 477 MESSAGE ADVISORIES
Message Comments
GCU CNFG
– GCU Config error.
Config service req’d.
GCU 477 configuration settings do not match
those of backup configuration memory. The
system should be serviced.
GCU FAIL
– GCU is inoperative. A failure has been detected in the GCU 477.
The GCU 477 is unavailable.
MANIFEST
– GCU software
mismatch, communication halted.
The GCU 477 has incorrect software installed.
The system should be serviced.
GCU KEYSTK
– GCU [key name]
Key is stuck.
A key is stuck on the GCU 477 bezel. Attempt
to free the stuck key by pressing it several times.
The system should be serviced if the problem
persists.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 157
Annunciations & Alerts
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
GMC 715 MESSAGE ADVISORIES
Message Comments
GMC CONFIG
– GMC Config error.
Config service req’d.
GMC 715 configuration settings do not match
those of backup configuration memory. The
system should be serviced.
GMC FAIL
– GMC is inoperative. A failure has been detected in the GMC 715.
The GMC 715 is unavailable.
MANIFEST
– GMC software
mismatch. Communication halted.
The GMC 715 has incorrect software installed.
The system should be serviced.
GMC KEYSTK
– GMC [key name]
Key is stuck.
A key is stuck on the GMC 715 bezel. Attempt
to free the stuck key by pressing it several
times. The system should be serviced if the
problem persists.
MISCELLANEOUS MESSAGE ADVISORIES
Message Comments
FPL WPT LOCK
– Flight plan
waypoint is locked.
Upon power-up, the system detects that a
stored flight plan waypoint is locked. This
occurs when an navigation database update
eliminates an obsolete waypoint. The flight
plan cannot find the specified waypoint and
flags this message. This can also occur with
user waypoints in a flight plan that is deleted.
Remove the waypoint from the flight plan if it
no longer exists in any database,
Or
update the waypoint name/identifier to reflect
the new information.
FPL WPT MOVE
– Flight plan
waypoint moved.
The system has detected that a waypoint
coordinate has changed due to a new
navigation database update. Verify that stored
flight plans contain correct waypoint locations.
TIMER EXPIRD
– Timer has expired. The system notifies the pilot that the timer has
expired.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
158
Annunciations & Alerts
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
MISCELLANEOUS MESSAGE ADVISORIES (CONT.)
Message Comments
DB CHANGE
– Database changed.
Verify user modified procedures.
This occurs when a stored flight plan contains
procedures that have been manually edited.
This alert is issued only after an navigation
database update. Verify that the user-modified
procedures in stored flight plans are correct and
up to date.
DB CHANGE
– Database changed.
Verify stored airways.
This occurs when a stored flight plan contains
an airway that is no longer consistent with the
navigation database. This alert is issued only
after an navigation database update. Verify
use of airways in stored flight plans and reload
airways as needed.
FPL TRUNC
– Flight plan has been
truncated.
This occurs when a newly installed navigation
database eliminates an obsolete approach
or arrival used by a stored flight plan. The
obsolete procedure is removed from the flight
plan. Update flight plan with current arrival or
approach.
LOCKED FPL
– Cannot navigate
locked flight plan.
This occurs when the pilot attempts to activate
a stored flight plan that contains locked
waypoint. Remove locked waypoint from flight
plan. Update flight plan with current waypoint.
WPT ARRIVAL
– Arriving at
waypoint -[xxxx]
Arriving at waypoint [xxxx], where [xxxx] is the
waypoint name.
STEEP TURN
– Steep turn ahead. A steep turn is 15 seconds ahead. Prepare to
turn.
INSIDE ARSPC
– Inside airspace. The aircraft is inside the airspace.
ARSPC AHEAD
– Airspace ahead
less than 10 minutes.
Special use airspace is ahead of aircraft. The
aircraft will penetrate the airspace within 10
minutes.
ARSPC NEAR
– Airspace near and
ahead.
Special use airspace is near and ahead of the
aircraft position.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 159
Annunciations & Alerts
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
MISCELLANEOUS MESSAGE ADVISORIES (CONT.)
Message Comments
ARSPC NEAR
– Airspace near – less
than 2 nm.
Special use airspace is within 2 nm of the
aircraft position.
APR INACTV
– Approach is not
active.
The system notifies the pilot that the loaded
approach is not active. Activate approach
when required.
SLCT FREQ
– Select appropriate
frequency for approach.
The system notifies the pilot to load the
approach frequency for the appropriate NAV
receiver. Select the correct frequency for the
approach.
SLCT NAV
– Select NAV on CDI for
approach.
The system notifies the pilot to set the CDI to
the correct NAV receiver. Set the CDI to the
correct NAV receiver.
PTK FAIL
– Parallel track unavailable:
bad geometry. Bad parallel track geometry.
PTK FAIL
– Parallel track unavailable:
invalid leg type. Invalid leg type for parallel offset.
PTK FAIL
– Parallel track unavailable:
past IAF.
IAF waypoint for parallel offset has been
passed.
UNABLE V WPT
– Can’t reach
current vertical waypoint.
The current vertical waypoint can not be reached
within the maximum flight path angle and vertical
speed constraints. The system automatically
transitions to the next vertical waypoint.
VNV
– Unavailable. Unsupported
leg type in flight plan.
The lateral flight plan contains a procedure turn,
vector, or other unsupported leg type prior to the
active vertical waypoint. This prevents vertical
guidance to the active vertical waypoint.
VNV
– Unavailable. Excessive track
angle error.
The current track angle error exceeds the limit,
causing the vertical deviation to go invalid.
VNV
– Unavailable. Excessive
crosstrack error.
The current crosstrack exceeds the limit,
causing vertical deviation to go invalid.
VNV
– Unavailable. Parallel course
selected.
A parallel course has been selected, causing
the vertical deviation to go invalid.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
160
Annunciations & Alerts
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
MISCELLANEOUS MESSAGE ADVISORIES (CONT.)
Message Comments
NON WGS84 WPT
– Do not use GPS
navigation to [xxxx].
The position of the selected waypoint [xxxx]
is not calculated based on the WGS84 map
reference datum and may be positioned in
error as displayed. Do not use GPS to navigate
to the selected non-WGS84 waypoint.
TRAFFIC FAIL
– Traffic device has
failed.
The system is no longer receiving data from
the traffic system. The traffic device should be
serviced.
FAILED PATH
– A data path has
failed.
A data path connected to the GDU, GSD 41,
GDL 69A, or the GIA 63/W has failed.
MAG VAR WARN
– Large magnetic
variance. Verify all course angles.
The GDU’s internal model cannot determine
the exact magnetic variance for geographic
locations near the magnetic poles. Displayed
magnetic course angles may differ from the
actual magnetic heading by more than 2°.
SVT
– SVT DISABLED: Out of
available terrain region.
Synthetic Vision is disabled because the aircraft
is not within the boundaries of the installed
terrain database.
SVT
– SVT DISABLED: Terrain DB
resolution too low.
Synthetic Vision is disabled because a terrain
database of sufficient resolution (9 arc-second
or better) is not currently installed.
SCHEDULER [#]
– <message>. Message criteria entered by the user.
CHECK CRS
– Database course for
LOC1 / [LOC ID] is [CRS]°.
Selected course for LOC1 differs from published
localizer course by more than 10 degrees.
CHECK CRS
– Database course for
LOC2 / [LOC ID] is [CRS]°.
Selected course for LOC2 differs from published
localizer course by more than 10 degrees.
[PFD1, PFD2, or MFD1]
CARD
1 REM
– Card 1 was removed.
Reinsert card.
The SD card was removed from the top card
slot of the specified PFD or MFD. The SD card
needs to be reinserted.
[PFD1, PFD2, or MFD1]
CARD
2 REM
– Card 2 was removed.
Reinsert card.
The SD card was removed from the bottom
card slot of the specified PFD or MFD. The SD
card needs to be reinserted.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A 161
Annunciations & Alerts
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
MISCELLANEOUS MESSAGE ADVISORIES (CONT.)
Message Comments
[PFD1, PFD2, or MFD1]
CARD 1
ERR
– Card 1 is invalid.
The SD card in the top card slot of the specified
PFD or MFD contains invalid data.
[PFD1, PFD2, or MFD1]
CARD 2
ERR
– Card 2 is invalid.
The SD card in the bottom card slot of the
specified PFD or MFD contains invalid data.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
162
Annunciations & Alerts
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
Blank Page
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
Appendix
163
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
APPENDIX
PFD SOFTKEY MAP
Top Level PFD Softkeys
CAS
ADF/DME
CAS Softkeys
CAS
Displays the scroll up and scroll down softkeys.
CAS ↑
Scroll up (Displayed only when a sufficient number
of items are displayed in the Crew Alerting System
Display to warrant scrolling)
CAS ↓
Scroll down (Displayed only when a sufficient
number of items are displayed in the Crew Alerting
System Display to warrant scrolling)
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
Appendix
164
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
INSET Map Softkeys
Select the BACK Softkey to return
to the top-level softkeys.
CAS
TRFC-1
TRFC-2
ADF/DME
TRFC/MAP
(optional TCAS II)
XPDR/TFC
(optional TCAS II)
METAR
WX LGND
INSET or
TRFC/MAP
Pressing the INSET Softkey Displays Inset Map
in the PFD lower left corner. The TRFC/MAP
Softkey is displayed when the TCAS II option
is installed. Pressing the TRFC/MAP Softkey
displays the Inset Map showing Traffic Map Page.
OFF
Removes Inset Map
DCLTR (3)
Selects desired amount of map detail; cycles
through declutter levels:
DCLTR (No Declutter): All map features visible
DCLTR-1: Declutters land data
DCLTR-2: Declutters land and SUA data
DCLTR-3: Removes everything except the active
flight plan
WX LGND
Displays icon and age on the Inset Map for the
selected weather products (optional)
TRAFFIC
Cycles through traffic display options:
TRFC-1: Traffic displayed on inset map
TRFC-2: Traffic Map Page is displayed in the
inset map window
TOPO
Displays topographical data (e.g., coastlines, ter-
rain, rivers, lakes) and elevation scale on Inset Map
TERRAIN
Displays terrain information on Inset Map (not
available with TAWS-A)
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
Appendix
165
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
NEXRAD
Displays NEXRAD weather and coverage
information on Inset Map (optional feature)
XM LTNG
Displays SiriusXM Weather lightning information
on Inset Map (optional feature)
METAR
Displays METAR flags on airport symbols shown on
the Inset Map
SENSOR Softkeys
Press the BACK Softkey to
return to the top level softkeys.
BACK MSG
ADC2
ADC1
CAS
AHRS1 ATTSTBY
ADCSTBY AHRS2
ADF/DME
SENSOR
Displays softkeys for selecting the #1 and #2 AHRS
and Air Data Computers
ADC1
Selects the #1 Air Data Computer
ADC2
Selects the #2 Air Data Computer
ADCSTBY
Selects standby air data input
AHRS1
Selects the #1 AHRS
AHRS2
Selects the #2 AHRS
ATTSTBY
Selects standby AHRS input
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
Appendix
166
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
PFD Configuration Softkeys
Select the BACK Softkey
to return to the top-level softkeys
ALT UNIT
METERS IN HPA
DME1
CAS
DME2
BACK 360 HSI ARC HSI
HSI FMT
NAV2
OFF
GPS
NAV1
OFF
GPS
ADF/DME
SYN TERR HRZN HDG
PATHWAY APTSIGNS
SYN VIS
PFD
Displays second-level softkeys for
additional PFD configurations
SYN VIS
Displays the softkeys for enabling or
disabling Synthetic Vision features
PATHWAY
Displays rectangular boxes representing
the horizontal and vertical flight path of
the active flight plan
SYN TERR
Enables synthetic terrain depiction
HRZN HDG
Displays compass heading along the
Zero-Pitch line
APTSIGNS
Displays position markers for airports
within approximately 15 nm of the
current aircraft position. Airport
identifiers are displayed when the
airport is within approximately 9 nm.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
Appendix
167
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
DFLTS
Resets PFD to default settings, includ-
ing changing units to standard
WIND
Displays softkeys to select wind data
parameters
OPTN 1
Headwind/tailwind and crosswind
arrows with numeric speed components
OPTN 2
Wind direction arrow with numeric
speed
OPTN 3
Wind direction arrow with headwind/
tailwind and crosswind speed components
OFF
Information not displayed
DME1
Select to display the DME1 information
window
BRG1
Cycles the Bearing 1 Information
Window through NAV1 or GPS/waypoint
identifier and GPS-derived distance
information.
HSI FRMT
Displays the HSI formatting softkeys
360 HSI
Displays the HSI in a 360 degree format
ARC HSI
Displays the HSI in an arc format
BRG2
Cycles the Bearing 2 Information
Window through NAV2 or GPS/
waypoint identifier and GPS-derived
distance information.
DME2
Select to display the DME2 information
window
ALT UNIT
Displays softkeys for setting the
altimeter and BARO settings to metric
units
METERS
When enabled, displays altimeter and
selected altitude in meters
IN
Press to display the BARO setting as
inches of mercury
HPA
Press to display the BARO setting as
hectopacals
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
Appendix
168
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
STD BARO
Sets barometric pressure to 29.92 in Hg
(1013 hPa)
OBS
Selects OBS mode on the CDI when
navigating by GPS (only available with
active leg)
CDI
Cycles through GPS, VOR1 (LOC1), and
VOR2 (LOC2) navigation sources on the
CDI
ADF/DME
Displays the ADF/DME Tuning
Window, providing ADF tuning
capability and allowing selection of the
NAV source for tuning each DME
Transponder Softkeys
Press the BACK Softkey to return
to the top-level softkeys.
Selecting BACK returns to the previous softkey level.
MSG
MSG
CAS
ADF/DME
XPDR
Displays transponder mode selection
softkeys
XPDR1
Selects the #1 transponder as active. Not
available with TCAS II option.
XPDR2
Selects the #2 transponder as active. Not
available with TCAS II option.
STBY
Selects Standby Mode (transponder does
not reply to any interrogations)
ON
Selects Mode A (transponder replies to
identification interrogations)
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
Appendix
169
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
ALT
Selects Mode C – Altitude Reporting Mode
(transponder replies to identification and
altitude interrogations)
GND
Manually selects Ground Mode, the
transponder does not allow Mode A
and Mode C replies, but it does permit
acquisition squitter and replies to discretely
addressed Mode S interrogations. Not
available with TCAS II option.
VFR
Automatically enters the VFR code (1200 in
the U.S.A. only). Not available when TCAS
II option is installed.
CODE
Displays transponder code selection soft-
keys 0-7
0 — 7
Use numbers to enter code
BKSP
Removes numbers entered, one at a time
IDENT
Activates the Special Position Identification
(SPI) pulse for 18 seconds, identifying the
transponder return on the ATC screen
TMR/REF
Displays Timer/References Window
NRST
Displays Nearest Airports Window
MSG
Displays Messages Window
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
Appendix
170
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
Transponder/Traffic Softkeys with TCAS II Option
MSG
MSG
ADF/DME
TRFC/MAP XPDR/TFC
Press the BACK Softkey to return
to the top-level softkeys.
MSGMODE TCAS CODE IDENT
Selecting BACK returns to the
previous softkey level.
Selecting BACK returns to the
previous softkey level.
Selecting BACK returns to the
previous softkey level.
MSGREL ABS ALT RNG TEST
TA ONLY TA/RA
CAS SENSOR PFDOBS CDI IDENT TMR/REF NRST MSG
BACK
(optional)
STBY ON ALT BACK
BACK
IDENT BKSP BACK0 5432167
MSG
Selecting BACK returns to the
previous softkey level.
UNRESTABOVE BELOWNORMAL BACK
XPDR/TFC
Displays the transponder and
TCAS II selection softkeys
MODE
Displays transponder mode
selection softkeys
STBY
Selects transponder Standby
Mode (transponder does not
reply to any interrogations).
When the transponder is set to
standby, the TCAS II system is
also set to standby.
ON
Activates transponder
(transponder replies to
identification interrogations).
When the transponder is set to
ON, the TCAS II system is set
to standby.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
Appendix
171
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
ALT
Altitude Reporting Mode
(transponder replies to
identification and altitude
interrogations). When the
transponder is set to ALT,
the TCAS II system is set to
standby.
TA ONLY
Activates the TCAS II system
in TA Only Mode and set the
transponder to ALT
TA/RA
Activates the TCAS II system
in TA/RA Mode and sets the
transponder to ALT
BACK
Returns to the previous softkey
level
TCAS
Displays the TCAS control
softkeys
REL
Displays intruder altitude as
altitude relative to own aircraft
altitude
ABS
Displays intruder MSL altitude
ALT RNG
Displays the altitude display
range softkeys
ABOVE
Displays non-threat traffic from
9900 feet above the aircraft to
2700 feet below the aircraft.
Typically used during climb
phase of flight.
NORMAL
Displays non-threat traffic from
2700 feet above the aircraft to
2700 feet below the aircraft.
Typically used during enroute
phase of flight.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
Appendix
172
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
BELOW
Displays non-threat traffic from
2700 feet above the aircraft to
9900 feet below the aircraft.
Typically used during descent
phase of flight.
UNREST
All traffic is displayed
TEST
Activates Test Mode and
displays test intruder symbols
BACK
Returns to the previous softkey
level
CODE
Displays transponder code
selection softkeys 0-7
0 — 7
Use numbers to enter code
IDENT
Activates the Special Position
Identification (SPI) pulse for
18 seconds, identifying the
transponder return on the ATC
screen
BKSP
Removes numbers entered, one
at a time
IDENT
Activates the Special Position
Identification (SPI) pulse for
18 seconds, identifying the
transponder return on the ATC
screen
TMR/REF
Displays Timer/References
Window
NRST
Displays Nearest Airports
Window
MSG
Displays Messages Window
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
Appendix
173
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
MFD SOFTKEY MAP
SYSTEM Softkeys
MAP DCLTR
SYSTEM
LFE STATUS ENG SET ECS ELEC FUEL ICEPROT ENG MNT BACK
FMS LFE +500 FT +50 FT ACCEPT BACK
CON ATR ON ATR OFF BACK
-500 FT -50 FT
CLB OAT
↑
OAT
↓
ACCEPT
CPDLC
CPDLC
CHKLISTSHW CHRT
The DONE Softkey label changes to UNDO
when the checklist item is already checked.
EXITDONEENGINE EMERGCY
(optional) (optional)(optional)
SYSTEM
Accesses engine and airframe softkeys
ENG SET
Accesses the FADEC settings softkeys;
displays the Takeoff Data Set Window when
aircraft is parked or taxiing
CON
Selects the continuous thrust rating.
Disabled when aircraft is on the ground.
CLB
Selects the maximum climb thrust
rating. Disabled when aircraft is on the
ground.
OAT ↑
Increases the takeoff outside air
temperature setting in one-degree
Celsius increments. Disabled when
aircraft is in the air.
OAT ↓
Decreases the takeoff outside air
temperature setting in one-degree
Celsius increments. Disabled when
aircraft is in the air.
ATR ON
Enables Automatic Thrust Reserve
(ATR). Disabled when aircraft is in the
air.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
Appendix
174
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
ATR OFF
Disables Automatic Thrust Reserve
(ATR). Disabled when aircraft is in the
air.
BACK
Returns display to previous softkey level
ACCEPT
Confirms the selected takeoff settings
LFE
Accesses softkeys for manually setting
the Landing Field Elevation (LFE)
FMS LFE
Sets current flight plan destination
elevation as displayed LFE
+500 FT
Increases currently displayed LFE value
by 500 ft
-500 FT
Decreases currently displayed LFE value
by 500 ft
+50 FT
Increases currently displayed LFE value
by 50 ft
-50 FT
Decreases currently displayed LFE value
by 50 ft
ACCEPT
Confirms the LFE setting and returns to
the previous softkey level
BACK
Returns display to previous softkey level
STATUS
Displays the System-Status Page
ECS
Displays the System-ECS (Environmental
Control System) Page
ELEC
Displays the System-Electrical Page
FUEL
Displays the System-Fuel Page
ICEPROT
Displays the System-Deice Page
ENG MNT
Displays the Engine Maintenance Page.
Enabled only while aircraft is on the
ground and engines are off.
BACK
Returns display to previous softkey level
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
Appendix
175
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
CPDLC Softkeys
MAP DCLTR
SYSTEM
CPDLC
CHKLISTSHW CHRT
LOGON LOGOFF NEW DELETE BACKDEL ALL
(optional) (optional)(optional)
Level 1 Level 2
Description
CPDLC
When available, accesses CPDLC softkeys.
LOGON
Displays Logon screen for the CPDLC system
LOGOFF
Displays Logoff screen for the CPDLC system
NEW
Accesses New CPDLC message screen
DELETE
Delete selected CPDLC message.
DEL ALL
Delete all CPDLC messages.
BACK
Returns display to previous softkey level
MAP Softkeys
MAP
DCLTR
TRAFFIC TOPO BACK
TERRAIN
DCLTR-2
DCLTR-3
DCLTR-1
Select the BACK Softkey on this level to
return to the top softkey level.
NEXRAD XM LTNG
(optional)(optional)
SYSTEM
SHW CHRT
(optional)
AIRWAYS
AIRWY LO
AIRWAY HI
AIRWY ON
METAR
(optional)
CPDLC
CHKLIST
(optional) (optional)
MAP
Enables second-level Navigation Map softkeys
TRAFFIC
Displays traffic information on Navigation Map
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
Appendix
176
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
TOPO
Displays topographical data (e.g., coastlines,
terrain, rivers, lakes) and elevation scale on
Navigation Map
TERRAIN
Displays terrain information on Navigation Map
(not available with TAWS-A)
AIRWAYS
Displays airways on the map; cycles through the
following:
AIRWAYS: No airways are displayed
AIRWY ON: All airways are displayed
AIRWY LO: Only low altitude airways are
displayed
AIRWY HI: Only high altitude airways are
displayed
NEXRAD
Displays NEXRAD weather and coverage
information on Navigation Map (optional feature)
XM LTNG
Displays SiriusXM Weather lightning information
on the Navigation Map (optional feature)
METAR
Displays METAR flags on airport symbols
BACK
Returns to top-level softkeys
DCLTR (3)
Selects desired amount of map detail; cycles
through declutter levels:
DCLTR (No Declutter): All map features visible
DCLTR-1: Declutters land data
DCLTR-2: Declutters land and SUA data
DCLTR-3: Removes everything except the active
flight plan
SHW CHRT
When available, displays optional airport and
terminal procedure charts
CHKLIST
When available, displays optional checklists
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
Appendix
177
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
UPDATING DATABASES
CAUTION: Never disconnect power to the system when loading a database.
Power interruption during the database loading process could result in
maintenance being required to reboot the system.
NOTE: When loading database updates, the ‘DB Mismatch’ message will
be displayed until database synchronization is complete, followed by turning
system power off, then on. Synchronization can be monitored on the AUX-
SYSTEM STATUS Page.
NOTE: DO NOT use the database SD cards for any purpose other than database
storage.
In some cases it may be necessary to obtain an unlock code from Garmin in order
to make the database product functional. It may also be necessary to have the system
configured by a Garmin authorized service facility in order to use some database
features.
If an error occurs during synchronization, an error message will be displayed,
followed by the affected display in the Sync Status section of the Database Window. If
synchronization completes on one display, but an error occurs on another, the error
message will be displayed with the affected displays listed after it. When an error
message is displayed, the problem must be corrected before synchronization can be
completed. A power cycle is required to restart synchronization when ‘Card Full’ or
‘Err’ is shown.
Error Message Description
Canceled Database synchronization has been canceled by removing the
bottom SD card in display being updated
Card Full SD card does not contain sufficient memory
Err Displayed for all other errors that may cause the synchronization
process to be halted
Timeout System timed-out prior to the database transfer completing
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
Appendix
178
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
Updating Basemap, SafeTaxi, Airport Terrain, Obstacle, and Airport
Directory Databases
These databases may be copied to one Supplemental Data Card, then automatically
synchronized to other card in the system:
1)
With system power OFF, remove the MFD database card from the bottom
card slot of the MFD.
2)
Update the basemap, SafeTaxi, airport terrain, obstacle and/or airport
directory databases on the MFD card.
3)
Insert the MFD database card into the bottom card slot of the MFD.
4)
Apply power to the system, check that the databases are initialized and
displayed on the power-up screen. If a ‘Verifying’ message is seen, wait for
the system to finish loading before proceeding to step 5.
5)
Acknowledge the Power-up Page agreement by pressing the ENT Key or
the right most softkey.
6)
Turn the large FMS Knob to select the AUX Page group on the MFD.
7)
Turn the small FMS Knob to select the System Status Page.
8)
Monitor the Sync Status in the Database Window. Wait for all databases to
complete synching, indicated by ‘Complete’ being displayed.
9)
Remove and reapply power to the system.
10)
Turn the large FMS Knob to select the AUX Page group on the MFD.
11)
Turn the small FMS Knob to select the System Status Page.
12)
Press the Display Database Selection Softkey to show database information
for each display (MFD1 DB or PFD1 DB). Verify the correct database cycle
information is shown for each database for each display.
Updating Terrain, FliteCharts, and ChartView Databases
1)
With system power OFF, remove the Supplemental Data Card from the
bottom card slot of the MFD and PFD.
2)
Copy the updated terrain database to both Supplemental Data Cards. Copy
the updated FliteCharts or ChartView database to one Supplemental Data
Card.
3)
Insert the updated Supplemental Data Cards into the bottom card slot of
the MFD and PFD. The Supplemental Data Card containing the FliteCharts
or ChartView database is inserted in the MFD.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
Appendix
179
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
4)
Apply power to the system, check that the databases are initialized and
displayed on the power-up screen. A ‘Verifying’ message may be seen.
If this message is present, wait for the system to finish loading before
proceeding to step 5.
5)
Acknowledge the Power-up Page agreement by pressing the ENT Key or
the right most softkey.
6)
Turn the large FMS Knob to select the AUX Page group on the MFD.
7)
Turn the small FMS Knob to select the System Status Page.
8)
Press the Display Database Selection Softkey to show database information
for each display (MFD1 DB or PFD1 DB). Verify the correct database cycle
information is shown for each database for each display.
9)
Remove power from the system.
Loading the Jeppesen Navigation Database as the Active Navigation
Database
The Jeppesen Navigation Database that is loaded to internal memory as the active
database will be used by the system.
NOTE: Loading the Jeppesen Navigation Database as the active database
prior to its effective date will result in the expiration date on the power-up
screen and the effective date on the AUX-System Status Page being displayed
in yellow.
NOTE: After the navigation database is loaded or copied, the top SD card
may be removed.
1)
With the system OFF, insert the SD card containing the new navigation database
version into the top card slot of the display (PFD1, PFD2 or MFD) to be updated
(label of SD card facing left).
2)
Turn the system ON. A prompt is displayed in the upper left corner of the
display:
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
Appendix
180
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
3)
Press the NO Softkey to proceed to loading the active database.
4)
A prompt similar to the following is displayed. Press the YES Softkey to update
the active navigation database.
5)
After the update completes, the display starts in normal mode.
6)
Turn the system OFF and remove the SD card from the top card slot.
7)
Repeat steps 1 through 6 for the other displays (PFD1, PFD2 or MFD).
8)
Apply power to the system and press the ENT Key to acknowledge the startup
screen.
9)
Turn the large FMS Knob to select the AUX Page group on the MFD.
10)
Turn the small FMS Knob to select the System Status Page.
11)
Press the Display Database Selection Softkey to show active navigation
database information for each display (MFD1 DB, PFD1 DB, PFD2 DB). Verify
the correct active navigation database cycle information is shown for each
display.
Loading the Jeppesen Navigation Database as the Standby Navigation
Database
The purpose of the Standby Navigation Database is to allow the loading of the
next cycle of the Jeppesen Navigation Database to the bottom SD card, prior to its
effective date. (The Jeppesen Navigation Database is available from Jeppesen seven
days prior to its effective date.)
NOTE: After the navigation database is loaded or copied, the top SD card
may be removed.
1)
With the system OFF, insert the SD card containing the new navigation
database version into the top card slot of the MFD.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
Appendix
181
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
2)
Verify that an SD card is inserted in the bottom slot of each PFD and the
MFD.
3)
Turn the system ON. A prompt similar to the following is displayed.
4)
Press the YES Softkey. The navigation database is copied to the SD card in
the bottom card slot of the MFD.
5)
After the navigation database files are copied to the bottom SD card, the
display will appear as shown in the following figure.
6)
As instructed on the display, press any key to continue. The display will now
appear as shown in the following figure.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
Appendix
182
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
7)
Press any key to continue. The display will now appear as shown in the
following figure.
8)
Press the NO Softkey. The display now starts in normal mode. Since the
database effective date is not yet valid, it should not be loaded as the
active database. The display now starts in normal mode. Do not remove
power while the display is starting.
9)
Press the ENT Key to acknowledge the startup screen.
10)
Turn the large FMS Knob to select the AUX Page group on the MFD.
11)
Turn the small FMS Knob to select the System Status Page.
12)
The new database is copied to the SD card in the bottom card slot of each
PFD. Progress can be monitored in the SYNC STATUS field. When copying
is finished, ‘Complete’ is displayed.
13)
Turn system power OFF.
14)
Remove the SD card from the top card slot of the MFD.
15)
Turn system power ON.
16)
Press the ENT Key to acknowledge the startup screen.
17)
Turn the large FMS Knob to select the AUX Page group on the MFD.
18)
Turn the small FMS Knob to select the System Status Page.
19)
Press the Display Database Selection Softkey to show standby navigation
database information for each display (MFD1 DB, PFD1 DB, PFD2 DB).
Verify the correct standby navigation database cycle information is shown
for each display.
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
Appendix
183
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
Loading the magnetic field variation database update:
A copy of the current magnetic field variation database (MV DB) is included with
the navigation database. At startup, the system compares this version of the MV
DB with that presently being used by each AHRS (GRS1 and GRS2). If the system
determines the MV DB needs to be updated, a prompt is displayed on the Navigation
Map Page, as shown in the following figure.
GRS1 Magnetic Field Variation Database Update Prompt
1)
With ‘OK’ highlighted, press the ENT Key on the MFD. A progress monitor
is displayed.
Uploading Database to GRS1
2)
When the upload is complete, the prompt for the next GRS upload is
displayed.
GRS2 Magnetic Field Variation Database Update Prompt
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
Appendix
184
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
3)
With ‘OK’ highlighted, press the ENT Key on the MFD. A progress monitor
is displayed. When the upload is complete, the system is ready for use.
Uploading Database to GRS2
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
Index
Index-1
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
A
Access code 64
Activate a flight plan 34
Active Channel 106
Active database 180
Active Navigation Database 179
AC-U-KWIK Airport Directory 91
ADF 21, 23
Advisories, CAS 127–128
AHRS 151, 152, 156, 157
Airport Directory 91, 144
Airport Signs 87, 88
Airways 176
Air Data Computer 130
Alerts, Aircraft 123
Alert messages 155
Altimeter setting 1
Antenna stabilization 85
Antenna tilt 83
AOPA Airport Directory 91
ATC RR-7, 24, 25, 26, 127, 138, 154,
169, 172
ATR 7, 173, 174
Attitude & Heading Reference System
130
Audio Panel 118
Audio panel controls
NAV1, NAV2 23
Aural alerts 138
Automatic Thrust Reserve 7, 173, 174
B
Barometric pressure 168
Battery indications 5
Bearing line 83, 84
C
Cautions, CAS 123–125
CDI 1, 2, 23, 159
Channel Presets 107
ChartView 89
Checklists 108–109
CLD TOP Softkey 72
Code selection softkeys 22
COM 22, 23, 117
CPDLC RR-1, 24–27, 127, 154, 175
D
Data link communication 24
DB Mismatch 177
DCLTR Softkey 89
Dead Reckoning 119
Declutter 118, 164, 176
Designated altitudes 36, 37
Direct-to 33
DME 21, 23
DR mode 119, 120, 121
E
Edit a flight plan 51
Electrical indications 8, 14
Electronic checklists 109, 110
Emergency checklist 109
Engine failure 115
Engine fire 115
Engine rotation speeds 5
Environmental Control System (ECS)
12–13
F
Flap Indicator 5, 11, 116
Flight Director 29
Flight ID 21
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
Index
Index-2
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
Flight path marker 87
FliteCharts® 89
Frequency Transfer 23
Fuel indications 5, 8, 16
G
Gain 84
H
HF 22
Horizon heading 87
Horizontal scan 83
I
Inhibit 81
Inhibit TAWS 81
Inset Map 164, 165
Interstage Turbine Temperature (ITT) 5,
115
IOI 131, 134
Iridium 91, 95
Iridium satellite network 91, 96
J
Jeppesen 89
L
Landing gear status 5, 9
M
Map panning 62
Message advisories 141–151, 152,
156–161
Message dialogs 26, 27
METAR 61
Minimum Anti-Ice N1 Bug 6, 19
MISCOMP 129
Mode S 169
Multi Function Display (MFD)
Softkeys 173
N
N1 gauge 115
N1 Transient Limit 6
NAV 23
NAV1 2, 23
NAV2 2, 23
Navigation database 35, 37, 139, 142,
145, 157, 158
Network 104, 105
NEXRAD 61, 165, 176
NEXRAD Softkey 71
O
OBS 2
Obstacles 145, 147
Oil, engine 5
Outside Air Temperature (OAT) 8
Overspeed Protection 30
P
Pathways 87, 88
PIREP 74
PIT 129
Power-up page 108
Predefined message 99
Pressure, oil 5
Pressurization 9
R
Register 64
Resolution Advisory 77, 88
Response/Request 25, 26
Reversionary mode 117
ROC 131, 134
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
Index
Index-3
Flight
Instruments EAS
Nav/Com/
XPDR/Audio AFCS GPS Nav
Flight
Planning Procedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
Alerts Appendix Index
S
SafeTaxi® 87, 89
SBAS 30, 56, 81, 120, 147, 148
Sector scan 84
Secure Digital (SD) card 108
Sensor 130
SiriusXM 106
SiriusXM lightning 165, 176
SiriusXM Weather 61
Spoiler status 5, 9
STAB 85
Standby 82
Standby Navigation Database 180, 182
steep approach 30
Steep approach 30
Store Flight Plan 51
SVT 87, 160
Synchronization 177
Synoptics 11–18
Synthetic Vision System 87
T
TAF 61, 73
TAS 151
TAWS 78–82, 131, 132, 134, 135
TAWS-A 78–80, 131–133, 135, 164,
176
TAWS-B 78, 80
TCAS II 22, 75, 76, 78, 88, 136, 137,
164, 168–171
Telephone 91, 92
TEMP COMP 35
Temperature, oil 5
Terrain 78, 80, 131, 132, 145, 164,
176
Text message 97, 99, 100
Text messaging 96
Thrust rating 6
Tilt line 83
Timer 2, 157
Topographical data 164, 176
Traffic 61, 76, 77, 175
Traffic Advisory 75, 76, 77, 138
Traffic map page 76, 77, 78
Transponder 21, 22, 168, 169, 170,
171, 172
Trim Indicator 5, 11, 117
V
Vertical path guidance 36
Vertical speed guidance 37
VNV 33, 119, 159
Voltmeter, battery 5
Vspeed 2
W
WATCH® 85
Waypoint Selection Submenu 46
Weather Attenuated Color Highlight 85
Weather radar 82
Wi-Fi 104, 105
Wind data 167
Winds Aloft 74
WIND Softkey 74
X
XM Weather Data Link 61, 62
Cockpit Reference Guide for the Prodigy® Flight Deck 300
190-00761-03 Rev. A
Index
Index-4
Flight
InstrumentsEAS
Nav/Com/
XPDR/AudioAFCSGPS Nav
Flight
PlanningProcedures
Hazard
Avoidance
Additional
Features
Abnormal
Operation
Annun/
AlertsAppendixIndex
