Gatekeeper Systems E7033 Digital Throttle User Manual E7033 v01
Gatekeeper Systems (HK) Ltd. Digital Throttle E7033 v01
User Manual
Digital Throttle (E7033)
User Manual
INSTRUCTION TO THE USER
This equipment has been tested and found to comply with the limits for a class B digital device,
pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a typical installation. This equipment generates, uses
and can radiate radio frequency energy and if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna on the device experiencing the interference
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the Door
Manager is connected
• Consult the dealer or experienced technician for the device experiencing the interference
In order to maintain compliance with FCC regulations, no changes can be made to this
equipment without the approval of Gatekeeper Systems, Inc. The user is cautioned that any
changes or modifications made to the equipment without the approval of Gatekeeper Systems,
Inc. could void the user’s authority to operate this equipment.
Operation is subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including interference that may cause
undesired operation of the device.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired operation
of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne
doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
The suggested ambient temperature is around 25°C

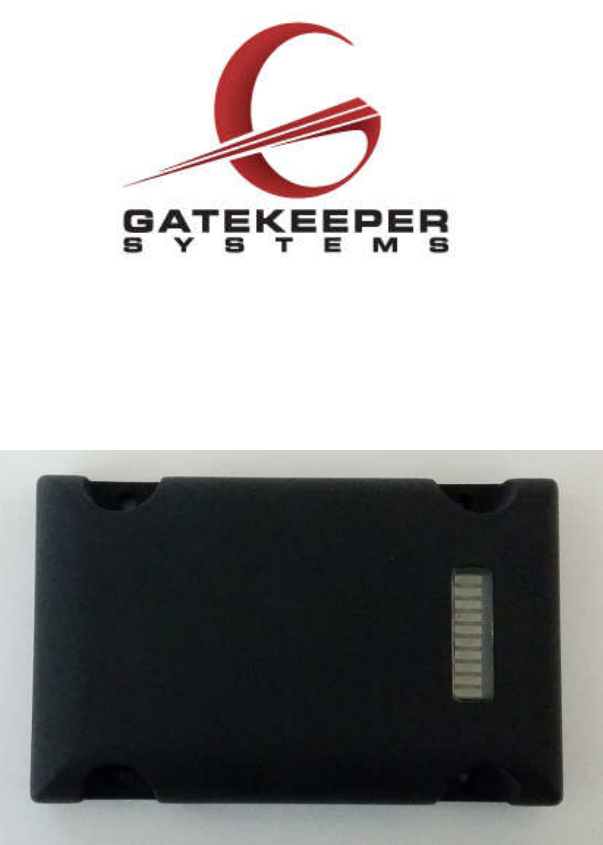

Digital Throttle:
The Gatekeeper Systems E7033 Digital Throttle transceiver is designed to be mounted
in the Gatekeeper Systems, Inc. Cart Manager. The Digital Throttle will operate with
Gatekeeper Systems CM Remote, Gatekeeper Systems wheels and responds to
Gatekeeper Systems status requests.
Digital Throttle connectors detail:
Power up Digital Throttle, by providing +12V DC power supply at connector block 1 pin
3 and grounding at connector block 1 pin 4.
While power up, LED bar will be ON to indicate Digital Throttle is in operating mode.
Connector Block 1 Definition:
Pin
Name
Description
1 5V_OUT +5V DC, 0.35A fused Output
2 HORN 6A fused HORN drive
3 12V IN Power Input
4 GND IN Power Grounding
5 RAW 36V Monitor the 36VDC batteries voltage input
6 KEY 36V Monitor a 36V DC Key Input
7 RELAY 36V Monitor the status of the AC relay
8 POT LO Potentiometer low voltage input
Connector Block 1
Connector Block 2
Connector Block 2 Definitions:
Pin
Name
Description
1 GND IN Power Grounding
2 ASSO SW CM Remote Associate Switch
3 V_TO_C Output Voltage to the controller
4 F_V_IN Input FWD voltage
5 F_TO_C FWD voltage output
6 SW1 IN Input Key switch
7 T_V_IN Throttle Voltage Input
8 E_LED_P Error LED input 1
9 POT HI Potentiometer High voltage input
10 E_LED_C Error LED Input 2
Contacting Gatekeeper Systems
For more information about the Door Manager and troubleshooting, to order parts or
report an issue, contact the Gatekeeper Systems Inc. regional Customer Support office
nearest to your location.
Hong Kong
Gatekeeper Systems (HK), Ltd.
Unit 2318~2319, Level 23, Tower 1, Metroplaza
NO. 223 Hing Fong Road, Kwai Fong, N.T.,
HONG KONG
(852) 2413 3050
USA
Gatekeeper Systems, Inc.
8 Studebaker
Irvine, CA 92618
(888) 808-9433
Canada
Gatekeeper Systems Canada, Ltd.
272 Galaxy Boulevard
Etobicoke, Ontario
Canada
M9W 5R8
(888) 525-3564
