- Using the Gateway210 Projector
- Safety, Regulatory, and Legal Information
Gateway 210 ProjectorGateway 210 Projector
user'sguideuser'sguide
Setup Connecting
www.gateway.com
i
Contents
Using the Gateway 210 Projector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Projector front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Projector back . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Projector left . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Projector right . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Projector top . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Projector bottom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Video adapter front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Video adapter back . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Remote front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Setting up the projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Connecting components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Connecting to your computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Connecting to a DVD player or VCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Connecting to a satellite dish . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Operating the projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Starting the projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

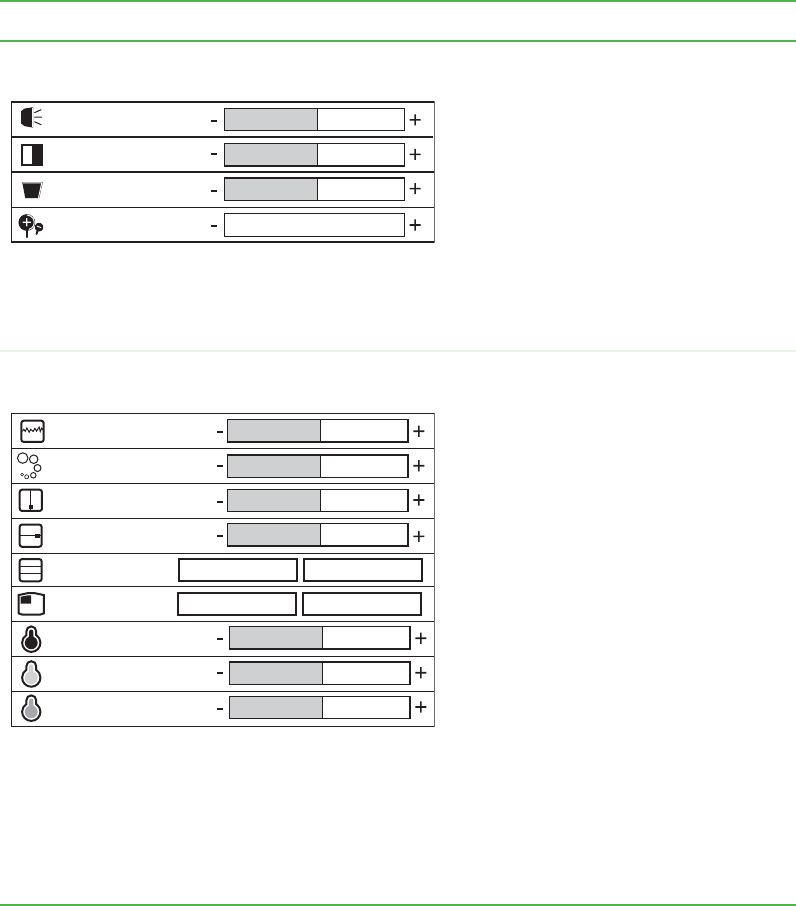

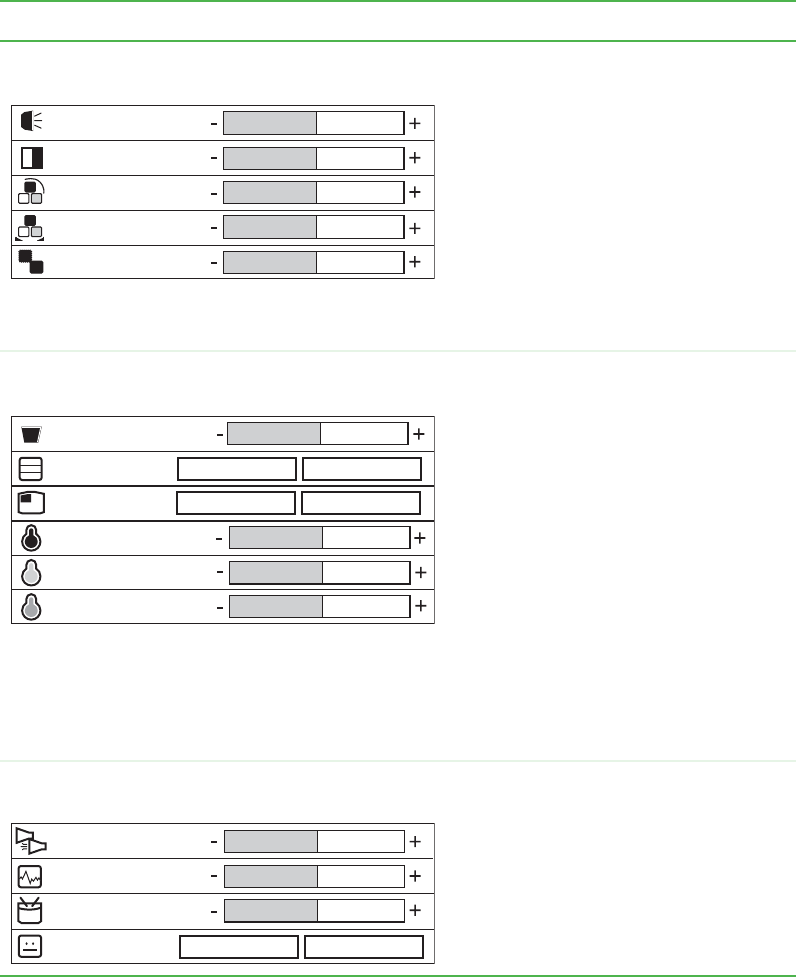

OSD options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Shutting down the projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Maintaining the projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Changing the lamp module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Cleaning the projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
First steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Common problems and solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

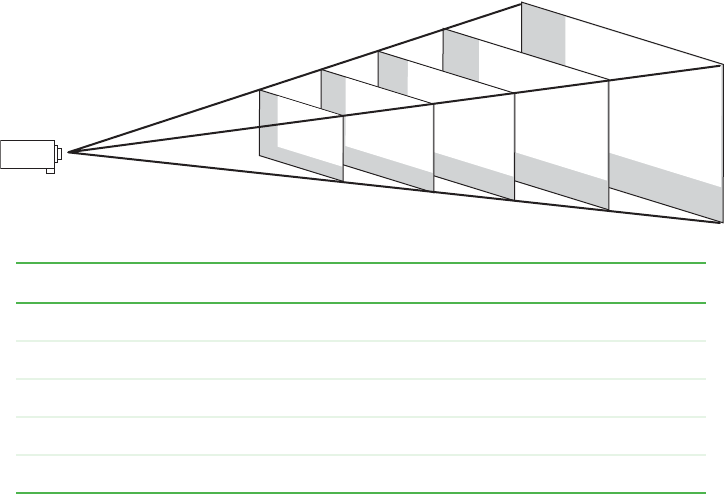

Display size chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Safety, Regulatory, and Legal Information . . . . . . . . . . . . . . . . . . . . . . . . . 47
ii
1
Using the
Gateway 210
Projector
Read this guide to find out how to:
■Use the projector safely
■Use the remote control
■Set up and connect the projector
■Start and turn off the projector

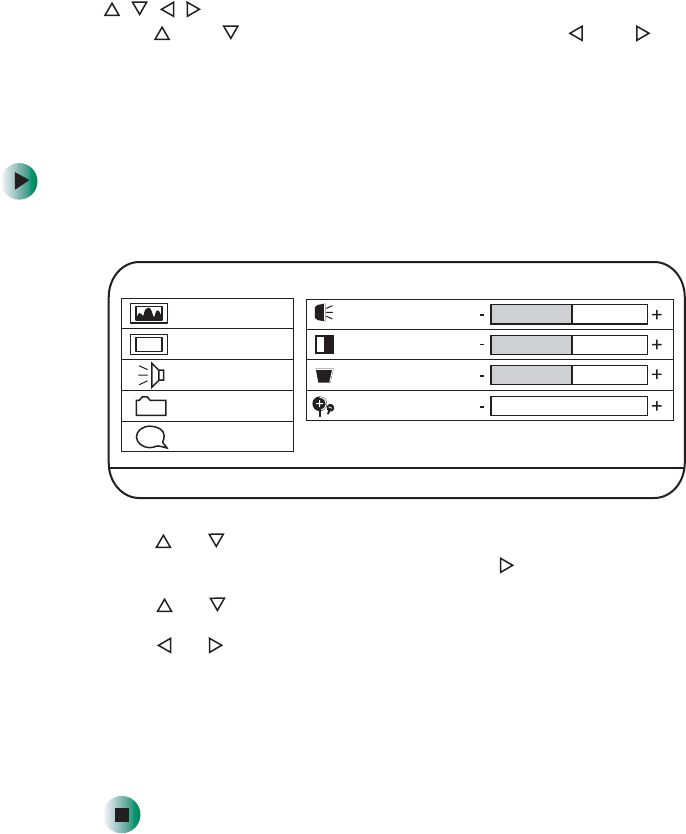

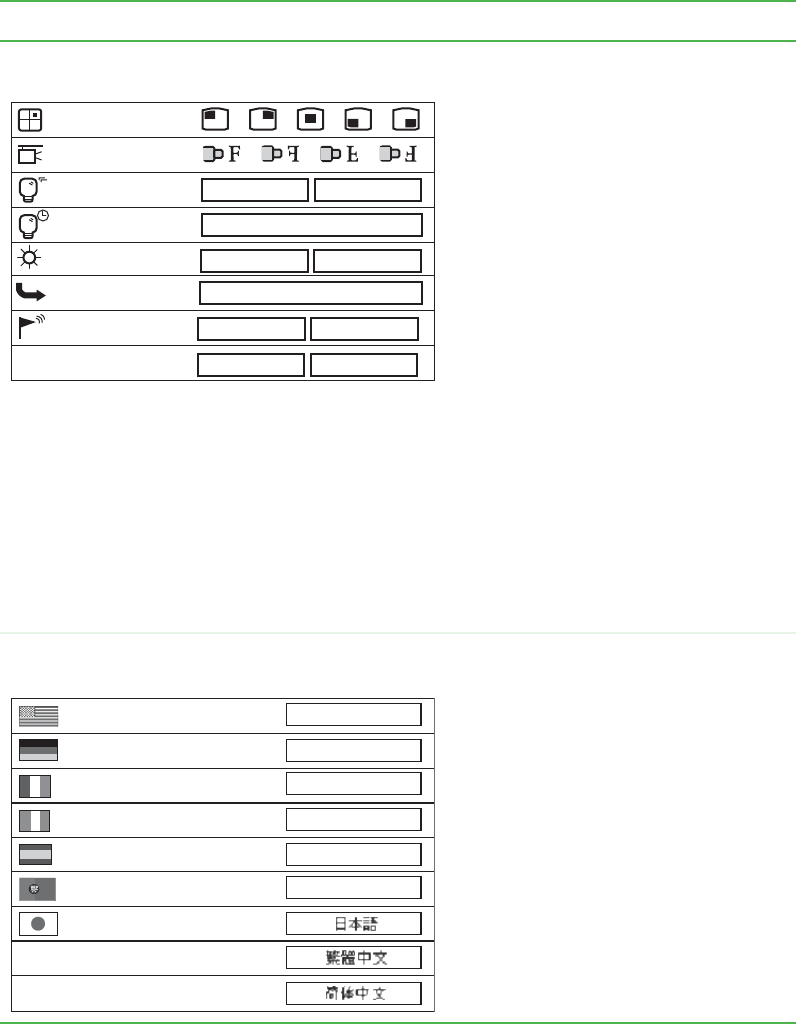

■Use the On-screen display (OSD) menus
■Replace the lamp module
■Troubleshoot typical hardware problems
2
Using the Gateway 210 Projector
www.gateway.com
Features
The Gateway 210 is a high-resolution projector with:
■Compact, lightweight design
■Full-function remote including laser pointer and mouse controls
■16 million-color display capability
■Ultra-high brightness projection lamp
■High-quality manual zoom lens
■On-screen display (OSD) menus for easy adjustment
■One-button Auto adjust for best display image
■Easy Keystone correction for distorted images
■Component video compatibility
Before using your projector, read the following safety instructions:
For a complete list of safety precautions, see “Important safety information”
on page 47.
Warning Do not cover the lens while the lamp is on.
Warning To project your eyes, do not look into the projector’s light
source.
Warning Make sure that you provide adequate ventilation for the
projector. Do not block the ventilation holes in the case.
Warning To prevent electrical shock, never open the projector case.
3

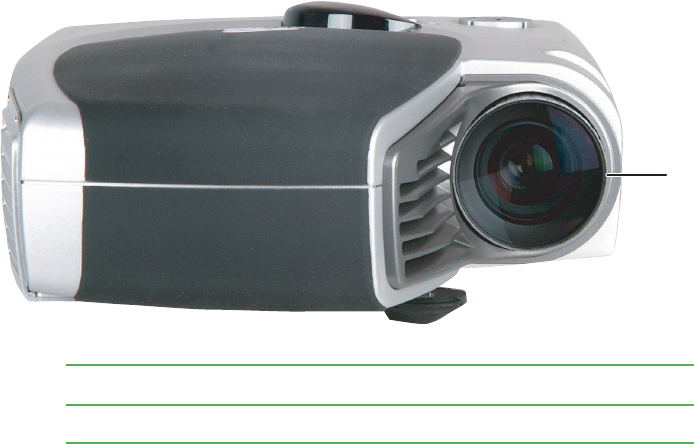

Projector front
www.gateway.com
Projector front
Item Description
Projection lens Projects the image on the screen.
Projection
lens
4
Using the Gateway 210 Projector
www.gateway.com

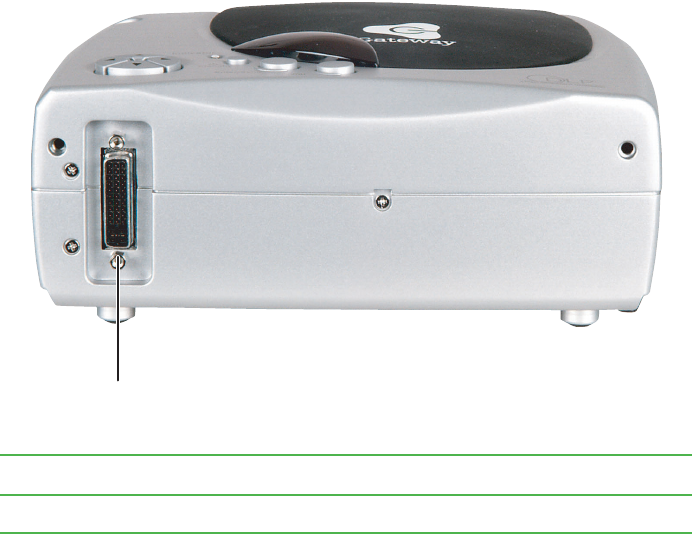

Projector back
Item Description
M1DA port Connects the video adapter to the projector.
M1DA port
5

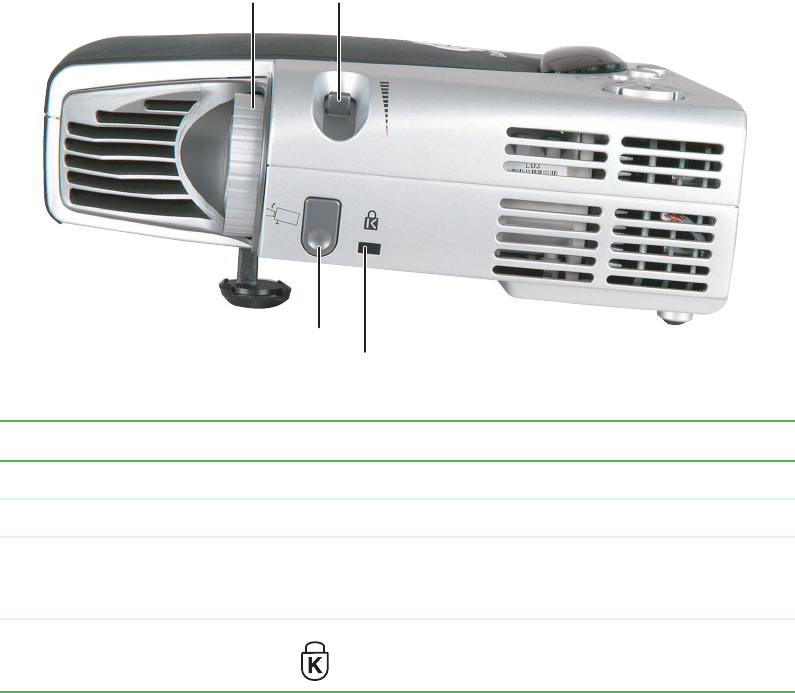

Projector left
www.gateway.com
Projector left
Item Icon Description
Focus ring Manually adjust the focus of the display image.
Zoom wheel Manually zoom the display image.

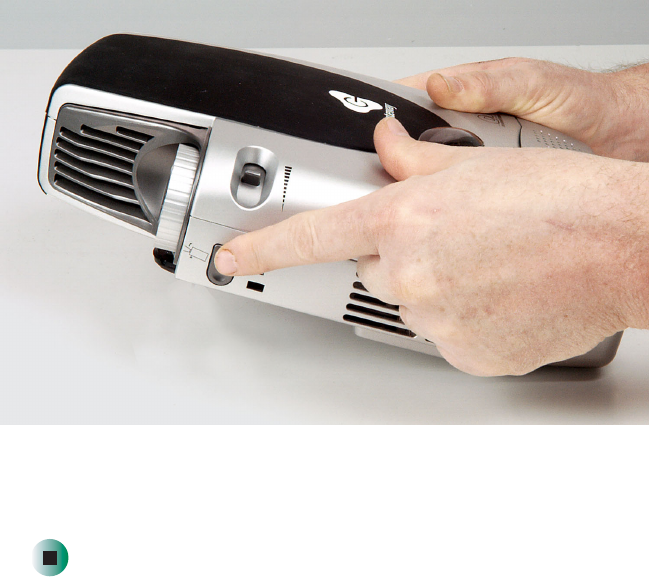

Adjustor-foot release button Press to release the adjustor-foot on the bottom of
the projector. For more information, see “Setting up
the projector” on page 18.
Kensington™ lock slot Connect a Kensington cable lock to this slot to
secure the projector to an object.
Kensington lock
Adjustor-foot release button
Zoom
wheel
Focus
ring
6
Using the Gateway 210 Projector
www.gateway.com

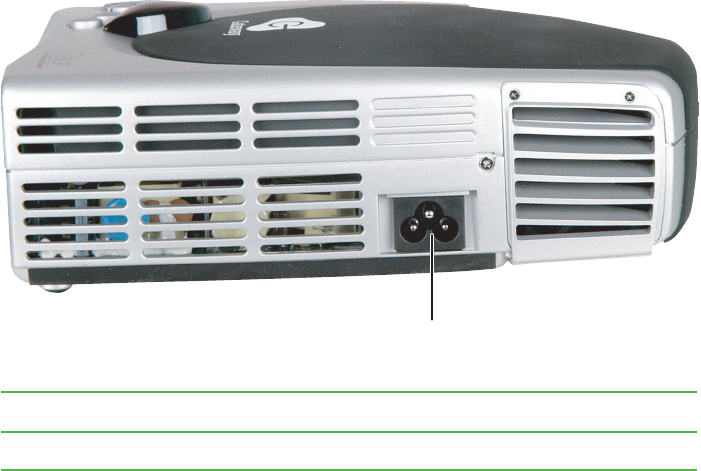

Projector right
Item Description
Power connector Plug a power cable into this connector.
Power connector
7
Projector top
www.gateway.com

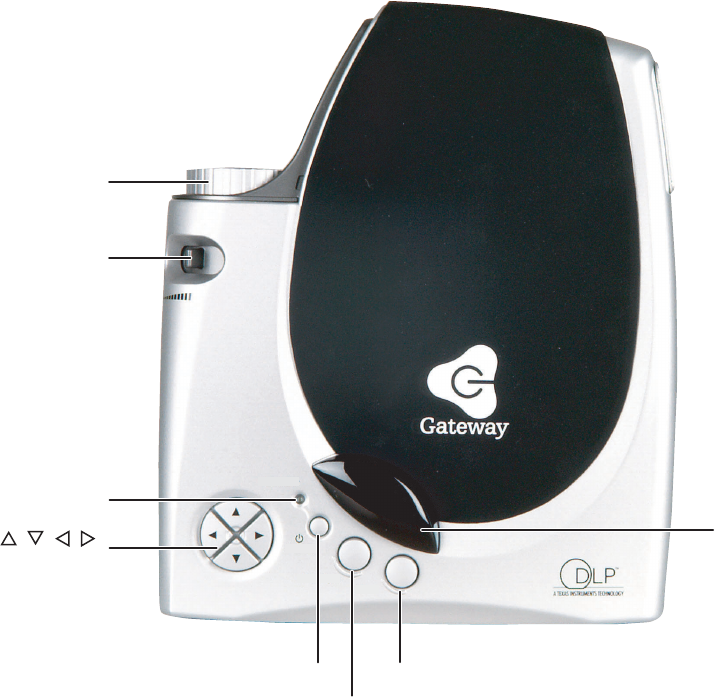

Projector top
Indicator
Power
Auto/Enter
Menu
Power button Menu button
Focus
ring
Zoom
wheel
Indicator
buttons
Auto/Enter button
Infrared
remote
sensor
8
Using the Gateway 210 Projector
www.gateway.com
Item Icon Description
Focus ring Manually adjust the focus of the display image.
Zoom wheel Manually zoom the display image in and out.
Indicator Displays power status.
buttons OSD active: Press to move between menu options.
OSD inactive: Press to select the video input
source.
buttons Press to adjust menu options.

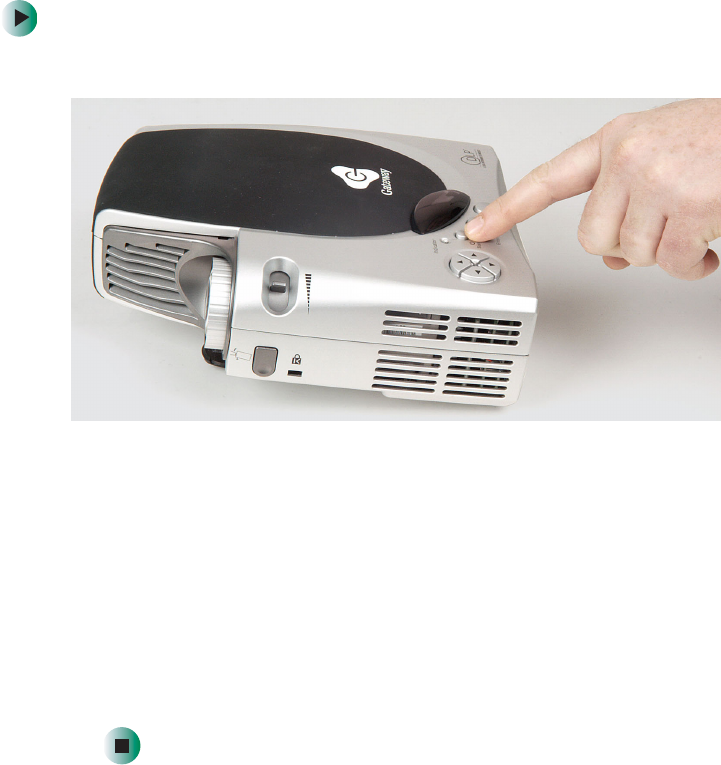

Power button Press to turn the power off and on.
Menu button Press to view the OSD. Press again to exit.
Auto/Enter button OSD active: Press to select menu options.
OSD inactive: Press to automatically select the best
video settings for the current video source.
Infrared remote sensor Picks up the signal from the remote control.
9
Projector bottom
www.gateway.com

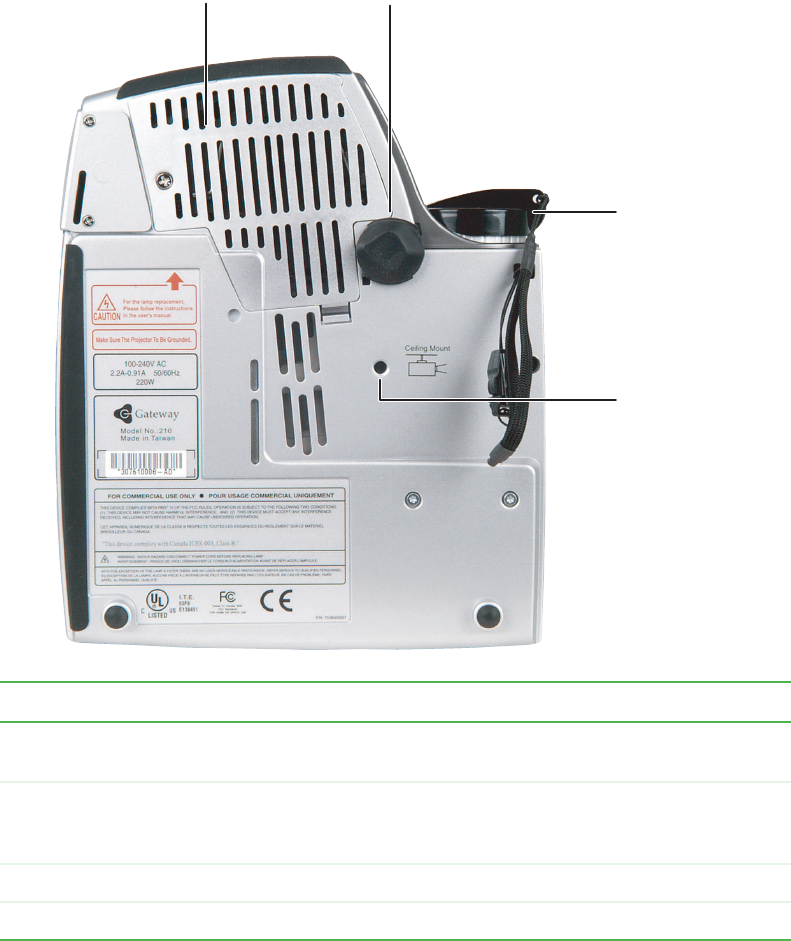

Projector bottom
Item Description

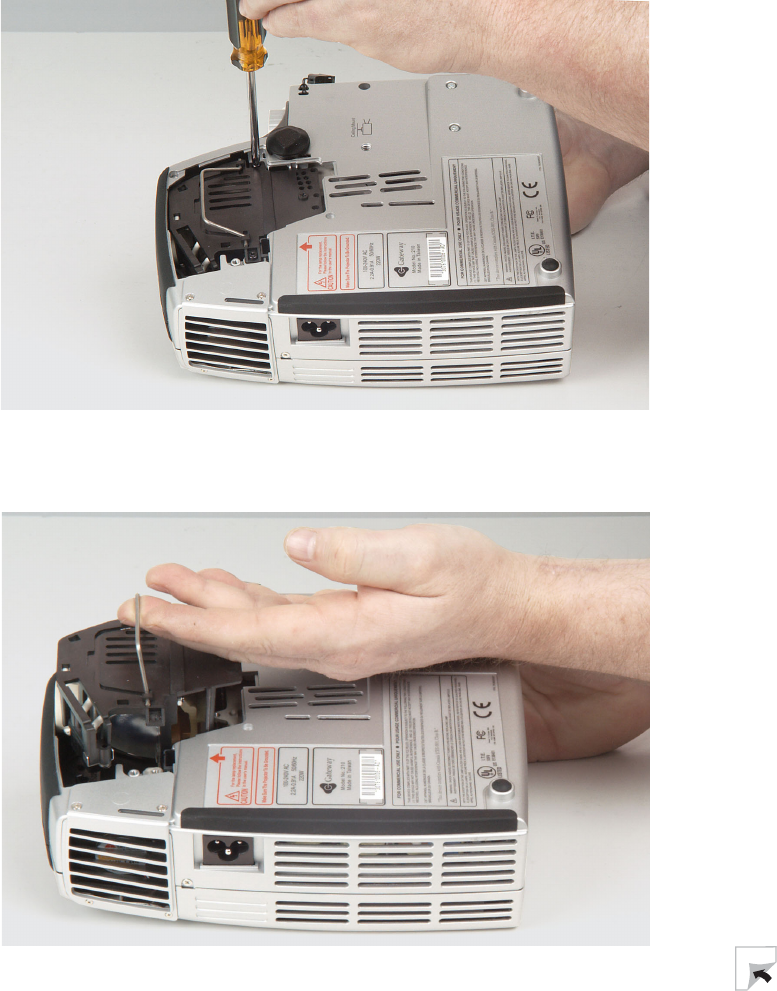

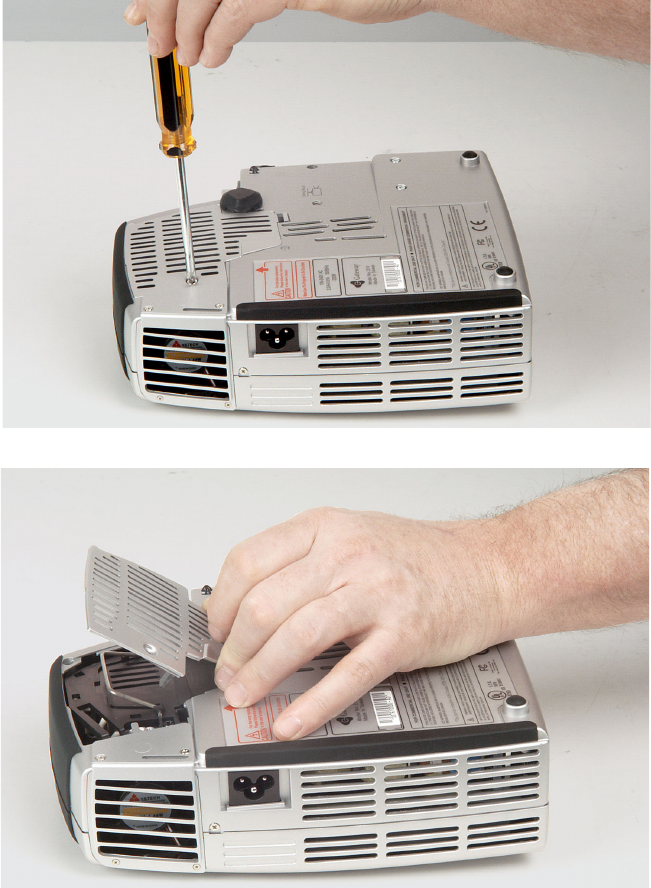

Lamp access panel Remove the screw to access the lamp bay. For more
information, see “Changing the lamp module” on page 35.
Adjustor-foot Press the button on the right side of the projector to release the
adjustor-foot. For more information, see “Setting up the
projector” on page 18.
Lens cap Protects the projector lens.
Ceiling mount connector Connect the projector to a ceiling mount.
Lens cap
Ceiling mount
connector
Adjustor-foot
Lamp access panel
10
Using the Gateway 210 Projector
www.gateway.com

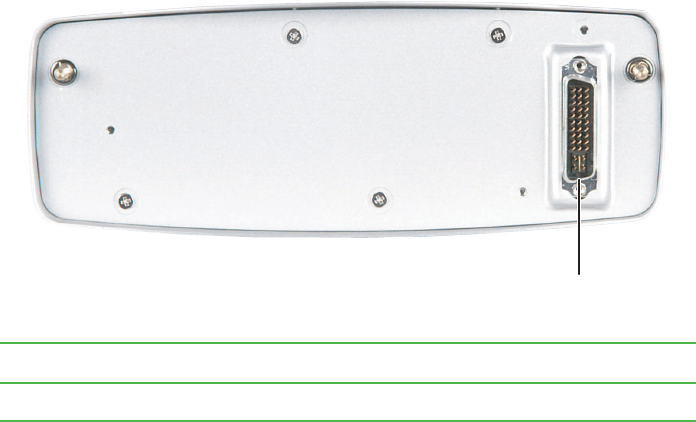

Video adapter front
Item Description
M1DA connector Connects the video adapter to the projector.
M1DA connector
11
Video adapter back
www.gateway.com

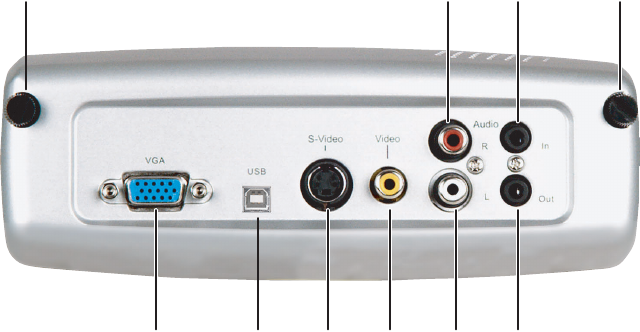

Video adapter back
Thumbscrew
VGA
port
Thumbscrew
S-Video
port
Video
port
Audio/L
port
Audio out
port
Audio/R
port
Audio in
port
USB
port
12
Using the Gateway 210 Projector
www.gateway.com
Item Description

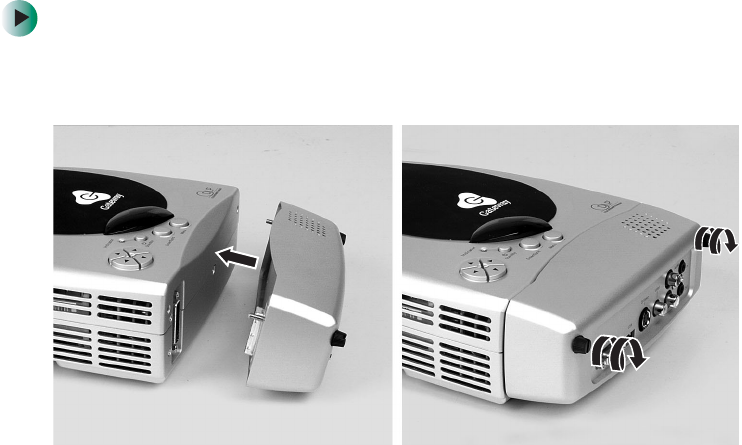

Thumbscrews (2) Tighten the two thumbscrews to secure the video
adapter to the projector.

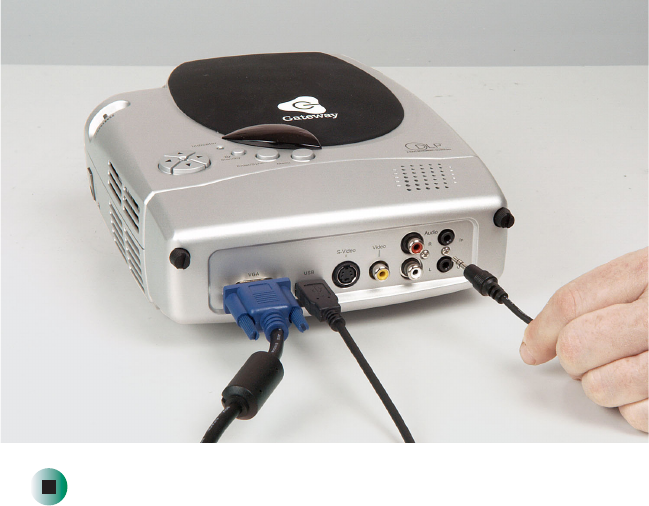

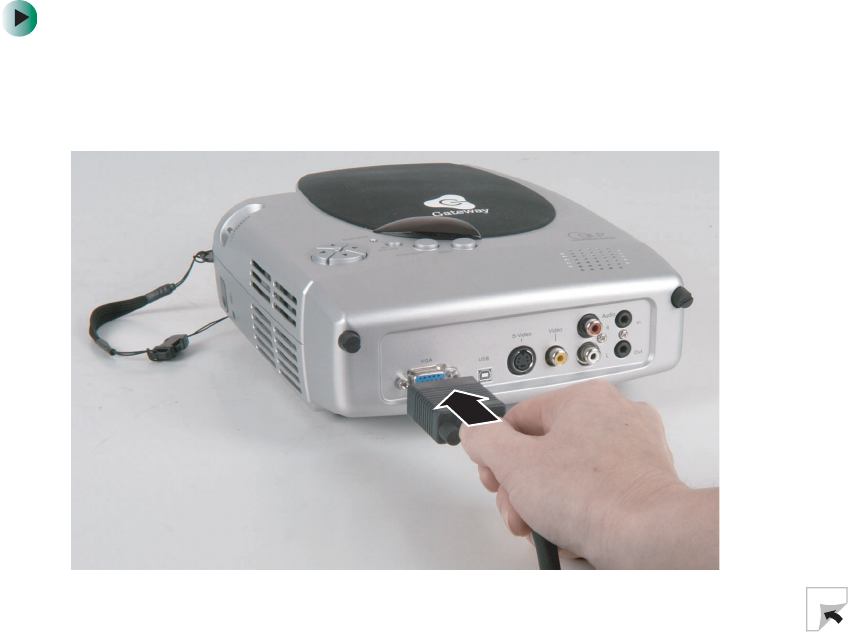

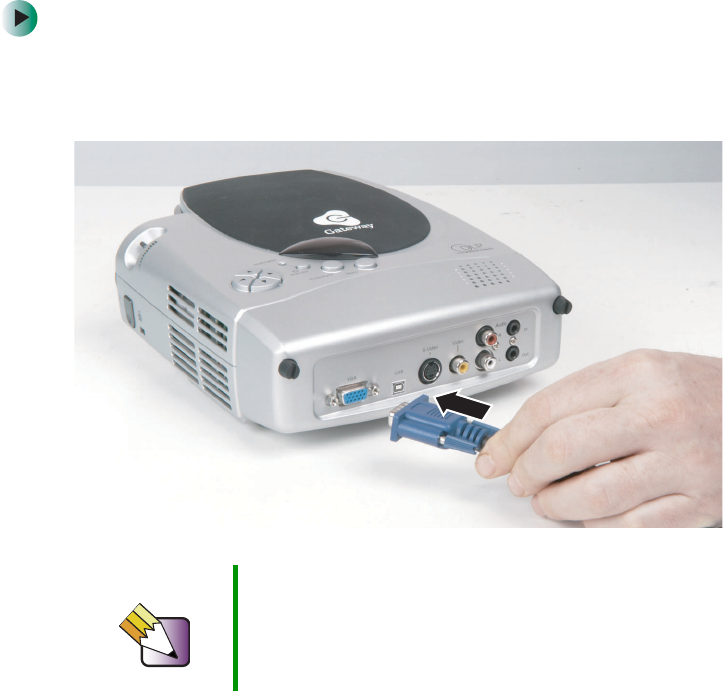

VGA port Plug the video cable from your computer into this
port. See “Connecting to your computer” on
page 20.
USB port Plug the USB cable into this port so you can use
the remote control as a mouse.

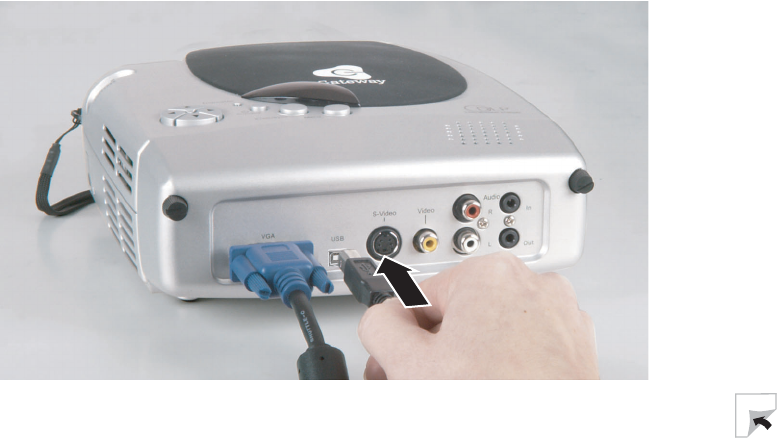

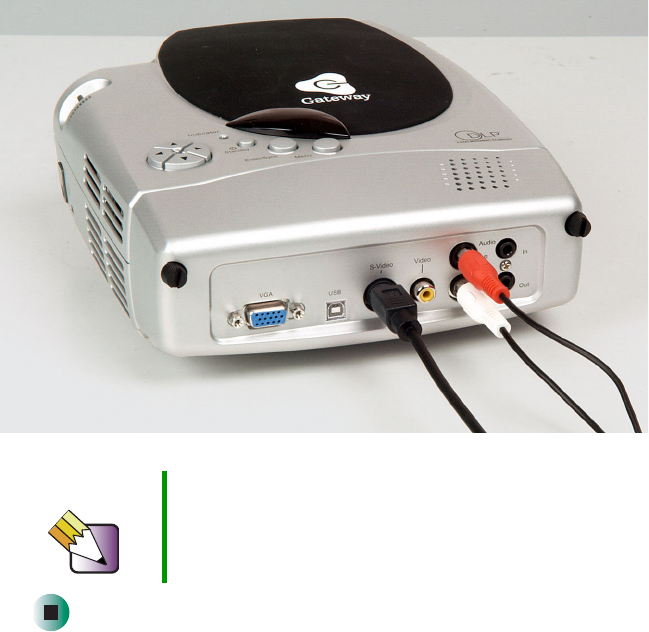

S-Video port Plug an S-Video cable into this port. For more
information, see “To connect the projector to a DVD
player or VCR using S-Video:” on page 25.

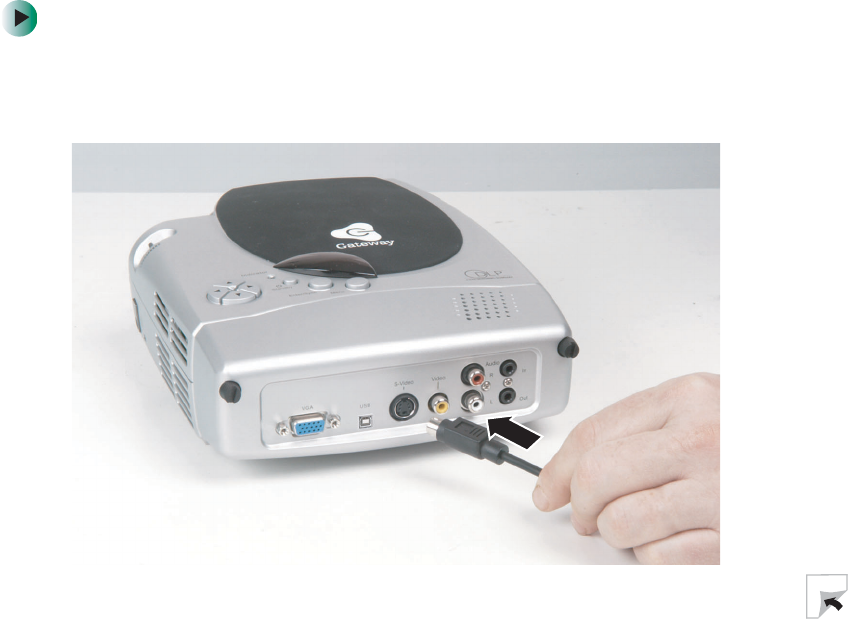

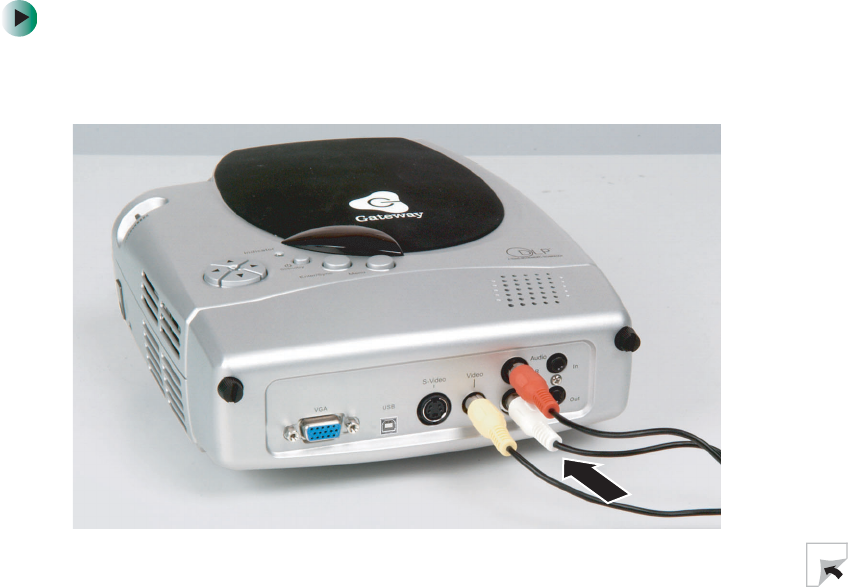

Video port Plug the video (yellow) connector from a composite
video cable into this port. For more information, see
“To connect the projector to a DVD player or VCR
using composite video:” on page 23.
Audio/L port Plug the white audio connector from a composite
video cable into this port. For more information, see
“To connect the projector to a DVD player or VCR
using composite video:” on page 23.
Audio/R port Plug the red audio connector from a composite
video cable into this port. For more information, see
“To connect the projector to a DVD player or VCR
using composite video:” on page 23.
Audio In port Plug the audio cable into this jack.
Audio Out port Plug additional speakers into this jack.
13
Cables
www.gateway.com

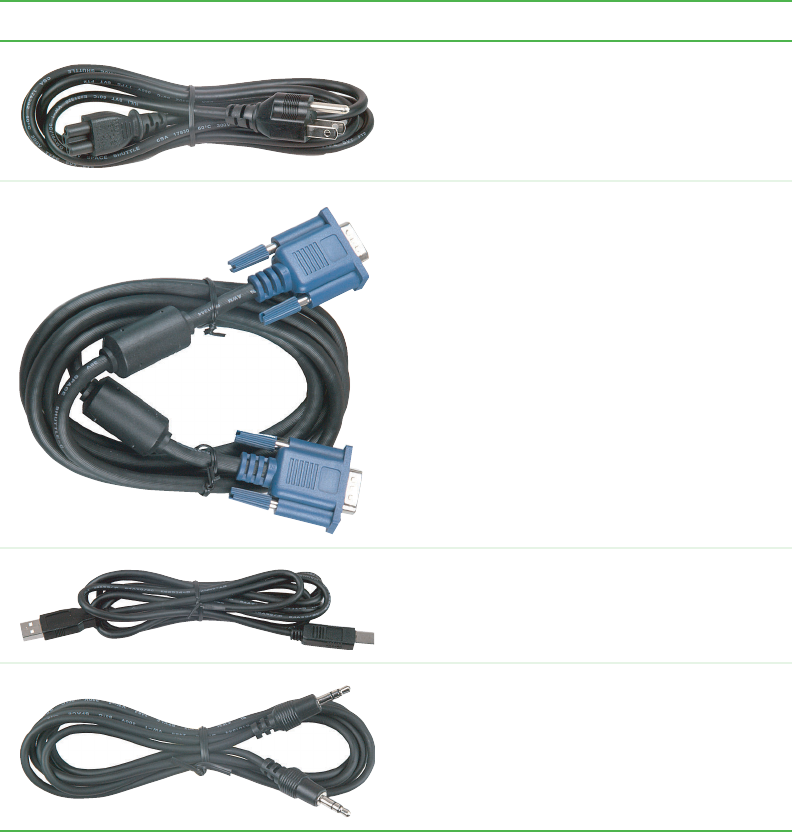

Cables
The projector comes with several cables so you can connect it to your computer
or other video component. See “Connecting components” on page 20.
Cable Description
Power cable. Use this cable to connect the
projector to a correctly grounded electrical
outlet or surge protector.
VGA cable. When the video adapter is
connected to the projector, connect this cable
to send the video signal from your computer to
the projector.
USB cable. When the video adapter is
connected to the projector, use this cable to
connect your computer to the projector so you
can use the remote control as a mouse.
Audio in/out cable. When the video adapter is
connected to the projector, connect this cable
to send audio from your computer to the
projector.
14
Using the Gateway 210 Projector
www.gateway.com

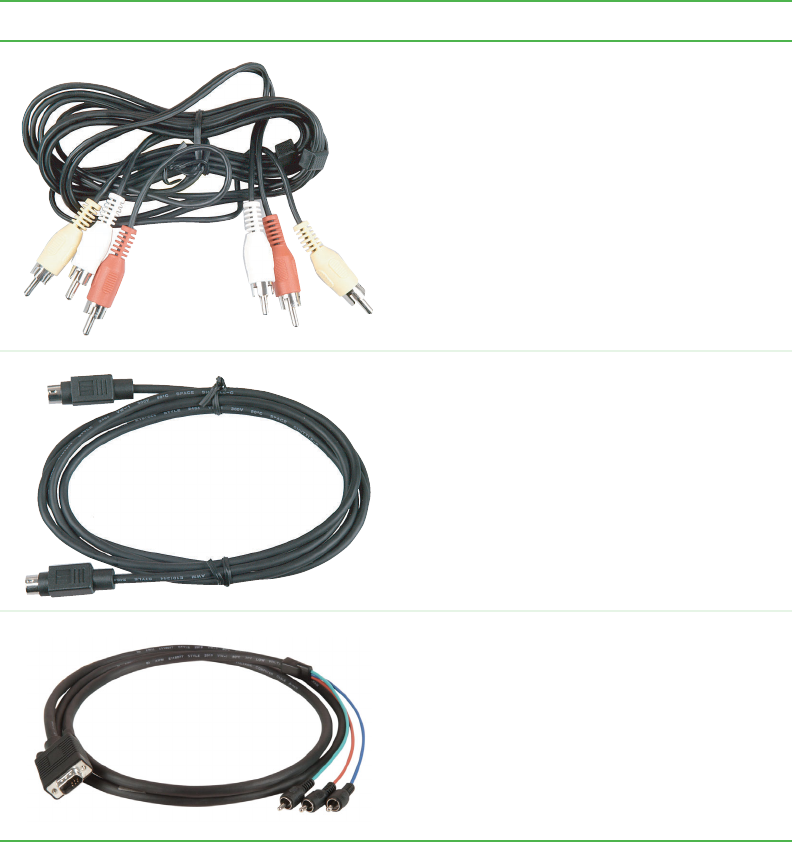

Composite video cable. When the video
adapter is connected to the projector, connect
this cable to send the video signal from a
component, such as a DVD player or VCR, to
the projector.
The video signal is carried through a single
video (yellow) connection.
The two additional connectors carry the left
(white) and right (red) channel audio signals.
S-Video cable. When the video adapter is
connected to the projector, use this cable to
connect a video component, such as a DVD
player or VCR, to the projector.
The video signal is split into two signals,
black-and-white and color. This type of cable
produces a better picture than the
single-connector from the composite video
cable.
This cable provides no audio output.
Component video cable. When the video
adapter is connected to the projector, use this
cable to connect a video component, such as
a progressive-scan DVD player or satellite dish,
to the projector.
The video signal is split into three signals, one
black-and-white and two color. This type cable
provides the best possible picture.
This cable provides no audio output.
Cable Description
15
Remote control
www.gateway.com
Remote control
The infrared remote sensor is located on the top of the projector. The distance
between the sensor and remote control should not exceed 29.5 feet (9 meters)
for the remote control to function correctly.

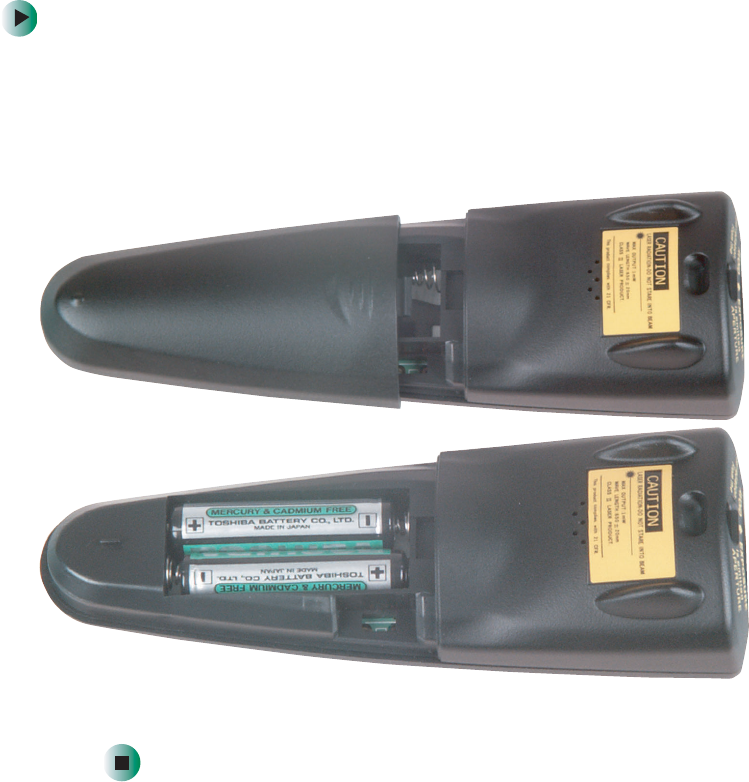

To insert batteries in the remote control:
1Remove the battery compartment cover.
2Insert two AAA batteries into the battery compartment. Make sure that the
+and – symbols match the +and – symbols inside the battery
compartment.
3Replace the battery compartment cover.
16
Using the Gateway 210 Projector
www.gateway.com

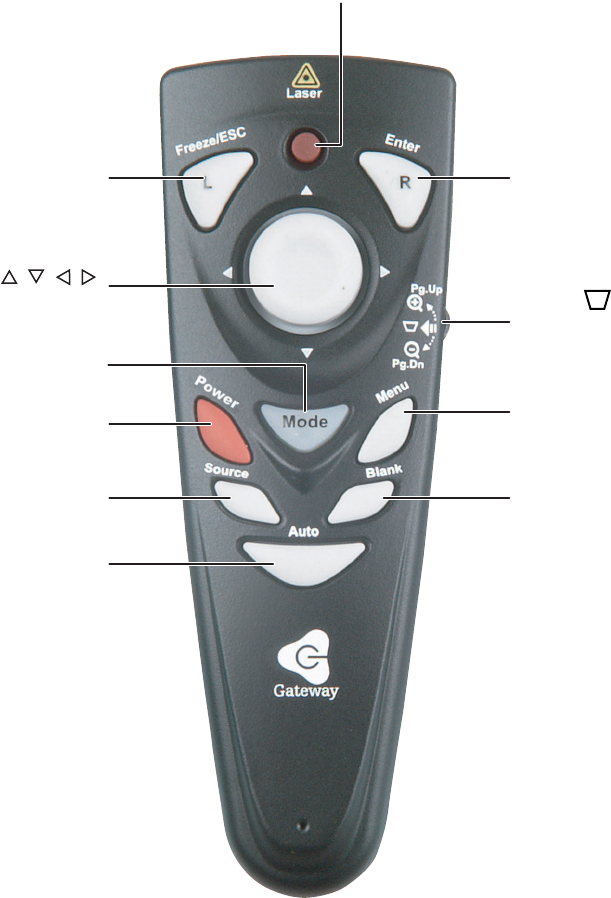

Remote front
Power
button
Laser
button
Source
button
Freeze/ESC/Left
mouse button
Pg. Up
Pg. Down
button
Enter/Right
mouse button
Auto
button
buttons
Menu
button
Blank
button
Mode
button
17
Remote control
www.gateway.com
Item Description
Laser Press to activate the laser pointer.
Freeze/ESC/L OSD active: Press to exit the OSD menu.
OSD inactive: Press to freeze the display image.
Mouse active: Use as the left mouse button.
Enter/R Press to select an OSD option. For more information about the OSD options,
see “OSD options” on page 30.
Mouse active: Use as the right mouse button.
Pg. Up Press up to zoom in the display image.
Mouse active: Use to return to the previous page of your presentation.
Press in to activate keystone correction, then press the button to correct a
display image that is wider at the top and press the button to correct a display
image that is wider at the bottom.
Do not activate when displaying text or spreadsheets to eliminate text distortion.
Pg. Down Press down to zoom out the display image.
Mouse active: Use to advance to the next page of your presentation.
Menu Press to view the OSD. Press again to exit. For more information about the OSD
options, see “OSD options” on page 30.
Blank Press to view a plain blue screen. Press again to restore the display image.
Auto Press to automatically adjust the display image to the best settings for the video
source.
Source Press to view the current video input source and switch between video input
sources.
Power Press to turn the projector on and off.
Mode Press to turn the remote control into a mouse. The remote returns to regular
mode after 15 seconds with no input. Press again to return to mouse mode.
You must have the USB cable connected between your computer and the
projector to use this option.
OSD active: Press and to move between menu options. Press and
to adjust menu options. For more information about the OSD options, see “OSD
options” on page 30.
OSD inactive: Press and to select the video input source.
Mouse active: Move the cursor within the display image.
Zoom active: Move within the zoomed display image.
18
Using the Gateway 210 Projector
www.gateway.com
Setting up the projector
To set up the projector:

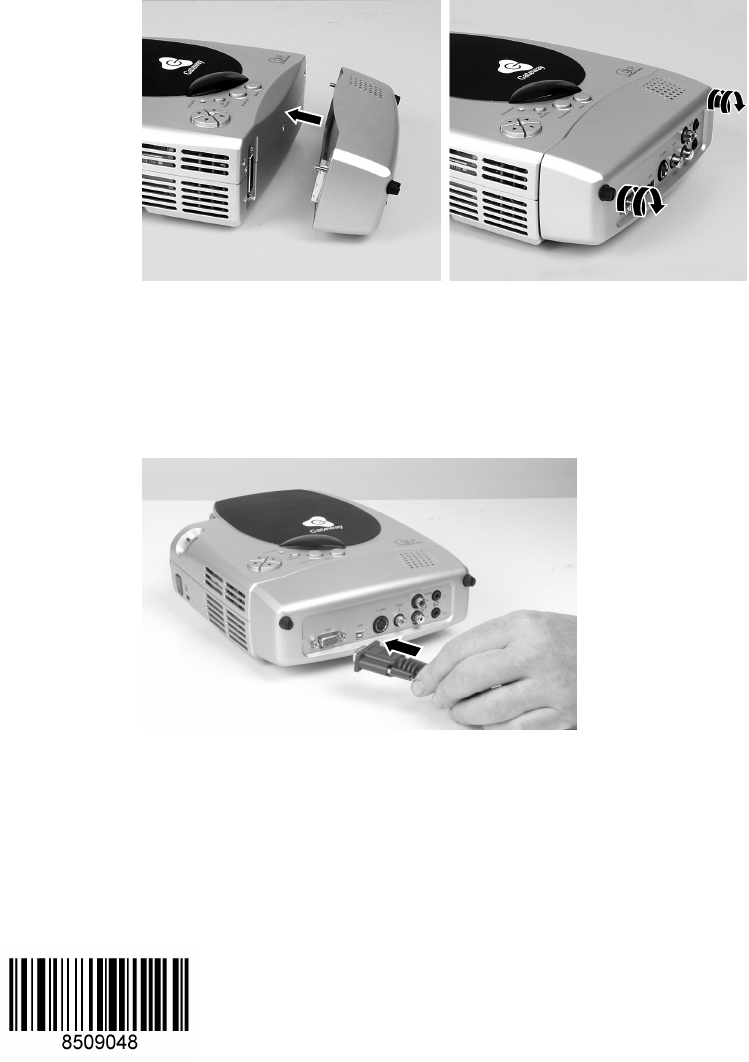

1Connect the video adapter to the back of the projector and tighten the
two thumbscrews.
2Place the projector on a sturdy cart or table close to other components you
plan to connect to the projector and an electrical outlet.
3Point the projector lens towards a blank wall or projection screen.
19
Setting up the projector
www.gateway.com
4Press the button on the right side of the projector to release the
adjustor-foot so you can adjust the tilt angle of the projector.
5Plug the power cable into the power connector on the left side of the
projector, then plug the other end into a correctly grounded electrical
outlet or surge protector.
20
Using the Gateway 210 Projector
www.gateway.com
Connecting components
You can connect the projector to your computer, DVD player or VCR, and
satellite dish receiver.
To connect the projector to a DVD player or VCR, go to “Connecting to a DVD
player or VCR” on page 23.
To connect the projector to a satellite dish, go to “Connecting to a satellite dish”
on page 27.
Connecting to your computer
To connect the projector to your computer:
1Plug the VGA cable into the blue VGA port on the back of the video
adapter, then plug the other end into the blue video port on the back of
your computer.
Tips & Tricks If you are connecting to a notebook, you may need to make
adjustments to the notebook’s display settings to view the
display image through the projector. See the
documentation that came with your notebook for
information about changing display settings.
21
Connecting components
www.gateway.com
2If you want to use the remote control as a mouse, plug the USB cable into
the USB port on the back of the video adapter, then plug the other end
into a USB port on the back of your computer.
22
Using the Gateway 210 Projector
www.gateway.com
3If your presentation contains an audio track, plug the audio cable into the
Audio In port on the back of the video adapter, then plug the other end
into the Audio Out port on the back of your computer.
23
Connecting components
www.gateway.com
Connecting to a DVD player or VCR
If you are using composite video to connect the DVD player or VCR, follow
these instructions. If you are using S-Video to connect the DVD player or VCR,
go to “To connect the projector to a DVD player or VCR using S-Video:” on
page 25.
To connect the projector to a DVD player or VCR using composite video:
1Plug the yellow, red, and white composite cable connectors into the
corresponding ports on the back of the video adapter.
24
Using the Gateway 210 Projector
www.gateway.com

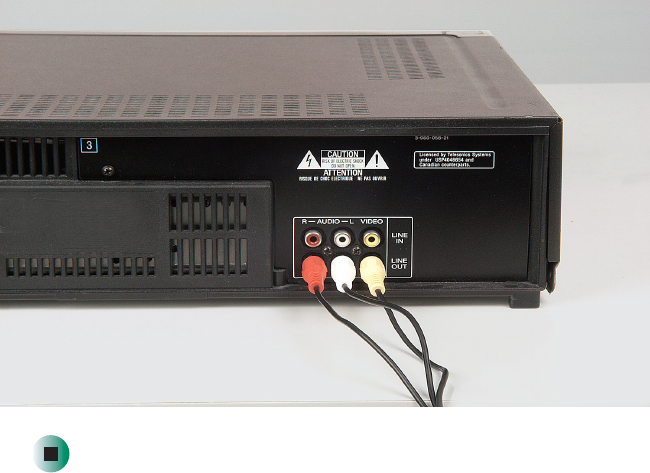

2Plug the yellow, red, and white connectors on the other end into the
corresponding line out ports on the back of the DVD player or VCR.
25
Connecting components
www.gateway.com
To connect the projector to a DVD player or VCR using S-Video:
1Plug the S-Video cable connector into the S-Video port on the back of the
video adapter, then plug the other end into the S-Video port on the back
of the DVD player or VCR.
26
Using the Gateway 210 Projector
www.gateway.com

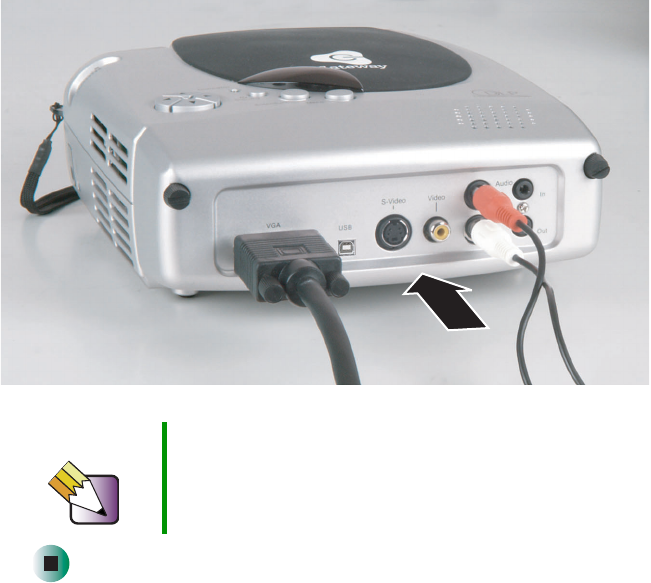

2Plug the red and white connectors from a composite video cable into the
corresponding ports on the back of the video adapter, then plug the red
and white connectors on the other end to the corresponding ports on the
back of the DVD player or VCR.
Tips & Tricks If you are using the composite cable for your audio cable
connections, make sure that you do not plug in the yellow
video connector.
27
Connecting components
www.gateway.com
Connecting to a satellite dish
To connect the projector to a satellite dish:
1Plug the component cable connector into the VGA port on the back of
the projector, then plug the green, blue, and red connectors on the other
end into the corresponding ports on the back of the satellite dish receiver.
28
Using the Gateway 210 Projector
www.gateway.com
2Plug the red and white connectors from a composite video cable into the
corresponding ports on the back of the video adapter, then plug the red
and white connectors on the other end to the corresponding ports on the
back of the satellite dish receiver.
Tips & Tricks If you are using the composite cable for your audio cable
connections, make sure that you do not plug in the yellow
video connector.
29
Operating the projector
www.gateway.com
Operating the projector
After you have connected all components to the projector, you are ready to
begin using the projector.
Starting the projector
To start the projector:
1Press the power button. The power LED displays steady green.
2Turn on the connected components.
After all components are running, allow about 30 seconds for the display
image to appear. If the power LED is not steady green or you do not see
a display image, check the connections. For more troubleshooting
information, see “Troubleshooting” on page 41.
3Use the focus ring and zoom wheel to adjust the display.
You can also use the on-screen display (OSD) to make additional display
setting adjustments if necessary. For more information, see “OSD options”
on page 30.
30
Using the Gateway 210 Projector
www.gateway.com
OSD options
This projector features an on-screen display (OSD) that lets you adjust and save
contrast, brightness, and other display settings.
Use the remote control to access all OSD functions.
■Menu
Press to view the OSD. Press again to exit.
■
Press and to highlight OSD options, or press and to adjust OSD
options.
■Enter
Press to select an OSD option.
To adjust the OSD settings:
1Press the Menu button. The OSD menu opens.
2Press or to highlight an OSD option on the main navigation bar on
the left of the OSD menu, then press the button.
3Press or to highlight a control, then press the Enter button.
4Press or to adjust the control to the desired level.
5Press the Menu button to return to the main navigation bar on the left of
the OSD menu.
6When you have finished making all adjustments, press the Menu button
to exit the OSD.
Brightness
Display
Audio
Management
Language
Contrast
Keystone
Zoom
64
128
0
0
VGA MENU
31
Operating the projector
www.gateway.com
OSD menus
OSD Menu Description
VGA MODE - Image Brightness. Adjusts the brightness of
the display image.
You may need to readjust brightness after
the projector has warmed up.
Contrast. Adjusts the contrast of the
display image.
Keystone. Corrects a display image that
is wider at the top or at the bottom.
Do not activate when displaying text or
spreadsheets to eliminate text distortion.
Zoom. Enlarges or reduces the display
image.
VGA MODE - Display Frequency. Minimizes any vertical bars
or stripes visible on the screen
background.
Phase. Removes any horizontal
distortion and clears or sharpens the
displayed characters.
V Position. Adjusts the display image up
and down.
H Position. Adjusts the display image left
and right.
Proportion. Switches between a display
image mode of 4:3 or 16:9.
User Color. Activates individual red,
green, or blue color correction controls.
User Red. Customizes the red color
levels.
User Green. Customizes the green color
levels.
User Blue. Customizes the blue color
levels.
Color Temp. Increases the red or blue
tint of the display image.
Brightness
Contrast
Keystone
Zoom
64
128
0
0
Frequency
Phase
V Position
H Position
50
16
Proportion
20
134
User Color
User Red
User Green
User Blue
123
123
123
4:3 16:9
Ye s No
32
Using the Gateway 210 Projector
www.gateway.com
VIDEO MODE - Image Brightness. Adjusts the brightness of
the display image.
You may need to readjust brightness after
the projector has warmed up.
Contrast. Adjusts the contrast of the
display image.
Color Hue. Changes the display image
from black and white to color.
Saturation. Adjusts the balance between
red and green color levels.
Sharpness. Adjusts the sharpness of the
display image.
VIDEO MODE - Display Keystone. Corrects a display image that
is wider at the top or at the bottom.
Do not use when displaying text or
spreadsheets to eliminate text distortion.
Proportion. Switches between a display
image mode of 4:3 or 16:9.
User Color. Activates individual red,
green, or blue color correction controls.
User Red. Customizes the red color
levels.
User Green. Customizes the green color
levels.
User Blue. Customizes the blue color
levels.
Color Temp. Increases the red or blue
tint of the display image.
Audio Vo lume . Turns the overall volume of the
projector up or down.
Treble. Turns the treble volume up or
down.
Bass. Adjusts the medium and low audio
frequencies.
Mute. Mutes the projector’s audio.
OSD Menu Description
Brightness
Contrast
Color Hue
Saturation
128
128
6
Sharpness
128
128
Keystone
Proportion
0
User Color
User Red
User Green
User Blue
123
123
123
4:3 16:9
Ye s No
Volume
Treble
Bass
Mute
16
8
8
Ye s No
33
Operating the projector
www.gateway.com
Management OSD Location. Adjusts the position of
the OSD within the display image.
Projection. Flips the display image so it
can be viewed correctly when the
projector is set up for rear screen
projection.
- OR -
Flips the display image so it can be
viewed correctly when the projector is
ceiling-mounted.
Lamp Remind. Displays the hours that
the lamp has been in use and lets you set
a warning message that will be displayed
when the lamp is within 30 hours of
maximum lamp life.
Lamp Reset. Resets the lamp timer after
replacing the lamp module.
Auto Adjust. Automatically adjusts the
display image to the ideal settings for the
display source.
Reset All. Returns all settings to the
factory defaults.
Source Type. Switches between
available video input sources.
Language Language. Changes the language of the
OSD menu. Choose between English,
German, French, Italian, Spanish,
Portuguese, Japanese, Traditional
Chinese, and Simple Chinese.
OSD Menu Description
OSD Location
Projection
Lamp Remind
Lamp Reset
Auto Adjust
Reset All
Source Type
Ye s No
Ye s
Reset to Default Setting
Ye s No
RGB Digit RGB
YPbPr Auto Scan
English
German
French
Italian
Spanish
Portuguese
Japanese
Traditional Chinese
Simple Chinese
English
Deutsch
Francais
Italiano
Espanol
Portugues
34
Using the Gateway 210 Projector
www.gateway.com
Shutting down the projector
To shut down the projector:
1Turn off all connected components.
2Press the power button on the projector. A warning message appears.
3Press the power button again to turn off the projector.
4Wait until the fan stops, then disconnect the power cable.
Warning The projector needs a 120 second cool-down period. Do
not disconnect the power cable until the fan stops, or you
may damage the projector.
35
Maintaining the projector
www.gateway.com
Maintaining the projector
The only user-replaceable part in the projector is the lamp module. Contact
Gateway Technical Support for any additional service or repair.
Changing the lamp module
You should replace the lamp module in the projector every 1500 hours to
maintain the best possible display image. Do not use a lamp module past the
rated lamp life.
To replace the lamp module:
1Turn off the projector and wait for the fan to stop.
2Disconnect the power cord and all other external cables.
3Let the projector lamp cool completely (approximately 30 minutes).
4Turn the projector over so the bottom is facing up.
Warning To prevent electric shock, do not open the projector case.
There are no user-replaceable parts inside. Contact
Gateway Technical Support for service or repair.
Warning The high-pressure lamp module may explode if handled
incorrectly. Make sure that the projector is turned off, power
is disconnected, and the lamp is completely cool (minimum
of 30 minutes) before replacing the lamp module.
36
Using the Gateway 210 Projector
www.gateway.com
5Remove the lamp access panel screw, then press down on the access panel
lock to remove the access panel.
37
Maintaining the projector
www.gateway.com
6Remove the three lamp module retaining screws.

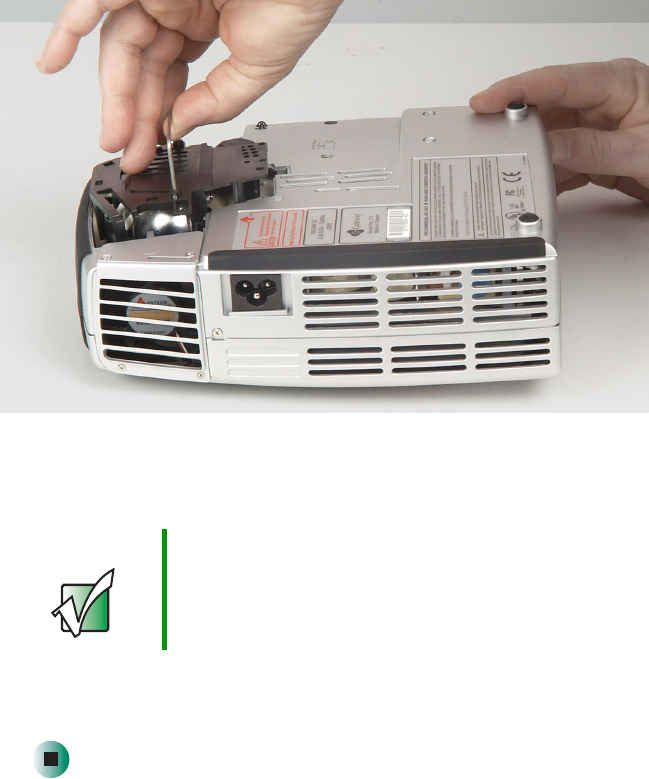

7Unsnap the lamp removal handle, then lift the lamp module straight up
out of the lamp bay.
38
Using the Gateway 210 Projector
www.gateway.com
8Gently press the new lamp module into the lamp bay. The lamp module
is keyed so it can only be inserted in one direction. If the lamp module
does not fit, make sure that the cable connections line up with the
connectors in the lamp bay.
9Replace the three lamp module retaining screws.
10 Replace the lamp bay access panel, then replace the access panel screw.
11 Turn the projector over.
12 Connect the power cable and all external cables.
Important Make sure that the lamp bay access panel is securely in
place. If the access panel is not securely in place, the
projector will not start.
39
Maintaining the projector
www.gateway.com
Cleaning the projector
Keeping the projector clean and the vents free from dust helps keep it
performing at its best.
Cleaning the exterior
Always turn off the projector and wait for it to cool before cleaning it.
Use a damp, lint-free cloth to clean the projector case. Do not use abrasive or
solvent cleaners because they can damage the finish.
The projector is cooled by air circulated through the vents on the case, so keep
the vents free of dust. With the projector turned off and unplugged, brush the
dust away from the vents with a damp cloth. Be careful not to drip any water
into the vents. Do not attempt to clean dust from the inside the projector.
Cleaning the projector lens
Always turn off the projector and wait for it to cool before cleaning it.
Use a soft cloth and glass cleaner to clean the projector lens. Squirt a little
cleaner on the cloth (never directly on the lens), and wipe the lens with the
cloth.
Keep the lens cap on when the projector is not being used to protect the lens.
Warning Make sure that the projector is off, power is disconnected,
and the lamp is completely cool (minimum of 30 minutes)
before cleaning the projector.
40
Using the Gateway 210 Projector
www.gateway.com
Accessories
Gateway offers accessories that can help you make the most of using the
projector. To order accessories, visit the Accessory Store at
accessories.gateway.com.
Carrying cases
Gateway has large-capacity carrying cases if you need additional space for
accessories or supplies.
Ceiling mount kits
Gateway has ceiling mounting kits available that let you mount the projector
to the ceiling.
M1DA cable kit
Gateway has a M1DA cable kit that lets you connect the projector to:
■Your computer without the video adaptor
■High-end HD-compatible video equipment
Network module
Gateway has a network module that attaches to the projector so you can access
and run presentations from your local network.
Portable projection screens
Gateway has portable projection screens available so you can get the best
display possible in any room.
Replacement lamps
Gateway has the correct replacement lamps for the projector. Lamps should be
replaced every 1500 hours of operation. See “Changing the lamp module” on
page 35 to learn how to replace the lamp module.
41
Troubleshooting
www.gateway.com
Troubleshooting
First steps
Try these things first:
■Make sure that the power cable is connected to the projector and an
AC outlet and that the AC outlet is supplying power.
■If you use a power strip, make sure that it is turned on.
■Make sure that all components are connected correctly and securely. To
make sure that all component connections are correct, see “Connecting
components” on page 20.
■See the troubleshooting section of this guide.
If the suggestions in the Troubleshooting section of this guide does not correct
the problem, contact Gateway Technical Support at 800-846-2303.
Before calling Gateway Technical Support:
■Have your customer ID, serial number, and order number available, along
with a detailed description of your problem, including the exact text of
any error messages, and the steps you have taken.
■Make sure that the projector is nearby at the time of your call. The
technician may have you follow troubleshooting steps.
Warning To avoid bodily injury, do not attempt to troubleshoot the
projector problem if:
■Power cord or plug are damaged
■Liquid has been spilled into the projector
■The projector was dropped
■The projector case was damaged
Instead, unplug the projector and contact a qualified
service technician.
42
Using the Gateway 210 Projector
www.gateway.com
Common problems and solutions
No power
■Make sure that the power cable is connected to the projector and an
AC outlet and that the AC outlet is supplying power.
■Wait 120 seconds after the projector fan stops before starting the projector
again.
No picture
■Make sure that you removed the lens cap.
■Press the Source button on the remote control to select the correct video
input source. For more information, see “Remote front” on page 16.
■Make sure that all components are connected correctly and securely. To
make sure that all component connections are correct, see “Connecting
components” on page 20.
■If you are connected to a notebook, make sure that the notebook’s display
settings were changed so the display image is viewed through the projector.
See the documentation that came with your notebook for information
about changing display settings.
■Access the OSD menus to adjust the brightness and contrast. For more
information, see “OSD options” on page 30.
No sound
■Make sure that all components are connected correctly and securely. To
make sure that all component connections are correct, see “Connecting
components” on page 20.
43
Troubleshooting
www.gateway.com
Display image is wider on the top or bottom
■Press the button on the remote control to adjust the display image.
For more information, see “Remote front” on page 16.
■Reposition the projector to get a better angle on the projection screen.
Display image is poor or blurred
■If the projector is connected to your computer, press the Auto button on
the remote control to automatically adjust the display image to the ideal
settings for the display source.
■Use the focus ring to manually focus the display image.
■Use the OSD menus to adjust the image settings. For more information,
see “OSD options” on page 30.
■Reposition the projector to get a better angle on the projection screen.
Remote control does not work
■Make sure that you are less than 29.5 feet (9 meters) of the infrared remote
sensors on the front and back of the projector.
■Make sure that nothing is blocking the infrared remote sensors on the top
of the projector.
■Replace the batteries in the remote control. For information on replacing
the batteries, see “Remote control” on page 15.
44
Using the Gateway 210 Projector
www.gateway.com
Specifications
Specifications are subject to change without notice or obligation.
Model Gateway 210 projector
Resolution 1024 × 768 XGA
Aspect ratio 4:3 or 16:9
Brightness 1500 lumens
Zoom ratio 1.2:1
Lamp 150 W VIP lamp
Power supply AC 100 ~ 240 V, 2.2 A, 50/60 Hz (automatic)
Power consumption 220 W (max.)
Dimensions (W×H×D) 9.01 × 2.72 × 7.60 inches (229 × 69 × 193 mm)
Weight 3.5 lbs (1.6 Kg)
Operating temperature 41°F ~ 95°F (5°C ~ 35°C)
Certifications UL 1950
45
Specifications
www.gateway.com
Display size chart
Many products for Gateway and its subsidiaries are custom engineered by our
suppliers to Gateway specifications and may vary from similarly marketed
products.
Distance to Screen Minimum Display Size Maximum Display Size
55 inches (1.4 m) 35 inches (0.89 m) 41 inches (1.04 m)
78 inches (2.0 m) 49 inches (1.25 m) 58 inches (1.47 m)
157 inches (4.0 m) 99 inches (2.52 m) 116 inches (2.95 m)
236 inches (6.0 m) 149 inches (3.79 m) 174 inches (4.42 m)
393 inches (10.0 m) 248 inches (6.30 m) 290 inches (7.37 m)
46
Using the Gateway 210 Projector
www.gateway.com
47
Safety,
Regulatory, and
Legal Information
Important safety
information
The Gateway projector is designed and tested to meet the latest standards
for safety of information technology equipment. However, to ensure safe
use of this product, it is important that the safety instructions marked on
the product and in the documentation are followed.
Warning Always follow these instructions to help
guard against personal injury and damage
to the Gateway projector.
Warning Laser Radiation – Do not stare into the laser
beam.
48
Appendix : Safety, Regulatory, and Legal Information
www.gateway.com
Setting up the projector
■Read and follow all instructions marked on the product and in the documentation before you
operate the projector. Retain all safety and operating instructions for future use.
■Do not use this product near water or a heat source such as a radiator.
■Set up the projector on a stable work surface.
■The product should be operated only from the type of power source indicated on the rating label.
■If the projector is connected to a computer, make sure that the voltage selector switch is in the
proper position for your area. The voltage selector switch is set at the factory to the correct
voltage.
■Openings in the projector case are provided for ventilation. Do not block or cover these
openings. Make sure you provide adequate space, at least 6 inches (15 cm), around the projector
for ventilation when you set up your work area. Never insert objects of any kind into the
ventilation openings.
■Some products are equipped with a three-wire power cord to make sure that the product is
properly grounded when in use. The plug on this cord will fit only into a grounding-type outlet.
This is a safety feature. If you are unable to insert the plug into an outlet, contact an electrician
to install the appropriate outlet.
■If you use an extension cord with this projector, make sure that the total ampere rating on the
products plugged into the extension cord does not exceed the extension cord ampere rating.
■If the projector is connected to a product fitted with a TV Tuner, cable, or satellite receiver card,
make sure that the antenna or cable system is electrically grounded to provide some protection
against voltage surges and buildup of static charges.
Care during use
■Do not walk on the power cord or allow anything to rest on it.
■Do not spill anything on the projector. The best way to avoid spills is to avoid eating and
drinking near the projector.
■When the projector is turned off, a small amount of electrical current still flows through the
projector. To avoid electrical shock, always unplug all power cables from the wall outlets and any
other cable connections before cleaning the projector.
■Unplug the projector from the wall outlet and refer servicing to qualified personnel if:
■The power cord or plug is damaged.
■Liquid has been spilled into the projector.
■The projector does not operate properly when the operating instructions are followed.
■The projector was dropped or the projector case is damaged.
■The projector performance changes.
Replacement parts and accessories
Use only replacement parts and accessories recommended by Gateway.
Important Do not use Gateway products in areas classified as
hazardous locations. Such areas include patient care
areas of medical and dental facilities, oxygen-laden
environments, or industrial facilities.
49
Regulatory compliance statements
www.gateway.com
Regulatory compliance
statements
United States of America
Federal Communications Commission (FCC)
Unintentional emitter per FCC Part 15
This device has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio or television reception. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause
interference to radio and television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
■Reorient or relocate the receiving antenna
■Increase the separation between the equipment and receiver
■Connect the equipment to an outlet on a different circuit from that to which the receiver is
connected
■Consult the dealer or an experienced radio/TV technician for help.
Compliance Accessories: The accessories associated with this equipment are: shielded video cable
when an external monitor is connected. These accessories are required to be used in order to
ensure compliance with FCC rules.
FCC declaration of conformity
Responsible party:
Gateway Companies, Inc.
610 Gateway Drive, North Sioux City, SD 57049
(605) 232-2000 Fax: (605) 232-2023
Product:
■Gateway 210 projector
This device complies with Part 15 of the FCC Rules. Operation of this product is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired operation.
Caution Changes or modifications not expressly approved by
Gateway could void the FCC compliance and negate your
authority to operate the product.
50
Appendix : Safety, Regulatory, and Legal Information
www.gateway.com
Canada
Industry Canada (IC)
Unintentional emitter per ICES-003
This digital apparatus does not exceed the Class B limits for radio noise emissions from digital
apparatus as set out in the radio interference regulations of Industry Canada.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites
applicables aux appareils numériques de Classe B prescrites dans le règlement sur le brouillage
radioélectrique édicté par Industrie Canada.
Laser Radiation
California Proposition 65 Warning
Warning Laser Radiation – Do not stare into the laser beam.
Warning This product contains chemicals, including lead, known to
the State of California to cause cancer and/or birth defects
or reproductive harm.
51
Notices
www.gateway.com
Notices
Copyright © 2003 Gateway, Inc.
All Rights Reserved
14303 Gateway Place
Poway, CA 92064 USA
All Rights Reserved
This publication is protected by copyright and all rights are reserved. No part of it may be reproduced or
transmitted by any means or in any form, without prior consent in writing from Gateway.
The information in this manual has been carefully checked and is believed to be accurate. However, changes are
made periodically. These changes are incorporated in newer publication editions. Gateway may improve and/or
change products described in this publication at any time. Due to continuing system improvements, Gateway is
not responsible for inaccurate information which may appear in this manual. For the latest product updates,
consult the Gateway Web site at www.gateway.com. In no event will Gateway be liable for direct, indirect, special,
exemplary, incidental, or consequential damages resulting from any defect or omission in this manual, even if
advised of the possibility of such damages.
In the interest of continued product development, Gateway reserves the right to make improvements in this
manual and the products it describes at any time, without notices or obligation.
Trademark Acknowledgments
1-800-GATEWAY, ActiveCPR, ALR, AnyKey, black-and-white spot design, CrystalScan, Destination, DestiVu, EZ
Pad, EZ Point, Field Mouse, Gateway 2000, Gateway Country, gateway.net, Gateway stylized logo, Perfect
Scholar, Solo, TelePath, Vivitron, stylized “G” design, and “You’ve got a friend in the business” slogan are
registered trademarks and black-and-white spotted box logo, GATEWAY, Gateway Astro, Gateway@Work,
Gateway Connected touch pad, Gateway Connected music player, Gateway Cyber:)Ware, Gateway
Education:)Ware, Gateway Flex Case, Gateway Gaming:)Ware, Gateway GoBack, Gateway Gold, Gateway
Learning:)Ware, Gateway Magazine, Gateway Micro Server, Gateway Money:)Ware, Gateway Music:)Ware,
Gateway Networking Solutions, Gateway Online Network (O.N.) solution, Gateway Photo:)Ware, Gateway
Professional PCs, Gateway Profile, Gateway Solo, green stylized GATEWAY, green stylized Gateway logo,
Gateway Teacher:)Ware, Gateway Video:)Ware, HelpSpot, InforManager, Just click it!, Learn@Gateway, Kids
BackPack, SERVE-TO-ORDER, Server Watchdog, the Spotted G Gateway Logo and the Spotted G Logo,
SpotShop, Spotshop.com, and Your:)Ware are trademarks of Gateway, Inc. Intel, Intel Inside logo, and Pentium
are registered trademarks and MMX is a trademark of Intel Corporation. Microsoft, MS, MS-DOS, and Windows
are trademarks or registered trademarks of Microsoft Corporation. All other product names mentioned herein are
used for identification purposes only, and may be the trademarks or registered trademarks of their respective
companies.
Macrovision statement
If the projector is connected to a computer that has a DVD drive and an analog TV Out port, the following
paragraph applies:
This product incorporates copyright protection technology that is protected by method claims of certain U.S.
patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of
this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home
and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse
engineering or disassembly is prohibited.
52
Appendix : Safety, Regulatory, and Legal Information
www.gateway.com
www.gateway.com
MAN 210 PROJECTOR USR GDE R0 3/03
Quick Setup
To connect the projector to your computer for a simple presentation:
1. Connect the video adapter to the back of the projector and tighten the
two thumbscrews.
2. Place the projector on a sturdy cart or table close to your computer and
an electrical outlet.
3. Point the projector lens towards a blank wall or projection screen.
4. Plug the VGA cable into the blue VGA port on the back of the video adapter,
then plug the other end into the blue video port on the back of your computer.
5. Plug the power cable into the power connector on the left side of the projector,
then plug the other end into a correctly grounded electrical outlet or surge
protector.
6. Use your computer to control the presentation.
Read this guide for additional information.
