HD2250 22-inch Widescreen LCD Monitor

USERGUIDE

Contents

i

Using Your Gateway Flat-Panel Monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Connecting your monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Connecting video inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Connecting power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Connecting a security cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Setting up the optional speaker bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Starting your monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Adjusting monitor settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Using the EzTouch menu buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Using the shortcut menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Using the main menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Using Picture-in-Picture (PIP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Changing Windows screen settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Changing color depth and screen resolution . . . . . . . . . . . . . . . . . . . . . . . . . .10

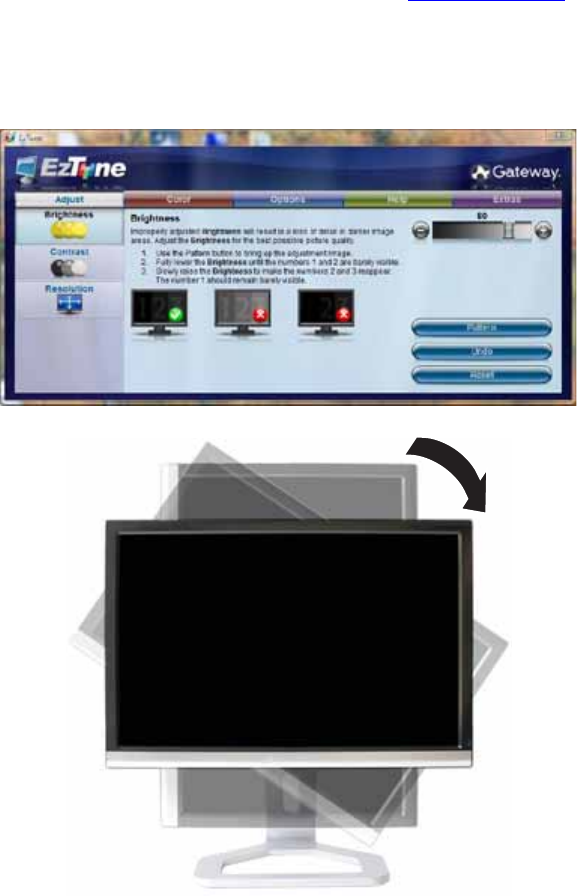

EzTune software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Power management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Energy declaration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Maintaining . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

No power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

No picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Display colors are wrong . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Picture has shadows or “ghosts” . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Color is not uniform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Image is not sized or centered correctly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Your monitor has pixels that are always dark or too bright . . . . . . . . . . . .14

Configuring video settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Gaming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Speaker bar does not work . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

HDCP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

DCDi by Faroudja . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Video modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Safety, Regulatory, and Legal Information. . . . . . . . . . . . . . . . . . . . . . . . . 21

Environmental information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Contents

ii

1

Using Your Gateway

Flat-Panel Monitor

•Connecting your monitor

•Starting your monitor

•Adjusting monitor settings

•Changing Windows screen settings

•Power management

•Maintaining

•Troubleshooting

•Specifications

Using Your Gateway Flat-Panel Monitor

2

Connecting your monitor

To set up your monitor, first unpack the box, unwrap the components, then make your cable

connections.

Connecting video inputs

To connect video sources to your monitor:

1Position your computer and your monitor so you can reach the back of each.

2If your computer has a digital video connector (DVI), connect a DVI video cable (not included)

to the white connector on the display.

- OR -

Connect the blue VGA video cable to the blue VGA video connector on the display.

- OR -

Connect an HDMI cable to the HDMI port on the display, or connect component video cables

to the component video ports on the display.

3Make sure that your computer is turned off, then connect the other end of the video cable

to the matching video port on the back of your computer.

Connecting power

To connect power:

1Position your monitor so you can reach the back, then connect the power cord to the power

connector under the back of your monitor.

2Plug the power cord into a correctly grounded power outlet. We recommend using a surge

protector to protect your monitor from voltage spikes.

Important

For best audio and video performance, we suggest using HDMI. The digital

audio signal is conveyed along the same cable as the digital video cable, and no

additional audio connection is required. You may need to set your video source’s

audio mode to PCM or ANALOG to hear the audio. See your source device’s user

guide for more information.

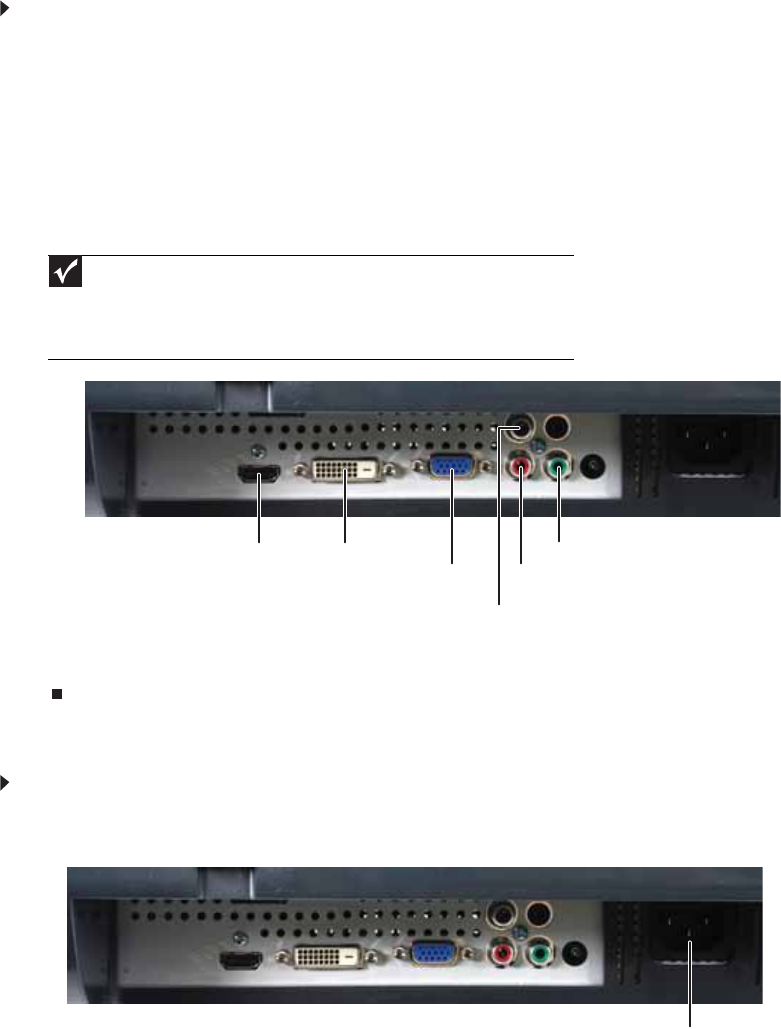

DVI port VGA port Component Pr port

Component Y port

Component Pb port

HDMI port

Power connector

www.gateway.com

3

3To make sure that your monitor’s power is correctly connected, check the power button on

the front button panel. The power icon on the power button should be glowing purple. If

the power icon is not visible, power is not connected.

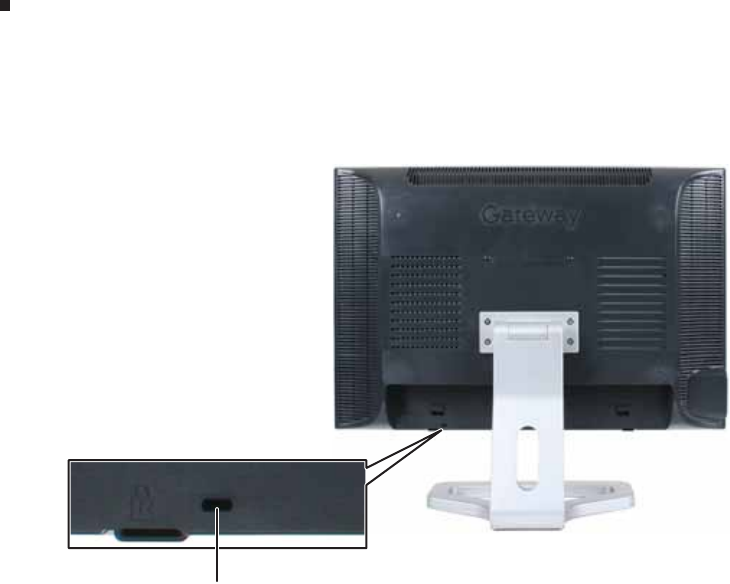

Connecting a security cable

You can secure your monitor to your computer desk (or to another heavy object) with a cable lock.

To connect a cable lock, follow the cable lock’s instructions to connect it to the Kensington lock

slot on the back of your monitor (cable lock not included).

Kensington lock slot

Using Your Gateway Flat-Panel Monitor

4

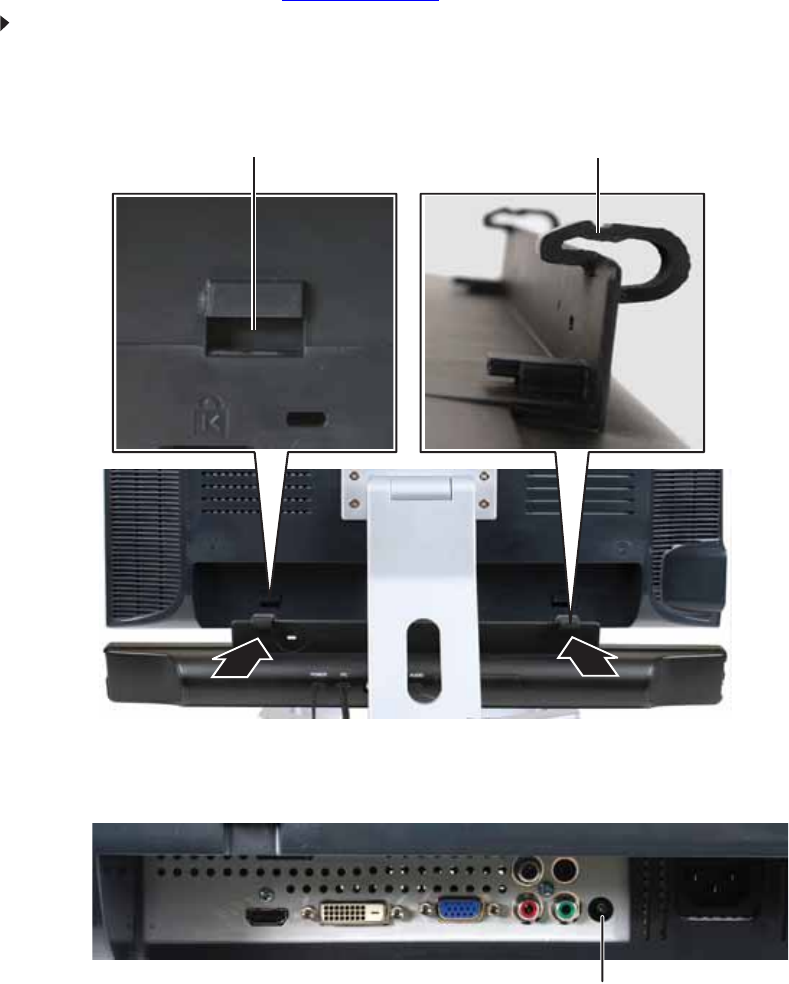

Setting up the optional speaker bar

In the United States, an optional speaker bar is available for mounting underneath your monitor.

You can order a speaker bar from www.gateway.com.

To install the speaker bar:

1Turn off your monitor.

2Tilt the screen back, then match the mounting clips on each side of the speaker bar with

the mounting slots underneath your monitor.

3Slide the speaker bar onto the bottom of your monitor until it snaps into place. Make sure

that it is secure by pulling it downward.

4Plug the speaker bar’s power plug into the power connector on your monitor.

Mounting slot Mounting clip

Speaker bar power connector

www.gateway.com

5

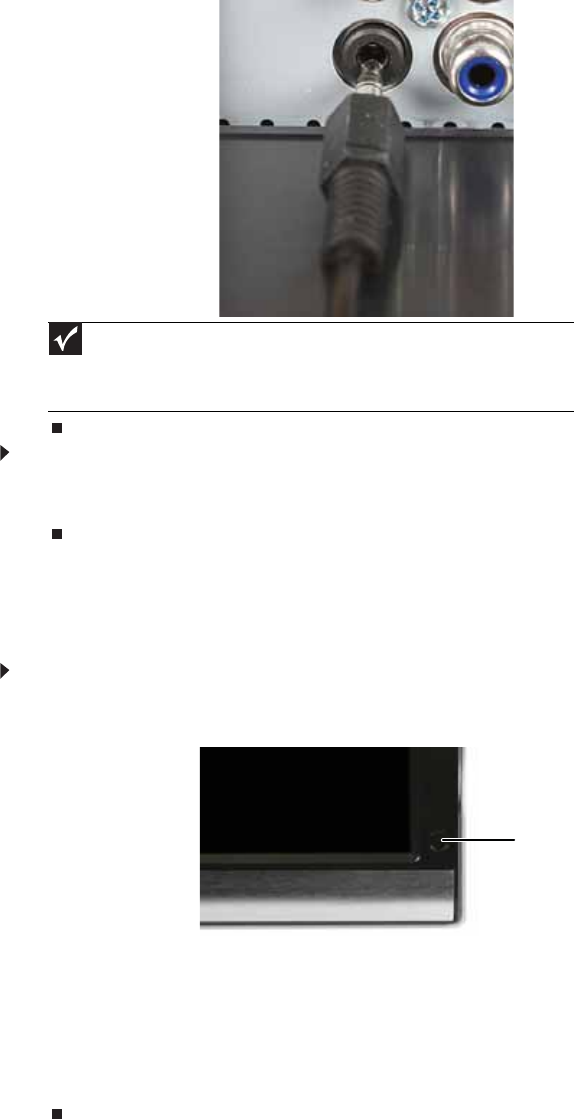

5Plug the speaker bar’s audio plug into the audio jack on your monitor.

To remove the speaker bar:

1Disconnect all audio and power cables from the speaker bar.

2Press the two clips on the back of your monitor, then slide the speaker bar back.

Starting your monitor

To start your monitor:

1Touch the power button on the front of monitor. The power LED on the power button changes

from purple (off) to orange (standby).

2Turn on your computer. After your computer is running, the power LED on your monitor’s

power button should be blue. Allow about 10seconds for the display image to appear. If

the power LED is not blue or you do not see a display image, check the connections. For

more troubleshooting information, see “Troubleshooting” on page 12.

3Adjust the tilt of your monitor for the best viewing angle.

4Use the on-screen display (OSD) to adjust other monitor settings. For more information, see

“Adjusting monitor settings” on page 6.

Important

For best audio performance, if your video connection uses HDMI, the digital

audio is also conveyed along the same cable, and no additional audio connection is

required. You may need to set your video source’s audio mode to PCM or ANALOG

to hear the audio. See your source device’s user guide for more information.

Power button

Using Your Gateway Flat-Panel Monitor

6

Adjusting monitor settings

Use your monitor controls (located on your monitor itself) and computer controls (accessible

through Windows) to adjust the display image. For more information about computer controls, see

“Changing Windows screen settings” on page 10.

Using the EzTouch menu buttons

This monitor features an on-screen display (OSD) and EzTouch menu buttons that let you adjust

contrast, brightness, and other settings for your monitor. Your monitor saves changes you make

to the settings, even if you turn off your monitor.

Your monitor has two levels of menus, and the functionality of the touch buttons depends on the

menu that is currently open:

•The shortcut menu lets you quickly change some of the most commonly adjusted settings.

•The main menu lets you precisely adjust all levels of settings.

Using the shortcut menu

To use the shortcut menu:

1Touch Menu on the front of your monitor. The rest of the button icons light up and the

shortcut menu opens.

2To use an EzTouch menu button, lightly touch its icon. For adjusting a setting’s values, you

can touch and hold touch buttons as you would conventional buttons.

•Touch Input Select to select an available video source.

•Touch Auto (VGA mode) or Video Adjust (DVI, HDMI, and component modes) to adjust

your display image to the ideal settings.

•Touch PIP On to turn on Picture-in-Picture, and touch PIP Off to turn it off.

•Touch Cancel to exit the shortcut menu.

•Touch Main Menu to open the main menu.

•To turn off the button icons and close the menu, wait about ten seconds without touching

a button.

PIP On/PIP Off

VGA mode: Auto

DVI, HDMI, and Component mode: Video Adjust

Input Select

Cancel

Main Menu

www.gateway.com

7

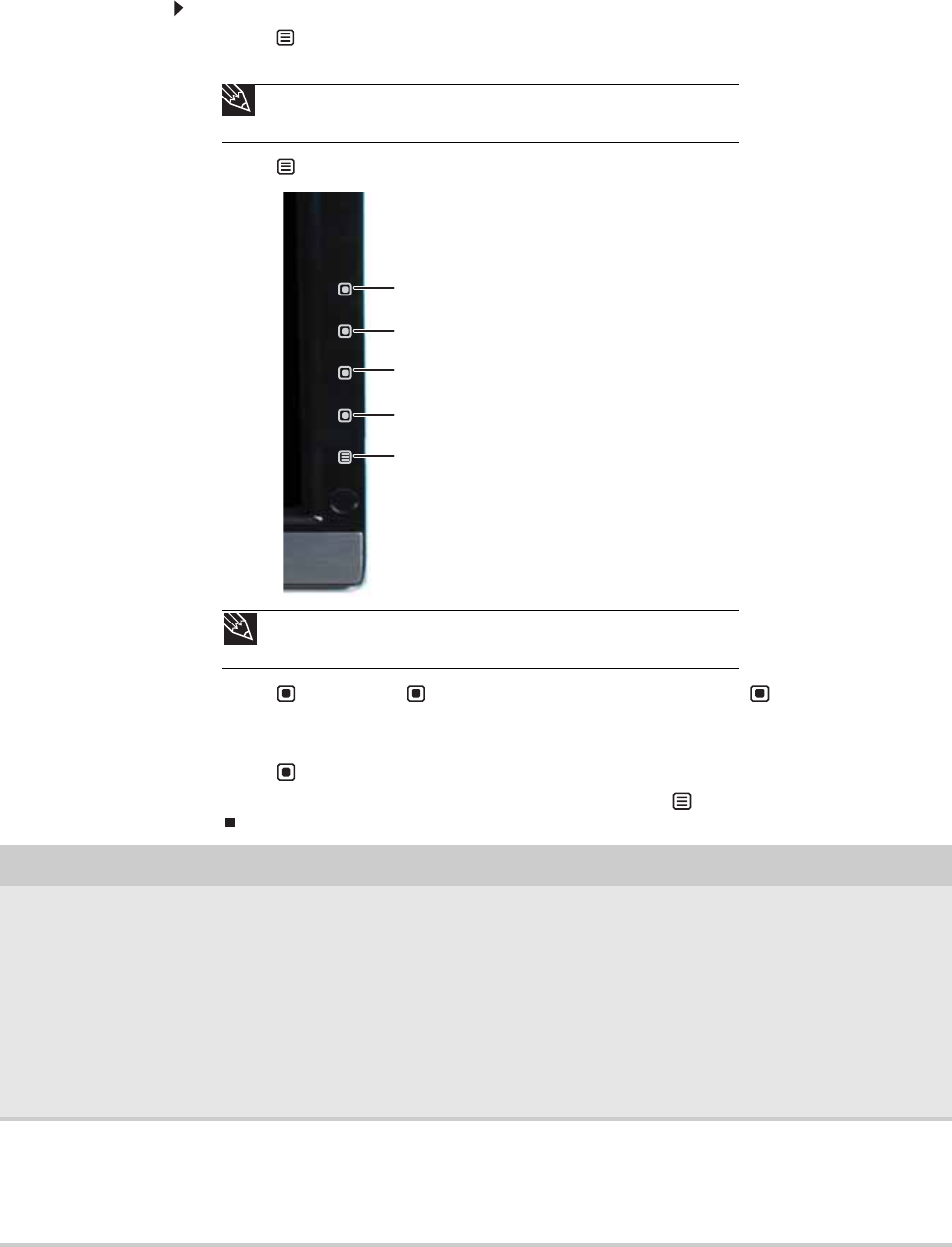

Using the main menu

To use the main menu:

1Touch Menu on the front of your monitor. The rest of the button icons light up and the

shortcut menu opens.

2Touch Main Menu. The main menu opens.

3Touch Previous or Next to highlight a setting, then touch Select to open the

selected menu or setting.

4Touch the indicated buttons to adjust the setting or change theoption.

5Touch Back to return to a previous menu.

6When you have finished making all adjustments, touch Menu Off to exit.

Tip

To use a button, lightly touch its icon. For adjusting a setting’s values, you can

touch and hold touch buttons as you would conventional buttons.

Tip

While the OSD is active, on-screen labels appear next to the buttons to help

you identify them.

OSD Menu Description

Main menu

Auto—Automatically adjusts the picture to optimum settings. (VGA mode only)

Picture—Opens the Picture menu, where you can adjust brightness, contrast, and gamma.

PIP Settings—Opens the PIP Settings menu, where you can adjust the source, position, size, and

transparency of the Picture-in-Picture image.

Video adjust—Opens the Video Adjust menu, where you can adjust the sharpness, video scaling, overscan,

noise reduction, film mode detection, and auto video enhance values of the video image from a source

such as component video.

Geometry—Opens the Geometry menu, where you can adjust image size and minimize distortions. (VGA

mode only)

Advanced—Opens the Advanced menu, where you can adjust color balance, change the OSD language,

and display information about current monitor settings.

Reset—Resets your monitor to the factory settings for the currently selected video source.

Picture menu

Brightness—Adjusts the amount of light in the darkest portion of the picture. Use the lowest brightness

setting you are comfortable with to maximize the life of the monitor backlights. You may need to readjust

brightness after your monitor warms up.

Contrast—Adjusts the level of white between the lightest and darkest portions of an image.

Gamma—Customizes the gamma level. High gamma levels increase white levels and low gamma levels

increase contrast.

Back (in submenus only)

Menu Off

Next

Previous

Select

Using Your Gateway Flat-Panel Monitor

8

PIP Settings menu

PIP Display—Toggles the display of the PIP window.

Source—Sets the source of the video used in the PIP window.

Position—Sets the position of the PIP window on the main screen.

Size—Sets the size of the PIP window.

Transparency—Sets the transparency of the PIP window. The PIP window can be from almost transparent

to completely opaque. When the PIP window is transparent, you are able to see through the PIP video

display to your Windows desktop, which makes it easier to access your computer programs while watching

video.

Swap—Switches the PIP image to the main image, and the main image to the PIP image.

PIP Picture—Opens a menu where you can set the PIP brightness, contrast, saturation, and tint/hue.

Video Adjust menu

Unless otherwise indicated, these settings apply only to SD (standard definition) video at 480i and below.

Where “PC input” is indicated, the resolutions that apply are from 800× 600 to 1680 × 1050.

Sharpness—Adjusts sharpness for video images.

Video Scaling—Sets video aspect ratios and scaling between Wide, Zoom, 1:1, and Panoramic modes.

PCinput: sets resolution aspect ratios and scaling between Wide, Zoom, and 1:1.

Wide mode stretches a standard broadcast or full-frame image to fill the entire

screen. Widescreen (1.76:1) images fill the entire screen without distortion, while

widescreen (1.85:1 and 2.35:1) images appear without distortion but with black

bars at the top and bottom. PC input: Stretches the image to fit the entire screen.

Zoom mode crops off a portion of a widescreen image in order to fill the entire

screen with a distortion-free and black bar-free image. PCinput: Zooms the

image to fill the screen from top to bottom with black bars on the left and right

sides of the image.

1:1 mode preserves a movie’s original aspect ratio, so a standard broadcast or

full-frame movie appears with black bars on the left and right of the image. PC input:

Preserves the original aspect ratio of the resolution by using black bars on the left

and right sides and variable sizes of black bars on the top and bottom of the image

(depends on resolution).

Panoramic mode uses selective distortion to stretch a standard broadcast or

full-frame image to fill the entire screen. Unlike Wide mode, Panoramic mode

stretches only the left and right sides of the image, and leaves the center of the

image distortion free.

Overscan—A video signal is often displayed slightly cut off at all edges. If

overscan is turned off, you may notice video anomalies on the edges of the video being displayed. This is

normal and is part of the data embedded in any broadcast video signal. To avoid seeing these anomalies,

turn Overscan on. (Component and HDMI video only)

Noise Reduction—Uses noise reduction filters that adapt to the amount of noise and motion from the

video source.

Film Mode Detection—Film Mode Detection detects frame rates of the source image and adapts the frame

rate of the display for ultimate image quality.

Bad Edit Detection and Correction—corrects incorrectly synchronized video.

Auto Video Enhance—Enables DCDi, Cross Color Reduction, and MADI for optimized video performance.

DCDi by Faroudja—Directional Correlation De-interlacing reduces jagged edge artifacts on diagonal lines.

Cross Color Reduction—Reduces cross-color artifacts, such as unintentional flashing colors or rainbow

patterns, that result from some types of video signals.

MADI—Motion-Adaptive De-Interlacing ensures a more static (flicker-free) display image for image sections

not containing moving elements, and ensures smoother edges for moving elements.

OSD Menu Description

www.gateway.com

9

Using Picture-in-Picture (PIP)

Picture-in-Picture (PIP) is a convenient way to view video from multiple video sources at the same

time. Refer to the following chart to determine which combinations of video sources can be used

as a PIP display.

Only 480i component (Y Pb Pr) video can be used with VGA as a PIP. With this combination, the Swap feature is not available. To switch

to full-screen component video when 480i content is used as a PIP, touch the Input Select button in the Shortcut menu.

If a 480p source is input to the Y Pb Pr jacks and Y Pb Pr is a PIP display within a VGA main display, the PIP image will be distorted.

Change the output of your external Y Pb Pr device to 480i if PIP is required with VGA to eliminate the PIP distortion. For more

information, see your Y Pb Pr device’s user guide.

** For some video resolutions, refresh rates, and video scaling modes, PIP may not be allowed. If you receive a message that PIP is not

available, try the following:

■Adjust the refresh rate in Windows to 60 Hz. See Windows online Help for more information.

■Adjust the video scaling mode to Wide on your monitor.

■Change the resolution of the Windows desktop to match your monitor’s full resolution of 1680 × 1050. For more information see

“Changing color depth and screen resolution” on page 10.

Geometry menu

(VGA mode only)

H Position—Moves the display image left and right.

V Position—Moves the display image up and down.

Clock—Minimizes any vertical bars or stripes visible on the screen background. The horizontal screen size

will also change.

Phase—Minimizes any horizontal distortion and clears or sharpens the displayed characters.

Advanced menu

Color—Customizes the color levels.

Language—Changes the language of the OSD.

LED Mode—Changes the brightness of the Standby and Power LED to Day Mode or Nite Mode. When

watching movies in a darkened room, you may want to change the LED mode to Nite Mode to avoid an

over-bright, distracting power LED indicator.

DVI Video mode—Changes the DVI video mode by enabling either RGB Color Space (used for digital input)

and YUV Color Space (used for analog TV input such as NTSC, PAL, and SECAM).

Information—Displays current screen resolution and input source for the main display.

Resolution reminder—If the computer display resolution (VGA and DVI) is not set to 1680 × 1050, displays

a reminder that you should change your computer’s settings to use the optimum 1680× 1050 resolution.

If you prefer using your monitor at a resolution less than 1680×1050, use this option to turn off the

Resolution Reminder. For information on changing your computer’s display resolution, see “Changing

Windows screen settings” on page 10.

UltraResponse—If you experience video quality problems with shadows in fast-moving images, you can

disable this to return to the display’s native response time.

Reset All—Resets all values to the factory settings.

Main display

PIP display

VGA** DVI** Component (Y Pb Pr) HDMI

VGA -OK No OK

DVI OK - OK No

Component (Y Pb Pr) No OK -OK

HDMI OK No OK -

OSD Menu Description

Using Your Gateway Flat-Panel Monitor

10

Changing Windows screen settings

Adjusting the color depth and screen area are two of the most basic display settings you may need

to change. You can also adjust settings such as the screen background and screen saver.

Changing color depth and screen resolution

Color depth and screen resolution are two of the most basic monitor settings you may need to

change to suit your needs.

Color depth is the number of colors your computer uses to display images on your monitor. Most

images look best displayed with the maximum number of colors available. If the color in your

images seems “false” or “jumpy,” especially after you have played a game or run a video-intensive

program, check the color depth setting and return it to the highest color setting, if necessary.

Screen resolution is the number of pixels (individual colored dots) your computer uses to display

images on your monitor. The higher the resolution, the more information and screen components

(such as icons and menu bars) can be displayed on your monitor.

To change the color depth or screen resolution in Windows Vista:

1Click (Start), Control Panel, then under Appearance and Personalization, click Adjust

Screen Resolution. The Display Settings dialog box opens.

2To change the color depth, click the Colors list, then click the color depth you want.

•Low (8-bit) = 256 colors

•Medium (16-bit) = 65,500 colors

•Highest (24-bit) = 16,700,000 colors

3To change the screen resolution, drag the Resolution slider to the size you prefer.

4Click Apply. If the new settings do not look right, click No. If the new settings make the screen

illegible and you cannot click No, the settings return to their previous values after several

seconds.

5Click OK, then click Yes to save your changes.

To change the color depth or screen resolution in Windows XP:

1Right-click any empty space on the desktop, then click Properties. The Display Properties

dialog box opens.

2Click the Settings tab.

3To change the color depth, click the arrow button to open the Color quality list, then click

the color depth you want.

•Low (8-bit) = 256 colors

•Medium (16-bit) = 65,500 colors

•Highest (24-bit) = 16,700,000 colors

4To change the screen resolution, drag the Resolution slider to the size you prefer.

5Click OK, then click Yes.

Help

For more information about adjusting the screen, click Start, then click Help and

Support. Type adjusting monitor settings in the Search Help box, then press ENTER.

www.gateway.com

11

EzTune software

When installed onto your computer, EzTune™ software (included on CD) lets you control many of

the monitor settings from your computer. With EzTune, you can:

•Change the orientation of the image (landscape to portrait). (Requires the optional

height-adjustable stand available in the United States at www.gateway.com.)

•Change brightness, contrast, and color balance

•Change screen geometry

•Set the display position and resolution

For more information, see the program’s CD or the installed program’s online help.

Using Your Gateway Flat-Panel Monitor

12

Power management

Energy declaration

When connected to a computer that supports the VESA Display Power Management Signaling

(DPMS) Protocol, your monitor can conserve significant energy by reducing power consumption

during periods of non-use. When your computer goes into the energy saving mode, your monitor

will then enter the Active Off mode (sleep). In the Active Off mode the Power LED will still show

orange.

Use these conventions and the power can be reduced to the following levels:

To “wake” your monitor when it is in Standby/ActiveOff mode, move the mouse or press any

keyboard key.

You can change your monitor’s power management settings using the Windows Control Panel. For

more information, see your computer’s User Guide.

Maintaining

To keep your monitor in optimal working order:

•Do not block the ventilation holes.

•Do not expose your monitor to rain or use near water.

•Keep your monitor away from radiators or heat vents.

•Keep your monitor out of direct sunlight.

•To clean your monitor, use a soft cloth slightly moistened with water only. Wipe the cabinet,

screen, and controls.

Troubleshooting

If you have problems with your monitor, the information in this troubleshooting section may help

you solve them.

No power Make sure that the power cord is connected correctly to both the back of your monitor and the

power outlet. For more information about connecting the power cord, see “Connecting your

monitor” on page 2.

VESA State LED Indicator Power Consumption

On Blue <55 W

Standby Orange <2 W

Off Purple <1 W

Caution

Do not use any type of abrasive pad or glass cleaner. You will permanently

scratch the screen.

Important

Make sure that your monitor has warmed up for approximately 30 minutes before

making any judgments about the picture quality.

www.gateway.com

13

No picture •Touch Menu, then Input Select to make sure that you have selected the correct video

source.

•Make sure that the power cord is connected correctly to both the back of your monitor and

the power outlet. For more information about connecting the power cord, see “Connecting

power” on page 2.

•Make sure that the video cable is connected securely to the back of your monitor and

computer. For more information about connecting the video cable, see “Connecting video

inputs” on page 2.

•Make sure that your monitor is turned on.

•If the power LED is orange:

•Make sure that your computer is turned on.

•Move the mouse or press any key on the keyboard to bring your monitor out of sleep

mode.

•Restart your computer with your monitor turned on.

•Make sure that the video cable is not damaged.

•Check the end of the video cable for any pins that might be bent or pushed in.

•Turn off your monitor and unplug the video cable from the back of your computer. Turn

your monitor back on and wait for ten seconds. If your monitor is functioning correctly, a

“No Signal” message appears. For more information about connecting the video cable, see

“Connecting video inputs” on page 2.

Display colors are wrong

•Touch Menu, Main Menu, then touch Auto to automatically adjust the display

image to the ideal settings. (VGA mode only)

•Restart your computer with your monitor turned on.

•Make sure that the video cable is connected securely to the back of your monitor and your

computer. For more information about connecting the video cable, see “Connecting video

inputs” on page 2.

•Make sure that the video cable is not damaged.

•Check the end of the video cable for any pins that might be bent or pushed in.

Picture has shadows or “ghosts”

•Touch Menu, Main Menu, then touch Auto to automatically adjust the display

image to the ideal settings. (VGA mode only)

•Remove any extension cables or switchboxes.

•Make sure that the video cable is connected securely to the back of your monitor and your

computer. For more information about connecting the video cable, see “Connecting video

inputs” on page 2.

•Make sure that the video cable is not damaged.

•Check the end of the video cable for any pins that might be bent or pushed in.

•Make sure that your monitor connection is using the VGA cable that came with your monitor.

Color is not uniform

•Touch Menu, Main Menu, then touch Auto to automatically adjust the display

image to the ideal settings. (VGA mode only)

•Make sure that your monitor warms up for at least 30 minutes before making a final

judgment about color uniformity or brightness.

Using Your Gateway Flat-Panel Monitor

14

Image is not sized or centered correctly

•Touch Menu, Main Menu, then touch Auto to automatically adjust the display

image to the ideal settings. (VGA mode only)

•Use the position controls to adjust the image. For instructions on how to adjust the display

image position, see “Adjusting monitor settings” on page6.

Your monitor has pixels that are always dark or too bright

•This condition is normal and inherent in the TFT technology used in active-matrix LCD

screens. Gateway’s inspection standards keep these to a minimum. If you feel these pixels

are unacceptably numerous or dense on your display, contact Gateway Customer Care to

identify whether a repair or replacement is justified based on the number of pixels affected.

Configuring video settings

The image looks stretched or fuzzy when you connect your monitor to your computer.

•You must adjust the operating system’s display settings to match your monitor’s optimal

(native) 1680 × 1050 setting. For information on adjusting settings in Windows, see

“Changing color depth and screen resolution” on page 10.

You do not see 1680 × 1050 available in the Windows display control panel.

•Make sure that your video card can display at 1680 × 1050 resolution.

•This may be caused by older video drivers on your computer. See the Gateway support Web

site (www.gateway.com) for updated video drivers for your computer. You can also go

directly to your video card’s support Web site for the most up-to-date video drivers. The Web

sites for the major video card manufacturers are:

ATI®: www.ati.com

Intel®: www.intel.com

Nvidia®: www.nvidia.com

When you run your games, you do not see support for widescreen displays.

•Newer games are adding support for widescreen displays as the widescreen format becomes

more popular. Check the game’s Web site for updates. You can also consult the following

Web site for specific settings and options to configure older games to support widescreen:

www.widescreengamingforum.com.

Some adjustments may require you to make changes to the Windows System Registry. We

recommend making a complete system backup before changing the System Registry.

When you display video from a component video source, the video looks overly compressed.

•See your video device’s user manual to adjust the video or TV format output to 16:9. Setting

this option to 4:3 results in compressed video. This is done differently on all brands of video

devices, so it is important that you read your video device’s user guide or the help tools

within your video device’s software.

You see black bars on left and right of the video.

•Touch Menu, Video Adjust, then touch Video Scaling. To fill more of the screen,

choose Wide, Zoom, 1:1 (normal), or Panoramic modes.

When you try to use Picture in Picture (PIP) component video at 480p, 720p, or 1080i, either

no video is displayed or you see corrupted video.

•This is a normal operation of your monitor. If you want to view component video in PIP, adjust

the video output of your external device to 480i.

www.gateway.com

15

You need to know whether you can connect the HDMI output of your external video device

to the DVI port of your monitor.

•Yes, you can. When using the digital connection, your video content remains completely

digital from your external video device (such as a cable box, HD DVR, or DVD player). This

results in a superior digital image. Also, in this configuration the PIP can support the input

of all HD resolutions.

Gaming

You need to know whether you can connect your game console to this monitor.

•Yes, you can, if your game console supports HDMI or component video. Using optional video

cables, you can connect your game console directly to your monitor. If your game console

supports Component (YPbPr), this results in the best picture quality.

Speaker bar does not work

I installed the speaker bar, but no sound is coming out of the speakers.

•Make sure that the speaker bar power cord is plugged into the speaker bar power connector

under your monitor.

•Check the position of the audio input selection switch on the left side of the speaker bar.

•If you are using HDMI as the audio and video source, make sure that the HDMI audio cable

is connected to the HDMI audio output on your monitor. Also make sure that your HDMI audio

source is set to PCM or Analog audio.

I checked all the connections, but I still do not get any sound.

•Your headphone/speaker jack may have been muted using Windows sound controls. To

check your headphone/speaker mute settings, click the speaker icon in the Windows taskbar,

or click Start, Control Panel, Sounds and Audio Devices, the Volume tab, then click

Advanced. For optimum volume control using the speaker bar, we recommend that you

set the Windows volume mid-way between the lowest and highest setting.

I want to plug in my headphones, but there is a headphone jack on both sides of the speaker

bar. Which should I use?

•You can use either jack or both jacks at the same time.

The sound coming from the speakers sounds distorted.

•Turn down the volume until the distortion disappears.

•Check the audio output volume of the sound device the speaker bar is connected to. If the

audio device’s output volume is set too high, the speaker bar’s sound may always be

distorted. To adjust the audio device’s output volume, see the device’s user guide. To adjust

the volume in Windows XP, click the speaker icon in the Windows taskbar, or click Start,

Control Panel, Sounds and Audio Devices, the Volume tab, then click Advanced. For

optimum volume control using the speaker bar, we recommend that you set the Windows

volume mid-way between the lowest and highest setting.

I plugged my microphone into the speaker bar’s microphone jack, but my computer cannot

record any sound.

•Make sure that the speaker bar’s pink microphone plug is connected to the microphone jack

on your computer.

•Your microphone jack may have been muted using Windows sound controls. To check your

microphone’s mute settings, click the speaker icon in the Windows taskbar, or click Start,

Control Panel, Sounds and Audio Devices, the Volume tab, then click Advanced.

Important

Although the HDMI interface supports audio, no audio is sent to your monitor. You

must separately connect the audio output of your video device to an external audio amplifier.

Using Your Gateway Flat-Panel Monitor

16

HDCP

What is HDCP and how should you troubleshoot it?

High-bandwidth Digital Content Protection (HDCP) is a specification developed by the Intel®

Corporation to protect digital entertainment content that uses a digital visual interface (DVI).

HDCP encrypts the transmission of digital content (signal) between the video source (computer,

DVD player, or set-top box) and the digital display (monitor, digital television/DTV, or projector).

HDCP is not designed to prevent copying or recording of digital content, but only to protect the

integrity of the content as transmitted.

You see “noise” or “trash” on the screen.

•When your display’s digital capabilities exceed a digital broadcast signal, the signal is

increased (up-converted) to match the display capabilities. Up-converting can cause “noise”

or “trash.” The signal on DVI-D is HDCP encoded. Stop and restart the source to allow

renegotiation.

How HDCP works.

•Implementation of HDCP requires a license obtainable from the Digital Content Protection,

LLC, which then issues a set of unique secret device keys to all authorized devices. During

authentication, the receiving device only accepts content after it acknowledges the keys. To

further prevent stealing of the data or line tapping, the transmitter and receiver generate

a shared secret value that is constantly checked throughout the transmission. After

authentication is established, the transmitter encrypts the data and sends it to the receiver

for decryption.

You lose the signal to the display while watching a movie on a HDCP-equipped component.

•The component must be restarted to establish renegotiation.

For example, while watching a movie on a HDCP-enabled DVD player, you change the

receiving device (DTV, monitor, or projector) input to watch broadcast TV, then change the

input back to watch the DVD movie. However, you are unable to watch the movie. This is

because when the input was changed, the receiver lost the HDCP signal. Restart the

HDCP-enabled DVD player to allow renegotiation.

A movie starts, but then slowly fades to static.

•The receiving device is not HDCP compatible or it is not negotiating correctly. Restart the

video source and re-plug all video cables from the source to the TV.

How to determine whether a component is HDCP compliant.

•If the video source device does not have a DVI or HDMI connection, it is not HDCP compliant.

DCDi by Faroudja

What is DCDi by Faroudja?

DCDi® by Faroudja is a video mode algorithm that stands for Directional Correlation De-Interlacing.

It was initially designed for fast-action video-based material. Its general purpose is to reduce

jagged edges along diagonal lines caused by interpolation. Utilizing this algorithm, DCDi does not

simply weave together two fields of video that match. DCDi creates new information through

interpolation which “smooths” the diagonal edges. DCDi constantly monitors edge transitions and

fills in any of the gaps that need smoothing.

www.gateway.com

17

You have your monitor connected to your notebook’s VGA port, but you see no image on

the screen.

You have two options:

•If your notebook supports dual displays, you can use both your notebook’s display and

this monitor in extended desktop multi-monitor mode. See Windows Help to learn how

to enable multiple monitors.

•You can also use this monitor as your primary monitor and not use the notebook’s

screen. Notebook computers typically have an FN key combination that lets you toggle

between your notebook’s display and an externally attached display. On Gateway

notebooks, this key combination is FN+F4. The F4 key is located along the top row of

keys. See your notebook’s user guide for more information.

Using Your Gateway Flat-Panel Monitor

18

Specifications

Specifications are subject to change without notice or obligation. Many products for Gateway and

its subsidiaries are custom engineered by our suppliers to Gateway specifications and may vary

from similarly marketed products.

Panel size

22 inches (diagonal)

Panel type

22-inch viewable

TFT active matrix TN

High brightness, non-glare

Pixel resolution

1680 ×1050 (native) (60 Hz)

Pixel pitch

0.0111 × 0.0111 inches (0.282 mm × 0.282 mm)

Aspect ratio

16:10

Brightness

300 cd/m2

Contrast ratio

1000:1

Viewing angles

160° horizontal, 160° vertical

Response time

UltraResponse enabled: 4 ms (typical)

UltraResponse disabled: 5 ms (typical)

Frequency

Horizontal: 48-76 KHz

Vertical: 24-83 Hz

Lamp type/life

40,000 -50,000 hours (minimum)

Colors

16.7 million

OSD languages

English, French, Spanish, Italian, Japanese

Connections and inputs

■Analog (VGA): 15-pin mini d-sub VGA

■Digital (DVI-D): 24-pin DVI-D (supports 480i, 480p, 720p, and 1080i)

Includes HDCP (High-bandwidth Digital Content Protection)

■HDMI video (supports 480i, 480p, 720p, and 1080i)

■HDMI audio (output)

■Component Y Pb Pr (supports 480i, 480p, 720p, 1080i, and 1080p)

■AC power input

■Speaker bar power output

Included cables

15-pin mini d-sub analog VGA (right-angle)

Power

Power consumption

Normal operation: <55 W

Standby mode: <2 W

Off: <1 W

Power input

100~240 VAC, 50/60Hz (built-in power supply)

Certifications

CSA, cUS, FCC Class B, CE, VCCI, and TCO’99 where applicable.

Wall mount bracket

VESA 4 × 3.937 inches (4× 100 mm)

Weight

Net weight (with stand): 13.44 lbs. (6.1 kg)

Gross weight (with packaging): 17.85 lbs. (8.1 kg)

Dimensions

20.24×16.85×7.2 inches (514×428×182mm)

Temperature

Operating: 41~95°F (5~35°C)

Storage: -4~140°F (-20~60°C)

Humidity

Operating: 20~80% (non-condensing)

Storage: 5~90% (non-condensing)

www.gateway.com

19

Video modes

Altitude

Operating: 12,000 feet (3,658 m)

Storage: 40,000 feet (12,192 m)

Security

Kensington lock slot

Resolution Horizontal frequency

(kHz) Vertical frequency

(Hz) Available in DVI mode

720 × 400 31.469 70 N

640 × 480 31.469 60 Y

640 × 480 37.9 72 N

640 × 480 37.5 75 N

800 × 600 35.1 56 N

800 × 600 37.879 60 Y

800 × 600 48.1 72 N

800 × 600 46.875 75 N

1024 × 768 48.363 60 Y

1024 × 768 56.5 70 N

1024 × 768 60.123 75 N

1152 × 864 67.5 75 N

1280 × 1024 64 60 Y

1280 × 1024 80 75 N

1440 × 900 55.935 60 Y

1440 × 900 70.635 75 N

1680 × 1050 65.29 60 Y

1680 × 1050 82.3 75 N

Using Your Gateway Flat-Panel Monitor

20

21

Safety, Regulatory, and Legal

Information

•Important safety information

•Environmental information

•Regulatory compliance statements

•Notices

Safety, Regulatory, and Legal Information

22

Important safety information

Your Gateway product is designed and tested to meet the latest standards for safety of information technology equipment. However,

to ensure safe use of this product, it is important that the safety instructions marked on the product and in the documentation are

followed.

Setting up your system

■Read and follow all instructions marked on the product and in the documentation before you operate your system. Retain all safety

and operating instructions for future use.

■Do not use this product near water or a heat source such as a radiator.

■Set up the system on a stable work surface.

■The product should only be operated from the type of power source indicated on the rating label.

■If your product has a voltage selector switch, make sure that the switch is in the proper position for your area. The voltage selector

switch is set at the factory to the correct voltage.

■Openings in the monitor case are provided for ventilation. Do not block or cover these openings. Make sure you provide adequate

space, at least 6 inches (15 cm), around the system for ventilation when you set up your work area. Never insert objects of any kind

into the monitor ventilation openings.

■Some products are equipped with a three-wire power cord to make sure that the product is properly grounded when in use. The

plug on this cord will only fit into a grounding-type outlet. This is a safety feature. If you are unable to insert the plug into an outlet,

contact an electrician to install the appropriate outlet.

■If you use an extension cord with this system, make sure that the total ampere rating on the products plugged into the extension

cord does not exceed the extension cord ampere rating.

Care during use

■Do not walk on the power cord or allow anything to rest on it.

■Do not spill anything on the system. The best way to avoid spills is to avoid eating and drinking near your system.

■Do not expose the monitor to rain or use near water. If the monitor does get exposed to moisture, unplug it and allow it to dry for

24 hours. Call Gateway Customer Care for advice on whether the monitor is safe to turn back on.

■When the monitor is turned off, a small amount of electrical current still flows through the monitor. To avoid electrical shock,

always unplug all power cables and modem cables from the wall outlets before cleaning the system.

■Unplug the system from the wall outlet and refer servicing to qualified personnel if:

■The power cord or plug is damaged.

■Liquid has been spilled into the system.

■The system does not operate properly when the operating instructions are followed.

■The system was dropped or the cabinet is damaged.

■The system performance changes.

Replacement parts and accessories

Use only replacement parts and accessories recommended by Gateway.

Warning

Always follow these instructions to help guard against personal injury and damage to your Gateway product.

Warning

Do not use Gateway products in areas classified as hazardous locations. Such areas include patient care areas

of medical and dental facilities, oxygen-laden environments, or industrial facilities.

Warning

To prevent electric shock, never remove the cover. No user serviceable parts inside. Refer servicing to qualified

service personnel.

www.gateway.com

23

Environmental information

EPA ENERGY STAR®

As an ENERGY STAR Partner, Gateway has determined that this product meets or exceeds the ENERGY STAR 4.0

performance guidelines for computer energy efficiency and power management.

ENERGY STAR Power Management (standard in the Windows operating system) places inactive components (CPU,

hard drives, and other components except memory) into a low-power Sleep mode. Sleep mode uses less energy to

run your computer, saves on your energy costs, and helps protect the environment by reducing greenhouse gas

emissions.

Your computer was shipped with Sleep mode enabled. While your computer is in Sleep mode, the power indicator

flashes. To use your computer after it has entered Sleep mode, move the mouse, press a key on the keyboard, or

press the power button to “wake” it up.

For more information about the power management features of your Gateway desktop computer, see “Changing power-saving

settings” in the online User Guide.

For more information about the power management features of your Gateway notebook, see “Managing Power” in the online

Reference Guide.

Recycling

The product you have purchased contains extracted natural resources that have been used in the manufacturing process. This product

may contain substances known to be hazardous to the environment or to human health.

To prevent releases of harmful substances into the environment and to maximize the use of our natural resources, Gateway provides

the following information on how you can responsibly recycle or reuse most of the materials in your “end of life” product.

Waste Electrical and Electronic Equipment (commonly known as WEEE) should never be disposed of in the municipal waste

stream (residential garbage collection). The “Crossed-Out Waste Bin” label affixed to this product is your reminder to

dispose of your “end of life” product properly.

Substances such as glass, plastics, and certain chemical compounds are highly recoverable, recyclable, and reusable. You

can do your part for the environment by following these simple steps:

■When your electrical or electronic equipment is no longer useful to you, “take it back” to your local or regional waste collection

administration for recycling.

■In some cases, your “end of life” product may be “traded in” for credit towards the purchase of new Gateway equipment. Call

Gateway to see if this program is available in your area.

■If you need further assistance in recycling, reusing, or trading in your “end of life” product, you may contact us at the Customer

Care number listed in your product’s user guide and we will be glad to help you with your effort.

Finally, we suggest that you practice other environmentally friendly actions by understanding and using the energy-saving features of

this product (where applicable), recycling the inner and outer packaging (including shipping containers) this product was delivered in,

and by disposing of or recycling used batteries properly.

With your help, we can reduce the amount of natural resources needed to produce electrical and electronic equipment, minimize the

use of landfills for the disposal of “end of life” products, and generally improve our quality of life by ensuring that potentially

hazardous substances are not released into the environment and are disposed of properly.

For additional recycling information specific to your area, please go to www.mpccorp.com/services/shared/recycle.html.

Help

For more information about Sleep mode in Windows Vista, click Start, then click Help and Support. Type

sleep in the Search Help box, then press ENTER.

Mercury Warning

Lamp(s) inside this product contain mercury and must be recycled or disposed of according to local, state,

or federal laws.

H

g

Safety, Regulatory, and Legal Information

24

Regulatory compliance statements

United States of America

Federal Communications Commission (FCC) Unintentional emitter per FCC Part 15

This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These

limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment

generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio or television reception. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause interference to radio and television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

■Reorient or relocate the receiving antenna

■Increase the separation between the equipment and receiver

■Connect the equipment to an outlet on a different circuit from that to which the receiver is connected

■Consult the dealer or an experienced radio/TV technician for help.

Compliance Accessories: The accessories associated with this equipment are: shielded video cable. These accessories are required to

be used in order to ensure compliance with FCC rules.

FCC declaration of conformity

Model: HD2250

Responsible party:

Gateway, Inc.

7565 Irvine Center Drive

Irvine, CA 92618 USA

This device complies with Part 15 of the FCC Rules. Operation of this device is subject to the following two conditions: (1) this device

may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause

undesired operation.

Canada

Industry Canada (IC) Unintentional emitter per ICES-003

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the radio

interference regulations of Industry Canada.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de

Classe B prescrites dans le règlement sur le brouillage radioélectrique édicté par Industrie Canada.

Caution

Changes or modifications not expressly approved by Gateway could void the FCC compliance and negate

your authority to operate the product.

California Proposition 65 Warning

This product contains chemicals known to the State of California to cause cancer, birth defects, and/or other

reproductive harm. For additional information regarding this product warning, go to www.gateway.com/prop65.

www.gateway.com

25

Notices

© 2007 Gateway, Inc.

All rights reserved.

Gateway, Inc.

7565 Irvine Center Drive

Irvine, CA 92618 USA

All Rights Reserved

This publication is protected by copyright and all rights are reserved. No part of it may be reproduced or transmitted by any means or

in any form, without prior consent in writing from Gateway.

The information in this manual has been carefully checked and is believed to be accurate. However, changes are made periodically.

These changes are incorporated in newer publication editions. Gateway may improve and/or change products described in this

publication at any time. Due to continuing system improvements, Gateway is not responsible for inaccurate information which may

appear in this manual. For the latest product updates, consult the Gateway Web site at www.gateway.com. In no event will Gateway

be liable for direct, indirect, special, exemplary, incidental, or consequential damages resulting from any defect or omission in this

manual, even if advised of the possibility of such damages.

In the interest of continued product development, Gateway reserves the right to make improvements in this manual and the products

it describes at any time, without notices or obligation.

Trademark acknowledgments

Gateway and eMachines are trademarks or registered trademarks of Gateway, Inc. in the United States and other countries. All other

brands and product names are trademarks or registered trademarks of their respective companies.

Safety, Regulatory, and Legal Information

26

MAN HD2250 USR GDE R0 10/07
