ADW1000 Series

GHDA300 Series

GSD1000 Series

GSD2000 Series

GSD3000 Series

GSD4000 Series

GSM2000 Series

HDA1000 Series

HDA2000 Series

HDA3000 Series

Owner’s Manual

Dishwashers

165D4700P343 49-55023 01-07 JR

Safety Instructions . . . . . . . . 2, 3

Operating Instructions

Care and Cleaning . . . . . . . . . . . . . .12

Control Panels . . . . . . . . . . . . . . . . . . .6

Control Settings . . . . . . . . . . . . . . 4–5

Dial Cycles . . . . . . . . . . . . . . . . . . . . . .7

Flashing Display Lights . . . . . . . . . . .8

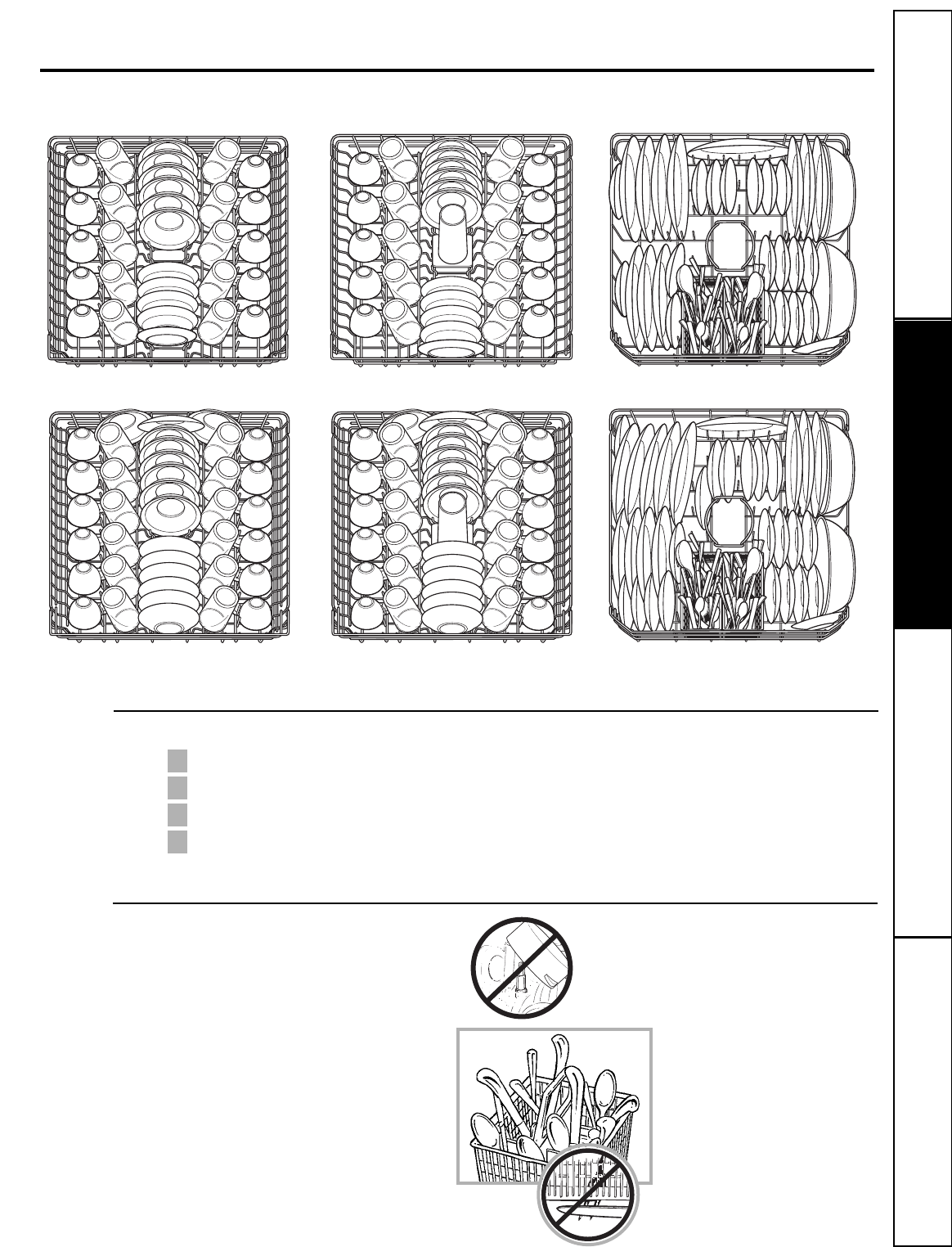

Loading the

Dishwasher Racks . . . . . . . . . . . . . .10

Loading Place Settings . . . . . . . . . .11

Optional Accessories . . . . . . . . . . . .12

Using the Dishwasher . . . . . . . . . .8, 9

Troubleshooting Tips . . . 13, 14

Consumer Support

Consumer Support . . . . . Back Cover

Warranty . . . . . . . . . . . . . . . . . . . . . 15

Write the model and serial

numbers here:

Model #____________________

Serial # ____________________

You can find them on a label on the

tub wall just inside the door.

2

Operating Instructions Safety InstructionsConsumer Support Troubleshooting Tips

IMPORTANT SAFETY INFORMATION

READ ALL INSTRUCTIONS BEFORE USING —

SAVE THESE INSTRUCTIONS

WARNING!

For your safety, the information in this manual must be followed to minimize the risk of fire,

explosion, electric shock, and to prevent property damage, personal injury, or death.

WATER HEATER SAFETY

PROPER INSTALLATION AND MAINTENANCE

This dishwasher must be properly installed and located in accordance with the Installation

Instructions before it is used. If you did not receive an Installation Instructions sheet with

your dishwasher, you can receive one by visiting our website at ge.com.

■Contents washed in Anti-bacterial mode, if

available, may be hot to the touch. Use care

before handling.

■Using a detergent that is

not specifically designed

for dishwashers will cause

the dishwasher to fill with

suds.

■If your dishwasher is connected to a

wall switch, ensure that the switch is

on prior to use.

■On dishwashers with electronic controls,

if you choose to turn the wall switch off

between wash cycles, allow 5-10

seconds after turning the switch on before

touching START/RESET to allow the control

to initialize.

■Non-Dishware Items: Do not wash items such

as electronic air cleaner filters, furnace filters and

paint brushes in your dishwasher. Damage to the

dishwasher and discoloration or staining of the

dishwasher may result.

■Close supervision is necessary if this appliance

is used by or near children.

■Load light, plastic items so they do not

become dislodged and drop to the bottom of

the dishwasher—they might come into contact

with the heating element and be damaged.

■Connect the dishwasher/appliance to a grounded

metal, permanent wiring system; or run an

equipment-grounding conductor with the circuit

conductors and connect to the equipment-

grounding terminal or lead of the appliance.

■Improper connection of the equipment-grounding

conductor can result in a risk of electric shock.

Check with a qualified electrician or service

representative if you are in doubt whether the

appliance is properly grounded.

■Dispose of discarded appliances and shipping

or packing material properly.

■Do not attempt to repair or replace any part

of your dishwasher unless it is specifically

recommended in this manual. All other servicing

should be referred to a qualified technician.

■To minimize the possibility of electric shock,

disconnect this appliance from the power supply

before attempting any maintenance.

NOTE: Turning the dishwasher off does not

disconnect the appliance from the power supply.

We recommend having a qualified technician

service your appliance.

WARNING!

CAUTION: To prevent minor injury and property damage

Under certain conditions, hydrogen gas may be produced in a water heater that has not been used

for two or more weeks. HYDROGEN GAS IS EXPLOSIVE.

If the hot water has not been used for two or more weeks, prevent the possibility of damage or injury

by turning on all hot water faucets and allow them to run for several minutes. Do this before using any

electrical appliance connected to the hot water system. This simple procedure will allow any built-up

hydrogen gas to escape. Since the gas is flammable, do not smoke, use an open flame, or use the appliance

during this process.

Consumer Support

Troubleshooting TipsOperating InstructionsSafety Instructions

3

PROPER DISPOSAL OF THE DISHWASHER

Junked or abandoned dishwashers are

dangerous…even if they will sit for “just a few

days.” If you are getting rid of your old

dishwasher, please follow the instructions below

to help prevent accidents.

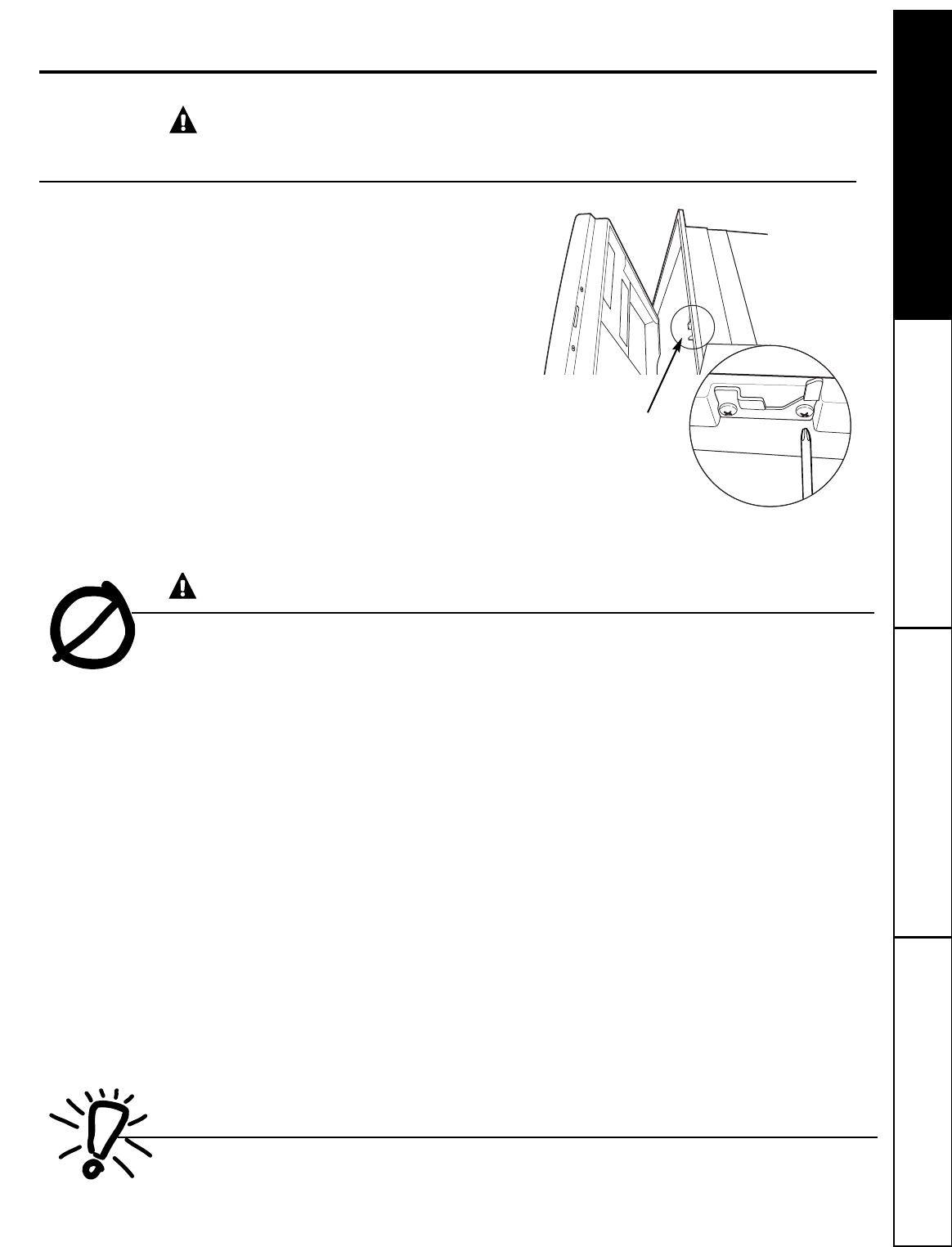

Before You Throw Away Your Old

Dishwasher:

■Take off the door of the washing compartment

or remove the door latch keeper (as shown).

WARNING! RISK OF CHILD ENTRAPMENT

Door latch keeper

ge.com

READ AND FOLLOW THIS SAFETY INFORMATION

CAREFULLY.

SAVE THESE INSTRUCTIONS

■Use this appliance only for its intended purpose

as described in this Owner's Manual.

■Use only powder, tabs, liquid detergents or rinse

agents recommended for use in a dishwasher and

keep them out of the reach of children. Cascade®,

Cascade®Complete and Electrasol®Automatic

Dishwashing Detergents, and Jet-Dry®and

Cascade Crystal Clear®rinse agents have

been approved for use in all GE dishwashers.

■Locate sharp items so that they are not likely

to damage the door seal.

■Load sharp knives with the handles up to reduce

the risk of cut-type injuries.

■Do not wash plastic items unless marked

dishwasher safe or the equivalent. For plastic

items not so marked, check the manufacturer's

recommendations.

■Do not touch the heating element during or

immediately after use.

■Do not operate your dishwasher unless all

enclosure panels are properly in place.

■Do not tamper with controls.

■Do not abuse, sit on or stand on the door or dish

rack of the dishwasher.

■Do not allow children to play around the

dishwasher when opening or closing the door due

to the possibility of small fingers being pinched in

the door.

■Do not discard a dishwasher without first removing

the door of the washing compartment or the latch

keeper.

■Do not store or use combustible materials, gasoline

or other flammable vapors and liquids in the

vicinity of this or any other appliance.

■Do not allow children to play with, on or inside this

or any discarded appliance.

WARNING! When using your dishwasher, follow basic precautions,

including the following:

Operating Instructions Safety InstructionsConsumer Support Troubleshooting Tips

4

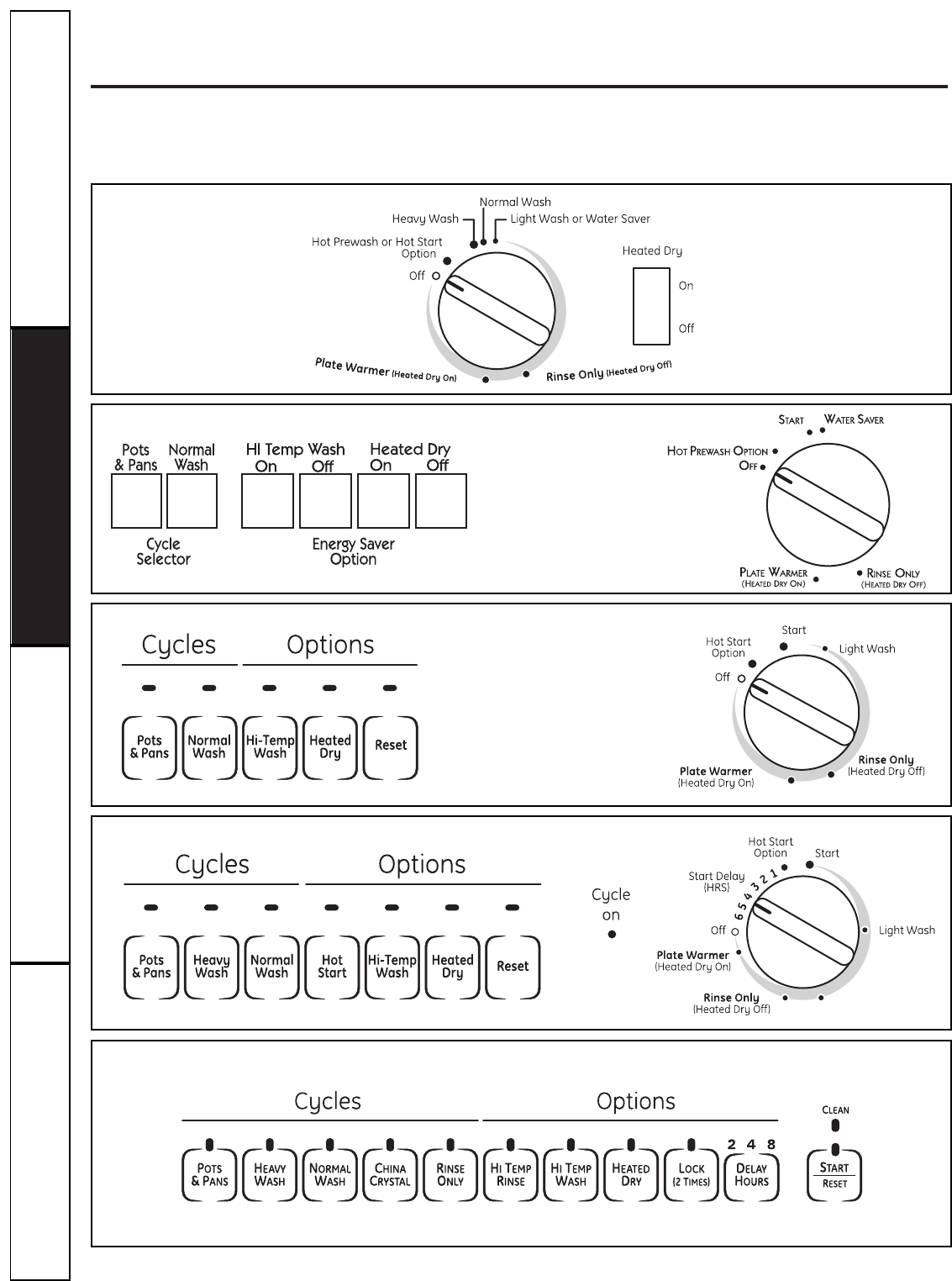

About the dishwasher control panel

Cycles

An indicator light above the selected pad will be ON to indicate which CYCLE has been selected, on some models.

POTS & PANS/ For heavily soiled dishes or cookware with dried-on or baked-on soils.

Everyday dishes may be included.

HEAVY WASH This cycle will not remove burned-on foods.

(on some models)

NORMAL/

For loads of everyday dishes, glasses and cookware with medium soils. NOTE: Many dishes have lighter

NORMAL WASH

soil than normal. Choosing

a cycle other than NORMAL WASH will save energy and water.

SHORT WASH For quickly washing loads of everyday dishes with medium soils

that have not dried on, such as loads

(on some models)

consisting mostly of glasses.

WATER SAVER For dishes with light soils.

LIGHT WASH

(on some models)

RINSE ONLY For rinsing partial loads that will be washed later. Do not use detergent.

DRYING For warming clean dishes and serving plates. This cycle will take approximately 30 minutes.

PLATE WARMER

HOT PREWASH Preheats wash water to the correct temperature.

HOT START

CHINA CRYSTAL For lightly soiled china and crystal.

(on some models)

Control Settings

Options

An indicator light above the selected pad will be ON to indicate which OPTION has been selected, on some models.

HI TEMP Turns on the heater in all final rinse cycles to help prevent spotting on dishware. This option may be

RINSE turned ON or OFF during the wash cycle.

(on some models)

HI TEMP Energizes the heater to boost water temperature in prewash and main wash fill cycles. Recommended

WASH for use with heavily soiled dishes. Option may be turned ON or OFF during the wash cycle.

HEATED DRY Shuts off the drying heat option. Dishes air dry naturally and energy is saved. Open the dishwasher door

OFF to speed drying.

HEATED DRY Turns the heater on for fast drying. This cycle will extend the time to your wash cycle by 30 minutes.

ON DO NOT use with RINSE ONLY cycle.

LOCK

When the LOCK pad is touched twice within 3 seconds, all pads become inoperative. You can lock the controls to

(electronic models

prevent any selections from being made. Or you can lock the controls after you have

started a cycle or selected

only)

DELAY START so the cycle or DELAY START is not interrupted.

Children cannot accidentally start dishwasher by touching pads with this option selected.

To unlock the dishwasher after it has been locked, touch the

LOCK

pad twice within 3 seconds. The light above

the

LOCK

pad will turn off.

DELAY HOURS Delays the start of a wash cycle for up to 8 hours.

(on some models)

RESET Touch RESET to cancel options.

(timer models)

START/RESET Touch START/RESET one time to start dishwasher cycle. Touch START/RESET a second time to pump out

(electronic models) and then turn off the dishwasher. Do not touch START/RESET more than one time unless you intend to

end the cycle.

Consumer Support

Troubleshooting TipsOperating InstructionsSafety Instructions

5

ge.com

Cycle Chart

Model Cycle Water Usage (gal.) Cycle Time (min.)

GSD1100 Hot Start Option12.5 10

Heavy Wash 7.0 120

Normal Wash 5.7 117

Rinse Only 2.2 53

Plate Warmer 0.0 40

HDA1100 Hot PreWash Option12.5 10

ADW1100 Normal Wash 5.7 117

Drying 0.0 40

GSD1300 Hot Start Option12.5 10

GSD2100 Heavy Wash 7.0 120

GSD2101 Normal Wash 5.7 117

Light Wash 4.5 113

Rinse Only 2.2 53

Plate Warmer 0.0 40

HDA2100 Hot PreWash Option12.5 10

Heavy Wash 7.0 120

Normal Wash 5.7 117

Water Saver 4.5 113

Rinse Only 2.2 53

Drying 0.0 40

HDA3500 Hot PreWash Option12.5 12

Heavy Wash 7.0 118

Normal Wash* 5.7 118

Water Saver* 4.5 114

Rinse Only* 2.2 53

Plate Warmer 0.0 40

GSD2300 Hot Start Option12.5 12

GSD2301 Pots & Pans 7.0 118

GSM2200 Normal Wash* 5.7 118

Light Wash* 4.5 114

Rinse Only* 2.2 53

Plate Warmer 0.0 40

GSD2700 Hot Start Option12.5 12

Heavy Wash 7.0 118

Normal Wash* 5.7 118

Rinse Only* 2.2 53

Plate Warmer 0.0 40

GSD3300 Hot Start Option12.5 12

Pots & Pans 7.0 118

Normal Wash* 5.7 118

Rinse Only* 2.2 53

Plate Warmer 0.0 40

GHDA350 Hot Start Option11.3 3

Pots & Pans 8.2 103

Heavy Wash 7.0 103

Normal Wash* 5.7 103

Light Wash* 3.4 95

Rinse Only* 2.2 42

Plate Warmer 0.0 33

GSD4000 Pots & Pans 8.8 112

Heavy Wash 7.5 108

Normal Wash 5.7 105

China/Crystal 6.3 80

Rinse Only 1.3 3

1Hot Start Option adds water amount and cycle time shown when selected.

* Normal Wash button should be pushed to run this cycle.

Control Settings

NOTE: Not all models have every cycle listed.

6

About the dishwasher control panel

Operating Instructions Safety InstructionsConsumer Support Troubleshooting Tips

You can locate your model number on the left tub wall just inside the door. Throughout this manual,

features and appearance may vary from your model.

Please match the control panel for your unit to a similar control panel below.

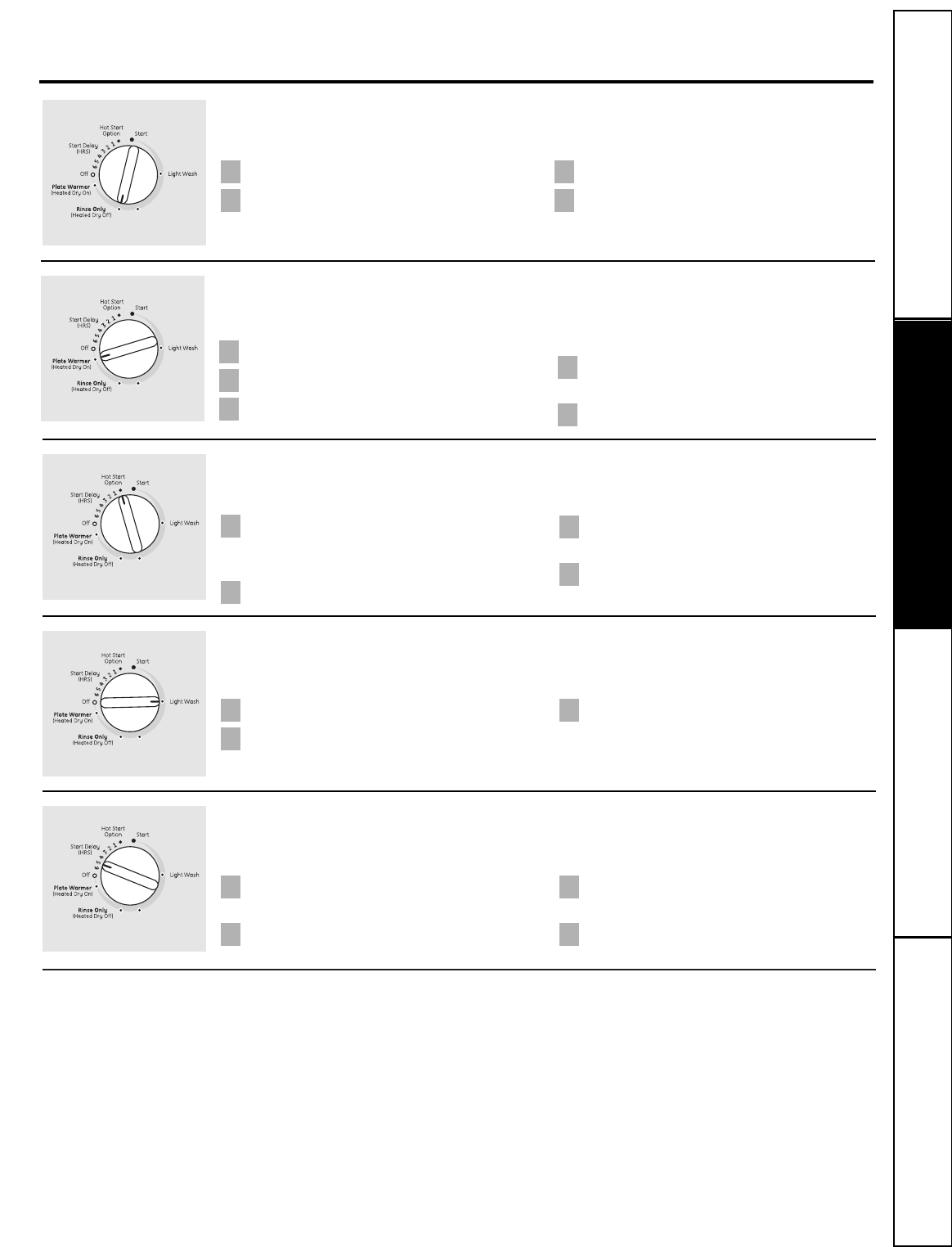

Start (Models with a Dial)

Slowly turn the Dial to the START or ON position, or the selected cycle. Don’t turn it past the START,

ON or cycle position; you could accidentally miss a prewash.

There is a time delay between start-up and water fill so you will not hear any wash action right

away.

■Latch the door to begin the cycle.

7

Consumer Support

Troubleshooting TipsOperating InstructionsSafety Instructions

Operation of models with cycle dial ge.com

Rinse Only

For rinsing partial loads that will be washed later. Do not use detergent.

Make sure HEATED DRY is not selected.

Slowly turn the Dial to RINSE ONLY.

Be sure the door is unlatched. Latch the door to start the cycle.

42 31

Be sure the door is unlatched.

Slowly turn the Dial to SHORT WASH,

LIGHT WASH or WATER SAVER.

Latch the door to start the cycle.

3

2

1

Plate Warmer or Drying

Load clean dishware to be warmed.

Select HEATED DRY ON.

Be sure the door is unlatched.

Slowly turn the Dial to PLATE WARMER or

DRYING.

Latch the door to start the cycle.

5

4

3

2

1

Start Delay (on some models)

The START DELAY will allow you to delay the start time of any cycle automatically up to 6 hours.

Hot Start or Hot Prestart Option

Preheats wash water to the correct temperature.

Select the HOT START or HOT PRESTART

cycle and any other option on the push

button pad.

Be sure the door is unlatched.

Slowly turn the Dial to HOT START or

HOT PRESTART.

Latch the door to start the cycle.

4

3

2

1

For warming clean dishes and serving plates. This cycle will take approximately 39 minutes.

Short Wash or Light Wash or Water Saver

For quickly washing loads of everyday dishes with light to medium soils that have not dried on.

Be sure the door is unlatched.

Select the wash cycle and option you want.

Slowly turn the Dial to the desired time.

The CYCLE ON light will come on.

Latch the door to start the cycle.

4

3

2

1

Operating Instructions Safety InstructionsConsumer Support Troubleshooting Tips

8

Operation of electronic models (model GSD4000 Only)

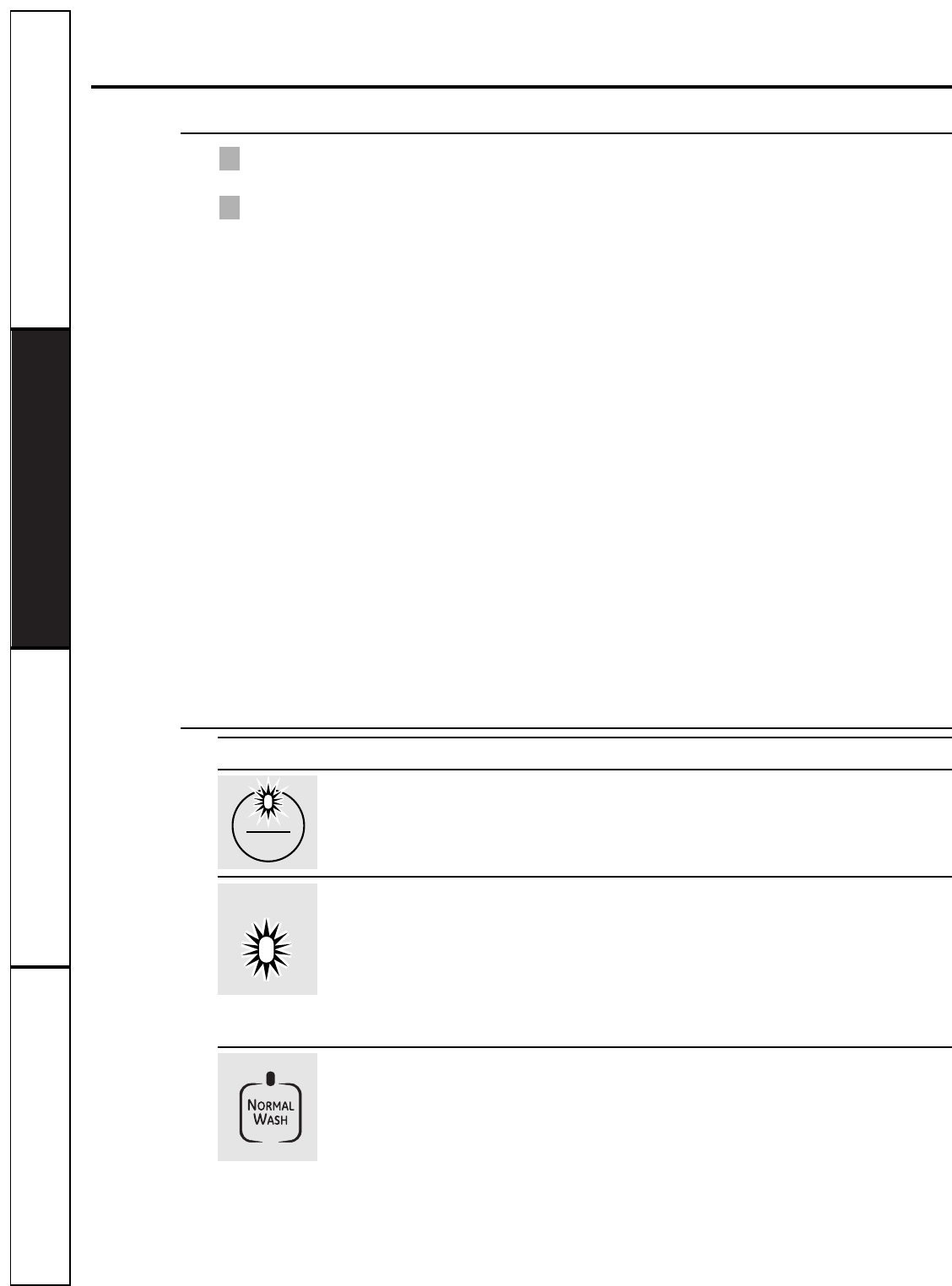

Lights What It Means What To Do

This is normal. Allow the dishwasher to drain and reset before you start a new

The START/RESET pad wash cycle.

has been pressed.

Control Error Press the START/RESET pad to turn off the beeper. If the CLEAN

light continues to flash, call for service.

Control Error Press the START/RESET pad to turn off the beeper and the

dishwasher will attempt to reset. Restart the wash cycle.

If this error continues, turn off the power to the dishwasher at

the circuit breaker for 30 seconds. Try the dishwasher again.

If the error is still present, call for service.

PLUS A

BEEPING

SOUND

RESET

STARTSTART

CLEANCLEAN

PLUS A

BEEPING

SOUND

Using the Dishwasher Door

The door must be closed and locked into place to select a LOAD SELECTION or an OPTION.

If the door is opened during a cycle and left open, the dishwasher will beep once every 30 seconds until the

door is closed and latched into place.

2

1

Start

Close and latch the door. Touch the START/RESET pad to begin the cycle. Water fill begins and

approximately 60 seconds later the wash action begins.

NOTE: The dishwasher remembers your last cycle so you don’t have to reprogram each time. When

the dishwasher is loaded and the door latch is in the locked position, the control panel lights will be ON

and display the last settings you selected.

If you don’t want to change any of the settings, simply touch the START/RESET pad to begin

the cycle.

Also, if a power failure occurs, NORMAL and HEATED DRY will automatically be programmed.

Make any new selections and touch the START/RESET pad to begin the cycle.

Clean

This light is illuminated when a wash cycle is complete. The light will stay ON until the door is opened.

Flashing Display Lights

Consumer Support

Troubleshooting TipsOperating InstructionsSafety Instructions

Filling the Dispenser

Fill the rinse agent dispenser until it reaches the bottom of

lip inside the opening. Replace cap.

To check if rinse agent is needed, remove the cap and look

into the dispenser.

A full dispenser should last about one month.

If the rinse agent spills, wipe up the excess.

Check the Water Temperature

The entering water must be at least 120°F and

not more than 150°F, for effective cleaning and to

prevent dish damage. Check the water temperature

with a candy or meat thermometer. Turn on the

hot water faucet nearest the dishwasher, place

the thermometer in a glass and let the water

run continuously into the glass until the temperature

stops rising.

Adjust the maximum/minimum temperature of the

water heater if necessary to deliver water at the

proper temperature.

Use Jet-Dry®Rinse Agent

Proper Use of Detergent

Jet-Dry®or Cascade Crystal Clear®rinse agents remove spots and prevent new film buildup on dishes,

glasses, flatware, cookware and plastic.

Use only detergent specifically made for use in

dishwashers. Cascade®and Electrasol®Automatic

Dishwashing Detergents have been approved for use

in all GE dishwashers. Keep your detergent fresh and

dry. Don’t put powder detergent into the dispenser

until you’re ready to wash dishes.

The amount of detergent to use depends on whether

your water is hard or soft. With hard water, you need

extra detergent. With soft water, you need less

detergent.

Protect your dishes and dishwasher by contacting

your water department and asking how hard your

water is. Twelve or more grains is extremely hard

water. A water softener is recommended. Without it,

lime can build up in the water valve, which could

stick while open and cause flooding. Too much

detergent with soft water can cause a permanent

cloudiness of glassware, called etching.

Use the information in the table below as a guideline

to determine the amount of automatic dishwasher

detergent to place in the dispenser.

You’ll find two detergent dispensers on the inside door

of your dishwasher. All wash cycles require detergent

in the main cup.

When

using automatic dishwashing

detergent tabs, simply place one tab in the main cup

and close.

Be sure the Dial is OFF before adding detergent.

Otherwise, the

detergent cup will not close and latch

properly.

Add detergent then close the main cup.

NOTE: To open detergent cup after it has been

closed, simply turn the detergent cup handle

counterclockwise until it releases. A snapping

sound may be heard.

DO NOT USE HAND DISH DETERGENT

NOTE: Using a detergent that is not specifically

designed for dishwashers will cause the dishwasher

to fill with suds. During operation, these suds will spill

out of the dishwasher vents, covering the kitchen floor

and making the floor wet.

Because so many detergent containers look alike,

store the dishwasher detergent in a separate space

from all other cleaners. Show anyone who may use

the dishwasher the correct detergent and where it

is stored.

While there will be no lasting damage to the

dishwasher, your dishes will not get clean using

a dishwashing detergent that is not formulated

to work with dishwashers.

Using the dishwasher ge.com

Detergent Cups to Fill

Fill to 1/3 of main cup

Fill to 2/3 of main cup

Fill main cup

Fill

main cup and open cup

Number

of Grains

Less than 4

4 to 8

8 to 12

Greater than 12

Open cup

Main cup

9

Loading the dishwasher racks

10

Operating Instructions Safety InstructionsConsumer Support Troubleshooting Tips

Upper Rack

The upper rack is for glasses, cups and

saucers. Cups and glasses fit best along

the sides. This is also a secure place for

dishwasher-safe plastics. The upper rack is

good for all kinds of odd-shaped utensils.

Saucepans, mixing bowls and other items

should be placed face down.

Secure larger dishwasher-safe plastics over

two fingers when possible.

Make sure small plastic items are secure so

they can’t fall onto the heating element.

Wash Tower

Keep the center area clear in the lower

rack.

The wash tower rises through the

center of the lower rack during the

wash and rinse portions of the cycle.

Lower Rack

When loading the lower rack, do not load

large platters or trays in the front right

corner. They may prevent detergent from

circulating during the wash cycle.

The lower rack is best used for plates,

saucers and cookware. Large items such as

broiler pans and racks should go along the

sides. Load platters, pots and bowls along

the sides, in corners or in the back. The

soiled side of items should face the center

of the rack.

For best dishwashing results, follow these loading guidelines. Features and appearance of racks and silverware

baskets may vary from your model.

Don’t block the wash

tower or load tall things

next to it.

Be sure items don’t fall

through rack and block

rotation of the spray arm.

Also, be careful not to

let a portion of an item

such as a pot or dish

handle extend through

the bottom rack. This

could block the wash

arm and cause poor

washing results.

Silverware Basket

Put flatware in the removable basket with

fork and knife handles up to protect your

hands. Place spoons in the basket with

handles down. Mix knives, forks and spoons

so they don’t nest together. Distribute

evenly. Small plastic items, such as

measuring spoons and lids from small

containers, should go in the bottom of the

silverware basket with silverware on top.

DON’T LET ANY ITEM EXTEND THROUGH

BOTTOM OF SILVERWARE BASKET AND

RACK, TO ENSURE PROPER FUNCTION

OF SPRAY ARM.

Do not cover upper rack tower

(not present on all models)

Tower

Don’t block the upper rack

wash tower.

Consumer Support

Troubleshooting TipsOperating InstructionsSafety Instructions

Follow these guidelines for loading 10 place settings. Features and appearance of racks and silverware baskets

may vary from your model.

Upper Rack—10 place settings Upper Rack—10 place settings Lower Rack—10 place settings

Loading place settings… ge.com

Forget to Add a Dish?

A forgotten dish can be added any time before the main wash.

Push the door latch to the left.

Once the water calms, open the door. Steam may rise out of the dishwasher.

Add forgotten dish.

Close the door and push the latch to the far right.

4

3

2

1

Tips for Loading and Good Wash Performance

■Don’t block the lower rack wash tower.

■Don’t let items fall through rack and

block spray arms.

11

Upper Rack—12 place settings Upper Rack—12 place settings Lower Rack—12 place settings

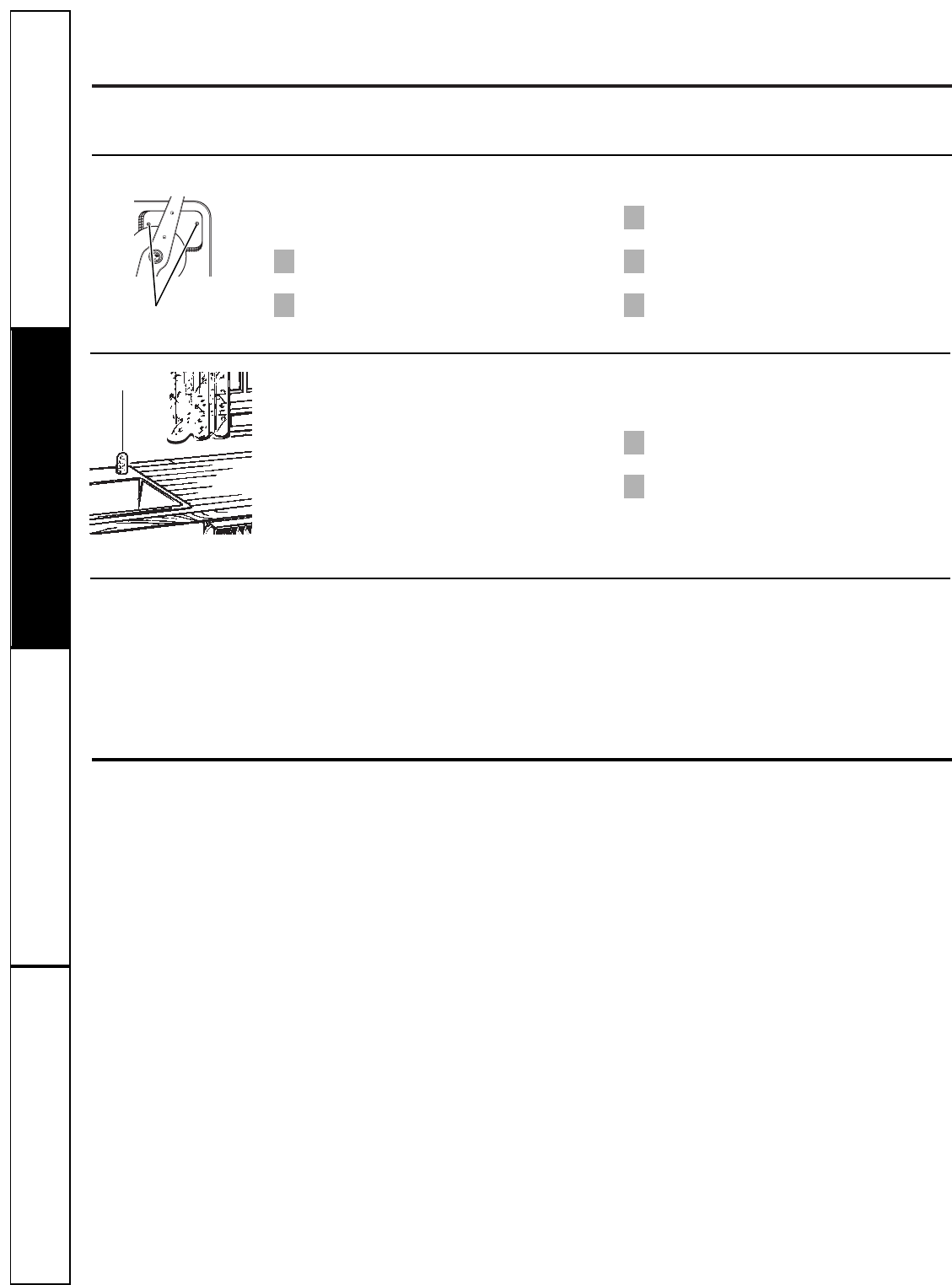

Caring for the dishwasher

To clean the control panel, use a lightly dampened cloth, then dry thoroughly. To clean the exterior, use a good appliance

polish. Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.

If your dishwasher is left in an unheated place

during the winter, ask a service technician to:

Cut off electrical power to the dishwasher.

Remove fuses or trip circuit breaker.

Turn off the water supply and disconnect the

water inlet line from the water valve.

Drain water from the inlet line and water

valve. (Use a pan to catch the water.)

Reconnect the water inlet line to the

water valve.

Remove the plastic sump cover in the tub

bottom and use a sponge to soak up water

in the rubber boot.

5

4

3

2

1

Sump cover screws

An air gap protects your dishwasher against

water backing up into it if a drain clogs.

The air gap is not a part of the dishwasher.

It is not covered by your warranty. Not all

plumbing codes require air gaps, so you may

not have one.

The air gap is easy to clean.

Turn off the dishwasher and lift off the

chrome cover.

Unscrew the plastic cap and clean with

a toothpick.

2

1

Check the air gap any time your

dishwasher isn’t draining well.

Air gap Does Your Dishwasher Have an Air Gap?

Protect Against Freezing

Operating Instructions Safety InstructionsConsumer Support Troubleshooting Tips

12

The stainless steel panels can be cleaned

with Stainless Steel Magic or a similar

product using a clean, soft cloth.

You can order Stainless Steel Magic

#WX10X15 through GE Parts by calling

800.626.2002.

Stainless Steel Panels

You can change the appearance of your

dishwasher by adding a custom panel trim kit.

1/4″ Wood panel trim kit—This accessory

contains trim and instructions for you to supply

and install a 1⁄ 4″thick decorative wood door:

■GPF25B (Black) GPF325B/GPF425B

■GPF25W (White) GPF325W/GPF425W

■GPF25C (Bisque) GPF325C/GPF425C

3/4″ Trimless wood panel kit—This accessory

contains parts and instructions for you to supply

and install a 3 ⁄ 4″thick decorative wood door:

■GPF375/GPF475

NOTE: The GPF100 dishwasher door spring kit

must also be ordered and installed when the

door panel weighs four lbs. or more. This kit is

included with the 3/4”trim kits.

Non-wood countertop bracket kit—This is for

installations which have non-wood countertops

and includes side-mounting brackets and

instructions for securing the dishawasher:

■GPF65

Consult your GE Appliance dealer to get the correct

kit for your model.

These accessories are available at extra cost

from GE. Call 800.626.2002 to order, or see your

authorized GE Appliance dealer. Visa, MasterCard or

Discover cards are accepted. Specify accessory

number when ordering.

Optional accessories

Problem Possible Causes What To Do

Dishwasher won’t run Fuse is blown, or the • Replace fuse or reset circuit breaker. Remove any other appliances

circuit breaker tripped from the circuit.

•Try pressing the START/RESET pad (Electronic models) two times.

Power is turned off • In some installations, power to the dishwasher is provided through a wall

switch, often located next to the disposer switch. Make sure it is on.

Noise Some of the sounds • Soft food disposal shredding action.

you’ll hear are normal •Drain valve opening to pump water out.

•Timer control as cycle progresses.

•Detergent cup opening.

•The motor stopping during the drying period.

•Water draining out of tub immediately after touching the START/RESET pad.

Utensils are not secure • Make sure everything is secured in dishwasher.

in rack or something small

has dropped into rack

Rattling dishes when • Make sure dishes are properly loaded. See the Loading the

the spray arm rotates dishwasher racks section.

Motor hums • Dishwasher has not been used on a regular basis. If you do not use

your dishwasher often, set it to fill and pump out once every week.

This will help keep the seal moist.

Water standing in This is normal • A small amount of clean water around the outlet on the tub bottom

the bottom of the tub at the back of the tub keeps the water seal lubricated.

Water won’t pump Drain is clogged • If you have an air gap, clean it.

out of the tub •Check to see if your kitchen sink is draining well. If not, you may need

a plumber.

•If the dishwasher drains into a disposer, run disposer clear.

Suds in the tub Wrong detergent • Use only automatic dishwasher detergents to avoid sudsing.

was used Cascade®, Cascade®Complete and Electrasol®Automatic Dishwashing

Detergents have been approved for use in all GE dishwashers.

•To remove suds from the tub, open the dishwasher and let suds

dissipate. Add 1 gallon of cold water to the tub. On Models with a Dial:

Close and latch the dishwasher. Pump out water by slowly turning the

Dial until a drain period is reached. Repeat if necessary. On Models with

Electronic Control: Pump out water by pressing the START/RESET pad,

then 10 seconds later, press START/RESET pad again. Repeat if necessary.

Rinse agent was spilled • Always wipe up rinse agent spills immediately.

Stained tub interior Some tomato-based • Use of the RINSE ONLY cycle after adding the dish to the load

foods can cause reddish can decrease the level of staining. GE recommends Cascade®

stains Plastic Booster to help remove these types of stains.

Tea or coffee stains • Remove the stain by hand, using a solution of 1/2 cup bleach

and 3 cups warm water.

WARNING

Before cleaning interior, wait at least 20 minutes after a cycle for the

heating elements to cool down. Failure to do so can result in burns.

An overall yellow or • A special filter in the water supply line is the only way to correct

brown film can be this problem. Contact a water softener company.

caused by iron deposits

in water

White film on inside • GE recommends Jet-Dry ®or Cascade Crystal Clear®to help

surface—hard water prevent hard water mineral deposits from forming.

minerals •Run dishwasher with citric acid to remove mineral deposits. Citric

acid (Part number: WD35X151) can be ordered through GE Parts.

See back cover for ordering information.

Consumer Support

Troubleshooting TipsOperating InstructionsSafety Instructions

13

Before you call for service… ge.com

Troubleshooting Tips

Save time and money! Review the charts on

the following pages, or visit ge.com. You may

not need to call for service.

Problem Possible Causes What To Do

Dishes don’t dry Low inlet water • Make sure inlet water temperature is at least 120°F.

temperature •Select HEATED DRY.

•Use HOT START and ADDED HEAT options.

•Select a higher cycle, such as POTS & PANS or HEAVY WASH.

Rinse agent dispenser • Check the rinse agent dispenser and fill as required.

is empty

Dishes and flatware Inlet water temperature • Raise the water heater temperature to 120°F.

not clean is below 120°F. •Use HOT START,POTS & PANS or HEAVY WASH and HI TEMP WASH.

Too little detergent • See Using the dishwasher section, refer to Proper Use of Detergent for

detergent recommendations.

Old or damp powdered • See Using the dishwasher section, refer to Proper Use of Detergent for

detergent detergent recommendations.

Water pressure is • Turn on a faucet. Is water coming out more slowly than usual? If so,

temporarily low wait until pressure is normal before using your dishwasher.

Air gap is clogged • Clean the air gap.

Improper rack loading • Make sure large dishware does not block detergent dispenser or wash arm.

No air gap or high • Verify that you have an air gap or a high drain loop. Refer to

drain loop the Installation Instructions.

Spots and filming •Use Jet-Dry®or Cascade Crystal Clear®rinse agents to remove spots

on glasses and and prevent new film buildup.

flatware •To remove stubborn spots and pre-existing film from glassware:

1 Remove all metal utensils from the dishwasher.

2Do not add detergent.

3Select the longest cycle.

4Start the dishwasher and allow to run for 18 to 22 minutes.

Dishwasher will now be in the main wash.

5Open the door and pour 2 cups (500 ml) of white vinegar into the

bottom of the dishwasher.

6Close the door and allow to complete the cycle. If vinegar rinse

doesn’t work: Repeat as above, except use 1/4 cup (60 ml) of citric

acid crystals instead of vinegar.

Cloudiness on Combination of soft • This is called etching and is permanent. To prevent this from

glassware water and too much happening, use less detergent if you have soft water. Wash glassware in

detergent the shortest cycle that will get it clean.

Water temperature • Lower the water heater temperature.

entering the dishwasher

exceeds 150°F.

Detergent cup lid Dial is not in the OFF •Turn the Timer Dial to OFF.

won’t latch position

Detergent left in Dishes are blocking the • Reposition the dishes.

dispenser cups detergent cups

Steam This is normal • Steam comes through the vent by the door latch during drying and

when water is being pumped out.

Black or gray Aluminum utensils have • Remove marks with a mild, abrasive cleaner.

marks on dishes rubbed against dishes

Control panel lights Time too long between • Each pad must be touched within 30 seconds of the others. To relight,

go off when you are touching or selecting touch any pad again or unlatch and relatch the door.

setting controls pads

Control panel Door latch may not • Call for service.

responded to inputs be properly seated

but dishwasher never

filled with water

14

Operating Instructions Safety InstructionsConsumer Support Troubleshooting Tips

Before you call for service…

Extremely hard water

Low inlet water

temperature

Overloading the

dishwasher

Improper loading

Old or damp powder

detergent

Rinse agent dispenser

empty

Too little detergent

15

Consumer Support

Troubleshooting TipsOperating InstructionsSafety Instructions

What Is Not Covered:

For The Period Of: GE Will Replace:

One Year Any part of the dishwasher which fails due to a defect in materials or workmanship. During

From the date of the this limited one-year warranty, GE will also provide, free of charge, all labor and in-home service

original purchase to replace the defective part.

GE Dishwasher Warranty

■Service trips to your home to teach you how to use

the product.

■Improper installation, delivery or maintenance.

■Failure of the product if it is abused, misused, or used for

other than the intended purpose or used commercially.

■Replacement of house fuses or resetting of circuit

breakers.

■Damage to the product caused by accident, fire, floods

or acts of God.

■Incidental or consequential damage caused by possible

defects with this appliance.

■Cleaning or servicing of the air gap device in the

drain line.

■Damage caused after delivery.

■Product not accessible to provide required service.

This warranty is extended to the original purchaser and any succeeding owner for products purchased for

home use within the USA. If the product is located in an area where service by a GE Authorized Servicer is not

available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE

Service location. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty

gives you specific legal rights, and you may also have other rights which vary from state to state. To know

what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.

Warrantor: General Electric Company. Louisville, KY 40225

All warranty service provided by our Factory Service Centers,

or an authorized Customer Care®technician. To schedule

service, on-line, 24 hours a day, visit us at ge.com, or call

800.GE.CARES (800.432.2737). Please have serial number and

model number available when calling for service.

Staple your receipt here.

Proof of the original purchase

date is needed to obtain service

under the warranty.

EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this Limited

Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular

purpose, are limited to one year or the shortest period allowed by law.

Consumer Support

GE Appliances Website ge.com

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day,

any day of the year! For greater convenience and faster service, you can now download Owner’s Manuals,

order parts or even schedule service on-line.

Schedule Service ge.com

Expert GE repair service is only one step away from your door. Get on-line and schedule your service

at your convenience 24 hours any day of the year! Or call 800.GE.CARES (800.432.2737) during normal

business hours.

Real Life Design Studio ge.com

GE supports the Universal Design concept—products, services and environments that can be used by

people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and

mental abilities and impairments. For details of GE’s Universal Design applications, including kitchen design ideas

for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC

(800.833.4322).

Extended Warranties ge.com

Purchase a GE extended warranty and learn about special discounts that are available while your warranty

is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours.

GE Consumer Home Services will still be there after your warranty expires.

Parts and Accessories ge.com

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes

(VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at

800.626.2002 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing

generally should be referred to qualified service personnel. Caution must be exercised, since improper

servicing may cause unsafe operation.

Contact Us ge.com

If you are not satisfied with the service you receive from GE, contact us on our Website with all the details

including your phone number, or write to: General Manager, Customer Relations

GE Appliances, Appliance Park

Louisville, KY 40225

In Canada write to: Director, Customer Relations, Mabe Canada Inc.

Suite 310, 1 Factory Lane

Moncton, N.B. E1C 9M3

Register Your Appliance ge.com

Register your new appliance on-line—at your convenience! Timely product registration will allow

for enhanced communication and prompt service under the terms of your warranty, should the need arise.

You may also mail in the pre-printed registration card included in the packing material.

Printed in the United States

Printed on Recycled Paper
