For answers to your Monogram,® GE Profile™ or

GE® appliance questions, visit our website at

ge.com or call GE Answer Center® service,

800.626.2000.

Specification Revised 11/08 270197

Dimensions and Installation Information (in inches)

Exhaust Options: 3-way via rear, right, and bottom.

Circuit Requirements: An individual, properly grounded

branch circuit, protected by a 30-amp circuit breaker or

a time-delay fuse, is required.

LP Conversion Kit: WE25M46

Note: Dryer wall outlet must be located within 36”

of service cord entry and accessible when dryer is

mounted in position.

Installation Information: For complete information, see

installation instructions packed with your dryer.

S D

T D A F

W U

P

SENSOR DRY

TIME DRY

S

D

L

D

T

D

Harmony

27”

32.34”

39-3/4”

32.34

39-3/4”

4-1/8”

3”

DPVH880

Gas Dryer Rating

120V 60Hz, 6A

DPVH880GJ

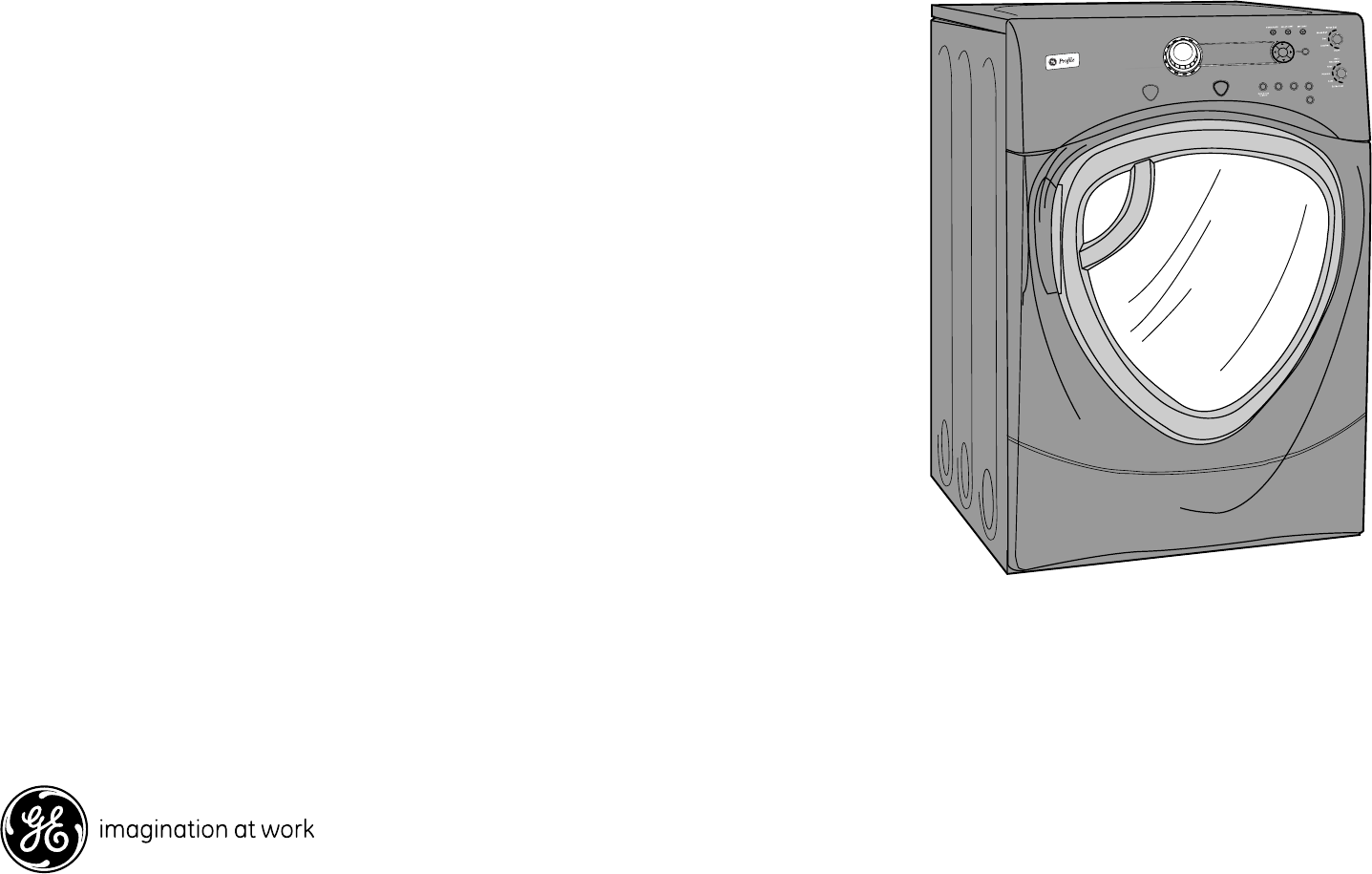

GE Profile™ 7.5 Cu. Ft. Colossal Capacity Gas Dryer

For answers to your Monogram,® GE Profile™ or

GE® appliance questions, visit our website at

ge.com or call GE Answer Center® service,

800.626.2000.

270197

Specification Revised 11/08

Special Installation Requirements:

Stacked Installation:

•Bracketsforstackingdryeroverwasherareavailableatanadditionalcost.

Custom built-in white installation template:

•OrderPub.No.14-A025.

Alcove or Closet Installation:

•Ifyourdryerisapprovedforinstallationinanalcoveorcloset,itwillbe

stated on a label on the dryer back.

•ThedryerMUSTbeexhaustedtotheoutside.

•Minimumclearancesbetweendryercabinetandadjacentwallsorother

surfaces are: 0" either side, 3" front and rear

•Minimumverticalspacefromfloortooverheadcabinets,ceilings,etc.is52".

•Closetdoorsmustbelouveredorotherwiseventilatedandmustcontaina

minimumof60sq.in.ofopenareaequallydistributed.Ifthisclosetcontains

both a washer and a dryer, doors must contain a minimum of 120 sq. in. of

open area equally distributed.

•Nootherfuel-burningapplianceshallbeinstalledinthesameclosetwithagasdryer.

Bathroom or Bedroom Installation:

•ThedryerMUSTbeexhaustedtotheoutdoors.

•Theinstallationmustconformwiththelocalcodes,orintheabsenceof

localcodes,withtheNationalElectricCodeandNationalFuelGasCode,ANSIZ223

for gas dryers.

Minimum Clearance other than Alcove or Closet Installations:

•Minimumclearancestocombustiblesurfaces0"bothsides,3"rear.

For more information on venting kits and accessories,

please call 1-800-GE-CARES.

Stacked Dimensions (in inches)

79"

Harmony

27

1 5

29-1/2

Storage Pedestal Dimensions

(in inches)

SPSD157JMG - Champagne

SPSD157JMV - Vermillion Red

SPSD157JWW - White

Thisoptional15"pedestalraises

the door opening and height of

the washer or dryer. Feet on 15"

pedestalallowittoadjustto15-

3/8" height.

DPVH880GJ

GE Profile™ 7.5 Cu. Ft. Colossal Capacity Gas Dryer

Specification Revised 11/08 270197

Dryer Exhausting Information – Metal Duct Only

For complete information, see installation instructions packed with your dryer.

Ducting Materials: For best performance, this dryer should be vented with 4” diameter

allrigidmetalexhaustduct.Ifrigidmetalductcannotbeused,thenUL-listedflexible

metal(semi-rigid)ductingcanbeused(KitWX08X10077).Inspecialinstallations,itmay

benecessarytoconnectthedryertothehouseventusingaflexiblemetal(foil-type)duct.

AUL-listedflexiblemetal(foil-type)ductmaybeusedONLYininstallationswhererigid

metalorflexiblemetal(semi-rigid)ductingcannotbeusedANDwherea4"diametercan

be maintained throughout the entire length of the transition duct. Please see installation

instructionspackedwithyourdryerforcompleteinstructionswhenusingflexiblemetal

(foil type) ducting.

Exhaust Length Calculation:

1. Determinethenumberof90°turnsneededforyourinstallation.Ifyouexhausttothe

side or bottom of dryer, add one turn.

2. Themaximumlengthof4’rigid(aluminumorgalvanized)ductwhichcanbetoleratedis

shown in the table.

 Aturnof45°orlessmaybeignored.Two45°turnswithintheductlengthshouldbe

treated as a 90° elbow.

A turn over 45° should be treated as a 90° elbow.

Dryers mustbeexhaustedtotheoutside.

Caution: Forpersonalsafetydonotterminateexhaustintoachimney,underanyenclosed

house floor (crawl space), or into an attic, since the accumulated lint could create a fire

hazardormoisturecouldcausedamage.Neverterminatetheexhaustintoacommonduct

orplenumwithakitchenexhaust,sincethecombinationoflintandgreasecouldcreatea

fire hazard.

Exhaustductsshouldbeterminatedinadamperedwallcaptopreventbackdrafts,bird

nesting,etc.Thewallcapmustalsobelocatedatleast12"abovethegroundoranyother

obstruction with the opening pointed Down.

For more information on venting kits and accessories, please call 1-800-GE-CARES.

DPVH880GJ

GE Profile™ 7.5 Cu. Ft. Colossal Capacity Gas Dryer

Best performance

Domestic

dryer models

Maximum length of 4"

dia. rigid metal duct

Number

of

90°

turns

Exhaust hood type

A

4"

opening

B

2-1/2"

opening

7.5 and 7.3 cu. ft.

capacity electric

and gas dryers

0

1

2

3

4

150 ft.

140 ft.

130 ft.

120 ft.

110 ft.

127 ft.

117 ft.

107 ft.

97 ft.

87 ft.

A

4

B

2-1/2

A

Specification Revised 11/08 270197

M

IXED

L

OADS

W

RINKLE

F

REE

A

CTIVE

W

EAR

S

PEED

D

RY

T

IMED

D

RY

A

IR

F

LUFF

W

ARM

U

P

D

ELICATES

P

OWER

SENSOR DRY

TIME DRY

C

OTTONS

S

ENSOR

D

RY

L

EVEL

D

RY

T

EMP

BACK

MY

CYCLE DAMP

ALERT EXTEND

TUMBLE DRUM

LIGHT

LOCK

D

EWRINKLE

Harmony

DPVH580EH/GH

Features and Benefits

•7.5Cu.Ft.ColossalCapacity-Thiscolossalsizedryerwillbereadyandableto

take on everything the washer sends its way

•ReverseTumble-Byreversingtherotationofthedrum,youcanexpectgentle,

fast even drying

•DuoDry™System-Quicklyandconsistentlydriesalltypesofclothes

•BaffleDry-Built-indryingrackandhangerclipdesignmultipliesthedrying

options for hard-to-dry items or delicates

•CleanSpeak™CommunicationSystem-Thewashercommunicates

electronically with the dryer, which then presets dry cycles for better clothes

care, increased time savings and greater convenience

•SpecialtyDryCycles-Providejusttherightlevelsofdryingforbetterfabriccare

•StainlessSteelDrum-Resistsrustandwon'tchip,peelorsnagclothes

• ModelDPVH880GJMG–Champagne

• ModelDPVH880GJMV–VermillionRed

• ModelDPVH880GJWW–White

DPVH880GJ

GE Profile™ 7.5 Cu. Ft. Colossal Capacity Gas Dryer
