Safety Instructions . . . . . . . . . . .2, 3

Operating Instructions

Controls . . . . . . . . . . . . . . . . . . . .4, 5

Care and Cleaning

Air Filter . . . . . . . . . . . . . . . . . . . . . .6

Front Grille . . . . . . . . . . . . . . . . . . . .7

Grille and Case . . . . . . . . . . . . . . . . .6

Outdoor Coils . . . . . . . . . . . . . . . . .6

Installation Instructions . . . . .8–12

Troubleshooting Tips . . . . . . . . .13

Normal Operating Sounds . . . . . .13

Consumer Support

Consumer Support . . . . .Back Cover

Product Registration . . . . . . . .17, 18

Warranty . . . . . . . . . . . . . . . . . . . . .19

49-7420-1 11-01 JR

ASP05

ASV05

Air Conditioners

Owner’s Manual and

Installation Instructions

GEAppliances.com

Write the model and serial numbers here:

Model # __________________________

Serial # __________________________

Find these numbers on a label on the

side of the air conditioner.

IMPORTANT SAFETY INFORMATION.

READ ALL INSTRUCTIONS BEFORE USING.

WARNING!

For your safety, the information in this manual must be followed to minimize the risk of fire, electric shock

or personal injury.

■ Use this appliance only for its intended

purpose as described in this Owner’s

Manual.

■This air conditioner must be properly

installed in accordance with the Installation

Instructions before it is used.

■Never unplug your air conditioner by

pulling on the power cord. Always grip

plug firmly and pull straight out from the

receptacle.

■ Repair or replace immediately all

electric service cords that have become

frayed or otherwise damaged. Do not use a

cord that shows cracks or abrasion damage

along its length or at either the plug or

connector end.

■ Turn the mode control

OFF

and unplug

your air conditioner before making any

repairs or cleaning.

NOTE:

We strongly recommend that any

servicing be performed by a qualified

individual.

■ For your safety…do not store or use

combustible materials, gasoline or other

flammable vapors or liquids in the vicinity

of this or any other appliance.

SAFETY PRECAUTIONS

Do not, under any circumstances, cut or remove

the third (ground) prong from the power cord. For

personal safety, this appliance must be properly

grounded.

The power cord of this appliance is equipped

with a 3-prong (grounding) plug which mates

with a standard 3-prong (grounding) wall

outlet to minimize the possibility of electric

shock hazard from this appliance.

Have the wall outlet and circuit checked by a

qualified electrician to make sure the outlet is

properly grounded.

Where a 2-prong wall outlet is encountered,

it is your personal responsibility and obligation

to have it replaced with a properly grounded

3-prong wall outlet.

The air conditioner should always be

plugged into its own individual electrical

outlet which has a voltage rating that matches

the rating plate.

This provides the best performance and also

prevents overloading house wiring circuits

which could cause a fire hazard from

overheated wires.

See the Installation Instructions,

Electrical

Requirements

section, for specific electrical

connection requirements.

HOW TO CONNECT ELECTRICITY

Consumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions

2

3

Consumer SupportTroubleshooting Tips

Operating Instructions

Safety Instructions Installation Instructions

GEAppliances.com

WARNING!

Because of potential safety hazards under certain

conditions, we strongly recommend against the

use of an extension cord.

However, if you must use an extension cord,

it is absolutely necessary that it be a UL-listed,

14 gauge, 3-wire grounding type appliance

extension cord having a grounding type plug

and outlet and that the electrical rating of the

cord be 15 amperes (minimum) and 125 volts.

CAUTION:

DO NOT use an extension cord with any of the

230/208 volt models.

USE OF EXTENSION CORDS –

115-Volt models only

Because of potential safety hazards under certain

conditions, we strongly recommend against the use

of an adapter plug.

However, if you must use an adapter, where

local codes permit, a

temporary connection

may

be made to a properly grounded 2-prong wall

outlet by use of a UL-listed adapter available at

most local hardware stores.

The larger slot in the adapter must be aligned

with the larger slot in the wall outlet to provide

proper polarity in the connection of the power

cord.

When disconnecting the power cord from the

adapter, always hold the adapter in place with

one hand while pulling the power cord plug

with the other hand. If this is not done, the

adapter ground terminal is very likely to break

with repeated use.

If the adapter ground terminal breaks,

DO NOT USE

the air conditioner until a

proper ground has been established.

Attaching the adapter ground terminal to a wall outlet

cover screw does not ground the appliance unless the

cover screw is metal, not insulated, and the wall outlet

is grounded through the house wiring. You should have

the circuit checked by a qualified electrician to make

sure the outlet is properly grounded.

USE OF ADAPTER PLUGS –

115-Volt models only

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

Consumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions

4

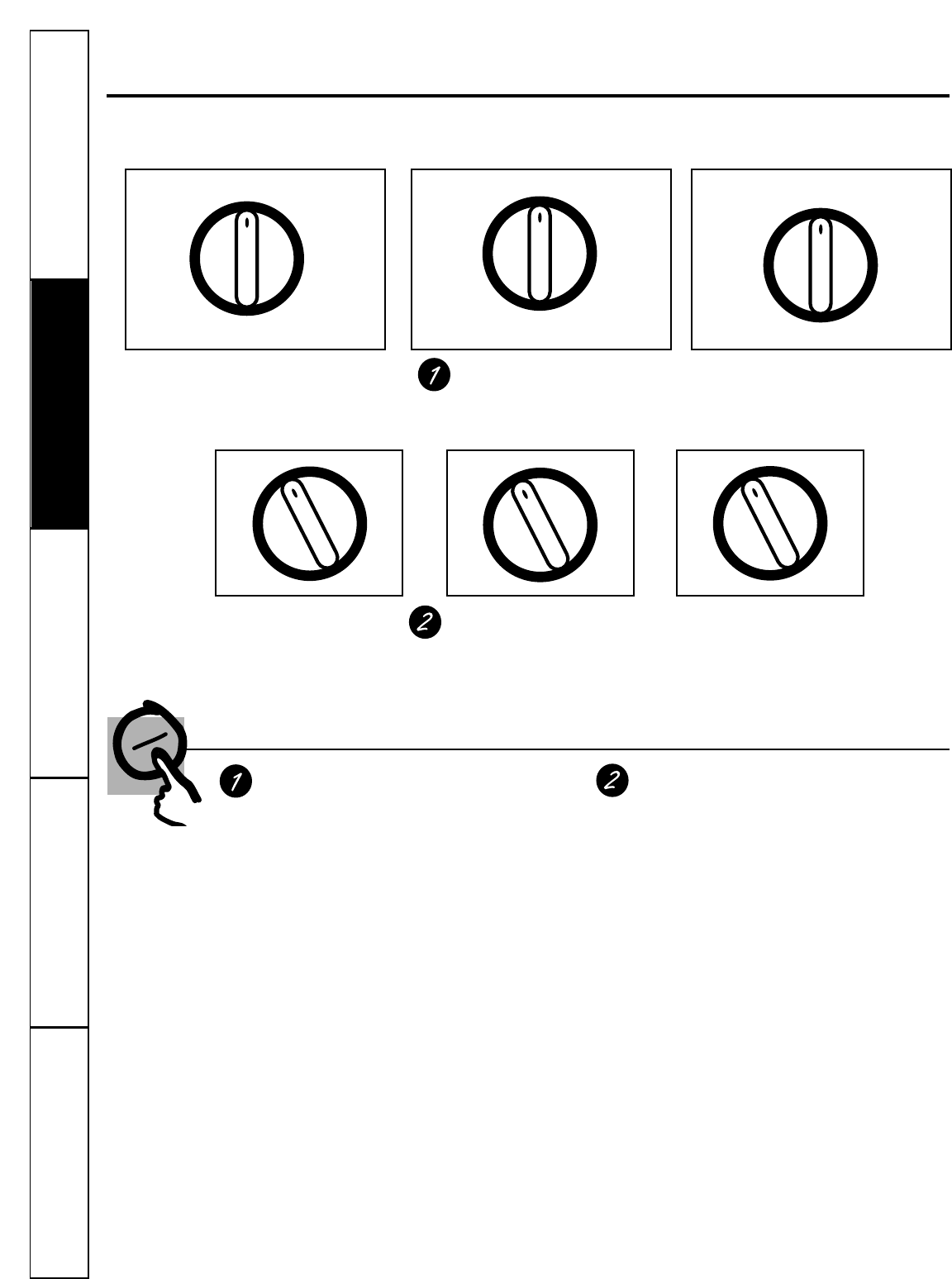

About the controls on the air conditioner.

Features and appearance will vary.

Controls

Mode Controls

HIGH COOL, MED COOL

and

LOW COOL

provide

cooling with different fan speeds.

LOW FAN

or

HIGH FAN

provides air circulation

and filtering without cooling.

NOTE: If you move the switch from a cool setting to OFF or to

a fan setting, wait at least 3 minutes before switching back to

a cool setting.

Cooling Descriptions

For Normal Cooling

– Select

HIGH COOL

or

MED

COOL

with the temp control at midpoint.

For Maximum Cooling

– Select

HIGH COOL

with the

temp control at the highest number available on

your knob.

For Quieter and Nighttime Cooling

– Select

LOW

COOL

with the temp control at midpoint.

Temp Controls

The temp control is used to maintain the

room temperature. The compressor will cycle

on and off to keep the room at the same

level of comfort. When you turn the knob to

a higher number, the indoor air will become

cooler. Turn the knob to a lower number and

the indoor air will become warmer.

MODE CONTROLS

Your model will have one of the above type controls.

TEMP CONTROLS

Your model will have one of the above type controls.

OFF

LOW

FAN

LOW

COOL

HIGH

FAN

HIGH

COOL

MED

COOL

OFF

LOW

FAN

LOW

COOL

HI

FAN

HI

COOL

1

2

3

4

56

7

8

9

10

1

2

3

45

6

7

81

2

34

5

6

OFF

LOW

FAN

LOW

COOL

HI

FAN

HI

COOL

MED COOL

The vent control is located on the inside of the air

louvers in the lower right corner.

When set at

CLOSE

, only the air inside the room will

be circulated and conditioned. When set at

OPEN

,

some inside air is exhausted outside.

Air Direction – Up and Down

(on some models)

Fingertip pressure on the horizontal louvers adjusts

the air direction up or down.

OR

Consumer SupportTroubleshooting Tips

Operating InstructionsSafety Instructions Installation Instructions

5

GEAppliances.com

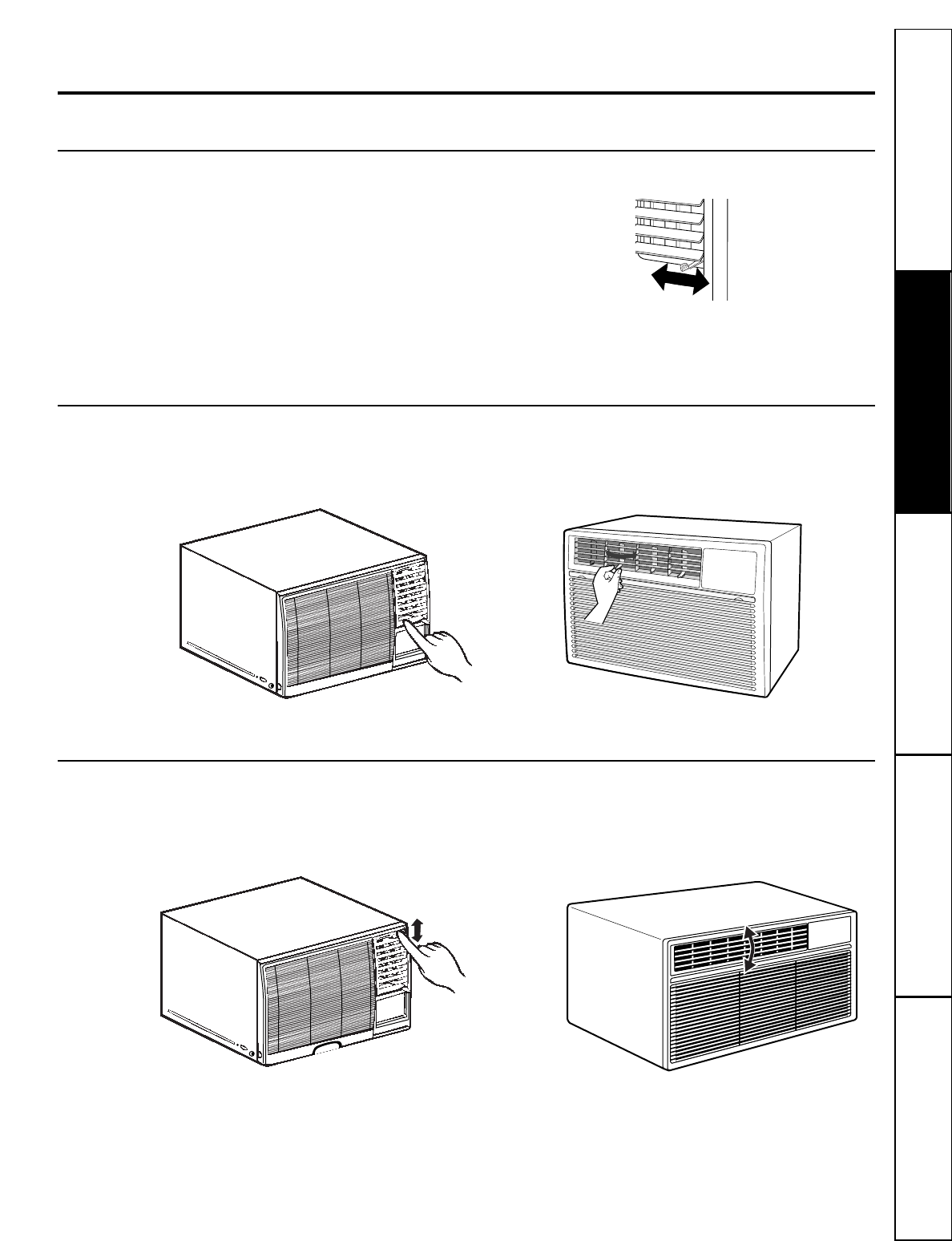

Additional controls and important information.

Vent Control

(on some models)

To open the vent, push the lever to the right.

To close it, push it to the left.

Air Direction – Side-to-Side

On some models, the side-to-side air direction is

adjusted by the louver levers or by grasping and

moving the inner vertical louvers.

OR

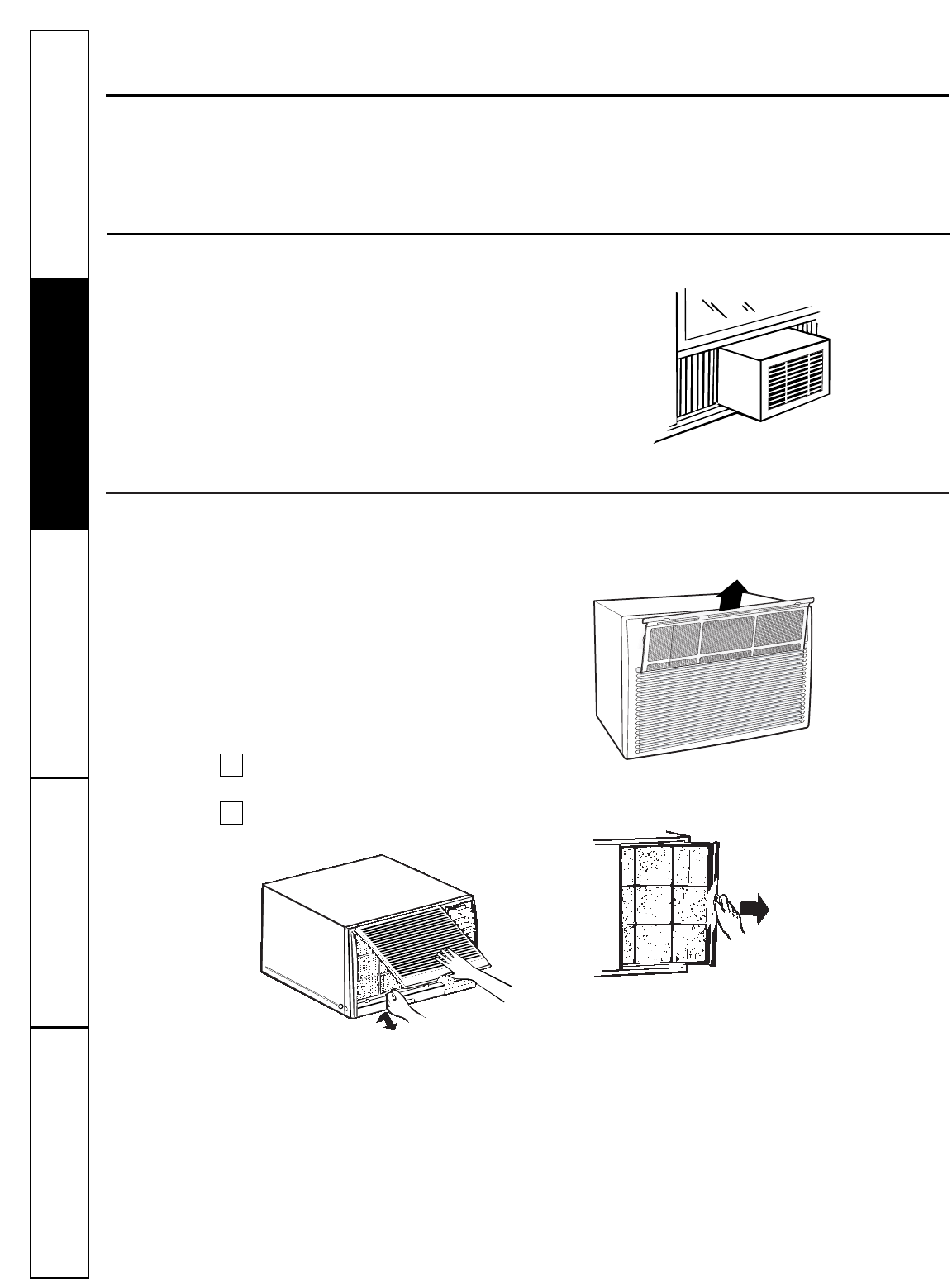

Air Filter

The air filter behind the front grille should be

checked and cleaned at least every 30 days or more

often if necessary.

Clean the filter with warm, soapy water. Rinse and

let the filter dry before replacing it.

CAUTION: DO NOT operate the air conditioner without

a filter because dirt and lint will clog it and reduce

performance.

To remove (on some models):

Open the inlet grille upward by pulling out

the bottom of the inlet grille.

Using the tab, pull up slightly on the filter to

release it and pull it down.

To remove (on some models):

To remove (on some models):

2

1

Outdoor Coils

The coils on the outdoor side of the air conditioner

should be checked regularly. If they are clogged

with dirt or soot they may be professionally steam

cleaned, a service available through your GE

service outlet.

Grille and Case

Turn the air conditioner off and remove the

plug from the wall outlet before cleaning.

To clean, use water and a mild detergent. Do not

use bleach or abrasives.

Care and cleaning of the air conditioner.

6

Consumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions

Grab the tab on the filter

and pull it to the right.

Grab the tabs on

the filter and pull

it up and out.

Consumer SupportTroubleshooting Tips

Operating InstructionsSafety Instructions Installation Instructions

7

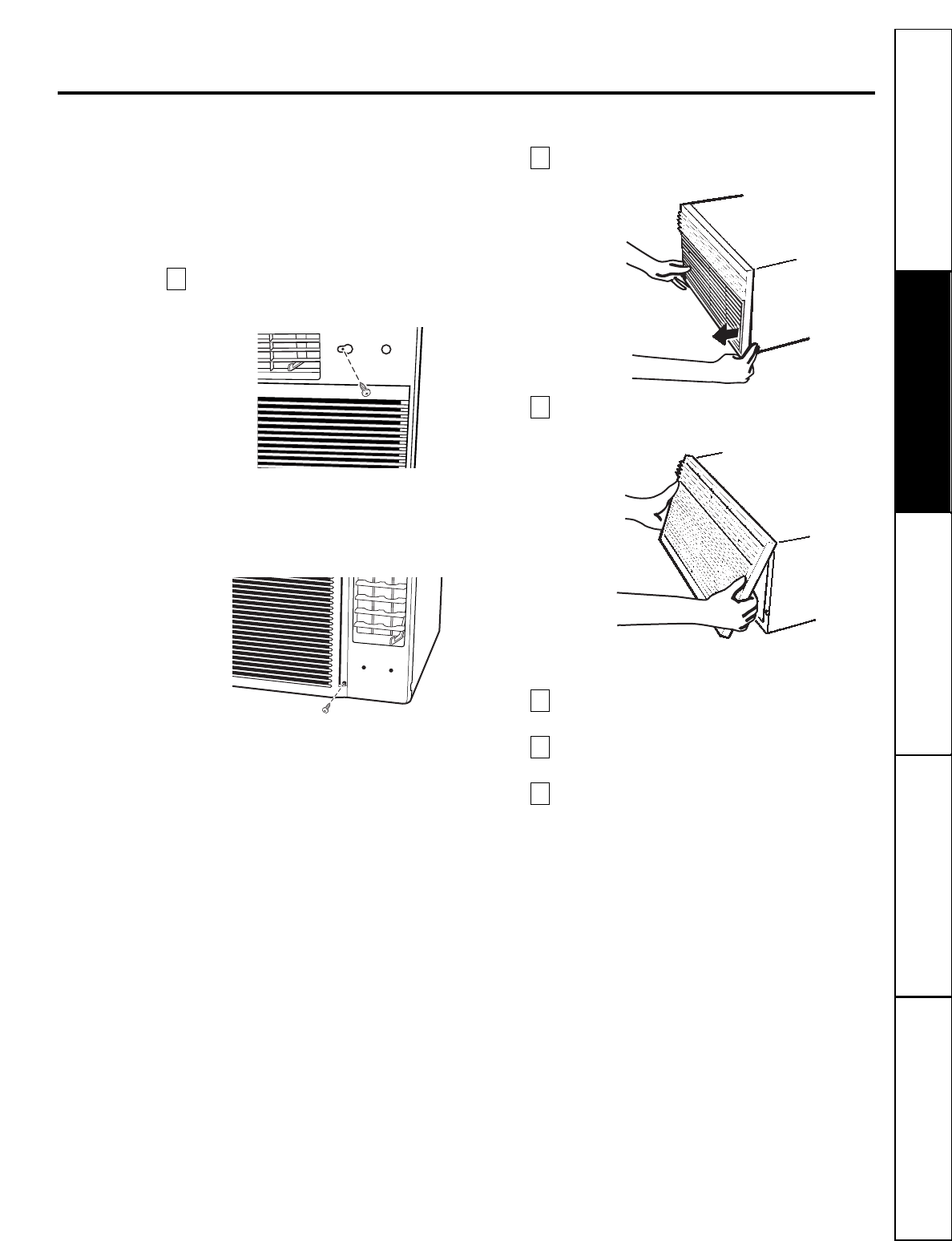

Front Grille and Case

Turn the air conditioner off and remove the plug

from the wall outlet before cleaning.

To clean, use water and a mild detergent. Do not

use bleach or abrasives.

To remove the front grille:

On some models, remove the knobs and the

screw behind the left knob.

On some models, remove the knobs, filter and

screw behind the filter bottom.

Gently but firmly grasp the lower grille corners

and pull forward to release.

Lift the top of the grille up and off to release

from the tabs.

To replace the grille:

Hook the front of the grille onto the tabs

on the top of the case.

Snap the bottom sides of the grille into

the case slots.

Replace the screw and attach the knobs.

C

B

A

C

B

A

GEAppliances.com

8

Consumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions

Preparing to install the air conditioner.

Read these instructions completely and carefully.

NOTE TO INSTALLER: Leave these instructions with

the air conditioner after installation is completed.

NOTE TO CONSUMER: Keep this Owner’s Manual

and Installation Instructions for future use.

IMPORTANT NOTES:

For personal safety, this air conditioner must be

properly grounded.

It is important to have the wall outlet and circuit

checked by a qualified electrician if there is any

doubt as to whether a proper ground exists.

Follow National Electric Codes (NEC) and/or local

codes and ordinances.

CAUTION:

Do not, under any circumstances, cut or

remove the third (ground) prong from the

power cord.

Do not change the plug on the power cord

of this air conditioner.

Aluminum house wiring may present

special problems—consult a qualified

electrician.

Before You Begin

Some models require 115/120-volt ac,

60-Hz grounded outlet protected with

a 15-amp time-delay fuse or circuit

breaker.

The 3-prong grounding plug minimizes the

possibility of electric shock hazard. If the wall outlet

you plan to use is only a 2-prong outlet, it is your

responsibility to have it replaced with a properly

grounded 3-prong wall outlet.

Some models require 230/208-volt ac,

protected with a time-delay fuse or circuit

breaker. These models should be installed

on their own single branch circuit for best

performance and to prevent overloading

house or apartment wiring circuits, which

could cause a possible fire hazard from

overheating wires.

Electrical Requirements

■ Phillips-head screwdriver

■ Adjustable wrench

■ Ruler or tape measure

■ Scissors or knife

■ Pencil

■ Level

Tools You Will Need

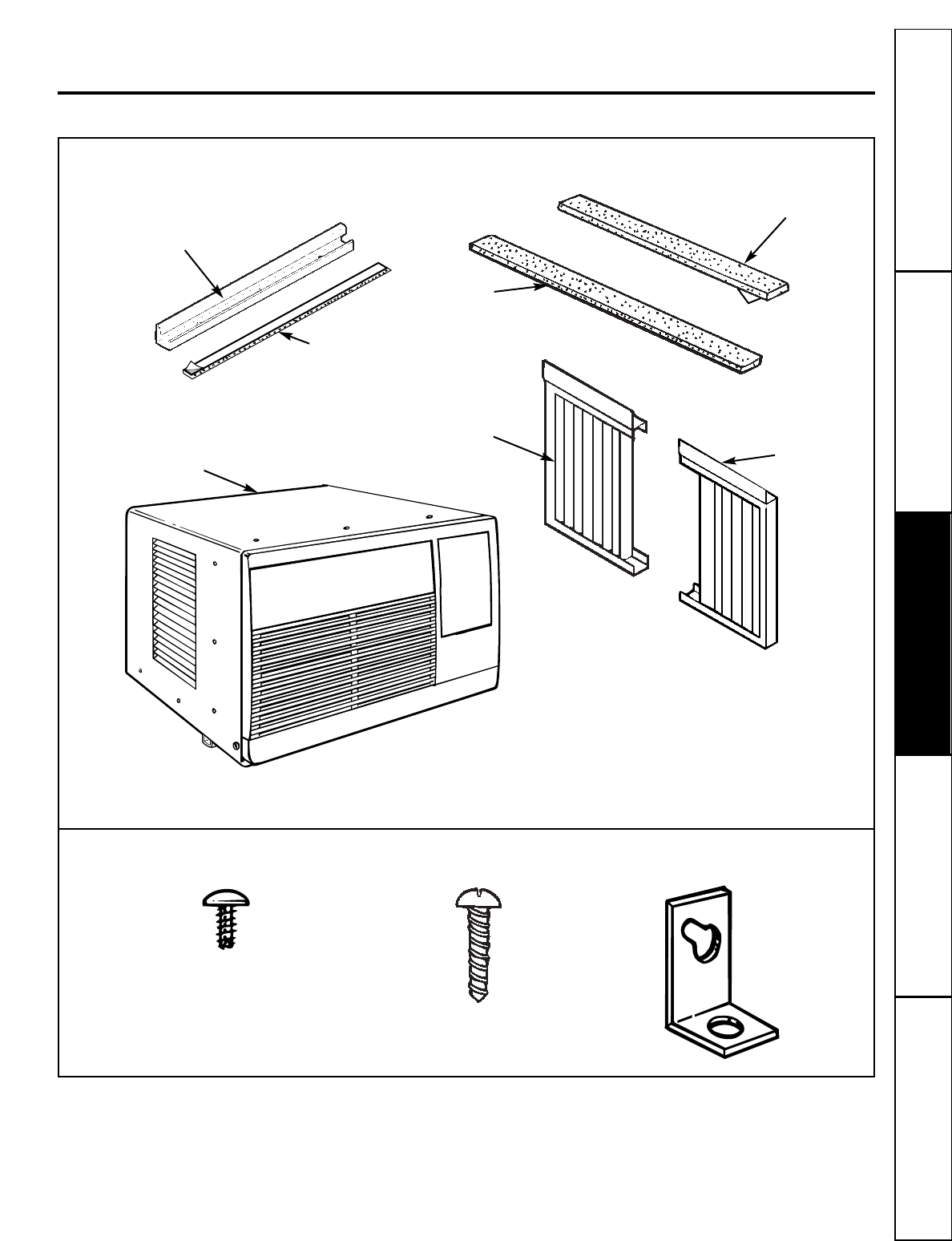

Parts Included

Type A (9) Security bracket (3)

Top mounting rail

Right

accordion

panel

Foam top

window gasket

Window

sash seal

Left

accordion

panel

Type B (8)

Consumer SupportTroubleshooting Tips

Operating InstructionsSafety Instructions Installation Instructions

9

Window Installation Instructions.

Air

conditioner

Top mounting rail

seal strip

10

Consumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions

Storm Window Requirements

A storm window frame will not allow the air

conditioner to tilt towards the outside and will keep

it from draining properly. To adjust for this, attach

a piece of wood to the stool.

WOOD PIECES—

WIDTH:

2″

LENGTH:

Long enough to fit inside the window

frame.

THICKNESS:

To determine the thickness, place a

piece of wood on the stool to make it 1/2″higher

than the top of the storm window frame.

Attach securely with nails or screws provided by

the installer.

2

Window Installation Instructions.

Read completely; then follow step-by-step.

Window Requirements

■These instructions are for a standard double-

hung window. You will need to modify them for

other types of windows.

■The air conditioner can be installed without

the accordion panels if needed to fit in a narrow

window. See the window opening dimensions

below.

■All supporting parts must be secured to firm

wood, masonry or metal.

■The electrical outlet must be within reach of the

power cord.

1/2″higher

than frame

Storm window

frame

Wood

Stool

1

127⁄8″min.

22″to 36″

(With accordion panels)

1713⁄16″ min.

(Without accordion panels)

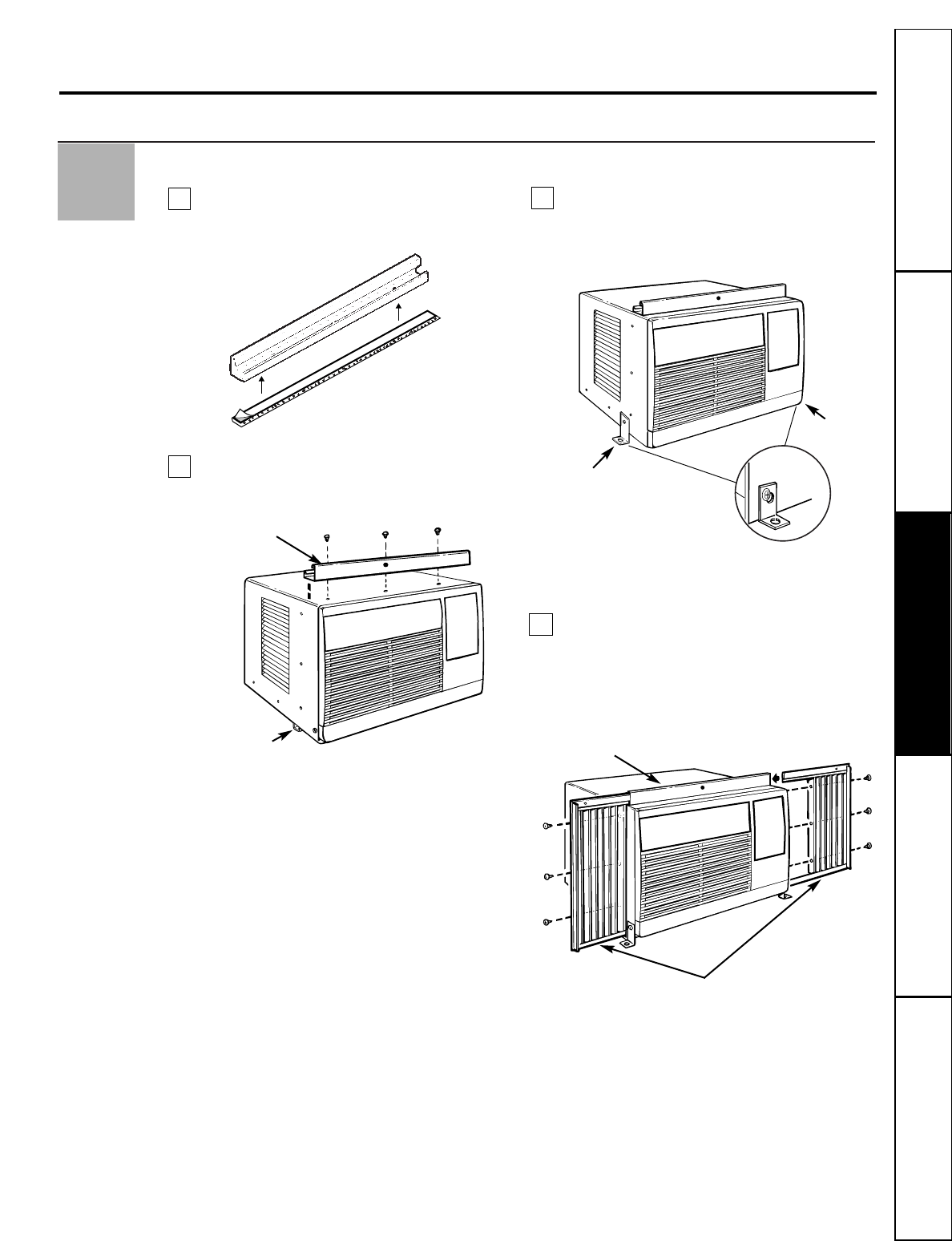

Prepare the Air Conditioner

Remove the backing from the top mounting

rail seal strip and attach it to the bottom of the

top mounting rail.

Install the top mounting rail with 3 type A

screws from the outside of the case.

Loosen the lower screw on each side of the

case and hook a security bracket on each side.

Tighten the screws to secure the brackets

in place.

Insert the frames of the accordion panels into

the top and bottom mounting rails. Attach the

accordion panels to the side of the case using

6 type A screws.

B

A

3

Consumer SupportTroubleshooting Tips

Operating InstructionsSafety Instructions Installation Instructions

11

C

Top mounting rail

Bottom mounting rail

D

Security bracket

Security bracket

Top mounting rail

Accordion panels

12

Consumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions

Window Installation Instructions.

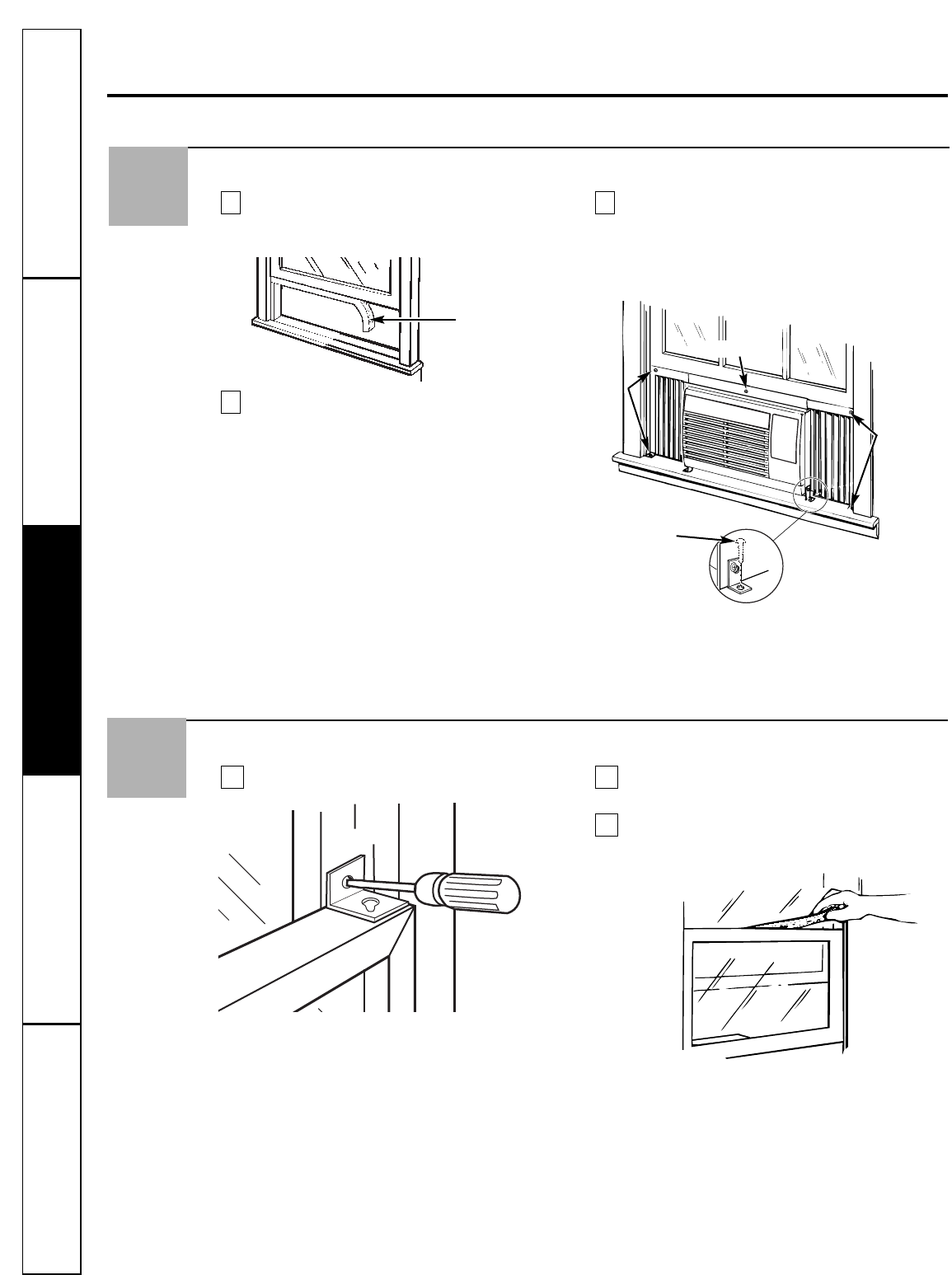

Install the Air Conditioner in the Window

Cut the window sash seal to the window

width and stick the adhesive side to the

bottom of the sash.

Place the air conditioner on the stool with

the bottom mounting rail against its back

edge. Center it and close the window

securely behind the top mounting rail.

It should be level or slightly tilted to the

outside. Use a level; about a 1/3 bubble will

be the correct case slant to the outside.

Extend the left and right accordion panels

to the vertical window sashes and attach

with 4 type B screws. Attach the top

mounting rail to the sash with a type

B screw.

Attach the brackets to the stool on both

sides using two type B screws.

C

B

A

Install the Security Bracket and the Foam Top Window Gasket

Attach a security bracket with a type B screw. Cut the foam top window gasket to the

window width.

Stuff the foam between the glass and the

window to prevent air and insects from getting

into the room.

The installation is now complete.

C

BA

5

4

Window sash seal

Type B

screws

Type B

screw

Type B screw

Type B

screws

Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions

13

Before you call for service…

Troubleshooting Tips: Save time and money! Review the chart below first and you may not need to call for service.

Normal Operating Sounds

■ You may hear a pinging noise caused by

water being picked up and thrown against the

condenser on rainy days or when the humidity is

high. This design feature helps remove moisture

and improve efficiency.

■ You may hear the thermostat click when the

compressor cycles on and off.

■ Water will collect in the base pan during

high humidity or on rainy days. The water

may overflow and drip from the outdoor side

of the unit.

■ The fan may run even when the compressor

does not.

Problem Possible Causes What To Do

Air conditioner

The air conditioner •Make sure the air conditioner plug is pushed

does not start

is unplugged. completely into the outlet.

The fuse is blown/circuit •Check the house fuse/circuit breaker box and replace

breaker is tripped. the fuse or reset the breaker.

Power failure. •If power failure occurs, turn the air conditioner

OFF

.

When power is restored, wait 3 minutes to restart the

air conditioner to prevent tripping of the compressor

overload.

Air conditioner does

Airflow is restricted. •Make sure there are no curtains, blinds or furniture

not cool as it should

blocking the front of the air conditioner.

The temp control may •Turn the temperature knob to a higher number.

not be set correctly.

The air filter is dirty. •Clean the filter at least every 30 days.

See the

Operating Instructions

section.

The room may have been hot. •When the air conditioner is first turned on, you need to

allow time for the room to cool down.

Cold air is escaping. •Check for open furnace floor registers and cold

air returns.

•Set the air conditioner’s vent to the closed position.

Cooling coils have iced up. •See “

Air conditioner freezing up

” below.

Air conditioner

Ice blocks the air flow •Set the mode control at

HIGH FAN

or

HIGH COOL

with

freezing up

and stops the air conditioner the temp at

1

or

2

.

from cooling the room.

Water drips outside

Excessively hot and •This is normal.

humid weather.

Water drips indoors

The air conditioner is not •For proper water disposal, make sure the air conditioner

tilted to the outside. slants slightly from the case front to the rear.

Water collects in

Moisture is removed from •This is normal for a short period in areas with little

base pan

indoor air and drains into humidity; normal for a longer period in very humid

rear of a cabinet where a fan areas.

blows it against the outdoor

condenser coil.

14

Consumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions

Notes.

15

Consumer SupportTroubleshooting Tips

Operating InstructionsSafety Instructions Installation Instructions

Notes.

16

Consumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions

Notes.

General Electric Company

Warranty Registration Department

P.O. Box 32150

Louisville, KY 40232-2150

GE Service Protection Plus™

GE, a name recognized worldwide for quality and dependability, offers you

Service Protection Plus™—comprehensive protection on all your appliances—

No Matter What Brand!

Benefits Include:

•Backed by GE

•All brands covered

•Unlimited service calls

•All parts and labor costs included

•No out-of-pocket expenses

•No hidden deductibles

•One 800 number to call

You will be completely satisfied with our service protection or you may request your money back

on the remaining value of your contract. No questions asked. It’s that simple.

Protect your refrigerator, dishwasher, washer and dryer, range, TV, VCR and much more—any brand!

Plus there’s no extra charge for emergency service and low monthly financing is available. Even icemaker

coverage and food spoilage protection is offered. You can rest easy, knowing that all your valuable

household products are protected against expensive repairs.

Place your confidence in GE and call us in the U.S. toll-free at 800.626.2224

for more information.

*All brands covered, up to 20 years old, in the continental U.S.

We’ll Cover Any Appliance.

Anywhere. Anytime.*

Please place in envelope and mail to:

✁Cut here

17

Consumer Product Ownership Registration

Important

Mail

Today!

General Electric Company

Louisville, Kentucky

GEAppliances.com

First

Name

Mr. ■■Ms. ■■Mrs. ■■Miss ■■

Street

Address

City State

Date Placed

In Use

Month Day Year

Zip

Code

Apt. #

Last

Name

Phone

Number __

Consumer Product Ownership Registration

Dear Customer:

Thank you for purchasing our product and thank you for placing your confidence in us.

We are proud to have you as a customer!

Follow these three steps to protect your new appliance investment:

Important: If you did not get a registration card with your

product, detach and return the form below to

ensure that your product is registered, or register

online at GEAppliances.com.

123

Model Number Serial Number

✁Cut here

Complete and mail

your Consumer

Product Ownership

Registration today.

Have the peace of

mind of knowing we

can contact you in

the unlikely event of

a safety modification.

After mailing the

registration below,

store this document

in a safe place. It

contains information

you will need should

you require service.

Our service number is

800.GE.CARES

(800.432.2737).

Read your Owner’s

Manual carefully.

It will help you

operate your new

appliance properly.

Model Number Serial Number

E-mail Address*

* Please provide your e-mail address to receive, via e-mail, discounts, special offers and other important

communications from GE Appliances (GEA).

■■ Check here if you do not want to receive communications from GEA’s carefully selected partners.

18

19

Consumer SupportTroubleshooting Tips

Operating InstructionsSafety Instructions Installation Instructions

Air Conditioner Warranty.

For The Period Of: We Will Replace:

One Year Any part

of the air conditioner which fails due to a defect in materials or workmanship.

From the date of the

During this

full one-year warranty,

we will also provide,

free of charge,

all labor

original purchase

and in-home service to replace the defective part.

Five Years Any part of the sealed refrigerating system

(the compressor, condenser, evaporator

From the date of the

and all connecting tubing) which fails due to a defect in materials or workmanship.

original purchase

During this

four-year additional warranty,

we will also provide,

free of charge,

all labor

and in-home service to replace the defective part.

■Service trips to your home to teach you how to use the

product.

■Improper installation. If you have an installation problem,

or if the air conditioner is of improper cooling capacity

for the intended use, contact your dealer or installer.

You are responsible for providing adequate electrical

connecting facilities.

■Failure of the product resulting from modifications to the

product or due to unreasonable use including failure to

provide reasonable and necessary maintenance.

■In commercial locations labor necessary to move the

unit to a location where it is accessible for service

by an individual technician.

■Replacement of house fuses or resetting of circuit

breakers.

■Failure due to corrosion on models not corrosion-

protected.

■Damage to the product caused by improper power supply

voltage, accident, fire, floods or acts of God.

■Incidental or consequential damage caused by possible

defects with this air conditioner.

What Is Not Covered:

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home

use within the USA. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives

you specific legal rights, and you may also have other rights which vary from state to state. To know what your

legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.

Warrantor: General Electric Company. Louisville, KY 40225

All warranty service provided by our Factory Service Centers,

or an authorized Customer Care®technician. To schedule service,

on-line, 24 hours a day, visit us at GEAppliances.com, or call

800.GE.CARES (800.432.2737).

Staple your receipt here.

Proof of the original purchase

date is needed to obtain service

under the warranty.

Printed in China

Consumer Support.

GE Appliances Website

GEAppliances.com

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day,

any day of the year! For greater convenience and faster service, you can now download Owner’s Manuals,

order parts, catalogs, or even schedule service on-line. You can also “Ask Our Team of Experts™”

your questions, and so much more...

Schedule Service

GEAppliances.com

Expert GE repair service is only one step away from your door. Get on-line and schedule your service at

your convenience 24 hours any day of the year! Or call 800.GE.CARES (800.432.2737) during normal

business hours.

Real Life Design Studio

GEAppliances.com

GE supports the Universal Design concept—products, services and environments that can be used by

people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and

mental abilities and impairments. For details of GE’s Universal Design applications, including kitchen

design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call

800.TDD.GEAC (800.833.4322).

Extended Warranties

GEAppliances.com

Purchase a GE extended warranty and learn about special discounts that are available while your warranty

is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours.

GE Consumer Home Services will still be there after your warranty expires.

Parts and Accessories

GEAppliances.com

Individuals qualified to service their own appliances can have parts or accessories sent directly to their

homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by

phone at 800.626.2002 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally

should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause

unsafe operation.

Contact Us

GEAppliances.com

If you are not satisfied with the service you receive from GE, contact us on our Website with all the details

including your phone number, or write to: General Manager, Customer Relations

GE Appliances, Appliance Park

Louisville, KY 40225

Register Your Appliance

GEAppliances.com

Register your new appliance on-line—at your convenience! Timely product registration will allow for

enhanced communication and prompt service under the terms of your warranty, should the need arise.

You may also mail in the pre-printed registration card included in the packing material.
