GE Appliances

Part No. 164D3333P155 Pub. No. 49-8923 11-98 CG

Cooking Center

Microwave

JKP85

JTP85

Owner’s Manual

The electrical output of the

microwave oven in this cooking

center is 1000 watts.

(IEC-705 Test Procedure)

Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsCustomer Service

IMPORTANT SAFETY INFORMATION.

READ ALL INSTRUCTIONS BEFORE USING.

WARNING!

For your safety, the information in this manual must be followed to minimize the risk of fire or

explosion, electric shock, or to prevent property damage, personal injury, or loss of life.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE

MICROWAVE ENERGY

■Do not attempt to operate this oven with

the door open since open-door operation

can result in harmful exposure to

microwave energy.

It is important not to

defeat or tamper with the safety interlocks.

■Do not place any object between the oven

front face and the door or allow soil or

cleaner residue to accumulate on sealing

surfaces.

■The oven should not be adjusted or

repaired by anyone except properly

qualified service personnel.

■Do not operate the oven if it is damaged. It

is particularly important that the oven door

close properly and that there is no damage

to the:

■door (bent)

■hinges and latches (broken or

loosened)

■door seals and sealing surfaces.

MICROWAVE TERMS ANDDEFINITIONS

Arcing

Arcing is the microwave term for sparks in the oven. Arcing

is caused by:

■

metal or foil touching the side of the oven.

■

foil that is not molded to food (upturned edges act

like antennas).

■

metal such as twist-ties, poultry pins, gold-rimmed

dishes.

■

recycled paper towels containing small metal pieces.

Covering

Covers hold in moisture, allow for more even heating and

reduce cooking time. Venting plastic wrap or covering with

wax paper allows excess steam to escape.

Shielding

In a regular oven, you shield chicken breasts or baked

foods to prevent over-browning. When microwaving, you

use small strips of foil to shield thin parts, such as the tips

of wings and legs on poultry, which would cook before

larger parts.

Standing Time

When you cook with regular ovens, foods such as roasts

or cakes are allowed to stand to finish cooking or to

set. Standing time is especially important in microwave

cooking. Note that a microwaved cake is not placed on

a cooling rack.

Venting

After covering a dish with plastic wrap, you vent the

plastic wrap by turning back one corner so excess steam

can escape.

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Customer Service

When using electrical appliances, basic safety precautions should be followed, including the following:

WARNING—To reduce the risk of burns,

electric shock, fire, injury to persons or

exposure to excessive microwave energy:

■Use this appliance only for its intended use

as described in this manual. Do not use

corrosive chemicals or vapors in this

appliance. This cooking center is specifically

designed to heat or cook food, and is not

intended for laboratory or industrial use.

■Be sure your appliance is properly installed

and grounded by a qualified technician in

accordance with the provided Installation

Instructions.

■Have the installer show you the location of

the circuit breaker or fuse. Mark it for easy

reference.

■Be sure the cooking center is securely

installed in a cabinet that is firmly attached

to the house structure. Weight on the oven

door could cause the oven to tip and result

in injury. Never allow anyone to climb, sit,

or hang on the oven door.

■This appliance must be connected to a

grounded, metallic, permanent wiring

system, or an equipment grounding

conductor should be run with the circuit

conductors and connected to the

equipment grounding terminal or lead

on the appliance.

■This appliance should be serviced only by

qualified service personnel. Contact

nearest authorized service facility for

examination, repair or adjustment. Do not

repair or replace any part of this appliance

unless specifically recommended in this

manual. All other servicing should be

referred to a qualified technician.

■Do not store this appliance outdoors.

Do not use this product near water—for

example, in a wet basement, or near a

swimming pool.

■Before performing any service, disconnect

the cooking center power supply at the

household distribution panel by removing

the fuse or switching off the circuit

breaker.

■Do not operate this appliance if it has a

damaged cord or plug, if it is not working

properly, or if it has been damaged or

dropped.

■Do not leave children alone—children

should not be left alone or unattended in

an area where appliance is in use. They

should never be allowed to sit or stand on

any part of the appliance.

■Don’t allow anyone to climb, stand or

hang on the door. They could damage

the cooking center and cause severe

personal injury.

SAFETY PRECAUTIONS

IMPORTANT SAFETY NOTICE

The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to

publish a list of substances known to the state to cause cancer, birth defects or other reproductive

harm, and requires businesses to warn customers of potential exposure to such substances.

The fiberglass insulation in self-clean ovens gives off a very small amount of carbon monoxide during

the cleaning cycle. Exposure can be minimized by venting with an open window or using a ventilation

fan or hood.

Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsCustomer Service

IMPORTANT SAFETY INFORMATION.

READ ALL INSTRUCTIONS BEFORE USING.

Do not use water on grease fires. Never pick up a flaming pan. Smother flaming pan by covering

pan completely with well-fitting lid, cookie sheet or flat tray. Flaming grease outside a pan can be

put out by covering with baking soda or, if available, a multi-purpose dry chemical or foam-type

fire extinguisher.

WARNING!

SAFETY PRECAUTIONS

■

CAUTION:

Items of interest to children

should not be stored in cabinets above an

oven; children climbing on the oven to

reach items could be seriously injured.

■Teach children not to play with the

controls or any other part of the

cooking center.

■Wear proper clothing. Loose fitting or

hanging garments should never be worn

while using the appliance. Flammable

material could be ignited if brought in

contact with hot heating elements and

may cause severe burns.

■Use only dry pot holders—moist or damp

pot holders on hot surfaces may result in

burns from steam. Do not let pot holders

touch hot heating elements. Do not use a

towel or other bulky cloth. Such cloths can

catch fire on a hot element.

■Always keep dish towels, dish cloths, pot

holders, and other linens a safe distance

from your oven.

■Always keep wooden spoons and plastic

utensils and canned food a safe distance

away from your oven.

■Always keep combustible wall coverings,

curtains or drapes a safe distance from

your oven.

■Do not store flammable material in an

oven or near the cooking center.

■Do not cover or block any openings on the

appliance.

■For your safety, never use your appliance

for warming or heating the room.

■Do not leave paper products, cooking

utensils, or food in the oven when not

in use.

■Do not store or use combustible materials,

gasoline or other flammable vapors and

liquids in the vicinity of this or any other

appliance.

■Do not let cooking grease or other

flammable materials accumulate in or

near the cooking center.

■Do not touch heating elements or interior

surface of the oven. These surfaces may be

hot enough to burn even though they are

dark in color. During and after use, do not

touch, or let clothing or other flammable

materials contact any interior area of the

oven; allow sufficient time for cooling first.

■Potentially hot surfaces include oven vent

openings, surfaces near the openings, and

crevices around the oven door.

■

REMEMBER:

The inside surface of the oven

may be hot when the door is opened.

Cook meat and poultry thoroughly—meat to at least an INTERNAL temperature of 160°F. and poultry

to at least an INTERNAL temperature of 180°F. Cooking to these temperatures usually protects against

foodborne illness.

COOK MEAT AND POULTRY THOROUGHLY…

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Customer Service

Read and follow the specific “Precautions to Avoid Possible Exposure To Excessive Microwave

Energy” section in this manual.

To reduce the risk of fire in the oven cavity:

■Do not over-cook food. Carefully attend

appliance if paper, plastic or other

combustible materials are placed inside

the oven to facilitate cooking.

■Remove wire twist-ties from paper or

plastic containers before placing bags

in oven.

■Do not use your microwave oven to dry

newspapers.

■Do not pop popcorn in your microwave

oven unless in a special microwave

popcorn accessory or unless you use

popcorn labeled for use in microwave

ovens.

■Do not over-cook potatoes. They could

dehydrate and catch fire, causing damage

to your oven.

■Do not operate the oven while empty to

avoid damage to the oven and the danger

of fire. If by accident the oven should run

empty a minute or two, no harm is done.

However, try to avoid operating the oven

empty at any time—it saves energy and

prolongs the life of the oven.

■Do not use the oven for storage purposes.

Do not leave paper products, cooking

utensils or food in the oven when not

in use.

■If materials inside the oven should ignite,

keep oven door closed, turn oven off,

and shut off power at the fuse or circuit

breaker panel. If the door is opened, the

fire may spread.

■This microwave oven is not approved or

tested for marine use.

■Some products such as whole eggs and

sealed containers—for example, closed

jars—will explode and should not be

heated in this microwave oven. Such use of

the microwave oven could result in injury.

■Do not operate the microwave oven

without the turntable and support in place.

■Avoid heating baby food in glass jars, even

with the lid off. Make sure all infant food is

thoroughly cooked. Stir food to distribute

the heat evenly. Be careful to prevent

scalding when warming formula or breast

milk. The container may feel cooler than

the milk really is. Always test the milk

before feeding the baby.

■Do not boil eggs in a microwave oven.

Pressure will build up inside the egg

yolk and will cause it to burst, possibly

resulting in injury.

■Foods with unbroken outer “skin” such as

potatoes, sausages, tomatoes, apples,

chicken livers and other giblets, and egg

yolks should be pierced to allow steam to

escape during cooking.

■Don’t defrost frozen beverages in narrow-

necked bottles (especially carbonated

beverages). Even if the container is

opened, pressure can build up. This can

cause the container to burst, possibly

resulting in injury.

■Hot foods and steam can cause burns.

Be careful when opening any containers

of hot food, including popcorn bags,

cooking pouches and boxes. To prevent

possible injury, direct steam away from

hands and face.

■As with any appliance, close supervision is

necessary when used by children.

MICROWAVE OVEN

Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsCustomer Service

IMPORTANT SAFETY INFORMATION.

READ ALL INSTRUCTIONS BEFORE USING.

Make sure all cookware used in your microwave oven is suitable for microwaving. Most glass

casseroles, cooking dishes, measuring cups, custard cups, pottery or china dinnerware which does

not have metallic trim or glaze with a metallic sheen can be used. Some cookware is labeled

“suitable for microwaving.”

WARNING!

MICROWAVE-SAFE COOKWARE

■If you are not sure if a dish is microwave-

safe, use this test: Place in the oven both

the dish you are testing and a glass

measuring cup filled with 1 cup of water—

set the measuring cup either in or next to

the dish. Microwave 1 minute at high.

If the dish heats, it should not be used

for microwaving.

■If the dish remains cool and only the water

in the cup heats, then the dish is microwave-

safe.

■If you use a meat thermometer while

cooking, make sure it is safe for use in

microwave ovens.

■Do not use recycled paper products.

Recycled paper towels, napkins and waxed

paper can contain metal flecks which may

cause arcing or ignite. Paper products

containing nylon or nylon filaments should

be avoided, as they may also ignite.

■Some styrofoam trays (like those that meat

is packaged on) have a thin strip of metal

embedded in the bottom. When

microwaved, the metal can burn the floor

of the oven or ignite a paper towel.

■Not all plastic wrap is suitable for use in

microwave ovens. Check the package for

proper use.

■Paper towels, waxed paper and plastic

wrap can be used to cover dishes in order

to retain moisture and prevent spattering.

Be sure to vent plastic wrap so steam

can escape.

■Oversized food or oversized metal

cookware should not be used in a

microwave oven. Electrical shock or

fire could occur.

■While paper plates may be used for timed

cooking and defrosting, do not use them

with Auto Sensor cooking. Use microwave-

safe plates or bowls for reheating. Cover

with plastic wrap.

■Cookware may become hot because

of heat transferred from the heated

food. Pot holders may be needed to

handle the cookware.

■“Boilable” cooking pouches and tightly

closed plastic bags should be slit, pierced

or vented as directed by package. If they

are not, plastic could burst during or

immediately after cooking, possibly

resulting in injury. Also, plastic storage

containers should be at least partially

uncovered because they form a tight seal.

When cooking with containers tightly

covered with plastic wrap, remove

covering carefully and direct steam

away from hands and face.

■Use foil only as directed in this manual. TV

dinners may be microwaved in foil trays less

than 3/4″high; remove the top foil cover

and return the tray to the box. When using

foil in the microwave oven, keep the foil at

least 1 inch away from the sides of the oven.

■Plastic cookware—Plastic cookware

designed for microwave cooking is very

useful, but should be used carefully.

Even microwave-safe plastic may not

be as tolerant of over-cooking conditions

as are glass or ceramic materials and

may soften or char if subjected to short

periods of over-cooking. In longer

exposures to over-cooking, the food

and cookware could ignite.

■

Follow these guidelines:

■Use microwave-safe plastics only and

use them in strict compliance with the

cookware manufacturer’s

recommendations.

■Do not microwave empty containers.

■Do not permit children to use

plastic cookware without complete

supervision.

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Customer Service

If you see arcing, press the CLEAR/OFFpad and correct the problem.

ARCING

Microwaved water and other liquids do not always bubble when they reach the boiling point.

They can actually get super heated and not bubble at all.

Super heated liquid will bubble up out of the

cup when it is moved or when something like

a spoon or tea bag is put into it.

To prevent this from happening and causing

injury, do not heat any liquid for more than 2

minutes per cup.

After heating, let the cup stand in the

microwave for 30 seconds before moving it or

putting anything into it.

Spontaneous boiling

Under certain special circumstances, liquids

may start to boil during or shortly after removal

from the microwave oven.

To prevent burns from splashing liquid, we

recommend the following before removing

the container from the oven:

■Allow the container to stand in the oven for

30 to 40 seconds after the oven has shut off.

■Do not boil liquids in narrow-necked

containers such as soft drink bottles, wine

flasks and especially narrow-necked coffee

cups. Even if the container is opened,

excessive steam can build up and cause it

to burst or overflow.

Arcing is the microwave term for sparks in the

oven. Arcing is caused by:

■Metal or foil touching the side of the oven.

■Foil not molded to food (upturned edges

act like antennas).

■Metal, such as twist-ties, poultry pins, or

gold-rimmed dishes, in the microwave.

■Recycled paper towels containing small

metal pieces being used in the microwave.

SUPER HEATED WATER

■Steam or vapor escaping from around

the door.

■Light reflection around the door or the

outer case.

■Dimming of the oven light and change

in the blower sound may occur while

operating at power levels other than high.

■The microwave fan may operate with both

ovens off. It is cooling the control and will

turn itself off.

■Some TV-radio interference might be

noticed while using your microwave oven.

It’s similar to the interference caused by

other small appliances and does not

indicate a problem with your oven.

■A dull thumping sound while the oven

is operating.

ALL THESE THINGS ARE NORMAL WITH YOUR MICROWAVE

Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsCustomer Service

IMPORTANT SAFETY INFORMATION.

READ ALL INSTRUCTIONS BEFORE USING.

Do not use aluminum foil to line oven bottoms, except as suggested in this manual. Improper

installation of aluminum foil may result in a risk of electric shock or fire.

WARNING!

SELF-CLEANING LOWER OVEN

■ Stand away from the oven when opening

the oven door. Hot air or steam which

escapes can cause burns to hands, face

and/or eyes.

■ Do not heat unopened food containers.

Pressure could build up and the container

could burst, causing an injury.

■ Keep the oven vent unobstructed.

■ Keep the oven free from grease buildup.

■ Keep the cooking center clean and free of

accumulations of grease or spillovers,

which may ignite.

■ Never leave the oven door open when you

are not watching the cooking center.

■ Place the oven shelf in the desired position

while the oven is cool. If shelves must be

handled when hot, do not let pot holder

contact the heating elements.

■ When using cooking or roasting bags in

the oven, follow the manufacturer’s

directions.

■ Pulling out the shelf to the stop-lock is a

convenience in lifting heavy foods. It is also

a precaution against burns from touching

hot surfaces of the door or oven walls.

■ Do not use the oven for a storage area.

Items stored in an oven can ignite.

■ Do not leave paper products, cooking

utensils or food in the oven when not in use.

■ After broiling, always take the broiler pan

out of the oven and clean it. Leftover

grease in the broiler pan can catch fire

next time you use the oven.

■ Do not use the oven to dry newspapers.

If overheated, they can catch on fire.

■ Never leave jars or cans of fat drippings

in or near your oven.

■ Clean only parts listed in this Use and

Care Manual.

■Do not clean the door gasket. The door

gasket is essential for a good seal. Care

should be taken not to rub, damage or

move the gasket.

■Do not use oven cleaners. No commercial

oven cleaner or oven liner protective

coating of any kind should be used in or

around any part of the oven. Residue from

oven cleaners will damage the inside of the

oven when the self-clean cycle is used.

■Before self-cleaning the oven, remove

the probe, broiler pan, grid and other

cookware.

■Be sure to wipe up excess spillage before

starting a self-cleaning cycle.

■If the self-cleaning mode malfunctions,

turn the oven off and disconnect the

power supply. Have it serviced by a

qualified technician.

■Listen for a fan— a fan noise should be

heard sometime during the cleaning

cycle. If not, call for service before self-

cleaning again.

Read and follow this Safety Information carefully.

SAVE THESE INSTRUCTIONS

Safety Information

Safety Precautions . . . . . . . 2–4

Microwave Oven . . . . . . . 2, 5–7

Self-Cleaning Lower Oven . . . . 8

Operating Instructions

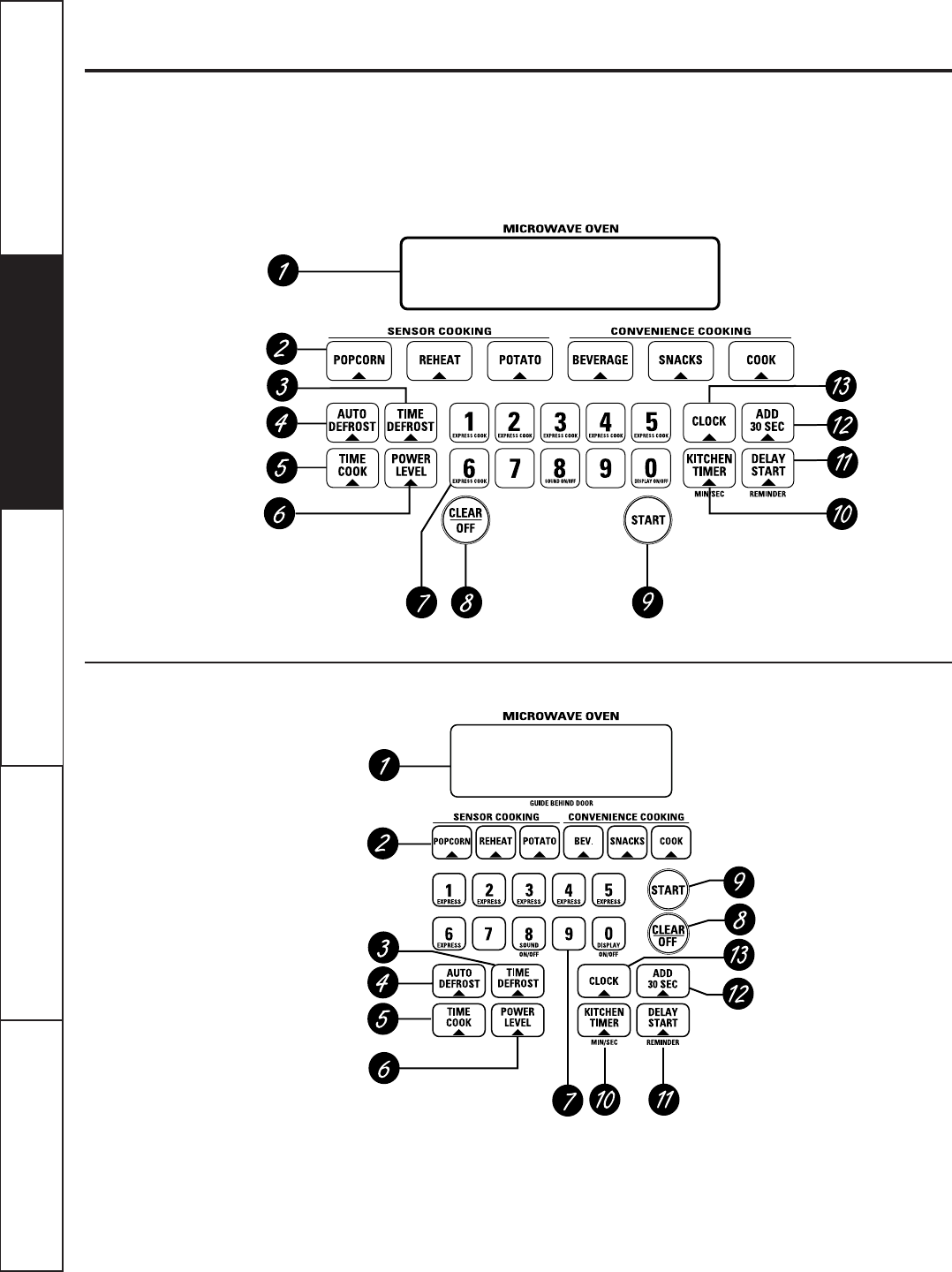

Microwave Control Panel . .10,11

Using the Microwave . . . 10–21

Sensor Controls . . . . . . . . 16, 17

Lower Oven Control Panel 22, 23

Using the Lower Oven . . . 10–32

Lower Oven Thermostat . . . . 30

Care and Cleaning

Self-Cleaning Lower Oven . .31,32

Microwave Oven . . . . . . . . . . 33

Shelves . . . . . . . . . . . . . . . . . 34

Broiler Pan and Grid . . . . . . . 35

Oven Light Bulb . . . . . . . . . . . 35

Troubleshooting Tips

Before You Call

For Service . . . . . . . . . . . . 36–38

Customer Service

Warranty . . . . . . . . . . . . . . . . 39

Service Telephone

Numbers . . . . . . . . . Back Cover

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Customer Service

Congratulations!

You Are Now Part of the GE Family.

Welcome to the GE family. We’re proud of our quality products and we are

committed to providing dependable service. You’ll see it in this easy-to-use Owner’s

Manual and you’ll hear it in the friendly voices of our customer service department.

Best of all, you’ll experience these values each time you use your cooking center.

That’s important, because your new cooking center will be part of your family for

many years. And we hope you will be part of ours for a long time to come.

We thank you for buying GE. We appreciate your purchase, and hope you will

continue to rely on us whenever you need quality appliances for your home.

Inside you will find many helpful hints on how to use and maintain

your cooking center properly. Just a little preventive care on your

part can save you a great deal of time and money over the life of your

cooking center.

You’ll find many answers to common problems in the

Before You Call

For Service

section. If you review our chart of

Troubleshooting Tips

first, you may not need to call for service at all.

READ THIS MANUAL

GE & You, AService Partnership.

FOR YOUR RECORDS

Write the model and serial numbers here:

You can find them on a label inside the upper oven on the left side.

Staple sales slip or cancelled check here.

Proof of the original purchase date is needed to obtain service under

the warranty.

IMPORTANT!

It is important that we, the manufacturer, know the location of your

cooking center should a need occur for adjustments. Your supplier is

responsible for registering you as the owner. Please check with your

supplier to be sure he has done so. This appliance must be registered.

Please be certain that it is. Fill out and return the Consumer Product

Registration Card that is packed with this product.

If you move, or if you are not the original purchaser please write to us, stating

model and serial numbers. Write to: GE Appliances, Range Product Service,

Appliance Park, Louisville, KY 40225.

If you do need service, you can relax knowing help is only a phone

call away. A list of toll-free customer service numbers is included in

the back section of this manual. Or you can always call the GE

Answer Center® at 800.626.2000, 24 hours a day, 7 days a week.

IF YOU NEED SERVICE

Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsCustomer Service

Using the microwave oven controls.

Throughout this manual, features and appearance may vary from your model. Your model may have one of the

following controls.

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Customer Service

The time on the microwave display is shown in minutes and seconds (1:30 is one minute, 30 seconds). On the lower

oven, time is shown in hours and minutes (1:30 is one hour, 30 minutes).

Microwave Oven Control Features and Settings

Display

Displays the time during cooking

functions, the power level being used,

the Auto Codes, the Auto Defrost food

weights, the cooking mode and

instructions.

AUTO SENSOR ANDCONVENIENCE

CONTROLS

The top row of pads lists specific items

you may choose to heat or cook.

POPCORN

Use to pop popcorn.

REHEAT

Use when foods need a quick warm up.

POTATO

Use when cooking whole potatoes.

BEVERAGE

Use to heat a cup of coffee or other

beverage.

SNACKS

Use to warm a variety of snack foods.

COOK

Use to automatically set the cooking times

and power levels for a variety of foods.

TIME DEFROST

Use Time Defrost for most other foods.

AUTO DEFROST

Use Auto Defrost for meat, poultry

and fish.

TIME COOK

Allows you to microwave for any time up

to 99 minutes and 59 seconds.

POWER LEVEL

Press to choose the power level you want

to set. Watch the display while pressing

this pad to select the power level.

Number Pads

After pressing a function pad, press the

number pads to set the exact amount of

time you want to cook for. For example; if

you press the

1, 2

and

pads, you have set

1 minute and 25 seconds.

CLEAR/OFF

Press once to interrupt or change a

function. Press twice to clear the display.

START

After all selections are made, press this

pad to start the oven. The

START

pad must

be pressed to turn on any function.

KITCHEN TIMER MIN/SEC

Press to set the timer up to 99 minutes

and 59 seconds. Press the number pads to

set the time. Press the

KITCHEN TIMER

MIN/SEC

pad. Press the

KITCHEN TIMER

MIN/SEC

pad twice to clear the display.

Does not turn on microwave energy.

This timer cannot be used while the

microwave is being used. Use the lower

oven timer.

DELAY START

Allows you to set the microwave to

delay cooking up to 24 hours.

ADD 30 SEC

Each time you press this pad the set

time is increased 30 seconds.

CLOCK

Press this pad before setting the clock.

Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsCustomer Service

Changing the microwave power level.

The power level may be entered or changed immediately after entering the feature time for Time Cook,

Time Defrost or Express Cook. The power level may also be changed during time countdown.

To change the power level…

Press the

TIMECOOK

pad or the

TIME

DEFROST

pad.

Enter cooking or defrosting time.

Press the

POWER LEVEL

pad.

Select desired power level 1–10.

Press the

START

pad.

Variable power levels add flexibility to microwave

cooking. The power levels on the microwave oven

can be compared to the surface units on a range.

Each power level gives you microwave energy a

certain percent of the time.

■

Power level 7

is microwave energy 70%

of the time.

■

Power level 3

is energy 30% of the time.

■Most cooking will be done on

High

(power level 10)

which gives you 100%

power. Power level 10 will cook faster

but food may need more frequent

stirring, rotating or turning over.

A lower setting will cook more evenly and

need less stirring or rotating of the food.

Some foods may have better flavor,

texture or appearance if one of the lower

settings is used. Use a lower power level

when cooking foods that have a tendency

to boil over, such as scalloped potatoes.

Rest periods (when the microwave

energy cycles off) give time for the food

to “equalize” or transfer heat to the inside

of the food. An example of this is shown

with

power level 3

—the defrost cycle.

If microwave energy did not cycle off,

the outside of the food would cook

before the inside was defrosted.

Here are some examples of uses for

various power levels:

■

High 10:

Fish, bacon, vegetables,

boiling liquids.

■

Med-High 7:

Gentle cooking of meat

and poultry; baking casseroles and

reheating.

■

Medium 5:

Slow cooking and

tenderizing for stews and less tender

cuts of meat.

■

Low 2 or 3:

Defrosting; simmering;

delicate sauces.

■

Warm 1:

Keeping food warm; softening

butter.

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Customer Service

Using the timed microwave features.

Time Cook I

Allows you to microwave for any time up to 99

minutes and 59 seconds.

Power level 10 (High)

is automatically set,

but you may change it for more flexibility.

Press the

TIME COOK

pad.

Enter cooking time. For example,

press

and

for 15 minutes.

Change power level if you don’t

want full power. (Press the

POWER

LEVEL.

pad Select a desired power

level 1–10.)

Press the

START

pad.

You may open the door during Time

Cook to check the food. Close the

door and press the

START

pad to

resume cooking.

Time Cook II

Lets you change power levels automatically

during cooking. Here’s how to do it:

Press the

TIME COOK

pad.

Enter cooking time.

Change power level if you don’t

want full power. (Press the

POWER

LEVEL

pad. Select a desired power

level 1–10.)

Press the

TIME COOK

pad again.

Enter the second cook time.

Change the power level if you don’t

want full power. (Press the

POWER

LEVEL

pad. Select a desired power

level 1–10.)

Press the

START

pad.

At the end of Time Cook I, Time Cook II

counts down.

Express Cook

This is a quick way to set cooking time for 1–6

minutes.

Press one of the

EXPRESS COOK

pads

(from

) for 1 to 6 minutes of cooking

power level 10.

For example, press the

pad for 2 minutes of cooking time.

The power level can be changed as time

is counting down. Press the

POWERLEVEL

pad and enter 1–10.

Add 30 Seconds

You can use this feature two ways:

■It will add 30 seconds to the time

counting down each time the pad is

pressed.

■It can be used as a quick way to set

30 seconds of cooking time. No need

to press the

START

pad, the oven will

start immediately.

Using the timed microwave features.

Cooking Guide For Time Cook. Use power level High (10) unless otherwise noted.

Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsCustomer Service

Vegetable Amount Time Comments

Asparagus

(fresh spears)

1 lb. 7 to 10 min. In 11⁄2-qt. casserole, place 1/4 cup water.

Med-High (7)

(frozen spears)

10-oz. package 5 to 8 min. In 1-qt. casserole.

Beans

(fresh green)

1 lb. cut in half 12 to 17 min. In 11⁄2-qt. casserole, place 1/2 cup water.

(frozen green)

10-oz. package 6 to 9 min. In 1-qt. casserole, place 2 tablespoons water.

(frozen lima)

10-oz. package 6 to 9 min. In 1-qt. casserole, place 1/4 cup water.

Beets

(fresh, whole)

1 bunch 18 to 25 min. In 2-qt. casserole, place 1/2 cup water.

Broccoli

(fresh cut)

1 bunch (11⁄4to 11⁄2lbs.) 7 to 10 min. In 2-qt. casserole, place 1/2 cup water.

(fresh spears)

1 bunch (11⁄4to 11⁄2lbs.) 9 to 13 min. In 2-qt. casserole, place 1/4 cup water.

(frozen, chopped)

10-oz. package 5 to 8 min. In 1-qt. casserole.

(frozen spears)

10-oz. package 5 to 8 min. In 1-qt. casserole, place 3 tablespoons water.

Cabbage

(fresh)

1 medium head (about 2 lbs.) 8 to 11 min. In 11⁄2- or 2-qt. casserole, place 1/4 cup water.

(wedges)

7 to 10 min. In 2- or 3-qt. casserole, place 1/4 cup water.

Carrots

(fresh, sliced)

1 lb. 6 to 9 min. In 11⁄2-qt. casserole, place 1/4 cup water.

(frozen)

10-oz. package 5 to 8 min. In 1-qt. casserole, place 2 tablespoons water.

Cauliflower

(flowerets)

1 medium head 9 to 14 min. In 2-qt. casserole, place 1/2 cup water.

(fresh, whole)

1 medium head 9 to 17 min. In 2-qt. casserole, place 1/2 cup water.

(frozen)

10-oz. package 51⁄2to 8 min. In 1-qt. casserole, place 2 tablespoons water.

Corn

(frozen kernel)

10-oz. package 4 to 8 min. In 1-qt. casserole, place 2 tablespoons water.

Corn on the cob

(fresh)

1 to 3 ears 3 to 5 min. In 2-qt. glass baking dish, place corn. If corn is in husk,

per ear use no water; if corn has been husked, add 1/4 cup

water. Rearrange after half of time.

(frozen)

1 ear 5 to 7 min. Place in a round glass baking dish. Cover with vented

2 to 3 ears 2 to 4 min. plastic wrap. Rearrange after half of time.

per ear

Mixed vegetables

(frozen)

10-oz. package 4 to 8 min. In 1-qt. casserole, place 3 tablespoons water.

Peas

(fresh, shelled)

2 lbs. unshelled 9 to 12 min. In 1-qt. casserole, place 1/4 cup water.

(frozen)

10-oz. package 4 to 8 min. In 1-qt. casserole, place 2 tablespoons water.

Potatoes

(fresh, cubed, white)

4 potatoes (6 to 8 oz. each) 11 to 14 min. Peel and cut into 1-inch cubes. Place in 2-qt. casserole

with 1/2 cup water. Stir after half of time.

(fresh, whole, sweet

1 (6 to 8 oz.) 2 to 5 min. Pierce with cooking fork. Place in the oven, 1 inch apart,

or white)

in circular arrangement. Let stand 5 minutes.

Spinach

(fresh)

10 to 16 oz. 5 to 8 min. In 2-qt. casserole, place washed spinach.

(frozen, chopped, and leaf)

10-oz. package 5 to 8 min. In 1-qt. casserole, place 3 tablespoons water.

Squash

(fresh, summer, and yellow)

1 lb. sliced 4 to 7 min. In 11⁄2-qt. casserole, place 1/4 cup water.

(winter, acorn, or butternut)

1 squash 7 to 11 min. Cut in half and remove fibrous membranes. In 2-qt.

(about 1 lb. each) glass baking dish, place squash cut-side-down.

Turn cut-side-up after 4 minutes.

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Customer Service

A dull thumping noise may be heard during defrosting. This is normal when oven is not operating at High power.

Time Defrost

Allows you to defrost for a selected length of

time. See the Defrosting Guide for suggested

times. (Auto Defrost explained in the About the

auto feature section.)

Press the

TIME DEFROST

pad twice.

Enter defrosting time.

Press the

START

pad.

Turn food over when the oven

signals.

Press the

START

pad.

Power level is automatically set at 3, but

can be changed. You can defrost small

items quickly by raising the power level

after entering the time.

Power level 7

cuts

the total defrosting time in about half;

power level 10

cuts the total time to

approximately 1/3. However, food will

need more frequent attention than usual.

Defrosting Tips

■

Foods frozen in paper or plastic can be

defrosted in the package. Closed packages

should be slit, pierced or vented AFTER food

has partially defrosted. Plastic storage

containers should be partially uncovered.

■

Family-size, prepackaged frozen dinners can be

defrosted and microwaved. If the food is in a

foil container, transfer it to a microwave-safe

dish.

■

Foods that spoil easily should not be allowed to

sit out for more than one hour after defrosting.

Room temperature promotes the growth of

harmful bacteria.

■

For more even defrosting of larger foods, such

as roasts, use Auto Defrost. Be sure large

meats are completely defrosted before cooking.

■

When defrosted, food should be cool but

softened in all areas. If still slightly icy, return

to the microwave very briefly, or let it stand a

few minutes.

Food Time Comments

Breads, Cakes

Bread, buns or rolls (1 piece)

1/2 min.

Sweet rolls (approx. 12 oz.)

3 to 6 min. Rearrange after half the time.

Fish and Seafood

Fillets, frozen (1 lb.)

9 to 12 min.

Shellfish, small pieces (1 lb.)

3 to 7 min. Place block in casserole. Turn over and break up after half the time.

Fruit

Plastic pouch—1 or 2 (10-oz. package)

3 to 7 min.

Meat

Bacon (1 lb.)

3 to 6 min. Place unopened package in oven. Let stand 5 minutes after defrosting.

Franks (1 lb.)

3 to 6 min. Place unopened package in oven. Microwave just until franks can be

separated. Let stand 5 minutes, if necessary, to complete defrosting.

Ground meat (1 lb.)

5 to 8 min. per lb. Turn meat over after first half of time.

Roast: beef, lamb, veal, pork

11 to 16 min. per lb. Use

power level 1.

Steaks, chops and cutlets

5 to 10 min. per lb. Place unwrapped meat in cooking dish. Turn over after first half of time and

shield warm areas with foil. After second half of time, separate pieces with

table knife.Let stand to complete defrosting.

Poultry

Chicken, broiler-fryer, cut up

15 to 22 min. Place wrapped chicken in dish. Unwrap and turn over after first half of time.

⁄

to 3 lbs.)

After second half of time, separate pieces and place in cooking dish. Microwave

2 to 4 minutes more, if necessary. Let stand a few minutes to finish defrosting.

Chicken, whole (2

⁄

to 3 lbs.)

20 to 28 min. Place wrapped chicken in dish. After half the time, unwrap and turn chicken

over. Shield warm areas with foil. To complete defrosting, run cold water in

the cavity until giblets can be removed.

Cornish hen

9 to 16 min. per lb. Place unwrapped hen in the oven breast-side-up. Turn over after first half of

time. Run cool water in the cavity until giblets can be removed.

Turkey breast (4 to 6 lbs.)

5 to 10 min. per lb. Place unwrapped breast in microwave-safe dish breast-side-down. After first

half of time, turn breast-side-up and shield warm areas with foil. Defrost for

second half of time. Let stand 1 to 2 hours in refrigerator to complete defrosting.

Defrosting Guide

At one half of selected defrosting

time, the oven signals TURN. At

this time, turn food over and

break apart or rearrange pieces

for more even defrosting. Shield

any warm areas with small pieces

of foil.

Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsCustomer Service

Using the microwave sensor cooking features.

The Sensor Features detect the increasing humidity released during cooking. The oven automatically adjusts the

cooking time to various types and amounts of food.

Sensor Cooking

■The proper containers and covers are

essential for best sensor cooking.

■Always use microwave-safe containers

and cover them with lids or vented

plastic wrap. Never use tight sealing

plastic containers—they can prevent

steam from escaping and cause food

to overcook.

■Be sure the outside of the cooking

containers and the inside of the

microwave oven are dry before

placing food in the oven. Beads

of moisture turning into steam

can mislead the sensor.

Popcorn

To use the Popcorn feature:

Follow package instructions, using

Time Cook if the package is less than

1.75 ounces or larger than 3.5

ounces. Place the package of

popcorn in the center of the

microwave.

Press the

POPCORN

pad. The oven

starts immediately.

If you open the door while POP is displayed,

ERROR will appear. Close the door, press the

CLEAR/OFF pad and begin again.

How to Adjust the Popcorn Program to

Provide a Shorter or Longer Cook Time:

If you find that the brand of popcorn you

use underpops or overcooks consistently,

you can add or subtract 20—30 seconds to

the automatic popping time.

To add time:

After pressing the

POPCORN

pad, press

the

pad immediately after the oven

starts for an extra 20 seconds. Press the

pad again to add another 10 seconds

(total 30 seconds additional time).

To subtract time:

After pressing the

POPCORN

pad, press

the

pad immediately after the oven

starts for 20 seconds less cooking time.

Press the

pad again to reduce cooking

time another 10 seconds (total 30 seconds

less time).

Covered

Vented

Dry off dishes so they don’t mislead

the sensor.

Use only with prepackaged

microwave popcorn weighing 1.75

to 3.5 ounces.

(less time) (more time)

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Customer Service

Reheat

The Reheat feature reheats single servings of

previously cooked foods or a plate of leftovers.

Place covered food in the oven.

Press the

REHEAT

pad. The oven

starts immediately.

The oven signals when steam is

sensed and the time remaining

begins counting down.

Do not open the oven door until time is

counting down. If the door is opened,

close it and press the

START

pad

immediately.

After removing food from the oven, stir, if

possible, to even out the temperature. If the food

is not hot enough, use Time Cook to reheat for

more time. Reheated foods may have wide

variations in temperature. Some areas may be

extremely hot.

Some foods not recommended for use with

REHEAT—It is best to use Time Cook for

these foods:

■Bread products.

■Foods that must be reheated

uncovered.

■Foods that need to be stirred or

rotated.

■Foods calling for a dry look or crisp

surface after reheating.

How to Change the Automatic Settings:

To reduce time by 10%:

Press the

pad after the feature pad.

To add 10% to cooking time:

Press the

pad after the feature pad.

(less time) (more time)

Potato

The Potato feature cooks 1/2–2 lbs. of potatoes.

Pierce skin with fork and place

potatoes on the turntable. If cooking

three or more potatoes, arrange in a

star pattern.

Press the

POTATO

pad. The oven

starts immediately. The oven signals

when steam is sensed and the time

remaining begins counting down.

Do not open the oven door until time is

counting down. If the door is opened,

close it and press the

START

pad

immediately.

If food is not done enough, use Time Cook to cook

for more time.

(less time) (more time)

Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsCustomer Service

Using the microwave convenience cooking features.

Drinks heated with the Beverage feature may be very hot. Remove the container with care.

Beverage

Press the

BEVERAGE

pad to heat a cup of

coffee or other beverage.

Snacks

The Snacks feature automatically sets the

microwaving times and power levels to warm a

variety of snack foods.

Press the

SNACKS

pad.

Select snack type 1–6 (see the Snacks

Guide).

Enter the number of items or the

food weight in ounces.

Press the

START

pad.

Hint: You can press and hold the SNACKS pad

during cooking to display the remaining

microwaving time.

Snacks Guide

Food Type Quantity or Weight

1 Bread, rolls, muffins

1 to 4

2 Sandwiches

1 to 2

3 Pizza (leftover slices)

1 to 4

4 Dessert toppings

1 to 4

5 Soup

8 to 40 oz.

6 Cheese dip

4 to 16 oz.

Cook

The Cook feature automatically sets the cooking

times and power levels for a variety of foods.

Press the

COOK

pad.

Select food type 1–9 (see the Cook

Guide below).

Enter weight in ounces.

Press the

START

pad.

Hint: Press and hold the COOK pad during cooking

to display the remaining cook time.

Cook Guide

Food Type Weight Comments

1 Canned Vegetables

4 to 20 oz. Use microwave-safe casserole or bowl. Cover with lid or vented

plastic wrap.

2 Frozen Vegetables

4 to 16 oz. Use microwave-safe casserole or bowl. Follow package instructions

for adding water. Cover with lid or vented plastic wrap.

3 Fresh Vegetables

4 to 16 oz. Use microwave-safe casserole or bowl. Add 2 tablespoons water

for each serving. Cover with lid or vented plastic wrap.

4 Potatoes

8 to 40 oz. Pierce skin with fork. Place potatoes on the turntable.

5 Fish

4 to 16 oz. Use oblong, square or round dish. Cover with vented plastic wrap.

6 Chicken Pieces

4 to 40 oz. Use oblong, square or round dish. Cover with vented plastic wrap

or wax paper.

7 Ground Meat

8 to 48 oz. Use round casserole dish. Crumble meat into dish. Cover with lid

(beef, pork, turkey)

or vented plastic wrap.

8 Bacon

2 to 10 oz. Layer strips on a plate, 4 to a layer.Cover each layer with a paper

towel.

9 Pizza (frozen,

4 to 16 oz. Follow package instructions to prepare pizza for microwaving.

microwaveable)

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Customer Service

Using the microwave auto feature.

The Defrost Auto/Time feature gives you two ways to defrost frozen foods. Press Defrost Auto/Time once for

Auto Defrost or twice for Time Defrost.

Auto Defrost

Use Auto Defrost for meat, poultry and fish up

to 6 pounds. Use Time Defrost for most other

frozen foods.

Auto Defrost automatically sets the

defrosting times and power levels to give

even defrosting results for meats, poultry

and fish.

Press the

AUTO DEFROST

pad once.

Using the Conversion Guide at right,

enter food weight. For example,

press pads

and

for 1.2 pounds

(1 pound, 3 ounces).

Press

START.

Time Defrost is explained in the

Using the

timed microwave features

section.

■Remove meat from package and place

on microwave-safe dish.

■Twice during defrost, the oven signals

TURN.

At each

TURN

signal, turn the

food over. Remove defrosted meat or

shield warm areas with small pieces

of foil.

■After defrosting, most meats need to

stand 5 minutes to complete defrosting.

Large roasts should stand for about

30 minutes.

Conversion Guide

If the weight of food is stated in pounds

and ounces, the ounces must be

converted to tenths (.1) of a pound.

Weight of Food Enter Food Weight

in Ounces (tenths of a pound)

1–2 .1

3.2

4–5 .3

6–7 .4

8.5

9–10 .6

11 .7

12–13 .8

14–15 .9

Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsCustomer Service

Using the other microwave features.

Cooking Complete Reminder: To remind you that you have food in the oven, the oven will beep once a minute

until you either open the oven door or press the CLEAR/OFF pad.

Clock

Press to enter the time of day or to check the time

of day while microwaving.

Press the

CLOCK

pad.

Enter time of day.

Press the

START

pad or the

CLOCK

pad.

Display On/Off

To turn the clock display on or off, press

and hold the

pad for about 3 seconds.

The Display On/Off feature cannot be

used while a cooking feature is in use.

Sound Level

The beeper sound level can be adjusted.

Press the

pad. Choose 0–3 for mute

to loud.

Delay Start

Delay Start allows you to set the

microwave to delay cooking up to

24 hours.

Press the

DELAY START

pad.

Enter the time you want the oven to

start. (Be sure the microwave clock

shows the correct time of day.)

Select your desired cooking

program.

Press the

START

pad.

The Delay Start time will be displayed.

The oven will automatically start at the

delayed time.

The time of day may be displayed by

pressing the

CLOCK

pad.

NOTE: You cannot use DELAY START with

POPCORN or REHEAT.

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Customer Service

Child Lock-Out

You may lock the control panel to prevent the

microwave from being accidentally started or

used by children.

To lock or unlock the controls, press

and hold the

CLEAR/OFF

pad for about

3 seconds.

When the control panel is locked, an

will be displayed to the extreme right.

Kitchen Timer

Kitchen Timer operates as a minute timer and can

be used at any time, even when the oven is

operating.

How to use as a minute timer:

Press the

KITCHEN TIMER MIN/SEC

pad.

Enter time you want to count down.

Press the

KITCHEN TIMER MIN/SEC

pad.

When time is up, the oven will signal.

To turn off the timer signal, press the

KITCHEN TIMER MIN/SEC

pad.

NOTE: The timer indicator will be lit while the

timer is operating.

To cancel the timer during the

countdown press the

KITCHEN TIMER

MIN/SEC

pad.

Reminder

The Reminder feature can be used like an alarm

clock, and can be used at any time, even when

the oven is operating. The Reminder time can be

set up to 12 hours later.

Press the

DELAY START

pad.

Enter the time you want the oven to

remind you. (Be sure the microwave

clock shows the correct time of day.)

Press the

DELAY START

pad. When

Reminder signal occurs, press the

DELAY START

pad to turn it off. The

Reminder time may be displayed by

pressing the

DELAY START

pad.

NOTE: REM will remain on the display to show

that the Reminder is set until the Reminder time is

reached and the door is opened or CLEAR/OFF is

pressed.

Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsCustomer Service

Using the lower oven controls.

Throughout this manual, features and appearance may vary from your model. Your model may have one of the

following controls.

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Customer Service

The time on the microwave display is shown in minutes and seconds (1:30 is one minute, 30 seconds). On the lower

oven, time is shown in hours and minutes (1:30 is one hour, 30 minutes).

Lower Oven Control, Clock and Timer Features and Settings

Display

Shows the time of day, oven temperature,

whether the oven is in the bake, broil or

self-cleaning mode and the times set for

the timer or automatic oven operations.

If “F– and a number or letter” flash in the

display and the oven control signals, this

indicates a function error code. Press the

CLEAR/OFF pad. Allow the oven to cool for one

hour. Put the oven back into operation. If the

function error code repeats, disconnect the power

to the oven and call for service.

If your oven was set for a timed oven

operation and a power outage occurred, the

clock and all programmed functions must be reset.

The time of day (may be incorrect) will flash

in the display when the there has been a

power outage.

BROIL HI/LO Pad

Press this pad to select the broil function.

BAKE Pad

Press this pad to select the bake function.

SELF CLEAN Pad

Press this pad to select the self-cleaning

function. See the

Using the self-cleaning

lower oven

section.

OVEN LIGHT Pad

Press this pad to turn the oven light on

or off.

Number Pads

Use to set any function requiring numbers

such as the time of day on the clock,

the timer, the oven temperature, the start

time and length of operation for timed

baking and self-cleaning.

CLEAR/OFF Pad

Press this pad to cancel

ALL

oven

operations except the clock and timer.

START Pad

Must be pressed to start any cooking or

cleaning function.

KITCHEN TIMER ON/OFF Pad

Press this pad to select the timer feature.

DELAY START Pad

Use along with

COOKING TIME

SELF

CLEAN

pads to set the oven to start and

stop automatically at a time you set.

COOKING TIME Pad

Press this pad and then press the number

pads to set the amount of time you want

your food to cook. The oven will shut off

when the cooking time has run out.

CLOCK Pad

Press this pad before setting the clock.

Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsCustomer Service

Special features of your lower oven control.

Your new touch pad control has additional features that you may choose to use. The following are the features and

how you may activate them.

The special feature modes can only be activated while the display is showing the time of day. They remain in the

control’s memory until the steps are repeated.

When the display shows your choice, press the START pad. The special features will remain in memory after a

power failure.

12 Hour Shut-Off

With this feature, should you forget and leave the

oven on, the control will automatically turn off the

oven after 12 hours during baking functions or

after 3 hours during a broil function.

If you wish to turn

OFF

this feature, follow

the steps below.

Press the

BAKE

and

BROIL HI/LO

pads

at the same time for 3 seconds until

the display shows

SF.

Press the

DELAY START

pad. The

display will show

12 shdn

(12 hour

shut-off). Press the

DELAY START

pad again and the display will show

no shdn

(no shut-off).

Press the

START

pad to activate the

no shut-off and leave the control set

in this special features mode.

Fahrenheit or Centigrade Temperature Selection

Your oven control is set to use the Fahrenheit

temperature selections but you may change this

to use the Centigrade selections.

Press the

BAKE

and

BROIL HI/LO

pads

at the same time for 3 seconds until

the display shows

SF.

Press the

BROIL HI/LO

pad. The

display will show

(Fahrenheit).

Press the

BROIL HI/LO

pad again. The

display will show

(Centigrade).

Press the

START

pad.

Control Lockout

Your control will allow you to lock down the touch

pads so they cannot be activated when pressed.

Press the

BAKE

and

BROIL HI/LO

pads

at the same time for 3 seconds until

the display shows

SF.

Press the

SELF CLEAN

pad. The

display will show

LOC OFF.

Press the

SELF CLEAN

pad again.

The display will show

LOC ON.

Press the

START

pad to activate

the control lockout feature and

leave the control set in this special

features mode.

When this feature is on and the touch

pads are pressed the display will show

LOC.

NOTE: The control lockout mode will not affect

the CLOCK, KITCHEN TIMER ON/OFF and OVEN

LIGHT touch pads.

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Customer Service

Tones at the End of a Timed Cycle

At the end of a timed cycle, 3 short beeps will

sound followed by one beep every 6 seconds

until the CLEAR/OFF pad is pressed. This

continuous 6 second beep may be canceled.

To cancel the 6 second beep:

Press the

BAKE

and

BROIL HI/LO

pads

at the same time for 3 seconds until

the display shows

SF.

Press the

KITCHEN TIMER ON/OFF

pad. The display shows

CON BEEP

(continuous beep). Press the

KITCHEN TIMER ON/OFF

pad

again. The display shows

BEEP.

(This cancels the one beep every

6 seconds.)

Press the

START

pad.

12 Hour, 24 Hour or Clock Black-Out

Your control is set to use a 12 hour clock.

If you would prefer to have a 24 hour

military time clock or black-out the clock

display, follow the steps below.

Press the

BAKE

and

BROIL HI/LO

pads

at the same time for 3 seconds until

the display shows

SF.

Press the

CLOCK

pad once. The

display will show

12 hr.

If this is

the choice you want, press the

START

pad.

Press the

CLOCK

pad again to change to

the 24 hour military time clock. The

display will show

24 hr.

If this is the

choice you want, press the

START

pad.

Press the

CLOCK

pad again to black-out

the clock display. The display will show

OFF.

If this is the choice you want, press

the

START

pad.

NOTE: If the clock is in the black-out mode you

will not be able to use the Delay Start function.

Cook and Hold

Your new control has a cook and hold feature that

keeps cooked foods warm for up to 3 hours after

the cooking function is finished.

This feature can be used only at the end

of Timed Baking using Automatic Stop.

To activate this feature, follow the steps

below.

Press the

BAKE

and

BROIL HI/LO

pads

at the same time for 3 seconds until

the display shows

SF.

Press the

COOKING TIME

pad.

The display will show

Hld OFF.

Press the

COOKING TIME

pad again

to activate the feature. The display

will show

Hld ON.

Press the

START

pad to activate

the cook and hold feature and

leave the control set in this special

features mode.

Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsCustomer Service

Using the lower oven.

To avoid possible burns, place the shelves in the desired position before you turn the oven on.

Before you begin…

The shelves have stop-locks, so that when

placed correctly on the supports, they will

stop before coming completely out, and

will not tilt.

When placing and removing cookware,

pull the shelf out to the bump on the

shelf support.

To remove a shelf,

pull it toward you, tilt

the front end up and pull it out.

To replace,

place the end of the shelf

(stop-locks) on the support, tilt up the

front and push the shelf in.

How to Set the Oven for Baking or Roasting

Press the

BAKE

pad.

Press the number pads to set the

desired temperature.

Press the

START

pad.

Check food for doneness at

minimum time on recipe. Cook

longer if necessary.

Press the

CLEAR/OFF

pad when

cooking is complete.

Shelf Position

Type of Food 27” Oven 30” Oven

Frozen pies B or C C or D

(on cookie sheet)

Angel food cake, A B

bundt or pound cakes

Biscuits, muffins, B or C C or D

brownies, cookies,

cupcakes, layer

cakes, pies

Casseroles B or C C or D

Preheating and Pan Placement

Preheat the oven if the recipe calls for it.

Preheating is necessary for good results

when baking cakes, cookies, pastry and

breads.

Baking results will be better if baking

pans are centered in the oven as much

as possible.

Pans should not touch each other or the

walls of the oven. If you need to use two

shelves, stagger the pans so one is not

directly above the other, and leave

approximately 11⁄2″between pans, from

the front, back and sides of the wall.

Aluminum Foil

You can use aluminum foil to line the broiler

pan and broiler grid. However, you must mold

the foil tightly to the grid and cut slits in it just

like the grid.

Without the slits, the foil will prevent fat

and meat juices from draining into the

broiler pan. The juices could become

hot enough to catch on fire. If you

do not cut the slits, you are essentially

frying, not broiling.

Do not use aluminum foil on the bottom of

the oven.

Never entirely cover a shelf with

aluminum foil. This will disturb the heat

circulation and result in poor baking.

A smaller sheet of foil may be used to

catch a spillover by placing it on a lower

shelf several inches below the food.

Cut slits in the foil just like the grid.

NOTE: A cooling fan may

automatically turn on and off to

cool internal parts. This is normal,

and the fan may continue to run

even after the oven is turned off.

Seven shelf positions are shown.

Some models have 4 or 6 positions.

To preheat, set the oven at the

correct temperature. The control

will beep when the oven is

preheated and the display will show

your set temperature. This may take

approximately 10 minutes.

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Customer Service

How to Set the Oven for Broiling

Place the meat or fish on the broiler

grid in the broiler pan.

Follow suggested shelf positions in

the

Broiling Guide.

If your oven is connected to 208 volts, rare steaks

may be broiled by preheating the broiler and

positioning the oven shelf one position higher.

Press the

BROIL HI/LO

pad once for

HI Broil.

To change to

LO Broil,

press the

BROIL HI/LO

pad again.

Press the

START

pad.

When broiling is finished, press

the

CLEAR/OFF

pad.

Leave the door open to the broil

stop position. The door stays open

by itself, yet the proper temperature

is maintained in the oven.

Broiling Guide

27” Ovens 27” Ovens 27” Ovens 30” Ovens 30” Ovens 30” Ovens

Quantity and/ Shelf First Side Second Side Shelf First Side Second Side

Food or Thickness Position Time (min.) Time (min.) Position Time (min.) Time (min.) Comments

Ground Beef 1 lb. (4 patties) C 10 7 E 10 7 Space evenly. Up

Well Done 1/2 to 3/4″thick E 10 9 to 8 patties take

about the same

time.

Beef Steaks

Rare 1″thick C 6 5 E 8 6 Steaks less than

Medium 1 to 11⁄2lbs. C 8 6 E 10 8 1″thick cook

Well Done C 12 11 E 12 10 through before

browning.

Rare 11⁄2″thick C 10 7–8 E 10 8 Pan frying is

Medium 2 to 21⁄2lbs. C 15 14–16 E 15 14–16 recommended.

Well Done C 25 20–25 E 25 20–25 Slash fat.

Chicken 1 whole A 35 10–15 C 25 10 Reduce time about

2 to 21⁄2lbs., 5 to 10 minutes

split lengthwise per side for cut-up

chicken. Brush

each side with

melted butter.

Broil skin-side-

down first.

Lobster Tails 2–4 B 13–16 Do not C 13–16 Do not Cut through back of

6 to 8 oz. each turn over. turn over. shell. Spread open.

Brush with melted

butter before

broiling and after

half of broiling

time.

Fish Fillets 1/4 to 1/2″thick C 5 5 E 5 5 Handle and turn

very carefully.

Brush with lemon

butter before and

during cooking, if

desired. Preheat

broiler to increase

browning.

Ham Slices 1″thick B 8 8 D 8 8 Increase time 5 to

(precooked) 10 minutes per

side for 11⁄2″thick

or home-cured ham.

Pork Chops 2 (1/2″thick) C 10 10 E 10 10 Slash fat.

Well Done 2 (1″thick) about 1 lb. B 13 13 D 15 15

Lamb Chops

Medium 2 (1″thick) about 10 C 10 9 E 10 9 Slash fat.

Well Done to 12 oz. C 12 10 E 12 10

Medium 2 (11⁄2″thick) about 1 lb. C 14 12 E 14 12

Well Done B 17 12–14 E 17 12–14 27

Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsCustomer Service

Using the lower oven clock and timer.

To Set the Clock

The clock must be set to the correct time

of day for the automatic oven timing

functions to work properly. The time of

day cannot be changed during a timed

baking or self-cleaning cycle.

Press the

CLOCK

pad.

Press the number pads.

Press the

START

pad until the time of

day shows in the display.

Make sure the clock is set to the

correct time of day.

To Set the Timer

Press the

KITCHEN TIMER ON/OFF

pad.

Press the number pads until the

amount of time you want shows in

the display. For example, to set 2

hours and 45 minutes, press

2, 4

and

in that order. If you make a

mistake press the

KITCHEN TIMER

ON/OFF

pad and begin again.

Press the

START

pad.

When the timer reaches

:00

, the

control will beep 3 times followed

by one beep every 6 seconds until

the

KITCHEN TIMER ON/OFF

pad

is pressed.

The 6 second tone can be canceled by following

the steps in the Special features of your lower

oven control section under Tones at the End of

a Timed Cycle.

The timer is a minute timer only.

The timer does not control oven

operations. The maximum setting on

the timer is 9 hours and 59 minutes.

To Reset the Timer

If the display is still showing the time

remaining, you may change it by pressing

the

KITCHEN TIMER ON/OFF

pad, then

press the number pads until the time you

want appears in the display.

If the remaining time is not in the display

(clock, delay start or cooking time are in

the display), recall the remaining time by

pressing the

KITCHEN TIMER ON/OFF

pad

and then pressing the number pads to

enter the new time you want.

To Cancel the Timer

Press the

KITCHEN TIMER ON/OFF

pad twice.

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Customer Service

Using the lower oven timed baking and roasting features.

NOTE: Foods that spoil easily–such as milk, eggs, fish, stuffings, poultry and pork–should not be allowed to sit for

more than 1 hour before or after cooking. Room temperature promotes the growth of harmful bacteria. Be sure that

the oven light is off because heat from the bulb will speed harmful bacteria growth.

How to Set an Immediate Start and Automatic Stop

The oven will turn on immediately and cook for a

selected length of time. At the end of the cooking

time the oven will turn off automatically.

Make sure the clock shows the correct

time of day.

Press the

BAKE

pad.

Using the number pads, enter the

desired temperature.

Press the

COOKING TIME

pad.

NOTE: If your recipe requires preheating, you may

need to add additional time to the length of the

cooking time.

Using the number pads, enter the

desired baking time. The oven

temperature and the cooking time

that you entered will be displayed.

Press the

START

pad.

The display shows the oven temperature

that you set and the cooking time

countdown. The display starts changing

once the temperature reaches 100°F.

The oven will continue to cook for the

programmed amount of time, then shut

off automatically.

Press the

CLEAR/OFF

pad to clear the

display.

How to Set a Delayed Start and Automatic Stop

You can set the oven control to delay-start the

oven, cook for a specific length of time and then

turn off automatically.

Make sure the clock shows the correct

time of day.

Press the

BAKE

pad.

Using the number pads, enter the

desired temperature.

Press the

COOKING TIME

pad.

NOTE: If your recipe requires preheating, you may

need to add additional time to the length of the

cooking time.

Using the number pads, enter the

desired baking time.

Press the

DELAY START

pad.

Using the number pads, enter the

time of day you want the oven to turn

on and start cooking.

Press the

START

pad.

NOTE: An attention tone will sound if you are

using timed baking and do not press the START

pad after entering the baking temperature.

If you would like to check the times you

have set, press the

DELAY START

pad to

check the start time you have set or press

the

COOKING TIME

pad to check the

length of cooking time you have set.

When the oven turns on at the time of day

you have set, the display will show the

changing temperature (starting at

100°F.) and the cooking time

countdown.

At the end of timed baking, the oven will

turn off. The end of cycle tone will sound.

Press the

CLEAR/OFF

pad to clear the

display.

Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsCustomer Service

Adjust the lower oven thermostat—Do it yourself!

You may find that your new oven cooks differently than the one it replaced. Use your new oven for a few

weeks to become more familiar with it. If you still think your new oven is too hot or too cold, you can adjust

the thermostat yourself.

Do not use thermometers, such as those found in grocery stores, to check the temperature setting of your oven.

These thermometers may vary 20–40 degrees.

NOTE: This adjustment will not affect the broiling or the self-cleaning temperatures. The adjustment will be

retained in memory after a power failure.

To Adjust the Thermostat

Press the

BAKE

and

BROIL HI/LO

pads at the same time for 3 seconds

until the display shows

SF.

Press the

BAKE

pad. A two digit

number shows in the display.

Press

BAKE

once to decrease

(-) the oven temperature, or

twice to increase (+).

The oven temperature can be

adjusted up to (+) 35°F. hotter

or (-) 35°F. cooler. Press the number

pads the same way you read them.

For example, to change the oven

temperature 15°F., press

and

When you have made the

adjustment, press the

START

pad to go back to the time of

day display. Use your oven as

you would normally.

The type of margarine will affect baking performance!

Most recipes for baking have been developed using high fat products such as butter or margarine (80% fat). If you

decrease the fat, the recipe may not give the same results as with a higher fat product.

Recipe failure can result if cakes, pies, pastries, cookies or candies are made with low fat spreads. The lower the fat

content of a spread product, the more noticeable these differences become.

Federal standards require products labeled “margarine” to contain at least 80% fat by weight. Low fat spreads, on the

other hand, contain less fat and more water. The high moisture content of these spreads affect the texture and flavor of

baked goods. For best results with your old favorite recipes, use margarine, butter or stick spreads containing at least

70% vegetable oil.

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Customer Service

Using the self-cleaning lower oven.

The oven door must be closed and all controls must be set correctly for the cycle to work properly.

Before a Clean Cycle

We recommend venting your kitchen

with an open window or using a

ventilation fan or hood during the first

self-clean cycle.

Remove the broiler pan, broiler grid, all

cookware and any aluminum foil from

the oven.

The oven shelves can be self-cleaned, but

they will darken, lose their luster and

become hard to slide.

Do not use abrasives or oven cleaners.

Clean the top, sides and outside of the

oven door with soap and water.

Make sure the oven light bulb cover

(on some models) is in place and the

oven light is off.

IMPORTANT:

The health of some birds

is extremely sensitive to the fumes given

off during the self-cleaning cycle of any

oven. Move birds to another well

ventilated room.

Wipe up heavy soil on the oven

bottom.

How to Set the Oven for Cleaning

Press the

SELFCLEAN

pad.

Using the number pads, enter the

desired clean time, if a time other

than 4 hours is needed.

Clean cycle time is normally 4 hours. You

can change the clean time to any time

between 3 hours and 5 hours, depending

on how dirty your oven is.

Press the

START

pad.

The door locks automatically. The display

will show the clean time remaining. It will

not be possible to open the oven door

until the temperature drops below the

lock temperature and the

LOCKED DOOR

light goes off.

When the

LOCKED DOOR

light is off,

open the door.

■The words

LOCK DOOR

will flash

and the oven control will signal if you

set the clean cycle and forget to close

the oven door.

■To stop a clean cycle, press the

CLEAR/OFF

pad. When the

LOCKED

DOOR

light goes off indicating the

oven has cooled below the locking

temperature, open the door.

Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsCustomer Service

Using the self-cleaning lower oven.

The oven door must be closed and all controls must be set correctly for the cycle to work properly.

How to Delay the Start of Cleaning

Press the

SELFCLEAN

pad.

Using the number pads, enter the

desired clean time.

Press the

DELAY START

pad. The

earliest start time you can set will

appear in the display.

Using the number pads, enter the

time of day you want the clean cycle

to start.

Press the

START

pad.

The door locks automatically. The display

will show the start time. It will not be

possible to open the oven door until

the temperature drops below the lock

temperature and the

LOCKED DOOR

light goes off.

When the

LOCKED DOOR

light is off,

open the door.

After a Clean Cycle

You may notice some white ash in the

oven. Wipe it up with a damp cloth after

the oven cools.

If white spots remain, remove them with a soap-

filled steel wool pad and rinse thoroughly with a

vinegar and water mixture.

These deposits are usually a salt

residue that cannot be removed by

the clean cycle.

If the oven is not clean after one clean

cycle, repeat the cycle.

■You cannot set the oven for cooking

until the oven is cool enough for the

door to unlock.

■ While the oven is self-cleaning, you

can press the

CLOCK

pad to display

the time of day. To return to the

clean countdown, press the

COOKING

TIME

pad.

■ If the shelves become hard to slide,

apply a small amount of vegetable oil

or cooking oil to a paper towel and

wipe the edges of the shelves with the

paper towel.

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Customer Service

Care and cleaning of the cooking center.

Be sure electrical power is off and all surfaces are cool before cleaning any part of the cooking center.

How to Remove Packaging Tape

To assure no damage is done to the finish

of the product, the safest way to remove

the adhesive left from packaging tape on

new appliances is an application of a

household liquid dishwashing detergent,

mineral oil or cooking oil.

Apply with a soft cloth and allow to soak.

Wipe dry and then apply an appliance

polish to thoroughly clean and protect

the surface.

NOTE: The plastic tape (on some models) must

be removed from all chrome trim. It cannot be

removed if it is baked on.

Microwave Oven

Removable Turntable and Turntable Support

To prevent breakage, do not place the

turntable into water just after cooking.

Wash it carefully in warm, sudsy water or

in the dishwasher.

The turntable and support can be broken

if dropped. Remember, do not operate

the microwave oven without the turntable

and support in place.

To replace the support, place its center

post in the hole. Turn the support

around until it seats into place.

Inside

Keep the microwave oven clean and

sweet-smelling. Opening the oven door a

few minutes after cooking helps air out

the interior. An occasional thorough

wiping with a solution of baking soda and

water keeps the interior fresh.

Spills and spatters are easy to remove

from walls and floor if they are wiped up

soon after the food is removed. Some

spatters wipe up with a paper towel, some

may require a damp cloth. Remove greasy

spatters with a sudsy cloth, then rinse

and dry.

Do not clean with metal scouring pads. Pieces can

break off the pad, causing electrical shock.

Wipe up spatters on the window on the

inside of the door daily. When the

window is soiled, wash it with a damp

cloth. Rinse thoroughly and dry.

Wipe metal and plastic parts on the inside

of the door frequently. Use a damp cloth

to remove all soil.

Do not use abrasives, such as cleaning powders

or steel and plastic pads. They may mar the

surface.

Outside

Clean the outside of the microwave oven

with soap and a damp cloth, then rinse

with a damp cloth and dry. Wipe the

window clean with a damp cloth. Chrome

is best wiped with a damp cloth and then

with a dry towel.

Door Surface

When cleaning surfaces of door and oven

that come together on closing the door,

use only mild, non-abrasive soaps or

detergents applied with a sponge or

soft cloth.

If you use a Brown ’N Sear Dish:

Use Bon Ami® brand cleanser. High heat

generated on the bottom of the Brown ’N

Sear Dish can cause stains to bake onto

the oven floor if grease is present.

These may be removed with Bon Ami®

brand cleanser. After using this cleanser,

rinse and dry thoroughly, following

cleanser instructions carefully.

Do not use a commercial oven cleaner on any part

of your microwave oven.

Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsCustomer Service

Care and cleaning of the cooking center.

Oven Shelves

(lower oven)

Clean the oven shelves with an abrasive

cleanser or steel wool. After cleaning,

rinse the shelves and rack with clean

water and dry with a clean cloth.

NOTE: The oven shelves may be cleaned in the

self-cleaning oven. However, the shelves will

darken in color, lose their luster and become hard

to slide if cleaned during the self-cleaning cycle.

To make the shelves slide more easily

apply a small amount of vegetable oil

or cooking oil to a paper towel and wipe

the edges of the oven shelves with the

paper towel.

Lift the door straight up and off

the hinges.

The gasket is designed with a gap at

the bottom to allow for proper air

circulation.

Do not rub or clean the door

gasket—it has an extremely low

resistance to abrasion.

If you notice the gasket becoming

worn, frayed or damaged in any way

or if it has become displaced on the

door, you should have it replaced.

Lift-Off Oven Door

(lower oven)

The lower oven door is removable for

easier access to the light bulb.

Do not lift the door by the handle.

To remove the door,

open it to the broil

stop position. Grasp firmly on each side

and lift the door straight up and off

the hinges.

Do not place hands between the hinge and the

oven door frame.

To replace the door,

make sure the hinges

are in the broil stop position. Position the

slots in the bottom of the door squarely

over the hinges and slowly lower it over

both hinges.

To clean the inside of the door:

■ Because the area inside the gasket is

cleaned during the self-clean cycle, you

do not need to clean this by hand.

■ The area outside the gasket and the

front frame can be cleaned with a soap-

filled steel wool or plastic pad, hot

water and detergent. Rinse well with a

vinegar and water solution.

To clean the outside of the door:

■ Use soap and water to thoroughly clean

the top, sides and front of the oven

door. Rinse well. You may also use a

glass cleaner to clean the glass on the

outside of the door. Do not let water

drip into the vent openings.

■ Spillage of marinades, fruit juices,

tomato sauces and basting materials

containing acids may cause

discoloration and should be wiped up

immediately. When surface is cool,

clean and rinse.

■ Do not use oven cleaners, cleaning

powders or harsh abrasives on the

outside of the door.

Lower Oven Heating Elements

Do not clean the bake element or the broil

element. Any soil will burn off when the elements

are heated.

To clean the oven floor, gently lift the bake

element. Clean with warm soapy water.

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Customer Service

Control Panel

It’s a good idea to wipe the control panel

after each use. Clean with mild soap and

water or vinegar and water, rinse with

clean water and polish dry with a soft cloth.

Do not use abrasive cleansers, strong

liquid cleansers, plastic scouring pads or

oven cleansers on the control panel—they

will damage the finish. A 50/50 solution

of vinegar and hot water works well.

Broiler Pan & Grid

(lower oven)

Do not clean the broiler pan or grid in a self-

cleaning oven.

After broiling, remove the broiler pan

from the oven. Remove the grid from the

pan. Carefully pour out the grease from

the pan into a proper container.

Wash and rinse the broiler pan and grid

in hot water with a soap-filled or plastic

scouring pad.

If food has burned on, sprinkle the grid

with detergent while hot and cover with

wet paper towels or a dishcloth. Soaking

the pan will remove burned-on foods.

Both the broiler pan and grid may be

cleaned with a commercial oven cleaner.

Both the broiler pan and grid can also be

cleaned in a dishwasher.

Do not store a soiled broiler pan and grid

anywhere in the cooking center.

After broiling, remove the broiler

pan from the oven.

Lower Oven Light Bulb

CAUTION: Before replacing your oven

light bulb, disconnect the electrical

power to the cooking center at the main

fuse or circuit breaker panel.

Be sure to let the light cover and bulb

cool completely.

To remove the cover:

Hold a hand under the cover so it

doesn’t fall when released. With

fingers of the same hand, firmly

push back the wire cover holder.

Lift off the cover.

Do not remove any screws to remove

the cover.

Replace bulb with a 40-watt

appliance bulb.

To replace the cover:

Place it into groove of the light

receptacle. Pull wire forward to

the center of the cover until it

snaps into place.

Connect electrical power to

the cooking center.

Wire cover holder.

Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsCustomer Service

Before You Call For Service…

Troubleshooting Tips

Save time and money! Review the charts on the following

pages first and you may not need to call for service.

Problem Possible Causes What To Do

Control panel on

You forgot to press the •Press the

START

pad.

microwave oven START

pad.

will not operate

Door not securely closed. •Make sure the microwave oven door is closed.

Another function was pressed. •Press the

CLEAR/OFF

pad twice to cancel it and begin again.

The

CLEAR/OFF

pad was •Begin again.

pressed accidentally.

Oven controls •While using Time Defrost numbers not entered after

improperly set. pressing the

AUTO DEFROST

pad.

“SENSOR ERROR”

During a sensor •The microwave oven door should not be opened

appears in the

function the microwave before the time begins to count down in the display.

microwave oven

oven door was opened

display

too soon.

Microwave oven light

Light bulb is loose •Call for service.

does not work

or defective.

Foods overcooked or

Varying density and amount •Varying density and amount sometimes require more

undercooked in the

of foods being cooked. cooking time.

microwave oven

Food not turned or stirred •Turn or stir food and begin again.

as called for in the recipe.

Too many dishes in the •Do not overload your microwave oven.

oven at the same time.

Food not thoroughly defrosted. •See the

Using the microwave sensor controls

section.

Improper cookware or •See the

Microwave safe cookware section of the

coverings being used.

Important Safety Instructions

section.

Humidity or moisture in •Make sure the inside of the oven and the outside of

the oven will lessen the the containers are dry.

Sensor cooking time.

Food not allowed to stand. •Some standing time is recommended for certain

vegetables cooked with the Sensor Controls.

Clock and timer

A fuse in your home may be •Replace the fuse or reset the circuit breaker.

do not work or

blown or the circuit breaker

display goes blank

tripped.

Controls improperly set. •See the

Using the clock and lower oven timer

section.

for the lower oven clock.

•See the

Display On/Off

section for the microwave oven clock.

The clock is in the •See the

Special features of your lower oven control

black-out mode. section for the lower oven clock.

•See the

Display On/Off

section for the microwave oven clock.

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Customer Service

Problem Possible Causes What To Do

“F— and a number or

You have a function •Press the

CLEAR/OFF

pad. Allow the oven to cool for one

letter” flash in the

error code. hour. Put the oven back into operation.

lower oven display

If the function code •Disconnect all power to the cooking center for at

repeats. least 30 seconds and then reconnect power. If the

function error code repeats, call for service.

Display flashes

Power failure. •Reset the lower oven clock.

Unable to get the

Oven control pads were •The

BAKE

and

BROIL HI/LO

pads must be pressed

lower oven display

not pressed properly. at the same time and held for 3 seconds.

to show “SF”

Lower oven temperature

Oven thermostat needs •See the

Adjust the lower oven thermostat—Do it yourself!

too hot or too cold

adjustment. section.

Lower oven will

A fuse in your home may •Replace the fuse or reset the circuit breaker.

not work

be blown or the circuit

breaker tripped.

Oven controls improperly set. •See the

Using the lower oven

section.

Lower oven control

You forgot to enter •Press the

BAKE

pad and desired temperature or the

signals after entering

a bake temperature

SELF CLEAN

pad and desired clean time.

cooking time or

or cleaning time.

delay start

Food does not bake or

Oven controls improperly set. •See the

Using the lower oven

section.

roast properly in the

Shelf position is incorrect •See the

Using the lower oven

section.

lower oven

or the shelf is not level.

Incorrect cookware or •See the

Using the lower oven

section.

cookware of improper size

being used.

Oven thermostat needs •See the

Adjust the lower oven thermostat—Do it yourself!

adjustment. section.

Food does not broil

Door not open to the broil stop •See the

Using the lower oven

section.

properly in the

position as recommended.

lower oven

Oven controls improperly set. •Make sure you press the

BROIL HI/LO

pad.

Improper shelf position •See the

Broiling Guide.

being used.

Cookware not suited •Use the broiling pan and grid that came with your oven.

for broiling.

Aluminum foil used on the the •See the

Using the lower oven

section.

broiling pan and grid has not

been fitted properly and slit

as recommended.

In some areas the power •Preheat the broil element for 10 minutes.

(voltage) may be low. •Broil for the longest period of time recommended

in the

Broiling Guide.

Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsCustomer Service

Before You Call For Service…

Troubleshooting Tips

Problem Possible Causes What To Do

Lower oven light does

Light bulb is loose or defective. •Tighten or replace the bulb.

not work

Pad operating light is broken. •Call for service.

Lower oven will

Oven controls •See the

Using the self-cleaning lower oven

section.self-

not clean

improperly set.

“Crackling” or

This is the sound of the metal •This is normal.

“popping” sound

heating and cooling during

in the lower oven

both the cooking and

cleaning functions.

Excessive smoking in

Excessive soil. •Press the

CLEAR/OFF

pad. Open the windows to rid the

the lower oven during

room of smoke. Wait until the

LOCKED DOOR

light goes

a clean cycle

off. Wipe up the excess soil and reset the clean cycle.

Lower oven door will

Oven too hot. •Allow the oven to cool below locking temperature.

not open after a

clean cycle

Lower oven not clean

Oven controls improperly set. •See the

Using the self-cleaning lower oven

section.

after a clean cycle

Oven was heavily soiled. •Clean up heavy spillovers before starting the clean

cycle. Heavily soiled ovens may need to self-clean

again or for a longer period of time.

“LOCK DOOR” flashes

The self-clean cycle has been •Close the oven door.

in the lower oven

selected but the door is not

display

closed.

LOCKED DOOR light

The oven door is locked •Press the

CLEAR/OFF

pad. Allow the oven to cool.

is on when you want to

because the temperature

cook in the lower oven

inside the oven has not

dropped below the locking

temperature.

Power outage,

Power outage or surge. •Reset the clock. If the oven was in use, you must reset

clock flashes

it by pressing the

CLEAR/OFF

pad, setting the clock

and resetting any cooking function.

“Burning” or “oily”

This is normal in a new oven •To speed the process, set a self-clean cycle for a

odor emitting from

and will disappear in time. minimum of 3 hours. See the

Using the self-

oven vent when using cleaning lower oven

section.

the lower oven

Strong odor in the

An odor from the insulation •This is temporary.

lower oven

around the inside of the

oven is normal for the first

few times the oven is used.

Fan noise when using

A cooling fan may •This is normal. The cooling fan will turn off and on.

the lower oven

automatically turn on

and off to cool internal parts.

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Customer Service

GE Built-In Microwave Cooking Center Warranty

All warranty service provided by our Factory Service Centers

or an authorized Customer Care®technician. For service,

call 800-GE-CARES.

For The Period Of: GE Will Replace:

One Year Any part

of the microwave cooking center which fails due to a defect in materials

From the date of the

or workmanship. During this

full one-year warranty,

GE will also provide,

original purchase free of charge,

all labor and in-home service to replace the defective part.

Limited Additional A replacement magnetron tube

the magnetron tube fails because of a

Four-Year

manufacturing defect. During this

limited additional four-year warranty,

you

For the second through

will be responsible for any labor or in-home service.

the fifth year from date

of the original purchase

■Service trips to your home to teach you how to use

the product.

■Improper installation.

■Failure of the product if it is abused, misused, or used

for other than the intended purpose or used

commercially.

■Replacement of house fuses or resetting of circuit

breakers.

■Damage to the product caused by accident, fire, floods

or acts of God.

■Incidental or consequential damage to personal

property caused by possible defects with this appliance.

What GE Will Not Cover:

This warranty is extended to the original purchaser and any succeeding owner for products purchased for

home use within the USA. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty

gives you specific legal rights, and you may also have other rights which vary from state to state. To know

what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.

Warrantor: General Electric Company. Louisville, KY 40225

Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsCustomer Service

Service Telephone Numbers.

GE Answer Center

800.626.2000

The GE Answer Center® is open 24 hours a day, 7 days a week.

In-Home Repair Service

800-GE-CARES (800-432-2737)

Expert GE repair service is only a phone call away.

Special Needs Service

800.626.2000

800-TDD-GEAC (800-833-4322)

GE offers, free of charge, a brochure to assist in planning a barrier-free kitchen for persons

with limited mobility.

Service Contracts

800-626-2224

Purchase a GE service contract while your warranty is still in effect and you’ll receive a

substantial discount. GE Consumer Service will still be there after your warranty expires.

Parts and Accessories

800-626-2002

Individuals qualified to service their own appliances can have parts or accessories sent directly

to their homes (VISA, MasterCard and Discover cards are accepted).

Instructions contained in this manual cover procedures to be performed by any user. Other servicing

generally should be referred to qualified service personnel. Caution must be exercised, since

improper servicing may cause unsafe operation.

Service Satisfaction

If you are not satisfied with the service you receive from GE:

First,

contact the people who serviced your appliance.

Next,

if you are still not pleased, write all the details—including your phone number—to:

Manager, Customer Relations

GE Appliances

Appliance Park

Louisville, KY 40225

Finally,

if your problem is still not resolved, write:

Major Appliance Consumer Action Program

20 North Wacker Drive

Chicago, IL 60606

Printed in LaFayette, GA

Ge Appliances General Electric Microwave Oven Jkp85 Users Manual

JTP85 to the manual daa1a574-9ab2-4094-96d9-2493e1322fa2

Navigation menu

Versions of this User Manual:

Views

Navigation
