Safety Instructions ........... 2-4

Operating Instructions

Automatic Icemaker ........... 14

Care and Cleaning .......... 16, 17

Crispers and Pans ............. 13

CustomCooD' . ............... 7, 8

Ice and Water Dispenser ........ 15

Refrigerator Door_ ............ 12

Replacing the Light Bulbs ....... 18

Shelves and Bins ........... 10, 11

Temperature Controls ........... 5

TurboCooD' . .................. 6

Water Filter ................... 9

Installation Instructions

Installing the Reli'igerator .... 28-31

Moving the Reli'igerator ..... 24-27

Preparing to Install

the Refrigerator ............... 25

Trim Kits and Panels ........ 19-22

Water Line Installation ...... 32-34

Troubleshooting Tips ....... 36--38

Normal Operating Sounds ...... 35

Consumer Support

Consumer Support ..... Back Cover

Performance Data Sheet ........ 41

Product Registration ........ 43, 44

State of"California Water

Treatment Device Certificate ..... 42

Warranty (Canadian) ........... 39

Warranty (U.S.) ............... 40

Models23,25,26,27 and29

Profi/e C6te C6te

R6frig&ateurs

Lasection fran_aisecommence_la page 46

Profi/e Lado a Lado

Refrigeradores

Laseccion en espa#olempieza en la p6gina88

Write the modeland serial numbershere:

Model #

Serial #

Find these numbers on a label inside

the refrigerator compartment at the

top on the right side.

200D2600P023 49-60238-2 02-03JR

IMPORTANTSAFETYINFORMATION.

READALLINSTRUCTIONSBEFOREUSING.

AWARNING!

Use this appliance only for its intended purpose as described in this Owner's ManuaL

SAFETYPRECAUTIONS

When using electrical appliances, basic safety precautions should be followed, including the following:

{This refrigerator must be properly installed

and located in accordance with the Installation

Instructions b@ore it is used.

{_Do not allow children to climb, stand or hang

on tile shelves in the reffigeraton They could

damage @e refrigerator and seriously injure

themselves.

{Do not touch @e cold surfaces in the freezer

compamnent when hands are damp or wet. Skin

may stick to @ese extremely cold surfaces.

{_Do not store or use gasoline or other flammable

vapors and liquids in tile vicinity of this or any

other appliance.

{In refiigerators with automatic icemakers,

avoid contact with the moving parts of the

ejector mechanism, or with the heating element

located on the bottom of the icemaker. Do not

place fingers or hands on the automatic

icemaking mechanism while the refrigerator

is plugged in.

@Keep fingers out of the "pinch point" areas;

clearances between the doors and between

the doors and cabinet are necessarily small.

Be careJ[ul closing doors when children are

in the area.

_ Unplug the refiigerator before cleaning and

making repairs.

NOTE: Westrongly recommendthat any servicingbe

performed by a qualified individual.

@ Setting either or both controls to 0(Off}does not

remove power to the light circuit.

_Do not refreeze frozen foods which have

thawed completely.

@Always clean the Cu@omCool" Tray after thawdng

food.

2

GEAppliances.com

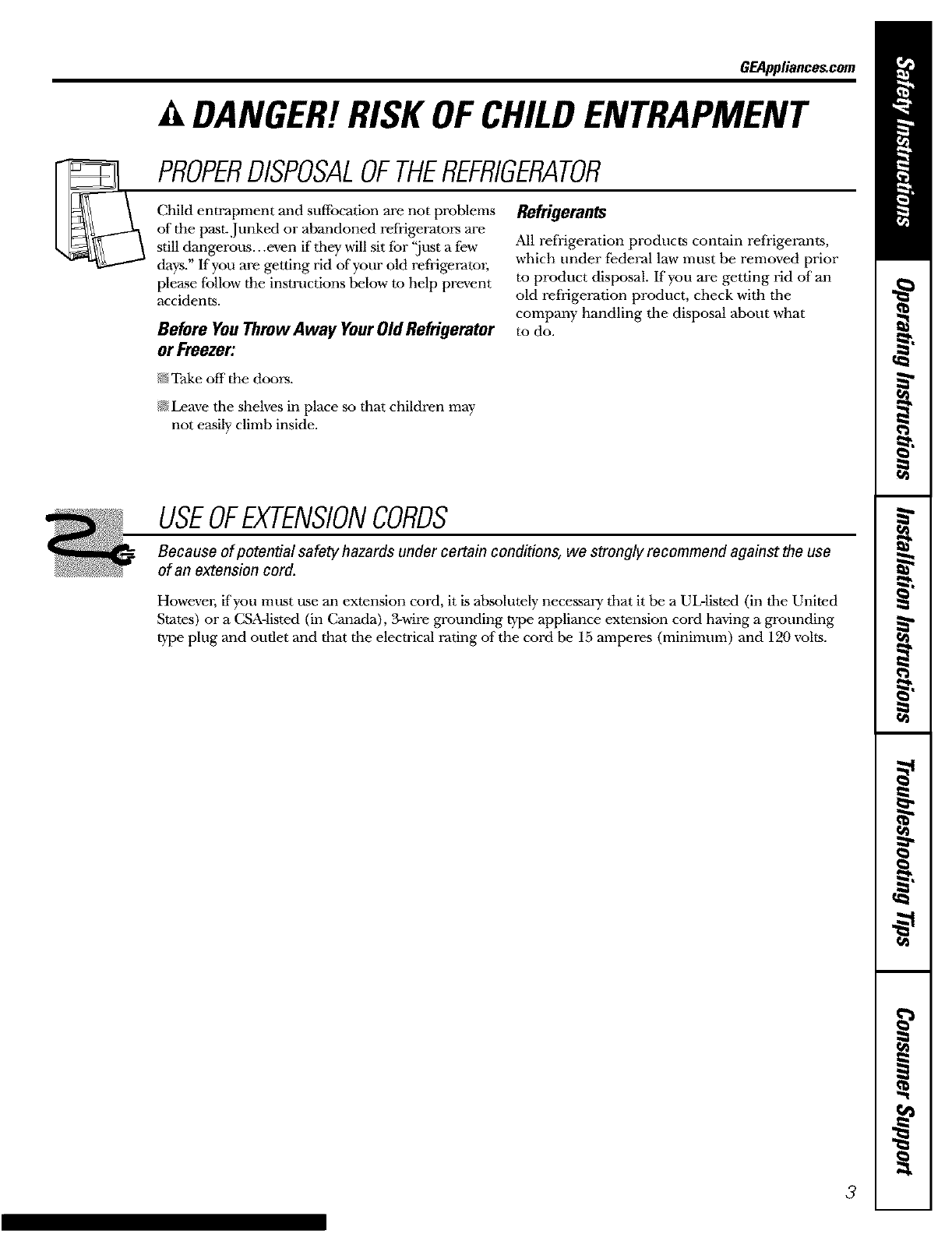

ADANGER!RISKOFCHILDENTRAPMENT

PROPERDISPOSALOFTHEREFRIGERATOR

Child enn'apment and suffocation are not problems

of the past..Junked or abandoned refigerators are

still dangerous...even if they will sit for 'just a few

days." @you are getting rid of your old refiigerato_;

please follow the insmmtions below to help prevent

accidents.

Before YouThrowA way YourOldRefrigerator

or Freezer:

@Take off the doors.

@Leave the shelves in place so that children may

not easily climb inside.

Refrigerants

All refigeration products contain re@igerants,

which under federal law must be removed prior

to product disposal. If you are getting rid of an

old refigeration product, check with tile

company handling the disposal about what

to do.

USEOFEXTENSIONCORDS

Because of potential safety hazards under certain conditions, we strongly recommend against the use

of an extension cord.

Howevm; if you must use an extension cord, it is absolutely necessary that it be a UL-listed (in the United

States) or a CNA-listed (in Canada), @wire grounding type appliance extension cord having a grounding

type plug and outlet and that the elecnical rating of the cord be 15 amperes (minimum) and 190 volts.

3

IMPORTANTSAFETYINFORMATION.

READALLINSTRUCTIONSBEFOREUSING.

AWARNING!

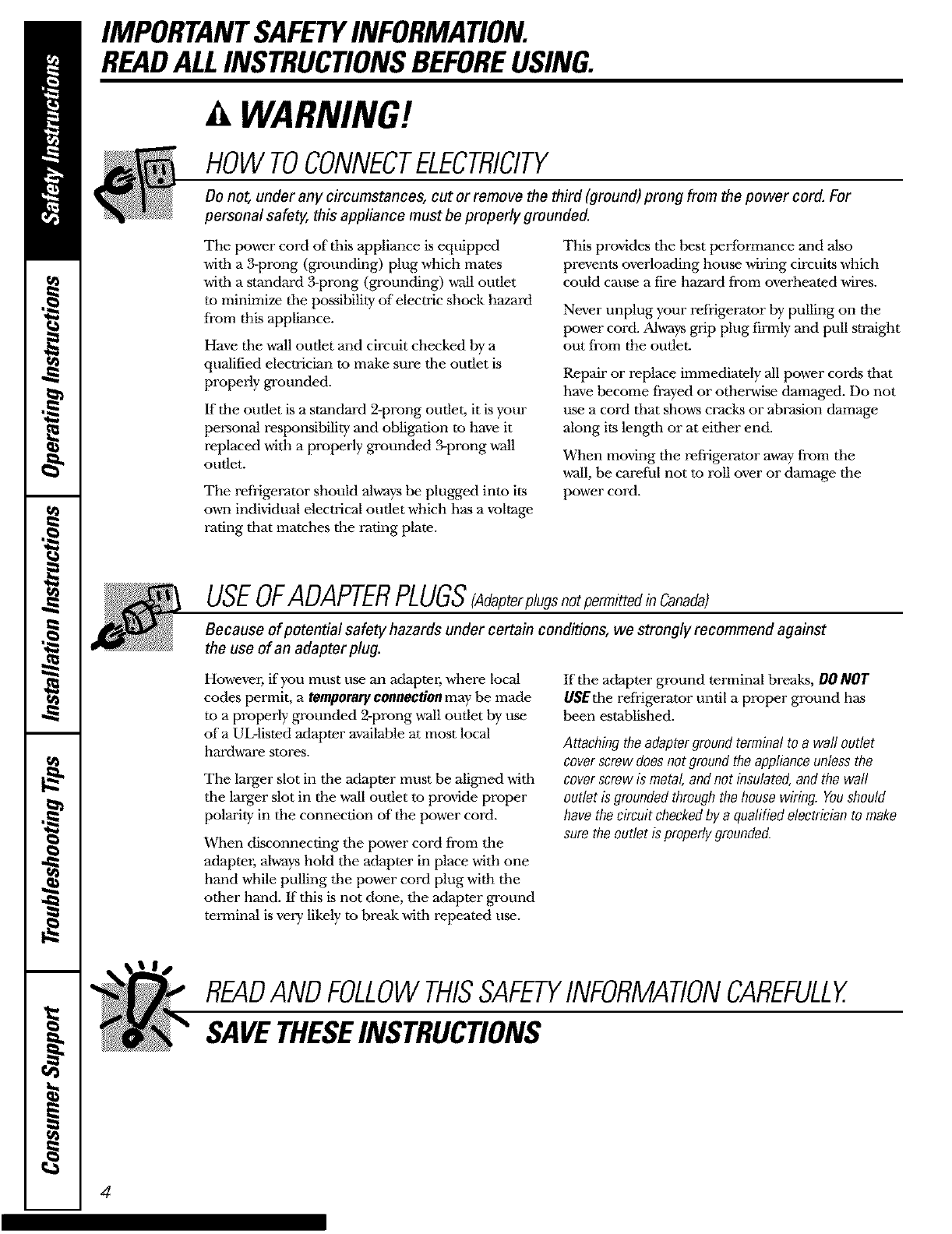

HOWTOCONNECTELECTRICITY

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For

personal safety, this appliance must be properly grounded.

The power cord of this appliance is equipped

with a g-prong (grounding) plug which mates

with a standard g-prong (grounding) w_l oudet

to minimize tile possibility of electric shock hazard

from this appliance.

Have tile wall outlet and circuit checked by a

qualified electrician to make sure tile outlet is

properly grounded.

If the oudet is a standard 2-prong outlet, it is your

personal responsibility and obligation to have it

replaced with a properly grounded 3-prong w_l

outlet.

The refrigerator should always be plugged into its

own individual electrical outlet which has a voltage

rating that matches the rating plate.

This provides the best performance and also

prevents overloading house wiring circuits which

could cause a fire hazard from overheated wires.

Never unplug your refrigerator by pulling on the

power cord. _Mwaysgrip plug firmly and pull straight

out fi'om the outlet.

Repair or replace immediately all power cords that

have become frayed or other,arise damaged. Do not

use a cord that shows cracks or abrasion damage

along its length or at eitlmr end.

When moving the refrigerator away fi'om the

wall, be careful not to roll over or damage the

power cord.

USEOFADAPTERPLUGS(Adapterpl,gsnotpermittedinCanada)

Because of potential safety hazards under certain conditions, we strongly recommend against

the use of an adapter plug.

Howevm; if you must use an adapter, where local

codes permit, a temporary connection may be made

to a properly grounded 2-prong wall outlet by use

era UL-listed adapter a'_ailable at most local

hardware stores.

The larger slot in the adapter must be aligned witll

the larger slot in the wall outlet to provide proper

polarity in the connection of the power cord.

When disconnecting the power cord from the

adapter, al,a-ayshold the adapter in place with one

hand while pulling the power cord plug with the

other hand. If this is not done, the adapter ground

terminal is very likely to break with repeated use.

If the adapter ground terminal breaks, DO NOT

USEthe refrigerator until a proper ground has

been established.

Attaching theadaptergroundterminalto a waft outlet

coverscrewdoesnot groundthe applianceunlessthe

coverscrewis metal,andnot insulated,andthe waft

outletis groundedthroughthehousewiring. Youshould

havethecircuit checkedby a quafifiedelectricianto make

surethe outlet isproperlygrounded.

READANDFOLLOWTHISSAFETYINFORMATIONCAREFULLY.

SAVETHESEINSTRUCTIONS

4

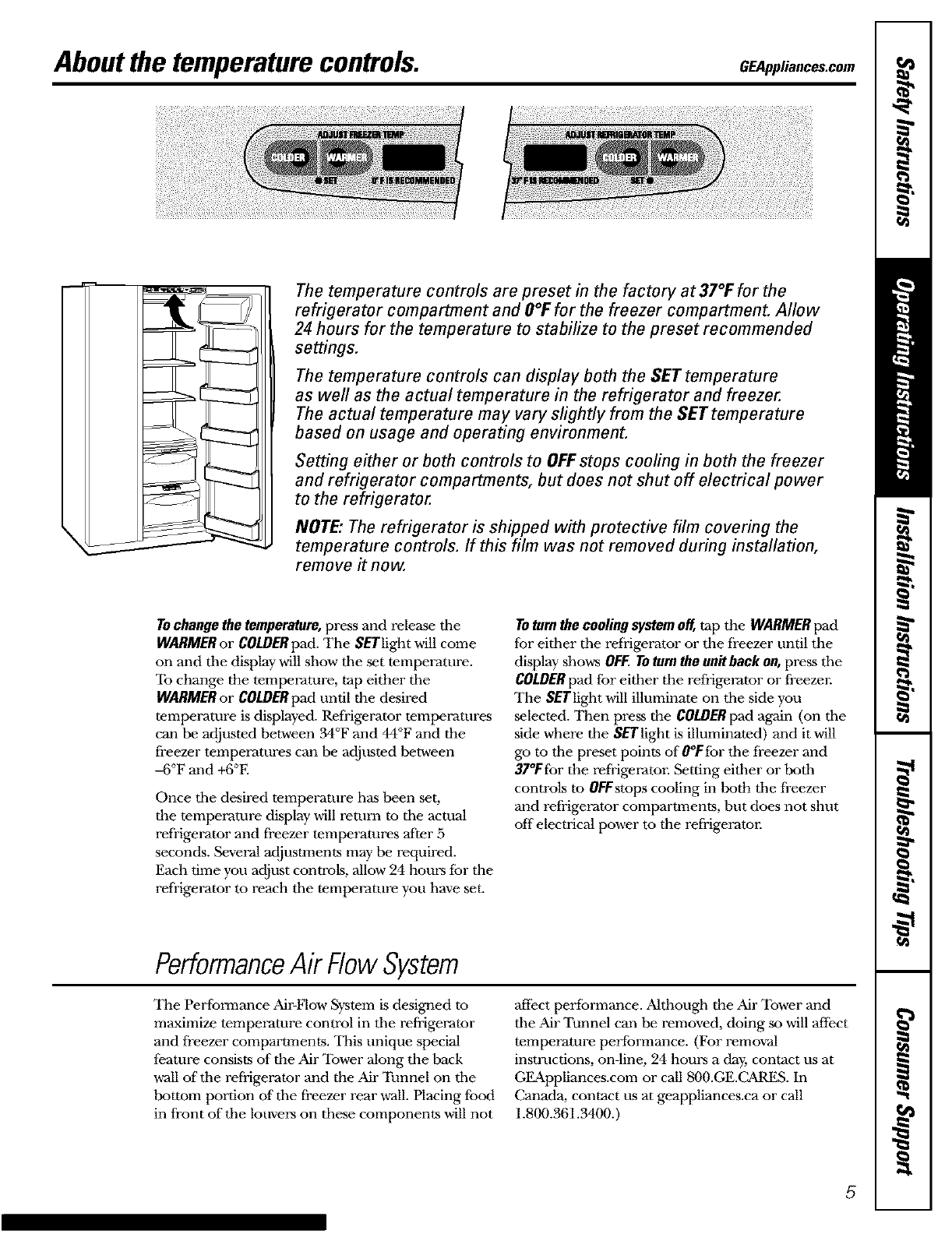

About the temperaturecontrols. GEAppliances.com

J

I

The temperature controls are preset in the factory at 37°1: for the

refrigerator compartment and O°Ffor the freezer compartment. Allow

24 hours for the temperature to stabilize to the preset recommended

settings.

The temperature controls can display both the SET temperature

as well as the actual temperature in the refrigerator and freezer.

The actual temperature may vary slightly from the SET temperature

based on usage and operating environment.

Setting either or both controls to OFFstops cooling in both the freezer

and refrigerator compartments, but does not shut off electrical power

to the refrigerator.

NOTE: The refrigerator is shipped with protective film covering the

temperature controls. If this film was not removed during installation,

remove it now.

TOchange the temperature, press and release the

WARMER or COLDER pad. The SErlight will come

on and the display will show the set temperature.

To change the temperature, tap either the

WARMER or COLDERpad until the desired

temperature is displayed. Refrigerator temperatures

can be adjusted between 34°F and 44°F and the

freezer temperatures can be adjusted between

4i°F and +6°F.

Once tile desired temperature has been set,

the temperature display will return to tile actual

refrigerator and freezer temperatures after 5

seconds. Several adjustments may be required.

Each time you adjust controls, allow 24 hours 1or the

refrigerator to reach tlle temperature you have set.

To turn the cooling system off, tap the WARMER pad

for either the refrigerator or the freezer until the

display shows OFF. TOturn the unit back on, press the

COLDER pad for either the refrigerator or freezm:

The SETlight will illuminate on the side you

selected. Then press the COLDER pad agMn (on the

side where the SErlight is illuminated) and it will

go to the preset points of O°Elor the freezer and

37°F1br the reliigeraton Setting either or both

controls m 0FFstups cooling in both tlle freezer

and refrigerator compartments, but does not shut

off electrical power to the refrigerator.

PerformanceAir FlowSystem

The Performance Air-Flow System is designed to

maximize temperature control in the refrigerator

and freezer compartments. This unique special

feature consists of the Air Tower along the back

wall of din refrigerator and the Air Tunnel on tlle

tx_ttom portion of tlle freezer rear wall. Placing food

in front of tlle louvers on these components will not

affect performance. Aithough the Air Tower and

the Air Tunnel can be removed, doing so Mll affect

temperature performance. (For removal

instructions, on4ine, 94 hours a day, contact us at

GEAppliances.com or call 800.GE.CARES. In

Canada, contact us at geappliances.ca or call

1.800.361.3400.)

5

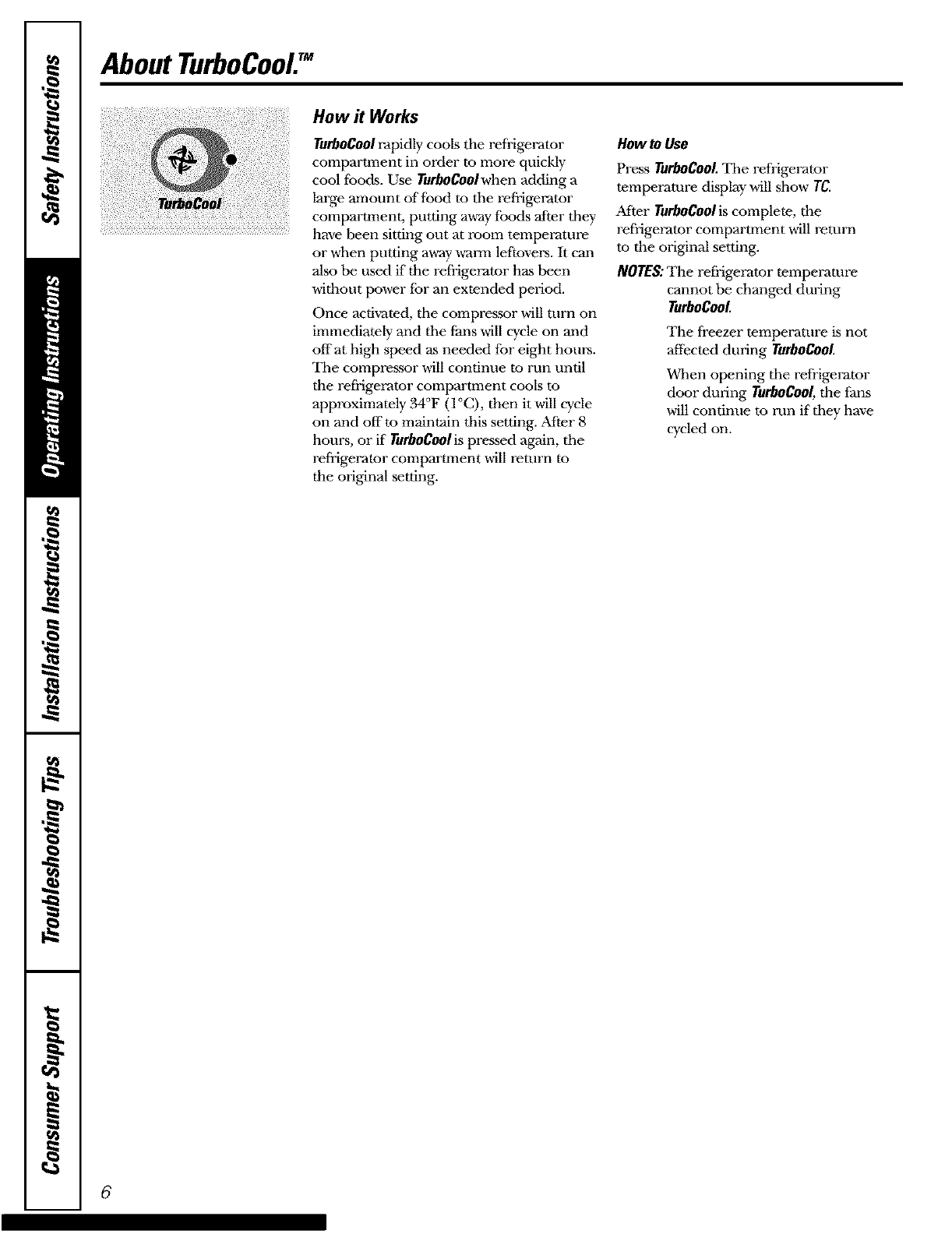

AboutTurboCooL"

How it Works

TurboCoolrapidly cools the refrigerator

compartment in order to more quickly

cool foods. Use TurboCoolwhen adding a

large amount of food to the refrigerator

...........................................................................compartment, putting away foods after they

....................................... have been sitting out at room temperature

or when putting away warm leftovers. It can

also be used if the refiigerator has been

without power for an extended period.

Once activated, tile compresmr will turn on

immediately and the fans will cycle on and

of{"at high speed as needed for eight hours.

The compressor will continue to run until

the refiigerator compartment cools m

approximately 34°F (I°C), then it will cycle

on and offto maintain this setting. After 8

hours, or if Turbogoolispressed again, the

refrigerator compartment will return to

the original setting.

How to Use

Press TurboCool.The refrigerator

temperature display will show TC.

After TurboCoolis complete, the

refrigerator compartment will return

to the original setting.

NOTES:The refiigerator temperature

cannot be changed during

TurboCoot

The freezer temperature is not

affected during TurboCool.

When opening the refrigerator

door during TurboCool,the fans

will continue to run if they have

cycled on.

6

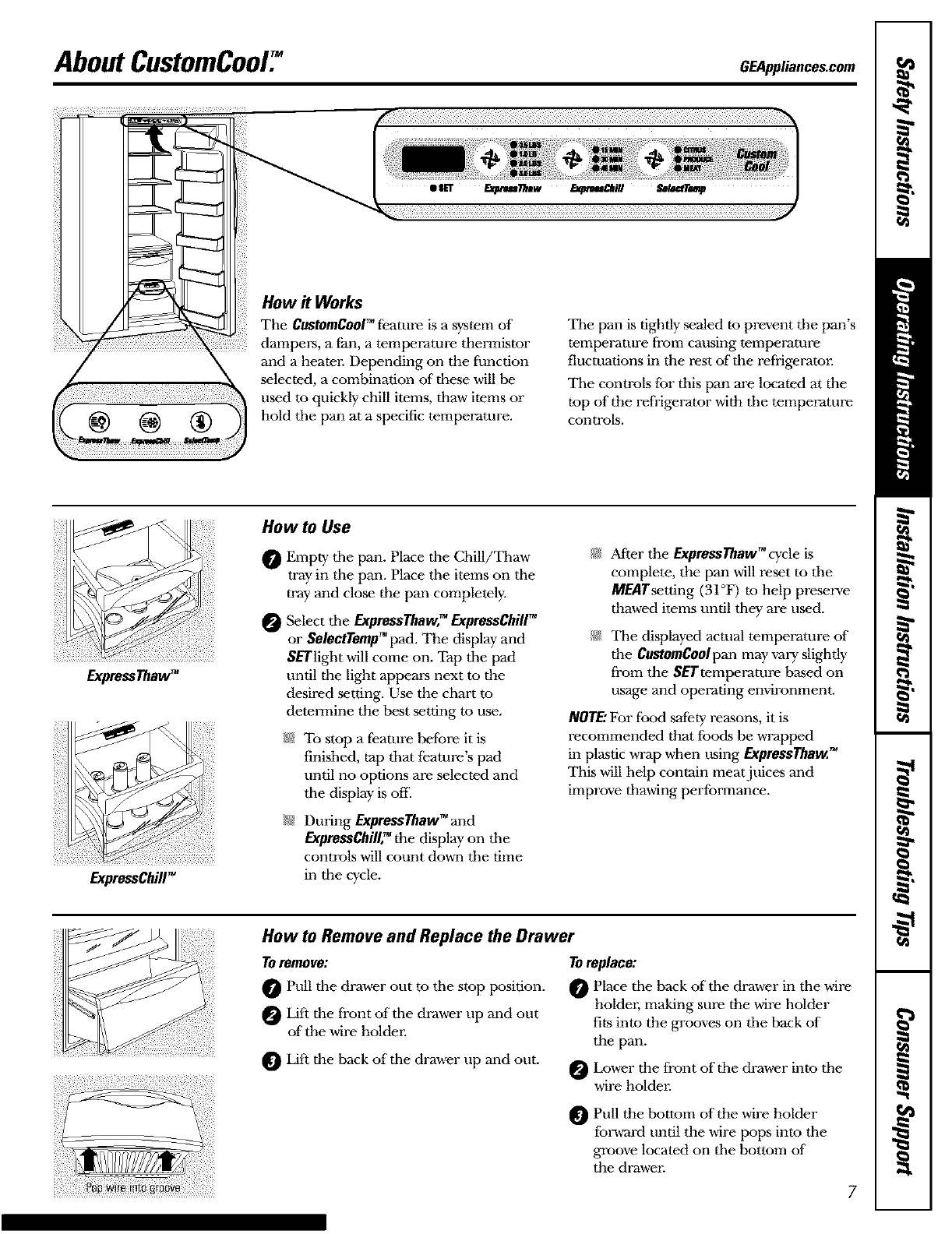

AboutCustomCooU GEAppliances.com

How it Works

The CustomCoolTM fizamre is a system of

dampers, a fan, a temperature thermistor

and a heatel: Depending on the traction

selected, a combination of these will be

used to quickly chill items, thaw items or

hold the pan at a specific temperature.

The pan is tightly sealed to prevent tile pan's

temperature fi'om causing temperature

fluctuations in the rest of the refrigeraton

The controls for this pan are located at the

top of the refrigerator with the temperature

controls.

ExpressThawTM

ExpressChillTM

How to Use

0

@

Empty the pan. Place the Chill/Thaw

tray in the pan. Place the items on the

tray and close the pan completely.

Select the ExpressThawff ExpressChillTM

or SelectTempTM pad. The display and

SETlight will come on. Tap the pad

until the light appears next to the

desired setting. Use the chart to

determine the best setting to use.

/}_5To stop a fizature before it is

finished, tap that feature's pad

until no options are selected and

the display is ore

I;}5During Expre,_ Yhaw" and

ExpressChillffthe display on the

controls will count down the time

in the cycle.

/}55After the ExpressYhaw_cycle is

complete, the pan will reset to the

MEATsetting (31°F) to help preserve

thawed items until they are used.

/;55The displayed actual temperature of

the CustomCoolpanmayvary slightly

from the SETtemperature based on

usage and operating emdronment.

NOTE."For J[bod safety reasons, it is

recommended that foods be wrapped

in plastic wrap when using F_xpressThawJ"

This will help contain meat juices and

improve thawing performance.

How to Remove and Replace the Drawer

TOremove:

Pull the drawer out to the stop position.

Lift the front of the drawer tip and out

of the wire holder.

Lift the hack of the drawer tip and out.

Toreplace:

Place the back of the drawer in the wile

holder, making sure the wire holder

fits into the grooves on the back of

the pan.

Lower the front of the drawer into the

wire holden

Pull the bottom of the wire holder

[}orward until the wire pops into the

groove located on the bottom of

the drawer.

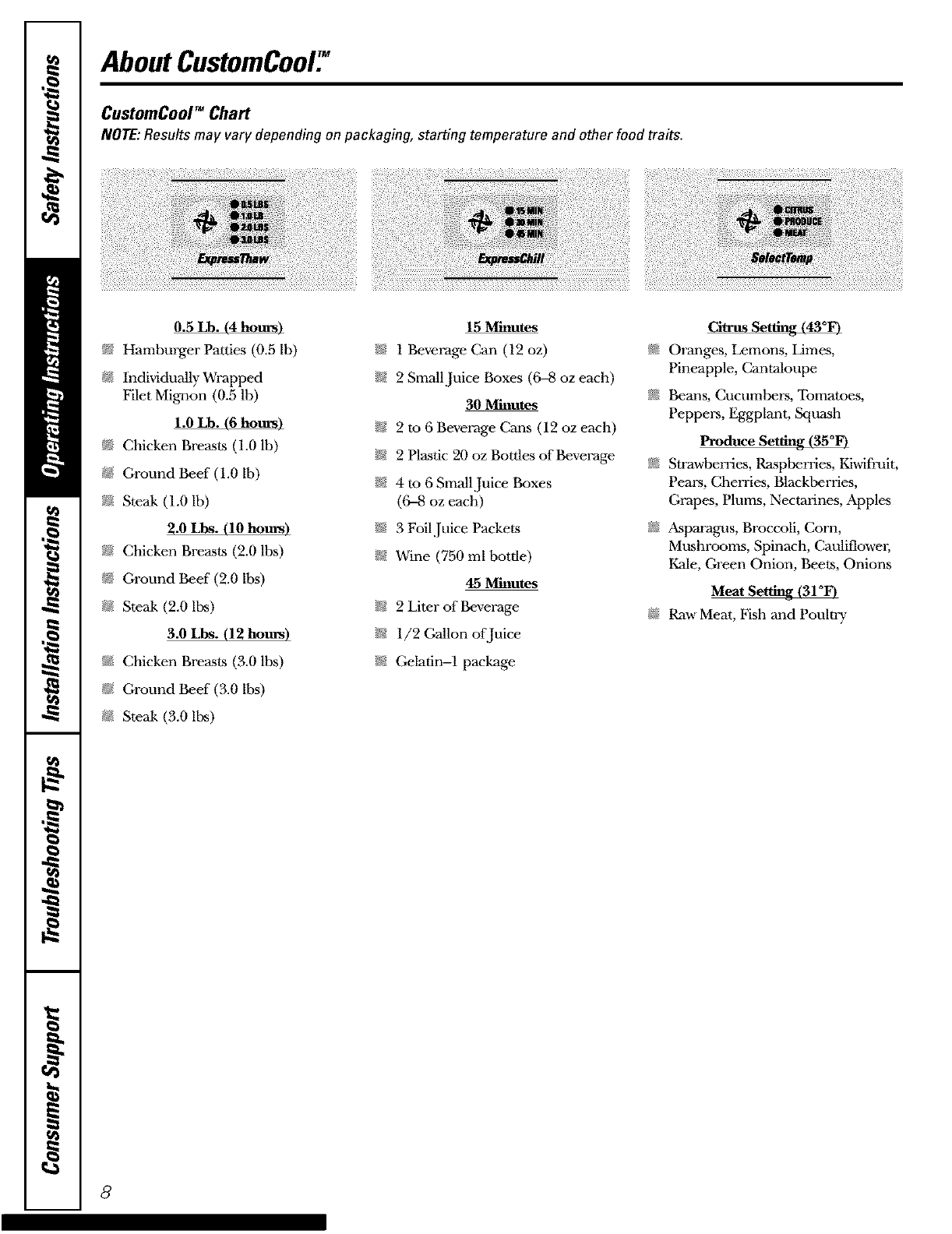

AboutCustomCooU

CustomCool TM Chart

NOTE:Results may vary depending on packaging, starting temperature and other food traits.

0.5 Lb. (4 hours) 15 Minutes

N Hamburger Patties 10.5 lb) g};;1 Beverage Can (12 oz) _

Individually Wrapped _;_ 2 Small Juice Boxes (6_ oz each)

Filet Mignon (0.5 lb) 30 MinuteS

1.0 Lb. (g hours) /g_ 2 to 6 Beverage Cans (12 oz each)

}g Chicken Breasts (1.0 lb) _S_;2 Plastic 20 oz Bottles of Beverage _

}g Ground Beef (1.0 lb) /}s54 to 6 Small Juice Boxes

_ Steak (1.0 |b) (6--8 oz each)

_,0 Lbs. (10 hours) 5;;;_3 Foil Juice Packets _

}g Chicken Breasts (2.0 lbs) /;55Wine (750 ml bottle)

_g Ground Beef (2.0 |bs) 45 MinuteS

_ Steak (2.0 lhs) N 2 Liter of Beverage _

3.0 Lbs. (12 hours) 5;;;;1/2 Gallon of Juice

N Chicken Breasts (3.0 lbs) N Gelatin-1 package

N Ground Beef (3.0 lbs)

_ Steak (3.0 lbs)

Oranges, Lemons, Limes,

Pineapple, Cantaloupe

Beans, Cucumbers, Tomatoes,

Peppers, Eggplant, Squash

Strawberries, Raspberries, Kiwifixlit,

Pears, Cherries, Blackberries,

Grapes, Plmns, Nectarines, Apples

Asparaglls, Broccoli, Corn,

Mushrooms, Spinach, Cauliflowm;

Kale, Green Onion, Beets, Onions

•1o

Meat Setting (3 F)

Raw Meat, Fish and Pouln T

8

About the water filter. (onsomemodels) GEAppliances.com

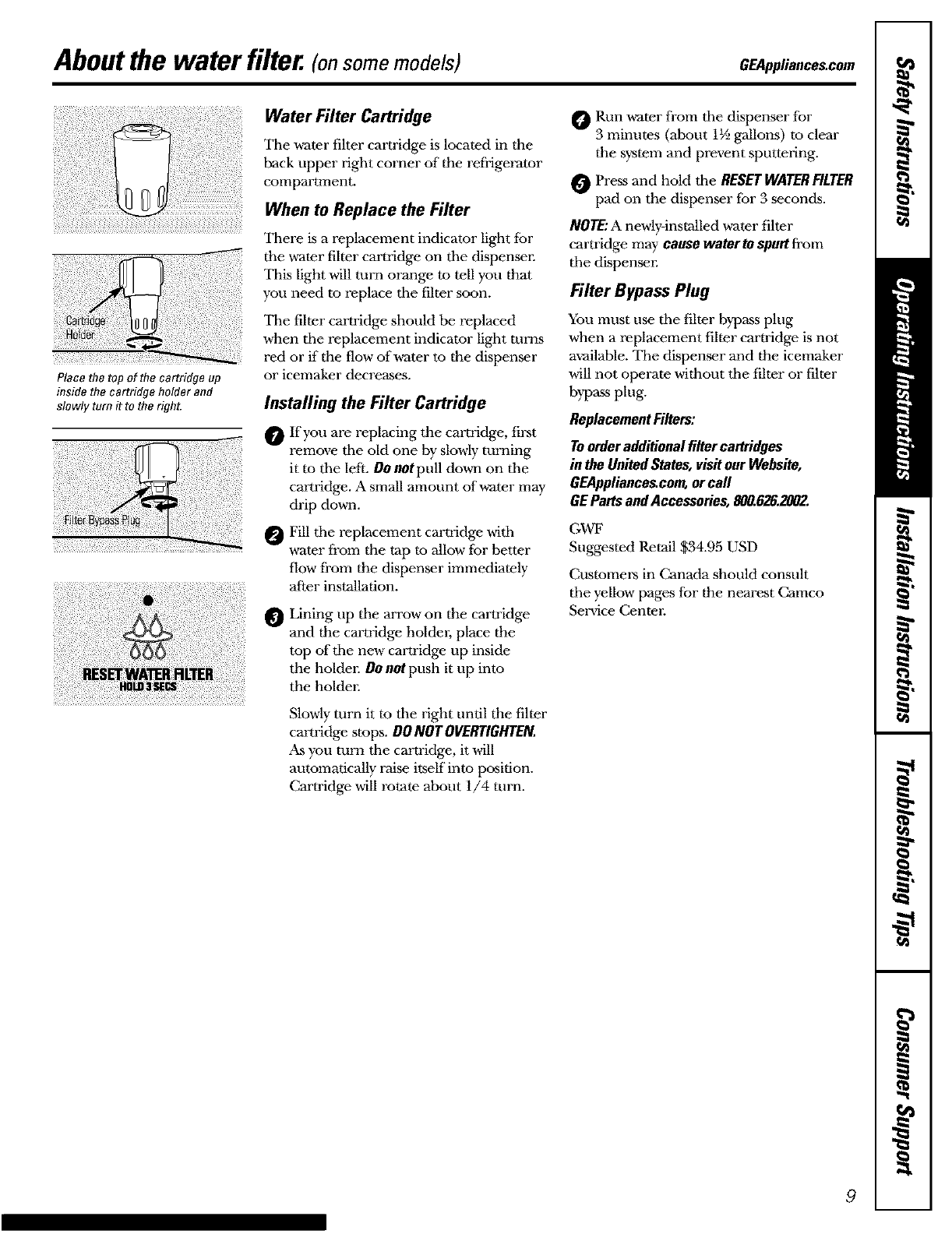

Place the top of the cartridge up

inside the cartridge holder and

slowly turn it to the right.

Water Filter Cartridge

Tile water filter cartridge is located in the

back upper right corner of the refrigerator

compartment.

When to Replace the Filter

Timre is a replacement indicator light for

the water filter cartridge on tile dispenser.

This light will turn orange to tell you that

you need to replace tile filter soon.

Tile filter cartridge should be replaced

when tile replacement indicator light turns

red or if the flow of water to the dispenser

or icemaker decreases.

Installing the Filter Cartridge

OIf you are replacing the cartridge, first

-- remove the old one by slowly turning

it to the left. Do not pull dovm on the

cartridge. A small amount of water may

iii drip down.

Fill the replacement cartridge with

-- water fi'om the tap to allow for better

flow fi'om the dispenser immediately

after installation.

_ Lining up the arrow on the cartridge

and the cartridge holder, place the

top of the new cartridge up inside

the holder. DOnot push it up into

the holder.

Slowly turn it to the right until the filter

cm'tridge stops. DO NOT OVERTIGHTEN.

As you turn the cartridge, it will

automatically raise itself into position.

Cartridge will rotate about 1/4 turn.

ORun water from the dispenser for

3 minutes (about 1½ gallons) to clear

the system and prevent sputtering.

Press and hold the RESET WATERFILTER

pad on the dispenser for 3 seconds.

NOTE:A newly-installed water filter

cartridge may cause waterto spurt from

the dispenser.

Filter Bypass Plug

You must use the filter bypass plug

when a replacement filter cartridge is not

available. Tim dispenser and the icemaker

will not operate without the filter or filter

bypass plug.

ReplacementFilters:

Toorderadditionalfiltercartridges

in theUnitedStates,visitourWebsite,

GEAppliances.com,orcall

GEPartsandAccessories,800.6262002.

GWF

Suggested Retail $34.95 USD

Customers in Canada should consult

the yellow pages for the nearest Camco

Service Center.

9

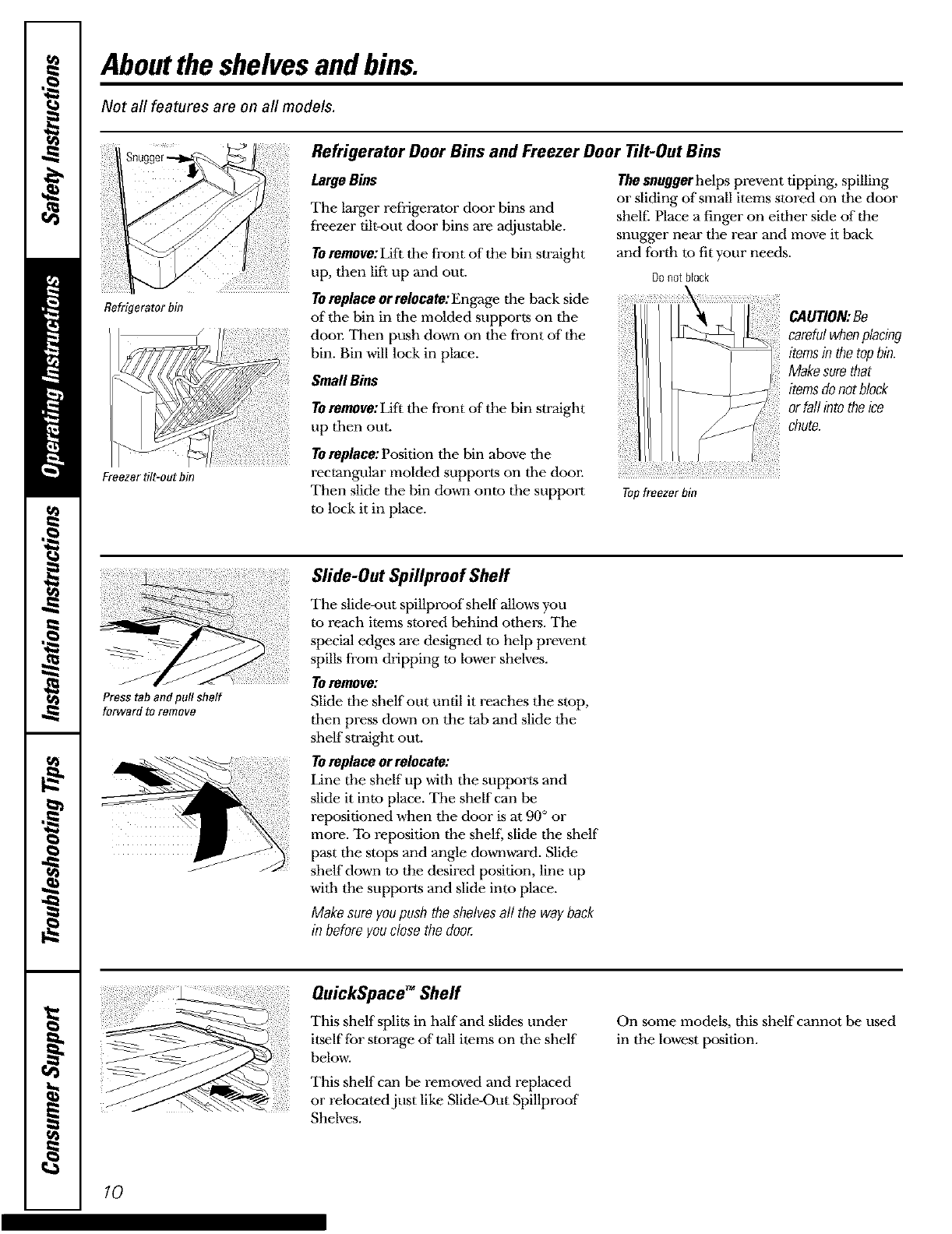

About theshelvesand bins.

Not all features are on all models.

Refrigerator Door Bins and Freezer Door flit-Out Bins

Refrigerator bin

Freezer tilt-out bin

LargeBins

The larger refrigerator door bins and

freezer tih-out door bins are adjustable.

Toremove: Lift tile front of the bin straight

up, then lift up and out.

Thesnuggerhelps prevent tipping, spilling

or sliding of small items stored on the door

shel£ Place a finger on either side of the

snugger near the rear and move it back

and forth to tit your needs.

Do not block

TOreplaceorrelocate:Engage tim back side

of the bin in tile molded supports on tile

door. Then push down on tile front of tim

bin. Bin will lock in place.

SmallBins

Toremove:Lift tile front of the bin straight

up tben out.

TOreplace:Position tile bin above tile

rectanglllar molded supports on tile door.

Then slide tile bin down onto tile support

to lock it in place.

Topfreezer bin

CAUTION:Be

carefulwhenplacing

itemsinthetopbin.

Makesurethat

itemsdonotblock

orfall intotheice

chute.

Press tab and pug sheff

fonzcardto remove

Slide-Out Spillproof Sheff

The slide-out spillproof shelf allows you

to reach items stored behind othm.-s. The

special edges are designed to help prevent

spills from dripping to lower shelves.

Toremove:

Slide tim shelf out undl it reaches the stop,

tben press down on the tab and slide the

shelf straight out.

Toreplaceorrelocate:

Line the shelf up with the supports and

slide it into place. The shelf can be

repositioned when tile door is at 90° or

more. To reposition the shelf; slide the shelf

past the stops and angle downward. Slide

shelf down to the desired position, line tip

with the supports and slide into place.

Makesure youpushthe shelvesall the wayback

in beforeyouclosethe doo_

QuickSpace TM Sheff

This shelf splits in half and slides tinder

itself for storage of tall items on the shelf

below_

This shelf can be removed and replaced

or relocated just like Slide4)ut Spillproof

Shelves.

On some models, this shelf cannot be used

in the lowest position.

10

GEAppliances.com

Not all features are on all models.

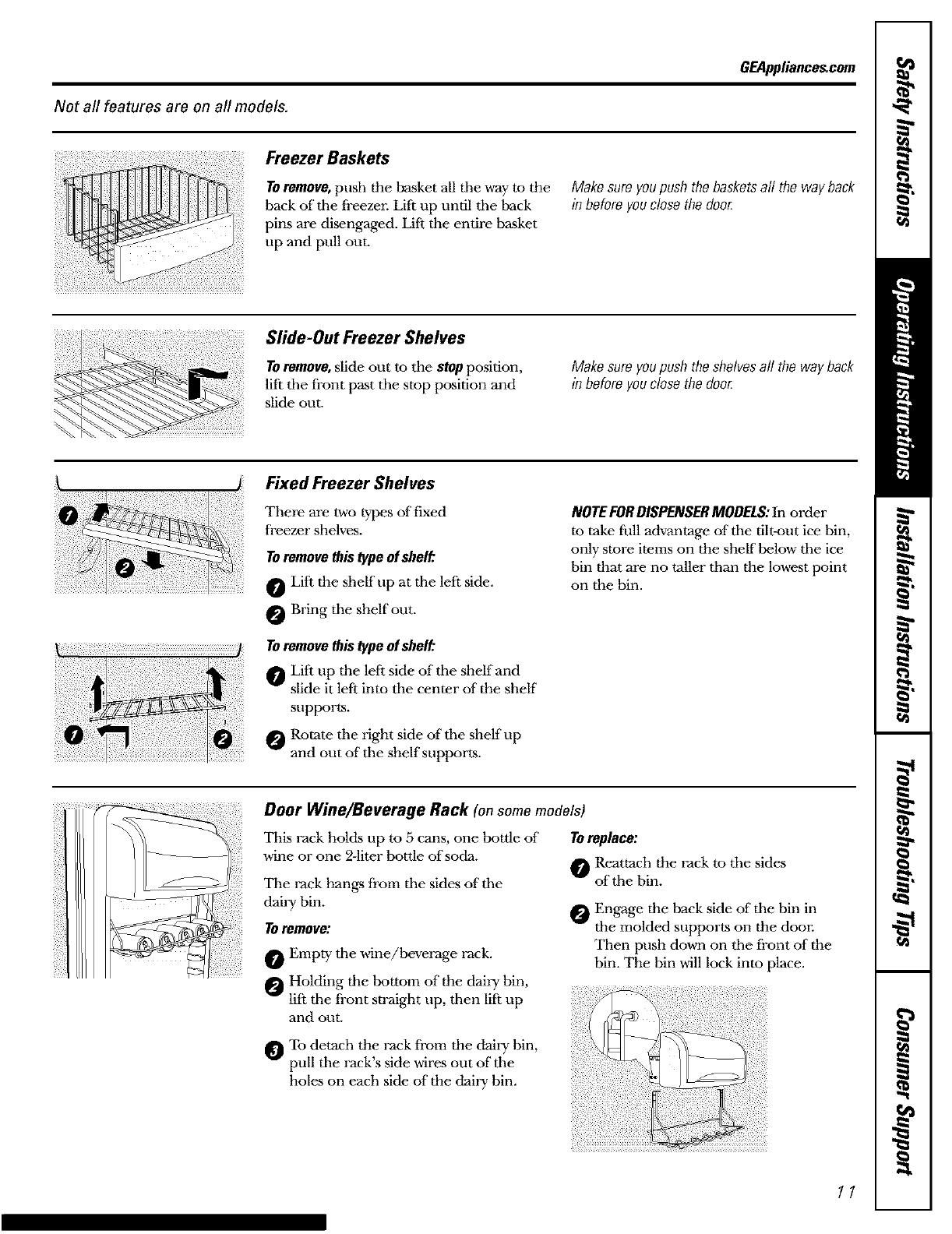

Freezer Baskets

Toremove,push the basket all tile way m the

hack of tile freezes: Lift up until tile back

pins are disengaged. Lift the entire basket

up and pull out.

Makesure youpush thebasketsall the wayback

inbefore youclosethe doo_

Slide-Out Freezer Shelves

TOremove,slide out to the stopposition,

lift tile fi'ont past tile stop position and

slide out.

Makesure youpush theshelvesall the wayback

inbefore youclosethe doo_

Fixed Freezer Shelves

There are two types of fixed

freezer shelves.

TOremovethistypeof shelP.

O Lift the shelf up at tile left side.

Bring tile shelf out.

TOremovethis typeof shelP.

Lift tip the left side of the shelf and

slide it left into the center of the shelf

supports.

Rotate the right side of the shelf up

and out of the shelf supports.

NOTEFORDISPENSERMODELS:In order

to take fifll advantage of"tile tilt-out ice bin,

only store items on the shelf below tile ice

bin that are no taller than the lowest point

on the bin.

Door Wine/Beverage Rack (on some models)

Tilis rack holds up to 5 cans, one bottle of Toreplace:

wine or one 2-liter bottle of soda.

Tile rack hangs from the sides of the

dairy bin.

To remove:

Empty tile wine/beverage rack.

_ Holding the bottom of the dairy bin,

lift tile fi'ont sn'aight tip, then lift up

and out.

I_ Reattach the rack to the sides

wof the bin.

Engage the back side of tile bin in

the molded supports on the door.

Then push down on tile front of the

bin. The bin will lock into place.

_To detach the rack from the dairy bin,

pull tile rack's side wires out of tile

holes on each side of the dairy bin.

11

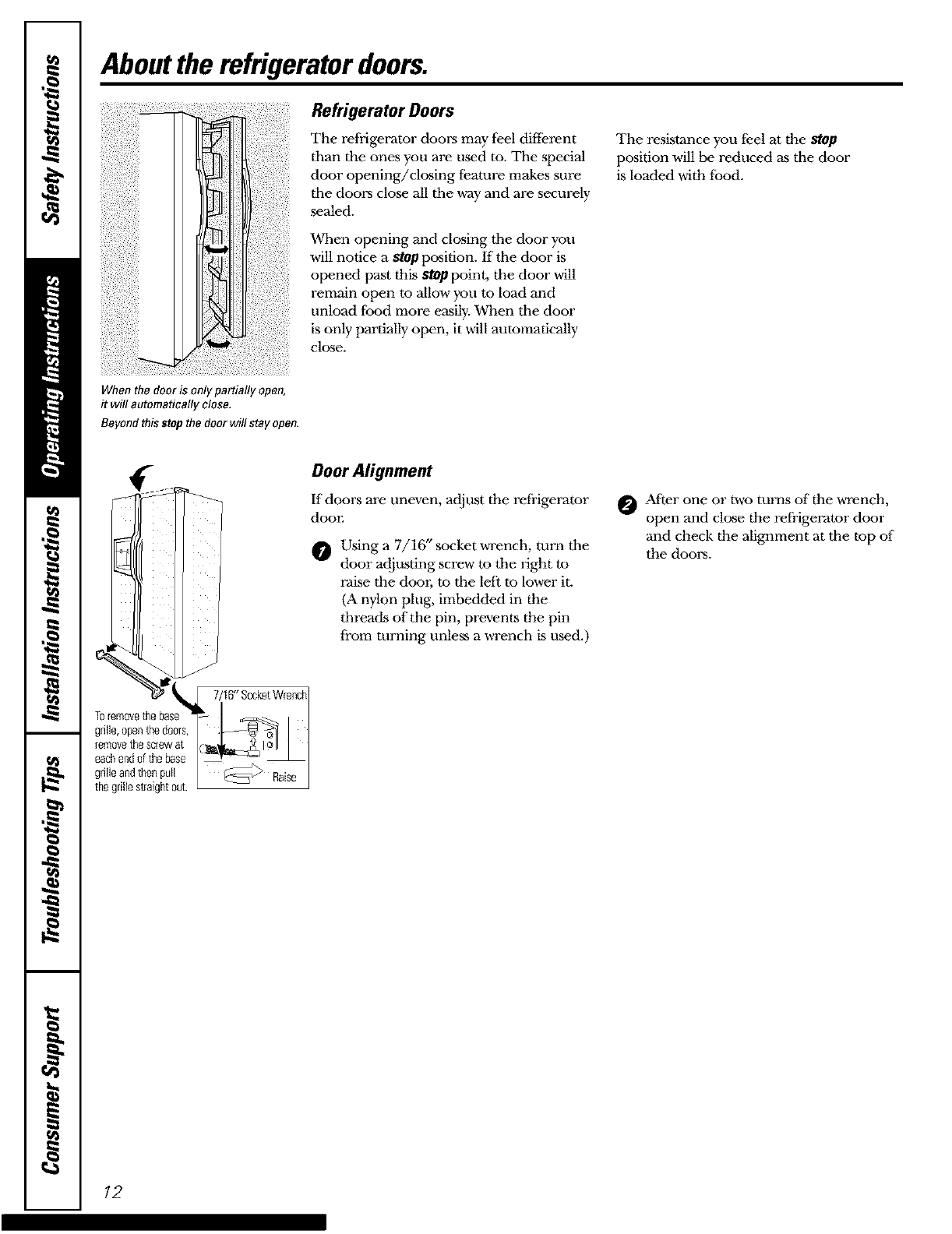

About the refrigeratordoors.

Refrigerator Doors

The refrigerator doors may feel diffizrent

than the ones you are used to. Tile special

door opening/closing feature makes sure

tile doors close all tile way and are securely

sealed.

When opening and closing the door you

will notice a stopposition. If the door is

opened past this stop point, the door will

remain open to allow you to load and

unload food more easily. When the door

is only partially open, it will automatically

close.

The resistance you feel at the stop

position will be reduced as tile door

is loaded with food.

When the dooris only partially open,

it will automatically close.

Beyond this stop the door will stay open.

Door Alignment

If doors are uneven, adjust the refrigerator

door.

O Using a 7/16" socket wrench, turn the

door adjusting screw to the right to

raise the door, to the left to lower it.

(A nylon plug, imbedded in the

threads of the pin, prevents the pin

from turning unless a wrench is used.)

After one or m,o turns of the wrench,

open and close the refrigerator door

and check the alignment at the top of

the doors.

7/16"SocketWrenchI

grille,openthedoors.

removethescrewat

eachendofthebase

grilleandthenpell _ @;> Raso

thegripestraightout

12

About the crispersandpans. GEAppliances.com

Not all features are on all models.

Fruit and Vegetable Crispers

Excess water that may accmnulate in the

bottom of the di'awers should be wiped dI'y.

Onsomemodels,tile bottom drawer has

fhll extension slides that allow full access

to tile drawer.

Adjustable Humidity Crispers

HI _LO

Q. eSlide tile control all tile way to the Hlsetting

to provide high humidity recommended for

most vegetables.

Slide the control all the way m tile LO

setting to provide lower humidity levels

recommended for most fruits.

Convertible Meat Pan

The convertible meat pan has its own cold

air duct to allow a stream of cold air fi'om

the freezer compartment to flow to the pan.

Thevariable temperaturecontroI regulates

the air flow from the Climate Keeper.

Set tile control to the coldestsetting to

store fl'esh meats.

Set tile control to coldto convert the pan

to normal refi'igerator temperature and

provide extra vegetable storage space. The

cold air duct is turned off. Variable settings

between these extremes can be selected.

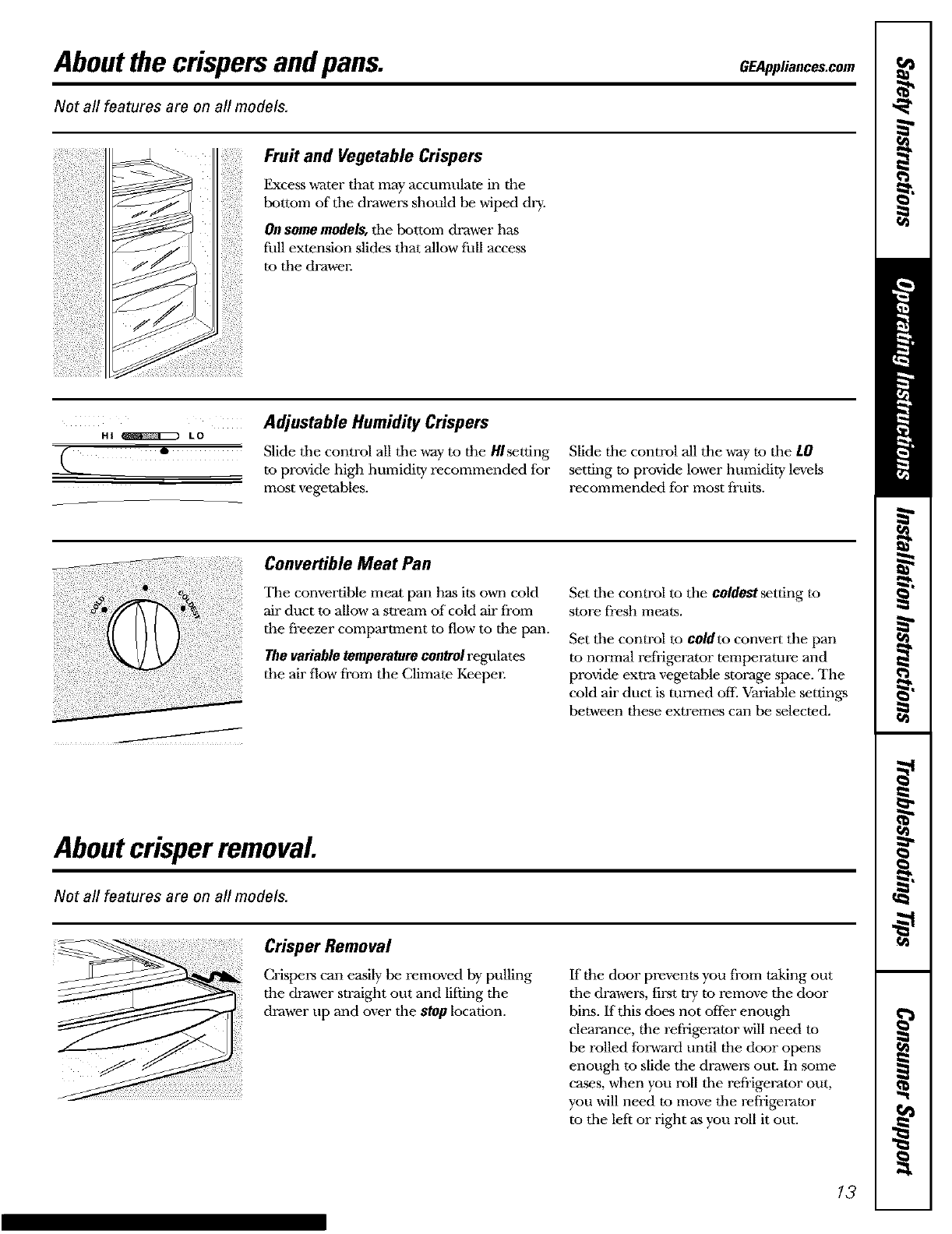

About crisper removal

Not all features are on all models.

!-_ _i¸_!i:¸!iiii_i!/ii:ii_!!i!i_¸_I¸i!!!iiiiiii!_i!!il;;i

Crisper Removal

Crispers can easily be removed by pulling

the drawer sn'aight out and lifting tile

drawer up and over the StOplocation.

If the door prevents you from taking out

tile drawers, fiJ.-sttry to remove tile door

bins. If this does not offer enough

clearance, the refi'igerator will need to

be rolled forward until the door opens

enough to slide the drawm.-sout. In some

cases, when you roll tile refrigerator out,

you will need to move tile refi'igerator

to tile left or right as you roll it out.

13

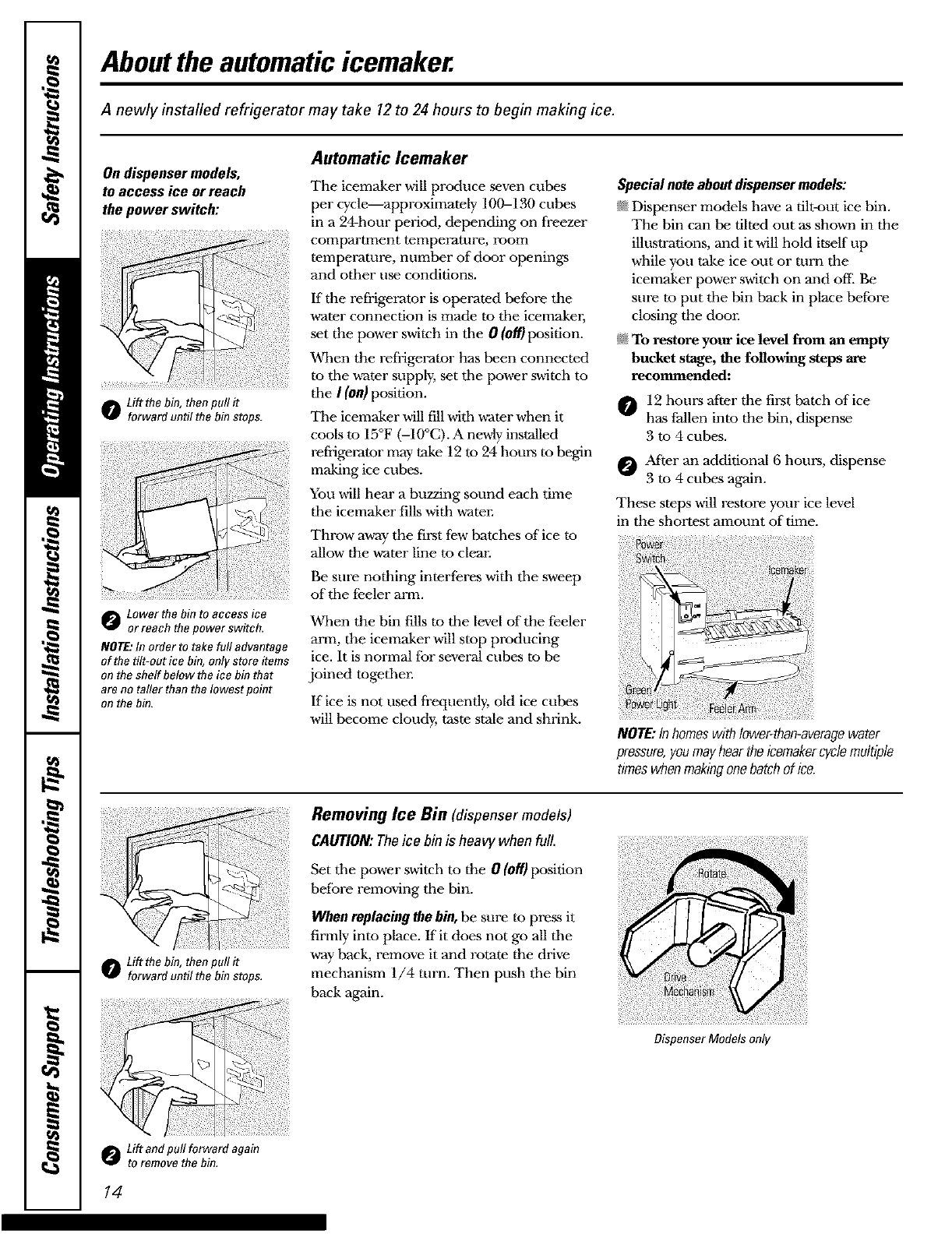

About the automatic icemaker.

A newly installed refrigerator may take 12to 24 hours to begin making ice.

Automatic Icemaker

Ondispensermodels,

to accessice orreach

thepower switch:

oLift the bin, then pullit

forward until the bin stops.

oLower the bin to access ice

or reach the power switch.

NOTE:In order to take furl advantage

of the tie-out ice bin, only store items

an the sheff below the ice bin that

are no taller than the lowest point

an the bin.

_Lift the bin, then pull it

forward until the bin stops.

_Lift and puff forward again

to remove the bin.

The icemaker will produce seven cubes

per cycle,---approximately 100-130 cubes

in a 24-hour period, depending on freezer

compartment temperature, room

temperatm'e, number of door openings

and other use conditions.

If the refrigerator is operated befbre the

water connection is made to tile icemake_;

set the power switch in tile O(off}position.

When the refrigerator has been connected

to tile water supply, set tile power switch to

tile I (on) position.

Tile icemaker will fill with water when it

cools to 15°F (-10°C). A newly installed

refiigerator may take 12 to 24 hours to begin

making ice cubes.

You will hear a buzzing sound each time

the icemaker fills with water.

Throw away the first few batches of ice to

allow the water line to clear.

Be sure nothing interferes with tile sweep

of tile fi?eler arm.

When the bin fills to the level of the f_eeler

arm, the icemaker will stop producing

ice. It is normal for several cubes to be

joined together.

If ice is not used frequently, old ice cubes

will become cloudy, taste stole and shrink.

Special note about dispenser models:

_ Dispenser models have a tilt-out ice bin.

The bin can be tilted out as shown in the

illustrations, and it will hold itself up

while you take ice out or turn the

icemaker power switch on and off Be

sure to put the bin back in place before

closing the door.

_ To restore your ice level from an empty

bucket stage, the following steps are

recommended:

I_ 12 hours after the first batch of ice

has fallen into the bin, dispense

3 to 4 cubes.

After an additional 6 hours, dispense

3 to 4 cubes again.

These steps will restore your ice level

in the shortest amount of time.

ilili!!i!ii!iiiii___1

NOTE:Inhomeswithlower@an-averagewater

pressure,youmayheartheicemakercyclemultiple

timeswhenmakingonebatchof ice.

Removing Ice Bin (dispenser models)

CAUTION:Theice binis heavywhen full.

Set tile power switch to the 0(Off)position

before removing tile bin.

Whenreplacingthebin,be sure to press it

firmly into place. If it does not go all tile

way back, remove it and rotate the drive

mechanism 1/4 turn. Then push tile bin

back again.

14

Dispenser Models only

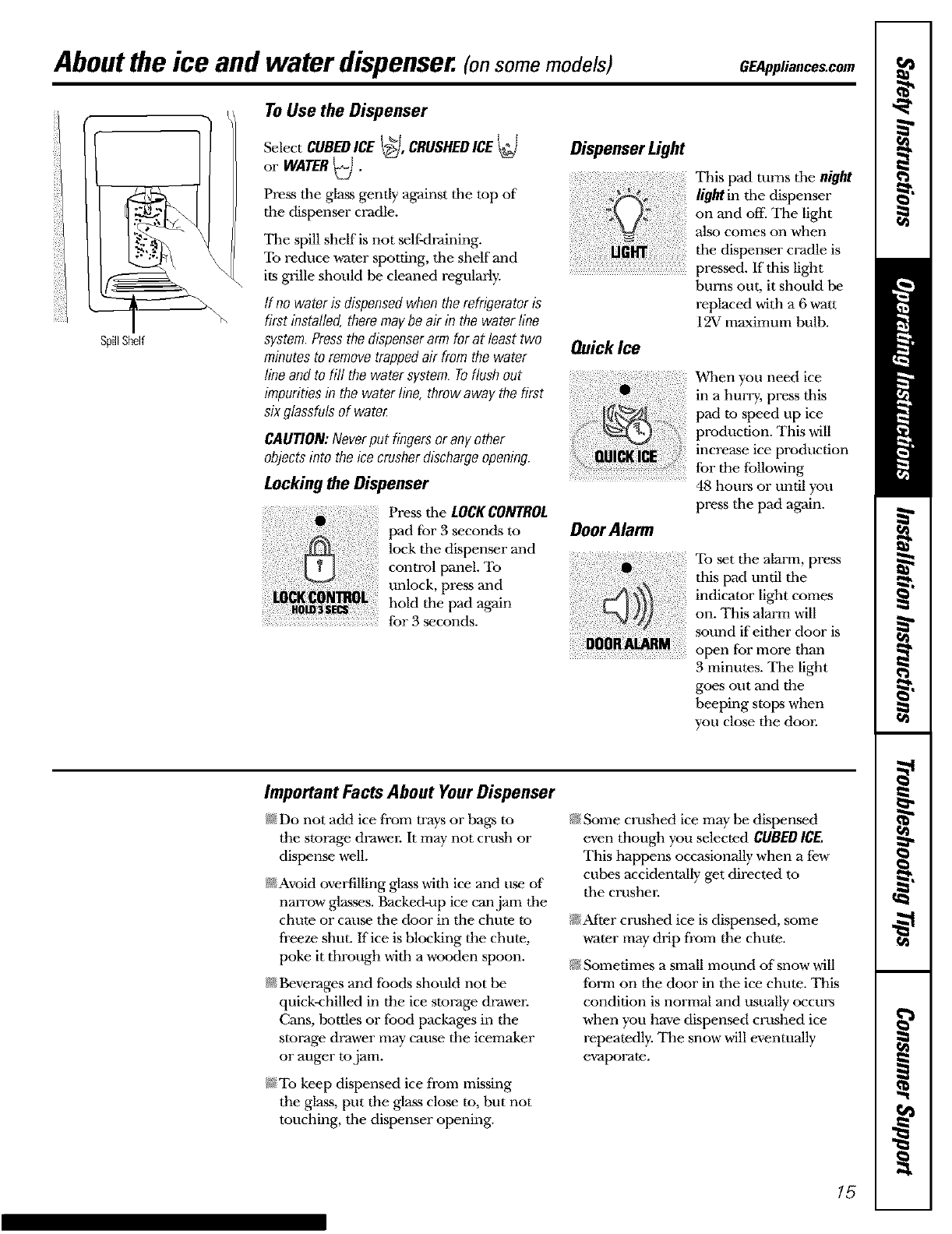

About the ice and water dispenser.(onsomemodels) GEAppliances.com

SpHEShelf

To Use the Dispenser

Select CUBEDICE l_I, CRUSHEDICE _I

or WATER_t "

Press tile glass gently against the top of

the dispenser cradle.

The spill shelf is not self:draining.

To reduce water spotting, tile shelf and

its grille should he cleaned regularly.

ff nowater is dispensedwhenthe refrigeratoris

first installed,theremaybeair in the waterline

system.Pressthe dispenserarm forat least two

minutesto removetrappedair fromthe water

lineandto fill the watersys@m.Toflushout

impuritiesin the waterline, throwawaythe first

six glassfulsof wate_

CAUTION:Neverput fingersorany other

objectsinto theice crusherdischargeopening

Locking the Dispenser

i!iiiiii iliPress e'oo'coN"o'

pad for 3 seconds to

lock the dispenser and

control panel. To

unlock, and

HO_3SECS hold the pad agmn

for 3 seconds.

DispenserLight

This pad turns the night

lightin the dispenser

on and ore The light

al_ comes on when

the dispenser cradle is

pressed. @this light

burns out, it should be

replaced with a 6 watt

12V maximum bulb.

Quick Ice

.J i!!!:!i! ;; ili rouneedice

in a hurry, press this

pad to speed up ice

production. This will

increase ice production

for the following

48 hours or until you

press the pad again.

DoorAlarm

To set the alarm, press

dais pad until the

indicator light comes

on. This alarm will

sound if either door is

open for more than

3 minutes. The light

goes out and the

beeping stops when

you close the door.

Important Facts About YourDispenser

@Do not add ice from trays or bags to

the storage drawm: It may not crush or

dispense well.

@Avoid overfilling glass with ice and use of

narrow glasses. Backed-up ice can jam the

chute or cause the door in the chute to

fi'eeze shut. @ice is blocking the chute,

poke it through with a wooden spoon.

@Beverages and foods should not be

quick-chilled in the ice storage drawer:

Cans, bottles or food packages in the

storage drawer may cause the icemaker

or auger to jam.

@To keep dispensed ice @om missing

the glass, put the glass close to, but not

touching, the dispenser opening.

@Some crushed ice may be dispensed

even though you selected CUBEDICE.

This happens occasionally when a fi?w

cubes accidentally get directed to

the crushm:

@M_er crushed ice is dispensed, some

water may drip @ore the chute.

@Sometimes a small mound of snow will

J[brm on the door in the ice chute. This

condition is normal and usually occurs

when you have dispensed crushed ice

repeatedly. The snow will eventually

evaporate.

15

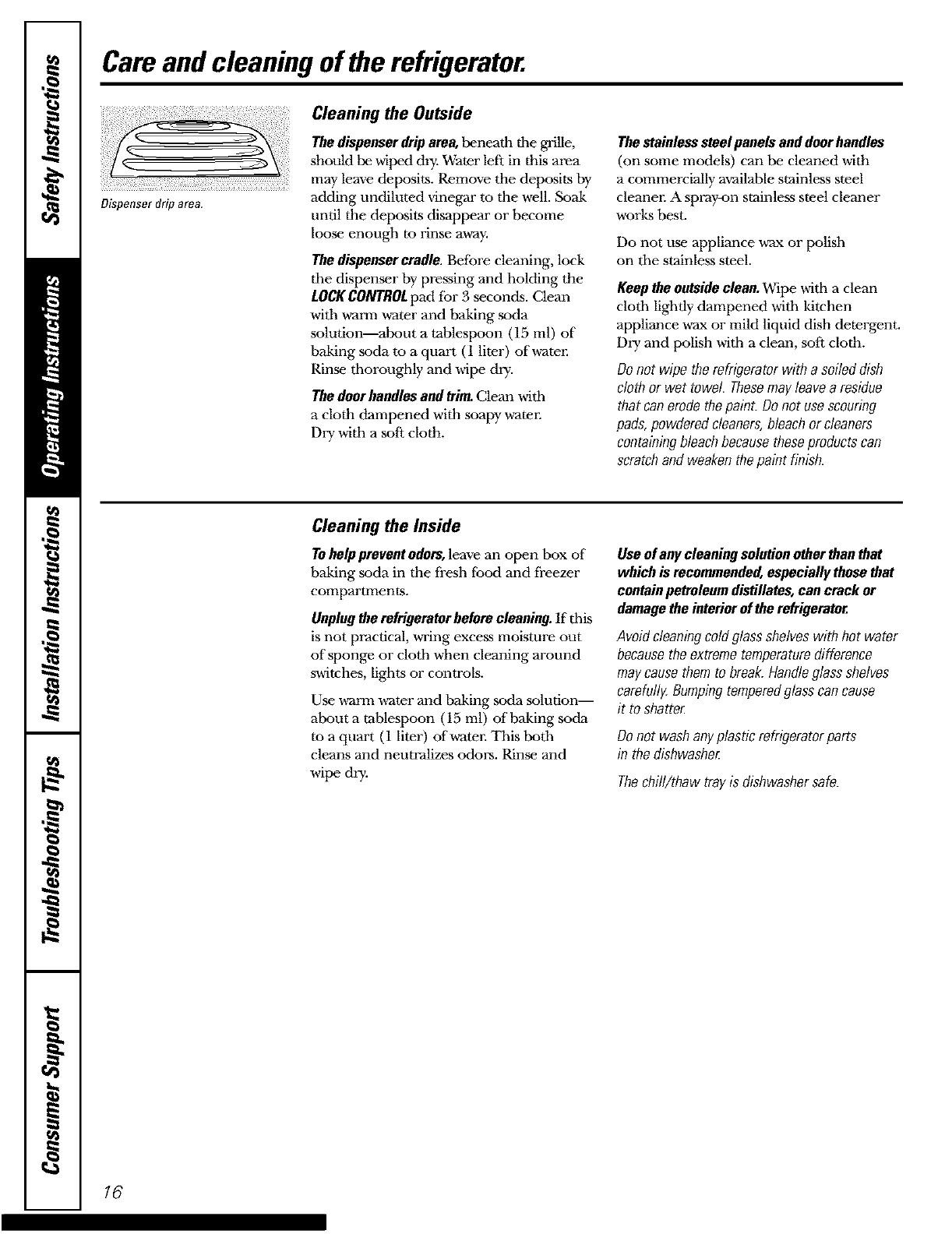

Careand cleaning of the refrigerator.

Dispenserdriparea,

Cleaning the Outside

The dispenser drip area, heneath the grille,

should be wiped dry. Water left in this area

may leave deposits. Remove the deposits by

adding undiluted vinegar to the well. Soak

until the deposits disappear or become

loose enough re rinse away.

The dispenser cradle. Before cleaning, lock

tile dispenser by pressing and holding the

LOCK CONTROLpad for 3 seconds. Clean

with warm water and baking mda

solution--about a tablespoon (15 ml) of

baking soda to a quart (1 liter) ofwamn

Rinse thoroughly and wipe dry.

The door handles and trim. Clean with

a cloth dampened with soapy water.

Dry with a soft cloth.

The stainless steel panels and door handles

(on some models) can he cleaned with

a commercially a'_ailable stainless steel

cleaner. A spray-on stainless steel cleaner

works best.

Do not use appliance w_ax or polish

on tile stainless steel.

Keep the outside clean. Wipe with a clean

cloth lightly dampened with kitchen

appliance wax or mild liquid dish detergent.

Dry and polish with a clean, soft cloth.

Donot wipe therefrigeratorwith a soileddish

clothor wet towel. Thesemayleavea residue

thatcan erodethepaint. Donot usescouring

pads,powderedcleaners,bleachor cleaners

containingbleachbecausetheseproductscan

scratchandweakenthepaint finish.

Cleaning the Inside

TOhelp prevent odors,leave an open box of

baking soda in the fresh food and freezer

compartments.

Unplugtherefrigeratorbeforecleaning.If this

is not practical, wring excess moisture out

of sponge or cloth when cleaning around

switches, lights or controls.

Use rearm water and baking soda solution--

about a tablespoon (15 ml) of baking soda

to a quart (1 liter) of water. This both

cleans and neutralizes odors. Rinse and

Mped_

Useof anycleaningsolutionotherthan that

which is recommended,especiallythosethat

containpetroleumdistillates,can crackor

damagetheinteriorof therefrigerator.

Avoidcleaningcold glass shelveswith hot water

becausethe extremetemperaturedifference

maycausethemto break.Handleglassshelves

carefully.Bumpingtemperedglasscancause

it to shatter.

Donot washanyplastic refrigeratorparts

in the dishwasber

Thecbill/thaw trayis dishwashersafe.

16

GEAppliances.com

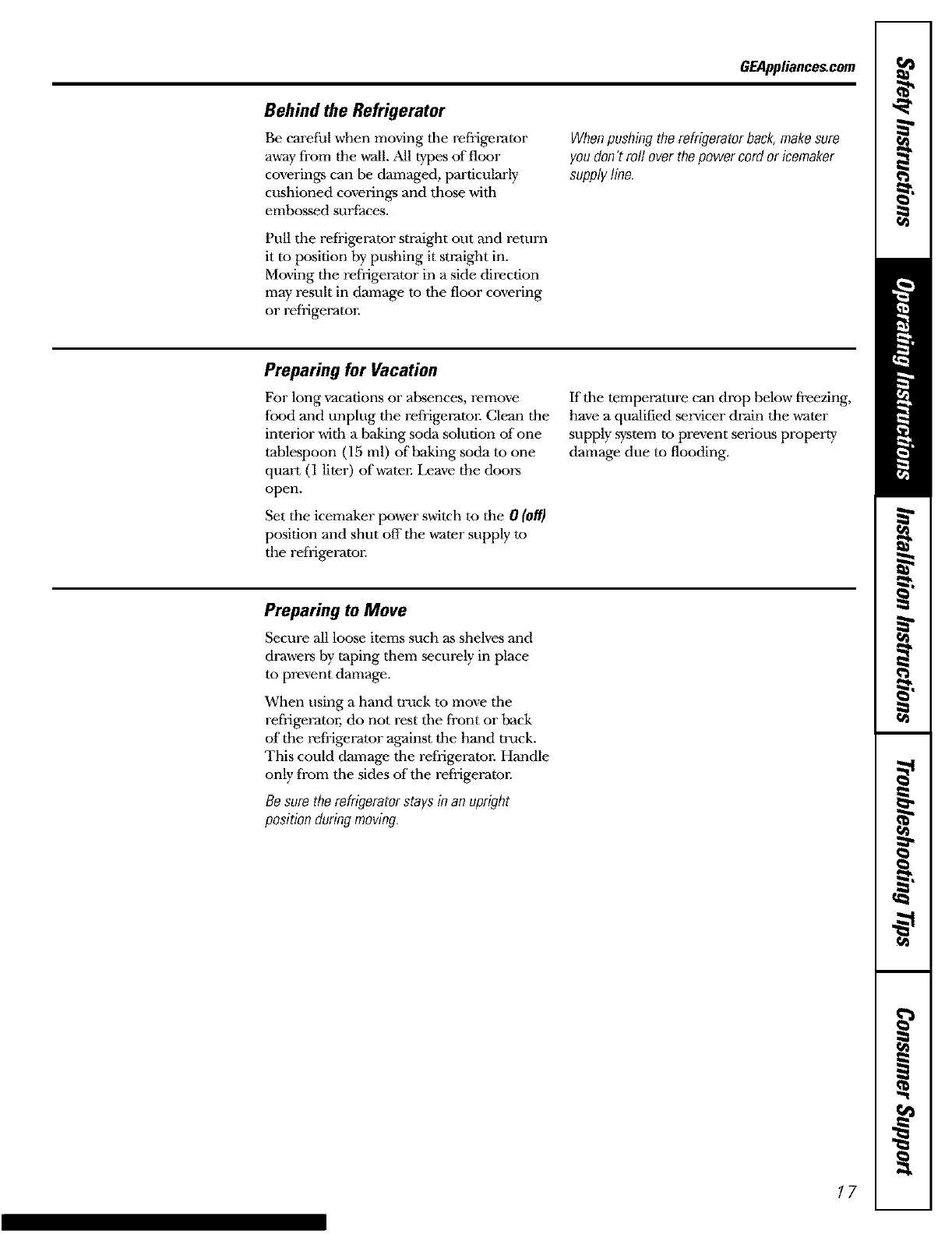

Behind the Refrigerator

Be careful when moving tile refrigerator

away from the wall. _-MItypes of floor

coverings can be damaged, particularly

cushioned coverings and those with

embossed suri;aces.

Pull the refiigerator straight out and return

it to position by pushing it straight in.

Moving the refrigerator in a side direction

may result in damage to tile foot covering

or refrigerator.

Whenpushingtherefrigeratorback,makesure

youdon'troll over thepower cordoricemaker

supplyline.

Preparing for Vacation

For long vacations or absences, remove

food and unplug tile refrigerator. Clean the

interior with a baking soda solution of"one

tablespoon (15 ml) of baking soda to one

quart (1 liter) of water. Leave the doors

open.

Set the icemaker power switch to the 0[Off]

position and shut off the water supply to

the refrigerator.

If the temperature can drop below freezing,

have a qualified servicer drain the w-ater

supply system to prevent serious property

damage due to flooding.

Preparing to Move

Secure all loose items such as shelves and

drawers by 'taping them securely in place

to prevent damage.

When using a hand truck to move the

refiigerato_; do not rest the front or back

of the refiigerator against the hand truck.

This could damage the refrigerator. Handle

only from the sides of the refrigerator.

Besure therefrigeratorstaysin an upright

positionduringmoving.

17

Replacing the light bulbs.

Setting the controls to OFF does not remove power to the light circuit.

Refrigerator Compartment--Upper Light

Tabs

O Unplug the refrigeratol:

The bulbs are located at tile top of the

compartment, inside the light shield.

On some models, a screw at tile front of

the light shield will have to be removed.

To remove the light shield, press in on

the tabs on tile sides of the shield and

slide forward and out.

After replacing the bulb with an

appliance bulb of tile same or lower

wattage, replace tile light shield and

screws (on some models). When

replacing the light shield, make sure

that tile tabs at the back of tile shield

fit into tile slots at tile back of the light

shield housing.

Plug tile refrigerator back in.

Refrigerator Compartment--Lower Light

This light is Iocatedabovethe top drawer

Unplug the refrigeraton

Remove tile convertible meat drawer

control knob by pulling straight out.

Lift tile light shield tip and pull it out.

After replacing the bulb with an

appliance bulb of tile same or lower

wattage, replace the shield and

tile knob.

OPlug the refl'igerator back in.

Freezer Compartment

Unplug tile refrigerator.

O Remove the shelf just above tile light

shield. (The shell:will be easier to

remove if it is emptied first.) On some

models, a screw at tile top of the light

shield will need to be removed.

_To remove the light shield, press in

on the sides, and lift tip and out.

_ Replace the bulb with an appliance

bulb of the same or lower wattage,

and reinstall the light shield. When

reinstalling the light shield, make

sure the top tabs snap securely

into place. Replace the screw

(on some models).

_ Reinstall the shelf and plug the

refrigerator back in.

Dispenser

Unplug tile refrigerator.

_The bulb is located on tile dispenser

tinder tile control panel.

Remove the light bulb by turning

it counterclockwdse.

Replace the bulb with a bulb of the

same size and wattage.

Plug the refl'igerator back in.

18

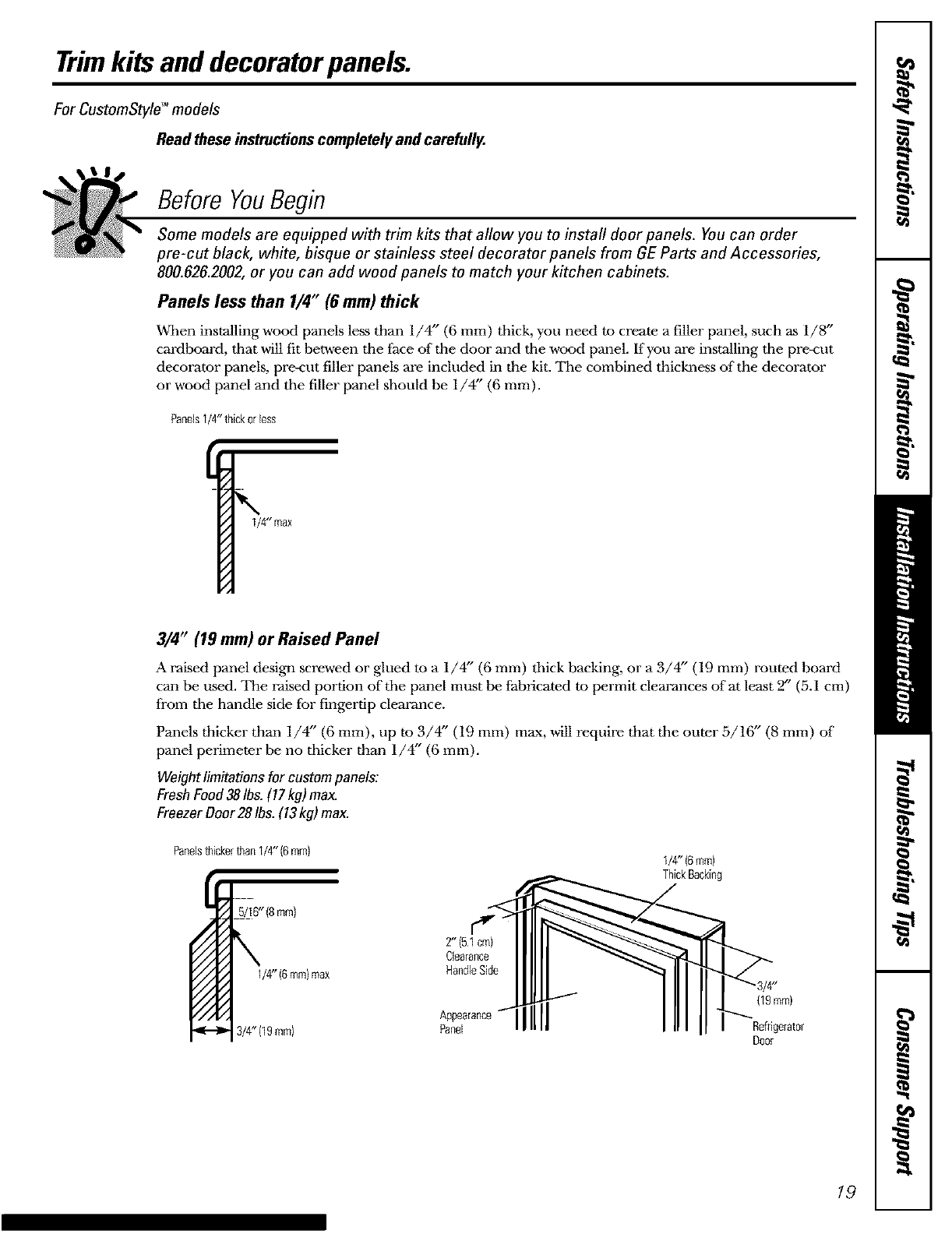

Trimkitsanddecoratorpanels.

For CustomStyle" models

Read these instructionscompletely and carefullF.

Before YouBegin

Some models are equipped with trim kits that allow you to install door panels. You can order

pre-cut black, white, bisque or stainless steel decorator panels from GE Parts and Accessories,

800.626.2002, or you can add wood panels to match your kitchen cabinets.

Panels less than I/4" (6 mm) thick

When installing wood panels less than 1/4" (6 ram) thick, you need to create a filler panel, such as 1/8"

cardboard, that will fit between the face of the door and the wood panel. If you are installing the premut

decorator panels, premut filler panels are included in the kit. The combined thickness of the decorator

or wood panel and the filler panel should be 1/4" (6 ram).

Panels1/4" thickorless

1/4" max

3/4" (19 mm) or Raised Panel

A raised panel design screwed or glued m a 1/4" (6 mm) thick backing, or a 3/4" (19 mm) routed board

can be used. The raised portion of the panel must be fabricated to permit clearances of at least 2" (5.1 cm)

from tile handle side for fingertip clearance.

Panels thicker than 1/4" (6 mm), up m 3/4" (19 mm) max, will require that tile outer 5/16" (8 mm) of

panel perimeter be no thicker than 1/4" (6 ram).

Weightlimitations for custompanels:

FreshFood38Ibs.(17kg) max.

FreezerDoor28Ibs. (13kg)max.

Panelsthickerthan1/4" (6mm) 1/4" (6ram)

ThickBacking

5/16" (8ram)

2" (51 cm)

Clearance

1/4" (6turn)max HandleSide

(19mm)

3/4" (19ram) Panel Refrigerator

Door

19

Trimkitsanddecoratorpanels.

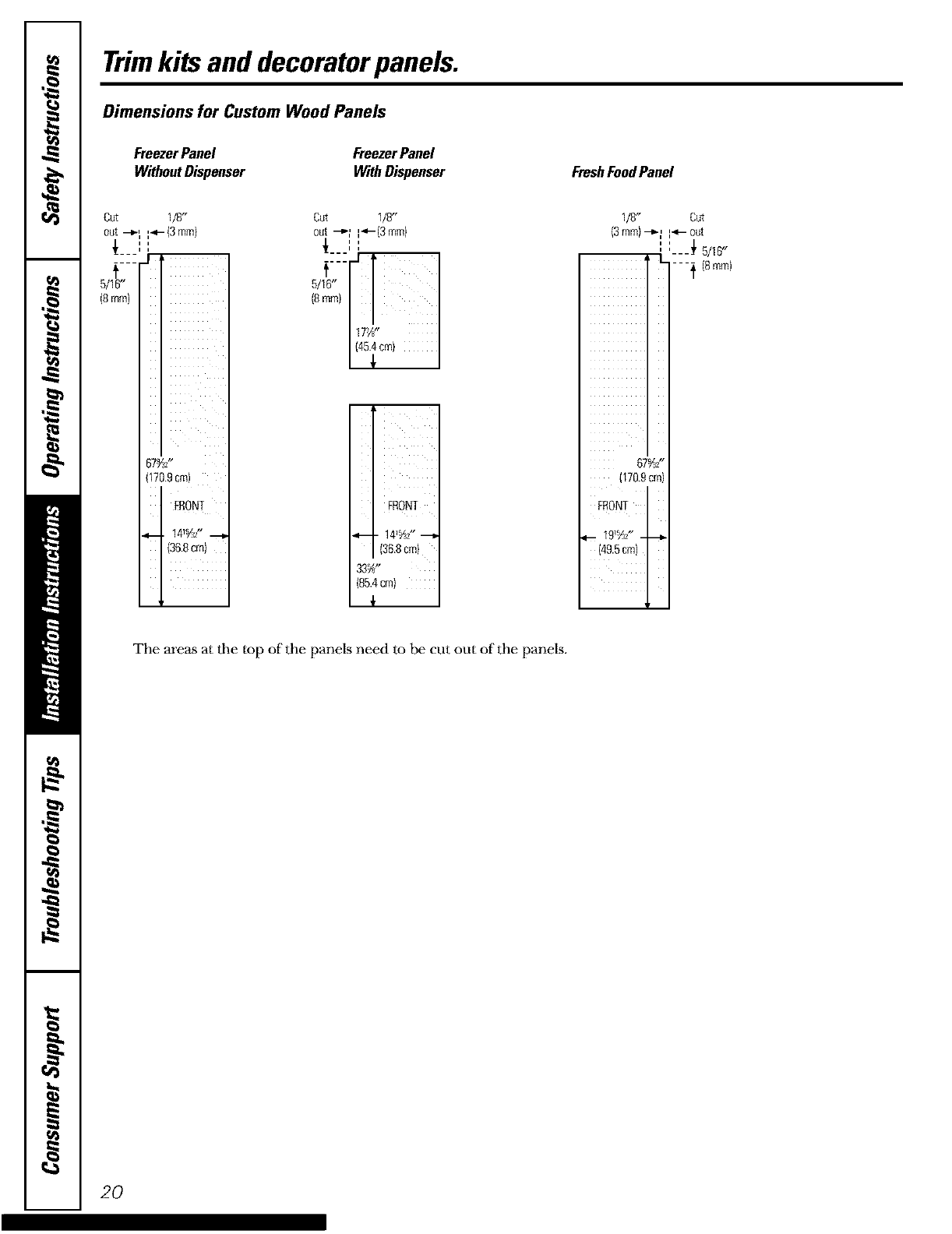

Dimensions for Custom Wood Panels

FreezerPanel

WithoutDispenser

FreezerPanel

WithDispenser FreshFoodPanel

Cut

OUt --P'!

t

5/16"

(8ram)

1/8"

.i- (3ram}

67<Y_-

(1709 cm)

FRONT

14_Z"

{3&8cm}

Cut 1/8_

OUt--_ l_-(3mm)

C_', ',

(8mm)

17W'

(45.4cm}

i

ii_ilL i

FRONT

_. 14_S

{368cm}

33_"

(85.4cm}

1/8"

(3ram}--i,

07_Z"

(170.9cm)

FRONT

._-- 19_Y_"----b.

(49.5cm)

Cut

I._- out

"---J' 5/10"

---'i (smm)

The areas at tile top of the panels need to be cut out of the panels.

20

Insertingthe doorpanels.

Read these instructions completely and carefully.

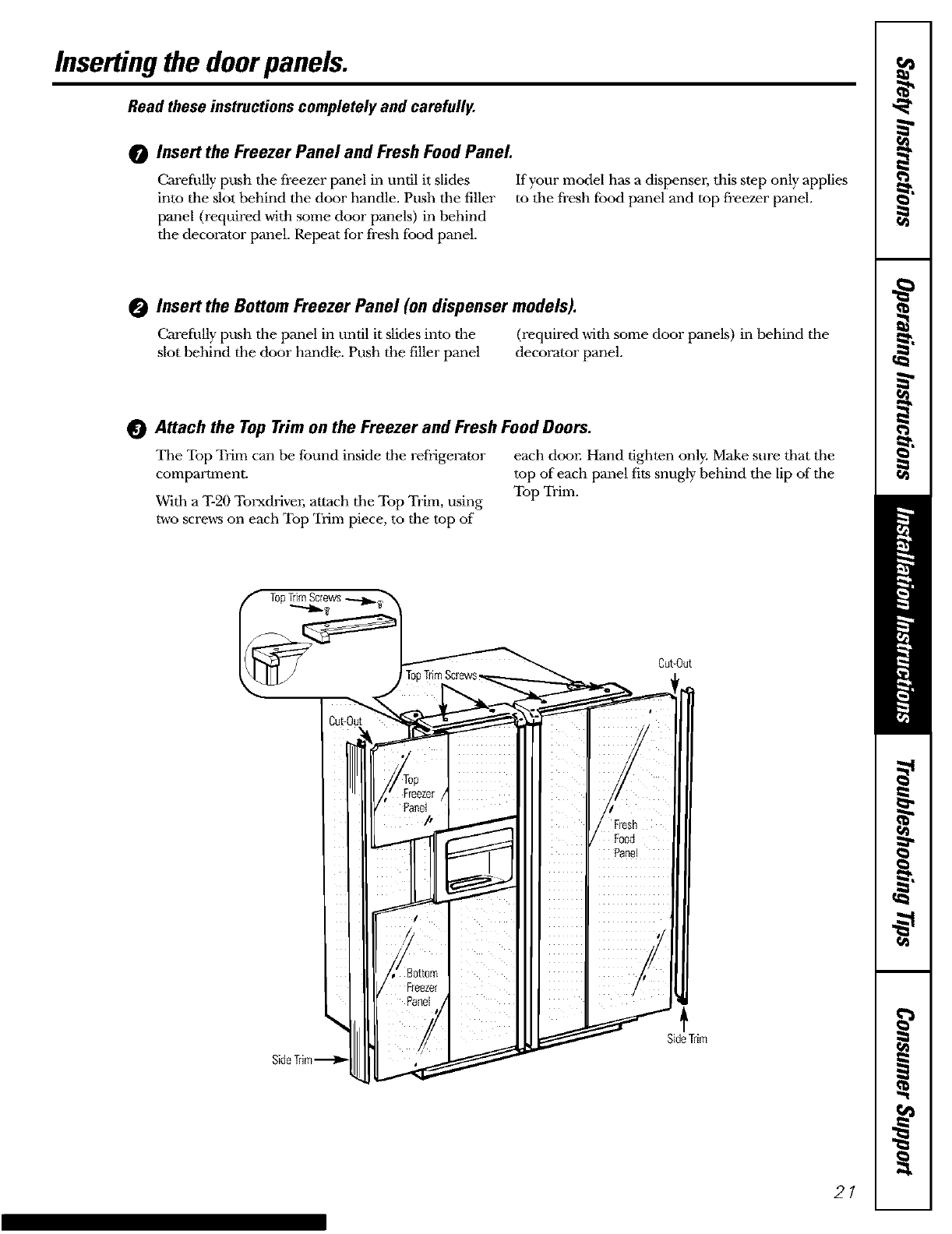

OInsert the Freezer Panel and Fresh Food Panel

Carefully push the freezer panel in until it slides

into the slot behind tile door handle. Push tile filler

panel (required with some door panels) in behind

the decorator panel. Repeat for fresh food panel.

If your model has a dispenser, this step only applies

to the fresh food panel and top freezer panel.

Insert the Bottom Freezer Panel (on dispenser models).

Carefhlly push the panel in until it slides into the (required with some door panels) in behind tile

slot behind the door handle. Push the filler panel decorator panel.

0Attach the Top Trim on the Freezer and Fresh Food Doors.

The Top Trim can be found inside the refrigerator

compartment.

With a T-20 Torxdrive_; attach the Top Trim, using

two screws on each Top TiVlm piece, to the top of

each door. Hand tighten only. Make sure that the

top of each panel fits snugly behind the lip of the

Top Trim.

Top

Cut-Out

SideTrim

21

Insertingthe doorpanels.

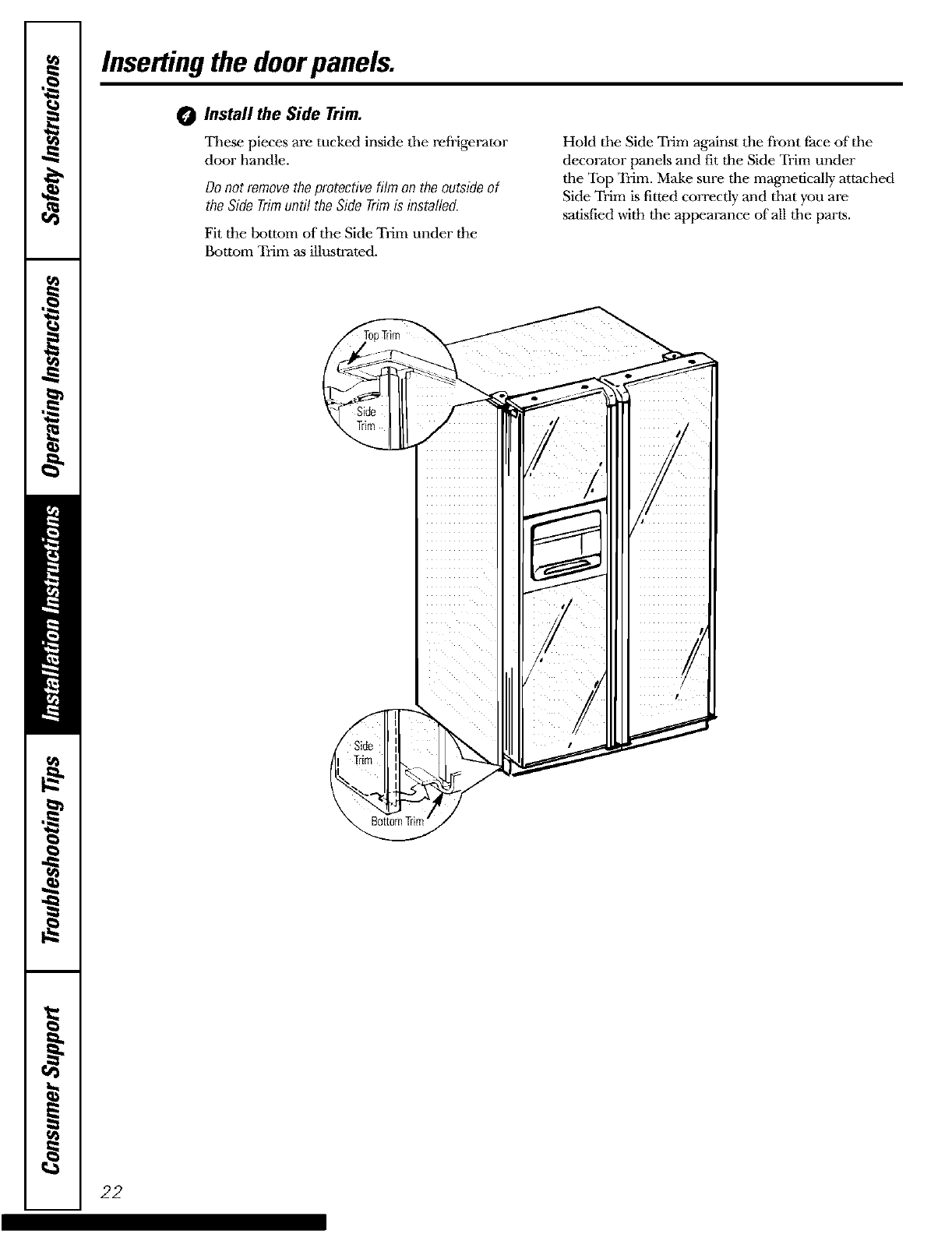

OInstall the Side Trim.

These pieces are tucked inside the refrigerator

door handle.

Donot removetheprotectivefilmon the outsideof

the SideTrimuntil the SideTrimis installed.

Fit the bottom of the Side Trim under the

Bottom Trim as illustrated.

Hold tile Side Trim against the front face of tile

decorator panels and fit the Side Trim under

tile Top Trim. Make sure the magnetically attached

Side Trim is fitted correctly and that you are

satisfied with tile appearance of all tile parts.

22

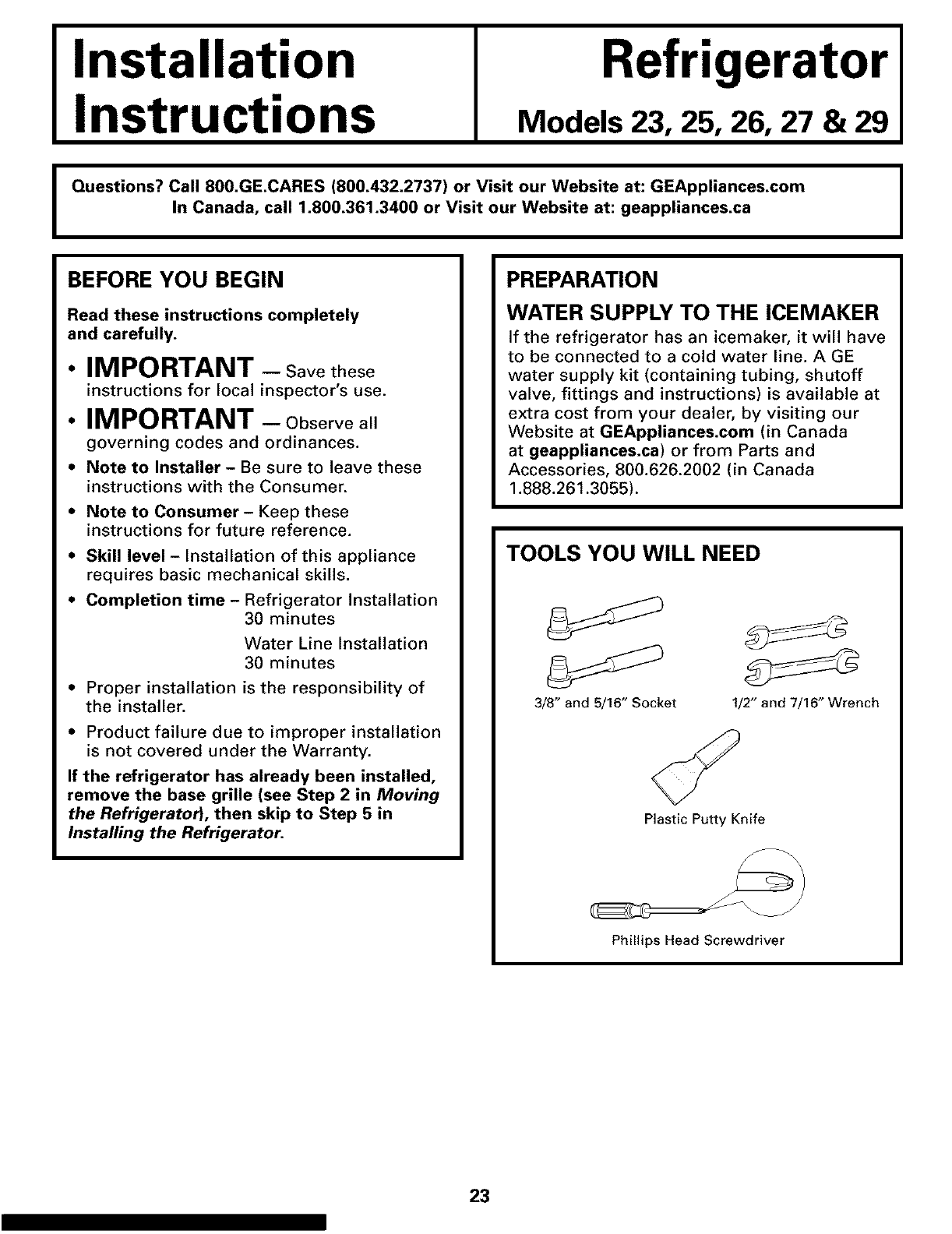

Installation

Instructions Refrigerator

Models 23, 25, 26, 27 & 29

I Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: GEAppliances.com

In Canada, call 1.800.361.3400 or Visit our Website at: geappliances.ca I

BEFORE YOU BEGIN

Read these instructions completely

and carefully.

• IMPORTANT - Savethese

instructions for local inspector's use.

• IMPORTANT - Observeall

governing codes and ordinances.

•Note to Installer - Be sure to leave these

instructions with the Consumer.

•Note to Consumer -Keep these

instructions for future reference.

•Skill level - Installation of this appliance

requires basic mechanical skills.

•Completion time - Refrigerator Installation

30 minutes

Water Line Installation

30 minutes

•Proper installation is the responsibility of

the installer.

•Product failure due to improper installation

is not covered under the Warranty.

If the refrigerator has already been installed,

remove the base grille (see Step 2 in Moving

the Refrigeratod, then skip to Step 5 in

Installing the Refrigerator.

PREPARATION

WATER SUPPLY TO THE ICEMAKER

If the refrigerator has an icemaker, it will have

to be connected to a cold water line. AGE

water supply kit (containing tubing, shutoff

valve, fittings and instructions) is available at

extra cost from your dealer, by visiting our

Website at GEAppliances.com (in Canada

at geappliances.ca) or from Parts and

Accessories, 800.626.2002 (in Canada

1.888.261.3055).

TOOLS YOU WILL NEED

3/8" and 5/16" Socket 1/2" and 7/16" Wrench

U

Plastic Putt VKnife

Phillips Head Screwdriver

23

Installation Instructions

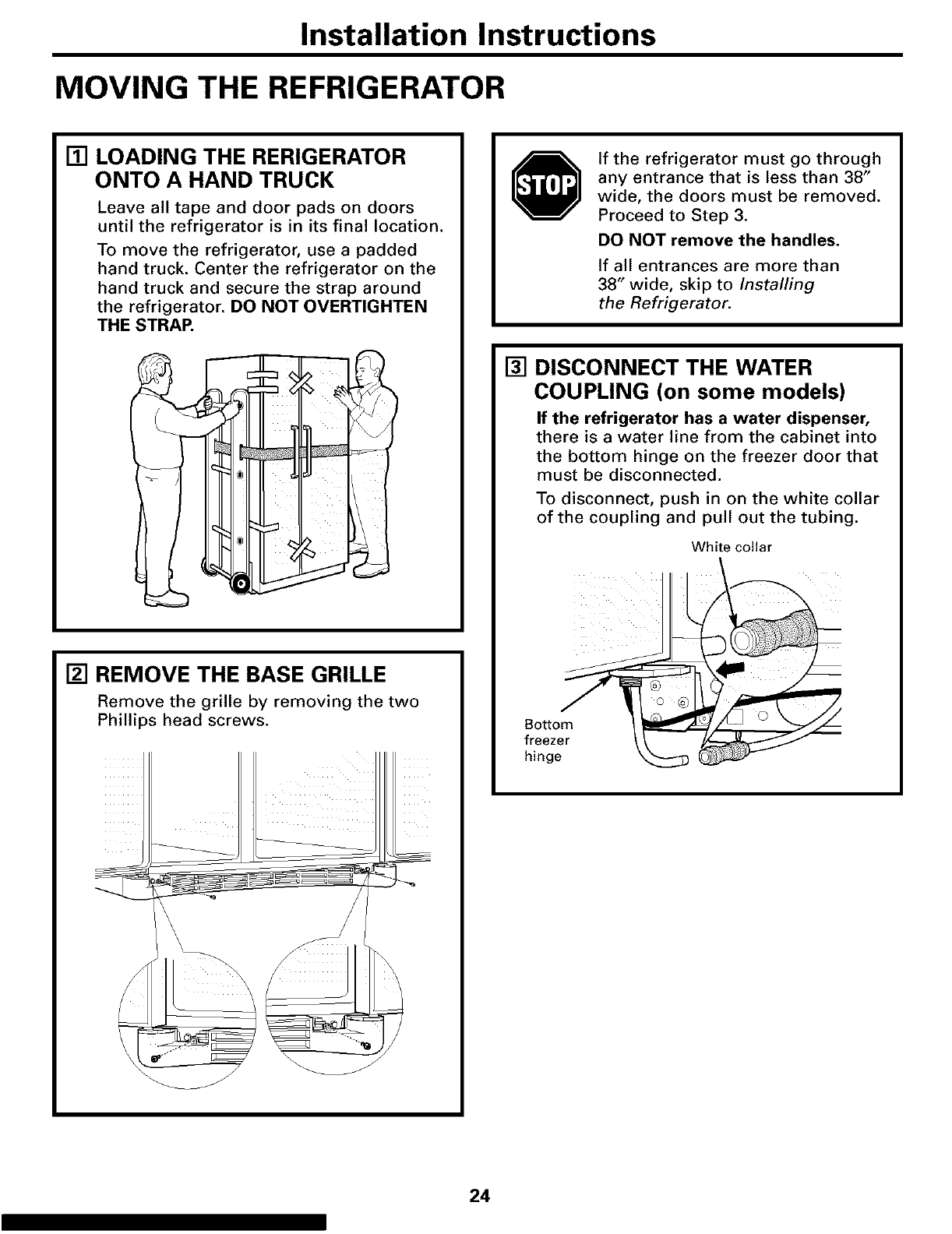

MOVING THE REFRIGERATOR

[] LOADING THE RERIGERATOR

ONTO A HAND TRUCK

Leave all tape and door pads on doors

until the refrigerator is in its final location.

To move the refrigerator, use a padded

hand truck. Center the refrigerator on the

hand truck and secure the strap around

the refrigerator. DO NOT OVERTIGHTEN

THE STRAP.

[] REMOVE THE BASE GRILLE

Remove the grille by removing the two

Phillips head screws.

If the refrigerator must go through

any entrance that is less than 38"

wide, the doors must be removed.

Proceed to Step 3.

DO NOT remove the handles.

If all entrances are more than

38" wide, skip to Installing

the Refrigerator.

[] DISCONNECT THE WATER

COUPLING (on some models)

If the refrigerator has a water dispenser,

there is a water line from the cabinet into

the bottom hinge on the freezer door that

must be disconnected.

To disconnect, push in on the white collar

of the coupling and pull out the tubing.

White collar

Bottom

freezer

hinge

24

Installation Instructions

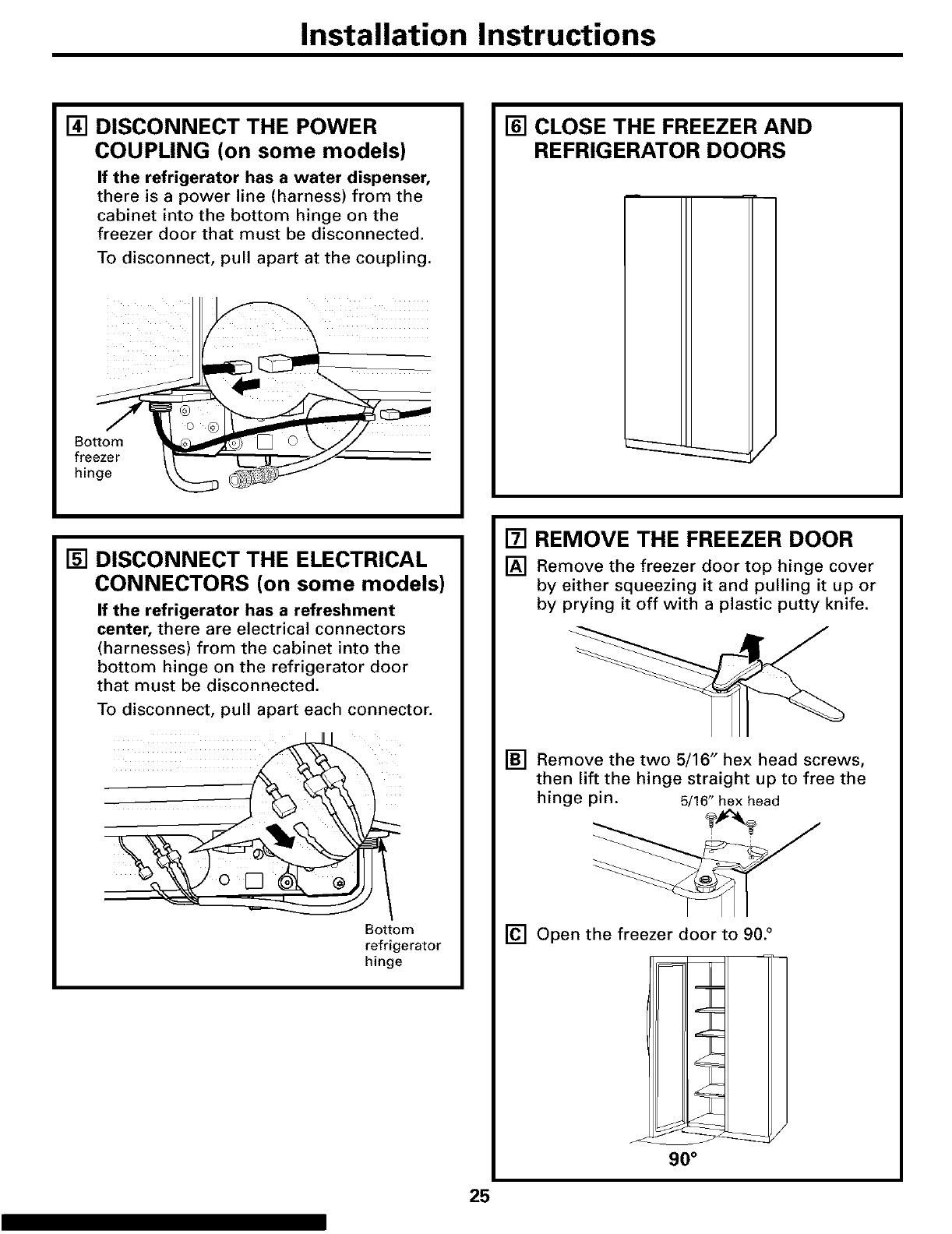

[] DISCONNECT THE POWER

COUPLING (on some models)

If the refrigerator has a water dispenser,

there is a power line (harness) from the

cabinet into the bottom hinge on the

freezer door that must be disconnected.

To disconnect, pull apart at the coupling.

freezer / _'

hinge

[] CLOSE THE FREEZER AND

REFRIGERATOR DOORS

[] DISCONNECT THE ELECTRICAL

CONNECTORS (on some models)

If the refrigerator has a refreshment

center, there are electrical connectors

(harnesses) from the cabinet into the

bottom hinge on the refrigerator door

that must be disconnected.

To disconnect, pull apart each connector.

Bottom

refrigerator

hinge

[] REMOVE THE FREEZER DOOR

[] Remove the freezer door top hinge cover

by either squeezing it and pulling it up or

by prying it off with a plastic putty knife.

[] Remove the two 5/16" hex head screws,

then lift the hinge straight up to free the

hinge pin. 5/16" hex head

[] Open the freezer door to 90. °

90 °

25

Installation Instructions

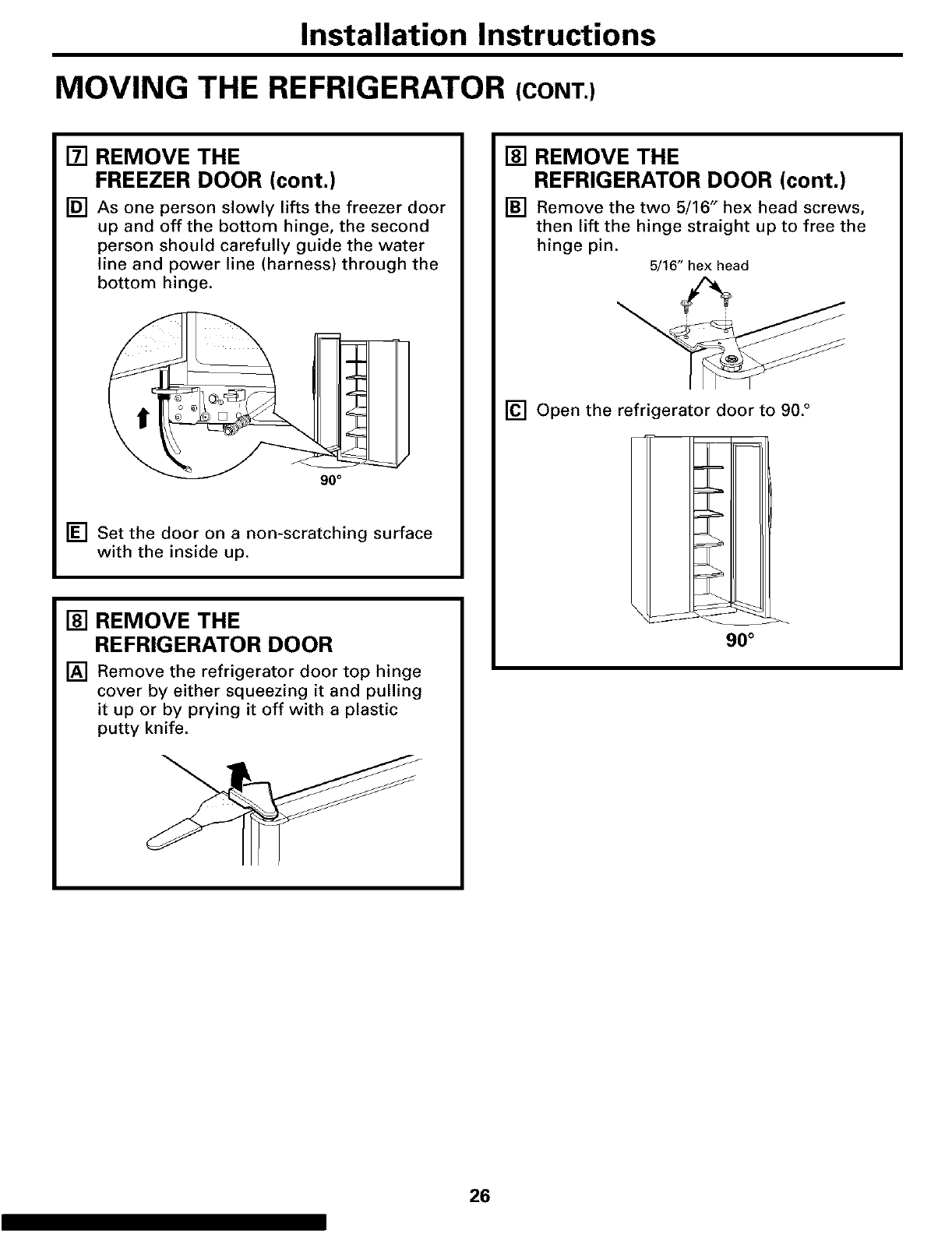

MOVING THE REFRIGERATOR (CONT.)

[] REMOVE THE

FREEZER DOOR (cont.)

[] As one person slowly lifts the freezer door

up and off the bottom hinge, the second

person should carefully guide the water

line and power line (harness) through the

bottom hinge.

[] Set the door on a non-scratching surface

with the inside up.

[] REMOVE THE

REFRIGERATOR DOOR

[] Remove the refrigerator door top hinge

cover by either squeezing it and pulling

it up or by prying it off with a plastic

putty knife.

[] REMOVE THE

REFRIGERATOR DOOR (cont.)

[] Remove the two 5/16" hex head screws,

then lift the hinge straight up to free the

hinge pin.

5/16" hex head

[] Open the refrigerator door to 90. °

90 °

26

Installation Instructions

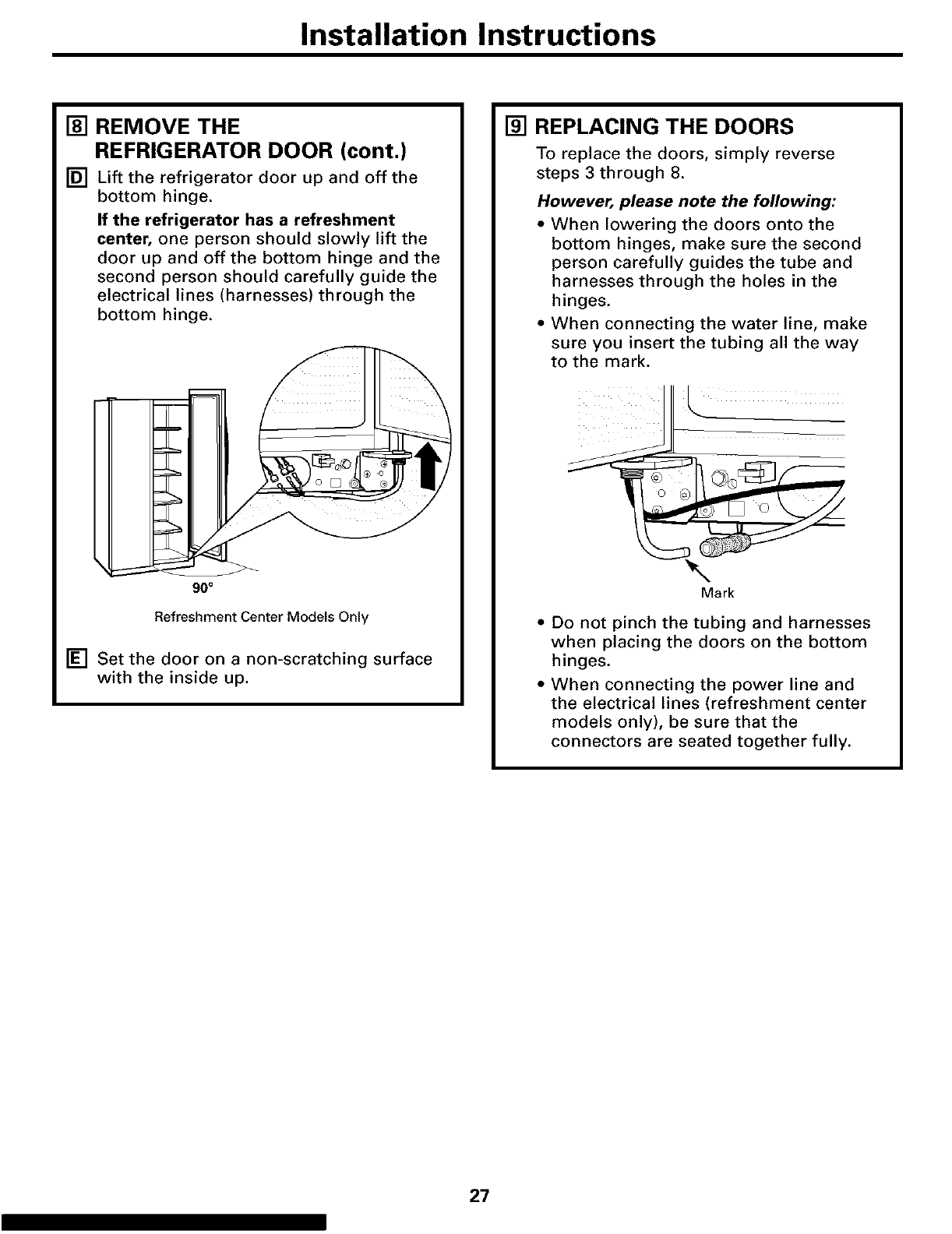

[] REMOVE THE

REFRIGERATOR DOOR (cont.)

[] Lift the refrigerator door up and off the

bottom hinge.

If the refrigerator has a refreshment

center, one person should slowly lift the

door up and off the bottom hinge and the

second person should carefully guide the

electrical lines (harnesses through the

bottom hinge.

90°

Refreshment Center Models Only

[] Set the door on a non-scratching surface

with the inside up.

[] REPLACING THE DOORS

To replace the doors, simply reverse

steps 3 through 8.

However, please note the following:

• When lowering the doors onto the

bottom hinges, make sure the second

person carefully guides the tube and

harnesses through the holes in the

hinges.

• When connecting the water line, make

sure you insert the tubing all the way

to the mark.

Mark

• Do not pinch the tubing and harnesses

when placing the doors on the bottom

hinges.

• When connecting the power line and

the electrical lines (refreshment center

models only), be sure that the

connectors are seated together fully.

27

Installation Instructions

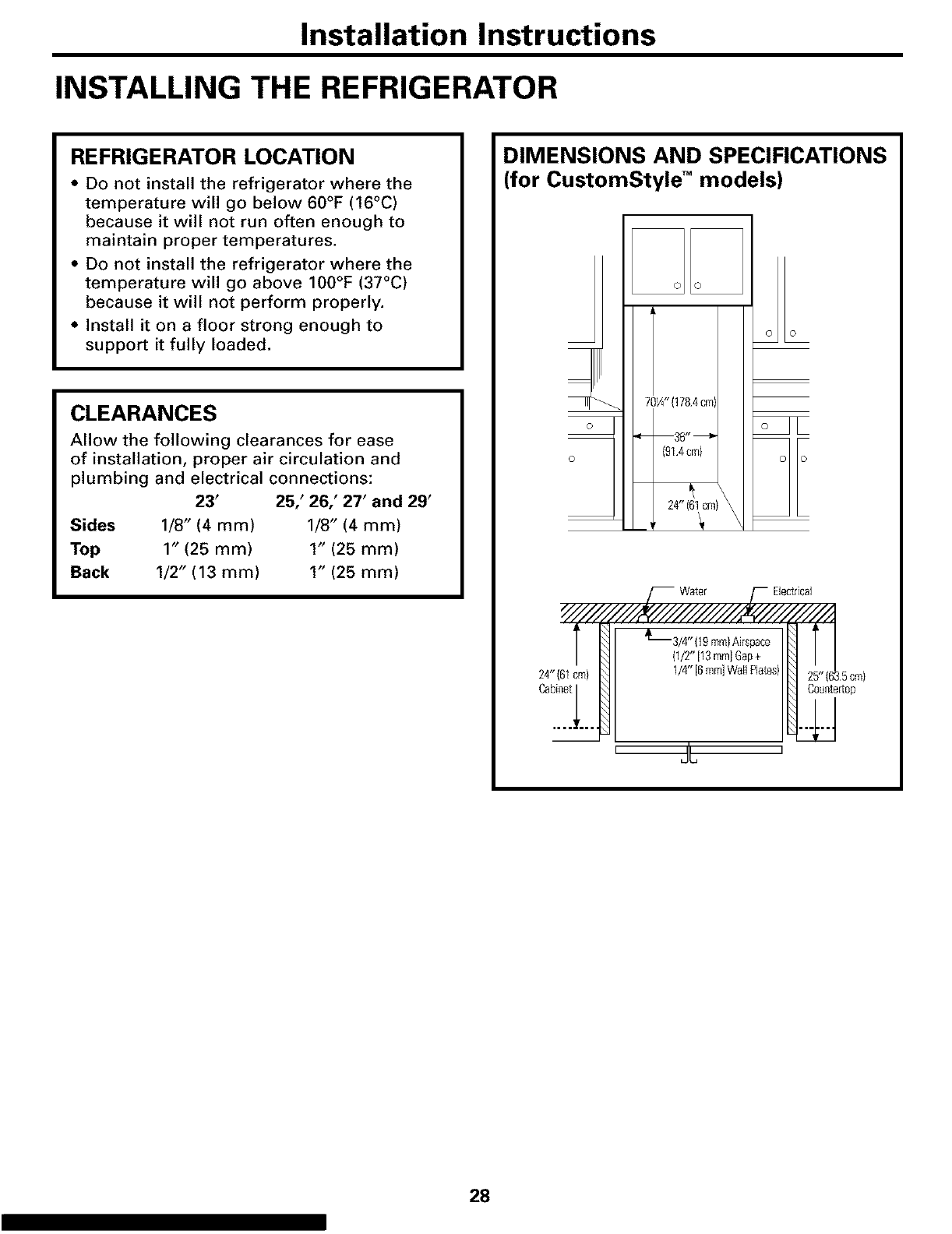

INSTALLING THE REFRIGERATOR

REFRIGERATOR LOCATION

• Do not install the refrigerator where the

temperature will go below 60°F (16°C)

because it will not run often enough to

maintain proper temperatures.

• Do not install the refrigerator where the

temperature will go above 100°F (37°C)

because it will not perform properly.

• Install it on a floor strong enough to

support it fully loaded.

CLEARANCES

Allow the following clearances for ease

of installation, proper air circulation and

plumbing and electrical connections:

23' 25/26/27' and 29'

Sides 1/8" (4 mm) 1/8" (4 mm)

Top 1" (25 mm) 1" (25 mm)

Back 1/2" (13 mm) 1" (25 mm)

DIMENSIONS AND SPECIFICATIONS

(for CustomStyle TM models)

z

©

©

70¼"(1784 cm)

1_36"

_ 24 (61cm)

24"(61cm}

Cabinet

.... ]

(1/2" [13mm]Gap+

1/4" [6 miniWall Rates)

j'_ J

CounteRop

28

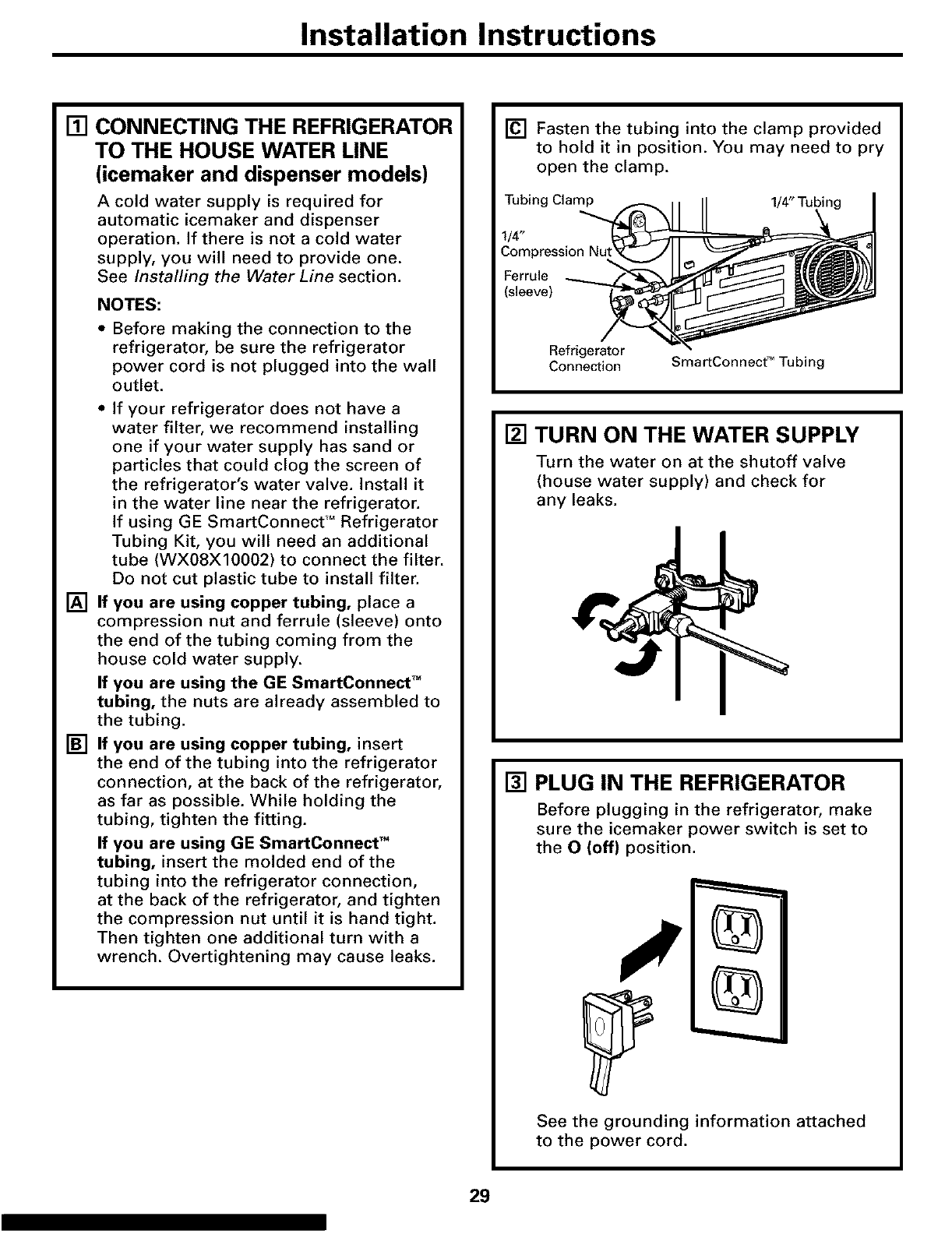

Installation Instructions

[] CONNECTING THE REFRIGERATOR

TO THE HOUSE WATER LINE

(icemaker and dispenser models)

A cold water supply is required for

automatic icemaker and dispenser

operation. If there is not a cold water

supply, you will need to provide one.

See Installing the Water Line section.

NOTES:

• Before making the connection to the

refrigerator, be sure the refrigerator

power cord is not plugged into the wall

outlet.

•If your refrigerator does not have a

water filter, we recommend installing

one if your water supply has sand or

particles that could clog the screen of

the refrigerator's water valve. Install it

in the water line near the refrigerator.

If using GE SmartConnect TM Refrigerator

Tubing Kit, you will need an additional

tube (WX08X10002) to connect the filter.

Do not cut plastic tube to install filter.

[] If you are using copper tubing, place a

compression nut and ferrule (sleeve) onto

the end of the tubing coming from the

house cold water supply.

If you are using the GE SmartConnect TM

tubing, the nuts are already assembled to

the tubing.

[] If you are using copper tubing, insert

the end of the tubing into the refrigerator

connection, at the back of the refrigerator,

as far as possible. While holding the

tubing, tighten the fitting.

If you are using GE SmartConnect TM

tubing, insert the molded end of the

tubing into the refrigerator connection,

at the back of the refrigerator, and tighten

the compression nut until it is hand tight.

Then tighten one additional turn with a

wrench. Overtightening may cause leaks.

[] Fasten the tubing into the clamp provided

to hold it in position. You may need to pry

open the clamp.

Tubing Clamp

1/4"

Compression

Ferrule

(sleeve)

Refrigerator

Connection SmartConnect _' Tubing

[] TURN ON THE WATER SUPPLY

Turn the water on at the shutoff valve

(house water supply) and check for

any leaks.

[] PLUG IN THE REFRIGERATOR

Before plugging in the refrigerator, make

sure the icemaker power switch is set to

the O (off) position.

See the grounding information attached

to the power cord.

29

Installation Instructions

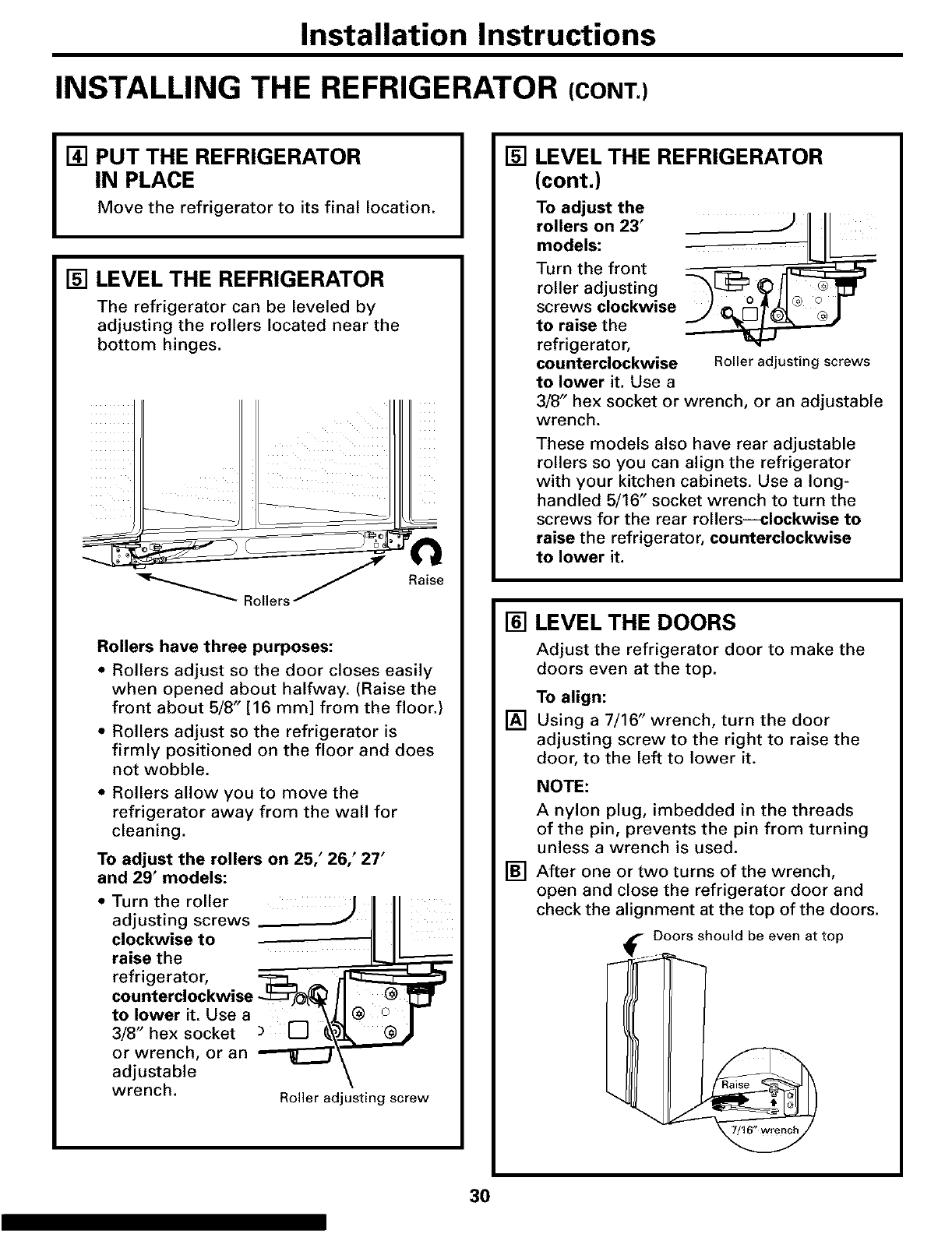

INSTALLING THE REFRIGERATOR (CONT.)

[] PUT THE REFRIGERATOR

IN PLACE

Move the refrigerator to its final location.

[] LEVEL THE REFRIGERATOR

The refrigerator can be leveled by

adjusting the rollers located near the

bottom hinges.

Raise

Rollers have three purposes:

*Rollers adjust so the door closes easily

when opened about halfway. (Raise the

front about 5/8" [16 mm] from the floor.)

• Rollers adjust so the refrigerator is

firmly positioned on the floor and does

not wobble.

• Rollers allow you to move the

refrigerator away from the wall for

cleaning.

To adjust the rollers on 25/26/27'

and 29' models:

•urn, eroer-- l

adjusting screws

clockwise to

raise the

refrigerator, _ rl k_:::]_=_

counterclockwise _@/I

to lower it. Use a "\J I@ o r_

3/8" hex socket )[] _._l

or wrench, or an _\_

adjustable \

wrench. Roller adjusting screw

[] LEVEL THE REFRIGERATOR

(cont.)

To adjust the

rollers on 23'

models:

Turn the front

roller adjusting

screws clockwise

to raise the

refrigerator,

counterclockwise

to lower it. Use a

Roller adjusting screws

3/8" hex socket or wrench, or an adjustable

wrench.

These models also have rear adjustable

rollers so you can align the refrigerator

with your kitchen cabinets. Use a long-

handled 5/16" socket wrench to turn the

screws for the rear rollers--clockwise to

raise the refrigerator, counterclockwise

to lower it.

[] LEVEL THE DOORS

Adjust the refrigerator door to make the

doors even at the top.

[] To align:

Using a 7/16" wrench, turn the door

adjusting screw to the right to raise the

door, to the left to lower it.

[]

NOTE:

A nylon plug, imbedded in the threads

of the pin, prevents the pin from turning

unless a wrench is used.

After one or two turns of the wrench,

open and close the refrigerator door and

check the alignment at the top of the doors.

iDoors should be even at top

3O

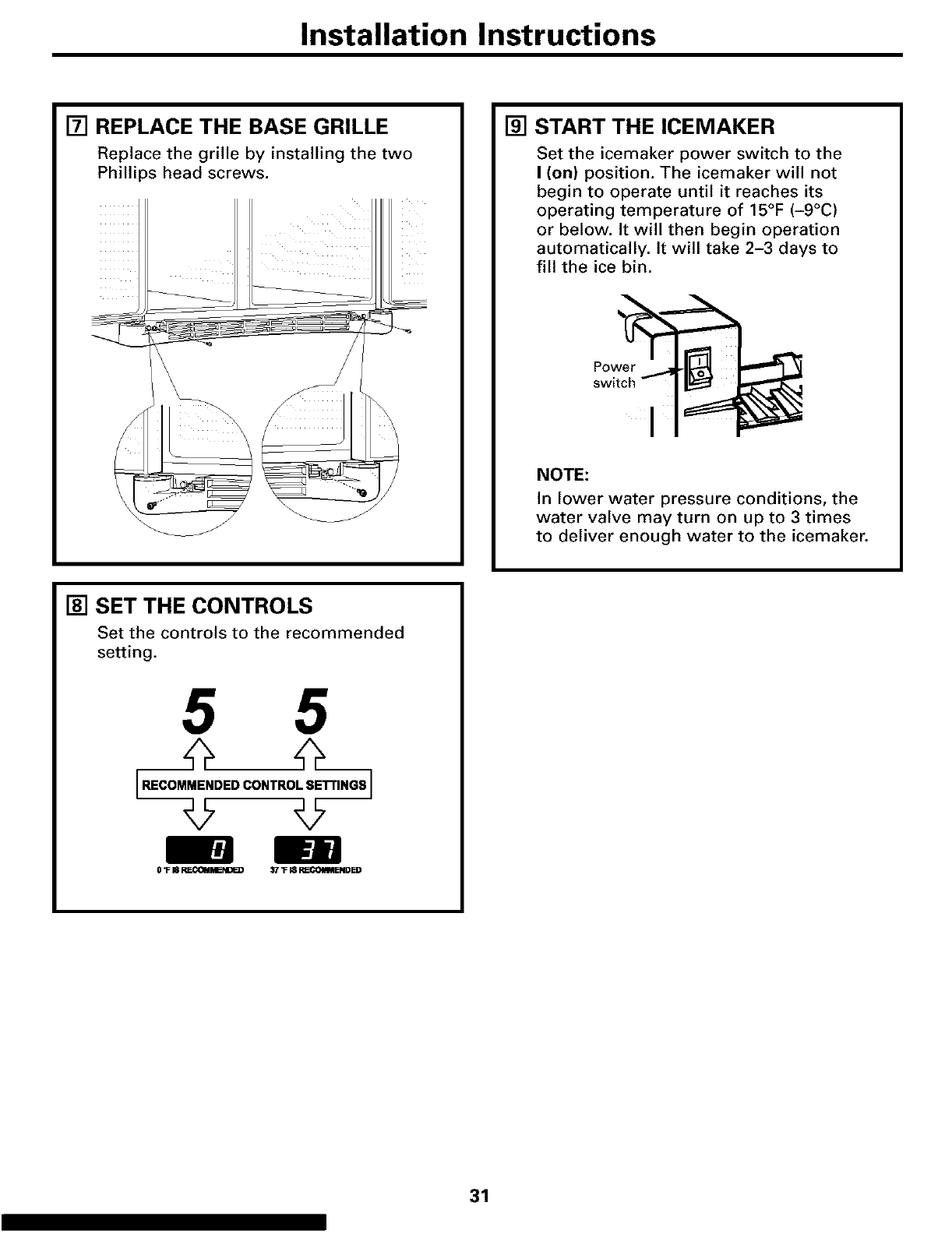

Installation Instructions

[] REPLACE THE BASE GRILLE

Replace the grille by installing the two

Phillips head screws.

\\ \

[] START THE ICEMAKER

Set the icemaker power switch to the

I(on) position. The icemaker will not

begin to operate until it reaches its

operating temperature of 15°F (-9°C)

or below. It will then begin operation

automatically. It will take 2-3 days to

fill the ice bin.

NOTE:

In lower water pressure conditions, the

water valve may turn on up to 3 times

to deliver enough water to the icemaker.

[] SET THE CONTROLS

Set the controls to the recommended

setting.

55

|=]

lxi

0 'F IS RP.C_M_NDE) 37 _FIS RECO_4ENDED

31

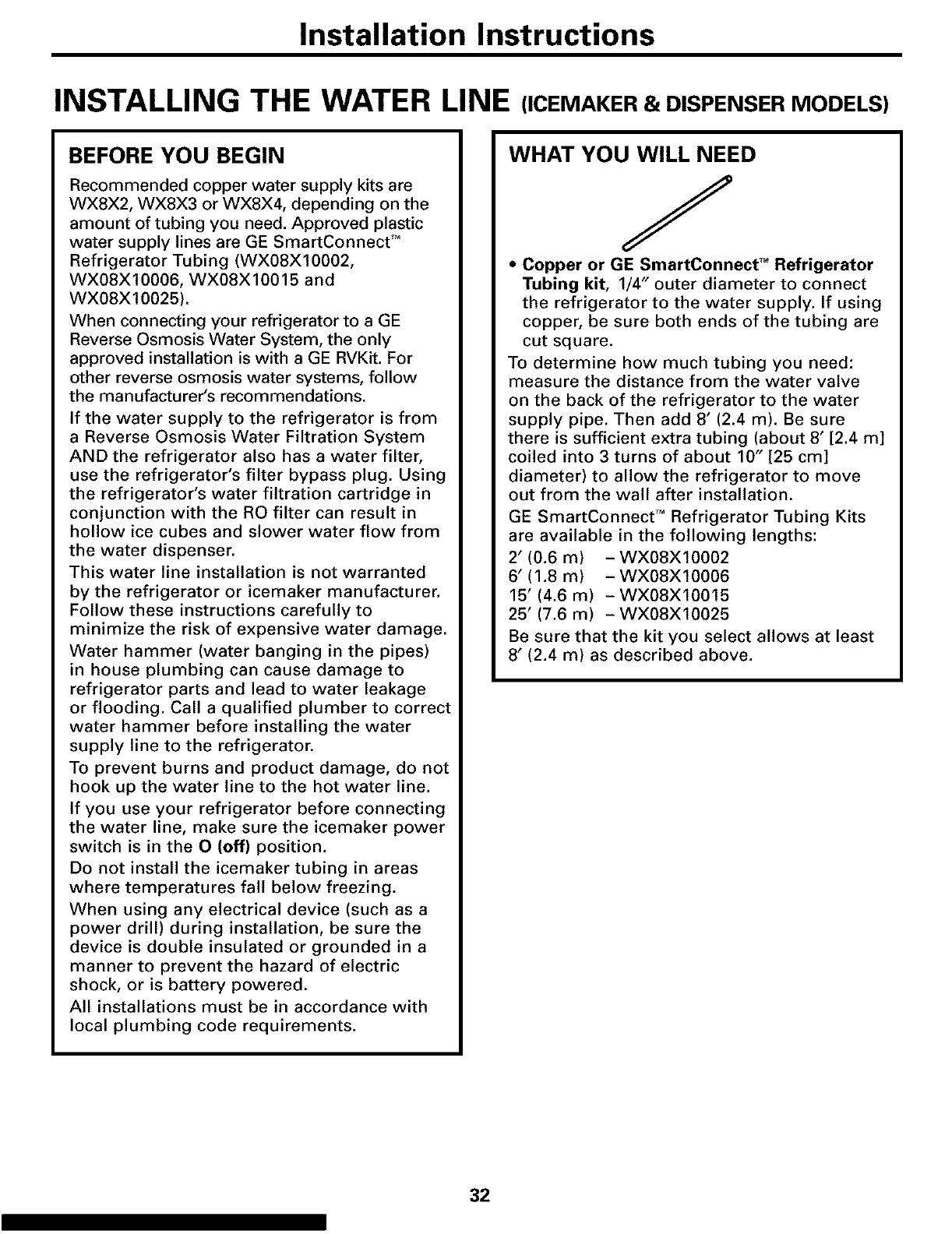

Installation Instructions

INSTALLING THE WATER LINE (ICEMAKER &DISPENSERMODELS)

BEFORE YOU BEGIN

Recommended copper water supply kits are

WX8X2, WX8X3 or WX8X4, depending on the

amount of tubing you need. Approved plastic

water supply lines are GE SmartConnect TM

Refrigerator Tubing (WX08X10002,

WX08X10006, WX08X10015 and

WX08X10025).

When connecting your refrigerator to a GE

Reverse Osmosis Water System, the only

approved installation is with a GE RVKit. For

other reverse osmosis water systems, follow

the manufacturer's recommendations.

If the water supply to the refrigerator is from

a Reverse Osmosis Water Filtration System

AND the refrigerator also has a water filter,

use the refrigerator's filter bypass plug. Using

the refrigerator's water filtration cartridge in

conjunction with the RO filter can result in

hollow ice cubes and slower water flow from

the water dispenser.

This water line installation is not warranted

by the refrigerator or icemaker manufacturer.

Follow these instructions carefully to

minimize the risk of expensive water damage.

Water hammer (water banging in the pipes)

in house plumbing can cause damage to

refrigerator parts and lead to water leakage

or flooding. Call a qualified plumber to correct

water hammer before installing the water

supply line to the refrigerator.

To prevent burns and product damage, do not

hook up the water line to the hot water line.

If you use your refrigerator before connecting

the water line, make sure the icemaker power

switch is in the O (off) position.

Do not install the icemaker tubing in areas

where temperatures fall below freezing.

When using any electrical device (such as a

power drill) during installation, be sure the

device is double insulated or grounded in a

manner to prevent the hazard of electric

shock, or is battery powered.

All installations must be in accordance with

local plumbing code requirements.

WHAT YOU WILL NEED

• Copper or GE SmartConnect TM Refrigerator

Tubing kit, 1/4" outer diameter to connect

the refrigerator to the water supply. If using

copper, be sure both ends of the tubing are

cut square.

To determine how much tubing you need:

measure the distance from the water valve

on the back of the refrigerator to the water

supply pipe. Then add 8' (2.4 m). Be sure

there is sufficient extra tubing (about 8' [2.4 m]

coiled into 3 turns of about 10" [25 cm]

diameter) to allow the refrigerator to move

out from the wall after installation.

GE SmartConnect TM Refrigerator Tubing Kits

are available in the following lengths:

2'(0.6 m) -WX08X10002

6' (1.8 m) -WX08X10006

15' (4.6 m) -WX08X10015

25' (7.6 m) -WX08X10025

Be sure that the kit you select allows at least

8' (2.4 m) as described above.

32

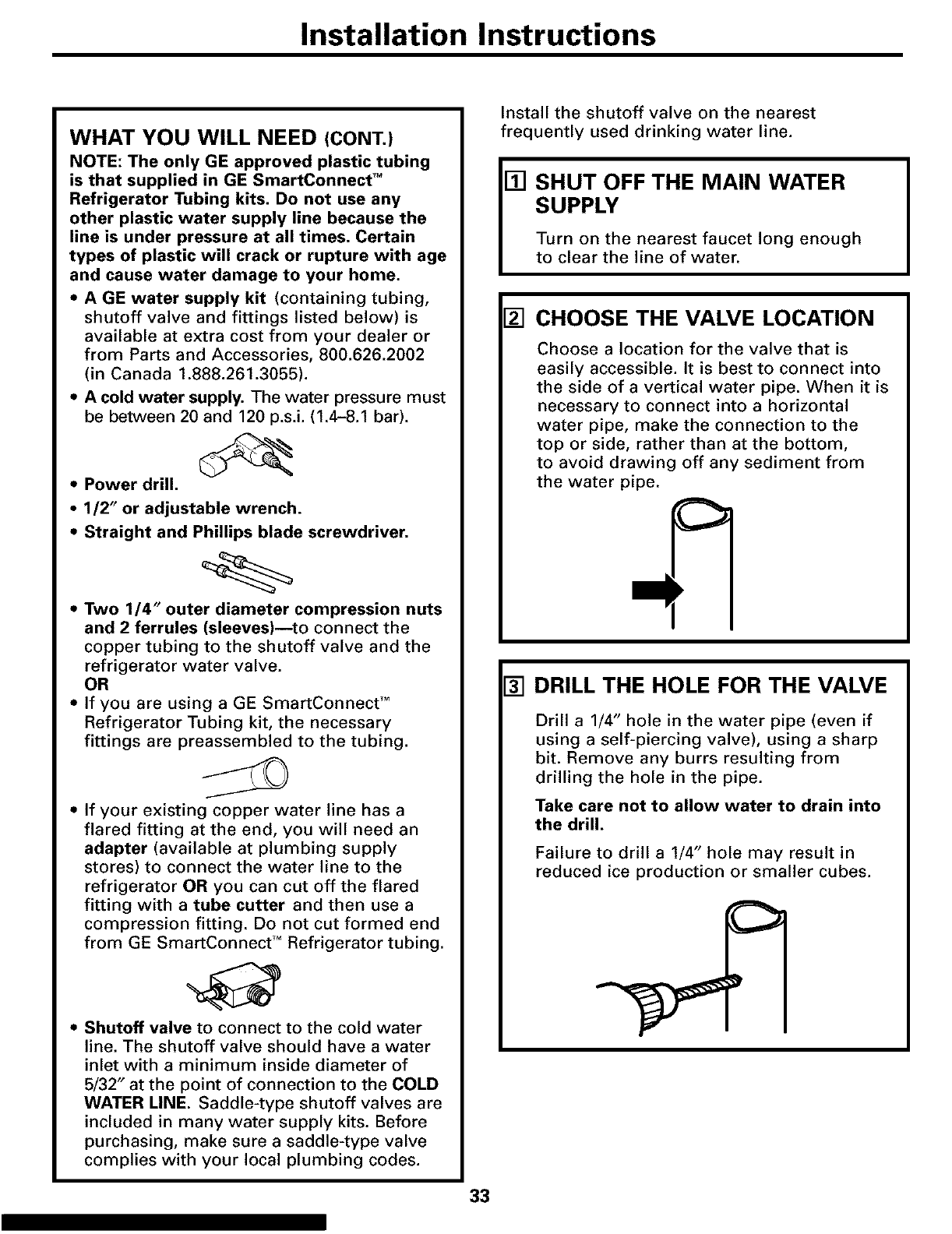

Installation Instructions

WHAT YOU WILL NEED (CONT.)

NOTE: The only GE approved plastic tubing

is that supplied in GE SmartConnect TM

Refrigerator Tubing kits. Do not use any

other plastic water supply line because the

line is under pressure at all times. Certain

types of plastic will crack or rupture with age

and cause water damage to your home.

•A GE water supply kit (containing tubing,

shutoff valve and fittings listed below) is

available at extra cost from your dealer or

from Parts and Accessories, 800.626.2002

(in Canada 1.888.261.3055).

•A cold water supply. The water pressure must

be between 20 and 120 p.s.i. (1.4-8.1 bar).

•Power drill.

•1/2" or adjustable wrench.

•Straight and Phillips blade screwdriver.

• Two 1/4" outer diameter compression nuts

and 2 ferrules (sleeves)--to connect the

copper tubing to the shutoff valve and the

refrigerator water valve.

OR

• If you are using a GE SmartConnect TM

Refrigerator Tubing kit, the necessary

fittings are preassembled to the tubing.

• If your existing copper water line has a

flared fitting at the end, you will need an

adapter (available at plumbing supply

stores) to connect the water line to the

refrigerator OR you can cut off the flared

fitting with a tube cutter and then use a

compression fitting. Do not cut formed end

from GE SmartConnect TM Refrigerator tubing.

•Shutoff valve to connect to the cold water

line. The shutoff valve should have a water

inlet with a minimum inside diameter of

5/32" at the point of connection to the COLD

WATER LINE. Saddle-type shutoff valves are

included in many water supply kits. Before

purchasing, make sure a saddle-type valve

complies with your local plumbing codes.

Install the shutoff valve on the nearest

frequently used drinking water line.

[] SHUT OFF THE MAIN WATER

SUPPLY

Turn on the nearest faucet long enough

to clear the line of water.

[] CHOOSE THE VALVE LOCATION

Choose a location for the valve that is

easily accessible. It is best to connect into

the side of a vertical water pipe. When it is

necessary to connect into a horizontal

water pipe, make the connection to the

top or side, rather than at the bottom,

to avoid drawing off any sediment from

the water pipe.

[] DRILL THE HOLE FOR THE VALVE

Drill a 1/4" hole in the water pipe (even if

using a self-piercing valve), using a sharp

bit. Remove any burrs resulting from

drilling the hole in the pipe.

Take care not to allow water to drain into

the drill.

Failure to drill a 1/4" hole may result in

reduced ice production or smaller cubes.

33

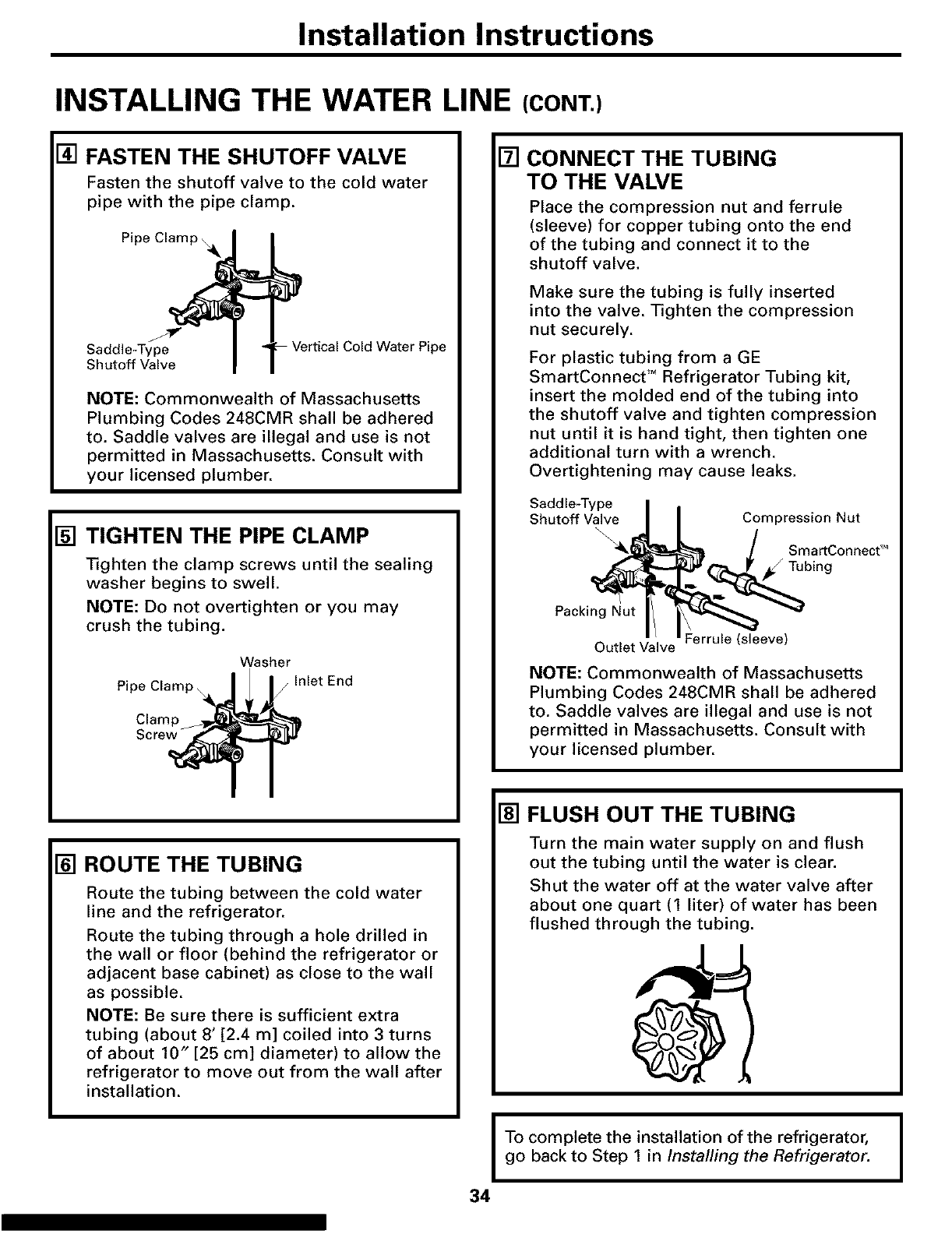

Installation Instructions

INSTALLING THE WATER LINE (CONT.)

[] FASTEN THE SHUTOFF VALVE

Fasten the shutoff valve to the cold water

pipe with the pipe clamp.

Pipe Clamp _

Saddle-Type

Shutoff Valve Water Pipe

NOTE: Commonwealth of Massachusetts

Plumbing Codes 248CMR shall be adhered

to. Saddle valves are illegal and use is not

permitted in Massachusetts. Consult with

your licensed plumber.

[] TIGHTEN THE PIPE CLAMP

Tighten the clamp screws until the sealing

washer begins to swell.

NOTE: Do not overtighten or you may

crush the tubing.

Scre_

Washer

Inlet End

/

[] ROUTE THE TUBING

Route the tubing between the cold water

line and the refrigerator.

Route the tubing through a hole drilled in

the wall or floor (behind the refrigerator or

adjacent base cabinet) as close to the wall

as possible.

NOTE: Be sure there is sufficient extra

tubing (about 8' [2.4 m] coiled into 3 turns

of about 10" [25 cm] diameter) to allow the

refrigerator to move out from the wall after

installation. I

34

[] CONNECT THE TUBING

TO THE VALVE

Place the compression nut and ferrule

(sleeve) for copper tubing onto the end

of the tubing and connect it to the

shutoff valve.

Make sure the tubing is fully inserted

into the valve. Tighten the compression

nut securely.

For plastic tubing from a GE

SmartConnect T_Refrigerator Tubing kit,

insert the molded end of the tubing into

the shutoff valve and tighten compression

nut until it is hand tight, then tighten one

additional turn with a wrench.

Overtightening may cause leaks.

Saddle-Type

Shutoff Valve Compression Nut

Packing Nut

Outlet Valve Ferrule {sleeve)

NOTE: Commonwealth of Massachusetts

Plumbing Codes 248CMR shall be adhered

to. Saddle valves are illegal and use is not

permitted in Massachusetts. Consult with

your licensed plumber.

[] FLUSH OUT THE TUBING

Turn the main water supply on and flush

out the tubing until the water is clear.

Shut the water off at the water valve after

about one quart (1 liter) of water has been

flushed through the tubing.

I

To complete the installation of the refrigerator, I

go back to Step 1 in Installing the Refrigerator. I

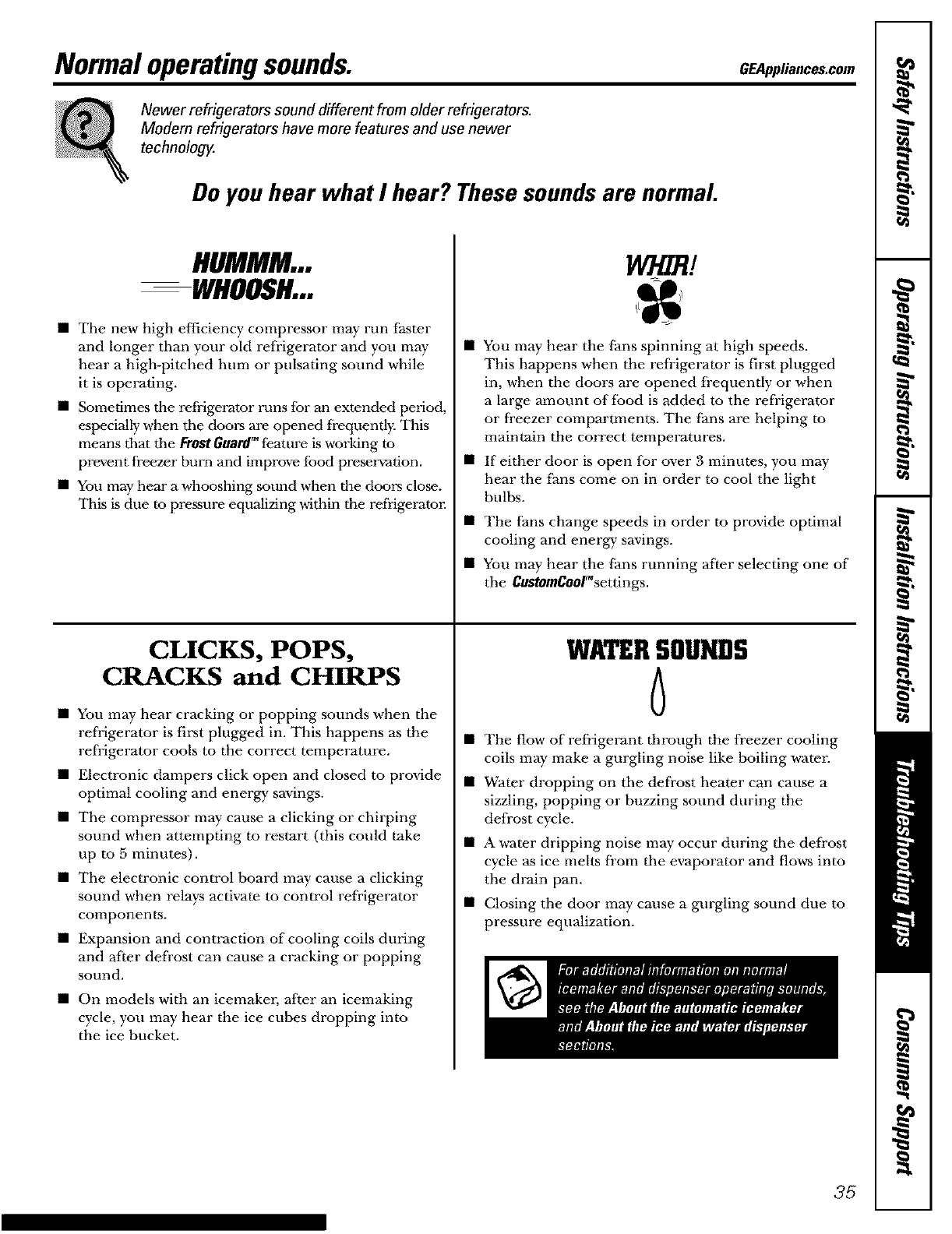

Normal operatingsounds. GEAppliances.com

Newer refrigerators sound different from older refrigerators.

Modem refrigerators have more features and use newer

technology.

Do you hear what I hear? These sounds are normal

HUMMM...

WHOOSH...

• The new high efficiency compressor may run faster

and longer than your old refrigerator and you may

hear a high-pitched hum or pulsating sound while

it is operating.

• Sometimes the refrigerator runs for an extended period,

especially when the doors are opened frequently. This

means that the Frost Guard" feature is working to

prevent freezer burn and improve food preservation.

• You may hear a whooshing sound when the dom.'s close.

This is due to pressure equalizing within the refrigerator.

CLICKS, POPS,

CRACKS and CHIRPS

• You may hear cracking or popping sounds when the

refrigerator is first plugged in. This happens as the

refrigerator cools to the correct temperature.

• Electronic dampers click open and closed to provide

optimal cooling and energy savings.

• The compressor may cause a clicking or chirping

sound when attempting to restart (this could take

up to 5 minutes).

• The electronic control board may cause a clicking

sound when relays activate to control refrigerator

components.

• Expansion and contraction of cooling coils during

and after defrost can cause a cracking or popping

sound.

• On models with an icemakm; after an icemaking

cycle, you may hear the ice cubes dropping into

the ice bucket.

•You may hear the fans spinning at high speeds.

This happens when the refrigerator is first plugged

in, when the doors are opened frequently or when

a large amount of food is added to the refrigerator

or freezer compartments. The fans are helping to

maintain the correct temperatures.

If either door is open for over 3 minutes, you may

hear the fans come on in order to cool the light

bulbs.

The fans change speeds in order to provide optimal

cooling and energy savings.

You may hear the fans running after selecting one of

the CustomCoorsettings.

WATERSOUNDS

6

The flow of refrigerant through the freezer cooling

coils may make a gurgling noise like boiling water.

Water dropping on the defrost heater can cause a

sizzling, popping or buzzing sound during the

defrost cycle.

A w-ater dripping noise may occur during the defrost

cycle as ice melts from the evaporator and flows into

the drain pan.

Closing the door may cause a gurgling sound due to

pressure equalization.

35

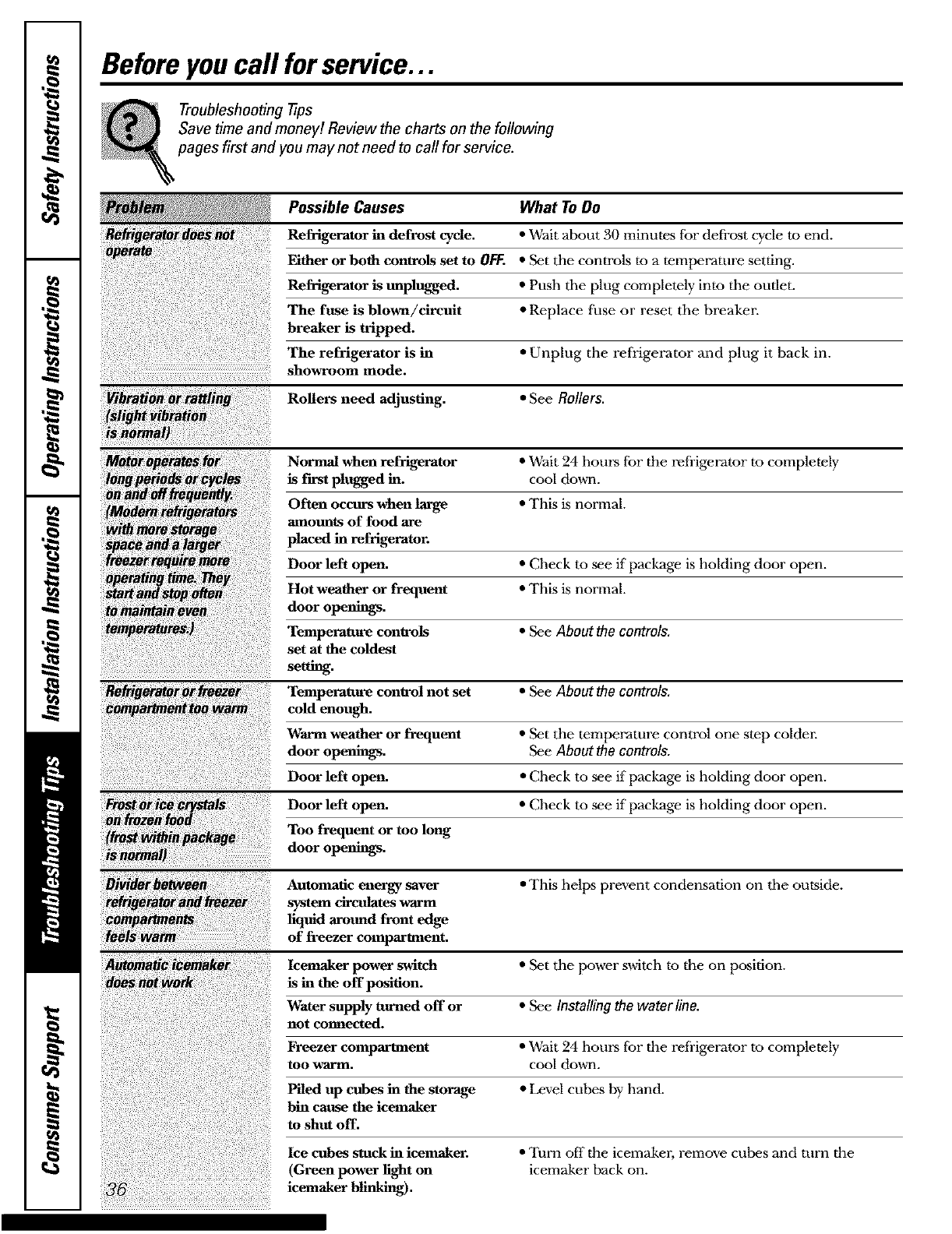

Before youcall for service...

Troubleshooting tips

Save time and money! Review the charts on the following

pages first and you may not need to call for service.

Possible Causes What ToDo

Refrigerator in defrost cycle. • Wait about 30 minutes for defi'ost cycle to end.

Either or both controls set to OFF. • Set the conn'ols re a temperature setting.

Refrigerator is unplugged.

The fuse is blown/circuit

breaker is tripped.

The refrigerator is in

showroom mode.

Rollers need adjusting.

• Push tile plug completely into tile outlet.

• Replace fuse or reset the breaker.

• Unplug the refrigerator and plug it back in.

• See Rollers.

Normal when refrigerator •Wait 24 hours for the refiigerator to completely

is first plugged in. cool down.

Often occurs when large • This is normal.

amounts of food are

placed in ref "t_emtor.

Door left open. • Check to see if package is holding door open.

Hot weather or frequent • This is normal.

door openings.

Temperature controls •See About the controls.

set at the coldest

setting,

Temperature control not set • See Aboutthe controls.

cold enough.

Warm weather or frequent • Set the temperature control one step coldm:

door openings. See About the controls.

Door left open. • Check to see if package is holding door open.

Door left open. • Check to see if package is holding door open.

_h frozeh _Od

Too frequent ortoo long

door openings.

Automatic energy saver •This helps prevent condensation on the outside.

system circulates warm

liquid around front edge

of freezer comparmaent.

Icemaker power switch • Set the power switch re the on position.

is in the off position.

Water supply turned off or •See Installing the water line.

not connected.

Frcezer comparmaent • Wait 24 hours for the refrigerator to completely

too warm. cool down.

Piled up cubes in the storage • Level cubes by hand.

bin cause the icemaker

to shut off.

Ice cubes stuck in icemaker.

(Green power light on

icemaker blinking).

• Turn off the icemakm; remove cubes and turn the

icemaker back on.

GEAppliances.com

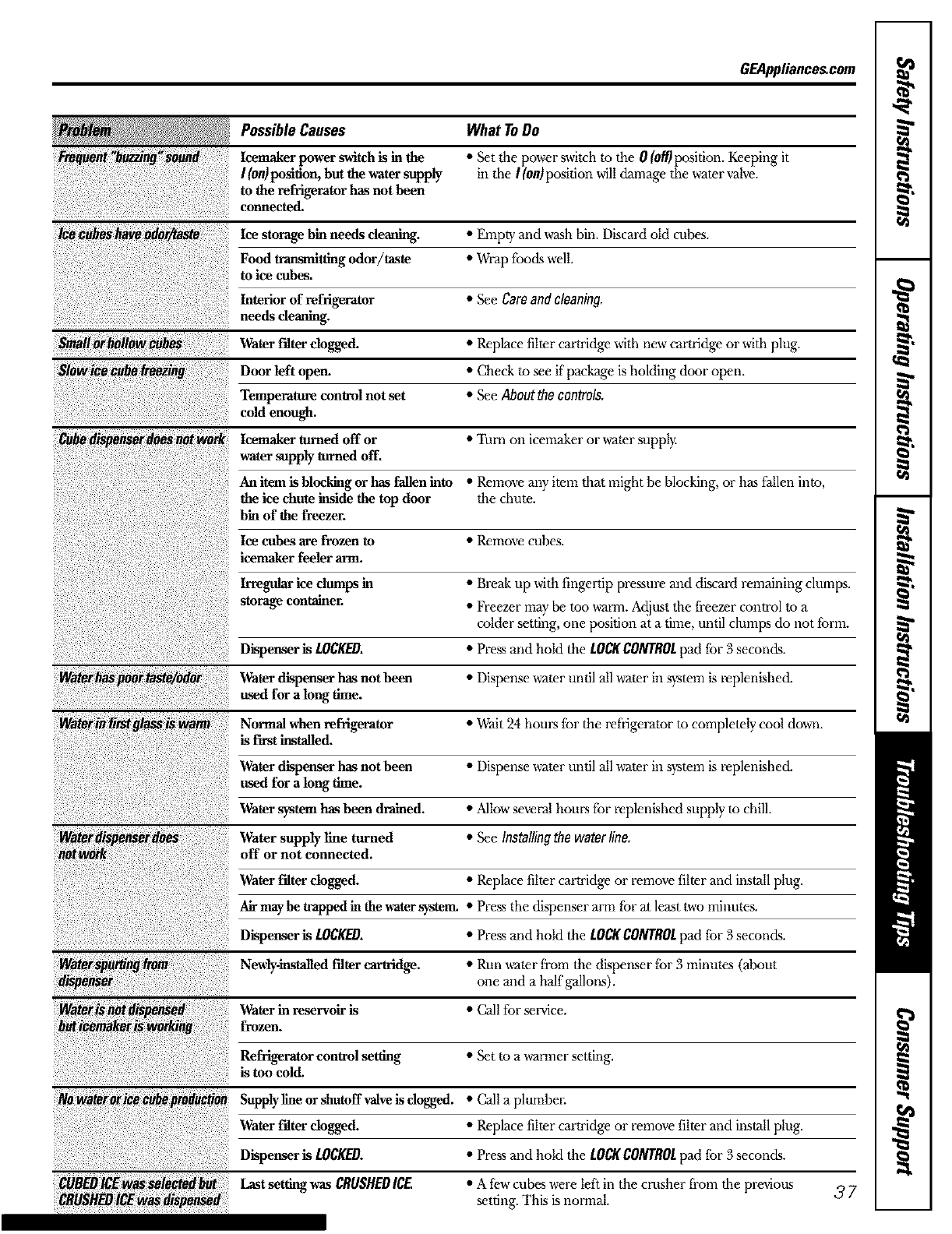

PossibleCauses What ToDo

Icemaker power switch is in the * Set the power switch to tile 0 (Off)position. I_eping it

I(on)position, but file wak"-rsupply in the I(on) position will damage the water valve.

to the refrigerator has not been

connected.

Ice storage bin needs cleaning. * Empty and wash bin. Discard old cubes.

Food transmiUJng odor/taste *Wrap foods well.

to ice cubes.

Interior of refrigerator *See Care and cleaning.

needs cleaning.

Water £11terclogged. * Replace filter cam'idge with new camidge or with plug.

Door left open. * Check to see if package is holding door open.

Temperature control not set *See About the controls.

cold enough.

Icemaker turned off or • Turn on ieemaker or water suppl):

water supply turned off.

An item is blocking or has fallen into • Remove any item that might be blocking, or has fallen into,

the ice chute inside the top door the chute.

bin of the freezer.

Ice cubes are frozen to •Remove cubes.

icemaker feeler arm.

Irregular ice clumps in • Break tip with fingertip pressure and discard remaining clumps.

storage container. • Freezer may be too wataqq.Adjust the freezer conu-ol to a

colder setting, one position at a time, until clumps do not form.

Dispemer is LOCKED. • Press and hold the LOCKCONTROLpad for 3 seconds.

Water dispenser has not been • Dispense water until all water in s?_tem is replenished.

used for a long thne.

Normal when refrigerator • Wait 94 hours for the refrigerator to completely cool down.

is first installed.

Water dispenser has not been • Dispense water until all water in s?_tem is replenished.

used for a long time.

Water system has been drained. • Allow several hout_ for replenished supply to chill.

Water supply line turned •See Installing the water line.

off or not connected.

Water filter clogged. •Replace filter cam'idge or remove filter and install plug.

Air may be trapped in the water system. • Press the dispenser arm for at least two minutes.

Dispertser is LOCKED. • Press and hold the LOCKCONTROLpad for 3 seconds.

Newly:installed filter cartridge. • Run water from the dispenser for 3 minutes (about

one and a half gallons).

Water in reservoir is •Call for service.

frozen.

CUBEOICEwa_sele_:

CRUSHEOlCEwasdisp_ns_d;

Refrigerator control setting • Set to a watzmer setting.

is too cold.

Supplyline or shutoff valve is dogged. • Call a plumben

Water filter clogged. • Replace filter cat tridge or remove filter and install plug.

Dispemer is LOCKED. • Press and hold the LOCKCONTROLpad for 3 seconds.

Last setting was CRUSHEDICE. •Afew cubes were left in the crusher from the prohous

setting. This is normal. 37

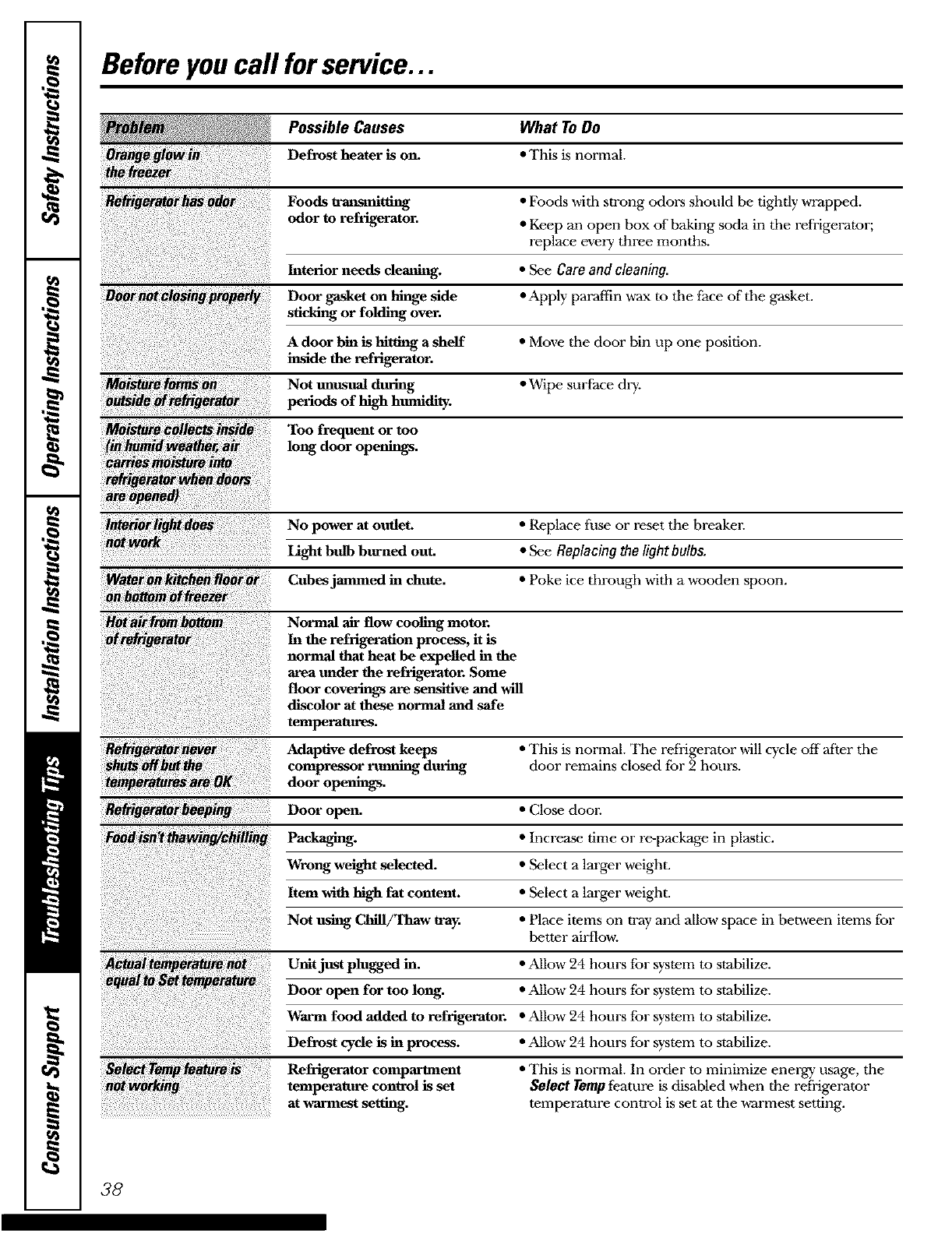

Before youcall for service...

Possible Causes What ToDo

Defrost heater is on. • This is normal.

:Refrigerato_ Foods transmitting • Foods with strong odors should be tightly wrapped.

odor to refrigerator. • Keep an open box of baking soda in tile refrigerator;

replace every three months.

................ Interior needs cleaning. • See Care and cleaning.

Door gasket on hinge side •Apply paraffin wax to the face of the gasket.

sticking or folding over.

A door bin is hitting a shelf • Move the door bin up one position.

inside the refrigerator.

Not unusual during •Wipe surface dry.

periods of high humidity.

Too frequent or too

long door openings.

No power at outlet. • Replace fuse or reset the breakel:

Light bulb burned out. • See Replacing the light bulbs.

Cubes jammed in chute. • Poke ice through with a wooden spoon.

Normal air flow cooling motor.

In the refrigeration process, it is

normal that heat be expelled in the

area under the refrigerator. Some

floor coverings are sensitive and will

discolor at these normal and safe

temperatures.

Adaptive defrost keeps •This is normal. The refrigerator will cycle off after the

compressor running during door remains closed for 9 hours.

door openings.

Door open. •Close doo,:

Packaging. • Increase time or re-package in plasdc.

Wrong weight selected. • Select a larger weight.

Item with high fat content. • Select a larger weight.

Not using Chill/Thaw tray. • Place items on tray and allow space in between items for

better airflow.

_perature

Select Temp_ature is

_working

Unit just plugged in.

Door open for too long.

Warm food added to refrigerator.

Defrost cycle is in process.

Refrigerator compartment

temperature control is set

at warmest setting.

• Allow 24 hours J[brsystem to stabilize.

• Allow 24 hours J[brsystem to stabilize.

• Allow 24 hours for system to stabilize.

• Allow 24 hours for system to stabilize.

• This is normal. In order to minimize energy usage, the

Select Tempfeature is disabled when the refi'igerator

temperature control is set at the warmest setting.

38

CONSUMER WARRANTY

(for customers in Canada)

Your refrigerator is warranted to be free of defects in material and workmanship.

What is covered How Long Warranted Parts Labour

(From Date of Sale) Repair or Replace

at Camco's Option

Compressor Ten (10) Years Ten (10) Years Five (5) Years

Sealed System (including Five (5) Years Five (5) Years Five (5) Years

evaporator, condenser

tubing and refrigerant)

All Other Parts One (1) Year One (1) Year One (1) Year

TERMS AND CONDITIONS:

This warranty applies only for single

family domestic use in Canada when the

Refrigerator has been properly installed

according to the instructions supplied by

Camco and is connected to an adequate

and proper utility service.

Damage due to abuse, accident, commercial

use, and alteration or defacing of the serial

plate cancels all obligations of this warranty.

Service during this warranty must be

performed by an Authorized Camco

Service Agent.

Neither Camco nor the Dealer is liable for

any claims or damages resulting from any

failure of the Refrigerator or from service

delays beyond their reasonable control.

To obtain warranty service, purchaser must

present the original bill of sale. Components

repaired or replaced are warranted through the

remainder of the original warranty period only.

This warranty is in addition to any statutory

warranty.

WHAT IS NOT COVERED:

• Owner is responsible to pay for service

calls related to product installation and/or

teaching how to use the product.

• Damage to finish must be reported within

48 hours following the delivery of the

appliance.

• Service trips to your home to teach you

how to use the product.

• Damage to finish after delivery.

• Improper installation-proper installation

includes adequate air circulation to the

refrigeration system, adequate electrical,

plumbing and other connecting facilities.

• Replacement of house fuses or resetting

of circuit breakers.

• Replacement of light bulbs.

• Damage to product caused by accident,

fire, floods or acts of God.

• Loss of food due to spoilage.

• Proper use and care of product as listed

in the owner's manual, proper setting of

controls.

• WARRANTOR IS NOT RESPONSIBLE

FOR CONSEQUENTIAL DAMAGES.

IMPORTANT

Keep this warranty and your bill of sale as proof of original purchase and purchase date.

Camco Service is available coast to coast.

If further help is needed concerning this warranty, contact:

Manager, Consumer Relations, Camco Inc.,

Suite 310, 1 Factory Lane, Moncton, N.B. E1C 9M3

Staple your receipt here.

Proof of the original purchase

date is needed to obtain service

under the warrant]z

39

RefrigeratorWarranty.(Forcustomers in the United States)

All warranty service provided by our Factory Service Centers,

or an authorized Customer Care®technician. Toschedule service,

on-line, 24 hours a day, visit us at GEAppliances.com, or call

800.GE.CARES (800.432.2737).

Staple your receipt here.

Proof of the original purchase

date is needed to obtain service

under the warranty.

GE Will Replace:

Anypartof tim refiigerator which Pails due to a defect in materials or worhnanship.

During tbis full one-year warran_ GE will also provide, free of charge, all labor and in-bome

service to replace the defective part.

Any part of the sealed refrigerating system (the compressor, condensm; evaporator

and all connecting tubing) which fhils due m a deflect in materials or workmanship.

During tbis full five-yearsealed refrigeratingsystem warranOI,GE will also proxdde, free of charge,

all labor and in-bome smMce to replace tbe defective part in the sealed refiigerating system.

The full extension slides, if tbey should fail due to a defect in materials or workmanship.

During tbis productlifetime limited warranty, you will be responsible for any labor or related

service costs.

Anypartof tim water filter cartridge wbich fails due to a defect in materials or workmanship.

During tbis limited thirty-daywarranty,GE will also provide, free of charge, a replacement water

filter cartridge.

@Service trips to your home to teach you how to use

the product.

NImproper installation, delivery or maintenance.

@Failure of the product if it is abused, misused, or used for

other than the intended purpose or used commercially.

@Loss of food due to spoilage.

@Replacement of house fuses or resetting of circuit

breakers.

@Damage caused after delivery.

@Replacement of the water filter cartridge due to water

pressure that is outside the specified operath_g range or

due to excessive sediment in the water supply.

@Replacement of the fight bulbs or water filter cartridge

other than as noted above.

@Damage to the product caused by accident, fire, floods

or acts of God.

@Incidental or consequential dmnage caused by possible

defects with this appliance.

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home

use within the USA. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives

you specific legal rights, and you may also have other rights which vary from state to state. To know what your

legal rights are, consult your local or state consumer affairs office or your state's Attorney General

Warrantor: General Electric Company. Louisville, KY 40225

4O

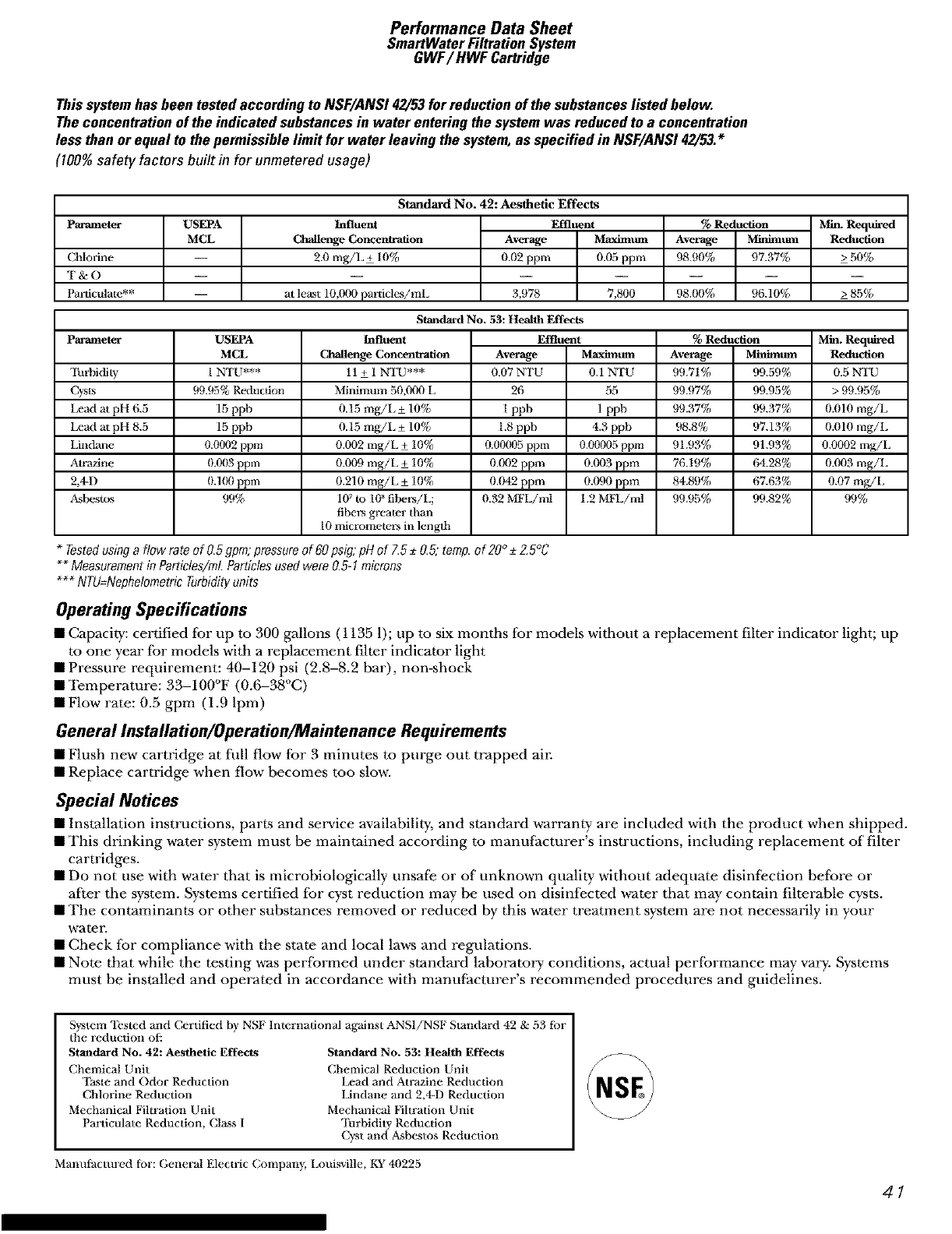

Performance Data Sheet

SmartWater FiltrationSystem

GWF/ HWF Cartridge

Thissystemhas beentested accordingto NSF/ANS142/53forreductionof the substanceslisted below.

Theconcentrationof the indicatedsubstancesin water entering the systemwas reducedto a concentration

less thanor equal to the permissiblelimit for water leaving the system,as specifiedin NSF/ANS142/53.*

(100%safety factors built in for unmetered usage)

Pm'ameter USEPA

MCL

Chlodne

T&O

Par ticulatc**

Standard No. 42: Aesthetic Effects

Influent Effluent

ChallengeConcenwation Average Maximum

2.0 mg/L + 10% 0.02 ppm 0.05 ppm

at least 10,000 particles/mL 3,978 7,800

% Reduction

Average Mi_fimmn

98.90% 97.37%

98.00% 911.10%

Min. Required

Reduction

>50%

>85%

Palwollleter

'lhrhidi W

Lead at pH 11.5

Lead at pH 8.5

Lindane

AtraTJne

2,4-D

,_bestos

USEPA

MCL

l NTU***

99.95% Reduction

15 ppb

15 ppb

0.0002 ppm

0.003 ppin

0.1(R) ppin

99%

Standard No. 53: Health Effects

lnfluent

Challenge Concentration

11 + 1 NTU***

Minimum 50,000 L

0.15 rag/L+ 10%

0.15 rag/L+ 10%

0.002 rag/L+ 10%

0.009 rag/L+ 10%

0.210 rag/L+ 10%

lfY to 1@ fit_'s/L;

tibms greawr than

10 micromete*_ in lenglh

Effluent

Average Maximum

0.07 NTU 0.1 NTU

26 55

l pph 1 ppb

1.8 pph 4.3 ppb

0.00(_)5 ppm 0.00005 ppm

0.002 ppm 0.003 ppm

0.042 ppm O.fY)Oppm

0.32 MFL/ml 1.2 MFL/ml

*Testedusinga flew rote of 0.5gpm;pressureof 60psig;pH of Z5 _ 0.5; temp.of go°+_Z5°C

** Measurementin Particles/ml.Particlesusedwere0.5-1microns

*** NTU=NephelometricTurbidityunits

%Reduction

Average Minimum

99.71% 99.59%

99.97% 99.95%

99.37% 99.37%

98.8% 97.13%

91.93% 91.93%

76.19% 64.28%

84.89% 67.63%

99.95% 99.82%

Min. Required

Reduction

0.5 NTU

> 99.95%

0.010 mg/L

0.010 mg/L

0.0002 mg/L

0.003 mg/L

0.07 mg/L

99%

Operating Specifications

• Capacity: certitied tbr up to 300 gallons (1135 l); up to six months for models without a replacement fiher indicator light; up

to one year tbr models with a replacement filter indicator light

• Pressure requirement: 40-120 psi (2.8-8.2 bar), non-shock

• Temperature: 33-100°F (0.6-38°C)

• Flow rate: 0.5 gpm (1.9 lpm)

General Installation/Operation/Maintenance Requirements

• Flush new cartridge at tull flow for 3 minutes to purge out trapped ai_:

• Replace cartridge when flow becomes too slow.

Special Notices

• Installation instructions, parts and smwice availability, and standard warranty are included with the product when shipped.

• This drinking water system must be maintained according to manufacturer's instructions, including replacement of filter

cartridges.

• Do not use with water that is microbiologically tmsati? or of unknown quality without adequate disinfection betore or

after the system. Systems certified 1or cyst reduction may be used on disinfected v_ater that may contain filterable cysts.

• The contaminants or other substances removed or reduced by this water treatment system are not necessarily in your

water.

• Check for compliance with the state and local la_a_ and regulations.

• Note that while the testing was performed under standard laboratory conditions, actual pertormance may vary. Systems

must be installed and operated in accordance with manufacturer's recommended procedures and guidelines.

8ysiem 'Ii.,sted and Certified hy NSF international against ANSI/NSF Standard 42 & 53 tor

the reduction off

Standard No. 42: Aesthetic Effects

Chemical Unit

'Ihste and Odor Reduction

Chlorine Reduction

Mechanical Filtration Unit

Pm'ticulate Reduction, Class i

Stmadard No. 53: Health Effects

Chemical Reduction Unit

Lead and Atrazine Reduction

Lindane and 2,4-D Reduction

Mechanical Filtration Unit

Turbidily Reduction

(;},.st and ,_bestos Reduction

Manutactm'ed tor: General Electric Company, Louisville, KY 40225

41

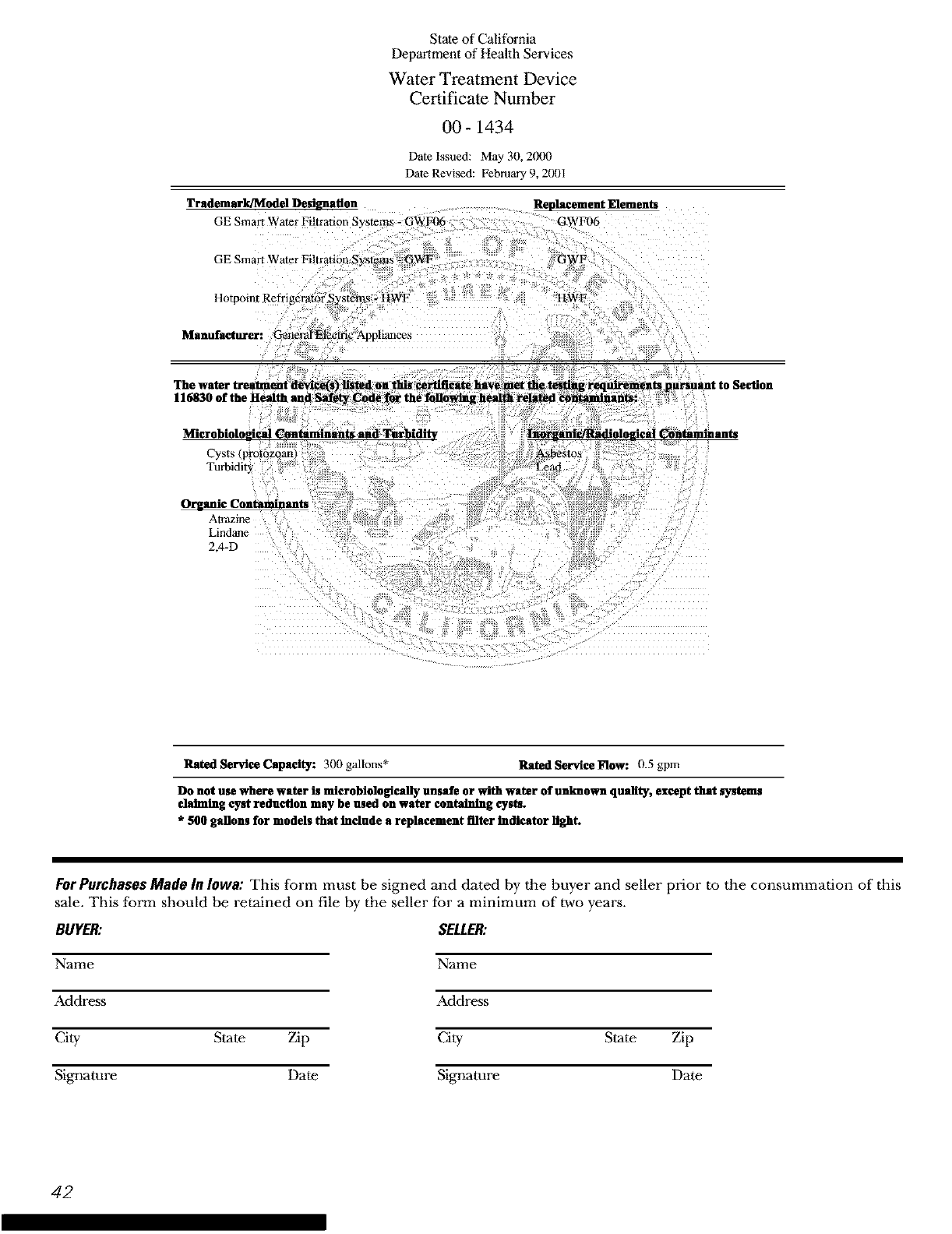

State of California

Department of Health Services

Water Treatment Device

Certificate Number

00-1434

Date Issued: May 30, 2//00

Date Revised: February 9, 2001

Trademark/Model Designation

GE Smart Water Filtration Systems -G_ FI)_

Replacement Elements

GWF06

GE Smart Water Filtration Systems _GWF

Hotpoim Refrigerator Systems -HWk

Manufacturer: Generar Elect (zc'Appliances

MicrobioloEical _oninminants stud Turbidity

Cysts (protozoanl

Turbidity

Organic Cont_ants

Atr_lne

Lind_e

2A-D

Rated Service Capacity: 3(10 gallons* Rated Service Flow: 0.5 gpm

Do not use where water is mierobinlogieally unssfe or with water of unknown qmdity, except that systems

claiming cyst reduction may be used on water containing cysts.

*500 gallons for models that include a replacement filter indicator light.

For Purchases Made In Iowa: This form must be signed and dated by the buyer and seller prior to the consummation of this

sale. This fbrm should be retained on file by the seller fbr a minimum of two years.

BUYER: SELLER:

Name Name

Address Address

City State Zip City State Zip

Signature Date Signature Date

42

GE Service Protection Plus TM

GE, a name recognized worldwide for quality and dependability, offers you

Service Protection Plus '_'-comprehensive protection on all your appliances-

No Matter What Brand!

Benefits Include:

•Backed by GE

•All brands covered

•Unlimited service calls

•All parts and labor costs included

•No out-of-pocket expenses

•No hidden deductibles

•One 800 number to call

We'll CoverAny Appliance.

Anywhere. Anytime.*

You will be completely satisfied with our service protection or you may request your money back

on the remaining value of your contract. No questions asked. It's tbat simple.

Protect your refrigerator, dishwashm; washer and drym; range, TV, VCR and much more-any brand!

Plus there's no extra charge for emergency service and low monthly financing is available. Even icemaker

coverage and fbod spoilage protection is offered. You can rest easy, knowing that all your valuable

household products are protected against expensive repairs.

Place your confidence in GE and call us in the U.S. toll-fl'ee at 800.626.2224

for more information.

* 9

All brands cover,:d, up to _0 years old, in the continental U.S.

........................................................................................... _Cut here

Please place in envelope and mail to:

General Electric Company

Warranty Registration Department

P.O. Box 32150

Louisville, KY 40232-2150

43

Consumer Product Ownership Registration

Dear Customer:

Thank you for purchasing our product and thank you for placing your confidence in us.

We are proud to have you _ a customer!

Follow these three steps to protect your new appliance investment:

Complete and mail

your Consumer

Product Ownership

Registration today.

Have the peace of

mind of knowing we

can contact you ill

the unlikely event of

asafL.ty modification. 2After mailing the

registration below,

store this document

in a satb place. It

contains intbrmation

you will need should

you require service.

Our sen,ice number

is 800.GE.CARES

(800.432.2737).

Read your Owner's

Manual care[hlly.

It will help you

operate your new

appliance properly.

Model Number Serial Number

IIIIIIIIIII Illllll

Important: If you did not get a registration card with your

product, detach and return the form below to

ensure that your product is registered, or register

online at GEAppliances.com.

_.,,. Cut here

Consumer Product Ownership Registration

Model Number Serial Number

IIIIII IIIII IIIIII

M_Ms._Mi3._Miss_

First NamelllllllllllllNamellllllllll

Street I

Addresslllllllllllllll Illlll

Apt. # I I I I IIII E-mail Address*

ci_llllllllllllll State Zip

(;ode II I II

Date P[a_ ed

Number I

Month Da, Pho.e II Ill

'i lease pro\ide your e-mail address to receL, e, via e-mail, discounts, special offers and other important

communications flora GE Appliances (GEA).

Check here if you do not want to receive communications flora GEA's carelull} selected partners.

GEAppliances

GECoaeumerproducts

GenetMElectric Cttmp_ny

toaisville, Kentucky

ww_GEAppliance_,com

44

Notes.

e.

_h

z_

e.

e.

q

45

ConsumerSupport.

%__

GEAppliancesWebsite In the U.S.: GEAppliances.com

Have a quesdon or need assistance with your appliance? Try the GE Appliances Website 24 hom.-sa day,

any day of the year! For greater convenience and faster service, you can now download Owner's Manuals,

order parts, catalogs, or even schedule service on-line. You can also "Ask Our Team of Experts''" your questions,

and so much more... In Canada: geapplianees.ca

ScheduleService In theU.S.:GEAppliances.com

Expert GE repair service is only one step away from your dool: Get on-line and schedule your service at your

convenience 24 hours any day of tile year! Or call 800.GE.C_MtJgS (800.432.2737) during normal business hours.

In Canada, call 1.800.361.3400

RealLife DesignStudio In the U.S.: GEAppliances.com

GE supports the Universal Design concept--products, services and environments that can be used by people of all

ages, sizes and capabilities. We recognize the need m design for a wide range of physical and mental abilities and

impairments. For details of GE's Universal Design applications, including kitchen design ideas for people with

disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).

In Canada, contact: Manages; Consumer Relations, Camco, Inc.

Suite 310, 1 Factory Lane

Moncton, N.B. E1C 9M3

ExtendedWarranties In the U.S.: GEAppliances.com

Purchase a GE extended warranty and learn about special discounts that are a'cailable while your warranty is still

in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer

Home Services will still be there after your warranty expires. In Canada, ear 1.888.961.9133

PartsandAccessories In the U.S.: GEAppliances.com

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes

(VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at

800.626.2002 during normal business hours.

Instruaionscontainedin thismanualcoverproceduresto beperformedbyanyuser.Otherservicinggenerallyshouldbe

referredtoqualifiedservicepersonnel.Cautionmustbeexercised,sinceimproperservicingmaycauseunsafeoperation.

Customers in Canada should consult the yellow pages 1or the nearest Camco service center, or call 1.888.261.3055.

ContactUs In the U.S.: GEAppliances.com

ffyou are not satisfied with the service you receive from GE, contact us on our Website with all the details including

your phone number, or write to: General Manager, Customer Relations

GE Appliances, Appliance Park

Louisville, KY40225

In Canada: geappliances.ca, or write to: Directol, Consumer Relations, Camco, Inc.

Suite 310, 1 Factory Lane

Moncton, N.B. E1C 9M3

RegisterYourAppliance In the U.S.: GEAppliances.com

r r

Register your new appliance on-line---at your convenience. Timely product registration _ill allow for enhanced

communication and prompt service under the terms of your warranty,should the need arise. You may also

mail in the pre-printed regisn-ation card included in the packing material. In Canada: geappliances.ca

Printed in Mexico
