GE
Lighting Solutions
imagination at work

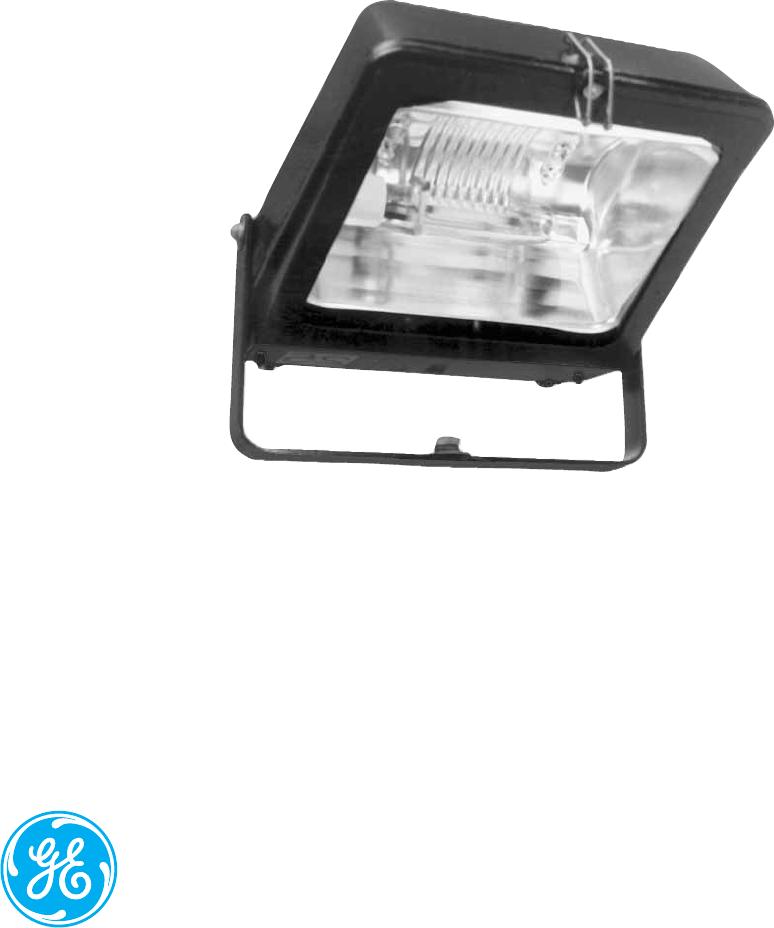

Glarefighter™ Asymmetric (GFPS & GFPT)
Flood Lighting
Applications
• Parking lots, building security, shipping yards, rail yards,
and many more floodlighting applications
• Engineered for situations requiring high performance
with low aiming angle and reduced glare optics
Housing
• Die-cast aluminum housing with polyester powder
paint finish
• Enclosed, gasketed and activatedcharcoal filtered
optical assembly
Ratings
• Listed Suitable for Wet Locations
Reflectors
• Hydroformed aluminum reflector with ALGLAS™ finish
Unique Features
• Designed for low aiming angles and low glare
applications
• Heavy duty steel trunnion with degree indicator
• Built-in “Sight-Track”, quick aiming sight
• Heat and shock resistant tempered glass lens
• Front access via hinged/removable door
• Corrosion-resistant external hardware
• Terminal board
• Mogul base socket – E39 standard
GE floodlights bring the security and safety of high quality illumination to a variety of outdoor areas. With a great look,
performance and durability, these fixtures offer versatility while meeting your outdoor lighting requirements.
Product Features
/

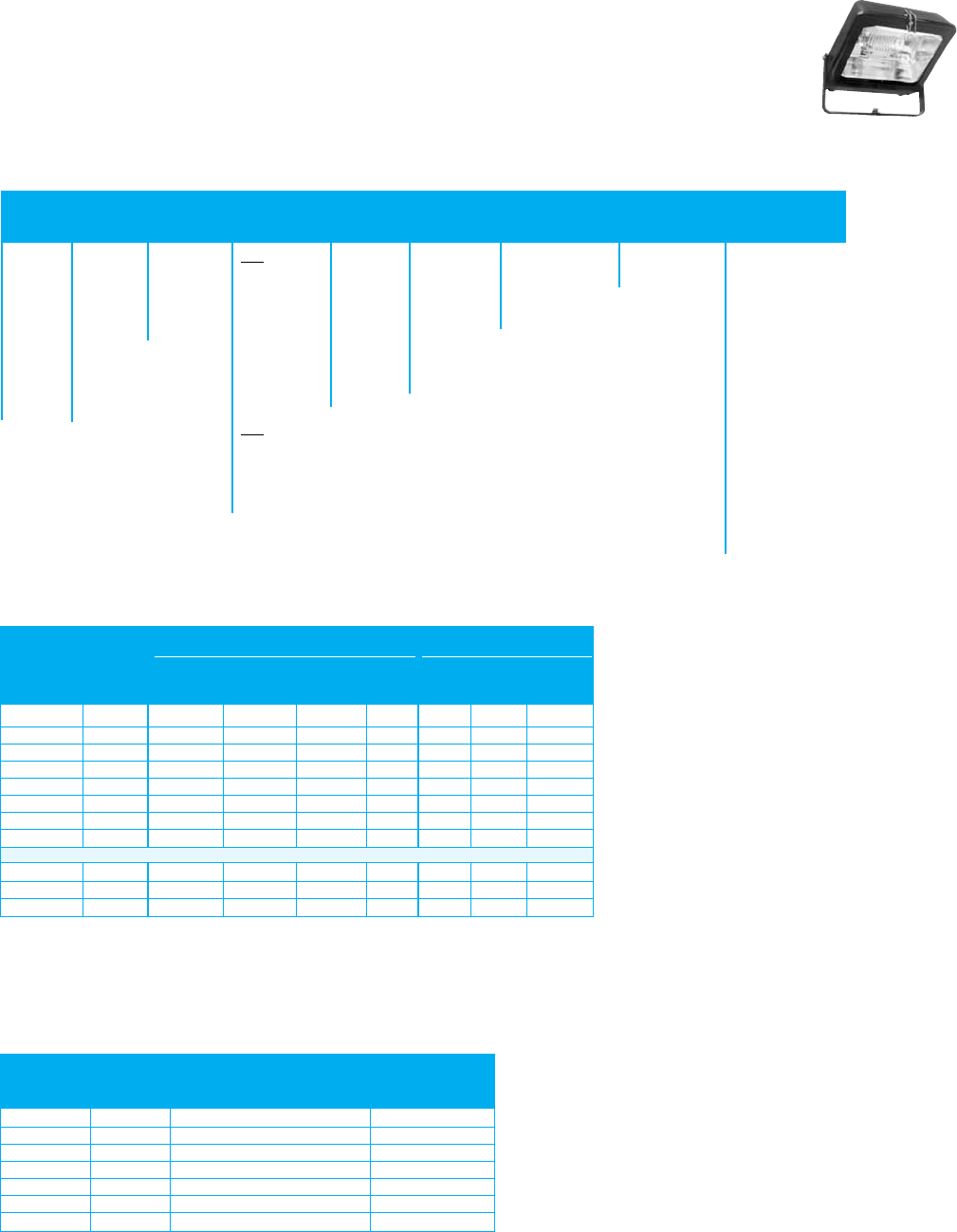

Ordering Number Logic
Glarefighter™ Asymmetric (GFPS & GFPT)
_ _ _ _ - _ _ - _ - _ - _ - _ - _ _ _ - _ _ - _
E = Energy Act
Compliant Pulse
MH (EPMH)
S = HPS
M = MH
Standard: Lamp
not included.
GFPS =
Glarefighter
Standard
GFPT =
With Tray
Mounted
Ballast
NOTE:
200-400W
Mag-Reg not
available on
tray.
15 = 150
17 = 175
20 = 200
24 = 250/
400
25 = 250
40 = 400
NOTE:
250/400
connected
for 250W
(HPS only)
60Hz
0 = 120/208/
240/277
Multivolt
1 = 120
2 = 208
3 = 240
4 = 277
5 = 480
D = 347
F = 120X347*
T = 220
50Hz
6 = 220
R = 230
Y = 240
*Connected for
120V
See Ballast
Selection Table
A = Autoreg
G = Mag-Reg
with
Grounded
Socket
Shell
H = HPF
Reactor
or Lag
M = Mag-Reg
1 = None
2 = PE
Receptacle
NOTE:
Receptacle
connected same
voltage as unit.
Order PE Control
separately.
NEMA TYPE BEAM
SPREAD
HORIZ X VERT
Select NEMA Type
from Photometric
Selection Table
Example:
6X6 = 6X6
F = Fusing (Not
available with
multivolt or
120X347V)
G = Top Trunnion
J = Line Surge Protector,
Expulsion Type
(UL not available)
K = Knuckle Slipfitter
for 1.9-in. to 2.38-in.
(48-60 mm) OD
Tenon
L = Latch for door
P = Prewired with 6 ft
(2 meters) #14/3
S = Knuckle Slipfitter for
1.9 to 3.0 in.
(48-76mm) OD
Tenon
V = Knuckle Wall Mount
Y = Dual Wattage Units
Connect Higher
Wattage
PROD. ID
VOLTAGE
wATTAGE LIGHT
SOURCE
BALLAST
TYPE
PE
FUNCTION
OPTIONSCOLOR
DB = Dark Bronze
(Standard)
GR = Gray
Ballast Selection Table
NOTES: N/A = Not Available
*For 150W HPS, 480V use A or M ballast only.
**347, 120X347 = May use M (MH) Ballast/Lamp Code
Ballast Type/Voltage
60Hz 50Hz
NEMA Type
Photometric Curve
Light Beam Spread Number
wattage Source Horizontal X Vertical (Degrees) 35-
150 (55V) HPS 7X6 (131X108) 179872
200 HPS 6X6 (127X112) 179873
250 HPS 6X6 (126X113) 179874
400 HPS 6X6 (125X108) 179876
175 EPMH 7X6 (140X112) 179877
250 EPMH 7X6 (132X113) 179878
400* EPMH 6X6 (130X144) 179879
Photometric Selection Table
All light sources are clear unless otherwise indicated.
NOTE: *Lamp for 400 watt MH must be E-18 or ED-28 (reduced envelope) only.
For cutoff at aiming angles 15° or less, order accessory TSV**-P4F separately.
120, 208,
Light 240, 277 347,
wattage Source Multivolt 480 120X347 220 220 230 240
150 (55V) HPS H H, M* H N/A M N/A N/A
200 HPS A, M A, M N/A A A A,H,N A
250 HPS A, M, G A, M, G A A A A,H,N A
250/400 HPS A A N/A N/A N/A N/A N/A
400 HPS A, M A, M A A A,H,N H A,H,N
175 EPMH A A A** N/A N/A N/A N/A
250 EPMH A A A** N/A N/A N/A N/A
400 EPMH A A A** N/A N/A N/A N/A
CANADA & EXPORT ONLY
175 MH A A A** N/A N/A N/A N/A
250 MH A A A** N/A N/A N/A N/A
400 MH A A A** N/A N/A N/A N/A
OLP-2978 (Rev. 06/14/12)
GE Lighting Solutions • 1-888-MY-GE-LED • www.gelightingsolutions.com
1 - 8 8 8 - 6 9 - 4 3 - 5 3 3
GE Lighting Solutions, LLC is a subsidiary of the General Electric Company. The GE brand and logo are trademarks of the General Electric Company.
© 2012 GE Lighting Solutions, LLC. Information provided is subject to change without notice. All values are design or typical values when measured under laboratory conditions.

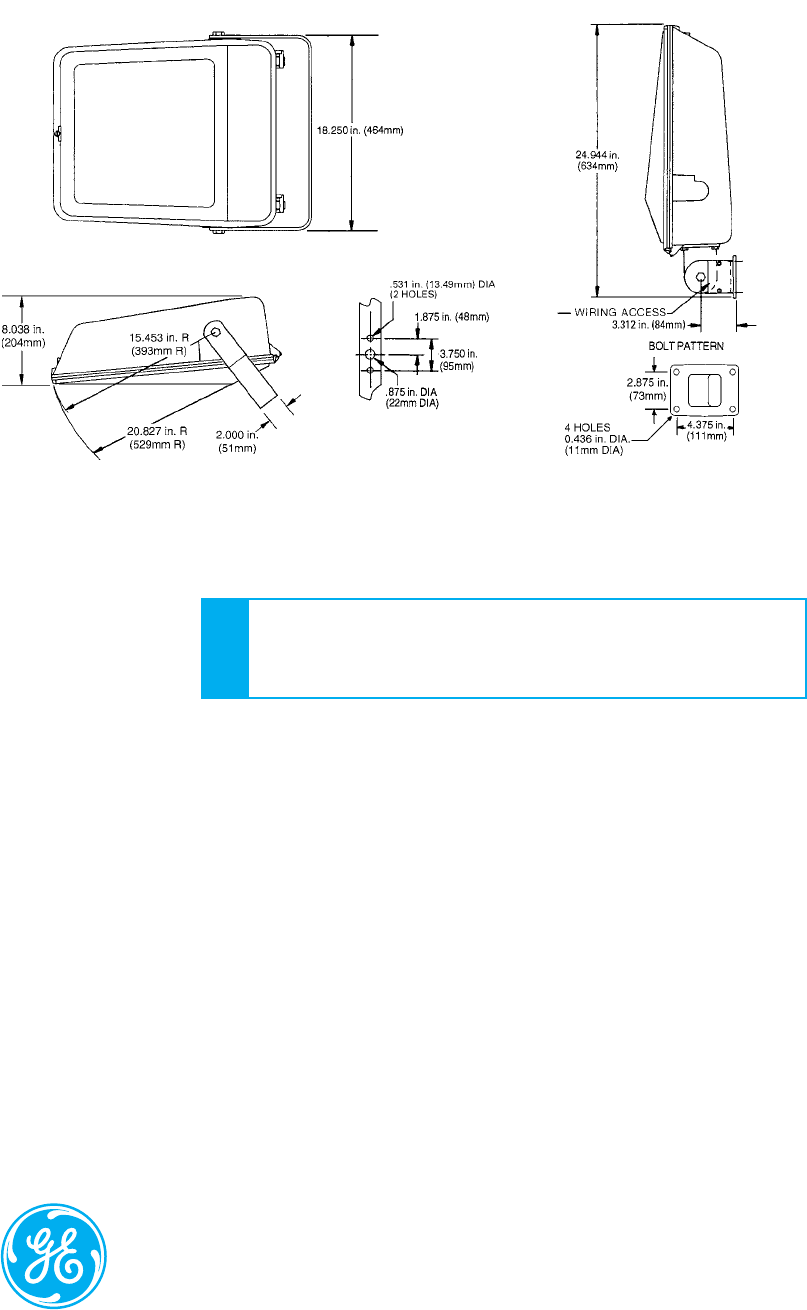

Product Dimensions
• Approximate Net Weight: 45 lbs (20 kgs)
• Effective Projected Area: 1.5 sq ft max (.14 sq M max)
• Suggested Mounting Height: 20-60 ft (6-18 M)
DATA
CAUTION:
Position illustrated is
not recommended for
Glarefighter applications.
This illustration should
only be used for
dimensional purposes.
