INDOOR LIGHTING

Guide Form Specifications – 2011

gGE

Lighting Solutions

GUIDE FORM SPECIFICATIONS

GENERAL DESCRIPTION

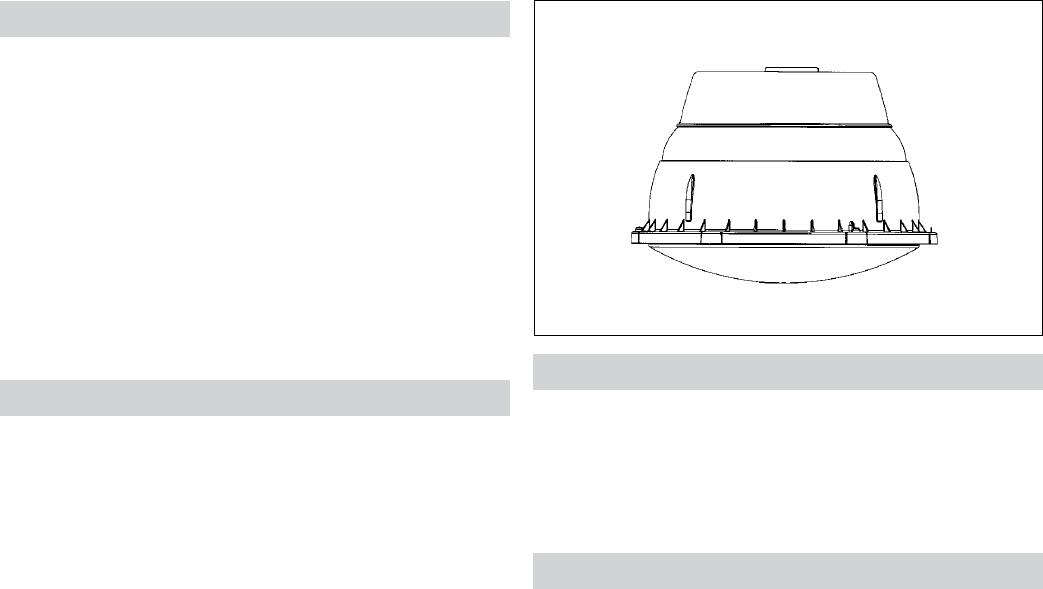

GARAGE GUARDIAN ™ LUMINAIRE HID

Low Bay Enclosed

MECHANICAL CONSTRUCTION

BALLAST OPERATION

OPTICAL ASSEMBLY

The complete luminaire designated _____ (identify) shall be

a GE GARAGE GUARDIAN™ luminaire with, ordering number

_____ (specify GBP or GBC, plus ordering number logic from

catalog) or approved equal, to operate one _____ (specify [100

or 150(55v)] watt high pressure sodium [HPS], [175 ] watt metal

halide or [100, 150 or 175] watt pulse start metal halide) lamp

from a nominal _____(specify 120, 208, 240, 277, 347 or 480)

volt 60 Hz or (110, 220, 230 or 240) volt 50 Hz power source.

The luminaire shall include a completely prewired integral bal-

last and optical assembly. The luminaire shall be suitable for

continuous service indoors in a maximum ambient temperature

of 40°C. The luminaire shall be UL Listed SUITABLE FOR DAMP

LOCATIONS or UL LISTED FOR WET LOCATIONS depending on

mounting, UL Listed for metal halide lamps in polymeric lamp

containment barriers and C-UL,(Canadian) Listed for Indoor

Locations.

The luminaire shall be shipped as a completely assembled fix-

ture including medium base lamp installed in socket for quick

installation. (Mogul base lamps included but not installed).

A heavy duty medium base socket, with superior lamp grip-

ping shall be mounted to the ballast housing. The socket shall

have the ability to handle the higher pulse ratings of newer

HID systems.

The ballast housing and optical assembly shall be provided

with easy-to-read moisture-resistant nameplates which can be

seen without disturbing the installed luminaire.

The luminaire shall include provision for optional field mounting

of safety chain.

The ballast housing shall be made of die-cast aluminum. The

ballast housing shall have a polyester powder paint finish .

The luminaire shall include a _____ (specify mounting code)

mounting from the following optional mounting configurations:

10 = Surface Mtg. (Junction-box not included)

11 = 3/4" Rigid Pendant

12 = 3/4" Pendant With Bird Shield*

13 = 3/4"Flex Pendant Adjustable

01 = Primary Electrical Disconnect With MPM-C

02 = Primary Electrical Disconnect With MPM-3PR

03 = Primary Electrical Disconnect With MPM-3PF

04 = Primary Electrical Disconnect With MPM-3PRFW

05 = Primary Electrical Disconnect With MPM-3PRTFW

06 = Primary Electrical Disconnect With MPM-WW

NOTE:

Bird Shield Adds 4.4" To Overall Height

* See GELS Product Selection Guide for MPM mounting details.

The luminaire shall contain a standard _____ (specify Autoreg

type ballast*) in full compliance with lamp-ballast specifica-

tions available to the fixture manufacturer from the lamp man-

ufacturers at the time of fixture manufacture.

The ballast shall reliably start and operate the lamp in ambient

temperatures down to -20°F for metal halide or -40°F for HPS.

The optical assembly shall be enclosed and gasketed to pre-

vent entrance of particulate contaminants. The refractor shall

be UV stabilized injection molded prismatic heat-resistant

acrylic or optional impact resistant polycarbonate optic and

lens.

The optical shall have downlight cutoff classification with up-

light window and either clear or painted lower refractor band;

and have optional field adjustable internal uplight shielding.

* REFER TO PRODUCT PAGE IN GELS PRODUCT CATALOG FOR

OTHER BALLAST SELECTIONS. FOR MORE DEFINITIVE ELECTRI-

CAL INFORMATION, REFER TO BALLAST SPECIFICATIONS IN

TECHNICAL DATA SECTION.

gGE Lighting Solutions is a subsidiary of the General Electric Company. Evolve and other trademarks belong to GE Lighting Solutions. The GE brand and logo are trademarks of the General Electric Company.

© 2011 GE Lighting Solutions. Information provided is subject to change without notice. All values are design or typical values when measured under laboratory conditions.
