GE Oil & Gas
Time-Saving Wellheads

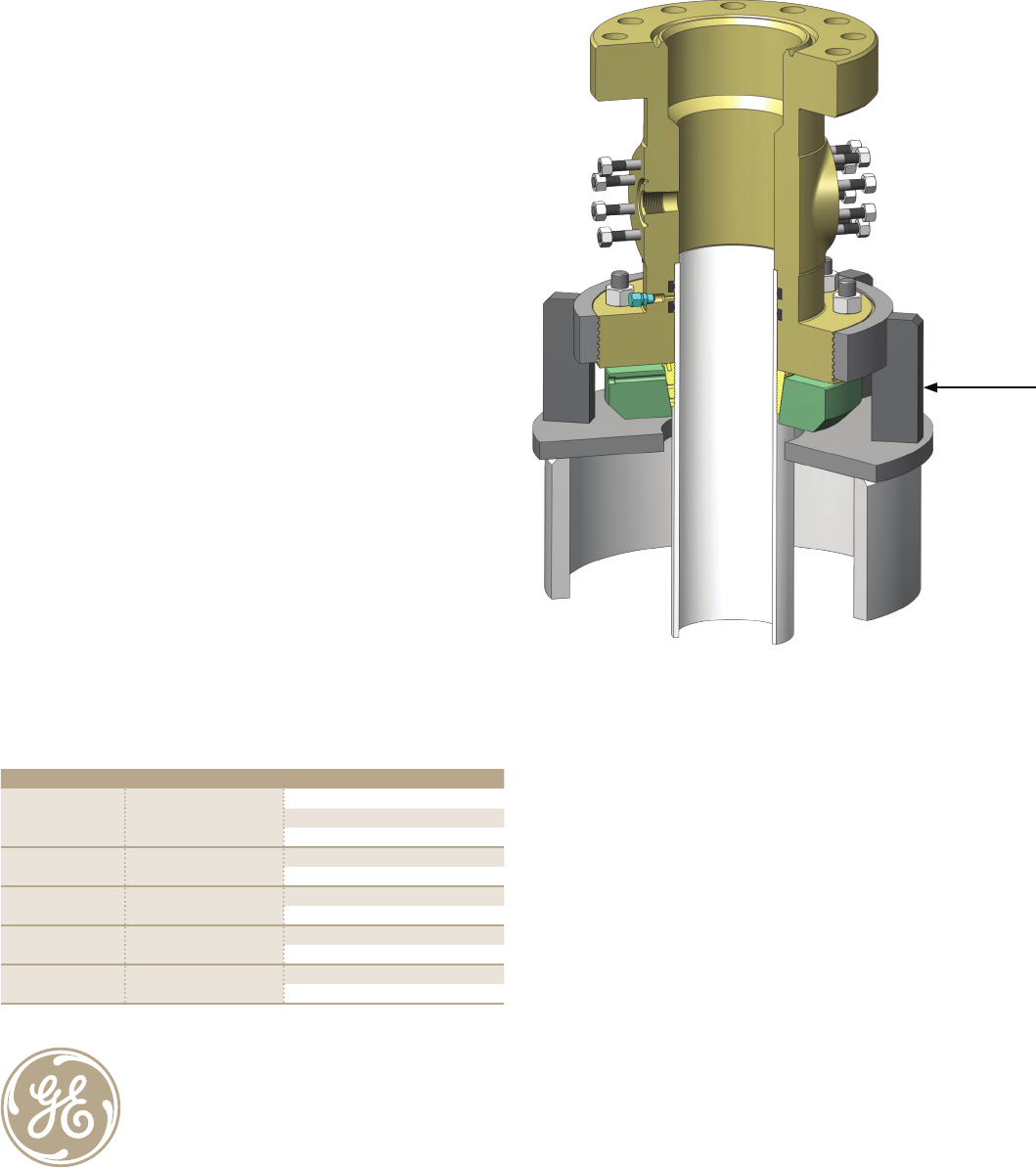

Pressure Control W2 Casing Head with S4 Surelok™ Connector
The S4 Surelok™ weldless casing connection oers a simple
and quick alternative to welded bottom casing heads. With
the ability to be installed without welding, this connector is
ideal for applications where an open ame is a safety or time
lost concern. Most sizes can be safely installed in less than 60
minutes.
Rated for the loads imposed by the casing head and BOP
operations, this readily reversible connection is ideal for
the most demanding temporary or permanent wellhead
installations. Field-proven, API qualied elastomer seals on the
casing stub are externally testable. The slip system is easily
activated to provide full locking engagement with the casing
stub even under tension, compression and/or bending loads.
With the use of the optional adjustable baseplate, subsequent
casing and drilling loads can be transferred to the larger
conductor pipe.
Features —
• Simple installation
– No welding required
– No special tools or services required
– Seals tested externally
• Rated for full casing head load (subject to casing
limitations)
– Load transfers to conductor pipe
– API 6A, PR2 qualied
•Reversible and reusable
• Optional congurations
– Adjustable baseplate
Availability —
295-2607
Optional
Adjustable
Baseplate
Top Flange Size Top Flange psi Bottom Prep. Casing Size
11” 2,000 thru 10,000
8-5/8”
9-5/8”
10-3/4”
13-5/8” 2,000 thru 10,000 11-3/4”
13-3/8”
16-3/4” 2,000 thru 5,000 13-3/8”
16”
20-3/4” 2,000 thru 5,000 18-5/8”
20”
21-1/4” 2,000 thru 5,000 18-5/8”
20”
GE © 2013. All rights reserved.
10/13, PC #05-0224 rev 2
geoilandgas.com/pressurecontrol
W2 Casing Head with S4 Surelok™ Connector
Engagement Steps —
1. Tighten the engagement bolts to
raise the slip bowl and force the slips
to engage the casing.
2. Lift the casing head to set the slips.
3. Release the casing head and
retighten the engagement bolts.
4. Rotate the adjustable baseplate to
bottom out on the outer conductor.
Attachment Steps —
1. Stab the casing head over the
casing stub.
2. Test the EBS seals (PC #04-0387).
3. Loosen the engagement bolts
slightly and remove the shipping
spacers.
4. Remove all the slip retainer screws.
The slips should settle around the
casing.

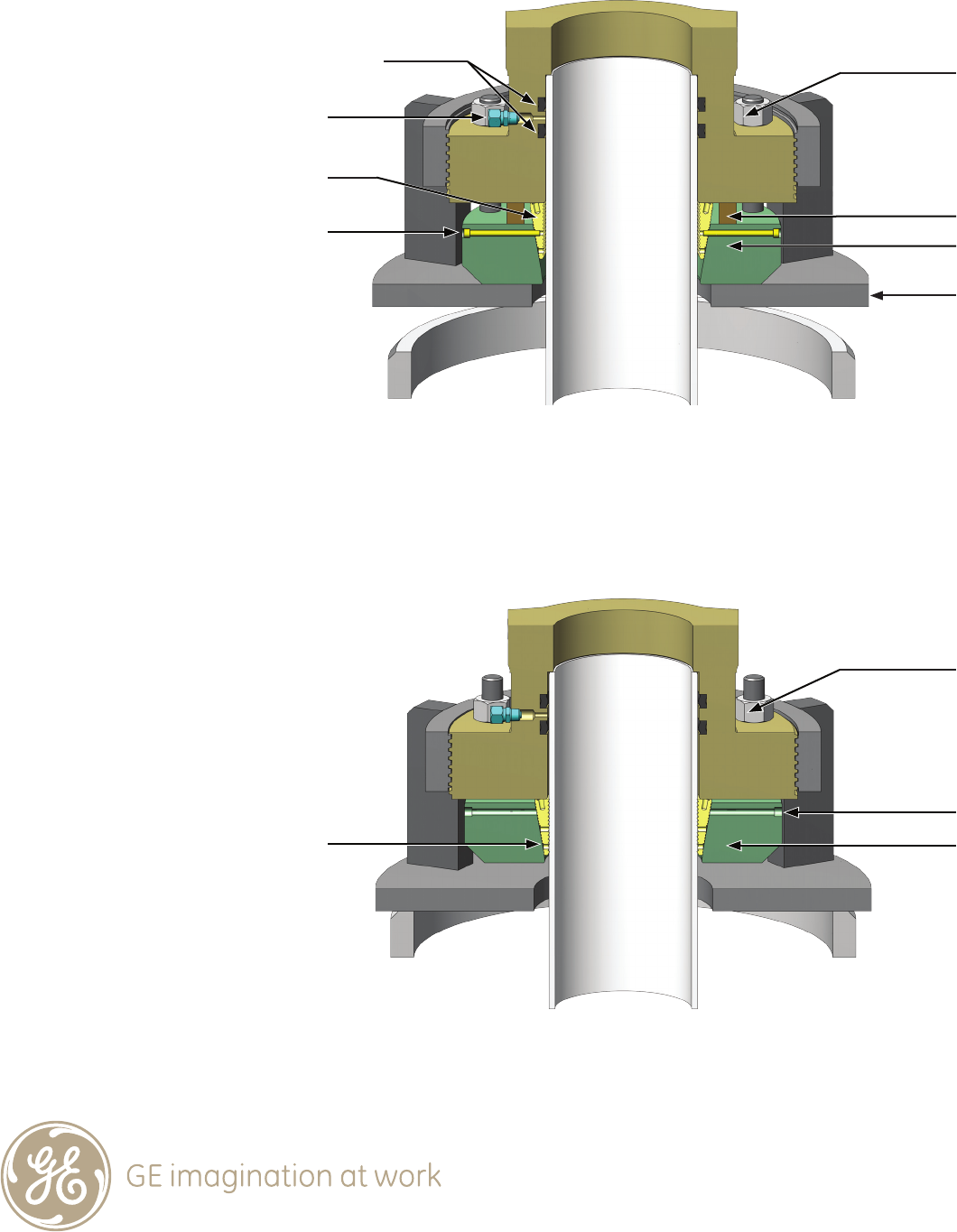

S4 Surelok Relaxed Position
Test Fitting
Slip Retainer
Screws
Slips
Slip Bowl
Shipping Spacers
Engagement Bolts
Adjustable
Baseplate
295-2607
EBS Seals
S4 Surelok Set Position
Slips
Engaged
295-2607
Engagement Bolts
Tightened
Slip Bowl Raised
Slip Retainer
Screws Removed
