GEAppliances

ProfileModels24& 27

with RefreshmentCenter

andElectronicDispenser

Part No. 162D7736PO05 Pub.No. 49-6909

Congratulations!

YouAre Now Part of the GEFamily.

Welcome to the GE family.

We're proud of our quality

products and we are

committed to providing

dependable service. You'll

see it in this easy-to-use

Owner's Manual and you'll

hear it in the friendly voices

of our customer service

department.

Best of all, you'll experience

these values each time you

use your refrigerator.

That's important, because

your new refrigerator will

be part of your family for

many years. And we hope

you will be part of ours for a

long time to come.

We thank you for buying

GE. We appreciate your

purchase, and hope you

will continue to rely on us

whenever you need quality

appliances for your home.

\l Jt

Proof of the original purchase date

is needed to obtain service under

the warranty.

Write the model and serial

numbers here.

Youcan find them on a label on the

wall beside the top drawer or at the

bottom, just inside the fresh food

compartment door.

GE& You,

A Service Partnership.

Ask any GEappliance owner and they will

tellyou we stand behind our products with

unmatched quality service. However,did

you know that most questions result from

simple problems thatyou can easily fix

yourself injust a few minutes? This

Owner'sManual can tellyou how.

manual

Inside you will find many

helpful hints on how to use and

maintain your refrigerator

properly.Just a little preventive

care on your part can save you a

great deal of time and money

over the life of your refrigerator.

Reviewthesectionon

Troubleshootingtips

You'll find many answers to

common problems here.

If you review our chart of

Troubleshooting Tips first, you may

not need to call for service at all.

If YouNeedService

If you do need service, you can

relax knowing help is only a phone

call away. A list of toll-free

customer service numbers is

included in the back section. Or, in

O.$., you can always call the GE

Answer Center ®at 800.626.2000,

24 hours a day, 7 days a week.

In Canada call 800-361-3400.

Languages

English .................. 4

Fra_.ais ................ 43

Espaflol ................. 87

Safety Information

CustomerService

Warranty

for CanadianCustomers.... ,41

Warranty

for U.S,Customers.......... 42

Sen/iceTelephone

Numbers .......... BackCover

IMPORTANTSAFETYINFORMATION.

READALLINSTRUCTIONSBEFOREUSING.

WARNING!

Use this appliance only for its intended purpose as

described in this Owner's Manual.

SAFETYPRECAUTIONS

When using electrical appliances, basic safety precautions

should be followed, including the following:

[] This refrigerator must be

properly installed and

located in accordance with

the Installation Instructions

before it is used.

[] Do not allow children to

climb, stand or hang on the

shelves in the refrigerator.

They could damage the

refrigerator and seriously

injure themselves.

[]

Do not allow anyone to

climb, sit, stand, or hang

on the Refreshment Center

door. They could damage the

refrigerator and maybe even

tip it over, causing severe

personal injury.

Do not touch the cold

surfaces in the freezer

compartment, particularly

when hands are damp or wet.

Skin may stick to these

extremely cold surfaces.

[] Do not store oruse gasoline

or other flammable vapors

and liquids in the vicinity of

this or any other appliance.

[] In refrigerators with

automatic icemakers, avoid

contact with the moving parts

of the ejector mechanism, or

with the heating element that

releases the cubes. Do not

place fingers or hands on the

automatic icemaking

mechanism while the

refrigerator is plugged in.

[] Keep fingers out of the

"pinch point" areas;

clearances between the

doors and between the doors

and cabinet are necessarily

small. Be careful dosing

doors when children are in

the area.

[] Unplug the refrigerator

before cleaning and making

repairs.

NOTE: We stronglyrecommend

that any servicingbe performed

by a qualified individual

m Turning the control to the

OFF position does not remove

power to the light circuit.

[] Do not refreeze frozen

foods which have thawed

completely.

IMPORTANT'.

PROPERDISPOSALOFTHEREFRIGERATOR

Child entrapment and suffocation are not problems of

the past.Junked or abandoned refrigerators are still

dangerous...even if they will sit for "just a few days."

If you are getting rid of your old refrigerator, please

follow the instructions below to help prevent accidents.

Before YouThrow Away YourOld Refrigerator

or Freezer:.

[] Take off the doors.

[] Leave the shelves in place so that children may not

easily climb inside.

CFCDisposal

Your old refrigerator has a cooling system that used

CFCs (chlorofluorocarbons). CFCs are believed to harm

stratospheric ozone.

If you are throwing away your old refrigerator, make

sure the CFC refrigerant is removed for proper disposal

by a qualified servicer, ffyou intentionally release this

CFC refrigerant you can be subject to fines and

imprisonment under provisions of the Federal Clean

AirAct.

IMPORTANTSAFETYINFORMATION.

READALLINSTRUCTIONSBEFOREUSING.

WARNING!

HOWTOCONNECTELECTRICITY

Donot, under anycircumstances, cut or remove the third

(ground)prong from the power cord. Forpersonal safeq,

this appliance must be properly grounded.

The power cord of this appliance is equipped with a 3-prong

(grounding) plug which mates with a standard 3-prong

(grounding) wall outlet to minimize the possibility of electric

shock hazard from this appliance.

Have the wall outlet and circuit checked by a qualified electrician

to make sure the outlet is properly grounded.

Where a standard 2-prong wall outlet is encountered, it is your

personal responsibility and obligation to have it replaced with a

properly grounded 3-prong wall outlet.

The refrigerator should always be plugged into its own individual

electrical outlet which has a voltage rating that matches the rating

plate.

This provides the best performance and also prevents overloading

house wiring circuits which could cause a fire hazard from

overheated wires.

Never unplug your refrigerator by pulling on the power cord.

Always grip plug firmly and pull straight out from the outlet.

Repair or replace immediately all power cords that have become

frayed or otherwise damaged. Do not use a cord that shows cracks

or abrasion damage along its length or at either end.

When moving the refrigerator away from the wall, be careful not to

roll over or damage the power cord.

USEOFADAPTERPLUGS

Because of potential safety hazards under certain conditions,

we strongly recommend against the use of an adapter plug.

However, if you must use an adapter, where local codes permit, a

terala_ty connexion may be made to a properly grounded 2-prong

wall outlet by use ofa UL-listed adapter available at most local

hardware stores.

Thelargerslotin theadaptermustbealignedwiththelargerslotin

thewalloutlettoprovideproperpolarityin theconnectionofthe

powercord.

Whendisconnectingthepowercordfrom theadapter,alwayshold

theadapterin placewith onehandwhilepullingthepowercord

plugwiththeotherhand.If thisisnotdone,theadapterground

terminalisverylikelytobreakwithrepeateduse.

If theadaptergroundterminalbreaks,DO NOT USE the refrigerator

until a proper ground has been established.

Attaching the adaptergroundterminal to a wall outlet coverscrew doesnot

ground the appliance unlessthe coverscrew is metal, andnot insulated,and the

wall outlet is groundedthrough the house wiring. Youshould have the circuit

checkedby a qualifind electrtcian to makesure the outlet is properlygrounded.

USEOFEXTENSIONCORDS

Because of potential safety hazards under certain

conditions, we strongly recommend against the use of an

extension cord.

However, if you must use an extension cord, it is absolutely

necessary that it be a UL-listed, 3-wire grounding type appliance

extension cord having a grounding type plug and outlet and that

the electrical rating of the cord be 15 amperes (minimum) and

120 volts.

REMEMBER...

Your continued health and safety are important to us.

Please read and follow this Safety Information carefully.

We wantyou to remain a happy and healthy part of our

GEfamily.

SAVE THESEINSTRUCTIONS

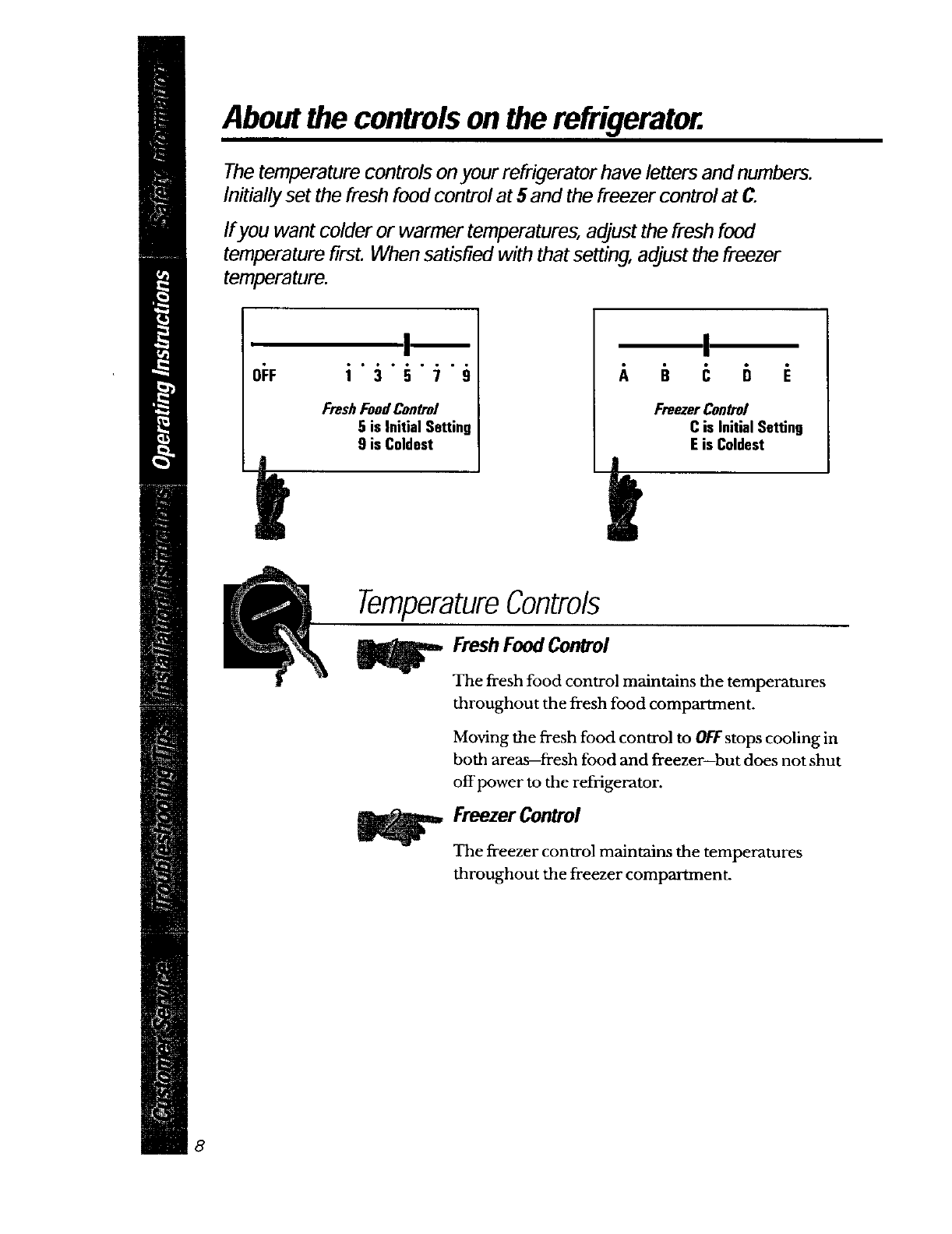

Aboutthe controlson the refrigerator.

The temperature controls on your refrigerator have letters and numbers.

Initially set the fresh food control at 5 and the freezer control at C.

Ifyou want colder or warmer temperatures,adjust the fresh food

temperature first. When satisfied with that setting, adjust the freezer

temperature.

OI:F i'_'_'}'_

FreshFoodControl

5 is Initial Setting

9 is Coldest

_, _ c6 _:

FreezerControl

C is Initial Setting

E is Coldest

TemperatureControls

Fresh Food Control

The fresh food control maintains the temperatures

throughout the fresh food compartment.

Moving the fresh food control to OFFstops cooling in

both areas--flesh food and freezer--but does not shut

off power to the refrigerator.

Freezer Control

The freezer control maintains the temperatures

throughout the freezer compamnent.

The Electronic Monitor and Diagnostic System monitors the operation of

your refrigerator and controls dispenser functions.

ElectronicMonitorandDiagnosticSystem

Lighted word NOR/IOIL indicates that no failure has been

detected by the diagnostic system.

_DOOR OPEN. Red signal light flashes to tell you when

either door is open.

WARM TEMP.Red signal light tells you when freezer food-

keeping temperature is above noxrnal.

_ Flashing diagnostic codes in the display warn you when:

[] frozen foods should be checked.

[] power has been interrupted.

[] icemaker may not be operating properly.

[] defrost system has failed.

What these codes mean-and what to do when

they appear--is explained more thoroughly on the

following pages.

SYSTEM CHECK-RESETpad puts a review of the electronic

diagnosis of four coded functions at your fingertip and

also allows you to erase codes from display.

_ Electronic control allows you to select CUBED ICE,

CRUSHEDICEor CHILLED WATERand signal light confirms

your choice.

Signal light tells you that the DOORAlARMbeeper has been

set to sound after either door has been open 30 seconds. 9

Aboutthe controlson the refrigerator.

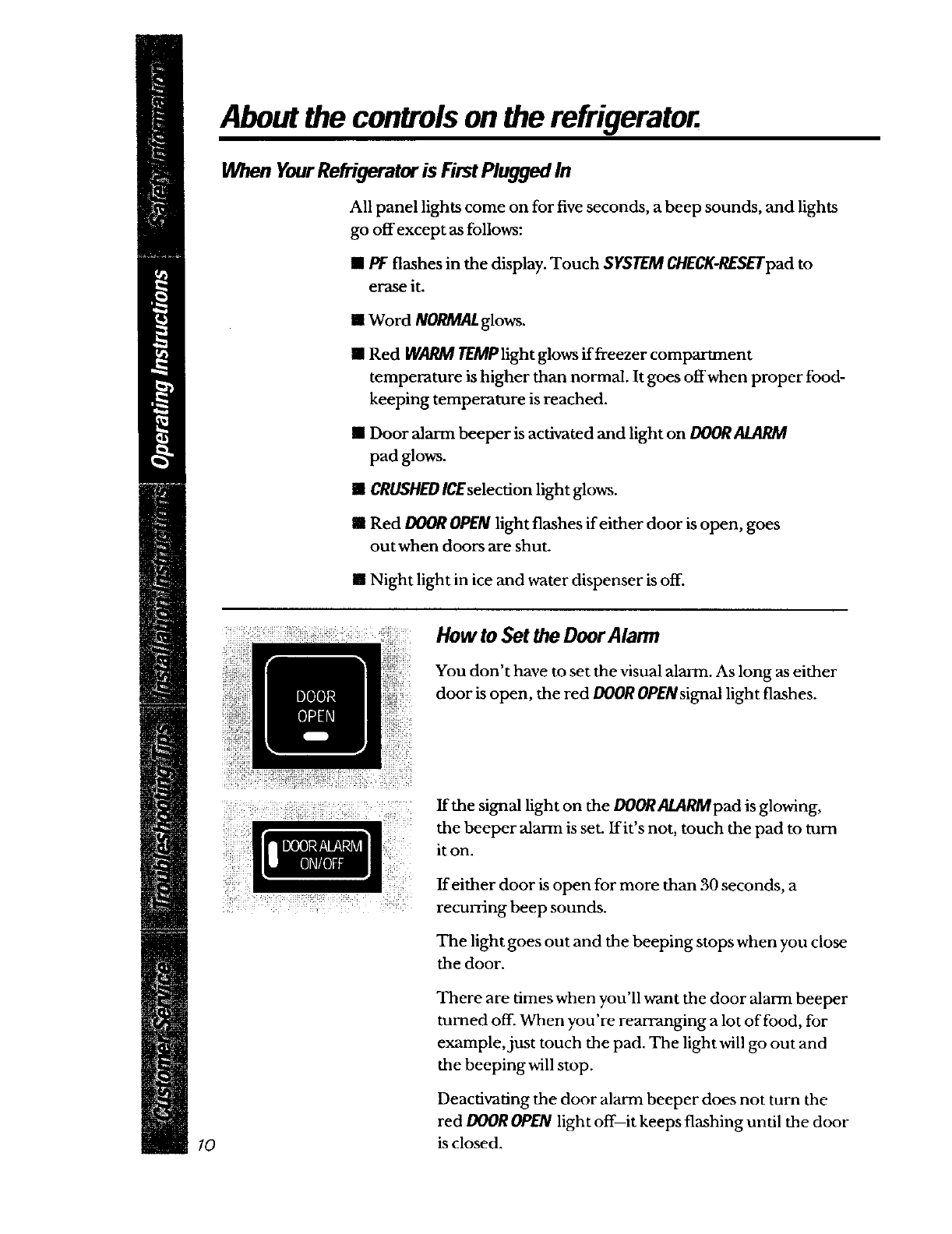

When YourRefrigerator is FirstPlugged In

All panel lights come on for five seconds, a beep sounds, and lights

go offexcept as follows:

[] Pk- flashes in the display. Touch SYSff_M CHECK-RESE'rpad to

erase it.

[] Word NO_q/l£ glows.

[] Red WARM TEblPlight glows if freezer compartment

temperature is higher than normal. It goes offwhen proper food-

keeping temperature is reached.

[] Door alarm beeper is activated and light on DOOR

pad glows.

[] CRUSHEDICEselection light glows.

[] Red DOOR OPEN light flashes if either door is open, goes

out when doors are shut.

[] Night light in ice and water dispenser is off.

........ How to Set the Door Alarm

You don't have to set the visual alarm. As long as either

door is open, the red DOOR ORENsignal light flashes.

If the signal light on the DOORALARMpad is glowing,

the beeper alarm is set. If it's not, touch the pad to turn

it on.

If either door is open for more than 30 seconds, a

recurring beep sounds.

The light goes out and the beeping stops when you close

the door.

There are times when you'll want the door alarm beeper

turned off. When you're rearranging a lot of food, for

example,just touch the pad. The light will go out and

the beeping will stop.

Deactivating the door alarm beeper does not turn the

red DOOR OPEN light off--it keeps flashing until the door

is closed.

Why the Red WARM TEMP Light Glows

At first, it's probably because your newly-installed

refrigerator hasn't completely cooled down yet. Wait a

few hours for it to cool, and then the light will go out.

From then on, the red light will glow whenever

temperatures inside get too high for proper food

storage, ffthis happens, open the doors only when

absolutely necessary, and close them as quickly as

possible.

As soon as inside temperatures retum to normal, the

light goes out.

If the WARM TEMP light reappears and stays on for

longer than 4 hours, call for service.

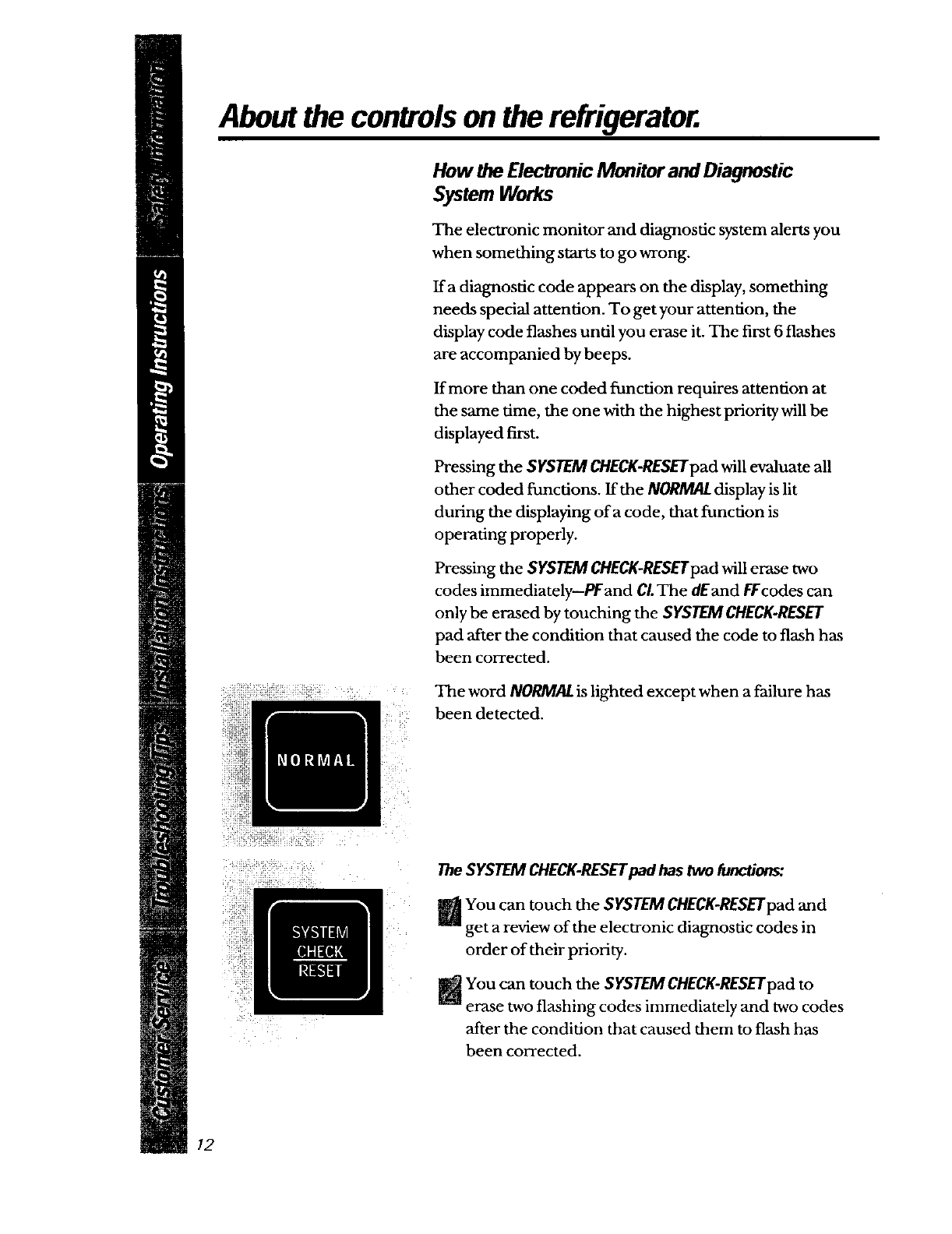

Aboutthe controlson therefrigerator.

How the Electronic Monitor and Diagnostic

System Works

The electronic monitor and diagnostic system alerts you

when something starts to go wrong.

Ifa diagnostic code appears on the display, something

needs special attention. To get your attention, the

display code flashes until you erase it. The first 6 flashes

are accompanied by beeps.

If more than one coded function requires attention at

the same time, the one with the highest priority will be

displayed first.

Pressing the SYSTEM CHECK-RESETpadwill evaluate all

other coded functions. If the NORMAL display is lit

during the displaying of a code, that function is

operating properly.

Pressing the SYSTEM CHECK-RESETpad will erase two

codes immediately-Wand CI.The dEand/:fcodes can

only be erased by touching the SYSTEM CHECK-RESET

pad after the condition that caused the code to flash has

been corrected.

The word NORMAL is lighted except when a failure has

been detected.

TheSYSTEM CHECK-RESETpadhas two functions_

You can touch the SYSTEM CHECK-RESETpadand

get a review of the electronic diagnostic codes in

order of their priority.

You can touch the SYSTEM CHECK-RESETpad to

erase two flashing codes immediately and two codes

after the condition that caused them to flash has

been corrected.

This flashing code tells you to check your frozen food.

Has any of it started to thaw? A package may be holding

the freezer compartment door open. Don't open the

door more often than absolutely necessarywhile this

code is displayed. Touching the SYSTEM CHECK-RESET

pad after the freezer compartment temperature has

returned to normal will erase the code.

This flashing code tells you the power to the refrigerator

has been interrupted for more than two seconds. Check

the condition of food in both the fresh food and freezer

compartments. Touch the SYSTEM CHECK-RESETpad

to erase the code.

There is no fault with the refrigerator when the l:_'code

flashes.

This flashing code tells you to check the automatic

icemaker. Ice clumps in the storage bin may have stalled

the icemaker. Follow corrective measures described in

Troubleshooting _ps. If water supply to the icemaker is not

connected or not turned on, make sure the icemaker

feeler arm is in the STOP (up) position. Code stops

flashing when problem is corrected or SYSTEM CItECg-

RESET pad is touched.

This flashing code tells you something is wrong with the

defrost system--keep doors closed to retain cold and call

for service. Code flashes until problem is corrected.

Aboutthe controlson the refrigerator.

How To TestTemperatures

Use the milk test for the fresh food compartment. Place a container

of milk on the top shelf and check it a day later, ffthe milk is too

warm or too cold, adjust the temperature controls.

Use the ice cream test for the freezer compartment. Place a

container of ice cream in the center of the freezer and check it after

a day. ffit's too hard or too soft, adjust the temperature controls.

After changingthe controls,allow 24 hoursfor the refrigerator to reach the

temperatureyou haveset.

FoodStorage

The type of packaging used and the storage temperatures will affect

how long food will keep in the refrigerator.

New food storage guidelines are constantly being developed.

Consultthe CountyExtensionServicefor the latest information on freezingand

storing foods.

Automatic Energy Saver System

Youwon't find an energy saver switch on this refrigerator

Warm liquid from the refrigerator's condenser is automatically

circulated around the front edge of the freezer compartment to

help keep moisture from forming on the outside of the refrigerator

during humid weather.

Many refrigerators use special electric heaters. This refrigerator

needs none. That's why there is no on_'gy saver switch...there's no

need for it.

Aboutthe refrigeratorshelvesand dishes.

Not all features are on all models.

RearrangingtheShelves

Shelves in the fresh food

and freezer compartments

are adjustable.

•!?ii_'ii__,_.,iiiiiiiil;ii,,__,•••_i_iii¸¸"_,•'•_!!!ii__•_......•_,•_:_•_:•_'•"•_'_il¸•!_L,_i___,__,,, _,_,_•O.ick_e".... S,_em

Dishes and lids are not des_qned for

I _'- use on the range top, broiler or in the regular

Ioven. Such use can be hazardous.

............ Quick Serve TM dishes fit into a space-saving rack under

the shelf. The rack can be relocated anywhere in the

fresh food compartment.

......... .... ...... Dishes and lids are safe for use in microwave ovens,

refrigerators and freezers.

_foods,suchascandyamsyrup. :tm_a_ a__

fa_ar_sugarcancausebobbtestoforr._ _ ias_eof_dish.

_i!i I _i _ , •

Quick Space Shelf

This shelf splits in half and slides under itself for storage

of tall items on the shelf below.

Slide-Out Spillproof Shelf

The slide-out spillproof shelf allows you to reach items

stored behind others. The special edges are designed to

help prevent spills from dripping to lower shelves.

Make sureyou push the shelvesall the way backin beforeyou

closethe doo_

About the storagedrawers.

Not aft features are on all models.

Fruitand Vegetable Drawers

Excess water that may accumulate in the bottom of the

drawers should be emptied and the drawers wiped dry.

AdjustableHumidi_yDrawerst

?_ii!

iliill ••_il i_ ¸ iiiiiiiiiiii_i_

Slide the control all the way to the HIGH setting

to provide high humidity recommended for most

vegetables.

Slide the control all the way to the LOWsetting to

provide lower humidity levels recommended for

most fruits.

Sealed Snack Pack

The sealed snack pack can be moved to the most useful location for

your family's needs.

Convertible Meat Drawer

The convertible meat drawer has its own cold air duct to

allow a stream of cold air from the freezer compartment

to flow around the drawer.

The variable temperature control regulates the air flow

from the freezer compartment.

Set control lever down to the coldest setting to store

fresh meats. If lever is left in meat position for a long

period of time, some frost may form on the inside of the

drawer.

Set control lever up to convert the drawer to normal

refrigerator temperature and provide extra vegetable

storage space. Cold air duct is turned off. Variable

settings between these extremes can be selected.

Aboutstoragedrawer removal

Not all features are on all models.

Drawer Removal

Drawers can eas'dy be removed by tilting up slightly and

pulfing past the stop location.

Removethe doorbins from the fresh food door beforeremovingthe

drawe_.

To remove the shelf above the top drawer, first remove

the top drawer and any food on the shelf. Then tilt the

shelf up at the front and lift it up and out of the tracks.

To replace the shelf, raise the shelf front slightly and

place the top hooks in the lowest large track slots. Then

lower the front of the shelf until it is level.

To remove the drawers when the fresh food

compartment door cannot be opened fully you need to

roll the refrigerator forward until the door can be fully

opened. In some cases this will require moving the

refrigerator to the left as you roll it out.

Aboutthe additionalfeatures.

Not all features are on all models.

Deep Door Shelves in the Freezer Compartment

Detachable shelfextenders deepen and enclose fixed

door shelves, providing more storage room and greater

storage flexibility.

Toremove: Lift the shelf extender straight up until the

mounting hooks come out of the slots in the door.

Toreplace: Line up the hooks with the slots in the door

and push in and down.

RemovableWine Rack FreezerBaskets

Bins on the Fresh Food Compartment Door

Adjustable bins can easily be carded from refrigerator to

work area.

Toremove: Lift bin straight up until mounting hooks

disengage.

Toreplace orrelocate: Select desired shelf height, engage

bin's hook in slots on the tracks of the door, and push in.

Bin will lock in place.

The dividerhelps prevent tipping, spilling or sliding of

small items stored on the door shelf. Place a finger on

either side of the divider near the front and move it back

and forth to fit your needs.

Aboutthe refreshmentcenter.

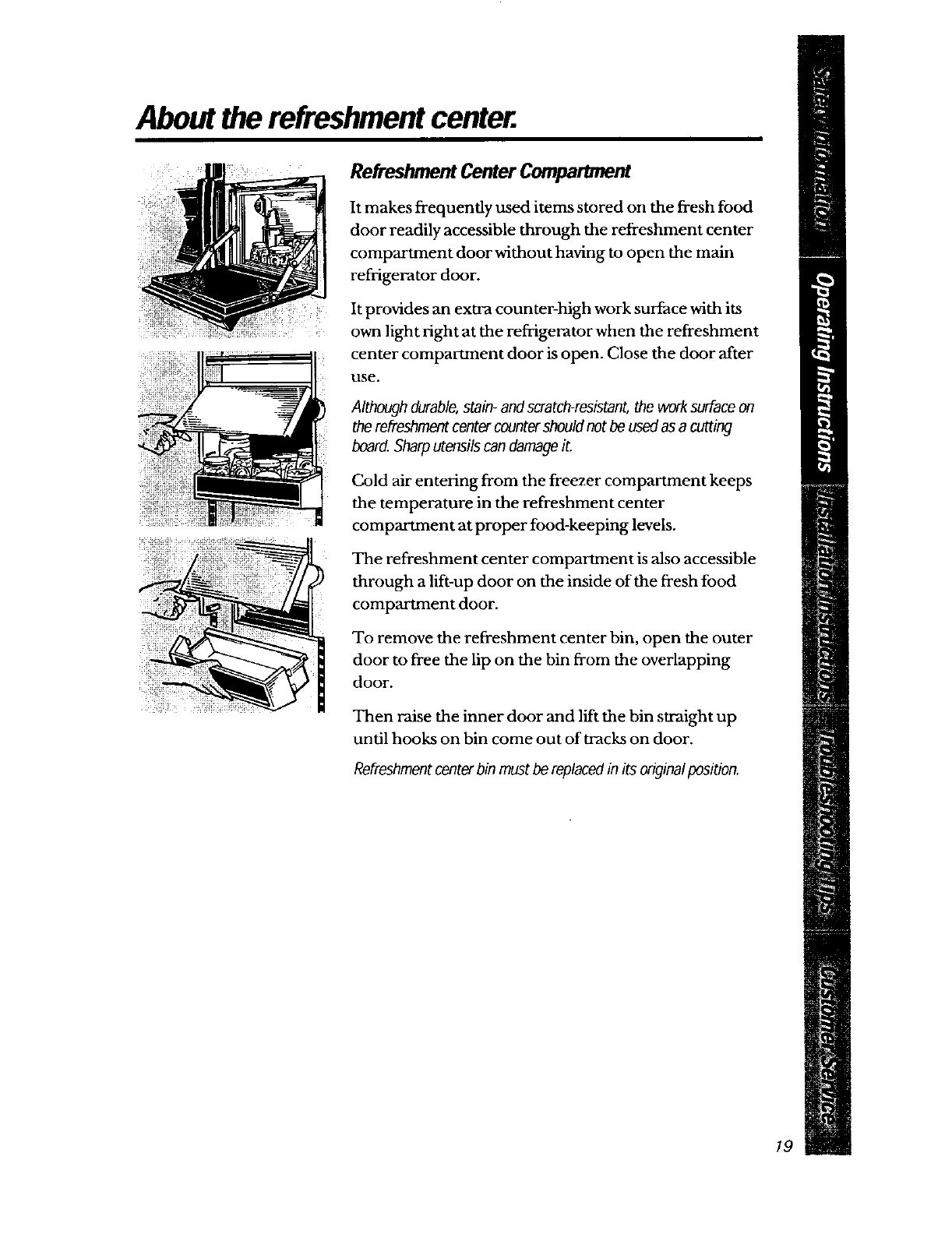

Refreshment Center Compartment

It makes frequently used items stored on the fresh food

door readily accessible through the refreshment center

compartment door without having to open the main

refrigerator door.

It provides an extra counter-high work surface with its

own light right at the refrigerator when the refreshment

center compartment door is open. Close the door after

use.

Although durable,stain-and scratch-resistant,the work surface on

the refreshmentcentercountershould not be usedas a cutting

board Sharputensils can damageit.

Cold air entering from the freezer compartment keeps

the temperature in the refreshment center

compartment at proper food-keeping levels.

The refreshment center compartment is also accessible

through a lift-up door on the inside of the fresh food

compartment door.

To remove the refreshment center bin, open the outer

door to free the lip on the bin from the overlapping

door.

Then raise the inner door and lift the bin straight up

until hooks on bin come out of tracks on door.

Refreshmentcenterbin must be replacedin its originalposition.

Aboutthe automaticicemaker.

A newly-installed refrigerator may take 8 to 12hours to begin making ice.

Automatic Icemaker

The icemaker will produce eight cubes per cycle--

approximately 120 cubes in a 24-hour period,

depending on freezer compartment temperature, room

temperature, number of door openings and other use

conditions.

If the refrigerator is operated before the water

connection is made to the icemaker, raise the ice access

door and make sure the feeler arm is in the STOP (up)

position.

When the refrigerator has been connected to the water

supply, move the feeler arm to the ON (down) position.

The icemaker will fill with water when it cools to

freezing. A newly-installed refrigerator may take

8 to 12 hours to begin making ice cubes.

Throw away the first few batches of ice to allow the water

line to clear.

Be sure nothing interferes with the swing of the feeler arm.

It is normal for several cubes to be joined together.

If ice is not used frequently, old ice cubes will become

cloudy and taste stale.

About the ice and water dispenser.

To Use the Dispenser

Press the rim of the glass gently against the dispenser pad.

Select CUBEDIC£ CRUSHEDICE(on some models) or

CHILLEDWATER.

The spill shelf is not self-draining. To reduce water

spotting, the shelf and its grille should be cleaned

regularly.

If no water is dispensedwhen the refrigeratoris first installed, there

maybe air in the water line system.Pressthe dispenserpad for at

least two minutes to removetrapped air from the water line and to

fill the water system. Toflush out impurities in the water line, throw

away the first six glassfulsof water

A light switch (on some models) turns the night light in

the dispenser on or off. The light also comes on when

the dispenser pad is pressed. The light in the dispenser

should be replaced with a 7 watt maximum bulb when it

bums out.

Mechar_sm'

Ice Storage Bin

Toremove¢

Lift the left comer to free the bin from the shelf. Pull the

bin straight out while supporting it at front and back.

Toreplace:

Slide the bin back until the tab on the bin locks into the

slot on the shelf. If the bin does not go all the way back,

remove it and turn the drive mechanism 1/4 tum. Then

push the bin back again until the tab on the bin locks

into the slot on the shelf.

Aboutthe ice and water dispenser.

_iiii_iii_J!i,_iii i_i_iii_iii,_!¸ _

i_i!__ii!![ii! ¸ i ! i_iiii_!i!i_! • :___ The water filter is an option at extra cost and is available

from your dealer. Specify WR97X0214. It has complete

installation instructions and installs on "

1/40.D.

copper water line.

Important FactsAbout YourDispenser

n Add ice before filling the glass with a beverage.

n Do not add ice from trays or bags to the storage bin. It may not

crush or dispense well.

[] Avoid overfilling glass with ice and use of narrow or extra-tall

glasses. Backed-up ice can jam the chute or cause the door in the

chute to freeze shut. If ice is blocking the chute, poke it through

with a wooden spoon.

[] Beverages and foods should not be quick-chilled in the ice

storage bin. Cans, bottles or food packages in the storage bin

may cause the icemaker or auger to jam.

g Some crushed ice may be dispensed even though you selected

CI.IBEO ICE.This happens occasionally when a few cubes

accidentally get directed to the crusher.

a After crushed ice is dispensed, some water may drip from

the chute.

[]

Sometimes a mound of snow will form on the door in the ice

chute. This condition is normal and usually occurs when you

have dispensed crushed ice repeatedly. The snow will eventually

evaporate.

Dispensed water is not ice cold. For colder water, add crushed ice

or cubes before dispensing water.

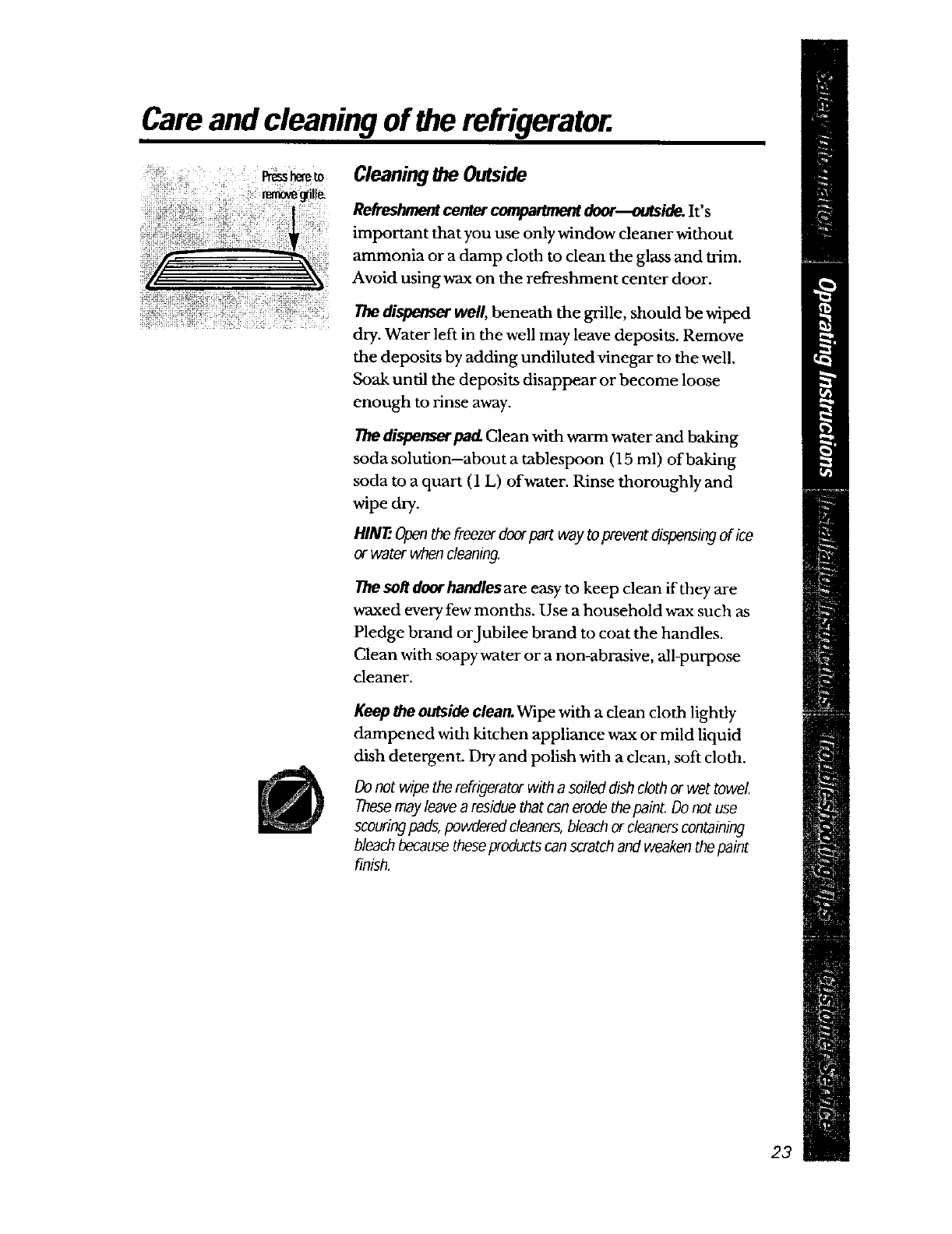

Careand cleaning of therefrigerator.

Cleaningthe Outside

Re_ center corapaame_ door---outside. It's

important that you use only window cleaner without

ammonia or a damp cloth to clean the glass and trim.

Avoid using wax on the refreshment center door.

The dispenser well, beneath the grille, should be wiped

dry. Water left in the well may leave deposits. Remove

the deposits by adding undiluted vinegar to the well.

Soak until the deposits disappear or become loose

enough to rinse away.

The dispensorpad Clean with warm water and baking

soda solution--about a tablespoon (15 ml) of baking

soda to a quart (1 L) of water. Rinse thoroughly and

wipe dry.

HINT."Openthe freezerdoorpart way to prevent dispensing&ice

or water when cleaning.

The soft doorhandles are easy to keep clean if they are

waxed every few months. Use a household wax such as

Pledge brand or Jubilee brand to coat the handles.

Clean with soapy vrater or a non-abrasive, all-purpose

cleaner.

Keep the outside clean. Wipe with a clean cloth lightly

dampened with kitchen appliance wax or mild liquid

dish detergent. Dry and polish with a clean, soft cloth.

Do not wipe the refrigerator with asoiled dish clothor wet towel.

Thesemay leave a residue that can erode thepaint. Do not use

scouringpads,powdered cleaners,bleach or cleanerscontaining

bleach becausetheseproducts can scratch and weakenthe paint

finish.

Careand cleaning of therefrigerator.

Cleaningthelnside

Refreshmentcenter compartment door--inside. Wipe up

spills right away. Use one tablespoon (15 ml) of baking

soda in one quart (1 L) of water to clean the inside door

surface, refreshment center bin and inside access door.

Rinse, wipe dry.

Tohells prevent odocg leave an open box of baking soda

in the fresh food and freezer compartments.

Unplug the refrigerator before cleaning, If this is not

practical, wring excess moisture out of sponge or cloth

when cleaning around switches, lights or controls.

Use warm water and baking soda solution--about a

tablespoon (15 ml) of baking soda to a quart (1 L) of

water. This both cleans and neutralizes odors. Rinse and

wipe dry.

After cleaning the door gaskets, apply a thin layer of

petroleum jelly to the door gaskets at the hinge side.

This helps keep the gaskets from sticking and bending

out of shape.

Drain opening in freezer comlaartrnenL During yearly

cleaning, remove bottom freezer basket and flush a

solution of baking soda--1 teaspoon (5 ml) and 2 cups

(500 ml) of hot (not boiling) water--through the drain

line with the help of a meat baster. This will help

eliminate odor and reduce the likelihood of a clogged

drain line. If drain becomes clogged, use a meat baster

and baking soda solution to force the clog through the

drain line.

Avoid cleaning cold glassshelves (onsome models)with hot water

becausethe extreme temperaturedifference may causethereto

break.Handleglass shelvescarefully.Bumpingtemperedglass can

causeit to shatter

Do not washany plastic refrigeratorparts in the dishwasher

except Quick Serve dishes and lid&

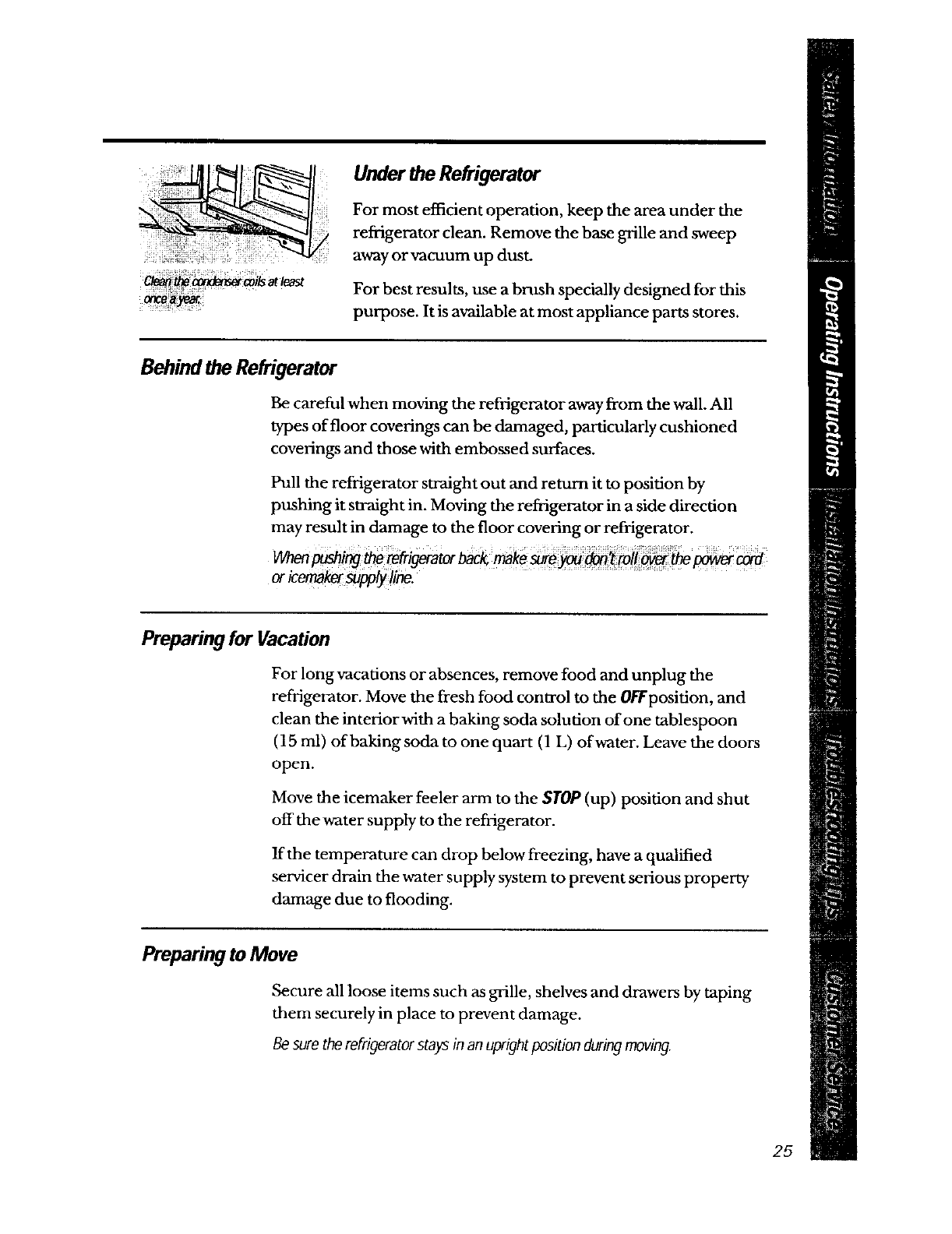

Under the Refrigerator

For most efficient operation, keep the area under the

refrigerator dean. Remove the base grille and sweep

away or vacuum up dust.

For best results, use a brush specially designed for this

purpose. It is available at most appliance parts stores.

Behind the Refrigerator

Be careful when moving the refrigerator away from the wall. All

types of floor coverings can be damaged, particularly cushioned

coverings and those with embossed surfaces.

Pull the refrigerator straight out and return it to position by

pushing it straight in. Moving the refrigerator in a side direction

may result in damage to the floor covering or refrigerator.

When jng suro ro!! cord

oricemakersupp_,line. ........

Preparing for Vacation

For long vacations or absences, remove food and unplug the

refrigerator. Move the fresh food conlxol to the Ot"Tposifion, and

clean the interior with a baking soda solution of one tablespoon

(15 ml) of baking soda to one quart (1 L) of water. Leave the doors

open.

Move the icemaker feeler arm to the STOP (up) position and shut

off the water supply to the refrigerator.

If the temperature can drop below freezing, have a qualified

servicer drain the water supply system to prevent serious property

damage due to flooding.

Preparing to Move

Secure all loose items such as grille, shelves and drawers by taping

them securely in place to prevent damage.

Besure the refrigeratorstays in an upright position during moving.

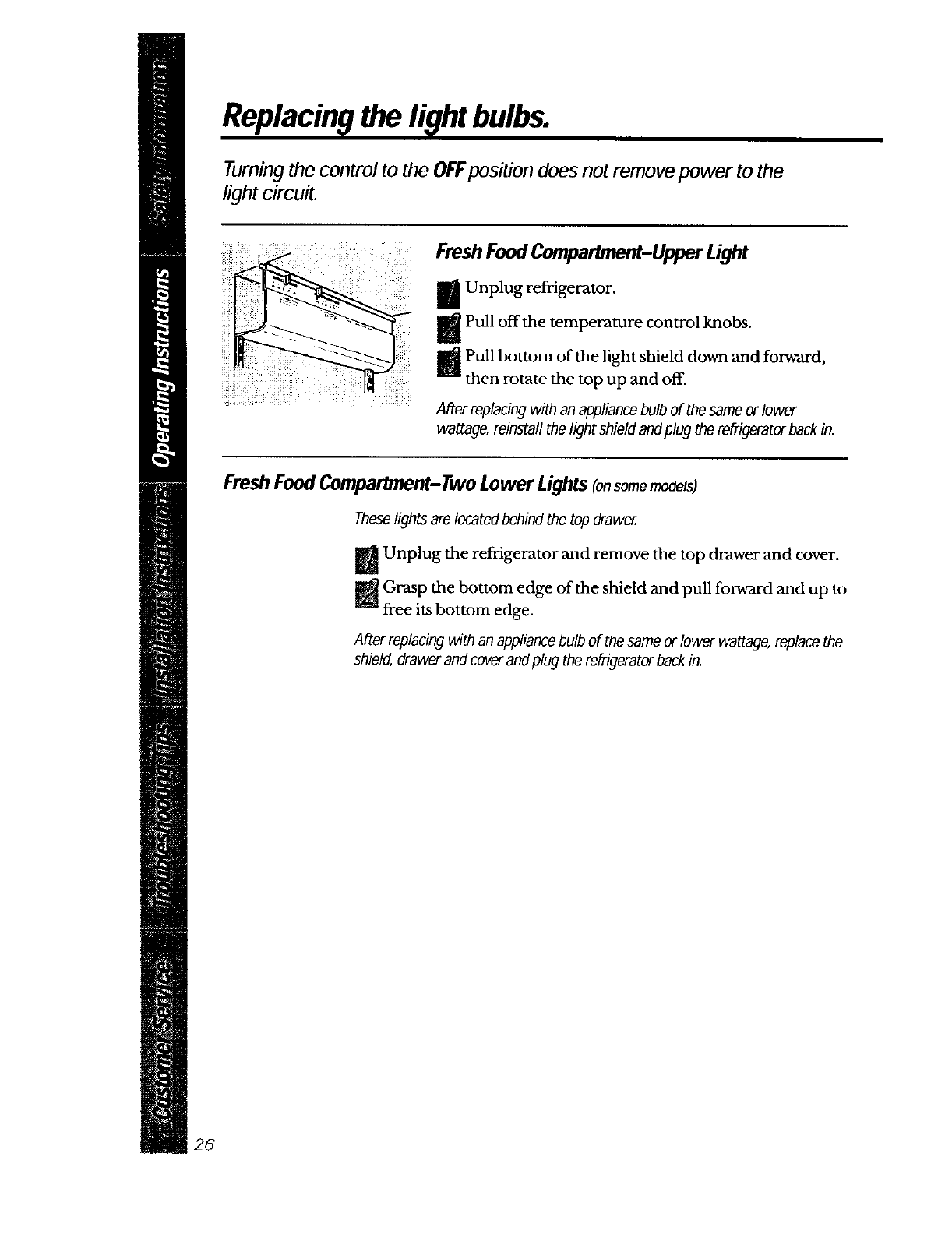

Replacingthe light bulbs.

Turning the control to the OFFposition does not remove power to the

light circuit.

FreshFoodCompartment-UpperLight

Unplug refrigerator.

Pull offthe temperature control knobs.

Pull bottom of the light shield down and forward,

then rotate the top up and off.

After replacing with an appliancebulb of the sameor lower

wattage, reinstall the light shield andplug the refrigeratorback in.

Fresh Food Compartment-Two Lower Lights (onsomemodels)

Theselights are locatedbehind the top draw_

Unplug the refrigerator and remove the top drawer and cover.

Grasp the bottom edge of the shield and pull forward and up to

free its bottom edge.

After replacing with an appliancebulb of the sameor lower wattage, replacethe

shield, drawer and coverandplug the refrigeratorback in.

Refreshment Center (onsomerr_els)

Unplug the refrigerator.

Open fresh food compartment door, remove top

bin and raise refreshment center inner door.

Press sides of flexible light shield to release locking

tabs and allow the shield to swing down.

Unscrewburned-outbulb and replace it with an appliancebulb of

the sameor lower wattage. Placereartab of light shield into door

and rotate shield up until tabs lock into slots above.Plugrefrigerator

back in.

Freezer Compartment

Unplug the refrigerator.

Remove the shelf just below light shield.

Pull the light shield toward you to reach the bulb.

After replacing with an appliancebulb of the same or lower wattage,reinstall the

shield and shelf, andplug the refrigerator backin.

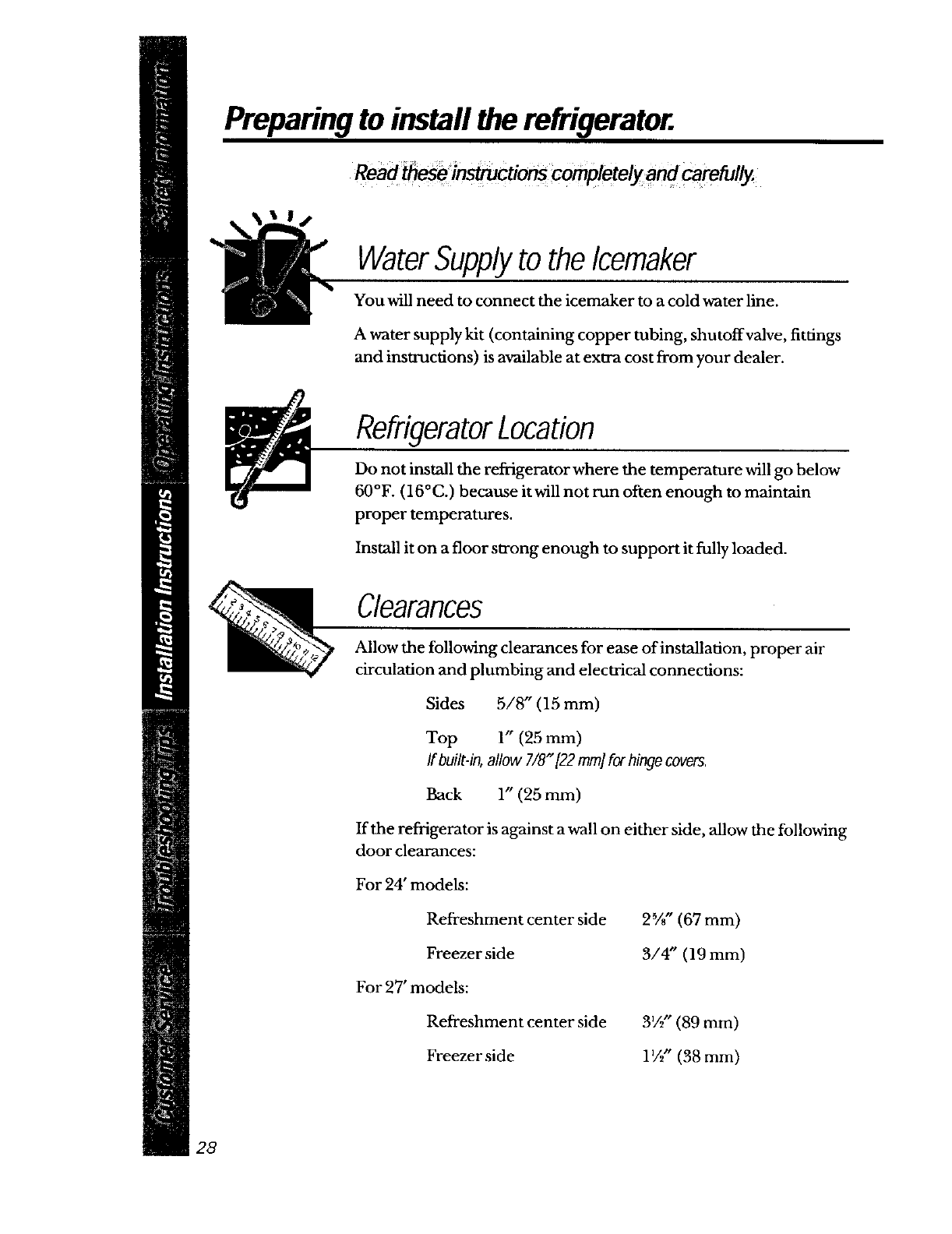

Preparingto install therefrigerator.

Read_eSe instmctio, s !comp!ete_and Carefully.

WaterSupplyto the Icemaker

You will need to connect the icemaker to a cold water line.

A water supply kit (containing copper tubing, shutoffvalve, fittings

and instructions) is available at extra cost from your dealer.

RefrigeratorLocation

Do not install the refrigerator where the temperature will go below

60°F. (16°C.) because it will not run often enough to maintain

proper temperatures.

Install it on a floor strong enough to support it fully loaded.

Clearances

Allow the following clearances for ease of installation, proper air

circulation and plumbing and electrical connections:

Sides 5/8" (15 mm)

Top l" (25 mm)

If built-in, allow 7/8"[22 ram] for hinge covers,

Back 1" (25 ram)

If the refrigerator is against a wall on either side, allow the following

door clearances:

For 24' models:

Refreshment center side

Freezer side

For 27' models:

Refreshment center side

Freezer side

2%" (67 mm)

3/4" (19 mm)

3V(' (89 mm)

]V(' (38 mm)

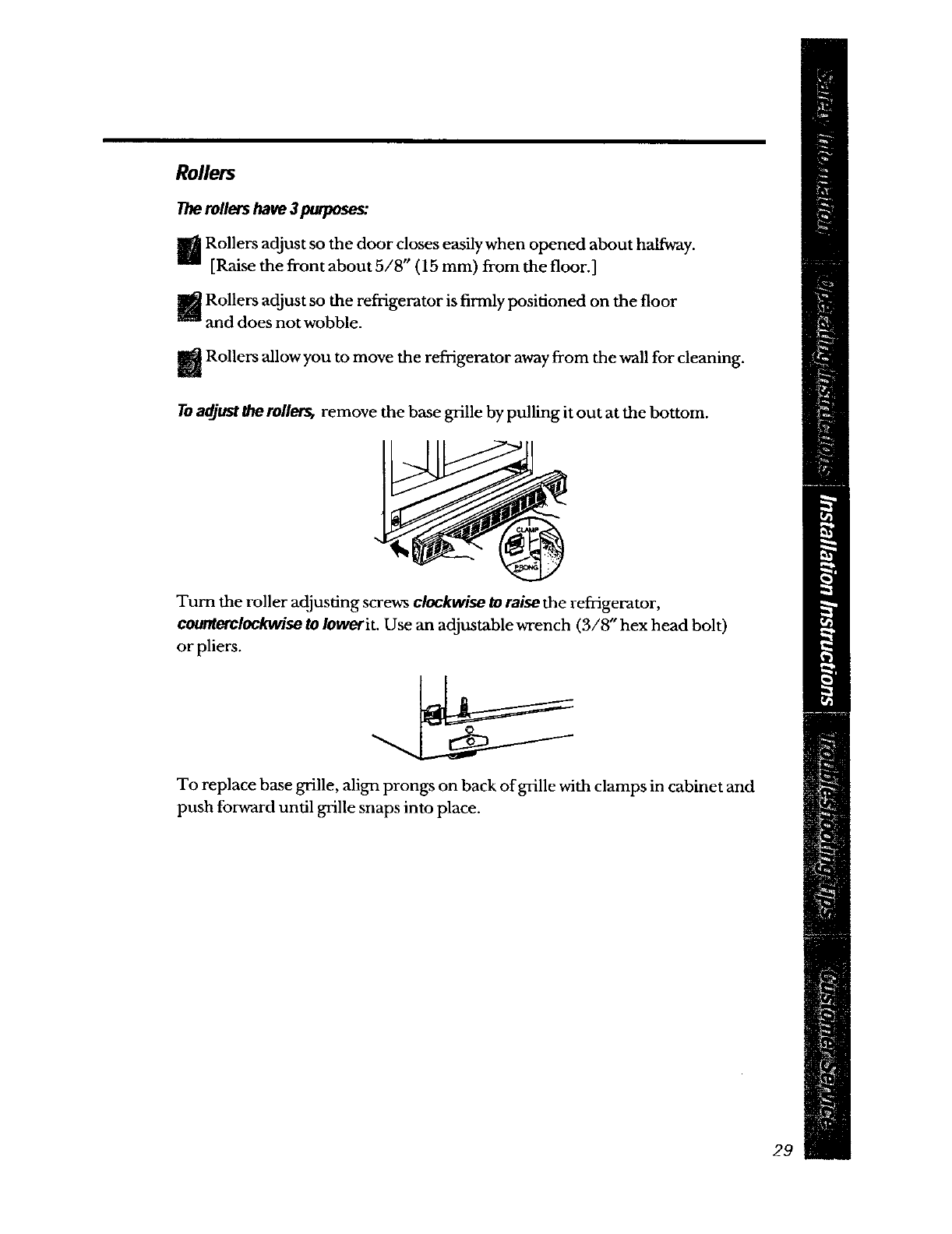

Rollers

Themilers have 3purposes:

Rollers adjust so the door closes easily when opened about halfway.

[Raise the front about 5/8" (15 mm) from the floor.]

Rollers adjust so the refrigerator is firmly positioned on the floor

and does not wobble.

Rollers allow you to move the refrigerator away from the wall for cleaning.

To adjust the rollers, remove the base grille by pulling it out at the bottom.

Turn the roller adjusting screws clockwise to raise the refrigerator,

_¢nlterclock_ise to Iowerit. Use an adjustable wrench (3/8" hex head bolt)

or pliers.

To replace base grille, align prongs on back of grille with clamps in cabinet and

push forward until grille snaps into place.

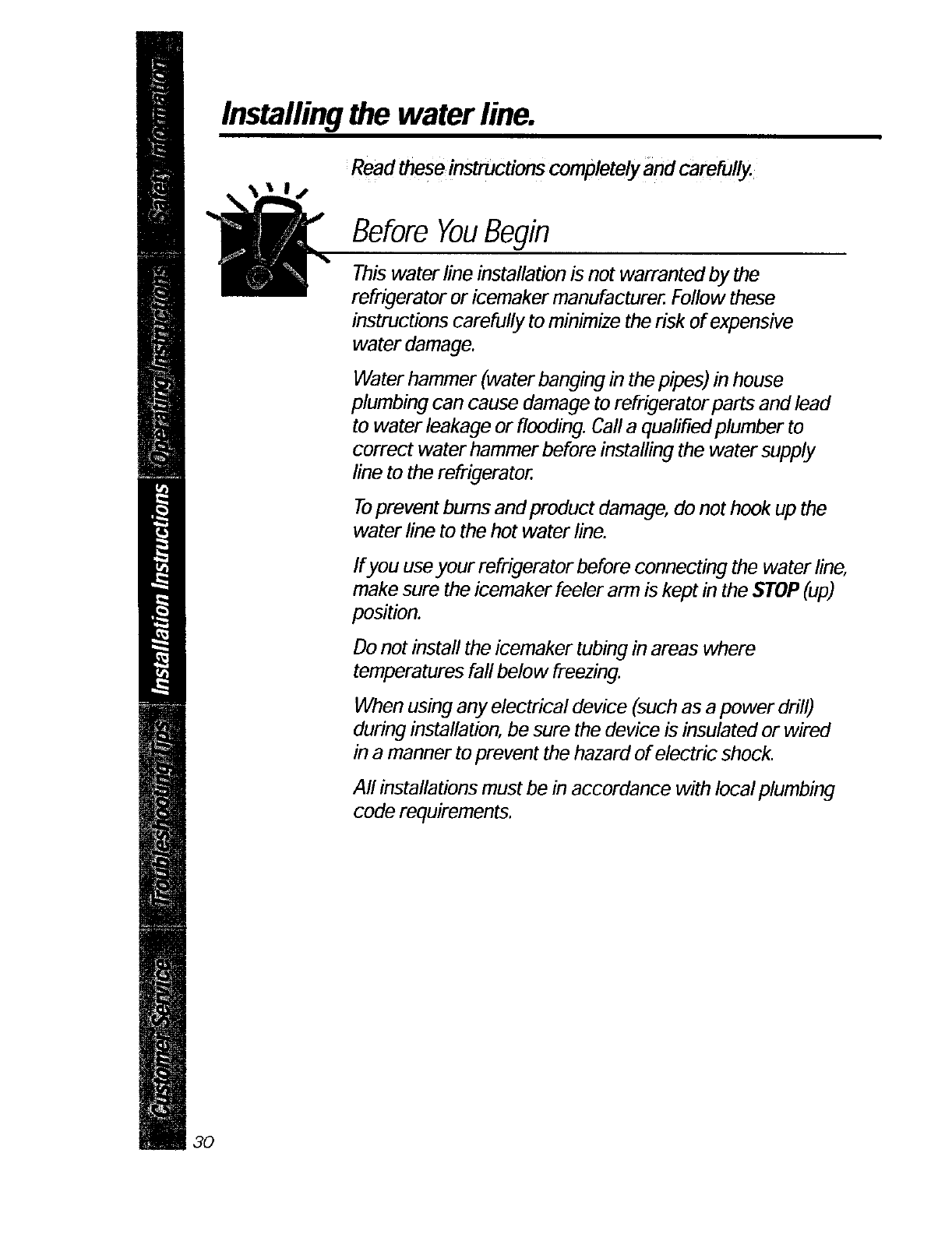

Installingthe water line.

Readtheseinstructions completely and carefully.

BeforeYouBegin

This water line installation is not warranted by the

refrigerator or icemaker manufacturer. Follow these

instructions carefully to minimize the risk of expensive

water damage.

Water hammer (water banging in the pipes) in house

plumbing can cause damage to refrigerator parts and lead

to water leakage or flooding. Call a qualified plumber to

correct water hammer before installing the water supply

line to the refrigerator.

Toprevent bums andproduct damage,do not hook up the

water line to the hot water line.

Ifyou useyour refrigerator before connecting the water line,

makesure the icemaker feeler arm is kept in the STOP(up)

position.

Do not install the icemaker tubing in areas where

temperatures fall below freezing.

When using any electrical device (such as a power drill)

during installation, be sure the device is insulated or wired

in a manner to prevent the hazard of electric shock.

All installations must be in accordance with local plumbing

code requirements.

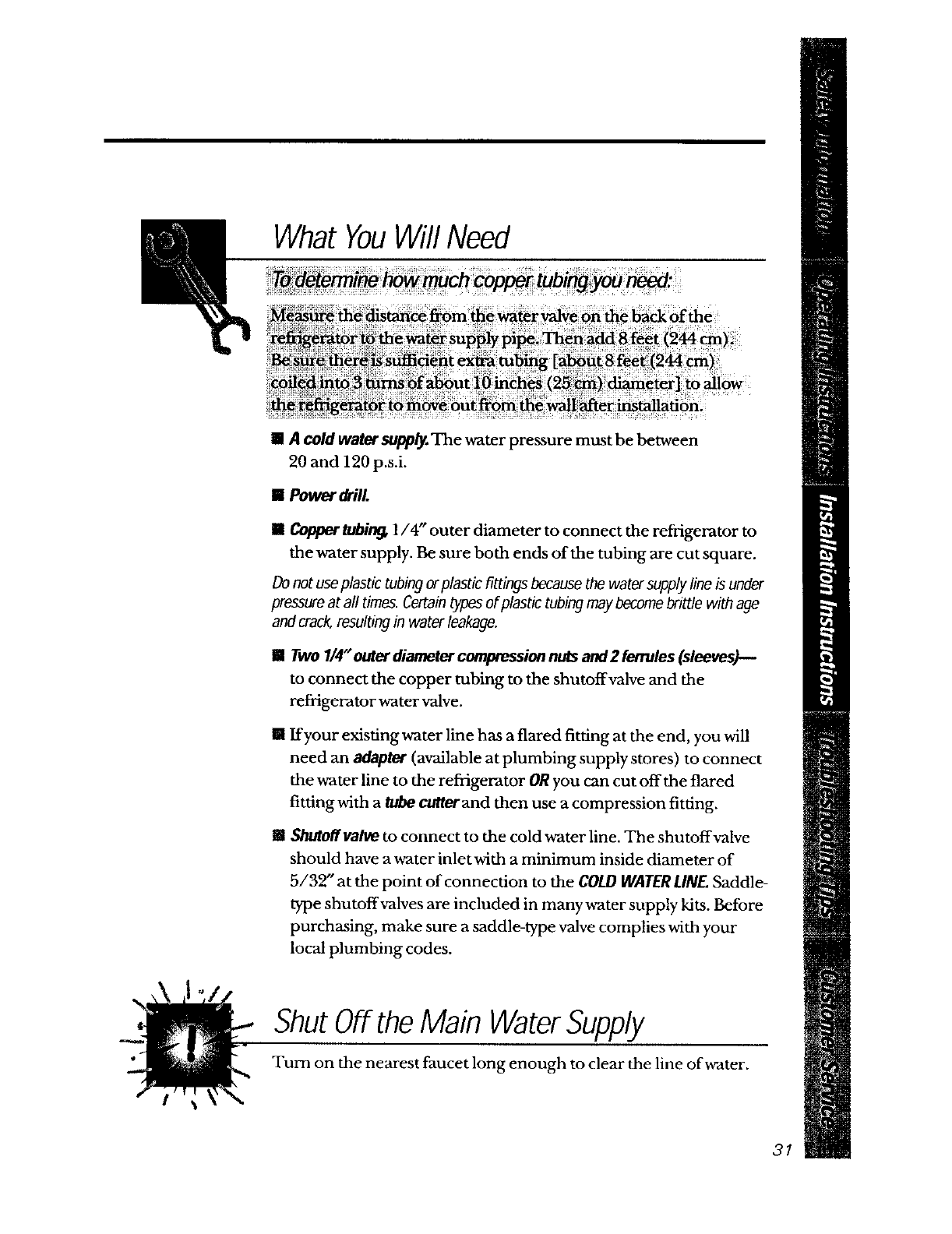

What YouWill Need

[] A cold water supp_ The water pressure must be between

20 and 120 p.s.i.

dlow

[] Power drill.

[] Copper tubin_ 1/4" outer diameter to connect the refrigerator to

the water supply. Be sure both ends of the tubing are cut square.

Do not use plastic tubingor plastic fittings becausethe water supply line is under

pressureat all times.Certaintypes of plastic tubing maybecomebrittle with age

and crac£ resulting in water leakage.

[] Two 1/4" outer diameter comtm_ssion nuts and 2 ferrules (sleeves)---

to connect the copper tubing to the shutoffvalve and the

refrigerator water valve.

[] ffyour existing water line has a flared fitting at the end, you will

need an adapter (available at plumbing supply stores) to connect

the water line to the refrigerator OR you can cut off the flared

fitting with a tube cutter and then use a compression fitting.

[] Shutuffvalve to connect to the cold water line. The shutoffvalve

should have a water inlet with a minimum inside diameter of

5/32" at the point of connection to the COLD WATER LINE.Saddle-

type shutoffvalves are included in manywater supply kits. Before

purchasing, make sure a saddle-type valve complies with your

local plumbing codes.

ShutOffthe Main WaterSupply

Turn on the nearest faucet long enough to clear the line ofw'ater.

Installingthe water line.

Install the Shutoff Valve

Install the shutoffvalve on the nearest frequently used drinking water line.

tChoose a location for the valve that is easily accessible. It is best to connect

into the side of a vertical water pipe. When it is necessary to connect into a

horizontal water pipe, make the connection to the top or side, rather than at

the bottom, to avoid drawing off any sediment from the water pipe.

Drill a 1/4" hole in the water pipe, using a sharp bit. Remove any burrs

resulting from drilling the hole in the pipe.

Fasten the shutoffvalve to the cold water pipe with the pipe clamp.

Tighten the clamp screws until the sealing washer begins to swell.

Do not overtighten oryou may crushthe coppertubing.

PipeClamp InletEnd

Saddle-TypeSht_toffValve

.VerticalColdWater Pipe

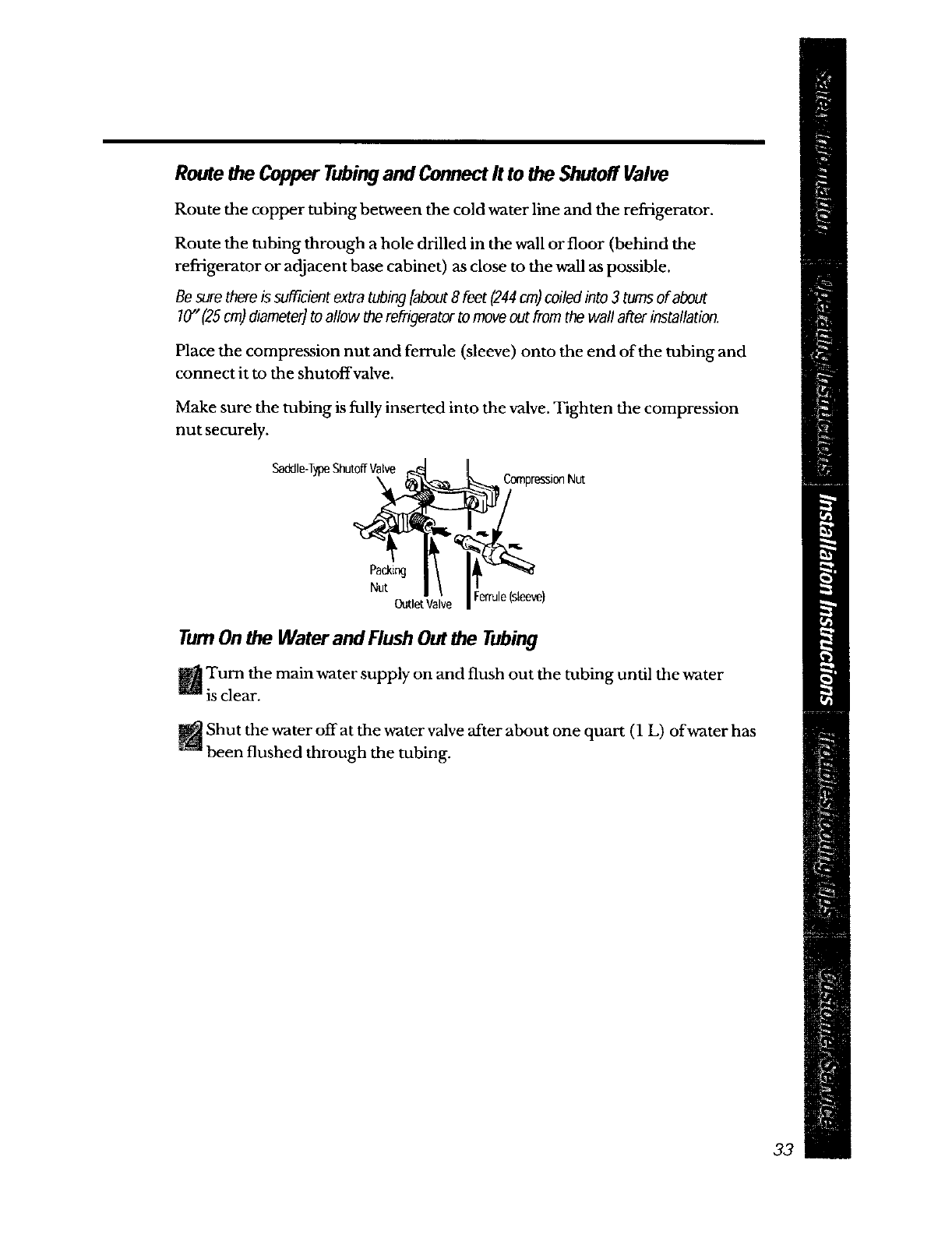

Route the Copper Tubingand Connect It to the Shutoff Valve

Route the copper tubing between the cold water line and the refrigerator.

Route the tubing through a hole drilled in the wall or floor (behind the

refrigerator or adjacent base cabinet) as close to the wall as possible.

Be sure there is sulficient extratubing [about 8 feet (244cm)coiled into 3 turns of about

10" (25cm] diameter] to allow the refrigerator to moveout from the wall after installation.

Place the compression nut and ferrule (sleeve) onto the end of the tubing and

connect it to the shutoffvalve.

Make sure the tubing is fully inserted into the valve. Tighten the compression

nut securely.

Saddle-TypeShutoffValve CompressionNut

Packing

Nut

OutletValve Ferrule(sleeve)

TurnOn the Water and Flush Out the Tubing

Turn the main water supply on and flush out the tubing until the water

is clear.

Shut the water off at the water valve after about one quart (1 L) of water has

been flushed through the tubing.

Installingthe water line.

Readthese instructionscompletely and careful!y.

Connect the Tubingto the Refrigerator

Before making the connection to the refrigerator, be sure the

refrigerator power cord is not plugged into the wall outlet.

We recommend installing a water filter if your water supply has sand or particles

that could clog the screen of the refrigerator's water valve. Install it in the water

line near the refrigerator.

Remove the plastic flexible cap from the water valve.

Place the compression nut and ferrule (sleeve) onto the end of the tubing as

shown.

Insert the end of the copper tubing into the water valve connection as far as

possible. While holding the tubing, tighten the fitting.

Fasten the copper tubing into the clamp provided to hold it in a vertical

position. You may need to pry open the clamp.

114"CopperTubing TubingClamp,,

Ferrule(sleeve)

,34

114"CompressionNut"

Turnthe Water Onat the Shutoff Valve

Tighten any connections that leak.

Plug In the Refrigerator

RefrigeratorConnection

Arrange the coil of copper tubing so that it does not vibrate against the back of

the refrigerator or against the wall.

Push the refrigerator back to the wall.

Start the Icemaker

Set the icemaker feeler arm to the ON (down) position. The icemaker will

not begin to operate until it reaches its operating temperature of 15°F. (-9°C.)

or below. It will then begin operation automatically if the icemaker feeler arm is

in the ON (down) position.

NOTE: Theicemakermay double-cyclewhen it first starts, causingsome water spillage from

the icemaker into the ice buckeL Thisis normal andshould not happenagain.

Normal operatingsounds.

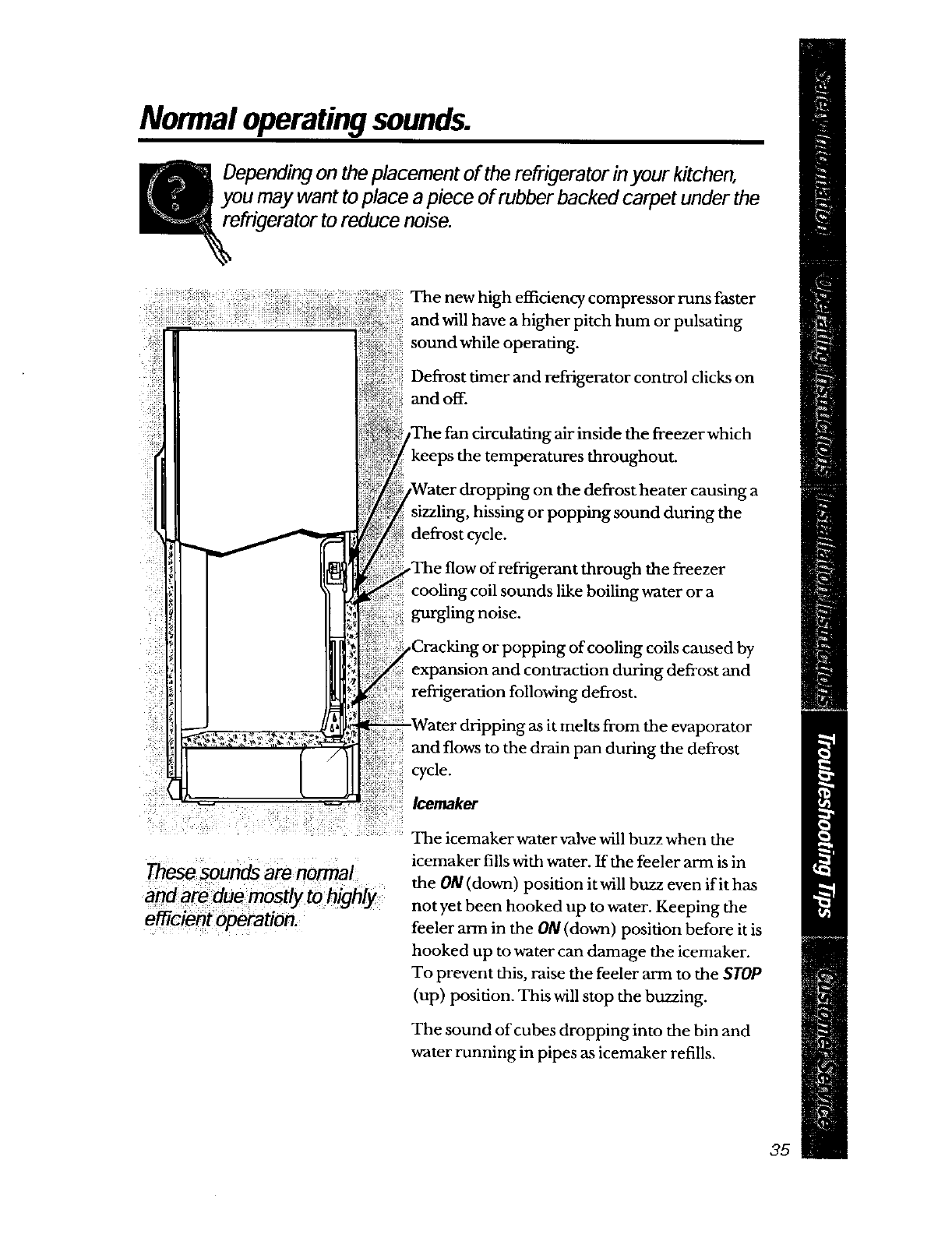

Dependingon theplacement of the refrigerator inyour kitchen,

you may want toplace apiece of rubber backed carpet under the

refrigerator to reduce noise.

Thesesounds are normal

andare due mostlyto highly

efficient operatiot; .....

The new high effidency compressor runs faster

and will have a higher pitch hum or pulsating

sound while operating.

Defrost timer and refrigerator control clicks on

and off.

air inside the freezer which

temperatures throughout.

on the defrost heater causing a

sound during the

defrost cycle.

a the freezer

cooling coil sounds like boiling water or a

gurgling noise.

of cooling coils caused by

expansion and contraction during defrost and

refrigeration following defrost.

as it melts from the evaporator

and flows to the drain pan during the defrost

cycle.

Icemaker

The icemaker water valve will buzz when the

icemaker fills with water. If the feeler arm is in

the ON (down) position it will buzz even if it has

not yet been hooked up to water. Keeping the

feeler arm in the ON (down) position before it is

hooked up to water can damage the icemaker.

To prevent this, raise the feeler arm to the STOP

(up) position. This will stop the buzzing.

The sound of cubes dropping into the bin and

_rater running in pipes as icemaker refills.

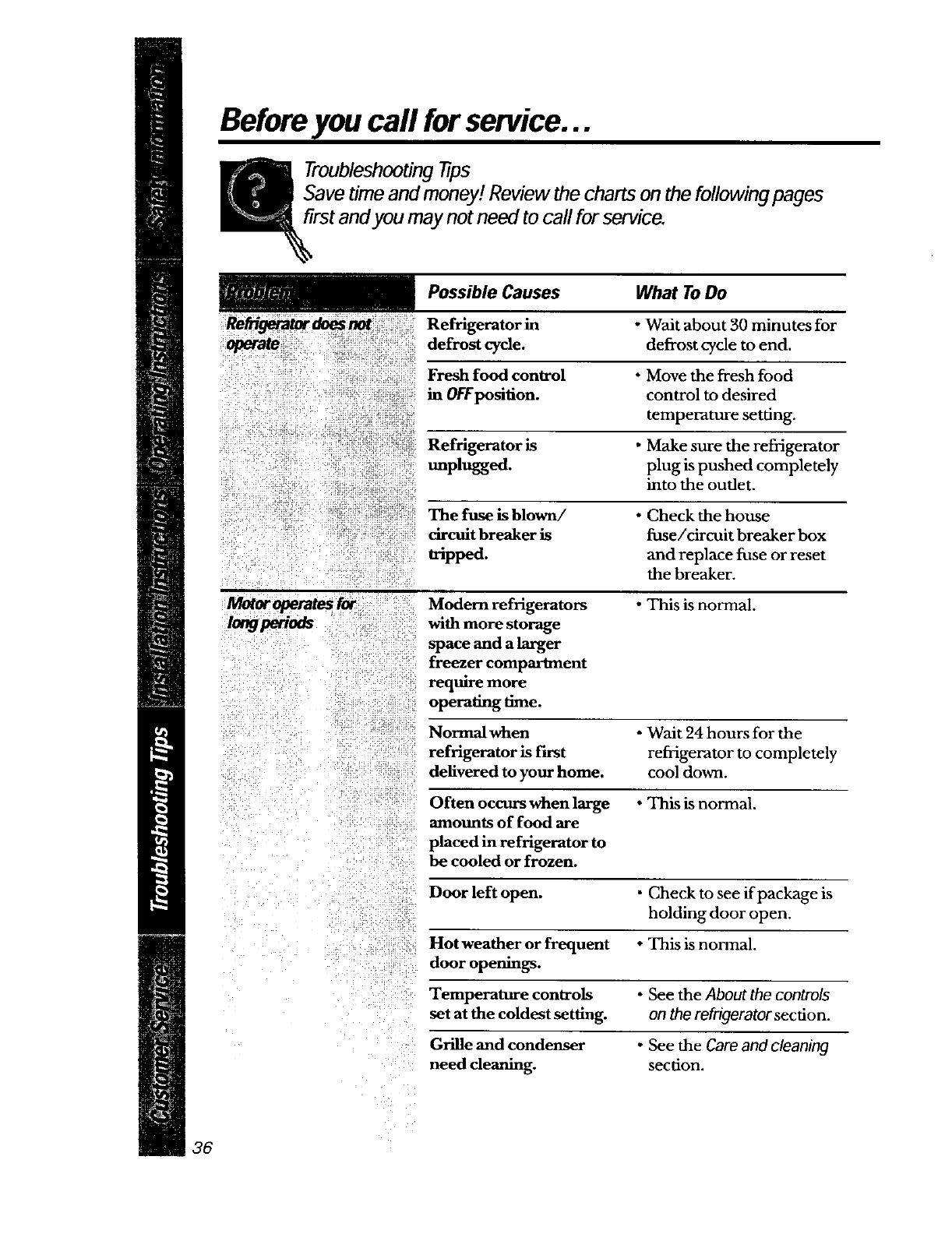

Beforeyou call for service...

Troubleshootingtips

Savetime and money! Reviewthe charts on the following pages

first and you may not need to call for service.

Possible Causes What ToDo

Refrigerator 6oes no[ :: Refrigerator in

operate defrost cycle.

,Fresh food control

in OFFpofifion.

....... Refrigerator is

..... unplugged

_:_' _"', The fuse is blown/

dreuit breaker is

tripped.

•Wait about 30 minutes for

defrost cycle to end.

•Move the flesh food

control to desired

temperature setting.

• Make sure the refrigerator

plug is pushed completely

into the oudet.

• Check the house

fuse/circuit breaker box

and replace fuse or reset

the breaker.

Motor operates for

!on0ta_ioas Modem refrigerators

with more storage

space and a larger

freezer compartment

require more

operatingtime.

• This is normal.

Normalwhen *Wait 24 hours for the

refrigerator is fkst refrigerator to completely

defivered to your home. cool down.

Often occurs when large • This is normal.

amounts of food are

placed in refrigerator to

be cooled or frozen.

Door left open. • Check to see if package is

holding door open.

Hot weather or frequent • This is normal.

door openings.

Temperature controls • See the About the controls

set at the coldest setting, on the refrigerator section.

Grille and condenser • See the Care and cleaning

need cleaning, secdon.

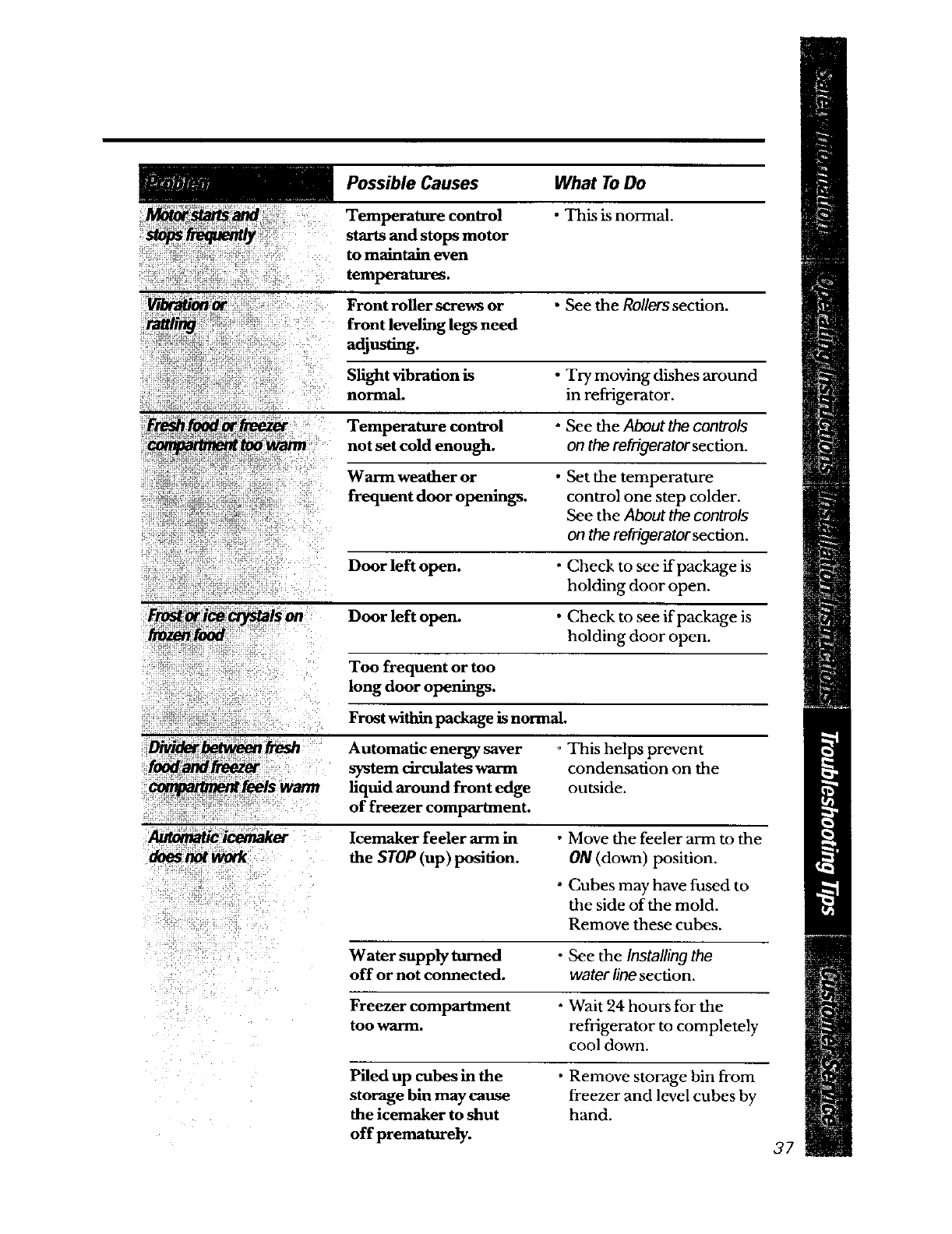

Possible Causes What To Do

Temperature control •This is normal.

starts and stops motor

to maintain even

temperatures.

Front roller screws or

front leveling legs need

adjuring.

• See the Rollerssection.

Slight vibration is

normal • Try moving dishes around

in refrigerator.

Temperature control

not set cold enough.

• See the About the controls

on the refrigerator section.

Warm weather or

frequent door openings. • Set the temperature

control one step colder.

See the About the controls

on the refrigerator section.

Door left open. •Check to see if package is

holding door open.

Door_fiopen. • Check to see if package is

holding door open.

Too frequent or too

long door openings.

Frost within package is normal.

Automatic iceraaker

does_work

Automatic energy saver

system circulates warm

liquid around front edge

of freezer compartment.

Icemaker feeler arm in

the STOP(up) position.

0 This helps prevent

condensation on the

outside.

•Move the feeler arm to the

ON (down) position.

•Cubes may have fused to

the side of the mold.

Remove these cubes.

Water supply turned " See the Installing the

off or not eonnected, water line section.

Freezer compartment • Wait 24 hours for the

too warm. refrigerator to completely

cool down.

Piled up cubes in the

storage bin may cause

the icemaker to shut

off prematurely.

• Remove storage bin from

freezer and level cubes by

hand.

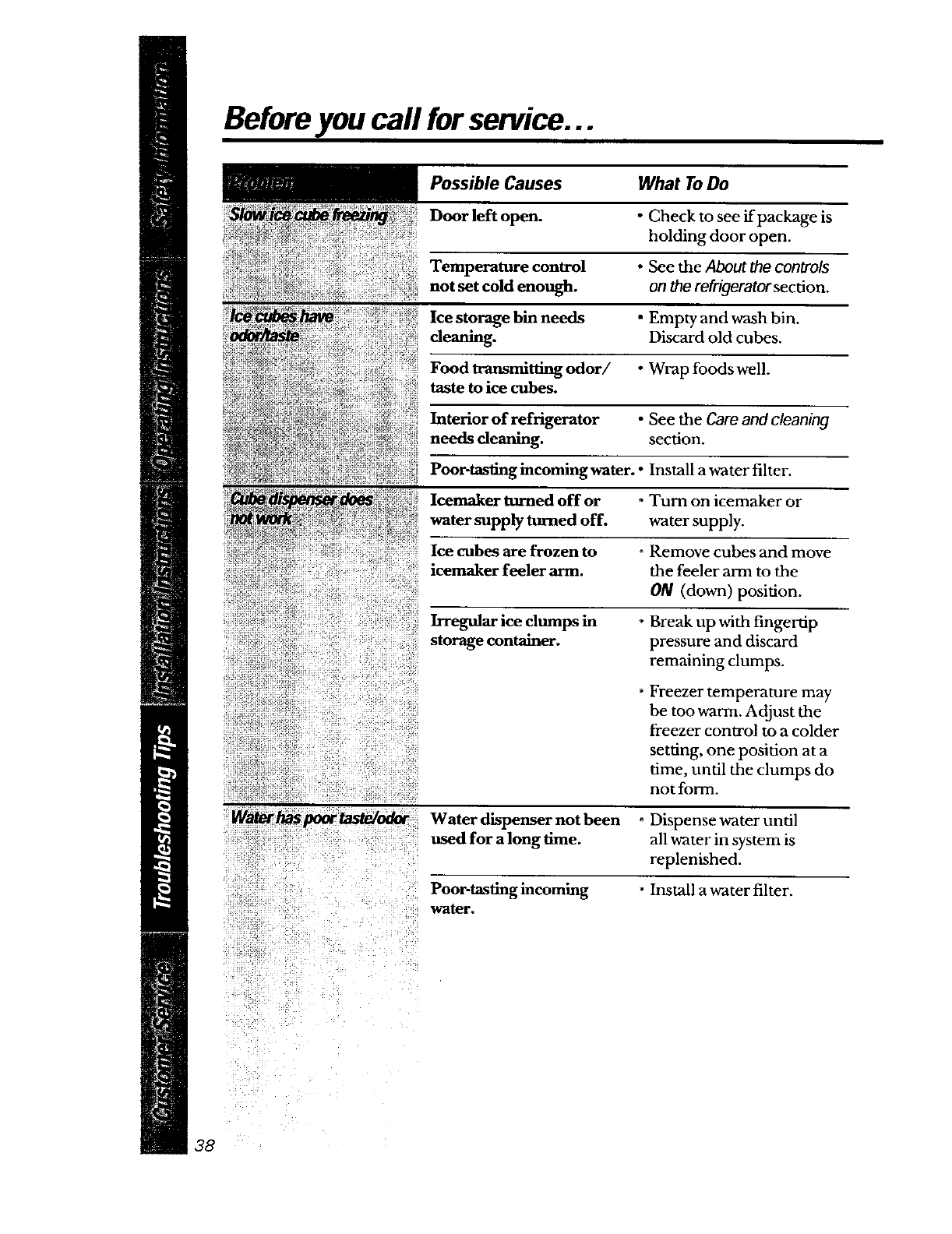

Beforeyou call forservice...

!i!iiii_J!_i

Possible Causes What ToDo

Door left open. "Check to see if package is

holding door open.

Temperature control

not set cold enough.

•See the Aboutthecontrols

ontherefrigeratorsection.

Ice storage bin needs

cleaning.

• Empty and wash bin.

Discard old cubes.

Food transmitting odor/ • Wrap foods well.

taste to ice cubes.

Interior of refrigerator • See the Care and cleaning

needs deaning, section.

Poor-tastingincomingwater. •Install awater filter.

Icemaker turned off or - Turn on icemaker or

water supply turned off. water supply.

Ice cubes are frozen to , Remove cubes and move

icemaker feeler ann. the feeler arm to the

ON (down) position.

Irregular ice clumps in

storage containe_. *Break up with fingertip

pressure and discard

remaining clumps.

• Freezer temperature may

be too warm. Adjust the

freezer control to a colder

setting, one posidon at a

time, undl the clumps do

not form.

has poor tasteJodor Water dispenser not been . Dispense water until

used for a long dme. all water in system is

replenished.

Poor_tastingincoming

water.

Install a water filter.

Possible Causes What ToDo

Water supply line turned

off or not connected.

Supplylinedogged

with sediment.

Air may be trapped in the

water system.

Foods transmitting

odor to refrigerator.

Spoiled food.

•See the Installing the water

line section.

•Press the dispenser pad for

at least two minutes.

• Foods with strong odors

should be fighdy wrapped.

•Keep an open box of

baking soda in the

refrigerator; replace

every three months.

Interior needs cleaning. .See the Care and cleaning

section.

Defrost water drainage

system needs cleaning.

• See the Care and cleaning

section.

Moislute forms on Not umtsual during • Wipe surface dry.

periods of high humidity.

Moisaxe:collects inside Too frequent or too

long door openings.

In humid weather, air

carries moisture into

refrigerator when doors

are opened.

No power at outlet. Check the house

fuse/circuit breaker

box and replace fuse or

reset the breaker.

Light bulb burned out. " See the Replacing the light

bulbs section.

Door not closing properly Door gasket on hinge side "Apply petroleumjelly on

sticking or folding over. face of gasket.

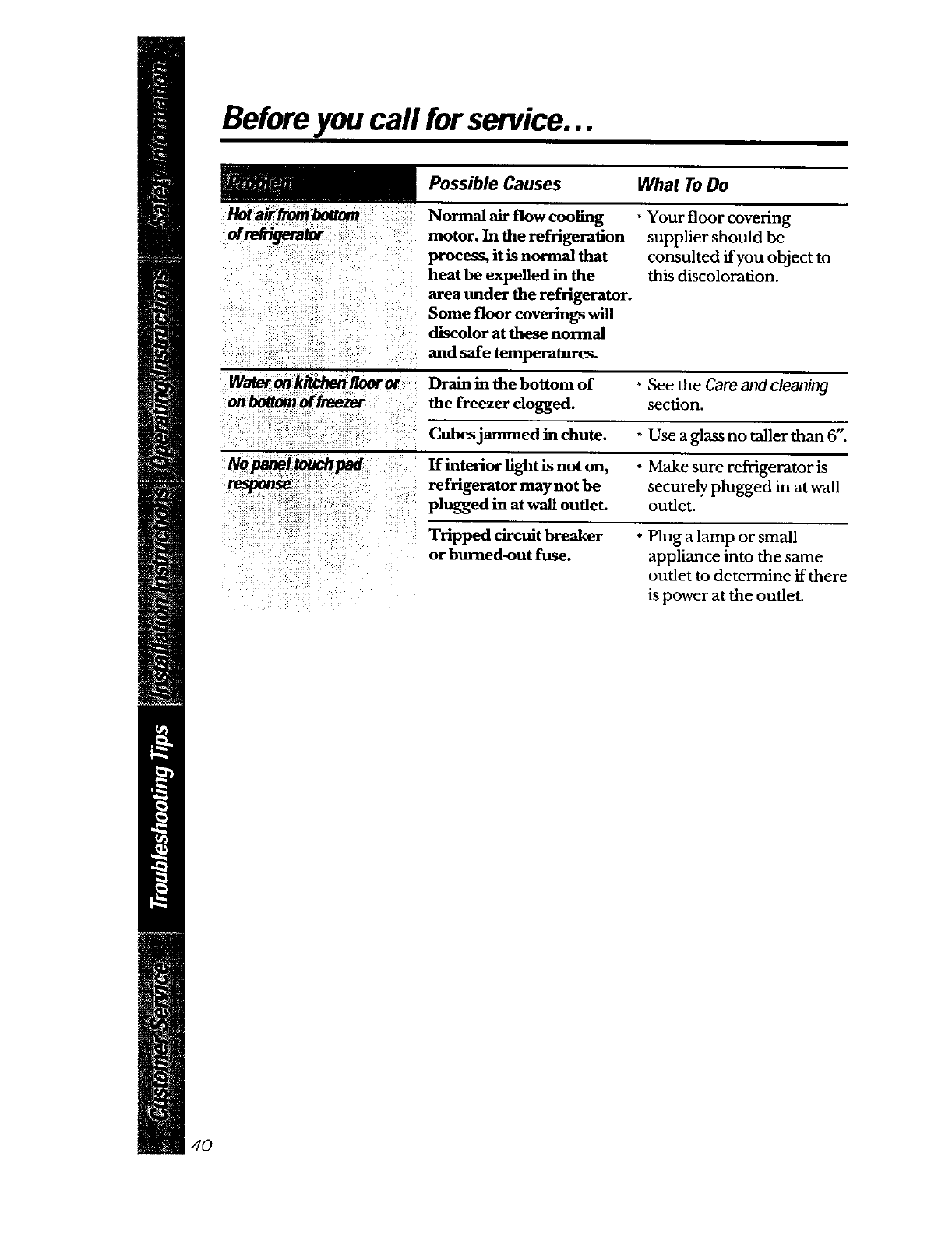

Beforeyou call for service...

Hotair frombottom

ofrehigerater

Possible Causes What ToDo

Water on kitchen floor or

on bottom of freezer

Normal air flow cooling

motor. In the refrigeration

process, it is normal that

heat be expelled in the

area under the refrigerator.

Some floor coverings will

discolor at these normal

and safe temperatures.

Your floor covering

supplier should be

consulted if you object to

this discoloration.

Drain in the bottom of

the freezer dogged.

• See the Care and cleaning

section.

Cubes jammed in chute. - Use a glass no taller than 6".

If interior light is not on, • Make sure refrigerator is

refrigerator may not be securely plugged in at wall

plugged in at wall outlet, outlet.

Tripped circuit breaker • Plug a lamp or small

or burned-out fuse. appliance into the same

outlet to determine ff there

is power at the outlet.

ConsumerWarranty

For customers in Canada

CAMCOwarrants the replacement or repair of all parts of this Refrigerator which

prove to be defective in material or workmanship for one year from the date of

purchase. Such parts will be repaired or replaced at the option of Camco without

charge, subject to the terms and conditions set out below.

The DEALERwarrants to provide the service labor for the repair or replacement of all

parts of this Refrigerator which prove to be defective in material or workmanship for

one year from the date of purchase.

CAMCOwarrant_ the hermetically sealed refrigerator (namely:. Evaporator,

Condenser, Motor Compressor, Interconnecting Tubing, Drier and Refrigerant

Charge) against defects in material or workmanship for an additional four years.

These parts will be repaired or replaced at the option of Camco without charge,

subject to the terms and conditions set out below.

The DEALERwarrants for the next four years to provide the service labor necessary to

repair or replace the hermedcally sealed refrigeration system to the terms and

conditions set out below.

mThis warranty applies only to single family domestic use in Canada when the

Refrigerator has been properly installed according to the inslructions supplied by

Camco and is connected to an adequate and proper utility service. Damage due to

abuse, accident, commercial use, and alteration or the removal or defacing of the

serial plate, cancels all obligations of this warranty. Service during this warranty must

be performed by an Authorized Camco Service Agent.

m Neither Camco nor the Dealer is liable for any claims or damages resulting from any

failure of the Refrigerator or from service delays beyond their reasonable control.

ITo obtain warranty service, purchaser must present the original bill of sale.

Components repaired or replaced are warranted through the remainder of the

original warranty period only.

[I This warranty does not cover expense involved in making this appliance readily

accessible for servicing.

IThis warranty gives you specific legal rights. Additional warranty rights may be

provided by law in some areas.

CamcoServiceis available coast-to-coast.See CustomerServicesection for serviceinformation.

If further help isneededconcemtngthis Warranty,contact.

Manager,ConsumerRelations,CamcoInc,,ConsumerService,

5800 Keeton Crescent,Mississauga,Ontario,L5R3K2 41

RefrigeratorWarranty(Forcustomers in the UnitedStates)

All warranty service provided by our Factory Service Centers,

or an authorized CustomerCare®technician. For service,

call 800-GE-CARES.

GE Will Replace, At No Charge ToYou:

A_part of the refrigerator which fails due to a defect

in materials or workmanship. During this full one-year

warranty, GE will also provide, free of charge, all labor

and in-home service to replace the defective part.

Any part of the sealed refrigerating system (the compressor,

condenser, evaporator and all connecting tubing)

which fails due to a defect in materials or workmanship.

During this five-year warran_ GE will also provide, free

of charge, all labor and in-home service to replace the

defective part.

Any see-lhrau_ pan or drawer furnished with the

refrigerator if the pan or drawer breaks during normal

household use. Drawer covers are not included.

J Service trips to your home to teach

you howto use the product.

1Improper installation.

[] Failure of the product if it is

abused, misused, or used for other

than the intended purpose or used

commercially.

[] Loss of food due to _o_e.

[] Rephcement of house fuses or

rese_ng of circuit breakers.

[] Damage to the product caused by

accident, fine, floods or acts of God.

[] Incidental or consequential damage to

personal property caused bypossible

defects with this appliance.

Thiswarranty is extendedto the originalpurchaserand any succeedingowner for productspurchased

for home use within the USA.In Alaska, the warranty excludesthe cost of shipping or servicecalls to

your home.

Some states donot allow the exclusionor limitation of incidentalor consequentialdamages.This

warrantygivesyou specific legalrights, andyou may also have other rights which varyfrom state to

state. Toknow whatyour legalrights are, consultyour local orstate consumeraffairs office oryour

state'sAttorney General

Ge Appliances Tfx24 Owners Manual ManualsLib Makes It Easy To Find Manuals Online!

Ge-Tfx24-Owners-Manual-119964 ge-tfx24-owners-manual-119964

Navigation menu

Versions of this User Manual:

Views

Navigation
