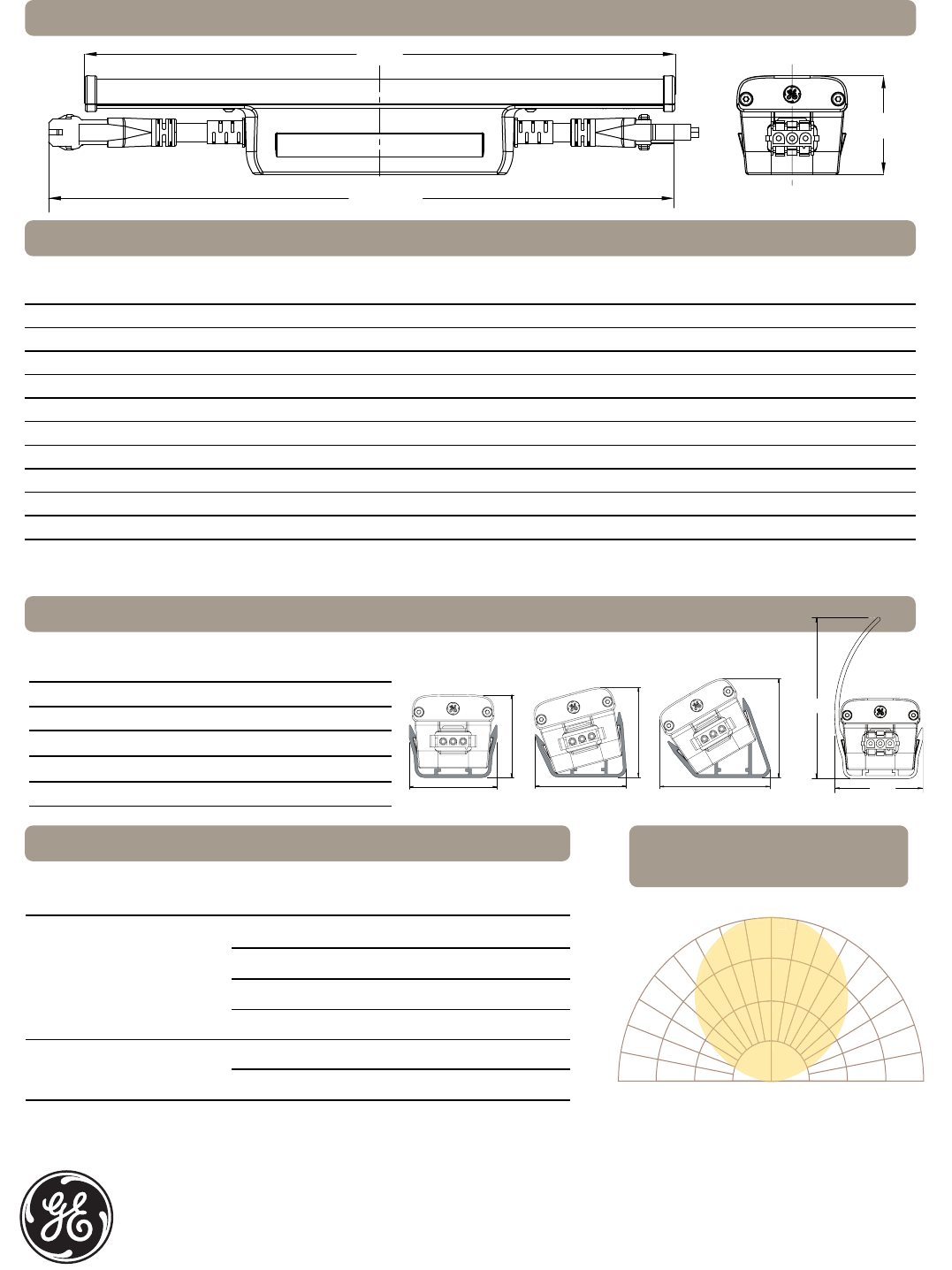

LED Cove

LC Series Lighting System

GE

Lighting

2.90 inches

2.60 inches

(66 mm)

(74 mm)

OLP-2875

ARCH054-031414

Candlepower Distribution

Comparison

Connector Cable Specifications

Product Dimensions

1.88 inches

(48 mm)

12.00±0.394 inches

(305±10 mm)

11.25 inches

(286 mm)

Cove Fixture Specifications

Mounting Track Specifications

0° 15° 30°

73105 73106 73107

2.20 inches

2.30 inches

(58 mm)

(56 mm)

2.20 inches

(56 mm)

2.40 inches

(61 mm)

105

270° 90°

250°

230°

210°

190°

Candela (Cd)

Vertical Plane at 90° Horizontal

170°

180°

150°

130°

110°

79

53

26

1

05

79

53

26

IES files can be downloaded at www.gelighting.com

Product Input Wattage

Length IP Case

Code Description Voltage CCT +/- CCT

Lumens

LPW

CRI (

ft/m)

(inches/mm) Rating Qty

73098 LC12/727/120V 120VAC/50Hz/60Hz 2700K* +90/-55K 350 51 80 6.8/22.30 12.00±0.394/305±10 IP20 10

62193 LC12/827/120V 120VAC/50Hz/60Hz 2700K* +90/-55K 350 51 80 6.8/22.30 12.00±0.394/305±10 IP51 10

73099 LC12/730/120V 120VAC/50Hz/60Hz 3000K* +123/-52K 350 51 80 6.8/22.30 12.00±0.394/305±10 IP20 10

74892 LC12/741/120V 120VAC/50Hz/60Hz 4100K +300/-300K 320 49 77 6.5/21.32 12.00±0.394/305±10 IP20 10

62194 LC12/840/120V 120VAC/50Hz/60Hz 4000K* +104/-170K 400 59 80 6.8/22.30 12.00±0.394/305±10 IP51 10

73100 LC12/727/240V 240VAC/50Hz/60Hz 2700K* +90/-55K 350 51 80 6.8/22.30 12.00±0.394/305±10 IP20 10

62197 LC12/827/240V 240VAC/50Hz/60Hz 2700K* +90/-55K 350 51 80 6.8/22.30 12.00±0.394/305±10 IP51 10

73101 LC12/730/240V 240VAC/50Hz/60Hz 3000K* +123/-52K 350 51 80 6.8/22.30 12.00±0.394/305±10 IP20 10

73826 LC12/741/240V 240VAC/50Hz/60Hz 4100K +300/-300K 320 49 77 6.5/21.32 12.00±0.394/305±10 IP20 10

62198 LC12/840/240V 240VAC/50Hz/60Hz 4000K* +104/-170K 400 59 80 6.8/22.30 12.00±0.394/305±10 IP51 10

For material estimation, each fixture measures exactly 12 inches (0.3m). Ambient Temperature: -20°C to +40°C. IP51: dry or damp location rated. IP20: dry location rated.

* = 3 Step MacAdam ellipse LED binning

Product Input

Length Length Case

Code Description Voltage

(inches) (mm) Qty

Leader Cables 73108 LC-LC/40 120V 480 12,192 1

75476 LC-LC/10 120V 120 3,048 1

73617 LC-LC/12M/CE 240V 472.4 12,000 1

73618 LC-LC/3M/CE 240V 118.1 3,000 1

Jumper Cables 73109 LC-JC/3 120V 36 914 1

73616 JC-JC/1M/CE 240V 39.4 1,000 1

Connects LED Cove fixtures to

power source

Connects between two LED Cove

fixtures for added flexibility

Product Track Length LengthCase

Code Description Angle Type (inches) (mm) Qty

73105 LC-MT48/0 0° Track 48 1,219 25

73106 LC-MT48/15 15° Track 48 1,219 25

73107 LC-MT48/30 30° Track 48 1,219 25

62188 LC-MTS48/0 0° Track 48 1,219 10

62818

LC-SC Shield Connector

5.91 150 20

2.34

(59.4 mm)

4.27

(108.4 mm)

COVE SHIELD TRACK

62188
