GE
Lighting
imagination at work

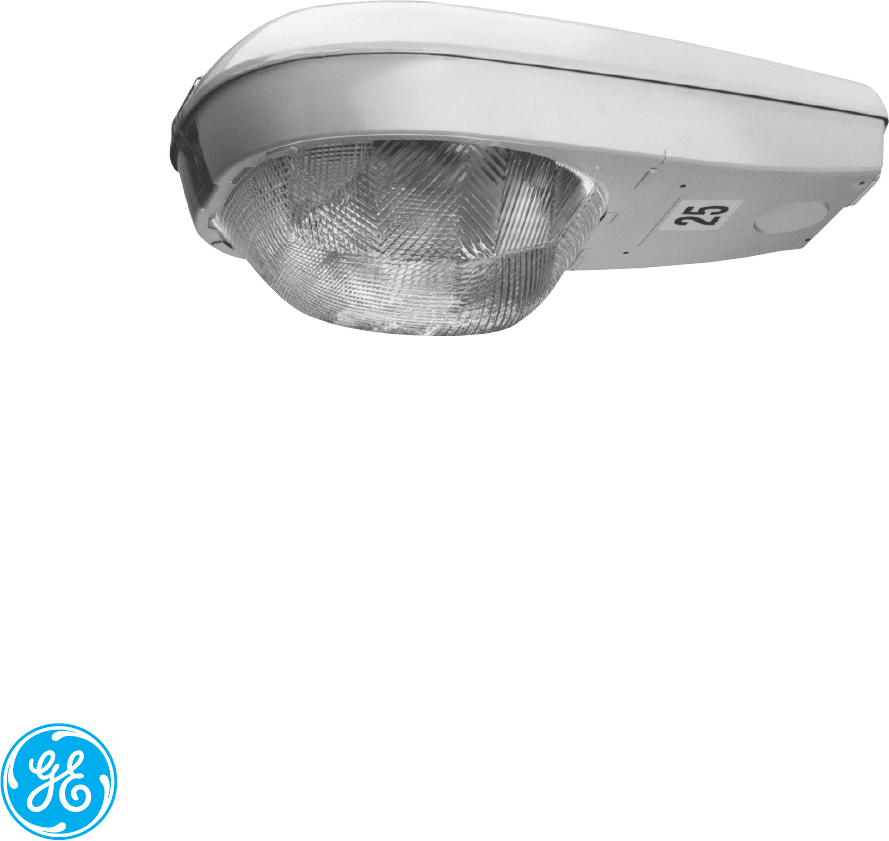

M-400 (MSRL & MSRA)
Roadway Lighting
Applications
• For street, highway, parking lot and area lighting
Housing
• Die-cast aluminum housing.
• External paddle type stainless steel bail latch
Finish
• Polyester powder gray paint finish
Ratings
• listed for wet location available
Mounting
• Universal two or four-bolt slipfitter
• Metal pest guard standard (not required
for 2 in. pipe mounting)
Reflectors
• Standardized reflector
Unique Features
• Adjustable mogul base socket
(house side) – E39 standard
• Plug-in ignitor standard
• “Dead back” tunnel type terminal board
• No-tool PE receptacle
From HID to LED, GE continues to push Roadway Lighting to new heights. Recognized for the highest quality and reliability
in street, highway, parkway, and commercial applications, GE offers a wide selection of styles to meet the lighting needs
of municipalities, utilities, DOT customers and more.
Product Features
/
Light
Wattage Source MS2 MS3 MC2 MC3 SC2 SC3
150 (55V) HPS 450395 450394 N/A 450393 N/A N/A 450957(MC3)
200-400 HPS 451012 451013 451014 451015 N/A 451016 450958(MS3)
175, 250, 320, EPMH 450351 450349 N/A N/A N/A 450350 N/A
350, 400 EPMH 450274 450273 N/A N/A N/A N/A N/A
Light 347** 240/120 200-
Wattage Source Multivolt 120 208 240 277 480 120X240 120X347 PE R 220 230 277 220 230 240
150 (55V) HPS H,N,A G,H,M,N G,M G,M G,M G,M G,H,M,N G*,H,M*,N G,M N/A N/A N/A N/A N/A N/A
200 HPS A,G,M,P A,G,H,M,N,P A,G,H,M,N,P A,G,H,M,N,P A,G,M,P A,G,M A,G,M,P A,G,M,P A,G,H,M,N N/A H N/A N/A N/A N/A
250 HPS A,G,M,P A,G,H,M,N,P A,G,H,M,N,P A,G,H,M,N,P A,G,M,P A,G,M,P A,G,M,P A,G,M,P A,G,H,M,N A,H H N/A A,H,M,N H M
250/400 HPS A A A A A A N/A A N/A N/A N/A N/A N/A N/A N/A
310 HPS A,G,M A,G,M A,G,H,M,N A,G,H,M,N A,G,M A,G,M A,G,M A,G,M A,G,H,M,N N/A H N/A N/A N/A N/A
400 HPS A,G,M A,G,M A,G,H,M,N A,G,H,M,N A,G,M A,G,M A,G,M A,G,M A,G,H,M,N A,H,N H N/A A,H,M,N N/A A,H,M
175 EPMH A A A A A A A N/A A N/A N/A N/A N/A N/A N/A
250 EPMH A A A A A A A N/A A N/A N/A N/A N/A N/A N/A
320 EPMH A A A A A N/A A N/A A N/A N/A N/A N/A N/A N/A
350 EPMH A A A A A N/A A N/A A N/A N/A N/A N/A N/A N/A
400 EPMH A A A A A A A N/A A N/A N/A N/A N/A N/A N/A
2
_ _ _ _ _ _ _ _ _ _ _ _ _ _
PROD. ID
VOLTAGE
OPTIONS
IGNITOR
MOUNTING
PE
FUNCTION
LENS
TYPE
IES DISTRIBUTION
TYPE
WAT TAGE LIGHT
SOURCE
Ordering Number Logic
M-400 (MSRL & MSRA)
BALLAST
TYPE
SELECTION
1 = None
2 = PE Receptacle
NOTE: Receptacle
connected same
voltage as unit
except as noted.
Order PE Control
separately.
MSRL =
M-400 with
2-bolt
slipfitter
MSRA =
M-400 with
4-bolt
slipfitter
07 = 70
10 = 100
15 = 150
(55V)
17 = 175
20 = 200
24 = 250/400
25 = 250
31 = 310
32 = 320
35 = 350
40 = 400
84 = 85
(4000K)
83 = 85
(3000K)
NOTE: Dual
wattage
connected for
lower wattage
E = Energy Act
Compliant Pulse
MH (EPMH)
S = HPS
Q = QL
Induction
Standard: Lamp
not included.
60Hz
0 = 120/208/240/
277 Multivolt
1 = 120
2 = 208
3 = 240
4 = 277
5 = 480
7 = 120X240
8 = 240V
Ballast 120V PE
Receptacle not
reconnectable
D = 347
G = 200-277
T = 220
W = 230
50Hz
6 = 220
R = 230
Y = 240
NOTE: Dual voltage
connected for lower
voltage
2 = Plug-in base
and Ignitor R = Prismatic Glass
Refractor
P = Lexan *250 Watt
HPS Maximum
Prismatic
Refractor
See Photometric
Selection Table
S = Short
M = Medium
S = Semi-cutoff
C = Cutoff
2 = Type II
3 = Type III
See Ballast
Selection Table
A = Autoreg
E = Induction
Ballast
G = Mag-Reg
with
Grounded
Socket Shell
H = HPF
Reactor
or Lag
M = Mag-Reg
N = NPF
Reactor
or Lag
P = CWI with
Grounded
Socket Shell
C = Charcoal filter
F = Fusing (Not available
with multivolt or dual
voltage)
J = Line Surge Protector,
Expulsion Type
(UL not available)
U = listed with
glass only (60Hz only)
NOTE: N/A = Not available. *Not available in 120 X 347. **Not available in 200 watt or 310 watt. C/F = Contact Manufacturer
Ballast Selection Table
PHOTOMETRIC SELECTION TABLE
GLASS PRISMATIC REFRACTOR
All light sources are clear unless otherwise indicated.
IES Distribution Type
Photometric Curve Number 35-
Semi-Cutoff Cutoff Polycarbonate
NOTE: N/A = Not Available C/F = Contact Manufacturer PMH—Contact Manufacturer
Photometric Selection Table
Ballast Type/Voltage Ballast Type/Voltage
60Hz 50Hz
/

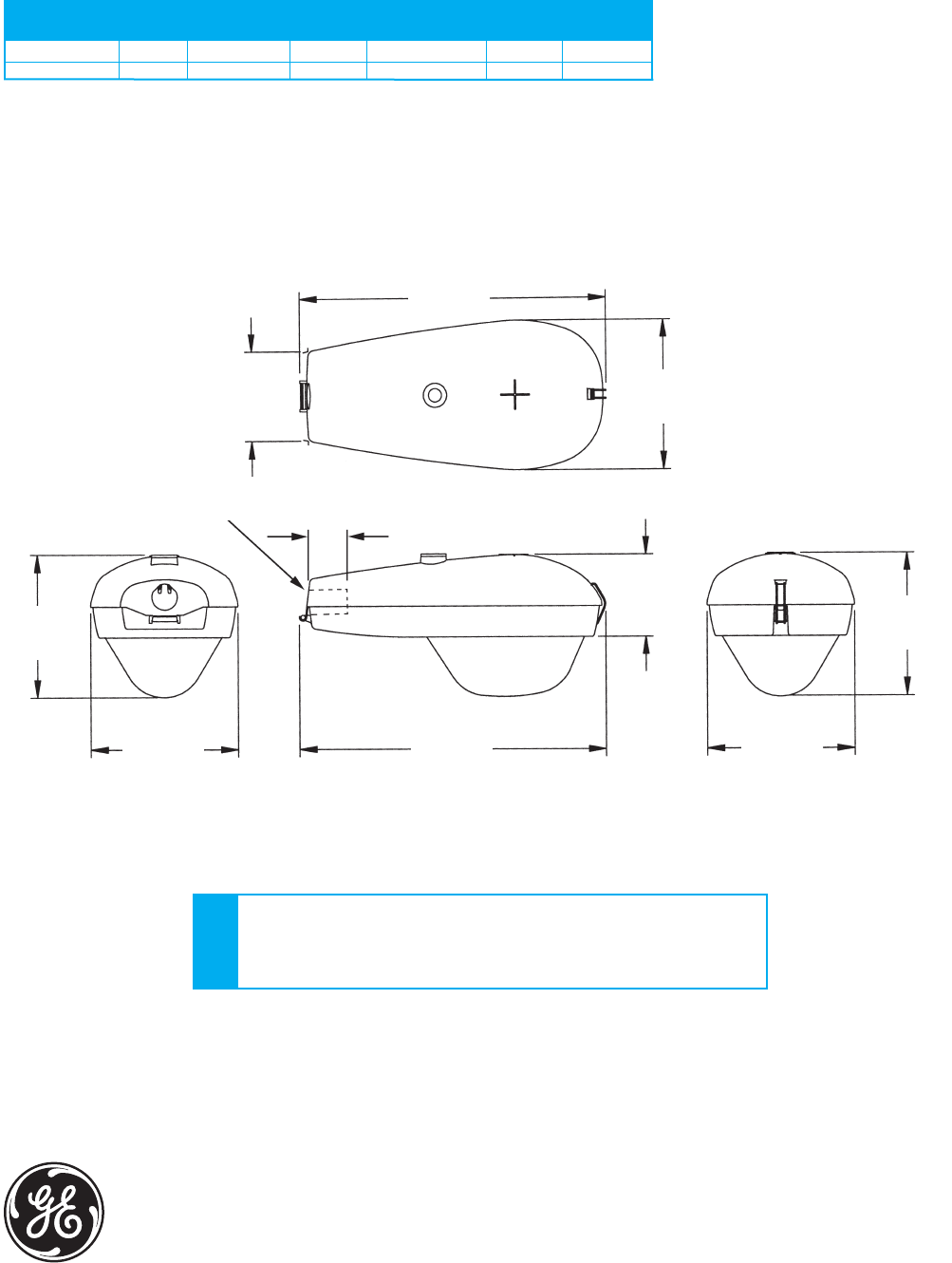

Product Dimensions
• Approximate Net Weight: 33-39 lbs (15-18 kgs)
• Effective Projected Area: 1.4 sq. ft. max. (0.13 sq. M max.)
• Suggested Mounting Height: 30-50 ft. (9-15 M)
DATA
SIDE VIEWS
TOP VIEW
31.81 in.
(808 mm)
15.12 in.
(384 mm)
9.04 in.
(230 mm)
14.41 in.
(366 mm)
15.12 in.
(384 mm)
31.81 in.
(808 mm)
15.12 in.
(384 mm)
14.41 in.
(366 mm)
8.32 in.
(211 mm)
500 in. (127 mm)
Adjustable For 1-1/4 in. to 2 in. Pipe (MSRL only)
(1.660 in. [42 mm] to 2.375 in. [60 mm] O. D.)
All GE suggested catalog ordering numbers come with PE receptacle. PE control must be ordered separately.
Order and install SCCL-PECTL if no PE is desired.
Multivolt ballasts can be for either 120, 208, 240, or 277 volt incoming power supply.
Voltage Ballast Refractor Photometric
Catalog Number Wattage Light Source (60 Hz) Type Type Distribution
MSRL25S0A22RMS3 250 HPS Multivolt Auto-Regulator Glass MS3
MSRL40S0A22RMS3 400 HPS Multivolt Auto-Regulator Glass MS3
MSRL – Suggested Catalog Ordering Numbers
www.gelighting.com
GE and the GE Monogram are trademarks of the General Electric Company. All other trademarks are the property
of their respective owners. Information provided is subject to change without notice. All values are design or typical
values when measured under laboratory conditions. GE Lighting and GE Lighting Solutions, LLC are businesses of
the General Electric Company. © 2014 GE.
OLP2925 (Rev 11/04/14)
