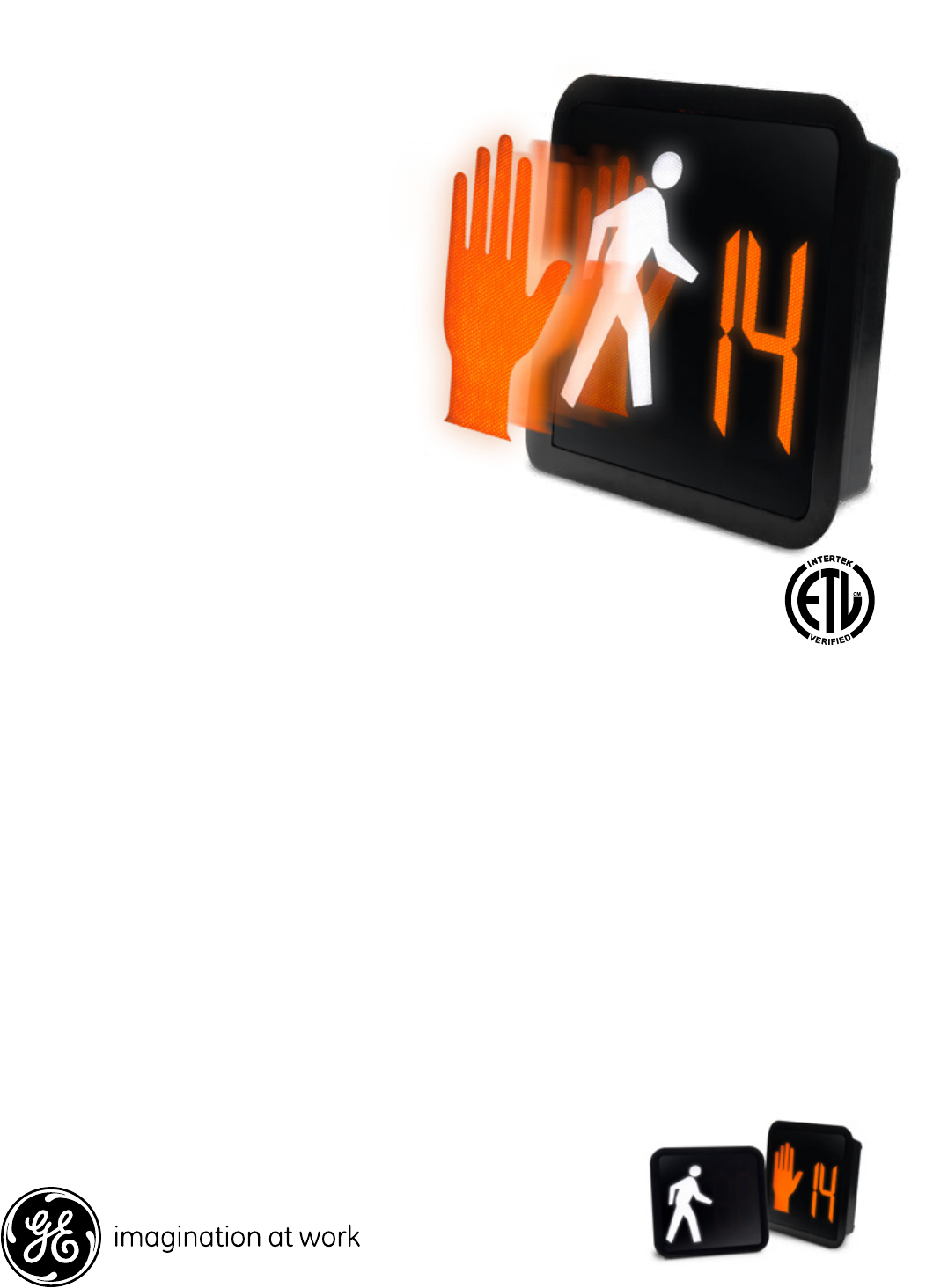

GE LED Countdown

Pedestrian Signals

PS7-CFF1-27A-J

16 x 18 inch

Excellent Appearance & Visibility

• Robust LED system design enables high luminous

intensity over product life cycle

• Efficient optical system minimizes power consumption

while providing excellent uniformity and viewing angles

• Single piece transparent front window with internal

masking to prevent:

- countdown and icons display from being readily

visible when not in operation

- scratches and abrasions compared with external silk

screen technology

• Bright and clear icons

• Fully uniform look

Outstanding Reliability

& Robust Operation

• Internal conflict monitor preventing walk and

don’t walk indications to light up at the same time

• Individual power supply drives each display to ensure

proper indication

• Jumper module enabling countdown testing

and countdown switch-off

Meets Rigorous Certification

& Testing Standards

• Intertek ETL Verified compliant

• DOE compliant

• Using MIL-STD-810F and NEMA 250-1991 Type 4 for

environmental robustness, passed reliability and

qualification testing including high temperature,

high humidity cycling (HTHH for 1,000 hours)

• Compliant (for Full Hand/Full Person) with the

ITE PTCSI LED Signal Modules

- version dated August 2010

The Greatest Signals Stand the Test of Time.TM

GE

Lighting Solutions

GE LED Countdown Pedestrian Signals

• 16 x 18 inch module

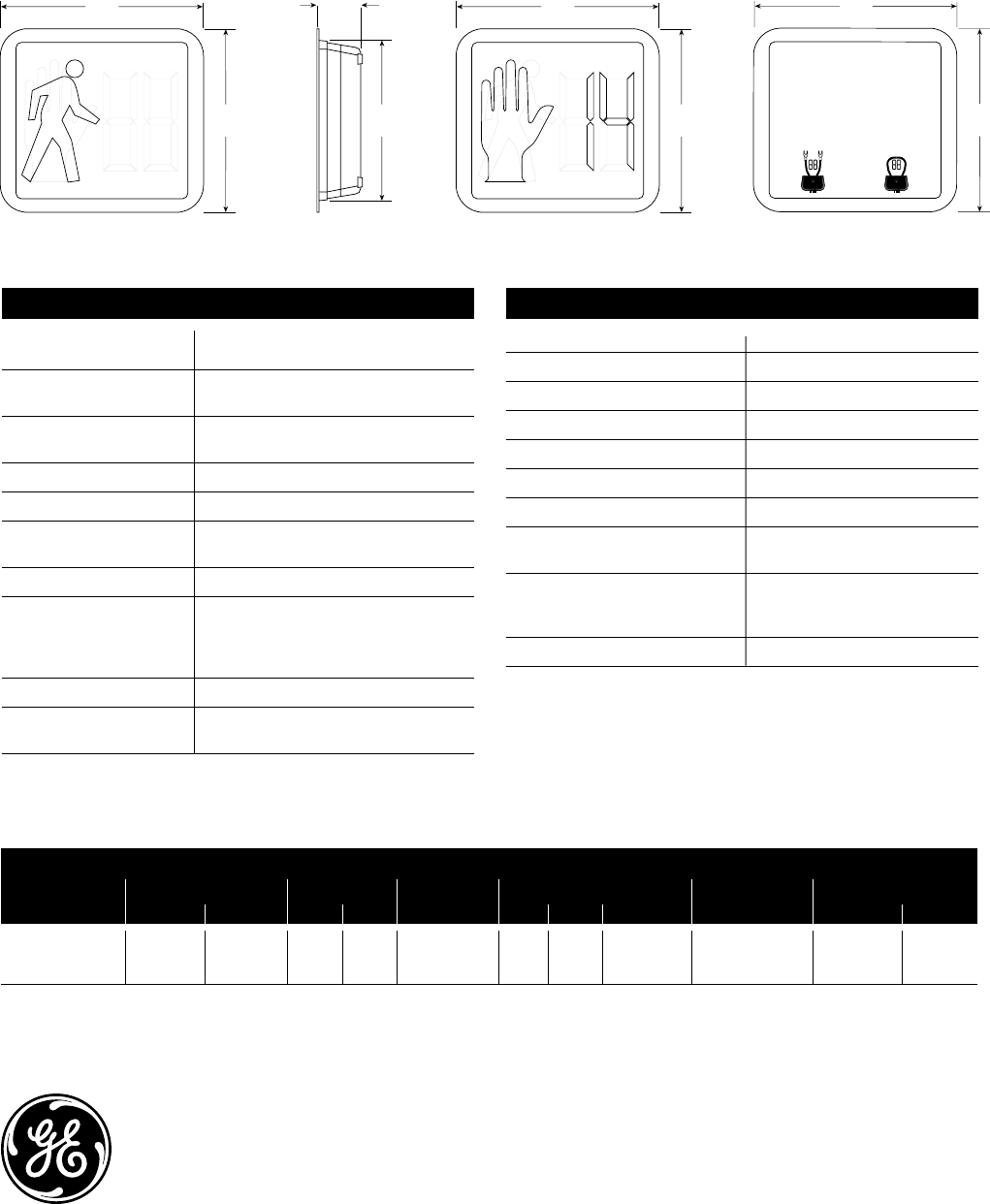

Mechanical Outline and Jumper Module

Dimensions in inches. (mm) indicates metric equivalent

Operating Specifications

Parameter Rating

Operating Temperature Range* -40 to +74°C (-40 to +165°F)

Operating Voltage Range 80 to 135 V (60Hz AC)

Power Factor (PF) > 90 %

Total Harmonic Distortion (THD) < 20 %

Voltage Turn-Off (VTO) 35 V

Start-up Time < 75msec

Lens & Shell Material UV Stabilized Polycarbonate

Wiring 20 AWG, Color Coded

with Strain Relief

LED Color Hand: Portland Orange

Person: Lunar White

Countdown: Portland Orange

Default Mode Hand only

* Performed in compliance with ITE test method described in the technical notes

Design Compliance

Test type Compliance

Luminous intensity, ITE PTCSI LED Signal Modules

Uniformity & Viewing Angles version of August 2010

Chromaticity ITE PTCSI LED Signal Modules

version of August 2010

MIL-STD-810F

Moisture Resistance Procedure 1, Rain & Blowing Rain

Mechanical Vibration MIL-STD-883 Test Method 2007

Electronic Noise FCC Title 47 Sec 15 Sub. B1

Sec. 2.1.6 NEMA TS 2-2003

Transient Voltage Protection Sec. 2.1.8 NEMA TS 2-2003

Controller Compatibility NEMA TS-2-2003

Sec. 8.2 IEC 1000-4-5 & Sec. 6.1.2 ANSI/IEEE

Transient C62.41.2 - 2002, 3KV, 2 Ω

Suppression Sec. 8.0 IEC 1000-4-12 & Sec. 6.1.1 ANSI/IEEE

C62.41.2 - 2002, 6KV, 30 Ω

Wiring NFPA 70, National Electric Code

Digits MUTCD 2003, Section 4E.07, Countdown

Numbers Minimum 9’’ Height & 7’’ Width

1 Class A

Product Information

Minimum Luminous

Dimensions Symbol AC Voltage Power (W) Beam Pattern Intensity Cd/m2

Model Number Dimensions Layout Hand Person Nominal Hand Person Countdown Degrees Hand/Digit Person

PS7-CFF1-27A-J2 16 x 18 in Overlay Full Full 120V - 60Hz 11 7 6 26 1400 2200

Countdown

1 Class A.

2 Full MUTCD Compliance

Test Condition : Ta = 25˚C. All values are design or typical values when measured under laboratory conditions.

GE Lighting Solutions • 1-888-MY-GE-LED • www.gelightingsolutions.com

1 - 8 8 8 - 6 9 - 4 3 - 5 3 3

GE Lighting Solutions, LLC is a subsidiary of the General Electric Company. The GE brand and logo are trademarks of the General Electric Company. © 2013 GE Lighting Solutions, LLC.

Information provided is subject to change without notice. All values are design or typical values when measured under laboratory conditions.

TRAF272-R102113

3.8"

(96)

13.9"

(354)

17.7"

(449)

16.0"

(406)

17.7"

(449)

16.0"

(406)

DISCONNECT

TO DISABLE

17.7"

(449)

16.0"

(406)

CONNECT

TO TEST
