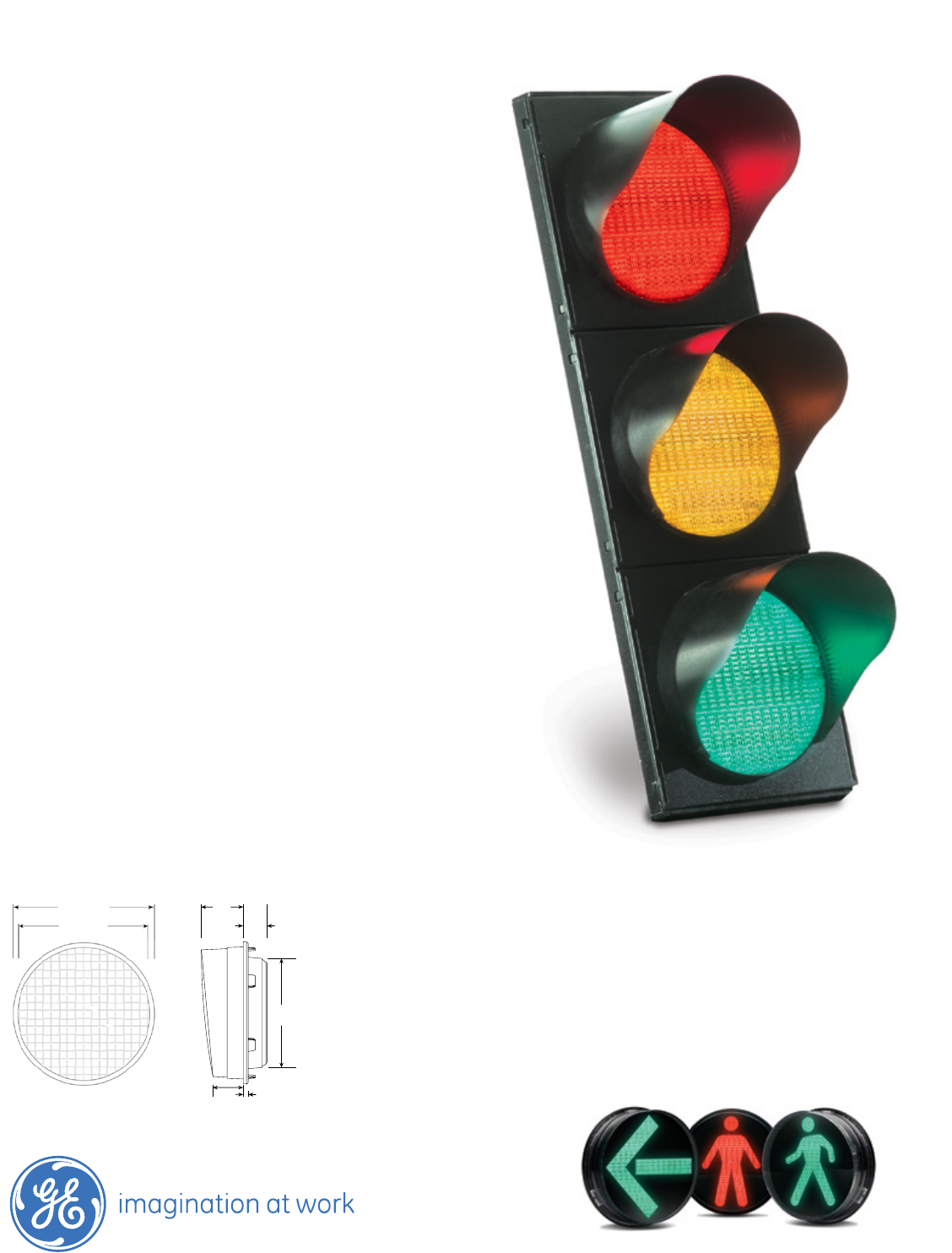

RX11 LED

Signal Modules

200mm - 220V

Features, Benefits and Values

• Highefciency&longlifeLEDlightsource

• SelfcontainedLEDmodulefordirectreplacement

• DesignedtoconformtoapplicableABNTandCaltransspecications

• Uniformsignalappearance,semi-pixelatedlook

• FailureofsingleLEDresultsinlossoflightfromonlythatLED

• UVstabilizedshell

• Moistureanddustresistant

• Reductioninoperatingandmaintenancecosts

• 5-yearlimitedwarrantyonworkmanshipandmaterialsdefect

• Compatibilitywithmosttrafcheadsandcontrollers

• Allproductsshippedwithinstalledgasket

• In-linefuseforsurgeprotection

• EPACT2005compliant

Mechanical Outline

Dimensions in inches. (mm) indicates metric equivalent

GE

Lighting Solutions

The Greatest Signals Stand the Test of Time.TM

RX11 LED Signal Modules

•200mm-220V

Design Compliance

Test Type Compliance

Chromaticity ABNT/CB-16: 2007

Moisture Resistance NEMA STD 250 Type 4 - 1991

Mechanical Vibration MIL-STD-883 Method 2007

Electronic Noise CISPR 22 – Class A

Surge Voltage Protection NEMA STD TS 2-2003 – Section 2.1.6

Controller Compatibility NEMA TS-2-1992

Wiring NFPA 70, National Electric Code

Tabela 1 - Mínima Intensidade Luminosa Mantida

- 2,5 ± 2,5 133 267 267

- 7,5 ± 7,5 89 178 178

- 12,5 ± 17,5 20 41 41

- 17,5 ± 17,5 9 16 16

Tabela 2 - Mínima Intensidade Luminosa ( Pedestre )

- 5 0 110 - 102

- 5 ± 15 46 - 43

- 5 ± 25 14 - 13

Tabela 3 - Mínima Intensidade Luminosa Mantida

- 2,5 ± 2,5 162 402 211

- 5 ± 10 107 267 140

- 10 ± 20 20 49 26

- 15 ± 20 7 16 9

Operating Specifications

Parameter Rating

Operating Temperature Range -40 to + 74°C (-40 to +165°F)

Operating Voltage Range 185 to 250VAC (50Hz - 60Hz)

Power Factor * > 92%

Total Harmonic Distortion (THD) * < 20%

Voltage Turn-Off (VTO) * < 35 Vac

Turn on/Turn off Time * 100 ms

Lens & Shell Material UV Stabilized Polycarbonate

Wiring 16 AWG, Color Coded with Strain Relief

Product Information

Model Traffic Stabilization Uniformity Power Minimum Photometric Minimum Photometric

Number Signals time ABNT/CB-16 : 2007 (W) Performance over 5 years Performance over 5 years

ABNT/CB-16 : 20072 CALTRANS 20012

Minutes Nominal 220V Nominal 220V Nominal 220V Nominal 220V

DR4-RCFB-20C 60 <1:10 5 Table 3 Table 1

DR4-YCFB-20C 60 <1:10 12 Table 31 Table 11

DR4-GCFB-20C 60 <1:10 5 Table 3 -

PR4-GCWM-20C 60 - 5 Table 2 3 -

PR4-RCSM-20C 60 - 5 Table 2 -

1Stabilized at a duty cycle of 5 seconds ON/55 seconds OFF.

2In Brazil: Red at 65% Duty Cycle; Green at 35% Duty Cycle; and Yellow at 8.3% Duty Cycle.

3Minimum photometric performance over 2 years.

* Stabilized at 25°C

Symbols Information*

* Other symbols available on request

Ângulo Ângulo Intensidade Luminosa (Candela)

Vertical Horizontal

(em relação (em relação Vermelho Amarelo Verde

ao eixo central) ao eixo central)
