GemTek Technology 9901100078 WiFi Display / Wireless Media Receiver User Manual WiFi Display
Gemtek Technology Co., Ltd. WiFi Display / Wireless Media Receiver WiFi Display
User Manual
WiFi DISPLAY
WMTC-159N
WiFi Display Production
Description
Content
1 Introduction .............................................................................................................3
1.1 Wireless Display .................................................................................................................... 3
1.2 Outlook..................................................................................................................................... 4
2 Feature Overview ....................................................................................................6
2.1 Features ................................................................................................................................... 6
3 System Overview ....................................................................................................8
3.1 Streaming Mode..................................................................................................................... 8
3.2 WiFi Management.................................................................................................................. 9
4 Detailed Functional Spec .....................................................................................10
4.1 Performance ......................................................................................................................... 10
4.2 Push Button Functions...................................................................................................... 10
4.3 Configurability...................................................................................................................... 10
4.4 WFD......................................................................................................................................... 11
4.5 Hardware Interfaces ........................................................................................................... 12
4.6 Power...................................................................................................................................... 13
4.7 Supported Audio Standards............................................................................................. 14
4.8 Supported Video Standards ............................................................................................. 15
4.9 Supported Image Standards ............................................................................................ 16
4.10 Supported Video Resolution ............................................................................................ 17
4.11 Supported Containers........................................................................................................ 18
2
1
Introduction

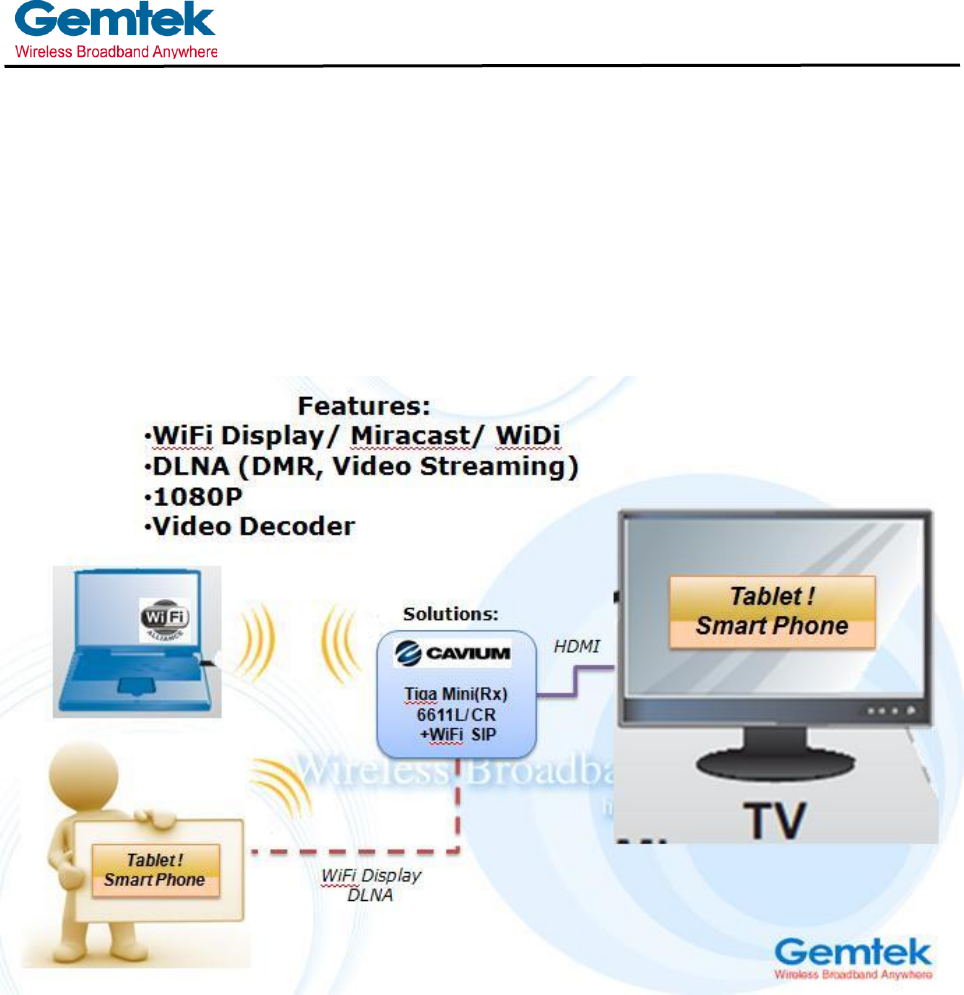

1.1 Wireless Display
Browsing, gaming, and video streaming from a smartphone, tablet, or notebook, wirelessly to a
TV or video display
3

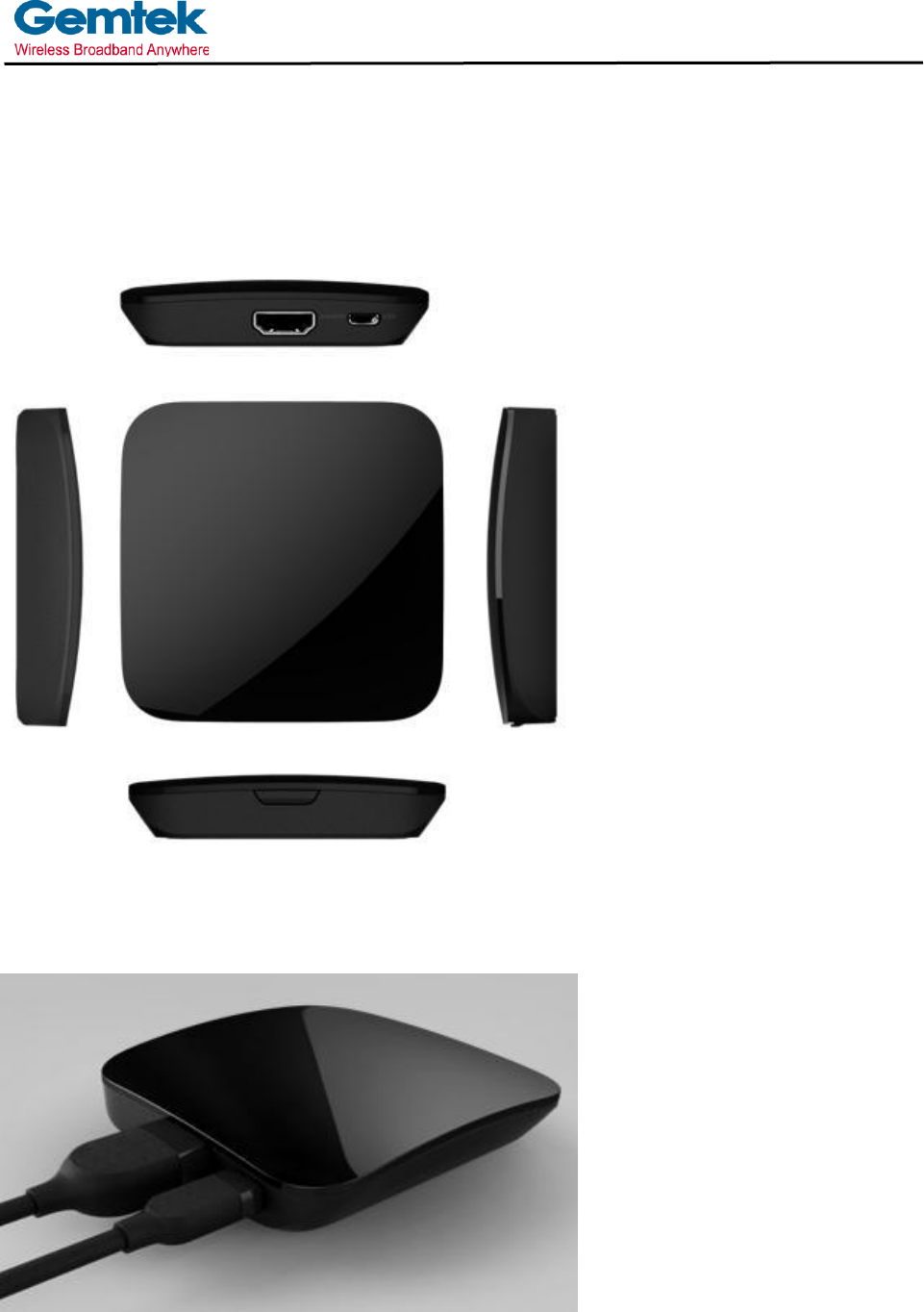

1.2 Outlook
I/O Ports of HDMI and Power via USB
4

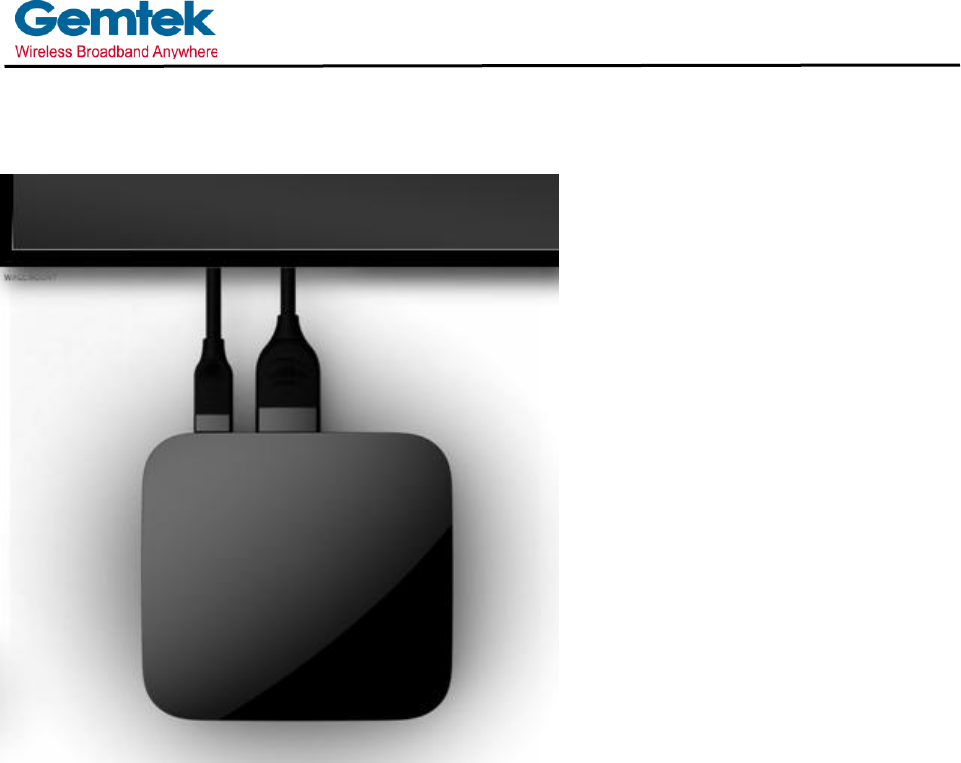

Connect to TV/Monitor Device via HDMI
5
2 Feature Overview
2.1 Features
The following is a list of the Gemtek WiFi Display evaluation board features:
Communication protocols supported
DLNA DMR (1.5 Certified)
WFD Primary Sink
Video decoding
H.264 CBP (WFD specific)
MPEG4, MPEG1, MPEG2, H.264, AVS, VC-1, H.263, RV8/9/10, DIVX 3/4/5/6,
XVid (DLNA specific)
Resolution: up to 1080p 30fps
Audio
Pass-through (pass-through modes are WFD, WiVu, WiDi and DLNA specific)
MPEG1 layer1/2, MP1/MP2/MP3, AC3, AAC, AAC-LC, HE-AAC, Dolby Digital
plus, DTS, FLAC, OGG Vorbis, WAV (PCM, ADPCM, A-law PCM), DVD
PCM,WMA, WMA-PRO
Security
HDCP 1.3 (wireless display specific)
DTCP-IP (DLNA specific)
QoS
Back-channel messages to ‘known’ Tx to reduce PER
Error resilient (robust error detection and concealment)
Performance
Throughput: 15Mbps (encoded video) at 30 feet
6
Receiver latency (WiFi PHY to dongle output) < 40ms (30 fps), or <23 ms (60fps)
with HW crypto with HDCP 2
User support
GUI: splash screen and connection status display
Upgrade over WiFi with fail-safe mechanism
Interfaces
HDMI Tx 1.3 with CEC
Tri-color LED (Blue, Red, Green)
Multi-function reset button
USB power input
WiFi: dual band Selectable (2.4GHz/ 5GHz) 802.11n 1x1
USB Host (Option)
Power Consumption
Active state: <2.5W
Power saving standby: <1W
Operating Temperature
0oC ~ 40oC
Mechanicals
Dimensions: 81 x 81x 16 mm
7
3 System Overview
3.1 Streaming Mode
This mode uses DLNA (Digital Living Network Alliance) protocol: the Smart Phone (or any other
device on the network) provides DMC, and optionally DMS functionality while the dongle acts as
DMR. The smart phone typically does not transcode the content as long as it conforms to DLNA
codec specification. Note that DLNA discovery and connection works over any IP network. DTCP/IP
can be used for premium content.
Following network topologies can be supported by this mode.
Topology
Description
Access Point
Both Mobile device and the Dongle are
connected to same Access Point
Direct Connection using Hotspot on the
handset
Mobile device hosts an Access Point and the
dongle is the client
Direct Connection using W i-Fi Direct
Mobile device and the dongle form a W I-Fi
Direct network
8
3.2 WiFi Management
Discoverability
DLNA is discoverable over any IP (Layer-3) network
W FD is discoverable by using W i-Fi Display Discovery method at Layer 2 only
W i-Fi pairing modes for W FD and DLNA
Protocol
Encoder Wi-Fi Mode
Decoder Wi-Fi Mode
W FD
P2P, GO or GC
P2P, GO or GC
DLNA
Station
Soft AP or Station
W i-Fi Management
Feature
Detailed Functional Spec
W i-Fi Discovery
L2 Discovery is supported via Scanning (as a
STA) and W i-Fi Direct/Display Discovery protocol
support
W PS pairing
PBC and PIN
Dongle connects to mobile device via AP without
WPS
This is supported by having a user configure the
AP credentials through an ‘admin’ page hosted
by dongle’s HTTP server
9
4 Detailed Functional Spec
4.1 Performance
Feature
Detailed Functional Spec
Time from cold boot to splash screen
3 seconds (to HDMI output)
Time from splash screen to idle screen (ready
for connection)
30 seconds
HDMI Video Output
Up to 1080p 30 fps
HDMI Audio
Pass through and Raw
Video display Latency through the dongle
< 33ms (30 fps)
4.2 Push Button Functions
Feature
Detailed Functional Spec
W PS Pairing support
The dongle is in Active state and if push-button is pressed for > 2
sec and < 10 sec, the dongle goes through W PS pairing process
Factory reset support
The dongle is in Active or Standby state and if push-button is
pressed for >10 sec, the dongle goes through factory reset
procedure. This will reset only user-configurable data as described in
Persistent Components
W ake-up support
The dongle is in Standby state and push-button is pressed for <=10
sec, the dongle goes to Active state.
4.3 Configurability
Firmware Upgrading over W i-Fi : Reference dongle software supports on-field
firmware upgradability
Uses HTTP server on the dongle to receive new firmware file. The file can be
10
uploaded from any connected device that has web-browser.
Fail-safe upgrade procedure with ability to recover using factory-installed firmware
Maximum time to perform upgrade over 20Mbps LAN connection: < 180 seconds
Retains persistent connection settings across the upgrade
Support for HTTP server for:
Firmware upgrade
Ability to configure connectivity to a router that does not support WPS
Ability to configure any other parameters such as resolution, friendly name, etc. as
deemed necessary.
4.4 WFD
Basic Features
Compatible with W FD specification version 1.38
Optional Features
HDCP 2.1 (4.7)
Explicit A/V Format Change (4.10.3.2)
W FD Video Recovery (4.10.5)
HIDC UIBC (4.11)
Persistent W FD group (4.13)
EDID (6.1.6)
Connector Type (6.1.19)
Optional Resolutions
All CEA progressive resolutions up to 1080p30, VESA/HH resolutions
Optional Audio – 2ch AAC, AC3
11
4.5 Hardware Interfaces
IO interface
Standard Interfaces (exposed on the system enclosure)
– HDMI 1.3 with Type A HDMI receptacle
– USB power input using Micro-USB type B receptacle that carries 5V DC input power
to the board
– Push button switch allows the user to access functions such as pairing with
another W i-Fi device (an Access Point (AP) or a mobile device in P2P mode),
wake from standby, system reset, and restoring factory defaults.
– Tri LED indicates up to seven states, represented by three colors, each constant or
blinking, and off.
– USB 2.0 host port is an internal 4-pin header available (Option)
Wi-Fi: 1x1 Dual-band radio
Antenna
PIFA Antenna
Flash memory
Serial NOR Flash: Both 64 Mbit (8 Mbyte) NOR flash and 512 K-bit serial are
supported by the Gemtek WiFi Display firmware. The NOR flash connects to
the CPU via SPI. The CPU can be configured via strapping resistors to read a
boot-loader from SPI NOR flash, then will continue execution by
uncompressing an image from NAND flash.
NAND Flash: A 1Gbit (128 Mbyte) parallel SLC NAND flash stores the Linux
kernel and application code. Also stores the bootloader, and encrypted
DTCP-IP and HDCP 2.1 keys.
DDR3 memory
The 16-bit wide DDR3 interface can run up to 648 MHz for speeds
approaching DDR3-1333. Gemtek WiFi Display features a 2Gb (256 Mbyte)
DDR3 DRAM.
12
4.6 Power
Gemtek WiFi Display is powered by a 5V input on the micro USB type B receptacle. Power can be
provided to the receptacle either by a USB host device (i.e. TV) or an external AC power adapter.
Maximum current draw is 500mA, for a total power of 2.5W .
Power states, as described below.
State
Power
Description
No power
0W
No power is applied to the device
Active
2.3 W
Active use. Active streaming of video and display
Idle
1.0 W
Idle mode. No activity in source and display
13
4.7 Supported Audio Standards
Audio Decoder (For MM
Video)
Max-Bitrate
Channel
Sample Frequency
wav: PCM /ADPCM /
A-law PCM
1536kbps
2
48k
MPEG1
Layer1/2
448k(L1)/384k(L2)bps
2
48k
MP3 (MPEG1 Layer3)
320kbps
2
48k
MPEG2
AAC(AAC-LC)
all bit rate
5.1
96k
MPEG4 AAC-LC
all bit rate
5.1
96k
MPEG4 HE-AAC
all bit rate
2
96k
AC3
640kbps
5.1
48k
WMA v7/8/9
all bit rate
5.1
48k
Window
all bit rate
5.1
48k
Media Audio v8
MP3 (MPEG1 Layer3)
320kbps
2
48k
Window Media audio Pro
all bit rate
5.1
48k
14
Window Media Audio v9
all bit rate
5.1
48k
DVD LPCM
all bit rate
7.1
192k
FLAC(stereo)
all bit rate
2
96k
OGG Vorbis
all bit rate
2
64k
cook: COOK
(RealAudio6)
96kbps
2
48k
raac: MPEG4 AAC-LC
(RealAudio9)
all bit rate
5.1
96k
racp: MPEG4
HE-AAC(RealAudio10)
all bit rate
2
96k
4.8 Supported Video Standards
Standard
Resolution
Divx 3.11
1920x1080
Divx 4.x
1920x1080
Divx 5.1
1920x1080
Divx 6.x
1920x1080
XviD
1920x1080
MPEG1
768x576
MPEG2 MP@HL
1920x1080
H.264 BP LV 4.0
1920x1080
15
4.10 Supported Video Resolution
Wi-Fi Display
Res
FPS
I/P
Supported
640x480
60.00
P
Y
720x480
60.00
P
Y(59.94)
720x576
50.00
P
Y
1280x720
30.00
P
Y
1280x720
60.00
P
Y
1280x720
24.00
P
Y
1280x720
25.00
P
Y
1280x720
50.00
P
Y
1920x1080
25.00
P
Y
1920x1080
30.00
P
Y
1920x1080
24.00
P
Y
800x600
30.00
P
Y(29.84)
800x600
60.00
P
Y
1152x864
30.00
P
Y(30.19)
1152x864
60.00
P
Y(60.38)
1360x768
30.00
P
Y
1360x768
60.00
P
Y
1368x768
30.00
P
Y
1368x768
60.00
P
Y
1280x1024
30.00
P
Y
1280x1024
60.00
P
Y
1400x1050
30.00
P
Y
1400x1050
60.00
P
Y
1600x900
30.00
P
Y(29.98)
1600x900
60.00
P
Y(59.96)
1600x1200
30.00
P
Y(30.06)
1600x1200
60.00
P
Y(60.12)
1680x1050
30.00
P
Y(29.95)
1680x1050
60.00
P
Y(59.90)
17
4.11 Supported Containers
The following
AVI, ASF, MP4, MKV, PS, TS, FLV, RM
5 Statement
5.1 Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this
equipment.
Operations in the 5.15-5.25GHz band are restricted to indoor usage only.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
The availability of some specific channels and/or operational frequency bands are
country dependent and are firmware programmed at the factory to match the
intended destination. The firmware setting is not accessible by the end user.
-
- -
- - -
5.3 Europe – EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE Directive
1999/5/EC. The following test methods have been applied in order to prove
presumption of conformity with the essential requirements of the R&TTE Directive
1999/5/EC:
- EN60950-1: 2006/A1:2010 => 請確認 LVD repot 並放上正確版本
Safety of Information Technology Equipment
- EN50385 : (2002-08)
- Product standard to demonstrate the compliance of radio base stations and
fixed terminal stations for wireless telecommunication systems with the basic
restrictions or the reference levels related to human exposure to radio
frequency electromagnetic fields (110MHz - 40 GHz) - General public
- EN 301 893 V1.5.1: (2008-12)
- Broadband Radio Access Networks (BRAN); 5 GHz high performance RLAN;
Harmonized EN covering the essential requirements of article 3.2 of the
R&TTE Directive
EN 301 489-1 V1.8.1: (2008-04)
- Electromagnetic compatibility and Radio Spectrum Matters (ERM);
ElectroMagnetic Compatibility (EMC) standard for radio equipment and
services; Part 1: Common technical requirements
- EN 301 489-17 V2.1.1 (2009-05)
- Electromagnetic compatibility and Radio spectrum Matters (ERM);
ElectroMagnetic Compatibility (EMC) standard for radio equipment; Part 17:
Specific conditions for Broadband Data Transmission Systems
In Italy the end-user should apply for a license at the national spectrum authorities
in order to obtain authorization to use the device for setting up outdoor radio links
and/or for supplying public access to telecommunications and/or network services.
0560
Česky [Czech]
[Jméno výrobce] tímto prohlašuje, že tento [typ zařízení] je ve shodě se základními požadavky a dalšími příslušnými
ustanoveními směrnice 1999/5/ES.
Dansk [Danish]
Undertegnede [fabrikantens navn] erklæ rer herved, at følgende udstyr [udstyrets typebetegnelse] overholder de
væ sentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
Deutsch
[German]
Hiermit erklärt [Name des Herstellers], dass sich das Gerät [Gerätetyp] in Ü bereinstimmung mit den grundlegenden
Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet.
Eesti [Estonian]
Käesolevaga kinnitab [tootja nimi = name of manufacturer] seadme [seadme tüüp = type of equipment] vastavust
direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
English
Hereby, [name of manufacturer], declares that this [type of equipment] is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
Español
[Spanish]
Por medio de la presente [nombre del fabricante] declara que el [clase de equipo] cumple con los requisitos esenciales
y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
Ελληνική [Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ [name of manufacturer] ΔΗΛΩΝΕΙ ΟΤΙ [type of equipment] ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ
ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
Français
[French]
Par la présente [nom du fabricant] déclare que l'appareil [type d'appareil] est conforme aux exigences essentielles et
aux autres dispositions pertinentes de la directive 1999/5/CE.
Italiano [Italian]
Con la presente [nome del costruttore] dichiara che questo [tipo di apparecchio] è conforme ai requisiti essenziali ed alle
altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski [Latvian]
Ar šo [name of manufacturer / izgatavotāja nosaukums] deklarē, ka [type of equipment / iekārtas tips] atbilst Direktīvas
1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.
Lietuvių
[Lithuanian]
Šiuo [manufacturer name] deklaruoja, kad šis [equipment type] atitinka esminius reikalavimus ir kitas 1999/5/EB
Direktyvos nuostatas.
Nederlands
[Dutch]
Hierbij verklaart [naam van de fabrikant] dat het toestel [type van toestel] in overeenstemming is met de essentiële eisen
en de andere relevante bepalingen van richtlijn 1999/5/EG.
Malti [Maltese]
Hawnhekk, [isem tal-manifattur], jiddikjara li dan [il-mudel tal-prodott] jikkonforma mal-ħtiġijiet essenzjali u ma
provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Magyar
[Hungarian]
Alulírott, [gyártó neve] nyilatkozom, hogy a [... típus] megfelel a vonatkozó alapvetõ követelményeknek és az 1999/5/EC
irányelv egyéb elõírásainak.
Polski [Polish]
Niniejszym [nazwa producenta] oświadcza, że [nazwa wyrobu] jest zgodny z zasadniczymi wymogami oraz pozostałymi
stosownymi postanowieniami Dyrektywy 1999/5/EC.
Português
[Portuguese]
[Nome do fabricante] declara que este [tipo de equipamento] está conforme com os requisitos essenciais e outras
disposições da Directiva 1999/5/CE.
Slovensko
[Slovenian]
[Ime proizvajalca] izjavlja, da je ta [tip opreme] v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive
1999/5/ES.
Slovensky
[Slovak]
[Meno výrobcu] týmto vyhlasuje, že [typ zariadenia] spĺňa základné požiadavky a všetky príslušné ustanovenia
Smernice 1999/5/ES.
Suomi [Finnish]
[Valmistaja = manufacturer] vakuuttaa täten että [type of equipment = laitteen tyyppimerkintä] tyyppinen laite on
direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
Svenska
[Swedish]
Härmed intygar [företag] att denna [utrustningstyp] står I överensstämmelse med de väsentliga egenskapskrav och
övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.
