Manual
BROWAN COMMUNICATIONS Page 1
Copyright
© 2002-2006 BROWAN COMMUNICATIONS.
This MARKET REQUIREMENT DOCUMENT is copyrighted with all rights reserved. No part of this
publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated
into any language in any form by any means without the written permission of BROWAN.
Notice
BROWAN reserves the right to change specifications without prior notice.
While the information in this document has been compiled with great care, it may not be deemed an
assurance of product characteristics. BROWAN shall be liable only to the degree specified in the
terms of sale and delivery.
The reproduction and distribution of the documentation and software supplied with this product and
the use of its contents is subject to written authorization from BROWAN.
Trademarks
The product described in this book is a licensed product of BROWAN.
Microsoft, Windows 95, Windows 98, Windows Millennium, Windows NT, Windows 2000, Windows
XP, and MS-DOS are registered trademarks of the Microsoft Corporation.
Novell is a registered trademark of Novell, Inc.
MacOS is a registered trademark of Apple Computer, Inc.
Java is a trademark of Sun Microsystems, Inc.
Wi-Fi is a registered trademark of Wi-Fi Alliance.
All other brand and product names are trademarks or registered trademarks of their respective
holders.
BROWAN COMMUNICATIONS Page 2
Within the 5.15 to 5.25 GHz band (5GHz radio channels 34 to 48) the U-NII devices
are restricted to indoor operations to reduce any potential harmful interference to
MSS operations.
FCC Warning
FCC Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
FCC Caution
Any changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate this equipment.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator &
your body.
If this device is going to be operated in 5.15 ~ 5.25GHz frequency range, then it is restricted in indoor
environment only.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
The availability of some specific channels and/or operational frequency bands are country dependent and are firmware
programmed at the factory to match the intended destination.The firmware setting is not accessible by the end user.
BROWAN COMMUNICATIONS Page 3
IC Warning
Operation is subject to the following two conditions:
This device may not cause interference and
This device must accept any interference, including interference that may cause undesired
operation of the device
This device has been designed to operate with an antenna having a maximum gain of 7dBi.
Antenna having a higher gain is strictly prohibited per regulations of Industry Canada. The required
antenna impedance is 50 ohms.
To reduce potential radio interference to other users, the antenna type and its gain should be so
chosen that the EIRP is not more than required for successful communication.
To prevent radio interference to the licensed service (i.e. co-channel Mobile Satellite systems) we
intended to operate this device indoors and away from windows to provide maximum shielding.
Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.
Because high power radars are allocated as primary users (meaning they have priority) in 5250-5350
MHz, these radars could cause interference and/or damage to license exempt LAN devices.
BROWAN COMMUNICATIONS Page 4
COPYRIGHT...........................................................................................................................................1
NOTICE...................................................................................................................................................1
TRADEMARKS.......................................................................................................................................1
FCC Warning.......................................................................................................................................2
IC Warning ..........................................................................................................................................3
CONTENTS ............................................................................................................................................4
ABOUT THIS GUIDE..............................................................................................................................6
Purpose ...............................................................................................................................................6
Prerequisite Skills and Knowledge......................................................................................................6
Conventions Used in this Document...................................................................................................6
Help Us to Improve this Document! ....................................................................................................6
Browan Technical Support..................................................................................................................6
CHAPTER 1 – INTRODUCTION............................................................................................................7
Product Overview................................................................................................................................7
Features Highlight ...............................................................................................................................9
CHAPTER 2 - INSTALLATION............................................................................................................11
The Product Package........................................................................................................................11
Hardware Introduction.......................................................................................................................12
General Overview..........................................................................................................................12

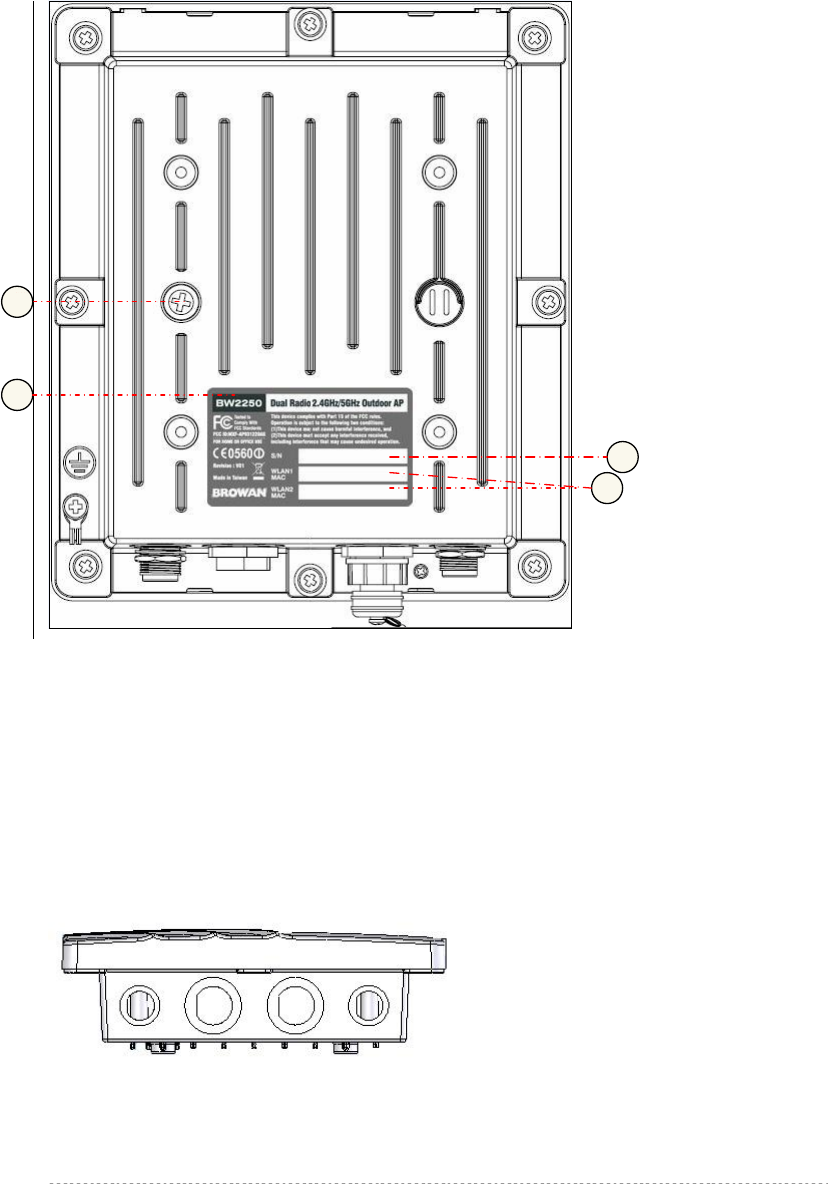

Bottom Cover.................................................................................................................................13
RF Connectors and ports...............................................................................................................13
Hardware Installation.........................................................................................................................14
Installing the Access Point.............................................................................................................14

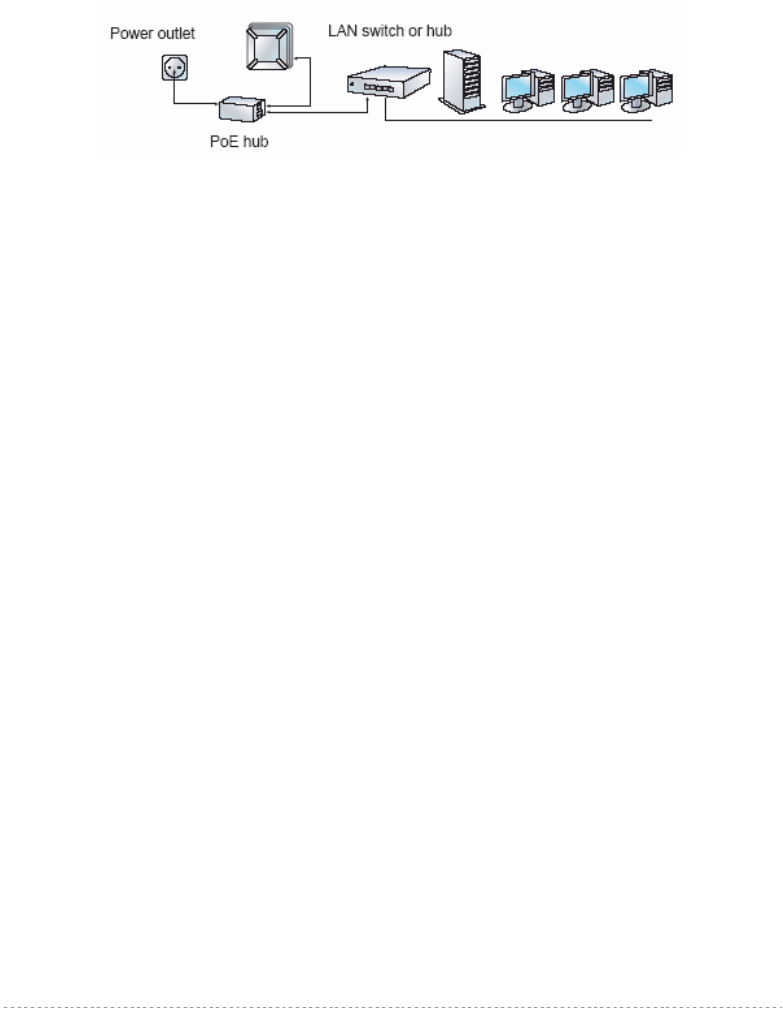

Connect to the Power Source and Local Network.........................................................................15
Software Installation..........................................................................................................................16
Initialization ....................................................................................................................................16

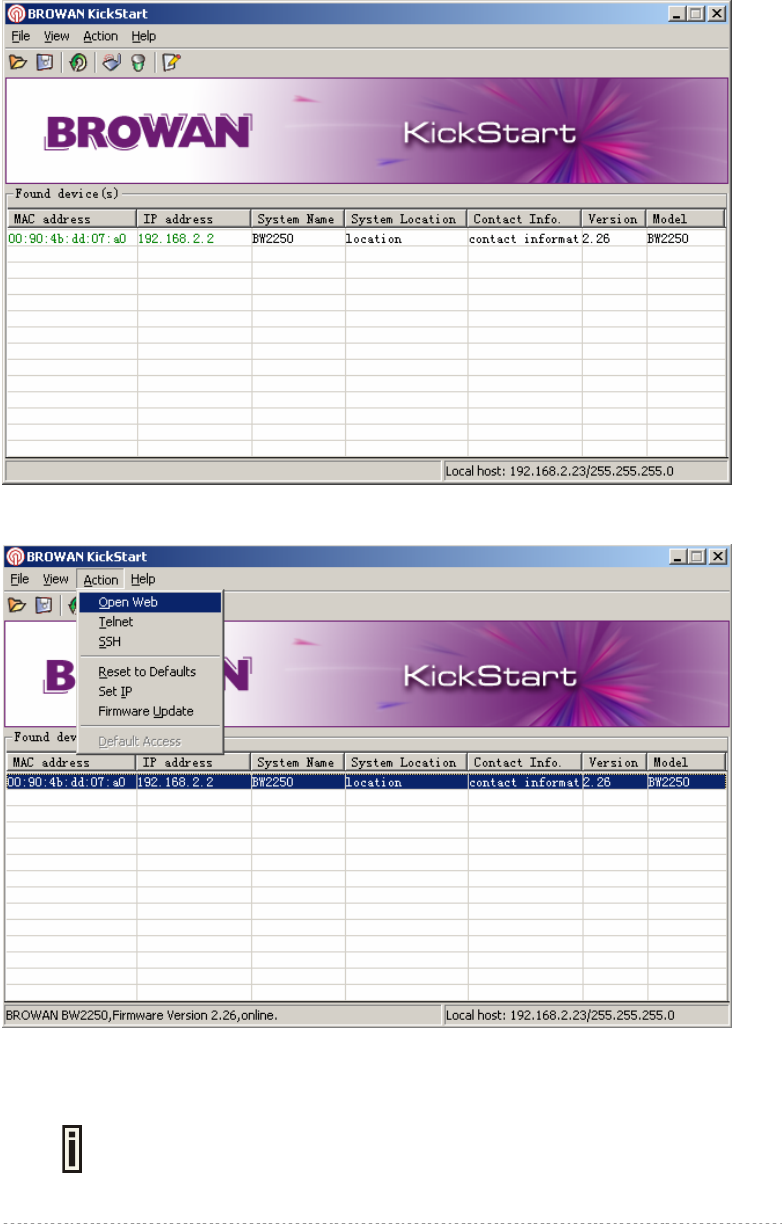

Software Introduction: KickStart ....................................................................................................16

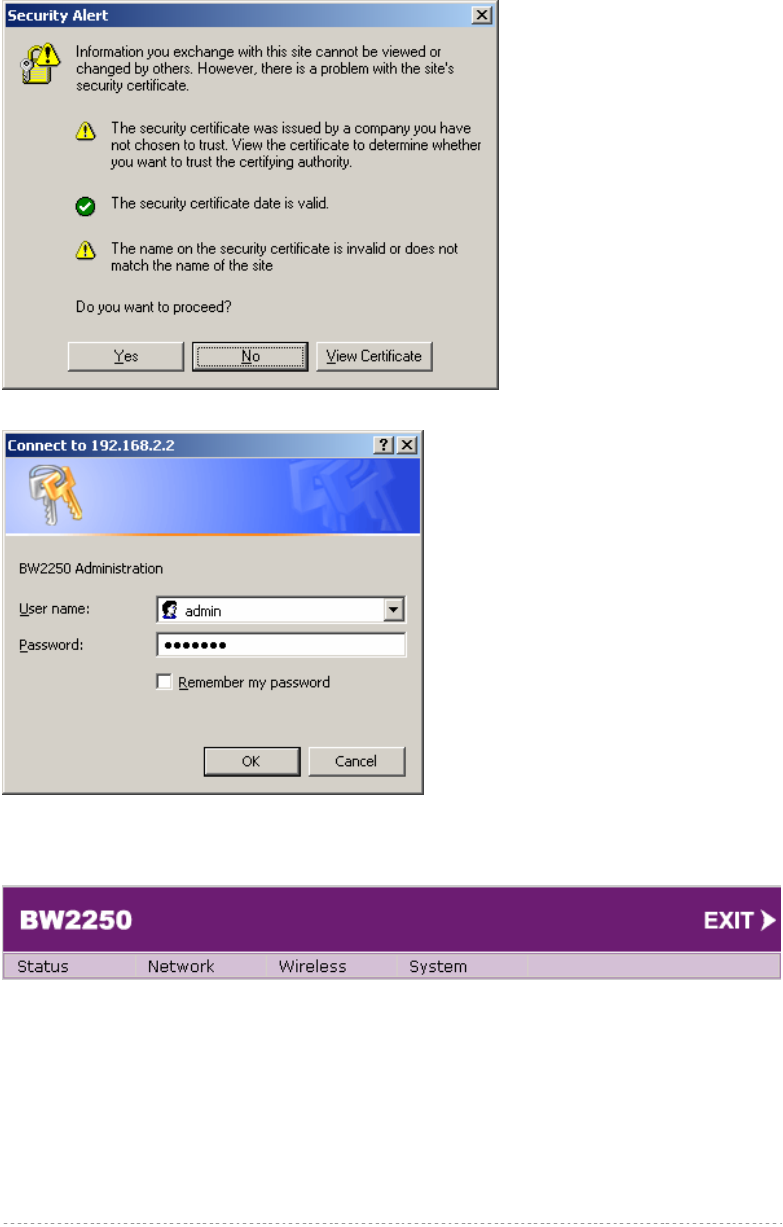

Access Your BW2250....................................................................................................................16

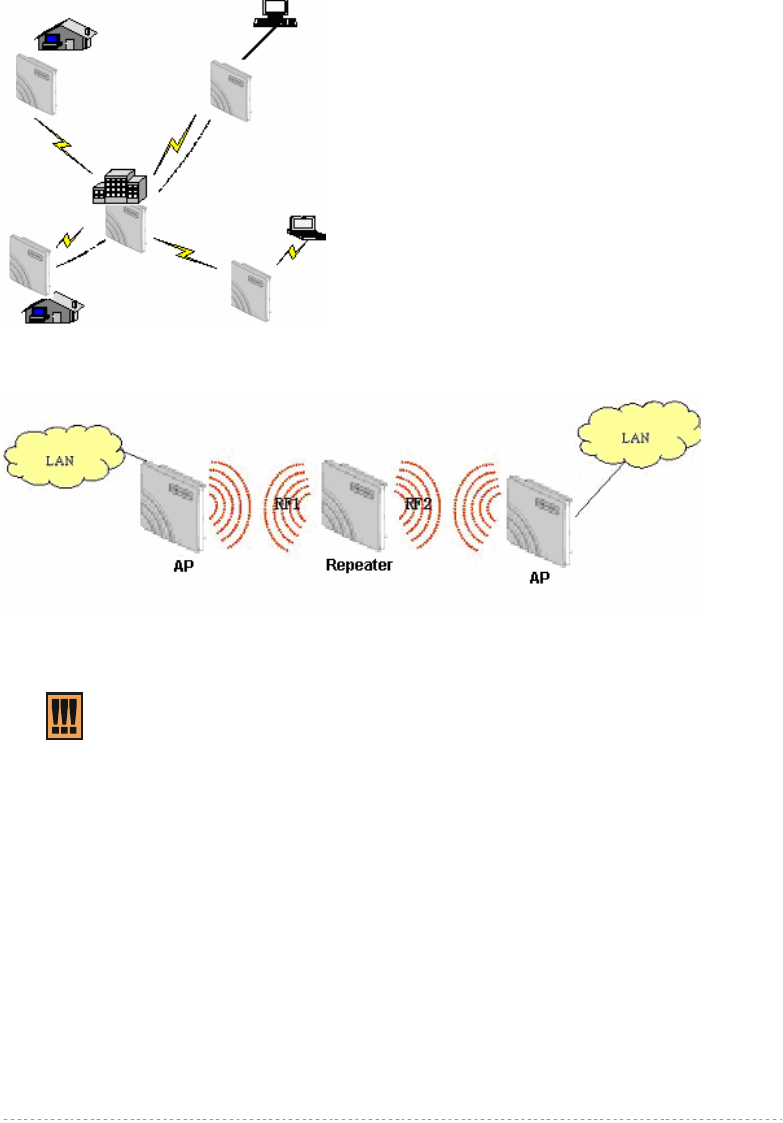

CHAPTER 3 – APPLICATION MODE .................................................................................................20

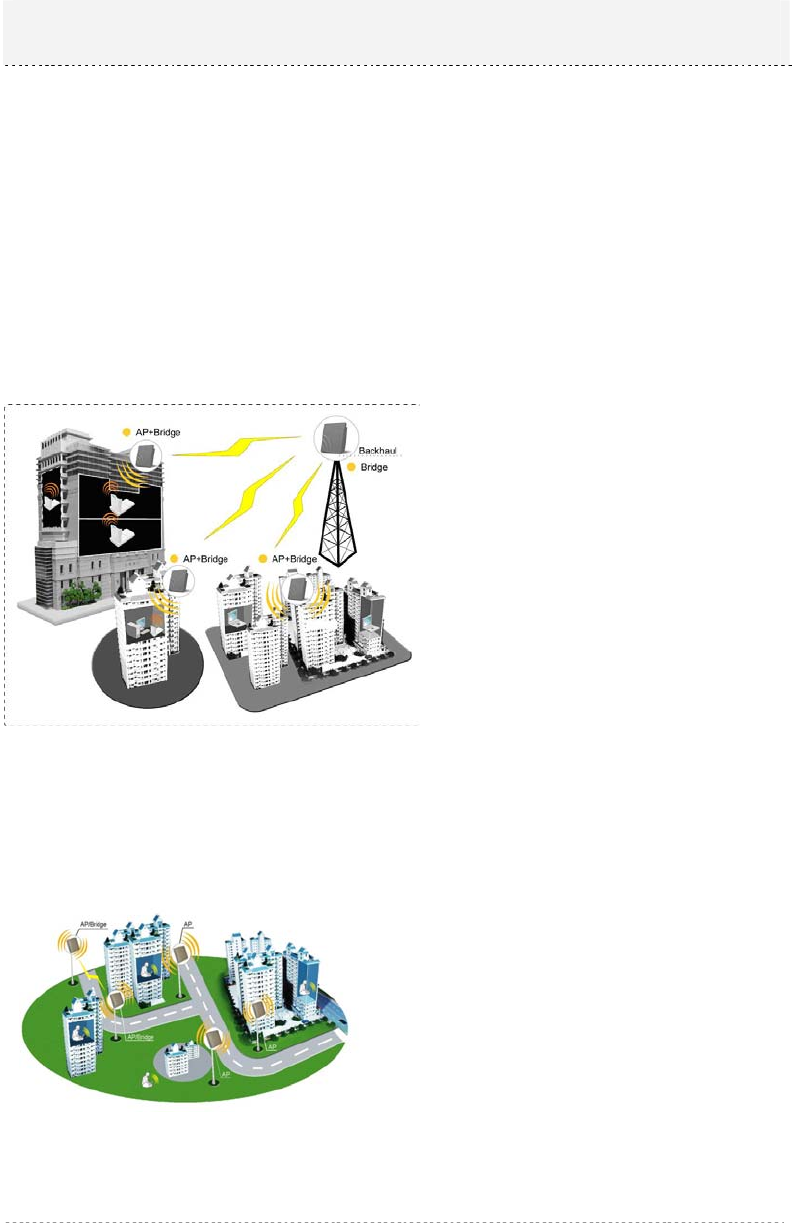

AP + Bridge Mode .............................................................................................................................20
AP + AP Mode...................................................................................................................................20
Bridge+ Bridge Mode ........................................................................................................................21
CHAPTER 4 – REFERENCE MANUAL...............................................................................................22
Web Interface....................................................................................................................................22
Status ................................................................................................................................................23

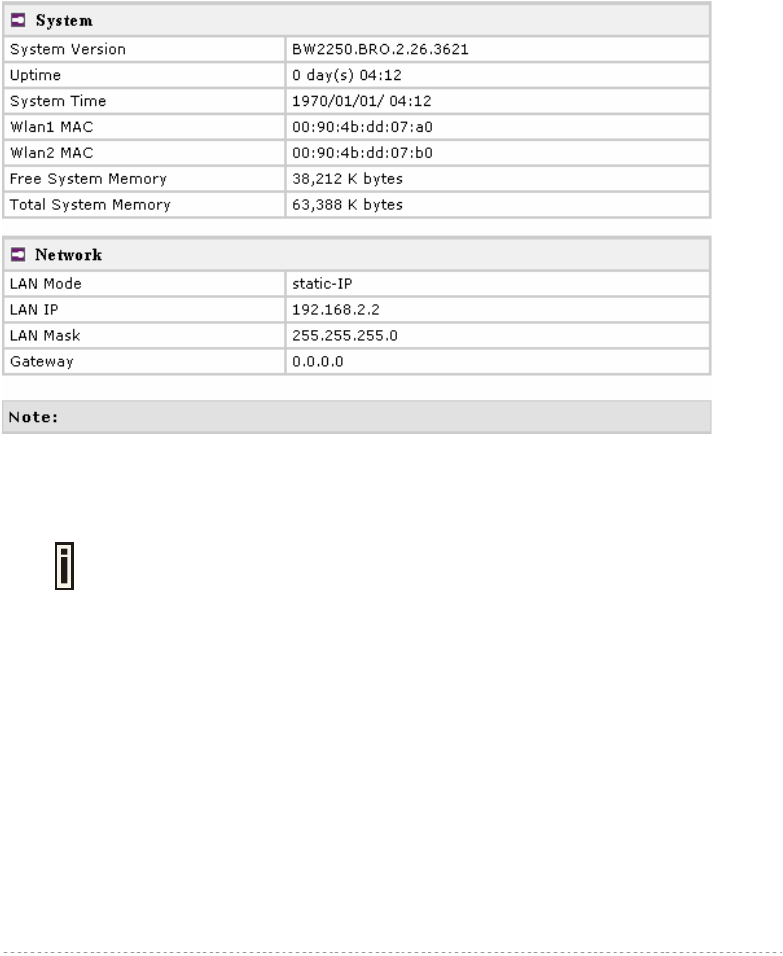

Status | Device Status ...................................................................................................................23

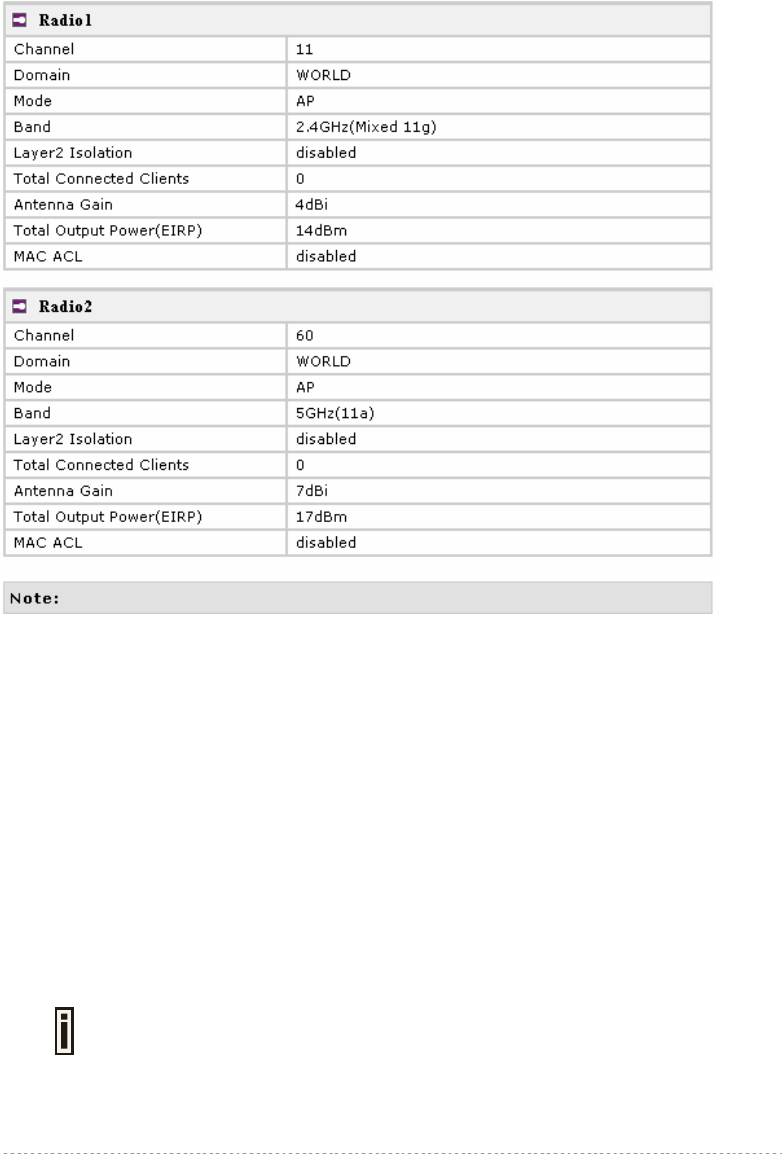

Status | Wireless Status.................................................................................................................24

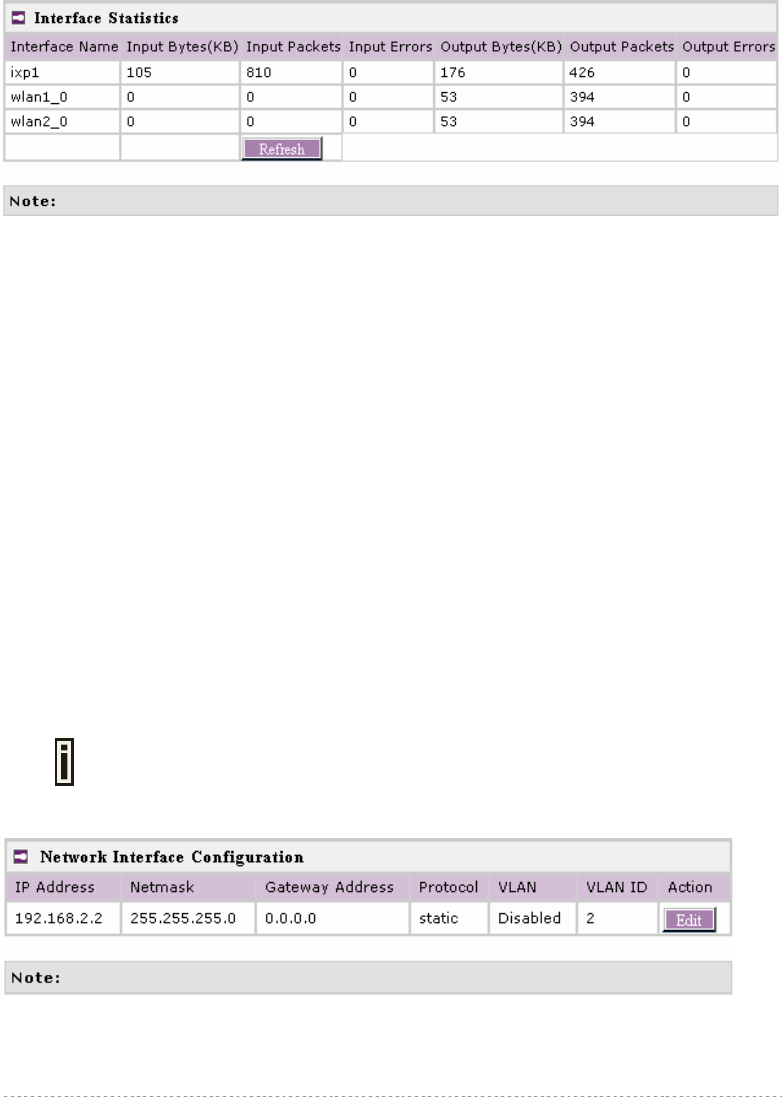

Status | Interface Statistics ............................................................................................................25
Network .............................................................................................................................................25

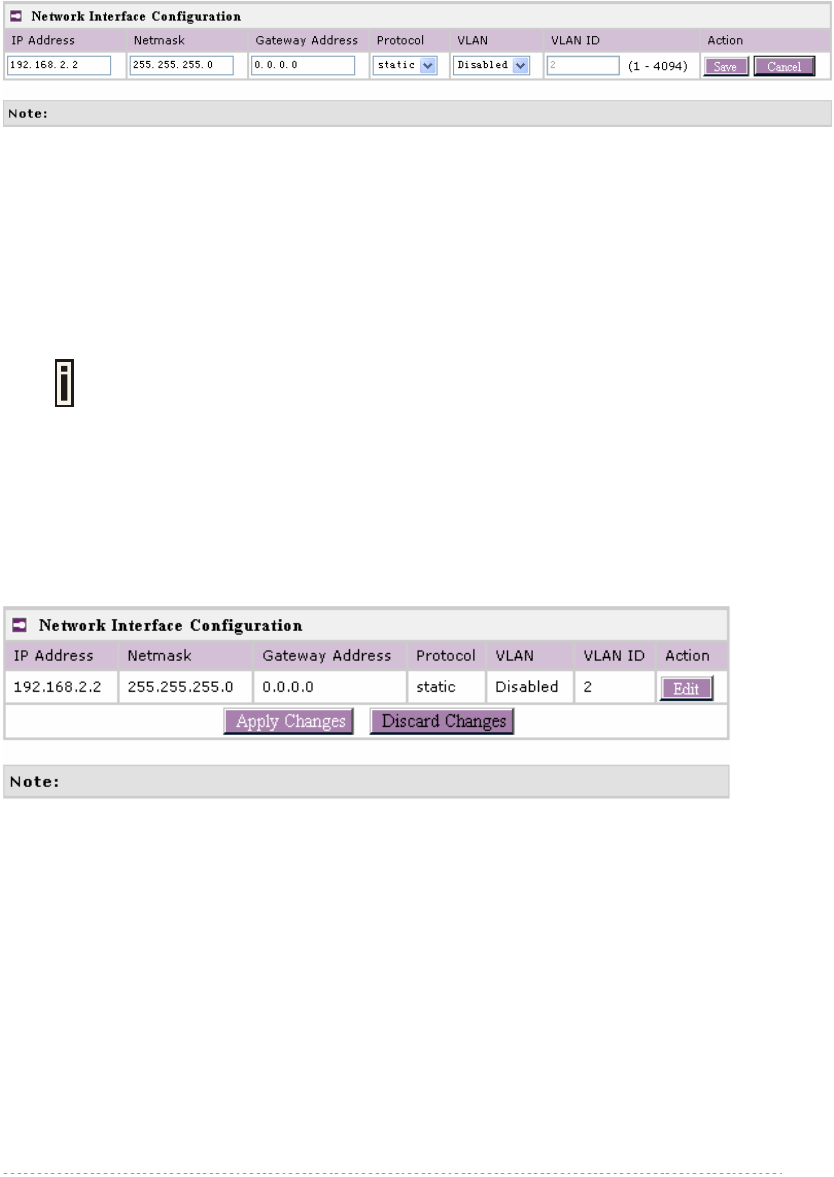

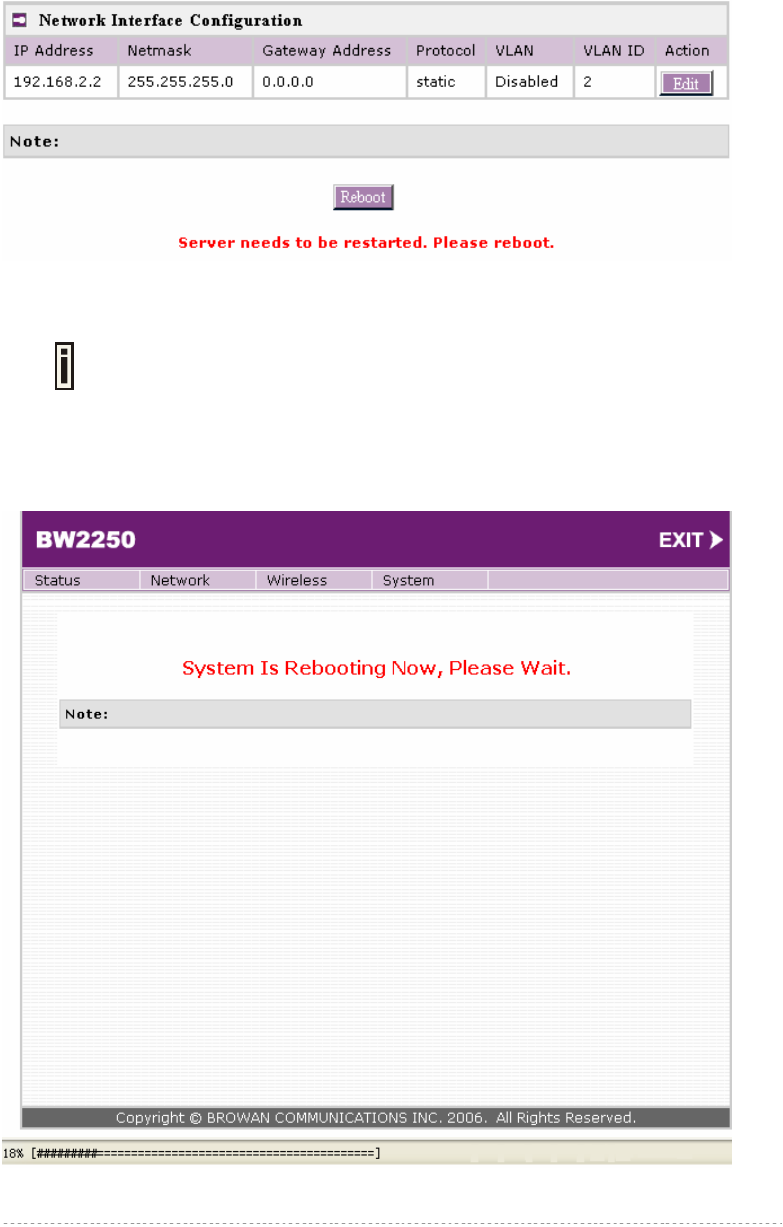

Network | Interface.........................................................................................................................25

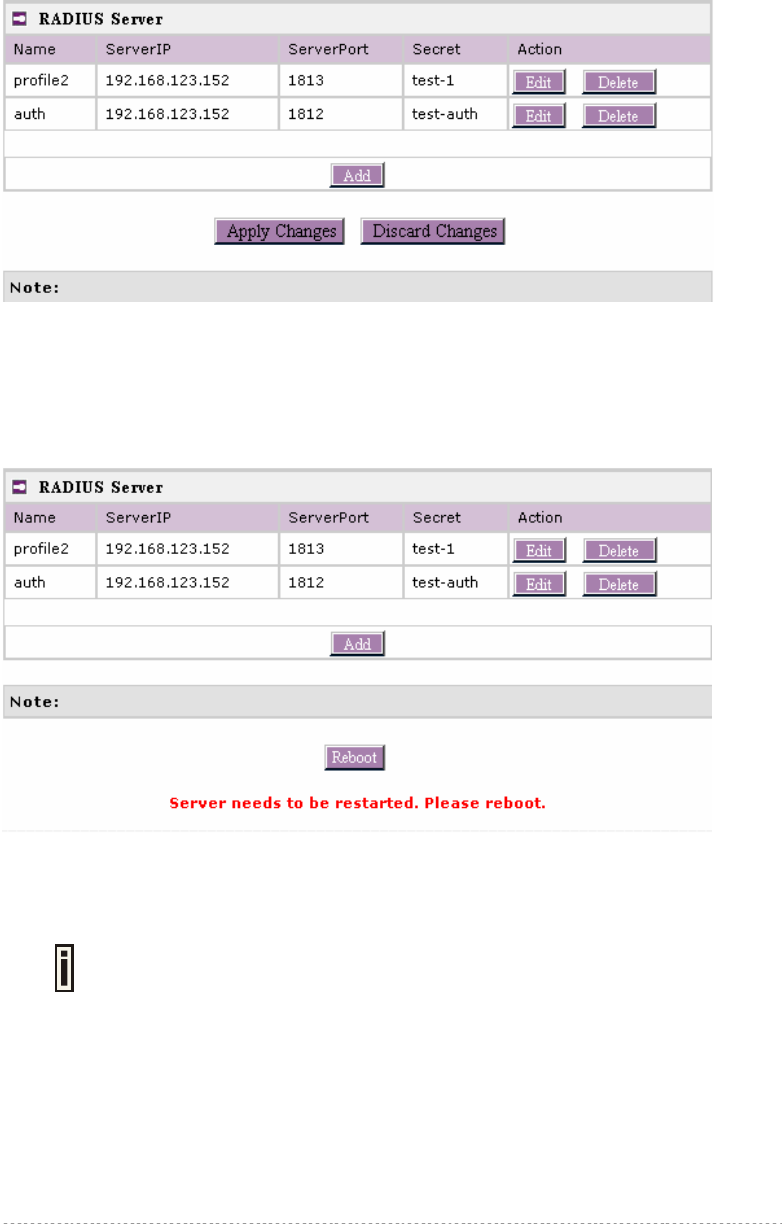

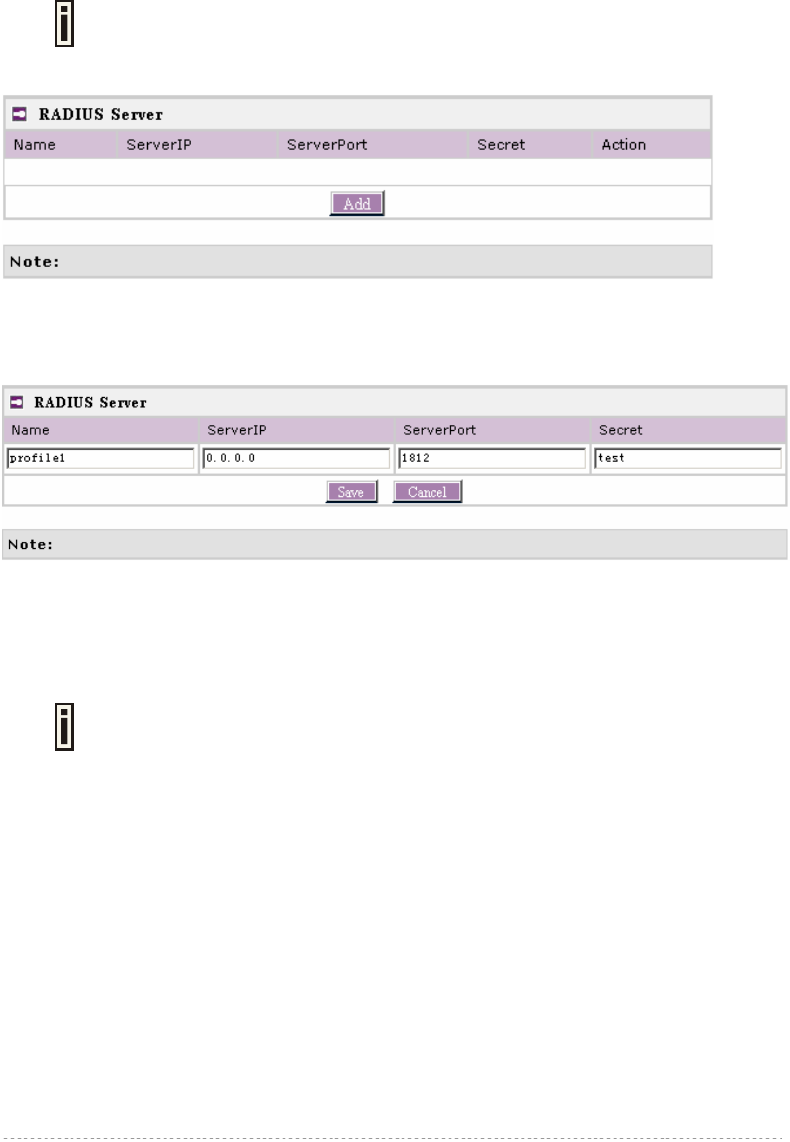

Network | RADIUS Server .............................................................................................................28

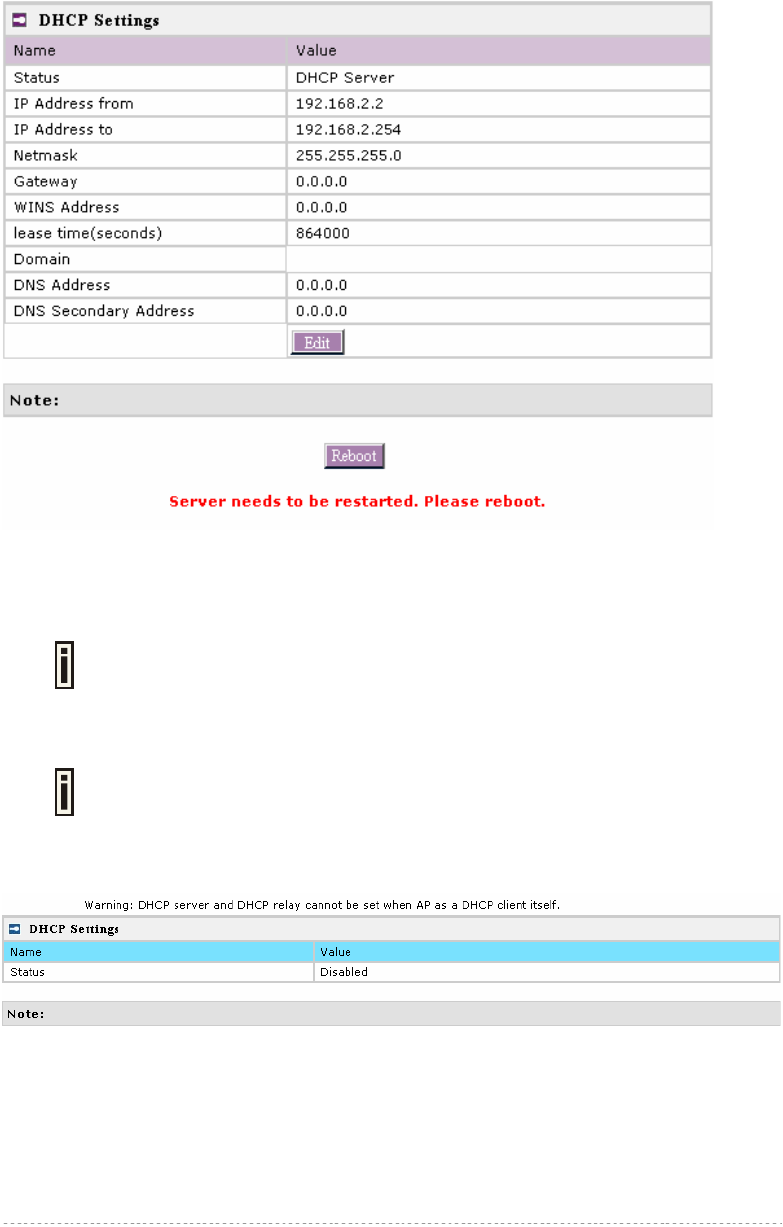

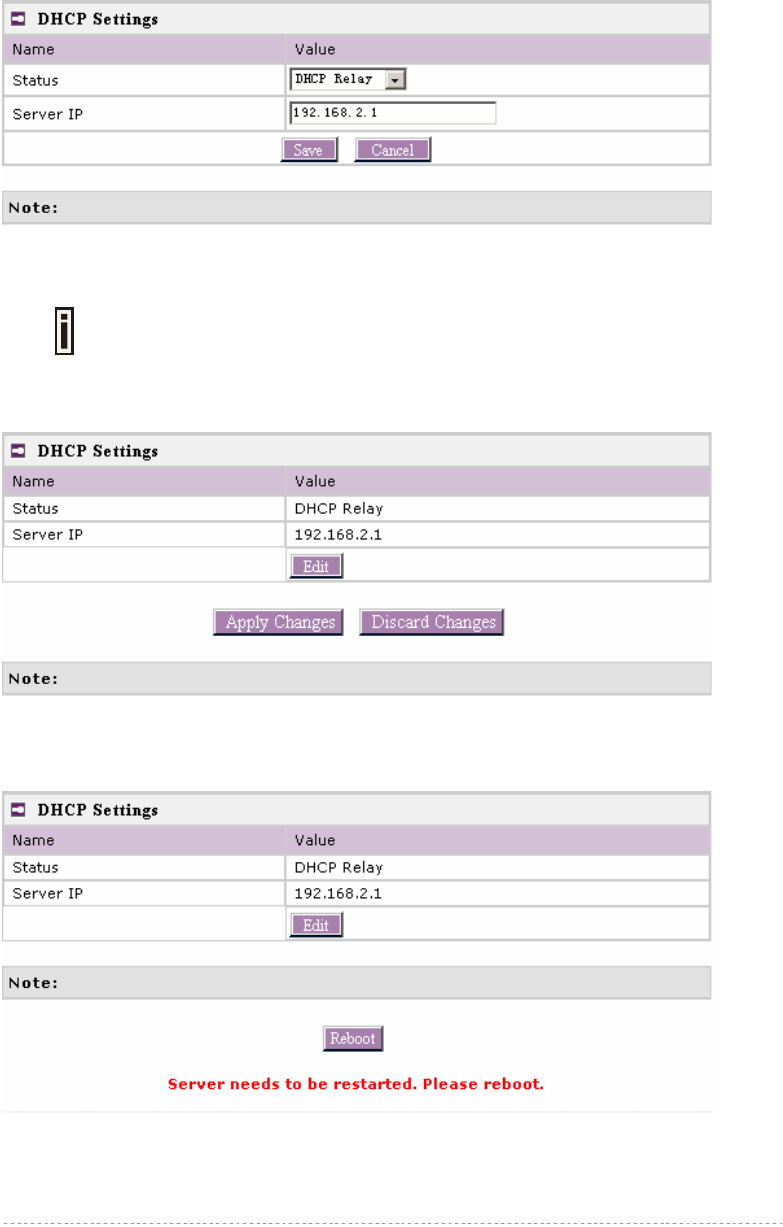

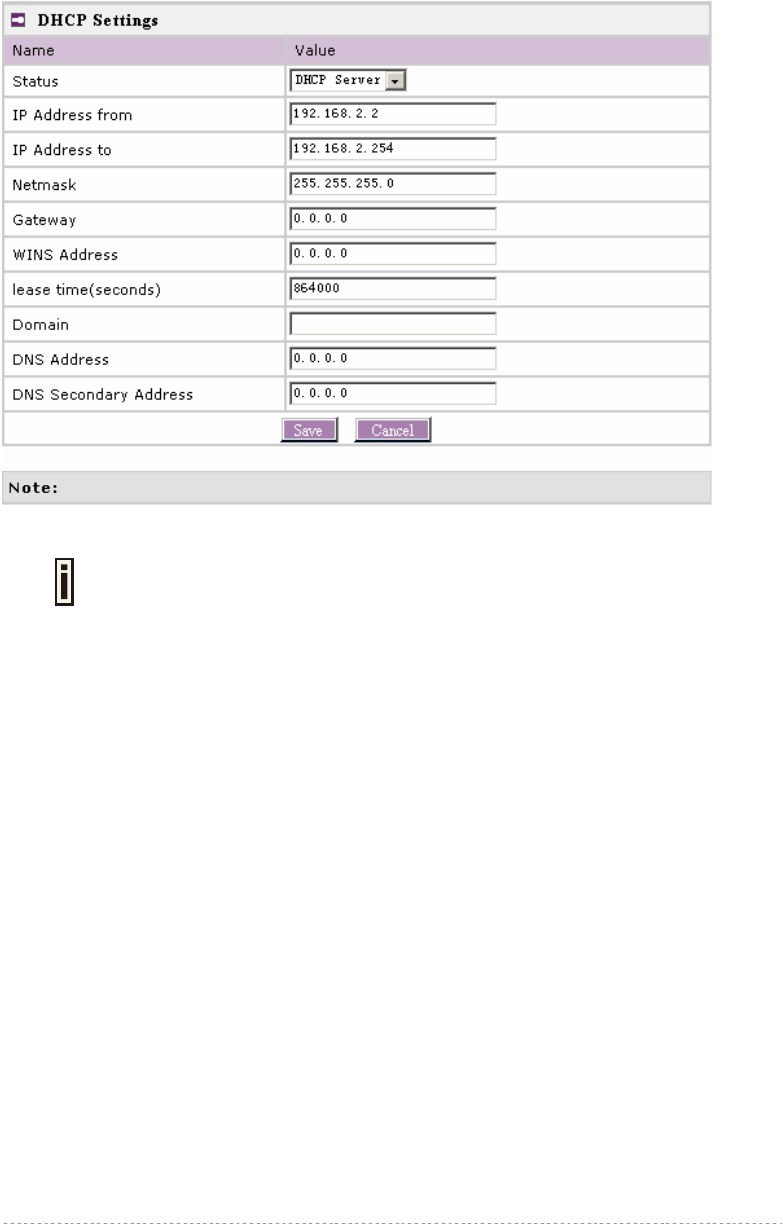

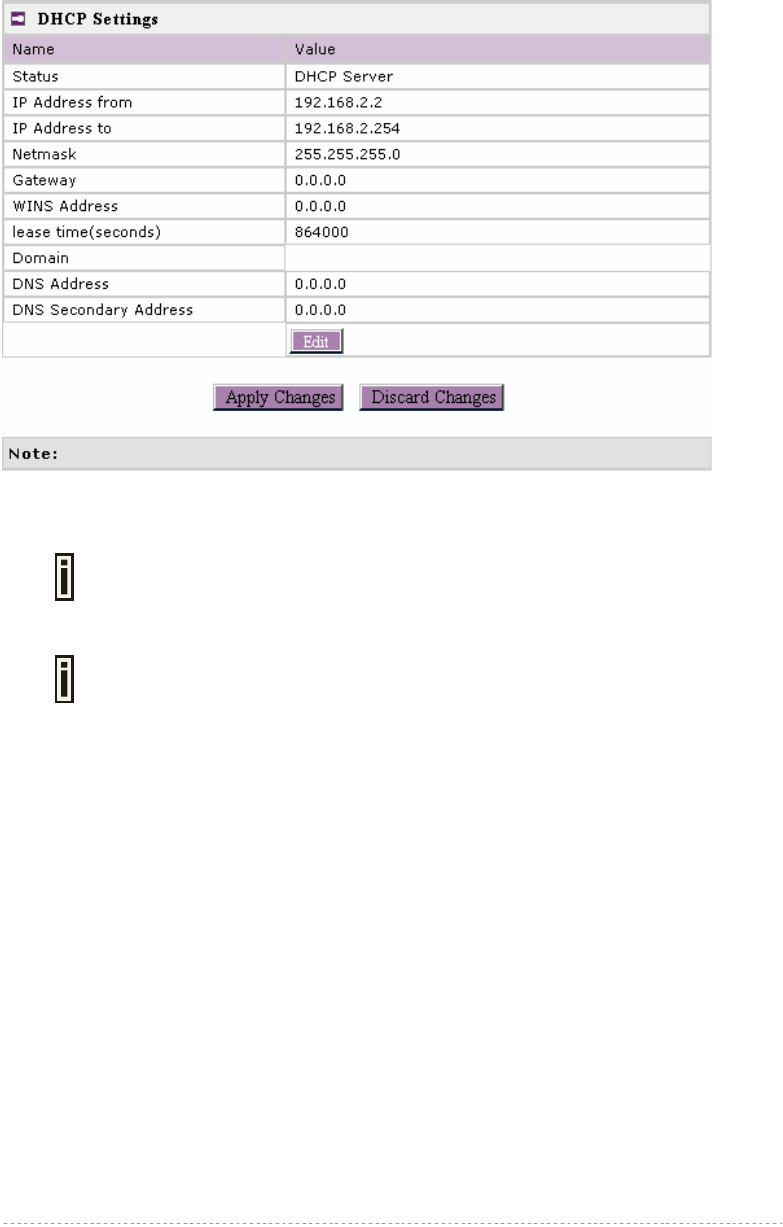

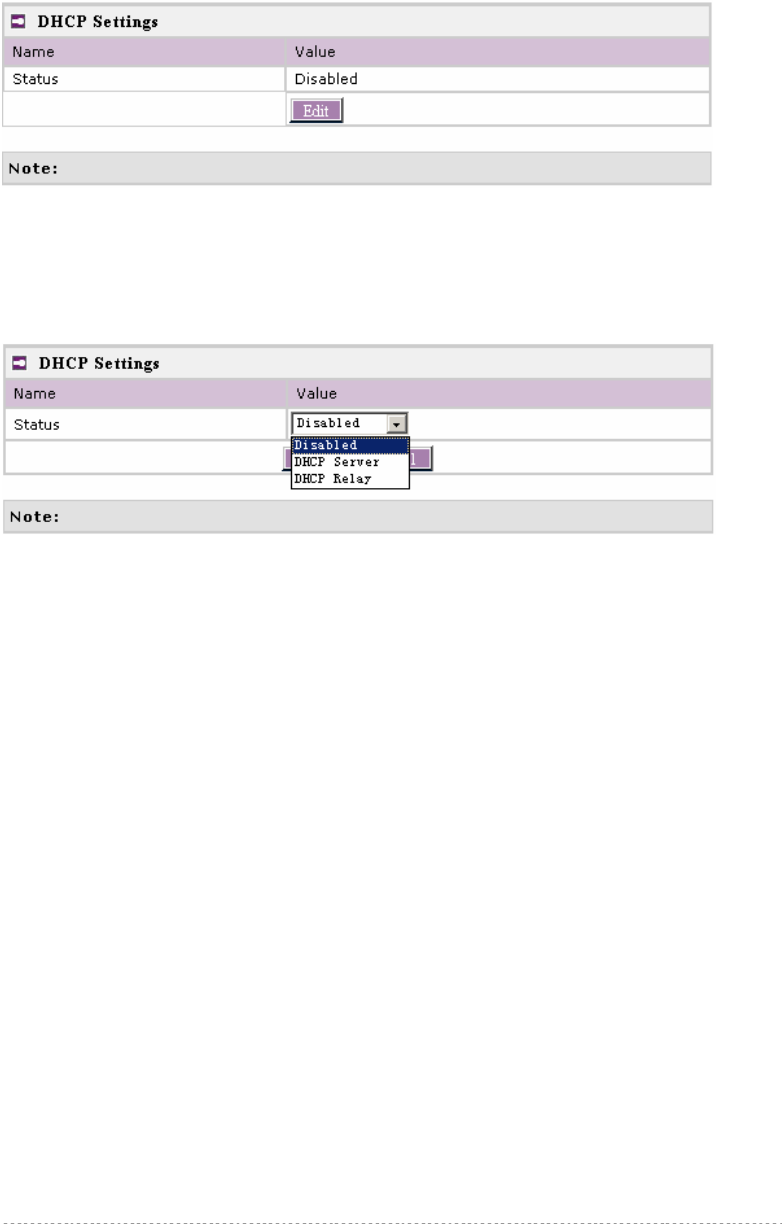

Network | DHCP Settings ..............................................................................................................29

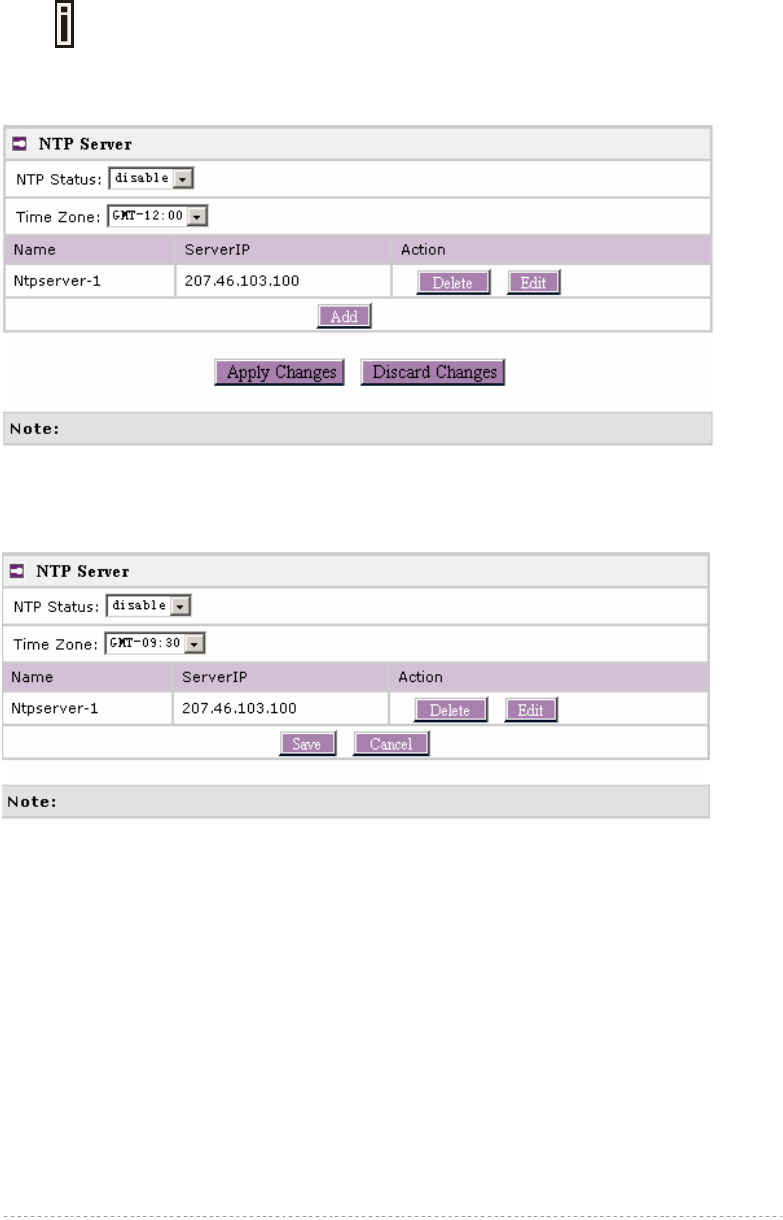

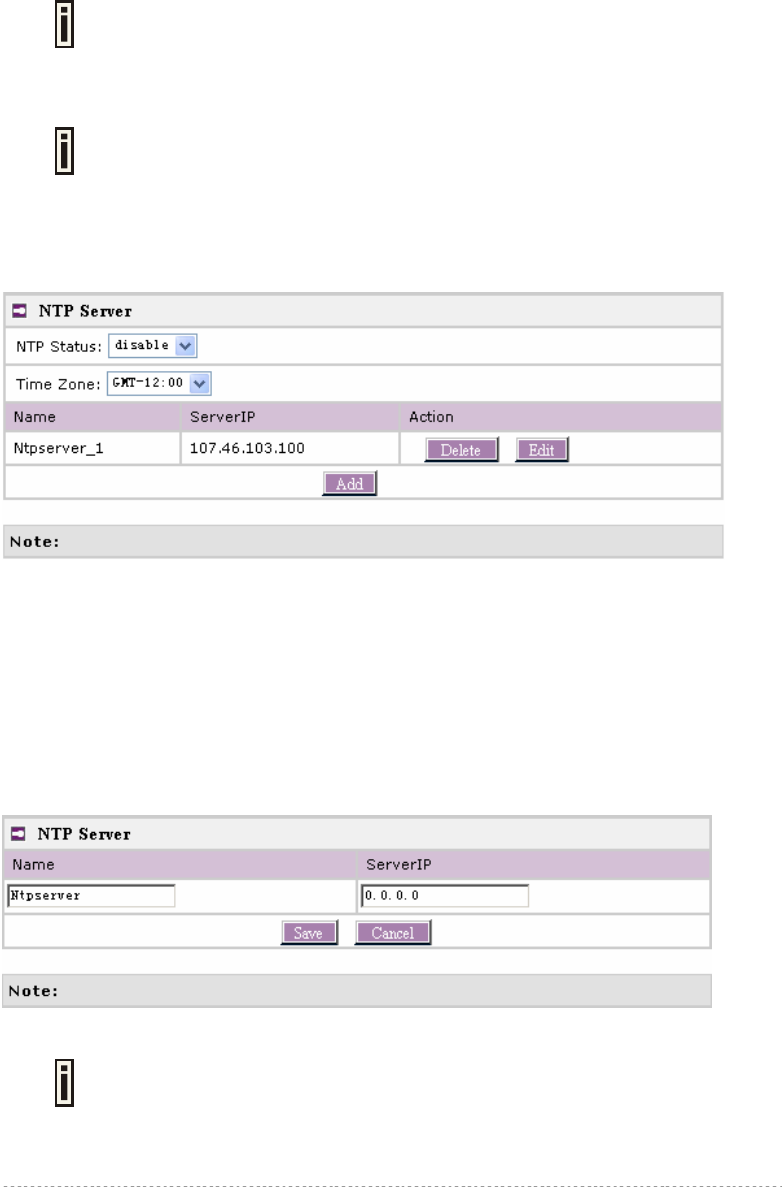

Network | NTP Settings .................................................................................................................35

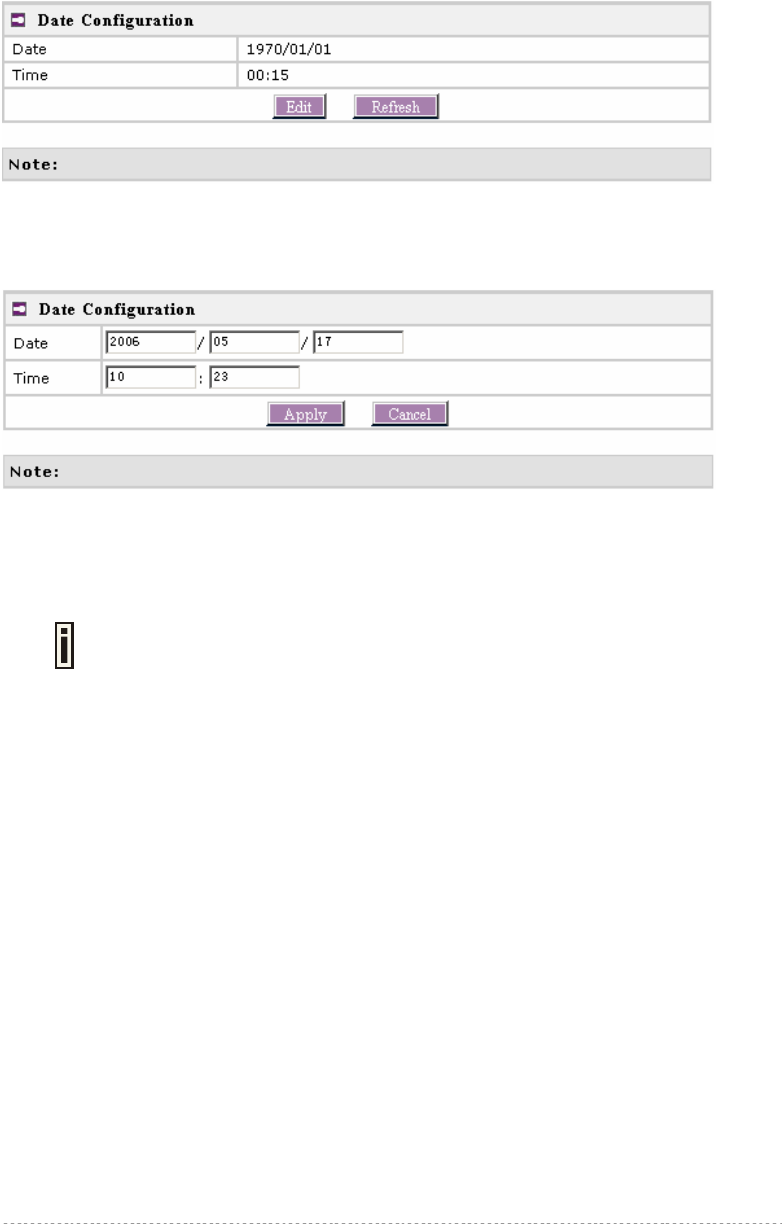

Network | Time Settings.................................................................................................................37
Wireless.............................................................................................................................................38
Contents
BROWAN COMMUNICATIONS Page 5

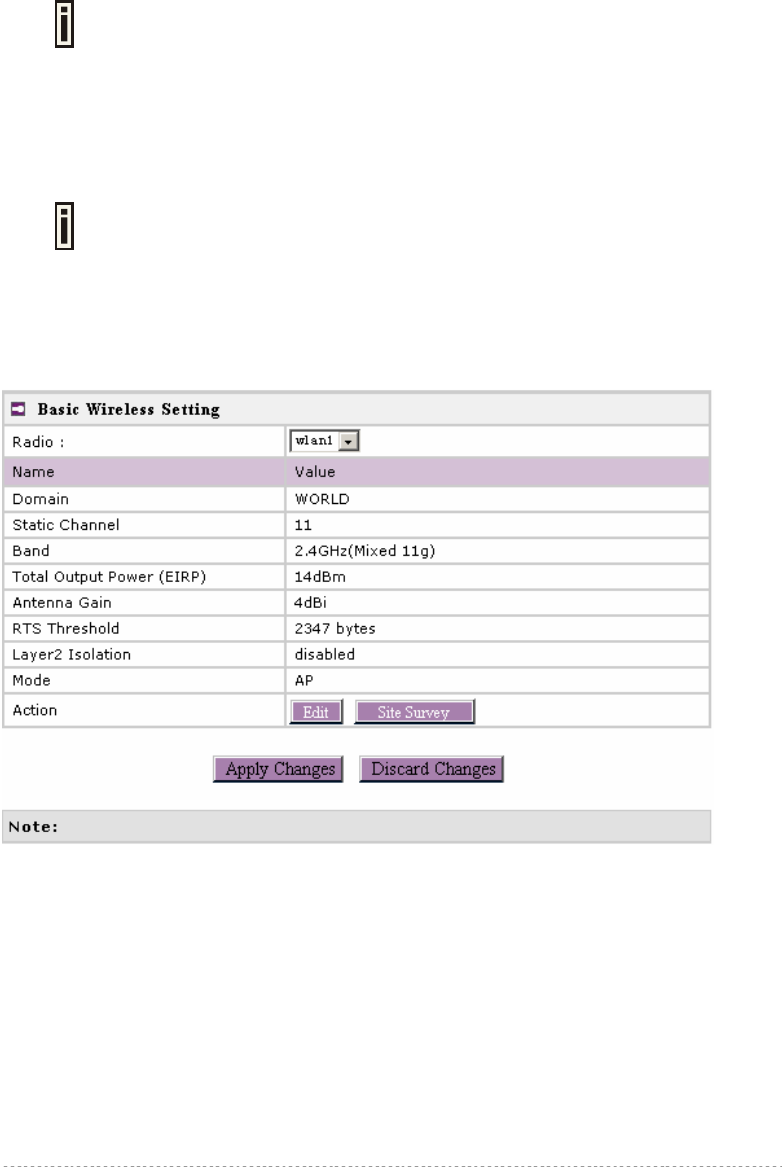

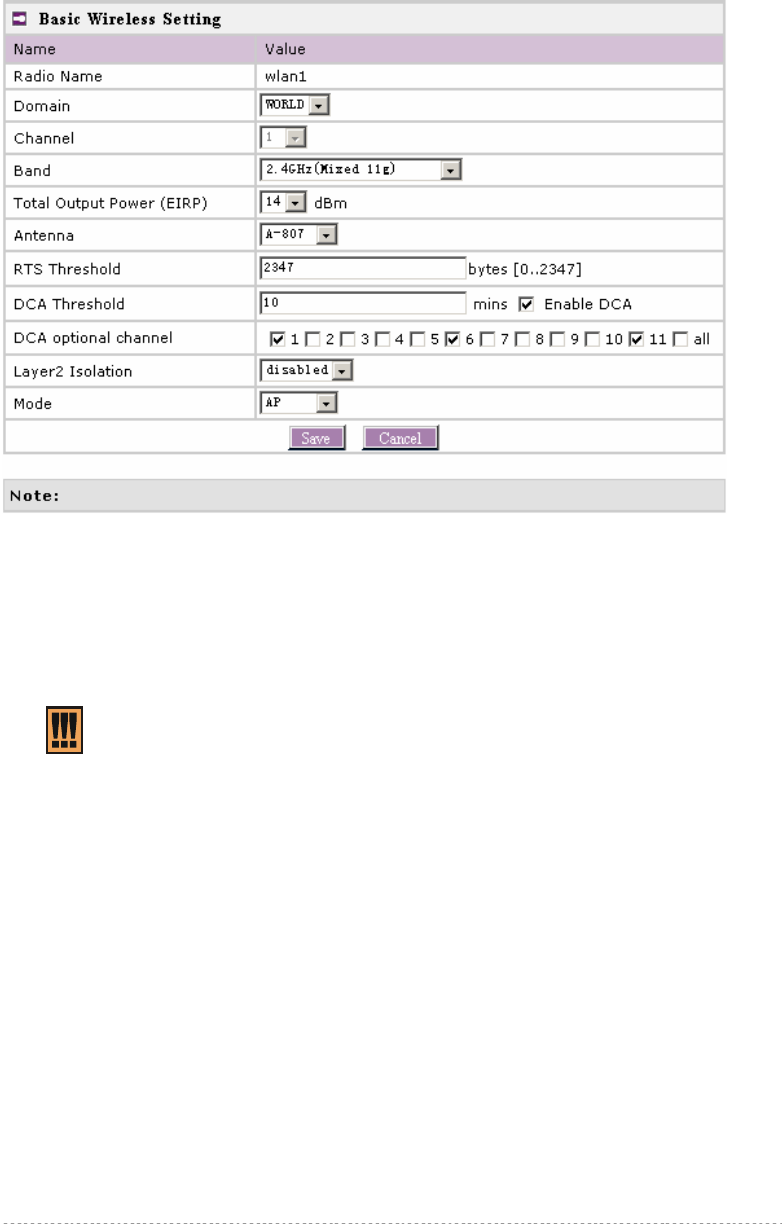

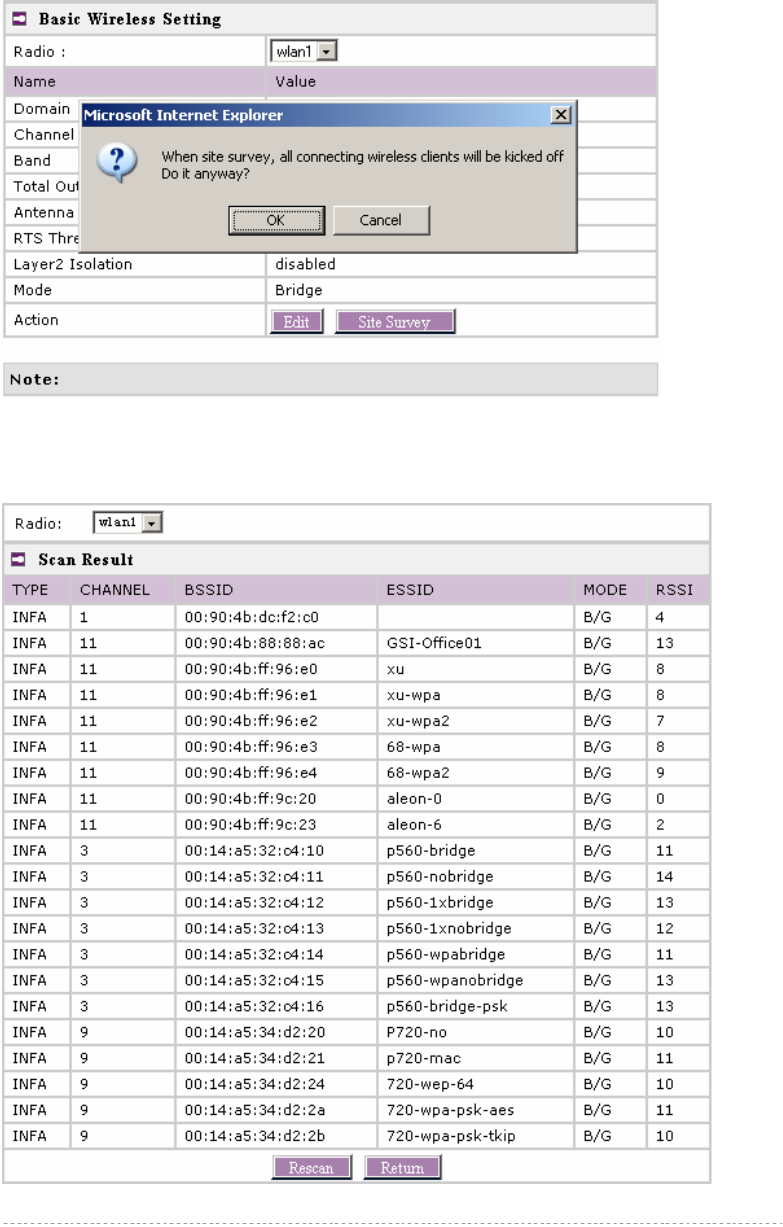

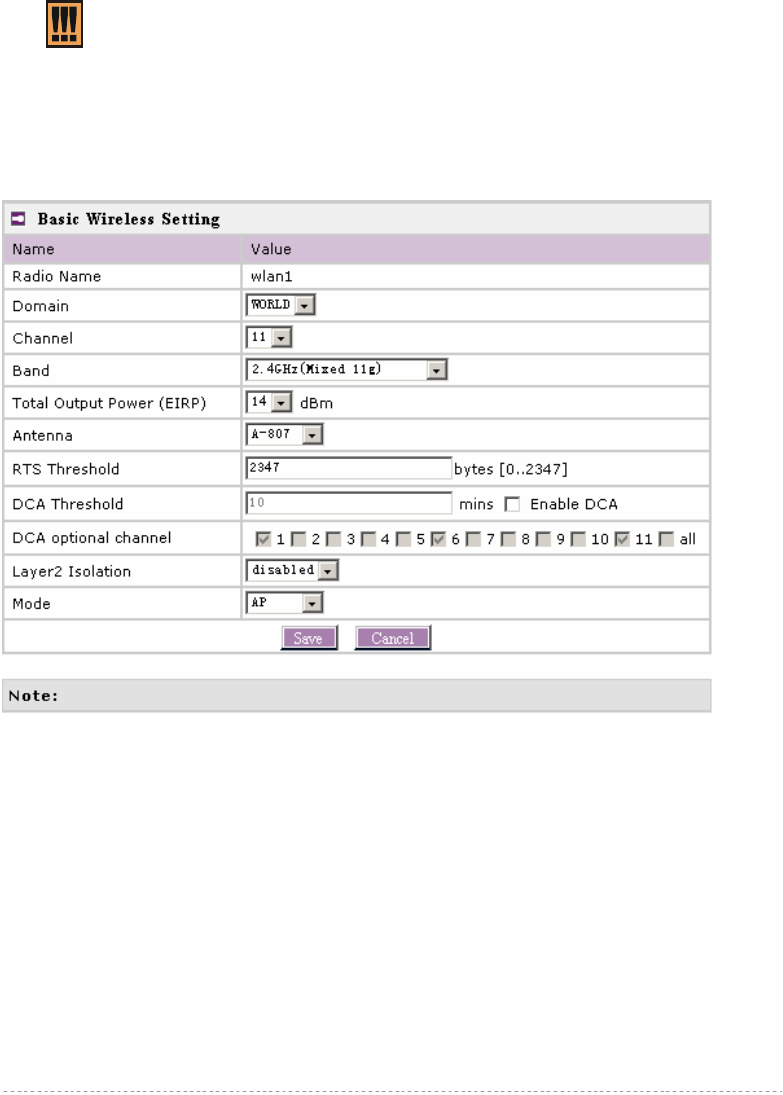

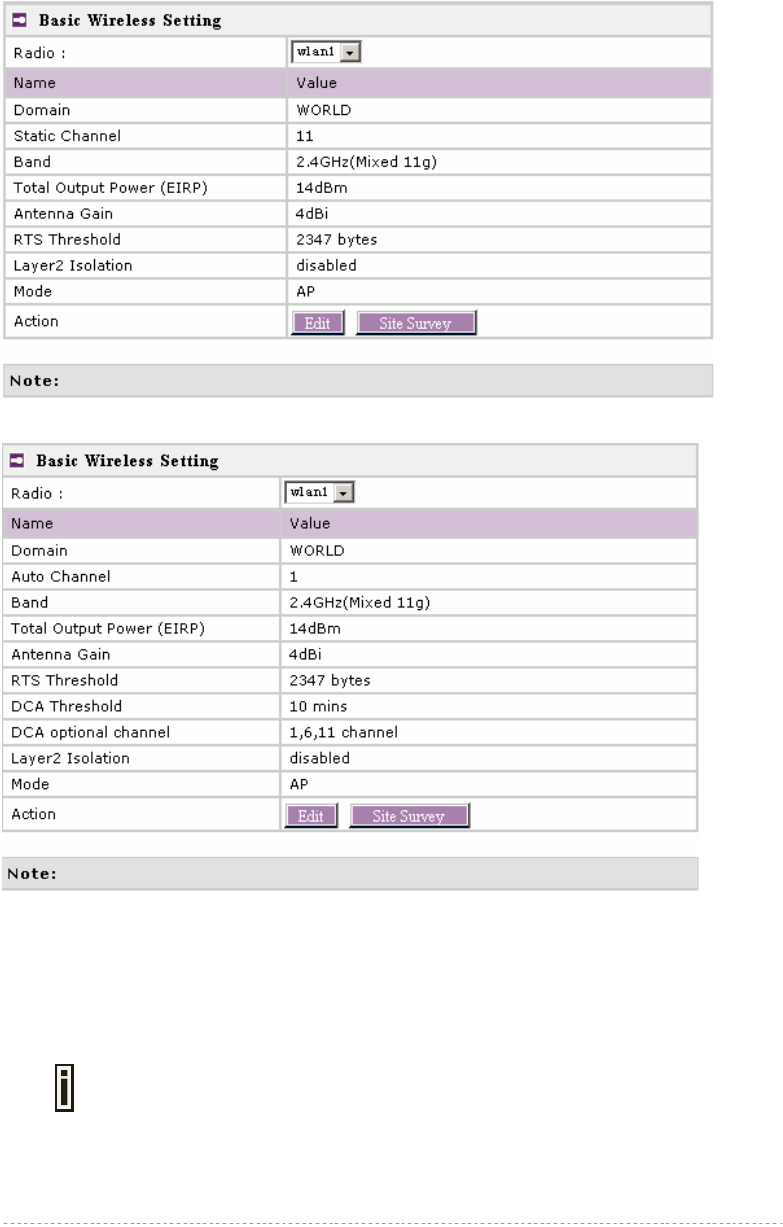

Wireless | Basic .............................................................................................................................38

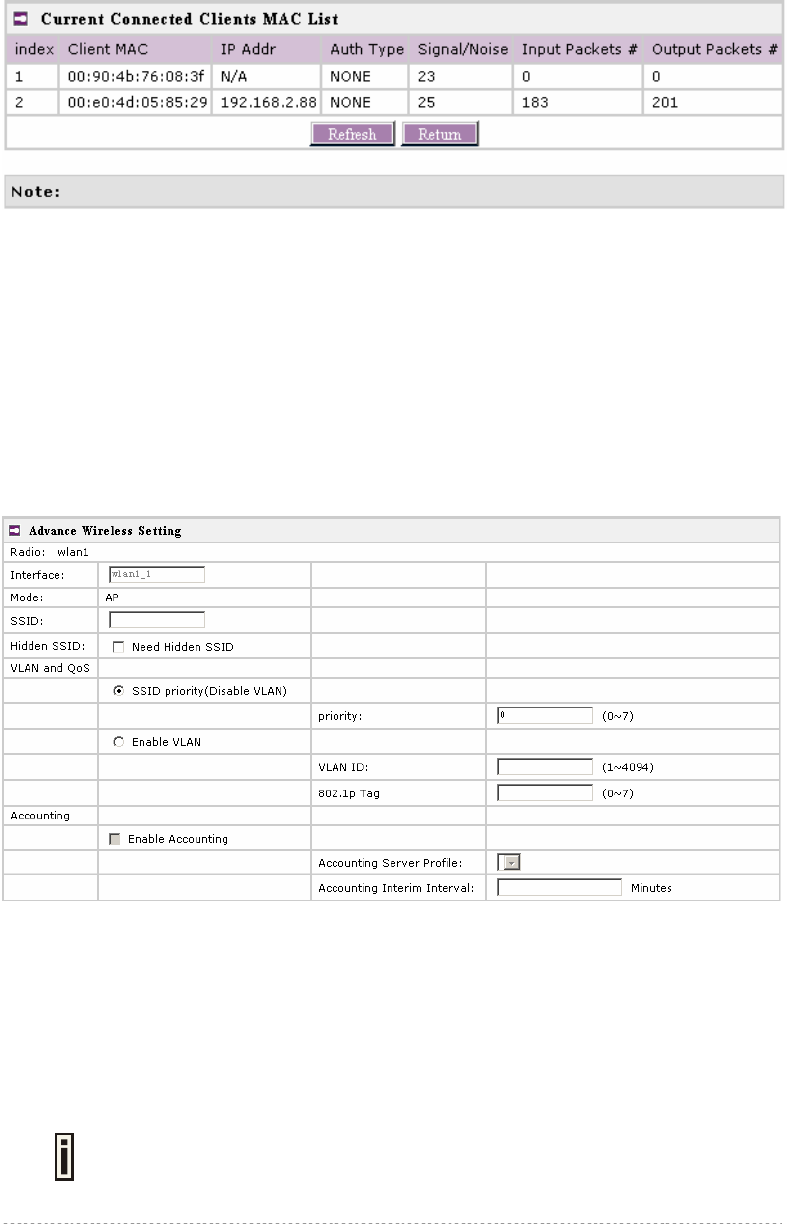

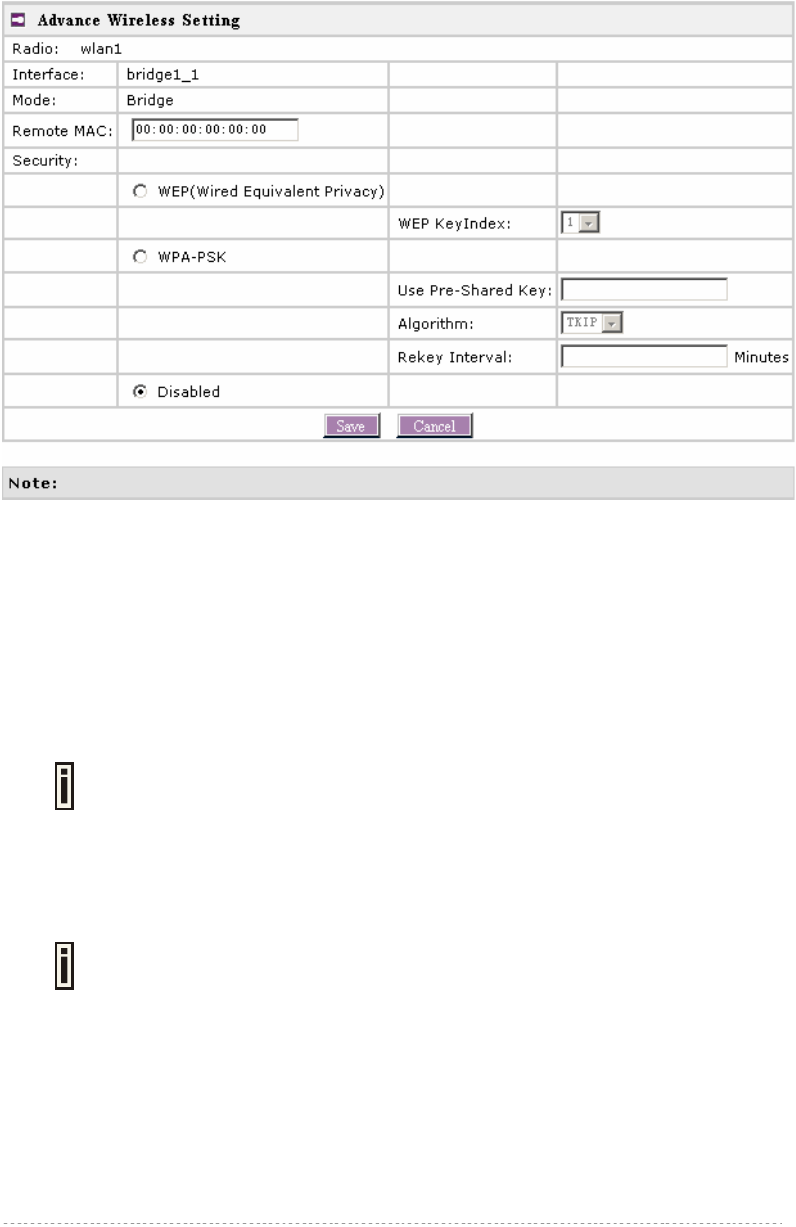

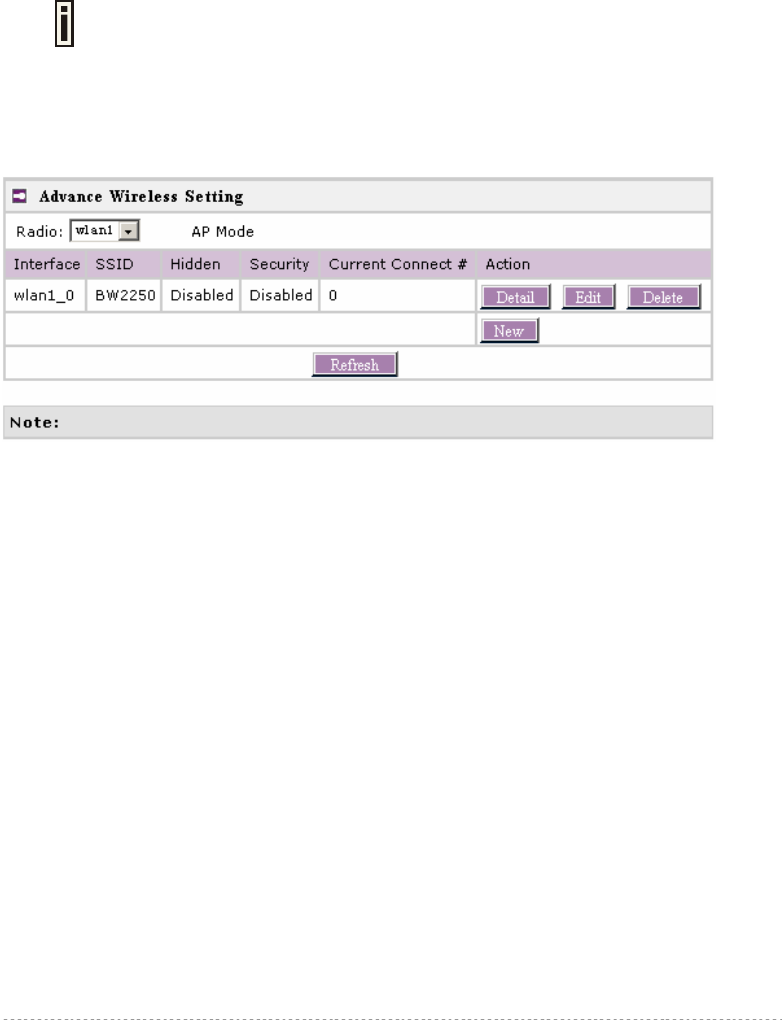

Wireless | Advance ........................................................................................................................48

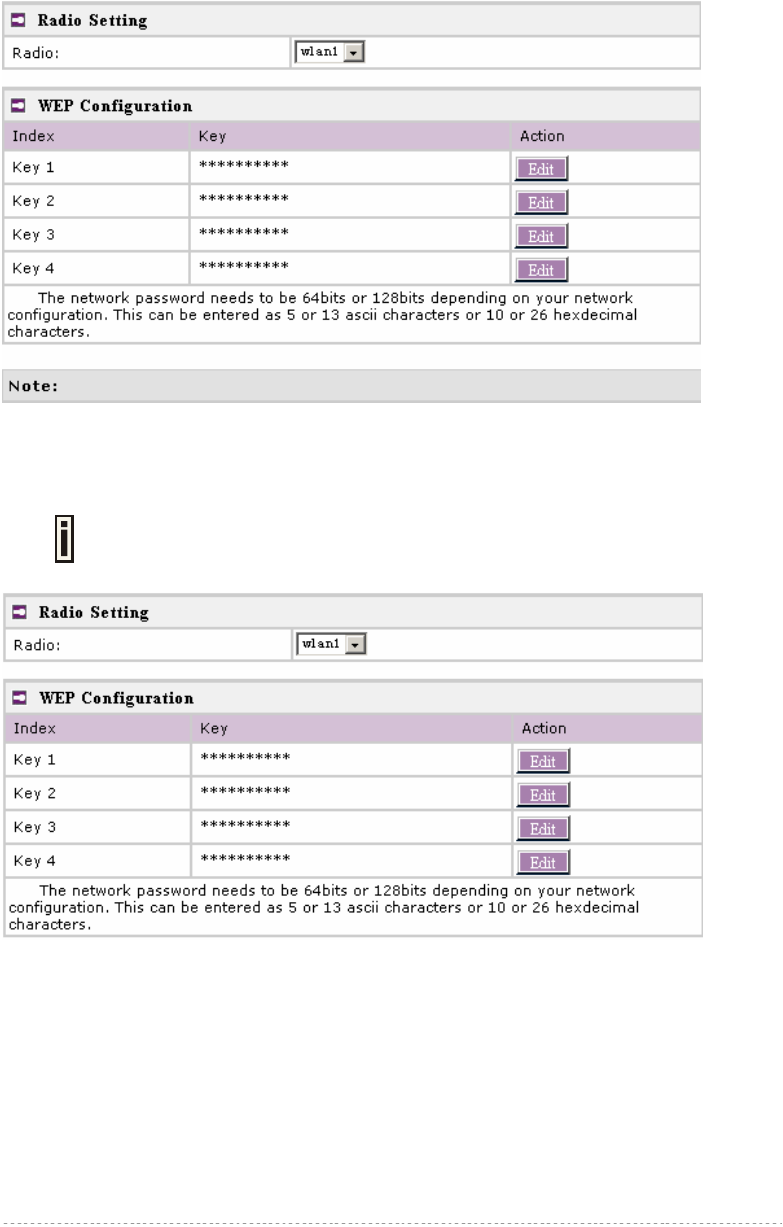

Wireless | WEP..............................................................................................................................55

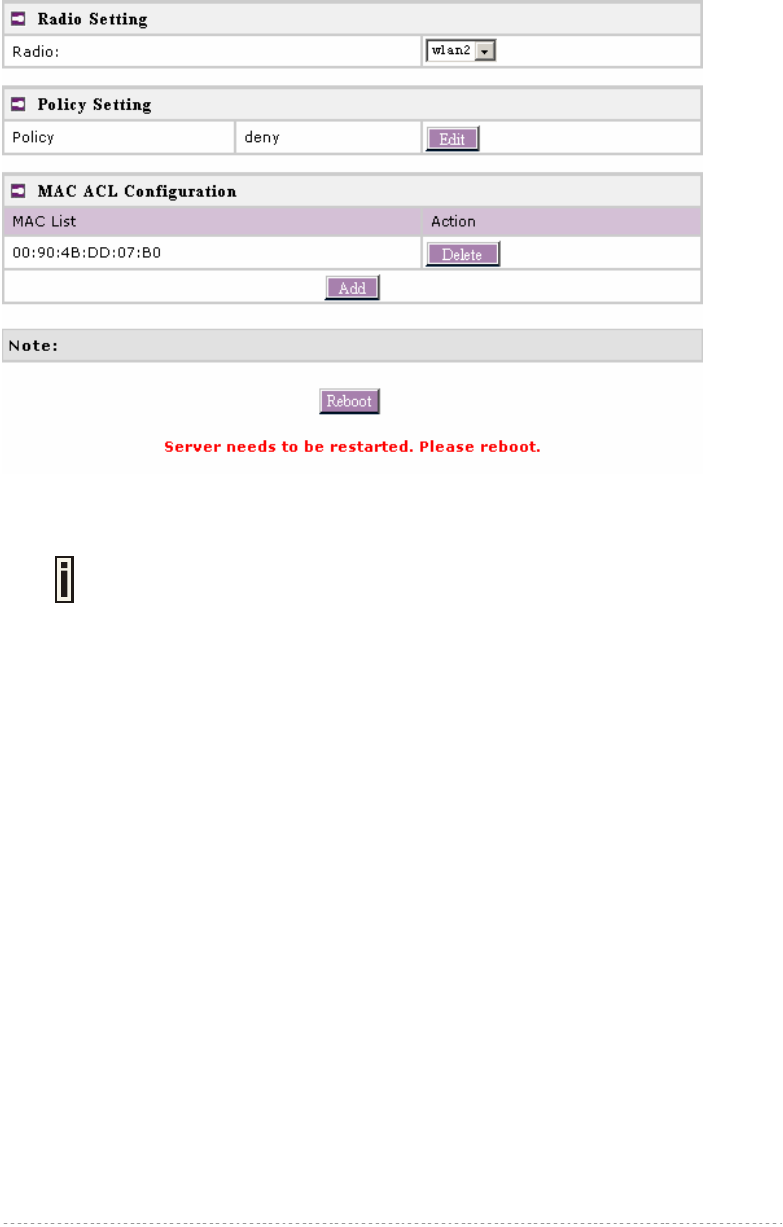

Wireless | MAC ACL......................................................................................................................56
System...............................................................................................................................................60

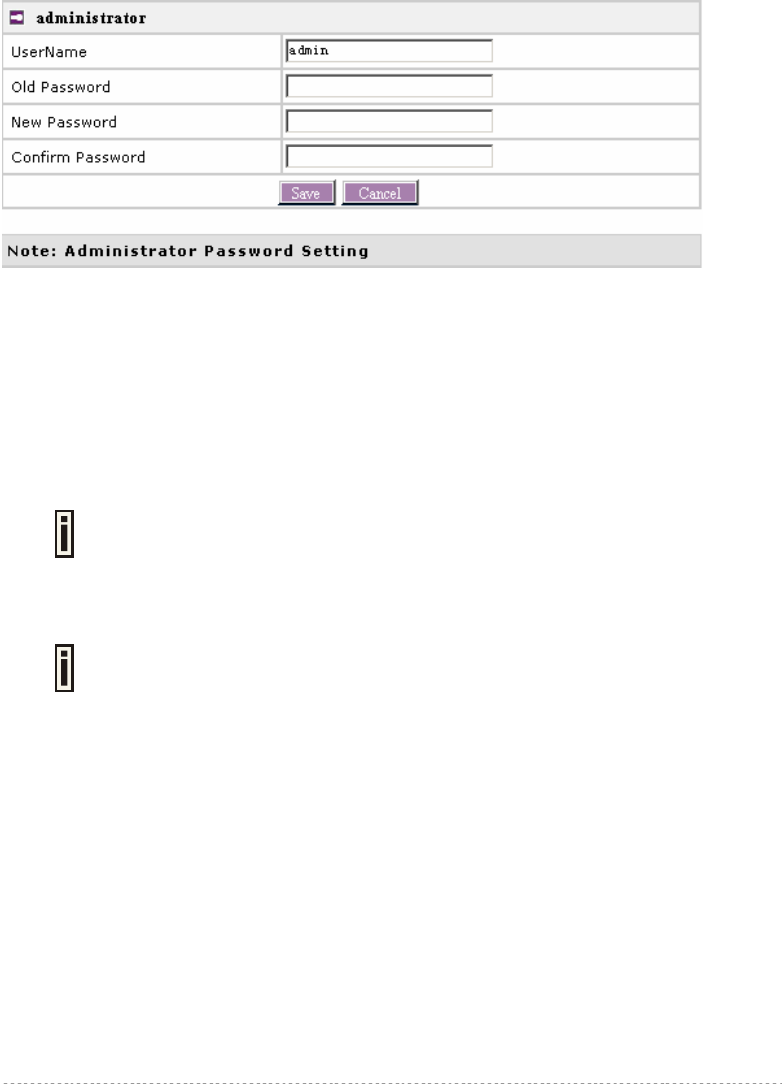

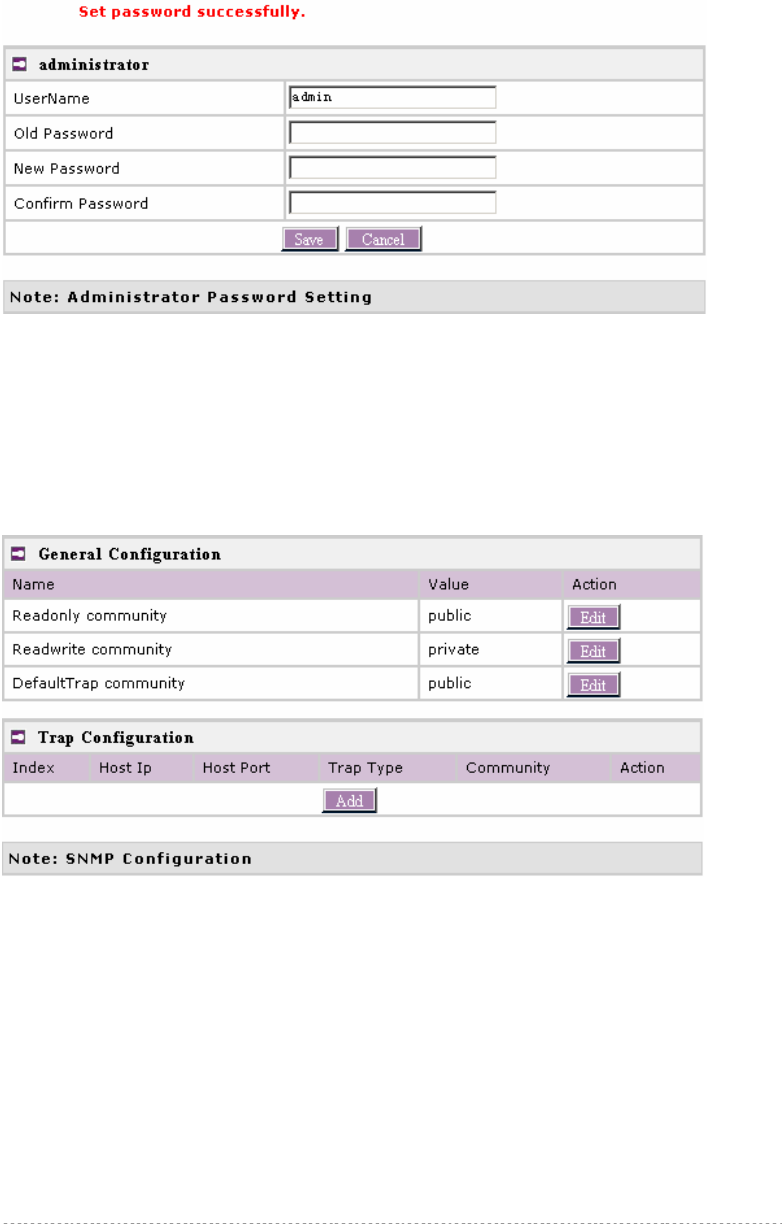

System | Security...........................................................................................................................60

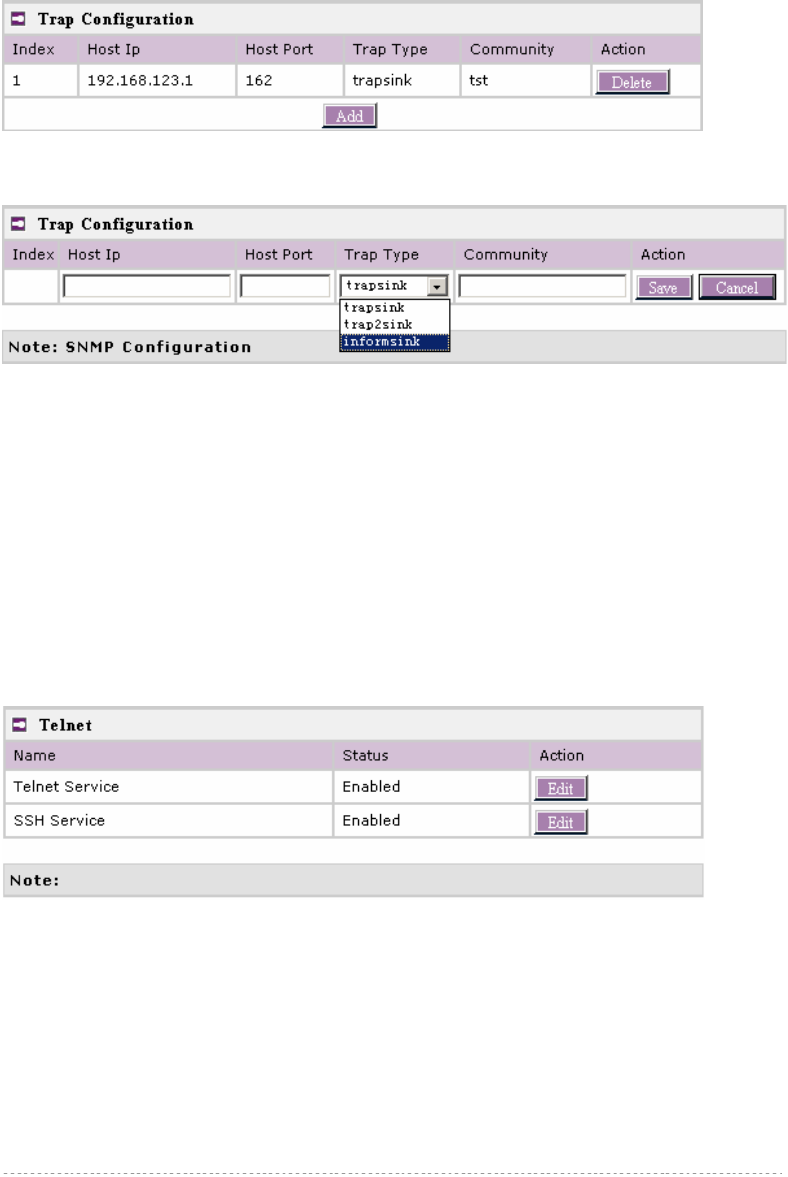

System | SNMP..............................................................................................................................61
System | Telnet..............................................................................................................................62

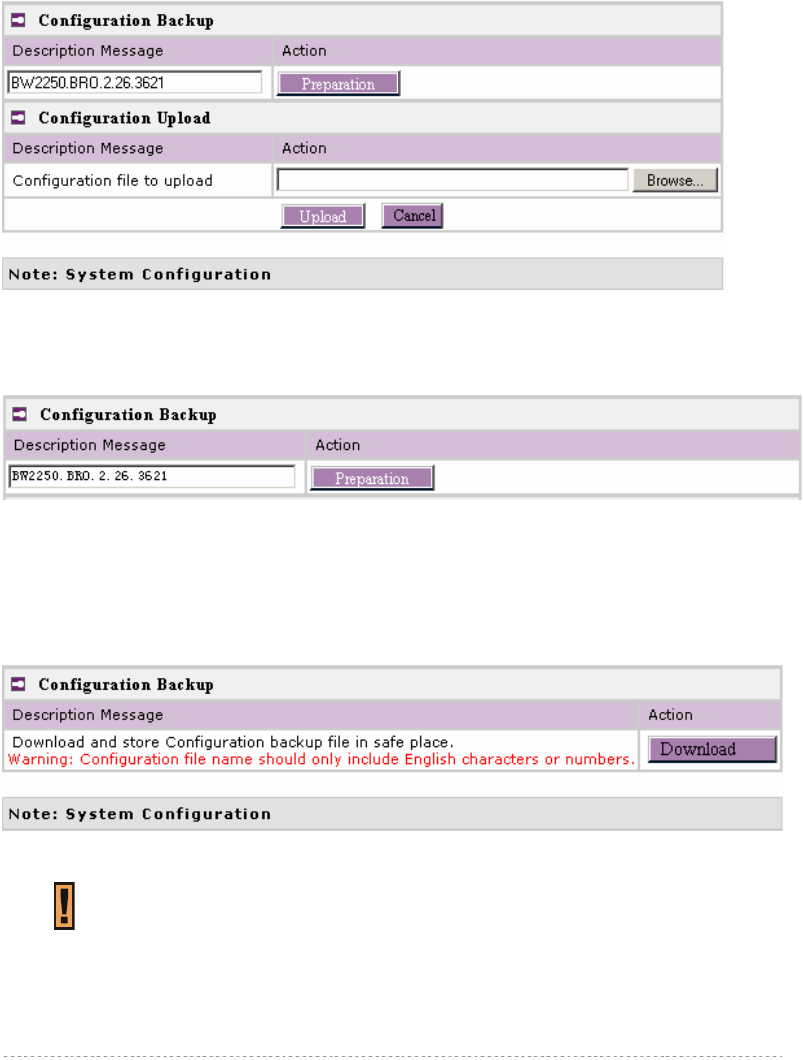

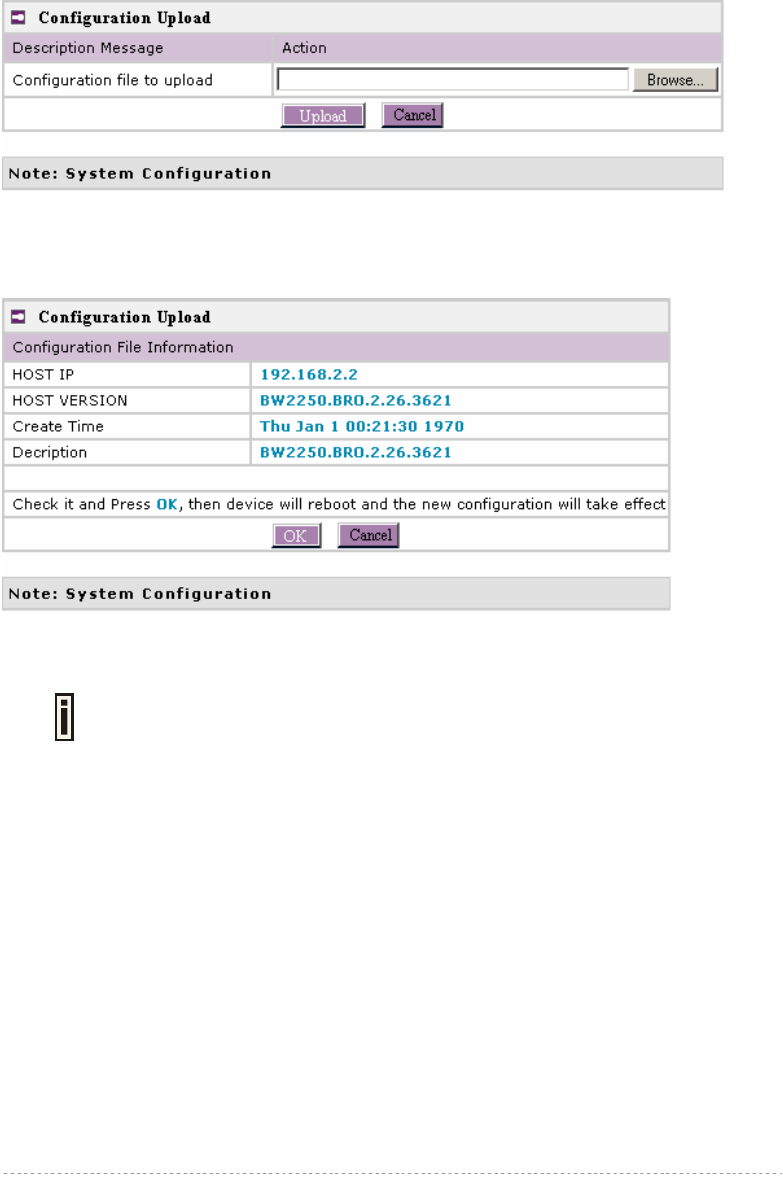

System | Configuration ..................................................................................................................63
System | Reset...............................................................................................................................65

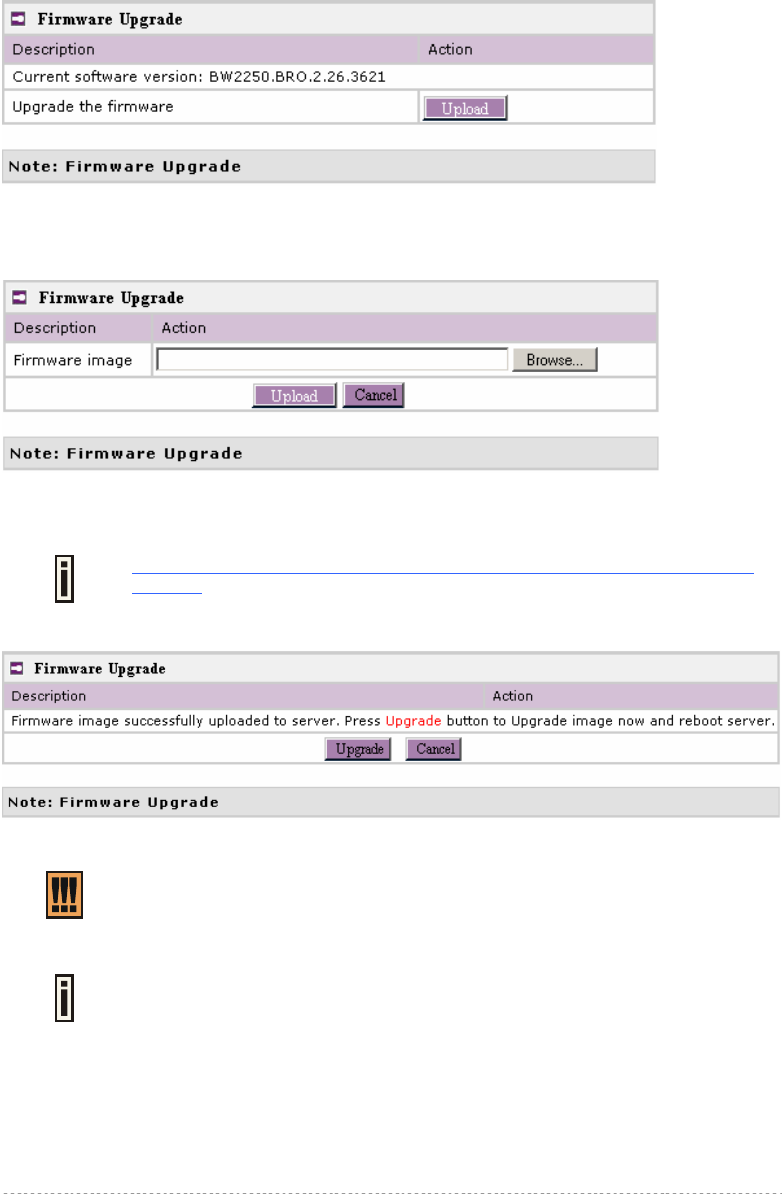

System | Upgrade ..........................................................................................................................65
APPENDIX............................................................................................................................................67
A) Specification .................................................................................................................................67
B) Factory Defaults for the BW2250 .................................................................................................69

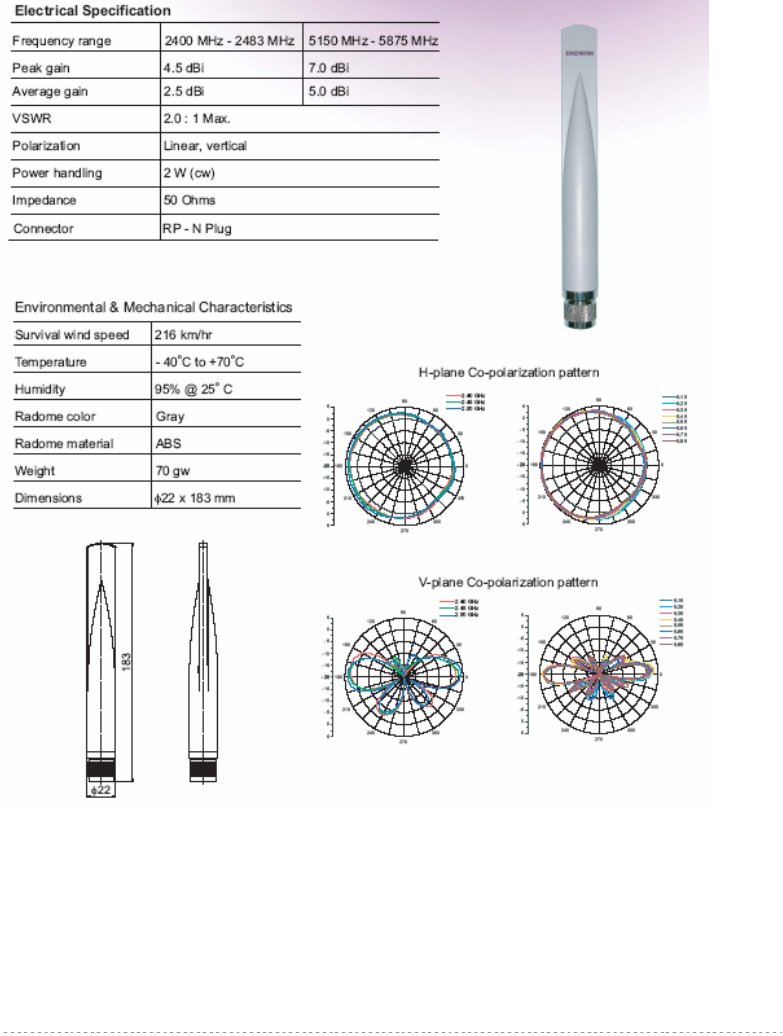

C) Approved Antenna........................................................................................................................70
D) Location ID and ISO Country Codes............................................................................................71
BROWAN COMMUNICATIONS Page 6
Purpose
The purpose of this document is to collect, analyze, and define needs and features of the new
BROWAN BW2250 Dual Radio 2.4GHz/5GHz Outdoor Access Point.
Prerequisite Skills and Knowledge
To use this document effectively, you should have a working knowledge of Local Area Networking
(LAN) concepts and wireless Internet access infrastructures. In addition, you should be familiar with
the following:
Hardware installers should have a working knowledge of basic electronics and mechanical
assembly, and should understand related local building codes.
Network administrators should have a solid understanding of software installation procedures for
network operating systems under Microsoft Windows 95, 98, Millennium, 2000, NT, and Windows
XP and general networking operations and troubleshooting knowledge.
Conventions Used in this Document
The following typographic conventions and symbols are used throughout this document:
Very important information. Failure to observe this may result in damage.
Important information that should be observed.
Additional information that may be helpful but which is not required.
bold Menu commands, buttons and input fields are displayed in bold
code File names, directory names, form names, and system-generated output
such as error messages are displayed in constant-width type
<value> Placeholder for certain values, e.g. user inputs
[value] Input field format, limitations, and/or restrictions.
Help Us to Improve this Document!
If you should encounter mistakes in this document or want to provide comments to improve the
manual please send e-mail directly to:
manuals@browan.com
Browan Technical Support
If you encounter problems when installing or using this product, please consult the Browan website at
www.browan.com for:
Direct contact to the Browan support centers.
Frequently Asked Questions (FAQ).
Download area for the latest software, user documentation and product updates.
About this Guide
BROWAN COMMUNICATIONS Page 7
Thank you for choosing the Browan 54Mb Dual-Radio Outdoor Access Point BW2250.
The Browan BW2250 operates simultaneously in the 5-GHz and 2.4-GHz frequency bands and is fully
compliant to 802.11b/g and 802.11a standard with its high performance and enhanced security.
BW2250 is an important part for the Browan Wi-Fi solution as 11a/b/g outdoor AP.
The two Dual-Band radios (a/g + a/g) that this product provides supplies the furthest in flexibility and
makes sure low interference and large coverage. The a+g operation mode and Multiple BSSID that
this product provides differentiates it from traditional outdoor AP product.
Product Overview
Flexibility and high performance
BROWAN BW2250 is a high-performance and high capacity and feature-rich outdoor AP/Bridge for
HotZone and backhaul services. The product’s dual tri-mode AP/Bridge radios architecture offers
spectrum and deployment flexibility to increase capacity and extend the range of HotZone Wifi
network.
z Simultaneously supports 802.11a and 802.11b/g for maximum client diversity
z Mix of AP, AP Router and Bridge configuration: working simultaneously, blanketing last miles
with high-speed bandwidth.
z Wireless AP router mode: Static Router table configure, NAT, Different IP subnet per BSSID,
Enable/Disable DHCP server or DHCP relay per BSSID.
z Dual AP/ AP Router configuration: for high client density environment for both 802.11b/g and
802.11a users
z Dual Bridge (repeater) configuration: serves to extend the transmission range of wireless
bridging and backhaul services.
Secure and reliable wireless networking
BW2250 supports and meets standard industry security requirement of wide area networking
professionals for secured wireless network:
z Supports VLAN, up to 16 VLAN ID per Radio
z IEEE 802.1x/EAP with password, certificates and SIM card
z 64bits/128bits static and dynamic WEP encryption
z Supports Wi-Fi Protected Access (WPA/WPA2) with AES and TKIP support
z Layer 2 Isolation for preventing snooping on the same BSS
z MAC address filtering (ACL) for preventing illegal attacking from Internet
z Hidden SSID broadcast to prevent illegal users connection
z Built-in Web login authentication (UAM)
Strong Anti-interference
Chapter 1 – Introduction
BROWAN COMMUNICATIONS Page 8
Dynamic Channel Allocation (DCA) solution automatically selects optimal operational frequency
channel during power up and the periodically monitors the environment and adjusts for best
operational channel. DCA enhances BW2250 performance and provide continuous coverage under
high AP density wireless network environment.
Dynamic Wireless Bridging
Dynamic Wireless Bridging capability enables BW2250 to automatically seek and discovery potential
nearby root AP, and dynamically self-configures for wireless bridge connection. With this feature in a
BW2250 network, whenever a bridge link is fail over, the network will auto reconfigure route
structures to minimize the lost of WLAN operation. It also minimized the technician intervention and
cost of going on-site to re-establish transmission paths. Since the birding fail over and restoration is
almost seamless, the perceptible interruption of WLAN subscribers is also minimized.
Multiple BSSID “Virtual AP” Technology
Supports up to16 BSSID per radio and each can be configured independently to support range of
security policies, authentication model, RADIUS servers and VLAN IDs. Each BSSID also can be set
different priority based on 802.1p tag or 802.11e EDCA which enables WLAN client device to access
wireless link QoS capabilities.
Ease Installation and Deployment
BW2250 enclosed in an aluminum-alloy frame-resistant with waterproof design housing operates
even under extreme weather conditions. Power option includes an integrated IEEE 802.3af Power-
over-Ethernet port enables effortless deployment in various environments. It also includes a special
Antenna Alignment Tool, which help to assist long-range wireless bridging installation to ensure the
optimal bridging performance.
Easy and Secure Remote Management
BW2250 supports secure remote management through HTTPS, CLISH and SNMP connections.
Web-based user interface with HTTPS request supplies secure remote management
BROWAN NMS product supplies the system management solution
Remote software upgrading via HTTPS
Detailed client survey and site survey
Bridge/Client Diagnostic Tools: optimize the installation for wireless bridging and optimize operation
status monitoring
Management Option
You can use the Access Controller management systems through the following interfaces:
Web-browser interface
with HTTPS
Command Line interface (CLI) with optional SSH
BROWAN COMMUNICATIONS Page 9
Simple Network Management Protocol
BW2250 management system pages are organized for the web-browser interface. This user manual
provides detailed description of this management option.
Features Highlight
Super Bridge
● 802.11a/b/g compliant
● Up to 20 bridge links supporting
● Special radio for Bridge
● Bridge link for static WEP encryption
Super AP
● Multiple BSSID (up to 16)
● SSID per BSSID
● Enabled or Disabled Hidden SSID per BSSID
● 16 VLAN ID per BSSID
● AAA way per BSSID, 802.1x and web login
● Co-existence of 802.1x and web login
● Security policy per BSSID, static WEP, dynamic WEP and WPA
● WPA passthrough
● RADIUS server per BSSID
AAA
● RADIUS client supporting
● AAA Proxy, RADIUS authentication, RADIUS Proxy Server (RFC 2865, 2058)
● 802.1x supporting (EAP/TLS, EAP/TTLS, EAP/PEAP and EAP/SIM)
Security
● Static 64/128bits WEP, Dynamic 64/128bits WEP
● WPA/TKIP and WPA/AES support
● MAC ACL
● Access Control (accept rule and deny rule) based on MAC address
● Layer 2 Isolation
● Hidden SSID
BROWAN COMMUNICATIONS Page 10
Management
● Secure management via HTTPS, CLISH, SNMP
● Standard MIB and Gemtek Systems Private MIB
● Remote firmware update via WEB UI
● Backup/Restore configuration file
● System Log, Save/Send System Log to remote log server with different log levels
Multiple BSSID (up to 16)
SSID per BSSID
Enabled or Disabled Hidden SSID per BSSID
VLAN ID per BSSID
QoS priority per BSSID based on 802.1p or EDCA
AAA way per BSSID, 802.1x or WPA
Co-existence of 802.1x and WPA
Security policy per BSSID
RADIUS server per BSSID
Traffic priority per BSSID
Maintenance
Software watchdog
Hardware watchdog
BROWAN COMMUNICATIONS Page 11
This chapter provides installation instructions for the hardware and software components of the
Access Point BW2250. It also includes the procedures for the following tasks:
Hardware Introduction (Connectors)
Hardware Installation
Software Installation
The Product Package
The product comes with the following:
Dual Radio outdoor Access Point (model: BW2250)
Mounting Kit
Screw Bag for Mounting Kit
Waterproof tape
RJ-45 Ethernet cable with waterproof connector
RS-232 console cable with waterproof connector
Omni-directional antenna (BA5070) * 2
Installation CD containing:
BW2250 User Guide in PDF format
KickStart Utility
Bridge/Client Diagnostic Utility
Product Firmware
Release Notes
Adobe Acrobat Readers
Printed 3 Years Warranty Card
Printed Warning Card
If any of these items are missing or damaged, please contact your reseller or
Browan sales representative.
BA5070 antenna is the accessory of BW2250 Product.
Refer to the Appendix D for BA5070 Antenna Spec: D) Approved Antenna
Chapter 2 - Installation
BROWAN COMMUNICATIONS Page 12
Hardware Introduction
General Overview
Figure 1 – BW2250 General View
The front panel of BW2250 contains:
Connectors which enable you to make different network connections for the device
Waterproof ports, which prevent the device from the damage of water that get into the internal
part of the device.
The Bottom cover of BW2250 contains:
Thermal convection hole
Reset button enables you to reboot or reset the device configuration to the factory defaults
Press the Reset button for less than 3 seconds to reboot the device.
Press the Reset button for more than 10 seconds to set the device to factory
defaults.
註解 [r1]: 增加作用说明
BROWAN COMMUNICATIONS Page 13
Bottom Cover
Figure 2 –Bottom Cover of the BW2250
The Bottom Cover of the BW2250 contains:
Back Label with Model and Device name. The official device name is 54Mb Dual Radio Outdoor
Access Point; model BW2250.
MAC address labels of the device. The two labels show the WLAN1 and WLAN2 interface MAC
address of the device.
Serial Number label of the device.
RESET Button. It is covered by a M6 Screw with a waterproof rubber washer
RF Connectors and ports
The BW2250 has two reverse N-type RF connectors on the flank panel:
Figure 3 –RF Connectors and ports
2
1
3
4
BROWAN COMMUNICATIONS Page 14
Hardware Installation
Installing the Access Point
Use the following procedure to prepare your network connection to BW2250.
Use the enclosed POE and power cord or any others IEEE802.3af Compliant POE
Power Source Devices to supply your BW2250 Access Point.
Step 1 Assemble part 1 of the Mount Kit at the back of the bottom cover as shown in the figure 4:
Figure 4 – Assembling the Mounting Kit to the BW2250
Step 2 If you are mounting the AP on the wall; first install the bracket 2 of the mounting kit to a
suitable position. Assemble the back of the BW2250 case to the bracket subsequently.
Step 3 If you are mounting the AP to a mast; first install the bracket 2 and the clip 3 of the Mounting
to a mast. Assemble the back of the BW2250 case to the bracket subsequently
Step 4 Assemble the one side of an Ethernet twist cable with the waterproof RJ45 connector.
Please read the description sheet in Waterproof RJ45 Connector package carefully
before you do the assembly.
Step 5 Insert the Ethernet twist cable to the LAN port connector on the back of the BW2250
Bottom Cover and screw down the nut.
Step 6 Connect two RF connectors to the Antennas by Jump RF cable with waterproof N-type
plug.
①
②
③
BROWAN COMMUNICATIONS Page 15
Connect to the Power Source and Local Network
Step 1 Connect the Ethernet cable from the BW2250 route to an IEEE802.3-2003 compliant
Power source Equipment, Such as BE3011 POE HUB Switch from Browan.
Step 2 If you use the BE3011 POE HUB, please connect the BW2250 LAN port to the
PWR-LAN OUT port of BE3011 and connect the BE3011 LAN-IN port to the Switch or hub
in the local network.
Figure 5 – Connect BW2250 to Power source and network by PoE HUB
BROWAN COMMUNICATIONS Page 16
Software Installation
Initialization
There are two choices for the first web browser connection to your BW2250: either enter the
BW2250's IP address and subnet (default networks settings) into the browser or launch the KickStart
utility that is provided with your product CD.
The default network settings for your new access point are:
LAN port: IP 192.168.2.2 subnet 255.255.255.0
Software Introduction: KickStart
The Browan KickStart is a software windows utility that is included on the Installation CD.
The utility automatically detects access points installed on your network, regardless of its host IP
address and lets you configure each unit’s IP settings. The feature list for the KickStart utility is listed
below:
Scanning your subnet for all connected APs
Quick access to your AP via HTTPs, telnet, SSH
To install the KickStart utility insert the Installation CD into your CD-ROM drive. Find and install the
utility from the product CD into the computer.
Access Your BW2250
There are two choices for the first Web browser connection to your BW2250:
Use the Web browser.
Launch the KickStart utility that is provided with your product CD.
If first method is preferred follow these instructions:
Step 1 Configure your PC with a static IP address on the 192.168.2.0 subnet with mask
255.255.255.0. Connect the BW2250 in to the same physical network as your PC.
Open the Web browser and type the default IP address of the BW2250:
https://192.168.2.2
Step 2 Enter the BW2250 administrator login details to access the Web management.
The default administrator log on settings for all access point interfaces are:
User Name: admin
Password: admin01
If the Installation CD does not start automatically, please run “autorun.exe”
manually from the root directory of the installation CD.
BROWAN COMMUNICATIONS Page 17
Step 3 After successful administrator log on you will see the main page of the BW2250’s Web
interface:
If second method is prefered follow the instuctions:
Step 1 Install the KickStart utility from the Installation CD. Click Start > Programs >
Browan > KickStart to launch the application. If the BW2250 device is connected
to your network, the utility will automatically find your BW2250:
BROWAN COMMUNICATIONS Page 18
Step 2 Select your controller and right click. Select Open WEB item to launch the web
management interface through the secure https connection:
Step 3 Enter the BW2250 administrator login settings to access the web management
interface.
The default administrator log on settings for all access point interfaces are:
User name: admin
Password: admin01
BROWAN COMMUNICATIONS Page 19
Step 4 After successful administrator log on you will see the controller web interface.
Now you are enabled to perform your configuration.
BROWAN COMMUNICATIONS Page 20
The two Dual-Band chips (a/g + a/g) that this product provides supplies the furthest flexible
application. Three application modes are supplied by BW2250:
z AP + Bridge mode
z AP + AP mode
z Bridge + Bridge mode
AP + Bridge Mode
AP + Bridge configuration is for environment with last mile issue.
The typical usage is: 11g AP + 11a Bridge.
Figure 6 – AP +Bridge application mode 1
AP + AP Mode
AP + AP configuration can be for client density environment.
The typical usage is: 11g AP + 11a AP.
Figure 7 – AP +AP application mode
Chapter 3 – Application Mode
BROWAN COMMUNICATIONS Page 21
Bridge+ Bridge Mode
Bridge + Bridge mode is used in the area without Ethernet wiring.
The typical usage is: 11a Bridge + 11a Bridge for Point to Multi-Point or for wireless Repeater.
Figure 8 – Bridge +Bridge application mode in Point to Multi-Point
Figure 9– Bridge +Bridge application mode as wireless repeater
Because of the antenna interference, the performance will deteriorate dramatically
if the same band (2.4GHz or 5GHz) is used both on the two RF modules.
It is strongly recommended that leave two external antennas apart, at least larger
than 1m. Thus antenna interference can be ignored.
If external antenna cannot be apart, it is strongly recommended that one RF
module is set 2.4GHz and the other is set 5GHz.
BROWAN COMMUNICATIONS Page 22
This chapter contains web management reference information.
The web management main menu consists of the following sub menus:
Status – device status showing
Network – device settings affecting networking
Wireless – device settings related to the wireless part of the BW2250
System – device system settings directly applicable to the BW2250
Exit – click exit and leave the web management then close your web-browser window.
Web Interface
The main web management menu is displayed at the top of the page after successfully logging into
the system (see the figure below). From this menu all essential configuration pages are accessed.
Figure 10 – Main Configuration Management Menu
The web management menu has the following structure:
Status
Device Status – show the status related with the whole device
Wireless Status – show the status of the two radios
Interface Statistics – show the status of each network interface
Network
Interface – TCP/IP settings of BW2250 LAN (Bridge) port
RADIUS Server – specify the settings of RADIUS server which is used by 802.1x or WPA
DHCP Settings– specify the settings of DHCP server or DHCP relay service
NTP Settings – NTP settings of BW2250
Time Settings – Manually set time
Wireless
Basic – specify the basic settings related with wireless part
Advance – specify the settings of multiple BSSID or Bridge
WEP – specify the WEP settings related with static WEP encryption
MAC ACL – MAC ACL settings for BW2250
System
Security – set access permission to your BW2250
SNMP – SNMP service
Telnet – Telnet/SSH service
Configuration – system configuration utilities, including Backup/Upload configuration
Chapter 4 – Reference Manual
BROWAN COMMUNICATIONS Page 23
Reset – reboot device and restore systems to factory default
Upgrade – Upgrade the firmware remotely
In the following sections, short references for all menu items are presented.
Status
Status | Device Status
The device status page shows important information for the BW2250, its system status and network
configuration.
Figure 11 – Device Status
System Version display the current version of the firmware loaded to the AP
This is important information for support requests and for preparing firmware
upgrading
Uptime – indicates the time, expressed in days, hours and minutes since the system was last
rebooted.
System Time – shows the current time of the BW2250
Wlan1 MAC / Wlan 2 MAC – shows the MAC addresses of the two wireless interfaces of the BW2250
Free System Memory – indicates the memory currently available in the BW2250
Total System Memory – indicates the total memory in the BW2250
LAN Mode – indicate static IP or DHCP client is used for BW2250 LAN IP address
LAN IP – shows the LAN IP address of BW2250
LAN Mask – shows the LAN Network Mask of BW2250
Gateway – shows the default gateway of BW2250
BROWAN COMMUNICATIONS Page 24
Status | Wireless Status
The wireless status shows the information related with BW2250 two wireless interfaces.
Figure 12 – Wireless Status
Radio1 / Radio2 – relates with two wireless interfaces
Channel – indicates which channel is in use now.
Domain – indicates regulatory domain set on the BW2250
Mode – AP or Bridge mode is be used for this wireless interface
Band – specify which band is in use for wireless interface
Layer2 Isolation – specify the status of Layer2 Isolation service on this wireless interface
Total Connected Clients – indicates number of the currently connected clients to your BW2250
Antenna Gain – indicates antenna gain value. If use BA5070, which is a attached Antenna of
BW2250, shows 4.5dBi in 2.4GHz and 7dBi in 5GHz for regulation’s limitation. If customer own antenna
will be used, this will shows 0dBi to gain larger EIPR value.
Total Output Power (EIRP) – indicates EIRP value set to the BW2250
Total Output Power (EIRP) = Antenna Gain + RF card output power
MAC ACL indicates the status of MAC ACL feature on BW2250
4.5 dBi
16dBm
14dBm
BROWAN COMMUNICATIONS Page 25
Status | Interface Statistics
The Interface Statistics shows each network interface status, including Input/Output bytes, packets or
error.
Figure 13 – Interface Statistics
Interface Name – shows the name of each network interface, where ixp1 is related to LAN interface,
wlan1_x is related to WLAN1 sub-interface and wlan2_x is related to WLAN2 sub-interface.
Input Bytes (KB) – shows the total number of bytes received on the network interface. The bytes
number is displayed in KB.
Input Packets – shows the packets number received on the network interface.
Input Errors – shows the packets number which contain errors preventing them from being received
correctly.
Output Bytes (KB) – shows the total number of bytes transmitted out of the network interface. The
bytes number is displayed in KB.
Output Packets – shows the packets number transmitted out of the network interface.
Output Errors – shows the packets number which contain errors preventing them from being
transmitted out correctly.
Refresh – gets the updated network interface information.
Network
Network | Interface
The interface configured is bridge device therefore only one interface is displayed
here for configuration.
Bridge interface and its settings are listed in the Interface page.
Figure 14 – Interface Configuration Table
BROWAN COMMUNICATIONS Page 26
To change network interface (bridge) configuration properties click the Edit button in the Action
column. The status can be changed now:
Figure 15 – Edit Interface Configuration Settings
IP Address - specify new interface IP address [in digits and dots notation, e.g. 192.168.123.70].
Netmask – specify the subnet mask [[0-255].[0-255].[0-255].[0-255]]. These numbers is a binary mask
of the IP address, which defines IP address order and the number of IP addresses in the subnet.
Gateway Address – interface gateway. For Bridge type interfaces, the gateway is always the
gateway router.
Protocol – specify static for setting IP address manually and dhcp for getting IP address dynamically
acting as DHCP client.
When dhcp is used for getting IP address, Kickstart is strongly recommended to
find your device.
VLAN –specify whether to manage this device via VLAN.
VLAN ID – specify VLAN ID when managing this device via VLAN.
Save – save the entered values.
Cancel – restore all previous values.
Change status or leave in the default state if no editing is necessary and click the Save button.
Figure 16 – Apply or Discard Interface Configuration Changes
Apply Changes – to save all changes in the interface table at once.
Discard Changes – restore all previous values.
For such each change of settings, the BW2250 needs to be restarted to apply all settings changes
when clicking Apply Changes. Request for reboot server appears:
BROWAN COMMUNICATIONS Page 27
Figure 17 – Reboot Server
Reboot – Click the button to restart the server and apply the changes.
If there is no other setting needed to be modified, click the Reboot button for
applying all modifications.
And if there are still other setting modifications needed, go ahead to finish all
changes and then click Reboot button to restart and apply all settings together.
To reboot at once, click Reboot button and then it is necessary to wait a moment. And the message
of reboot appears just like bellows:
Figure 18 – Reboot Information
BROWAN COMMUNICATIONS Page 28
Network | RADIUS Server
Up to 32 different RADIUS servers can be configured under the RADIUS servers
menu.
By default, one RADIUS server is specified for the system:
Figure 19 – RADIUS Servers Settings
Add – add new RADIUS server.
Click Add to configure RADIUS server settings.
Figure 20 – RADIUS Server's Details
Name – specify the new RADIUS server name, which is used for selecting RADIUS server.
Server IP – authentication RADIUS server IP address [dots and digits].
Server Port – specify the network port used to communicate with RADIUS [1-65535].
The default port value for authentication is 1812.
The default port value for accounting is 1813.
The port specified here must be the same with the one on the RADIUS server.
Secret – shared secret string that is used to make sure the integrity of data frames used for
authentication server.
Save – save new specified RADIUS server.
Cancel – restore all previous values.
After adding a new RADIUS server, the following control appears:
BROWAN COMMUNICATIONS Page 29
Figure 21 – Apply or Discard RADIUS Server Changes
Edit – edit an existing RADIUS server setting
Delete – delete an existing RADIUS server setting
Click Apply Changes to apply all the changes. Then the follow similar page will appears:
Figure 22 – RADIUS Servers Reboot Server
Reboot – restart the controller to make applied changes work.
If there is no other setting needed to be modified, click the Reboot button for
applying all modifications.
And if there are still other setting modifications needed, go ahead to finish all
changes and then click Reboot button to restart and apply all settings together.
Network | DHCP Settings
BW2250 can act as DHCP server or DHCP relay. The DHCP (Dynamic Host Configuration Protocol)
service is supported on layer 2 interfaces.
DHCP server and DHCP relay is disabled by default.
BROWAN COMMUNICATIONS Page 30
Figure 23 –DHCP Settings
Edit – edit the wireless basic settings
To change DHCP setting properties click the Edit button, the DHCP server or DHCP relay service
should be configured:
Figure 24 –DHCP Settings
Status – Select status from the drop-down menu.
Disabled – Disable the DHCP server service.
DHCP Server – Enable the DHCP server service.
DHCP Relay – Enable the DHCP Relay service.
Choose DHCP Server to enable DHCP server service or choose DHCP Relay to enable DHCP relay
service.
DHCP Server
This DHCP server service enables clients on the LAN to request configuration information, such as IP
address, from a server. Settings of the DHCP service can be viewed just like the follow page.
BROWAN COMMUNICATIONS Page 31
Figure 25 –DHCP server Settings
By default, DHCP server is disabled for BW2250.
IP Address from / IP Address to – specify the IP address range to be dynamically allocated by the
DHCP server.
Netmask – enter the netmask for IP pool range.
Gateway – enter the gateway IP for wireless clients.
WINS Address (Windows Internet Naming Service) – specify server IP address if it is available on the
network [dots and digits].
Lease Time – specify the IP address lease interval in seconds [1-1000000].
Domain – specify the DHCP domain name [optional, 1-128 sting].
DNS address – specify the DNS server’s IP address [in digits and dots notation].
DNS secondary address – specify the secondary DNS server’s IP address [in digits and dots
notation].
Change status or leave in the default state if no editing is necessary and click the Save button.
BROWAN COMMUNICATIONS Page 32
Figure 26 –Apply or Discard DHCP server Settings
The DHCP server settings will be automatically adjusted to match the network
interface settings.
The Gateway of DHCP server settings must be same with the Gateway of BW2250
For each change of settings, the BW2250 needs to be restarted to apply all settings changes when
clicking Apply Changes. Request for reboot server appears:
BROWAN COMMUNICATIONS Page 33
Figure 27 – Reboot information
Reboot – Click the button to restart the server and apply the changes.
If there is no other setting needed to be modified, click the Reboot button for
applying all modifications.
And if there are still other setting modifications needed, go ahead to finish all
changes and then click Reboot button to restart and apply all settings together.
When BW2250 network Interface uses DHCP to get IP address dynamically, DHCP
server service cannot be enabled.
When BW2250 uses DHCP to get IP address dynamically, the similar WEB UI will be appears:
Figure 28 – Warning information
DHCP Relay
To route DHCP through the external server, enable the DHCP Relay service.
BROWAN COMMUNICATIONS Page 34
Figure 29 – DHCP Relay settings
Server IP: enter the IP address of the external DHCP server.
Only one DHCP server can be supported for DHCP relay feature.
Change status or leave in the default state if no editing is necessary and click the Save button.
Figure 30 –Apply or Discard DHCP relay Settings
For each change of settings, the BW2250 needs to be restarted to apply all settings changes when
clicking Apply Changes. Request for reboot server appears:
Figure 31 – Reboot information
BROWAN COMMUNICATIONS Page 35
Reboot – Click the button to restart the server and apply the changes.
If there is no other setting needed to be modified, click the Reboot button for
applying all modifications.
And if there are still other setting modifications needed, go ahead to finish all
changes and then click Reboot button to restart and apply all settings together.
When BW2250 network Interface uses DHCP to get IP address dynamically, DHCP
relay service cannot be enabled.
Network | NTP Settings
NTP (Network Time protocol) is used to synchronize the system time with the selected network NTP
server. Use the Network| NTP Settings menu to configure the NTP service:
Figure 32 – NTP Settings
NTP status – specify enable or disable this NTP service
Time Zone – specify the time zone for NTP service.
Delete – delete the existed NTP server
Edit – Edit the settings of the existed NTP server
Add – add a new NTP server setting for synchronizing time
Clicking Add button to add a new NTP server:
Figure 33 – Add new NTP server setting
Two NTP servers can be configured under Network | NTP Settings menu. And
only IP address is accepted for NTP server.
It is required to add at least one NTP server before enable NTP service.
BROWAN COMMUNICATIONS Page 36
The Name of NTP Server should be unique.
Change status or leave in the default state if no editing is necessary and click the Save button.
Figure 34 – Apply or Discard NTP server Changes
Change the Time Zone for your own local time and change the NTP status to enable or disable.
Figure 35 – Edit Time Zone setting/NTP status
Clicking Save button for saving new Time Zone setting
BROWAN COMMUNICATIONS Page 37
Figure 36 – Apply or Discard Time Zone/NTP status Changes
For each change of settings, the BW2250 needs to be restarted to apply all settings changes when
clicking Apply Changes. Request for reboot server appears:
Figure 37 – Reboot information
Reboot – Click the button to restart the server and apply the changes
If there is no other setting needed to be modified, click the Reboot button for
applying all modifications.
And if there are still other setting modifications needed, go ahead to finish all
changes and then click Reboot button to restart and apply all settings together.
Network | Time Settings
Configure the system time manually under Network | Time Settings menu.
BROWAN COMMUNICATIONS Page 38
Figure 38 – Time Settings
Click Edit to change current system time.
Figure 39 – Edit Date and Time Settings
Change the Date and Time or leave in the default value if no editing is necessary and click the Apply
button. Thus the modified time will be taken effect at once. No reboot is needed.
BW2250 has RTC (real-time clock). The system time will be saved upon reboot.
If NTP is enabled, the local time cannot be modified manually.
Wireless
Wireless | Basic
Use the wireless | Basic menu to configure such wireless settings as regulatory domain, channel,
band, and power, layer2isolation. Click the edit button on the setting you need to change:
BROWAN COMMUNICATIONS Page 39
Figure 40 – Basic Wireless Settings with static channel selection
Figure 41 – Basic Wireless Settings with DCA enabled
Radio – specify which wireless interface of BW2250 is shown
Domain – show the regulatory domain
Static Channel– show the channel that the access point will use to transmit and receive information.
If DCA (Dynamic Channel Allocation) is enabled, this will show Auto Channel and
its channel number is chosen in auto channel selection.
If use static channel selection, this will show Static Channel and its channel
number.
16dBm
4.5dBi
16dBm
4.5 dBi
BROWAN COMMUNICATIONS Page 40
DCA (Dynamic Channel Allocation) is very useful feature to help choose the best
channel automatically and reduce interference among many Access Points.
Band – show the working bands on which your radios are working.
Six bands are supplied: 5GHz(11a), 5GHz(Turbo Mode 11a), 2.4GHz(Mixed 11g), 2.4GHz(11g
only), 2.4GHz(Mixed 11g WiFi) and 2.4GHz(11g only WiFi).
2.4GHz(Mixed 11g) or 2.4GHz(11g only) – the radio will work on 2.4GHz for a better
performance. 2.4GHz (11g only) mode only allows 11g client access. 2.4GHz(Mixed 11g) mode
allows 11b/11g client access.
2.4GHz(Mixed 11g WiFi) or 2.4GHz(11g only WiFi) – make sure to compatible with Wi-Fi.
5GHz (11a) or 5GHz(Turbo Mode 11a) – the radio will work on 5GHz 11A mode. 5GHz(Turbo
Mode 11a) can supply 108 raw data rate.
Only under Bridge mode, Turbo Mode 11a can be set.
Total Output Power (EIRP) – show the BW2250 transmission output power (EIRP) in dBm.
Default is16dBm&WORLD.
Antenna Gain: show the antenna gain that this Access Point used.
When using the attached antenna BA5070 supplied by Browan, 4.5dBi will show in 2.4GHz and 7dBi
will show in 5GHz. Otherwise, if select custom in Antenna item, the Antenna Gain will show 0 dBi to
acquire larger output transmit power.
RTS Threshold –show the value of RTS threshold. Default is 2347, which means that RTS is
disabled.
DCA threshold – show the value (in minutes) of DCA threshold. This threshold is been used to judge
if there is no wireless users connected during this time. And if yes, BW2250 will monitor the
environment and adjust channel for the best operational one.
DCA optional channel – show the channels only in which auto channel selection (DCA) will be
processed to reduce interference.
Only when DCA is enabled, DCA threshold and DCA optional channel will be
shown.
Layer 2 Isolation – show the status of Layer 2 Isolation service (enabled or disabled)
Mode – show the mode that the Access Point is in. (AP mode or Bridge mode)
Site Survey –perform survey to show overview information for wireless networks in a local geography
The site survey shows overview information for wireless networks in a local geographic area. Using
this survey, administrator can scan for working access points, check their operating channels, and see
RSSI levels. To start the scan, simply click the Site Survey menu.
After clicking Site Survey, you will get the follow warning:
BROWAN COMMUNICATIONS Page 41
Figure 42 – Site Survey warning
Click OK to continue site survey and get the similar UI:
BROWAN COMMUNICATIONS Page 42
Figure 43 – Site Survey information
To refresh the statistics click the Rescan button.
During Site Survey, all wireless clients, who are connecting with BW2250 would be
kicked off.
Site Survey takes some minutes to perform. Please wait and don’t power off AP
during site survey.
Edit – edit the wireless basic settings
To change basic wireless setting properties click the Edit button in the Action column. The status
can be changed now:
Figure 44 – Edit Basic Wireless Settings with static channel selection
BROWAN COMMUNICATIONS Page 43
Figure 45 – Edit Basic Wireless Settings with DCA enabled
Radio Name– show which wireless interface of BW2250 is being set
Domain – select the regulatory domain according to your country
The full frequency range of the 2.4 GHz or 5 GHz is not permitted for use in all countries. Depending
on your selection of regulatory domains, the available frequency channels will vary.
Before changing radio settings manually verify that your settings comply with
government regulations. At all times, it will be the responsibility of the end-user to
ensure that the installation complies with local radio regulations. Refer to the
Appendix:
.
Channel – select the channel that the access point will use to transmit and receive information. If one
channel is defined, it acts as default channel. Channels list will vary depending on selected regulatory
domain and selected band. Multiple frequency channels are used to avoid interference between two
radios of this AP, and between nearby access points. If you wish to operate more than one access
point in overlapping coverage areas, we recommend a distance of at least four channels between the
chosen channels. For example, for three Access Points in close proximity choose channels 1, 6 and
11 for 11b/g or channels 36, 40 and 64 for 11a.
Band – working bands on which your radios are working.
Six bands are supplied: 5GHz(11a), 5GHz(Turbo Mode 11a), 2.4GHz(Mixed 11g), 2.4GHz(11g
only), 2.4GHz(Mixed 11g WiFi) and 2.4GHz(11g only WiFi).
2.4GHz(Mixed 11g) or 2.4GHz(11g only) – the radio will work on 2.4GHz for a better
performance. 2.4GHz (11g only) mode only allows 11g client access. 2.4GHz(Mixed 11g) mode
allows 11b/11g client access.
2.4GHz(Mixed 11g WiFi) or 2.4GHz(11g only WiFi) – make sure to compatible with Wi-Fi.
BROWAN COMMUNICATIONS Page 44
5GHz (11a) or 5GHz(Turbo Mode 11a) – the radio will work on 5GHz 11A mode. 5GHz(Turbo
Mode 11a) can supply 108 raw data rate.
Only under Bridge mode, Turbo Mode 11a can be set.
Total Output Power (EIRP) –the BW2250 transmission output power (EIRP) in dBm.
Default is 16dBm&WORLD.
Total Output Power (EIRP) = Antenna Gain + RF card output power
Antenna: Type of Antenna, two items for choice. BA5070 is the approved antenna supplied by
Browan. Choose BA5070 antenna is used for meeting the limitation of regulatory domain. If you want
to gain a larger output power for the real usage, it is strongest recommended to select custom.
BA5070 antenna is the accessory of BW2250 Product.
Refer to the Appendix D for BA5070 Antenna Spec: D) Approved Antenna
If you want to gain a larger output power for the real usage, it is strongly
recommended to select custom.
RTS Threshold – when set, this setting specifies the maximum packet size beyond which RTS/CTS
mechanism is be invokes. The value range of this is [0 …2347]. Default is 2347, which means that
RTS is disabled.
Enable DCA – Enable or Disable DCA service. DCA can help to choose the best working channel
automatically. And static channel selection will be forbidden if DCA is enabled.
DCA (Dynamic Channel Allocation) solution automatically selects the optimal operational frequency
channel when power up and periodically monitors the environment and adjusts for the best
operational frequency channel.
DCA service is available only under 2.4GHz band.
DCA threshold – specify the value (in minutes) of DCA threshold. This threshold is been used to
judge if there is no wireless users connected during this time. And if yes, BW2250 will monitor the
environment and adjust channel for the best operational one.
If wireless network environment is stable which means auto channel selection
needn’t do frequently, set a big value for DCA threshold to gain a stable wireless
users’ connection.
If wireless network environment changes continually, frequent auto channel
selection is needed. So set a relative small value for DCA threshold to let channel
change based on wireless environment.
Wireless users’ will be kicked off when DCA is processing (site survey and new
operational frequency channel takes effect).
BROWAN COMMUNICATIONS Page 45
DCA optional channel – specify the channels only in which auto channel selection (DCA) will choose
for reducing interference reference.
Only when DCA is enabled, DCA threshold and DCA optional channel will be
shown.
Layer 2 Isolation – Layer2 wireless client separation. Connected clients with user isolation function
enabled cannot access each other directly. The clients are isolated from each other using their MAC
addresses [enabled/disabled].
Mode – two modes are supplied: AP mode and Bridge mode.
When Bridge mode is enabled, BW2250 can introduce a bridge loop if BW2250
Ethernet port is connected to your wired LAN. To avoid a bridge loop on your
network, disconnect BW2250 from the wired LAN before or soon after Bridge mode
is enabled.
Save – Save the settings
Change status or leave in the default state if no editing is necessary and click the Save button.
Figure 46 – Apply or Discard Basic Wireless Settings with static channel selection
16dBm
4.5 dBi
BROWAN COMMUNICATIONS Page 46
Figure 47 – Apply or Discard Basic Wireless Settings with DCA enabled
For such each change of settings, the BW2250 needs to be restarted to apply all settings changes
when clicking Apply Changes. Request for reboot server appears:
Figure 48 – Reboot Server
Reboot – Click the button to restart the server and apply the changes.
BROWAN COMMUNICATIONS Page 47
If there is no other setting needed to be modified, click the Reboot button for
applying all modifications.
And if there are still other setting modifications needed, go ahead to finish all
changes and then click Reboot button to restart and apply all settings together.
BROWAN COMMUNICATIONS Page 48
Wireless | Advance
BW2250 supports Multiple BSSID (MBSSID) function. You can configure up to 16 BSSIDs per radio
on BW2250 and assign different configuration settings to each BSSID. For wireless users, they can
think BW2250 as single AP with multi service supporting, including different security policy, different
VLAN ID, different authentication etc. All the BSSIDs are active at the same time that means client
devices can associate to the access point for specific service. Use the Wireless | Advance menu to
configure properties related to Multiple BSSID, including configure SSID, Hidden SSID, VLAN/QoS,
and Security for each SSID.
Each BSSID can have its own SSID, In this case, Multiple BSSID is the same with
Multiple ESSID. Wireless users can think BW2250 as multiple virtual APs, each
supporting different service, and connects one SSID for the special services.
Also, BW2250 supports Bridge function, it can support up to 20 Bridge links per radio. Different
bridge link can use WEP or WPA-PSK for link security.
AP Mode:
Figure 49 – Advanced Wireless Setting (AP Mode)
Radio – specify which RF card (wlan1 or wlan2) is needed to be configured since BW2250 has two
Dual-Band radios
Mode – specify the operation mode of BW2250 (AP or Bridge)
Interface – Choose the specified MBSSID entry you want to configure. Each Interface maps to a
BSSID
Hidden – Show the status of Hidden SSID feature
Security – Show which security policy is used for this MBSSID entry
Current Connect # – Show the number of current wireless clients who are connecting with this
MBSSID
New – Create a new MBSSID entry
Detail – Show the detail information of this MBSSID entry
Edit – Edit the selected MBSSID entry you want to configure
Delete – Delete the selected MBSSID entry. When in AP mode, you cannot delete the last entry
Refresh – Rescan the WEB page to get newer information
Clicking Detail, a similar page will be appears as below:
BROWAN COMMUNICATIONS Page 49

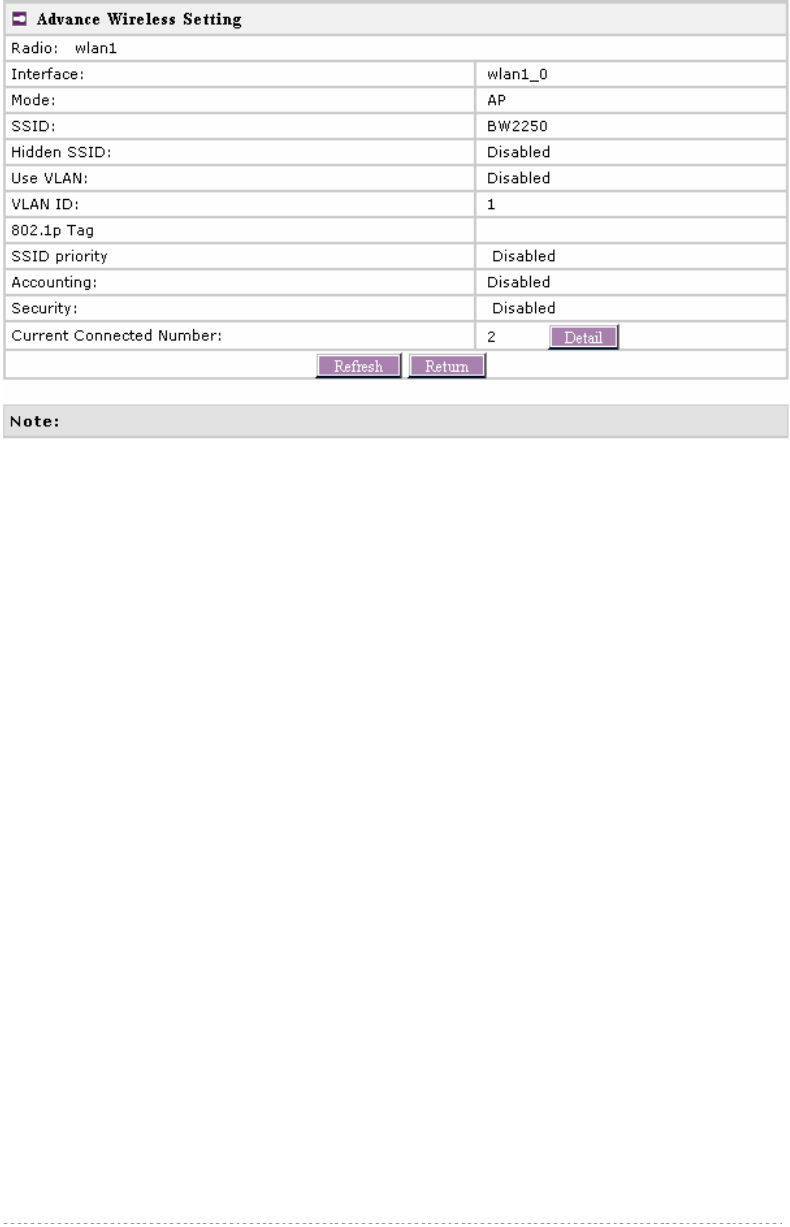

Figure 50 – Detail for MBSSID entry
Radio – Show which radio (WLAN1 or WLAN2) is displayed
Interface – Show the sub-interface of specified Radio
Mode – Show the operation mode of the sub-interface
SSID – Show the SSID value of the sub-interface
Hidden SSID – Show the enable/disable status of Hidden SSID service
Use VLAN – Show if VLAN is used for the sub-interface
VLAN ID – If used VLAN, show the VLAN ID, which is specified
802.1p Tag – Show the 802.1p tag for the sub-interface if 802.1p is used
SSID priority – Show the traffic priority specified for this sub-interface (BSSID/SSID), 0 means the
normal priority
Accounting – Show the enable/disable status of accounting service
Security – Show the security policy specified for this sub-interface
Current Connect Number – Show the number of current connected client with this sub-interface
Detail – Show the MAC address of current connected clients
Refresh – Rescan the WEB page to get newer information
Return – Return to the wireless advance settings page
Clicking Detail to check the detail information of the connected client just like below:
BROWAN COMMUNICATIONS Page 50
Figure 51 – Detail information of connected client
Client MAC – Show the connected client’s MAC address
IP Addr – Show the IP address of the connected client
Auth Type – Show the auth type that the connected client is used. Auth type includes PEAP, TLS or
TTLS.
Signal/Noise – Show the SNR value of the connected client
Input Packets – Show the packet number transmitted by the connected client
Output Packets – Show the packet number destined to the connected client
Clicking New or Edit on AP mode, the settings of MBSSID entry appears:
Figure 52 – Multiple BSSID Setting - 1
Radio – showing which RF card (wlan1 or wlan2) is being configured.
Mode – showing the current operation mode of BW2250 (AP or Bridge).
Interface – showing the current MBSSID | Bridge link entry
SSID – a unique ID for your wireless network. It is case sensitive and must not exceed 32 characters.
The default SSID is "BW2250" but you should change this to a personal wireless network name. The
SSID is important for clients when connecting to the access point. All client stations must have their
client SSID settings configured and must use the same SSID.
Each MBSSID entry (BSSID) can has its own SSID. And SSID can be same for
different BSSID
BROWAN COMMUNICATIONS Page 51
Hidden SSID – When enabled, the SSID of this Interface is invisible in the networks list while
scanning the available networks for wireless client (SSID is not broadcasted with its Beacons). When
disabled, the AP’s SSID is visible in the available network list [enabled/disabled]. By default the
Hidden SSID is disabled.
VLAN and QoS – Specify VLAN policy or QoS policy. Data priority is based on (B) SSID and
implemented by 802.11e EDCA or 802.1p tag.
SSID priority (Disable VLAN) – specify the data priority, which is implemented according to
802.11e EDCA and makes sure the wireless downlink over-air QoS. This priority is based on (B)
SSID, which means different BSSID can have different data priority and the data of the same
BSSID has the same priority.
This data priority only makes sure the priority of downlink (from AP to wireless
client).
8 levels priorities are supplied. 1, 2, 0, 3, 4, 5, 6, 7 is from lowest priority to highest
priority.
And if no special QoS is needed, leave priority to default (0). 0 means normal
priority.
Enable VLAN – When enabled, the outgoing packets from this SSID will be tagged with VLAN ID
and 802.1p tag (If have).
VLAN ID – Configure VLAN ID for each Multiple SSID devices. Valid numbers are from 1 to
4094.
802.1p Tag – Configure 802.1p Tag for remote APC’s or Router’s QoS uses. Valid numbers
are from 0 to 7.
VLAN ID and 802.1p tag must cooperate with remote Router or APC.
802.1p Tag is also used for data priority. 8 levels priorities are supplied. 1, 2, 0, 3,
4, 5, 6, 7 is from lowest priority to highest priority.
Accounting – Control the status of accounting service.
Enable Accounting – enable or disable the accounting service.
Accounting service only can be enabled when the security policy using RADIUS
server is chosen. The security policies using RADIUS server include 802.1x, WPA,
WPA2, WPA2 MIXED and MAC auth.
Accounting Server Profile – specify which RADIUS server is used for accounting service. If
not have any RADIUS server: please configure Network | RADIUS Servers Web UI first.
Accounting Interim Interval – specify the value (in minutes), which is used for interim-
accounting interval. This should not be left empty and the value range is from 1 to 60
minutes.
BROWAN COMMUNICATIONS Page 52

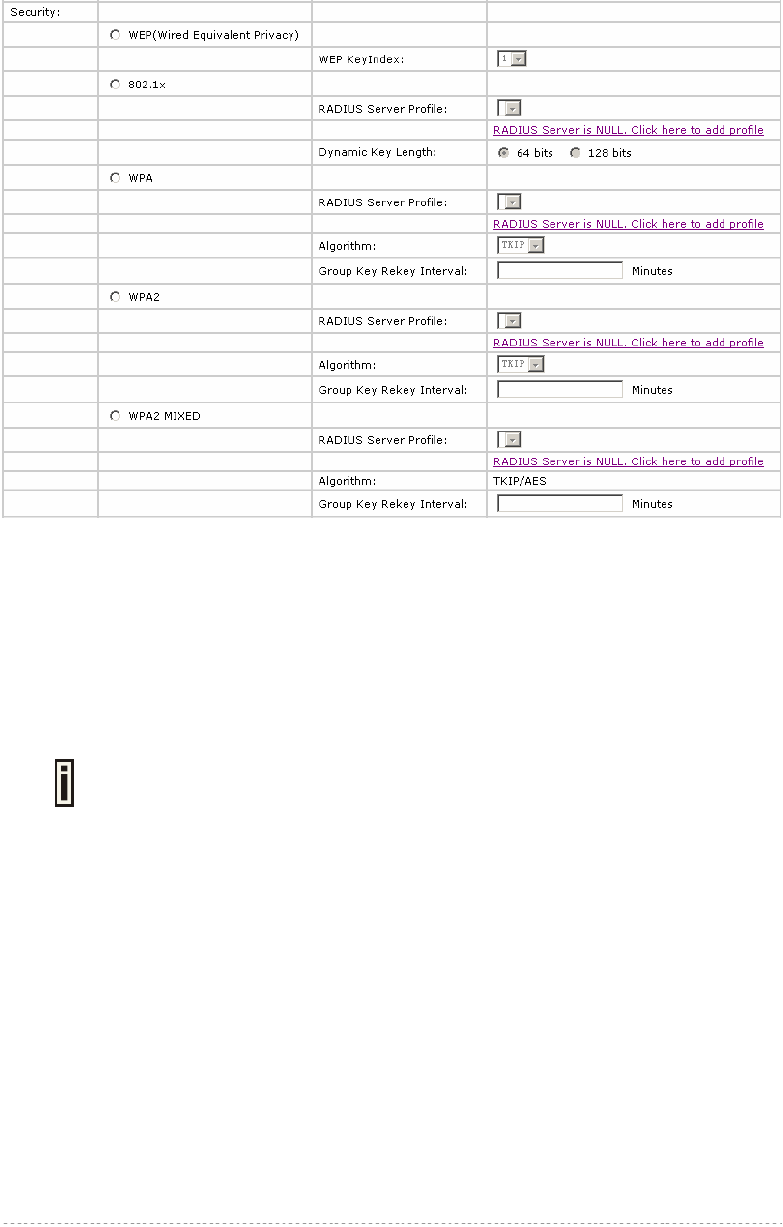

Figure 53 – Multiple BSSID Setting - 2
Security – Specify the security policy.
WEP – When selected, the privacy of MSSID entry will be set to WEP (Wired Equivalent Privacy).
WEP Key Index – Select the default key Index to make it the Default key and encrypt the
data before being transmitted. All stations, including this MSSID Entry, always transmit data
encrypted using this Default Key. The key number (1,2,3,4) is also transmitted. The receiving
station will use the key number to determine which key to use for decryption. If the key value
does not match with the transmitting station, the decryption will fail. The key value is set in
Wireless | WEP web page.
By default, four WEP keys are all set to “aaaaa”. They can be modified in
Wireless | WEP.
802.1x – When selected, the MSSID entry will be configured as an 802.1x authenticator. It
supports multiple authentication types based on EAP (Extensible Authentication Protocol) like
EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-SIM. The privacy will be configured as dynamic WEP.
RADIUS Server Profile – Select the default radius server name. If not have any RADIUS
server: please configure Network | RADIUS Servers Web page first.
Dynamic Key Length – Select the dynamic 64-bits / 128-bits WEP encryption.
WPA – Wi-Fi Protected Access, When selected, the encrypt method will be WPA with RADIUS
Sever.
WPA2 – When selected, the security policy will be WPA2 with RADIUS Server. In this mode,
WPA client is not permitted to connect.
WPA2 MIXED – When selected, WPA2 client and WPA client are all permitted to connect.
RADIUS Server Profile –Select the default radius server name. If not, please configure
Network | RADIUS Servers Web page first.
BROWAN COMMUNICATIONS Page 53
Algorithm – Choose WPA algorithm (TKIP, AES).
Group Key Rekey interval –Specify the time in minutes, after which the group key will be
updated. If not fill in the time, default rekey interval 10 minutes will be used for group key
rekey.
Figure 54 – Multiple BSSID Setting - 3
WPA-PSK – When selected, the security policy will be WPA PSK without RADIUS Server.
WPA2-PSK – When selected, the security policy will be WPA2 PSK without RADIUS Server. In
this mode, only WPA2 PSK client can connect with AP and WPA PSK client is not permitted to
connect.
WPA2-PSK MIXED – When selected, WPA2 PSK and WPA PSK are all permitted to connect
with AP.
Use Pre-Shared Key – Specify more than 8 characters and less than 64 characters for WPA
with pre-shared key encryption.
Algorithm – Choose WPA algorithm (TKIP, AES).
Group Key Rekey interval –Specify the time in minutes, after which the group key will be
updated. If not fill in the time, default rekey interval 10 minutes will be used for group key
rekey.
MAC Auth – When selected, the MAC address of wireless client will be passed to RADIUS server
for PAP authentication when it connects with BW2250. The MAC address of wireless client acts
as username and password.
RADIUS Server Profile –Select the default radius server name. If not, please configure
Network | RADIUS Servers Web page first.
Disabled – When selected, no security policy is used on AP device.
Bridge Mode
BROWAN COMMUNICATIONS Page 54
Figure 55 – Advanced Wireless Setting (Bridge Mode)
Radio – specify which RF card (wlan1 or wlan2) is needed to be configured since BW2250 has two
Dual-Band radios
Mode – specify the operation mode of BW2250 (AP or Bridge)
Interface – Choose the specified Bridge link entry you want to configure.
Remote MAC – Specify the remote peer’s MAC address of this Bridge
Security – Specify which security policy is used
New – Create a new Bridge link entry
Detail – Show the detail information of this Bridge link entry
Edit – Edit the selected Bridge link entry you want to configure
Delete – Delete the selected Bridge link entry.
Clicking Detail, the similar page will be appears:
Figure 56 – Detail of one bridge entry
Clicking Edit for editing an existed bridge link or New for adding a new bridge link, you can see the
figure like this.
BROWAN COMMUNICATIONS Page 55
Figure 57 – Bridge Link Setting
Remote MAC – Add the remote peer’s MAC address you want to configure as a bridge link
Security – Specify WEP or WPA-PSK (TKIP or AES) is used for security policy. WPA-PSK or static
WEP can be used for encrypt each bridge link
Use Pre-Shared Key – Specify more than 8 characters and less than 64 characters for WPA
with pre-shared key encryption.
Algorithm – Choose WPA algorithm (TKIP, AES).
Rekey Interval –Specify the time in minutes, after which the key of the bridge link will be
updated.
By default, four WEP keys are all set to “aaaaa”. They can be modified in
Wireless | WEP.
Wireless | WEP
Use the Wireless | WEP menu to configure static WEP settings.
This menu only set static WEP key value related with 4 key indexes for each RF
card (wlan1 or wlan2). Enable or Disable static WEP is in the Wireless | Advance
menu.
BROWAN COMMUNICATIONS Page 56
Figure 58 – WEP Settings
Radio – specify which RF card (wlan1 or wlan2) is needed to be set.
Click Edit to edit the existing wepkey1 to wepkey4.
By default, four WEP keys are all set to “aaaaa”. They can be modified according to
real need.
Figure 59 – Edit WEP Key
Wireless | MAC ACL
Use the MAC ACL service to control the default access to the wireless interface of the BW2250 or
define special access rules for mobile clients. Configure the ACL using the Wireless | MAC ACL menu:
BROWAN COMMUNICATIONS Page 57
Figure 60 – MAC ACL Service
Radio – Two wireless interfaces wlan1 and wlan2 can be selected for each radio’s MAC ACL rules.
Only AP mode has the MAC ACL service. The wireless interface whose mode is
Bridge hasn’t MAC ACL settings.
Policy Setting – click the edit button to choose Allow, Deny or disable the access control service on
device. By default the ACL service is disabled and all wireless clients connecting to the BW2250 are
allowed (no ACL rules are applied to the wireless clients).
Select Allow means only the wireless clients, whose MAC are listed in the MAC List would be
permitted to access this AP. Other wireless client cannot access this AP.
Select Deny means only the wireless clients, whose MAC are listed in the MAC List would be
prevented from accessing. Other wireless clients can access this AP.
Select Disabled means no ACL service.
Figure 61 – MAC ACL settings
You must create MAC List to work with Policy setting. The access control list is based on the
network device’s MAC address. In the MAC ACL Configuration table, you only need to specify the
MAC address of wireless client. Click the Add button to create a new MAC entry:00
BROWAN COMMUNICATIONS Page 58
Figure 62 – Add MAC entry
MAC Address – enter the physical address of the network device you need to (MAC address) The
format is a list of colon separated hexadecimal numbers (for example: 00:AA:A2:5C:89:56).
Save – click the button to save the new MAC entry.
Figure 63 – Apply or Discard MAC ACL Configuration Changes
Apply Changes – to save all changes made in the interface table at once.
Discard Changes – restore all previous values.
For such each change of settings, the BW2250 needs to be restarted to apply all settings changes
when clicking Apply Changes. Request for reboot server appears:
BROWAN COMMUNICATIONS Page 59
Figure 64 – Reboot Server
Reboot – Click the button to restart the server and apply the changes.
If there is no other setting needed to be modified, click the Reboot button for
applying all modifications.
And if there are still other setting modifications needed, go ahead to finish all
changes and then click Reboot button to restart and apply all settings together.
BROWAN COMMUNICATIONS Page 60
System
System | Security
Use the System | Security service to configure the name and password administrator:
Figure 65 – system security settings
User Name – administrator username for access to BW2250 (e.g. web interface, CLI mode) [1-32
symbols, spaces not allowed].
Old Password – old password value.
New Password –new password value used for user authentication in the system [4-8 characters,
spaces not allowed].
Confirm Password – re-enter the new password to verify its accuracy.
Save – click to save new administrator settings.
Default administrator logon settings are:
User Name: admin
Password: admin01
Password length is from 4 to 8 characters.
After filling in the right old password and the new password, clicking the Save button for taking effect
immediately.
After clicking Save button, the below UI will be shown to notify that the new password setting has
been taken place:
BROWAN COMMUNICATIONS Page 61
Figure 66 – system security settings save and take effect successfully
System | SNMP
SNMP is the standard protocol that regulates network management over the Internet. To
communicate with SNMP manager you must set up the same SNMP communities and identifiers on
both ends: manager and agent.
Use the System | SNMP menu to change current SNMP configuration.
Figure 67 – SNMP settings
Readonly community – Community name is used in SNMP version 1 and version 2c. Read-only
(public) community allows reading values, but denies any attempt to change values [1-32 all ASCII
printable characters, no spaces].
Readwrite community – Community name is used in SNMP version 1 and version 2c. Read-write
(private) community allows to read and (where possible) change values [1-32 all ASCII printable
characters, no spaces].
Default Trap community – The default SNMP community name used for traps without specified
communities. The default community by most systems is "public". The community string must match
the community string used by the SNMP network management system (NMS) [1-32 all ASCII
printable characters, no spaces].
Trap Configuration Table:
BROWAN COMMUNICATIONS Page 62
You can configure your SNMP agent to send SNMP Traps (and/or inform notifications) under the
defined host (SNMP manager) and community name (optional).
Figure 68 – SNMP Trap table settings
Click Add to add a new SNMP manager or Delete to delete a specific SNMP manager. Clicking Add:
Figure 69 – Add SNMP Trap
Host IP – enter SNMP manager IP address [dots and digits].
Host Port – enter the port number the trap messages should be send through [number].
Trap Type – select trap message type [v1/v2/inform].
Community – specify the community name at a SNMP trap message. This community will be used in
trap messages to authenticate the SNMP manager. If not defined, the default trap community name
will be used (specified in the SNMP table) [1-32 all ASCII printable characters, no spaces].
Save – save all current settings
Cancel – restore the last settings
System | Telnet
Use System | Telnet menu to manage the telnet/SSH service of your BW2250.
Figure 70 – System Configuration settings
Telnet Service – Enable or disable telnet service of BW2250
SSH Service – Enable or disable SSH service of BW2250.
The default of these two services are all Enabled. The current IETF SSH (SSHv2) is supported for
security of accessing BW2250 via telnet/CLISH.
BROWAN COMMUNICATIONS Page 63
System | Configuration
Use the System | Configuration menu to configure such system utilities:
Backup – download current working system configuration for backup
Upload/Restore – upload system configuration for restore
Figure 71 – System Configuration settings
You can save your current device configuration file locally clicking the Preparation button:
Figure 72 – Backup settings
Such device configuration is saved in the specific format file (.cfg).
Description Message shows the current version of firmware.
Click the Preparation button to start saving the configuration file.
Click the Download button to download current working configuration into your local PC.
Figure 73 – Download system configuration
A configuration file name will be required when you download/save the
configuration file. And please remember the configuration file name should only
include characters or numbers. Otherwise, this configuration file will not upload to
BW2250.
BROWAN COMMUNICATIONS Page 64
You can upload saved configuration file any time you want to restore this configuration to the device
by using the Browse button Select the configuration file and upload it on the device:
Figure 74 – Configuration Upload/Restore
Click Upload for upload the specified configuration and then the similar UI appears
Figure 75 – configuration information
HOST IP – show the IP address in the configuration file that needs to upload.
Please remember this IP address for accessing BW2250 after the configuration file
is uploaded.
HOST VERSION – show the firmware version in the configuration file that needs to upload.
OK – click the button to apply configuration setting to the device.
If everything is right, click OK button for upload/restore.
BROWAN COMMUNICATIONS Page 65
System | Reset
Figure 76 – System Reset setting
Reboot – Reboot the device
Reset – Reset System to Factory Defaults
To reboot the device, click Reboot and then the below appears to make sure:
Figure 77 – Reboot the device
To reset device to factory defaults, click Reset on Figure 48 and then the below appears to make sure:
Figure 78 – Reset the device
Please note that all settings including the administrator settings will be set back to
the factory default when Reset is selected.
System | Upgrade
Check for new product updates at the Browan website: http://www.browan.com
BROWAN COMMUNICATIONS Page 66
Upload – Update your device firmware.
Figure 79 – Firmware Upgrade
Click the Upload and then the follow appears. Specify the full path to the new firmware image and
click the Upload button:
Figure 80 – Firmware Upgrade
To flash the uploaded firmware image to upgrade the firmware is done by click the Upgrade button.
Please make sure the firmware is correct for BW2250. Otherwise the upgrade will
be failed.
Figure 81 – Device Statistics
Do not switch off and do not disconnect the BW2250 from the power supply during
the firmware update process, otherwise the device could be damaged. It is best to
use the Ethernet connection (not wireless) for the firmware update process.
Update firmware will take about 5 minutes.
BROWAN COMMUNICATIONS Page 67
A) Specification
Wireless
Standard IEEE 802.11b(DSSS), IEEE 802.11g(OFDM) and IEEE 802.11a(OFDM)
Data Rate 802.11a: 54,48,36,24,18,12,9,6Mbps; 802.11g:
54,48,36,24,12,9,6,11,5,5,2,1Mbps (auto fall back)
Transmit Power
(RF power)
Max. 17 dBm ± 1.5dBm @6~24Mbps
Max. 13 dBm ± 1.5dBm @54Mbps
Antennas Two N type connectors
Encryption WPA2, WPA（TKIP and CCMP-AES）, WEP64, WEP128
Bridge Up to 20 bridge links
Interface
LAN 10/100Mb Ethernet, auto sensing, RJ-45
WLAN1 N-type Connector
WLAN2 N-type Connector
Management
Interfaces HTTPs, Secure Telnet (SSHv2), SNMP
Software Update Remote software update via HTTPs
Reset Remote restore factory default
Physical Specification
Dimension 227 mm x 198 mm x 65 mm
Weight 1.5kg
Environment Specification
Temperature Humidity
Operating -40 to 60°C 95%, non-condensing
Power Supply
POE 48V, IEEE802.3af-2003 compliance
Warranty
3 years
Package Contents
BW2250 Dual-Band Outdoor Access
Point
Mounting Kit including SCREW
Printed warranty card, release note,
warning card
CD with BW2250 Firmware, Kickstart Utility,
Bridge/Client Utility and User manual (*.pdf)
BA5070 Omni Dual-Band Antenna Waterproof tape
Waterproof RJ45 Straight Plug Reset Post
Related Products
Controllers: G-4200 Public Access Controller
Access Points: P-720 Dual Radio 2.4GHz/5GHz Access Point
Appendix
註解 [r2]: 确认配套设备机
种名称
BROWAN COMMUNICATIONS Page 68
BROWAN COMMUNICATIONS Page 69
B) Factory Defaults for the BW2250
General Configuration Settings
Administrator Username admin
Administrator Password admin01
Get Community Public
Set Community Private
Network Configuration Settings
IP address (Static IP) 192.168.2.2
Subnet mask 255.255.255.0
Gateway 0.0.0.0
Service Configuration Settings
DHCP server Disable
DHCP relay Disable
NTP service Disable
Telnet service Enable
SSH service Enable
Wireless Configuration Settings
RF Card 1(WLAN1)
Default Mode 11g Access Point
Regulatory Domain World
SSID BW2250g
Default channel (Static) 11
RTS Threshold 2347 bytes
EIRP 14dBm
Authentication Type Open System
MAC ACL Disable
Layer 2 Isolation Disable
Hidden SSID Disable
Security Policy Disable
RF Card 2(WLAN2)
Default Mode 11a Access Point
Regulatory Domain World
SSID BW2250a
Default channel (Static) 60
RTS Threshold 2347 bytes
EIRP 17dBm
Authentication Type Open System
MAC ACL Disable
Layer 2 Isolation Disable
Hidden SSID Disable
Security Policy Disable
BROWAN COMMUNICATIONS Page 70
C) Approved Antenna
BA5070 (omni-directional antenna for 2400 ~ 2500 MHz/ 5150 ~ 5875 MHz) is approved by Browan.
It is the accessory of BW2250 product.
BROWAN COMMUNICATIONS Page 71
D) Location ID and ISO Country Codes
This list states the country names (official short names in English) in alphabetical order as given in
ISO 3166-1 and the corresponding ISO 3166-1-alpha-2 code elements.
It lists 239 official short names and code elements.
Location
ID Country Location
ID Country
AF Afghanistan LI Liechtenstein
AL Albania LT Lithuania
DZ Algeria LU Luxembourg
AS American Samoa MO Macao
AD Andorra MK Macedonia, the former Yugoslav
republic of
AO Angola MG Madagascar
AI Anguilla MW Malawi
AQ Antarctica MY Malaysia
AG Antigua and Barbuda MV Maldives
AR Argentina ML Mali
AM Armenia MT Malta
AW Aruba MH Marshall islands
AU Australia MQ Martinique
AT Austria MR Mauritania
AZ Azerbaijan MU Mauritius
BS Bahamas YT Mayotte
BH Bahrain MX Mexico
BD Bangladesh FM Micronesia, federated states of
BB Barbados MD Moldova, republic of
BY Belarus MC Monaco
BE Belgium MN Mongolia
BZ Belize MS Montserrat
BJ Benin MA Morocco
BM Bermuda MZ Mozambique
BT Bhutan MM Myanmar
BO Bolivia NA Namibia
BA Bosnia and Herzegovina NR Nauru
BW Botswana NP Nepal
BV Bouvet island NL Netherlands
BR Brazil AN Netherlands Antilles
IO British Indian ocean territory NC New Caledonia
BN Brunei Darussalam NZ New Zealand
BG Bulgaria NI Nicaragua
BF Burkina Faso NE Niger
BROWAN COMMUNICATIONS Page 72
BI Burundi NG Nigeria
KH Cambodia NU Niue
CM Cameroon NF Norfolk island
CA Canada MP Northern Mariana islands
CV Cape Verde NO Norway
KY Cayman islands OM Oman
CF Central African republic PK Pakistan
TD Chad PW Palau
CL Chile PS Palestinian territory, occupied
CN China PA Panama
CX Christmas island PG Papua new guinea
CC Cocos (keeling) islands PY Paraguay
CO Colombia PE Peru
KM Comoros PH Philippines
CG Congo PN Pitcairn
CD Congo, the democratic republic of the PL Poland
CK Cook islands PT Portugal
CR Costa Rica PR Puerto Rico
