Getting Started With Your DellTM Wireless Network Card
Thank you for purchasing a Dell Wireless 1390 802.11g ExpressCardTM.
Before you begin to use your Dell Wireless network card, you will require the following items and information:
A computer with an ExpressCard port and Windows® XP operating system
Software installation CD included with your Dell Wireless 1390 802.11g ExpressCard
The network name (SSID) of your wireless network
Getting Started
NOTE: You must connect the device to the system before installing the software.
Connecting the Dell Wireless Network Card to Your Computer
Gemtek need to change this picture to show Setanta and Key West

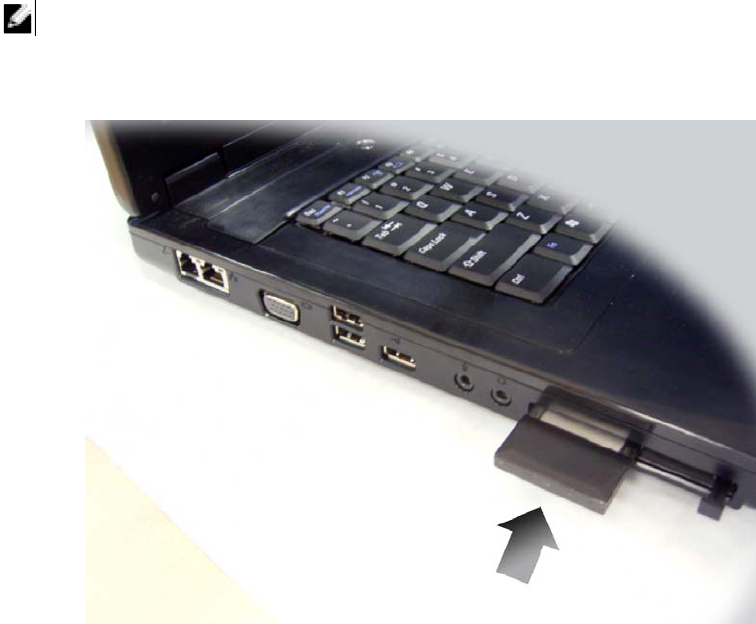

1. Insert the Dell Wireless 1390 802.11g ExpressCard into the computer as shown above.

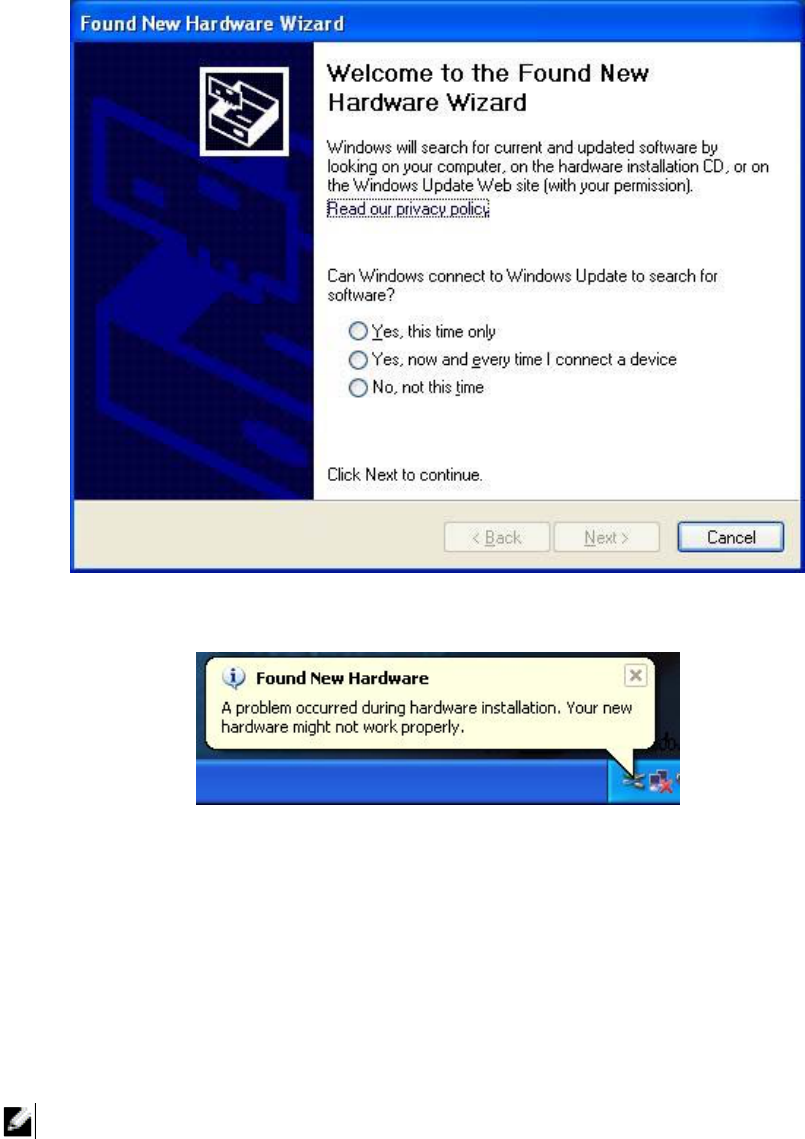

2. The
Found New Hardware Wizard screen will appear.
3. Click Cancel on the Found New Hardware Wizard
4. Ignore the balloon message indicating that a problem occurred during hardware installation. The
following steps to install the software will rectify the problem.
5. Insert the Dell Wireless 1390 802.11g ExpressCard CD into the CD or DVD drive of your
computer. If the Main Menu screen does not appear automatically, select Start > Run and then
type x:\setup.exe (where x is your CDROM drive letter) and click OK.
6. Click on Install Software, and follow the on screen instructions. The install wizard will install the
Dell Wireless LAN Card Utility and the Windows driver.
7. Check for the
Green Light on the device to make sure the network card is operating correctly and
the Windows driver is loaded.
8. The New network device installed screen will appear on the bottom right corner.
Connecting to a Wireless Network with No Security
NOTE: This section provides the basic steps to configure and connect to a wireless network. For
further details see “Making a Basic Network Connection in Windows XP”in the User’s Guide on the
Dell Wireless 1390 802.11g ExpressCard CD.
1. Right-click Wireless Network Connection icon, as shown above, in the system tray on bottom
right hand corner of your computer screen.

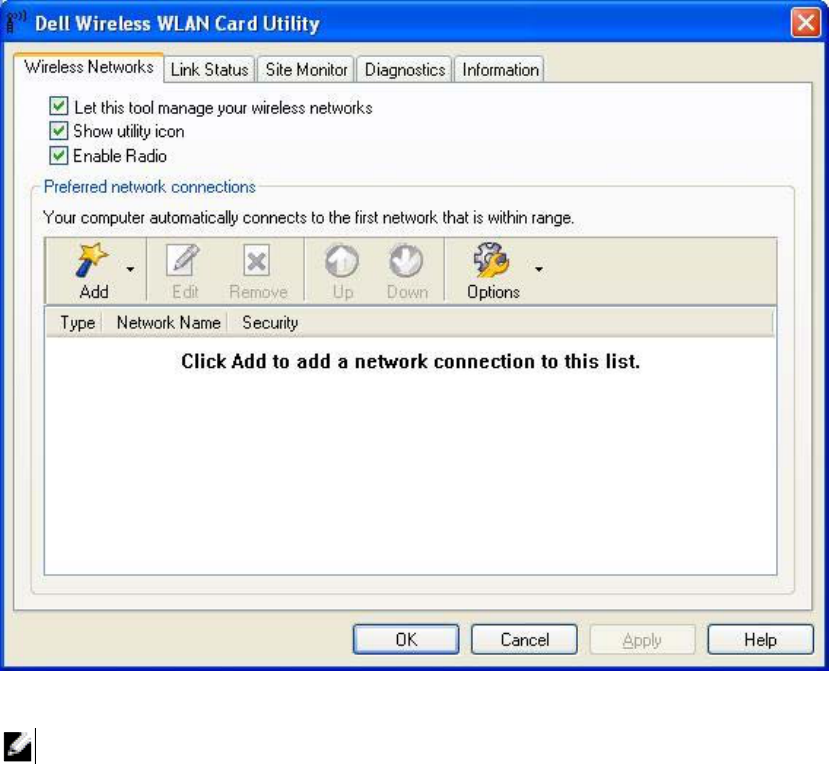

2. Click Open Utility.

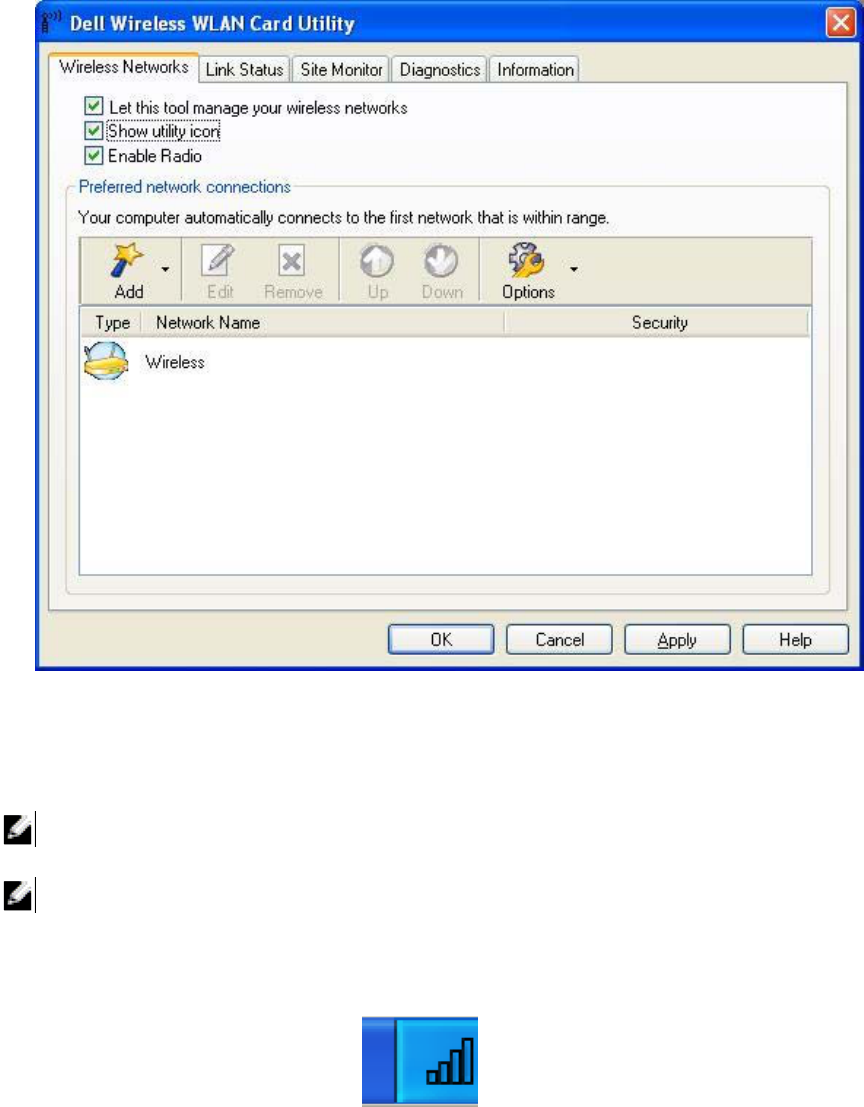

3. Click Add.
NOTE: The names of the wireless networks, that are visible to your computer, are shown under
Connect to a network.

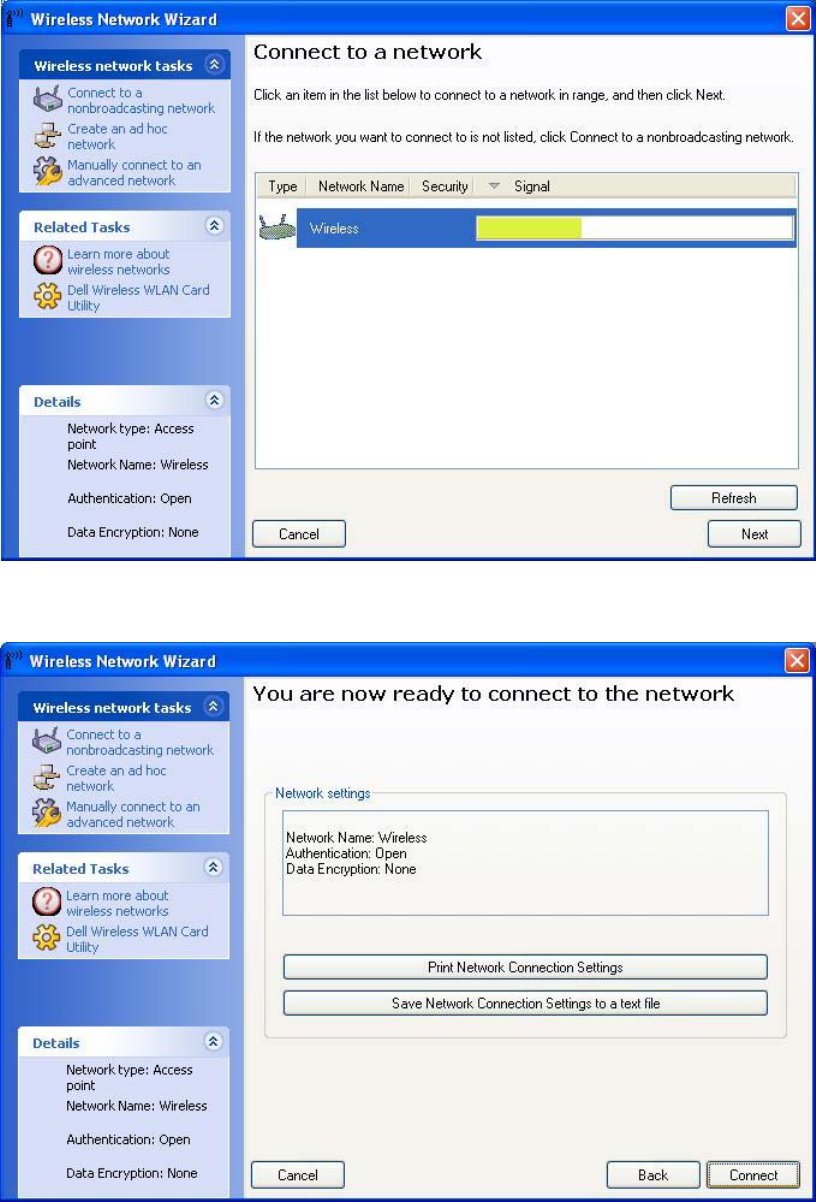

4. Click on the name of the network that you wish to join and click Next.
5. Click Connect to join the network
6. Click OK.
Connecting to a Wireless Network with Security
NOTE: To make advanced security settings, home users need to know the advanced security
settings on their access point and enterprise users need information from their system administrators.
NOTE: If you have not already made a basic wireless network connection, see, “Connecting to Your
Wireless Network with No Security.” Otherwise see, “Making a Basic Network Connection in Windows
2000/XP” in the User’s Guide that came with your computer. To make other types of advanced
network security settings in Windows XP, see, “Making Advanced Network Security Settings in
Windows 2000/XP Using the Dell WLAN Card Utility” in the User’s Guide.
1. Right-click Wireless Network Connection icon in the system tray on bottom right hand corner of
your computer screen.
2. Click Open Utility.
3. Click Add.
NOTE: The names of the wireless networks, that are visible to your computer, are shown under
Connect to a network.

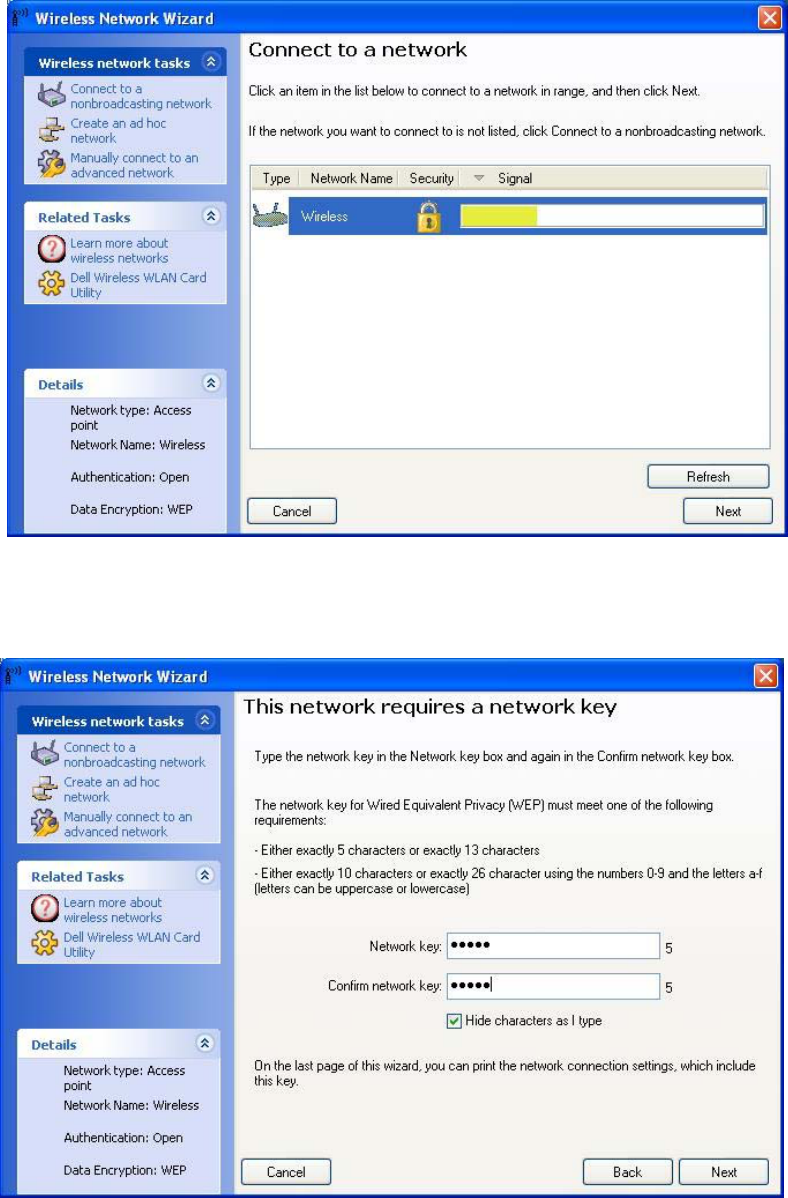

4. Click on the name of the network that you wish to join and click Next.
5. Enter the network key in both Network key and Confirm network key boxes.
NOTE: The type of key varies according to the security type being used by the wireless network. The
screen shot above is for WEP. The screen contents may vary depending on the security method in
use, for example WPA, WPA2 and 64/128 bit WEP.
6. Click Connect to join the network.
7. Click OK.
NOTE: The following symbols are used on the Dell Wireless 802.11g ExpressCard.
Green light indicates that the device is powered on.
Green light indicates that the radio is enabled.
Orange flashing light indicates that data is being transmitted to or from the wireless network.
Notes, Notices, and Cautions
NOTE: A NOTE indicates important information that helps you make better use of your computer.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you
how to avoid the problem.
CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.
___________________
Information in this document is subject to change without notice.
© 2005 Dell Inc. All rights reserved.
The copying or reproducing of any material in this document in any manner whatsoever, without the written
permission of Dell, is strictly forbidden. Trademarks used in this text: Dell and the DELL logo are trademarks
of Dell Inc. Microsoft and Windows are registered trademarks of Microsoft Corporation.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the
marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade
names other than its own.
October 2005 P/N: UF622 Rev. A00
