GemTek Technology F240WA 7368 ISAM CPE User Manual 8 UserMan MXF F240WA

Gemtek Technology Co., Ltd. 7368 ISAM CPE 8 UserMan MXF F240WA

Contents

8. UserMan_MXF-F240WA

Copyright © Gemtek Technology Co., Ltd.
All Rights Reserved. 2015/7/21
HGW F-240W-A
User manual
2015.07 v1.0
1
Copyright © Gemtek Technology Co., Ltd.
All Rights Reserved. 2015/7/21
Outline
Exterior
Interface
Accessory
HGW LED definition
Backup
Statement
2
Copyright © Gemtek Technology Co., Ltd.
All Rights Reserved. 2015/7/21

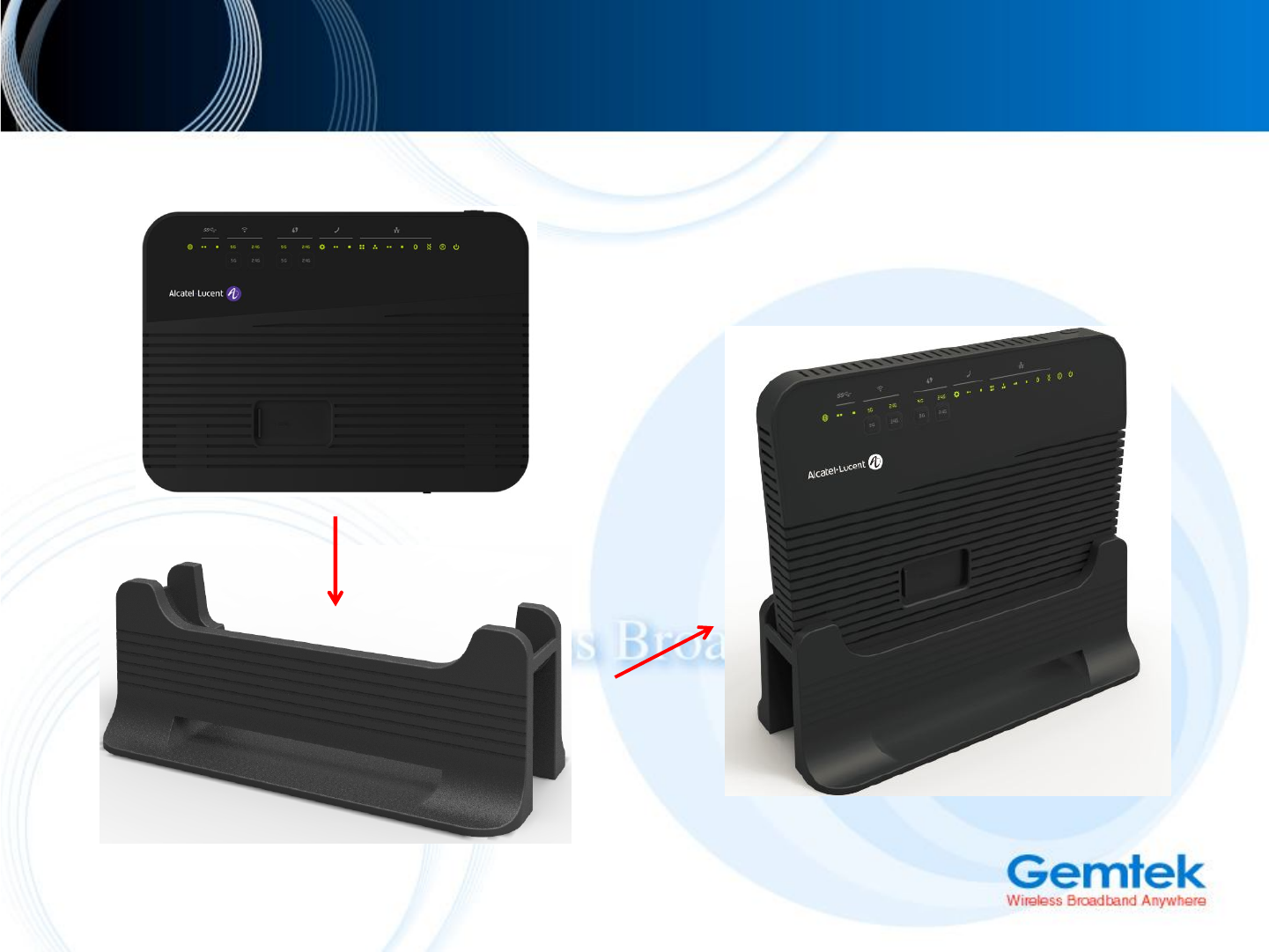

Exterior 3
Copyright © Gemtek Technology Co., Ltd.
All Rights Reserved. 2015/7/21

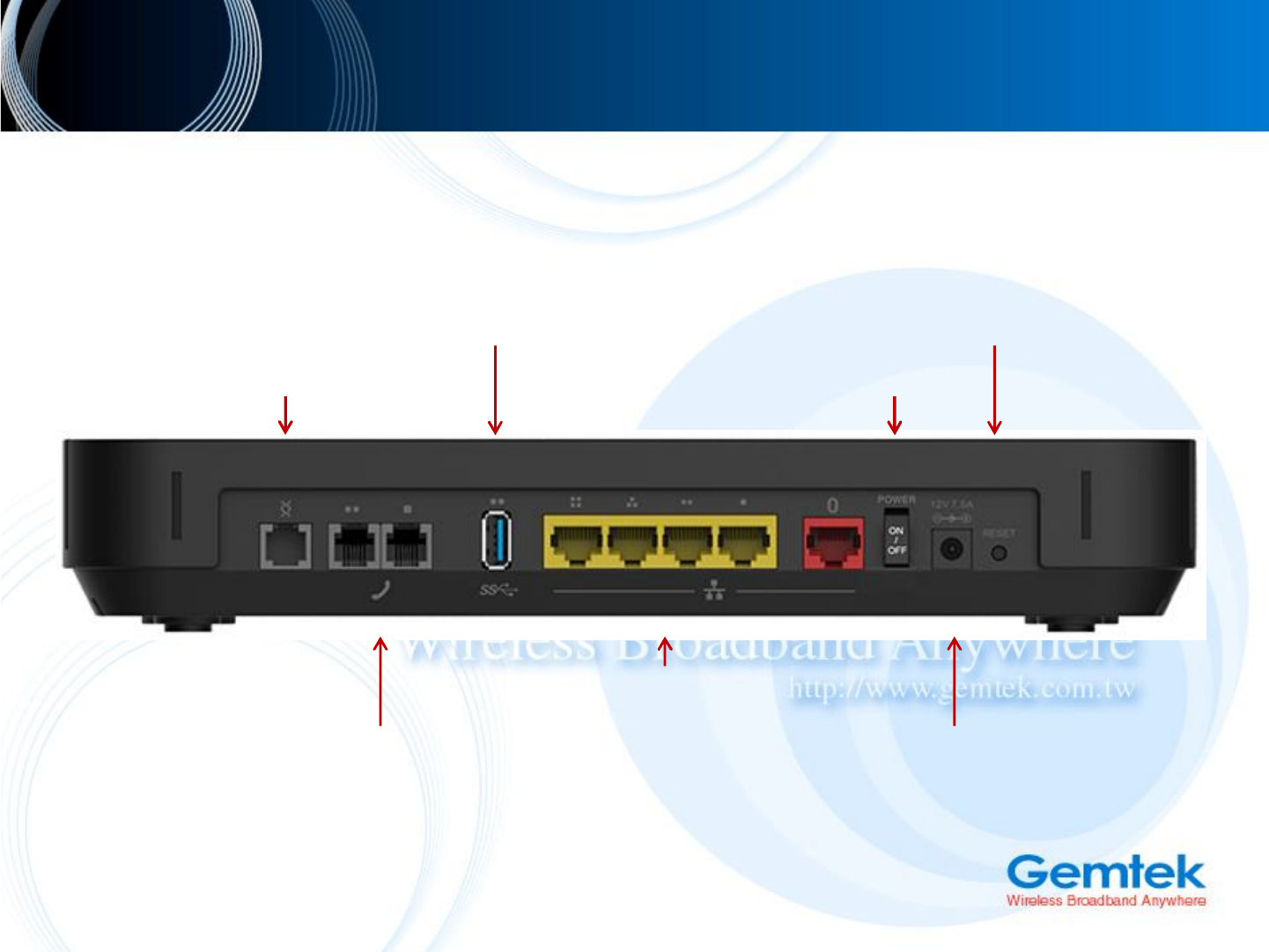

Interface 4
LAN port
USB port : USB 3.0 & 2.0
Power
Power in
Foreign eXchange Station
Reset
G.fast/Vplus-VDLS2 interfaces
Copyright © Gemtek Technology Co., Ltd.
All Rights Reserved. 2015/7/21
Accessory 5
ONT 1
RJ-11 Cable 1.8m 1
RJ-11 Cable 1.5m 1
RJ-45 Cable 1.5m 1
Power Adapter 1
Power Cable 1
Pedestal *1
Copyright © Gemtek Technology Co., Ltd.
All Rights Reserved. 2015/7/21
HGW LED definition 6
LED Color(S) Activity Description
Power (TOP)
Green
Solid Power on(self test succeeded)
flash Device POSTING and BOOTING
Off Power Off
Red
Solid
POST fails on startup (example, flash is corrupt). So in Hardware the LED should be
RED by default until the software is running which can then turn it green. Normally
the ONT should also do a self-test on power-up. If Self-test fails the LED should
remain RED
During operations the ONT fails (Device Malfunction): On regular intervals the ONT
should run a self-test and if it fails the LED should turn RED.
flash Firmware upgrade ongoing
Off System is in normal condition
RPF (TOP)
Green Solid reverse power active
Amber Solid reverse power in detection mode
Off Off reverse power is off
G.fast/Vplus-
VDLS2
(TOP)
Green
Solid Provisioned and registered(VDSL2)
flash
Flashing at 2 Hz with a 50% duty cycle: DSL carrier detection ongoing;
Flashing at 4 Hz with a 50% duty cycle: Carrier has been detected, DSL training is
ongoing;
Off not provisioned
Amber
Solid Provisioned and registered(Gfast/Vplus)
flash
Flashing at 2 Hz with a 50% duty cycle: DSL carrier detection ongoing;
Flashing at 4 Hz with a 50% duty cycle: Carrier has been detected, DSL training is
ongoing;
Off not provisioned
Copyright © Gemtek Technology Co., Ltd.
All Rights Reserved. 2015/7/21
HGW LED definition 7
LED Color(S) Activity Description
Ethernet
WAN or
LAN(1~5)
(TOP))
Green
(10/100M)
Solid Ethernet Link
flash Data Transmitting / Receiving
Amber
(1000M)
Solid Ethernet Link
flash Data Transmitting / Receiving
FXS/
POTS(1,2)
(TOP)
Green
Solid Provides a positive indication that at least one of the POTS lines, provisioned on the
respective Service Unit, has a telephone in the off-hook condition.
flash Call in or on talking
Off Telephone at POTS ports are all on-hook.
VOIP
(TOP) Green Solid VoIP service is built up and can provide service
Off VoIP service is not built up or out of service.
WPS 11n
(TOP)
Green Solid "Success" status
Off WPS disabled
Red Solid "Error" and "Session Overlap" status
Off WPS disabled
WPS 11ac
(TOP)
Green Solid "Success" status
Off WPS disabled
Red Solid "Error" and "Session Overlap" status
Off WPS disabled
WLAN
11n
(TOP)
Green
Solid WLAN link up
flash WLAN activity
Off WLAN is down or no link connected.
WLAN
11ac
(TOP)
Green
Solid WLAN link up
flash WLAN activity
Off WLAN is down or no link connected.
Copyright © Gemtek Technology Co., Ltd.
All Rights Reserved. 2015/7/21
HGW LED definition 8
LED Color(S) Activity Description
USB(1,2)
(TOP) Green
Solid A device is conneced to the USB port
flash Traffic activity on the USB connection
Off No device connected to the USB port.
Internet
(TOP) Green
Solid
IP connected (the device has a WAN IP address from IPCP/DHCP/Static and Broadband link
is up). If the PPPoE session is dropped due to an idle timeout, the light will remain green if
the G.fast link is still present. If the session is dropped for any other reason, the light is
turned off.
flash The device is in the process of acquiring an IP address (either via PPPoE or DHCP).
Off Broadband physical connection power off, or device in bridged mode with no IP address
assigned to the device, or Broadband physical interface connection not present
Copyright © Gemtek Technology Co., Ltd.
All Rights Reserved. 2015/7/21
Backup 9
Copyright © Gemtek Technology Co., Ltd.
All Rights Reserved. 2015/7/21
Federal Communication Commission Interference
Statement 10
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Copyright © Gemtek Technology Co., Ltd.
All Rights Reserved. 2015/7/21
Federal Communication Commission Interference
Statement 11
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Country Code selection feature to be disabled for products marketed to the US/CANADA
Operation of this device is restricted to indoor use only
Copyright © Gemtek Technology Co., Ltd.
All Rights Reserved. 2015/7/21
EU Declaration of Conformity 12
This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test
methods have been applied in order to prove presumption of conformity with the essential requirements of the
R&TTE Directive 1999/5/EC:
EN 60950-1:2006 + A1:2010 + A11:2009 + A12:2011 + A2:2013
Safety of Information Technology Equipment
EN 62311: 2008 / Article 3(1)(a) and Article 2 2006/95/EC)
Assessment of electronic and electrical equipment related to human exposure restrictions for electromagnetic
fields (0 Hz-300 GHz)
EN 300 328 V1.9.1: 2015-02
Electromagnetic compatibility and Radio spectrum Matters (ERM);Wideband transmission systems; Data
transmission equipment operating in the 2,4 GHz ISM band and using wide band modulation techniques;
Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive
EN 301 893 V1.7.1: 2012-06
Broadband Radio Access Networks (BRAN); 5 GHz high performance RLAN; Harmonized EN covering the
essential requirements of article 3.2 of the R&TTE Directive
EN 301 489-1 V1.9.2: 2011
Electromagnetic compatibility and Radio spectrum Matters (ERM); Electro Magnetic Compatibility (EMC)
standard for radio equipment and services; Part 1: Common technical requirements
EN 301 489-17 V2.2.1 2012
Electromagnetic compatibility and Radio spectrum Matters (ERM); Electro Magnetic Compatibility (EMC)
standard for radio equipment; Part 17: Specific conditions for Broadband Data Transmission Systems
Copyright © Gemtek Technology Co., Ltd.
All Rights Reserved. 2015/7/21
EU Declaration of Conformity 13
In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain
authorization to use the device for setting up outdoor radio links and/or for supplying public access to
telecommunications and/or network services.
Česky
[Czech]
[Jméno výrobce] tímto prohlašuje, že tento [typ zařízení] je ve shodě se základními požadavky a
dalšími příslušnými ustanoveními směrnice 1999/5/ES.
Dansk
[Danish]
Undertegnede [fabrikantens navn] erklærer herved, at følgende udstyr [udstyrets typebetegnelse]
overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
Deutsch
[German]
Hiermit erklärt [Name des Herstellers], dass sich das Gerät [Gerätetyp] in Übereinstimmung mit
den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie
1999/5/EG befindet.
Eesti
[Estonian]
Käesolevaga kinnitab [tootja nimi = name of manufacturer] seadme [seadme tüüp = type of
equipment] vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele
teistele asjakohastele tetele.
English Hereby, [name of manufacturer], declares that this [type of equipment] is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC.
Español
[Spanish]
Por medio de la presente [nombre del fabricante] declara que el [clase de equipo] cumple con los
requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de 1999/5/CE.
Ελληνική
[Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ [name of manufacturer] ΔΗΛΩΝΕΙ ΟΤΙ [type of equipment]
ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ
ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
Français
[French]
Par la présente [nom du fabricant] déclare que l'appareil [type d'appareil] est conforme aux
exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.
Copyright © Gemtek Technology Co., Ltd.
All Rights Reserved. 2015/7/21
EU Declaration of Conformity 14
Italiano
[Italian]
Con la presente [nome del costruttore] dichiara che questo [tipo di apparecchio] è conforme ai
requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski
[Latvian]
Ar šo [name of manufacturer / izgatavotāja nosaukums] deklarē, ka [type of equipment / iekārtas
tips] atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.
Lietuvių
[Lithuanian]
Šiuo [manufacturer name] deklaruoja, kad šis [equipment type] atitinka esminius reikalavimus ir
kitas 1999/5/EB Direktyvos nuostatas.
Nederlands
[Dutch]
Hierbij verklaart [naam van de fabrikant] dat het toestel [type van toestel] in overeenstemming is
met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.
Malti
[Maltese]
Hawnhekk, [isem tal-manifattur], jiddikjara li dan [il-mudel tal-prodott] jikkonforma mal-ħtiġijiet
essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Magyar
[Hungarian]
Alulírott, [gyártó neve] nyilatkozom, hogy a [... típus] megfelel a vonatkozó alapvetõ
követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Polski [Polish] Niniejszym [nazwa producenta] oświadcza, że [nazwa wyrobu] jest zgodny z zasadniczymi
wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.
Português
[Portuguese]
[Nome do fabricante] declara que este [tipo de equipamento] está conforme com os requisitos
essenciais e outras disposições da Directiva 1999/5/CE.
Slovensko
[Slovenian]
[Ime proizvajalca] izjavlja, da je ta [tip opreme] v skladu z bistvenimi zahtevami in ostalimi
relevantnimi določili direktive 1999/5/ES.
Slovensky
[Slovak]
[Meno výrobcu] týmto vyhlasuje, že [typ zariadenia] sňa základné požiadavky a všetky príslušné
ustanovenia Smernice 1999/5/ES.
Suomi
[Finnish]
[Valmistaja = manufacturer] vakuuttaa täten että [type of equipment = laitteen tyyppimerkintä]
tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin
muiden ehtojen mukainen.
Copyright © Gemtek Technology Co., Ltd.
All Rights Reserved. 2015/7/21
EU Declaration of Conformity 15
