Users Manual
Copyright © Gemtek Technology Co., Ltd.
All Rights Reserved. 2015/7/21
HGW F-240W-A
User manual
2015.07 v1.0
1
Copyright © Gemtek Technology Co., Ltd.
All Rights Reserved. 2015/7/21
Outline
Exterior
Interface
Accessory
HGW LED definition
Backup
Statement
2
Copyright © Gemtek Technology Co., Ltd.
All Rights Reserved. 2015/7/21

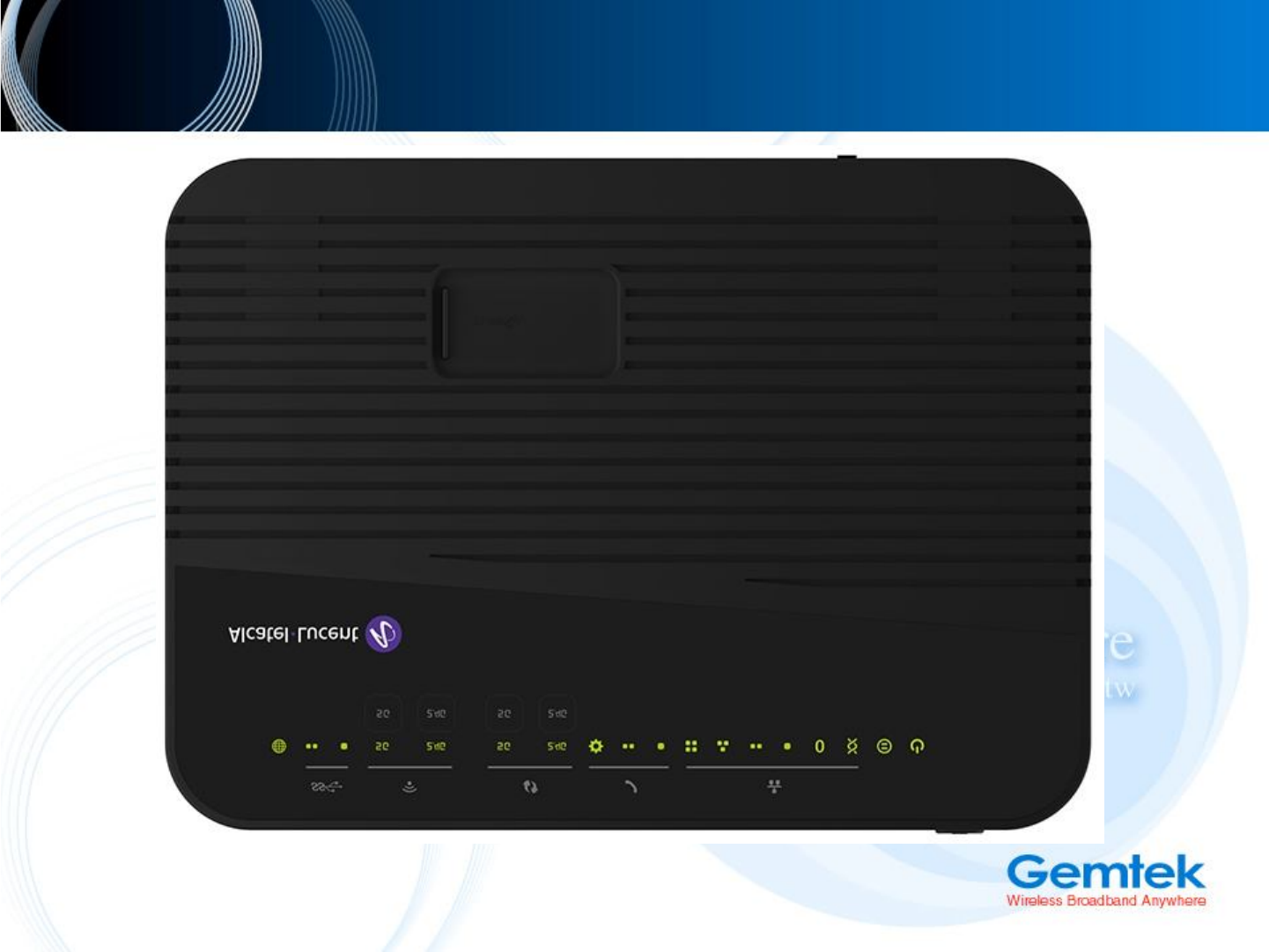

Exterior 3
Copyright © Gemtek Technology Co., Ltd.
All Rights Reserved. 2015/7/21

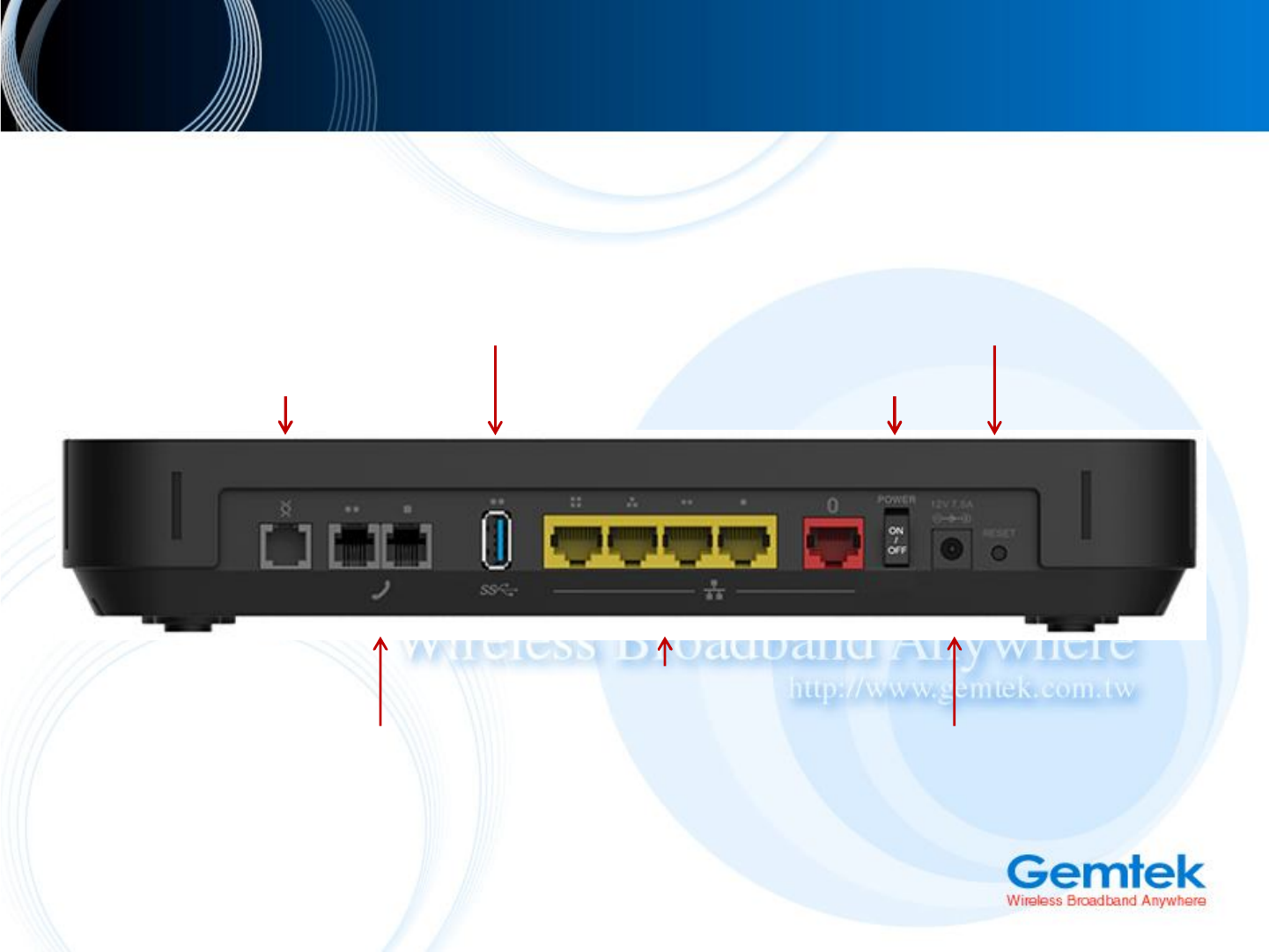

Interface 4
LAN port
USB port : USB 3.0 & 2.0
Power
Power in
Foreign eXchange Station
Reset
G.fast/Vplus-VDLS2 interfaces
Copyright © Gemtek Technology Co., Ltd.
All Rights Reserved. 2015/7/21

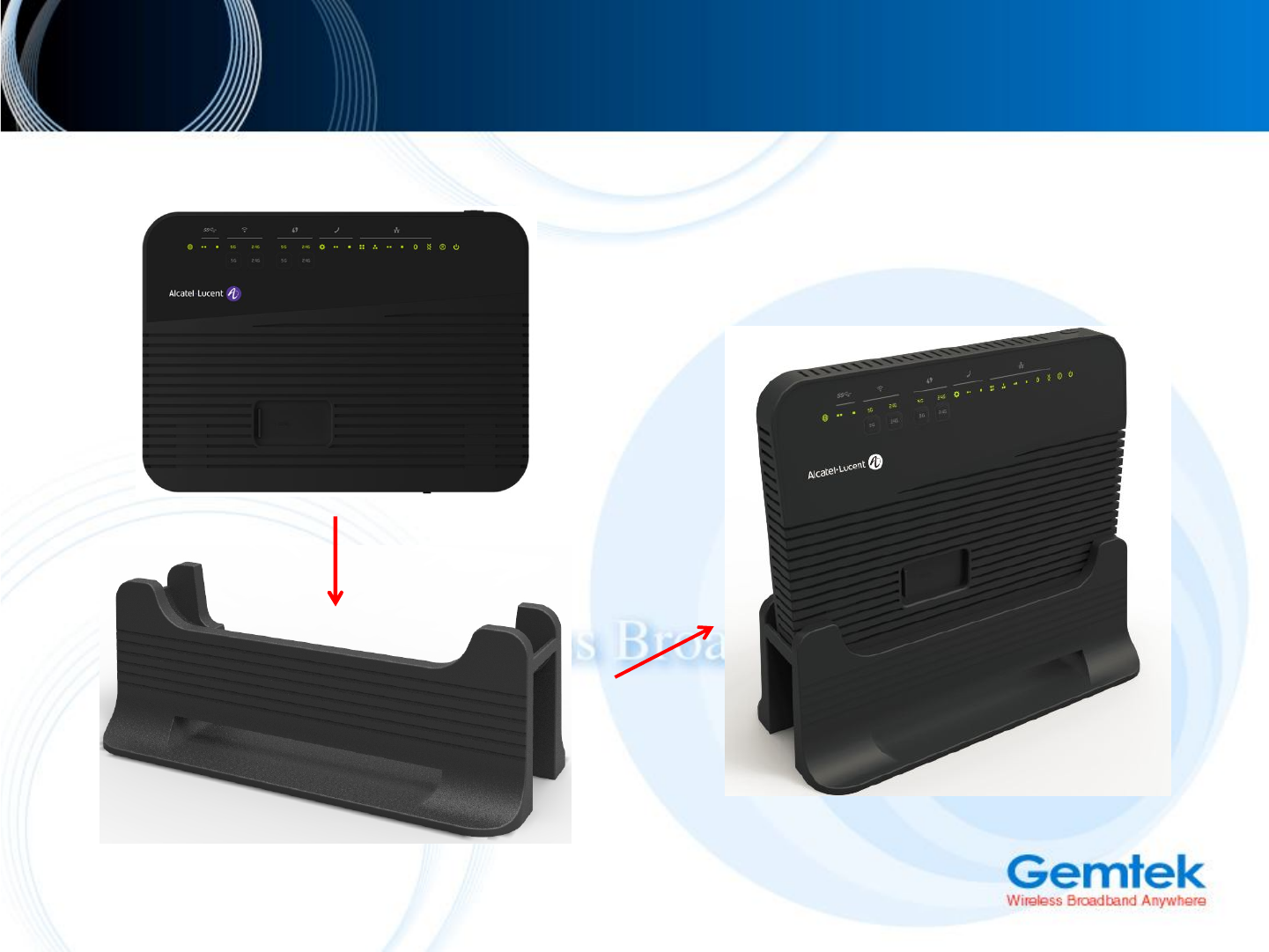

Accessory 5
ONT ＊1
RJ-11 Cable 1.8m ＊1
RJ-11 Cable 1.5m ＊1
RJ-45 Cable 1.5m ＊1
Power Adapter ＊1
Power Cable ＊1
Pedestal *1
Copyright © Gemtek Technology Co., Ltd.
All Rights Reserved. 2015/7/21
HGW LED definition 6
LED Color(S) Activity Description
Power (TOP)
Green
Solid Power on(self test succeeded)
flash Device POSTING and BOOTING
Off Power Off
Red
Solid
POST fails on startup (example, flash is corrupt). So in Hardware the LED should be
RED by default until the software is running which can then turn it green. Normally
the ONT should also do a self-test on power-up. If Self-test fails the LED should
remain RED
During operations the ONT fails (Device Malfunction): On regular intervals the ONT
should run a self-test and if it fails the LED should turn RED.
flash Firmware upgrade ongoing
Off System is in normal condition
RPF (TOP)
Green Solid reverse power active
Amber Solid reverse power in detection mode
Off Off reverse power is off
G.fast/Vplus-
VDLS2
(TOP)
Green
Solid Provisioned and registered(VDSL2)
flash
Flashing at 2 Hz with a 50% duty cycle: DSL carrier detection ongoing;
Flashing at 4 Hz with a 50% duty cycle: Carrier has been detected, DSL training is
ongoing;
Off not provisioned
Amber
Solid Provisioned and registered(Gfast/Vplus)
flash
Flashing at 2 Hz with a 50% duty cycle: DSL carrier detection ongoing;
Flashing at 4 Hz with a 50% duty cycle: Carrier has been detected, DSL training is
ongoing;
Off not provisioned
Copyright © Gemtek Technology Co., Ltd.
All Rights Reserved. 2015/7/21
HGW LED definition 7
LED Color(S) Activity Description
Ethernet
WAN or
LAN(1~5)
(TOP))
Green
(10/100M)
Solid Ethernet Link
flash Data Transmitting / Receiving
Amber
(1000M)
Solid Ethernet Link
flash Data Transmitting / Receiving
FXS/
POTS(1,2)
(TOP)
Green
Solid Provides a positive indication that at least one of the POTS lines, provisioned on the
respective Service Unit, has a telephone in the off-hook condition.
flash Call in or on talking
Off Telephone at POTS ports are all on-hook.
VOIP
(TOP) Green Solid VoIP service is built up and can provide service
Off VoIP service is not built up or out of service.
WPS 11n
(TOP)
Green Solid "Success" status
Off WPS disabled
Red Solid "Error" and "Session Overlap" status
Off WPS disabled
WPS 11ac
(TOP)
Green Solid "Success" status
Off WPS disabled
Red Solid "Error" and "Session Overlap" status
Off WPS disabled
WLAN
11n
(TOP)
Green
Solid WLAN link up
flash WLAN activity
Off WLAN is down or no link connected.
WLAN
11ac
(TOP)
Green
Solid WLAN link up
flash WLAN activity
Off WLAN is down or no link connected.
Copyright © Gemtek Technology Co., Ltd.
All Rights Reserved. 2015/7/21
HGW LED definition 8
LED Color(S) Activity Description
USB(1,2)
(TOP) Green
Solid A device is conneced to the USB port
flash Traffic activity on the USB connection
Off No device connected to the USB port.
Internet
(TOP) Green
Solid
IP connected (the device has a WAN IP address from IPCP/DHCP/Static and Broadband link
is up). If the PPPoE session is dropped due to an idle timeout, the light will remain green if
the G.fast link is still present. If the session is dropped for any other reason, the light is
turned off.
flash The device is in the process of acquiring an IP address (either via PPPoE or DHCP).
Off Broadband physical connection power off, or device in bridged mode with no IP address
assigned to the device, or Broadband physical interface connection not present
Copyright © Gemtek Technology Co., Ltd.
All Rights Reserved. 2015/7/21
Backup 9
Copyright © Gemtek Technology Co., Ltd.
All Rights Reserved. 2015/7/21
Federal Communication Commission Interference
Statement 10
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
