User manual System rev

OTION

OMPUTING

LE1600 T

ABLET

MICROSOFT WINDOWS XP TABLET PC EDITION 2005

USER GUIDE

Motion Computing LE1600 Tablet PC User Guide ii

Acrobat is a registered trademark of Adobe Systems Incorporated.

Atheros. the Atheros logo, Super G, Super A/G, Wake-on-Wireless, and Wake-on-Theft are

registered trademarks of Atheros Communications, Inc.

AuthenTec is a registered trademark of AuthenTec, Inc.

BLUETOOTH is a registered trademark owned by the Bluetooth SIG, Inc., U.S.A. and

licensed to Motion Computing, Inc.

Intel, Intel Inside, the Intel Inside logo, Pentium, and PROSet are trademarks or registered

trademarks of Intel Corporation or its subsidiaries in the United States and other countries.

Knowles and IntelliSonic are trademarks or registered trademarks of Knowles Acoustics, Inc.

Microsoft Windows, Windows XP, Windows XP Tablet PC Edition, and Windows Journal are

either registered trademarks or trademarks of Microsoft Corporation in the United States and/

or other countries.

Motion Computing, Speak Anywhere, and View Anywhere are trademarks or registered

trademarks of Motion Computing, Inc. in the U.S. and other countries.

OmniPass is a trademark of Softex, Inc.

Realtek is a trademark of Realtek Semiconductor Corporation.

SigmaTel is a registered trademark and Universal Jacks is a trademark of SigmaTel

Corporation.

Wi-Fi is a registered trademark of the Wi-Fi Alliance.

Motion Computing, Inc. has made every effort to identify trademarked properties and owners

on this page. All brands and product names used in this document are for identification

purposes only and may be trademarks or registered trademarks of their respective

companies.

PATENTS: The Motion Computing products and services may be covered by one or more of

the following protected inventions. Additional patents may also be pending.

US PATENTS: D480,730. OTHER PATENTS: GB3009545, BG3009546, AUS154529,

CAN101617, J1188539. For more information, see www.motioncomputing.com/info/patents.

NOTICE: The information in this publication is subject to change without notice. MOTION

COMPUTING, INC. SHALL NOT BE HELD LIABLE FOR TECHNICAL OR EDITORIAL

ERRORS OR OMISSIONS CONTAINED HEREIN NOR FOR ACCIDENTAL OR

CONSEQUENTIAL DAMAGES RESULTING FROM THE FURNISHING, PERFORMANCE,

OR USE OF THIS MATERIAL. The information contained in this document is provided “as is”

without warranty of any kind and is subject to change without notice. The warranties for

Motion Products are set forth in the express limited warranty statements accompanying such

products. Nothing herein should be construed as constituting an additional warranty. This

publication contains information protected by copyright. No part of this publication may be

photocopied or reproduced in any form without prior written consent from Motion

Computing, Inc.

P/N 024-02-0061 Rev. A00

Motion Computing LE1600 Tablet PC User Guide iii

About This User Guide

CAUTIONS,

WARNINGS AND

NOTICES

The following notices are found in this User Guide:

WARNING: Text set off in this way indicates that failure to follow

directions in the warning could result in bodily harm or loss of

life.

CAUTION: Text set off in this way indicates that failure to follow

directions in the CAUTION could result in damage to the

equipment or loss of information.

IMPORTANT: Text set off in this way presents information or instructions

that should be followed or information of particular interest.

NOTE: Text set off in this way presents information or instructions.

MENU ITEMS,

BUTTONS,

ICONS

Menu items, icons, and instructions found in the procedures in this User

Guide are set apart by capitalizing them exactly as shown on screen.

Examples are the Start menu, Dashboard, Tablet and Pen Settings icon,

and Apply buttons.

WRITING ON

THE DISPLAY

Writing on the Motion Tablet PC digitizer display in this User Guide refers to

any handwritten input using the specially-designed Motion digitizer pen, that

is provided. The display responds only to this pen and not to any other type

of pen or to a stylus or other device such as those used with personal digital

assistants (PDAs). The display surface may be damaged by ink pens or

other pointed objects.

INK The term ink refers to digital ink, i.e., hand-drawn or handwritten input and

that can be displayed or converted into text.

REFERENCES

TO USING THE

PEN AND

PEN FUNCTION

BUTTON

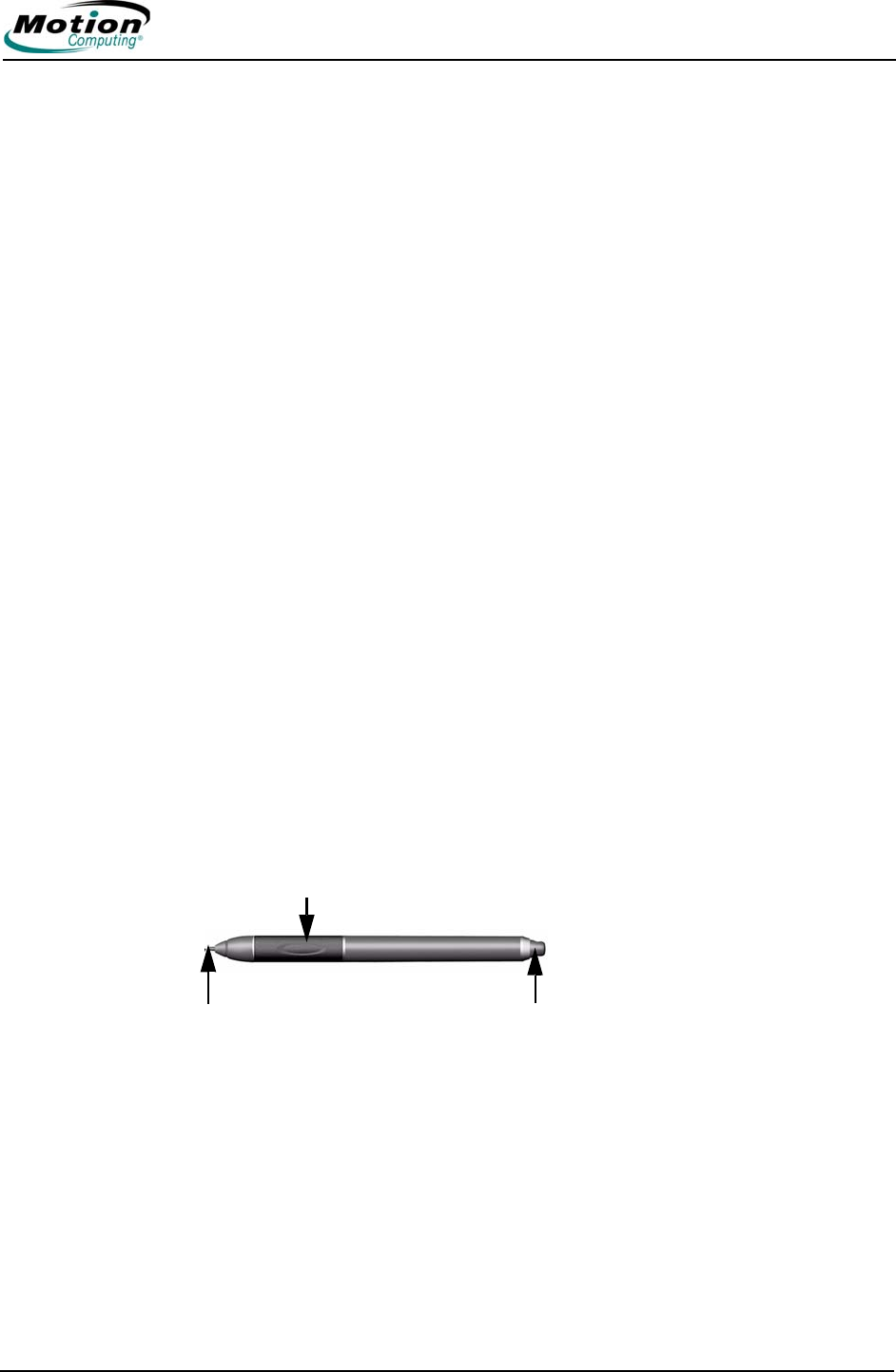

Notations for using the Motion Digitizer Pen, which are found throughout this

User Guide, are described below:

• Tap — Firmly tap the pen on the Tablet PC display, without pressing the

function button on the pen; a tap equals a mouse left-click

• Double-tap — Tap the pen twice on the display, without pressing the

function button on the pen

• Right-click — Press the function button on the pen and tap the pen on

the display (equals a mouse right-click)

• Press and hold — Press and hold the tip of the pen to the display with-

out pressing the pen function button (equals a mouse right-click)

• Tap and drag — Tap and drag the pen on the display

• Select/Highlight — Tap on the item on the display to activate the func-

tion: to select a line of text, tap, hold down the button, and drag the pen

across the text to highlight it

TASK BAR/

SYSTEM TRAY

The Microsoft Windows task bar is on the lower-left of the display; the

system tray (or notification area) is on the lower right, near the clock.

Motion Computing LE1600 Tablet PC User Guide v

Table of Contents

Chapter

1 Getting Started with Your Tablet PC

Features Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Quick Start Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Using the Motion Digitizer Pen . . . . . . . . . . . . . . . . . . . . . . . .2

Helpful Hints: Pen and Ink . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

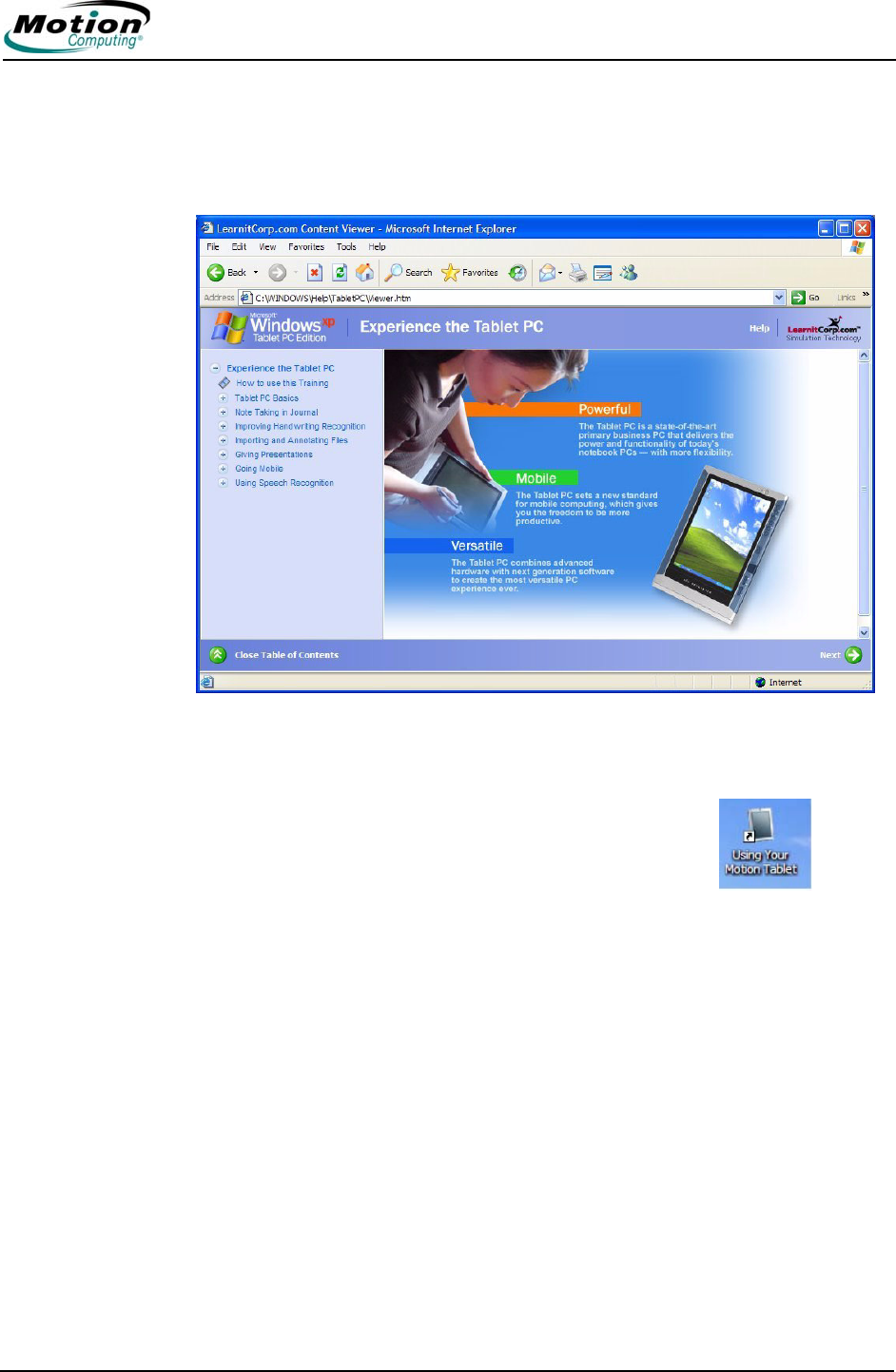

Complete the Microsoft Tablet PC Tutorials . . . . . . . . . . . . . . 4

Review Using Your Motion Tablet and User Guide . . . . . . . . . 4

Open the Motion Dashboard . . . . . . . . . . . . . . . . . . . . . . . . . .4

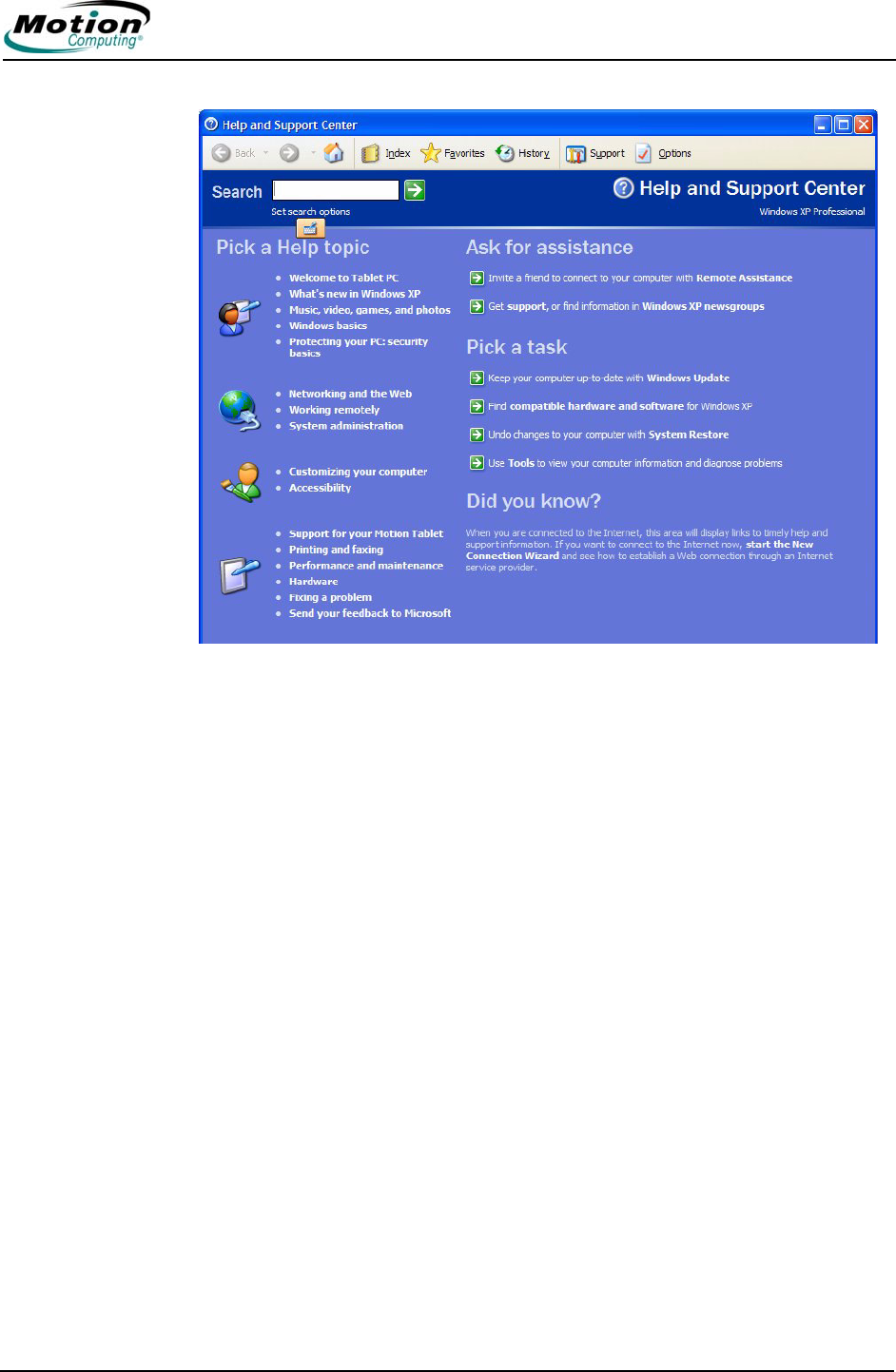

Visit the Microsoft Help and Support Center . . . . . . . . . . . . . . 5

Hardware Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Tablet PC Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

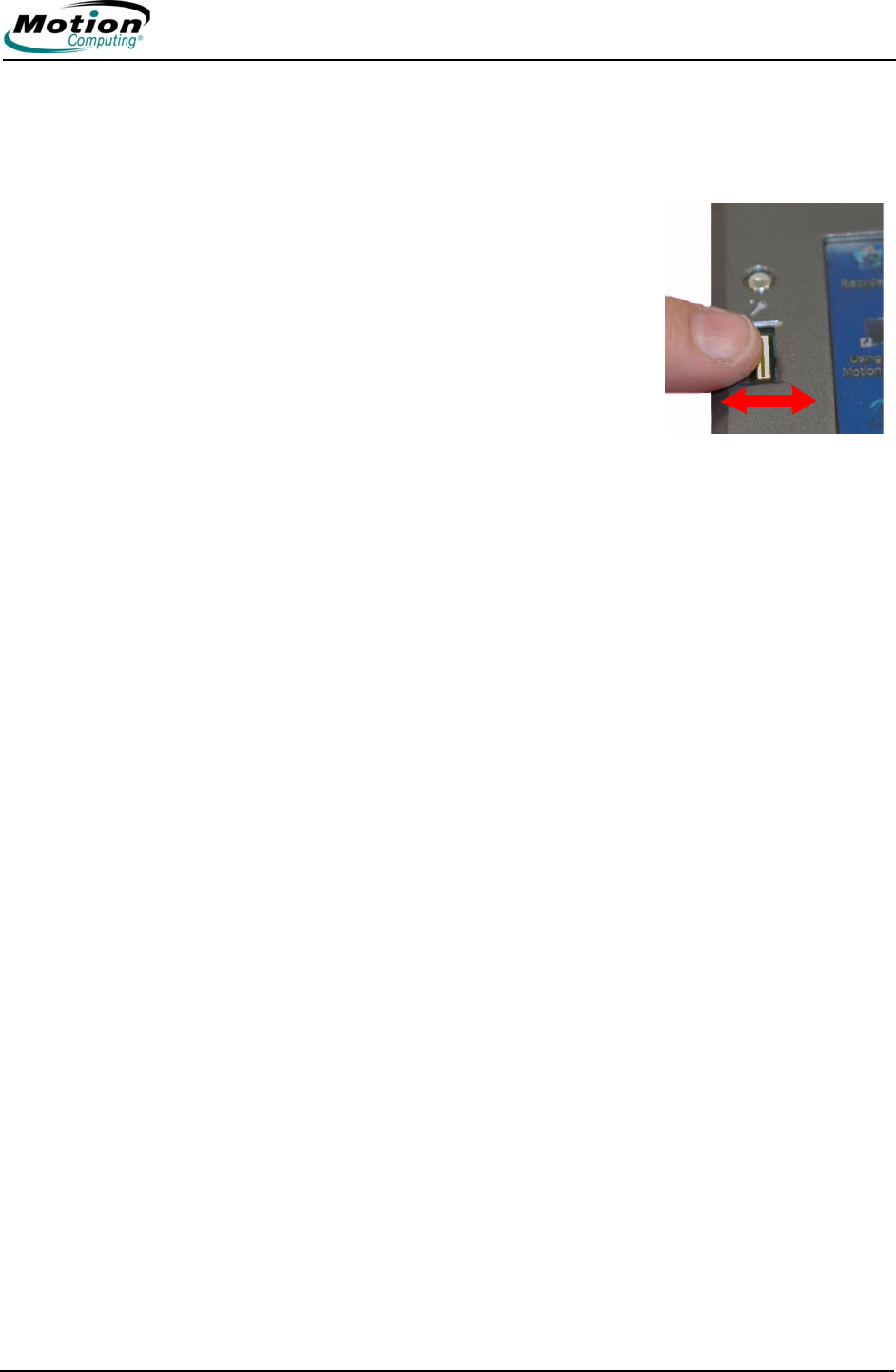

Fingerprint Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Motion AC Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Motion Battery Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

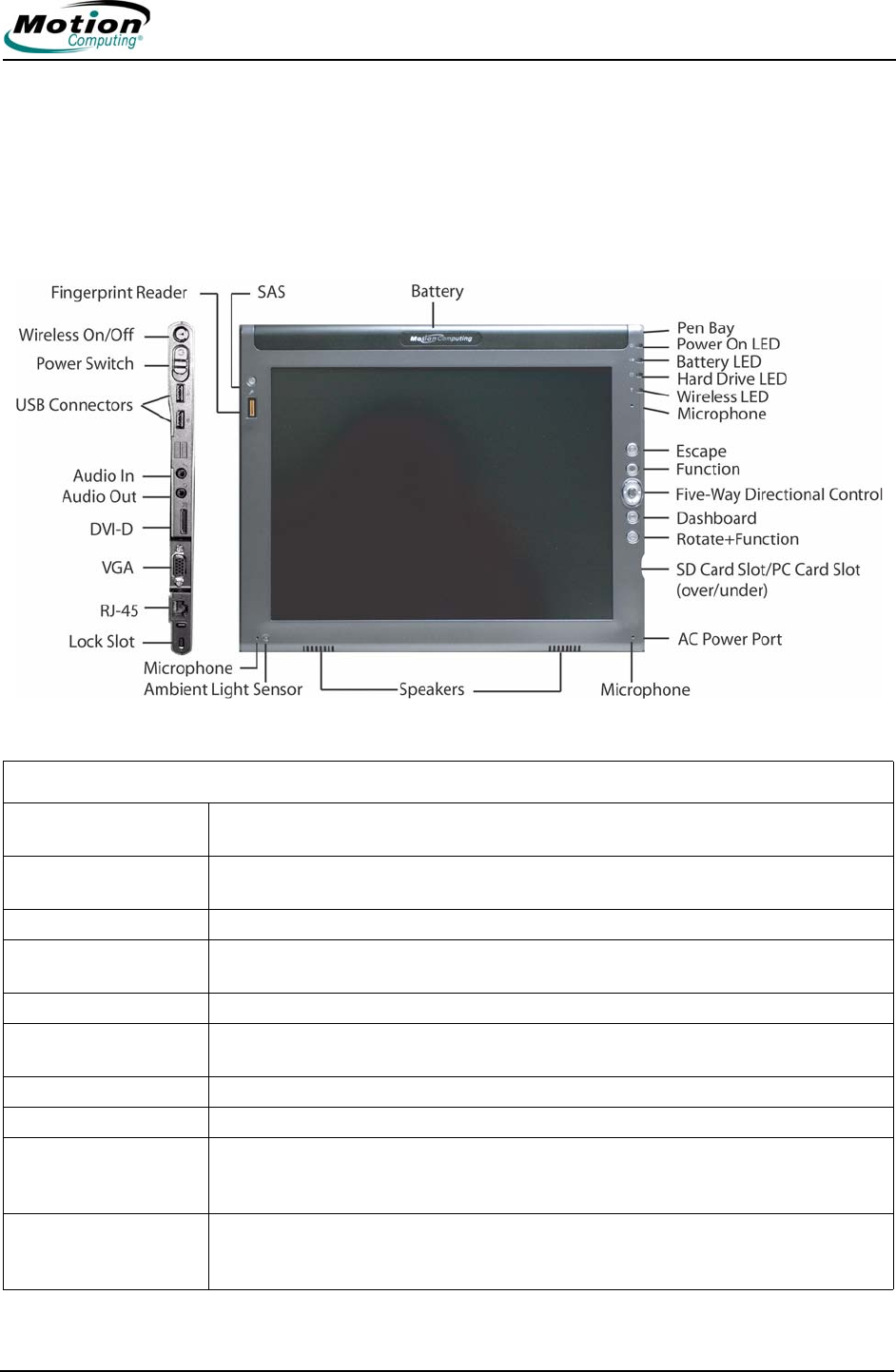

Tablet PC Buttons, Connectors, and Indicators . . . . . . . . . . . . .10

Front Panel Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

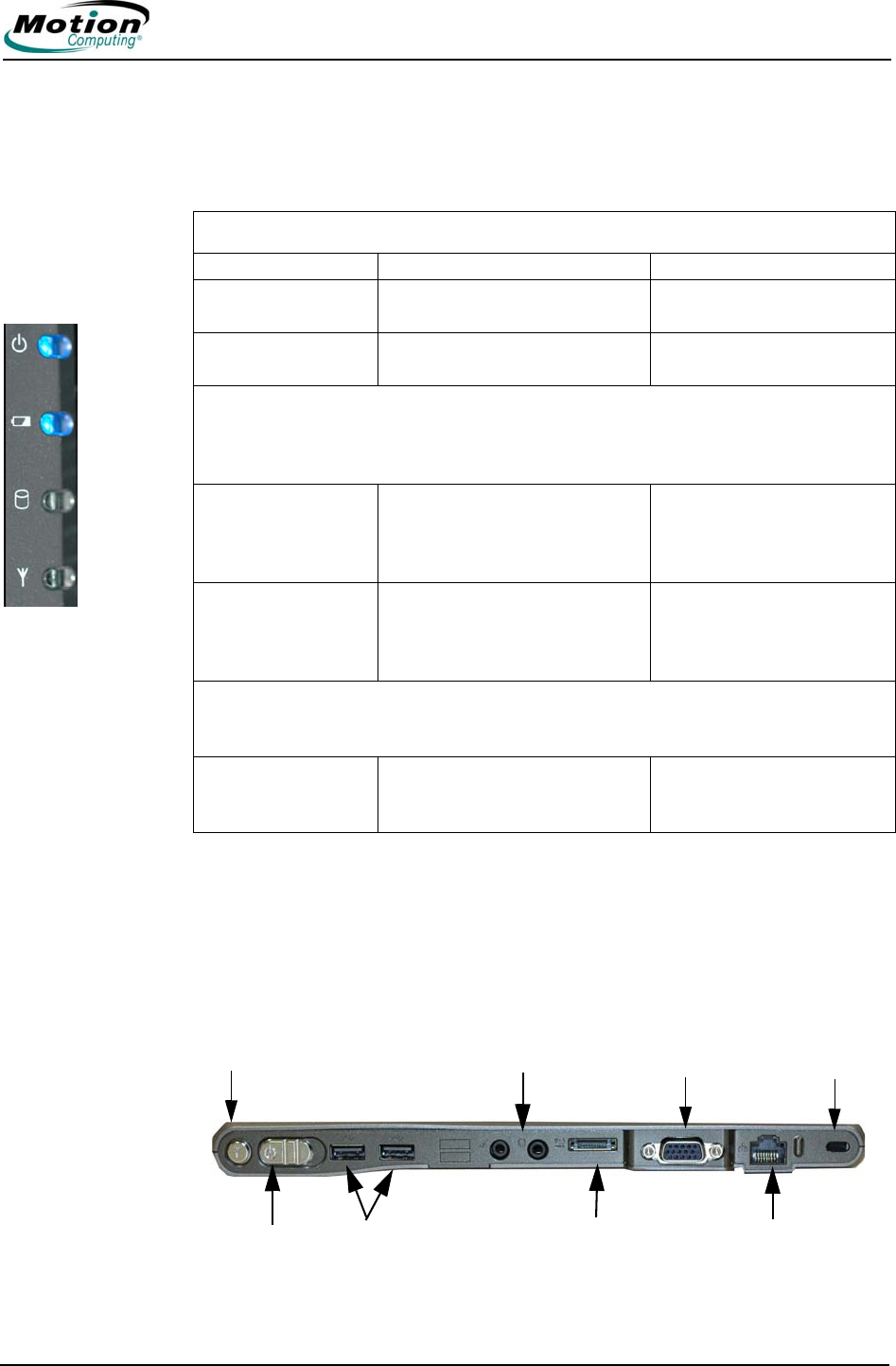

Front Panel LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Battery Status LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Ports, Slots and Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Software Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Using Your Motion Tablet . . . . . . . . . . . . . . . . . . . . . . . . . . .14

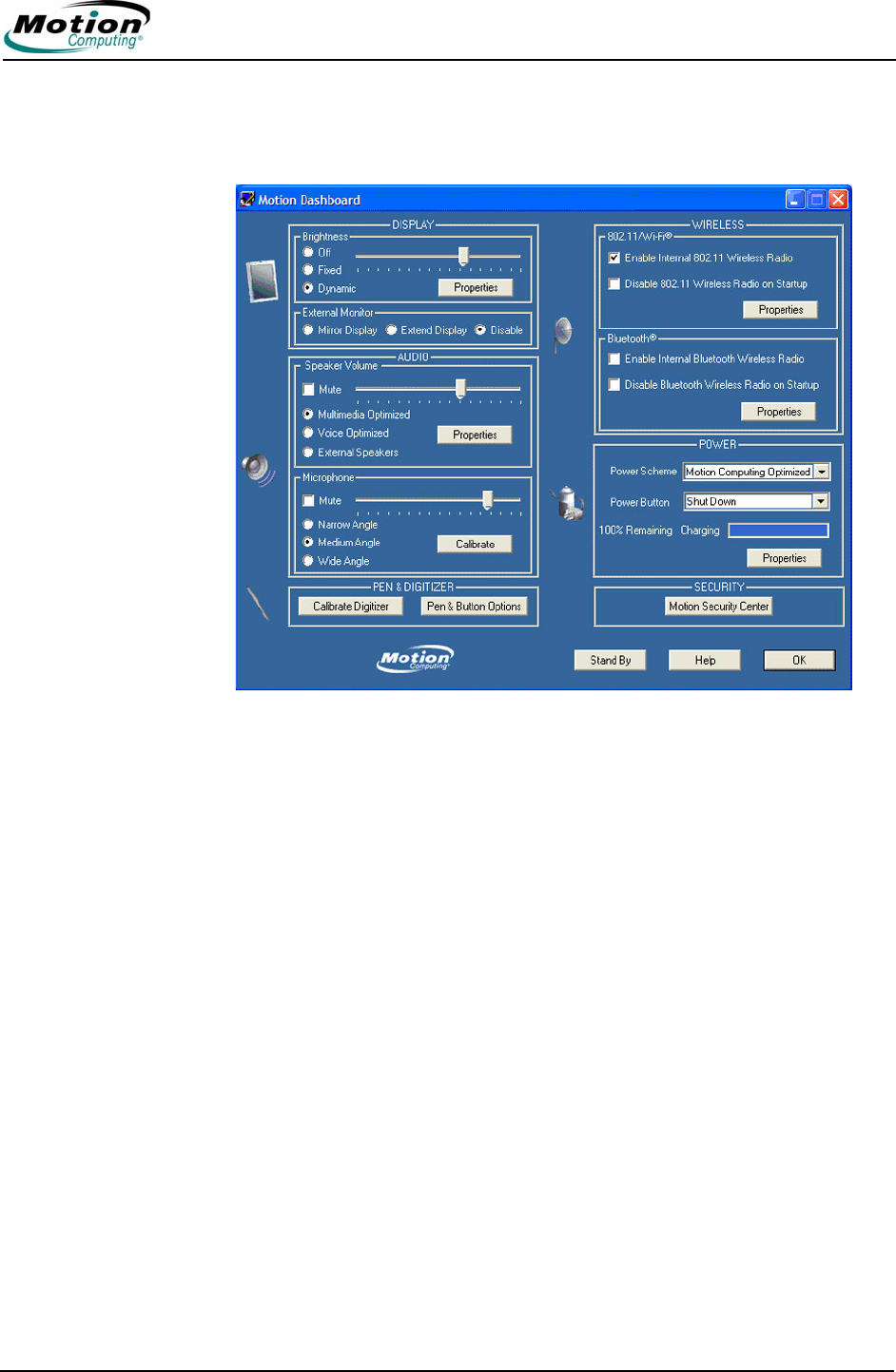

Motion Dashboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Motion Security Center . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Motion Third-Party Software Solutions . . . . . . . . . . . . . . . . .18

Chapter

2 Using Your Motion Tablet PC

Pen and Ink . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

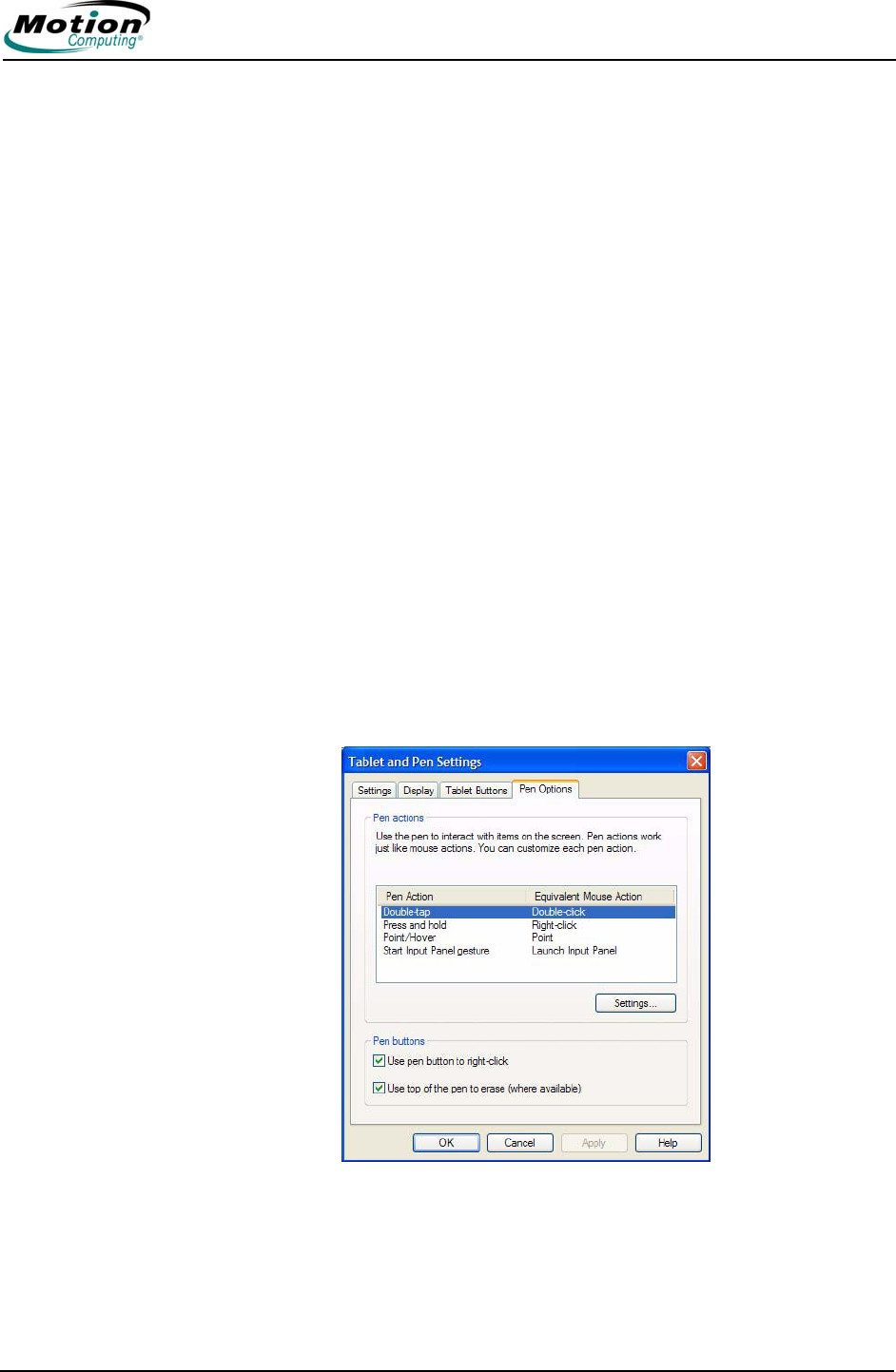

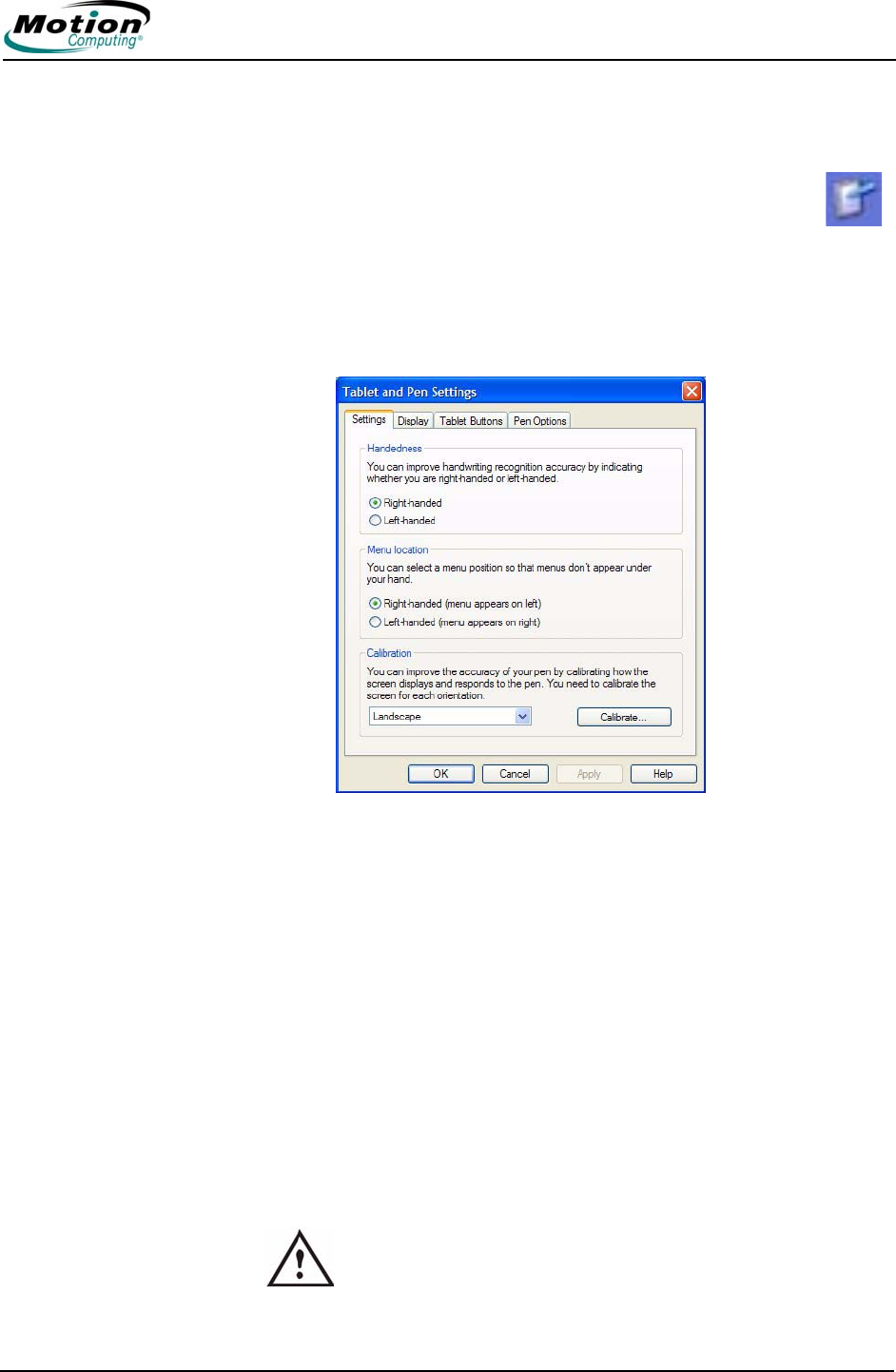

Configuring Tablet and Pen Settings . . . . . . . . . . . . . . . . . .19

Calibrating and Using Your Digital Pen . . . . . . . . . . . . . . . . .20

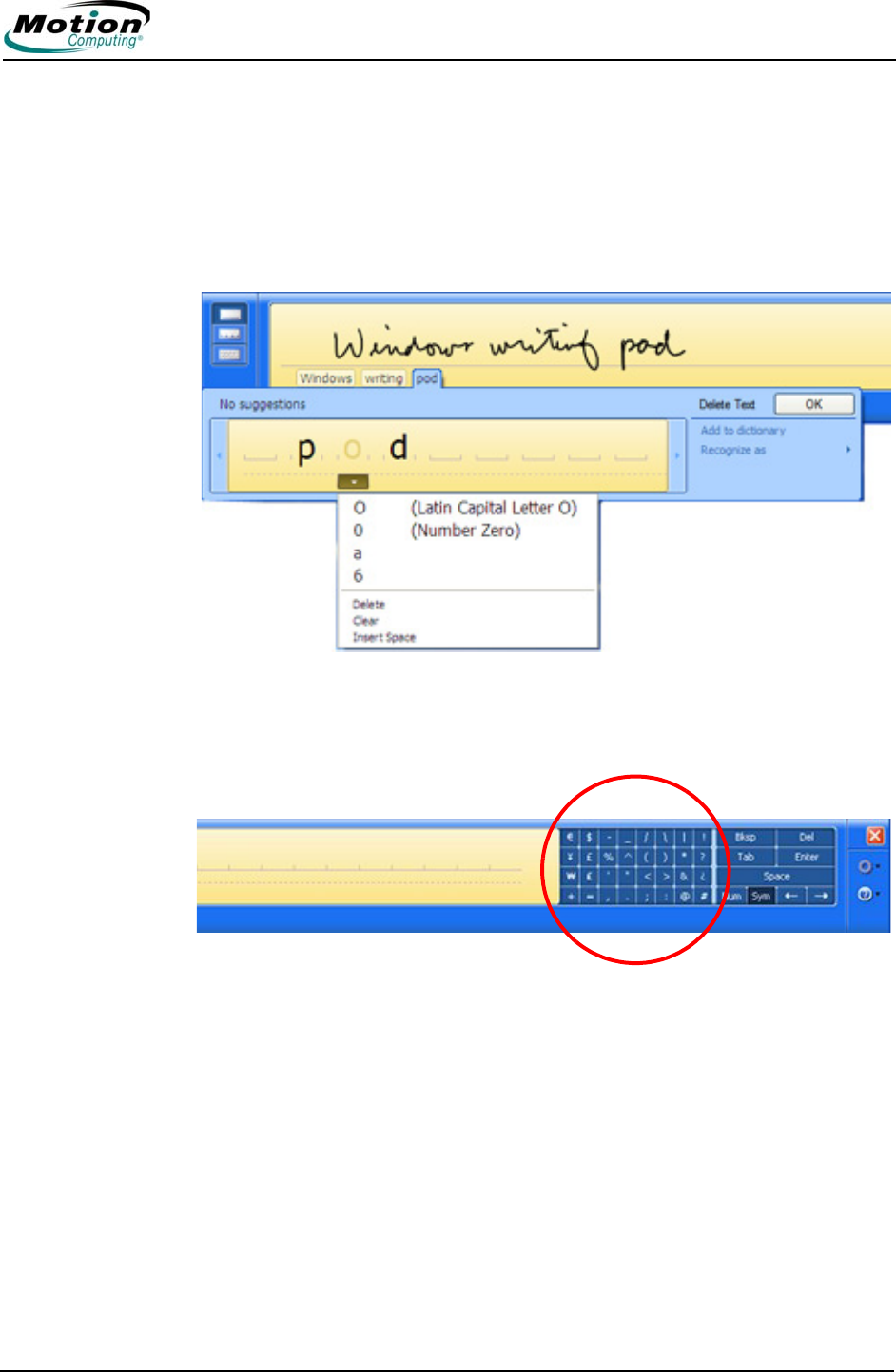

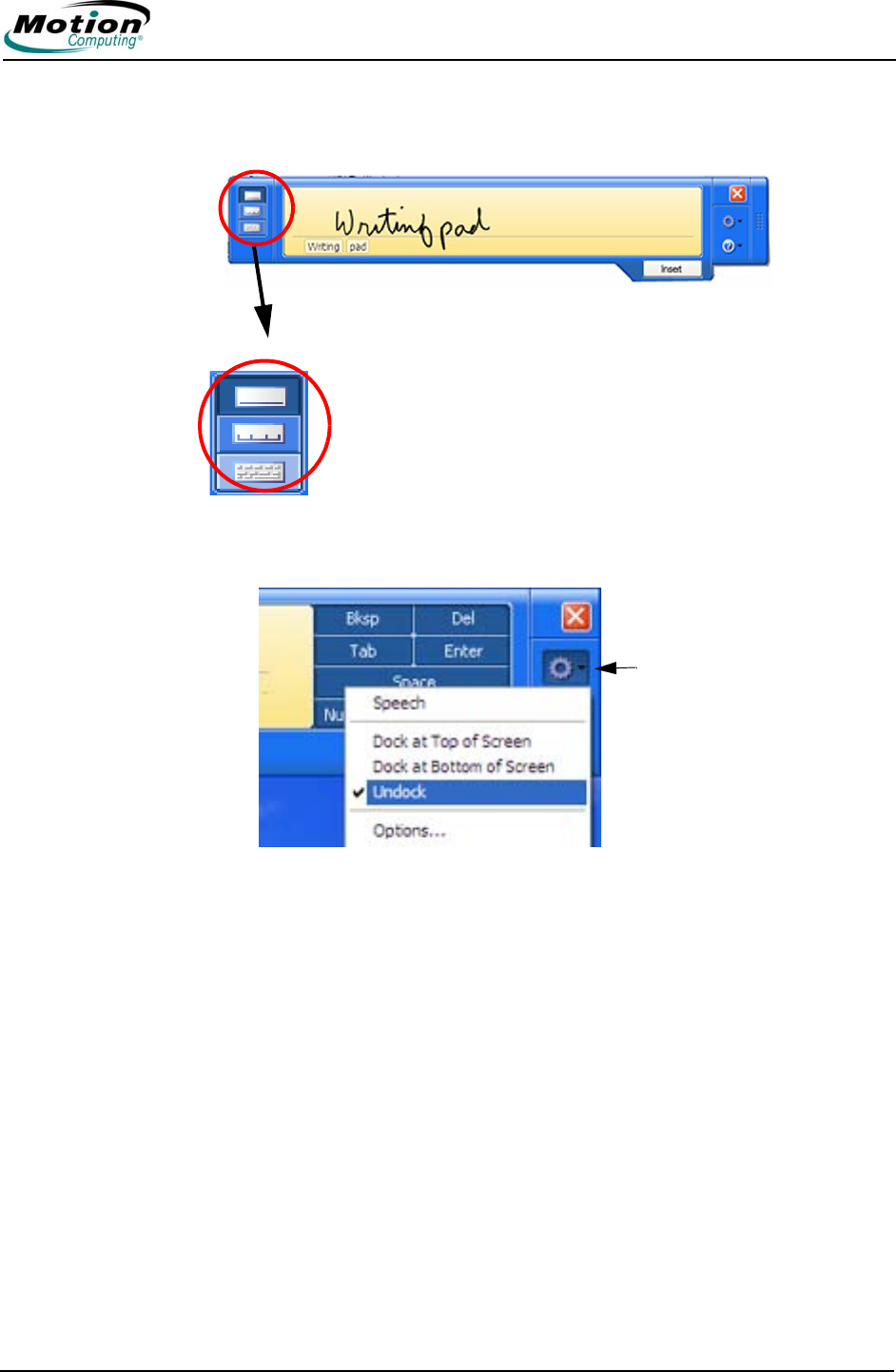

Using the Tablet PC Input Panel . . . . . . . . . . . . . . . . . . . . . . 22

Helpful Hints: Using the TIP Window . . . . . . . . . . . . . . . . . .26

Audio and Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Motion Dashboard Audio System Controls . . . . . . . . . . . . . .26

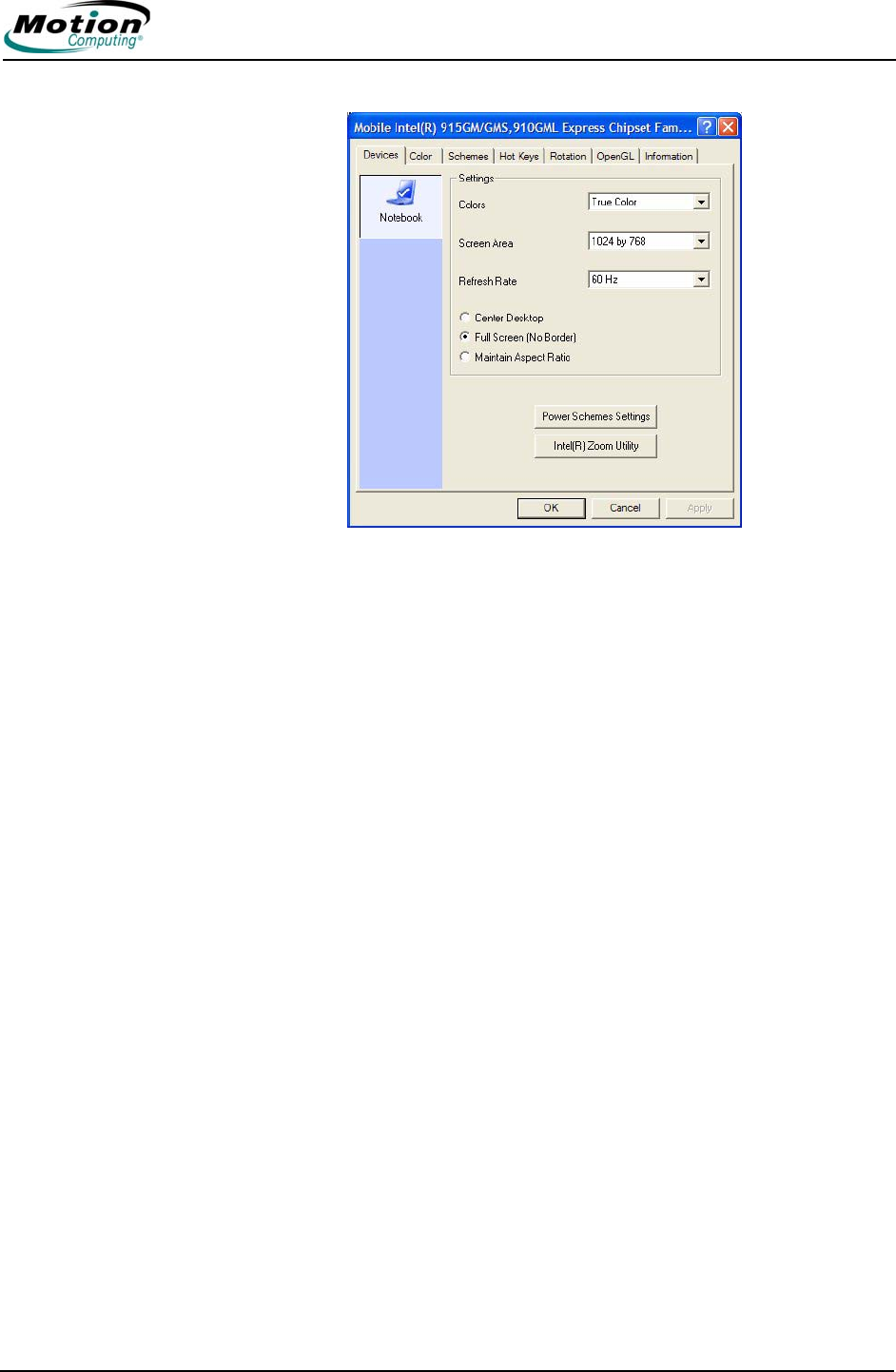

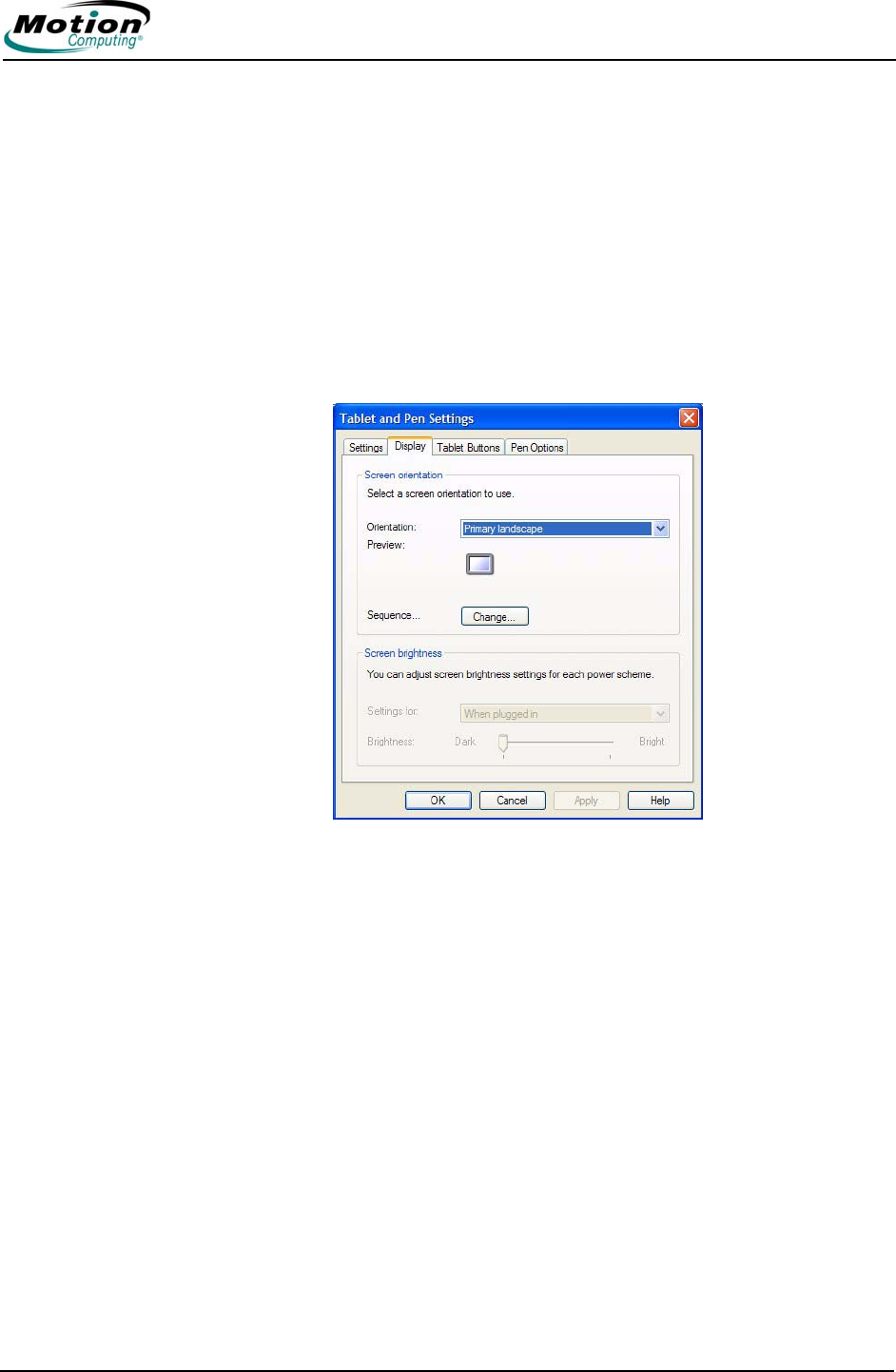

Adjusting Display Settings and Screen Brightness . . . . . . . .26

Creating Schemes for External Monitors . . . . . . . . . . . . . . .30

Helpful Hints: Mirrored and Extended Modes . . . . . . . . . . . .31

Power Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Configuring Your Power Management Settings . . . . . . . . . .31

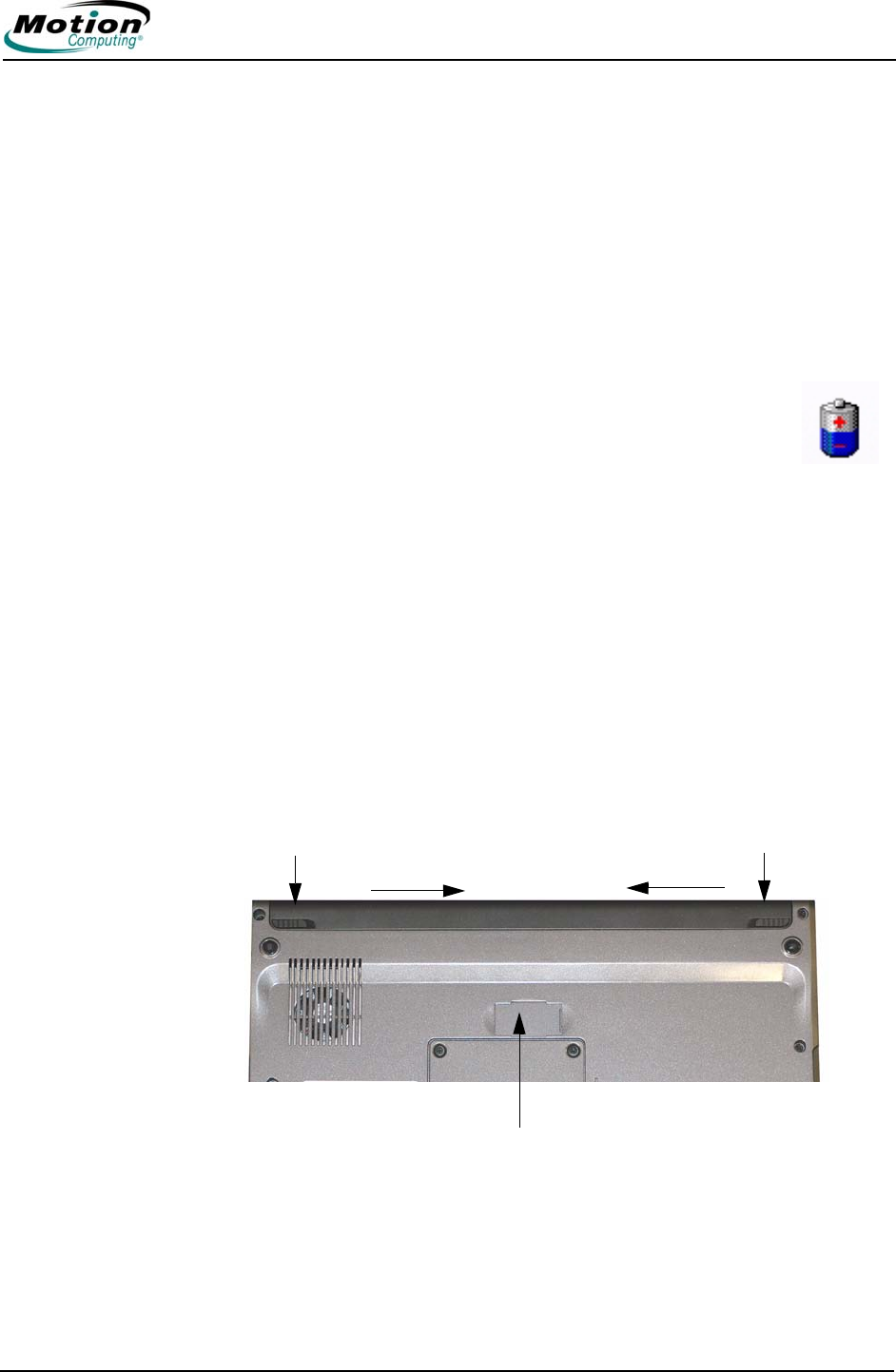

Using Your Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Helpful Hints: Battery and Power Management . . . . . . . . . . 36

Security Features and Settings . . . . . . . . . . . . . . . . . . . . . . . . . .37

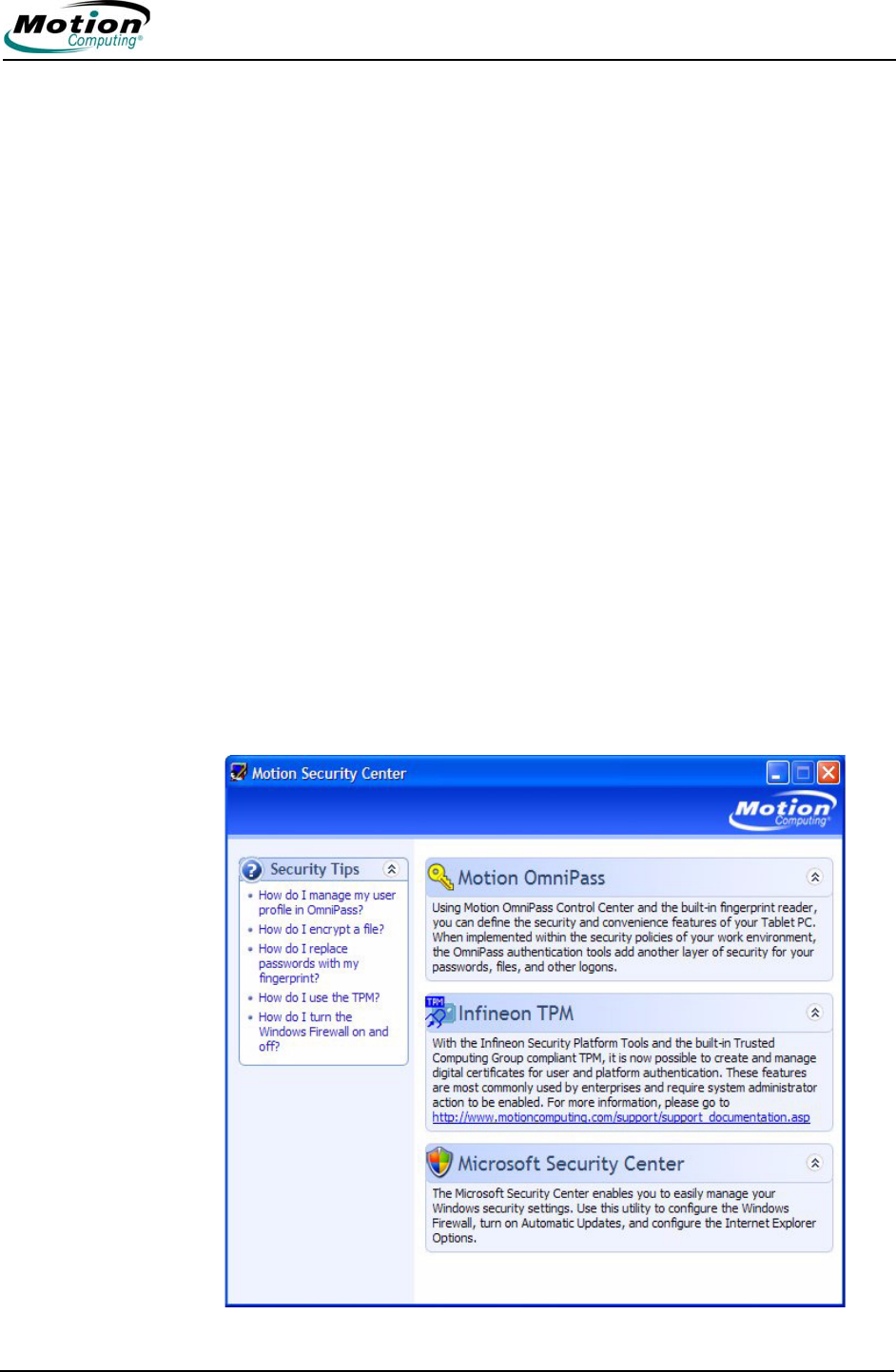

Motion Security Center . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

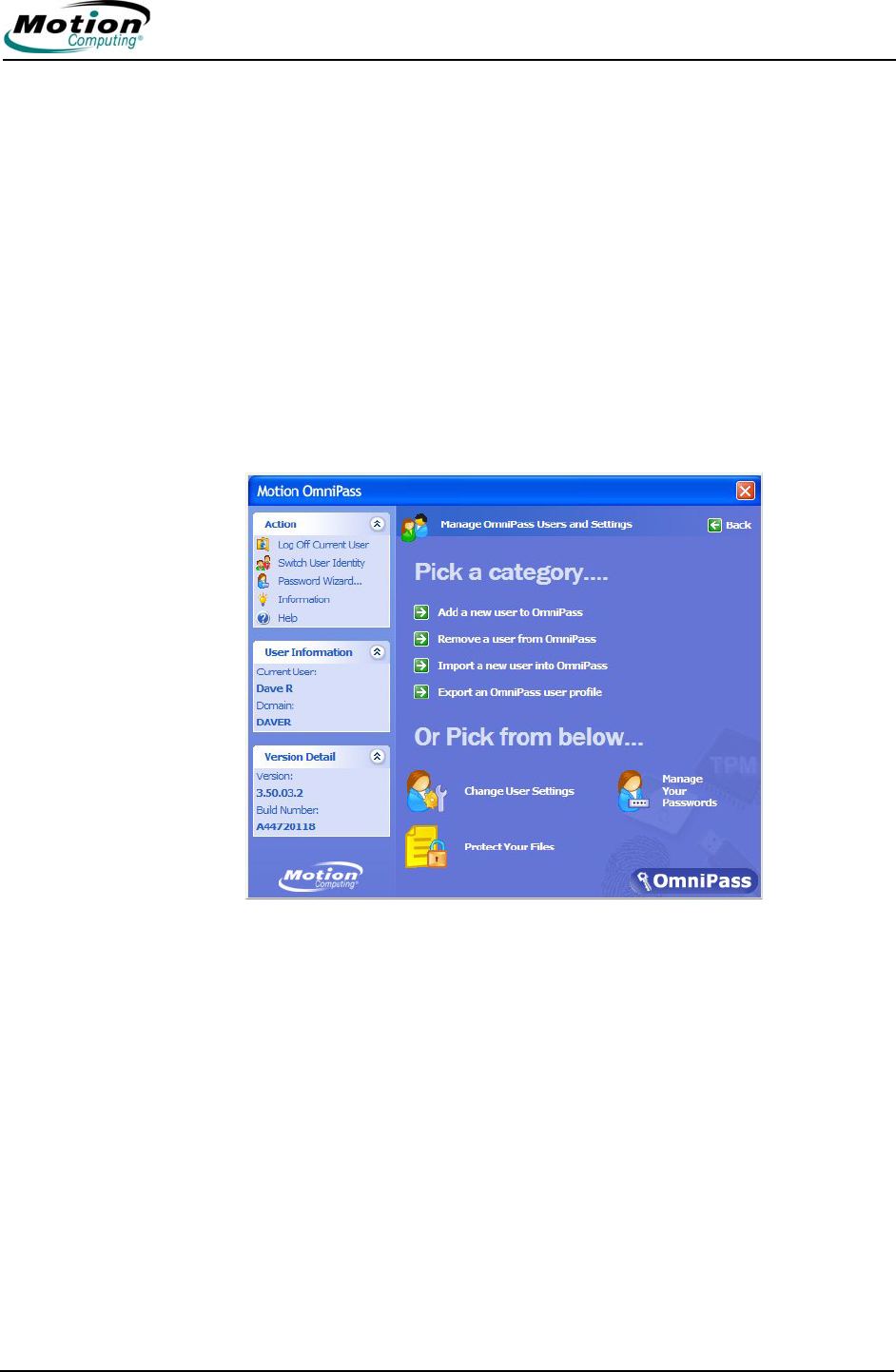

Motion OmniPass and Fingerprint Reader . . . . . . . . . . . . . .38

Helpful Hints: Successful Fingerprint Captures . . . . . . . . . . .41

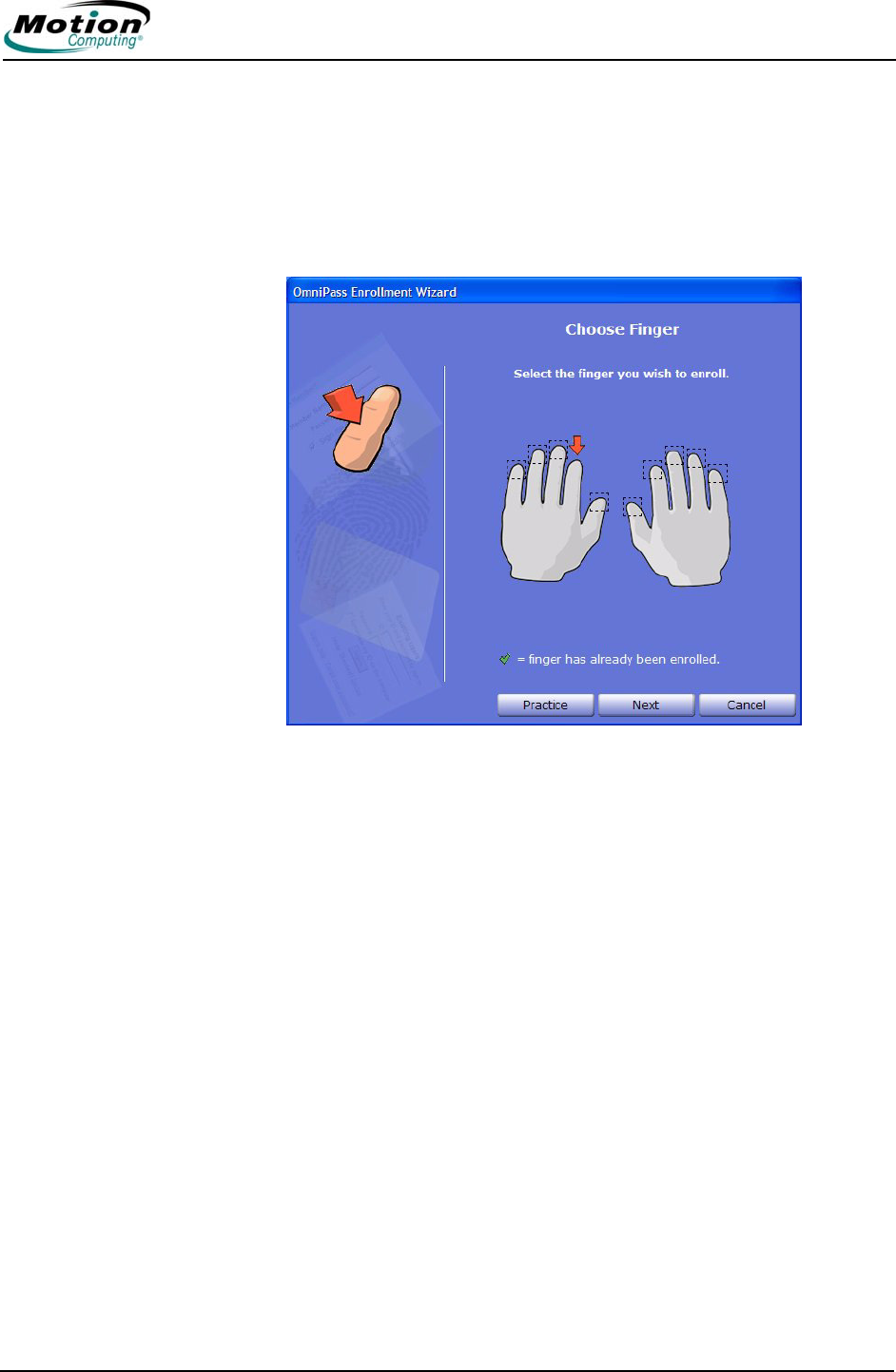

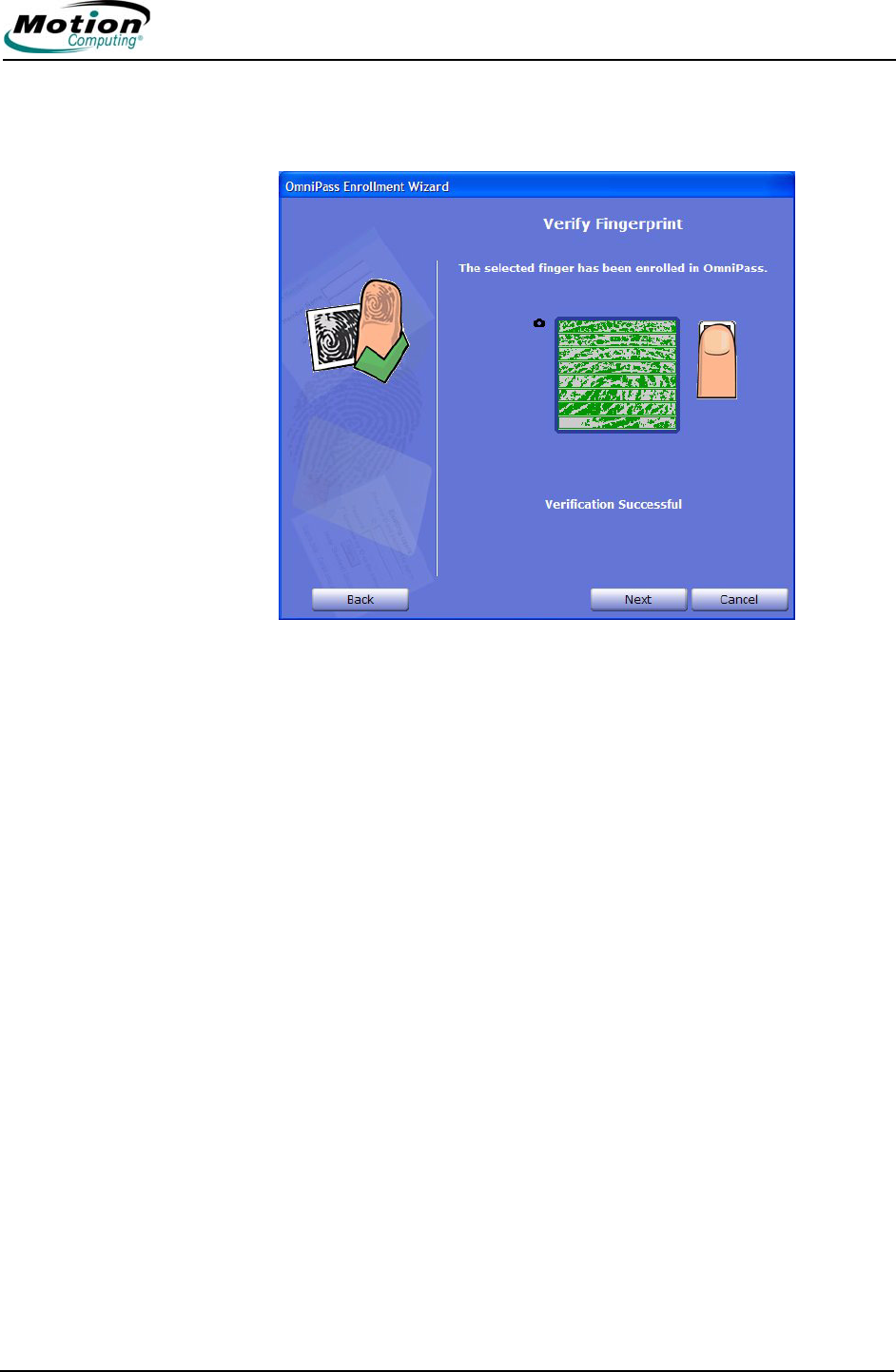

Capturing a Fingerprint . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Capturing a Second Fingerprint Later . . . . . . . . . . . . . . . . . .44

Configuring Advanced OmniPass Features . . . . . . . . . . . . .44

Motion Computing LE1600 Tablet PC User Guide vi

Logging Onto a Remembered Site . . . . . . . . . . . . . . . . . . . .46

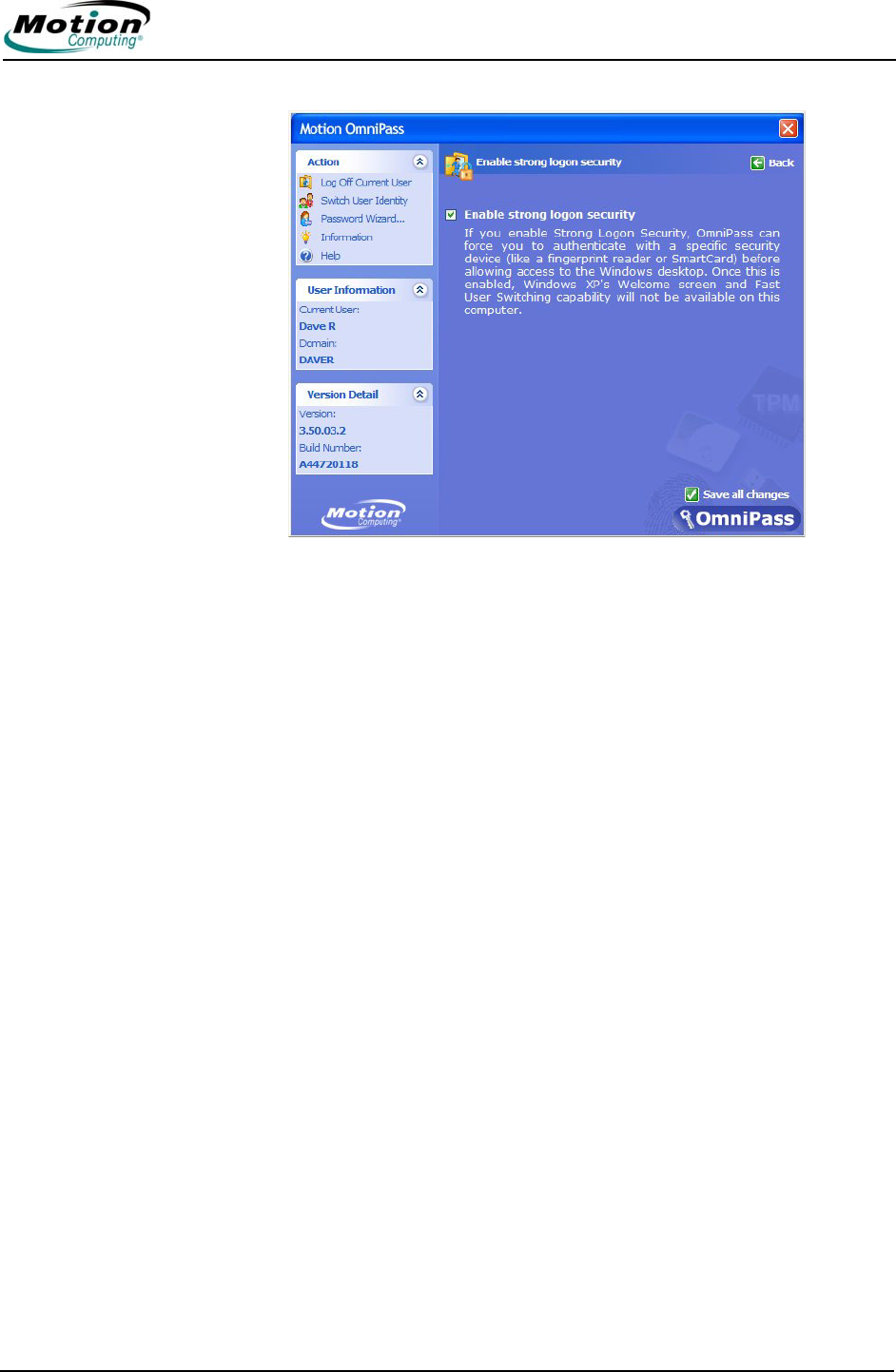

Configuring Strong Logon Security . . . . . . . . . . . . . . . . . . . .46

Infineon Trusted Platform Module . . . . . . . . . . . . . . . . . . . . .47

Windows Security System Components Overview . . . . . . . .47

Speech . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Introduction to Speech . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Motion Speak Anywhere Technology . . . . . . . . . . . . . . . . . .51

Speech Recognition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Helpful Hints: Dictating and Recording . . . . . . . . . . . . . . . . .55

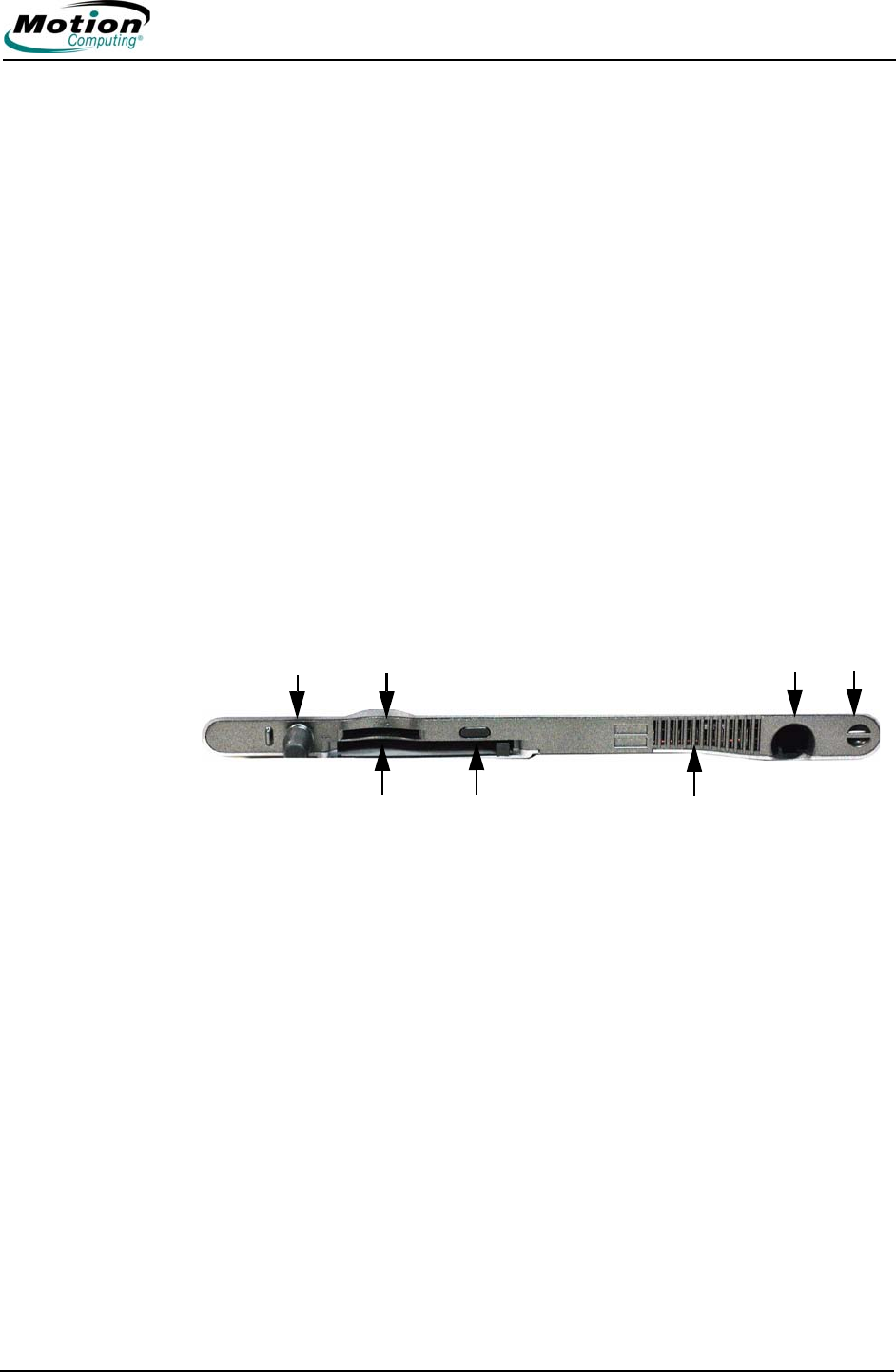

Ports, Slots and Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

PC Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

SD Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

IrDA (infrared) Port. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

USB Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

Speaker Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

Microphone Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

DVI-D Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

VGA Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

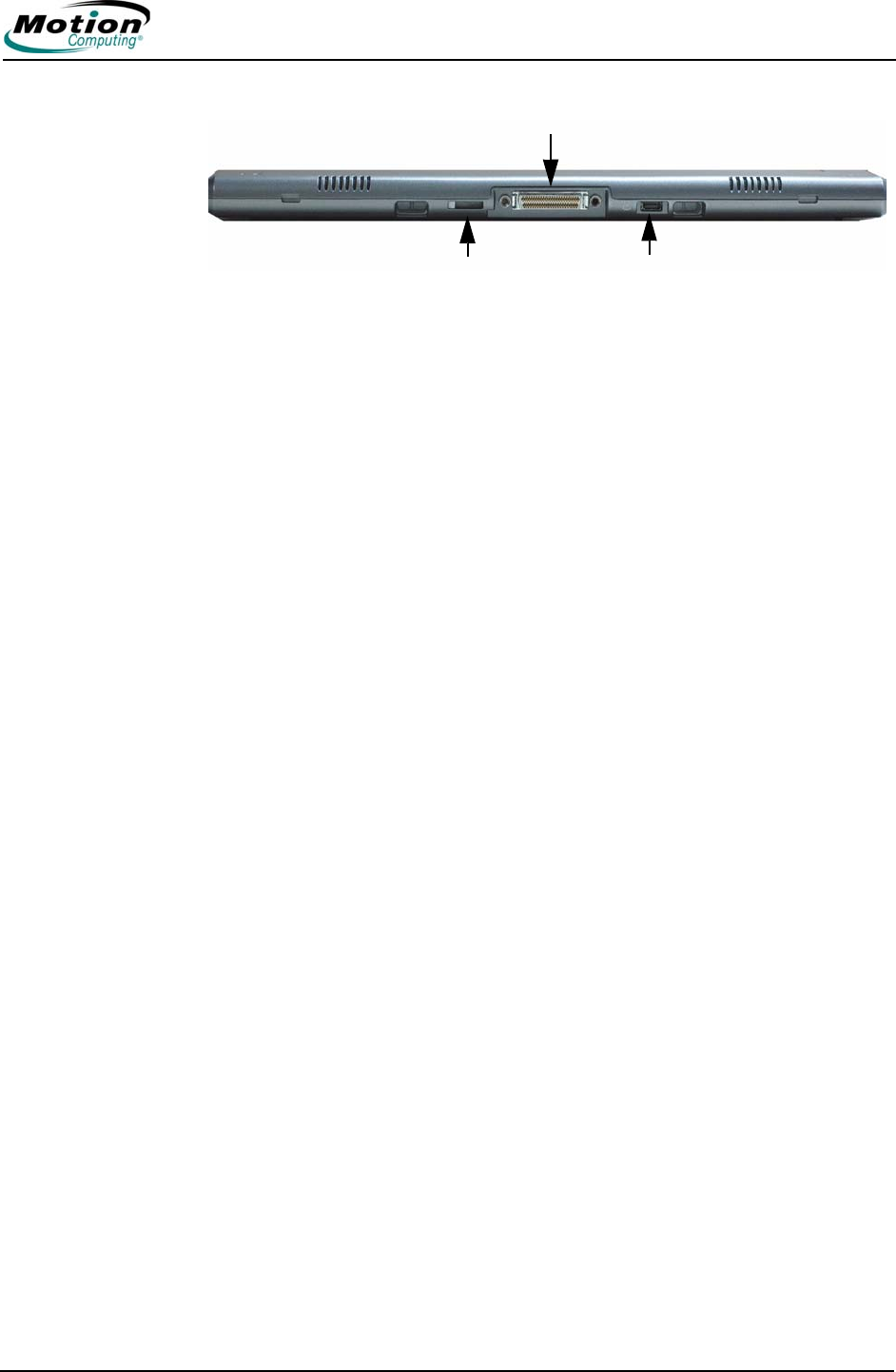

Docking Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

Wireless Networking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

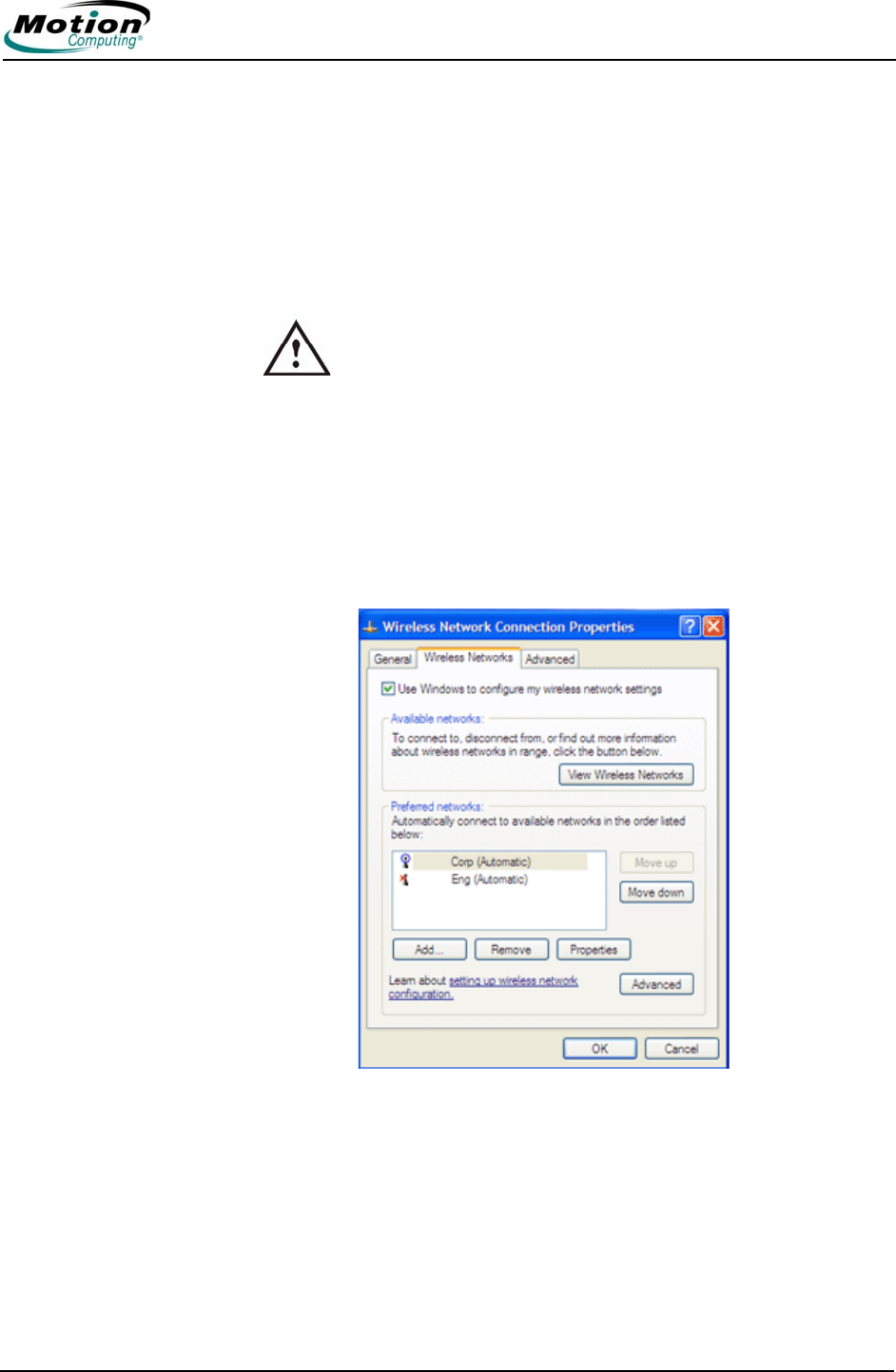

Wi-Fi (802.11) Wireless Connections . . . . . . . . . . . . . . . . . .57

Bluetooth Wireless Connections . . . . . . . . . . . . . . . . . . . . . .59

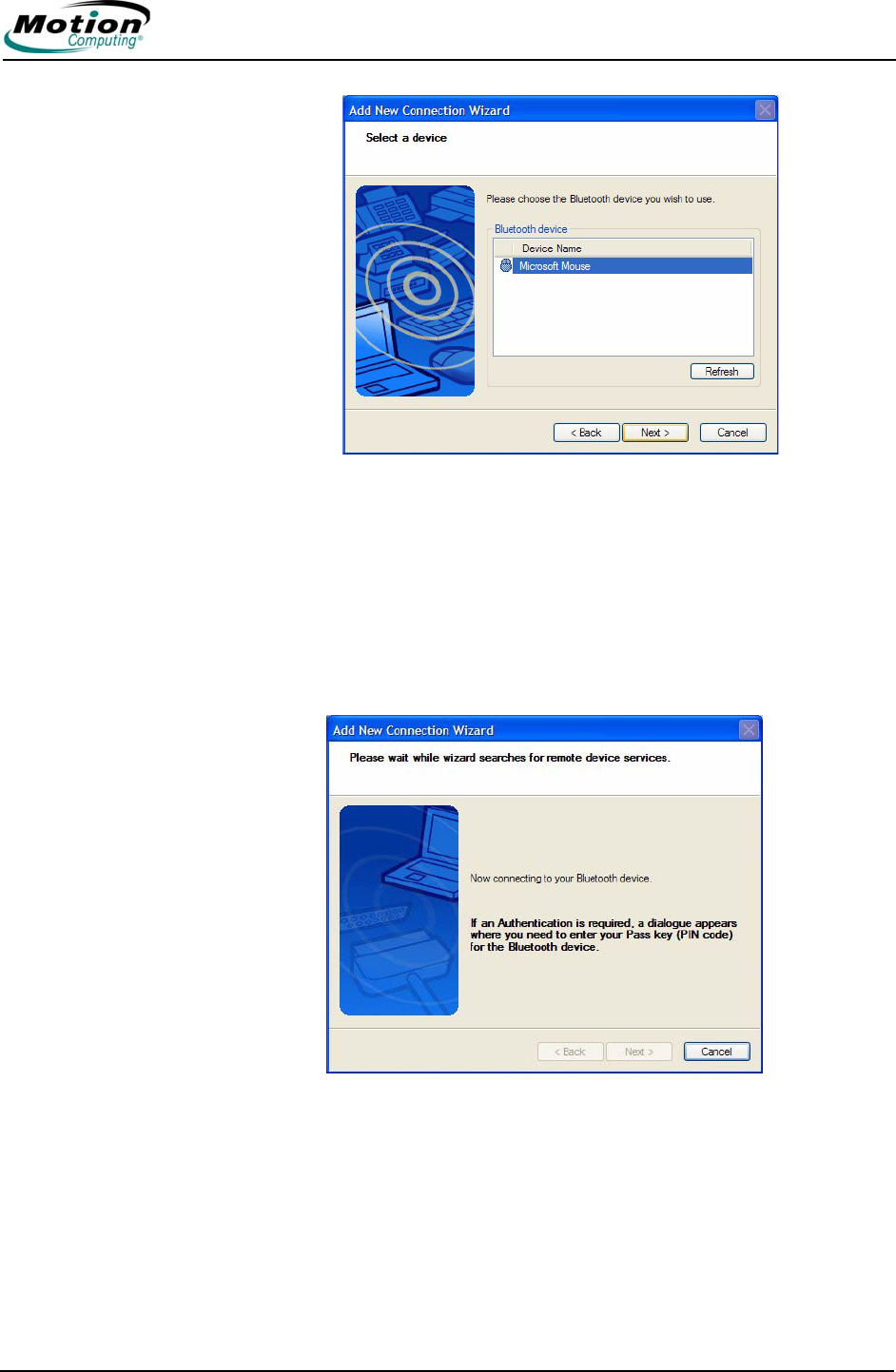

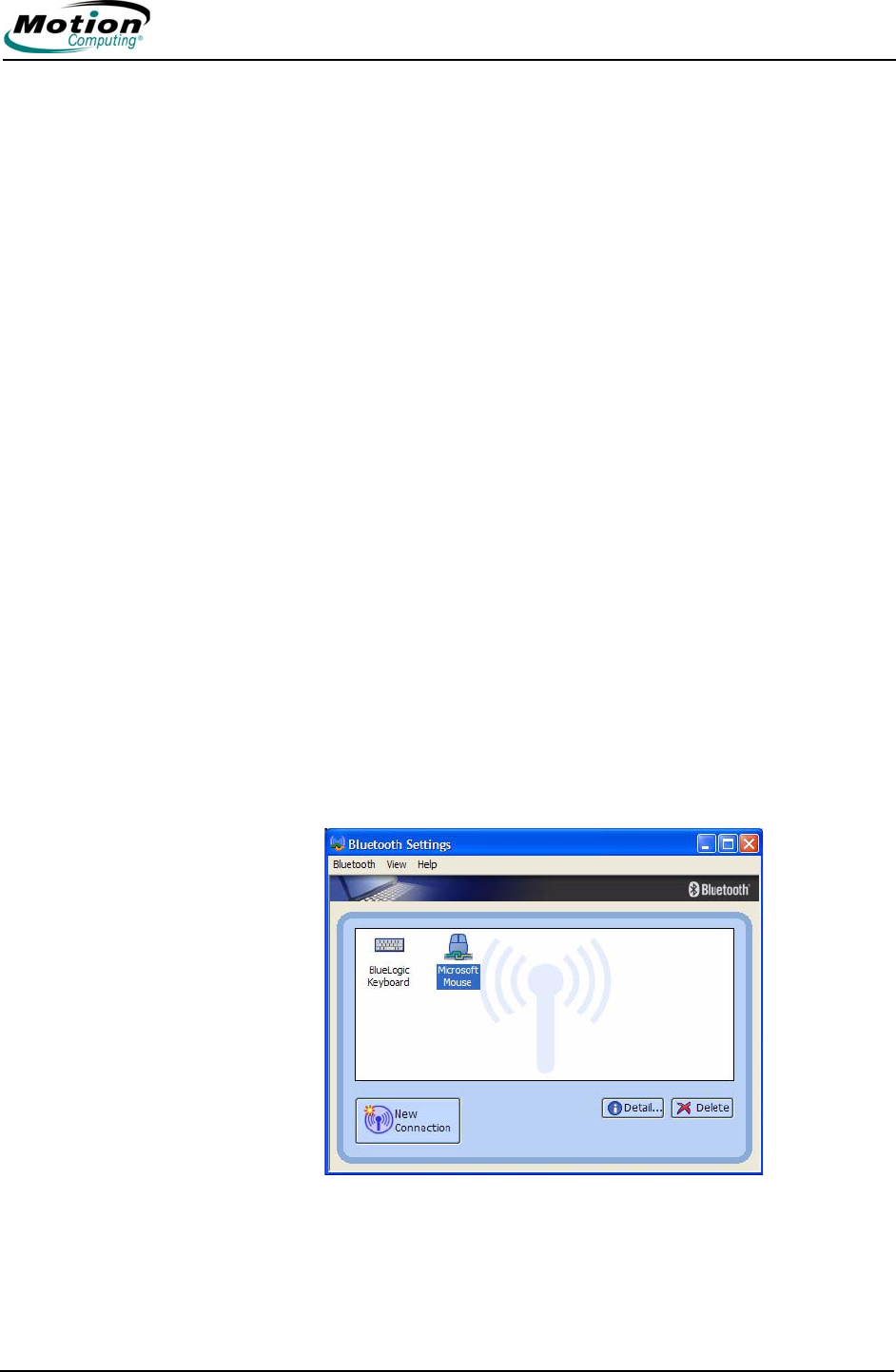

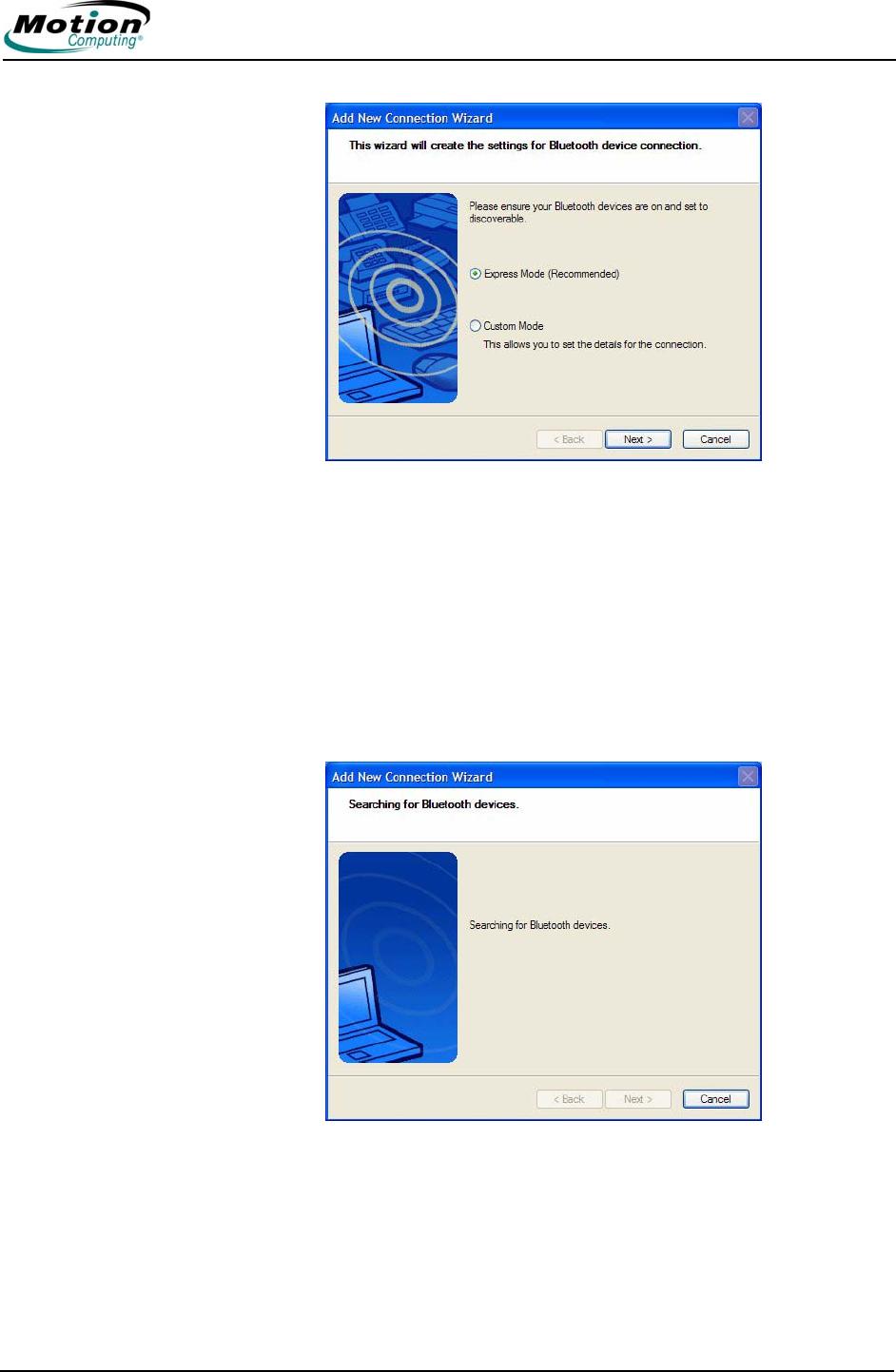

Using the Bluetooth Application . . . . . . . . . . . . . . . . . . . . . .60

Helpful Hints: Bluetooth Wireless . . . . . . . . . . . . . . . . . . . . .65

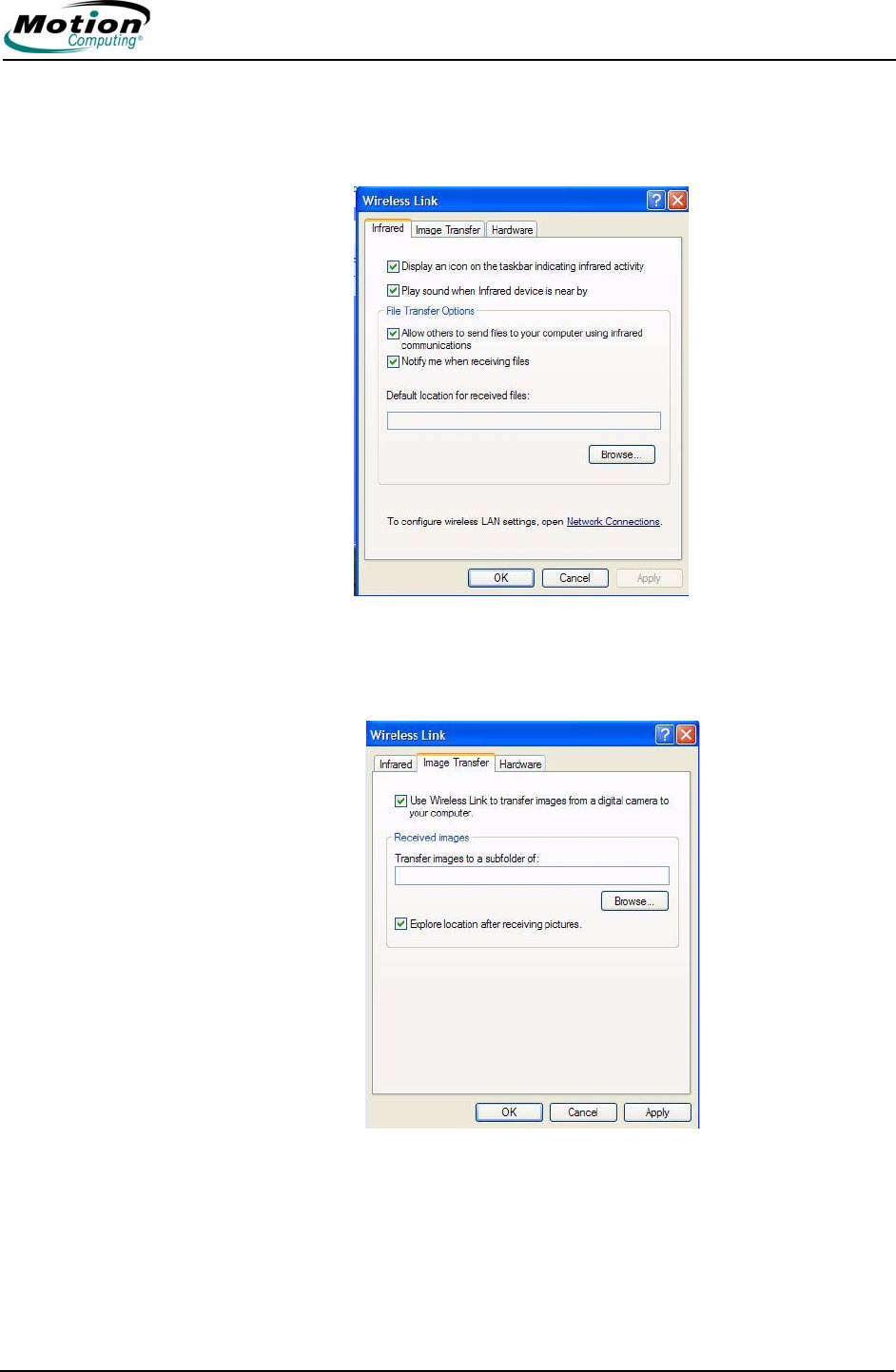

Using Infrared Wireless Connections . . . . . . . . . . . . . . . . . .65

Configuring Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Chapter 3

Care and Maintenance

Caring for Your Tablet PC and Its Accessories . . . . . . . . . . . . . .69

General Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69

Caring for the Standard and View Anywhere Displays . . . . .70

Caring for the Motion Digitizer Pen . . . . . . . . . . . . . . . . . . . .70

Ordering New Pens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Traveling With our Tablet PC . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Traveling by Air . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

Other Travel Hints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

System Repair/Recovery Procedure . . . . . . . . . . . . . . . . . . . . . .72

Appendix

Troubleshooting and Support

Solutions To Common Problems . . . . . . . . . . . . . . . . . . . . . . . .75

Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

Motion Warranties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82

Standard and Extended Warranty and Insurance Programs 82

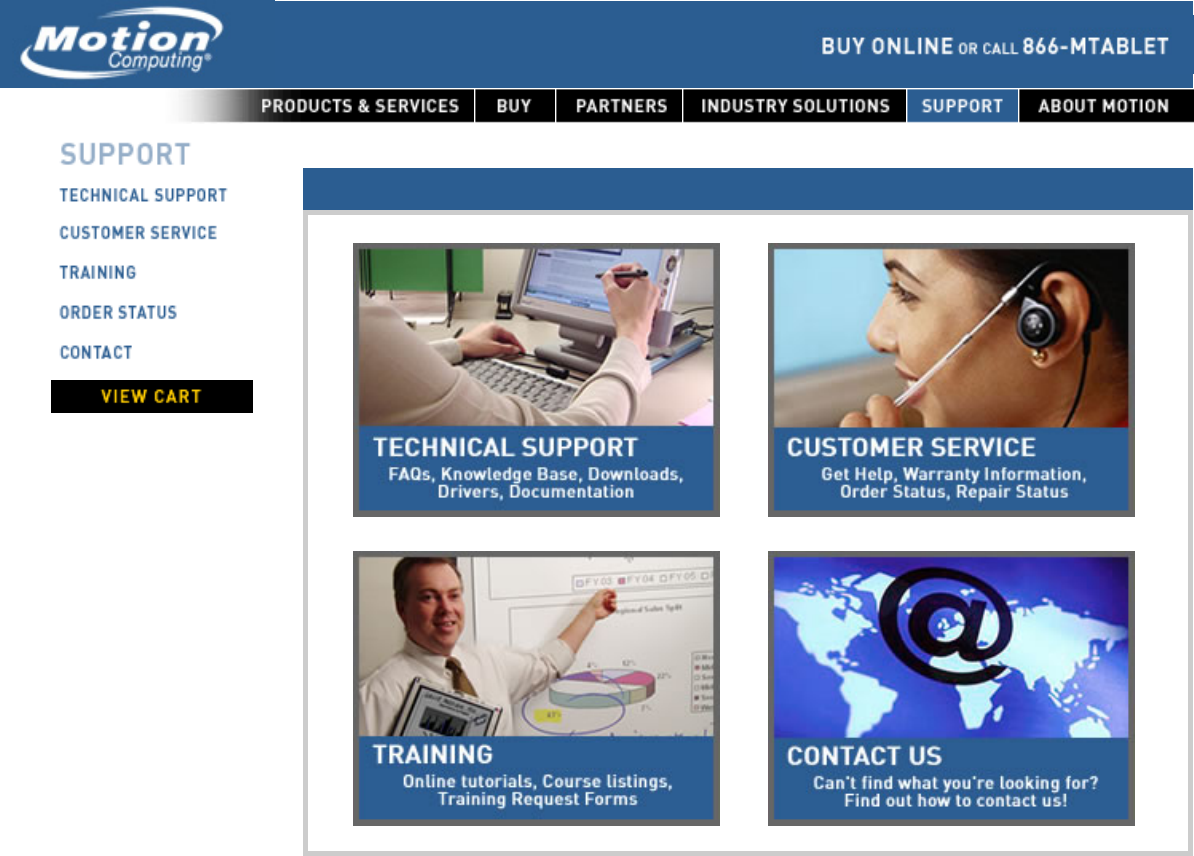

Motion Computing Support . . . . . . . . . . . . . . . . . . . . . . . . . . . .82

Appendix

Motion Tablet PC Specification . . . . . . . . . . . . . . . . . . . . . 83

Chapter

Getting Started with Your Tablet PC

Motion Computing LE1600 Tablet PC User Guide 1

Chapter

Getting Started with Your Tablet PC

The Tablet PC from Motion Computing® combines the best features of

desktop and notebook computing with the unique mobility and versatility

found only in a Tablet PC. This chapter provides a quick start overview of

the hardware and software features of the Tablet PC. Specific details on

how to set up and use the Tablet PC are provided in Chapter 2. The Care

and Maintenance of your new Tablet PC is detailed in Chapter 3. Appendix

A is a summary of common problems and the steps to take if those

problems occur. Appendix B is a reference to where you can find the Tablet

PC Specifications.

It is not necessary to read this document from cover to cover. If you are

already familiar with personal computers, you may feel comfortable

proceeding to the instructions in the next chapter. If there are certain things

you want to learn about your new Tablet PC, look in the Table of Contents or

search for that topic.

FEATURES

OVERVIEW

The Motion Tablet PC includes these key features:

•Microsoft

® Windows® XP Tablet PC Edition 2005 operating system that

contains a Tablet PC Input Panel (TIP) with ink-to-text and word recogni-

tion functionality, and an improved security infrastructure that helps

defend against viruses, worms, and hackers

• Optional View AnywhereTM display which optimizes the display for both

outdoor and indoor viewing, providing the same wide viewing angles as

the standard display while significantly improving the sunlight contrast

ratio and significantly reducing unwanted reflection and glare

• Ambient Light Sensor (ALS) to automatically optimize display perfor-

mance and battery life

• Integrated 802.11 Wi-Fi wireless technology

• Integrated Bluetooth® wireless technology for pairing with Bluetooth

devices

• Fingerprint reader for convenient, secure biometric password manage-

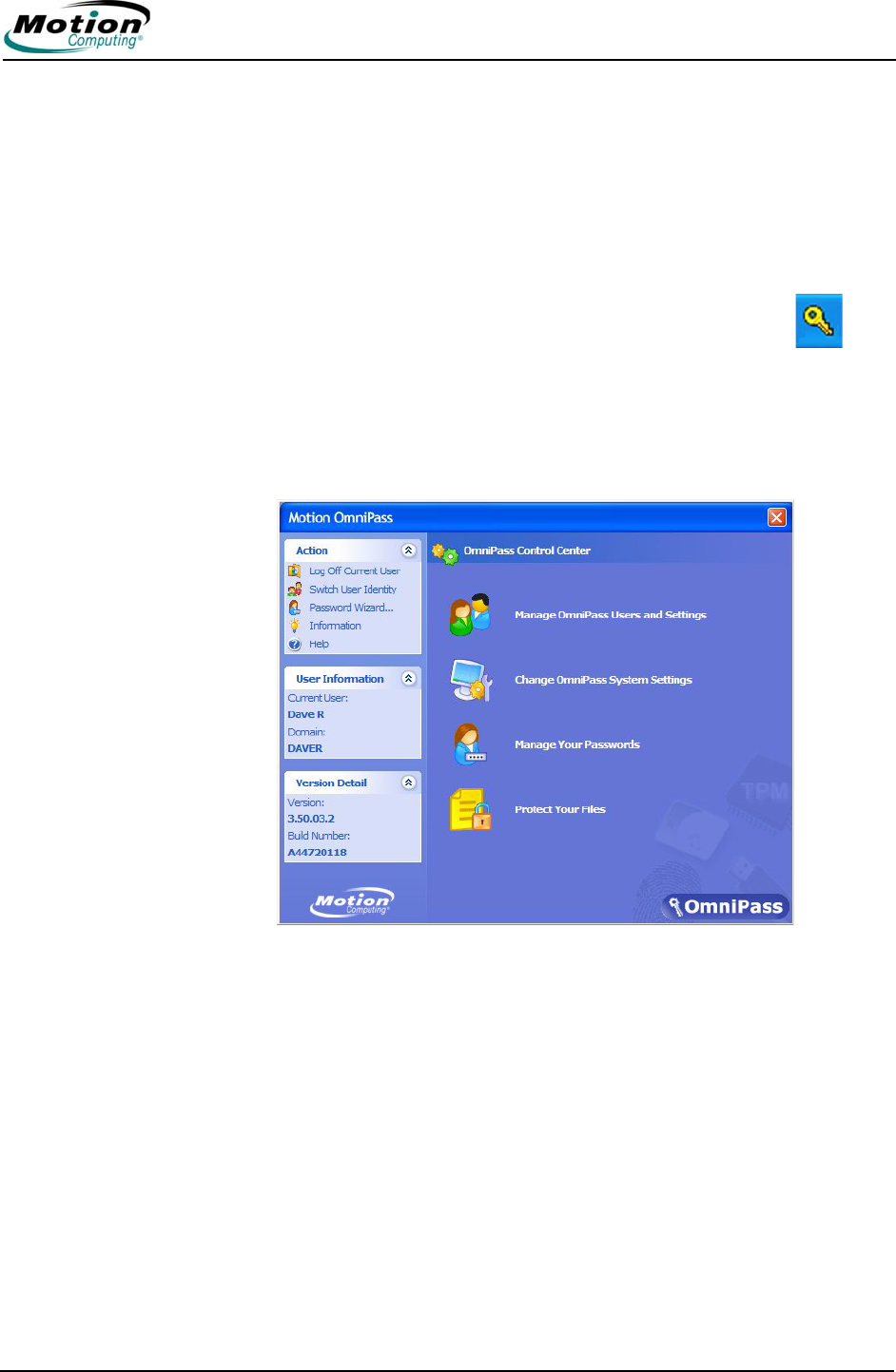

ment; combined with Motion OmniPass software to manage settings

• Speak AnywhereTM technology that combines user-configurable acous-

tics software with integrated array microphones to optimize the audio

capabilities of your Tablet PC

• Motion Dashboard for convenient access to Tablet PC controls

• High speed USB ports

• Front panel status LEDs and function buttons

Chapter

Getting Started with Your Tablet PC

Motion Computing LE1600 Tablet PC User Guide 2

• Screen rotation

• Handwriting and voice recognition

• PC Card slot for memory expansion, or accessory

connections

• Secure Digital (SD) Card slot to support SD storage devices

• User-configurable power-saving schemes

• Additional I/O ports

• Two audio jacks (designated as microphone/audio in and

headphone/audio out)

• Two USB 2.0 ports

• External VGA monitor port

• RJ-45 (Gigabit Ethernet network)

• DVI-D (Digital Video Interface) port

• Infrared (IrDA) transceiver

• DC power-in port

• Motion Digitizer Pen/Eraser for ink input, with a pen storage bay and a

pen tether anchor built into the Tablet PC

• Universal security lock slot

QUICK START

INSTRUCTIONS

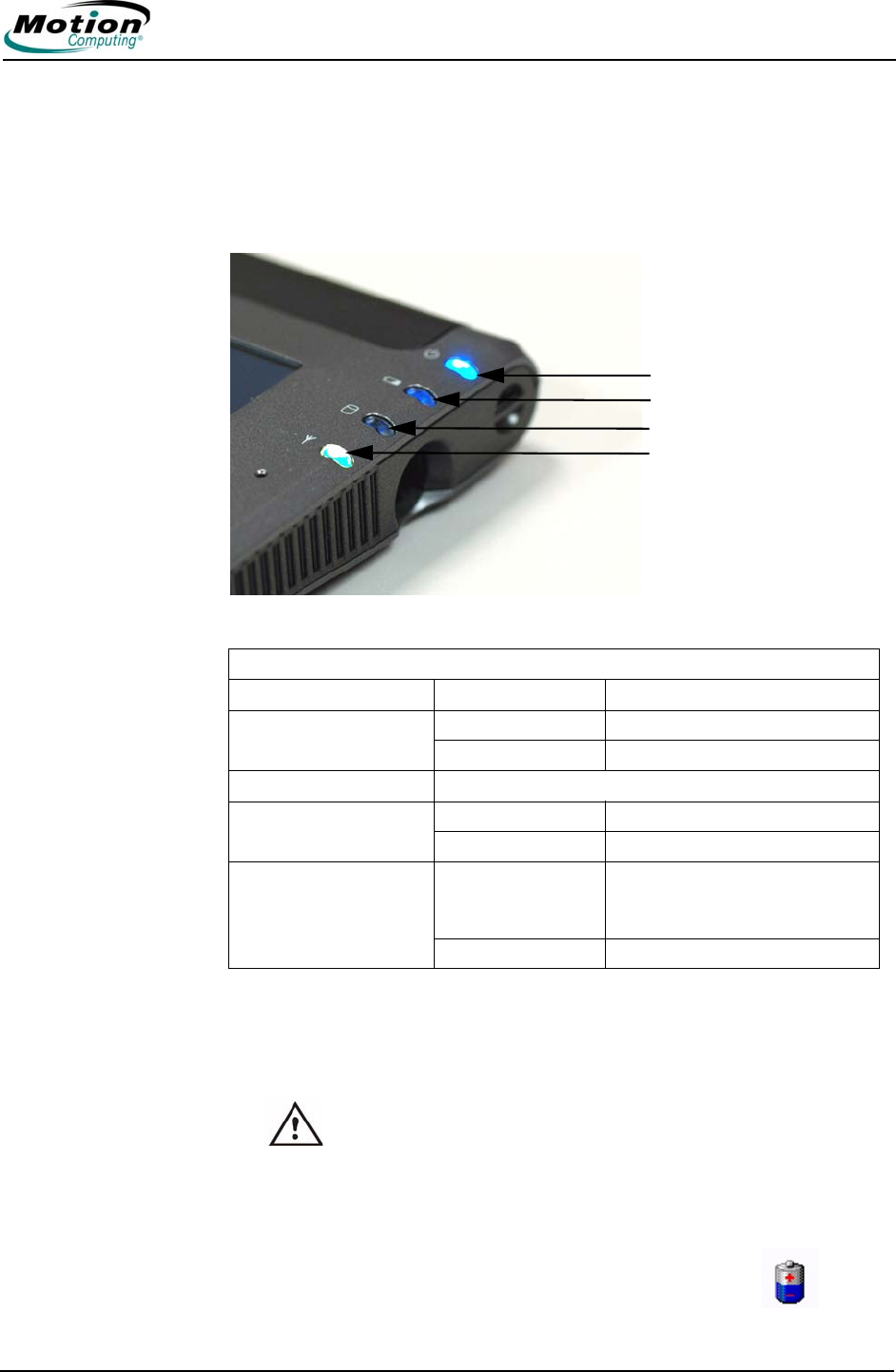

Start the Tablet PC by sliding the power switch. The power LED turns blue

and the Hard Disk Drive (HDD) LED intermittently flashes blue (these are

the top two LEDs on the upper right corner). Then Windows XP launches.

When you start the Tablet PC, the Windows XP Tablet PC Edition 2005

Tutorials screen appears.

NOTE: If you do not want this screen to continue to appear,

check “Do not show me this again.” We recommend that

you complete the Microsoft tutorials, which take a few min-

utes. It you do not want to run the tutorials now, you can return

to them by tapping Start > Using Your Motion Tablet PC.

Using the Motion Digitizer Pen

The Motion Digitizer Pen contains

internal electronics that let you

enter digital ink on the Tablet PC

display. The pen is a sensitive,

electronic, data-entry device

designed in conjunction with the

display. The pen includes a user-

replaceable tip; the other end of

the pen serves as an eraser in applications that support an eraser. The pen

contains no batteries and requires no external power. The pen contains a

pen function button, used for right-clicking (like a mouse) and a small

opening at one end for attaching a pen tether cord. Using the pen tether

(provided) helps prevent pen loss; attach it to the built-in pen tether post on

the upper right edge of the Tablet PC. The pen also comes with replacement

pen tips and a replacement tool. For information about replacing the pen

tips, refer to the Care and Maintenance information in Chapter 3.

Eraser

Function Button

Tip

Chapter

Getting Started with Your Tablet PC

Motion Computing LE1600 Tablet PC User Guide 3

Pen Usage. Think of the pen as your mouse; review the following

information about how it works in conjunction with tapping, pressing, and the

function button.

• Tap — Firmly tap the pen on the Tablet PC display, without pressing the

function button on the pen; a tap equals a mouse left-click

• Double-tap — Tap the pen twice on the display, without pressing the

function button on the pen

• Right-click — Press the function button on the pen and tap the pen on

the display (equals a mouse right-click)

• Press and hold — Press and hold the tip of the pen to the display with-

out pressing the pen function button (equals a mouse right-click)

• Tap and drag — Tap and drag the pen on the display

• Select/Highlight — Tap on the item on the display to activate the func-

tion: to select a line of text, tap, hold down the button, and drag the pen

across the text to highlight it

NOTE: For best results, we recommend that you calibrate

your pen before using it for the first time. For information

about this and other pen procedures, refer to “Calibrating and

Using Your Digital Pen” on page 20.

Helpful Hints: Pen and Ink

Here are some additional hints about working with the digital pen. For more

information about the pen and Tablet PC settings refer to “Configuring

Tablet and Pen Settings” on page 19.

• When you write with the pen, you can rest your hand or arm anywhere

without disturbing any open programs or damaging the display.

• Watch the cursor instead of the pen tip when you write. The cursor is a

guide for your pen movements. If it does not align with the pen tip, you

should recalibrate the pen.

• Practice writing and learn how firmly and where to tap on the Tablet PC

display. You need these skills for activating programs, menus, or other

Tablet PC functions.

• The pen can be held like any other writing tool. Learn how to hold it and

when and how to press the function button on the pen, which activates

right-click options (such as pop-up menus). You can also activate the

right-click options by pressing and holding the pen tip on the surface of

the display.

• Change pen tips every 90 days in a clean environment. Change pen tips

every 30 days if you use the pen in an environment with airborne or sur-

face debris (sand, dust, etc.) or if you drop it on a rough surface. Any of

these or similar situations could damage the pen tip or embed debris in

it. You may not notice the damage or debris until it is too late. Damaged

pen tips could scratch the display.

Perform the following steps to familiarize yourself with the Tablet PC.

• Complete the Microsoft Tablet PC Tutorials

• Read the Motion Resources Page and review the User Guide

• Open the Motion Dashboard

• Go to the Microsoft Help and Resources Page for more information

Chapter

Getting Started with Your Tablet PC

Motion Computing LE1600 Tablet PC User Guide 4

Complete the Microsoft Tablet PC Tutorials

When you start your Tablet PC, several tutorials are offered to help you

learn to use various features, such as the Tablet PC Input Panel (TIP) and

speech recognition.

The tutorials are short, quick, and informative and are an excellent place to

begin a successful Tablet PC experience.

NOTE: Microsoft Windows XP Tablet PC Edition

2005 provides several tutorials. One set ap-

pears each time you start the Tablet PC (unless

you deactivate this option). Others can be found

by tapping the Using Your Motion Tablet icon

on your desktop. If you are new to the Tablet PC

world, taking the tutorials is a great way to get

started and learn quickly.

Review Using Your Motion Tablet and User Guide

Tap the shortcut Using Your Motion Tablet icon on your desktop to open

the Using Your Motion Tablet page. Instructions for using the pen, the

Motion Dashboard, and links to other applications, are included. Also, you

can tap the Motion User Guide icon on your desktop to open the online

Motion Tablet PC User Guide at any time.

Open the Motion Dashboard

The Motion Dashboard is an exclusive Motion Computing application that

you can use to access programs and functions as well as configure your

Tablet PC.

To open the Motion Dashboard, press the Dashboard (Hot Key #1) button

on the Tablet PC front panel or select Start > All Programs > Motion

Chapter

Getting Started with Your Tablet PC

Motion Computing LE1600 Tablet PC User Guide 5

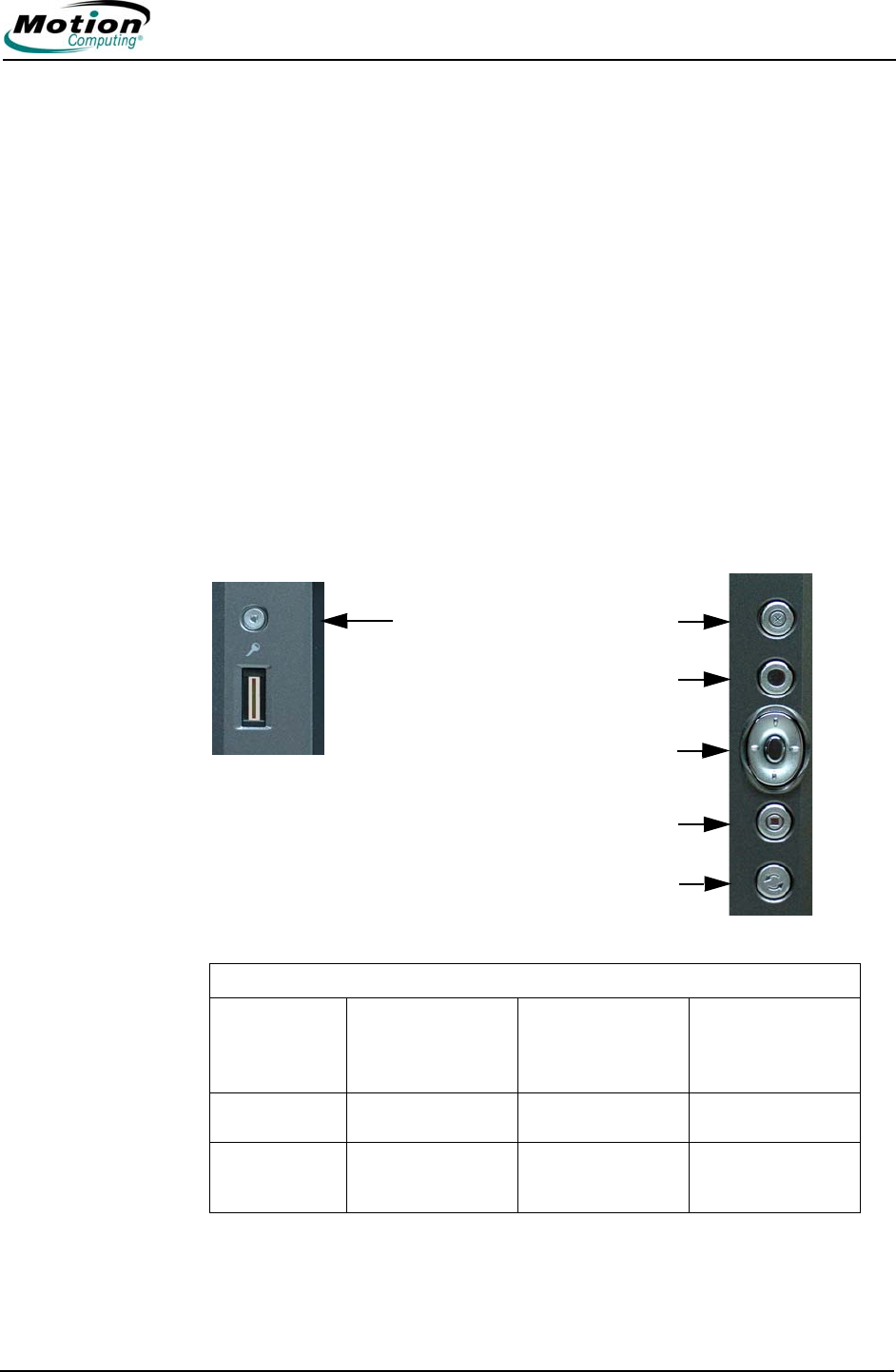

Resources > Motion Dashboard. (Refer to “Tablet PC Buttons,

Connectors, and Indicators” on page 9 for a description of the Tablet PC

buttons and indicators).

The Motion Dashboard can be used to monitor and set some of the most

commonly used control panel items for the Tablet PC. For more information,

refer to “Motion Dashboard” on page 15.

Visit the Microsoft Help and Support Center

You can find additional information about your Tablet PC and the Windows

XP Tablet PC Edition 2005 operating system in the Microsoft Help and

Support Center. Access help by selecting Start > Help and Support.

Chapter

Getting Started with Your Tablet PC

Motion Computing LE1600 Tablet PC User Guide 6

Whenever you open the Help and Support Center while your Tablet PC is

connected to the Internet, the "Did You Know" section checks for updates

from Microsoft and Motion Computing, such as system-use hints, or notices

from Motion Computing about your Tablet PC.

If this is your first experience with the Windows XP operating system, taking

the Microsoft tour is a good way to get started. Select Start > Help and

Support > What’s new in Windows XP > Taking a tour or tutorial.

HARDWARE

OVERVIEW

Tablet PC Display

The Motion Tablet PC includes a 12.1-inch display with wide viewing angles.

The Tablet PC standard display incorporates the following features:

• A highly-readable, liquid-crystal display (LCD)

• A protective layer that offers a firm writing surface and minimizes glare

• A digitizer panel underlying the display that enables handwritten entry

with a specially-designed Motion Digitizer Pen and the TIP

• A wide viewing angle display that provides bright, clear viewing at up to

180 degrees, plus a high contrast ratio, fast response time, and authen-

tic color at any angle

• A digitizer that responds to the Motion Digitizer Pen, but not to a plastic

stylus or to finger touches

• A display surface that lets you touch or rest your hand on it without

affecting open programs or data input

NOTE: For information about display care, see Chapter 3 of

this User Guide.

Chapter

Getting Started with Your Tablet PC

Motion Computing LE1600 Tablet PC User Guide 7

Tablet PC View AnywhereTM Display Option. The View Anywhere display

option was designed to enhance indoor viewing and to improve outdoor

viewing while retaining all the standard display features. The bright 12.1-

inch XGA TFT display was developed from a proprietary optical

enhancement process based on technology initially developed for high-end

military aviation and marine applications. The View Anywhere display

includes all the features of the standard display plus the following

components:

• A protective layer that improves the sunlight contrast ratio and signifi-

cantly reduces reflection and glare

• Improved sunlight contrast ratio, which enhances viewability at wide

viewing angles even further than the standard display

• Enhanced optical display technology with a significant reduction in

unwanted reflection and glare and improved light pass-through effi-

ciency

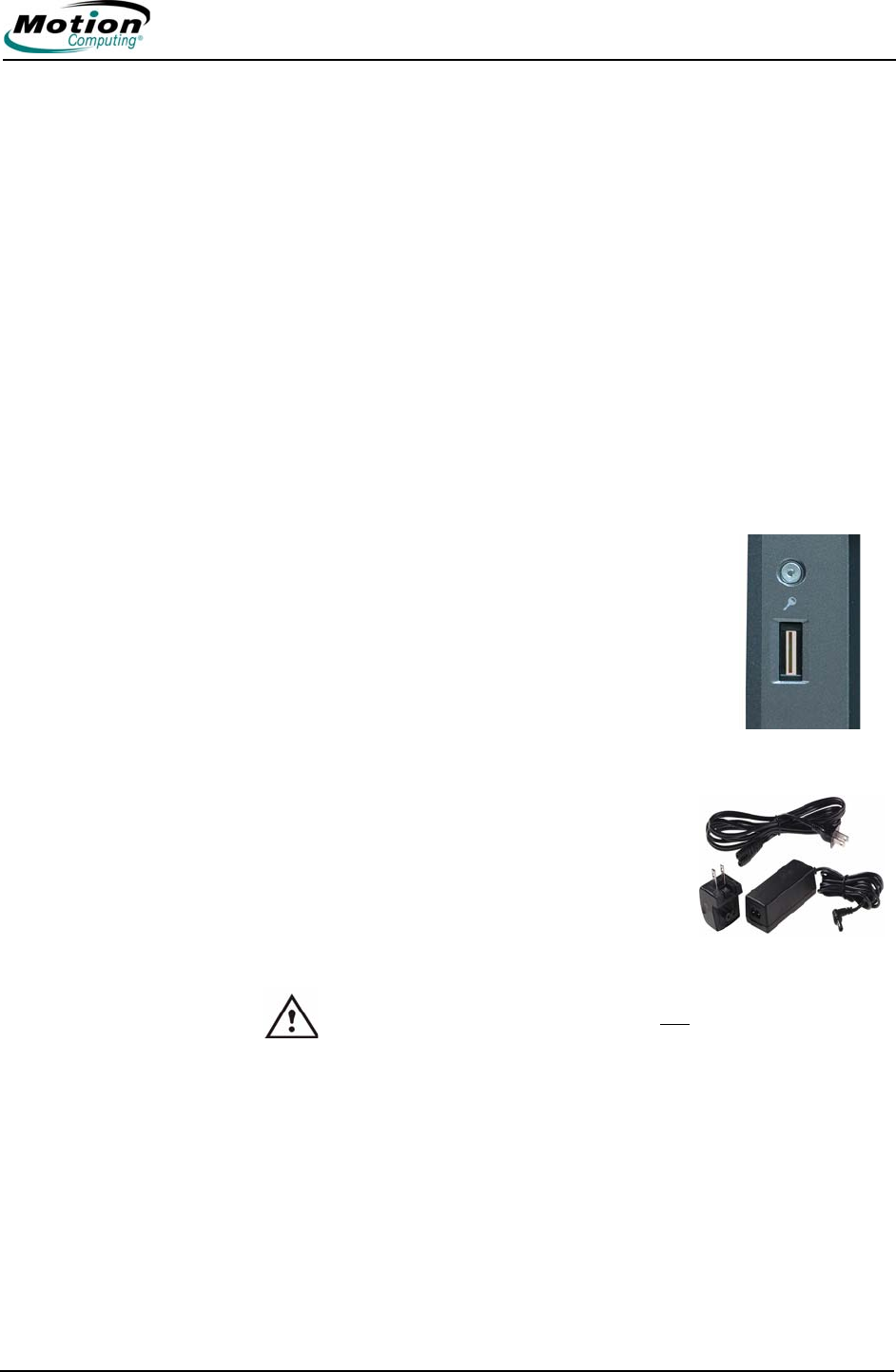

Fingerprint Reader

The fingerprint reader lets you scan your fingerprint and

associate it with passwords. This feature offers a quick

and convenient way to log on to your Tablet PC, provides

global password management, and protects your Tablet

PC data from unauthorized access. The fingerprint reader

also serves as a scrolling device; you can move your

finger vertically (from top to bottom) to scroll the cursor

within the active application window.

Motion AC Adapter

The Motion AC Adapter has three components:

• AC power adapter

• Power cord

• AC mini-plug with folding prongs that can be

used instead of the long cord when traveling

CAUTION: Use the Motion AC Adapter with your Mo-

tion Tablet PC. This adapter should not be used to

power any other electronic devices. If you do so, you

may damage the accessory or the other device.

Motion Battery Pack

Each Motion Tablet PC ships with a Lithium-ion (Li-ion) battery mounted and

latched at the top edge of the Tablet PC. Extra batteries are available from

Motion Computing. An optional Extended Battery is available that provides

additional hours of continuous operation.

Chapter

Getting Started with Your Tablet PC

Motion Computing LE1600 Tablet PC User Guide 8

WARNING: To avoid personal injury, handle the bat-

tery with care. Do not open, puncture, short, or expose

it to fire or water. Keep the battery in an ambient tem-

perature of less than +104°F (+40°C); for example, do

not leave it in a closed car in hot weather for an ex-

tended time.

For additional safety information, see the Safety and

Regulatory Guide packaged with your Tablet PC.

Chapter

Getting Started with Your Tablet PC

Motion Computing LE1600 Tablet PC User Guide 9

TABLET PC

BUTTONS,

CONNECTORS,

AND

INDICATORS

The following shows the buttons, connectors, and other components on the

Tablet PC. While there are no controls on the back side of the Tablet PC,

there is a sliding panel that covers the Extended Battery connector. This

panel must be open before connecting the optional Extended Battery. The

connector panel should be closed when not being used.

Tablet PC LEDs, Buttons, Connectors, and Other Components

Wireless On/Off Alternately turns wireless on and off; makes it easy to disable wireless on

airplanes (button must be pressed and held for 1/2 second to take affect)

Pen bay Storage area for the Motion digitizer pen; located at upper right edge. A pen

tether attachment point is located directly above the pen bay.

Power LED Displays power status; lights blue when power is on, blinks blue on low battery

Battery LED Displays battery status; lights amber when battery is charging; blinks blue when

in stand by state

Hard drive LED Displays hard disk drive (HDD) activity - blinks blue

Wireless LED Displays wireless 802.11 and Bluetooth activity; white for 802.11, blue for

Bluetooth

Escape button Primary function: Escape; secondary function: Alt+Tab

Function button Press this button then another to activate Secondary button functions

Five-way directional

control button

Primary functions: Scrolls Up/Down/Right/Left + Enter

Secondary functions: Left arrow—Shift+Tab; Right arrow—Tab; Up arrow—Page

Up; Down arrow—Page Down

Dashboard (Hot Key

#1) or Windows

Journal (with Function)

Primary function: Opens the Motion Dashboard; programmable

Secondary function: Opens the Windows Journal application

Chapter

Getting Started with Your Tablet PC

Motion Computing LE1600 Tablet PC User Guide 10

Front Panel Buttons

The front panel of the Motion Tablet PC contains six buttons. Most of these

buttons have both primary and secondary functions. In addition, some may

be re-programmed for other functions. The SAS (security) button is located

at the top left corner of the Tablet PC.

Front Panel LEDs

The Tablet PC front panel (shown in the illustration) contains status LEDs for

the following:

Rotate Display (Hot

Key #2)/TIP (Tablet PC

input panel)

Primary function: Changes the Tablet PC display orientation; programmable

Secondary function: Opens the Tablet PC Input Panel

SAS button Primary function: Ctrl-Alt-Del; Secondary function: None

Microphones Work at a natural distance; disabled when an external microphone is plugged in

PC card slot Holds one Type-II PC Card for memory expansion, Smart Card

SD card Slot Holds one SD-type card, for memory expansion (SDIO compatible)

Infrared (IrDA)

transceiver

An infrared transceiver built into the Tablet PC. Allows communication with other

devices compliant with the IrDA standard. Effective range is approximately 3 feet

Power switch Turns the Tablet PC on and off; can be configured to activate Hibernate or Stand

By mode

DVI-D connector A digital video interface digital connector for attachment to a digital video

interface monitor. An optional DVI-D cable is available from Motion Computing.

To use a digital video interface monitor you must use this cable with your Tablet

PC.

AC power port AC point of connection for the AC adapter

RJ-45/LAN Standard RJ-45 connector for a 10/100/1000 Mbps network

VGA connector A standard DB-15 monitor connector for an external monitor, projector, or other

VGA device

Docking connector Connects the Tablet PC with the Motion FlexDock for the LE series (not pictured

in the illustration)

USB ports (2) Universal Serial Bus; a port for connecting USB 2.0 devices, such as a storage

device, mouse, printer, digital camera, or optical disk drives

Audio input/output (2) Microphone and headset plug; 3.5 mm plug

Speakers (2) Integrated speakers that are muted when you connect a headset or external

speakers

Fingerprint reader Swipe-type sensor for scanning fingerprints; used for password management

and security; also serves as a scroll device in active application window

Ambient Light Sensor Measures the background light and automatically balances display brightness

Air vent Active cooling system vent, dissipates heat from the Tablet PC (side and back)

(not pictured in the illustration)

External battery

connector

An external battery connector is included on the backside of the Tablet PC. It is

located under a sliding panel in the upper center of the chassis. The sliding panel

must be opened before attempting to attach the Extended Battery.

Chapter

Getting Started with Your Tablet PC

Motion Computing LE1600 Tablet PC User Guide 11

• Power On and Off

• Battery

• Hard Disk Drive

• Wireless

The front panel LEDs are described in the following table.

Battery Status LEDs

Your Motion Tablet PC is equipped with a smart battery that provides

information about its power status.

CAUTION: To avoid personal injury, or the risk of fire

or explosion if the battery is overheated, wait until the

battery cools to room temperature before recharging

or replacing it.

NOTE: If the unit is operating on battery power, you

can move the pen over the Power/Battery icon

(shown here and found in the system tray at the

Front Panel Status LEDs

LED Description Status

Power/Stand By Steady blue Tablet PC is on

Flashing blue Tablet PC is in Stand By

Battery Status See Front Panel Battery Status LED below

Hard Disk Drive Flashing/On Some HDD activity

Off No HDD activity

Wireless Activity Independently

flashing white

and blue

Wireless is on:

White=802.11

Blue=Bluetooth

Off Wireless is off

Battery

Hard Disk Drive

Wireless (white is

802.11, blue is

Bluetooth)

Power

Chapter

Getting Started with Your Tablet PC

Motion Computing LE1600 Tablet PC User Guide 12

lower-right corner of the Tablet PC display) to see the number

of hours of battery life and the percentage of battery charge

remaining.

Refer to “Power Management” on page 31 for more information about your

battery and power settings.

PORTS, SLOTS

AND

CONNECTORS

The Motion Tablet PC contains a number of ports and connectors that you

can use to attach to input/output and networking devices. The following

illustration shows the ports, slots, and connectors that are on the left side of

the LE1600 Tablet PC.

Power

Battery

Hard

Disk

Drive

Wireless

Front Panel Battery Status LED

Battery LED Battery Status Action

Steady blue Battery charged

(AC plugged in)

None

Amber Battery charging (AC plugged

in)

None

NOTE: When the remaining battery charge is 10%, your Tablet PC issues a Low

Battery alarm message in addition to the LED warning. For information about

modifying this alarm (you can set it to display a message or to produce an audible

warning), refer to “Configuring Your Power Management Settings” on page 31.

Fast-flashing amber

(lasts only a few

seconds)

3% battery charge remaining

(AC unplugged)

The Tablet PC issues a

Critical Battery alarm and

automatically goes into

Hibernate mode.

Slow-flashing amber The battery is too hot to charge Move the Tablet PC/ battery

to a cooler environment until

the temperature is closer to

normal.

NOTE: Hibernate mode attempts to save data in any open programs to your hard

disk drive. When you restart the Tablet PC, it should return to the same system

status as before hibernation.

Off Tablet PC is unplugged from

AC power and the system is

running on battery power.

Plug the Tablet PC into AC

power if you want to

preserve battery power.

LAN Connector

USB Connectors

Wireless On/Off

Power

Audio In/Out

DVI-D

VGA

Lock

Slot

Chapter

Getting Started with Your Tablet PC

Motion Computing LE1600 Tablet PC User Guide 13

USB Connectors. Two USB connectors are included. These can be used

to connect any USB device to the Tablet PC.

Audio In/Out Connectors. The connectors are marked for microphone

input and speaker output connections.

DVI-D Connector. The Digital Video Interface(DVI-D) connector can be

used to attach a third-party Digital Video Interface enabled monitor to the

Tablet PC. An optional DVI-D cable is offered by Motion Computing for this

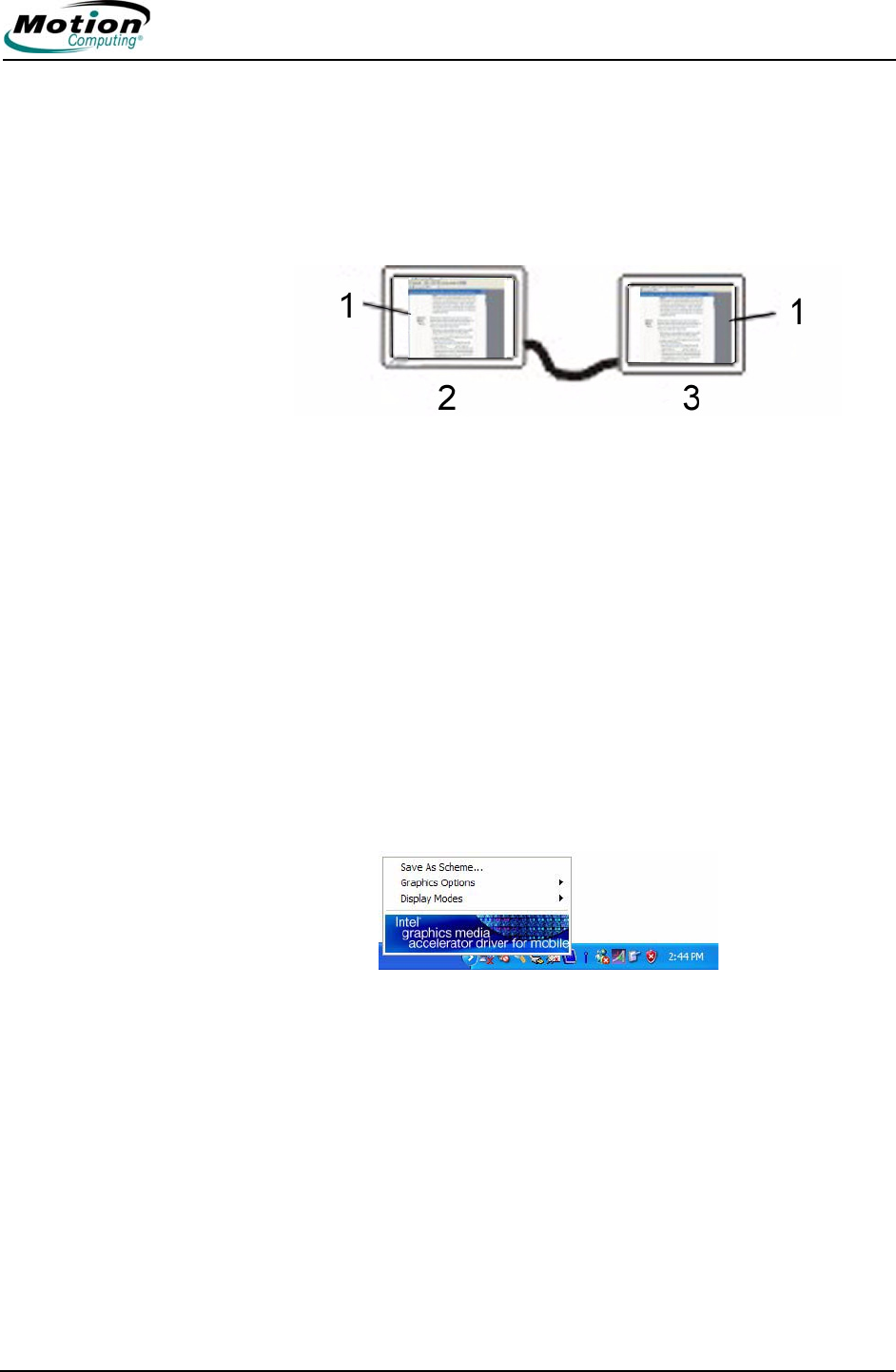

purpose. Refer to “Mirroring or Extending Your Display” on page 28 about

how to set up video that is displayed on an attached external display/

monitor.

VGA Connector. The VGA connector can be used to attach a third-party

VGA capable display/monitor to the Tablet PC. Motion Computing does not

provide a VGA cable; refer to the information that came with your display for

the type of cable to use.

LAN Connector. This is a Gigabit Ethernet LAN (RJ-45) connector that

can be used to connect to a network, cable modem, or xDSL; it contains two

status LEDs.

The following illustration shows the ports, slots, and connectors that are on

the right side of the LE1600 Tablet PC.

The right side of the Tablet PC contains:

• AC Power port

• SD Card slot for expanded accessory options (SDIO compatible)

• PCMCIA card slot for third-party type-II PC cards

• Infrared (IrDA) transceiver for short distance network connections with

another IrDA compliant device

• Pen Bay for the Motion Digitizer Pen

• Pen Tether post for attaching the Motion Digitizer Pen

The following illustration shows the connectors and attachment points on

the bottom edge of the Tablet PC.

PC Card Slot Air Vent

Pen

Tether

Pen

Bay

SD Card Slot

IrDA

Transceiver

Power

Chapter

Getting Started with Your Tablet PC

Motion Computing LE1600 Tablet PC User Guide 14

FlexDock Connector. There is a FlexDock connector at the bottom edge of

the Tablet PC. This connector mates with the corresponding connector on

the FlexDock for the LE Series to provide the required signal connections

when the Tablet PC is “docked.” Refer to the Installation Guide provided

with the FlexDock for the LE series unit for more information.

Motion Accessory Port. The Motion Accessory port is for connecting

input/output devices directly to the Motion Tablet PC, or to the FlexDock

for the LE Series when the Tablet PC is mated to the FlexDock. For

example, this is the port for attaching the optional external DVD/CD-RW

Drive to the Tablet PC - all power to the drive is provided through this port.

Convertible Keyboard. There are two attachment points for mating the

Tablet PC to the Motion Convertible Keyboard. When the Tablet PC is

attached to the keyboard, the Tablet PC can be angled to provide a

comfortable viewing angle.

SOFTWARE

OVERVIEW

Your new Motion Tablet PC ships with the standard Motion software, Motion

Security Center, Motion Dashboard, and Motion CDs. In addition, it

contains the Microsoft Windows XP Tablet PC Edition 2005 Operating

System with a Tablet PC Input Panel (TIP) that includes enhanced ink-to-

text experience and word recognition, and an improved security

infrastructure that helps defend against viruses, worms, and hackers.

All the software options you ordered have been pre-loaded on your Tablet

PC. Software installation files are in the directory c:\windows\motion.

Using Your Motion Tablet

When you start your Tablet PC and go to Start > Using Your Motion

Tablet, you will find pages that describe software applications and utilities to

help you personalize and make the most of your system. These pages are

opened by your default internet browser. Most of the links on those pages

do not require an internet connection; however, you may need an active

internet connection to access some of the information.

FlexDock Connector

Motion

Convertible

Keyboard/FlexDock

Attachment

Accessory

Port

Chapter

Getting Started with Your Tablet PC

Motion Computing LE1600 Tablet PC User Guide 15

Motion Dashboard

The Motion Dashboard puts many operations at your fingertips for

convenient access and control. To open the Motion Dashboard, press the

Dashboard button (Hot Key #1).

NOTE: The Motion Dashboard does not include an “Apply”

button. When you change a setting, the change occurs imme-

diately. Tapping “OK” on the Motion Dashboard closes the

window.

Also, if you disable your wireless connection from the Motion

Dashboard, it may still appear to be working for a short time.

The wireless/Bluetooth LED may continue to blink for a few

seconds. This is a timing delay; the connection will end short-

ly.

Chapter

Getting Started with Your Tablet PC

Motion Computing LE1600 Tablet PC User Guide 16

Motion Dashboard Features

Feature Description

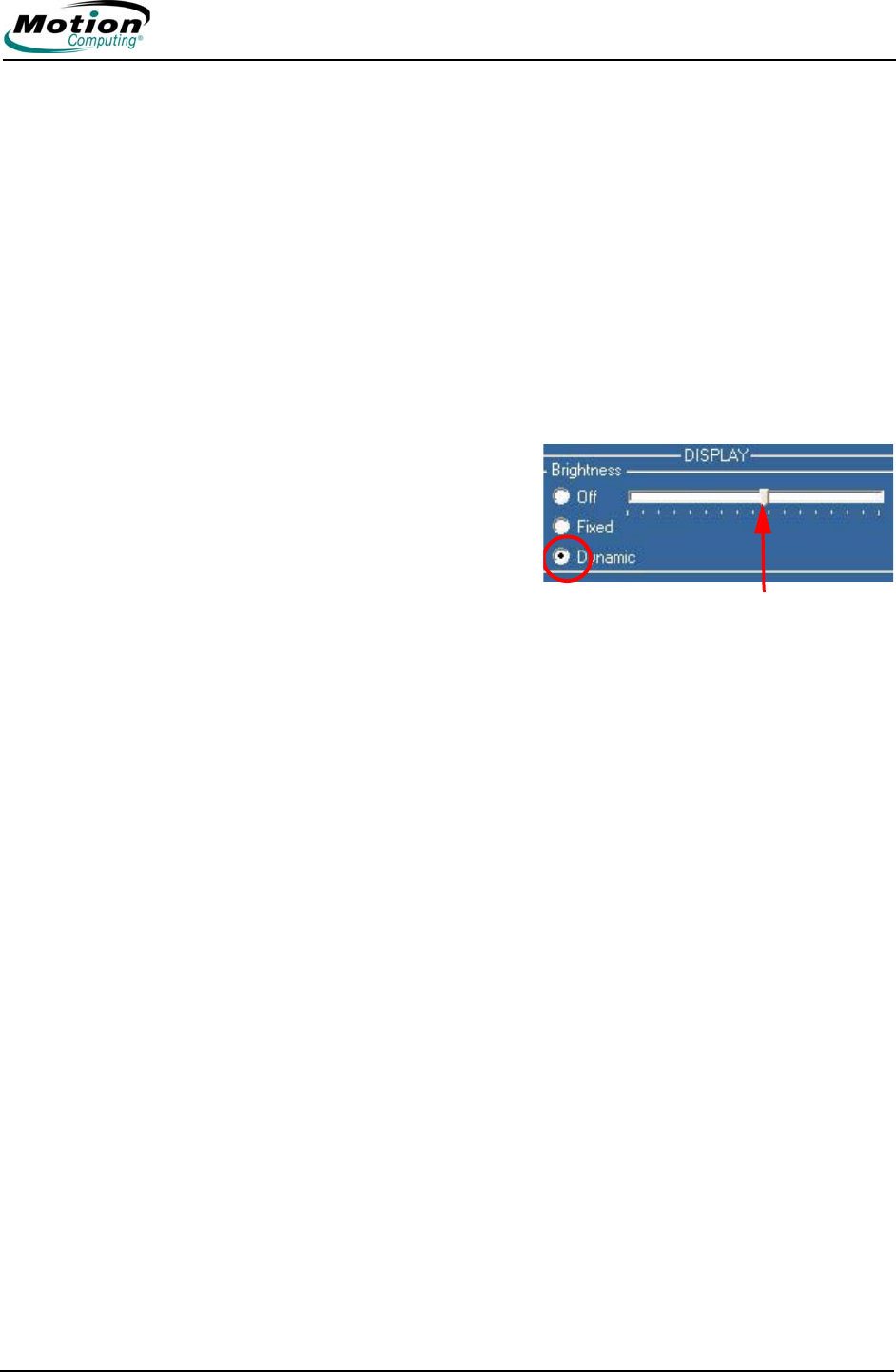

Display

Brightness

The built-in Ambient Light Sensor (ALS) detects light in the

environment and automatically adjusts the display brightness.

Available settings:

•Off

— Blanks the display to save power

•Fixed

— Maintains a fixed brightness level on the display that

remains constant under varying light conditions

• Dynamic — Uses ALS to maintain a relative brightness level

on the display in varying light conditions

NOTE: For optimal battery life benefits and view-

ability from ALS, set the brightness scale to the

mid-point or slightly above. If the setting is higher

than this, you lose some of the battery-saving

benefits while gaining minimal improvement in

viewability.

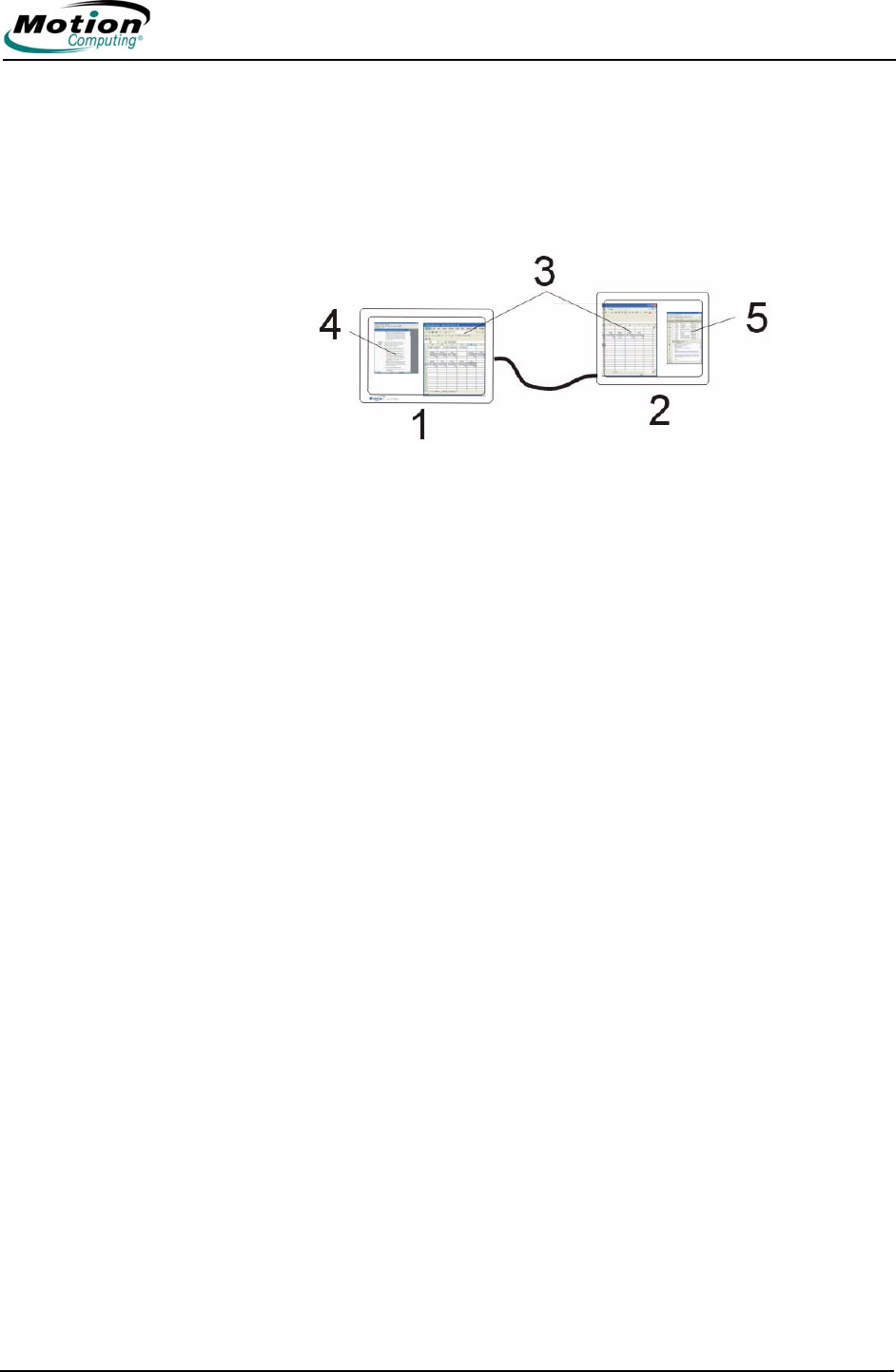

External

Monitor

The Tablet PC has a dual-head video controller that can “mirror”

the Tablet PC display or extend it to a second monitor or external

device, such as a data projector. This feature is disabled by

default.

Available settings:

• Mirror Display — Clones or duplicates the Tablet PC display

on another monitor or projector

• Extend Display — Enlarges the overall desktop work space to

include both the external monitor and the Tablet PC display

• Disable — Disables the External Monitor feature

Audio -

Speaker

Volume

Available settings:

• Mute the speaker sound; sliding the scale changes the

speaker volume

• Multimedia Optimized — Best equalization setting for sound

reproduction from the Tablet PC for a CD player, DVD, or

sound recorder

• Voice Optimized — Best setting for voice reproduction from

the Tablet PC speakers

• External Speakers— Best setting for external speakers or

headphones

• Properties — Access advanced operating system controls to

configure your audio experience. Tap Volume Control >

Options > Properties to set Playback and Recording for a

selected device.

Chapter

Getting Started with Your Tablet PC

Motion Computing LE1600 Tablet PC User Guide 17

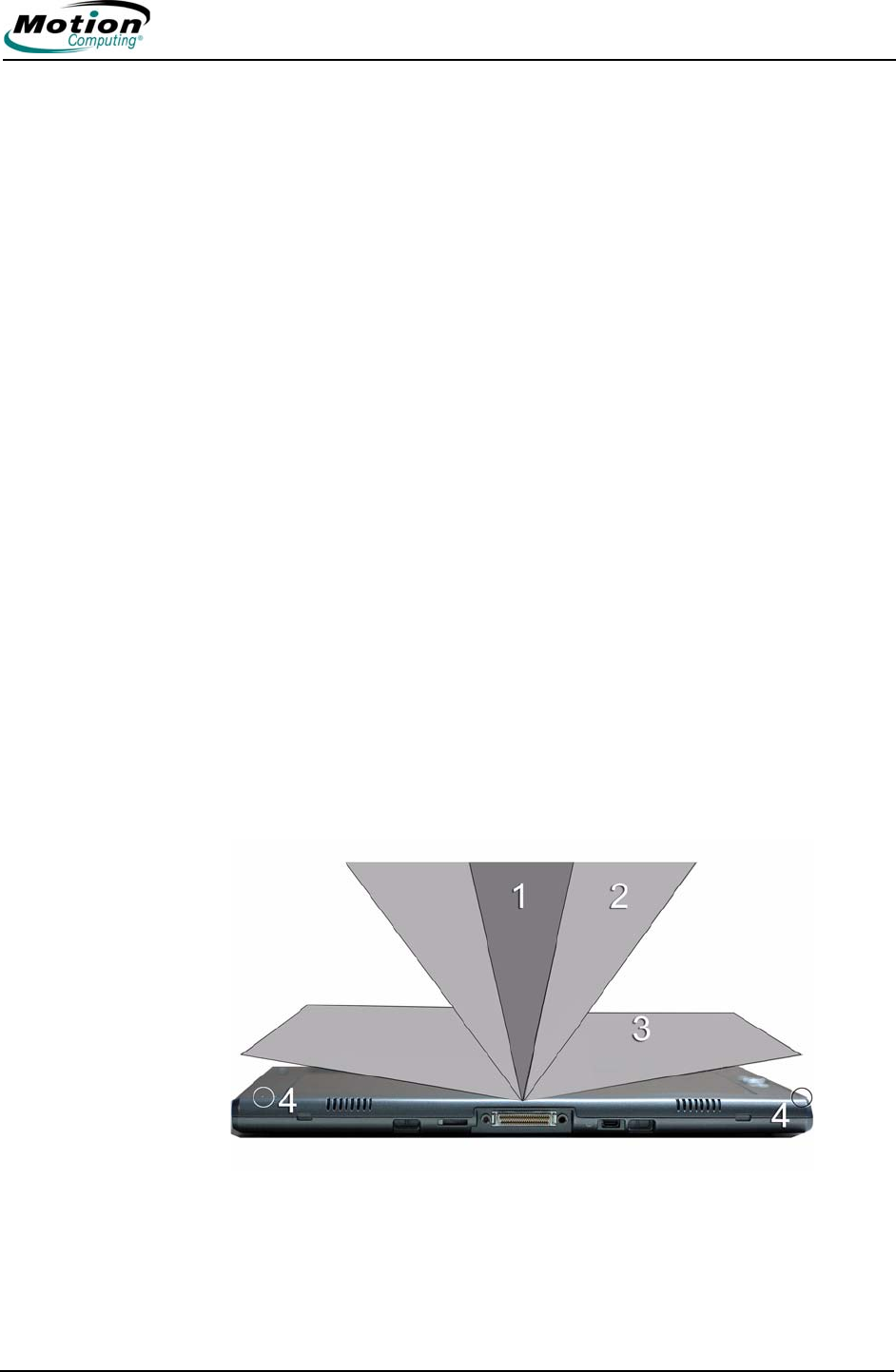

Audio -

Microphones

Available settings:

• Mute — Sliding scale changes microphone volume

• Narrow Angle — Best setting for dictation, Voice over IP

(VoIP), or “voice noisy” environments

• Medium Angle — Best setting for small group, conference

table, or “voice quiet” environments; the microphone detects

sounds from a larger area

• Wide Angle — Best setting for an open meeting room

• Calibrate — Trains the microphones to focus on sounds from

a particular location or angle

Pen and

Digitizer

Available Options:

• Calibrates the pen to the display

• Pen and Button Options — Changes Tablet PC, pen, and but-

ton properties, such as hot-key assignments, right/left handed-

ness, or the right-click function; enable the eraser for

applications that support an eraser.

Wireless Available Settings:

• Enables/disables the 802.11 (Wi-Fi) and/or Bluetooth wireless

radio

• Disables either or both wireless devices at Tablet PC start up

(useful in environments where policy prohibits wireless opera-

tions)

• The physical wireless button (not on the Motion Dashboard)

is intended for situations where you want to shut wireless

down quickly and reliably.

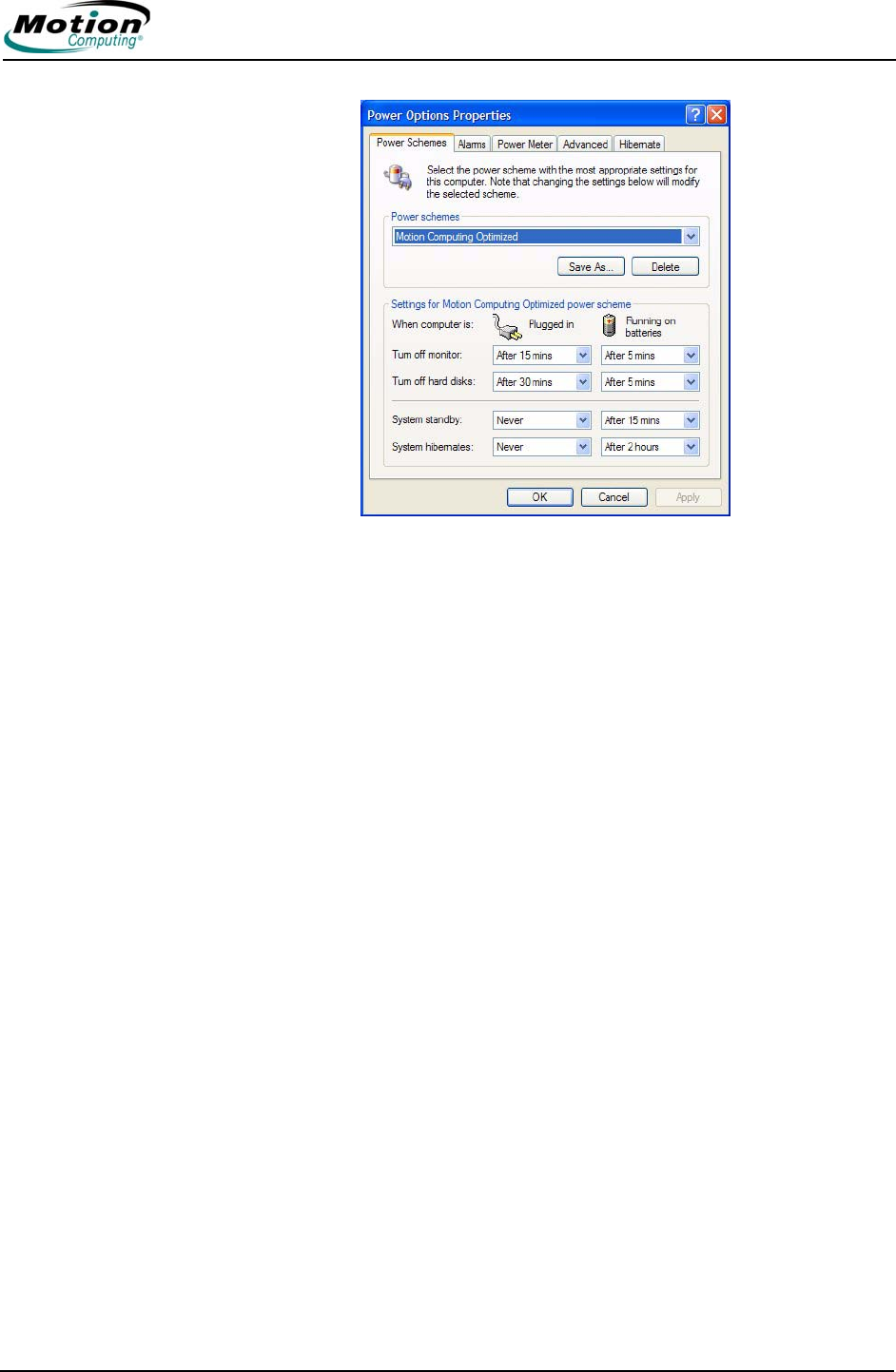

Power

Management

Lets you set power schemes and power button options; also

displays remaining battery power. You can select from an

extensive list of power schemes or you can create custom power

schemes to fit your environment.

Motion

Security

Center

Opens the Motion Security Center where you can do the

following:

• Access Motion OmniPass; refer to “Motion OmniPass and Fin-

gerprint Reader” on page 38

• Review or modify Trusted Platform Module settings; refer to

“Infineon Trusted Platform Module” on page 47

• Open the Microsoft Security Center to review or modify Win-

dows security settings; refer to “Using Windows Security” on

page 48

Stand By Puts the Tablet PC in a low-power Stand By state for a

temporary suspension from which you can quickly resume a

Windows session.

Help Displays Motion Dashboard Help application

Chapter

Getting Started with Your Tablet PC

Motion Computing LE1600 Tablet PC User Guide 18

Motion Security Center

The Motion Security Center consolidates the tablet security applications into

one single security management dashboard. It provides the ability to

manage the security applications and settings from a single point. You can

also find quick links for help with various security-related tasks. Motion

Security Center provides access to the Motion OmniPass, Infineon TPM,

and Microsoft Security Center applications.

Motion Third-Party Software Solutions

Visit the Motion website at www.motioncomputing.com/products and select

Software. You will find links to software solutions to purchase as well as free

downloads from Motion software and service partners.

All Motion Tablet PCs come packaged with CDs for the repair and recovery

of the operating system and utilities and drivers. Separate application CDs,

including the Motion Pak and Microsoft Office Pak software, are optional at

the time of purchase.

Chapter

Using Your Motion Tablet PC

Motion Computing LE1600 Tablet PC User Guide 19

Chapter

Using Your Motion Tablet PC

This chapter is divided into the following sections:

• “Pen and Ink” on page 19

• “Audio and Video” on page 26

• “Power Management” on page 31

• “Security Features and Settings” on page 37

• “Speech” on page 51

• “Ports, Slots and Connectors” on page 56

• “Wireless Networking” on page 57

• “Configuring Buttons” on page 67

Each of these sections includes a brief introduction to the topic, and

information on how to access and use the feature or function. Other than a

brief introduction to these topics in Chapter 1; all other information regarding

the topic, including set up, operating procedures, and helpful hints, is in this

chapter.

PEN AND INK A significant difference between using a standard personal computer or a

laptop and your Tablet PC is the use of pen and ink in software applications.

Some software applications are designed specifically for pen and ink while

others may be “ink enabled” to improve their suitability with ink input. Be

aware that you need to turn on the ink in Microsoft Word or Microsoft Excel

to be able to write over what is being displayed. You can also use the TIP to

enter text directly.

Configuring Tablet and Pen Settings

The Tablet and Pen Settings window is accessed by tapping the Pen and

Button Options button in the Pen and Digitizer area of the Motion

Dashboard. Refer to “Tablet PC Buttons, Connectors, and Indicators” on

page 9 for a description of the Tablet PC buttons and their default behavior.

You can make selections to set up the following from the various sub-

windows of the Tablet and Pen Settings window:

• Settings Tab

• Select right-handed or left-handed to improve handwriting

recognition

• Set the menu location for right-handed or left-handed display

Chapter

Using Your Motion Tablet PC

Motion Computing LE1600 Tablet PC User Guide 20

• Set the calibration for each orientation

• Change the rotation sequence

• Set the display screen brightness

• Display Tab

• Select and preview the primary screen orientation

• Change the rotation sequence

• Set the screen brightness for each power setting

• Tablet Buttons Tab

• Set up the front panel buttons

• Set same for all orientations, or

• Set different for each orientation

• Pen Options Tab

• Set up the pen and equivalent mouse actions

• Set up the pen buttons and enable the eraser (application

dependent)

Click on each tab and practice setting different options. The default settings

may be perfect for your work situation, but if not, the Tablet and Pen

Settings window lets you set up your Tablet PC according to your unique

needs.

The following illustration is a sample Tablet and Pen Settings window - this

window includes a checkbox to enable the eraser - if your eraser is not

functioning properly, make sure this box is checked. Also, availability of the

eraser is application dependent; not all software applications allow the top of

the pen to be used as an eraser. Refer to the Microsoft Help application for

more information about these features (tap the HELP button).

Calibrating and Using Your Digital Pen

Be sure to calibrate your pen in both portrait and landscape orientations the

first time you start your Tablet PC, then again at other times if the cursor

does not seem to line up with the pen tip. Calibration ensures the accuracy

Chapter

Using Your Motion Tablet PC

Motion Computing LE1600 Tablet PC User Guide 21

of the pen and adjusts the input angle for each person who uses it. The

Tablet PC stores calibration data and settings on a per-user basis.

1. Open the Motion Dashboard and tap Calibrate Digitizer.

Or double-tap the Tablet and Pen Settings icon in the

system tray, located in the lower right-hand corner of the

display window. This opens the Tablet and Pen Settings

window.

NOTE: This icon may be hidden in the system tray. Tap the

system tray left-arrow to open all hidden icons.

2. Hold the pen naturally, angled as if you are writing with a pen, and

tap the pen point in the center of each of the four calibration

crosshairs as they appear. During calibration, try to position the

Tablet PC as close to the way you will use it as possible, whether

holding it in portrait or landscape orientation or using it in a FlexDock

for the LE Series or with a Convertible Keyboard. Changing the pen

or display angles affects the calibration.

3. If you change the orientation, you may need to calibrate the pen

again.

When using the pen as a cursor, you can determine if you are in the right

place to select a menu item. For example, look at the position of the pointer

on the screen, not where the pen touches the display.

CAUTION: Do not write on the Tablet PC display

with ink pens or other sharp objects that could dam-

age it. Do not use markers that could also damage

the display.

Chapter

Using Your Motion Tablet PC

Motion Computing LE1600 Tablet PC User Guide 22

Refer to the following to compare mouse and pen actions:

Deactivating Pen Button to End Accidental Right-Clicks. If you find that

you accidentally press the pen button when you write, you may want to

deactivate this option. (You will still be able to open right-click menus by

pressing and holding the pen against the display surface.)

Using the Tablet PC Input Panel

The Tablet PC Input Panel (TIP) is the primary tool for entering text and

provides several text correction and control options. The TIP also includes

buttons for activating speech recognition and voice command capabilities. It

is opened by tapping the TIP icon in the Windows task bar. In some

applications, a small TIP icon floats nearby. As you move your pen close to

the display; tap that icon to open the TIP.

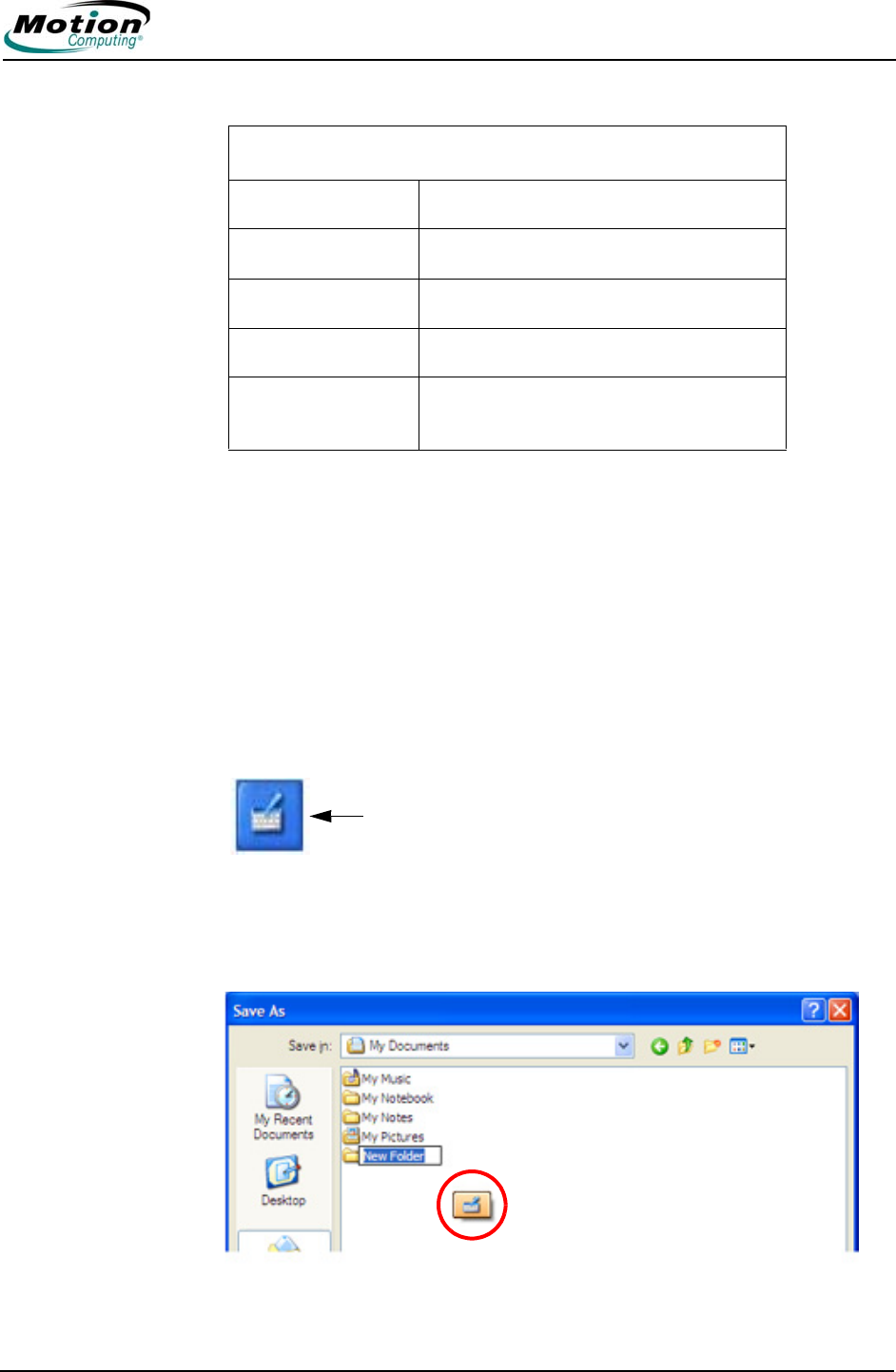

Using the TIP. The following example shows how the TIP icon appears in a

“Save As” window; you can tap the icon to open the TIP panel to use

handwriting or the On Screen Keyboard to enter the name of the New

Folder.

Mouse versus Pen Actions

With a Mouse With the Digitizer Pen

Point and click Point and tap the pen on the display.

Double-click Double-tap the pen on the display.

Click-and-drag Tap-and-drag the pen on the display.

Right-click Press the pen button while tapping, or

press and hold the pen on the display.

TIP icon: Tap the icon to open

the Tablet PC Input panel (TIP).

Chapter

Using Your Motion Tablet PC

Motion Computing LE1600 Tablet PC User Guide 23

When you tap this icon, the Writing Pad opens. As you write, the recognition

software interprets the writing and displays a text equivalent below the line.

You can change from the Writing Pad to a Character

Writing Pad or On Screen Keyboard at any time by tapping

the appropriate icon on the left side of the TIP panel. On the

right side of the TIP panel there are icons for Tools and

Options and for TIP Help.

Tap the Tools and Options (small gear) icon to access the following

selections:

•Speech - If this is the first time you selected Speech, a Speech Recog-

nition Enrollment window is shown. You must adjust the microphones

(using the Motion Dashboard) and train for your voice before speech

recognition is functional. This can take several minutes. After training,

tapping Speech shows that Dictation and Command icons have been

added to the TIP panel. Tapping either Dictation or Command opens a

voice input window. For more information about Speech, refer to “Motion

Speak Anywhere Technology” on page 51.

•Dock at Top of Screen. Moves and locks the TIP at the top of the

screen.

•Dock at Bottom of Screen. Moves and locks the TIP at the bottom of

the screen.

•Undock. Closes the TIP if shown; allows it to float undocked the next

time it is opened.

•Options. Opens the Options window, where you can change many of

the finer aspects of the pen and its usage in the TIP. There is also a link

to Help that is specifically for the Tablet PC TIP.

Tools and Options icon

Chapter

Using Your Motion Tablet PC

Motion Computing LE1600 Tablet PC User Guide 24

Using the Writing Pad. As you write, the software selects the best match

for a word from its dictionary of words and displays it on screen. Tap on a

word to select it.

In the following example, either handwrite directly over the incorrect

character or tap the character to open a list of alternatives (as shown here:

O, 0, a, 6). You can erase a word you have just written, by rapidly scratching

back and forth over it.

The Writing Pad expands to show Numbers (Num) or Symbols (Sym)

toolbars, whose symbols are inserted immediately in the text entry area as

you select them. Then, when you begin to handwrite on the Writing Pad, the

Num or Sym toolbar closes.

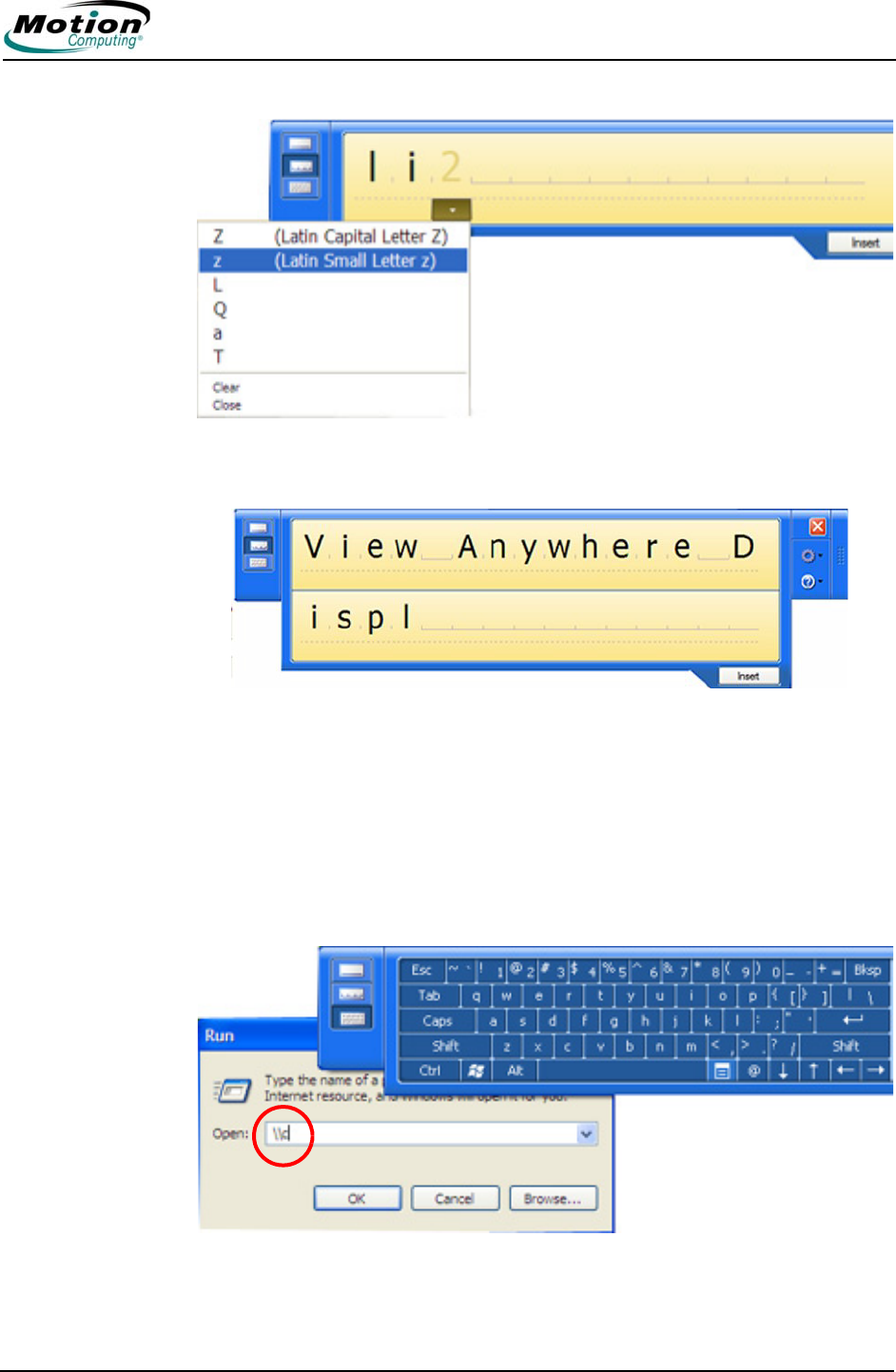

Using the Character Writing Pad. Use the Character Writing Pad for

acronyms, equations, or other entries that require individual letters,

numbers, or symbols that the writing pad may interpret incorrectly. Some

examples include the following: ~<!<@<#<$<%<^ and*()_+<>{}[] \ /.

Symbols/letters are displayed in a text equivalent that you can individually

correct by:

• Handwriting over the text equivalent in each character space

• Clicking on the arrow under the letter and selecting an alternative from

the drop-down menu

Chapter

Using Your Motion Tablet PC

Motion Computing LE1600 Tablet PC User Guide 25

The writing pad expands vertically when you get near the end of the panel.

Using the On Screen Keyboard. You can use the On Screen Keyboard to

type words, letters, numbers, and characters from keyboard using your pen.

For improved security and accuracy, you may want to enter passwords with

the On Screen Keyboard instead of handwritten text.

NOTE: When using the On Screen Keyboard, be sure to

place your cursor where you want to enter text in the text entry

box before you tap Insert.

Chapter

Using Your Motion Tablet PC

Motion Computing LE1600 Tablet PC User Guide 26

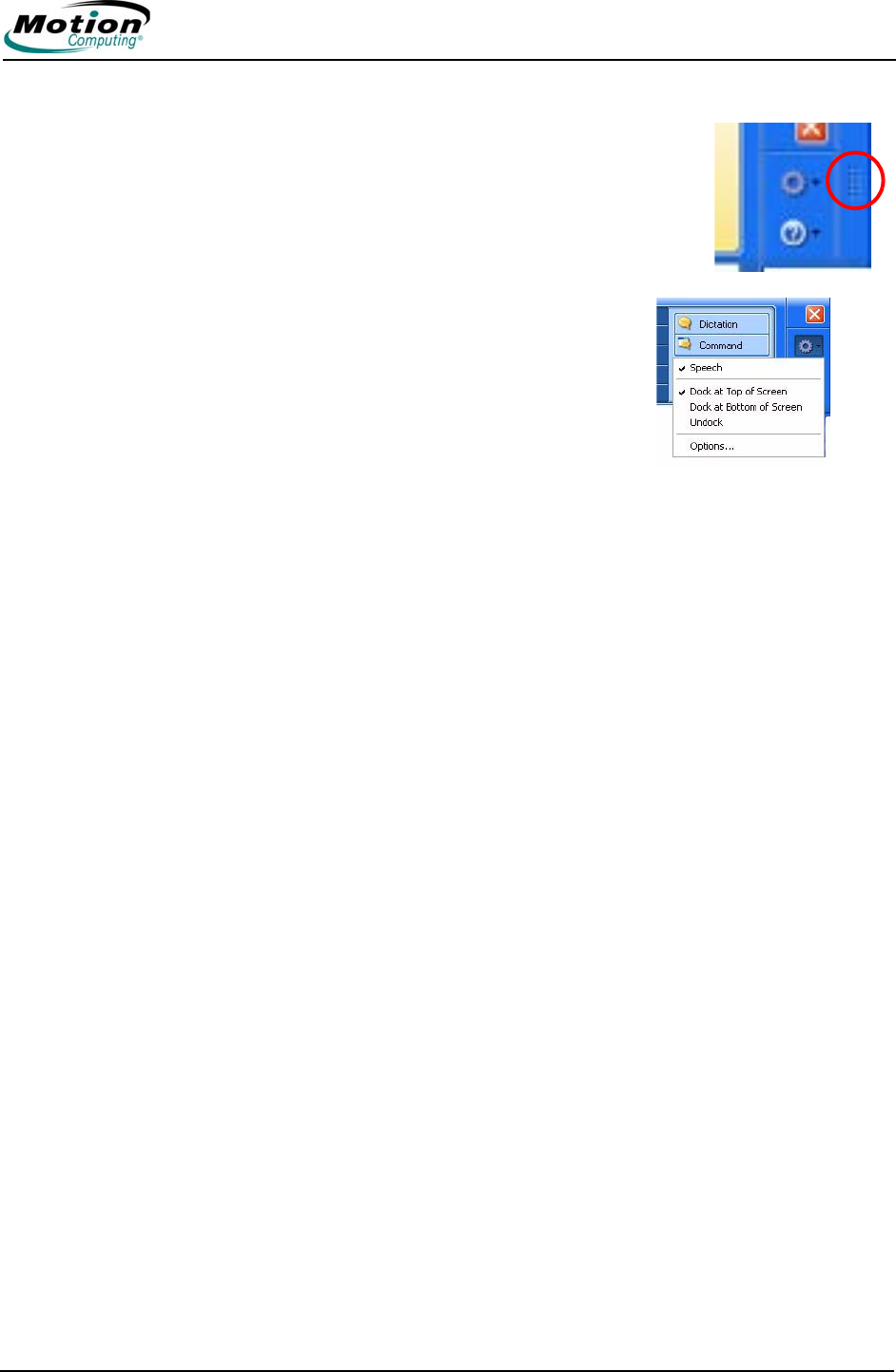

Helpful Hints: Using the TIP Window

• Move the TIP panel on your desktop using the

bar on the right - only available when the TIP

panel is not docked/locked at the top or bottom of

the screen. When it is docked at the top or bot-

tom, it cannot be moved.

• Customizing — Select Tools and

Options (the gear icon) then Options...

from the TIP window to open the

Options window at the

General tab. You can customize many

features in the TIP. Select one or more of

the tabs and set the desired options.

• Refer to the Help and the Tutorials that

are provided as part of the Windows Operating System. Or refer to the

Help information that is provided in the Options window.

• In some applications, you may need to double tap to enable pen and ink

functions.

AUDIO AND

VIDEO

The Audio and Video controls are in the Motion Dashboard in the Audio

and Display sections. You will find additional information regarding audio

settings and acceptance angles in the Speech section of this chapter, refer

to “Speech” on page 51.

Motion Dashboard Audio System Controls

The Motion Dashboard contains volume and directional controls for both

speech recognition and recording functions. You should perform this

procedure before you train your Tablet PC for speech recognition or voice

commands.

Speaker Volume. While the noise suppression software removes most

background noise, in some cases speaker playback (such as background

music or intermittent audio messages) can affect recording. In general,

reducing speaker volume will eliminate these extraneous noises.

Microphone Volume. The default volume setting for the microphones is at

roughly two-thirds of the sliding scale. When recording, dictating, or using

voice commands, you may need to adjust this setting until you achieve the

desired results.

Adjusting Display Settings and Screen Brightness

The Display settings on the Motion Dashboard are used to set the

brightness level of the LCD display. These settings are used in conjunction

with the Ambient Light Sensor (ALS) to maintain a level of brightness and

contrast in all lighting conditions.

The built-in light sensor located on the Tablet PC front panel measures the

ambient light in the environment. The system then automatically balances

the brightness of the Tablet PC display in relation to the surroundings. You

Chapter

Using Your Motion Tablet PC

Motion Computing LE1600 Tablet PC User Guide 27

can set brightness modes from the Motion Dashboard (note: you can also

turn the display off).

• Fixed — Sets the display brightness to a fixed level (ALS is off); use the

slider to adjust the display to the desired brightness level

• Dynamic — Sets the display so that the system adjusts the brightness to

the preferred level under changing lighting conditions while maintaining

viewability (ALS is on)

Setting “Dynamic” Display Brightness: ALS On. When you turn on the

ALS, the display will automatically brighten if you move from dim to bright

light (within the range supported by the hardware), or automatically dim if

you move to an environment with a lower level of lighting. You may not be

able to visibly detect the adjustment. Using ALS also helps to reduce power

consumption when possible.

1. Open the Motion

Dashboard.

2. Under Display, tap the radio

button beside Dynamic.

3. Move the slider until the

Tablet PC display is at the

preferred brightness level.

The system will then auto-

matically adjust the display

brightness to changes in lighting.

Setting “Fixed” Display Brightness: ALS Off.

1. Open the Motion Dashboard.

2. Under Display, tap the radio button beside Fixed.

3. Move the slider until the brightness is at the desired level. The

system will keep the same brightness level at all times; that is, it will

not adjust the display brightness to changes in lighting.

NOTE: In low-light settings, the “Fixed” brightness setting

may keep the display brighter than is needed for good view-

ability. Keeping the brightness always at the same level may

also use more battery power than necessary.

Turning the Display On and Off.

1. Open the Motion Dashboard.

2. Tap Off in the Brightness area of the Display settings.

NOTE: To turn the display back on, wave your pen over the

display or press any key on the keyboard. When the display

comes on, the Fixed/Dynamic setting remains selected as it

was.

Changing Display Orientation. An interesting and useful feature of the

Tablet PC is the ability to change the screen orientation from landscape to

portrait by pressing a button. Also, you can rotate the screen in 90-degree

increments. The Tablet PC flexibility in changing the screen orientation

allows you to set the view to suit your purpose. You may be using an

Move slider to preferred

brightness level.

Chapter

Using Your Motion Tablet PC

Motion Computing LE1600 Tablet PC User Guide 28

application where it is more advantageous to have a portrait (vertical) view

of the screen. You may be filling out a form that is longer than the standard

screen view. At other times you may want to view a wider than normal page;

in this instance you would use landscape view. The Tablet PC provides

several ways to change the display orientation quickly:

• The quickest way to rotate the screen is to press the Rotate button (Hot

Key #2).

Be aware that changing the screen orientation may require you to

recalibrate the pen; refer to “Calibrating and Using Your Digital Pen” on

page 20. Use the pull-down menu to see the other orientation settings. You

can also change the sequence for rotating from one orientation to another.

Mirroring or Extending Your Display. The Tablet PC has a Dual Head

Video Controller that lets you run a presentation from your Tablet PC on an

external monitor or data projector while taking notes in ink. You can also

move applications onto a second monitor to create additional work space.

How To Connect the Tablet PC and a Monitor or Projector Example.

1. Plug the VGA monitor cable into the VGA port on the Tablet PC or

Motion FlexDock for the LE Series.

2. Connect the external monitor or data projector to a power outlet and

turn it on. The software recognizes the external monitor or data pro-

jector and searches for a driver.

3. If necessary, install the driver from the CD supplied by the monitor’s

manufacturer.

4. Set up the mirrored desktop or external display, using the steps in

the following sections.

IMPORTANT: Be sure to drag any application window back to

the Tablet PC display before shutting down the external data

projector or monitor. Otherwise, you cannot access the appli-

cation(s) to shut it down. If you do leave an application open

on the extended display, you can disable it from the Windows

Chapter

Using Your Motion Tablet PC

Motion Computing LE1600 Tablet PC User Guide 29

Control Panel Display Properties or from the Motion

Dashboard.

Setting Up a Mirrored Display. Use this feature to connect an external

projector for presentations or an extra display on your desk. This

example shows a Word document (1) displayed (“mirrored”) on both the

Tablet PC (2) and an external monitor (3).

Mirrored Display Example: (1) Word document; (2) Tablet

PC display; (3) external monitor

NOTE: The resolution and orientation of the external monitor

will be the same as the Tablet PC display.

To Mirror the Tablet PC Display, Do the Following:

1. Open the Motion Dashboard.

2. Select the Mirror Display radio button under External Monitor.

This setting automatically creates an identical display on the exter-

nal monitor.

NOTE: You can also tap the icon for the Intel Graphics Media

Accelerator Driver for Mobile, in the system tray at the bottom

right of the Tablet PC display (or found in the Windows Control

Panel) to set up this feature from the Graphics Media pop-up

menu.

Chapter

Using Your Motion Tablet PC

Motion Computing LE1600 Tablet PC User Guide 30

Setting Up an Extended Display. Use this feature when you want to

simultaneously open applications on two monitors and significantly expand

your workspace without hiding open documents under layers of other work.

This example shows the Tablet PC (1) and an external monitor (2) with an

Excel spreadsheet extended across both. It also shows a Word document

(4) on the Tablet PC and e-mail (5) on the extended desktop.

Extended Desktop Example: (1) Tablet PC display; (2) external monitor; (3)

spreadsheet; (4) Word document; (5) email message

To Extend the Tablet PC Display, do the following:

1. Open the Motion Dashboard.

2. Tap the Extend Display radio button under External Monitor. This

setting automatically extends the Tablet PC display to the external

monitor.

NOTE: You can also tap the icon for the Intel Graphics Media

Accelerator Driver for Mobile in the system tray at the bottom

right of the Tablet PC display (or found in the Windows Control

Panel as Intel GMA Driver for Mobile) to set up this feature

from the pop-up menu, or tabbed window respectively.

Creating Schemes for External Monitors

To create a special screen resolution scheme. This feature can be used

to create named schemes for one or more external monitors. After creating

and saving the scheme, you can access it by right-clicking on the operating

system desktop and selecting the scheme name from the pop-up menu that

is shown.

1. Tap the Intel Graphics Media Accelerator Driver for Mobile icon

in the system tray, located at the bottom-right corner of the display;

then select Graphics Options > Graphics Properties.

2. This example illustrates the Mobile Intel 915GM/GMS, 910GML

Express Chipset Family window. From that window, select the

Schemes tab. The current Video Mode is displayed. (The default

mode is 1024 x 768 True Color (60 Hz).

3. Select the desired video mode for the new scheme

4. Tap the New... button in this window.

5. Type in a name for the new scheme. Tap OK to save the scheme.

6. Highlight this new scheme in the Schemes window.

7. Add or change the parameters for this scheme.

8. Tap Save. Right-click on the desktop, select Display Mode and the

new scheme name will be displayed.

Chapter

Using Your Motion Tablet PC

Motion Computing LE1600 Tablet PC User Guide 31

Helpful Hints: Mirrored and Extended Modes

• Use a mouse pointing device and keyboard to operate in these modes.

• The pen does not work in the external monitor space of the extended

mode.

• Refer to Mobile Intel Help for more information about creating schemes

for external monitors.

POWER

MANAGEMENT

The Tablet PC provides access to a comprehensive suite of power

management functions by using the buttons and controls on the Motion

Dashboard.

Configuring Your Power Management Settings

The following power-related settings can be accessed, monitored or

controlled from the Motion Dashboard.

• Power schemes

• Alarms for low and critical battery

• Power meter readings for up to two batteries

• Advanced power settings

• Hibernation settings

Tapping the Properties button in the Power area of the Motion Dashboard

opens the Power Options Properties window. Each of the power options is

represented by a tab in this window. Tapping one of the tabs shows the

various properties for that aspect of the Tablet PC power management

feature. The following example shows the window open at the Power

Schemes tab; it illustrates the various power schemes properties that can

be set for the Tablet PC. The remaining option properties windows are

described, but illustrations to show the various options are not included in

this User Guide.

Chapter

Using Your Motion Tablet PC

Motion Computing LE1600 Tablet PC User Guide 32

Power Schemes. Tap the Power Schemes tab to show the Power

Schemes window. You can select from a set of pre-defined power schemes

that apply to a wide variety of home and work environments. Try it yourself

by selecting one of the options from the pull-down menu and seeing how

your choice affects the power settings. This operation also gives you the

flexibility to define your own scheme and keep the same name or rename it

to something that makes more sense to you.

Alarms. The Alarms tab shows the Alarms window. This option lets you

specify the point at which battery alarms are activated for both the low and

critically low battery level states. You also define the action that the Tablet

PC should take when that battery level is reached. For example, you may

choose to have the Tablet PC sound an alarm, or you may prefer to receive

a text message.

Power Meter. The Power Meter tab shows the Power Meter window and

shows a visual indication of the Battery Status for battery #1 and #2 (if

present and attached to the Tablet PC). The icon shows the remaining

battery level and the text shows the percentage remaining. You can click on

a battery icon to open a detailed information window for that battery.

Advanced. The Advanced tab shows the Advanced window where you

specify the power settings options that you want to use. You can also

specify what you want the Tablet PC to do when you press the Power

switch. Your choices include everything from doing nothing, going into

standby mode, to hibernation, or to performing a shut down of your

computer.

Hibernate. The Hibernate tab opens the HIbernate window where you

enable or disable hibernation by using the Hibernation checkbox. This

window also shows information about the hard drive space on your

computer and details the amount of hard disk drive space required for safe

Chapter

Using Your Motion Tablet PC

Motion Computing LE1600 Tablet PC User Guide 33

hibernation. Selecting Hibernate has the following advantages over placing

your Tablet PC in the Stand By state:

• Hibernate saves the state of the desktop and applications

• Hibernate consumes no battery power

• When you return from the Hibernate state, you return to where you were

when you entered hibernation.

Checking Your Battery Power Level. There are several ways to see how

much battery power is left on your Tablet PC. You can determine the

remaining battery power by doing any of the following:

•Reading Battery Power from the Tablet PC Display

To check the power level while you are on battery power,

move the pen over the Power Meter icon, shown here, in

the system tray at the bottom-right corner of the Tablet PC

display. This displays the number of hours of battery power

and the percentage of battery power left. (Also, the blue

area on the battery icon gets smaller as the battery discharges.)

• Reading Battery Power from the Battery Gauge (requires battery

removal)

Ensure that AC power is plugged into the Tablet PC, or that the Tablet

PC is turned off. Turn the system over so that you are looking at the

back and remove the battery from the top of the tablet. The gauge is

mounted on the backside of the standard battery. Press the button and

look at the LEDs. Each LED represents approximately 20% of the total

available charge. (If the optional Extended Battery is attached, the

battery gauge is located on the backside of the Extended Battery and

can be checked without removal.).

Spring-Loaded Latch Locking Latch

Extended Battery Connector

Under Sliding Panel (must be

open to install Extended

Battery)

Slide latches toward center to open

Chapter

Using Your Motion Tablet PC

Motion Computing LE1600 Tablet PC User Guide 34

Caution: When you replace the standard battery, make sure

that the locking latch is in the correct position, moved fully to

the right to lock the battery in place, and that the battery is

firmly installed.

• Reading Battery Power from Motion Dashboard

The Motion Dashboard also has a battery power gauge that displays

the percent of remaining battery charge. If a Standard Battery and a

Extended Battery are both attached, the power reading is the cumulative

amount of both batteries.

• Reading Battery Power from the Power Meter

Right-click on the Power Meter icon in the system tray, located in the

lower right-hand corner of the display window (only visible if you are

running on the battery). To see remaining power, tap Power Meter; or

tap Adjust Power Properties > Power Meter tab.

From the Windows Control Panel (in Classic view), double-click Power

Options. Or (in Category View), tap Performance and Maintenance,

then tap Power Options.

Using Your Batteries

This section describes how to use your Tablet PC battery. The Standard

Battery is located at the top of the Tablet PC. There is an optional Extended

Battery that can be attached to the back of the Tablet PC. The upper center

area of the back of the system includes a small sliding panel that covers the

terminal connections for the Extended Battery.

Caution: Ensure that the sliding panel is open before attempting to

attach the Extended Battery. Otherwise, there may be damage to the

Extended Battery connector.

Both batteries are designed to be re-charged by using the AC adapter when

attached to the Tablet PC.

Charging the Battery. When you connect the Tablet PC to AC power with a

battery attached, the system automatically charges the battery until it

reaches full charge. If two batteries are attached, the primary battery

charges first, followed by the secondary battery. The charging sequence is

staggered to ensure that both batteries become fully charged at nearly the

same time. The standard battery charges to the 80% level, followed by the

Extended Battery charging to the 80% level. Then each battery charges for

a short interval until both reach 100%.

The Battery Status LED is on the Tablet PC flashes amber when the battery

is at a critically low level and changes to solid amber while charging. When

the battery is fully charged, the Battery Status LED is solid blue.

Chapter

Using Your Motion Tablet PC

Motion Computing LE1600 Tablet PC User Guide 35

WARNING: To avoid injury, keep the battery within

the recommended temperature range when charg-

ing it. Wait until it cools to room temperature before

recharging it in the Tablet PC or the battery charger.

For more information, see the Safety and Regulatory

Guide shipped with your Tablet PC or the documen-

tation that came with the battery charger. Or go to

www.motioncomputing.com/support to view these

documents.

To charge the battery:

1. Plug the AC adapter into the Tablet PC, then into a wall outlet or

power strip. (Completely recharging the battery may take up to two

hours, although the battery reaches an 80% charge in much

less time.)

Swapping the Battery. You can swap the Standard Battery while the

system is powered on, with or without having the Tablet PC plugged into an

AC power outlet.

1. If the Tablet PC is running, open the Motion Dashboard and tap

Stand By. The Tablet PC immediately goes into the Stand By state.

2. Alternatively, go to Start > Turn Off Computer.

3. Do one of the following:

• If you are logged on to a domain: When the Turn Off

Computer window appears, tap Stand By or Hibernate

from the drop-down list.

• If you are not logged on to a domain: Press the Shift key

on your external keyboard or tap Shift on the TIP On

Screen Keyboard to change the option from Stand By to

Hibernate.

NOTE: Here are some key differences between putting the

Tablet PC in Stand By or Hibernate mode to swap the

battery:

• If you choose Stand By, the Tablet PC is designed to

maintain your system for up to 30 seconds while you

swap the battery.

• However, you may have less than 30 seconds if you are

running a number of programs that drain power faster.

• You should save any data before putting the system in

Stand By to swap the battery.

• Choosing Hibernate gives you more time to swap the

battery. Hibernate saves the status of the Tablet PC to

your hard drive.

4. Tap Hibernate or Stand By. The Tablet PC opens a dialog box

stating that it is “preparing to standby or hibernate.”

5. Wait until the system shuts down. In Hibernate, all LEDs are off; in

Stand By, the Power LED flashes.

6. Slide the battery release latches on the back of the Tablet PC toward

the center and lift the battery upward to remove it.

7. Insert the new battery until you hear the left latch click, which

ensures the new battery is correctly seated. Slide the right latch fur-

Chapter

Using Your Motion Tablet PC

Motion Computing LE1600 Tablet PC User Guide 36

ther to the right to lock it in place. Check to make sure the latches

are fully seated.

CAUTION: To avoid damage to the Tablet PC, install

only Motion Computing batteries, which are specially

designed for the Tablet PC.

Disposing of Used Batteries. The Tablet PC contains a Lithium-ion (Li-

ion) battery that should be disposed of at a hazardous materials recycling

center when it is no longer serviceable. Do not throw it in a waste receptacle

where it will be sent to a landfill.

Helpful Hints: Battery and Power Management

• Use AC power when available to lengthen the battery’s usable life. The

battery will charge automatically as you run on AC power, so leave the

battery in the Tablet PC while you are working.

• Use AC power when installing software or writing to a CD, and for opti-

mal battery life, when using a CD or DVD player.

• When using battery power, if you leave the Tablet PC unattended, place

the system in Stand By or Hibernate.

• Keep in mind that the display, processor, PC Cards, SD cards, wireless

cards, and accessory drives all draw on the battery, so adjust properties

and disable unused accessories and PC Cards when operating on bat-

tery power.

• When using battery power, adjust the power mode and display bright-

ness to lower settings to prolong the battery life.

• Turn off all wireless devices through the Motion Dashboard when not

being used.

• Enable the Ambient Light Sensor (ALS) through Motion Dashboard.

See the section “Adjusting Display Settings and Screen Brightness” on

page 26.

Chapter

Using Your Motion Tablet PC

Motion Computing LE1600 Tablet PC User Guide 37

SECURITY

FEATURES AND

SETTINGS

Motion Computing has strongly embraced the need for enhanced platform-

based security for the Tablet PC. The result of that commitment has been to

provide an out-of-box, safe computing environment that enables strong

security protection and that will serve as the foundation for complementary

add-on security technologies. These core security features include

password-protected Phoenix TrustedCore BIOS with HDD locking and

networking control, a universal security lock slot, the Motion Security

Center, a built-in fingerprint reader, a Trusted Computing Group Trusted

Platform Module (TPM), and a Smart Card-ready platform.

The Motion Computing Tablet PC includes a comprehensive security

solution that is designed to protect the hardware platform, the operating

system, and any information stored on the Tablet PC from most potential

outside threats. The Motion Security Center includes the following:

• Motion OmniPass

• Infineon TPM

• Microsoft Security Center

Motion Security Center

The Motion Security Center consolidates the tablet security applications into

one single security management dashboard. It provides the ability to

comprehensively manage the security applications and settings from a

single point. You can also find quick links for help with various security-

related tasks. Motion Security Center provides access to Motion

OmniPass, Infineon TPM, and Microsoft Security Center. Click on those

headings to launch the respective application.

Chapter

Using Your Motion Tablet PC

Motion Computing LE1600 Tablet PC User Guide 38

Motion OmniPass and Fingerprint Reader

The Motion OmniPass Control Center and the Fingerprint Reader are vital

elements of the Motion Security Center. Using this application and the

Fingerprint Reader, you can define the security and convenience features of

your Tablet PC. When implemented within the security policies of your work

environment, the OmniPass authentication tools add another layer of

security for your passwords, files, and other logons.

The OmniPass application can be opened by tapping the

OmniPass icon (shown at right) in the System tray. Or, you can

open the application by opening the Motion Dashboard then

Motion Security Center > Motion OmniPass. The

OmniPass Control Center window is shown below.

There is extensive help supporting the Motion OmniPass Control Center.

To get help on a specific topic, tap the Help button in the Motion OmniPass

Actions panel, and use the Search or Index function.

At this point you can choose from the following options:

• Manage OmniPass Users and Settings to add users

• Change OmniPass System Settings

• Manage Your Passwords

• Protect Your Files

Also, notice that there are three selection areas, an action panel and two

information panels, at the left side of the window. These areas allow actions

or show specific information.

• Action panel

• Log Off Current User

• Switch User Identity

• Password

• Information

• Help

Chapter

Using Your Motion Tablet PC

Motion Computing LE1600 Tablet PC User Guide 39

• User Information panel

• Shows current user information

• Version Detail panel

• Shows version and build Information

Manage OmniPass Users and Settings. When you select this action you

are presented with the following options:

• Add a new user to OmniPass

• Remove a user from OmniPass

• Import a new user into OmniPass

• Export an OmniPass profile

These are advanced operations and may not be part of your typical work

flow. If you need more information about this aspect of the Motion

OmniPass application, refer to the OmniPass Help by tapping Help in the

Action panel.

Other OmniPass Set Up Functions. You can also tap the Change User

Settings icon; the Change User Settings window is opened where you can

select from the following operations:

• Audio Settings

• Use radio buttons to set the desired audio setting

• Taskbar Tips

• Use radio buttons to set the desired taskbar tip level

• Encrypt/Decrypt

• Select digital certificate or select an algorithm for encryption

• Enrollment

• Use the enrollment wizard to create a user account or to enroll new

authentication devices (e.g., fingerprint reader, digital certificates)

• Manage Your Passwords

• Opens the User Name/Domain dialog where you enter the password

and domain information to authenticate the user for access to the

password vault. There you can change your password.

Chapter

Using Your Motion Tablet PC

Motion Computing LE1600 Tablet PC User Guide 40

• Protect Your Files

• Browse to select files to be encrypted

• Browse to select encrypted files to decrypt

Fingerprint Reader. The built-in fingerprint

reader lets you scan your fingerprint and

associate it with a password. This offers a quick

and convenient way to log on to your Tablet PC,

provides global password management, and

helps protect your Tablet PC data from

unauthorized access. The illustration at the right

shows the bi-directional scan of a fingerprint. You

can move your selected finger from left-to-right or

right-to-left. Refer to “Helpful Hints: Successful

Fingerprint Captures” on page 41 for more information about obtaining a

successful fingerprint capture.

The fingerprint reader also functions as a scrolling device; you can move

your finger vertically (vertical in relation to the orientation of the Tablet PC)

across the scanner to scroll the Tablet PC application within the window.

NOTE: The scroll function is disabled while scanning a finger-

print.

Using Motion OmniPass Security and the Fingerprint Reader. The

fingerprint reader built into your Motion Tablet PC lets you scan your

fingerprint to log onto your Tablet PC and perform other functions such as

accessing email, e-banking, paying bills online, or accessing network

resources.

The OmniPass software offers a secure and convenient system for

managing your passwords and providing confidentiality for your sensitive

data through file encryption.

The procedures for setting up the fingerprint reader are divided into basic

and advanced options. For a more successful experience, start with the

basic set up before setting the more advanced features.

Basic setup includes:

• Enrolling (your username and password)

• Selecting a finger

• Capturing a fingerprint

• Capturing a second fingerprint

Advanced OmniPass setup features include:

• User management

• User settings

• System settings

• You can modify the OmniPass startup options

• You can enable Strong Logon Security to authenticate with a specific

security device before showing the windows desktop

Chapter

Using Your Motion Tablet PC

Motion Computing LE1600 Tablet PC User Guide 41

• Vault management

• The vault is a storage area for passwords and dialogs that you have

associated with web sites and applications.

• Encrypting and decrypting files

• You can encrypt any file on your Tablet PC except for system files.

• Only an authenticated user can decrypt files that have been

encrypted.

Descriptions of these features may be found in the OmniPass Help section

(open Motion Dashboard then Motion Security Center > Motion

OmniPass and tap the Help icon in that window).

Helpful Hints: Successful Fingerprint Captures

• Be consistent. Hold your finger and scan at the same angle each time.

For example, if you enroll your finger with your hand open (or closed),

hold your hand this way each time you scan. If you enroll your thumb

while holding the edge of the Tablet PC while scanning, you need to

scan like this each time.

• The scanner is bi-directional; you can move your finger from right-to-left

or left-to-right.

• Read the prompts carefully and make sure you are waiting to be

prompted before each swipe.

• Swiping too fast or too slow can make a capture unsuccessful. Change

the swipe speed until you learn what speed works best.

• When scanning, press hard enough to fully contact both the nickel-col-

ored ring and the sensor; you do not have to press hard.

• Rub your fingers together to stimulate the natural skin oils so your fin-

gerprint is easier for the sensor to detect. Conversely, wipe your finger

off so nothing interferes with the scan.

• If you are repeatedly having trouble getting a good scan, you may need

to clean the sensor. First, power down the Tablet PC and remove the

battery. Then, clean the sensor using a cotton swab sprayed with a win-

dow-type cleaner (no bleach, solvents, or abrasives); then dry the sen-

sor. Do not spray, pour, or otherwise dispense any liquid directly on the

sensor.

• If you are having trouble enrolling a specific finger, enroll a different fin-

ger. Typically, you will get the best results by scanning an index finger,

thumb, middle finger, ring finger, and little finger in that order.

Capturing a Fingerprint

1. Tap Motion Dashboard then Motion Security Center > Motion

OmniPass > Manage OmniPass Users and Settings > Add a new

user to OmniPass. This step enrolls a new user; you decide on the

authentication method (e.g., fingerprint, digital certificate, TPM, etc.).

2. Type in the User Name, Domain, and the Password (if you have one

set up) for this OmniPass account. (This may default to the user

name you logged on with and the password associated with it.)

3. Tap Next to take you to Selecting a Finger and Practicing Finger-

print Capture.

Chapter

Using Your Motion Tablet PC

Motion Computing LE1600 Tablet PC User Guide 42

4. When the Choose Finger window appears, tap the dotted area

above the finger you want to enroll. A red arrow appears above the

selected finger.

IMPORTANT: To get a feel for finger position and swipe

speed, tap Practice. “Practice” takes you through all the en-

rollment steps and helps you get a successful fingerprint

scan. You are asked to scan the same finger three times.

5. After you have practiced, you will be asked to scan one more time

for verification. After the verification is successful, tap Next to scan

your finger again, this time for real (not practice).

6. Place the selected finger over the nickel-colored ring and slowly,

with moderate pressure, drag your finger across the sensor from

right-to-left or left-to-right. Make sure your entire fingerprint (i.e., your

fingertip, not your whole finger) touches both the nickel-colored ring

and the sensor surface.

NOTE: If the capture is successful, you will see a green fin-

gerprint image in the capture area. If the capture is unsuc-

cessful, an information message appears, such as “Scan too

slow/too fast...” and the green fingerprint will not appear.

Swipe your finger across the sensor again as many times as

required for a successful scan.

7. After the first scan is successful (and a green fingerprint image

appears), OmniPass prompts you to scan your fingerprint additional

times. Wait until the green fingerprint disappears from the display

and the fingerprint image area is blank before swiping your finger

again. After OmniPass successfully captures three fingerprints, the

Verify Fingerprint window appears. Swipe your finger one more

time to complete the enrollment.

Chapter

Using Your Motion Tablet PC

Motion Computing LE1600 Tablet PC User Guide 43

When the messages “The selected finger has been enrolled in

OmniPass” and “Verification Successful!” and a green fingerprint

image appear, enrollment is successful and complete.

IMPORTANT: During the verification process, you may get

red fingerprint images or the message “Verification Failed.” If

this happens, tap the Back button and try again. You can have

as many tries as you need for enrollment and verification.

8. Tap Next. When you are asked if you would like to enroll a second

fingerprint, tap Yes.

IMPORTANT: We recommend that you enroll a second finger-

print. A finger injury could prevent authentication and block

access to your accounts.

9. Repeat Steps 6-8 to enroll a second fingerprint.

10. Tap Next. The Audio and Taskbar Settings window appears. You can

leave the defaults or change the settings, as desired.

11. Tap Next. The Congratulations window appears. OmniPass recom-

mends that you “Export” (backup or make a copy of) your user pro-

file so you can restore a lost or corrupted OmniPass configuration or

encryption keys. See the section “Exporting Your User Profile” on

page 46 for more information.

NOTE: You can export your profile at any time, but this may

not be the best time since you are a new user and your profile

has little information associated with it. You should backup

your profile later and on a routine basis to protect your config-

uration and any stored passwords and encryption keys.

12. Tap Done.

13. Tap Yes to log yourself on as a new user.

Chapter

Using Your Motion Tablet PC

Motion Computing LE1600 Tablet PC User Guide 44

Capturing a Second Fingerprint Later

Capturing a second fingerprint is a good practice to follow. While it is easier

to do this at the time of the initial enrollment, it is possible to capture a sec-

ond fingerprint later. To do so, open the Motion Dashboard, then tap the

following: Motion Security Center > Motion OmniPass > Manage

OmniPass Users and Settings > Change User Settings > Enroll

Authentication Devices (e.g. enroll a new finger). Then follow the

procedure to enroll.

Configuring Advanced OmniPass Features

OmniPass offers a number of advanced features that provide additional

password management for your Tablet PC beyond the basic convenience of

logging on.

CAUTION: Before configuring advanced features, please

read the Motion OmniPass Help, including any cautions or

warnings about features. Activating some features (specifical-

ly Strong Logon Security) may, as a normal part of the Om-

niPass operation, change the way your Tablet PC starts up

and/or the start-up options that are available. Before using ad-

vanced features, back up your user profile using the feature

provided.

To access these advanced features, tap the OmniPass icon in the system

tray and open the OmniPass Control Center, or open the Motion

Dashboard then Motion Security Center > Motion OmniPass. The

following is an overview of these features. For further information, refer to

the OmniPass Help.

•Motion OmniPass > Manage OmniPass Users and Settings

• Add/remove users

• Import a new user

• Export OmniPass user profiles; user profiles are stored as .opi

(OmniPass Import/Export) files

IMPORTANT: To restore a lost or corrupted OmniPass config-

uration and encryption keys, back up and store a copy of your

user profile(s) in a safe place.

• Motion OmniPass > Change User Settings

• Change user audio settings

• Change taskbar tips

• Modify file encryption settings

• Enroll authentication devices

• Set authentication rules and policies

NOTE: For instructions for setting up passwords, refer to “Re-

placing Password Logons” on page 45.

Chapter

Using Your Motion Tablet PC

Motion Computing LE1600 Tablet PC User Guide 45

• Change System Settings

• Startup options for Windows

• Strong Logon Security

• Vault Management — Password management for websites,

applications, or any password-protected resource

• Encrypt/Decrypt — Settings for authenticating encrypted/decrypted

files

Checking Logon Status. Move your pen over the OmniPass key icon in

the system tray to check. A pop-up window shows who is logged on.

Open the Motion Dashboard, tap Motion Security Center > Motion

OmniPass or tap the OmniPass key icon and open the OmniPass Control

Center and look at the Current User/Domain information in the second

panel on the left. See the OmniPass Control Center illustration for an

example of this window.

Replacing Password Logons. OmniPass lets you replace the password

logons at websites or anywhere you are prompted to provide your

credentials, such as Internet email, ftp logons, client logons, or any

restricted-access network resource. Once OmniPass registers your logon

credentials, you can conveniently access any of these restricted areas with

your fingerprint. You can also access these sites with your password.

Perform the following steps.

1. Go to a site that requires a log on (username and password), but do

not log on yet.

2. At the site logon prompt, enter your username and password in the

fields provided, but do not tap Enter, Submit, OK, or Logon or any

other method that accesses the site.

3. Right-click the yellow OmniPass key icon that appears in the system

tray at the bottom of the screen.

4. Tap Remember Password. The Windows arrow cursor will change

to the OmniPass “golden key” cursor.

5. Drag this OmniPass cursor to the area on the site where you would

normally enter your username and password to log on, but do not

tap “Logon” or “Submit” yet. (You will complete the logon in Step 9.)

6. If a “Friendly Name” window appears, enter a name that reminds

you of the website. OmniPass associates this name with this web-

site.

NOTE: Verify that the Settings for this Password Site are set

the way you want the site authenticated:

• Automatically enter ... — Instantly accesses the site

without requiring a password or fingerprint scan. If you

are logged in to OmniPass and you access a secure

website, OmniPass will automatically submit your user

name and password without prompting for verification. If

you leave your system unattended and unlocked, this

website can be viewed by anyone who has access to

your Tablet PC.

Chapter

Using Your Motion Tablet PC

Motion Computing LE1600 Tablet PC User Guide 46

• (Default) Automatically click ... — Prompts you for

your OmniPass/Windows password or fingerprint scan

when you access the site.

7. If needed, swipe your fingerprint or enter your master password to

authenticate these settings.

8. Tap OK, Submit, Sign In, or Logon to access the site.

9. Tap Finish to complete the “Remember Password” procedure. The

site location, the credentials to access the site, and the OmniPass

authentication settings for the site are now stored in the OmniPass

secure database.

Logging Onto a Remembered Site

1. Open a website where you have set up the OmniPass logon (that is,

a “Remembered Site”).

2. Swipe your finger when you are prompted for a fingerprint/master

password authentication.

NOTE: You can remove a remembered site through the

OmniPass Control Center > Vault Management >

Manage Passwords option.

Exporting Your User Profile. The OmniPass Help application contains

information about exporting your user profile. Go to Motion Dashboard

then Motion Security Center > Motion OmniPass, and tap Help in the

Action panel.

Configuring Strong Logon Security

Strong logon security can be configured to require authentication before

showing the Windows desktop. Be aware that enabling strong logon

security will force you to authenticate with a specific security device (e.g.,

the fingerprint reader, a Smart Card) before allowing access to the Windows

desktop. Once enabled, the Windows XP Welcome screen and Windows

fast switching will not be available on this Tablet PC.

1. To enable Strong Logon Security, open the Motion Dashboard, tap

Motion Security Center then Motion OmniPass to open the

OmniPass Control Center.

2. Tap Change OmniPass System Settings

3. Tap Enable strong logon security. The Enable strong logon

security window is shown.

4. Tap the checkbox: Enable strong logon security.

5. Tap the checkbox: Save all changes. A dialog box tells you that you

have made changes that require you to restart your computer.

6. Tap OK and restart your computer. During logon you will be required

to use the specified authentication device.

Chapter

Using Your Motion Tablet PC

Motion Computing LE1600 Tablet PC User Guide 47

Infineon Trusted Platform Module

The Infineon Trusted Security Platform Solution is a comprehensive set of

tools provided with your Tablet PC. Together, these tools and the Trusted

Platform Module (TPM) result in the one of the most secure computing

environments now available on a Tablet PC. With this application it is now

possible to create and manage digital certificates for user and platform

authentication. The Infineon TPM is not automatically enabled at startup

and requires system administrator action to enable the feature.

More Information About the Infineon Security Solution. Ask your

system administrator for more information or learn more about the Infineon

Security Solution by opening the Motion Dashboard then Motion Security

Center > Infineon TPM > Getting Started Guide.

Windows Security System Components Overview

Among the new security features, the Microsoft Windows Security Center

automatically sets up a Windows Firewall on your Tablet PC to block

unwanted access to your system over the internet and from other networks.

The Security Center system provides security alerts during startup and

messages while running Internet Explorer. These messages are a normal

part of the operating system. Microsoft provides information with these

alerts to help you decide what action to take.

In addition, you can set up the firewall to block all outside sources from

connecting to your system (recommended) or can make exceptions to allow

communications with a certain program. Within these settings, you can

change the scope to specify a set of computers for which this port or

program is unblocked.

Chapter

Using Your Motion Tablet PC

Motion Computing LE1600 Tablet PC User Guide 48

• Microsoft Security Center — Lets you check security

settings and learn more about improving security. Access

is via open Motion Dashboard > Motion Security

Center.

• Windows Firewall — On by default; helps protect your

Tablet PC against viruses and other security threats, such

as intruders who might try access over the Internet or a

network. Tap the Windows Firewall icon on the Control

Panel (Classic view) or the Security Center > Windows

Firewall icon (Category view). From here, you can add exceptions

to bypass selected programs and services. If a program or service

needs to open the firewall to perform, it notifies you and lets you

decide whether to open the firewall and allow access.

• Automatic Updates — Checks for the latest important updates and

installs them automatically. Configure from the Microsoft Security

Center.

• Internet Explorer — Provides security settings to warn you about

viruses and other security threats that can spread over the Internet

or other types of networks; blocks certain website features and gives

you a warning, so you can decide whether it is safe to proceed.

Access from Internet Explorer Tools > Internet Options > Security.

You can always bypass the settings for sites of your choice by

changing the options for that site.

Pop-up blocker in Internet Explorer. Stops most browser windows from

popping up without your permission, giving you more control over your Web

browsing experience. Access from Internet Explorer Tools > Internet

Options > Security. You can always bypass the settings for sites of your

choice by changing the options for that site.

Microsoft Security Center. The Windows XP Tablet PC Edition 2005

Operating System provides new security features that help defend against

viruses, worms, and hackers. To learn more about these features, go to

Motion Dashboard then Motion Security Center > Microsoft Security

Center or tap the Windows Security Alerts icon in the system tray (this

icon only remains active for a short time on your desktop).

Using Windows Security. Passwords protect your Tablet PC from

unauthorized access. Passwords can create different levels of protection for

your Tablet PC and its data.

• Operating system passwords — Secure the files on your Tablet PC from

other users

• BIOS (Basic Input/Output System) passwords — Secure the software

routines that test hardware at startup, start the operating system, and

support the transfer of data among hardware devices

• System password — Locks access to the BIOS set up

• Boot password — Locks access to the system

• Hard Disk Drive (HDD) password — Secures your data so the HDD

cannot be accessed by removing it and connecting it to another

Tablet PC

Chapter

Using Your Motion Tablet PC

Motion Computing LE1600 Tablet PC User Guide 49

Setting the Windows Operating System Password. Be aware that the

following advanced procedures require you to make changes in Windows

BIOS. You should not perform this procedure unless you are comfortable

with the following cautionary information. You can set up a Windows

operating system password going to Start > Control Panel > User

Accounts > Create a new account... (Classic View)

Setting BIOS Passwords.

CAUTION: We strongly recommend that you read the

information in this section carefully to understand the

implications of setting up a BIOS system password. If

you set up a BIOS System password and enter it in-

correctly several times, you will be locked out of the system.

If you become locked out, you can restart the Tablet PC and

retry the password again. You can restart the Tablet PC and

re-enter the password as many times as you need to. Howev-

er, if you are unsuccessful in entering the password, you will

not be able to access your Tablet PC.

If this happens, contact Motion Computing Technical Support

at www.motioncomputing.com/support for assistance. Have

your Tablet PC serial number available (on the label on the

back of the system).

The level of security you want on your Tablet PC helps determine what

BIOS password(s) you set.

Setting a BIOS System Password. Perform these steps to set up a

password to access the PhoenixBIOSTM Set Up Utility on the Tablet PC:

NOTE: These procedures describe using the pen to enter

information; you can also attach an external keyboard if you

prefer.

1. Start the Tablet PC.

2. When the Motion Computing splash screen appears, quickly press

Hot Key #2. If you miss the splash screen, turn the Tablet PC off

then back on and try this step again.

3. From the PhoenixBIOS Set Up Utility, tap Security on the menu bar.

4. To set up a System password, double-tap Enter next to Set

System Password.

5. Type in a System Password using the On Screen Keyboard.

6. Tap Enter.

7. Type in the password again to confirm it.

8. Tap Enter. The system returns to the Security screen and the Sys-

tem Password reads Set. A password is now required to enter the

PhoenixBIOS Set Up Utility.

Chapter

Using Your Motion Tablet PC

Motion Computing LE1600 Tablet PC User Guide 50

9. To set up a Password on boot, tap Disabled next to

Password on boot until Enabled is highlighted. You will not be

prompted to type in another password because Password on boot

uses the System password.

NOTE: You cannot set up Password on boot until you set up

a System password.

10.If you have finished setting up a password, tap Exit or press the

Esc key on the Tablet PC to exit the PhoenixBIOS Set Up Utility.

11. When you exit, you are asked to select from the following options:

• Exit Saving Changes

• Exit Discarding Changes

• Load Set Up Defaults

• Discard Changes

• Save Changes

12. Select the desired action.

13. Confirm the selection by tapping Yes.

Hard Disk Drive (HDD) Password. To set up a password to start the Tablet

PC (so no one can access the information on the HDD of your Tablet PC

even if it is removed and installed in another Tablet PC without the proxy

password):

1. Start the Tablet PC.

2. When the Motion Computing splash screen appears, quickly press

Hot Key #2. If you miss the splash screen, turn the Tablet PC off

then back on and try this step again.

3. From the PhoenixBIOS Set Up Utility, tap Security on the menu bar.

4. To set the HDD password, double-tap Enter next to Set Hard Disk

Password.

5. Type in a New Password.

6. Tap Enter.

7. Type in the password to confirm it.

8. Tap Enter. The system returns to the Security screen and the HDD

Password is Set. (When you exit then re-enter the PhoenixBIOS

setup, the HDD Password is Locked.)

9. If you have finished setting up a password, tap Exit or press the Esc

key on the Tablet PC to exit the PhoenixBIOS Set Up Utility.

10. When you exit, you are prompted to select from the

following options:

• Exit Saving Changes

• Exit Discarding Changes

• Load Set Up Defaults

• Discard Changes

• Save Changes

11. Select the desired action.

12. Confirm the selection by tapping Yes.

Clearing Tablet PC Security. To clear the Tablet PC PhoenixBIOS

security:

1. Start the Tablet PC.

Chapter

Using Your Motion Tablet PC

Motion Computing LE1600 Tablet PC User Guide 51

2. When the Motion Computing splash screen appears, quickly press

Hot Key #2. If you miss the splash screen, turn the Tablet PC off

then back on and try this step again.

3. From the PhoenixBIOS Set Up Utility, tap Security on the menu bar.

If you have rebooted, you will be prompted to enter the password(s)

you have set up.

4. To clear the System and Password on boot passwords, double-tap

Enter next to Set System Password.

5. Type in the Current Password.

6. Leave the space blank next to Enter New Password.

7. Tap Enter.

8. Leave the space blank to Confirm New Password.

9. Tap Enter.

10. When the Security screen appears, the System Password should be

Clear and the Password on boot Disabled.

11. To clear the HDD password, double-tap Enter next to Set Hard Disk

Password.

12. Type in the Current Password.

13. Leave the space blank next to Enter New Password.

14. Tap Enter.

15. Leave the space blank to Confirm New Password.

16. Tap Enter.

17. When the Security screen appears, the HDD Password should

now display Clear.

SPEECH Introduction to Speech

The speech recognition capability in the Tablet PC provides two distinct

operations; there is a Voice Command mode and a Dictation mode. These

selections are visible as buttons in the Tablet PC Input Panel (TIP). The

following steps lead to success in setting up the speech feature.

• View the tutorial on speech recognition

• Set acceptance angle and the skew using the Motion Dashboard

• Adjust microphone volume

• Go through training

Dictation mode requires additional training and results in converting your

spoken words into “typewritten” text. The Voice Command and Dictation

modes are described in this section.

Motion Speak Anywhere Technology

The Motion Speak AnywhereTM audio system combines the Knowles®

Acoustics IntelliSonicTM software application with integrated microphones to

let you record audio, dictate notes, and use voice commands without the

need for a microphone headset. These capabilities make the Motion Tablet

PC with Speak Anywhere technology a valuable tool for mobile users in a

variety of work settings, including small or large groups, or for individual

dictation or voice commands.

• Integrated microphones, two of the three are used at one time — The

integrated microphones help optimize the sound capturing capabilities of

Chapter

Using Your Motion Tablet PC

Motion Computing LE1600 Tablet PC User Guide 52

the Tablet PC for speech recognition and voice recording. The locations

of the microphones have been carefully designed to let the system

detect sound input from a specific angle, rejecting sounds from outside

that angle. There are three microphones; the software determines which

two of the three provide the best results.

• Knowles Acoustics IntelliSonic software — This software lets you direct

sounds coming from a specific direction to the microphones, while can-

celing interfering noise from other directions, thus minimizing the effects

of environmental noise and eliminating acoustic echo feedback. It is

based on the following audio technologies:

• Array Processing or “beam forming” software — Removes all sound

outside a software-defined “angle of acceptance”

• Noise Suppression — Removes background and ambient noise

• Acoustic Echo Cancellation (AEC) — Removes echo caused by the

microphone picking up the system’s speaker output, thus preventing

feedback

Speech Recognition

Speech recognition lets you convert spoken words into typed text or into

voice commands, you can use speech to correct errors, format text, or

control programs. This is sometimes quicker than typing or writing text.

Before you can use speech recognition, you must first train the system for

your voice, pronunciation, speaking pace, and inflection. These adjustments

are made through the Speech utility on the TIP window. Speech recognition,

including dictation and voice commands is available through the TIP

window. Tap the Tools and Options icon in the TIP. If this is the first time

you have activated Speech, you will be asked to complete the Voice

Training application. The more training you do, the better the speech

recognition.

• Dictation mode — Selected by tapping Dictation. Changes everything

you say to text; use to enter text directly into any document or text box

when you do not want to use the pen or keyboard

• Voice command mode — Selected by tapping Command. Listens for

specific words that correspond to an existing list of available voice com-

mands; use to quickly switch between programs, for saving documents,

etc.

NOTE: To turn off speech, tap the button for Dictation or Com-

mand (whichever you are using).

Tap here to activate

speech recognition

Chapter

Using Your Motion Tablet PC

Motion Computing LE1600 Tablet PC User Guide 53

For additional information about setting up speech recognition, you can tap

Help (the Question mark in the circle) on the TIP window and search for

“speech.”

Using Motion Dashboard Directional Controls. The Microphone settings

in the Motion Dashboard include three radio buttons that define the

directional angle that is to be used for speech recording. The selected

setting determines the angle of acceptance. The following information is

intended to help you understand the differences between the narrow,

medium, and wide angles. However, the best reference will be your actual

experience in using the technology. There are three microphones, but only

two are used at one time. If you are in landscape mode, the microphones

along the bottom edge (as viewed in primary landscape mode) of the Tablet

PC are used. If you are in portrait mode, the two microphones along the

right side are used.

•Angle of acceptance. Three pre-defined “angles of acceptance” are

part of the Motion Speak Anywhere audio technology:

• Narrow Angle — Best setting for dictation, Voice over IP, “voice

noisy” environments; the microphones detect sound on a narrow

angle near the bottom center (landscape orientation) or top center

(portrait orientation) of the display. If you do not speak within the

angle of acceptance, e.g., if you turn your head while dictating or

change the angle of the Tablet PC, the sound will not be recorded.

• Medium Angle (default) — Best setting for a small group, conference

table, “voice quiet” environment; microphones detect at a wider

angle

• Wide Angle — Widest angle of acceptance. Try starting with this

setting (even for dictation) before using a more restricted angle.

Change to the Narrow or Medium Angle to eliminate more

background noise.

1 Narrow Angle; 2 Medium Angle; 3 Wide Angle; 4 Microphones (only two of

the three are shown in the illustration).

• Skew angle. The pre-set sound detection area is straight in front of

the system display. If you want the system to receive sound from

Chapter

Using Your Motion Tablet PC

Motion Computing LE1600 Tablet PC User Guide 54

elsewhere, you can skew the receiving direction towards one or the

other microphone (keeping the same relative angle of acceptance.

Setting up the skew angle:

1. Open the Motion Dashboard.

2. Under Microphone, tap Narrow Angle or Medium Angle. (You can-

not calibrate wide angle.)

3. Move to where you want the microphone to detect your voice.

4. Tap Calibrate. A block of text appears.

5. Read the text aloud, speaking normally towards the Tablet PC micro-

phones. This should take 20-40 seconds.

NOTE: In many cases, you will not need to calibrate the

microphone because the audio system filters out many

unwanted sounds. If you are dictating in an office or recording

during a meeting, the audio system may work well with no

additional calibration.

IMPORTANT: The audio system does not store calibrations.

If you change to another angle/position and then return to the

previous one, you must re-calibrate the audio system.

Enabling Speech Recognition Enrollment. It is necessary to train the

system to your voice before you can use the Speech Dictation and Voice

Command capabilities of the Tablet PC. The procedure is used to adjust the

microphones and train the Tablet PC for the characteristics of your voice.

The entire process takes about 10 minutes. It is advisable to move to a quiet

environment before starting this procedure.

1. Open the Motion Dashboard and make sure the speakers and

microphone are turned on (the default settings).

2. Check that the speaker volume and microphone sound levels on the

Motion Dashboard are appropriate for your setting.

3. Tap the TIP icon on the menu bar at the bottom of the Tablet PC dis-

play. The TIP appears.

4. Tap the down-arrow beside Tools to open the Tools options.

5. Tap Speech. The first time you access this function, a Speech Rec-

ognition Enrollment message appears. You must adjust the micro-

phone and train speech recognition before continuing. Until you

complete speech training, the speech button is inactive. This takes

about 10 minutes.

6. Tap Next and follow the Microphone Wizard.

NOTE: To improve speech recognition, run additional speech

training sessions.

Using Speech Recognition: Setting Up Dictation or Voice Commands.

Once you activate speech recognition, depending on your work setting

(single-person office or small or large meeting) and what you plan to do

(dictate, use voice commands), you may want to change the Motion

Dashboard microphone angle from Medium (the default) to either Narrow

Chapter

Using Your Motion Tablet PC

Motion Computing LE1600 Tablet PC User Guide 55

or Wide. You may then also want to calibrate the direction of the

microphones.

1. Open the Motion Dashboard and select the desired angle.

2. (Optional) To use either Medium or Narrow Angle to dictate from a

direction other than directly in front of the display, tap Calibrate and

read through the calibration script.

NOTE: Calibration will skew the angle at which the micro-

phones detect your voice while keeping the same relative an-

gle of acceptance.

3. To start the Speech recognizer, open the TIP window.

4. Select Dictation (to convert spoken words into typed text) or

Commands (to use your voice to enter commands, such as “Enter,”

“Save,” “Open”).

NOTE: For more information about using this feature and for

available voice commands, see the Windows Help and Sup-

port Center where you can search for topics about speech

recognition and training. Also available are the speech tutori-

als. To find the speech tutorials, select Start > Help; then

Support > Welcome to Tablet PC > Tablet PC Tutorials.

Helpful Hints: Dictating and Recording

• You may want to start recording or dictating from the Wide Angle

(Motion Dashboard setting) and change to a more-restricted angle

(Narrow or Medium) if too many outside sounds are recorded. The

advantage to the Wide Angle is that no sounds will be lost if you change

your location. The disadvantage is that outside sounds may be picked

up that interfere with the recording.

• You MUST recalibrate the microphones if you change from one orienta-

tion (landscape) to another (portrait). This is because the skew angle

changes and the sound will no longer be in the angle of acceptance. If

necessary, refer to the earlier information on skew angle.

• Even with the Narrow Angle setting, if a sound is loud enough and within

the angle of acceptance (no matter how distant), the sound will be

picked up by the microphones. The advantage of the Tablet PC is that it

detects fewer extraneous sounds than other audio systems. You can fur-

ther limit the detection of these outside sounds by turning down the

microphone volume and speaking louder; this reduces the microphones’

range and restricts their ability to detect extraneous sounds.

• The Tablet PC contains pre-installed audio components. If you install a

third-party audio device (such as USB or Bluetooth devices), the Motion-

installed audio may not work. If this happens, you must reinstall the

Motion-audio components. (The Motion audio components are the Sig-

maTel and Knowles Acoustics audio drivers.) After you install these, if

you still have problems recording, contact Motion Technical Support or

the Bluetooth or USB manufacturer’s technical support.

• To improve speech recognition, run additional speech training sessions.

Open the Windows Control Panel and select Speech to perform addi-

Chapter

Using Your Motion Tablet PC

Motion Computing LE1600 Tablet PC User Guide 56

tional speech training. As you do this, speech recognition accuracy will

gradually improve.

PORTS, SLOTS

AND

CONNECTORS

PC Cards

The PC Card slot (also referred to as a PCMCIA card slot), located on the

right edge of the Tablet PC, holds one Type-II PC Card for networking,

memory expansion, or accessory connection.

1. To install a PC Card, insert it label side up.

2. To remove a PC Card, push the button next to the slot until it

pops out.

3. Push it again to eject the PC Card.

NOTE: Your Tablet PC ships with a plastic blank card in the

PC Card slot. When the slot is not in use, we recommend that

you leave the plastic blank in place.

SD Cards

The SD Card slot, located just above the PC card slot on the right edge of

the Tablet PC, holds one SD Card for networking, memory expansion, or

accessory connection.

1. To install an SD Card, insert it in the slot, label side up.

2. To remove the SD Card, grip the edge of the card and carefully pull it

from the slot. Notice that the edge of the Tablet PC is curved slightly

in the area of the SD Card. This makes it easier to grip the edge of

the card for insertion and removal.

Infrared (IrDA) Port

The IrDA port is located on the right edge of the Tablet PC near the SD Card

slot. The infrared connection protocol allows transfer of data or digital

images from any IrDA enabled device to the specified file location on the

Tablet PC. Typically, the devices must be within three feet of each other.

USB Ports

There are two high speed USB ports on the left edge of the Tablet PC.

These can be used to attach any USB device to the Tablet PC. Typically a

USB device draws power from the Tablet PC and it is advisable to use AC

power when one or more USB devices are attached. Running USB devices

while on the battery power will affect your power consumption.

Speaker Port

The speaker port is on the left edge of the Tablet PC. It is marked with a

small headphones symbol and is designed as an audio output channel only.

You can attach external speakers or headphones to this port. When

headphones or external speakers are attached, the internal speakers are

disabled.

Chapter

Using Your Motion Tablet PC

Motion Computing LE1600 Tablet PC User Guide 57

Microphone Port

The microphone port is on the left edge of the Tablet PC. It is marked with a

small microphone symbol and is designed as an audio input/line in channel

only. You can attach an external microphone directly to this port to enhance

your audio recording capabilities. When an external microphone is attached,

the built-in microphones are disabled.

DVI-D Connector

The DVI-D (Digital Video Interface) Connector is on the left edge of the

Tablet PC and is identified by the DVI-D designation. This connector is

provided for the direct attachment of a digital video monitor. An optional

DVI-D cable is available from Motion Computing for this purpose. When an

external monitor is attached, the Motion Dashboard display settings can be

used to set the external display as a mirrored or extended display.

VGA Connector

The VGA Connector is on the left edge of the Tablet PC. It is intended for

use with standard analog video displays. An attachment cable is not

provided for this purpose; if you use the Tablet PC with a standard VGA-type

display, you will need to purchase a corresponding cable. When an external

monitor is attached, the Motion Dashboard display settings can be used to

set the external display as a mirrored or extended display.

Docking Connector

The Docking Connector is at the bottom edge of the Tablet PC. It is

designed to integrate the Table PC with the new Motion FlexDock for the LE

Series. When the Tablet PC is used with the new FlexDock, the port

connections on the Tablet PC are replicated on the FlexDock. For more

information about the new FlexDock for the LE Series, contact your Motion

sales representative or visit the Motion Computing website at

www.motioncomputing.com/accessories.

WIRELESS

NETWORKING

There are three technologies available in the Tablet PC for wireless

networking connections.

• Wi-Fi (802.11)

• Bluetooth

• Infrared

Wi-Fi (802.11) Wireless Connections

IMPORTANT: Since wireless set ups differ widely, the infor-

mation presented here is general and may not cover all the

steps required for your wireless configuration. For more infor-

mation about wireless networks, you may need to contact

your System Administrator. Or, go to Start > Help and Sup-

port and search for wireless help from Microsoft.

Although wireless access is available in public areas, your ability to use the

wireless access point depends on the following conditions:

Chapter

Using Your Motion Tablet PC

Motion Computing LE1600 Tablet PC User Guide 58

• Distance from the access point

• Ability to connect to the access point

• Service rights to it (which may require an account fee, user name, pass-

word, an/or network set up through an administrator)

• The access point is not broadcasting a network name (Check your secu-

rity settings, the SSID may not be broadcasting)

• The security settings may not be configured properly for wireless net-

working.

WARNING: FAA regulations require that you disable

any wireless connection when traveling by air. If the

Wireless LED on the front of the Tablet PC is off, in-

ternal wireless communications are disabled.

Enabling/Setting Up a Wireless Connection Through the Motion

Dashboard.

1. Open the Motion Dashboard and make sure that Enable Internal

802.11 Wireless Radio is checked.

2. Under Wireless on the Motion Dashboard, tap Properties.

3. In the Wireless Network Connection Properties window, tap the

Wireless Networks tab.

4. In the Wireless Networks window, tap View Wireless Networks to

see a list of available networks

Chapter

Using Your Motion Tablet PC

Motion Computing LE1600 Tablet PC User Guide 59

5. Highlight the network you want to connect to and tap Connect.

6. Tap OK.

NOTE: If you are on a secure network, you may also need to

enter a network key.

Bluetooth Wireless Connections

The internal Bluetooth wireless radio in the Tablet PC is disabled by default.

This setting is found in the Motion Dashboard.

Bluetooth software comes pre-installed on your Tablet PC. To begin using

Bluetooth, open the Motion Dashboard, and check the box that enables

your internal wireless Bluetooth radio. The Bluetooth software completes it’s

installation.

How To Access Bluetooth. When

you first enable Bluetooth on your

Tablet PC, you will see a Bluetooth

icon in the system tray. This icon

offers shortcuts to the Bluetooth Settings window, the Bluetooth File

Transfer Wizard, and the Add New Connection Wizard. Press and hold the

pen tip on the Bluetooth icon to open the Bluetooth Settings menu.

Bluetooth Device Connection Process. The following process is

generally common for connecting most Bluetooth devices (keyboard,

mouse, printer, cellular phone, PDA, Tablet PC, notebook PC, etc.). The

actual steps may be slightly different for every type and brand of Bluetooth

device. Read and follow the installation instructions included with your

Chapter

Using Your Motion Tablet PC

Motion Computing LE1600 Tablet PC User Guide 60

specific device. These are the four generic steps for connecting to a

Bluetooth device.

1. Discover

2. Search

3. Pair

4. Connect

1. Make the device discoverable. Making a Bluetooth device discoverable

makes it visible to other Bluetooth devices. Each Bluetooth device uses a

different method (pressing a button or key combination) to make it

discoverable; this is generally described in the device’s documentation.

2. Search for Bluetooth devices in range. This process will find every

Bluetooth device that is discoverable and available for connection within 33

feet (10 meters).

3. Pairing. Using a passkey creates a secure connection (pairing) between

the Tablet PC and Bluetooth device. This passkey helps prevent data from

being intercepted and interpreted by another device.

IMPORTANT: Though the passkey exchange helps to secure

your data, Bluetooth wireless technology should not be con-

sidered completely secure.

4. Connect the devices. The first time a Bluetooth device is connected to

the Tablet PC the drivers are loaded for that device. After this initial

connection, some Bluetooth devices may disconnect when they go into

power-saving mode. Most will automatically reconnect when they become

active again.

Using the Bluetooth Application

1. Make sure that either the Bluetooth LED is flashing or that there is a

checkmark beside Enable Internal Bluetooth Wireless Radio

(both indicate that Bluetooth is running) in the Motion Dashboard

2. Using your pen, single tap the Bluetooth Devices icon in the

system tray.

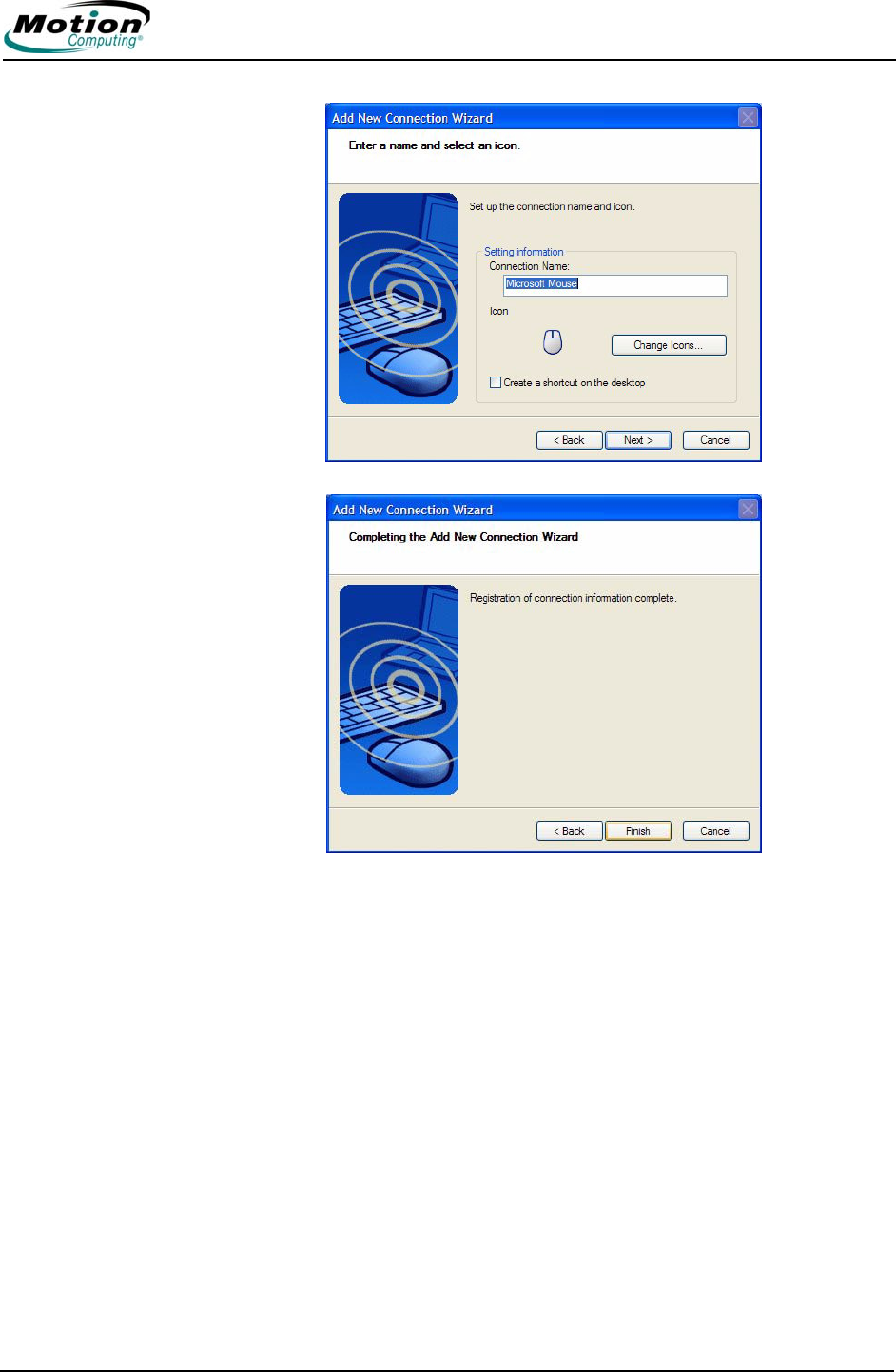

3. Tap Add New Connection to launch the Bluetooth Add New Con-

nection Wizard.

The Bluetooth Settings window is shown, quickly followed by the Add

New Connection Wizard.

Chapter

Using Your Motion Tablet PC

Motion Computing LE1600 Tablet PC User Guide 61

4. Place the Bluetooth device (mouse, keyboard, printer, etc.) in dis-

coverable mode.

NOTE: Each Bluetooth device may have a different way to

make it discoverable. Some have a small button on the back

of the mouse or keyboard; others may require that you press

a key sequence on the keyboard. Look at the documentation

that came with the Bluetooth device or visit the manufactur-

er’s website for information.

5. After you make the Bluetooth device discoverable, tap Next. The

“Searching for Bluetooth devices” window is shown.

When the Bluetooth device is detected, it is shown in the Add New

Connection Wizard Select a device window. If multiple devices are

detected, each is shown in the window. Select the device to be

connected.

Chapter

Using Your Motion Tablet PC

Motion Computing LE1600 Tablet PC User Guide 62

6. Tap Next to add the Bluetooth device.The wizard searches for

remote device services. The Wizard will display a message that it is

connecting and then the passkey number if authentication is

required.

NOTE: If required, immediately enter the number shown in

the Passkey field and press Enter. Consult your device docu-

mentation for more information.

It may take a short time to complete the connection. Please

wait.

7. When the Completing the Add Bluetooth Device Wizard window

appears, the Bluetooth installation is nearly complete. Tap Finish to

complete the installation

Chapter

Using Your Motion Tablet PC

Motion Computing LE1600 Tablet PC User Guide 63

8. Take your device for a spin. You can now begin using your Bluetooth

device.

Important Steps to Take If the Device Is Not Discovered

If the Tablet PC fails to detect the Bluetooth device after what you consider a

reasonable number of attempts, try the following:

• Make sure the Bluetooth LED is flashing. If not, open the Motion

Dashboard and enable the Bluetooth Wireless radio button.

• Make sure the device you are adding is discoverable. There are

several things you need to check:

• Install new or fully charged batteries in the Bluetooth device; make

sure these are installed correctly

• For keyboards, mice, printers, etc., read the instructions that came

with the device or visit the device manufacturer’s website for

information and other troubleshooting tips. Some devices have a

button to press or a series of keys to press to make it discoverable.

Chapter

Using Your Motion Tablet PC

Motion Computing LE1600 Tablet PC User Guide 64

• Also with keyboards, mice, printers, etc., be sure that when you go

through the Add Bluetooth Device Wizard that you place a

checkmark beside “My device is set up and ready to be found.”

• For Tablet PCs transferring files, both Tablet PCs must turn on the

device transfer wizard, although only the receiving Tablet PC needs

to be discoverable. Tap the Bluetooth icon and then either “Send a

file” or “Receive a file.” When you do this, discovery is automatically

turned on for the receiving device.

• Also for Tablet PCs, you need to enable “Allow Bluetooth devices to

connect to this computer” to connect to keyboards, mice, printers,

etc. While this is the default, make sure that this setting has not been

changed. You find this by right-clicking the Bluetooth icon > Show

Bluetooth Devices > Options.

• When you open the Bluetooth Devices tab, only the connected

devices will be displayed. Other devices are only displayed when

you add a device using the Bluetooth Device Wizard.

• Check to see what Bluetooth devices are connected. Tap the

Bluetooth Devices icon > Open Bluetooth Settings. On the

Devices window, you should be able to see Bluetooth devices that

are currently connected.

If the Bluetooth card in the Tablet PC still fails to detect the Bluetooth device,

contact the device manufacturer or visit their website for assistance.

NOTE: A system reboot is not required.

The Bluetooth device is ready to use. If you look at the Blue-

tooth Settings window, the connected device or devices are

shown. An example of a Bluetooth Settings window with

both a Bluetooth keyboard and a Bluetooth mouse is shown

below.

Switch to Other Bluetooth Software. Your Tablet PC comes pre-installed

with Bluetooth from Toshiba. Windows XP Tablet PC Edition 2005 supports

certain Bluetooth devices natively (e.g., keyboards and mice).

Chapter

Using Your Motion Tablet PC

Motion Computing LE1600 Tablet PC User Guide 65

If you would prefer to use the Windows XP Tablet PC software, please visit

http:\\selfhelp.motioncomputing.com for instructions on switching to the

native Bluetooth software.

Helpful Hints: Bluetooth Wireless

Motion Computing and its Bluetooth partners have worked to ensure a

positive experience with this technology, as well as to ensure Bluetooth

inter-operability. In doing so, the following operating issues have been

found:

• When simultaneously operating Bluetooth wireless and 802.11 wireless,

interference between these wireless technologies impacts Bluetooth

performance. This is most noticeable when you try to transfer large

amounts of data, such as file transfers or printing large documents. This

may also be noticeable when you try to transfer large or small amounts

of data may if several Bluetooth devices are operating simultaneously in

an office.

• Bluetooth audio support is currently based on technology that has not

been fully developed for speech recognition. In addition, the Bluetooth

software in the Tablet PC does not have a pre-installed Bluetooth head-

set profile. Therefore, for speech recognition, we recommend that you

not use a Bluetooth wireless headset. Moreover, the Motion Speak Any-

where technology is designed to record clear audio, dictate notes, and

use voice commands without the need for any type of microphone head-

set.

• Should you attempt to install other wireless headset or other audio driv-

ers (such as Bluetooth or USB) over the Tablet PC audio drivers, a mal-

function of the Tablet PC audio system may occur because the drivers

may not be compatible.

• Because Bluetooth is a relatively new technology, some cross-device

compatibility issues may occur. If you are having problems with inter-

pretability of Bluetooth devices, contact the manufacturer of your Blue-

tooth device and check its compatibility with the Bluetooth software

installed on your Tablet PC.

• Do not install Bluetooth software from another manufacturer over the

Microsoft Bluetooth software installed on the Tablet PC. This will cause

malfunction of the Tablet PC Bluetooth system.

Using Infrared Wireless Connections

The infrared software is installed by default. You can access the Infrared

software by going to the Control Panel and tapping the Wireless Link icon.

Chapter

Using Your Motion Tablet PC

Motion Computing LE1600 Tablet PC User Guide 66

Double-tap the Wireless Link icon to open the Wireless Link window. The

following shows the Wireless Link window at the Infrared tab. Tap the

desired checkboxes.

Accessing Image Transfer. To transfer an image from your camera to

your Tablet PC, tap the Image Transfer tab in the Wireless Link window.

The Image Transfer window is shown. Specify the destination of the

received image(s) and tap OK to begin.

For information about the Infrared Port, tap the Hardware tab to open that

window.

Chapter

Using Your Motion Tablet PC

Motion Computing LE1600 Tablet PC User Guide 67

CONFIGURING

BUTTONS

This section shows you how to program some of the buttons on the front

panel of the Tablet PC. It is not necessary for you to customize the buttons,

especially at this point in the learning process. Just be aware that it can be

done, and as you become more familiar with the Tablet PC, you may want to

customize your buttons.

You can configure some of the Tablet PC buttons so they perform the

functions that you want them to perform.

• Escape button (Secondary function is programmable)

• Function button (not programmable)

• Five-way directional control buttons (Secondary functions of each key

are programmable)

• Hot Keys 1 and 2 (Primary and Secondary functions are

programmable)

• SAS (Ctrl+Alt+Del) (not programmable) - this button is located on the

front panel in the upper left corner (when in primary landscape orienta-

tion) above the key icon and the fingerprint reader.

Button Default and Programmable Functions

Button Primary

Function Programmable

Secondary

Function

(Press Fcn button

+ this button)

Escape Escape key Secondary function is

programmable

Alt + Tab

Function Function + other

button activates

secondary function

Not programmable No secondary

function

Esc button

Fcn button

Five- way directional control

Dashboard/Hot key #1

Rotate/Hot key #2

SAS button

Tablet PC Buttons

Chapter

Using Your Motion Tablet PC

Motion Computing LE1600 Tablet PC User Guide 68

To change the default button properties:

1. Open Motion Dashboard and tap Pen and Button Options. Or,

double-tap the Tablet and Pen Settings icon in the system tray,

located in the lower right corner of the display window.

2. Tap Tablet Buttons.

3. Highlight the name of the tablet button you want to reprogram. The

button being programmed turns red.

4. Tap Change.

5. On the Change Button Functions window, tap the down-arrow

beside Action. This opens the list of actions.

6. Select a new action from the list.

NOTE: For some actions, you only need to select the action

itself to change the button property. For others, such as to

launch a program, you must browse and find the program; or,

to set up a key combination, you must press a sequence of

keys. You can also tap Reset to return to the button defaults.

7. Tap OK. In the list of Actions, you should see the new action for the

button you programmed.

Five-way

Directional

Control Button

Works like the

arrow keys on a

keyboard. The

center of the button

works like the

Enter key.

Secondary

functions are

programmable

Left arrow = Shift

+Tab

Right arrow = Tab

Up arrow = Page Up

Down arrow = Page

Down

Dashboard/Hot

Key # 1

Opens Motion

Dashboard

Both primary and

secondary functions

are programmable

Open Windows

Journal

Rotate/Hot Key

# 2

Rotates the display Both primary and

secondary functions

are programmable

Open Tablet PC

Input Panel

SAS

(This button is

located at the top

left corner with a

key icon)

Ctrl + Alt + Del

(Windows Task

Manager). Also used

for domain

authentication or

logon screen.

Not programmable No secondary

function

Chapter 3

Care and Maintenance

Motion Computing LE1600 Tablet PC User Guide 69

Chapter

Care and Maintenance

This chapter describes various care and maintenance procedures that you

should do on a routine basis with your Motion Tablet PC.

CARING FOR

YOUR TABLET

PC AND ITS

ACCESSORIES

The Tablet PC display and chassis are designed to be very durable. This

section describes the proper care and maintenance that will keep them

working and in good condition for a long time. For general information about

care of the Tablet PC and its components and accessories, see the

Regulatory and Safety Guide packaged with your Tablet PC.

CAUTION: Be sure to follow the guidelines listed be-

low when caring for your Tablet PC and its compo-

nents. Improper use may damage the Tablet PC and/

or its components and void the warranty.

General Care

• Protect the Tablet PC from exposure to extreme temperatures, shock,

liquids, and strong magnetic fields.

• Do not open or disassemble the Tablet PC other than to replace memory

modules or to replace the battery. Always follow the instructions

included with these accessories when performing these procedures.

WARNING: To avoid the risk of personal injury or

damage to the Tablet PC, when replacing memory

modules, turn off your Tablet PC, unplug the AC pow-

er connection, and remove the battery. Ground your-

self by touching a grounded conductive surface,

such as a device or appliance with a grounded,

three-pronged plug. Avoid touching the pins and

leads on the memory and the internal circuitry of the

Tablet PC.

Chapter 3

Care and Maintenance

Motion Computing LE1600 Tablet PC User Guide 70

• When storing the Tablet PC for an extended period of time, unplug AC

power and remove the battery after discharging it part way.

• Do not place heavy objects on top of the Tablet PC.

Caring for the Standard and View Anywhere Displays

• General cleaning of either display — Clean fingerprints and most marks

from the display surface by wiping it with the soft cloth (provided). Never

spray or pour liquids directly onto the display surface itself. Never use an

abrasive cleaner on the display. If liquid is spilled on the display, wipe it

up immediately.

• Cleaning the standard display — If needed, spray a soft cloth (not

directly on the display) with a window-type cleaner and wipe the

display.

• Cleaning the View Anywhere Display — If needed, clean with any

alcohol-based product recommended for use on anti-reflective

glass. Other cleaning products may leave a residue.

• Avoid using tissues or paper towels to clean the display surface. These

contain wood fibers that can scratch the display.

• Use only the Motion Digitizer Pen on the display. Do not write on the sur-

face with an ink pen or pencil, any pointed or other object that could

damage the display surface.

• Do not place heavy objects on the display surface.

• Protect the display surface from unnecessary contact by using the Hard-

top Cover or a portfolio when transporting the Tablet PC.

• Avoid exposing the display to direct sunlight for long periods of time.

Caring for the Motion Digitizer Pen

• Always store the Motion Digitizer Pen in the Tablet PC pen bay or in the

portfolio when not in use.

• Do not store the pen vertically on the tip. Constant tip pressure can

affect the pen-to-digitizer interaction.

• Change the pen tip regularly. See the CAUTION and refer to “Replacing

the Pen Tips” on page 70.

• The pen contains sensitive electronics. Do not immerse it in liquids.

CAUTION: Certain environments may contain parti-

cles or debris that can adhere to the Tablet PC dis-

play or to the pen tip. To avoid damaging the display,

clean it frequently with the cleaning cloth, provided

with your system. Also, change pen tips regularly,

especially if you drop the pen onto a rough surface

that could damage the tip or embed debris in it. Dam-

aged pen tips can scratch the display. Consider us-

ing a Motion Slip Case to protect the display and the

pen.

Replacing the Pen Tips. Normal use eventually wears down the pen tip, so

the pen ships with extra tips and a small “tip tool” for replacing them.

1. Grasp the old tip with the silver ring of the tip replacement tool. Use

the notch on the ring to grab the tip.

2. Pull the old tip out of the pen.

Chapter 3

Care and Maintenance

Motion Computing LE1600 Tablet PC User Guide 71

3. Insert a new tip.

4. Apply slight pressure to push it into place.

Ordering New Pens

To order additional pens, visit the Motion Computing website at

www.motioncomputing.com/accessories.

TRAVELING

WITH YOUR

TABLET PC

Here are some tips for traveling with your Tablet PC:

• Remove all accessories and cables. Remember to pack those you will

need while traveling and do not forget to pack at least one Motion

digitizer pen.

• Attach the Hardtop Cover or slip the Tablet PC into a portfolio to protect

the display.

• Protect the pen by keeping it in the Tablet PC pen bay or portfolio case

during travel.

• Pack the Tablet PC securely in a briefcase or hand-carried luggage, and

keep it separate from toiletries, liquids, and food. Do not pack it in

checked luggage when you travel.

• Keep the Tablet PC stable during travel; secure it to prevent it from slid-

ing around in overhead bins and car trunks.

NOTE: For travel warnings, see the section “FAA Wireless Air

Travel Requirements” in this chapter.

Traveling by Air

• Prepare for airport security by charging the battery in the event Security

asks you to start the Tablet PC.

• Have it hand-inspected or sent through the X-ray scanner, but never

carry it through the metal detector.

• Either turn off or place the Tablet PC in hibernation mode for takeoff

and landing.

FAA Wireless Air Travel Requirement

WARNING: The FAA requires that you suspend

wireless operations, such as 802.11 and Bluetooth,

before boarding the plane. The easiest way to dis-

able internal wireless operations is by pressing the

Wireless on/off button for 1/2 second. You can also

uncheck (disable) all wireless devices in the Motion

Dashboard. The wireless LED on the Tablet PC

front panel, shown here, is off when wireless commu-

nications are disabled. To disable external wireless

operations, remove any installed wireless PC Cards.

WARNING: Do not transport the Lithium-ion batter-

ies used in your Tablet PC in checked baggage. You

may take up to two spare batteries in carry-on lug-

gage in addition to the one in your Tablet PC.

Transporting batteries in checked baggage or trans-

porting more than two spare batteries is a violation

of transportation regulations.

Chapter 3

Care and Maintenance

Motion Computing LE1600 Tablet PC User Guide 72

Other Travel Hints

• Before extended use in the field or long trips away from AC power,

adjust the Power properties to maximize battery conservation. Right-

click the Power Meter icon in the system tray to open the Power

Options Properties dialog box. Then adjust the options. For more infor-

mation, refer to “Helpful Hints: Battery and Power Management ” on

page 36.

• For international travel, obtain and use the appropriate adapters for your

destination’s electrical outlets. A current converter is not necessary.

• You may want to carry proof of ownership or a merchandise passport

when traveling internationally.

• Consult your insurance company and credit card company to learn

about emergency travel assistance in the event your Tablet PC becomes

lost or disabled.

SYSTEM

REPAIR/

RECOVERY

PROCEDURE

You may never need to perform this procedure, but in the event that your

system shows signs of instability or corruption, it may become necessary. In

most cases, once initiated, this procedure lets you repair the Tablet PC hard

disk drive and retain the original system data, applications, passwords, and

settings with no data loss.

In those cases where no repair is possible, this procedure overwrites your

system data. You can cancel the procedure before the recovery process

begins. In this case, you may want to contact your system administrator for

assistance.

1. If possible, back up your data files.

2. Turn off your Tablet PC.

3. Insert the Motion Tablet PC Operating System Recovery CD (Win-

dows XP Professional Service Pack 2) into the CD-ROM drive and

start the Tablet PC.

4. When prompted, press any key to boot from the CD.

5. On the Set Up screen, select ENTER to set up Windows XP.

NOTE: Do not select R=Repair before you accept the End

User License Agreement (EULA). If you do, you must exit this

procedure, shut down and restart your Tablet PC, then accept

the EULA before proceeding.

6. Press F8 to accept the terms of the End User License Agreement.

7. When the next options appear, select from the following:

IMPORTANT: If Windows XP cannot repair your system, this

procedure automatically skips to the second option, ESC =

Don’t Repair (reformatting):

• R = Repair option — Installs Windows XP Tablet PC Edition 2005 on

your system, preserving your system data, applications, passwords,

and settings

• ESC = Don’t Repair (reformatting) option — Reformats your hard

disk drive. If Windows XP automatically skips to this option (that is,

no repair is possible), you must decide whether to reformat now or

Chapter 3

Care and Maintenance

Motion Computing LE1600 Tablet PC User Guide 73

cancel the procedure. If you decide to reformat, select either Format

the partition using the NTFS File System or the NTFS File System

(Quick). If you decide not to reformat, select ESC to cancel the

procedure.

8. Continue following the on screen instructions.

9. After your operating system has been reinstalled, you will be

prompted to insert the Motion Drivers and Utilities Recovery CD.

• For a repaired system, this process completes quickly. If

your system notifies you to reboot, restart your system.

• For a reformatted system, this process takes some time

while the drivers and utilities are reinstalled. Once Win-

dows loads, your settings and drivers begin to install.

Your system may reboot several times during this pro-

cess. No action is required. At this point, you may need

to install additional software (such as Microsoft Office),

as appropriate, from the Motion Application CD. You

may also want to restore your personal preferences and

settings.

Chapter 3

Care and Maintenance

Motion Computing LE1600 Tablet PC User Guide 74

This page is intentionally blank.

Appendix

Troubleshooting and Support

Motion Computing LE1600 Tablet PC User Guide 75

Appendix

Troubleshooting and Support

All Motion Computing Tablet PCs have passed a rigorous series of

performance and quality-control tests, but now and then a problem may

occur. If you do not see a solution among the following system and software

issues, check the section “Support Options” in this chapter or go to our

website at www.motioncomputing.com/support.

SOLUTIONS TO

COMMON

PROBLEMS

PROBLEM CAUSE SOLUTION

POWER

The Tablet PC won’t start when I

slide the Power switch.

The Power switch hasn’t been

fully engaged.

Slide and hold the power switch

for at least a half-second, but no

more than three seconds.

Fully discharged battery or no

battery and no AC power.

Connect the AC adapter to

operate the Tablet PC and charge

the battery.

The Tablet PC won’t shut down. An application has locked up the

Tablet PC.

Press the SAS button (small

button with a key icon nearby) to

start Windows Task Manager and

close the application, or

Slide and hold the power switch

for at least 5 seconds to force a

shutdown of the Tablet PC.

The Tablet PC won’t enter

Hibernation mode.

Hibernation isn’t enabled. Enable Hibernation through Power

Option Properties.

Appendix

Troubleshooting and Support

Motion Computing LE1600 Tablet PC User Guide 76

The Tablet PC won’t come out of

Hibernation mode when running

on battery power.

Fully discharged battery and no

AC power.

Connect the AC adapter to

provide power to the Tablet PC

and charge the battery.

The display goes black while the

Tablet PC is still turned on.

The Tablet PC system has gone

into stand by after sitting idle for a

period of time. (In this state, the

power LED flashes blue.)

Slide the power switch for about a

second to resume operations.

System has gone into low-battery

Hibernation mode. (In this state,

the power LED is off.)

1. Slide the power switch for about

a second to resume operations. 2.

Connect the AC adapter to the

Tablet PC to charge the battery.

BATTERY

Data loss during battery swap. The unit is designed to maintain

the data and settings for up to 30

seconds in stand by while you

swap the battery. This time may

vary due to your system and the

programs you’re running.

When you swap the battery with

the unit in stand by, be sure to

save your data before removing

the battery to avoid data loss.

The battery seems to run down

very quickly (lasting less than

three hours after a full charge).

Accessory devices such as a DVD

player and applications that make

heavy use of the hard drive drain

the battery more quickly.

Use AC power when possible and/

or turn off the accessory devices.

The battery is weakening or

defective.

All batteries weaken over time, but

if a new battery is needed, visit the

Motion website to order a new

battery.

DISPLAY

The desktop is too big for the

display – I can’t see all of the

desktop icons.

Screen resolution is set higher

than the default 1024 x 768 with

32-bit resolution.

Decrease the screen resolution by

opening the Motion Dashboard,

selecting Graphics Properties,

then the Schemes tab.

Appendix

Troubleshooting and Support

Motion Computing LE1600 Tablet PC User Guide 77

When I disconnected a second

monitor from the Tablet PC, the

image became too big for the

Tablet PC display.

The Tablet PC has attempted to

spread the image of a window or

desktop beyond the screen area

of the active monitor.

1. Tap the Properties button on the

Motion Dashboard.

2. Tap Graphics Options, then

Graphics Properties... to open the

Properties screen.

3. Select Notebook to make the

Tablet PC the primary display.

The display looks dim. Brightness is set too low. Adjust brightness from the Motion

Dashboard.

The screen is unreadable or

distorted.

Screen resolution and/or color

quality are set incorrectly.

Reset resolution to 1024 x 768

and color quality to 32-bit by

opening the Motion Dashboard,

Graphics Properties, then the

Schemes tab.

Display driver has become

corrupted or uninstalled.

1. Open the Windows Control

Panel, select Performance

and Maintenance (Category

View). or System (Classic

View).

2. Select the Hardware tab.

3. Select Device Manager.

4. Open Display adapters.

5. Double-tap on an adapter.

6. Select the Driver tab.

7. Choose Update Driver... and

follow the Installation Wizard.

PEN

The Tablet PC digitizer screen

doesn’t respond to the plastic

stylus I use on my PDA.

You’re using the wrong input

device.

Only the Motion Digitizer Pen lets

you write on the Tablet PC display.

The Tablet PC doesn’t respond to

other tablet pens or to a plastic

stylus.

The Motion Digitizer Pen tip

doesn’t line up with the arrow-

cursor when I tap on the screen.

The pen and display need

recalibrating.

Open the Motion Dashboard and

select Calibrate.

Appendix

Troubleshooting and Support

Motion Computing LE1600 Tablet PC User Guide 78

When I write, I unintentionally click

the pen function button while I’m

writing with the pen.

You’re pressing the pen button

with your thumb or finger when

you write or gripping the pen too

tightly and accidentally pressing

the pen button. This enables the

right-click function of the pen.

Try these hints:

• Readjust how you hold the pen.

Place your fingers on either side

of the pen function button when

you write.

• Practice using the pen function

button with both your index fin-

ger and thumb to see which

you prefer.

• Relax your grip. Only a light

touch is needed to write with

the pen.

• Deactivate the pen right-click

function through Tablet and Pen

Settings. Instead, press and

hold the pen to the display sur-

face to right-click.

The pen button doesn’t work. I

can’t get it to right-click.

The right-click option for the pen

button may be deactivated.

Re-activate the right-click option:

Double-click the Tablet and Pen

Settings icon, select Pen Options,

and reselect Use pen button to

right-click. Select Apply>OK.

You may not be correctly timing

clicking the pen button and

tapping the pen on the display.

To right-click, hold the pen button

down and then firmly tap on the

display.

The buttons on the Tablet PC

don’t do what I expect them to do.

Button functions have been

changed.

Double-tap the Tablet and Pen

Settings icon, then Tablet Buttons.

You can reset the buttons to the

defaults. NOTE: Button functions

are associated with the orientation

in which they’re programmed.

INTERFACE/PORTS

The system doesn’t recognize the

PC card I’ve inserted.

The card is incorrectly inserted. Eject the card and re-insert it with

the label side up.

The device is not supported. Check Windows XP compatibility.

Appendix

Troubleshooting and Support

Motion Computing LE1600 Tablet PC User Guide 79

The system doesn’t recognize a

USB device.

Windows XP may take a short

time to recognize the device.

Wait until Windows XP recognizes

the device.

The accessory isn’t connected to

the Tablet PC correctly.

Check the connection cable and

be sure it is inserted into the

correct port on the Tablet PC and

the accessory device.

The correct driver isn’t built into

Windows XP.

Use the device’s installation CD or

check the manufacturer’s website

for the correct driver.

The Tablet PC is sitting in the

Motion FlexDock for the LE

Series, but the system doesn’t

recognize any accessory devices,

such as the external monitor or

DVD/CD RW.

The Tablet PC isn’t fully seated in

the Motion FlexDock for the LE

Series.

Reseat the Tablet PC in the

Motion FlexDock for the LE

Series.

AUDIO

No sound is coming from the built-

in speakers.

Connecting a headset or external

speakers mutes the built-in

speakers.

Disconnect the headset or

external speakers if not in use.

No sound is coming from any

speakers.

Audio volume is too low or has

been muted.

Open the Motion Dashboard and

adjust the speaker volume by

sliding the volume slider or

uncheck the Mute button.

I’ve forgotten my BIOS password

and can’t access my system.

The Tablet PC will let you enter

several passwords incorrectly

before it temporarily locks the

system.

Turn the Tablet PC off and back on

and try re-entering your password

(you can do this as many times as

needed). If you have forgotten

your password, contact Motion

Computing Technical Support for

information about unlocking your

system at

www.motioncomputing.com/

support.

The program I’m working in has

stopped responding, but the

cursor moves and other programs

work.

The program has crashed. Press the Security button (small

button with a key icon) on the

Tablet PC front panel to open the

Task Manager and end the non-

responsive program.

Appendix

Troubleshooting and Support

Motion Computing LE1600 Tablet PC User Guide 80

The system seems to be operating

more slowly than usual.

The hard disk drive is full or nearly

full.

Run the Disk Cleanup utility to

clear out unnecessary and

temporary files. Remove

unneeded programs and files.

The disk needs defragmenting. Run Disk Defragmenter to

consolidate files and folders on

the hard drive. Consult the

“Performance and Maintenance”

section of the Microsoft Help and

Support Center.

COMMUNICATIONS

The wireless communication

keeps connecting even when I

don’t want it to.

The default setting is On. Uncheck the wireless checkboxes

in the Motion Dashboard.

Data doesn’t transfer through the

wired Ethernet cable.

The Ethernet cable is not

connected correctly.

Reconnect and check the activity

LEDs next to the LAN (RJ-45)

port. They should flash green and

amber.

Appendix

Troubleshooting and Support

Motion Computing LE1600 Tablet PC User Guide 81

FREQUENTLY

ASKED

QUESTIONS

Can I make the battery charge last longer?

• Change to the Max Battery power scheme (right-click on the Power/Bat-

tery icon in the system tray—located in the lower-right corner of the dis-

play window—and tap Adjust Power Properties; under Power schemes,

tap Max Battery). The Tablet PC comes with Motion Computing Opti-

mized as the default power scheme.

• Turn on the Ambient Light Sensor on the Motion Dashboard. This will

dim the display automatically (when possible) and save battery power.

• Dim the display brightness by opening the Motion Dashboard and mov-

ing the Display Brightness slider. (You can also double-tap on the Tablet

and Pen Settings icon in the system tray and choose the Display tab to

get this brightness slider.)

• Disconnect LAN/modem connections and disable wireless communica-

tions when not in use (uncheck the Wireless checkboxes in the Motion

Dashboard).

• Turn off optional and unnecessary background programs and turn off or

unplug accessory equipment from the USB ports.

What does the Tablet PC need for use in another country?

Just an outlet adapter, which you can find in airports and travel stores. The

AC adapter will adjust automatically to different voltages when plugged into

the correct location-appropriate power adapter.

What’s the best way to clean the standard display screen?

To clean the acrylic display screen, wipe it with a soft cloth (like the one

supplied) onto which you have sprayed a window-type cleaner. Do not spray

cleaners, spray/pour any liquid, nor wipe any abrasive cleaner on the

screen nor any surface of the Tablet PC. Do not use tissues or paper towels

to clean the screen. They contain wood fibers and may scratch

the surface.

How should I clean the View Anywhere display screen?

To clean the View Anywhere display screen, wipe it with a soft cloth (like the

one supplied). If needed, clean with any alcohol-based product

recommended for use on anti-reflective glass. Other cleaning products may

leave a residue. Do not spray cleaners, spray/pour any liquid, nor wipe any

abrasive cleaner on the screen nor any surface of the Tablet PC. Do not use

tissues or paper towels to clean the screen. They contain wood fibers and

may scratch the surface.

Will scratches affect the display/digitizer’s performance?

Testing has not found appreciable loss of performance on a scratched

display.

How sensitive is the screen to various elements?

As with any computer or electronic device, the Tablet PC should be

protected from liquids, dirt and sand, other contaminants, and

extreme heat.

Appendix

Troubleshooting and Support

Motion Computing LE1600 Tablet PC User Guide 82

Will the Tablet PC work with any monitor or USB accessory, keyboard,

mouse, disk drive, etc?

As long as the device’s driver is available either in the Windows XP

operating system or from the manufacturer and it carries the Windows XP

logo or certification, it should work with your Tablet PC. For more

information, see www.microsoft.com/help.

Why doesn’t the Tablet PC or FlexDock have parallel, serial, or

PS2 (mouse) ports?

Microsoft Tablet PC certification requires the system to be completely Grab-

and-Go—that is, to be able to dock with and undock from all accessories

without putting the system into suspend or shutting it down. Connection

through legacy ports (serial, parallel, PS2) often requires suspending or

restarting the system, which prevents you from moving between desktop

mode and mobile mode seamlessly in one docking/undocking step.

How do I adjust the Tablet PC for left-handed use?

Double-tap on the Tablet and Pen Settings icon in the system tray, located

in the lower-right corner of the display window, which opens the Settings

window. You can change it for left- or right-handed use as well as change

the location of the menus. Then, make sure you recalibrate the pen.

MOTION

WARRANTIES

Standard and Extended Warranty and Insurance Programs

Motion Computing currently provides limited warranties on Motion products

and accessories. See the Warranty packaged with your Motion product or

accessory or visit our website at www.motioncomputing.com.

In addition, Motion Computing offers extended warranties along with various

screen and configuration insurance programs. Visit our website at

www.motioncomputing.com/support.

MOTION

COMPUTING

SUPPORT

If you need assistance or answers to frequently asked questions about your

Motion Tablet PC, visit www.motioncomputing.com/support. We also offer a

Knowledge Base of additional information that may help with your problem.

Appendix

Motion Tablet PC Specifications

Motion Computing LE1600 Tablet PC User Guide 83

Appendix

Motion Tablet PC Specifications

Refer to the Motion Computing website at www.motioncomputing.com

for the latest information and specifications for your Tablet PC.

Motion Computing - Support

Motion recommends Microsoft® Windows® XP Tablet PC Edition 2005.
MOTION SUPPORT

© 2005 Motion Computing, Inc | Legal Terms | Privacy | Site Map
http://www.motioncomputing.com/support/2/21/2005 9:51:45 AM

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to operate this equipment.

For operation within 5.15 ~ 5.25GHz frequency range, it is restricted to indoor

environment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired

operation.

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment.

This device complies with FCC RF Exposure limits set forth for an uncontrolled

environment, under 47 CFR 2.1093 paragraph (d)(2).

This transmitter must not be co-located or operating in conjunction with any other

antenna or transmitter.

MAXIMUM AVERAGE SAR (1g) (FOR 802.11b) is 0.322W/kg.

MAXIMUM AVERAGE SAR (1g) (FOR 802.11g) is 0.221W/kg.

MAXIMUM AVERAGE SAR (1g) (FOR 802.11a) is 0.370W/kg.

GemTek Technology M940103AG47 Motion Computing LE1600 with 11a/b/g WLAN User Manual PecosOLUG
