GemTek Technology R960306G SMB Wireless Router User Manual Manual
Gemtek Technology Co., Ltd. SMB Wireless Router Manual
Manual
BROWAN COMMUNICATIONS Page 2
Copyright
© 2002-2007 BROWAN COMMUNICATIONS.
This DOCUMENT is copyrighted with all rights reserved. No part of this publication may be reproduced, transmitted, transcribed,
stored in a retrieval system, or translated into any language in any form by any means without the written permission of BROWAN.
Notice
BROWAN reserves the right to change specifications without prior notice.
While the information in this document has been compiled with great care, it may not be deemed an assurance of product
characteristics. BROWAN shall be liable only to the degree specified in the terms of sale and delivery.
The reproduction and distribution of the documentation and software supplied with this product and the use of its contents is subject
to written authorization from BROWAN.
Trademarks
The product described in this book is a licensed product of BROWAN.
BROWAN COMMUNICATIONS Page 3
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution
Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this
equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
BROWAN COMMUNICATIONS Page 4
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the
factory to match the intended destination. The firmware setting is not accessible by the end user.
BROWAN COMMUNICATIONS Page 5
Europe – EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order
to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC:
- EN 60950-1: 2001
Safety of Information Technology Equipment
- EN50385 : (2002-08)
- Product standard to demonstrate the compliance of radio base stations and fixed terminal stations for wireless telecommunication systems
with the basic restrictions or the reference levels related to human exposure to radio frequency electromagnetic fields (110MHz - 40 GHz) -
General public
-
- EN 300 328 V1.6.1 (2004-11)
Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband transmission systems; Data transmission equipment operating
in the 2,4 GHz ISM band and using wide band modulation techniques; Harmonized EN covering essential requirements under article 3.2 of
the R&TTE Directive
-
EN 301 489-1 V1.6.1: (2005-09)
Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and
services; Part 1: Common technical requirements
BROWAN COMMUNICATIONS Page 6
- EN 301 489-17 V1.2.1 (2002-08)
- Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and
services; Part 17: Specific conditions for 2,4 GHz wideband transmission systems and 5 GHz high performance RLAN equipment
This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries, except in
France and Italy where restrictive use applies.
In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to use the device for setting up
outdoor radio links and/or for supplying public access to telecommunications and/or network services.
This device may not be used for setting up outdoor radio links in France and in some areas the RF output power may be limited to 10 mW EIRP
in the frequency range of 2454 – 2483.5 MHz. For detailed information the end-user should contact the national spectrum authority in France.
Česky
[Czech]
[Jméno výrobce] tímto prohlašuje, že tento [typ zařízení] je ve shodě se základními
požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES.
Dansk
[Danish]
Undertegnede [fabrikantens navn] erklærer herved, at følgende udstyr [udstyrets
typebetegnelse] overholder de væsentlige krav og øvrige relevante krav i direktiv
1999/5/EF.
Deutsch
[German]
Hiermit erklärt [Name des Herstellers], dass sich das Gerät [Gerätetyp] in
Übereinstimmung mit den grundlegenden Anforderungen und den übrigen
einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet.
BROWAN COMMUNICATIONS Page 7
Eesti
[Estonian]
Käesolevaga kinnitab [tootja nimi = name of manufacturer] seadme [seadme tüüp = type
of equipment] vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist
tulenevatele teistele asjakohastele sätetele.
English Hereby, [name of manufacturer], declares that this [type of equipment] is in compliance
with the essential requirements and other relevant provisions of Directive 1999/5/EC.
Español
[Spanish]
Por medio de la presente [nombre del fabricante] declara que el [clase de equipo]
cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o
exigibles de la Directiva 1999/5/CE.
Ελληνική
[Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ [name of manufacturer] ΔΗΛΩΝΕΙ ΟΤΙ [type of equipment]
ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ
ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
Français
[French]
Par la présente [nom du fabricant] déclare que l'appareil [type d'appareil] est conforme
aux exigences essentielles et aux autres dispositions pertinentes de la directive
1999/5/CE.
Italiano
[Italian]
Con la presente [nome del costruttore] dichiara che questo [tipo di apparecchio] è
conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva
1999/5/CE.
Latviski
[Latvian]
Ar šo [name of manufacturer / izgatavotāja nosaukums] deklarē, ka [type of equipment
/ iekārtas tips] atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to
saistītajiem noteikumiem.
Lietuvių Šiuo [manufacturer name] deklaruoja, kad šis [equipment type] atitinka esminius
BROWAN COMMUNICATIONS Page 8
[Lithuanian] reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.
Nederlands
[Dutch]
Hierbij verklaart [naam van de fabrikant] dat het toestel [type van toestel] in
overeenstemming is met de essentiële eisen en de andere relevante bepalingen van
richtlijn 1999/5/EG.
Malti
[Maltese]
Hawnhekk, [isem tal-manifattur], jiddikjara li dan [il-mudel tal-prodott] jikkonforma
mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva
1999/5/EC.
Magyar
[Hungarian]
Alulírott, [gyártó neve] nyilatkozom, hogy a [... típus] megfelel a vonatkozó alapvetõ
követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Polski
[Polish]
Niniejszym [nazwa producenta] oświadcza, że [nazwa wyrobu] jest zgodny z
zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy
1999/5/EC.
Português
[Portuguese]
[Nome do fabricante] declara que este [tipo de equipamento] está conforme com os
requisitos essenciais e outras disposições da Directiva 1999/5/CE.
Slovensko
[Slovenian]
[Ime proizvajalca] izjavlja, da je ta [tip opreme] v skladu z bistvenimi zahtevami in
ostalimi relevantnimi določili direktive 1999/5/ES.
Slovensky
[Slovak]
[Meno výrobcu] týmto vyhlasuje, že [typ zariadenia] spĺňa základné požiadavky a všetky
príslušné ustanovenia Smernice 1999/5/ES.
Suomi
[Finnish]
[Valmistaja = manufacturer] vakuuttaa täten että [type of equipment = laitteen
tyyppimerkintä] tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä
koskevien direktiivin muiden ehtojen mukainen.
BROWAN COMMUNICATIONS Page 9
Svenska
[Swedish]
Härmed intygar [företag] att denna [utrustningstyp] står I överensstämmelse med de
väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv
1999/5/EG.
BROWAN COMMUNICATIONS Page 10
Copyright..........................................................................................................................................................................................2
Notice...............................................................................................................................................................................................2
Trademarks......................................................................................................................................................................................2
FCC Warning ...................................................................................................................................................................................3
CONTENTS .............................................................................................................10
ABOUT THIS GUIDE...............................................................................................15
Purpose..........................................................................................................................................................................................15
Prerequisite Skills and Knowledge.................................................................................................................................................15
Conventions Used in this Document ..............................................................................................................................................16
Help Us to Improve this Document! ...............................................................................................................................................17
Browan Technical Support.............................................................................................................................................................17
CHAPTER 1 – INTRODUCTION.............................................................................. 18
Product Overview...........................................................................................................................................................................18
Contents
BROWAN COMMUNICATIONS Page 11
Features Highlight..........................................................................................................................................................................21
CHAPTER 2 - INSTALLATION................................................................................22
The Product Package.....................................................................................................................................................................23
Hardware Introduction....................................................................................................................................................................24
General Overview.......................................................................................................................................................................24

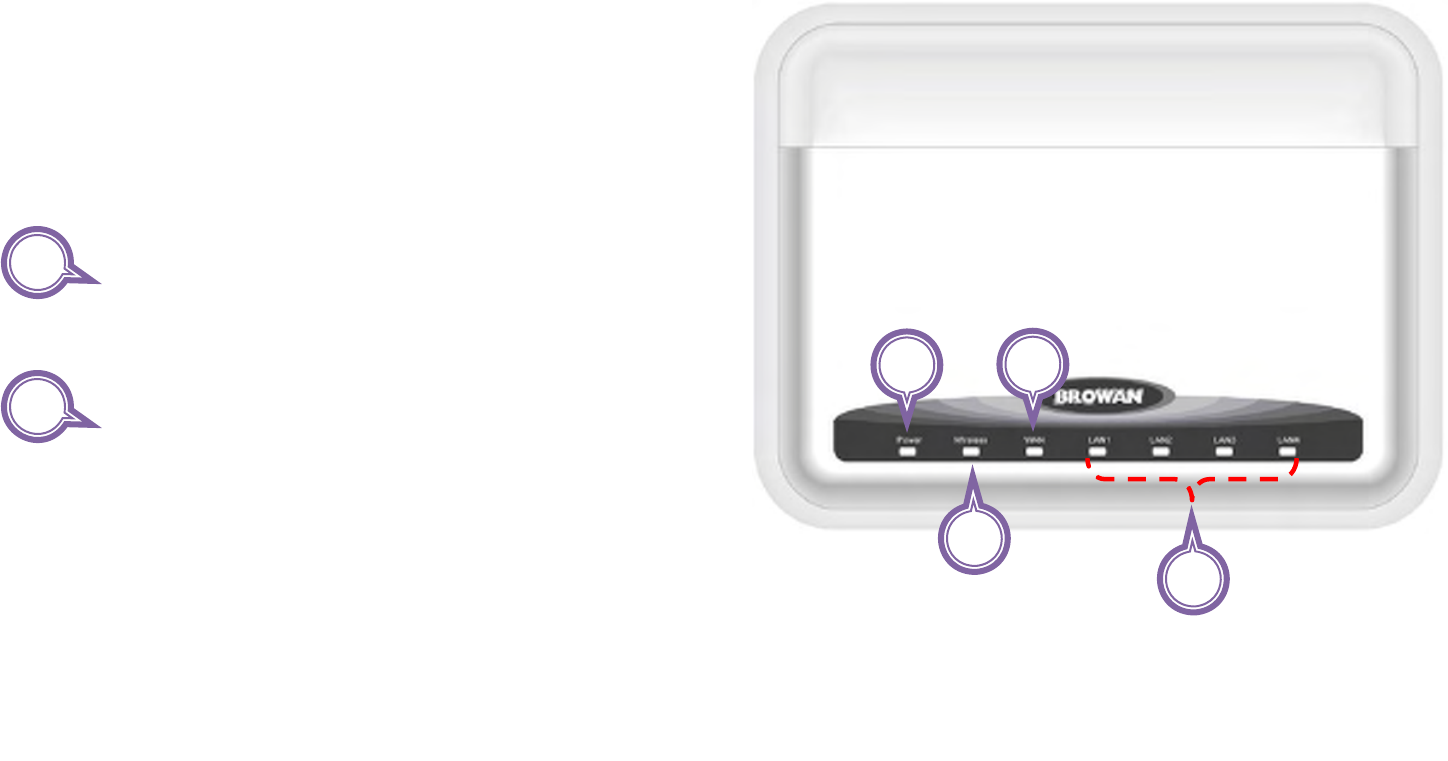

TOP Cover View.........................................................................................................................................................................25
Connection View.........................................................................................................................................................................28
Bottom Case...............................................................................................................................................................................30

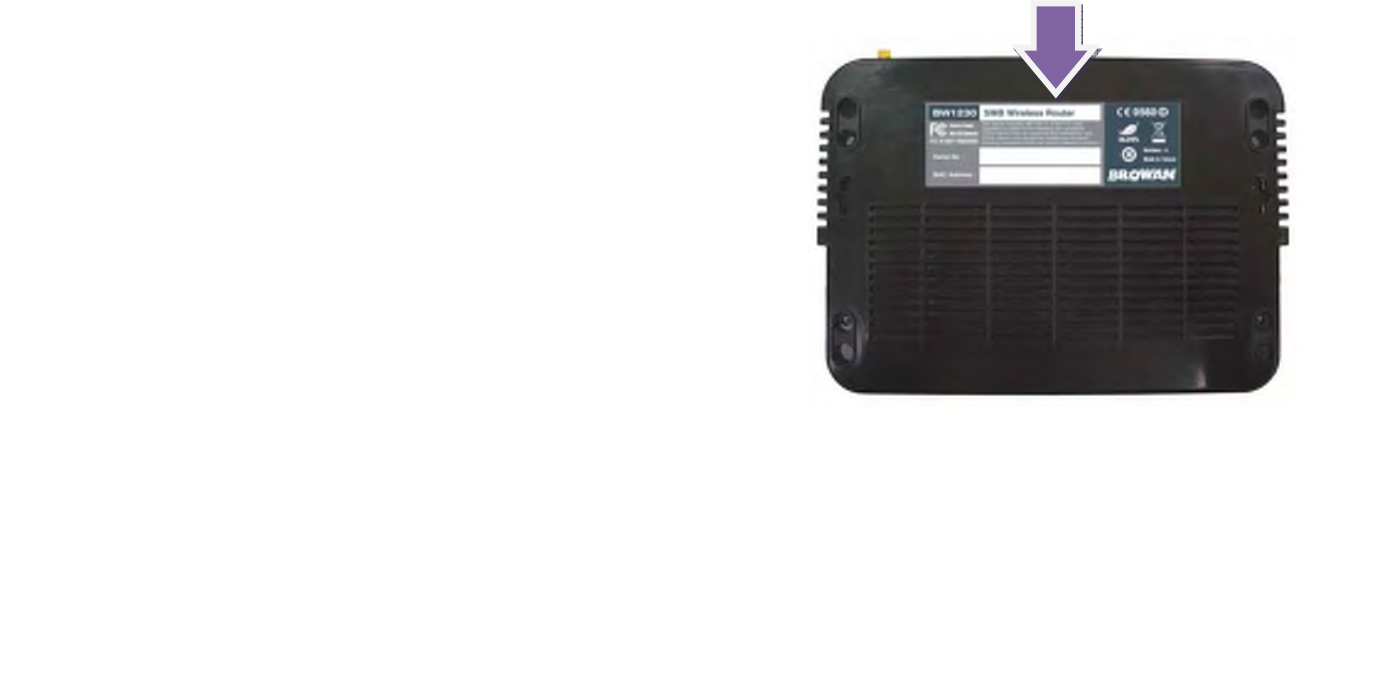

Product and Safety Label ...........................................................................................................................................................31
Hardware Installation .....................................................................................................................................................................35

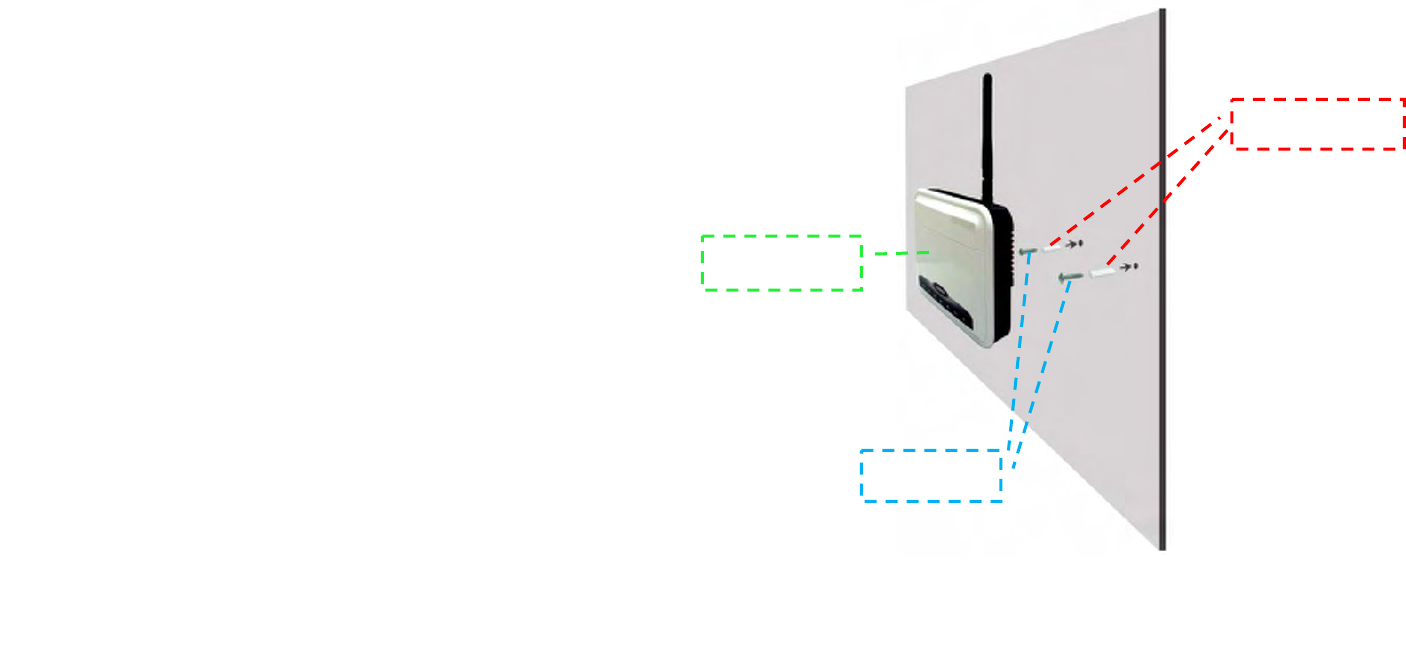

Mounting the BW1230 ................................................................................................................................................................35

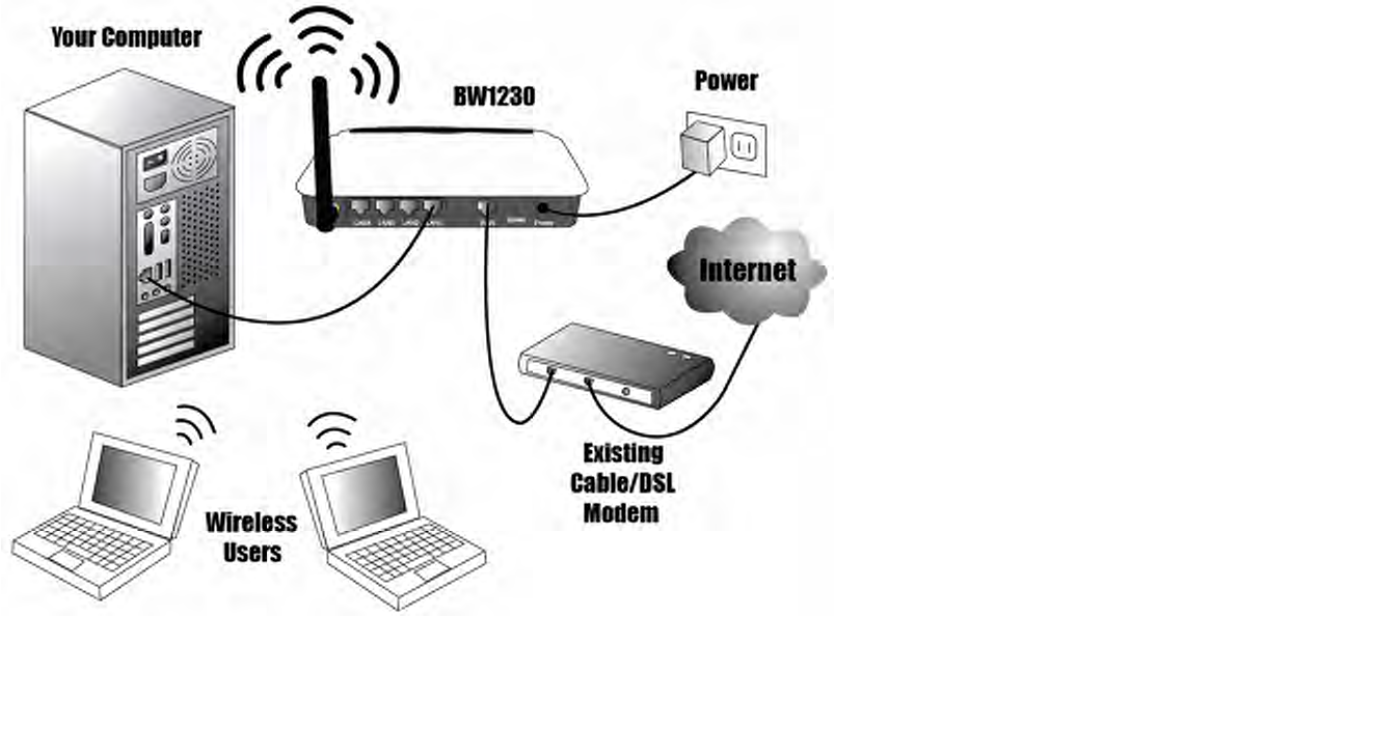

Installing the BW1230.................................................................................................................................................................36

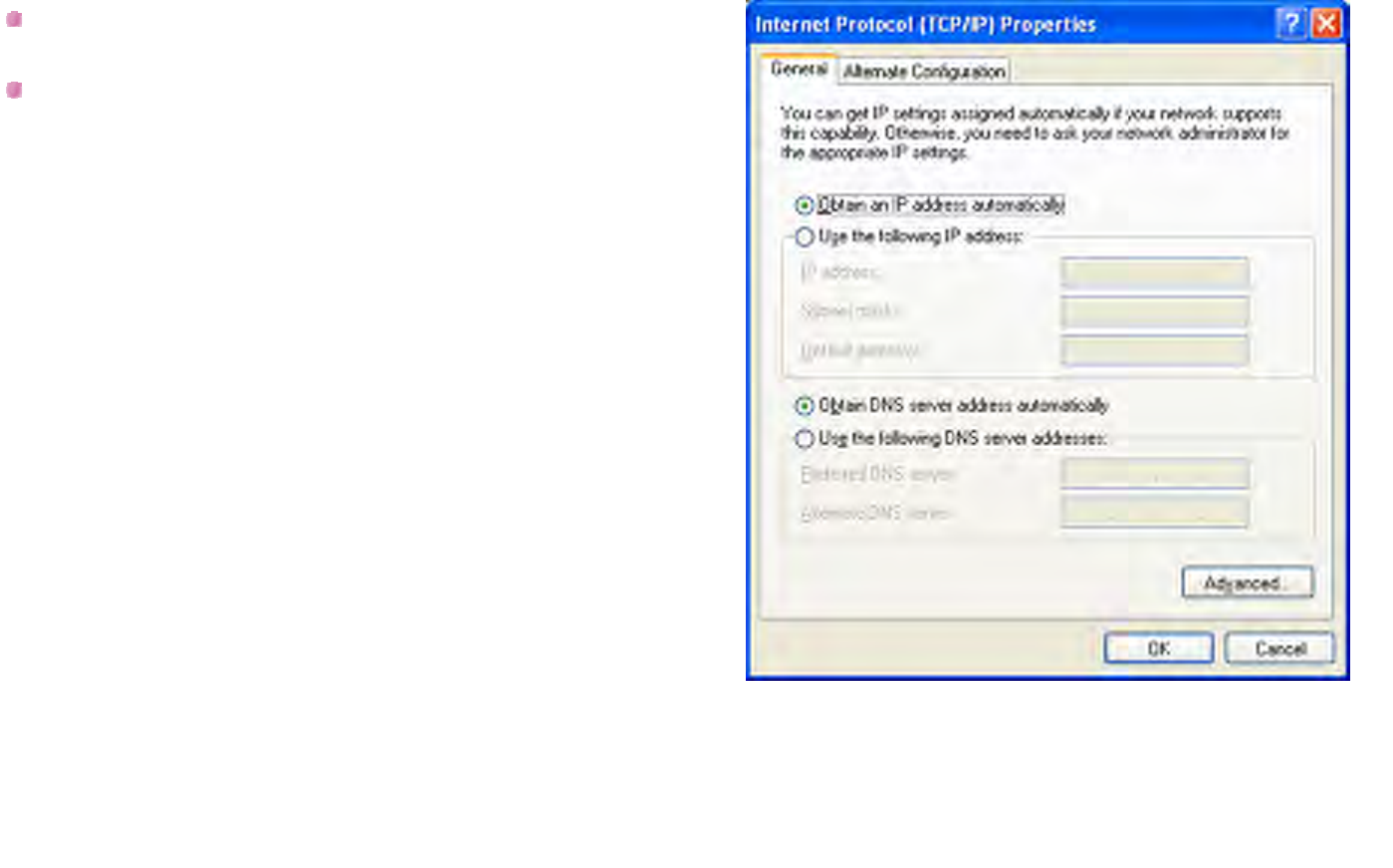

Software Installation.......................................................................................................................................................................38
Accessing Your BW1230 ............................................................................................................................................................38
CHAPTER 3 – APPLICATION MODE..................................................................... 43
CHAPTER 4 – REFERENCE MANUAL .................................................................. 44
BROWAN COMMUNICATIONS Page 12
Select Country ...............................................................................................................................................................................46

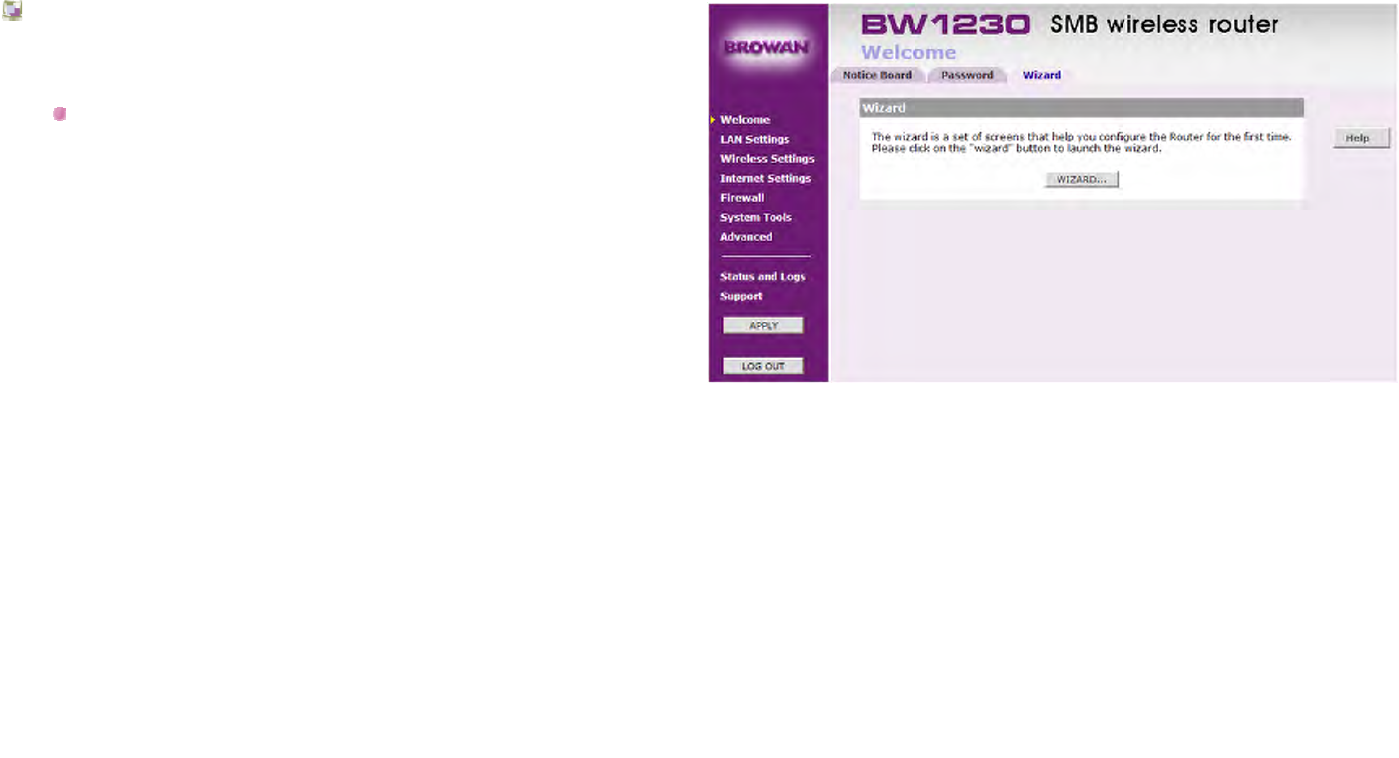

Welcome | Wizard..........................................................................................................................................................................47

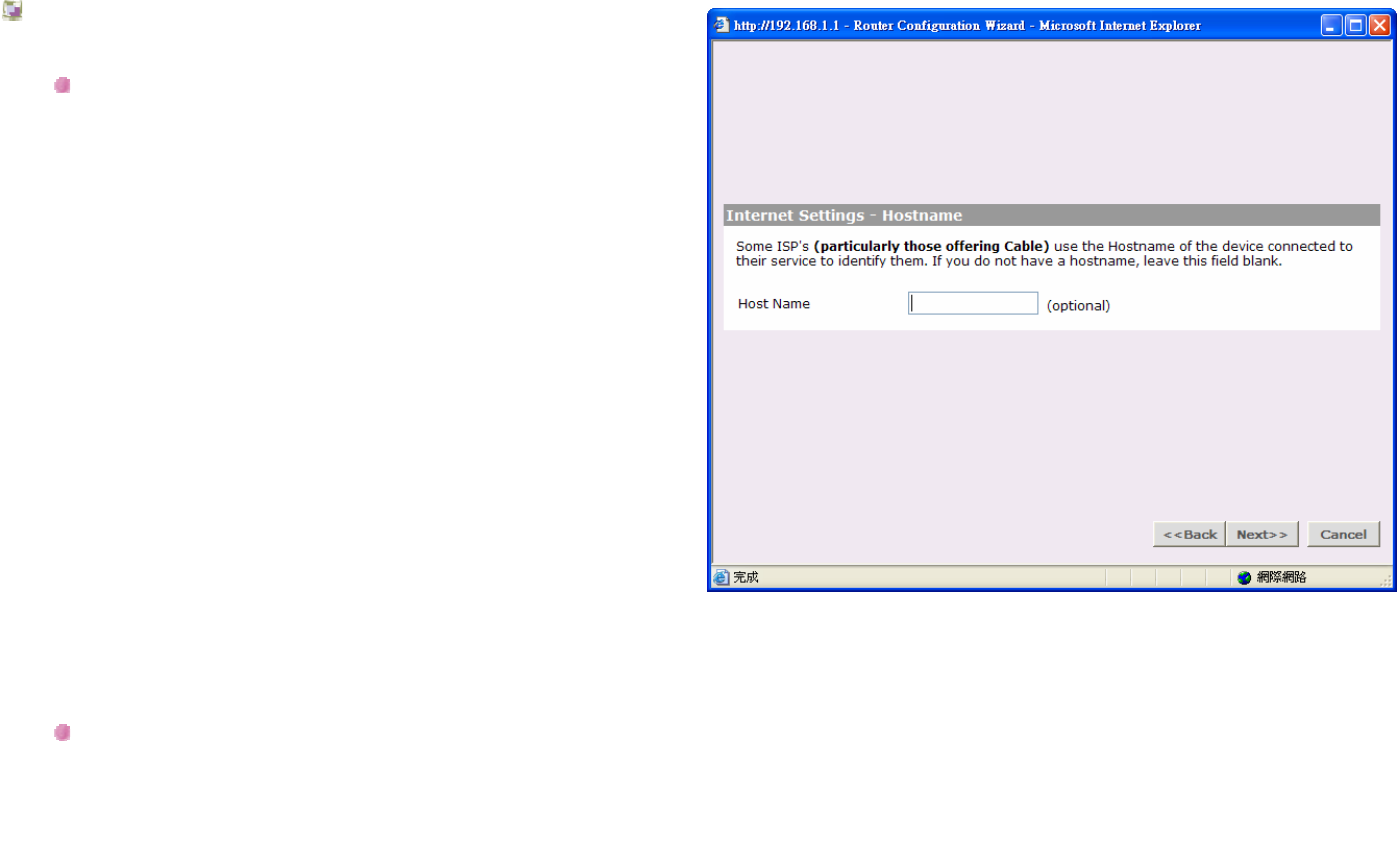

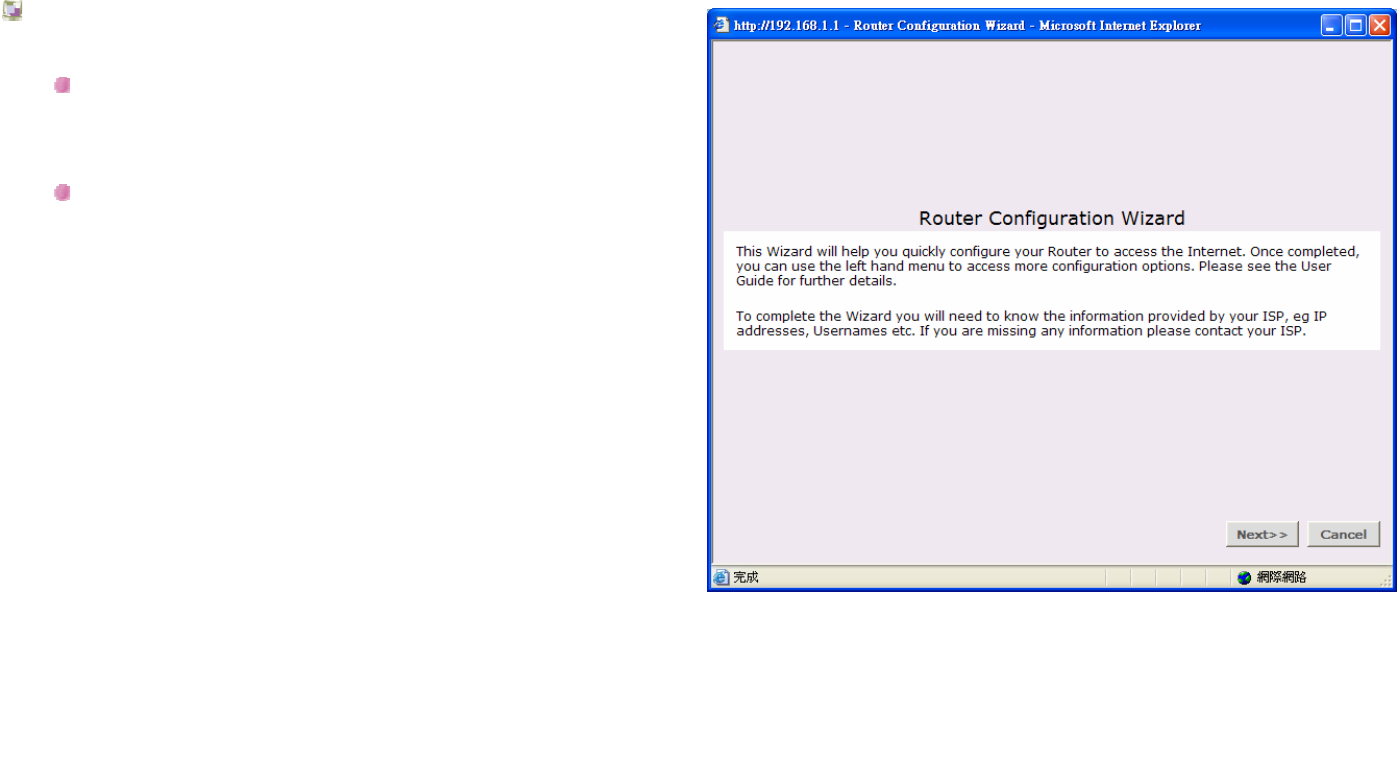

Welcome | Wizard | Setup Wizard..................................................................................................................................................48

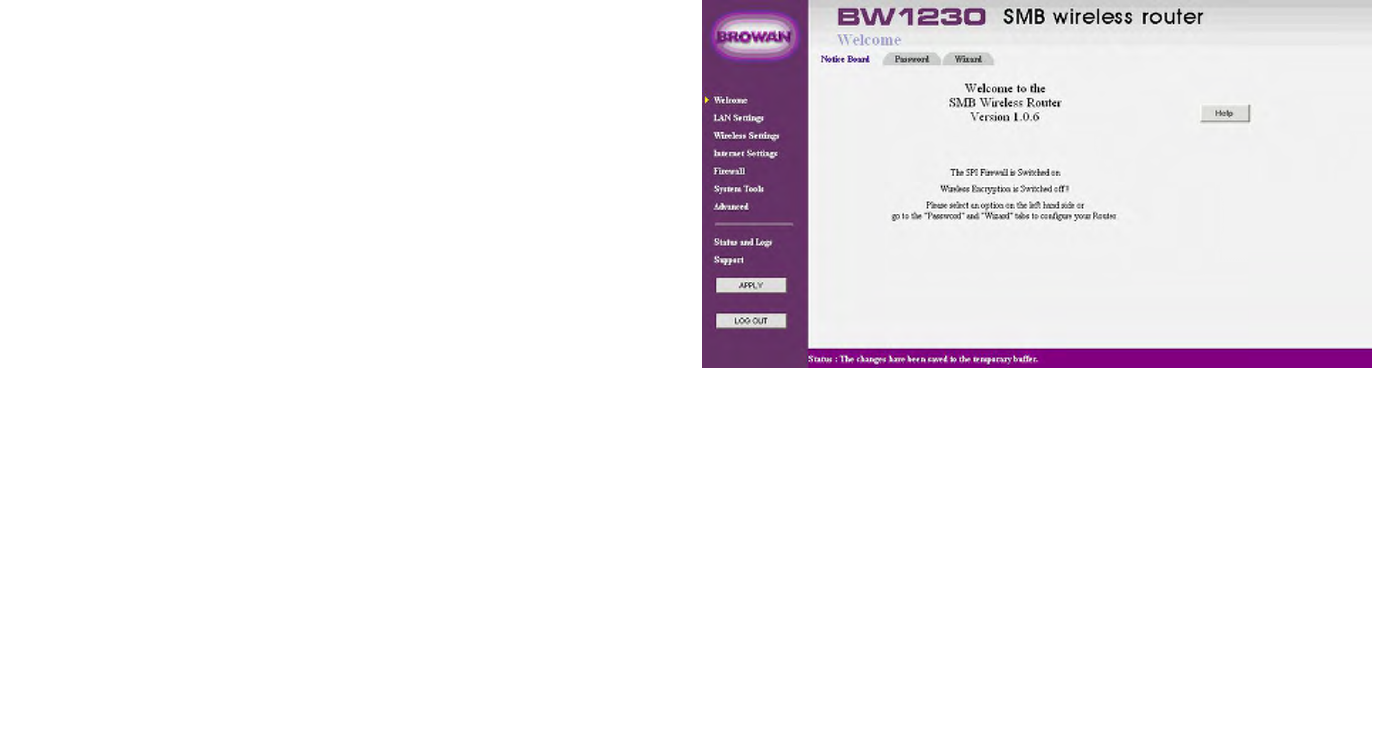

Welcome | Notice Board ................................................................................................................................................................75

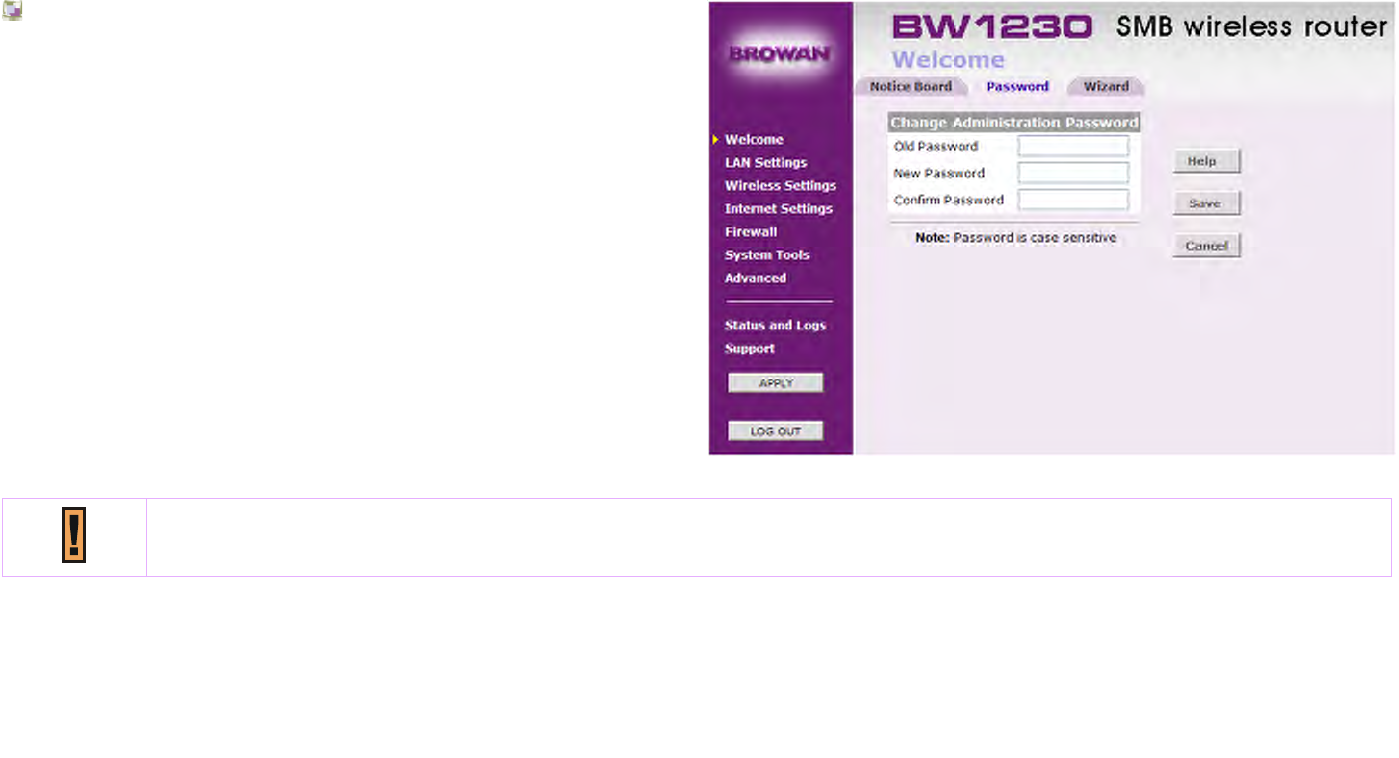

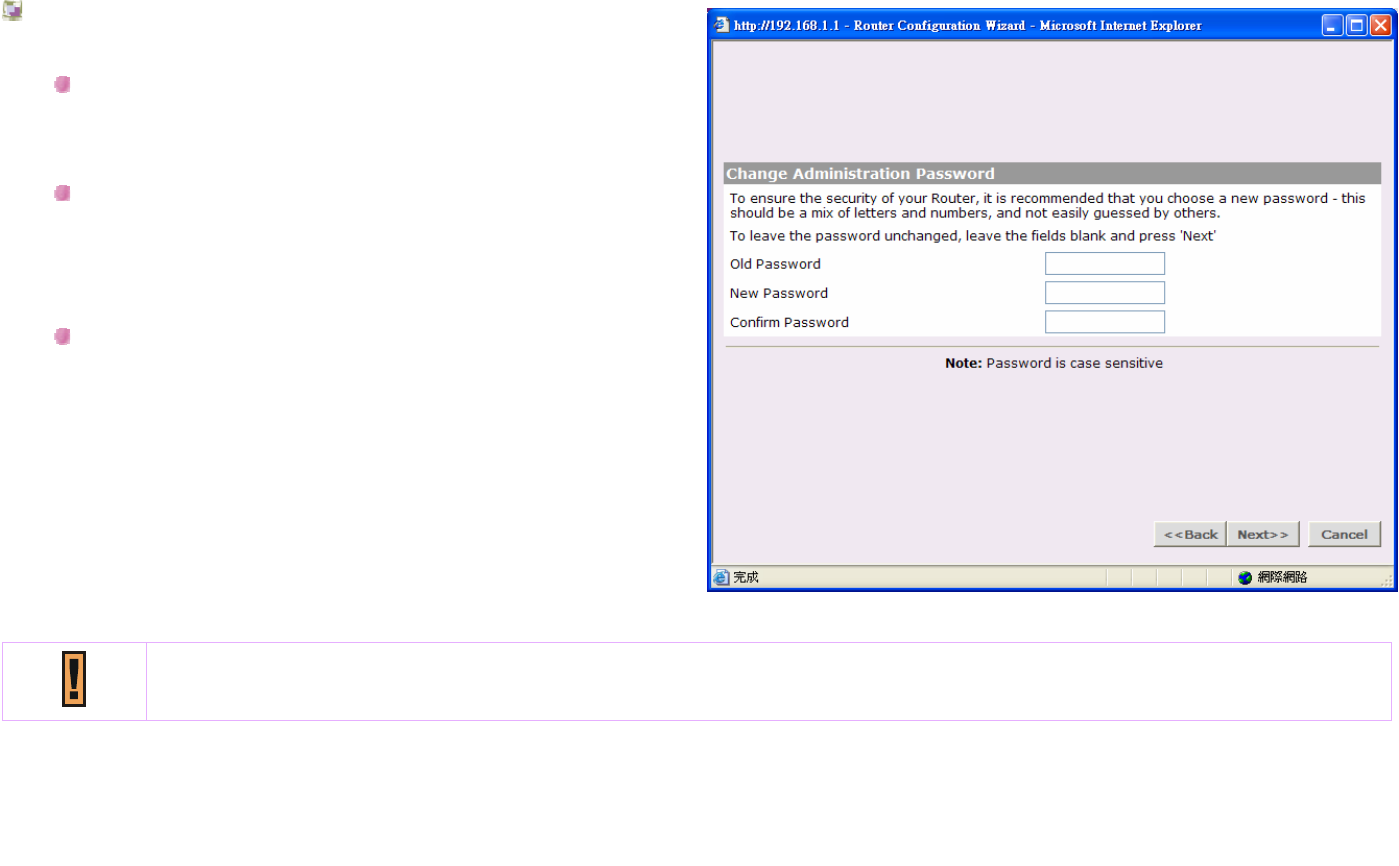

Welcome | Password .....................................................................................................................................................................76
Welcome | Wizard..........................................................................................................................................................................77

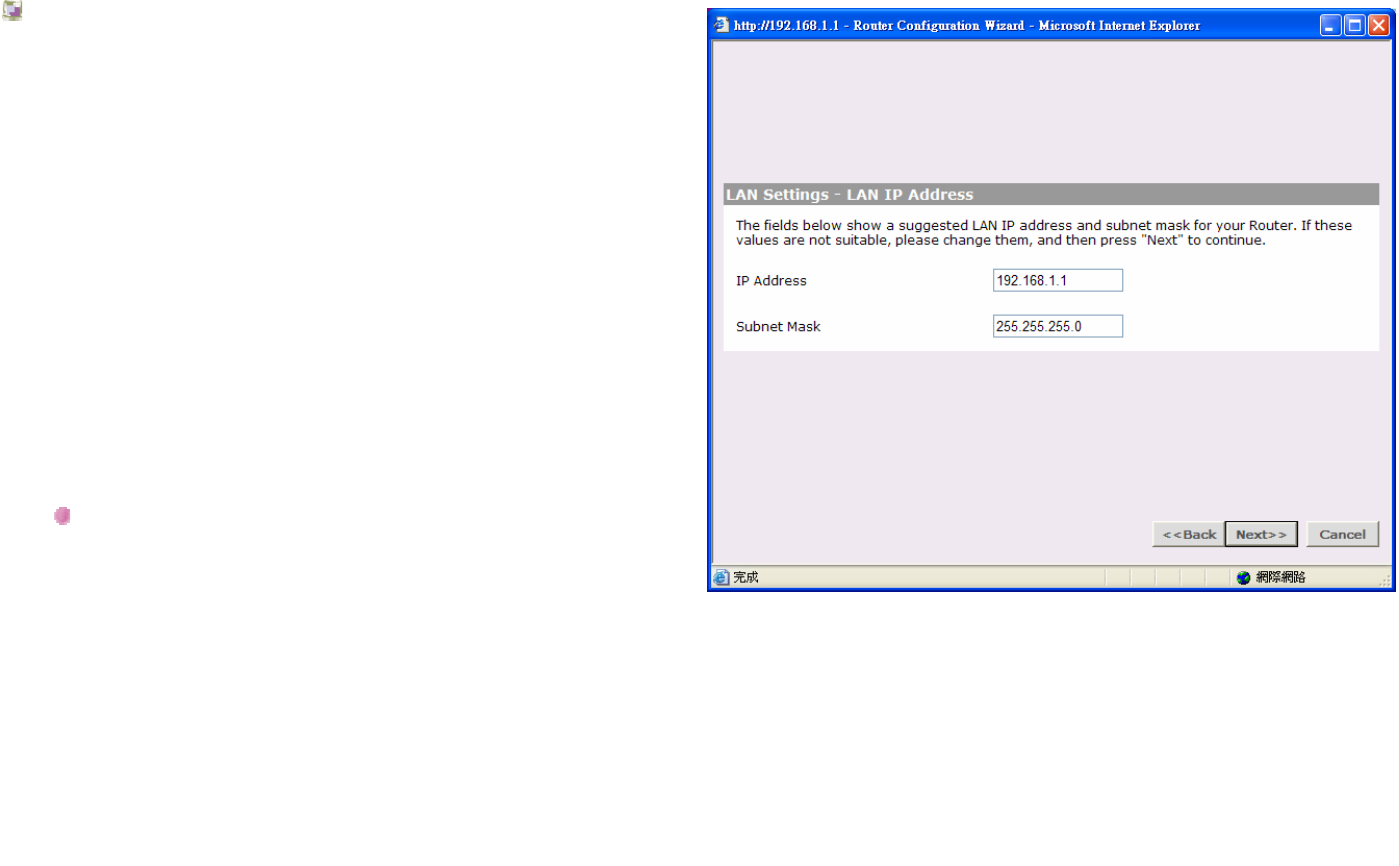

LAN Settings | Unit Configuration...................................................................................................................................................78

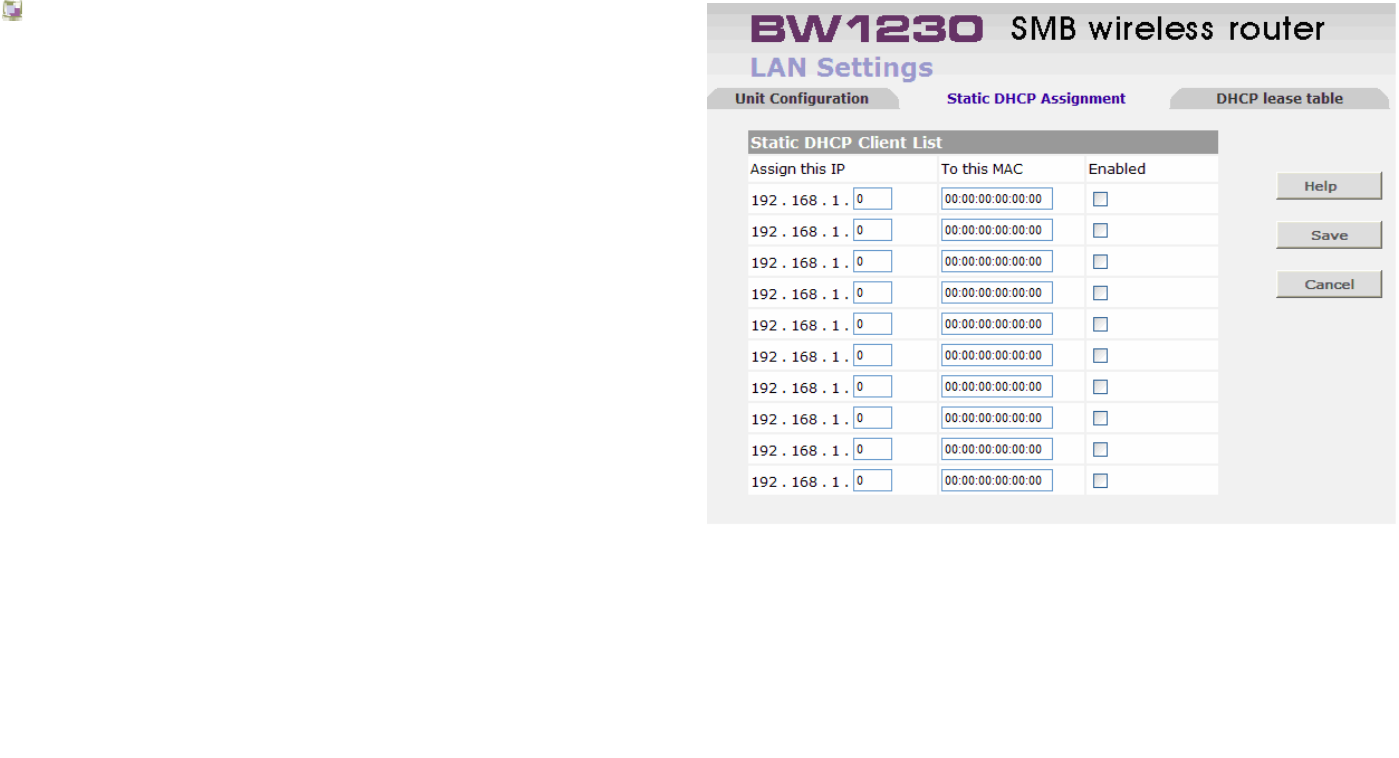

LAN Settings | Static DHCP Assignment .......................................................................................................................................80

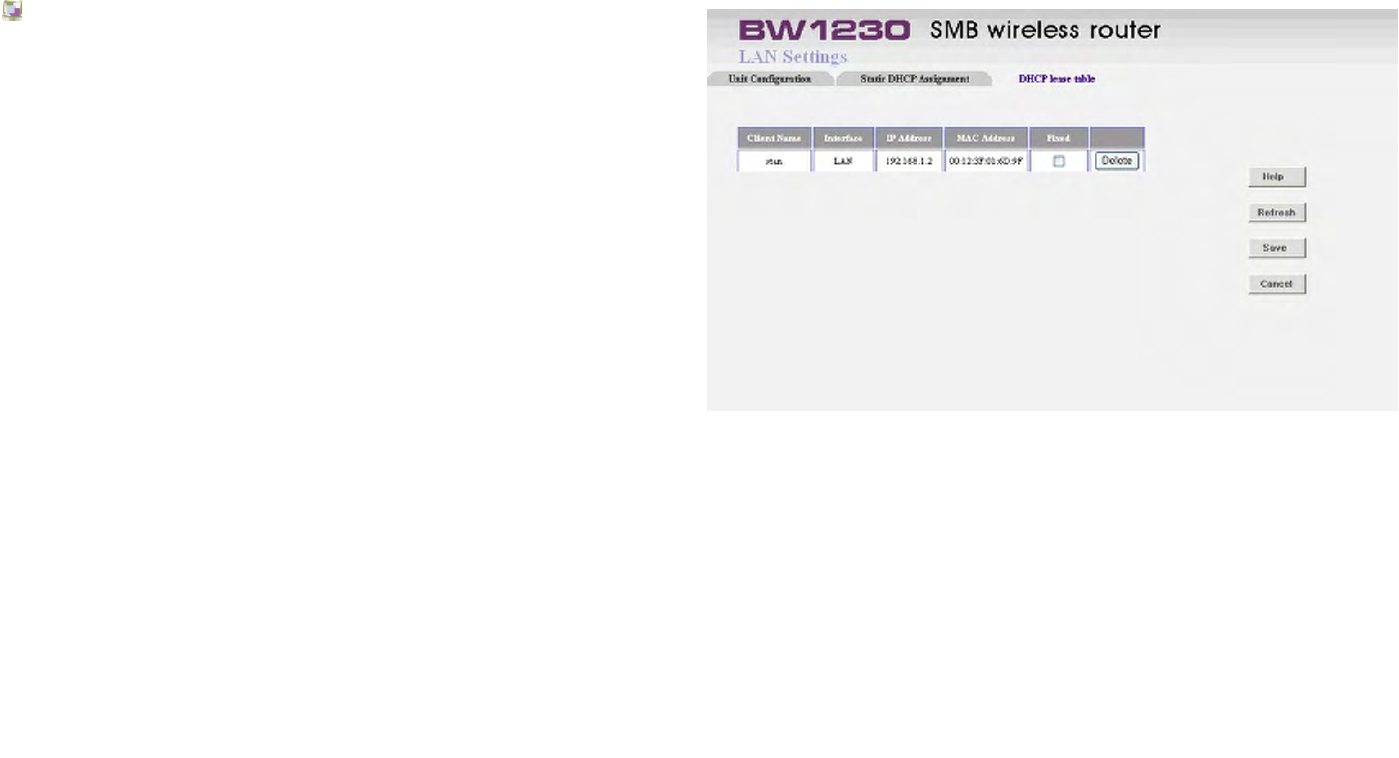

LAN Settings | DHCP lease table...................................................................................................................................................81

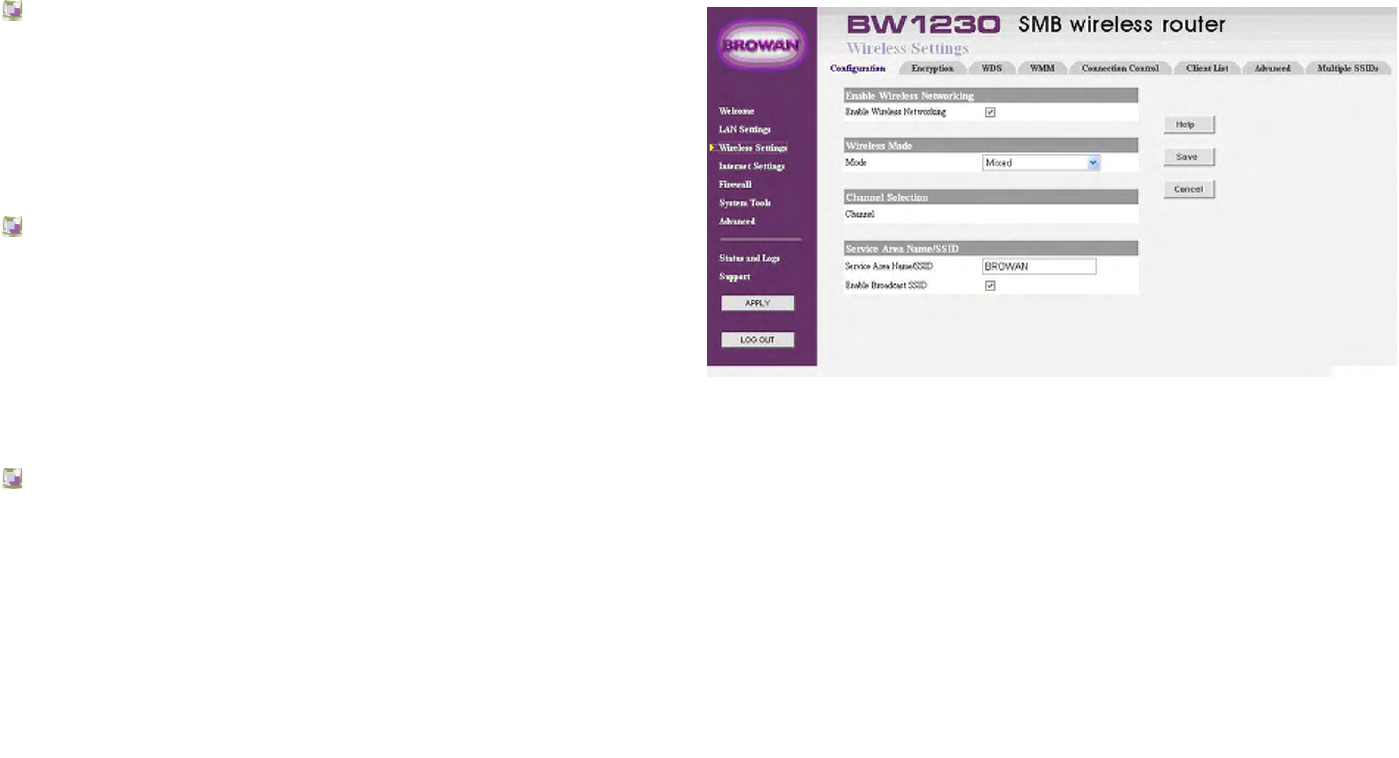

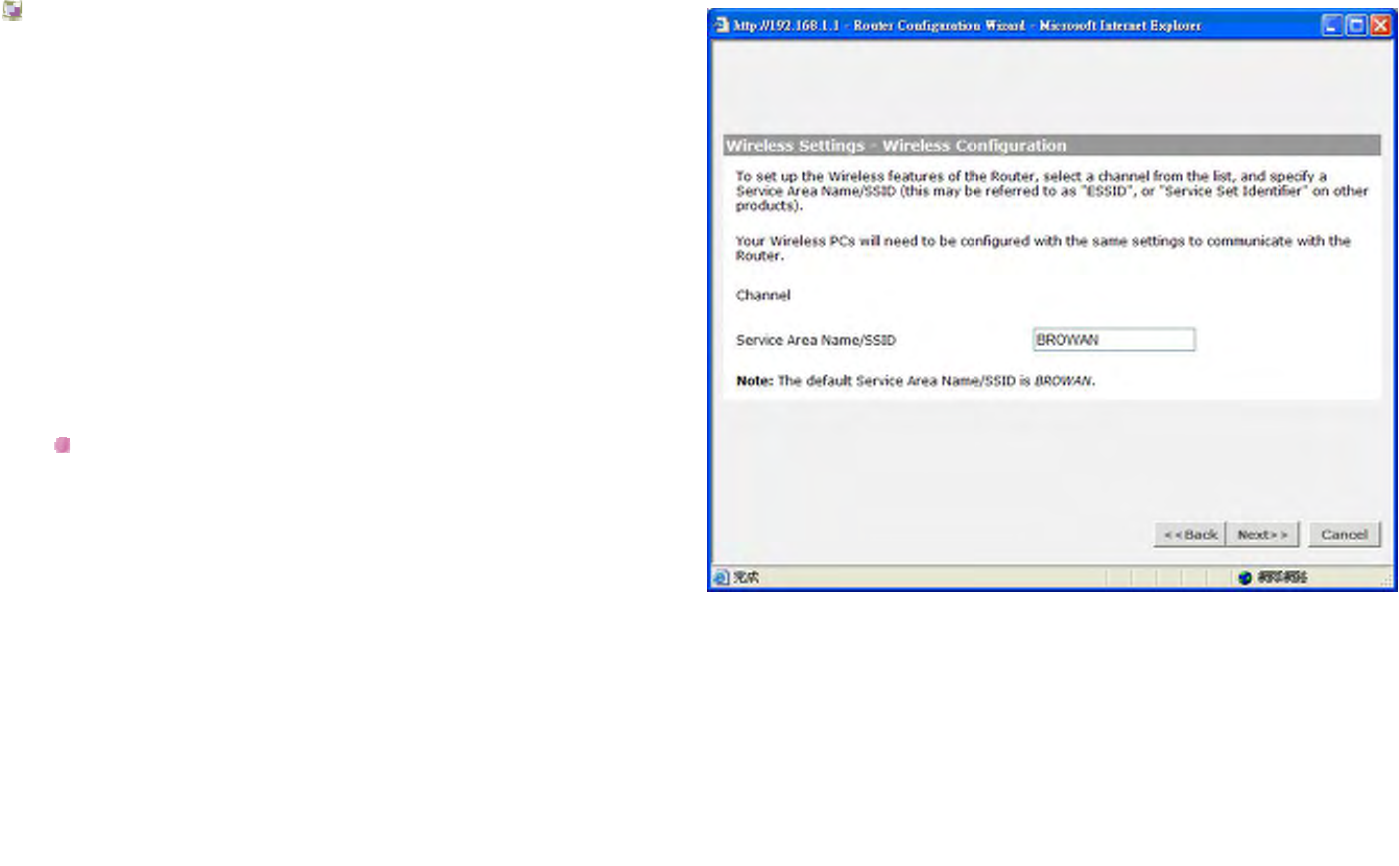

Wireless Settings | Configuration ...................................................................................................................................................82

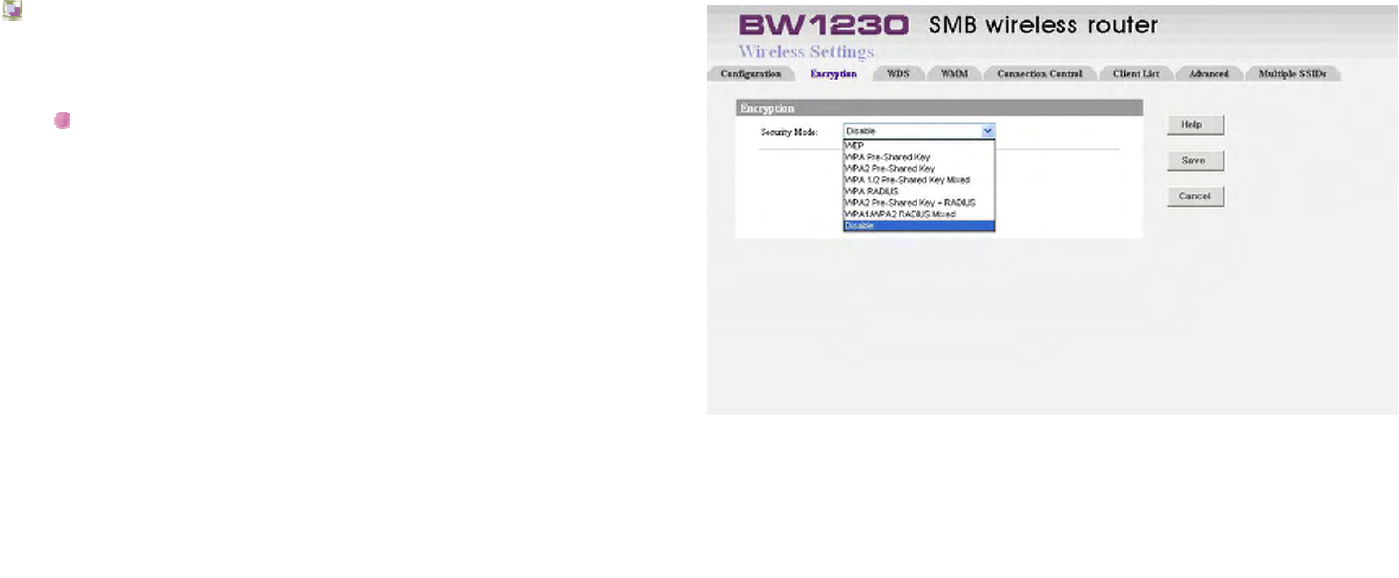

Wireless Settings | Encryption .......................................................................................................................................................83

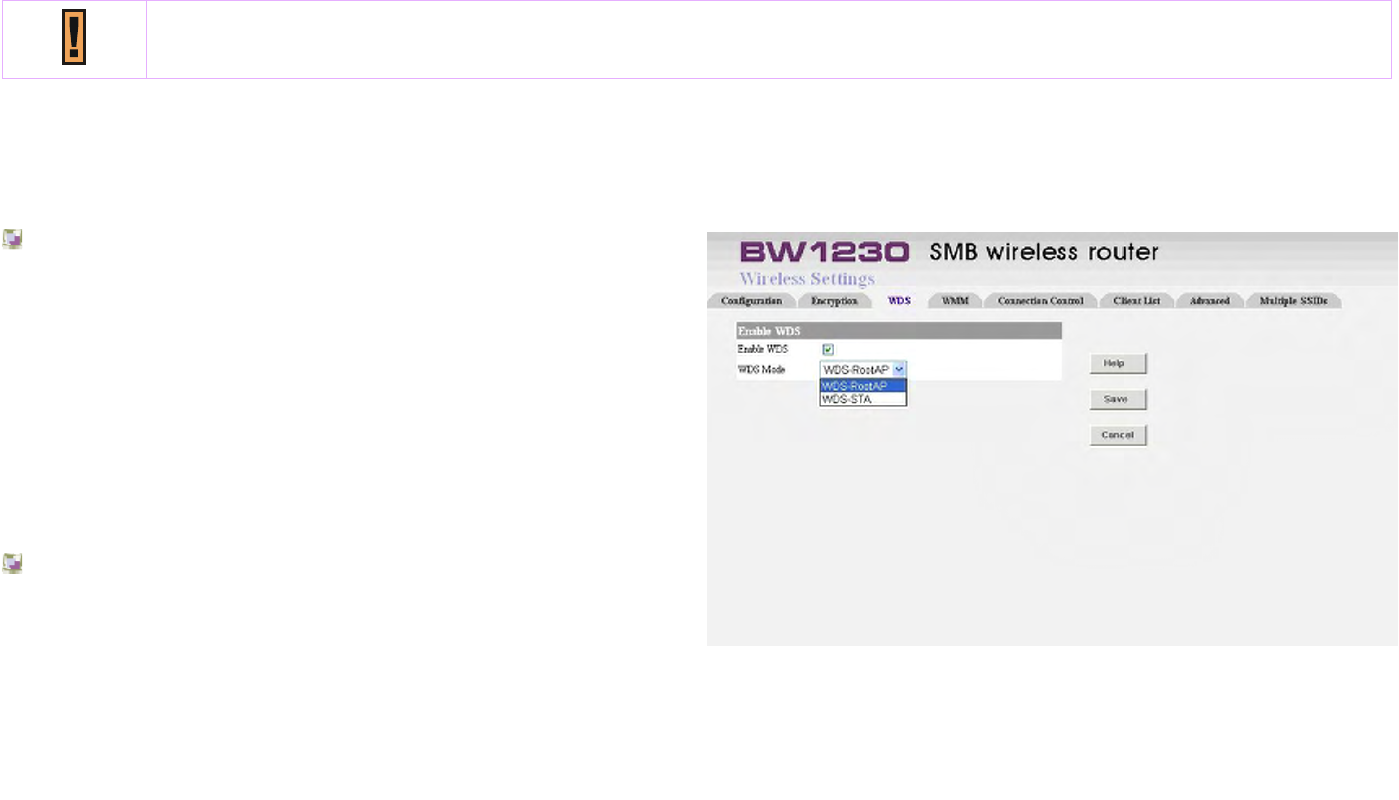

Wireless Settings | WDS................................................................................................................................................................89

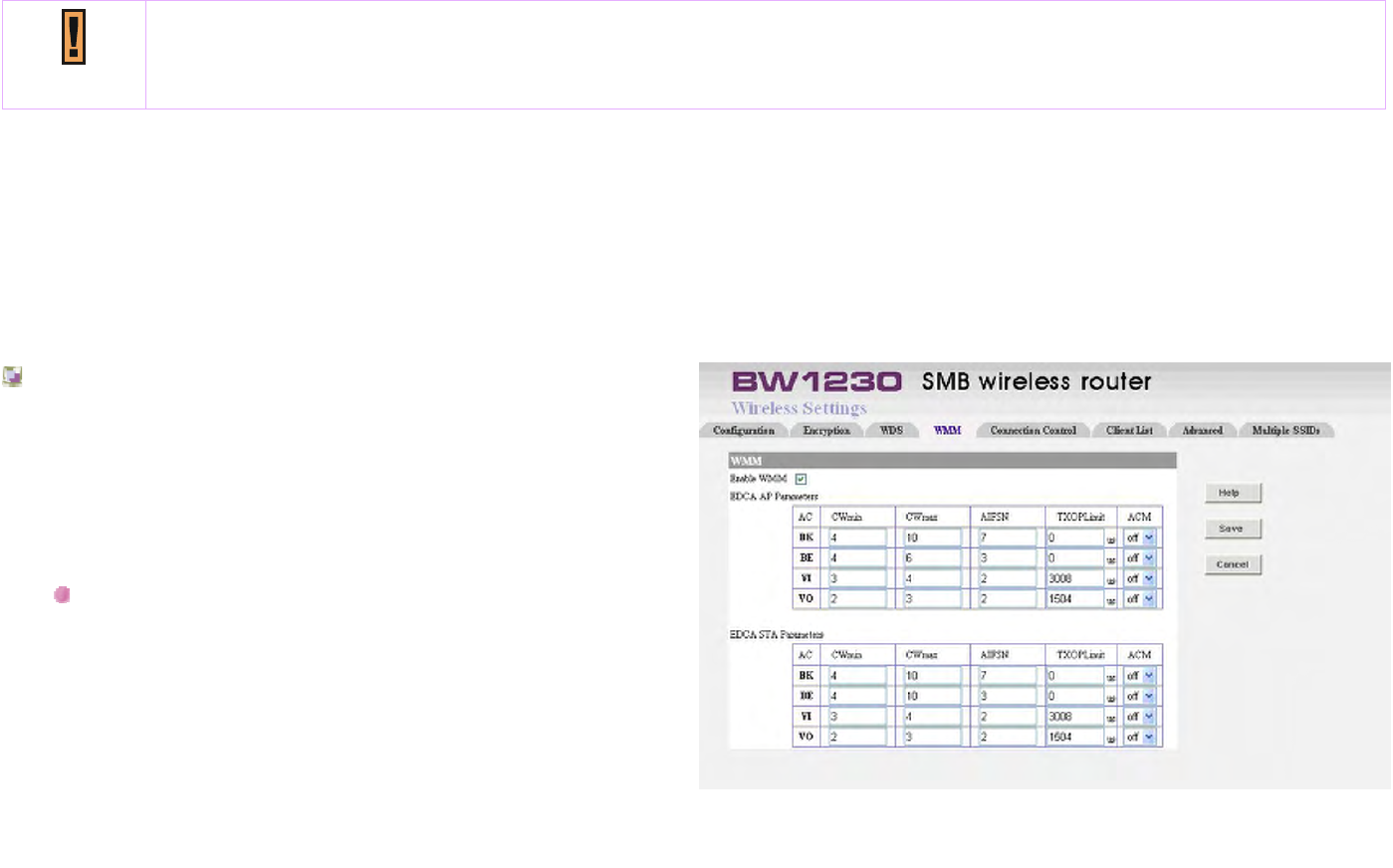

Wireless Settings | WMM...............................................................................................................................................................90

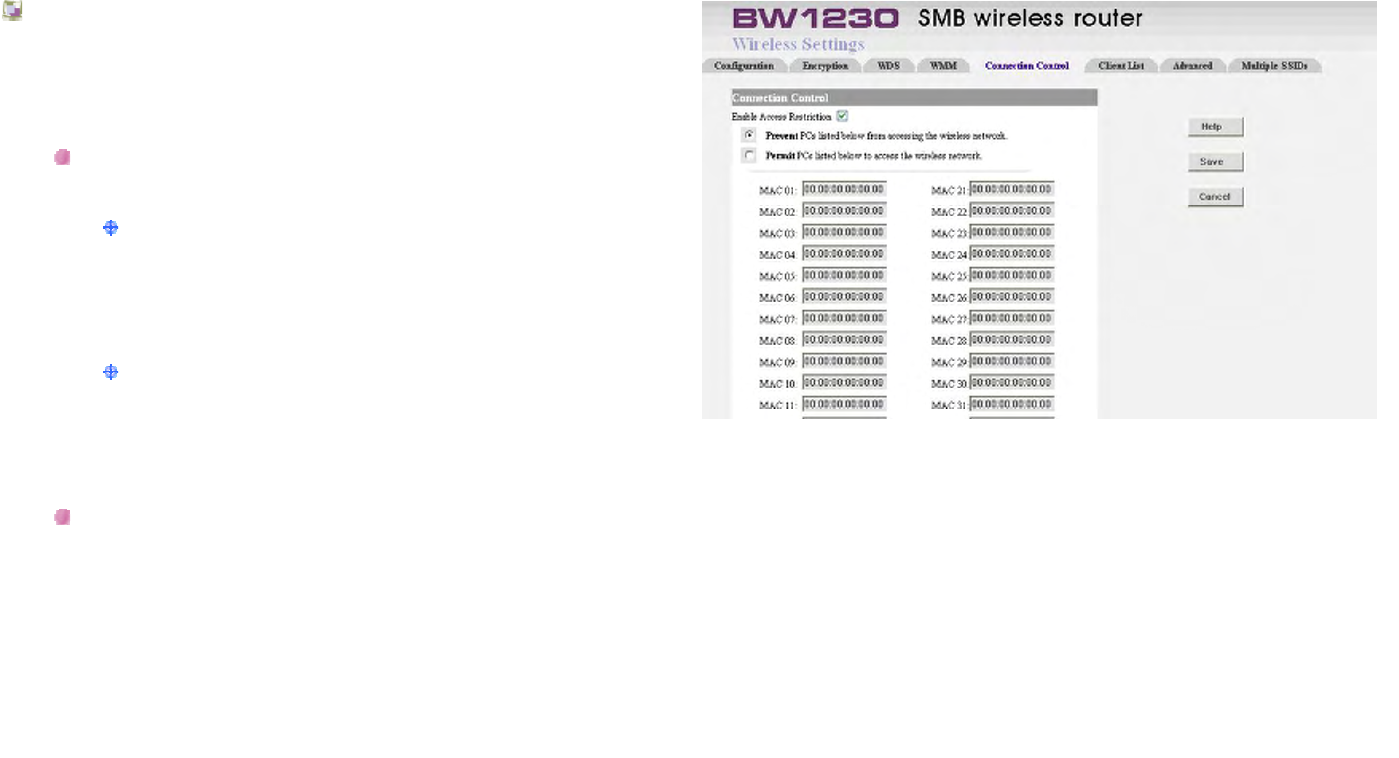

Wireless Settings | Connection Control..........................................................................................................................................95

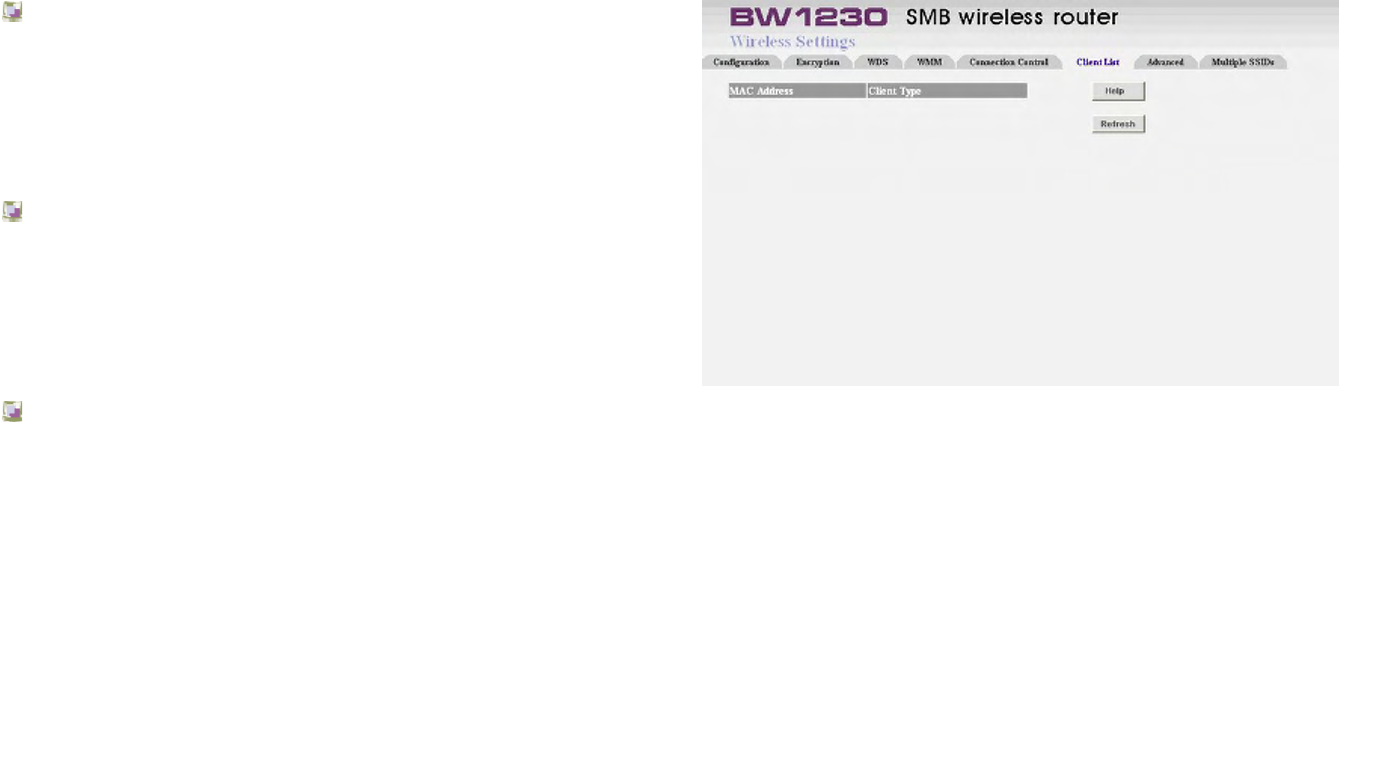

Wireless Settings | Client List.........................................................................................................................................................96
Wireless Settings | Advanced ........................................................................................................................................................97
BROWAN COMMUNICATIONS Page 13

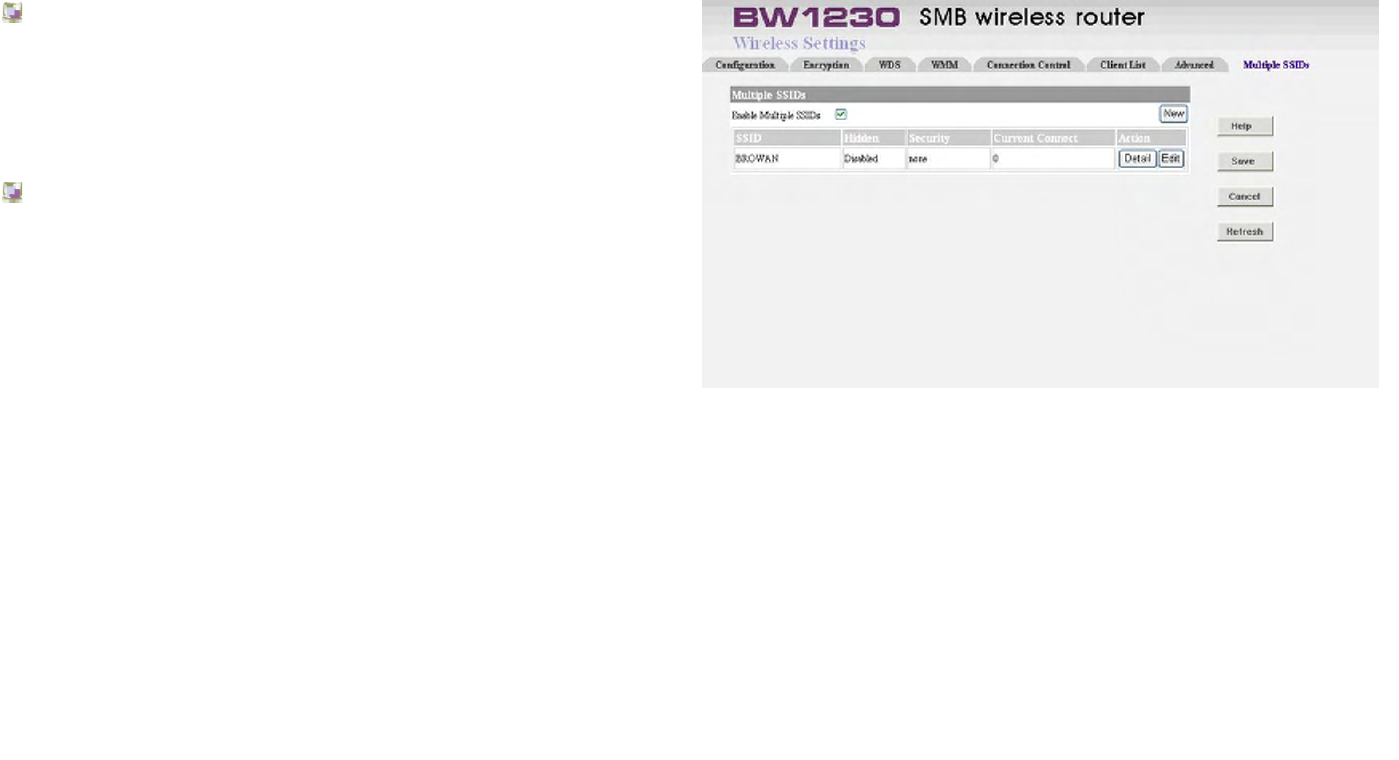

Wireless Settings | Multiple SSDIs...............................................................................................................................................102

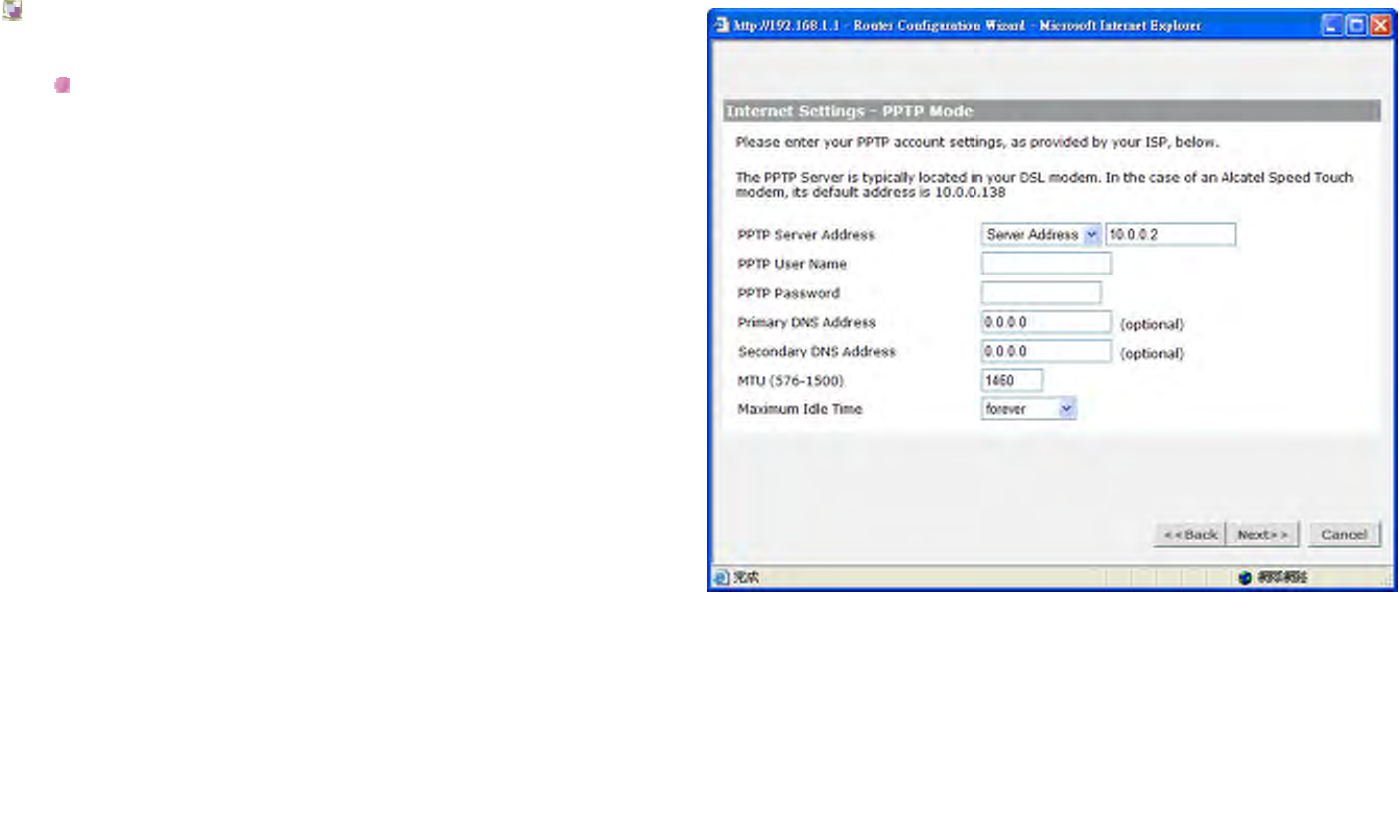

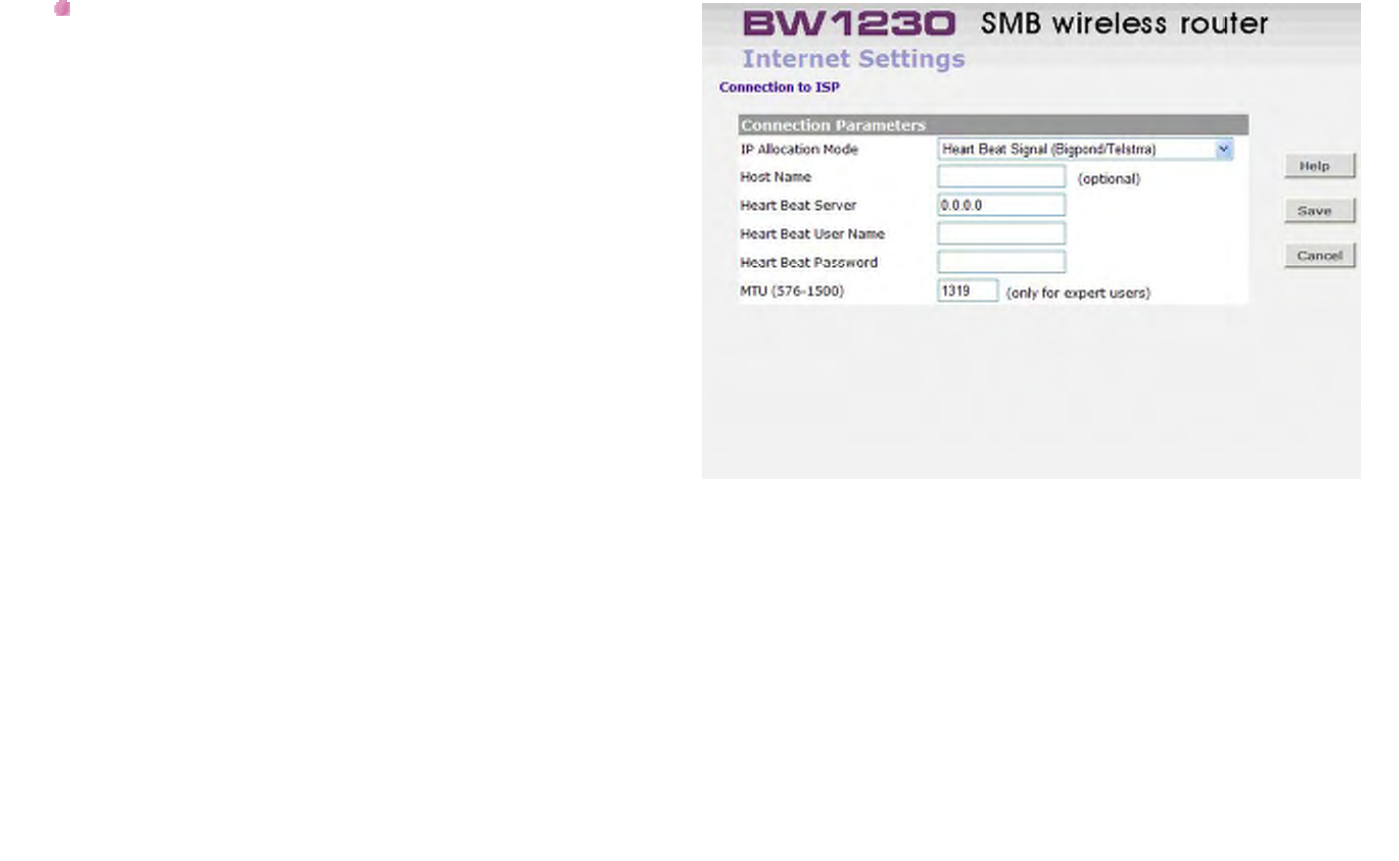

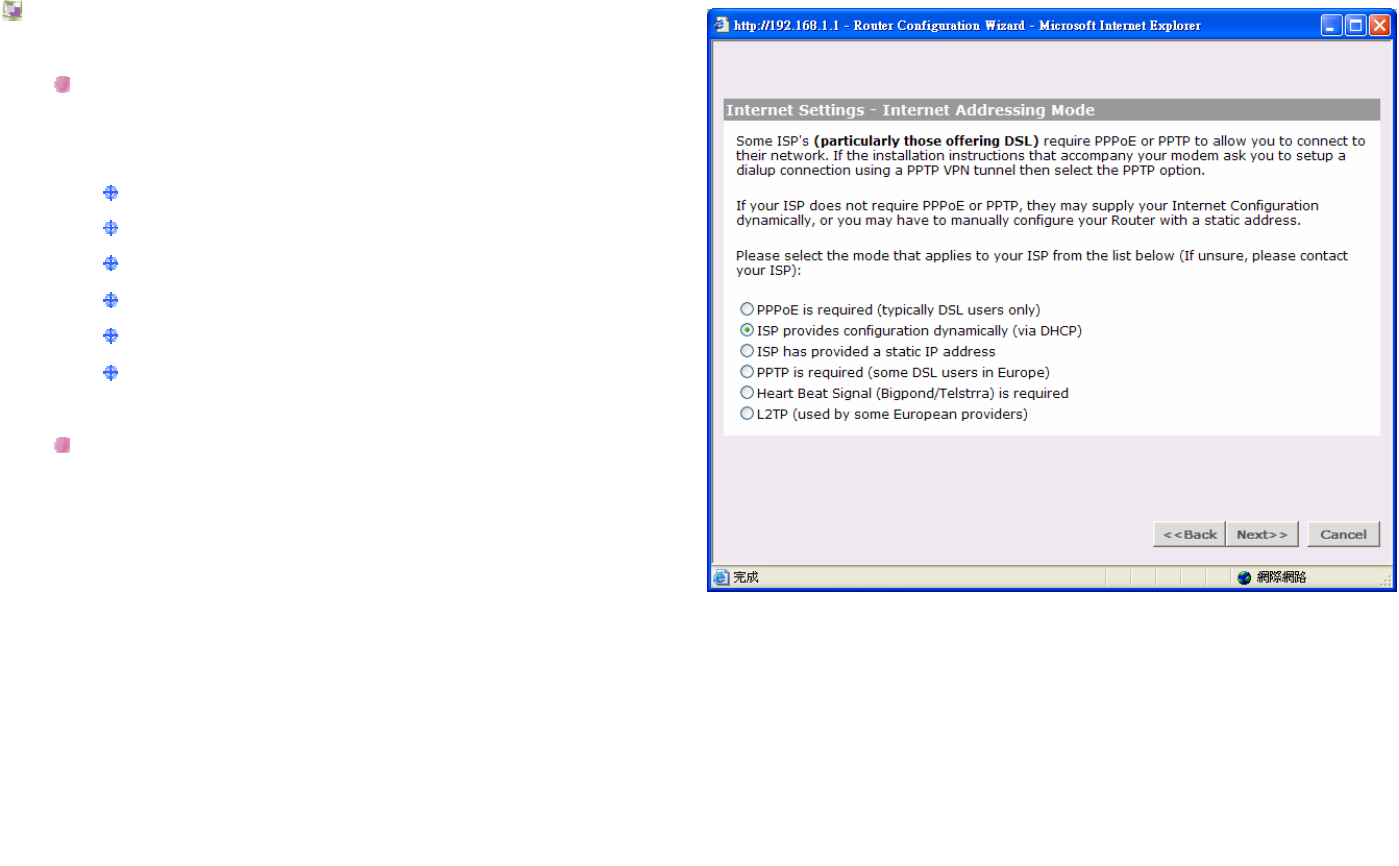

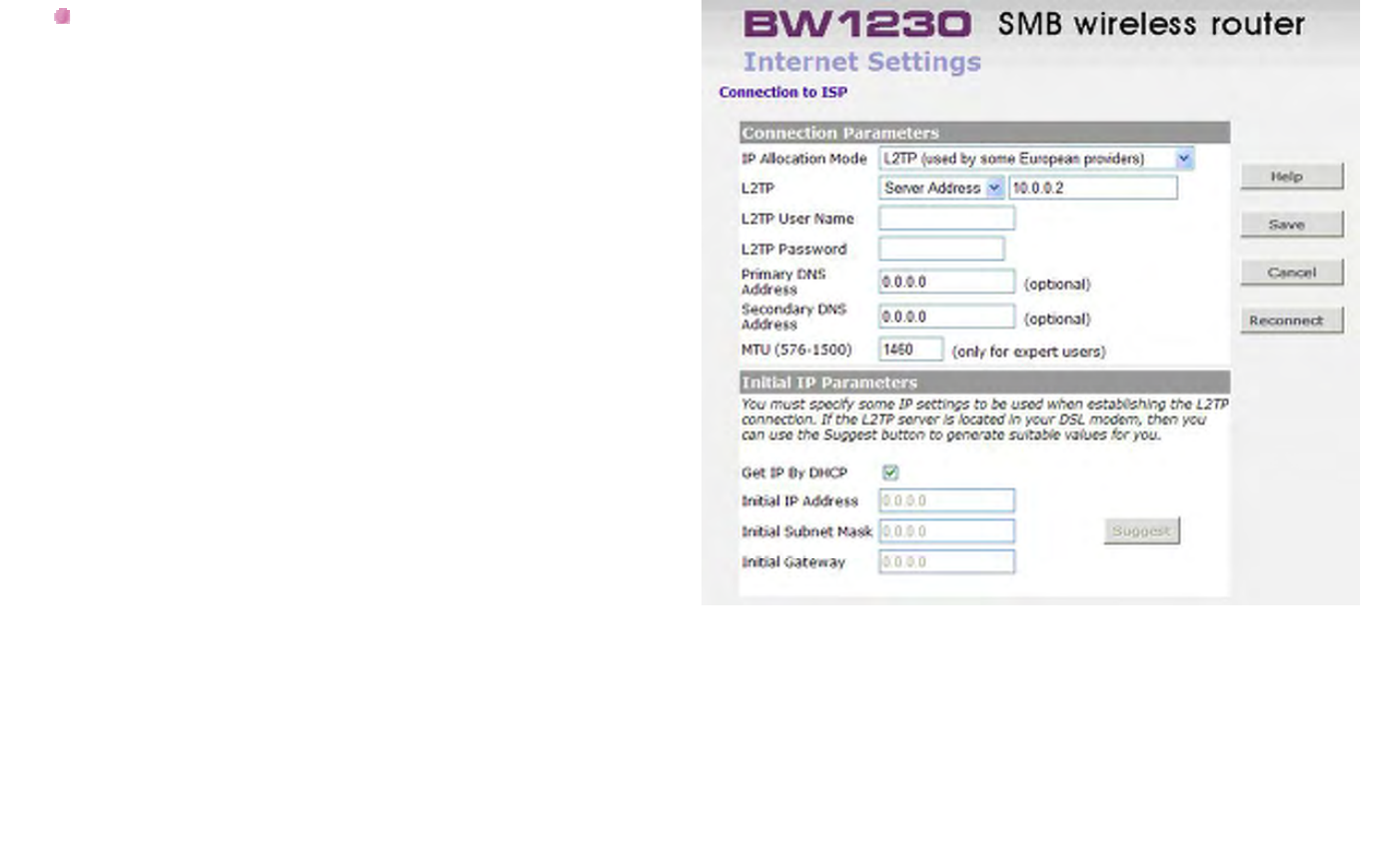

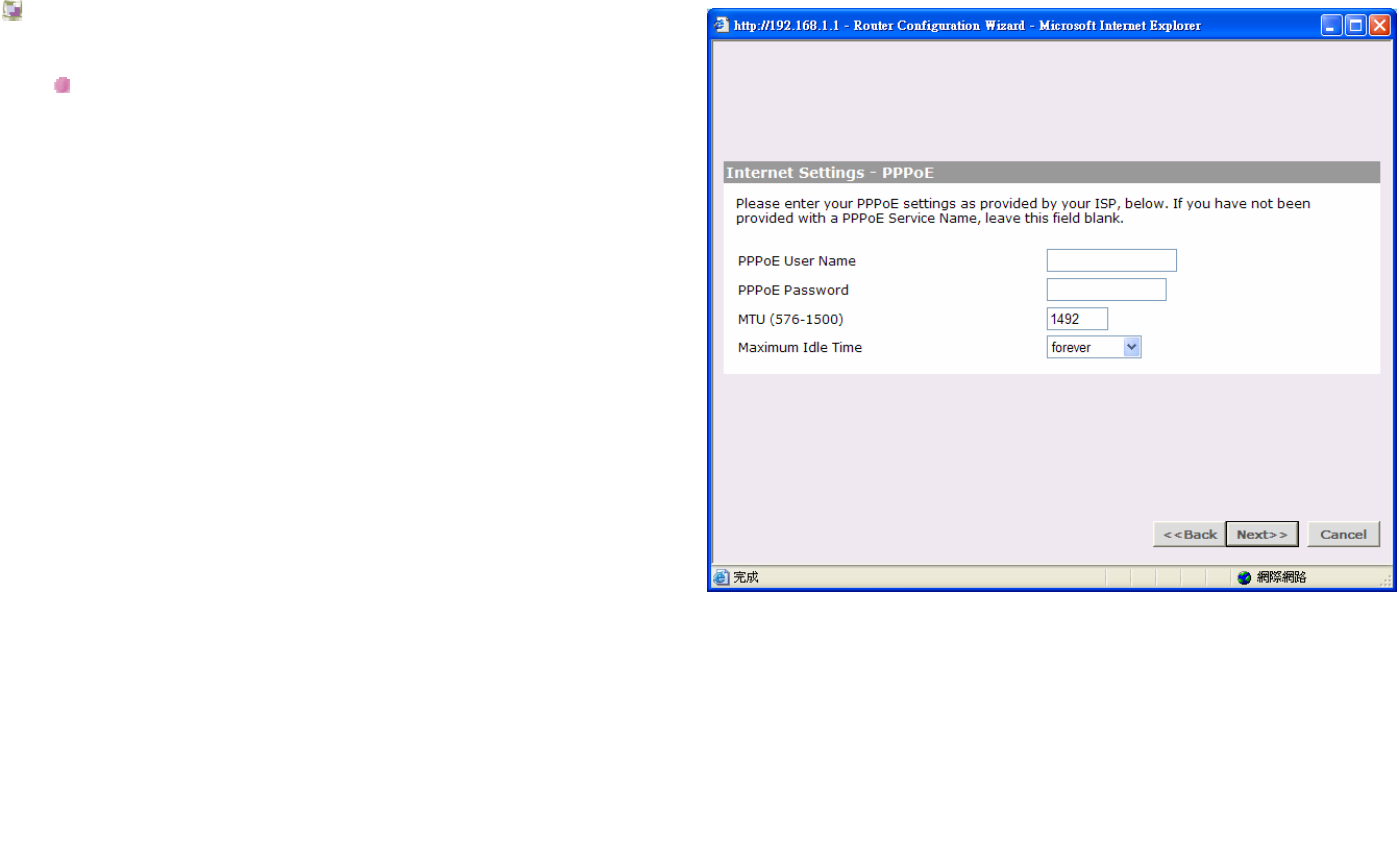

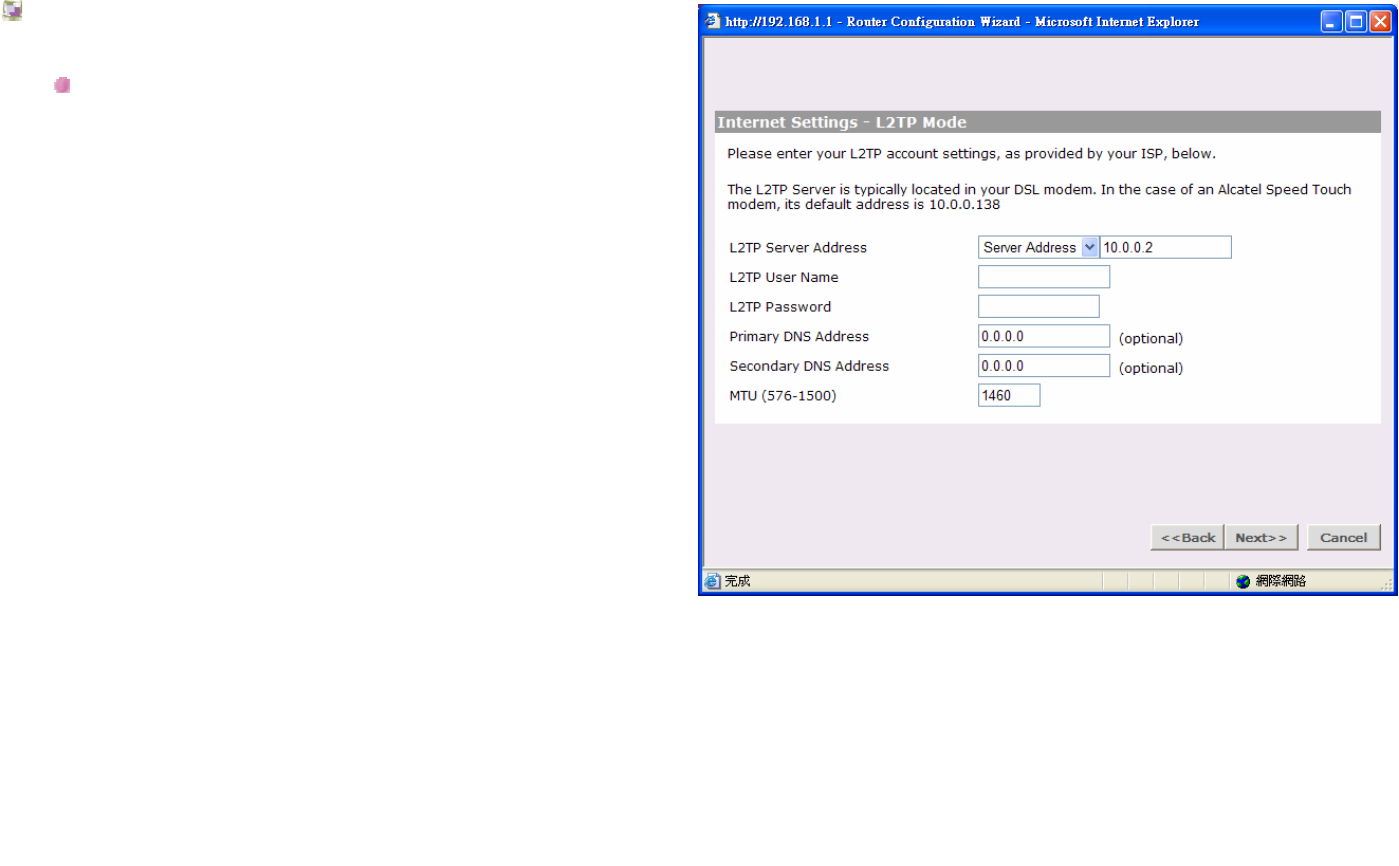

Internet Settings | Connection to ISP ...........................................................................................................................................104

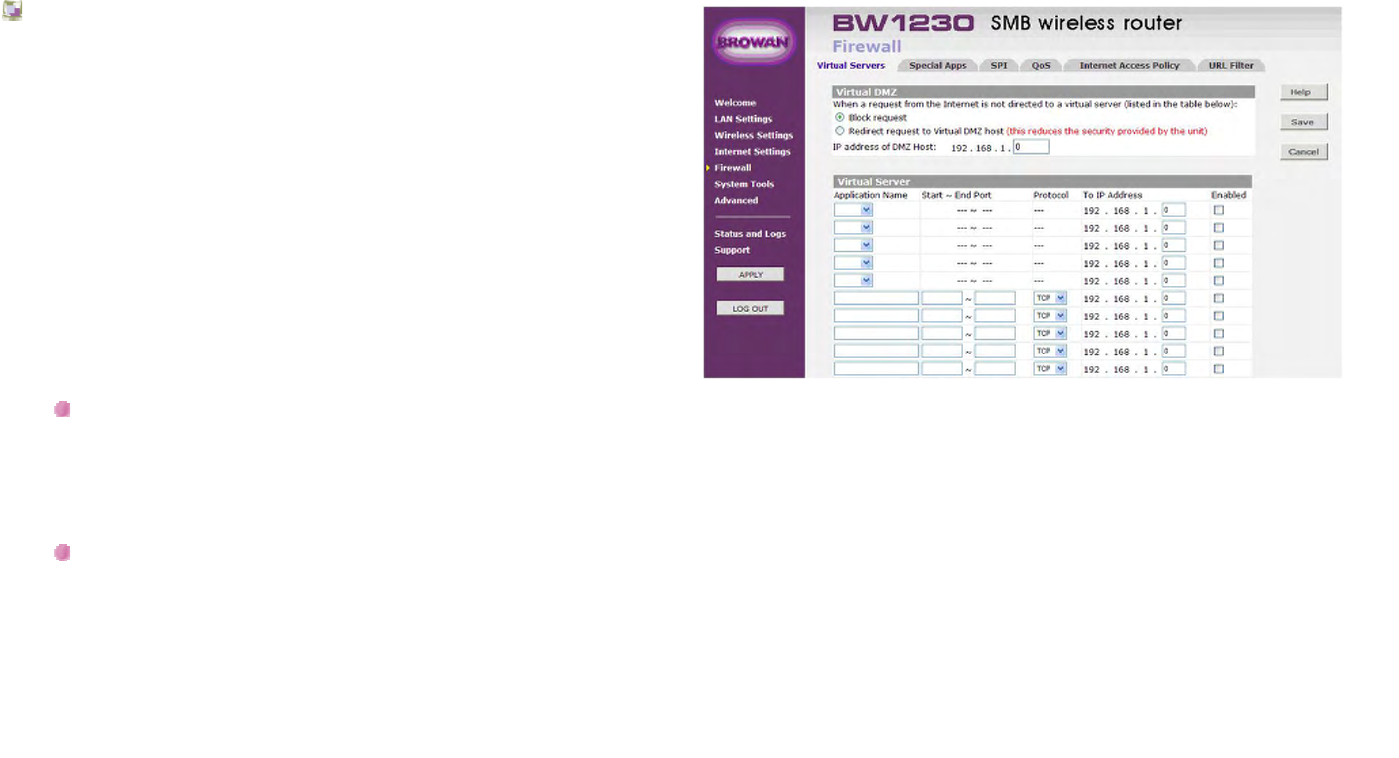

Firewall | Virtual Servers ..............................................................................................................................................................120

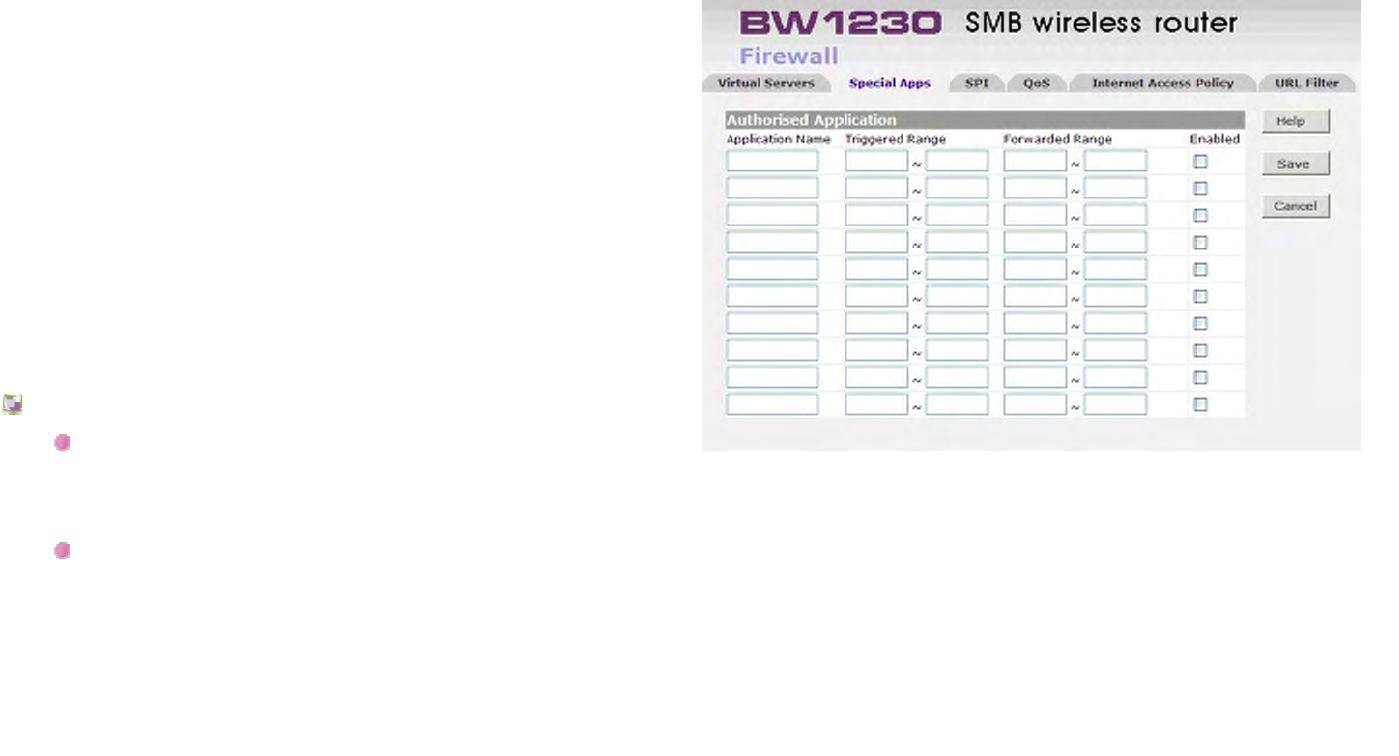

Firewall | Special Apps.................................................................................................................................................................126

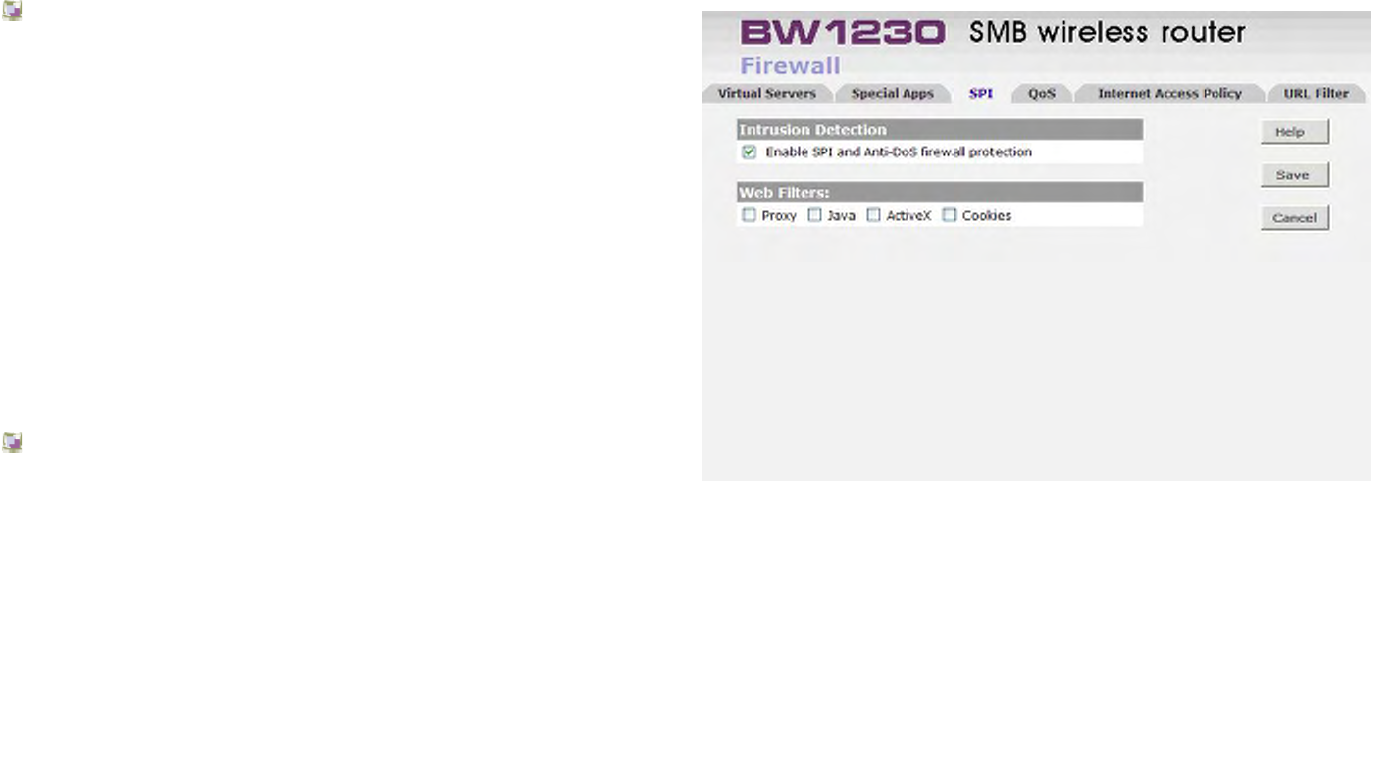

Firewall | SPI................................................................................................................................................................................128

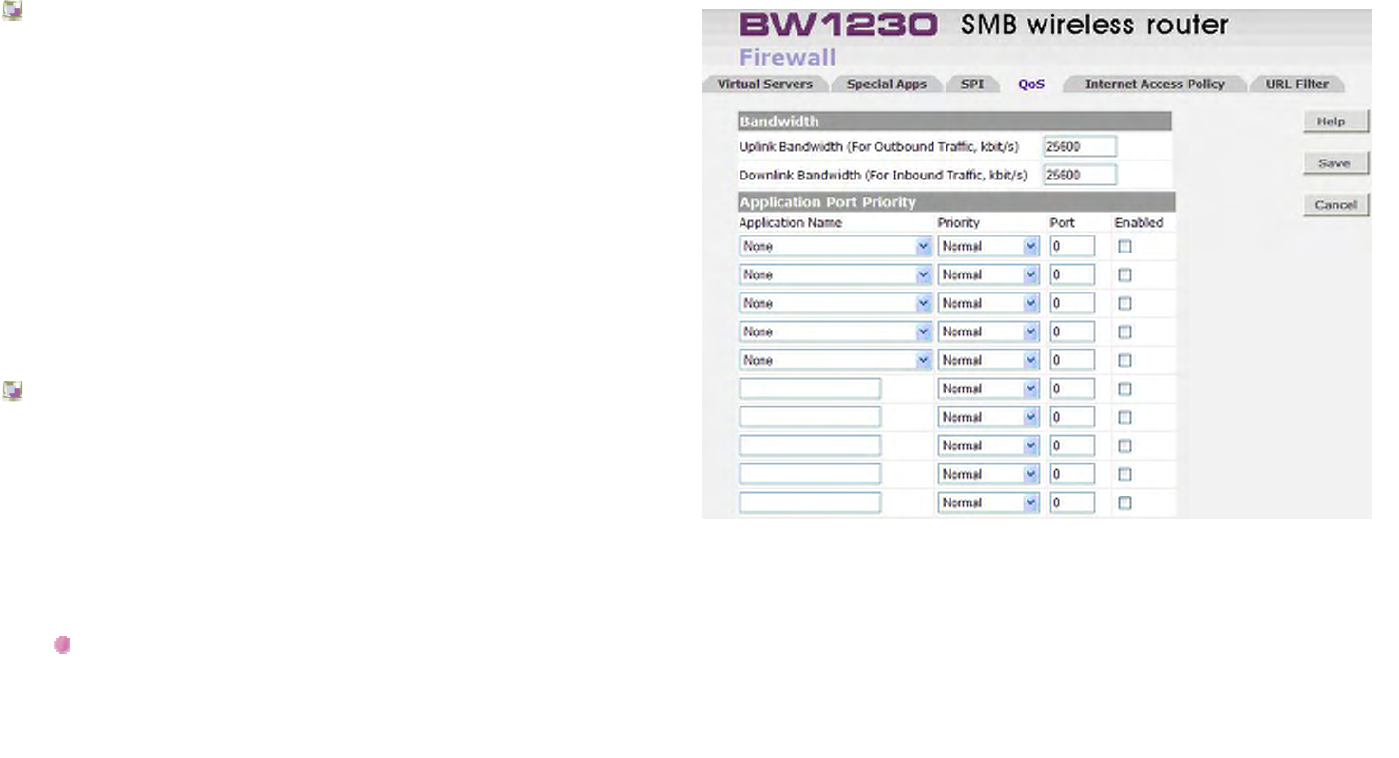

Firewall | QoS ..............................................................................................................................................................................131
Firewall | Internet Access Plicy ....................................................................................................................................................141

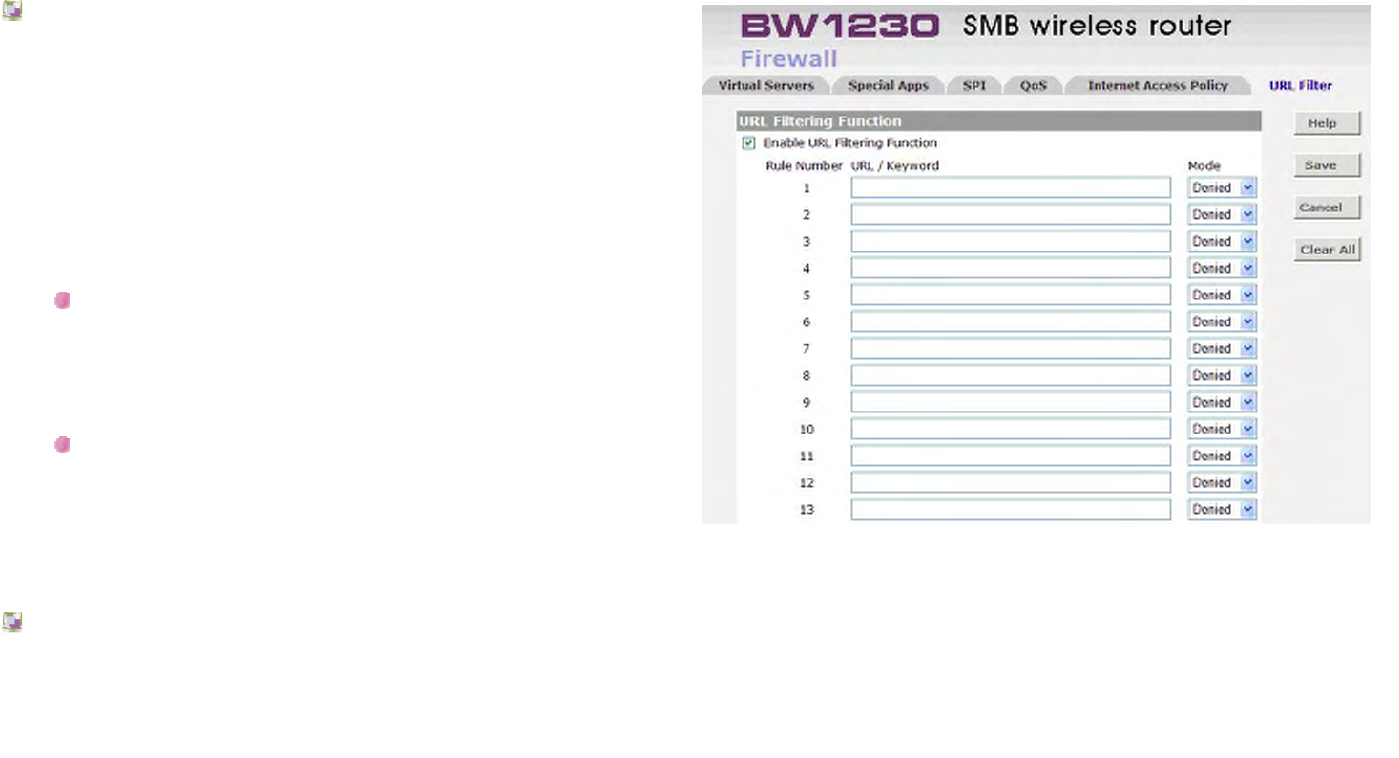

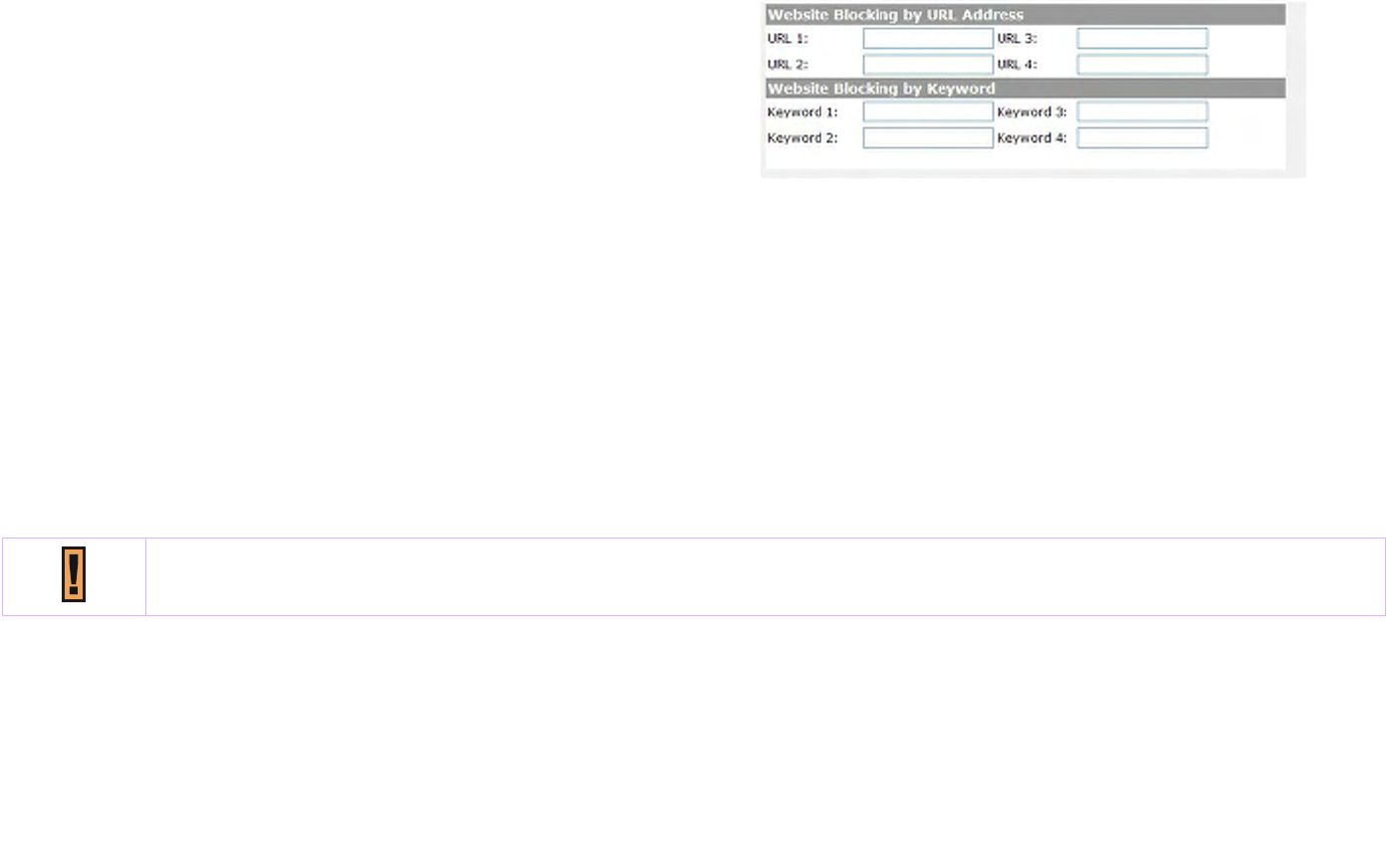

Firewall | URL Filter......................................................................................................................................................................145
System Tools | Restart.................................................................................................................................................................147
System Tools | Time Zone ...........................................................................................................................................................148
System Tools | Configuration .......................................................................................................................................................149

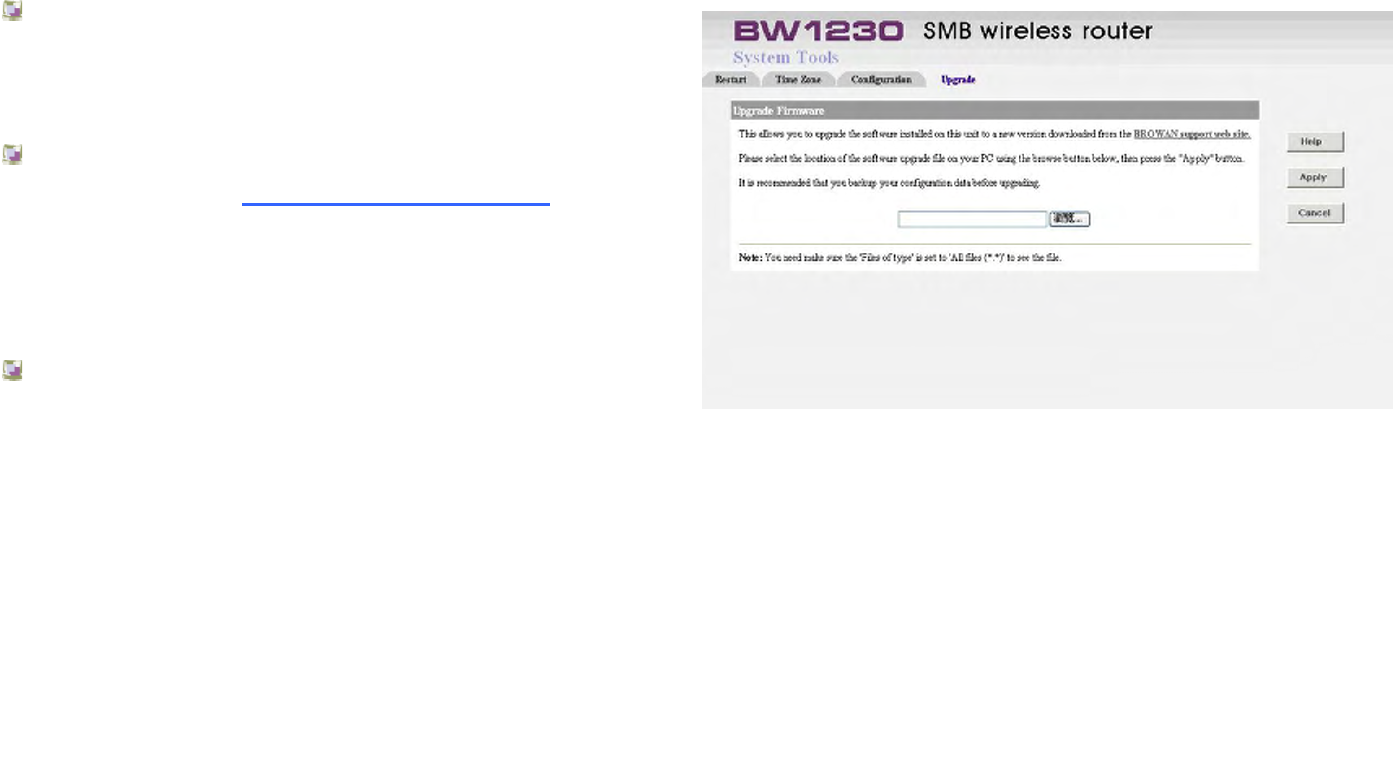

System Tools | Upgrade...............................................................................................................................................................151
Advanced | Static Route...............................................................................................................................................................152

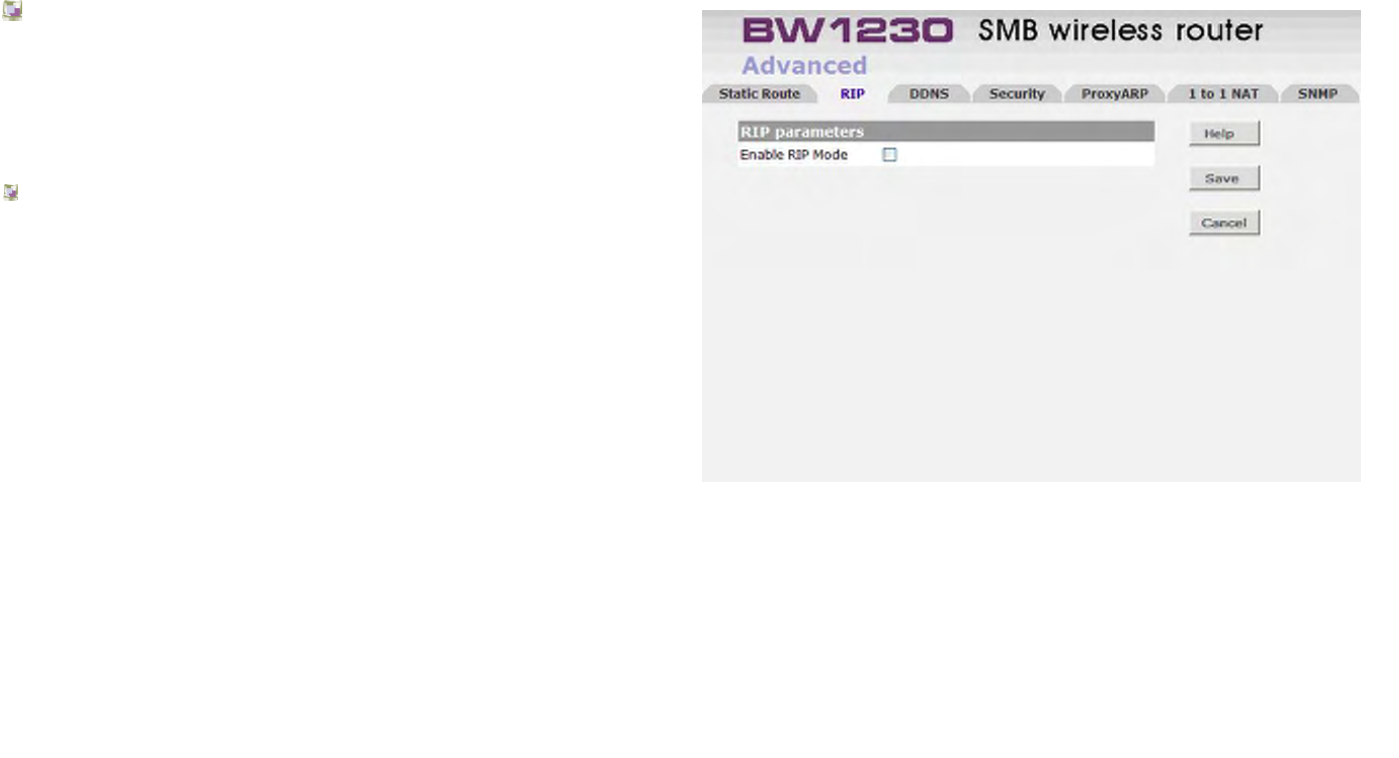

Advanced | RIP ............................................................................................................................................................................153
Advanced | DDNS........................................................................................................................................................................154

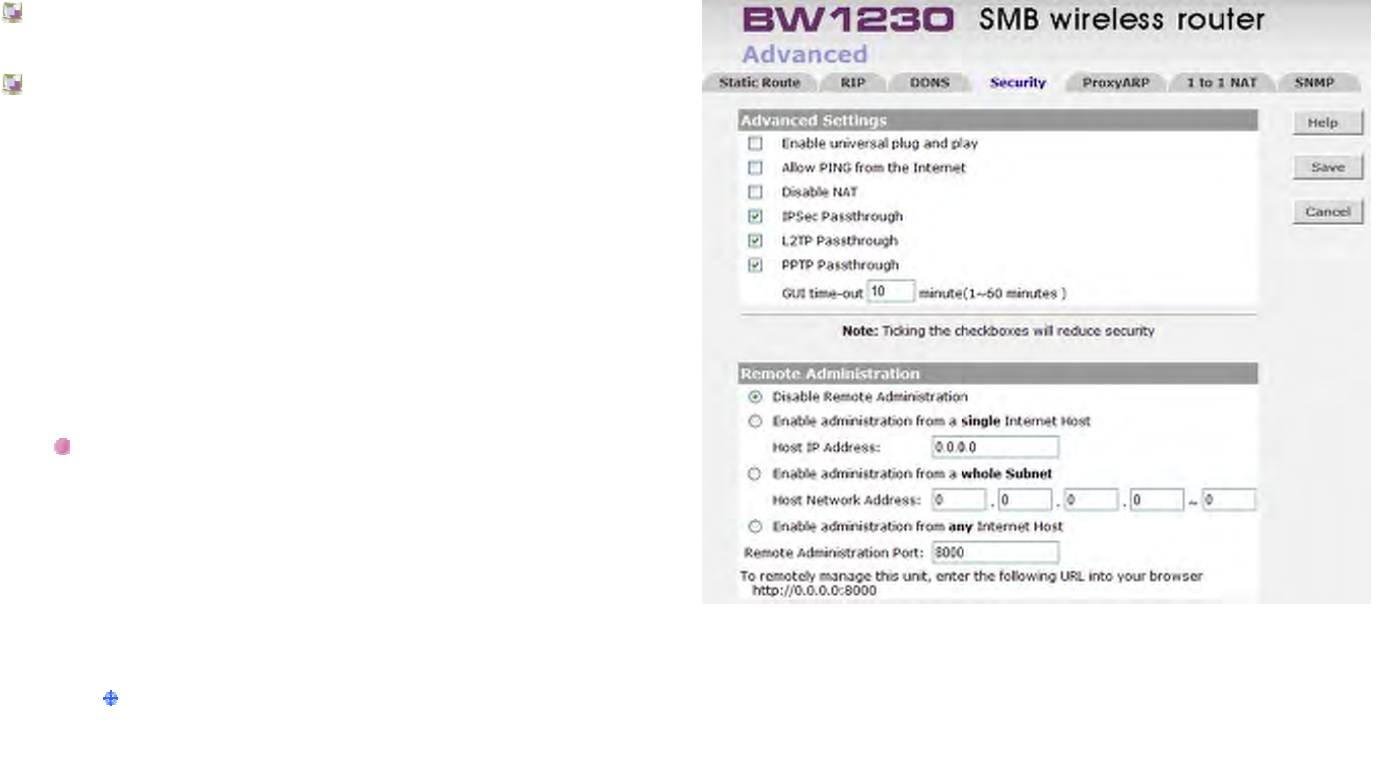

Advanced | Security .....................................................................................................................................................................157
BROWAN COMMUNICATIONS Page 14
Advanced | ProxyARP..................................................................................................................................................................161
Advanced | 1 to 1 NAT.................................................................................................................................................................162
Advanced | SNMP........................................................................................................................................................................163

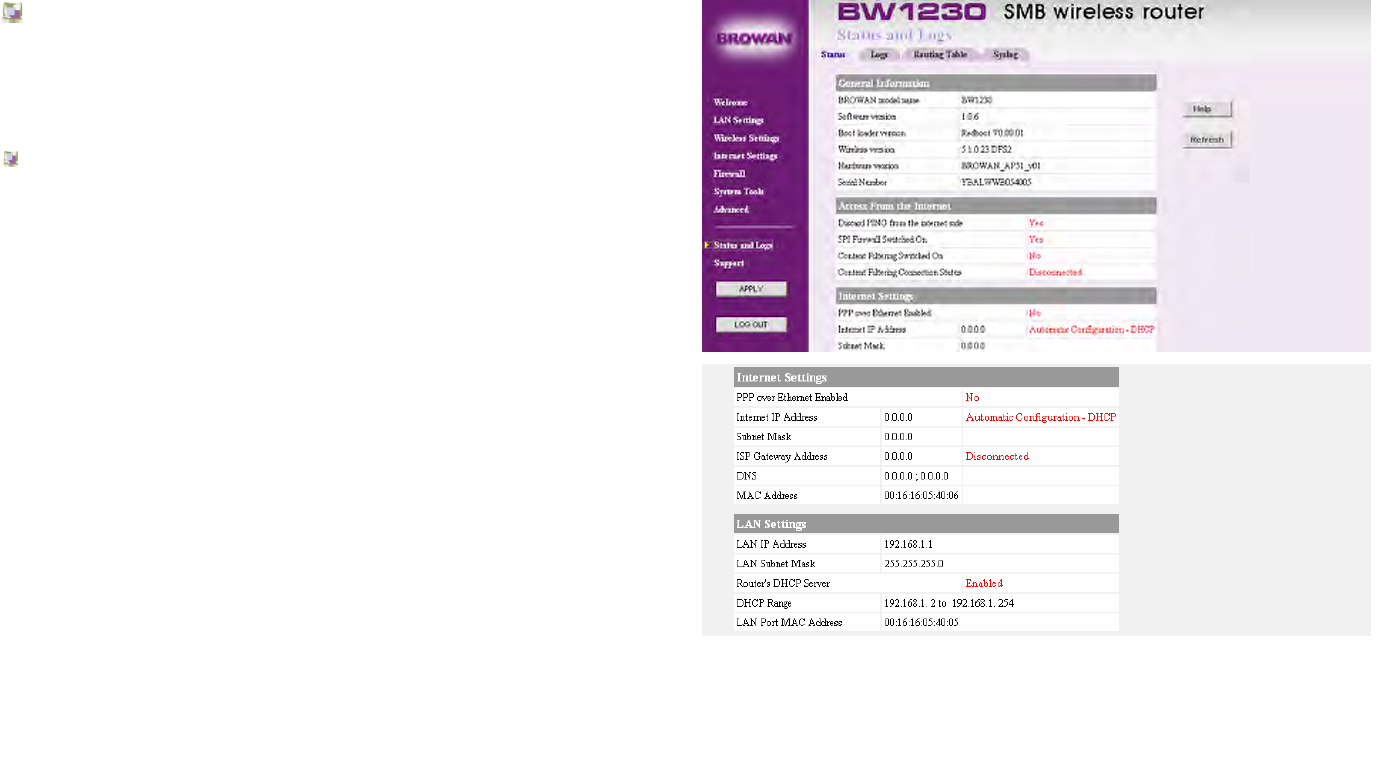

Status and Logs | Status..............................................................................................................................................................164
Status and Logs | Logs ................................................................................................................................................................166
Status and Logs | Routing Table..................................................................................................................................................168

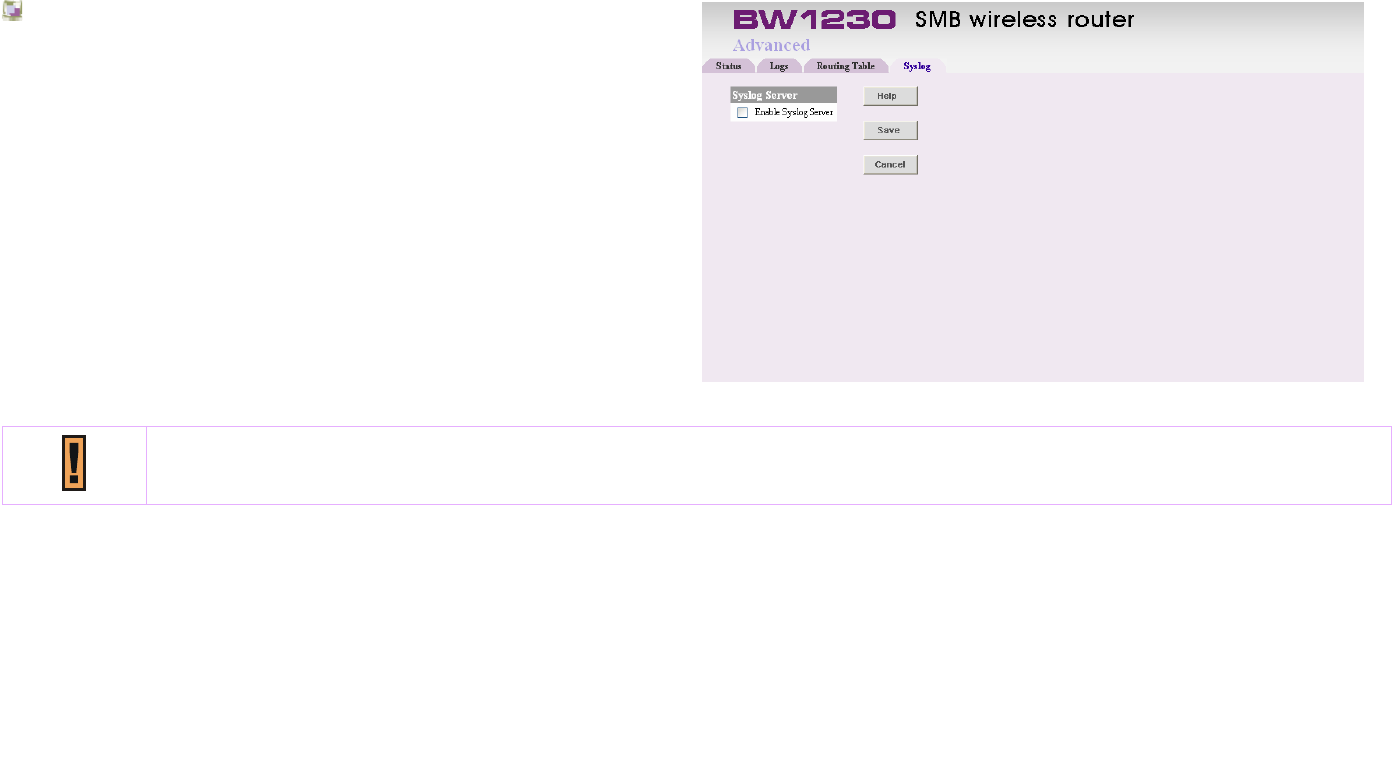

Status and Logs | Syslog .............................................................................................................................................................169

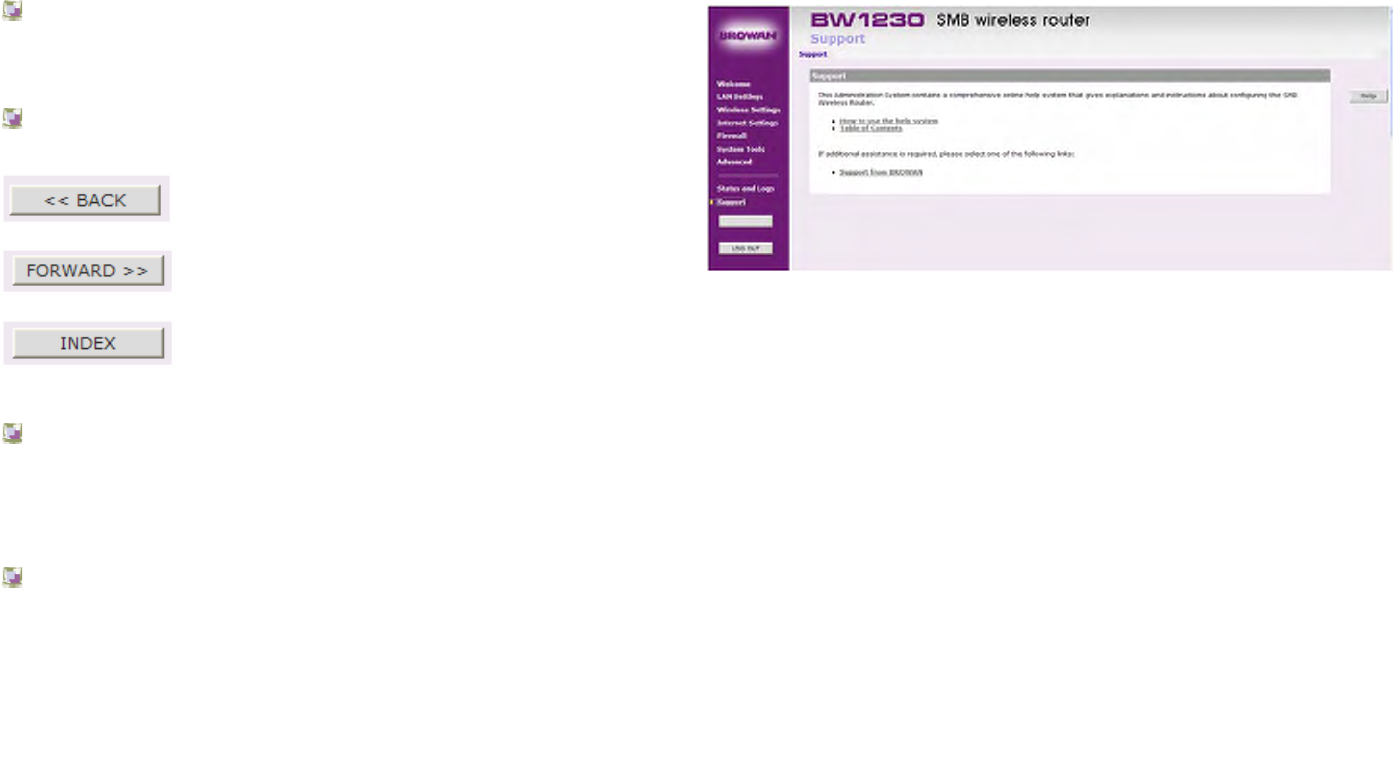

Support | Support.........................................................................................................................................................................170
APPENDIX............................................................................................................. 171
BROWAN COMMUNICATIONS Page 15
Purpose
This document provides information and procedures on hardware installation, setup, configuration, and management of the
BROWAN BW1230 SMB Wireless Router.
Prerequisite Skills and Knowledge
To use this document effectively, you should have a working knowledge of Local Area Networking (LAN) concepts and wireless
Internet access infrastructures. In addition, you should be familiar with the following:
Hardware installers should have a working knowledge of basic electronics and mechanical assembly, and should understand
related local building codes.
Network administrators should have a solid understanding of software installation procedures for network operating systems
under Microsoft Windows 95, 98, Millennium, 2000, NT, and Windows XP and general networking operations and
troubleshooting knowledge.
About this Guide
BROWAN COMMUNICATIONS Page 16
Conventions Used in this Document
The following typographic conventions and symbols are used throughout this document:
Very important information. Failure to observe this may result in
damage.
Important information that should be observed.
Additional information that may be helpful but which is not
required.
bold Menu commands, buttons and input fields are displayed in bold
code File names, directory names, form names, and
system-generated output such as error messages are
displayed in constant-width type
<value> Placeholder for certain values, e.g. user inputs
[value] Input field format, limitations, and/or restrictions.
Words in
Bold
The texts in Bold mean that those words are the Key Words.
Words in
Bold and
Italic
The texts in Bold and Italic mean that there are the
Explanations about the words.
BROWAN COMMUNICATIONS Page 17
Help Us to Improve this Document!
If you should encounter mistakes in this document or want to provide comments to improve the manual please send e-mail directly
to:
manuals@browan.com
Browan Technical Support
If you encounter problems when installing or using this product, please consult the Browan website at www.browan.com for:
Direct contact to the Browan support centers.
Frequently Asked Questions (FAQ).
Download area for the latest software, user documentation and product updates.
BROWAN COMMUNICATIONS Page 18
Thank you for choosing BROWAN BW1230 SMB Wireless Router. You could have the better and easier wireless network with a
series of BROWAN’s products.
Product Overview

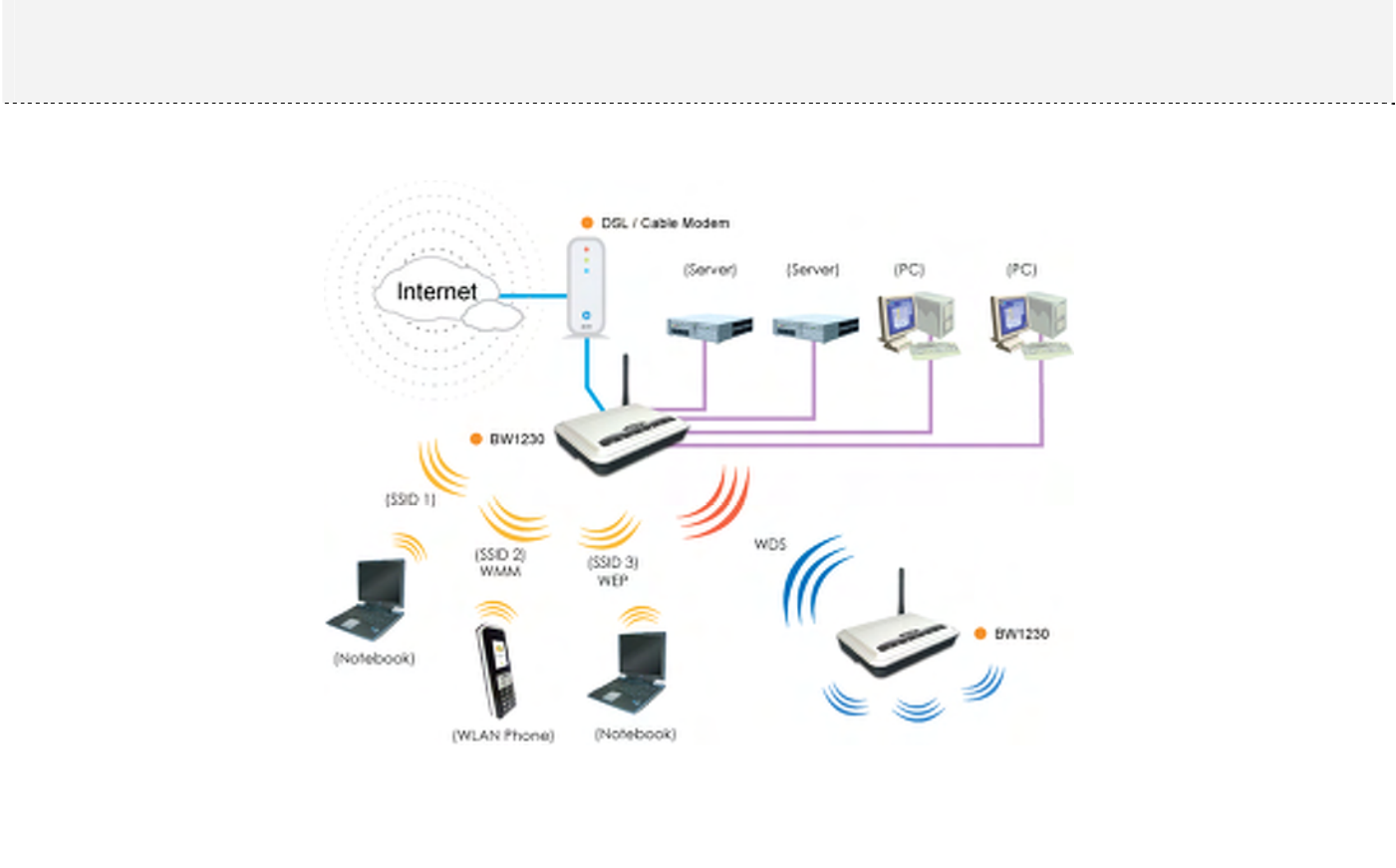

The BW1230 SMB Wireless Router is an integrated router, IEEE 802.11g wireless access point, four-port switch, and firewall to
provide a high-speed, secure, affordable and easy-to-use wireless LAN solution that combines the flexibility of wireless networking
and services required in Small Medium Business networks.
Shared and Rapid Connectivity
The BW1230 is designed in an attractive, compact plastic enclosure, with cutting-edge RF technology, providing shared Internet
access for wireless and wired users within robust wireless network in offices or similar RF environments. The BW1230 not only
supports either local power supply or inline Power-over-Ethernet (optional) but also keeps full backward compatibility with legacy
802.11b devices to ensure interoperability with all IEEE 802.11g and IEEE 802.11b client devices, extending the security, scalability,
reliability, ease of deployment, and manageability available in wired networks to the wireless LAN.
Chapter 1 – Introduction
BROWAN COMMUNICATIONS Page 19
Sophisticated Firewall and Advanced Security
Integrated with sophisticated firewall functionalities including a stateful packet inspection firewall, hacker pattern detection, IP and
MAC address filtering and other security features help protect the entire enterprise network from attacks and other Internet security
risks. In addition, the advanced wireless security offers a strong level of protection for the wireless connection by 128-bit enhanced
encryption (Wireless Protected Access) with TKIP/AES encryption for better security, along with 64/128-bits static and dynamic
WEP encryption for legacy clients.
Virtual AP technology
BW1230 supports multiple BSSIDs, so-called Virtual AP which delivers multiple services from one piece of hardware. It can create
up to 3 virtual AP with different wireless security settings respectively, allowing different users to access the services they need (e.g.,
guests only get Internet access). It prevents non-authorized users from logging on enterprise network in terms of confidentiality of
company information.
BROWAN COMMUNICATIONS Page 20
stateful packet inspection firewall:
A stateful firewall (any firewall that performs stateful packet inspection or stateful inspection) is a firewall that
keeps track of the state of network connections (such as TCP streams, UDP communication) travelling across it. The
firewall is programmed to distinguish legitimate packets for different types of connections. Only packets matching a
known connection state will be allowed by the firewall; others will be rejected.
TKIP:
TKIP (Temporal Key Integrity Protocol) is a security protocol used in Wi-Fi Protected Access (WPA).
TKIP ensures that every data packet is sent with its own unique encryption key.
AES:
Advanced Encryption Standard (AES) is a block cipher adopted as an encryption standard by the U.S. government.
And a block cipher is a symmetric key cipher which operates on fixed-length groups of bits.
BROWAN COMMUNICATIONS Page 21
Features Highlight
802.11b+g compliant, 1-54Mbps with auto-fallback
Support Multiple BSSID, up to 3 Virtual AP
Concurrent 802.11b and 802.11g user association
WDS supported
Quality of Service, IEEE 802.11e (WMM)
Static and Dynamic IP routing (RIP v1 and v2)
NAT/NAPT (IP masquerading)
Port-forwarding and up to 15 virtual servers supported
Virtual DMZ
Transparent VPN pass-through (PPTP, L2TP)
PPPoE/PPTP/L2TP client
DHCP server/relay/client
Dynamic Domain Name Service (DDNS)
Enhanced encryption (Wireless Protected Access) with
TKIP or AES
Wired Equivalent Privacy (WEP) using static or dynamic
key of 64 or 128 bits
IP, MAC, WEB, and Protocol filter
URL and domain blocking
Access Control (accepting and denying rules) based on
MAC/IP address
Hidden SSID
Web-based configuration
Remote management via http and SNMP
Firmware upgrade via web UI
Backup/Restore configuration file
System log to log server
BROWAN COMMUNICATIONS Page 22
This chapter provides installation instructions for the hardware and software components of the BROWAN BW1230 SMB Wireless
Router. It also includes the procedures for the following tasks:
The Product Package
Hardware Introduction
Hardware Installation
Software Installation
Chapter 2 - Installation
BROWAN COMMUNICATIONS Page 23
The Product Package
The items in the package
:
Item Qty
1 BROWAN BW1230 SMB Wireless Router 1
2 Power adapter 1
3 RJ-45 Ethernet cable 1
4 External antenna 1
5 Installation CD with::
BW1230 User Guide (PDF)
Product Firmware
Release Notes
Adobe Acrobat Reader
1
6 Printed 2 Years Warranty Card 1
If any of these items are missing or damaged, please
contact your reseller or Browan sales representative
immediately.
BROWAN COMMUNICATIONS Page 24
Hardware Introduction
General Overview
Cost-effective solution is the design concept of BW1230. Users
could share a single broadband internet connection between
several wired and wireless computers. Also BW1230 could
present user a safe internet connection by block any
unauthorized users to see your files or damage your computers.
And users could manage BW1230 easier with Web-based
configuration.
Figure 1 – BW1230 General View
BROWAN COMMUNICATIONS Page 25
TOP Cover View
The Top Cover of BW1230 contains some indicator lights (LEDs),
and they could help you to know the status of your networking and
connection operations.
Figure2 shows the Top Cover view of BW1230.
Power LED:
It tells you the power is on or off.
Wireless LED:
1. If the Wireless LED is on it indicates your wireless
networking is enable.
2. If the Wireless LED is off it indicates your wireless
networking is disable.
3. If the Wireless LED is flashing it indicates your
wireless networking is transmitting and receiving the
data.
Figure 2 – BW1230 Top Cover View
1
3
2
4
1
2
BROWAN COMMUNICATIONS Page 26
WAN LED:
1. If the WAN LED is on it indicates the connection
between the BW1230 and your DSL/Cable Modem is
working fine.
2. If the WAN LED is off it indicates the connection is
failed.
3. If the WAN LED is flashing it indicates the
connection between the BW1230 and your
DSL/Cable Modem is working fine and it is
transmitting and receiving the data.
LAN LED (Four Ports) :
1. If the LAN LED is on it indicates the connection
between the BW1230 and your another network
equipment is working fine.
2. If the LAN LED is off it indicates the connection is
failed.
3. If the LAN LED is flashing it indicates the connection
between the BW1230 and your another network
equipment is working fine and it is transmitting and
receiving the data.
3
4
BROWAN COMMUNICATIONS Page 27
The LED indication of BW1230 shown as below：
Item Number LED Status Description
ON Power is ON
1. Power OFF Power is OFF
ON Wireless is activated
OFF Wireless is idle
2. Wireless
Flashing Data is transmitting
ON WAN is activated
OFF WAN is idle
3. WAN
Flashing Data transmitting
ON LAN is activated
OFF LAN is idle
4. LAN 1 – LAN 4
Flashing Data is transmitting
BROWAN COMMUNICATIONS Page 28
Connection View
Figure3 shows the connectors of BW1230.
Power Adapter Socket
Please only use the power adapter provided by this
BW1230 SMB Wireless Router.
Reset
You could press Reset button to restore your router
back to the factory default.
WAN
Connect your WAN port to your DSL/Cable Modem for
your broadband Internet access with a RJ-45 network
cable.
LAN (From LAN1 to LAN4)
Connect your LAN port to your computers or any other
network equipments (such as hubs or switches) with a
RJ-45 network cable.
Figure 3 – BW1230 Connection View
4
1
2
3
5
1
2
3
4
BROWAN COMMUNICATIONS Page 29
External Antenna Socket
To install the BW1230 External Antenna.
Press the Reset button for less than 5 seconds to reboot the device.
Press the Reset button for more than 5 seconds to set the device to factory defaults.
5
BROWAN COMMUNICATIONS Page 30
Bottom Case
You could find the product label on the bottom case, shown as
Figure4.
Product Label
Figure 4 – BW1230 Bottom Case
BROWAN COMMUNICATIONS Page 31
Product and Safety Label
This product label contains :
1. Product Model
2. Product name of BW1230.
3. BW1230 has passed the requirement of CE.
4. BW1230 has passed the requirement of RoHS.
5. BW1230 has passed the requirement of WEEE.
6. BW1230 has passed the requirement of FCC.
7. BW1230 has passed the requirement of China RoHS.
8. Browan Logo.
9. The Revision of BW1230.
10. This device has been made in Taiwan.
11. Serial number of BW1230.
12. MAC address of LAN in BW1230.
Figure 5 – BW1230 Product Label
1
2
3
4
5
6
7
8
9
10
1112
BROWAN COMMUNICATIONS Page 32
CE : The CE mark is a mandatory European marking for certain product groups to indicate conformity with the
essential health and safety requirements set out in European Directives. To permit the use of a CE mark on a product,
proof that the item meets the relevant requirements must be documented.
WEEE : The Waste Electrical and Electronic Equipment Directive (WEEE Directive) is the European Community
directive on waste electrical and electronic equipment which, together with the RoHS Directive 2002/95/EC, became
European Law in February 2003, setting collection, recycling and recovery targets for all types of electrical goods
RoHS : Restriction of Hazardous Substances Directive was adopted in February 2003 by the European Union.
adopted in February 2003 by the European Union. The RoHS directive took effect on July 1, 2006, but is not a law; it is
simply a directive. This directive restricts the use of six hazardous materials in the manufacture of various types of
electronic and electrical equipment.
RoHS is often referred to as the lead-free directive, but it restricts the use of the following 6 substances:
1. Lead
2. Mercury
3. Cadmium
4. Hexavalent chromium (Chromium VI or Cr6+)
5. Polybrominated biphenyls (PBB)
6. Polybrominated diphenyl ether (PBDE)
BROWAN COMMUNICATIONS Page 33
China RoHS : China RoHS is a certification about the administration on the control of pollution caused by electronic
information products.
Key Differences between China RoHS and EU RoHS:
The scope is different
The requirements are different
There are no exemptions ... yet
Labels, marks, and disclosure are required
The concept of Put on the market is different
The penalties are different
The responsibilities dictated by the law are different
Material testing down to the homogeneous materials in every single part you use to build your product may be
required
The regulation is in force on March 1
You will have to design labels and issue change orders in order to comply
The standards that you have to comply with just became available in finalized versions
FCC : The Federal Communications Commission (FCC) is an independent United States government agency,
created, directed, and empowered by Congressional statute.
The FCC was established by the Communications
A
ct of 1934 as the successor to the Federal Radio Commission and
is charged with regulating all non-Federal Government use of the radio spectrum (including radio and television
broadcasting), and all interstate telecommunications (wire, satellite and cable) as well as all international
communications that originate or terminate in the United States. It is an important factor in US telecommunication
BROWAN COMMUNICATIONS Page 34
policy. The FCC took over wire communication regulation from the Interstate Commerce Commission. The FCC's
jurisdiction covers the 50 states, the District of Columbia, and U.S. possessions.
BROWAN COMMUNICATIONS Page 35
Hardware Installation
Mounting the BW1230
Step 1 :
Please use a power drill to make two holes on the wall.
Step 2 :
Hammer the ○
1Wall Plugs into the two holes.
Step 3 :
And screw the ○
2Screws to the ○
1Wall Plug.
Step 4:
Now you could hang your ○
3BW1230 on the wall.
Figure 7 – Mounting the BW1230 on the wall
○
1Wall Plug
○
2Screw
○
3BW1230
BROWAN COMMUNICATIONS Page 36
Installing the BW1230
Step1: Install the antenna and connect the power
adapter.
Step2: Insert one end of RJ-45 network cable into
the WAN Port, and insert another end of RJ-45
network cable into your existing Cable/DSL
Modem.
You might check the connection status of the
BW1230 and Cable/DSL modem from the WAN
LED indicator.
Step3: Connect the Cable/DSL modem to your
internet service with a RJ-45 network cable.
Step4: Connect your computer to any LAN Port of
BW1230 with a RJ-45 network cable.
You might check the LAN connection status from
the LAN LED indicator.
Step5: The Hardware installation now is
BROWAN COMMUNICATIONS Page 37
completed.
You could configure the BW1230 with your
computer, and then you could set up other
computers ( including wireless computers ) after
the configuration completed
Directly connect a computer to the any LAN Port of BW1230 for your preliminary configuration.
Because you might lose contact with router if you configure the router from a wireless computer.
BROWAN COMMUNICATIONS Page 38
Software Installation
Accessing Your BW1230
Use the Web browser to access
Step 1 :
Please setup your network connection.
Select Local Area Connection Status.
Click on Properties.
Figure 10-1 – Local Area Connection Status
BROWAN COMMUNICATIONS Page 39

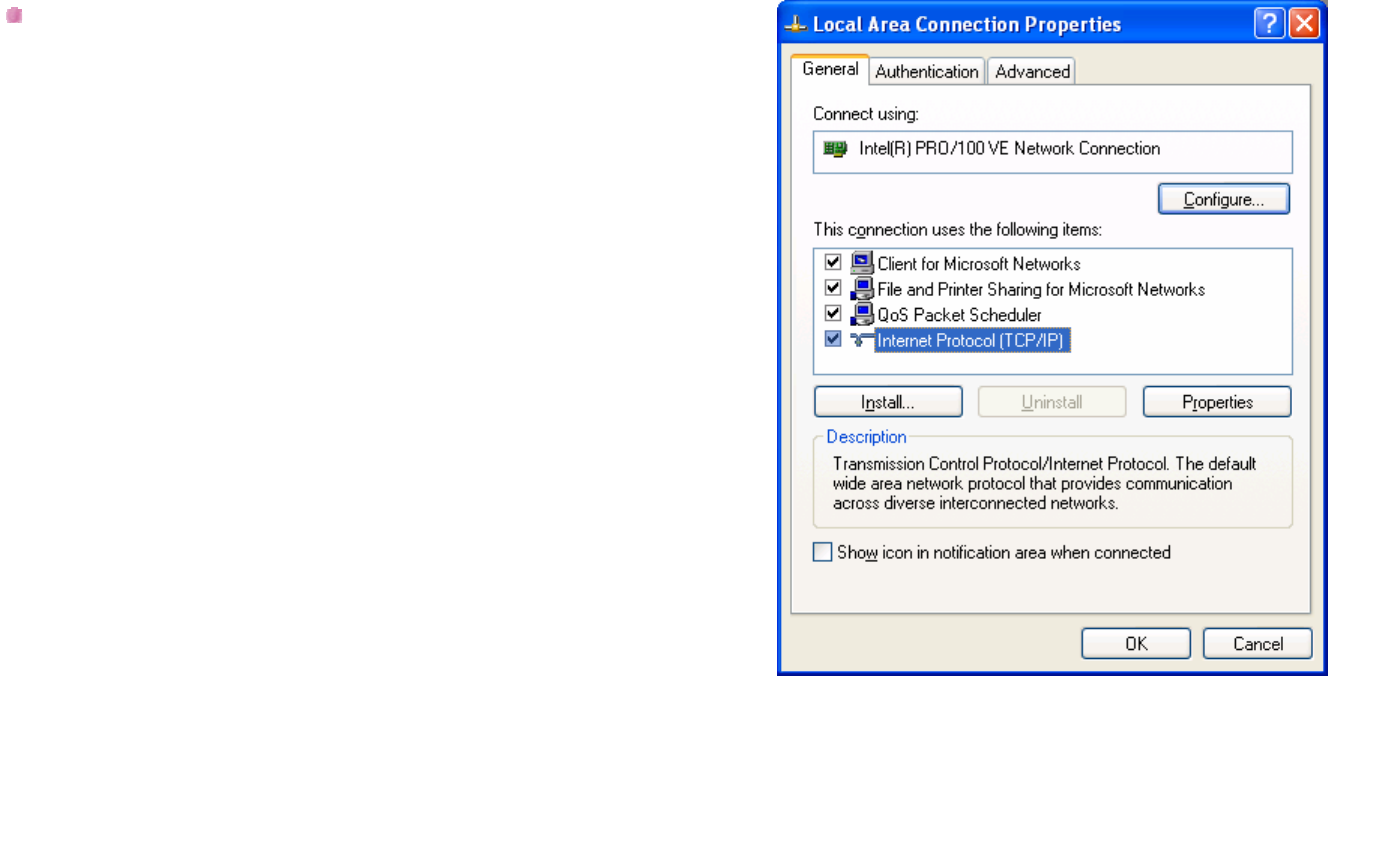

Double click on the Internet Protocol (TCP/IP)
Figure 10-2 – Local Area Connection Status
BROWAN COMMUNICATIONS Page 40
Please select Obtain an IP address automatically and
Obtain DNS sever address automatically.
Click on OK to apply the changes.
Figure 10-3 – Local Area Connection Status
BROWAN COMMUNICATIONS Page 42
Enter the BW1230 administrator login credential to access
the Web management interface.
The Default System Password is admin, and it is case
sensitive.
Figure 12 – Login page
BROWAN COMMUNICATIONS Page 43
You could share the internet with everybody in anywhere.
Chapter 3 – Application Mode
BROWAN COMMUNICATIONS Page 44
This chapter contains the illustration of the main functions in the configuration.
After the network connection setup (refer to Accessing Your
BW1230), open the Web browser and enter the default IP
address of the BW1230: http://192.168.1.1
Enter the System Password, admin.
Click Log in button to continue the configuration, or click
Cancel button to quit the configuration.
Chapter 4 – Reference Manual
BROWAN COMMUNICATIONS Page 45
If you forget your password, please click on the here. After
you click on the here, there will be a popup window. And
the popup window will show you what you should do.
BROWAN COMMUNICATIONS Page 47
Welcome | Wizard
The Wizard feature could help you to easily configure the
router.
The Wizard screen would display automatically for your
preliminary configuration, or you could manually click on
Wizard tag.
Please click on the WIZARD button to launch the wizard
feature.
BROWAN COMMUNICATIONS Page 48
Welcome | Wizard | Setup Wizard
Router Configuration Wizard
This screen is the first screen appears after you start
the setup wizard.
Click Next to continue the setup wizard.
Or click Cancel to quit the setup wizard.
BROWAN COMMUNICATIONS Page 49
Change Administration Password
You could leave fields blank to keep the default
administrator password, or you could change a new
password.
If you would like to change a new password, please
enter the old password in the first field. And enter the
new password in the other two fields.
Click Back to go to previous screen.
Or Click Next to continue the setup wizard.
Or click Cancel to quit the setup wizard.
Browan recommand you to change a new password for your wireless network sercurity.
And the password is case sensitive.
BROWAN COMMUNICATIONS Page 50
Time Zone
Please select the time zone from the drop-down menu,
and check the Enable Daylight saving selection if
necessary
Click Back to go to previous screen.
Or Click Next to continue the setup wizard.
Or click Cancel to quit the setup wizard.
BROWAN COMMUNICATIONS Page 51
Internet Settings - Internet Addressing Mode
Please select an internet connection mode you are
using.
PPPoE is required (typically DSL users only)
ISP provides configuration dynamically (via DHCP)
ISP has provided a static IP address
PPTP is required (some DSL users in Europe)
Heart Beat Signal (Bigpond/Telstrra) is required
L2TP (used by some European providers)
Click Back to go to previous screen.
Or Click Next to continue the setup wizard.
Or click Cancel to quit the setup wizard.
BROWAN COMMUNICATIONS Page 52
Internet Settings – PPPoE
PPPoE (Point-to-Point Protocol over Ethernet):
Only ISP's providing DSL use PPPoE. If the installation
instructions that accompany your modem ask you to
install a PPPoE client on your PC then select this
option. Note that you will not need to use PPPoE
software on your PC once the Router is installed. If you
are unsure, you should ask your ISP whether you need
to use PPPoE.
PPPoE User Name:
Enter your User Name in this box. This field is required,
and will be provided to you by your ISP.
PPPoE Password:
Enter your password in this box. This field is required,
and will be provided to you by your ISP.
PPPoE Service Name:
If your ISP provided you with a Service Name, you
should enter this here. If not, you should leave this
blank.
BROWAN COMMUNICATIONS Page 53
Host Name:
Some ISP's require a host name to identify you when
you connect. If you have been provided a Host Name
by your ISP, you should enter it here. This field is
optional, and so if you have not been provided a host
name, you may leave it blank.
MTU:
The MTU settings should be obtained from your
Internet Service Provider. If you do not know this value,
just leave it at the default value.
Maximum Idle Time:
This is the amount of time that passes before your
Internet Connection is dropped due to inactivity. If you
want to keep your Internet Connection established at all
times, you should select Forever; Otherwise, select the
amount of time that you want to pass before your
Router disconnects from your ISP.
Click Back to go to previous screen.
Or Click Next to continue the setup wizard.
Or click Cancel to quit the setup wizard.
BROWAN COMMUNICATIONS Page 54
Internet Settings – Hostname
Dynamic IP address (automatically allocated):
This allocation mode may be used by either Cable or
DSL ISP's. It is popular with Cable providers, and may
also be required if your modem has a built in DHCP
server.
If this mode is selected, your IP Address, Subnet Mask,
and ISP Address will be obtained automatically from
your ISP. They are not displayed on this screen, but
may be viewed on the Status screen (click on Status
and Logs on the left hand menu bar).
Host Name:
Some ISP's require a host name to identify you when
you connect. If you have been provided a Host Name
by your ISP, you should enter it here. This field is
optional, and so if you have not been provided a host
name, you may leave it blank.
Click Back to go to previous screen.
Or Click Next to continue the setup wizard.
Or click Cancel to quit the setup wizard.
BROWAN COMMUNICATIONS Page 55

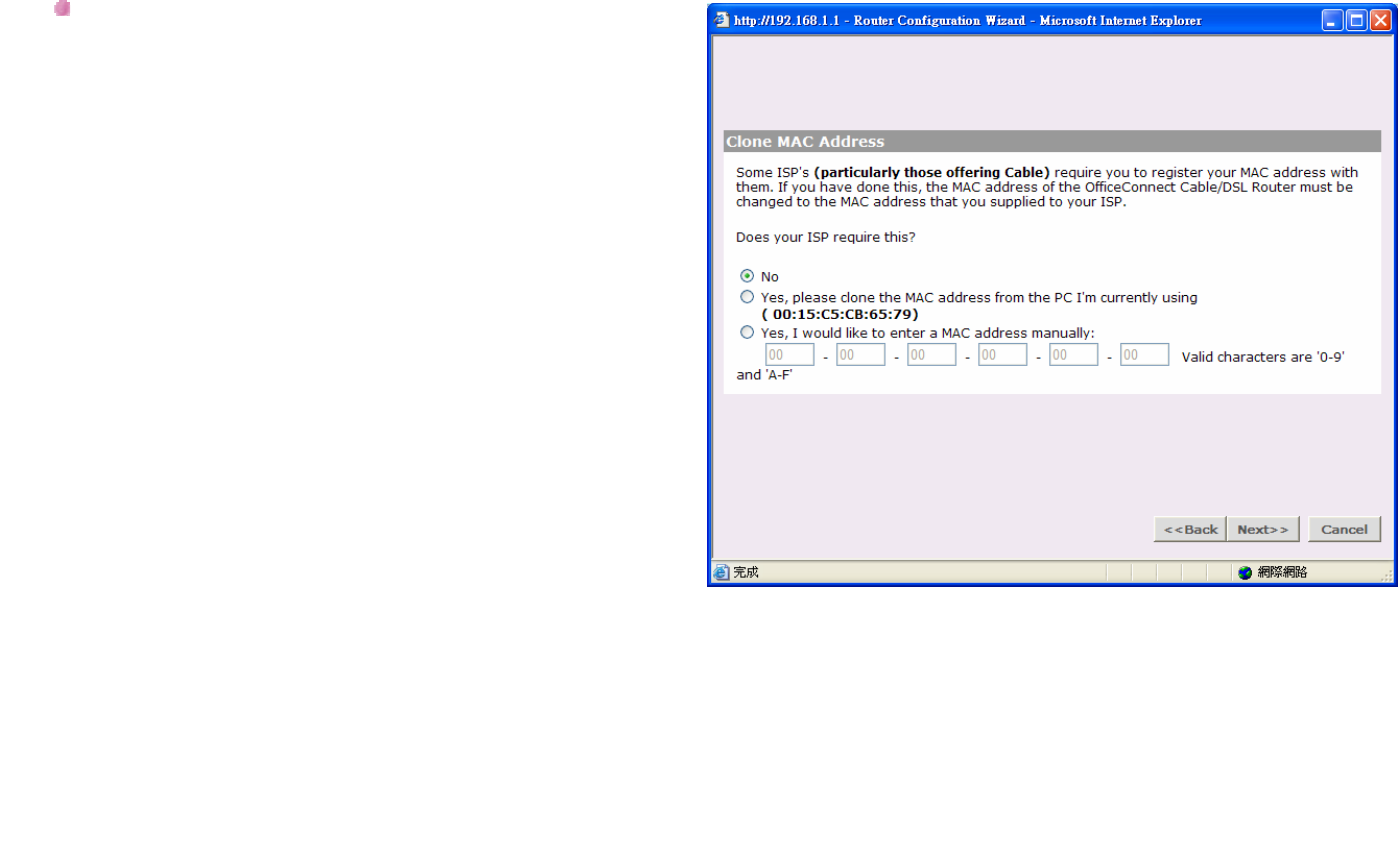

Clone MAC address:
Some ISP's use the hardware (MAC) address of the
device you connect to the Internet with to identify you. If
you have previously used a different device with your
current ISP, and they use your MAC address to identify
you, then you can change the MAC address on the
WAN side of your Router to be that of your old device.
There are three options available for cloning the Router
WAN port MAC address:
Use the Router's original MAC address:
This option is selected by default. When selected, the
Router uses the WAN port MAC address that it was
assigned at the factory.
Use this PCs MAC address:
This option will assign the MAC address of the PC you
are using to manage the Router to the WAN port. If this
is the PC that you used previously to connect to your
ISP, then you should select this option.
BROWAN COMMUNICATIONS Page 56
Enter a new MAC address manually
If the MAC addresses given by the previous two options
are not correct, then you will need to find the MAC
address of the previous device used with your ISP.
Click Back to go to previous screen.
Or Click Next to continue the setup wizard.
Or click Cancel to quit the setup wizard.
BROWAN COMMUNICATIONS Page 57
Internet Settings - Static IP Mode
Static IP address (to be specified manually):
This allocation mode may be used by either Cable or
DSL ISP's.
IP address:
This is the IP address of your Router that will be seen
from the WAN, or Internet. This setting is required, and
will be provided to you by your ISP.
Subnet mask:
This is the Subnet Mask of your Router's WAN port.
This setting is required, and will be provided to you by
your ISP.
ISP Gateway Address:
This is sometimes referred to as Default Gateway.
This setting is required, and will be provided to you by
your ISP.
BROWAN COMMUNICATIONS Page 58
Primary DNS Address:
Your ISP will normally provide you with at least one
DNS (Domain Name Server) address, and you should
enter the first here. A Domain Name Server performs
the translation between user-friendly names (such as
www.browan.com) and IP addresses. Note that this
setting is optional, and can be left at 0.0.0.0 if it is not
required.
Secondary DNS Address:
If your ISP has provided a second DNS address, you
should enter it here. Otherwise, leave this setting at its
default of 0.0.0.0. This setting is optional.
MTU:
The MTU settings should be obtained from your
Internet Service Provider. If you do not know this value,
just leave it at the default value.
Click Back to go to previous screen.
Or Click Next to continue the setup wizard.
Or click Cancel to quit the setup wizard.
BROWAN COMMUNICATIONS Page 59
Internet Settings - PPTP Mode
PPTP (Point to Point Tunneling Protocol):
Some ISP's require the use of PPTP to establish
connections to their networks. At present PPTP is only
used by some European ISP's. If the installation
instructions that accompany your modem ask you to set
up a dialup connection using a PPTP VPN tunnel then
select this option. Note that once the Router is installed,
you will not need to use the dialup VPN on your PC any
more.
PPTP Server address:
This is the IP address of the PPTP server you are
connecting to. This setting is required, and will be
provided to you by your ISP. The PPTP Server is
typically located in your DSL modem. In the case of an
Alcatel Speed Touch modem, its default address is
10.0.0.2
BROWAN COMMUNICATIONS Page 60
PPTP User Name:
Enter your User Name in this box. This field is required,
and will be provided to you by your ISP.
PPTP Password:
Enter your password in this box. This field is required,
and will be provided to you by your ISP.
DNS Addresses:
If your ISP has provided you with DNS addresses, you
should enter them here. Otherwise, leave these setting
at its default of 0.0.0.0. These settings are optional, and
most ISP's will also provide you with DNS addresses
automatically. When the addresses are obtained from
your ISP, they will be displayed on the Status screen.
MTU:
The MTU settings should be obtained from your
Internet Service Provider. If you do not know this value,
just leave it at the default value.
BROWAN COMMUNICATIONS Page 61
Maximum Idle Time:
This is the amount of time that passes before your
Internet Connection is dropped due to inactivity. If you
want to keep your Internet Connection established at all
times, you should select Forever. Otherwise, select the
amount of time that you want to pass before your
Router disconnects from your ISP.
Click Back to go to previous screen.
Or Click Next to continue the setup wizard.
Or click Cancel to quit the setup wizard.
BROWAN COMMUNICATIONS Page 62

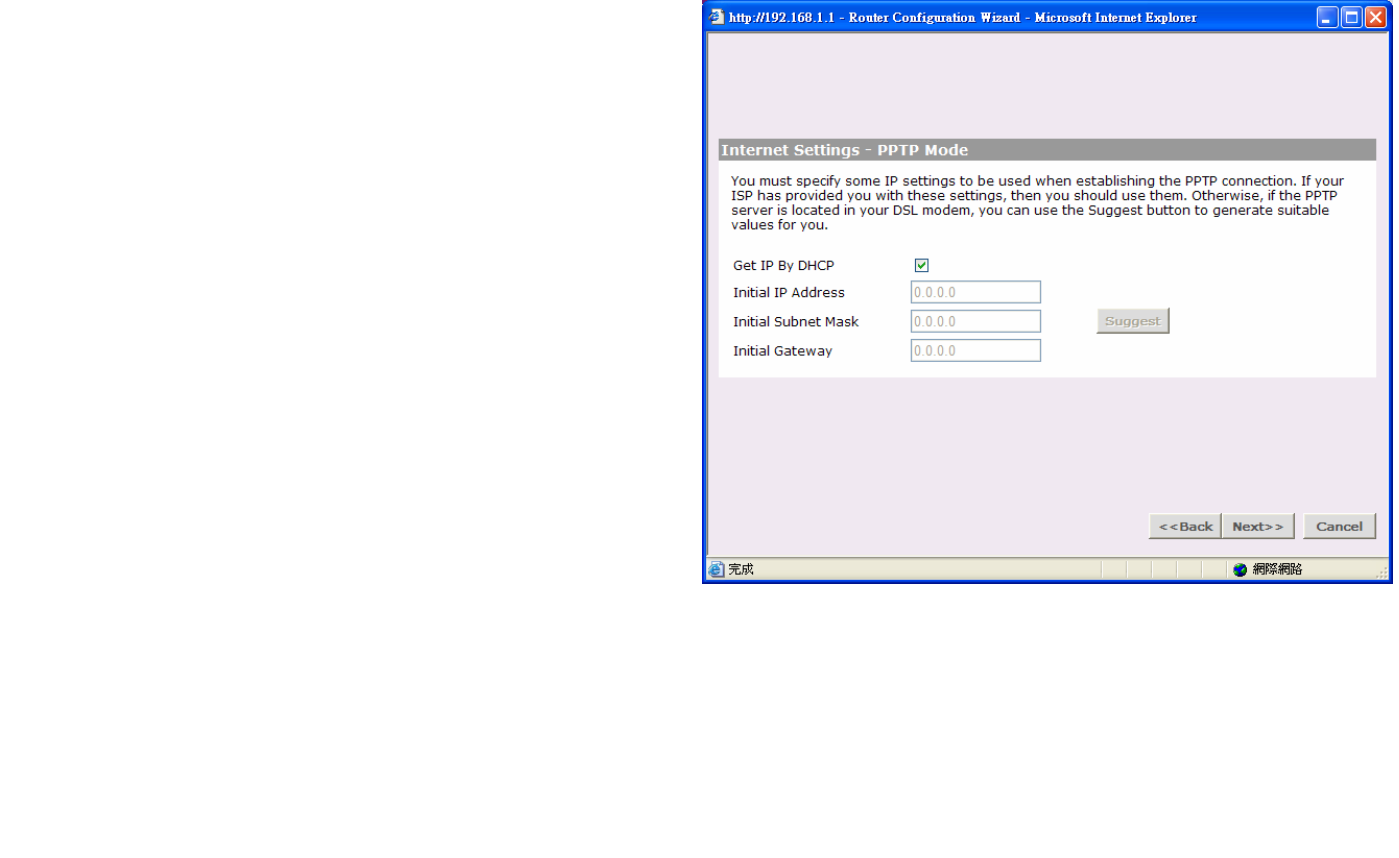

Get IP By DHCP:
Some ISP may have the mechanism that automatically
provides Initial IP Address, Subnet Mask and Default
Gateway. If your ISP provides such mechanism, you
should check this option. Otherwise, you should
manually enter your initial IP Address, Subnet Mask
and Default Gateway.
Initial IP address and Subnet Mask:
You must specify some IP settings to be used when
establishing the PPTP connection. If your ISP has
provided you with these settings, then you should use
them. Otherwise, if the PPTP server is located in your
DSL modem, you can use the Suggest button to
generate suitable values for you. The Suggest button
will select an IP address on the same subnet as the
PPTP server.
Initial Default Gateway:
The PPTP Server address and the Initial IP Address
that ISP provides sometimes may not be in the same
Subnet. In this case, the Initial Default Gateway is
necessarily to be provided to establish the PPTP
BROWAN COMMUNICATIONS Page 63
connection. If the PPTP Server and Initial IP Address
are in the same subnet, then you can set the Initial
Default Gateway to 0.0.0.0 or 0.
Click Back to go to previous screen.
Or Click Next to continue the setup wizard.
Or click Cancel to quit the setup wizard.
BROWAN COMMUNICATIONS Page 64
Internet Settings - Heart Beat Signal (Bigpond/Telstrra)
Mode
Heart Beat Signal (For Australia only):
It is a service used in Australia only. If you are using
Heart Beat Signal connection, check with your ISP for
the necessary setup information.
Host Name:
Some ISP's require a host name to identify you when
you connect. If you have been provided a Host Name
by your ISP, you should enter it here. This field is
optional, and so if you have not been provided a host
name, you may leave it blank.
Heart Beat Server:
Your ISP will provide you with the Heart Beat Server's
IP Address.
Heart Beat User Name:
Enter the User Name you use when logging onto your
ISP through a Heart Beat Signal connection
BROWAN COMMUNICATIONS Page 65
Heart Beat Password:
Enter the Password you use when logging onto your
ISP through a Heart Beat Signal connection
MTU:
The MTU settings should be obtained from your
Internet Service Provider. If you do not know this value,
just leave it at the default value.
Click Back to go to previous screen.
Or Click Next to continue the setup wizard.
Or click Cancel to quit the setup wizard.
BROWAN COMMUNICATIONS Page 66
Internet Settings - L2TP Mode
L2TP (Layer Two Tunneling Protocol):
Some ISP's require the use of L2TP to establish
connections to their networks. If the installation
instructions that accompany your modem ask you to
set up a dialup connection using a L2TP VPN tunnel
then select this option. Note that once the Router is
installed, you will not need to use the dialup VPN on
your PC any more.
L2TP Server address:
This is the IP address of the L2TP server you are
connecting to. This setting is required, and will be
provided to you by your ISP. The L2TP Server is
typically located in your DSL modem.
L2TP User Name:
Enter your User Name in this box. This field is
required, and will be provided to you by your ISP.
L2TP Password:
Enter your password in this box. This field is required,
BROWAN COMMUNICATIONS Page 67
and will be provided to you by your ISP.
DNS Addresses:
If your ISP has provided you with DNS addresses, you
should enter them here. Otherwise, leave these setting
at its default of 0.0.0.0. These settings are optional,
and most ISP's will also provide you with DNS
addresses automatically. When the addresses are
obtained from your ISP, they will be displayed on the
Status screen.
MTU:
The MTU settings should be obtained from your
Internet Service Provider. If you do not know this
value, just leave it at the default value.
Click Back to go to previous screen.
Or Click Next to continue the setup wizard.
Or click Cancel to quit the setup wizard.
BROWAN COMMUNICATIONS Page 68
Get IP By DHCP:
Some ISP may have the mechanism that automatically
provides Initial IP Address, Subnet Mask and Default
Gateway. If your ISP provides such mechanism, you
should check this option. Otherwise, you should
manually enter your initial IP Address, Subnet Mask
and Default Gateway.
Initial IP address and Subnet Mask:
You must specify some IP settings to be used when
establishing the L2TP connection. If your ISP has
provided you with these settings, then you should use
them. Otherwise, if the L2TP server is located in your
DSL modem, you can use the Suggest button to
generate suitable values for you. The Suggest button
will select an IP address on the same subnet as the
L2TP server.
Initial Default Gateway:
The L2TP Server address and the Initial IP Address
that ISP provides sometimes may not be in the same
Subnet. In this case, the Initial Default Gateway is
necessarily to be provided to establish the L2TP
BROWAN COMMUNICATIONS Page 69
connection.
Click Back to go to previous screen.
Or Click Next to continue the setup wizard.
Or click Cancel to quit the setup wizard.
BROWAN COMMUNICATIONS Page 70
LAN Settings - LAN IP Address
The Router must be given a valid static IP address and
subnet mask for the LAN interface.
IP Address:
This is the IP address of the Router as seen by the devices
on the LAN. The default value is 192.168.1.1.
Subnet Mask:
This is the Subnet Mask for the Router. For devices to be on
the same subnet, they must have the same subnet mask.
The default value is 255.255.255.0.
Click Back to go to previous screen.
Or Click Next to continue the setup wizard.
Or click Cancel to quit the setup wizard.
BROWAN COMMUNICATIONS Page 71

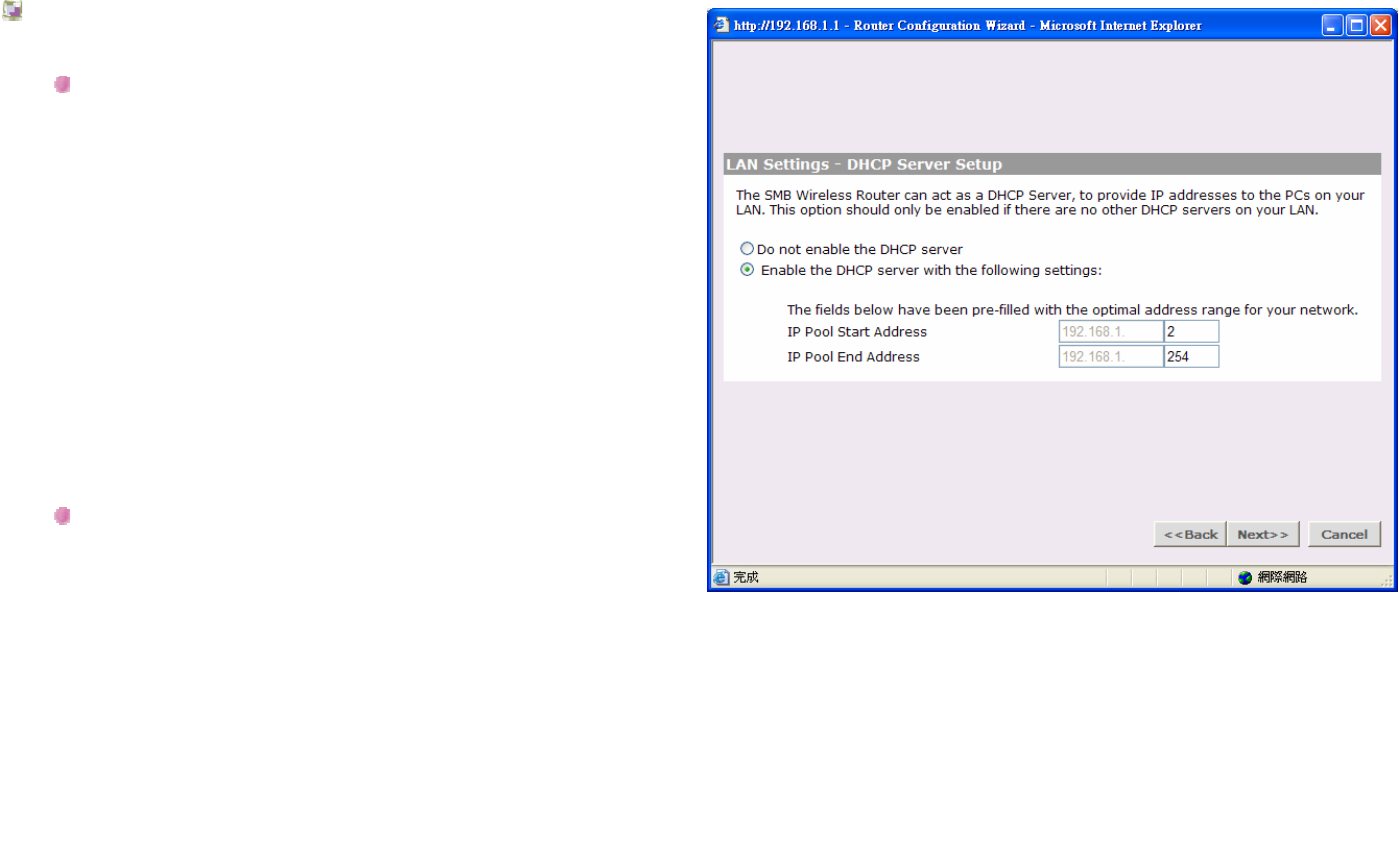

LAN Settings - DHCP Server Setup
Please make selection if you would like to enable
DHCP or disable DHCP.
IP Pool Start Address:
This defines the start address of the IP address range.
The default value is 192.168.1.2.
IP Pool End Address:
This defines the end address of the IP address range.
The default value is 192.168.1.254.
Click Back to go to previous screen.
Or Click Next to continue the setup wizard.
Or click Cancel to quit the setup wizard.
BROWAN COMMUNICATIONS Page 72
Wireless Settings - Wireless Configuration
Service Area Name/SSID:
This allows you to name your Wireless network. The field
will accept any alphanumeric string but not spaces and has
a maximum length of 32 characters. Your Wireless PCs
must be configured with exactly the same name or you will
not establish a connection.
The Service Area Name may also be referred to as ESSID
depending on your networking vendor. By default the Router
uses the name BROWAN.
Click Back to go to previous screen.
Or Click Next to continue the setup wizard.
Or click Cancel to quit the setup wizard.
BROWAN COMMUNICATIONS Page 73

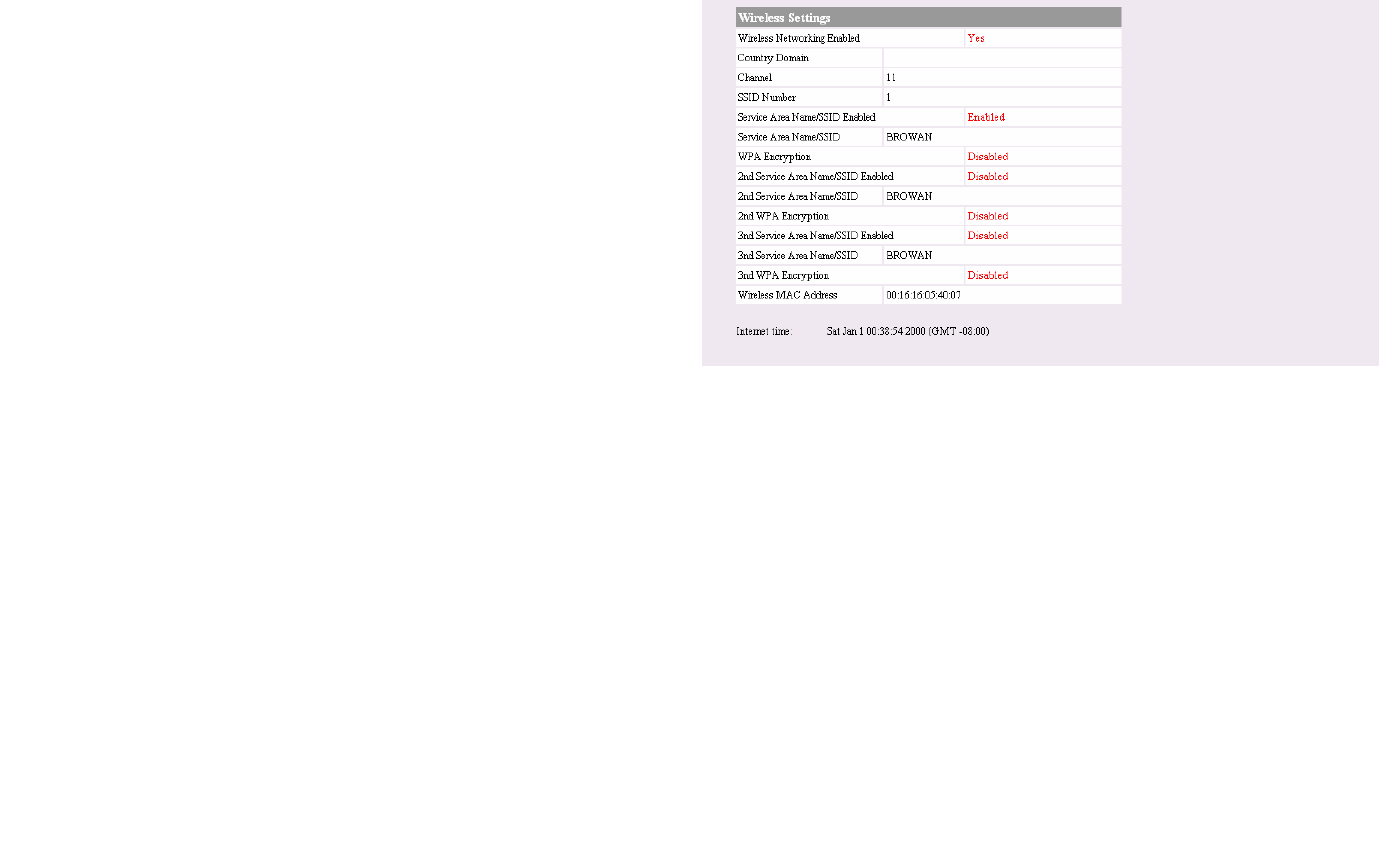

Configuration Summary
This screen will show the configuration of your
BW1230.
Click Print to print out the configuration.
And click Back to go to previous screen.
Or Click Finish to complete the setup wizard.
Or click Cancel to quit the setup wizard.
BROWAN COMMUNICATIONS Page 74
Wizard Completed
Your BW1230 settings have been completely saved.
Now you are ready to enjoy your wire and wireless network.
BROWAN COMMUNICATIONS Page 75
Welcome | Notice Board
The Notice Board is used to display warning messages if you've
configured the Router in a non standard manner. For example,
you would be warned if you had disabled the Firewall.
BROWAN COMMUNICATIONS Page 76
Welcome | Password
Changing the Administration Password
You can change the password to prevent unauthorized
access to the Administration System. To do this:
1. Enter the current password in the Old Password field.
2. Enter the new password in the New Password field.
3. Enter the new password again in the Confirm Password
field.
4. Click Apply to save the new password.
Browan recommand you to change a new password for your wireless network sercurity.
And the password is case sensitive.
BROWAN COMMUNICATIONS Page 77
Welcome | Wizard
This option allows you to run the Setup Wizard to change
the configuration settings of the Router.
You could click WIZARD bottom to start the wizard
setup.
BROWAN COMMUNICATIONS Page 78
LAN Settings | Unit Configuration
LAN Settings:
The Router must be given a valid static IP address and
subnet mask for the LAN interface.
IP Address:
This is the IP address for PC accessing the Router on the
LAN. The default value is 192.168.1.1.
Subnet Mask:
This is the Subnet Mask for the Router. For devices to be on
the same subnet, they must have the same subnet mask.
The default value is 255.255.255.0.
DHCP Server Parameters:
The Router can act as a DHCP (Dynamic Host Control
Protocol) Server for your LAN and can automatically
allocate IP addresses to the other devices on the LAN. To
use the Router as a DHCP Server, you must tick the The
Router acts as a DHCP Server.
BROWAN COMMUNICATIONS Page 79
IP Pool Start Address
This defines the start address of the IP address range.
When the Router is acting as a DHCP server, it will issue IP
addresses to the devices on the LAN from within the IP
address range. The default value is 192.168.1.2.
IP Pool End Address
This defines the end address of the IP address range. The
default value is 192.168.1.254.
DHCP Relay:
The DHCP Relay Agent can deliver the IP address from the
DHCP Server and allows you to place DHCP Clients and
DHCP Servers on the same network. Deploying DHCP in a
single segment network is easy.
All DHCP messages are IP broadcast messages, and
therefore all the computers on the segment can listen and
respond through the DHCP relay to these broadcasts. A
single scope on a solitary DHCP server is all that is
required.
BROWAN COMMUNICATIONS Page 80
LAN Settings | Static DHCP Assignment
Static DHCP Client List
This feature is for users would like a PC to be assigned the
same IP address when every time it reboots.
On the Static DHCP Client List , enter the static local IP
address in the Assign this IP field, and enter the MAC
address of the PC in the To this MAC field. Then click the
Enabled checkbox.
When you have finished your entries, click the Save button
to save your changes.
BROWAN COMMUNICATIONS Page 81
LAN Settings | DHCP lease table
DHCP Lease Table
On the DHCP Lease Table, you will see a list of DHCP
clients with the following information: Client Names,
Interfaces, IP Addresses, and MAC Addresses. If you want
to add any of the DHCP clients to the Static DHCP Client
List, just click the Fixed checkbox. Then click the Save
button.
To view the most up-to-date information, click the Refresh
button.
BROWAN COMMUNICATIONS Page 82
Wireless Settings | Configuration
Enable Wireless Networking
It allows you to enable/disable the wireless section of your
LAN. When disabled, the router will close all the wireless
connection and no wireless PCs can get the access to either
the Internet in wired LAN of the router.
Wireless Mode
From this drop-down menu, you could see the selection
which including mixed, wireless-B only, wireless-G only,
Dynamic SuperG and SuperG without turbo. You could
choose the proper wireless standards running on your
network. The default setting is mixed mode.
Service Area Name/SSID
This allows you to name your Wireless network. The field
will accept any alphanumeric string but not spaces and has
a maximum length of 32 characters. Your Wireless PCs
must be configured with exactly the same name or you will
not establish a connection.
The Service Area Name may also be referred to as ESSID
BROWAN COMMUNICATIONS Page 83
depending on your networking vendor. By default the Router
uses the name BROWAN.
Wireless Settings | Encryption
The Router offers two methods of encryption for greater
wireless network security：
WPA — Wi-Fi Protected Access.
WPA is an enhancement over WEP and will strongly
increase the level of data protection and access control
on your wireless network.
WPA allows you to encrypt the switched packet in
network between your Wireless PC and the Router.
The default value of security mode is disable.
WPA allows you to configure：
1. Type
There are three types of WPA methods available：
Manual Pre-Shared Key, Pre-Shared Passphrase and
BROWAN COMMUNICATIONS Page 84
Enterprise Mode. Use the WPA Type box to select the
desired type.
2. Manual Pre-Shared Key
A Key is a hexadecimal (0-9, A-F) number used to
encrypt and decrypt the data. There is only one key
available, which are 63 digits long. Each wireless PC
client using WPA must be configured to have the exact
same Key; otherwise the client will be unable to
connect. Manual Pre-Shared Keys provide the greatest
combination of possible Keys, which provides greater
security to the wireless network.
3. Pre-Shared Passphrase
The Router also offers a method for converting plain
text into hex keys. The Passphrase is much easier to
remember than the hex key but it relies on your
wireless adapters also supporting this feature. The
Passphrase limits the possible number of key
combinations and it is recommended that users enter
text containing 20 characters or more. The text entered
BROWAN COMMUNICATIONS Page 85
must be greater than 8 characters and shorter than 64
characters.
4. Enterprise Mode
Allows Enterprise-level User Authentication via 802.1x
and EAP (Extensible Authentication Protocol). This
framework utilizes a central authentication server, such
as RADIUS, to authenticate each user on the network
before they join it.
This option features a WPA used in coordination with a
RADIUS server that uses either EAP-TLS or PEAP as
its authentication method. (This should only be used
when a RADIUS server is connected to the Router.)
First, select the type of encryption method you want to
use, TKIP or AES. Enter the RADIUS servers IP
address and port number, along with the authentication
key shared by the Router and the server. Last, enter
the Key Renewal period, which instructs the Router
how often it should change the encryption keys.
WEP — Wired Equivalent Privacy.
Wired Equivalent Privacy or WEP allows you to encrypt
the traffic between your Wireless PC and the Router.
BROWAN COMMUNICATIONS Page 86
WEP Encryption allows you to configure：
Wireless Encryption Type
There are two levels of encryption available, 64 bit
(sometimes referred to as 40 bit) and 128 bit
(sometimes referred to as 104 bit). 128 bit WEP is
more secure than 64 bit. Use the Wireless
Encryption Type box to select the desired level.
Key Generation Method
A Key is a hexadecimal (0-9, A-F) number used to
encrypt and decrypt the data. There can be up to 4
keys and each key can be as long as 26 digits. The
Router also offers a number of methods for
converting plain text into hex keys. The text is much
easier to remember than hex keys but it relies on
your wireless adapters also supporting this feature.
Different manufacturers have developed different
ways of converting plain text and so interoperability
is not guaranteed. If you are experiencing difficulty,
the Manual Hex Key method is supported by most
vendors.
BROWAN COMMUNICATIONS Page 87
The Router supports 4 methods to specify the WEP
Keys：
○
1 Manual Hex Key — This method allows you to
manually enter hex keys. Virtually all
manufacturers support this scheme.
○
2 BROWAN Encryption String — This method is
only supported by BROWAN Wireless products.
The string can contain any alpha numeric
characters and must be between 6 and 30
characters long. A single string will automatically
generate 4 unique keys for 64 or 128 bit WEP.
○
3 ASCII — This method is supported by some
adapter cards running under Windows XP. The
string must be exactly 5 characters for 64 bit
WEP and 13 characters for 128 bit WEP. You
must enter a separate string for each of the 4
Keys. You can leave a string blank so long as
this Key is not selected as the Active Transmit
Key.
BROWAN COMMUNICATIONS Page 88
○
4 Passphrase — This is another common method
and similar to the BROWAN Encryption string. In
64 bit WEP, the Passphrase will generate 4
different keys. However, in 128 bit WEP, this
method only generates 1 key which is replicated
for all 4 keys.
Active Transmit Key
The Active Transmit Key selects which of the 4
Keys the Router uses when it transmits. You can
change the selected key every now and then to
increase the security of your network.
When you apply the Mutiple SSIDs in Wireless Settings, you
can operate different SSID in different security mode. And
you must enter the correct key forward intto the SSID that
you connect. It means that WPA and WEP encryption
modes are enabled allowing wireless client PCs to be
configured to run with either WPA or the original WEP
encryption.
Maximum security can be obtained by configuring your
wireless network to WPA encryption only. It is important to
remember that with encryption disabled anyone with a
BROWAN COMMUNICATIONS Page 89
Wireless PC can eavesdrop on your network.
If you enable WPA or WEP on the Router, you must reconfigure your wireless PCs to use exactly the same
Encryption Type and Keys otherwise the devices will not understand each other.
Wireless Settings | WDS
WDS (Wireless Distribution System) is comprised of a
bridging and/or a repeater mode. Wireless bridging is where
the WDS APs communicate only with each other to bridge
together 2 separate networks (without allowing for wireless
clients or stations to access them). Wireless repeating is
where the WDS APs rebroadcasts the received signals to
extend reach and range (at the expense of half or more of
the throughput).
Enabling the WDS will enable wireless repeating.
BROWAN COMMUNICATIONS Page 90
If you choose WDS-STA for the router, you have specified the router to act as a Repeater of your wireless
distributed system (WDS); whereas if you choose WDA-ROOTA for your router, you have specified this router to
act as a Base of your wireless distributed system.
Wireless Settings | WMM
You can enable Wi-Fi Multimedia (WMM) support to help
improve the Quality of Service (QoS) for audio, video, and
voice applications over the wireless network. When WMM
support is enabled, multimedia traffic is given higher priority
over other types of traffic.
EDCA Parameter
The IEEE 802.11e standard improves the Medium
Access Control (MAC) of the legacy 802.11 with regard
to Quality of Service (QoS) by introducing the
Enhanced Distributed Channel Access (EDCA).The
802.11e MAC is based on both centrally-controlled and
contention-based channel accesses. The EDCA
BROWAN COMMUNICATIONS Page 91
provides differentiated channel access to frames with
different priorities. Typically, voice and video traffic
types are delay-sensitive, but are tolerant of some
frame losses. On the other hand, data traffic type is
delay-tolerable, but requires loss-free transmission. So
you may adjust theses parameters with regard to the
characteristics of these types of data to better manage
your network flow.
AC (Access Category):
Using 4 different ACs: From high to low: VO:
Voice, VI: Video, BE: Best Effort, BK: Background.
AIFS (Arbitrary Inter-frame Space):
An Inter-frame Space for different Access
Category
TXOP (Transmission Opportunity):
WMM (Wireless Multimedia) Transmission
Opportunity: defined by IEEE 802.11e, the TXOP is
the interval of time when a particular STA (station)
has the right to initiate transmissions.
ACM (Admission Mandatory):
Advertised in the EDCA parameter set element to
BROWAN COMMUNICATIONS Page 92
indicate the admission control is required for each
of the ACs.
Access Point
Theses values of AIFS, CWmin, and CWmax are
announced by the AP via beacon frames. The AP can
adapt these parameters dynamically depending on the
network conditions. Basically, the smaller AIFS and
CWmin, the shorter the channel access delay for the
corresponding priority, and hence the more capacity
share for a given traffic condition. However, the
probability of collisions increases when operating with
smaller CWmin. Theses parameters can be used in
order to differentiate the channel access among
different priority traffic.
STA
Each station maintains a Contention Window (CW),
which is used to select the random back off counter.
The BC is determined as a random integer drawn from
a uniform distribution over the interval (0, CW).The CW
size is initially assigned CWmin, and increases when a
transmission fails, i.e., the transmitted data frame has
BROWAN COMMUNICATIONS Page 93
not been acknowledged. After any unsuccessful
transmission attempt, another back off timer is
performed, with an upper bound of CWmax. This
reduces the collision probability in case there are
multiple stations attempting to access the channel.
CW min:
should be smaller for delay-sensitive data
CW max:
should be smaller for delay-sensitive data
AIFSN:
should be smaller for delay-sensitive data
TXOPLimit:
These will allow multiple MAC frames consecutively
as long as the whole transmission time does not
exceed the TXOP limit. So keep it larger for
delay-sensitive data.
ACM:
BROWAN COMMUNICATIONS Page 94
Admission Mandatory; could be turned on to
mandatory execution of the contention control.
BROWAN COMMUNICATIONS Page 95
Wireless Settings | Connection Control
Wireless access can be filtered by using the MAC
addresses of the wireless devices transmitting within your
networks radius.
Access Restrictions
Prevent PC listed below from accessing the
wireless network. Clicking this radio button will
block wireless access by MAC Address.
Permit PC listed below to access the wireless
network. Clicking this radio button will allow
wireless access by MAC Address.
Wireless MAC Filter List
Click the Enable Access Restriction checkbox to
display a list of network users by MAC Address. If you
want to add any of the wireless clients to the Wireless
MAC Filter List, just fill in wireless clients' Mac to to the
Wireless MAC Filter List.
BROWAN COMMUNICATIONS Page 96
Wireless Settings | Client List
The Wireless Clients List provides details on the devices
that are connected to the Wireless LAN. The list is only
created when Wireless Networking is enabled.
For each device that is connected to the Wireless LAN: the
MAC address, Connection Speed and Client Type of that
device is displayed.
As you connect more devices to the Wireless LAN, the
client list will grow to a maximum of 32 (the maximum
number of wireless devices that the Router can support).
BROWAN COMMUNICATIONS Page 97
Wireless Settings | Advanced
Authentication Type
The default is set to open system (Default), allows choosing
Shared Key authentication to be used. With Open System
authentication, the sender and the recipient do NOT use a
WEP key for authentication. With Shared Key
authentication, the sender and recipient use a WEP key for
authentication.
Basic Rate
The Basic Rate setting is not actually one rate of
transmission but a series of rates at which the Router can
transmit. The Router will advertise its Basic Rate to the
other wireless devices in your network, so they know which
rates will be used. The Router will also advertise that it will
automatically select the best rate for transmission. The
default setting is Default, when the Router can transmit at
all standard wireless rates (1-2Mbps, 5.5Mbps, 11Mbps,
18Mbps, and 24Mbps). Other options are 1-2Mbps, for use
with older wireless technology, and All, when the Router
can transmit at all wireless rates. The Basic Rate is not the
BROWAN COMMUNICATIONS Page 98
actual rate of data transmission. If you want to specify the
Router's rate of data transmission, configure the
Transmission Rate setting.
Transmission Rate
The rate of data transmission should be set depending on
the speed of your wireless network. You can select from a
range of transmission speeds, or you can select Auto
(Default) to have the Router automatically use the fastest
possible data rate and enable the Auto-Fallback feature.
Auto-Fallback will negotiate the best possible connection
speed between the Router and a wireless client. The
default value is Auto (Default).
BROWAN COMMUNICATIONS Page 99
Router. Then select the appropriate level, Full (Default),
Half, Quarter, Eighth, or Min, from the drop-down menu.
The default is Full (Default).
CTS Protection Mode
CTS (Clear-To-Send) Protection Mode should be set to
Auto (Default). The Router will automatically use CTS
Protection Mode when your Wireless-G products are
experiencing severe problems and are not able to transmit
to the Router in an environment with heavy 802.11b traffic.
This function boosts the Router's ability to catch all
Wireless-G transmissions but will severely decrease
performance. If you do not want to use CTS Protection
Mode at all, select Disabled.
Frame Burst Mode
Frame burst is a term in wireless technology supported by
the 802.11e QoS specification. Suggesting to enable this
option on point to point should provide your network with
greater performance, depending on the manufacturer of
your wireless products. If you are not sure how to use this
option, keep the default, Enabled.
BROWAN COMMUNICATIONS Page 100
Beacon Interval
A beacon is a packet broadcast by the wireless router to
make the client scan the wireless signal. The Beacon
Interval value indicates the time interval of the beacon. The
default value is 100.
DTIM Interval
This value indicates the interval of the Delivery Traffic
Indication Message (DTIM). A DTIM field is a countdown
field informing clients of the next window for listening to
broadcast and multicast messages. When the Router has
stored in buffer with broadcast or multicast messages for
associated clients, it sends the next DTIM with a DTIM
Interval value. Its clients hear the beacons and awaken to
receive the broadcast and multicast messages. The default
value is 1.
Fragmentation Threshold
This value specifies the maximum size for a packet before
data is fragmented into multiple packets. If you experience
a high packet error rate, you may slightly increase the
Fragmentation Threshold. Setting the Fragmentation
BROWAN COMMUNICATIONS Page 101
Threshold too low may result in poor network performance.
Only minor reduction of the default value is recommended.
In most cases, it should remain at its default value of 2346.
RTS Threshold
Should you encounter inconsistent data flow, only minor
reduction of the default value, 2347, is recommended. If a
network packet is smaller than the preset RTS threshold
size, the RTS/CTS mechanism will not be enabled. The
Router sends Request to Send (RTS) frames to a particular
receiving station and negotiates the sending of a data
frame. After receiving an RTS, the wireless station
responds with a Clear to Send (CTS) frame to acknowledge
the right to begin transmission. The RTS Threshold value
should remain at its default value of 2347.
BROWAN COMMUNICATIONS Page 102
Wireless Settings | Multiple SSIDs
Enable Multiple SSID
Allows you to enable/disable the Multiple SSID. When
disabled, only one SSID on your Wireless LAN.
The default setting is BROWAN.
Service Area Name/SSID
This allows you to name your Wireless network. The field
will accept any alphanumeric string but not spaces and has
a maximum length of 32 characters. Your Wireless PCs
must be configured with exactly the same name or you will
not establish a connection.
The Service Area Name may also be referred to as ESSID
depending on your networking vendor. By default the
Router uses the name BROWAN.
You may specify up to 3 SSIDs. (1 Main SSID , 2 Multiple
SSIDs)
BROWAN COMMUNICATIONS Page 103
Enable Broadcast SSID
This feature can be used to improve the security of your
wireless network. When the checkbox is unchecked, the
Router will not broadcast the Service Area Name / SSID of
your wireless network. It will prevent unauthorized clients
from detecting your SSID and attempting to connect to your
network.
If you have a wireless client that can detect all the available
SSIDs in your area, your client will not list the Router SSID
when this feature is enabled.
We recommend that you install your wireless network with
this feature unchecked and then enable it once your have
set up the Router and wireless clients.
BROWAN COMMUNICATIONS Page 104
Internet Settings | Connection to ISP
Connection Parameters
IP Allocation Mode: To establish a connection with your
ISP's network, select the IP Allocation Mode that they use.
There are four different options available：
Dynamic IP address (automatically allocated):
This allocation mode may be used by either Cable or
DSL ISP's. It is popular with Cable providers, and may
also be required if your modem has a built in DHCP
server.
If this mode is selected, your IP Address, Subnet Mask,
and ISP Address will be obtained automatically from
your ISP. They are not displayed on this screen, but
may be viewed on the Status screen (click on Status
and Logs on the left hand menu bar).
Host Name:
Some ISP's require a host name to identify you when
you connect. If you have been provided a Host Name
by your ISP, you should enter it here. This field is
BROWAN COMMUNICATIONS Page 105
optional, and so if you have not been provided a host
name, you may leave it blank.
Clone MAC address:
Some ISP's use the hardware (MAC) address of the
device you connect to the Internet with to identify you.
If you have previously used a different device with your
current ISP, and they use your MAC address to identify
you, then you can change the MAC address on the
WAN side of your Router to be that of your old device.
There are three options available for cloning the Router
WAN port MAC address:
Use the Router's original MAC address:
This option is selected by default. When selected, the
Router uses the WAN port MAC address that it was
assigned at the factory.
Use this PCs MAC address:
This option will assign the MAC address of the PC you
are using to manage the Router to the WAN port. If this
is the PC that you used previously to connect to your
ISP, then you should select this option.
BROWAN COMMUNICATIONS Page 106
Enter a new MAC address manually
If the MAC addresses given by the previous two
options are not correct, then you will need to find the
MAC address of the previous device used with your
ISP.
BROWAN COMMUNICATIONS Page 107
Static IP address (to be specified manually):
This allocation mode may be used by either Cable or
DSL ISP's.
IP address:
This is the IP address of your Router that will be seen
from the WAN, or Internet. This setting is required, and
will be provided to you by your ISP.
Subnet mask:
This is the Subnet Mask of your Router's WAN port.
This setting is required, and will be provided to you by
your ISP.
ISP Gateway Address:
This is sometimes referred to as Default Gateway.
This setting is required, and will be provided to you by
your ISP.
Primary DNS Address:
Your ISP will normally provide you with at least one
DNS (Domain Name Server) address, and you should
enter the first here. A Domain Name Server performs
BROWAN COMMUNICATIONS Page 108
the translation between domain name (such as
www.browan.com) and IP addresses. Note that this
setting is optional, and can be left at 0.0.0.0 if it is not
required.
Secondary DNS Address:
If your ISP has provided a second DNS address, you
should enter it here. Otherwise, leave this setting at its
default of 0.0.0.0. This setting is optional.
MTU:
The MTU settings should be obtained from your
Internet Service Provider. If you do not know this value,
just leave it at the default value.
BROWAN COMMUNICATIONS Page 109
PPPoE (Point-to-Point Protocol over Ethernet):
Only ISP's providing DSL use PPPoE. If the installation
instructions that accompany your modem ask you to
install a PPPoE client on your PC then select this
option. Note that you will not need to use PPPoE
software on your PC once the Router is installed. If you
are unsure, you should ask your ISP whether you need
to use PPPoE.
PPPoE User Name:
Enter your User Name in this box. This field is required,
and will be provided to you by your ISP.
PPPoE Password:
Enter your password in this box. This field is required,
and will be provided to you by your ISP.
PPPoE Service Name:
If your ISP provided you with a Service Name, you
should enter this here. If not, you should leave this
blank.
BROWAN COMMUNICATIONS Page 110
Host Name:
Some ISP's require a host name to identify you when
you connect. If you have been provided a Host Name
by your ISP, you should enter it here. This field is
optional, and so if you have not been provided a host
name, you may leave it blank.
MTU:
The MTU settings should be obtained from your
Internet Service Provider. If you do not know this value,
just leave it at the default value.
Maximum Idle Time:
This is the amount of time that passes before your
Internet Connection is dropped due to inactivity. If you
want to keep your Internet Connection established at
all times, you should select Forever; Otherwise, select
the amount of time that you want to pass before your
Router disconnects from your ISP.
BROWAN COMMUNICATIONS Page 111
PPTP (Point to Point Tunneling Protocol):
Some ISP's require the use of PPTP to establish
connections to their networks. At present PPTP is only
used by some European ISP's. If the installation
instructions that accompany your modem ask you to
set up a dialup connection using a PPTP VPN tunnel
then select this option. Note that once the Router is
installed, you will not need to use the dialup VPN on
your PC any more.
PPTP Server address:
This is the IP address of the PPTP server you are
connecting to. This setting is required, and will be
provided to you by your ISP. The PPTP Server is
typically located in your DSL modem. In the case of an
Alcatel Speed Touch modem, its default address is
10.0.0.2
PPTP User Name:
Enter your User Name in this box. This field is required,
and will be provided to you by your ISP.
BROWAN COMMUNICATIONS Page 112
PPTP Password:
Enter your password in this box. This field is required,
and will be provided to you by your ISP.
DNS Addresses:
If your ISP has provided you with DNS addresses, you
should enter them here. Otherwise, leave these setting
at its default of 0.0.0.0. These settings are optional,
and most ISP's will also provide you with DNS
addresses automatically. When the addresses are
obtained from your ISP, they will be displayed on the
Status screen.
MTU:
The MTU settings should be obtained from your
Internet Service Provider. If you do not know this value,
just leave it at the default value.
Maximum Idle Time:
This is the amount of time that passes before your
Internet Connection is dropped due to inactivity. If you
want to keep your Internet Connection established at
all times, you should select Forever; Otherwise, select
BROWAN COMMUNICATIONS Page 113
the amount of time that you want to pass before your
Router disconnects from your ISP.
Get IP By DHCP:
Some ISP may have the mechanism that automatically
provides Initial IP Address, Subnet Mask and Default
Gateway. If your ISP provides such mechanism, you
should check this option. Otherwise, you should
manually enter your initial IP Address, Subnet Mask
and Default Gateway.
Initial IP address and Subnet Mask:
You must specify some IP settings to be used when
establishing the PPTP connection. If your ISP has
provided you with these settings, then you should use
them. Otherwise, if the PPTP server is located in your
DSL modem, you can use the Suggest button to
generate suitable values for you. The Suggest button
will select an IP address on the same subnet as the
PPTP server.
Initial Default Gateway:
The PPTP Server address and the Initial IP Address
BROWAN COMMUNICATIONS Page 114
that ISP provides sometimes may not be in the same
Subnet. In this case, the Initial Default Gateway is
necessarily to be provided to establish the PPTP
connection. If the PPTP Server and Initial IP Address
are in the same subnet, then you can set the Initial
Default Gateway to 0.0.0.0 or 0.
BROWAN COMMUNICATIONS Page 115
Heart Beat Signal (For Australia only):
It is a service used in Australia only. If you are using
Heart Beat Signal connection, check with your ISP for
the necessary setup information.
Host Name:
Some ISP's require a host name to identify you when
you connect. If you have been provided a Host Name
by your ISP, you should enter it here. This field is
optional, and so if you have not been provided a host
name, you may leave it blank.
Heart Beat Server:
Your ISP will provide you with the Heart Beat Server's
IP Address.
Heart Beat User Name:
Enter the User Name you use when logging onto your
ISP through a Heart Beat Signal connection
Heart Beat Password:
Enter the Password you use when logging onto your
ISP through a Heart Beat Signal connection
BROWAN COMMUNICATIONS Page 116
MTU:
The MTU settings should be obtained from your
Internet Service Provider. If you do not know this value,
just leave it at the default value.
BROWAN COMMUNICATIONS Page 117
L2TP (Layer Two Tunneling Protocol):
Some ISP's require the use of L2TP to establish
connections to their networks. If the installation
instructions that accompany your modem ask you to
set up a dialup connection using a L2TP VPN tunnel
then select this option. Note that once the Router is
installed, you will not need to use the dialup VPN on
your PC any more.
L2TP Server address:
This is the IP address of the L2TP server you are
connecting to. This setting is required, and will be
provided to you by your ISP. The L2TP Server is
typically located in your DSL modem.
L2TP User Name:
Enter your User Name in this box. This field is required,
and will be provided to you by your ISP.
L2TP Password:
Enter your password in this box. This field is required,
and will be provided to you by your ISP.
BROWAN COMMUNICATIONS Page 118
DNS Addresses:
If your ISP has provided you with DNS addresses, you
should enter them here. Otherwise, leave these setting
at its default of 0.0.0.0. These settings are optional,
and most ISP's will also provide you with DNS
addresses automatically. When the addresses are
obtained from your ISP, they will be displayed on the
Status screen.
MTU:
The MTU settings should be obtained from your
Internet Service Provider. If you do not know this value,
just leave it at the default value.
Get IP By DHCP:
Some ISP may have the mechanism that automatically
provides Initial IP Address, Subnet Mask and Default
Gateway. If your ISP provides such mechanism, you
should check this option. Otherwise, you should
manually enter your initial IP Address, Subnet Mask
and Default Gateway.
BROWAN COMMUNICATIONS Page 119
Initial IP address and Subnet Mask:
You must specify some IP settings to be used when
establishing the L2TP connection. If your ISP has
provided you with these settings, then you should use
them. Otherwise, if the L2TP server is located in your
DSL modem, you can use the Suggest button to
generate suitable values for you. The Suggest button
will select an IP address on the same subnet as the
L2TP server.
Initial Default Gateway:
The L2TP Server address and the Initial IP Address
that ISP provides sometimes may not be in the same
Subnet. In this case, the Initial Default Gateway is
necessarily to be provided to establish the L2TP
connection.
BROWAN COMMUNICATIONS Page 120
Firewall | Virtual Servers
Virtual DMZ
The default operation of the Router is to block any requests
from the Internet. This maximizes the security of your
network. However, if you want to host a server on your LAN
and make it accessible from the internet, you will need to
configure a Virtual Server.
A Virtual DMZ is a special case of a Virtual Server which
can intercept all unsolicited incoming traffic not
already assigned to a Virtual Server, and redirects it to a
specified PC on the LAN.
Blocking Service Requests
Select the Block Request radio button, in the Virtual
DMZ box.
Redirecting to a Virtual DMZ Host
1. Select the Redirect Request radio button, in the
Virtual DMZ box.
2. Enter the IP address of the Host.
3. Press the Apply button.
BROWAN COMMUNICATIONS Page 121
Virtual Servers
A Virtual Server is used to enable hosting of Internet
Services, for example a web site or email server, by
opening one or more incoming ports in the Router and
redirecting the unsolicited requests from the Internet to a
specified PC on the LAN.
Application Name
Each drop-down menu offers a choice of ten preset
applications (select None if you do not want to use any
of the preset applications). Select up to five preset
applications. For custom applications, enter the name
of your application in one of the available fields. The
preset applications are among the most widely used
Internet applications. They include the following：
1. FTP (File Transfer Protocol)
A protocol used to transfer files from PC to another
across the network.(Internet, UNIX, etc.). For
example, after developing the HTML pages for a
website on a local machine, they are typically
uploaded to the web server using FTP.
BROWAN COMMUNICATIONS Page 122
2. Telnet
A terminal emulation protocol commonly used on
Internet and TCP/IP-based networks. It allows a
user at a terminal or host computer to log on to a
remote device and run a program.
3. SMTP (Simple Mail Transfer Protocol)
The standard e-mail protocol on the Internet. It is a
TCP/IP protocol that defines the message format
and the message transfer agent (MTA), which
stores and forwards the mail.
4. DNS (Domain Name System)
The way that Internet domain names are located
and translated into IP addresses. A domain name is
a meaningful and easy-to-remember handle for an
Internet address.
5. TFTP (Trivial File Transfer Protocol)
A version of the TCP/IP FTP protocol that has no
directory or password capability.
BROWAN COMMUNICATIONS Page 123
6. Finger
A UNIX command widely used on the Internet to
find out information about a particular user, such as
a telephone number, whether the user is currently
logged on, and the last time the user was logged
on. The person being fingered must have placed his
or her profile on the system in order for the
information to be available. Fingering requires
entering the full user@domain address.
7. HTTP (HyperText Transport Protocol)
The communications protocol used to connect to
servers on the World Wide Web. Its primary
function is to establish a connection with a web
server and transmit HTML pages to the client web
browser.
8. POP3 (Post Office Protocol 3)
A standard mail server commonly used on the
Internet. It provides a message store that holds
incoming e-mail until users log on and download it.
POP3 is a simple system with little selectivity. All
pending messages and attachments are
BROWAN COMMUNICATIONS Page 124
downloaded at the same time. POP3 uses the
SMTP messaging protocol.
9. NNTP (Network News Transfer Protocol)
The protocol used to connect to Usenet groups on
the Internet. Usenet newsreaders support the
NNTP protocol.
10. SNMP (Simple Network Management Protocol)
A widely used network monitoring and control
protocol. Data is passed from SNMP agents, which
are hardware and/or software processes reporting
activity in each network device (hub, router, bridge,
etc.) to the workstation console used to oversee the
network. The agents return information contained in
a MIB Management Information Base), which is a
data structure that defines what is obtainable from
the device and what can be controlled (turned off,
on, etc.).
Start/End
This is the port range. Enter the port number or range
of external ports used by the server or Internet
BROWAN COMMUNICATIONS Page 125
application. Check with the software documentation of
the Internet application for more information.
Protocol
Select the protocol(s) used for this application, TCP
and/or UDP.
To IP Address
For each application, enter the IP address of the PC
running the specific application.
Enabled
Click the Enabled checkbox to enable port forwarding
for the relevant application.
BROWAN COMMUNICATIONS Page 126
Firewall | Special Apps
Some software applications require special or multiple
connections to the Internet and these would normally be blocked
by the Firewall. For example Internet Telephony or Video
conferencing require multiple connections.
So that these special applications can work properly and are not
blocked, the firewall needs to be told about them. In each
instance there will be a trigger port and incoming port(s), where
traffic on the trigger port tells the Firewall to open the incoming
ports.
Authorized Application
Application Name
Enter the application name of the trigger.
Triggered Range
For each application, list the triggered port number
range. Check with the Internet application
documentation for the port number(s) needed. In the
first field, enter the starting port number of the
BROWAN COMMUNICATIONS Page 127
Triggered Range. In the second field, enter the ending
port number of the Triggered Range.
Forwarded Range
For each application, list the forwarded port number
range. Check with the Internet application
documentation for the port number(s) needed. In the
first field, enter the starting port number of the
Forwarded Range. In the second field, enter the ending
port number of the Forwarded Range.
Enabled
Click the Enabled checkbox to enable port range
triggering for the relevant application.
Each defined Special Application only supports a single PC user and up to 10 Special Applications can be defined.
BROWAN COMMUNICATIONS Page 128
Firewall | SPI
The Router inspects packets at the application layer, and
maintains TCP and UDP session information, including
timeouts and the number of active sessions. The Router
also provides the ability to detect and prevent certain types
of network attacks such as DOS attacks. Network attacks
that deny access to a network device are called
denial-of-service (DOS) attacks. Denials of Service (DOS)
attacks are aimed at devices and networks with a
connection to the Internet. The goal is not to steal
information, but to disable a device or network so users no
longer have access to network resources.
By using above inspected information and
timeout/threshold criteria, the Router provide following DOS
attacks prevention: Ping of Death (Ping flood) attack, SYN
flood attack, IP fragment attack (Teardrop Attack), Land
Attack, IP Spoofing attack, IP with zero length, TCP null
scan (Port Scan Attach), UDP port loopback, Stork Attack
etc.
BROWAN COMMUNICATIONS Page 129
Intrusion Detection
Enable this feature to employ Stateful Packet
Inspection (SPI) for more detailed review of data
packets entering your network environment
Web Filters
Using the Web Filters feature, you may enable up to
four specific filtering methods.
1. Proxy
Use of WAN proxy servers may compromise the
Router's security. Denying Proxy will disable
access to any WAN proxy servers. To enable proxy
filtering, click the Proxy box.
2. Java
Java is a programming language for websites. If
you deny Java, you run the risk of not having
access to Internet sites created using this
programming language. To enable Java filtering,
click the Java box.
3. ActiveX
ActiveX is a programming language for websites. If
BROWAN COMMUNICATIONS Page 130
you deny ActiveX, you run the risk of not having
access to Internet sites created using this
programming language. To enable ActiveX filtering,
click the ActiveX box.
4. Cookies
A cookie is the data stored on your PC and used by
Internet sites when you interact with them. To
enable cookie filtering, click the Cookies box.
BROWAN COMMUNICATIONS Page 131
Firewall | QoS
QoS (Quality of Service) manages information as it is
transmitted and received. It ensures better service to high
priority types of Internet traffic, which may involve
demanding, real-time applications, such as
videoconferencing. QoS can also prioritize traffic for a
specific device or the Routers LAN ports.
You may give a comparative metric for your selected
application with High, Low, or Normal to prioritize bandwidth
of your services.
Bandwidth
Specify the limit for your uplink and downlink connection
bandwidth in kilobit per second. Remember that if you
specify a speed exceeding your current broadband service
capabilities, you will still only be able to achieve the
maximum speed provided by your broadband service.
If NAT is enabled:
Maximum Uplink/Downlink Bandwidth: 25 Mbps
BROWAN COMMUNICATIONS Page 132
Minimum Uplink/Downlink Bandwidth: 1 kbit/s
If NAT is disabled:
Maximum Uplink/Downlink Bandwidth: 30 Mbps
Minimum Uplink/Downlink Bandwidth: 1 kbit/s
Application Port Priority
Application Name:
1. FTP (File Transfer Protocol)
A protocol used to transfer files over a TCP/IP
network (Internet, UNIX, etc.). For example, after
developing the HTML pages for a website on a local
machine, they are typically uploaded to the web
server using FTP.
2. Telnet
A terminal emulation protocol commonly used on
Internet and TCP/IP-based networks. It allows a
user at a terminal or computer to log onto a remote
device and run a program.
BROWAN COMMUNICATIONS Page 133
3. SMTP (Simple Mail Transfer Protocol)
The standard e-mail protocol on the Internet. It is a
TCP/IP protocol that defines the message format
and the message transfer agent (MTA), which
stores and forwards the mail.
4. DNS (Domain Name System)
The way that Internet domain names are located
and translated into IP addresses. A domain name is
a meaningful and easy-to-remember handle for an
Internet address.
5. TFTP (Trivial File Transfer Protocol)
A version of the TCP/IP FTP protocol that has no
directory or password capability.
6. Finger
A UNIX command widely used on the Internet to
find out information about a particular user, such as
a telephone number, whether the user is currently
logged on, and the last time the user was logged
on. The person being fingered must have placed his
or her profile on the system in order for the
BROWAN COMMUNICATIONS Page 134
information to be available. Fingering requires
entering the full user@domain address.
7. HTTP (HyperText Transport Protocol)
The communications protocol used to connect to
servers on the World Wide Web. Its primary
function is to establish a connection with a web
server and transmit HTML pages to the client web
browser.
8. POP3 (Post Office Protocol 3)
A standard mail server commonly used on the
Internet. It provides a message store that holds
incoming e-mail until users log on and download it.
POP3 is a simple system with little selectivity. All
pending messages and attachments are
downloaded at the same time. POP3 uses the
SMTP messaging protocol.
9. NNTP (Network News Transfer Protocol)
The protocol used to connect to Usenet groups on
the Internet. Usenet newsreaders support the
NNTP protocol.
BROWAN COMMUNICATIONS Page 135
10. SNMP (Simple Network Management Protocol)
A widely used network monitoring and control
protocol. Data is passed from SNMP agents, which
are hardware and/or software processes reporting
activity in each network device (hub, router, bridge,
etc.) to the workstation console used to oversee the
network. The agents return information contained in
a MIB (Management Information Base), which is a
data structure that defines what is obtainable from
the device and what can be controlled (turned off,
on, etc.)
11. Kazaa
Kazaa uses peer-to-peer technology. The means
that individual users connect to each other directly,
without need for a central point of management.
12. DC++
DC++ is an open source client for the Direct
Connect network. Direct Connect allows you to
share files over the Internet without restrictions or
limits. The client is completely free of
BROWAN COMMUNICATIONS Page 136
advertisements and has a nice, easy to use
interface. Firewall and router support is integrated
and it is easy and convenient to use functionality
like multi-hub connections, auto-connections and
resuming of downloads.
13. RSVP
The RSVP protocol is part of a larger effort to
enhance the current Internet architecture with
support for Quality of Service flows. The RSVP
protocol is used by a host to request specific
qualities of service from the network for particular
application data streams or flows. RSVP is also
used by routers to deliver quality-of-service (QoS)
requests to all nodes along the path(s) of the flows
and to establish and maintain state to provide the
requested service.
RSVP requests will generally result in resources
being reserved in each node along the data path.
14. H.323
H.323 is the international standard for multimedia
communication over packet-switched networks,
BROWAN COMMUNICATIONS Page 137
including LANs, WANs, and the Internet. It was first
defined by the ITU in 1996 and has been updated
regularly.
The scope of H.323 covers real-time voice, video,
and data communication over packet-switched
networks. It was designed from the outset to
operate over IP networks, primarily, though H.323
may also operate over other packet-switched
networks. It was designed with multipoint voice and
video conferencing capabilities, though most users
do not take advantage of the multipoint capabilities
specified in the protocol.
15. L2TP
L2TP, Layer 2 Tunneling Protocol, is used to
provide IP security at the network layer.
L2TP uses UDP to transport the PPP data; this is
often encapsulated in IPSec for encryption instead
of using MPP.
16. PPTP
PPP (Point-to-Point Protocol) is a standard for
transporting datagram over point-to-point links. It is
BROWAN COMMUNICATIONS Page 138
used to encapsulate IP packets for transport
between two peers.
To establish a PPP tunnel, both sides send LCP
frames to negotiate parameters and test the data
link. If authentication is used, at least one of the
peers has to authenticate itself before the network
layer protocol parameters can be negotiated using
NCP. During the LCP and NCP negotiation optional
parameters such as encryption, can be negotiated.
When LCP and NCP negotiation is done, IP
datagram can be sent over the link.
17. IPSec
Internet Protocol Security (IPSec) is a collection of
standards that was designed specifically to create
secure end-to-end secure connections. The
standards were developed by the Internet
Engineering Task For (IETF) to secure
communications over both public and private
networks, though it is particularly beneficial to
public networks. In this article I'll explain to you
some of the fundamentals of IPSec, how it is used,
and what products use it.
BROWAN COMMUNICATIONS Page 139
IPSec is framework that is built into various security
products to provide end-to-end security in wide
area networking communications. Using strong
encryption, and public key cryptography, IPSec can
secure data links that would otherwise be insecure
and susceptible to exploitation.
Priority
Select one of these priority levels: Highest, High,
Above Normal, or Normal.
Port
For preset applications, the port number is
automatically displayed. For custom applications, enter
the appropriate port number in the Port field.
MAC Address Priority
Client Device Name
Enter the name of your network device.
Priority
BROWAN COMMUNICATIONS Page 140
Select one of these priority levels: Highest, High,
Above Normal, or Normal
MAC
Enter the MAC address of the device.
Enabled
Click the Enabled checkbox to enable QoS for the
appropriate MAC address.
BROWAN COMMUNICATIONS Page 141
Firewall | Internet Access Policy
The Internet Access Policy screen allows you to block or
allow specific kinds of Internet usage and traffic, such as
Internet access, designated applications, websites, and
inbound traffic during specific days and times.
Internet Access Policy
Access can be managed by a policy. Use the settings
on this screen to establish an access policy (after the
Save Settings button is clicked).
Selecting a policy from the drop-down menu will
display those policies settings.
To delete a policy, select policies number and click the
Delete This Policy button.
To view all the policies, click the Summary button.
On the Summary screen, the policies are listed with the
following information: No., Policy Name, Access, Days,
Time, and status (Enabled). You can change the type
of access, days, and times of a policy.
To activate a policy, click the Enabled checkbox.
To delete a policy, click its Delete button.
BROWAN COMMUNICATIONS Page 142
Click the Save Settings button to save your changes.
To view the list of PCs for a specific policy, click the
Edit List button.
On the List of PCs screen, you can select a PC by
MAC Address or IP Address. You can also enter a
range of IP Addresses if you want this policy to affect a
group of PCs.
After making your changes, click the Save Settings
button to apply your changes.
To create an Internet Access policy
1. Select a number from the Access Policy drop-down
menu.
2. Enter a Policy Name in the field provided.
3. To enable this policy, select Enabled from the Status
drop-down menu.
4. Click the Edit List button to select which PCs will be
affected by the policy. The List of PCs screen will
appear. You can select a PC by MAC Address or IP
Address. You can also enter a range of IP Addresses if
BROWAN COMMUNICATIONS Page 143
you want this policy to affect a group of PCs. After
making your changes, click the Save Settings button to
apply your changes.
5. Click the appropriate option, Deny or Allow, depending
on whether you want to block or allow Internet access
for the PCs you listed on the List of PCs screen.
6. Decide which days and what times you want this policy
to be enforced. Select the individual days during which
the policy will be in effect, or select Everyday. Then
enter a range of hours and minutes during which the
policy will be in effect, or select 24 Hours.
7. You can filter access to various applications accessed
over the Internet, such as FTP or telnet by selecting up
to three applications from the drop-down menus next to
Blocked Application Port. Each drop-down menu offers
a choice of ten preset applications (select None if you
do not want to use any of the applications). For the
preset applications you select, the appropriate ranges of
ports will automatically be displayed. If the application
you want to block is not listed or you want to edit
BROWAN COMMUNICATIONS Page 144
applications settings, then select Custom from the
drop-down menu. Enter the port range you want to
block. Then select its protocol(s), TCP and/or UDP.
8. Internet Access can also be filtered by URL Address,
the address entered to access Internet sites, by entering
the address in one of the Website Blocking by URL
Address fields. If you do not know the URL Address,
filtering can be done by Keyword by entering a keyword
in one of the Website Blocking by Keyword fields.
9. Click the Save button to save the policy settings.
By pressing the Cancel button all changes will be discarded.
BROWAN COMMUNICATIONS Page 145
Firewall | URL Filter
This feature allows you to block or allow access to specified
Websites. The feature is used in conjunction with PC
Privileges. PC Privileges allow the administrator to control
Internet access.
There are two types of URL Filter available:
Deny List and Allow List. In both cases the Router will
only check the URL and not the content of the site.
The Deny List will compare entries in the Filter Table
to that of a requested Website URL and block the user
from viewing the Website if a match is found.
The Allow List will compare entries in the Filter Table
to that of a requested Website URL and allow the
Website to be viewed if a match is found. All other URL
requests are blocked.
If a user attempts to access a blocked website, they will be
presented with a warning message in their Internet Browser
informing them that this website is blocked and to contact
BROWAN COMMUNICATIONS Page 146
their system administrator.
The Filter Table allows the entry of either URLs or
keywords.
For example, a URL would typically look take the form:
www.examplesite.com, www.another-site.org,
www.eg_website.net. Whereas a Keyword would
typically be a word or letters that should be blocked, for
example: adult, xxx, excite.
BROWAN COMMUNICATIONS Page 147
System Tools | Restart
Pressing the Restart the Router button will cause the
Router to restart, simulating the effect of power cycling the
unit. No configuration information will be lost. This function
may be of use if you are experiencing problems and you
wish to re-establish your Internet connection.
Any network users who are currently accessing the Internet
will have their access interrupted whilst the restart takes
place, and they may need to reboot their computers when
the restart has completed and the Router is operational
again.
BROWAN COMMUNICATIONS Page 148
System Tools | Time Zone
Choose the Time Zone that is closest to your actual
location. The time zone setting is used by the system clock
when displaying the correct time in the log files.
The system time is automatically updated from Time
Servers on the Internet. The Daylight saving feature
allows you to manually add 1 hour to the Internet time. This
is not automatically updated when the Daylight saving time
ends.
BROWAN COMMUNICATIONS Page 149
System Tools | Configuration
Backup Configuration
Use the Backup button to save the Router's current
configuration settings in a file on your computer. When you
select this function, your browser will prompt you to enter a
file name and folder location in which to save the data. Note
that a file saved in this way cannot be viewed or modified
with a word processor or spreadsheet program.
Restore Configuration Data
The Restore Configuration Data function is used to
reinstate the configuration data previously saved to a file
using the Backup Configuration function. Use the Browse
button to locate the backup file on your computer, and then
click the Restore button to copy the data into the Router's
memory.
Note that the system password is NOT changed when a
new configure file is loaded.
Reset to Factory Default
The Reset to Factory Default function will clear all the
BROWAN COMMUNICATIONS Page 150
configuration information from the Router and return it to
the state it was in when it was shipped from BROWAN. The
unit will then restart. This function might be useful if, for
instance, a Router is moved from one network to another
and you wish to start the configuration process from a
known clean state.
This function should be used with caution, as once a unit
has been reset to its factory default state, then the current
configuration settings are irrevocably lost. It is strongly
recommended that you backup the current configuration
with the Backup Configuration facility before using the
Reset to Factory Defaults function unless you are certain
that the current settings are no longer needed.
BROWAN COMMUNICATIONS Page 151
System Tools | Upgrade
The Upgrade facility allows you to install on the Router any
new releases of system software that BROWAN may make
available.
To install new software, you first need to download the
software from the BROWAN support web site. Once you
have done this, use the Browse button to tell your web
browser where this file is on your computer, and then click
on Apply.
The file will be copied to the Router, and when this has
completed, the Router will restart. Although the upgrade
process has been designed to preserve your configuration
settings, it is recommended that you make a backup of the
configuration beforehand, in case the upgrade process fails
for any reason (for example, the connection between the
computer and the Router is lost while the new software is
being copied to the Router).
BROWAN COMMUNICATIONS Page 152

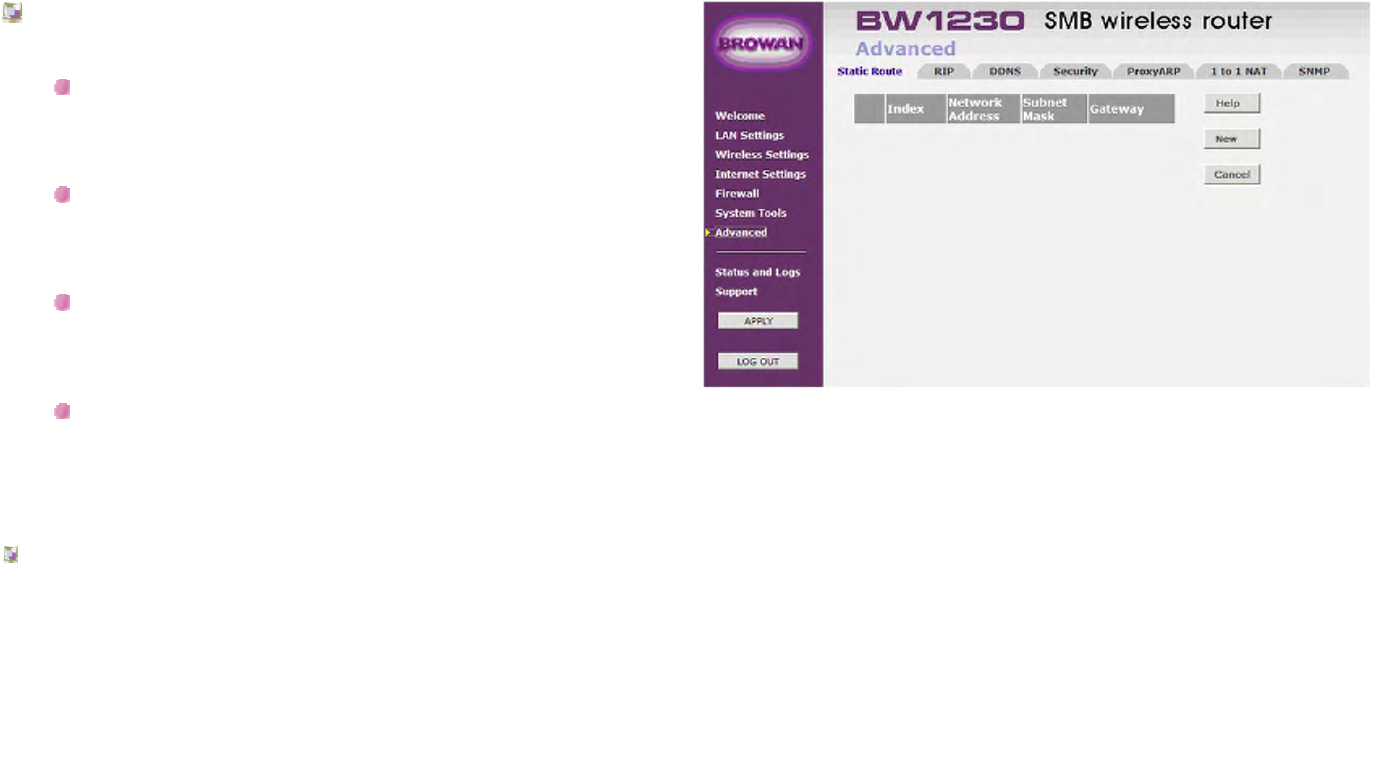

Advanced | Static Route
The device supports static route functionality.
Index
The index of the entry for the static route.
Network Address
The network address of the static route.
Subnet Mask
The subnet mask of the static route.
Gateway
Gateways are most commonly used to transfer data
between private networks and the internet.
Click New button below the table to add the static route
entries. After adding any entry in the static routing table,
you could click Delete button to delete the entries you have
made. Click Apply button to save the changes, otherwise
click Cancel button to quit the setup.
BROWAN COMMUNICATIONS Page 153
Advanced | RIP
RIP (Routing Information Protocol) is a widely-used
protocol for managing router information within a
self-contained network such as a corporate local area
network (LAN) or an interconnected group of such LANs.
Check the check box to enable RIP Mode, or uncheck the
check box for disable RIP Mode.
BROWAN COMMUNICATIONS Page 154

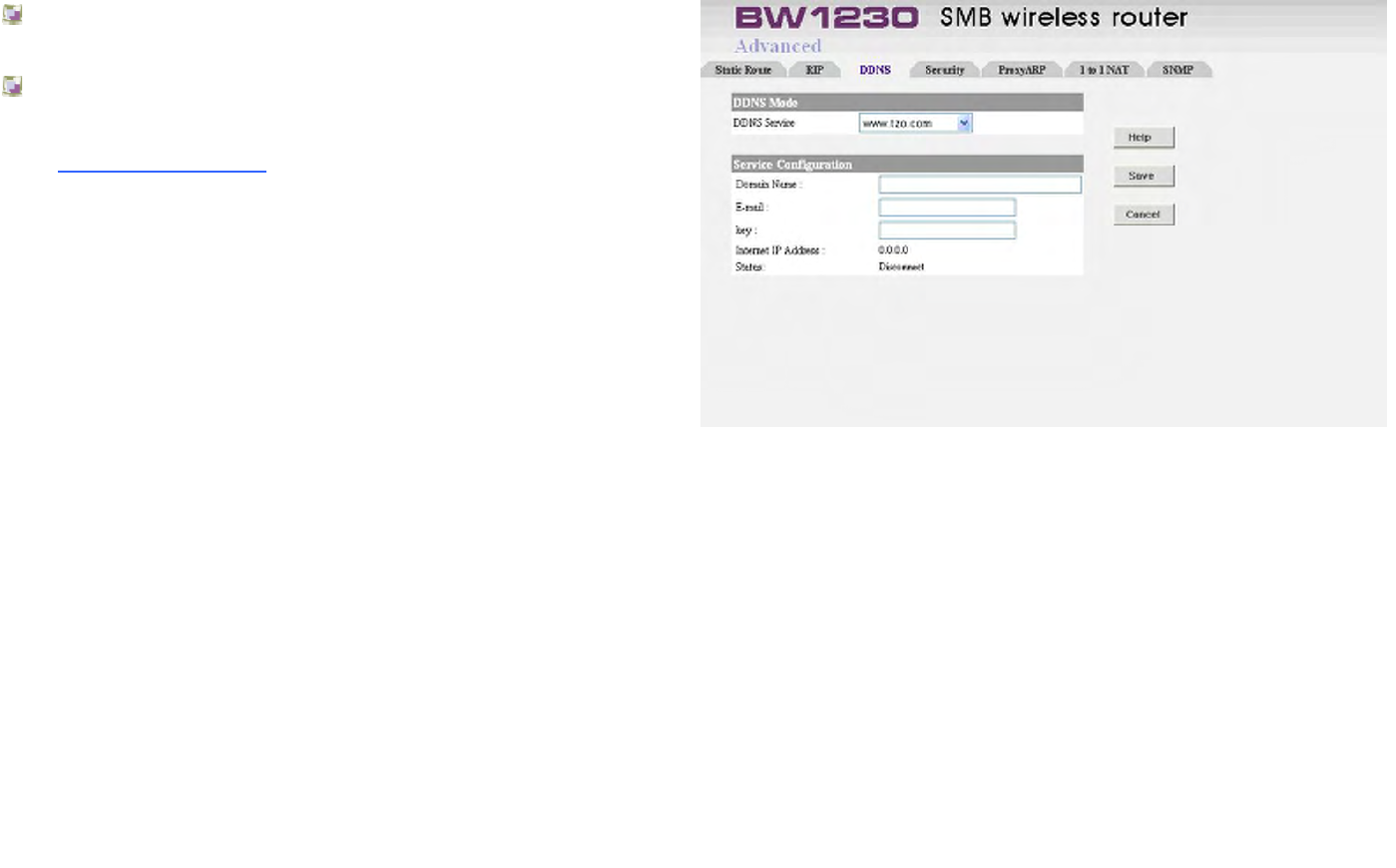

Advanced | DDNS
Dynamic Domain Name System (DDNS) is a system
which allows the domain name data held in a name server
to be updated in real time. The most common use for this is
in allowing an Internet domain name to be assigned to a
computer with a varying (dynamic) IP address. This makes
it possible for other sites on the Internet to establish
connections to the machine without needing to track the IP
address themselves. A common use is for running server
software on a computer that has a dynamic IP address, as
is the case with many consumer Internet service providers.
The DDNS is disabled by default selection.
BROWAN COMMUNICATIONS Page 157
Advanced | Security
The security setup could help you to protect your network.
The Router contains both an Advanced Firewall and a
Basic Firewall. The Basic Firewall detects the common
attack patterns used by people on the Internet and once
detected will block their access to your network. The
Advanced Firewall uses Stateful Packet Inspection (SPI),
which is a more secure method of protection against
attacks to your network. When an attack is detected a log
entry will be generated and the Alert LED will be lit for 2
seconds.
Enable universal plug and play
The universal plug and play architecture enables
discovery and control between devices on a network.
Enabling this feature will make the Router less secure,
as you no longer have control on which ports in the
Firewall are opened.
Universal plug and play is enabled by:
Checking on the Enable universal plug and play
BROWAN COMMUNICATIONS Page 158
check box so that a tick can be seen.
Clicking the Apply button.
Allow PING from the Internet
Ping is a computer network tool used to test whether a
particular host is reachable across an IP network. Ping
works by sending ICMP echo request packets to the
target host and listening for ICMP echo response
replies. Using interval timing and response rate, ping
estimates the round-trip time and rate of packet loss (if
any) between hosts.
Allow PING is enabled by：
Checking on the Allow PING from the Internet
check box so that a tick can be seen.
Click the Apply button.
Disable NAT
When NAT is Disabled, the Router does not perform IP
address and port translation. The related features,
such as Virtual Server, Special Applications, PC
Privileges, Virtual DMZ, do not work after NAT
Disabled.
BROWAN COMMUNICATIONS Page 159
Disable NAT is enabled by：
Checking on the Disable NAT check box so that a
tick can be seen.
Clicking he Apply button.
IPSec Pass-through
Internet Protocol Security (IPSec) is a suite of protocols
used to implement secure exchange of packets at the
IP layer. IPSec Pass-Through is enabled by default.
L2TP Pass-through
Layer 2 Tunneling Protocol is the method used to
enable Point-to-Point sessions via the Internet on the
Layer 2 level. L2TP Pass-Through is enabled by
default.
PPTP Pass-through
Point-to-Point Tunneling Protocol (PPTP) allows the
Point-to-Point Protocol (PPP) to be tunneled through
an IP network. PPTP Pass-Through is enabled by
default.
GUI timeout
BROWAN COMMUNICATIONS Page 160
If you do not access the GUI for the specified time span
(Default is 10 minutes), the system will ask you to login
again.
Enabling Remote Administration
It is possible to administer the Router from the Internet.
You can enable remote administration for a single PC,
all PCs in a subnet, or for any PC. The more PCs you
enable access for, the less secure your Router will be.
To do this :
1. Select the remote administration mode you require.
2. In the case of a single PC, specify its IP address. In
the case of a subnet, specify the address of a PC in
the subnet, and the subnet mask.
3. The Remote PC can now administer the Router by
entering http：//<Router_Internet_IP_Address>：
8000 into a web browser.
BROWAN COMMUNICATIONS Page 161
Advanced | Proxy ARP
Proxy ARP is the technique in which one machine, usually a
router, answers ARP requests intended for another
machine. By "faking" its identity, the router accepts
responsibility for routing packets to the "real" destination.
Proxy ARP allows a site to use a single IP address with two
physical networks.
Following is the setting procedures on Proxy ARP function
1. Set the GW wan IP in static ip mode, such as IP：
10.0.0.2, submask：255.255.0.0, route：10.0.0.1
2. Enable Proxy ARP on WEB UI and set the Public IP
range you want to set on PC in your LAN network such
as from 10.0.0.3 to 10.0.0.14
3. Set PC in your LAN network with one of those Public IP,
such as IP：10.0.0.3, submask：255.255.0.0, route：
10.0.0.1
BROWAN COMMUNICATIONS Page 162
Advanced | 1 to 1 NAT
The following criteria must be met to be able to use
One-to-One NAT：
You must have a static Internet IP address for every
computer on your network plus one for the Router
itself.
The addresses must be in one continuous block in the
same subnet
You must have selected Static IP Address as your IP
Allocation Mode and have given your VPN Firewall the
first of the Internet addresses allocated by your ISP.
To set up One-to-One NAT：
Enable the entry of One-to-One NAT.
Enter the Internet addresses in ISP Pool field. (WAN IP
address).
Enter the IP address in your LAN side to which you
want to map it in LAN Pool field.
BROWAN COMMUNICATIONS Page 163
Advanced | SNMP
Simple Network Management Protocol (SNMP) allows a
management application to retrieve statistics and status
from the SNMP agent in this device.
BROWAN COMMUNICATIONS Page 164
Status and Logs | Status
This page summarizes most of the unit's configuration in
one place. You may be asked to print this page out if you
call BROWAN Support.
You can refresh the information by clicking on the Refresh
button.
BROWAN COMMUNICATIONS Page 165
BROWAN COMMUNICATIONS Page 166
Status and Logs | Logs
This page allows the user to view or download the System
Log files. These files record the date and time of a variety of
events that took place when using the Router. Most of them
are normal events for example issuing DHCP addresses to
requesting PCs. However, this is also where the Router
would record security threats like：
Hacker Attacks detected.
Attempts to login to the admin interface from the
LAN side.
Attempts to login to the admin interface from the
Internet.
View Log
Select Incoming Log, Outgoing Log,Security Log,
Security Log, or DHCP Client Log from the Type
drop-down menu.
The Incoming Log will display a temporary log of
the Source IP Addresses and Destination Port
BROWAN COMMUNICATIONS Page 167
Numbers for the incoming Internet traffic
The Outgoing Log will display a temporary log of
the LAN IP Addresses, Destination URLs or IP
Addresses, and Service or Port Numbers for the
outgoing Internet traffic.
The Security Log will display the login information
for the WEB Utility.
The DHCP Client Log will display the LAN DHCP
server status information.
The files can be downloaded and saved as a text file on
your PC. To do this:
1. Click on the Save Log button.
2. Specify a location to save the file and click OK.
Click the Refresh button to update the log
The Clean button deletes all of the log contents.
BROWAN COMMUNICATIONS Page 168
Status and Logs | Routing Table
The routing table details the default routing used by the
router and any routing created using Static routing or RIP.
BROWAN COMMUNICATIONS Page 169
Status and Logs | Syslog
Syslog allows the user to to log system information to a
remote server.
You may need to modify your remote syslog server settings to accept remote logs.
BROWAN COMMUNICATIONS Page 170
Support | Support
To access help for the Administration System, Click Help
button o. The help pop-up window will appear after you click
Help button.
How to use the help system:
Works exactly like a browser's back button.
Works exactly like a browser's forward button
Opens the Help Table of Contents.
Table of Contents：
This link will help you to find the keyword in help system
quickly.
Support from BROWAN：
You could visit our support web page with is link.
BROWAN COMMUNICATIONS Page 171
Wireless specification
Data rate supported IEEE 802.11 b ： 1, 2, 5.5, 11 Mbps
802.11 g ： 6, 9, 12, 18, 24 , 36 , 48, 54, and 108 Mbps
Frequency Band 802.11b/g 2.400 ~ 2.483GHz
Channel FCC： 11 , EU ： 13
Modulation 802.11b：DBPSK(1Mbps), DQPSK(2Mbps), CCK(5.5Mbps, 11Mbps)
802.11g：OFDM with BPSK, QPSK, 16QAM, 64QAM
Transmit Power 18dBm(+/-2dBm)@ 11Mbps (not including Antenna gain)
16dBm(+/-2dBm)@ 54Mbps (not including Antenna gain)
Receive Sensitivity
-83dBm@11Mbps (IEEE 802.11b)
-65dBm@54Mbps (IEEE 802.11g)
Antenna
One R-SMA connector for external antenna
1 detachable antenna, peak: 2.0dBi
Radio 2.4GHz ISM band
Appendix
BROWAN COMMUNICATIONS Page 172
Product specification
Interface WAN ：1 port 100BASE-T, auto-sensing
LAN ：4 ports 100BASE-T, auto-sensing
Physical characteristics
Dimension： 173mm(L) x 128mm(W) x 33mm(H)
Weight： 256 g
Environment
Operation temperature：0 ~ 55°C (Operating)
Storage temperature： -20~85°C (Storing)
Humidity：5~95% (Non-condensing)
Power supply
PoE：IEEE 802.3af compliance (option)
Power adapter：100 ~ 240 V AC, 50 ~60 Hz input and 12V / 500mA output
LEDs Power, WLAN, WAN, LAN
Network Management
Firewall Access control, Authorized application, Application port priority, URL filtering, Stateful packet
inspection(SPI), Website blocking, Virtual Server, Virtual DMZ
Internet connection Static IP, DHCP, PPPoE, PPTP, Heart Beat Signal, L2TP
Remote management HTTPS, SNMP, back up and restore configuration files
Firmware upgradeable Web firmware upgrade
BROWAN COMMUNICATIONS Page 173
Regulation
Certification FCC, CE
Compliance RoHS, WEEE
Warranty Two years.
