GemTek Technology S981116N Internet Protocol Wireless Set Top Box User Manual
Gemtek Technology Co., Ltd. Internet Protocol Wireless Set Top Box
Contents
- 1. User Manual
- 2. Manual
- 3. Final user manual
Final user manual
Installation Manual
for Cisco IPTV
Receivers
for use with your AT&T U-verse TV service
Model ISB7005
2
3
Contents
Notice for Installers ..........................................................................................................4
IMPORTANT SAFETY INSTRUCTIONS..............................................................................4
Change the Way You Watch TV .......................................................................................7
What’s In the Carton? ......................................................................................................7
Safety First .......................................................................................................................7
Identify Your Receiver with the Serial Number .................................................................7
In This Manual ..................................................................................................................7
Questions About Your Service. ........................................................................................7
Protecting You and the Environment ................................................................................7
Front Panel .......................................................................................................................8
Back Panel .......................................................................................................................9
Connecting the Receiver ................................................................................................10
ISB7005 Wireless Network Connection .........................................................................11
Connecting the Wireless Access Point to the Wireless Gateway ........................................ 12
Pairing the Wireless Access Point and Receiver ............................................................12
Connections for a High-De nition TV (HDTV) ................................................................13
Connections for a Standard-De nition TV (SDTV) .........................................................14
Connections for a VCR or DVD Recorder .......................................................................15
Connecting an Over-the-Air Converter Box ...................................................................15
Connecting to an HDTV with an HDMI Connector ..........................................................16
Connecting to an HDTV with a DVI Connector ...............................................................17
Connecting to an HDTV with Component (YPbPr) Connectors ......................................18
Connecting to an SDTV with Component (YPbPr) Connectors ......................................19
Connecting to an SDTV with an S-Video Connector ......................................................20
Connecting to an SDTV with an RCA-Type Connector ..................................................21
Connecting to an SDTV with a Coaxial Cable.................................................................22
Connecting to a Home Theater System with Component (YPbPr) Connectors .............23
Connecting to a Stereo VCR or DVD Recorder (optional) ..............................................24
Troubleshooting .............................................................................................................25
Avoid Screen Burn-In .....................................................................................................25
Frequently Asked Questions ..........................................................................................26

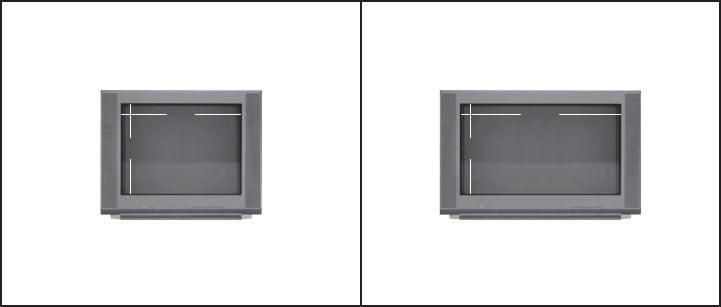

Picture Formats ..............................................................................................................27
Index ..............................................................................................................................28
Compliance Information .................................................................................................30
4
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
ampli ers) that produce heat.
9) Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding-type plug has
two blades and a third grounding prong. The wide blade
or the third prong are provided for your safety. If the
provided plug does not t into your outlet, consult an
electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
11) Only use attachments/accessories specified by the
manufacturer.
12) Use only with the cart, stand, tripod, bracket, or
table speci ed by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid
injury from tip-over.
13) Unplug this apparatus during lightning storms or when
unused for long periods of time.
14) Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as a power-supply cord or plug
is damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been
dropped.
Power Source Warning
A label on this product indicates the correct power source for this
product. Operate this product only from an electrical outlet with
the voltage and frequency indicated on the product label. If you are
uncertain of the type of power supply to your home or business,
consult your service provider or your local power company.
The AC inlet on the unit must remain accessible and operable at
all times.
Ground the Product
WARNING: Avoid electric shock and re hazard! If this
product connects to cable wiring, be sure the cable system
is grounded (earthed). Grounding provides some protection
against voltage surges and built-up static charges.
Protect the Product from Lightning
In addition to disconnecting the AC power from the wall outlet,
disconnect the signal inputs.
IMPORTANT SAFETY INSTRUCTIONS
Notice for Installers
The servicing instructions in this notice are for use by quali ed service personnel only. To reduce the risk of
electric shock, do not perform any servicing other than that contained in the operating instructions, unless you are
quali ed to do so.
20080814_Installer800
Note to System Installer
CAUTION: To reduce the risk of electric shock, do not
remove cover (or back). No user-serviceable parts
inside. Refer servicing to qualified service personnel.
WARNING
TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS UNIT TO RAIN OR MOISTURE.
For this apparatus, the cable shield/screen shall be grounded
as close as practical to the point of entry of the cable into the
building. For products sold in the US and Canada, this
reminder is provided to call the system installer's attention to
Article 800-93 and Article 800-100 of the NEC (or Canadian
Electrical Code Part 1), which provides guidelines for proper
grounding of the cable shield.
This symbol is intended to alert you that uninsulated voltage
within this product may have sufficient magnitude to cause
electric shock.Therefore, it is dangerous to make any kind of
contact with any inside part of this product.
Ce symbole a pour but d’alerter toute personne qu’un contact
avec une pièce interne de ce produit, sous tension et non
isolée, pourrait être suffisant pour provoquer un choc
électrique. Il est donc dangereux d’être en contact avec toute
pièce interne de ce produit.
This symbol is intended to alert you of the presence
of important operating and maintenance (servicing)
instructions in the literature accompanying this product.
Ce symbole a pour but de vous avertir qu’une
documentation importante sur le fonctionnement et
l’entretien accompagne ce produit.
5
Verify the Power Source from the
On/O Power Light
When the on/o power light is not illuminated, the apparatus may
still be connected to the power source. The light may go out when
the apparatus is turned o , regardless of whether it is still plugged
into an AC power source.
Eliminate AC Power/Mains Overloads
WARNING: Avoid electric shock and re hazard! Do
not overload AC power/mains, outlets, extension cords, or
integral convenience receptacles. For products that require
battery power or other power sources to operate them,
refer to the operating instructions for those products.
Provide Ventilation and
Select a Location
• Remove all packaging material before applying power to the
product.
• Do not place this apparatus on a bed, sofa, rug, or similar
surface.
• Do not place this apparatus on an unstable surface.
• Do not place this apparatus in excessive heat or moisture.
• Do not install this apparatus in an enclosure, such as a
bookcase or rack, unless the installation provides proper
ventilation.
• Do not place entertainment devices (such as VCRs or DVDs),
lamps, books, vases with liquids, or other objects on top of this
product.
• Do not block ventilation openings.
Operating Environment
This product is designed for operation indoors with a temperature
range from 32° to 104° F (0° to 40°C). Each product should have
adequate spacing on all sides so that the cooling air vents on the
chassis are not blocked.
Protect from Exposure to Moisture
and Foreign Objects
WARNING: Avoid electric shock and re hazard! Do
not expose this product to dripping or splashing liquids,
rain, or moisture. Objects lled with liquids, such as vases,
should not be placed on this apparatus.
WARNING: Avoid electric shock and fire hazard!
Unplug this product before cleaning. Do not use a liquid
cleaner or an aerosol cleaner. Do not use a magnetic/static
cleaning device (dust remover) to clean this product.
WARNING: Avoid electric shock and re hazard!
Never push objects through the openings in this product.
Foreign objects can cause electrical shorts that can result
in electric shock or re.
Service Warnings
WARNING: Avoid electric shock! Do not open
the cover of this product. Opening or removing the cover
may expose you to dangerous voltages. If you open the
cover, your warranty will be void. This product contains
no user-serviceable parts.
Check Product Safety
Upon completion of any service or repairs to this product, the service
technician must perform safety checks to determine that this product
is in proper operating condition.
Protect the Product When Moving It
Always disconnect the power source when moving the apparatus
or connecting or disconnecting cables.
20110316_IP_No Tuner_Safety
IMPORTANT SAFETY INSTRUCTIONS, continued
6
7
Change the Way You Watch TV
Welcome to U-verse TV. The ISB7005 devices, known as U-verse receivers, bring a rich, new set of
interactive services directly to you through your TV and your in-home IP network. The receiver uses
wireless technology 802.11n to connect to the network.
The ISB7005 receiver allows for easy and secure connection to U-verse services. The signal
strength indicator on the front panel of the receiver identi es the strength of the wireless connection
and aids in the proper placement of the receiver.
What’s In the Carton?
In addition to this installation manual, the receiver carton contains the following items:
• An ISB7005 Receiver - A wireless receiver
• A power cord and power adapter
To support the wireless functionality of the ISB7005 receiver, you will also need a wireless
access point that is packaged separately from your receiver. See page 12 of this guide for more
information on the wireless access point.
Safety First
Before using the receiver, read the Important Safety Instructions section of this manual.
Identify Your Receiver with the Serial Number
At times your service provider may ask for the serial number. To nd the serial number for your
receiver, look on the bottom of the receiver for the label. The serial number is a 9-digit numeric
code to the right of the letters “S/N” on the label.
Use the space provided here to record the serial number: _______________________________
In This Manual
This manual covers the information you need to connect your receiver to both your in-home IP
network and your entertainment system. The manual also outlines certain safeguards and installation
information. The safety information contained in this manual was developed and provided solely by
the receiver manufacturer, Cisco Systems, Inc.
Questions About Your Service
For questions about how to operate your receiver, once installed, refer to your Feature Guide available
for download at: att.com/userguides. For all other questions about your TV service, contact your
service provider.
Protecting You and the Environment
Cisco addresses the environmental impact of networking products throughout their lifecycle, from product
development, manufacturing, and use to service and end-of-life. Integrating environmental policies into
Cisco engineering and manufacturing practices results in socially accountable business practices that
help reduce the environmental impact associated with networking products.
8
Front Panel
1 Power Turns the receiver on or places it in standby. To restart the receiver,
press and hold the POWER button for 10 seconds. The LED is green
2 Model Number Identi es the model number of your receiver as ISB7005
3 Signal Strength Identi es the strength of the wireless connection
Indicator
4 Link Indicates network link status. The LED is green
5 HD Indicates the set-top is set to a resolution of 720p, 1080i, or 1080p.
The LED is blue
6 Record Indicates that a recording is in progress. The LED is red
7 IR Sensor Receives the infrared signal from the remote control. The sensor is
behind the front panel
8 Menu Accesses the on-screen menu
9 Arrow Keys Accesses on-screen services (such as the on-screen guide, video-on-
demand, or pay-per-view) and navigates menus
10 OK Selects the current item
11 USB Port USB connector. (Reserved for future use)
Note: This illustration may vary from the actual product.
POWER LINK HD RECORD MENU
ISB
7005
OK
OK
OK
T1482043 5 6 87 1191021
9
Back Panel
1 To TV (Video Out) Connect to TV. You must set the channel on your TV to the channel
designated by your service provider (usually channel 3). Contact your
service provider for the channel information
2 Network Connect to the Ethernet (CAT-5) network at your home, if applicable
3 YPbPr Connect the receiver to the component video input (YPbPr) on the
HDTV. See pages 13 and 14 for more information
4 S-Video Connect an S-Video cable to send an S-Video signal to your TV, VCR, or
DVD recorder. This signal is standard-de nition but higher quality than
other standard-de nition TV connections. See page 14 for more
information
5 Video Out Connect to composite input on your HDTV or SDTV
Note: Two video output connectors are provided. Typically, one output
is connected to the TV, and the other output is used to connect to a
home theater system, DVD recorder, or VCR
6 Audio Out (L/R) Connect RCA-type cables to Audio Out to send analog audio signals
(left and right) to a TV with stereo inputs or to a stereo ampli er
Note: Two sets of audio out connectors are provided. Typically, one set
of outputs is connected to the TV, and the other set is used to connect
to a home theater system, DVD recorder, or VCR
7 Optical Connect an optical cable to send a digital audio signal to a surround-
sound receiver or other digital audio device
8 HDMI Connect an HDTV HDMI™ (High-De nition Multimedia Interface) cable
from the HDTV to the HDMI port. HDMI supports both digital audio and
video. See page 13 for more information
9 USB Port USB connector. (Reserved for future use)
10 Power Connect the DC output of the AC power adapter (provided) to deliver
power to the receiver
Note: This illustration may vary from the actual product.
T14821T14821
Pr
Pb Y
TO TV
(VIDEO OUT)
NETWORK S-VIDEO VIDEO
OUT
AUDIO
OUT
LR
OPTICAL POWERUSB
21 4 7 9
8103 65
10
Because the connections
for a high-de nition (HD)
or standard-de nition (SD)
TV are di erent, you must
determine if your TV is HD
or SD. Your TV must
receive HD signals for
you to enjoy the bene ts
of HDTV. Refer to the manual that came with your TV for more information.
See page 27 for more information on picture formats.
Connecting the Receiver
To connect your receiver to your network and home entertainment devices, complete these steps.
Identify the additional consumer
electronic devices you will
connect to the receiver and TV.
See pages 16 through 24 and
refer to the owner’s manual for
the device.
Plug the receiver and the TV into an AC power source that is not controlled by a
switch. For further instructions on completing your setup, refer to the Feature
Guide available from your service provider.
Make the connections for your TV, VCR, and DVD recorder as follows:
• If you are using an HDTV, see page 13 and the connection diagrams in this
manual.
• If you are using a standard-de nition TV, see page 14 and the connection
diagrams in this manual.
• If you want to record some programs on VCR tape or DVD, see page 15
and the connection diagrams in this manual.
1
2
4
3
Home Theater
OtherDVDVCR
9
16 4
3
or
11
ISB7005 Wireless Network
Connection
The ISB7005 receiver allows for easy and secure
connection to U-verse services. The signal strength
indicator on the front panel of the receiver identi es
the strength of the wireless connection and aids in the
proper placement of the receiver.
• You cannot change the brightness of the signal
strength indicator.
• The receiver must be paired with the wireless access point for the wireless connection to be
established. See page 12 for more information.
Wireless
LEDs Receiver Operational Status
This indicates the wireless signal is excellent. The video quality is good.
This indicates the wireless signal is very good. The video quality is good.
This indicates the wireless signal is good. The video quality is good. You must obtain
three or more green bars at initial installation.
This indicates the wireless signal is fair. The video quality is good.
This indicates the wireless signal is weak. The video quality may be poor. The STB
should be re-oriented to achieve a better wireless signal.
This indicates the wireless signal is very weak. No video can be displayed. The
receiver must be re-oriented to achieve a better wireless signal.
This indicates no wireless connectivity.
T14822
PO WER LINK HD
ISB
7005
Signal Strength Indicator
12
Connecting the Wireless Access Point to the Wireless
Gateway
1.Connect the 12 VDC Power Supply
plug on the access point to the wall
power outlet. Use only the power
adapter provided with the product.
2. Connect the power plug to the power
receptacle on the wireless access point.
3. Connect one end of the RJ-45
Ethernet cable to the Ethernet port on
the wireless access point.
4. Connect the other end of the RJ-45
Ethernet cable to an available Ethernet
port on your wireless gateway.
T14853
1
2
4
3
5
T14854
12VDC
Reset
Ethernet
1
2
3
1 Wireless LED
2 Wi-Fi Protected Setup (WPS) button
3 Wi-Fi Protected Setup (WPS) LED
4 Ethernet LED
5 Power LED
Note: This illustration may vary from the actual product.
1 Ethernet Port Connects the Wireless Access Point to a
wireless gateway
2 Reset Restores factory default settings when held
for more than 5 seconds
3 Power Connects device to the external 12 VDC
power supply
Note: This illustration may vary from the actual product.
T14961
Power Receptacle
12VDC
Reset
12VDC
Reset
Ethernet
RJ-45
Cable
To Wall Power Outlet
Wireless
Gateway
Ethernet Port
Pairing the Wireless Access Point and Receiver
1. Press the OK button on the receiver.
2. Press the WPS button on the wireless access point.
13
Connections for a High-De nition TV (HDTV)
To use the receiver with an HDTV, you must make one of the following connections to view the HD
content. Refer to the owner’s manual for your TV and the cabling diagrams in this manual for more
detailed connection information.
Although all connections provide you with quality service, we list the connections in our
recommended order.
Notes:
• The labeling on your receiver or HDTV may vary slightly from the illustrations shown below.
• Some cables shown in the connection diagrams may not be included with this receiver.
• Set the HD mode and select the output video format (480i, 720p, 1080i, or 1080p) on the receiver
using the instructions provided in the Feature Guide available for download at: uverse.att.com/support
Some HDTVs have a High-De nition Multimedia
Interface (HDMI) connector. The HDMI connector
provides both a digital video and audio connection.
See the connection diagram on page 16 for an
example.
Note: The HDMI port on the TV must support
high-bandwidth digital content protection (HDCP).
HDTV
Connections
The HDMI connector can provide the connection
to an HDTV with a DVI input. If your HDTV has a
Digital Visual Interface (DVI) connector, you need
an HDMI-to-DVI adapter, and a separate audio
connection (either L/R or optical audio).
Note: The DVI port on the TV must support
high-bandwidth digital content protection (HDCP).
See the connection diagram on page 17 for an
example.
Use One of These Required
Connections to an HDTV
DVI
Receiver
Connections
The YPbPr (red, blue, and green) connectors
provide high-de nition component video signals
to an HDTV, and a separate audio connection
(either L/R or optical audio).
See the connection diagram on page 18 for an
example.
Pr
Pb
Y
Audio/VideoVideoVideo
DVI HDMIYPbPr
Pb Y
Some HDTVs have only RGB or RGB-HV
connectors. If you have one of these HDTVs,
you need a Component-to-RGB adapter, and
you need a separate audio connection.
B
G
V
H
R
P
Pb Y
Adapter Needed
Adapter Needed
Video
RGB
Audio
LR
AUDIO
OUT
LR
AUDIO
OUT
LR
OPTICAL
OPTICAL
INPUT
LR
Audio
AUDIO
OUT
LR
OPTICAL
OPTICAL
INPUT
LR
Audio
14
Connections for a Standard-De nition TV (SDTV)
When using the receiver with an SDTV, you must make one of the following connections to view
content. Some SDTVs may not have all these connections. Refer to the owner’s manual for your TV
and the cabling diagrams in this manual for more detailed information.
Although all connections provide you with quality service, we list the connections in our
recommended order.
Notes:
• The labeling on your receiver or SDTV may vary slightly from the illustrations shown below.
• Some cables shown in the connection diagrams may not be included with this receiver.
The YPbPr (red, blue, and green) connectors
can provide standard-de nition component
video signals to an SDTV. A separate audio
connection is also needed.
See the connection diagram on page 19 for an
example.
SDTV
Connections
Use One of These Required
Connections to an SDTV Receiver
Connections
The S-Video connection provides an optimal
video connection to SDTVs. A separate audio
connection is also needed.
See the connection diagram on page 20 for
an example.
Audio/Video
The Video Out connector provides a video
connection to an SDTV. A separate audio
connection is also needed.
See the connection diagram on page 21 for
an example.
S-VideoTo TV (Video Out) Video Out
TO TV
(VIDEO OUT)
CABLE IN/
ANT IN
S-VIDEO
IN
VIDEO
OUT
VIDEO
IN
LR
LR
Pr
Pb
Y
LR
YPbPr
Audio VideoAudio Video
The To TV (Video Out) connector provides both
a video and audio connection to an SDTV.
See the connection diagram on page 22 for
an example.
Audio Video
Pr
Pb Y
AUDIO
OUT
LR
AUDIO
OUT
LR
AUDIO
OUT
LR
S-VIDEO
15
Connections for a VCR or DVD Recorder
When using the receiver with a VCR or DVD recorder, you must make one of the following
connections to view content.
Although all connections provide you with quality service, we list the connections in our
recommended order.
Notes:
• The labeling on your receiver, VCR, or DVD recorder may vary slightly from the illustrations shown
below.
• Some cables shown in the connection diagrams may not be included with this receiver.
Connecting an Over-the-Air Converter Box
You can connect an over-the-air converter box directly to your TV to receive certain local
channels, but do not connect the over-the-air converter box directly to your receiver.
For VCRs or DVD recorders with Video In and
Left and Right audio connectors, use the Video
Out and the Audio Out connectors (Left and
Right) on the receiver.
See the connection diagram on page 24 for an
example.
VCR/DVD Recorder
Connections
Use One of These Optional Connections
to a VCR or DVD Recorder Receiver
Connections
VCR/DVD Recorder
Audio Video
For VCRs or DVD recorders with S-Video In
and Left and Right audio connectors, use the
S-Video and the Audio Out Left and Right
connectors on the receiver.
Audio Video
S-VIDEO
IN
VIDEO
OUT
VIDEO
IN
LR
LR
AUDIO
OUT
LR
AUDIO
OUT
LR
S-VIDEO
16
Connecting to an HDTV with an HDMI Connector
Cable Used in this Con guration
• 1 HDMI Cable
Notes:
• The HDMI port on the TV must support high-bandwidth digital content protection (HDCP).
• The HDMI interface supports Dolby™ Digital 5.1 audio.
WARNING:
Electric shock hazard! Unplug all electronic devices before connecting or
disconnecting any device cables to the receiver.
Receiver
T14823
Pr
Pb Y
TO TV
(VIDEO OUT)
S-VIDEO VIDEO
OUT
AUDIO
OUT
LR
OPTICAL
NETWORK
POWERUSB
Back of HDTV
HDMI
AUDIO
CENTER
CHANNEL IN
AUDIO IN
DVI/HDCP
ANT (75 )
INOUT
LR
ANT-1
HD 2
Y
OUT
ANT-2
PB
PR
L
R
VIDEO
L/
MONO
R
L/
MONO
R
AUDIO
IN
ON OFF
IN
HD 1
S-VIDEO
VIDEO Y
PB
PR
L
R
AUDIOAUDIO
17
Connecting to an HDTV with a DVI Connector
Cables Used in this Con guration
• 1 HDMI-to-DVI Cable or 1 HDMI Cable and 1 HDMI-to-DVI Adapter
• 1 Audio Left/Right Cable (You can also use an optical cable [indicated by the dotted line]
instead of the Audio Left/Right Cable as shown in the diagram, dependent upon your TV’s
capabilities.)
Notes:
• The DVI port on the TV must support high-bandwidth digital content protection (HDCP).
• When you connect the HDMI connector to the DVI connector on your HDTV, you need an
HDMI-to-DVI adapter and a separate audio connection.
WARNING:
Electric shock hazard! Unplug all electronic devices before connecting or
disconnecting any device cables to the receiver.
Receiver
Pr
Pb Y
TO TV
(VIDEO OUT)
S-VIDEO VIDEO
OUT
AUDIO
OUT
LR
OPTICAL
NETWORK
POWERUSB
Back of HDTV
AUDIO
CENTER
CHANNEL IN
ANT (75 )
INOUT
ANT-1
HD 2
Y
OUT
ANT-2
PB
PR
L
R
VIDEO
L/
MONO
R
L/
MONO
R
AUDIO
IN
ON OFF
IN
HD 1
S-VIDEO
VIDEO Y
PB
PR
L
R
AUDIOAUDIO
DVI/HDCP
IN
AUDIO IN
DVI/HDCP
LR
OPTICAL
INPUT
OR
T14824
18
Connecting to an HDTV with Component (YPbPr)
Connectors
Cables Used in this Con guration
• 1 Component Video Cable (YPbPr)
• 1 Audio Left/Right Cable (You can also use an optical cable [indicated by the dotted line]
instead of the Audio Left/Right Cable as shown in the diagram, dependent upon your TV’s
capabilities.)
WARNING:
Electric shock hazard! Unplug all electronic devices before connecting or
disconnecting any device cables to the receiver.
Receiver
T14825
Pr
Pb Y
TO TV
(VIDEO OUT)
S-VIDEO VIDEO
OUT
AUDIO
OUT
LR
OPTICAL
NETWORK
POWERUSB
Back of
HDTV
HDMI
AUDIO
CENTER
CHANNEL IN
AUDIO IN
DVI/HDCP
ANT (75 )
INOUT
LR
ANT-1
HD 2
Y
OUT
ANT-2
PB
PR
L
R
VIDEO
L/
MONO
R
L/
MONO
R
AUDIO
IN
ON OFF
S-VIDEO
VIDEO
AUDIO
IN
HD 1
Y
PB
PR
L
R
AUDIO
OPTICAL
INPUT
OR
19
Connecting to an SDTV with Component (YPbPr)
Connectors
Cables Used in this Con guration
• 1 Component Video Cable (YPbPr)
• 1 Audio Left/Right Cable
Note: The receiver must be set to the proper standard-de nition mode.
WARNING:
Electric shock hazard! Unplug all electronic devices before connecting or
disconnecting any device cables to the receiver.
Receiver
Pr
Pb Y
TO TV
(VIDEO OUT)
S-VIDEO VIDEO
OUT
AUDIO
OUT
LR
OPTICAL
NETWORK
POWERUSB
Back of SDTV
CABLE OUT/
ANT OUT
CABLE IN/
ANT IN
RL
AUDIO
IN
VIDEO
IN
RL
AUDIO
OUT
VIDEO
OUT
Y
PB
PR
T14826
20
Connecting to an SDTV with an S-Video Connector
Cables Used in this Con guration
• 1 S-Video Cable
• 1 Audio Left/Right Cable
WARNING:
Electric shock hazard! Unplug all electronic devices before connecting or
disconnecting any device cables to the receiver.
Receiver
Pr
Pb Y
TO TV
(VIDEO OUT)
S-VIDEO VIDEO
OUT
AUDIO
OUT
LR
OPTICAL
NETWORK
POWERUSB
CABLE OUT/
ANT OUT
RL
AUDIO
IN
S-VIDEO
IN
RL
AUDIO
OUT
VIDEO
OUT
VIDEO
IN
CABLE IN/
ANT IN
Back of SDTV
T14827
21
Connecting to an SDTV with an RCA-Type Connector
Cables Used in this Con guration
• 1 RCA-type Video Cable
• 1 Audio Left/Right Cable
WARNING:
Electric shock hazard! Unplug all electronic devices before connecting or
disconnecting any device cables to the receiver.
Receiver
T14828
Pr
Pb Y
TO TV
(VIDEO OUT)
S-VIDEO VIDEO
OUT
AUDIO
OUT
LR
OPTICAL
NETWORK
POWERUSB
CABLE OUT/
ANT OUT
RL
AUDIO
IN
VIDEO
IN
RL
AUDIO
OUT
VIDEO
OUT
Y
PB
PR
CABLE IN/
ANT IN
Back of SDTV
22
Connecting to an SDTV with a Coaxial Cable
Cable Used in this Con guration
• 1 Coaxial Cable
Note: You must set the channel on your TV to the channel designated by your service provider
(usually channel 3). Contact your service provider for the channel information.
WARNING:
Electric shock hazard! Unplug all electronic devices before connecting or
disconnecting any device cables to the receiver.
Receiver
T14829
Pr
Pb Y
TO TV
(VIDEO OUT)
S-VIDEO VIDEO
OUT
AUDIO
OUT
LR
OPTICAL
NETWORK
POWERUSB
CABLE OUT/
ANT OUT
RL
AUDIO
IN
VIDEO
IN
RL
AUDIO
OUT
VIDEO
OUT
Y
PB
PR
Back of SDTV
CABLE IN/
ANT IN
Coaxial
Cable
23
Connecting to a Home Theater System
with Component (YPbPr) Connectors
Cables Used in this Con guration
• 1 Component Video Cable (YPbPr)
• 1 Audio Left/Right Cable (You can also use an optical cable [indicated by the dotted line] instead
of the Audio Left/Right Cable as shown in the diagram.)
Notes:
• This connection requires that audio is provided by the home theater system.
• Consult the user guide that came with your home theater system for information on connecting
your other video and audio devices.
Contact AT&T ConnecTech® service to learn about a ordable at-rate home theater installation
services. Call (800) 344-1734 to speak with an AT&T ConnecTech Representative. (Not available in all
areas; See o ers and terms & conditions at www.att.com/ConnecTech).
WARNING:
Electric shock hazard! Unplug all electronic devices before connecting or
disconnecting any device cables to the receiver.
T14830
Receiver
Pr
Pb Y
TO TV
(VIDEO OUT)
S-VIDEO VIDEO
OUT
AUDIO
OUT
LR
OPTICAL
NETWORK
POWERUSB
Back of Home
Theater Receiver
COMPONENT VIDEO
1
Y
PB
PR
2
Y
PB
PR
Y
PB
PR
S-VIDEO
DIGITAL
AUDIO TV/CABLE
1
2
3
4
VIDEO
L
R
AUDIO
S-VIDEO
DVD
VIDEO
L
R
AUDIO
VIDEO
L
R
AUDIO
S-VIDEO
VIDEO 1
S-VIDEO
OUT
VIDEO OUT
MONITOR
VIDEO
L
R
AUDIO
S-VIDEO
OUTIN
OUTIN
OR
24
Connecting to a Stereo VCR or DVD Recorder (optional)
The diagram below shows how to connect a recording device to your receiver. Although it
is possible to watch TV using a connection through your VCR or DVD recorder to the TV, this
connection may not provide the best picture, and HDTV users are restricted to an SD format. In
addition, some content is copy protected and passing this content through the recording device
may result in a picture that cannot be viewed.
For these reasons, the connection shown is best used to provide only video and audio to your
recording device and not for normal TV viewing. The connection from the recording device to the
TV (only used for playback of recorded material) depends on the type of device being used, the
outputs that are supported, and the inputs that remain available for use on your TV.
Consult the owner’s manuals provided with your TV and recording device for more details on
connection options.
Cables Used in this Con guration
• 1 RCA-type Video Cable
• 1 Set Audio Left/Right Cables
Connecting your TV directly to the Audio/Video output of your receiver will
assure a more vivid picture and enhance your viewing enjoyment.
WARNING:
Electric shock hazard! Unplug all electronic devices before connecting or
disconnecting any device cables to the receiver.
T14831
Receiver
Pr
Pb Y
TO TV
(VIDEO OUT)
S-VIDEO VIDEO
OUT
AUDIO
OUT
LR
OPTICAL
NETWORK
POWERUSB
Back of Stereo VCR
or DVD Recorder
CABLE OUT/
ANT OUT
RL
AUDIO
IN
VIDEO
IN
R
L
AUDIO
OU
T
V
IDEO
OU
T
CABLE IN/
ANT IN
25
Troubleshooting
If the receiver does not perform as expected, the following tips may help. If you need further
assistance, contact your service provider.
No Picture
• Verify that the power to your TV is turned on.
• Verify that your wireless receiver and wireless access point are powered on.
• Verify that all cables are properly connected.
• If your system includes a VCR, DVD recorder, or stereo, verify that you have properly connected
the device to the receiver.
• Verify that you are using the proper input selection to the home theater receiver or TV.
• Verify that the receiver is set to the proper screen type and resolution.
• If you are using coaxial cable to connect to your TV, verify that the TV is tuned to the channel
designated by your service provider (usually channel 3). Contact your service provider for the
channel information.
Wireless Receiver Signal Strength
• Verify that you are able to receive wireless signal. See page 11 for details.
• Optimal operating conditions for wireless receivers can vary. Performance depends on many
factors, including distance from the access point, building materials, interference, and other
environmental conditions.
No Color or Incorrect Color
• Verify that the current TV program is broadcast in color.
• Adjust the TV color controls.
• If you are using a component video connection (YPbPr), check that all connectors are completely
and properly plugged into the receiver and TV.
• If you are using a component video connection (YPbPr) and your HDTV has only RGB or RGB-HV
connectors, you must use an adapter. You can obtain the adapter through an electronic parts
retailer.
No Sound
• If your setup includes a VCR, DVD recorder, or stereo, verify that you have properly connected
the device to the receiver.
• Verify that the volume is turned up.
• Verify that the mute function is not on.
• Verify the proper input selection to the home theater receiver or TV.
• If you are using coaxial cable to connect to your TV, verify that the TV is tuned to the correct channel.
Avoid Screen Burn-In
Images such as letterbox bars or side bars, bright closed-captioning backgrounds, station logos, or
any other stationary images may cause the display in your HDTV to age unevenly; this is known as
screen burn-in. Refer to the owner’s manual that came with your HDTV for more information.
CAUTION:
Avoid screen burn-in.
Do not display the same xed images on your HDTV screen for extended periods
of time.
26
Frequently Asked Questions
What Is Digital Television?
Digital television (DTV) is a huge leap forward in television technology compared to analog television
that has been widely available since the 1940s. DTV is delivered and displayed using digital encoding,
similar to the way a PC operates. By using digital technology, there is no variation in picture and
sound quality from the origination point until it is displayed on your television. You always receive a
high-quality picture without the wavy lines or static you might sometimes get from a weak analog
signal. Another feature of digital television is digital surround sound using Dolby Digital technology,
which is the same technology used to produce the sound you hear in movie theaters.
What Is Standard-De nition Television?
Standard-de nition television (SDTV) is basic digital television programming delivered by your
service provider. Typically, the SDTV screen is the same, nearly square shape as an analog
television screen. Digital images on an SDTV set are crisp and clear—noticeably better than on a
standard analog television set using an antenna to receive over-the-air signals.
What Is High-De nition Television?
High-de nition television (HDTV) is a completely new way to send and receive television broadcast
signals. HDTV images are made up of pixels that are much smaller and closer together than those
used in standard analog television, and there are millions of them. Thus, HDTV can display ve to six
times the detail of analog television to deliver picture quality that is much more realistic, dimensional,
and precise. SDTV programs can be viewed on an HDTV.
Are Local TV Stations or Other Programmers Broadcasting in
HDTV?
Many local TV stations and programmers are transmitting digital signals. However, transmitting
a digital signal does not mean transmitting an HDTV signal. Some stations are using the new
bandwidth to broadcast several standard-de nition channels. Most stations and programmers, once
they begin broadcasting in digital, are o ering HD content from their parent network (for example,
CBS, ABC, NBC, Fox, and PBS). Contact your service provider for more information.
Why Aren’t All the Shows I Watch in High-De nition?
A high-de nition program must originate in HD format and be broadcast in HD format. Having an
HDTV system does not mean that everything you watch will be viewed in high-de nition. Getting the
signal from a digital source also does not mean it is high-de nition.
Why Are Some HDTVs 4:3 Aspect Ratio and Others 16:9?
The aspect ratios di er because television manufacturers build both standard-screen and wide-
screen HDTVs to appeal to consumer viewing preferences. The two aspect ratios are as follows:
• On standard-screen (4:3) HDTVs, the programming is displayed in letterbox format in the middle
of the screen. There are bars surrounding the picture.
• On wide-screen (16:9) HDTVs, the programming is displayed on the full screen.
What Is HDMI and Does it Support Dolby Digital 5.1 Audio?
The High-De nition Multimedia Interface (HDMI) is an uncompressed, all-digital audio/video
interface. The Dolby Digital audio format that provides up to 5.1 separate channels of surround
sound, and is the standard used for DVD-Video. HDMI supports standard, enhanced, or high-
de nition video, plus multi-channel digital audio, such as Dolby Digital audio, on a single cable.
27
Picture Formats
What Is the Di erence Between a Standard-Screen and a
Wide-Screen HDTV?
The type of screen your HDTV has (wide-screen or standard-screen) determines how the receiver
displays programs on the screen. The picture format for an HDTV is a combination of aspect ratio
and screen resolution and is di erent for standard-screen and wide-screen HDTVs.
What Is Aspect Ratio?
An aspect ratio is the ratio of the width to the height of the TV screen. The aspect ratios di er
because the television industry manufactures both standard-screen and wide-screen HDTVs to
appeal to consumer viewing preferences.
What Is the Screen Resolution?
The screen resolution indicates the amount of detail that the picture displays. Resolution is identi ed
by the number of display lines on the screen. The techniques that an HDTV uses to “paint” the
picture on the screen are referred to as progressive and interlaced.
With the progressive scanning method, the lines are drawn on the screen one at a time in
sequential order. Progressive scanning results in a more detailed image on the screen and is also less
susceptible to the icker commonly associated with interlaced scanning. The interlaced method
involves refreshing pixels in alternation — rst the odd lines and then the even lines.
For advanced setup, select the screen resolution that your TV can support. Refer to your Feature
Guide and HDTV owner’s manuals to choose the proper screen resolution (480i, 720p, 1080i, or
1080p) for your setup.
For example, a screen resolution of 1080i indicates that the screen shows 1080 lines in an
interlaced display, and 720p indicates that the screens shows 720 lines in a progressive display.
A standard-screen HDTV has a 4x3
aspect ratio. The screen is 4 units wide
for every 3 units tall.
A wide-screen HDTV is one-third wider
than a standard-screen HDTV. The screen is
16 units wide for every 9 units tall.
A screen resolution of 480i lls the
screen. A screen resolution of 720p, 1080i, or
1080p lls the screen.
9
16
4
3
28
A
AC Power input 9
Arrow keys 8
Aspect ratio 27
Audio Out 9, 13, 14, 15
B
Back panel 9
Burn-in of screen 25
Buttons See Front Panel
C
Cables 9, 10, 12, 16-24
CAT-5 See Ethernet
Coaxial Cable Input 22
Compliance, FCC 30
Component video connection. See YPbPr
Connectors
See also Front panel; Back panel
DVD recorder 15
required for HDTV 13
required for SDTV 14
VCR 15
Connecting the receiver to other devices
DVD recorder 10, 15, 24
HDTV with Component input
(YPbPr) 18
HDTV with DVI connector 13, 17
HDTV with HDMI connector 13, 16
Home Theater System with Component input
(YPbPr) 23
SDTV with Component input (YPbPr) 19
SDTV with an S-Video connector 20
SDTV with an RCA-type connector 21
SDTV with Coaxial cable 22
VCR 9, 10, 15, 24
Connection
Consumer electronic devices 10
Controls See Front panel
D
DC Power output 9
Diagrams. See Connecting the receiver
to other devices
Digital Video Recorder. See DVR
Digital TV, What is it 26
DVD Connection 9, 10, 15, 24
DVI connector 13, 17
E
Ethernet 9, 12
F
FAQs 26
FCC compliance 30
Formats, picture 27
Frequently Asked Questions. See FAQs
Front panel 8
H
HD
format 26
HDTV broadcasting 26
HDTV, what is it 26
indicator 8
HDMI 9, 13, 16
High-de nition See HD
Home theater system connection 23
I
Interlaced screen resolution 27
IR sensor 8
K
Keys. See Front panel
N
Network 9, 10, 11
O
Optical Audio Output 9, 13, 17, 18, 23
Over-the-air converter box 15
Index
29
Index, continued
P
Picture formats 27
Ports. See Connectors
Power 8, 9
Programs, view 26
Progressive screen resolution 27
R
RGB connector 13, 25
S
S-Video Out 9, 14, 15
S-Video In 14, 15
Safety 4, 5
Scan rates. See screen resolution
Screen
burn-in 25
resolution 27
size 27
SD
Connections 10, 14, 19, 20, 21, 22
TV, What is it 26
Serial number, locating 7
Sound, performance 25
Standard-de nition TV 10, 14, 19, 20, 21, 26
Standard-screen TV 27
T
To TV (Video Out) connector 9, 14, 22
Troubleshooting 25
TV
digital, what is it 26
formats 27
HDTV, what is it 26
programming 26
resolution 27
screen size. See aspect ratio
standard-screen 27
standard-de nition 10, 14, 19, 20, 21, 22,
26
wide-screen 27
U
USB port 8, 9
V
VCR connection 9, 15, 24
Video Out. See To TV
View programs 26
W
Wide-screen TV 27
Y
YPbPr
connector 9, 13, 14, 18, 19, 23
HDTV connection 13, 16-18
home theater connection 23
SDTV connection 14, 19-22
30
United States FCC Compliance
This device has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
such interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy. If not
installed and used in accordance with the instructions, it may
cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment OFF and ON, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit di erent from
that to which the receiver is connected.
• Consult the service provider or an experienced radio/television
technician for help.
Any changes or modifications not expressly approved by
Cisco Systems, Inc., could void the user’s authority to operate
the equipment.
The information shown in the FCC Declaration of Conformity
paragraph below is a requirement of the FCC and is intended to
supply you with information regarding the FCC approval of this
device. The phone numbers listed are for FCC-related questions
only and not intended for questions regarding the connection or
operation for this device. Please contact your service provider for
any questions you may have regarding the operation or installation
of this device.
FCC Declaration of Conformity
This device complies with Part 15 of FCC Rules. Operation is
subject to the following two conditions: 1) the device may not
cause harmful interference, and 2) the device must accept any
interference received, including interference that may cause
undesired operation.
ISB7005 Receiver
Model ISB7005
Manufactured by: Cisco Systems, Inc.
5030 Sugarloaf Parkway
Lawrenceville, Georgia 30044 USA
Telephone: 770 236-1077
Canada EMI Regulation
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la class B est conforme à la norme
NMB-003 du Canada.
20081121 FCC Standard
Compliance Information AVC VIDEO LICENSE
With respect to each AVC/H.264 product, we are obligated to
provide the following notice:
THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE
FOR THE PERSONAL USE OF A CONSUMER OR OTHER USES IN WHICH IT
DOES NOT RECEIVE REMUNERATION TO (i) ENCODE VIDEO IN COMPLIANCE
WITH THE AVC STANDARD (“AVC VIDEO”) AND/OR (ii) DECODE AVC VIDEO
THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL ACTIVITY
AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE
AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY
OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG
LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM.
Accordingly, please be advised that service providers, content
providers, and broadcasters may be required to obtain a separate
use license from MPEG LA prior to any use of AVC/H.264 encoders
and/or decoders.
ENERGY STAR® Notice
Cisco has tested and con rmed that the ISB7005 set-top
models meet the Quali cation Criteria speci ed in the ENERGY
STAR Program Requirements for Set-top Boxes Version 2.0.
ROVI CORPORATION COPYRIGHT
NOTICE
This product incorporates copyright protection technology that is
protected by U.S. patents and other intellectual property rights.
Use of this copyright protection technology must be authorized
by Rovi Corporation, and is intended for home and other
limited viewing uses only unless otherwise authorized by Rovi
Corporation. Reverse engineering or disassembly is prohibited.
Trademarks
Cisco and the Cisco logo are trademarks or registered trademarks
of Cisco and/or its a liates in the U.S. and other countries. A listing
of Cisco’s trademarks can be found at www.cisco.com/go/
trademarks.
AT&T, the AT&T logo, ConnecTech and U-verse are registered
trademarks or trademarks of AT&T Knowledge Ventures.
Manufactured under license from Dolby Laboratories. Dolby is a
trademark of Dolby Laboratories.
ENERGY STAR and the ENERGY STAR mark are registered
trademarks of the U.S. government.
HDMI, the HDMI logo, and High-De nition Multimedia Interface
are registered trademarks or trademarks of HDMI Licensing LLC
in the United States and other countries.
Rovi is a trademark of Rovi Corporation.
Other third party trademarks mentioned are the property of their
respective owners.
The use of the word partner does not imply a partnership
relationship between Cisco and any other company. (1009R)
Disclaimer
Cisco Systems, Inc. assumes no responsibility for errors or
omissions that may appear in this manual. We reserve the right to
change this manual at any time without notice.
31
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment o and
on, the user is encouraged to try to correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit di erent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modi cations not expressly approved by the party responsible for compliance could
void the user’s authority to operate this equipment.
For operation within the 5150-5250 MHz and 5470-5725 MHz frequency ranges, it is restricted to indoor
environment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
IMPORTANT NOTE:
FCC RF Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
The availability of some speci c channels and/or operational frequency bands are country dependent and are
rmware programmed at the factory to match the intended destination. The rmware setting is not accessible by
the end user.
ISB7005 with PCB antenna and max. antenna gain is 5 dBi in 5G.
Industry Canada Statement:
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Caution:
The device for the bands 5150-5250 MHz and 5470-5725 MHz is only for indoor usage to reduce potential for
harmful interference to co-channel mobile satellite systems.
The maximum antenna gain permitted (for devices in the band 5250-5725 MHz (5 dBi)) to comply with the e.i.r.p.
limit; and
The maximum antenna gain permitted (for devices in the band 5725-5825 MHz (5 dBi)) to comply with the e.i.r.p.
limits speci ed for point-to-point and non point-to-point operation as appropriate, as stated in section A9.2(3).
High power radars are allocated as primary users (meaning they have priority) of 5250-5350 MHz and 5650-
5850 MHz and these radars could cause interference and/or damage to LE-LAN devices.
IMPORTANT NOTE:
Canada RF Exposure Statement:
This system has been evaluated for radiofrequency exposure for humans in reference to Canada Health Code 6
(2009) limits. The evaluation was based on evaluation per RSS-102 Rev 4. The minimum separation distance from
the antenna to general bystander is 7.9 inches (20cm) to maintain compliance.
Note: The ISB7005 has disabled the 5600-5650M band by S/W to avoid 5600-5650M band for IC
certi cation.
© 2011 Cisco and/or its a liates. All rights reserved.
May 2011 4024566 Rev A
Cisco Systems, Inc. 678 277-1120
5030 Sugarloaf Parkway, Box 465447 800 722-2009
Lawrenceville, GA 30042 www.cisco.com
