GemTek Technology VD970617G VDSL2 POTS overlay, 4 ETH, 11g User Manual usm
Gemtek Technology Co., Ltd. VDSL2 POTS overlay, 4 ETH, 11g usm
Manual
&HOO3LSH9'6/5HVLGHQWLDO*DWHZD\
9VHULHV
5*9H$DQG5*9H%
86(50$18$/
0$<
,668(
Alcatel, Lucent, Alcatel-Lucent and the Alcatel-Lucent logo are trademarks of Alcatel-Lucent. All other trademarks are the property of their respective owners..
The information presented is subject to change without notice. Alcatel-Lucent assumes no responsibility for inaccuracies contained herein.
Copyright © 2008 Alcatel-Lucent. All Rights Reserved.
&RQIRUPDQFHVWDWHPHQWV
The device complies with Part 68 of the Federal Communications Commission (FCC) statements, Japan VCCI Class B, and the requirements of the Council
Directive 89/336/EEC on the Approximation of the laws of the member states relating to Electromagnetic Compatibility and 72/23/EEC for electrical
equipment used within certain voltage limits and the Amendment Directive 93/68/EEC as stated in the CE Mark Declaration of Conformance for EMI and
Safety.
LLL
,VVXH 0D\
&RQWHQWV
$ERXWWKLVGRFXPHQW
Purpose ......................................................................................................................................................... v
Reason for revision ....................................................................................................................................... v
Intended audience ......................................................................................................................................... v
Supported systems ........................................................................................................................................ v
How to use this document ............................................................................................................................ v
Safety information ....................................................................................................................................... vi
Conventions used ......................................................................................................................................... vi
Eco-environmental statements .................................................................................................................... vii
Technical support ........................................................................................................................................ vii
How to order ............................................................................................................................................... vii
How to comment ....................................................................................................................................... viii
4XLFN,QVWDOODWLRQ*XLGH4,*
Hardware description .................................................................................................................................1-2

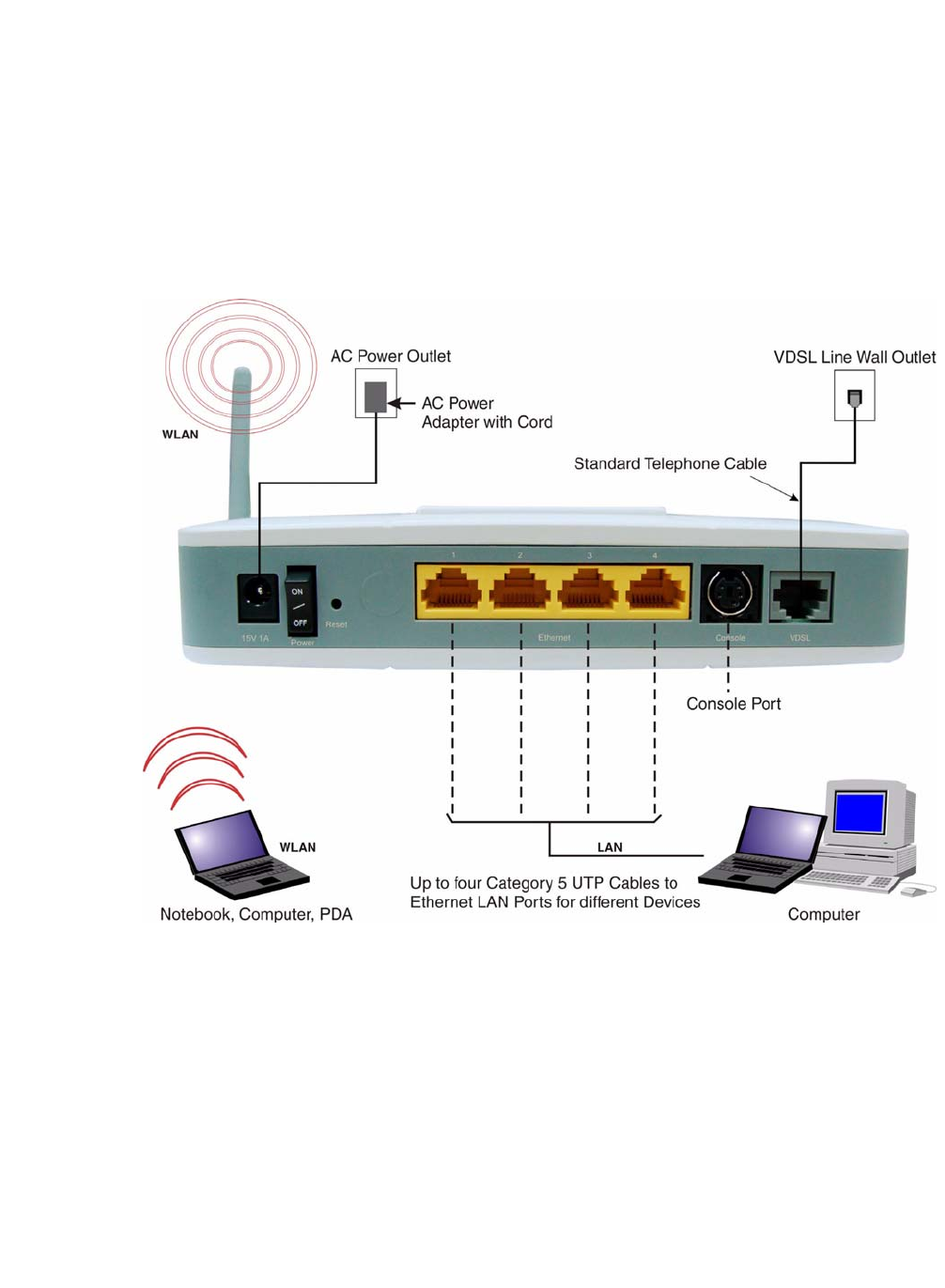

Install the CPE ........................................................................................................................................... 1-5
:HE0DQDJHPHQW,QWHUIDFH
The Web Management Interface ................................................................................................................ 2-3

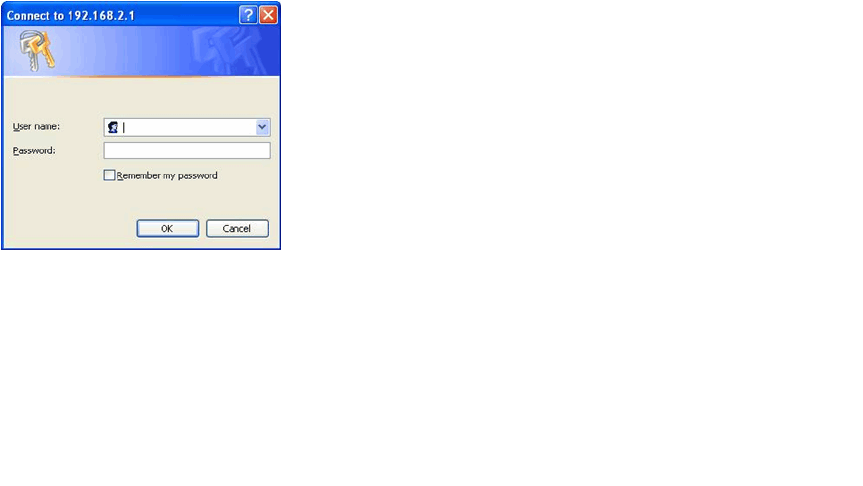

Access to Web Management Interface via Internet browser ..................................................................... 2-5
Retrieve Status ........................................................................................................................................... 2-7

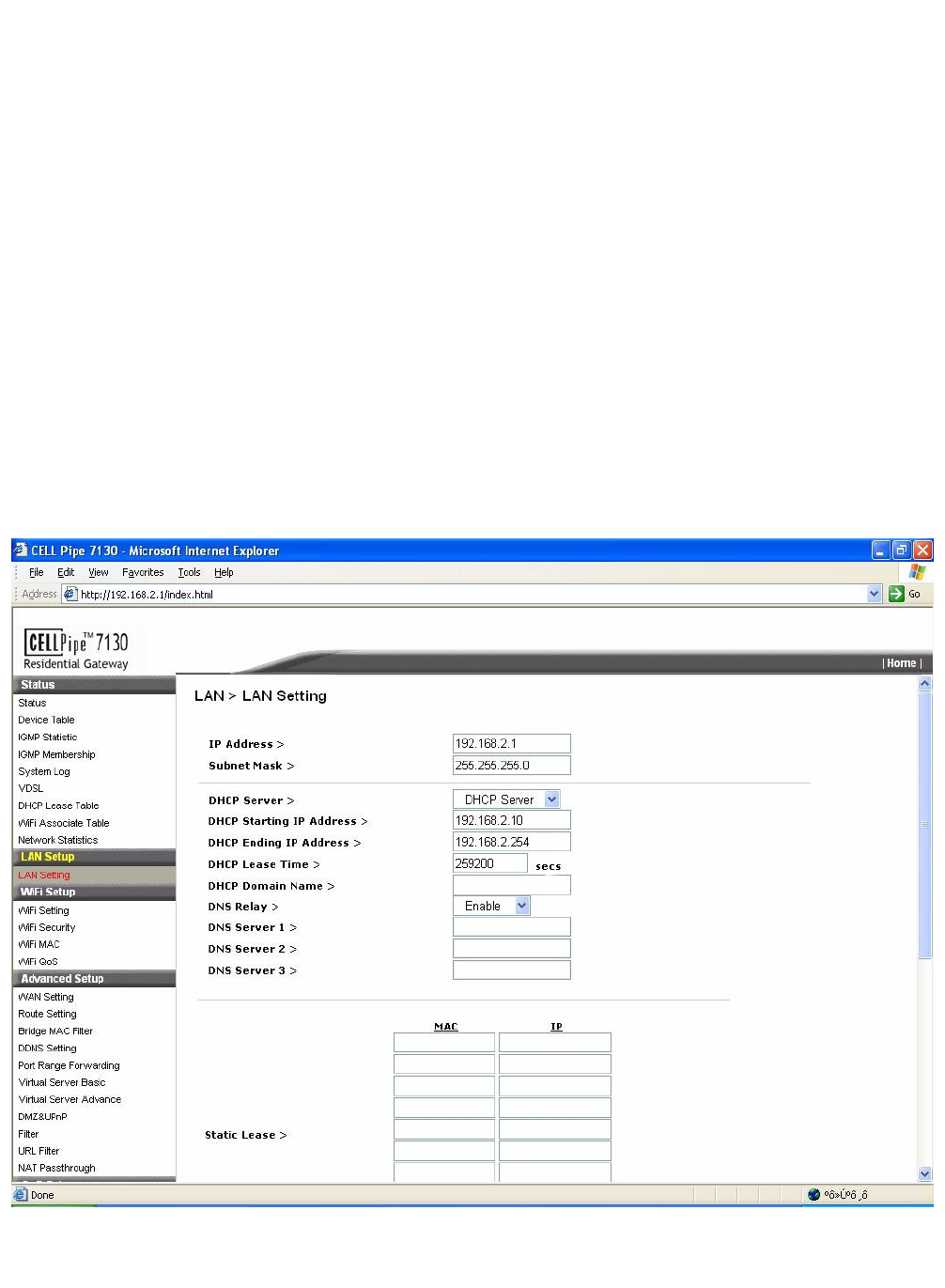

LAN Settings ............................................................................................................................................. 2-9

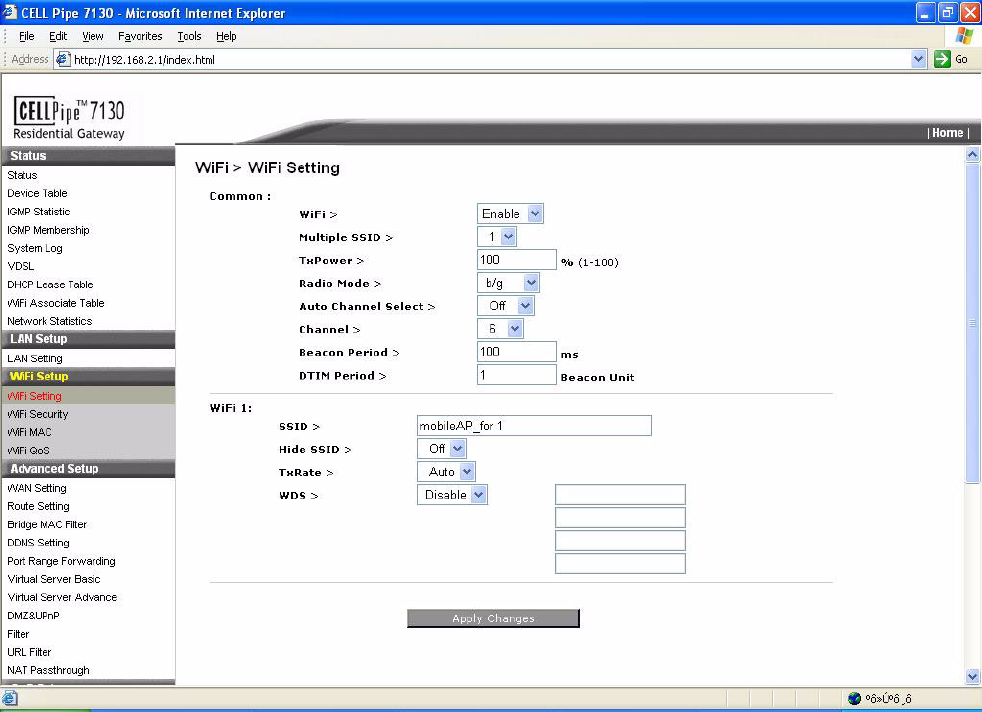

WiFi Settings ........................................................................................................................................... 2-12

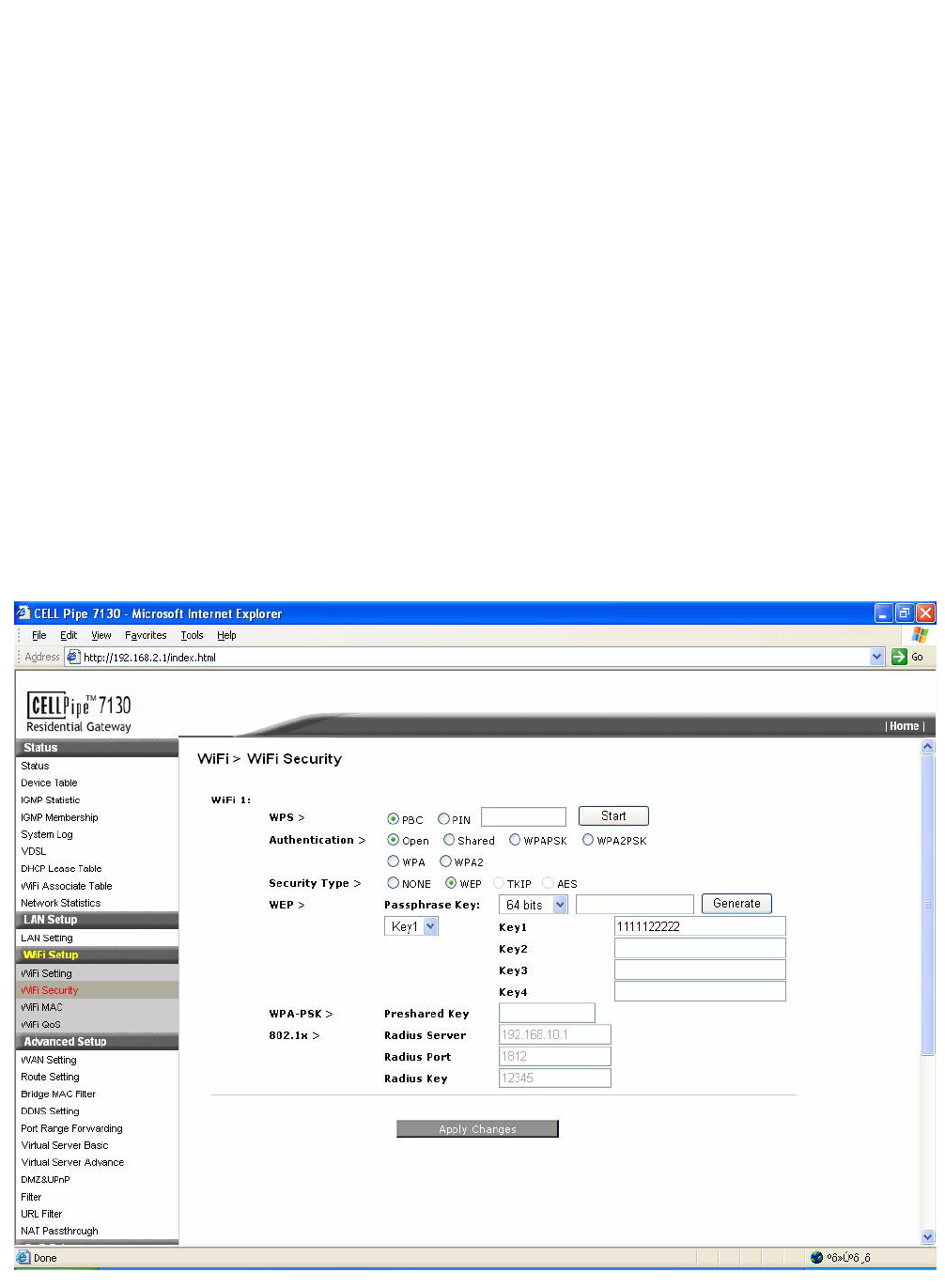

Security Mode configuration ................................................................................................................... 2-15

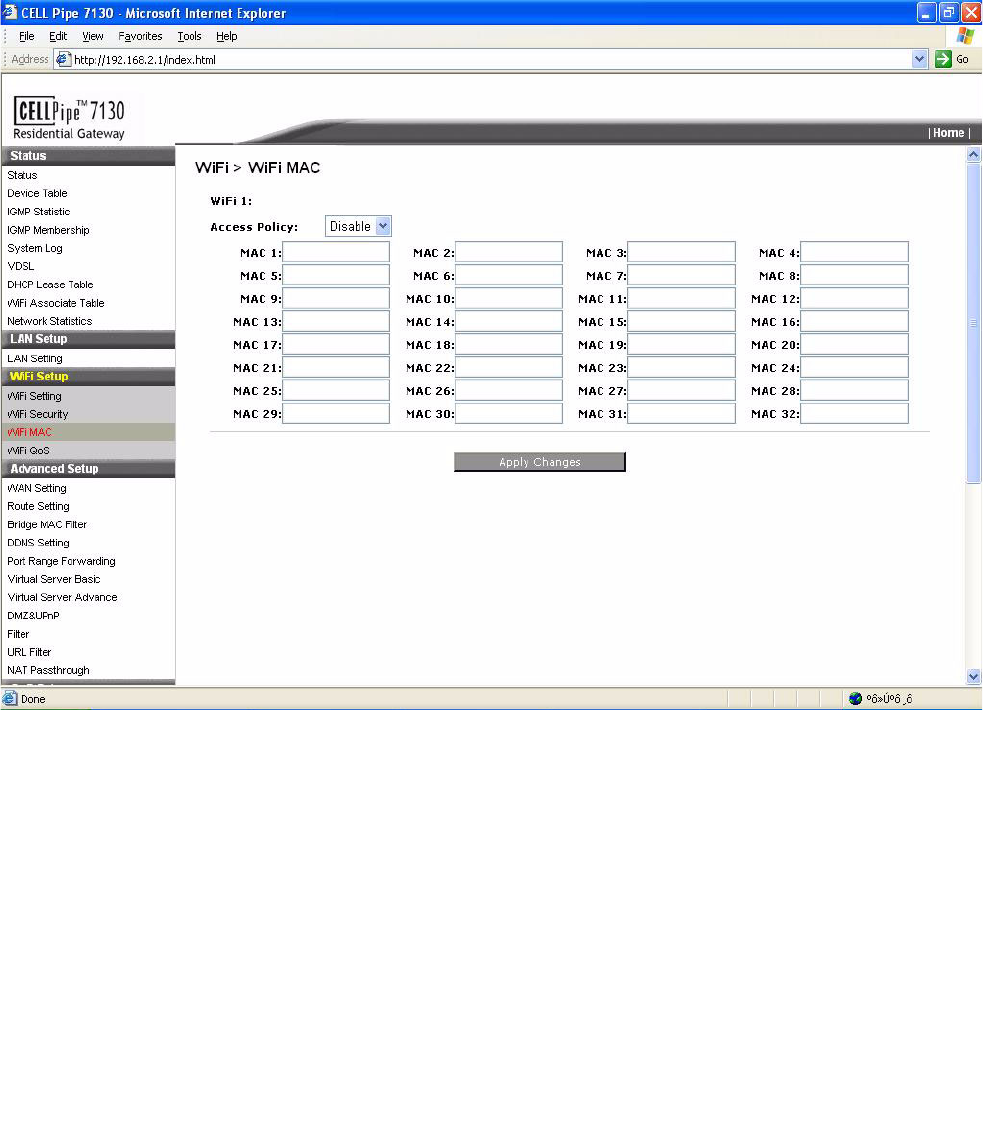

Wi-Fi MAC .............................................................................................................................................. 2-17

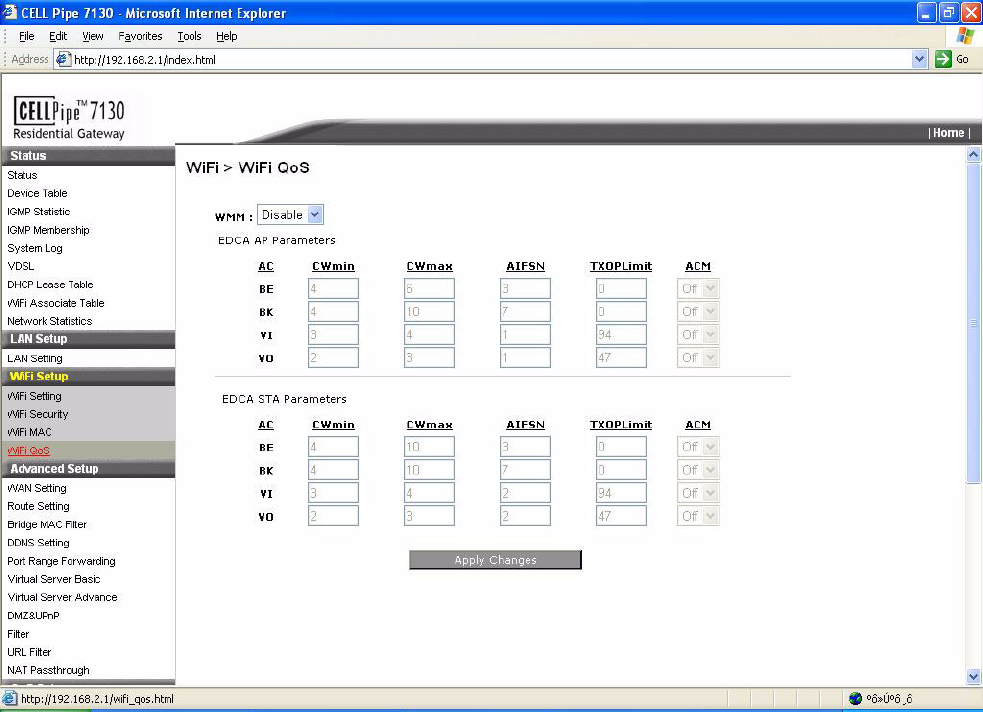

WiFi QoS ................................................................................................................................................. 2-19
Advanced Setup ....................................................................................................................................... 2-23

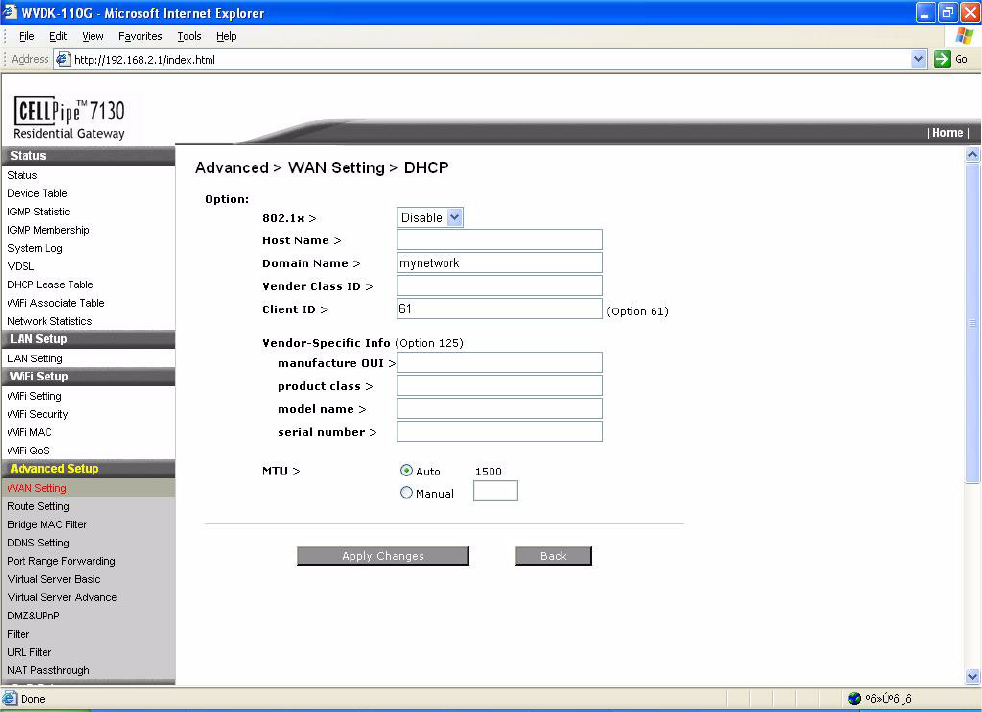

DHCP ...................................................................................................................................................... 2-24

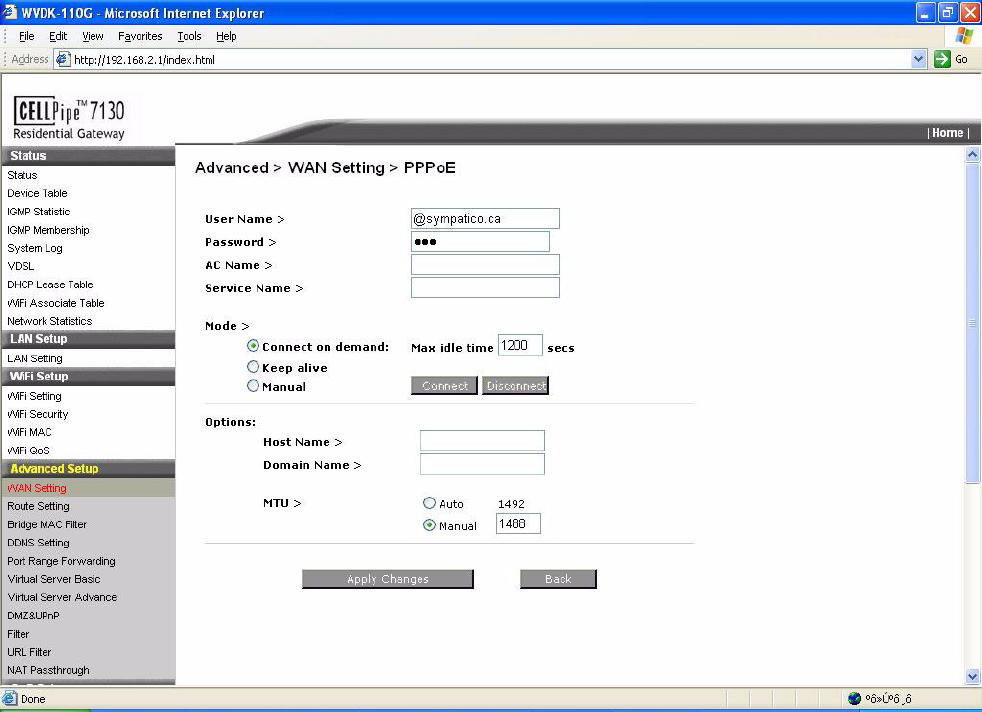

PPPoE Settings ........................................................................................................................................ 2-26

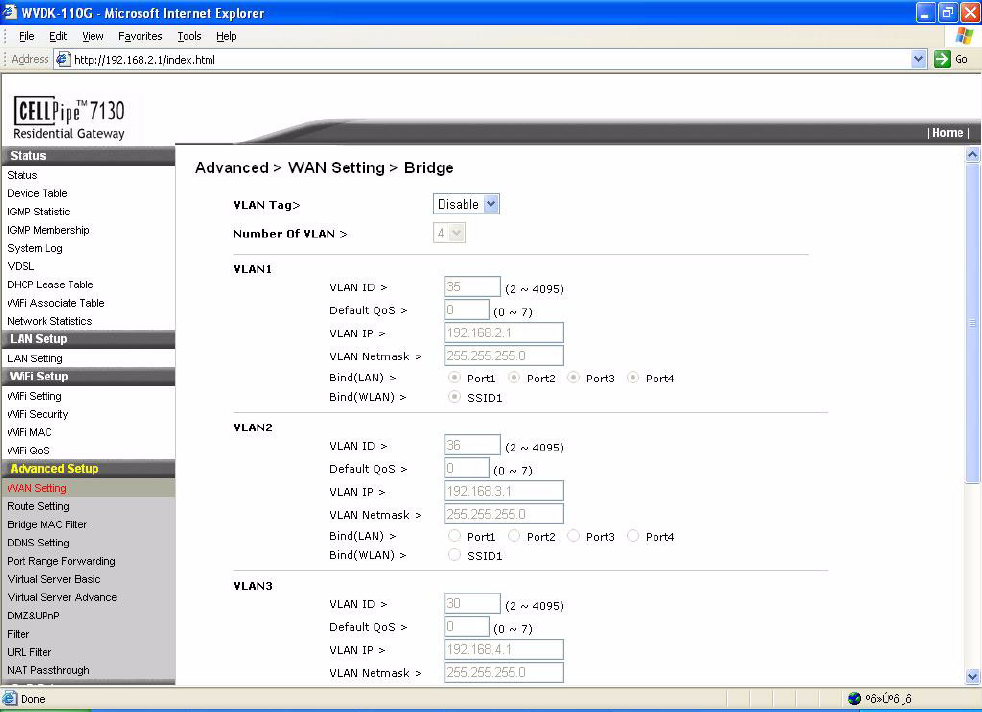

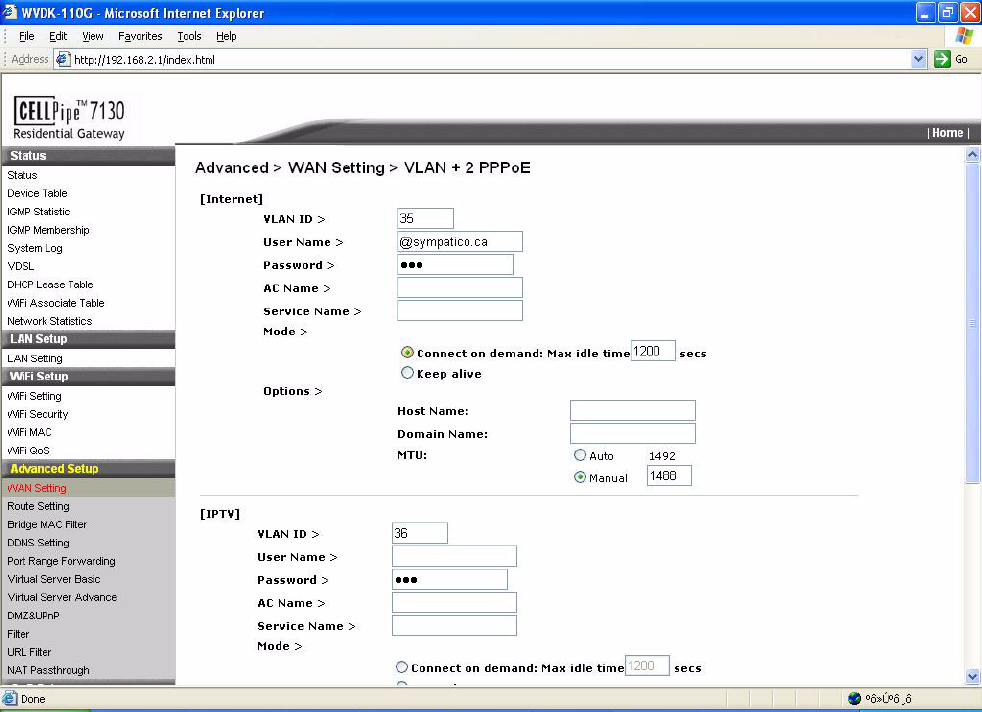

VLAN + 2PPPoE Settings ....................................................................................................................... 2-28
Bridge Settings ........................................................................................................................................ 2-30

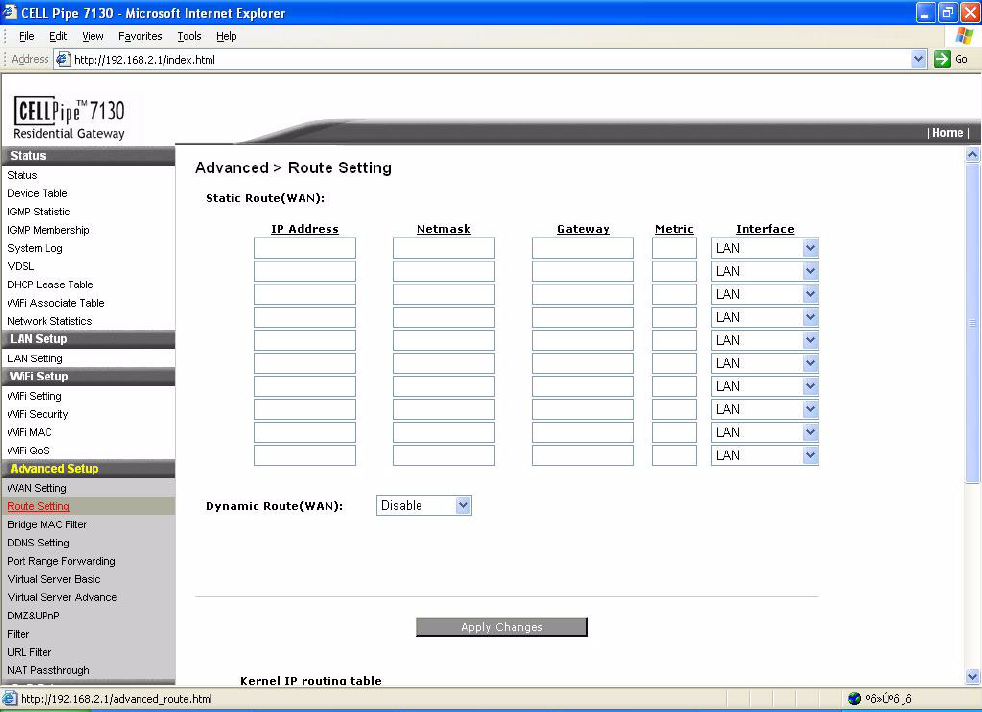

Route Setting ........................................................................................................................................... 2-32

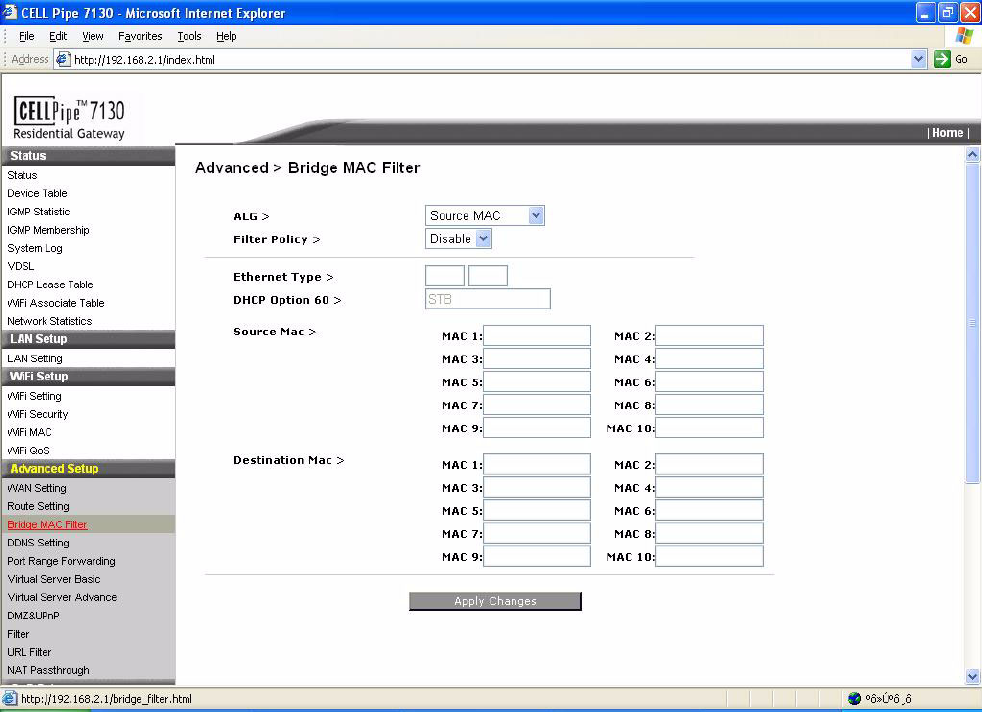

Bridge MAC Filter ................................................................................................................................... 2-34
LY
,VVXH 0D\

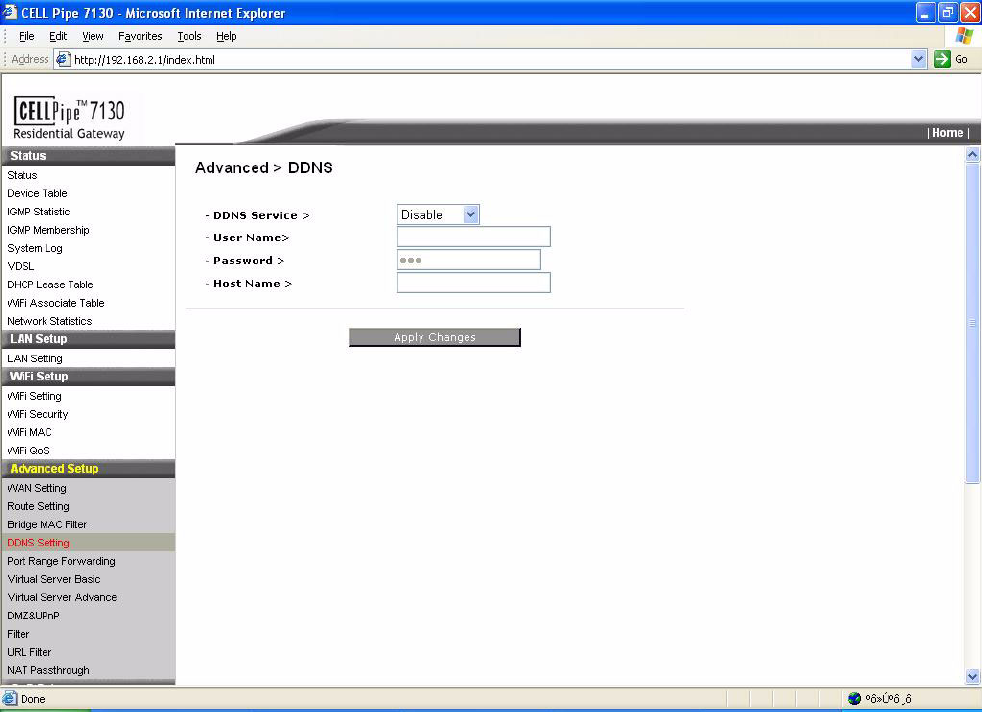

DDNS Setting .......................................................................................................................................... 2-36

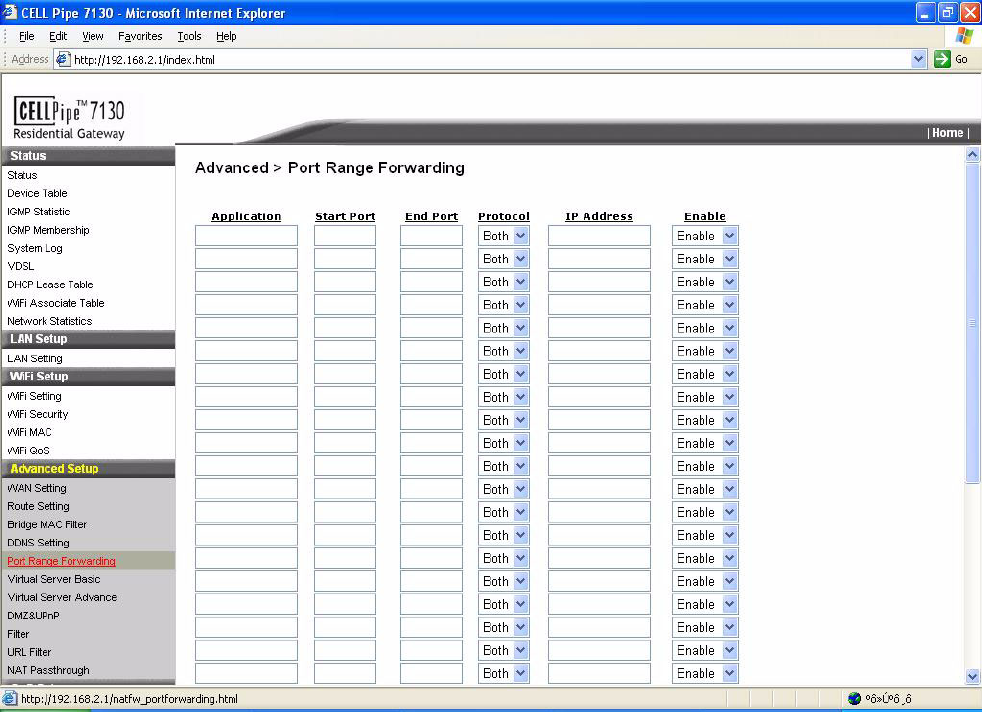

Port Range Forwarding ........................................................................................................................... 2-38

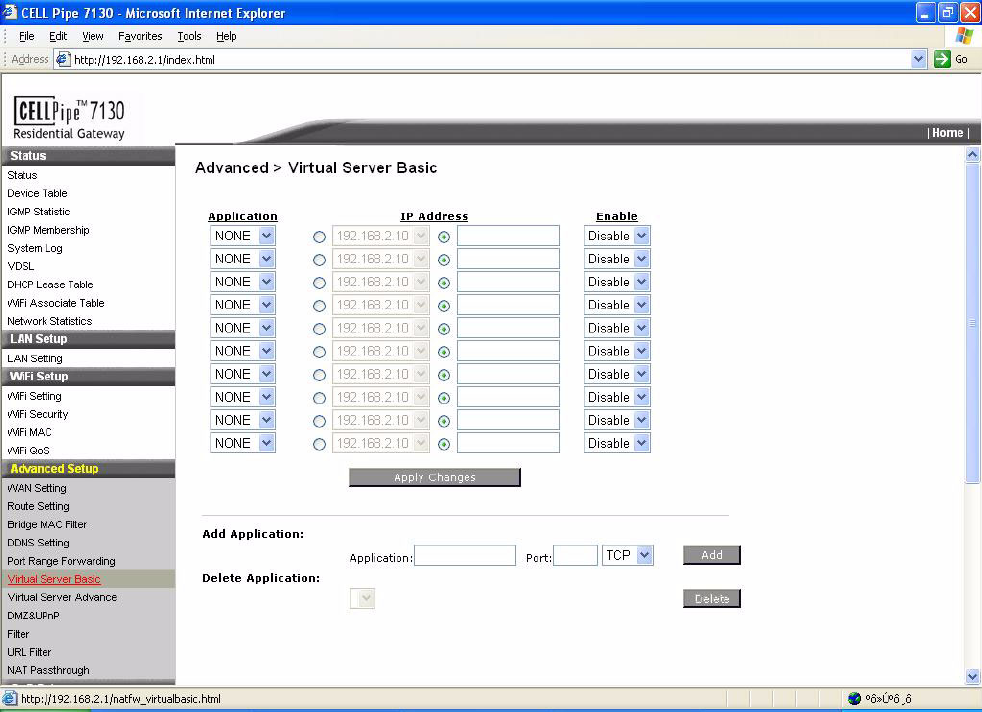

Virtual Server Basic ................................................................................................................................ 2-40

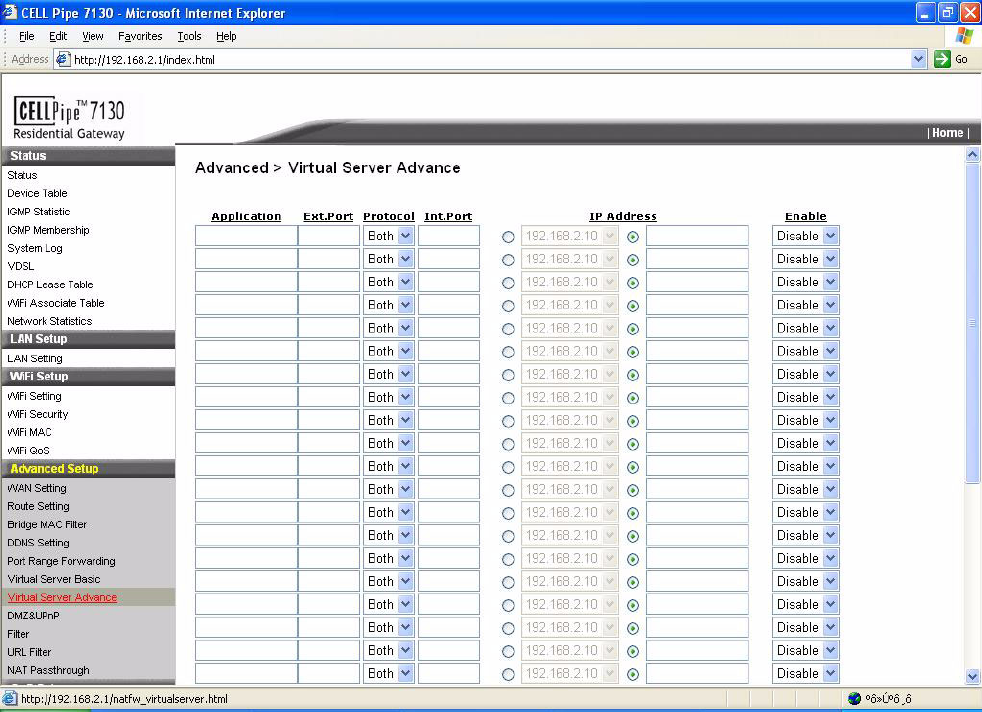

Virtual Server Advance ........................................................................................................................... 2-42

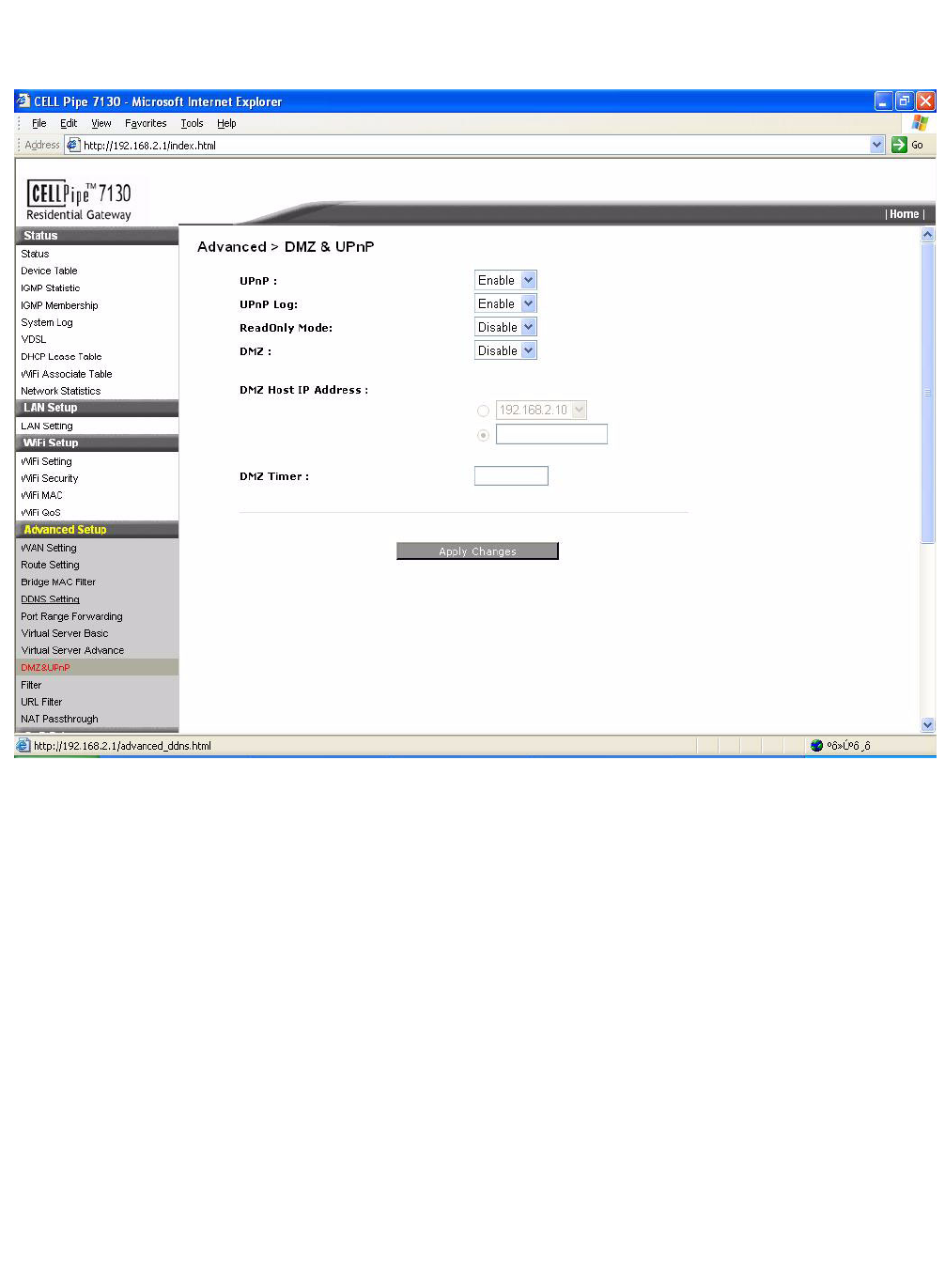

DMZ and UPnP ....................................................................................................................................... 2-44

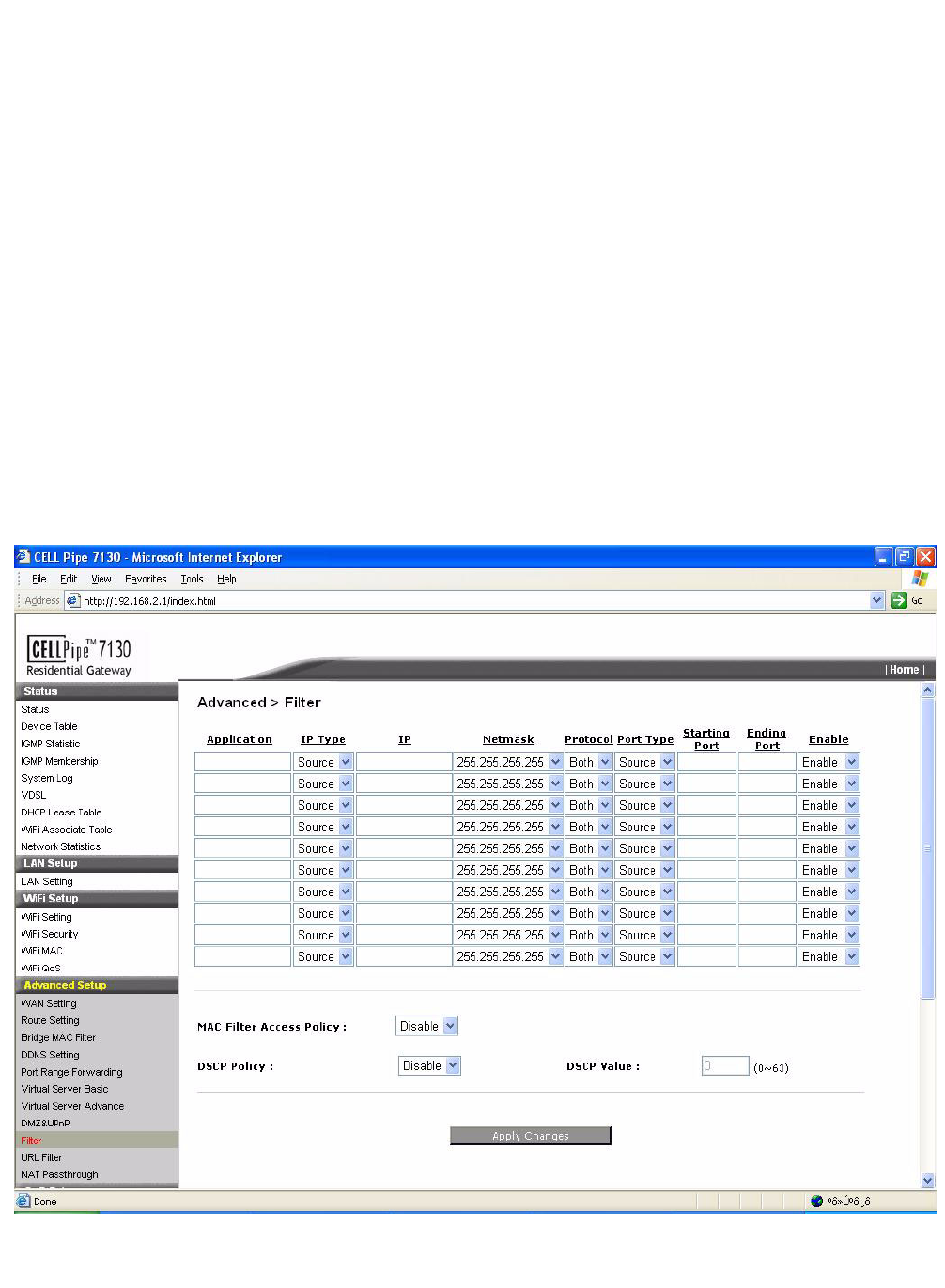

Filter ........................................................................................................................................................ 2-47

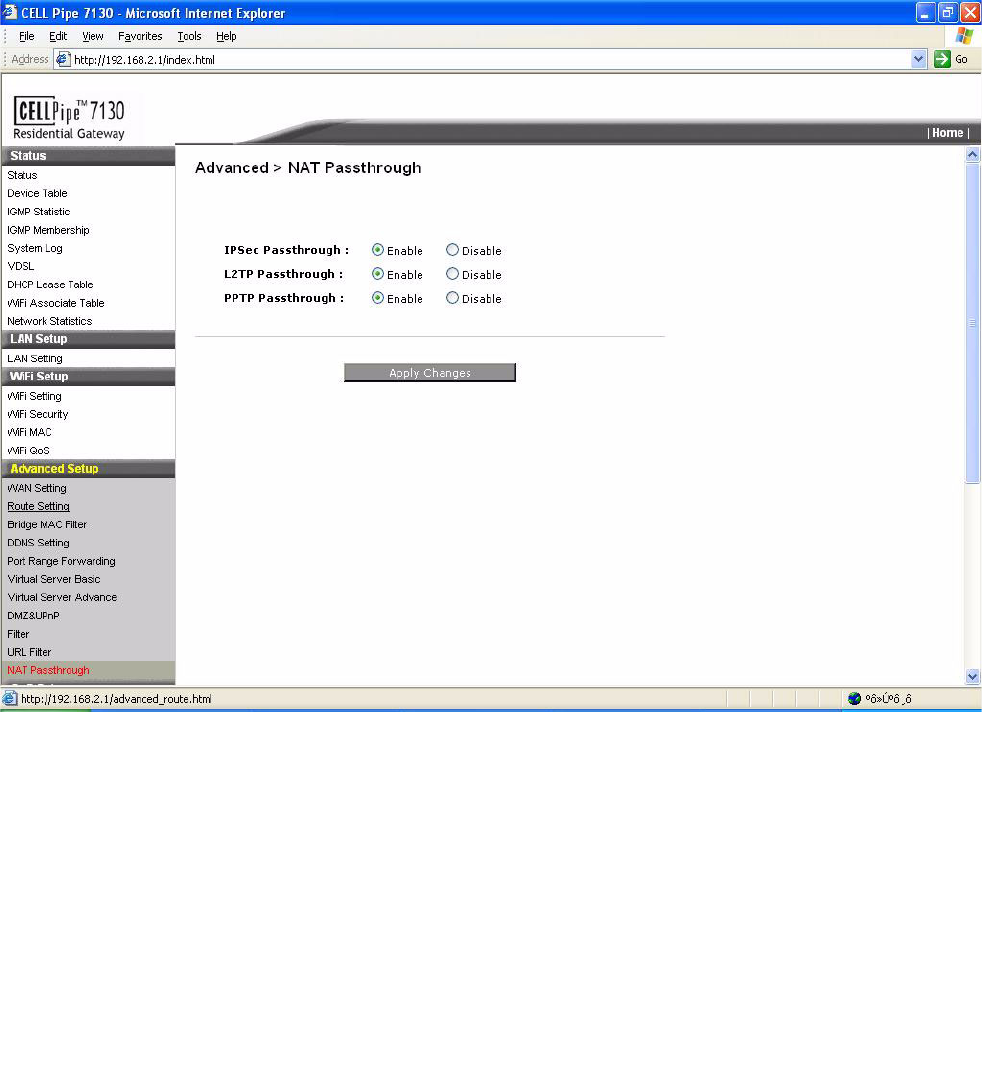

NAT Passthrough ..................................................................................................................................... 2-49

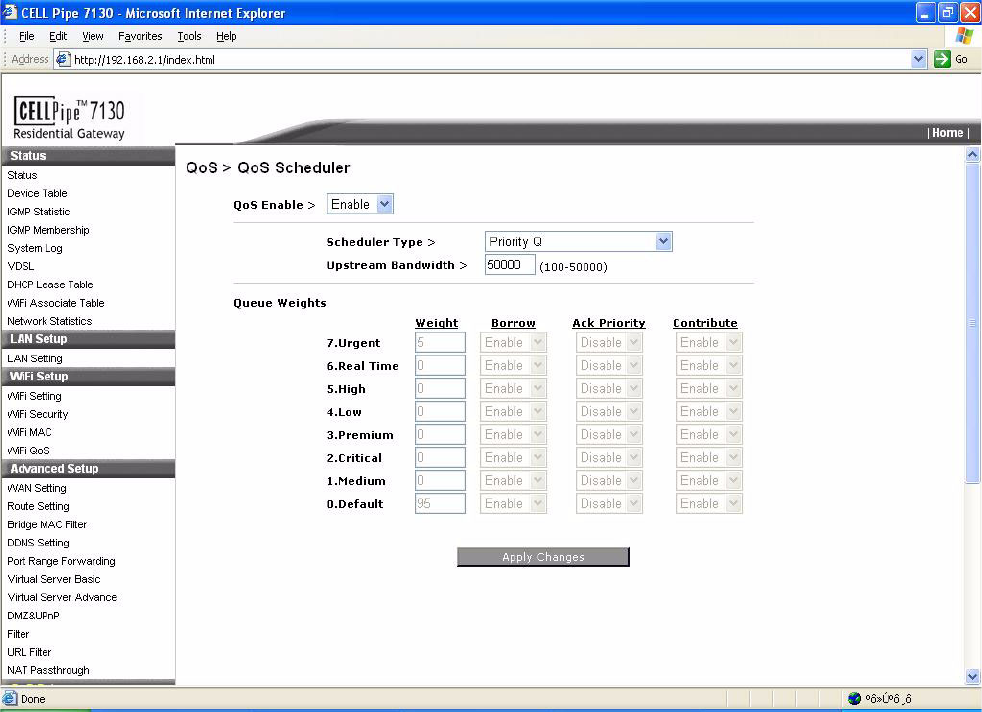

QoS Setup ................................................................................................................................................ 2-51

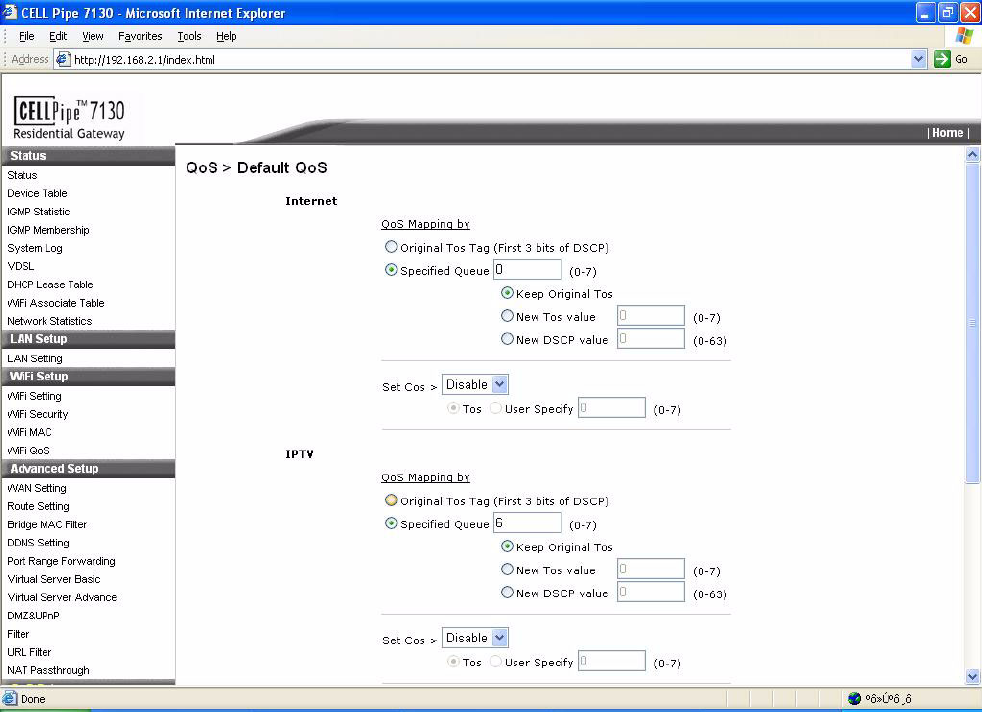

Default QoS ............................................................................................................................................. 2-54

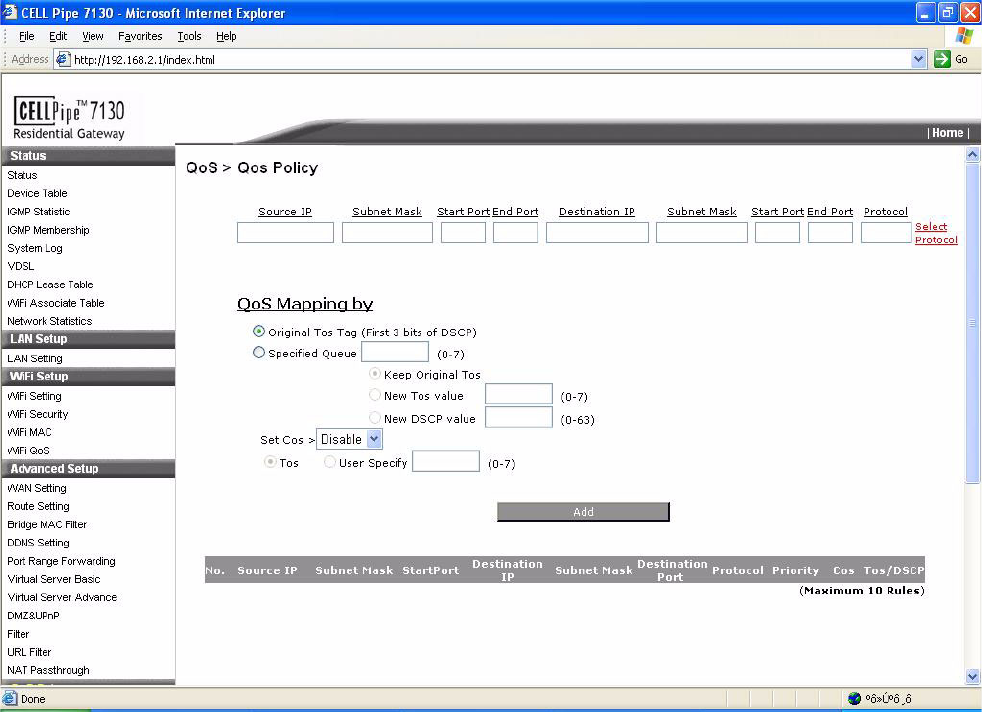

QoS Policy ............................................................................................................................................... 2-56

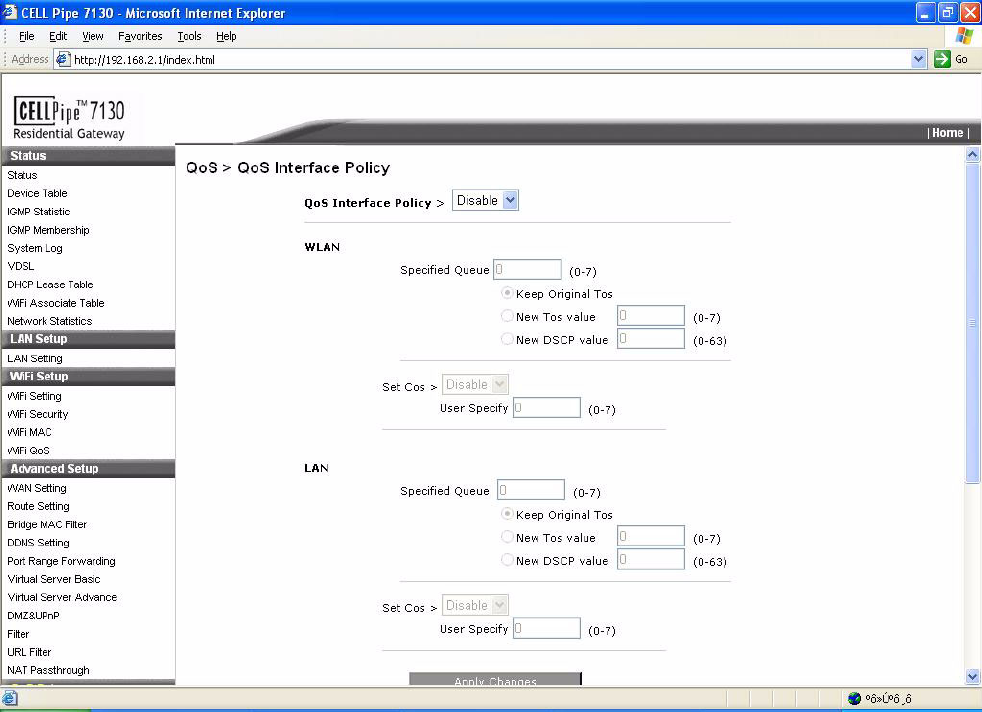

QoS Interface Policy ............................................................................................................................... 2-58

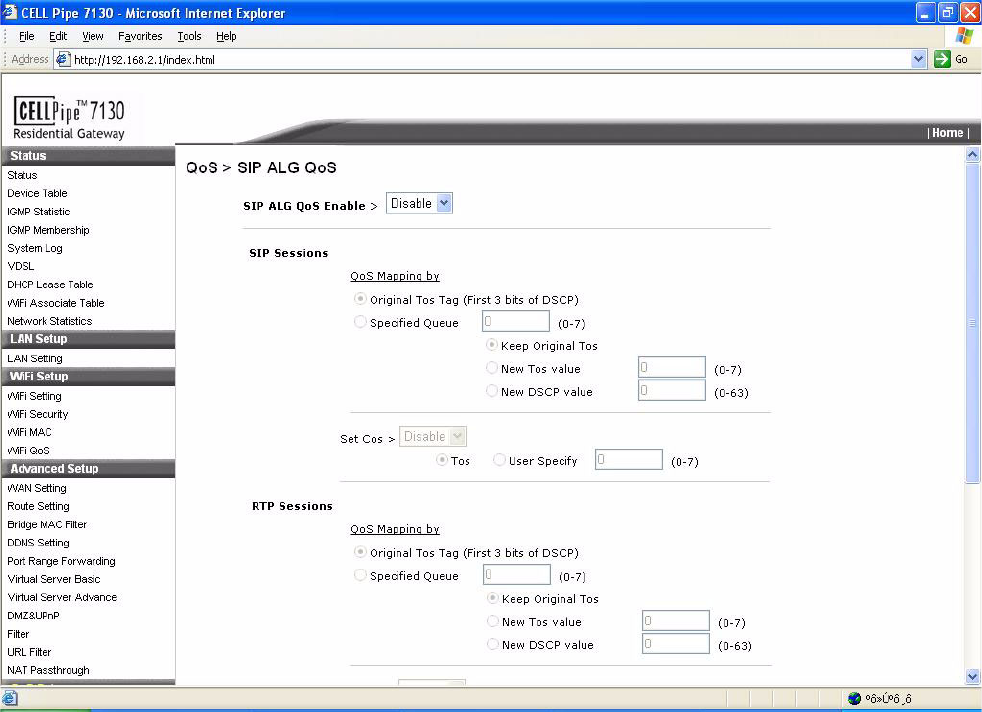

QoS ALG ................................................................................................................................................ 2-60

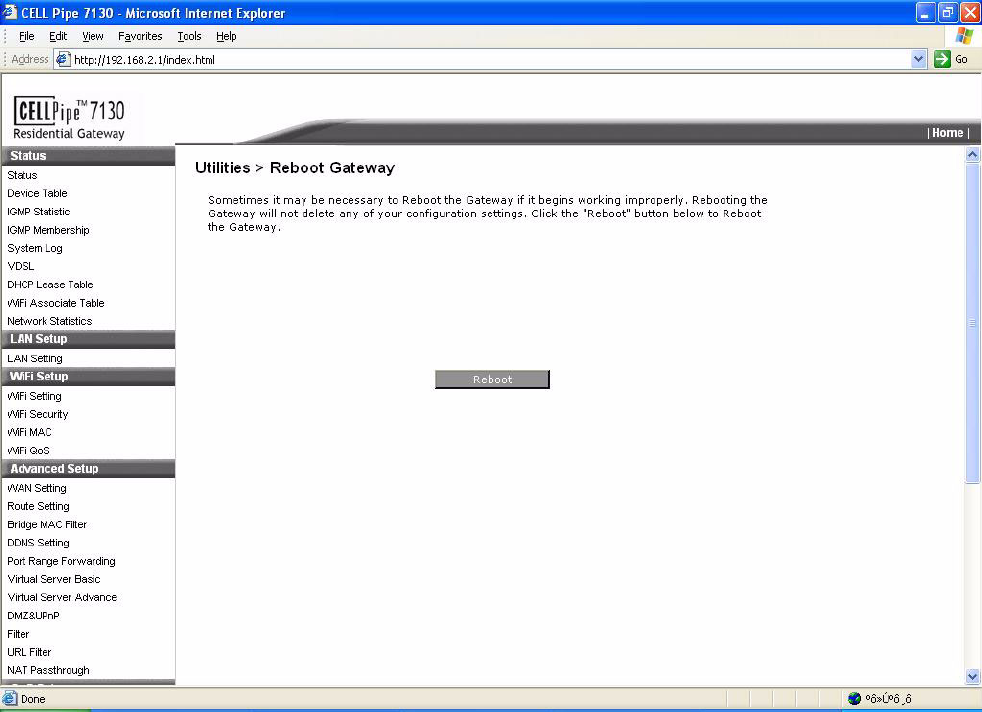

Reboot Gateway ...................................................................................................................................... 2-62

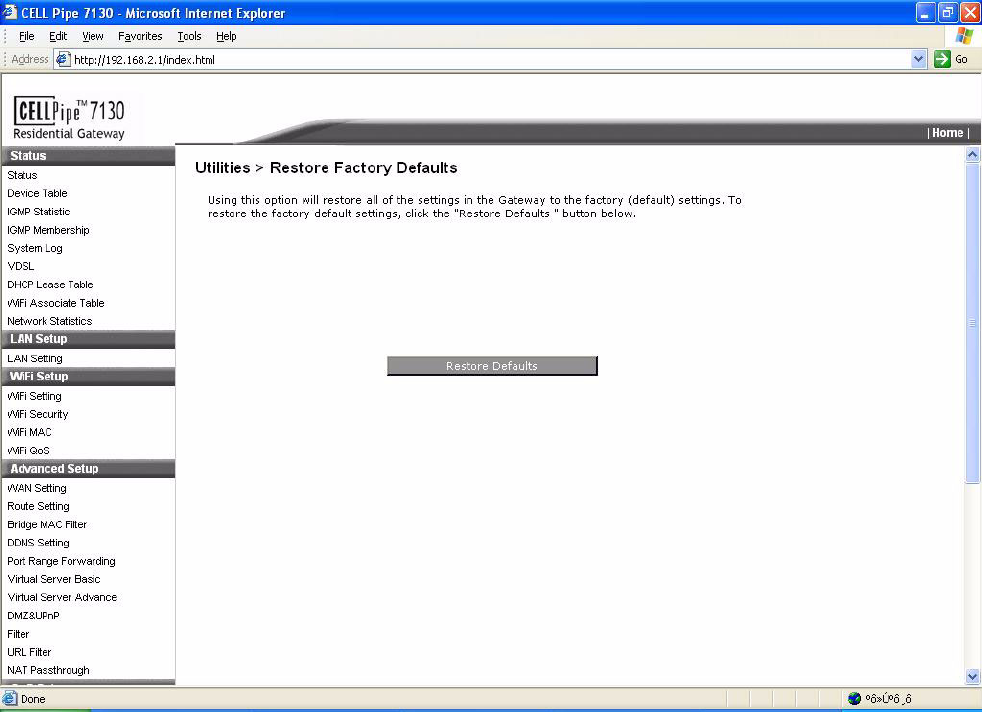

Restore Factory Defaults ......................................................................................................................... 2-64

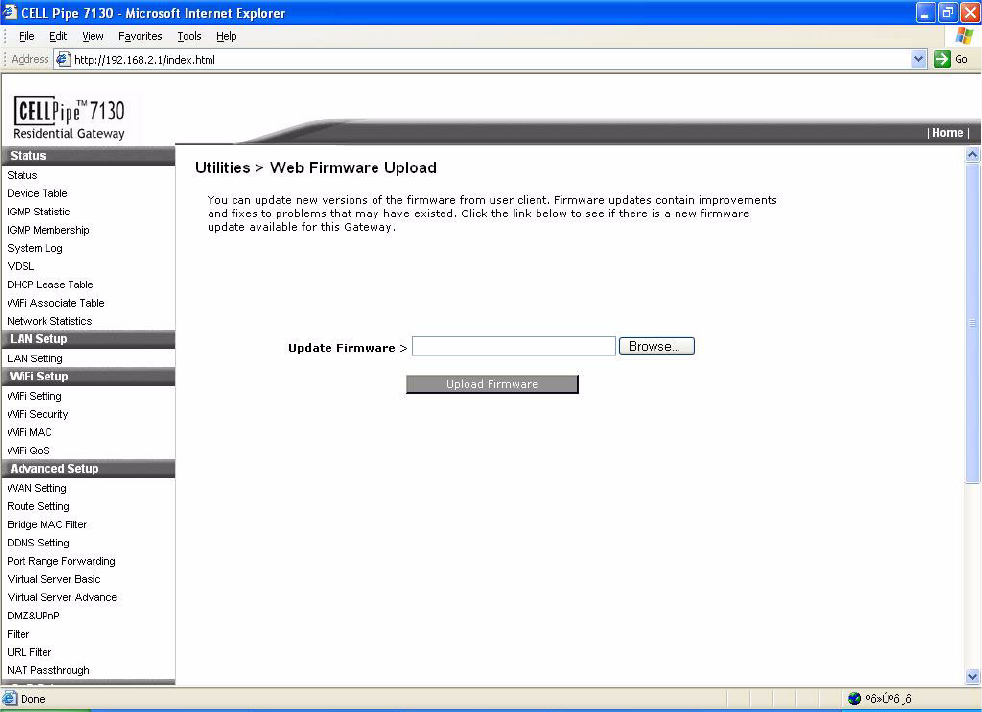

Web Firmware Upload ............................................................................................................................ 2-66

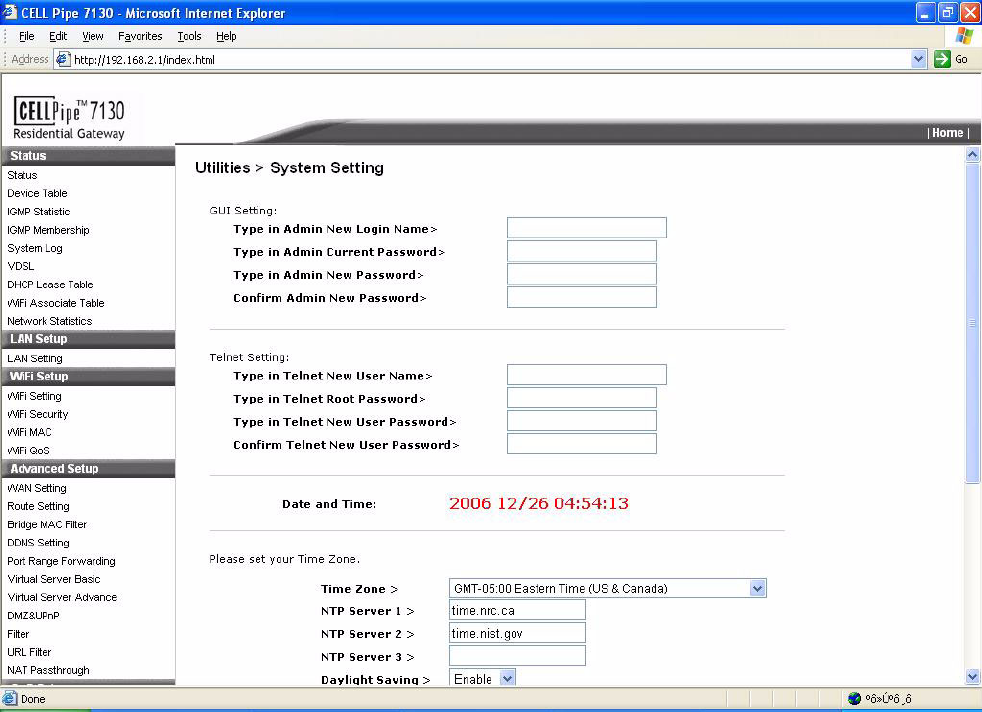

System Settings ....................................................................................................................................... 2-68

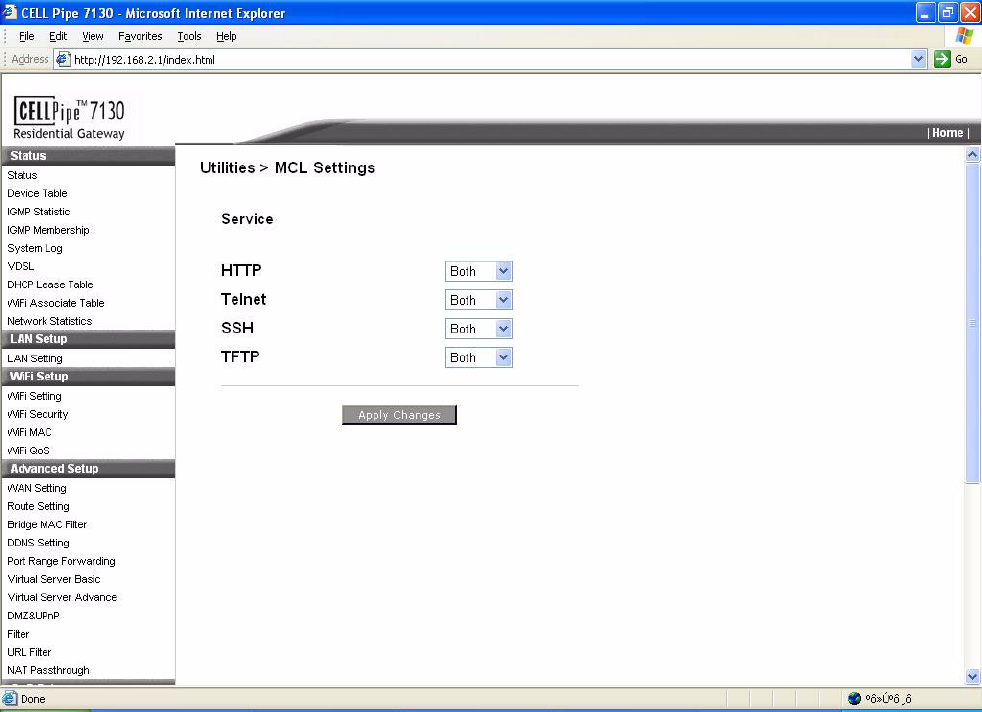

MCL Settings .......................................................................................................................................... 2-70
$ 7URXEOHVKRRWLQJ
% &RQILJXULQJWKH7&3,3SURWRFROVRQWKH3&

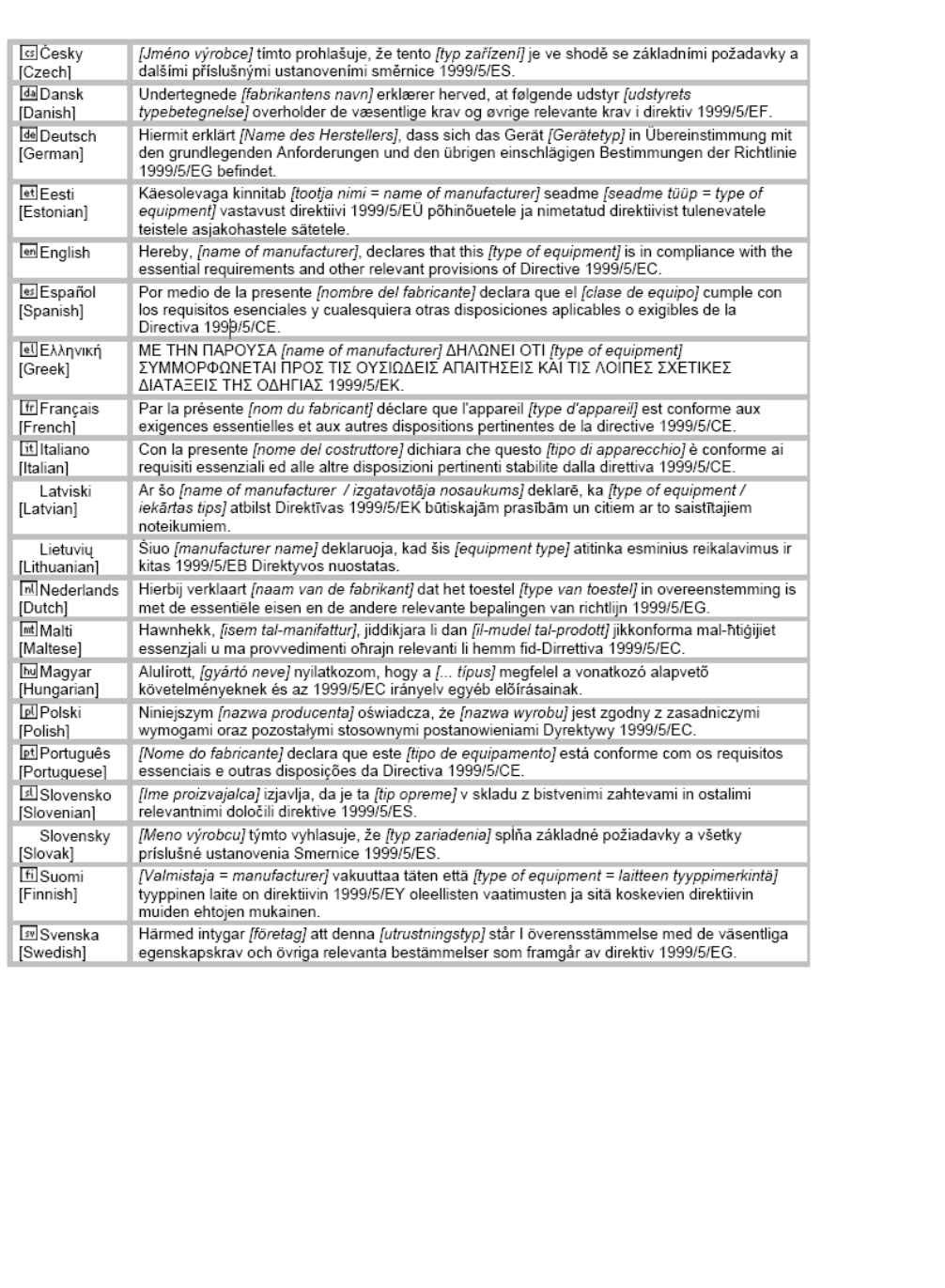

& 3URGXFWFRQIRUPDQFH
Y
,VVXH 0D\
$ERXWWKLVGRFXPHQW
3XUSRVH
The purpose of the User Manual is to provide installation information, procedures for
installation, service activation and system reconfiguration for the 7130 RG
5Ve.A2000/7130 RG 5Ve.B2000 VDSL2 gateway. Additionally the User Manual contains
status indicators and troubleshooting information and a comprehensive description of
safety guidelines.
5HDVRQIRUUHYLVLRQ
This version 1.0 of the User Manual is the first issue.
,QWHQGHGDXGLHQFH
The intended audience of the User Manual primarily is for individuals who install,
configure and maintain this customer premises equipment (CPE) and in addition
responsible for the supervision of transmission operation.
6XSSRUWHGV\VWHPV
For the 7130 RG 5Ve.A2000 or 7130 RG 5Ve.B2000 VDSL2 gateway operation as
described in this manual, a specific hardware consists of the following components is
required:
•
One 7130 RG 5Ve.A2000 or 7130 RG 5Ve.B2000 VDSL2 gateway
•
One standard telephone cable (1.8 m)
•
One category 5 UTP network cable (1.5 m)
•
One power adapter
•
One cradle for stand-up mounting
•
Quick Installation Guide
•
User Manual on CD-ROM.
+RZWRXVHWKLVGRFXPHQW
Each chapter of this User Manual treats a specific aspect of the 7130 RG 5Ve.A2000/7130
RG 5Ve.B2000 VDSL2 gateway. This ensures that the reader can inform himself
according to his special needs. This also means that the User Manual provides more
YL
,VVXH 0D\
information than needed by many of the readers. Before you start reading the manual, it is
therefore necessary to assess which aspects or chapters will cover the individual area of
interest.
The following information is provided in this information product:
•
Quick Installation Guide (QIG)
•
Install the CPE
•
The Web Management Interface
•
Access to Web Management Interface via Internet browser
•
Configure the CPE by using the Web Management Interface
•
Guidance for troubleshooting
•
Configuring the TCP/IP protocols on the PC.
6DIHW\LQIRUPDWLRQ
,PSRUWDQW
The following information lists the safety reminders for installation and
maintenance personnel.
Read all instructions before attempting to unpack, install, operate, or connect power to
this CPE. Please remember the following when you unpack and install this equipment:
•
Always follow basic safety precautions to reduce the risk of fire, electrical shock
and injury.
•
To prevent fire or shock hazard, do not expose the CPE to rain, moisture or install
this equipment near water. Never spill any form of liquid on or into this product.
•
Do not insert any sharp object into the products module openings or empty slots.
Doing so may accidentally damage its parts.
•
Do not attach the power supply cable on building surfaces or floorings. Rest the
power cable freely without any obstacle or heavy items piled on top of it. Refrain
from abusing, stepping or walking on the cable.
•
To protect the equipment from overheating, do not block the slots and openings in
the module housing that provide ventilation.
•
Exercise caution when installing or modifying telephone lines. Never install
telephone wiring during inclement weather conditions (i.e., storm).
•
Electrostatic discharge (ESD) can permanently damage semiconductor devices.
Always follow ESD-prevention guidelines for equipment handling and storage.
&RQYHQWLRQVXVHG
,PSRUWDQW
Introduces important additional information.
&$87,21:DUQVWKDWDIDLOXUHWRIROORZWKHUHFRPPHQGHGSURFHGXUHFRXOGUHVXOWLQORVVRIGDWDRU
GDPDJHWRHTXLSPHQW
:$51,1*:DUQVWKDWDIDLOXUHWRWDNHDSSURSULDWHVDIHW\SUHFDXWLRQVFRXOGUHVXOWLQSK\VLFDOLQMXU\,Q
DGGLWLRQLWZDUQVRIGDQJHURIHOHFWULFDOVKRFN
,VVXH 0D\
YLL
(FRHQYLURQPHQWDOVWDWHPHQWV
The statements that follow are the eco-environmental statements that apply to 7130 RG
5Ve.A2000/7130 RG 5Ve.B2000 products.
Countries, states, localities, or other jurisdictions may require that systems be established
for the return and/or collection of packaging waste from the consumer, or other end user,
or from the waste stream. Additionally, reuse, recovery, and/or recycling targets for the
return and/or collection of the packaging waste may be established.
For more information regarding collection and recovery of packaging waste within
specific jurisdictions, please contact the Alcatel-Lucent Technologies Field
Services/Installation or Environmental Health and Safety organization.
7HFKQLFDOVXSSRUW
To obtain technical support, contact your local sales representative or use the Online
Customer Support (OLCS) (https://support.lucent.com).
+RZWRRUGHU
To order Alcatel-Lucent documents, contact your local sales representative or Alcatel-
Lucent Customer Information Center (CIC) as follows:
•
For mail order
Alcatel-Lucent Customer Information Center
7525 E. 39th Street
Ste. 1100
Indianapolis, IN 46226-5157
•
For telephone order
888-582-3688 (toll free in the United States)
1-317-377-8617 (direct dial and outside the United States)
•
For Fax order
(toll free in the United States)
(direct dial and outside the United States)
•
For credit card orders
800-744-7755 (toll free in the United States)
1-317-377-8619 (direct dial and outside the United States)
+RZWRFRPPHQW
To comment on this information product, go to the Online Comment Form
(http://www.lucent-info.com/comments/) or e-mail your comments to the Comments
Hotline (comments@alcatel-lucent.com).
YLLL
,VVXH 0D\
,VVXH 0D\
4XLFN,QVWDOODWLRQ
*XLGH4,*
2YHUYLHZ
3XUSRVH
This Quick Installation Guide provides information about how to install the 7130 RG
5Ve.A2000/7130 RG 5Ve.B2000 at the customers premises, which may be apartment
blocks, hotels or office complexes.
This customer premises equipment (CPE) supports Ethernet-over-VDSL2 via four
Ethernet data link rated up to 100 Mbps symmetrically. With its bridge functionality, it
connects any device equipped with a 10BASE-T or 100BASE-TX network interface card
via a standard telephone cable to a VDSL switch. Additionally the CPE provides a WLAN
connection for client computers. For this purpose, it provides:
•
One VDSL port
•
Four Ethernet LAN ports (10/100BASE-TX)
•
WLAN link for wireless network.
5HDVRQIRUUHYLVLRQ
The version 1.0 of the Quick Installation Guide is the first issue.
&RQWHQWV
This chapter covers these topics.
Hardware description 1-2
Install the CPE 1-5
,VVXH 0D\
+DUGZDUHGHVFULSWLRQ
3DFNDJHFRQWHQW
The package consists of the following components:
•
One 7130 RG 5Ve.A2000/7130 RG 5Ve.B2000 VDSL2 gateway
•
One standard telephone cable (1.8 m)
•
One category 5 UTP network cable (1.5 m)
•
One power adapter
•
One cradle for stand-up mounting
•
Quick Installation Guide
•
User Manual on CD-ROM.
6LGHYLHZ/('DQGFRQQHFWRUSDQHO
The LED panel of the CPE provides several LEDs as system and port status indicators.
The connector panel includes four Ethernet LAN ports for 10/100 Mb/s Ethernet
connections and one port for VDSL line. The connector panel also includes the power
inlet (15V/1A).

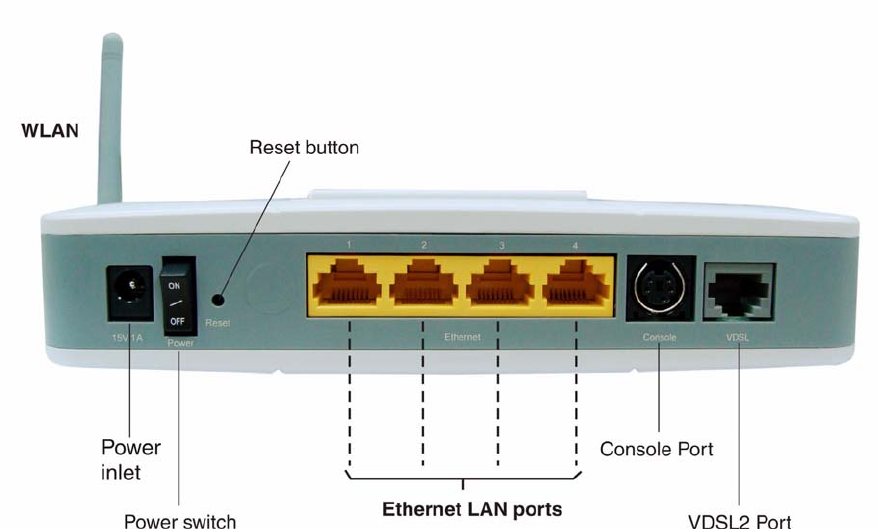

The following figure shows the connector panel with the different ports.
)LJXUH &RQQHFWRUSDQHO
The left-most socket is for connecting the power adapter.
,VVXH 0D\
:$51,1*
Please use for this inlet only the power adapter, which is shipped with your 7130 RG
5Ve.AL2000/7130 RG 5Ve.B2000 VDSL2 gateway. Failure to comply with may cause
damage to the CPE.
3RZHUVZLWFK
The power switch is used for turning “ON” and “OFF” the device.
5HVHWVZLWFK
The reset switch serves two functions as explained here:
•
Reset the device
•
Turn “OFF” the Power switch and turn it “ON” again to reset the device.
•
Reset and restore the default settings
•
Using a pointed object, push down the Reset button and hold for 5 seconds (PWR
LED turns “Off”), then release. This operation will reset the device to factory
defaults.
,QWHUIDFHV
•
Ethernet
The Ethernet LAN ports are RJ-45 connectors with switching functionality. They also
feature the Auto MDI/MDIX function, which allows using either a crossover or a
straight cable to connect a Hub or PC.
The left LED indicates connectivity with a device. The second LED indicates whether
the connection speed is 10 Mbps or 100 Mbps; that is, it will be “ON” if the
connection speed is 100 Mbps.
•
The left LED indicates connectivity with a device. The second LED indicates whether
the connection speed is 10 Mbps or 100 Mbps, that is it will be “ON” if the connection
speed is 100 Mbps.
•
VDSL
The VDSL port is used for the WAN connection.
,VVXH 0D\
/('LQGLFDWLRQVIRUV\VWHPDQGSRUWVWDWXV
Six LEDs on the front panel indicate the following system and port status:
/(' 6WDWXV 'HVFULSWLRQ
System Status Indicators
PWR (Power) On Power supply is okay.
Off Power failure or disconnected.
DIAG
(Diagnostics)
Slow Flashing
*
* H/W flashing: LED flashes at the rate depending on the data transmission rate.
Flashes during firmware upgrade.
Off No Firmware upgrading
INTERNET
(Internet)
On Data/Video session is connected, but no traffic.
H/W Flashing
†
† Slow flashing: LED flashes at the rate of 2 seconds “On” and 2 seconds “Off”
Fast flashing: LED flashes at a rate of 0.2 second ON and 0.2 second OFF.
Data/Video traffic is present.
Off Not connected to the Internet.
Port Status Indicators
DSL (WAN
link)
On VDSL is operating.
Slow flashing VDSL is training.
Off VDSL is disconnected or not enabled.
LAN
(link/activity)
On Any of the four Ethernet LAN ports is connected and
active.
H/W flashing Any of the four Ethernet LAN ports has data traffic.
Off None of the four Ethernet LAN ports are connected.
WLAN
(link/activity)
H/W flashing Traffic on wireless
On Wireless enabled
Off Wireless disabled
,VVXH 0D\
,QVWDOOWKH&3(
:KHQWRXVH
Use this procedure to install the 7130 RG 5Ve.A2000/7130 RG 5Ve.B2000, that means to
make the connections to the network (wireless traffic via WLAN included), to the devices
which may be for example a notebook, laptop or computer and to the power supply. In
addition use the procedure to establish a TCP/IP connection from the device to the CPE.
The following figure shows the CPE with all external connections established. This will be
described step by step in the procedure below.
)LJXUH 2YHUYLHZDERXWDOOH[WHUQDOFRQQHFWLRQV
6\VWHPUHTXLUHPHQWVDQGVDIHW\JXLGHOLQHV
1. The CPE should be located in a cool dry place, with at least 5 cm (2 in.) of space on all
sides for ventilation. Place the CPE out of direct sunlight, and away from heat sources
or areas with a high amount of electromagnetic interference.
2. For power supply, the CPE requires 15 V DC via the included AC power adapter. The
power adapter is designed for a 230 V AC connection.
3. Do not spill liquid of any kind on this CPE.
4. The CPE is a plug-and-play unit and does not need any configuration or maintenance.
,VVXH 0D\
5. Do not place the CPE on an unstable stand or table; the CPE may drop and become
damaged.
6. For an Internet access, a PC with a 10/100 Mb/s Ethernet adapter card installed is
required. The PC must be configured for TCP/IP.
%HIRUH\RXEHJLQ
Make sure that the package content is complete. Preserve original carton and packaging
material.
0RXQWLQJSURFHGXUH
There are three ways for mounting the CPE:
•
Wall mounting
1. Locate a high position on the wall that is free of obstructions.
2. Connect two screws in the wall 5 cm (2 in.) apart. Do not screw the screws all the
way into the wall.
,PSRUWDQW
Make sure that the screws are securely fixed to the wall and strong
enough to hold the weight of the CPE.
3. Align the holes on the back of the CPE with the screws on the wall.
4. Hang up the CPE on the screw.
•
Desktop mounting
Place the CPE on top of the desk with the name “Alcatel.Lucent” side up.
•
Stand-up mounting
Place the cradle at the bottom of the CPE and sit the CPE on top of the desk.
+:LQVWDOODWLRQSURFHGXUH
&$87,21
Please follow the directions from your service provider regarding the connection of your
VDSL2 modem. The following procedure are meant as a guideline.
Connect the cord of the AC power adapter to the power socket on the CPE which is
labeled 15 V 1 A. Then plug the power adapter directly into the AC power outlet.
5HVXOW
The LED marked PWR (power) on the LED panel is on.
Restore this CPE to factory defaults if necessary. See section Reset and restore the
default settings to restore the CPE to the factory defaults.
,VVXH 0D\
Connect one end of the attached standard telephone cable to the port on the CPE which is
labeled VDSL and connect the other end to the telephone wall outlet providing the VDSL
service.
Connect one end of the Category 5 UTP network cable to the Ethernet LAN port on the
CPE and the other end to the port of the network interface on the appropriate device, for
example a PC, Notebook and so on.
Make sure that the Ethernet adapter of your device is correctly configured for DHCP. For
more details refer to Appendix B Configuring the TCP/IP protocols on the PC.
Establish the first connection to the ISP provider. For information about how to configure
an internet connection refer to the: User Manual.
(
1'
2
)
6
7(36
,VVXH 0D\
,VVXH 0D\
:HE0DQDJHPHQW
,QWHUIDFH
2YHUYLHZ
The Web Management Interface is provided to let the configuration of 7130 RG
5Ve.A2000/7130 RG 5Ve.B2000 as easily as possible. It provides a user-friendly graphical
interface through a Web platform. You can configure bridge or router functions to
accommodate your needs. In the section below, each configuration item is described in
detail.
&RQWHQWV
This chapter covers these topics.
The Web Management Interface 2-3
Access to Web Management Interface via Internet browser
Retrieve Status
LAN Settings
WiFi Settings
Security Mode configuration
Wi-Fi MAC
2-5
2-7
2-9
2-12
2-15
2-17
WiFi QoS
Advanced Setup
DHCP
PPPoE Settings
VLAN + 2PPPoE Settings
Bridge Settings
2-19
2-23
2-24
2-26
2-28
2-30
Route Setting
Bridge MAC Filter
DDNS Setting
Port Range Forwarding
Virtual Server Basic
Virtual Server Advance
2-32
2-34
2-36
2-38
2-40
2-42
,VVXH 0D\
DMZ and UPnP
Filter
NAT Passthrough
QoS Setup
Default QoS
QoS Policy
QoS Interface Policy
2-44
2-47
2-49
2-51
2-54
2-56
2-58
QoS ALG
Reboot Gateway
Restore Factory Defaults
Web Firmware Upload
System Settings
MCL Settings
2-60
2-62
2-64
2-66
2-68
2-70
,VVXH 0D\
7KH:HE0DQDJHPHQW,QWHUIDFH
2YHUYLHZ
The following summarizes how to configure the 7130 RG 5Ve.A2000/7130 RG
5Ve.B2000 by using the
:HE0DQDJHPHQW,QWHUIDFH
The
:HE0DQDJHPHQW,QWHUIDFH
is a graphical interface and allow user to access the system for statistics, configuration,
administration and maintenance activities. The Web Management Interface has several
pages, each page can be accessed directly by clicking the menu item from the navigation
bar on the left side.
The main navigation bar is divided in five groups:
6WDWXV
The pages that accessed from these menu items group
present information about the current
configuration status of your 7130 RG 5Ve.A2000/7130 RG 5Ve.B2000.
Following information items are available:
•
Status
•Device Table
• IGMP Statistics
•IGMP Membership
•System Log
• VDSL
• DHCP Lease Table
• WiFi Associate Table
• Network Statistics
/$16HWXS
On this page you can setup the network configurations for your gateway's LAN port.
• LAN Settings
:L)L6HWXS
On this pages you can configure the wireless settings.
•
WiFi Settings
•
WiFi Security
•
WiFi MAC
•
WiFi QoS
,VVXH 0D\
$GYDQFHG6HWXS
On this pages you can configure the WAN ports connection method.
•
WAN Settings
– DHCP
– PPPoE
– VLAN + 2PPPoE
– Bridge
•
Route Setting
•
Bridge MAC Filter
•
DDNS Setting
•
Port Range Forwarding
•
Virtual Server Basic
•
Virtual Server Advance
•
DMZ & UPnP
•
Filter
•
URL Filter
•
NAT Passthrough
4R6
On this pages you can configure the QoS method.
•
Scheduler
•
Default QoS
•
Policy
•
Interface Policy
•
ALG
8WLOLWLHV
On this pages you can restore the factory settings to the 7130 RG 5Ve.A2000/7130 RG
5Ve.B2000 or update the firmware.
•
Restore Factory Defaults
•
Web Firmware Upload
•
System Setting
•
MCL Settings.
,VVXH 0D\
$FFHVVWR:HE0DQDJHPHQW,QWHUIDFHYLD,QWHUQHWEURZVHU
3XUSRVH
Use this procedure to access to the 7130 RG 5Ve.A2000/7130 RG 5Ve.B2000
:HE
0DQDJHPHQW,QWHUIDFH
via Internet browser.
5HODWHGLQIRUPDWLRQ
The 7130 RG 5Ve.A2000/7130 RG 5Ve.B2000 is with following default settings
configured:
•
User Name: admin
•
Password: admin
•
Operation Mode: Bridge Mode
•
Local port address: 192.168.2.1
•
Subnet mask: 255.255.255.0
%HIRUH\RXEHJLQ
Make sure that the 7130 RG 5Ve.A2000/7130 RG 5Ve.B2000 hardware is properly
connected and switched on (refer to QIG).
Your PC is configured to the same IP subnet mask as the 7130 RG 5Ve.A2000/7130 RG
5Ve.B2000.
Configuration example:
7130 RG 5Ve.A2000/7130 RG 5Ve.B2000: 192.168.2.1 Your PC:192.168.2.x
Subnet mask: 255.255.255.0
3URFHGXUH
Connect to the
+RPH$UHD
from the 7130 RG 5Ve.A2000/7130 RG 5Ve.B2000
Open your internet browser on the computer (e.g. IE or Netscape), and enter the default IP
address 192.168.2.1 (for your 7130 RG 5Ve.A2000/7130 RG 5Ve.B2000) into the address
bar as the URL to access the Web management page on the 7130 RG 5Ve.A2000/7130 RG
5Ve.B2000.
5HVXOW
The
/RJLQ
dialog box will appear first.
,VVXH 0D\
Enter the
8VHUQDPH
and the
3DVVZRUG
(“admin” for both per default), and then click
2.
.
1RWH
The username and password are case-sensitive.
5HVXOW
The
+RPH$UHD
screen with the basic setting of your 7130 RG
5Ve.A2000/7130 RG 5Ve.B2000 configuration and connection statistics opens.
(
1'
2
)
6
7(36
,VVXH 0D\
5HWULHYH6WDWXV
3XUSRVH
Use this procedure to retrieve the basic settings of your current configuration as well as a
network and connection statistics.
%HIRUH\RXEHJLQ
Make sure that you are connected to the
+RPH$UHD
from the 7130 RG 5Ve.A2000/7130
RG 5Ve.B2000 via your internet browser.
From the main navigation bar, follow this path to retrieve basic settings of your current
configuration.
6WDWXV!6WDWXV
5HVXOW
The
6WDWXV
window opens.
Example of a
6WDWXV
window:
,VVXH 0D\
Following parameters are displayed in the
6WDWXV
window:
(
1'
2
)
6
7(36
3DUDPHWHU 'HVFULSWLRQ
Version Info: The version of currently used firmware
Release Date: The release date of your firmware
System Up Time: Shows how long the system has been up and operated
Total Memory: Shows the memory (Random Access Memory) capacity of the
system.
Used Memory: Shows the memory used in the system.
Free Memory: Shows free memory in the system.
WAN IP Address: The IP Address of the WAN interface.
WAN NetMask: The network mask of the WAN interface.
WAN Gateway: The gateway IP address for the WAN interface.
WAN DNS1or 2: Shows the Domain Name Server IP address.
WAN MAC: Shows the MAC address of the WAN interface.
LAN IP Address: Shows the IP Address of the LAN interface.
LAN NetMask: The IP subnet mask of the LAN interface.
LAN MAC: The MAC address of the LAN interface.
,VVXH 0D\
/$16HWWLQJV
3XUSRVH
Use this procedure to configure the network settings for your gateway and LAN port.
%HIRUH\RXEHJLQ
Make sure that you are connected to the
+RPH$UHD
from the 7130 RG 5Ve.A2000/7130
RG 5Ve.B2000 via your internet browser.
From the main navigation bar, follow this path to configure the network settings for your
gateways and LAN port.
6WDWXV!/$16HWWLQJV
5HVXOW
The
/$16HWWLQJV
window opens.
Example of a
/$16HWWLQJV
window:
,VVXH 0D\
To configure the gateway and the LAN port enter the
,3$GGUHVV
and the
6XEQHW0DVN
.
For example: IP Address 10.x.x.x or 192.x.x.x and Subnet Mask 255.255.255.0
$GGLWLRQDO,QIRUPDWLRQ
This defines the IP address of local port and has to be a
private one. The subnet mask determines the number of computers that are allowed in
this local network. A class C network with the subnet mask 255.255.255.0 allows up
to 253 users in your local area network. Usually a class C network is satisfactory for
a LAN environment.
To enable the
'+&36HUYLFH
click the pull-down menu and enable the DHCP server on
this unit.
Enter the
'+&36WDUW,3$GGUHVV
.
This specifies the starting IP address for DHCP users, which has 192.168.2.10 as default
value.
Enter the
'+&3(QG,3$GGUHVV
This specifies the ending IP address for DHCP users, which has 192.168.2.254 as default
value.
1RWH
Please make sure that there is no existing LAN client with fixed IP address
within the range you assigned here. Otherwise, the DHCP client may not get the IP
address correctly.
Enter the
'+&3/HDVH7LPH
.
$GGLWLRQDOLQIRUPDWLRQ
A DHCP user's PC gets the IP address with a lease time.
When the lease time is expired, the user's PC must connect to the DHCP server to
request the dynamic IP address again. When there are many nomadic users using
DHCP service in your network, select an appropriate time to make sure IP addresses
will be released after they logout. The gateway may not know at when an user turns
his computer off and leaves, thus that IP address will be occupied there until the lease
time expires. The default value of the lease time is 72 hours.
Enter the
'+&3'RPDLQ1DPH
.
The name for your group or zone. This will be published with your DHCP service.
,VVXH 0D\
Enable/Disable
'165HOD\
.
This is optional. You may have already setup a DHCP server in your domain and let the
unit to forward the DHCP request to this server.
Enter the
'166HUYHU
IP Address.
Enter the DNS server IP address if this is not automatically relaying (obtained by your
Internet service provider ISP).
Configure a
6WDWLF,3/HDVH
.
Enter the clients'
0$&
addresses and
,3
addresses to configure the
6WDWLF'+&3/HDVH
.
You can assign a fixed IP address to a DHCP client identified by its MAC address. Enter
the new entry into the list.
Enter the client's MAC addresses in the fields provided, to filter a client from getting a
DHCP release. (Configure Not Assign IP).
Click
$SSO\&KDQJHV
at the bottom of the page to apply your changes.
(
1'
2
)
6
7(36
,VVXH 0D\
:L)L6HWWLQJV
3XUSRVH
Use this procedure to configure the basic wireless network settings. The Router can
connect up to 253 wireless clients.
%HIRUH\RXEHJLQ
Make sure that you are connected to the
+RPH$UHD
from the 7130 RG 5Ve.A2000/7130
RG 5Ve.B2000 via your internet browser.
From the main navigation bar, follow this path to configure the
:L)L6HWWLQJV
for your
wireless network.
6WDWXV!:L)L6HWWLQJV
5HVXOW
The
:L)L6HWWLQJV
window opens.
Example of a
:L)L6HWWLQJV
window:
,VVXH 0D\
To configure the wireless LAN settings enable the WiFi function first. Select from the
pull-down menu
(QDEOH
(Enable/Disable).
Set a appropriate value for the
7[3RZHU
capability (ranges 1-100%).
This parameter allow you to manage your transmission power consumption.
Specify the
5DGLR0RGH
.
Select from the pull-down menu the wireless mode one of following options: b/g mix, b or
g only.
Specify the
&KDQQHO
.
Select the appropriate channel to be used among your Access Points and your client
devices. Default is channel 6. When you select
$XWR
your Access Point will select the
channel with the lowest amount of wireless interference while the system is powering up.
The
$XWRFKDQQHOVHOHFW
start when you click
$SSO\&KDQJHV
button, it take several
seconds to scan through all the channels to find the best channel.
Specify the
%HDFRQ3HULRG
. This is optional.
This value indicates the frequency interval of the beacon. This is a packet broadcast by the
Access Point to keep the network synchronized.
Specify the
'7,03HULRG
. This is optional.
This value indicates the interval of the Delivery Traffic Indication Message (DTIM). A
DTIM field is a countdown field informing clients of the next window for listening to
broadcast and multicast messages.
Enter the
'+&36WDUW,3$GGUHVV
.
This specifies the starting IP address for DHCP users, which has 192.168.2.10 as default
value.
Enter the
66,'
.
The SSID is the unique name shared among all devices in a wireless network. It is case
sensitive, must not exceed 32 alphanumeric characters, and may be any keyboard
character. Make sure that this setting is the same for all devices in your wireless network.
,VVXH 0D\
Configure
+LGH66,'
.
Select
2Q
to hide the SSID or select
2II
to make the SSID visible.
$GGLWLRQDO,QIR
This option allows the SSID to be broadcast on your network. You
may want to enable this function while configuring your network, but make sure that
you disable it when you are finished.
With this enabled, someone could easily obtain the SSID information with site survey
software or Windows XP and gain unauthorized access to your network. Select off to
allow broadcasting the SSID to all wireless devices in range. Select on to increase
network security and prevent the SSID from being seen on networked PCs.
Configure
7[5DWH
. This is optional.
You may restrict the transmission rate by entering the transmission rate. Specify the rate of
transmission up to its maximum which is 54Mbps for 802.11g
Click
$SSO\ &KDQJHV
at the bottom of the page to apply your changes
(
1'
2
)
6
7(36
,VVXH 0D\
6HFXULW\0RGHFRQILJXUDWLRQ
3XUSRVH
Use this procedure to configure security mode on your wired or wireless network, the
7130 RG 5Ve.A2000/7130 RG 5Ve.B2000 supports the security mechanisms WEP (Wired
Equivalent Privacy), WPA (Wi-Fi Protected Access) and WPA2.
%HIRUH\RXEHJLQ
Make sure that you are connected to the
+RPH$UHD
from the 7130 RG 5Ve.A2000/7130
RG 5Ve.B2000 via your internet browser.
From the main navigation bar, follow this path to configure the
:L)L6HFXULW\
for your
wireless network.
6WDWXV!:L)L6HFXULW\
5HVXOW
The
:L)L6HFXULW\
window opens.
Example of a
:L)L6HFXULW\
window:
,VVXH 0D\
Following options are available:
•2SHQ
- For this type of security mode, your wireless connection is unprotected.
This is strongly not recommended.
•:(3
- This security mode is defined in the original IEEE 802.11. This mode is not
recommended now due to its weak security protection. Users are urged to migrate
to WPA or WPA2.
'HIDXOW7UDQVPLW.H\
- Select the key to be used for data encryption. WEP
Encryption.
Select a level of WEP encryption, 64 bits (10 hex digits) or 128 bits (26 hex digits).
Key 1-4. If you want to manually enter WEP keys, then complete the fields
provided. Each WEP key can consist of the letters "A" through "F" and the
numbers "0" through "9". It should be 10 characters in length for 64-bit encryption
or 26 characters in length for 128-bit encryption.
•:3$36.
- This is the WPA Algorithm. WPA offers you two encryption methods,
TKIP and AES for data encryption.
Select the type of algorithm you want to use, TKIP or AES. The default is TKIP.
WPA PreShared Key. Enter a PassPhrase Key of 8-63 characters.
•:3$36.
- This is the WPA2 Algorithm. WPA2 offers you two encryption
methods, TKIP and AES for data encryption.
Select the type of algorithm you want to use, TKIP or AES. The default is TKIP.
WPA PreShared Key. Enter a PassPhrase Key of 8-63 characters.
•[
- This is for authenticating with a Radius server. Please enter your Radius
server's IP address, port number and key in the boxes.
1RWH
To configure your wireless network for the best security setting of your
wireless network, it is recommended that you use WPA/WPA2- PSK and setup your
pre-shared key in the router. Or you may choose to use WPA/WPA2 if you have a
radius server in your local network.
Click
$SSO\&KDQJHV
at the bottom of the page to apply your changes.
(
1'
2
)
6
7(36
,VVXH 0D\
:L)L0$&
3XUSRVH
Use this procedure to restrict some of the wireless clients association with the Access
Point.
5HODWHGLQIRUPDWLRQ
Every Ethernet device has a unique MAC (Media Access Control) address. The MAC
address is assigned at the factory and consists of six pairs of hexadecimal characters. You
need to know the MAC address of the devices to configure the Wi-Fi MAC filter. You can
allows access up to 32 devises or exclude access up to 32 devises.
%HIRUH\RXEHJLQ
Make sure that you are connected to the
+RPH$UHD
from the 7130 RG 5Ve.A2000/7130
RG 5Ve.B2000 via your internet browser.
From the main navigation bar, follow this path to enable and change the Wi-Fi MAC filter
settings.
6WDWXV!:L),0$&
5HVXOW
The
:L),0$&
window opens.
,VVXH 0D\
Example of a
:L),0$&
window:
Enter the MAC addresses of the wireless devices that are allowed or denied access to your
wireless network.
Select
'LVDEOH
to turn off the Wi-Fi MAC filtering function. Select
$OORZ
to allow the
following MAC addresses to connect the router. Select
'HQ\
to deny the following MAC
addresses to connect the router.
Click
$SSO\&KDQJHV
at the bottom of the page to apply your changes.
(
1'
2
)
6
7(36
,VVXH 0D\
:L)L4R6
3XUSRVH
Use this procedure to enable the media access prioritization Wi-Fi Multimedia (WMM).
Three access categories are support by the Wi-Fi QoS, for audio, video, and voice
applications over the wireless network. This give you a higher priority for different types
of multimedia traffic.
%HIRUH\RXEHJLQ
Make sure that you are connected to the
+RPH$UHD
from the 7130 RG 5Ve.A2000/7130
RG 5Ve.B2000 via your internet browser.
From the main navigation bar, follow this path to configure the
:L)L4R6
for your wireless
network.
6WDWXV!:L)L4R6
5HVXOW
The
:L)L4R6
window opens.
,VVXH 0D\
Example of a
:L)L4R6
window:
EDCA Parameter
The IEEE 802.11e standard improves the Medium Access Control (MAC) of the legacy
802.11 with regard to Quality of Service (QoS) by introducing the Enhanced Distributed
Channel Access (EDCA).The 802.11e MAC is based on both centrally-controlled and
contention-based channel accesses.The EDCA provides differentiated channel access to
frames with different priorities.
Typically, voice and video traffic types are delay-sensitive, but are tolerant of some frame
losses.On the other hand, data traffic type is delay-tolerable, but requires loss-free
transmission. So you may adjust theses parameters with regard to the characteristics of
these types of data to better manage your network flow.
$&$FFHVV&DWHJRU\
:
using 4 different ACs: From high to low: VO: Voice, VI: Video, BE: Best Effort, BK:
Background
,VVXH 0D\
$,)6$UELWUDU\,QWHUIUDPH6SDFH
:
The back-off timing for each access category consists of a fixed period called the Arbitrary
Inter-Frame Space Number followed by a random period called the Contention Window
(CW), both specified in multiples of the slot time.
7;237UDQVPLVVLRQ2SSRUWXQLW\
:
WMM (Wireless Multimedia) Transmission Opportunity: defined by IEEE 802.11e, the
TXOP is the interval of time when a particular STA (station) has the right to initiate
transmissions.
$&0$GPLVVLRQ&RQWURO0DQGDWRU\
Advertised in the EDCA parameter set element to indicate that the admission control is
taken over by the client when it is turned on. It only has the effect on AC VI and VO.
$FFHVV3RLQW
Theses values of AIFS, CWmin, and CWmax are announced by the AP via beacon
frames.The AP can adapt these parameters dynamically depending on the network
conditions. Basically, the smaller AIFS and CWmin, the shorter the channel access delay
for the corresponding priority, and hence the more capacity share for a given traffic
condition.However, the probability of collisions increases when operating with smaller
CWmin. Theses parameters can be used in order to differentiate the channel access among
different priority traffic.
1RWH
You may slightly adjust these values when you experience latency in your
network traffic according to the following explained properties for each of the data
types. For instance, if you experience delay in your video applications, you may give a
bigger value for TXOPLimit while reduce the difference between CWmin and
CWmax, and the number for AIFSN.
67$
Each station maintains a Contention Window (CW), which is used to select the random
back off counter. The BC is determined as a random integer drawn from a uniform
distribution over the interval (0, CW).The CW size is initially assigned CWmin, and
increases when a transmission fails, i.e., the transmitted data frame has not been
acknowledged.After any unsuccessful transmission attempt, another back off timer is
performed, with an upper bound of CWmax.This reduces the collision probability in case
there are multiple stations attempting to access the channel.
&:PLQ
:
should be smaller for delay-sensitive data
&:PD[
should be smaller for delay-sensitive data
$,)61
should be smaller for delay-sensitive data
,VVXH 0D\
7;23/LPLW
These will allow multiple MAC frames consecutively as long as the whole transmission
time does not exceed the TXOP limit.So keep it larger for delay-sensitive data.
$&0
Admission Control Mandatory: The admission control is taken over by the client when
you turn on this. Otherwise, the connecting AP is in charge.
,PSRUWDQW
Do not change any of these values unless you are a experienced network
administrator.
(
1'
2
)
6
7(36
,VVXH 0D\
$GYDQFHG6HWXS
3XUSRVH
Use this procedure to setup your WAN ports connection method.
5HODWHGLQIRUPDWLRQ
These settings determine how the router will make a connection with the modem/internet.
A Dynamic Connection, meaning that the IP address, Subnet Mask, Gateway, and DNS
addresses are supplied automatically by the ISP.
%HIRUH\RXEHJLQ
Make sure that you are connected to the
+RPH$UHD
from the 7130 RG 5Ve.A2000/7130
RG 5Ve.B2000 via your internet browser.
Click on the
:DQ6HWWLQJ
link on the navigation bar to configure the gateway's WAN
connection method. Your service provider will specify which WAN setting option is
required.
Following options are displayed:
•
DHCP
•
PPPoE
•
VLAN + 2 PPPoE
•
Bridge.
Select your connection method from
'+&3
,
333R(
,
9/$1333R(
or
%ULGJH
and click
1H[W
.
5HVXOW
The window with the selected settings opens.
(
1'
2
)
6
7(36
,VVXH 0D\
'+&3
3XUSRVH
Use this procedure to configure the
'+&3
settings.
%HIRUH\RXEHJLQ
Make sure that you are connected to the
+RPH$UHD
from the 7130 RG 5Ve.A2000/7130
RG 5Ve.B2000 via your internet browser.
From the main navigation bar, follow this path to configure the gateway connected via
'+&3
for your wireless network.
6WDWXV!:$16HWWLQJV!'+&3
5HVXOW
The
'+&3
window opens.
Example of a
'+&3
window:
,VVXH 0D\
Enter the appropriate
+RVW1DPH
and
'RPDLQ1DPH
for your connection: For this type of
connection method, just identify your router with the
+RVW1DPH
and
'RPDLQ1DPH
.
Select
$XWR
or
0DQXDO
configuration and enter the appropriate value for the
078
(Maximum Transfer Unit).
Configure the
&OLHQW,'9HQGRU&ODVV,'
: You may also need to set the
&OLHQW,'
or
9HQGRU&ODVV,'
to set the DHCP class ID the client uses when obtaining its lease from the
DHCP server. Please consult your ISP for this option.
Click
$SSO\&KDQJHV
at the bottom of the page to apply your changes.
(
1'
2
)
6
7(36
,VVXH 0D\
333R(6HWWLQJV
3XUSRVH
Use this procedure to configure the
333R(
settings.
%HIRUH\RXEHJLQ
Make sure that you are connected to the
+RPH$UHD
from the 7130 RG 5Ve.A2000/7130
RG 5Ve.B2000 via your internet browser.
From the main navigation bar, follow this path to configure the
333R(
settings for your
wireless network.
6WDWXV!:$16HWWLQJV!333R(
5HVXOW
The
333R(
window opens.
Example of a
333R(
window:
,VVXH 0D\
Enter the
8VHUQDPH
and the
3DVVZRUG
for your PPPoE connection.
$&1DPH
and
6HUYLFH
1DPH
are optional, please consult your ISP.
Select from the radio button for either
&RQQHFWLRQRQ'HPDQG
or
.HHSDOLYH
.
For connection on demand, the router will only connect to the internet service when it is
instructed to do so.
Enter the
0D[,GOH7LPH
in the box to specify the maximum number of seconds of being
idle before it can drop a connection.
In the
2SWLRQV
section enter the
+RVW1DPH
and
'RPDLQ1DPH
to setup your router as
hostname@domainname. Select your
078
(Maximum Transfer Unit) size from either
$XWR
(Default:1488) or
0DQXDO
Click
$SSO\&KDQJHV
at the bottom of the page to apply your changes.
(
1'
2
)
6
7(36
,VVXH 0D\
9/$1333R(6HWWLQJV
3XUSRVH
Use this procedure to configure the
333R(
settings over VLAN for multiple PPPoE
connections.
%HIRUH\RXEHJLQ
Make sure that you are connected to the
+RPH$UHD
from the 7130 RG 5Ve.A2000/7130
RG 5Ve.B2000 via your internet browser.
From the main navigation bar, follow this path to configure the
9/$1333R(
settings
over VLAN for your wireless network.
6WDWXV!:$16HWWLQJV!9/$1333R(
5HVXOW
The
333R(
window opens.
Example of a
9/$1333R(
window:
,VVXH 0D\
Enter the VLAN ID: Please give the Vlan-ID if you have two different PPPoE accounts for
these two services.
,PSRUWDQW
This configuration should be given by your ISP or configured by them.
Enter the
8VHU1DPH
and
3DVVZRUG
for your connection.
Enter the
$&1DPH
(Access Concentrator) for your PPPoE account
Select from the radio button for either
&RQQHFWLRQRQ'HPDQG
or
.HHSDOLYH
.
For connection on demand, the router will only connect to the internet service when it is
instructed to do so.
Enter the
0D[,GOH7LPH
in the box to specify the maximum number of seconds of being
idle before it can drop a connection.
In the
2SWLRQV
section enter the
+RVW1DPH
and
'RPDLQ1DPH
to setup your router as
hostname@domainname. Select your
078
(Maximum Transfer Unit) size from either
$XWR
(Default:1488) or
0DQXDO
.
Click
$SSO\&KDQJHV
at the bottom of the page to apply your changes.
(
1'
2
)
6
7(36
,VVXH 0D\
%ULGJH6HWWLQJV
3XUSRVH
Use this procedure to set the connection type for your wireless network.
%HIRUH\RXEHJLQ
Make sure that you are connected to the
+RPH$UHD
from the 7130 RG 5Ve.A2000/7130
RG 5Ve.B2000 via your internet browser.
From the main navigation bar, follow this path to configure the
&RQQHFWLRQ7\SH
for your
wireless network.
6WDWXV!:$16HWWLQJ
5HVXOW
The
:$16HWWLQJ
window opens.
Example of a
:$16HWWLQJ
window:
,VVXH 0D\
Click
$SSO\&KDQJHV
at the bottom of the page to apply your changes.
In this case your router is configured as a simply bridge and act like a bridge.
(
1'
2
)
6
7(36
,VVXH 0D\
5RXWH6HWWLQJ
3XUSRVH
Use this procedure to setup static routes when the routing packets come from a specific
network to another.
%HIRUH\RXEHJLQ
Make sure that you are connected to the
+RPH$UHD
from the 7130 RG 5Ve.A2000/7130
RG 5Ve.B2000 via your internet browser.
From the main navigation bar, follow this path to setup the
6WDWLF5RXWHV
6WDWXV!5RXWH6HWWLQJ
5HVXOW
The
5RXWH6HWWLQJ
window opens.
Example of a
5RXWH6HWWLQJ
window:
,VVXH 0D\
Enter the
,3$GGUHVV
for the destination network (destination network ID).
Enter the
1HWPDVN
the network mask for the destined network.
Enter the
*DWHZD\
, the address to which the packet is forwarded.
Enter the
0HWULF
value
the number that is used to specify the cost of the route, so that the
best route (potentially among multiple routes to the same destination) can be selected.
Enter the
,QWHUIDFH
the network interface that is used to forward the packet. All the
addresses defined by the destination IP Address are reachable over the interface.
Click
$SSO\&KDQJHV
at the bottom of the page to apply your changes.
(
1'
2
)
6
7(36
,VVXH 0D\
%ULGJH0$&)LOWHU
3XUSRVH
Use this procedure to provides filtering for traffic from certain MAC addresses, i.e., MAC
access control list.
%HIRUH\RXEHJLQ
Make sure that you are connected to the
+RPH$UHD
from the 7130 RG 5Ve.A2000/7130
RG 5Ve.B2000 via your internet browser.
From the main navigation bar, follow this path to setup the
%ULGJH0$&)LOWHU
6WDWXV!%ULGJH0$&)LOWHU
5HVXOW
The
%ULGJH0$&)LOWHU
window opens.
Example of a
%ULGJH0$&)LOWHU
window:
,VVXH 0D\
Enter the
,3$GGUHVV
for the destination network (destination network ID).
Select your filtering Algorithm,
$OJ
choose from the drop-down menu to specify your
filtering rules, i.e.,
6RXUFH0$&
or
'HVWLQDWLRQ0DF
, then the
(WKHUQHW7\SH
(the Ethernet
type code contains 4 digits of Hex numbers).
Enable or disable the
)LOWHU3ROLF\
.
Enter the
(WKHUQHW7\SH
of traffic (please refer to Ethernet type code for this value) if you
select Ethernet type from the above Alg.
Enter your
6RXUFH0$&
and you
'HVWLQDWLRQ0DF
addresses for the designated rule.
Click
$SSO\&KDQJHV
at the bottom of the page to apply your changes.
(
1'
2
)
6
7(36
,VVXH 0D\
''166HWWLQJ
3XUSRVH
Use this procedure to register a dynamic IP address with a Domain name over DDNS
(Domain Name Service).
%HIRUH\RXEHJLQ
Make sure that you are connected to the
+RPH$UHD
from the 7130 RG 5Ve.A2000/7130
RG 5Ve.B2000 via your internet browser.
From the main navigation bar, follow this path to setup the
''16
6WDWXV!''16
5HVXOW
The
''16
window opens.
Example of a
''16
window:
,VVXH 0D\
Enable your DDNS Service first then select from pull-down menu to specify your DDNS
service name. You may need to register an account with the above providers first and enter
your service name here.
Enter the
8VHU1DPH
this is your user name for your DDNS account.
Enter the
3DVVZRUG
Enter the
+RVWQDPH
Click
$SSO\&KDQJHV
at the bottom of the page to apply your changes.
(
1'
2
)
6
7(36
,VVXH 0D\
3RUW5DQJH)RUZDUGLQJ
3XUSRVH
Use this procedure to add a new or to change existing
3RUW5DQJH)RUZDUGLQJ
rules.
%HIRUH\RXEHJLQ
Make sure that you are connected to the
+RPH$UHD
from the 7130 RG 5Ve.A2000/7130
RG 5Ve.B2000 via your internet browser.
From the main navigation bar, follow this path to setup the
3RUW5DQJH)RUZDUGLQJ
rules
6WDWXV!3RUW5DQJH)RUZDUGLQJ
5HVXOW
The
3RUW5DQJH)RUZDUGLQJ
window opens.
Example of a
3RUW5DQJH)RUZDUGLQJ
window:
In the
$SSOLFDWLRQ
column enter the name of the application.
,VVXH 0D\
In the
6WDUW3RUW
column enter the number of the first port of the range you want to seen by
users on the Internet and forwarded to your PC.
In the
(QG3RUW
column enter the number of the last port of the range you want to seen by
users on the Internet and forwarded to your PC.
From the
3URWRFRO
pull-down menu select the right protocol TCP, UDP or Both. Set this to
what the application requires.
In the
,3$GGUHVV
column enter the IP Address of the PC running the application.
1RWH
Any PC whose port is being forwarded must have a static IP address assigned
to it because its IP address may change when using the DHCP function.
From the
(QDEOH
pull-down menu select the
(QDEOH
to enable port forwarding for the
application.
Click
$SSO\&KDQJHV
at the bottom of the page to apply your changes.
(
1'
2
)
6
7(36
,VVXH 0D\
9LUWXDO6HUYHU%DVLF
3XUSRVH
Use this procedure to activate and configure a virtual server in your router.
%HIRUH\RXEHJLQ
Make sure that you are connected to the
+RPH$UHD
from the 7130 RG 5Ve.A2000/7130
RG 5Ve.B2000 via your internet browser.
From the main navigation bar, follow this path to activate a
9LUWXDO6HUYHU
6WDWXV!9LUWXDO6HUYHU%DVLF
5HVXOW
The
9LUWXDO6HUYHU%DVLF
window opens.
Example of a
9LUWXDO6HUYHU%DVLF
window:
,VVXH 0D\
From the
$SSOLFDWLRQ
pull-down menu select the name for the application to be served by
this virtual server.
Check the radio button for automatically-configured LAN hosts or choose to enter the
,3
$GGUHVV
manually.
Enable or Disable on the pull-down menu the basic virtual server setting.
Click
$SSO\&KDQJHV
at the bottom of the page to save your changes.
To add or delete an application to or from bypass the firewall restrictions,
enter the application name.
Enter the application port number and select from TCP, UDP or both.
Click
$GG
or
'HOHWH
.
Click
$SSO\&KDQJHV
at the bottom of the page to save your changes.
(
1'
2
)
6
7(36
,VVXH 0D\
9LUWXDO6HUYHU$GYDQFH
3XUSRVH
Use this procedure to activate and configure an advance virtual server in your router.
%HIRUH\RXEHJLQ
Make sure that you are connected to the
+RPH$UHD
from the 7130 RG 5Ve.A2000/7130
RG 5Ve.B2000 via your internet browser.
From the main navigation bar, follow this path to activate an
$GYDQFH 9LUWXDO6HUYHU
6WDWXV!9LUWXDO6HUYHU$GYDQFH
5HVXOW
The
9LUWXDO6HUYHU$GYDQFH
window opens.
Example of a
9LUWXDO6HUYHU$GYDQFH
window:
,VVXH 0D\
Specify the
$SSOLFDWLRQ
name first, enter the name for the application to be served by this
virtual server.
Enter the
([W3RUW
number (Ext. Port, means the ports for traffic coming in from the
WAN) to be used for this type of application/service. The external port is associated with
this application.
Specify the
3URWRFRO
to be used with this service (TCP, UDP or both).
Enter the
,QW3RUW
number
Enter the
,QW3RUW
number (the ports that the router uses for traffic forwarding). The
internal port is associated with the application.
Enter the
,3$GGUHVV
for your server. The IP Address for you server where the service
request will be forwarded to.
Select
(QDEOH
or
'LVDEOH
for this rule.
Click
$SSO\&KDQJHV
at the bottom of the page to save your changes.
(
1'
2
)
6
7(36
,VVXH 0D\
'0=DQG83Q3
3XUSRVH
Use this procedure to enable or disable DMZ and UPnP.
5HODWHGLQIRUPDWLRQ
83Q3
(Universal Plug and Play) is a distributed, open networking standard that uses
TCP/IP for simple peer-to-peer network connectivity between devices. A UPnP device can
dynamically join a network, obtain an IP address, convey its capabilities and learn about
other devices on the network.
'0=
(De-Militarized Zone) Host is a computer without the protection of the firewall. This
feature allows a single computer to be exposed to an unrestricted 2-way communication
from outside of your network. This feature should be used only if the Virtual Server or
Special Applications options do not provide the level of access needed for certain
applications.
%HIRUH\RXEHJLQ
Make sure that you are connected to the
+RPH$UHD
from the 7130 RG 5Ve.A2000/7130
RG 5Ve.B2000 via your internet browser.
From the main navigation bar, follow this path to activate an
'0=DQG83Q3
6WDWXV!'0=DQG83Q3
5HVXOW
The
'0=DQG83Q3
window opens.
,VVXH 0D\
Example of a
'0=DQG83Q3
window:
83Q3
: Select
(QDEOH
or
'LVDEOH
for the UPnP function.
83Q3/RJ
: Select
(QDEOH
or
'LVDEOH
the UPnP logging activities.
5HDG2QO\0RGH
: Enable or disable the read only mode.
'0=+RVW,3$GGUHVV
Enter the IP Address for your DMZ host.
'0=7LPHU
Enter the number of seconds for DMZ Timer.
For high security, enter a specific time in seconds to allow the length of time in which the
DMZ will be functional.
,VVXH 0D\
Click
$SSO\&KDQJHV
at the bottom of the page to save your changes.
(
1'
2
)
6
7(36
,VVXH 0D\
)LOWHU
3XUSRVH
Use this procedure to disable some internet applications with associated service port
numbers for the specific clients.
%HIRUH\RXEHJLQ
Make sure that you are connected to the
+RPH$UHD
from the 7130 RG 5Ve.A2000/7130
RG 5Ve.B2000 via your internet browser.
From the main navigation bar, follow this path to setup the
)LOWHU
functions
6WDWXV!)LOWHU
5HVXOW
The
)LOWHU
window opens.
Example of a
)LOWHU
window:
,VVXH 0D\
Enter the
$SSOLFDWLRQ
name first.
Specify the
,3$GGUHVV
and
1HWPDVN
of the hosts for which you would like to block this
type of application.
Specify the
3URWRFRO
to be used with this application (TCP, UDP or both).
Specify the
6WDUWLQJ3RUW
and
(QGLQJ3RUW
: This is the starting and ending port number to
be blocked for the associated application.
(QDEOH
or
'LVDEOH
the filter rules
In addition to the IP address and service port filtering, you can also filter the internet
access with the MAC addresses.
Select
(QDEOH
or
'LVDEOH
the
0$&)LOWHU$FFHVV3ROLF\
first to allow or not allow the MAC
addresses below to access the internet.
0$&
: Please enter the MAC addresses to be applied for the filtering policy.
Click
$SSO\&KDQJHV
at the bottom of the page to apply your changes.
(QDEOH
or
'LVDEOH
the
'6&33ROLF\
.
Select
'LVDEOH
to disable the
'6&3SROLF\
. Select
'HQ\
to deny packets with the specified
IP header 's DSCP value to access the internet or select
$OORZ
to allow packets with the
specified IP header's DSCP value to access the internet.
DSCP value: means please enter your DSCP value.
Click
$SSO\&KDQJHV
at the bottom of the page to apply your changes.
(
1'
2
)
6
7(36
,VVXH 0D\
1$73DVVWKURXJK
3XUSRVH
Use this procedure to enable or disable security protocols NAT Passthrough.
5HODWHGLQIRUPDWLRQ
Internet Protocol Security (IPSec) is a standards-based VPN that offers flexible solutions
for secure data communications across a public network like the Internet.
L2TP refers to Layer 2 Tunneling Protocol and PPTP refers to Point to Point Tunneling
Protocol. This protocols are used for communications between two networking sites
without the expense of leased site-to-site lines.
%HIRUH\RXEHJLQ
Make sure that you are connected to the
+RPH$UHD
from the 7130 RG 5Ve.A2000/7130
RG 5Ve.B2000 via your internet browser.
From the main navigation bar, follow this path to enable or disable
1$73DVVWKURXJK
protocols
6WDWXV!1$73DVVWKURXJK
5HVXOW
The
1$73DVVWKURXJK
window opens.
,VVXH 0D\
Example of a
1$73DVVWKURXJK
window:
(QDEOH
or
'LVDEOH
following security protocols:
•
IPSec Passthrough
•
L2TP Passthrough
•
PPTP Passthrough
Click
$SSO\&KDQJHV
at the bottom of the page to save your changes.
(
1'
2
)
6
7(36
,VVXH 0D\
4R66HWXS
3XUSRVH
Use this procedure to configure QoS Setup.
5HODWHGLQIRUPDWLRQ
The IEEE 802.1p specifies the user priority field and defines up to eight separate traffic
types. You can give weights to each queue. Thus, you may give priorities to some queues
over other queues by assigning weights.
Contribute: If you enable this, you may let your queues to give away some up their
resource to other queues so that they may also be transmitted when the queue does not use
up all of the available bandwidth.
Borrow: If you enable this, you may let these queues to use other queues' resources.
%HIRUH\RXEHJLQ
Make sure that you are connected to the
+RPH$UHD
from the 7130 RG 5Ve.A2000/7130
RG 5Ve.B2000 via your internet browser.
From the main navigation bar, follow this path to enable or disable
4R66FKHGXOHU
protocols
6WDWXV!4R66FKHGXOHU
5HVXOW
The
4R66FKHGXOHU
window opens.
,VVXH 0D\
Example of a
4R66FKHGXOHU
window:
Select
(QDEOH
to enable your
4R66FKHGXOHU
.
Click the
6FKHGXOHU7\SH
pull down menu, to select the appropriate
3ULRULW\4
.
Following options are displayed:
•3ULRULW\4
: This type of scheduler will first deliver traffic that has higher weights and
only delivers traffic with lower priority when it is empty.
•
Deficit Weighted
3ULRULW\)DLU4
: For this type of scheduler, each service class will be
guaranteed bandwidth but limited to the assigned weights.The eight queues is ranged
from low to high according to its sensitivity to jitter.
Enter the appropriate
8SVWUHDP%DQGZLGWK
(100... 50000).
In the
4XHXH:HLJKWV
field, assign weights to each queue (make sure that they add up to a
total of 100).
,VVXH 0D\
•&RQWULEXWH
: If you enable this, you may let your queues to give away some of their
resource to other queues so that they may also be transmitted when the queue does not
use up all of the available bandwidth.
•%RUURZ
: If you enable this, you may let these queues to use other queues' resources.
•$&.3ULRULW\
: If it is enabled, the
7&3$&.)UDPH
will be put in the front of the queue.
Click
$SSO\&KDQJHV
at the bottom of the page to save your changes.
(
1'
2
)
6
7(36
,VVXH 0D\
'HIDXOW4R6
3XUSRVH
Use this procedure to setup the QoS default policy for the Internet and IPTV traffic.
%HIRUH\RXEHJLQ
Make sure that you are connected to the
+RPH$UHD
from the 7130 RG 5Ve.A2000/7130
RG 5Ve.B2000 via your internet browser.
From the main navigation bar, follow this path to configure the
'HIDXOW4R6
method
6WDWXV!'HIDXOW4R6
5HVXOW
The
'HIDXOW4R6
window opens.
Example of a
'HIDXOW4R6
window:
Configure the QoS default policy for the Internet or IPTV traffic.
,VVXH 0D\
In the
4R60DSSLQJE\
field choose the
2ULJLQDO7RV7DJ
if you want to assign queue
according to the incoming ToS (Type of Service) value. Then choose the
6SHFLILHG4XHXH
and assign a queue number for the incoming traffic (0...7).
For
7R 6
and
'6&3
(DiffServ Code Point) value, you can select
.HHS2ULJLQDO7RV
to keep
the original value or you can assign a new
7R 6
(0...7) value and a new
'6&3
(0...63) value
for this type of traffic.
In the
6HW&R6
field configure
&R6
(Class of Service).
If you enable
6HW&R6
select the
7R 6
radio button or enter the appropriate value in the
8VHU6SHFLI\
field (0...7).
To configure
,379'HIDXOW 4R6
follow Step 4 to Step 6, then go to Step 8.
Click
$SSO\&KDQJHV
at the bottom of the page to save your changes.
(
1'
2
)
6
7(36
,VVXH 0D\
4R63ROLF\
3XUSRVH
Use this procedure to configure the QoS Policy as provided on the screen.
This screen lists the QoS classifiers or policy. A classifier groups upstream traffic into data
flows according to specific criteria such as the source address, destination address, source
port or destination port.
%HIRUH\RXEHJLQ
Make sure that you are connected to the
+RPH$UHD
from the 7130 RG 5Ve.A2000/7130
RG 5Ve.B2000 via your internet browser.
From the main navigation bar, follow this path to configure the
4R63ROLF\
method
6WDWXV!4R63ROLF\
5HVXOW
The
4R63ROLF\
window opens.
Example of a
4R63ROLF\
window:
,VVXH 0D\
Please enter your settings into the fields provided.
Enter the IP Address and the Subnet Mask of the host that sends the traffic in the
6RXUFH
,3
field and
6XEQHW0DVN
field.
Enter the port number of the sending host in the
6WDUW3RUW
and
(QG3RUW
field.
Enter the IP Address and the Subnet Mask of the host that receives the traffic in the
'HVWLQDWLRQ,3
field
6XEQHW0DVN
field.
Enter the port number of the destined host in the
6WDUW3RUW
and
(QG3RUW
field.
Select the appropriate protocol e.g. TCP.
In the
4R60DSSLQJE\
field choose the
2ULJLQDO7RV7DJ
if you want to assign queue
according to the incoming
7R 6
(Type of Service) value. Then choose the
6SHFLILHG4XHXH
and assign a queue number for the incoming traffic (0...7). For
7R 6
and
'6&3
(DiffServ
Code Point) value, you can select
.HHS2ULJLQDO7RV
to keep the original value or you can
assign a new
7R 6
(0...7) value and a new
'6&3
(0...63) value for this type of traffic.
In the
6HW&R6
field configure
&R6
(Class of Service).
If you enable
6HW&R6
select the
7R 6
radio button or enter the appropriate value in the
8VHU6SHFLI\
field (0...7).
Click
$GG
at the bottom of the page to save your changes.
(
1'
2
)
6
7(36
,VVXH 0D\
4R6,QWHUIDFH3ROLF\
3XUSRVH
Use this procedure to configure the Quality of Service for the network interface. Enable or
disable the
4R6,QWHUIDFH3ROLF\
for WLAN and LAN.
%HIRUH\RXEHJLQ
Make sure that you are connected to the
+RPH$UHD
from the 7130 RG 5Ve.A2000/7130
RG 5Ve.B2000 via your internet browser.
From the main navigation bar, follow this path to configure the
4R6,QWHUIDFH3ROLF\
for
WLAN and LAN
6WDWXV!4R6,QWHUIDFH3ROLF\
5HVXOW
The
4R6,QWHUIDFH3ROLF\
window opens.
Example of a
4R6,QWHUIDFH3ROLF\
window:
,VVXH 0D\
The
4R6,QWHUIDFH3ROLF\
screen will let you to setup different QoS policy rules for
wireless LAN and wired LAN network traffic.
Enable the
4R6,QWHUIDFH3ROLF\
(default value is Disable).
Configure the
4R6,QWHUIDFH3ROLF\
for WLAN and LAN network traffic.
Choose the
6SHFLILHG4XHXH
and assign a queue number for the incoming traffic (0...7).
For
7R 6
and
'6&3
(Differentiated Services Code Point) value, you can select
.HHS
2ULJLQDO7RV
to keep the original value or you can assign a new
7R 6
(0...7) value and a new
'6&3
(0...63) value for this type of traffic.
In the
6HW&R6
field configure
&R6
(Class of Service).
Therefor enable
6HW&R6
and enter the appropriate value in the
8VHU6SHFLI\
field (0...7).
To configure wired LAN
4R6,QWHUIDFH3ROLF\
follow Step 4 to Step 6, then go to Step 8.
Click
$SSO\&KDQJHV
at the bottom of the page to save your changes.
(
1'
2
)
6
7(36
,VVXH 0D\
4R6$/*
3XUSRVH
Use this procedure to enable or disable
4R6
for the SIP (Session Initiated Protocol) and
RTP (Real-time Transport Protocol). SIP is for the implementation of VOIP. RTP is the
protocol which provides end-to-end delivery services for data with real-time
characteristics, such as interactive audio and video.
%HIRUH\RXEHJLQ
Make sure that you are connected to the
+RPH$UHD
from the 7130 RG 5Ve.A2000/7130
RG 5Ve.B2000 via your internet browser.
From the main navigation bar, follow this path to configure the
6,3$/*4R6
method
6WDWXV!6,3$/*4R6
5HVXOW
The
6,3$/*4R6
window opens.
Example of a
6,3 $/*4R6
window:
,VVXH 0D\
The
6,3$/*4R6
screen will let you to enable or disable QoS for the Session Initiated
Protocol and Real-time Transport Protocol (RTP). The users can also setup different QoS
policy for SIP and RTP sessions.
Configure the
6,3$/*4R6
for SIP sessions and RTP sessions.
In the
4R60DSSLQJE\
field choose the
2ULJLQDO7RV7DJ
if you want to assign queue
according to the incoming ToS (Type of Service) value. Then choose the
6SHFLILHG4XHXH
and assign a queue number for the incoming traffic (0...7).
For
7R 6
and
'6&3
(DiffServ Code Point) value, you can select
.HHS2ULJLQDO7RV
to keep
the original value or you can assign a new
7R 6
(0...7) value and a new
'6&3
(0...63) value
for this type of traffic.
In the
6HW&R6
field configure
&R6
(Class of Service).
If you enable
6HW&R6
select the
7R 6
radio button or enter the appropriate value in the
8VHU6SHFLI\
field (0...7).
Click
$SSO\&KDQJHV
at the bottom of the page to save your changes.
(
1'
2
)
6
7(36
,VVXH 0D\
5HERRW*DWHZD\
3XUSRVH
Use this procedure to reboot the gateway.
%HIRUH\RXEHJLQ
Make sure that you are connected to the
+RPH$UHD
from the 7130 RG 5Ve.A2000/7130
RG 5Ve.B2000 via your internet browser.
From the main navigation bar, follow this path to configure the
5HERRW*DWHZD\
method
6WDWXV!5HERRW*DWHZD\
5HVXOW
The
5HERRW*DWHZD\
window opens.
Example of a
5HERRW*DWHZD\
window:
,VVXH 0D\
Click
5HERRW
to reboot your router.
5HVXOW
The PWR LED will goes off and stays on if the restart is successful. Then you
may log into the device again.
1RWH
Rebooting your router will not delete your configuration settings.
(
1'
2
)
6
7(36
,VVXH 0D\
5HVWRUH)DFWRU\'HIDXOWV
3XUSRVH
Use this procedure to the restore factory defaults.
Before you begin
Make sure that you are connected to the
+RPH$UHD
from the 7130 RG 5Ve.A2000/7130
RG 5Ve.B2000 via your internet browser.
From the main navigation bar, follow this path to the
5HVWRUH)DFWRU\'HIDXOWV
6WDWXV!5HVWRUH)DFWRU\'HIDXOWV
5HVXOW
The
5HVWRUH)DFWRU\'HIDXOWV
window opens.
5HVWRUH)DFWRU\'HIDXOWV
window:
,VVXH 0D\
Click
5HVWRUH'HIDXOWV
to reset all configuration settings to their default values.
5HVXOW
After restoring the router is accessible under the default IP address
192.168.2.1 and the default user name and password admin.
1RWH
A restore to the factory defaults will delete all your configuration settings.
Any settings you have saved will be lost when the default settings are restored.
(
1'
2
)
6
7(36
,VVXH 0D\
:HE)LUPZDUH8SORDG
3XUSRVH
Use this procedure to update your router's firmware in this screen
Before you begin
Make sure that you are connected to the
+RPH$UHD
from the 7130 RG 5Ve.A2000/7130
RG 5Ve.B2000 via your internet browser.
From the main navigation bar, follow this path to the
:HE)LUPZDUH8SORDG
6WDWXV!:HE)LUPZDUH8SORDG
5HVXOW
The
:HE)LUPZDUH8SORDG
window opens.
:HE)LUPZDUH8SORDG
window:
,PSRUWDQW
When you upgrade your router with new firmware, you lose all your
configuration settings, so make sure you write down the router settings before you
upgrade the firmware.
,VVXH 0D\
Download the firmware upgrade file from the website.
The new firmware versions are posted at www.... and can be downloaded for free.
Click
%URZVH
to locate your firmware upgrade and press
8SORDG)LUPZDUH
to upload
the new firmware, wait until the upgrade is finished.
,PSRUWDQW
Do not power off the router or press the reset button while the firmware
is being upgraded.
(
1'
2
)
6
7(36
,VVXH 0D\
6\VWHP6HWWLQJV
3XUSRVH
Use this procedure to change your web administrator's login name and password.
Before you begin
Make sure that you are connected to the
+RPH$UHD
from the 7130 RG 5Ve.A2000/7130
RG 5Ve.B2000 via your internet browser.
From the main navigation bar, follow this path to the
6\VWHP6HWWLQJV
6WDWXV!6\VWHP6HWWLQJV
5HVXOW
The
6\VWHP6HWWLQJV
window opens.
6\VWHP6HWWLQJV
window:
,VVXH 0D\
In the
*8,6HWWLQJV
section
you can change the
$GPLQ3DVVZRUG
.
,PSRUWDQW
It is strongly recommended that you change the factory default password
of the router, which is
admin
.
In the
7HOQHW6HWWLQJV
section
you can change the
7HOHQHW5RRW3DVVZRUG
.
,PSRUWDQW
It is strongly recommended that you change the factory default telnet
login name and password, which is
admin
and
admin
.
Specify the
7LPH=RQH
for your location by selecting the appropriate time zone from the
pull-down menu.
Enter the IP address or the URL of your time Server,
1736HUYHU
1..3.
Enable the option
'D\OLJKW6DYLQJ
if you use daylight savings time.
Daylight saving is a period from late spring to early fall when many countries set their
clocks ahead of normal local time by one hour to give more daytime light in the evening.
Click
$SSO\&KDQJHV
at the bottom of the page to save your changes.
(
1'
2
)
6
7(36
,VVXH 0D\
0&/6HWWLQJV
3XUSRVH
Use this procedure to turn on or off certain type of service from the router. Thus, it gives
you more control over the router's security.
%HIRUH\RXEHJLQ
Make sure that you are connected to the
+RPH$UHD
from the 7130 RG 5Ve.A2000/7130
RG 5Ve.B2000 via your internet browser.
From the main navigation bar, follow this path to configure the
0&/6HWWLQJV
method.
6WDWXV!0&/6HWWLQJV
5HVXOW
The
0&/6HWWLQJV
window opens.
0&/6HWWLQJV
window:
,VVXH 0D\
From the pull-down menu for each service type, select the appropriate setting.
Following options are displayed:
•'LVDEOH
: Turn off this type of service on the CPE.
•/$1
: Only allow hosts from the LAN to access this type of service.
•:$1
: Only allow hosts from the WAN to access this type of service.
•%RWK
: Allow both LAN and WAN hosts to access this type of service
Click
$SSO\&KDQJHV
at the bottom of the page to save your changes.
(
1'
2
)
6
7(36
,VVXH 0D\
$
,VVXH 0D\
$ 7URXEOHVKRRWLQJ
2YHUYLHZ
3XUSRVH
This Appendix provides guidance for troubleshooting. The CPE operation can easily be
monitored via the LED indicators to identify problems. The table below describes
common problems you may encounter and possible solutions.
'LDJQRVLQJ
6\PSWRP 3RVVLEOHFDXVH 6ROXWLRQ
PWR LED
does not light
up after power
on.
Power outlet, power
cord, or power adapter
may be defective.
•
Check the power outlet by plugging in another
device that is functioning properly.
•
Call the Customer Support Hotline or return
the device to the vendor.
DSL LED is
flashing slowly
after making a
connection.
The cabling, or the
VDSL port on the CPE
may be defect.
•
Verify that the CPE is powered on.
•
Make sure the cable is correctly plugged into
the VDSL line wall outlet and the CPE
connector labeled "VDSL".
LAN LED does
not light up
after making a
connection.
Network interface
(e.g., a network
adapter card in the
attached computer),
network cable, or the
LAN port on the CPE
may be defect or not
connected.
•
Verify that the CPE and the computer device
are powered on.
•
Make sure that the cable is plugged into both,
the CPE and the device.
•
Verify that the proper cable type is used and its
length does not exceed specified limits.
•
Check the network adapter in the device and
the cable connections for possible defects.
Replace the defective adapter or cable if
necessary.
WLAN LED is
flashing after
wireless
traffic.
WLAN link off-grade
or the WLAN module
may be defect.
•
Check if the WLAN module is in operation
and works properly.
•
Make sure that the antenna is correctly
plugged into the WLAN socket on the CPE.
2YHUYLHZ7URXEOHVKRRWLQJ
$
,VVXH 0D\
DIAG LED is
flashing
At the moment a CPE
firmware upgrade is
executed.
•
Wait until the firmware upgrade is passed and
the DIAG LED is “On” (wireless enabled).
INTERNET
LED is “Off”
You cannot connect to
the Internet. The PC
may not be configured
as required or the
network adapter driver
may not fit.
•
Check that your PC is properly configured for
TCP/IP. (See Configuring the TCP/IP
protocols on the PC).
•
Make sure the correct network adapter driver
is installed for your operating system. If
necessary, try reinstalling the driver.
•
Check that the speed of the network adapter or
duplex mode has not been configured
manually. We recommend to set the adapter to
auto-negotiation when installing the network
driver.
•
Did you establish your network connection
before starting your browser?
•
Verify your username and password entry in
the network connection tab.
6\PSWRP 3RVVLEOHFDXVH 6ROXWLRQ
%
,VVXH 0D\
% &RQILJXULQJWKH7&3,3
SURWRFROVRQWKH3&
2YHUYLHZ
3XUSRVH
To connect the CPE to a PC through its Ethernet port, the PC must have an Ethernet
network adapter card installed, and be configured for the TCP/IP protocol. Many service
providers configure TCP/IP for client PC automatically using a networking technology
known as Dynamic Host Configuration Protocol (DHCP). Other service providers may
specify an IP configuration (known as a static IP address), which must be entered
manually.
Carry out the following steps to check that the computer’s Ethernet port is correctly
configured for DHCP.
:LQGRZV17
1. Click “Start/Settings/Control Panel.”
2. Click the “Network” icon.
3. For Windows NT, click the “Protocols” tab.
4. Select “TCP/IP” from the list of network protocols; this may include details of
adapters installed in your computer.
5. Click “Properties.”
6. Check the option “Obtain an IP Address.”
7. Click “OK” to close the TCP/IP Properties window.
8. Restart your computer.
:LQGRZV
1. Click “Start/Settings/Network and Dial-up Connections.”
2. Right-click “Local Area Connections.”
3. Select “TCP/IP” from the list of network protocols.
4. Click on “Properties.”
5. Select the option “Obtain an IP Address.”
6. Click “OK” to close the TCP/IP Properties window.
7. Restart your computer.
2YHUYLHZ&RQILJXULQJWKH7&3,3SURWRFROVRQWKH3&
%
,VVXH 0D\
:LQGRZV;3
1. Click “Start/Control Panel/Network and Internet Connections.”
(You may need to choose Settings before Control Panel, depending on your Start
Menu configuration.)
2. Right-click the “Local Area Connection” icon for the adapter you want to configure,
and choose “Properties.”
3. Highlight “Internet Protocol (TCP/IP).”
4. Click “Properties.”
5. Select the option “Obtain an IP address automatically” and “Obtain DNS server
address automatically.”
6. Click “OK” to close the TCP/IP Properties window.
7. Restart your computer.
:LQGRZV9LVWD
1. Click “Start/Control Panel/Network and Internet.”
(You may need to choose Settings before Control Panel, depending on your Start
Menu configuration.)
2. Click “Network and Sharing Center” then click “Manage network connections.”
3. Right-click the “Local Area Connection” and choose Properties.
4. Select “Internet Protocol Version 4(TCP/IPv4).”
5. Click “Properties.”
6. Select “Obtain an IP address automatically” and “Obtain DNS server address
automatically.”
7. Click “OK” to close the TCP/IP Properties window.
8. Restart your computer.
0DF26
1. Pull down the Apple Menu. Click “Control Panels” and select “TCP/IP.”
2. In the TCP/IP dialog box, verify that “Ethernet” is selected in the “Connect Via:” field.
3. If “Using DHCP Server” is already selected in the “Configure” field, your computer is
already configured for DHCP. Otherwise, select “Using DHCP Server” in the
“Configure” field and close the window.
4. Another box will appear asking whether you want to save your TCP/IP settings. Click
“Save.”
5. Your service provider will now be able to automatically assign an IP address to your
computer.
&
,VVXH 0D\
& 3URGXFWFRQIRUPDQFH
2YHUYLHZ
3XUSRVH
This section provides the EU Declaration of Conformity (CE) statements, additional
international conformity statements.
Note that in regions such as the European Union, the statements that are required are
determined primarily by national or multi-national regulations. However, in some regions,
contact terms determine which statements are required.
The presence of the statement indicates that the product does comply with that statement
wherever it is required to do so.
(XURSH²(8'HFODUDWLRQRI&RQIRUPLW\
This device complies with the essential requirements of the R&TTE Directive 1999/5/EC.
The following test methods have been applied in order to prove presumption of conformity
with the essential requirements of the R&TTE Directive 1999/5/EC:
– EN60950-1:2001 A11:2004
Safety of Information Technology Equipment
– EN50385 : (2002-08)
– Product standard to demonstrate the compliance of radio base stations and fixed
terminal stations for wireless telecommunication systems with the basic
restrictions or the reference levels related to human exposure to radio frequency
electromagnetic fields (110MHz - 40 GHz) - General public
– EN 300 328 V1.7.1: (2006-10)
– Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband
Transmission systems; Data transmission equipment operating in the 2,4 GHz ISM
band and using spread spectrum modulation techniques; Harmonized EN covering
essential requirements under article 3.2 of the R&TTE Directive
(XURSH²(8'HFODUDWLRQRI&RQIRUPLW\3URGXFWFRQIRUPDQFH
&
,VVXH 0D\
– EN 301 489-1 V1.6.1: (2005-09)
Electromagnetic compatibility and Radio Spectrum Matters (ERM);
ElectroMagnetic Compatibility (EMC) standard for radio equipment and services;
Part 1: Common technical requirements
– EN 301 489-17 V1.2.1 (2002-08)
– Electromagnetic compatibility and Radio spectrum Matters (ERM);
ElectroMagnetic Compatibility (EMC) standard for radio equipment and services;
Part 17: Specific conditions for 2,4 GHz wideband transmission systems and
5 GHz high performance RLAN equipment
This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in
all EU member states and EFTA countries, except in France and Italy where restrictive use
applies.
In Italy the end-user should apply for a license at the national spectrum authorities in order
to obtain authorization to use the device for setting up outdoor radio links and/or for
supplying public access to telecommunications and/or network services.
This device may not be used for setting up outdoor radio links in France and in some areas
the RF output power may be limited to 10 mW EIRP in the frequency range of 2454 –
2483.5 MHz. For detailed information the end-user should contact the national spectrum
authority in France.
3URGXFWFRQIRUPDQFH
,VVXH 0D\
&
)HGHUDO&RPPXQLFDWLRQ&RPPLVVLRQ,QWHUIHUHQFH
6WDWHPHQW
3URGXFWFRQIRUPDQFH
&
,VVXH 0D\
)HGHUDO&RPPXQLFDWLRQ&RPPLVVLRQ,QWHUIHUHQFH6WDWHPHQW
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
,PSRUWDQW
)&&5DGLDWLRQ([SRVXUH6WDWHPHQW
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
The availability of some specific channels and/or operational frequency bands are country
dependent and are firmware programmed at the factory to match the intended destination.
The firmware setting is not accessible by the end user.
