GemTek Technology WIXS-167 WiMAX Outdoor CPE User Manual Manual
Gemtek Technology Co., Ltd. WiMAX Outdoor CPE Manual
Manual
Manual / Installation Guide
Gemtek Outdoor WiMAX Model
Document Version: V00
August 09
1
Packing mode / Inside the Box
2

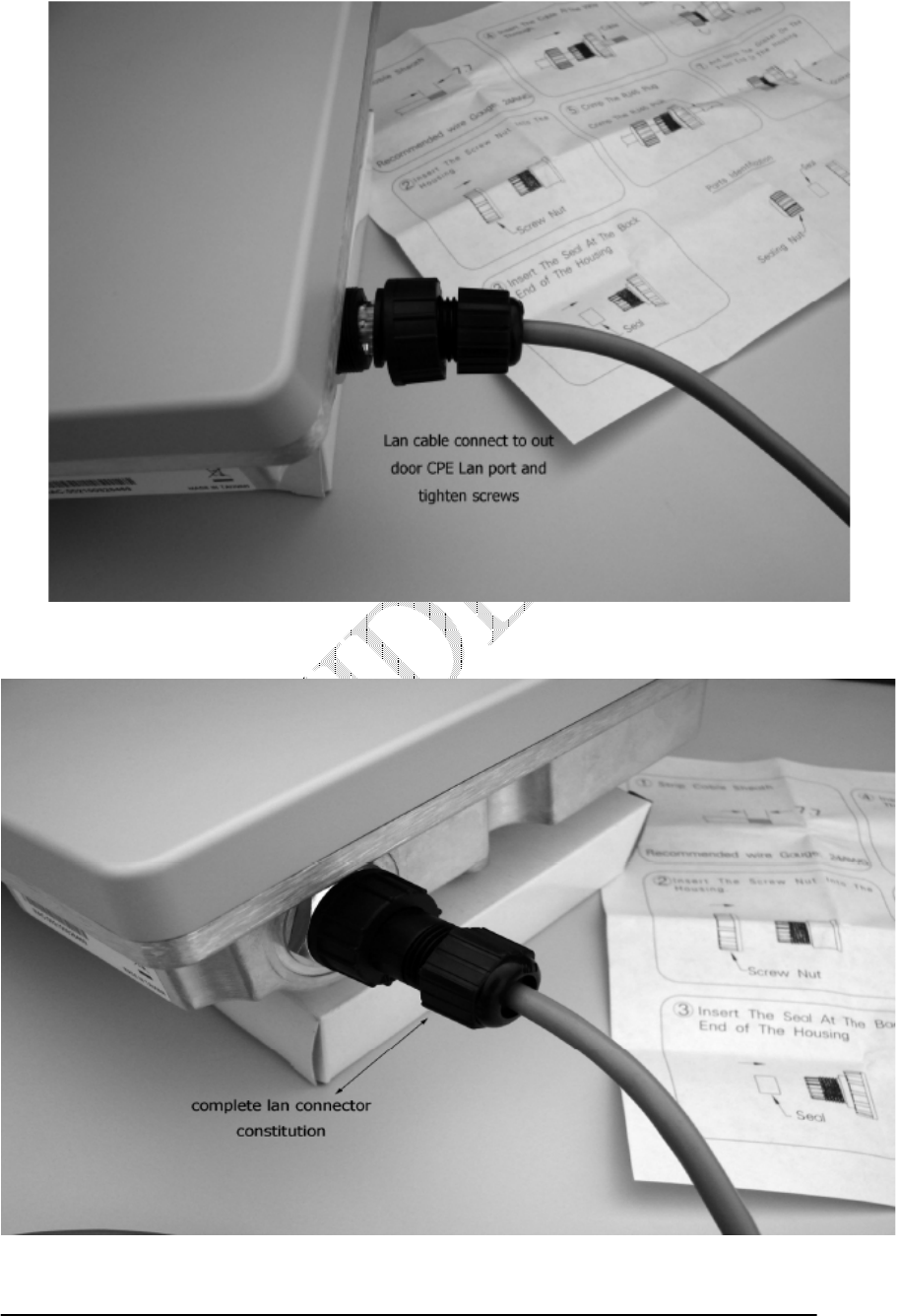

Outdoor Lan Connector Jacket Constitution Guide
Outdoor Lan Connector Jacket Constitution (I)
3
Outdoor Lan Connector Jacket Constitution (II)
Outdoor Lan Connector Jacket Constitution (III)
4

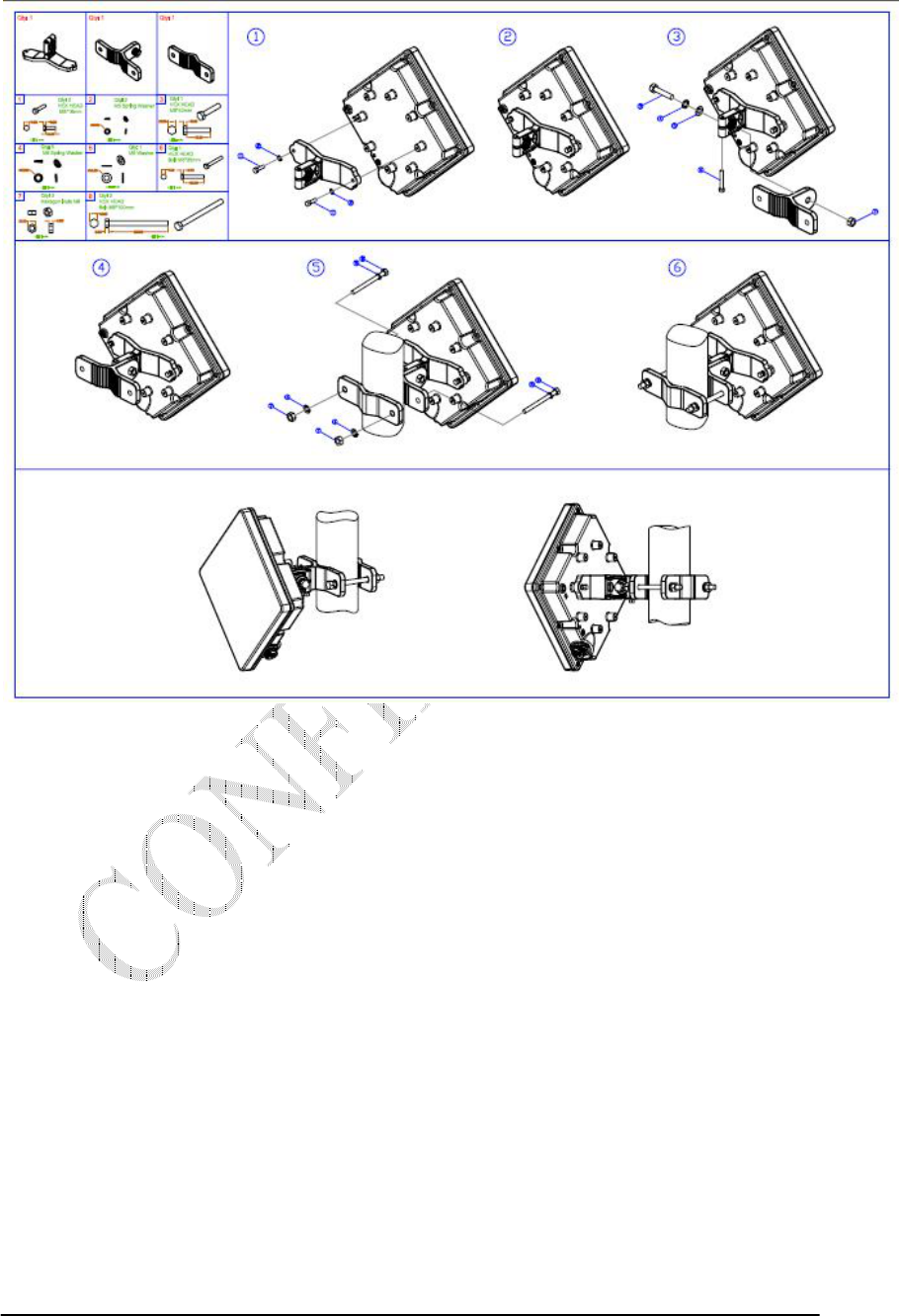

Outdoor CPE installation
5
Important Safety Notices
1.1 Safety Recommendations
It is strongly recommended that end-users of the equipment observe all warnings and
cautions during operation, installation, and maintenance of the system.
Failure to comply with these warnings and cautions, or with specific warnings and
cautions elsewhere in the manuals, or displayed directly on system equipment, violates
the safety standards incorporated into the design, manufacture, and intended use of the
system equipment.
1.2 Important Warning Symbols
The following symbols may be encountered during installation or troubleshooting. These
warning symbols mean danger. Bodily injury may result if you are not aware of the safety
hazards involved in working with electrical equipment and radio transmitters. Familiarize
yourself with standard safety practices before continuing.
1.3 Safety Advisories
1. Read this manual and follow all operating and safety instructions.
2. Installation of the system must be contracted to a professional installer.
3. Read this user manual and follow all operating and safety instructions.
4. PoE (Power over Ethernet) power adaptor caution:
PoE Power Adapter Caution
Warning to Service Personnel: 48 VDC
Standard Ethernet equipment may be damaged if connected directly to
the 'Data + Power Output' port of a PoE power adaptor.
5. The power requirements are indicated on the product-marking label. Do not exceed the
described limits.
6. Disconnect the power before cleaning.
7. Disconnect power when unit is stored for long periods.
8. The outdoor unit must not be located near power lines or other electrical power circuits.
9. The system must be properly grounded to protect against power surges and accumulated
static electricity. It is the user’s responsibility to install this device in accordance with the
6
local electrical codes: correct installation procedures for grounding of the outdoor unit,
mast, lead-in wire and discharge unit, location of discharge unit, size of grounding
conductors and connection requirements for grounding electrodes.
10. Keep all product information for future reference.
1.4 Electrical Safety
1. To minimize shock hazard, the equipment chassis and enclosure must be connected to
an electrical ground. All power outlets and plugs must meet International Electrotechnical
Commission (IEC) safety standards.
2. Do not operate the system equipment in the presence of flammable gases or fumes.
Operation of any electrical equipment in such an environment constitutes a definite safety
hazard.
3. Only qualified maintenance personnel may remove equipment covers to replaceinternal
subassemblies, components, or perform internal adjustments.
1.5 WEEE Product Return Process
In EU countries, dispose of equipment in accordance with the WEEE (Waste from Electrical and
Electronic Equipment) directive, 2002/96/EC, Gemtek is marked with the logo shown above. The WEEE
directive seeks to increase recycling and re-use of electrical and electronic equipment. This symbol
indicates that this product should not be disposed of as part of the local municipal waste program.
Contact your local sales representative for additional information. In non-EU countries, dispose of
equipment in accordance with national and regional regulations. In non-EU countries, dispose of
equipment in accordance with national and regional regulations.
7
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 40 cm
between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
The availability of some specific channels and/or operational frequency bands are country
dependent and are firmware programmed at the factory to match the intended destination.
The firmware setting is not accessible by the end user.
Due to the essential high output power natural of WiMAX device, use of this device with other
transmitter at the same time may exceed the FCC RF exposure limit and such usage must be
prohibited (unless such co-transmission has been approved by FCC in the future).
