User manual
BreezeMAX® USB 250
User Manual
Software Version: 1.0
June 2010
P/N 215679
Legal Rights
BreezeMAX USB 250 iii User Manual
Legal Rights
© Copyright 2010 Alvarion Ltd. All rights reserved.
The material contained herein is proprietary, privileged, and confidential and
owned by Alvarion or its third party licensors. No disclosure thereof shall be made
to third parties without the express written permission of Alvarion Ltd.
Alvarion Ltd. reserves the right to alter the equipment specifications and
descriptions in this publication without prior notice. No part of this publication
shall be deemed to be part of any contract or warranty unless specifically
incorporated by reference into such contract or warranty.
Trade Names
Alvarion®, BreezeCOM®, WALKair®, WALKnet®, BreezeNET®, BreezeACCESS®,
BreezeLINK®, BreezeMAX®, BreezeLITE®, BreezePHONE®, 4MOTION®,
BreezeCONFIG™, and/or other products and/or services referenced here in are
either registered trademarks, trademarks or service marks of Alvarion Ltd.
All other names are or may be the trademarks of their respective owners.
“WiMAX Forum” is a registered trademark of the WiMAX Forum. “WiMAX,” the
WiMAX Forum logo, “WiMAX Forum Certified”, and the WiMAX Forum Certified
logo are trademarks of the WiMAX Forum.
Statement of Conditions
The information contained in this manual is subject to change without notice.
Alvarion Ltd. shall not be liable for errors contained herein or for incidental or
consequential damages in connection with the furnishing, performance, or use of
this manual or equipment supplied with it.
Warranties and Disclaimers
All Alvarion Ltd. (“Alvarion”) products purchased from Alvarion or through any of
Alvarion's authorized resellers are subject to the following warranty and product
liability terms and conditions.
Exclusive Warranty
(a) Alvarion warrants that the Product hardware it supplies and the tangible
media on which any software is installed, under normal use and conditions, will
be free from significant defects in materials and workmanship for a period of
fourteen (14) months from the date of shipment of a given Product to Purchaser
(the “Warranty Period”). Alvarion will, at its sole option and as Purchaser's sole
remedy, repair or replace any defective Product in accordance with Alvarion'
standard R&R procedure.
Legal Rights
BreezeMAX USB 250 iv User Manual
(b) With respect to the Firmware, Alvarion warrants the correct functionality
according to the attached documentation, for a period of fourteen (14) month from
invoice date (the “Warranty Period”)". During the Warranty Period, Alvarion may
release to its Customers firmware updates, which include additional performance
improvements and/or bug fixes, upon availability (the “Warranty”). Bug fixes,
temporary patches and/or workarounds may be supplied as Firmware updates.
Additional hardware, if required, to install or use Firmware updates must be
purchased by the Customer. Alvarion will be obligated to support solely the two (2)
most recent Software major releases.
ALVARION SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING
AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT
DOES NOT EXIST OR WAS CAUSED BY PURCHASER'S OR ANY THIRD
PERSON'S MISUSE, NEGLIGENCE, IMPROPER INSTALLATION OR IMPROPER
TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR, OR ANY OTHER CAUSE
BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE,
LIGHTNING OR OTHER HAZARD.
Disclaimer
(a) The Software is sold on an “AS IS” basis. Alvarion, its affiliates or its licensors
MAKE NO WARRANTIES, WHATSOEVER, WHETHER EXPRESS OR IMPLIED,
WITH RESPECT TO THE SOFTWARE AND THE ACCOMPANYING
DOCUMENTATION. ALVARION SPECIFICALLY DISCLAIMS ALL IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE AND NON-INFRINGEMENT WITH RESPECT TO THE SOFTWARE.
UNITS OF PRODUCT (INCLUDING ALL THE SOFTWARE) DELIVERED TO
PURCHASER HEREUNDER ARE NOT FAULT-TOLERANT AND ARE NOT
DESIGNED, MANUFACTURED OR INTENDED FOR USE OR RESALE IN
APPLICATIONS WHERE THE FAILURE, MALFUNCTION OR INACCURACY OF
PRODUCTS CARRIES A RISK OF DEATH OR BODILY INJURY OR SEVERE
PHYSICAL OR ENVIRONMENTAL DAMAGE (“HIGH RISK ACTIVITIES”). HIGH
RISK ACTIVITIES MAY INCLUDE, BUT ARE NOT LIMITED TO, USE AS PART OF
ON-LINE CONTROL SYSTEMS IN HAZARDOUS ENVIRONMENTS REQUIRING
FAIL-SAFE PERFORMANCE, SUCH AS IN THE OPERATION OF NUCLEAR
FACILITIES, AIRCRAFT NAVIGATION OR COMMUNICATION SYSTEMS, AIR
TRAFFIC CONTROL, LIFE SUPPORT MACHINES, WEAPONS SYSTEMS OR
OTHER APPLICATIONS REPRESENTING A SIMILAR DEGREE OF POTENTIAL
HAZARD. ALVARION SPECIFICALLY DISCLAIMS ANY EXPRESS OR IMPLIED
WARRANTY OF FITNESS FOR HIGH RISK ACTIVITIES.
(b) PURCHASER'S SOLE REMEDY FOR BREACH OF THE EXPRESS
WARRANTIES ABOVE SHALL BE REPLACEMENT OR REFUND OF THE
PURCHASE PRICE AS SPECIFIED ABOVE, AT ALVARION'S OPTION. TO THE
Legal Rights
BreezeMAX USB 250 v User Manual
FULLEST EXTENT ALLOWED BY LAW, THE WARRANTIES AND REMEDIES SET
FORTH IN THIS AGREEMENT ARE EXCLUSIVE AND IN LIEU OF ALL OTHER
WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, EITHER IN FACT OR BY
OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING BUT NOT
LIMITED TO WARRANTIES, TERMS OR CONDITIONS OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE, SATISFACTORY QUALITY,
CORRESPONDENCE WITH DESCRIPTION, NON-INFRINGEMENT, AND
ACCURACY OF INFORMATION GENERATED. ALL OF WHICH ARE EXPRESSLY
DISCLAIMED. ALVARION' WARRANTIES HEREIN RUN ONLY TO PURCHASER,
AND ARE NOT EXTENDED TO ANY THIRD PARTIES. ALVARION NEITHER
ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY
OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION,
MAINTENANCE OR USE OF ITS PRODUCTS.
Limitation of Liability
(a) ALVARION SHALL NOT BE LIABLE TO THE PURCHASER OR TO ANY THIRD
PARTY, FOR ANY LOSS OF PROFITS, LOSS OF USE, INTERRUPTION OF
BUSINESS OR FOR ANY INDIRECT, SPECIAL, INCIDENTAL, PUNITIVE OR
CONSEQUENTIAL DAMAGES OF ANY KIND, WHETHER ARISING UNDER
BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), STRICT LIABILITY
OR OTHERWISE AND WHETHER BASED ON THIS AGREEMENT OR
OTHERWISE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
(b) TO THE EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL
THE LIABILITY FOR DAMAGES HEREUNDER OF ALVARION OR ITS EMPLOYEES
OR AGENTS EXCEED THE PURCHASE PRICE PAID FOR THE PRODUCT BY
PURCHASER, NOR SHALL THE AGGREGATE LIABILITY FOR DAMAGES TO ALL
PARTIES REGARDING ANY PRODUCT EXCEED THE PURCHASE PRICE PAID
FOR THAT PRODUCT BY THAT PARTY (EXCEPT IN THE CASE OF A BREACH OF
A PARTY'S CONFIDENTIALITY OBLIGATIONS).
Safety Information
BreezeMAX USB 250 vi User Manual
Safety Information
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this
equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
IMPORTANT NOTE: FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. End users must follow the specific operating
instructions for satisfying RF exposure compliance. To maintain compliance with
FCC RF exposure compliance requirements, please follow operation instruction as
documented in this manual.
This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
SAR compliance has been established in typical laptop computer(s) with USB slot,
and product could be used in typical laptop computer with USB slot. Other
Safety Information
BreezeMAX USB 250 vii User Manual
application like handheld PC or similar device has not been verified and may not
compliance with related RF exposure rule and such use shall be prohibited.
The availability of some specific channels and/or operational frequency bands are
country dependent and are firmware programmed at the factory to match the
intended destination. The firmware setting is not accessible by the end user.
Industry Canada statement
This device complies with RSS-210 of the Industry Canada Rules. Operation is
subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
IMPORTANT NOTE: Radiation Exposure Statement
This equipment complies with Canada radiation exposure limits set forth for an
uncontrolled environment. End users must follow the specific operating
instructions for satisfying RF exposure compliance. To maintain compliance with
Canada RF exposure compliance requirements, please follow operation
instruction as documented in this manual.
This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
Disposal of Electronic and Electrical Waste
Disposal of Electronic and Electrical Waste
Pursuant to the WEEE EU Directive electronic and electrical waste must not be disposed of with
unsorted waste. Please contact your local recycling authority for disposal of this product.
Important Notice
BreezeMAX USB 250 viii User Manual
Important Notice
This user manual is delivered subject to the following conditions and restrictions:
This manual contains proprietary information belonging to Alvarion Ltd. Such
information is supplied solely for the purpose of assisting properly authorized
users of the respective Alvarion products.
No part of its contents may be used for any other purpose, disclosed to any
person or firm or reproduced by any means, electronic and mechanical,
without the express prior written permission of Alvarion Ltd.
The text and graphics are for the purpose of illustration and reference only.
The specifications on which they are based are subject to change without
notice.
The software described in this document is furnished under a license. The
software may be used or copied only in accordance with the terms of that
license.
Information in this document is subject to change without notice. Corporate
and individual names and data used in examples herein are fictitious unless
otherwise noted.
Alvarion Ltd. reserves the right to alter the equipment specifications and
descriptions in this publication without prior notice. No part of this
publication shall be deemed to be part of any contract or warranty unless
specifically incorporated by reference into such contract or warranty.
The information contained herein is merely descriptive in nature, and does not
constitute an offer for the sale of the product described herein.
Any changes or modifications of equipment, including opening of the
equipment not expressly approved by Alvarion Ltd. will void equipment
warranty and any repair thereafter shall be charged for. It could also void the
user's authority to operate the equipment.
Contents
BreezeMAX USB 250 ix User Manual
Contents
1. About BreezeMAX USB250..................................................................1
1.1 BreezeMAX USB250 Hardware....................................................................................1
1.2 Specifications...............................................................................................................1
1.2.1 Hardware Specifications .....................................................................................1
1.2.2 Wireless Specifications .......................................................................................2
1.2.3 Dimensions .........................................................................................................2
1.2.4 Environmental Specifications..............................................................................3
1.2.5 Standards............................................................................................................3
1.3 LED Indication ..............................................................................................................4
2. Installation...........................................................................................4
2.1 Prerequisites.................................................................................................................4
2.2 Installation Procedure..................................................................................................4
3. Uninstalling the Software ...................................................................7
3.1 Prerequisites.................................................................................................................8
3.2 Uninstallation Procedure.............................................................................................8
4. Using Your BreezeMAX USB250 .........................................................8
4.1 Prerequisites.................................................................................................................8
4.2 Settings the WiMAX Connection Manager (WCM) ....................................................9
4.3 Connecting to the WiMAX Network ..........................................................................11
4.4 Operation Verification................................................................................................12
4.5 Viewing Status Details...............................................................................................13
4.6 Software Upgrade.......................................................................................................17
5. Maintenance and Troubleshooting ...................................................18
6. Glossary.............................................................................................20
About BreezeMAX USB250 BreezeMAX USB250 Hardware
BreezeMAX USB 250 1 User Manual
1. About BreezeMAX USB250
The BreezeMAX USB 250 device supports IEEE 802.16e-2005 state of the art
Scalable OFDMA based Technology. BreezeMAX USB250 operates on 2.3, 2.5 and
3.5 GHz frequency licensed band. It provides users a seamless broadband
wireless access, video streaming at home, office or on the move. To protect
information transmitting through wireless network, standard security Sublayer
PKMv2 EAP based user authorization/authentication and AES for data encryption
are supported.
An easy-to-use Windows-based utility provides the graphic user interface for
system/link status, configuration and firmware updates.
1.1 BreezeMAX USB250 Hardware
The BreezeMAX USB250 hardware consists of a USB modem, a USB connector
adapter, and Quick Installation Guide.
The following figure shows the BreezeMAX USB250.
1.2 Specifications
1.2.1 Hardware Specifications

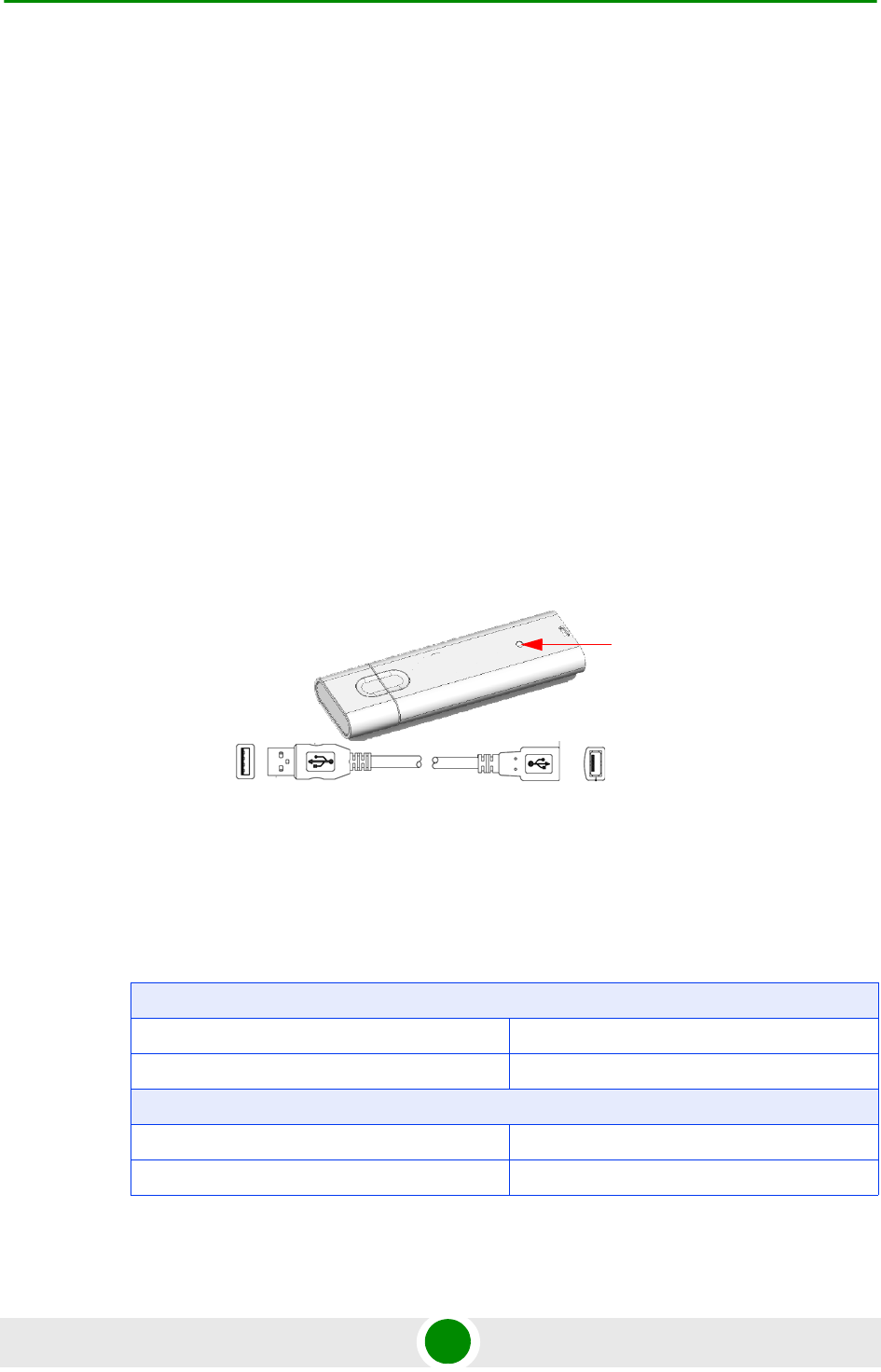

Figure 1: BreezeMAX USB250 Unit and Adapter
System
CPU BCSM250, Wave 2
Flash ROM 16MB
Network Interface
USB 2.0
WiMAX Port Two Printed Antennas
LED Indicator
About BreezeMAX USB250 Specifications
BreezeMAX USB 250 2 User Manual
1.2.2 Wireless Specifications
1.2.3 Dimensions
Standards
5002-e61.208 EEEIsseleriW
I/O
V0.5+ CDtrop tupni rewoP CD
sutatS kniL XAMiWrotacidni DEL
Model 2.3 GHz 2.5 GHz 3.5 GHz
Operating
Frequencies
2.302 ~ 2.397 GHz 2.483 ~ 2.687 GHz 3.302~3.597 GHz
zHM01/7/5zHM 01/5zHM 01/5htdiwdnaB lennahC
TX Output Power @25°C: +23 dBm
(typical), 16QAM 3/4
with EVM -24dB / FCC
spectrum mask
@0/40°C: +23 dBm
(typical), 16QAM 3/4
with EVM -24dB / FCC
spectrum mask
@25°C: +23 dBm
(typical), 16QAM 3/4 with
EVM -24dB / FCC
spectrum mask
@0/40°C: +20 dBm
(typical), 16QAM 3/4 with
EVM -24dB / FCC
spectrum mask
@25°C: +23 dBM (typical)’
16QAM 3/4 with EVM -24dB /
ETSI spectrum mask
@0/40°C: +23 dBm (typical)’
16QAM 3/4 with EVM -24dB /
ETSI spectrum mask
Sensitivity (MRC) Better than mRCT 6dB Better than mRCT 6dB Better than mRCT 6dB
Antenna Support
Frequency
2302~2397 MHz 2483~2687 MHz 3302~3597 MHz
Radio Type Dual Receive, Direct Conversion Radio (CMOS), MIMO Rate 1 and Rate 2, Beam Forming
Modulation S-OFDMA, MIMO
Modulation Technique QPSK, 16QAM, 64QAM
Network Architectures WiMAX Forum NRM (Network Reference Model)
Operating Channels In Channel Step Size 250KHz
Transmit Power
Dynamic Range
45 dB
Power Consumption Below 2.5W
Length x Width x Height (mm) 93.7mm x 28mm x 10.7mm
g02thgieW
About BreezeMAX USB250 Specifications
BreezeMAX USB 250 3 User Manual
1.2.4 Environmental Specifications
1.2.5 Standards
Operating Temperature 0° to +40°C
Storage Temperature -20° to 60°C
Operating Humidity max. 90%
Storage Humidity max. 90%
Model Standard Details
2.3 GHz CE Health: EN 62311 (SAR)
RF: EN 302 326
EMC: EN 301 489-1 V1.4.1
Safety: EN 60950-1, 2nd edition
Notify Body review (0560)
2.5 GHz FCC Health: FCC OET 65C (SAR)
RF: FCC Part 27M
EMI: FCC Part 15B
UL Safety: UL 60950-1, 2nd edition
CE Health: EN 62311 (SAR)
Safety: EN 60950-1, 2nd edition
RF: ETSI 302544
Reliability: ETSI 300 019-2-3
EMC: ETSI 301 489-1 V1.4.1
Notify Body review (0560)
3.5 GHz CE Health: EN 62311 (SAR)
RF: EN 302 623
EMC: EN 301 489-1 V1.4.1
Safety: EN 60950-1, 2nd edition
Notify Body Review (0560)
Installation LED Indication
BreezeMAX USB 250 4 User Manual
1.3 LED Indication
2. Installation
The following section will guide you through the hardware and software
installation.
The software installs drivers on your laptop, which allow you to use the
BreezeMAX USB250 just like a regular modem.
2.1 Prerequisites
Before installation, make sure you have a computer with the following:
A minimum of 64MB available hard disk space
An available USB 2.0 slot
Windows XP, Windows 7 or Windows Vista operating system
2.2 Installation Procedure
1Remove the plastic cap and slide the BreezeMAX USB250 into the USB port.
The LED indicator turns on if the device is properly inserted.
Color Status Description
Red On Power on
No Network Entry
Firmware download complete
Driver initialized
Yellow/green Blinking WiMAX connected
IMPORTANT
Windows Vista and Windows 7 users must install under Administrator mode for installation to be
complete.
To install BreezeMAX USB:
Installation Installation Procedure
BreezeMAX USB 250 5 User Manual
2A new removable storage “WiMAXCM” is displayed in the Explorer (see
Figure 2). If auto-run is enabled in your PC, the installer is executed
automatically. Otherwise, execute the installer manually.
3The WiMAX Connection Manager Setup Wizard is displayed; Click Next to
continue.
4Select the installation path: Click Browse to select a different path from the
default or click Install to start the installation in the current path.
NOTE
Please ignore the “Found new hardware” message.

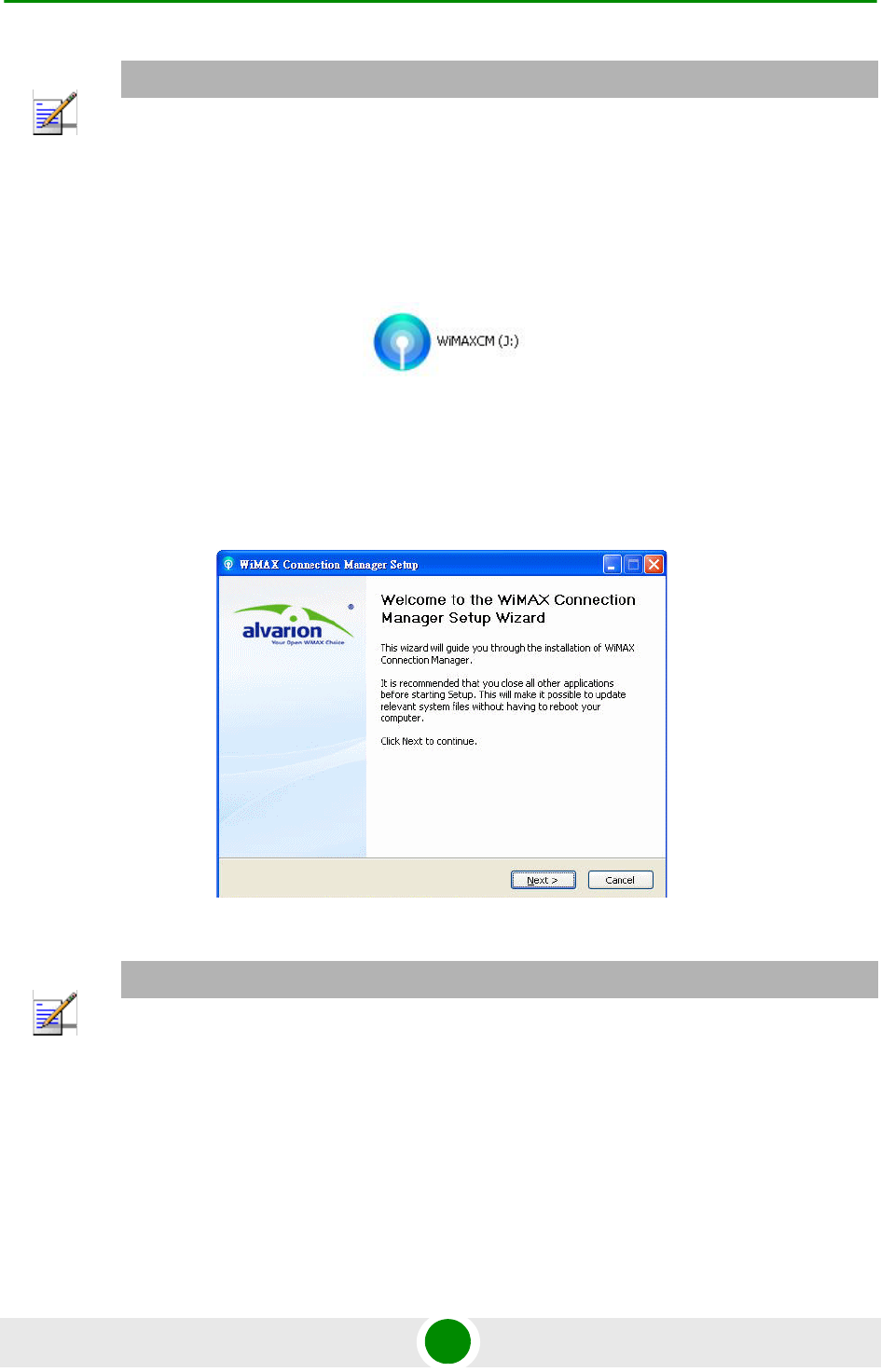

Figure 2: Removable Storage “WiMAXCM”
Figure 3: WiMAX Connection Manager Setup Wizard Window
NOTE
To review or make changes at this time, click Back. To cancel the installation process, click
Cancel.
Installation Installation Procedure
BreezeMAX USB 250 6 User Manual
5The installation process starts, displaying the status of installed components.
The utility and drivers are automatically installed and may take several
minutes. Wait for the installation completion.
6When the installation is complete, click Next.
Figure 4: Choose Installation Location Window
IMPORTANT
Windows Vista and Windows 7 users, a security screen may prompt you to identify the WCM
program. To continue installation, click Allow
Figure 5: Installation Process
Uninstalling the Software Installation Procedure
BreezeMAX USB 250 7 User Manual
7The installation is complete. Click Finish to complete the installation and
close the wizard.
After installing the WCM, an icon is displayed in your System Tray and the
Connection Manager main window opens automatically.
8If necessary, proceed either with “Settings the WiMAX Connection Manager
(WCM)” on page 9 or “Viewing Status Details” on page 13.
3. Uninstalling the Software
The following section will guide you through the BreezeMAX USB250 software
uninstallation procedure.

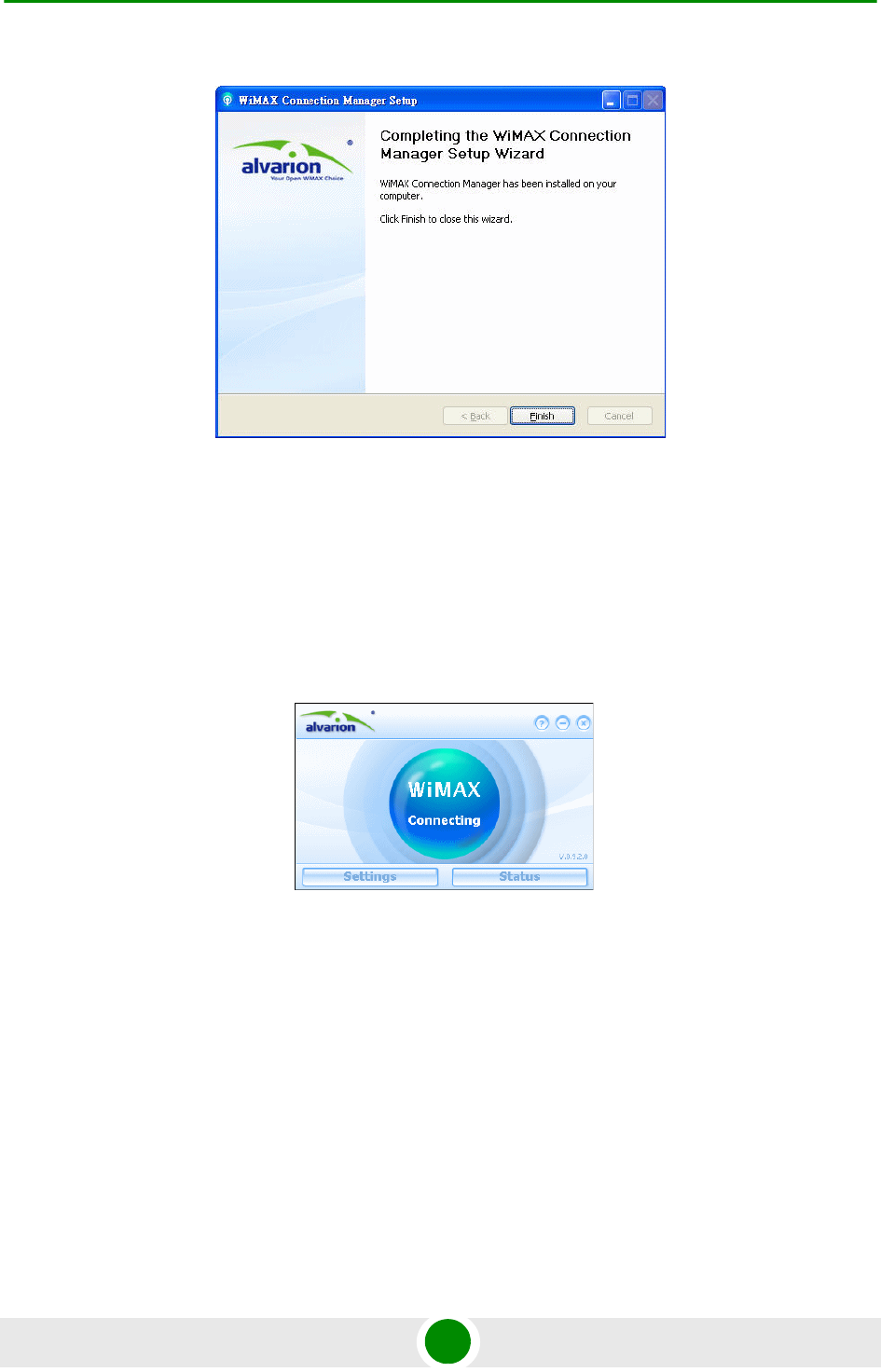

Figure 6: Installation Complete
Figure 7: WiMAX Connection Manager
Using Your BreezeMAX USB250 Prerequisites
BreezeMAX USB 250 8 User Manual
3.1 Prerequisites
Before proceeding, ensure that your Wireless Connection Manager is closed and
the BreezeMAX USB250 is not plugged in to facilitate an easy uninstallation
procedure.
3.2 Uninstallation Procedure
1Navigate to Start > Programs > WCM and click Uninstall.
2You are prompted to verify the process. Click Yes to proceed.
3The Windows Installer removes the WCM software from your system.
4. Using Your BreezeMAX USB250
Your BreezeMAX USB250 comes with an easy-to-use graphic user interface. The
following chapter provides information for login and connecting to your WiMAX
account.
4.1 Prerequisites
Before you can connect to your network, make sure you have the following:
WiMAX account information as supplied by your service provider.
Required software installed from the unit (as described above).
BreezeMAX USB250 inserted (with or without the USB cable adapter).
IMPORTANT
A reboot will be required after uninstalling the Wireless Connection Manager.
To uninstall BreezeMAX USB:
IMPORTANT
Menu screens are subject to change and may differ from the actual working sample.
Using Your BreezeMAX USB250 Settings the WiMAX Connection Manager (WCM)
BreezeMAX USB 250 9 User Manual
4.2 Settings the WiMAX Connection Manager (WCM)
This chapter describes the general settings available for users, including basic
settings and authentication.
1In the main WCM window click Settings. The Settings page is displayed,
containing the Basic and Authentication tabs .
To configure general settings:
NOTE
The Basic tab may contain Language selection, depending on your configuration.

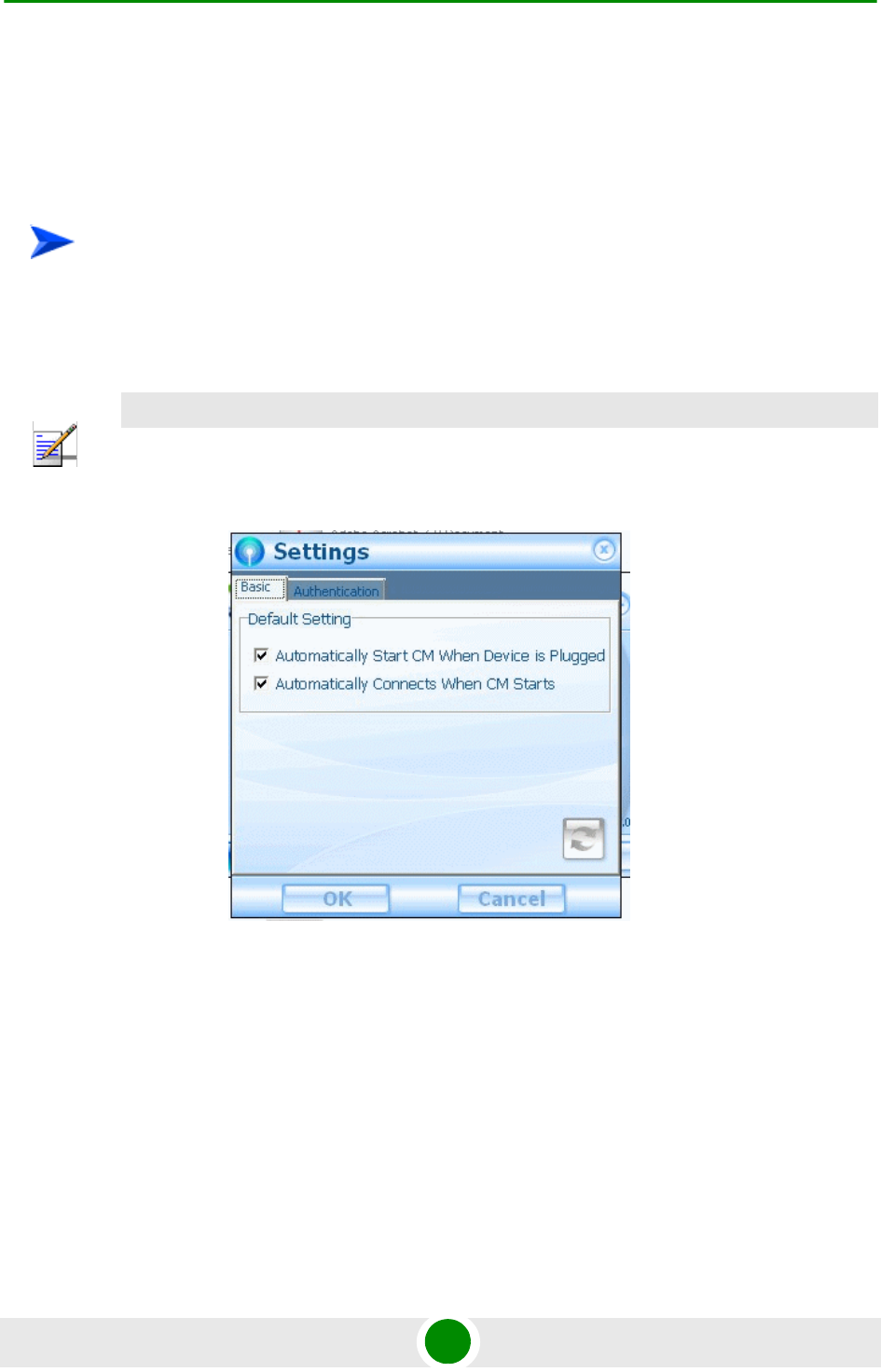

Figure 8: Setting Page: Basic Tab
Using Your BreezeMAX USB250 Settings the WiMAX Connection Manager (WCM)
BreezeMAX USB 250 10 User Manual
2In the Basic tab select or deselect the following and click OK:
»Automatically Start CM when Device is Plugged: If it is enabled, WiMAX
Connection Manager starts automatically when the USB250 is plugged into
the PC. (Default: Enabled)
»Automatically Connects When CM Starts: If it is enabled, WiMAX
Connection Manager tries to connect to WiMAX network automatically
when it starts. (Default: Enabled)
»Language (if enabled for display): select the language (default: English).

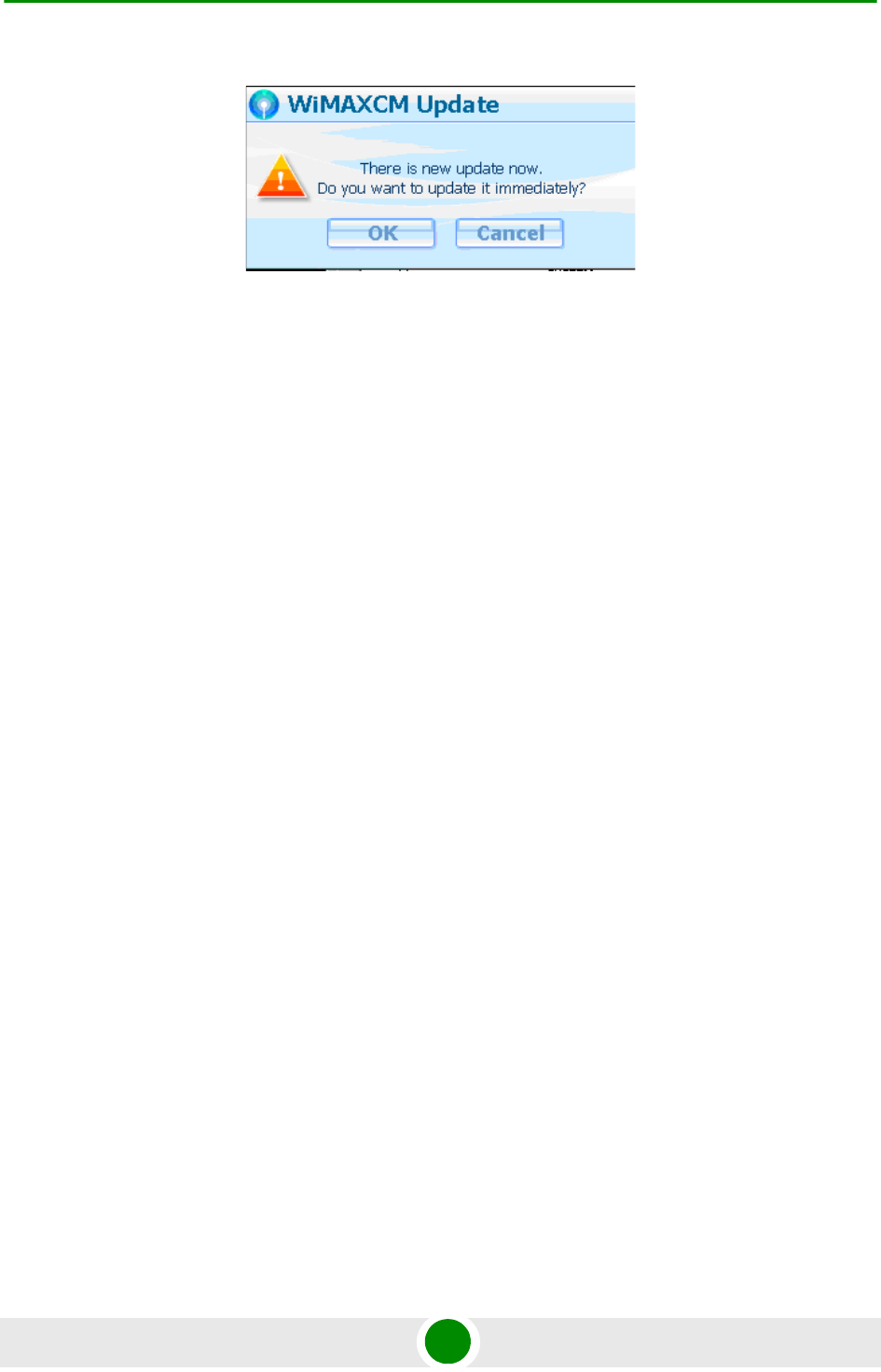

3To initiate SW Upgrade procedure, click the Update button . Refer to
“Software Upgrade” on page 17.

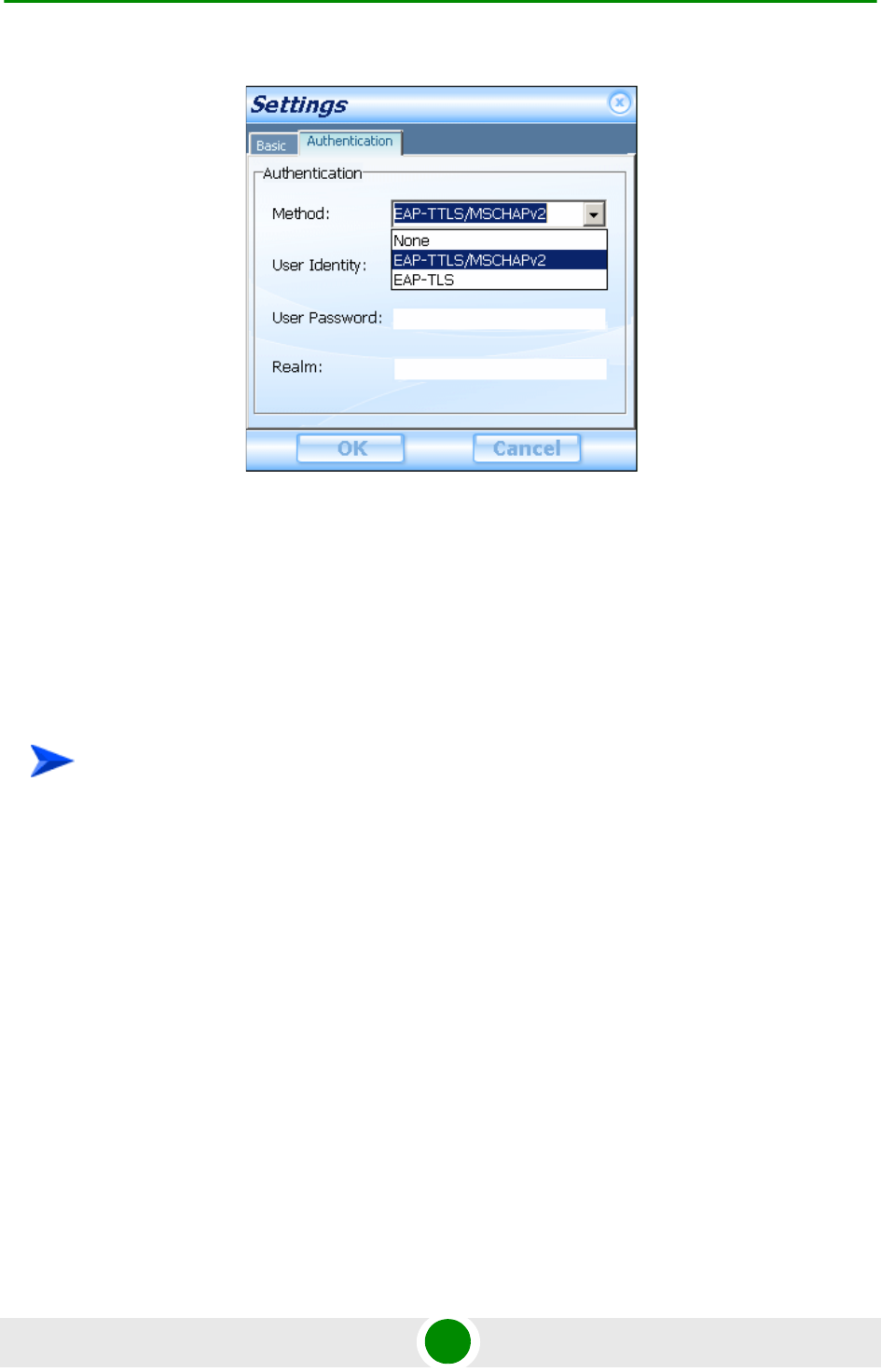

4In the Authentication tab (see Figure 9) specify the following and click OK:
»Method: Select one of the following WiMAX security method:
◊None - authentication is disabled
◊EAP-TTLS/MS-CHAPv2 (default) - Extensible Authentication
Protocol-Tunneled Transport Layer Security, supporting the Microsoft
version of the Challenge-handshake authentication protocol, version 2.
◊EAP-TLS - Extensible Authentication Protocol Transport Layer Security
(not supported in current release).
»User Identity: Enter the user name supplied by the service provider
(Default: CPEMACaddr@WiMAX.com).
»User Password: Enter the user password supplied by the service provider.
(Default: quickynikynyoky).
»Realm: Enter the WiMAX domain for EAP used by Supplicant (Default:
WiMAX.com).
Using Your BreezeMAX USB250 Connecting to the WiMAX Network
BreezeMAX USB 250 11 User Manual
Your USB is now ready to connect to the WiMAX network.
4.3 Connecting to the WiMAX Network
This section describes how to connect to WiMAX network with proper
configurations.
1Navigate to Start > Programs > WiMAX Connection Manager
If “Automatically Connects When CM Starts” is enabled, a blue button with
dynamic background is displayed and CM will try to connect any available
WiMAX base station (BS).
Figure 9: Settings: Authentication Tab
To connect to WiMAX network:
Using Your BreezeMAX USB250 Operation Verification
BreezeMAX USB 250 12 User Manual
If “Automatically Connects When CM Starts” is disabled, click the orange
button to start the connection.
4.4 Operation Verification
To verify proper operation of the unit, examine the LED indicator.
To verify data connectivity, from the end-user's PC or from a portable PC
connected to the unit, connect to a known internet site (e.g www.Alvarion.com).
When connected to WiMAX network, a small blue button with several concentric
circles is displayed (see Figure 12). The orange concentric circles represent
WiMAX signal strength.
Figure 10: CM Main Window: WiMAX Connecting
Figure 11: CM Main Window: WiMAX Disconnected
IMPORTANT
In the event that signal strength is low, tilting the USB device while attached to the USB Connector
adapter may improve signal strength and quality. Adjusting the USB device position may also
improve signal quality.
Using Your BreezeMAX USB250 Viewing Status Details
BreezeMAX USB 250 13 User Manual
To disconnect from the network, click the blue circle.
An Error message is displayed when the CPE does not find a base station.
Some basic information is also shown in this window, which includes:
Service: Network service provider (NSP) name. The Service parameter is hidden
if WCM cannot obtain the operator's name via NSP discovery.
Duration: Time (HH:MM:SEC) during which there is connection to WiMAX
IP Address: Address of the WiMAX server
DL Speed: Downlink speed in kbps
UL Speed: Uplink speed in kbps
Sent: Data sent in KB/MB/GB
Received: Data received in KB/MB/GB
4.5 Viewing Status Details
In addition to the basic information that appears in the main window, you can
view detailed information on the various device parameters.
Figure 12: CM Main Window: WiMAX Connected
Using Your BreezeMAX USB250 Viewing Status Details
BreezeMAX USB 250 14 User Manual
1In the main window click Status. The Status page is displayed, showing the IP
Network tab.
2To view various parameters, select the appropriate tab:
The IP Network tab includes:
»Physical Address
»IP Address - WAN IP address. For DHCP mode - IP address acquired on the
WAN interface is displayed. Otherwise it is 0.0.0.0
»Subnet Mask
»Default Gateway - Gateway IP address
»DNS Servers - Domain Name System servers IP address(es)
To view status details:

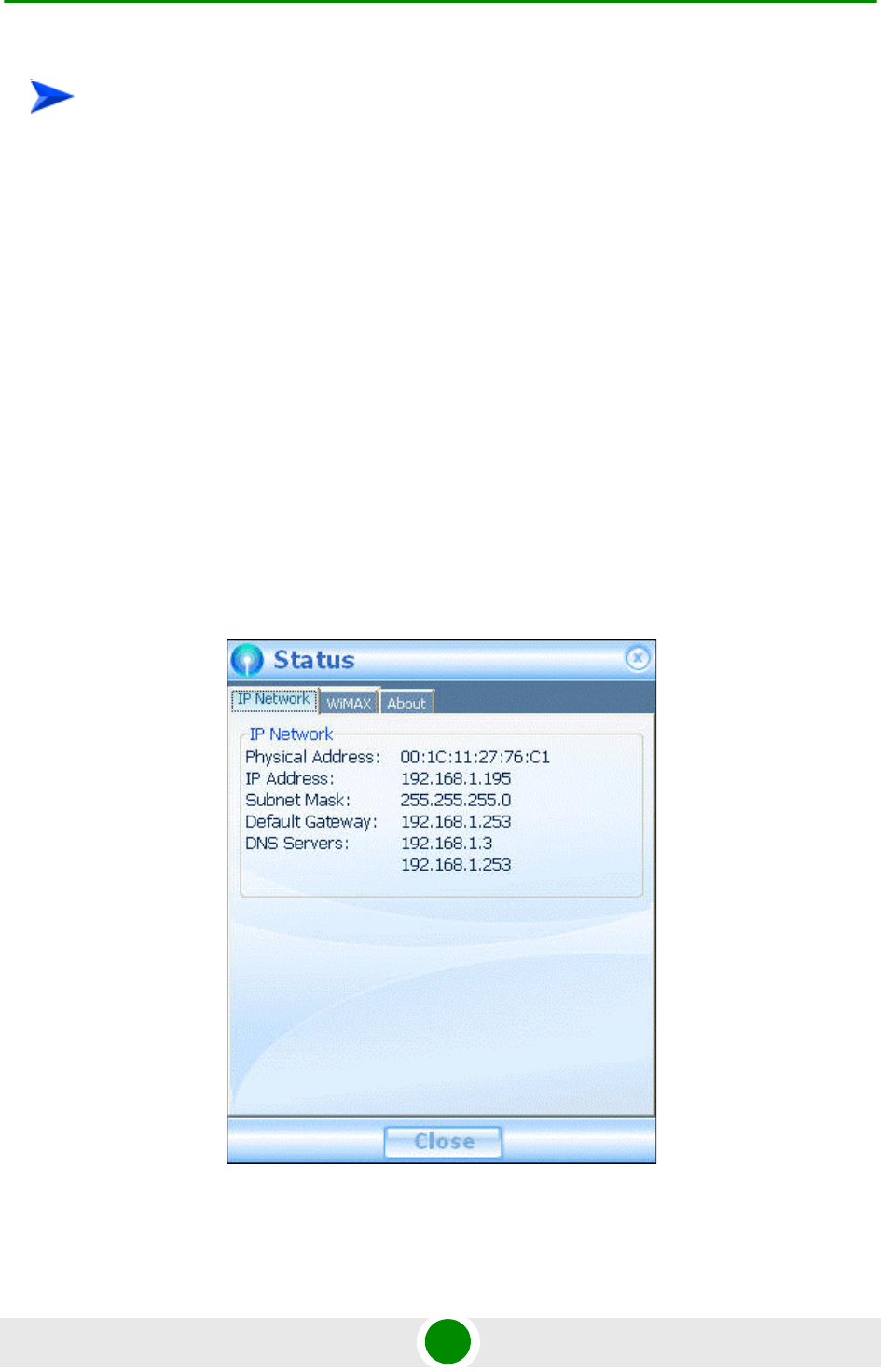

Figure 13: Status - IP Network Tab
Using Your BreezeMAX USB250 Viewing Status Details
BreezeMAX USB 250 15 User Manual
The WiMAX tab includes:
»State - The status of the device, including “Init”, “Ready”, “Scan”, “Network
Entry”, “Operational”, and “Idle”.
»Session Duration - Time of device function (hours:minutes:seconds)
»Temperature - Unit’s current temperature
»Base Station ID - Base Station ID number (e.g. 00:01:21:00:03:5A)
»Center Frequency - The middle frequency of the bandwidth of a channel.
»Bandwidth
»RSSI - Currently received signal strength indication
»CINR - Carrier to Interference-plus-Noise Ratio [in decibels (dB))
»TX Power - Transmission power
»Downlink Rate - Rate (kbytes per second) of downlink transmitted bytes
»Uplink Rate - Rate (kbytes per second) of uplink transmitted bytes
»Byte Sent - Total number of transmitted bytes
»Byte Received - Total number of received bytes
Using Your BreezeMAX USB250 Viewing Status Details
BreezeMAX USB 250 16 User Manual
The About tab includes
»Product Name
»Product Version
»Driver Version
»Firmware Version
»Copyright
»URL

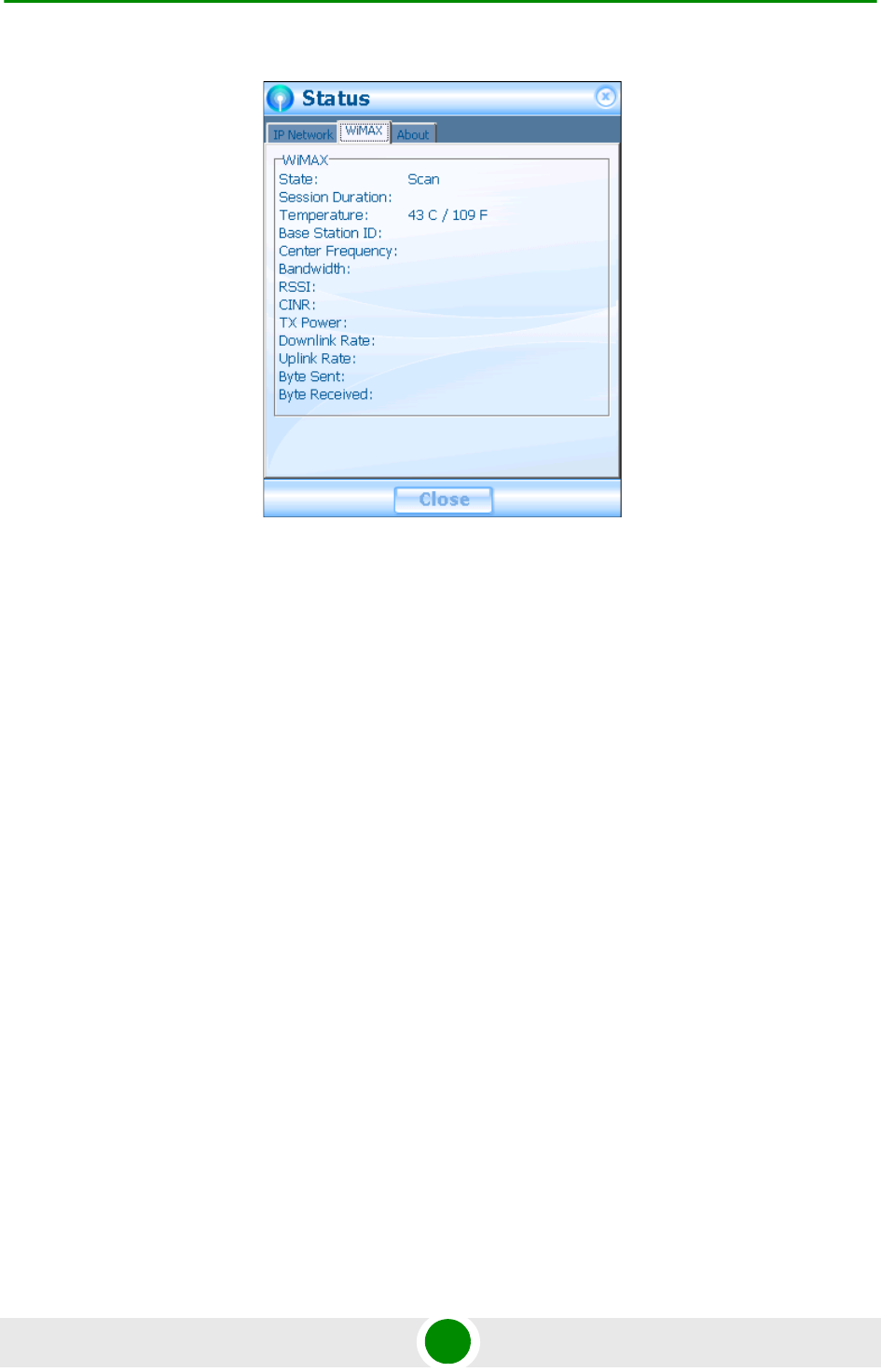

Figure 14: Status - WiMAX Tab
Using Your BreezeMAX USB250 Software Upgrade
BreezeMAX USB 250 17 User Manual
4.6 Software Upgrade
This section describes how to update your wireless connection manager.
1When a new version is available, the following message is displayed, allowing
you to choose if to install the new update or not.
Figure 15: Status - About Tab
NOTE
Software upgrade availability is dependent on your service provider.
To upgrade the software found in your BreezeMAX USB 250 device:
Maintenance and Troubleshooting Software Upgrade
BreezeMAX USB 250 18 User Manual
2To update immediately, click OK; the management application closes and the
installation starts automatically. Click Next to confirm each step of the
installation. When the new software is installed, the management application
restarts.
To continue running the existing version of the application click Cancel. The
new firmware image remains in C:\Program Files\WiMAXCM\oma\temp
folder, but it will not be installed automatically the next time the WCM is
restarted.
To install the update after choosing Cancel, manually run the installer from
the location mentioned above.
5. Maintenance and Troubleshooting
The following section provides information for hardware and software related
questions or troubleshooting issues.
Figure 16: WiMAXCM Update
QAre there any special requirements for notebook computers?
AYes, there are two special requirements for notebook computers:
An available USB 2.0 slot is required.
Power supply support of 5V±5% is required.
QWhat's the correct way to install the client software?
AThe operating system detects the new hardware and guides you to install the new
driver step by step.
QCan I take out the USB device without removing it through the operating system?
AAlthough the USB device supports hot swap, please remove it by undocking it through
your operating system first.
QWhat operating system does the client utility support?
Maintenance and Troubleshooting Software Upgrade
BreezeMAX USB 250 19 User Manual
AThe client utility currently supports Windows XP, Windows 7 and Windows Vista.
QMy device failed to connect after I inserted my USB device. What can I do at this time?
ATake out the USB adapter at this time and reinsert it in the USB slot. When your device
is detected the main screen appears.
QI have followed the procedures in the user manual, why can't I access the Internet?
APlease make sure the USB adapter has been activated successfully. In addition,
contact your operator for detailed settings.
QI click connect but I cannot log in to my account?
APlease verify your account UserID and Password and ensure they are correct. Enter
the account information and try again.
QMy account information is correct, but I'm still not able to log in.
ASignal reception might be a factor. Situate your computer in a location with good air link
quality, and attempt to connect again.
Glossary Software Upgrade
BreezeMAX USB 250 20 User Manual
6. Glossary
This section details terms used in this manual.
Authentication The process to verify the identity of a client requesting network
access. IEEE 802.11 specifies two forms of authentication:
open system and shared key.
BS Base Station
Channel Allocation
Priority Level (CAPL)
CAPL scan list is defined by the customer provisioned list.
There are some parameters with CAPL scan: NAPID, priority
and RefID.
NAPID is used to filter some BS if the NAPID is not matched.
Priority is the customer defined priority scan order. Higher
priority will be scanned first.
RefID is a result of mapping from IDs into a scan list from the
channel plan.
Extensible Authentication
Protocol (EAP)
An authentication protocol used to authenticate network
clients. EAP is combined with IEEE 802.1X port authentication
and a RADIUS authentication server to provide “mutual
authentication” between a client, the access point, and the a
RADIUS server.
EAP-Transport Layer
Security (EAP-TLS)
A cryptographic protocol that provides secure communications
on the Internet for web browsing, e-mail, Internet faxing,
instant messaging and other data transfers.
EAP-Tunneled Transport
Layer Security (EAP-TTLS)
An EAP protocol that extends TLS.
Handover The WiMAX Handover mechanism was defined to maintain
uninterrupted user communication session during their
movement from one location to another.
IEEE 802.16e A standard that provides mobile broadband wireless access
using Scalable Orthogonal Frequency Division Multiple Access
(SOFDMA).
MSCHAPV2 (MS-CHAP. v2) Microsoft version of the Challenge-handshake authentication
protocol, version 2. MS-CHAPv2 provides mutual
authentication between peers by adding a peer challenge upon
the Response packet and an authenticator response on the
Success packet.
Glossary Software Upgrade
BreezeMAX USB 250 21 User Manual
mRCT Mobile Radio Conformance Test
Network Access Point
(NAP)
Network exchange point equipped with large-scale switching
facilities and serving as a connection point between individual
Internet Service Providers
Open Mobile Alliance
(OMA)
OMA DM (device Management) is a protocol specified by Open
Mobile Alliance (OMA) for Device Management purposes, by the
Device Management Working Group and the Data
Synchronization (DS) Working Group. The communication
protocol is a request-response protocol.
