GemTek Technology WLTMS11043 CPE9000-PRO-1D-3.x User Manual
Gemtek Technology Co., Ltd. CPE9000-PRO-1D-3.x Users Manual
Users Manual
LTE CPE
Quick installation Guide
WLTMS-110
Connection Guide
Copyright
This DOCUMENT is copyrighted with all rights reserved. No part of
this publication may be reproduced, transmitted, transcribed, stored in
a retrieval system, or translated into any language in any form by any
means without the written permission of Gemtek Technology Co. Ltd.
Notice
Gemtek reserves the right to change specifications without prior
notice.
While the information in this document has been compiled with
great care, it may not be deemed an assurance of product
characteristics. Gemtek shall be liable only to the degree specified in
the terms of sale and delivery.
The reproduction and distribution of the documentation and
software supplied with this product and the use of its contents is
subject to written authorization from Gemtek.
Connectors

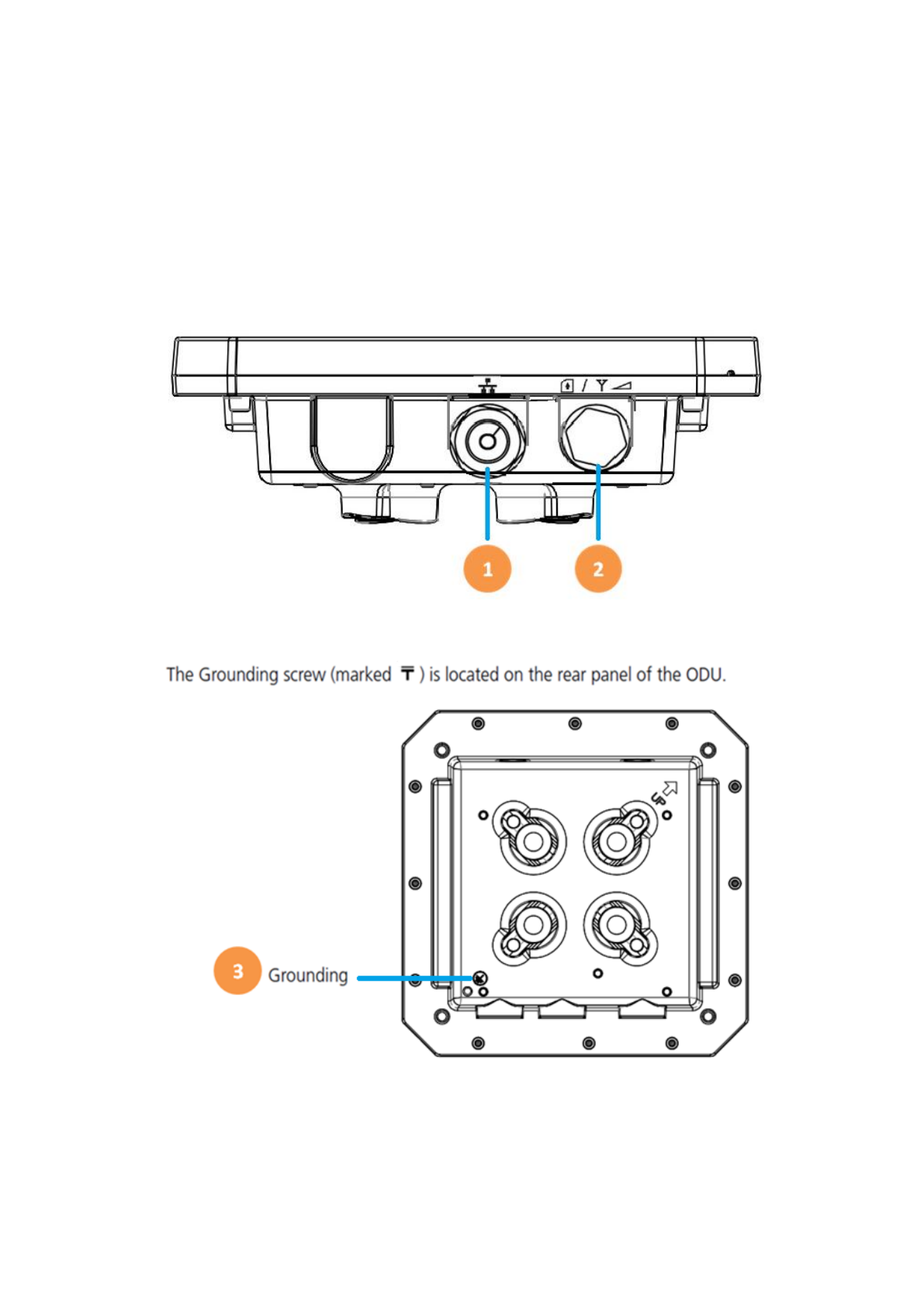

1. One RJ-45 connector for connecting to the PoE adaptor.
2. LED indicator inside and SIM card slot for inserting SIM card.
3. A grounding screw on the rear panel.
LED Indicators _ODU
LED name
Location
Color
LED Behavior
Status Indication
LED List
●●●
●●●
MAIN power
●○○
○○○
Blue
ON
Power On
OFF
Power Off
Ethernet
status
○●○
○○○
Yellow
Steady ON
Ethernet Connected
Blinking
Data Transmission
OFF
No Ethernet action
SIM status
○○●
○○○
Green
Steady ON
SIM Detected
Blinking when
On-hook
PUK / PIN Code
OFF
No SIM Detected
LTE Status LED : Link Status
When CPE is power on, each LED
indicates each link status
LTE 1
○○○
●○○
Red
Steady ON
CINR < 8dB
LTE 2
○○○
●●○
Red/
Yellow
Steady ON
8dB < CINR <
15dB
LTE 3
○○○
●●●
Red/
Yellow/
Green
Steady ON
15dB < CINR
Installing LTE outdoor CPE
● Selecting a Location: LTE Outdoor CPE should be pole-mounted
outdoors and aligned so its antenna faces the nearest LTE eNB.
When selecting a suitable location for the unit, consider these
guidelines:
• Place LTE Outdoor CPE as high as possible to achieve the best
possible link quality.
• Place the LTE Outdoor CPE away from power and telephone
lines.
• Avoid placing LTE Outdoor CPE too close to any metallic
reflective surfaces.
• Be sure to ground LTE Outdoor CPE with an appropriate
grounding wire (not included) by attaching it to the grounding
screw on the unit and to a good ground connection.

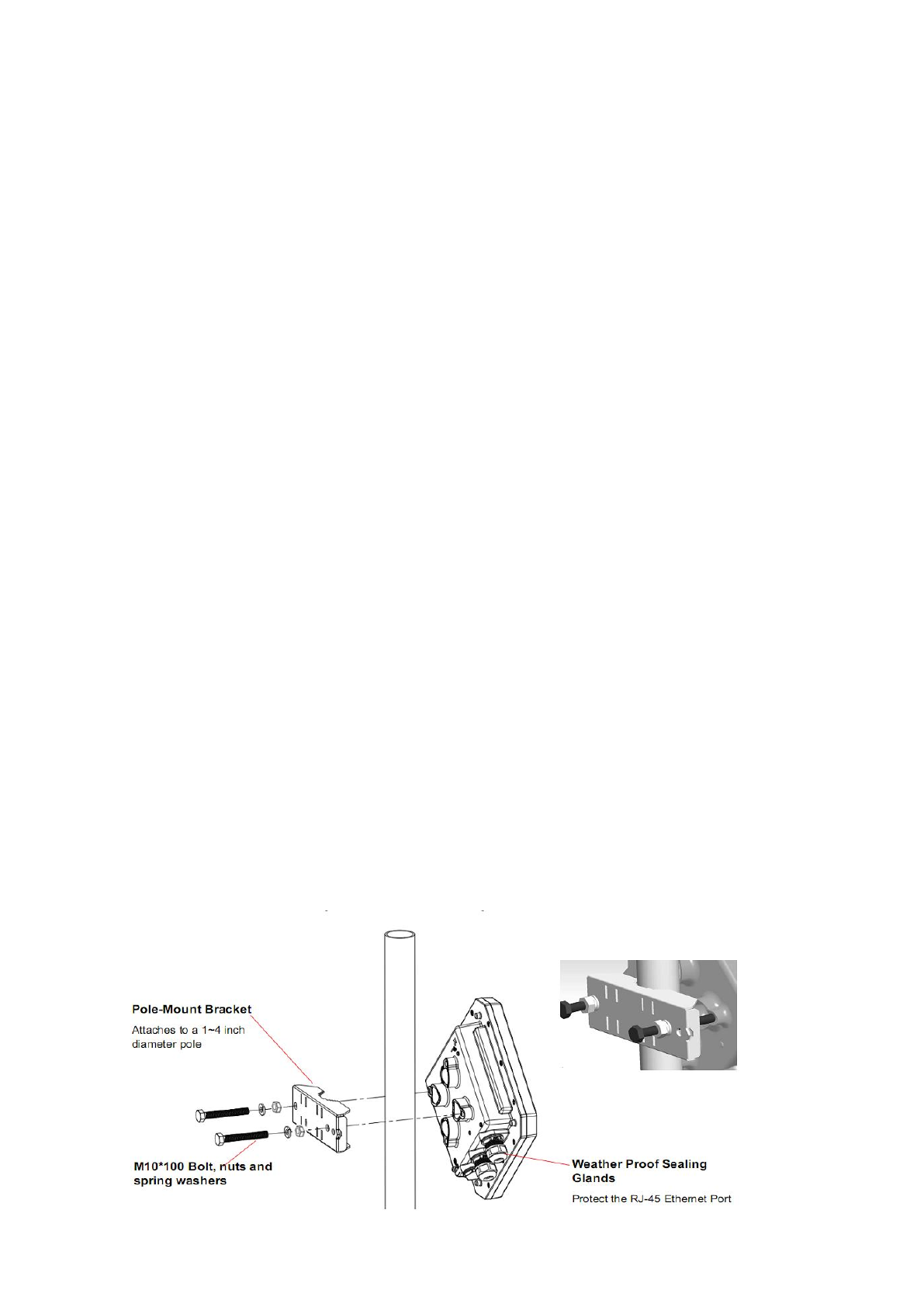

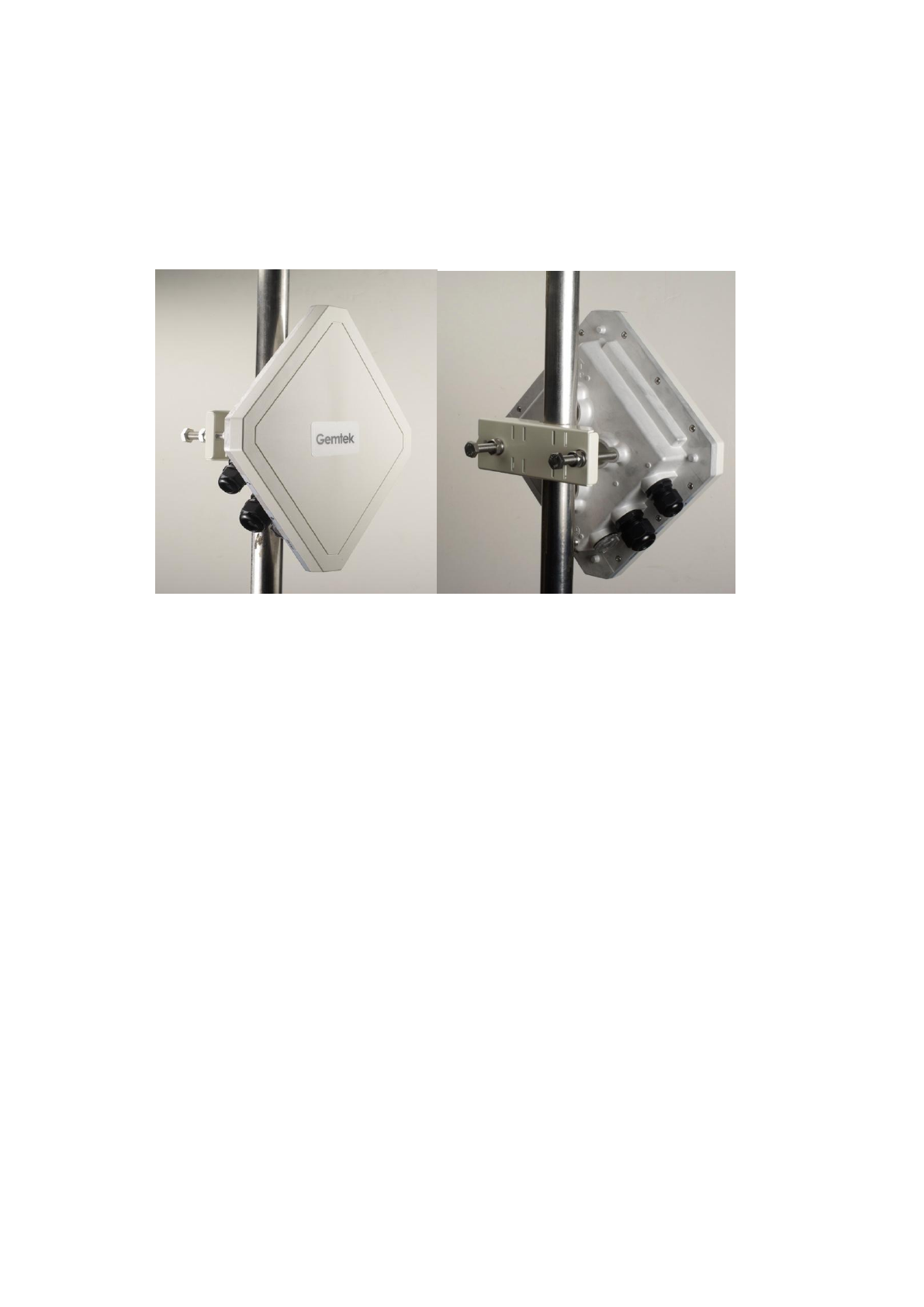

● Mounting the ODU: Mount LTE Outdoor CPE on a 1”-4” pole
using the supplied kit, or the optional tilt accessory.
• Using the clamp
1. Thread the M10*100mm bolt through a spring washer, flat
washer and the bracket holes.
2. With the connector facing downward, attaché LTE Outdoor
CPE to a 1”-4” pole.
3. Attach the bracket to the other side of the pole.
4. Thread the M10*100mm bolts through both holes on either
side, and tighten the nuts.
Connecting the Cables
● Outdoor Connection: Connect a grounding cable between the
Ground terminal of the LTE outdoor CPE and a good ground
connection.
● Preparing and connecting the cable: Use only UTP-FTP
4x2x24AWG CAT. 5E outdoor cable from an approved
manufacturer. The cable provides pin-to-pin connection on both
ends.
1. Prepare the cable: Use a crimp too for RJ-45 connectors to
prepare the wires. Insert them into the appropriate pins and
use the tool to crimp the connector. Make sure to do the
following:
• Remove as small a length as possible of the external jacket.
Verify that the external jacket is well inside the sealing
cover when connected to the unit, to ensure good sealing.
• Pull back the shield drain wire before inserting the cable into
the RJ-45 connector, to ensure a good connection with the
connector’s shield after crimping.

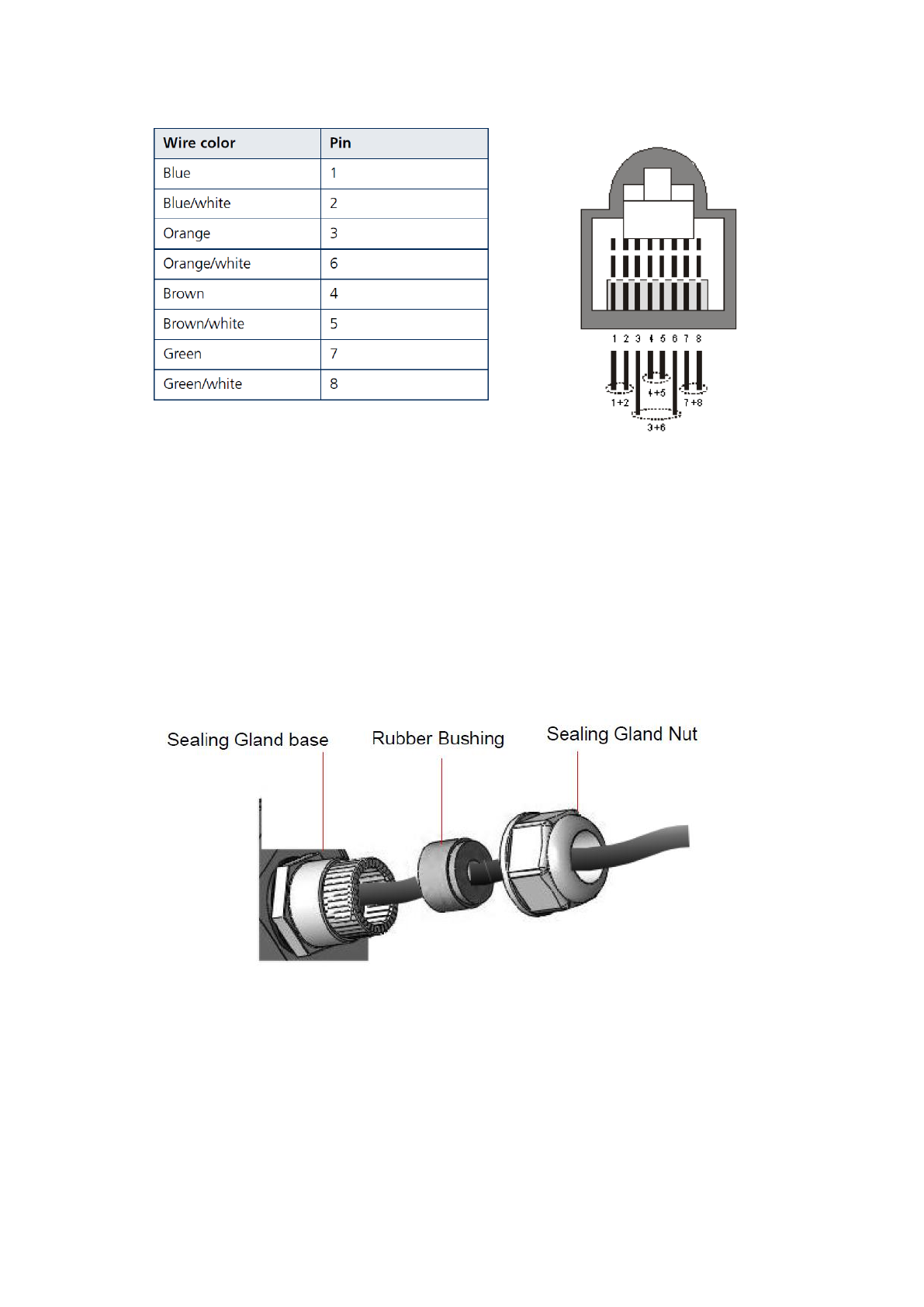

The following figure shows the required wire pair connections.
The color codes used in standard cables supplied by the
manufacturer are as listed in the table.
2. Connect the cable
• Remove the sealing cable gland plug from the gland nut.
• Open the sealing gland nut and remove it. Don not
disassembles the gland base from the bracket.
• Insert the cable into the sealing gland base and connect it to
the RJ-45 connector at the bottom of the CPE. Make sure the
connector is completely inserted and tightened.
• Insert the rubber bushing on the cable into the gland base.
• Tighten the gland nut. Use the dedicated tool for fastening
the sealing glands.
3. Seal the connector
• Attach the mastic tape (ScotchfilTM Electrical Insulation Putty)
and wrap it around the connector butting up against the
connector. Do not over stretch.
• Squeeze to tighten the mastic sealer. Make sure there are no
air bubbles.
• Slide the cold shrink sleeve on top of the connector. Make
sure that the sleeve covers both cable connector and unit
connector.
• Pull the cord slowly to shrink the sleeve.
● Indoor Connection
1. It is assumed that the RJ-45 is already connected to the LTE
outdoor CPE. Assemble an RJ-45 connector with a protective
cover on the other end of the LTE outdoor CPE cable.

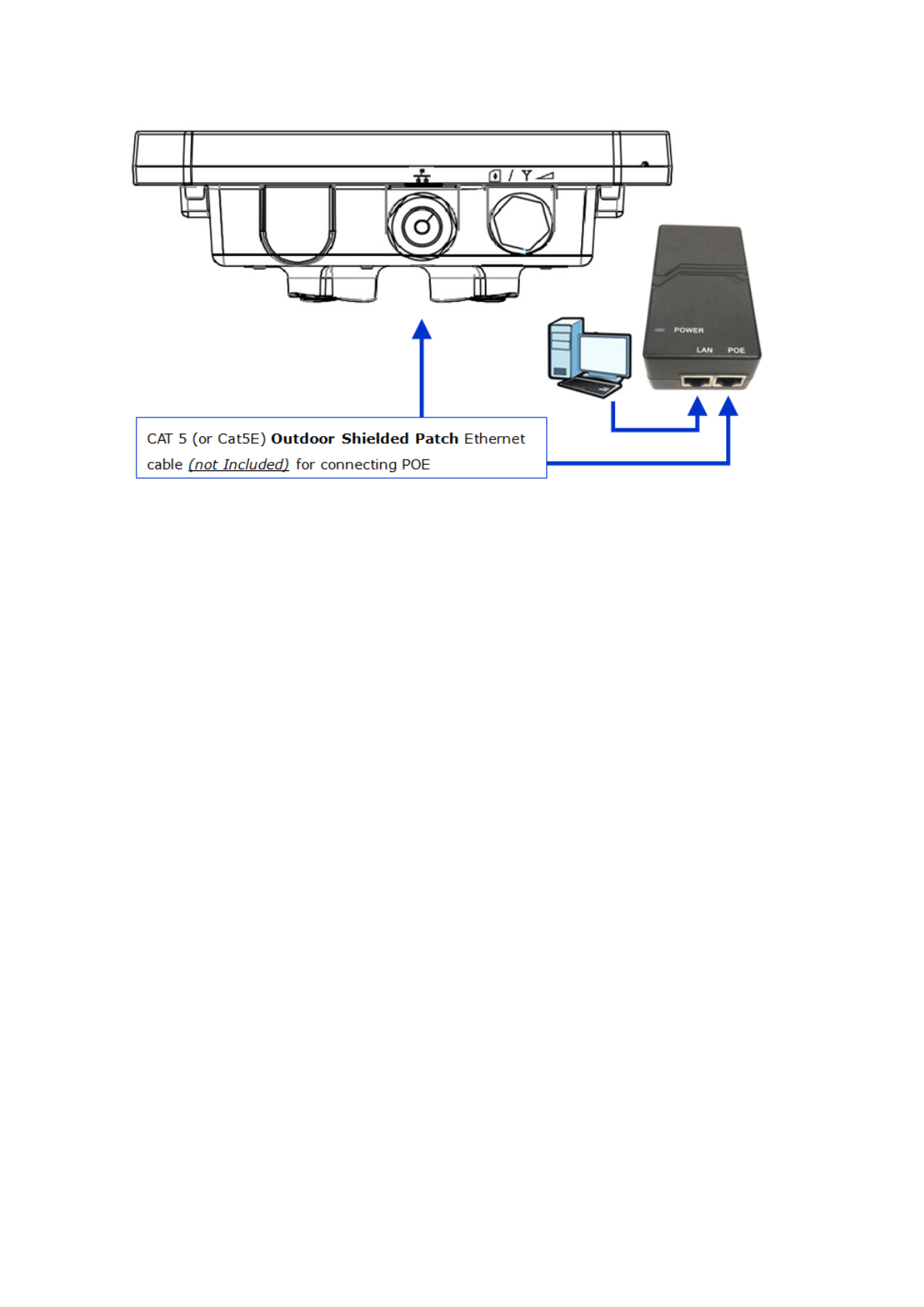

2. Connect the other end of the cable from ODU to the PoE
adaptor which labeled “POE”.
3. Connect RJ45 cable from PoE adaptor which label “LAN” to a
PC/NB/Hub/Switch.
Web Interface
Please follow the steps below to configure your device through the
web interface:

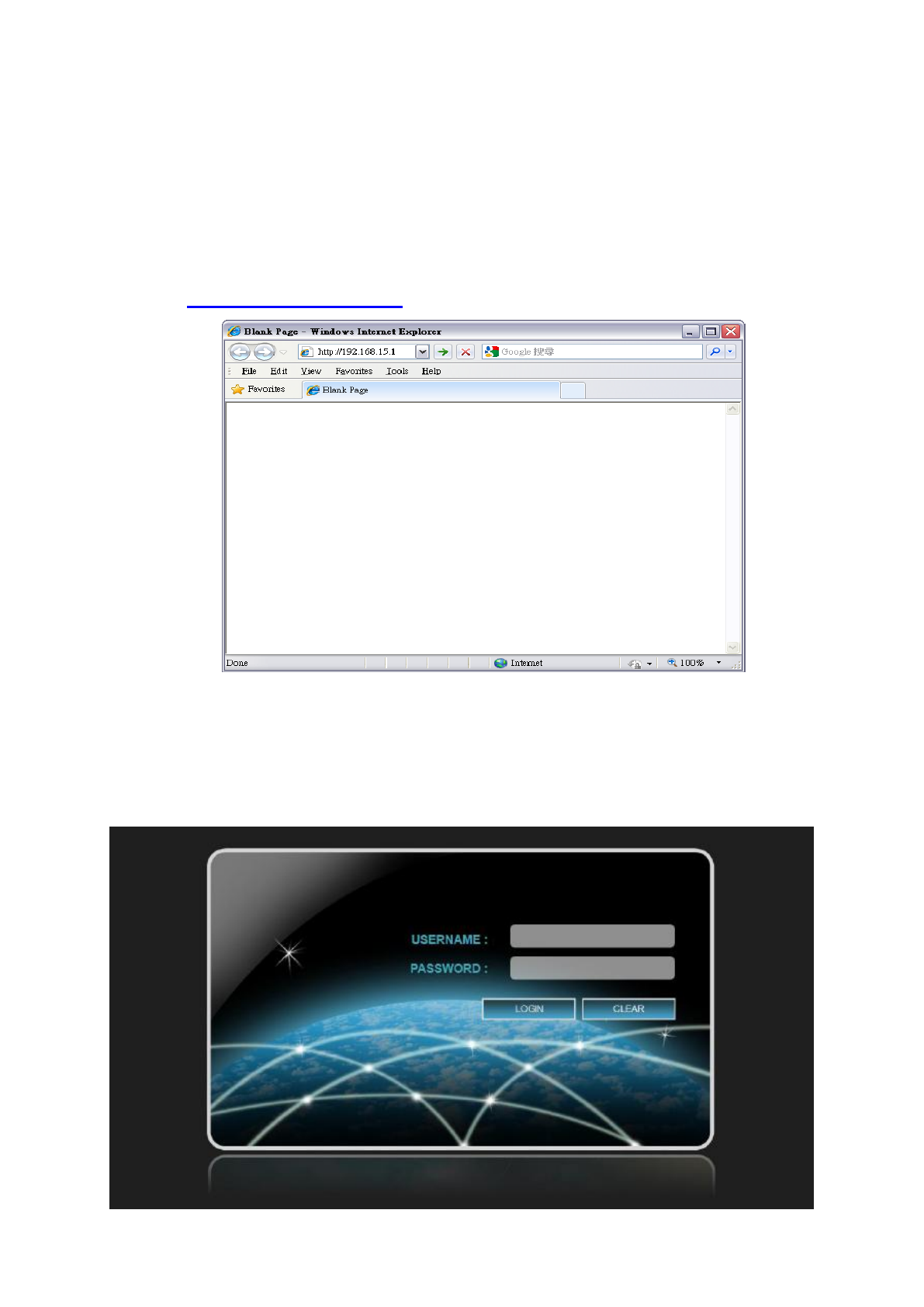

Step1: Open the Web browser (Internet Explorer) and enter the
default IP address of the ODU CPE, which is :
http://192.168.15.1
Web browser
Step2: Enter ODU administrator login username/password to access
the web management interface. The default
username/password is administrator/administrator.
Web management interface

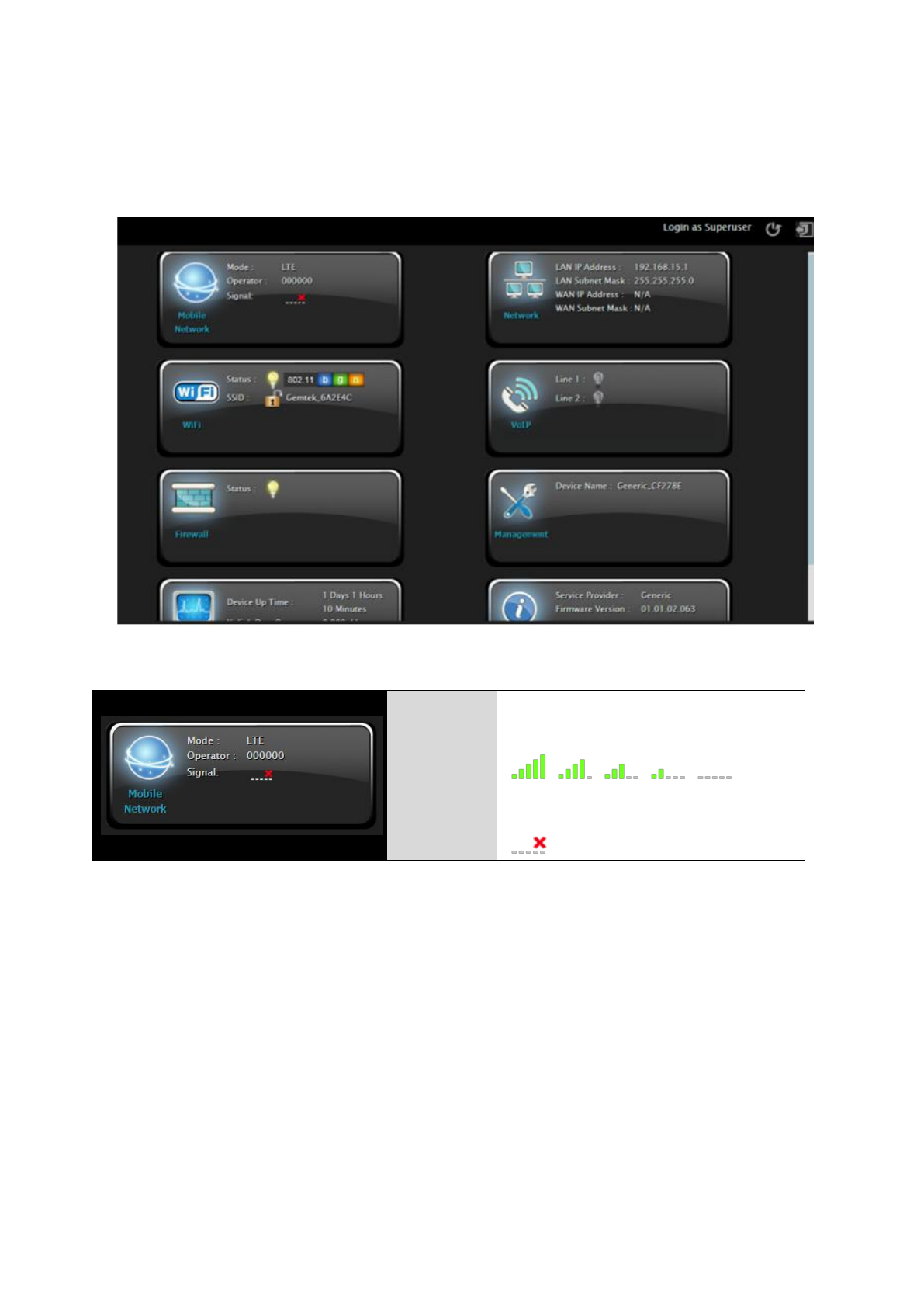

Step3: The page shown here gets displayed in your browser after
login; you can now configure the device settings.
GUI Interface
Mode:
LTE
Operator:
APN Name
Signal:
(More bar means better
signal)
(Disconnect, no signal)
