Gemtek Technology Co., Ltd. Telemetry Unit Users Manual
Users Manual
Product Specification
BOC Telemetry Beacon
Devices are designed to measure the level of cryogenic liquid in different tanks.
Product Features
- The liquid level is measured using a sensor installed on the vessel.
- The liquid level data is passed to the cloud via LoRaWan
Introduction
Enclosure Design
The dimension of Telemetry product is L:222 x W:141 x H:86 mm with one external antenna connector
for connecting LoRaWAN antenna, and either one external communication cable or one water-proof
connector to connect to atank sensor.
Telemetry Beacon 1
Port
Count
Description
Antenna connector (N-type)
at top side
1
Antenna connector for external LoRaWAN antenna
Water-proof connector with
sensor cable (1000mm in
length)
1
The communication cable is used for connecting the tank
sensor
Water-proof connector at
bottom side
1
The port is reserved for connecting external 12V power
source

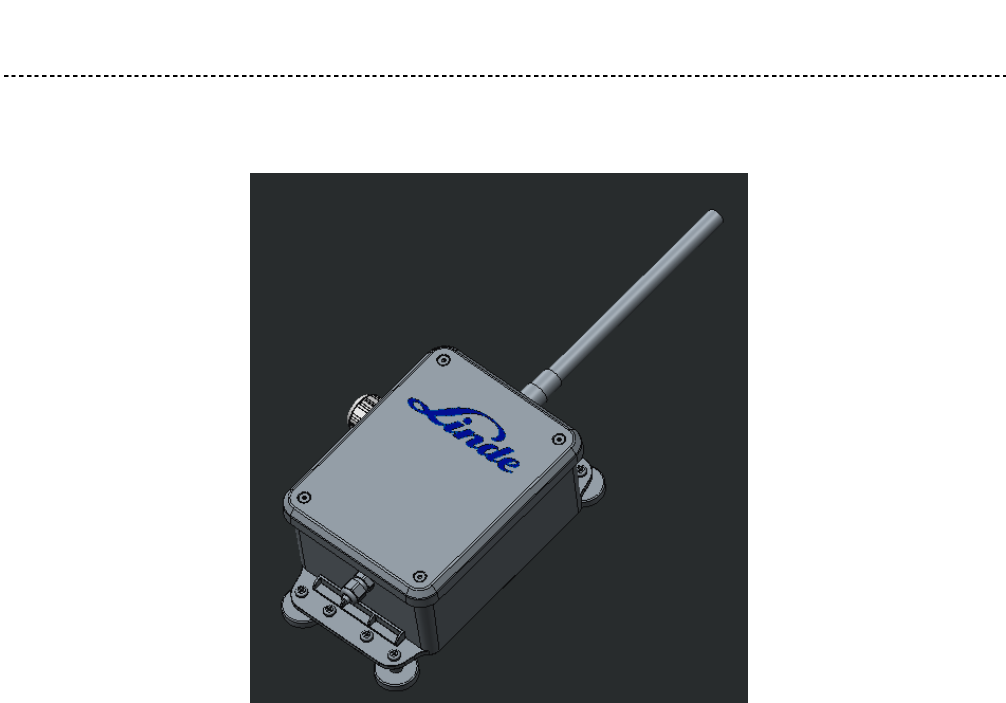

Mechanical Design
Telemetry Beacon 2
Port
Count
Description
Antenna connector (N-type)
at top side
1
Antenna connector for external LoRaWAN antenna
Water-proof connector at left
hand side
1
The water-proof connecter is designed for attaching external
sensor
Water-proof connector at
bottom side
1
The port is reserved for connecting external 12V power
source
Federal Communication Commission Interference
Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
Country Code selection feature to be disabled for products marketed to the
US/CANADA
Operation of this device is restricted to indoor use only
Appedix
Professional installation instruction
Please be advised that due to the unique function supplied by this product, the device
is intended for use with our interactive entertainment software and licensed third-party
only. The product will be distributed through controlled distribution channel and
installed by trained professional and will not be sold directly to the general public
through retail store.
1. Installation personal
This product is designed for specific application and needs to be installed by a
qualified personal who has RF and related rule knowledge. The general user
shall not attempt to install or change the setting.
2. Installation location
The product shall be installed at a location where the radiating antenna can be
kept 20 cm from nearby person in normal operation condition to meet
regulatory RF exposure requirement.
3. External antenna
Use only the antennas which have been approved by the applicant. The
non-approved antenna(s) may produce unwanted spurious or excessive RF
transmitting power which may lead to the violation of FCC limit and is
prohibited.
4. Installation procedure
Please refer to user’s manual for the detail.
5. Warning
Please carefully select the installation position and make sure that the final
output power does not exceed the limit set force in relevant rules. The violation
of the rule could lead to serious federal penalty.
