GemTek Technology WSMS123 IOT Macro Gateway User Manual Marketing Requirement

Gemtek Technology Co., Ltd. IOT Macro Gateway Marketing Requirement

Users Manual

Installation Guide of the IOT Macro Gateway V0.1
Gemtek Technology Co., Ltd. In Commercial Confidential
1/13
WSMS-123 Installation Guide
IOT Macro Gateway
(Date: 8/24/2016)
Gemtek Technology Co., Ltd. Confidential information
This document contains confidential and/or proprietary information of Gemtek Technology Co.,
Ltd. and shall not be, directly or indirectly, reproduced or copied in any manner without the
written consent of Gemtek Technology Co., Ltd.
Installation Guide of the IOT Macro Gateway V0.1
Gemtek Technology Co., Ltd. In Commercial Confidential
2/13
Revision History:
Date/Version
Editor
Remark
08/24/2016 v0.1
Cory Lam
Initial draft
Abbreviation:
Installation Guide of the IOT Macro Gateway V0.1
Gemtek Technology Co., Ltd. In Commercial Confidential
3/13
Outline:
1 Application ............................................................................................................. 4
2 Product Overview .................................................................................................. 5
2.1 Enclosure Features ........................................................................................... 6
2.2 Power-Over-Ethernet (PoE) ............................................................................. 8
3 Installation .............................................................................................................. 9
3.1 Professional Installation ................................................................................... 9
3.2 Mounting .......................................................................................................... 9
3.3 Cabling ............................................................................................................. 9
3.4 LED Indicators ............................................................................................... 11
4 Antenna Parameters ............................................................................................. 11
5 Appendix .............................................................................................................. 12
Tables:
N/A
Installation Guide of the IOT Macro Gateway V0.1
Gemtek Technology Co., Ltd. In Commercial Confidential
4/13
1 Application
This document is to describe the installation procedure and application of the
IOT Macro Gateway.
Project Code : WSMS-123
Installation Guide of the IOT Macro Gateway V0.1
Gemtek Technology Co., Ltd. In Commercial Confidential
5/13
2 Product Overview
The IOT Macro Gateway is one of many gateways in our wireless IOT
solution. Each IOT Macro Gateway can listen and receive LoRa packets on
64 channels concurrently. It can supports tens of thousands of our IOT
nodes. Our nodes can be sensor nodes, meter nodes and trackers. They
send packets to the IOT Macro Gateways covering the area, which in turn
send the data to the cloud server where data can be analyze and used for
billing purpose.
Installation Guide of the IOT Macro Gateway V0.1
Gemtek Technology Co., Ltd. In Commercial Confidential
6/13
2.1 Enclosure Features

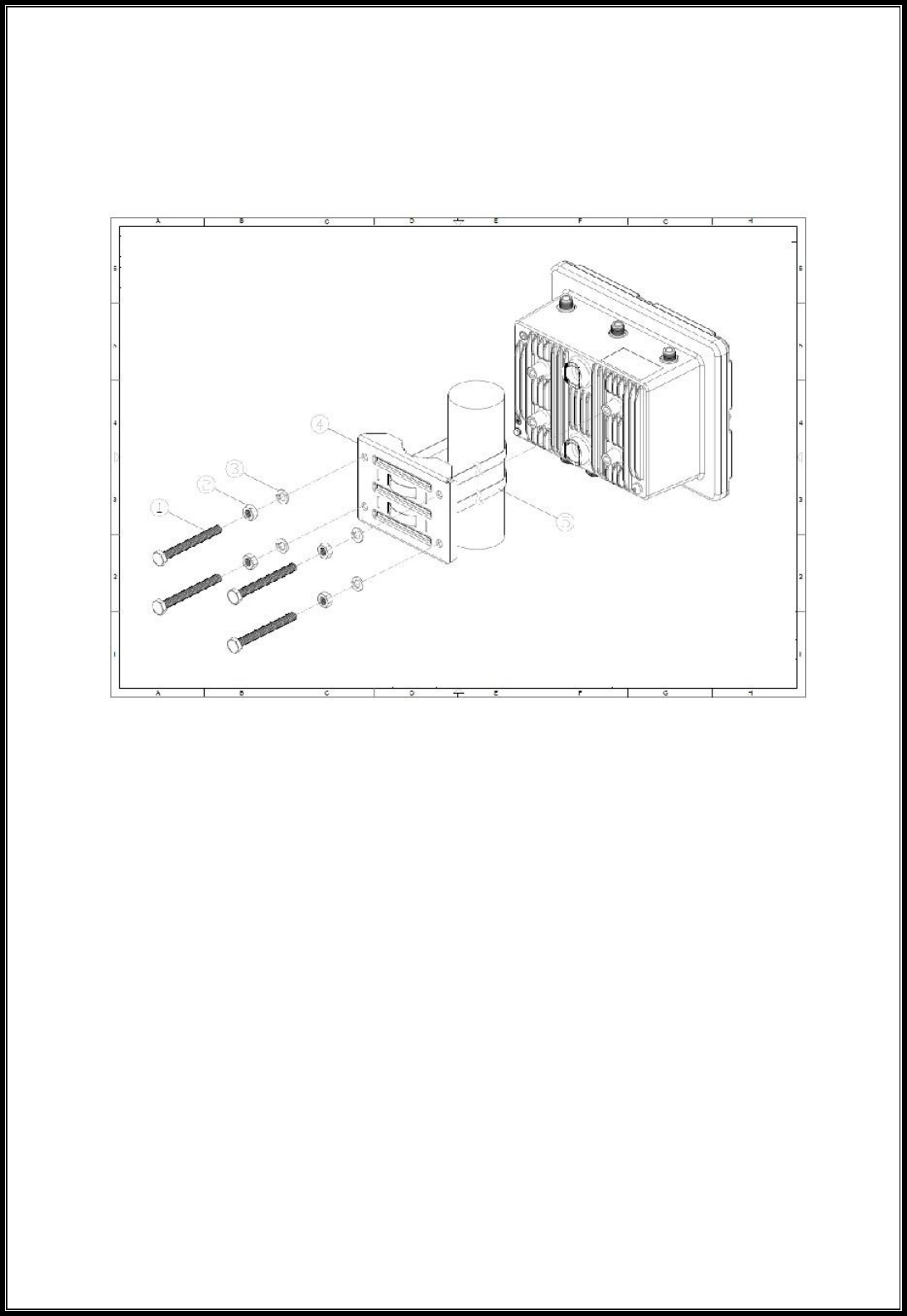

The IOT Macro Gateway is designed to be mounted on a mounting pole. It
comes with mount kit as shown here:
Installation Guide of the IOT Macro Gateway V0.1
Gemtek Technology Co., Ltd. In Commercial Confidential
7/13

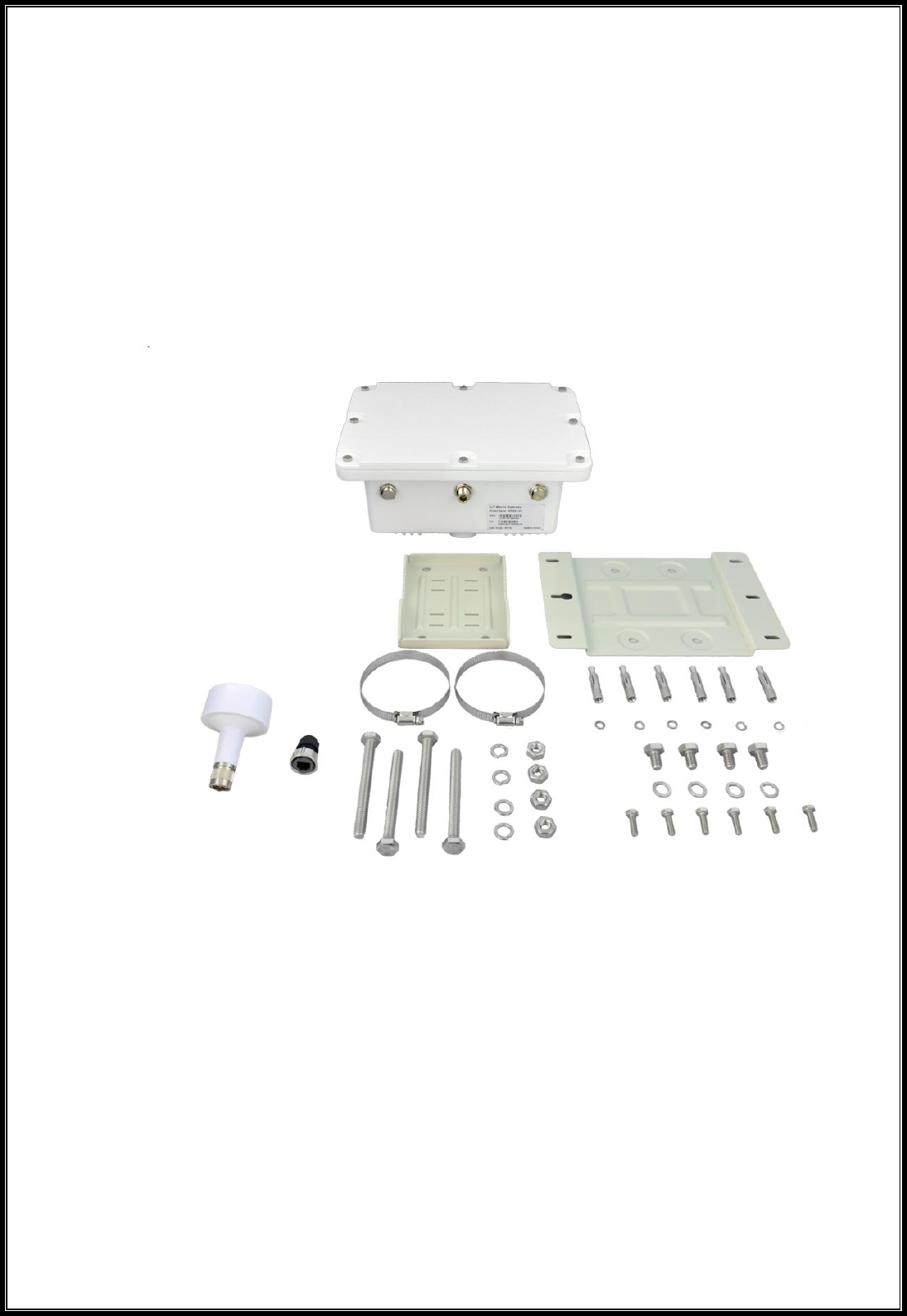

The IOT Macro Gateway can also be mounted on a wall. It comes with mount
kit as shown here:
Installation Guide of the IOT Macro Gateway V0.1
Gemtek Technology Co., Ltd. In Commercial Confidential
8/13
2.2 Power-Over-Ethernet (PoE)
A CAT5 PoE interface is used to split the Data and Power carried by a CAT5 cable to
the internal equipment. To supply the required current to the equipment, the PoE
adapter should be used.
Installation Guide of the IOT Macro Gateway V0.1
Gemtek Technology Co., Ltd. In Commercial Confidential
9/13
3 Installation
3.1 Professional Installation
The IOT Macro Gateway, and any associated accessories require professional
installation; a) installation of the equipment must be controlled, b) installation must be
performed by professionals, c) installation of the equipment requires special training.
3.2 Mounting
As described earlier, the IOT Macro Gateway comes with a mount kit for
mounting on a pole. The antennas can be directly connected to the IOT Macro
Gateway, or preferably be extended and mounted on the pole at a meter apart.
3.3 Cabling
Connections
Connect the 915MHz antenna cable to the middle connector on the top side as shown
in the figure
Connect GPS antenna cable to bottom right antenna connector
Connect the Power (PoE) to the Gateway at the POE connector
Installation Guide of the IOT Macro Gateway V0.1
Gemtek Technology Co., Ltd. In Commercial Confidential
10/13
Installation Guide of the IOT Macro Gateway V0.1
Gemtek Technology Co., Ltd. In Commercial Confidential
11/13
3.4 LED Indicators
None
4 Antenna Parameters
This device has been tested with the antenna listed below, and has a peak gain of 7.2 dBi.
The required antenna impedance is 50 ohms.
Table 1 Typical Antenna
Part Number
Gain
Type
O-UF-1602-OA
7.2dBi
Dipole
Additional equivalent antennas from other manufactures may be substituted and then
marketed with this equipment. Equivalent antennas must be of the same type (e.g.
Omni-Directional) and must be for 915 MHz band and have same out of band
characteristics.
Installation Guide of the IOT Macro Gateway V0.1
Gemtek Technology Co., Ltd. In Commercial Confidential
12/13
5 Appendix
FCC Statement
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
Country Code selection feature to be disabled for products marketed to the
US/CANADA.
Installation Guide of the IOT Macro Gateway V0.1
Gemtek Technology Co., Ltd. In Commercial Confidential
13/13
Professional installation instruction
Please be advised that due to the unique function supplied by this product, the device
is intended for use with our interactive entertainment software and licensed third-party
only. The product will be distributed through controlled distribution channel and
installed by trained professional and will not be sold directly to the general public
through retail store.
1. Installation personal
This product is designed for specific application and needs to be installed by a
qualified personal who has RF and related rule knowledge. The general user
shall not attempt to install or change the setting.
2. Installation location
The product shall be installed at a location where the radiating antenna can be
kept 20cm from nearby person in normal operation condition to meet
regulatory RF exposure requirement.
3. External antenna
Use only the antennas which have been approved by the applicant. The
non-approved antenna(s) may produce unwanted spurious or excessive RF
transmitting power which may lead to the violation of FCC limit and is
prohibited.
4. Installation procedure
Please refer to user’s manual for the detail.
5. Warning
Please carefully select the installation position and make sure that the final
output power does not exceed the limit set force in relevant rules. The
violation of the rule could lead to serious federal penalty.
