Gemalto M2M BG2 Quadband GSM/GPRS Module User Manual hio

Gemalto M2M GmbH Quadband GSM/GPRS Module hio

Integrator instructions

BG2-E/BG2-WVersion: 01.000DocId: BG2_HIO_v01.000Hardware Interface Overview

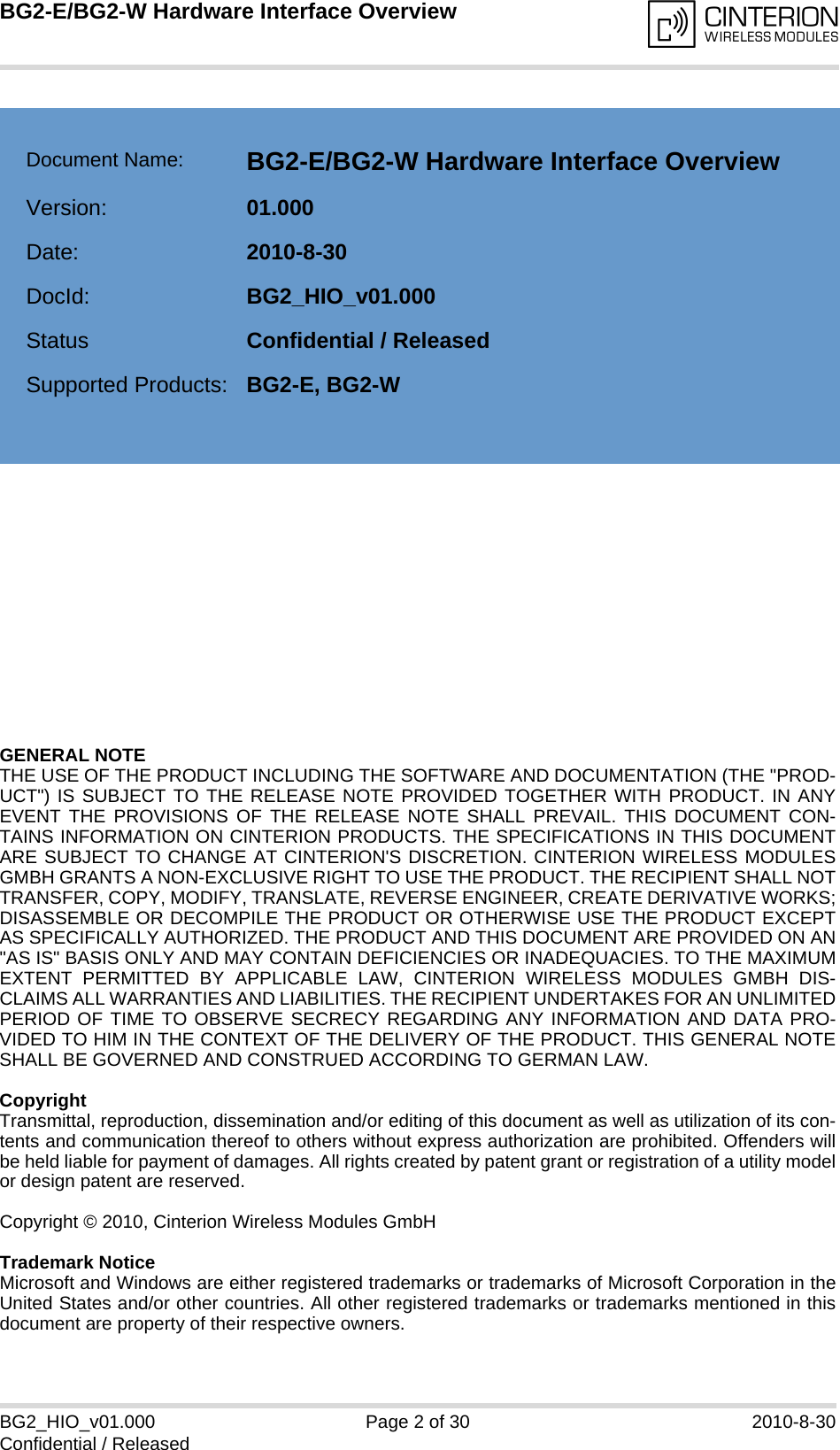

GENERAL NOTE THE USE OF THE PRODUCT INCLUDING THE SOFTWARE AND DOCUMENTATION (THE "PROD-UCT") IS SUBJECT TO THE RELEASE NOTE PROVIDED TOGETHER WITH PRODUCT. IN ANYEVENT THE PROVISIONS OF THE RELEASE NOTE SHALL PREVAIL. THIS DOCUMENT CON-TAINS INFORMATION ON CINTERION PRODUCTS. THE SPECIFICATIONS IN THIS DOCUMENTARE SUBJECT TO CHANGE AT CINTERION'S DISCRETION. CINTERION WIRELESS MODULESGMBH GRANTS A NON-EXCLUSIVE RIGHT TO USE THE PRODUCT. THE RECIPIENT SHALL NOTTRANSFER, COPY, MODIFY, TRANSLATE, REVERSE ENGINEER, CREATE DERIVATIVE WORKS;DISASSEMBLE OR DECOMPILE THE PRODUCT OR OTHERWISE USE THE PRODUCT EXCEPTAS SPECIFICALLY AUTHORIZED. THE PRODUCT AND THIS DOCUMENT ARE PROVIDED ON AN"AS IS" BASIS ONLY AND MAY CONTAIN DEFICIENCIES OR INADEQUACIES. TO THE MAXIMUMEXTENT PERMITTED BY APPLICABLE LAW, CINTERION WIRELESS MODULES GMBH DIS-CLAIMS ALL WARRANTIES AND LIABILITIES. THE RECIPIENT UNDERTAKES FOR AN UNLIMITEDPERIOD OF TIME TO OBSERVE SECRECY REGARDING ANY INFORMATION AND DATA PRO-VIDED TO HIM IN THE CONTEXT OF THE DELIVERY OF THE PRODUCT. THIS GENERAL NOTESHALL BE GOVERNED AND CONSTRUED ACCORDING TO GERMAN LAW.CopyrightTransmittal, reproduction, dissemination and/or editing of this document as well as utilization of its con-tents and communication thereof to others without express authorization are prohibited. Offenders willbe held liable for payment of damages. All rights created by patent grant or registration of a utility modelor design patent are reserved. Copyright © 2010, Cinterion Wireless Modules GmbH Trademark NoticeMicrosoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in theUnited States and/or other countries. All other registered trademarks or trademarks mentioned in thisdocument are property of their respective owners.BG2_HIO_v01.000 Page 2 of 30 2010-8-30Confidential / ReleasedBG2-E/BG2-W Hardware Interface Overview2Document Name: BG2-E/BG2-W Hardware Interface OverviewVersion: 01.000Date: 2010-8-30DocId: BG2_HIO_v01.000Status Confidential / ReleasedSupported Products: BG2-E, BG2-W

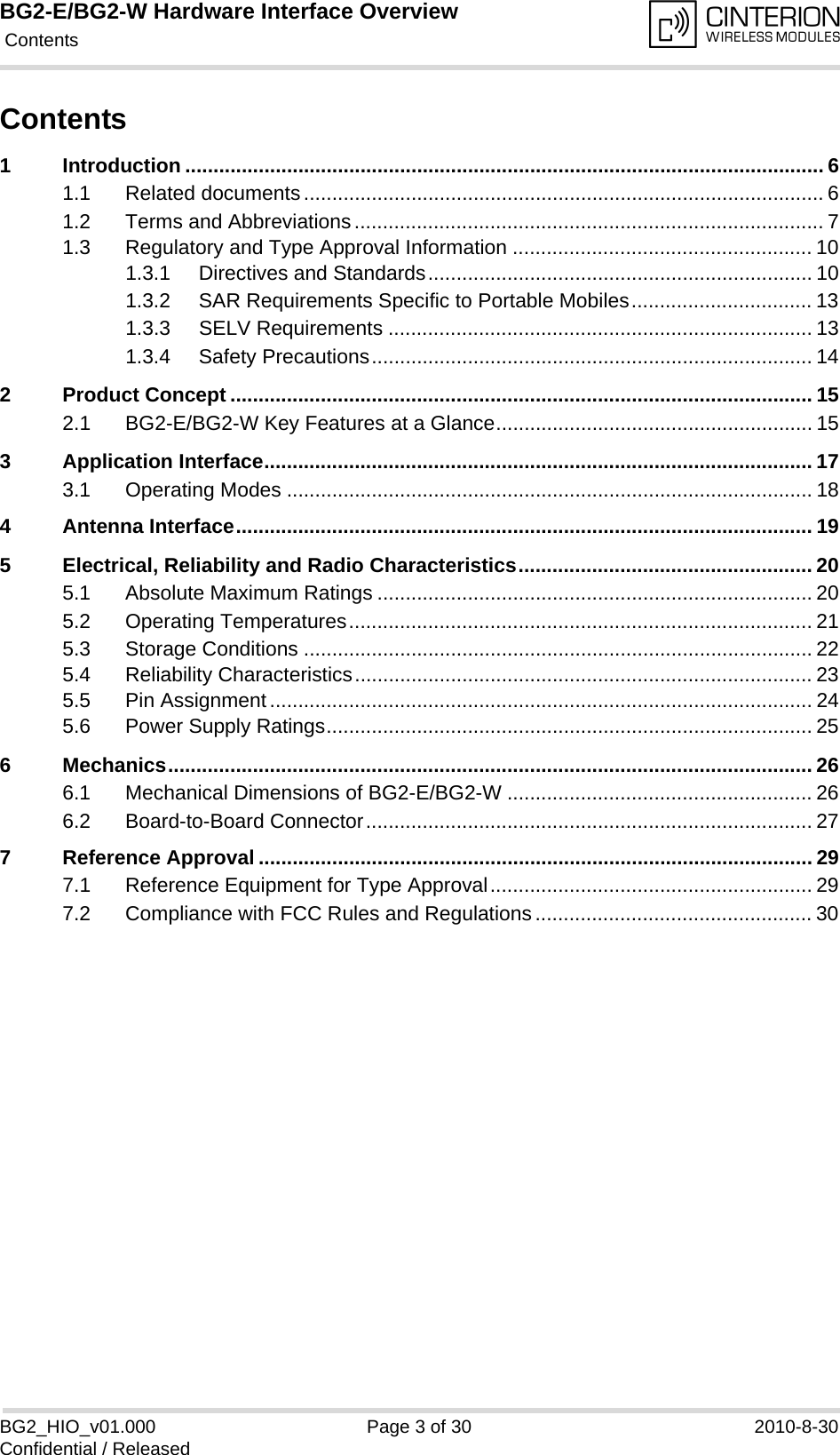

BG2-E/BG2-W Hardware Interface Overview Contents30BG2_HIO_v01.000 Page 3 of 30 2010-8-30Confidential / ReleasedContents1 Introduction ................................................................................................................. 61.1 Related documents............................................................................................ 61.2 Terms and Abbreviations................................................................................... 71.3 Regulatory and Type Approval Information ..................................................... 101.3.1 Directives and Standards.................................................................... 101.3.2 SAR Requirements Specific to Portable Mobiles................................ 131.3.3 SELV Requirements ........................................................................... 131.3.4 Safety Precautions.............................................................................. 142 Product Concept ....................................................................................................... 152.1 BG2-E/BG2-W Key Features at a Glance........................................................ 153 Application Interface................................................................................................. 173.1 Operating Modes ............................................................................................. 184 Antenna Interface...................................................................................................... 195 Electrical, Reliability and Radio Characteristics.................................................... 205.1 Absolute Maximum Ratings ............................................................................. 205.2 Operating Temperatures.................................................................................. 215.3 Storage Conditions .......................................................................................... 225.4 Reliability Characteristics................................................................................. 235.5 Pin Assignment................................................................................................ 245.6 Power Supply Ratings...................................................................................... 256 Mechanics.................................................................................................................. 266.1 Mechanical Dimensions of BG2-E/BG2-W ...................................................... 266.2 Board-to-Board Connector............................................................................... 277 Reference Approval .................................................................................................. 297.1 Reference Equipment for Type Approval......................................................... 297.2 Compliance with FCC Rules and Regulations................................................. 30

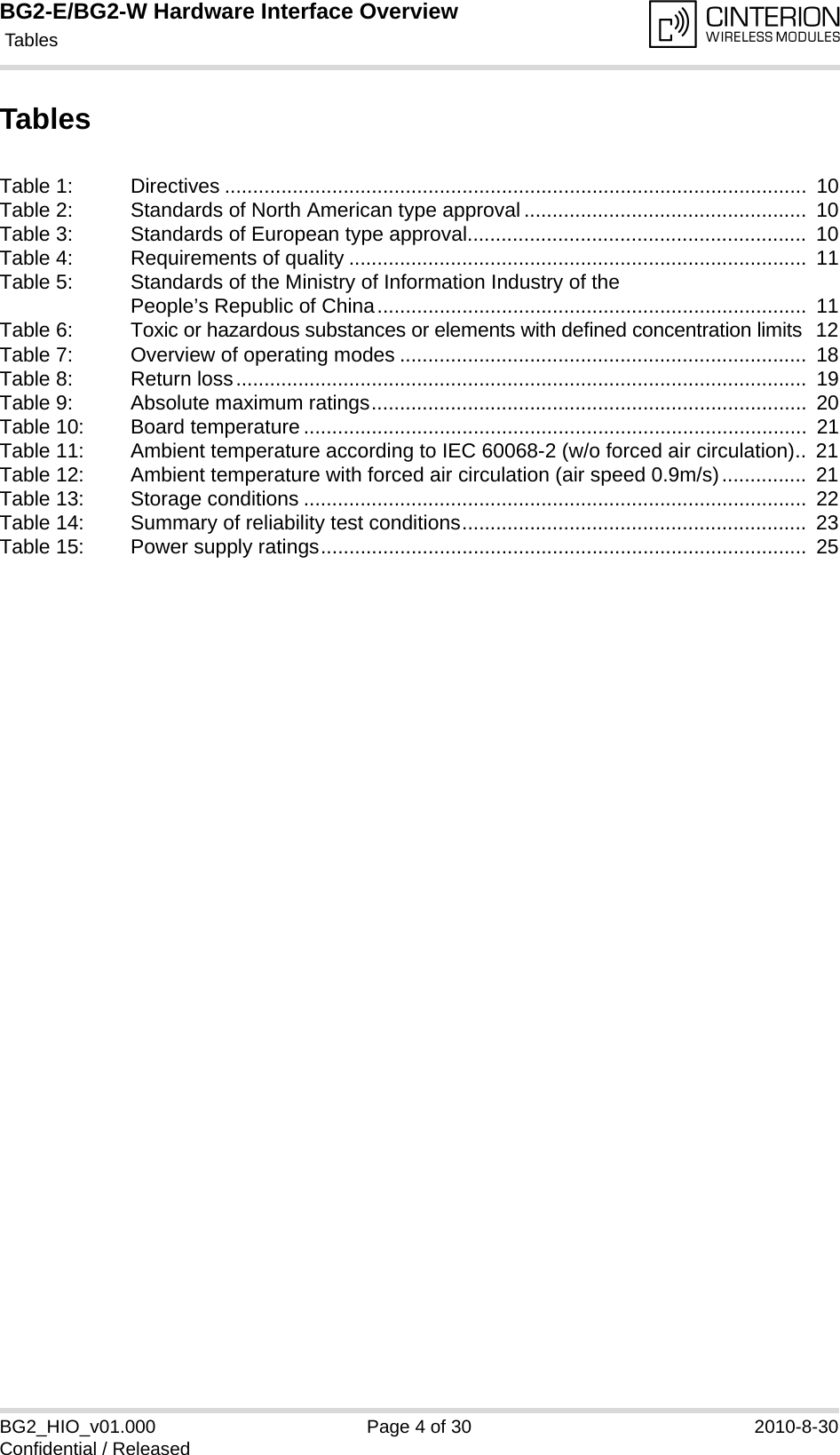

BG2-E/BG2-W Hardware Interface Overview Tables4BG2_HIO_v01.000 Page 4 of 30 2010-8-30Confidential / ReleasedTablesTable 1: Directives ....................................................................................................... 10Table 2: Standards of North American type approval .................................................. 10Table 3: Standards of European type approval............................................................ 10Table 4: Requirements of quality ................................................................................. 11Table 5: Standards of the Ministry of Information Industry of the People’s Republic of China............................................................................ 11Table 6: Toxic or hazardous substances or elements with defined concentration limits 12Table 7: Overview of operating modes ........................................................................ 18Table 8: Return loss..................................................................................................... 19Table 9: Absolute maximum ratings............................................................................. 20Table 10: Board temperature ......................................................................................... 21Table 11: Ambient temperature according to IEC 60068-2 (w/o forced air circulation).. 21Table 12: Ambient temperature with forced air circulation (air speed 0.9m/s)............... 21Table 13: Storage conditions ......................................................................................... 22Table 14: Summary of reliability test conditions............................................................. 23Table 15: Power supply ratings...................................................................................... 25

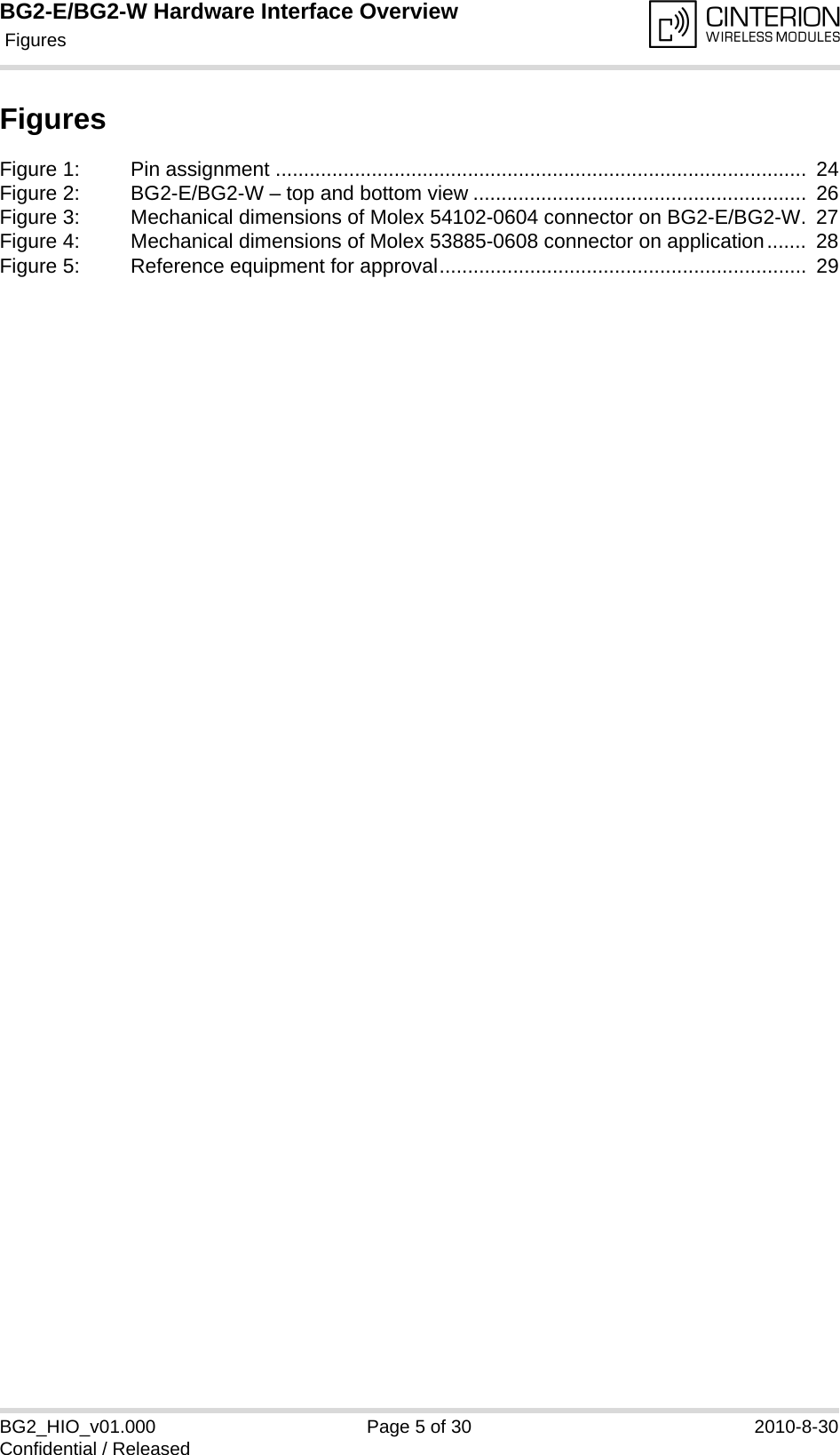

BG2-E/BG2-W Hardware Interface Overview Figures5BG2_HIO_v01.000 Page 5 of 30 2010-8-30Confidential / ReleasedFigures Figure 1: Pin assignment .............................................................................................. 24Figure 2: BG2-E/BG2-W – top and bottom view ........................................................... 26Figure 3: Mechanical dimensions of Molex 54102-0604 connector on BG2-E/BG2-W. 27Figure 4: Mechanical dimensions of Molex 53885-0608 connector on application....... 28Figure 5: Reference equipment for approval................................................................. 29

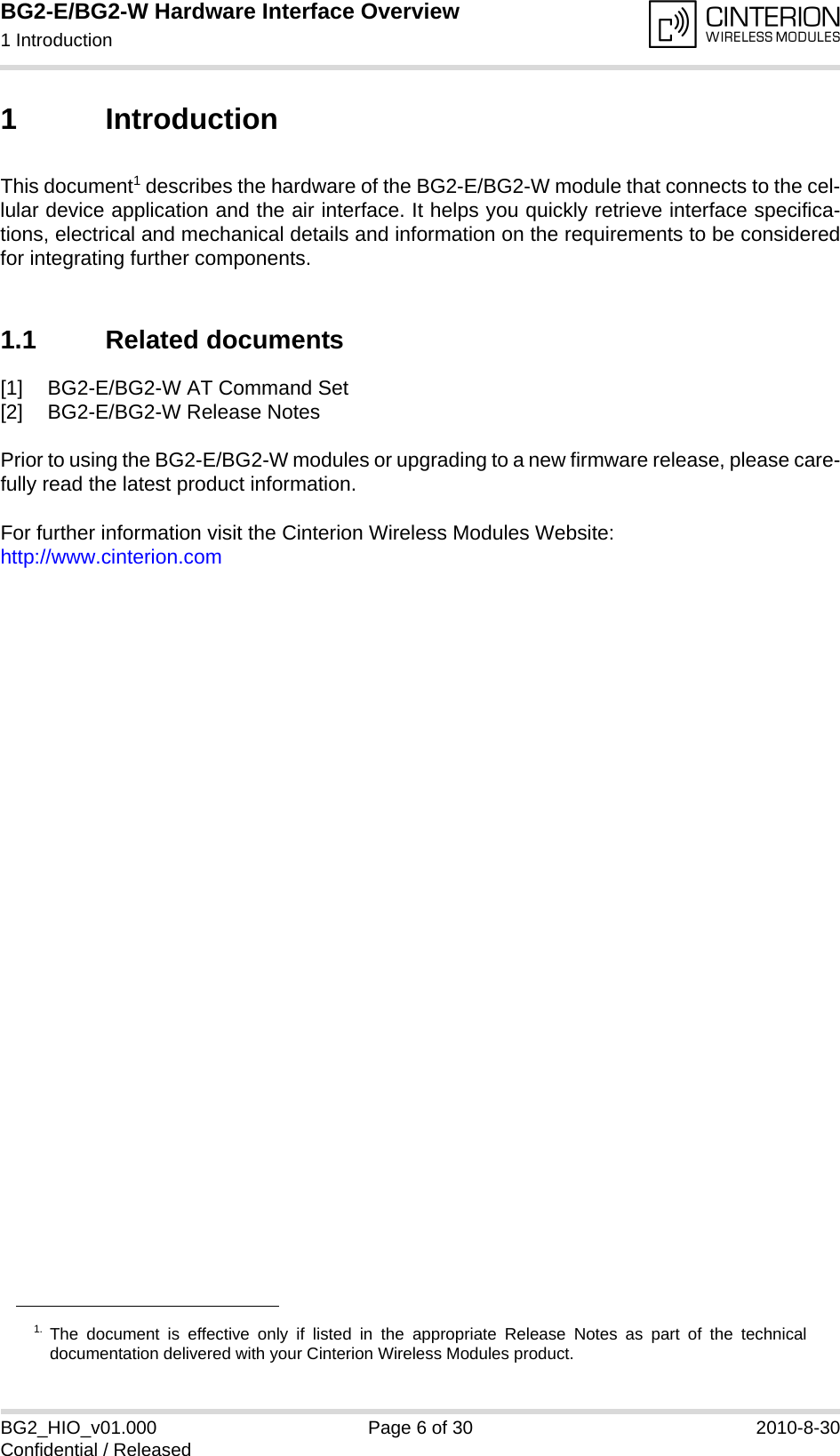

BG2-E/BG2-W Hardware Interface Overview1 Introduction14BG2_HIO_v01.000 Page 6 of 30 2010-8-30Confidential / Released1 IntroductionThis document1 describes the hardware of the BG2-E/BG2-W module that connects to the cel-lular device application and the air interface. It helps you quickly retrieve interface specifica-tions, electrical and mechanical details and information on the requirements to be consideredfor integrating further components.1.1 Related documents[1] BG2-E/BG2-W AT Command Set[2] BG2-E/BG2-W Release NotesPrior to using the BG2-E/BG2-W modules or upgrading to a new firmware release, please care-fully read the latest product information.For further information visit the Cinterion Wireless Modules Website:http://www.cinterion.com1. The document is effective only if listed in the appropriate Release Notes as part of the technicaldocumentation delivered with your Cinterion Wireless Modules product.

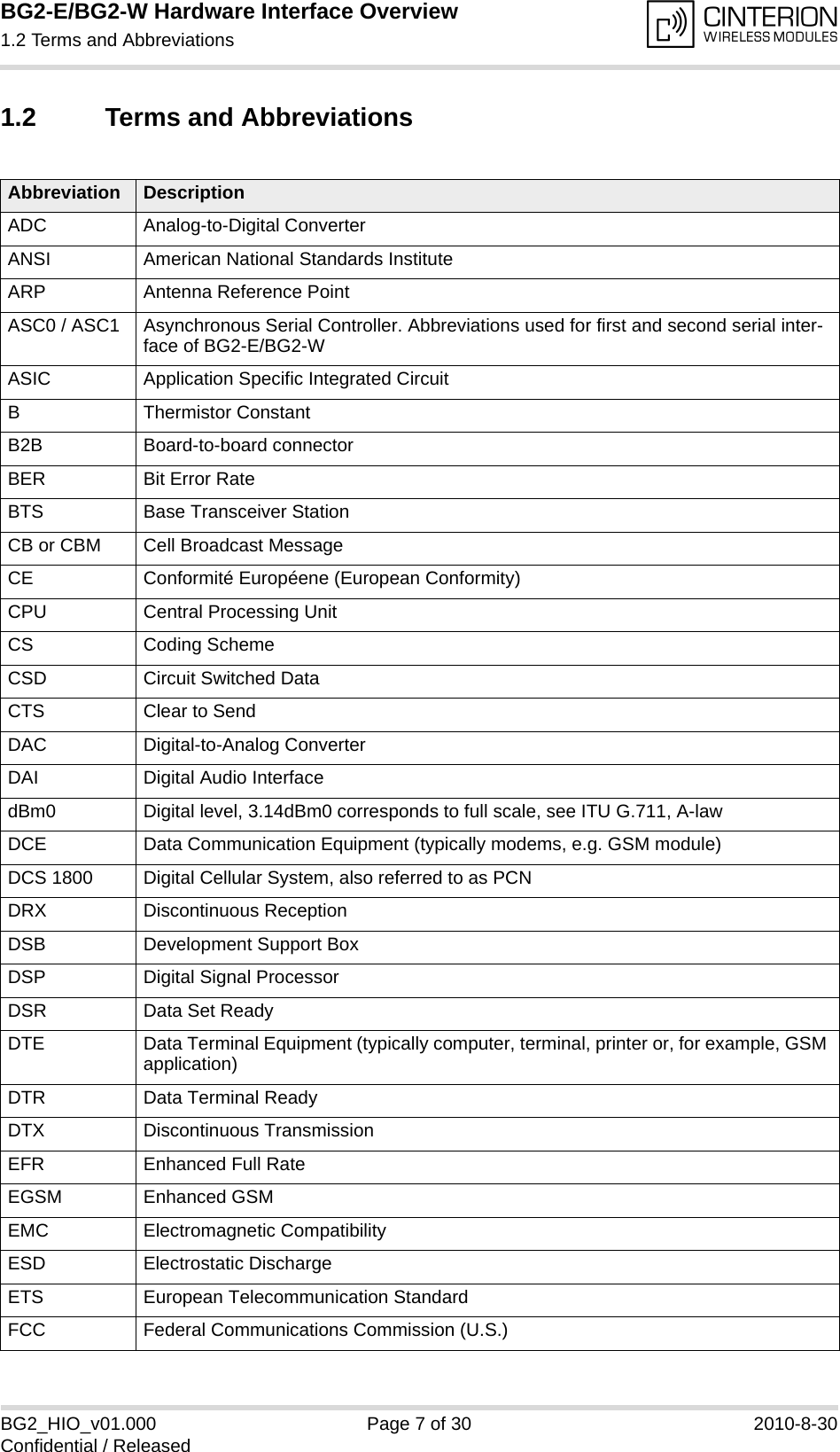

BG2-E/BG2-W Hardware Interface Overview1.2 Terms and Abbreviations14BG2_HIO_v01.000 Page 7 of 30 2010-8-30Confidential / Released1.2 Terms and AbbreviationsAbbreviation DescriptionADC Analog-to-Digital ConverterANSI American National Standards InstituteARP Antenna Reference PointASC0 / ASC1 Asynchronous Serial Controller. Abbreviations used for first and second serial inter-face of BG2-E/BG2-WASIC Application Specific Integrated CircuitB Thermistor ConstantB2B Board-to-board connectorBER Bit Error RateBTS Base Transceiver StationCB or CBM Cell Broadcast MessageCE Conformité Européene (European Conformity)CPU Central Processing UnitCS Coding SchemeCSD Circuit Switched DataCTS Clear to SendDAC Digital-to-Analog ConverterDAI Digital Audio InterfacedBm0 Digital level, 3.14dBm0 corresponds to full scale, see ITU G.711, A-lawDCE Data Communication Equipment (typically modems, e.g. GSM module)DCS 1800 Digital Cellular System, also referred to as PCNDRX Discontinuous ReceptionDSB Development Support BoxDSP Digital Signal ProcessorDSR Data Set ReadyDTE Data Terminal Equipment (typically computer, terminal, printer or, for example, GSM application)DTR Data Terminal ReadyDTX Discontinuous TransmissionEFR Enhanced Full RateEGSM Enhanced GSMEMC Electromagnetic CompatibilityESD Electrostatic DischargeETS European Telecommunication StandardFCC Federal Communications Commission (U.S.)

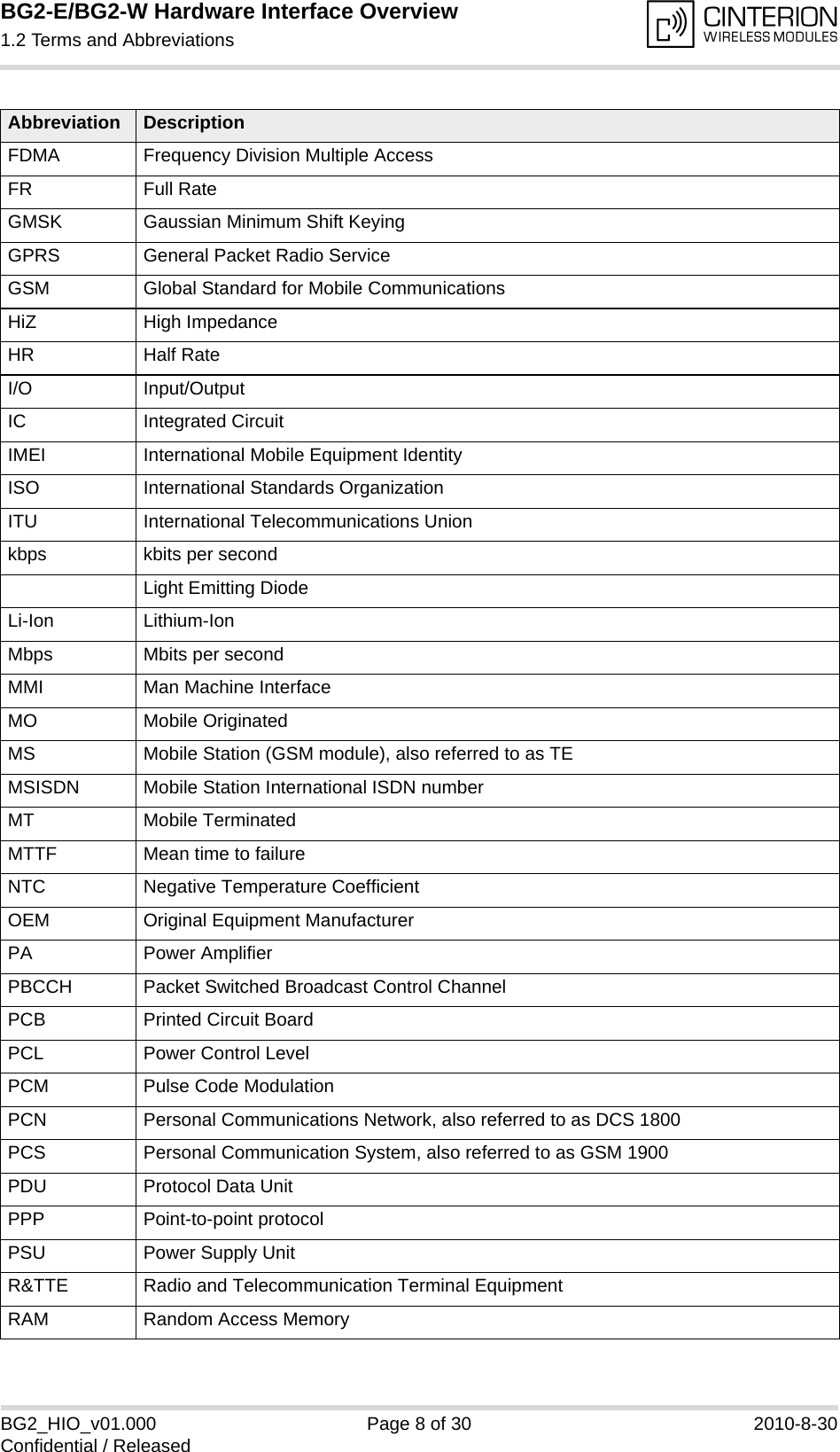

BG2-E/BG2-W Hardware Interface Overview1.2 Terms and Abbreviations14BG2_HIO_v01.000 Page 8 of 30 2010-8-30Confidential / ReleasedFDMA Frequency Division Multiple AccessFR Full RateGMSK Gaussian Minimum Shift KeyingGPRS General Packet Radio ServiceGSM Global Standard for Mobile CommunicationsHiZ High ImpedanceHR Half RateI/O Input/OutputIC Integrated CircuitIMEI International Mobile Equipment IdentityISO International Standards OrganizationITU International Telecommunications Unionkbps kbits per secondLight Emitting DiodeLi-Ion Lithium-IonMbps Mbits per secondMMI Man Machine InterfaceMO Mobile OriginatedMS Mobile Station (GSM module), also referred to as TEMSISDN Mobile Station International ISDN numberMT Mobile TerminatedMTTF Mean time to failureNTC Negative Temperature CoefficientOEM Original Equipment ManufacturerPA Power AmplifierPBCCH Packet Switched Broadcast Control ChannelPCB Printed Circuit BoardPCL Power Control LevelPCM Pulse Code ModulationPCN Personal Communications Network, also referred to as DCS 1800PCS Personal Communication System, also referred to as GSM 1900PDU Protocol Data UnitPPP Point-to-point protocolPSU Power Supply UnitR&TTE Radio and Telecommunication Terminal EquipmentRAM Random Access MemoryAbbreviation Description

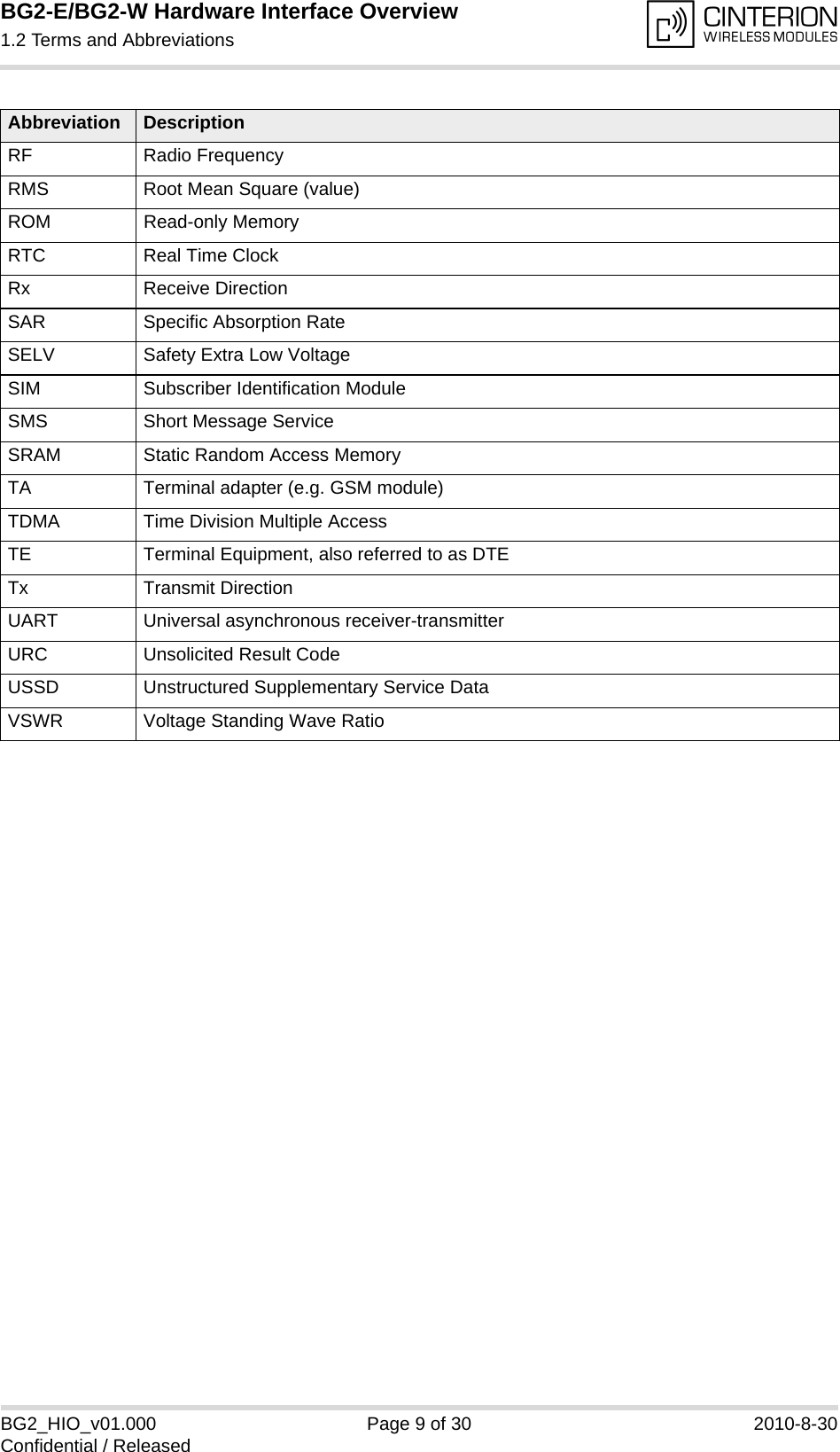

BG2-E/BG2-W Hardware Interface Overview1.2 Terms and Abbreviations14BG2_HIO_v01.000 Page 9 of 30 2010-8-30Confidential / ReleasedRF Radio FrequencyRMS Root Mean Square (value)ROM Read-only MemoryRTC Real Time ClockRx Receive DirectionSAR Specific Absorption RateSELV Safety Extra Low VoltageSIM Subscriber Identification ModuleSMS Short Message ServiceSRAM Static Random Access MemoryTA Terminal adapter (e.g. GSM module)TDMA Time Division Multiple AccessTE Terminal Equipment, also referred to as DTETx Transmit DirectionUART Universal asynchronous receiver-transmitterURC Unsolicited Result CodeUSSD Unstructured Supplementary Service DataVSWR Voltage Standing Wave RatioAbbreviation Description

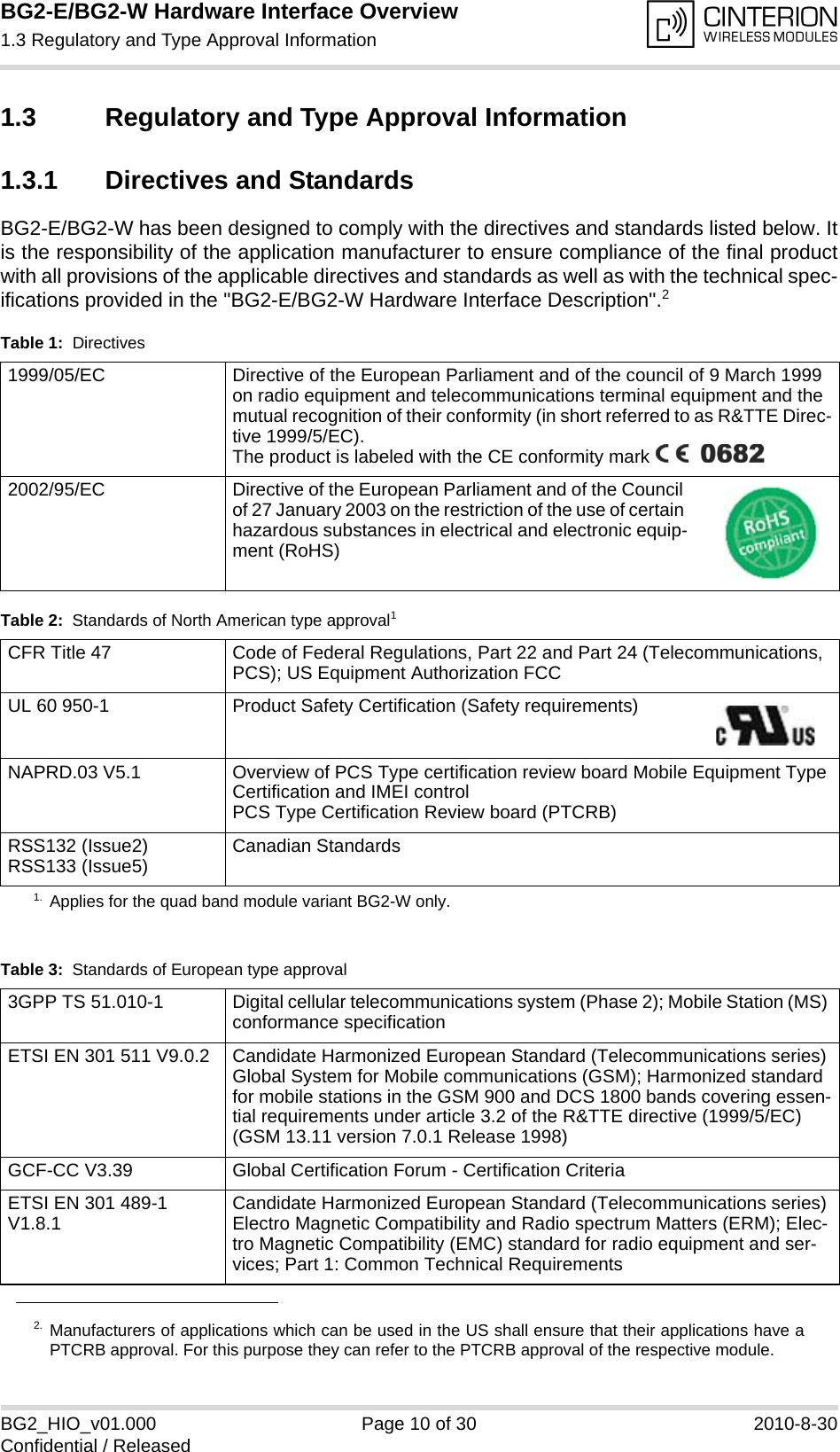

BG2-E/BG2-W Hardware Interface Overview1.3 Regulatory and Type Approval Information14BG2_HIO_v01.000 Page 10 of 30 2010-8-30Confidential / Released1.3 Regulatory and Type Approval Information1.3.1 Directives and StandardsBG2-E/BG2-W has been designed to comply with the directives and standards listed below. Itis the responsibility of the application manufacturer to ensure compliance of the final productwith all provisions of the applicable directives and standards as well as with the technical spec-ifications provided in the "BG2-E/BG2-W Hardware Interface Description".22. Manufacturers of applications which can be used in the US shall ensure that their applications have aPTCRB approval. For this purpose they can refer to the PTCRB approval of the respective module. Table 1: Directives1999/05/EC Directive of the European Parliament and of the council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity (in short referred to as R&TTE Direc-tive 1999/5/EC).The product is labeled with the CE conformity mark 2002/95/EC Directive of the European Parliament and of the Council of 27 January 2003 on the restriction of the use of certain hazardous substances in electrical and electronic equip-ment (RoHS)Table 2: Standards of North American type approval11. Applies for the quad band module variant BG2-W only.CFR Title 47 Code of Federal Regulations, Part 22 and Part 24 (Telecommunications, PCS); US Equipment Authorization FCCUL 60 950-1 Product Safety Certification (Safety requirements)NAPRD.03 V5.1 Overview of PCS Type certification review board Mobile Equipment Type Certification and IMEI controlPCS Type Certification Review board (PTCRB)RSS132 (Issue2)RSS133 (Issue5) Canadian StandardsTable 3: Standards of European type approval3GPP TS 51.010-1 Digital cellular telecommunications system (Phase 2); Mobile Station (MS) conformance specificationETSI EN 301 511 V9.0.2 Candidate Harmonized European Standard (Telecommunications series) Global System for Mobile communications (GSM); Harmonized standard for mobile stations in the GSM 900 and DCS 1800 bands covering essen-tial requirements under article 3.2 of the R&TTE directive (1999/5/EC) (GSM 13.11 version 7.0.1 Release 1998)GCF-CC V3.39 Global Certification Forum - Certification CriteriaETSI EN 301 489-1 V1.8.1 Candidate Harmonized European Standard (Telecommunications series) Electro Magnetic Compatibility and Radio spectrum Matters (ERM); Elec-tro Magnetic Compatibility (EMC) standard for radio equipment and ser-vices; Part 1: Common Technical Requirements

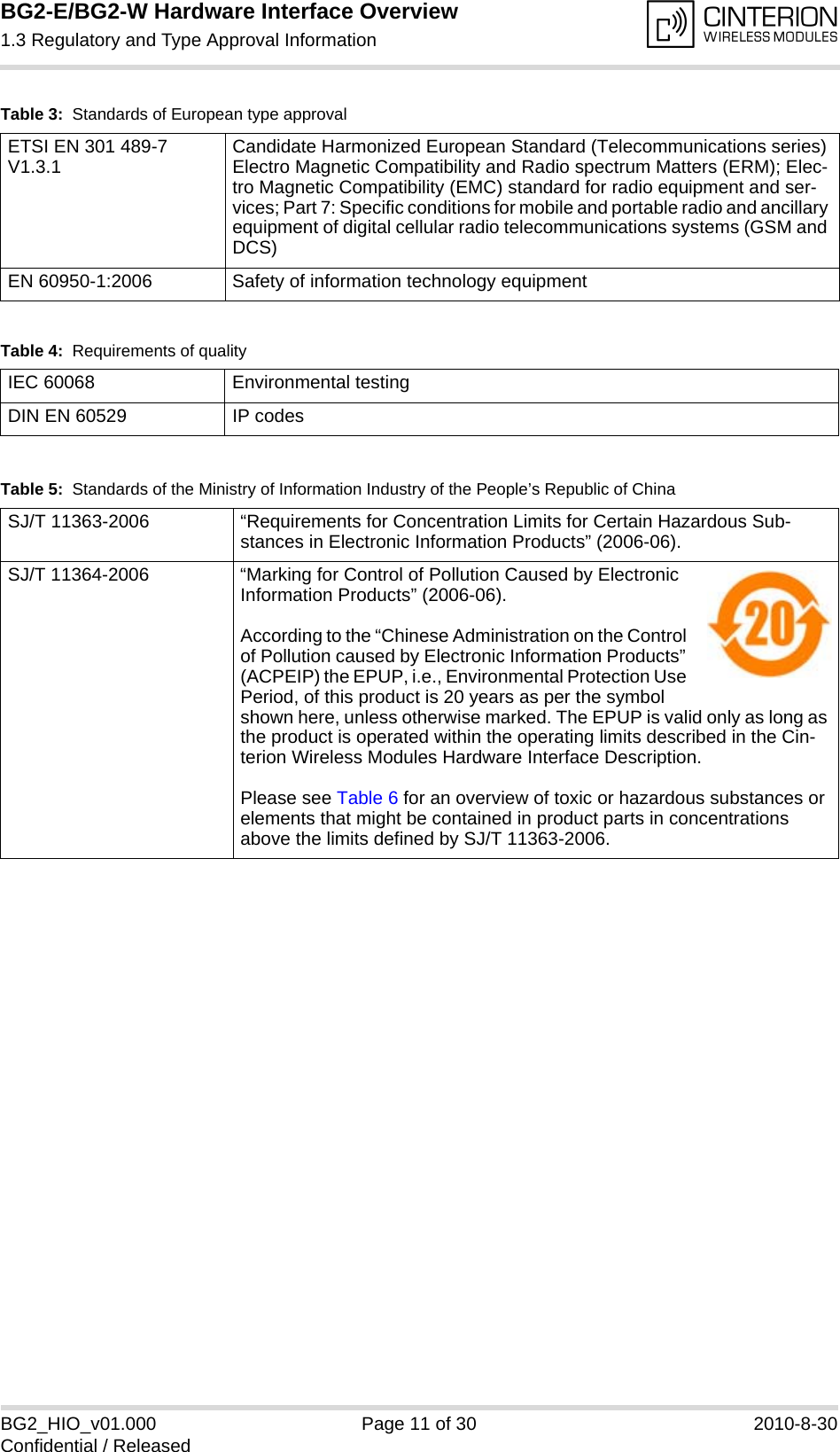

BG2-E/BG2-W Hardware Interface Overview1.3 Regulatory and Type Approval Information14BG2_HIO_v01.000 Page 11 of 30 2010-8-30Confidential / ReleasedETSI EN 301 489-7 V1.3.1 Candidate Harmonized European Standard (Telecommunications series) Electro Magnetic Compatibility and Radio spectrum Matters (ERM); Elec-tro Magnetic Compatibility (EMC) standard for radio equipment and ser-vices; Part 7: Specific conditions for mobile and portable radio and ancillary equipment of digital cellular radio telecommunications systems (GSM and DCS)EN 60950-1:2006 Safety of information technology equipmentTable 4: Requirements of qualityIEC 60068 Environmental testingDIN EN 60529 IP codesTable 5: Standards of the Ministry of Information Industry of the People’s Republic of ChinaSJ/T 11363-2006 “Requirements for Concentration Limits for Certain Hazardous Sub-stances in Electronic Information Products” (2006-06).SJ/T 11364-2006 “Marking for Control of Pollution Caused by Electronic Information Products” (2006-06).According to the “Chinese Administration on the Control of Pollution caused by Electronic Information Products” (ACPEIP) the EPUP, i.e., Environmental Protection Use Period, of this product is 20 years as per the symbol shown here, unless otherwise marked. The EPUP is valid only as long as the product is operated within the operating limits described in the Cin-terion Wireless Modules Hardware Interface Description.Please see Table 6 for an overview of toxic or hazardous substances or elements that might be contained in product parts in concentrations above the limits defined by SJ/T 11363-2006. Table 3: Standards of European type approval

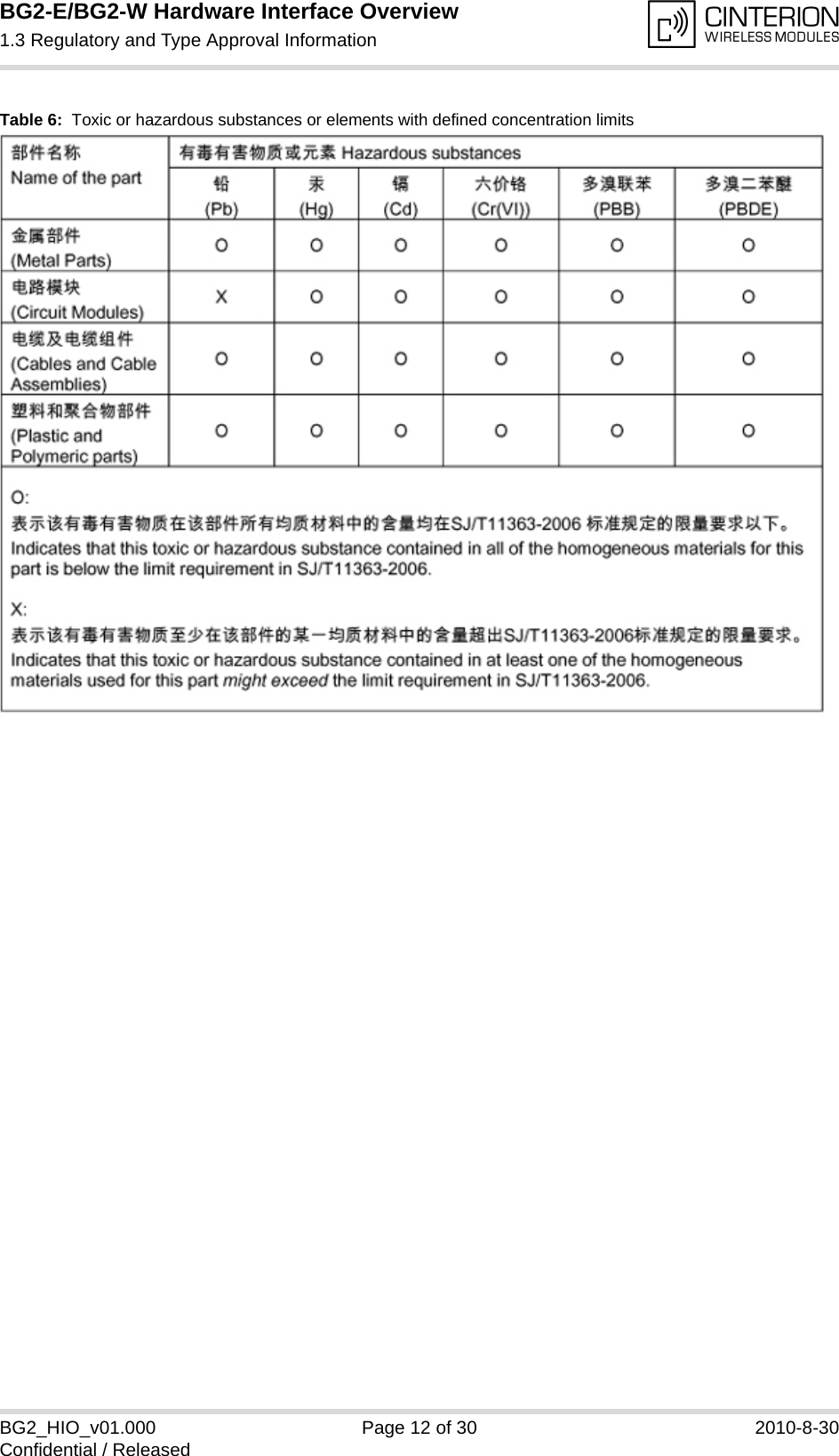

BG2-E/BG2-W Hardware Interface Overview1.3 Regulatory and Type Approval Information14BG2_HIO_v01.000 Page 12 of 30 2010-8-30Confidential / ReleasedTable 6: Toxic or hazardous substances or elements with defined concentration limits

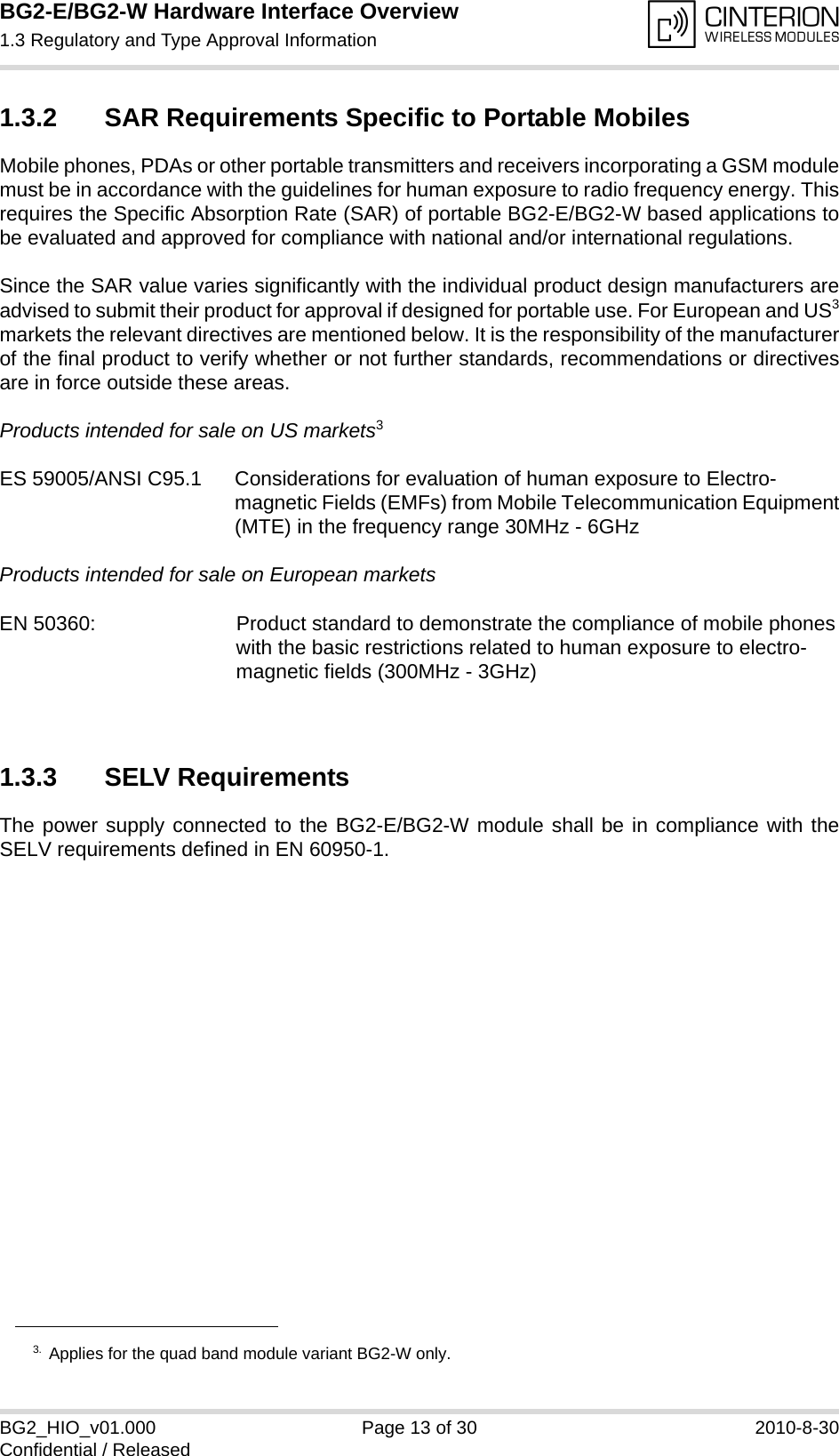

BG2-E/BG2-W Hardware Interface Overview1.3 Regulatory and Type Approval Information14BG2_HIO_v01.000 Page 13 of 30 2010-8-30Confidential / Released1.3.2 SAR Requirements Specific to Portable MobilesMobile phones, PDAs or other portable transmitters and receivers incorporating a GSM modulemust be in accordance with the guidelines for human exposure to radio frequency energy. Thisrequires the Specific Absorption Rate (SAR) of portable BG2-E/BG2-W based applications tobe evaluated and approved for compliance with national and/or international regulations. Since the SAR value varies significantly with the individual product design manufacturers areadvised to submit their product for approval if designed for portable use. For European and US3markets the relevant directives are mentioned below. It is the responsibility of the manufacturerof the final product to verify whether or not further standards, recommendations or directivesare in force outside these areas. Products intended for sale on US markets3ES 59005/ANSI C95.1 Considerations for evaluation of human exposure to Electro-magnetic Fields (EMFs) from Mobile Telecommunication Equipment(MTE) in the frequency range 30MHz - 6GHz Products intended for sale on European markets EN 50360: Product standard to demonstrate the compliance of mobile phoneswith the basic restrictions related to human exposure to electro-magnetic fields (300MHz - 3GHz)1.3.3 SELV RequirementsThe power supply connected to the BG2-E/BG2-W module shall be in compliance with theSELV requirements defined in EN 60950-1.3. Applies for the quad band module variant BG2-W only.

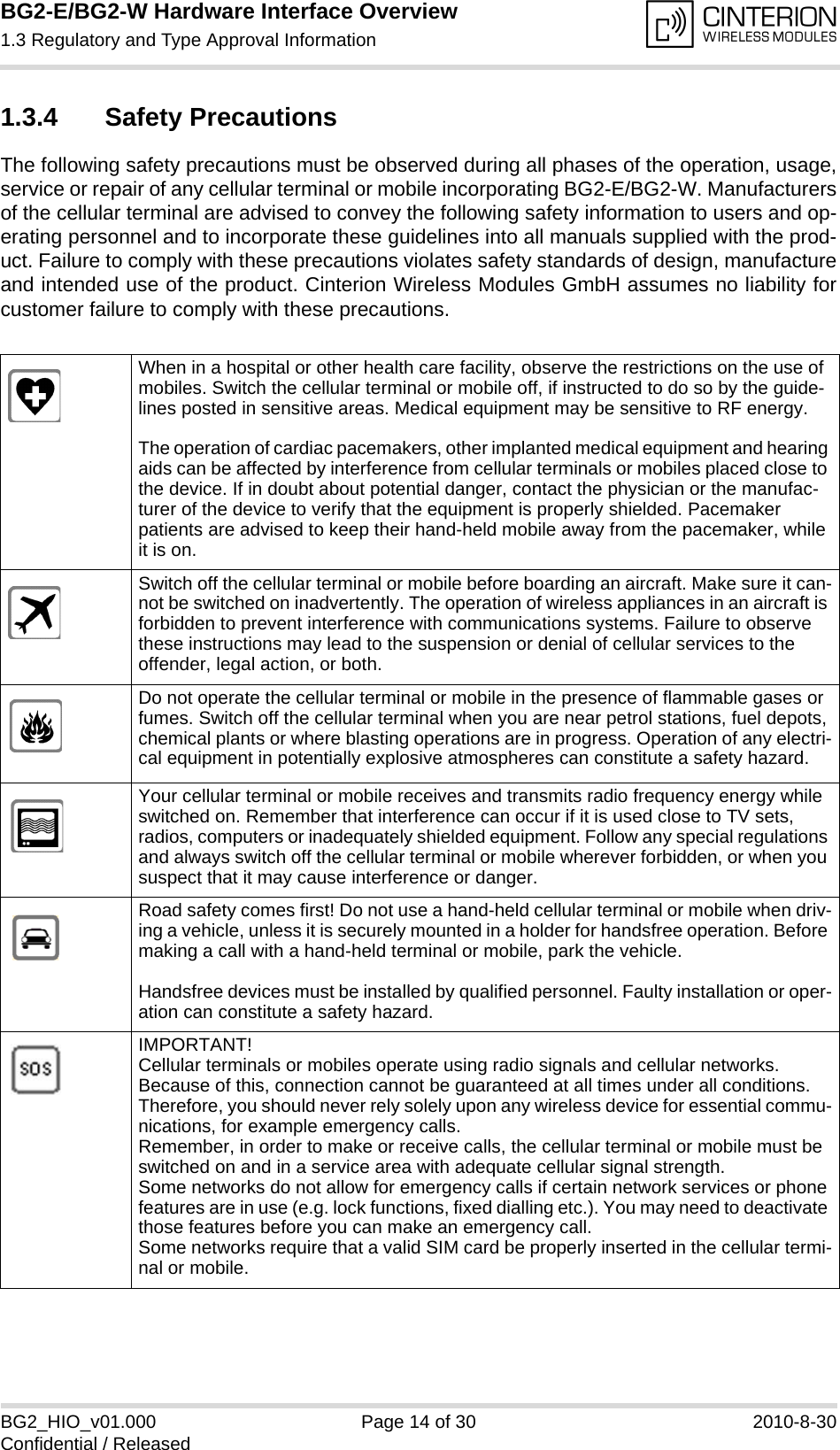

BG2-E/BG2-W Hardware Interface Overview1.3 Regulatory and Type Approval Information14BG2_HIO_v01.000 Page 14 of 30 2010-8-30Confidential / Released1.3.4 Safety PrecautionsThe following safety precautions must be observed during all phases of the operation, usage,service or repair of any cellular terminal or mobile incorporating BG2-E/BG2-W. Manufacturersof the cellular terminal are advised to convey the following safety information to users and op-erating personnel and to incorporate these guidelines into all manuals supplied with the prod-uct. Failure to comply with these precautions violates safety standards of design, manufactureand intended use of the product. Cinterion Wireless Modules GmbH assumes no liability forcustomer failure to comply with these precautions.When in a hospital or other health care facility, observe the restrictions on the use of mobiles. Switch the cellular terminal or mobile off, if instructed to do so by the guide-lines posted in sensitive areas. Medical equipment may be sensitive to RF energy. The operation of cardiac pacemakers, other implanted medical equipment and hearing aids can be affected by interference from cellular terminals or mobiles placed close to the device. If in doubt about potential danger, contact the physician or the manufac-turer of the device to verify that the equipment is properly shielded. Pacemaker patients are advised to keep their hand-held mobile away from the pacemaker, while it is on. Switch off the cellular terminal or mobile before boarding an aircraft. Make sure it can-not be switched on inadvertently. The operation of wireless appliances in an aircraft is forbidden to prevent interference with communications systems. Failure to observe these instructions may lead to the suspension or denial of cellular services to the offender, legal action, or both.Do not operate the cellular terminal or mobile in the presence of flammable gases or fumes. Switch off the cellular terminal when you are near petrol stations, fuel depots, chemical plants or where blasting operations are in progress. Operation of any electri-cal equipment in potentially explosive atmospheres can constitute a safety hazard.Your cellular terminal or mobile receives and transmits radio frequency energy while switched on. Remember that interference can occur if it is used close to TV sets, radios, computers or inadequately shielded equipment. Follow any special regulations and always switch off the cellular terminal or mobile wherever forbidden, or when you suspect that it may cause interference or danger.Road safety comes first! Do not use a hand-held cellular terminal or mobile when driv-ing a vehicle, unless it is securely mounted in a holder for handsfree operation. Before making a call with a hand-held terminal or mobile, park the vehicle. Handsfree devices must be installed by qualified personnel. Faulty installation or oper-ation can constitute a safety hazard.IMPORTANT!Cellular terminals or mobiles operate using radio signals and cellular networks. Because of this, connection cannot be guaranteed at all times under all conditions. Therefore, you should never rely solely upon any wireless device for essential commu-nications, for example emergency calls. Remember, in order to make or receive calls, the cellular terminal or mobile must be switched on and in a service area with adequate cellular signal strength. Some networks do not allow for emergency calls if certain network services or phone features are in use (e.g. lock functions, fixed dialling etc.). You may need to deactivate those features before you can make an emergency call.Some networks require that a valid SIM card be properly inserted in the cellular termi-nal or mobile.

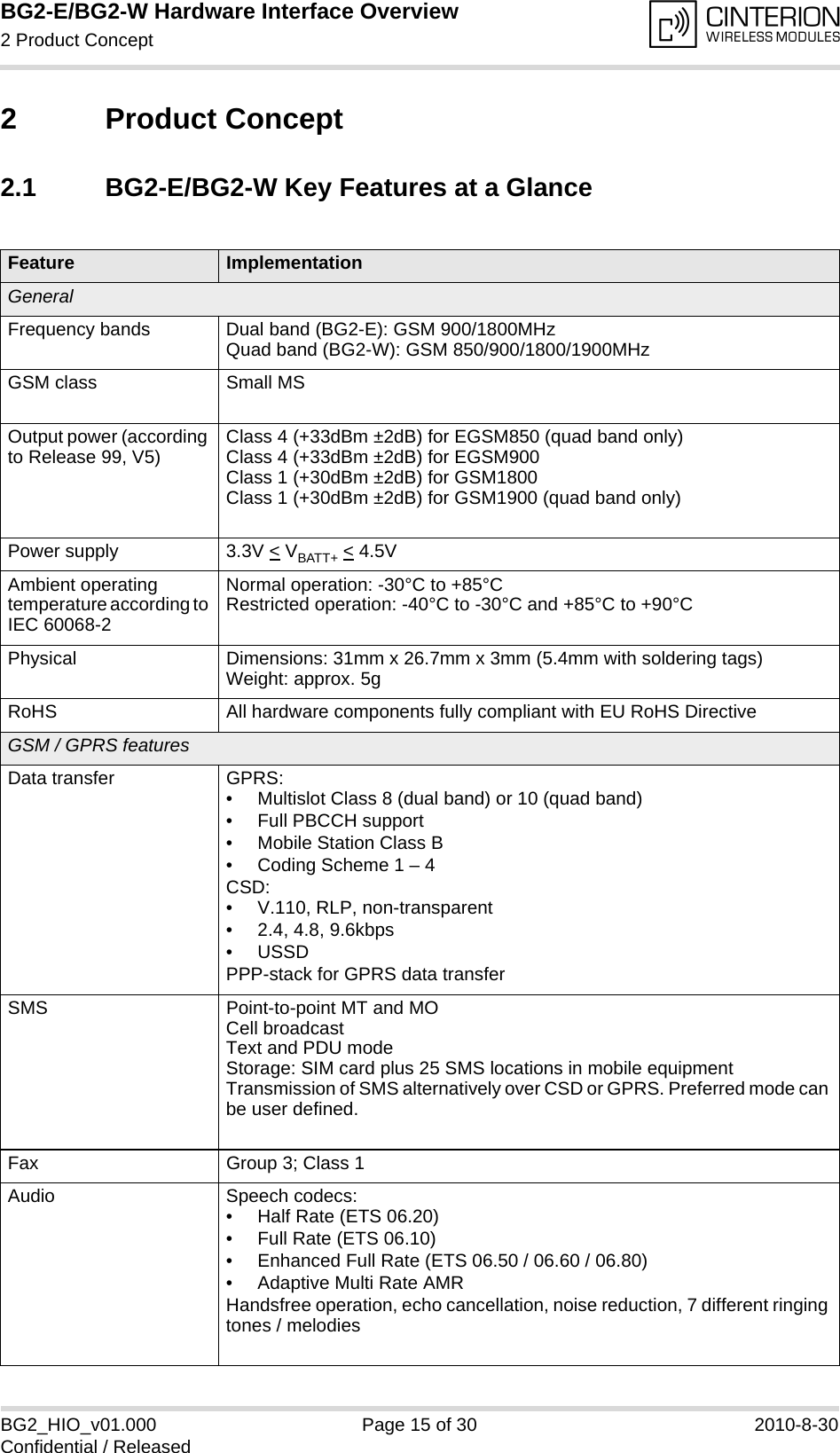

BG2-E/BG2-W Hardware Interface Overview2 Product Concept16BG2_HIO_v01.000 Page 15 of 30 2010-8-30Confidential / Released2 Product Concept2.1 BG2-E/BG2-W Key Features at a GlanceFeature ImplementationGeneralFrequency bands Dual band (BG2-E): GSM 900/1800MHzQuad band (BG2-W): GSM 850/900/1800/1900MHzGSM class Small MSOutput power (according to Release 99, V5) Class 4 (+33dBm ±2dB) for EGSM850 (quad band only)Class 4 (+33dBm ±2dB) for EGSM900Class 1 (+30dBm ±2dB) for GSM1800Class 1 (+30dBm ±2dB) for GSM1900 (quad band only)Power supply 3.3V < VBATT+ < 4.5VAmbient operating temperature according to IEC 60068-2Normal operation: -30°C to +85°CRestricted operation: -40°C to -30°C and +85°C to +90°CPhysical Dimensions: 31mm x 26.7mm x 3mm (5.4mm with soldering tags)Weight: approx. 5gRoHS All hardware components fully compliant with EU RoHS DirectiveGSM / GPRS featuresData transfer GPRS:• Multislot Class 8 (dual band) or 10 (quad band)• Full PBCCH support• Mobile Station Class B• Coding Scheme 1 – 4CSD:• V.110, RLP, non-transparent• 2.4, 4.8, 9.6kbps•USSDPPP-stack for GPRS data transferSMS Point-to-point MT and MOCell broadcastText and PDU modeStorage: SIM card plus 25 SMS locations in mobile equipmentTransmission of SMS alternatively over CSD or GPRS. Preferred mode can be user defined.Fax Group 3; Class 1Audio Speech codecs: • Half Rate (ETS 06.20)• Full Rate (ETS 06.10)• Enhanced Full Rate (ETS 06.50 / 06.60 / 06.80)• Adaptive Multi Rate AMRHandsfree operation, echo cancellation, noise reduction, 7 different ringing tones / melodies

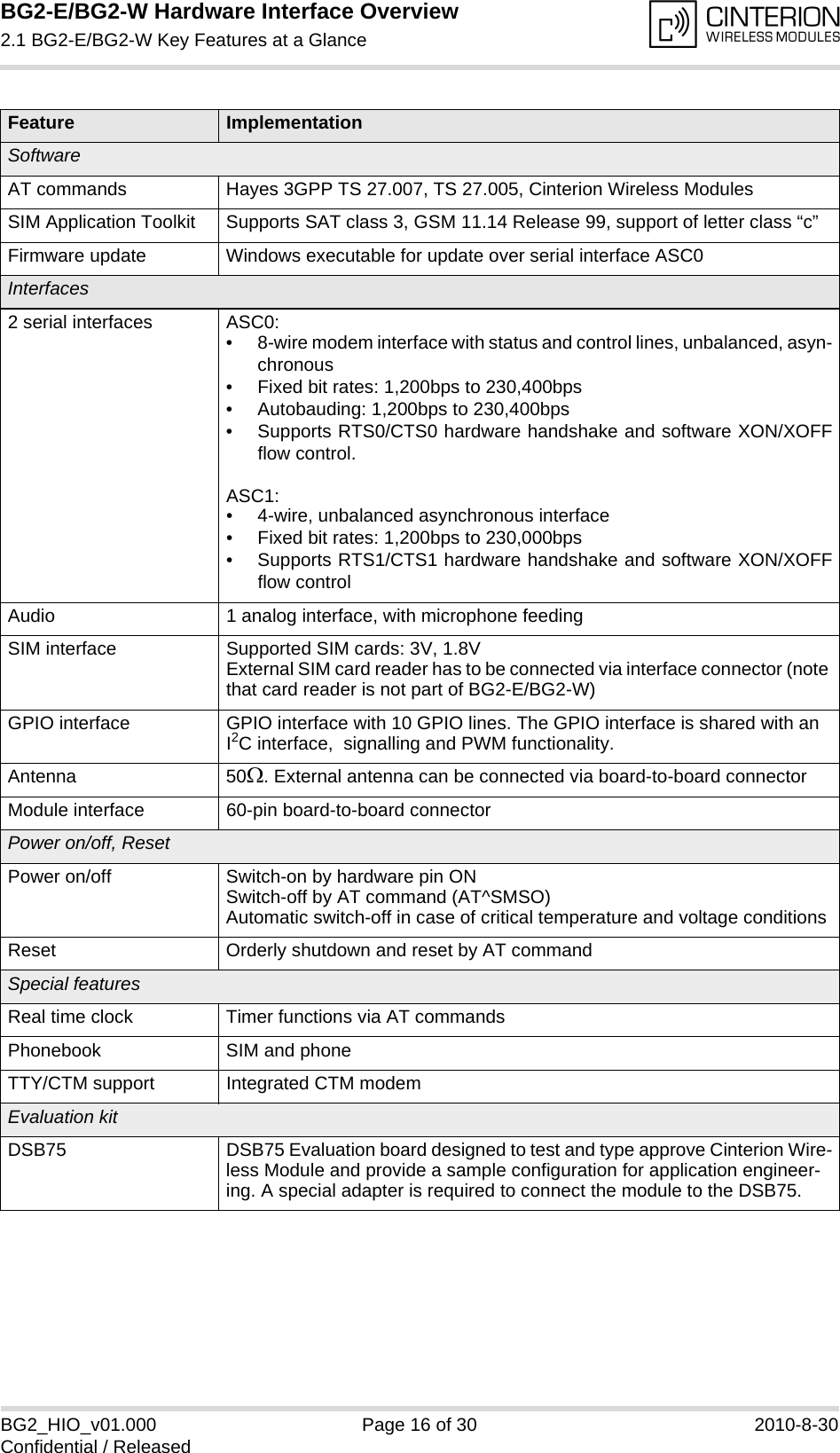

BG2-E/BG2-W Hardware Interface Overview2.1 BG2-E/BG2-W Key Features at a Glance16BG2_HIO_v01.000 Page 16 of 30 2010-8-30Confidential / ReleasedSoftwareAT commands Hayes 3GPP TS 27.007, TS 27.005, Cinterion Wireless ModulesSIM Application Toolkit Supports SAT class 3, GSM 11.14 Release 99, support of letter class “c”Firmware update Windows executable for update over serial interface ASC0Interfaces2 serial interfaces ASC0:• 8-wire modem interface with status and control lines, unbalanced, asyn-chronous• Fixed bit rates: 1,200bps to 230,400bps• Autobauding: 1,200bps to 230,400bps• Supports RTS0/CTS0 hardware handshake and software XON/XOFFflow control.ASC1:• 4-wire, unbalanced asynchronous interface• Fixed bit rates: 1,200bps to 230,000bps• Supports RTS1/CTS1 hardware handshake and software XON/XOFFflow controlAudio 1 analog interface, with microphone feedingSIM interface Supported SIM cards: 3V, 1.8VExternal SIM card reader has to be connected via interface connector (note that card reader is not part of BG2-E/BG2-W)GPIO interface GPIO interface with 10 GPIO lines. The GPIO interface is shared with an I2C interface, signalling and PWM functionality. Antenna 50. External antenna can be connected via board-to-board connectorModule interface 60-pin board-to-board connectorPower on/off, ResetPower on/off Switch-on by hardware pin ONSwitch-off by AT command (AT^SMSO)Automatic switch-off in case of critical temperature and voltage conditionsReset Orderly shutdown and reset by AT commandSpecial featuresReal time clock Timer functions via AT commandsPhonebook SIM and phoneTTY/CTM support Integrated CTM modemEvaluation kitDSB75 DSB75 Evaluation board designed to test and type approve Cinterion Wire-less Module and provide a sample configuration for application engineer-ing. A special adapter is required to connect the module to the DSB75.Feature Implementation

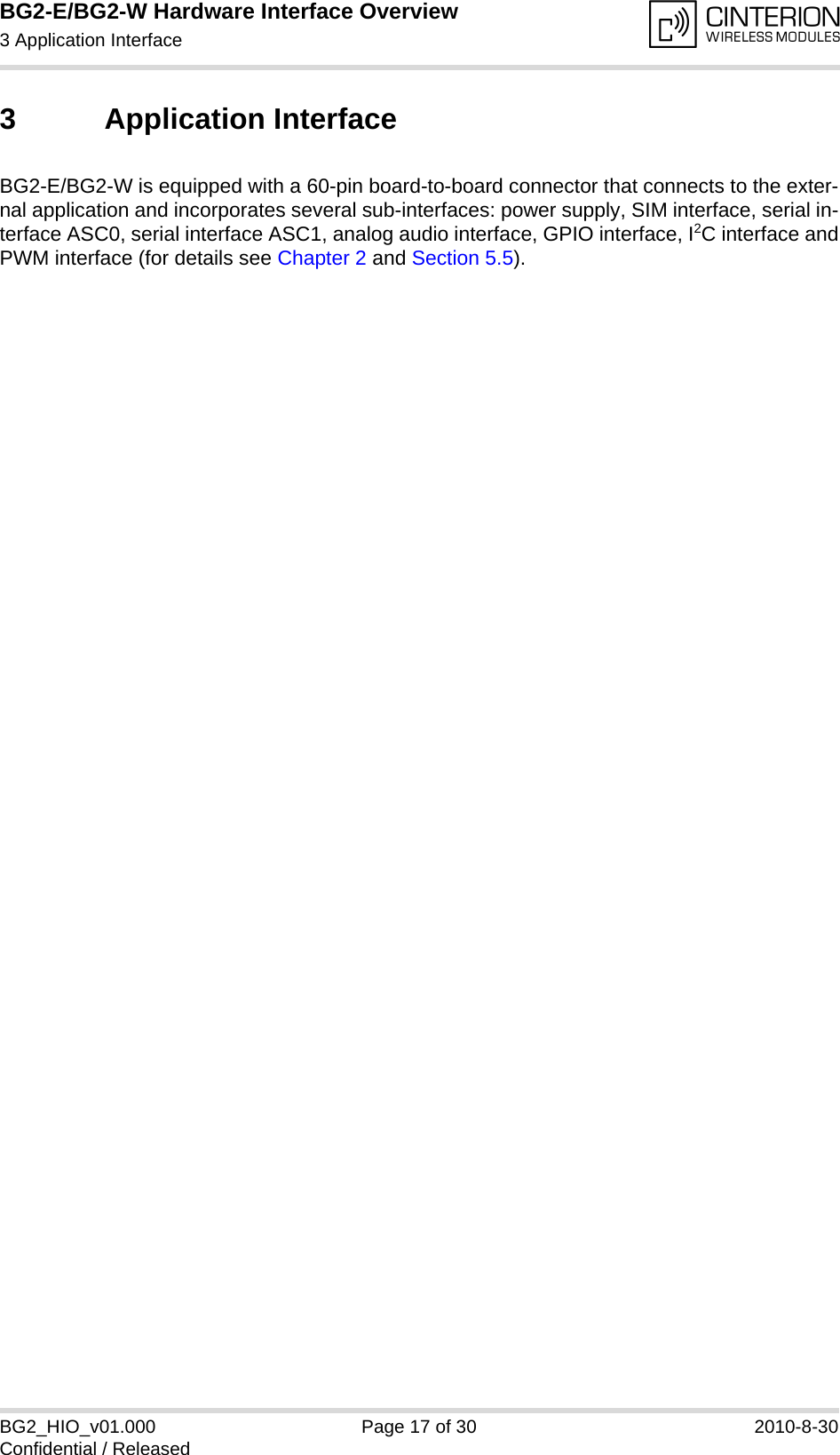

BG2-E/BG2-W Hardware Interface Overview3 Application Interface18BG2_HIO_v01.000 Page 17 of 30 2010-8-30Confidential / Released3 Application InterfaceBG2-E/BG2-W is equipped with a 60-pin board-to-board connector that connects to the exter-nal application and incorporates several sub-interfaces: power supply, SIM interface, serial in-terface ASC0, serial interface ASC1, analog audio interface, GPIO interface, I2C interface andPWM interface (for details see Chapter 2 and Section 5.5).

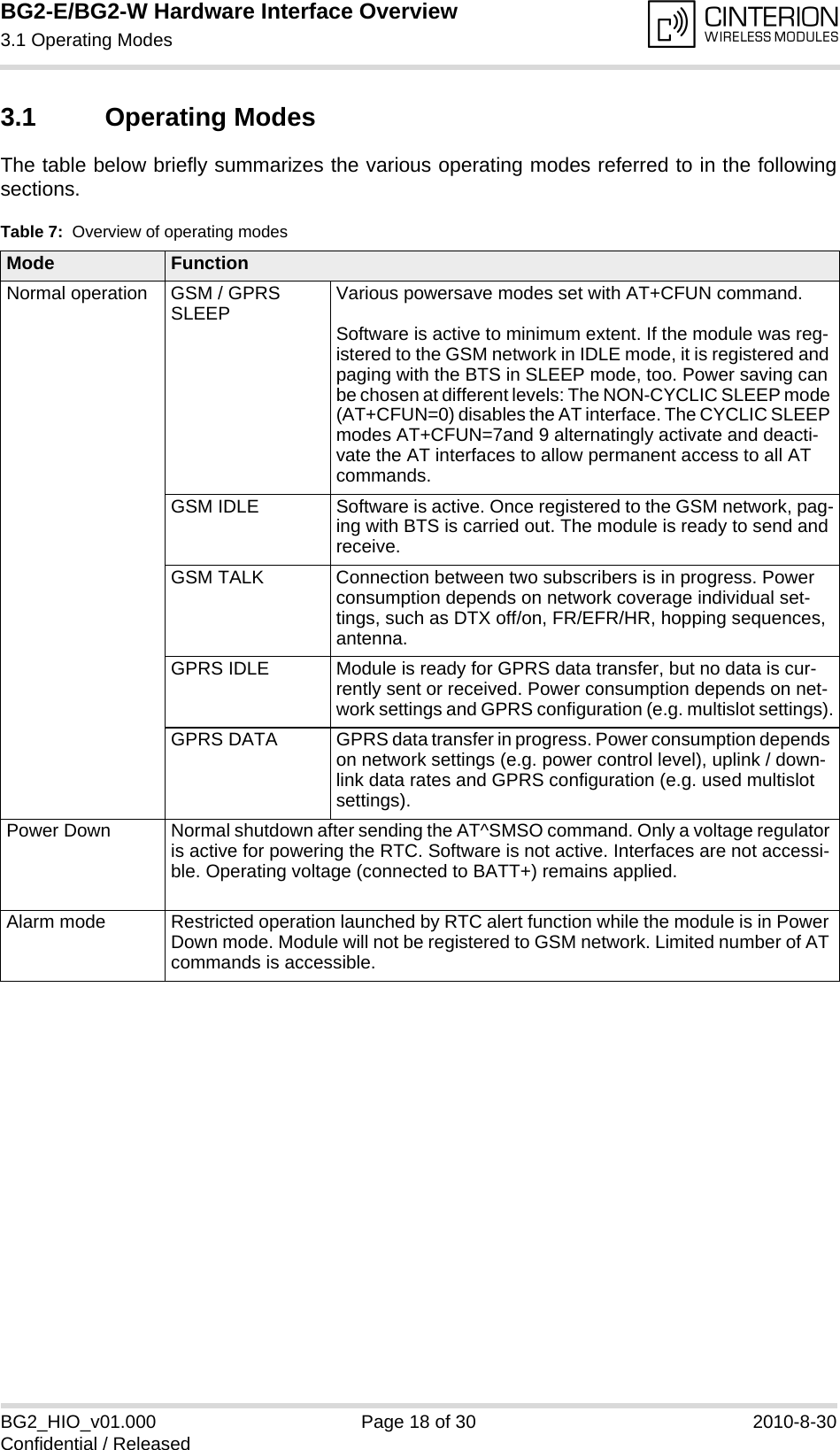

BG2-E/BG2-W Hardware Interface Overview3.1 Operating Modes18BG2_HIO_v01.000 Page 18 of 30 2010-8-30Confidential / Released3.1 Operating ModesThe table below briefly summarizes the various operating modes referred to in the followingsections. Table 7: Overview of operating modesMode FunctionNormal operation GSM / GPRS SLEEP Various powersave modes set with AT+CFUN command. Software is active to minimum extent. If the module was reg-istered to the GSM network in IDLE mode, it is registered and paging with the BTS in SLEEP mode, too. Power saving can be chosen at different levels: The NON-CYCLIC SLEEP mode (AT+CFUN=0) disables the AT interface. The CYCLIC SLEEP modes AT+CFUN=7and 9 alternatingly activate and deacti-vate the AT interfaces to allow permanent access to all AT commands.GSM IDLE Software is active. Once registered to the GSM network, pag-ing with BTS is carried out. The module is ready to send and receive.GSM TALK Connection between two subscribers is in progress. Power consumption depends on network coverage individual set-tings, such as DTX off/on, FR/EFR/HR, hopping sequences, antenna.GPRS IDLE Module is ready for GPRS data transfer, but no data is cur-rently sent or received. Power consumption depends on net-work settings and GPRS configuration (e.g. multislot settings).GPRS DATA GPRS data transfer in progress. Power consumption depends on network settings (e.g. power control level), uplink / down-link data rates and GPRS configuration (e.g. used multislot settings).Power Down Normal shutdown after sending the AT^SMSO command. Only a voltage regulator is active for powering the RTC. Software is not active. Interfaces are not accessi-ble. Operating voltage (connected to BATT+) remains applied.Alarm mode Restricted operation launched by RTC alert function while the module is in Power Down mode. Module will not be registered to GSM network. Limited number of AT commands is accessible.

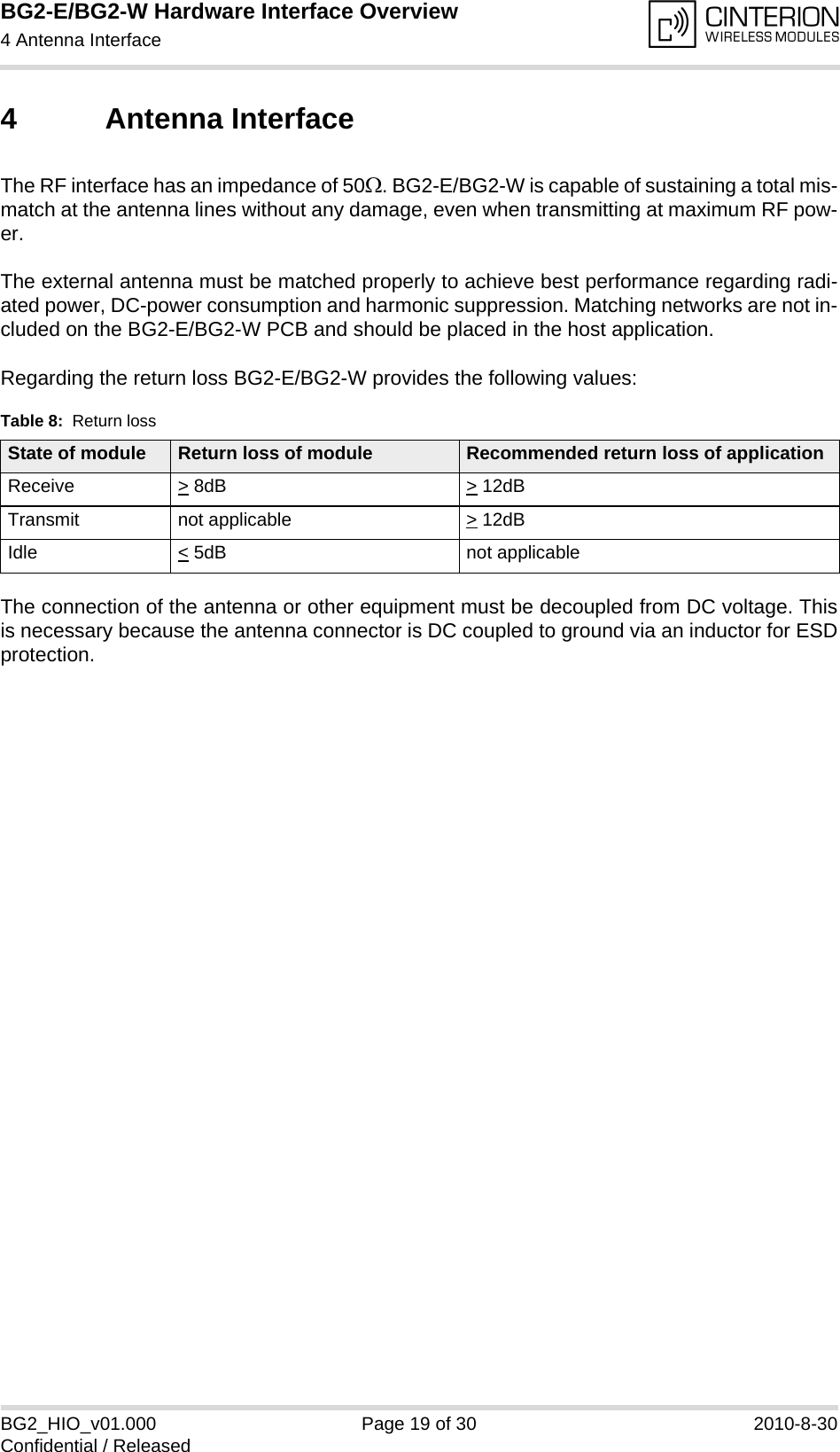

BG2-E/BG2-W Hardware Interface Overview4 Antenna Interface19BG2_HIO_v01.000 Page 19 of 30 2010-8-30Confidential / Released4 Antenna InterfaceThe RF interface has an impedance of 50. BG2-E/BG2-W is capable of sustaining a total mis-match at the antenna lines without any damage, even when transmitting at maximum RF pow-er. The external antenna must be matched properly to achieve best performance regarding radi-ated power, DC-power consumption and harmonic suppression. Matching networks are not in-cluded on the BG2-E/BG2-W PCB and should be placed in the host application. Regarding the return loss BG2-E/BG2-W provides the following values:The connection of the antenna or other equipment must be decoupled from DC voltage. Thisis necessary because the antenna connector is DC coupled to ground via an inductor for ESDprotection.Table 8: Return lossState of module Return loss of module Recommended return loss of applicationReceive > 8dB > 12dB Transmit not applicable > 12dB Idle < 5dB not applicable

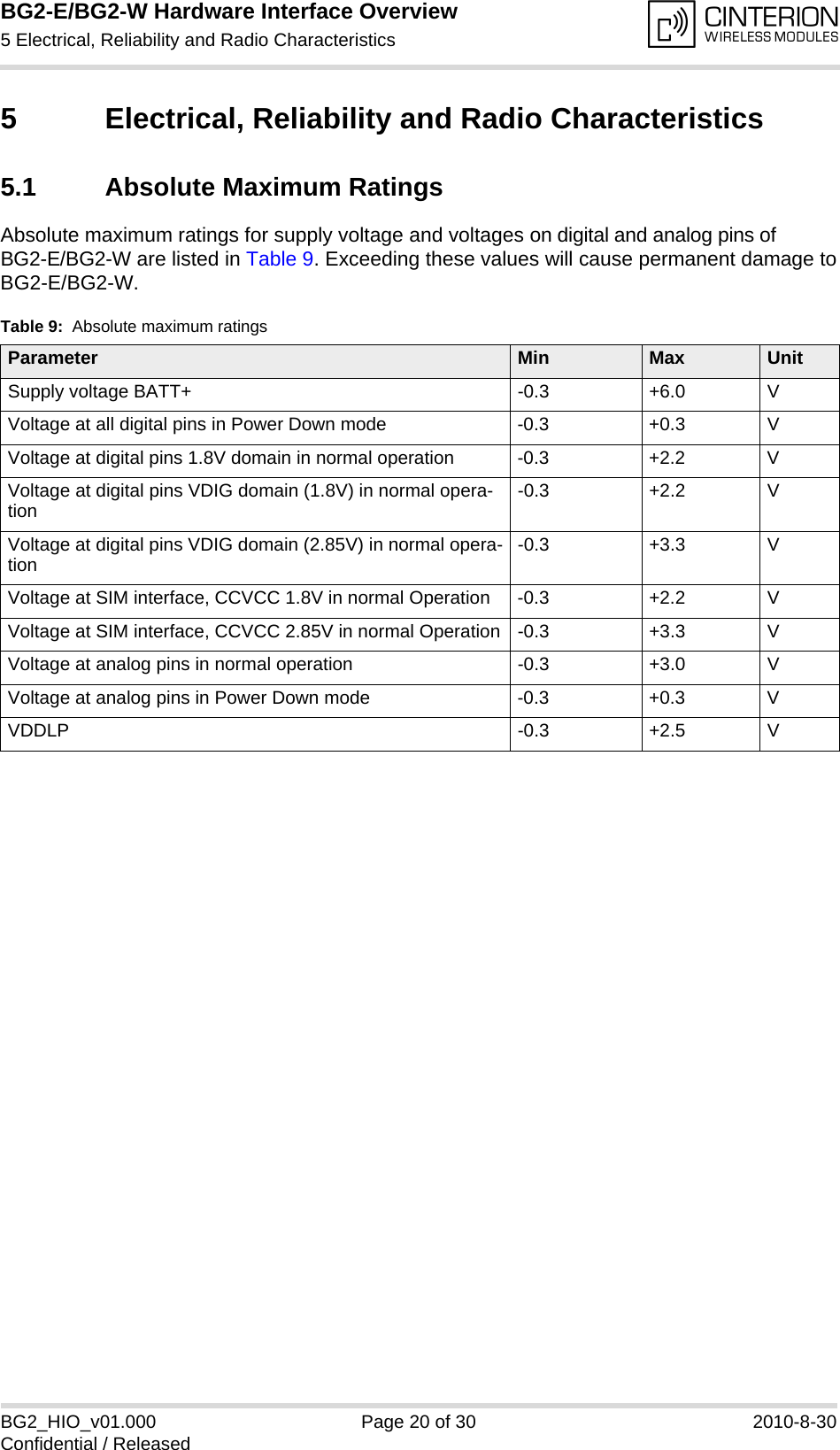

BG2-E/BG2-W Hardware Interface Overview5 Electrical, Reliability and Radio Characteristics25BG2_HIO_v01.000 Page 20 of 30 2010-8-30Confidential / Released5 Electrical, Reliability and Radio Characteristics5.1 Absolute Maximum RatingsAbsolute maximum ratings for supply voltage and voltages on digital and analog pins of BG2-E/BG2-W are listed in Table 9. Exceeding these values will cause permanent damage toBG2-E/BG2-W.Table 9: Absolute maximum ratingsParameter Min Max UnitSupply voltage BATT+ -0.3 +6.0 VVoltage at all digital pins in Power Down mode -0.3 +0.3 VVoltage at digital pins 1.8V domain in normal operation -0.3 +2.2 VVoltage at digital pins VDIG domain (1.8V) in normal opera-tion -0.3 +2.2 VVoltage at digital pins VDIG domain (2.85V) in normal opera-tion -0.3 +3.3 VVoltage at SIM interface, CCVCC 1.8V in normal Operation -0.3 +2.2 VVoltage at SIM interface, CCVCC 2.85V in normal Operation -0.3 +3.3 VVoltage at analog pins in normal operation -0.3 +3.0 VVoltage at analog pins in Power Down mode -0.3 +0.3 VVDDLP -0.3 +2.5 V

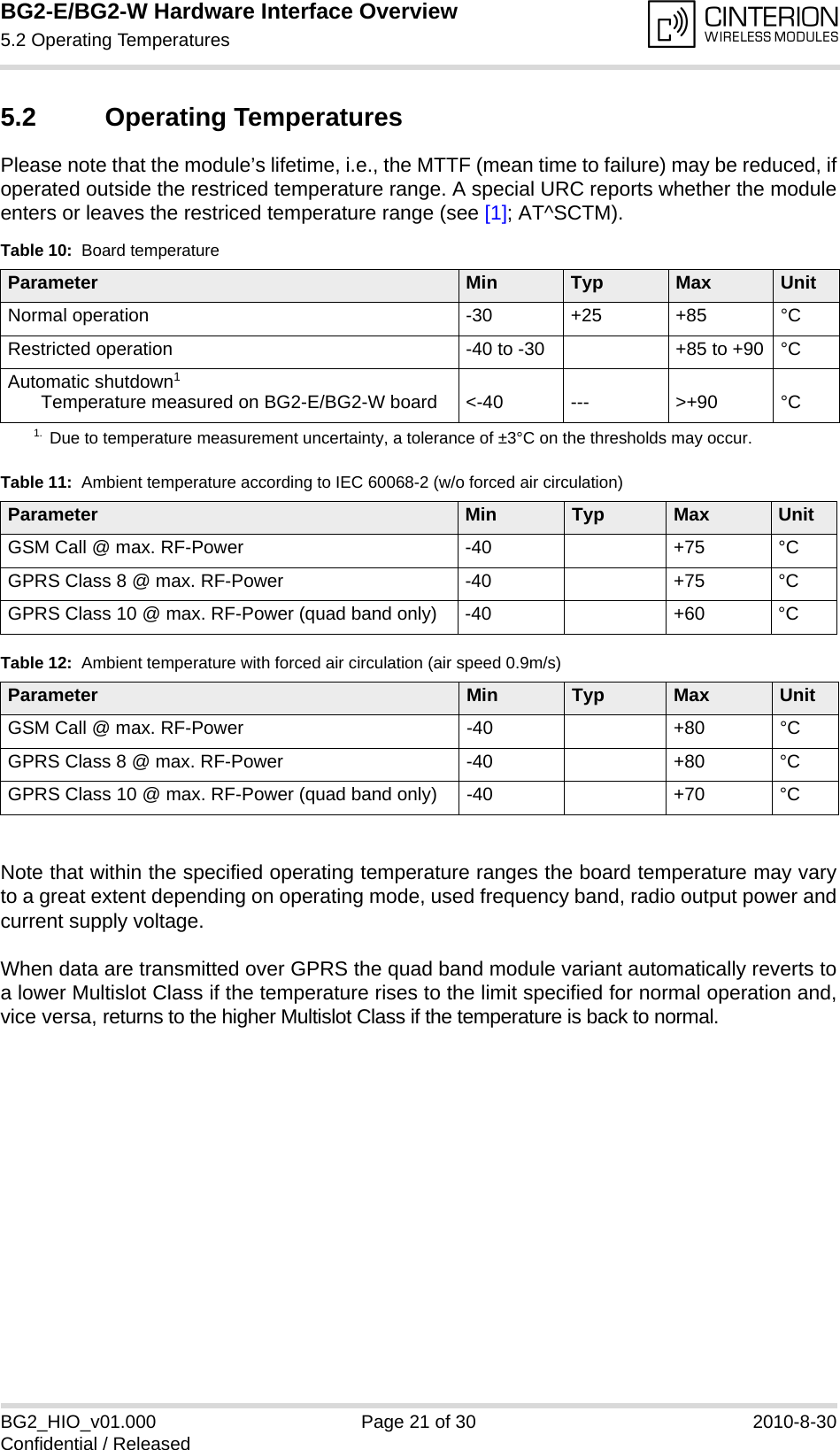

BG2-E/BG2-W Hardware Interface Overview5.2 Operating Temperatures25BG2_HIO_v01.000 Page 21 of 30 2010-8-30Confidential / Released5.2 Operating TemperaturesPlease note that the module’s lifetime, i.e., the MTTF (mean time to failure) may be reduced, ifoperated outside the restriced temperature range. A special URC reports whether the moduleenters or leaves the restriced temperature range (see [1]; AT^SCTM).Note that within the specified operating temperature ranges the board temperature may varyto a great extent depending on operating mode, used frequency band, radio output power andcurrent supply voltage. When data are transmitted over GPRS the quad band module variant automatically reverts toa lower Multislot Class if the temperature rises to the limit specified for normal operation and,vice versa, returns to the higher Multislot Class if the temperature is back to normal. Table 10: Board temperatureParameter Min Typ Max UnitNormal operation -30 +25 +85 °CRestricted operation -40 to -30 +85 to +90 °CAutomatic shutdown1Temperature measured on BG2-E/BG2-W board1. Due to temperature measurement uncertainty, a tolerance of ±3°C on the thresholds may occur.<-40 --- >+90 °CTable 11: Ambient temperature according to IEC 60068-2 (w/o forced air circulation)Parameter Min Typ Max UnitGSM Call @ max. RF-Power -40 +75 °CGPRS Class 8 @ max. RF-Power -40 +75 °CGPRS Class 10 @ max. RF-Power (quad band only) -40 +60 °CTable 12: Ambient temperature with forced air circulation (air speed 0.9m/s)Parameter Min Typ Max UnitGSM Call @ max. RF-Power -40 +80 °CGPRS Class 8 @ max. RF-Power -40 +80 °CGPRS Class 10 @ max. RF-Power (quad band only) -40 +70 °C

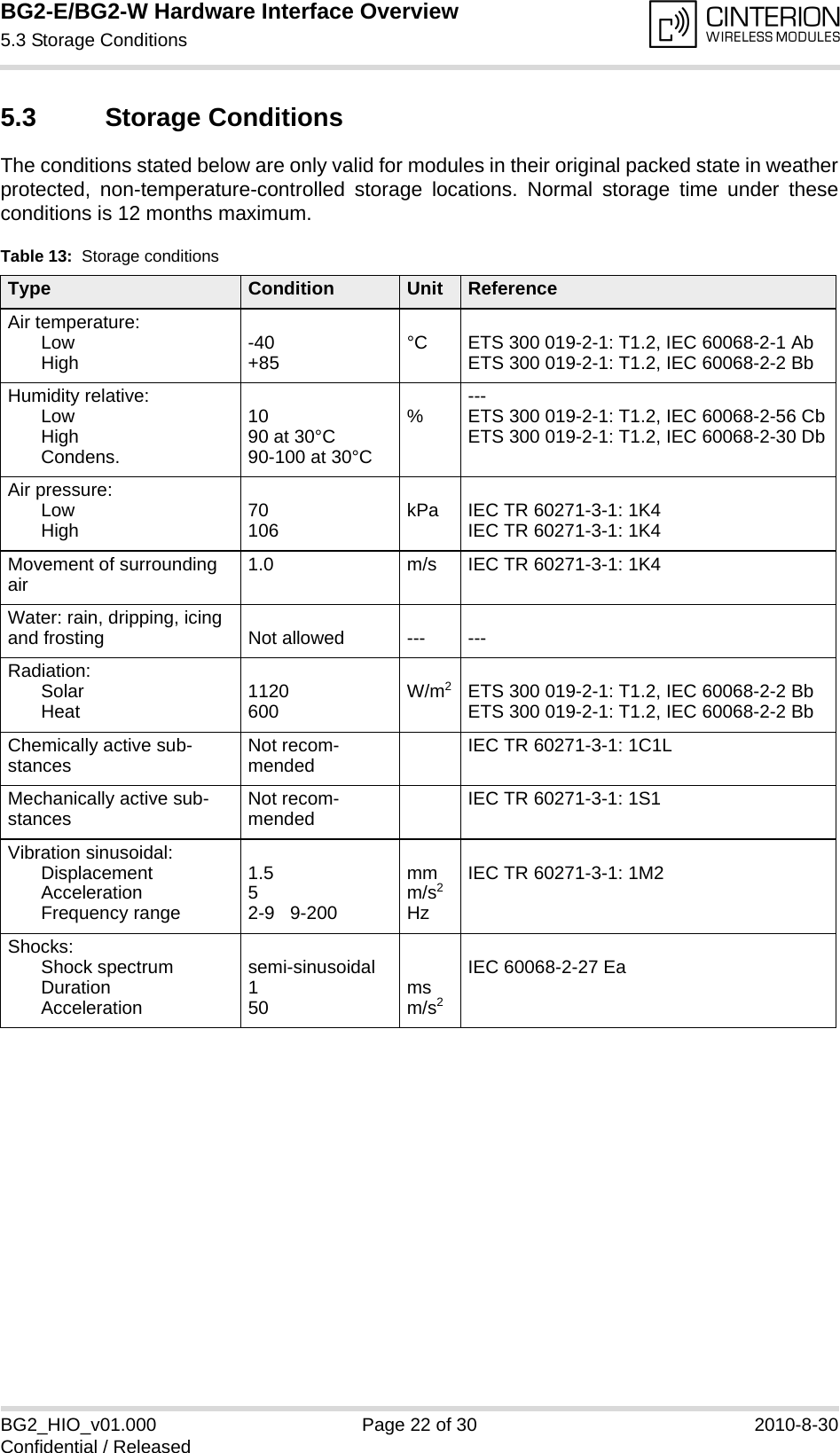

BG2-E/BG2-W Hardware Interface Overview5.3 Storage Conditions25BG2_HIO_v01.000 Page 22 of 30 2010-8-30Confidential / Released5.3 Storage ConditionsThe conditions stated below are only valid for modules in their original packed state in weatherprotected, non-temperature-controlled storage locations. Normal storage time under theseconditions is 12 months maximum.Table 13: Storage conditionsType Condition Unit ReferenceAir temperature: LowHigh -40+85 °C ETS 300 019-2-1: T1.2, IEC 60068-2-1 AbETS 300 019-2-1: T1.2, IEC 60068-2-2 BbHumidity relative: LowHighCondens.1090 at 30°C90-100 at 30°C%---ETS 300 019-2-1: T1.2, IEC 60068-2-56 CbETS 300 019-2-1: T1.2, IEC 60068-2-30 DbAir pressure: LowHigh 70106 kPa IEC TR 60271-3-1: 1K4IEC TR 60271-3-1: 1K4Movement of surrounding air 1.0 m/s IEC TR 60271-3-1: 1K4Water: rain, dripping, icing and frosting Not allowed --- ---Radiation: SolarHeat 1120600 W/m2ETS 300 019-2-1: T1.2, IEC 60068-2-2 BbETS 300 019-2-1: T1.2, IEC 60068-2-2 BbChemically active sub-stances Not recom-mended IEC TR 60271-3-1: 1C1LMechanically active sub-stances Not recom-mended IEC TR 60271-3-1: 1S1Vibration sinusoidal:DisplacementAccelerationFrequency range1.552-9 9-200mmm/s2HzIEC TR 60271-3-1: 1M2Shocks:Shock spectrumDurationAccelerationsemi-sinusoidal150 msm/s2IEC 60068-2-27 Ea

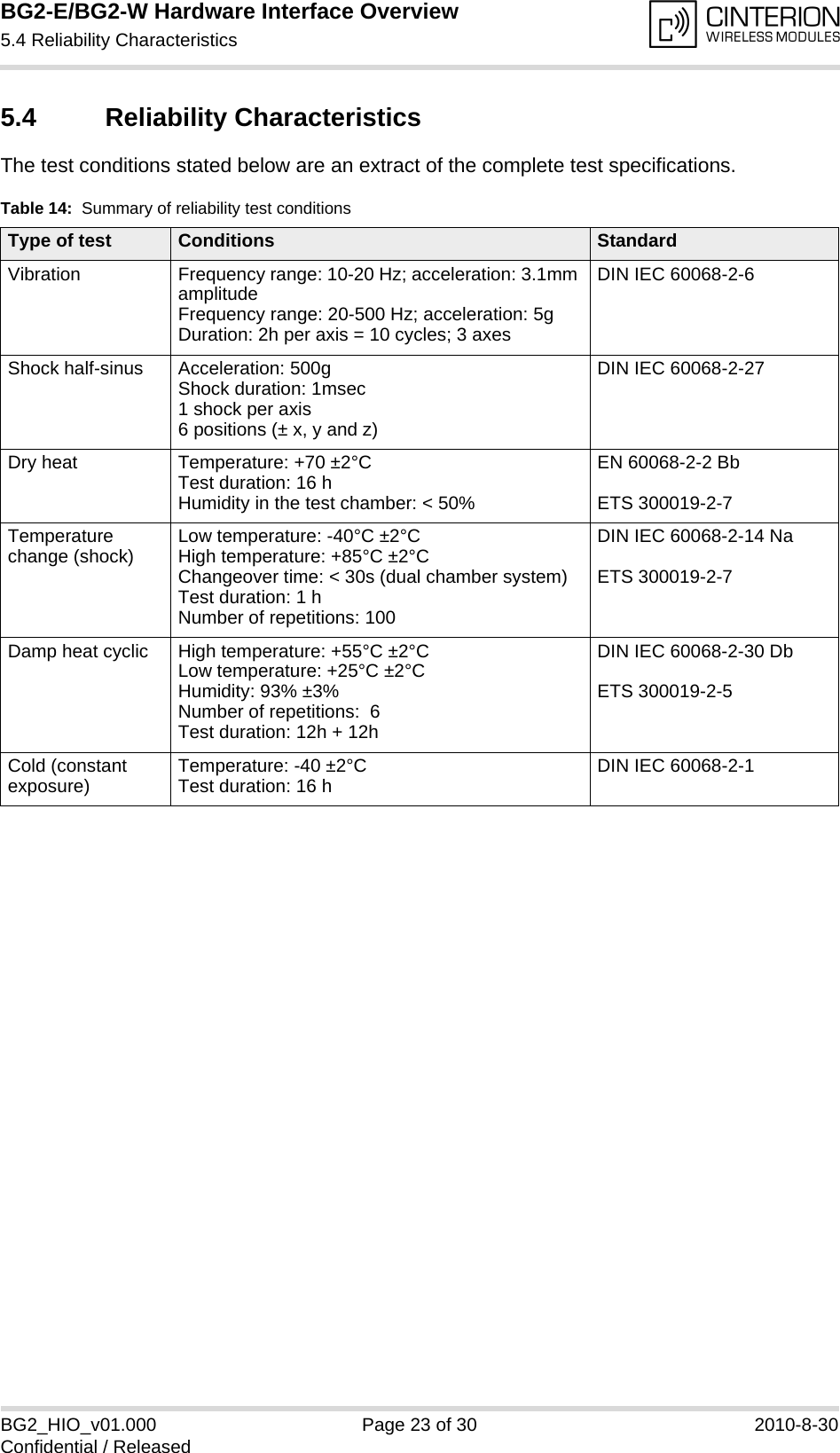

BG2-E/BG2-W Hardware Interface Overview5.4 Reliability Characteristics25BG2_HIO_v01.000 Page 23 of 30 2010-8-30Confidential / Released5.4 Reliability CharacteristicsThe test conditions stated below are an extract of the complete test specifications. Table 14: Summary of reliability test conditionsType of test Conditions StandardVibration Frequency range: 10-20 Hz; acceleration: 3.1mm amplitudeFrequency range: 20-500 Hz; acceleration: 5gDuration: 2h per axis = 10 cycles; 3 axesDIN IEC 60068-2-6Shock half-sinus Acceleration: 500gShock duration: 1msec1 shock per axis6 positions (± x, y and z)DIN IEC 60068-2-27Dry heat Temperature: +70 ±2°CTest duration: 16 hHumidity in the test chamber: < 50%EN 60068-2-2 Bb ETS 300019-2-7Temperature change (shock) Low temperature: -40°C ±2°CHigh temperature: +85°C ±2°CChangeover time: < 30s (dual chamber system)Test duration: 1 hNumber of repetitions: 100DIN IEC 60068-2-14 NaETS 300019-2-7Damp heat cyclic High temperature: +55°C ±2°CLow temperature: +25°C ±2°CHumidity: 93% ±3%Number of repetitions: 6Test duration: 12h + 12hDIN IEC 60068-2-30 DbETS 300019-2-5Cold (constant exposure) Temperature: -40 ±2°CTest duration: 16 h DIN IEC 60068-2-1

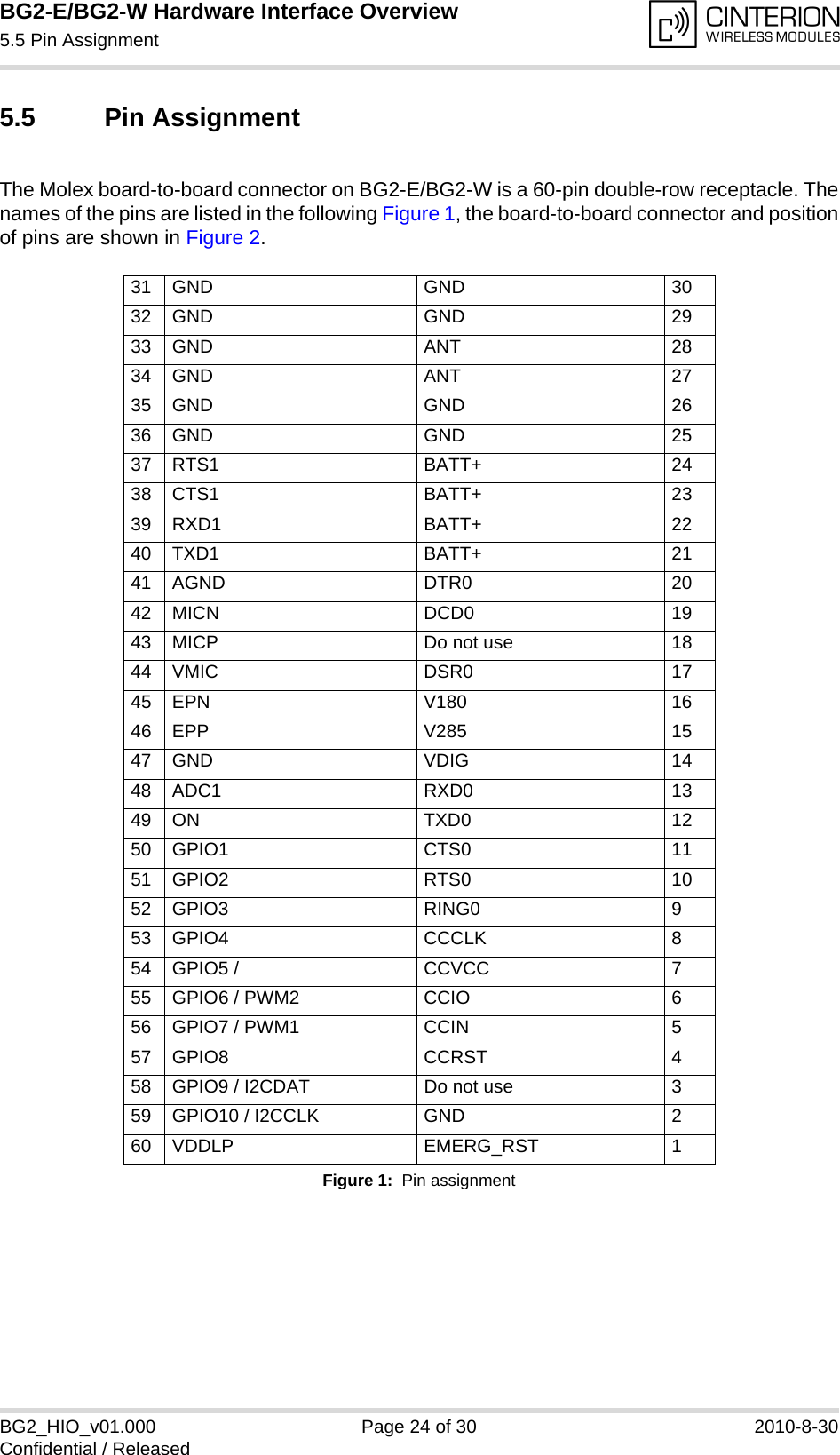

BG2-E/BG2-W Hardware Interface Overview5.5 Pin Assignment25BG2_HIO_v01.000 Page 24 of 30 2010-8-30Confidential / Released5.5 Pin AssignmentThe Molex board-to-board connector on BG2-E/BG2-W is a 60-pin double-row receptacle. Thenames of the pins are listed in the following Figure 1, the board-to-board connector and positionof pins are shown in Figure 2.Figure 1: Pin assignment 31 GND GND 3032 GND GND 2933 GND ANT 2834 GND ANT 2735 GND GND 2636 GND GND 2537 RTS1 BATT+ 2438 CTS1 BATT+ 2339 RXD1 BATT+ 2240 TXD1 BATT+ 2141 AGND DTR0 2042 MICN DCD0 1943 MICP Do not use 1844 VMIC DSR0 1745 EPN V180 1646 EPP V285 1547 GND VDIG 1448 ADC1 RXD0 1349 ON TXD0 1250 GPIO1 CTS0 1151 GPIO2 RTS0 1052 GPIO3 RING0 953 GPIO4 CCCLK 854 GPIO5 / CCVCC 755 GPIO6 / PWM2 CCIO 656 GPIO7 / PWM1 CCIN 557 GPIO8 CCRST 458 GPIO9 / I2CDAT Do not use 359 GPIO10 / I2CCLK GND 260 VDDLP EMERG_RST 1

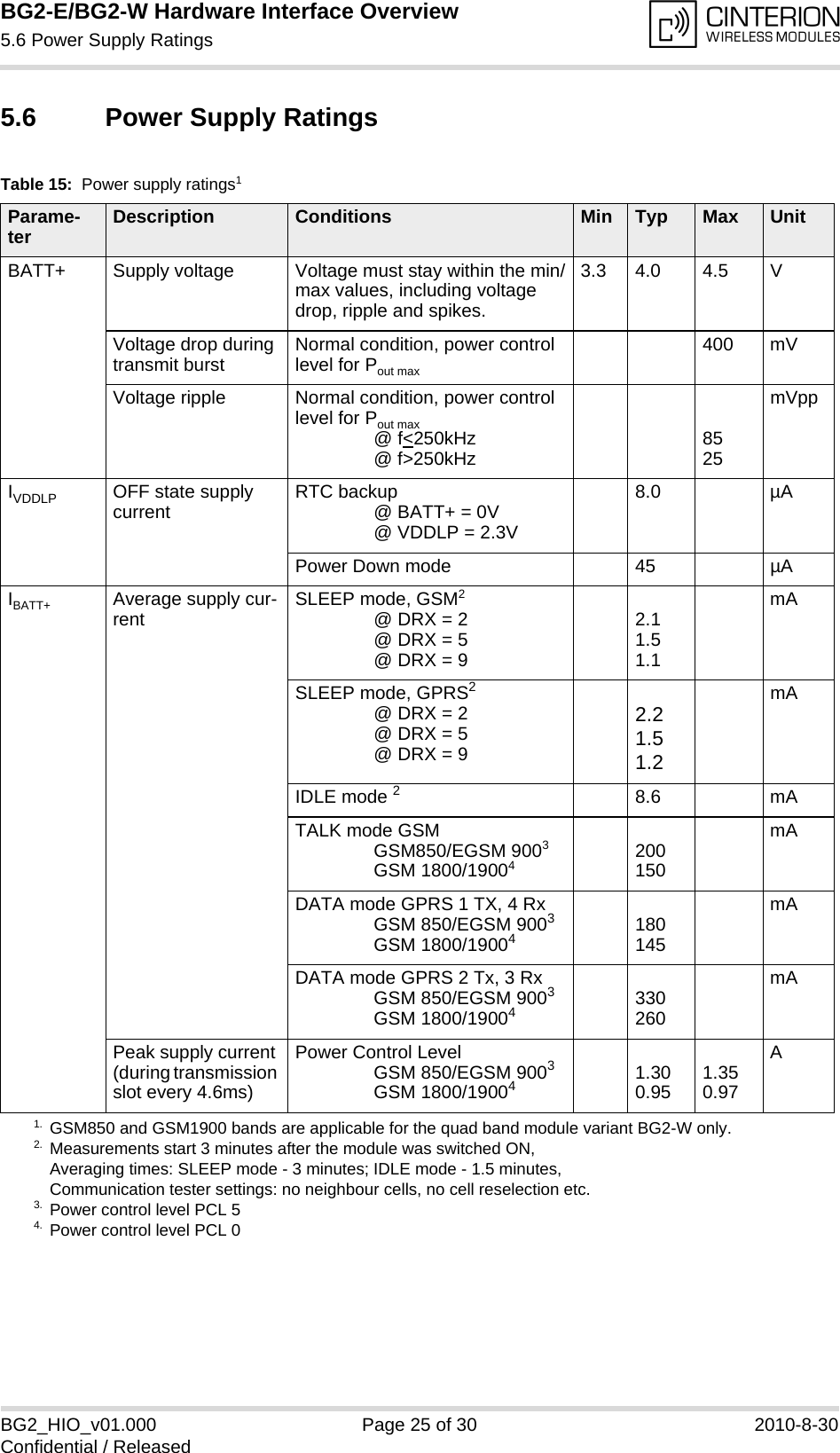

BG2-E/BG2-W Hardware Interface Overview5.6 Power Supply Ratings25BG2_HIO_v01.000 Page 25 of 30 2010-8-30Confidential / Released5.6 Power Supply RatingsTable 15: Power supply ratings11. GSM850 and GSM1900 bands are applicable for the quad band module variant BG2-W only.Parame-ter Description Conditions Min Typ Max UnitBATT+ Supply voltage Voltage must stay within the min/max values, including voltage drop, ripple and spikes.3.3 4.0 4.5 VVoltage drop during transmit burst Normal condition, power control level for Pout max400 mVVoltage ripple Normal condition, power control level for Pout max@ f<250kHz@ f>250kHz 8525mVppIVDDLP OFF state supply current RTC backup @ BATT+ = 0V@ VDDLP = 2.3V8.0 µAPower Down mode 45 µAIBATT+ Average supply cur-rent SLEEP mode, GSM2 @ DRX = 2@ DRX = 5@ DRX = 92. Measurements start 3 minutes after the module was switched ON, Averaging times: SLEEP mode - 3 minutes; IDLE mode - 1.5 minutes,Communication tester settings: no neighbour cells, no cell reselection etc.2.11.51.1mASLEEP mode, GPRS2@ DRX = 2@ DRX = 5@ DRX = 92.21.51.2mAIDLE mode 28.6 mATALK mode GSMGSM850/EGSM 9003GSM 1800/19004 3. Power control level PCL 54. Power control level PCL 0200150mADATA mode GPRS 1 TX, 4 RxGSM 850/EGSM 9003GSM 1800/19004180145mADATA mode GPRS 2 Tx, 3 RxGSM 850/EGSM 9003 GSM 1800/19004330260mAPeak supply current (during transmission slot every 4.6ms)Power Control LevelGSM 850/EGSM 9003 GSM 1800/190041.300.95 1.350.97A
BG2-E/BG2-W Hardware Interface Overview6 Mechanics28BG2_HIO_v01.000 Page 26 of 30 2010-8-30Confidential / Released6 MechanicsThe following sections describe the mechanical dimensions of BG2-E/BG2-W and give recom-mendations for integrating BG2-E/BG2-W into the host application. 6.1 Mechanical Dimensions of BG2-E/BG2-WFigure 2 shows the top view on BG2-E/BG2-W and provides an overview of the mechanicaldimensions of the board. Length: 31.00mmWidth: 26.70mmHeight: 3.05mm (5.37mm with soldering tags)Figure 2: BG2-E/BG2-W – top and bottom viewPin 1Pin 30Pin 60Pin 31Product labelSoldering tagTop viewBottom View

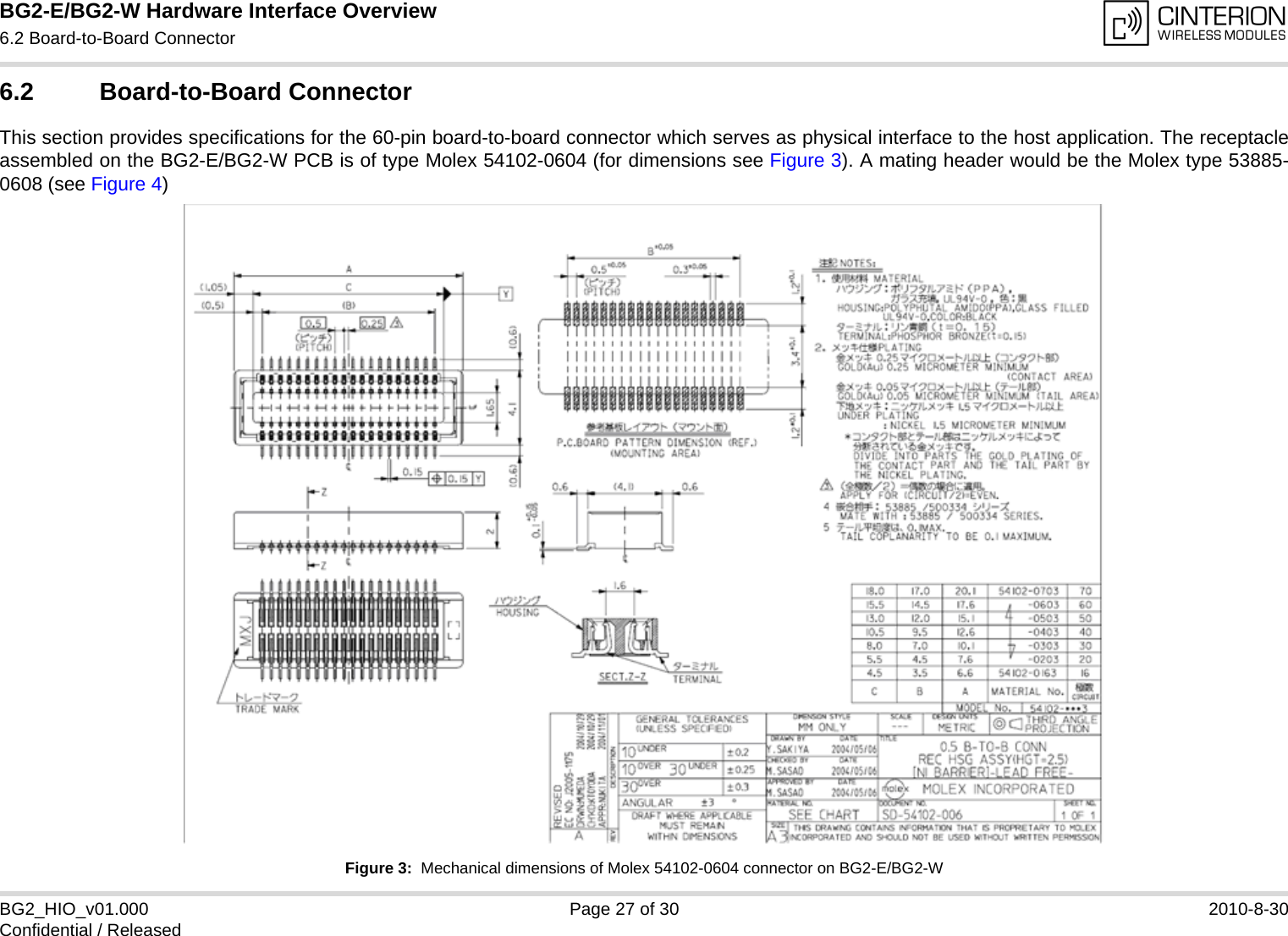

BG2-E/BG2-W Hardware Interface Overview6.2 Board-to-Board Connector28BG2_HIO_v01.000 Page 27 of 30 2010-8-30Confidential / Released6.2 Board-to-Board ConnectorThis section provides specifications for the 60-pin board-to-board connector which serves as physical interface to the host application. The receptacleassembled on the BG2-E/BG2-W PCB is of type Molex 54102-0604 (for dimensions see Figure 3). A mating header would be the Molex type 53885-0608 (see Figure 4) Figure 3: Mechanical dimensions of Molex 54102-0604 connector on BG2-E/BG2-W

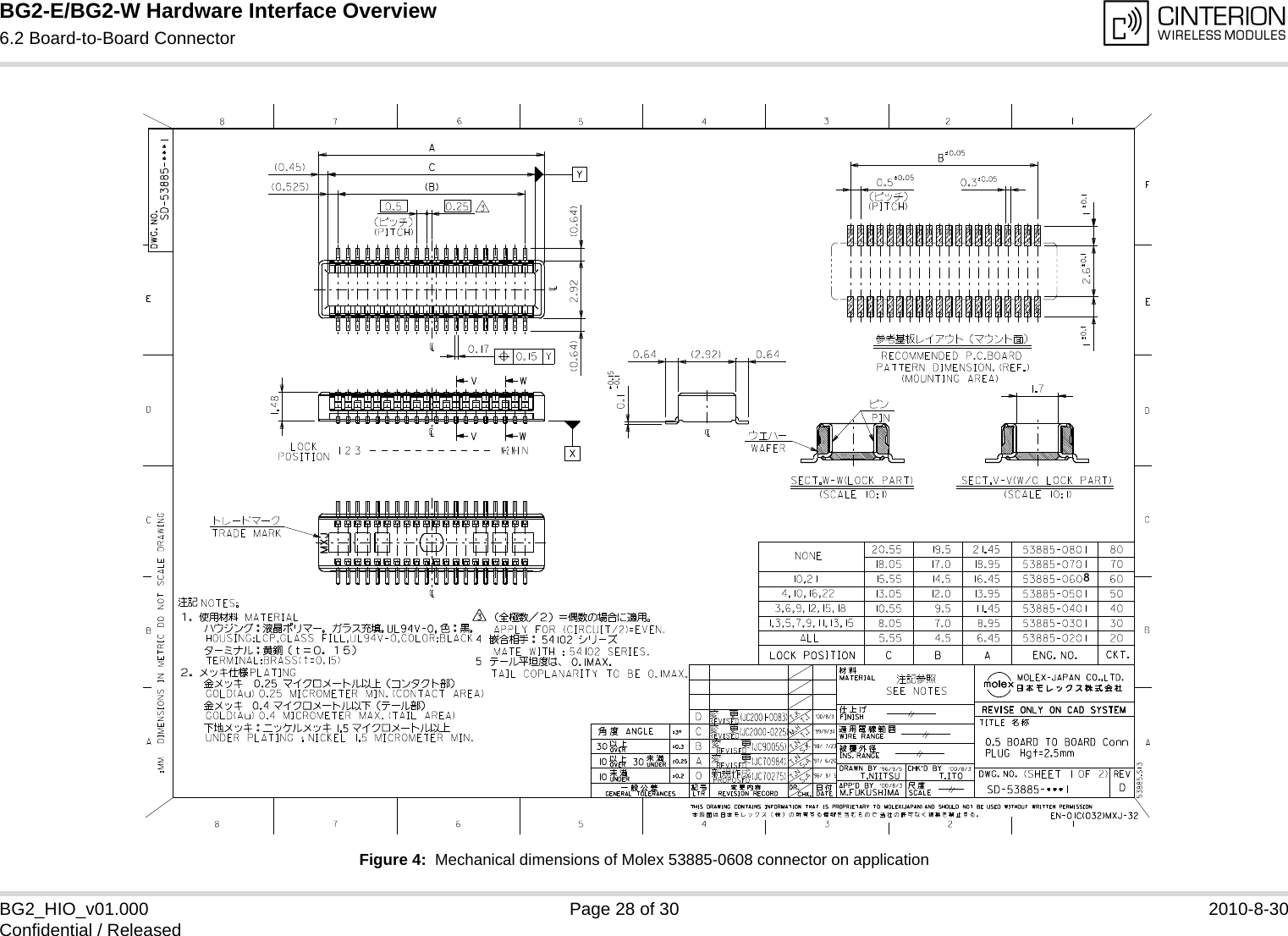

BG2-E/BG2-W Hardware Interface Overview6.2 Board-to-Board Connector28BG2_HIO_v01.000 Page 28 of 30 2010-8-30Confidential / ReleasedFigure 4: Mechanical dimensions of Molex 53885-0608 connector on application8

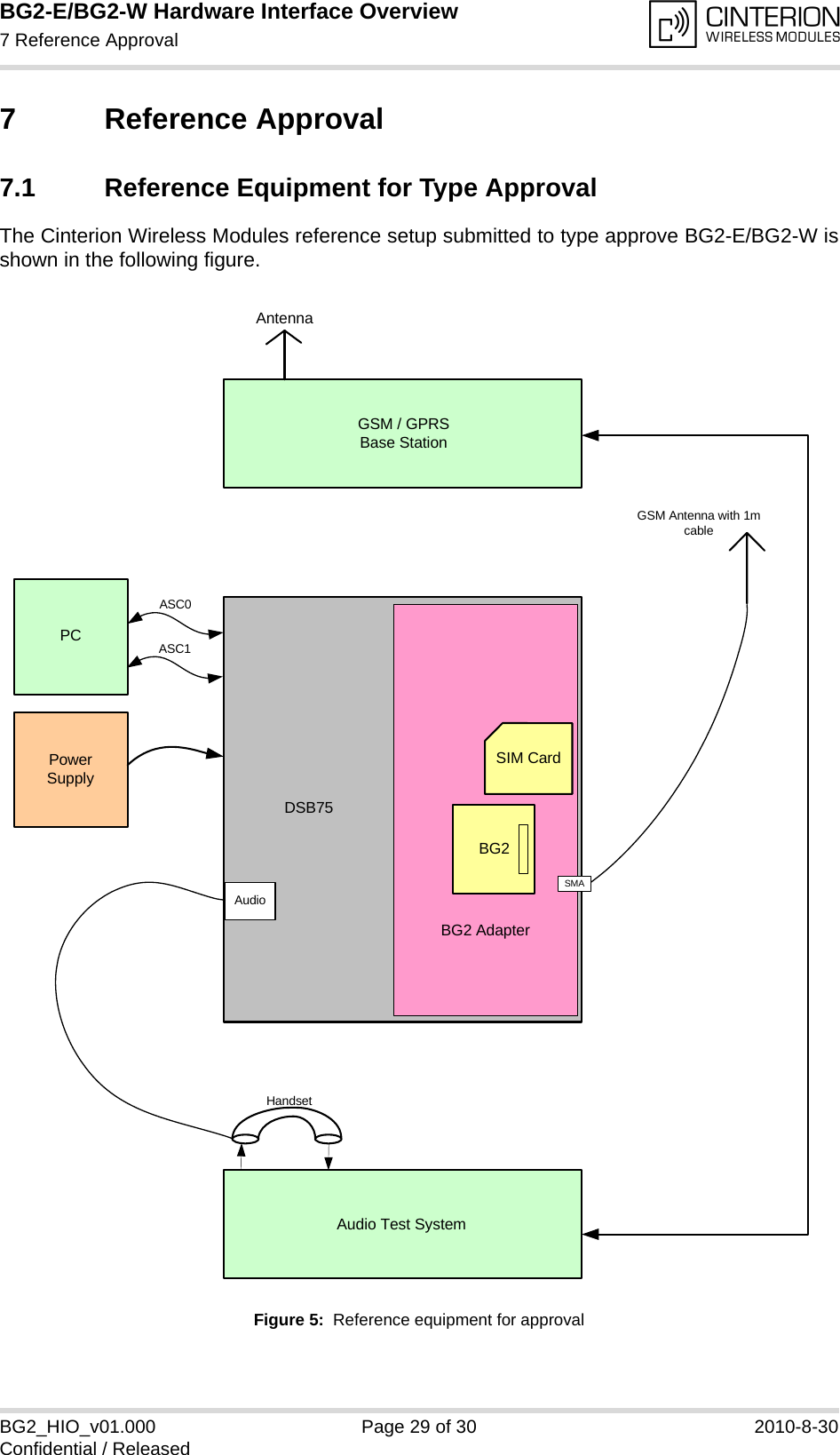

BG2-E/BG2-W Hardware Interface Overview7 Reference Approval30BG2_HIO_v01.000 Page 29 of 30 2010-8-30Confidential / Released7 Reference Approval7.1 Reference Equipment for Type ApprovalThe Cinterion Wireless Modules reference setup submitted to type approve BG2-E/BG2-W isshown in the following figure.Figure 5: Reference equipment for approvalBG2 AdapterAntennaGSM Antenna with 1m cable ASC0PCPower SupplyGSM / GPRS Base StationDSB75Audio Test SystemHandsetASC1SIM CardBG2SMAAudio

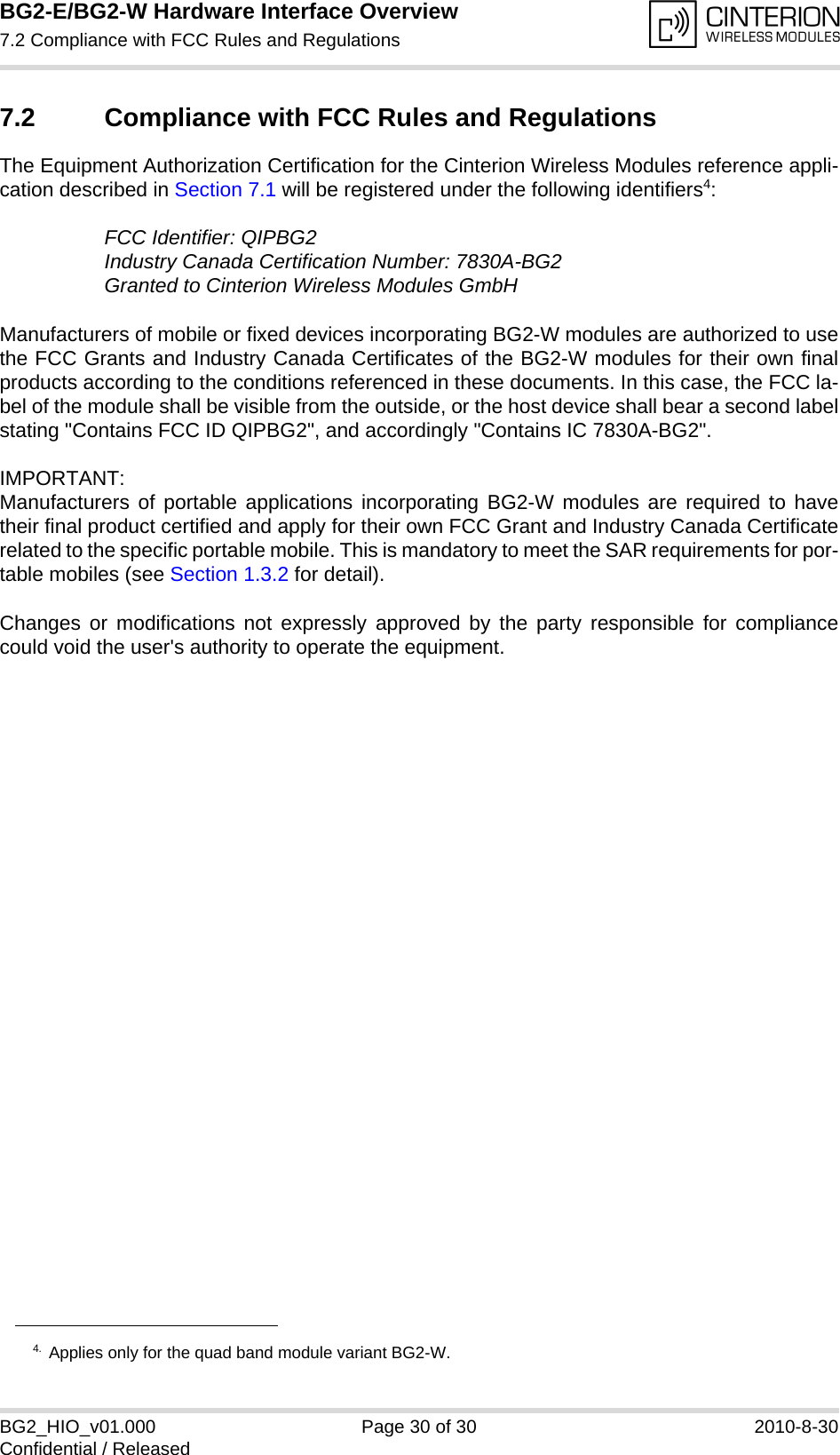

BG2-E/BG2-W Hardware Interface Overview7.2 Compliance with FCC Rules and Regulations30BG2_HIO_v01.000 Page 30 of 30 2010-8-30Confidential / Released7.2 Compliance with FCC Rules and RegulationsThe Equipment Authorization Certification for the Cinterion Wireless Modules reference appli-cation described in Section 7.1 will be registered under the following identifiers4:FCC Identifier: QIPBG2Industry Canada Certification Number: 7830A-BG2Granted to Cinterion Wireless Modules GmbHManufacturers of mobile or fixed devices incorporating BG2-W modules are authorized to usethe FCC Grants and Industry Canada Certificates of the BG2-W modules for their own finalproducts according to the conditions referenced in these documents. In this case, the FCC la-bel of the module shall be visible from the outside, or the host device shall bear a second labelstating "Contains FCC ID QIPBG2", and accordingly "Contains IC 7830A-BG2".IMPORTANT: Manufacturers of portable applications incorporating BG2-W modules are required to havetheir final product certified and apply for their own FCC Grant and Industry Canada Certificaterelated to the specific portable mobile. This is mandatory to meet the SAR requirements for por-table mobiles (see Section 1.3.2 for detail).Changes or modifications not expressly approved by the party responsible for compliancecould void the user's authority to operate the equipment.4. Applies only for the quad band module variant BG2-W.
