Gemini Technologies Srl A132M6224 Remote control User Manual

Gemini Technologies Srl Remote control

User Manual

18
Vehicle Security Alarm Features
Passive (automatic) activation of the -
engine immobiliser.
Protection on both doors and tailgate. -
Selectable cabin intrusion detection -
Self powered siren to protect if the -
battery is disconnected.
Personal protection by ‘Panic’ activation -
of the siren.
Emergency alarm override and -
transmitter key programming.
Transmitter Keyfob Range
Normal operation range is up to 5 metres
from the car, but this may be reduced by
the presence of other radio signals or
large metal structures in the vicinity.
Key Storage
The transmitter keys should be kept
separate and a replacement obtained
immediately after any loss.
Transmitter Security Codes
The security codes are supplied on tags
attached to the key ring of a new vehicle.
To order more keys it is essential that
these numbers are recorded and kept
safely.
Memorising the security code will allow
the alarm to be overridden in case of key
loss or fob failure (see page 22). If the
codes are not available on receipt of the
vehicle, immediately enquire with the
dealer.
WARNING
Never leave the car unattended with
the key in the ignition switch, espe-
cially if unsupervised children and/
or animals are in the car. Dangers
can arise from imprudent operation of
window or other electrical controls or
if engine starting attempts are made.

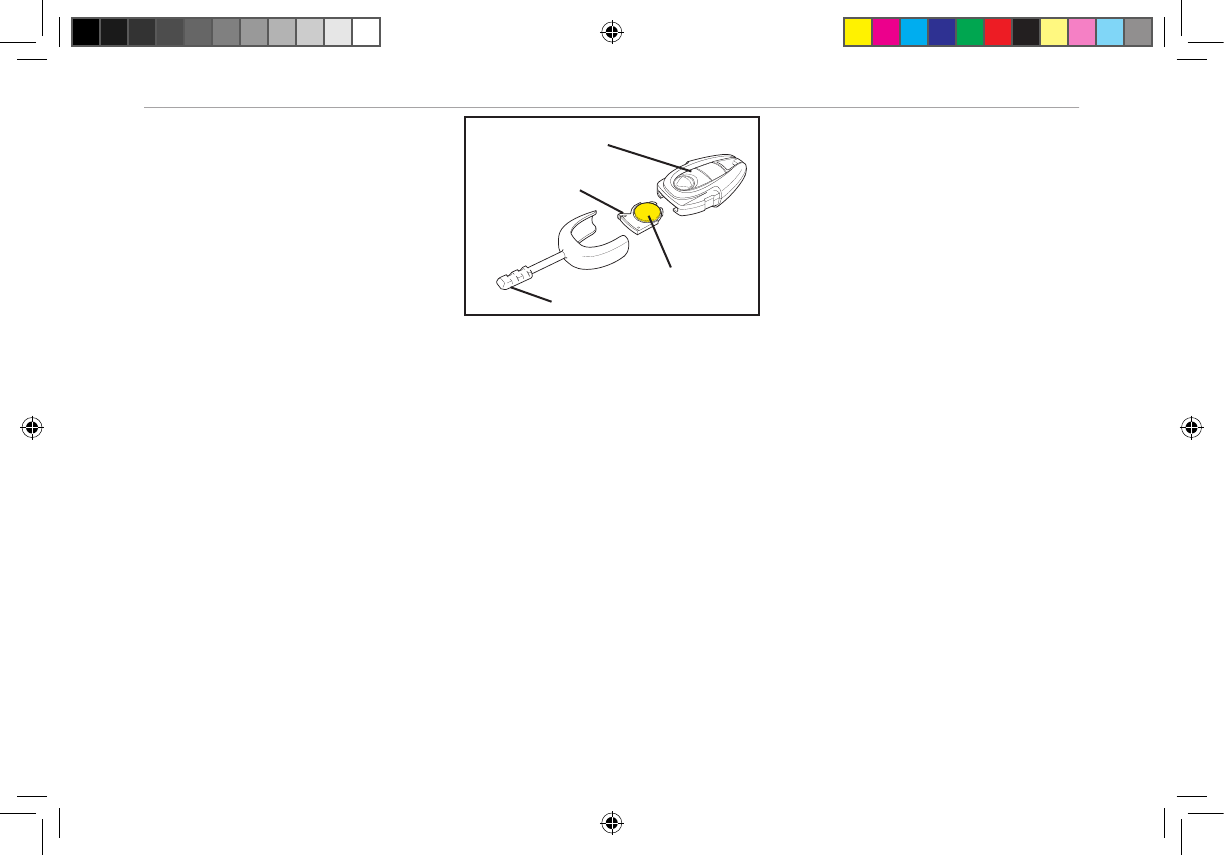

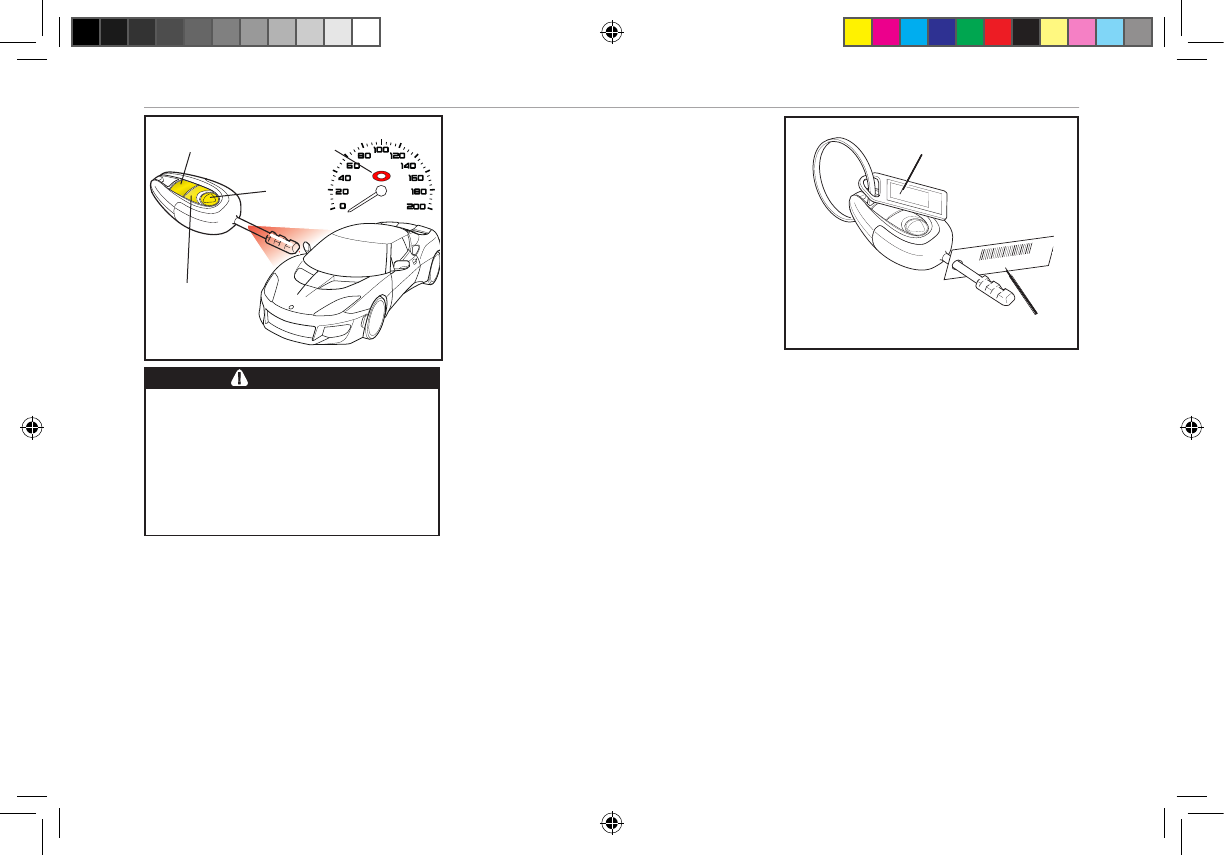

Transmitter Keys
Two keys are provided combining a
mechanical blade with a transmitter 'fob'.
The blade is used to operate the ignition
switch/steering column lock and the
emergency manual door lock via the left
hand door. The fob push buttons are used
to operate the alarm system and central
door locking.
KEYS & SECURITY ALARM
'Panic' alarm,
tailgate opening
Arm
& lock
Disarm,
mobilise
& unlock
Alarm
tell tale
Off
On
Off
Turn on the ignition. The alarm tell tale will light.

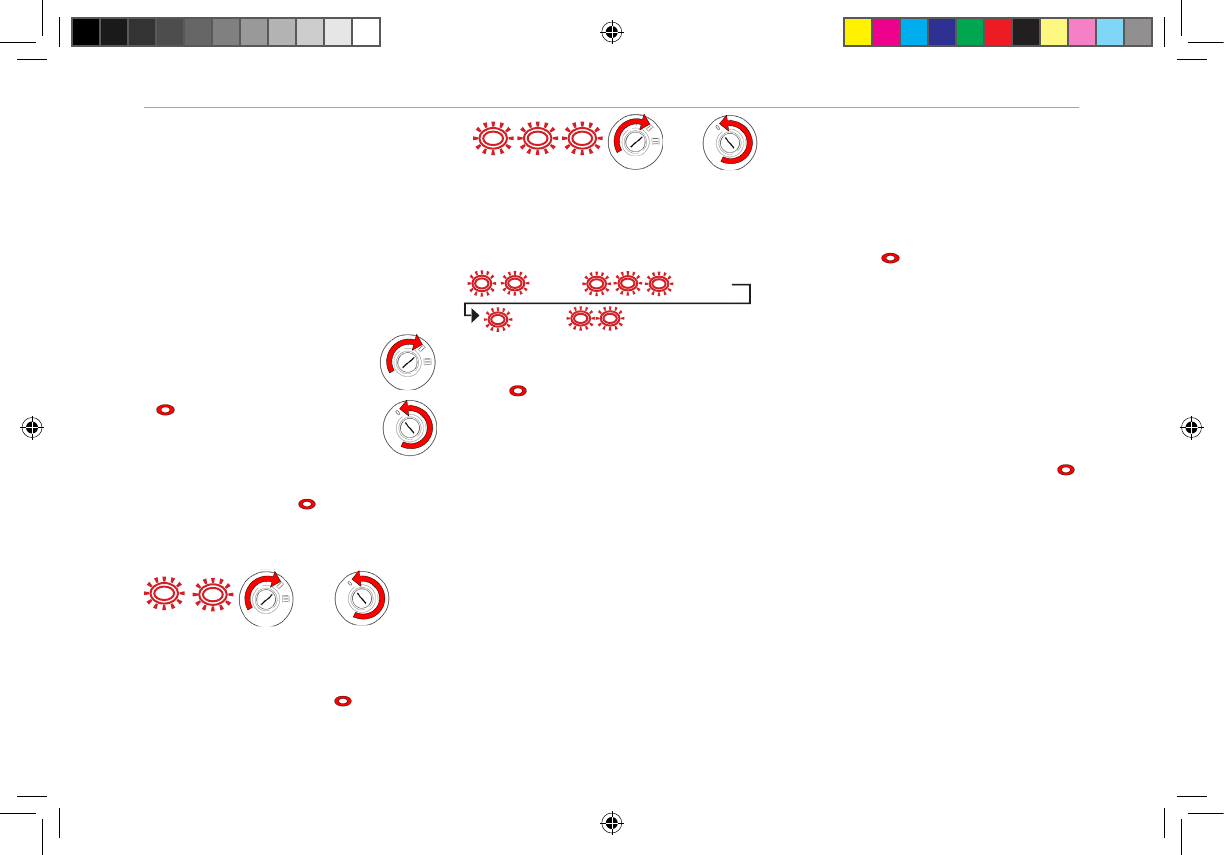

Emergency Disarming/Mobilising (PFK Alarm)
If the key transmitter is damaged or fails to function, and a spare is not
available, the alarm system’s unique 5 digit (PIN) Identification Number
may be used to disarm the alarm provided that a key blade is available
to access the cabin:
Within 10 seconds, turn the ignition off; the tell tale will begin to flash.
After a number of flashes corresponding to the first digit of the PIN, for
example, 23121.
1 2
=
2
3121
Key blade number
Alarm security code
T123412
000 0000
12345
00000
Alarm pin code
Alarm pin code
EVORA
ELISE / EXIGE SELISE / EXIGE S
Key blade number
Key blade number
000 0000
12345
00000
LSL622
L1234
E132T0324JA Federal Evora 400 2016MY OHB English Language.indd 18 16/05/2016 09:12:28
19
Off
On
Off
Turn on the ignition. The alarm tell tale will light.
Emergency Disarming/Mobilising (PFK Alarm)
If the key transmitter is damaged or fails to function, and a spare is not
available, the alarm system’s unique 5 digit (PIN) Identification Number
may be used to disarm the alarm provided that a key blade is available
to access the cabin:
Within 10 seconds, turn the ignition off; the tell tale will begin to flash.
After a number of flashes corresponding to the first digit of the PIN, for
example, 23121.
1 2
=
2
3121
Off
On
Off
Turn on the ignition. The alarm tell tale will light.
Emergency Disarming/Mobilising (PFK Alarm)
If the key transmitter is damaged or fails to function, and a spare is not
available, the alarm system’s unique 5 digit (PIN) Identification Number
may be used to disarm the alarm provided that a key blade is available
to access the cabin:
Within 10 seconds, turn the ignition off; the tell tale will begin to flash.
After a number of flashes corresponding to the first digit of the PIN, for
example, 23121.
1 2
=
2
3121

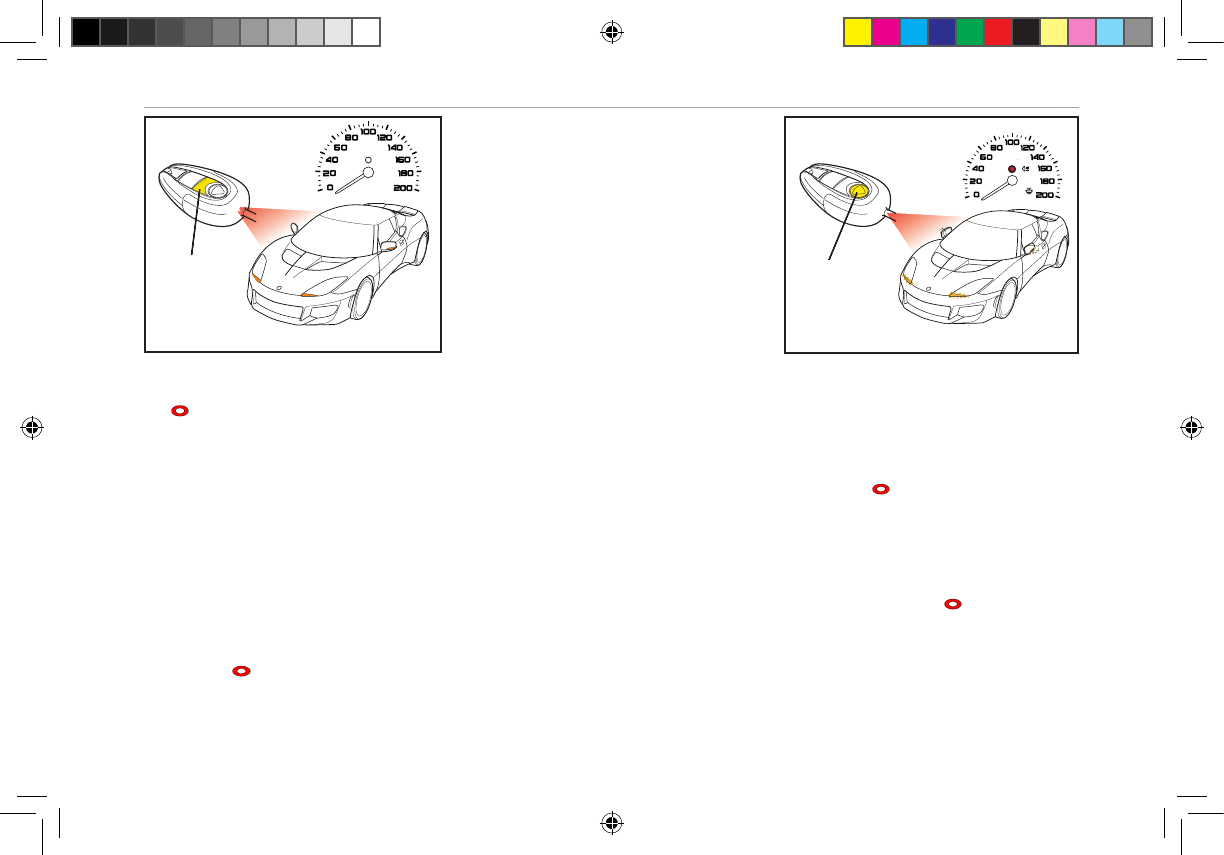

Disarming the Alarm/Unlocking Doors
With the vehicle locked and alarm armed,
the alarm tell tale in the speedometer
face will flash once every 2 seconds.
To disarm the alarm and unlock the doors
press the central fob button. The first
press will unlock the driver's door.
After a short pause a second press will
unlock the passenger's door.
This command is acknowledged by:
A double flash of the hazard lamps*. -
Both door mirrors will unfold returning -
to the driving setting (see page 37).
The alarm tell tale will extinguish. -
The engine will be mobilised. -
The interior lamp will fade on and -
remain lit for up to 2 minutes (if set to
the ‘courtesy’ position see page 54).
*If a theft attempt has been detected the
hazard lamps will flash 5 times.
Auto Re-Arm - (If Fitted)
If a door is not opened within 2 minutes of
a disarming command, the alarm system
will automatically re-arm.
Arming the Alarm/Locking the Doors
Remove the ignition key, ensure that both
doors and tailgate are closed, press once
the Lotus logo button on the fob. Alarm
activation will be displayed by:
A single flash of the hazard lamps. -
The alarm tell tall will illuminate. -
Both door mirrors will fold inwards, flat -
against the doors (see page 37).
Both doors will be locked and after a -
period of 45 seconds, the engine is immo-
bilised and the alarm system is armed.
At this time the alarm tell tale will flash -
once every 2 seconds.
The interior lamps (if lit) will fade off. -
Note: If arming the system when a door is -
not fully shut, three high frequency beeps
will sound as a warning and opening a
KEYS & SECURITY ALARM
Off
On
Off
Turn on the ignition. The alarm tell tale will light.
Emergency Disarming/Mobilising (PFK Alarm)
If the key transmitter is damaged or fails to function, and a spare is not
available, the alarm system’s unique 5 digit (PIN) Identification Number
may be used to disarm the alarm provided that a key blade is available
to access the cabin:
Within 10 seconds, turn the ignition off; the tell tale will begin to flash.
After a number of flashes corresponding to the first digit of the PIN, for
example, 23121.
1 2
=
2
3121
Off
On
Off
Turn on the ignition. The alarm tell tale will light.
Emergency Disarming/Mobilising (PFK Alarm)
If the key transmitter is damaged or fails to function, and a spare is not
available, the alarm system’s unique 5 digit (PIN) Identification Number
may be used to disarm the alarm provided that a key blade is available
to access the cabin:
Within 10 seconds, turn the ignition off; the tell tale will begin to flash.
After a number of flashes corresponding to the first digit of the PIN, for
example, 23121.
1 2
=
2
3121
Press to
Disarm
Press to
Arm
E132T0324JA Federal Evora 400 2016MY OHB English Language.indd 19 16/05/2016 09:12:29
20
door will not trigger the alarm.
If arming the system when the tailgate -
is not fully closed, three low frequency
beeps will be heard, opening a door in
this instance will trigger the alarm.
When fully armed the alarm will be
triggered by any of the following actions:
Interruption of the car battery power -
supply or siren cables.
Opening of a door or the tailgate. -
Movement detected within the cabin -
(unless interior sensor de-selected).
Passive (Automatic) Immobilisation
The alarm automatically immobilises the
engine after the ignition has been turned
off for 60 seconds, or a similar period
has elapsed since the last mobilising
command. With the ignition off, the
alarm tell tale indicates the engine
is immobilised by flashing twice every
second. With ignition on, immobilisation
is indicated by a continuously lit tell tale.
To cancel passive immobilisation if the
ignition is on, press any button on the fob,
or if the ignition is off, press the center
(disarm) fob button.
Triggered Alarm Operation Cycle
If the alarm is triggered, the hazard
warning lamps will flash and the siren
will sound for a period of approximately
30 seconds before closing down and
resetting, ready for any further triggering
input. If a trigger is continuously present
(e.g. door left open), the alarm will repeat
for a maximum of ten 30 second cycles
before excluding the triggering sensor for
the remainder of the armed period.
The cause of the last alarm triggering
cycle can be identified by counting the
alarm tell tale flashes once the alarm
has been disarmed and the ignition switch
is turned on.
Alarm Tell Tale Summary
Flash rate
2 flashes
repeated 5 times:
3 flashes
repeated 5 times:
4 flashes
repeated 5 times:
Turning Off Interior Movement Sensor
Press the Lotus logo button again within 25
seconds of arming the alarm. The hazard
warning lamps will flash as confirmation.
The sensor will automatically re-activate
next time the alarm is armed.
KEYS & SECURITY ALARM
Off
On
Off
Turn on the ignition. The alarm tell tale will light.
Emergency Disarming/Mobilising (PFK Alarm)
If the key transmitter is damaged or fails to function, and a spare is not
available, the alarm system’s unique 5 digit (PIN) Identification Number
may be used to disarm the alarm provided that a key blade is available
to access the cabin:
Within 10 seconds, turn the ignition off; the tell tale will begin to flash.
After a number of flashes corresponding to the first digit of the PIN, for
example, 23121.
1 2
=
2
3121
Off
On
Off
Turn on the ignition. The alarm tell tale will light.
Emergency Disarming/Mobilising (PFK Alarm)
If the key transmitter is damaged or fails to function, and a spare is not
available, the alarm system’s unique 5 digit (PIN) Identification Number
may be used to disarm the alarm provided that a key blade is available
to access the cabin:
Within 10 seconds, turn the ignition off; the tell tale will begin to flash.
After a number of flashes corresponding to the first digit of the PIN, for
example, 23121.
1 2
=
2
3121

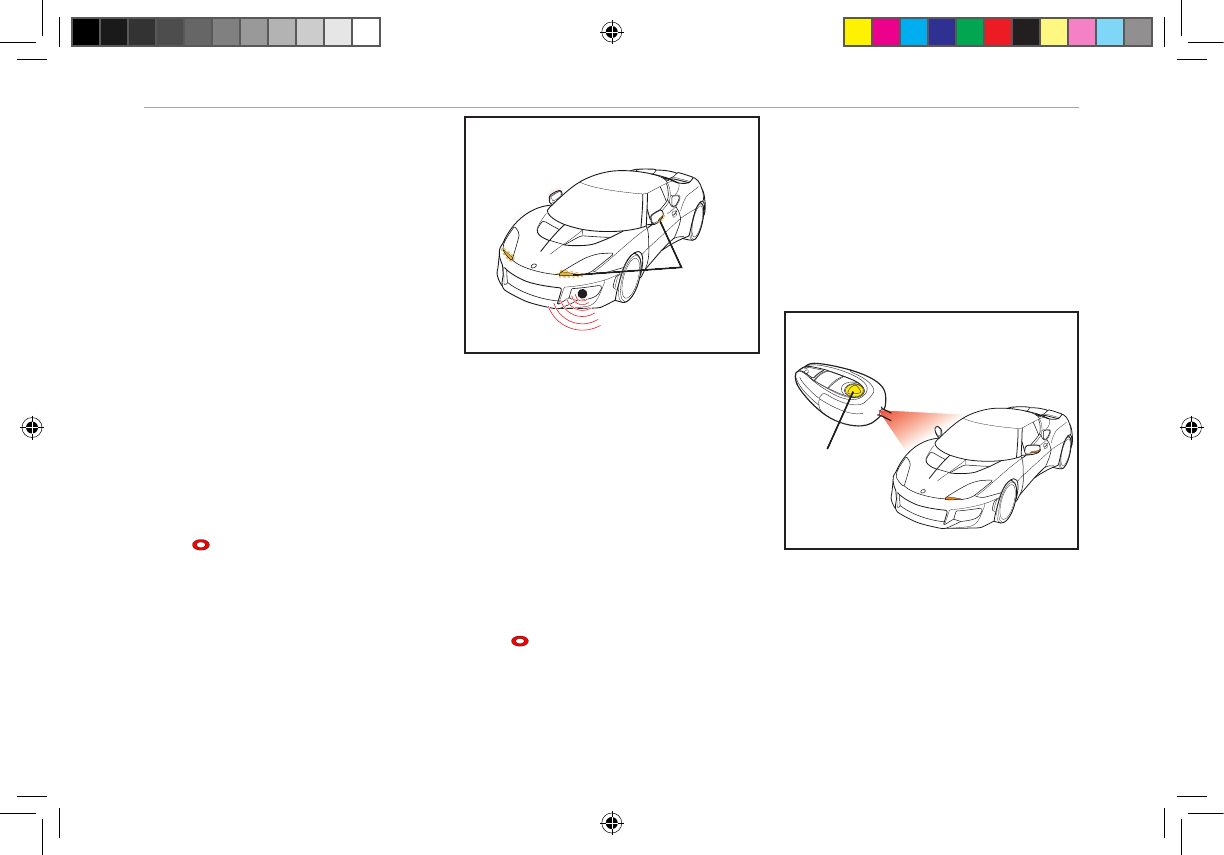

Siren
Hazard
lamps
Press
twice
within
25 seconds
Triggering action
Door open attempt.
Ignition circuit.
Tailgate open
attempt/interior
sensor activated.
E132T0324JA Federal Evora 400 2016MY OHB English Language.indd 20 16/05/2016 09:12:29
21

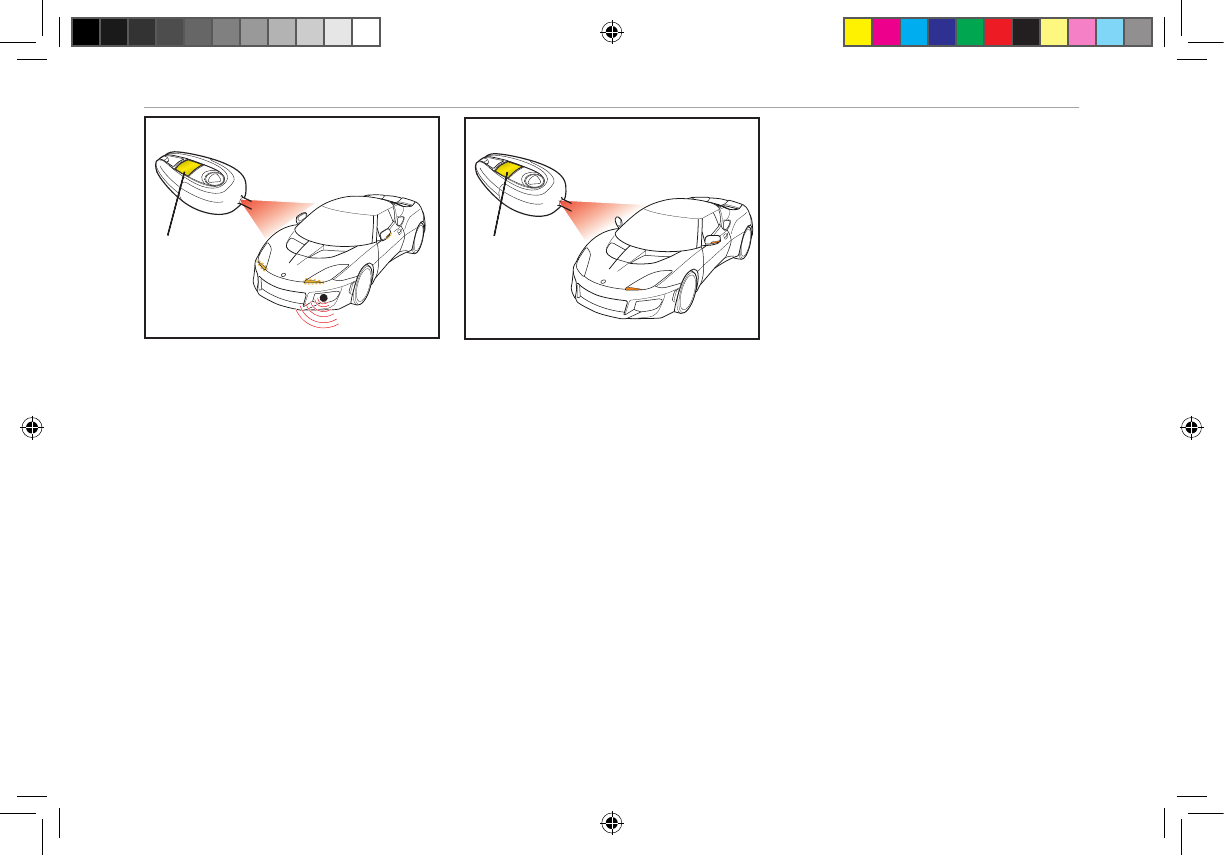

'Panic' Alarm Activation
Press the end button on the fob for 3
seconds. The siren will sound and the
hazard lamps flash for a period of 30
seconds.
To stop the siren, press any of the keyfob
buttons. Manual siren activation will not
affect the alarm system status.
Opening the Tailgate
To open: Press twice within 2 seconds the
end button on the fob; the hazard warning
lamps will flash once (if the alarm system
has been previously armed).
The tailgate latch will release allowing the
tailgate to be opened without activating the
alarm siren.
Note: if the tailgate latch does not release
then repeat the procedure but leave a
slightly longer time in between button
presses (but still complete the procedure
within 2 seconds).
To close: Ensure to not inadvertently
lock the transmitter key in the boot. For
additional information on tailgate opening/
closing refer to page 77.
Note: if previously armed, the alarm system
will resume normal operation when the
tailgate is manually closed.
KEYS & SECURITY ALARM
Press
3 seconds
Press
twice
within
2 seconds
E132T0324JA Federal Evora 400 2016MY OHB English Language.indd 21 16/05/2016 09:12:30
22
Emergency Disarming/Mobilising
If the keyfob fails to function and a spare
keyfob is not available, the alarm system’s
security code may be used to disarm the
alarm (if access is available to the cabin).
Procedure
The override procedure can be started
once the alarm has been triggered and the
first 30 second cycle has been completed.
The ignition must be turned -
ON and then OFF within 3
seconds after the alarm has
ceased sounding. The alarm
tell tale will extinguish
confirming the override
procedure can begin.
4 seconds after the ignition has been -
turned off the alarm tell tale will start
a first sequence of 10 flashes.
Example if the security code is 2312
At the second flash turn the ignition on -
for 1 second and then turn off.
After 4 seconds the alarm tell tale will
start flashing again.
At the third flash turn the ignition on for -
1 second and then turn off.
Repeat this process until all 4 digits have -
been completed.
Note: If your security code contains a ‘0’
digit, this corresponds to 10 flashes of the
alarm tell tale.
If the code is entered correctly, the -
alarm will be overridden and the
engine mobilised. However, automatic
immobilisation will still occur after an
ignition off time of 40 seconds, requiring
a repeat of the procedure to mobilise.
If, at any stage, a number is entered -
incorrectly, the system will immediately
revert to the start and the whole security
code must be re-entered.
Note: Automatic re-arming (if fitted) of the
alarm and automatic door locking cannot
occur until a working keyfob is used to
operate the alarm.
Programming Additional Keyfobs
A maximum of 8 keyfobs may be
programmed to the car.
Ensure that the alarm system is 1.
disarmed, turn the ignition ON, but do
not start the engine.
The alarm tell tale will flash for 1 2.
second; during this flash period press
and hold the Interior Central Door
Locking (CDL) Switch for at least 1
second, see page 21 for more details.
The alarm siren will emit a low tone 3.
beep and the hazard lights will flash
twice to confirm the system is in
program mode.
Press any button on a keyfob to be 4.
added, a high tone beep from the alarm
siren and a single flash of the alarm
tell tale confirms the key fob has been
added.
To exit program mode, turn the ignition 5.
OFF, a low tone beep of the alarm siren
and a single flash of the hazard lights
will confirm exit.
To program more key fobs, repeat this 6.
procedure from step 1.
Off
On
Off
Turn on the ignition. The alarm tell tale will light.
Emergency Disarming/Mobilising (PFK Alarm)
If the key transmitter is damaged or fails to function, and a spare is not
available, the alarm system’s unique 5 digit (PIN) Identification Number
may be used to disarm the alarm provided that a key blade is available
to access the cabin:
Within 10 seconds, turn the ignition off; the tell tale will begin to flash.
After a number of flashes corresponding to the first digit of the PIN, for
example, 23121.
1 2
=
2
3121
Off
On
Off
Turn on the ignition. The alarm tell tale will light.
Emergency Disarming/Mobilising (PFK Alarm)
If the key transmitter is damaged or fails to function, and a spare is not
available, the alarm system’s unique 5 digit (PIN) Identification Number
may be used to disarm the alarm provided that a key blade is available
to access the cabin:
Within 10 seconds, turn the ignition off; the tell tale will begin to flash.
After a number of flashes corresponding to the first digit of the PIN, for
example, 23121.
1 2
=
2
3121
Off
On
Off
Turn on the ignition. The alarm tell tale will light.
Emergency Disarming/Mobilising (PFK Alarm)
If the key transmitter is damaged or fails to function, and a spare is not
available, the alarm system’s unique 5 digit (PIN) Identification Number
may be used to disarm the alarm provided that a key blade is available
to access the cabin:
Within 10 seconds, turn the ignition off; the tell tale will begin to flash.
After a number of flashes corresponding to the first digit of the PIN, for
example, 23121.
1 2
=
2
3121
2312
Off
On
Off
Turn on the ignition. The alarm tell tale will light.
Emergency Disarming/Mobilising (PFK Alarm)
If the key transmitter is damaged or fails to function, and a spare is not
available, the alarm system’s unique 5 digit (PIN) Identification Number
may be used to disarm the alarm provided that a key blade is available
to access the cabin:
Within 10 seconds, turn the ignition off; the tell tale will begin to flash.
After a number of flashes corresponding to the first digit of the PIN, for
example, 23121.
1 2
=
2
3121
Off
On
Off
Turn on the ignition. The alarm tell tale will light.
Emergency Disarming/Mobilising (PFK Alarm)
If the key transmitter is damaged or fails to function, and a spare is not
available, the alarm system’s unique 5 digit (PIN) Identification Number
may be used to disarm the alarm provided that a key blade is available
to access the cabin:
Within 10 seconds, turn the ignition off; the tell tale will begin to flash.
After a number of flashes corresponding to the first digit of the PIN, for
example, 23121.
1 2
= 23121
On Off
Off
On
Off
Turn on the ignition. The alarm tell tale will light.
Emergency Disarming/Mobilising (PFK Alarm)
If the key transmitter is damaged or fails to function, and a spare is not
available, the alarm system’s unique 5 digit (PIN) Identification Number
may be used to disarm the alarm provided that a key blade is available
to access the cabin:
Within 10 seconds, turn the ignition off; the tell tale will begin to flash.
After a number of flashes corresponding to the first digit of the PIN, for
example, 23121.
1 2
= 23121
Off
On
Off
Turn on the ignition. The alarm tell tale will light.
Emergency Disarming/Mobilising (PFK Alarm)
If the key transmitter is damaged or fails to function, and a spare is not
available, the alarm system’s unique 5 digit (PIN) Identification Number
may be used to disarm the alarm provided that a key blade is available
to access the cabin:
Within 10 seconds, turn the ignition off; the tell tale will begin to flash.
After a number of flashes corresponding to the first digit of the PIN, for
example, 23121.
1 2
= 23121
On Off
On-Off On-Off
On-Off On-Off
Off
On
Off
Turn on the ignition. The alarm tell tale will light.
Emergency Disarming/Mobilising (PFK Alarm)
If the key transmitter is damaged or fails to function, and a spare is not
available, the alarm system’s unique 5 digit (PIN) Identification Number
may be used to disarm the alarm provided that a key blade is available
to access the cabin:
Within 10 seconds, turn the ignition off; the tell tale will begin to flash.
After a number of flashes corresponding to the first digit of the PIN, for
example, 23121.
1 2
= 23121
On
Off
Off
On
Off
Turn on the ignition. The alarm tell tale will light.
Emergency Disarming/Mobilising (PFK Alarm)
If the key transmitter is damaged or fails to function, and a spare is not
available, the alarm system’s unique 5 digit (PIN) Identification Number
may be used to disarm the alarm provided that a key blade is available
to access the cabin:
Within 10 seconds, turn the ignition off; the tell tale will begin to flash.
After a number of flashes corresponding to the first digit of the PIN, for
example, 23121.
1 2
= 23121
On Off
Off
On
Off
Turn on the ignition. The alarm tell tale will light.
Emergency Disarming/Mobilising (PFK Alarm)
If the key transmitter is damaged or fails to function, and a spare is not
available, the alarm system’s unique 5 digit (PIN) Identification Number
may be used to disarm the alarm provided that a key blade is available
to access the cabin:
Within 10 seconds, turn the ignition off; the tell tale will begin to flash.
After a number of flashes corresponding to the first digit of the PIN, for
example, 23121.
1 2
=
2
3121
Off
On
Off
Turn on the ignition. The alarm tell tale will light.
Emergency Disarming/Mobilising (PFK Alarm)
If the key transmitter is damaged or fails to function, and a spare is not
available, the alarm system’s unique 5 digit (PIN) Identification Number
may be used to disarm the alarm provided that a key blade is available
to access the cabin:
Within 10 seconds, turn the ignition off; the tell tale will begin to flash.
After a number of flashes corresponding to the first digit of the PIN, for
example, 23121.
1 2
=
2
3121
KEYS & SECURITY ALARM
E132T0324JA Federal Evora 400 2016MY OHB English Language.indd 22 16/05/2016 09:12:30
23
Lost or Stolen Keyfobs
IMPORTANT: Any functional keyfobs will
still continue to unlock the vehicle and
operate the alarm system. Therefore in the
event that a keyfob has been stolen or lost,
then the replacement of the vehicles lock
set and alarm system is recommended to
maintain full vehicle security.
Disconnecting the Car Battery
Before disconnecting, ensure that the
alarm is disarmed in order to prevent its
being triggered, then wait for at least 30
MINUTES after switching off the ignition
to allow the ECU and associated sensors
to shut down in the correct sequence.
Also refer to the battery section (see page
106) for further information.
Transmitter Key Battery Replacement
The transmitters are powered by a 3V,
CR2025 type Lithium battery, which with
normal use should last for 3 years. To en-
sure correct operation, it is recommended
to renew the batteries every 12 months:
- Using a small screwdriver, prise the fob
from the key blade carrier utilising the
slot provided on the back of the case.
- At the end face of the fob, prise the retain-
ing tang inwards whilst withdrawing the
battery carrier from the fob.
- Remove the old battery and wait for 10
seconds before inserting a new battery,
with +ve sign lowermost and holding the
battery only by its periphery.
- Slide the battery carrier back into the fob,
pressing firmly to engage the clip and
then clip back onto the key blade.
- The transmitter should now operate
normally.
The following statements are mandated
by the Federal Communications Com-
mission:
CHANGES OR MODIFICATIONS NOT
EXPRESSLY APPROVED BY LOTUS
RESPONSIBLE FOR COMPLIANCE
COULD VOID THE USER'S AUTHORITY
TO OPERATE THE EQUIPMENT.
THIS DEVICE COMPLIES WITH PART 15
OF THE FCC RULES
OPERATION IS SUBJECT TO THE
FOLLOWING TWO CONDITIONS:
1) THIS DEVICE MAY NOT CAUSE
INTERFERENCE AND
2) THIS DEVICE MUST ACCEPT ANY
INTERFERENCE, INCLUDING
INTERFERENCE THAT MAY CAUSE
UNDESIRED OPERATION OF THE
DEVICE
THIS DEVICE COMPLIES WITH FCC
RADIATION EXPOSURE LIMITS SET
FORTH FOR AN UNCONTROLLED
ENVIRONMENT AND MEETS THE
FCC RADIO FREQUENCY EXPOSURE
GUIDELINES IN SUPPLEMENT
(OET65). THIS TRANSMITTER MUST
NOT BE COLOCATED OR OPERATING
IN CONJUNCTION WITH ANY OTHER
ANTENNA OR TRANSMITTER.
Transmitter fob
Carrier
retaining tang
Key blade
Type CR2025
battery
KEYS & SECURITY ALARM
E132T0324JA Federal Evora 400 2016MY OHB English Language.indd 23 16/05/2016 09:12:31

Navigation menu
