STANDBY GENERATOR

OWNER'S MANUAL

This manual should remain with the unit.

A new standard of reliability

Serial Number QT

3.9L

40kW

Model: 005221-0

—CAUTION—

ONLY QUALIFIED ELECTRICIANS OR CONTRACTORS SHOULD ATTEMPT INSTALLATION!

Cover026 Rev. 0 09/05 Part No. 0F7924

Standby Generator Sets

Table of Contents

SECTION PAGE

SAFETY RULES ................................................ 1-1

INTRODUCTION .....................................................1-3

Read this Manual Thoroughly ...................................1-3

Operation and Maintenance ......................................1-3

How to Obtain Service ..............................................1-3

IDENTIFICATION RECORD .....................................2-1

Data Label ................................................................2-1

EQUIPMENT DESCRIPTION ...................................3-1

Equipment Description ................................................3-1

Engine Oil Requirements .............................................3-1

Coolant Recommendations...........................................3-1

ENGINE PROTECTIVE DEVICES ............................4-1

High Coolant Temperature Switch ............................4-1

Low Coolant Level Sensor .........................................4-1

Low Oil Pressure Switch ...........................................4-1

Overcrank Shutdown ................................................4-1

Overspeed Shutdown ................................................4-1

RPM Sensor Loss Shutdown .....................................4-1

DC Fuse ....................................................................4-1

FUEL SYSTEMS .....................................................5-1

Fuel Requirements ....................................................5-1

Natural Gas Fuel System ..........................................5-1

Propane Vapor Withdrawal Fuel System....................5-1

LP Fuel System .........................................................5-1

SPECIFICATIONS ...................................................6-1

Generator .................................................................6-1

Engine.......................................................................6-1

Cooling System .........................................................6-1

Fuel System ..............................................................6-1

Electrical System ......................................................6-1

Cold Weather Kit .......................................................6-2

GENERAL INFORMATION .......................................7-1

Generator AC Lead Connections ..................................7-1

Four-lead, Single-phase Stator ..................................7-1

Alternator Power Winding Connections ........................7-1

3-phase Alternators ..................................................7-1

INSTALLATION .......................................................8-1

Installation ...................................................................8-1

Preparation Before Start-up .........................................8-1

Prior to Initial Start-up .............................................8-1

Initial Inspection for QT Genset Start-up .....................8-1

Start-up Inspection ...................................................8-2

OPERATION ...........................................................9-1

Generator Control and Operation ................................9-1

Operating Unit with Manual Transfer Switch ...............9-1

Engine Start-up and Transfer ...................................9-1

Retransfer and Shutdown .........................................9-1

Operating Unit with Automatic Transfer Switch ...........9-1

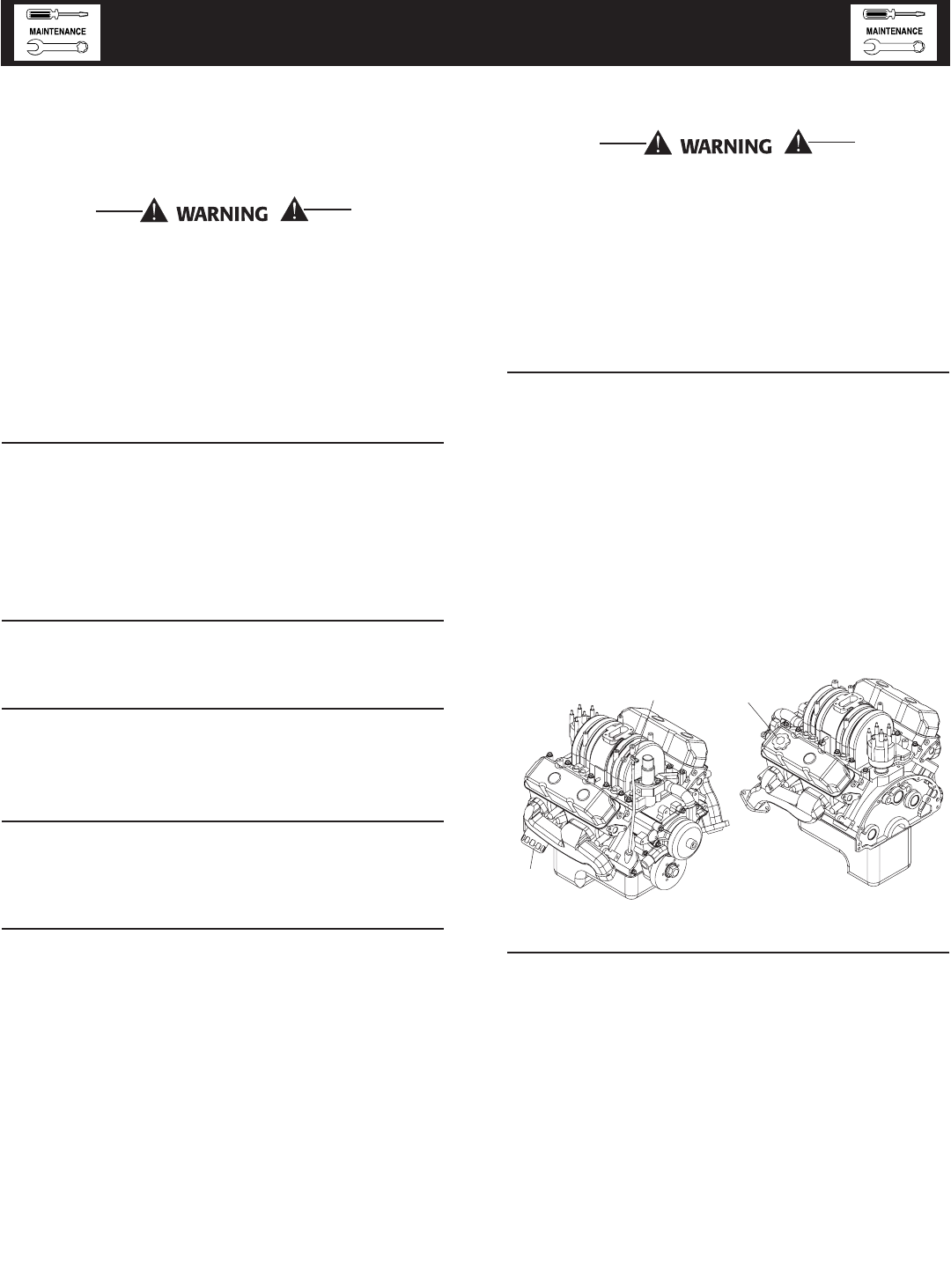

MAINTENANCE .....................................................10-1

Maintenance Performed by Authorized

Service Facilities .....................................................10-1

Cooling System ..........................................................10-1

Checking Fluid Levels ................................................10-1

Check Engine Oil ....................................................10-1

Battery Fluid ...........................................................10-1

Engine Coolant .......................................................10-1

Maintenance Owner/Operator Can Perform ................10-2

Check Engine Oil Level ...........................................10-2

Check Battery .........................................................10-2

Exercise System ......................................................10-2

Inspect Cooling System ...........................................10-2

Check Engine Coolant Level....................................10-2

Perform Visual Inspection .......................................10-2

Inspect Exhaust System ..........................................10-2

Check Fan Belt ........................................................10-2

Inspect Engine Governor ........................................10-2

Changing Engine Oil ...............................................10-2

Changing the Engine Air Cleaner ............................10-3

Spark Plugs ............................................................10-3

Coolant Change .......................................................10-3

Miscellaneous Maintenance ........................................10-3

Cleaning the Generator ...........................................10-3

Battery ....................................................................10-3

Battery Maintenance ...............................................10-4

Battery Replacement ...............................................10-4

SERVICE SCHEDULE ...........................................11-1

30 kW - 150 kW Standby Gas Engine

Driven Generator Sets ............................................11-1

TROUBLESHOOTING ...........................................12-1

Troubleshooting Guide ...............................................12-1

NOTES

EXPLODED VIEWS & PARTS LISTS

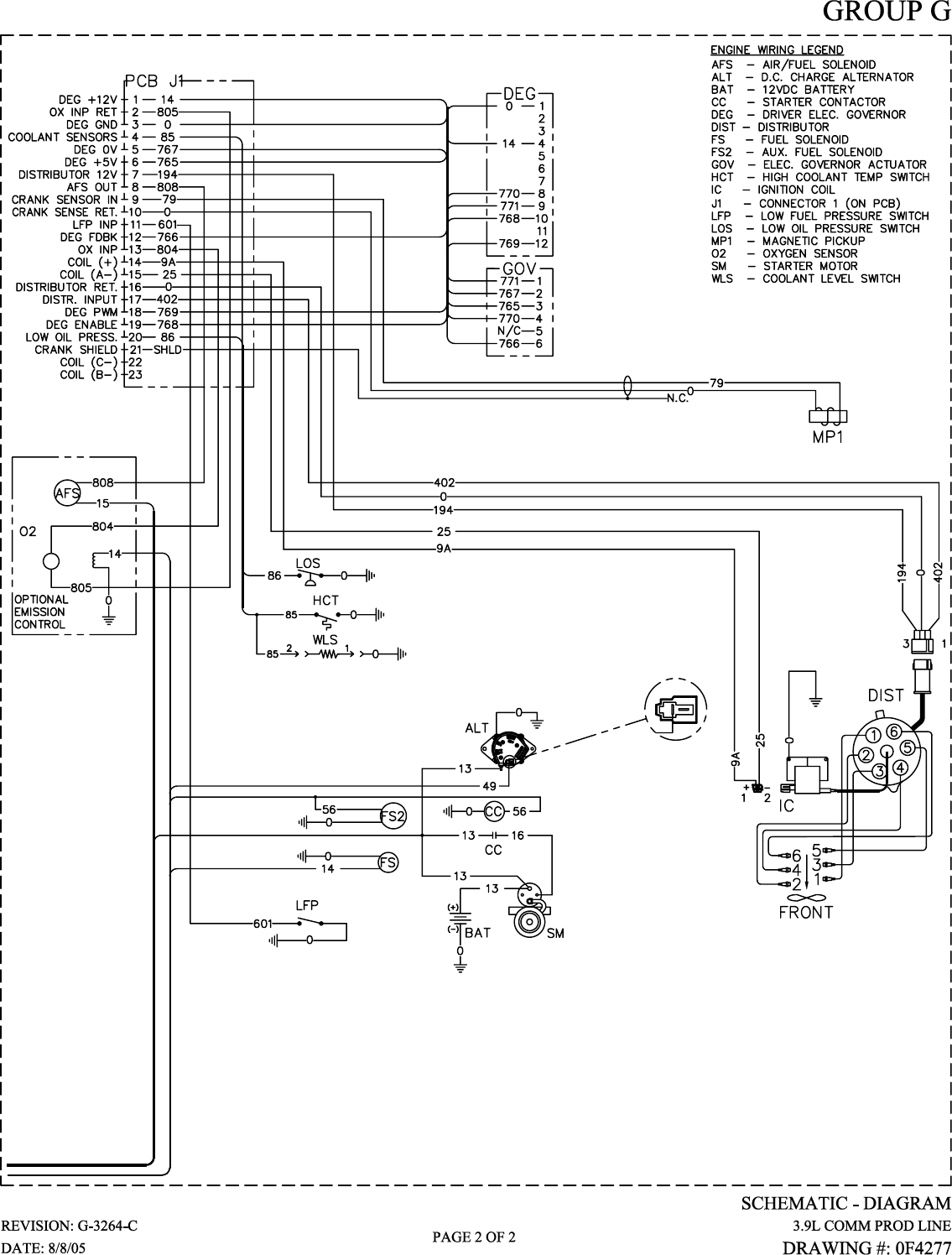

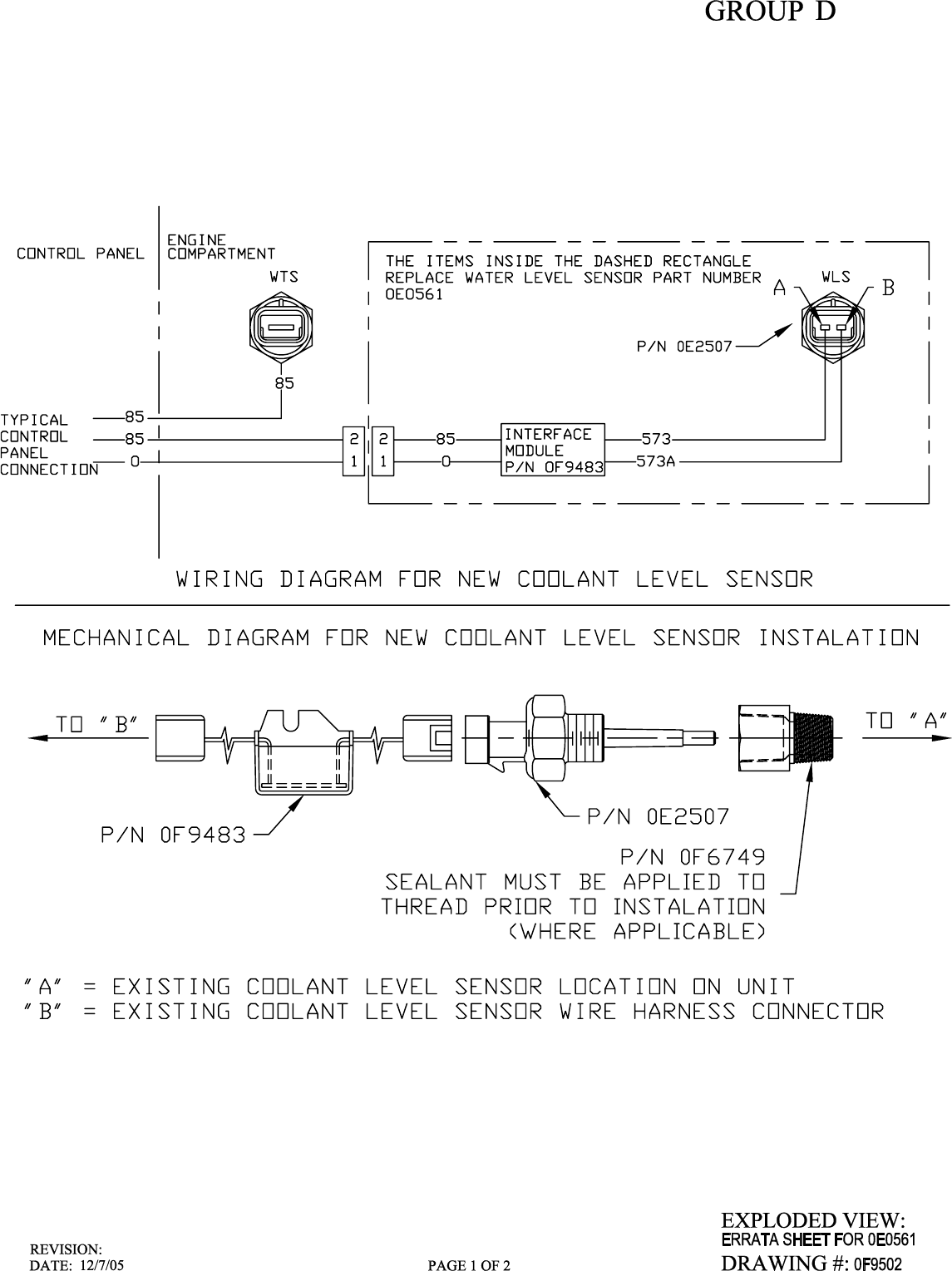

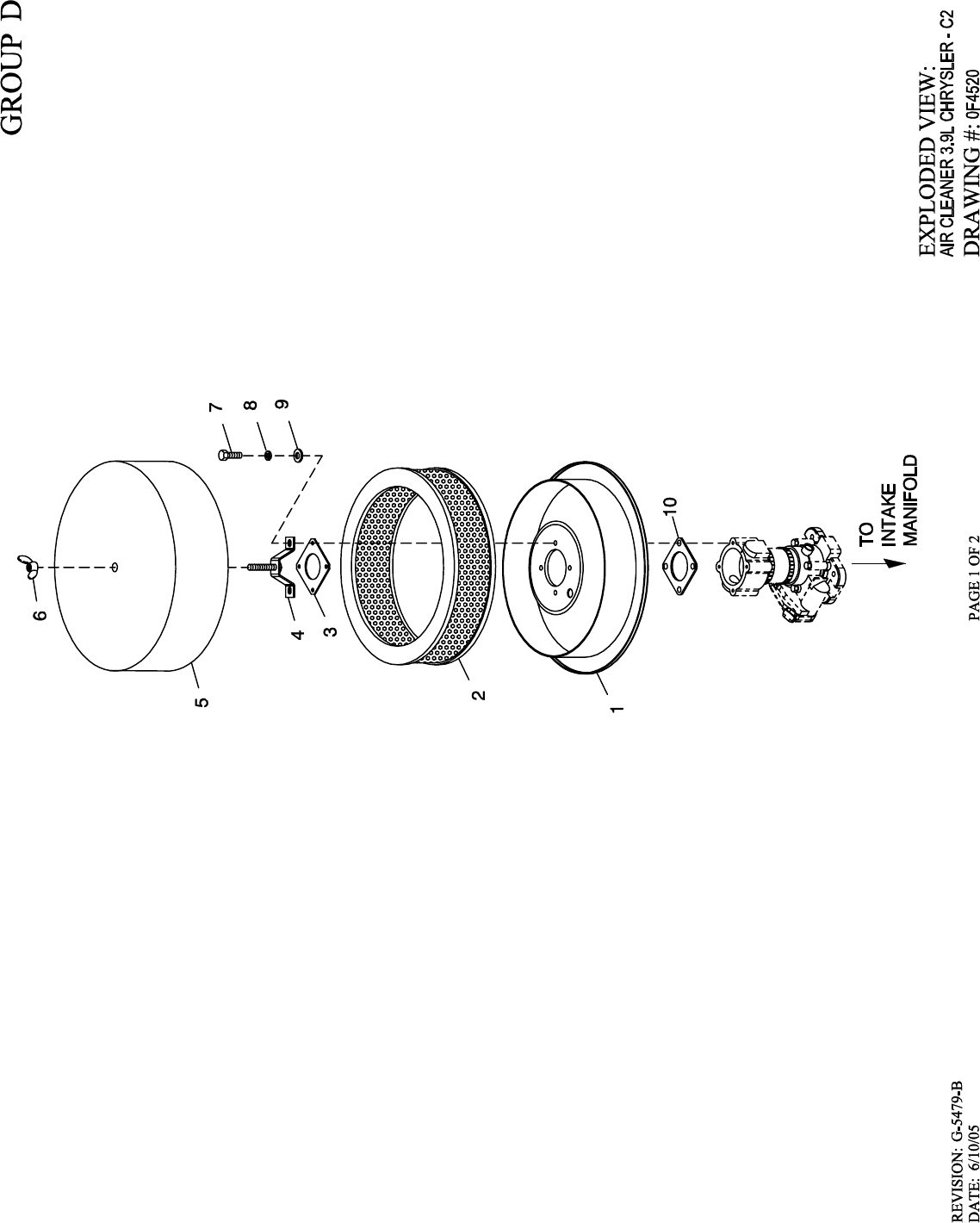

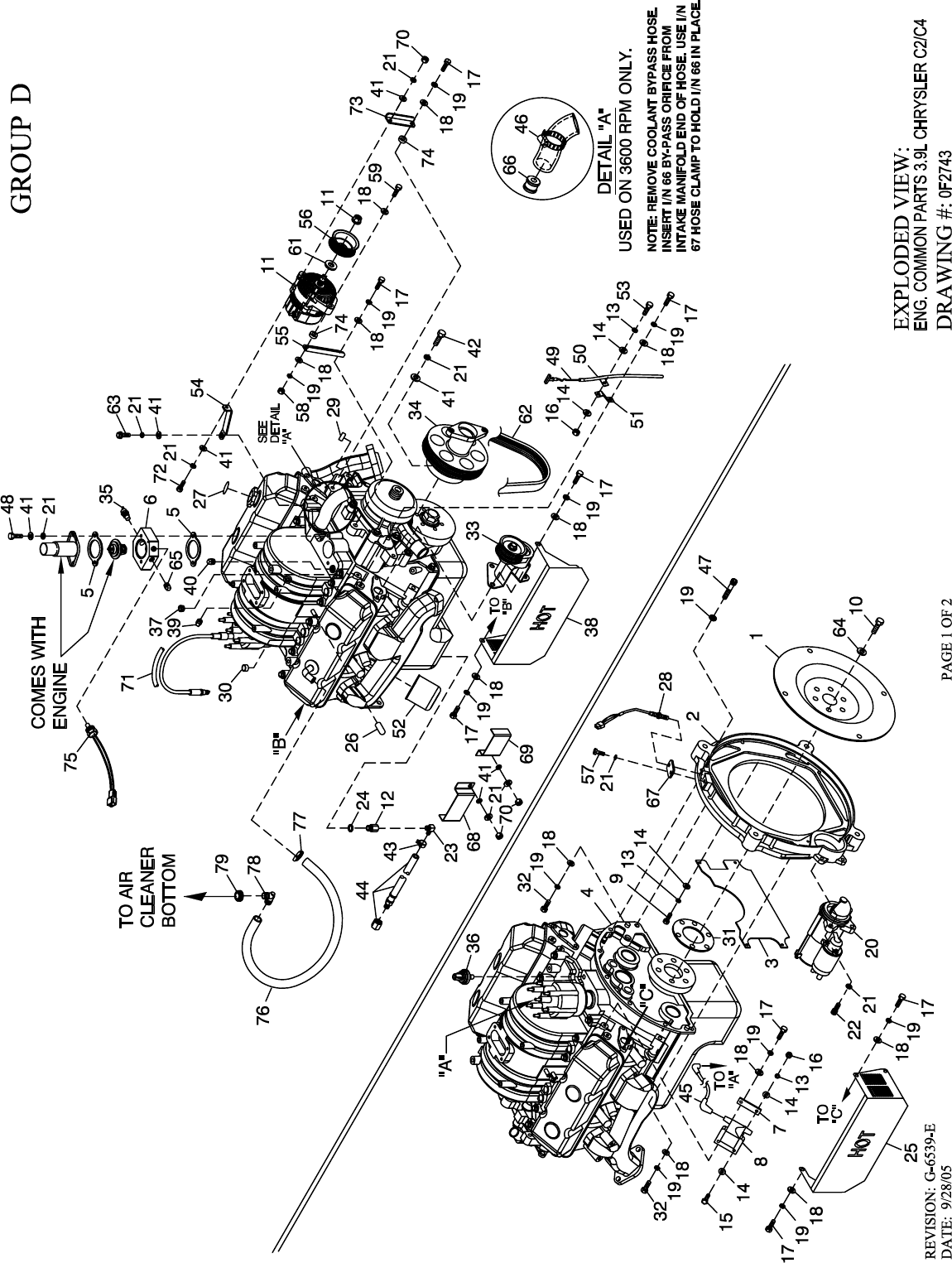

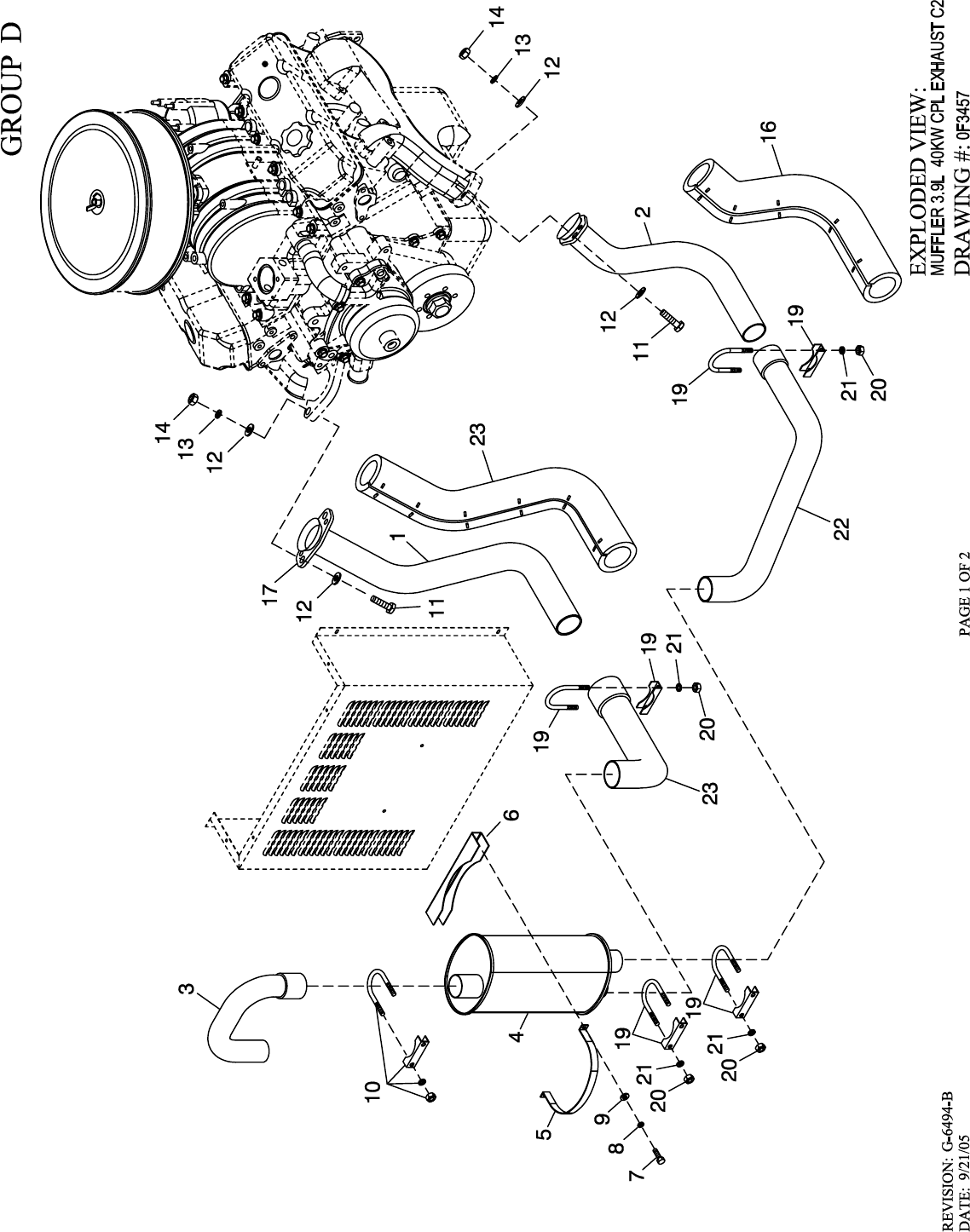

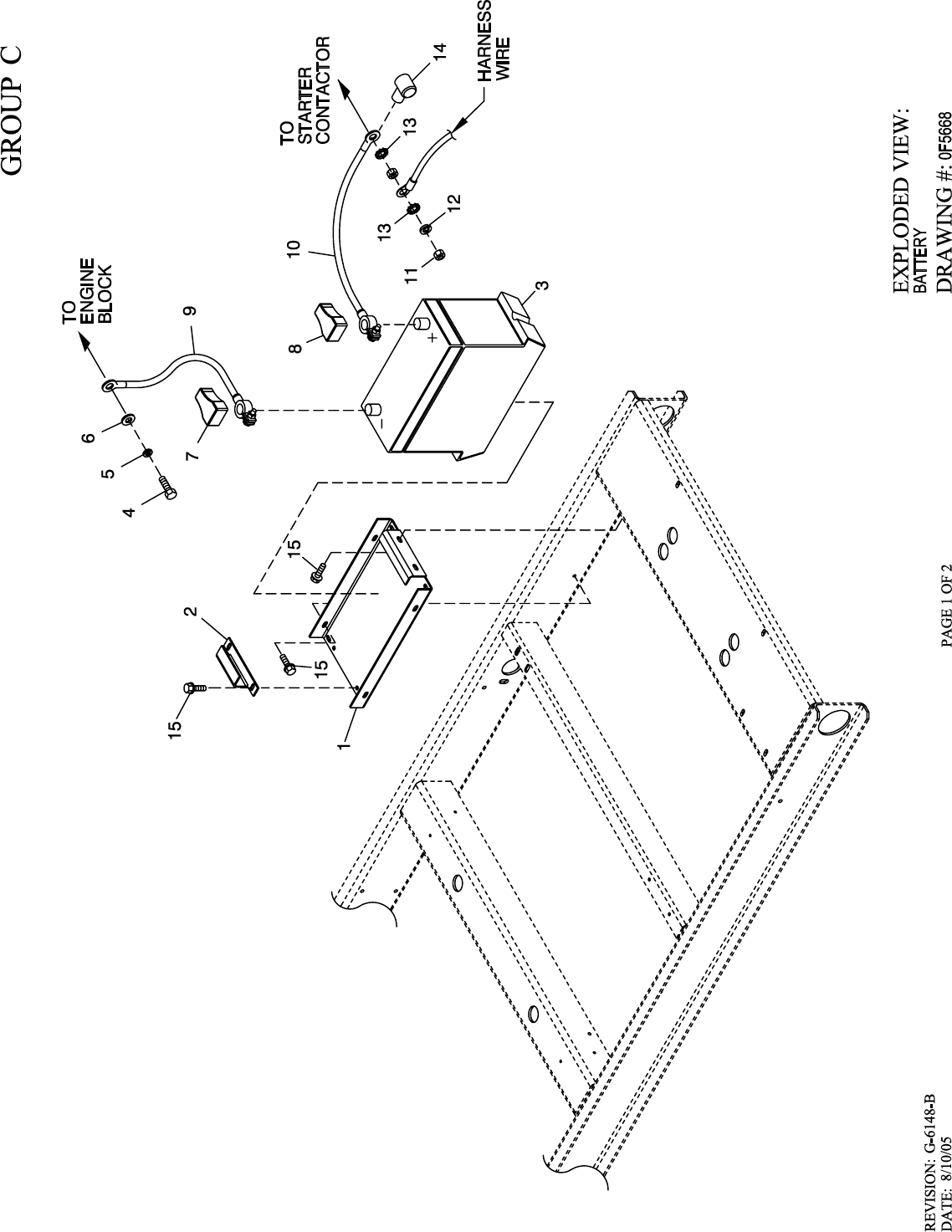

WIRING DIAGRAMS & SCHEMATICS

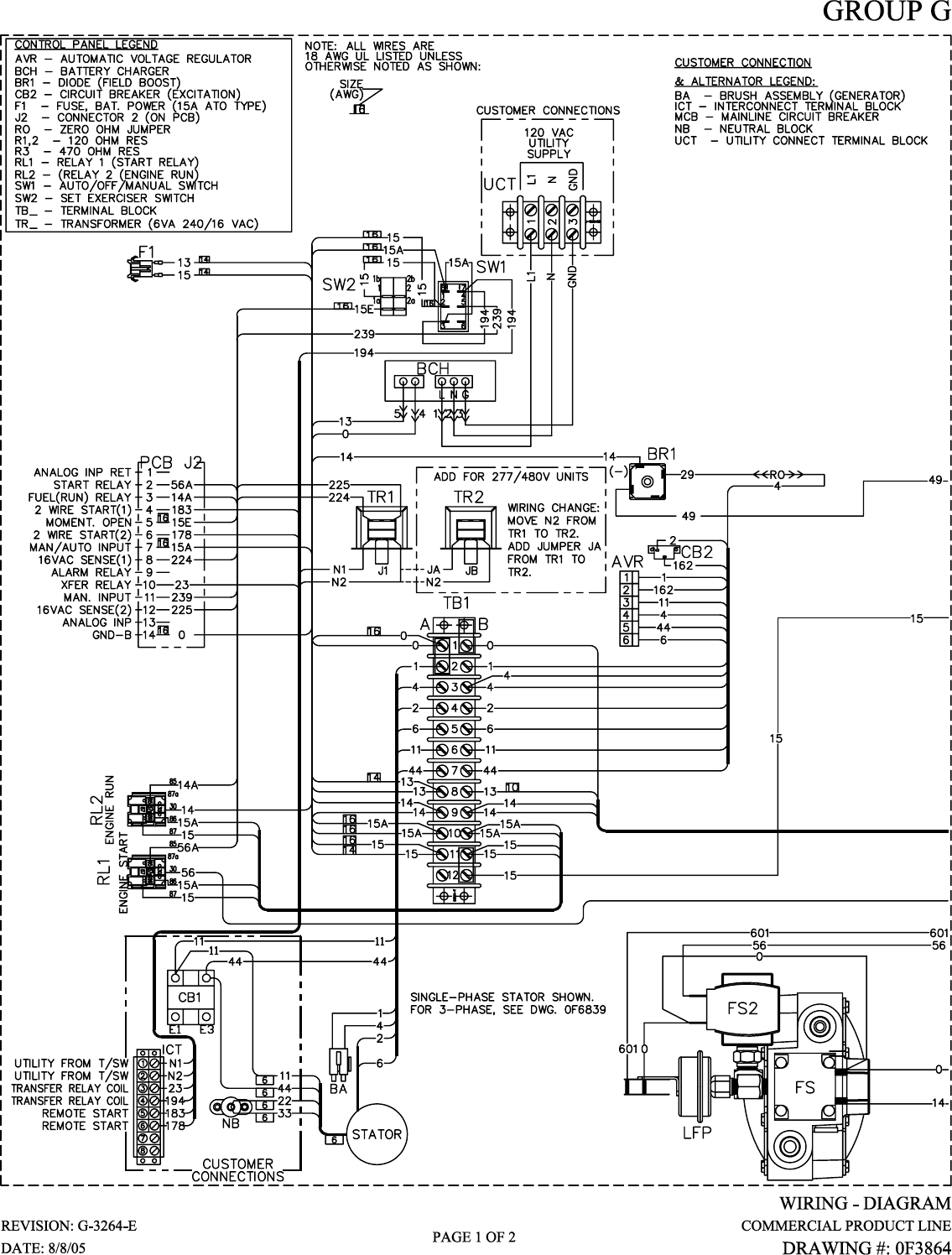

WARRANTY

Content001 Rev. 0 08/05

Study these SAFETY RULES carefully before install-

ing, operating or servicing this equipment. Become

familiar with this Owner’s Manual and with the unit.

The generator can operate safely, efficiently and reli-

ably only if it is properly installed, operated and

maintained. Many accidents are caused by failing to

follow simple and fundamental rules or precautions.

The manufacturer cannot anticipate every possible

circumstance that might involve a hazard. The warn-

ings in this manual, and on tags and decals affixed

to the unit are, therefore, not all inclusive. If a pro-

cedure, work method or operating technique is used

that the manufacturer does not specifically recom-

mend, ensure that it is safe for others. Also make

sure the procedure, work method or operating tech-

nique utilized does not render the generator unsafe.

DANGER

 Despite the safe design of this generator,

operating this equipment imprudently, neglect-

ing its maintenance or being careless can cause

possible injury or death. Permit only responsible

and capable persons to install, operate or main-

tain this equipment.

 Potentially lethal voltages are generated by

these machines. Ensure all steps are taken to

render the machine safe before attempting to

work on the generator.

 Parts of the generator are rotating and/or hot

during operation. Exercise care near running

generators.

 GENERAL HAZARDS 

• For safety reasons, the manufacturer recommends

that this equipment be installed, serviced and

repaired by an Authorized Service Dealer or other

competent, qualified electrician or installation tech-

nician who is familiar with applicable codes, stan-

dards and regulations. The operator also must

comply with all such codes, standards and regula-

tions.

• Installation, operation, servicing and repair of this

(and related) equipment must always comply with

applicable codes, standards, laws and regulations.

Adhere strictly to local, state and national electri-

cal and building codes. Comply with regulations

the Occupational Safety and Health Administration

(OSHA) has established. Also, ensure that the

generator is installed, operated and serviced in

accordance with the manufacturer’s instructions

and recommendations. Following installation, do

nothing that might render the unit unsafe or in

noncompliance with the aforementioned codes,

standards, laws and regulations.

• The engine exhaust fumes contain carbon monox-

ide gas, which can be DEADLY. This dangerous gas,

if breathed in sufficient concentrations, can cause

unconsciousness or even death. For that reason,

adequate ventilation must be provided. Exhaust

gases must be piped safely away from any building

or enclosure that houses the generator to an area

where people, animals, etc., will not be harmed.

This exhaust system must be installed properly, in

strict compliance with applicable codes and stan-

dards.

• Keep hands, feet, clothing, etc., away from drive

belts, fans, and other moving or hot parts. Never

remove any drive belt or fan guard while the unit

is operating.

• Adequate, unobstructed flow of cooling and venti-

lating air is critical in any room or building hous-

ing the generator to prevent buildup of explosive

gases and to ensure correct generator operation.

Do not alter the installation or permit even partial

blockage of ventilation provisions, as this can seri-

ously affect safe operation of the generator.

• Keep the area around the generator clean and

uncluttered. Remove any materials that could

become hazardous.

• When working on this equipment, remain alert

at all times. Never work on the equipment when

physically or mentally fatigued.

• Inspect the generator regularly, and promptly

repair or replace all worn, damaged or defective

parts using only factory-approved parts.

 SAVE THESE INSTRUCTIONS – The manufacturer suggests that these rules for safe

operation be copied and posted in potential hazard areas. Safety should be stressed to all

operators, potential operators, and service and repair technicians for this equipment.

The engine exhaust from this product

contains chemicals known to the state

of California to cause cancer, birth

defects or other reproductive harm.

WARNING:



This product contains or emits chemicals

known to the state of California to cause

cancer, birth defects or other reproductive harm.

WARNING:



1-1

Standby Generator Sets

Important Safety Instructions



Safety 001 Rev. 0 08/05

• Before performing any maintenance on the gen-

erator, disconnect its battery cables to prevent

accidental start-up. Disconnect the cable from the

battery post indicated by a NEGATIVE, NEG or (–)

first. Reconnect that cable last.

• Never use the generator or any of its parts as a

step. Stepping on the unit can stress and break

parts, and may result in dangerous operating con-

ditions from leaking exhaust gases, fuel leakage,

oil leakage, etc.

 ELECTRICAL HAZARDS 

• All generators covered by this manual produce

dangerous electrical voltages and can cause fatal

electrical shock. Utility power delivers extremely

high and dangerous voltages to the transfer switch

as well as the standby generator. Avoid contact

with bare wires, terminals, connections, etc., on

the generator as well as the transfer switch, if

applicable. Ensure all appropriate covers, guards

and barriers are in place before operating the gen-

erator. If work must be done around an operating

unit, stand on an insulated, dry surface to reduce

shock hazard.

• Do not handle any kind of electrical device while

standing in water, while barefoot, or while hands or

feet are wet. DANGEROUS ELECTRICAL SHOCK

MAY RESULT.

• If personnel must stand on metal or concrete while

installing, operating, servicing, adjusting or repair-

ing this equipment, place insulative mats over a

dry wooden platform. Work on the equipment only

while standing on such insulative mats.

• The National Electrical Code (NEC) requires the

frame and external electrically conductive parts

of the generator to be connected to an approved

earth ground. This grounding will help prevent

dangerous electrical shock that might be caused

by a ground fault condition in the generator set or

by static electricity. Never disconnect the ground

wire.

• Wire gauge sizes of electrical wiring, cables and

cord sets must be adequate to handle the maxi-

mum electrical current (ampacity) to which they

will be subjected.

• Before installing or servicing this (and related)

equipment, make sure that all power voltage

supplies are positively turned off at their source.

Failure to do so will result in hazardous and pos-

sibly fatal electrical shock.

• Connecting this unit to an electrical system nor-

mally supplied by an electric utility shall be by

means of a transfer switch so as to isolate the

generator electric system from the electric utility

distribution system when the generator is operat-

ing. Failure to isolate the two electric system power

sources from each other by such means will result

in damage to the generator and may also result

in injury or death to utility power workers due to

backfeed of electrical energy.

• Generators installed with an automatic transfer

switch will crank and start automatically when

normal (utility) source voltage is removed or is

below an acceptable preset level. To prevent such

automatic start-up and possible injury to person-

nel, disable the generator’s automatic start circuit

(battery cables, etc.) before working on or around

the unit. Then, place a “Do Not Operate” tag on

the generator control panel and on the transfer

switch.

• In case of accident caused by electric shock, imme-

diately shut down the source of electrical power.

If this is not possible, attempt to free the victim

from the live conductor. AVOID DIRECT CONTACT

WITH THE VICTIM. Use a nonconducting imple-

ment, such as a dry rope or board, to free the vic-

tim from the live conductor. If the victim is uncon-

scious, apply first aid and get immediate medical

help.

• Never wear jewelry when working on this equip-

ment. Jewelry can conduct electricity resulting in

electric shock, or may get caught in moving com-

ponents causing injury.

 FIRE HAZARDS 

• Keep a fire extinguisher near the generator at all

times. Do NOT use any carbon tetra-chloride type

extinguisher. Its fumes are toxic, and the liquid

can deteriorate wiring insulation. Keep the extin-

guisher properly charged and be familiar with its

use. If there are any questions pertaining to fire

extinguishers, consult the local fire department.

 EXPLOSION HAZARDS 

• Properly ventilate any room or building housing

the generator to prevent build-up of explosive gas.

• Do not smoke around the generator. Wipe up any

fuel or oil spills immediately. Ensure that no com-

bustible materials are left in the generator com-

partment, or on or near the generator, as FIRE or

EXPLOSION may result. Keep the area surround-

ing the generator clean and free from debris.

• These generator sets may operate using one of

several types of fuels. All fuel types are potentially

FLAMMABLE and/or EXPLOSIVE and should be

handled with care. Comply with all laws regulat-

ing the storage and handling of fuels. Inspect the

unit’s fuel system frequently and correct any leaks

immediately. Fuel supply lines must be prop-

erly installed, purged and leak tested according to

applicable fuel-gas codes before placing this equip-

ment into service.

• Diesel fuels are highly FLAMMABLE. Gaseous

fluids such as natural gas and liquid propane

(LP) gas are extremely EXPLOSIVE. Natural gas

is lighter than air, and LP gas is heavier than air;

install leak detectors accordingly.

1-2

Standby Generator Sets

Important Safety Instructions

Safety 001 Rev. 0 08/05

1-3

INTRODUCTION

Thank you for purchasing this model of the standby

generator set product line.

Every effort was expended to make sure that the

information and instructions in this manual were

both accurate and current at the time the manual was

written. However, the manufacturer reserves the right

to change, alter or otherwise improve this product(s)

at any time without prior notice.

READ THIS MANUAL THOROUGHLY

If any portion of this manual is not understood, con-

tact the nearest Authorized Service Dealer for start-

ing, operating and servicing procedures.

Throughout this publication, and on tags and

decals affixed to the generator, DANGER, WARNING,

CAUTION and NOTE blocks are used to alert person-

nel to special instructions about a particular service

or operation that may be hazardous if performed

incorrectly or carelessly. Observe them carefully.

Their definitions are as follows:

DANGER

After this heading, read instructions that, if not

strictly complied with, will result in personal injury

or property damage.

After this heading, read instructions that, if not

strictly complied with, may result in personal

injury or property damage.

After this heading, read instructions that, if not

strictly complied with, could result in damage to

equipment and/or property.

NOTE:

After this heading, read explanatory statements

that require special emphasis.

These safety warnings cannot eliminate the hazards

that they indicate. Common sense and strict compli-

ance with the special instructions while performing

the service are essential to preventing accidents.

Four commonly used safety symbols accompany the

DANGER, WARNING and CAUTION blocks. The type

of information each indicates is as follows:

 This symbol points out important safety infor-

mation that, if not followed, could endanger

personal safety and/or property of others.

 This symbol points out potential explosion

hazard.



 This symbol points out potential fire hazard.

 This symbol points out potential electrical shock

hazard.

The operator is responsible for proper and safe use

of the equipment. The manufacturer strongly recom-

mends that the operator read this Owner's Manual

and thoroughly understand all instructions before

using this equipment. The manufacturer also strong-

ly recommends instructing other users to properly

start and operate the unit. This prepares them if they

need to operate the equipment in an emergency.

OPERATION AND MAINTENANCE

It is the operator's responsibility to perform all safety

checks, to make sure that all maintenance for safe

operation is performed promptly, and to have the

equipment checked periodically by an Authorized

Service Dealer. Normal maintenance service and

replacement of parts are the responsibility of the

owner/operator and, as such, are not considered

defects in materials or workmanship within the terms

of the warranty. Individual operating habits and usage

contribute to the need for maintenance service.

Proper maintenance and care of the generator ensure

a minimum number of problems and keep operating

expenses at a minimum. See an Authorized Service

Dealer for service aids and accessories.

Operating instructions presented in this manual

assume that the standby electric system has been

installed by an Authorized Service Dealer or other

competent, qualified contractor. Installation of this

equipment is not a “do-it-yourself” project.

HOW TO OBTAIN SERVICE

When the generator requires servicing or repairs,

simply contact an Authorized Service Dealer for

assistance. Service technicians are factory-trained

and are capable of handling all service needs.

When contacting an Authorized Service Dealer or the

factory about parts and service, always supply the

complete model number of the unit as given on the

front cover of this manual or on the DATA LABEL

affixed to the unit.





AUTHORIZED SERVICE DEALER LOCATION

To locate the nearest AUTHORIZED

SERVICE DEALER, please call this number:

1-800-333-1322

or locate us on the web at:

www.generac.com

Standby Generator Sets

Important Safety Instructions

Safety 001 Rev. 0 08/05

IDENTIFICATION RECORD

DATA LABEL

Every generator set has a DATA LABEL that contains

important information pertinent to the generator. The

data label, which can be found attached to the gen-

erator’s lower connection box, lists the unit’s serial

number and its rated voltage, amps, wattage capacity,

phase, frequency, rpm, power factor, etc.



NOTE:

For actual information related to this particular

model, please refer to the Manual Drawing Listing

located at the end of this manual, or to the data

label affixed to the unit.

Generator Model and Serial Number

This number is the key to numerous engineering and

manufacturing details pertaining to your unit. Always

supply this number when requesting service, order-

ing parts or seeking information.



2-1

Standby Generator Sets

General Information

Identy 002 Rev. A 12/05

WAUKESHA, WI

RATED KW

RATED VOLTAGE

POWER FACTOR

ENGINE RPM

ALTERNATOR SUBTRANSIENT REACTANCE

ALTERNATOR TRANSIENT REACTANCE

CLASS

MODEL

MADE IN USA

PRODUCTION DATE

GENERAC POWER SYSTEMS, INC.

HERTZ

RATED KVA

GENERATOR SET DATA

RATED AMPS

ALT RPM

PHASE

SERIAL

ROTOR STATOR WINDING INSULATION AT 25°C AMBIENT

Data Label

EQUIPMENT DESCRIPTION

This equipment is a revolving field, alternating cur-

rent generator set. It is powered by a gaseous fueled

engine operating at 1800 rpm for 4-pole direct drive

units, 3600 rpm for 2-pole direct drive units and

2300 - 3000 rpm for quiet drive gear units. See the

Specifications section for exact numbers. The unit

comes complete with a sound attenuated enclosure,

internally mounted muffler, control console, main-

line circuit breaker, battery charger, and protective

alarms as explained in the following paragraph.

All AC connections, including the power leads from

the alternator, 120 volt battery charger input and

control connections to the transfer switch are avail-

able in the main connection box.

The generator incorporates the following generator

features:

• Rotor and Stator insulation is Class H rated as

defined by NEMA MG1-32.6, NEMA MG1-1.66.

The generator is self ventilated and drip-proof con-

structed.

• The voltage waveform deviation, total harmonic

content of the AC waveform and telephone influ-

ence factor have been evaluated and are acceptable

according to NEMA MG1-32.

ENGINE OIL RECOMMENDATIONS

The unit has been filled with 15W-40 engine oil at

the factory. Use a high-quality detergent oil classified

“For Service CC, SD, SE, SF.” Detergent oils keep the

engine cleaner and reduce carbon deposits. Use oil

having the following SAE viscosity rating, based on

the ambient temperature range anticipated before the

next oil change:

 Any attempt to crank or start the engine before

it has been properly serviced with the recom-

mended oil may result in an engine failure.

NOTE:

For temperatures below 32° F, it is strongly recom-

mended to use the optional Cold Weather Start Kit

(part number listed in the Specification Section).

The oil grade for temperatures below 32° F is 5W-

30 synthetic oil.

COOLANT RECOMMENDATIONS

Use a mixture of half low silicate ethylene glycol

base anti-freeze and deionized water. Cooling system

capacity is listed in the specifications. Use only deion-

ized water and only low silicate anti-freeze. If desired,

add a high quality rust inhibitor to the recommended

coolant mixture. When adding coolant, always add

the recommended 50-50 mixture.

 Do not use any chromate base rust inhibitor

with ethylene glycol base anti-freeze or chro-

mium hydroxide (“green slime”) forms and will

cause overheating. Engines that have been oper-

ated with a chromate base rust inhibitor must

be chemically cleaned before adding ethylene

glycol base anti-freeze. Using any high silicate

anti-freeze boosters or additives will also cause

overheating. The manufacturer also recommends

that any soluble oil inhibitor is NOT used for this

equipment.

DANGER

 Do not remove the radiator pressure cap while

the engine is hot or serious burns from boiling

liquid or steam could result.

 Ethylene glycol base antifreeze is poisonous.

Do not use mouth to siphon coolant from the

radiator, recovery bottle or any container. Wash

hands thoroughly after handling. Never store

used antifreeze in an open container because

animals are attracted to the smell and taste of

antifreeze even though it is poisonous to them.

Temperature Oil Grade (Recommended)

Above 80° F (27° C) SAE 30W or 15W-40

32° to 80° F (0° to 27° C) SAE 20W-20 or 15W-40

Below 32° F (0° C) See Note

3-1

Standby Generator Sets

Equipment Description

Equip001 Rev. 0 08/05

ENGINE PROTECTIVE DEVICES

The standby generator may be required to operate for

long periods of time without an operator on hand to

monitor such engine conditions as coolant tempera-

ture, oil pressure or rpm. For that reason, the engine

has several devices designed to protect it against

potentially damaging conditions by automatically

shutting down the unit when the oil pressure is too

low, the coolant temperature is too high, the coolant

level is too low, or the engine is running too fast.

NOTE:

Engine protective switches and sensors are men-

tioned here for the reader’s convenience. Also

refer to the applicable control panel manual for

additional automatic engine shutdown informa-

tion.

HIGH COOLANT TEMPERATURE SWITCH

This switches contacts close if the temperature should

exceed approximately 140° C (284° F), initiating an

engine shutdown. The generator will automatically

restart and the LED will reset once the temperature

has returned to a safe operating level.

LOW COOLANT LEVEL SENSOR

Should the engine coolant level drop below the level

of the high coolant temperature switch, it is possible

for the engine to overheat without automatic shut-

down. To prevent such overheating, the engine has a

low coolant level sensor. If the level of engine coolant

drops below the level of the low coolant level sensor,

the engine automatically shuts down.

LOW OIL PRESSURE SWITCH

This switch has normally closed contacts that are

held open by engine oil pressure during cranking and

operating. Should oil pressure drop below the 8 psi

range, switch contacts close, and the engine shuts

down. The unit should not be restarted until oil is

added, and the AUTO/OFF/MANUAL switch must be

turned to OFF and then back to AUTO.







OVERCRANK SHUTDOWN

After a prespecified duration of cranking, this func-

tion ends the cranking if the engine has failed to

start. The overcrank LED will turn ON. Turn OFF the

AUTO/OFF/MANUAL switch, then turn switch back to

AUTO to reset the generator control board.

NOTE:

If the fault is not corrected, the overcrank feature

will continue to activate.

Approximate Crank Cycle Times

• 15 seconds ON

• 7 seconds OFF

• 7 seconds ON

• 7 seconds OFF

• Repeat for 45 seconds

Approximately 90 seconds total.

OVERSPEED SHUTDOWN

A speed circuit controls engine cranking, start-up,

operation and shutdown. Engine speed signals are

delivered to the circuit board whenever the unit is

running. Should the engine overspeed above a safe,

preset value, the circuit board initiates an automatic

engine shutdown. Contact the nearest Authorized

Dealer if this failure occurs.

RPM SENSOR LOSS SHUTDOWN

If the speed signal to the control panel is lost, engine

shutdown will occur.

DC FUSE

This fuse is located inside of the control panel. It

protects the panel wiring and components from

damaging overload. Always remove this fuse before

commencing work on the generator. The unit will

not start or crank if the fuse is blown. Replace the

fuse with one of the same size, type, and rating. (See

the exploded views and parts lists at the end of this

manual for replacement part number.)









4-1

Standby Generator Sets

Engine Protective Devices

EngProt001 Rev. 0 08/05

FUEL SYSTEM

FUEL REQUIREMENTS

The standby generator may be equipped with one of

the following fuel systems:

• Natural gas fuel system

• Propane vapor (PV) fuel system

The Manual Drawing Listing that is affixed to the

unit includes the “Identification Code,” which may be

used to identify the type of fuel system installed on

the unit.

Recommended fuels should have a Btu content of at

least 1,000 Btus per cubic foot for natural gas; or at

least 2,520 Btus per cubic foot for LP gas. Ask the

fuel supplier for the Btu content of the fuel.

Required fuel pressure for natural gas is 5 inches

to 14 inches water column (0.18 to 0.5 psi); and

for liquid propane, 5 inches to 14 inches of water

column (0.18 to 0.5 psi).

NOTE:

Any piping used to connect the generator to the

fuel supply should be of adequate size to ensure

the fuel pressure NEVER drops below five inches

water column for natural gas or 5 inches water

column for propane vapor for all load ranges.

NOTE:

It is the responsibility of the installer to make sure

that only the correct recommended fuel is sup-

plied to the generator fuel system. Thereafter, the

owner/operator must make certain that only the

proper fuel is supplied.

NATURAL GAS FUEL SYSTEM

Natural gas is supplied in its vapor state. In most

cases, the gas distribution company provides piping

from the main gas distribution line to the standby

generator site. The following information applies to

natural gas fuel systems.

• Gas pressure in a building is usually regulated by

national, state and local codes.

• To reduce gas pressure to a safe level before

the gas enters a building, a primary regulator is

needed. The natural gas supplier may or may not

supply such a regulator.

• It is the responsibility of the gas supplier to make

sure sufficient gas pressure is available to operate

the primary regulator.

• Gas pressure at the inlet to the fuel shutoff sole-

noid should not exceed approximately 14 inches

water column (0.5 psi). Optimum pressure at the

fuel shutoff solenoid is 11 inches water column

(0.4 psi).





PROPANE VAPOR WITHDRAWAL FUEL SYSTEM

This type of system utilizes the vapors formed above

the liquid fuel in the supply tank. Approximately 10

to 20 percent of the tank capacity is needed for fuel

expansion from the liquid to the vapor state. The

vapor withdrawal system is generally best suited for

smaller engines that require less fuel. The installer

should be aware of the following:

• The natural gas and LP gas systems are similar.

However, the natural gas system delivers gas at a

pressure of approximately five inches water col-

umn to the carburetor.

• When ambient temperatures are low and engine

fuel consumption is high, the vapor withdrawal

system may not function efficiently.

• Ambient temperatures around the supply tank

must be high enough to sustain adequate vaporiza-

tion, or the system will not deliver the needed fuel

volume.

• In addition to the cooling effects of ambient air, the

vaporization process itself provides an additional

cooling effect.

LP FUEL SYSTEM

LP is supplied as a liquid in pressure tanks. It is

usually made up of propane, butane, or a mixture of

the two gases. Propane tends to vaporize readily even

at temperatures as low as -20° F (-29° C). However,

butane reverts to its liquid state when temperatures

drop below 32° F (0° C).

LP in a liquid withdrawal system must be converted

to its gaseous state before it is introduced into the

engine carburetor. A vaporizer-converter is generally

used to accomplish this. In such a converter, heated

engine coolant is ported through the converter to

provide the necessary heat for conversion of the fuel

from a liquid to a gaseous state.





5-1

Standby Generator Sets

Fuel Systems

FuelSys001 Rev. 0 08/05

SPECIFICATIONS

GENERATOR

Type ............................................................................. Synchronous

Rotor Insulation ................................................................... Class H

Stator Insulation .................................................................. Class H

Total Harmonic Distortion ......................................................< 3.5%

Telephone Interference Factor (TIF) .......................................... < 50

Alternator Output Leads 3-phase ........................................... 4-wire

Bearings .........................................................................Sealed Ball

Coupling .......................................................................Flexible Disc

Load Capacity (Standby Rating) ............................................40kW*

* NOTE: Generator rating and performance in accordance with ISO8528-5, BS5514, SAE J1349,

ISO3046 and DIN 6271 Standards. KW rating is based on LPG fuel and may derate with natural

gas.

Excitation System ....................................................................Direct

Generator Output Voltage/kW - 60 Hz kW Amp CB Size

120/240V, 1-phase, 1.0 pf (LP) 40 167 175

120/240V, 1-phase, 1.0 pf (NG) 37 154 175

120/208V, 3-phase, 0.8 pf (LP) 40 139 150

277/480V, 3-phase, 0.8 pf (LP) 40 60 70

Generator Locked Rotor KVA Available @ Voltage Dip of 35%

Single-phase or 208V, 3-phase .......................................... 80 KVA

480V, 3-phase .................................................................... 90 KVA

ENGINE

Make ................................................................................... Generac

Model ...................................................................................... V-type

Cylinders and Arrangement ............................................................ 6

Displacement ....................................................................... 3.9 Liter

Bore ...................................................................................... 3.91 in.

Stroke ................................................................................... 3.31 in.

Compression Ratio ...............................................................9.1-to-1

Air Intake System ...............................................Naturally Aspirated

Valve Seats ........................................................... Precision Ground

Lifter Type ......................Overhead Valve Push Rod/Hydraulic Lifter

Engine Parameters

Rated Synchronous RPM ..............................................60 Hz, 1800

HP at rated kW (LP/NG) ...............................................60 Hz, 64/59

Exhaust System

Exhaust Flow at Rated Output 60 Hz .................................. 318 cfm

Exhaust Temperature at Rated Output .................................. 938° F

Combustion Air Requirements (Natural Gas)

Flow at rated power, 60 Hz ................................................. 118 cfm

Governor

Type .................................................................................. Electronic

Frequency Regulation ...................................................Isochronous

Steady State Regulation ......................................................± 0.25%





Engine Lubrication System

Type of Oil Pump ...................................................................... Gear

Oil Filter ............................................... Full Flow Spin-on, Cartridge

Crankcase Oil Capacity ....................................................4 U.S. qts.

COOLING SYSTEM

Type ...................................................Pressurized Closed Recovery

Water Pump .................................................................... Belt Driven

Fan Speed .........................................................................2060 rpm

Fan Diameter .....................................................................22 inches

Fan Mode ..............................................................................Pusher

Air Flow (inlet air including alternator and

combustion air) .......................................................... 2725 ft3/min.

Coolant Capacity ........................................................ (3.0 U.S. gal.)

Heat Rejection to Coolant ..........................................154,000 Btu/h

Maximum Operating Air Temp. on Radiator ..............60° C (150° F)

Maximum Ambient Temperature ................................50° C (140° F)

FUEL SYSTEM

Type of Fuel ......................................... Natural Gas, Propane Vapor

Carburetor ...................................................................... Down Draft

Secondary Fuel Regulator .................................................Standard

Fuel Shut-off Solenoid ........................................................Standard

Operating Fuel Pressure ...................... 5 in. - 14 in. Water Column

Fuel Consumption - ft3/hr (Natural Gas/LPV)

Exercise 25% 50% 75% 100%

Cycle Load Load Load Load

82/33 148/59 285/114 397/160 550/221

ELECTRICAL SYSTEM

Battery Charge Alternator ............................................12V, 30 Amp

Static Battery Charger ............................................................2 Amp

Recommended Battery ................................................ 24F 525CCA

System Voltage .....................................................................12 Volts

Voltage Regulator

Type .................................................................................. Electronic

Sensing ........................................................................ Single-phase

Regulation ................................................................................± 1%

Features .................................................V/F Adjustable, Adjustable

Voltage and Gain LED Indicators

Power Adjustment for Ambient Conditions

Temperature Deration

3% for every 10° C above °C ..................................................... 25

1.65% for every 10° above °F .................................................... 77

Altitude Deration

1% for every 100 m above m ................................................... 183

3% for every 1000 ft. above ft. ................................................. 600

Controller .................................................R-100







6-1

Standby Generator Sets

Specifications

GenSpec001 Rev. D 11/05

COLD WEATHER KIT

For cold climates, optional cold weather kit (part

number 0F6148) is recommended. The kit includes:

• Battery Warmer

• 4” Junction Box with hardware

• 6 qt. pack 5W-30 synthetic oil (engine)

RECONFIGURING THE FUEL SYSTEM

NOTE:

All models are configured for natural gas or LP

vapor from the factory.

To reconfigure the fuel system from NG to LP, follow

these steps:

1. Turn the main gas supply off.

2. Remove the carburetor fuel hose from the outlet

port (Port 1) of the demand regulator (Figure

6.2).

3. Remove the brass hose fitting from the outlet port

(Port 1) of the demand regulator.

4. Remove pipe plug from Port 2.

5. Install brass hose fitting into Port 2.

6. Install pipe plug into Port 1.

7. Connect carburetor gas hose to brass fitting.

8. Tighten all clamps and plugs.

9. Make sure fuel supply is of the proper pressure

and type for configuration.





10. Reverse the procedure to convert back to natural

gas.

11. The Dip switch inside the control panel must be

in the LP or NG position when switching to differ-

ent fuels.

Figure 6.2 — Reconfigure the Fuel System

NG FUEL SYSTEM LP FUEL SYSTEM

Port 1 Port 2

FUEL HOSE

BRASS HOSE

FITTING

HOUSING

PORTS

OUT

PORT 2

PLUG

FUEL HOSE

BRASS HOSE

FITTING

HOUSING

PORTS

PLUG

OUT

PORT 1

NOTE:

Port 1 is for NG only and Port 2 is for LP vapor

only. No provision for dual fuel has been made.

NOTE:

For LP vapor application substitue LPG fuel inlet

decal P/N 050280 for NG fuel inlet decal P/N

050279.

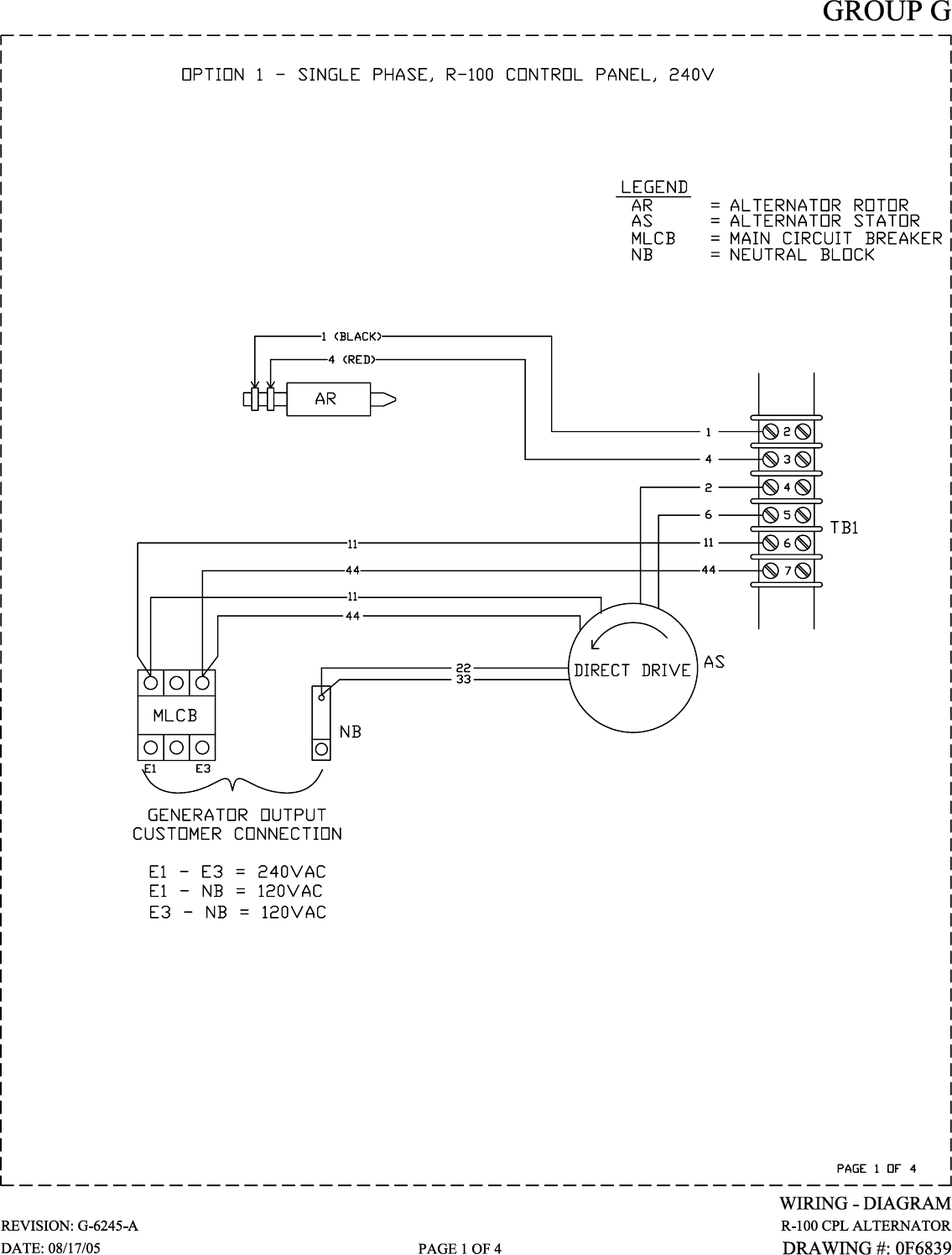

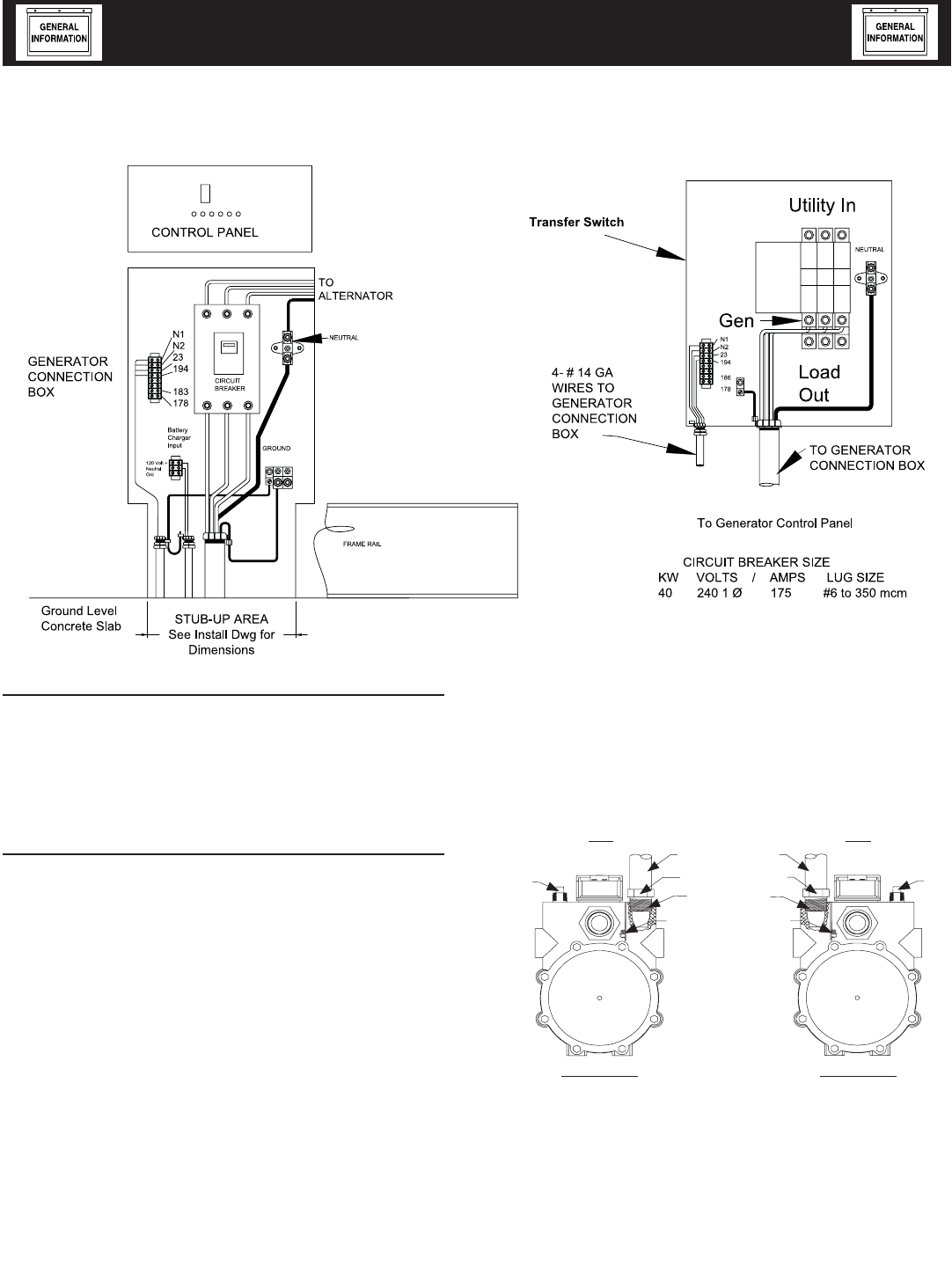

Figure 1 — Interconnections

6-2

Standby Generator Sets

Specifications

GenSpec001 Rev. D 11/05

GENERATOR AC LEAD CONNECTIONS

See “Voltage Codes”. This generator may be rated

at any one of three voltages, either single-phase or

three-phase. The electrical wires in the unit’s AC con-

nection (lower) panel should be installed according to

the number of leads and the voltage/phase required

for the application. If there are any questions regard-

ing lead connection, refer to the wiring diagrams at

the back of this manual.

Voltage codes apply to the type of stator assembly

installed on a particular generator.

FOUR-LEAD, SINGLE-PHASE STATOR

Four-lead generators (see Figure 7.1) are designed to

supply electrical loads with voltage code “A” (240V,

1-phase, 60 Hz). Electrical power is produced in the

stator power windings. These windings were con-

nected at the factory to the main circuit breaker as

shown in Figure 7.1.

The rated voltage between each circuit breaker ter-

minal is 240V. The rated voltage between each circuit

breaker terminal and the neutral point 00 is 120V.

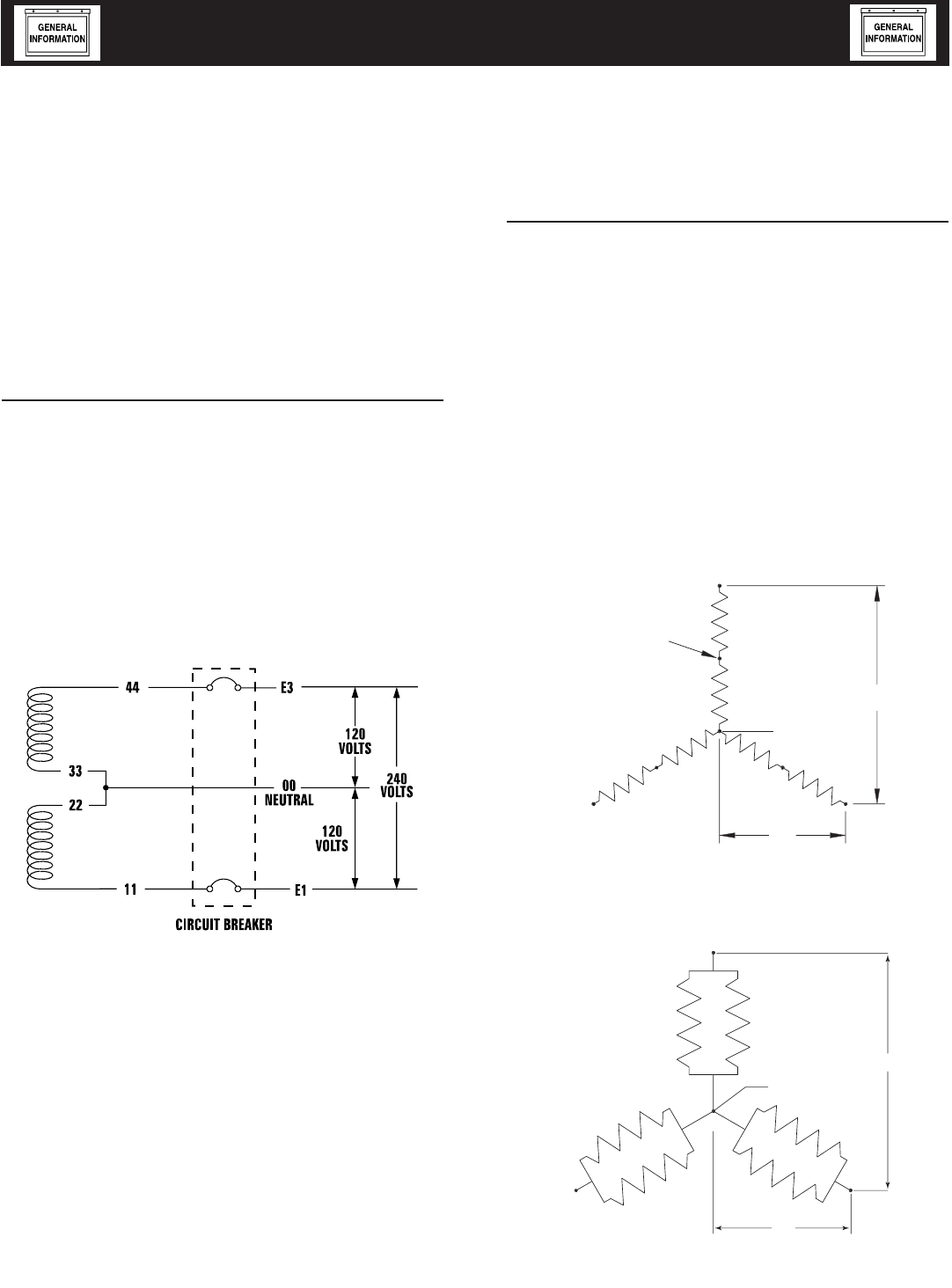

Figure 7.1 — Four-lead, Single-phase Stator



ALTERNATOR POWER WINDING

CONNECTIONS

3-PHASE ALTERNATORS

The generator is designed to supply 3-phase electri-

cal loads. Electric power is produced in the alterna-

tor power windings. These windings were connected

at the factory to the main circuit breaker with a “Y”

configuration as shown in Figures 7.2 and 7.3.

The rated voltage between circuit breaker terminals

E1-E2, E1-E3 and E2-E3 is either 480V or 208V

depending on the model.

The rated voltage between each circuit breaker termi-

nal and the neutral point 00 is either 277V or 120V

depending on the model.

Figure 7.2 — Stator Power Winding

Connections - 3-phase, 277/480V (6 Lead)

S6

E

3

S3

INTERNAL

CO

NNE

C

TI

O

N

S

L-

N

L

-

L

S4

E2

S2

S5

S1

E1

NE

U

TRA

L

Figure 7.3 — Stator Power Winding

Connections - 3-phase, 120/208V (6 Lead)

E

3

E2

00

(

NEUTRAL

)

E1

L

-

L

L

-

N

S1

S1

S4

S4

S

6

S6

S3

S3

S5

S5

S2

S2



7-1

Standby Generator Sets

General Information

ACConn001 Rev. 0 08/05

INSTALLATION

Refer to the separate “Installation Guide QT Product

Line” supplied with the unit.

PREPARATION BEFORE START-UP

The instructions in this section assume that the

standby generator has been properly installed, ser-

viced, tested, adjusted and otherwise prepared for

use by a competent, qualified installation contractor.

Be sure to read the “Safety Rules”, as well as all other

safety information in this manual, before attempting

to operate this (and related) equipment.

Before starting the generator for the first time, the

installer must complete the following procedures. For

follow-up maintenance information and/or service

intervals, please refer to the “Maintenance” section

and the “Service Schedule”.

TRANSFER SWITCH

If this generator is used to supply power to any elec-

trical system normally powered by an electric utility,

the National Electrical Code requires that a transfer

switch be installed. The transfer switch prevents elec-

trical backfeed between two different electrical sys-

tems. (For additional information, see the applicable

transfer switch manual for this unit.) The transfer

switch, as well as the generator and other standby

components, must be properly located and mounted

in strict compliance with applicable codes, standards

and regulations.

FUEL SYSTEM

Make sure the fuel supply system to the genera-

tor (a) delivers the correct fuel at the correct pres-

sure and (b) is properly purged and leak tested

according to code. No fuel leakage is permitted. See

“Specifications” for more information.

GENERATOR SET LUBRICATION

Check the engine crankcase oil level before operating

and add oil to the proper level – the dipstick “FULL”

mark. Never operate the engine with the oil level

below the dipstick “ADD” mark. See “Specifications”

and “Engine Oil Recommendations”.

NOTE:

This engine is shipped from the manufacturer

with “break-in” oil. This oil should be changed

after 30 hours of operation.

Check the oil level in the generator gearbox (if so

equipped) prior to initial use and at the intervals

indicated by the “Service Schedule.” The recom-

mended oil is SAE 90 gear lubricant.

Also, if the engine is equipped with a mechanical gov-

ernor, make sure the governor is properly lubricated

with clean engine oil.







PRIOR TO INITIAL START-UP

 Prior to initially starting the generator, it must

be properly prepared for use. Any attempt to

crank or start the engine before it has been

properly serviced with the recommended types

and quantities of engine fluids (oil, coolant, fuel,

etc.) may result in an engine failure.

ENGINE COOLANT

Have the engine cooling system properly filled with

the recommended coolant mixture. Check the system

for leaks and other problems. See “Specifications”

and “Coolant” sections.

BELT TENSION

Check-the engine-fan belt tension and condition prior

to placing the unit into service and at recommended

intervals. Belt tension is correct when a force of

approximately 22 pounds (10 kg), applied midway

between pulleys, deflects the belt about 3/8- to 5/8-

inch (10 to 16 mm).

ELECTRICAL SYSTEM

Make sure the generator is properly connected to an

approved earth ground.

Make sure the generator battery is fully charged,

properly installed and interconnected, and ready for

use.

Check to ensure that there are no loose electrical con-

nections. Restrain any loose wires to keep them clear

of any moving generator set components.

INITIAL INSPECTION FOR QT GENSET

STARTUP

Inspect for the following.

• Freight Damage.

• Manuals present.

• Fluid Levels ( Oil, coolant, battery, Gear Drive).

• Correct fuel piping.

• Correct muffler installation for QT50, QT70,

QT100 - QT150.

• Adequate air flow, clearances and ventilation per

installation drawings and applicable codes.

• Correct AC and DC wire size, connections and

grounding. Control and communication wiring to/

from the transfer switch must be run in a separate

conduit from the AC power leads.

• Battery charger connection to 120 VAC.

• Communication wires connected between transfer

switch and generator (HTS only).

• Unit secured to pad.









8-1

Standby Generator Sets

Installation

Install001 Rev. A 11/05

START-UP CHECKLIST

 Before working on the generator, ensure the fol-

lowing:

• The AUTO/OFF/MANUAL switch is in the OFF

position.

• The 120VAC supply to the battery charger is

switched OFF.

PREPARATION FOR START-UP

• Ensure that the 120VAC circuit breaker to the bat-

tery charger is open.

• Remove the fuse from the the control panel. For

the H-100 and R-100: Open the front door of the

control box and remove the 15 Amp ATO fuse in

the lower left-hand corner of the control box.

• Connect the battery cables to the battery. Attach

negative battery cable last.

• Close the 120VAC circuit breaker to the battery

charger.

• Measure the voltage at the battery before and after

the charger is turned on.

• Verify all AC electrical connections are tight at the

circuit breaker and transfer switch.

• Visually inspect entire area looking for loose paper,

plastic wrappings, leaves, etc.

• Check all hoses clamps fittings for leaks or dam-

age.

• Check all electrical plugs throughout the genera-

tor. Ensure each plug is seated correctly and fully

inserted into its receptacle.

• Verify the AUTO/OFF/MANUAL switch is in OFF

position.

• Open the valve to the engine fuel line.

• Bleed the fuel system of air. (necessary for long fuel

lines).

• Open the generator main line circuit breaker.

• Connect a manometer to the gas line and record

the static pressure. It must be as listed in the

Specifications.

• Insert the fuse into the control panel.

• Move the AUTO/OFF/MANUAL switch to the MAN-

UAL position. The engine should now crank and

start.



• Check voltage at the generator terminals.

• For 3-phase units, check phase rotation at the

transfer switch terminals. The generator phase

rotation must match the utility phase rotation.

• Check for coolant, fuel, oil, and exhaust leaks.

• Close the generators main line circuit breaker.

• Turn the generator set off.

• Connect the UTILITY supply to the transfer

switch.

• Set the AUTO/OFF/MANUAL switch to AUTO.

• Disconnect utility power before the transfer

switch.

Engine should start, transfer to load.

Run at least 15 minutes on generator power.

Make certain all 3-phase loads are functioning

correctly (correct phase rotation).

• Reconnect Utility power

Transfer switch will transfer back to Utility and

engine will shut down within the given time

parameters set up for the specific transfer switch

and controller.

• Install all covers, access plates and door panels.

• Put the Owners Manual in a safe and accessible

place.

• Make certain the AUTO/OFF/MANUAL switch is in

the AUTO position.

START-UP INSPECTION

When a start-up is performed by an Authorized

Service Dealer, a standard three-part form titled

“Start-up Inspection for Standby Power Systems”

(part no. 067377), should be completed by the instal-

lation technician or engineer. See page 1-3 for infor-

mation on locating the nearest Authorized Service

Dealer. The installer should complete the form and

disseminate copies as follows:

• White copy: Mail to Generac Warranty Department,

P.O. Box 340, 211 Murphy Dr., Eagle, WI 53119-

2062.

• Pink Copy: For service file of installing dealer.

• Yellow Copy: For the customer’s records.



8-2

Standby Generator Sets

Installation

Install001 Rev. A 11/05

GENERATOR CONTROL AND

OPERATION

Refer to the appropriate control panel operator’s

manual for this unit.

OPERATING UNIT WITH MANUAL

TRANSFER SWITCH

If the generator was installed in conjunction with a

transfer switch capable of manual operation only, the

following procedure applies. A manually operated

transfer switch is one that will not provide automatic

start-up and does not include an intelligence circuit.

ENGINE START-UP AND TRANSFER

For additional information, refer to the applicable

control panel manual for this unit, as well as any lit-

erature pertaining to the specific transfer switch.

DANGER

 The Maintenance Disconnect Switch and the

AUTO/OFF/MANUAL switches (if so equipped)

must be set properly, or the generator will crank

and start as soon as the utility power to the

transfer switch is turned off. Refer to applicable

control panel and transfer switch manuals for

more information.

 Do not proceed until certain that utility source

voltage is available to the transfer switch and

the transfer switch main contacts are set to

UTILITY.

 Do not attempt manual operation until all power

supplies to the transfer switch have been posi-

tively turned off, or extremely dangerous - pos-

sibly lethal - electrical shock will result.

 Transfer switch enclosure doors should be kept

closed and locked. Only authorized personnel

should be allowed access to the transfer switch

interior. Extremely high and dangerous voltages

are present in the transfer switch.

In order to transfer load from the utility source to the

generator, follow these directions:

• Turn OFF or disconnect the utility power circuit

to the transfer switch, using the means provided

(such as the utility source main line circuit break-

er).

• Set the transfer handle to its UTILITY (NORMAL)

position with load circuits connected to the utility

power supply.

• Set the standby generator’s main line circuit break-

er to its OFF (or OPEN) position.

• Start the generator.



 Do not crank the engine continuously for longer

than 30 seconds, or the heat may

damage the starter motor.

• Let engine stabilize and warm up.

• Check all applicable instrument and gauge read-

ings. When certain that all readings are correct,

move the transfer switch manual handle to its

STANDBY (GENERATOR) position, i.e., load cir-

cuits supplied by the generator.

• Set the standby generator’s main line circuit break-

er to its ON (or CLOSED) position.

• Load circuits are now powered by the standby

generator.

RETRANSFER AND SHUTDOWN

For additional information, refer to the applicable

control panel manual for this unit, as well as any lit-

erature pertaining to the specific transfer switch.

To transfer the load back to the utility power source

and shut down the generator, follow these direc-

tions:

• Set the standby generator’s main line circuit break-

er to its OFF (or OPEN) position.

• Manually move the transfer switch handle to its

UTILITY (NORMAL) position, i.e., load circuits

connected to the utility.

• Turn ON the utility power supply to the transfer

switch, using the means provided (such as the util-

ity power source main line circuit breaker).

• Let the generator run at no-load for a few minutes

to stabilize internal temperatures.

• Shut down the generator.

OPERATING UNIT WITH AUTOMATIC

TRANSFER SWITCH

If the generator has been installed with an automatic

transfer switch, such as an RTS, HTS, or GTS-type

transfer switch, the engine may be started and

stopped automatically or manually.

NOTE:

Refer to the applicable manual for your trans-

fer switch and to “Transfer Switch Start Signal

Connections”. In addition, please note the dangers

under “Engine Start-up and Transfer.”



9-1

Standby Generator Sets

Operation

Oper001 Rev. 0 08/05

MAINTENANCE PERFORMED BY

AUTHORIZED SERVICE FACILITIES

 Before working on the generator, ensure the fol-

lowing:

• The AUTO/OFF/MANUAL switch is in the OFF

position.

• The 15A fuse has been removed from the con-

trol box.

• The 120VAC supply to the battery charger is

switched OFF.

EVERY THREE MONTHS

1. Check battery state of charge and condition.

2. Inspect and test fuel system.

3. Check transfer switch.

4. Inspect exhaust system.

5. Check engine ignition system.

6. Check fan belts.

ONCE EVERY SIX MONTHS

1. Test Engine Safety Devices (low oil pressure, low

coolant level, high coolant temperature).

ONCE ANNUALLY

1. Test engine governor. Adjust or repair, if needed.

2. Clean, inspect generator.

3. Flush cooling system.

FIRST 100 OPERATING HOURS

1. Change engine oil and oil filter. (After initial

change, service engine oil and filter at 150 operat-

ing hours or 6 months, whichever comes first.)

EVERY 500 OPERATING HOURS

1. Service air cleaner.

2. Check starter.

3. Check engine DC alternator.

COOLING SYSTEM

Air intake and outlet openings in the generator com-

partment must be open and unobstructed for contin-

ued proper operation. This includes such obstruc-

tions as high grass, weeds, brush, leaves and snow.

Without sufficient cooling and ventilating air flow, the

engine/generator quickly overheats, which causes it

to shut down.











 The exhaust system parts from this product get

extremely hot and remain hot after shutdown.

High grass, weeds, brush, leaves, etc. must

remain clear of the exhaust. Such materials may

ignite and burn from the heat of the exhaust

system.

CHECKING FLUID LEVELS

CHECK ENGINE OIL

Check engine crankcase oil level (Figure 10.1) at least

every 20 hours of operation, or prior to use.

• Remove oil dipstick and wipe dry with a clean, lint-

free cloth.

• Install oil dipstick, then remove again.

• Oil should be between FULL and ADD marks.

• If oil level is below the dipstick ADD mark,

remove oil fill cap. Add the recommended oil to

bring oil level up to the FULL mark. DO NOT

FILL ABOVE THE “FULL” MARK. See “Engine Oil

Recommendations” for recommended oils.

Figure 10.1 - Oil Dipstick and Oil Fill Cap

Oil Dipstick Oil Fill

Oil Filter

BATTERY FLUID

Check battery electrolyte fluid at least once weekly.

Fluid should cover separators in all battery cells. If

fluid level is low, add distilled water to cover tops of

separators. DO NOT USE TAP WATER IN BATTERY.





10-1

Standby Generator Sets

Maintenance

Maint002 Rev. 0 08/05

ENGINE COOLANT

Check coolant level in coolant recovery bottle. See the

“Specifications” section.

• Add recommended coolant mixture as necessary.

• Periodically remove radiator pressure cap to make

sure the coolant recovery system is functioning

properly. Coolant should be at bottom of radiator

filler neck. If coolant level is low, inspect gasket in

radiator pressure cap. Replace cap, if necessary.

To have pressure cap tested, contact an Authorized

Service Dealer. Inspect cooling system and coolant

recovery system for leaks.

MAINTENANCE OWNER/

OPERATOR CAN PERFORM

CHECK ENGINE OIL LEVEL

Refer to the “Checking Fluid Levels” section.

CHECK BATTERY

• Check battery fluid level each week as outlined

under “Check Fluid Levels”.

• Check battery cables for condition, tightness, cor-

rosion or damage. Clean, tighten or replace as

necessary.

EXERCISE SYSTEM

Start the generator engine at least once every seven

days and let it run at least 20 minutes. See the

“Weekly Exercise Cycle” section.

INSPECT COOLING SYSTEM

• Inspect engine cooling system at least once each

month.

• Check hoses for damage, deterioration, leaks, etc.

Correct any discrepancies found.

• Check hose clamps for tightness.

CHECK ENGINE COOLANT LEVEL

See the “Checking Fluid Levels” section.

PERFORM VISUAL INSPECTION

Complete a thorough visual inspection of the entire

engine-generator monthly. Look for obvious damage,

loose, missing or corroded nuts, bolts and other fas-

teners. Look for fuel, oil or coolant leaks.

INSPECT EXHAUST SYSTEM

Inspect the exhaust system at least once every three

months. Check all exhaust system pipes, mufflers,

clamps, etc. for condition, tightness, leaks, security,

damage.

















CHECK FAN BELT

• Inspect fan belts every three months. Replace any

damaged, deteriorated, worn or otherwise defec-

tive belt.

• Check fan belt tension. Thumb pressure, exerted

midway between pulleys, should deflect about 3/8

to 5/8 inch. Adjust belt tension as required.

INSPECT ENGINE GOVERNOR

Visually inspect electronic governor.

DANGER

 Do not attempt to adjust the governor. Only

qualified service facilities should adjust the

governor. Excessively high operating speeds

are dangerous and increase the risk of personal

injury. Low speeds impose a heavy load on the

engine when adequate engine power is not

available and may shorten engine life. Correct

rated frequency and voltage are supplied only

at the proper governed speed. Some connected

electrical load devices may be damaged by incor-

rect frequency and/or voltage. Only qualified

service technicians should adjust the governed

speed.

CHANGING ENGINE OIL

Refer to maintenance performed by authorized service

facilities for engine oil and filter change frequencies.

Drain the oil while the engine is still warm from run-

ning. This means warm up the engine, shut it down

and drain immediately as follows:

1. Remove OIL DRAIN HOSE from its retaining

clip.

2. Loosen and remove OIL DRAIN HOSE CAP. Drain

oil completely into suitable container.

3. When all oil has drained, install and tighten OIL

DRAIN HOSE CAP, and re-install into its retaining

clip.

4. Turn OIL FILTER (Figure 10.2) counterclockwise

and remove. Dispose of old filter.

5. Apply light coating of new engine oil to seal of new

oil filter.-Install FILTER and tighten by hand only.

DO NOT OVERTIGHTEN.

6. Remove OIL FILL CAP. Add recommended oil (see

SPECIFICATIONS). DO NOT FILL ABOVE THE

DIPSTICK “FULL” MARK. Crankcase oil capacity

is 4.0 U.S. quarts (3.8 liters).

 After refilling the crankcase with oil, always

check oil level on dipstick. NEVER OPERATE

ENGINE WITH OIL BELOW THE DIPSTICK “ADD”

MARK.







Standby Generator Sets

Maintenance

10-2

Maint002 Rev. 0 08/05

7. Start engine and check for oil leaks.

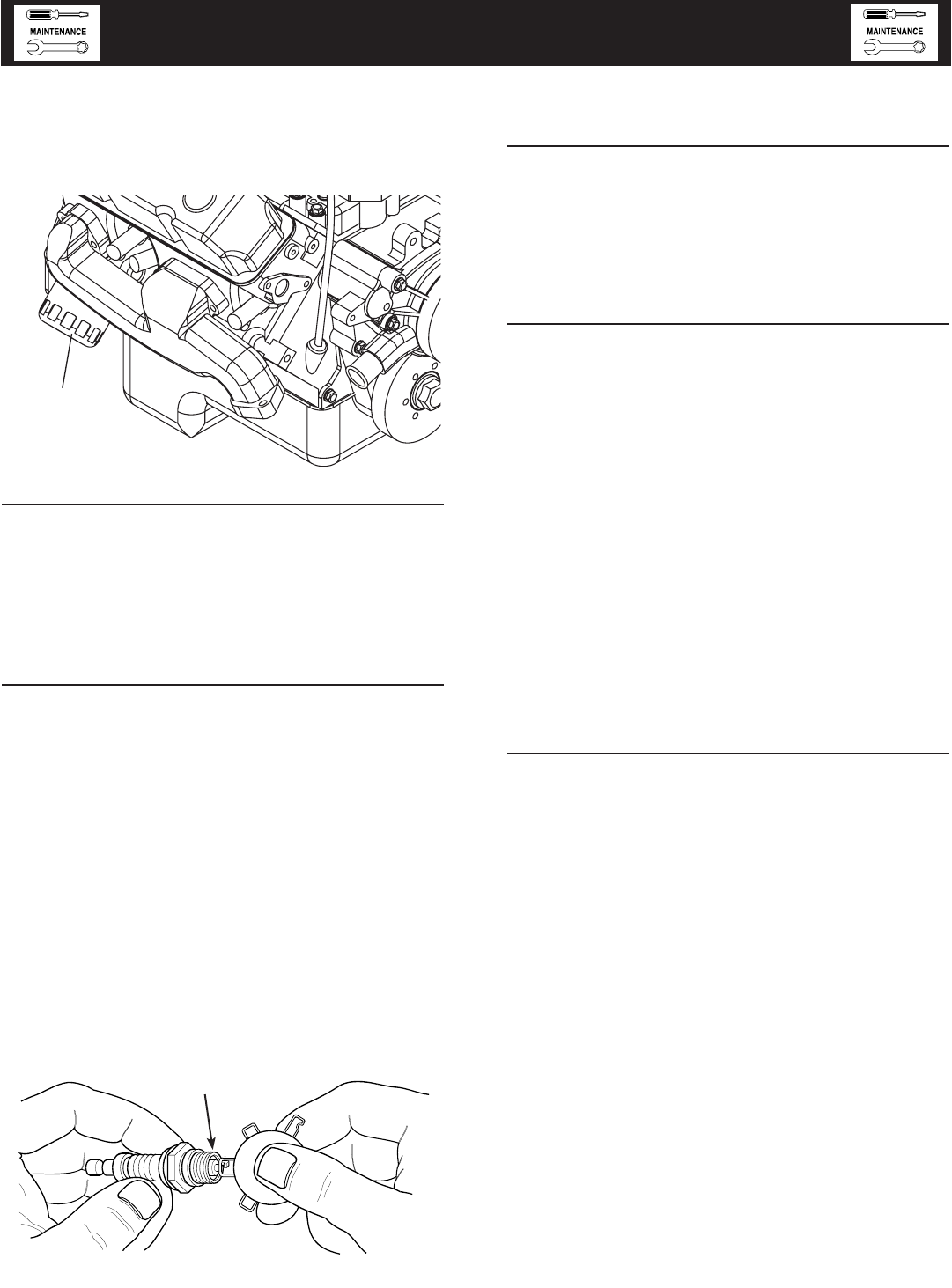

Figure 10.2 - Oil Filter

Oil Filter

CHANGING THE ENGINE AIR CLEANER

To replace the engine air cleaner, (part number

0A4637), remove the air cleaner cover and replace

the air filter making sure it is positioned properly

before reattaching the cover.

See the “Service Schedule” section for air cleaner

maintenance.

SPARK PLUGS

Reset the spark plug gap or replace the spark plugs

as necessary.

1. Clean the area around the base of the spark plugs

to keep dirt and debris out of the engine. Clean

by scraping or washing using a wire brush and

commercial solvent. Do not blast the spark plugs

to clean.

2. Remove the spark plugs and check the condition.

Replace the spark plugs if worn or if reuse is

questionable. See the “Service Schedule” section

for recommended inspection.

3. Check the spark plug gap using a wire feeler

gauge. Adjust the gap to 1.01 mm (0.040 inch)

by carefully bending the ground electrode (Figure

10.3).

Figure 10.3 – Setting the Spark Plug Gap





COOLANT CHANGE

Every year, have an Authorized Service Facility

drain, flush and refill the cooling system. See the

“Specifications” section for cooling system recom-

mendations.

MISCELLANEOUS MAINTENANCE

CLEANING THE GENERATOR

Keep the generator as clean and as dry as possible.

Dirt and moisture that accumulates on internal gen-

erator windings have an adverse effect on insulation

resistance.

Periodically clean generator exterior surfaces. A soft

brush may be used to loosen caked on dirt. Use a

vacuum system or dry, low pressure air to remove

any accumulations of dirt. The generator is housed

inside an all-weather enclosure, clean the enclosure

with a soft, damp cloth or sponge and water.

Once each year, have the generator cleaned and

inspected by an Authorized Service Dealer. That

dealer will use dry, low pressure air to clean internal

windings. Parts inside the control console should be

cleaned and inspected at this time as well.

Finally, have the insulation resistance of stator and

rotor windings checked. If insulation resistances are

excessively low, the generator may require drying.

BATTERY

All lead-acid storage batteries discharge when not in

use. Refer to specific instructions and warnings that

accompany the battery. If such information is not

available, observe the following precautions when

handling a battery:

• DO NOT use jumper cables and a booster battery

to crank or start the generator engine.

• DO NOT recharge a weak battery while it is

installed in the generator. Remove battery from

generator and recharge in a well-ventilated area,

away from fuel vapors, sparks, heat or flames.

• Battery electrolyte fluid is an extremely caustic

sulfuric solution that can cause severe burns. DO

NOT permit fluid to contact eyes, skin, clothing,

painted surfaces, wiring insulation, etc. If any bat-

tery fluid is spilled, flush the affected area with

clear water immediately.

• Always wear safety glasses, rubber apron and

gloves when handling a battery.

• Batteries give off explosive hydrogen gas while

charging. The gas can form an explosive mixture

around the battery for several hours after charging.

Any spark, heat or flames can ignite the gas and

cause an explosion which can shatter the battery,

causing blindness or other serious injury.







SET PLUG GAP AT 1.01 mm

(0.040 inch)

Standby Generator Sets

Maintenance

10-3

Maint002 Rev. 0 08/05

BATTERY MAINTENANCE

The battery should be inspected per the “Service

Schedule” section. The following procedure should

be followed for inspection:

1. Inspect the battery posts and cables for tightness

and corrosion. Tighten and clean as necessary.

2. Check the battery fluid level of unsealed batteries

and, if necessary, fill with DISTILLED WATER

ONLY. DO NOT USE TAP WATER IN BATTER-

IES.

3. Have the state of charge and condition checked.

This should be done with an automotive-type bat-

tery hydrometer.

DANGER

 Storage batteries give off explosive hydrogen

gas. This gas can form an explosive mixture

around the battery for several hours after charg-

ing. The slightest spark can ignite the gas and

cause an explosion. Such an explosion can shat-

ter the battery and cause blindness or other

injury. Any area that houses a storage battery

must be properly ventilated. Do not allow smok-

ing, open flame, sparks or any spark producing

tools or equipment near the battery.

 Battery electrolyte fluid is an extremely caus-

tic sulfuric acid solution that can cause severe

burns. Do not permit fluid to contact eyes, skin,

clothing, painted surfaces, etc. Wear protective

goggles, protective clothing and gloves when

handling a battery. If the fluid is spilled, flush

the affected area immediately with clear water.

 Do not use any jumper cables or booster battery

to crank and start the generator engine. If the

battery has completely discharged, remove it

from the generator for recharging.



 Be sure the AUTO/OFF/MANUAL switch is set to

the OFF position before connecting the battery

cables. If the switch is set to AUTO or MANUAL,

the generator can crank and start as soon as the

battery cables are connected.

 Be sure the 120VAC power supply to the battery

is turned OFF, or sparking may occur at the bat-

tery posts as the cables are attached and cause

an explosion.

BATTERY REPLACEMENT

When replacing batteries, use the same number and

the type of battery that follows:

NOTE:

The BCI number should be located directly on the

battery.

REPAIR PARTS

The latter portion of this manual consists of exploded

views, parts lists and electrical data pertaining to this

generator set. The parts lists consist of (a) an item

number, (b) a part number, (c) the quantity required,

and (d) a description of the part. The item number

corresponds to an identical number on the exploded

view drawing.



BCI Group No. CCA

24F-6 535 @ 0 deg. F

Periodic Replacement Parts

Part Name Part Number

Oil Filter # 0E7415

Radiator Cap # 046627

Air Cleaner # 0A4637

Spark Plug Champion # RC12LC4

Standby Generator Sets

Maintenance

10-4

Maint002 Rev. 0 08/05

SERVICE SCHEDULE

30 KW - 150 KW STANDBY GAS ENGINE DRIVEN GENERATOR SETS

The following is a recommended maintenance schedule for standby gas engine driven generator sets from 30kW to

150 kW in size. The established intervals in the schedule are the maximum recommended when the unit is used

in an average service application. They will need to be decreased (performed more frequently) if the unit is used

in a severe application. Use calendar time, from the previous maintenance interval to determine the next required

maintenance interval.

Service Maintenance Interval Information:

The various service maintenance intervals are designated by interval numbers as follows:

1 An early inspection of the generator set to insure it is ready to operate when required and to identify any poten-

tial problem areas.

This inspection may be performed by the end user providing the following safety steps are taken to prevent

the engine from starting automatically without warning:

To prevent injury, perform the following steps in the order indicated before starting any maintenance:

• Disable the generator set from starting and/or connecting to the load by setting the control panel Auto/Off/

Manual switch to the “OFF” position.

• Remove the 15 amp control panel fuse.

• Turn off the battery charger.

• Remove the negative battery cable.

The battery charger must be turned off BEFORE removing the battery cable to prevent an over current condition

from burning out sensitive control panel components and circuits.

Following all maintenance, reverse these steps to insure the unit is returned to standby setup for normal

operation when required.

2 A wear-in service inspection of the generator set to insure it is ready to operate and carry the load when

required, and to identify any potential problem areas.

Performed ONLY ONCE following the first three months or the first 30 hours of operation after purchase of

the unit.

This inspection contains some maintenance tasks which require special tools, equipment, and/or knowledge

to accomplish and should be performed only by an Authorized Service Dealer.

3 An operational inspection of the generator set to insure it is ready to operate and carry the load when required,

and to identify any potential problem areas.

Performed semi-annually or following each 50 hours of operation of the unit.

This inspection contains some maintenance tasks which require special tools, equipment, and/or knowledge

to accomplish and should be performed only by an Authorized Service Dealer.

4 A mid-level inspection of the generator set to insure it is ready to operate and carry the load when required,

and to identify any potential problem areas.

Performed annually or following each 100 hours of operation of the unit.

This inspection contains some maintenance tasks which require special tools, equipment, and/or knowledge

to accomplish and should be performed only by an Authorized Service Dealer.

5 A comprehensive inspection of the generator set to insure it is properly serviced and ready to operate and carry

the load when required, and to identify any potential problem areas.

Performed annually or following each 250 hours of operation of the unit.

This inspection contains some maintenance tasks which require special tools, equipment, and/or knowledge

to accomplish and should be performed only by an Authorized Service Dealer.

11-1

Standby Generator Sets

Service Schedule

SrvSchd001 Rev. A 09/05

Maintenance Level 1 Level 2 Level 3 Level 4 Level5

Tasks Recom- Task Required Task Required Task Task Required Task

mended Comp. to be done Comp. to be done Comp. Required Comp. to be done Comp.

to be done (Date- 3 months/ (Date- Semi- (Date- to be done (Date- Bi- (Date-

monthly/ Initials) Break-in Initials) annually/ Initials) Annually/ Initials) annually/ Initials)

10 hrs. 30 hrs. 50 hrs. 100 hrs. 250 hrs.

1. Disable the unit

from operating

per the first page

warning.

2. Check the engine

oil level. Adjust

as necessary.

3. Check the engine

coolant level.

Adjust as

necessary.

4. Check the engine

coolant thermal

protection level.

Correct as

necessary.

5. Check the natural

gas delivery

system for leaks

and correct

pressure on gas

engine driven

units. Tighten

connections as

necessary.

6. Check the air

inlets and outlets

for debris. Clean

as necessary.

7. Check the battery

electrolyte level

and specific

gravity if

accessible. Adjust

as necessary.

8. Check the battery

posts, cables,

and charger for

loose

connections,

corrosion, and

proper operation.

Correct as

necessary.

9. Check the unit

wiring for loose

connections,

corrosion, and

damage. Correct

as necessary.

11-2

Standby Generator Sets

Service Schedule

SrvSchd001 Rev. A 09/05

Maintenance Level 1 Level 2 Level 3 Level 4 Level5

Tasks Recom- Task Required Task Required Task Task Required Task

mended Comp. to be done Comp. to be done Comp. Required Comp. to be done Comp.

to be done (Date- 3 months/ (Date- Semi- (Date- to be done (Date- Bi- (Date-

monthly/ Initials) Break-in Initials) annually/ Initials) Annually/ Initials) annually/ Initials)

10 hrs. 30 hrs. 50 hrs. 100 hrs. 250 hrs.

10. Check the engine

accessory drive

belts and fan

coupling device

if equipped for

correct tension,

wear, weather

cracking, and

damage. Replace

as necessary.

11. Check the engine

valve clearance.

Adjust as

necessary.

12. Visually inspect

the unit looking

for leaks, wear or

damage, loose

connections or

components, and

corrosion. Correct

as necessary.

13. Test the engine

and transfer

switch safety

devices. Correct

and/or adjust as

necessary.

14. Initiate an

automatic start

and transfer of

the unit to site

load and exercise

it for at least 1

hour looking for

leaks, loose

connections or

components, and

abnormal

operating

conditions.

Correct as

necessary.

15. Replace the

engine

accessory

drive belts.

16. Check gearbox

oil level (if

equipped).

17. Change gearbox

oil (if equipped).

11-3

Standby Generator Sets

Service Schedule

SrvSchd001 Rev. A 09/05

Maintenance Level 1 Level 2 Level 3 Level 4 Level5

Tasks Recom- Task Required Task Required Task Task Required Task

mended Comp. to be done Comp. to be done Comp. Required Comp. to be done Comp.

to be done (Date- 3 months/ (Date- Semi- (Date- to be done (Date- Bi- (Date-

monthly/ Initials) Break-in Initials) annually/ Initials) Annually/ Initials) annually/ Initials)

10 hrs. 30 hrs. 50 hrs. 100 hrs. 250 hrs.

18. Start and

exercise the unit

at full rated load

(use a load bank

if the site load is

not enough) for

at least 2 hours

looking for leaks,

loose

connections or

components, and

abnormal

operating

conditions.

Correct as

necessary.

19. Perform an

engine oil

analysis (send a

sample to a lab

for results).

Change the

engine oil and

filters if the

analysis results

indicate this is

required.

20. Change the

engine oil.

21. Replace the

engine oil filter(s).

22. Replace engine

spark plugs.

Clean and re-gap

or replace as

necessary.

23. Replace the

engine air

filter(s).

24. Perform a 5

minute no-load

operational run

of the unit

looking for any

post service

problems.

25. Return the unit

to standby setup

for operation

when required.

11-4

Standby Generator Sets

Service Schedule

SrvSchd001 Rev. A 09/05

TROUBLESHOOTING GUIDE

PROBLEM CAUSE CORRECTION

Engine won’t crank. 1. 15 amp fuse blown. 1. Replace fuse.

2. Loose or corroded or defective 2. Tighten, clean or replace

battery cables. battery cables as necessary.

3. Defective starter contactor. 3. Replace contactor.*

4. Defective starter motor. 4. Replace starter motor.*

5. Dead or Defective Battery. 5. Remove, change or replace battery.

6. 5 amp fuse blown. 6. Replace fuse.*

Engine cranks but won't start 1. Out of fuel. 1. Replenish fuel.

2. Fuel solenoid (FS) is defective 2. Replace solenoid.*

3. Open Wire #14A from Engine Control 3. Reconnect wire.

circuit board.

4. Spark plugs defective. 4. Clean, regap or replace plugs.

5. Door on tank not closed. 5. Close door on tank.

Engine starts hard, runs rough. 1. Flame arrestor (air cleaner) plugged or 1. Clean or replace as needed.

damaged.

2. Plugged fuel line. 2. Unclog fuel line.

3. Defective spark plugs. 3. Clean, regap or replace plugs.

4. Fuel pressure incorrect. 4. Confirm fuel pressure to regulator is as

recommended in SPECIFICATIONS.

Engine starts then shuts down. 1. Engine oil level is low. 1. Check oil and add oil as needed.

2. Engine is overheated. 2. Check cooling system for leaks.

3. Defective Low Oil Pressure Switch 3. Replace switch.*

4. Defective Coolant Temperature Switch 4. Replace switch.*

5. Defective Control Module circuit board. 5. Replace board.*

6. Coolant Level is Low. 6. Repair leak - Add coolant.

7. Defective Low Coolant Level Switch 7. Replace Switch.*

AUTO/OFF/MANUAL Switch at OFF, 1. Defective AUTO/OFF/MANUAL switch 1. Replace switch.*

engine continues to run 2. Open/disconnected wire #15A between 2. Reconnect/close wire.

AUTO/OFF/MANUAL switch and Control

Module circuit board.

3. Defective Control Module circuit board 3. Replace board.*

No AC output from generator. 1. Check main line circuit breaker. 1. Reset to ON or CLOSED.

2. Check circuit breaker & fuses. 2. Reset and replace, if necessary.

3. Transfer switch set to NORMAL position 3. Set to GENERATOR position.

4. Generator internal failure. 4. *

5. Thermal circuit breaker open. 5. Auto-reset - Wait 5 min. and

attempt restart.

*Contact the nearest Authorized Dealer for assistance.

12-1

Standby Generator Sets

Troubleshooting

Trblsht001 Rev. 0 08/05

Standby Generator Sets

Notes

1 0F3137 1 PAN CB CONN BOX

2 0F3188 1 STAND RH CONTROL

3 0F3189 1 STAND LH CONTROL

4 023484N 1 BUSHING SNAP SB-2.5-31

5 *** 0F6366B 1 / 2 XFMR DUAL 120V/16V (FOR 120/240V & 277/480V UNITS)

0F6366A 1 XFMR DUAL 104V/16V (FOR 120/208V UNITS)

6 *** 043180 2 / 4 WASHER FLAT M4

7 *** 022264 2 / 4 WASHER LOCK #8-M4

8 *** 0C3990 2 / 4 SCREW PHTT M4-0.7 X 10 ZYC

9 * 057701 REF BLOCK TERM 20A 8 X 6 X 1100V

10 022155 4 WASHER LOCK #6

11 0C2428 4 SCREW PHTT #6-32 X 1/2 ZYC

12 0F3824 1 DECAL UTIL SENSE/CUST CONN

13 0A9457 1 DECAL NEUTRAL

14 057073 2 JUNCTION BLOCK 3/8-16

15 ** 0D5466 REF BUS BAR NEUTRAL BLOCK 390

16 ** 0A7822 REF LUG SLDLSS 600/250-1/0 X 1/4-28

17 022237 2 WASHER LOCK 3/8

18 022241 2 NUT HEX 3/8-16 STEEL

19 049226 7 WASHER LOCK M5

20 0C2266 6 SCREW PHTT M5-0.8 X 16 ZYC

21 0C2454 8 SCREW THF M6-1 X 16 N WA Z/JS

23 022473 8 WASHER FLAT 1/4-M6 ZINC

24 022097 4 WASHER LOCK M6-1/4

26 * 0D4698 REF BLOCK TERM 20A 6 X 3 X 1100V

27 0F4464 1 DECAL CUST CONN 120V UTILITY

28 025433 1 LUG SLDLSS #6-14 X 13/64 CU

29 024469 1 SCREW HHTT #10-32 X 3/8 CZ

30 067210A 1 DECAL GROUND LUG

31 0D6029 4 SCREW HHTT M6-1.0 X 16 ZYC

32 081008 1 GROMMET 1.25 X .25 X .75

33 077043J 1 CONDUIT FLEX 2.0" ID (36” LG)

34 051713 2 WASHER FLAT M5

35 0F6156 1 PLATE WIRE SNGL GALV

36 029289 1 TAPE ELEC 1/2 FOAM (AS REQ’D)

37 047411 4 SCREW HHC M6-1.0 X 16 G8.8

38 **** 064153B 2 WIRE JUMPER TRANSFORMER (NOT SHOWN)

1) UL CIRCUIT BREAKER (ED)

A 0F3328 1 COVER ED CB SHORT STND

B 065469 1 DECAL DANGER HIGH VOLTAGE

C 0D5552 1 CB 0050A 3P 480V S ED4 LL

0D5554 - CB 0070A 3P 480V S ED4 LL

0D5556 - CB 0090A 3P 480V S ED4 LL

0D9693 - CB 0125A 3P 480V S ED4 LL

D 0F0492 1 INSULATOR CB S (ED-3P)

E 048927 4 SCREW RHM #10-32 X 4-1/2

F 023897 4 WASHER FLAT #10 ZINC

G 022152 4 WASHER LOCK #10

H 022158 4 NUT HEX #10-32 STEEL

J 0C2454 7 SCREW THF M6-1 X 16 N WA Z/JS

K 029289 1 TAPE ELEC 1/2 FOAM (AS REQ’D)

L 0F1733 1 DECAL CUSTOMER CONNECT INSIDE

2) UL CIRCUIT BREAKER (FD)

A 0F3138 1 COVER CB CONN BOX

B 065469 1 DECAL DANGER HIGH VOLTAGE

C 0D5572 1 CB 0150A 3P 600V S FD6 LL

0D5573 - CB 0175A 3P 600V S FD6 LL

0D5574 - CB 0200A 3P 600V S FD6 LL

0D5575 - CB 0225A 3P 600V S FD6 LL

0D5576 - CB 0250A 3P 600V S FD6 LL

D 0F0199 1 INSULATOR CB FD FRAME 30MIL

E 081320 4 SCREW SHC 1/4-20 X 4.5 G8.8 NZ

F 022473 4 WASHER FLAT 1/4-M6 ZINC

G0220974WASHER LOCK M6-1/4

H 022127 4 NUT HEX 1/4-20 STEEL

J 0C2454 7 SCREW THF M6-1 X 16 N WA Z/JS

K 029289 1 TAPE ELEC 1/2 FOAM (AS REQ’D)

L 0F1733 1 DECAL CUSTOMER CONNECT INSIDE

3) UL CIRCUIT BREAKER (JD+LD)

A 0F3329 1 COVER JD/LD CB SHRT STAND

B 065469 1 DECAL DANGER HIGH VOLTAGE

C 0D5577 1 CB 0300A 3P 600V S JD6 LL

D 0F2353 2 INSULATOR CIRCUIT BR. JD/LD

E 022770 4 SCREW RHM 1/4-20 X 3

F 022473 4 WASHER FLAT 1/4-M6 ZINC

G 022097 4 WASHER LOCK M6-1/4

H 022127 4 NUT HEX 1/4-20 STEEL

J 0C2454 7 SCREW THF M6-1 X 16 N WA Z/JS

K 029289 1 TAPE ELEC 1/2 FOAM (AS REQ’D)

L 0F1733 1 DECAL CUSTOMER CONNECT INSIDE

4) UL CIRCUIT BREAKER (QN)

A 0F8135 1 COVER QN FRM CB

B 065469 1 DECAL, DANGER HIGH VOLTAGE

C 0E7283 - CB 0150A 2P 240V S QN2 LL

0E7284 - CB 0175A 2P S QN2 LL 240V

D 0E3664 1 BASE, QN CIRCUIT BREAKER

E 074908 2 SCREW HHTT M5-0.8 X 10 BP

F 0F8140 1 COVER QN CB DISH

G 036261 4 RIVET POP .125 X .275 SS

H 0C2454 7 SCREW THF M6-1X16 N WA Z/JS

J 029289 1 TAPE ELEC 1/2 FOAM (AS REQ’D)

K 0F1733 1 DECAL CUSTOMER CONNECT INSIDE

5) UL CIRCUIT BREAKER (QJ-2P)

A 0F8137 1 COVER QJ 2P FRM CB

B 065469 1 DECAL, DANGER HIGH VOLTAGE

C 0E7994 - CB 0225A 240V 2P S QJ22

D 0F8136 1 COVER QJ 2P CB DISH

E 036261 4 RIVET POP .125 X .275 SS

F 022473 2 WASHER FLAT 1/4-M6 ZINC

G 022097 2 WASHER LOCK M6-1/4

H 022127 2 NUT HEX 1/4-20 STEEL

J0F81391INSUL CB 2P QJ

K 0C2454 7 SCREW THF M6-1X16 N WA Z/JS

L 022237 2 WASHER LOCK 3/8

M 048527 2 SCREW SHC 3/8-16 X 3/4 G8.8 NZ

N 029289 1 TAPE ELEC 1/2 FOAM (AS REQ’D)

P 022770 2 SCREW RHM 1/4-20 X 3

Q 0F1733 1 DECAL CUSTOMER CONNECT INSIDE

6) NEUTRAL BLOCK 390 / 200-400A

A 0D5466 2 BUS BAR NEUTRAL BLOCK 390

B 039287 1 SCREW HHC M8-1.25 X 45 G8.8 FT

C 022145 1 WASHER FLAT 5/16-M8 ZINC

D 022129 1 WASHER LOCK M8-5/16

E 045771 1 NUT HEX M8-1.25 G8 YEL CHR

F 022473 2 WASHER FLAT 1/4-M6 ZINC

G 022097 2 WASHER LOCK M6-1/4

H 045335 2 SCREW HHC 1/4-28 X 3/4 G5

J 0A7822 1 LUG SLDLSS 600/250-1/0 X 1/4-28

* ITEM INCLUDED WITH HARNESS

** ITEM INCLUDED WITH 0D5464B

*** ITEM QTY DOUBLES FOR 277/480V

**** ITEM USED WITH 277/480V UNITS ONLY

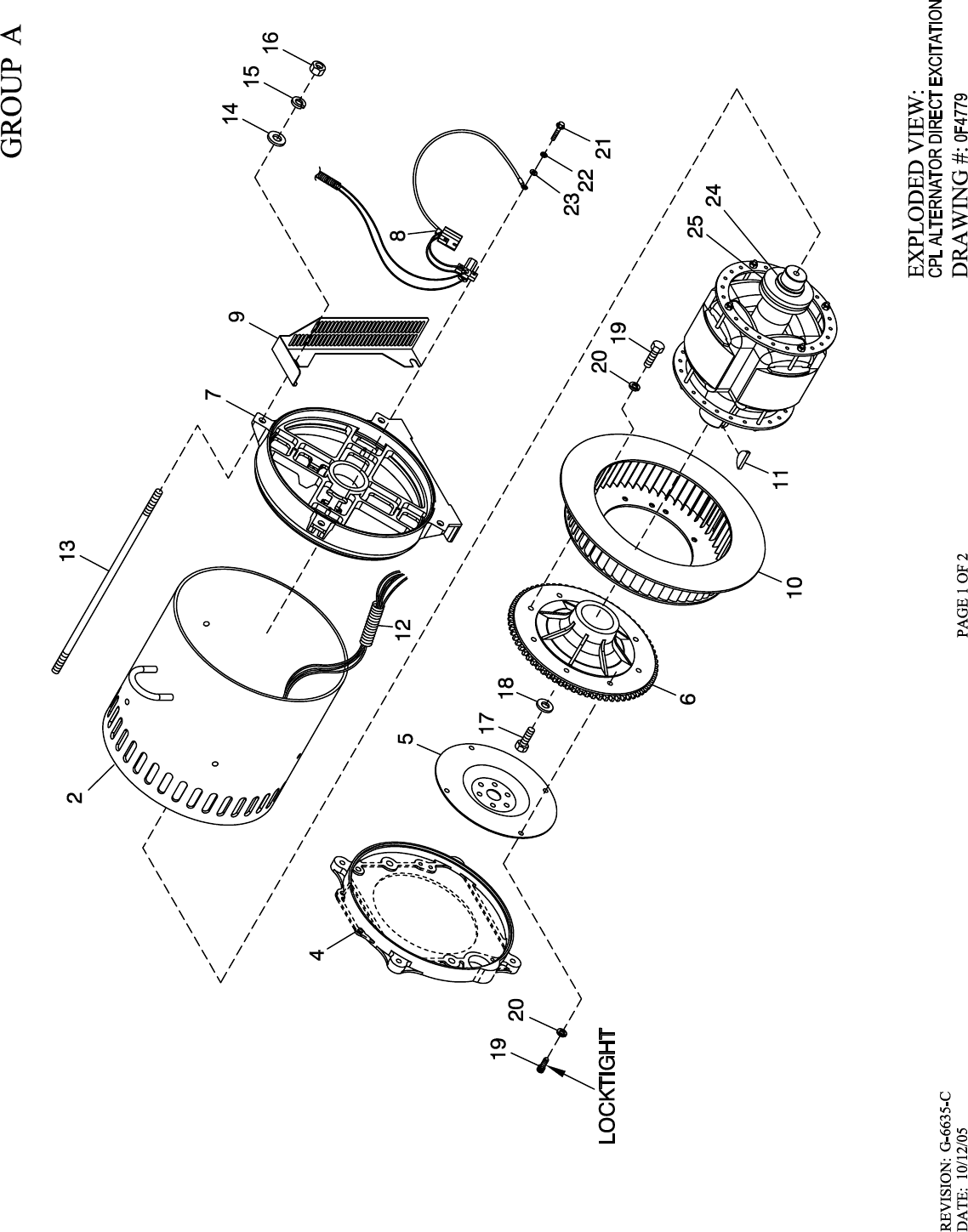

1 0F3438 1 RTR 390 30AD1 CPL

0F3440 1 RTR 390 40AD2 CPL HI-EF

0F6188 1 ASSY RTR 390 30KD1 CPL

0F6190 1 ASSY RTR 390 40KD2 CPL

2 0F3439 1 STR 390 30AD1 CPL

0F3441 1 STR 390 40AD2 CPL

0F6189 1 STR 390 30GD1 CPL

0F6199 1 STR 390 40GD2 CPL

0F6655 1 ASSY STR 390 30KD1 CPL

0F6656 1 ASSY STR 390 40KD2 CPL

3 0C9708 1 INSTR HYPOT TEST

4 SEE ENGINE EV REF ENGINE ADAPTER

5 SEE ENGINE EV REF FLEXPLATE

6 0F5536 1 ASSY FLYWHEEL C2 CPL

7 0E5706 1 REAR BEARING CARRIER 390/DRCT

8 0F7874 1 ASSY BRUSH HOLDER 390/HSB

9 0F6124 1 GUARD REAR BEARING CARRIER CPL 3.0L 30KW

0F6123 1 GUARD REAR BEARING CARRIER CPL 3.9L 40KW

10 0E6076 1 REVCOR FAN 12.63 X 2 W/PRESSDISK

11 023454 1 KEY WOODRUFF #E

12 077043F 1 CONDUIT FLEX 1-1/4" (30” LG)

13 04576100BU 4 STUD M14-2.0 570 G5 ZINC (30KW)

04576100AQ 4 STUD M14-2.0 X 615 G5 ZINC

14 052646 4 WASHER FLAT M14

15 043123 4 WASHER LOCK M14

16 051779 4 NUT HEX M14-2.0 G8 YEL CHR

17 0A2601 1 SCREW HHC M16-2.0 X 45 G8.8

18 0A2602 1 WASHER FLAT .688 ID X 3.25 OD

19 0F3398 8 SCREW SHC M10-1.5 X 16 G10.9

20 046526 8 WASHER LOCK M10

21 0C3993 4 SCREW HHTT M4-0.7 X 25 BP

22 022264 4 WASHER LOCK #8-M4

23 038150 4 WASHER FLAT #8 ZINC

24 * 047248 1 BALL BEARING-45 MM

25 * 070892 1 SLIP RING MACHINED

* ROTOR REPLACEMENT PARTS

COMPONENTS INCLUDED IN 01827E

1 0F1823A 1 ENCL HSB CONTROL PANEL

2 0F3078 1 COVER CONTROL PANEL

3 0F2606 1 HINGE CONTINUOUS H-PANEL

4 036261 6 RIVET POP .125 X .275 SS

5 043181 4 SCREW PHM M3-0.5 X 10MM

6 052777 7 WASHER FLAT M3

7 0F4245E 1 ASSY PCB CPL CTRLR 1800 RPM

8 0F1262 4 HOLDER FUSE WICKMANN 178.6150

9 0F1263 1 ADPTR RH SIDE WICKMAN 178.6191

10 0F1264 1 ADPTR LH SIDE WICKMAN 178.6192

11 0F1725C 1 ASSY PCB 2AMP 12V UL BATT CHGR

12 067680 1 ASSY VOLTAGE REGULATOR 60HZ

13 0E6875A 2 RELAY 12VDC C FORM W/DIODE

14 055911 1 BLOCK TERM 20A 12 X 6 X 1100V

15 0E3161 1 ASSY PCB BOSCH GOV DRIVER

16 0F5459 1 DECAL CPL CONTROL PANEL FUSES

17 0F5462 1 DECAL CPL 3.9L TB1

18 0A5062J 4 SPACER 9.5H 3.2 ID

19 029673 1 DIO BRIDGE 25A 600V

20 048467 1 CIRCT BRK 7 X 1 ETA 46-500-P

21 0F1958 1 PLATE,HARNESS CLAMP

22 082573 1 SWITCH RKR DPST 125V SPD

23 0E4494 1 SWITCH RKR DPDT ON-OFF-ON

24 0F3215 1 DECAL CONTROL HSB

25 0F5886 3 SCREW HHPM M5-0.8 X 12

26 051713 12 WASHER FLAT M5

27 049226 12 WASHER LOCK M5

28 0F5752F 1 RES WW 15R 5% 25W QK CONN

29 0F5884 2 SCREW PHTT M3.5-0.6 X 10

30 0F5896 2 SCREW PHTT M3.5-0.6 X 16

31 0C2265 4 SCREW PHTT M4-0.7 X 12 ZYC

32 0C3990 2 SCREW PHTT M4-0.7 X 10 ZYC

33 091526 4 SCREW PPHM M5-0.8 X 12 ZNC

34 051716 9 NUT HEX M5-0.8 G8 CLEAR ZINC

35 079224 2 SCREW PPHM M5-0.8 X 30 SS

36 043182 7 WASHER LOCK M3

37 051714 7 NUT HEX M3-0.5 G8 YEL CHR

38 0F3192 1 SUPPORT ANGLE PCB

39 0E7403C 1 FUSE ATO TYPE 15 AMP (BLUE)

40 0F4416 1 HARN 1800RPM R-100 CONTROL PNL (NOT SHOWN)

41 0F6305 2 SEAL COVER 3.18 X 12.7 X 382

42 0F6305A 1 SEAL COVER 3.18 X 12.7 X 283

COMPONENTS INCLUDED IN 0F7376D

A 056739 1 RELAY SOLENOID 12VDC PNL MNT

B 047411 2 SCREW HHC M6-1.0 X 16 G8.8

C 022473 4 WASHER FLAT 1/4-M6 ZINC

D 022097 2 WASHER LOCK M6-1/4

E 049813 2 NUT HEX M6 X 1.0 G8 YEL CHR

F 0F6145 A/R SEAL WEATHER .45"DIA

G 0F2627A 1 COVER CONTROL PANEL SIDE

H 049815 4 SCREW HHC M5-0.8 X 16 G8.8

J 049226 4 WASHER LOCK M5

K 023897 4 WASHER FLAT #10 ZINC

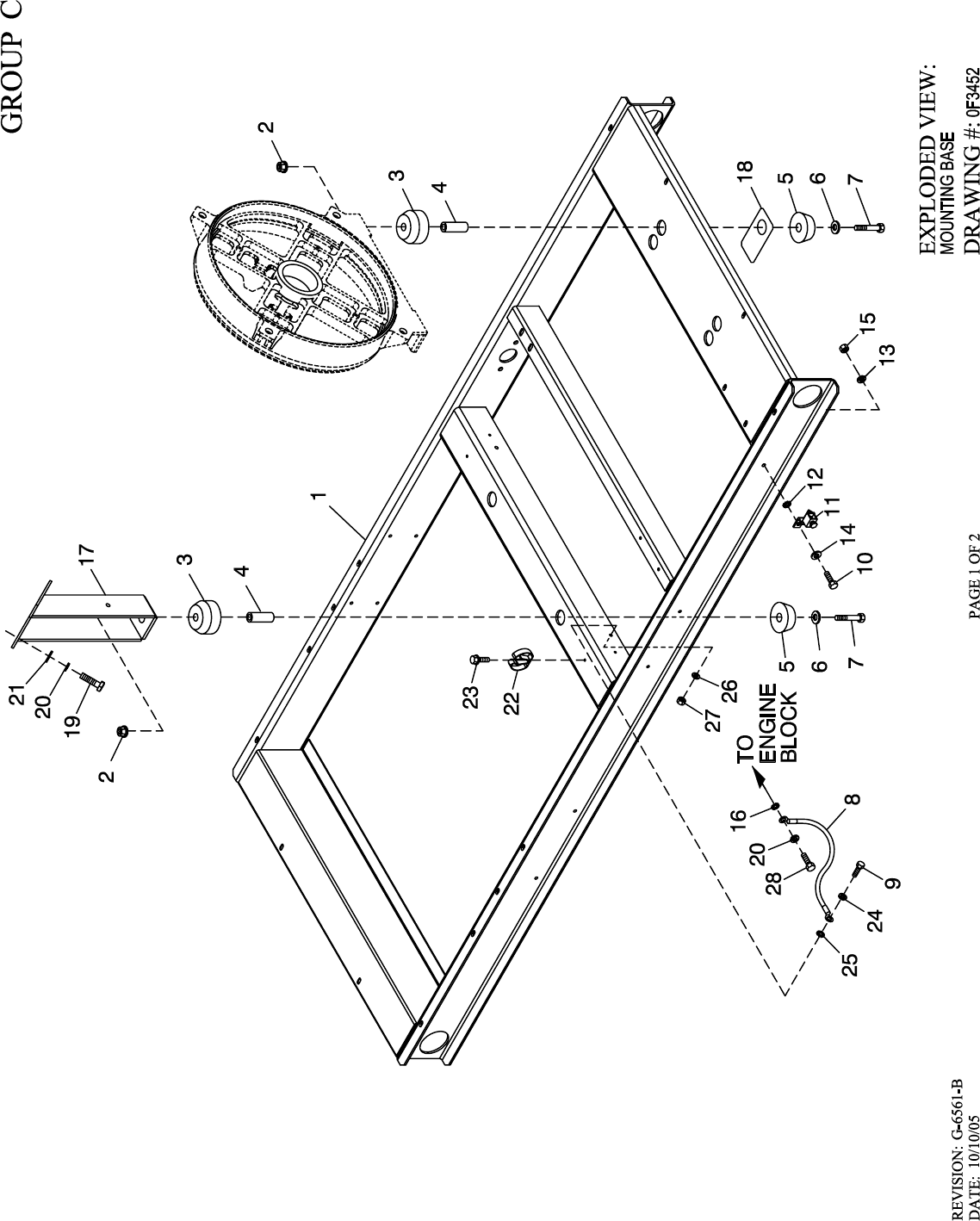

1 0F3270 1 MTG BASE 3.9L 40KW C2

2 052860 4 NUT FLANGED HEX M12-1.75

3 052251 4 DAMPENER VIBRATION 40 BLUE

4 052257 4 SPACER .49 X .62 X 1.87 PWDR/ZNC

5 052252 4 DAMPENER VIBRATION

6 052259 4 WASHER FLAT M12

7 052891 4 SCREW HHC M12-1.75 X 80 G8.8

8 0536210410 1 ASSY WIRE 14.00"

9 042909 1 SCREW HHC M8-1.25 X 30 G8.8

10 047411 1 SCREW HHC M6-1.0 X 16 G8.8

11 055414 1 LUG SLDLSS #2-#8 X 17/64 CU

12 022447 1 WASHER SHAKEPROOF INT 1/4

13 022097 1 WASHER LOCK M6-1/4

14 022473 1 WASHER FLAT M6-1/4 ZINC

15 049813 1 NUT HEX M6 -1.0 G8 YEL CHR

16 022261 1 WASHER SHAKEPROOF INT 3/8

17 0F2230 2 SUPPORT ENGINE 3.9L LH & RH SD

18 0F5898 2 PLATE ALT VARMINT

19 036833 4 SCREW HHC 3/8-16 X 1 G8

20 022302 1 WASHER LOCK 7/16

21 022131 4 WASHER FLAT 3/8-M10 ZINC

22 065852 1 SPRING CLIP HOLDER .37-.62

23 045764 1 SCREW HHTT M4-0.7 X 8 BP

24 022129 1 WASHER LOCK M8-5/16

25 022145 1 WASHER FLAT 5/16-M8 ZINC

26 026204 1 WASHER SHAKEPROOF INT 5/16

27 045771 1 NUT HEX M8-1.25 G8 CLEAR ZINC

28 051755 1 SCREW HHC M10-1.5 X 16 G8.8

29 022237 4 WASHER LOCK 3/8

1 0F3408 1 TRAY BATTERY

2 0F3411 1 STRAP BATTERY RETAINMENT

3 058208 REF BATT 12VDC 24F 625

4 036833 1 SCREW HHC 3/8-16 X 1 G8

5 022237 1 WASHER LOCK 3/8

6 022131 1 WASHER FLAT 3/8-M10 ZINC

7 050331A 1 BATT POST COVER RED +

8 050331 1 BATT POST COVER BLK -

9 038805H 1 CABLE BATT BLK #1 X 23.00

10 038804Y 1 CABLE BATT RED #1 X 35.00

11 045771 1 NUT HEX M8-1.25 G8 YEL CHR

12 022129 1 WASHER LOCK M8-5/16

13 027482 2 WASHER SHAKEPROOF EXT 5/16 STL

14 075763 1 BOOT BATTERY CABLE

15 0C2454 6 SCREW THF M6-1 X 16 N WA Z/JS

1 0E5048A 1 FLEXPLATE HSB 3.9L CHRYSLER (1800RPM)

0F3903A 1 FLEX PLATE 2 POLE 3.9L CHRY (3600RPM)

2 0F2982 1 ENG ADAPTER MACH 3.9L HSB NSPS

3 0E6703 1 COVER FLYWHEEL ACCESS

4 0F3795 REF ENGINE INSERTED VALVE 3.9L (3600 RPM)

0E8336 REF MAKE 3.9L CHRYSLER ENGINE (1800 RPM)

5 0E7841 2 GASKET THERMOSTAT ADAPTOR

6 0E7254 1 MACH THERM ADAPTOR 3.9L CHRY

7 0E7956 1 BRACKET IGNITION COIL

8 0E7953 1 COIL IGNITION 3.9L CHRYSLER

9 047411 4 SCREW HHC M6-1.0 X 16 G8.8

10 0E8615 6 BOLT 7/16-20 X 7/8

11 0E9868A 1 D.C. ALTERNATOR W/OUT PULLEY

12 054455 1 ADP OIL DRN 1/2-20

13 022097 7 WASHER LOCK M6-1/4

14 022473 10 WASHER FLAT 1/4-M6 ZINC

15 049721 2 SCREW HHC M6-1.0 X 35 G8.8 BLK

16 049813 3 NUT HEX M6 X 1.0 G8 YEL CHR

17 036833 11 SCREW HHC 3/8-16 X 1 G8

18 022131 15 WASHER FLAT 3/8-M10 ZINC

19 022237 19 WASHER LOCK 3/8

20 0E6729 1 STARTER 12V

21 022129 19 WASHER LOCK M8-5/16

22 049821 3 SCREW SHC M8-1.25 X 30 G12.9

23 043790 1 BARBED EL 90 3/8 NPT X 3/8

24 052677 1 WASHER NYLON .50 X .87 X .06

25 0F1444A 1 HEAT SHEILD L/H SIDE

26 0E9975 1 CAP VINYL 1/4" ID X 1" DP BLK

27 0F5114 1 DECAL REFER TO OWNERS MANUAL

28 0D2244M 1 ASSY MAGPICKUP (3/8-24 MALE)

29 0E0992B REF PLUG EXPANSION 21/32" O.D. (WATER PUMP) (QTY 1)

30 0E0992A REF PLUG EXPANSION 14.1 O.D. (INJCTOR HOLE) (QTY 6)

31 0F5806 1 SPACER FLEX PLATE 3.9L C4 CPL (3600 RPM)

0E8731 1 PLATE FLEX DISK SPACER (1800 RPM)

32 052647 2 SCREW SHC M10-1.5 X 25 G12.9

33 0E7855 1 TENSIONER W/BRACKET

34 0F2694A 1 PULLEY CRANKSHAFT (3600 RPM)

0E7952 1 PULLEY CRANKSHAFT 3.9L CRYSLR (1800 RPM)

35 035606 1 SENSOR HI COOLANT SHUTDOWN

36 0A8584 1 SWITCH OIL PRESSURE 10 PSI 2 POL

37 061012 REF PLUG STD PIPE 1/8 SOCKET HEAD

38 0F1444 1 HEAT SHIELD R/H SIDE

39 050873A REF PLUG PIPE 1/4 CSK W/ VIBRA SL

40 031919 REF PLUG STD PIPE 3/8 COUNTERSUNK

41 022145 15 WASHER FLAT 5/16-M8 ZINC

42 030231 6 SCREW HHC 5/16-18 X 1-1/2 G5 (3600 RPM)

030795 6 SCREW HHC 5/16-18 X 1 G5 (1800 RPM)

43 048031J REF HOSE CLAMP BAND 5/8"

44 069860E 1 HOSE DRAIN ASSY 28"

45 0E7954 1 CABLE IGN COIL 3.9L CHRYSLER

46 057824 1 CLAMP HOSE #16 .87-1.50 (3600 RPM)

47 023645 5 SCREW SHC 3/8-16 X 1.25 G8.8 Z

48 022403 2 SCREW HHC 5/16-18 X 2 G5

49 0E7950 1 TUBE DIPSTICK 3.9L CHRYSLER

50 0E7951 1 DIPSTICK OIL LEVEL 3.9L CHRYSLER

51 0E8445 1 BRACKET DIPSTICK TUBE

52 0E7415 1 OIL FILTER 3.9L CHRYSLER

53 042568 1 SCREW HHC M6-1.0 X 20 G8.8

54 0F3447 1 BRKT L/H SIDE D.C. ALTERNATOR

55 0F3446 1 BRKT R/H SIDE D.C. ALTERNATOR

56 0F3216C 1 PULLEY 132 OD DC ALTERNATOR (3600 RPM)

0F3216 1 PULLEY 80 OD DC ALTERNATOR (1800 RPM)

57 039253 1 SCREW HHC M8-1.25 X 20 G8.8

58 022241 1 NUT HEX 3/8-16 STEEL

59 022746 1 SCREW HHC 3/8-16 X 1-3/4 G5

60 0F3641 1 HARN ENG 3.9L 3600 RPM FLEX PNL (NOT

SHOWN)(3600 RPM)

0F4272 1 HARN ENG 3.9L 1800 RPM FLEX PNL (NOT

SHOWN)(1800 RPM)

61 0F3217 1 SPACER DC ALTERNATOR PULLEY

62 0D3488H 1 SERPENTINE BELT (60.5")

63 022532 1 SCREW HHC 5/16-18 X 2-1/2 G5

64 0F3844 6 WASHER FLAT .45 X 1.00

65 026925 1 PLUG STD PIPE 3/8 STEEL SQ HD

66 0F4110 1 BYPASS ORIFICE 3.9L CHRYSLER (3600 RPM)

67 0F5454 1 PLATE MAG PICK-UP ADAPTOR

68 0F6027 2 SHIELD HT RR (C4 3600RPM ONLY) (BOTH SIDES)

69 0F6029 2 SHIELD HT FRT (C4 3600RPM ONLY) (BOTH SIDES)

70 045771 5 NUT HEX M8-1.25 G8 CLEAR ZINC (C4 3600 RPM ONLY)

71 0F5928 6 REFLEX WRAP 13MM X 153.3MM (C4 3600 RPM ONLY)

72 087173 1 SCREW HHC M8-1.25 X 45 G8.8

73 0F6480 1 BRKT L/H SIDE DC ALTERNATOR

74 0F6715 2 SPACER .41 X .75 X .18 AL

75 0E0561 1 ASSY WATER LEVEL SENSOR C/E PL

76 059057 1 HOSE 3/4 ID SAE-30R2 (17” LG)

77 057822 1 CLAMP HOSE #8 .53-1.00

78 057795A 1 BARBED EL 90 3/4 PLASTIC

79 057796 1 GROMMET

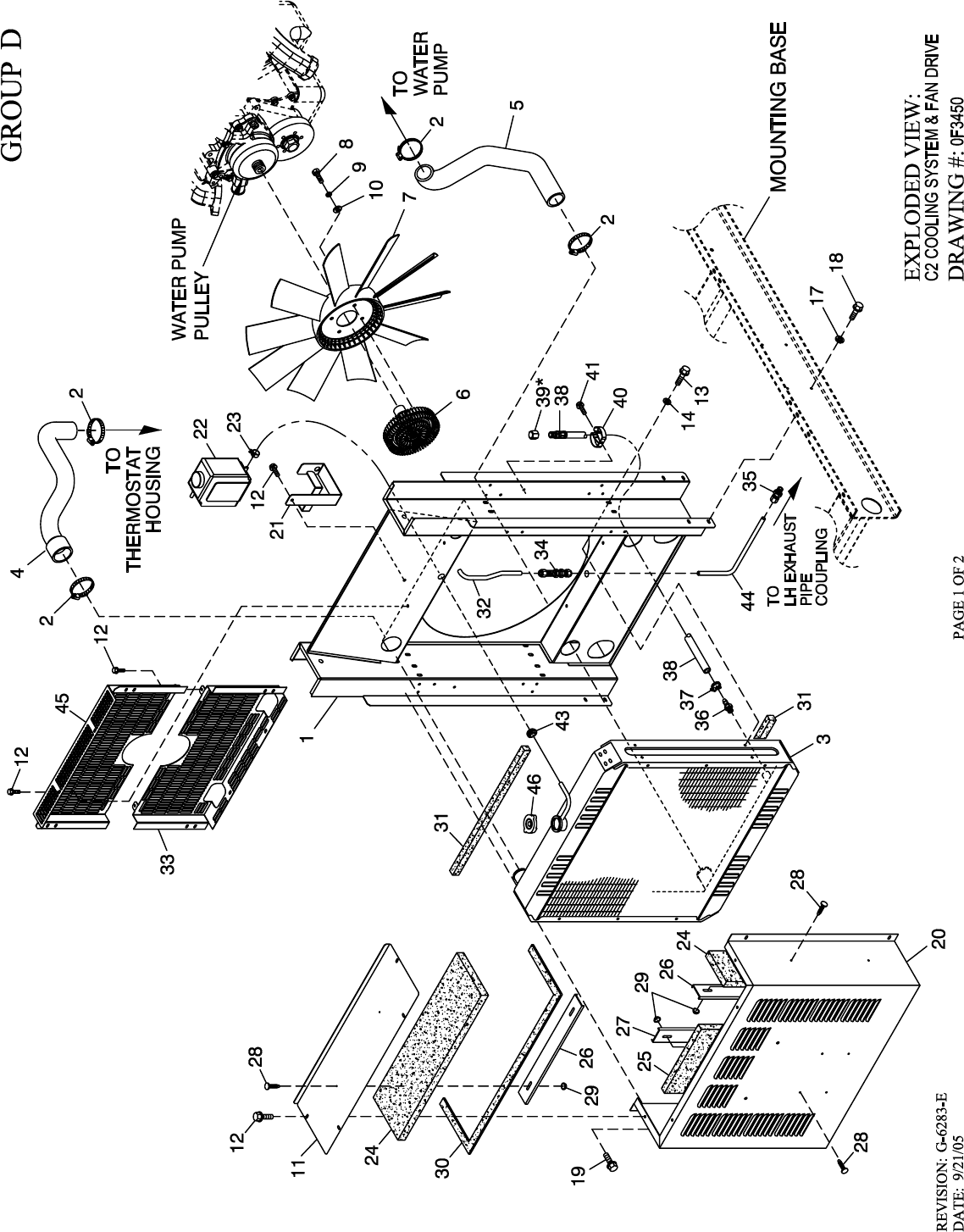

1 0F3203 1 WELDMENT RAD SUPPORT 3.9L C2

2 035685 4 CLAMP HOSE #28 1.32-2.25

3 0F2608 1 RADIATOR 598 X 568 X 49 CPL RH

4 0F4413 1 HOSE UPPER RAD CPL C2 3.9L

5 0F4414 1 HOSE LOWER RAD CPL C2 3.9L

6 0E7854 1 CLUTCH COOLING FAN

7 0F2820 1 FAN 22" DIA 10 BLADE

8 051756 4 SCREW HHC M10-1.5 X 20 G8.8

9 046526 4 WASHER LOCK M10

10 022131 4 WASHER FLAT 3/8-M10 ZINC

11 0F3312 1 DUCT INNER DISCHARGE TOP C2

12 0C2454 13 SCREW THF M6-1 X 16 N WA Z/JS

13 0F8651 8 SCREW HHFC M8-1.25 X 20 W/M6

14 022129 8 WASHER LOCK M8-5/16

17 022097 8 WASHER LOCK M6-1/4

18 0C8566 8 SCREW HHFC M6-1.0 X 20 G8.8

19 0E3257 4 SCREW HWHTF M6-1.0 X 16

20 0F3313 1 DUCT INNER DISCHARGE C2

21 080712 1 BRKT COOLANT RECOVERY TANK

22 076749 1 TANK COOLANT RECOVERY

23 048031C 1 CLAMP HOSE BAND 1/4

24 0F4051D 3 INSULATION INNER DUCT

25 0F4073C 1 INSUL DUCT SIDE OR INNER DUCT

26 0F3890 3 RETAINER INSULATION (450)

27 0F3890C 2 RETAINER INSULATION (220)

28 0F3072 10 INSULATION RETAINMENT HANGER

29 078115 10 WASHER SELF LOCKING DOME

30 089961 1 FOAM STRIP 3/4" WIDE X 3/16" THK (46” LG)

31 052250 2 TAPE FOAM 1 X 1 (22.5” LG)

32 0F4767 1 TUBE FAN CLUTCH PREHTR UPPR C2

33 0F8085 1 GUARD FAN C2 CPL, BOTTOM

34 0F4765 1 FTG CMPN BLKHD 3/8" OD TUBE BRS

35 089514 1 FTG CMPR 3/8TUBE X 3/8 NPT W/FERL

36 055596 1 BARBED STR 3/8 NPT X 3/8

37 0C7649 1 CLAMP HOSE .38-.87

38 069860E 1 HOSE DRAIN ASSY 28"

39 * 069811 REF. CAP HEX 1/4 NPT BRASS

40 065852 1 SPRING CLIP HOLDER .37-.62

41 045764 1 SCREW HHTT M4-0.7 X 8 BP

43 089685 1 GROMMET .75 X .12 X .50

44 0F4768 1 TUBE FAN CLUTCH PREHTR LOWR C2

45 0F8085A 1 GUARD FAN C2 CPL, TOP

46 090283 1 CAP RADIATOR 13 PSI

* ITEM #39 IS INCLUDED WITH ITEM #38.

1 0F6504 1 PIPE R/H SIDE MUFFLER

2 0F3127 1 PIPE L/H SIDE 3.9L CPL

3 0F2808B 1 PIPE EXHAUST MUFFLER OUT

4 0F0738 1 MUFFLER 7" X 9"-(2) 2" IN/2.5" OUT

5 0F2962 1 MUFFLER STRAP

6 0F2830 1 MUFFLER BRACKET STIFFENER

7 047411 2 SCREW HHC M6-1.0 X 16 G8.8

8 022097 2 WASHER LOCK M6-1/4

9 022473 2 WASHER FLAT 1/4-M6 ZINC

10 080762 1 BOLT U 3/8-16 X 2.62

11 0D9832 4 SCREW HHC M12-1.75 X 75 SS

12 087171 8 WASHER FLAT 1/2 SS

13 083215 4 WASHER LOCK 1/2 SS

14 051548 4 NUT HEX M12-1.75 G8 SS

15 0F3794 1 EXHAUST BLANKET 549MM LONG (R/H)

16 0F3794A 1 EXHAUST BLANKET 448MM LONG (L/H)

17 0E8816 1 EXHAUST FLANGE 2" PIPE

19 036797 4 BOLT U 5/16-18 X 2.25

20 024114 8 NUT HEX 5/16-24 STEEL

21 022129 8 WASHER LOCK M8-5/16

22 0F5078 1 PIPE L/H SIDE MUFFLER

23 0F3133 1 PIPE R/H SIDE 3.9L CPL

1 0F6322 1 BOTTOM PLATE, AIR CLEANER 3.9L

2 0F5418 1 ELEMENT AIR FILTER

3 0E6406 1 HOLDER VENTURI

4 0E7702 1 HOLD DOWN AIR CLEANER

5 0F6323 1 PLATE, AIR CLEANER TOP 3.9L

6 037561 1 NUT WING 1/4-20 NYLK

7 049815 4 SCREW HHC M5-0.8 X 16 G8.8

8 049226 4 WASHER LOCK M5

9 051713 4 WASHER FLAT M5

10 0E6586 1 GASKET BOSCH 32 & 40

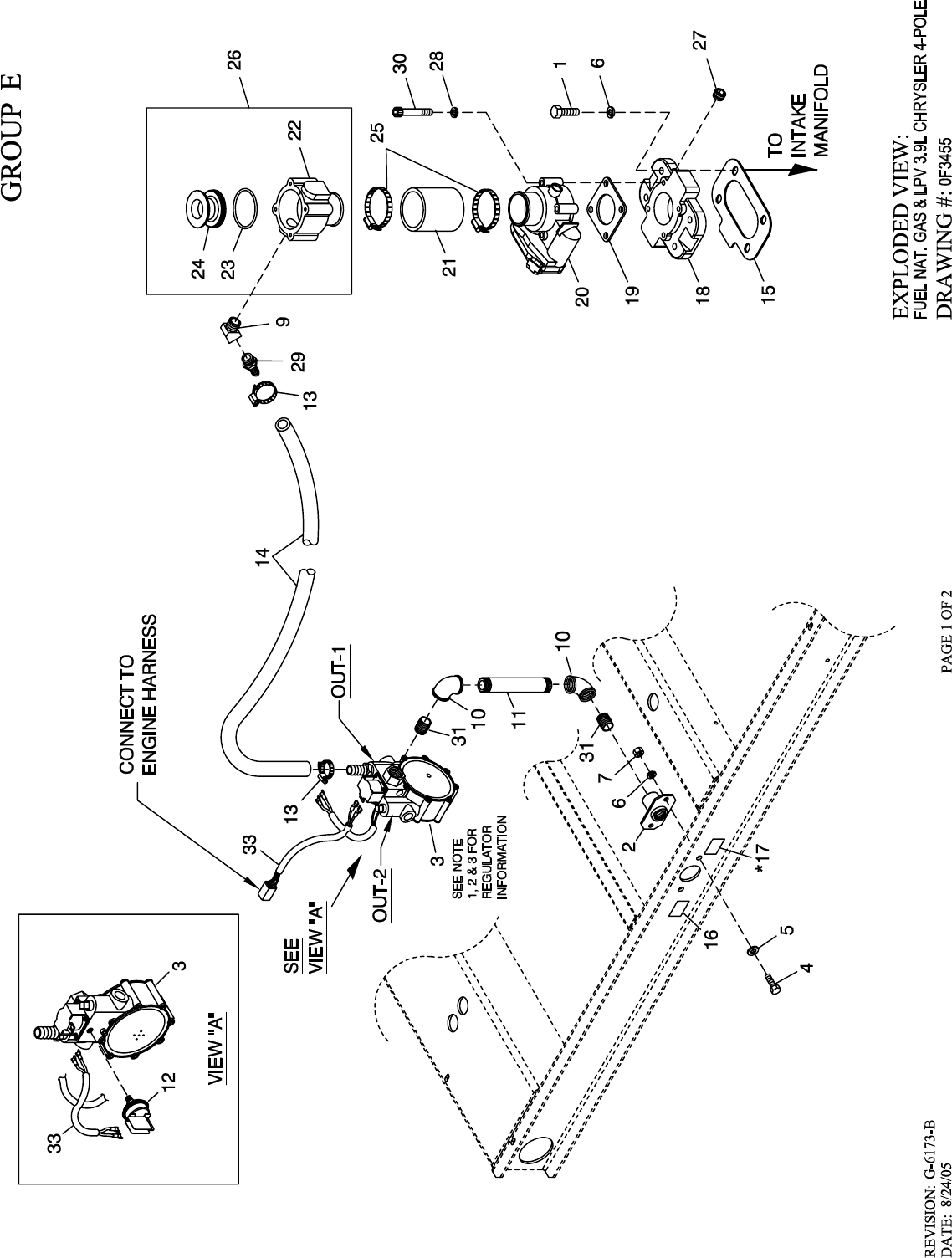

1 033212 4 SCREW HHC 5/16-18 X 1-1/4 G5

2 075580 1 FLANGE FUEL INLET

3 0F6390 1 REGULATOR ASSEMBLY DUAL FUEL

4 039253 2 SCREW HHC M8-1.25 X 20 G8.8

5 022145 2 WASHER FLAT 5/16-M8 ZINC

6 022129 6 WASHER LOCK M8-5/16

7 045771 2 NUT HEX M8-1.25 G8 CLEAR ZINC

9 0E8286 1 STREET EL 45 DEG 1/2" NPT BRASS

10 026812 2 ELBOW 90D 3/4 NPT

11 0F8379 1 NIPPLE PIPE 3/4 NPT X 7”

12 0F3869 1 (REF.) SWITCH PRESSURE GAS 5" RISE (INCLUDED WITH I/N 3)

13 057823 2 CLAMP HOSE #10 .56-1.06

14 059194 1 HOSE 5/8 ID LPG & NG (31.5” LG)

15 064945 1 GASKET CARB ADAPTOR

16 0D1509 1 DECAL INLET PRESSURE

17 * 050279 1 DECAL FUEL INLET NG (NATURAL GAS APPLICATION)

050280 1 DECAL FUEL INLET LPG (LP VAPOR APPLICATION)

18 0E7839 1 MACHINING CARBURETOR ADAPTOR

19 0E6586 1 GASKET BOSCH 32 & 40

20 0E4394 1 ACTUATOR BOSCH 40 GOVERNOR

21 040105 1 HOSE COOL 2IN ID 20R4 (2” LG)

22 0E6382B 1 (REF) VENTURI HOLDER W/40MM ACTUATOR

23 0E7121 1 (REF) O-RING 47.625 ID X 2.38 WIDTH

24 0E6376B 1 (REF) VENTURI 28 ID THROTTLE W/CHOKE

25 042561 2 CLAMP HOSE #36 1.88-2.75

26 0E9295 1 ASSY THROTTLE 28MM

27 061012 1 PLUG STD PIPE 1/8 SOCKET HEAD

28 022097 4 WASHER LOCK M6-1/4

29 044118 1 BARBED STR 1/2 NPT X 5/8

30 046580 4 SCREW SHC M6-1.0 X 45 G12.9

31 026915 2 NIPPLE CLOSE 3/4 X 1.375

33 0F6155 1 HARNESS CPL FUEL JUMPER

NOTES:

1. REGULATOR (I/N 3) AS SHOWN IN ILLUSTRATION IS SET UP FOR

NATURAL GAS APPLICATION.

2. TO CONFIGURE REGULATOR FOR LP VAPOR, SWITCH HOSE BARB,

HOSE CLAMP (I/N 13) AND HOSE (I/N 14) FROM “OUT-1” TO “OUT-2”.

REPLACE PIPE PLUG FROM “OUT-2” TO “OUT-1”. USE PIPE SEALANT

ON HOSE BARB AND PIPE PLUG. MAKE SURE TO KEEP PORTS FREE

FROM DEBRIS DURING RECONFIGURATION PROCESS.

3*. FOR LP VAPOR APPLICATION SUBSTITUE LPG FUEL INLET DECAL P/N

050280 FOR NG FUEL INLET DECAL P/N 050279 (ITEM17).

4 . WHEN SWITCHING FUEL TYPES, THE PROPER DIP SWITCH SITTINGS

MUST BE MADE TO THE CONTROL PANEL. SEE OWNERS MANUAL, FUEL

SECTION FOR MORE DETAILS.

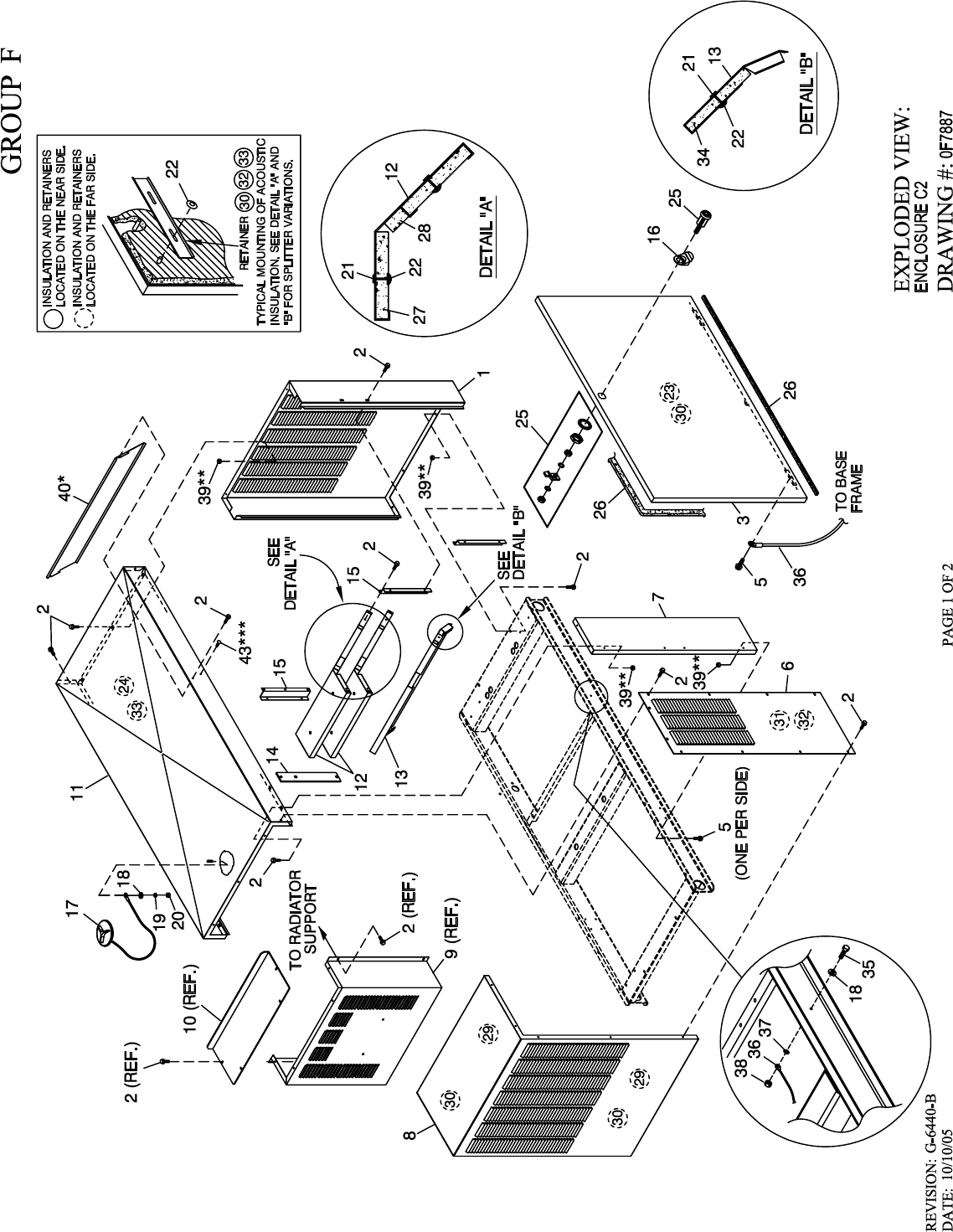

1 0F5853 (XX) 1 REAR WRAP C2

2 0C2454 68 SCREW THF M6-1 X 16 N WA Z/JS

3 0F5849 (XX) 2 DOOR C2

4 087233 2 RIVET POP .1875 X .450 SS

5 0E3257 4 SCREW TH-FRM M6 W/CAP SHKPRF W

6 0F5852 (XX) 2 DISCHARGE DUCT,LH & RH SIDE C2

7 0F5850 (XX) 2 FRONT CORNERS C2

8 0F5851 (XX) 1 DISCHARGE CENTER DUCT C2

9 0F3313 1 (REF.) DUCT INNER DISCHARGE C2

10 0F3312 1 (REF.) DUCT INNER DISCHARGE TOP C2

11 0F5848 1 ROOF C2 ALUM

12 0F2786 2 SLITTER C4

13 0F2785 1 SPLITTER LOWER C4

14 0F3364 1 SPLITTER STINGER C2

15 0F4880 2 SUPPORT SPLITTER LH C2

16 0F5049 2 TAB PULL

17 0C2634A 1 ASSEMBLY COVER ACCESS

18 022473 3 WASHER FLAT 1/4-M6 ZINC

19 022097 1 WASHER LOCK M6-1/4

20 022127 1 NUT HEX 1/4-20 STEEL

21 0F3072 16 INSULATION RETAINMENT HANGER

22 078115 48 WASHER SELF LOCKING DOME

23 0F4051 2 INSULATION DOOR C2

24 0F4051A 1 INSULATION ROOF TOP

25 0F5048 2 LATCH VISE ACTION 5/16HEX SOCK

26 0E5968 1 GASKET EXTRUDED TRIM (440.64” LG)

27 0F3760K 2 INSULATION SPLITTER

28 0F3760E 2 INSULATION SPLITTER

29 0F4051C 2 INSULATION DUCT

30 0F3890B 8 RETAINER INSULATION (820)

31 0F4051B 2 INSULATION DUCT SIDES

32 0F3890 4 RETAINER INSULATION (450)

33 0F3890A 3 RETAINER INSULATION (740)

34 0F3760L 1 INSULATION LOWER SPLITTER

35 042568 2 SCREW HHC M6-1.0 X 20 G8.8

36 0912970094 2 ASSY WIRE 14 AWG 34.8" GRN/YEL

37 022447 2 WASHER SHAKEPROOF INT 1/4

38 049813 2 NUT HEX M6 X 1.0 G8 YEL CHR

39 ** 077992 21 NUT HEX LOCK M6-1.0 SS NY INS

40 * 0F6321 1 ROOF RAIN DEFLECTOR

43 *** 0C3397 4 FASTENER RATCHET

OPTIONAL COMPARTMENT MATERIALS:

ALL P/N’S WITH AN (XX) SUFFIX INDICATE A MULTIPLE MATERIAL AND COLOR OPTION.

USE THE FOLLOWING LEGEND TO IDENTIFY THE CORRECT PART NUMBER:

PART NO. MATERIAL COLOR

0XXXXXSN STEEL TAN

0XXXXXAN ALUMINUM TAN

0XXXXXSG STEEL GRAY

0XXXXXAG ALUMINUM GRAY

* 3.9L ONLY

** ALUMINUM ENCLOSURE NOTE: ALL ENCLOSURE PANELS THAT FASTEN TO

THE BASE FRAME MUST BE SECURED USING ITEM 2 & 5 THREAD FORMING

FASTENER AND ITEM 39 LOCK NUT. LOCK NUT IS TO BE INSTALLED AFTER THREAD

FORMING FASTENER HAS PENETRATED THROUGH EXTRUSIONS IN

ENCLOSURE PANELS. ALL ROOF PANELS ARE TO BE SECURED IN THE SAME

MANNER.

*** 3.0L ONLY

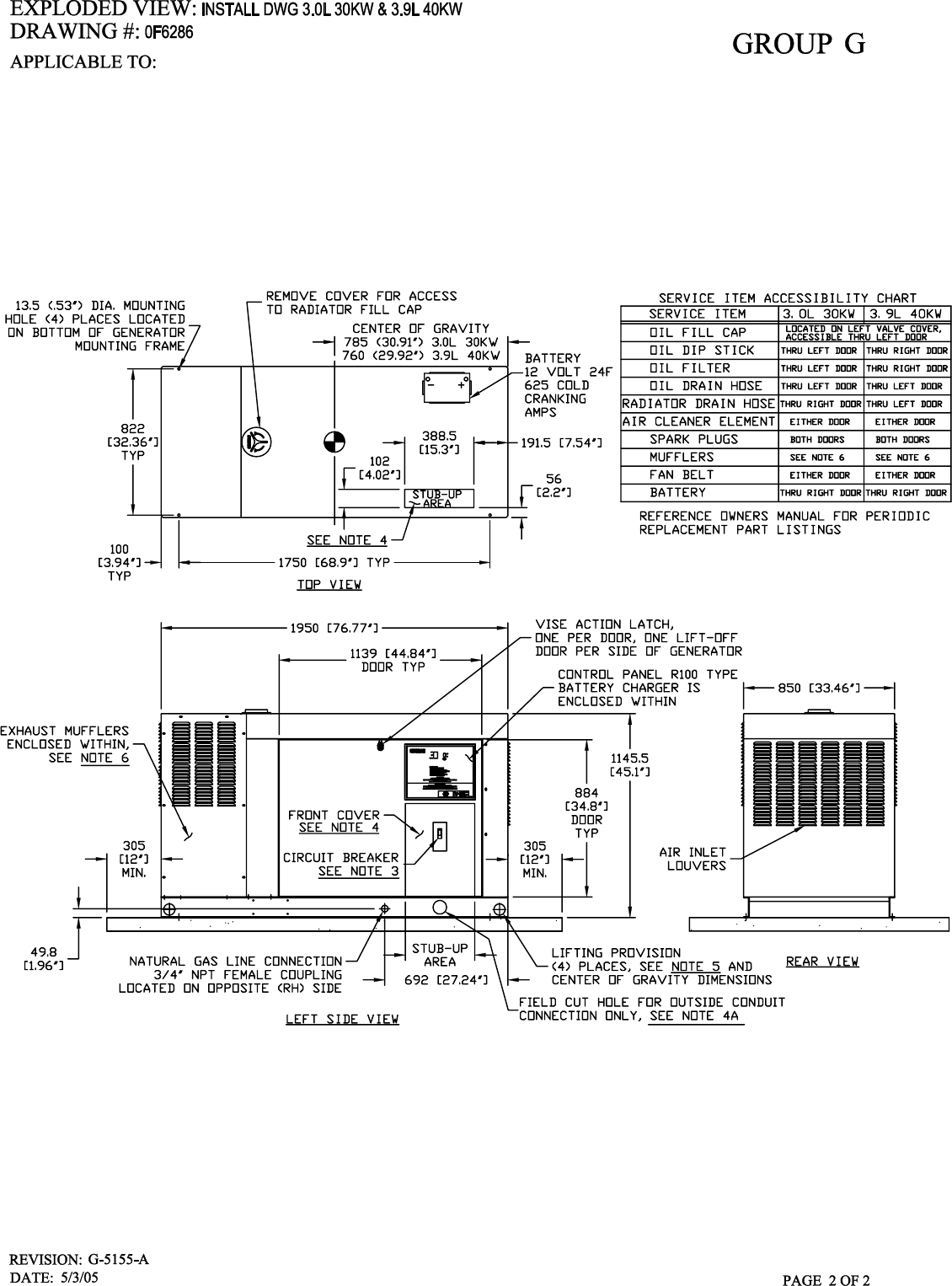

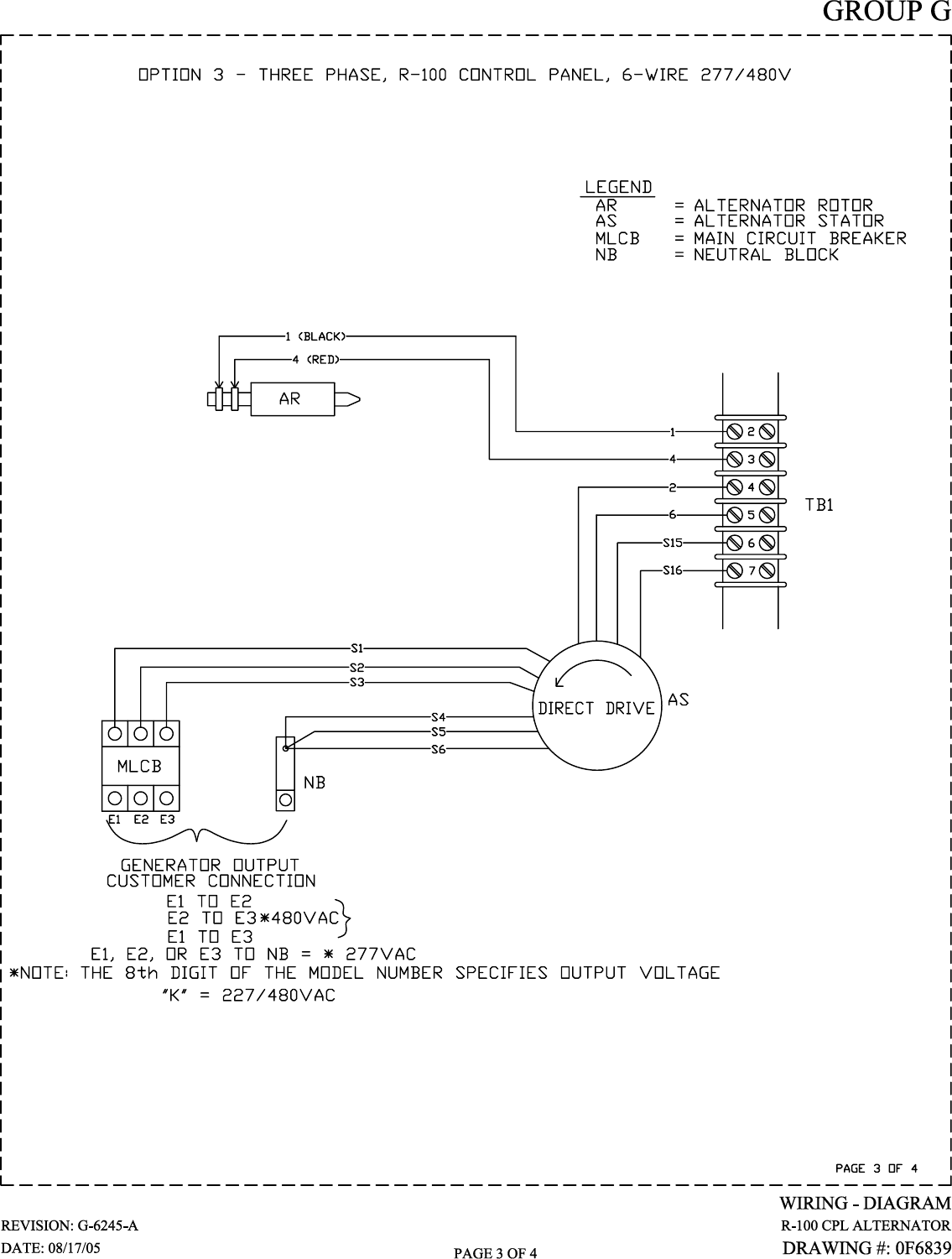

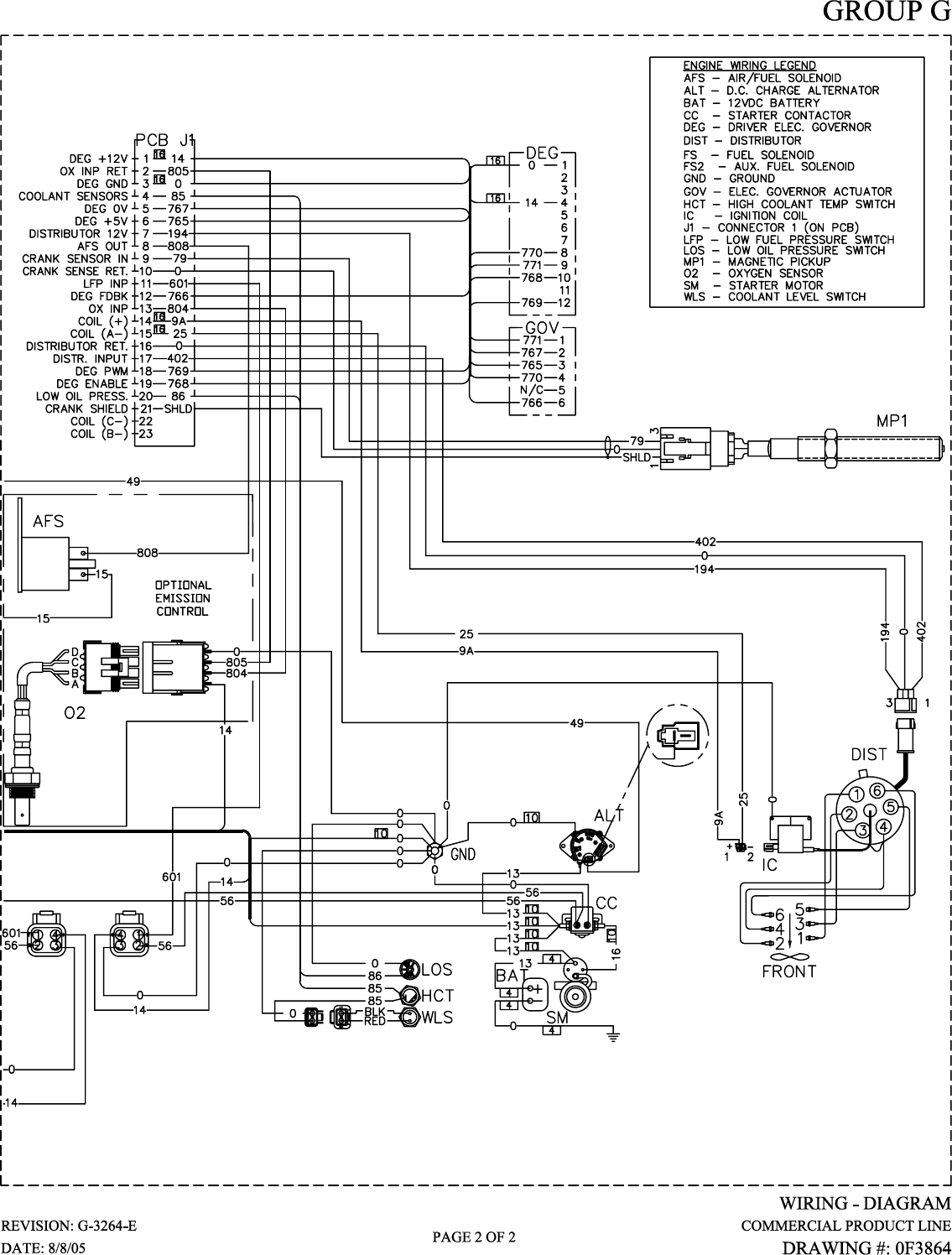

Standby Generator Sets

Warranty

Printed in U.S.A.

GENERAC POWER SYSTEMS STANDARD LIMITED WARRANTY FOR

HOME STANDBY/LIGHT COMMERCIAL PRODUCT 45kW AND BELOW

For a period of two (2) years from the date of sale, or start-up by Authorized/Certified Generac Power Systems Dealer, or branch thereof, Generac

Power Systems, Inc. will, at its option, repair or replace any part(s) which, upon examination, inspection, and testing by Generac Power Systems or

an Authorized/Certified Generac Power Systems Dealer, or branch thereof, is found to be defective under normal use and service, in accordance with

the warranty schedule set forth below. Any equipment that the purchaser/owner claims to be defective must be examined by the nearest Authorized/

Certified Generac Power Systems Dealer, or branch thereof. This warranty applies only to Generac Power Systems Generators used in "Standby"

applications, as Generac Power Systems, Inc. has defined Standby, provided said generator has been properly installed and inspected on-site by

appropriate personnel. Scheduled maintenance, as outlined by the generator owner's manual, is highly recommended. This should be performed by

an Authorized/Certified Generac Power Systems Dealer, or branch thereof. This will verify service has been performed on the unit throughout the

warranty period.

WARRANTY SCHEDULE

YEARS ONE and TWO — Limited comprehensive coverage on mileage, labor, and parts listed.

• - ALL COMPONENTS

*Start-up and/or On-line Registration, or Registration Card, along with Proof of Purchase, must be performed and/or sent in.

Guidelines:

• Any and all warranty repairs and/or concerns, must be performed and/or addressed by an Authorized/Certified Generac Power Systems Dealer, or

branch thereof.

• A Generac Power Systems, Inc. Transfer Switch is highly recommended to be used in conjunction with the genset. If a Non - Generac Power

Systems, Inc. Transfer Switch is substituted for use and directly causes damage to the genset, no warranty coverage shall apply.

• All warranty expense allowances are subject to the conditions defined in Generac Power Systems Warranty, Policies, and Procedures Flat Rate Manual.

• Units that have been resold are not covered under the Generac Power Systems Warranty, as this Warranty is not transferable.

• Unit enclosure is only covered against rust or corrosion the first year of the warranty provision.

• Use of Non-Generac replacement part(s) will void the warranty in its entirety.

• Engine coolant heaters (block-heaters), heater controls and circulating pumps are only covered during the first year of the warranty provision (If

applicable).

THIS WARRANTY SHALL NOT APPLY TO THE FOLLOWING:

1. Any unit built/manufactured prior to January 1, 2005.

2. Costs of normal maintenance (i.e. tune-ups, associated part(s), adjustments, loose/leaking clamps, installation and start-up).

3. Any failure caused by contaminated fuels, oils, coolants/antifreeze or lack of proper fuels, oils or coolants/antifreeze.

4. Units sold, rated or used for "Prime Power", "Trailer Mounted" or "Rental Unit" applications as Generac Power Systems have defined Prime Power,

Trailer Mounted or Rental Unit. Contact a Generac Power Systems Distributor for Prime Power, Trailer Mounted or Rental Unit definition and warranty.

5. Units used for prime power in place of existing utility power where utility is present or in place of utility power where utility power service does not

normally exist.

6. Failures caused by any external cause or act of God such as, but not limited to, collision, fire, theft, freezing, vandalism, riot or wars, lightning,

earthquake, windstorm, hail, volcanic eruption, water or flood, tornado, hurricane, terrorist acts or nuclear holocaust.

7. Products that are modified or altered in a manner not authorized by Generac Power Systems in writing.

8. Failures due, but not limited to, normal wear and tear, accident, misuse, abuse, negligence, or improper installation or sizing.

9. Any incidental, consequential or indirect damages caused by defects in materials or workmanship, or any delay in repair or replacement of the

defective part(s).

10. Failure due to misapplication, misrepresentation, or bi-fuel conversion.

11. Telephone, facsimile, cell phone, satellite, internet, or any other communication expenses.

12. Rental equipment used while warranty repairs are being performed (i.e. rental generators, cranes, etc.).

13. Overtime, holiday, or emergency labor.

14. Planes, ferries, railroad, busses, helicopters, snowmobiles, snow-cats, off-road vehicle or any other mode of transportation deemed abnormal.

15. Any and all expenses incurred investigating performance complaints unless defective Generac materials and/or workmanship were the direct

cause of the problem.

16. Starting batteries, fuses, light bulbs, engine fluids, and overnight freight cost for replacement part(s).

THIS WARRANTY IS IN PLACE OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, SPECIFICALLY, GENERAC POWER SYSTEMS

MAKES NO OTHER WARRANTIES AS TO THE MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow

limitations on how long an implied warranty lasts, so the above limitation may not apply to purchaser/owner.

GENERAC POWER SYSTEMS ONLY LIABILITY SHALL BE THE REPAIR OR REPLACEMENT OF PART(S) AS STATED ABOVE. IN NO EVENT

SHALL GENERAC POWER SYSTEMS BE LIABLE FOR ANY INCIDENTAL, OR CONSEQUENTIAL DAMAGES, EVEN IF SUCH DAMAGES ARE A

DIRECT RESULT OF GENERAC POWER SYSTEMS, INC. NEGLIGENCE.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply to purchaser/

owner. Purchaser/owner agrees to make no claims against Generac Power Systems, Inc. based on negligence. This warranty gives purchaser/owner

specific legal rights. Purchaser/owner also may have other rights that vary from state to state.

Generac Power Systems, Inc. • P.O. Box 8 • Waukesha, WI 53187

Ph: (262) 544-4811 • Fax: (262) 544-4851

Bulletin 0171360SVE / Printed in U.S.A. 7.05
