klodeHNo. H443:0 (2,500 PSIHigh PressureVV'asher) klanuaHNo. B5786 Revision 2(8/H4/2000)

Visit our Generac vvebsite:www.genera¢-portabmes.¢om

This is the safety aHercsymbol It is used to aHertyou to potentiaHpersonaHinjury hazards.

Obey aHHsafety messagesthac foHHowthis symboHto avoid possibHeiniury or death.

Generac Portable Products 2_500 PSI Hig.h Pressure VVasher

EQUmPHENT

CONGRATULATmONS on your purchase of a

GENERAC high pressure washer. It has been designed_

engineered and manufactured to give you the best possible

dependability and performance.

This manual contains information for an dectric start high

pressure washer that operates at 2_500 PSIat a flow rate

of 3.0 gallons per minute. This high quality

professionaVcommercial system features large I 0" wheels,

a pump equipped with an automatic cool down system, a

chemical iniection system, quick connect nozzles, safety

goggles, a heavy duty 25' hose, and more.

Please read and retain this manual. The instructions will

enable you to assemble your unit, and maintain your high

pressure washer properly.

Every effort has been made to ensure that the information

in this manual is both accurate and current. However,

Generac reserves the right to change, alter or otherwise

improve the product and its documentation at any time

without prior notice.

Should you experience any problem you cannot easily fix_

call the pressure washer hdpline at m-800-270- m408.

CUSTOMER

SAFETY RULES

CAUT|ON! When setting up, transporting,

adiusting or making repairs to your high pressure

washer, always disconnect the spark plug wire from

the spark plug and place the wire where it cannot

contact spark plug.

DANGER! Engine exhaust contain DEADLY

carbon monoxide gas. This dangerous gas, if

breathed in sufficient concentrations_ can cause

unconsciousness or even death. Operate this

equipment only in the open air where adequate

ventilation is available.

DANGER! Gasoline is highly FLAMMABLE and its

vapors are EXPLOSIVE. Do Not permit smoking,

open flames, sparks or heat in the vicinity while

handling gasoline. Avoid spilling gasoline on a hot

engine. Allow unit to cool for 2 minutes before

refueling. Comply with all laws regulating storage

and handling of gasoline.

Read this manuam carefuRy and become familiar

with your pressure washer. Know its appmications,

itsmimitations,and any hazards invomved.

*Read and observe the safety rules.

*Follow regular schedule in maintaining_ caring forand

using your high pressure washer.

*For off:season storage_ review "Preparing The Unit For

Storage" on page 16.

*Locate this pressure washer in areas away from

combustible materials, combustible fumes or dust.

. The high pressure equipment is designed to be used with

Generac authorized parts ONLY. If you use this

equipment with parts that do not comply with minimum

specifications, the user assumes all risks and liabilities.

. Do Not allow CHILDREN to operate the pressure

*Always be certain the spray gum nozzles and accessories

are correctly attached.

. Do Not wear loose clothing, iewdry or anything that

may be caught in the starter or other rotating parts.

Generac PortabHe Products 2_500 PSI High Pressure _A/asher

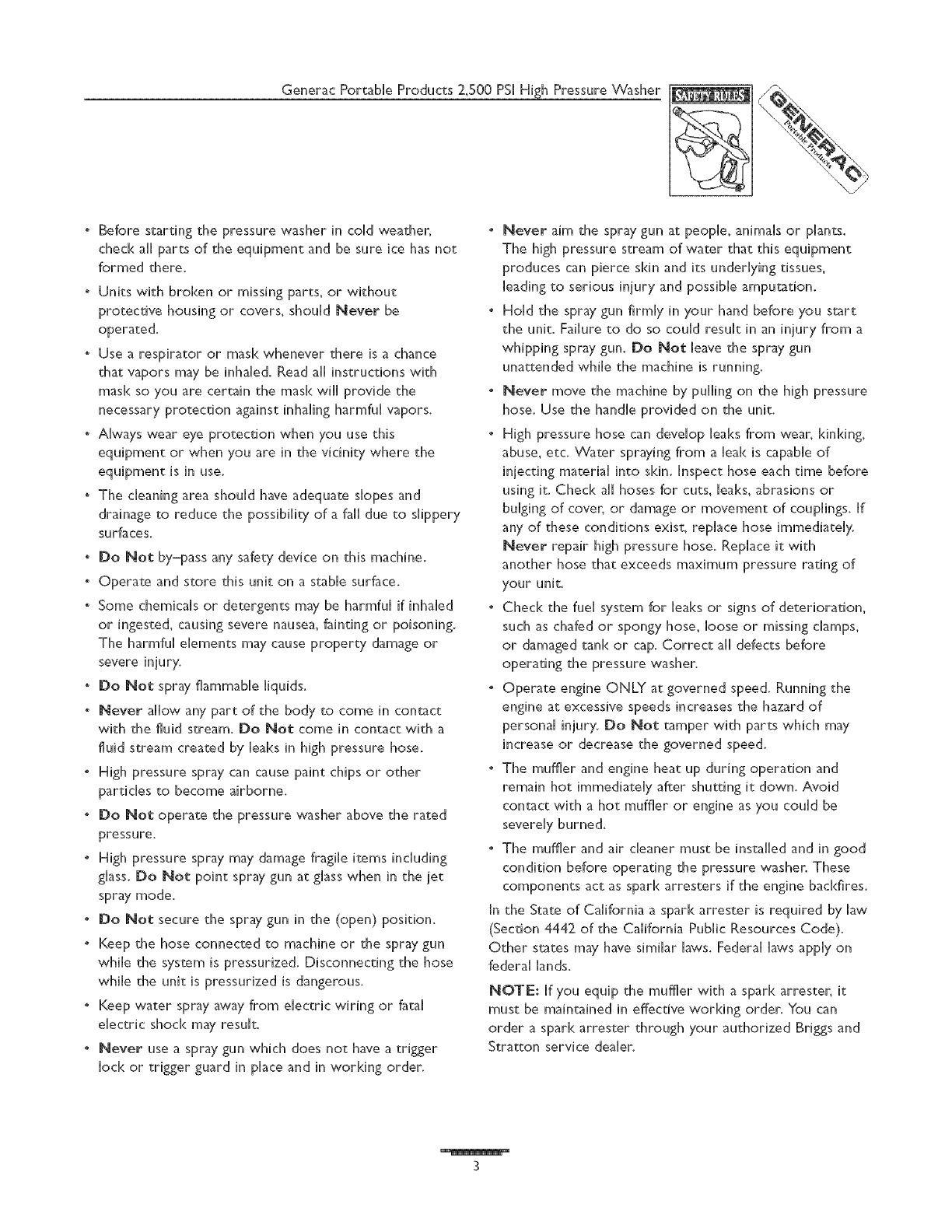

°Before starting the pressure washer in coHd weather,

check aHHparts of the equipment and be sure ice has not

formed there.

, Units with broken or missing parts, or without

protective housing or covers, shouHd Never be

operated.

,Use a respirator or masH<whenever there is a chance

that vapors may be inhaHed. Read aHHinstructions with

masH<so you are certain the masH<wiHHprovide the

necessary protection against inhaHing harmful vapors.

,AHways wear eye protection when you use this

equipment or when you are in the vicinity where the

equipment is in use.

,The cHeaning area shouHd have adequate sHopesand

drainage to reduce the possibility of a fall due to sHippery

surfaces.

,Do Not by-pass any safety device on this machine.

, Operate and store this unit on a stabile surface.

, Some chemicaHs or detergents may be harmfuH if inhaHed

or ingested_ causing severe nausea_ fainting or poisoning.

The harmful eHements may cause property damage or

severe iniury.

,Do Not spray flammabHe Hiquids.

,Never allow any part of the body to come in contact

with the fluid stream. Do Not come in contact with a

fluid stream created by Heaksin high pressure hose.

,High pressure spray can cause paint chips or other

particHes to become airborne.

,Do Not operate the pressure washer above the rated

pressure.

,High pressure spray may damage fragile items incHuding

gHass.Do Not point spray gun at gHasswhen in the iet

spray mode.

,Do Not secure the spray gun in the (open) position.

,Keep the hose connected to machine or the spray gun

whiHe the system is pressurized. Disconnecting the hose

whiHe the unit is pressurized is dangerous.

, Keep water spray away from eHectric wiring or fatal

eHectric shock may resuHc

, Never use a spray gun which does not have a trigger

Hod<or trigger guard in pHaceand in working order.

,Never aim the spray gun at peopHe, animaHs or pHants.

The high pressure stream of water that this equipment

produces can pierce skin and its underHying tissues_

Headingto serious iniury and possibHe amputation.

,HoHd the spray gun firmHy in your hand before you start

the unit. FaiHureto do so couHd resuHt in an iniury from a

whipping spray gun. Do Not Heavethe spray gun

unattended whiHe the machine is running.

,Never move the machine by puHHingon the high pressure

hose. Use the handHe provided on the unit.

,High pressure hose can deveHop Heaksfrom wear, kinking_

abuse, etc. VVater spraying from a Heakis capabHeof

iniecting material into skin. Inspect hose each time before

using it. Check aHHhoses for cuts, Heaks,abrasions or

buHgingof cover, or damage or movement of coupHings. If

any of these conditions exist_ repHace hose immediately.

Never repair high pressure hose. RepHace it with

another hose that exceeds maximum pressure rating of

your unit.

,Check the fueHsystem for Heaksor signs of deterioration_

such as chafed or spongy hose_ Hooseor missing cHamps_

or damaged tank or cap. Correct aHHdefects before

operating the pressure washer.

, Operate engine ONLY at governed speed. Running the

engine at excessive speeds increases the hazard of

personaH iniury. Do Not tamper with parts which may

increase or decrease the governed speed.

,The muffler and engine heat up during operation and

remain hot immediateHy after shutting it down. Avoid

contact with a hot muffler or engine as you couHd be

° The muffler and air cHeaner must be instaHHed and in good

condition before operating the pressure washer. These

components act as spark attesters if the engine backfires.

In the State of California a spark attester is required by Haw

(Section 4442 of the California PubHic Resources Code).

Other states may have simiHar Haws. FederaH Haws appHy on

federal Hands.

NOTE: If you equip the muffHer with a spark arresten it

must be maintained in effective working order. You can

order a spark attester through your authorized Briggs and

Stratton service dealer.

Generac Portable Products 2_500 PSI Hish Pressure VVasher

KNOW YOUR PRESSURE WASHER

Read this owner's manual and safety rules before operating your high pressure washers

Compare the iHHustrationswith your high pressure washer to familiarize yourseHf with the Hocations of various controHs and

adjustments. Save tNs manuaHfor future reference.

Hose Reel High Pressure Hose

Spray Gun

Gas Tank

Oil Fill/Dipstick

. Pressure Control Knob

RecoiH Starter

NozzHeExtension with

Quick Connect

Automatic Cool Down System -- CycHes water through

pump when water reaches 140 °=145°F. Warm water wiHH

discharge from pump onto ground. This system prevents

internaH pump damage.

Battery Charger Jack -- Hug battery charger into iack to

keep the battery charged and ready for use.

Detergent Pick=Up Tube and Filter -- Used to siphon

detergent from chemical bottle to Now pressure water stream.

Gas Tank -- Firthtank with reguHar unleaded gasoHine. AHways

Heave room for fuel expansion.

Nigh Pressure Nose -- Connect one end to the water

pump and the other end to the spray gun.

Nose Reel -- Used for storing hose whiHe unit is not in use.

Hose must be detached from unit and spray gun before

storage.

Nozzle Extension with Quick Connect -- AHHows you to

switch between four different spray nozzHes.

_A/ater [nHet

Pump equipped with

Automatic CooH Down System

Battery Charger Jack

Push=Button Start Switch

Oil Fill/Dipstick -- Used to check and firthwith oiH here.

Pressure Control Knob -- Varies the pressure of the high

pressure spray.

Pump -- Develops high pressure.

Push=Button Start Switch -- Push button for easy engine

starting.

Recoil Starter -- Use for starting the engine manually.

Safety Goggles -- AHways use the encHosed go_Hes or other

eye protection when running your pressure washer.

Spray Gun -- ControHs the appHication of water onto

cHeaning surface with trigger device. IncHudes safety Hatch.

Spray Nozzles -- ChemicaH injection, 0 °, I5°,and 40°: for

various cHeaning appHications.

Water Inlet -- Connect garden hose here.

Generac PortabHe Products 2_500 PSI _ Pressure VVasher

Read entire owner's manuaH before you attempt to

assembHe or operate your new pressure washer.

REMOVE PRESSORE

WASHER FROM

o Remove the handHe, hose reeH box and parts box

incHuded with pressure washer.

, SHicetwo corners at the end of carton from top to

bottom so the paneH can be folded down flat, then

remove aHHpacking material

, RoHHpressure washer out of carton.

Carton Contents

[terns in the carton include:

Main Unit

Handle

Hose Red box containing:

Hose Red

Parts bag containing champs, hose chip, handHe,

hose red mounting hardware

PREPARING PRESSURE

WASHER FOR USE

If you have any probHems with the assembHyof your

pressure washer or if parts are missing or damaged, caHHthe

pressure washer heHpHineat [ -see-27e- [ 4e8o

To prepare your pressure washer for operation, you

writ need to perform these tasks:

CarefuHHyattach the handHeto the unit.

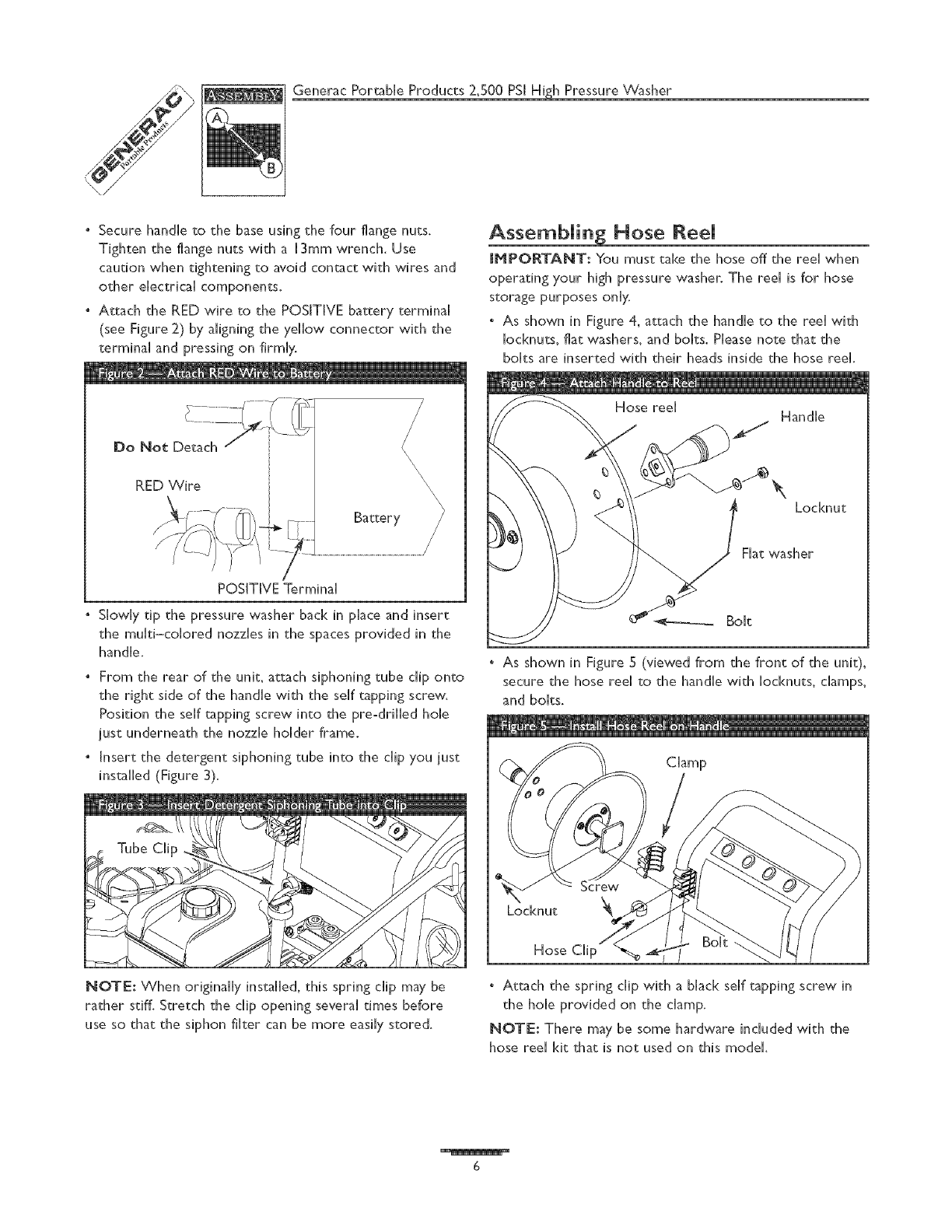

Attach RED battery wire to battery.

AssembHe hose reeHto handHe.

Attach detergent hose chip to handHe.

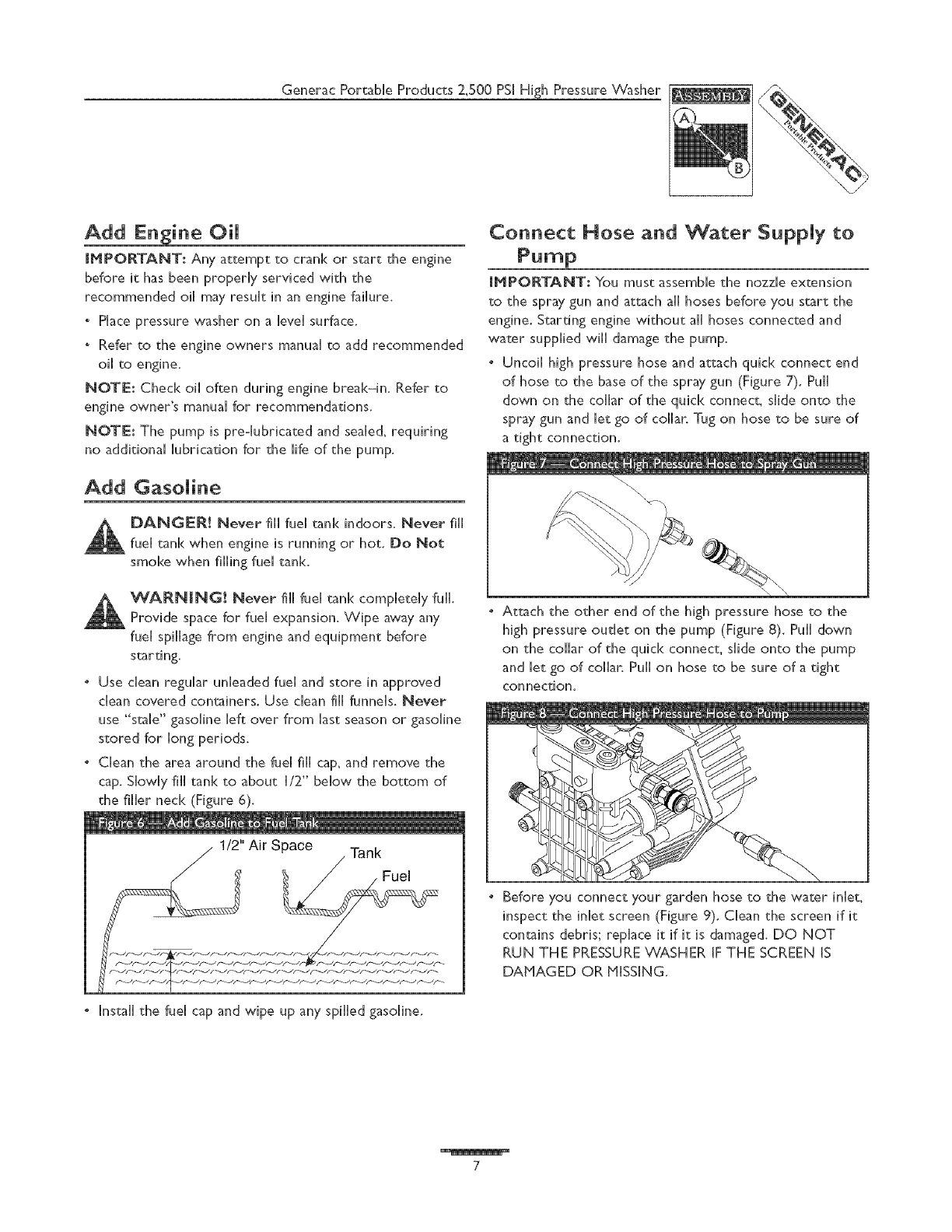

Add oiHto the engine crankcase.

Add fuelto the fuel tank.

Connect the high pressure hose to the spray gun and the

pump.

" Connect the water suppHy to the pump.

Attach Handle to Pressure Washer

CarefuHHyattach handHe to unit as follows:

°SHowilytip the pressure washer forward and Herit gentHy

rest on its front bumper, as shown in Figure H.

Bag with 4 muHti-coHored nozzHes

Safety goggles

High pressure hose

Nozzle cleaning [<it

NozzHe extension with Quick-Connect fitting

Engine oil

O-Ring maintenance [<it

Owner's manual

Engine manual

HandHe hardware and detergent hose chip

Spray gun

Battery charger

If any of the above parts are missing or damaged, ca[[ the

pressure washer heHpHineat 1-800-270-1408_

o Slowly insert the handHethrough the holies in the base,

being carefuHto avoid touching the wires and other

electrical components.

oAHign the holies on the handHewith the holies on the base.

°Insert the carriage boHts to hoHd the handHe in pHace.

GeneracPortableProducts2_500PSIHighPressureVVasher

° Secure hande to the base using the four flange nuts.

Tighten the flange nuts with a H3mm wrench. Use

caution when tightening to avoid contact with wires and

other eHectricaHcomponents.

° Attach the RED wire to the POSITIVE battery terminaH

(see Figure 2) by aHigning the yellow connector with the

terminal and pressing on firmly.

oo.o ooZ

RED Wire \, \

POSITIVE Terminal

Slowly tip the pressure washer back in place and insert

the multi-colored nozzles in the spaces provided in the

handle.

°From the rear of the unit, attach siphoning tube clip onto

the right side of the handle with the self tapping screw.

Position the self tapping screw into the pre°drilled hole

just underneath the nozzle holder frame.

. Insert the detergent siphoning tube into the clip you just

installed (Figure 3).

NOTE: When originally installed, this spring clip may be

rather stiff. Stretch the clip opening several times before

use so that the siphon filter can be more easily stored.

Hose Reel

[NPORTANT: You must take the hose off the reel when

operating your high pressure washer. The reel is for hose

storage purposes only.

. As shown in Figure 4, attach the handle to the reel with

[ocknuts, fiat washers, and boks. Please note that the

bolts are inserted with their heads inside the hose reel.

Handle

*As shown in Figure 5 (viewed from the front of the unit),

secure the hose reel to the handle with Iocknuts_ damps_

and bolts.

Locknut

Hose Cli

°Attach the spring clip with a black self tapping screw in

the hole provided on the clamp.

NOTE: There may be some hardware included with the

hose reel kit that is not used on this model.

Generac PortabHe Products 2_500 PSI _ Pressure _A/asher

Add Engine Oil

mMPORTANT: Any attempt to crank or start the engine

before ithas been properHy serviced with the

recommended oH may resuHt in an engine failure.

*PHacepressure washer on a HeveHsurface.

"Refer to the engine owners manual to add recommended

oH to engine.

NOTE: Check oH often during engine break-in. Refer to

engine owner's manuaHfor recommendations.

NOTE: The pump is preoHubricated and seaHe& requiring

no additionaH Hubrication for the life of the pump.

Add Gasoline

DANGER! Never firthfueHtank indoors. Never firth

fueHtank when engine is running or hot. Do Not

smoke when fiHHingfueHtank.

WARNING! Never firthfuel tank compHeteHy full

Provide space for fuel expansion. Wipe away any

fueHspillage from engine and equipment before

starting.

. Use dean reguHar unHeaded fueHand store in approved

dean covered containers. Use dean firthfunneHs. Never

use "stale" gasoHine Heftover from Hast season or gasoHine

stored for Hong periods.

° CHean the area around the fuel firthcap, and remove the

cap. SHowilyfirthtank to about H/2" bellow the bottom of

the fiHHerneck (Figure 6).

j 1/2" Air Space /Tank

1 7gT TC T 7

"[nstaHHthe fuel cap and wipe up any spiHHedgasoHine.

Connect Hose and Water Supply to

mMPORTANT: You must assemble the nozzle extension

to the spray gun and attach aHHhoses before you start the

engine. Starting engine without aHHhoses connected and

water suppHied wiHHdamage the pump.

.UncoiH high pressure hose and attach quick connect end

of hose to the base of the spray gun (Figure 7). PuHH

down on the coHHarof the quick connect, sHideonto the

spray gun and Hetgo of collar. Tug on hose to be sure of

a tight connection.

.Attach the other end of the high pressure hose to the

high pressure outlet on the pump (Figure 8). PuHHdown

on the coHHarof the quick connecL sHide onto the pump

and Het go of collar. PuHHon hose to be sure of a tight

connection.

.Before you connect your garden hose to the water inHeL

inspect the inHet screen (Figure 9). CHean the screen if it

contains debris; repHace it if it is damaged. DO NOT

RUN THE PRESSURE _A/ASHER IF THE SCREEN IS

DAMAGED OR MISSING.

GeneracPortableProducts2_500PSIHighPressureVVasher

o Runwaterthroughyour garden hose for 30 seconds to

clean out any debris. Turn off water.

° Connect the garden hose to the water inlet. Tighten by

hand (Figure 9).

WARN|NG! There HUST be at least ten feet of

unrestricted garden hose between the pressure

washer inlet and any flow shut off device, such as a

'Y' shut-off connector or other convenience-type

water shut-off valve. Damage to pressure washer

resulting from disregarding this warning will not be

covered by the warranty.

o Turn ON the water and squeeze the trigger on the spray

gun to purge the pump system of air and impurities.

° Attach the nozzle extension to the spray gun. Tighten by

hand (Figure 10).

CHECKLIST BEFORE

STARTING ENGINE

Review the unit's assembly to confirm you have performed

all of the following:

° Hake sure the handle is in place and secure.

° Hake sure the RED battery wire is connected.

° Check that all hose reel fasteners are tight.

° Check for properly tightened hose connections.

° Check to make sure that there are no kinks, cuts, or

damage to the high pressure hose.

° Check that oil has been added to the proper level in the

engine crankcase.

° Add the proper gasoline to fuel tank.

. Provide a proper water supply (not to exceed 140°F) at

an adequate flow.

° Be sure to read "Safety Rules" and "Preparing Pressure

VVasher For Use" before using the pressure washer.

Generac PortabHe Products 2_500 PSI _ Pressure VVasher

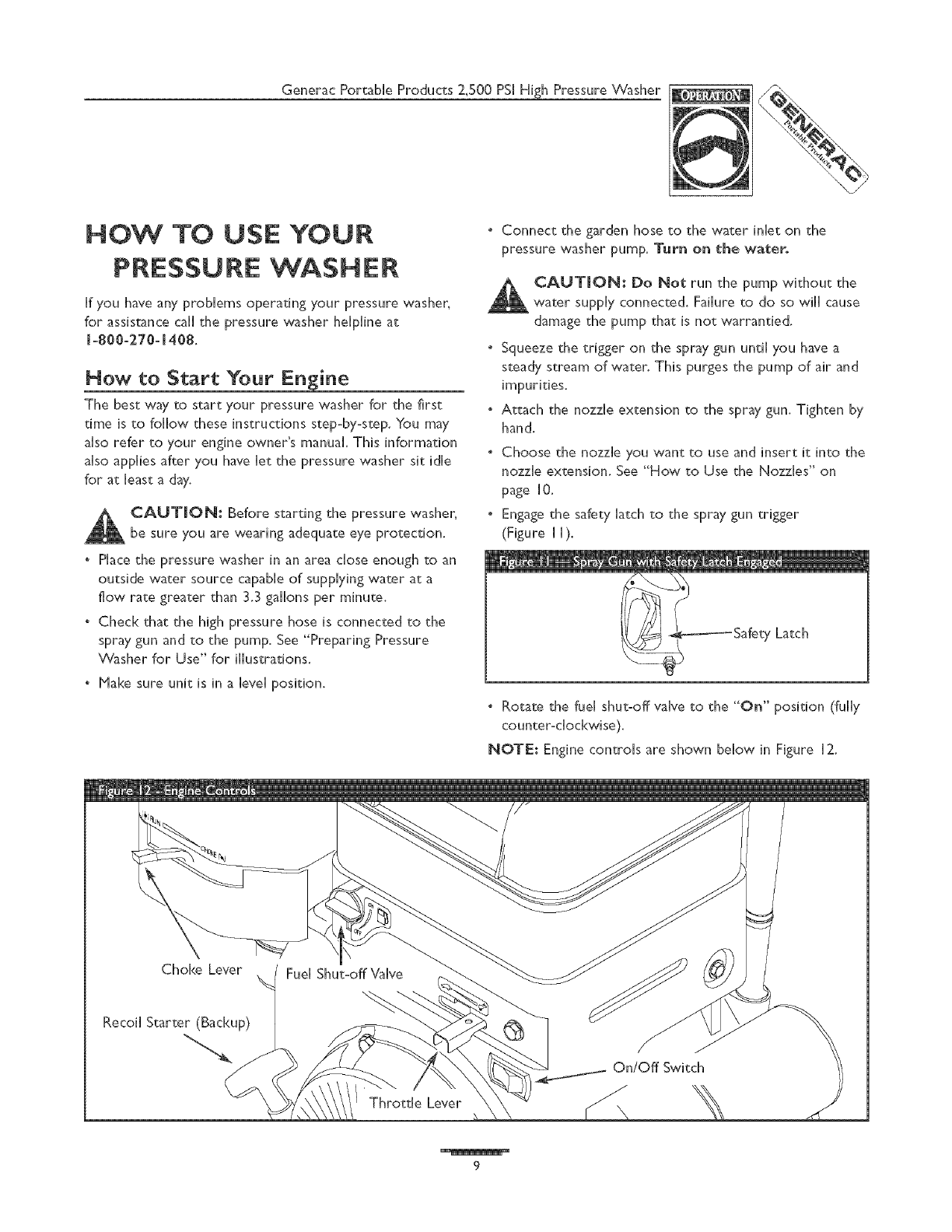

HOW TO USE YOUR

PRESSURE WASHER

If you have any probHems operating your pressure washen

for assistance caHHthe pressure washer heHpHineat

I=S00=270=1408.

How to Start Your Engine

The best way to start your pressure washer for the first

time [s to follow these instructions step-by:step. You may

aHsoreferto your engine owner's manual TNs information

aHsoappHiesafter you have Herthe pressure washer sit idHe

for at Heast a day.

CAUTION: Before starting the pressure washer,

be sure you are wearing adequate eye protection.

,PHacethe pressure washer in an area chose enough to an

outside water source capabHeof suppHying water at a

flow rate greater than 3.3 gaHHonsper minute.

,Check that the high pressure hose is connected to the

spray gun and to the pump, See "Preparing Pressure

Washer for Use" for iHHustrations,

,Make sure unit is in a HeveHposition.

*Connect the garden hose to the water inHet on the

pressure washer pump. Turn on the water.

CAUTION: Do Not run the pump without the

water suppHy connected, FaiHureto do so wiHHcause

damage the pump that is not warrantied.

Squeeze the trigger on the spray gun untiH you have a

steady stream of water. This purges the pump of air and

*Attach the nozzle extension to the spray gun. Tighten by

hand.

"Choose the nozzle you want to use and insert it into the

nozzle extension. See "How to Use the Nozzles" on

page IO,

*Engage the safety latch to the spray gun trigger

(Figure HH).

SafeV Latch

°Rotate the fuel shut-off vaHveto the "On" position (fully

counter:cHockwise).

NOTE; Engine controHs are shown below in Figure H2.

Generac Por_bie Products 2_500 PSI High Pressure VVasher

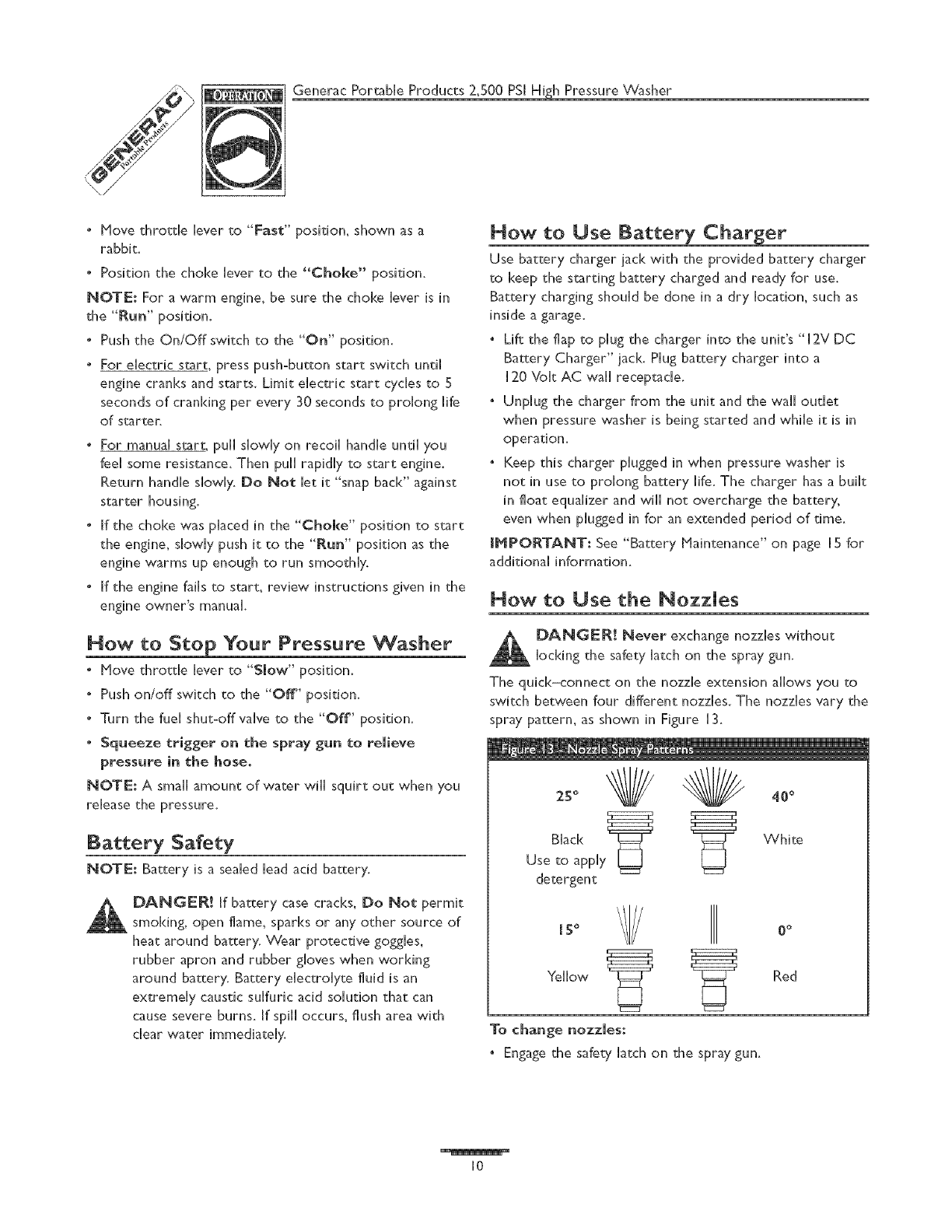

° Hove throtde iever to "Fast" position_ shown as a

rabbit.

° Position the choke iever to the "Choke" position.

NOTE: For a warm engine_ be sure the choke iever is in

the "Run" position.

° Push the On/Off switch to the "On" position.

. For electric start press push-button start switch until

engine cranks and starts. Limit electric start cycles to 5

seconds of cranking per every 30 seconds to prolong life

of s_rter,

° For manual smr_, pull slowly on recoil handle until you

feel some resistance. Then pull rapidly to start engine.

Return handle slowly. Do Not let it "snap back" against

starter housing.

° If the choke was placed in the "Choke" position to start

the engine_ slowly push it to the "Run" position as the

engine warms up enough to run smoothly.

° If the engine fails to start_ review instructions given in the

engine owner's manual.

How to Stop Your Pressure Washer

* Hove throttle lever to "Slow" position.

° Push on/off switch to the "Off" position.

° Turn the fuel shutooffvabe to the "Off' position.

° Squeeze trigger on the spray gun to remieve

pressure in the hose°

NOTE: A small amount of water will squirt out when you

release the pressure.

Battery Safety

NOTE: Battery is a sealed lead acid battery.

DANGER! if battery case cracks, Do Not permit

smoking, open fiame_ sparks or any other source of

heat around battery. VVear protective goggles,

rubber apron and rubber gloves when working

around battery. Battery electrolyte fluid is an

extremely caustic sulfuric acid solution that can

cause severe burns. If spill occurs_ flush area with

clear water immediately.

How to Use Battery Char er

Use battery charger jack with the provided battery charger

to keep the starting battery charged and ready for use.

Battery charging should be done in a dry Iocation_ such as

inside a garage.

°Lift the flap to plug the charger into the unit's "12V DC

Battery Charger" jack. Plug battery charger into a

120 Volt AC wall receptacle.

° Unplug the charger from the unit and the wall outlet

when pressure washer is being started and while it is in

operation.

"Keep this charger phgged in when pressure washer is

not in use to prolong battery life. The charger has a built

in float equalizer and wiil not overcharge the battery,

even when phgged in for an extended period of time.

[NPORTANT: See "Battery Haintenance" on page 15 for

additional information.

How to Use the Nozzles

DANCER! Never exchange nozzles without

locking the safety latch on the spray gun.

The quick-connect on the nozzle extension allows you to

switch between four different nozzles. The nozzles vary the

spray pattern_ as shown in Figure 13.

:- k® - • , % - m _I

25 °

Black

Use to apply

detergent

[5 °

40°

White

0 °

Yellow Red

To change nozzmes:

"Engage the safety latch on the spray gun.

GeneracPortabHeProducts2500PSI_ Pressure _A/asher

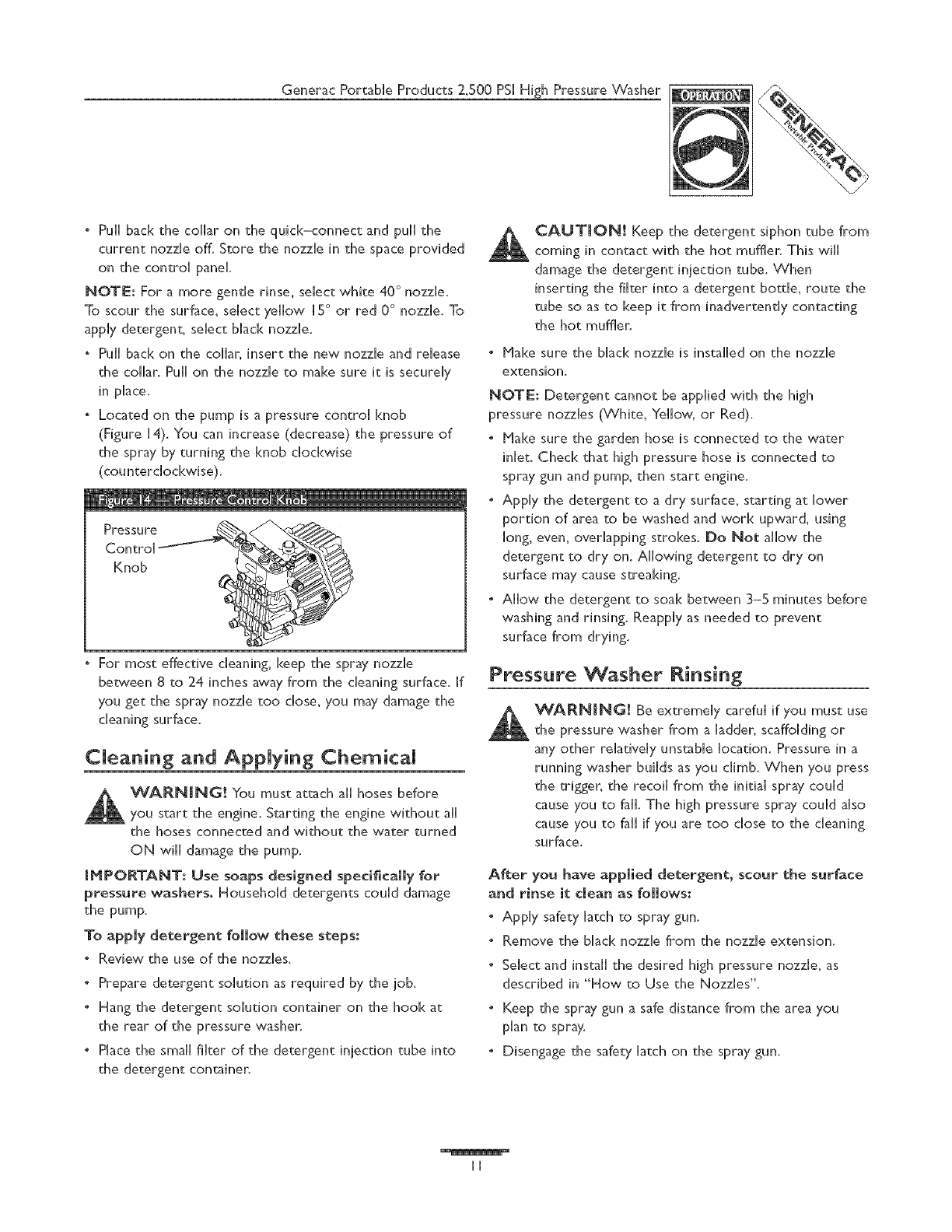

oPuHHbacH<the coHHaron the quick-connect and puHHthe

current nozzHe off. Store the nozzHe in the space provided

on the controH panel

NOTE: For a more gentle rinse_ seHectwhite 40 ° nozzle.

To scour the surface, seHect yellow H5° or red 0° nozzHe. To

appHydetergent, seHect bHacknozzHe.

oPuHHbacH<on the collar, insert the new nozzHe and reHease

the coHhr. PuHHon the nozzHe to make sure it is secureHy

in pHace.

oLocated on the pump is a pressure controH knob

(Figure Hd). You can increase (decrease) the pressure of

the spray by turning the knob clockwise

(counterclockwise).

Pressure

ControH _

For most effective cHeaning_ keep the spray nozzHe

between 8 to 24 inches away from the cHeaning surface. If

you get the spray nozzHe too cHose_ you may damage the

cHeaningsurface.

Cleaningand ApplyingChemical

WARNmNG! You must attach aHHhoses before

you start the engine. Starting the engine without aHH

the hoses connected and without the water turned

ON wiHHdamage the pump,

mNPORTANT: Use soapsdesignedspeci_cammyfor

pressure washers° HousehoHd detergentscouHddamage

the pump.

To appmy detergent fommow these steps:

o Review the use of the nozzHes.

o Prepare detergent soHution as required by the job.

o Hang the detergent soHution container on the hook at

the rear of the pressure washer.

o PHace the smaHHfiHter of the detergent injection tube into

the detergent container.

CAUTION! Keep the detergent siphon tube from

coming in contact with the hot muffler. This wiHH

damage the detergent injection tube. When

inserting the filter into a detergent bottHe, route the

tube so as to keep it from inadvertently contacting

the hot muffler.

o Make sure the bHack nozzHe is instaHHed on the nozzHe

extension.

NOTE: Detergent cannot be appHied with the high

pressure nozzHes (White, Yellow, or Red).

o Make sure the garden hose is connected to the water

inHet. Check that high pressure hose is connected to

spray gun and pump, then start engine.

o AppHy the detergent to a dry surface, starting at Hower

portion of area to be washed and work upward, using

Hong, even, overlapping strokes. Do Not aHHowthe

detergent to dry on. AHHowing detergent to dry on

surface may cause streaking.

o AHHowthe detergent to soak between 3-5 minutes before

washing and rinsing. ReappHy as needed to prevent

surface from drying.

Pressure Washer Rinsing

WARNING! Be extremeHy carefuHif you must use

the pressure washer from a Hadder, scaffoHding or

any other reHativeHyunstable Hocation. Pressure in a

running washer buiHdsas you cHimb. When you press

the trigger, the recoiH from the initiaH spray couHd

cause you to fall The high pressure spray couHd aHso

cause you to fall if you are too chose to the cHeaning

surface.

After you have appmied detergent, scour the surface

and rinse it cmean as fommows:

o AppHy safety Hatch to spray gun.

o Remove the bHacknozzHe from the nozzHe extension.

o SeHectand instaHHthe desired high pressure nozzHe, as

described in "How to Use the NozzHes'.

o Keep the spray gun a safe distance from the area you

pHan to spray.

o Disengage the safety Hatch on the spray gun.

Generac Por_bHe Products 2_500 PSI High Pressure V_/asher

o AppHy a high pressure spray to an smaHHarea and then

check the surface for damage. If no damage is found_ you

can assume it is okay to continue cHeaning.

oStart at the top of the area to be rinsed_ working down

with same overHapping strokes used for cHeaning.

o The use of a brush may be heHpfuHon some hard to dean

surfaces.

Automatic Coo[ Down System

(Thermal Relief)

if you run the engine on your pressure washer for

3-5 minutes without pressing the trigger on the spray gum

circuHating water in the pump can reach a temperature

between H40-H45°E When the water reaches this

temperature, the automatic cool down system

engages and cools the pump by discharging the

warm water onto the ground. This system prevents

internal damage to the pump. Once the pump has

cooHed_it wHHstop discharging.

NOTE: This discharge is not a Heak.Do Not return the

pressure washer for this reason.

How to Use the Hose Reel

Your pressure washer is equipped with a hose reel that is

designed to store your hose when the unit is not in use.

After each use:

o Disconnect hose from spray gun and high pressure outlier

on pump.

o Drain water from hose.

Nigh Pressure Nose Storage

The factory=recommended way to store the high pressure

hose is to roHHit onto the red in a counterodockwise

manner, as foHHows:

o Insert the marie end of the hose through the hoHe in the

hose red hub_ as shown in Figure H5.

Spring

Tension

Knob

o WhiHe guiding the hose with your left hand_ grasp the

hose red handHeand turn the reeH counterocHockwise.

AppHy sufficient tension on the hose to force it to coiH

tightHy against the hose red hub.

o When the entire hose has been reeHed_the Hoose hose

end is chipped into the hose cHip_as shown in Figure H6.

GeneracPortableProductsZ500PSIHi_ Pressure _A/asher

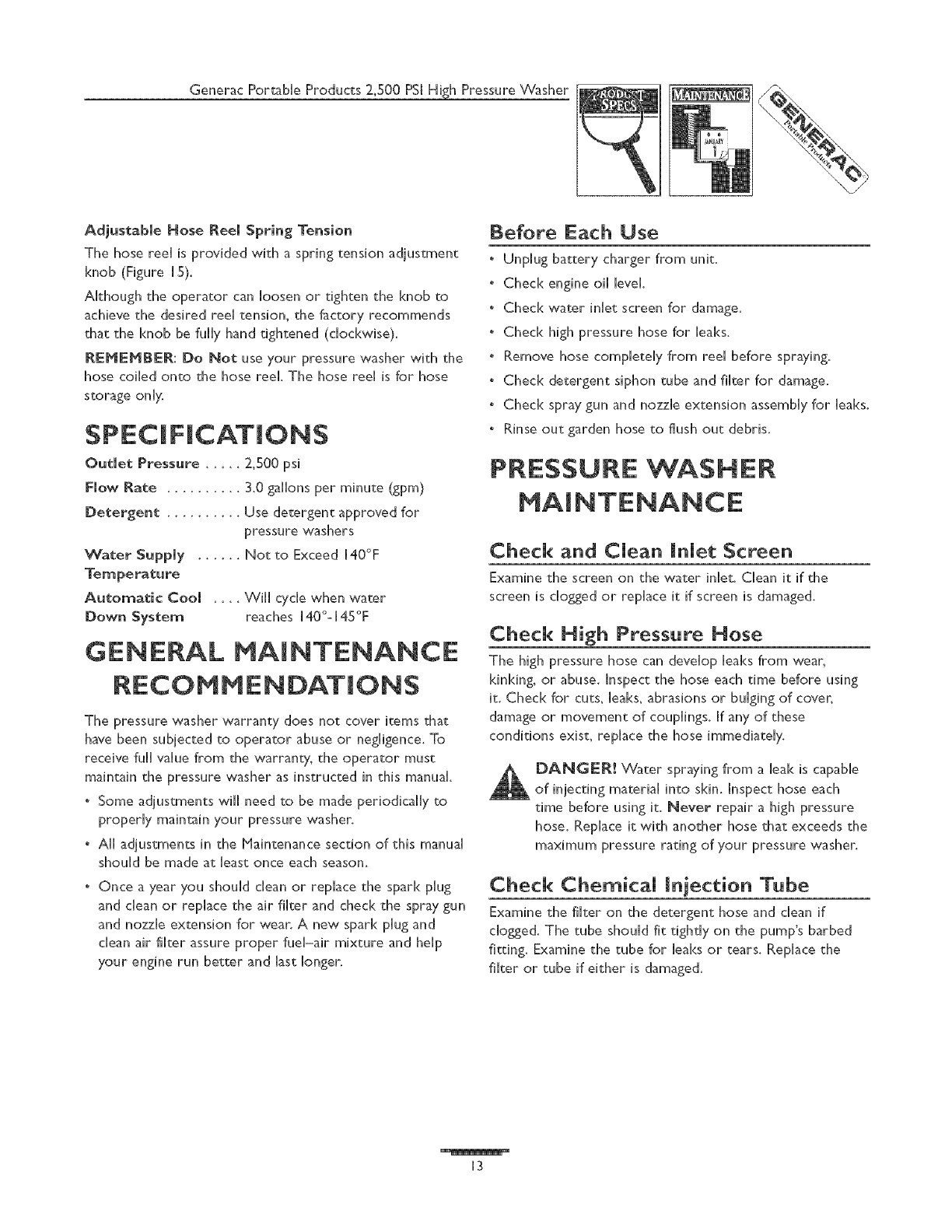

Adiustabme Hose Ree[ Spring Tension

The hose reel is provided with a spring tension adjustment

knob (Figure 15),

Akhough the operator can loosen or tighten the knob to

achieve the desired reel tension, the factory recommends

that the knob be fully hand tightened (clockwise).

RENENBER: Do Not use your pressure washer with the

hose coiled onto the hose reel. The hose reel is for hose

storage only.

SPECIFICATIONS

Oudet Pressure ..... 2,500 psi

Row Rate .......... 3.0 gallons per minute (gpm)

Detergent .......... Use detergent approved for

pressure washers

Water Supply ...... Not to Exceed 140°F

Automatic Cool .... Will cycle when water

Down System reaches [40°, [45°F

GENERAL MAINTENANCE

RECOMMENDATIONS

The pressure washer warranty does not cover items that

have been subjected to operator abuse or negligence. To

receive full value from the warranty, the operator must

maintain the pressure washer as instructed in this manual.

oSome adjustments will need to be made periodically to

properly maintain your pressure washer.

o All adjustments in the Maintenance section of this manual

should be made at least once each season.

oOnce a year you should clean or replace the spark plug

and clean or replace the air filter and check the spray gun

and nozzle extension for wear. A new spark plug and

clean air filter assure proper fuel-air mixture and help

your engine run better and last longer.

Before Each Use

Unplug battery charger from unit.

Check engine oil level,

Check water inlet screen for damage,

Check high pressure hose for leaks.

Remove hose completely from reel before spraying.

Check detergent siphon tube and filter for damage,

Check spray gun and nozzle extension assembly for leaks.

Rinse out garden hose to flush out debris.

PRESSURE WASHER

Check and Clean Inlet Screen

Examine the screen on the water inlet. Clean it if the

screen is dogged or replace it if screen is damaged.

Check High Pressure Hose

The high pressure hose can develop leaks from wear,

kinking_ or abuse. Inspect the hose each time before using

it. Check for cuts_ [eaks_ abrasions or bulging of cover,

damage or movement of couplings, ff any of these

conditions exist_ replace the hose immediately.

DANGER! Water spraying from a leak is capable

of injecting material into s[dn. Inspect hose each

time before using it. Never repair a high pressure

hose. Replace it with another hose that exceeds the

maximum pressure rating of your pressure washer.

Check Chemical InjectionTube

Examine the filter on the detergent hose and clean if

clogged, The tube should fit tightly on the pump's barbed

fitting, Examine the tube for leaks or tears. Replace the

filter or tube if either is damaged.

GeneracPortableProducts2_500PSIHighPressureVVasher

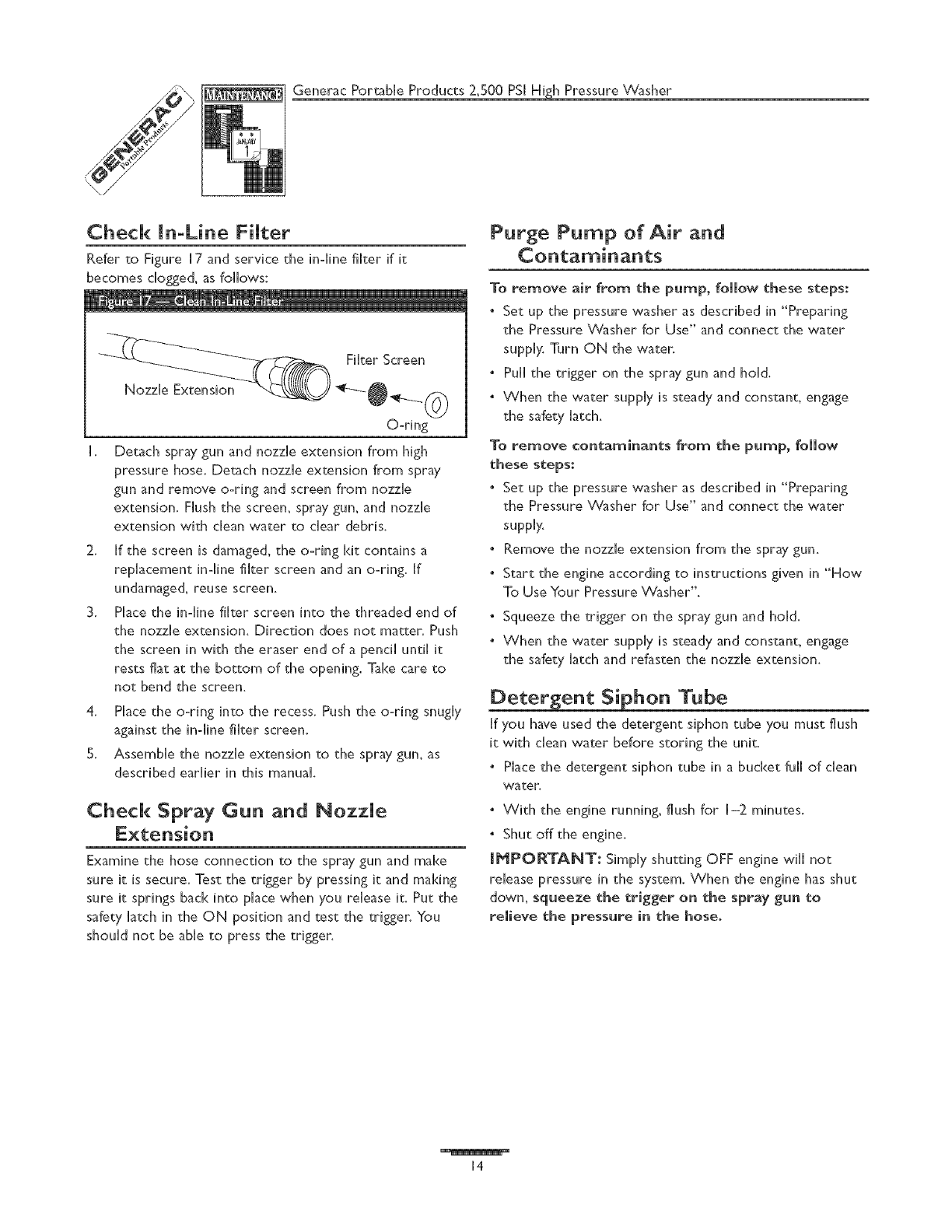

Check In-Line Filter

Refer to Figure H7 and service the in4ine fiker if it

becomes dogged_ as follows:

Fiker Screen

NozzHe Extension _ ____ (_

O-ring

[. Detach spray gun and nozzHeextension from high

pressure hose. Detach nozzHe extension from spray

gun and remove o°ring and screen from nozzHe

extension. Rush the screen, spray gun, and nozzHe

extension with dean water to dear debris.

2. If the screen is damaged_ the o-ring kit contains a

replacement in-line filter screen and an o°ring. [f

undamaged, reuse screen.

3. Place the in-line filter screen into the threaded end of

the nozzle extension. Direction does not matter. Push

the screen in with the eraser end of a pencil until it

rests flat at the bottom of the opening. Take care to

not bend the screen.

4. Place the o-ring into the recess. Push the o-ring snugly

against the in:line filter screen.

5. Assemble the nozzle extension to the spray gun, as

described earlier in this manual.

Check Spray Gun and Nozzle

Examine the hose connection to the spray gun and make

sure it is secure. Test the trigger by pressing it and making

sure it springs back into place when you release it. Put the

safety latch in the ON position and test the trigger. You

should not be able to press the trigger.

Purge Pump of Air and

To remove air from the pump, follow these steps:

* Set up the pressure washer as described in "Preparing

the Pressure 'Washer for Use" and connect the water

supply. Turn ON the water.

* Pull the trigger on the spray gun and hold.

*When the water supply is steady and constant, engage

the safety latch.

To remove contaminants from the pump, follow

these steps:

*Set up the pressure washer as described [n "Preparing

the Pressure _A/asher for Use" and connect the water

supply.

*Remove the nozzle extension from the spray gun.

. Start the engine according to instructions given in "How

To Use Your Pressure VVasher'.

" Squeeze the trigger on the spray gun and hold.

, When the water supply is steady and constant, engage

the safety latch and refasten the nozzle extension.

Detergent Siphon Tube

[f you have used the detergent siphon tube you must flush

it with dean water before storing the unit.

, Place the detergent siphon tube in a bucket full of clean

water.

" With the engine running, flush for 1-2 minutes.

* Shut off the engine.

|MPORTANT: Simply shutting OFF engine will not

release pressure in the system. When the engine has shut

dowm squeeze the trigger on the spray gun to

relieve the pressure in the hose.

Generac Portabie Products 2_500 PSI _ Pressure _A/asher

Nozzle Maintenance

If the nozzles becomes restricted or dogged with foreign

materiab, such as dirt, excessive pump pressure may

develop. If the nozzles become partially dogged, it can

cause a pulsing sensation during use. This generally is not a

pump related problem, but rather a clogged or partially

restricted nozzie.

if the nozzies become dogged or parqaHy restricted,

immediately dean the nozzles with the [<it included with

your pressure washer by following these instructions:

,Shut off the engine and turn off the water supply.

*Remove the nozzle from the end of the nozzle extension.

*Use the wire included in the kit or a small paper clip to

free the foreign materials clogging or restricting the

nozzle (Figure 18).

Use wire here __:"_1_J

tO remove _if._.. _

" Remove additional debris by rinsing out the nozzle for 30

to 60 seconds.

*Reinstall the nozzle into the nozzle extension.

,Reconnect the water supply, turn on the water, and start

the engine.

,Test the pressure washer.

O-Ring Maintenance

Through the normal operation of your pressure washer,

o-rings, which keep the connections of the hoses and spray

gun tight and leak-free_ may become worn or damaged.

Provided with your pressure washer is an O-Ring

Maintenance Kit which includes replacement o-rings_ a

rubber washer and a water inlet filter. Refer to the

instruction sheet provided in the kit to service your unit's

o-rings. Note that not aii of the parts in the kit wiii be used

on your unit.

To remove a worn or damaged o-ring:

*Use a small flathead screwdriver to get underneath the

o-ring and pry it off.

Battery Maintenance

This unit is supplied with battery and charger jack

connections covered with insulating compound to avoid

corrosion and prolong battery life.

Some dielectric compound may squirt out when plugging

the charger into the jack for the first time. Add more

compound (Generac part number 185928 or GC

Electronics number 10-SI01 or equivalent) only if the

connections are no longer coated with dielectric

compound.

NOTE: Do Not use petroleum jelly in the absence of

Other than trickle charging, described eisewhere_ no

maintenance is required for the battery. If you have a need

to contact the battery manufacturer, cail 888-841-5179.

iMPORTANT: Battery charging should be performed in a

dry Iocation_ such as inside a garage.

GeneracPortabHeProducts2_500PSIHighPressureVVasher

ENGINE HAINTENANCE

See the engine owner's manuaHfor instructions on how to

propeMy maintain the engine.

PREPARING THE UNIT

FOR STORAGE

Water should not remain in the unit for tong periods of

time. Sediments or mineraHs can deposit on pump parts and

"freeze" pump action, ff you do not phn to use the

pressure washer for more than 30 days_follow this

procedure:

I. Flush detergent siphoning tube by placing the filter into

a pail of clean water while running pressure washer in

low pressure mode. Flush for one to two minutes.

2. Shut off the engine and let it cool then remove all

hoses. Disconnect spaM<plug wire from spaM<plug.

3. Empty the pump of all pumped liquids by pulling the

recoil handle about 6 times. This should remove most

of the liquid in the pump.

NOTE: To protect the unit from freezing temperatures,

draw RV antifreeze (nonoa[coho[) into the pump by pouring

the solution into a 3ofoot section of garden hose connected

to inter adapter and putting recoil handle twice.

4. Store unit in a deam dry area.

Hose Storage:

°Disconnect hose from spray gun and high pressure outlet

on pump. Drain water from hose and wipe off the hose

with a rag.

°Storethe hose on the hose reel as described in"How To

Use the Hose Reel".

Battery Storage:

Store your unit with the DC battery charger plugged in to

keep your battery charged and ready for use.

If you store your pressure washer below freezing

temperatures and the charger cannot be plugged in_ charge

the battery for 24 hours prior to storage. Be sure to

recharge the battery once each month to maintain a fully

charged battery.

STORING THE ENGINE

See the engine owner's manual for instructionson how to

proper[}, prepare the engine for storage.

GeneracPortabHeProducts2_500PSI_ Pressure VVasher

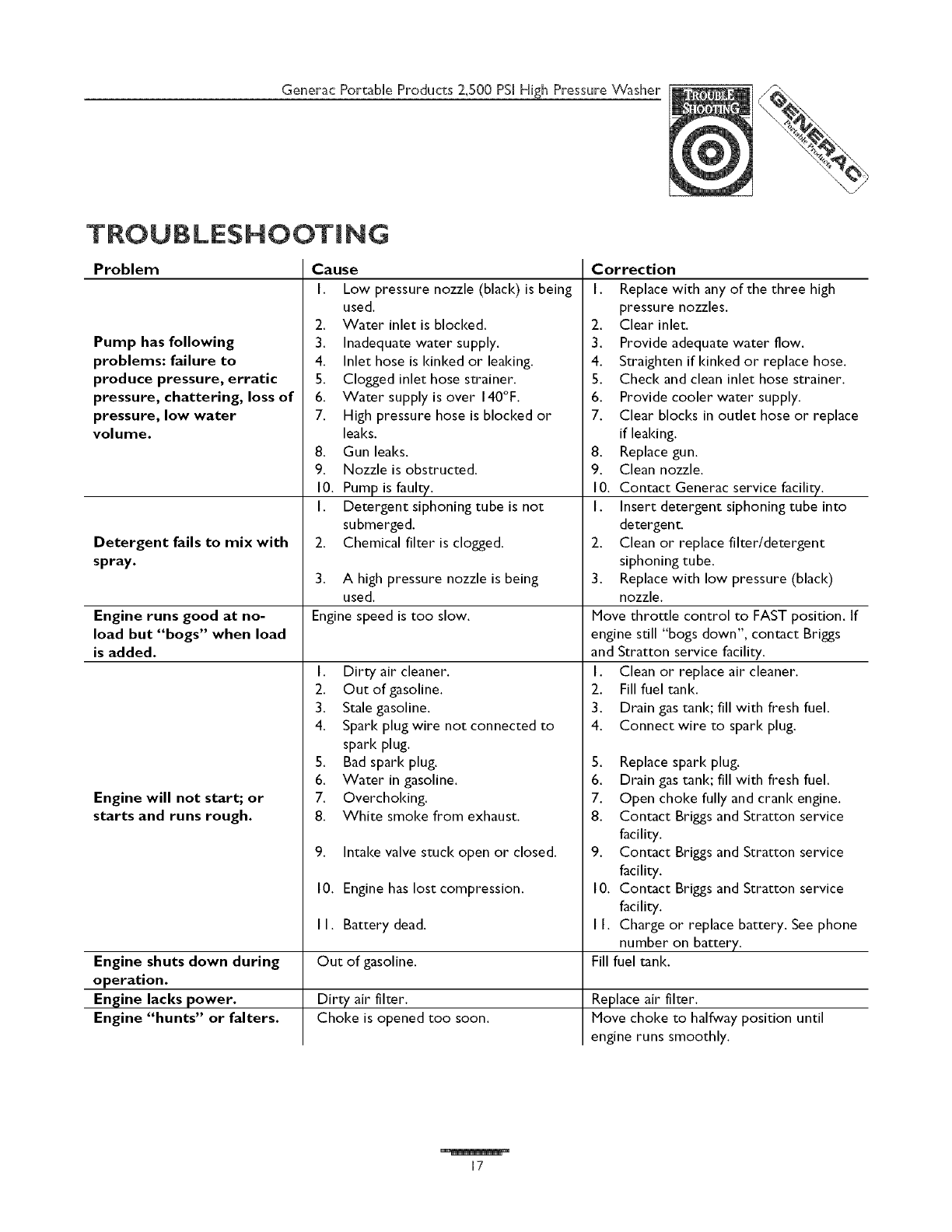

TROUBLESHOOTING

Problem

Pump has following

problems: failure to

produce pressure, erratic

pressure, chattering, loss of

pressure, low water

volume.

Detergent fails to mix with

spray.

Cause

I. Low pressure nozzle (black) is being

used.

2. Water inlet is blocked.

3. Inadequate water supply.

4. Inlet hose is Idnked or lealdng.

5. Clogged inlet hose strainer.

6. Water supply is over 140°F.

7. High pressure hose is blocked or

leaks.

8. Gun leaks.

9. Nozzle is obstructed.

10. Pump is fault7.

I. Detergent siphoning tube is not

submerged.

2. Chemical filter is clogged.

3. A high pressure nozzle is being

used.

Engine runs good at no- Engine speed is too slow.

load but "bogs" when load

is added, and

I. Dirty air cleaner. I.

2. Out of gasoline. 2.

3. Stale gasoline. 3.

4. Spark plug wire not connected to 4.

spark plug.

5. Bad spark plug. 5.

6. Water in gasoline. 6.

7. Overchoking. 7.

8. White smoke from exhaust. 8.

9. Intake valve stuck open or closed. 9.

10. Engine has lost compression.

II. Battery dead.

Out of gasoline.

Dirt 7 air filter.

Choke is opened too soon,

Engine will not start; or

starts and runs rough.

Engine shuts down during

operation.

Engine lacks power.

Engine "hunts" or falters.

Correction

I. Replace with any of the three high

pressure nozzles.

2. Clear inlet.

3. Provide adequate water flow,

4. Straighten if Idnked or replace hose,

5. Check and clean inlet hose strainer,

6. Provide cooler water supply,

7. Clear blocks in outlet hose or replace

if lealdng,

8. Replace gun.

9. Clean nozzle.

10. Contact Generac service facilit 7.

I. Insert detergent siphoning tube into

detergent.

2. Clean or replace filter/detergent

siphoning tube.

3. Replace with low pressure (black)

nozzle.

Move throttle control to FAST position. If

engine still "bogs down", contact Briggs

Stratton service facility.

Clean or replace air cleaner.

Fill fuel tank.

Drain gas tank; fill with fresh fuel.

Connect wire to spark plug.

10.

II.

Fill

Replace spark plug.

Drain gas tank; fill with fresh fuel.

Open choke fully and crank engine,

Contact Briggs and Stratton service

facility,

Contact Briggs and Stratton service

facility,

Contact Briggs and Stratton service

facility,

Charge or replace battery, See phone

number on battery,

fuel tank.

Replace air filter.

Move choke to halfway position until

engine runs smoothly,

GeneracPor_bHeProducts2,500PSIHighPressureVVasher

GeneracPortab(eProducts2_500PSI_ Pressure VVasher

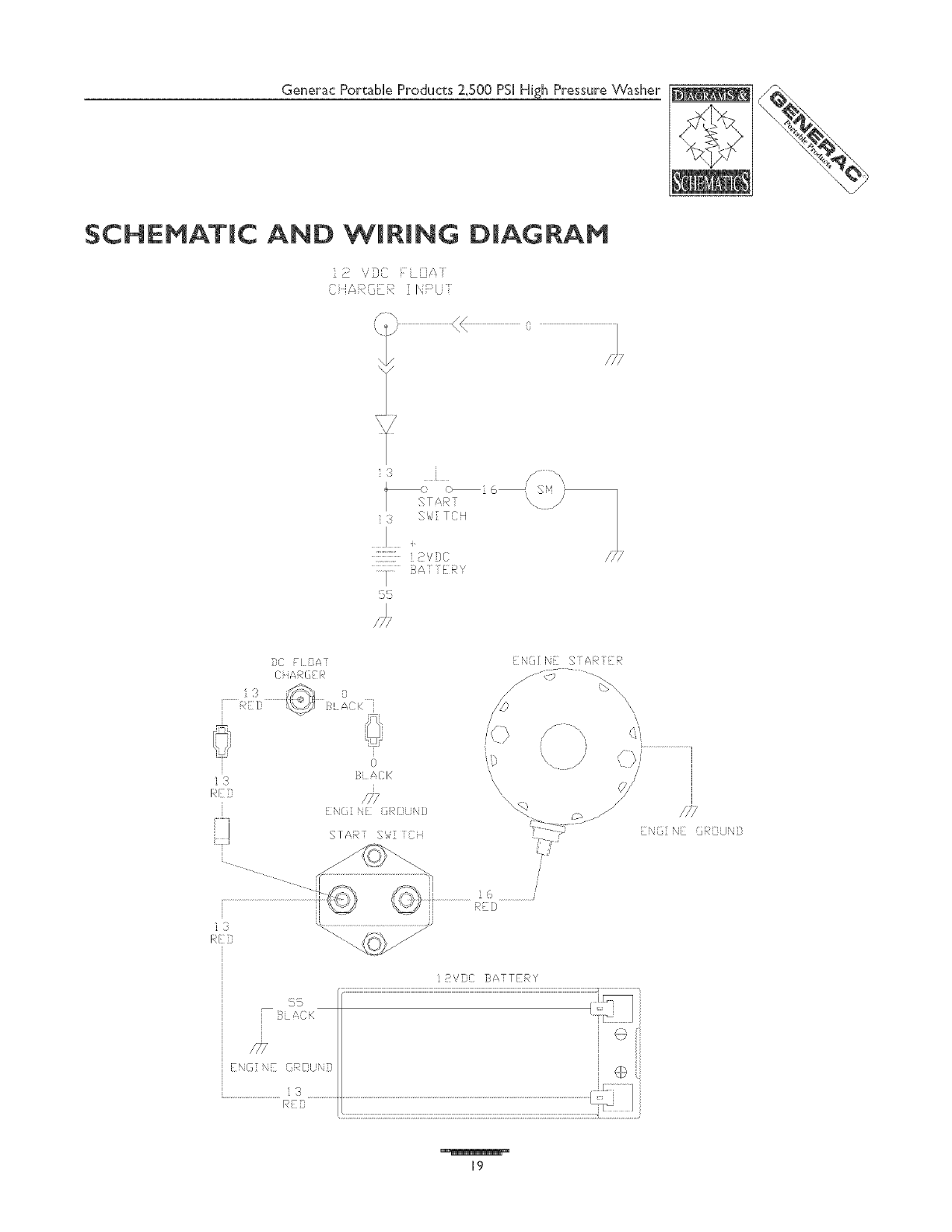

SCHEMAT(C AND W(R(HG D(AGRAM

i 2 ",_b" i __

b i NPU

s 'x //

N\ 0 /j/

TART " /

} SW TCH

............. 27,,i1}C

......T..... SA ElRY

) 3

i 3

R[;}

DC PI CAT

C ,,_,( :

B EK _,

\\a

///

[(3i N[ { _111]'N{}

START SI,,di iCH

NQINT] STAR[i R

\\\\

\" i ...................................

•/" 7" "

x///

iN@ N @R:UN

REi}

F SLACK

/77

ENGINE (RDJ n

iR/,'DC BATTERY

2j I __s

Generac Portabie Products 2,500 PSI High Pressure VVasher

EXPLODED VIEW- UNIT

Setei[ o_ E[ectPice{ Hookup

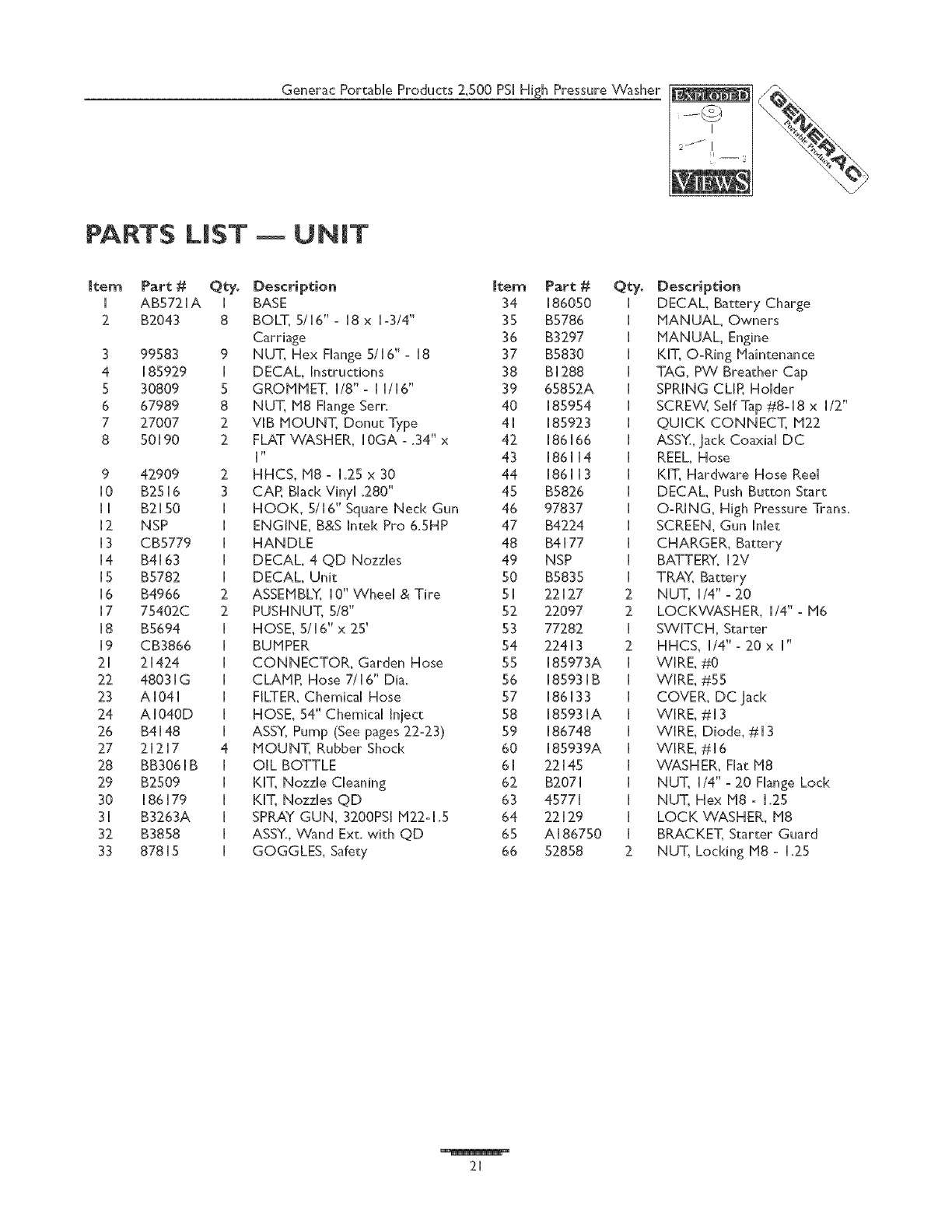

PARTS

Generac Portable Products 2500 PSI High Pressure VVasher

L ST UNmT

2 jj I

Item

Part #

AB5721A

B2043

99583

185929

30809

67989

27007

50190

42909

B2516

B2150

NSP

CB5779

B4163

B5782

B4966

75402C

B5694

CB3866

21424

48031G

AI041

AI040D

B4148

212m7

BBB061B

B2509

186179

B3263A

B3858

87815

Description

BASE

BOLT, 5/16" - 18 x 1-3/4"

Carriage

NUT, Hex Flange 5/16" - 18

DECAL Instructions

GROMMET, U8"- 11/16"

NUT, M8 Flange Serr.

VIB MOUNT, Donut Type

FLAT VVASHER_ I 0GA -34" x

HHCS, M8 - 1.25 x 30

CAP, Black Vinyl .280"

HOOK_ 5/16" Square Ned< Gun

ENGINE_ B&S Intek Pro 6.SHP

HANDLE

DECAL 4 QD Nozzles

DECAL, Unit

ASSEMBLY, I O" VVheel & Tire

PUSHNUT, 5/8"

HOSE, 5/16" x 25'

BUMPER

CONNECTOR, Garden Hose

CLAMR Hose 7,/16" Dia.

FILTER, Chemical Hose

HOSE, 54" Chemical Inject

ASSY, Pump (See pages 22-23)

MOUNT, Rubber Shock

OIL BOTTLE

KIT, Nozzle Cleaning

KIT, Nozzles QD

SPRAY GUN, 3200PSI H22-1.5

ASSY., Wand Ext. with QD

GOGGLES_ Safety

totem

Pare #

186050

B5786

B3297

B5830

BI288

65852A

185954

185923

186166

186114

186113

B5826

97837

B4224

B4177

NSP

B5835

22127

22097

77282

22413

85973A

85931B

86133

85931A

86748

85939A

22145

B2071

45771

22129

AI86750

52858

Qtyo

Description

DECAL, Battery Charge

MANUAL, Owners

MANUAL, Engine

KIT, O-Ring Maintenance

TAG, PW Breather Cap

SPRING CUR Holder

SCREV_ Self Tap #8-18 x liT'

QUICK CONNECT, M22

ASSY. Jack Coaxial DC

REEL, Hose

KIT, Hardware Hose Reel

DECAL, Push Button Start

O-RING, High Pressure Trans.

SCREEN, Gun Inlet

CHARGER, Battery

BATTERY, 12V

TRAY, Battery

NUT, 1t4" -20

LOCK'CCASHER, I/4"o H6

SWITCH, Starter

HHCS, 1/4" -20 x I"

WIRE, #0

WIRE, #55

COVER, DC Jack

WIRE, #13

WIRE, Diode, #13

WIRE, #16

WASHER, Flat M8

NUT, I/4"o 20 Flange Lock

NUT, Hex M8 -125

LOCK WASHER, M8

BRACKET, Starter Guard

NUT, Locking M8 - 1.25

2J ii'-- s

Generac Por_ble Products Z500 PSI Hitch Pressure VVasher

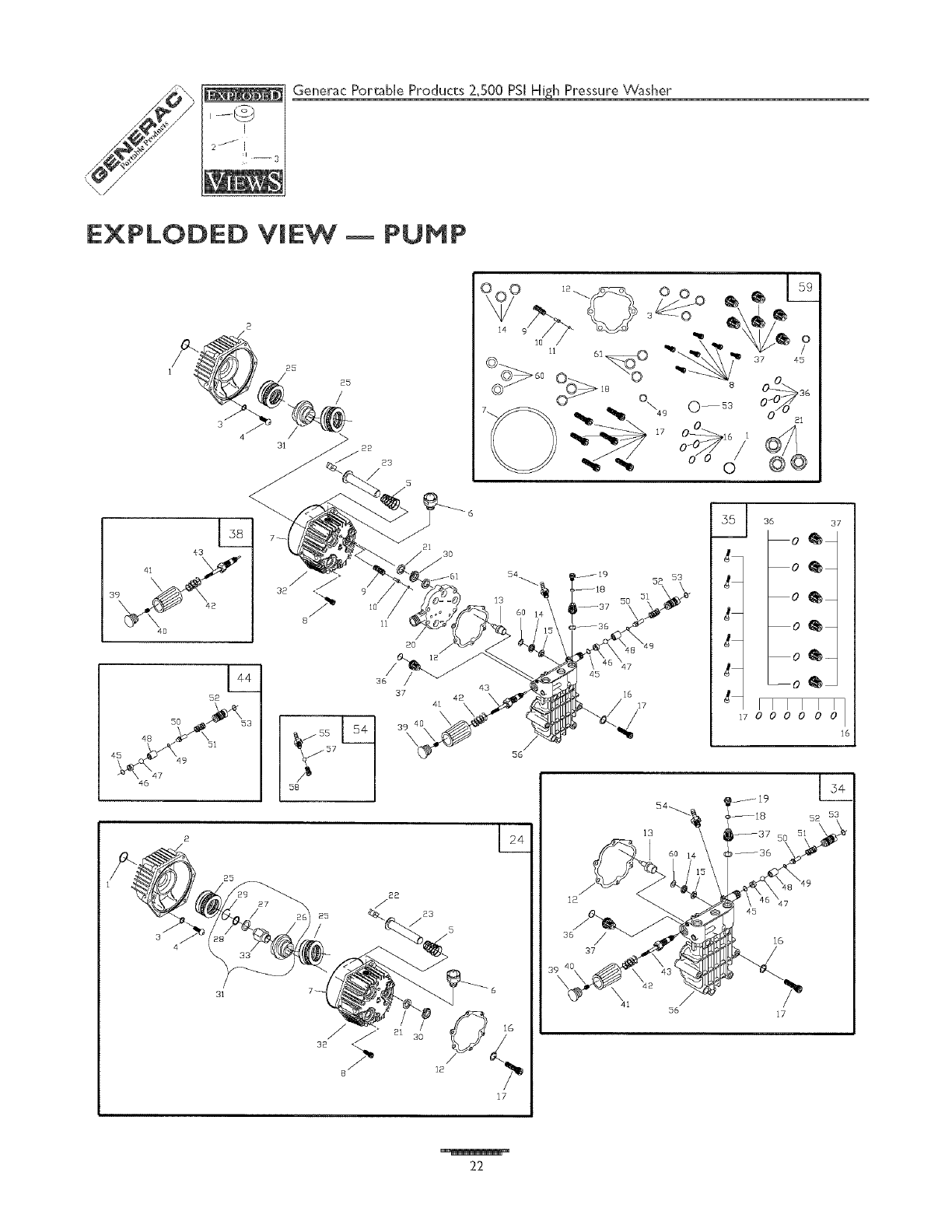

EXPLODED VmEW _ PUMP

\4O

32 _ 21

ii 61

35 37

'i!7°°

I I I I I I

000000

½5O

Generac PortabHe Products 2_500 PSI High Pressure _A/asher

2 jj I

;i --3

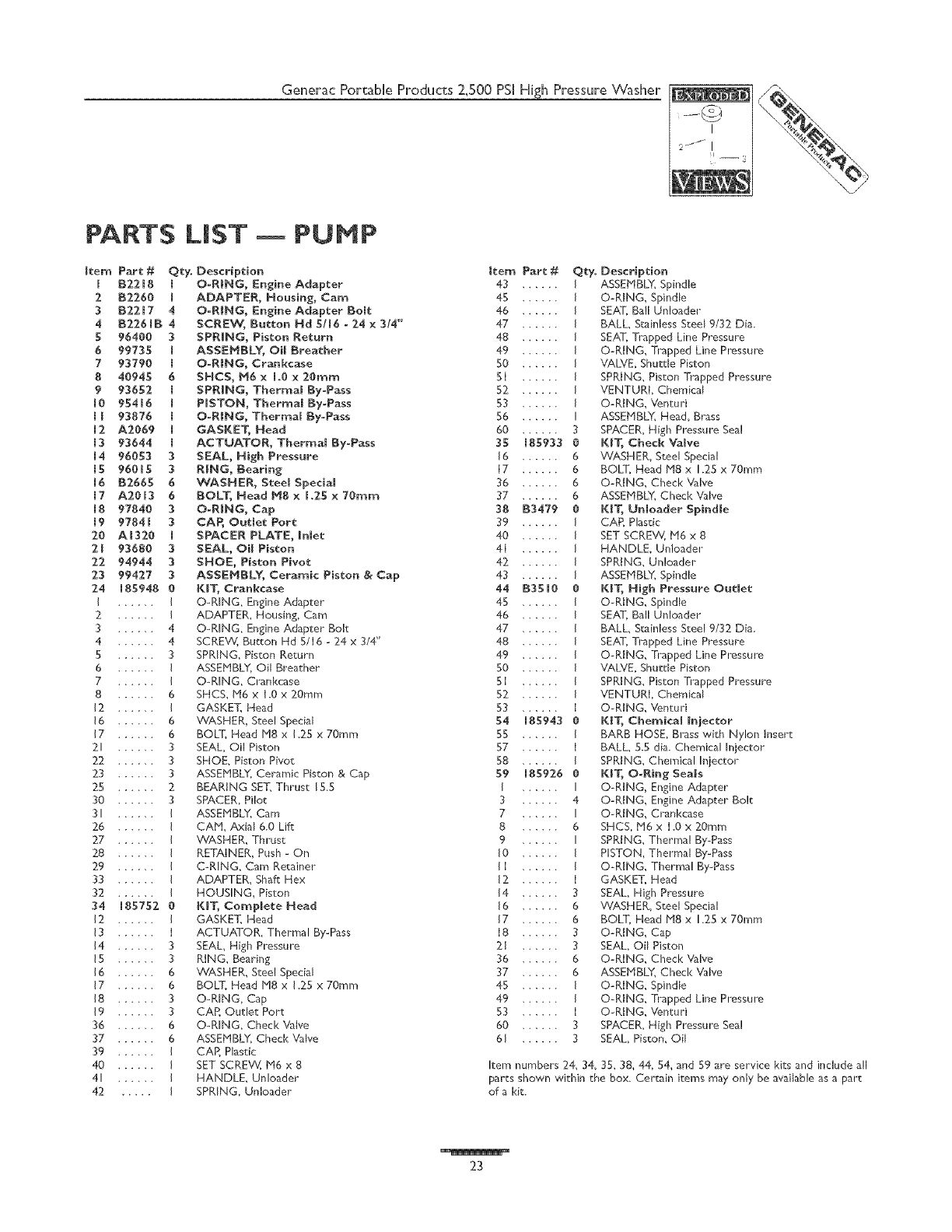

PARTS LIST -- PUMP

item Part #

I B2218 I

2 B2260 I

3 B2217 4

4 B2261B 4

596400 3

6 99735; I

7 93790 [

0 40945 6

9 936S2 [

10 95416 [

[ [ 93876 [

12 A2069 [

13 93644 [

14 9605:3 3

15 9601S 3

16 B2665 6

17 A2013 6

18 97040 3

19 97041 3

20 A1320 [

21 93680 3

22 94944 3

23 99427 3

24 182940 0

2... I

3... 4

4... 4

5...

8...

12 ...

16 ...

17 ...

21 ...

22 ...

23 ...

25 ...

30 ...

31 ...

26 ...

27 .....

28 .....

29 .....

33 .....

32 .....

34 185752

12 .....

I] .....

14 .....

15 .....

16 ...

17 ...

18 ...

19 ...

36 ...

37 ...

39 ...

40 ...

41 ...

42 ....

Qty. Description

O-RING, Engine Adapter

ADAPTER, Noosing, Cam

O-RiNG, Enzir, e Adapter Bolt

SCREW, Botton Hd 5/16 -24 x3/4"

SPRING, Piston Return

ASSEMBLY, Oil Breather

O-RING, Crankcase

SNCS, M6 xlo0 x20_r_rn

SPRING, Thermal By-Pass

PISTON, Thermal By-Pass

O-RING, Thermal By-Pass

GASKET, Head

ACTUATOR, Thermal By-Pass

SEAL, Nigh Pressure

RING, Bearing

WASHER, Steel Speeiam

BOLT, Nead M8 x[.25 x70ram

O-RING, Cap

CAP, Oodet Port

SPACER PLATE, Irdet

SEAL, Oil Piston

SHOE, Piston Pivot

ASSEMBLY, Ceramic Piston &Cap

KiT, Crankcase

O-RiNG, Engine Adapter

ADAPTER, Housing, Cam

O-RiNG, Engine Adapter Bolt

SCREW, Button Hd 5/[6 24 x 3/4"

SPRING, Piston Return

ASSEMBLY, Oil Breather

O-RiNG, Ci ankcase

SHCS. M6 x 1.0 x 20turn

GASKET, Head

WASHER, Steel Special

BOLT, Head M8 x [.25 x 70turn

SEAL, Oil Piston

SHOE, Piston Pivot

ASSEMBLY, Ceramic Piston & Cap

BEARING SET, Thrust I&S

SPACER, Pilot

ASSEMBLY. Cam

CAM, Axial 6.0 Lift

WASHER, Thl ust

RETAINER, Push -On

C°R[NG, Cam Retainer

ADAPTER, Shaft Hex

HOUSING, Piston

KiT, Cor_p[ete Head

GASKET, Head

ACTUATOR, Thermal ByPass

SEAL, High Pressute

RING, Bearing

"WASHER, Steel Special

BOLT, Head M8 x 1.25 x 70turn

O-RING, Cap

CAR Outlet Port

O-RING, Check Vi_ive

ASSEMBLY, Check Valve

CAP, Plastic

SET SCREW, M6 x 8

HANDLE, Unloader

SPRING, Unloader

item Part #

43 ....

45 ....

46 ....

47 ....

48 ....

49 ....

50 ....

S[ ....

52 ......

53 ......

56 ......

60 ......

35 10S933 0

16 ...... 6

17 ...... 6

36 ...... 6

37 ...... 6

38 B3479 0

39 ...... I

40 ...... I

41 ...... I

42 ...... [

43 ...... I

44 B3S[0 0

45 ......

46 ......

47 ......

48 ......

49 ......

50 ......

S[ ......

52 ......

53 ......

S4 105943 0

55 ...... I

57 ...... [

58 ...... I

S9 109926 0

I ...... I

3 ...... 4

7...... I

8 ...... 6

9 ...... I

I0 .... I

I[ .... I

12 .... [

14 .... 3

16 .... 6

W.... 6

18 .... 3

21 .... 3

36 .... 6

37 .... 6

45 .... [

49 .... [

53 .... [

60 .... 3

61 .... 3

Qty. Descripdon

ASSEMBLY, Spindle

O-RING, Spindle

SEAT, Ball Unloade_

BALL, Stainless Steel 9/32 Dia.

SEAT, Trapped Line Pressure

O-RING, Trapped Line Pressute

VALVE, Shuttle Piston

SPRING, Piston Trapped Pressure

VENTURi, Chemical

O-RING, Ventul i

ASSEMBLY, Head, Brass

SPACER, High Pressute Sea!

KIT, Cheek Valve

"WASHER, Steel Special

BOLT, Head M8 x 1.25 x 70ram

O-RING, Check Valve

ASSEMBLY, Check Valve

KIT, Unloader Spindle

CAP, Plastic

SET SCREW, M6 x 8

HANDLE, Ueloade_

SPRING, Unloader

ASSEMBLY, Spindle

KiT, High Pressore Outlet

O-RiNG, Spindle

SEAT, Ball Unloader

BALL, Stainless Steel 9/32 Dia.

SEAT, Trapped Line Pressure

O-RING, Trapped Line Pressute

VALVE, Shuttle Piston

SPRING, Piston Tlapped Pressure

VENTURL Chemical

O-RING, Venturi

KIT, Chef,deal injector

BARB HOSE, Blass with Nylon Insert

BALL, 5.5 dia. Chemical Injector

SPRING, Chemical Injector

KiT, O-Ring Seals

O-RING, Engine Adapter

O-RING, Engine Adapter Bolt

O-RING, Crankcase

SHCS, M6 x 1.0 x 20ram

SPRING, Therma! By-Pass

PISTON, Thel real By-Pass

O-RING, Thermal By-Pass

GASKET, Head

SEAL, High Pressure

"WASHER, Steel Special

BOLT, Head M8 x 1.25 x 70ram

O-RING, Cap

SEAL, Oil Piston

O-RING, Check Vabe

ASSEMBLY, Check Valve

O-RING, Spindle

O_RING, Trapped Line Plessute

O-RING, Venturi

SPACER, High Plessure Sea!

SEAL, Piston, Oil

kern numbers 24, 34, 35, 38, 44, 54, and 59 are service kits and include all

parts shown within the box. Celtain items may only be available as a pint

of a kit.

UHmTED PRESSURE WASHER WARRANTY

GENERAC PORTABLE PRODUCTS (hereafter referred to as the COMPANY) warrants to the original retail purchaser, the

pressure washer manufactured by the COMPANY to be free from defects in material and workmanship for the period(s)

set forth below from the date of original purchase. This warranty is not transferable. The term "original purchaser" means

the person for whom the pressure washer is originally purchased.

Electric Power VVasher

Aii Other Engine-driven

I year (does not apply to commercial or rental applications)

CONSUMER _' COMHERCIAU '

Engine: Warranted solely by

Engine Manufacturer Engine Manufacturer

Battery: VVarranted solely by

Battery Manufacturer

I year 90 days

* NOTE: For the purpose of this warranty "consumer" use means personam residendam househomd use by

original purchaser° "Commerdam" use means aR other uses, including rental construction, commerciam and

income producing purposes° Once a pressure washer has experienced commercial use, it shall thereafter be

considered acommercial use pressure washer for the purposes of this warranty_

During said warranty period, the COMPANY will, at its option, repair or replace any part which, upon examination by the

COMPANY or COMPANY=Authorized Dealers, is found to be defective under normal use and servic@_. All transportation

costs under warranty, including return to the factory if necessary, are to be borne by the purchaser and prepaid by the

purchaser

** NORMAL WEAR: As with all mechanical devices, pressure washers need periodic parts service and

replacement to perform well. This warranty does not cover repair when normal use has exhausted the life

of a part or pressure washer pumps

This warranty does not include: Used products and demonstration equipment. Parts, such as GUNS, HOSES, _NANDS,

NOZZLES, BATTERIES or wear items such as quick couplers, oil, gauges, belts, o-rings, filters, pump packing, etc. Pumps

which have been run without water supplied. Damage or malfunctions resulting from: accidents, abuse, modifications,

alterations, or improper servicing. Freezing or chemical deterioration. Normal maintenance such as adjustments, fuel

system cleaning and obstruction (due to chemical, dirt, carbon or lime, etc.).

THIS WARRANTY IS IN PLACE OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, SPECIFICALLY,

THE COMPANY MAKES NO OTHER WARRANTIES AS TO MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE. THE DURATION OF ANY IMPLIED WARRANTIES WHICH CANNOT BE

DISCLAIMED IS LIMITED TO THE TIME PERIOD AS SPECIFIED IN THE EXPRESS WARRANTY. LIABILITY

FOR CONSEQUENTIAL, INCIDENTAL, OR SPECIAL DAMAGES UNDER ANY AND ALL WARRANTIES IS

EXCLUDED, EVEN IF SUCH DAMAGES ARE A DIRECT RESULT OF THE COMPANY'S NEGLIGENCE. THE

COMPANY ALSO DISCLAIMS ANY RESPONSIBILITY FOR INCIDENTAL OR CONSEQUENTIAL

DAMAGES SUCH AS THE LOSS OF TIME OR THE USE OF THE POWER EQUIPMENT, OR ANY

COMMERCIAL LOSS DUE TO THE FAILURE OF THE EQUIPMENT: AND ANY IMPLIED WARRANTIES

ARE LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY.

Some states do not allow limitations on how long an implied warranty lasts, or the exchsion or limitation of incidental or

consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal

rights and you may also have other rights, which vary from state to state.

For service, see your nearest COMPANY=Authorized warranty service facility or call 1=877=544=0982. _A/arranty service can

be performed only by a COMPANY=Authorized service facility. This warranty will not apply to service at any other facility.

At the time of requesting warranty service, evidence of original purchase date must be presented.

Generoc Portable Products

Jefferson, Wisconsin U.S.A.

Generac 1443 0 User Manual PRESSURE WASHER Manuals And Guides L0505109

GENERAC Power Washer, Gas Manual L0505109 GENERAC Power Washer, Gas Owner's Manual, GENERAC Power Washer, Gas installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
