FOR YOUR NEAREST AUTHORIZED SERVICE CENTER 1-800-333-1322

Owner’s

Manual

UULLTTRRAA SSOOUURRCCEE

Commercial, Industrial, Residential

Portable Generator

MODELS:

004451 (12,500 Watt)

004582 (15,000 Watt)

• Safety

• Assembly

• Operation

• Maintenance

• Troubleshooting

• Electrical Data

• Parts

• Warranty

by Generac Power Systems, Inc

.

Table of Contents

Commercial-Industrial-Residential Portable Generator System

Safety Rules ..............................................1-3

Section 1 – General Information ................4

1.1 Unpacking ............................................................................4

1.1.1 Accessory Box ........................................................4

1.2 Assembly ..............................................................................4

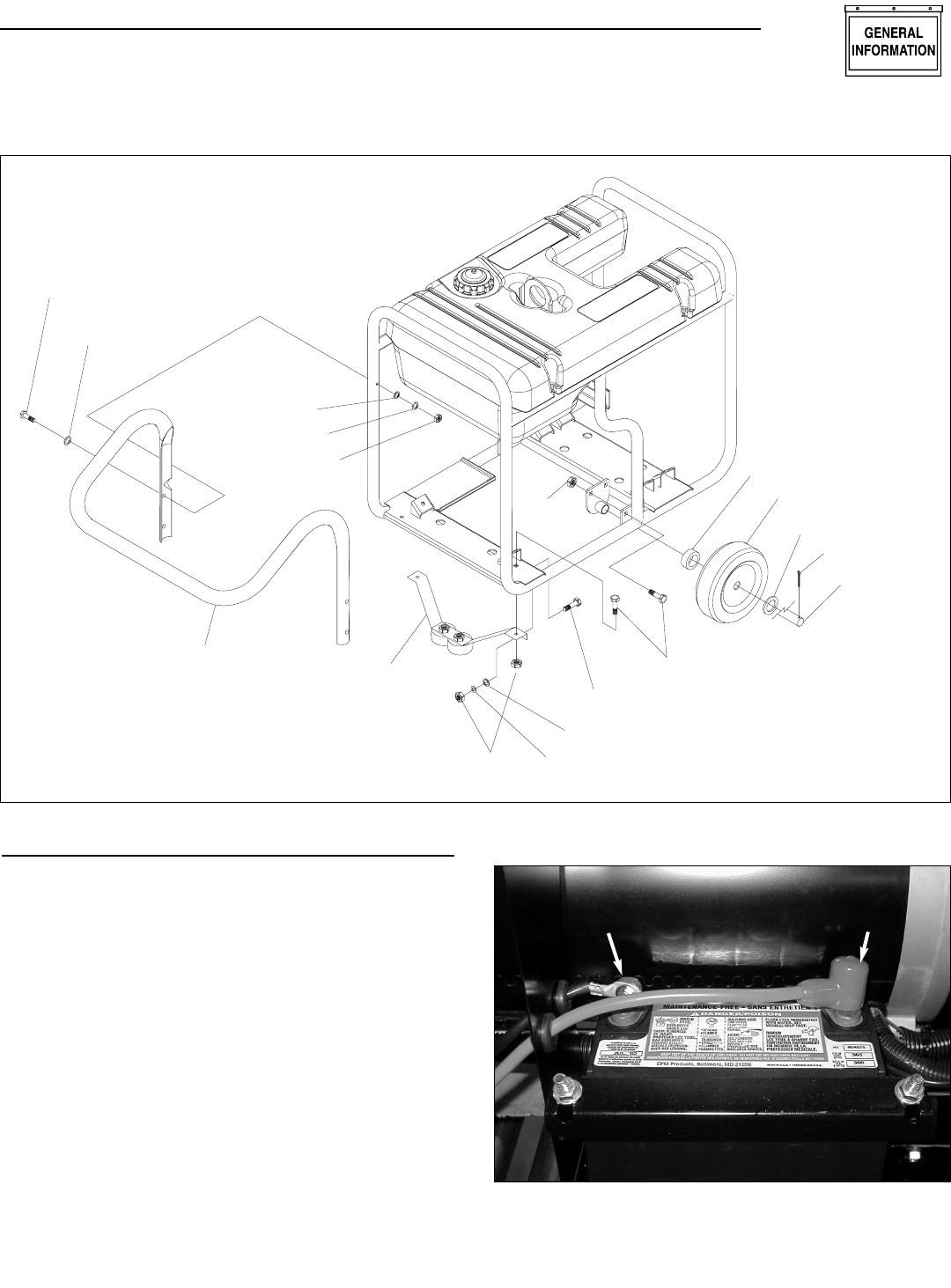

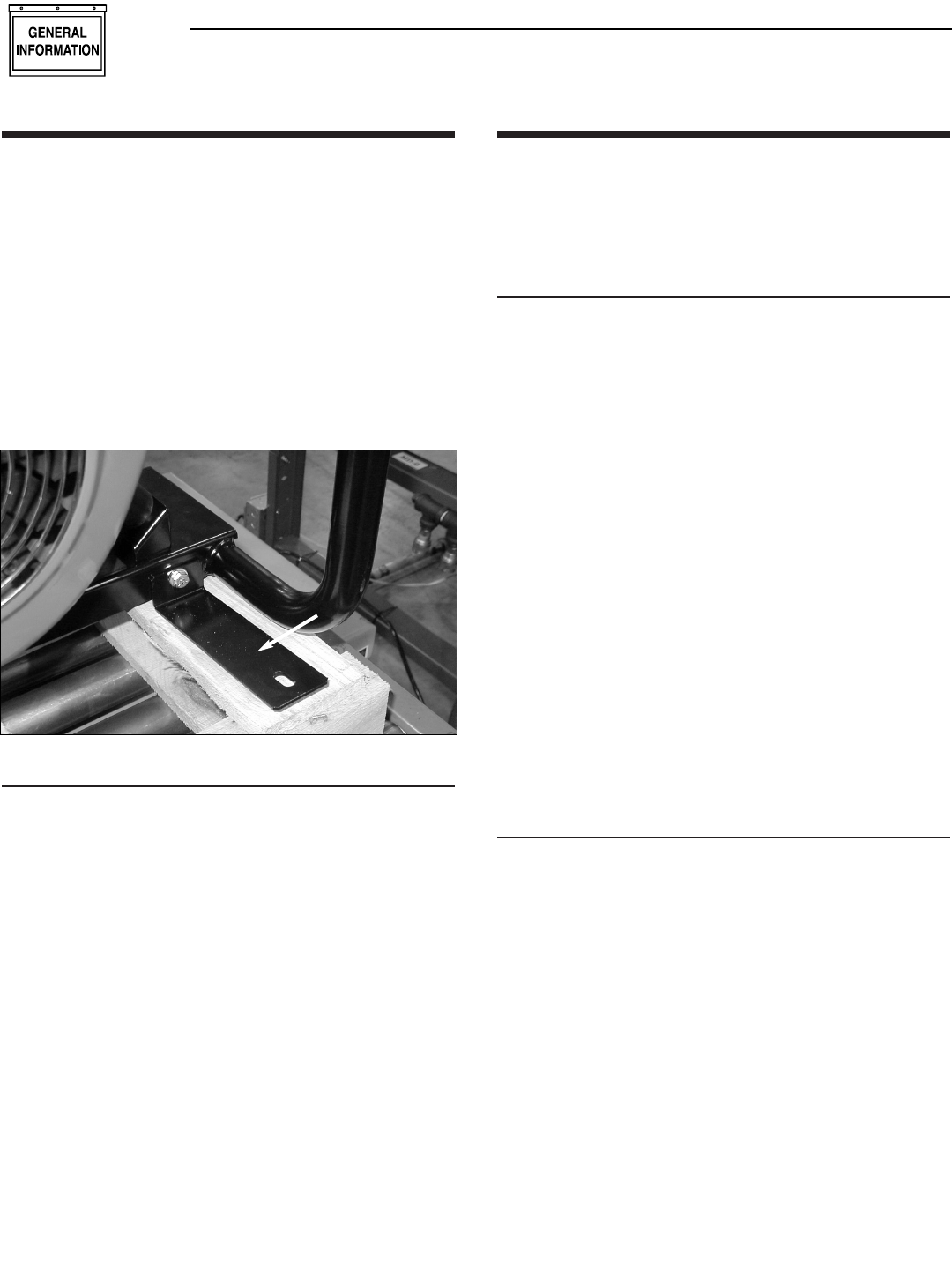

1.2.1 Assembling the Wheel Kit ......................................4

1.2.2 Assembling the Handle ..........................................5

1.2.3 Battery Connection..................................................5

Section 2 – Operation ..................................6

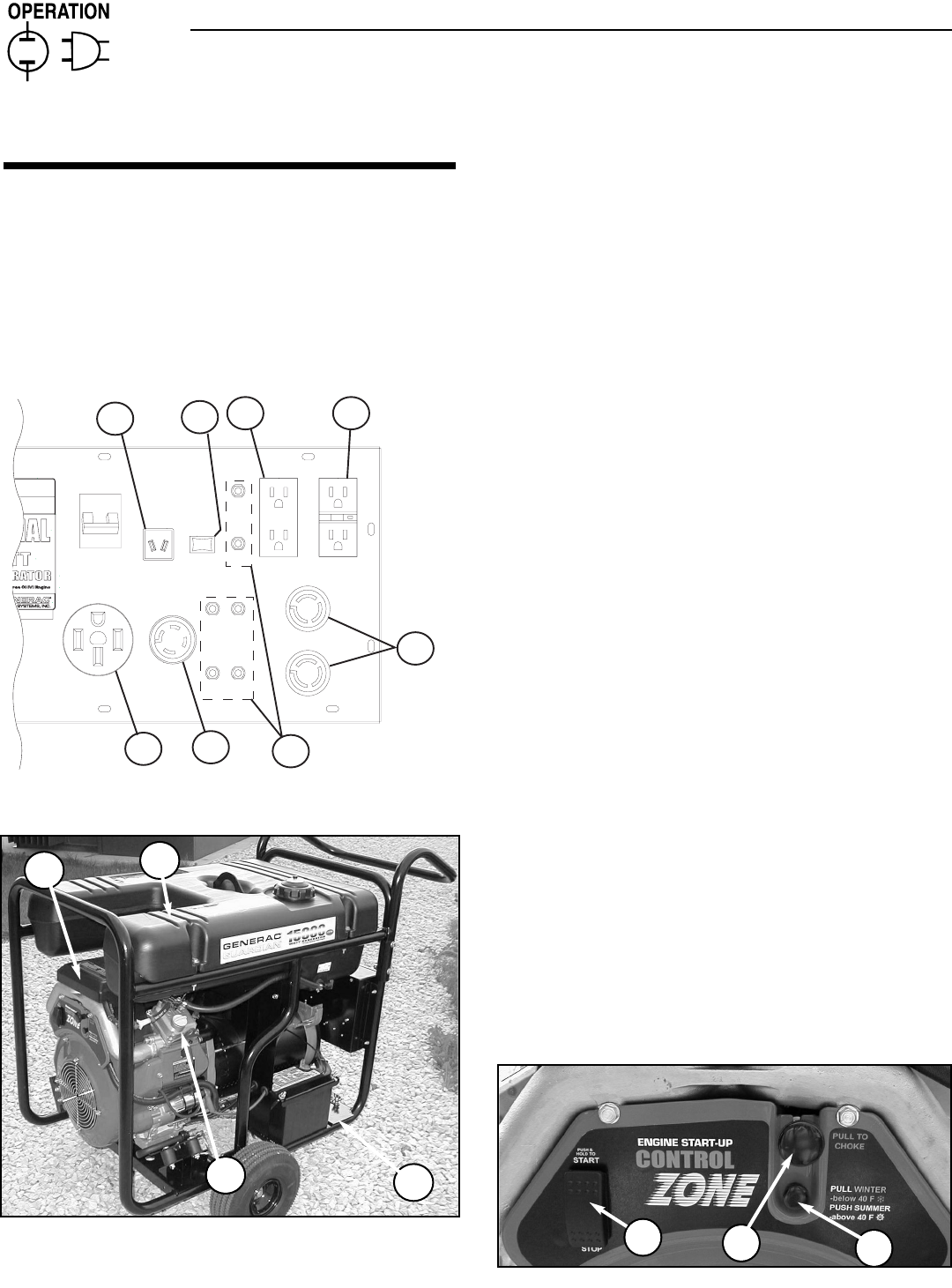

2.1 Know The Generator ............................................................6

2.2 Cord Sets and Connector Plugs ..........................................7

2.2.1 120V AC, 20 A, Duplex Receptacle ........................7

2.2.2 120V AC, 20 A, GFCI Receptacle ..........................7

2.2.3 120V AC, 30 A Receptacle ..................................7-8

2.2.4 120/240V AC, 30 A, Receptacle ............................8

2.2.5 12 VDC, 10 Amp Receptacle ..................................8

2.2.6 120/240V AC, 50 A, Receptacle ............................8

2.3 How To Use The Generator ..................................................9

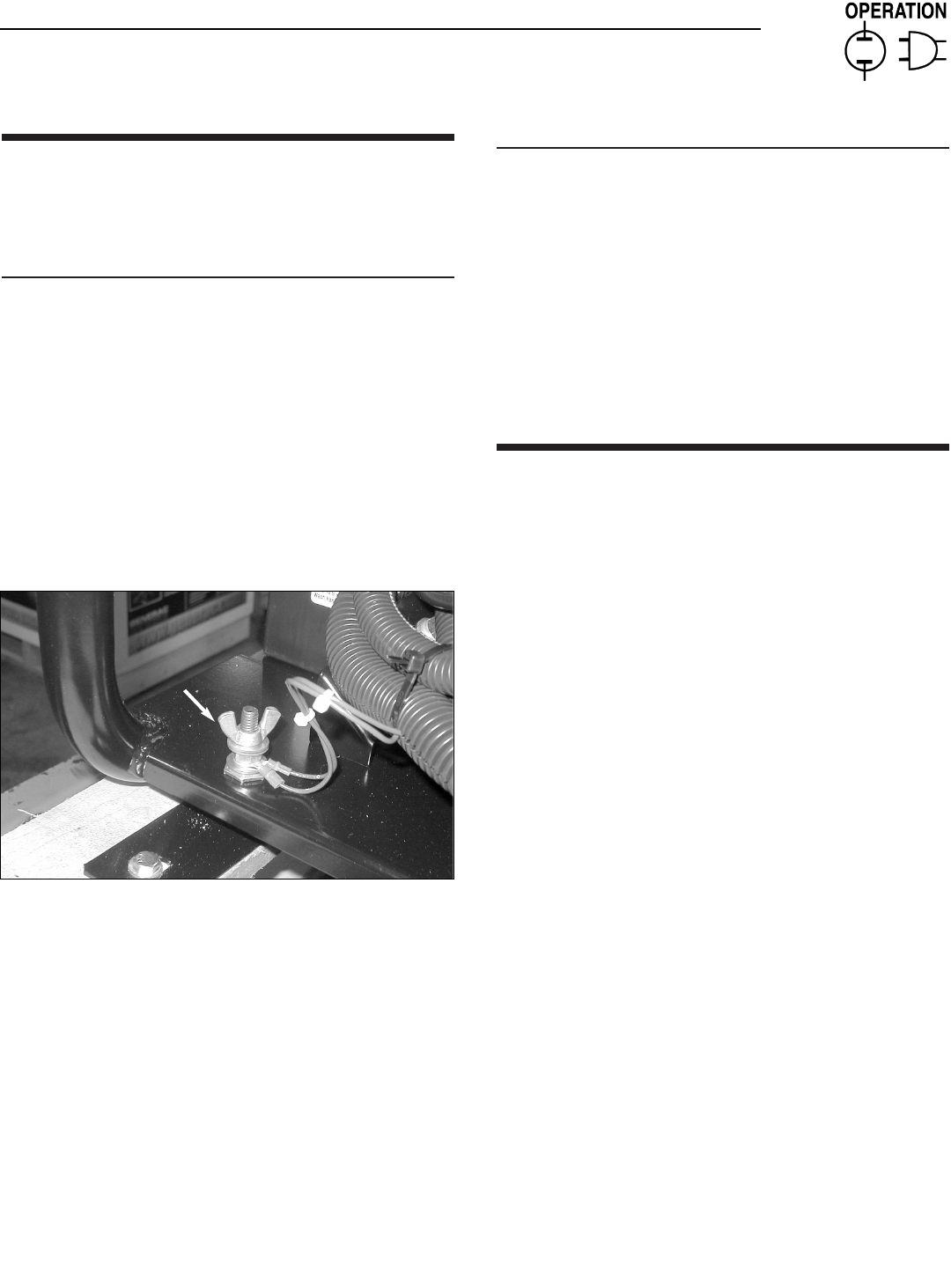

2.3.1 Grounding The Generator ......................................9

2.3.2 Connecting Electric Loads ......................................9

2.4 Don’t Overload The Generator..............................................9

2.5 Wattage Reference Chart ..................................................10

2.6 Before Starting The Generator............................................10

2.6.1 Adding Engine Oil ................................................10

2.6.2 Adding Gasoline ....................................................11

2.7 To Start The Engine ............................................................11

2.8 Stopping The Engine ..........................................................12

2.9 Automatic Idle Control ........................................................12

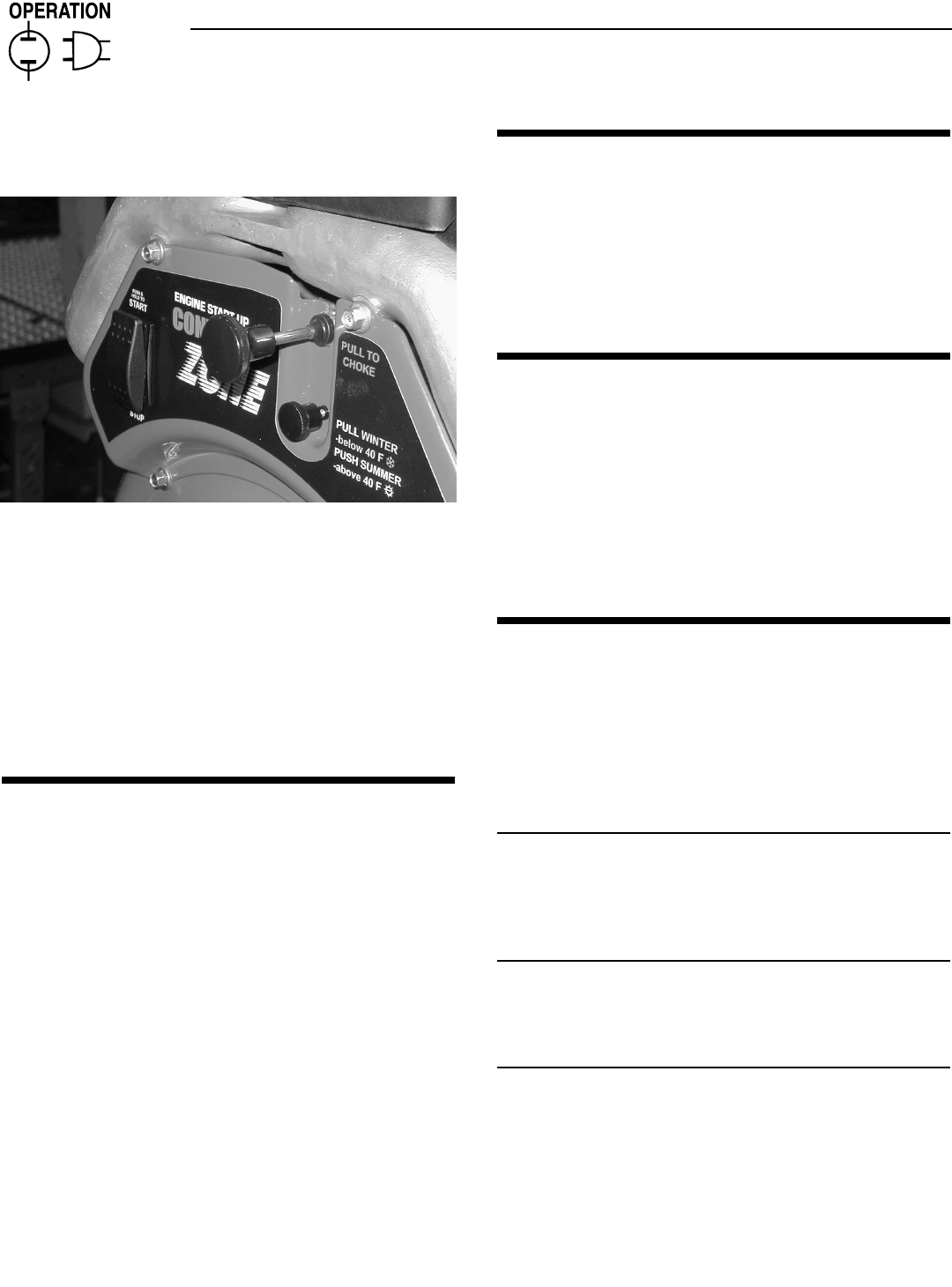

2.10 Cold Weather Operation/De-Icer ........................................12

2.11 Low Oil Pressure Shutdown................................................12

2.11.1 Initial Start-up ........................................................12

2.11.2 Sensing Low Oil Pressure ....................................12

2.11.3 Restarting..............................................................12

2.12 Charging a Battery..............................................................13

Section 3 – Maintenance............................14

3.1 Maintenance Schedule........................................................14

3.2 Product Specifications ........................................................14

3.2.1 Generator Specifications ......................................14

3.2.2 Engine Specifications ............................................14

3.3 General Recommendations ................................................15

3.3.1 General Maintenance ............................................15

3.3.2 To Clean The Generator........................................15

3.3.3 Engine Maintenance..............................................15

3.3.4 Checking Oil Level ................................................15

3.3.5 Changing The Oil & Oil Filter ................................15

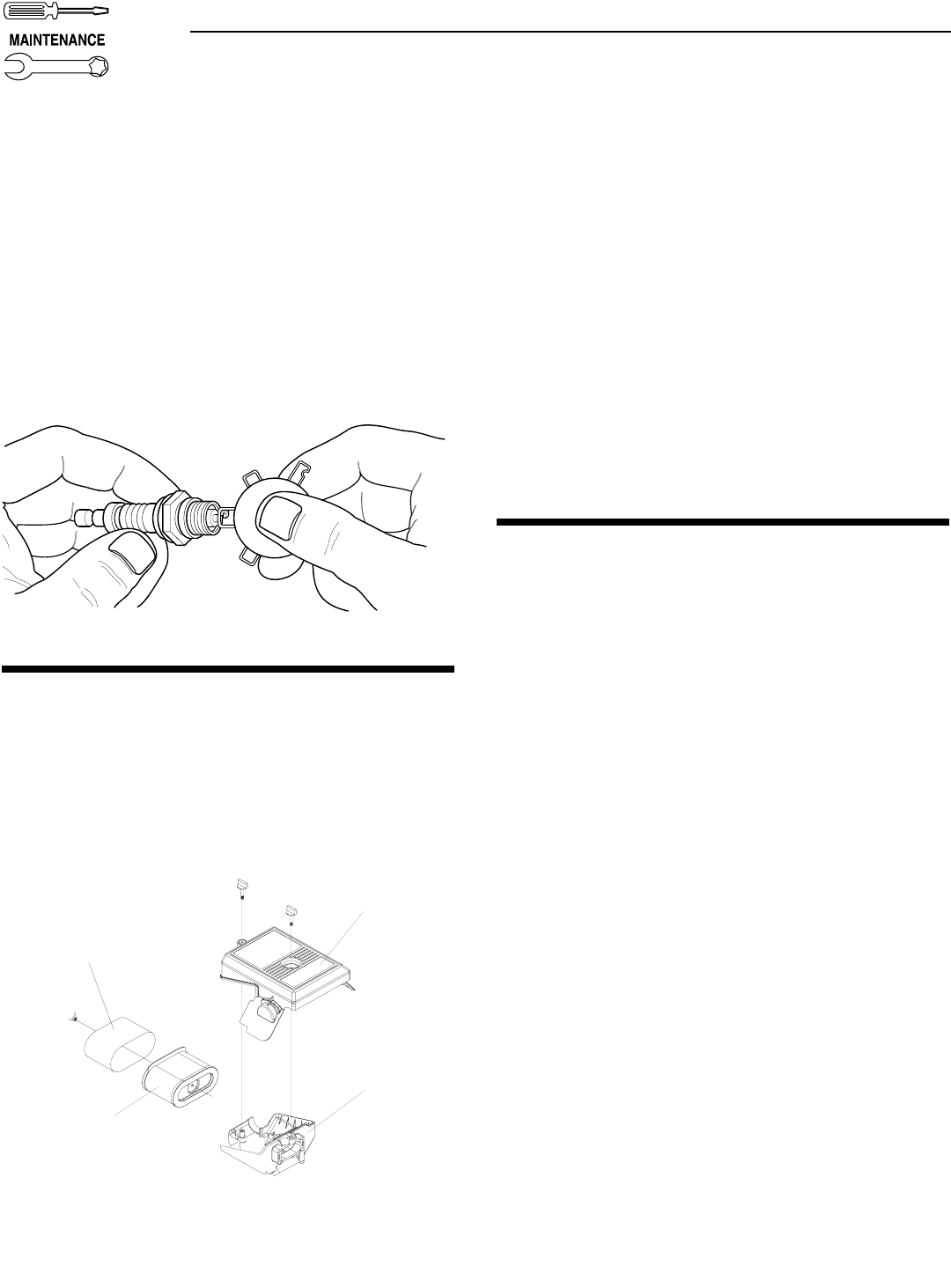

3.3.6 Replacing The Spark Plug ..............................15-16

3.4 Service Air Cleaner ............................................................16

3.5 Clean Spark Arrestor Screen ..............................................16

3.6 Adjusting Valve Clearance ..................................................17

3.7 General ..............................................................................18

3.8 Long Term Storage..............................................................18

3.9 Other Storage Tips..............................................................18

Section 4 – Troubleshooting......................19

4.1 Troubleshooting Guide ........................................................19

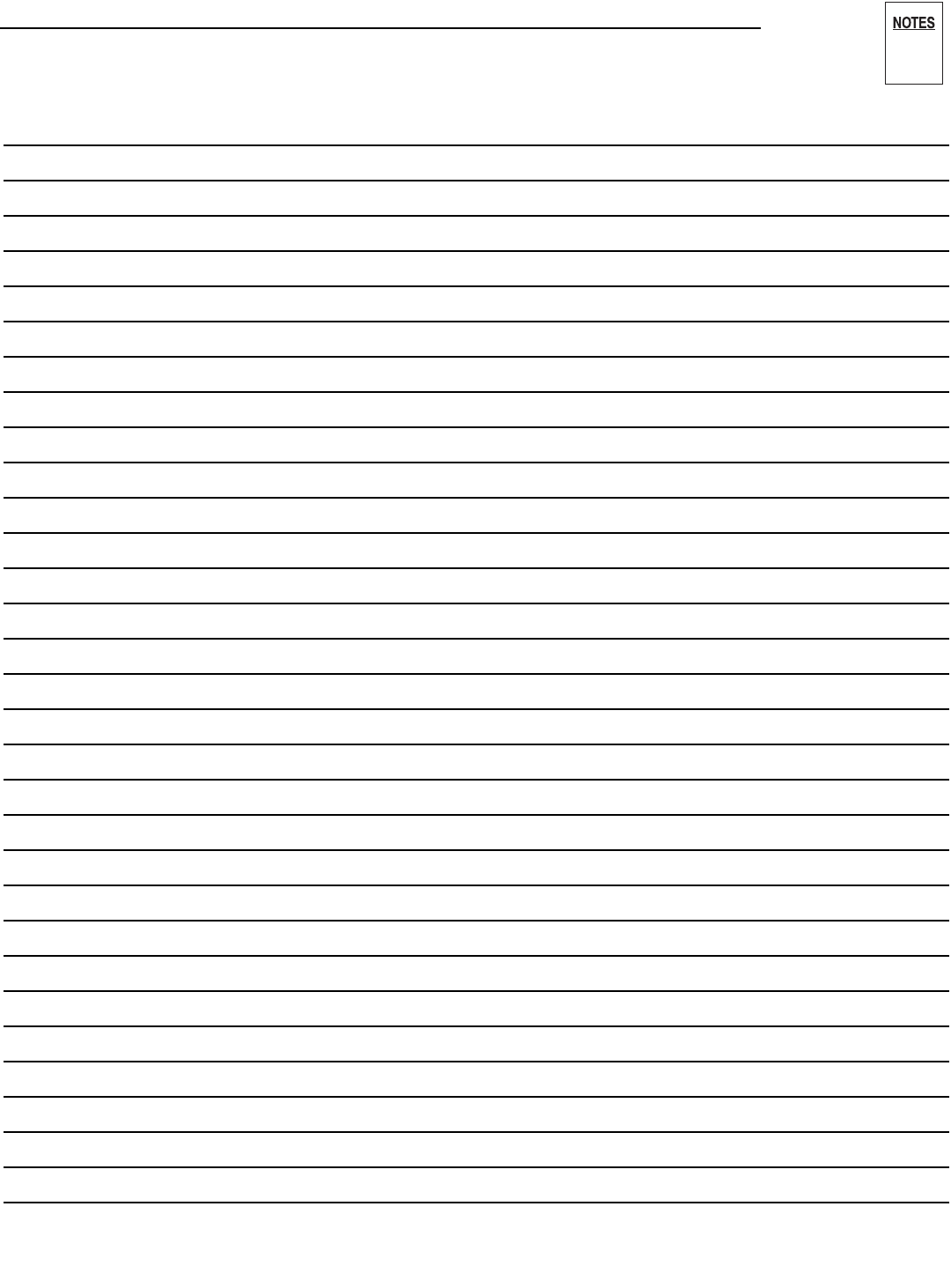

Section 5 – Notes ..................................20-21

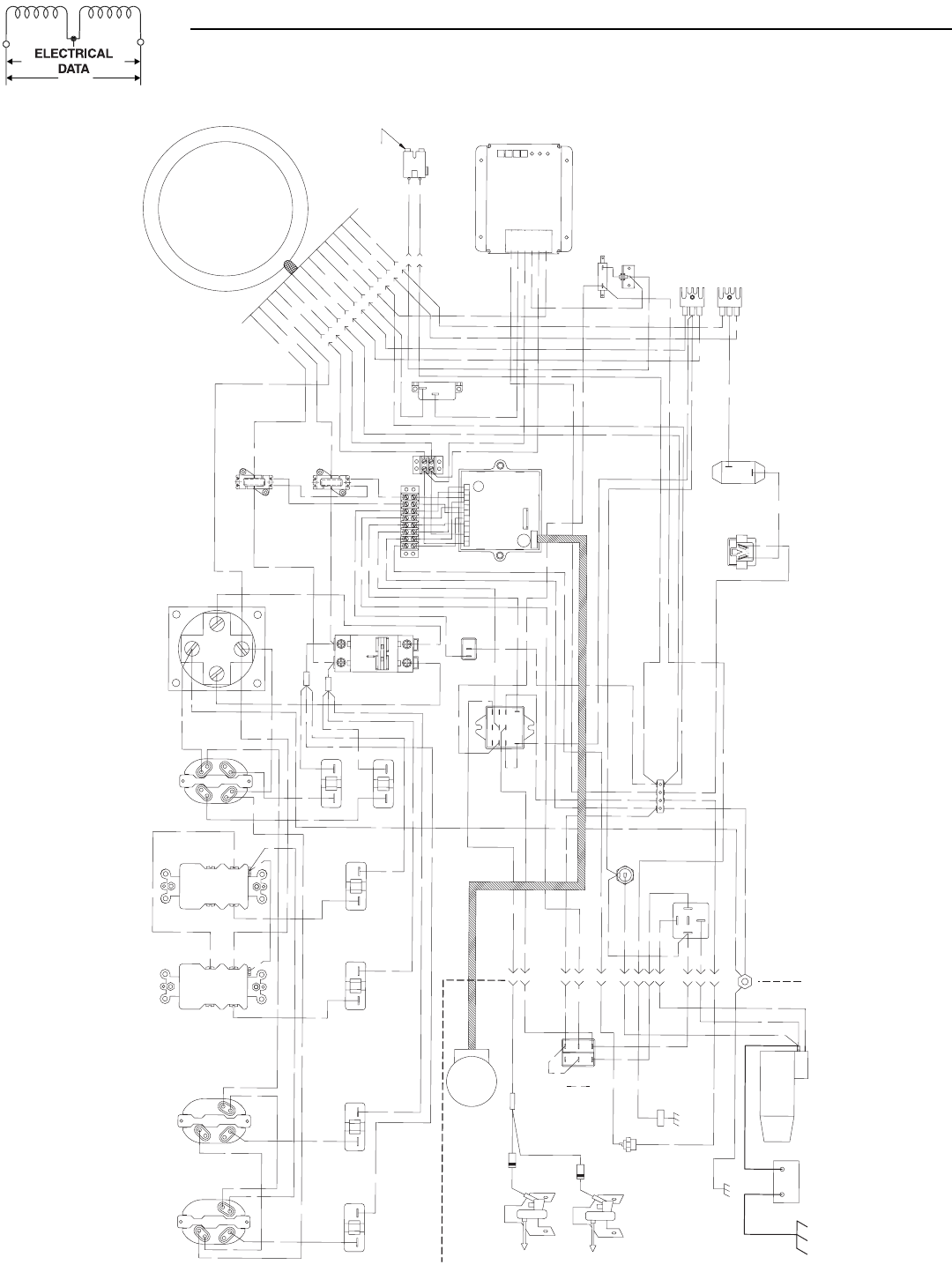

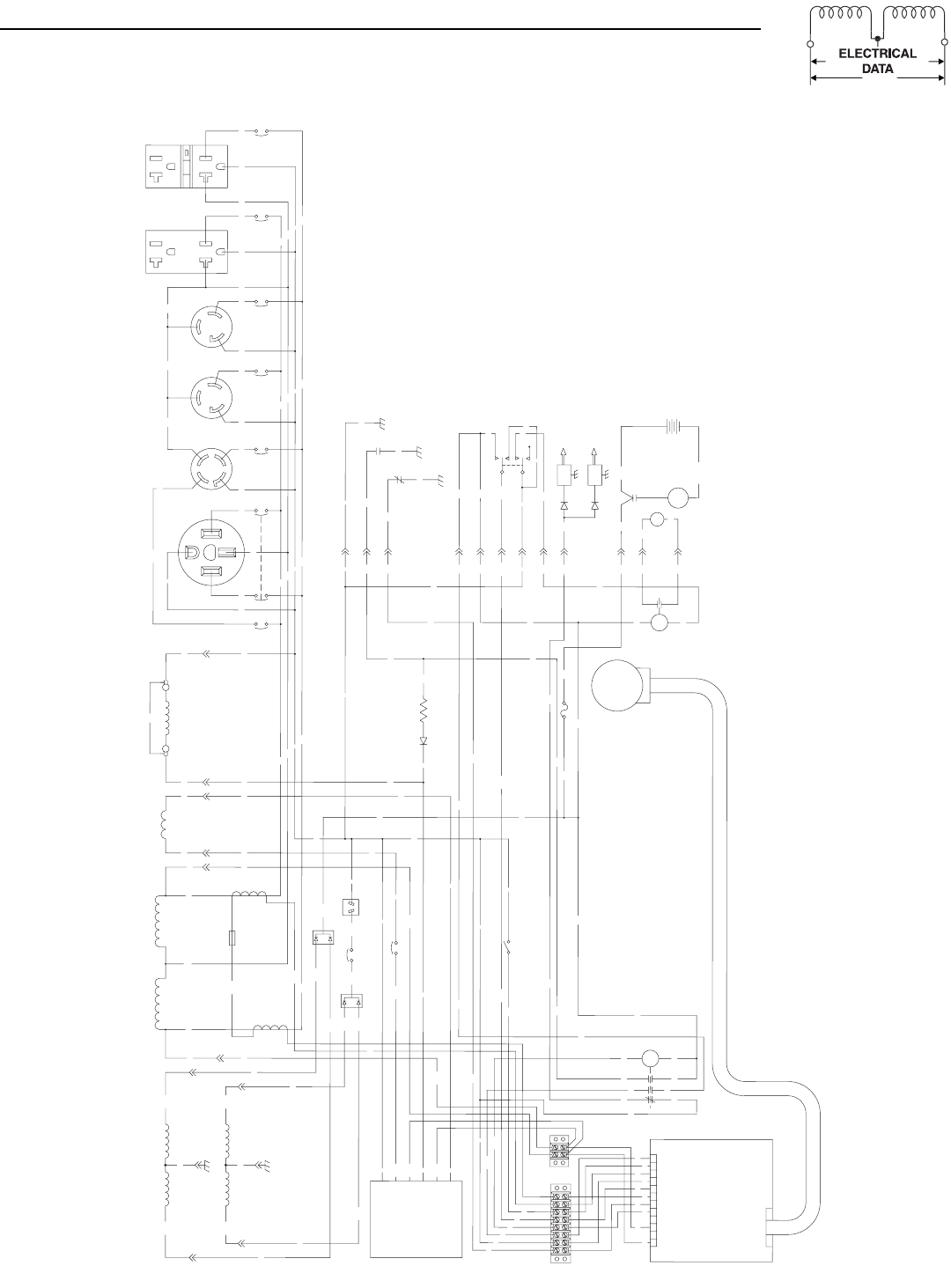

Section 6 – Electrical Data ..................22-23

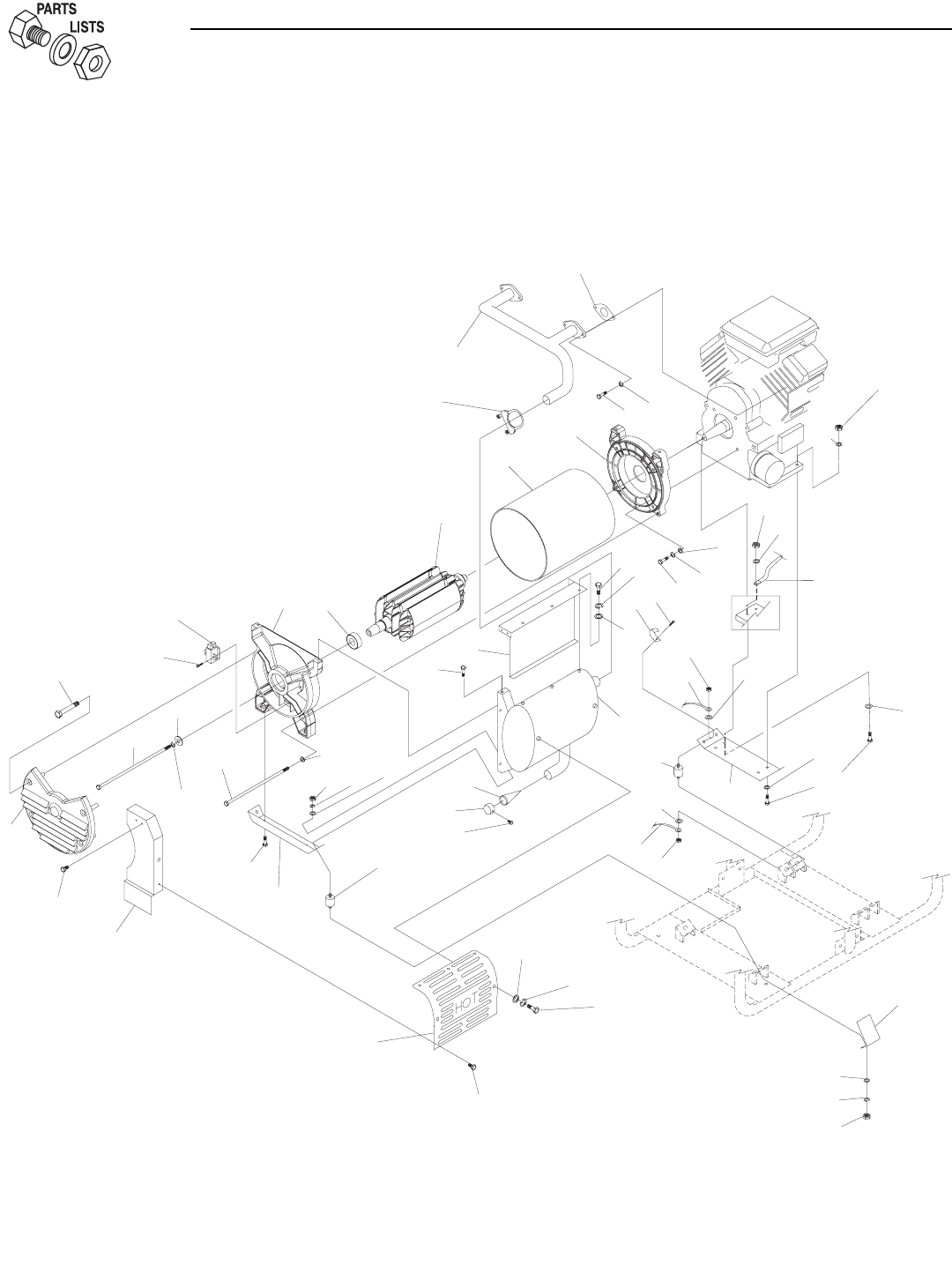

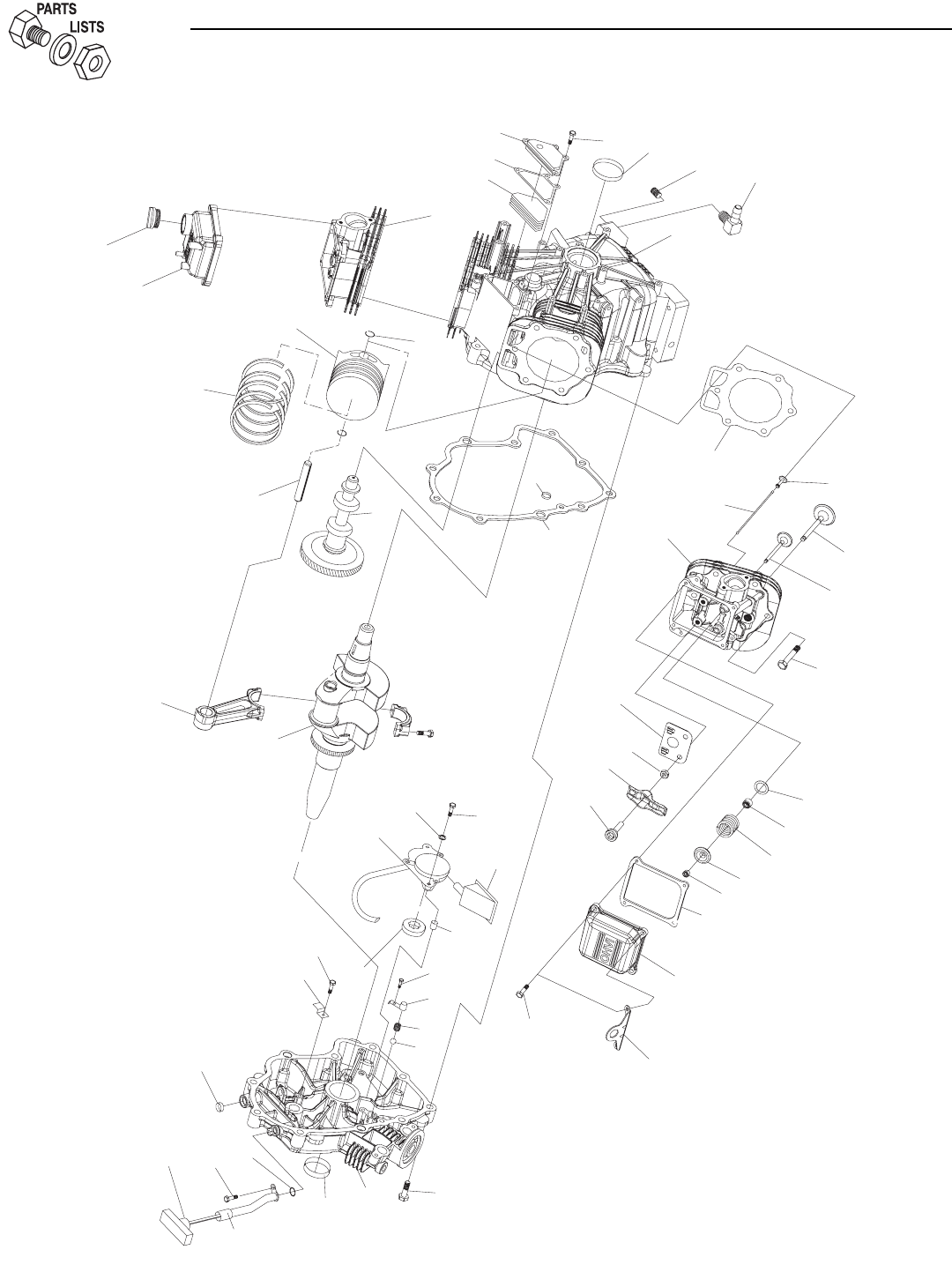

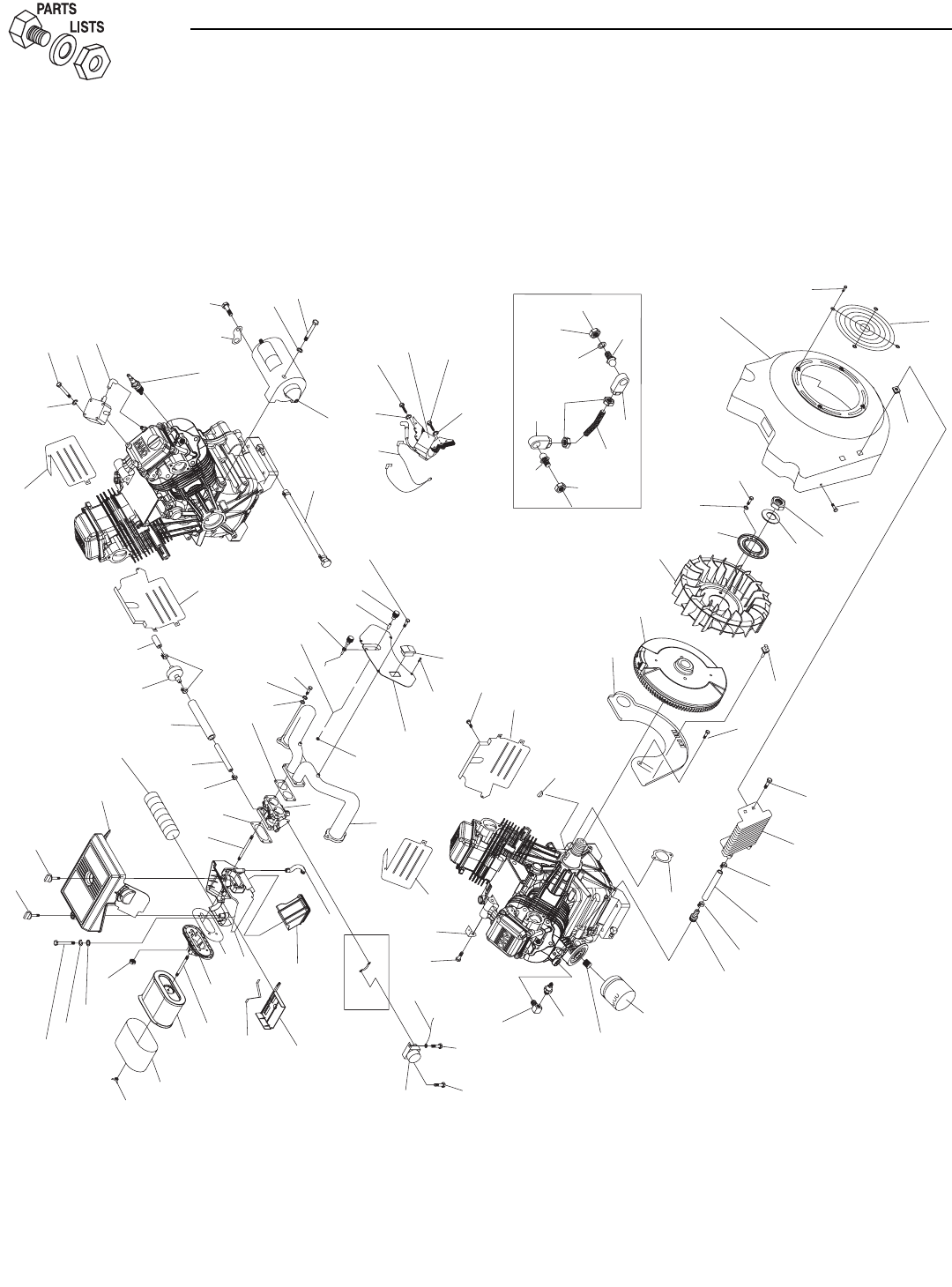

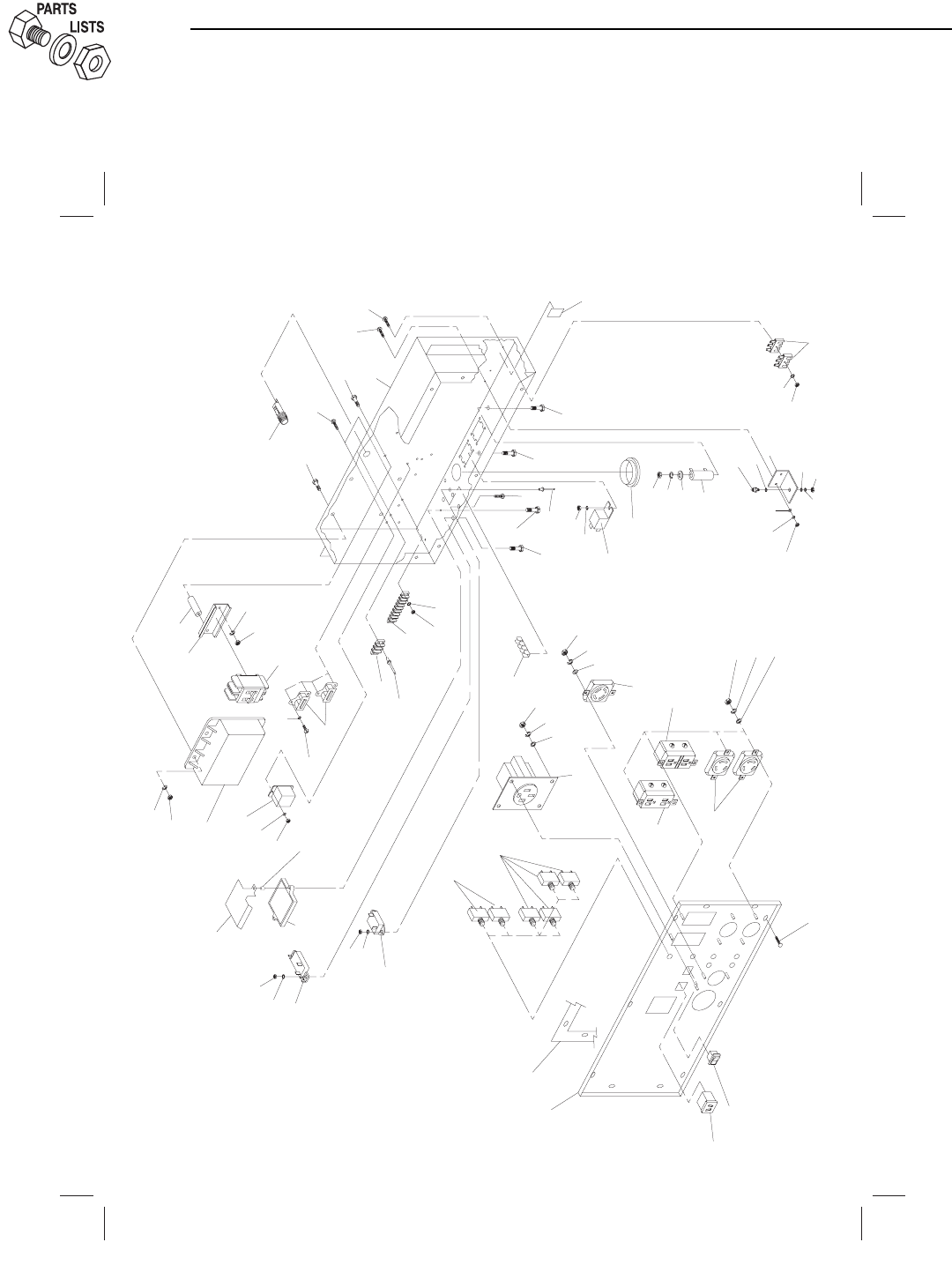

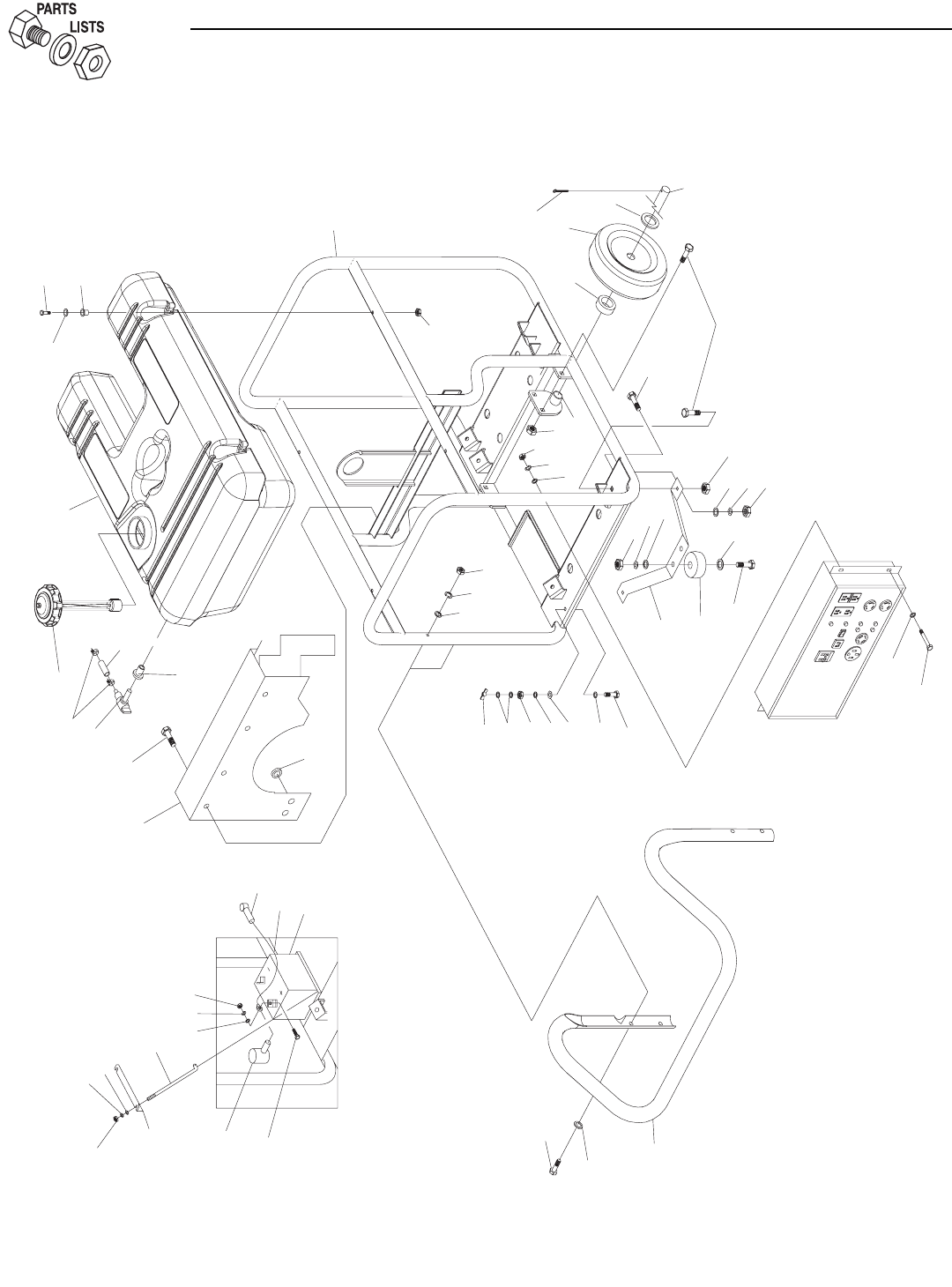

Section 7 – Exploded Views and

Parts Lists..........................24-33

Section 8 – Warranty ............................34-36

INTRODUCTION

Thank you for purchasing this model of the GUARDIAN®product line by

Generac Power Systems, Inc. This model is a compact, high

performance, air-cooled, engine driven generator designed to supply

electrical power to operate electrical loads where no utility power is

available.

READ THIS MANUAL THOROUGHLY

If you do not understand any portion of this manual, contact your

nearest GENERAC/GUARDIAN®Authorized Dealer for starting,

operating and servicing procedures.

Throughout this publication, and on tags and decals affixed to the

generator, DANGER, WARNING, CAUTION and NOTE blocks are used

to alert you to special instruction about a particular operation that may

be hazardous if performed incorrectly or carelessly. Observe them

carefully. Their definitions are as follows:

After this heading, you can read instructions that, if

not strictly complied with, will result in personal injury

or property damage.

After this heading, you can read instructions that, if

not strictly complied with, may result in personal

injury or property damage.

After this heading, you can read instructions that, if

not strictly complied with, could result in damage to

equipment and/or property.

NOTE:

After this heading, you can read explanatory statements that

require special emphasis. These safety warnings cannot eliminate the

hazards that they indicate. Common sense and strict compliance with

the special instructions while performing the service are essential to

preventing accidents.

Four commonly used safety symbols accompany the

DANGER,

WARNING

and

CAUTION

blocks. The type of information each

indicates follows:

This symbol points out important safety

information that, if not followed, could endanger

personal safety and/or property of you and others.

This symbol points out potential explosion hazard.

This symbol points out potential fire hazard.

This symbol points out potential electrical shock

hazard.

The operator is responsible for proper and safe use of

the equipment. We strongly recommend that the

operator read this

Owner’s Manual

and thoroughly

understand all instructions before using this

equipment. We also strongly recommend instructing

other users to properly start and operate the unit. This

prepares them if they need to operate the equipment

in an emergency.

CAUTION!

Always disconnect spark plug wire and place the wire

where it cannot contact the spark plug to prevent accidental starting

when setting up, transporting, adjusting or making repairs to your

generator.

• The generator produces dangerously high voltage that can cause

extremely hazardous electrical shock. Avoid contact with bare wires,

terminals, etc. Never permit any unqualified person to operate or

service the generator.

• Never handle any kind of electrical cord or device while standing in

water, while barefoot or while hands or feet are wet. Dangerous

electrical shock will result.

• The National Electric Code requires the frame and external

electrically conductive parts of the generator be properly connected

to an approved earth ground. Local electrical codes may also

require proper grounding of the generator. Consult with a local

electrician for grounding requirements in your area.

• Use a ground fault circuit interrupter in any damp or highly

conductive area (such as metal decking or steel work).

• Do not use worn, bare, frayed or otherwise damaged electrical cord

sets with the generator.

• Operate generator only on level surfaces and where it will not be

exposed to excessive moisture, dirt, dust or corrosive vapors.

• Gasoline is highly

FLAMMABLE

and its vapors are

EXPLOSIVE

. Do not permit smoking, open flames, sparks or

heat in the vicinity while handling gasoline. Avoid spilling gasoline on

a hot engine. Comply with all laws regulating storage and handling

of gasoline.

• Never add fuel while unit is running.

• Do not overfill the fuel tank. Always allow room for fuel expansion. If

tank is overfilled, fuel can overflow onto a hot engine and cause

FIRE

or an

EXPLOSION.

• Never store generator with fuel in tank where gasoline vapors might

reach an open flame, spark or pilot light (as on a furnace, water

heater or clothes dryer).

FIRE

or

EXPLOSION

may result.

• Generator exhaust gases contain

DEADLY

carbon monoxide

gas.This dangerous gas, if breathed in sufficient concentrations, can

cause unconsciousness or even death. Operate this equipment only

in the open air where adequate ventilation is available.

• Allow at least 2 feet of clearance on all sides of generator or you

could damage the unit. Never operate the unit inside any room or

enclosure where the free flow of cooling air into and out of the unit

might be obstructed. Review “Cold Weather Operation” on page 12.

1

-------------



DANGER



-------------

-------------



WARNING



-------------

-------------



CAUTION



-------------

2

• Never start or stop the unit with electrical loads connected to

receptacles AND with connected devices turned ON. Start the

engine and let it stabilize before connecting electrical loads.

Disconnect all electrical loads before shutting down the generator.

• Do not insert objects through unit's cooling slots.

•

Never operate generator:

in rain; in any enclosed

compartment; if connected electrical devices overheat; if electrical

output is lost; if engine or generator sparks; if flames or smoke are

observed while unit is running; if unit vibrates excessively.

Note:Your generator is equipped with a spark arrestor

muffler. The spark arrestor must be maintained in

effective working order by the owner/ operator. In the

State of California, a spark arrestor is required by law

(Section 4442 of the California Public Resources

Code). Other states may have similar laws. Federal

laws apply on federal lands.

Study these

SAFETY RULES

carefully before installing, operating or

servicing this equipment. Become familiar with this

Owner’s Manual

and

with the unit. The generator can operate safely, efficiently and reliably

only if it is properly installed, operated and maintained. Many accidents

are caused by failing to follow simple and fundamental rules or

precautions.

GENERAC®cannot possibly anticipate every possible

circumstance that might involve a hazard. The warnings in this

manual, and on tags and decals affixed to the unit are, therefore,

not all-inclusive. If you use a procedure, work method or operating

technique GENERAC®does not specifically recommend, you must

satisfy yourself that it is safe for you and others. You also must make

sure the procedure, work method or operating technique that you

choose does not render the generator unsafe.



Despite the safe design of this generator, operating this

equipment imprudently, neglecting its maintenance

or being careless can cause possible injury or death.

Permit only responsible and capable persons to

operate or maintain this equipment.

Potentially lethal voltages are generated by these

machines. Ensure all steps are taken to render

the machine safe before attempting to work on

the generator.

 Parts of the generator are rotating and/or hot during

operation. Exercise care near running generators.

 GENERAL HAZARDS 

• For safety reasons, GENERAC®recommends that the installation,

initial start-up and maintenance of this equipment is carried out by

a GENERAC®/GUARDIAN®Authorized Dealer.

• The engine exhaust fumes contain carbon monoxide, which can be

DEADLY

. This dangerous gas, if breathed in sufficient

concentrations, can cause unconsciousness or even death. This

exhaust system must be installed properly, in strict compliance with

applicable codes and standards. Following installation, you must do

nothing that might render the system unsafe or in noncompliance

with such codes and standards.

• Keep hands, feet, clothing, etc., away from drive belts, fans, and

other moving or hot parts. Never remove any drive belt or fan guard

while the unit is operating.

• Adequate, unobstructed flow of cooling and ventilating air is critical

to correct generator operation. Do not alter the installation or permit

even partial blockage of ventilation provisions, as this can seriously

affect safe operation of the generator. The generator

MUST

be

operated outdoors.

• When working on this equipment, remain alert at all times. Never

work on the equipment when you are physically or mentally fatigued.

• Inspect the generator regularly, and contact your nearest

GENERAC®/GUARDIAN®Authorized Dealer for parts needing repair

or replacement.

• Before performing any maintenance on the generator, disconnect its

battery cables to prevent accidental start up. Disconnect the cable

from the battery post indicated by a NEGATIVE, NEG or (–) first.

Reconnect that cable last.

• Never use the generator or any of its parts as a step. Stepping on

the unit can stress and break parts, and may result in dangerous

operating conditions from leaking exhaust gases, fuel leakage, oil

leakage, etc.

IMPORTANT SAFETY INSTRUCTIONS

Commercial-Industrial-Residential Portable Generator System

SAVE THESE INSTRUCTIONS – The manufacturer suggests that these rules for safe operation be copied and posted

near the unit's installation site. Safety should be stressed to all operators and potential operators of this equipment.

The engine exhaust from this product

contains chemicals known to the state

of California to cause cancer, birth

defects or other reproductive harm.

WARNING:

This product contains or emits chemicals

known to the state of California to cause

cancer, birth defects or other reproductive harm.

WARNING:

-------------



DANGER



-------------



3

 ELECTRICAL HAZARDS

• All generators covered by this manual produce dangerous

electrical voltages and can cause fatal electrical shock. Utility

power delivers extremely high and dangerous voltages as

does the generator when it is in operation. Avoid contact with

bare wires, terminals, connections, etc., while the unit is

running. Ensure all appropriate covers, guards and barriers

are in place before operating the generator. If you must work

around an operating unit, stand on an insulated, dry surface

to reduce shock hazard.

• Do not handle any kind of electrical device while standing in water,

while barefoot, or while hands or feet are wet.

DANGEROUS

ELECTRICAL SHOCK MAY RESULT.

• The National Electrical Code (NEC) requires the frame and external

electrically conductive parts of the generator to be connected to an

approved earth ground. Local electrical codes also may require

proper grounding of the generator electrical system.

• In case of accident caused by electric shock, immediately shut down

the source of electrical power. If this is not possible, attempt to free

the victim from the live conductor.

AVOID DIRECT CONTACT

WITH THE VICTIM.

Use a non-conducting implement, such as

a rope or board, to free the victim from the live conductor. If the victim

is unconscious, apply first aid and get immediate medical help.

• Never wear jewelry when working on this equipment. Jewelry can

conduct electricity resulting in electric shock, or may get caught in

moving components causing injury.

FIRE HAZARDS 

• For fire safety, the generator must be operated and maintained

properly. Operation always must comply with applicable codes,

standards, laws and regulations. Adhere strictly to local, state and

national electrical and building codes. Comply with regulations the

Occupational Safety and Health Administration (OSHA) has

established. Also, ensure that the generator is operated in

accordance with the manufacturer’s instructions and

recommendations. Do not alter the construction of generator or

change controls which might create an unsafe operating condition.

• Keep a fire extinguisher near the generator at all times.

Extinguishers rated “ABC” by the National Fire Protection

Association are appropriate for use on the standby electric system.

Keep the extinguisher properly charged and be familiar with its use.

If you have any question pertaining to fire extinguishers, consult your

local fire department.

 EXPLOSION HAZARDS 

• Do not smoke around the generator. Wipe up any fuel or oil

spills immediately. Ensure that no combustible materials are

left on or near the generator, as FIRE or EXPLOSION may

result. Keep the area surrounding the generator clean and

free from debris.

• Gasoline is extremely

EXPLOSIVE.

STANDARDS INDEX

In the absence of pertinent standards, codes, regulations and laws, the

published information listed below may be used as a guideline for

operation of this equipment.

1. NFPA No. 70, NFPA HANDBOOK OF NATIONAL ELECTRIC

CODE.

2. Article X, NATIONAL BUILDING CODE, available from the American

Insurance Association, 85 John Street, New York, N.Y. 10038.

3. AGRICULTURAL WIRING HANDBOOK, available from the Food

and Energy Council, 909 University Avenue, Columbia, MO 65201.

4. ASAE EP-3634, INSTALLATION AND MAINTENANCE OF FARM

STANDBY ELECTRICAL SYSTEMS, available from the American

Society of Agricultural Engineers, 2950 Niles Road, St. Joseph, MI

49085.

5. NFPA No. 30, FLAMMABLE AND COMBUSTIBLE LIQUIDS CODE.

IMPORTANT SAFETY INSTRUCTIONS

Commercial-Industrial-Residential Portable Generator System

1.1 UNPACKING

• Set the palleted carton on a rigid flat surface.

• Remove staples along bottom of carton that fasten carton to pallet.

Open carton from top.

• Remove all packaging material.

• Remove separate accessory box.

• Lift carton off the generator.

• Remove generator from shipping pallet by removing bolts through

the shipping brackets.

Figure 1 - Bracket Removal

1.1.1 ACCESSORY BOX

Check all contents. If any parts are missing or damaged locate an

authorized dealer at 1-800-333-1322.

Contents include:

• Owner’s Manual

• Bolt-on tubular handle

• Wheel Axle

• 2 – Pneumatic Wheels

• 2 – Axle Bracket Assemblies

• 2 – Washers

• 2 – Wheel Spacers

• 2 – Cotter Pins

• Bolt-on Foot

• 6 – Carriage Bolts, Washers, Nuts

• Battery Charge Cable

• Spark Plug Wrench

• 2 Spark Plugs.

• Air Filter

• Pre-cleaner

1.2 ASSEMBLY

The generator requires some assembly prior to using it. If problems

arise when assembling the generator, please call the Generator

Helpline at 1-800-333-1322.

1.2.1 ASSEMBLING THE WHEEL KIT

The wheel kit is designed to greatly improve the portability of the

generator. A socket wrench with a 9/16” socket, a 1/2” socket, a 1/2”

wrench and a pair of pliers are the tools that will be needed for

assembly of the wheel kit.

Note:The wheel kit is not intended for over-the-road use.

• Refer to

Figure 2

shown on opposite page and install the wheel kit

as follows:

• Place the generator on a hard flat surface.

• Stand at the engine end of the unit and gently tilt the generator

forward, high enough to place wooden blocks beneath the cradle.

This will allow space to install the wheel assemblies.

• Attach an axle bracket assembly with attached sleeve to either side

of the frame. Ensure the sleeve faces outward.

• Slide the axle through the sleeves on the axle brackets.

• Slide one wheel with flat washer to the outside and a spacer to the

inside onto each end of the axle. Make sure the air inflation valve

on the wheel is facing outward.

• Insert retaining pins and using pliers, bend out the ends to prevent

the pins from falling out of the axle. Remove the wooden blocks.

1.2.2 ASSEMBLING THE HANDLE

• Attach the handle by aligning one side of the handle on the cradle,

then spread the handle around the cradle and let it spring into place.

Secure the handle to the frame using the 5/16’ hex head bolts

provided. Check each fastener to ensure that it is secure.

• Using the handle, lift the unit high enough to place wooden blocks

under the unit. Attach the front support foot to the underside of the

cradle using the 3/8” carriage bolts provided.

• Remove the shipping brackets from the cradle, if not already done

so.

4

Section 1 – General Information

Commercial-Industrial-Residential Portable Generator System

Shipping

Bracket

(x4)

5

1.2.3 BATTERY CONNECTION

• The battery shipped with the generator has been provided fully

charged. Caution must be taken when connecting the battery.

• Cut the tie wrap cable holding the RED and BLACK battery cables

to the stator.

• Connect the RED battery cable to the battery Positive terminal (+).

After making sure that the connection is tight, slip the rubber boot

over the terminal connection.

• Connect the BLACK battery cable to the battery Negative terminal

(–). Make sure the connection is tight.

• Double check all connections to ensure they are in the correct

location and secure. See

Figure 3

at right.

Figure 3 - Battery Connections

FLAT WASHER

LOCK WASHER

LOCK NUT

FLAT WASHER

HANDLE

FLAT WASHER

CAPSCREW,

5/16 X 2-1/2

ASSEMBLY

FRONT FOOT

LOCK

NUT

LOCK NUT

LOCK WASHER

FLAT WASHER

CAPSCREW, 5/16 X 1

CARRIAGE BOLT, 3/8 X 1

SPACER

AXLE

RETAINING PIN

WHEEL

Section 1 - General Information

Commercial-Industrial-Residential Portable Generator System

Negative

Cable

Positive

Cable

Figure 2 - Handle Assembly

6

Section 2 – Operation

Commercial-Industrial-Residential Portable Generator System

OPERATION

2.1 KNOW THE GENERATOR

Read the

Owner’s Manual

and

Safety Rules

before

operating this generator.

Compare the generator to this illustration to become familiarized with

the locations of various controls and adjustments. Save this manual for

future reference.

1) 12 Volt DC, 10 Amp Receptacle –

This receptacle allows

the capability to recharge a 12 volt DC storage battery with

provided battery charge cables.

2) 120 Volt AC, 20 Amp, Duplex Receptacle –

Supplies

electrical power for the operation of 120 Volt AC, 20 Amp,

single-phase, 60 Hz electrical lighting, appliance, tool and

motor loads.

3) 120 Volt AC, 20A Duplex GFCI Receptacle –

Supplies ground fault protected electrical power for operation of

120 volt AC 20 amp, single-phase, 60 Hz electric lighting,

appliances, tools and motor loads.

4) 120 Volt AC, 30 Amp Locking Receptacle –

Supplies

electrical power for the operation of 120 Volt AC, 30 Amp, single-

phase, 60 Hz electrical lighting, appliance, tool and motor loads.

5) 120/240 Volt AC, 30 Amp Locking Receptacle –

Supplies electrical power for the operation of 120 and/or 240 Volt

AC, 30 Amp, single-phase, 60 Hz, electrical lighting, appliance,

tool and motor loads.

6) 120/240 Volt AC, 50 Amp Receptacle –

Supplies

electrical power for the operation of 120/240 Volt AC, 50 Amp,

single-phase, 60 Hz, welder or motor loads.

7) Air Cleaner –

Filters intake air as it is drawn into the engine.

8) Choke Knob –

Used when starting a cold engine.

9) Winter / Summer Valve –

See “Cold Weather Operation.”

(Section 2, page 12.)

10) Circuit Breakers

(AC) – Each receptacle is provided with a

push-to-reset circuit breaker to protect the generator against

electrical overload.

11) Fuel Tank –

Tank holds 16 U.S. gallons of fuel.

12) Grounding Lug –

Ground the generator to an approved earth

ground here. See page 9 for details.

13) Idle Control Switch –

The idle control runs the engine at

normal (high) speeds when there is an electrical load present and

runs the engine at idle (low) speeds when a load is not present.

14) Start/Run/Stop Switch –

Controls the operation of the

generator.

15) Oil Fill –

Use this point to add oil to engine.

711

12

15

9

8

14

Figure 5 - Generator Controls

Figure 6 - Engine Control Panel

30A

120V

20A

GFCI

120V

20A

120V

CIRCUIT BREAKERS - PUSH TO RESET

HOUR METER

10A

ON OFF

IDLE

CONTROL

12Vdc

120V/240V

50A

120V/240V

30A

50A

30A

TEST RESET

TESTRESET

30A

30A30A

20A

20A

GFCI

120V

30A

1/10

HOURS

QUARTZ

123

4

5

610

13

Figure 4 - Control Panel

2.2 CORD SETS AND CONNECTION

PLUGS

2.2.1 AC, 20 AMP, DUPLEX RECEPTACLE

This is a 120 Volt outlet protected against overload by a 20 Amp push-to-

reset circuit breaker. Use each socket to power 120 Volt AC, single phase,

60 Hz electrical loads requiring up to a combined 2400 watts (2.4 kW) or

20 Amps of current. Use only high quality, well-insulated, 3-wire grounded

cord sets rated for 125 Volts at 20 Amps (or greater).

Keep extension cords as short as possible, preferably less than 15 feet

long, to prevent voltage drop and possible overheating of wires.

Figure 7 - 120 Volt AC, 20 Amp, Duplex Receptacle

2.2.2 120V AC, 20 AMP, GFCI RECEPTACLE

This unit is equipped with a ground fault circuit interrupter (GFCI). This

device meets applicable federal, state and local codes.

A GFCI receptacle is different from conventional receptacles. In the

event of a ground fault, a GFCI will trip and quickly stop the flow of

electricity to prevent serious injury.

Definition: Instead of following its normal safe path, electricity passes

through a persons body to reach the ground. For example, a defective

appliance can cause a ground fault.

A GFCI receptacle does NOTprotect against circuit overloads, short

circuits, or shocks. For example, electric shock can still occur if a person

touches charged electrical wires while standing on a non-conducting

surface, such as a wood floor.

Figure 8 - 120 VAC, 20 Amp GFCI Receptacle

Testing the GFCI: Test the GFCI outlet every month as follows:

• Plug a test lamp into the receptacle.

• Start the generator, the test lamp should be on.

• Press the “Test” button located on the front of the receptacle to trip

the device.

• This should stop the flow of electricity making the lamp shut off. The

yellow trip indicator should now be on.

• To restore the flow of electricity, press the “Reset” button on the front

of the receptacle. If the GFCI does not perform in this manner, do

not use the receptacle. Contact a local service dealer.

• This outlet is protected against overload by a 20A push-to-reset

circuit breaker. Use the outlet to power 120V AC, single-phase, 60

Hz, electrical loads requiring up to a combined 2400 watts (2.4 kW)

or 20 amps of current.

2.2.3 120V AC, 30 AMP RECEPTACLE

Use a NEMA L5-30 plug with this receptacle. Connect a 3-wire cord set

rated for 125 Volts AC at 30 Amps (or greater) to the plug.

Figure 9 - 120 VAC, 30 Amp Receptacle

7

Section 2 – Operation

Commercial-Industrial-Residential Portable Generator System

Use this receptacle to operate 120 Volt AC, 60 Hz, single phase loads

requiring up to 3600 watts (3.6 kW) of power at 30 Amps. The outlet is

protected by a 30 Amp push-to-reset circuit breaker.

2.2.4 120/240V AC, 30 AMP RECEPTACLE

Use a NEMA L14-30 plug with this receptacle. Connect a suitable 4-

wire grounded cord set to the plug and to the desired load. The cord set

should be rated for 250 Volts AC at 30 Amps (or greater).

Figure 10 - 120/240 VAC, 30 Amp Receptacle

Use this receptacle to operate 120 Volt AC, 60 Hz, single phase loads

requiring up to 3600 watts (3.6 kW) of power at 30 Amps or 240 Volt AC,

60 Hz, single phase loads requiring up to 7200 watts (7.2 kW) of power

at 30 Amps. The outlet is protected by two 30 Amp push-to-reset circuit

breakers.

2.2.5 12 VOLT DC, 10 AMP RECEPTACLE

This receptacle allows you to recharge a 12 Volt automotive or utility

style storage battery with the battery charge cables provided. This

receptacle can not recharge 6 Volt batteries and can not be used to

crank an engine having a discharged battery. See the section "Charging

a Battery" (page 12) before attempting to recharge a battery.

Figure 11 - 12 Volt DC, 10 Amp Receptacle

2.2.6 120/240 VOLT AC, 50 AMP RECEPTACLE

Use a NEMA 14-50 plug with this receptacle. Connect a 4-wire cord set

rated for 250 Volts AC at 50 Amps to the plug.

Figure 12 - 120/240 VAC, 50 Amp Receptacle

Use this receptacle to operate 120/240 Volt AC, 60 Hz electrical loads

requiring up to 12,000 watts (12.0 kW) of power. This receptacle is

protected by a 50 Amp 2-pole circuit breaker.

8

Section 2 – Operation

Commercial-Industrial-Residential Portable Generator System

30A

120V

120V/240V

30A

120V/240V

50A

2.3 HOW TO USE THE GENERATOR

If you have any problems operating your generator, please call the

generator helpline at 1-800-333-1322.

2.3.1 GROUNDING THE GENERATOR

The National Electrical Code requires that the frame

and external electrically conductive parts of this

generator be properly connected to an approved earth

ground.

Local electrical codes may also require proper grounding of

the unit. For that purpose, generally, connecting a No. 10 AWG

(American Wire Gauge) stranded copper wire to the grounding wing nut

and to an earth-driven copper or brass grounding rod (electrode)

provides adequate protection against electrical shock. However, local

codes may vary widely.

Consult with a local electrician for

grounding requirements in your area.

Figure 13 - Grounding the Generator

Proper grounding of the generator will help prevent

electrical shock

in the event of a ground fault condition in the

generator or in connected electrical devices. Proper grounding also

helps dissipate static electricity, which often builds up in ungrounded

devices.

2.3.2 CONNECTING ELECTRICAL LOADS

DO NOT

connect 240 Volt loads to 120 Volt receptacles.

DO NOT

connect 3-phase loads to the generator.

DO NOT

connect 50 Hz

loads to the generator.

• Let engine stabilize and warm up for a few minutes after starting.

• Plug in and turn on the desired 120 or 240 Volt AC, single phase, 60

Hz electrical loads.

• Add up the rated watts (or amps) of all loads to be connected at one

time. This total should not be greater than (a) the rated

wattage/amperage capacity of the generator or (b) circuit breaker

rating of the receptacle supplying the power. See "Don't Overload

the Generator" below.

2.4 DON’T OVERLOAD THE

GENERATOR

Overloading a generator in excess of its rated wattage capacity can

result in damage to the generator and to connected electrical devices.

Observe the following to prevent overloading the unit:

• Add up the total wattage of all electrical devices to be connected at

one time. This total should NOT be greater than the generator's

wattage capacity.

• The rated wattage of lights can be taken from light bulbs. The rated

wattage of tools, appliances and motors can usually be found on a

data plate or decal affixed to the device.

• If the appliance, tool or motor does not give wattage, multiply volts

times ampere rating to determine watts (volts x amps = watts).

• Some electric motors, such as induction types, require about three

times more watts of power for starting than for running. This surge of

power lasts only a few seconds when starting such motors. Make

sure you allow for this high starting wattage when selecting electrical

devices to connect to your generator:

1. Figure the watts needed to start the largest motor.

2. Add to that figure the running watts of all other connected loads.

The Wattage Reference Guide on page 10 is provided to assist you in

determining how many items your generator can operate at one time.

(Note: All figures are approximate. See data plate on appliance for

wattage requirements.)

9

Section 2 – Operation

Commercial-Industrial-Residential Portable Generator System

Generator Ground Lug

10

2.5 WATTAGE REFERENCE GUIDE

Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Running Watts

*Air Conditioner (12,000 Btu) . . . . . . . . . . . . . . . . . . . . .1700

*Air Conditioner (24,000 Btu) . . . . . . . . . . . . . . . . . . . . .3800

*Air Conditioner (40,000 Btu) . . . . . . . . . . . . . . . . . . . . .6000

Battery Charger (20 Amp) . . . . . . . . . . . . . . . . . . . . . . . .500

Belt Sander (3") . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1000

Chain Saw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1200

Circular Saw (6-1/2") . . . . . . . . . . . . . . . . . . . . . .800 to 1000

*Clothes Dryer (Electric) . . . . . . . . . . . . . . . . . . . . . . . .5750

*Clothes Dryer (Gas) . . . . . . . . . . . . . . . . . . . . . . . . . . . .700

*Clothes Washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1150

Coffee Maker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1750

*Compressor (1 HP) . . . . . . . . . . . . . . . . . . . . . . . . . . . .2000

*Compressor (3/4 HP) . . . . . . . . . . . . . . . . . . . . . . . . . .1800

*Compressor (1/2 HP) . . . . . . . . . . . . . . . . . . . . . . . . . .1400

Curling Iron . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .700

*Dehumidifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .650

Disc Sander (9") . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1200

Edge Trimmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .500

Electric Blanket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .400

Electric Nail Gun . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1200

Electric Range (per element) . . . . . . . . . . . . . . . . . . . . .1500

Electric Skillet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1250

*Freezer . ...... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..700

*Furnace Fan (3/5 HP) . . . . . . . . . . . . . . . . . . . . . . . . . . .875

*Garage Door Opener . . . . . . . . . . . . . . . . . . . . . .500 to 750

Hair Dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1200

Hand Drill . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .250 to 1100

Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Running Watts

Hedge Trimmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .450

Impact Wrench . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .500

Iron . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1200

*Jet Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .800

Lawn Mower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1200

Light Bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100

Microwave Oven . . . . . . . . . . . . . . . . . . . . . . . . .700 to 1000

*Milk Cooler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1100

Oil Burner on Furnace . . . . . . . . . . . . . . . . . . . . . . . . . . .300

Oil Fired Space Heater (140,000 Btu) . . . . . . . . . . . . . . .400

Oil Fired Space Heater (85,000 Btu) . . . . . . . . . . . . . . . .225

Oil Fired Space Heater (30,000 Btu) . . . . . . . . . . . . . . . .150

*Paint Sprayer, Airless (1/3 HP) . . . . . . . . . . . . . . . . . . . .600

Paint Sprayer, Airless (handheld) . . . . . . . . . . . . . . . . . . .150

Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50 to 200

*Refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .700

Slow Cooker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .200

*Submersible Pump (1-1/2 HP) . . . . . . . . . . . . . . . . . . .2800

*Submersible Pump (1 HP) . . . . . . . . . . . . . . . . . . . . . .2000

*Submersible Pump (1/2 HP) . . . . . . . . . . . . . . . . . . . . .1500

*Sump Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . .800 to 1050

*Table Saw (10") . . . . . . . . . . . . . . . . . . . . . . . .1750 to 2000

Television . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .200 to 500

Toaster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1000 to 1650

Weed Trimmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .500

*Allow 3 times the listed watts for starting these devices.

Section 2 – Operation

Commercial-Industrial-Residential Portable Generator System

2.6 BEFORE STARTING THE

GENERATOR

Prior to operating the generator, engine oil and gasoline will need to be

added, as follows:

2.6.1 ADDING ENGINE OIL

NOTE: When adding oil to the engine crankcase in

the future, use only high quality detergent oil rated

with API service classification SF or SG SAE 30

weight. Use no special additives.

Select the oil’s viscosity grade according to the expected operating

temperature.

Do not use SAE 10W-40.

• Above 40°F

, use SAE 10W-30 or SAE 30.

• Below 40°F,

use synthetic 5W-20 or 5W-30.

Although multi-viscosity oils (5W-30, 10W-30, etc.) improve starting in

cold weather, these multi-viscosity oils will result in increased oil

consumption when used above 32°F. Check your engine oil level more

frequently to avoid possible damage from running low on oil.

• Place generator on a level surface.

• Clean area around oil fill and remove oil fill cap and dipstick.

• Wipe dipstick clean.

• Slowly fill engine with oil through the oil fill opening until it reaches

the full mark on the dipstick. Stop filling occasionally to check oil

level. DO NOT OVERFILL.

• Install dipstick. Install oil fill cap and finger tighten securely.

• Check engine oil level before starting each time thereafter.

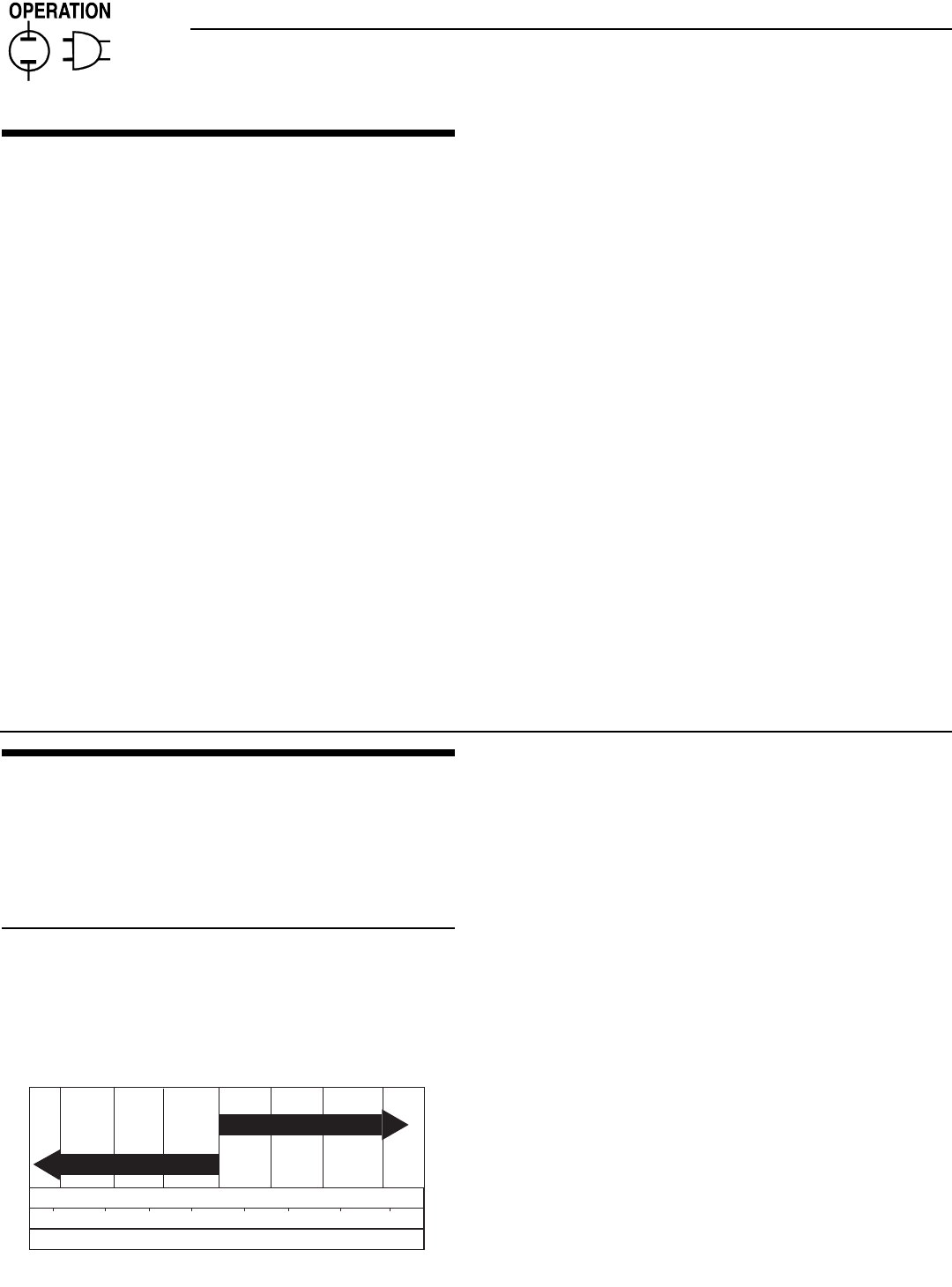

Synthetic 5W-20, 5W-30

Synthetic 5W-20, 5W-30

10W-30, SAE 30

10W-30, SAE 30

ºF -20 0 20 32 40 60 80 100

ºC -30 -20 -10 0 10 20 30 40

Temperature Range of Expected Use

11

2.6.2 ADDING GASOLINE

 WARNING: Never fill fuel tank indoors. Never fill

fuel tank when engine is running or hot. DO NOT

light a cigarette or smoke when filling the fuel

tank.

 Caution: Do not overfill the fuel tank. Always leave

room for fuel expansion.

• Use regular UNLEADED gasoline with the generator engine. Do not

use premium gasoline. Do not mix oil with gasoline.

• Clean area around fuel fill cap, remove cap.

• Slowly add unleaded regular gasoline to fuel tank. B

e careful not

to overfill.

Allow about 1/2" of tank space for fuel expansion, as

shown here.

• Install fuel cap and wipe up any spilled gasoline.

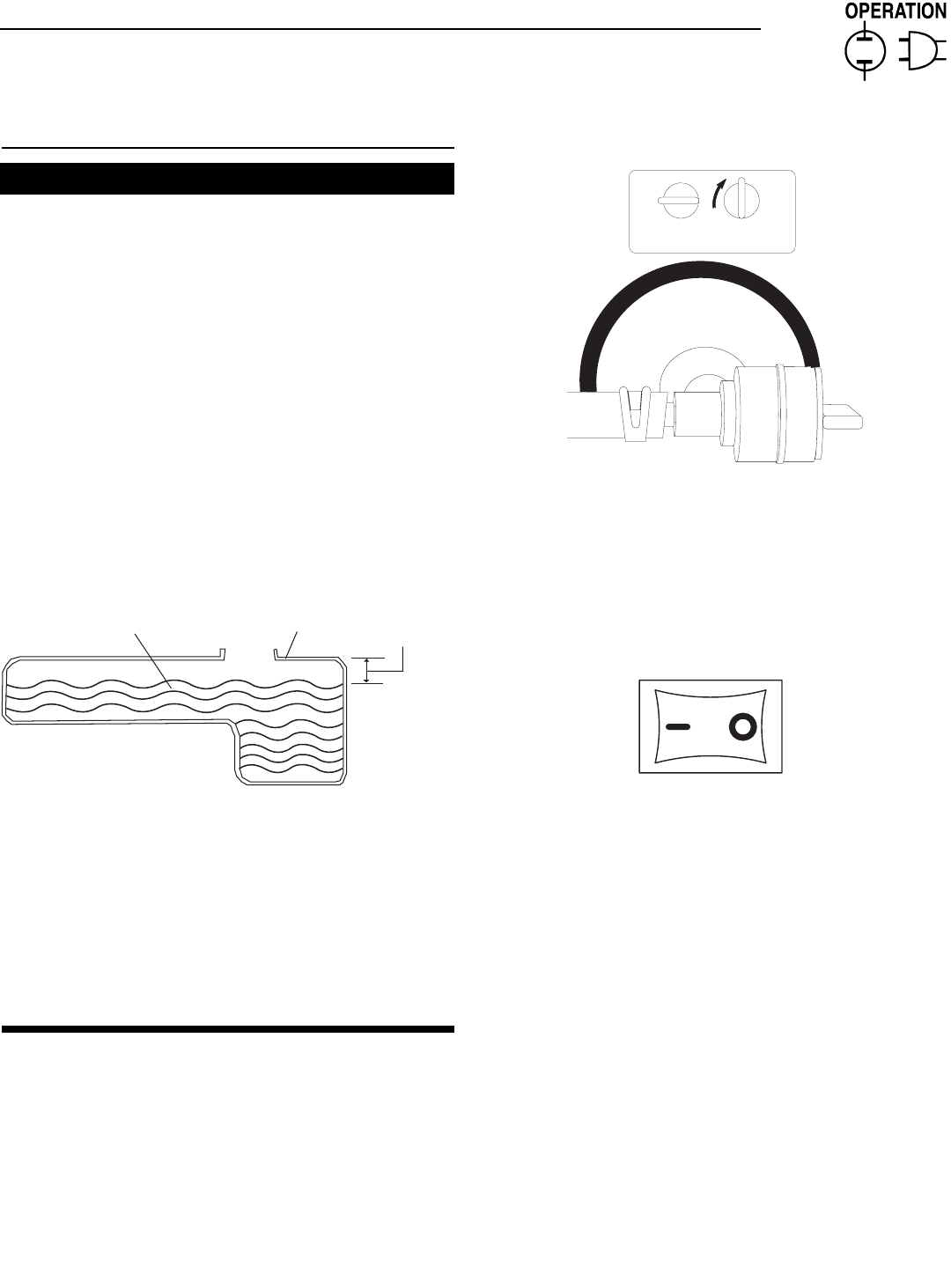

Figure 14 - Fuel Tank

MPORTANT:

It is important to prevent gum deposits from forming in

fuel system parts such as the carburetor, fuel hose or tank during

storage. Alcohol-blended fuels (called gasohol, ethanol or methanol)

can attract moisture, which leads to separation and formation of acids

during storage. Acidic gas can damage the fuel system of an engine

while in storage. To avoid engine problems, the fuel system should be

emptied before storage of 30 days or longer. See "Storage" on page 18.

Never use engine or carburetor cleaner products in the fuel tank as

permanent damage may occur.

2.7 TO START THE ENGINE

 WARNING!

Never start or stop engine with electrical devices

plugged into the receptacles AND devices turned on.

• Unplug all electrical loads from the unit's receptacles before starting

the engine.

• Make sure the unit is in a level position.

• Open the fuel shut-off valve.

Figure 15 - Fuel Shut-off Valve

• Locate the Idle Control ON/OFF switch on the control panel and set it

to the “OFF” position.

Figure 16 - Idle Control Switch

Section 2 — Operation

Commercial-Industrial-Residential Portable Generator System

-------------



WARNING



-------------

1/2 in

ch

Fuel Tank

Fuel

FUEL SHUTOFF

ON OFF

ON OFF

IDLE

CONTROL

12

• Move engine CHOKE knob to “Full Choke” position.

17 - Full Choke Position

• To start engine, press and hold the Start/Run/Stop switch in the

“Start” position. The engine will crank and attempt to start. When

the engine starts, release the switch to the run position.

• When the engine starts, move choke knob to “1/2 Choke” position until the

engine runs smoothly and then to “Run” position. If engine falters, move choke

knob to “1/2 Choke” position until the engine runs smoothly and then to “Run”

position.

Note: If engine fires, but does not continue to run,

move choke lever to “Full Choke” and repeat starting

instructions.

2.8 STOPPING THE ENGINE

• Shut off all loads, then unplug the electrical loads from generator

panel receptacles. Never start or stop the engine with electrical

devices plugged in and turned on.

• Turn “Off” the Idle Control switch (if on).

• Let engine run at no-load for several minutes to stabilize the internal

temperatures of engine and generator.

• Move Start/Run/Stop switch to “Off” position.

• Close fuel valve.

IMPORTANT

: Do not overload the generator. Also, do not overload

individual panel receptacles. These outlets are protected against

overload with push-to-reset-type circuit breakers. If amperage rating of

any circuit breaker is exceeded, that breaker opens and electrical

output to that receptacle is lost. Read “Don’t Overload the Generator”

on page 9 carefully.

2.9 AUTOMATIC IDLE CONTROL

This feature is designed to greatly improve fuel economy. When this

switch is turned

“On,”

the engine will only run at its normal fast

governed engine speed when electrical load is connected. When the

load is removed, the engine will run at a reduced speed. With the switch

“Off,”

the engine runs at the normal fast engine speed all the time.

Always have the switch OFF when starting and

stopping the engine.

2.10 COLD WEATHER OPERATION/

DE-ICER

Under certain weather conditions (temperatures below 40° F (4° C) and

a high dew point), the engine may experience icing of the carburetor

and/or the crankcase breather system. To eliminate this problem, this

generator engine is fitted with a winter/summer valve. this directs hot

air into the carburetor during cold weather operation. Always make sure

the winter/summer valve is in the correct location relative to the weather

conditions.

2.11 LOW OIL PRESSURE SHUTDOWN

SYSTEM

The engine is equipped with a low oil pressure sensor that shuts down

the engine automatically when the oil pressure drops below 10 psi. If

the engine shuts down by itself and the fuel tank has enough gasoline,

check engine oil level.

2.11.1 INITIAL START-UP

A delay built into the low oil shutdown system allows oil pressure to

build during starting. The delay allows the engine to run for about 10

seconds before sensing oil pressure.

2.11.2 SENSING LOW OIL PRESSURE

If the system senses low oil pressure during operation, the engine shuts

down.

2.11.3 RESTARTING

If you try to restart the engine within 10 seconds after it shuts down, the

engine may NOT start. The system needs 5 to 10 seconds to reset.

If you do restart the engine after such a shutdown and have not

corrected the low oil pressure, the engine runs for about 10 seconds as

described above and then stops.

Section 2 — Operation

Commercial-Industrial-Residential Portable Generator System

2.12 CHARGING A BATTERY

DANGER!

Storage batteries give off explosive hydrogen gas

while recharging. An explosive mixture will remain around the

battery for a long time after it has been charged. The slightest

spark can ignite the hydrogen and cause an explosion. Such an

explosion can shatter the battery and cause blindness or other

serious injury.

 DANGER!

Do not permit smoking, open flame, sparks or any

other source of heat around a battery. Wear protective goggles,

rubber apron and rubber gloves when working around a battery.

Battery electrolyte fluid is an extremely caustic sulfuric acid

solution that can cause severe burns. If spill occurs flush area with

clear water immediately.

Your generator has the capability of recharging a discharged 12 Volt

automotive or utility style storage battery.

Do not use the unit to

charge any 6 Volt batteries. Do not use the unit to

crank an engine having a discharged battery.

To recharge 12 Volt batteries, proceed as follows:

• Check fluid level in all battery cells. If necessary, add ONLY distilled

water to cover separators in battery cells.

Do not use tap

water.

• If the battery is equipped with vent caps, make sure they are

installed and are tight.

• If necessary, clean battery terminals.

• Connect battery charge cable connector plug to panel receptacle

identified by the words "12-VOLT D.C."

• Connect battery charge cable clamp with red handle to the positive

(+) battery terminal.

• Connect battery charge cable clamp with black handle to the

negative (-) battery terminal.

• Start engine. Let the engine run while battery recharges. Engine idle

control switch must be in off position for battery charging.

• When battery has charged, shut down engine.

Note: Use an automotive hydrometer to test battery

state of charge and condition. Follow the hydrometer

manufacturer's instructions carefully. Generally, a

battery is considered to be at 100% state of charge

when specific gravity of its fluid (as measured by

hydrometer) is 1.260 or higher.

13

Section 2 — Operation

Commercial-Industrial-Residential Portable Generator System

3.2.1 GENERATOR SPECIFICATIONS

MODEL GPS 12500 GPS 15000

Model # 004451-1 004582-1

Rated Max. Power 12.5 kW 15.0 kW

Surge Power 18.75 kW 22.5 kW

Rated AC Voltage 120/240 120/240

Rated Max AC Load

Current @ 240V 52.0 Amps 62.5 Amps

Current @ 120V 104.0 Amps 125.0 Amps

Rated Frequency 60 Hz @3600 RPM

Phase Single Phase

Rated DC Voltage 12 Volts

Rated Max DC Load

Current @ 12 Volts 10 Amperes

3.2.2 ENGINE SPECIFICATIONS

Rated Horsepower

@ 3600 RPM 27 30

Displacement 760cc 992cc

Spark Plug Type Champion RC12YC or Equivalent

Spark Plug Gap 0.030 inch or (0.76 mm)

Gasoline Capacity 16 U.S. gallons

Oil Type Summer – SAE 30 or 10W-30 Winter – Synthetic 5W-20 or 5W-30

Oil Capacity w/Filter Change = 1.5 Qts. w/o Filter Change = 1.2 Qts.

Run Time/Fuel 10 Hours / 1.6 gallons per hour

Consumption-1/2 Load

Check Oil Level

✓

Service Air Pre-Cleaner

✓

**

Change Oil and Oil Filter‡

✓

*

Clean Spark Arrestor Screen

✓

Adjust Valve Clearance

✓

Service Air Cleaner

✓

**

Replace Spark Plugs

✓

‡ Change oil after first 8 hours of operation then every season.

* Change oil and oil filter every month when operating under heavy load or in high temperatures.

** Clean more often under dirty or dusty operating conditions. Replace air cleaner parts if very dirty..

14

Section 3 — Maintenance

Commercial-Industrial-Residential Portable Generator System

3.1 MAINTENANCE SCHEDULE

Follow the calendar intervals. More frequent service is required when operating in adverse conditions noted below.

Operation Maintenance Daily Every Season Every Season Every Season

PRODUCT SPECIFICATIONS

15

3.3 GENERAL RECOMMENDATIONS

The warranty of the generator does not cover items that have been

subjected to operator abuse or negligence. To receive full value from the

warranty, the operator must maintain the generator as instructed in this

manual.

Some adjustments will need to be made periodically to properly

maintain the generator.

All adjustments in the Maintenance section (3) of this manual should be

made at least once each season. Follow the requirements in the

"Maintenance Schedule" chart on page 14.

NOTE: Once a year you should replace the spark plug

and replace the air filter. A new spark plug and clean

air filter assure proper fuel-air mixture and help your

engine run better and last longer.

3.3.1 GENERATOR MAINTENANCE

Generator maintenance consists of keeping the unit clean and dry.

Operate and store the unit in a clean dry environment where it will not

be exposed to excessive dust, dirt, moisture or any corrosive vapors.

Cooling air slots in the generator must not become clogged with snow,

leaves, or any other foreign material.

Check the cleanliness of the generator frequently and clean when dust,

dirt, oil, moisture or other foreign substances are visible on its exterior

surface.

 CAUTION!

Never insert any object or tool through the air cooling

slots, even if the engine is not running.

Note: DO NOT use a garden hose to clean generator.

Water can enter the engine fuel system and cause

problems. In addition, if water enters the generator

through cooling air slots, some water will be retained

in voids and crevices of the rotor and stator winding

insulation. Water and dirt buildup on the generator

internal windings will eventually decrease the

insulation resistance of these windings.

3.3.2 TO CLEAN THE GENERATOR

• Use a damp cloth to wipe exterior surfaces clean.

• A soft, bristle brush may be used to loosen caked on dirt, oil, etc.

• A vacuum cleaner may be used to pick up loose dirt and debris.

• Low pressure air (not to exceed 25 psi) may be used to blow away

dirt. Inspect cooling air slots and openings on the generator. These

openings must be kept clean and unobstructed.

3.3.3 ENGINE MAINTENANCE

DANGER!

When working on the generator, always disconnect

negative cable from battery. Also disconnect spark plug wires from

spark plug and keep wire away from spark plug.

3.3.4 CHECKING OIL LEVEL

See the “BEFORE STARTING THE GENERATOR” section on page 10

for information on checking the oil level. The oil level should be checked

before each use, or at least every eight hours of operation. Keep the oil

level maintained.

3.3.5 CHANGING THE OIL AND OIL FILTER

Change the oil and filter after the first eight hours of operation. Change

the oil every 100 hours thereafter. If you are running this unit under dirty

or dusty conditions, or in extremely hot weather, change the oil more

often.

Use the following instructions to change the oil while

the engine is still warm:

• Clean area around oil drain hose and plug.

• Remove oil drain plug from end of hose and oil fill plug to drain oil

completely into a suitable container.

• When oil has completely drained, install oil drain plug and tighten

securely.

• Place a suitable container beneath the oil filter and turn filter

counterclockwise to remove. Discard according to local regulations.

• Coat gasket of new filter with clean engine oil. Turn filter clockwise

until gasket contacts lightly with filter adapter. Then tighten an

additional 3/4 turn.

• Fill oil sump with recommended oil. (See “Before Starting the

Generator” on page 10 for oil recommendations).

• Wipe up any spilled oil.

3.3.6 REPLACING THE SPARK PLUG

Section 3 — Maintenance

Commercial-Industrial-Residential Portable Generator System

16

Use Champion RC12YC spark plug or equivalent. The correct air gap is

0.76 mm (0.030 in.).

Replace the plug once each year.

This

will help your engine start easier and run better.

1. Stop the engine and pull the spark plug wire off of the spark plug.

2. Clean the area around the spark plug and remove it from the

cylinder head.

3. Set the spark plug's gap to 0.76 mm (0.030 in.). Install the correctly

gapped spark plug into the cylinder head.

Figure 18 - Spark Plug Gap

3.4 SERVICE AIR CLEANER

Your engine will not run properly and may be damaged if you run it

using a dirty air cleaner. Clean or replace the air cleaner paper filter

once a year. Clean or replace more often if operating under dusty

conditions. Clean foam pre-cleaner every month or more often under

dusty conditions.

Figure 20 - Air Cleaner

To clean or replace foam pre-cleaner:

• Remove air cleaner cover, then foam pre-filter.

• Wash pre-cleaner in soapy water. Squeeze pre-filter dry in clean

cloth (DO NOT TWIST).

• Clean air cleaner cover before re-installing it.

To clean or replace paper air filter:

• Remove air cleaner cover; then remove foam pre-filter (service if

necessary) and remove paper filter.

• Clean paper filter by tapping it gently on a solid surface. If the filter

is too dirty, replace it with a new one. Dispose of the old filter

properly.

• Clean air cleaner cover then slip pre-cleaner over filter. Next insert

new paper filter into the base of the air cleaner. Re-install air cleaner

cover.

Note: To order a new air filter, please contact the

nearest authorized service center at 1-800-333-1322.

3.5 CLEAN SPARK ARRESTOR

SCREEN

The engine exhaust muffler has a spark arrestor screen. Inspect and

clean the screen at least once each year. If unit is used regularly,

inspect and clean more often.

NOTE: If you use your generator on any forest-

covered, brush-covered or grass-covered unimproved

land, it must equipped with a spark arrestor. The spark

arrestor must be maintained in good condition by the

owner/operator.

Clean and inspect the spark arrestor as follows:

• Remove the screen retaining bracket by removing the screw.

• Slide the spark arrestor screen out from the tail pipe.

• Inspect screen and replace if torn, perforated or otherwise

damaged. DO NOT USE a defective screen. If screen is not

damaged, clean it with commercial solvent.

• Replace the screen and the retaining bracket.

Section 3 — Maintenance

Commercial-Industrial-Residential Portable Generator System

Pre-Cleaner

Filter

Cover

Base

17

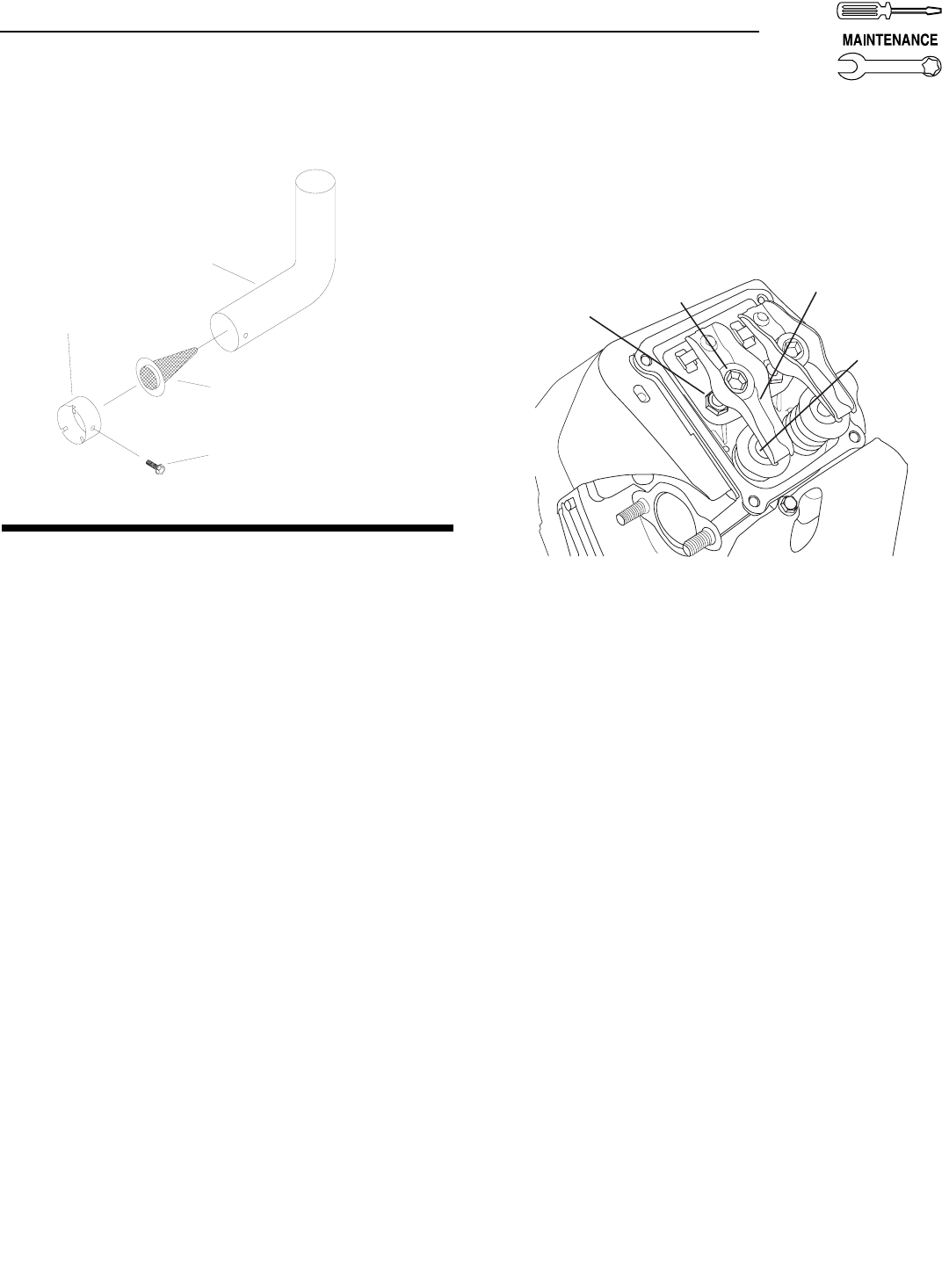

Figure 21 - Spark Arrestor

3.6 ADJUSTING VALVE CLEARANCE

After the first 50 hours of operation, you should adjust

the valve clearance in the engine.

Important:

If you feel uncomfortable about doing this procedure or

you don't have the proper tools, please take your generator in to the

nearest service center to have the valve clearance adjusted. This is a

very important step to insure longest life for your engine.

To adjust valve clearance:

• Make sure the engine is at room temperature.

• Make sure that the spark plug wire is removed from the spark plug

and out of the way.

• Remove the four screws attaching the valve cover with a #2 or #3

phillips screwdriver.

• Make sure the piston is at Top Dead Center (TDC) of its

compression stroke (both valves closed). To get the piston at TDC,

remove the intake screen at the front of the engine to gain access to

the flywheel nut. Use a large socket and socket wrench to rotate the

nut and hence the engine. While watching the piston through the

spark plug hole. The piston should move up and down. The piston

is at TDC when it is up as high as it can go.

• Loosen the rocker jam nut. Use an 10mm allen wrench to turn the

pivot ball stud while checking clearance between the rocker arm and

the valve stem with a feeler gauge. Correct clearance is 0.002-0.004

inch (0.05-0.1 mm).

NOTE: You must hold the rocker arm jam nut in place

as you turn the pivot ball stud.

When valve clearance is correct, hold the pivot ball stud in place with

the allen wrench and tighten the rocker arm jam nut. Tighten the jam nut

to 174 in/lbs. torque. After tightening the jam nut, recheck valve

clearance to make sure it did not change.

Figure 22 - Valve Clearance Adjustment

• Install new valve cover gasket.

• Re-attach the valve cover.

NOTE: Start all four screws before tightening or you

will not be able to get all the screws in place. Make

sure the valve cover gasket is in place.

• Re-attach the spark plug wire to the spark plug.

• Repeat the process for the other cylinder.

Section 3 — Maintenance

Commercial-Industrial-Residential Portable Generator System

RETAINING

SCREW

SPARK ARRRESTOR

SCREEN

MUFFLER OUTLET

TUBE

RETAINER

Jam Nut

Pivot Ball

Stud

Rocker

Arm

Valve

Stem

18

Section 3 — Maintenance

Commercial-Industrial-Residential Portable Generator System

3.7 GENERAL

The generator should be started at least once every seven days and be

allowed to run at least 30 minutes. If this cannot be done and you must

store the unit for more than 30 days, use the following information as a

guide to prepare it for storage.

DANGER! NEVER store engine with fuel in tank

indoors or in enclosed, poorly ventilated areas

where fumes may reach an open flame, spark or

pilot light as on a furnace, water heater, clothes

dryer or other gas appliance.

3.8 LONG TERM STORAGE

It is important to prevent gum deposits from forming in essential fuel

system parts such as the carburetor, fuel hose or tank during storage.

Also, experience indicates that alcohol-blended fuels (called gasohol,

ethanol or methanol) can attract moisture, which leads to separation

and formation of acids during storage. Acidic gas can damage the fuel

system of an engine while in

storage.

To avoid engine problems, the fuel system should be emptied before

storage of 30 days or longer, as follows:

• Remove all gasoline from the fuel tank.

DANGER! Drain fuel into approved container

outdoors, away from open flame. Be sure engine is

cool. Do not smoke.

• Start and run engine until engine stops from lack of fuel.

• While engine is still warm, drain oil from crankcase. Refill with

recommended grade.

• Remove spark plugs and pour about 1/2 ounce

(15 ml) of engine oil into the cylinders. Cover spark plug hole with

rag. Press the “Start” button and allow engine to crank for 2

seconds. Then press the “Stop” button.

CAUTION! Avoid spray from spark plug holes

when cranking engine.

• Install and tighten spark plugs. Do not connect spark plug wires.

• Clean the generator outer surfaces. Check that cooling air slots

and openings on generator are open and unobstructed.

• Store the unit in a clean, dry place.

3.9 OTHER STORAGE TIPS:

• Do not store gasoline from one season to another.

• Replace your gasoline can if your can starts to rust. Rust and/or dirt

in your gasoline will cause problems with the carburetor and fuel

system.

• If possible, store your unit indoors and cover it to give protection

from dust and dirt.

BE SURE TO EMPTY THE FUEL TANK.

• If it is not practical to empty the fuel tank and the unit is to be stored

for some time, use a commercially available fuel stabilizer added to

the gasoline to increase the life of the gasoline.

• Cover your unit with a suitable protective cover that does not retain

moisture.

DANGER! NEVER cover your generator while

engine and exhaust area are warm.

STORAGE

19

4.1 TROUBLESHOOTING

Engine is running, but no AC

1. Circuit breaker is open. 1. Reset circuit breaker.

output is available.

2. Poor connection or defective cord set. 2. Check and repair.

3. Connected device is bad. 3. Connect another device that is in

good condition.

4. Fault in generator. 4. Contact Authorized Service Facility.

Engine runs good but bogs

1. Short circuit in a connected load. 1. Disconnect shorted electrical load.

down when loads are connected.

2. Generator is overloaded. 2. See

“Don’t Overload the Generator”

on page 9.

3. Engine speed is too slow. 3. Contact Authorized Service Facility.

4. Shorted generator circuit. 4. Contact Authorized Service Facility.

Engine will not start; or starts

1. Dirty air cleaner. 1. Clean or replace air cleaner.

and runs rough.

2. Out of gasoline. 2. Fill fuel tank.

3. Stale gasoline. 3. Drain fuel tank and fill with fresh fuel.

4. Spark plug wire not connected to 4. Connect wire to spark plug.

spark plug.

5. Bad spark plug. 5. Replace spark plug.

6. Water in gasoline. 6. Drain fuel tank; fill with fresh fuel.

7. Overchoking. 7. Put choke knob to No Choke position.

8. Low oil level. 8. Fill crankcase to proper level.

9. Excessive rich fuel mixture. 9. Contact Authorized Service Facility.

10. Intake valve stuck open or closed. 10. Contact Authorized Service Facility.

11. Engine has lost compression. 11. Contact Authorized Service Facility.

Engine shuts down during

1. Out of gasoline. 1. Fill fuel tank.

operation.

2. Low oil level. 2. Fill crankcase to proper level.

3. Fault in engine. 3. Contact Authorized Service Facility.

Engine lacks power.

1. Load is too high. 1. See

“Don’t Overload the Generator”

on page 9.

2. Dirty air filter. 2. Replace air filter.

3. Engine needs to be serviced. 3. Contact Authorized Service Facility.

Engine “hunts” or falters.

1. Choke is opened too soon. 1. Move choke to halfway position until

engine runs smoothly.

2. Carburetor is running too rich or too 2. Contact Authorized Service Facility.

lean.

No Battery Charge DC output.

1. Battery posts are corroded. 1. Clean battery posts.

2. Battery cable is bad. 2. Replace cable.

3. Battery is defective. 3. Check battery condition; replace if

defective.

4. Receptacle is bad. 4. Contact Authorized Service Facility.

Section 4 — Troubleshooting

Commercial-Industrial-Residential Portable Generator System

PROBLEM CAUSE SOLUTION

20

Section 5 — Notes

Commercial-Industrial-Residential Portable Generator System

21

Section 5 - Notes

Commercial-Industrial-Residential Portable Generator System

GOVERNOR

ACTUATOR

30

85

87a

86

87

GREEN

WHITE

Y

X

OFF

ON

J2

J1

+

-

2

22

77A

66A

11

BA

44S

11S

6

44

REGULATOR

VOLTAGE

WHITE

Y

XG

30A TWISTLOK

120/240V

120V/20A

HOT HOT

3

1

WHITE

WHITE

5

LINE 4

LOAD 2

C.B.

30A

C.B.

30A

C.B.

20A

C.B.

20A

C.B.

30A

30A

C.B.

TRANSFORMERS

IDLE CONTROL

CONTROL

ON/OFF

IDLE

0

LOP

FSS

SP2

IM2

D

IM1

SP1

D

IC

SSR

66 77

10A AUTO

RESET BKR

12Vdc OUTLET

ENGINE WIRING

77

66 6

2

77A

66A

77

66A

13A

15

15

15

15

15

0

0

0

0

0

0

0

0

0

18

15

13

13

167

167

15B

11

11

11

44

44

22

22

22

22

11

11

11

11

11 11

44

44

44

44

44

44

44

0

0

15A

BLK

229

229

11A

11A

44A

44A

44B

11B

11C

11D

44D

22

22 22

0

0

0

0

0

0

0

0

0

0

0

GFCI

DUPLEX

120V/20A

HOT

3

1

HOT

WHITE

4

5

WHITE

2

G

WHITE

G

WHITE

120V/30A

TWISTLOK

120V/30A

TWISTLOK

F1

0

0

0

0

0

15 15

0

0

0

0

4

13

15

R1

D2

1414

14

14

14

14

14

14

14

17

15B

BLK

0

0

ELECTRONIC GOVERNOR /

ENGINE SHUTDOWN P.C.B.

CB1

50A

C.B.

55

55

55A

55 55A

11

0

11

44

86

86

86

167

83

83

BLACK

BATTERY

12V

RED

SM

SC

86

13

16

16

15

15

14 14

0

0

SWITCH

SCR

TB1

TB2

RECTIFIER

BATTERY

CHARGE

BATTERY

CHARGE

RECTIFIER

18

1

2

4

5

6

7

8

9

10

11

3

12

PIN #

4

4

4

RED

1

2

3

4

6

7

8

9

10

5

11

12

PIN #

167

0

0

44C

0

22

22

22

22

22

22

GND

LEGEND

BA - BRUSH ASSEMBLY

CB1 - 5AMP AUTO RESET BREAKER

D - ENGINE SHUTDOWN DIODE

D2 - 600V 12A DIODE

F1 - 10A FUSE

FSS - FUEL SHUT OFF SOLENOID

GND - GROUND BAR

IM1 - IGNITION MODULE, CYL. 1

IM2 - IGNITION MODULE, CYL. 2

LOP - LOW OIL PRESSURE

R1 - 25 OHM, 25W RESISTOR

SC - STARTER CONTACTOR

SM - STARTER MOTOR

SP1 - SPARK PLUG, CYL. 1

SP2 - SPARK PLUG, CYL. 2

SSR - START / STOP RELAY

TB1, TB2 - TERMINAL BLOCK

SCR - STARTER CONTACTOR RELAY

120/240V

50A OUTLET

(START)

0

15

17

RUN

STOP

22

22 22

22

0

22

22

66

77A

0

0

0

0

0

014

14

13

910 12

5

12

6

4

8

CLOSEST TO BEARING

0

4

STATOR

PIN 6

PIN 5

PIN 4

PIN 3

PIN 2

PIN 1

44S

162

11S

0

4

6

162

55

55A

11S

44S

55A

55

77

66

10 98 7654321

11

12

22

Section 6 — Electrical Data

Commercial-Industrial-Residential Portable Generator System

Wiring Diagram – Drawing No. 0E0228

23

VOLTAGE

ELECTRONIC

REGULATOR

11S

162

0

6

44S

4

6

5

4

3

2

1

BCR2

77A

15

66A

56

4

10

12

SSR

9

RESET

RESET

TEST

TEST

18

IM2

SP2

IM1

SP1

PRINTED CIRCUIT

BOARD

CONTROL

12 10

11 9 2

7

864

53

J2

1

J1

15B

83

TR1

0

167

TR2

86

229

44S

11S

ACTUATOR

GOVERNOR

00 44C

22

11C

22

C.B.

0

0

0

0

22

22

22

44D

11D

44B

11B

11B

0

11A

44A

22

20A

C.B.

20A

30A

C.B.

30A

C.B.

30A

C.B.

50A

C.B.

30A

C.B.

FIELD

0

167

SW1

BATTERY CHARGE WINDING

55A

10A BATTERY CHARGE WINDING

77

55

11S

11

22

44

44S

66

77A 66A

6

240

C1-12

C1-11

C1-7

C1-6

C1-1

C1-2

C1-4

C1-9

C1-8

C1-10

C1-5

C1-3

77

66

BCR1

13A

CB2

83

167

229

15B

0

86

SW2

FSS

LOP

0

15

17

0

17

15

0

0

86

14

C2-8

C2-3

C2-4

C2-10

C2-5

C2-7

C2-1

C2-2

15

C2-12

0

0

16

SC

BATTERY

BLACK

RED

SC

SM

12V

CB1

15A 0

C2-6

C2-11

C2-9

13

13

F1

SCR

229

14

15B

18

0

15

15 15

0

0

0

167

15

15

86

0

14

17

18

13

13

16

14

14

14

14

86

13

15

15

15

15

15

15

15

15

14

18 18

167

167

86

86

4

4

162

11S

44S

22

11

0

44

11

0

22

44

11

0

22

44

11

0

22

44

44

77A

77

66A

66

77

0

2

2

2

6

6

6

11S 40

44S

RED

BLK

BLK

83 0

0

0

0

0

229

15B

15

15

15

0

17

17

4

SCR - STARTER CONTACTOR RELAY

SW1 - START-RUN-STOP RELAY

SSR - START / STOP RELAY

SP2 - SPARK PLUG, CYL. 2

SP1 - SPARK PLUG, CYL. 1

SM - STARTER MOTOR

SC - STARTER CONTACTOR

R1 - 25 OHM, 25W RESISTOR

IM2 - IGNITION MODULE, CYL. 2

FSS - FUEL SHUT OFF SOLENOID

CB1 - 10AMP AUTO RESET BREAKER

LOP - LOW OIL PRESSURE

IM1 - IGNITION MODULE, CYL. 1

GND - GROUND BAR

F1 - 10A FUSE

D2, D3 - ENGINE SHUTDOWN DIODE

BA - BRUSH ASSEMBLY

LEGEND

120/240V

50A

TWISTLOK TWISTLOK

120V/30A

TWISTLOK

120V/30A

DUPLEX

120V 120V

GFCI

30A

120/240V

POWER WINDING

DPE WINDING

I.C.T.

I.C.T.

I.C.

R1

D1

TB1 TB2

D2

D3

12Vdc

BA

CB2 - 5AMP AUTO RESET BREAKER

D1 - 600V 12A DIODE

BCR2 - BATTERY CHARGE RECTIFIER

BCR1 - BATTERY CHARGE RECTIFIER, 10A

I.C.T. - IDLE CONTROL TRANSFORMER

SW2 - IDLE CONTROL SWITCH

TB1, TB2 - TERMINAL BLOCK

13

14

Section 6 — Electrical Data

Commercial-Industrial-Residential Portable Generator System

Schematic – Drawing No. 0E0229

24

12

15

3

65

4

7

18

17

56

58

52 53 55

5

4

57

42

43

44 4546

51

49

40

39

38

16

8

12

11

9

13

23

28

19

20

22 21

24

29

35

3

3

36

37 26

27

3

34

32

25 3

31

30

3

14

10

41

47

50

Section 7 — Exploded Views and Parts Lists

Commercial-Industrial-Residential Portable Generator System

GT-990 & GT-760 Engine (Page 1) – Drawing No. 0E0034

25

ITEM PART NO. QTY. DESCRIPTION

1 0C5729 1 ASSEMBLY, CRANKCASE HOUSING

WITH SLEEVE

2 0C3008 1 SEAL, 38 I.D. CRANKSHAFT

3 090388 8 SCREW, TAPTITE M6-1.0 X 12 BP

4 0C5372 1 ASSEMBLY, BREATHER

5 0C3005 1 GASKET, BREATHER COVER

6 0C3003 3 SEPARATOR, OIL BREATHER

7 0D8067A 1 ASSEMBLY, HEAD #1

8 071983 4 RETAINER, PISTON PIN 20

9 0D5269 1 ROCKER, COVER

10 043790A 1 BARBED EL 90 3/8NPT X 3/8

11 0C2967 2 PISTON, LC

12 021533 2 SET, PISTON RING 90MM

13 071980 2 PIN PISTON D20

14 0D4041 1 ASSEMBLY, CAMSHAFT & GEAR

15 0D4788 2 PLUG STD PIPE 3/8 STEEL SQ HD

16 093064 1 ASSEMBLY, OIL FILL CAP

17 0C2977 1 GASKET, CRANK CASE

18 0C5943 1 SEAL, OIL PASSAGE

19 0D4040E 1 ASSEMBLY, CRANKSHAFT

HORIZONTAL DIRECT DRIVE

(GT-990)

19 0D4122E 1 ASSEMBLY, CRANKSHAFT

HORIZONTAL DIRECT DRIVE

(GT-760)

20 0C2969 2 ASSEMBLY, CONNECTING ROD

(GT-990)

20 0D3961 2 ASSEMBLY, CONNECTING ROD

(GT-760)

21 0D2157 2 SCREW SHC M6-1.0 X 50 G8.8

22 0C5313 1 SCREEN, OIL PICKUP

23 0D4123 1 ASSEMBLY, OIL PUMP

24 078699E 2 SLEEVE, SEAMED DOWEL 10 DIA.

25 0C3011 2 COVER, OIL RELIEF

26 0C3009 2 SPRING, OIL RELIEF

27 0C3010 2 BALL, 1/2D OIL RELIEF

28 093873 2 WASHER, LOCK RIB M6

29 0C5315 1 GEROTOR, OUTER

30 0C5998 1 CLAMP, OIL TUBE

31 0D4497 1 PLUG-CRANKCASE GOVERNOR

BORE

32 0C3971E 1 ASSEMBLY, DIPSTICK WITH

HANDLE

33 0D3745 1 TUBE, DIPSTICK

34 0C3027 3 O-RING, OIL CLR

35 0C3007 1 SEAL, 42 I.D. CRANKSHAFT

36 0C5731 1 ASSEMBLY, HOUSING COVER WITH

SLEEVE

ITEM PART NO. QTY. DESCRIPTION

37 0C3006 11 SCREW, HHFC M10-1.5 X 55

38 0C8566 8 SCREW HHFC M6-1.0 X 20

39 0C8808 2 HOOK, LIFTING

40 0C2981 1 ROCKER, COVER

41 0C2979 2 GASKET, VALVE COVER

42 086515 8 KEEPER, VALVE SPRING

43 0D2274 4 RETAINER, VALVE SPRING

44 0D3867 4 SPRING, VALVE

45 078672 2 SEAL, VALVE STEM D7

46 0C5371 4 WASHER, VALVE SPRING

47 072694 4 STUD, D20 PIVOT BALL

49 0D5313 4 ROCKER ARM

50 0D3998 4 NUT, HEX M8-1.0 GB YELLOW

CHROME

51 0D6024 2 PLATE, PUSH ROD GUIDE

52 0C2976 12 SCREW HHFC M8-1.25 X 65

53 086516 2 VALVE, EXHAUST

54 0C2229 2 VALVE, INTAKE

55 083897 4 TAPPET, SOLID

56 0D8067B 1 ASSEMBLY, HEAD #2

57 0D9853D 4 PUSHROD 144.6

58 0C2978 2 GASKET, HEAD (GT-990)

0D9000 2 GASKET, HEAD (GT-760)

59 0D6008 1 KIT GEAR COVER

60 0D4010 1 KIT GASKET

61 0D6007 1 KIT PISTON & RINGS

62 0D4012 1 KIT BREATHER ASSEMBLY

63 0D8675A 1 KIT HEAD ASSEMBLY CYLINDER 1

64 0D8675B 1 KIT HEAD ASSEMBLY CYLINDER 2

65 0D4015 1 KIT OIL RELIEF

Section 7 — Exploded Views and Parts Lists

Commercial-Industrial-Residential Portable Generator System

GT-990 & GT-760 Engine (Page 1) – Drawing No. 0E0034

Item 59 (Kit) includes items 3, 30, 35 & Kit item 64

Item 60 (Kit) includes items 2, 5, 17, 18, 34, 35, 40, 57, 139, 153.

Item 61 (Kit) includes items 8, 11, 12, 13

Item 62 (Kit) includes items 4, 5, 6

Item 63 (Kit) includes items 7, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52,

53, 54

Item 64 (Kit) includes items 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53,

54, 56

Item 65 (Kit) includes items 25, 26, 27

26

108

136

115

113

120

117

119

116

118

112 113

114

114

111

110

122

123

121

84

66

80

72

75

74

86

81

69

73

68

67

70

82 83

85

79

104

97

94

95

90

101

91

93

77

76

105

103

102

98

99

78

88

100

108

108

109

107

128

126

130

137

129

108

131

134

132

133

127

135

138

141

139

140

143

142

143

145

144

147

146

147

153

37 150 151

152

106

92

96

89

93

71

149

DETAIL "A"

87

DETAIL "A"

155

101

154 155

156

157

156

158

157

92 125

124

Section 7 — Exploded Views and Parts Lists

Commercial-Industrial-Residential Portable Generator System

GT-990 & GT-760 Engine (Page 2) – Drawing No. 0E0034

ITEM PART NO. QTY. DESCRIPTION

66 087680 1 WINGNUT, AIRBOX

67 0D4511 1 PRECLEANER, AIR

68 0D3262 1 ELEMENT, AIR CLEANER

69 0D6020 1 STUD M6-1.0 X 73

70 0D4183 1 ADAPTOR, SPIT BACK

71 0D6327 1 GASKET, SPITBACK

72 0D2774B 1 BASE, AIRBOX

73 0D5125 1 SPRING, WINTER/SUMMER

VALVE

74 0D2930 1 VALVE, SUMMER / WINTER

75 0D4612 1 SNORKEL, AIR INTAKE

76 0D6143 1 TUBE, HEAT RISER 50.8 I.D.

77 0D2775 1 COVER, AIRBOX

78 0D5014A 1 KNOB, AIRBOX 17mm

79 0D5014B 1 KNOB, AIRBOX 95MM

80 049721 1 SCREW HHC M6-1.0 X 35

81 022097 1 WASHER LOCK M6-1/4

82 022473 1 WASHER FLAT 1/4

83 052857 4 NUT LOCK FLANGE M6-1.0

84 0D6021 4 STUD, METRIC

85 0C9093 1 HOSE, BREATHER

86 0D4522 1 CONTROLLER ASSEMBLY

87 074908 1 SCREW HHTT M5-0.8 X 10

88 066849B 1 SCREW HHTT M5-0.8 X 8mm

89 0536210209 1 ASSEMBLY, WIRE

90 0C8526 1 CARBURETOR (GT-990)

0D8059 1 CARBURETOR (GT-760)

91 0D4024 1 GASKET,CARB TO SPACER

92 048031C 4 CLAMP HOSE BAND 1/4

93 030340 12" HOSE ¼ ID

94 0D5282 1 GASKET, MANIFOLD TO

CARBURETOR

95 086061G 1 SLEEVING 1/2" I.D.

96 0D6313 1 FILTER, FUEL

97 070008 4 WASHER FLAT M8

98 070006 4 WASHER LOCK M8

99 049821 4 SCREW SHC M8-1.25 X 30

100 0C9911 1 MANIFOLD, INTAKE

101 051714 3 NUT HEX M3-0.5

102 0D5411 1 ROD, SUMMER / WINTER VALVE

103 0D5445 1 BUSHING, MINI CONTROL PANEL

104 0D5416 1 KNOB, CONTROL SUMMER /

WINTER

105 0D5398 1 CHOKE ASSEMBLY

106 066849 2 SCREW TAPTITE M5-0.8 X 8 BP

107 0D3432 1 PANEL, CONTROL FACE PLATE

108 045756 26 SCREW TAPTITE M6-1.0X 10

YELLOW CHROME

109 0D4767 1 SWITCH ROCKER

110 0D1142A 1 WRAPPER, LOWER CYLINDER 2

111 0D1143 1 WRAPPER, UPPER CYLINDER 2

112 0C3053 1 ASSEMBLY, GROUND WIRE

113 022097 4 WASHER LOCK M6-1/4

114 092079 4 SCREW TAPTITE M6-1.0 X 25 BP

115 0C3052 2 ASSEMBLY, IGNITION COIL

116 0C4147 1 PUMP, IMPULSE

117 022264 2 WASHER LOCK M4

ITEM PART NO. QTY. DESCRIPTION

118 0D6142 2 SCREW PPHM M4-0.7 X 40

119 0D5399 1 ELBOW, RUBBER 90 DEG.

120 072347 2 SPARKPLUG

121 0C3017 1 STARTER

122 022129 2 WASHER LOCK M8-5/16

123 061906 2 SCREW HHC M8-1.25 X 85 G8.8

124 0C8919 1 BRACKET, STARTER

125 079246 1 SCREW HHC M6-1.0 X 16mm W/

LOCKWASHER

126 0D1131 1 GUARD,FAN

127 0C3022B 1 HOUSING, BLOWER GASOLINE

COOLER

128 0C9763 4 NUT, GROMMET 1/4 PLUG

129 0C3034 1 NUT,HEX M24

130 0C3033 1 WASHER, M24

131 0C3032 1 PLATE, FAN

132 0A5992 2 WASHER SHAKEPROOF INT M8

SS

133 051754 2 SCREW HHC M8-1.25 X 12 G8.8

134 0C3031 1 FAN, NYLON

135 085011 1 INSULATOR ASSEMBLY IGNITION

136 045756 4 SCREW TAPTITE M6-1X10

YELLOW CHROME

137 0C3725A 1 FLYWHEEL ASSEMBLY

138 0C3016A 1 PLATE, BACKING GT990 WITH

OIL COOL

139 082774 1 KEY, WOODRFF 4 X 19D

140 0C3043 2 GASKET, MANIFOLD / PORT

141 0C9764 4 PLASTITE,1/4-15 X 3/4

142 0C3026 1 COOLER, OIL

143 040173 4 CLAMP HOSE #5.5 .62 - .62

144 0C9806 2 HOSE, 3/8" I.D. X 6" LONG

145 035461A 2 BARBED STR 1/4NPT X 3/8 WITH

VIBRA SEAL

146 070185 1 FILTER, OIL D 69 X 64 LONG

147 0C7292 1 NIPPLE, 3/4"-16 UNF

148 0D3083 1 ASSEMBLY, OIL DRAIN HOSE

149 0C3025 1 SWITCH, OIL PRESS

150 0D4550 1 BRACKET, AIRBOX SUPPORT

151 0C3018 1 WRAPPER, UPPER CYLINDER 1

152 0C3019 1 WRAPPER, LOWER CYLINDER 1

153 046964 1 BRASS ST ELBOW 1/4 NPT

154 0D5605 1 ROD,GOV. STEP MOTOR-

CARBURETOR

155 0D6341 2 ROD END

156 0D6342 2 BALL STUD

157 0D9784 2 NUT LOCK HEX M3-0.5

158 031879 1 WASHER FLAT #4

27

Section 7 — Exploded Views and Parts Lists

Commercial-Industrial-Residential Portable Generator System

GT-990 & GT-760 Engine (Page 2) – Drawing No. 0E0034

28

36

15

21

22

9

3

2

1

4

31

12

25 24

26

32

10

19

16

28

27

17

10

19 32

28

31

32

17

32 31

33

29

28

13

28

18

10

7

29

11

23

24

6

5

8

14

34

30

35

22

20

31

30

37

39

38

41

40

40

41

39

42

43

44

45

28

Section 7 — Exploded Views and Parts Lists

Commercial-Industrial-Residential Portable Generator System

Generator – Drawing No. 0D4488

29

ITEM PART NO. QTY. DESCRIPTION

1 0C6934 1 ADAPTOR, ENGINE

2 0D2123 1 STATOR 12.5KW

0D2134 STATOR 15KW

3 0D2132 1 ROTOR 12.5KW

0D2133 ROTOR 15KW

4 0C6043B 1 CARRIER, REAR BEARING

5 0D2492 1 EXHAUST MANIFOLD

6 0D2726 1 MUFFLER

7 0C4138 2 GASKET, EXHAUST

8 0D3547 1 COVER, ALTERNATOR AIR IN

9 031971 1 BEARING

10 0C3168 3 5/16 SPECIAL LOCK

WASHER

11 0D1838 1 SCREW IHHC 3/8-24 X 15.50 G5

12 0D3549 4 SCREW IHHC M8-1.25 X 400 G8.8

13 0C7038E 1 BRACKET, ALT MOUNTING

14 032712 4 SCREW HHTT #10-32 X 1.75

15 083512 1 SCREW TAPTITE M8-1.25 X 16 BP

16 0C7038D 1 ENGINE MOUNTING PLATE

17 0C7758 6 RUBBER MOUNT

18 0388050AF0 1 BATTERY CABLE, BLACK

19 0C2417A 1 EARTH STRAP 3/8X 3/8

20 082121C 1 CLIP-J VINYL COAT .625 ID

21 066386 1 ASSEMBLY, BRUSH HOLDER

22 0C2824 3 SCREW TAP-R #10-32 X 9/16

ITEM PART NO. QTY. DESCRIPTION

23 0A2038 1 WASHER FLAT 3/8 ZINC

24 022237 5 WASHER LOCK 3/8

25 022511 4 SCREW HHC 3/8-16 X 1-1/4 G5

26 022131 4 WASHER FLAT 3/8-M10 ZINC

27 039288 4 SCREW HHC M8-1.25 X 55 G8.8

28 022145 22 WASHER FLAT 5/16 ZINC

29 049820 4 NUT LOCK HEX M8-1.25

NYLON INSERT

30 043116 5 SCREW HHC M6-1.0 X 12

31 022129 18 WASHER LOCK M8-5/16

32 022259 12 NUT HEX 5/16-18 STEEL

33 059637 2 SCREW TAPTITE 3/8-16 X 3/4 BP

34 0D5100 1 SHIELD, MUFFLER HEAT

35 0D5823 1 U-BOLT & SADDLE

36 0C8565 4 SCREW SHC M8-1.25 X 18

37 0D5833 1 PANEL, MUFFLER BOX BACK

38 0D5834 1 PANEL, MUFFLER BOX END

39 090388 3 SCREW HHTT M6-1.0 X 12

40 022473 5 WASHER FLAT 1/4

41 022097 5 WASHER LOCK M6-1/4

42 0D5133 1 SPARK ARRESTOR SCREEN

43 0D5133A 1 RETAINER, SPARK

ARREST SCREEN

44 045764 1 SCREW HHTT M4-0.7 X 8

45 0D6214 1 SHIELD, RUBBER MOUNT

Section 7 — Exploded Views and Parts Lists

Commercial-Industrial-Residential Portable Generator System

Generator – Drawing No. 0D4488

54

54

5

5

1

1

2

2

15

15

14

14

13

13

59

59

6

6

59

59

42

42

41

41

12

12

42

42

41

41

11

11

42

42

59

59

41

41

10

10

46

46

8

8

9

9

41

41

42

42

43

43

38

38

39

39

40

40

8

8

44

44

18

18

17

17

45

45

16

16

18

18

17

17

19

19

20

20

47,48

47,48

28

28

41

41

33

33

42

42

7

7

31

31

30

30

32

32

9

9

8

8

49

49

36

36

37

37

34

34

35

35

29

29

27

27

17

17

18

18

18

18

22

22

17

17

26

26

25

25

51

51

9

9

8

8

23

23

4

4

21

21

4

4

50

50

53

53

57

57

56

56

52

52

61

61

24

24

58

58

55

55

60

60

62

62

3

3

63

63

30

Section 7 — Exploded Views and Parts Lists

Commercial-Industrial-Residential Portable Generator System

Control Panel – Drawing No. 0E0227

ITEM PART NO. QTY. DESCRIPTION

1 087968 1 SWITCH, ROCKER -/0

2 090418 1 OUTLET, 12VDC SNAP

3 0D6640 1 COVER, GOVERNOR CONTROL

4 090987 6 SCREW PPHM M3-0.5 X 12

5 0D2502 1 PANEL, SHEET METAL

6 068868 2 OUTLET 30A 120V RECEPT

7 022985 2 WASHER FLAT #6

8 043182 10 WASHER LOCK M3

9 051714 6 NUT HEX M3-0.5 G8

10 075207A 4 CIRCUIT BREAKER 30A

11 075207 2 CIRCUIT BREAKER 20A

12 0D4969 1 OUTLET 50A 125/250V

13 043437 1 OUTLET 30A 125/250V

14 0D4968 1 OUTLET 20A 120V DPLX

15 0D4966 1 OUTLET 20A 120V GFCI

16 0D1004E 1 CIRCUIT BREAKER 50A 400V

2POLE

17 051716 8 NUT HEX M5-0.8 G8

18 022152 8 WASHER LOCK #10

19 0D5045 1 DIN RAIL 59.5mm LONG

20 067680 1 ASSEMBLY VOLTAGE REGULATOR

60HZ

21 0D4409 1 ELECTRONIC GOVERNOR / IDLE

CONTROLLER

22 052844 1 RELAY PNL 12VDC SPST 30A

23 0D4766 1 RELAY 12VDC 5A 3PDT 240V

24 0D2691 1 CONTROL PANEL BOX

25 023484L 1 BUSHING SNAP

26 0A1661 2 RIVET POP .156 X .160-.164 / #20

27 048766 1 BLOCK TERMINAL 20A 2 X 6 X

1100V

28 0D3550 1 BLOCK DOUBLE ROW TERMINAL 8

POSITION

29 049939 1 RECTIFIER MSC 12A 600V

30 070370 1 WASHER MICA .203

31 030468 1 WASHER STEP NYLON .20

ITEM PART NO. QTY. DESCRIPTION

32 022158 1 NUT HEX #10-32

33 023897 1 WASHER FLAT #10

34 057405 1 RESISTOR 25R 5% 25W

35 022473 1 WASHER FLAT 1/4

36 022097 1 WASHER LOCK M6-1/4

37 049813 1 NUT HEX M6-1.0 G8

38 065795 2 RECTIFIER-BATTERY CHARGER

39 0D4804 2 TRANSFORMER, IDLE CURRENT

40 0C1085 4 SCREW PPHM M3-0.5 X 8

41 051715 18 NUT HEX M4-0.7 G8

42 022264 18 WASHER LOCK M4

43 048512 1 CIRCUIT BREAKER 5 X 1

44 087962 1 CIRCUIT BREAKER 10 X 1 12VDC

1/4"QC

45 036261 2 RIVET POP .125 X .129-.133 / #30

46 0A2769 1 LUG GRND 8 TABS

47 032300 1 HOLDER FUSE

48 028578 1 FUSE 10A X AGC10

49 055444 1 HEATSINK

50 075475 2 SCREW PPHM M4-0.7 X 10

51 049815 4 SCREW HHC M5-0.8 X 16 G8.8

52 0A2053 1 SCREW HHC M6-1.0 X 65 G8.8

53 055440 2 SCREW HHC M5-0.8 X 25 G8.8

54 045770 1 SCREW HHC M5-0.8 X 10 G8.8

55 0D5734 2 SPACER .25 X .50 X 1.5

56 074908 18 SCREW HHTT M5-0.8 X 10

57 075235 1 SCREW PPHM M5-0.8 X 30

58 080823 2 SCREW PPHM M5-0.8 X 50

59 038150 14 WASHER FLAT #8

60 0D6140 1 GASKET, PORTABLE CONTROL

PANEL

61 075476 2 SCREW PPHM M4-0.7 X 16

62 027565 A/R TAPE ELEC UL PERMACEL

63 058000K 2 NUT TRIC M5-0.8

31

Section 7 — Exploded Views and Parts Lists

Commercial-Industrial-Residential Portable Generator System

Control Panel – Drawing No. 0E0227

32

22

21

26 30

28

567

89

15

14

32

42

24 26 27

31

51

29

5

19

18

17

20

16

10

1

37

34

11 12 13

33

35

7

7636

34

23

39

38

41

40

39

17

2

44

43

45

46

25

17

67

47

48

49

50

52

7

6

36

Detail of Battery Tray

POWER

WIRE TO

ENGINE

Section 7 — Exploded Views and Parts Lists

Commercial-Industrial-Residential Portable Generator System

Frame, Handle & Wheel Kit – Drawing No. 0E0695

33

ITEM PART NO. QTY. DESCRIPTION

1 057058 4 SCREW HHC M6-1.0 X 55

2 0D5315 4 RUBBER TANK MOUNT

3 0D4570 1 CAP, FUEL WITH GAUGE & VENT

4 0D22850SRV 1 KIT, FUEL TANK

5 045771 4 NUT HEX M8-1.25

6 022129 10 WASHER LOCK M8-5/16

7 022145 14 WASHER FLAT 5/16

8 0D4565 1 BRACKET BATTERY

9 0D3545 2 BOLT,BATTERY J-BOLT

10 022287 2 SCREW HHC 1/4-20 X 3/4 G5

11 022473 2 WASHER FLAT 1/4

12 022097 2 WASHER LOCK M6-1/4

13 022127 2 NUT HEX 1/4-20

14 0388040AK0 1 BATTERY CABLE, RED

15 0D4575 1 BATTERY U1

16 0D5202 1 NUT WING 5/16-18 BRASS

17 0D5199 4 WASHER FLAT 5/16 BRASS

18 029809 1 NUT HEX 5/16-18 BRASS

19 0C3168 1 5/16 SPECIAL L/WASH

20 0D5198 1 SCREW HHC 5/16-18 X 1.5 BRASS

21 0E0317 1 BRACKET FRONT FOOT

22 027007 2 VIB MOUNT

23 0D5303 4 WASHER FLAT .25ID X 1"OD

24 042909 2 SCREW HHC M8-1.25 X 30

25 090388 4 SCREW HHTT M6-1.0 X 12

26 064101 6 NUT LOCK FL 3/8-16

27 039214 6 BOLT CARR 3/8-16 X 1

ITEM PART NO. QTY. DESCRIPTION

28 0D9165 1 AXLE, 3/4"DIA X 30"

29 045900 2 WASHER FLAT 3/4

30 0D7668 2 12.3" PNEUM WHEEL 3/4" AXLE

31 0D4999 2 PIN COTTER 1/8 X 1-1/4

32 0D4044 2 BRACKET, WHEEL SPACER

33 0D3700 4 NUT FLANGE M6-1.0 NYLOK

34 0D2497 1 HANDLE

35 022532 4 SCREW HHC 5/16-18 X 2-1/2 G5

36 027028 6 NUT LOCK HEX 5/16-18 NYLON

INSERT

37 0D2271 1 FRAME

38 052762 4 SCREW HHC M5-0.8 X 45 G8.8

39 051713 8 WASHER FLAT M5

40 049226 4 WASHER LOCK M5

41 051716 4 NUT HEX M5-0.8

42 050190 2 WASHER FLAT 1"

43 078299 1 BUSHING TANK DEXTOR

44 080270 1 VALVE, PLASTIC TANK

45 0D5142 1 AIR DEFLECTOR

46 096021 2 GROMMET .75 X .06 X .50

47 048031C 2 CLAMP HOSE BAND ¼

48 030340 18" HOSE ¼ ID

49 075763 1 BOOT BATTERY CABLE

50 075763A 1 BOOT STARTER CABLE

51 0E0318 2 SPACER, AXLE

52 030795 2 SCREW HHC 5/16"-18 X 1"

Section 7 — Exploded Views and Parts Lists

Commercial-Industrial-Residential Portable Generator System

Frame, Handle & Wheel Kit – Drawing No. 0E0695

34

CALIFORNIA EMISSION CONTROL WARRANTY STATEMENT

YOUR WARRANTY RIGHTS AND OBLIGATIONS

The California Air Resources Board (CARB) and Generac Power Systems, Inc. (Generac) are pleased to explain the Emission Control System

warranty on your new engine. In California, new off-road Large Spark-Ignition (LSI) engines must be designed, built and equipped to meet the state's

stringent anti-smog standards. Generac will warrant the emission control. system on your engine one for the periods of time listed below provided

there has been no abuse, neglect, unapproved modification or improper maintenance of your engine.

Your emission control system may include parts such as the carburetor, ignition system and exhaust system. Generac will repair your engine at no

cost to you for diagnosis, replacement parts arid labor, should a warrantable condition occur.

MANUFACTURER’S EMISSION CONTROL SYSTEM WARRANTY COVERAGE:

Emissions control systems on 2001 and later model year LSI engines are warranted for two years as hereinafter noted- If, during such warranty period,

any emission-related component or system on your engine is found to be defective in materials or workmanship, repairs or replacement will be

performed by a Generac Authorized Warranty Service Facility.

PURCHASER'S/OWNER'S WARRANTY RESPONSIBILITIES:

As the engine owner, you are responsible for the completion of all required maintenance as listed in your factory supplied Owner's Manual. For

warranty purposes, Generac recommends that you retain all receipts covering maintenance on your engine. However, Generac cannot deny warranty

solely due to the lack of receipts or for your failure to ensure the completion of all scheduled maintenance.

As the engine purchaser/owner, you should, however, be aware that Generac may deny any and/or all warranty coverage or responsibility if your

engine, or a part/component thereof, has failed due to abuse, neglect , improper maintenance or unapproved modifications, or the use of counterfeit

and/ox "grey market" parts not made, supplied or approved by Generac.

You are responsible for contacting a. Generac Authorized Warranty Facility as soon as a problem occurs. The

warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days.

Warranty service can be arranged by contacting either your selling dealer or a Generac Authorized Warranty Service Facility. To locate the Generac

Authorized Warranty Service Facility nearest you, call our toll free number:

1-800-333-1322

IMPORTANT NOTE:

This warranty statement explains your rights and obligations under the Emission Control System Warranty (ECS Warranty),

which is provided to you by Generac pursuant to California law. See also the "Generac Limited Warranties for Generac Power Systems, Inc.," which

is enclosed herewith on a separate sheet, also provided to you by Generac. The ECS Warranty applies

only

to the emission control system of your

new engine. If there is any conflict in terms between the ECS Warranty and the Generac Warranty, the ECS warranty shall apply except in

circumstances where the Generac Warranty may provide a longer warranty period. Both the ECS Warranty and the Generac Warranty describe

important rights and obligations with respect to your new engine.

Warranty service can be performed only by a Generac Authorized Warranty Service Facility. When requesting warranty service, evidence must be

presented showing the date of the sale to the original purchaser/owner.

If you have any questions regarding your warranty rights and responsibilities, you should contact Generac at one of the following addresses:

ATTENTION WARRANTY DEPARTMENT

GENERAC POWER SYSTEMS, INC.

P.O. BOX 297 • WHITEWATER, WI 53190

Part 1

Section 8 – Warranty

Commercial-Industrial-Residential Portable Generator System

35

EMISSION CONTROL SYSTEM WARRANTY

Emission Control System Warranty (ECS warranty) for 2001 and later model year LSI engines:

(a) Applicability: This warranty shall apply to 1995 and later model year engines. The ECS Warranty period shall begin on the date the new engine or equipment is

purchased by/delivered to its original, end-use purchaser/owner and shall continue for 24 consecutive months thereafter.

(b) General Emissions Warranty Coverage: Generac warrants to the original, end-use purchaser/owner of the new engine or equipment and to each subsequent

purchaser/owner that each of its engines is...

(1) Designed, built and equipped so as to conform with all applicable regulations adopted by the CARB pursuant to its authority, and

(2) Free from defects in materials and workmanship which, at any time during the ECS Warranty Period, may cause a warranted emissions-related part to fail to be

identical in all material respects to the part as described in the engine manufacturer's application for certification.

The ECS Warranty pertains only to emissions-related parts on your engine, as follows:

(1) Any warranted, emissions-related parts that are not scheduled for replacement as required maintenance in the

Owner's Manual

shall be warranted for the ECS

Warranty Period. If any such part fails during the ECS Warranty Period, it shall be repaired or replaced by Generac according to Subsection (4) below. Any such

part repaired or replaced under the ECS Warranty shall be warranted for the remainder of the ECS Warranty Period.

(2) Any warranted, emissions-related part that is scheduled only for regular inspection as specified in the

Owner's Manual

shall be warranted for the ECS Warranty

Period. A statement in such written instructions to the effect of "repair or replace as necessary" shall not reduce the ECS Warranty Period. Any such part repaired

or replaced under the ECS Warranty shall be warranted for the remainder of the ECS Warranty Period.

(3) Any warranted, emissions-related part that is scheduled for replacement as required maintenance in the

Owner's Manual

shall be warranted for the period of time

prior to first scheduled replacement point for that part. If the part fails prior to the first scheduled replacement, the part shall be repaired or replaced by Generac

according to Subsection (4) below. Any such emissions-related part repaired or replaced under the ECS warranty shall be warranted for the remainder of the ECS

Warranty Period prior to the first scheduled replacement point for such emissions-related part.

(4) Repair or replacement of any warranted, emissions-related part under this ECS Warranty shall be performed at no charge to the owner at a Generac Authorized

Warranty Service Facility.

(5) When the engine is inspected by a Generac Authorized Warranty Service Facility, the purchaser/owner shall not be held responsible for diagnostic costs if the

repair is deemed warrantable.

(6) Generac shall be liable for damages to other original engine components or approved modifications caused by a failure under warranty of any emission-related

part covered by the ECS Warranty.

(7) Throughout the ECS Warranty Period, Generac shall maintain a supply of warranted emission-related parts sufficient to meet the expected demand for such

emission-related parts.

(8) Any Generac authorized and approved emission-related replacement part may be used in the performance of any ECS warranty maintenance or repairs and will

be provided without charge to the purchaser/owner. Such use shall not reduce Generac RCS Warranty obligations.

(9) Unapproved, add-on, modified, counterfeit and/or "grey market" parts nay not be used to modify or repair a Generac engine. Such use voids this ECS Warranty

and shall be sufficient grounds for disallowing an ECS Warranty claim. Generac shall not be held liable hereunder for failures of any warranted parts of a Generac

engine caused by the use of such an unapproved, add-on, modified, counterfeit and/or "grey market" part.

EMISSION RELATED PARTS INCLUDE THE FOLLOWING:

* Generac engine types covered by this warranty statement include the following:

1) Prepackaged Standby Generator

2) Auxiliary Power Unit (APU) Generator

3) Standby Generator

Part 2

Section 8 – Warranty

Commercial-Industrial-Residential Portable Generator System

1) Fuel Metering System:

1.2) LPG/Natural Gas carburetion assembly and its internal components.

a) Fuel controller (if so equipped)

b) Mixer and its gaskets (if so equipped)

c) Carburetor and its gaskets (if so equipped)

d) Primary gas regulator (if so equipped)

e) LP liquid vaporizer (if so equipped)

2) Air Induction System including:

a) Intake pipe/manifold

b) Air cleaner

3) Ignition System including:

a) Spark plug

b) Ignition module

4) Catalytic Muffler Assembly (if so equipped) including:

a) Muffler gasket

b) Exhaust manifold

5) Crankcase Breather Assembly including:

a) Breather connection tube

GENERAC POWER SYSTEMS “TWO YEAR” LIMITED WARRANTY FOR GUARDIAN®

“12,500 WATT AND 15,000 WATT PORTABLE GENERATORS”

For a period of two years from the date of original sale, Generac Power Systems, Inc. (Generac) warrants its Guardian

generator will be free from defects in materials and workmanship for the items and period set forth below. Generac will, at its option, repair or replace any part which,

upon examination, inspection and testing by Generac or a Generac Authorized Warranty Service Dealer, is found to be defective. Any equipment that the

purchaser/owner claims to be defective must be returned to and examined by the nearest Generac Authorized Warranty Service Dealer. All transportation costs under

the warranty, including return to the factory, are to be borne and prepaid by the purchaser/owner. This warranty applies only to Generac Guardian portable generators

and is not transferable.

WARRANTY SCHEDULE

Consumer applications are warranted for 2 (two) years. Commercial applications are warranted for 1 (one) year. Rental applications are warranted for 90 (ninety) days.

CONSUMER APPLICATION

YEARS ONE and TWO -

100% (one hundred percent) coverage on Labor and Part(s) listed (proof of purchase and maintenance is required):

•Engine - All Components

•Alternator - All Components

NOTE:

For the purpose of this warranty "consumer use" means personal residential household use by original purchaser. This does not apply to units used for Prime

Power in place of utility where utility power service normally exists. Once a generator has experienced commercial or rental use, it shall thereafter be considered a

non-consumer use generator for the purpose of this warranty.

All warranty expense allowances are subject to the conditions defined in Generac's Warranty Policies, Procedures and Flat Rate Manual.

THIS WARRANTY SHALL NOT APPLY TO THE FOLLOWING:

•

Generac Guardian portable generators that utilize non-Generac replacement parts.

• Costs of normal maintenance and adjustments.

• Failures caused by any contaminated fuels, oils or lack of proper oil levels.

• Failures due, but not limited, to normal wear and tear, accident, misuse, abuse, negligence or improper use. As with all mechanical devices, the Generac engines

need periodic part(s) service and replacement to perform well. This warranty will not cover repair when normal use has exhausted the life of a part(s) or engine.

• Failures caused by any external cause or act of God, such as collision, theft, vandalism, riot or wars, nuclear holocaust, fire, freezing, lightning, earthquake,

windstorm, hail, volcanic eruption, water or flood, tornado or hurricane.

• Damage related to rodent infestation.

• Products that are modified or altered in a manner not authorized by Generac in writing.

• Any incidental, consequential or indirect damages caused by defects in materials or workmanship, or any delay in repair or replacement of the defective part(s).

• Failure due to misapplication.

• Telephone, cellular phone, facsimile, internet access or other communication expenses.

• Living or travel expenses of person(s) performing service, except as specifically included within the terms of a specific unit warranty period.

• Expenses related to "customer instruction" or troubleshooting where no manufacturing defect is found.

• Rental equipment used while warranty repairs are being performed.

• Overnight freight costs for replacement part(s).

• Overtime labor.

• Starting batteries, fuses, light bulbs and engine fluids.

THIS WARRANTY IS IN PLACE OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED. SPECIFICALLY, GENERAC MAKES NO OTHER WARRANTIES AS

TO THE MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow limitations on how long an implied warranty lasts, so the

above limitation may not apply to you.

GENERAC'S ONLY LIABILITY SHALL BE THE REPAIR OR REPLACEMENT OF PART(S) AS STATED ABOVE. IN NO EVENT SHALL GENERAC BE LIABLE FOR

ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES, EVEN IF SUCH DAMAGES ARE A DIRECT RESULT OF GENERAC'S NEGLIGENCE. Some states do not

allow the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply to you.

This warranty gives you specific legal rights. You also have other rights from state to state.

GENERAC®POWER SYSTEMS, INC.

P.O. BOX 297 • WHITEWATER, WI 53190

Section 8 – Warranty

Commercial-Industrial-Residential Portable Generator System

36
