STANDBY GENERATOR

OWNER'S MANUAL

This manual should remain with the unit.

A new standard of reliability

Serial Number QT

1.5L

20kW

Models

Cover013 Rev. A 08/05 Part No. 0F7437

Standby Generator Sets

Table of Contents

SECTION PAGE

SAFETY RULES ................................................ 1-1

INTRODUCTION .....................................................1-3

Read this Manual Thoroughly ...................................1-3

Operation and Maintenance ......................................1-3

How to Obtain Service ..............................................1-3

IDENTIFICATION RECORD .....................................2-1

Data Label ................................................................2-1

EQUIPMENT DESCRIPTION ...................................3-1

Equipment Description ................................................3-1

Engine Oil Recommendations ......................................3-1

Coolant Recommendations...........................................3-1

ENGINE PROTECTIVE DEVICES ............................4-1

High Coolant Temperature Switch ............................4-1

Low Coolant Level Sensor .........................................4-1

Low Oil Pressure Switch ...........................................4-1

Overcrank Shutdown ................................................4-1

Overspeed Shutdown ................................................4-1

RPM Sensor Loss Shutdown .....................................4-1

DC Fuse ....................................................................4-1

FUEL SYSTEMS .....................................................5-1

Fuel Requirements ....................................................5-1

Natural Gas Fuel System ..........................................5-1

Propane Vapor Withdrawal Fuel System....................5-1

LP Fuel System .........................................................5-1

SPECIFICATIONS ...................................................6-1

Generator .................................................................6-1

Engine.......................................................................6-1

Cooling System .........................................................6-1

Fuel System ..............................................................6-1

Electrical System ......................................................6-1

Cold Weather Kit .......................................................6-2

Reconfiguring the Fuel System ..................................6-2

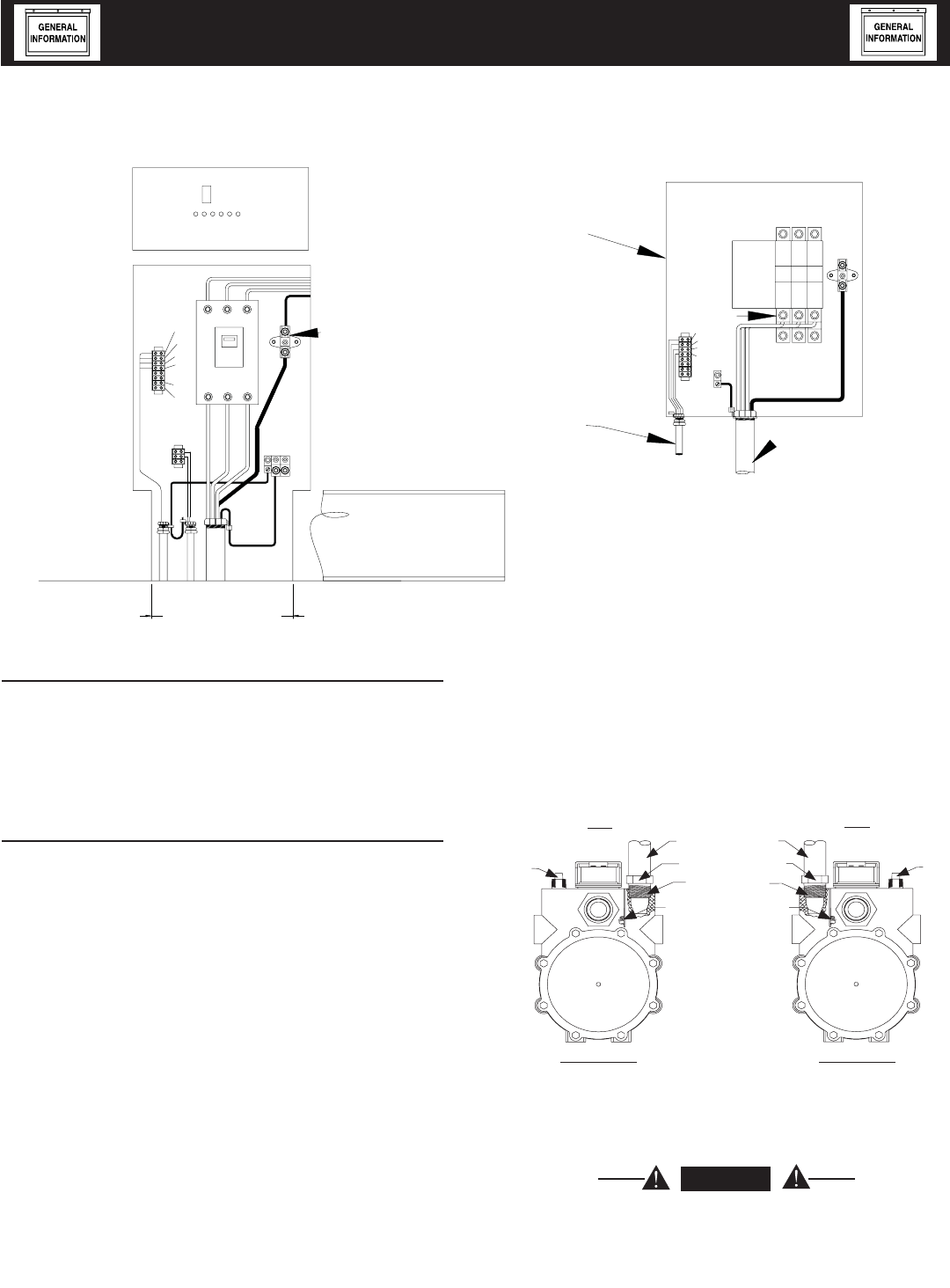

GENERAL INFORMATION .......................................7-1

Generator AC Lead Connections ..................................7-1

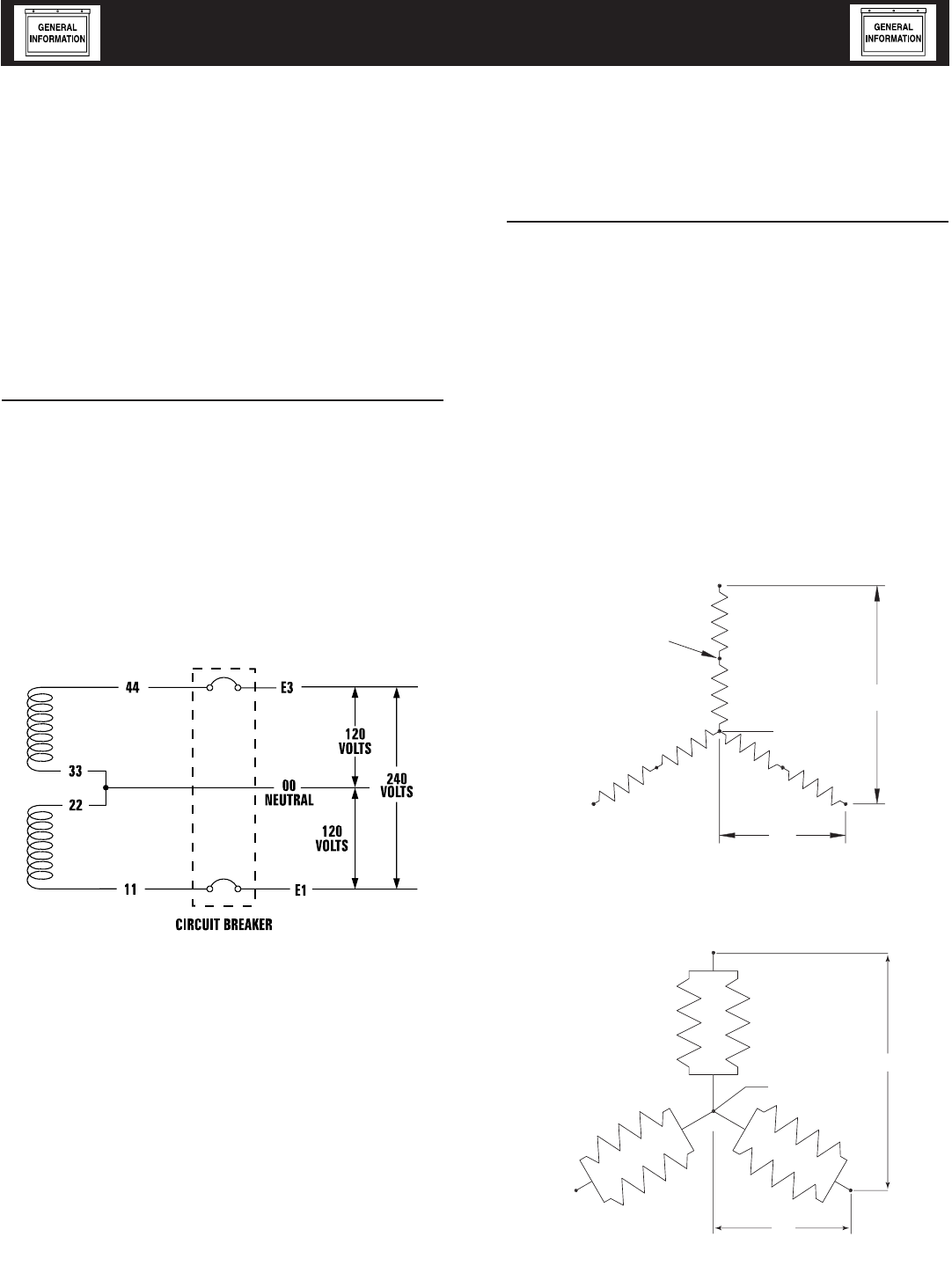

Four-lead, Single-phase Stator ..................................7-1

Alternator Power Winding Connections ........................7-1

3-phase Alternators ..................................................7-1

INSTALLATION .......................................................8-1

Installation ...................................................................8-1

Preparation Before Start-up .........................................8-1

Transfer Switch ........................................................8-1

Fuel System ..............................................................8-1

Generator Set Lubrication ........................................8-1

Prior to Initial Start-up .............................................8-1

Engine Coolant .........................................................8-1

Belt Tension ..............................................................8-1

Electrical System ......................................................8-1

Initial Inspection for QT Genset Start-up .....................8-1

Start-up Checklist ........................................................8-2

Preparation for Start-up............................................8-2

Start-up Inspection ...................................................8-2

OPERATION ...........................................................9-1

Generator Control and Operation ................................9-1

Operating Unit with Manual Transfer Switch ...............9-1

Engine Start-up and Transfer ...................................9-1

Retransfer and Shutdown .........................................9-1

Operating Unit with Automatic Transfer Switch ...........9-1

MAINTENANCE .....................................................10-1

Maintenance Performed by Authorized

Service Facilities .....................................................10-1

Every Three Months ...............................................10-1

Once Every Six Months ...........................................10-1

Once Annually .........................................................10-1

First 100 Operating Hours ......................................10-1

Every 500 Operating Hours ....................................10-1

Every 800 Operating Hours ....................................10-1

Exhaust Manifold Procedure ......................................10-1

Intake Manifold Procedure .........................................10-1

Cylinder Head Procedure ...........................................10-1

Cooling System ..........................................................10-2

Overload Protection for Engine DC

Electrical System ....................................................10-2

Checking Fluid Levels ................................................10-2

Check Engine Oil ....................................................10-2

Battery Fluid ...........................................................10-2

Engine Coolant .......................................................10-2

Maintenance Owner/Operator Can Perform ................10-3

Check Engine Oil Level ...........................................10-3

Check Battery .........................................................10-3

Exercise System ......................................................10-3

Inspect Cooling System ...........................................10-3

Check Engine Coolant Level....................................10-3

Perform Visual Inspection .......................................10-3

Inspect Exhaust System ..........................................10-3

Check Fan Belt ........................................................10-3

Inspect Engine Governor ........................................10-3

Changing Engine Oil ...............................................10-3

Changing the Engine Air Cleaner ............................10-3

Spark Plugs ............................................................10-4

Coolant Change .......................................................10-4

Miscellaneous Maintenance ........................................10-4

Cleaning the Generator ...........................................10-4

Battery ....................................................................10-4

Battery Maintenance ...............................................10-4

Battery Replacement ...............................................10-5

SERVICE SCHEDULE ...........................................11-1

TROUBLESHOOTING ...........................................12-1

Troubleshooting Guide ...............................................12-1

NOTES

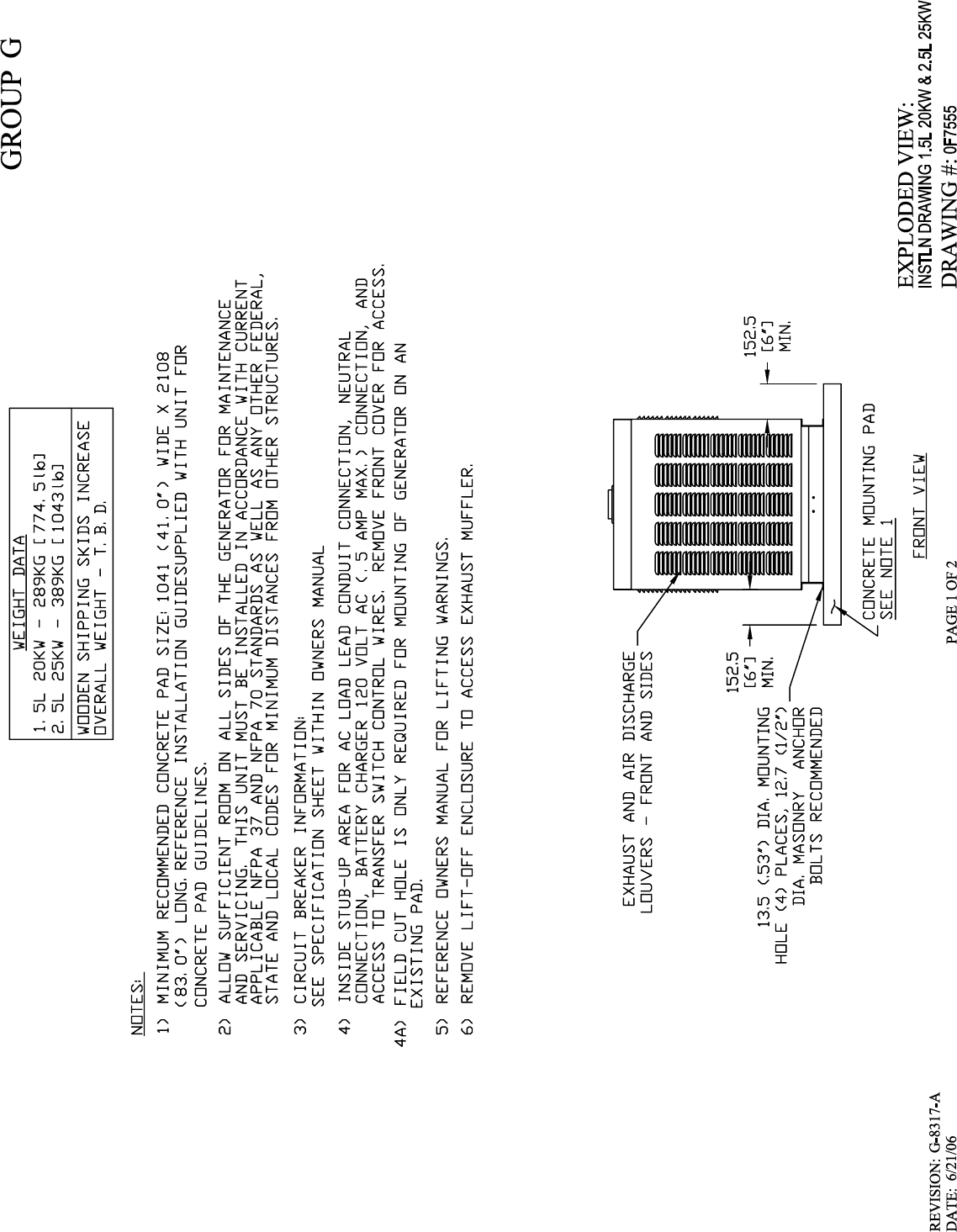

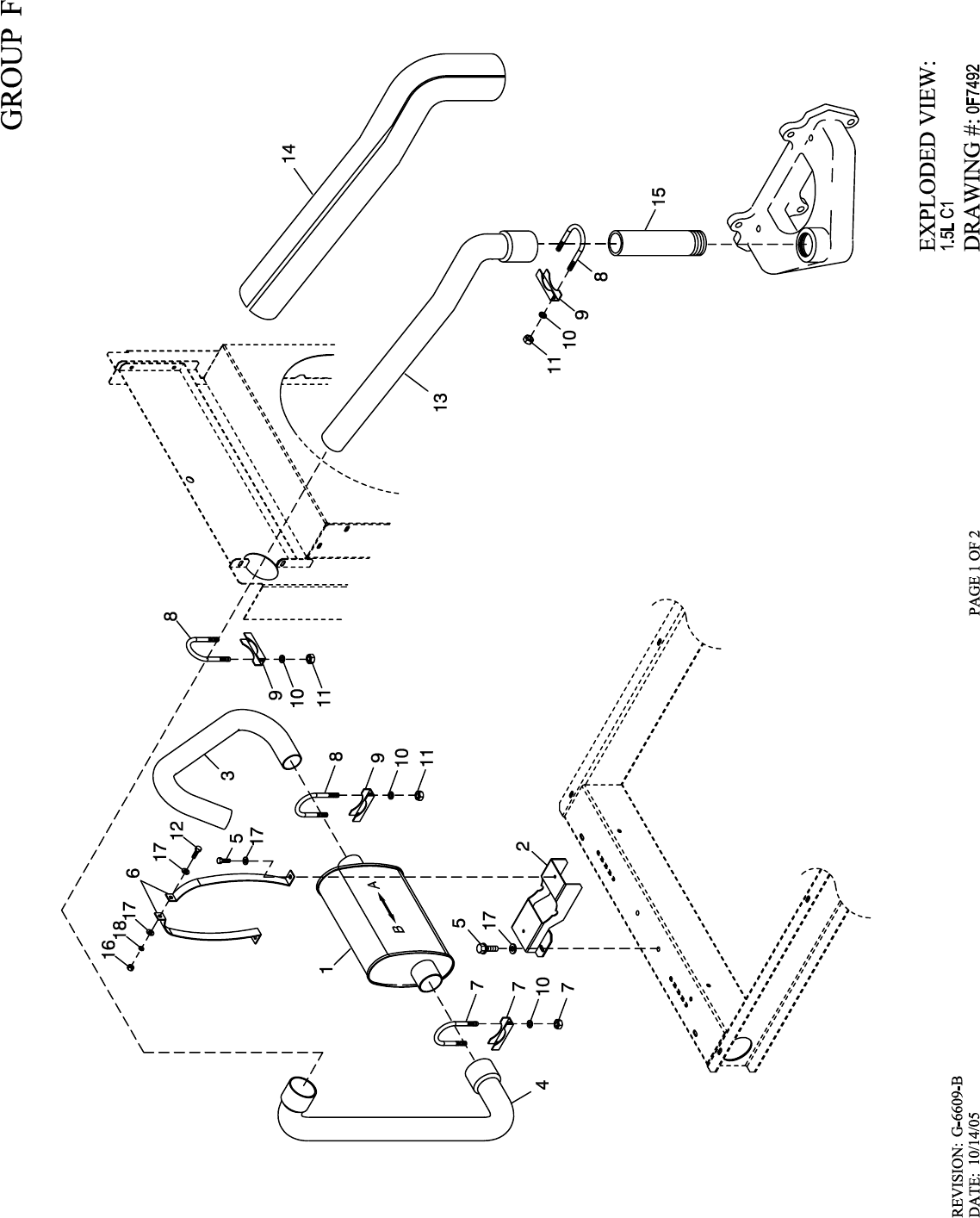

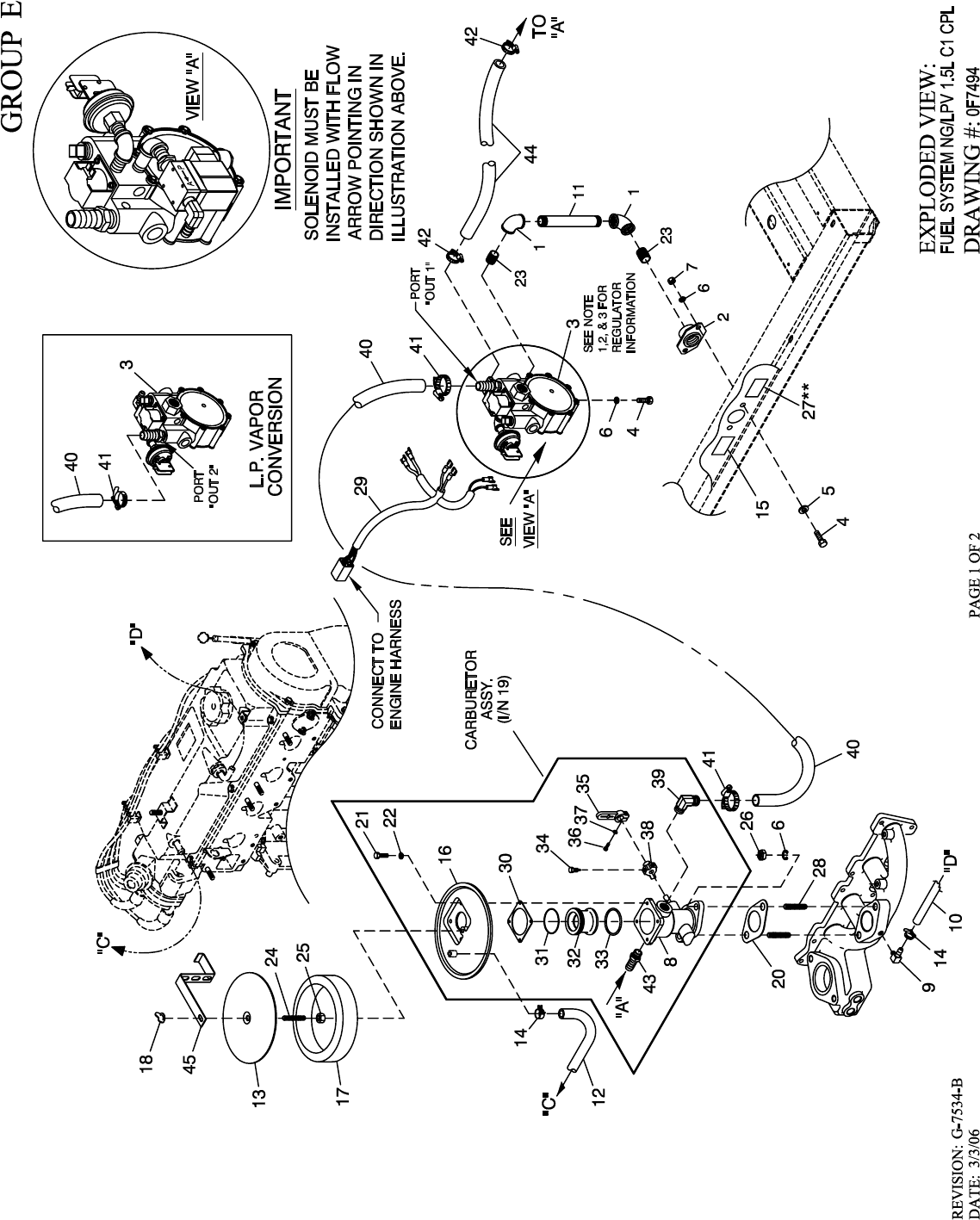

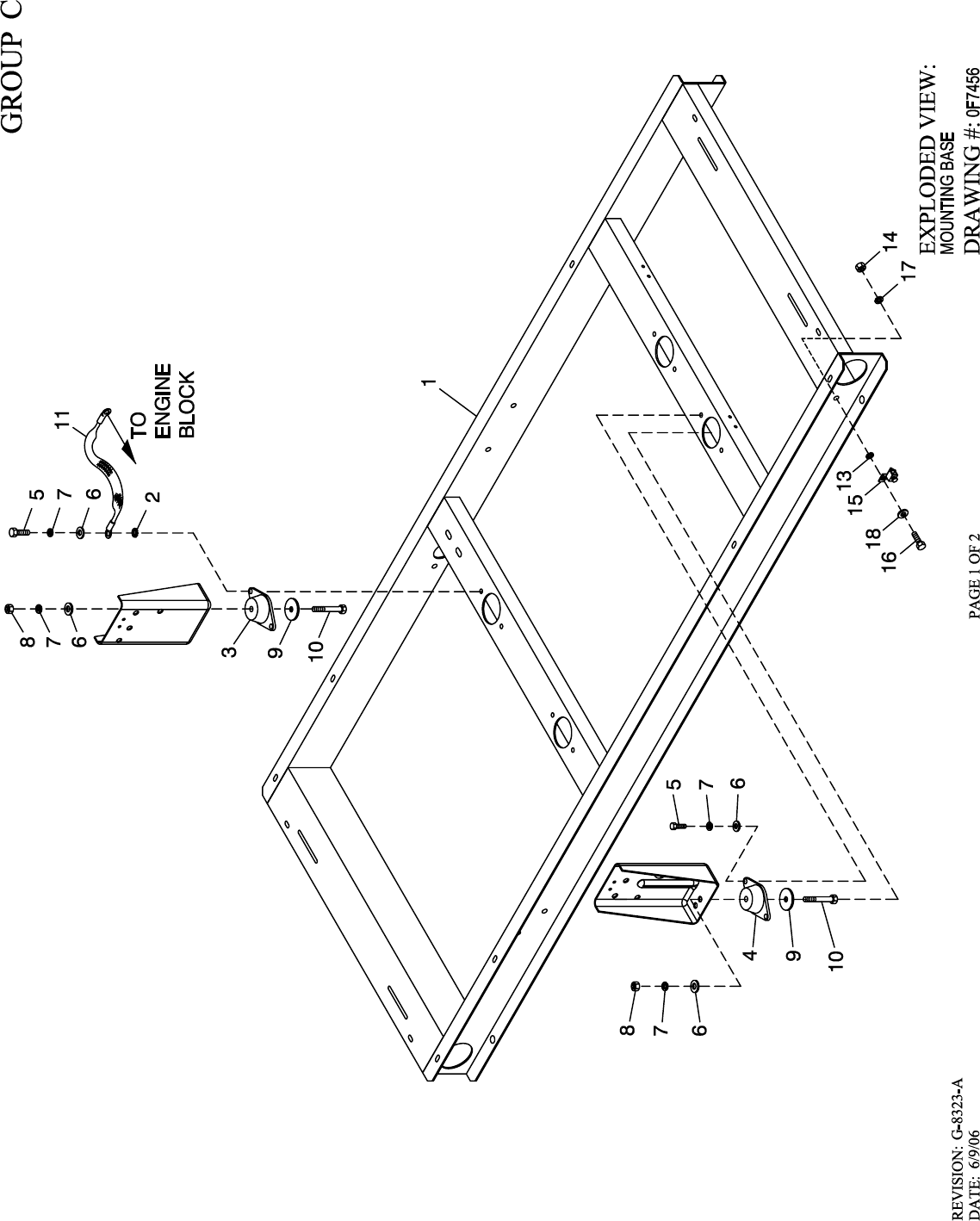

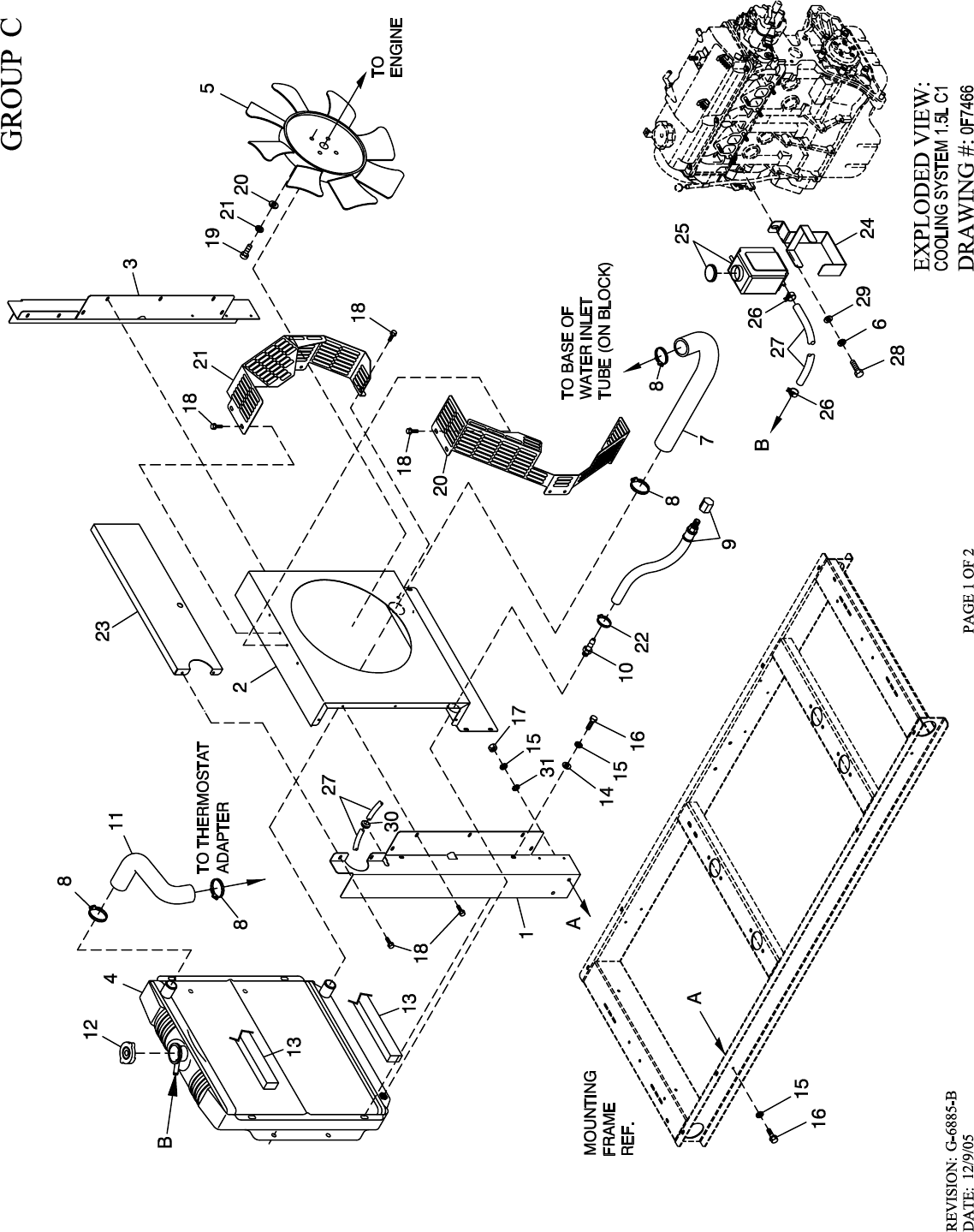

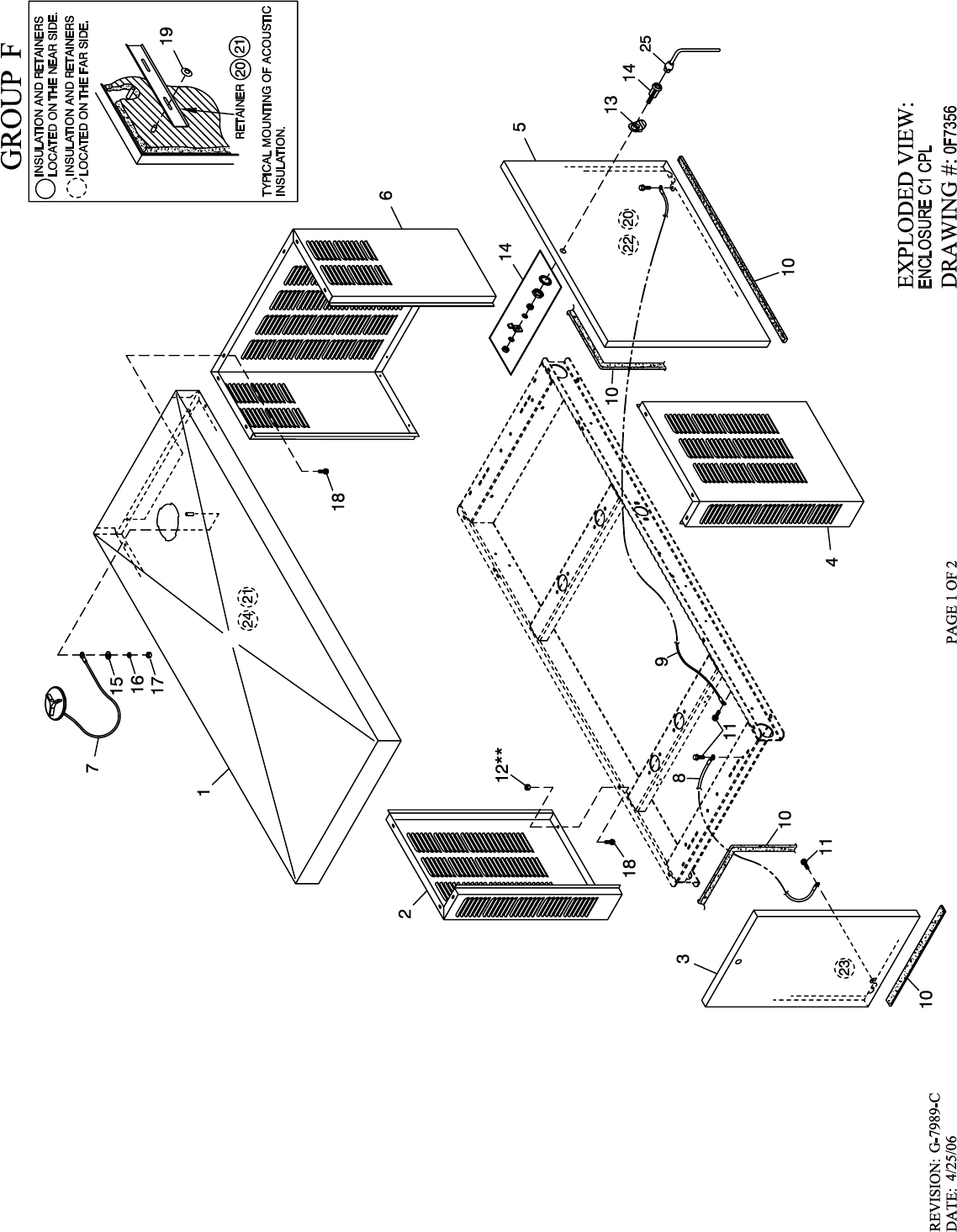

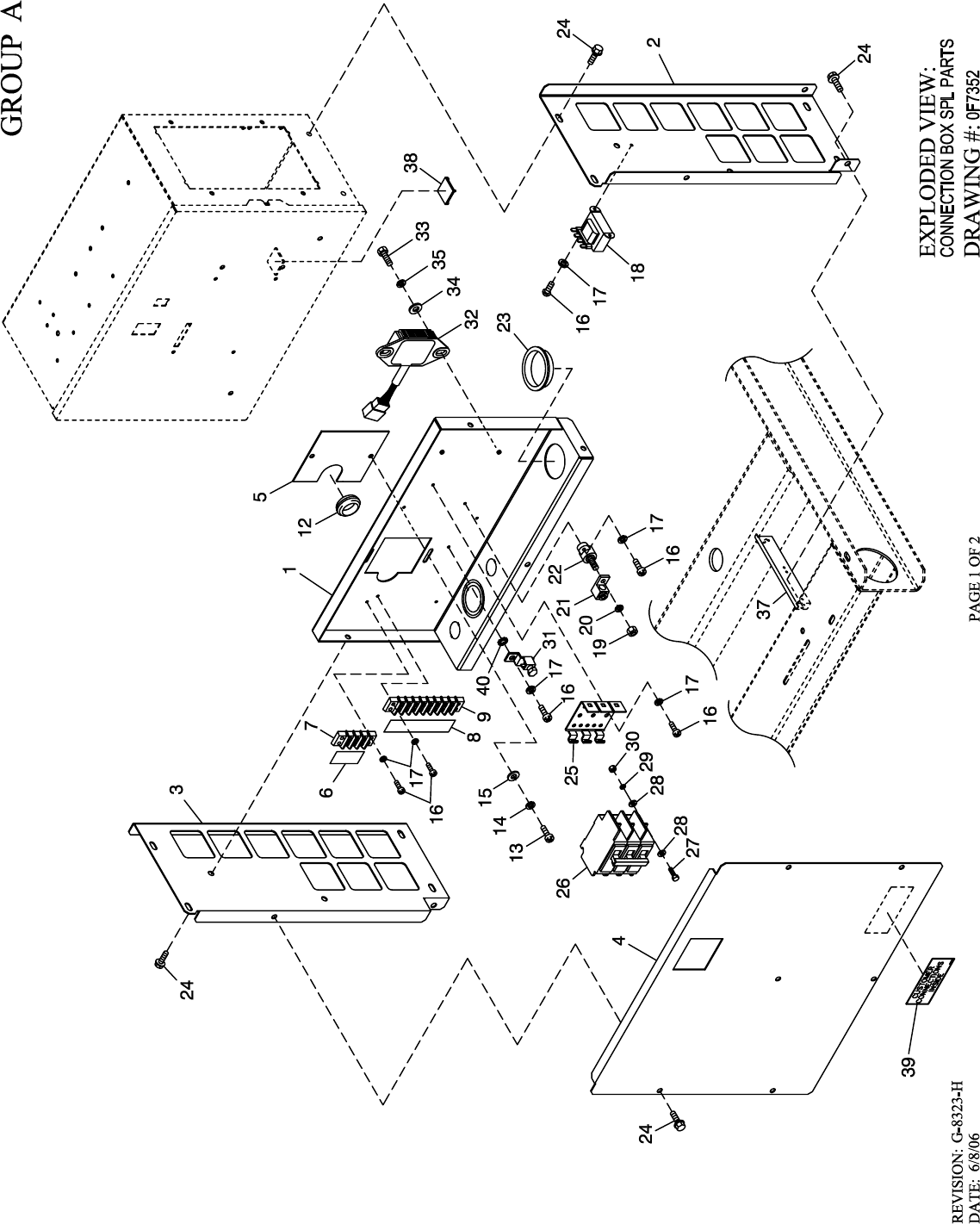

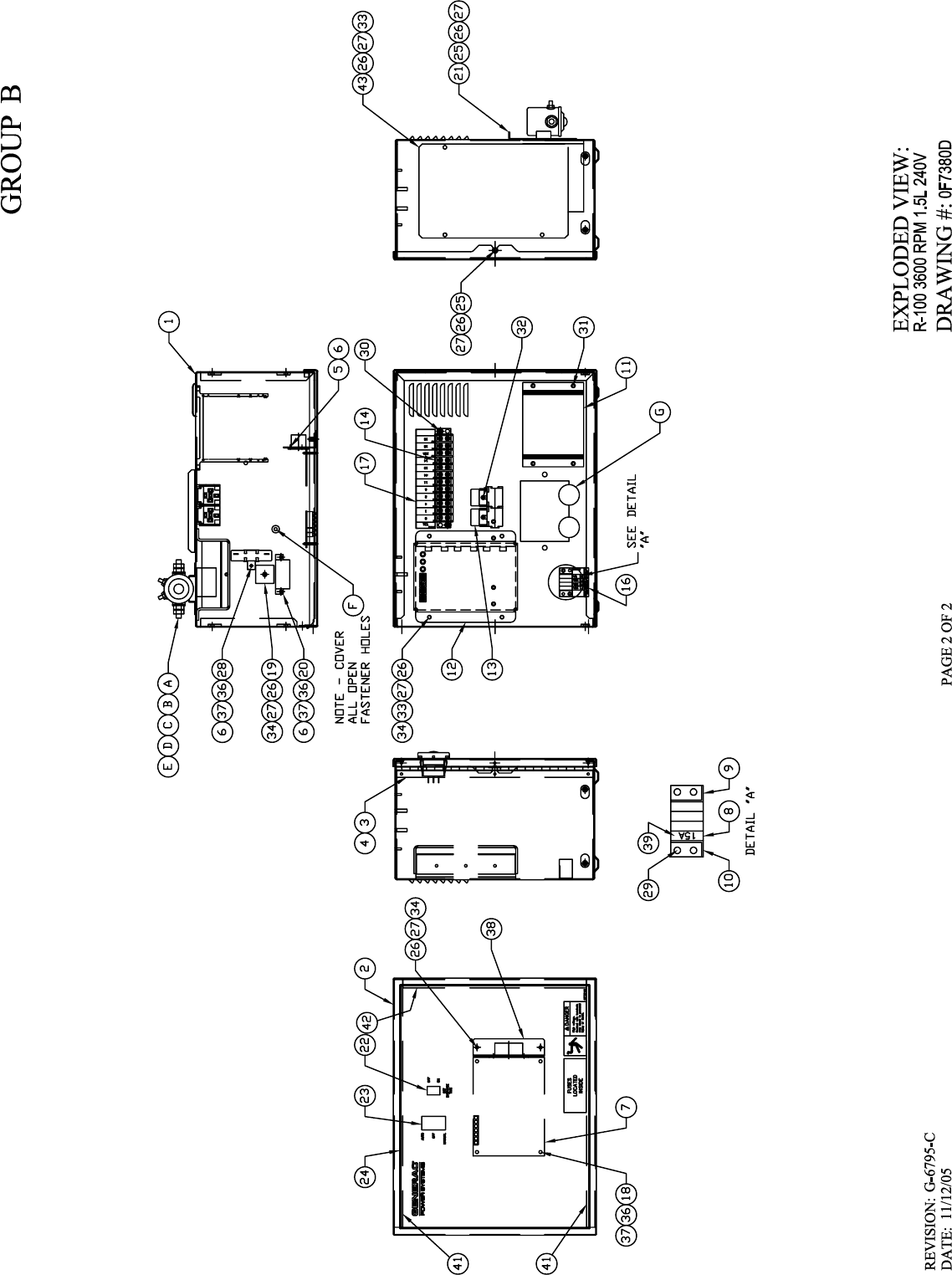

EXPLODED VIEWS & PARTS LISTS

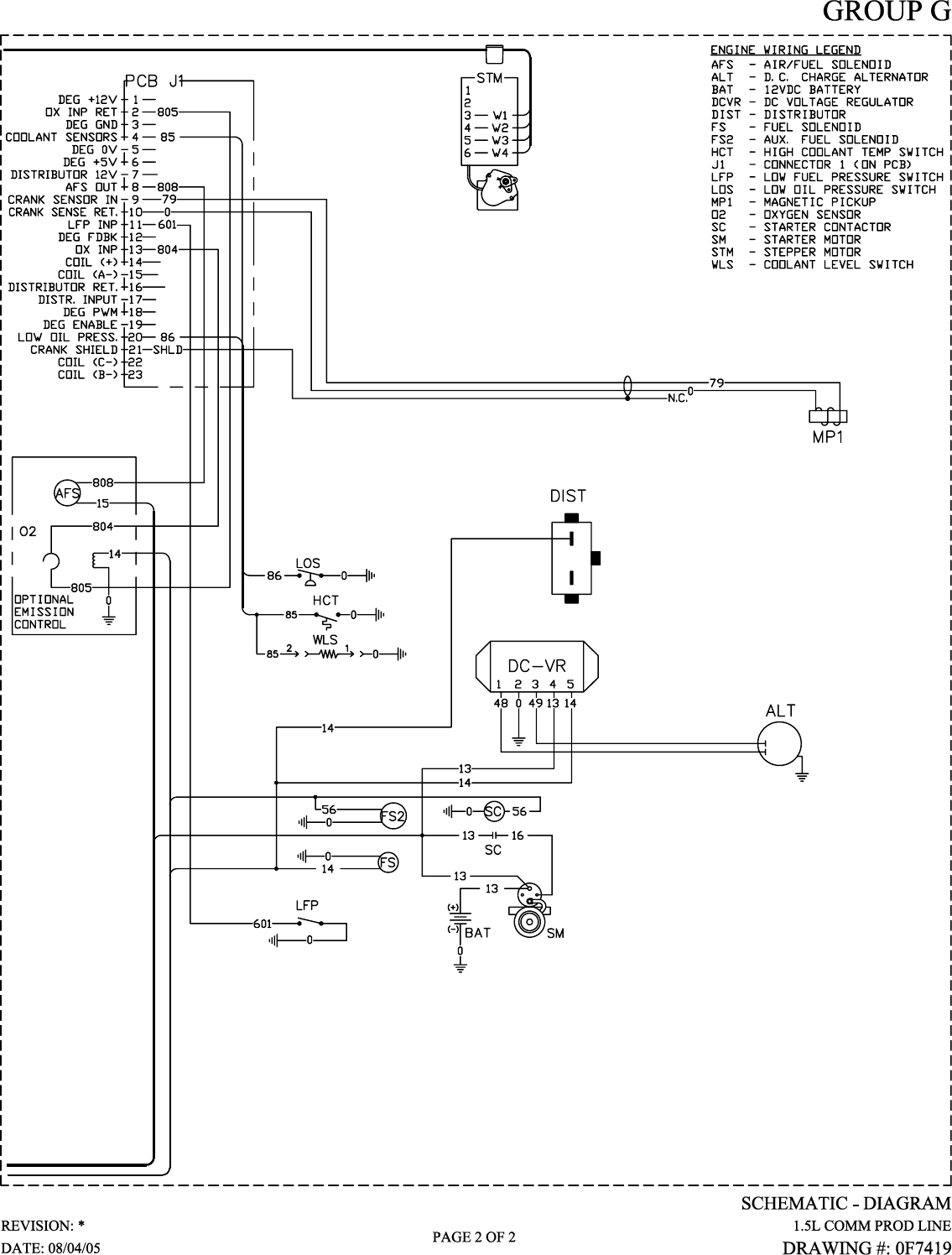

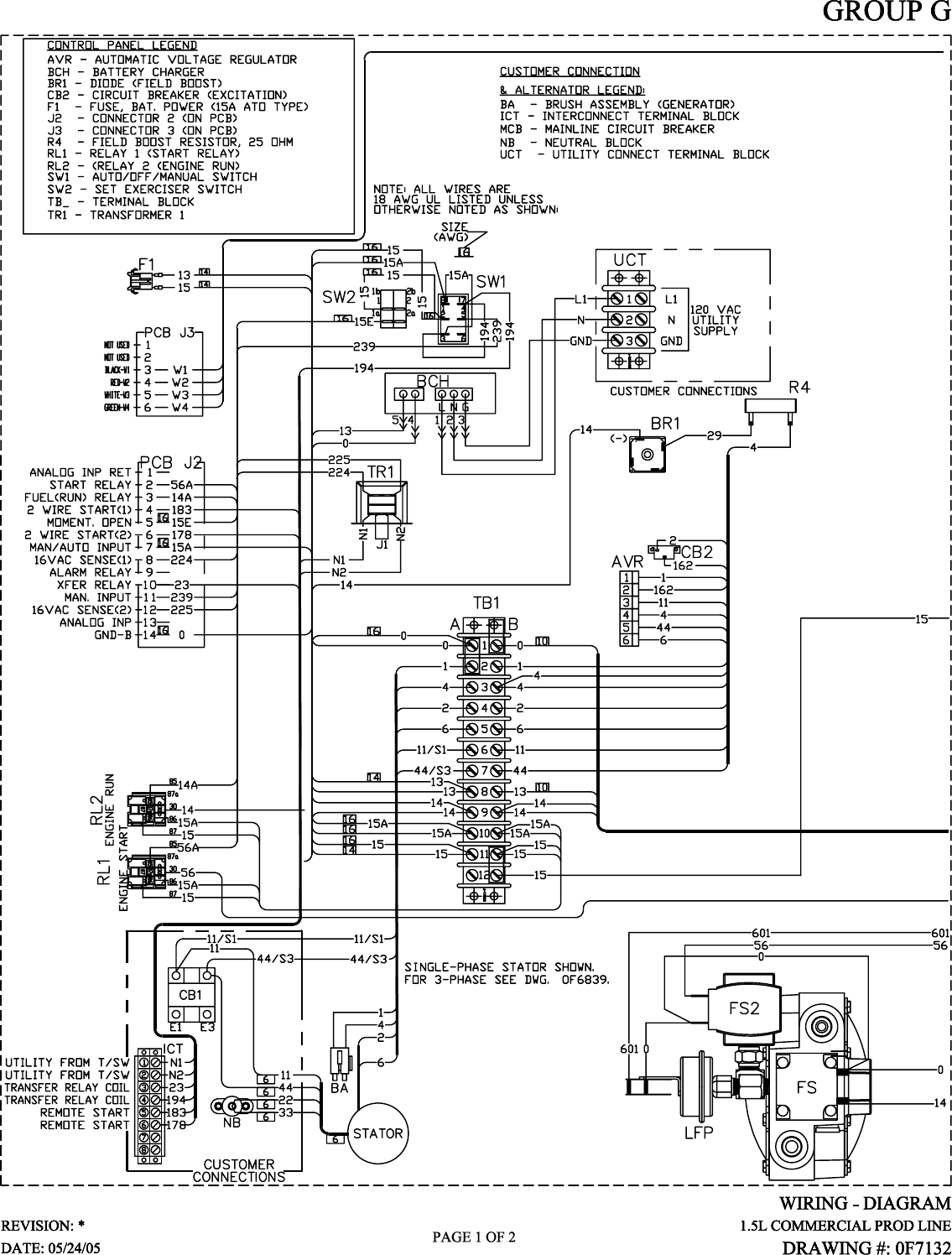

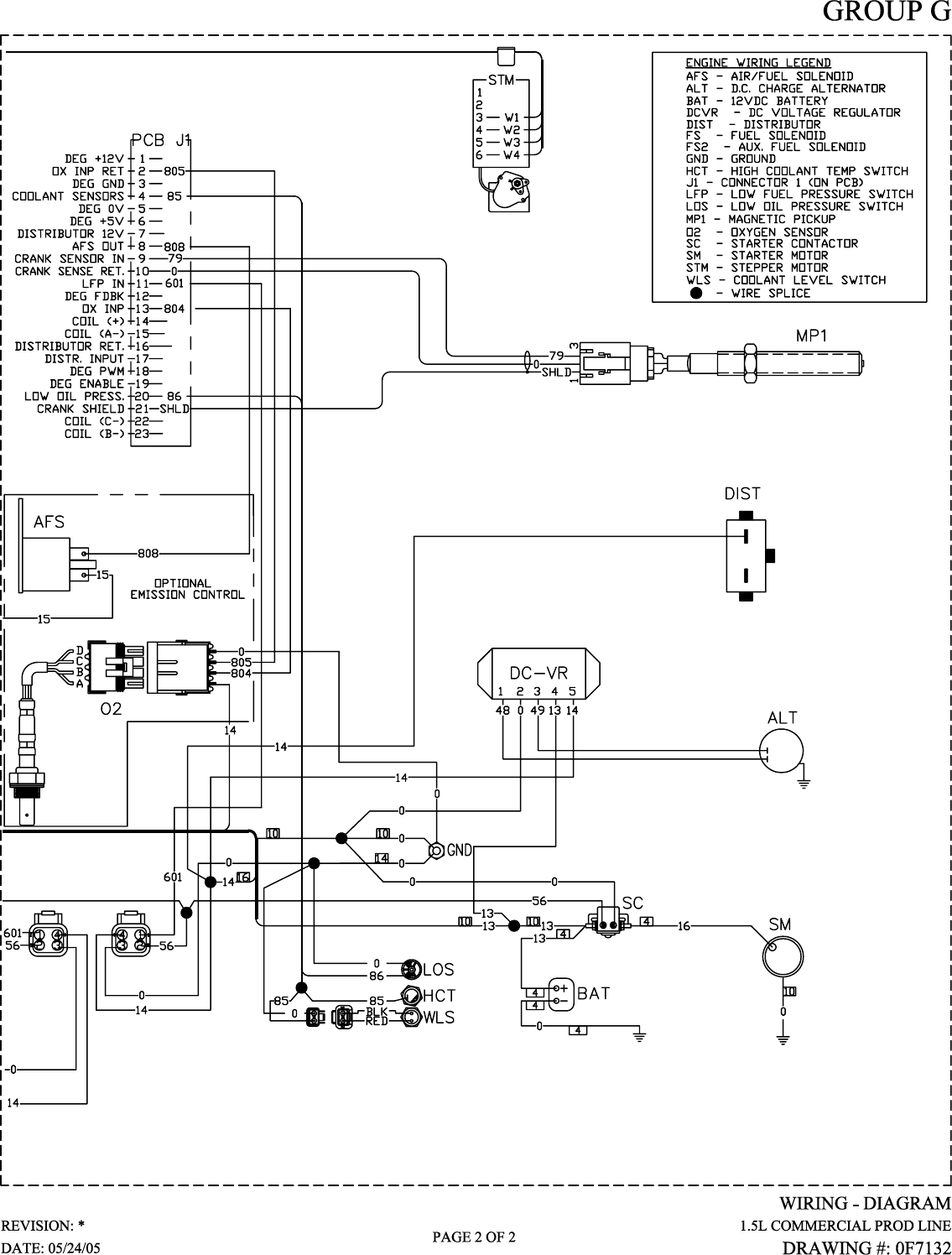

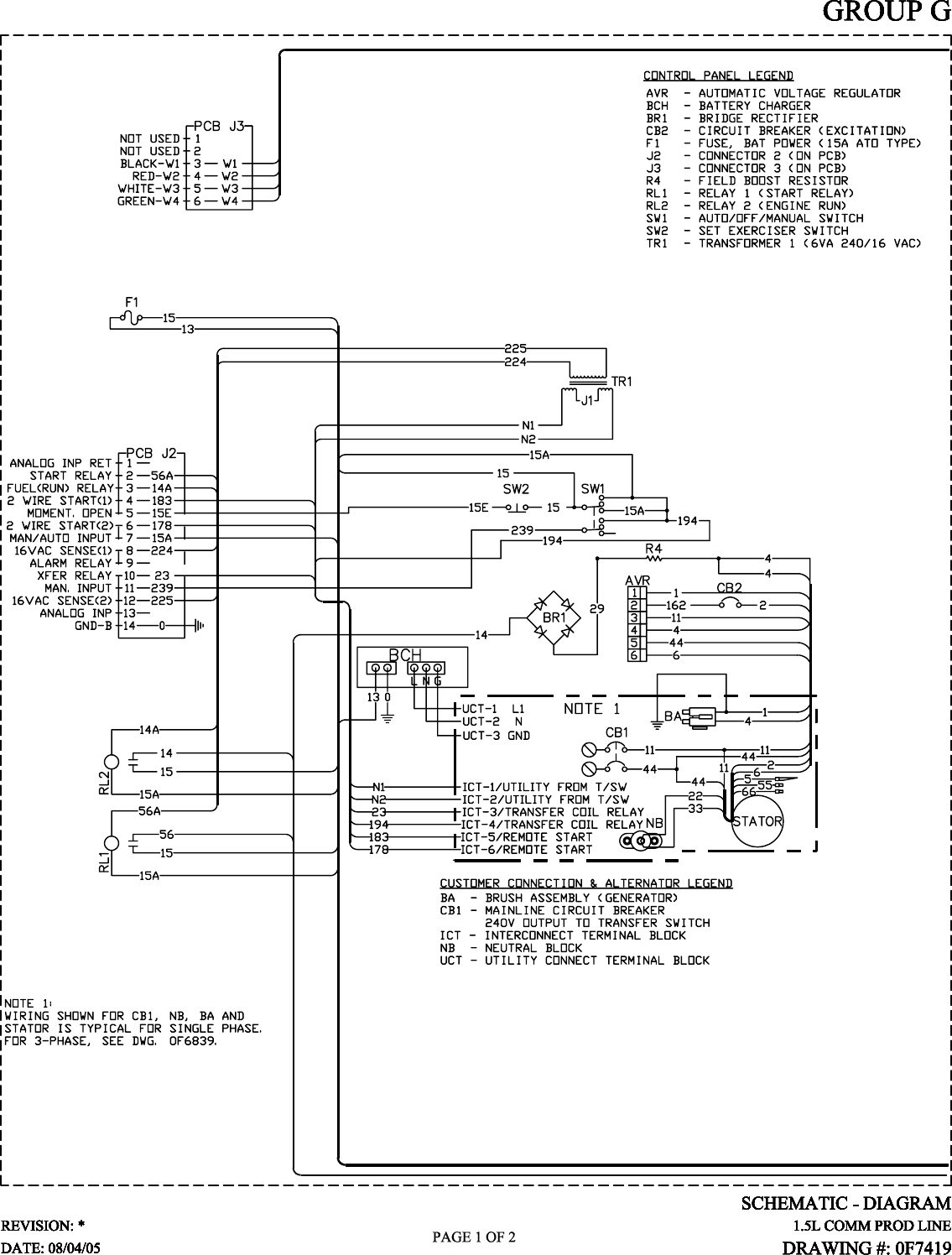

WIRING DIAGRAMS & SCHEMATICS

WARRANTY

Content004 Rev. 0 09/05

Study these SAFETY RULES carefully before install-

ing, operating or servicing this equipment. Become

familiar with this Owner’s Manual and with the unit.

The generator can operate safely, efficiently and reli-

ably only if it is properly installed, operated and

maintained. Many accidents are caused by failing to

follow simple and fundamental rules or precautions.

The manufacturer cannot anticipate every possible

circumstance that might involve a hazard. The warn-

ings in this manual, and on tags and decals affixed

to the unit are, therefore, not all inclusive. If a pro-

cedure, work method or operating technique is used

that the manufacturer does not specifically recom-

mend, ensure that it is safe for others. Also make

sure the procedure, work method or operating tech-

nique utilized does not render the generator unsafe.

DANGER

 Despite the safe design of this generator,

operating this equipment imprudently, neglect-

ing its maintenance or being careless can cause

possible injury or death. Permit only responsible

and capable persons to install, operate or main-

tain this equipment.

 Potentially lethal voltages are generated by

these machines. Ensure all steps are taken to

render the machine safe before attempting to

work on the generator.

 Parts of the generator are rotating and/or hot

during operation. Exercise care near running

generators.

 GENERAL HAZARDS 

• For safety reasons, the manufacturer recommends

that this equipment be installed, serviced and

repaired by an Authorized Service Dealer or other

competent, qualified electrician or installation tech-

nician who is familiar with applicable codes, stan-

dards and regulations. The operator also must

comply with all such codes, standards and regula-

tions.

• Installation, operation, servicing and repair of this

(and related) equipment must always comply with

applicable codes, standards, laws and regulations.

Adhere strictly to local, state and national electri-

cal and building codes. Comply with regulations

the Occupational Safety and Health Administration

(OSHA) has established. Also, ensure that the

generator is installed, operated and serviced in

accordance with the manufacturer’s instructions

and recommendations. Following installation, do

nothing that might render the unit unsafe or in

noncompliance with the aforementioned codes,

standards, laws and regulations.

• The engine exhaust fumes contain carbon monox-

ide gas, which can be DEADLY. This dangerous gas,

if breathed in sufficient concentrations, can cause

unconsciousness or even death. For that reason,

adequate ventilation must be provided. Exhaust

gases must be piped safely away from any building

or enclosure that houses the generator to an area

where people, animals, etc., will not be harmed.

This exhaust system must be installed properly, in

strict compliance with applicable codes and stan-

dards.

• Keep hands, feet, clothing, etc., away from drive

belts, fans, and other moving or hot parts. Never

remove any drive belt or fan guard while the unit

is operating.

• Adequate, unobstructed flow of cooling and venti-

lating air is critical in any room or building hous-

ing the generator to prevent buildup of explosive

gases and to ensure correct generator operation.

Do not alter the installation or permit even partial

blockage of ventilation provisions, as this can seri-

ously affect safe operation of the generator.

• Keep the area around the generator clean and

uncluttered. Remove any materials that could

become hazardous.

• When working on this equipment, remain alert

at all times. Never work on the equipment when

physically or mentally fatigued.

• Inspect the generator regularly, and promptly

repair or replace all worn, damaged or defective

parts using only factory-approved parts.

 SAVE THESE INSTRUCTIONS – The manufacturer suggests that these rules for safe

operation be copied and posted in potential hazard areas. Safety should be stressed to all

operators, potential operators, and service and repair technicians for this equipment.

The engine exhaust from this product

contains chemicals known to the state

of California to cause cancer, birth

defects or other reproductive harm.

WARNING:



This product contains or emits chemicals

known to the state of California to cause

cancer, birth defects or other reproductive harm.

WARNING:



1-1

Standby Generator Sets

Important Safety Instructions



Safety 001 Rev. 0 08/05

• Before performing any maintenance on the gen-

erator, disconnect its battery cables to prevent

accidental start-up. Disconnect the cable from the

battery post indicated by a NEGATIVE, NEG or (–)

first. Reconnect that cable last.

• Never use the generator or any of its parts as a

step. Stepping on the unit can stress and break

parts, and may result in dangerous operating con-

ditions from leaking exhaust gases, fuel leakage,

oil leakage, etc.

 ELECTRICAL HAZARDS 

• All generators covered by this manual produce

dangerous electrical voltages and can cause fatal

electrical shock. Utility power delivers extremely

high and dangerous voltages to the transfer switch

as well as the standby generator. Avoid contact

with bare wires, terminals, connections, etc., on

the generator as well as the transfer switch, if

applicable. Ensure all appropriate covers, guards

and barriers are in place before operating the gen-

erator. If work must be done around an operating

unit, stand on an insulated, dry surface to reduce

shock hazard.

• Do not handle any kind of electrical device while

standing in water, while barefoot, or while hands or

feet are wet. DANGEROUS ELECTRICAL SHOCK

MAY RESULT.

• If personnel must stand on metal or concrete while

installing, operating, servicing, adjusting or repair-

ing this equipment, place insulative mats over a

dry wooden platform. Work on the equipment only

while standing on such insulative mats.

• The National Electrical Code (NEC) requires the

frame and external electrically conductive parts

of the generator to be connected to an approved

earth ground. This grounding will help prevent

dangerous electrical shock that might be caused

by a ground fault condition in the generator set or

by static electricity. Never disconnect the ground

wire.

• Wire gauge sizes of electrical wiring, cables and

cord sets must be adequate to handle the maxi-

mum electrical current (ampacity) to which they

will be subjected.

• Before installing or servicing this (and related)

equipment, make sure that all power voltage

supplies are positively turned off at their source.

Failure to do so will result in hazardous and pos-

sibly fatal electrical shock.

• Connecting this unit to an electrical system nor-

mally supplied by an electric utility shall be by

means of a transfer switch so as to isolate the

generator electric system from the electric utility

distribution system when the generator is operat-

ing. Failure to isolate the two electric system power

sources from each other by such means will result

in damage to the generator and may also result

in injury or death to utility power workers due to

backfeed of electrical energy.

• Generators installed with an automatic transfer

switch will crank and start automatically when

normal (utility) source voltage is removed or is

below an acceptable preset level. To prevent such

automatic start-up and possible injury to person-

nel, disable the generator’s automatic start circuit

(battery cables, etc.) before working on or around

the unit. Then, place a “Do Not Operate” tag on

the generator control panel and on the transfer

switch.

• In case of accident caused by electric shock, imme-

diately shut down the source of electrical power.

If this is not possible, attempt to free the victim

from the live conductor. AVOID DIRECT CONTACT

WITH THE VICTIM. Use a nonconducting imple-

ment, such as a dry rope or board, to free the vic-

tim from the live conductor. If the victim is uncon-

scious, apply first aid and get immediate medical

help.

• Never wear jewelry when working on this equip-

ment. Jewelry can conduct electricity resulting in

electric shock, or may get caught in moving com-

ponents causing injury.

 FIRE HAZARDS 

• Keep a fire extinguisher near the generator at all

times. Do NOT use any carbon tetra-chloride type

extinguisher. Its fumes are toxic, and the liquid

can deteriorate wiring insulation. Keep the extin-

guisher properly charged and be familiar with its

use. If there are any questions pertaining to fire

extinguishers, consult the local fire department.

 EXPLOSION HAZARDS 

• Properly ventilate any room or building housing

the generator to prevent build-up of explosive gas.

• Do not smoke around the generator. Wipe up any

fuel or oil spills immediately. Ensure that no com-

bustible materials are left in the generator com-

partment, or on or near the generator, as FIRE or

EXPLOSION may result. Keep the area surround-

ing the generator clean and free from debris.

• These generator sets may operate using one of

several types of fuels. All fuel types are potentially

FLAMMABLE and/or EXPLOSIVE and should be

handled with care. Comply with all laws regulat-

ing the storage and handling of fuels. Inspect the

unit’s fuel system frequently and correct any leaks

immediately. Fuel supply lines must be prop-

erly installed, purged and leak tested according to

applicable fuel-gas codes before placing this equip-

ment into service.

• Diesel fuels are highly FLAMMABLE. Gaseous

fluids such as natural gas and liquid propane

(LP) gas are extremely EXPLOSIVE. Natural gas

is lighter than air, and LP gas is heavier than air;

install leak detectors accordingly.

1-2

Standby Generator Sets

Important Safety Instructions

Safety 001 Rev. 0 08/05

1-3

INTRODUCTION

Thank you for purchasing this model of the standby

generator set product line.

Every effort was expended to make sure that the

information and instructions in this manual were

both accurate and current at the time the manual was

written. However, the manufacturer reserves the right

to change, alter or otherwise improve this product(s)

at any time without prior notice.

READ THIS MANUAL THOROUGHLY

If any portion of this manual is not understood, con-

tact the nearest Authorized Service Dealer for start-

ing, operating and servicing procedures.

Throughout this publication, and on tags and

decals affixed to the generator, DANGER, WARNING,

CAUTION and NOTE blocks are used to alert person-

nel to special instructions about a particular service

or operation that may be hazardous if performed

incorrectly or carelessly. Observe them carefully.

Their definitions are as follows:

DANGER

After this heading, read instructions that, if not

strictly complied with, will result in personal injury

or property damage.

After this heading, read instructions that, if not

strictly complied with, may result in personal

injury or property damage.

After this heading, read instructions that, if not

strictly complied with, could result in damage to

equipment and/or property.

NOTE:

After this heading, read explanatory statements

that require special emphasis.

These safety warnings cannot eliminate the hazards

that they indicate. Common sense and strict compli-

ance with the special instructions while performing

the service are essential to preventing accidents.

Four commonly used safety symbols accompany the

DANGER, WARNING and CAUTION blocks. The type

of information each indicates is as follows:

 This symbol points out important safety infor-

mation that, if not followed, could endanger

personal safety and/or property of others.

 This symbol points out potential explosion

hazard.



 This symbol points out potential fire hazard.

 This symbol points out potential electrical shock

hazard.

The operator is responsible for proper and safe use

of the equipment. The manufacturer strongly recom-

mends that the operator read this Owner's Manual

and thoroughly understand all instructions before

using this equipment. The manufacturer also strong-

ly recommends instructing other users to properly

start and operate the unit. This prepares them if they

need to operate the equipment in an emergency.

OPERATION AND MAINTENANCE

It is the operator's responsibility to perform all safety

checks, to make sure that all maintenance for safe

operation is performed promptly, and to have the

equipment checked periodically by an Authorized

Service Dealer. Normal maintenance service and

replacement of parts are the responsibility of the

owner/operator and, as such, are not considered

defects in materials or workmanship within the terms

of the warranty. Individual operating habits and usage

contribute to the need for maintenance service.

Proper maintenance and care of the generator ensure

a minimum number of problems and keep operating

expenses at a minimum. See an Authorized Service

Dealer for service aids and accessories.

Operating instructions presented in this manual

assume that the standby electric system has been

installed by an Authorized Service Dealer or other

competent, qualified contractor. Installation of this

equipment is not a “do-it-yourself” project.

HOW TO OBTAIN SERVICE

When the generator requires servicing or repairs,

simply contact an Authorized Service Dealer for

assistance. Service technicians are factory-trained

and are capable of handling all service needs.

When contacting an Authorized Service Dealer or the

factory about parts and service, always supply the

complete model number of the unit as given on the

front cover of this manual or on the DATA LABEL

affixed to the unit.





AUTHORIZED SERVICE DEALER LOCATION

To locate the nearest AUTHORIZED

SERVICE DEALER, please call this number:

1-800-333-1322

or locate us on the web at:

www.generac.com

Standby Generator Sets

Important Safety Instructions

Safety 001 Rev. 0 08/05

IDENTIFICATION RECORD

DATA LABEL

Every generator set has a DATA LABEL that contains

important information pertinent to the generator. The

data label, which can be found attached to the gen-

erator’s lower connection box, lists the unit’s serial

number and its rated voltage, amps, wattage capacity,

phase, frequency, rpm, power factor, etc.

WAUKESHA, WI

RATED KW

RATED VOLTAGE

POWER FACTOR

ENGINE RPM

ALTERNATOR SUBTRANSIENT REACTANCE

ALTERNATOR TRANSIENT REACTANCE

CLASS

MODEL

MADE IN USA

PRODUCTION DATE

GENERAC POWER SYSTEMS, INC.

HERTZ

RATED KVA

GENERATOR SET DATA

RATED AMPS

ALT RPM

PHASE

SERIAL

ROTOR STATOR WINDING INSULATION AT 25°C AMBIENT

NOTE:

For actual information related to this particular

model, please refer to the Manual Drawing Listing

located at the end of this manual, or to the data

label affixed to the unit.

Generator Model and Serial Number

This number is the key to numerous engineering and

manufacturing details pertaining to your unit. Always

supply this number when requesting service, order-

ing parts or seeking information.





Identification Code

Use this code to obtain important information about

the generator. For example, if the code is:

M — Designates generators capable of paralleling.

NOTE: Only 100kW and 150kW, 6.8L units

are currently available for this configura-

tion.

QT — Quiet Test Generator Series

100 — kw Rating

5.4 — Engine Size in Liters

A — Voltage Code: A = 120/240, Single-phase;

G = 120/208, Three-phase; K = 277/480,

Three-phase; J = 120/240, Three-phase;

L = 346/600, Three-phase

N — Fuel: N = Natural Gas; V = Vapor Propane

S — Enclosure Material: A = Aluminum; S

= Steel (Corrosion Resistant Aluminum

Enclosure Material, Steel is Standard)

N — Emission Equipment: N = No Equipment;

Y = Catalytic Converter and Air/Fuel Ratio

Controller

A — Industrial Dealer Product

Voltage Codes

The identification code letter following the unit’s

engine size is the generator’s “voltage code.”

Groups and Assembly Numbers

The manual drawing listing lists the groups and cor-

responding assembly numbers for each unit. The

assembly numbers refer to exploded view drawing

numbers that are applicable to the specific generator

model. These drawings are located in the back half

of this manual.







2-1

Standby Generator Sets

General Information

Identy001 Rev. C 04/06

M Q T 1 0 0 5 4 A N S N A

EQUIPMENT DESCRIPTION

This equipment is a revolving field, alternating cur-

rent generator set. It is powered by a gaseous fueled

engine operating at 1800 rpm for 4-pole direct drive

units, 3600 rpm for 2-pole direct drive units and

2300 - 3000 rpm for quiet drive gear units. See the

Specifications section for exact numbers. The unit

comes complete with a sound attenuated enclosure,

internally mounted muffler, control console, main-

line circuit breaker, battery charger, and protective

alarms as explained in the following paragraph.

All AC connections, including the power leads from

the alternator, 120 volt battery charger input and

control connections to the transfer switch are avail-

able in the main connection box.

The generator incorporates the following generator

features:

• Rotor and Stator insulation is Class F rated as

defined by NEMA MG1-32.6, NEMA MG1-1.66.

The generator is self ventilated and drip-proof con-

structed.

• The voltage waveform deviation, total harmonic

content of the AC waveform and telephone influ-

ence factor have been evaluated and are acceptable

according to NEMA MG1-32.

ENGINE OIL RECOMMENDATIONS

The unit has been filled with 15W-40 engine oil at

the factory. Use a high-quality detergent oil classified

“For Service CC, SD, SE, SF.” Detergent oils keep the

engine cleaner and reduce carbon deposits. Use oil

having the following SAE viscosity rating, based on

the ambient temperature range anticipated before the

next oil change:

 Any attempt to crank or start the engine before

it has been properly serviced with the recom-

mended oil may result in an engine failure.

NOTE:

For temperatures below 32° F, it is strongly recom-

mended to use the optional Cold Weather Start Kit

(part number listed in the Specification Section).

The oil grade for temperatures below 32° F is 5W-

30 synthetic oil.

COOLANT RECOMMENDATIONS

Use a mixture of half low silicate ethylene glycol

base anti-freeze and deionized water. Cooling system

capacity is listed in the specifications. Use only deion-

ized water and only low silicate anti-freeze. If desired,

add a high quality rust inhibitor to the recommended

coolant mixture. When adding coolant, always add

the recommended 50-50 mixture.

 Do not use any chromate base rust inhibitor

with ethylene glycol base anti-freeze or chro-

mium hydroxide (“green slime”) forms and will

cause overheating. Engines that have been oper-

ated with a chromate base rust inhibitor must

be chemically cleaned before adding ethylene

glycol base anti-freeze. Using any high silicate

anti-freeze boosters or additives will also cause

overheating. The manufacturer also recommends

that any soluble oil inhibitor is NOT used for this

equipment.

DANGER

 Do not remove the radiator pressure cap while

the engine is hot or serious burns from boiling

liquid or steam could result.

 Ethylene glycol base antifreeze is poisonous.

Do not use mouth to siphon coolant from the

radiator, recovery bottle or any container. Wash

hands thoroughly after handling. Never store

used antifreeze in an open container because

animals are attracted to the smell and taste of

antifreeze even though it is poisonous to them.

Temperature Oil Grade (Recommended)

Above 80° F (27° C) SAE 30W or 15W-40

32° to 80° F (0° to 27° C) SAE 20W-20 or 15W-40

Below 32° F (0° C) See Note

3-1

Standby Generator Sets

Equipment Description

Equip002 Rev. 0 08/05

ENGINE PROTECTIVE DEVICES

The standby generator may be required to operate for

long periods of time without an operator on hand to

monitor such engine conditions as coolant tempera-

ture, oil pressure or rpm. For that reason, the engine

has several devices designed to protect it against

potentially damaging conditions by automatically

shutting down the unit when the oil pressure is too

low, the coolant temperature is too high, the coolant

level is too low, or the engine is running too fast.

NOTE:

Engine protective switches and sensors are men-

tioned here for the reader’s convenience. Also

refer to the applicable control panel manual for

additional automatic engine shutdown informa-

tion.

HIGH COOLANT TEMPERATURE SWITCH

This switches contacts close if the temperature should

exceed approximately 140° C (284° F), initiating an

engine shutdown. The generator will automatically

restart and the LED will reset once the temperature

has returned to a safe operating level.

LOW COOLANT LEVEL SENSOR

Should the engine coolant level drop below the level

of the high coolant temperature switch, it is possible

for the engine to overheat without automatic shut-

down. To prevent such overheating, the engine has a

low coolant level sensor. If the level of engine coolant

drops below the level of the low coolant level sensor,

the engine automatically shuts down.

LOW OIL PRESSURE SWITCH

This switch has normally closed contacts that are

held open by engine oil pressure during cranking and

operating. Should oil pressure drop below the 8 psi

range, switch contacts close, and the engine shuts

down. The unit should not be restarted until oil is

added, and the AUTO/OFF/MANUAL switch must be

turned to OFF and then back to AUTO.







OVERCRANK SHUTDOWN

After a prespecified duration of cranking, this func-

tion ends the cranking if the engine has failed to

start. The overcrank LED will turn ON. Turn OFF the

AUTO/OFF/MANUAL switch, then turn switch back to

AUTO to reset the generator control board.

NOTE:

If the fault is not corrected, the overcrank feature

will continue to activate.

Approximate Crank Cycle Times

• 15 seconds ON

• 7 seconds OFF

• 7 seconds ON

• 7 seconds OFF

• Repeat for 45 seconds

Approximately 90 seconds total.

OVERSPEED SHUTDOWN

A speed circuit controls engine cranking, start-up,

operation and shutdown. Engine speed signals are

delivered to the circuit board whenever the unit is

running. Should the engine overspeed above a safe,

preset value, the circuit board initiates an automatic

engine shutdown. Contact the nearest Authorized

Dealer if this failure occurs.

RPM SENSOR LOSS SHUTDOWN

If the speed signal to the control panel is lost, engine

shutdown will occur.

DC FUSE

This fuse is located inside of the control panel. It

protects the panel wiring and components from

damaging overload. Always remove this fuse before

commencing work on the generator. The unit will

not start or crank if the fuse is blown. Replace the

fuse with one of the same size, type, and rating. (See

the exploded views and parts lists at the end of this

manual for replacement part number.)









4-1

Standby Generator Sets

Engine Protective Devices

EngProt001 Rev. 0 08/05

FUEL SYSTEM

FUEL REQUIREMENTS

The standby generator may be equipped with one of

the following fuel systems:

• Natural gas fuel system

• Propane vapor (PV) fuel system

The Manual Drawing Listing that is affixed to the

unit includes the “Identification Code,” which may be

used to identify the type of fuel system installed on

the unit.

Recommended fuels should have a Btu content of at

least 1,000 Btus per cubic foot for natural gas; or at

least 2,520 Btus per cubic foot for LP gas. Ask the

fuel supplier for the Btu content of the fuel.

Required fuel pressure for natural gas is 5 inches

to 14 inches water column (0.18 to 0.5 psi); and

for liquid propane, 5 inches to 14 inches of water

column (0.18 to 0.5 psi).

NOTE:

Any piping used to connect the generator to the

fuel supply should be of adequate size to ensure

the fuel pressure NEVER drops below five inches

water column for natural gas or 5 inches water

column for propane vapor for all load ranges.

NOTE:

It is the responsibility of the installer to make sure

that only the correct recommended fuel is sup-

plied to the generator fuel system. Thereafter, the

owner/operator must make certain that only the

proper fuel is supplied.

NATURAL GAS FUEL SYSTEM

Natural gas is supplied in its vapor state. In most

cases, the gas distribution company provides piping

from the main gas distribution line to the standby

generator site. The following information applies to

natural gas fuel systems.

• Gas pressure in a building is usually regulated by

national, state and local codes.

• To reduce gas pressure to a safe level before

the gas enters a building, a primary regulator is

needed. The natural gas supplier may or may not

supply such a regulator.

• It is the responsibility of the gas supplier to make

sure sufficient gas pressure is available to operate

the primary regulator.

• Gas pressure at the inlet to the fuel shutoff sole-

noid should not exceed approximately 14 inches

water column (0.5 psi). Optimum pressure at the

fuel shutoff solenoid is 11 inches water column

(0.4 psi).





PROPANE VAPOR WITHDRAWAL FUEL SYSTEM

This type of system utilizes the vapors formed above

the liquid fuel in the supply tank. Approximately 10

to 20 percent of the tank capacity is needed for fuel

expansion from the liquid to the vapor state. The

vapor withdrawal system is generally best suited for

smaller engines that require less fuel. The installer

should be aware of the following:

• The natural gas and LP gas systems are similar.

However, the natural gas system delivers gas at a

pressure of approximately five inches water col-

umn to the carburetor.

• When ambient temperatures are low and engine

fuel consumption is high, the vapor withdrawal

system may not function efficiently.

• Ambient temperatures around the supply tank

must be high enough to sustain adequate vaporiza-

tion, or the system will not deliver the needed fuel

volume.

• In addition to the cooling effects of ambient air, the

vaporization process itself provides an additional

cooling effect.

LP FUEL SYSTEM

LP is supplied as a liquid in pressure tanks. It is

usually made up of propane, butane, or a mixture of

the two gases. Propane tends to vaporize readily even

at temperatures as low as -20° F (-29° C). However,

butane reverts to its liquid state when temperatures

drop below 32° F (0° C).

LP in a liquid withdrawal system must be converted

to its gaseous state before it is introduced into the

engine carburetor. A vaporizer-converter is generally

used to accomplish this. In such a converter, heated

engine coolant is ported through the converter to

provide the necessary heat for conversion of the fuel

from a liquid to a gaseous state.





5-1

Standby Generator Sets

Fuel Systems

FuelSys001 Rev. 0 08/05

SPECIFICATIONS

GENERATOR

Type ............................................................................. Synchronous

Rotor Insulation ....................................................................Class F

Stator Insulation ...................................................................Class F

Total Harmonic Distortion .........................................................< 5%

Telephone Interference Factor (TIF) .......................................... < 50

Alternator Output Leads 3-phase ........................................... 4-wire

Bearings .........................................................................Sealed Ball

Coupling .......................................................................Flexible Disc

Load Capacity (Standby Rating) ............................................20kW*

* NOTE: Generator rating and performance in accordance with ISO8528-5, BS5514, SAE J1349,

ISO3046 and DIN 6271 Standards. KW rating is based on LPG fuel and may derate with natural

gas.

Excitation System ....................................................................Direct

Generator Output Voltage/kW - 60 Hz kW Amp CB Size

120/240V, 1-phase, 1.0 pf 20 83 100

120/208V, 3-phase, 0.8 pf 20 69 80

Generator Locked Rotor KVA Available @ Voltage Dip of 35%

Single-phase or 208 3-phase ............................................. 34 KVA

ENGINE

Make ................................................................................... Generac

Model ..................................................................................... In Line

Cylinders and Arrangement ............................................................ 4

Displacement ....................................................................... 1.5 Liter

Bore ...................................................................................... 2.97 in.

Stroke ................................................................................... 3.23 in.

Compression Ratio ...............................................................9.4-to-1

Air Intake System ...............................................Naturally Aspirated

Valve Seats ................................................................... Replaceable

Lifter Type .......................................................................... Hydraulic

Engine Parameters

Rated Synchronous RPM ..............................................60 Hz, 3600

HP at rated kW ..................................................................60 Hz, 32

Exhaust System

Exhaust Flow at Rated Output 60 Hz .................................. 177 cfm

Exhaust Temperature at Rated Output .................................. 910° F

Combustion Air Requirements (Natural Gas)

Flow at rated power, 60 Hz ................................................... 70 cfm

Governor

Type .................................................................................. Electronic

Frequency Regulation ...................................................Isochronous

Steady State Regulation ........................................................± .25%

Adjustments:

Speed ............................................................................ Selectable





Engine Lubrication System

Type of Oil Pump ...................................................................... Gear

Oil Filter .............................................................Full Flow, Cartridge

Crankcase Oil Capacity ....................................................4 U.S. qts.

COOLING SYSTEM

Type ....................................................................................... Closed

Water Pump .................................................................... Belt Driven

Fan Speed ................................................................................ 2550

Fan Diameter .....................................................................15 inches

Fan Mode ..............................................................................Pusher

Air Flow (inlet air including alternator and

combustion air) .......................................................... 1528 ft3/min.

Coolant Capacity ...........................................................2.0 U.S. gal.

Heat Rejection to Coolant ..........................................107,000 Btu/h

Maximum Operating Air Temp. on Radiator ..............60° C (150° F)

Maximum Ambient Temperature ................................50° C (140° F)

FUEL SYSTEM

Type of Fuel ......................................... Natural Gas, Propane Vapor

Carburetor ...................................................................... Down Draft

Secondary Fuel Regulator .................................................Standard

Fuel Shut-off Solenoid ........................................................Standard

Operating Fuel Pressure ...................... 5 in. - 14 in. Water Column

Fuel Consumption - ft3/hr (Natural Gas/LPV)

Exercise 25% 50% 75% 100%

Cycle Load Load Load Load

60/24 124/49 188/75 250/99 315/125

ELECTRICAL SYSTEM

Battery Charge Alternator ............................................12V, 15 Amp

Static Battery Charger ............................................................2 Amp

Recommended Battery ...................................... Group 26, 525CCA

System Voltage .....................................................................12 Volts

Voltage Regulator

Type .................................................................................. Electronic

Sensing ........................................................................ Single-phase

Regulation ................................................................................± 1%

Features ................................................. V/F Adjustable, Adjustable

Voltage and Gain LED Indicators

Power Adjustment for Ambient Conditions

Temperature Deration

3% for every 10° C above °C ..................................................... 25

1.65% for every 10° above °F .................................................... 77

Altitude Deration

1% for every 100 m above m ................................................... 182

3% for every 1000 ft. above ft. ................................................. 600

Controller .................................................R-100







6-1

Standby Generator Sets

Specifications

GenSpec013 Rev. B 11/05

COLD WEATHER KIT

For cold climates, optional cold weather kit (part

number 0F6148) is recommended. The kit includes:

• Battery Warmer

• 4” Junction Box with hardware

• 6 qt. pack 5W-30 synthetic oil (engine)

RECONFIGURING THE FUEL SYSTEM

NOTE:

All models are configured for natural gas or LP

vapor from the factory.

To reconfigure the fuel system from NG to LP, follow

these steps:

1. Turn the main gas supply off.

2. Remove the carburetor fuel hose from the outlet

port (Port 1) of the demand regulator (Figure

6.2).

3. Remove the brass hose fitting from the outlet port

(Port 1) of the demand regulator.

4. Remove pipe plug from Port 2.

5. Install brass hose fitting into Port 2.

6. Install pipe plug into Port 1.

7. Connect carburetor gas hose to brass fitting.

8. Tighten all clamps and plugs.

9. Make sure fuel supply is of the proper pressure

and type for configuration.





10. Reverse the procedure to convert back to natural

gas.

11. The Dip switch inside the control panel must be

in the LP or NG position when switching to differ-

ent fuels.

Figure 6.2 — Reconfigure the Fuel System

NG FUEL SYSTEM LP FUEL SYSTEM

Port 1 Port 2

FUEL HOSE

BRASS HOSE

FITTING

HOUSING

PORTS

OUT

PORT 2

PLUG

FUEL HOSE

BRASS HOSE

FITTING

HOUSING

PORTS

PLUG

OUT

PORT 1

NOTE:

Port 1 is for NG only and Port 2 is for LP vapor

only. No provision for dual fuel has been made.

DANGER

 Serious injury or damage may occur if not con-

figured properly. Please consult an Authorized

Dealer with any questions.

TO

ALTERNATOR

NEUTRAL

GROUND

CIRCUIT

BREAKER

NEUTRAL

Ground Level

Concrete Slab STUB-UP AREA

See Install Dwg for

Dimensions

CONTROL PANEL

GENERATOR

CONNECTION

BOX

FRAME RAIL

N1

N2

23

194

186

178

To Generator Control Panel

Utility In

Load

Out

Gen

N1

N2

23

194

183

178

120 Volt +

Neutral

Grd

Battery

Charger

Input

Transfer Switch

CIRCUIT BREAKER SIZE

KW VOLTS / AMPS LUG SIZE

20 240 1 Ø 100 #4 to 1/0

20 208 3 Ø 80 #4 to 1/0

4- # 14 GA

WIRES TO

GENERATOR

CONNECTION

BOX

TO GENERATOR

CONNECTION BOX

Figure 1 — Interconnections

6-2

Standby Generator Sets

Specifications

GenSpec013 Rev. B 11/05

GENERATOR AC LEAD CONNECTIONS

See “Voltage Codes”. This generator may be rated

at any one of three voltages, either single-phase or

three-phase. The electrical wires in the unit’s AC con-

nection (lower) panel should be installed according to

the number of leads and the voltage/phase required

for the application. If there are any questions regard-

ing lead connection, refer to the wiring diagrams at

the back of this manual.

Voltage codes apply to the type of stator assembly

installed on a particular generator.

FOUR-LEAD, SINGLE-PHASE STATOR

Four-lead generators (see Figure 7.1) are designed to

supply electrical loads with voltage code “A” (240V,

1-phase, 60 Hz). Electrical power is produced in the

stator power windings. These windings were con-

nected at the factory to the main circuit breaker as

shown in Figure 7.1.

The rated voltage between each circuit breaker ter-

minal is 240V. The rated voltage between each circuit

breaker terminal and the neutral point 00 is 120V.

Figure 7.1 — Four-lead, Single-phase Stator



ALTERNATOR POWER WINDING

CONNECTIONS

3-PHASE ALTERNATORS

The generator is designed to supply 3-phase electri-

cal loads. Electric power is produced in the alterna-

tor power windings. These windings were connected

at the factory to the main circuit breaker with a “Y”

configuration as shown in Figures 7.2 and 7.3.

The rated voltage between circuit breaker terminals

E1-E2, E1-E3 and E2-E3 is either 480V or 208V

depending on the model.

The rated voltage between each circuit breaker termi-

nal and the neutral point 00 is either 277V or 120V

depending on the model.

Figure 7.2 — Stator Power Winding

Connections - 3-phase, 277/480V (6 Lead)

S6

E

3

S3

INTERNAL

CO

NNE

C

TI

O

N

S

L-

N

L

-

L

S4

E2

S2

S5

S1

E1

NE

U

TRA

L

Figure 7.3 — Stator Power Winding

Connections - 3-phase, 120/208V (6 Lead)

E

3

E2

00

(

NEUTRAL

)

E1

L

-

L

L

-

N

S1

S1

S4

S4

S

6

S6

S3

S3

S5

S5

S2

S2



7-1

Standby Generator Sets

General Information

ACConn001 Rev. 0 08/05

INSTALLATION

Refer to the separate “Installation Guide QT Product

Line” supplied with the unit.

PREPARATION BEFORE START-UP

The instructions in this section assume that the

standby generator has been properly installed, ser-

viced, tested, adjusted and otherwise prepared for

use by a competent, qualified installation contractor.

Be sure to read the “Safety Rules”, as well as all other

safety information in this manual, before attempting

to operate this (and related) equipment.

Before starting the generator for the first time, the

installer must complete the following procedures. For

follow-up maintenance information and/or service

intervals, please refer to the “Maintenance” section

and the “Service Schedule”.

TRANSFER SWITCH

If this generator is used to supply power to any elec-

trical system normally powered by an electric utility,

the National Electrical Code requires that a transfer

switch be installed. The transfer switch prevents elec-

trical backfeed between two different electrical sys-

tems. (For additional information, see the applicable

transfer switch manual for this unit.) The transfer

switch, as well as the generator and other standby

components, must be properly located and mounted

in strict compliance with applicable codes, standards

and regulations.

FUEL SYSTEM

Make sure the fuel supply system to the genera-

tor (a) delivers the correct fuel at the correct pres-

sure and (b) is properly purged and leak tested

according to code. No fuel leakage is permitted. See

“Specifications” for more information.

GENERATOR SET LUBRICATION

Check the engine crankcase oil level before operating

and add oil to the proper level – the dipstick “FULL”

mark. Never operate the engine with the oil level

below the dipstick “ADD” mark. See “Specifications”

and “Engine Oil Recommendations”.

NOTE:

This engine is shipped from the manufacturer

with “break-in” oil. This oil should be changed

after 30 hours of operation.

Check the oil level in the generator gearbox (if so

equipped) prior to initial use and at the intervals

indicated by the “Service Schedule.” The recom-

mended oil is SAE 90 gear lubricant.

Also, if the engine is equipped with a mechanical gov-

ernor, make sure the governor is properly lubricated

with clean engine oil.







PRIOR TO INITIAL START-UP

 Prior to initially starting the generator, it must

be properly prepared for use. Any attempt to

crank or start the engine before it has been

properly serviced with the recommended types

and quantities of engine fluids (oil, coolant, fuel,

etc.) may result in an engine failure.

ENGINE COOLANT

Have the engine cooling system properly filled with

the recommended coolant mixture. Check the system

for leaks and other problems. See “Specifications”

and “Coolant” sections.

BELT TENSION

Check-the engine-fan belt tension and condition prior

to placing the unit into service and at recommended

intervals. Belt tension is correct when a force of

approximately 22 pounds (10 kg), applied midway

between pulleys, deflects the belt about 3/8- to 5/8-

inch (10 to 16 mm).

ELECTRICAL SYSTEM

Make sure the generator is properly connected to an

approved earth ground.

Make sure the generator battery is fully charged,

properly installed and interconnected, and ready for

use.

Check to ensure that there are no loose electrical con-

nections. Restrain any loose wires to keep them clear

of any moving generator set components.

INITIAL INSPECTION FOR QT GENSET

STARTUP

Inspect for the following.

• Freight Damage.

• Manuals present.

• Fluid Levels (Oil, coolant, battery, Gear Drive).

• Correct fuel piping.

• Correct muffler installation for external applica-

tion.

• Adequate air flow, clearances and ventilation per

installation drawings and applicable codes.

• Correct AC and DC wire size, connections and

grounding. Control and communication wiring to/

from the transfer switch must be run in a separate

conduit from the AC power leads.

• Battery charger connection to 120 VAC.

• Communication wires connected between transfer

switch and generator (HTS only).

• Unit secured to pad.









8-1

Standby Generator Sets

Installation

Install001 Rev. C 05/06

START-UP CHECKLIST

 Before working on the generator, ensure the fol-

lowing:

• The AUTO/OFF/MANUAL switch is in the OFF

position.

• The 120VAC supply to the battery charger is

switched OFF.

PREPARATION FOR START-UP

• Ensure that the 120VAC circuit breaker to the bat-

tery charger is open.

• Remove the fuse from the the control panel. For

the H-100 and R-series: Open the front door of the

control box and remove the 15 Amp ATO fuse in

the lower left-hand corner of the control box.

• Connect the battery cables to the battery. Attach

negative battery cable last.

• Close the 120VAC circuit breaker to the battery

charger.

• Measure the voltage at the battery before and after

the charger is turned on.

• Verify all AC electrical connections are tight at the

circuit breaker and transfer switch.

• Visually inspect entire area looking for loose paper,

plastic wrappings, leaves, etc.

• Check all hoses clamps fittings for leaks or dam-

age.

• Check all electrical plugs throughout the genera-

tor. Ensure each plug is seated correctly and fully

inserted into its receptacle.

• Verify the AUTO/OFF/MANUAL switch is in OFF

position.

• Open the valve to the engine fuel line.

• Bleed the fuel system of air. (necessary for long fuel

lines).

• Open the generator main line circuit breaker.

• Connect a manometer to the gas line and record

the static pressure. It must be as listed in the

Specifications.

• Insert the fuse into the control panel.

• Move the AUTO/OFF/MANUAL switch to the MAN-

UAL position. The engine should now crank and

start.



• Check voltage at the generator terminals.

• For 3-phase units, check phase rotation at the

transfer switch terminals. The generator phase

rotation must match the utility phase rotation.

• Check for coolant, fuel, oil, and exhaust leaks.

• Close the generators main line circuit breaker.

• Turn the generator set off.

• Connect the UTILITY supply to the transfer

switch.

• Set the AUTO/OFF/MANUAL switch to AUTO.

• Disconnect utility power before the transfer

switch.

Engine should start, transfer to load.

Run at least 15 minutes on generator power.

Make certain all 3-phase loads are functioning

correctly (correct phase rotation).

• Reconnect Utility power

Transfer switch will transfer back to Utility and

engine will shut down within the given time

parameters set up for the specific transfer switch

and controller.

• Install all covers, access plates and door panels.

• Put the Owners Manual in a safe and accessible

place.

• Make certain the AUTO/OFF/MANUAL switch is in

the AUTO position.

START-UP INSPECTION

When a start-up is performed by an Authorized

Service Dealer, a standard three-part form titled

“Start-up Inspection for Standby Power Systems”

(part no. 067377), should be completed by the instal-

lation technician or engineer. See page 1-3 for infor-

mation on locating the nearest Authorized Service

Dealer. The installer should complete the form and

disseminate copies as follows:

• White copy: Mail to Generac Warranty Department,

P.O. Box 340, 211 Murphy Dr., Eagle, WI 53119-

2062.

• Pink Copy: For service file of installing dealer.

• Yellow Copy: For the customer’s records.



8-2

Standby Generator Sets

Installation

Install001 Rev. C 05/06

GENERATOR CONTROL AND

OPERATION

Refer to the appropriate control panel operator’s

manual for this unit.

OPERATING UNIT WITH MANUAL

TRANSFER SWITCH

If the generator was installed in conjunction with a

transfer switch capable of manual operation only, the

following procedure applies. A manually operated

transfer switch is one that will not provide automatic

start-up and does not include an intelligence circuit.

ENGINE START-UP AND TRANSFER

For additional information, refer to the applicable

control panel manual for this unit, as well as any lit-

erature pertaining to the specific transfer switch.

DANGER

 The Maintenance Disconnect Switch and the

AUTO/OFF/MANUAL switches (if so equipped)

must be set properly, or the generator will crank

and start as soon as the utility power to the

transfer switch is turned off. Refer to applicable

control panel and transfer switch manuals for

more information.

 Do not proceed until certain that utility source

voltage is available to the transfer switch and

the transfer switch main contacts are set to

UTILITY.

 Do not attempt manual operation until all power

supplies to the transfer switch have been posi-

tively turned off, or extremely dangerous - pos-

sibly lethal - electrical shock will result.

 Transfer switch enclosure doors should be kept

closed and locked. Only authorized personnel

should be allowed access to the transfer switch

interior. Extremely high and dangerous voltages

are present in the transfer switch.

In order to transfer load from the utility source to the

generator, follow these directions:

• Turn OFF or disconnect the utility power circuit

to the transfer switch, using the means provided

(such as the utility source main line circuit break-

er).

• Set the transfer handle to its UTILITY (NORMAL)

position with load circuits connected to the utility

power supply.

• Set the standby generator’s main line circuit break-

er to its OFF (or OPEN) position.

• Start the generator.



 Do not crank the engine continuously for longer

than 30 seconds, or the heat may

damage the starter motor.

• Let engine stabilize and warm up.

• Check all applicable instrument and gauge read-

ings. When certain that all readings are correct,

move the transfer switch manual handle to its

STANDBY (GENERATOR) position, i.e., load cir-

cuits supplied by the generator.

• Set the standby generator’s main line circuit break-

er to its ON (or CLOSED) position.

• Load circuits are now powered by the standby

generator.

RETRANSFER AND SHUTDOWN

For additional information, refer to the applicable

control panel manual for this unit, as well as any lit-

erature pertaining to the specific transfer switch.

To transfer the load back to the utility power source

and shut down the generator, follow these direc-

tions:

• Set the standby generator’s main line circuit break-

er to its OFF (or OPEN) position.

• Manually move the transfer switch handle to its

UTILITY (NORMAL) position, i.e., load circuits

connected to the utility.

• Turn ON the utility power supply to the transfer

switch, using the means provided (such as the util-

ity power source main line circuit breaker).

• Let the generator run at no-load for a few minutes

to stabilize internal temperatures.

• Shut down the generator.

OPERATING UNIT WITH AUTOMATIC

TRANSFER SWITCH

If the generator has been installed with an automatic

transfer switch, such as an RTS, HTS, or GTS-type

transfer switch, the engine may be started and

stopped automatically or manually.

NOTE:

Refer to the applicable manual for your trans-

fer switch and to “Transfer Switch Start Signal

Connections”. In addition, please note the dangers

under “Engine Start-up and Transfer.”



9-1

Standby Generator Sets

Operation

Oper001 Rev. 0 08/05

MAINTENANCE PERFORMED BY

AUTHORIZED SERVICE FACILITIES

 Before working on the generator, ensure the fol-

lowing:

• The AUTO/OFF/MANUAL switch is in the OFF

position.

• The 15A fuse has been removed from the con-

trol box.

• The 120VAC supply to the battery charger is

switched OFF.

EVERY THREE MONTHS

1. Check battery condition.

2. Inspect and test fuel system.

3. Check transfer switch.

4. Inspect exhaust system.

5. Check engine ignition system.

6. Check fan belts.

ONCE EVERY SIX MONTHS

1. Test Engine Safety Devices (low oil pressure, low

coolant level, high coolant temperature).

ONCE ANNUALLY

1. Test engine governor; adjust or repair, if needed.

2. Clean, inspect generator.

3. Flush cooling system.

FIRST 30 OPERATING HOURS

1. Change engine "break-in" oil and filter.

FIRST 100 OPERATING HOURS

1. Change engine oil and oil filter. After initial

change, service engine oil and filter at 100 operat-

ing hours or six months, whichever comes first.

2. Retorque cylinder head.

3. Retorque intake and exhaust manifold.

EVERY 500 OPERATING HOURS

1. Service air cleaner.

2. Check starter.

3. Check engine DC alternator.

EVERY 800 OPERATING HOURS

1. Retorque cylinder head.

2. Retorque intake and exhaust manifold.

3. Check engine compression.

4. Check valve clearance.















COOLING SYSTEM

Air intake and outlet openings in the generator com-

partment must be open and unobstructed for contin-

ued proper operation. This includes such obstruc-

tions as high grass, weeds, brush, leaves and snow.

Without sufficient cooling and ventilating air flow, the

engine/generator quickly overheats, which causes it

to shut down. (See the installation diagram.)

 The exhaust system parts from this product get

extremely hot and remains hot after shutdown.

High grass, weeds, brush, leaves, etc. must

remain clear of the exhaust. Such materials may

ignite and burn from the heat of the exhaust

system.

OVERLOAD PROTECTION FOR ENGINE

DC ELECTRICAL SYSTEM

Engine cranking, start up and running are controlled

by a solid state Engine Controller circuit board.

Battery voltage is delivered to that circuit board via

a 15 amp fuse. These overcurrent protection devices

will open if the circuit is overloaded.

 If a circuit breaker opens or a fuse element

melts, find the cause of the overload before

resetting the circuit breaker or replacing the

fuse.

CHECKING FLUID LEVELS

CHECK ENGINE OIL

Check engine crankcase oil level (Figure 10.1) at least

every 20 hours of operation, or prior to use.

• Remove oil dipstick and wipe dry with a clean, lint-

free cloth.

• Install oil dipstick, then remove again.

• Oil should be between FULL and ADD marks.

• If oil level is below the dipstick ADD mark, remove

oil fill cap-. Add the recommended oil to bring oil

level up to the FULL mark. DO NOT FILL ABOVE

THE “FULL” MARK. See “Engine Oil Recommen-

dations” for recommended oils.



10-1

Standby Generator Sets

Maintenance

Maint006 Rev. B 12/05

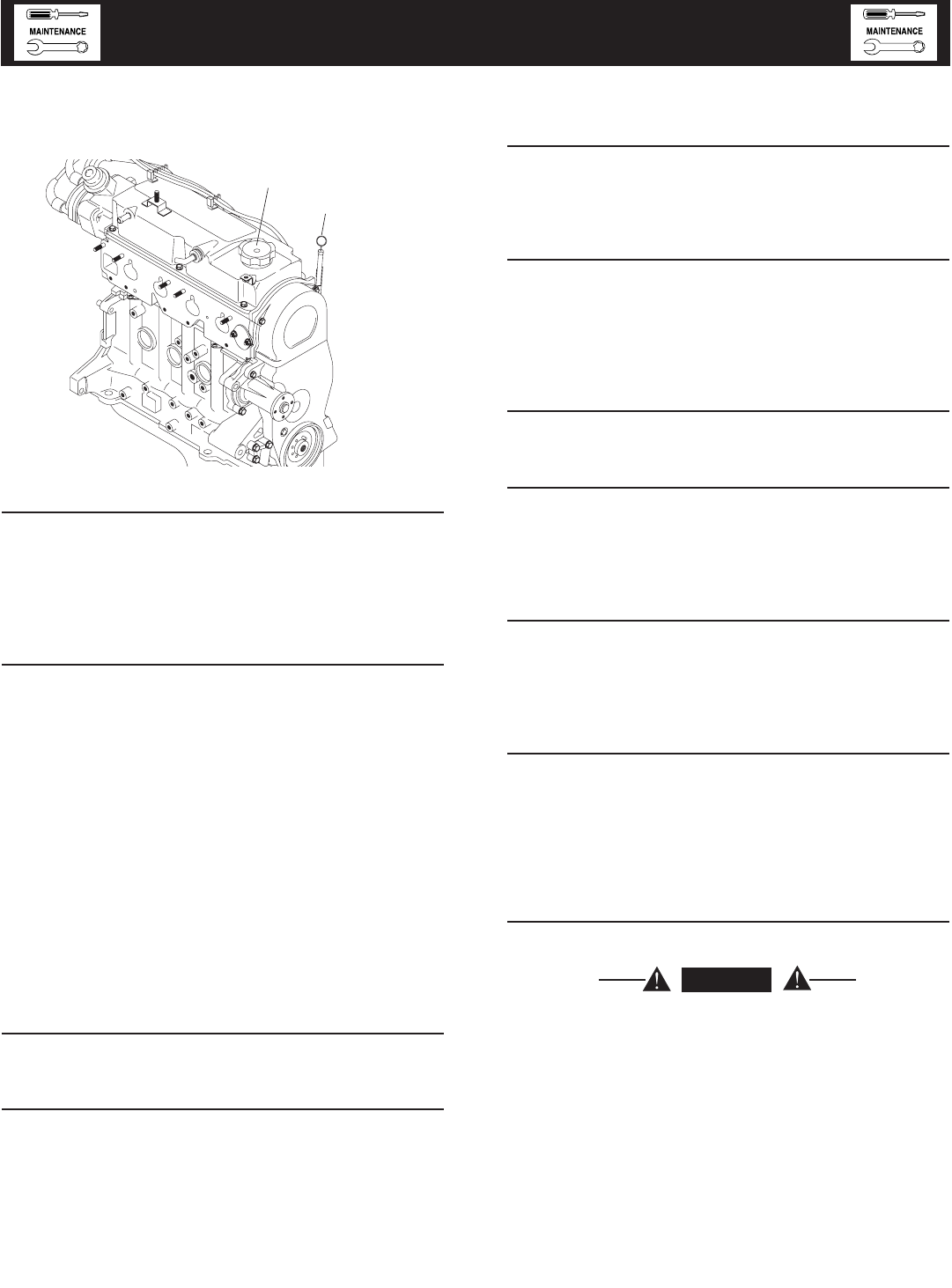

Figure 10.1 - Oil Dipstick and Oil Fill Cap

OIL FILL CAP

OIL DIPSTIC

K

BATTERY FLUID

Check battery electrolyte fluid based on the

Maintenance Schedule. Fluid should cover separa-

tors in all battery cells. If fluid level is low, add dis-

tilled water to cover tops of separators. DO NOT USE

TAP WATER IN BATTERY.

ENGINE COOLANT

Check coolant level in coolant recovery bottle. See

Specifications.

• Add recommended coolant mixture as necessary.

• Periodically remove radiator pressure cap (only

when engine has cooled down) to make sure the

coolant recovery system is functioning properly.

Coolant should be at bottom of radiator filler neck.

If coolant level is low, inspect gasket in radiator

pressure cap. Replace cap, if necessary. To have

pressure cap tested, contact an Authorized Service

Dealer. Inspect cooling system and coolant recov-

ery system for leaks.

MAINTENANCE OWNER/

OPERATOR CAN PERFORM

CHECK ENGINE OIL LEVEL

Refer to “Checking Fluid Levels”.

CHECK BATTERY

• See “Checking Fluid Levels”.

• Check battery cables for condition, tightness, cor-

rosion or damage. Clean, tighten or replace as

necessary.









EXERCISE SYSTEM

Start the generator engine at least once every seven

days and let it run at least 20 minutes. See “Weekly

Exercise Cycle”.

INSPECT COOLING SYSTEM

• Inspect engine cooling system. See “Maintenance

Schedule”.

• Check hoses for damage, deterioration, leaks, etc.

Correct any discrepancies found.

• Check hose clamps for tightness.

CHECK ENGINE COOLANT LEVEL

See “Checking Fluid Levels”.

PERFORM VISUAL INSPECTION

Complete a thorough visual inspection of the entire

engine-generator monthly. Look for obvious damage,

loose, missing or corroded nuts, bolts and other fas-

teners. Look for fuel, oil or coolant leaks.

INSPECT EXHAUST SYSTEM

Inspect the exhaust system at least once every three

months. Check all exhaust system pipes, mufflers,

clamps, etc. for condition, tightness, leaks, security,

damage.

CHECK FAN BELT

• Inspect fan belts every three months. Replace any

damaged, deteriorated, worn or otherwise defec-

tive belt.

• Check fan belt tension. Thumb pressure, exerted

midway between pulleys, should deflect about 3/8

to 5/8 of an inch. Adjust belt tension as required.

INSPECT ENGINE GOVERNOR

Visually inspect electronic governor.

DANGER

 Do not attempt to adjust the governor. Only

qualified service facilities should adjust the

governor. Excessively high operating speeds

are dangerous and increase the risk of personal

injury. Low speeds impose a heavy load on the

engine when adequate engine power is not

available and may shorten engine life. Correct

rated frequency and voltage are supplied only

at the proper governed speed. Some connected

electrical load devices may be damaged by incor-

rect frequency and/or voltage. Only qualified

service technicians should adjust the governed

speed.















Standby Generator Sets

Maintenance

10-2

Maint006 Rev. B 12/05

CHANGING ENGINE OIL

Refer to maintenance performed by authorized service

facilities for engine oil and filter change frequencies.

Drain the oil while the engine is still warm from run-

ning. This means warm up the engine, shut it down

and drain immediately as follows:

1. Remove OIL DRAIN HOSE from its retaining

clip.

2. Loosen and remove OIL DRAIN HOSE CAP. Drain

oil completely into suitable container.

3. When all oil has drained, install and tighten OIL

DRAIN HOSE CAP, and re-install into its retaining

clip.

4. Turn OIL FILTER (Figure 10.2) counterclockwise

and remove. Properly dispose of old filter.

Figure 10.2 – Oil Filter

OIL FILTER

5. Apply light coating of new engine oil to seal of new

oil filter.-Install FILTER and tighten by hand only.

DO NOT OVER TIGHTEN.

6. Remove OIL FILL CAP. Add recommended oil (see

SPECIFICATIONS). DO NOT FILL ABOVE THE

DIPSTICK “FULL” MARK. Crankcase oil capacity

is 4.0 U.S. quarts (3.8 liters).

 After refilling the crankcase with oil, always

check oil level on dipstick. NEVER OPERATE

ENGINE WITH OIL BELOW THE DIPSTICK “ADD”

MARK.

7. Start engine and check for oil leaks.

CHANGING THE ENGINE AIR CLEANER

To replace the engine air cleaner, (part number

059402), simply remove the air cleaner cover and

replace the air filter making sure it is positioned

properly before reattaching the cover (Figure 10.3).

See the “Service Schedule,” for air cleaner mainte-

nance.





Figure 10.3 – Engine Air Cleaner

Air Cleaner

(Doors Removed for Clarity)

SPARK PLUGS

Reset the spark plug gap or replace the spark plugs

as necessary (Figure 10.4).

1. Clean the area around the base of the spark plugs

to keep dirt and debris out of the engine. Clean

by scraping or washing using a wire brush and

commercial solvent. Do not blast the spark plugs

to clean.

2. Remove the spark plugs and check the condition.

Replace the spark plugs if worn or if reuse is

questionable. See the “Service Schedule,” Section

6, for recommended inspection.

3. Check the spark plug gap using a wire feeler

gauge. Adjust the gap to 0.5-0.6 mm (0.020-0.025

inch) by carefully bending the ground electrode

(Figure 10.4).

Figure 10.4 – Setting the Spark Plug Gap

COOLANT CHANGE

Every year, have an Authorized Service Facility drain,

flush and refill the cooling system. See “Specifications”

for cooling system recommendations.





Standby Generator Sets

Maintenance

10-3

Maint006 Rev. B 12/05

SET PLUG GAP AT 0.5 - 0.6 mm

(0.020 - 0.025 inch)

MISCELLANEOUS MAINTENANCE

CLEANING THE GENERATOR

Keep the generator as clean and as dry as possible.

Dirt and moisture that accumulates on internal gen-

erator windings have an adverse effect on insulation

resistance.

Periodically clean generator exterior surfaces. A soft

brush may be used to loosen caked on dirt. Use a

vacuum system or dry, low pressure air to remove

any accumulations of dirt. The generator is housed

inside an all-weather enclosure, clean the enclosure

with a soft, damp cloth or sponge and water.

Once each year have the generator cleaned and

inspected by an Authorized Service Dealer. That

dealer will use dry, low pressure air to clean internal

windings. Parts inside the control console should be

cleaned and inspected at this time as well.

Finally, have the insulation resistance of stator and

rotor windings checked. If insulation resistances are

excessively low, the generator may require drying.

BATTERY

All lead-acid storage batteries discharge when not in

use. Refer to specific instructions and warnings that

accompany the battery. If such information is not

available, observe the following precautions when

handling a battery:

• DO NOT use jumper cables and a booster battery

to crank or start the generator engine.

• DO NOT recharge a weak battery while it is

installed in the generator. Remove battery from

generator and recharge in a well-ventilated area,

away from fuel vapors, sparks, heat or flames.

• Battery electrolyte fluid is an extremely caustic

sulfuric solution that can cause severe burns. DO

NOT permit fluid to contact eyes, skin, clothing,

painted surfaces, wiring insulation, etc. If any bat-

tery fluid is spilled, flush the affected area with

clear water immediately.

• Always wear safety glasses, rubber apron and

gloves when handling a battery.

• Batteries give off explosive hydrogen gas while

charging. The gas can form an explosive mixture

around the battery for several hours after charging.

Any spark, heat or flames can ignite the gas and

cause an explosion which can shatter the battery,

causing blindness or other serious injury.

BATTERY MAINTENANCE

The battery should be inspected per Section 4.7,

Scheduled Maintenance. The following procedure

should be followed for inspection:

1. Inspect the battery posts and cables for tightness

and corrosion. Tighten and clean as necessary.







2. Check the battery fluid level of unsealed batteries

and, if necessary, fill with DISTILLED WATER

ONLY. DO NOT USE TAP WATER IN BATTERIES.

3. Have the state of charge and condition checked.

This should be done with an automotive-type bat-

tery hydrometer.

DANGER

 Storage batteries give off explosive hydrogen

gas. This gas can form an explosive mixture

around the battery for several hours after charg-

ing. The slightest spark can ignite the gas and

cause an explosion. Such an explosion can shat-

ter the battery and cause blindness or other

injury. Any area that houses a storage battery

must be properly ventilated. Do not allow smok-

ing, open flame, sparks or any spark producing

tools or equipment near the battery.

 Battery electrolyte fluid is an extremely corro-

sive sulfuric acid solution that can cause severe

burns. Do not permit fluid to contact eyes, skin,

clothing, painted surfaces, etc. Wear protective

goggles, protective clothing and gloves when

handling a battery. If fluid is spilled, flush the

affected area immediately with clear water.

 Do not use any jumper cables or booster battery

to crank and start the generator engine. If the

battery has completely discharged, remove it

from the generator for recharging.

 Be sure the AUTO/OFF/MANUAL switch is set to

the OFF position, before connecting the battery

cables. If the switch is set to AUTO or MANUAL,

the generator can crank and start as soon as the

battery cables are connected.

 Be sure the 120VAC power supply to the battery

is turned OFF, or sparking may occur at the bat-

tery posts as the cables are attached and cause

an explosion.

BATTERY REPLACEMENT

When replacing batteries, use the same number and

the type of battery that follows:

NOTE:

The BCI number should be located directly on the

battery.



Standby Generator Sets

Maintenance

10-4

BCI Group No. CCA

26 525 @ 0 deg. F

PERIODIC REPLACEMENT PARTS

Part Name Part Number

Oil Filter # 0A4531A244

Radiator Cap # 046627

Air Cleaner # 059402

Spark Plug # 0A45310275



Maint006 Rev. B 12/05

SERVICE SCHEDULE

The following is a recommended maintenance schedule for small standby and residential generator sets. The

established intervals in the schedule are the maximum recommended when the unit is used in an average service

application. They will need to be decreased (performed more frequently) if the unit is used in a severe applica-

tion. Use calendar time or accumulated run time, from the previous maintenance interval to determine the next

required maintenance interval.

Service Maintenance Interval Information:

The various service maintenance intervals are designated by interval numbers as follows:

1 An early inspection of the generator set to insure it is ready to operate when required and to identify any poten-

tial problem areas.

Performed monthly this requires approximately .5 man-hours per unit to complete.

This inspection may be performed by the end user providing the following safety steps are taken to prevent

the engine from starting automatically without warning:

To prevent injury, perform the following steps in the order indicated before starting any maintenance:

• Disable the generator set from starting and/or connecting to the load by setting the control panel

AUTO/OFF/MANUAL switch to the OFF position.

• Remove the 5 amp and 15 amp control panel fuses.

• Turn off the battery charger (turn OFF utility supply to ATS).

• Remove the negative battery cable.

The battery charger must be turned off BEFORE removing the battery cable to prevent an over current condition

from burning out sensitive control panel components and circuits.

Following all maintenance, reverse these steps to insure the unit is returned to standby setup for normal

operation when required.

2 A break-in service inspection of the generator set to insure it is ready to operate and carry the load when

required, and to identify any potential problem areas.

Performed ONLY ONCE following the first three months, or 30 run time hours of operation after purchase of

the unit and requires approximately 2.5 man-hours per unit to complete.

This inspection contains some maintenance tasks which require special tools, equipment, and/or knowledge

to accomplish and should be performed only by a Service Dealer.

3 An operational inspection of the generator set to insure it is ready to operate and carry the load when required,

and to identify any potential problem areas.

Performed semi-annually this requires approximately 1.5 man-hours per unit to complete.

This inspection contains some maintenance tasks which require special tools, equipment, and/or knowledge

to accomplish and should be performed only by a Service Dealer.

4 A mid-level inspection of the generator set to insure it is ready to operate and carry the load when required,

and to identify any potential problem areas.

Performed annually this requires approximately 4.0 man-hours per unit to complete.

This inspection contains some maintenance tasks which require special tools, equipment, and/or knowledge

to accomplish and should be performed only by a Service Dealer.

11-1

Standby Generator Sets

Service Schedule

SrvSchd002 Rev. C 05/06

Maintenance Level 1 Level 2 Level 3 Level 4

Tasks Recom- Task Required Task Required Task Task

mended Comp. to be done Comp. to be done Comp. Required Comp.

to be done (Date- 3 months/ (Date- Semi- (Date- to be done (Date-

monthly Initials) Break-in Initials) annually Initials) Annually Initials)

10 Hrs. 30 Hrs. 50 Hrs. 100 Hrs.

1. Disable the unit from

operating per the first page

warning.

2. Check the engine oil level.

Adjust as necessary.

3. Check the engine coolant

level. Adjust as necessary.

4. Check the engine coolant

thermal protection level.

Correct as necessary.

5. Check the natural gas

delivery system on gas

engine driven units.

Tighten connections as

necessary.

6. Check the air inlets and

outlets for debris. Clean as

necessary.

7. Check the battery

electrolyte level if

accessible. Adjust as

necessary.

8. Check the battery posts,

cables, and charger for

loose connections,

corrosion, and proper

operation. Correct as

necessary.

9. Check the unit wiring for

loose connections,

corrosion, and damage.

Correct as necessary.

10. Check the engine

accessory drive belts for

wear, weather cracking,

and damage. Replace as

necessary.

11. Visually inspect the unit

looking for leaks, wear or

damage, loose connections

or components, and

corrosion. Correct as

necessary.

12. Test the engine and

transfer switch safety

devices. Correct and/or

adjust as necessary.

11-2

Standby Generator Sets

Service Schedule

SrvSchd002 Rev. C 05/06

Maintenance Level 1 Level 2 Level 3 Level 4

Tasks Recom- Task Required Task Required Task Task

mended Comp. to be done Comp. to be done Comp. Required Comp.

to be done (Date- 3 months/ (Date- Semi- (Date- to be done (Date-

monthly In itials) Break-in Initials) annually Initials) Annually Initials)

10 Hrs. 30 Hrs. 50 Hrs. 100 Hrs.

13. Initiate an automatic start

and transfer of the unit to

site load and exercise it for

at least 1 hour looking for

leaks, loose connections

or components, and

abnormal operating

conditions. Correct as

necessary.

14. Start and exercise the unit

at full rated load (use a

load bank if the site load is

not enough) for at least 2

hours looking for leaks,

loose connections or

components, and abnormal

operating conditions.

Correct as necessary.

15. Change the engine oil.

16. Replace the engine oil

filter(s).

17. Replace the engine air

filter(s).

18. Replace the engine fuel

filter(s) on diesel engine

driven units and re-prime

the fuel system.

19. Check the engine spark

plugs on gas engine driven

units. Clean and re-gap or

replace as necessary.

20. Perform a 5 minute no-load

operational run of the unit

looking for any post service

problems.

21. Return the unit to standby

setup for operation when

required.

11-3

Standby Generator Sets

Service Schedule

SrvSchd002 Rev. C 05/06

TROUBLESHOOTING GUIDE

PROBLEM CAUSE CORRECTION

Engine won’t crank. 1. 15 amp fuse blown. 1. Replace fuse.

2. Loose or corroded or defective 2. Tighten, clean or replace

battery cables. battery cables as necessary.

3. Defective starter contactor. 3. Replace contactor.*

4. Defective starter motor. 4. Replace starter motor.*

5. Dead or Defective Battery. 5. Remove, change or replace battery.

6. 5 amp fuse blown. 6. Replace fuse.*

Engine cranks but won't start 1. Out of fuel. 1. Replenish fuel.

2. Fuel solenoid (FS) is defective 2. Replace solenoid.*

3. Open Wire #14A from Engine Control 3. Reconnect wire.

circuit board.

4. Spark plugs defective. 4. Clean, regap or replace plugs.

5. Door on tank not closed. 5. Close door on tank.

Engine starts hard, runs rough. 1. Flame arrestor (air cleaner) plugged or 1. Clean or replace as needed.

damaged.

2. Plugged fuel line. 2. Unclog fuel line.

3. Defective spark plugs. 3. Clean, regap or replace plugs.

4. Fuel pressure incorrect. 4. Confirm fuel pressure to regulator is as

recommended in SPECIFICATIONS.

Engine starts then shuts down. 1. Engine oil level is low. 1. Check oil and add oil as needed.

2. Engine is overheated. 2. Check cooling system for leaks.

3. Defective Low Oil Pressure Switch 3. Replace switch.*

4. Defective Coolant Temperature Switch 4. Replace switch.*

5. Defective Control Module circuit board. 5. Replace board.*

6. Coolant Level is Low. 6. Repair leak - Add coolant.

7. Defective Low Coolant Level Switch 7. Replace Switch.*

AUTO/OFF/MANUAL Switch at OFF, 1. Defective AUTO/OFF/MANUAL switch 1. Replace switch.*

engine continues to run 2. Open/disconnected wire #15A between 2. Reconnect/close wire.

AUTO/OFF/MANUAL switch and Control

Module circuit board.

3. Defective Control Module circuit board 3. Replace board.*

No AC output from generator. 1. Check main line circuit breaker. 1. Reset to ON or CLOSED.

2. Check circuit breaker & fuses. 2. Reset and replace, if necessary.

3. Transfer switch set to NORMAL position 3. Set to GENERATOR position.

4. Generator internal failure. 4. *

5. Thermal circuit breaker open. 5. Auto-reset - Wait 5 min. and

attempt restart.

*Contact the nearest Authorized Dealer for assistance.

12-1

Standby Generator Sets

Troubleshooting

Trblsht001 Rev. 0 08/05

Standby Generator Sets

Notes

Standby Generator Sets

Notes

Standby Generator Sets

Notes

Standby Generator Sets

Notes

1 0F7135 1 BREAKER TRAY BACK/BOTTOM

2 0F7022 1 SUPPORT CONTROL PANEL SIDE RH

3 0F7021 1 SUPPORT CONTROL PANEL SIDE LH

4 0F7260 1 COVER CIRCUIT BREAKER 2P

0F7136 1 COVER CIRCUIT BREAKER 3P

5 0F6156 1 PLATE WIRE SNGL GALV

6 0F4464 1 DECAL CUST CONN 120V UTILITY

7 0D4698 REF BLOCK TERM 20A 6 X 3 X 1100V

8 0F3824 1 DECAL UTIL SENSE/CUST CONN

9 057701 REF BLOCK TERM 20A 8 X 6 X 1100V

10 0F6146 1 HANG TAG 2 WIRE START (NOT SHOWN)

12 081008 1 GROMMET 1.25 X .25 X .75

13 0C2267 2 SCREW HHTT M5-0.8 X 12 BP

14 049226 2 WASHER LOCK M5

15 051713 2 WASHER FLAT M5

16 0C2212 11 SCREW PHTT M4-0.7 X 16 ZYC

17 022264 11 WASHER LOCK #8-M4

18 0F6366A 1 XFMR DUAL 104V/16V (3 PHASE)

0F6366B 1 XFMR DUAL 120V/16V (1 PHASE)

19 022241 1 NUT HEX 3/8-16 STEEL

20 022237 1 WASHER LOCK 3/8

21 057329 1 LUG SLDLSS 350-#6 X 13/32 AL/CU

22 057073 1 JUNCTION BLOCK 3/8-16

23 023484J 1 BUSHING SNAP SB-2000-26

24 0E3257 15 SCREW HWHTF M6-1.0 X 16

25 0E7890 REF BRKT CB MTG BACK 2P

0E6002 REF MTG TRACK BQ SIEMENS CB 3P

26 0D5544 REF CB 0100A 2P 240V S BQ2 LL (1.5L 2 POLE)

062812 REF CB 0080A 3P 240V S BQ3 LL (1.5L 3 POLE)

0A2077 REF CB 0125A 2P 240V S BQ2 LL (2.5L 2 POLE)

040532 REF CB 0100A 3P 240V S BQ3 LL (2.5L 3 POLE)

27 052619 REF SCREW HHC M5-0.8 X 20 G8.8 (NOT SHOWN)

28 023897 REF WASHER FLAT #10 ZINC (NOT SHOWN)

29 049226 REF WASHER LOCK M5 (NOT SHOWN)

30 051716 REF NUT HEX M5-0.8 G8 CLEAR ZINC (NOT SHOWN)

31 025433 1 LUG SLDLSS #6-14 X 13/64 CU

32 * 0A1354A REF REGULATOR - DC ALT

33 * 0E3257 REF SCREW HWHTF M6-1.0 X 16

34 * 022473 REF WASHER FLAT 1/4-M6 ZINC

35 * 022097 REF WASHER LOCK M6-1/4

37 * 0F7194 2 BRACKET PANEL SUPPORT 1.5L C1

38 057593 1 CABLE TIE MOUNT BLACK

39 0F1733 1 DECAL CUSTOMER CONNECT INSIDE

40 023762 1 WASHER SHAKEPROOF EXT #10 STL

* USED ON 1.5L ONLY.

1 098675 1 ASSY ROTOR 20KW

2 0A5336A 1 HOUSING BLOWER

3 0A1659 1 SCREEN AIR OUTLET

4 020746 4 SCREW PPHM M5-0.8 X 8 ZINC

5 049226 4 WASHER LOCK M5

6 051713 4 WASHER FLAT M5

7 022129 4 WASHER LOCK M8-5/16

8 0F8218 1 ASSY STATOR 20KW 1PH A

0F8220 1 ASSY STATOR 20KW 3PH GJK

9 0A5382 1 BEARING CARRIER REAR

10 075591 1 ASSY HOLDER BRUSH

11 075476 4 SCREW PPHM M4-0.7 X 16

12 0A5601A 1 COVER REAR BEARING

13 075554B 4 BOLT STATOR X 16" LG

14 0A9375 4 SCREW RHM #10-24 X 2

15 022152 4 WASHER LOCK #10

16 097146 1 FAN & RING GEAR ASSEM.

17 042558 1 KEY SQ 3/8 X 1 STEEL

18 0A5061 1 SPACER-FLEX PLATE

19 0A4989 1 PLATE FLEX

20 053607 1 SCREW HHC M12-1.75 X 35 G8.8

21 051769 6 WASHER LOCK M12

22 049541 4 SCREW HHC M10-1.5 X 35 G8.8

23 046526 4 WASHER LOCK M10

24 045772 4 NUT HEX M10-1.5 G8 YEL CHR

26 * 087599 2 PLUG PLASTIC 3/8 NPT

27 077043E 1 FLEX CONDUIT 1" BLACK (NOT SHOWN)

28 022131 4 WASHER FLAT 3/8-M10 ZINC

29 072578 1 SPACER ROTOR SHAFT

30 0A7043 5 SCREW HHC M12-1.25 X 25 G8.8

31 049808 5 WASHER FLAT M12

32 058589 1 DECAL WARN ENG START

33 023365 4 WASHER SHAKEPROOF INT #8

35 0A8830 4 WASHER FLAT .34 ID X .75 OD

36 072080 1 DECAL DANGER STANBY UNITS

1 0F1823A 1 ENCL HSB CONTROL PANEL

2 0F3078 1 COVER CONTROL PANEL

3 0F2606 1 HINGE CONTINUOUS H-PNL

4 036261 6 RIVET POP .125 X .275 SS

5 043181 4 SCREW PHM M3-0.5 X 10MM

6 052777 7 WASHER FLAT M3

7 0F4245F 1 ASSY PCB CPL CTRLR 3600 RPM

8 0F1262 4 HOLDER FUSE WICKMANN 178.6150

9 0F1263 1 ADPTR RH SIDE WICKMAN 178.6191

10 0F1264 1 ADPTR LH SIDE WICKMAN 178.6192

11 0F1725C 1 ASSY PCB 2AMP 12V UL BATT CHGR

12 067680 1 ASSY VOLTAGE REGULATOR 60HZ

13 0E6875A 2 RELAY 12VDC C FORM W/DIODE

14 055911 1 BLOCK TERM 20A 12 X 6 X 1100V

16 0F5459 1 DECAL CPL CONTROL PANEL FUSES

17 0F5462 1 DECAL CPL 3.9L TB1

18 0A5062J 4 SPACER 9.5H 3.2 ID

19 029673 1 DIO BRIDGE 25A 600V

20 049350 1 CB 4 X 1 ETA 46-500-P

21 0F1958 1 PLATE HARNESS CLAMP

22 082573 1 SWITCH RKR DPST 125V SPD

23 0E4494 1 SWITCH RKR DPDT ON-OFF-ON

24 0F3215 1 DECAL CONTROL HSB

25 0F5886 3 SCREW HHPM M5-0.8 X 12

26 051713 14 WASHER FLAT M5

27 049226 14 WASHER LOCK M5

28 0F5752B 1 RES WW 25R 5% 25W QK CONN

29 0F5884 2 SCREW PHTT M3.5-0.6 X 10

30 0F5896 2 SCREW PHTT M3.5-0.6 X 16

31 0C2265 4 SCREW PHTT M4-0.7 X 12 ZYC

32 0C3990 2 SCREW PHTT M4-0.7 X 10 ZYC

33 091526 8 SCREW PPHM M5-0.8 X 12 ZNC

34 051716 7 NUT HEX M5-0.8 G8 CLEAR ZINC

36 043182 7 WASHER LOCK M3

37 051714 7 NUT HEX M3-0.5 G8 YEL CHR

38 0F3192 1 SUPPORT ANGLE PCB

39 0E7403C 1 FUSE ATO TYPE 15 AMP (BLUE)

40 0F4416 1 HARN 1800RPM R-100 CONTROL PNL (NOT SHOWN)

41 0F6305 2 SEAL COVER 3.18 X 12.7 X 382

42 0F6305A 1 SEAL COVER 3.18 X 12.7 X 283

43 0F2627 1 PLATE COVER H PANEL

COMPONENTS INSTALLED PER OF7380D

A 056739 1 RELAY SOLENOID 12VDC PNL MNT

B 022287 2 SCREW HHC 1/4-20 X 3/4 G5

C 022473 4 WASHER FLAT 1/4-M6 ZINC

D 022097 2 WASHER LOCK M6-1/4

E 022127 2 NUT HEX 1/4-20 STEEL

F 0F6145 A/R SEAL WEATHER .45" DIA

1 0F3408B 1 BATTERY TRAY C1 CPL

2 0F3411 1 STRAP BATTERY RETAINMENT

3 025507 REF WASHER SHAKEPROOF EXT 7/16 STL

4 052647 REF SCREW SHC M10-1.5 X 25 G12.9

5 046526 REF WASHER LOCK M10

6 022131 REF WASHER FLAT 3/8-M10 ZINC

7 050331A REF BATT POST COVER RED +

8 050331 REF BATT POST COVER BLK -

9 038805J 1 CABLE BATTERY BLK #1 X 30.00

10 038804U 1 CABLE BATTERY RED #1 X 28.00

11 045771 REF NUT HEX M8-1.25 G8 YEL CHR

12 022129 REF WASHER LOCK M8-5/16

13 027482 REF WASHER SHAKEPROOF EXT 5/16 STL

14 0F3976 3 BOOT CONTACTOR CABLES

15 0C2454 4 SCREW THF M6-1 X 16 N WA Z/JS

16 022145 REF WASHER FLAT 5/16-M8 ZINC

17 077483 REF BATTERY 12VDC 75-AH 26

18 0742600131 1 ASSY WIRE #16 RED 1.6

1 0F7155 1 MOUNTING BASE 1.5L C1 CPL

2 027482 2 WASHER SHAKEPROOF EXT 5/16 STL

3 070936 2 DAMPENER VIBRATION

4 070936C 2 VIB. ISO. 70-75 DURO

5 039253 8 SCREW HHC M8-1.25 X 20 G8.8

6 022145 12 WASHER FLAT 5/16 ZINC

7 022129 12 WASHER LOCK M8-5/16

8 045771 4 NUT HEX M8-1.25 G8 YEL CHR

9 071956 4 WASHER FLAT M8

10 051730 4 SCREW HHC M8-1.25 X 60 G8.8

11 021991 1 EARTH STRAP

13 026850 1 WASHER SHAKEPROOF EXT 1/4 STL

14 049813 1 NUT HEX M6 X 1.0 G8 YEL CHR

15 055414 1 LUG SLDLSS #2-#8 X 17/64 CU

16 047411 1 SCREW HHC M6-1.0 X 16 G8.8

17 022097 1 WASHER LOCK M6-1/4

18 022473 1 WASHER FLAT 1/4-M6 ZINC

1 0F7211 1 SUPPORT RADIATOR LH SIDE

2 0F7209 1 VENTURI 15" DIA FAN

3 0F7210 1 SUPPORT RADIATOR RH SIDE

4 0E9837A 1 RADIATOR 2.5L CPL

5 0E1936 1 FAN COOLING 15"

6 022129 1 WASHER LOCK M8-5/16

7 0F7166 1 RADIATOR HOSE LWR 1.5L C1 CPL

8 099502 4 CLAMP HOSE #24 B1.06-2.00

9 069860C 1 HOSE OIL DRAIN ASSY 21"

10 035461 1 BARBED STR 1/4 NPT X 3/8

11 0A6258 1 HOSE - UPPER RADIATOR

12 046627 1 CAP RADIATOR

13 052250 2 TAPE FOAM 1 X 1 (17” LG)

14 022473 4 WASHER FLAT 1/4-M6 ZINC

15 022097 8 WASHER LOCK M6-1/4

16 0C8566 8 SCREW HHFC M6-1.0 X 20 G8.8

17 049813 4 NUT HEX M6 X 1.0 G8 YEL CHR

18 0C2454 24 SCREW THF M6-1 X 16 N WA Z/JS

19 055816 4 SCREW HHC M6-1.0 X 70 G8.8

20 0F7594 4 GUARD FAN LH C1 CPL

21 0F7595 4 GUARD FAN RH C1 CPL

22 0C7649 1 CLAMP HOSE .38-.87

23 0F7320 1 BLOCK OFF UPPER

24 0F1433 1 BRACKET 2.5L FORD WATER BOTTLE

25 076749 1 TANK COOLANT RECOVERY

26 048031C 2 CLAMP HOSE BAND 1/4

27 029032 1 HOSE 9/32 ID (40” LG)

28 040976 1 SCREW SHC M8-1.25 X 20 G12.9

29 022145 1 WASHER FLAT 5/16-M8 ZINC

30 029107 1 GROMMET 7/8 X 3/16 X 5/8

31 026850 4 WASHER SHAKEPROOF EXT 1/4 STL

1 098290 1 ASM MOTOR STEPPER

2 098941A 1 HOUSING GOVERNOR CONNECTOR

3 098958A 1 CONNECTOR INTERFACE ASSEMBLY

4 098942A 1 COVER CONNECTOR HOUSING

5 098225 2 SCREW FHM #2 X 5/8 SELF TAP

6 043146 3 SCREW HHC M6-1.0 X 10 G8.8

7 022097 5 WASHER LOCK M6-1/4

8 064526 2 SCREW TAP HWH #6-25 X 3/8 ZINC

9 098783 1 LEVER STEPPER MOTOR

10 037398 2 NUT LOCK HEX #10-32 NYL INS

11 0A7041 1 ASSEMBLY CARBURATOR LINKAGE

12 0A7106 1 BRACKET STEPPER MOTOR

13 074031 - LIQUID NEOPRENE

14 029333A 1 TIE WRAP 7.4"X.19" BLK UL

15 022507 2 SCREW HHC 1/4-20 X 1/2 G5

16 022473 2 WASHER FLAT 1/4 ZINC

1 0A4531 REF ENGINE-1.5L

2 022473 2 WASHER FLAT 1/4 ZINC

3 * 055934C 1 CLAMP VINYL .5 X .406 Z

4 0A45310258 REF. GASKET-EXHAUST MANIFOLD

5 0A4355 1 MANIFOLD-EXHAUST

6 0E2632 1 HEAT SHIELD EXH 1.5L

7 022097 4 WASHER LOCK M6-1/4

8 022507 2 SCREW HHC 1/4-20 X 1/2 G5

9 052212 4 SCREW HHC M10-1.25 X 25 G8.8

10 046526 4 WASHER-LOCK-M10

11 022131 20 WASHER FLAT 3/8 ZINC

12 0C2499 2 STAMPING ENG FOOT

13 055993 1 SPACER .41 X .75 X .12 STL/ZNC

14 045772 1 NUT HEX M10-1.5 G8 YEL CHR

15 023586 2 SCREW SHC 5/16-18 X 2 G8.8 NZ

16 020692 1 STARTER-12V

17 0A7005 2 SPACER .56 X 1 X .37 ST/ZNC

18 052243 1 SCREW HHC M10-1.5 X 60 G8.8

19 0A4772 1 ENGINE PLATE

20 070901 2 SLEEVE DOWEL BLHSG

21 051735 3 SCREW HHC M10-1.5 X 70 G8.8

22 056768 3 SCREW HHC M10-1.5 X 90 G8.8

23 022145 12 WASHER FLAT 5/16 ZINC

24 022129 19 WASHER LOCK M8-5/16

25 022259 2 NUT HEX 5/16-18 STEEL

26 052213 11 SCREW HHC M10-1.25 X 20 G8.8

27 047411 2 SCREW HHC M6-1.0 X 16 G8.8

28 052830 1 SCREW HHC M10-1.25 X 45 G8.8

29 0C3153 1 SCREW TBH M8-1.25 X 30

30 045771 12 NUT HEX M8-1.25 G8 YEL CHR

31 058306 5 SCREW SHC M8-1.25 X 25 G12.9

32 030795 2 SCREW HHC 5/16-18 X 1 G5

33 0A2711A 1 ADAPTER-THERMOSTAT

34 048665 1 GASKET THERMOSTAT

35 075885 1 THERMOSTAT 195 DEG

36 0A45310257 REF. GASKET INLET MANIFOLD

37 0E1100 1 MANIFOLD INTAKE MACHINED

38 0E2507 1 PROBE, COOLANT LEVEL 3/8NPTF

39 0A6751 1 SW-TMP 245 DEG 3/8 NPT

41 026925 2 PLUG STD PIPE 3/8 STEEL SQ HD

42 061012 1 PLUG STD PIPE 1/8 SCKT HD

43 039253 5 SCREW HHC M8-1.25 X 20 G8.8

44 0A5110 1 PIPE WATER-INLET

45 0A7006 1 O-RING 1-1/16 X 1-5/16 X 1/8

46 025507 2 WASHER SHAKEPROOF EXT 7/16 STL

47 022500B 2 SPACER .41 X .75 X .25 ST/ZNC

48 0A8584 1 SWITCH OIL PRESSURE

49 036277 1 ELBOW 90D STREET 1/8

50 042574 1 ADAPTOR 1/8 NPTF TO 1/8-28

51 026073A 1 PLUG STD PIPE 1/4 STEEL SQ HD

52 0A6701 1 SCREW HHC M10-1.5 X 110 G8.8

53 039414 1 SCREW HHC M8-1.25 X 35 G8.8

55 051769 1 WASHER LOCK M12

56 0A4800A 1 PULLEY-CRANKSHAFT (3600 RPM)

57 0A5839 1 BRACKET - ALT SUPPRT

58 0A1354B 1 DC ALTERNATOR-12V

59 0A4839 1 ARM ADJUST ALTERNATOR

60 069860C 1 HOSE ASM.-OIL DRAIN

61 0F3856 1 GUARD CRANKSHAFT 1.5L

62 058443 2 SCREW CRIMPTITE 1/4-20 X 5/8

63 0A2628 1 PULLEY - FAN 95 DIA

64 0A5586 1 V-BELT 3/8 X 28.9D

65 0A4814 1 SPACER PULLEY

66 0A45310244 REF. FILTER OIL

67 0C1852 1 ADAPTER DRAIN OIL

68 0912970066 1 GROUND WIRE (STARTER)

69 070928 1 CLAMP HOSE - OIL DRAIN

70 069860C 1 HOSE OIL DRAIN ASSY 21"

71 035473 1 CLAMP HOSE #12 .50-1.25

72 077996 1 CAP ANTIFREEZE RUBBER

73 069811 1 CAP HEX 1/4 NPT BRASS

74 ** 0A1354A 1 REGULATOR - DC ALT

75 ** 0E3257 2 SCREW HWHTF M6-1.0 X 16

76 ** 022473 2 WASHER FLAT 1/4-M6 ZINC

77 ** 022097 2 WASHER LOCK M6-1/4

79 0D2244M 1 ASSY MAGPICKUP (3/8-24 MALE)

80 0F9483 1 ASSY PCB WATERLEVEL SNSR INTFC

* CLAMP FOR WIRING HARNESS (NOT SHOWN)

** NOT SHOWN

1 026812 2 ELBOW 90D 3/4 NPT

2 075580 1 FLANGE FUEL INLET

3 0F6364A 1 FUEL RGLTR 1.5L REWORK

4 039253 4 SCREW HHC M8-1.25 X 20 G8.8

5 022145 2 WASHER FLAT 5/16 ZINC

6 022129 6 WASHER LOCK M8-5/16

7 045771 2 NUT HEX M8-1.25 G8 YEL CHR

8 * 0F1570 1 BODY CARBURETOR ASSEMBLY

9 032552 1 BARBED EL 90 5/16 X 1/8 NPT

10 029032 1 HOSE 9/32 ID

11 025424 1 NIPPLE PIPE 3/4 NPT X 6

12 0F0397 1 HOSE CRANKCASE BREATHER

13 0A5547 1 COVER AIR CLEANER

14 048031C 4 CLAMP HOSE BAND 1/4

15 0D1509 1 DECAL INLET PRESSURE

16 * 0E0591 1 ADAPTER CARB. TO AIR CLNR

17 059402 1 FILTER ELEMENT

18 037561 1 NUT WING 1/4-20 NYLK

19 0E1028C 1 ASSY CARBURETOR 1.5L C1 CPL

20 059401 1 CARBURETOR GASKET

21 * 091526 4 SCREW PPHM M5-0.8 X 12 ZNC

22 * 049226 4 WASHER LOCK M5

23 026915 2 NIPPLE CLOSE 3/4 X 1.375

24 062522 1 STUD TH 1/4-20 X 3 G2 ZNC FULL

25 022127 1 NUT HEX 1/4-20 STEEL

26 022259 2 NUT HEX 5/16-18 STEEL

27 ** 050279 1 DECAL FUEL INLET NG

050280 1 DECAL FUEL INLET LPG

28 0A6125 2 STUD 5/16-18 X 1.25 F THR

29 0F6155 1 HARNESS FUEL JUMPER SINGLE REG

30 * 0E1104 1 GASKET AIR CLEANER ADAPTER

31 * 0E0668 1 O-RING 2-028 1.38 X 1.50 X .06

32 * 0E0590 1 VENTURI 18MM

33 * 0C5133 1 O-RING 29.82 X 2.62

34 * 0E0665 1 SCREW THROTTLE PIN STOP

35 * 0E1108 1 THROTTLE ARM REWORK

36 * 033138 1 SCREW HHM #10-32 X 5/8

37 * 022152 1 WASHER LOCK #10

38 * 0E0645 1 LEVER THROTTLE STOP

39 * 034339 1 BARBED EL 90 3/8 NPT X 5/8

40 059193D 1 HOSE 5/8 ID X 20.5" LG

41 057823 2 CLAMP HOSE #10 .56 - 1.06

42 040173 2 CLAMP HOSE #5.5 .62-.62

43 * 089617 1 BARBED STR 1/4 NPT X 1/4 MALE

44 030340 1 HOSE 1/4 ID SAE 30R7

45 0A7040 1 BRACKET-RAD HOSE

* INCLUDED IN ITEM 19 (CARBURETOR ASSY )

NOTES:

1. REGULATOR (I/N 3) AS SHOWN IN ILLUSTRATION IS SET UP FOR

NATURAL GAS APPLICATION.

2. TO CONFIGURE REGULATOR FOR LP VAPOR, SWITCH HOSE BARB,

HOSE CLAMP (I/N 41) AND HOSE (I/N 40) FROM “OUT-1” TO “OUT-2”.

REPLACE PIPE PLUG FROM “OUT-2” TO “OUT-1”. USE PIPE SEALANT

ON HOSE BARB AND PIPE PLUG. MAKE SURE TO KEEP PORTS FREE

FROM DEBRIS DURING RECONFIGURATION PROCESS.

3.** FOR LP VAPOR APPLICATION SUBSTITUE LPG FUEL INLET DECAL P/N

050280 FOR NG FUEL INLET DECAL P/N 050279 (ITEM 27).

4 . WHEN SWITCHING FUEL TYPES, THE PROPER DIP SWITCH SITTINGS

MUST BE MADE TO THE CONTROL PANEL. SEE OWNERS MANUAL, FUEL

SECTION FOR MORE DETAILS.

1 0F7003 (XX) 1 ROOF C1 CPL

2 0F7004 (XX) 1 CORNER POST LH SIDE C1 CPL

3 0F7008 (XX) 1 DOOR REAR C1 CPL

4 0F7005 (XX) 1 CORNER POST RH SIDE C1 CPL

5 0F7007 (XX) 2 DOOR LH & RH SIDE C1 CPL

6 0F7006 (XX) 1 DUCT FRONT DISCHARGE C1 CPL

7 0C2634A 1 ASSEMBLY COVER ACCESS

8 0912970091 1 ASSY WIRE 14AWG 13.8" GRN/YEL

9 0912970090 2 ASSY WIRE 14AWG 33.5" GRN/YEL

10 0E5968 1 GASKET EXTRUDED TRIM (356” LG)

11 0E3257 6 SCREW HWHTF M6-1.0 X 16

12 ** 077992 18 NUT HEX LOCK M6-1.0 SS NY INS

13 0F5049 3 TAB PULL

14 0F5048D 3 VISE-ACTION LATCH SLOTTED CIR

15 022473 1 WASHER FLAT 1/4-M6 ZINC

16 022097 1 WASHER LOCK M6-1/4

17 022127 1 NUT HEX 1/4-20 STEEL

18 0C2454 24 SCREW THF M6-1 X 16 N WA Z/JS

19 078115 20 WASHER SELF LOCKING DOME

20 0F3890B 2 RETAINER INSULATION (820)

21 0F3890 4 RETAINER INSULATION (450)

22 0F7365 2 INSULATION SIDE DOOR C1

23 0F7365B 1 INSULATION REAR DOOR C1 CPL

24 0F7365A 1 INSULATION ROOF C1 CPL

25 0F8869D 1 KEY VISE-ACTION LATCH SLOT CIR

OPTIONAL COMPARTMENT MATERIALS:

ALL P/N’S WITH AN (XX) SUFFIX INDICATE A MULTIPLE MATERIAL AND COLOR OPTION.

USE THE FOLLOWING LEGEND TO IDENTIFY THE CORRECT PART NUMBER:

PART NO. MATERIAL COLOR

0XXXXXSN STEEL TAN

0XXXXXAN ALUMINUM TAN

0XXXXXSG STEEL GRAY

0XXXXXAG ALUMINUM GRAY

** ALUMINUM ENCLOSURE NOTE: ALL ENCLOSURE PANELS THAT FASTEN TO

THE BASE FRAME MUST BE SECURED USING ITEM 18 & 11 THREAD FORMING

FASTENER AND ITEM 12 LOCK NUT. LOCK NUT IS TO BE INSTALLED AFTER THREAD

FORMING FASTENER HAS PENETRATED THROUGH EXTRUSIONS IN

ENCLOSURE PANELS. ALL ROOF PANELS ARE TO BE SECURED IN THE SAME

MANNER.

1 0F7366 1 MUFFLER C1

2 0F7647 1 MUFFLER SADDLE

3 0F8095 1 PIPE EXHAUST OUTLET

4 0F7538 1 PIPE EXH INLET MUFLR SIDE 1.5L

5 0E3257 4 SCREW HWHTF M6-1.0 X 16

6 0F7644 2 MUFFLER STRAP

7 0C6119 1 BOLT U 5/16-18 X 2-1/4

8 036434 3 BOLT U 5/16-18 X 2.09

9 036449 3 SADDLE 2 INCH

10 022129 8 WASHER LOCK M8-5/16

11 022259 6 NUT HEX 5/16-18 STEEL

12 038750 1 SCREW HHC M6-1.0 X 30 G8.8

13 0F7539 1 PIPE EX INLET MANIFLD SIDE 1.5

14 0E0170 1 EXHAUST BLANKET 800MM

15 0E2844 1 NIPPLE TOE 1.5NPTX5.5 BLK IRON

16 049813 1 NUT HEX M6 X 1.0 G8 YEL CHR

17 022473 6 WASHER FLAT 1/4-M6 ZINC

18 022097 1 WASHER LOCK M6-1/4

Standby Generator Sets

Warranty

Printed in U.S.A.

GENERAC POWER SYSTEMS STANDARD LIMITED WARRANTY FOR

HOME STANDBY/LIGHT COMMERCIAL PRODUCT 45kW AND BELOW

For a period of two (2) years from the date of sale, or start-up by Authorized/Certified Generac Power Systems Dealer, or branch thereof, Generac

Power Systems, Inc. will, at its option, repair or replace any part(s) which, upon examination, inspection, and testing by Generac Power Systems or

an Authorized/Certified Generac Power Systems Dealer, or branch thereof, is found to be defective under normal use and service, in accordance with

the warranty schedule set forth below. Any equipment that the purchaser/owner claims to be defective must be examined by the nearest Authorized/

Certified Generac Power Systems Dealer, or branch thereof. This warranty applies only to Generac Power Systems Generators used in "Standby"

applications, as Generac Power Systems, Inc. has defined Standby, provided said generator has been properly installed and inspected on-site by

appropriate personnel. Scheduled maintenance, as outlined by the generator owner's manual, is highly recommended. This should be performed by

an Authorized/Certified Generac Power Systems Dealer, or branch thereof. This will verify service has been performed on the unit throughout the

warranty period.

WARRANTY SCHEDULE

YEARS ONE and TWO — Limited comprehensive coverage on mileage, labor, and parts listed.

• - ALL COMPONENTS

*Start-up and/or On-line Registration, or Registration Card, along with Proof of Purchase, must be performed and/or sent in.

Guidelines:

• Any and all warranty repairs and/or concerns, must be performed and/or addressed by an Authorized/Certified Generac Power Systems Dealer, or

branch thereof.

• A Generac Power Systems, Inc. Transfer Switch is highly recommended to be used in conjunction with the genset. If a Non - Generac Power

Systems, Inc. Transfer Switch is substituted for use and directly causes damage to the genset, no warranty coverage shall apply.

• All warranty expense allowances are subject to the conditions defined in Generac Power Systems Warranty, Policies, and Procedures Flat Rate Manual.

• Units that have been resold are not covered under the Generac Power Systems Warranty, as this Warranty is not transferable.

• Unit enclosure is only covered against rust or corrosion the first year of the warranty provision.

• Use of Non-Generac replacement part(s) will void the warranty in its entirety.

• Engine coolant heaters (block-heaters), heater controls and circulating pumps are only covered during the first year of the warranty provision (If

applicable).

THIS WARRANTY SHALL NOT APPLY TO THE FOLLOWING:

1. Any unit built/manufactured prior to January 1, 2005.

2. Costs of normal maintenance (i.e. tune-ups, associated part(s), adjustments, loose/leaking clamps, installation and start-up).

3. Any failure caused by contaminated fuels, oils, coolants/antifreeze or lack of proper fuels, oils or coolants/antifreeze.

4. Units sold, rated or used for "Prime Power", "Trailer Mounted" or "Rental Unit" applications as Generac Power Systems have defined Prime Power,

Trailer Mounted or Rental Unit. Contact a Generac Power Systems Distributor for Prime Power, Trailer Mounted or Rental Unit definition and warranty.

5. Units used for prime power in place of existing utility power where utility is present or in place of utility power where utility power service does not

normally exist.

6. Failures caused by any external cause or act of God such as, but not limited to, collision, fire, theft, freezing, vandalism, riot or wars, lightning,

earthquake, windstorm, hail, volcanic eruption, water or flood, tornado, hurricane, terrorist acts or nuclear holocaust.

7. Products that are modified or altered in a manner not authorized by Generac Power Systems in writing.

8. Failures due, but not limited to, normal wear and tear, accident, misuse, abuse, negligence, or improper installation or sizing.

9. Any incidental, consequential or indirect damages caused by defects in materials or workmanship, or any delay in repair or replacement of the

defective part(s).

10. Failure due to misapplication, misrepresentation, or bi-fuel conversion.

11. Telephone, facsimile, cell phone, satellite, internet, or any other communication expenses.

12. Rental equipment used while warranty repairs are being performed (i.e. rental generators, cranes, etc.).

13. Overtime, holiday, or emergency labor.

14. Planes, ferries, railroad, busses, helicopters, snowmobiles, snow-cats, off-road vehicle or any other mode of transportation deemed abnormal.

15. Any and all expenses incurred investigating performance complaints unless defective Generac materials and/or workmanship were the direct

cause of the problem.

16. Starting batteries, fuses, light bulbs, engine fluids, and overnight freight cost for replacement part(s).

THIS WARRANTY IS IN PLACE OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, SPECIFICALLY, GENERAC POWER SYSTEMS

MAKES NO OTHER WARRANTIES AS TO THE MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow

limitations on how long an implied warranty lasts, so the above limitation may not apply to purchaser/owner.

GENERAC POWER SYSTEMS ONLY LIABILITY SHALL BE THE REPAIR OR REPLACEMENT OF PART(S) AS STATED ABOVE. IN NO EVENT

SHALL GENERAC POWER SYSTEMS BE LIABLE FOR ANY INCIDENTAL, OR CONSEQUENTIAL DAMAGES, EVEN IF SUCH DAMAGES ARE A

DIRECT RESULT OF GENERAC POWER SYSTEMS, INC. NEGLIGENCE.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply to purchaser/

owner. Purchaser/owner agrees to make no claims against Generac Power Systems, Inc. based on negligence. This warranty gives purchaser/owner

specific legal rights. Purchaser/owner also may have other rights that vary from state to state.

Generac Power Systems, Inc. • P.O. Box 8 • Waukesha, WI 53187

Ph: (262) 544-4811 • Fax: (262) 544-4851

Bulletin 0171360SVE / Printed in U.S.A. 7.05
