users manual HTML Version

users manual

Getting Started

Congratulations on your purchase of the Itronix GoBook III computer! Your new GoBook III features

the most innovative advances in portable computing technology. It combines state-of-the-art ergonomics

with a rugged, durable architecture to provide you with a notebook computer that is compact, powerful,

rugged and easy to use. Designed for a wide range of business and personal productivity applications,

the GoBook III is an ideal choice for use in applications that require durability and performance.

For maximum expandability without compromising portability, the GoBook III has a USB interface and

aPC card slot. The high capacity hard disk drive provides you with plenty of storage space for

multimedia files and applications.

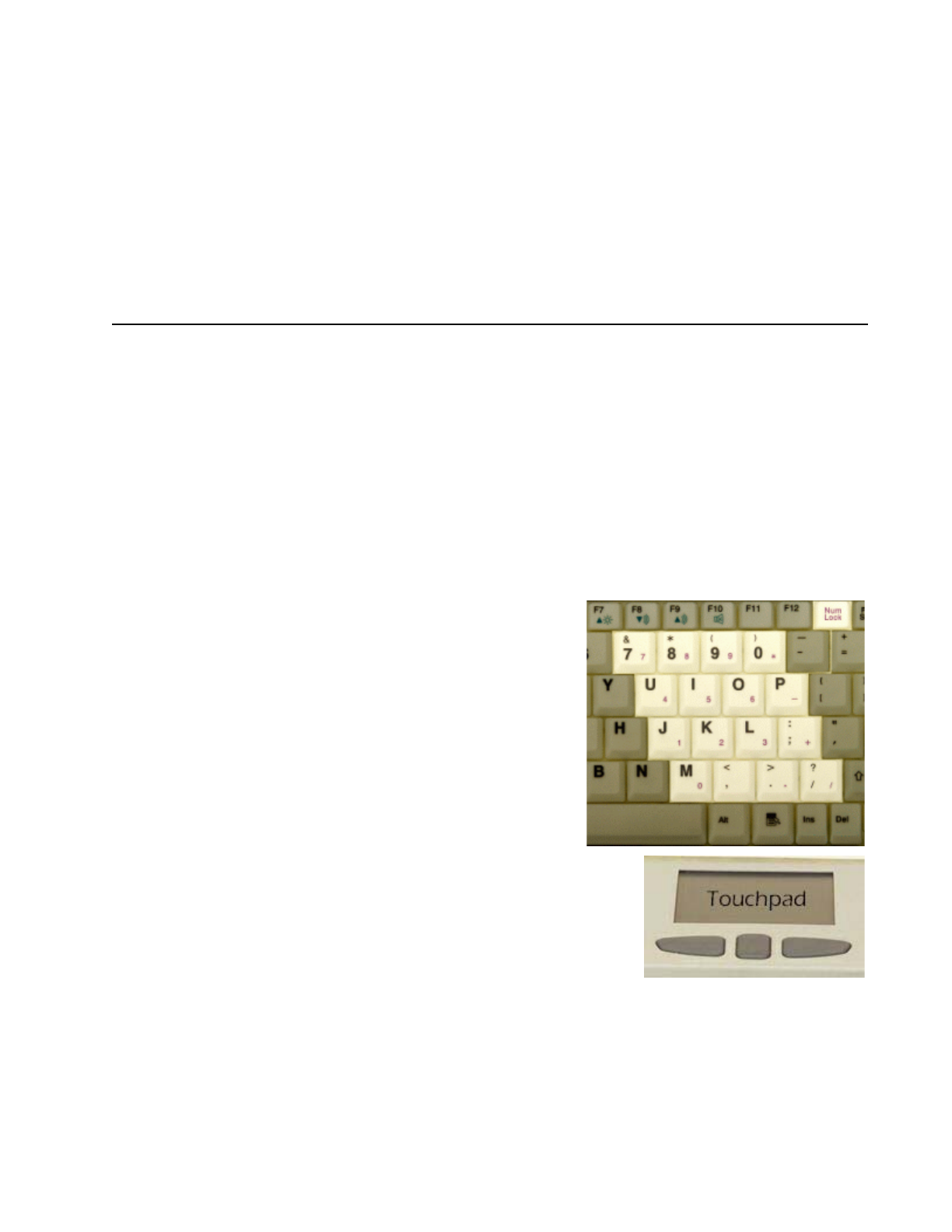

The GoBook III features a standard 87-key Nitevue® keyboard (89-key international). The high-

resolution 12.1-inch touch screen LCD panel provides clear and crisp viewing with the convenience of a

touch screen.

This online document, GoBook III Help, contains all the information you need to set up and use your

new GoBook III. It describes all the features of the GoBook III in an easy-to-read yet thorough manner.

For information on printing, navigating or otherwise using GoBook III Help see How to Use This Help

System.

GoBook III® Help

e 1 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

Checklists

After opening the package, carefully inspect the contents. Contact your dealer if any items are missing

or appear damaged. The shipping carton should contain the following:

STANDARD

zThe Itronix GoBook III computer

zBattery

zADP-90AB or ADP-75FB AC adapter with power cord

z12.1 inch XGA display

zStylus

zShoulder Strap

zGoBook III Quick Start Guide

OPTIONS

The following items are normally optional, but some vendors may include them in the standard package.

Some items may not be available in some countries, or some vendors may choose not to carry all the

items.

zFloppy disk drive

zCD-ROM drive

zCD-RW Drive

zDVD-ROM drive

zSoft Handle

zMedia Bay Li-Ion battery pack

zHard Disk Drive Heater

zLCD Heater

CAUTION When purchasing any of the accessories listed above, purchase only those accessories that

are approved for use with your computer. The above accessories are proprietary items. Your system

vendor can obtain these approved accessories. If you use items that are not approved for use with this

computer, you may cause your computer to malfunction, or to emit or receive electromagnetic radiation

in excess of local regulations. For non-proprietary accessories such as PC Cards or printers, ensure that

the accessor

functions

erl

our com

uter before makin

the

urchase. Your s

stem vendor

e 2 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

may be able to recommend reliable brands and models.

Features

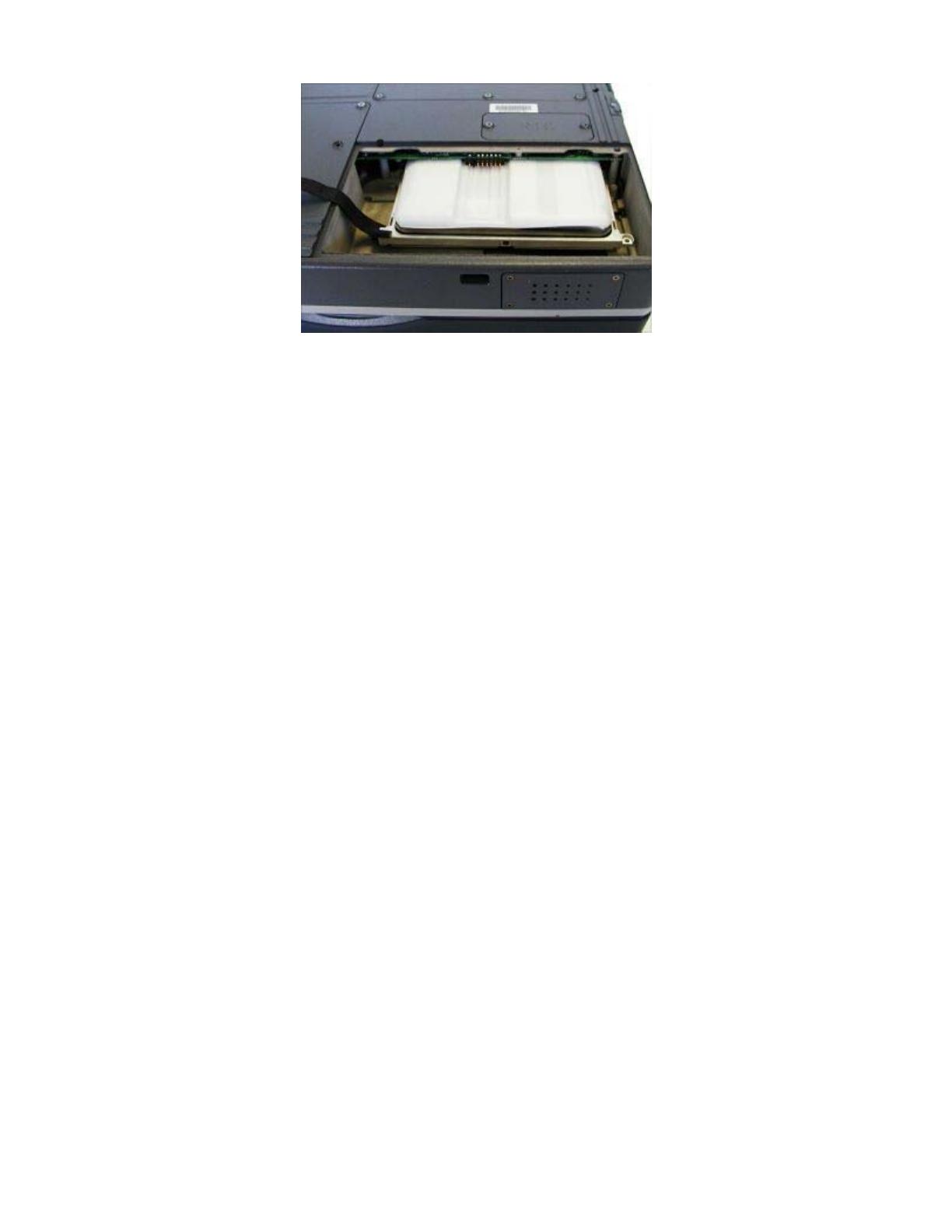

High Capacity Hard Disk Drive

The computer has a high capacity hard disk drive, enabling you to install your favorite programs and

store large multimedia files.

Full Array of Ports and Connectors

Your computer includes standard ports for connecting to peripherals such as USB devices and monitors.

USB ports allow you to add many types of peripherals.

Large XGA LCD

Your computer has a large, easy to view XGA LCD panel.

Built-in Microphone and Stereo Speakers

The stereo speakers and internal microphone enable you to run a variety of multimedia applications.

Function Keys

Function keys allow you to suspend your computer, shut the LCDs off, and give you easy control of

audio and your monitor.

Where to Look For Information

About Your Computer

This Help System describes the key elements of your computer. New users can find a simple step-by-

step orientation in this chapter.

About Windows

For more extensive information and help about Windows go to Help and Support, found on the Start

Menu.

72_0119_001

28 June 2004

e 3 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

Precautions

You can use your computer under a wide range of environmental conditions. However, to ensure long

use and continued high performance, consider the following factors when setting up your computer:

zFollow all warnings and instructions noted in this documentation and in Windows Help and

Support, found on the Start Menu.

zThe first time you use your computer, we recommend that you carefully read the section on Power

Management to familiarize yourself with some basic battery information and to ensure optimum

performance

zThere is danger of explosion if the battery is incorrectly replaced. Replace only with the same or

equivalent type recommended by the manufacturer. Dispose of used batteries according to the

manufacturer's instructions.

zDo not open the RAM door by yourself.

zUnplug the computer from the power outlet before cleaning. Use a damp cloth for cleaning. Do

not use aerosols, solvents, or strong detergents

zSlots and openings in the computer case are for ventilation purposes. Do not block or cover these

openings or the system could overheat

zOn the bottom of the GoBook III, there is a label with information on the power requirements of

this system. These requirements must be followed. If you are unsure of your local power supply,

consult your dealer or local Power Company

zDo not step on or place anything on the power cord

zIf you use the computer with an extension cord, ensure that the total ampere ratings of all the

devices sharing the extension do not exceed the rating of the extension cord or the rating of the

wall outlet

zUnless instructed, never push foreign objects into the computer through any of the slots or

openings. Dangerous voltages are present, which could cause electric shock, fire, or damage

sensitive components

zFor best results, use a power strip with a built-in surge protector. Do not use inferior extension

cords as this may result in damage to your computer

GoBook III® Help

e 4 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

72_0119_001

28 June 2004

The First Time. . .

Using your computer for the first time involves:

zInstalling the battery

zConnecting the AC adapter to the computer

zTurning the Computer On and Off

zAdjusting the Volume

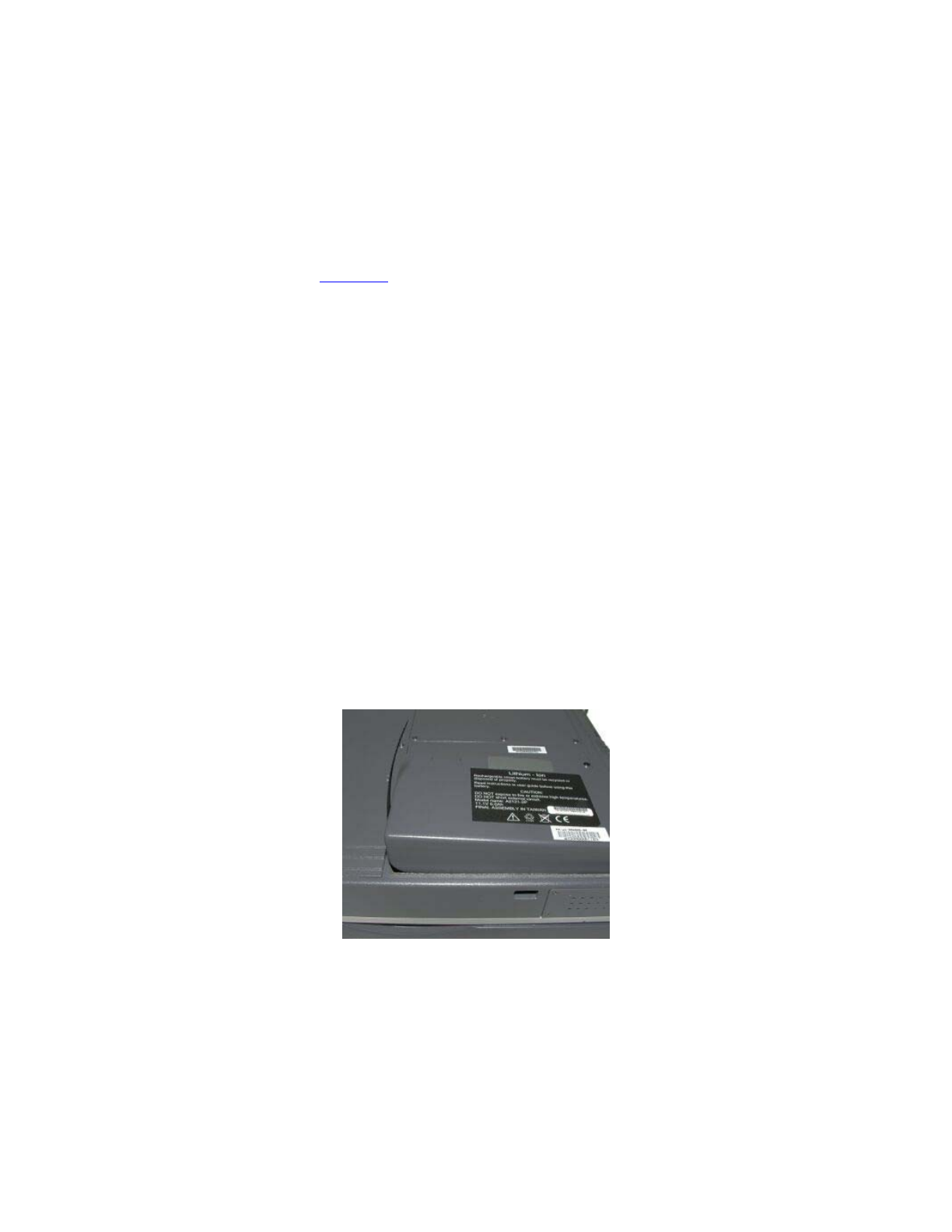

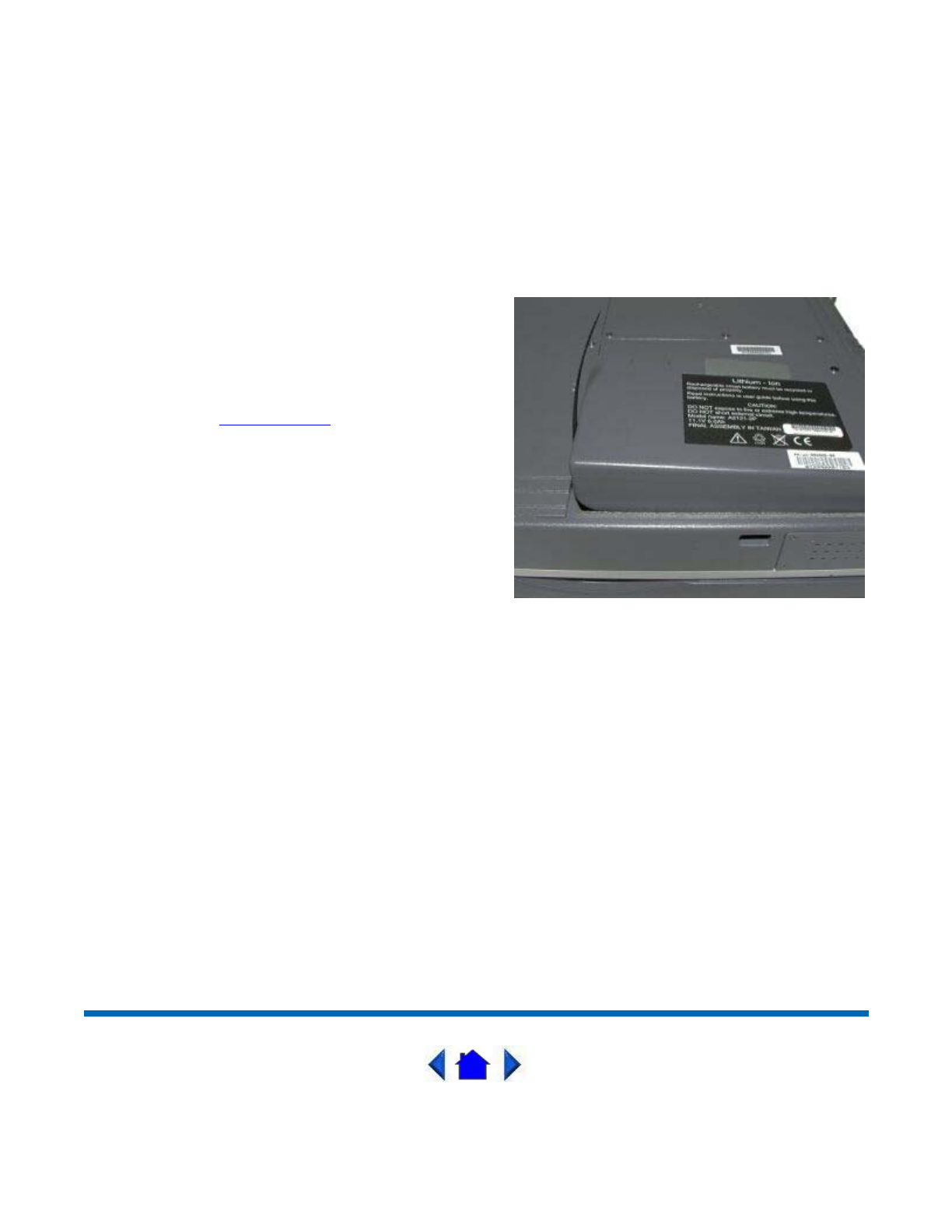

Installing the Battery

Make sure the computer is sheltered when you install the Lithium Ion battery; the computer is not

weather sealed until the battery is properly installed. The battery should be fully charged before you

operate the unit on battery power. To get the most from your battery, follow the guidelines in the Power

Management section.

To install the battery

1. Remove the battery door.

2. Align the battery connectors and place the battery in the computer.

3. Replace the battery door and rotate the door latches to secure the door.

NOTE When the battery is installed and the computer is connected to AC power, see Connecting the

AC Adapter below, it starts charging automatically. At moderate temperatures, approximately 70°

Fahrenheit (21°C), the battery will be fully charged in four to six hours. In warmer or cooler

temperatures, the battery can take much longer to fully charge. Refer to the Power Management section

for additional information.

Connecting the AC Adapter

To connect the ADP-90AB or ADP-75FB AC adapter

1. Connect the AC adapter power cord to the AC adapter.

2. Connect the AC ada

ter to the

ower

ack at the rear of

our com

uter.

GoBook III® Help

e 5 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

3. Connect the AC adapter power cord to an AC outlet.

4. Lift the display to open the LCD.

5. Open the LCD panel to a comfortable viewing angle.

6. Press the Power Button to turn ON the power.

Turning the Computer On and Off

You can operate the computer while the battery is charging, while on external power , or on battery

ower only.

To turn on the computer

zPress the Power Button button once, and then give the system time to respond.

To turn off the computer

1. From the Start menu, select Turn Off Computer.

2. Then, from the Shut Down Windows screen select Turn Off.

If you need to leave the system for a short time, or if you want to conserve battery power, you can

suspend the computer by pressing FN+F3. See Power Management for additional information.

Suspend to RAM In a suspend to RAM, the contents of your computer's memory are held intact, while

almost all the components in your computer either turn off completely, or reduce power consumption to

a minimum. In a suspend to RAM, your computer remains active, but with a minimum possible power

consumption. Return the computer to full power by pressing any key. A fully-charged battery can

maintain a Suspend to RAM for many hours.

Suspend to Disk (Hibernate) Suspend to Disk is similar to turning off the computer, except that the

current state of the computer is copied to the hard disk as a special file. In a Suspend to Disk there is no

ower consumption. When the computer returns from suspend mode , the desktop appears with the same

files and programs open as when the computer was suspended. Suspend to Disk is very useful when you

don’t want to take the time to shut down all open programs one by one to shut off the computer. This

mode is also called hibernation mode.

CAUTION Shutting down the computer improperly could result in lost or corrupted data.

Adjusting the Volume

Volume for the computer is adjusted by using function key combinations.

zFN + F8 decreases the volume

zFN + F9 increases the volume

e 6 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

zFN + F10 toggles the volume mute on or off

You can also adjust the volume with the Windows volume control applet, which is located on the

taskbar and looks like this .

NOTE Adjusting the volume using the function keys produces only a slight change with each press. It

may take several presses to increase or decrease the volume to a level that you desire.

72_0119_001

28 June 2004

Calibrating the Touch Screen

Your GoBook III computer has a touch screen display. Follow the guidelines below to calibrate the

touch screen for optimum use.

Calibrating the touch screen

To calibrate the touch screen, open the Calibration Applet by selecting Start, Programs, Mobile

Computer Tools, Touch Screen Calibrator. You can also open the Calibration Applet by selecting Start,

Settings, Control Panel, Touch Screen Calibrator.

After the Calibration Applet starts, click on the Calibrate button

After you have completed calibration by touching the four highlighted points with an approved stylus,

select OK to have the new settin

s take effect.

GoBook III® Help

CAUTION

zAlways use an approved stylus or your finger.

zNever use sharp, hard, or abrasive implements on the touch screen such as ball point pens,

pencils, or keys. They could damage the screen.

zTo clean the touch screen panel, apply a household glass cleaner to a soft, clean, dry cloth an

wipe the screen.

e 7 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

NOTE If you cannot select objects accurately with the stylus you may need to re-calibrate the touch

screen. This can be accomplished by revisiting the procedure above.

Adjusting the Screen

You can adjust the display brightness for better viewing.

Use the following keys to make adjustments:

Setting the Date and Time

To set the date and time

1. Tap the Start button, Settings, Control Panel, and double-tap the Date / Time icon.

2. From the Date / Time Properties menu, make changes to the Time and Date, and then close this

screen by selecting OK.

To Do This... Press

Lighten the display FN+F7

Darken the display FN+F6

e 8 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

72_0119_001

28 June 2004

Startup Problems?

If your computer does not operate, try these solutions.

zConnect the AC adapter to charge the battery if it is not charged.

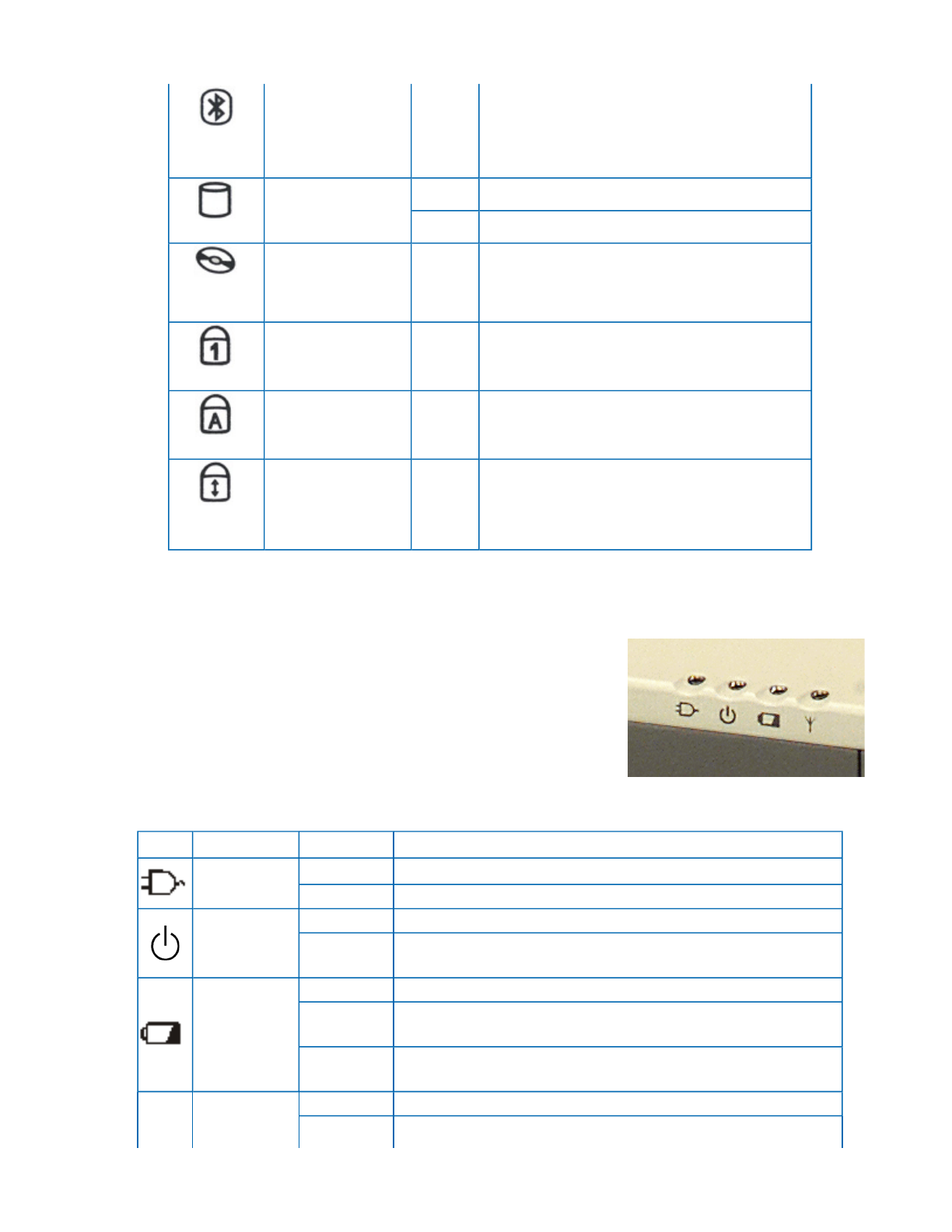

NOTE The Power LED on the AC adapter should be lit as well as the External Power Indicator

on the GoBook III if the AC adapter is connected and functioning properly. Additionally, one

of the power icons should appear in the task tray.

zIf the AC adapter is connected, make sure the electrical outlet you are using works.

zCheck to make sure the battery is installed and charged properly.

zIf the battery doesn’t begin charging, remove the battery, connect the AC adapter, and turn on the

computer by pressing On. Reinstall the battery. The Battery Power Indicator LED is solid

while the battery is charging.

The Troubleshooting section lists additional solutions you can try.

72_0119_001

28 June 2004

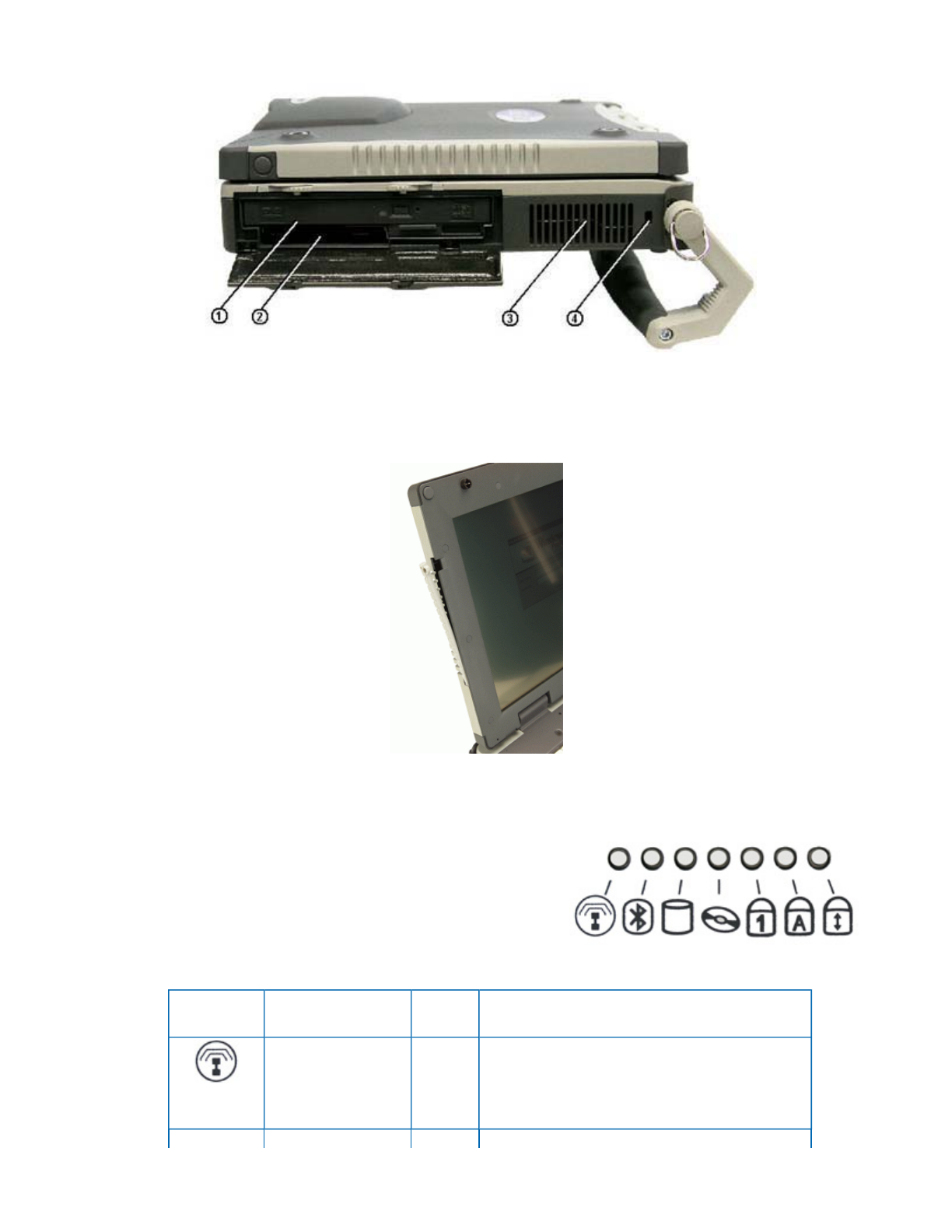

Getting Familiar with Your Computer

The GoBook III computer is a ruggedized , weather-sealed laptop computer system built for the

demanding environment of the mobile worker. Designed for use by mobile workforces, this computer is

a superior work tool for collecting, managing, and communicating information in the field.

The following pages describe the external and internal features of your GoBook III computer.

GoBook III® Help

e 9 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

Individual Parts

The following diagrams and descriptions provide an overview of your GoBook III computer.

Hover the mouse over each number on the picture to see a description.

Front View

GoBook III® Help

1. Touch Screen Display

2. Display Latches

3. Antenna (internal mini-WLAN)

4. GPS and/or Bluetooth Antenna

5. LED Activity Indicators

6. Power Button

7. Touchpad

8. Scrolling Button

9. Touchpad Buttons

10. Power / Wireless Modem Indicators

11. Speakers

e 10 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

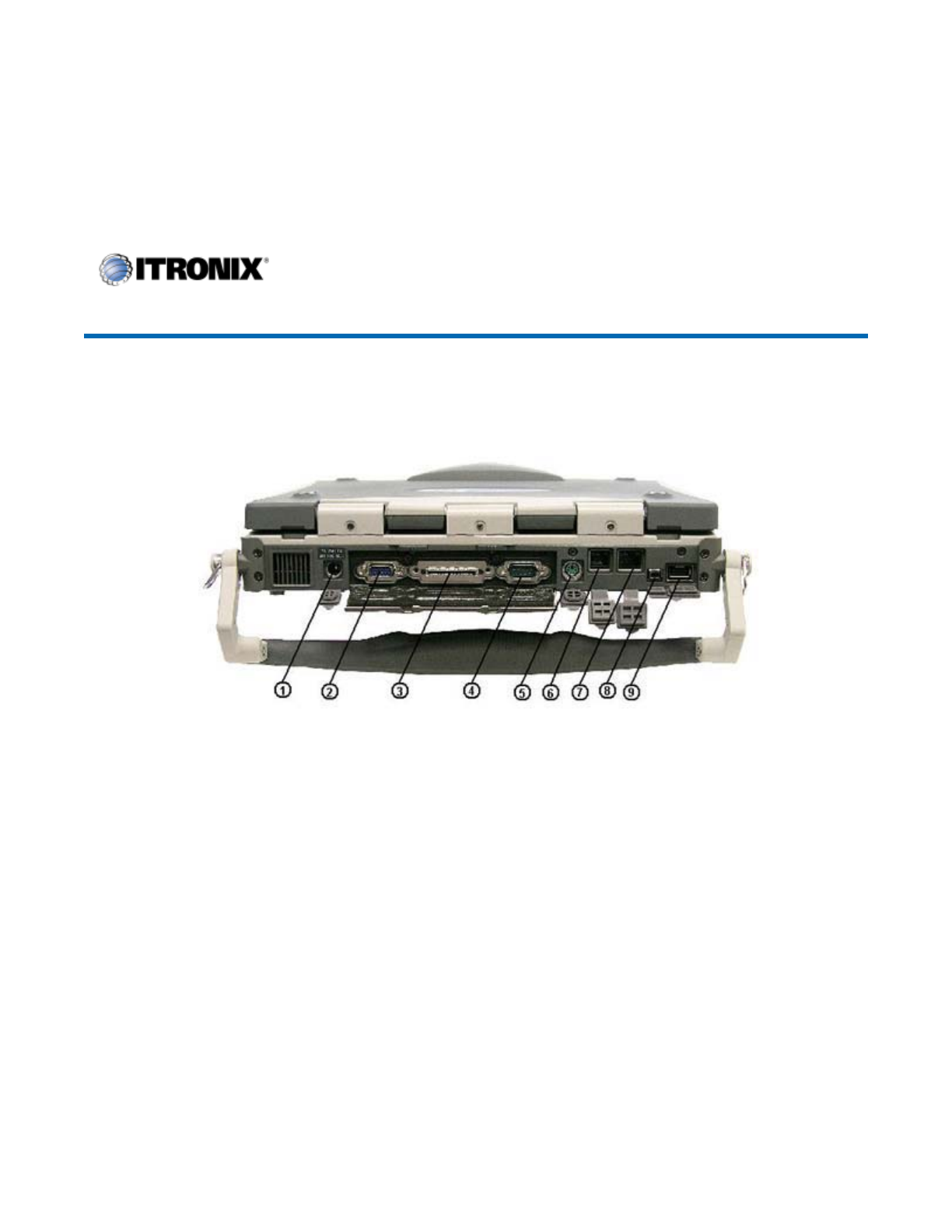

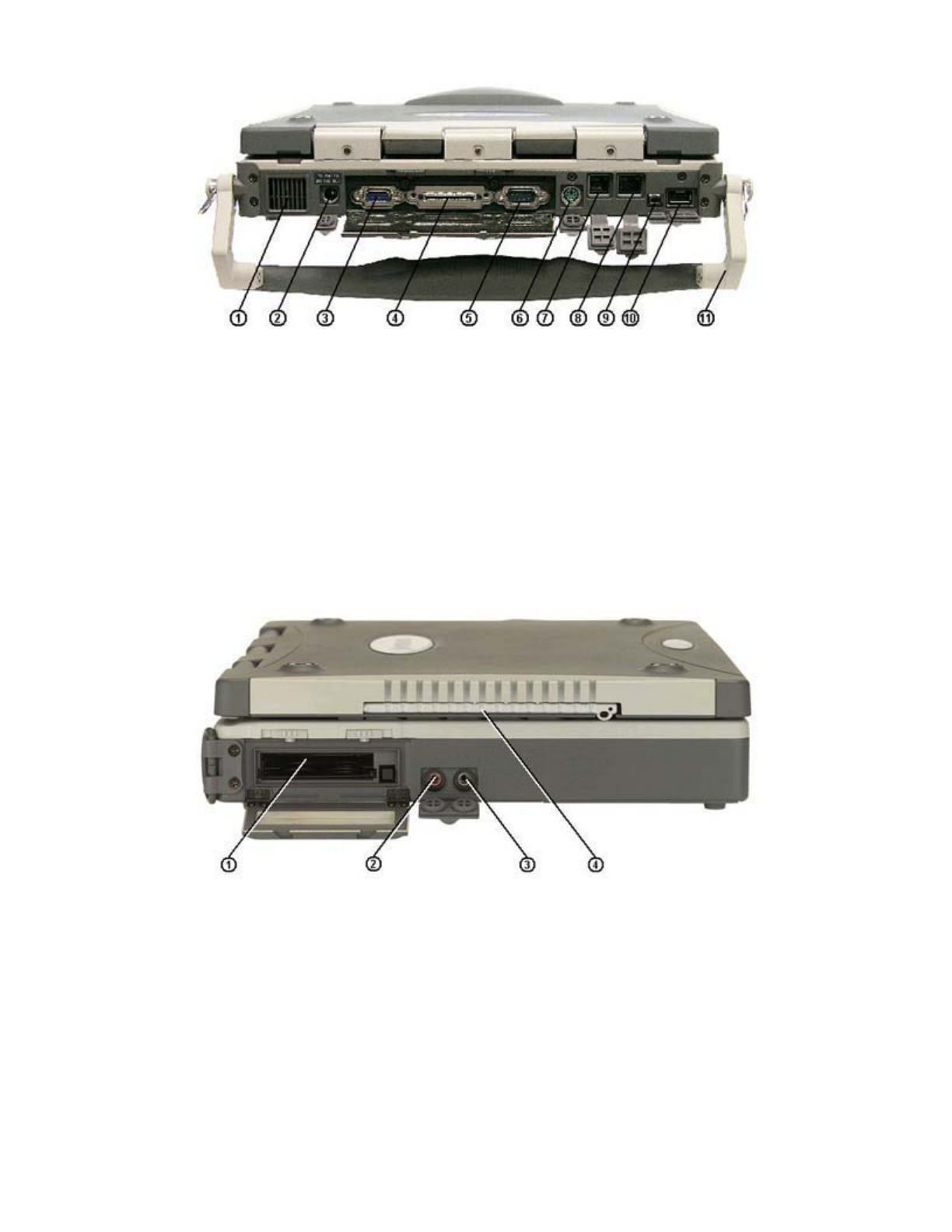

Back View

1. Cooling Fan

2. Power Jack

3. 15-Pin VGA Port

4. 68-Pin Multi-IO Port

5. 9-Pin Serial Port

6. PS2 Port

7. RJ-11 Modem Jack

8. RJ-45 Network Jack

9. IEEE 1394 Port

10. USB 2.0 Port

11. Handle

e 11 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

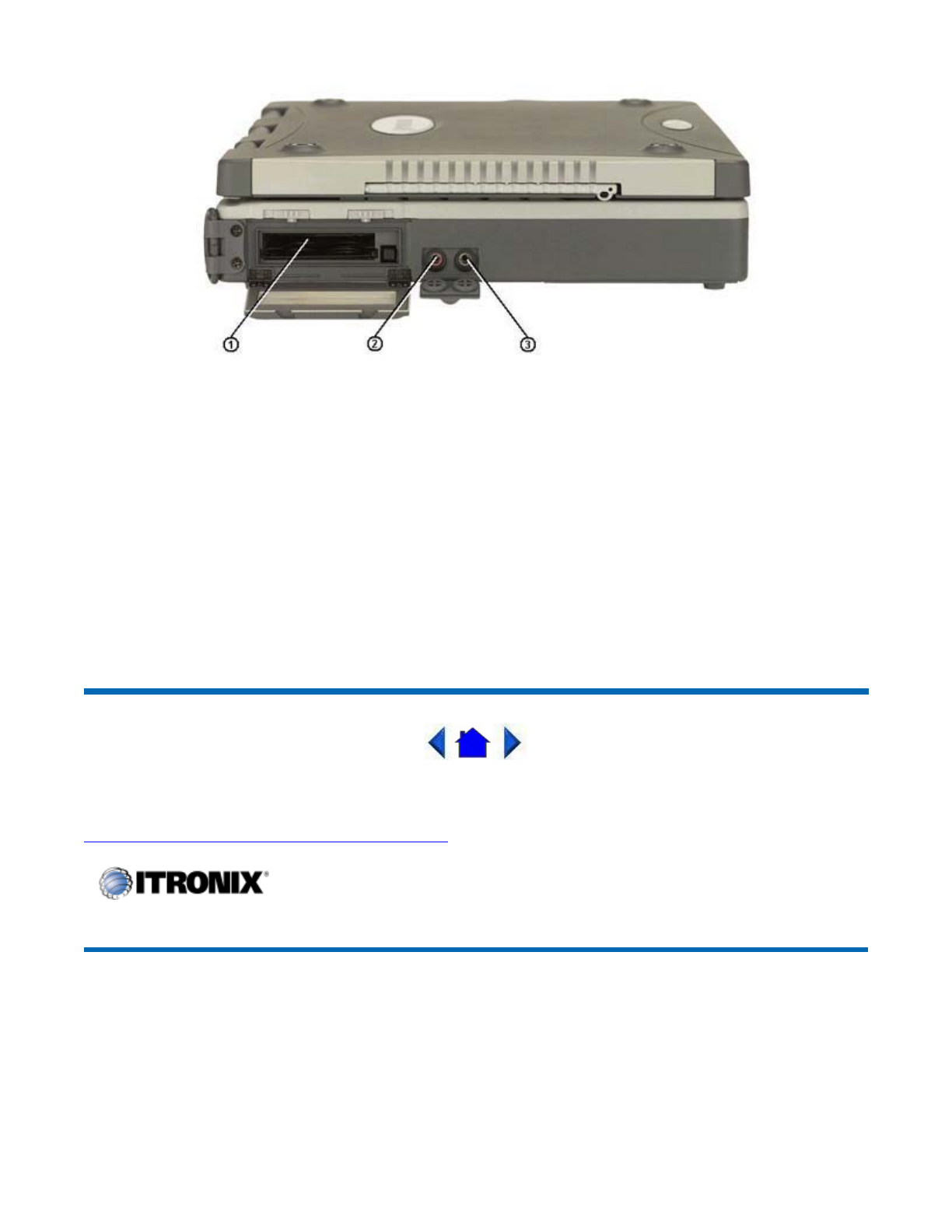

Left Side View

1. PC Card Slot

2. Microphone Jack

3. Audio Jack

4. Stylus

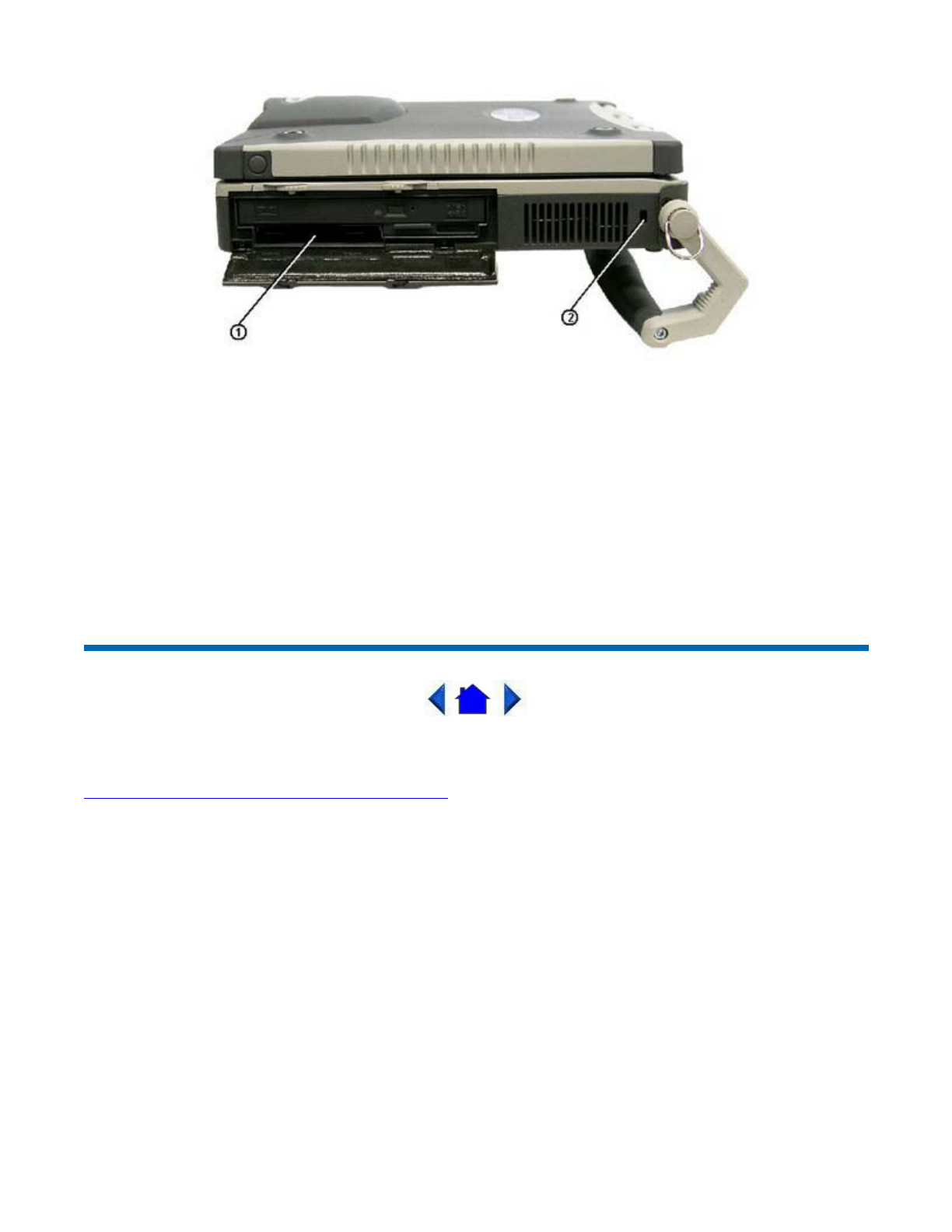

Right Side View

1. Media Bay - CDROM, DVD, Floppy Disk, CDRW, or Media Bay Battery

2. Smart Card Option

3. Cooling Fan

4. Securit

Slot

e 12 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

Display with Stylus

LED Activity Indicators

The activity indicators, located above the keyboard, light up

when a particular function of the computer is active. Each

indicator is marked with a corresponding symbol and is visible

when the lid is open or closed. LED numbers are from left to

right.

Icon &

LED #

Function LED Description

LED #1

Mini PCI Lit Power is on to the Mini-PCI Slot. This can

be a WLAN or Modem.

e 13 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

LED Power / Wireless Modem Indicators

The case front LED's indicate external power, unit ON/OFF, battery

status, and wireless modem ON/OFF. The indicators remain active and

viewable even when the LCD panel is closed.

LED #2

Bluetooth Lit Bluetooth Power is on

LED #3

Disk Status (HW) Lit The hard disk drive is being accessed

Not lit The hard disk drive is not being accessed

LED #4

Media Drive Bay Lit The computer is accessing the CD-ROM,

the DVD-ROM, or the Floppy drive.

LED #5

Number Lock Lit The keyboard is in Num Lock mode.

LED #6

Caps Lock Lit The keyboard is in Caps Lock mode

LED #7

Scroll Lock Lit The keyboard is in Scroll Lock mode

Icon Function LED Description

External

Power

Green External power is connected to the unit.

LED off External power is not connected to the unit.

Power Green Power is ON

Flashing

Green

Suspend to RAM

Battery Green Battery charging

Flashing

Green

Low Battery

LED off No battery / battery fully charged (will always be OFF

without external power connected to the unit)

Wireless

Modem

Green Wireless modem is On

Flashing Message waiting

e 14 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

72_0119_001

28 June 2004

Keyboard Basics

The keyboard on the GoBook III computer looks much like the keyboard of a typewriter and operates in

almost the same way. While typewriter keys put characters on paper, the keys on the laptop enter

characters in the computer and perform certain functions, depending on the application or program.

The GoBook III computer features:

z87-key US keyboard; 89-key international keyboard

zTwelve function keys,F1-F12

zEmbedded numeric keypad

zMouse keys and cursor control keys

zKeyboard backlight

Restarting the Computer

Primary Keys

Green

LED off Wireless modem is Off

GoBook III® Help

Press… To do this

CTRL+ALT+DEL Reboot the computer.

CAUTION All open and unsaved data will be lost.

Key Description

ALT The ALT (alternate) key is used with other keys to perform special tasks. On

some operating systems pressing CTRL+ALT+DEL resets the computer,

stops processing and restarts the operating system.

ALT GR The ALT GR key, a special function key found on the 89-key international

keyboard, when pressed and held, allows you to use characters in the bottom

e 15 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

Arrow Keys

The arrow keys are defined by the software application.

The UP ARROW key usually moves the cursor up one line. In some cases, you can use the up arrow to

make selections from menus and scrollable list boxes.

The DOWN ARROW ke

usuall

moves the cursor down one line. In Windows,

ou can use the down

right of a three character key.

BACKSPACE The BACKSPACE key, sometimes represented on the keyboard as a left

arrow, moves the cursor one position to the left. The character to the left of the

cursor is erased.

On the 89-key international keyboard the key to the right of the BACKSPACE

key is also designed to mover the cursor one position to the left. The character

to the left of the cursor is erased. If other functions are designed for this key,

the key will be printed with the appropriate legend.

CAPS LOCK Pressing the CAPS LOCK key one time locks keys A through Z in the

UPPER CASE position. Pressing the CAPS LOCK key again returns the

letters to lower case. While in the upper case mode, pressing the SHIFT key

results in lowercase characters when entered. You still have to use the SHIFT

key to display characters located on the upper portion of the keyboard. For

example, press SHIFT+8 to type an asterisk (*), even when the CAPS LOCK

key is activated.

The CAPS LOCK activity indicator is on when the keyboard is in CAPS

LOCK mode. This indicator can be found in the windows system tray at the

lower right corner of the screen.

Key Description

CTRL The CTRL (control) key works with other keys to perform a variety of functions.

ENTER The ENTER key signals the computer that you have completed your entry. This is

your way of telling the computer to process the information that you have entered.

ESC The ESC (escape) key cancels the current line if you are working in DOS. In some

DOS applications, pressing the ESC key backs you out of your last menu selection

In Windows, the ESC key allows you to exit a pop-up window or message box.

PRTSC In Windows, pressing the PRTSC (print screen) key or ALT+PRTSC key copies

the current screen or window to the clipboard so you can paste it into documents.

SHIFT The SHIFT key changes the keys A through Zto the UPPER CASE position. Wh

you press an alphabetic key, the character appears as a capital letter. When you pre

SHIFT with other keys, the characters on the upper part of the keys appear. For

example, pressing SHIFT+7 displays an ampersand (&).

FN Function. Some special keys have been established to perform important tasks whe

pressed and held with the FN key. These keys are described later in this document.

The FN key legend is color keyed to other special keys on the keyboard

SPACEBAR Use the SPACEBAR to enter a space and move the cursor one character to the rig

TAB The TAB key moves the cursor to the next tab stop or field. Tab stops are defined

your operating system or application program. Press the TAB key to move from o

field or text box to another.

e 16 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

arrow to make selections from menus and scrollable list boxes.

The RIGHT ARROW key usually moves the cursor one character position to the right.

The LEFT ARROW key usually moves the cursor one character position to the left.

Function Keys

Hold the FN key while pressing the numbered function key.

Numeric Keypad

The numeric keypad is embedded in the keyboard area. The

embedded keypad emulates the numeric keypad typically found

on a full-size keyboard. It is arranged like a calculator for

applications that require you to key many numbers or for use with

the Calculator in the standard Windows Accessories.

Touchpad

The touchpad is a pointing device that provides all the features of

a two-button mouse. Its primary function is to move the cursor

around the screen.

Using Your Touchpad

Clicking

1. First, place your fingers on the keyboard in the normal typing

position. The touchpad is easily accessible by moving either your left or right thumb off the space

bar and on to the touchpad.

2. Gently move your thumb across the touchpad in the direction you want the cursor to move. The

pad detects the change in pressure and moves the cursor in the corresponding direction.

NOTE The touch

ad on

our GoBook III com

uter is electricall

sensitive to fin

er touch. It

Function key Description

FN+F1 Toggles display on / off

FN+F2 Toggles between LCD / CRT displays

FN+F3 Suspend to RAM / HDD

FN+F4 Decreases keyboard backlight brightness

FN+F5 Increases keyboard backlight brightness

FN+F6 Decreases LCD brightness

FN+F7 Increases LCD brightness

FN+F8 Decrease volume

FN+F9 Increase volume

FN+F10 Mutes the audio

e 17 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

will not respond if touched by anything other than your fingers, such as a stylus or pencil.

3. The touchpad offers another method of making selections in a software program. It is called

double-tapping. This function corresponds to double-clicking with a mouse. Once the cursor has

been moved to the object you want to select, lightly double-tap the pressure sensitive touchpad.

This double-tapping on the touchpad will select the desired item and prompt the software to

perform the related operation.

4. The left and right buttons located directly below the touchpad are the same in function as those on

a two-buttoned mouse. Clicking these buttons makes selections, drags objects, or performs a

variety of other functions depending on the software. To select an object, first move the pointer

over the object you want to select, and then press the left button one time. The functions of these

buttons are software specific.

Double-clicking

zDouble-clicking is a common technique for selecting objects or launching programs from icons.

Once you have moved the pointer over the object you wish to select, rapidly press the left button

two times. This action is commonly referred to as “double-clicking” an object.

Dragging

zMove the pointer to the desired location then press down the left button. While still holding down

the left button, move the pointer to the desired location. Release the button.

zMove the pointer to the desired location. Tap the touchpad twice quickly as if you were double-

clicking, however do not remove your finger after the second tap. Move the cursor to the desired

location. Lift your finger to finish dragging.

Adjust the touchpad settings by selecting Settings/Control Panel/Mouse/Buttons. These settings allow

you to change the orientation of the touchpad from right-handed to left-handed, and fine-tune the pointer

movement and timing of clicks.

Touchpad Precautions

If not properly cared for the touchpad can be easily damaged. Please take note of the following

recautions.

z Do not rest heavy objects on the touchpad or the touchpad buttons.

General Guidelines

The mobile computer uses a Liquid Crystal Display (LCD), which is the type of screen used on many

notebook and sub-notebook computers. One problem experienced on computers with an LCD display,

especially in cold environments, is that the cursor seems to “disappear” whenever the mouse is moved

quickly. To improve the visibility of the mouse cursor, you should use a slow or medium

speed/sensitivity level.

You can combine a higher level of acceleration with a slow or medium speed/sensitivity level. This will

allow

ou to move the mouse cursor

uickl

increasin

our fin

ressure, while still

rovidin

e 18 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

finer degree of control when you apply minimum pressure.

NOTE To change the speed of the mouse, from the Start Menu select Settings, Control Panel, and then

choose Mouse to make adjustments.

Scrolling Buttons

If you are scrolling through a document, you may it find the scrolling button more restful to your hand

than holding down a mouse button. The scrolling button is located between the touchpad buttons. Push

the top of the button to scroll up in a document or Web page; press the bottom of the button to scroll

down.

Connecting an External Keyboard or Mouse

You can use your GoBook III computer with an optional external keyboard, numeric keypad, or IBM

PS/2 compatible mouse. These devices are “hot swap” capable, which means you do not have to power

down the GoBook III to connect them to the PS/2 connection located on the back of the unit.

Keyboard Backlight

Press FN+Shift to turn on the keyboard backlight. The keyboard backlight has four brightness levels.

You can decrease brightness by pressing FN+F4 and increase brightness by pressing FN+F5. The

keyboard backlight retains its previous brightness setting after a suspend or resume.

72_0119_001

28 June 2004

Display Basics

Connecting to an External Monitor

The GoBook III has a 15-Pin VGA monitor port to connect your computer to an external monitor.

Using the VGA monitor port for dual display

You may use an external monitor simultaneously with your GoBook III’s LCD. You may also disable

the GoBook III's LCD and use the external monitor exclusivel

GoBook III® Help

e 19 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

1. Locate the 15-pin VGA monitor port on the back of the unit behind the IO door. Then connect the

video signal cable from the external monitor to the monitor port.

2. Connect the monitor’s power cable to a power outlet and turn on the monitor.

3. If the new monitor has not automatically been detected and is not displaying what appears on your

GoBook III’s LCD screen, open the Control Panel.

4. Double-tap Display. The Display Properties window opens.

5. Tap the Settings tab. Then select the Advanced button.

6. Tap the S3DuoVue tab and select the CRT box the enable display on an external monitor.

7. You can also use the FN+F2 hot keys to cycle through the CRT, LCD, and CRT/LCD settings.

72_0119_001

28 June 2004

Disk Drives

Your computer comes with several components for reading and writing (recording) information.

The Hard Disk Drive

The hard disk provides high-capacity storage and fast access. Windows and most programs are stored

here. Your GoBook III identifies the hard disk drive as drive C. For information about removing or

installing the hard drive see Hard Drive Care and Handling.

The Floppy Disk, CD-ROM, or DVD-ROM Drive

Your computer may come with a floppy disk drive. The floppy disk drive accepts 3.5-inch floppy disks

and is read and write capable.

The CD-ROM drive is a read only drive. It cannot be used to write data to a recordable compact disk.

The CD-ROM drive can read data from CDs, including audio or video CDs. The DVD drive can read

both DVD and CD disks. Your GoBook III identifies the drive with the letter following the hard drive

letter. If

ou hard drive is C, then the CD-ROM drive will be D. The media ba

is located on the ri

GoBook III® Help

e 20 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

side of your computer, as you are facing the display, and is accessible by sliding the two bay door

latches, which release and open the door.

Inserting a CD-ROM or DVD-ROM Disk

1. Press the button on the front of the drive to open the disk tray and pull the tray open.

2. Place the disk on the tray, label side up.

3. Place the disk on the central spindle and press gently until the disk clicks into place.

4. Slide back the tray until it clicks shut.

Removing a CD-ROM or DVD-ROM Disk

1. Make sure the computer is not accessing the CD-ROM/DVD-ROM drive.

2. Press the button on the front of the drive and pull the tray all the way out.

3. Pick up the CD-DVD by the edges and remove the CD-ROM/DVD-ROM from the tray. Push the

tray into the computer until it closes fully.

CAUTION When the computer is reading from a CD-ROM/DVD-ROM or Floppy disk drive, the

indicator light for the drive will flash. Do not attempt to remove a disk while this light is active.

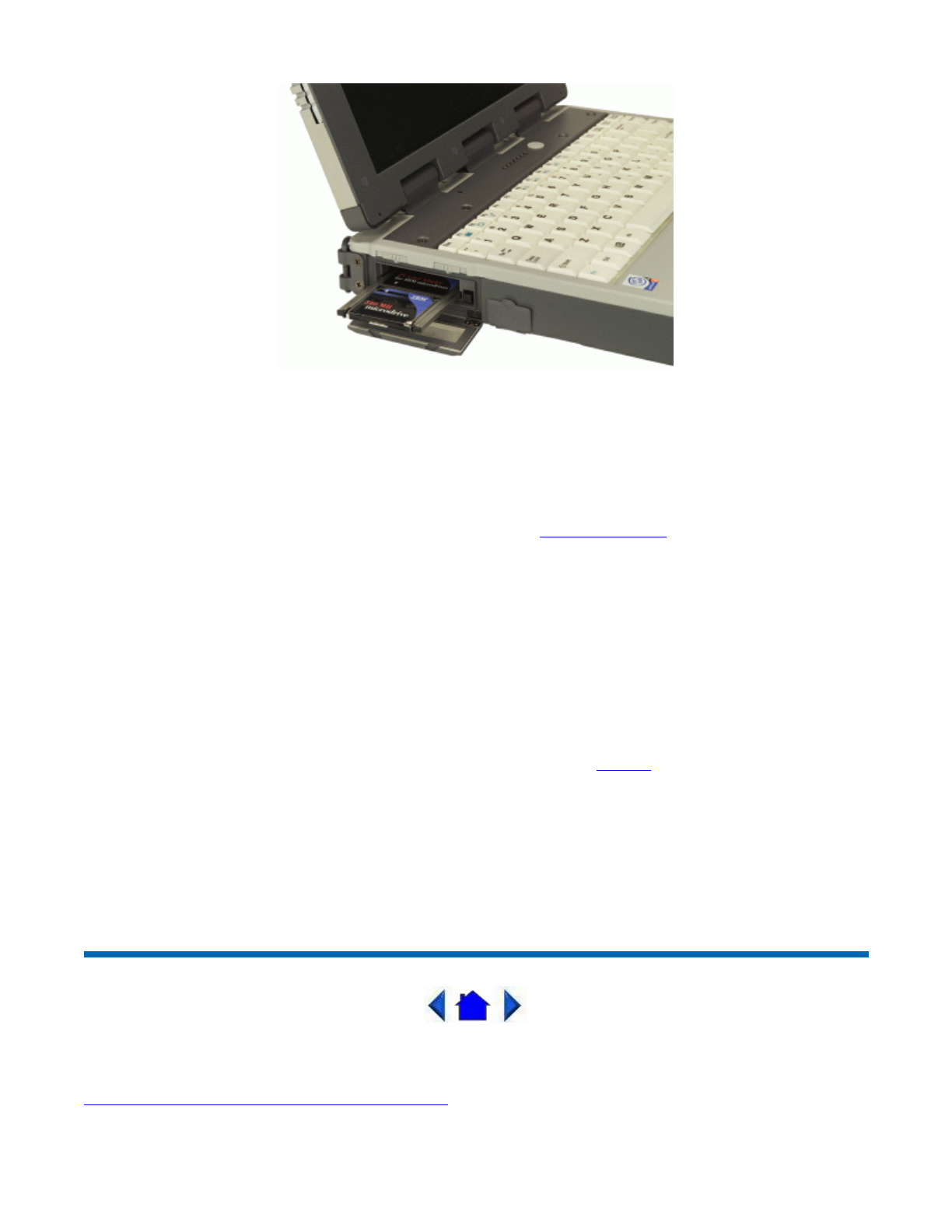

Changing your 'swappable' media bay device

1. Make sure the computer is not accessing

the media bay drive.

2. Slide the door latches to release the media

bay door.

3. Left click the "unplug or eject" media bay

icon on the right side of the taskbar.

4. Select the media bay device and left click

to stop the device.

5. Wait for the "safe to remove hardware"

message.

6. Grasp the media bay device by the

removal tab and pull straight out until it is

clear from the slot.

7. Click OK

8. Re-insert the next media bay device by firmly pushing it back into the slot until it clicks into

lace.

e 21 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

Precautions for Handling CD-ROM/DVD-ROM Disks

Keep these precautions in mind when handling CD-ROM/DVD-ROM discs.

zAlways hold the disc by the edges; avoid touching the surface of the disc.

zUse a clean, dry, cloth to remove dust, smudges, or fingerprints. wipe from the center outward.

zDo not write on the surface of the disc.

zExtremes in temperature may damage discs. Store discs in a cool dry place.

zDo not use benzene, thinners, or cleaners with detergent. Only use CD-ROM/DVD-ROM

cleaning kits.

zDo not bend or drop the discs.

zDo not place objects on top of discs.

CAUTION do not insert any foreign objects into the disc tray. Do not force the tray to open or close

manually. When not in use, keep the tray closed to prevent dust or dirt from entering the drive unit. If

you experience difficulty when removing a CD/DVD disc, stretch a paper clip (or use a pin or a thin

metal rod) and insert it into the emergency eject hole located on the front panel.

The CD/DVD disk tray should eject immediately. This procedure can also be used to remove a CD-

DVD from the drive when the GoBook III is powered off.

72_0119_001

28 June 2004

The PC Card Slot

The PC card slot can be used as an interface between your computer and a variety of communications

devices, such as network adapters, SCSI adapters, and fax/modems. They can also be used to provide

additional data storage capacity. Your computer’s PC Card slot supports Type I, II or III PC Cards, 32-

it CardBus cards, and Zoomed Video cards.

GoBook III® Help

e 22 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

Installing a Card

1. The top side of a PC Card is usually identified with a label. Insert the card into the slot with the

top up and the edge with pinhole contacts going in first. You will feel some resistance as the card

slides into the back of the slot.

2. PC Cards require drivers, or a program that allows the operating system to use a specific device.

Many drivers are included with Windows, but if not, you will be prompted to install the driver

included with your card.

NOTE Please read the instructions included with individual PC Cards. Some cards may be inserted

with power on, while others require that the computer be turned off.

Removing a PC Card

1. If a PC Card is in use, you must shut down the PC Card before removing it.

2. Select the PC Card icon on the right side of the Windows tray taskbar , then tap Stop.

3. When the Windows message appears, telling you that it is safe to remove the card, tap OK.

4. Press the eject button on the PC Card slot to release the eject button (it is spring loaded and

remains hidden until it is pressed).

5. Press the eject button again to release the PC Card.

72_0119_001

28 June 2004

oration. All ri

hts reserved.

e 23 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

Making Connections

Your computer is equipped with a full array of ports and connectors, including standard input/output

(I/O) ports for quickly and easily adding peripheral devices such as printers and monitors. Refer to

documentation included with individual devices for details on connecting these devices to your

computer. Along with the standard ports found on most computers, your computer may also include

optional modem and LAN ports for advanced communications technology.

Rear Connectors

Hover the mouse over each number on the picture to see a description.

1 DC-in Jack

Connect the DC power cable from the AC adapter to this jack.

2 VGA Out (External Video) Port

The 15-pin monitor can connect your computer to an external monitor.

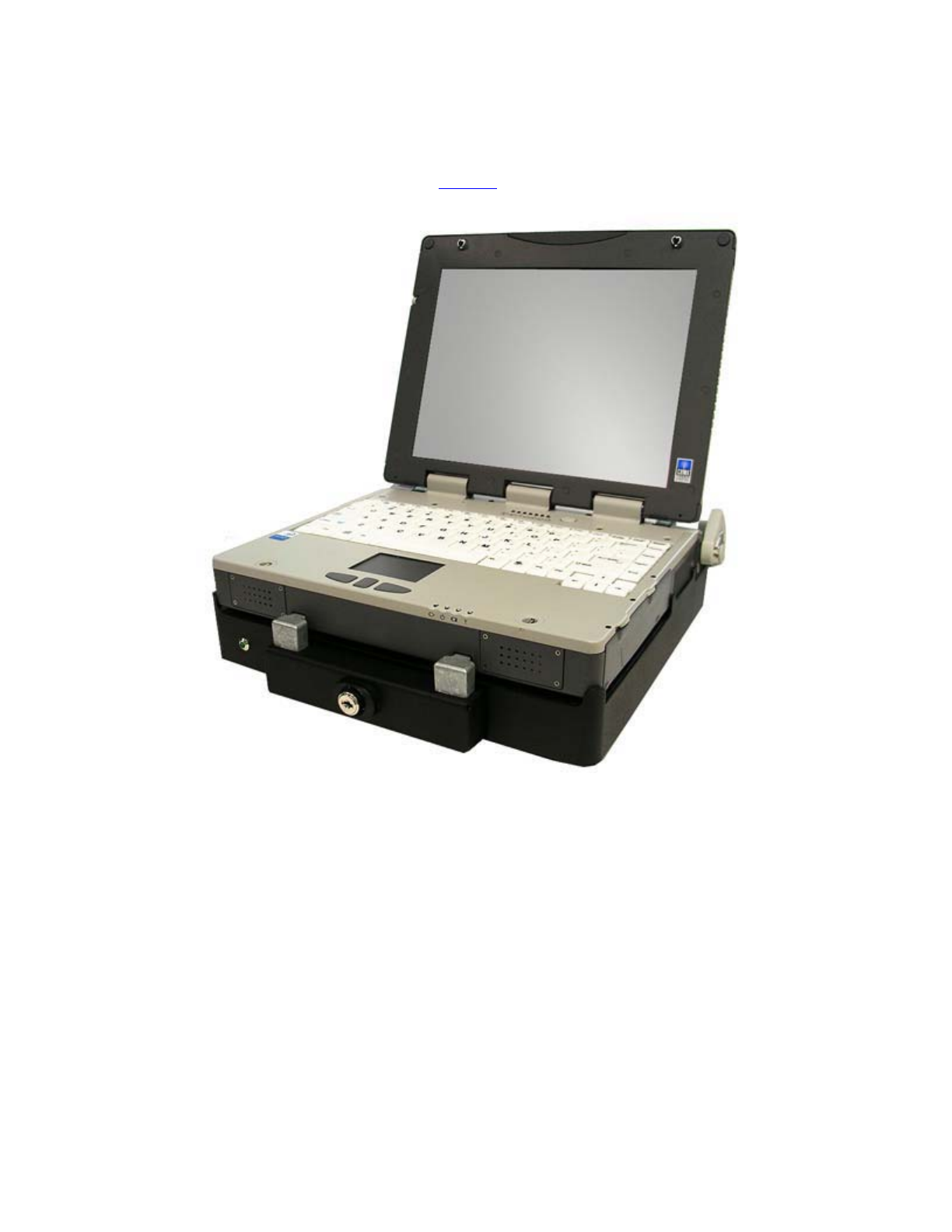

3 Multi-I/O Port

The 68-pin Multi-IO port is provided so you can connect the GoBook III to an optional cradle or office

dock.

4 Serial Port

The 9-pin serial port can be used to connect your computer to serial devices such a a fax/modem or a

serial mouse. This port is identified as COM1 and is 16550A compatible.

5 PS/2 Port

GoBook III® Help

e 24 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

You can use the mini-DIN PS/2 port to connect your computer to a PS/2 device such as a PS/2 keyboard

or mouse.

6 Fax/modem RJ-11 Jack

The fax/modem can transmit data using the 56 Kbps V.90 or V.92 protocol, and send and receive faxes

at 14.4 Kbps. In some countries, local regulations may not permit the use of the fax/modem designed

for this system. In this case, you may use a PCMCIA modem.

CAUTION Plug your modem into an analog telephone jack only. Most homes use analog lines. Do not

use digital lines, such as PBX and ISDN systems found in many offices. Digital lines may damage your

modem. If you are unsure as to the type of port you have to plug into, simple detection and protection

devices are available at your local computer store.

7 LAN RJ-45 Jack (optional)

With an Ethernet LAN you can make LAN connections without installing PC cards. Connection speed is

10/100 Mbps.

8 IEEE 1394 Port

You can use the IEEE 1394 port to transfer data at rates up to 400Mbps. It is ideal for video devices

because it can transfer data in real time.

9 USB (Universal Serial Bus) Port

The USB is latest standard for attaching input devices, scanners, and other devices to a PC. USB

devices can be chained together on a single cable. USB is 2.0 compliant.

72_0119_001

28 June 2004

Left Side Connectors

Hover the mouse over each number on the picture to see a description

GoBook III® Help

e 25 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

1 PC Card Slot

Use this slot to connect PCMCIA-card devices.

2 Microphone Jack

Connect a microphone to this jack to record audio.

3 Audio-Out Jack

Connect external speakers or a stereo headset to this jack to listen to multimedia.

72_0119_001

28 June 2004

Right Side Connector

Hover the mouse over the number on the

icture to see a descri

tion.

GoBook III® Help

e 26 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

1 Smart Card Reader (optional)

You can use a Smart Card Reader to read or write to a smart card. A smart card is an electronic device

about the size of a credit card. Depending on the card, it may be used to store data, store cash, or

generate network identification.

2 Security Slot

Your computer has a Security Slot that can be used with a standard laptop locking device, such as a

Kensington Lock. You can connect the GoBook III to a large object with the lock to prevent theft of

your GoBook III. See the documentation that comes with your lock for more information.

72_0119_001

28 June 2004

Wireless Communications

The GoBook III may include several antennas for wireless communication. The WLAN antenna and

Bluetooth antenna are embedded in the upper display housing and require no user action. Another

antenna is located on the upper right corner of the display for the WAN radios. Simply raise this

antenna when using your WAN radios.

Use only the supplied or an approved antenna(s). Unauthorized antennas, modifications, or attachments

could impair call quality, damage the phone, or result in violation of FCC regulations.

The GoBook III may contain the radio transmitters listed below. The following statements are relevant

when usin

these radios:

e 27 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

Each internal radio may or may not have an individual FCC Identifier label. That FCC Identifier label is

not applicable to this configuration. Only the external FCC ID is applicable. Only the antenna with

which an intentional radiator is authorized may be used with the intentional radiator.

The WAN antenna location is in the upper right edge of the display screen and is not to be modified.

The WLAN embedded dual antennas are located internally in the upper right and left edges of the

display screen and are not to be modified. This device contains a WLAN radio transmitter and a WAN

radio transmitter. To comply with FCC RF exposure requirements when using the WAN radio

transmitter, a minimum separation distance of 20 cm must be maintained between the external dipole

antenna and all users/bystanders. When using the WLAN transmitter, a minimum separation distance of

20 cm must be maintained between the upper right and left edges of the display screen and all

users/bystanders. The WAN radio and WLAN transmitter should be turned off before carrying the

Laptop PC in order to comply with FCC RF exposure requirements.

Since each customer's radio configuration is unique, please read the radio help installed on your desktop

and refer to the manufacturer documentation to setup and use your radio(s).

WAN and WLAN

The GoBook III supports many different wireless radio configuration options including LAN (Local

Area Network) and WAN (Wide Area Network) wireless communication.

LAN radios are local and therefore span a small area such as a building or small group of buildings.

WAN radios cover a wider geographical area so they can be used anyplace the carrier has digital

coverage. For example, our cell phone system. WAN radios are usually connected via a

communications infrastructure such as a telephone system and connect at 14.4K to 153K depending on

the carrier, technology, and coverage. The GoBook III's WAN radios include CDMA and GPRS.

72_0119_001

28 June 2004

Bluetooth

GoBook III® Help

e 28 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

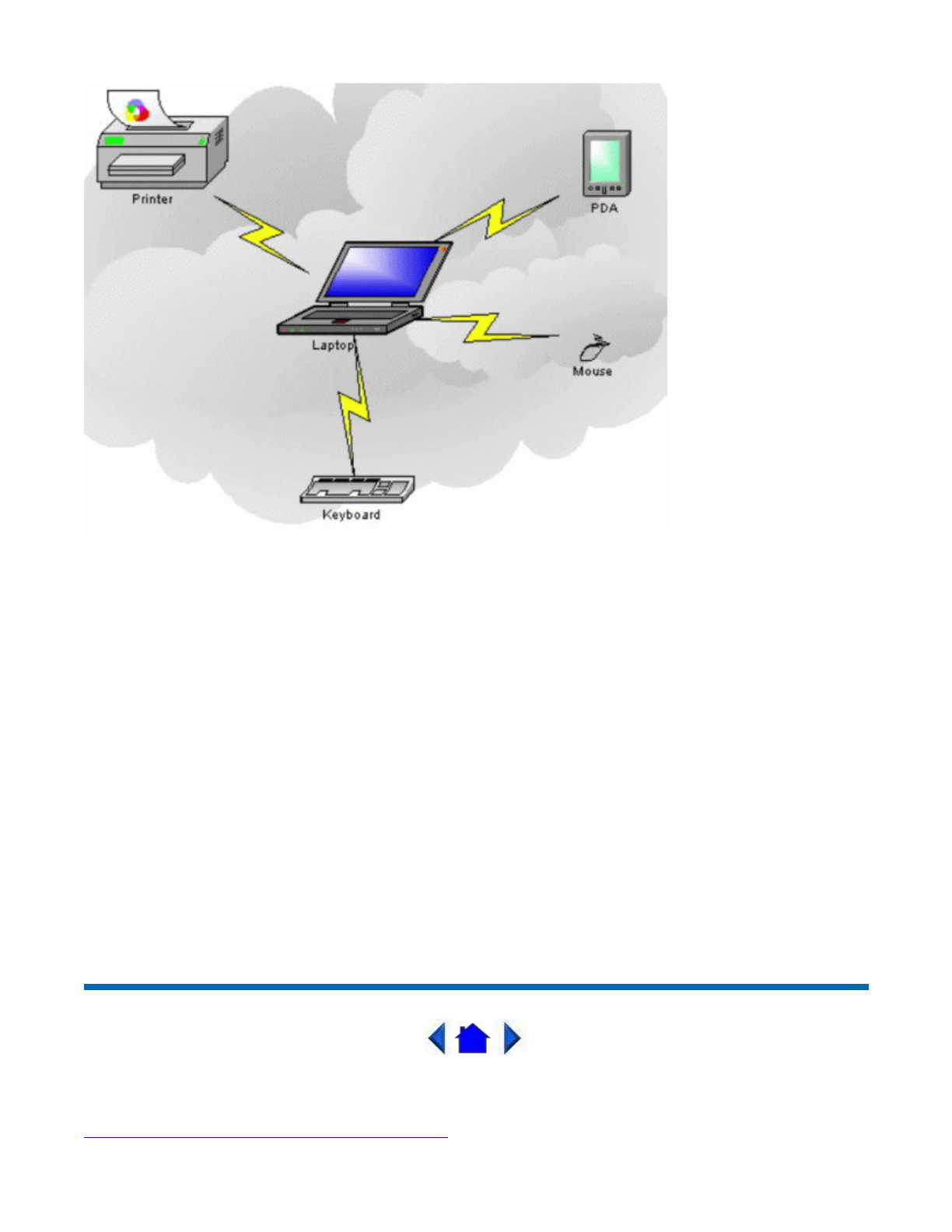

Bluetooth systems create a personal-area network (PAN), or piconet, that may fill a room or may

encompass no more distance than that between the cell phone on a belt-clip and the headset on your

head.

When Bluetooth-capable devices come within range of one another, an electronic conversation takes

lace to determine whether they have data to share or whether one needs to control the other. The user

doesn't have to press a button or give a command -- the electronic conversation happens automatically.

Once the conversation has occurred, the devices -- whether they're part of a computer system or a stereo

-- form a network.

Once a piconet is established, the members randomly hop frequencies in unison so they stay in touch

with one another and avoid other piconets that may be operating in the same room.

One of the ways Bluetooth devices avoid interfering with other systems is by sending out very weak

signals of 1 milliwatt. By comparison, the most powerful cell phones can transmit a signal of 3 watts.

The low power limits the range of a Bluetooth device to about 10 meters, cutting the chances of

interference between your computer system and your portable telephone or television. Even with the low

ower, the walls in your house won't stop a Bluetooth signal, making the standard useful for controlling

several devices in different rooms.

72_0119_001

28 June 2004

oration. All ri

hts reserved.

e 29 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

GPRS

For specific information about your GPRS radio please refer to the manufacturer's documentation. You

may have one or more documents already installed on your GoBook III computer.

72_0119_001

28 June 2004

Wireless LAN

The GoBook III computer includes a high powered WLAN radio; the WLAN installed in the MiniPCI

slot with an antenna in the display. The WLAN MiniPCI Card User's Manual may already be installed

on your GoBook III computer. Refer to it for more information.

72_0119_001

28 June 2004

Power Management

The GoBook III has power management capability so you can reduce the amount of energy used,

especially during periods of inactivity. Effective use of power management options can greatly

conserve and extend your battery life.

GoBook III® Help

e 30 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

Battery Calibration

Over time, as the battery is repeatedly drained and recharged, battery performance will decrease.

Occasionally, the battery needs to be recalibrated for maximum performance. The calibration process

empties and charges the battery. This allows the Windows battery gauge to accurately monitor battery

status.

It is recommended you calibrate your battery:

zthe first time you use it

zafter it has been stored for awhile

zif the gas gauge has become inaccurate.

Windows Battery Calibration

To run the Battery Calibration program tap Start, Programs, and Mobile Computer Tools.

After starting calibration, the Battery Calibration application requires no further input from the user. The

calibration consists of four steps:

1. Partial Discharge - the battery is drained to a level below 60 %.

2. Charge - the battery is fully charged to 100 %.

3. Discharge and calibrate:

First, the battery is discharged all the way down to zero. Now the battery is 'calibrated' but not

charged. You may stop the process after this point and let the battery charge outside of the Battery

Calibration application.

4. Charge - if the Battery Calibration continues running, the battery will fully charged to 100%.

NOTE The unit will not go into suspend mode while Battery Calibration is running.

CAUTION Do not disconnect AC power while Battery Calibration is running. If AC remains

disconnected for more than two minutes, the application will terminate.

CAUTION Do not remove the battery while Battery Calibration is running. Doing so will cause the

application to terminate immediately.

BIOS Level Battery Calibration

You can also calibrate the battery from within BIOS Setup. To calibrate the battery from BIOS Setup

follow these steps:

1. Plu

in the AC ada

ter.

e 31 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

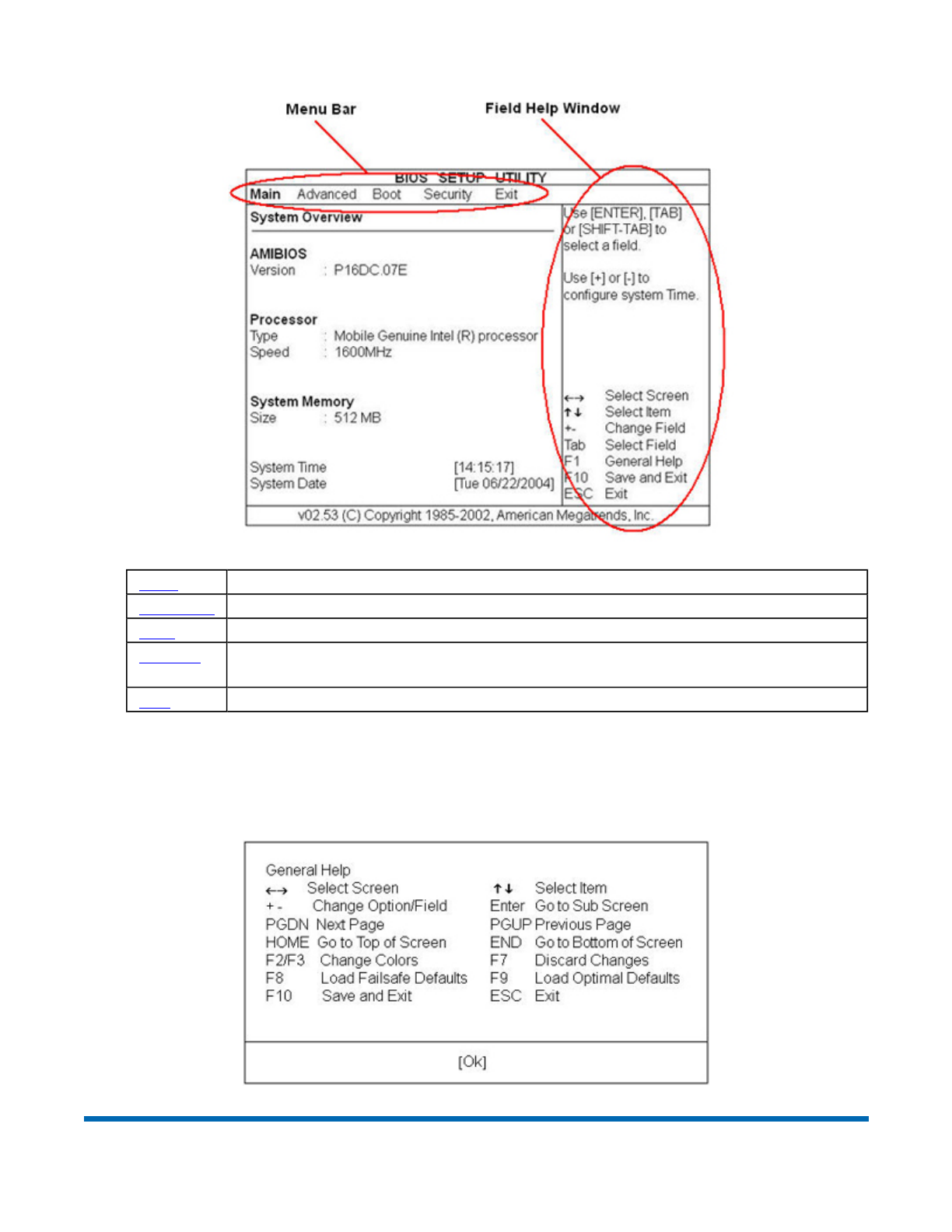

2. Restart the computer. When the startup screen appears, just prior to the Windows logo screen,

press the DEL key to enter the BIOS Setup Utility.

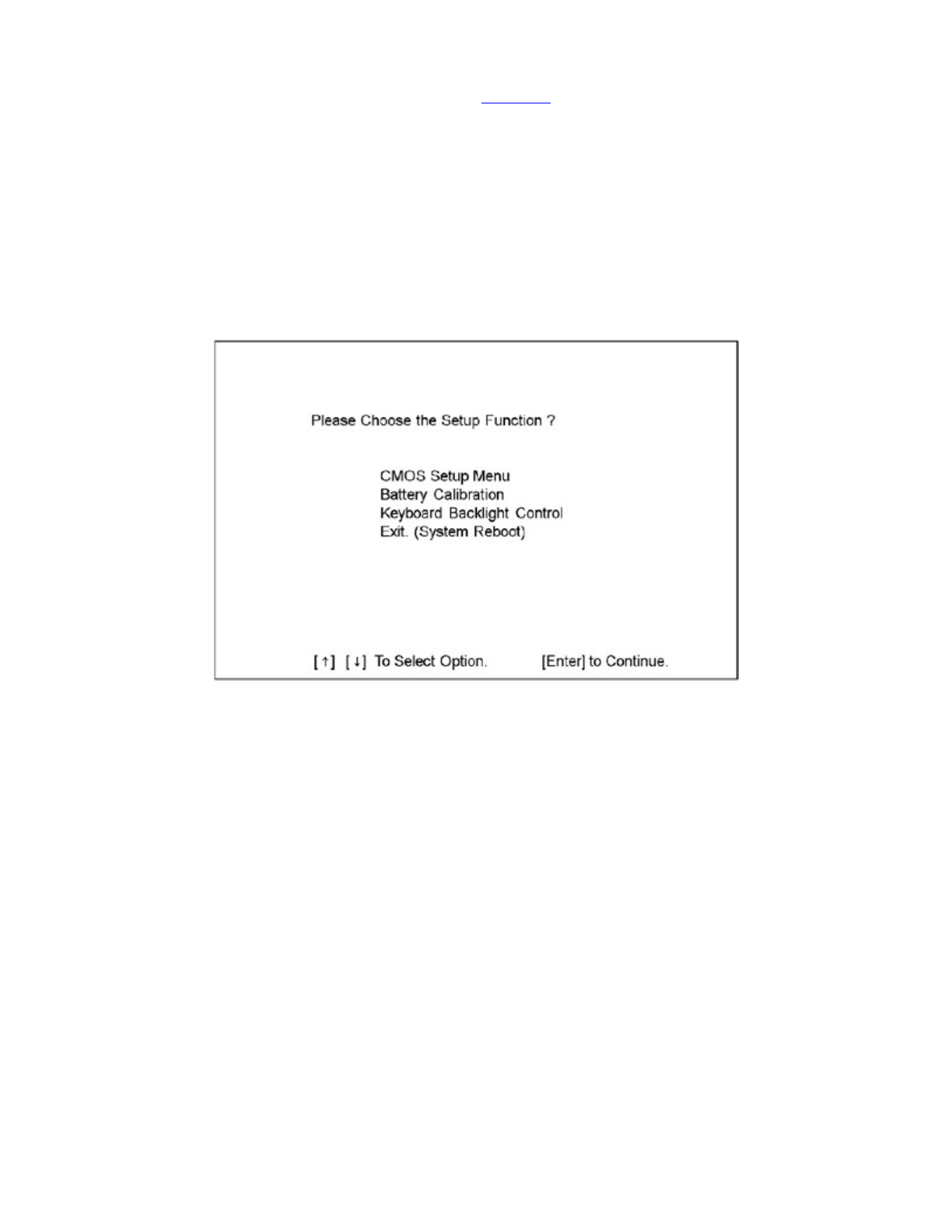

3. At the "Choose the setup function" screen, select "Battery Calibration" and hit enter.

NOTE Make sure the AC adapter and battery are present.

4. Choose Primary or secondary battery and hit enter. Battery Calibration will take from 10 to 16

hours, depending on how much power the battery may already contain.

72_0119_001

28 June 2004

Using the Battery

Monitoring Battery Power

There are two ways to monitor how much power the battery has left:

1. Click Start, Settings, Control Panel, Power Management (Power Options); then tap the Power

Meter tab.

2. Moving the cursor to the battery icon on the taskbar, without selecting anything, is the simplest

way to check on battery power status. The status will show as a pop-up when you mouse-over the

icon.

NOTE If you do not see the battery icon, enable it in Start, Settings, Control Panel, Power Management

(Power Options). Choose the Advanced tab and select "Always show icon on the taskbar."

Low Battery Alarms

How your computer responds to a low battery condition can be set by going to Start, Settings, Control

Panel, Power Management, Alarms.

Two different power alarms can be enabled or disabled: the Low Battery Alarm, and the Critical Battery

Alarm. Use the slidebar to set the power level at which the alarms are activated. Click on the Action

utton to choose whether the alarm sounds, dis

s a messa

e, or both.

GoBook III® Help

e 32 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

CAUTION When battery power is low, the Battery Power Indicator will flash and the alarm will

beep or display a warning on your screen. Take immediate action, such as saving files or connecting to

the AC adapter , or data may be lost.

When the computer alerts you that the battery is low, immediately do one of the following:

zConnect the AC power adapter

zSave your work and suspend to disk (Hibernate) by pressing the Power Button

zSave your work and then select Shut Down from the Start menu

zTurn off the computer (or suspend to disk) and replace the discharged battery with a charged

battery (See Changing the Battery)

NOTE Do not restart the computer until you have connected to an AC adapter, or replaced the

discharged battery with a charged battery.

72_0119_001

28 June 2004

Battery Charging

When you use the AC adapter to connect your GoBook III to a power outlet, the internal battery will

begin to recharge automatically. While the battery is charging, the Battery Power Indicator will be

flashing green. When the battery is fully charged, it will turn off.

If your computer is turned off, or suspended to RAM, a fully discharged battery will take about 4 hours

to recharge. If you computer is turned on and is not in suspend mode, it will take 4- 6 hours to recharge

the battery. Refer to the following table:

GoBook III® Help

Charging Discharging

System On 4-6 hours 3-4 hours

System Off (suspend to RAM) 4 hours —

e 33 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

NOTE a fully charged Li-Ion battery can run the GoBook III for approximately 3 hours or more.

Power Saving Modes

Adjust the default power management settings in the Power Management (Power Options) dialog box in

the Control Panel. The Power Management (Power Options) dialog box allows you to set different

actions to take when the computer is left idle for a certain amount of time.

Suspend Mode

There are several possible settings for suspend mode. You may Suspend to RAM,Suspend to Disk

(Hibernate), or disable suspend altogether, which is not recommended.

Suspend to RAM

In a suspend to RAM, the contents of your computer’s memory are held intact, while most of the

components in your computer either turn off completely, or reduce power consumption to a minimum.

In a Suspend to RAM, your computer remains active but with the minimum possible power

consumption. Return the computer to full power by pressing any key. A fully-charged battery can

maintain a Suspend to RAM for many hours.

Suspend to Disk (Hibernate)

Suspend to Disk (Hibernate) is similar to turning off the computer, except that the current state of the

computer is copied to the hard disk as a special file. When the computer returns from suspend mode, the

desktop appears with the same files and programs open as when the computer was suspended. Suspend

to Disk (Hibernate) is very useful when you don’t want to take the time to shut down all open programs

one by one to shut off the computer, only to have to open the same programs and files the next time you

use the computer. This mode is also called hibernation mode.

Initiating Suspend Mode

There are four ways to initiate suspend mode. The settings can be adjusted in the Power Management

dialog box:

zThe computer will automatically enter suspend mode when not used for a set period of time

zSelecting the Standby button in the Shut Down Windows dialog box

zPressing the power button (if enabled in power settings)

zPressing the suspend function key (FN+F3)

Power Button Settings

The function of the Power Button can be set to Shut down, Stand by or Hibernate in the Windows

Control Panel. However, holding the Power Button down for more than four seconds will force a

ower off while o

eratin

under an

situation, resultin

in the loss of an

unsaved information.

e 34 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

When to Replace the Battery

Over time, the battery’s capacity gradually decreases. We recommend that you replace your battery

when you notice that it begins to store significantly less charge.

WARNING There is danger of explosion if the battery is incorrectly replaced. Replace only with the

same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the

manufacturer's instructions.

Changing the Battery

Change the main battery pack as follows:

1. Turn off the computer.

2. Disconnect external power .

3. Close the display and turn the computer over.

4. Rotate the latches on the battery door to the open

position and remove the door. Remove the

battery.

5. Make sure the replacement battery is properly

orientated. Insert the battery into the battery

compartment. Check that the latches lock back into position.

6. Charge the new battery by plugging the computer into AC power.

Heat Considerations

The computer’s processor has been specially designed to consume little power and generates very little

heat. However, working in a hot environment, or working for long periods may raise the temperature.

Your computer takes the following steps to lower temperature:

1. The cooling fan turns on. You may hear the fan and feel air coming from a vent near the right rear

of the computer when this happens.

2. If the temperature continues to rise, Processor activity is reduced. You may notice a slight loss of

performance when this happens.

3. If the computer overheats, the processor will stop functioning and the computer will shutdown.

72_0119_001

28 June 2004

e 35 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

Battery Tips

Tip 1. Avoid excessive heat and cold

zYour battery will last longer during the day if it is used, charged and stored between 50°F and 86°

F (10°C and 30°C).

zCharge the battery nightly where the temperature will remain around 68°F (20°C). Your battery

may not last as long through the day if you charge it at higher or lower temperatures.

zAllow unrestricted airflow while the computer is connected to external power. Make sure that the

fan inlet and outlet are unobstructed.

zAvoid exposing batteries to hot or cold temperatures for long periods.

How your battery behaves in warm conditions

zTo prevent possible damage to the battery, the system may not allow a charge if the battery

temperature is above 122°F (50°C), such as in a closed, unattended vehicle during the summer. In

this case, the Battery Power Indicator may indicate that the computer has stopped charging

your battery; however, your battery may not be fully charged.

zIf possible, turn off or suspend your computer while the battery is charging in a warm

environment to avoid over-heating.

zIn warmer temperatures, your battery may take much longer to fully charge.

How your battery behaves in cold conditions

zWhen using a battery in cold conditions, the battery capacity may drain significantly faster.

zTo prevent possible damage to the battery, the system will not allow a charge if the battery

temperature is below 41°F (5°C), such as in a closed, unattended vehicle during the winter. In this

case, the Battery Power Indicator may indicate that the computer has stopped charging your

battery; however, your battery may not be fully charged.

zIn cooler temperatures, your battery can take much longer to fully charge.

Tip 2. Prevent wasted power

zManuall

turn off or sus

end

our com

uter whenever

ou are not usin

it.

GoBook III® Help

e 36 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

zReduce the screen brightness. Decrease brightness by pushing FN + F6. Increase it by pushing FN

+F7.

zUse the AC adapter or vehicle adapter whenever possible.

zUse the "Mobile Computer" power management scheme, which helps save power. To set this

value, select Power Management (Power Options) from the Control Panel, select the Power

Schemes tab, then set the scheme to "Mobile Computer".

zWhen running on battery power, make sure your system suspends automatically after a few

minutes of inactivity. PC Cards, radios, custom applications, or modified system settings may

affect this.

zRemove PC Cards and unplug peripherals when you are not using them. They may draw power

from the system even when not in use.

zAvoid operating the fax/modem, or audio and video applications when using battery power.

Operating a fax/modem, video, or audio equipment increases the computer’s power requirements.

zDon't use screen savers as they draw excessive current, especially “3D” screen savers.

zSet the computer to automatically run the CPU at a lower speed when the computer is operating

on battery power. Set this value as follows:

1. While your computer is booting, press the DEL key when you see the message "Hit DEL if

you want to run setup".

2. Select the Power Management Setup menu option after the Setup Utility screen is displayed.

3. Set the "Intel(R)SpeedStep(TM) technology" menu option to Recommended.

4. Press the Esc key, then select Save Settings and Exit when you are finished setting up your

computer.

5. Then, in Windows, right click on the Mobile System Monitor icon ( or ) in the

toolbar, which is normally located at the bottom right corner of the display.

6. Select an option that keeps the CPU at 75% or less when on battery.

zAvoid or minimize using applications that keep the CPU busy a large percentage of the time. The

following will help you determine if your system is running such applications:

Identifying power wasting programs

To determine if applications or processes are keeping the CPU busy

1. Start the Task Manager utility. To open Windows Task Manager, right-click an empty space on

the taskbar, and then click Task Manager.

2. Select the Performance tab to view runnin

lications, and the Process tab to view runnin

e 37 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

processes.

3. Watch the CPU Usage. It is okay if the processor usage is occasionally 100 percent, but if it is 100

percent most of the time, this may indicate a problem.

What to do if applications are keeping the CPU busy

zSet the computer to automatically run the CPU at a lower speed when the computer is operating

on battery power (see above).

zIf possible, close applications that keep the CPU busy when you are not using them.

zTurn off or suspend your computer whenever you are not using it. This will help to conserve

power.

zInform your organization's help desk. They may have an updated version of the application.

Tip 3. Calibrate your battery

zOver time, the accuracy of the Windows battery gas gauge may be affected by repeated charging

and discharging of the battery. Calibrating the battery every 3 or 4 months helps to keep the gas

gauge accurate. For information on calibrating the battery, refer to Battery Calibration.

Tip 4. Get a good charge

zYour computer will charge more quickly if it is turned off or suspended.

zIn warmer or cooler temperatures, your battery can take much longer to fully charge.

zIf your battery is charged in a cold (less than 41°F/5°C) or very warm (greater than 122°F/50°C)

environment, it is possible that the Battery Charge LED will indicate that the charge has stopped;

however, this does not necessarily mean that your battery is fully charged.

Tip 5. Prevent data loss

Follow these guidelines to prevent data loss when removing your battery or storing your computer:

zYou will lose data if you remove the battery while the computer is operating or suspended. To

prevent this, shutdown your computer or put it into hibernate (suspend-to-disk) mode before

removing your battery.

zIf you plan to store your computer for more than a few days, shutdown your computer or put it

into hibernate mode. Remove the battery before storing the computer.

Tip 6. Clean terminals

zDirty terminals can be a cause of charging problems. Clean battery terminals with a cotton swab

dipped in isopropyl alcohol. Make sure that the alcohol has evaporated before reinstalling the

atter

e 38 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

Tip 7. Storing batteries

zStore the battery within the recommended temperature range: 10°C to 30°C (50°F to 86°F).

zUnused or stored batteries can lose power over time. When you install a battery that has not been

used for awhile, connect external power to the computer and fully charge your battery.

zBattery calibration may increase the capacity of a battery stored for a period of time. For

information on calibrating the battery, refer to Battery Calibration.

zIt is recommended that the battery is recharged every six months while in storage.

72_0119_001

28 June 2004

Customizing Your BIOS Settings

This chapter explains how to use the Setup Utility to modify the BIOS settings. The Setup Utility

displays and allows modification of the GoBook III components and the configuration of devices that

are connected to it. This information is used to test and initialize components at start-up time and to

make sure everything runs properly when the system is operating.

The GoBook III is configured with a set of default values. You may be able to increase system

erformance by changing some of the timing values in the Setup Utility, but this can be limited by the

kind of hardware you are using. In certain circumstances, the system may generate an error message that

asks you to make changes to the BIOS settings using the Setup Utility. This happens when the system

finds an error during the POST (Power On Self Test) that it carries out at startup.

CAUTION It is not recommended that you change any settings since this may cause the unit to not

function properly.

If you are not sure how to configure the BIOS settings we suggest that you select Auto configuration

with Optimal Settings on the Main Menu screen, then exit saving changes. This loads optimized default

settings for normal use.

Using the Setup Utility

The Setu

Utilit

allows

ou to confi

ure

our com

ute

’s basic settin

s. When

ou turn

our com

uter

GoBook III® Help

e 39 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

on, the system reads this information to initialize the hardware so that it can operate correctly. You can

use the Setup Utility to change your computer’s start-up configuration. For example, you can change

your system's security routine.

Starting the Setup Utility

You can only start the Setup Utility shortly after the computer has been turned on or rebooted. To

execute a controlled reboot, select Start, Turn Off Computer, Restart. Shortly after the computer

restarts, the following prompt appears on the computer display, “Press DEL to enter Setup. Press TAB

to show POST information” Press the DEL key when you see the prompt. The system will start the

Setup Utility with the following screen displayed. Select "CMOS Setup Menu" and press Enter.

Navigation and Help

The Setup Utility has five menu options in the Menu Bar at the top of the window. Press the left or right

arrow ke

s to c

cle throu

h these menu screens:

e 40 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

The Field Help Window is on the right side of each menu. It displays the help text for the currently

selected field. This text updates as you move the cursor from field to field.

The General Help Window describes the legend keys. You can display it by pressing F1 on any menu.

Main Use for basic system configuration

Advanced Use to set the advanced features

Boot Use to set user and supervisor passwords

Security Use to select the sequence of boot devices that are searched to load an operating

system

Exit Use to exit the current Setup session

e 41 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

72_0119_001

28 June 2004

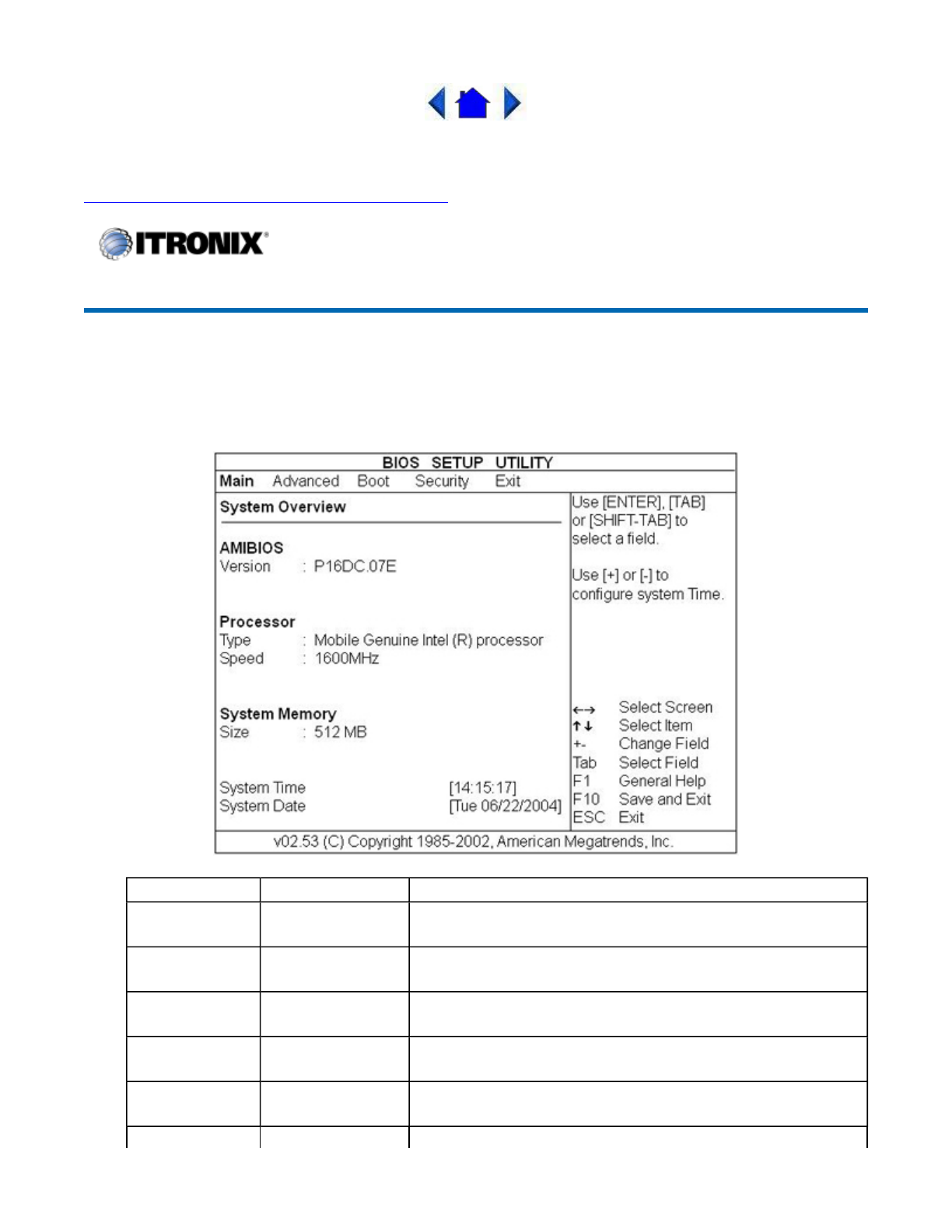

The Main Menu

You can change the system date and time on the main menu, and view processor and memory

information.

GoBook III® Help

Field Setting Function

AMIBIOS

Version

N/A Displays the AMIBIOS version detected during boot up.

This is a display only field.

Processor

Type

N/A Displays the processor type detected during boot up. This

is a display only field.

Processor

Speed

N/A Displays the processor speed detected during boot up.

This is a display only field.

System

Memory Size

N/A Displays amount of conventional memory detected

during boot up. This is a display only field.

System Time HH:MM:SS Use this field to set the time. The time is displayed in 24

hour format. The value set takes effect immediately.

e 42 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

CAUTION Incorrect settings can cause your system to malfunction. To correct mistakes, return to

Setup and restore the Setup Defaults by pressing F9.

72_0119_001

28 June 2004

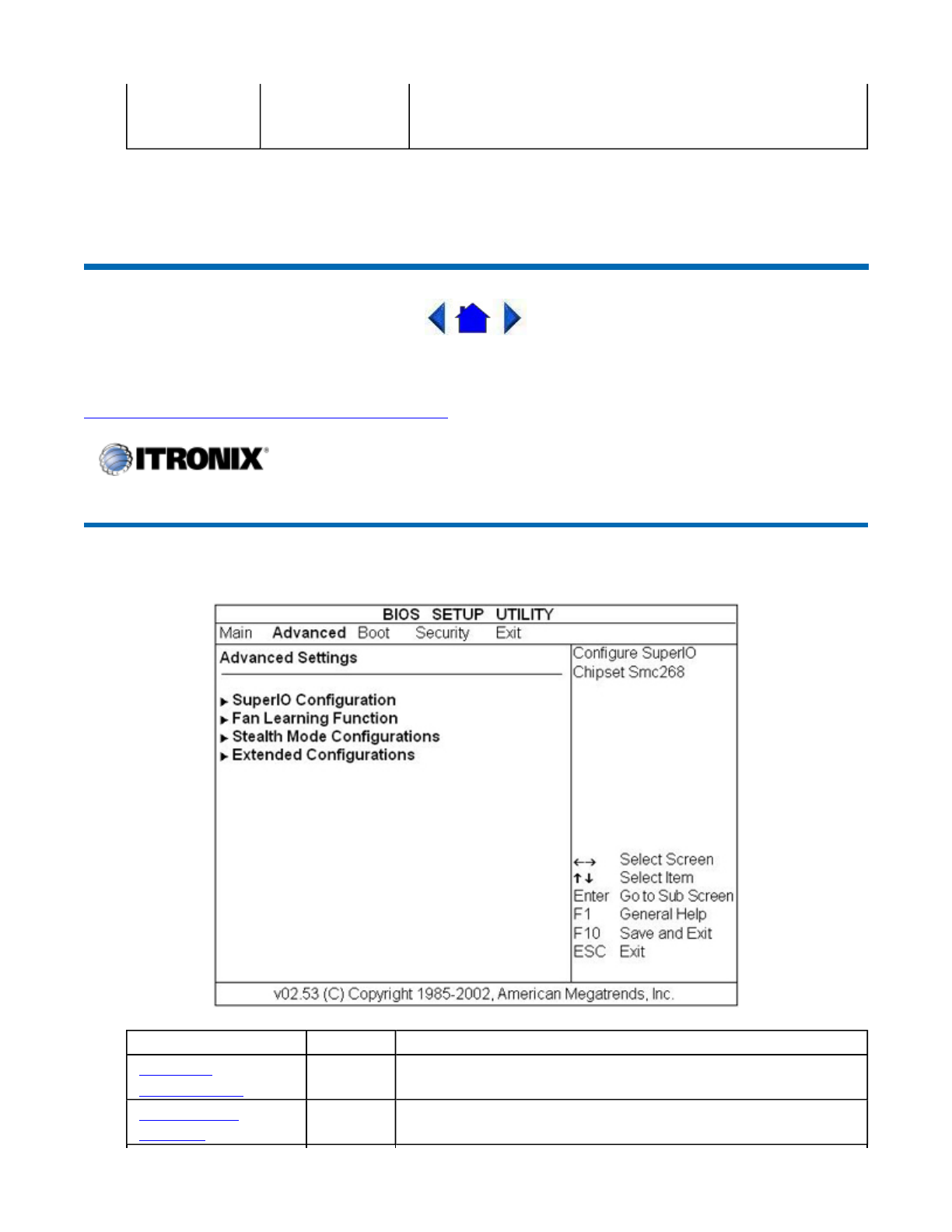

The Advanced Menu

System Date MM/DD/YYYY Use this field to set the date. The date can be set from

January 1, 1980 to December 31, 2099. The value set

takes effect immediately.

GoBook III® Help

Field Setting Function

Super I/O

Configuration

sub-

Configure SuperIO Chipset Smc268

Fan Learning

Function

sub-

Fan Learning Function will take 20 minutes to finish

procedure

e 43 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

CAUTION Incorrect settings can cause your system to malfunction. To correct mistakes, return to

Setup and restore the Setup Defaults by pressing F9.

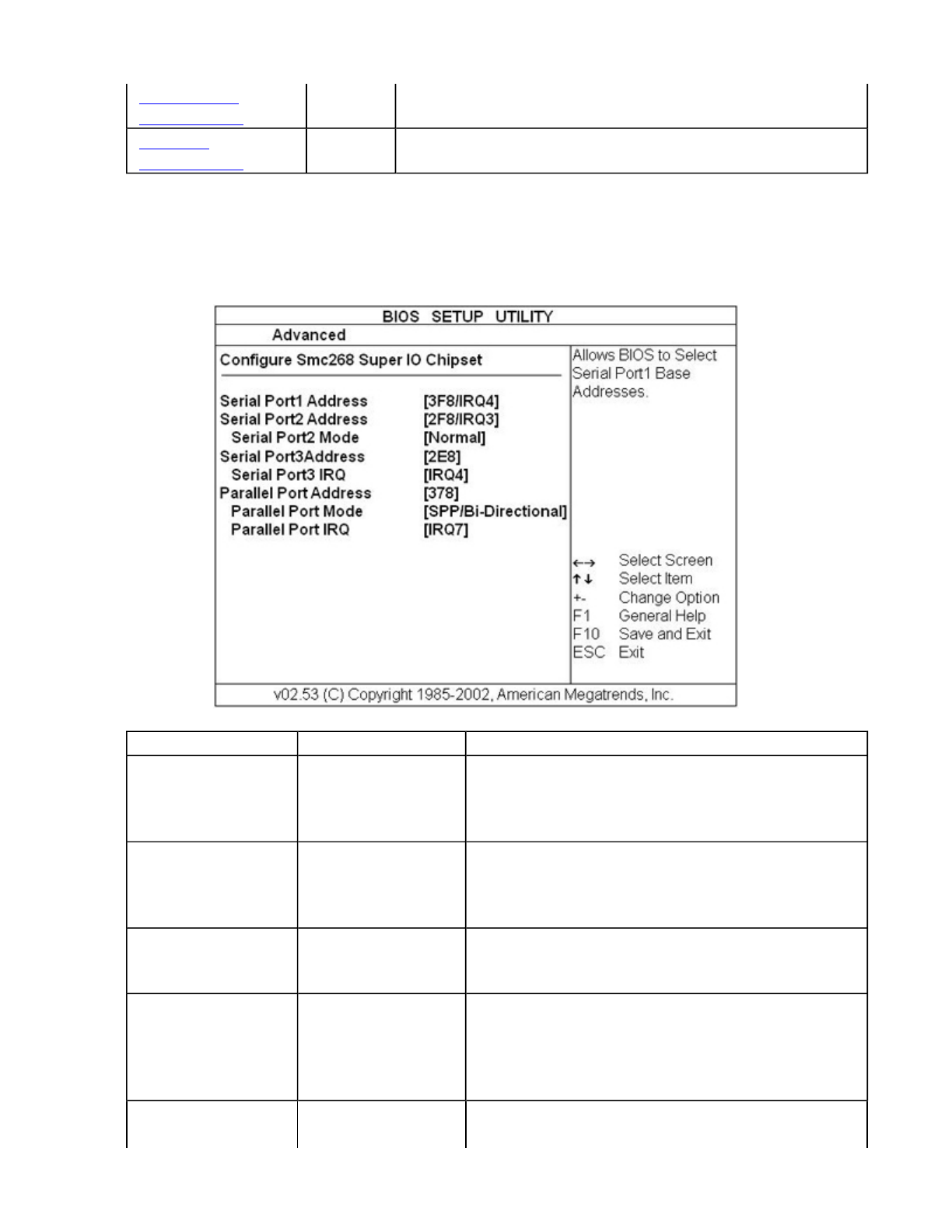

Super I/O Configuration

Stealth Mode

Configuration

sub-

Depending on Stealth Mode setting, LED, FAN Beeps,

LCD Brightness, Audio will keep silent when you need.

Extended

Configuration

sub-

Other special function settings including low battery beep,

radio wakeup, etc.

Field Setting Function

Serial Port1

Address

Disabled

3F8/IRQ4

3E8/IRQ4

2E8/IRQ3

Allows the BIOS to select Serial Port1 Base

Addresses.

Serial Port2

Address

Disabled

2F8/IRQ3

3E8/IRQ4

2E8/IRQ3

Allows the BIOS to select Serial Port2 Base

Addresses.

Serial Port2 Mode Normal

IrDA

ASK IR

Allows the BIOS to select the mode for Serial

Port2.

Serial Port3

Address

Disabled

3F8

2F8

3E8

2E8

Allows the BIOS to select Serial Port3 Base

Addresses.

Serial Port3 IRQ IRQ4

IRQ9

Allows the BIOS to select Serial Port3 IRQ.

e 44 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

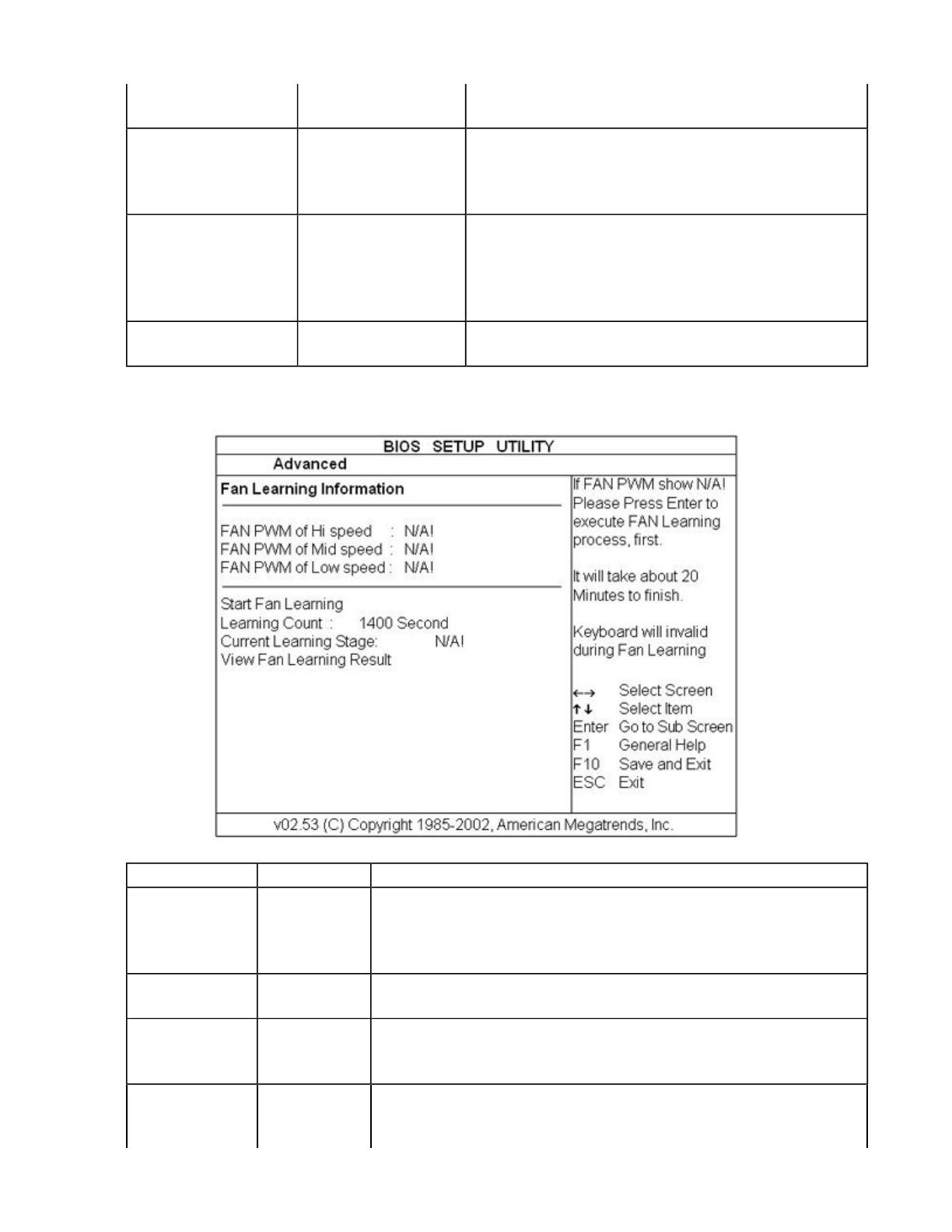

Fan Learning Function

IRQ10

IRQ11

Parallel Port

Address

Disabled

378

278

3BC

Allows the BIOS to select Parallel Port Base

Addresses.

Parallel Port Mode SPP/Bi-

Directional

EPP/SPP

ECP

ECP/EPP

Allows the BIOS to select the Parallel Port mode.

Parallel Port IRQ IRQ5

IRQ7

Allows the BIOS to select the Parallel Port IRQ.

Field Setting Function

Start Fan

Learning

Start Fan

Learning

Cancel

If FAN PWM shows N/A! you will need to press Enter to

execute the fan learning process first. It will take about 20

minutes to finish. The keyboard will not work during fan

learning.

Learning

Count

N/A Displays the fan learning count.

Current

Learning

Stage

N/A Displays the current fan learning stage.

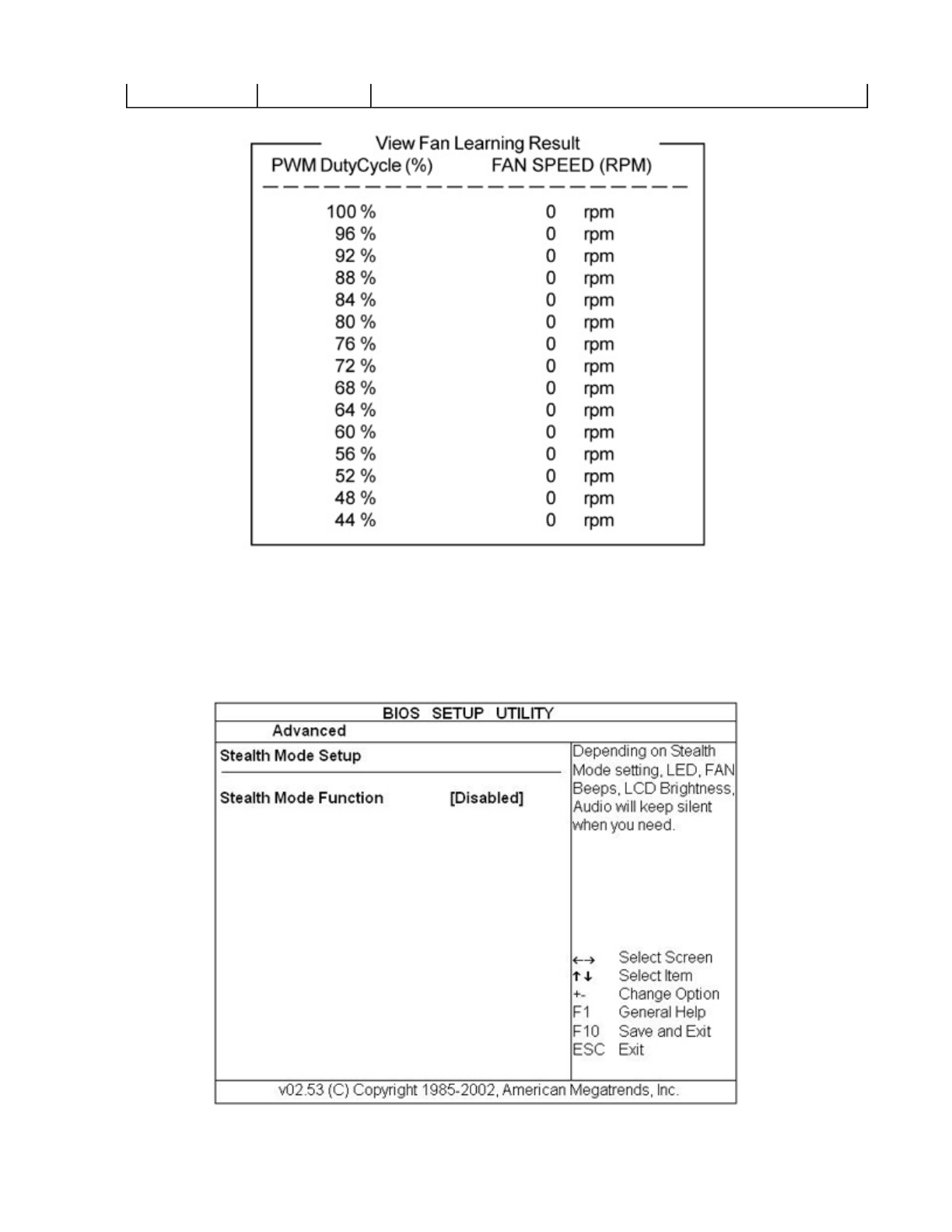

View Fan

Learning

see screen Lists information details for each step of fan learning.

e 45 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

Stealth Mode Configuration

Stealth mode is a feature that allows the GoBook III to be used in an environment where sound and light

could be dangerous to the users, such as a military user. If Stealth mode is disabled, the LEDs, fan,

system beeps, audio, and display brightness operate normally.

Result

e 46 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

When Stealth Mode is enabled, the various options have the following effect:

NOTE The off setting means that option is in Stealth Mode.

The keyboard backlight does the following whether stealth mode is enabled or disabled:

zDoes not illuminate when the system is off or suspended

zDoes not illuminate on resume or boot

zTurns off when FN+F1 is pressed to turn off the display.

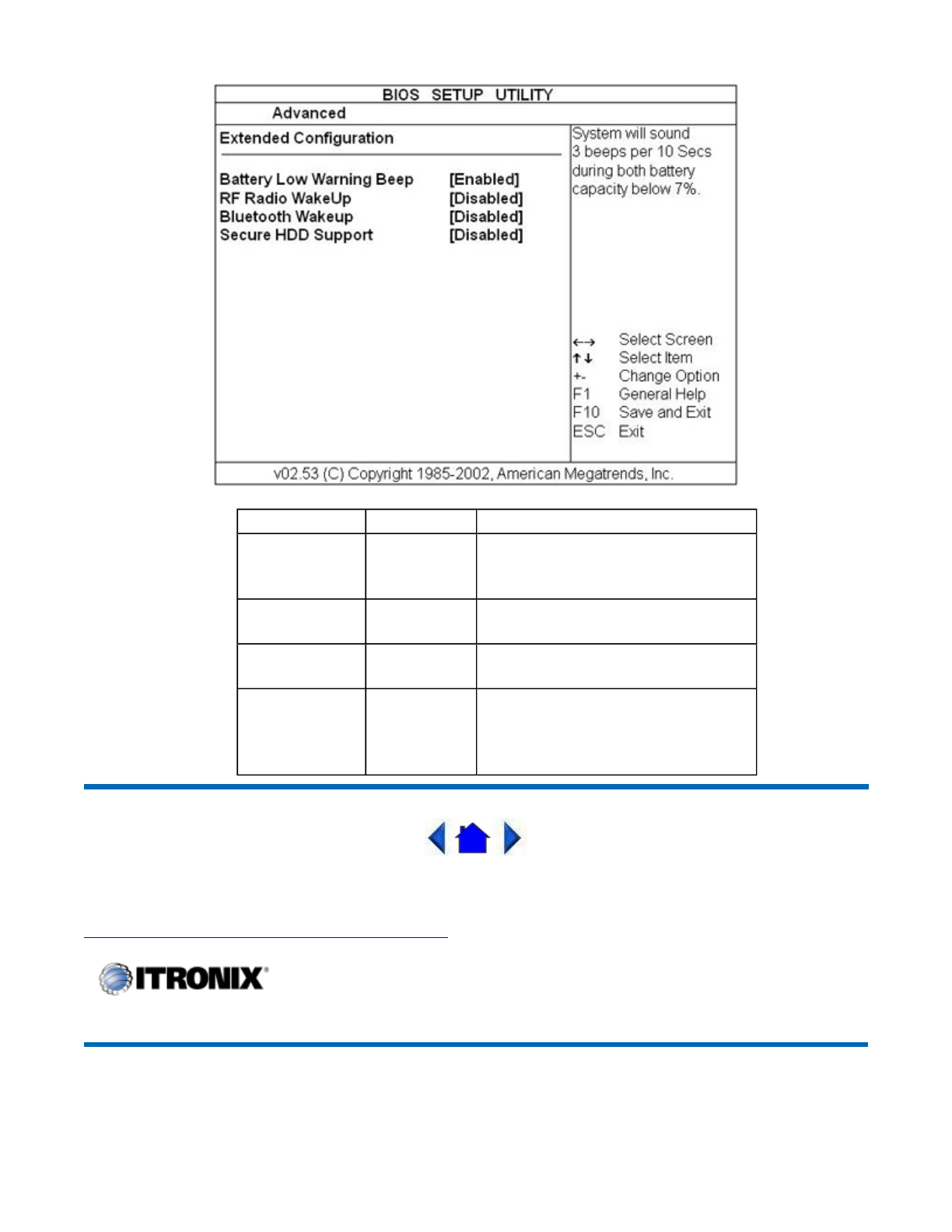

Extended Confi

uration

Field Setting Function

LEDs Off LEDs are disabled

On LEDs function normally

FAN Off The Fan is disabled. Heat management is then controlled solely

through throttling.

On The fan functions normally

Audio Off Volume is set to 0 across suspend/resume and boot. Use the existing

audio function keys to restore volume.

On Audio is preserved across suspend/resume and boot. The default

volume level is set to mid range.

System

Beeps

Off The system beeper is disabled during the boot up or resume process.

On Beeps are heard during POST

Display

Brightness

Off Brightness is set to 0 across suspend/resume and boot. FN+F1

restores brightness to the value it was set to before suspend.

Additionally, FN+F7 can be used to increase display brightness

gradually. FN+F6 can be used to decrease brightness gradually.

On Display brightness is preserved across suspend/resume and boot. It

is restored to default when the brightness level is set at 0. The

default level is mid range.

e 47 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

72_0119_001

28 June 2004

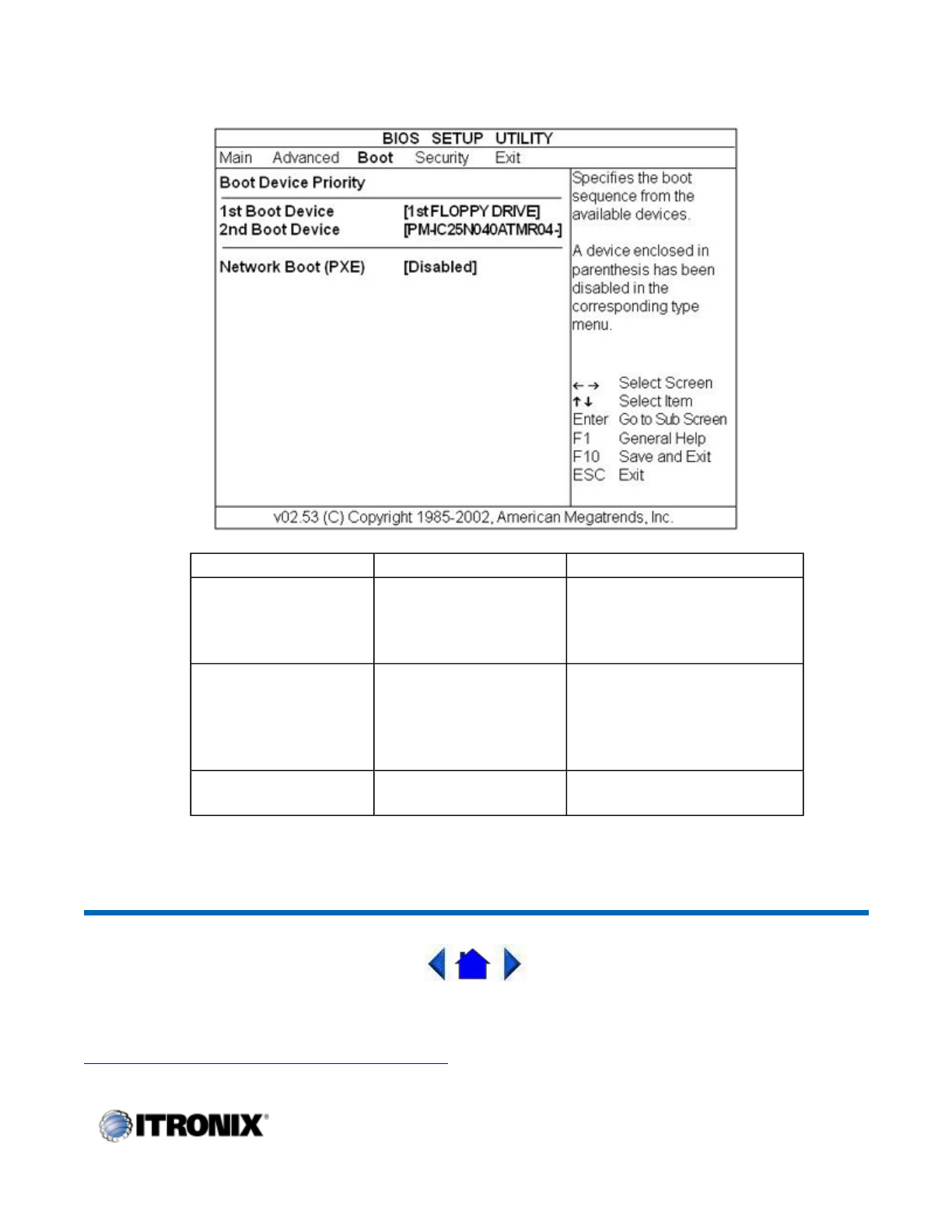

The Boot Menu

Use these fields to set the devices from which the s

stem should boot in order of

riorit

. When

Field Setting Function

Battery Low

Warning

Beep

Disabled

Enabled

System will sound 3 beeps per 10

Secs during both battery capacity

below 7%.

RF Radio

WakeUp

Disabled

Enabled

If enabled, RF Radio Card will

wake system.

Bluetooth

Wakeup

Disabled

Enabled

If enabled, Bluetooth will wake

system.

Secure HDD

Support

Disabled

Enabled

If enabled, the system will close

S3 support for ACPI and will

keep HDD power if the system

restarts.

GoBook III® Help

e 48 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

select a device, it is disabled in the other boot device fields.

CAUTION Incorrect settings can cause your system to malfunction. To correct mistakes, return to

Setup and restore the Setup Defaults by pressing F9.

72_0119_001

28 June 2004

Field Setting Function

1st Boot Device PM-

IC25N040ATMR04-0

1st Floppy Drive

Disabled

Select the device computer

should boot from first.

2nd Boot Device PM-

IC25N040ATMR04-

1st Floppy Drive

Disabled

Select the device computer

should boot from second.

Network Boot (PXE) Disabled

Enabled

If enabled, booting from the

network is possible.

e 49 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

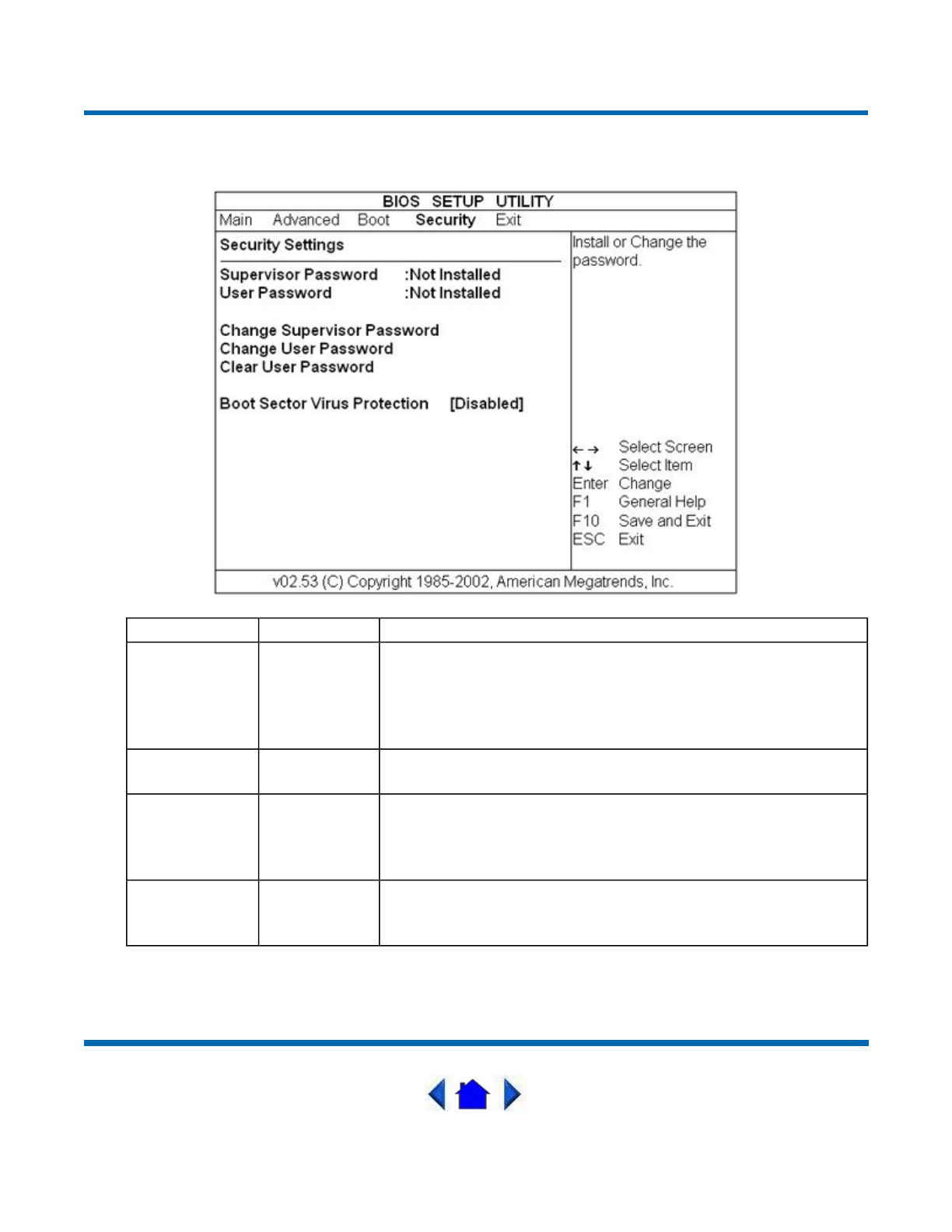

The Security Menu

CAUTION Incorrect settings can cause your system to malfunction. To correct mistakes, return to

Setup and restore the Setup Defaults by pressing F9.

GoBook III® Help

Field Setting Function

Change

Supervisor

Password

Enter New

Password

Install or Change the Supervisor password. This field must be

set before a user level password can be set. You will be

prompted for the new password, and then again to verify it.

Type in six or fewer keystrokes. If you make an error, press

Esc to start over.

Change User

Password

Enter New

Password

Install or Change the User password

Clear User

Password

Clear User

Password?

Cancel

Immediately clears the User password.

Boot Sector

Virus

Protection

Disabled

Enabled

Enable/Disable Boot Sector Virus Protection

e 50 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

72_0119_001

28 June 2004

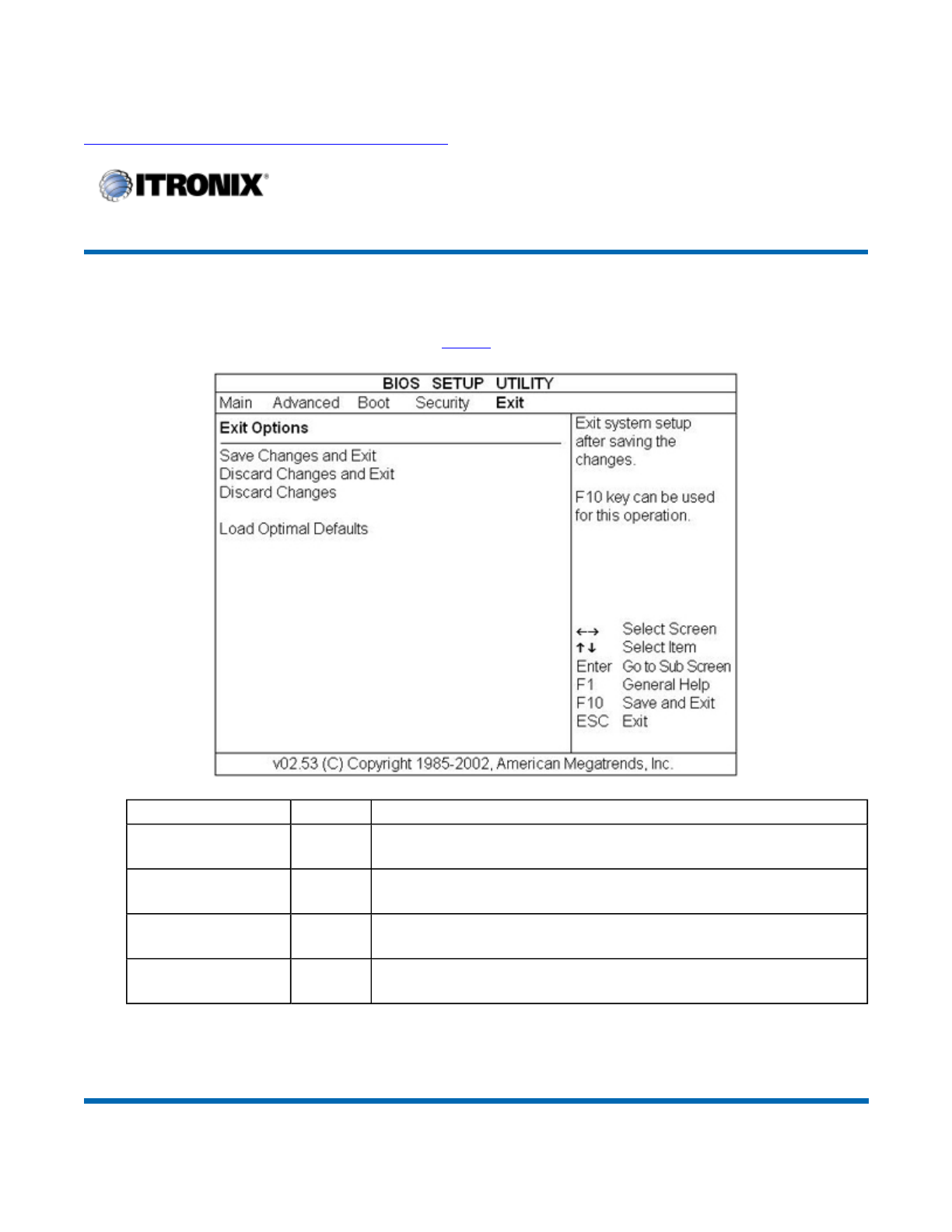

The Exit Menu

You use the exit menu to leave the BIOS Setup Utility .

CAUTION Incorrect settings can cause your system to malfunction. To correct mistakes, return to

Setup and restore the Setup Defaults by pressing F9.

GoBook III® Help

Field Setting Function

Save Changes and

Exit

Cancel

Exit system setup after saving the changes. The F10 key can

be used for this operation.

Discard Changes

and Exit

Cancel

Exit system setup without saving any changes. The Esc key

can be used for this operation.

Discard Changes OK

Cancel

Discards changes done so far to any of the setup questions.

The F7 key can be used for this operation.

Load Optimal

Defaults

Cancel

Load Optimal Default values for all the setup questions. The

F9 key can be used for this operation.

e 51 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

72_0119_001

28 June 2004

Optional Equipment and Accessories

The GoBook III computer has several equipment and accessory options to further enhance your mobile

computing experience.

CAUTION When purchasing any additional accessories, purchase only those accessories that are

approved for use with your computer. Some accessories are proprietary items and can be obtained

through your system vendor. If you use items that are not approved for use with this computer, you may

cause your computer to malfunction, or to emit or receive electromagnetic radiation in excess of local

regulations. For non-proprietary accessories such as PC Cards or printers, ensure that the accessory

functions properly in your computer before making the purchase. Your system vendor may be able to

recommend reliable brands and models.

Surge Protection

A large number of computer and high technology equipment damage is directly related to AC power and

telephone line problems. These problems can include surges, spikes, noise, interference, and weather-

related problems, which in turn can cause glitches, hang-ups, crashes, performance slow downs, and

down time with computer equipment. The market is flooded with hundreds of AC power line surge

suppressors advertising high performance surge protection; only a few of them actually provide

adequate protection.

This section provides guidelines for selecting a quality surge suppressor to be used with your GoBook

III, and it helps identify a few sources for products with acceptable performance.

Selecting the Right Surge Protection

Consider the level of quality you need when selecting a surge suppressor. This depends on factors such

as surge environment, the type of equipment to be protected, and the quality of the electrical wiring and

service.

Surge Environment

Surge environment refers to the damage potential from electrical surges in a particular geographical

area. A high quality suppressor should be used if there is frequent lightning activity in the area and the

location service is fed b

overhead utilit

oles.

GoBook III® Help

e 52 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

Type of Equipment to be Protected

If the computer is equipped with a modem, the modem should also be surge protected. Protecting the

ower line without protecting the modem line provides only partial protection.

Quality of Electrical Wiring and Service

Wiring should be up to current NEC standards and have verified good AC grounds. It is important that

your computer system be plugged into a grounded AC outlet when charging and that all peripherals

connected to your system reference the same AC ground.

Selecting the Right Equipment

There are a number of companies that sell quality surge suppressors such as Sutton Designs, APC, and

Panamax. When you are looking for a surge suppressor, consider these things.

zExpect to pay at least $50 for a good quality surge suppressor.

zThe surge suppressor should be a UL 1449, 497, and 1283 listed for surge suppression, modem

surge protection, and RFI/EMI noise filtering respectively.

zThe surge suppressor should have diagnostic LEDs that verify good AC ground, proper wiring,

and proper surge operation. On/off switches that light are not recommended since they can

produce electrical noise.

zThe Joule ratings should be a minimum of 480 Joules for the AC surge circuit.

zThe Joule ratings should be a minimum of 240 Joules for the modem.

zThe modem surge circuit should present low capacitance to the modem line or it will slow the

transmission rate. Capacitance should be specified at less than 50 picofarads.

zQuality surge suppressor manufacturers generally offer a lifetime warranty.

zConsider obtaining a protected equipment coverage policy which insures the equipment in the

event of surge damage.

zThe devices that will be attached to the computer also need to be surge protected.

72_0119_001

28 June 2004

e 53 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

Vehicle Adapter

The Vehicle Adapter is an optional device that supplies power from the vehicle battery to operate the

computer and charge the battery installed in the unit. It typically connects to the vehicle battery using the

cigarette lighter socket.

To prevent possible damage to the battery, the system will not allow the battery to charge at extreme

temperatures. Be aware of the following charging characteristics, especially if the computer is left

unattended in a closed vehicle.

To connect the vehicle adapter

1. Insert the vehicle adapter’s power cord into the power port on the back of the computer.

2. Insert the cigarette lighter adapter into the vehicle’s cigarette lighter socket, turning it slightly to

make a good connection.

The power light illuminates to indicate that current is reaching the vehicle adapter. When you

connect the vehicle adapter, it automatically begins charging the computer’s battery. At moderate

temperatures, around 21°C (70ºF), the battery will be fully charged in approximately four to five

hours. However, under extremely cold or hot temperatures, or if the system is on, it will take

longer to charge the battery (up to 16 hours).

72_0119_001

28 June 2004

Vehicle Cradle

The vehicle cradle is a vehicle-based docking station designed to safely secure the computer in the

vehicle. A standard key lock located on the front of the cradle locks the computer onto the cradle for

securit

oses. You can use the vehicle cradle to:

GoBook III® Help

Temperature Charging Activity

<5°C (<41°F) Battery will not charge

>50°C (<122°F) Battery will not charge

GoBook III® Help

e 54 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

zCharge batteries

zCommunicate with other devices

zAutomatically connect to an external RF antenna

PRECAUTIONS

zThere are no user-replaceable parts within the vehicle cradle, so do not open the cradle case. The

vehicle cradle is internally protected; it resets automatically if there is a power fault.

zDo not use the vehicle cradle to charge the computer battery overnight. Turn off the vehicle cradle

at the end of each work day to prevent draining the voltage in your vehicle’s battery below

starting levels.

Charging Batteries

The vehicle cradle is designed to charge the computer’s battery with voltage from the vehicle battery

while you are traveling between jobs. Follow the procedure below to charge a battery.

To char

e a batter

installed in the com

ute

e 55 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

1. Place the computer onto the vehicle cradle, making sure it is securely latched.

2. If charging is required it begins automatically. The Battery Power Indicator flashes.

3. When the battery is fully charged, the Battery Power Indicator remains steady.

Communicating with Other Devices

Connect the external device to either of the USB ports on the back of the cradle, and then place the

GoBook III onto the vehicle cradle. You can install or remove the computer from the vehicle cradle

without connecting or disconnecting the cables.

External Antennas

You can also connect an external RF antenna to the cradle using the SMA RF connector on the back of

the vehicle cradle. FCC regulations require that users of vehicle-mounted antennas must use only

antennas authorized for use with the GoBook III in order to meet FCC RF exposure limits. Please

contact your organizations’s help desk for a list of approved vehicle-mounted antennas. For mounting

installation and/or mounting instructions for these types of antennas, see the instructions that accompany

each antenna.

RF Antenna Placement

WARNING Improper installation and/or operating configurations of permanent and magnetic vehicle-

mounted antennas may cause FCC RF exposure limits to be exceeded. Vehicle-mounted antennas must

be placed at least 20 cm from operators and bystanders.

Placement of a vehicle-mounted antenna

1. Measure and identify an area 20 cm (8 inches) in from the edges of the vehicle roof (see diagram

below).

2. Place the antenna within that area.

Important

zA temperature of 5°C to 50°C (41°F to 22°F) is required when charging batteries with the

vehicle cradle. Batteries will not charge successfully outside this temperature range.

zIf you charge your battery daily, rely on the gas gauge reading to determine battery

capacity. The gas gauge displayed by the Power Meter may show that the battery is full,

but charging continues. This happens because the charging process is trying to put a little

more capacity into the battery. External power can be removed at this time since the

battery is virtually full.

zIf your battery is new or has not been used for several weeks, rely on the indicator light to

determine when the battery is fully charged. The gas gauge is unreliable in these cases; it

may read 100%, when the actual capacity is only 10%.

e 56 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

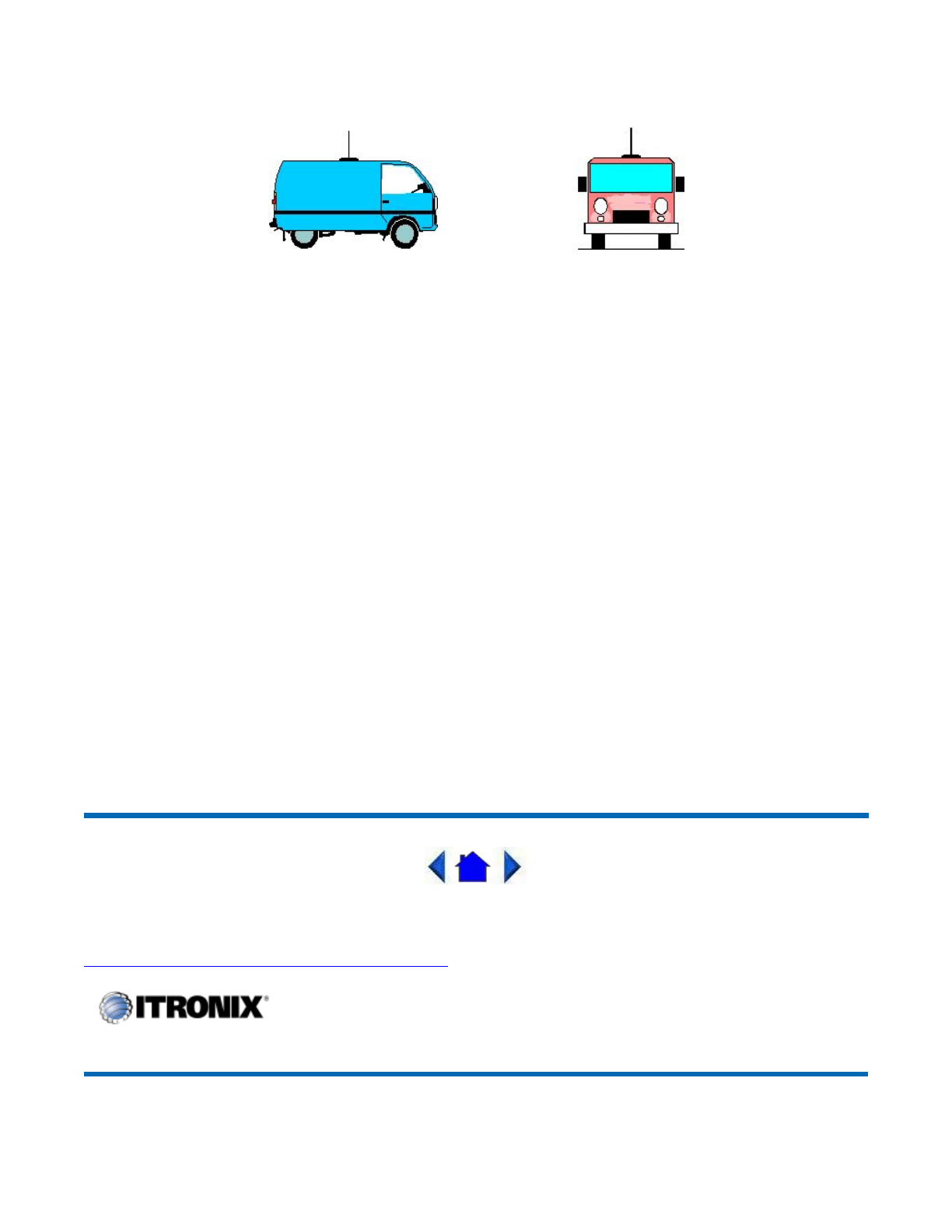

To maximize RF performance, position the antenna in the center of the vehicle roof.

Cleaning or Replacing Cradle Contact Pins

The contact pins on the vehicle cradle are exposed to contamination and stress when the computer is

installed and removed from the cradle during normal daily operation. If the pins become dirty, they can

be removed and cleaned as necessary using electrical contact cleaner. Or they can be replaced. The

ower and ground pins are pins 3 and 8 respectively. When charging problems are encountered and

replacement pins are not available, other pins in the contact assembly can be used to field fix the unit

until replacement parts are available.

To clean or replace the cradle contact pins

1. Hold down the protective plastic cover.

2. Grasp a pin and pull straight up, being careful not to bend it.

3. Clean the pin with electrical contact cleaner and reinstall it into the cradle contact assembly.

If a pin is bent or cannot be cleaned, contact your support desk to obtain a replacement pin.

NOTE Pin 8 is not user replaceable. Contact your support desk for information about replacing this RF

connector.

CAUTION Do not place any metal objects on top of the cradle that might make contact with the metal

ins of the contact connector. Doing so may cause an electrical short and subsequent damage to the

cradle.

72_0119_001

28 June 2004

Heaters

GoBook III® Help

e 57 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

Hard Disk Drive Heater

If your GoBook III has a hard disk drive (HDD) heater option to warm the HDD before spinning up in

temperatures below 5°C, the minimum safe operating temperature of the HDD. The heater is built into

the removable HDD module and operates as needed when the computer is turned on or is in an

operational state. If the temperature is below 5°C when booting or resuming you will see the message

"Warming internal hard drive. Please wait...". The unit will continue booting when it detects the HDD

is warm enough to operate safely.

NOTE If you are using the computer in a cold temperature environment and the battery level is too low

for the heater to operate, you will see the error message "Battery too low to warm the hard drive.

Shutting down..." and the computer will shut down. Apply external power and reboot.

LCD Heater

The GoBook III also has an CCFL heater to improve display brightness in a cold environment. The

heater consists of a film and heater strip that is bonded over the CCFL area of the display. It is designed

to turn on when the temperature is cold enough to impact display brightness.

72_0119_001

28 June 2004

Maintenance and Storage

The GoBook III is ruggedized and weather resistant. Handle it with the normal care required by any

sophisticated electronic equipment, and the computer will provide reliable service even under harsh field

conditions.

Follow the guidelines in this section to care for your unit.

Battery Maintenance and Storage

Maintainin

Batteries

GoBook III® Help

e 58 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

Follow these guidelines to maintain performance of Lithium-Ion (Li-on) batteries.

zAvoid exposing batteries to extremely hot or cold temperatures for long periods. To prevent

possible damage to the battery, the GoBook III does not allow the battery to charge if the internal

temperature of the battery gets too low (< 5°C or < 41°F) or too high (> 50°C or > 122°F).

zCharge the battery nightly where the temperature will remain around 20°C (68°F).

zRe-calibrate your battery when your battery performance degrades.

Storing Batteries

zStore the battery within the recommended temperature range: 10°C to 30°C (50°F to 86°F).

zUnused or stored batteries can lose power over time. When you install a battery that has not been

used for awhile, connect external power to the computer and charge the battery.

zAfter storage, battery calibration may increase its capacity.

Refer to Battery Tips for more recommendations regarding your batteries.

72_0119_001

28 June 2004

Computer Maintenance and Storage

Maintaining Your Computer

Follow these guidelines to help maintain the condition and performance of your computer.

zTurn off the computer when you are not using it.

zCharge the batteries daily or whenever their capacity is low.

zOperate the computer within the recommended temperature ranges of -23°C to +60°C (32°F to

+140°F).

Care and Cleanin

GoBook III® Help

e 59 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

Physical Inspection Periodically inspect the computer and accessories for wear, damage, loose or

missing parts. Identifying and correcting potential problems early can help reduce the need to return the

unit for service.

Outside Case Like all tools, the outside of the computer will get dirty with use. The case is made of

ainted Magnesium and polycarbonate blend (plastic) doors and covers. These areas can be cleaned with

a solution of one part Formula 409™ and one part water. Follow the procedure below.

To clean the outside case

1. Disconnect external power and turn off the computer.

2. Remove the battery.

3. Using a soft, dry cloth (do not use paper products because they can scratch the surface, add a

small amount of cleaning solution to the cloth and clean the computer case.

4. Wipe off any excess liquid with a soft cloth.

5. Reinstall the battery.

Display Periodically inspect the display to make sure the brightness function is operating properly and

that all pixels are operational.

To clean your touch screen

To clean the display assembly, use the same cleaning solution and procedure described earlier for the

outside case. In some cases, you can use a small amount of isopropyl alcohol to remove streaks or

smears. Use a soft, clean cloth to clean the display. Do not use paper products because they can scratch

the screen.

External Power Connector The external power connector may sometimes be exposed to moisture

and/or contamination causing an unreliable connection to the external power source.

Clean the connector using a cotton swab dipped in isopropyl alcohol.

RJ-11/ RJ-45 / USB / IEEE 1394 Connectors Make sure these connectors are operating properly.

During normal use, the connector pins can get dirty or become broken, bent, or pushed out of place.

Clean the connector with a cotton swab dipped in isopropyl alcohol.

Keyboard Check all keys to make sure they are working properly. To clean the keyboard, use the same

cleaning solution and procedure described above for the outside case.

If keyboard problems persist, the keyboard might need to be replaced. This can be done without

returning the unit for service. Contact your local support person for more information.

I/O Ports Make sure the video, serial, and audio ports are operating properly. Periodically inspect the

orts for damage or contamination, and make sure the cover is attached to the computer. The I/O cover

can be replaced without returning the unit for service. Contact your local support person for more

information.

e 60 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

PC Card and Connectors Whenever possible, make sure this door is closed and latched properly.

When the PC Card door is closed, it provides a watertight seal for the PC Card socket. Shield the area

from all contaminants such as liquids, rain, snow, and dust when the door is open.

Make sure the PC Card connector is operating properly by reading from or writing to a PC Card.

Smart Card and Removable Drive Whenever possible, make sure this door is closed and latched

roperly. When the door is closed, it provides a watertight seal for the Smart Card Reader and

Removable Drive. Shield the area from all contaminants such as liquids, rain, snow, and dust when the

door is open.

Cradle Contacts The cradle contacts on the bottom of the computer may get dirty with daily use. Pins

can be cleaned with a cotton swab dipped in isopropyl alcohol. See Cleaning or Replacing Cradle

Contact Pins for more information.

Storing Your Computer

If you plan to store the computer, follow these storage guidelines.

To store the computer

1. Files and data should be saved before storing the computer.

Contact your organization’s help desk about the procedure for backing up files or data.

2. Exit all applications and use the appropriate procedure to exit from your operating system.

3. Turn off the computer by going to the Start menu and selecting Shutdown.

4. Remove the battery from the unit and store it in a dry place.

5. Store the computer within the recommended temperature ranges of -40°C to +75°C (-40°F to

+167°F).

If you use PC cards, refer to the manufacturer’s instructions you received with the card for storage

and care information.

72_0119_001

28 June 2004

GoBook III® Help

e 61 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

Hard Drive Care and Handling

There is one hard drive option for the GoBook III: a removable shock-mounted 2.5-inch hard drive. All

hard drives contain media for data storage in the form of a rotating disk, read/write head(s), a motor, and

electronics for interfacing and control. Drives can be susceptible to damage from severe shock and other

stressful environmental impacts. The degree of susceptibility to damage is directly related to the

individual hard drive and the mounting system employed.

When reading or writing to the hard disk , the head is “flying” on a thin layer of air, micro-inches above

the disk. A shock can cause the read/write head to contact the spinning disk, resulting in immediate loss

of stored data and possible physical damage to the disk. It could also create loose debris in the drive

enclosure that may cause progressive damage over time.

To reduce exposure to high operating shocks, the GoBook III uses power modes for the hard drive that

revent the read/write heads from being positioned over the disk when it is not being used: idle mode

and standby mode.

You can reduce the risk of damage to the hard drive and increase the reliability of the hard drive and

data integrity by following the recommendations below.

Installing and Removing the Hard Drive

To remove the hard drive:

1. Shut down the unit and remove external power.

2. Open the battery door and remove the battery using the extraction tape. The hard drive is in a

cassette that can be seen in the battery well just under the RTC hatch.

3. On the left side of the hard drive cassette you will see a small black release lever. Pull the lever

towards you (away from the direction of the RTC hatch) and slide the cassette out into the battery

stora

e area.

e 62 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

4. Lift the hard drive cassette from the battery storage area.

To install the hard drive:

1. Make sure the unit is shut down and external power is removed.

2. The battery door should be off the unit and the battery removed.

3. Make sure the small black release lever is rotated towards you (in its released position).

4. Slide the hard drive cassette into its storage location.

5. Replace the battery and then replace the battery door.

Internal Hard Drives

zDo not intentionally drop the computer. The unit is designed to withstand the day to day rigors of

the mobile environment and provide years of reliable service. The useful life of the product can be

enhanced by not intentionally abusing it.

zWhenever possible suspend the unit by pressing FN+F3 before moving it from one location to

another. This will unload the read/write heads and spin down the disk.

zMaintain the environmental seal of the computer by keeping all external access doors closed and

latched. Also avoid exposing the unit to extreme temperatures or moisture when the doors are

open.

zPeriodically backup or archive important files and data.

External PC Card Hard Drives

Each PC Card hard drive manufacturer provides specific guidelines for the care and handling of the

roduct. In addition, follow these recommendations:

zWhen the PC Card hard drive is not inserted in a PC Card socket, store the hard drive in a

rotective carr

case. This will hel

rotect it from inadvertent shocks.

e 63 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

zAlways use care when handling the hard drive. Do not drop, bend, flex, or crush it.

zAvoid exposing the PC Card hard drive to extreme moisture, heat, or sunlight.

zKeep all debris out of the connector to ensure good electrical connections.

zThere are no user repairable parts in the PC Card hard drive. Do not attempt to disassemble any

part of the hard drive. The warranty will be voided if drive seals are broken or screws have been

removed.

zPeriodically backup or archive important files and data.

If you encounter or suspect hard drive problems, you can run SCANDISK, which provides a description

of file usage and syntax on selected drives. SCANDISK will identify any failures on the hard drive and

rompt you for corrective action based on selected options. If problems are found, it may be necessary

to run SCANDISK several times to determine the extent and severity of the problem. SCANDISK may

discover multiple bad clusters. Up to ten bad clusters can be allowed before returning the computer for

service. After you have run SCANDISK and the problem persists or becomes more severe, or if

SCANDISK finds more than ten bad clusters, return the unit for service.

To run SCANDISK in WIN2K and WINXP right click on the drive letter, go to properties, and select

the tools tab, Error-checking and click check now. In other Windows operating systems you can run

SCANDISK by going to Start, Programs, Accessories, System Tools. Then select SCANDISK.

72_0119_001

28 June 2004

Touch Screen Care

GoBook III® Help

CAUTION

zAlways use an approved stylus or your finger.

zNever use sharp, hard, or abrasive implements on the touch screen such as ball point pens,

pencils, or keys. They could damage the screen.

zTo clean the touch screen panel, apply a household glass cleaner to a soft, clean, dry cloth

and wipe the screen.

e 64 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

72_0119_001

28 June 2004

Error Messages

The following are possible error and warning messages you may encounter while operating the GoBook

III computer. The messages described in this section are listed below.

Error and warning messages are generated by several different sources including:

zPower On Self Test (POST)

zMS-DOS

zWindows

zApplications

POST Messages

When the GoBook III computer restarts, it tests its hardware components. This test is called the Power

On Self Test (POST) . If the system finds an error during this test, it displays an error message.

Some POST errors can occur before anything can be displayed on the screen. In this case, the computer

issues a series of beeps, then stops working. This type of error indicates a serious hardware problem, and

you should contact your supervisor or your organization’s help desk.

The most common POST error messages are listed next along with solutions you can try.

Disk not found

Restart the computer by pressing the power button for at least eight seconds. If the problem persists,

contact your supervisor or your organization's help desk.

Fixed disk controller failure

GoBook III® Help

e 65 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

Disk controller is not responding. Report this error to your supervisor or your organization's help desk.

Fixed disk failure

Report this error to your supervisor or your organization's help desk.

GA20 Error

Hardware failure. Report this error to your supervisor or your organization's help desk.

Hard disk boot sector invalid

Hard disk failed

Restart the computer by pressing the power button for at least eight seconds. If the problem persists,

contact your supervisor or your organization's help desk.

Insert boot-disk and press any key

Restart the computer by pressing the Power Button for at least eight seconds. If the problem persists,

contact your supervisor or your organization's help desk.

KB / Interface Error

Reboot the computer by pressing CTRL+ALT+DEL. If the message persists, and the keyboard is not

usable, report this error to your supervisor or your organization's help desk.

Keyboard Error

Unlock Keyboard

Restart the computer by pressing the Power Button for at least eight seconds. If the problem persists,

contact your supervisor or your organization's help desk.

o boot device available

Reboot the computer by pressing CTRL+ALT+DEL. If the message persists, the hard disk may need

to be replaced. Report this error to your supervisor or your organization's help desk.

o boot sector on hard dis

Data corrupted on hard disk. Restore hard disk data by rebooting from CD-ROM.

on-system disk or disk error - Replace and press any key to continue

Remove the non-bootable PC memory card or floppy disk and press any key to reboot.

on-s

stem disk - insert boot disk and

ress an

e 66 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

Restart the computer by pressing the Power Button for at least eight seconds. If the problem persists,

contact your supervisor or your organization's help desk.

Press the F1 key to resume

This message indicates that an error was found during POST. Pressing the F1 key allows the system to

attempt to boot.

CPU Fan Error

Report the error to your supervisor or your organization's help desk.

Battery too low to warm the hard drive. Shutting down...

There is not enough battery power to operate the Hard Disk Drive (HDD) heater and the temperature is

too cold to safely turn on the HDD. Apply external power and/or move the unit to a location that is at

least 5°C.

Warming internal hard drive. Please wait...

The temperature is less than 5°C and the HDD heater is operating. The unit will continue booting when

the HDD temperature is warm enough for safe operation.

72_0119_001

28 June 2004

MS-DOS Messages

The MS-DOS operating system may display a warning or error message if it encounters a problem with

a command in the CONFIG.SYS or AUTOEXEC.BAT file, or a command that you entered at the DOS

rompt. Following are a few of the most common MS-DOS messages.

Bad command or file name

A command was entered that is spelled incorrectly or does not exist on the computer.

Invalid media t

e readin

drive X

(

where X is an

drive letter

)

GoBook III® Help

e 67 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

Abort, Retry, Fail?

The media may not be formatted. Press a to abort, then format the card using the MS-DOS Format

command, or from Windows using the Format Disk command.

Invalid drive specification

You tried to access a drive that does not exist. This can happen if you try to access drive D, but the

media is not loaded. Report this error to your supervisor or help desk.

on-System disk or disk error

Replace and press any key when ready

This can occur if media is in the card socket and you restart the computer. Remove the media, and then

ress any key.

ot ready reading drive X (where X is any drive letter)

Abort, Retry, Fail?

Make sure that the media is inserted fully into the card socket, then press r to retry.

72_0119_001

28 June 2004

Windows Messages

Windows messages are typically self-explanatory. (See Troubleshooting, for more information).

Application Messages

Both MS-DOS and Windows applications may display messages if a warning or error condition occurs.

Refer to the online Help or other documentation for the application that generated the message.

GoBook III® Help

e 68 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

72_0119_001

28 June 2004

Troubleshooting

This section is designed to help you determine and fix problems you might encounter while operating

the GoBook III computer. Try the following things in order:

zFirst look through the categories in this section for a solution.

zIf you don’t find a solution for your situation here, try one of the resources listed below.

zIf you are having a problem with a computer application , use the online Help that comes with the

application to find a solution.

zIf you still cannot resolve your problem, contact the help desk at your organization.

For More Help

zWindows Help is already installed on your system. To access this information, select Windows

Help and Support from the Start Menu.

zThird-party Windows manuals are available from your local bookstore.

Applications

My application locks up, acts strangely, or produces a General Protection Fault (GPF) error

zIf you’ve tried to resolve the problem and your application still doesn’t respond, you may need to

restart your computer as described below.

To reboot your computer, select Start, Shut Down, Restart. If that does not work, try pressing

CTRL+ALT+DEL twice.

If the computer does not restart, the keyboard may be locked up. Perform a hardware reset by

holding down the Power Button for at least five seconds and then release the button.

CAUTION This will result in a loss of all unsaved data.

zThe data on the hard dis

could be corru

ted. Run SCANDISK.

GoBook III® Help

e 69 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

zWindows is out of memory/resources. Exit Windows and restart Windows.

Communications programs such as HyperTerminal don’t seem to work or they lock Windows

zWhen you first try to use HyperTerminal or similar application, the system responds with a

message asking if you want to install the modem. Answer “Yes” to this question and follow the

instructions on the screen to install it.

72_0119_001

28 June 2004

Batteries

The battery does not charge

zTo prevent possible damage to the battery, the system will not allow a charge if the battery

temperature is extremely hot or cold (such as in a closed, unattended vehicle). If possible, charge

the battery in a location with a moderate temperature of around 20°C (68°F).

zIf possible, turn off the computer while the battery is charging.

zIf the battery is new or has been stored for a week or more, follow this procedure:

1. Make sure the computer is turned off.

2. Open the battery door and remove the battery.

3. Connect the AC adapter to the computer and an AC wall outlet, and then turn on the computer by

pressing the Power Button.

4. Let the computer complete the boot process. Then reinstall the battery and replace the battery

door..

5. Allow the system to remain idle for one hour with the AC adapter connected to the computer.

The Battery Power Indicator blinks when the battery starts charging.

6. If the batter

still fails to char

e after an hour, remove the batter

, wait several seconds, and then

GoBook III® Help

e 70 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

install it again.

If the battery does not begin charging within several minutes, return the unit for service.

The batteries take much longer than seven hours to charge

zUnder moderate temperatures, about 21°C (70ºF), the computer’s battery takes approximately 4 to

5 hours to completely charge. Under extremely cold or hot temperatures, however, the battery can

take up to 16 hours to fully charge.

The batteries don’t last very long

zCalibrate the battery using the Battery Calibration selection in Mobile Computer Tools. If your

battery is new or has not been used for several weeks, calibrating the battery over a weekend may

substantially increase its capacity.

zAs your battery ages, the maximum capacity that it can hold naturally decreases, and even the best

maintained batteries eventually need to be retired. Consider replacing the battery if you are not

getting the usage you need from it.

The gas gauge isn’t full after charging the battery

zThis may indicate that the charging process terminated prematurely.

The gas gauge reads “full,” but the charging indicator light is still blinking

zIf you charge your battery daily, rely on the gas gauge reading to determine battery capacity. The

charging process may continue even if the gas gauge reads full. External power can be removed

because the battery is virtually full.

My battery seems to have less and less capacity

zIf your battery is new, or if your are using it for the first time, you will need to calibrate it prior to

using it.

zAs your battery ages, the maximum capacity that it can hold naturally decreases, and even the best

maintained batteries eventually need to be retired. Consider replacing the battery if you are not

getting the usage you need from it.

72_0119_001

28 June 2004

e 71 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

Display

The display performance is slow

zThe temperature may be too cold. Move the computer to a warmer operating environment.

I can’t read the display

zAdjust the brightness level using FN+F6 and FN+F7.

zThe automatic power-saving mode may have shut off (suspended) the computer. Press any key to

resume.

zIf the display brightness is unreadable after a resume or reboot but is easily adjusted with FN+F6

and FN+F7, you may have set Stealth mode in the Setup Utility. If you disable Stealth mode, the

display and backlight will operate normally.

The underlined, inverse, and hypertext characters are difficult to read on the screen

zChange the color scheme. From the Start Menu select Settings, Control Panel, choose Display,

and then tap the Appearance tab to make changes to the color scheme.

I can’t see the cursor while using the DOS editor

zPress FN+INSERT to change from insert mode to overwrite mode to enable a block cursor.

When it defaults to insert mode, the DOS editor uses an underline cursor which is less visible than

the block cursor for overwrite mode.

The display appears to have random pixels darkened after scrolling

zContact your supervisor or your organization’s help desk for information about correcting this

problem.

I changed my display resolution, but I see no difference on the screen

zTry restarting your computer for the changes to take effect.

72_0119_001

28 June 2004

GoBook III® Help

e 72 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

Hard Disk

The hard disk will not spin up so the computer can’t boot up

zThis occurs if the unit is exposed to extreme low temperatures. This is not a hardware failure

associated with the hard disk . Allow the computer to warm to room temperature. The minimum

cold or soft boot temperature is 0°C (32°F)

I can’t save files because the disk is full

zReport this situation to your supervisor or your organization’s help desk.

Diskette Read Error

zAny card in the PC card socket except for a properly formatted memory card will cause this error

since it is trying to read the PC card.

zAny media in the installed media bay, except for properly formatted media, will cause this error

since it is trying to read the media.

I get the message "Battery too low to warm the hard drive. Shutting down..."

zThere is not enough battery power to operate the Hard Disk Drive (HDD) heater and the

temperature is too cold to safely turn on the HDD. Apply external power and/or move the unit to

a location that is at least 5°C.

72_0119_001

28 June 2004

I/O Ports

I can’t access a serial

ort

GoBook III® Help

e 73 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

zMake sure another application is not using the same port .

zMake sure the correct COM port is selected in your application. Refer to the online Help for your

application.

72_0119_001

28 June 2004

Keyboard

Something unexpected happens when I press a key

zYou may have pressed a key combination that performs a Windows function. Make sure you are

pressing the correct keys for the application you are running.

Incorrect characters appear on the screen when I press certain keys

zYou may be in NUM LOCK mode. Press NUM LOCK to toggle NUM LOCK mode off.

72_0119_001

28 June 2004

Landline Modems

The modem doesn’t work

zWhen

ou first tr

to use H

erTerminal or similar a

lication , the s

stem res

onds with a

GoBook III® Help

e 74 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

message asking if you want to install the modem. Answer “Yes” to this question and follow the

instructions on the screen to install it.

zMake sure the communication settings are correct in your application. Refer to the online Help for

your application.

The modem doesn’t dial a number

Check these things:

zIf you are using an external modem, make sure the cables are attached correctly.

zMake sure your communications parameters are correct in your application. Refer to the online

Help for your application.

The modem dials and receives an answer but does not establish a connection

zYou may have incorrect parameters selected for your application to talk with the remote modem.

Refer to the online Help for your application.

zYou may need to adjust your modem’s baud rate or protocol selection.

Communications programs such as HyperTerminal don’t seem to work or they lock Windows

zIf you are using the internal modem, be sure to specify the proper communications port .

zWhen you first try to use HyperTerminal or similar application, the system responds with a

message asking if you want to install the modem. Answer “Yes” to this question and follow the

instructions on the screen to install it.

The modem dials and the answering modem generates tone, but our modem does not begin the training

sequence to establish a connection

Although the problem may appear to originate from the computer, the source of the problem is the

answering modem.

zTry setting up the answering modem to generate the correct V.22 tone, which can usually be done

by sending an AT command to the modem.

72_0119_001

28 June 2004

e 75 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

Miscellaneous

The computer shuts off unexpectedly

zThe computer has entered suspend mode . Press any key to turn it back on.

zThe battery capacity may be low. Connect external power to charge the battery, or replace the

battery with a fully charged one.

zThe battery contacts may be dirty. Turn off the computer, remove the battery, and clean the

contacts.

The speaker volume is too high or too low

zIncrease the volume by pressing FN+F9; decrease the volume by pressing FN+F8.

The computer won’t turn on

zThe battery may not be installed properly, or it may not be fully charged. Make sure a fully

charged battery is properly installed.

zConnect external power to charge the battery if it is not charged.

zIf you are using the AC adapter , check the electrical outlet you are using to make sure it is

working properly.

zIf the GoBook III computer does not turn on, restart the computer by holding down the Power

Button for at least 10 seconds and then release it.

The computer won’t turn off

zPress and hold the Power Button for at least eight seconds.

The computer enters suspend mode too quickly

zWhen there is no activity for a period of time, the computer turns off or enters suspend mode. To

extend this time, use the Power Management program and increase the non-activity time to enter

suspend.

The computer doesn’t automatically suspend

zCheck to make sure the COM ports are off. For example, exit any application that uses COM

ports.

zMake sure external power is not connected. Depending on power settings, some systems will not

sus

end automaticall

when the

are connected to external

ower.

GoBook III® Help

e 76 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

zMake sure the standby time is set properly in the Power Management program.

The system date and time are incorrect

zReset the correct date and time by choosing the Date/Time icon from Control Panel and making

the appropriate changes.

I receive an “out of memory” error message

zToo many applications may be running at the same time. Close applications you don’t need.

zRun MS-DOS applications in full screen rather than a window. Press ALT+ENTER to toggle

between full screen and window mode.

zIf you’re using desktop wallpaper, set wallpaper to None. To do this, choose Display from Control

Panel and make the appropriate change.

zMake sure you have enough space on your hard disk . Contact your supervisor or your

organization’s help desk for assistance.

zSet up a permanent swap file. Contact your supervisor or your organization’s help desk for

assistance.

Holding down the Power button to reset the computer doesn’t always work

zTry resetting the computer again. If this doesn’t work, remove all power, including the battery

pack, and allow the unit to remain idle for ten minutes. After ten minutes, connect external power

and retry.

The LED's, backlight, and/or keyboard backlight don't illuminate.

You may have enabled Stealth mode in the Setup Utility. Go to CMOS Setup and disable Stealth mode.

The computer doesn't make any sounds, even during boot-up.

You may have enabled Stealth mode in the Setup Utility. Go to CMOS Setup and disable Stealth mode.

The fan stopped running.

You may have enabled Stealth mode in the Setup Utility. Go to CMOS Setup and disable Stealth mode.

72_0119_001

28 June 2004

e 77 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

Mouse

I have difficulty double-clicking the mouse fast enough

zFrom the Start Menu, select Settings, Control Panel, and then choose Mouse. The Buttons tab

contains the setting for the double-click speed.

I can’t see the mouse pointer

zThe mouse pointer may be off the screen. Move the mouse until it reappears on the screen.

zFrom the Start Menu, select Settings, Control Panel, and then choose Mouse. The Motion tab

contains settings for the mouse speed and mouse trails.

72_0119_001

28 June 2004

PC Cards

I can’t remove the PC card

zPress the ejector button located inside the PC card door on the side of the computer. The button

will pop out. Press the ejector button again to eject the PC card. Slide the card out.

zIf the ejector button malfunctions when you press it, release the button and then press it again.

Diskette Read Error

zAny card in the PC Card socket except for a properly formatted memory card will cause this error

since it is trying to read the PC Card.

The s

stem does not reco

nize the PC Card CD-ROM when it is inserted into the PC Card socket

GoBook III® Help

e 78 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

zThere is a delay of 10 to 15 seconds before the CD-ROM drive is recognized.

zDrivers may not be installed. Contact your organization’s help desk for assistance.

The computer locks up when I remove the PC card

zBefore you remove the card, select the PC card icon on the taskbar (in the tray area near the clock

in the lower right corner), and choose “Stop [card name] card.”

The computer locks up when inserting a PC card

zBecause of the combination media bay configuration on the GoBook III, the computer may not be

locked up. Instead, it may be taking a couple of minutes before the system recognizes the PC card

slot.

72_0119_001

28 June 2004

Pen/Touch Screen

When I try to use the stylus on my touch screen, nothing happens

zIf you cannot select objects accurately with the stylus, you may need to recalibrate the touch

screen.

To calibrate the touch screen

1. From the Start Menu, select Programs, Mobile Computer Tools and then choose Touch Screen

Calibrator. This opens the Calibration Applet.

2. Click on the Calibrate button.

3. After you have completed calibration by touching the highlighted points using an approved stylus,

select OK to have the new settings take effect.

The touch screen display warps or pillows in high humidity

zThe com

uter remains functional; however, movin

the com

uter to a more suitable environment

GoBook III® Help

e 79 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

will allow the display to recover.

The touch screen doesn't respond after a suspend

zThe touch screen needs a few seconds to work after a suspend. Wait a moment and try again.

72_0119_001

28 June 2004

oration. All ri

hts reserved.

e 80 of 80GoBook III Hel

7/5/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Local%20Settin

s\Tem

\~h...

Identification

GoBook III (IX260+) Help

June 2004 · Revision 001

transcribed, stored in a retrieval system, or translated into any other language or computer language in whole or in part, in

any form or by any means, whether it be electronic, mechanical, magnetic, optical, manual, or otherwise, without the prior

written consent of Itronix Corporation, South 801 Stevens Street, Spokane, Washington 99204.

Disclaimer

This document is printed in the U.S.A. Itronix Corporation reserves the right to revise the manual and make periodic changes

to the content without a direct or inferred obligation to Itronix to notify any person of such revision or changes. Itronix

Corporation does not assume responsibility for the use of this help manual, nor for any patent infringements or other rights or

third parties who may use the manual.

This document contains valuable trade secrets and proprietary information of Itronix Corporation.

This product is available for purchase under the terms of the Itronix Hardware Purchase and Software License Agreement.

Itronix hardware products may be reconditioned, or be manufactured from parts and components that may be new, used,

rebuilt, or recycled and in some cases, the hardware product may not be new and may have been previously installed. In any

event, Itronix warranty terms apply.

Trademark and Patent Notice

Itronix is a registered trademark of Itronix Corporation.

GoBook III is a registered trademark of Itronix Corporation

Microsoft, MS, Windows, and MS-DOS are registered trademarks of Microsoft Corporation.

IBM is a trademark of International Business Machines Corporation.

The following United States Patent Numbers apply to any unit which incorporates a DVD drive - 5,434,678; 5,589,945;

5,913,013; 6,151,444; and 6,208,805.

Compliance Statements

The GoBook III (IX260+) computer has been tested and found to comply with the limits for a Class B digital device,

ursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

zReorient or relocate the receiving antenna.

zIncrease the separation between the equipment and receiver.

zConnect the equipment into an outlet on a circuit different from that to which the receiver is connected.

zConsult the dealer or an experienced radio/TV technician for help.

The GoBook III (IX260+) computer complies with Part 68 of the FCC Rules. On the bottom of this equipment is a label that

contains, among other information, the FCC registration number and ringer equivalence number (REN) for this equipment. If

requested, this information must be provided to the telephone company.

The REN is used to determine the quantity of devices which may be connected to the telephone line. Excessive RENs on the

telephone line may result in the devices not ringing in response to an incoming call. In most, but not all areas, the sum of the

RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to the line, as determined

oBook III® Help Legal Information

e 1 of 3Le

al Information

7/7/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Deskto

\Marks%20shared%...

by the total RENs, contact the telephone company to determine the maximum REN for the calling area.

The GoBook III (IX260+) computer may be connected to the telephone network using the RJ-11 jack provided.

If this equipment causes harm to the telephone network, the telephone company will notify you in advance that temporary

discontinuance of service may be required. If advance notice isn’t practical, the telephone company will notify the customer

as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary.

The telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the

operation of the equipment. If this happens, the telephone company will provide advance notice in order for you to make the

necessary modifications in order to maintain uninterrupted service.

If trouble is experienced with this equipment, please contact the equipment manufacturer for repair and/or warranty

information. Do not attempt repairs of this equipment yourself without obtaining manufacturer authorized parts and

documentation. If the trouble is causing harm to the telephone network, the telephone company may request you remove the

equipment from the network until the problem is resolved.

Compliance Statement for Canada

NOTICE The Industry Canada label identifies certified equipment. This certification means that the equipment meets certain

telecommunications network protective, operational and safety requirements as prescribed in the appropriate Terminal

Equipment Technical Requirements document(s). The Department does not guarantee the equipment will operate to the

user’s satisfaction.

Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local

telecommunications company. The equipment must also be installed using an acceptable method of connection. The

customer should be aware that compliance with the above conditions may not prevent degradation of service in some

situations.

Repairs to certified equipment should be made by a representative designated by the supplier. Any repairs or alterations made

by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the

user to disconnect the equipment.

Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines, and

internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural

areas.

CAUTION! Users should not attempt to make such connections themselves, but should contact the appropriate electric

inspection authority, or electrician, as appropriate.

The Ringer Equivalence Numbers (REN) are:

GoBook III (IX260+) non-radio: 0.5B

GoBook III (IX260+) Motient: 0.5B

GoBook III (IX260+) Cingular: 0.5B

GoBook III (IX260+) CDPD: 1.3B

NOTICE The Ringer Equivalence Number (REN) assigned to each terminal device provides an indication of the maximum

number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any

combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices

does not exceed 5.

The GoBook III (IX260+) computer may be connected to the telephone network using the RJ-11 jack provided.

Fax Branding

The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other electronic

device to send any message via a telephone fax machine unless such message clearly contains in a margin at the top or

bottom of each transmitted page or on the first page of the transmission, the date and time it is sent and an identification of

the business or other entity, or other individual sending the message and the telephone number of the sending machine or

such business, other entity, or individual.

In order to program this information into your fax machine, you should complete the following:

This information is entered through the FAX application software you have installed. Consult your FAX software

e 2 of 3Le

al Information

7/7/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Deskto

\Marks%20shared%...

documentation for instructions about entering this information.

Warnings and Cautions

WARNING It is important that only authorized Itronix personnel attempt repairs on Itronix equipment as this might void any

maintenance contract with your company. Unauthorized service personnel might be subject to shock hazard on some Itronix

equipment if removal of protective covers is attempted.

Changes or modifications not expressly approved by the party responsible for compliance could void the users authority to

operate the equipment.

There is danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type

recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.

The product you have purchased is powered by a rechargeable battery. The battery is recyclable and, under various state and

local laws, it may be illegal to dispose of this battery into the municipal waste stream. Do not crush the battery or place it in a

fire. Check with your local solid-waste officials for details on recycling options or proper disposal.

CAUTION Internal components of the GoBook III (IX260+) computer will be damaged if exposed to contaminants. When

dust covers, the PC card door, or the bottom access panel are open on the computer, shield the unit from all contaminants

such as liquids, rain, snow, and dust.

Internal radio(s) may have an individual FCC Identifier which are not applicable to this configuration. Only the FCC ID

shown on the label located on the bottom of the IX260+ Laptop PC is applicable. The IX260+ Laptop PC must not be co-

located or operating in conjunction with any other antenna or transmitter than specified in the FCC ID filing.

This device may contain a WLAN radio transmitter , a WAN radio transmitter and a PAN radio transmitter. To comply with

FCC RF exposure requirements when using the WAN radio transmitter, a minimum separation distance of 20 cm must be

maintained between the external dipole antenna and all users/bystanders. When using the WLAN or PAN transmitter, a

minimum separation distance of 20 cm must be maintained between the back side of the display screen and users/bystanders.

The WAN radio and WLAN/PAN transmitter should be turned off before carrying the Laptop PC in order to comply with

FCC RF exposure requirements.

"The equipment has been approved to [Commission Decision "CTR21"] for pan-European single terminal connection to the

ublic Switched Telephone Network (PSTN). However, due to differences between individual PSTNs provided in different

countries the approval does not, of itself, give an unconditional assurance of successful operation on every PSTN network

termination point.

n the event of problems, you should contact your equipment supplier in the first instance.

Safety Information

Enclosed with each IX260+ Laptop PC is the Radio specific safety information. Do not proceed without reviewing the

Information provided on that document.

Do not proceed beyond a WARNING or CAUTION until the indicated conditions are fully understood and met.

72_0119_001 mod 7/4

28 June 2004

e 3 of 3Le

al Information

7/7/2004file://C:\Documents%20and%20Settin

s\harwoodm.ITRXNT1\Deskto

\Marks%20shared%...

General Dynamics Itronix IX260PLUSNL305 Rugged Laptop PC w/ Senao NL-3054MP 802.11b/g WLAN User Manual KBCIX260PRO2200 Manual

General Dynamics Itronix Corporation Rugged Laptop PC w/ Senao NL-3054MP 802.11b/g WLAN KBCIX260PRO2200 Manual

Contents

users manual

Navigation menu

Namespaces

Views

Navigation
