users manual
![](/img.php?id=544175&img=bg1.png)
Getting Started
Congratulations on your purchase of the Itronix GoBook III computer! Your new GoBook III features
the most innovative advances in portable computing technology. It combines state-of-the-art ergonomics
with a rugged, durable architecture to provide you with a notebook computer that is compact, powerful,
rugged and easy to use. Designed for a wide range of business and personal productivity applications,
the GoBook III is an ideal choice for use in applications that require durability and performance.
For maximum expandability without compromising portability, the GoBook III has a USB interface and
aPC card slot. The high capacity hard disk drive provides you with plenty of storage space for
multimedia files and applications.
The GoBook III features a standard 87-key Nitevue® keyboard (89-key international). The high-
resolution 12.1-inch touch screen LCD panel provides clear and crisp viewing with the convenience of a
touch screen.
This online document, GoBook III Help, contains all the information you need to set up and use your
new GoBook III. It describes all the features of the GoBook III in an easy-to-read yet thorough manner.
For information on printing, navigating or otherwise using GoBook III Help see How to Use This Help
System.
GoBook III® Help
Pa
g
e 1 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg2.png)
Checklists
After opening the package, carefully inspect the contents. Contact your dealer if any items are missing
or appear damaged. The shipping carton should contain the following:
STANDARD
zThe Itronix GoBook III computer
zBattery
zADP-90AB or ADP-75FB AC adapter with power cord
z12.1 inch XGA display
zStylus
zShoulder Strap
zGoBook III Quick Start Guide
OPTIONS
The following items are normally optional, but some vendors may include them in the standard package.
Some items may not be available in some countries, or some vendors may choose not to carry all the
items.
zFloppy disk drive
zCD-ROM drive
zCD-RW Drive
zDVD-ROM drive
zSoft Handle
zMedia Bay Li-Ion battery pack
zHard Disk Drive Heater
zLCD Heater
CAUTION When purchasing any of the accessories listed above, purchase only those accessories that
are approved for use with your computer. The above accessories are proprietary items. Your system
vendor can obtain these approved accessories. If you use items that are not approved for use with this
computer, you may cause your computer to malfunction, or to emit or receive electromagnetic radiation
in excess of local regulations. For non-proprietary accessories such as PC Cards or printers, ensure that
the accessor
y
functions
p
ro
p
erl
y
in
y
our com
p
uter before makin
g
the
p
urchase. Your s
y
stem vendor
Pa
g
e 2 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg3.png)
may be able to recommend reliable brands and models.
Features
High Capacity Hard Disk Drive
The computer has a high capacity hard disk drive, enabling you to install your favorite programs and
store large multimedia files.

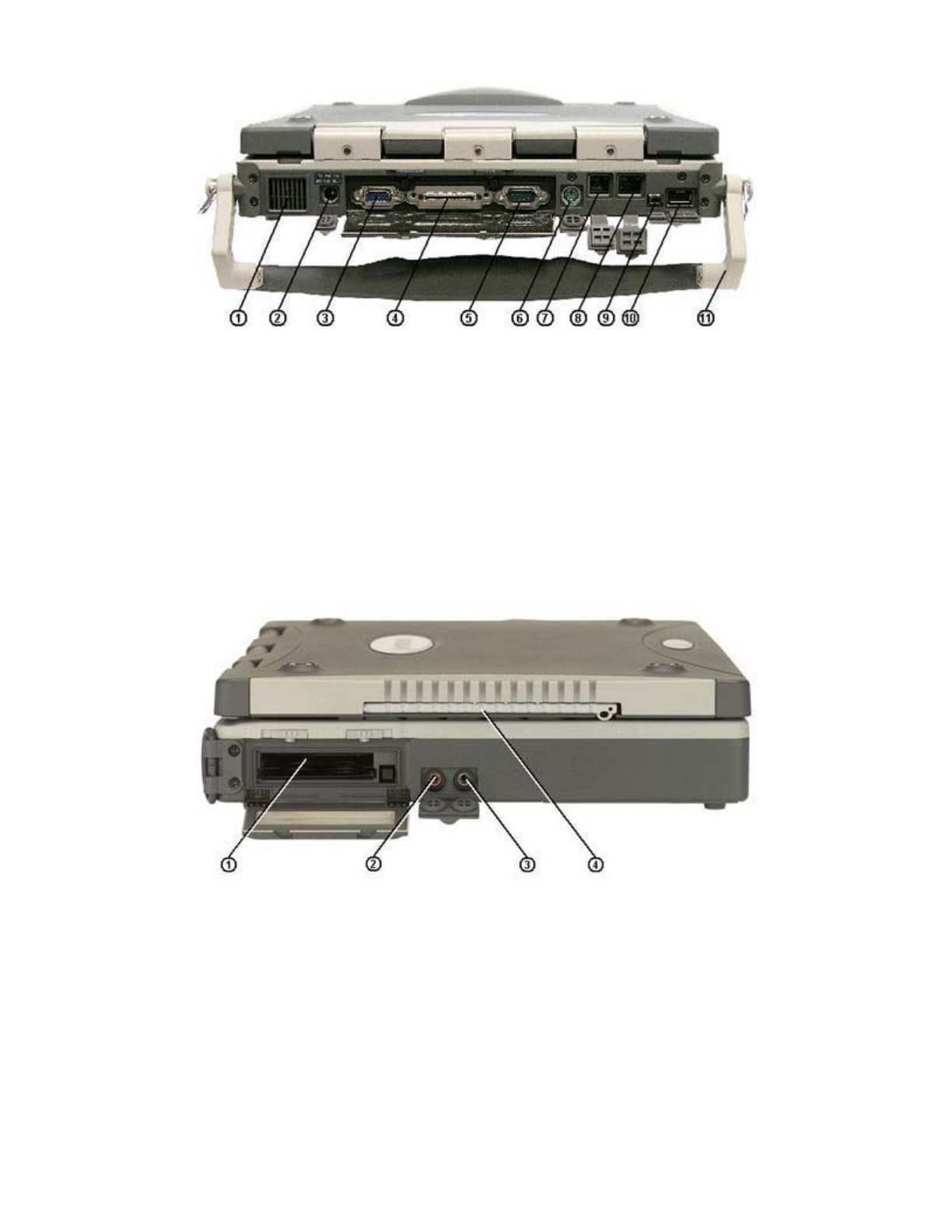

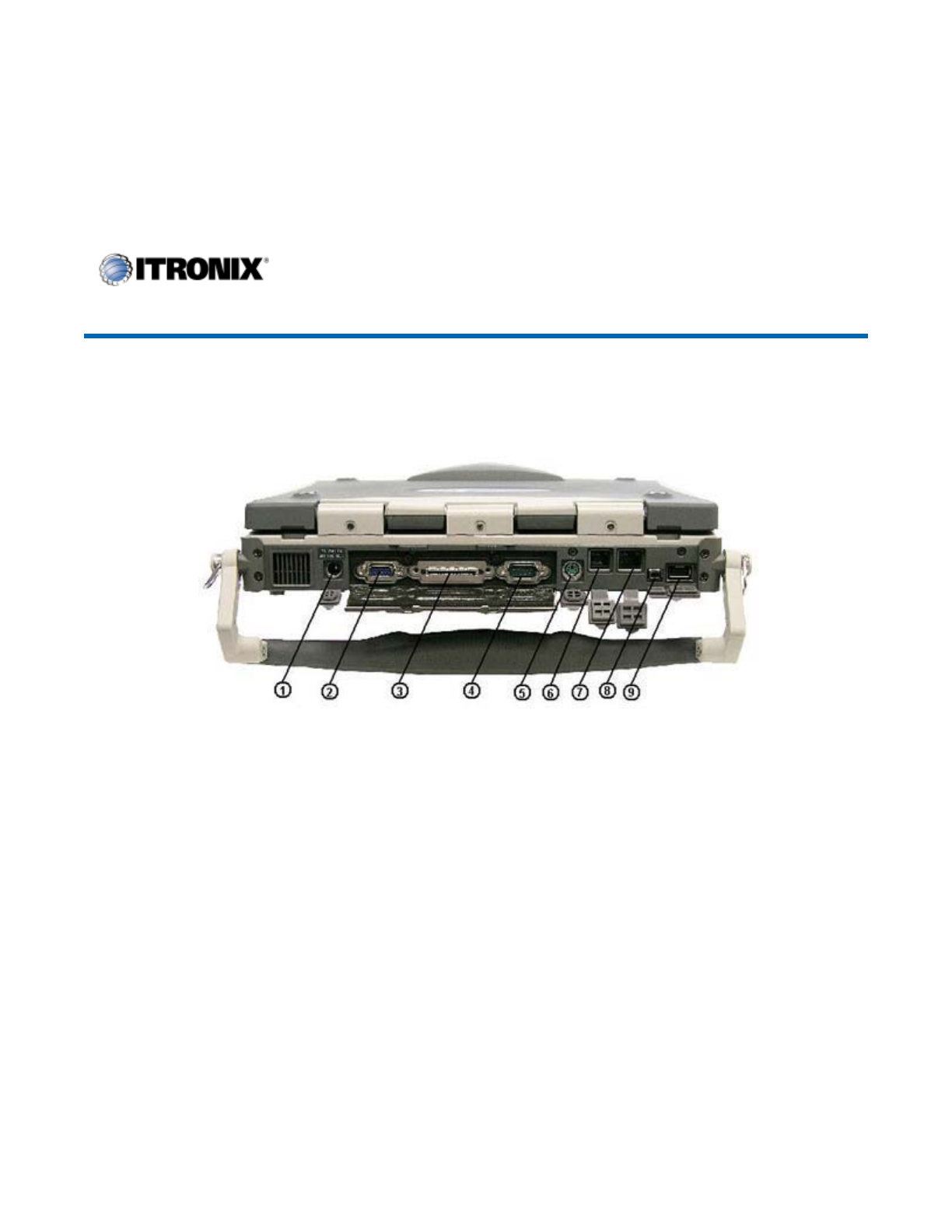

Full Array of Ports and Connectors
Your computer includes standard ports for connecting to peripherals such as USB devices and monitors.
USB ports allow you to add many types of peripherals.
Large XGA LCD
Your computer has a large, easy to view XGA LCD panel.
Built-in Microphone and Stereo Speakers
The stereo speakers and internal microphone enable you to run a variety of multimedia applications.
Function Keys
Function keys allow you to suspend your computer, shut the LCDs off, and give you easy control of
audio and your monitor.
Where to Look For Information
About Your Computer
This Help System describes the key elements of your computer. New users can find a simple step-by-
step orientation in this chapter.
About Windows
For more extensive information and help about Windows go to Help and Support, found on the Start
Menu.
72_0119_001
28 June 2004
©2004 Itronix Corporation. All rights reserved.
Pa
g
e 3 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg4.png)
Precautions
You can use your computer under a wide range of environmental conditions. However, to ensure long
use and continued high performance, consider the following factors when setting up your computer:
zFollow all warnings and instructions noted in this documentation and in Windows Help and
Support, found on the Start Menu.
zThe first time you use your computer, we recommend that you carefully read the section on Power
Management to familiarize yourself with some basic battery information and to ensure optimum
performance
zThere is danger of explosion if the battery is incorrectly replaced. Replace only with the same or
equivalent type recommended by the manufacturer. Dispose of used batteries according to the
manufacturer's instructions.
zDo not open the RAM door by yourself.
zUnplug the computer from the power outlet before cleaning. Use a damp cloth for cleaning. Do
not use aerosols, solvents, or strong detergents
zSlots and openings in the computer case are for ventilation purposes. Do not block or cover these
openings or the system could overheat
zOn the bottom of the GoBook III, there is a label with information on the power requirements of
this system. These requirements must be followed. If you are unsure of your local power supply,
consult your dealer or local Power Company
zDo not step on or place anything on the power cord
zIf you use the computer with an extension cord, ensure that the total ampere ratings of all the
devices sharing the extension do not exceed the rating of the extension cord or the rating of the
wall outlet
zUnless instructed, never push foreign objects into the computer through any of the slots or
openings. Dangerous voltages are present, which could cause electric shock, fire, or damage
sensitive components
zFor best results, use a power strip with a built-in surge protector. Do not use inferior extension
cords as this may result in damage to your computer
GoBook III® Help
Pa
g
e 4 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg5.png)
72_0119_001
28 June 2004
©2004 Itronix Corporation. All rights reserved.
The First Time. . .
Using your computer for the first time involves:
zInstalling the battery
zConnecting the AC adapter to the computer
zTurning the Computer On and Off
zAdjusting the Volume

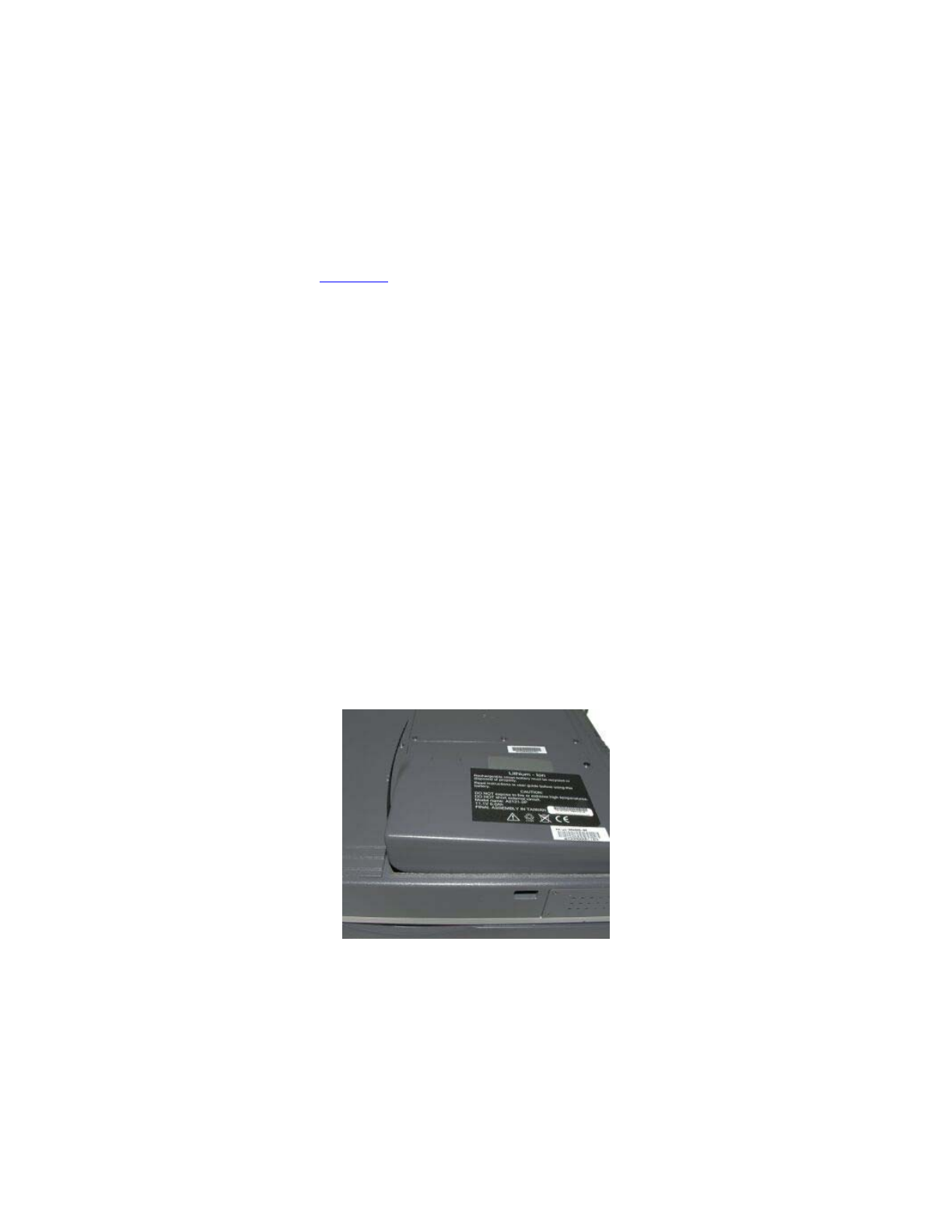

Installing the Battery
Make sure the computer is sheltered when you install the Lithium Ion battery; the computer is not
weather sealed until the battery is properly installed. The battery should be fully charged before you
operate the unit on battery power. To get the most from your battery, follow the guidelines in the Power
Management section.

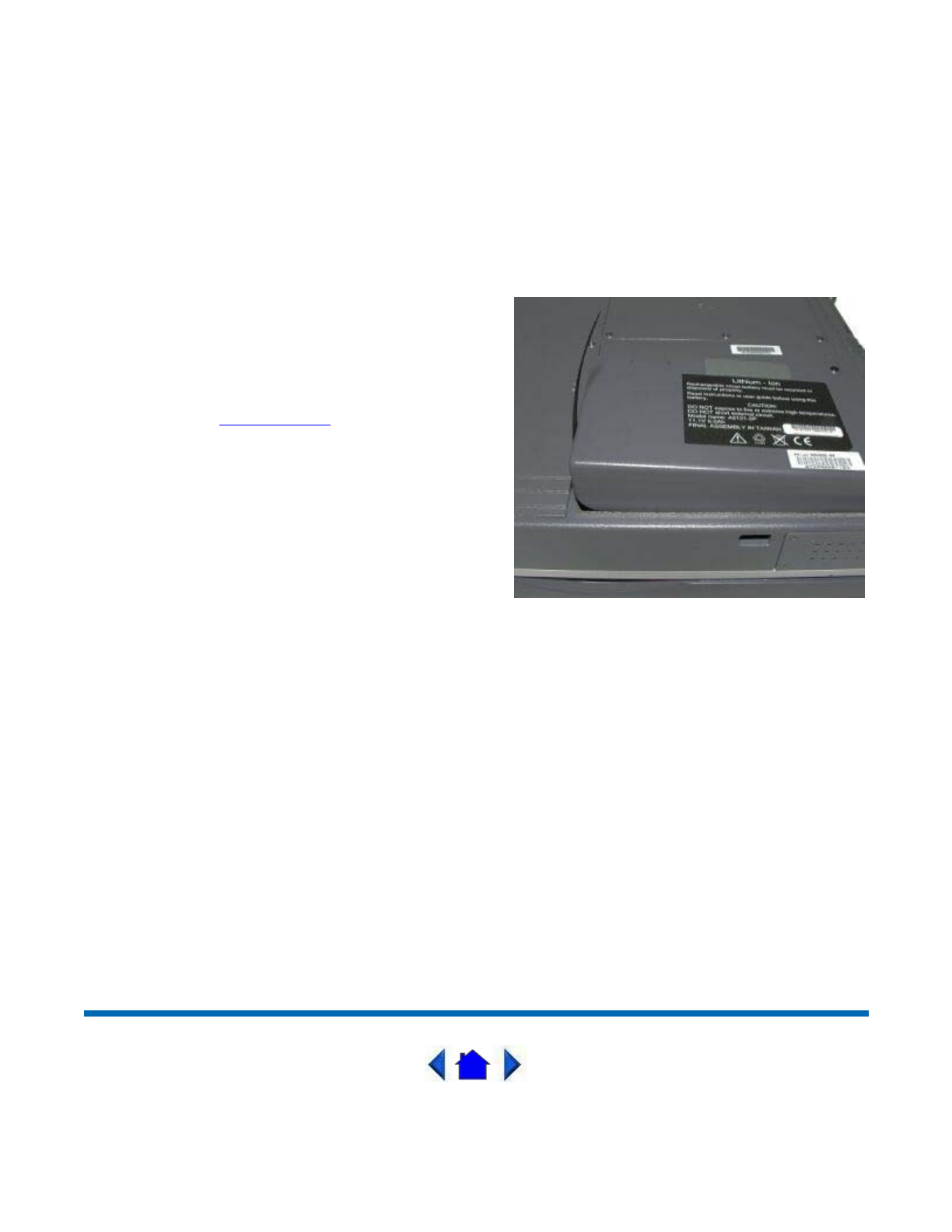

To install the battery
1. Remove the battery door.
2. Align the battery connectors and place the battery in the computer.
3. Replace the battery door and rotate the door latches to secure the door.
NOTE When the battery is installed and the computer is connected to AC power, see Connecting the
AC Adapter below, it starts charging automatically. At moderate temperatures, approximately 70°
Fahrenheit (21°C), the battery will be fully charged in four to six hours. In warmer or cooler
temperatures, the battery can take much longer to fully charge. Refer to the Power Management section
for additional information.
Connecting the AC Adapter
To connect the ADP-90AB or ADP-75FB AC adapter
1. Connect the AC adapter power cord to the AC adapter.
2. Connect the AC ada
p
ter to the
p
ower
j
ack at the rear of
y
our com
p
uter.
GoBook III® Help
Pa
g
e 5 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg6.png)
3. Connect the AC adapter power cord to an AC outlet.
4. Lift the display to open the LCD.
5. Open the LCD panel to a comfortable viewing angle.
6. Press the Power Button to turn ON the power.
Turning the Computer On and Off
You can operate the computer while the battery is charging, while on external power , or on battery
p
ower only.
To turn on the computer
zPress the Power Button button once, and then give the system time to respond.
To turn off the computer
1. From the Start menu, select Turn Off Computer.
2. Then, from the Shut Down Windows screen select Turn Off.
If you need to leave the system for a short time, or if you want to conserve battery power, you can
suspend the computer by pressing FN+F3. See Power Management for additional information.
Suspend to RAM In a suspend to RAM, the contents of your computer's memory are held intact, while
almost all the components in your computer either turn off completely, or reduce power consumption to
a minimum. In a suspend to RAM, your computer remains active, but with a minimum possible power
consumption. Return the computer to full power by pressing any key. A fully-charged battery can
maintain a Suspend to RAM for many hours.
Suspend to Disk (Hibernate) Suspend to Disk is similar to turning off the computer, except that the
current state of the computer is copied to the hard disk as a special file. In a Suspend to Disk there is no
p
ower consumption. When the computer returns from suspend mode , the desktop appears with the same
files and programs open as when the computer was suspended. Suspend to Disk is very useful when you
don’t want to take the time to shut down all open programs one by one to shut off the computer. This
mode is also called hibernation mode.
CAUTION Shutting down the computer improperly could result in lost or corrupted data.
Adjusting the Volume
Volume for the computer is adjusted by using function key combinations.
zFN + F8 decreases the volume
zFN + F9 increases the volume
Pa
g
e 6 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg7.png)
zFN + F10 toggles the volume mute on or off
You can also adjust the volume with the Windows volume control applet, which is located on the
taskbar and looks like this .
NOTE Adjusting the volume using the function keys produces only a slight change with each press. It
may take several presses to increase or decrease the volume to a level that you desire.
72_0119_001
28 June 2004
© 2004 Itronix Corporation. All rights reserved.

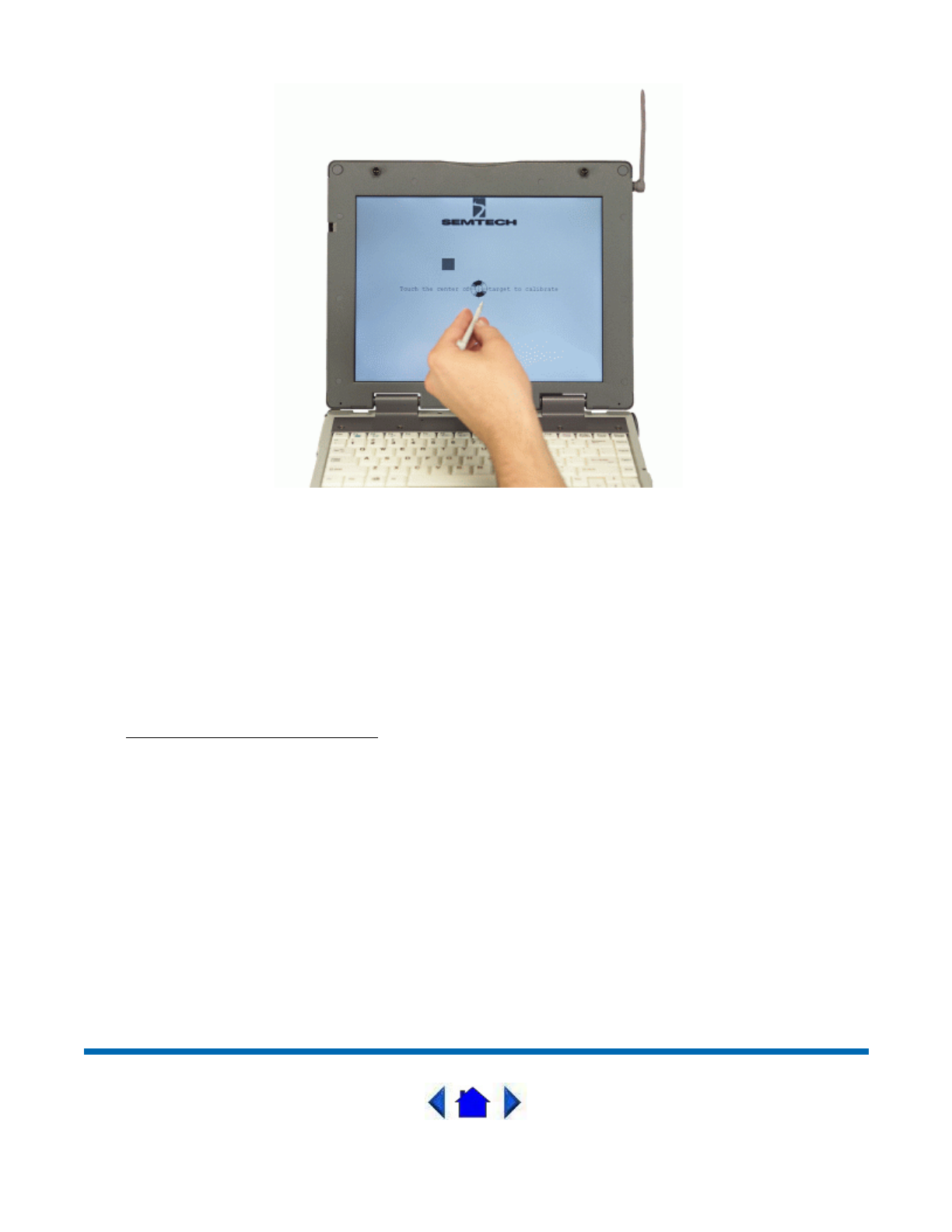

Calibrating the Touch Screen
Your GoBook III computer has a touch screen display. Follow the guidelines below to calibrate the
touch screen for optimum use.
Calibrating the touch screen
To calibrate the touch screen, open the Calibration Applet by selecting Start, Programs, Mobile
Computer Tools, Touch Screen Calibrator. You can also open the Calibration Applet by selecting Start,
Settings, Control Panel, Touch Screen Calibrator.
After the Calibration Applet starts, click on the Calibrate button
After you have completed calibration by touching the four highlighted points with an approved stylus,
select OK to have the new settin
g
s take effect.
GoBook III® Help
CAUTION
zAlways use an approved stylus or your finger.
zNever use sharp, hard, or abrasive implements on the touch screen such as ball point pens,
pencils, or keys. They could damage the screen.
zTo clean the touch screen panel, apply a household glass cleaner to a soft, clean, dry cloth an
d
wipe the screen.
Pa
g
e 7 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg8.png)
NOTE If you cannot select objects accurately with the stylus you may need to re-calibrate the touch
screen. This can be accomplished by revisiting the procedure above.
Adjusting the Screen
You can adjust the display brightness for better viewing.
Use the following keys to make adjustments:
Setting the Date and Time
To set the date and time
1. Tap the Start button, Settings, Control Panel, and double-tap the Date / Time icon.
2. From the Date / Time Properties menu, make changes to the Time and Date, and then close this
screen by selecting OK.
To Do This... Press
Lighten the display FN+F7
Darken the display FN+F6
Pa
g
e 8 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg9.png)
72_0119_001
28 June 2004
©2004 Itronix Corporation. All rights reserved.
Startup Problems?
If your computer does not operate, try these solutions.
zConnect the AC adapter to charge the battery if it is not charged.
NOTE The Power LED on the AC adapter should be lit as well as the External Power Indicator
on the GoBook III if the AC adapter is connected and functioning properly. Additionally, one
of the power icons should appear in the task tray.
zIf the AC adapter is connected, make sure the electrical outlet you are using works.
zCheck to make sure the battery is installed and charged properly.
zIf the battery doesn’t begin charging, remove the battery, connect the AC adapter, and turn on the
computer by pressing On. Reinstall the battery. The Battery Power Indicator LED is solid
while the battery is charging.
The Troubleshooting section lists additional solutions you can try.
72_0119_001
28 June 2004
©2004 Itronix Corporation. All rights reserved.
Getting Familiar with Your Computer

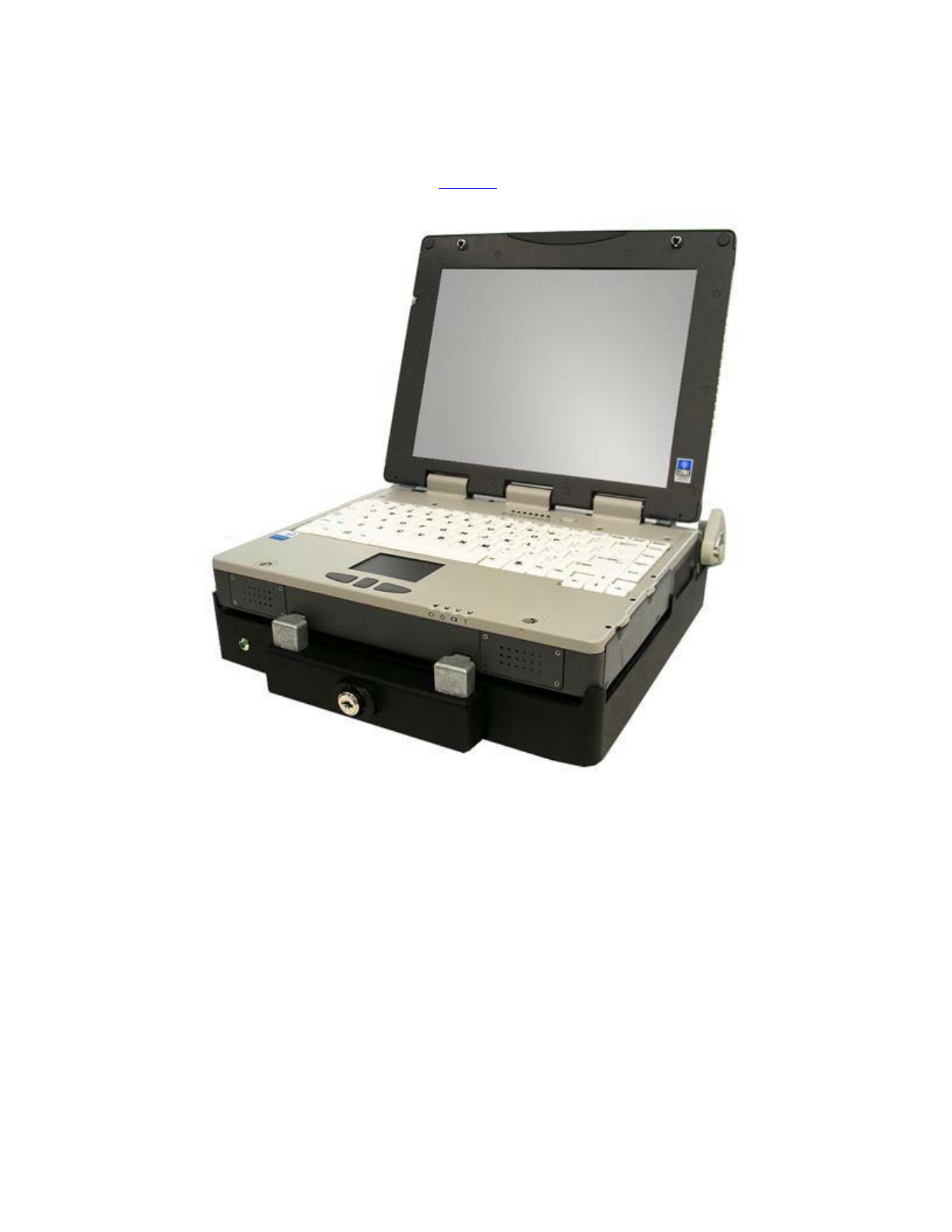

The GoBook III computer is a ruggedized , weather-sealed laptop computer system built for the
demanding environment of the mobile worker. Designed for use by mobile workforces, this computer is
a superior work tool for collecting, managing, and communicating information in the field.
The following pages describe the external and internal features of your GoBook III computer.
GoBook III® Help
Pa
g
e 9 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bga.png)
Individual Parts
The following diagrams and descriptions provide an overview of your GoBook III computer.
Hover the mouse over each number on the picture to see a description.

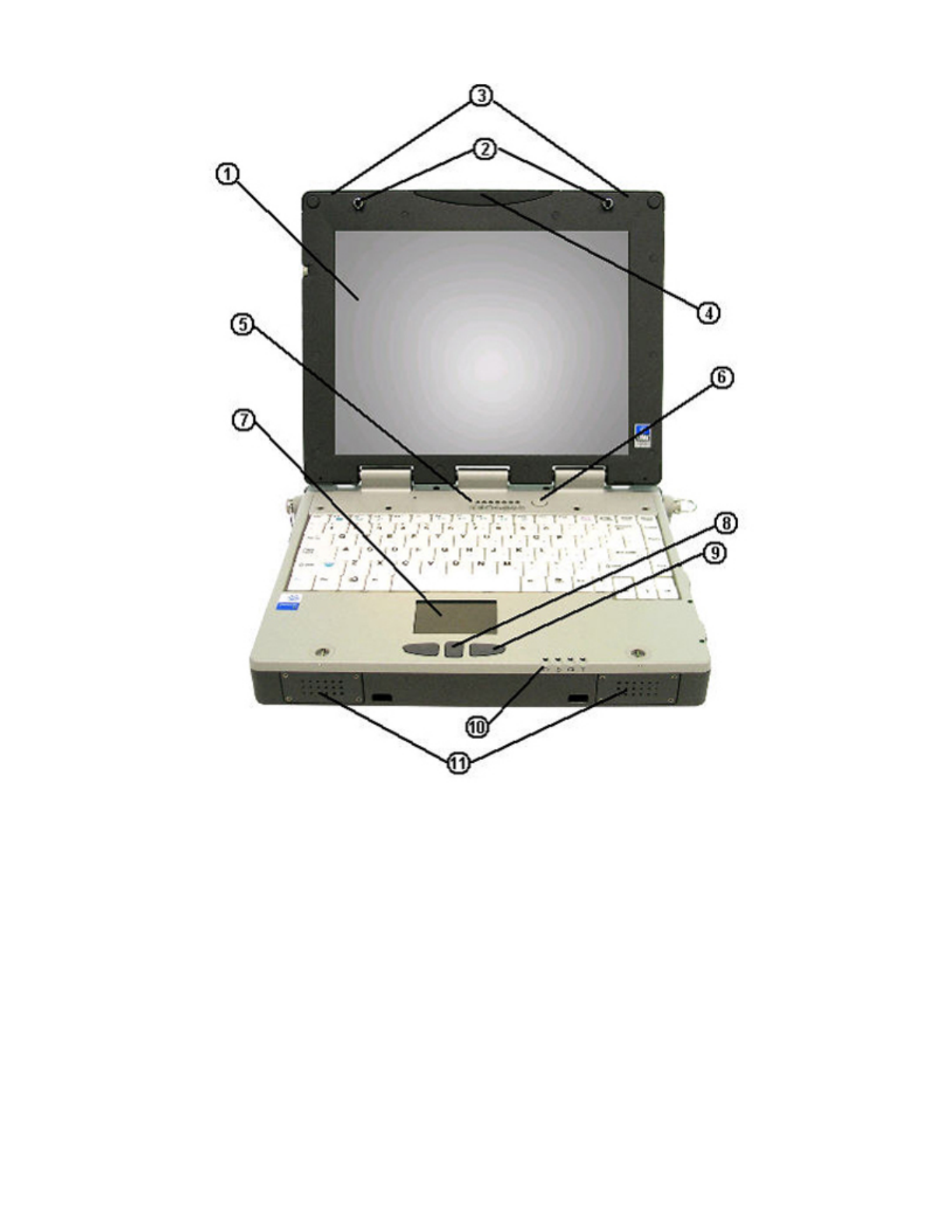

Front View
GoBook III® Help
1. Touch Screen Display
2. Display Latches
3. Antenna (internal mini-WLAN)
4. GPS and/or Bluetooth Antenna
5. LED Activity Indicators
6. Power Button
7. Touchpad
8. Scrolling Button
9. Touchpad Buttons
10. Power / Wireless Modem Indicators
11. Speakers
Pa
g
e 10 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bgb.png)
Back View
1. Cooling Fan
2. Power Jack
3. 15-Pin VGA Port
4. 68-Pin Multi-IO Port
5. 9-Pin Serial Port
6. PS2 Port
7. RJ-11 Modem Jack
8. RJ-45 Network Jack
9. IEEE 1394 Port
10. USB 2.0 Port
11. Handle
Pa
g
e 11 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bgc.png)

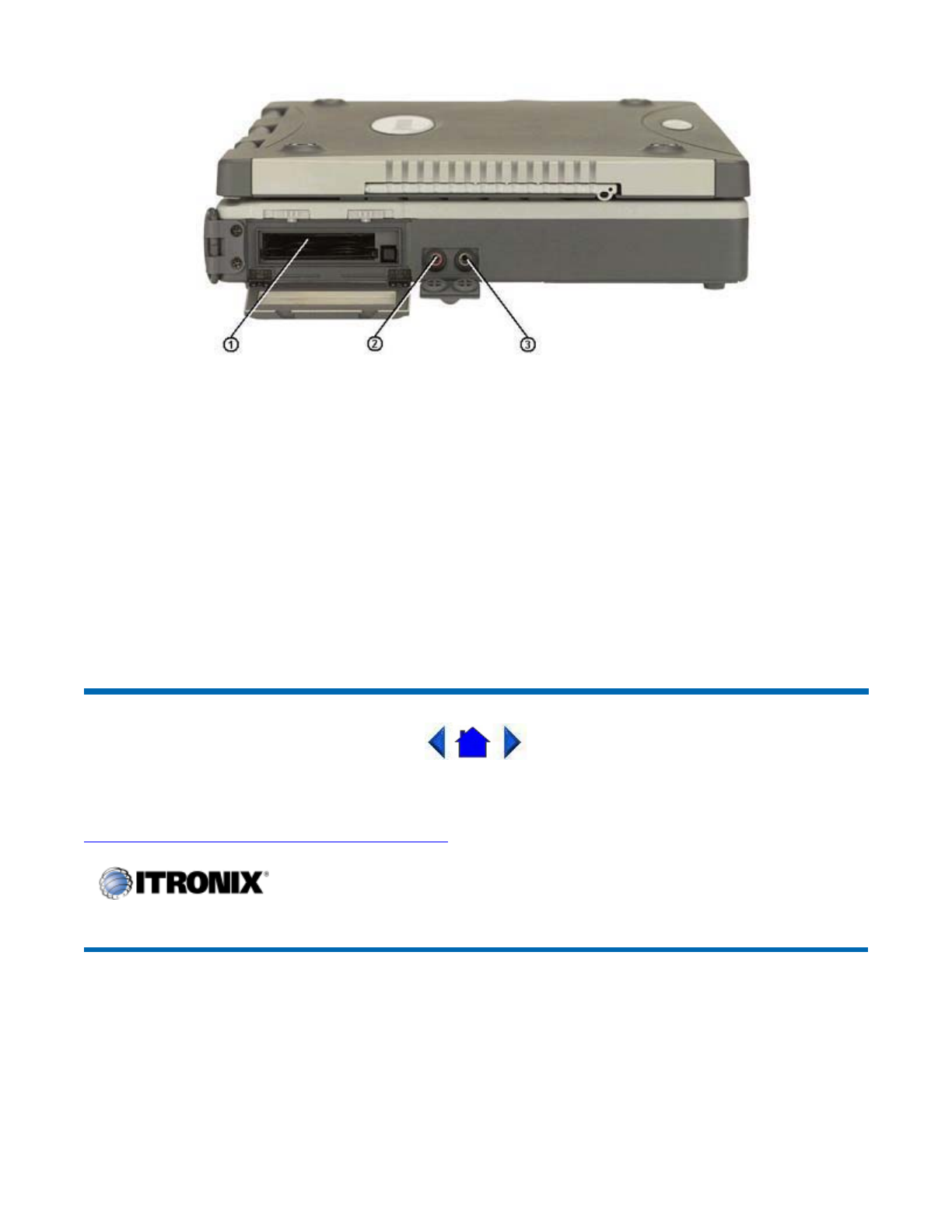

Left Side View
1. PC Card Slot
2. Microphone Jack
3. Audio Jack
4. Stylus

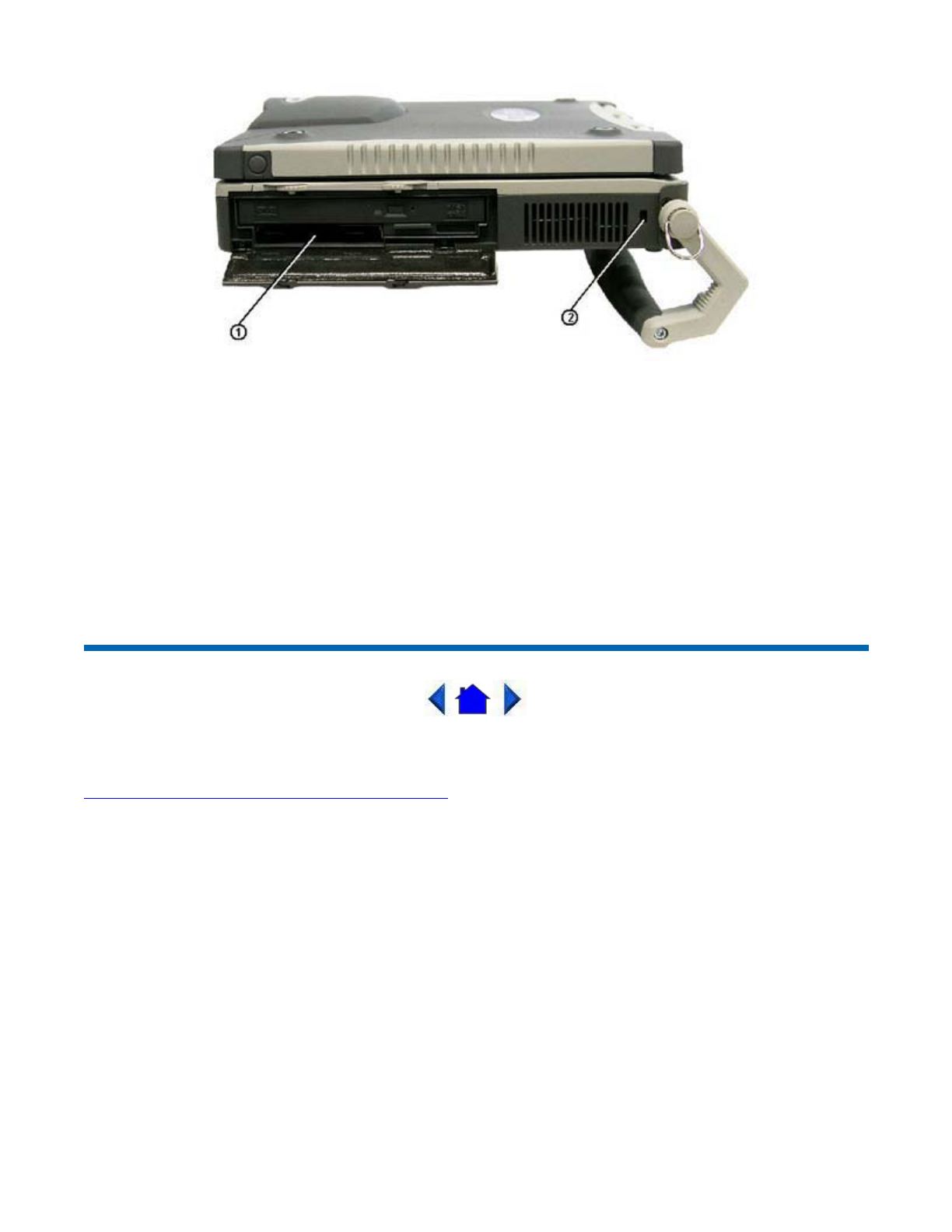

Right Side View
1. Media Bay - CDROM, DVD, Floppy Disk, CDRW, or Media Bay Battery
2. Smart Card Option
3. Cooling Fan
4. Securit
y
Slot
Pa
g
e 12 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bgd.png)
Display with Stylus
LED Activity Indicators
The activity indicators, located above the keyboard, light up
when a particular function of the computer is active. Each
indicator is marked with a corresponding symbol and is visible
when the lid is open or closed. LED numbers are from left to
right.
Icon &
LED #
Function LED Description
LED #1
Mini PCI Lit Power is on to the Mini-PCI Slot. This can
be a WLAN or Modem.
Pa
g
e 13 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bge.png)
LED Power / Wireless Modem Indicators
The case front LED's indicate external power, unit ON/OFF, battery
status, and wireless modem ON/OFF. The indicators remain active and
viewable even when the LCD panel is closed.
LED #2
Bluetooth Lit Bluetooth Power is on
LED #3
Disk Status (HW) Lit The hard disk drive is being accessed
Not lit The hard disk drive is not being accessed
LED #4
Media Drive Bay Lit The computer is accessing the CD-ROM,
the DVD-ROM, or the Floppy drive.
LED #5
Number Lock Lit The keyboard is in Num Lock mode.
LED #6
Caps Lock Lit The keyboard is in Caps Lock mode
LED #7
Scroll Lock Lit The keyboard is in Scroll Lock mode
Icon Function LED Description
External
Power
Green External power is connected to the unit.
LED off External power is not connected to the unit.
Power Green Power is ON
Flashing
Green
Suspend to RAM
Battery Green Battery charging
Flashing
Green
Low Battery
LED off No battery / battery fully charged (will always be OFF
without external power connected to the unit)
Wireless
Modem
Green Wireless modem is On
Flashing Message waiting
Pa
g
e 14 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bgf.png)
72_0119_001
28 June 2004
© 2004 Itronix Corporation. All rights reserved.
Keyboard Basics
The keyboard on the GoBook III computer looks much like the keyboard of a typewriter and operates in
almost the same way. While typewriter keys put characters on paper, the keys on the laptop enter
characters in the computer and perform certain functions, depending on the application or program.
The GoBook III computer features:
z87-key US keyboard; 89-key international keyboard
zTwelve function keys,F1-F12
zEmbedded numeric keypad
zMouse keys and cursor control keys
zKeyboard backlight
Restarting the Computer
Primary Keys
Green
LED off Wireless modem is Off
GoBook III® Help
Press… To do this
CTRL+ALT+DEL Reboot the computer.
CAUTION All open and unsaved data will be lost.
Key Description
ALT The ALT (alternate) key is used with other keys to perform special tasks. On
some operating systems pressing CTRL+ALT+DEL resets the computer,
stops processing and restarts the operating system.
ALT GR The ALT GR key, a special function key found on the 89-key international
keyboard, when pressed and held, allows you to use characters in the bottom
Pa
g
e 15 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg10.png)
Arrow Keys
The arrow keys are defined by the software application.
The UP ARROW key usually moves the cursor up one line. In some cases, you can use the up arrow to
make selections from menus and scrollable list boxes.
The DOWN ARROW ke
y
usuall
y
moves the cursor down one line. In Windows,
y
ou can use the down
right of a three character key.
BACKSPACE The BACKSPACE key, sometimes represented on the keyboard as a left
arrow, moves the cursor one position to the left. The character to the left of the
cursor is erased.
On the 89-key international keyboard the key to the right of the BACKSPACE
key is also designed to mover the cursor one position to the left. The character
to the left of the cursor is erased. If other functions are designed for this key,
the key will be printed with the appropriate legend.
CAPS LOCK Pressing the CAPS LOCK key one time locks keys A through Z in the
UPPER CASE position. Pressing the CAPS LOCK key again returns the
letters to lower case. While in the upper case mode, pressing the SHIFT key
results in lowercase characters when entered. You still have to use the SHIFT
key to display characters located on the upper portion of the keyboard. For
example, press SHIFT+8 to type an asterisk (*), even when the CAPS LOCK
key is activated.
The CAPS LOCK activity indicator is on when the keyboard is in CAPS
LOCK mode. This indicator can be found in the windows system tray at the
lower right corner of the screen.
Key Description
CTRL The CTRL (control) key works with other keys to perform a variety of functions.
ENTER The ENTER key signals the computer that you have completed your entry. This is
your way of telling the computer to process the information that you have entered.
ESC The ESC (escape) key cancels the current line if you are working in DOS. In some
DOS applications, pressing the ESC key backs you out of your last menu selection
In Windows, the ESC key allows you to exit a pop-up window or message box.
PRTSC In Windows, pressing the PRTSC (print screen) key or ALT+PRTSC key copies
the current screen or window to the clipboard so you can paste it into documents.
SHIFT The SHIFT key changes the keys A through Zto the UPPER CASE position. Wh
e
you press an alphabetic key, the character appears as a capital letter. When you pre
s
SHIFT with other keys, the characters on the upper part of the keys appear. For
example, pressing SHIFT+7 displays an ampersand (&).
FN Function. Some special keys have been established to perform important tasks whe
n
pressed and held with the FN key. These keys are described later in this document.
The FN key legend is color keyed to other special keys on the keyboard
SPACEBAR Use the SPACEBAR to enter a space and move the cursor one character to the rig
h
TAB The TAB key moves the cursor to the next tab stop or field. Tab stops are defined
b
your operating system or application program. Press the TAB key to move from o
n
field or text box to another.
Pa
g
e 16 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg11.png)
arrow to make selections from menus and scrollable list boxes.
The RIGHT ARROW key usually moves the cursor one character position to the right.
The LEFT ARROW key usually moves the cursor one character position to the left.
Function Keys
Hold the FN key while pressing the numbered function key.
Numeric Keypad
The numeric keypad is embedded in the keyboard area. The
embedded keypad emulates the numeric keypad typically found
on a full-size keyboard. It is arranged like a calculator for
applications that require you to key many numbers or for use with
the Calculator in the standard Windows Accessories.
Touchpad
The touchpad is a pointing device that provides all the features of
a two-button mouse. Its primary function is to move the cursor
around the screen.
Using Your Touchpad
Clicking
1. First, place your fingers on the keyboard in the normal typing
position. The touchpad is easily accessible by moving either your left or right thumb off the space
bar and on to the touchpad.
2. Gently move your thumb across the touchpad in the direction you want the cursor to move. The
pad detects the change in pressure and moves the cursor in the corresponding direction.
NOTE The touch
p
ad on
y
our GoBook III com
p
uter is electricall
y
sensitive to fin
g
er touch. It
Function key Description
FN+F1 Toggles display on / off
FN+F2 Toggles between LCD / CRT displays
FN+F3 Suspend to RAM / HDD
FN+F4 Decreases keyboard backlight brightness
FN+F5 Increases keyboard backlight brightness
FN+F6 Decreases LCD brightness
FN+F7 Increases LCD brightness
FN+F8 Decrease volume
FN+F9 Increase volume
FN+F10 Mutes the audio
Pa
g
e 17 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg12.png)
will not respond if touched by anything other than your fingers, such as a stylus or pencil.
3. The touchpad offers another method of making selections in a software program. It is called
double-tapping. This function corresponds to double-clicking with a mouse. Once the cursor has
been moved to the object you want to select, lightly double-tap the pressure sensitive touchpad.
This double-tapping on the touchpad will select the desired item and prompt the software to
perform the related operation.
4. The left and right buttons located directly below the touchpad are the same in function as those on
a two-buttoned mouse. Clicking these buttons makes selections, drags objects, or performs a
variety of other functions depending on the software. To select an object, first move the pointer
over the object you want to select, and then press the left button one time. The functions of these
buttons are software specific.
Double-clicking
zDouble-clicking is a common technique for selecting objects or launching programs from icons.
Once you have moved the pointer over the object you wish to select, rapidly press the left button
two times. This action is commonly referred to as “double-clicking” an object.
Dragging
zMove the pointer to the desired location then press down the left button. While still holding down
the left button, move the pointer to the desired location. Release the button.
zMove the pointer to the desired location. Tap the touchpad twice quickly as if you were double-
clicking, however do not remove your finger after the second tap. Move the cursor to the desired
location. Lift your finger to finish dragging.
Adjust the touchpad settings by selecting Settings/Control Panel/Mouse/Buttons. These settings allow
you to change the orientation of the touchpad from right-handed to left-handed, and fine-tune the pointer
movement and timing of clicks.
Touchpad Precautions
If not properly cared for the touchpad can be easily damaged. Please take note of the following
p
recautions.
z Do not rest heavy objects on the touchpad or the touchpad buttons.
General Guidelines
The mobile computer uses a Liquid Crystal Display (LCD), which is the type of screen used on many
notebook and sub-notebook computers. One problem experienced on computers with an LCD display,
especially in cold environments, is that the cursor seems to “disappear” whenever the mouse is moved
quickly. To improve the visibility of the mouse cursor, you should use a slow or medium
speed/sensitivity level.
You can combine a higher level of acceleration with a slow or medium speed/sensitivity level. This will
allow
y
ou to move the mouse cursor
q
uickl
y
b
y
increasin
gy
our fin
g
er
p
ressure, while still
p
rovidin
g
a
Pa
g
e 18 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg13.png)
finer degree of control when you apply minimum pressure.
NOTE To change the speed of the mouse, from the Start Menu select Settings, Control Panel, and then
choose Mouse to make adjustments.
Scrolling Buttons
If you are scrolling through a document, you may it find the scrolling button more restful to your hand
than holding down a mouse button. The scrolling button is located between the touchpad buttons. Push
the top of the button to scroll up in a document or Web page; press the bottom of the button to scroll
down.
Connecting an External Keyboard or Mouse
You can use your GoBook III computer with an optional external keyboard, numeric keypad, or IBM
PS/2 compatible mouse. These devices are “hot swap” capable, which means you do not have to power
down the GoBook III to connect them to the PS/2 connection located on the back of the unit.
Keyboard Backlight
Press FN+Shift to turn on the keyboard backlight. The keyboard backlight has four brightness levels.
You can decrease brightness by pressing FN+F4 and increase brightness by pressing FN+F5. The
keyboard backlight retains its previous brightness setting after a suspend or resume.
72_0119_001
28 June 2004
© 2004 Itronix Corporation. All rights reserved.
Display Basics
Connecting to an External Monitor
The GoBook III has a 15-Pin VGA monitor port to connect your computer to an external monitor.
Using the VGA monitor port for dual display
You may use an external monitor simultaneously with your GoBook III’s LCD. You may also disable
the GoBook III's LCD and use the external monitor exclusivel
y
.
GoBook III® Help
Pa
g
e 19 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg14.png)
1. Locate the 15-pin VGA monitor port on the back of the unit behind the IO door. Then connect the
video signal cable from the external monitor to the monitor port.
2. Connect the monitor’s power cable to a power outlet and turn on the monitor.
3. If the new monitor has not automatically been detected and is not displaying what appears on your
GoBook III’s LCD screen, open the Control Panel.
4. Double-tap Display. The Display Properties window opens.
5. Tap the Settings tab. Then select the Advanced button.
6. Tap the S3DuoVue tab and select the CRT box the enable display on an external monitor.
7. You can also use the FN+F2 hot keys to cycle through the CRT, LCD, and CRT/LCD settings.
72_0119_001
28 June 2004
©2004 Itronix Corporation. All rights reserved.
Disk Drives
Your computer comes with several components for reading and writing (recording) information.
The Hard Disk Drive
The hard disk provides high-capacity storage and fast access. Windows and most programs are stored
here. Your GoBook III identifies the hard disk drive as drive C. For information about removing or
installing the hard drive see Hard Drive Care and Handling.
The Floppy Disk, CD-ROM, or DVD-ROM Drive
Your computer may come with a floppy disk drive. The floppy disk drive accepts 3.5-inch floppy disks
and is read and write capable.
The CD-ROM drive is a read only drive. It cannot be used to write data to a recordable compact disk.
The CD-ROM drive can read data from CDs, including audio or video CDs. The DVD drive can read
both DVD and CD disks. Your GoBook III identifies the drive with the letter following the hard drive
letter. If
y
ou hard drive is C, then the CD-ROM drive will be D. The media ba
y
is located on the ri
g
ht
GoBook III® Help
Pa
g
e 20 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg15.png)
side of your computer, as you are facing the display, and is accessible by sliding the two bay door
latches, which release and open the door.
Inserting a CD-ROM or DVD-ROM Disk
1. Press the button on the front of the drive to open the disk tray and pull the tray open.
2. Place the disk on the tray, label side up.
3. Place the disk on the central spindle and press gently until the disk clicks into place.
4. Slide back the tray until it clicks shut.
Removing a CD-ROM or DVD-ROM Disk
1. Make sure the computer is not accessing the CD-ROM/DVD-ROM drive.
2. Press the button on the front of the drive and pull the tray all the way out.
3. Pick up the CD-DVD by the edges and remove the CD-ROM/DVD-ROM from the tray. Push the
tray into the computer until it closes fully.
CAUTION When the computer is reading from a CD-ROM/DVD-ROM or Floppy disk drive, the
indicator light for the drive will flash. Do not attempt to remove a disk while this light is active.
Changing your 'swappable' media bay device
1. Make sure the computer is not accessing
the media bay drive.
2. Slide the door latches to release the media
bay door.
3. Left click the "unplug or eject" media bay
icon on the right side of the taskbar.
4. Select the media bay device and left click
to stop the device.
5. Wait for the "safe to remove hardware"
message.
6. Grasp the media bay device by the
removal tab and pull straight out until it is
clear from the slot.
7. Click OK
8. Re-insert the next media bay device by firmly pushing it back into the slot until it clicks into
p
lace.
Pa
g
e 21 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg16.png)
Precautions for Handling CD-ROM/DVD-ROM Disks
Keep these precautions in mind when handling CD-ROM/DVD-ROM discs.
zAlways hold the disc by the edges; avoid touching the surface of the disc.
zUse a clean, dry, cloth to remove dust, smudges, or fingerprints. wipe from the center outward.
zDo not write on the surface of the disc.
zExtremes in temperature may damage discs. Store discs in a cool dry place.
zDo not use benzene, thinners, or cleaners with detergent. Only use CD-ROM/DVD-ROM
cleaning kits.
zDo not bend or drop the discs.
zDo not place objects on top of discs.
CAUTION do not insert any foreign objects into the disc tray. Do not force the tray to open or close
manually. When not in use, keep the tray closed to prevent dust or dirt from entering the drive unit. If
you experience difficulty when removing a CD/DVD disc, stretch a paper clip (or use a pin or a thin
metal rod) and insert it into the emergency eject hole located on the front panel.
The CD/DVD disk tray should eject immediately. This procedure can also be used to remove a CD-
DVD from the drive when the GoBook III is powered off.
72_0119_001
28 June 2004
©2004 Itronix Corporation. All rights reserved.
The PC Card Slot
The PC card slot can be used as an interface between your computer and a variety of communications
devices, such as network adapters, SCSI adapters, and fax/modems. They can also be used to provide
additional data storage capacity. Your computer’s PC Card slot supports Type I, II or III PC Cards, 32-
b
it CardBus cards, and Zoomed Video cards.
GoBook III® Help
Pa
g
e 22 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg17.png)
Installing a Card
1. The top side of a PC Card is usually identified with a label. Insert the card into the slot with the
top up and the edge with pinhole contacts going in first. You will feel some resistance as the card
slides into the back of the slot.
2. PC Cards require drivers, or a program that allows the operating system to use a specific device.
Many drivers are included with Windows, but if not, you will be prompted to install the driver
included with your card.
NOTE Please read the instructions included with individual PC Cards. Some cards may be inserted
with power on, while others require that the computer be turned off.
Removing a PC Card
1. If a PC Card is in use, you must shut down the PC Card before removing it.
2. Select the PC Card icon on the right side of the Windows tray taskbar , then tap Stop.
3. When the Windows message appears, telling you that it is safe to remove the card, tap OK.
4. Press the eject button on the PC Card slot to release the eject button (it is spring loaded and
remains hidden until it is pressed).
5. Press the eject button again to release the PC Card.
72_0119_001
28 June 2004
©2004 Itronix Cor
p
oration. All ri
g
hts reserved.
Pa
g
e 23 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg18.png)
Making Connections
Your computer is equipped with a full array of ports and connectors, including standard input/output
(I/O) ports for quickly and easily adding peripheral devices such as printers and monitors. Refer to
documentation included with individual devices for details on connecting these devices to your
computer. Along with the standard ports found on most computers, your computer may also include
optional modem and LAN ports for advanced communications technology.
Rear Connectors
Hover the mouse over each number on the picture to see a description.
1 DC-in Jack
Connect the DC power cable from the AC adapter to this jack.
2 VGA Out (External Video) Port
The 15-pin monitor can connect your computer to an external monitor.
3 Multi-I/O Port
The 68-pin Multi-IO port is provided so you can connect the GoBook III to an optional cradle or office
dock.
4 Serial Port
The 9-pin serial port can be used to connect your computer to serial devices such a a fax/modem or a
serial mouse. This port is identified as COM1 and is 16550A compatible.
5 PS/2 Port
GoBook III® Help
Pa
g
e 24 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg19.png)
You can use the mini-DIN PS/2 port to connect your computer to a PS/2 device such as a PS/2 keyboard
or mouse.
6 Fax/modem RJ-11 Jack
The fax/modem can transmit data using the 56 Kbps V.90 or V.92 protocol, and send and receive faxes
at 14.4 Kbps. In some countries, local regulations may not permit the use of the fax/modem designed
for this system. In this case, you may use a PCMCIA modem.
CAUTION Plug your modem into an analog telephone jack only. Most homes use analog lines. Do not
use digital lines, such as PBX and ISDN systems found in many offices. Digital lines may damage your
modem. If you are unsure as to the type of port you have to plug into, simple detection and protection
devices are available at your local computer store.
7 LAN RJ-45 Jack (optional)
With an Ethernet LAN you can make LAN connections without installing PC cards. Connection speed is
10/100 Mbps.
8 IEEE 1394 Port
You can use the IEEE 1394 port to transfer data at rates up to 400Mbps. It is ideal for video devices
because it can transfer data in real time.
9 USB (Universal Serial Bus) Port
The USB is latest standard for attaching input devices, scanners, and other devices to a PC. USB
devices can be chained together on a single cable. USB is 2.0 compliant.
72_0119_001
28 June 2004
© 2004 Itronix Corporation. All rights reserved.
Left Side Connectors
Hover the mouse over each number on the picture to see a description
GoBook III® Help
Pa
g
e 25 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg1a.png)
1 PC Card Slot
Use this slot to connect PCMCIA-card devices.
2 Microphone Jack
Connect a microphone to this jack to record audio.
3 Audio-Out Jack
Connect external speakers or a stereo headset to this jack to listen to multimedia.
72_0119_001
28 June 2004
© 2004 Itronix Corporation. All rights reserved.
Right Side Connector
Hover the mouse over the number on the
p
icture to see a descri
p
tion.
GoBook III® Help
Pa
g
e 26 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg1b.png)
1 Smart Card Reader (optional)
You can use a Smart Card Reader to read or write to a smart card. A smart card is an electronic device
about the size of a credit card. Depending on the card, it may be used to store data, store cash, or
generate network identification.
2 Security Slot
Your computer has a Security Slot that can be used with a standard laptop locking device, such as a
Kensington Lock. You can connect the GoBook III to a large object with the lock to prevent theft of
your GoBook III. See the documentation that comes with your lock for more information.
72_0119_001
28 June 2004
© 2004 Itronix Corporation. All rights reserved.
Wireless Communications
The GoBook III may include several antennas for wireless communication. The WLAN antenna and
Bluetooth antenna are embedded in the upper display housing and require no user action. Another
antenna is located on the upper right corner of the display for the WAN radios. Simply raise this
antenna when using your WAN radios.
Use only the supplied or an approved antenna(s). Unauthorized antennas, modifications, or attachments
could impair call quality, damage the phone, or result in violation of FCC regulations.
The GoBook III may contain the radio transmitters listed below. The following statements are relevant
when usin
g
these radios:
Pa
g
e 27 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg1c.png)
Each internal radio may or may not have an individual FCC Identifier label. That FCC Identifier label is
not applicable to this configuration. Only the external FCC ID is applicable. Only the antenna with
which an intentional radiator is authorized may be used with the intentional radiator.
The WAN antenna location is in the upper right edge of the display screen and is not to be modified.
The WLAN embedded dual antennas are located internally in the upper right and left edges of the
display screen and are not to be modified. This device contains a WLAN radio transmitter and a WAN
radio transmitter. To comply with FCC RF exposure requirements when using the WAN radio
transmitter, a minimum separation distance of 20 cm must be maintained between the external dipole
antenna and all users/bystanders. When using the WLAN transmitter, a minimum separation distance of
20 cm must be maintained between the upper right and left edges of the display screen and all
users/bystanders. The WAN radio and WLAN transmitter should be turned off before carrying the
Laptop PC in order to comply with FCC RF exposure requirements.
Since each customer's radio configuration is unique, please read the radio help installed on your desktop
and refer to the manufacturer documentation to setup and use your radio(s).
WAN and WLAN
The GoBook III supports many different wireless radio configuration options including LAN (Local
Area Network) and WAN (Wide Area Network) wireless communication.
LAN radios are local and therefore span a small area such as a building or small group of buildings.
WAN radios cover a wider geographical area so they can be used anyplace the carrier has digital
coverage. For example, our cell phone system. WAN radios are usually connected via a
communications infrastructure such as a telephone system and connect at 14.4K to 153K depending on
the carrier, technology, and coverage. The GoBook III's WAN radios include CDMA and GPRS.
72_0119_001
28 June 2004
© 2004 Itronix Corporation. All rights reserved.
Bluetooth
GoBook III® Help
GoBook III® Help
Pa
g
e 28 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg1d.png)

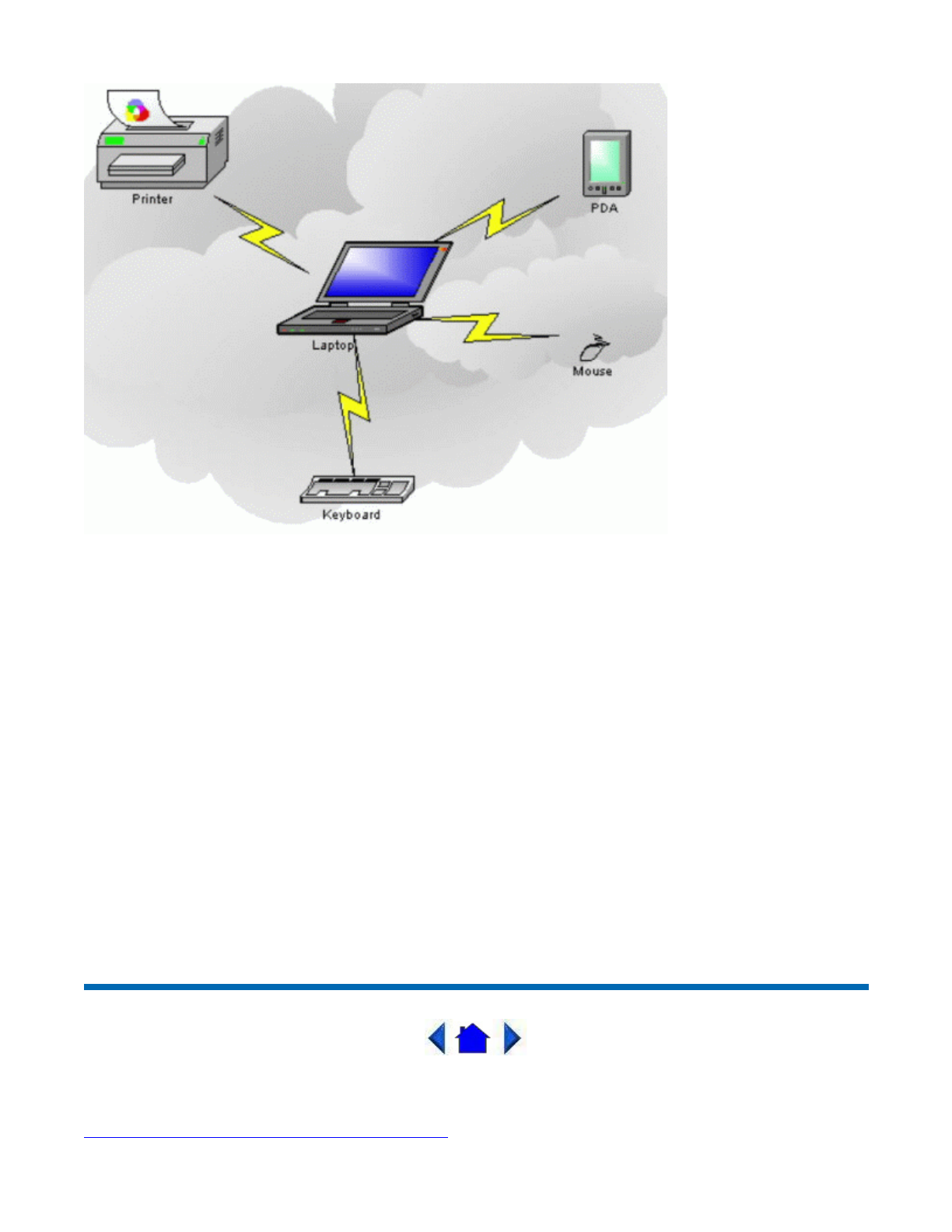

Bluetooth systems create a personal-area network (PAN), or piconet, that may fill a room or may
encompass no more distance than that between the cell phone on a belt-clip and the headset on your
head.
When Bluetooth-capable devices come within range of one another, an electronic conversation takes
p
lace to determine whether they have data to share or whether one needs to control the other. The user
doesn't have to press a button or give a command -- the electronic conversation happens automatically.
Once the conversation has occurred, the devices -- whether they're part of a computer system or a stereo
-- form a network.
Once a piconet is established, the members randomly hop frequencies in unison so they stay in touch
with one another and avoid other piconets that may be operating in the same room.
One of the ways Bluetooth devices avoid interfering with other systems is by sending out very weak
signals of 1 milliwatt. By comparison, the most powerful cell phones can transmit a signal of 3 watts.
The low power limits the range of a Bluetooth device to about 10 meters, cutting the chances of
interference between your computer system and your portable telephone or television. Even with the low
p
ower, the walls in your house won't stop a Bluetooth signal, making the standard useful for controlling
several devices in different rooms.
72_0119_001
28 June 2004
© 2004 Itronix Cor
p
oration. All ri
g
hts reserved.
Pa
g
e 29 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg1e.png)
GPRS
For specific information about your GPRS radio please refer to the manufacturer's documentation. You
may have one or more documents already installed on your GoBook III computer.
72_0119_001
28 June 2004
© 2004 Itronix Corporation. All rights reserved.
Wireless LAN
The GoBook III computer includes a high powered WLAN radio; the WLAN installed in the MiniPCI
slot with an antenna in the display. The WLAN MiniPCI Card User's Manual may already be installed
on your GoBook III computer. Refer to it for more information.
72_0119_001
28 June 2004
© 2004 Itronix Corporation. All rights reserved.
Power Management
The GoBook III has power management capability so you can reduce the amount of energy used,
especially during periods of inactivity. Effective use of power management options can greatly
conserve and extend your battery life.
GoBook III® Help
GoBook III® Help
GoBook III® Help
Pa
g
e 30 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg1f.png)
Battery Calibration
Over time, as the battery is repeatedly drained and recharged, battery performance will decrease.
Occasionally, the battery needs to be recalibrated for maximum performance. The calibration process
empties and charges the battery. This allows the Windows battery gauge to accurately monitor battery
status.
It is recommended you calibrate your battery:
zthe first time you use it
zafter it has been stored for awhile
zif the gas gauge has become inaccurate.
Windows Battery Calibration
To run the Battery Calibration program tap Start, Programs, and Mobile Computer Tools.
After starting calibration, the Battery Calibration application requires no further input from the user. The
calibration consists of four steps:
1. Partial Discharge - the battery is drained to a level below 60 %.
2. Charge - the battery is fully charged to 100 %.
3. Discharge and calibrate:
First, the battery is discharged all the way down to zero. Now the battery is 'calibrated' but not
charged. You may stop the process after this point and let the battery charge outside of the Battery
Calibration application.
4. Charge - if the Battery Calibration continues running, the battery will fully charged to 100%.
NOTE The unit will not go into suspend mode while Battery Calibration is running.
CAUTION Do not disconnect AC power while Battery Calibration is running. If AC remains
disconnected for more than two minutes, the application will terminate.
CAUTION Do not remove the battery while Battery Calibration is running. Doing so will cause the
application to terminate immediately.
BIOS Level Battery Calibration
You can also calibrate the battery from within BIOS Setup. To calibrate the battery from BIOS Setup
follow these steps:
1. Plu
g
in the AC ada
p
ter.
Pa
g
e 31 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg20.png)
2. Restart the computer. When the startup screen appears, just prior to the Windows logo screen,
press the DEL key to enter the BIOS Setup Utility.

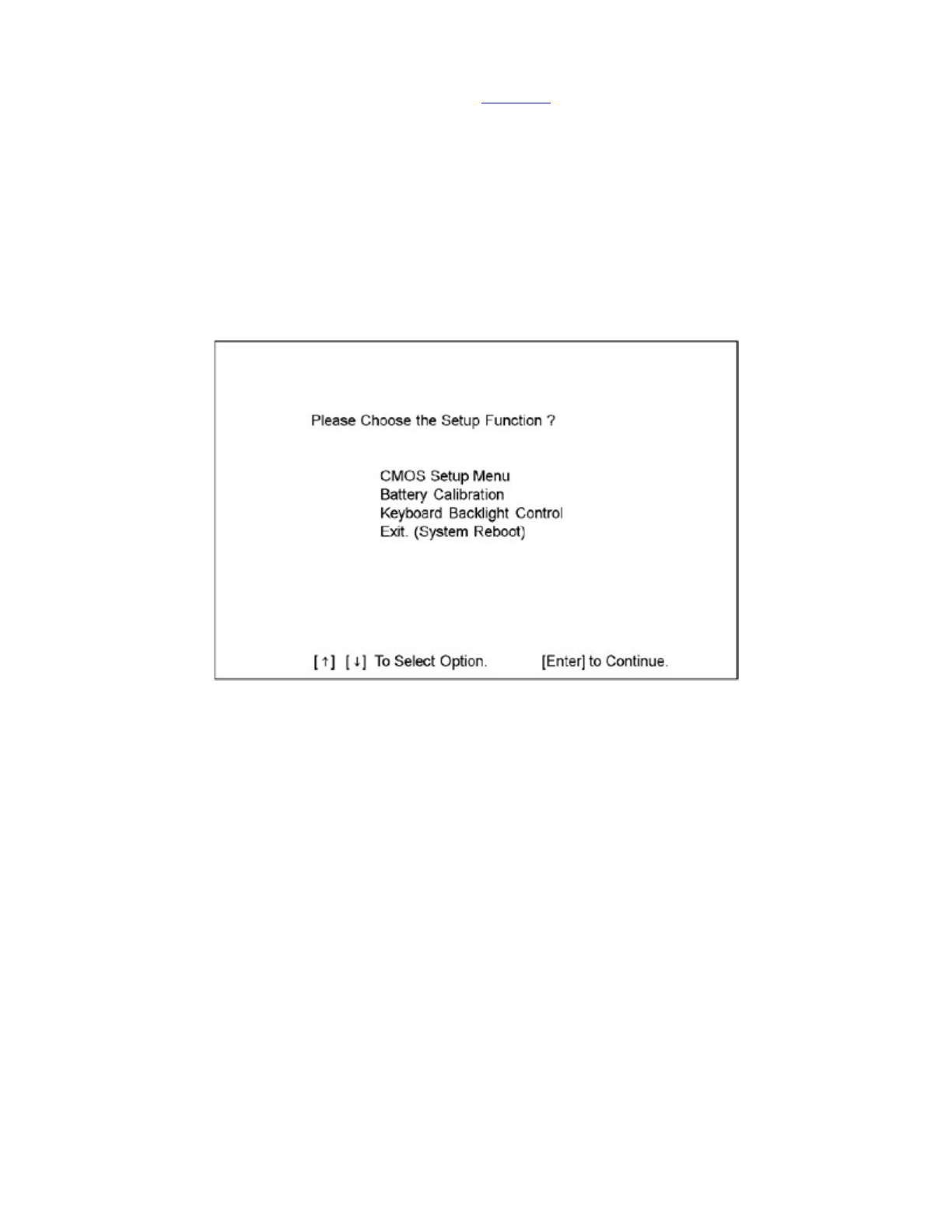

3. At the "Choose the setup function" screen, select "Battery Calibration" and hit enter.
NOTE Make sure the AC adapter and battery are present.
4. Choose Primary or secondary battery and hit enter. Battery Calibration will take from 10 to 16
hours, depending on how much power the battery may already contain.
72_0119_001
28 June 2004
©2004 Itronix Corporation. All rights reserved.
Using the Battery
Monitoring Battery Power
There are two ways to monitor how much power the battery has left:
1. Click Start, Settings, Control Panel, Power Management (Power Options); then tap the Power
Meter tab.
2. Moving the cursor to the battery icon on the taskbar, without selecting anything, is the simplest
way to check on battery power status. The status will show as a pop-up when you mouse-over the
icon.
NOTE If you do not see the battery icon, enable it in Start, Settings, Control Panel, Power Management
(Power Options). Choose the Advanced tab and select "Always show icon on the taskbar."
Low Battery Alarms
How your computer responds to a low battery condition can be set by going to Start, Settings, Control
Panel, Power Management, Alarms.
Two different power alarms can be enabled or disabled: the Low Battery Alarm, and the Critical Battery
Alarm. Use the slidebar to set the power level at which the alarms are activated. Click on the Action
b
utton to choose whether the alarm sounds, dis
p
la
y
s a messa
g
e, or both.
GoBook III® Help
Pa
g
e 32 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg21.png)
CAUTION When battery power is low, the Battery Power Indicator will flash and the alarm will
beep or display a warning on your screen. Take immediate action, such as saving files or connecting to
the AC adapter , or data may be lost.
When the computer alerts you that the battery is low, immediately do one of the following:
zConnect the AC power adapter
zSave your work and suspend to disk (Hibernate) by pressing the Power Button
zSave your work and then select Shut Down from the Start menu
zTurn off the computer (or suspend to disk) and replace the discharged battery with a charged
battery (See Changing the Battery)
NOTE Do not restart the computer until you have connected to an AC adapter, or replaced the
discharged battery with a charged battery.
72_0119_001
28 June 2004
©2004 Itronix Corporation. All rights reserved.
Battery Charging
When you use the AC adapter to connect your GoBook III to a power outlet, the internal battery will
begin to recharge automatically. While the battery is charging, the Battery Power Indicator will be
flashing green. When the battery is fully charged, it will turn off.
If your computer is turned off, or suspended to RAM, a fully discharged battery will take about 4 hours
to recharge. If you computer is turned on and is not in suspend mode, it will take 4- 6 hours to recharge
the battery. Refer to the following table:
GoBook III® Help
Charging Discharging
System On 4-6 hours 3-4 hours
System Off (suspend to RAM) 4 hours —
Pa
g
e 33 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg22.png)
NOTE a fully charged Li-Ion battery can run the GoBook III for approximately 3 hours or more.
Power Saving Modes
Adjust the default power management settings in the Power Management (Power Options) dialog box in
the Control Panel. The Power Management (Power Options) dialog box allows you to set different
actions to take when the computer is left idle for a certain amount of time.
Suspend Mode
There are several possible settings for suspend mode. You may Suspend to RAM,Suspend to Disk
(Hibernate), or disable suspend altogether, which is not recommended.
Suspend to RAM
In a suspend to RAM, the contents of your computer’s memory are held intact, while most of the
components in your computer either turn off completely, or reduce power consumption to a minimum.
In a Suspend to RAM, your computer remains active but with the minimum possible power
consumption. Return the computer to full power by pressing any key. A fully-charged battery can
maintain a Suspend to RAM for many hours.
Suspend to Disk (Hibernate)
Suspend to Disk (Hibernate) is similar to turning off the computer, except that the current state of the
computer is copied to the hard disk as a special file. When the computer returns from suspend mode, the
desktop appears with the same files and programs open as when the computer was suspended. Suspend
to Disk (Hibernate) is very useful when you don’t want to take the time to shut down all open programs
one by one to shut off the computer, only to have to open the same programs and files the next time you
use the computer. This mode is also called hibernation mode.
Initiating Suspend Mode
There are four ways to initiate suspend mode. The settings can be adjusted in the Power Management
dialog box:
zThe computer will automatically enter suspend mode when not used for a set period of time
zSelecting the Standby button in the Shut Down Windows dialog box
zPressing the power button (if enabled in power settings)
zPressing the suspend function key (FN+F3)
Power Button Settings
The function of the Power Button can be set to Shut down, Stand by or Hibernate in the Windows
Control Panel. However, holding the Power Button down for more than four seconds will force a
p
ower off while o
p
eratin
g
under an
y
situation, resultin
g
in the loss of an
y
unsaved information.
Pa
g
e 34 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg23.png)
When to Replace the Battery
Over time, the battery’s capacity gradually decreases. We recommend that you replace your battery
when you notice that it begins to store significantly less charge.
WARNING There is danger of explosion if the battery is incorrectly replaced. Replace only with the
same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the
manufacturer's instructions.
Changing the Battery
Change the main battery pack as follows:
1. Turn off the computer.
2. Disconnect external power .
3. Close the display and turn the computer over.
4. Rotate the latches on the battery door to the open
position and remove the door. Remove the
battery.
5. Make sure the replacement battery is properly
orientated. Insert the battery into the battery
compartment. Check that the latches lock back into position.
6. Charge the new battery by plugging the computer into AC power.
Heat Considerations
The computer’s processor has been specially designed to consume little power and generates very little
heat. However, working in a hot environment, or working for long periods may raise the temperature.
Your computer takes the following steps to lower temperature:
1. The cooling fan turns on. You may hear the fan and feel air coming from a vent near the right rear
of the computer when this happens.
2. If the temperature continues to rise, Processor activity is reduced. You may notice a slight loss of
performance when this happens.
3. If the computer overheats, the processor will stop functioning and the computer will shutdown.
72_0119_001
28 June 2004
Pa
g
e 35 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg24.png)
© 2004 Itronix Corporation. All rights reserved.
Battery Tips
Tip 1. Avoid excessive heat and cold
zYour battery will last longer during the day if it is used, charged and stored between 50°F and 86°
F (10°C and 30°C).
zCharge the battery nightly where the temperature will remain around 68°F (20°C). Your battery
may not last as long through the day if you charge it at higher or lower temperatures.
zAllow unrestricted airflow while the computer is connected to external power. Make sure that the
fan inlet and outlet are unobstructed.
zAvoid exposing batteries to hot or cold temperatures for long periods.
How your battery behaves in warm conditions
zTo prevent possible damage to the battery, the system may not allow a charge if the battery
temperature is above 122°F (50°C), such as in a closed, unattended vehicle during the summer. In
this case, the Battery Power Indicator may indicate that the computer has stopped charging
your battery; however, your battery may not be fully charged.
zIf possible, turn off or suspend your computer while the battery is charging in a warm
environment to avoid over-heating.
zIn warmer temperatures, your battery may take much longer to fully charge.
How your battery behaves in cold conditions
zWhen using a battery in cold conditions, the battery capacity may drain significantly faster.
zTo prevent possible damage to the battery, the system will not allow a charge if the battery
temperature is below 41°F (5°C), such as in a closed, unattended vehicle during the winter. In this
case, the Battery Power Indicator may indicate that the computer has stopped charging your
battery; however, your battery may not be fully charged.
zIn cooler temperatures, your battery can take much longer to fully charge.
Tip 2. Prevent wasted power
zManuall
y
turn off or sus
p
end
y
our com
p
uter whenever
y
ou are not usin
g
it.
GoBook III® Help
Pa
g
e 36 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg25.png)
zReduce the screen brightness. Decrease brightness by pushing FN + F6. Increase it by pushing FN
+F7.
zUse the AC adapter or vehicle adapter whenever possible.
zUse the "Mobile Computer" power management scheme, which helps save power. To set this
value, select Power Management (Power Options) from the Control Panel, select the Power
Schemes tab, then set the scheme to "Mobile Computer".
zWhen running on battery power, make sure your system suspends automatically after a few
minutes of inactivity. PC Cards, radios, custom applications, or modified system settings may
affect this.
zRemove PC Cards and unplug peripherals when you are not using them. They may draw power
from the system even when not in use.
zAvoid operating the fax/modem, or audio and video applications when using battery power.
Operating a fax/modem, video, or audio equipment increases the computer’s power requirements.
zDon't use screen savers as they draw excessive current, especially “3D” screen savers.
zSet the computer to automatically run the CPU at a lower speed when the computer is operating
on battery power. Set this value as follows:
1. While your computer is booting, press the DEL key when you see the message "Hit DEL if
you want to run setup".
2. Select the Power Management Setup menu option after the Setup Utility screen is displayed.
3. Set the "Intel(R)SpeedStep(TM) technology" menu option to Recommended.
4. Press the Esc key, then select Save Settings and Exit when you are finished setting up your
computer.
5. Then, in Windows, right click on the Mobile System Monitor icon ( or ) in the
toolbar, which is normally located at the bottom right corner of the display.
6. Select an option that keeps the CPU at 75% or less when on battery.
zAvoid or minimize using applications that keep the CPU busy a large percentage of the time. The
following will help you determine if your system is running such applications:
Identifying power wasting programs
To determine if applications or processes are keeping the CPU busy
1. Start the Task Manager utility. To open Windows Task Manager, right-click an empty space on
the taskbar, and then click Task Manager.
2. Select the Performance tab to view runnin
g
a
pp
lications, and the Process tab to view runnin
g
Pa
g
e 37 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg26.png)
processes.
3. Watch the CPU Usage. It is okay if the processor usage is occasionally 100 percent, but if it is 100
percent most of the time, this may indicate a problem.
What to do if applications are keeping the CPU busy
zSet the computer to automatically run the CPU at a lower speed when the computer is operating
on battery power (see above).
zIf possible, close applications that keep the CPU busy when you are not using them.
zTurn off or suspend your computer whenever you are not using it. This will help to conserve
power.
zInform your organization's help desk. They may have an updated version of the application.
Tip 3. Calibrate your battery
zOver time, the accuracy of the Windows battery gas gauge may be affected by repeated charging
and discharging of the battery. Calibrating the battery every 3 or 4 months helps to keep the gas
gauge accurate. For information on calibrating the battery, refer to Battery Calibration.
Tip 4. Get a good charge
zYour computer will charge more quickly if it is turned off or suspended.
zIn warmer or cooler temperatures, your battery can take much longer to fully charge.
zIf your battery is charged in a cold (less than 41°F/5°C) or very warm (greater than 122°F/50°C)
environment, it is possible that the Battery Charge LED will indicate that the charge has stopped;
however, this does not necessarily mean that your battery is fully charged.
Tip 5. Prevent data loss
Follow these guidelines to prevent data loss when removing your battery or storing your computer:
zYou will lose data if you remove the battery while the computer is operating or suspended. To
prevent this, shutdown your computer or put it into hibernate (suspend-to-disk) mode before
removing your battery.
zIf you plan to store your computer for more than a few days, shutdown your computer or put it
into hibernate mode. Remove the battery before storing the computer.
Tip 6. Clean terminals
zDirty terminals can be a cause of charging problems. Clean battery terminals with a cotton swab
dipped in isopropyl alcohol. Make sure that the alcohol has evaporated before reinstalling the
b
atter
y
.
Pa
g
e 38 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg27.png)
Tip 7. Storing batteries
zStore the battery within the recommended temperature range: 10°C to 30°C (50°F to 86°F).
zUnused or stored batteries can lose power over time. When you install a battery that has not been
used for awhile, connect external power to the computer and fully charge your battery.
zBattery calibration may increase the capacity of a battery stored for a period of time. For
information on calibrating the battery, refer to Battery Calibration.
zIt is recommended that the battery is recharged every six months while in storage.
72_0119_001
28 June 2004
©2004 Itronix Corporation. All rights reserved.
Customizing Your BIOS Settings
This chapter explains how to use the Setup Utility to modify the BIOS settings. The Setup Utility
displays and allows modification of the GoBook III components and the configuration of devices that
are connected to it. This information is used to test and initialize components at start-up time and to
make sure everything runs properly when the system is operating.
The GoBook III is configured with a set of default values. You may be able to increase system
p
erformance by changing some of the timing values in the Setup Utility, but this can be limited by the
kind of hardware you are using. In certain circumstances, the system may generate an error message that
asks you to make changes to the BIOS settings using the Setup Utility. This happens when the system
finds an error during the POST (Power On Self Test) that it carries out at startup.
CAUTION It is not recommended that you change any settings since this may cause the unit to not
function properly.
If you are not sure how to configure the BIOS settings we suggest that you select Auto configuration
with Optimal Settings on the Main Menu screen, then exit saving changes. This loads optimized default
settings for normal use.
Using the Setup Utility
The Setu
p
Utilit
y
allows
y
ou to confi
g
ure
y
our com
p
ute
r
’s basic settin
g
s. When
y
ou turn
y
our com
p
uter
GoBook III® Help
Pa
g
e 39 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg28.png)
on, the system reads this information to initialize the hardware so that it can operate correctly. You can
use the Setup Utility to change your computer’s start-up configuration. For example, you can change
your system's security routine.
Starting the Setup Utility
You can only start the Setup Utility shortly after the computer has been turned on or rebooted. To
execute a controlled reboot, select Start, Turn Off Computer, Restart. Shortly after the computer
restarts, the following prompt appears on the computer display, “Press DEL to enter Setup. Press TAB
to show POST information” Press the DEL key when you see the prompt. The system will start the
Setup Utility with the following screen displayed. Select "CMOS Setup Menu" and press Enter.
Navigation and Help
The Setup Utility has five menu options in the Menu Bar at the top of the window. Press the left or right
arrow ke
y
s to c
y
cle throu
g
h these menu screens:
Pa
g
e 40 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg29.png)
The Field Help Window is on the right side of each menu. It displays the help text for the currently
selected field. This text updates as you move the cursor from field to field.
The General Help Window describes the legend keys. You can display it by pressing F1 on any menu.
Main Use for basic system configuration
Advanced Use to set the advanced features
Boot Use to set user and supervisor passwords
Security Use to select the sequence of boot devices that are searched to load an operating
system
Exit Use to exit the current Setup session
Pa
g
e 41 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg2a.png)
72_0119_001
28 June 2004
©2004 Itronix Corporation. All rights reserved.
The Main Menu
You can change the system date and time on the main menu, and view processor and memory
information.
GoBook III® Help
Field Setting Function
AMIBIOS
Version
N/A Displays the AMIBIOS version detected during boot up.
This is a display only field.
Processor
Type
N/A Displays the processor type detected during boot up. This
is a display only field.
Processor
Speed
N/A Displays the processor speed detected during boot up.
This is a display only field.
System
Memory Size
N/A Displays amount of conventional memory detected
during boot up. This is a display only field.
System Time HH:MM:SS Use this field to set the time. The time is displayed in 24
hour format. The value set takes effect immediately.
Pa
g
e 42 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg2b.png)
CAUTION Incorrect settings can cause your system to malfunction. To correct mistakes, return to
Setup and restore the Setup Defaults by pressing F9.
72_0119_001
28 June 2004
© 2004 Itronix Corporation. All rights reserved.
The Advanced Menu
System Date MM/DD/YYYY Use this field to set the date. The date can be set from
January 1, 1980 to December 31, 2099. The value set
takes effect immediately.
GoBook III® Help
Field Setting Function
Super I/O
Configuration
sub-
menu
Configure SuperIO Chipset Smc268
Fan Learning
Function
sub-
menu
Fan Learning Function will take 20 minutes to finish
procedure
Pa
g
e 43 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg2c.png)
CAUTION Incorrect settings can cause your system to malfunction. To correct mistakes, return to
Setup and restore the Setup Defaults by pressing F9.
Super I/O Configuration
Stealth Mode
Configuration
sub-
menu
Depending on Stealth Mode setting, LED, FAN Beeps,
LCD Brightness, Audio will keep silent when you need.
Extended
Configuration
sub-
menu
Other special function settings including low battery beep,
radio wakeup, etc.
Field Setting Function
Serial Port1
Address
Disabled
3F8/IRQ4
3E8/IRQ4
2E8/IRQ3
Allows the BIOS to select Serial Port1 Base
Addresses.
Serial Port2
Address
Disabled
2F8/IRQ3
3E8/IRQ4
2E8/IRQ3
Allows the BIOS to select Serial Port2 Base
Addresses.
Serial Port2 Mode Normal
IrDA
ASK IR
Allows the BIOS to select the mode for Serial
Port2.
Serial Port3
Address
Disabled
3F8
2F8
3E8
2E8
Allows the BIOS to select Serial Port3 Base
Addresses.
Serial Port3 IRQ IRQ4
IRQ9
Allows the BIOS to select Serial Port3 IRQ.
Pa
g
e 44 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg2d.png)
Fan Learning Function
IRQ10
IRQ11
Parallel Port
Address
Disabled
378
278
3BC
Allows the BIOS to select Parallel Port Base
Addresses.
Parallel Port Mode SPP/Bi-
Directional
EPP/SPP
ECP
ECP/EPP
Allows the BIOS to select the Parallel Port mode.
Parallel Port IRQ IRQ5
IRQ7
Allows the BIOS to select the Parallel Port IRQ.
Field Setting Function
Start Fan
Learning
Start Fan
Learning
OK
Cancel
If FAN PWM shows N/A! you will need to press Enter to
execute the fan learning process first. It will take about 20
minutes to finish. The keyboard will not work during fan
learning.
Learning
Count
N/A Displays the fan learning count.
Current
Learning
Stage
N/A Displays the current fan learning stage.
View Fan
Learning
see screen Lists information details for each step of fan learning.
Pa
g
e 45 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg2e.png)
Stealth Mode Configuration
Stealth mode is a feature that allows the GoBook III to be used in an environment where sound and light
could be dangerous to the users, such as a military user. If Stealth mode is disabled, the LEDs, fan,
system beeps, audio, and display brightness operate normally.
Result
Pa
g
e 46 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg2f.png)
When Stealth Mode is enabled, the various options have the following effect:
NOTE The off setting means that option is in Stealth Mode.
The keyboard backlight does the following whether stealth mode is enabled or disabled:
zDoes not illuminate when the system is off or suspended
zDoes not illuminate on resume or boot
zTurns off when FN+F1 is pressed to turn off the display.
Extended Confi
g
uration
Field Setting Function
LEDs Off LEDs are disabled
On LEDs function normally
FAN Off The Fan is disabled. Heat management is then controlled solely
through throttling.
On The fan functions normally
Audio Off Volume is set to 0 across suspend/resume and boot. Use the existing
audio function keys to restore volume.
On Audio is preserved across suspend/resume and boot. The default
volume level is set to mid range.
System
Beeps
Off The system beeper is disabled during the boot up or resume process.
On Beeps are heard during POST
Display
Brightness
Off Brightness is set to 0 across suspend/resume and boot. FN+F1
restores brightness to the value it was set to before suspend.
Additionally, FN+F7 can be used to increase display brightness
gradually. FN+F6 can be used to decrease brightness gradually.
On Display brightness is preserved across suspend/resume and boot. It
is restored to default when the brightness level is set at 0. The
default level is mid range.
Pa
g
e 47 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg30.png)
72_0119_001
28 June 2004
© 2004 Itronix Corporation. All rights reserved.
The Boot Menu
Use these fields to set the devices from which the s
y
stem should boot in order of
p
riorit
y
. When
y
ou
Field Setting Function
Battery Low
Warning
Beep
Disabled
Enabled
System will sound 3 beeps per 10
Secs during both battery capacity
below 7%.
RF Radio
WakeUp
Disabled
Enabled
If enabled, RF Radio Card will
wake system.
Bluetooth
Wakeup
Disabled
Enabled
If enabled, Bluetooth will wake
system.
Secure HDD
Support
Disabled
Enabled
If enabled, the system will close
S3 support for ACPI and will
keep HDD power if the system
restarts.
GoBook III® Help
Pa
g
e 48 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg31.png)
select a device, it is disabled in the other boot device fields.
CAUTION Incorrect settings can cause your system to malfunction. To correct mistakes, return to
Setup and restore the Setup Defaults by pressing F9.
72_0119_001
28 June 2004
©2004 Itronix Corporation. All rights reserved.
Field Setting Function
1st Boot Device PM-
IC25N040ATMR04-0
1st Floppy Drive
Disabled
Select the device computer
should boot from first.
2nd Boot Device PM-
IC25N040ATMR04-
0
1st Floppy Drive
Disabled
Select the device computer
should boot from second.
Network Boot (PXE) Disabled
Enabled
If enabled, booting from the
network is possible.
Pa
g
e 49 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg32.png)
The Security Menu
CAUTION Incorrect settings can cause your system to malfunction. To correct mistakes, return to
Setup and restore the Setup Defaults by pressing F9.
GoBook III® Help
Field Setting Function
Change
Supervisor
Password
Enter New
Password
Install or Change the Supervisor password. This field must be
set before a user level password can be set. You will be
prompted for the new password, and then again to verify it.
Type in six or fewer keystrokes. If you make an error, press
Esc to start over.
Change User
Password
Enter New
Password
Install or Change the User password
Clear User
Password
Clear User
Password?
OK
Cancel
Immediately clears the User password.
Boot Sector
Virus
Protection
Disabled
Enabled
Enable/Disable Boot Sector Virus Protection
Pa
g
e 50 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg33.png)
72_0119_001
28 June 2004
©2004 Itronix Corporation. All rights reserved.
The Exit Menu
You use the exit menu to leave the BIOS Setup Utility .
CAUTION Incorrect settings can cause your system to malfunction. To correct mistakes, return to
Setup and restore the Setup Defaults by pressing F9.
GoBook III® Help
Field Setting Function
Save Changes and
Exit
OK
Cancel
Exit system setup after saving the changes. The F10 key can
be used for this operation.
Discard Changes
and Exit
OK
Cancel
Exit system setup without saving any changes. The Esc key
can be used for this operation.
Discard Changes OK
Cancel
Discards changes done so far to any of the setup questions.
The F7 key can be used for this operation.
Load Optimal
Defaults
OK
Cancel
Load Optimal Default values for all the setup questions. The
F9 key can be used for this operation.
Pa
g
e 51 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg34.png)
72_0119_001
28 June 2004
©2004 Itronix Corporation. All rights reserved.
Optional Equipment and Accessories
The GoBook III computer has several equipment and accessory options to further enhance your mobile
computing experience.
CAUTION When purchasing any additional accessories, purchase only those accessories that are
approved for use with your computer. Some accessories are proprietary items and can be obtained
through your system vendor. If you use items that are not approved for use with this computer, you may
cause your computer to malfunction, or to emit or receive electromagnetic radiation in excess of local
regulations. For non-proprietary accessories such as PC Cards or printers, ensure that the accessory
functions properly in your computer before making the purchase. Your system vendor may be able to
recommend reliable brands and models.
Surge Protection
A large number of computer and high technology equipment damage is directly related to AC power and
telephone line problems. These problems can include surges, spikes, noise, interference, and weather-
related problems, which in turn can cause glitches, hang-ups, crashes, performance slow downs, and
down time with computer equipment. The market is flooded with hundreds of AC power line surge
suppressors advertising high performance surge protection; only a few of them actually provide
adequate protection.
This section provides guidelines for selecting a quality surge suppressor to be used with your GoBook
III, and it helps identify a few sources for products with acceptable performance.
Selecting the Right Surge Protection
Consider the level of quality you need when selecting a surge suppressor. This depends on factors such
as surge environment, the type of equipment to be protected, and the quality of the electrical wiring and
service.
Surge Environment
Surge environment refers to the damage potential from electrical surges in a particular geographical
area. A high quality suppressor should be used if there is frequent lightning activity in the area and the
location service is fed b
y
overhead utilit
yp
oles.
GoBook III® Help
Pa
g
e 52 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg35.png)
Type of Equipment to be Protected
If the computer is equipped with a modem, the modem should also be surge protected. Protecting the
p
ower line without protecting the modem line provides only partial protection.
Quality of Electrical Wiring and Service
Wiring should be up to current NEC standards and have verified good AC grounds. It is important that
your computer system be plugged into a grounded AC outlet when charging and that all peripherals
connected to your system reference the same AC ground.
Selecting the Right Equipment
There are a number of companies that sell quality surge suppressors such as Sutton Designs, APC, and
Panamax. When you are looking for a surge suppressor, consider these things.
zExpect to pay at least $50 for a good quality surge suppressor.
zThe surge suppressor should be a UL 1449, 497, and 1283 listed for surge suppression, modem
surge protection, and RFI/EMI noise filtering respectively.
zThe surge suppressor should have diagnostic LEDs that verify good AC ground, proper wiring,
and proper surge operation. On/off switches that light are not recommended since they can
produce electrical noise.
zThe Joule ratings should be a minimum of 480 Joules for the AC surge circuit.
zThe Joule ratings should be a minimum of 240 Joules for the modem.
zThe modem surge circuit should present low capacitance to the modem line or it will slow the
transmission rate. Capacitance should be specified at less than 50 picofarads.
zQuality surge suppressor manufacturers generally offer a lifetime warranty.
zConsider obtaining a protected equipment coverage policy which insures the equipment in the
event of surge damage.
zThe devices that will be attached to the computer also need to be surge protected.
72_0119_001
28 June 2004
© 2004 Itronix Corporation. All rights reserved.
Pa
g
e 53 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg36.png)
Vehicle Adapter
The Vehicle Adapter is an optional device that supplies power from the vehicle battery to operate the
computer and charge the battery installed in the unit. It typically connects to the vehicle battery using the
cigarette lighter socket.
To prevent possible damage to the battery, the system will not allow the battery to charge at extreme
temperatures. Be aware of the following charging characteristics, especially if the computer is left
unattended in a closed vehicle.
To connect the vehicle adapter
1. Insert the vehicle adapter’s power cord into the power port on the back of the computer.
2. Insert the cigarette lighter adapter into the vehicle’s cigarette lighter socket, turning it slightly to
make a good connection.
The power light illuminates to indicate that current is reaching the vehicle adapter. When you
connect the vehicle adapter, it automatically begins charging the computer’s battery. At moderate
temperatures, around 21°C (70ºF), the battery will be fully charged in approximately four to five
hours. However, under extremely cold or hot temperatures, or if the system is on, it will take
longer to charge the battery (up to 16 hours).
72_0119_001
28 June 2004
© 2004 Itronix Corporation. All rights reserved.
Vehicle Cradle
The vehicle cradle is a vehicle-based docking station designed to safely secure the computer in the
vehicle. A standard key lock located on the front of the cradle locks the computer onto the cradle for
securit
yp
ur
p
oses. You can use the vehicle cradle to:
GoBook III® Help
Temperature Charging Activity
<5°C (<41°F) Battery will not charge
>50°C (<122°F) Battery will not charge
GoBook III® Help
Pa
g
e 54 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg37.png)
zCharge batteries
zCommunicate with other devices
zAutomatically connect to an external RF antenna
PRECAUTIONS
zThere are no user-replaceable parts within the vehicle cradle, so do not open the cradle case. The
vehicle cradle is internally protected; it resets automatically if there is a power fault.
zDo not use the vehicle cradle to charge the computer battery overnight. Turn off the vehicle cradle
at the end of each work day to prevent draining the voltage in your vehicle’s battery below
starting levels.
Charging Batteries
The vehicle cradle is designed to charge the computer’s battery with voltage from the vehicle battery
while you are traveling between jobs. Follow the procedure below to charge a battery.
To char
g
e a batter
y
installed in the com
p
ute
r
Pa
g
e 55 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg38.png)
1. Place the computer onto the vehicle cradle, making sure it is securely latched.
2. If charging is required it begins automatically. The Battery Power Indicator flashes.
3. When the battery is fully charged, the Battery Power Indicator remains steady.
Communicating with Other Devices
Connect the external device to either of the USB ports on the back of the cradle, and then place the
GoBook III onto the vehicle cradle. You can install or remove the computer from the vehicle cradle
without connecting or disconnecting the cables.
External Antennas
You can also connect an external RF antenna to the cradle using the SMA RF connector on the back of
the vehicle cradle. FCC regulations require that users of vehicle-mounted antennas must use only
antennas authorized for use with the GoBook III in order to meet FCC RF exposure limits. Please
contact your organizations’s help desk for a list of approved vehicle-mounted antennas. For mounting
installation and/or mounting instructions for these types of antennas, see the instructions that accompany
each antenna.
RF Antenna Placement
WARNING Improper installation and/or operating configurations of permanent and magnetic vehicle-
mounted antennas may cause FCC RF exposure limits to be exceeded. Vehicle-mounted antennas must
be placed at least 20 cm from operators and bystanders.
Placement of a vehicle-mounted antenna
1. Measure and identify an area 20 cm (8 inches) in from the edges of the vehicle roof (see diagram
below).
2. Place the antenna within that area.
Important
zA temperature of 5°C to 50°C (41°F to 22°F) is required when charging batteries with the
vehicle cradle. Batteries will not charge successfully outside this temperature range.
zIf you charge your battery daily, rely on the gas gauge reading to determine battery
capacity. The gas gauge displayed by the Power Meter may show that the battery is full,
but charging continues. This happens because the charging process is trying to put a little
more capacity into the battery. External power can be removed at this time since the
battery is virtually full.
zIf your battery is new or has not been used for several weeks, rely on the indicator light to
determine when the battery is fully charged. The gas gauge is unreliable in these cases; it
may read 100%, when the actual capacity is only 10%.
Pa
g
e 56 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg39.png)
To maximize RF performance, position the antenna in the center of the vehicle roof.
Cleaning or Replacing Cradle Contact Pins
The contact pins on the vehicle cradle are exposed to contamination and stress when the computer is
installed and removed from the cradle during normal daily operation. If the pins become dirty, they can
be removed and cleaned as necessary using electrical contact cleaner. Or they can be replaced. The
p
ower and ground pins are pins 3 and 8 respectively. When charging problems are encountered and
replacement pins are not available, other pins in the contact assembly can be used to field fix the unit
until replacement parts are available.
To clean or replace the cradle contact pins
1. Hold down the protective plastic cover.
2. Grasp a pin and pull straight up, being careful not to bend it.
3. Clean the pin with electrical contact cleaner and reinstall it into the cradle contact assembly.
If a pin is bent or cannot be cleaned, contact your support desk to obtain a replacement pin.
NOTE Pin 8 is not user replaceable. Contact your support desk for information about replacing this RF
connector.
CAUTION Do not place any metal objects on top of the cradle that might make contact with the metal
p
ins of the contact connector. Doing so may cause an electrical short and subsequent damage to the
cradle.
72_0119_001
28 June 2004
© 2004 Itronix Corporation. All rights reserved.
Heaters
GoBook III® Help
Pa
g
e 57 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg3a.png)
Hard Disk Drive Heater
If your GoBook III has a hard disk drive (HDD) heater option to warm the HDD before spinning up in
temperatures below 5°C, the minimum safe operating temperature of the HDD. The heater is built into
the removable HDD module and operates as needed when the computer is turned on or is in an
operational state. If the temperature is below 5°C when booting or resuming you will see the message
"Warming internal hard drive. Please wait...". The unit will continue booting when it detects the HDD
is warm enough to operate safely.
NOTE If you are using the computer in a cold temperature environment and the battery level is too low
for the heater to operate, you will see the error message "Battery too low to warm the hard drive.
Shutting down..." and the computer will shut down. Apply external power and reboot.
LCD Heater
The GoBook III also has an CCFL heater to improve display brightness in a cold environment. The
heater consists of a film and heater strip that is bonded over the CCFL area of the display. It is designed
to turn on when the temperature is cold enough to impact display brightness.
72_0119_001
28 June 2004
©2004 Itronix Corporation. All rights reserved.
Maintenance and Storage
The GoBook III is ruggedized and weather resistant. Handle it with the normal care required by any
sophisticated electronic equipment, and the computer will provide reliable service even under harsh field
conditions.
Follow the guidelines in this section to care for your unit.
Battery Maintenance and Storage
Maintainin
g
Batteries
GoBook III® Help
Pa
g
e 58 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg3b.png)
Follow these guidelines to maintain performance of Lithium-Ion (Li-on) batteries.
zAvoid exposing batteries to extremely hot or cold temperatures for long periods. To prevent
possible damage to the battery, the GoBook III does not allow the battery to charge if the internal
temperature of the battery gets too low (< 5°C or < 41°F) or too high (> 50°C or > 122°F).
zCharge the battery nightly where the temperature will remain around 20°C (68°F).
zRe-calibrate your battery when your battery performance degrades.
Storing Batteries
zStore the battery within the recommended temperature range: 10°C to 30°C (50°F to 86°F).
zUnused or stored batteries can lose power over time. When you install a battery that has not been
used for awhile, connect external power to the computer and charge the battery.
zAfter storage, battery calibration may increase its capacity.
Refer to Battery Tips for more recommendations regarding your batteries.
72_0119_001
28 June 2004
© 2004 Itronix Corporation. All rights reserved.
Computer Maintenance and Storage
Maintaining Your Computer
Follow these guidelines to help maintain the condition and performance of your computer.
zTurn off the computer when you are not using it.
zCharge the batteries daily or whenever their capacity is low.
zOperate the computer within the recommended temperature ranges of -23°C to +60°C (32°F to
+140°F).
Care and Cleanin
g
GoBook III® Help
Pa
g
e 59 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg3c.png)
Physical Inspection Periodically inspect the computer and accessories for wear, damage, loose or
missing parts. Identifying and correcting potential problems early can help reduce the need to return the
unit for service.
Outside Case Like all tools, the outside of the computer will get dirty with use. The case is made of
p
ainted Magnesium and polycarbonate blend (plastic) doors and covers. These areas can be cleaned with
a solution of one part Formula 409™ and one part water. Follow the procedure below.
To clean the outside case
1. Disconnect external power and turn off the computer.
2. Remove the battery.
3. Using a soft, dry cloth (do not use paper products because they can scratch the surface, add a
small amount of cleaning solution to the cloth and clean the computer case.
4. Wipe off any excess liquid with a soft cloth.
5. Reinstall the battery.
Display Periodically inspect the display to make sure the brightness function is operating properly and
that all pixels are operational.
To clean your touch screen
To clean the display assembly, use the same cleaning solution and procedure described earlier for the
outside case. In some cases, you can use a small amount of isopropyl alcohol to remove streaks or
smears. Use a soft, clean cloth to clean the display. Do not use paper products because they can scratch
the screen.
External Power Connector The external power connector may sometimes be exposed to moisture
and/or contamination causing an unreliable connection to the external power source.
Clean the connector using a cotton swab dipped in isopropyl alcohol.
RJ-11/ RJ-45 / USB / IEEE 1394 Connectors Make sure these connectors are operating properly.
During normal use, the connector pins can get dirty or become broken, bent, or pushed out of place.
Clean the connector with a cotton swab dipped in isopropyl alcohol.
Keyboard Check all keys to make sure they are working properly. To clean the keyboard, use the same
cleaning solution and procedure described above for the outside case.
If keyboard problems persist, the keyboard might need to be replaced. This can be done without
returning the unit for service. Contact your local support person for more information.
I/O Ports Make sure the video, serial, and audio ports are operating properly. Periodically inspect the
p
orts for damage or contamination, and make sure the cover is attached to the computer. The I/O cover
can be replaced without returning the unit for service. Contact your local support person for more
information.
Pa
g
e 60 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg3d.png)
PC Card and Connectors Whenever possible, make sure this door is closed and latched properly.
When the PC Card door is closed, it provides a watertight seal for the PC Card socket. Shield the area
from all contaminants such as liquids, rain, snow, and dust when the door is open.
Make sure the PC Card connector is operating properly by reading from or writing to a PC Card.
Smart Card and Removable Drive Whenever possible, make sure this door is closed and latched
p
roperly. When the door is closed, it provides a watertight seal for the Smart Card Reader and
Removable Drive. Shield the area from all contaminants such as liquids, rain, snow, and dust when the
door is open.
Cradle Contacts The cradle contacts on the bottom of the computer may get dirty with daily use. Pins
can be cleaned with a cotton swab dipped in isopropyl alcohol. See Cleaning or Replacing Cradle
Contact Pins for more information.
Storing Your Computer
If you plan to store the computer, follow these storage guidelines.
To store the computer
1. Files and data should be saved before storing the computer.
Contact your organization’s help desk about the procedure for backing up files or data.
2. Exit all applications and use the appropriate procedure to exit from your operating system.
3. Turn off the computer by going to the Start menu and selecting Shutdown.
4. Remove the battery from the unit and store it in a dry place.
5. Store the computer within the recommended temperature ranges of -40°C to +75°C (-40°F to
+167°F).
If you use PC cards, refer to the manufacturer’s instructions you received with the card for storage
and care information.
72_0119_001
28 June 2004
©2004 Itronix Corporation. All rights reserved.
GoBook III® Help
Pa
g
e 61 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg3e.png)
Hard Drive Care and Handling
There is one hard drive option for the GoBook III: a removable shock-mounted 2.5-inch hard drive. All
hard drives contain media for data storage in the form of a rotating disk, read/write head(s), a motor, and
electronics for interfacing and control. Drives can be susceptible to damage from severe shock and other
stressful environmental impacts. The degree of susceptibility to damage is directly related to the
individual hard drive and the mounting system employed.
When reading or writing to the hard disk , the head is “flying” on a thin layer of air, micro-inches above
the disk. A shock can cause the read/write head to contact the spinning disk, resulting in immediate loss
of stored data and possible physical damage to the disk. It could also create loose debris in the drive
enclosure that may cause progressive damage over time.
To reduce exposure to high operating shocks, the GoBook III uses power modes for the hard drive that
p
revent the read/write heads from being positioned over the disk when it is not being used: idle mode
and standby mode.
You can reduce the risk of damage to the hard drive and increase the reliability of the hard drive and
data integrity by following the recommendations below.
Installing and Removing the Hard Drive
To remove the hard drive:
1. Shut down the unit and remove external power.
2. Open the battery door and remove the battery using the extraction tape. The hard drive is in a
cassette that can be seen in the battery well just under the RTC hatch.
3. On the left side of the hard drive cassette you will see a small black release lever. Pull the lever
towards you (away from the direction of the RTC hatch) and slide the cassette out into the battery
stora
g
e area.
Pa
g
e 62 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg3f.png)
4. Lift the hard drive cassette from the battery storage area.
To install the hard drive:
1. Make sure the unit is shut down and external power is removed.
2. The battery door should be off the unit and the battery removed.
3. Make sure the small black release lever is rotated towards you (in its released position).
4. Slide the hard drive cassette into its storage location.
5. Replace the battery and then replace the battery door.
Internal Hard Drives
zDo not intentionally drop the computer. The unit is designed to withstand the day to day rigors of
the mobile environment and provide years of reliable service. The useful life of the product can be
enhanced by not intentionally abusing it.
zWhenever possible suspend the unit by pressing FN+F3 before moving it from one location to
another. This will unload the read/write heads and spin down the disk.
zMaintain the environmental seal of the computer by keeping all external access doors closed and
latched. Also avoid exposing the unit to extreme temperatures or moisture when the doors are
open.
zPeriodically backup or archive important files and data.
External PC Card Hard Drives
Each PC Card hard drive manufacturer provides specific guidelines for the care and handling of the
p
roduct. In addition, follow these recommendations:
zWhen the PC Card hard drive is not inserted in a PC Card socket, store the hard drive in a
p
rotective carr
y
in
g
case. This will hel
pp
rotect it from inadvertent shocks.
Pa
g
e 63 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg40.png)
zAlways use care when handling the hard drive. Do not drop, bend, flex, or crush it.
zAvoid exposing the PC Card hard drive to extreme moisture, heat, or sunlight.
zKeep all debris out of the connector to ensure good electrical connections.
zThere are no user repairable parts in the PC Card hard drive. Do not attempt to disassemble any
part of the hard drive. The warranty will be voided if drive seals are broken or screws have been
removed.
zPeriodically backup or archive important files and data.
If you encounter or suspect hard drive problems, you can run SCANDISK, which provides a description
of file usage and syntax on selected drives. SCANDISK will identify any failures on the hard drive and
p
rompt you for corrective action based on selected options. If problems are found, it may be necessary
to run SCANDISK several times to determine the extent and severity of the problem. SCANDISK may
discover multiple bad clusters. Up to ten bad clusters can be allowed before returning the computer for
service. After you have run SCANDISK and the problem persists or becomes more severe, or if
SCANDISK finds more than ten bad clusters, return the unit for service.
To run SCANDISK in WIN2K and WINXP right click on the drive letter, go to properties, and select
the tools tab, Error-checking and click check now. In other Windows operating systems you can run
SCANDISK by going to Start, Programs, Accessories, System Tools. Then select SCANDISK.
72_0119_001
28 June 2004
© 2004 Itronix Corporation. All rights reserved.
Touch Screen Care
GoBook III® Help
CAUTION
zAlways use an approved stylus or your finger.
zNever use sharp, hard, or abrasive implements on the touch screen such as ball point pens,
pencils, or keys. They could damage the screen.
zTo clean the touch screen panel, apply a household glass cleaner to a soft, clean, dry cloth
and wipe the screen.
Pa
g
e 64 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg41.png)
72_0119_001
28 June 2004
© 2004 Itronix Corporation. All rights reserved.
Error Messages
The following are possible error and warning messages you may encounter while operating the GoBook
III computer. The messages described in this section are listed below.
Error and warning messages are generated by several different sources including:
zPower On Self Test (POST)
zMS-DOS
zWindows
zApplications
POST Messages
When the GoBook III computer restarts, it tests its hardware components. This test is called the Power
On Self Test (POST) . If the system finds an error during this test, it displays an error message.
Some POST errors can occur before anything can be displayed on the screen. In this case, the computer
issues a series of beeps, then stops working. This type of error indicates a serious hardware problem, and
you should contact your supervisor or your organization’s help desk.
The most common POST error messages are listed next along with solutions you can try.
Disk not found
Restart the computer by pressing the power button for at least eight seconds. If the problem persists,
contact your supervisor or your organization's help desk.
Fixed disk controller failure
GoBook III® Help
Pa
g
e 65 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg42.png)
Disk controller is not responding. Report this error to your supervisor or your organization's help desk.
Fixed disk failure
Report this error to your supervisor or your organization's help desk.
GA20 Error
Hardware failure. Report this error to your supervisor or your organization's help desk.
Hard disk boot sector invalid
Hard disk failed
Restart the computer by pressing the power button for at least eight seconds. If the problem persists,
contact your supervisor or your organization's help desk.
Insert boot-disk and press any key
Restart the computer by pressing the Power Button for at least eight seconds. If the problem persists,
contact your supervisor or your organization's help desk.
KB / Interface Error
Reboot the computer by pressing CTRL+ALT+DEL. If the message persists, and the keyboard is not
usable, report this error to your supervisor or your organization's help desk.
Keyboard Error
Unlock Keyboard
Restart the computer by pressing the Power Button for at least eight seconds. If the problem persists,
contact your supervisor or your organization's help desk.
N
o boot device available
Reboot the computer by pressing CTRL+ALT+DEL. If the message persists, the hard disk may need
to be replaced. Report this error to your supervisor or your organization's help desk.
N
o boot sector on hard dis
k
Data corrupted on hard disk. Restore hard disk data by rebooting from CD-ROM.
N
on-system disk or disk error - Replace and press any key to continue
Remove the non-bootable PC memory card or floppy disk and press any key to reboot.
N
on-s
y
stem disk - insert boot disk and
p
ress an
y
ke
y
Pa
g
e 66 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg43.png)
Restart the computer by pressing the Power Button for at least eight seconds. If the problem persists,
contact your supervisor or your organization's help desk.
Press the F1 key to resume
This message indicates that an error was found during POST. Pressing the F1 key allows the system to
attempt to boot.
CPU Fan Error
Report the error to your supervisor or your organization's help desk.
Battery too low to warm the hard drive. Shutting down...
There is not enough battery power to operate the Hard Disk Drive (HDD) heater and the temperature is
too cold to safely turn on the HDD. Apply external power and/or move the unit to a location that is at
least 5°C.
Warming internal hard drive. Please wait...
The temperature is less than 5°C and the HDD heater is operating. The unit will continue booting when
the HDD temperature is warm enough for safe operation.
72_0119_001
28 June 2004
©2004 Itronix Corporation. All rights reserved.
MS-DOS Messages
The MS-DOS operating system may display a warning or error message if it encounters a problem with
a command in the CONFIG.SYS or AUTOEXEC.BAT file, or a command that you entered at the DOS
p
rompt. Following are a few of the most common MS-DOS messages.
Bad command or file name
A command was entered that is spelled incorrectly or does not exist on the computer.
Invalid media t
yp
e readin
g
drive X
(
where X is an
y
drive letter
)
GoBook III® Help
Pa
g
e 67 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg44.png)
Abort, Retry, Fail?
The media may not be formatted. Press a to abort, then format the card using the MS-DOS Format
command, or from Windows using the Format Disk command.
Invalid drive specification
You tried to access a drive that does not exist. This can happen if you try to access drive D, but the
media is not loaded. Report this error to your supervisor or help desk.
N
on-System disk or disk error
Replace and press any key when ready
This can occur if media is in the card socket and you restart the computer. Remove the media, and then
p
ress any key.
N
ot ready reading drive X (where X is any drive letter)
Abort, Retry, Fail?
Make sure that the media is inserted fully into the card socket, then press r to retry.
72_0119_001
28 June 2004
© 2004 Itronix Corporation. All rights reserved.
Windows Messages
Windows messages are typically self-explanatory. (See Troubleshooting, for more information).
Application Messages
Both MS-DOS and Windows applications may display messages if a warning or error condition occurs.
Refer to the online Help or other documentation for the application that generated the message.
GoBook III® Help
Pa
g
e 68 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg45.png)
72_0119_001
28 June 2004
©2004 Itronix Corporation. All rights reserved.
Troubleshooting
This section is designed to help you determine and fix problems you might encounter while operating
the GoBook III computer. Try the following things in order:
zFirst look through the categories in this section for a solution.
zIf you don’t find a solution for your situation here, try one of the resources listed below.
zIf you are having a problem with a computer application , use the online Help that comes with the
application to find a solution.
zIf you still cannot resolve your problem, contact the help desk at your organization.
For More Help
zWindows Help is already installed on your system. To access this information, select Windows
Help and Support from the Start Menu.
zThird-party Windows manuals are available from your local bookstore.
Applications
My application locks up, acts strangely, or produces a General Protection Fault (GPF) error
zIf you’ve tried to resolve the problem and your application still doesn’t respond, you may need to
restart your computer as described below.
To reboot your computer, select Start, Shut Down, Restart. If that does not work, try pressing
CTRL+ALT+DEL twice.
If the computer does not restart, the keyboard may be locked up. Perform a hardware reset by
holding down the Power Button for at least five seconds and then release the button.
CAUTION This will result in a loss of all unsaved data.
zThe data on the hard dis
k
could be corru
p
ted. Run SCANDISK.
GoBook III® Help
Pa
g
e 69 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg46.png)
zWindows is out of memory/resources. Exit Windows and restart Windows.
Communications programs such as HyperTerminal don’t seem to work or they lock Windows
zWhen you first try to use HyperTerminal or similar application, the system responds with a
message asking if you want to install the modem. Answer “Yes” to this question and follow the
instructions on the screen to install it.
72_0119_001
28 June 2004
©2004 Itronix Corporation. All rights reserved.
Batteries
The battery does not charge
zTo prevent possible damage to the battery, the system will not allow a charge if the battery
temperature is extremely hot or cold (such as in a closed, unattended vehicle). If possible, charge
the battery in a location with a moderate temperature of around 20°C (68°F).
zIf possible, turn off the computer while the battery is charging.
zIf the battery is new or has been stored for a week or more, follow this procedure:
1. Make sure the computer is turned off.
2. Open the battery door and remove the battery.
3. Connect the AC adapter to the computer and an AC wall outlet, and then turn on the computer by
pressing the Power Button.
4. Let the computer complete the boot process. Then reinstall the battery and replace the battery
door..
5. Allow the system to remain idle for one hour with the AC adapter connected to the computer.
The Battery Power Indicator blinks when the battery starts charging.
6. If the batter
y
still fails to char
g
e after an hour, remove the batter
y
, wait several seconds, and then
GoBook III® Help
Pa
g
e 70 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg47.png)
install it again.
If the battery does not begin charging within several minutes, return the unit for service.
The batteries take much longer than seven hours to charge
zUnder moderate temperatures, about 21°C (70ºF), the computer’s battery takes approximately 4 to
5 hours to completely charge. Under extremely cold or hot temperatures, however, the battery can
take up to 16 hours to fully charge.
The batteries don’t last very long
zCalibrate the battery using the Battery Calibration selection in Mobile Computer Tools. If your
battery is new or has not been used for several weeks, calibrating the battery over a weekend may
substantially increase its capacity.
zAs your battery ages, the maximum capacity that it can hold naturally decreases, and even the best
maintained batteries eventually need to be retired. Consider replacing the battery if you are not
getting the usage you need from it.
The gas gauge isn’t full after charging the battery
zThis may indicate that the charging process terminated prematurely.
The gas gauge reads “full,” but the charging indicator light is still blinking
zIf you charge your battery daily, rely on the gas gauge reading to determine battery capacity. The
charging process may continue even if the gas gauge reads full. External power can be removed
because the battery is virtually full.
My battery seems to have less and less capacity
zIf your battery is new, or if your are using it for the first time, you will need to calibrate it prior to
using it.
zAs your battery ages, the maximum capacity that it can hold naturally decreases, and even the best
maintained batteries eventually need to be retired. Consider replacing the battery if you are not
getting the usage you need from it.
72_0119_001
28 June 2004
©2004 Itronix Corporation. All rights reserved.
Pa
g
e 71 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg48.png)
Display
The display performance is slow
zThe temperature may be too cold. Move the computer to a warmer operating environment.
I can’t read the display
zAdjust the brightness level using FN+F6 and FN+F7.
zThe automatic power-saving mode may have shut off (suspended) the computer. Press any key to
resume.
zIf the display brightness is unreadable after a resume or reboot but is easily adjusted with FN+F6
and FN+F7, you may have set Stealth mode in the Setup Utility. If you disable Stealth mode, the
display and backlight will operate normally.
The underlined, inverse, and hypertext characters are difficult to read on the screen
zChange the color scheme. From the Start Menu select Settings, Control Panel, choose Display,
and then tap the Appearance tab to make changes to the color scheme.
I can’t see the cursor while using the DOS editor
zPress FN+INSERT to change from insert mode to overwrite mode to enable a block cursor.
When it defaults to insert mode, the DOS editor uses an underline cursor which is less visible than
the block cursor for overwrite mode.
The display appears to have random pixels darkened after scrolling
zContact your supervisor or your organization’s help desk for information about correcting this
problem.
I changed my display resolution, but I see no difference on the screen
zTry restarting your computer for the changes to take effect.
72_0119_001
28 June 2004
© 2004 Itronix Corporation. All rights reserved.
GoBook III® Help
Pa
g
e 72 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg49.png)
Hard Disk
The hard disk will not spin up so the computer can’t boot up
zThis occurs if the unit is exposed to extreme low temperatures. This is not a hardware failure
associated with the hard disk . Allow the computer to warm to room temperature. The minimum
cold or soft boot temperature is 0°C (32°F)
I can’t save files because the disk is full
zReport this situation to your supervisor or your organization’s help desk.
Diskette Read Error
zAny card in the PC card socket except for a properly formatted memory card will cause this error
since it is trying to read the PC card.
zAny media in the installed media bay, except for properly formatted media, will cause this error
since it is trying to read the media.
I get the message "Battery too low to warm the hard drive. Shutting down..."
zThere is not enough battery power to operate the Hard Disk Drive (HDD) heater and the
temperature is too cold to safely turn on the HDD. Apply external power and/or move the unit to
a location that is at least 5°C.
72_0119_001
28 June 2004
©2004 Itronix Corporation. All rights reserved.
I/O Ports
I can’t access a serial
p
ort
GoBook III® Help
GoBook III® Help
Pa
g
e 73 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg4a.png)
zMake sure another application is not using the same port .
zMake sure the correct COM port is selected in your application. Refer to the online Help for your
application.
72_0119_001
28 June 2004
© 2004 Itronix Corporation. All rights reserved.
Keyboard
Something unexpected happens when I press a key
zYou may have pressed a key combination that performs a Windows function. Make sure you are
pressing the correct keys for the application you are running.
Incorrect characters appear on the screen when I press certain keys
zYou may be in NUM LOCK mode. Press NUM LOCK to toggle NUM LOCK mode off.
72_0119_001
28 June 2004
© 2004 Itronix Corporation. All rights reserved.
Landline Modems
The modem doesn’t work
zWhen
y
ou first tr
y
to use H
yp
erTerminal or similar a
pp
lication , the s
y
stem res
p
onds with a
GoBook III® Help
GoBook III® Help
Pa
g
e 74 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg4b.png)
message asking if you want to install the modem. Answer “Yes” to this question and follow the
instructions on the screen to install it.
zMake sure the communication settings are correct in your application. Refer to the online Help for
your application.
The modem doesn’t dial a number
Check these things:
zIf you are using an external modem, make sure the cables are attached correctly.
zMake sure your communications parameters are correct in your application. Refer to the online
Help for your application.
The modem dials and receives an answer but does not establish a connection
zYou may have incorrect parameters selected for your application to talk with the remote modem.
Refer to the online Help for your application.
zYou may need to adjust your modem’s baud rate or protocol selection.
Communications programs such as HyperTerminal don’t seem to work or they lock Windows
zIf you are using the internal modem, be sure to specify the proper communications port .
zWhen you first try to use HyperTerminal or similar application, the system responds with a
message asking if you want to install the modem. Answer “Yes” to this question and follow the
instructions on the screen to install it.
The modem dials and the answering modem generates tone, but our modem does not begin the training
sequence to establish a connection
Although the problem may appear to originate from the computer, the source of the problem is the
answering modem.
zTry setting up the answering modem to generate the correct V.22 tone, which can usually be done
by sending an AT command to the modem.
72_0119_001
28 June 2004
©2004 Itronix Corporation. All rights reserved.
Pa
g
e 75 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg4c.png)
Miscellaneous
The computer shuts off unexpectedly
zThe computer has entered suspend mode . Press any key to turn it back on.
zThe battery capacity may be low. Connect external power to charge the battery, or replace the
battery with a fully charged one.
zThe battery contacts may be dirty. Turn off the computer, remove the battery, and clean the
contacts.
The speaker volume is too high or too low
zIncrease the volume by pressing FN+F9; decrease the volume by pressing FN+F8.
The computer won’t turn on
zThe battery may not be installed properly, or it may not be fully charged. Make sure a fully
charged battery is properly installed.
zConnect external power to charge the battery if it is not charged.
zIf you are using the AC adapter , check the electrical outlet you are using to make sure it is
working properly.
zIf the GoBook III computer does not turn on, restart the computer by holding down the Power
Button for at least 10 seconds and then release it.
The computer won’t turn off
zPress and hold the Power Button for at least eight seconds.
The computer enters suspend mode too quickly
zWhen there is no activity for a period of time, the computer turns off or enters suspend mode. To
extend this time, use the Power Management program and increase the non-activity time to enter
suspend.
The computer doesn’t automatically suspend
zCheck to make sure the COM ports are off. For example, exit any application that uses COM
ports.
zMake sure external power is not connected. Depending on power settings, some systems will not
sus
p
end automaticall
y
when the
y
are connected to external
p
ower.
GoBook III® Help
Pa
g
e 76 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg4d.png)
zMake sure the standby time is set properly in the Power Management program.
The system date and time are incorrect
zReset the correct date and time by choosing the Date/Time icon from Control Panel and making
the appropriate changes.
I receive an “out of memory” error message
zToo many applications may be running at the same time. Close applications you don’t need.
zRun MS-DOS applications in full screen rather than a window. Press ALT+ENTER to toggle
between full screen and window mode.
zIf you’re using desktop wallpaper, set wallpaper to None. To do this, choose Display from Control
Panel and make the appropriate change.
zMake sure you have enough space on your hard disk . Contact your supervisor or your
organization’s help desk for assistance.
zSet up a permanent swap file. Contact your supervisor or your organization’s help desk for
assistance.
Holding down the Power button to reset the computer doesn’t always work
zTry resetting the computer again. If this doesn’t work, remove all power, including the battery
pack, and allow the unit to remain idle for ten minutes. After ten minutes, connect external power
and retry.
The LED's, backlight, and/or keyboard backlight don't illuminate.
You may have enabled Stealth mode in the Setup Utility. Go to CMOS Setup and disable Stealth mode.
The computer doesn't make any sounds, even during boot-up.
You may have enabled Stealth mode in the Setup Utility. Go to CMOS Setup and disable Stealth mode.
The fan stopped running.
You may have enabled Stealth mode in the Setup Utility. Go to CMOS Setup and disable Stealth mode.
72_0119_001
28 June 2004
©2004 Itronix Corporation. All rights reserved.
Pa
g
e 77 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg4e.png)
Mouse
I have difficulty double-clicking the mouse fast enough
zFrom the Start Menu, select Settings, Control Panel, and then choose Mouse. The Buttons tab
contains the setting for the double-click speed.
I can’t see the mouse pointer
zThe mouse pointer may be off the screen. Move the mouse until it reappears on the screen.
zFrom the Start Menu, select Settings, Control Panel, and then choose Mouse. The Motion tab
contains settings for the mouse speed and mouse trails.
72_0119_001
28 June 2004
© 2004 Itronix Corporation. All rights reserved.
PC Cards
I can’t remove the PC card
zPress the ejector button located inside the PC card door on the side of the computer. The button
will pop out. Press the ejector button again to eject the PC card. Slide the card out.
zIf the ejector button malfunctions when you press it, release the button and then press it again.
Diskette Read Error
zAny card in the PC Card socket except for a properly formatted memory card will cause this error
since it is trying to read the PC Card.
The s
y
stem does not reco
g
nize the PC Card CD-ROM when it is inserted into the PC Card socket
GoBook III® Help
GoBook III® Help
Pa
g
e 78 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg4f.png)
zThere is a delay of 10 to 15 seconds before the CD-ROM drive is recognized.
zDrivers may not be installed. Contact your organization’s help desk for assistance.
The computer locks up when I remove the PC card
zBefore you remove the card, select the PC card icon on the taskbar (in the tray area near the clock
in the lower right corner), and choose “Stop [card name] card.”
The computer locks up when inserting a PC card
zBecause of the combination media bay configuration on the GoBook III, the computer may not be
locked up. Instead, it may be taking a couple of minutes before the system recognizes the PC card
slot.
72_0119_001
28 June 2004
© 2004 Itronix Corporation. All rights reserved.
Pen/Touch Screen
When I try to use the stylus on my touch screen, nothing happens
zIf you cannot select objects accurately with the stylus, you may need to recalibrate the touch
screen.
To calibrate the touch screen
1. From the Start Menu, select Programs, Mobile Computer Tools and then choose Touch Screen
Calibrator. This opens the Calibration Applet.
2. Click on the Calibrate button.
3. After you have completed calibration by touching the highlighted points using an approved stylus,
select OK to have the new settings take effect.
The touch screen display warps or pillows in high humidity
zThe com
p
uter remains functional; however, movin
g
the com
p
uter to a more suitable environment
GoBook III® Help
Pa
g
e 79 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg50.png)
will allow the display to recover.
The touch screen doesn't respond after a suspend
zThe touch screen needs a few seconds to work after a suspend. Wait a moment and try again.
72_0119_001
28 June 2004
©2004 Itronix Cor
p
oration. All ri
g
hts reserved.
Pa
g
e 80 of 80GoBook III Hel
p
7/5/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Local%20Settin
g
s\Tem
p
\~h...
![](/img.php?id=544175&img=bg51.png)
Identification
GoBook III (IX260+) Help
June 2004 · Revision 001
Copyright Notice
© Copyright 2004 Itronix Corporation. All rights reserved. No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or translated into any other language or computer language in whole or in part, in
any form or by any means, whether it be electronic, mechanical, magnetic, optical, manual, or otherwise, without the prior
written consent of Itronix Corporation, South 801 Stevens Street, Spokane, Washington 99204.
Disclaimer
This document is printed in the U.S.A. Itronix Corporation reserves the right to revise the manual and make periodic changes
to the content without a direct or inferred obligation to Itronix to notify any person of such revision or changes. Itronix
Corporation does not assume responsibility for the use of this help manual, nor for any patent infringements or other rights or
third parties who may use the manual.
This document contains valuable trade secrets and proprietary information of Itronix Corporation.
This product is available for purchase under the terms of the Itronix Hardware Purchase and Software License Agreement.
Itronix hardware products may be reconditioned, or be manufactured from parts and components that may be new, used,
rebuilt, or recycled and in some cases, the hardware product may not be new and may have been previously installed. In any
event, Itronix warranty terms apply.
Trademark and Patent Notice
Itronix is a registered trademark of Itronix Corporation.
GoBook III is a registered trademark of Itronix Corporation
Microsoft, MS, Windows, and MS-DOS are registered trademarks of Microsoft Corporation.
IBM is a trademark of International Business Machines Corporation.
The following United States Patent Numbers apply to any unit which incorporates a DVD drive - 5,434,678; 5,589,945;
5,913,013; 6,151,444; and 6,208,805.
Compliance Statements
The GoBook III (IX260+) computer has been tested and found to comply with the limits for a Class B digital device,
p
ursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
zReorient or relocate the receiving antenna.
zIncrease the separation between the equipment and receiver.
zConnect the equipment into an outlet on a circuit different from that to which the receiver is connected.
zConsult the dealer or an experienced radio/TV technician for help.
The GoBook III (IX260+) computer complies with Part 68 of the FCC Rules. On the bottom of this equipment is a label that
contains, among other information, the FCC registration number and ringer equivalence number (REN) for this equipment. If
requested, this information must be provided to the telephone company.
The REN is used to determine the quantity of devices which may be connected to the telephone line. Excessive RENs on the
telephone line may result in the devices not ringing in response to an incoming call. In most, but not all areas, the sum of the
RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to the line, as determined
G
oBook III® Help Legal Information
Pa
g
e 1 of 3Le
g
al Information
7/7/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Deskto
p
\Marks%20shared%...
![](/img.php?id=544175&img=bg52.png)
by the total RENs, contact the telephone company to determine the maximum REN for the calling area.
The GoBook III (IX260+) computer may be connected to the telephone network using the RJ-11 jack provided.
If this equipment causes harm to the telephone network, the telephone company will notify you in advance that temporary
discontinuance of service may be required. If advance notice isn’t practical, the telephone company will notify the customer
as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary.
The telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the
operation of the equipment. If this happens, the telephone company will provide advance notice in order for you to make the
necessary modifications in order to maintain uninterrupted service.
If trouble is experienced with this equipment, please contact the equipment manufacturer for repair and/or warranty
information. Do not attempt repairs of this equipment yourself without obtaining manufacturer authorized parts and
documentation. If the trouble is causing harm to the telephone network, the telephone company may request you remove the
equipment from the network until the problem is resolved.
Compliance Statement for Canada
NOTICE The Industry Canada label identifies certified equipment. This certification means that the equipment meets certain
telecommunications network protective, operational and safety requirements as prescribed in the appropriate Terminal
Equipment Technical Requirements document(s). The Department does not guarantee the equipment will operate to the
user’s satisfaction.
Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local
telecommunications company. The equipment must also be installed using an acceptable method of connection. The
customer should be aware that compliance with the above conditions may not prevent degradation of service in some
situations.
Repairs to certified equipment should be made by a representative designated by the supplier. Any repairs or alterations made
by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the
user to disconnect the equipment.
Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines, and
internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural
areas.
CAUTION! Users should not attempt to make such connections themselves, but should contact the appropriate electric
inspection authority, or electrician, as appropriate.
The Ringer Equivalence Numbers (REN) are:
GoBook III (IX260+) non-radio: 0.5B
GoBook III (IX260+) Motient: 0.5B
GoBook III (IX260+) Cingular: 0.5B
GoBook III (IX260+) CDPD: 1.3B
NOTICE The Ringer Equivalence Number (REN) assigned to each terminal device provides an indication of the maximum
number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any
combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices
does not exceed 5.
The GoBook III (IX260+) computer may be connected to the telephone network using the RJ-11 jack provided.
Fax Branding
The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other electronic
device to send any message via a telephone fax machine unless such message clearly contains in a margin at the top or
bottom of each transmitted page or on the first page of the transmission, the date and time it is sent and an identification of
the business or other entity, or other individual sending the message and the telephone number of the sending machine or
such business, other entity, or individual.
In order to program this information into your fax machine, you should complete the following:
This information is entered through the FAX application software you have installed. Consult your FAX software
Pa
g
e 2 of 3Le
g
al Information
7/7/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Deskto
p
\Marks%20shared%...
![](/img.php?id=544175&img=bg53.png)
documentation for instructions about entering this information.
Warnings and Cautions
WARNING It is important that only authorized Itronix personnel attempt repairs on Itronix equipment as this might void any
maintenance contract with your company. Unauthorized service personnel might be subject to shock hazard on some Itronix
equipment if removal of protective covers is attempted.
Changes or modifications not expressly approved by the party responsible for compliance could void the users authority to
operate the equipment.
There is danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type
recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.
The product you have purchased is powered by a rechargeable battery. The battery is recyclable and, under various state and
local laws, it may be illegal to dispose of this battery into the municipal waste stream. Do not crush the battery or place it in a
fire. Check with your local solid-waste officials for details on recycling options or proper disposal.
CAUTION Internal components of the GoBook III (IX260+) computer will be damaged if exposed to contaminants. When
dust covers, the PC card door, or the bottom access panel are open on the computer, shield the unit from all contaminants
such as liquids, rain, snow, and dust.
Internal radio(s) may have an individual FCC Identifier which are not applicable to this configuration. Only the FCC ID
shown on the label located on the bottom of the IX260+ Laptop PC is applicable. The IX260+ Laptop PC must not be co-
located or operating in conjunction with any other antenna or transmitter than specified in the FCC ID filing.
This device may contain a WLAN radio transmitter , a WAN radio transmitter and a PAN radio transmitter. To comply with
FCC RF exposure requirements when using the WAN radio transmitter, a minimum separation distance of 20 cm must be
maintained between the external dipole antenna and all users/bystanders. When using the WLAN or PAN transmitter, a
minimum separation distance of 20 cm must be maintained between the back side of the display screen and users/bystanders.
The WAN,WLAN, and PAN radio transmitters should be turned off before carrying the Laptop PC in order to comply with
FCC RF exposure requirements.
"The equipment has been approved to [Commission Decision "CTR21"] for pan-European single terminal connection to the
P
ublic Switched Telephone Network (PSTN). However, due to differences between individual PSTNs provided in different
countries the approval does not, of itself, give an unconditional assurance of successful operation on every PSTN network
termination point.
I
n the event of problems, you should contact your equipment supplier in the first instance.
Safety Information
Enclosed with each IX260+ Laptop PC is the Radio specific safety information. Do not proceed without reviewing the
Information provided in that document.
Do not proceed beyond a WARNING or CAUTION until the indicated conditions are fully understood and met.
72_0119_001 mod 7/4
28 June 2004
Pa
g
e 3 of 3Le
g
al Information
7/7/2004file://C:\Documents%20and%20Settin
g
s\harwoodm.ITRXNT1\Deskto
p
\Marks%20shared%...
