GE Appliances
DBLR333GE – GE® 5.8 Cu. Ft. Extra-Large Capacity Gas Dryer

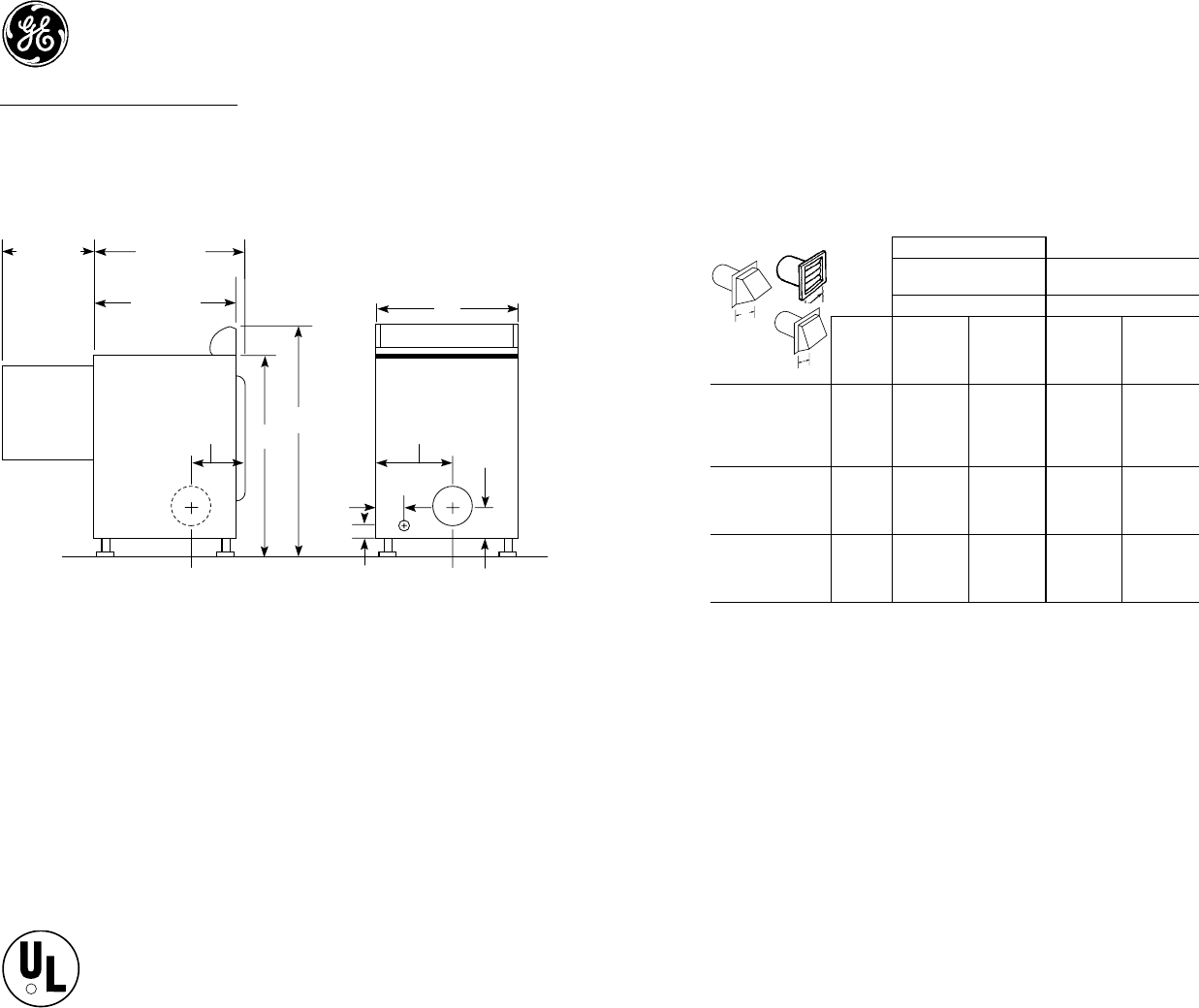

Dryer Dimensions (in inches)
Exhaust Options:
Electric – 4-way via rear, right, left and bottom.
Circuit Requirements:
Electric – An individual, properly-grounded branch circuit, protected by a
30-amp circuit breaker or a time-delay fuse, is required.
Electric Dryer Rating:
240V, 5600W, 24A, 60 Hz
208V, 4400W, 22A, 60 Hz
Note: Dryer wall outlet must be located within 36" of service cord entry and accessible when
dryer is mounted in position.
Installation Information: For complete information, see installation instructions packed with
your dryer.
36
25-1/2
42
54-1/2
Side View
27
Rear View
36
42
27
25-1/2
2-1/2
25-1/2*
Side View Rear View
4-3/4
25-3/4
23-1/2
11-3/4
RCA Washer/Dryers LC4 QSart
*24-1/2" from the edge of the side panel to the front.
25-1/2" from the front edge of endcaps.
Specification Created 2/04
370276
Dryer Exhausting Information – Use Metal Duct Only
Vertical and Horizontal Ducting
R
Listed by
Underwriters
Laboratories
For answers to your Monogram,
® GE Profile™ or
GE® appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center® service, 800.626.2000.
A
B
2-1/2
4
GE Dryer Vent
A
B
2-1/2
4
GE Dryer Vent
A
Best Performance
Maximum Length of 4" Dia.
Rigid Metal Duct
Maximum Length of 4" Dia.
Flexible Metal Duct
Exhaust Hood Type Exhaust Hood Type
Domestic
Dryer Models
Number
of
90°
Turns
A
4" Opening
B
2-1/2"
Opening
A
4" Opening
B
2-1/2"
Opening
7.0, 6.0 and 5.8
Capacity Models
all Electric Dryers
0
1
2
3
4
90 ft.
60 ft.
45 ft.
35 ft.
25 ft.
127 ft.
117 ft.
107 ft.
97 ft.
87 ft.
75 ft.
65 ft.
55 ft.
45 ft.
35 ft.
52 ft.
42 ft.
32 ft.
22 ft.
12 ft.
7.0, 6.0 and 5.8
Capacity Models
all Electric Dryers
0
1
2
3
90 ft.
60 ft.
45 ft.
35 ft.
60 ft.
45 ft.
35 ft.
25 ft.
55 ft.
40 ft.
30 ft.
20 ft.
45 ft.
30 ft.
20 ft.
15 ft.
7.0, 6.0 and 5.8.0
Capacity Models
all Gas Dryers
0
1
2
3
90 ft.
60 ft.
45 ft.
35 ft.
60 ft.
45 ft.
35 ft.
25 ft.
55 ft.
40 ft.
30 ft.
20 ft.
45 ft.
30 ft.
20 ft.
15 ft.
Special Installation Requirements
Alcove or Closet Installation:
• If your dryer is approved for installation in an alcove or closet, it will be stated on a
label on the dryer back.
• The dryer MUST be exhausted to the outside.
• Minimum clearances between dryer cabinet and adjacent walls or other surfaces are:
0" either side
3" front and rear
• Minimum vertical space from floor to overhead cabinets, ceilings, etc. is 52".
• Closet doors must be louvered or otherwise ventilated and must contain a minimum of
60 sq. in. of open area equally distributed. If this closet contains both a washer and a
dryer, doors must contain a minimum of 120 sq. in. of open area equally distributed.
• No other fuel-burning appliance shall be installed in the same closet with a gas dryer.
Bathroom or Bedroom Installation:
• The dryer MUST be exhausted to the outdoors.
• The installation must conform with the local codes, or in the absence of local codes,
with the National Fuel Gas Code, ANSI Z223.
Minimum Clearances other than Alcove or Closet Installation:
• Minimum clearances to combustible surfaces
0" both sides
3" rear
GE Appliances
DBLR333GE – GE® 5.8 Cu. Ft. Extra-Large Capacity Gas Dryer

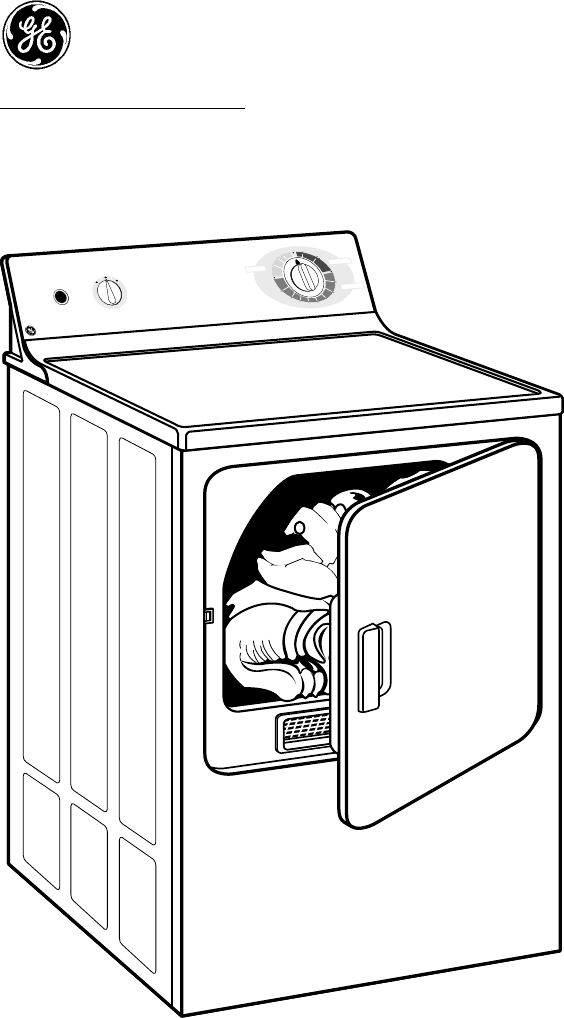

Features and Benefits
• Auto Dry – Uses thermostats to monitor air temperature and reduce fabric ware
• DuraDrum™ – Provides long-lasting dependability and durability
• Three heat selections – Offer a choice of drying temperatures for better fabric care
• Three dry cycles – Simple options for reliable drying performance
• Reverse-A-Door – Offers added installation flexibility
• Upfront Lint Filter – Easy to reach and clean
• Model DBLR333GEWW – White on white
• Model DBLR333GECC – Bisque on bisque
Specification Created 2/04
370276
DBLR333EE/GE.EPS
TEMPERATURE
3 Heat Settings
START
COTTONS
AUTOMATIC
MORE DRY
MORE DRY
LESS DRY
COOLDOWN
OPTIMUM
DRY
LESS DRY
MIN
20
30
40 50
60
70
80
EASY CARE
TIMED DRY
Push to Start REGULAR
MEDIUM
FLUFF
NO HEAT
AUTOMATIC
3
C
l
o
t
h
e
s
C
a
r
e
C
y
c
l
e
s
-
E
x
t
r
a
L
a
r
g
e
C
a
p
a
c
i
t
y
10
