CVM9215SL
GE Cafe™ Series 2.1 cu. ft. Over-the-Range Microwave Oven
Specification Revised 1/18
NOTE: Requires 120V grounded outlet. Electrical receptacle
must be located in cabinet above microwave oven. No
additional wiring, venting or cabinet rebuilding necessary in
many cases. Complete detailed, easy-to-follow installation
instructions and convenient full-size templates are packed
with the microwave oven.
IMPORTANT INFORMATION: When installing the
microwave oven over a range, allow minimum of 2" from
bottom of microwave oven to top of range backguard to allow
for removal of light covers.
VENTILATION OPTIONS: The microwave ovens are
designed for adaptation to the following three types of
ventilation:
-Outside exhaust (vertical – as shown)
-Outside exhaust (horizontal)
-Recirculating (non-vented ductless – see Filter Kit drawing)
INSTALLATION INFORMATION: This information is
not intended to be used for installing unit described. Before
installing, consult installation instructions packed with
product/kit for current dimensional data.
105°
Door open
(without obstruction)
24-1/2
"
29-3/4"
16-1/2"
(rear)
15-1/2"
16"
13"
MAX.
12"
MIN.*
66" MIN.
Mounting
height from
floor
Minimum distance from
door hinge side to
adjacent wall should
equal 1/2"
30" MIN.
width
required Exhaust outlet
connects to
3-1/4"x10" duct
*Maximum depth
with JX15
Bump Out Kit is 16"
Bump Out Kit
sold separately.

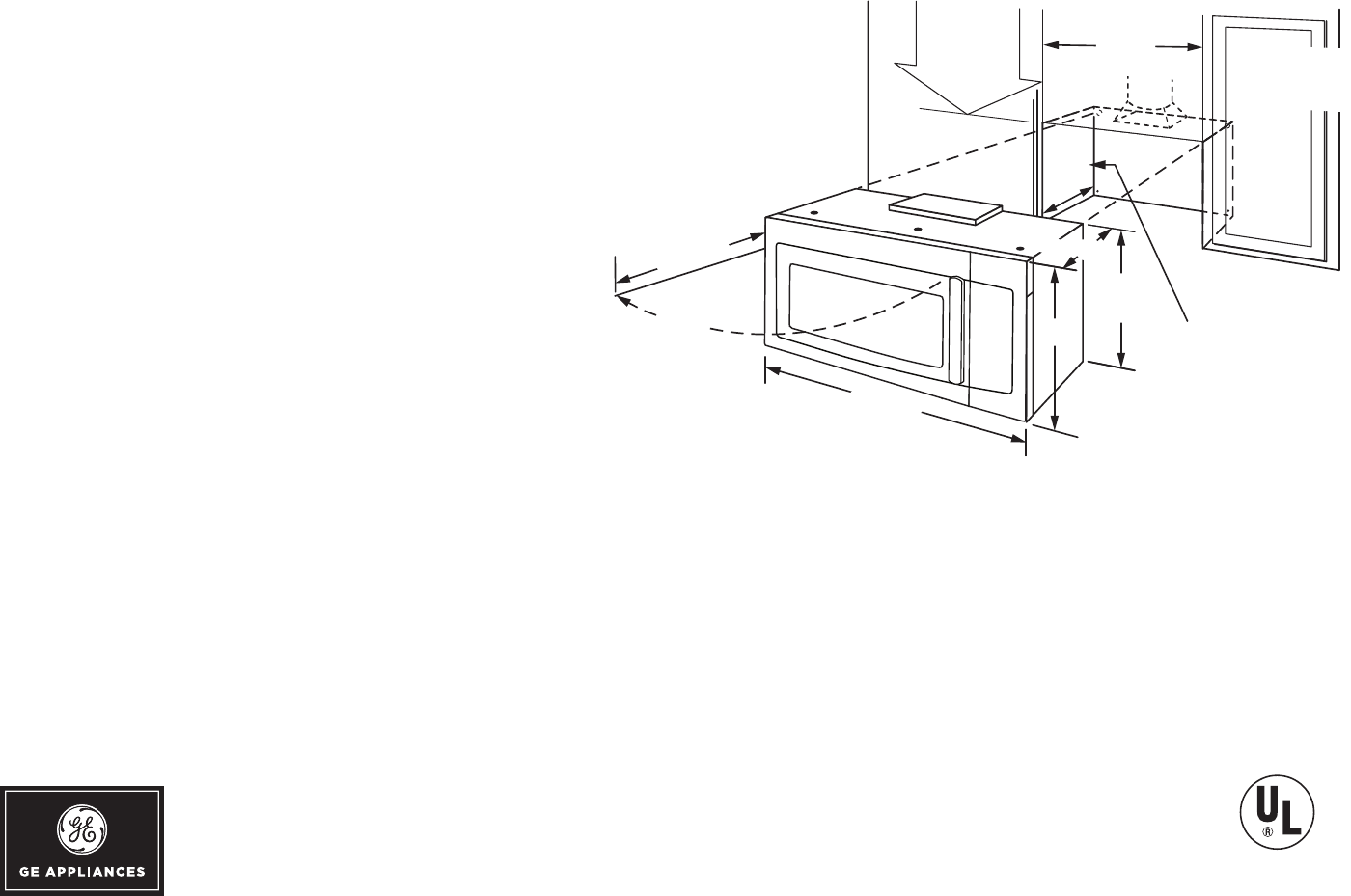

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.
Listed by
Underwriters
Laboratories
CVM9215SL
GE Cafe™ Series 2.1 cu. ft. Over-the-Range Microwave Oven
Specification Revised 1/18
HOOD EXHAUST DUCT: Outside ventilation requires a HOOD
EXHAUST DUCT. Read the following carefully.
EXHAUST CONNECTION: The hood exhaust has been designed to mate
with a standard 3-1/4" x 10" rectangular duct. If a round duct is required, a
rectangular-to-round transition adaptor must be used. Do not use less than a
6" diameter duct
REAR EXHAUST: If a rear or horizontal exhaust is to be used, care should be
taken to align exhaust with space between studs, or wall should be prepared
at the time it is constructed by leaving enough space between the wall studs to
accommodate exhaust.
MAXIMUM DUCT LENGTH: For satisfactory air movement, the total duct
length of 3-1/4" x 10" rectangular or 6" diameter round duct should not exceed
140 equivalent feet.
ELBOWS, TRANSITIONS, WALL AND ROOF CAPS, etc., present
additional resistance to airflow and are equivalent to a section of straight
duct which is longer than their actual physical size. When calculating the total
duct length, add the equivalent length of all transitions and adaptors plus the
lengths of all straight duct sections. The chart below shows the approximate
feet of equivalent length of some typical ducts.
DUCT EQUIVALENT FEET
A. Rectangular-To-round
Transition Adaptor 5 ft.
B. Wall Cap 40 ft.
C. 90° Elbow 10 ft.
D. 45° Elbow 5 ft.
E. 90° Elbow 25 ft.
F. 45° Elbow 5 ft.
G. Roof Cap 24 ft.
OPTIONAL ACCESSORIES (AVAILABLE AT ADDITIONAL COST)
Filler Panel Kit JX36DSS
When replacing a 36" range hood,
this kit fills in the additional width to
provide a custom built-in
appearance. For installation
between cabinets only; not
for end-of-cabinet installation.
Each kit contains two 3"-wide
filler panels.

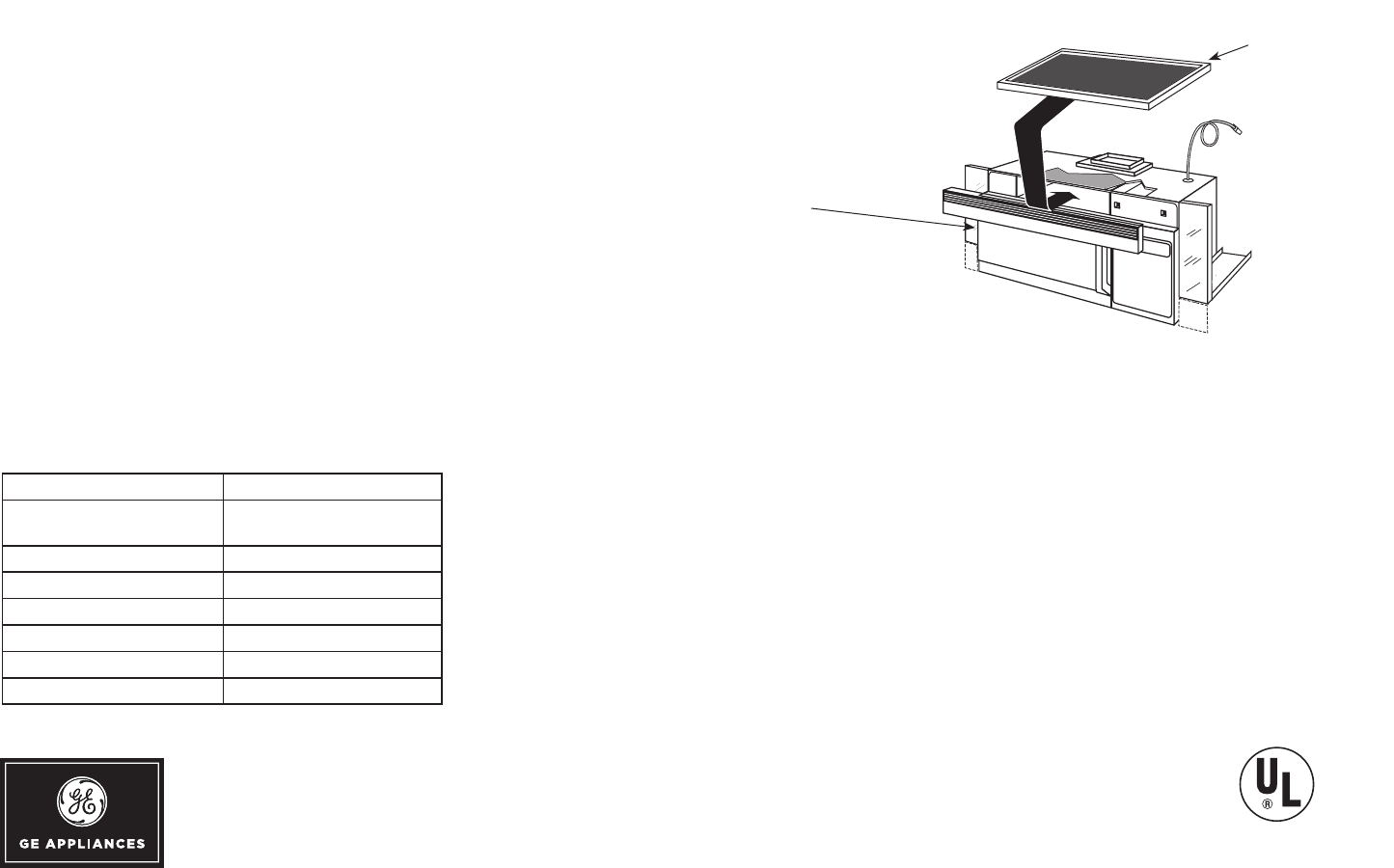

Filter Kit JX81H–
Recirculating
Charcoal Filter Kit
To be used when
the microwave oven
cannot be vented to
the outside.
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.
Listed by
Underwriters
Laboratories
CVM9215SL
GE Cafe™ Series 2.1 cu. ft. Over-the-Range Microwave Oven
Specification Revised 1/18
12:30
CVM9215SLSS

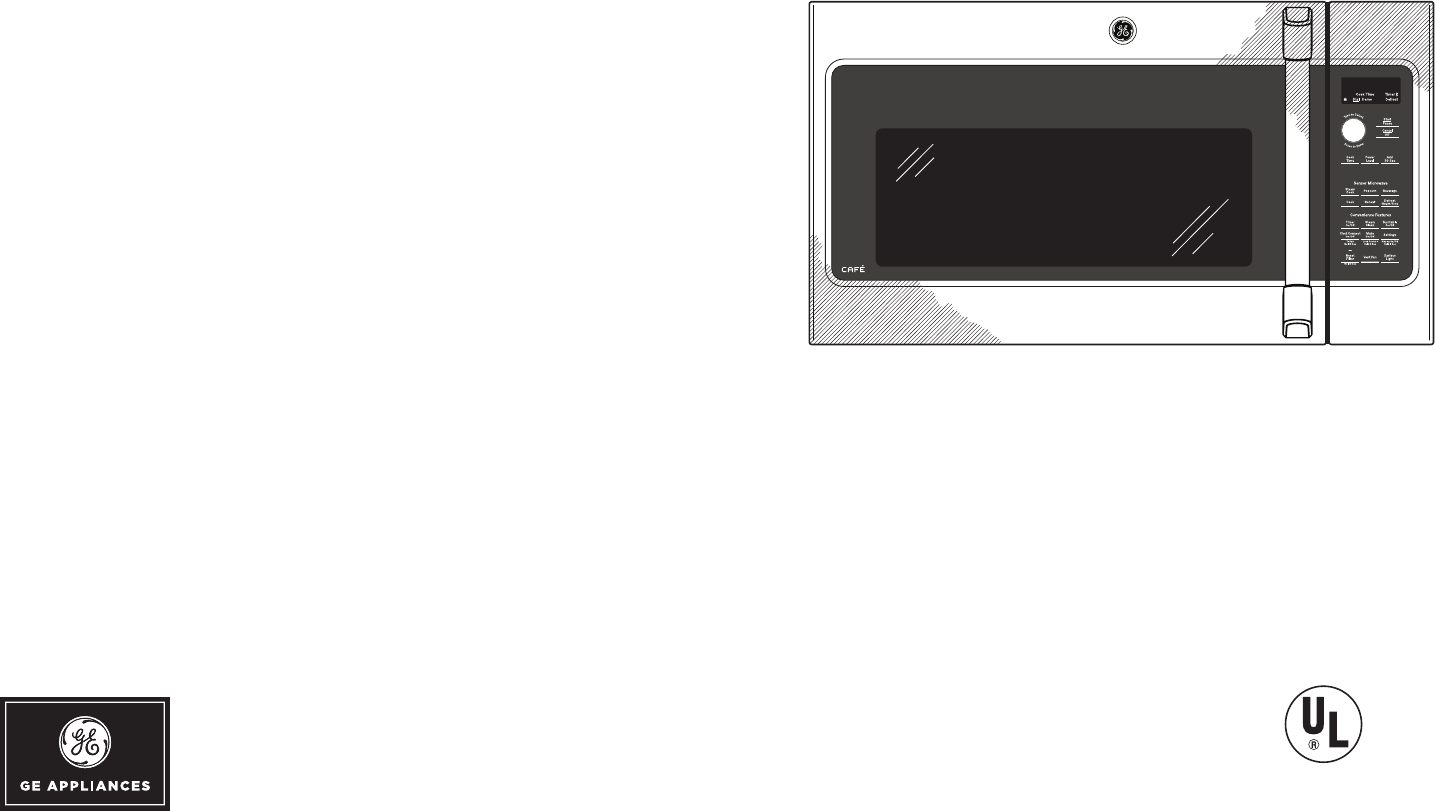

FEATURES AND BENEFITS
2.1 cu. ft. capacity - 1000 Watts (IEC-705 test procedure)
Steam cook button - Perfectly prepare your steamed favorites
Easy clean enamel interior with steam clean - Makes cleaning spills
and splatters a snap
Chef Connect - Three options with a single touch. For instant
convenience, choose when to automatically sync clocks and the range
elements with the microwave’s surface light and vent
Weight and time defrost - Simply enter the weight of the food, and the
oven automatically sets the optimal defrosting time and power level or
set your desired time for defrosting
LED cooktop lighting - Brighten the kitchen while saving on energy
and maintenance costs
Four-speed, 400-CFM venting fan system - Quickly removes smoke,
steam and odors from the cooktop to keep kitchen air fresh and clean
Upfront charcoal filter with indicator light - Light indicates when
odor-removing charcoal filter needs to be replaced
My Cycle - Create a custom cook time setting, and with one touch,
cook your favorite dish just the way you like
Recessed turntable with on/off - Controls turntable operation
Sensor cooking controls - Automatically adjusts time and power for
delicious cooking results
Model CVM9215SLSS - Stainless steel
