General Research of Electronics 0716 Scanning Receiver User Manual PSR 600 Owners Manual V0 2

General Research of Electronics Inc Scanning Receiver PSR 600 Owners Manual V0 2

Users manual

0716
Owners Manual

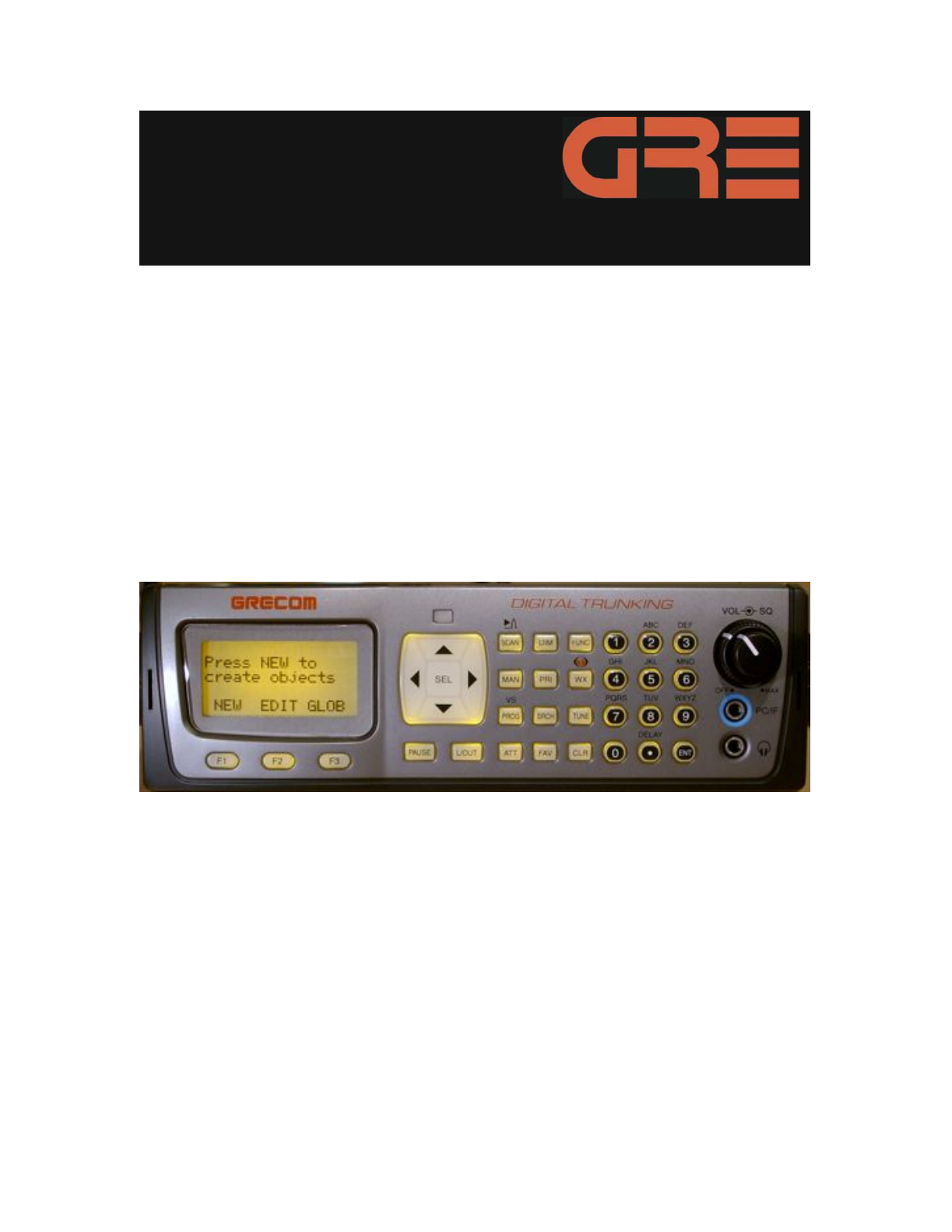

ADVANCED DIGITAL BASE/MOBILE SCANNING RECEIVER
WITH OBJECT ORIENTED USER INTERFACE
GRE America, Inc., 425 Harbor Blvd., Belmont, CA 94002
A Guide to Getting The Most From Your
0716 Advanced Digital Scanner
0716 ADVANCED DIGITAL SCANNER
WITH OBJECT ORIENTED USER INTERFACE
FCC ID ADV0716
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired
operation.
Motorola, Smartnet, Smartzone, Omnilink, ASTRO and Privacy Plus are registered trademarks of Motorola Inc. EDACS and ProVoice are
registered trademarks of MA-COM Inc. LTR is a registered trademark of E.F. Johnson, Inc. The IMBE™ voice coding Technology
embodied in this product is protected by intellectual property rights including patent rights, copyrights and trade secrets of Digital Voice
Systems, Inc. This voice coding Technology is licensed solely for use within this Communications Equipment. The user of this Technology
is explicitly prohibited from attempting to decompile, reverse engineer, or disassemble the Object Code, or in any other way convert the
Object Code into a human readable form. U.S. Pat. Nos. 5,870,405 and 5,517,511.
© 2007 General Research of Electronics
All Rights Reserved
OWNERS MANUAL - Please read before using this equipment.
IMPORTANT:
This manual uses the following symbols to emphasize Warnings, Notes and Usage Hints
WARNING A WARNING symbol is used to indicate possible risk of personal
injury or damage to equipment
NOTE A NOTE symbol is used to indicate an operational note that relates
to the current paragraph of the manual
A HINT symbol is used to indicate an usage hint that relates to the
current paragraph of the manual
HINT
IMPORTANT NOTICE:
The 0716 Advanced Digital Scanner will not receive encrypted radio
communications, or radio transmissions that utilize ProVoice digital modulation.
Please take the time to read this manual completely
before using your new scanner.
Table of Contents
..........................................................................................................Introduction 7
...........................................................................................................Features 8
........................................Overview of the Object Oriented User Interface 10
.............................................................................................Background 10
......................................................What is Object Oriented Scanning? 14
..........A Few Things To Remember about Object Oriented Scanning 15
........................................................................................About this manual 16
.......................................Object abbreviations used in this document 16
..................................................................................................TGRP 16
...................................................................................................TSYS 16
..................................................................................................CONV 17
....................................................................................................LMIT 17
..................................................................................................SRVC 17
..................................................................................................SWPR 17
......................................................................The FCC Wants You To Know 17
..........................................................................................Scanning Legally 18
................................................................Getting Familiar With Your 071620
......................................................................................0716 Front View 20
.......................................................................................0716 Rear View 21
...................................................................0716 Included Accessories 22
...............................................................Understanding the Display Icons 23
..........................................................................Understanding the Keypad 23
...................................................................................................Softkeys 24
......................................................................Five Way Pushbutton Pad 25
......................................................................................Numeric Keypad 25
.......................................................................................Operation Keys 25
...................................................................................................Getting Started 27
.........................................................................................First Time Startup 27
.....................................................................................Unpack the radio 27
........................................................................................Base operation 27
.....................................................................................Mobile operation 28

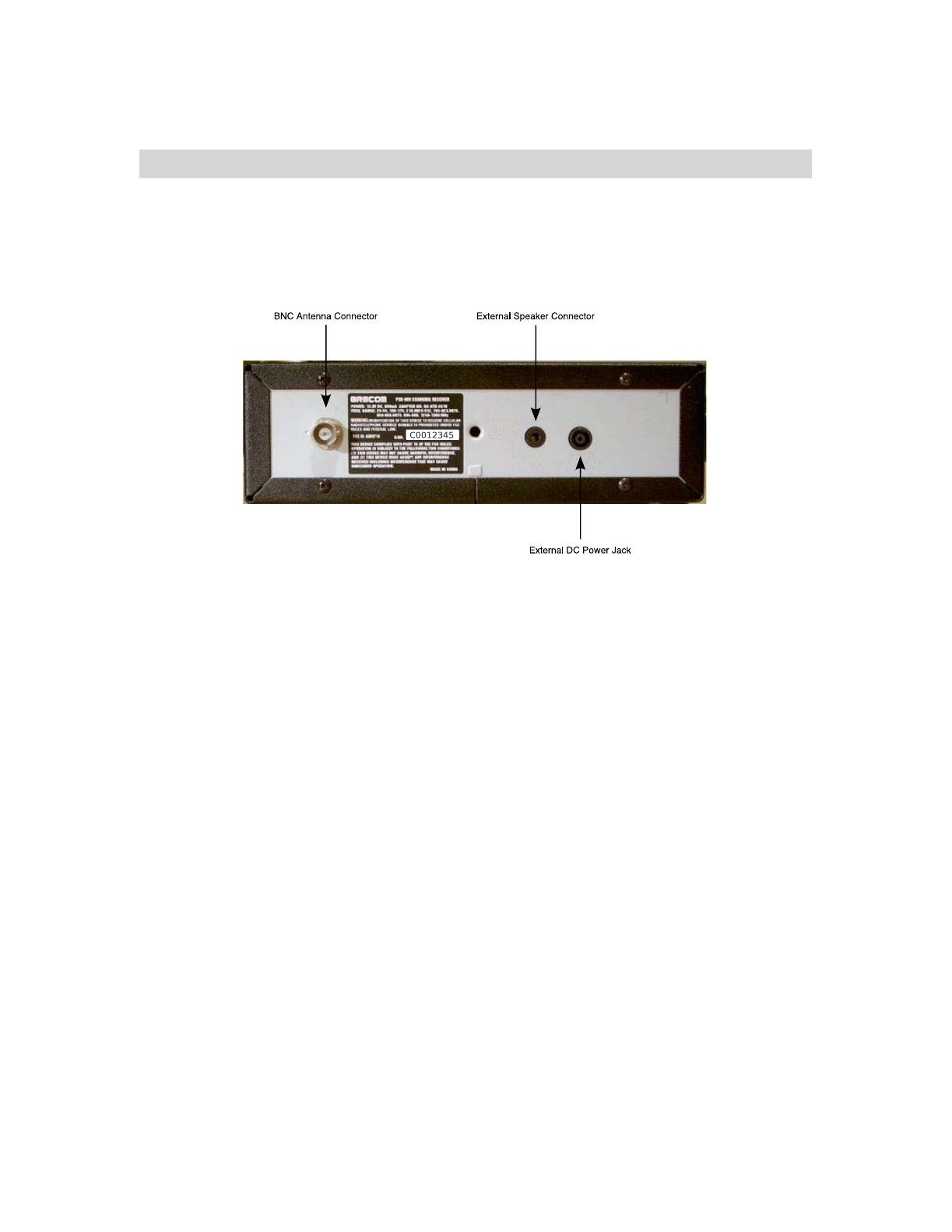

.............................................Connecting an earphone or headphones 31
........................................................Connecting an Extension Speaker 31
......................................................................................Listening Safely 31
...........................................................................................Traffic Safety 31
...........................................Connecting an Optional External Antenna 32
.....................................................................................Turn the radio on 32
.................................................................Creating Your First New Objects 33
..................................................Conventional Channel Object (CONV) 33
.................................Essential Conventional Channel parameters 33
.......................................................................Talkgroup Object (TGRP) 37
......................................Essential Trunking Talkgroup parameters 37
...............Setting up and using a Trunking System (TSYS) object 37
..................................................Using DUPE to speed up object entry 42
.....................................................................Basic Scanning Operation 43
...................................................................................Browsing Objects 45
............................................................................Advanced Startup Topics 45
.......................................................................About Object Numbering 46
...........................Using the Object ID to directly access an object 46
.............................................................More About Wildcard Scanning 46
.....................................................................Displaying Memory Usage 47
...............................................................................Search Object Types 47
...............................................................Limit Search Object (LMIT) 48
............................................Essential Limit Search parameters 48

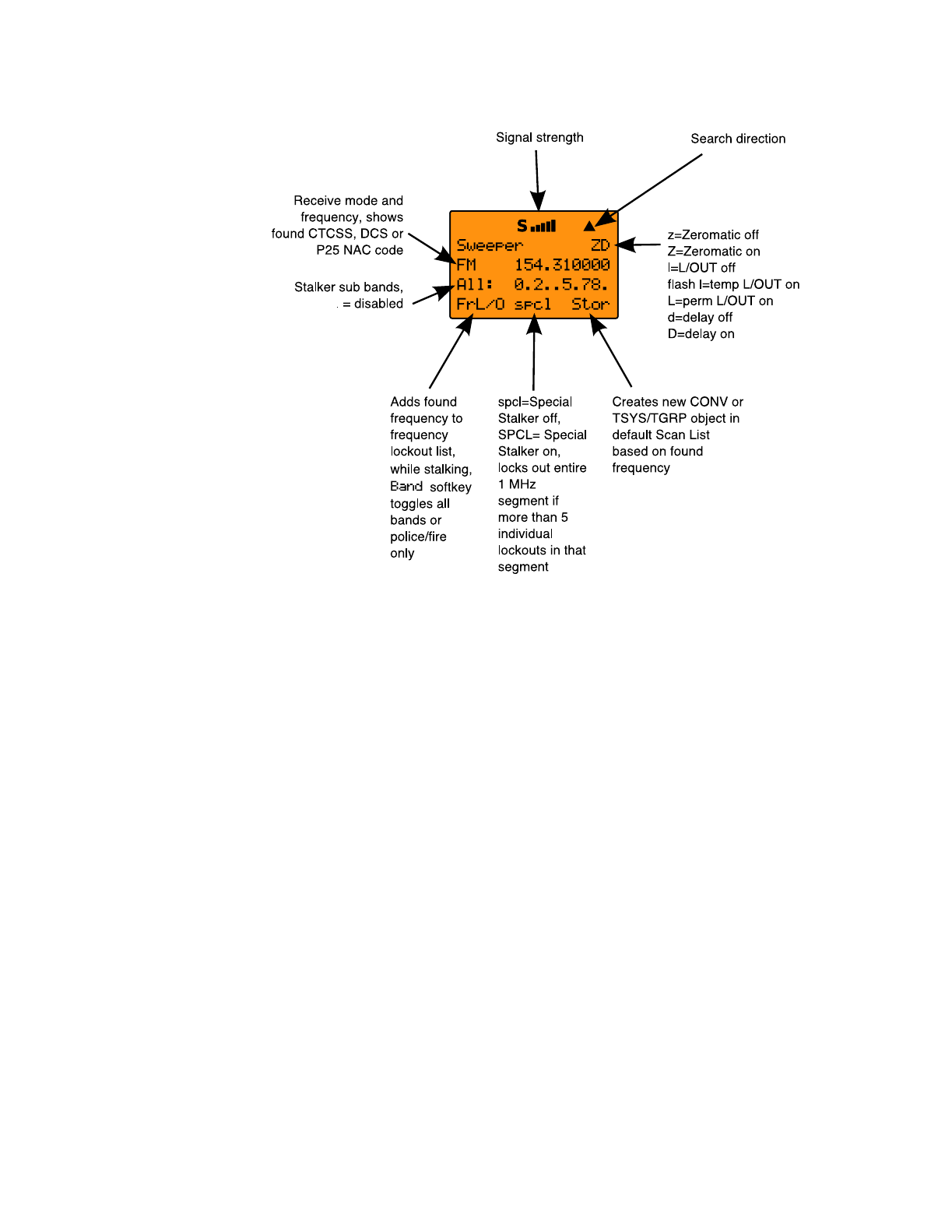

..................................................Spectrum Sweeper Object (SWPR) 49
..................................Essential Spectrum Sweeper parameters 50
.........................................................Service Search Object (SRVC) 52
........................................Essential Service Search parameters 52
........................................................Grouping Objects with Scan Lists 54
...................................................................................Geographically 54
...........................................................................By trunking system 55
....................................................................................By object type 55
....................................................................................By application 55
.......................................................................................By Favorites 55
........................................................Mapping Objects to Scan Lists 56
..................................................Enabling and disabling Scan Lists 57
............................................................Other Advanced Startup Topics 58
..........................................................Finding Stored Objects Easily 58
............................................Searching For Objects Using FIND 59
..............................................................Filtering By Object Type 59
..................................................................................Object Lockout 60
......................................................................Temporary Lockout 60
.....................................................................Permanent Lockout 61
............................................................................Search Lockout 62
.......................................................................Talkgroup Lockout 63
...........................................................Setting the Default Scan List 64
................................................................................Deleting Objects 64
..............................Using Multi-Site Mode On Networked Systems 65
........................................................LTR Home Repeater AutoMove 67
......................................................................................Priority Scan 67
...............................................Turning Object Priority On or Off 67
........................................Turning Priority Scan Mode On or Off 68
......................................................................CONV Priority Scan 68
......................................................................TGRP Priority Scan 68
.......................................................................................Hit Counters 68
...............................................Audible Alarms and the ALERT LED 69
...................................Audible Alarm and ALERT LED Settings 69
................................ALERT LED with Audible Alarm Examples 70
..................................................................Dedicated search modes 71
.................Using Dedicated Spectrum Sweeper (SWPR) Mode 71
......................................................Using dedicated TUNE mode 73
...................Using dedicated Limit and Service search modes 75
.......................................................................LMIT Search Mode 75
......................................................Using dedicated SRVC mode 76
.......................................................................Using Weather Modes 78
....................................................................Weather Radio Mode 79

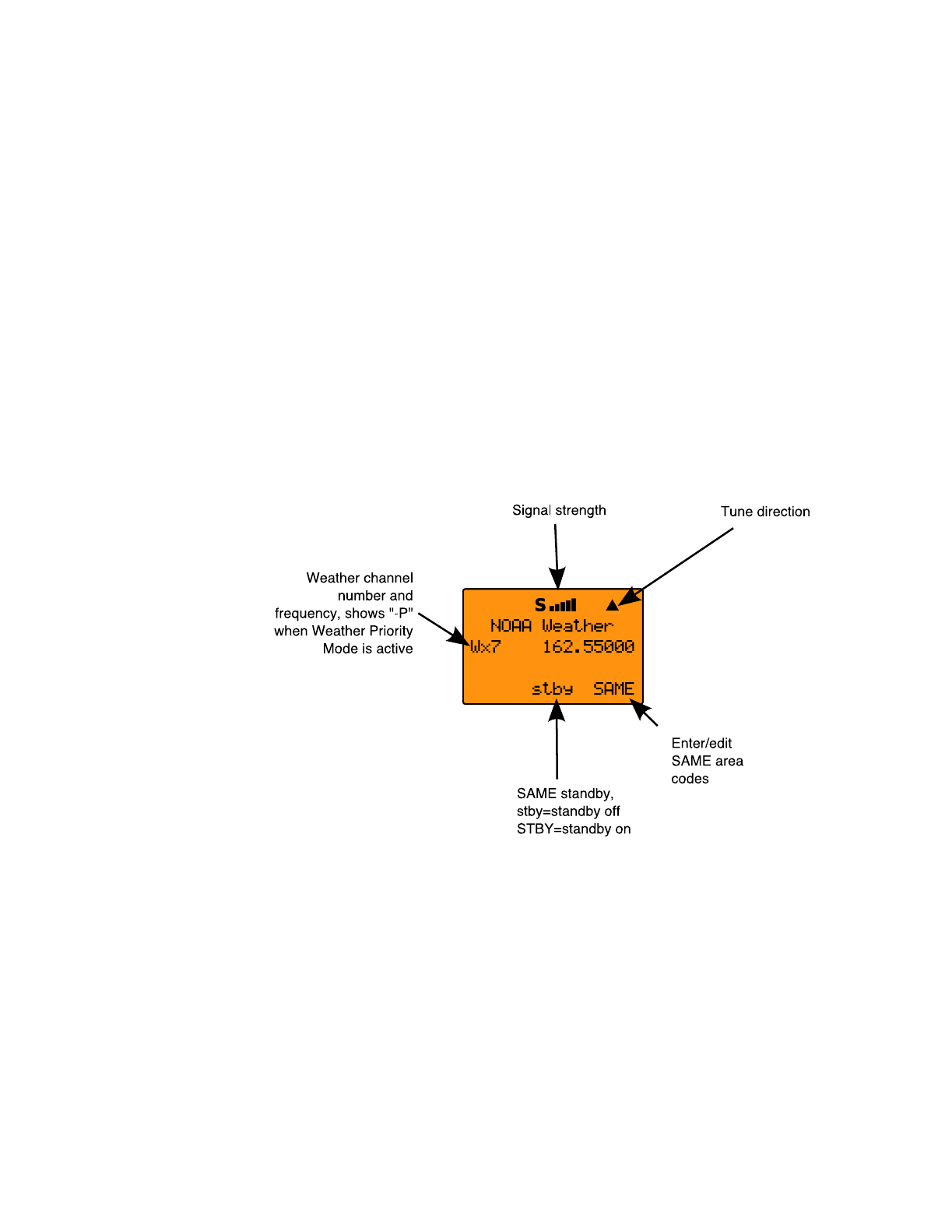

.................................................................Weather Priority Mode 79
...................................................................SAME Standby Mode 80
.................................................................SAME Entry Examples 81

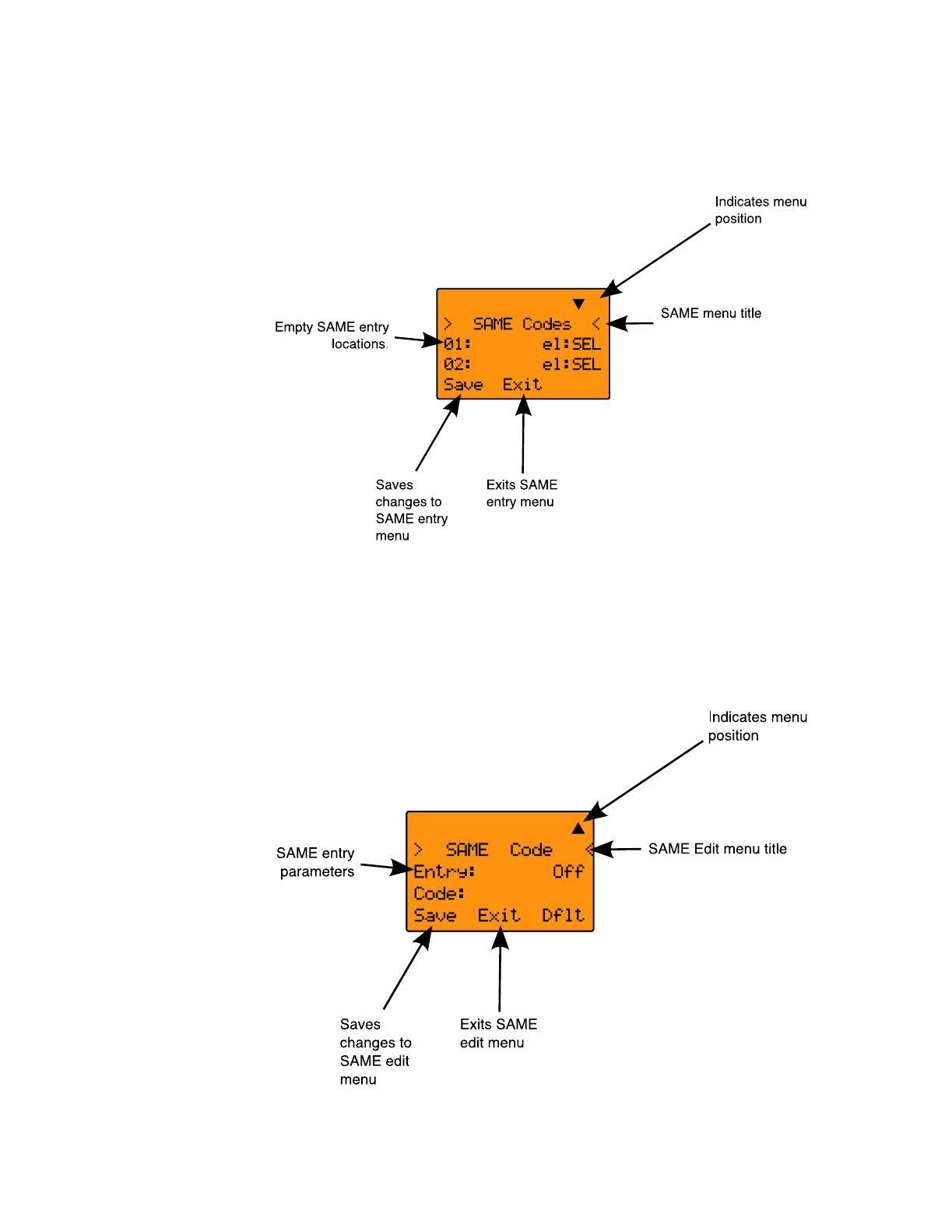

...............................Entering SAME Location and Event Codes 82
.................................................Activating SAME Standby Mode 85
.................................................................Using V-Scanner Storage 85
.............................Saving Main Memory To A V-Scanner Folder 87
..............Loading A Stored V-Scanner Folder To Main Memory 87
.........................................................Erasing V-Scanner Folders 88
................Cloning Your Radio to Another 0716 or 0715 Scanner 88
..............................................Standard Text Entry Method and QuickText 88
.................................Entering and Editing Alphanumeric Information 89
......................................................................................Using QuickText 90
..........................................................................Customizing QuickText 91
..................................................Power-On Configuration Key Sequences 91
.......................................................................................Birdie Frequencies 92
...............................................................................................................Care 93
............................................................................................In Case of Fault 93
...........................................................................................Troubleshooting 94
...........................................................................Troubleshooting Chart 94
..............................Initializing Global Parameters to Factory Defaults 94
.........................................Initializing the Scanner to Factory Defaults 95
..................................................................................Detailed Menu Reference 97
................................................................................GLOB Menu Reference 98
..............................................................................CONV Menu Reference 101
...............................................................................TGRP Menu Reference 103
...............................................................................TSYS Menu Reference 105
................................................................................LMIT Menu Reference 107
...............................................................................SRVC Menu Reference 109
..............................................................................SWPR Menu Reference 111
.................................................................................................................Index 113
..........................................................Appendix A - Remote Control Protocol 116
..............................................................................................Get Status 117
..................................................................................................Get LCD 117
................................................................................................Send Key 118
........................................................................................................Tune 118
.....................................................................................Appendix B - CCDump 120
.............................Appendix C - Frequency, Step and Mode Specifications 123
.............................................................Appendix D - General Specifications 124
........................................Appendix E - About Trunked Radio Technologies 127
...........................................Appendix F - About CTCSS, DCS and P25 NAC 130
..............................................................................................CTCSS 130
...................................................................................................DCS 131
...........................................................................................P25 NAC 131
........................................................Appendix G - Finding More Information 132
.....................................Learning About Scanning and your 0716132
....................Finding Frequencies and Trunked System Information 132
...........................................................................................................Warranty 134
Introduction
Welcome to an exciting new world of radio scanning!
Recognizing that contemporary scanning receivers are too hard
to program and use, GREs engineers conducted extensive
research to determine the functional requirements for an entirely
new scanning receiver user interface. We call this new user
interface the Object Oriented User Interface (OOUI), and it is
based on the premise that, to a hobbyist, a scanner is easiest to
use if all of the things that can be scanned are handled using
common conventions for interaction between the user and the
radio, at least to the extent that this is possible given that the
“things” that can be scanned are different from one another in
either subtle or major ways.
In this new user interface design, we call “things” that can be
scanned Scannable Objects. Simply put, a Scannable Object is
defined as something that can be scanned or monitored.
Scannable Objects include the following:
•Conventional, non-trunked radio channels
•Trunked talkgroups used on a trunked radio system
•Service searches to search for a specific radio service
•Search ranges with upper and lower limits
•Spectrum Sweeper setups with band segments that can be
enabled or disabled by the user
One of the goals of the Object Oriented User Interface is to make
the scanner as easy to use as possible. The OOUI does this by
treating all Scannable Objects the same in terms of how they are
created, edited, manipulated and grouped. Once you have
learned how to create and store a conventional channel, you
know most of what you need to know to create a trunking
talkgroup, and so on.
While we have designed this radio to be the easiest scanning
receiver in its class to program and use, we encourage you to
read this manual in its entirety so that you will fully understand all
of the radios capabilities. However, if you consider yourself to be
an experienced scanning hobbyist and are feeling adventurous,
we invite you to dive right in and get started programming your
favorite “objects” into the radio.
0716 User Manual Page 7
Features
Upgradeable CPU and DSP Firmware - keep your radio current
with enhancements as they become available with free upgrades
from www.greamerica.com!
Intuitive "Object Oriented" User Interface Design is designed
for ease of use, yet powerful enough to satisfy the most
sophisticated experts. Common data entry, browsing and control
methods are used for non-trunked conventional channels,
trunking talkgroups, search configurations and Spectrum
Sweeper setups. The radio grows with you – you can start out
with a small, easy to manage configuration, then expand it
whenever you need to.
Menu Driven Programming With Context Sensitive Help -
Each menu item provides a few lines of help text that provide
assistance with programming and using the scanner.
Powerful and flexible Scan List functionality allows you to
arrange, group and scan objects according to your preference.
Flexible Free-Form Memory Organization - memory is
assigned as objects are created using a sophisticated internal file
management system. You are not constrained to traditional bank/
channel scanner memory layouts. No memory is wasted as a
result of bank/channel programming constraints. The scanner
has sufficient main memory capacity to store over 1,800
conventional channels, trunking talkgroups, search
configurations and Spectrum Sweeper objects in any
combination, providing ample capacity for more sophisticated
hobbyists and professionals while keeping the database size
manageable for beginners.
GRE's Exclusive V-Scanner Technology - Allows you to save
complete radio configurations within the radio, for recall into main
memory as needed in the field. This is similar to having a laptop
computer and programming software available anytime. You can
use V-Scanners to store configurations for different geographical
areas or usage styles. Twenty one V-Scanner Folders are
provided, each capable of storing over 1,800 objects. Total
memory capacity of main memory combined with V-Scanners is
over 37,800 objects!
SKYWARN Storm Spotter Functionality - Instant access to
frequencies used by storm spotter networks. You can monitor
storm conditions as they occur, and become aware of dangerous
0716 User Manual Page 8
conditions before the media or emergency management officials
are able to announce them to the general public.
SAME and All Hazards Weather Alerting - Your scanner can
operate in dedicated Specific Area Message Encoding (SAME)
weather alerting mode, and alert you to severe weather and
other hazards in the specific area(s) that you select, or, your
scanner can check your local NOAA weather frequency
periodically, even while scanning and alert you when an All
Hazards alert occurs.
Multi-System Trunking - Scans most common trunked radio
system signaling formats, including Motorola, EDACS, LTR and
P25 trunked radio networks. Both talkgroup and individual call
monitoring are supported.
GRE's Exclusive Automatic Adaptive Digital Tracking - When
monitoring P25 digital systems, instantly adapts the digital
decoder to the digital modulation format of the transmitted signal,
then analyzes the signal over 50 times each second and adapts
to any subtle changes caused by multipath or fading. No
cumbersome manual adjustments are required.
GRE's Exclusive Digital AGC - instantly compensates for low
user audio levels that are very common on digital systems. This
makes the radio easier to listen to, and provides you with a more
enjoyable scanning experience.
LTR Home Repeater AutoMove - Takes the guesswork out of
programming LTR trunking systems when the home repeater
order is not known. Enter the LTR system frequencies in any
order, and the 0716 will automatically move the frequencies
to the proper home repeater slots as transmissions are received
on the system.
The Best Subaudible Squelch Decoder in the Scanning
Industry - CTCSS and DCS subaudible squelch coding is
processed by the same powerful DSP chip that is used for P25
digital decoding. Provides fast and reliable decoding of
subaudible squelch signaling with squelch tail elimination.

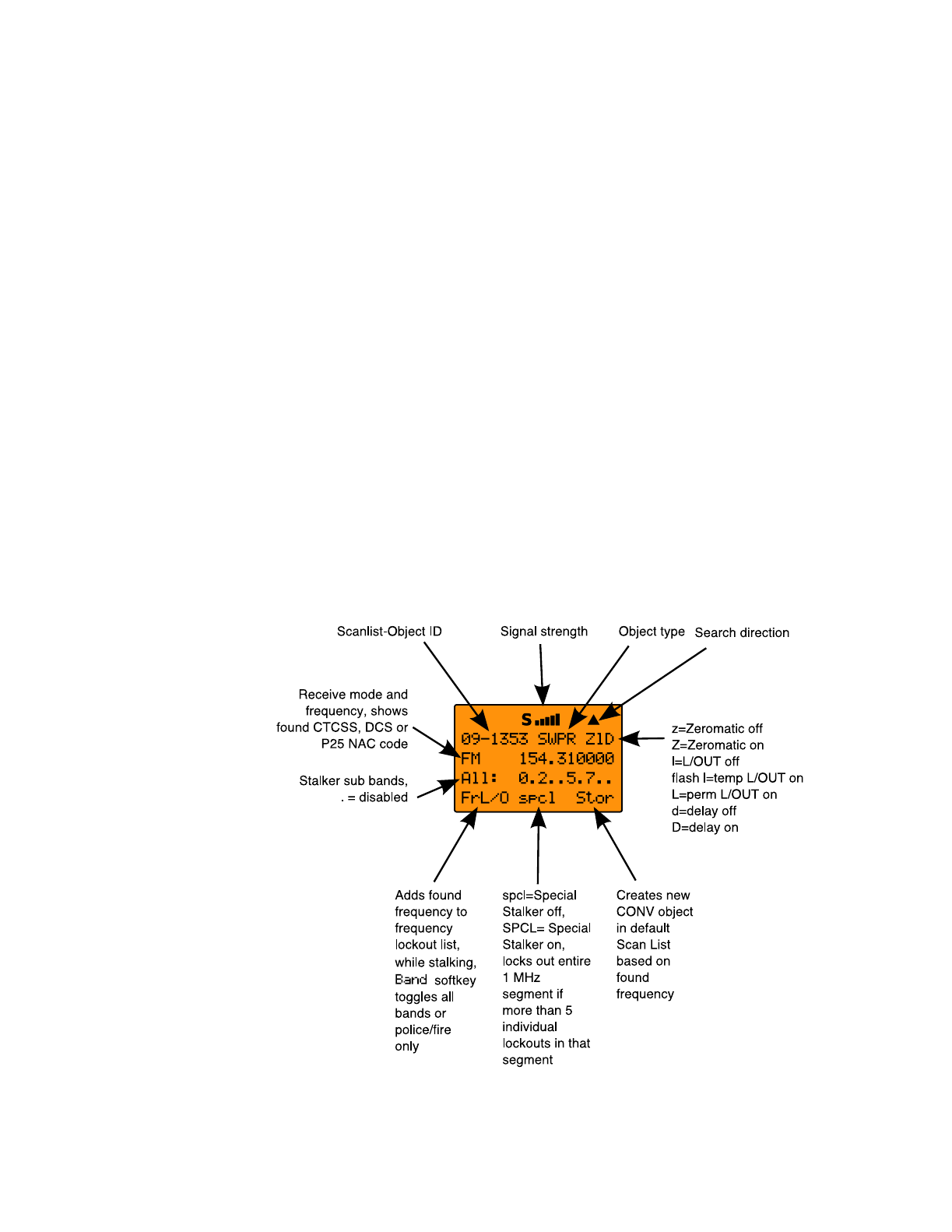

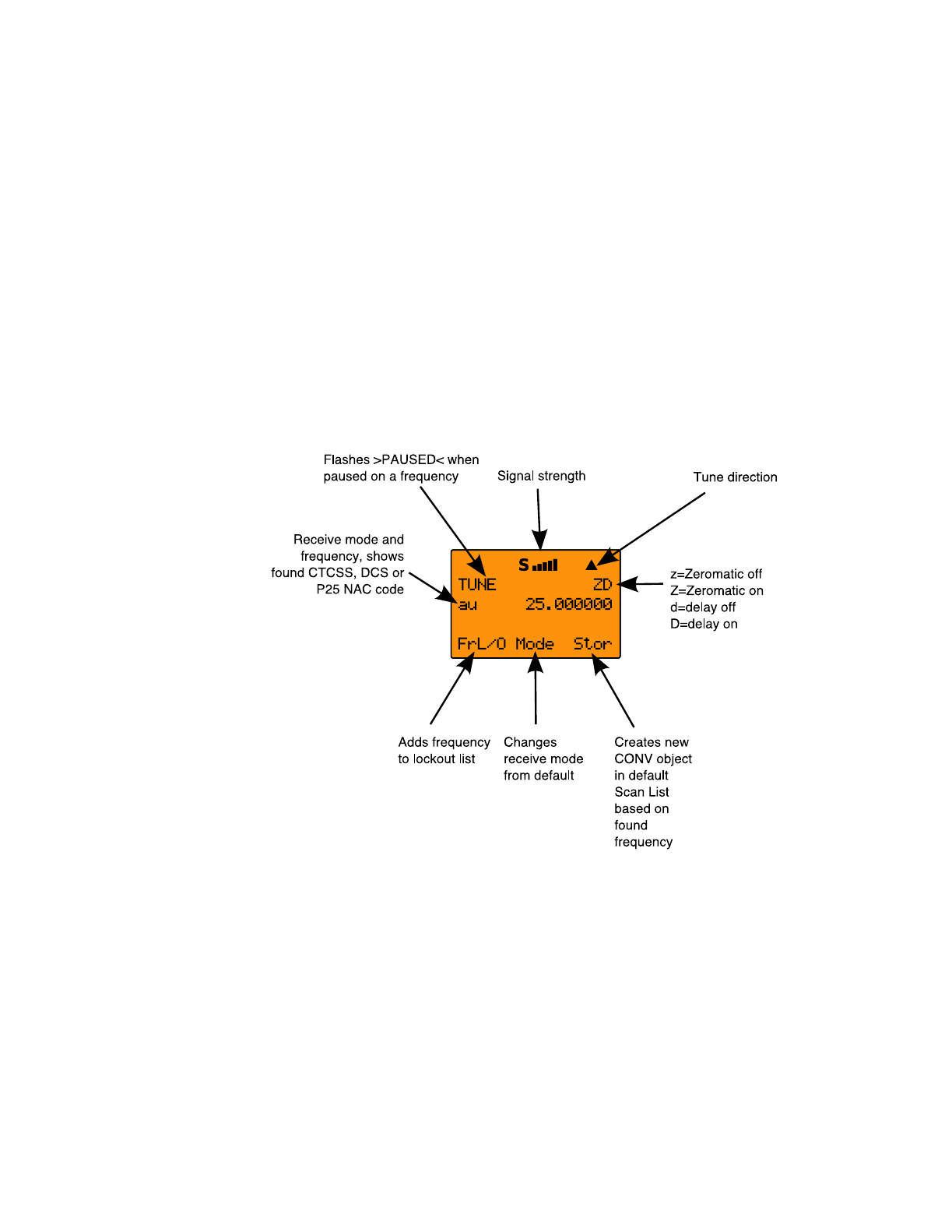

Powerful Spectrum Sweeper - Quickly sweeps the scanners
frequency ranges for transmissions from nearby sources. When
a nearby active frequency is found, the scanner automatically
tunes to that frequency and receives the traffic.
0716 User Manual Page 9
P25 NAC Functionality - Much like CTCSS and DCS with
analog signals, P25 Network Access Code (NAC) is used to
provide selective squelch operation on conventional digital
channels. Your 0716 will detect the NAC that is being used
on a P25 conventional digital channel, and allow you to program
NAC codes to block transmissions that do not have a matching
NAC, including analog traffic on the same frequency!
Exclusive ALERT LED - Programmable tri-color LED can be
configured to illuminate or flash when certain objects are active.
Eight user-defined colors and brightness levels can be specified
from thousands of possible combinations. Provides visual alerts
when certain channels are active, e.g., blue can be used to
signal activity on your primary police channel, red for fire, etc.
Audible alarms - Programmable audible alarms can be
configured to sound when certain Scannable Objects are active.
Can be used in conjunction with, or separately from, the ALERT
LED described above.
High Speed PC Interface - uses GREs 30-3290 USB cable in
full duplex mode at 6 times the speed of previous scanner
models for PC transfer and 8 times the speed of previous models
for radio to radio cloning.
Real-time Signal Strength Indicator – shows relative strength
of received signals.
Sleek, attractive case design with large speaker is well suited
for tabletop, mobile or DIN mounting.
Overview of the Object Oriented User Interface
Background
Long time scanner enthusiasts probably remember the days
before microprocessors became common in everyday consumer
devices. Back then, scanners had very limited capabilities. A
typical scanner was able to scan between 2 and 10 frequencies,
and relied on plug-in crystal elements for each frequency that a
user wished to scan. Scanning activity was typically shown on a
row of incandescent or LED indicators. These indicators would
show scanning operation in progress as the scanner moved from
one channel to the next, looking for activity, and would indicate
the active channel when activity was found. Pushbuttons or
switches were used to skip or lock out undesired channels. The
scanning row of LEDs or incandescent indicators seemed to
0716 User Manual Page 10
personify the hobby at the time, and it was quite an experience to
see the light show from multiple radios in a well-equipped
scanner shack
Early microprocessor controlled scanners eliminated the need for
crystals and increased the number of channels that could be
scanned. Without keypads and numeric or alphanumeric displays
these early microprocessor controlled radios still relied on the
traditional row of lights to show scanning activity. A row of
switches was used to enter binary code to store individual
frequencies. In some later models a punch card or metal comb
was used to load the binary code.
The true predecessors of todays modern scanning receivers are
those first radios to use a numeric keypad to store frequency
information and control the radio, and numeric LCDs to show the
programmed information and display the status of the radio. The
row of lights was replaced with a row of zeroes or other display
elements in the LCD to show scanning activity.
As it became possible to increase the memory capacity of these
microprocessor controlled scanners, designers started looking
for ways to organize this expanded memory to make operation
easier for users. This lead to the typical bank/channel memory
organization that is still used in many scanning receivers today.
This design works well when scanning conventional, non-trunked
frequencies.
Trunking presented new challenges for designers. Early trunking
scanner designs operated in trunking or conventional mode, but
not both at the same time. Because programming for trunked
systems includes many parameters not normally used in
conventional radio scanning, it was necessary to design a
completely separate user interface for entering trunking
parameters and scanning trunked systems. Soon after the first
early models were released, new “multi-scanning” receivers
appeared that allowed users to scan different combinations of
trunked systems or conventional channels simultaneously.
Trunking scanners soon earned a reputation for being complex
and difficult to program. Even experienced and expert users
were frustrated when confronted with the challenges of
programming and operating a trunked scanning receiver. Part of
the problem with trunking scanners was the way that trunking
functionality was added to the radio. Until recently, trunking
functionality was forced into the traditional bank/channel scanner
design. This confused and frustrated for users, who had to learn
0716 User Manual Page 11
two different methods for programming and controlling their
scanners – one for conventional, non-trunked channels, and
another for trunked systems and talkgroups.
GREs engineers carefully studied the challenges of
programming and operating todays current crop of trunked
scanning receivers. We have also carefully studied how scanning
hobbyists like to use their radios, and the role the Internet plays
in the scanning hobby. We have studied the scanning hobby
itself, which has changed dramatically over the years as radio
systems, scanning receivers and scanner hobbyists have all
become more sophisticated. Sophistication is a generally good
thing, but in this case it can have the effect of discouraging
newcomers from joining the hobby.
Our engineers decided that an entirely new method of
programming and controlling scanning receivers was needed –
essentially, a new user interface. Several design objectives were
defined. These included the following:
•There should be a strong focus on ease-of-use. The radio
should do as much work as possible for the user. A brand
new hobbyist should be able to begin using the radio quickly
with minimal frustration. There should also be enough
advanced features and functionalities to satisfy the most
sophisticated expert users.
•The user interface should be intuitive. Interactions with the
radio should be standardized to the extent possible. For
example, the same basic methods should be used whether
adding a new conventional channel or adding a trunked
talkgroup.
•The scanner should include efficient memory usage. Bank/
channel designs result in much wasted memory. Memory
should be allocated as it is needed for new Scannable
Objects.
Our engineers realize that our scanners are used by a wide
variety of users with varying levels of experience and expertise.
These include amateur radio operators, scanner hobbyists, fire
buffs, railfans, public safety professionals, volunteer firefighters,
news and media organizations, and most importantly, everyday
people who just want to know what is going on around them.
All of these users share a few things in common about the way
they use scanning receivers. First, they all follow the same basic
0716 User Manual Page 12
process when configuring and programming the radio for use.
Second, all have one or more collections of frequencies,
talkgroups, or other things they listen to.
As our engineers studied the scanning hobby and those who use
scanners, they began to realize that the scanning hobby had
much in common with hobbies that involve collections, like stamp
collecting, coin collecting, and so on.
Hobbies of collection all have some things in common:
•Typically, a collector starts off small, and adds to the
collection
•A collector groups items in the collection according to their
type
•A collector looks for new things to add to the collection
•A collector removes items from the collection that they no
longer desire
•A collector enjoys the collection
Specifically, with regard to scanning:
•At first, the typical scannist starts off small, and expands. This
is especially true with beginners and newcomers to the
hobby.
•The scannist groups channels and talkgroups according to
area or type of use
•The scannist searches or tunes to find new things to scan
•A scannist removes channels and talkgroups they no longer
need
•A scannist enjoys the collection of channels and talkgroups
they have programmed into the scanner
Our engineers determined that a new scanner design would be
most useful if it could be used as a tool by the scanning hobbyist
to build and enjoy the collection of channels and trunked
talkgroups they have programmed into the scanner.
Much of what you see in the design of your new GRE scanner
with Object Oriented User Interface is intended to meet the
0716 User Manual Page 13
objectives we describe above, and serve as a tool to help you
manage and enjoy your collection of “Scannable Objects”.
What is Object Oriented Scanning?
To put it simply, Object Oriented Scanning describes a new user
interface design for scanning receivers (the Object Oriented User
Interface, or OOUI). In Object Oriented Scanning, we introduce
the concept of the Scannable Object. A Scannable Object is
defined as “something that can be scanned”.
The Scannable Object concept is very important in the OOUI
design. Recall that one of the more frustrating things about
current trunking scanners is that entirely different methods of
programming and interacting with the radio are used depending
on whether the user is working with trunking talkgroups or
conventional channels. A method that works with one does not
work well with the other. The user must learn two entirely
different “languages” for “talking to” the radio – one for trunking
and one for conventional, non-trunked frequencies.
What if it was possible to use the same basic “language”
regardless of whether a user is working with trunked talkgroups
or conventional channels, such that once a user has learned how
to enter a conventional channel into memory, they already know
most of what they need to know to enter a trunked talkgroup? Or,
a search range, or other “Scannable Objects”? This is how the
OOUI works – the two primary Scannable Objects, talkgroups on
trunked radio systems and conventional non-trunked frequencies
use the same user interface elements.

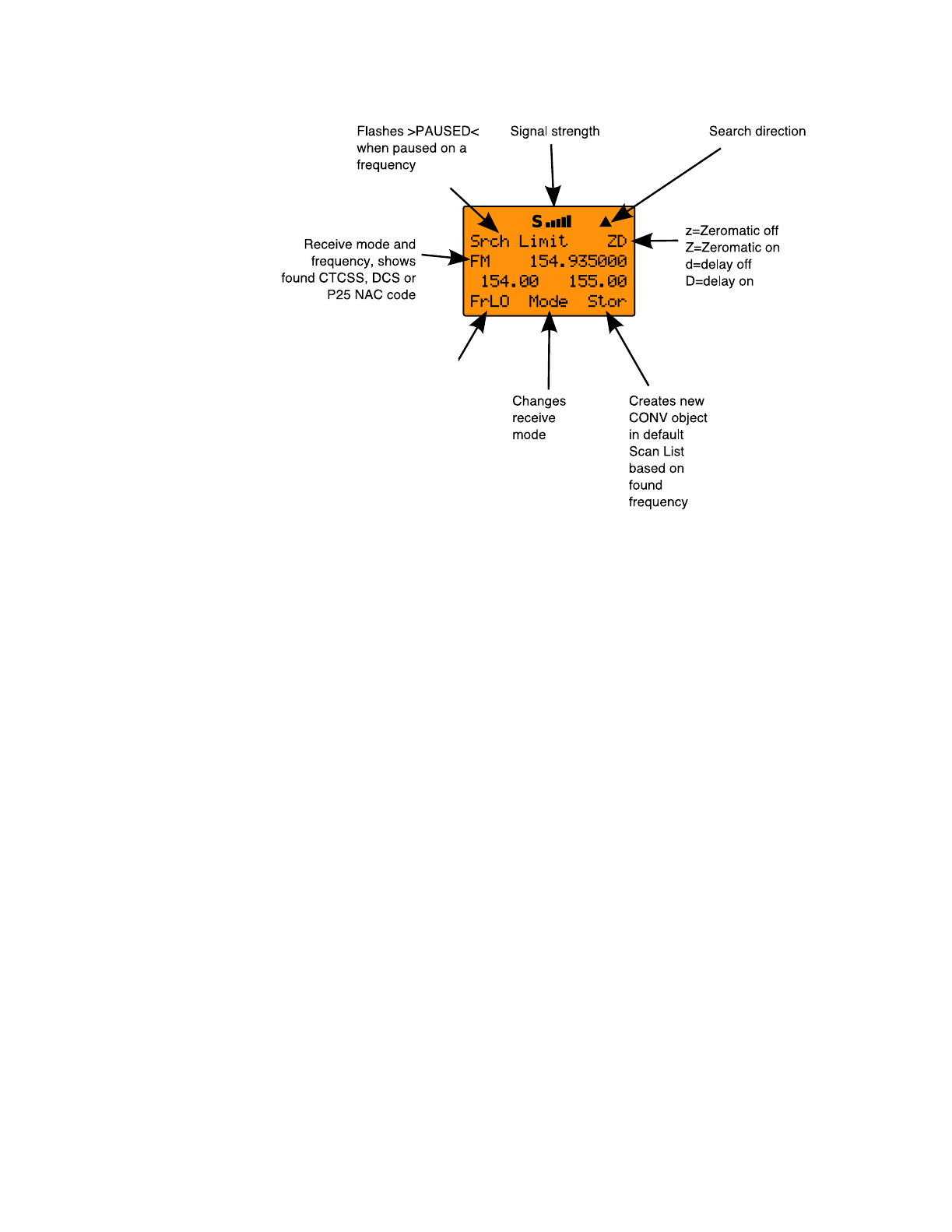

Additionally, we include limit and service search configurations
and Spectrum Sweeper configurations as Scannable Objects.
This means that it is possible to create, edit, group, scan and
delete service and limit searches, and Sweeper configurations
using the same methods that are used when working with
trunked talkgroups and conventional channels.
Object Oriented Scanning also lends itself quite well to the
“collector hobbyist model” we describe above. Object Oriented
Scanning makes it very easy for newcomers to the hobby or the
radio to start off with a small collection Scannable Objects and
expand their collection as needed later. Object Oriented
Scanning makes it easy to group Scannable Objects in Scan
Lists, a powerful and flexible grouping system. Object Oriented
Scanning makes it easy to search for new frequencies or
talkgroups to monitor, and add them to existing or new Scan List
0716 User Manual Page 14
groups. Object Oriented Scanning makes it very easy to delete
or deactivate objects and Scan Lists that you do not want to

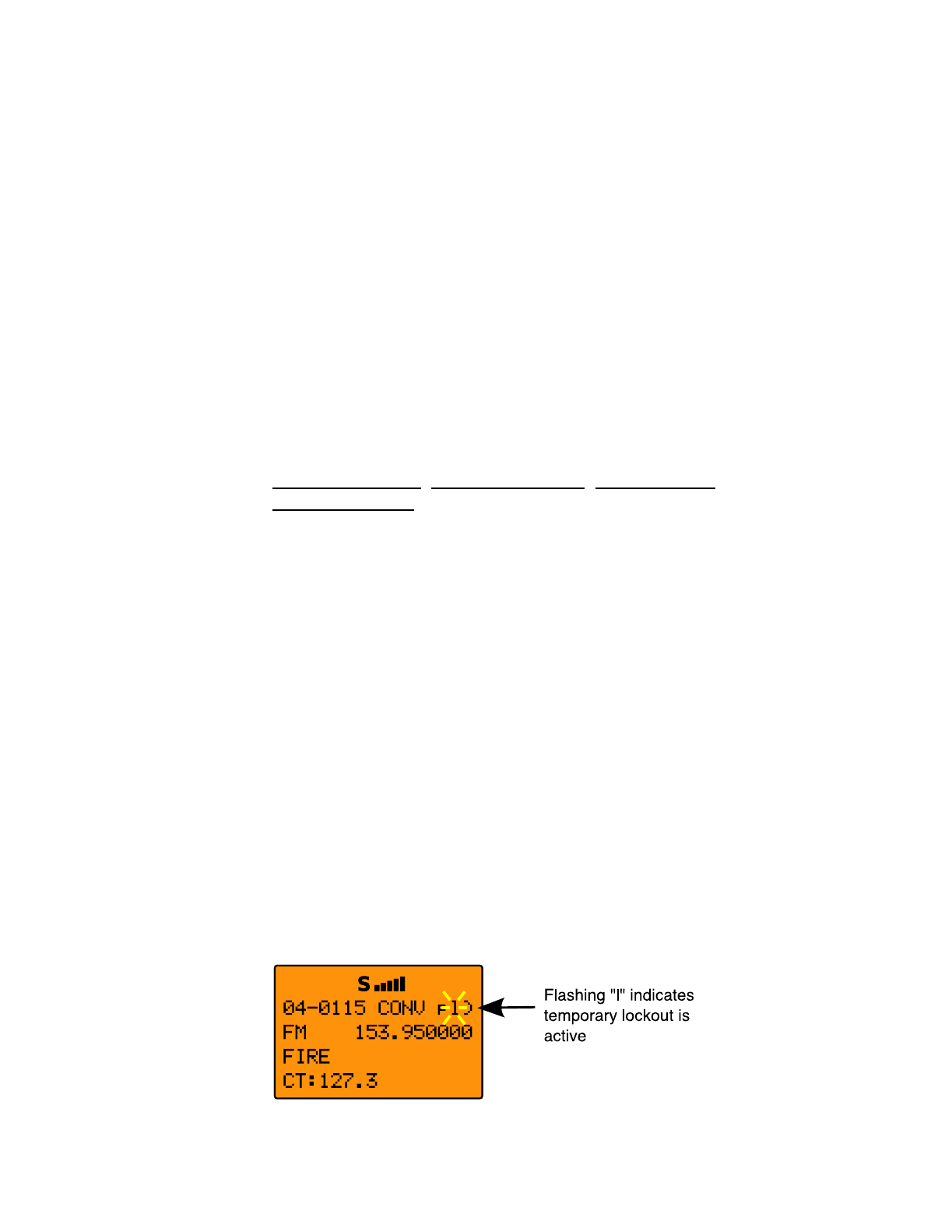

listen to, including a powerful temporary lockout mode that allows
you to zero in on activity associated with a specific incident, then
restore your desired configuration when the incident is over.
Finally, Object Oriented Scanning makes it exceedingly easy for
the scannist to enjoy the collection of channels and talkgroups
they have programmed into the scanner, and to share them with
other scannists.
A Few Things To Remember about Object Oriented Scanning
Object oriented scanning is completely different from any prior
scanning receiver technology. Accordingly, some users may find
it difficult to visualize and understand how Object Oriented
Scanning works. This may be especially true for users who have
become very familiar with more recent scanning receiver
technologies.
We suggest that you keep the following “OOUI Tenets” in mind
as you proceed with your study of this manual. If you find
yourself confused or stuck about the basics of Object Oriented
Scanning, it may be helpful to review this section again.
1. The OOUI memory organization is nothing more than a large
list of "Scannable Objects".
2. A "Scannable Object" is simply "something that can be
scanned", including conventional channels, trunking
talkgroups, limit searches, service searches and Spectrum
Sweeper setups.
3. In OOUI scanning, there are no "systems", "banks", "groups",
"sub-groups" or "ID lists". There is simply a very large
collection of objects, each with their own attributes.
Scannable Objects all exist at the same level or hierarchy
within the scanner - no single type of Scannable Object is
more important than another, and Scannable Objects do not
have dependencies on or links to other Scannable Objects in
order for them to function properly.
4. The primary method of grouping the collection of objects is by
mapping them to Scan Lists. Mapping a Scannable Object to
one or more Scan Lists does not change the physical location
of the object in the memory system. Even when an object is
mapped to one or more Scan Lists, the object itself has not
0716 User Manual Page 15
moved nor changed from what it is - a simple, standalone
object that is part of a larger collection.
About this manual
Object abbreviations used in this document
We described how your new GRE scanner utilizes an Object
Oriented User Interface in the Introduction and Overview
sections of this manual. You learned that the key components of
this new user interface are the Scannable Objects, which are, of
course, “things that can be scanned”. As you begin to use your
new scanner, you will notice that the object names are
abbreviated so that they can easily fit into the 16 character LCD.
(Imagine what the radios display would look like if “Trunking
Talkgroup Object” was spelled out in its entirety every time it was
necessary to show it in the display.)
You should take a moment and become familiar with these
abbreviations now. For consistency, the same abbreviations for
the different object types are used in the radio and here in the
manual.

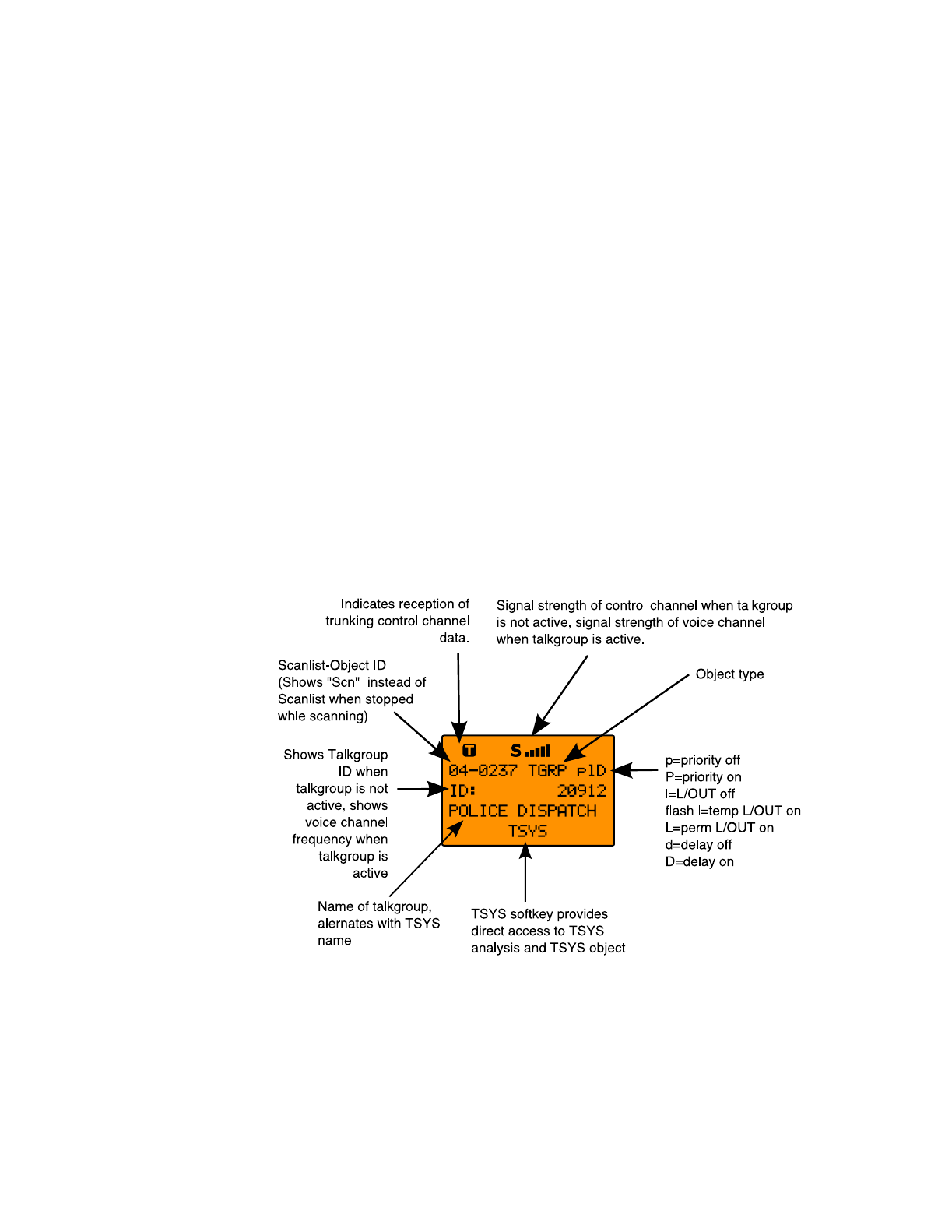

TGRP

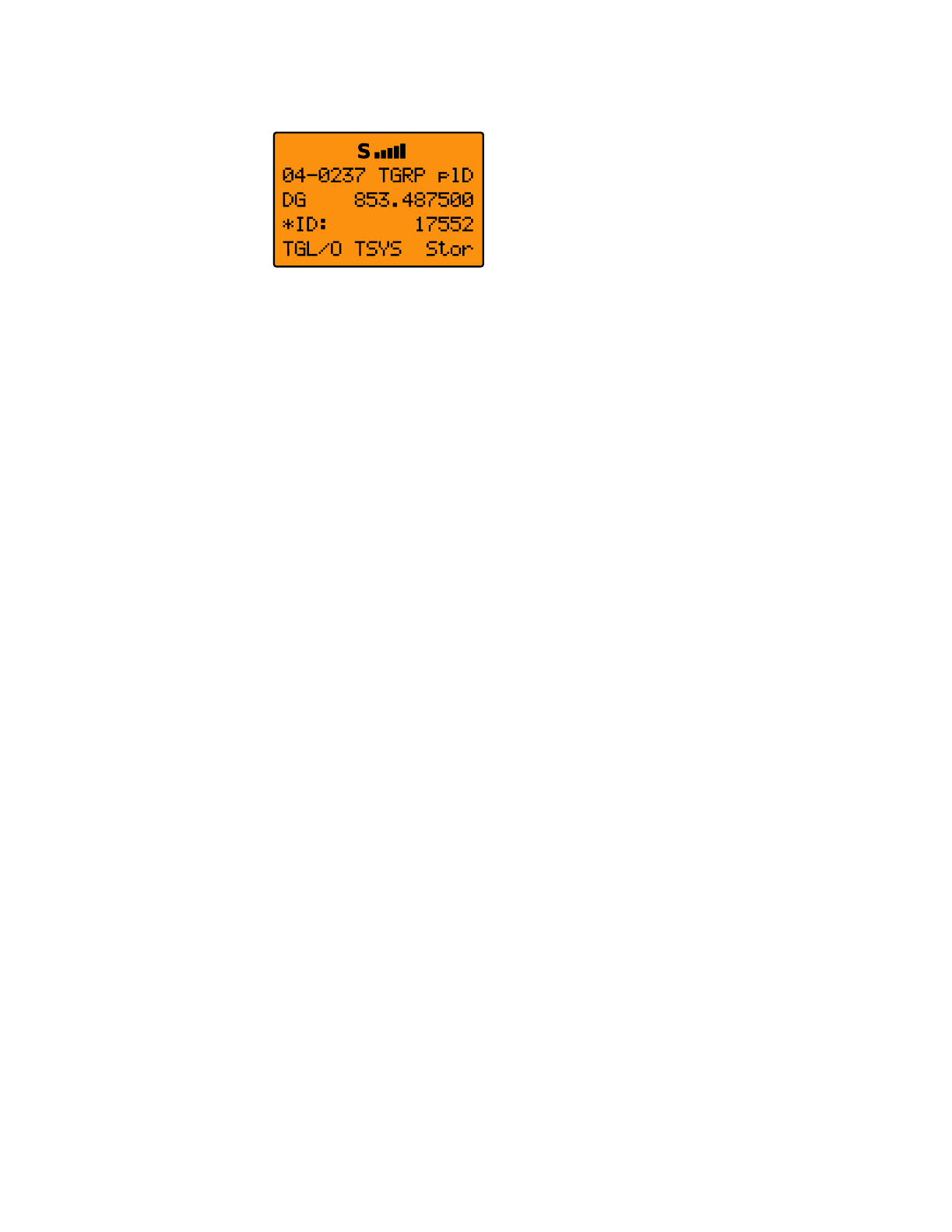

TGRP is used to represent a Trunking Talkgroup Object.
Trunking Talkgroups are “virtual” channels that exist on a trunked
radio system. A trunked radio system is a radio system where a
small group of radio channels are automatically shared between
a larger number of users and user groups. This sharing of
channels is managed automatically by a special computer, called
acontroller, or by other specialized hardware. For now, all you
need to know is this; if you want to monitor a talkgroup on a
trunked radio system, you must store that talkgroups parameters
in a TGRP object.
TSYS
TSYS is used to represent a Trunking System Object. A TSYS is
a special object type that is used when creating TGRP objects. A
trunking talkgroup must be associated with a specific trunked
radio system in order for it to operate. There are parameters that
are associated with trunking systems, such as the type of
trunked radio system technology used, the frequencies that the
system uses to broadcast control data, etc. Instead of entering
these parameters over and over again every time you create a
new TGRP on the same trunked radio system, you create a
TSYS object with all of the system parameters, then specify that
0716 User Manual Page 16
TSYS object for each TGRP you create on the same trunked
radio system. A TSYS cannot be scanned by itself and is not
considered a Scannable Object. It is a “configuration object” that
can be used over and over again when adding talkgroups for a
specified trunked radio system.
CONV
CONV is used to represent a Conventional Channel Object. A
Conventional Channel Object is a regular, non-trunked frequency
used for radio communications. CONV objects are used to store
the parameters for any radio channel that is not a part of a
trunked system. For example, if you want to monitor specific VHF
marine channels, they should be programmed as CONV objects.
If you want to monitor your favorite amateur radio channel, it
should be stored as a CONV object. If your police or fire
department uses a channel, or channels that are not trunked, but
part of a “plain old radio system”, they should be stored as
CONV objects.
LMIT
LMIT is used to represent a Search Range, or Limit Search
Object. LMIT objects contain the parameters necessary for the
radio to search a range of individual frequencies between a lower
and upper limit frequency.
SRVC
SRVC is used to represent a Service Search Object. SRVC
objects are further divided into Public Safety, Aircraft, Amateur,
CB, Marine, and FRS/GMRS/MURS/DOT. SRVC objects are
similar to LMIT objects, but are preprogrammed to search all
frequencies associated with the selected service. For example,
selecting the Amateur SRVC search will search selected amateur
radio frequency ranges frequencies in the VHF and UHF portions
of the radio spectrum.
SWPR
SWPR is used to represent a Spectrum Sweeper Object. SWPR
objects contain the parameters necessary for the radio to rapidly
sweep a range of radio spectrum for strong signals from nearby
transmitters.
The FCC Wants You To Know
This equipment has been tested and found to comply with the
limits for a scanning receiver, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable
0716 User Manual Page 17
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference
to radio communications.
However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including
interference that may cause undesired operation.
Scanning Legally
Your scanner covers frequencies used by many different groups
including police and fire departments, ambulance services,
government agencies, private companies, amateur radio
services, military operations, pager services, and wireline
(telephone and telegraph) service providers. It is legal to listen to
almost every transmission your scanner can receive. However,
there are some transmissions you should never intentionally
listen to. These include:
•Telephone conversations (cellular, cordless, or other means
of private telephone signal transmission)
•Paging transmissions
•Any intentionally decoded scrambled or encrypted
transmissions
0716 User Manual Page 18
According to the Electronic Communications Privacy Act (ECPA),
you are subject to fines and possible imprisonment for
intentionally listening to, using, or divulging the contents of such
a transmission unless you have the consent of a party to the
communication (unless such activity is otherwise illegal).
This scanner has been designed to prevent reception of illegal
transmissions. This is done to comply with the legal requirement
that scanners be manufactured so as to not be easily modifiable
to pick up those transmissions. Do not open your scanner's case
to make any modifications that could allow it to pick up
transmissions that are illegal to monitor. Doing so could subject
you to legal penalties.
We encourage responsible, legal scanner use.
In some areas, mobile use of this scanner is unlawful or requires
a permit. Check the laws in your area. It is also illegal in many
areas to interfere with the duties of public safety officials by
traveling to the scene of an incident without authorization.
0716 User Manual Page 19
Getting Familiar With Your 0716
The following illustrations are provided to help you get familiar
with your 0716's controls and accessories.

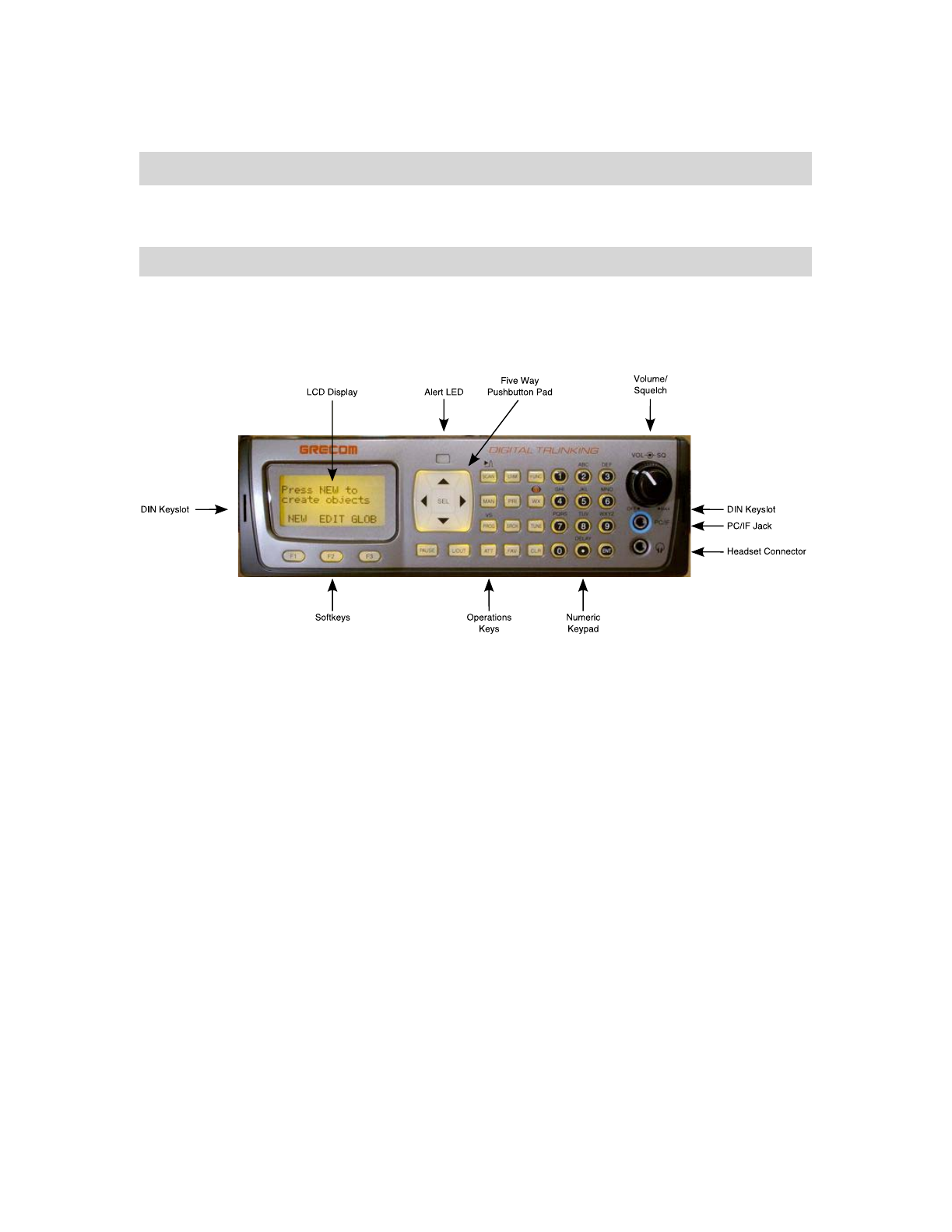

0716 Front View
Figure 1 - 0716 front view
0716 User Manual Page 20
0716 Rear View
Figure 2 - 0716 rear view
0716 User Manual Page 21

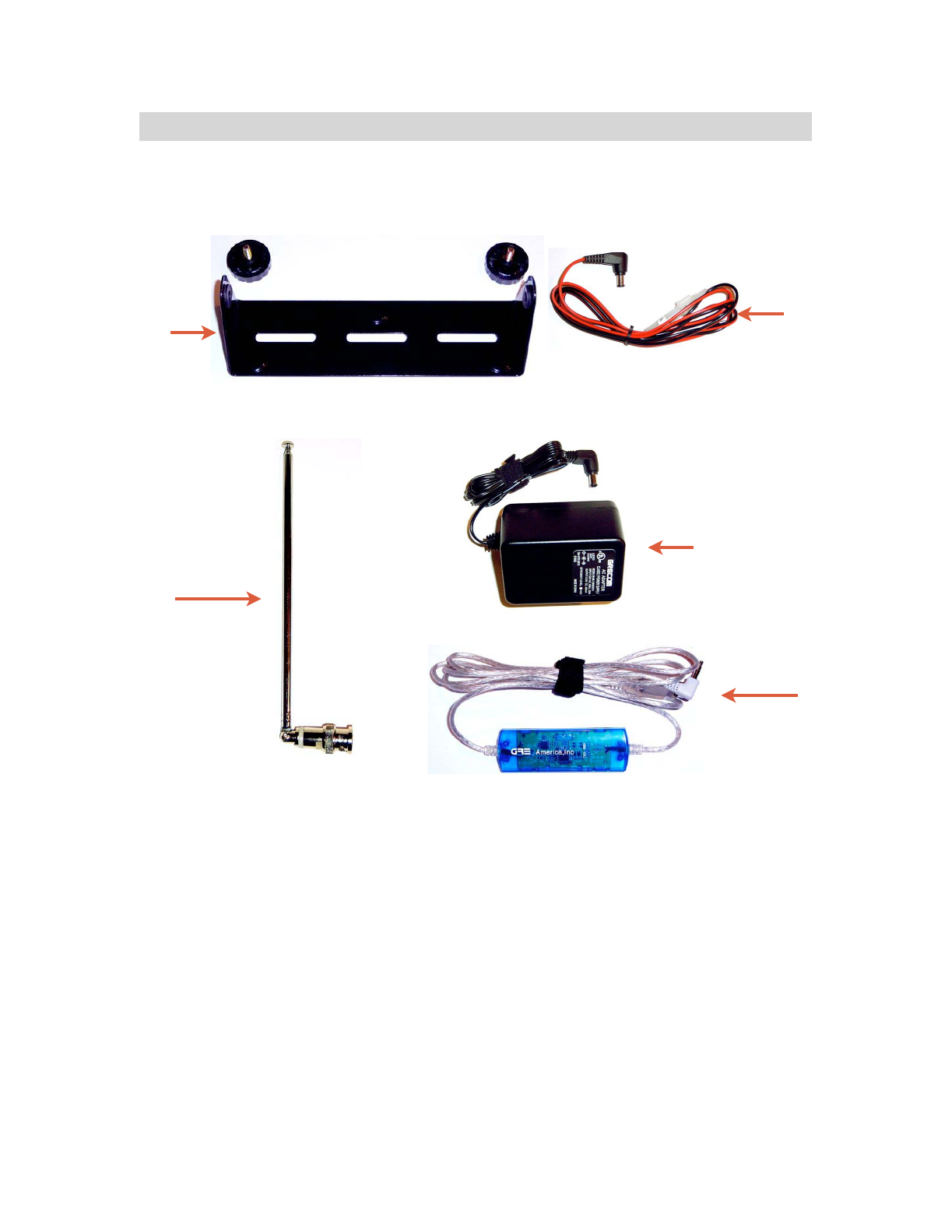

0716 Included Accessories
Figure 3 - 0716 Included Accessories (Compact Disc not shown)
0716 User Manual Page 22
Antenna
Mobile Mounting
Bracket with Rubber
Feet, Rubber Washers
and Knurled Knobs
USB Cable
AC Adapter
DC Cable

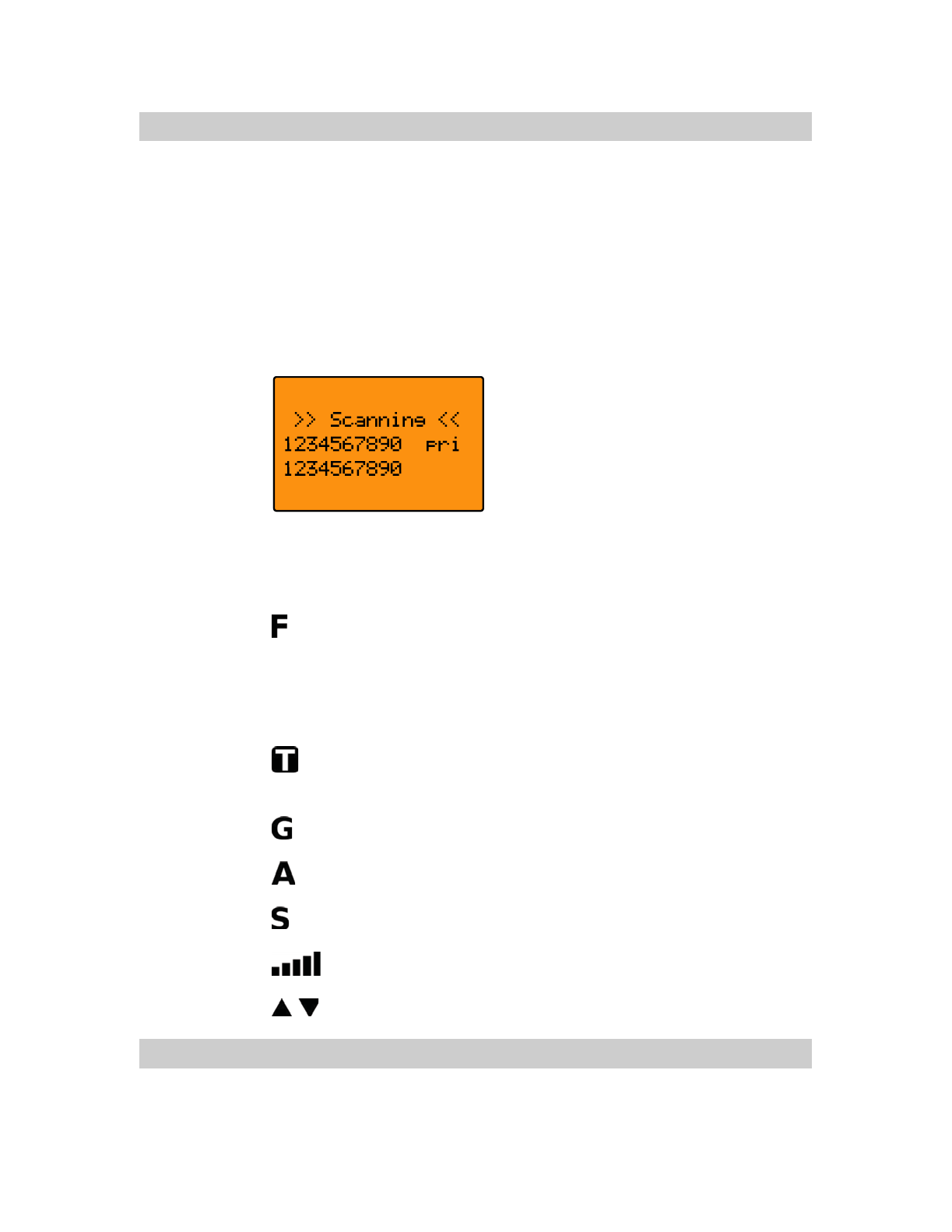

Understanding the Display Icons
Your 0716 features a high contrast, backlit Liquid Crystal
Display (LCD) to provide important information about the status
of the radio while you are programming and using it. The LCD
includes a row of icons at the top that provides information about
the status of the scanner while it is operating. Beneath this row of
icons, there are 4 rows of 16 characters each that provide
alphanumeric information for frequencies, object names, Scan

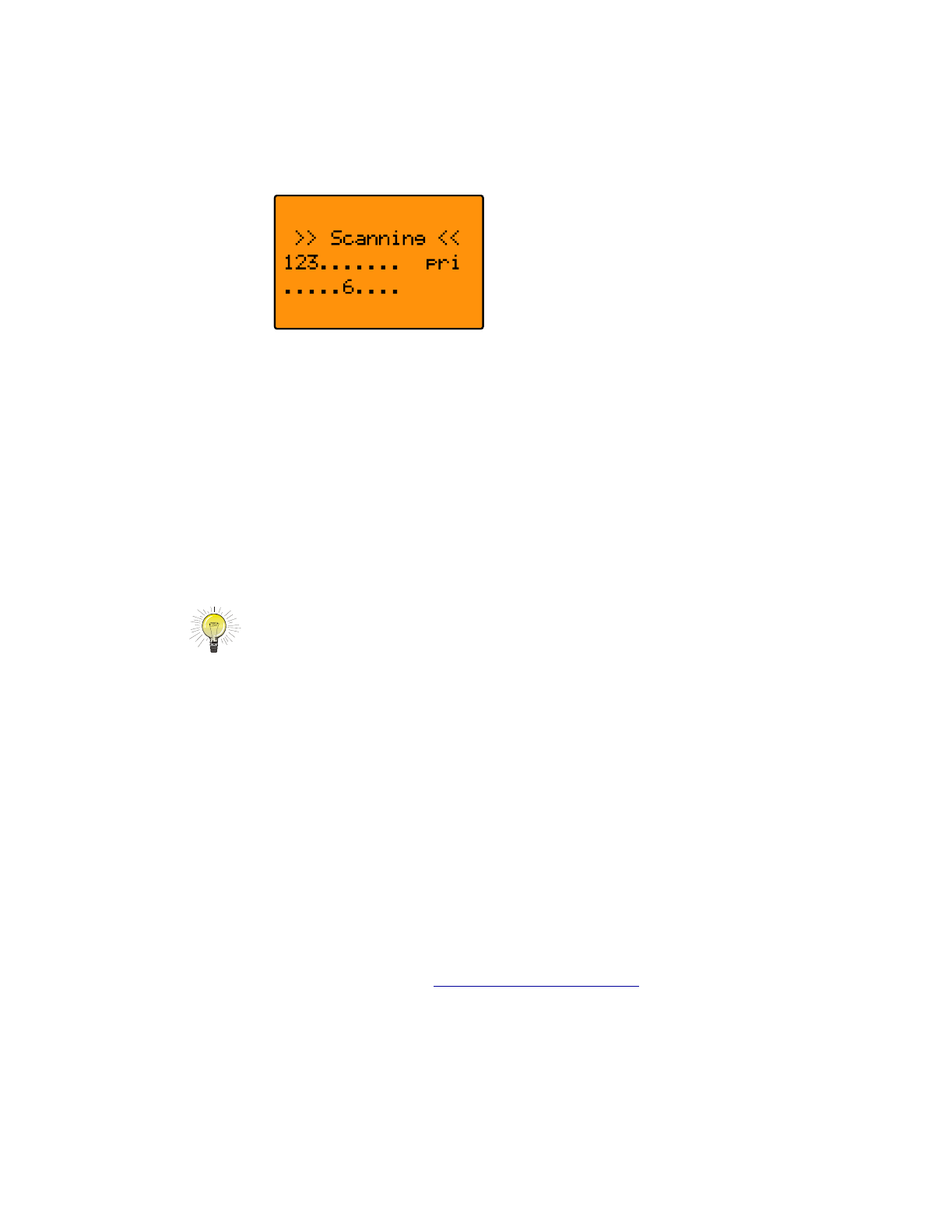

List status and menu information. Figure 4 provides an example
of the display that is shown while the radio is scanning.

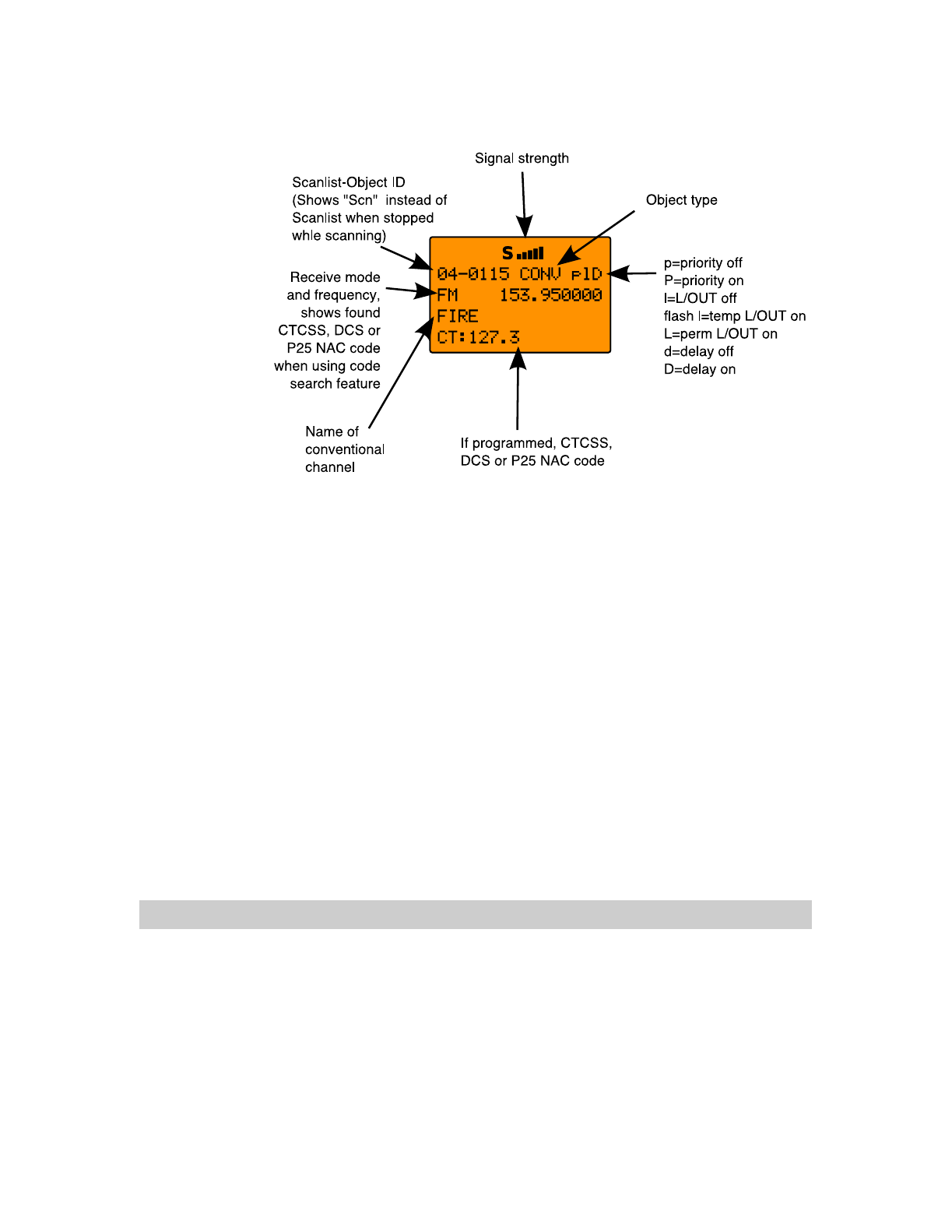

Figure 4 - Scanning Display
The top row of icons are defined as follows:
The Function Key (FUNC) has been pressed. FUNC acts
as a “shift” key and typically enhances in some way the
action of the button that follows it. When using FUNC,
press the FUNC key first and release it, then press the
next key.
The scanner is currently receiving trunking control channel
data.
The attenuator is set for Global mode.
The attenuator is currently active.
The radios squelch circuit is open.
Signal meter indicating strength of the received signal.
Menu position and search direction indicators.
Understanding the Keypad
Your 0716 features an easy-to understand backlit keypad
with  keys that are used to control and program the radio.
0716 User Manual Page 23

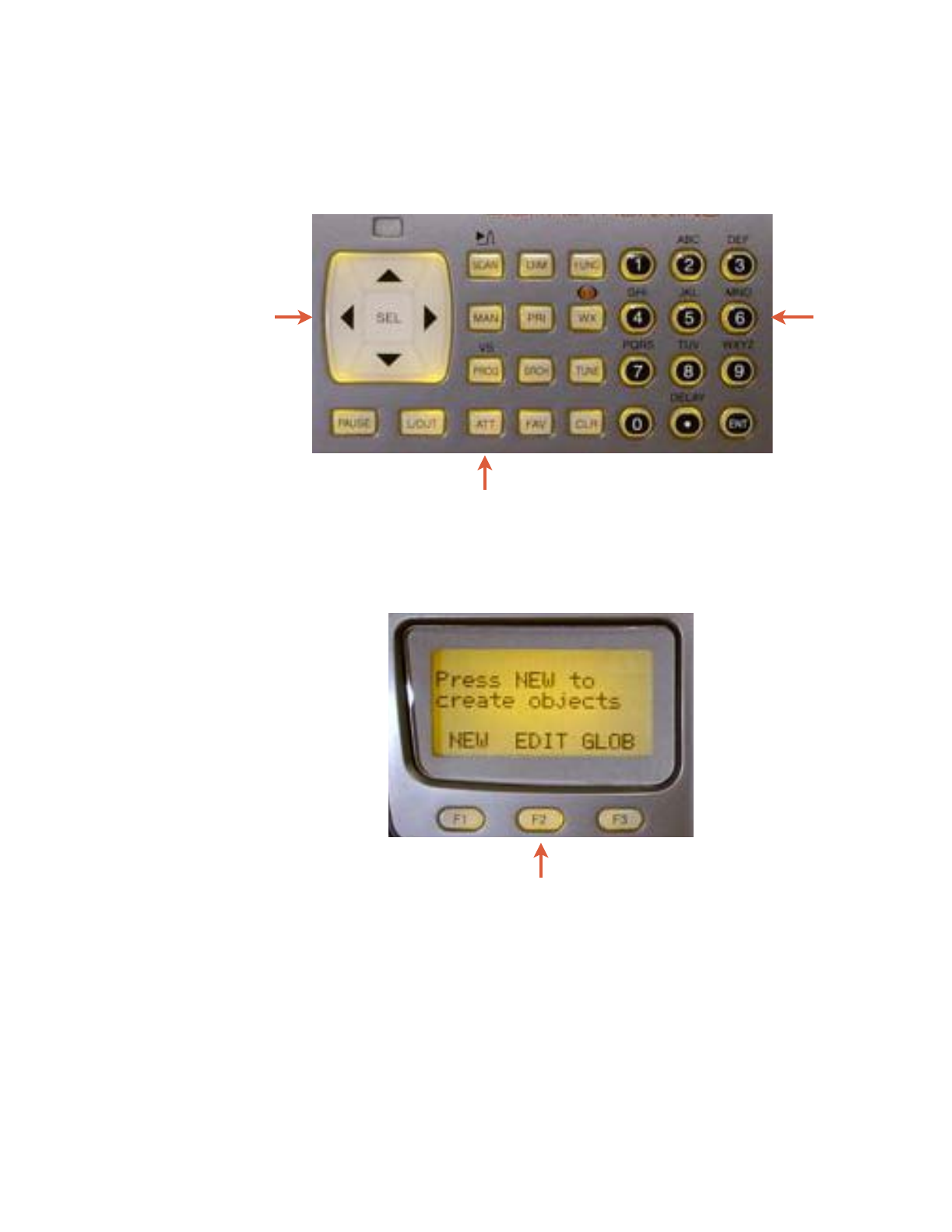

Figure 5 highlights the various keys and their basic functions. For
more information on key functions see the Detailed Menu
Reference.
Figure 5 - Keypad layout
Softkeys
F1,F2,F3 - activate the function shown in the LCD display
immediately above the softkey.
0716 User Manual Page 24
Five Way
Pushbutton
P
ad
Operational
Keys
Softkeys
Numeric
Keypad
Five Way Pushbutton Pad
 keys are used for navigation while browsing objects
and menus. SEL key activates data entry fields and toggles Scan
List selection in object menus. FUNC SEL activates context
sensitive help in menus.
Numeric Keypad
Used for data entry of frequencies, talkgroup IDs and
alphanumeric labels. Used while scanning, 1-9 and 0 toggle
Scan Lists 1-10 on and off. FUNC 1-9 and 0 toggle Scan Lists
11-20 on and off.
Operation Keys
FUNC - activates alternate key functions. FUNC key operation is
very intuitive - typically it “amplifies” the keypress that follows it.
DIM -controls backlight brightness
MAN - Places scanner in Manual Mode for monitoring single
objects.
SCAN - Places scanner in Scan Mode for scanning enabled
objects, FUNC SCAN launches Spectrum Sweeper.
TUNE - Allows direct tuning of any valid frequency, FUNC TUNE
loads the current or most recently scanned frequency into TUNE
SRCH - Dedicated Search mode for service and frequency
searches
ATT - Toggles Attenuator on and off, FUNC ATT toggles Global
Attenuator mode
PRI - Toggles the Priority setting for selected or active object,
FUNC PRI toggles Priority Mode on or off for the scanner
FAV - Activates Favorites Scan Mode, FUNC FAV adds the
current object to the Favorites Scan List
WX - Activates Weather scan, FUNC WX activates Skywarn mode
PGM - Places scanner in Program Mode for editing radio-wide
options, adding new objects or editing existing objects, FUNC
PGM accesses V-Scanner mode
0716 User Manual Page 25
L/OUT - Toggles Temporary Lockout on active or selected object,
FUNC L/OUT applies permanent lockout (can be changed in the
GLOB menu)
ENT - Enter key
PAUSE - Pauses scan or search operation on active object
0716 User Manual Page 26
Getting Started
First Time Startup
We believe that your new 0716 is so easy to use that
scannists with minimal experience in the hobby should be able to
get up and running in a matter of just a few minutes. If you
already know the difference between a conventional channel and
a talkgroup, or a search range and a Spectrum Sweeper, we
invite you to dive right in and set the radio up to begin scanning
your first objects. If you get stuck, you can refer to this Getting
Started section, or see the relevant sections in the Detailed
Menu Reference. Otherwise, please read on and allow us to help
you get acquainted to your new scanner!
WARNING: Always protect your scanner from exposure to extreme heat or
cold temperatures.
WARNING: Your scanner is not waterproof. Do not expose it to rain,
extreme high humidity or moisture.
WARNING: The external DC power input is designed to accept 12.0 - 14.4
VDC using a tip-positive coaxial power plug. Do not connect the
radio to external power sources that are greater than 16.0 VDC.
Ensure that the DC polarity is correct before connecting your
radio to an external power source. Turn the radio off prior to
connecting or disconnecting external power.
Unpack the radio
Unpack your radio carefully. Save all documentation and packing
materials in case it is necessary to return your scanner for repair.
Base operation
The mounting bracket can serve as a desktop stand when it is
attached such that it is positioned underneath the radio, it will.
You may also use the mounting bracket indoors to attach the
radio underneath a table or shelf by installing the mounting
bracket such that it is positioned on top of the radio.
Attach the three self-adhesive rubber feet to the bottom of the
mounting bracket in the spaces provided. The rubber feet help
prevent sliding on smooth surfaces, and will help prevent
scratching of your desk or tabletop. Do not use the rubber feet if
0716 User Manual Page 27
you plan to attach the mounting bracket to a fixed surface with
screws.
Attach the two self-adhesive rubber washers to the inside of the
mounting bracket sides, over the holes that are used when
attaching the bracket to the scanners side holes. Be sure to
align the holes in the washer carefully with the holes in the
mounting bracket. The rubber washers help protect the scanners
case from scratches.
Slide the scanner carefully into the mounting bracket assembly,
and use the two provided knurled knobs to secure the scanner
within the mounting bracket.
Connect the supplied DC power supply to your wall outlet.
Connect the coaxial power plug to the radio.
WARNING: To prevent electric shock, do not use the AC adaptor s polarized
plug with an extension cord, receptacle, or other outlet unless
you can fully insert the blades to prevent blade exposure.
Attach the supplied antenna to the radio.
Your scanners sensitivity to various frequencies depends on its
location and the antennas length. For best reception, adjust the
antennas length as follows:
Frequency Antenna Length
25-54 MHz Extend fully
108-174 MHz Extend 4 segments
216-225 MHz Extend 3 segments
225-406 MHz Extend 2 segments
406-1300 MHz Collapse fully
NOTE: If desired, you may also connect an external base station antenna
feedline equipped with a BNC male connector to the antenna
connector. Please refer to the section entitled “Connecting an
Optional External Antenna” below for important instructions and
warnings.
Mobile operation
By attaching the mounting bracket such that it is located on top
of the radio, it is possible to mount the radio underneath your
vehicles dashboard, or in any other mounting location where the
radio will be suspended from above. You may also use the
mounting bracket such that it is located underneath of the radio,
0716 User Manual Page 28
which makes it possible to mount the radio on top of any flat
surface in your vehicle.
Your 0716 is also designed to fit into a DIN-E compatible
sleeve, which makes it easy to mount the radio in an existing
radio or CD player dashboard opening. An optional DIN-E
installation kit can be purchased from GRE at :
http://www.greamerica.com.
NOTE: In certain cases, installation of mobile communications electronics in
modern automobiles requires specialized tools, training, and
experience. If in doubt, seek assistance from a local car audio
electronics installation shop, or a local two-way radio dealer.
Select a mounting location that does not interfere with visibility
while driving. Use caution not to select a location that may
interfere with the deployment of your vehicles air bags. It is
extremely important not to mount this or any other equipment in
locations where deployment of the air bags may cause the
equipment to be propelled towards the vehicles passengers. If
necessary, seek advice from your automotive dealer or service
shop.
Use the mounting bracket as a template to mark the locations for
the two mounting screws.
At the marked locations, drill holes that are slightly smaller than
the screws. Use caution not to damage wiring or components
that are located behind your drilling surface.
Using the provided screws and lock washers, attach the
mounting bracket to your vehicle.
Attach the two self-adhesive rubber washers to the inside of the
mounting bracket sides, over the holes that are used when
attaching the bracket to the scanners side holes. The rubber
washers help protect the scanners case from scratches.
Slide the scanner into the mounting bracket assembly, and use
the two provided knurled knobs to secure the scanner within the
mounting bracket.
Connect the supplied DC power cable to a power source in your
vehicle as follows:
0716 User Manual Page 29
Disconnect the cable from the negative (-) terminal of your
vehicles battery prior to attempting any connections to your
vehicles electrical system.
NOTE: Disconnecting your battery may reset certain devices in your vehicle,
such as automotive audio systems, navigation systems, alarm
systems, keyless entry systems, etc.
Route the suppled DC power cord between a power source and
the mounting location for your scanner.
Ground the black wire of the supplied DC power cord to your
vehicles chassis drilling a small hole in a metal frame member
underneath your dashboard and using a small sheet metal screw
to secure the black wire to the frame.
NOTE: Be sure the grounding screw makes complete contact with the metal
frame of your vehicle.
Connect the red wire of the supplied DC power cord to a voltage
source that turns on and off with the ignition switch, such as a
spare accessory terminal in your vehicles fuse box.
Insert the coaxial power plug into the DC power jack on the rear
of the radio.
Reconnect the cable to the negative (-) terminal of your vehicles
battery.
For temporary installations, you may wish to use a cigarette
lighter cable to power your scanner.
To power your scanner from a 12V power source in your vehicle,
such as cigarette-lighter socket, you need a 12V, at least 600mA
DC with 4.75mm outer/1.7mm inner plug cigarette-lighter adaptor
(not supplied).
Insert the adaptors barrel plug into the scanners DC 13.8V jack.
Plug the adaptors other end into your vehicles cigarette lighter
or power socket.
NOTE: You must use a power source that supplies 12-14.4 VDC and is
rated for 600 mA. Its center tip must be set to positive and its plug
must fit the scanner s DC 13.8V jack. The supplied DC power
adaptor meets these specifications. Using a DC adaptor that does
0716 User Manual Page 30
not meet these specifications could damage the scanner or the
adaptor.
When you use a cigarette-lighter adaptor, you might hear electrical
noise from your engine while scanning. This is normal.
Connecting an earphone or headphones
For private listening, you can plug an 1/8” (3.5 mm) mini-plug
earphone or headphones (not supplied), into the headphone jack
on the front panel. This automatically disconnects the internal
speaker.
Connecting an Extension Speaker
In a noisy areas, or you install the scanner into your dashboard,
extension speaker (not supplied) might provide more comfortable
listening. Plug the speaker cables 1/8 inch (3.5 mm) mini-plug
into your scanners EXT-SP jack, located on the rear panel of the
radio.
Listening Safely
To protect your hearing, follow these guidelines when you use
headphones.
Do not connect headphones to the external speaker jack located
on the rear panel of the radio.
Set the volume to zero before putting on headphones. With the
headphones on, adjust the volume to a comfortable level.
Avoid increasing the volume once you set it. Over time, your
sensitivity to a volume level decreases, so volume levels that do
not cause discomfort might damage your hearing.
Avoid or limit listening at high volume levels. Prolonged exposure
to high volume levels can cause permanent hearing loss.
Traffic Safety
Wearing headphones while operating a motor vehicle or riding a
bicycle can create a traffic hazard and is illegal in most areas.
Even though some headphones let you hear some outside
sounds when listening at normal volume levels, they still can
present a traffic hazard. Exercise extreme caution!
0716 User Manual Page 31
Connecting an Optional External Antenna
The antenna connector on your scanner makes it easy to use the
scanner with a variety of antennas, such as an external mobile
antenna or outdoor base station antenna.
Always use 50-ohm coaxial cable, such as RG-58 or RG-8 low-
loss dielectric coaxial cable. For lengths over 50 feet, use RG-8
low-loss dielectric coaxial cable. If the antenna cables connector
does not have a BNC connector, you will also need a BNC
adapter.
Follow the installation instructions supplied with the antenna,
route the antenna cable to the scanner, then connect it to the
antenna jack.
WARNING: Use extreme caution when installing or removing an outdoor
antenna. If the antenna starts to fall, let it go! It could contact
overhead power lines. If the antenna touches a power line,
touching the antenna, mast, cable, or guy wires can cause
electrocution and death. Call the power company to remove the
antenna. DO NOT attempt to do so yourself.
Turn the radio on
Rotate the top knob of the VOLUME/SQUELCH control
clockwise to turn the radio on. Set both the VOLUME and
SQUELCH knobs at their mid-point (12 oclock) position.
NOTE: While 12 o clock is a good squelch setting to start with, it may cause
your radio to miss some calls with weak signals. You will probably
want to optimize the squelch setting to set it close to threshold. To
optimize the squelch setting to be close to the best threshold, press
TUNE, then rotate the squelch control counterclockwise until a
rushing sound is heard from the speaker. Rotate the squelch control
clockwise just past the point where the rushing sound stops. The
squelch is now set to the optimum point. Please note the position of
the squelch control for future reference. Once the squelch setting is
complete, you may press PGM to exit TUNE mode.
0716 User Manual Page 32
Creating Your First New Objects
When the scanner is first turned on after it is unpacked, you are
working with a clean slate. You will notice that your scanner tells
you this:
Press NEW to
create objects
NEW EDIT GLOB
The scanner is in program mode and is ready for you to enter the
first Objects into the memory. The scanner prompts you to
Press NEW to create objects.
You will also notice that there are three pushbutton keys beneath
the display, and above each button in the display, a label that
indicates the current function of these three keys. These keys
are called softkeys, and they function much like the softkeys on
many Automatic Teller Machines. Their meaning can change
depending on the operational state that the radio is in. Right now,
the softkeys on your radio should read as follows:
NEW EDIT GLOB
Lets focus on the NEW softkey for a few minutes. As you might
have guessed, NEW is an invitation for you to create a new
Scannable Object (CONV, TGRP, LMIT, SRVC, or SWPR). So,
what would you like to create first? We suggest that you start
with a Conventional Channel Object (CONV) first, to get familiar
with the radios user interface and display.
Conventional Channel Object (CONV)
A Conventional Channel Object (CONV) is a record that stores
the parameters for a regular, non-trunked conventional AM or FM
channel. When you create a CONV object, you are creating an
object that will allow you to scan and monitor a “plain old radio
channel”, that is, a single frequency and the associated
parameters that are necessary for you to receive traffic on that
frequency.
Essential Conventional Channel parameters
CONV objects are the simplest objects supported by the radio.
By this we mean that there really isnt that much for you to do if
0716 User Manual Page 33
you want to create one. There are only a few essential
parameters in the CONV object fields that must be set correctly
for a CONV object to work. The Frequency must be set to match
the frequency of the transmitter you want to scan or monitor, and
the MODE should be set to AU, or, if desired, AM, FM or NFM.
Note that the scanner will automatically select the default mode
based on the frequency you enter when MODE is set for AUto. In
most cases it will not be necessary to change this.
We also recommend that you label your CONV object by giving it
a name in the TAG field. This will make it easier for you to find
the CONV object later, and identify it when the scanner stops to
monitor activity. Enter your CONV object by following these
steps.
As we mentioned above, a brand new radio will launch into
Program Mode when it is first turned on, which allows for
creation and editing of Scannable Objects. If this is the first time
you have turned on your radio, you should see these softkey
labels at the bottom of your screen:
NEW EDIT GLOB
If not, press the PGM (Program) key now.
Press the NEW softkey to begin entry of a new object.
Press the CONV softkey to begin entry of a CONVentional
Channel object. Your scanners display should read as follows:
> CONV Channel <
Scan Lists: *01
Freq: 25.000000
Save Exit Dflt
Now, take a moment and study the display. You will notice that
the icon is active. Its purpose is to indicate that you are at the
very top position of the menu for a conventional channel object,
and there are more parameters that can be accessed if you scroll
down. We also see three new softkeys:
Save Exit Dflt
The Save softkey will save your new CONV object to the file
system when pressed (but dont press it yet!). The Exit softkey
0716 User Manual Page 34
aborts the creation of the new CONV object, and the Dflt
softkey restores the selected CONV menu parameter to its
default setting.
If you press the key on the bottom of the 5-way pushbutton
pad, you can scroll down and see all of the parameters that can
be specified for a CONV object. Go ahead and take a peek -
then scroll back to the very top of the display so you can begin
entering information for your first CONV object.
HINT: Pressing FUNC or FUNC will jump to the top or bottom of a
menu, respectively.
Note that as you scroll both the upward and downward scroll
indicators will illuminate to indicate that there are parameters
above and below the current cursor position, until you get to the
very end of the menu, where only the upward scroll indicator will
be on to indicate that there are no more parameters below the
current cursor position. Also note that a few lines of context
sensitive help are available for each menu item. To see the help
text for a menu item, press FUNC, then press SEL on the 5-way
pushbutton pad. To exit help, press SEL again.
As you scroll the object menu, you will see a line that states:
EXPERT BELOW
This line is found in the object menus and the Global
configuration menus. Its purpose is to delineate between the
basic settings that are important to each object and the operation
of the radio, and the expert settings that may be of interest to
advanced users, but, if left alone, will not adversely impact the
operation of the radio. For more information about the Basic and
Expert settings, please refer to the Detailed Menu Reference at
the end of this Owners Manual.
Use the  keys to scroll the screen until the flashing cursor
appears next to the Freq: label. Key in a known local frequency
and press the ENT key, or press the DONE softkey - either one
0716 User Manual Page 35
will do the same thing. There! You just entered the frequency for
your first CONV object.
By default, your new CONV object will be tagged “Channel”. If
youd like to change this, just scroll the screen down one click
until the flashing cursor highlights the Tag: field, then press SEL
to edit the tag. You can move the cursor around using the 
keys on the 5-way pushbutton pad, use the CLR key to clear the
old text, or press FUNC CLR to erase the entire field. To enter
text, find the letter you want to enter on the front panel of the
radio, press the numeric key beneath it, then press 1, 2, 3, or 4
depending on the position of the letter in the group for that
number. For example, to enter FIRE, press:
3 3 F
4 3 I
7 3 R
3 2 E
Press the ENT key or DONE softkey to store the new tag
information for your CONV object.
Now you are ready to store your first CONV object. There are
other parameters that you can change, and we invite you to
scroll through the CONV menu to see the other settings that are
available. You can experiment with the different settings. If you
make a change that you arent certain about, press the Dflt
softkey to restore the setting to its original values.
When youre ready, simply press the Save softkey to save your
new conventional object. Once the object is saved, you can
continue to enter other new objects, or press MAN to listen to the
CONV object you just entered, or SCAN to start scanning!
NOTE: Your scanner uses Scan Lists as a way to group objects together
according to your preferences for scanning. By default, all new
objects are mapped to Scan List 01. There are a total of twenty
regular Scan Lists in your radio, a special Favorites Scan List, and a
Scan List to hold Skywarn objects. Scan List membership for an
object is assigned in the individual object menus. For now, just let
your new objects go to the default Scan List 01. Later in this section
we will show you how you can group your objects into Scan Lists.
NOTE: When entering data into a numerical field, you can start typing as
soon as you have scrolled to the desired field, which will replace the
0716 User Manual Page 36
contents of the field with your new entry. Alternatively, you can press
the key, which will preserve the original contents of the field so
you can make small changes without retyping all of the data.
Talkgroup Object (TGRP)
A Trunking Talkgroup Object (TGRP) is a record that stores the
parameters for a trunked talkgroup on a trunked radio system.
When you create a TGRP object, you are creating an object that
will allow you to scan and monitor a talkgroup on a particular
trunked radio system.
Essential Trunking Talkgroup parameters
As a standalone object, a TRGP object is really no more
complicated than a CONV object. The trunking system (TSYS)
that the TGRP is a member of must be specified. Each talkgroup
has a digital “address” on the trunking system, which is called the
talkgroup ID, and this must be provided. We also recommend
that you label your TGRP object by giving it a name in the TAG
field. This will make it easier for you to find the TGRP object later,
and identify it when the scanner stops to monitor activity.
Setting up and using a Trunking System (TSYS) object
We just mentioned that the TSYS is an essential parameter
needed in order for a TGRP object to function properly and
receive radio traffic. The TSYS object has its own set of essential
parameters, and these parameters vary depending on the type of
trunked radio system you plan to monitor. If you are a reasonably
experienced user you probably already know what the essential
parameters are for the system you wish to monitor. For example,
each TSYS must correctly specify the type of system being
monitored, the control channel or LCN frequencies used by the
system, and so on. A detailed description of each type of system
supported by this radio and the essential parameters required to
make the different types of trunked radio systems work properly
is provided in the Detailed Menu Reference. So, if all of this
makes sense to you then you should proceed and enter the
required data for the system you wish to monitor to make a new
TSYS as you create your TGRP. If not, please refer to the TGRP
section of the Detailed Menu Reference so that you will
understand which TSYS parameters are required for the type of
trunked radio system you wish to monitor.
The first time you make a TGRP for a particular trunked radio
system, you must also create a TSYS that contains the system
parameters associated with that trunked radio system. Once you
create a TSYS object for the trunked radio system, you can use
0716 User Manual Page 37
the TSYS object over and over again without having to re-enter
all of the system data.
Assuming that you have already entered one or more CONV
objects (which we recommend you do prior to attempting the
entry of the slightly more complicated TGRP object), you should
press the PGM key to place your scanner into Program Mode,
then press the NEW softkey, then press the TGRP softkey. Your
radio display should appear as follows:
> Talkgroup <
Scan Lists: *01
TSYS: NEW
Save Exit Dflt
In the same way as with the CONV object, this menu of TGRP
parameters can be scrolled up and down to access and enter or
change the various parameters associated with a trunking
talkgroup.
For the purpose of this example, we will assume that you wish to
create a TGRP object for a Motorola Type II 800 MHz trunked
radio system, which is one of the more common types of trunked
radio systems in use. (If this is not the case, we encourage you
to refer to the Detailed Menu Reference section of this manual
for more information that applies to the type of TSYS you wish to
monitor.)
Scroll the display by pressing the down arrow once so that the
flashing cursor is highlighting the TSYS field, then press the SEL
key in the center of the 5-way pushbutton pad. Your radios
display should appear as follows:
>Trunked System<
Type:MOT 800/900
Tag:System
Save Exit Dflt
We are entering a new Motorola Type II 800 MHz system, so we
can leave the Type: field as-is. Its a good idea (in fact, a
REALLY good idea, for reasons you will see as you proceed) to
give your TSYS a unique name. Press the down arrow key once
0716 User Manual Page 38
to scroll to the Tag: field, then press the SEL key and enter a
name for the system using the methods previously described for
naming your CONV object. We will use the tag My System for
this particular example in the documentation:
6 1 M
9 3 Y
. <space>
7 4 S
9 3 Y
7 4 S
8 1 T
3 2 E
6 1 M
If necessary, use the decimal/period key or the CLR key to delete
any unnecessary characters, and press the SAVE softkey to save
your TSYS name. Next, scroll to the Frequencies: field to
begin entering the control channel frequencies for the My
System trunked radio system. Press the SEL key, and at the
Ch01: field you should enter the first control channel frequency
for your Motorola trunked radio system. Simply key in the
frequency including the decimal point, and press the ENT key or
the DONE softkey to store the control channel frequency. Press
the key and repeat this step to add any other control channels
used by the system. Typically, a Motorola trunked radio site or
system will have one active control channel and three backup
control channels. You need only enter the active control channel
for the scanner to track the system, but if the system switches to
a backup control channel the scanner will not receive traffic
unless the frequency for the backup control channel has been
entered.
Once you have finished entering the control channels, press the
SAVE softkey, then press the SAVE softkey again. This will store
the new TSYS into memory and return you to the TGRP
parameter entry. Your display will now appear as follows:
Scan Lists: *01
TSYS:My System
ID: Wildcard
Save Exit Dflt
0716 User Manual Page 39
Notice that the system name has changed to reflect the name
you chose when you were entering the parameters for the
trunking system. As you enter this TGRP and other TGRP
objects for this system, you will just specify the system name
here. So, the TSYS parameters for a system need only be
entered once. You simply specify the already-entered TSYS as
needed when building more TGRP objects for the same system.
Scroll down one click to the ID: field. Note that by default, the
trunking talkgroup ID is set to Wildcard. Wildcard is a special
type of TGRP object that allows you to monitor all talkgroup call
traffic on the associated trunked radio system. Wildcard TGRP
objects allow you to quickly find and store new or unknown
talkgroups on a trunked radio system. When a Wildcard TGRP
object is mapped to an active Scan List and scanned, all
talkgroup traffic on the system is monitored, and you have the
option to save or lock out new talkgroups as they appear. You
may wish to save your TGRP object as a Wildcard with no further
changes. If so, just press the SAVE softkey to store your new
TGRP as a wildcard. By default it will take the tag name of
ID: Wildcard.
HINT: Wildcard objects are easier to find and change later if you include an
abbreviated name for the system in the tag field.
If you would rather store a TGRP object for a specific talkgroup
ID on MySystem, just press the number keys to enter the
talkgroup ID of the desired talkgroup, then press the ENT key or
the DONE softkey to store the ID.
HINT: TGRP objects are also used to receive Private/Individual Calls on
trunking systems that support these call types. Simply change the
Type: field from Group to Private. A Wildcard TGRP object with the
Type: field set to Private will monitor all Private/Individual Calls
seen on the system, or you can specify a radio ID to watch for in the
ID: field.
Youll want to scroll down two more clicks to the Tag: field and
enter an easy to remember name for your talkgroup that
corresponds with its purpose on the trunked radio system. For
this example, lets assume that this is a police dispatch
talkgroup, and we would like to use the name “POLICE
DISPATCH” for the tag. Scroll to the Tag: field and press the
SEL key on the 5-way pushbutton pad. Using the text entry
methods that you have previously employed for naming your
0716 User Manual Page 40
CONV and TSYS objects, name your new talkgroup “POLICE
DISPATCH”:
7 1 P
6 3 O
5 3 L
4 3 I
2 3 C
3 2 E
. <space>
3 1 D
4 3 I
7 4 S
7 1 P
2 1 A
8 1 T
2 3 C
4 2 H
Press ENT or DONE to store the name, then press SAVE to store
the TGRP as a new object. As with the other object types, there
are many other parameters you can edit for the TGRP, but for
now, thats all you have to do to start monitoring traffic on that
TGRP! To add more TGRPs on the same system, follow the
same steps above, this time specifying the TSYS that you just
created. To create TGRPs on a different system, follow the steps
above, specify a NEW system, and provide the correct
parameters for that system, as shown above.
As a reminder, here are a few important points to remember
about monitoring trunked radio systems, and about TGRP
objects in particular:
With regard to trunked radio systems, it is important to note that
a "system" cannot be scanned. If one wishes to monitor radio
traffic on a trunked radio system, one must create a TGRP
object. A TGRP object includes the parameters for a trunked
radio system so that it will operate properly. Trunking system
(TSYS) parameters are stored as a separate "configuration
object", and can be used over and over again in other talkgroup
objects on the same trunked radio system.
Also with regard to trunked radio systems, it is important to note
that a talkgroup object may be configured in one of four different
0716 User Manual Page 41
ways to monitor traffic on a trunked radio system. They are as
follows:
•Wildcard Talkgroup: will monitor all talkgroup call radio traffic
on the desired trunked radio system (press Dflt in the ID:
field of the TGRP object to use Wildcard)
•Talkgroup with TGID: will only monitor talkgroup call radio
traffic on the specified TGID (enter the desired talkgroup in the
ID: field of the TGRP object to scan a specified ID)
•Wildcard Private Call: will monitor all private call radio traffic
on the desired trunked radio system (press Dflt in the TGID
field to get Wildcard, and set the Type field to Private)
•Private Call with ID: will only monitor private call radio traffic
on the specified TGID (enter the desired Radio ID in the TGID
field, and set the Type field to Private)
NOTE: Remember, by default all new objects are mapped to Scan List 01.
For now, just let your new objects go to the default Scan List 01.
Later in this section we will show you how you can group your
objects into Scan Lists.
Using DUPE to speed up object entry
DUPE is a powerful feature that will help you when entering
multiple objects that have similar characteristics. DUPE is
especially useful when entering multiple TGRP objects that are
hosted on the same trunked radio system, or multiple CONV
objects that have similar parameters or tag names. To use
DUPE, press the PGM key, then scroll to the object that you wish
to duplicate using the  keys on the 5-way pushbutton
pad. Press the EDIT softkey, then press the DUPE softkey. An
exact copy of the object you selected is created, and the scanner
displays the newly created object menu so you can change the
parameters that need to be changed prior to saving. Be sure to
change the tag name before saving your new object. When
finished, press the SAVE softkey to save the new object.
Try using the DUPE feature now to enter a few more CONV and
TGRP objects before continuing. You might consider using
DUPE on your wildcard TGRP object to make a duplicate, then
set the Type to Private, so youll have a TGRP wildcard for
talkgroup calls, and another for private calls.
0716 User Manual Page 42
NOTE: Use caution with DUPE. As soon as you press DUPE, a duplicate of
the selected object is created and saved in memory. Be certain to
delete any DUPEd objects that you create accidentally.
Basic Scanning Operation
Now that you have entered a few CONV or TGRP objects you
can experiment with Scan and Manual operation.
Activating Scan Mode will cause your scanner to scan through all
Scannable Objects that are members of enabled Scan Lists and
are not locked out. Manual Mode allows you to browse the
Scannable Objects you have created so you can select just one
to monitor.
To activate Scan Mode, just press the SCAN key on the keypad.
Unless you have explicitly changed Scan List membership, all of
the objects you have entered so far should be mapped to Scan
List 01, and your scanner should begin scanning these objects
immediately when you press the SCAN key. The scanner display
indicates Scan Mode as follows:
>> Scanning <<
1......... pri
..........
Study the two rows under the “Scanning” display. Each space
represents the status of a Scan List in your radio. The top row of
numbers represents Scan Lists 1 through 10, and the bottom row
represents Scan Lists 11 through 20. Unless you have already
enabled other Scan Lists in your radio, you will only see the
number “1” in the top row. All of the other spaces contain “.”
symbols, which indicates that these other Scan Lists are
currently not enabled.
If you have included one or more TGRP objects in your
programming, and are within range of the trunked radio system
for those TGRPs, you will see the icon flash periodically while
the radio is scanning. The icon indicates that the scanner is
receiving control channel data from a trunked radio system.
To pause the scanner on an active object so that the scanner
does not resume scanning, press the PAUSE (Pause) key while
the scanner is stopped on that object, and press PAUSE or SCAN
0716 User Manual Page 43
to resume scanning. Alternatively, you may press MAN to monitor
an active object. Although PAUSE and MAN both stop the
scanner on the active object, there are some small differences in
how they operate. PAUSE pauses the scanner but keeps the
scanner in scan mode, resulting in faster stop/start operation.
MAN stops scan mode completely, and allows you to browse the
file system to select other objects to monitor.
While the scanner is Manual Mode, you can browse through the
stored objects in your scanner and select one object to monitor.
Use the and keys on the 5-way pushbutton pad to scroll
through the objects assigned to the current Scan List. The and
keys on the 5-way pushbutton pad are used to browse up and
down through the Scan Lists, respectively. Only Scan Lists that
contain objects are shown when browsing. A quick low-high wrap
beep is played when the scanner reaches the last occupied Scan
List and wraps back to the beginning.

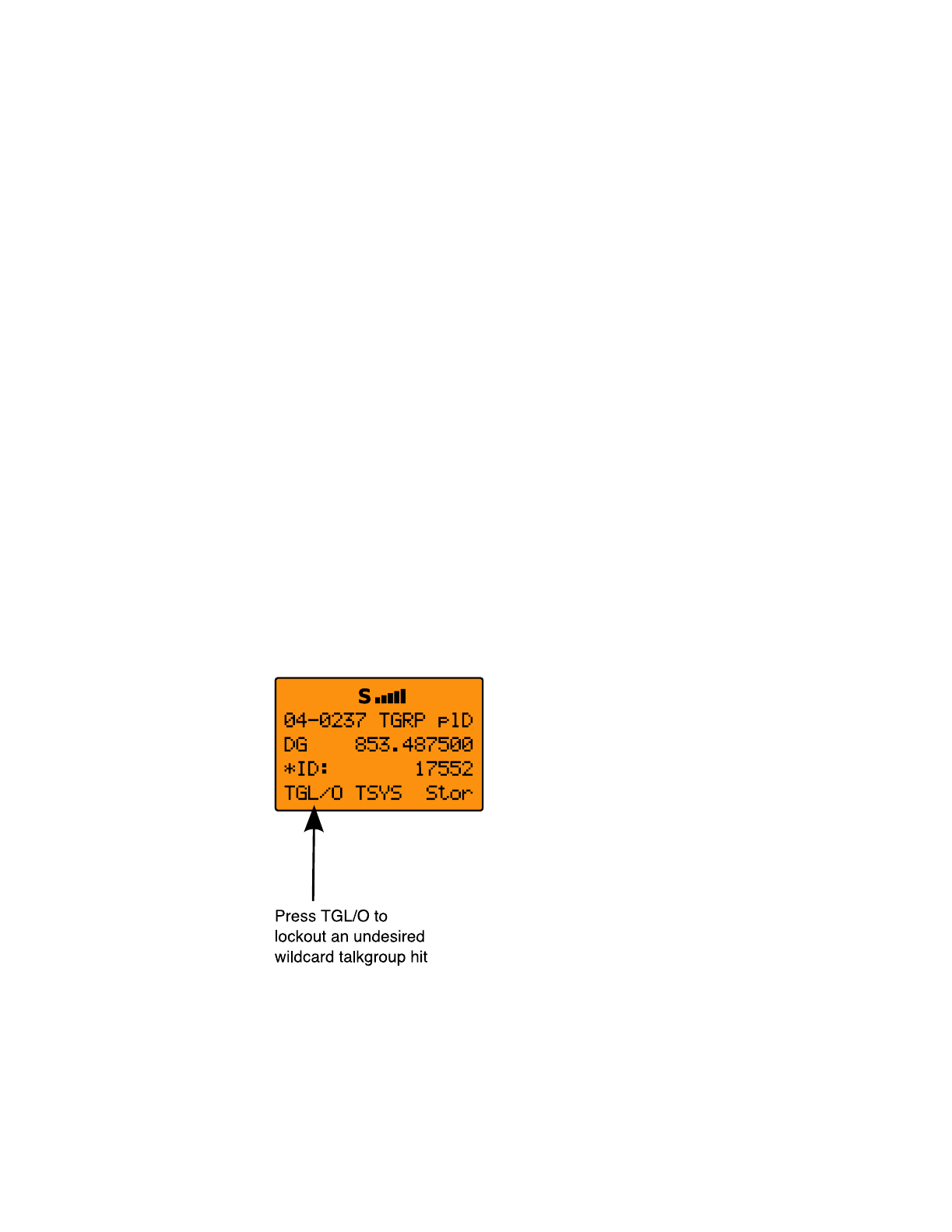

When the scanner is stopped on a TGRP while scanning, or
paused in Manual Mode, the display will appear as follows:
When the scanner is stopped on a conventional channel while
scanning, or while paused in Manual Mode, the display will
appear as follows:
0716 User Manual Page 44
Browsing Objects
The 5-way pushbutton pad makes it easy for you to browse the
stored objects in your 0716 when in Manual or Program
modes. Press MAN or PGM, then use the  keys on the
5-way pushbutton pad to move around in the scanners memory
as follows:
: navigates “up” through the objects assigned to the
current Scan List
: navigates “down” through the objects assigned to the
current Scan List
: navigates “up” through the active Scan Lists in the radio
: navigates “down” through the active Scan Lists in the radio
Advanced Startup Topics
Congratulations! Now that you have mastered the creation of
Scannable Objects and how to monitor them using Scan and
Manual Mode, you can move on to some more advanced startup
topics.
This Advanced Startup Topics section of this manual will provide
you with more basic information about how you can create other
types of Scannable Objects, and how you can group your
0716 User Manual Page 45
Scannable Objects into different Scan Lists and work with the
Scan Lists to quickly enable or disable groups of objects that you
want to monitor. You can also read the Detailed Menu Reference
section of this manual to learn more about the different object
types and their parameters, and how to perform more advanced
operations with your scanner.
About Object Numbering
Your 0716 is different from other types of scanners in how it
stores your Scannable Objects in memory. Instead of fixed
channels and banks, objects are stored in the first available block
of free memory and assigned an Object ID. The Object ID is the
“address” where the object is stored in memory.
The Object ID is displayed as a four digit number in the upper
left-hand corner of the display whenever an object is selected in
Manual Mode and PGM modes, and when the scanner stops on
an active object while scanning. Additionally, the current Scan
List number is displayed prior to the Object ID when an object is
selected in Manual Mode or PGM mode, i.e.,
10-0348
indicates Object ID 0348 mapped to Scan List 10.
Using the Object ID to directly access an object
You can use this address to quickly access your stored objects
when in the Manual Mode and PGM modes. Press MAN or PGM,
then key the Object ID using the numeric keypad, then press
ENT to go to that object. In the above example, press MAN or
PGM, then key 0348 ENT to jump directly to that object.
Note that objects are not really “in” a Scan List, or Scan Lists.
Objects are “mapped” to Scan Lists, meaning that an object can
be a member of one or more Scan Lists. In the above example,
10-348 means that the object itself is stored in memory address
0348, and is mapped to (at a minimum) Scan List 10, and, if you
were to use the  keys to scroll up or down while viewing
Scan List 10, you will see all the other objects that are also
mapped to Scan List 10.
More About Wildcard Scanning
As mentioned previously, a Wildcard TGRP object allows you to
receive all radio traffic on a trunked radio system.
0716 User Manual Page 46
A Wildcard TGRP works by catching talkgroup calls on the
system that are not already stored as objects in the radios
memory.
In order for the Wildcard TGRP to function properly, the radio
needs to be in SCAN mode. This is what enables the scanner to
find the previously stored TGRP objects that need to be checked
before declaring that the found talkgroup is new and should be
scanned as a Wildcard “hit”.
If you park on a Wildcard TGRP object in MAN mode, the
scanner is not able to “see” the previously stored TGRP objects,
and every call on the trunked radio system will come up as a
wildcard hit.
Displaying Memory Usage
Your scanner can report how much free memory is available for
new objects, and, show how much memory has been used, and
how the memory is allocated to different types of objects. To
display the memory usage report, use the power-on shortcut by
pressing 0, then 0 again while the Welcome/Owner screen is
displayed just after the radio is powered on, or, press PGM, then
the GLOB softkey to access the Global configuration menu, then
scroll down using the key until Memory Info:SEL appears
in the display. Press SEL to view the memory usage report. Use
the  keys to scroll the display.
Search Object Types
A very powerful feature of your 0716 is the ability to define
different types of frequency searches and process them while
scanning. Frequency searches are just another type of
Scannable Object in the hierarchy of the radios memory
organization, so they can be manipulated and scanned in the
same manner as conventional channels and trunking talkgroups.
There are several different types of frequency searches available
in your scanner.
0716 User Manual Page 47
Limit Search Object (LMIT)
A Limit Search Object (LMIT) is a search object that stores the
parameters necessary for the radio to search each frequency
within a lower and an upper limit for activity. A LMIT object can be
used for standalone searching – the radio just searches and
stops when activity is detected on a frequency, or for searching
that is performed while the radio is scanning. The radio treats
LMIT objects just like any other Scannable Object when in Scan
Mode. If you create a LMIT object, assign it to a Scan List and
press the SCAN key, the radio will check for activity on all the
Scannable Objects – TGRP objects, CONV objects, and even
LMIT objects. An example of when this might be handy would be
when you want to scan for activity on a collection of TGRP and
CONV objects, then run through a range of frequencies to look
for activity there, such as the entire 2 meter amateur radio band
or the entire VHF marine radio band. When used in Scan Mode,
this capability is best suited for small ranges of frequencies that
contain more frequencies than practical to program as individual
channels. Any size range can be used, but larger ranges that
take more time to search will increase the chances of missed
activity on other object types.
Essential Limit Search parameters
Much like the other object types, there are only a few parameters
that are essential in order for a search range to function correctly.
The FrLO: and FrHi: lower and upper frequency limits must be
specified, so the scanner will know where to begin the search,
and where to end the search and start again. The Mode: must
be set properly, although by default the scanner will automatically
choose the receive mode that most likely applies to the active
frequency as the search proceeds. And again, we recommend
that you give the LMIT object a name in the Tag: field so that
you can easily find or identify it later.
To create a new LMIT object, press PGM to place your scanner
into Program Mode, then press the NEW softkey, then press the
SRCH softkey to view the available Search types, then press the
LMIT softkey. Use the data entry methods you have already
learned for CONV and TGRP object setup to specify the FrLO:
and FrHi: limits, and provide a name for your search in the
Tag: field. When finished, press the Save softkey to store your
LMIT search as a new object.
Once your LMIT object is saved, you can use it while scanning,
or launch the LMIT search by itself by pressing the SRCH softkey
(note that we are referring to the SRCH softkey, and not the SRCH
0716 User Manual Page 48
key on the keypad) after navigating to the LMIT object in Manual
Mode.

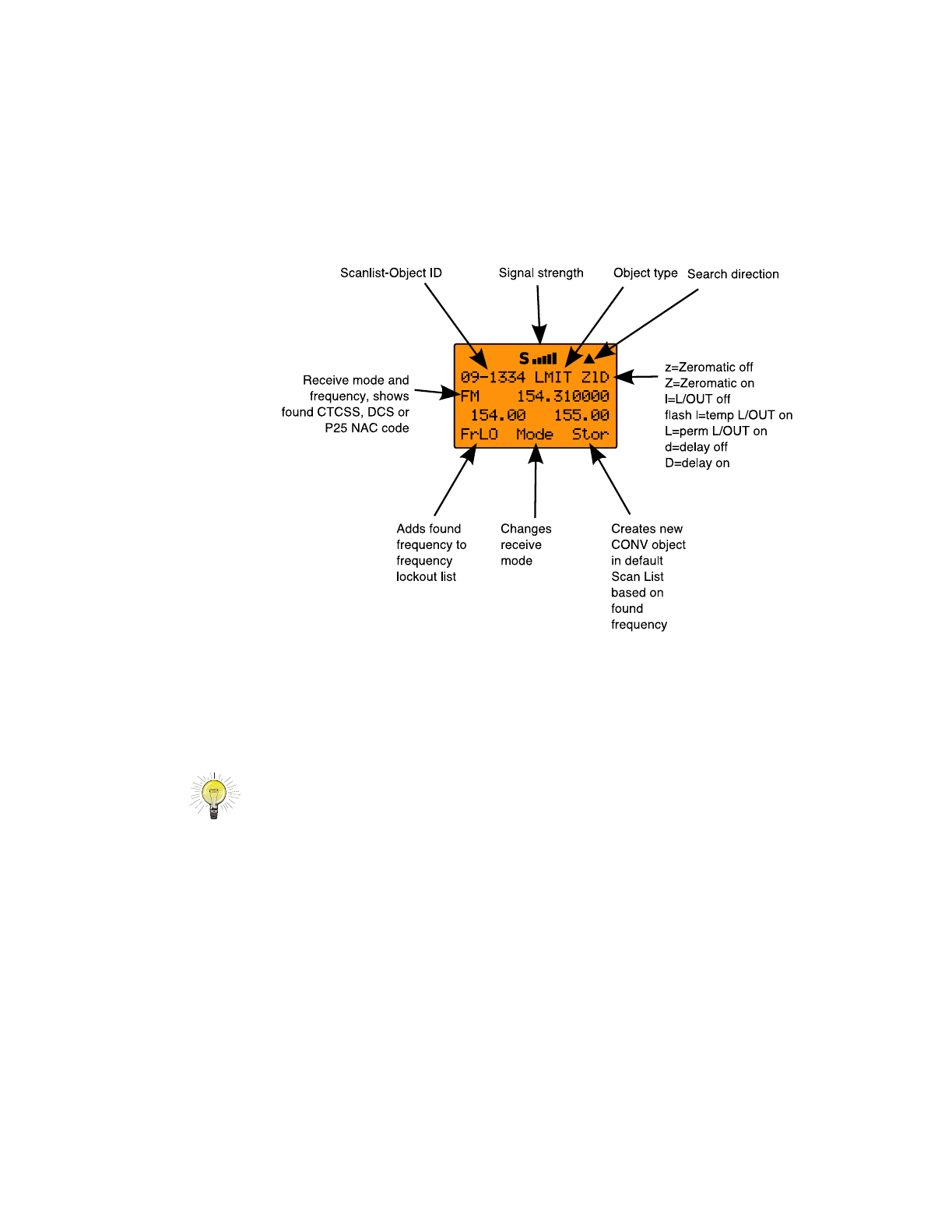

When the LMIT search stops on an active frequency, the display
will appear as follows:
Press the PAUSE key to hold on the active frequency. To resume,
press the PAUSE key again.
HINT: It can take some time for the 0716 to process all of the
frequencies in a LMIT search. You can experiment with different size
frequency ranges to find a LMIT search setup that does not interfere
excessively with scanning of other object types.
Spectrum Sweeper Object (SWPR)
A Spectrum Sweeper Object (SWPR) is a record that stores the
parameters necessary for the radio to rapidly sweep a range of
frequencies for strong signals from nearby transmitters. A SWPR
object can be used for standalone operation – the radio just
sweeps and stops when activity is detected, or for sweeping that
is performed while the radio is scanning. The radio treats SWPR
objects just like any other Scannable Object when in Scan Mode.
If you create a SWPR object, assign it to a Scan List and press
the SCAN key, the radio will check for activity on all the enabled
Scannable Objects – TGRP objects, CONV objects, LMIT objects
0716 User Manual Page 49
and SWPR objects. An example of when this might be handy
would be when you want to scan for activity on a collection of
TGRP and CONV objects, then do a quick sweep for
transmissions from nearby transmitters.
Essential Spectrum Sweeper parameters
Like every other object type, there are certain parameters in a
SWPR record that are essential in order for the SWPR object to
function correctly. By default, a newly created SWPR object is
ready to go without any changes. In its default configuration, the
SWPR object will sweep through all of the important land mobile
radio bands and look for strong signal activity from nearby
transmitters. As you become more familiar with SWPR operation,
you may wish to include or exclude some bands in your sweeps
to check other frequency ranges or to limit the amount of time the
scanner spends sweeping frequency ranges where local
transmitter activity is less likely. This will speed up operation, and
when used while scanning, will allow the radio to return to
scanning for activity on CONV, TGRP and other enabled objects.
To create a new SWPR object, press PGM to place your scanner
into Program Mode, then press the NEW softkey, then press the
SRCH softkey to view the available Search types, then press the
SWPR softkey. By default the SWPR parameters are set for a
general purpose sweep of all important land mobile radio bands.
Optionally, you may wish to toggle the Type: field from All
Bands to Public Safety by pressing on the 5-way pushbutton
pad. When Public Safety is selected, the frequency sweep will be
limited to those frequency ranges typically used for Public Safety
communications. Note that other radio services also use these
ranges, so dont be surprised if you occasionally hear activity that
is not Public Safety related. The sub-bands are defined as
follows:
0: 25-54 MHz VHF Low Band
1: 108-137 MHz VHF Aircraft Band
2: 137-174 MHz VHF High Band
3: 216-300 MHz 220 MHz Commercial/Amateur Band
4: 300-406 MHz UHF Military Air Band
5: 406-470 MHz UHF Band
6: 470-512 MHz UHF-T Band
7: 764-806 MHz 700 MHz Band
8: 806-869 MHz 800 MHz Band
9: 896-1300 MHz 900 MHz Band, 23 cm Amateur Band
In Public Safety, the sub bands are defined as follows:
0716 User Manual Page 50
0: 33.4-46.5 MHz VHF Low Band
1: 151-170 MHz VHF High Band
2: 453-467 MHz UHF Band
3: 764-806 MHz 700 MHz Band
4: 851-869 MHz 800 MHz Band
Sub bands can be selected and deselected by using the 
keys to scroll through the sub bands, and pressing the SEL key
to toggle the selected sub band on or off. An asterisk character
(*) indicates that the sub band is enabled.
Be sure to provide a name for your SWPR object in the Tag:
field. When finished, press the Save softkey to store your SWPR
search as a new object.
Once your SWPR object is saved, you can use it while scanning,
or launch the Spectrum Sweeper object by itself by pressing the
SWPR softkey after navigating to the SWPR object in Manual
Mode.

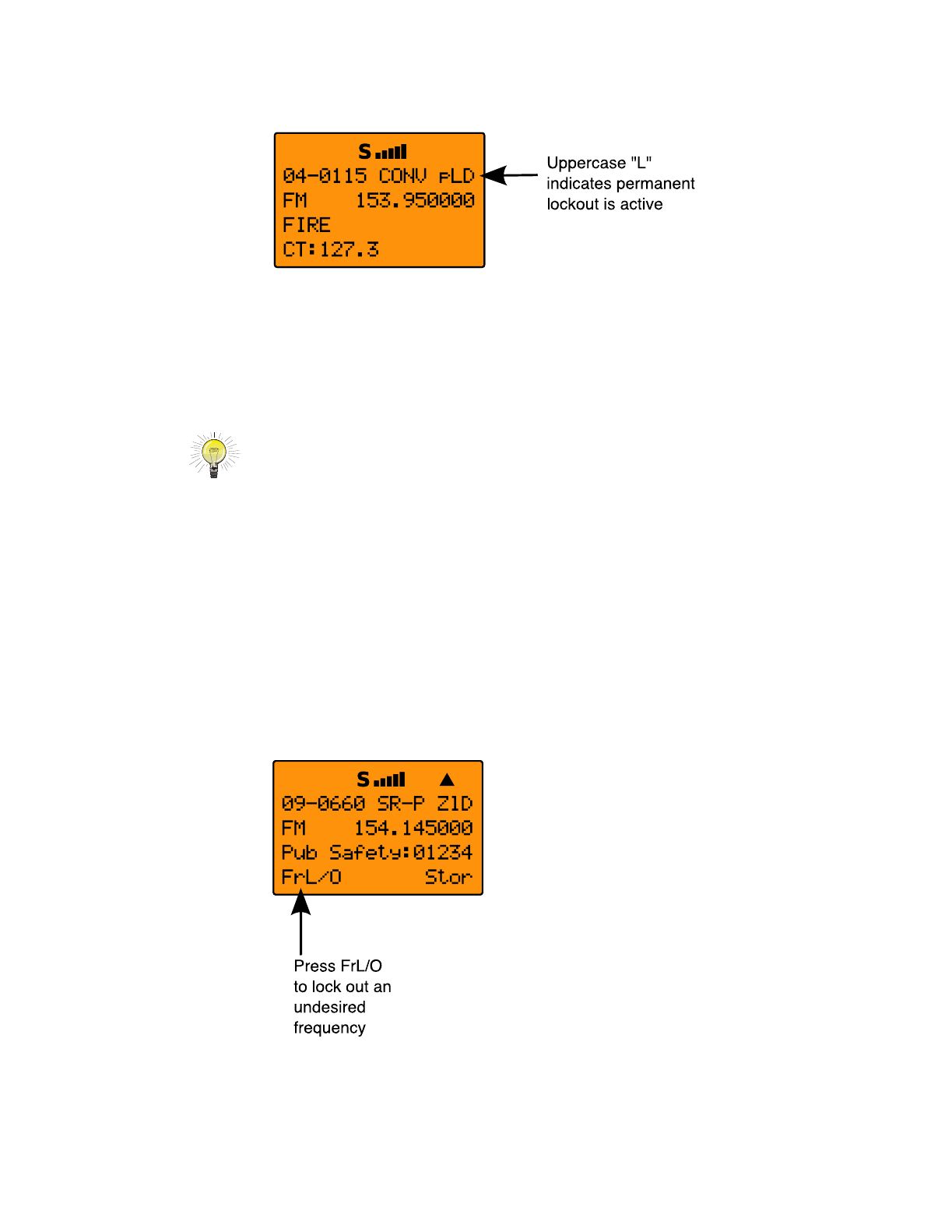

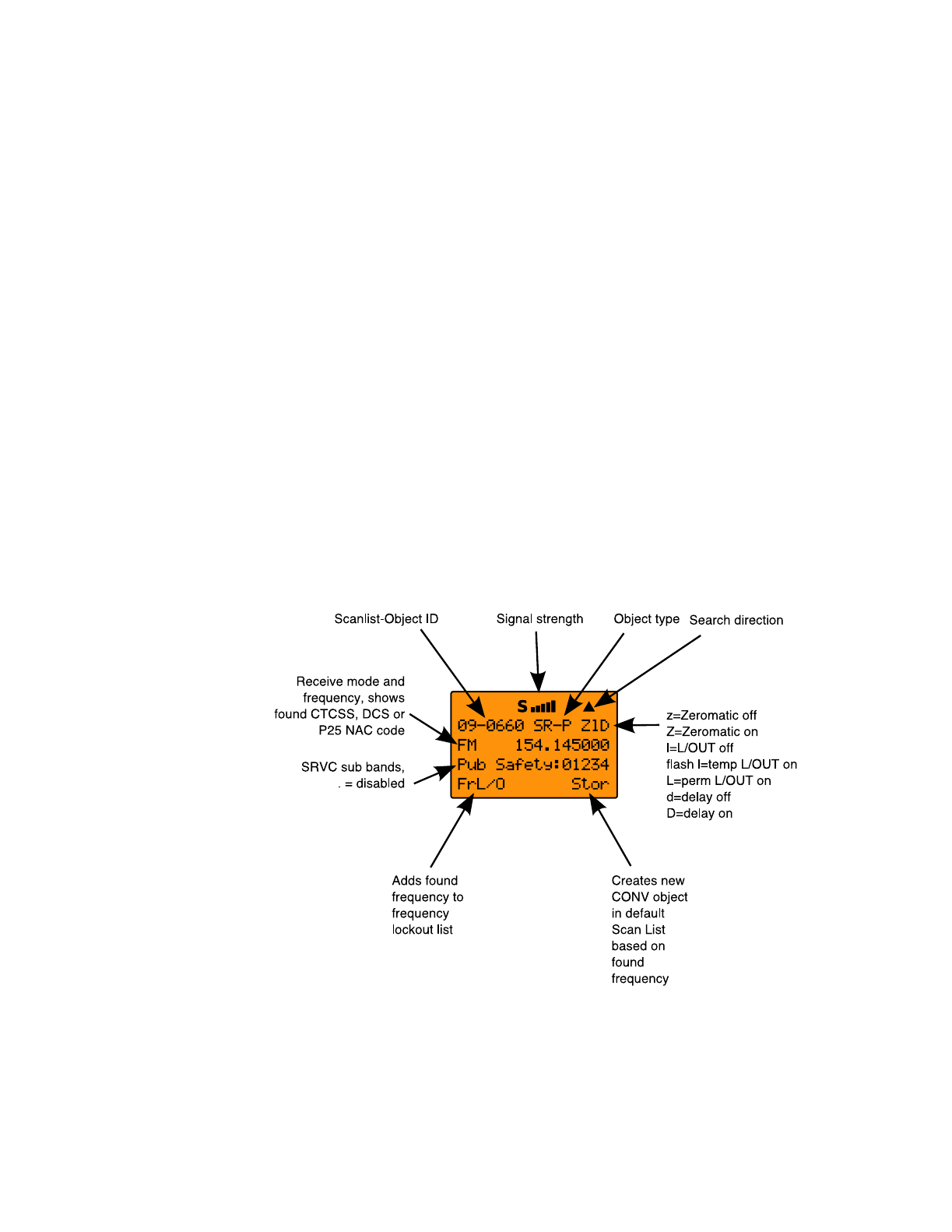

When the SWPR object stops on an active frequency, the display
will appear as follows:
0716 User Manual Page 51
Service Search Object (SRVC)
A Service Search Object (SRVC) is similar to a LMIT search but
is optimized for a specific radio service, and can search for
activity associated with a type of service across multiple
frequency bands.
Essential Service Search parameters
The only critical parameter needed for a Service Search to
function is the service type. When you set up a Service Search,
you will want to specify the type of service that you wish to
search.
To create a new SRVC object, press PGM to place your scanner
into Program Mode, then press the NEW softkey, then press the
SRCH softkey to view the available Search types, then press the
SRVC softkey. Scroll to the Srvc: field and select the type of
search you want to define using the  keys on the 5-way
pushbutton pad. Service types include Public Safety, Aircraft,
Amateur, CB, Marine, FRS/GMRS/MURS/DOT and Railroad,
and provide frequency coverage as follows:
Public Safety (PubSafety) - Searches commonly used public
safety frequencies. Groups are as follows:
0: 33.4-46.5 MHz VHF Low Band
1: 151-170 MHz VHF High Band
2: 453-467 MHz UHF Band
3: 764-806 MHz 700 MHz Band
4: 851-869 MHz 800 MHz Band
Aircraft - Searches civilian and military air frequencies. Groups
are as follows:
0: 108-118 MHz Navigation
1: 118-137 MHz Civilian Voice
2: 138-150 MHz Military Voice (excludes 2m Amateur)
3: 225-400 MHz Military Voice
Ham - Searches amateur radio frequencies. Groups are as
follows:
0: 28.0-29.7 MHz 10m Band
1: 50-54 MHz 6m Band
2: 144-148 MHz 2m Band
3: 222-225 MHz 1.25cm Band
4: 420-450 MHz 70cm Band
0716 User Manual Page 52
5: 902-928 MHz 33cm Band
6: 1240-1300 MHz 23cm Band
CB - Searches the Citizens Band radio frequencies
Marine - Searches the VHF-FM marine radio band
FRS/GMRS/MURS/DOT/STAR (F/G/MURS) - Searches the
FRS, GMRS, MURS, DOT and STAR radio frequencies
Railroad - searches the Association of American Railroads
(AAR) VHF railroad frequencies used in the US and Canada
When finished, press the Save softkey to store your SRVC
search as a new object.
Once your SRVC object is saved, you can use it while scanning,
or launch the SRVC search by itself by pressing the SRCH
softkey after navigating to the SRVC object in Manual Mode.

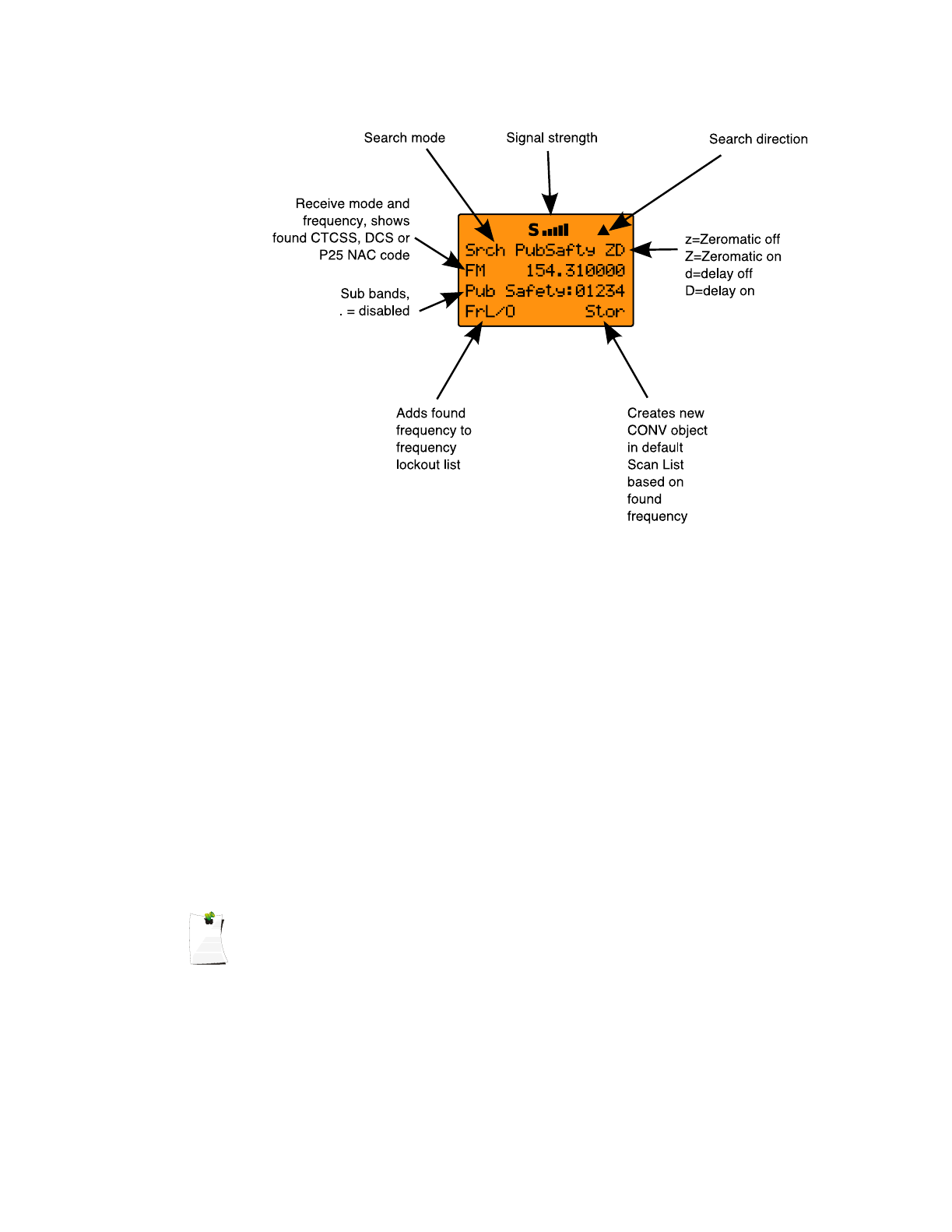

When the SRVC search stops on an active frequency, the display
will appear as follows:
To resume searching, press the key.
Now, take a few moments to practice setting up each of the
different search object types by experimenting and creating
some SRVC, LMIT and SWPR objects.
0716 User Manual Page 53
HINT: Remember that there is context sensitive help available for each
menu item in the object menus. Just press FUNC, then SEL to view
the help, and SEL again to exit the help screen.
These are just a few of the many ways you can incorporate
different types of search objects in your Scan List configurations.
and, just a few of the many ways that each of the individual
search types can be configured to your preferences and needs.
Be sure to refer to the Detailed Menu Reference section of the
manual for detailed information for each of the search object
types.
Grouping Objects with Scan Lists
By default, new objects are automatically assigned to Scan List
01. Now that you have entered a variety of new objects that are,
by default, members of Scan List 01, you may want to separate
these objects into separate Scan Lists so that you can easily
enable or disable groups of objects as needed depending on
what you want to scan. There are 20 regular Scan Lists
available, a special “FAV” Scan List for one-button access to your
favorite Scannable Objects, and a Skywarn Scan List.
Although Scan Lists may seem similar to the “banks” that are
used in older bank/channel scanner designs, you will find that
they are much more powerful and flexible than “banks”. The
number of objects that can be grouped in a Scan List is limited
only by the scanners memory, and single objects can be
members of multiple Scan Lists without creating duplicate
versions of those objects and manually placing them in each
Scan List where you want them included.
You can also mix and match different object types in Scan Lists
as you see fit. Feel free to group your objects in the manner that
best suits your listening style. If you choose to group your objects
by geographical area, and find that the best set of Scannable
Objects for your area includes a mix of trunked talkgroups and
conventional channels, go right ahead and put them all in the
same Scan List. There are no limitations as to the type of objects
that can exist together in the same Scan List.
How you group objects in Scan Lists is entirely up to you! Here
are some examples of how objects can be grouped:
Geographically
You may wish to group your Scannable Objects according to the
areas where they are used. For example, assume that you
0716 User Manual Page 54
routinely travel to another town to visit family. You can assign the
channels and talkgroups for fire and police services around your
home to one Scan List, and those that are located where your
family lives in another. When you travel to visit your family, you
can no longer hear the Scannable Objects assigned to your
home Scan List, so you disable that Scan List and enable the
Scan List that contains the channels and talkgroups that are in
use in your familys town.
By trunking system
It is possible to assign any combination of object types to any
Scan List. However, you may wish to assign TGRP objects
associated with specific trunked radio systems to specific Scan
Lists, so you can easily enable or disable monitoring of each
system by enabling or disabling the associated Scan List.
By object type
It may be desirable to segregate object types by assigning them
to specific Scan Lists. For example, you can assign a group of
LMIT or SRVC searches to a single Scan List, and easily activate
or deactivate searching on those objects by enabling or disabling
the associated Scan List. You may wish to place your wildcard
TGRP group call or private call objects in a separate Scan List.
By application
You can group objects by their application. For example, you
may wish to place all law enforcement related objects for your
area in one Scan List, all fire and rescue objects in another, and
all business related objects in yet another Scan List. Racing fans
may wish to group objects for different cars, drivers, teams and
tracks into separate Scan Lists.
By Favorites
The Favorites (FAV) Scan List is a powerful tool that can be used
to quickly narrow (or expand) your scanning profile.
In addition to the normal Scan List map, each Scannable Object
menu includes a FAV (yes/no) item. When FAV is set to YES, the
object is a member of the Favorites Scan List in addition to the
other Scan Lists that it is mapped to in the normal Scan List map.
When you press the FAV key, the radio suspends scanning of all
objects in the radio except for those that are set to FAV=YES in
their object menus.
0716 User Manual Page 55
You can also add any object to the FAV Scan List by pressing the
FUNC key, then FAV while the object is active during SCAN
mode, or while parked on the object in MAN and PROGRAM
mode.
It is also possible to clear the FAV Scan List completely by
pressing PGM, then the GLOB softkey, then scrolling to down to
the Clear FAV menu item. Press the SEL key to set FAV=NO
for all objects, press the YES softkey to confirm the action, then
press the Save softkey to save your changes.
For example, you may wish to leave the FAV Scan List empty,
and add your favorites while scanning by pressing FUNC, then
FAV when objects of interest are active. This can be useful during
a major event, where you wish to quickly isolate objects of
interest by pressing FUNC FAV when they are active, then
pressing FAV to scan only those objects.
The Favorites Scan List is also useful to group objects that are
very close to where you live, so that when you press the FAV key,
you are only scanning objects that are in your immediate vicinity,
making the radio less active and increasing the chances that you
will not miss important local activity.
Use your imagination and you will probably come up with many
other ways to use the Favorites Scan List feature.
Mapping Objects to Scan Lists
By default, every new object you create is mapped to be a
member of Scan List 01. Scan List membership is defined in an
objects parameters menu and is typically found at the beginning
of the menu.
To change Scan List membership when creating a new object,
scroll up or down to the Scan Lists: parameter in the objects
menu before saving the object. With the Scan Lists: field
highlighted (as indicated by the blinking cursor), use the 
keys on the 5-way pushbutton pad to scroll through the Scan
Lists until you find the Scan List that you wish to enable or
disable membership for the object, and use the SEL button to
toggle membership for that Scan List on or off. The asterisk (*)
next to the Scan List number indicates that the object is a
member of that Scan List. Press the Save softkey to save the
modified object. Objects can be members of as many Scan Lists
as you see fit, without limitation to the number of Scan Lists an
0716 User Manual Page 56
object is mapped to, and without limitation to the number of
objects that are mapped to a given Scan List.
To change Scan List membership for an existing object, press
the PGM key. Use the  keys on the 5-way pushbutton
pad to scroll to the existing object that you wish to change, then
press the EDIT softkey. Press the CURR softkey to edit the
current object.
NOTE: Remember, when browsing objects in Manual or Program Mode, the
arrow keys on the 5-way pushbutton pad operate as follows:
: navigates “up” through the objects assigned to the
current Scan List
: navigates “down” through the objects assigned to the
current Scan List
: navigates “up” through the active Scan Lists in the radio
: navigates “down” through the active Scan Lists in the
radio
Scroll down in the objects parameters menu to the Scan
Lists: field. With the Scan Lists: field highlighted, use the
on the 5-way pushbutton pad to scroll through the Scan Lists,
and use the SEL button to toggle membership for a Scan List on
or off. The asterisk (*) next to the Scan List number indicates
that the object is a member of that Scan List. Press the Save
softkey to save the modified object.
Enabling and disabling Scan Lists
Scan Lists may be enabled or disabled while actively scanning,
or by accessing the individual Scan List in the Global Settings
(GLOB) menu.
To toggle a Scan Lists enabled/disabled status while scanning,
press the numeric key that corresponds with the Scan List you
wish to toggle. For example, pressing 4 while scanning will
toggle the state of Scan List 04 from enabled to disabled, or vice
versa if the Scan List is already disabled. To toggle the enabled/
disabled status for Scan Lists 11-20, press FUNC, then press a
number key, i.e., press FUNC 3 to toggle the status of Scan List
13. If you enable a Scan List that has no assigned objects, the
number for that Scan List will flash in the display while the
scanner is scanning.
0716 User Manual Page 57
For example, when Scan Lists 1, 2, 3 and 16 are enabled, the
display will appear as follows while scanning:
To toggle a Scan Lists status from the Global Settings menu,
press PGM to enter Program Mode, then press the GLOB softkey.
At the Scan Lists: item, press the SEL key on the 5-way
pushbutton pad. Scroll to the Scan List you wish to change and
press the SEL key again, then at the Enabled: setting press the
or on the 5-way pushbutton pad to toggle the Scan List on
or off. An asterisk (*) indicates that the Scan List is enabled.
Press the SAVE softkey to save settings for that Scan List, then
press SAVE again to confirm your global changes and exit the
GLOB menu.
HINT: You can also change the name of your Scan Lists in the GLOB
menu. Use the text entry techniques previously discussed for
entering object tag names.
If you inadvertently store an object with no Scan List
mappings, the object will be placed in a special “NS” Scan
List that can be accessed using the  keys while in
Manual Mode or PGM mode. Once you scroll to the NS
Scan List, you can use the  keys to scroll to the objects
found there and edit the Scan List setting by pressing the PGM
key, then the EDIT and CURR softkeys to see the objects menu.
Other Advanced Startup Topics
Here are some more startup topics that will help you get more
enjoyment out of your 0716 as you become more
experienced with its operation. We also suggest that you visit
RadioReference at www.radioreference.com, where you can
discuss the 0716 with other owners!
Finding Stored Objects Easily
The 0716's browse feature makes it easy to scroll to the
Scan Lists and Scannable Objects you have created, using the
0716 User Manual Page 58
 keys on the 5-way pushbutton pad while the scanner is
in PGM or Manual Mode. Here are some more methods you can
use to find stored objects quickly.
Searching For Objects Using FIND
Your 0716 provides a very useful FIND feature that allows
you to search all objects for a text string that you specify. FIND
searches for your specified text in the following places:
•In TGRP objects, the ID field and the Tag field
•In CONV objects, the Frequency field and the Tag field
•In TSYS, LMIT, SRVC and SWPR objects, the Tag field
To use FIND, press the PGM key, then press the EDIT softkey.
Press the FIND softkey, then enter the text string you wish to
search for. Press the OK softkey to begin searching. Press the
Exit softkey to cancel the FIND operation. Press the Qtxt
softkey to use QuickText in your find text screen. For more
information on text entry and QuickText, please see the section
of this manual entitled “Standard Text Entry Method and
QuickText”.
Once you have started searching, the radio will stop on any
object where your find text is found in the frequency, tag, or ID
fields as described above.
When the scanner finds a matching object, you may press MAN
to begin monitoring of the found object in Manual mode. You may
also press PGM to exit FIND and execute programming tasks at
the found object position. If you wish to edit the object, press the
EDIT softkey. If you wish to continue searching, press the NEXT
softkey.
FIND keeps the last search text you specified stored so that you
may use it again in subsequent FIND operations.
Filtering By Object Type
When browsing objects in PGM mode, you can filter the objects
that are displayed by their type.
Press the PGM key on the keypad, then press the EDIT softkey.
Press the or keys on the 5-way pushbutton pad to scroll the
Edit softkeys to display the filter softkeys. The filter softkeys are
as follows:
CONV
TGRP
0716 User Manual Page 59
TSYS
SRCH
SWPR
To filter browse for a specific type of object, press the softkey
that corresponds with that object type. For example, press the
CONV softkey, then use the  keys on the 5-way
pushbutton pad to browse only conventional objects.
Object Lockout
The L/OUT key is used to lock out objects. When an object is
locked out, traffic is not received on that object until it is
unlocked, even if the object is mapped to more than one Scan
List. Locking out an object locks it out “radio-wide” until it is
enabled by toggling the lockout setting.
Four types of lockout functions are available in the 0716,
temporary lockout, permanent lockout, search lockout and
talkgroup lockout.
Temporary Lockout
Temporary lockout locks out an object until the scanner is turned
off. When the scanner is powered on again, all objects that have
been temporarily locked out are restored.
By default, the L/OUT key activates temporary lockout when
pressed. If desired, you can change the function of the L/OUT
key in the GLOB radio wide settings by pressing PGM, then the
GLOB softkey. Scroll to the TLO=FUNC L/O setting and press the
key to toggle the setting to YES to have the L/OUT key
function as a permanent lockout instead of temporary lockout.
To apply temporary lockout to an object, press the L/OUT key
while the scanner is stopped on that object during scan
operation, or navigate to an object using the 5-way pushbutton
pad while in Manual Mode or PGM mode and press the L/OUT
key. The lowercase “l” in the display flashes to indicate that
temporary lockout is applied to the object:
0716 User Manual Page 60
If you wish to remove temporary lockout from a single object,
navigate to the object using the 5-way pushbutton pad while in
Manual Mode or PGM mode and press the L/OUT key again.
Temporary lockout is a very useful feature. For example, when a
major incident occurs while you are scanning, you may wish to
focus your scanning on that major incident, and exclude
unrelated talkgroups so that radio traffic associated with the
major incident is not interrupted.
You could press the PAUSE or MAN keys to listen to a single
object, if communications for the major incident are only being
conducted on single channel or talkgroup. More often, several
talkgroups are used to provide communications for major
incidents, so if you park on a single object, you may miss
communications on other objects that are related to the incident
of interest.
By using Temporary Lockout, it is possible to “zoom in” on the
objects that are carrying communications related to the incident
of interest by pressing L/OUT every time an unrelated object
becomes active. Eventually you will narrow down your monitoring
to those objects that are being used to provide communications
for the incident you are trying to monitor.
Permanent Lockout
Permanent lockout locks out an object until you explicitly unlock
it. No traffic will be received on the locked out object while
permanent lockout is active.
To apply permanent lockout to an object, press FUNC, then the L/
OUT key while the scanner is stopped on that object during scan
operation, or navigate to an object using the 5-way pushbutton
pad while in Manual Mode or PGM mode and press FUNC, then
the L/OUT key. The lowercase “l” in the display changes to
uppercase to indicate that permanent lockout is applied to the
object:
0716 User Manual Page 61
If you wish to remove permanent lockout from an object,
navigate to the object using the 5-way pushbutton pad while in
Manual Mode or PGM mode and press FUNC, then L/OUT again.
HINT: You can also toggle lockout anytime you are viewing an object menu
in Program mode by pressing L/OUT.
Search Lockout
Search lockout works with certain search objects, including
LMIT searches, some SRVC searches, and SWPR objects.
Frequency lockout is used to lock out undesired frequencies that
are found during searches.
To apply search lockout during a search, press the FrL/O
softkey while the scanner is stopped on the undesired frequency:
Applying search lockout to an undesired frequency adds that
frequency to the Search Lockout List, a list of frequencies that
0716 User Manual Page 62
the scanner ignores when performing searches or during
Spectrum Sweeper operations. You can edit or clear the Search
Lockout List by following these steps:
Press PGM
Press the GLOB softkey
Scroll down to the SRCH L/Outs: item and press SEL
Scroll to the frequencies you wish to remove from the lockout list
and press the Del softkey to remove them from the list.
Scroll to an empty spot and enter any frequency you wish to
manually add to the list.
Press FUNC, then the Del softkey to clear the entire list.
Talkgroup Lockout
Talkgroup lockout is similar to search lockout, as it allows you to
lockout undesired talkgroups while searching for new talkgroup
activity with wildcard TGRP objects.
To apply lockout on an undesired wildcard hit, press the TGL/O
softkey while the scanner is stopped on the undesired talkgroup:
Applying wildcard lockout to an undesired talkgroup creates a
new TGRP object in the same Scan List as the wildcard TGRP,
then applies permanent lockout to the new TGRP object, so that
will be ignored in the future by the scanner when scanning the
wildcard talkgroup. To unlock or edit talkgroups locked out using
the wildcard lockout feature, press PGM, then navigate to the
0716 User Manual Page 63
object using the 5-way pushbutton pad. Press FUNC, then L/OUT
to remove permanent lockout from the talkgroup. Press FUNC,
then CLR to delete the TGRP object from the scanner. Press the
EDIT, then the CURR softkey to edit and save the TGRP object.
Setting the Default Scan List
By default, your scanner will store all new objects, and objects
found during Search, Tune, and Sweeper as mapped to Scan
List 01.
You can easily change the default Scan List to any Scan List you
specify, including the special FAV and SKYWARN Scan Lists.
Press PGM, then the GLOB softkey, and use the key to scroll
down until the Dflt ScanList item appears in the middle of
the display. Enter a new Scan List number to use as the default
Scan List. The following numbers are valid:
0: The “not scanned” (ns) Scan List - objects that have no
Scan List mappings can be found here
1-20:The twenty normal Scan Lists
21: The FAV Scan List
22: The SKYWARN Scan List.
Press ENT or the Done softkey to store your new default Scan
List value, then press the SAVE softkey to save your changes to
the radios configuration memory.
Deleting Objects
Objects that you no longer need to use can easily be deleted
from the 0716's memory, making room for new objects.
To delete an object, press PGM, then use the  keys to
navigate to the object you wish to delete. Press FUNC CLR to
delete the object. The scanner will ask you to confirm the delete
command before removing the object from the scanners
memory. Deletions cannot be un-done.
To delete a TSYS, use the FIND feature to search for the TSYS
by name. Press PGM, then press the EDIT softkey, then press
the FIND softkey, and use the Standard Text Entry Method to
enter all or part of the TSYS name you wish to delete. Press the
OK softkey to begin searching, and, if necessary, press the NEXT
softkey to continue searching until the desired TSYS is located.
0716 User Manual Page 64
Once the TSYS has been located, press the PGM key, then press
FUNC CLR. The scanner will ask you to confirm the delete
command before removing the object from the scanners
memory, then, provide a final warning that all TGRPs associated
with the TSYS to be deleted will be lost if you proceed. Press the
YES softkey at both warnings to delete the TSYS.
An alternative method is to browse TSYS objects only using the
TSYS filter. Press PGM, then the EDIT softkey, then , and
press the TSYS softkey. Scroll to the desired TSYS using the
 keys, then press FUNC CLR. The scanner will ask you to
confirm the delete command before removing the object from the
scanners memory, then, provide a final warning that all TGRPs
associated with the TSYS to be deleted will be lost if you
proceed. Press the YES softkey at both warnings to delete the
TSYS.
Using Multi-Site Mode On Networked Systems
Some Motorola and P25 systems include a large number of sites
that are networked together to provide radio coverage to a large
geographical area. These types of trunked radio systems are
more commonly used for large statewide systems, and for some
systems that are used in large, rural counties.
These networked trunked radio systems work in a manner that is
very similar to a cellular telephone network. As a system user
moves around (or “roams”) in the coverage area of the network,
their radio will automatically find and use the nearest tower site.
Each tower site includes a number of channels. One of these
channels is used for control channel data, and the remaining
channels are used for voice traffic. As a user moves away from
the coverage of one site, their radio will search other control
channel frequencies for a better site to use.
Your 0716 includes a Multi-site feature that can enhance the
operation of the scanner when monitoring Multi-site systems.
Multi-site can be enabled editing the trunking system (TSYS)
parameters for a Motorola or P25 system. Multi-site can be set to
Off, Stat(Stationary) or Roam. By default, Multi-site is set to OFF.
The ROAM setting is ideal for those times when you are driving
around in the service area of a networked trunked radio system,
as it allows the radio to find and use the best tower sites as you
move in and out of the coverage footprints of different sites. The
STAT(ionary) setting is ideal for those times when you are not
moving and are within range of more than one tower site, as it
0716 User Manual Page 65
will allow you to monitor traffic from any tower that you are within
range of.
To activate Multi-site mode on a Motorola or P25 networked
system, follow these steps:
Press PGM, then navigate to a talkgroup on the networked multi-
site system using the  keys.
Press the EDIT softkey, then press the CURR softkey.
Scroll down to the TSYS item and press the SEL key to edit the
TSYS parameters.
Scroll to Multi-Site. Use the  keys to select Off,Stat
or Roam. When set to Off, the scanner will find the first usable
control channel in the control channel list and use it until it is no
longer usable. When set to Stat(ionary), the scanner will track
the system using any control channel in the list that is usable.
When set to Roam, the scanner will attempt to locate and use the
best possible control channel and ignore others, until the control
channel is no longer usable, then it will locate a new “best control
channel” to use. When Multi-Site=ROAM, the scanner will
always attempt to lock on to control channels where the
decoding quality is greater than the Threshold Hi setting, and will
search for new control channels when the decoding quality of a
control channel drops below Threshold Lo setting, and, if no new
control channels are available that meet the Threshold Hi criteria,
the scanner will seek the best control channel to use, and
continue checking periodically for a new control channel that
meets the Threshold Hi criteria. When Multi-Site=STAT, the
scanner will track the system using every usable control channel
in the control channel list.
Press the SAVE softkey to save your changes to the TSYS
parameters, then press the SAVE softkey again to use the
scanner.
You should experiment with the different Multi-site modes and
the threshold settings to find a combination that works best for
your location. Keep in mind that the threshold settings are only
available when Multi-Site Roam is selected.
Multi-site functionality is not available in EDACS or LTR trunking.
0716 User Manual Page 66
NOTE: It may be necessary to change the values used for Threshold Hi and
Threshold Low in the TSYS object to optimize Multi-site Roam
performance.
LTR Home Repeater AutoMove
LTR Home Repeater AutoMove takes the guesswork out of
programming LTR trunking systems when the home repeater
order is not known.
By default, LTR Home Repeater AutoMove is turned off and is
controlled in the individual TSYS objects. To enable LTR Home
Repeater Automove, access the menu for the desired TSYS,
then scroll down to the last item in the menu, AutoMove HRs.
Use the  keys to toggle AutoMove HRs on or off for the
selected TSYS, then press the Save softkey to save your
changes.
When AutoMove HRs is turned on, you may enter the LTR
system frequencies in any order, and the 0716 will
automatically move the frequencies to the proper home repeater
slots as transmissions are received on the system.
Priority Scan
Your 0716 scanner features Priority Scan operation for
CONV and TGRP objects. When Priority Scan is active,
increased priority is given to objects that have their Priority
mode set to ON.
Turning Object Priority On or Off
Priority for CONV and TGRP objects can be toggled on or off
using the following methods:
Press the PRI key when the scanner stops on the object while it
is active. The plD indicator in the object display will show p for
Object Priority Off, and P for Object Priority On.
Browse to an object in Manual Mode or PGM mode, then press
the PRI key to toggle Object Priority on or off. The plD indicator
in the object display will show p for Object Priority Off, and P for
Object Priority On.
Browse to an object in PGM mode. Press the EDIT, then CURR
softkeys. Use the key to scroll to the Priority setting. Use
the or keys to toggle Priority On or Off.
0716 User Manual Page 67
When creating a new object, before saving the object scroll to
the Priority setting. Use the or keys to toggle
Priority On or Off.
Turning Priority Scan Mode On or Off
While the radio is scanning, press FUNC, then PRI to toggle
Priority Scan On or Off. Priority Scan status is shown in the man
Scanning status display. PRI indicates that Priority Scan mode is
on, and pri indicates that Priority Scan mode is off.
CONV Priority Scan
When Object Priority is set to Yes for one or more CONV objects,
the scanner will sample the CONV objects for activity periodically
while scanning and monitoring other objects.
This sampling will cause a brief muting of received audio when it
occurs while another object is active.
The more CONV objects are set for Priority, the longer this audio
muting will be, since it takes a certain amount of time to sample
each Priority CONV object for activity.
TGRP Priority Scan
When Object Priority is set to Yes for one or more TGRP objects,
the scanner will give those TGRPs priority over other TGRPs
while checking a particular trunking system for activity. TGRPs
configured for Priority are checked for activity before any other
TGRPs are checked, and during the reply delay time after non-
priority TGRP calls.
Additionally, your 0716 decodes the subaudible priority data
that is present on analog Motorola talkgroup calls (3600 baud
control channel systems only), and will switch to a priority
talkgroup when the data for that talkgroup is found in the
subaudible priority data.
Hit Counters
Your 0716 includes a unique Hit Counter feature that keeps
track of how many transmissions are received for each object
type. The Hit Counter for an object is incremented each time a
transmission is received on an object, making it possible for you
to determine the objects that are the least and most active.
By default, the Hit Counter feature is turned off. To turn the Hit
Counter on, press PGM, then the GLOB softkey, and use the
key to scroll down to the Hit Counts item. Use the  keys
0716 User Manual Page 68
to toggle Hit Counts on and off. When finished, press the
SAVE softkey to save your changes to the radios configuration
memory.
You can view the hit counts for an object by navigating to the
object by pressing PGM, then using the  keys to
navigate to the desired object, if necessary. Once you have
selected the desired object, press the EDIT softkey, then the
CURR softkey, and scroll to the Hit Count item bottom of the
object menu to view the hit counter.
To reset the hit counter for a single object, press the Dflt
softkey while the Hit Count item is selected in the objects
menu.
To clear all hit counters, press the PGM key, then the GLOB
softkey. Use the key to scroll down to the Clear Hits item,
then press the SEL key. Press the SAVE softkey to save your
changes and exit the Global settings menu.
Audible Alarms and the ALERT LED
Your 0716 features a very powerful ALERT LED with Audible
Alarm capability that allows you to set different types of visual
and audible notifications for the different types of objects you
create.
You may have noticed that the menus for each object you create
include various settings for LED, Backlight and Alarm. You can
use these settings to design custom visual and/or audible alarms
that are triggered when activity is detected on the specified
Scannable Object.
NOTE: The Alert LED utilizes a special tri-color Light Emitting Diode module
that mixes light from red, green and blue LED elements to produce
thousands of different colors. Eight pre-defined color settings are
available for use in object menus. LED COLOR: 0 is normally used
for “all colors off”, or no Alert LED display.
NOTE: Slight variations to LED colors are a normal part of the
manufacturing process. You may notice these variations when using
the White LED color setting (LED COLOR: 0), or when comparing
one 0716 to another. You can compensate for these slight
variations by fine-tuning the RGB LED settings for each color. See
the COLOR settings in the GLOB menu in Detailed Menu Reference
section at the end of this manual.
Audible Alarm and ALERT LED Settings
0716 User Manual Page 69
Each object you create has the following ALERT LED and
Audible Alarm settings:
LED Mode: Solid or Flash controls whether the LED
remains on solid or flashes when the object is active.
LED Color: 0-7 sets the color of the LED. By default, color 0
is used for LED off. You can change the LED colors in the Global
Settings menu.
Latch LED keeps the LED on after activity on the object is
finished. This is useful in cases where you need to know if an
object was active while you were away from the scanner.
Backlight: Off, On, Flash controls whether the backlight
remains off, comes on solid or flashes when the object is active.
Alarm: None, Chirp, Hi-Lo, Alert, Ring, 2-
Chirp, Fast Hi-Lo, DTMF # are used to set audible
alarms that play each time activity is found on the object.
ALERT LED with Audible Alarm Examples
Here are some examples of when you may wish to use the
ALERT LED with Audible Alarm capability:
•You have programmed a Talkgroup Wildcard in for a trunked
radio system you monitor in order to find new talkgroups. You
can use an Audible Alarm to alert you when the radio receives
a wildcard hit, and turn on the backlight so that you can read
the display and operate the keypad to save or lock out the new
talkgroup.
•You have programmed your favorite amateur radio repeater in
and wish to be alerted when a QSO begins. You can use an
Audible Alarm with one of the shorter alarms (Chirp, 2-Chirp,
Fast Hi-Lo or DTMF #) to provide this indication without
covering the traffic in the QSO.
•You have included a Spectrum Sweeper object in your scan
configuration so that you can find nearby strong transmitters
while you are scanning. You can use an Audible Alarm to alert
you when the radio receives a Spectrum Sweeper hit, and turn
on the backlight so that you can read the display and operate
the keypad to save or lock out the new frequency. This
technique is also useful for TGRP wildcards.
0716 User Manual Page 70
•You wish to assign different LED colors to different types of
public safety agencies, i.e., red for fire, rescue and EMS, blue
for law enforcement, yellow for emergency management, and
so on. When there is activity you can tell if it is related to law
enforcement, fire/rescue and EMS or emergency management
at a glance, even if the transmission is short or difficult to copy.
The possibilities for the ALERT LED with Audible Alarm capability
are limited only by your imagination.
Dedicated search modes
In addition to its powerful ability to store different types of
frequency searches as objects, your scanner provides fast
access to dedicated frequency search modes that allow you to
execute searches or run the Spectrum Sweeper without having
to go through the process of setting up and saving a search
object. This is handy for those times where you need to run a
search quickly. Dedicated search modes do not create new
search objects or use previously created search objects.
Using Dedicated Spectrum Sweeper (SWPR) Mode
Dedicated SWPR mode lets you access and run the Spectrum
Sweeper easily and quickly. Press FUNC SCAN while in the
Manual, Program or Scan Modes to access the Spectrum
Sweeper dedicated mode.
0716 User Manual Page 71
Operation of the dedicated Spectrum Sweeper mode is almost
identical to that of the object mode, with one exception. When
running the Spectrum Sweeper as a Scannable Object, you must
use the object menu to enable or disable the Spectrum Sweeper
sub-bands when operating in Scan Mode. When dedicated
Spectrum Sweeper mode is used, you may press the numeric
key on the keypad that corresponds with the sub-band you wish
to enable or disable. Disabling a sub-band will cause the
Spectrum Sweeper system to skip the frequencies within that
sub-band as it performs its sweeps. The sub-bands are defined
as follows:
0: 25-54 MHz VHF Low Band
1: 108-137 MHz VHF Aircraft Band
2: 137-174 MHz VHF High Band
3: 216-300 MHz 220 MHz Commercial/Amateur Band
4: 300-406 MHz UHF Military Air Band
5: 406-470 MHz UHF Band
6: 470-512 MHz UHF-T Band
7: 764-806 MHz 700 MHz Band
8: 806-869 MHz 800 MHz Band
9: 896-1300 MHz 900 MHz Band, 23 cm Amateur Band
In Public Safety, the sub bands are defined as follows:
0716 User Manual Page 72
0: 33.4-46.5 MHz VHF Low Band
1: 151-170 MHz VHF High Band
2: 453-467 MHz UHF Band
3: 764-806 MHz 700 MHz Band
4: 851-869 MHz 800 MHz Band
Using dedicated TUNE mode
Your scanners dedicated TUNE mode provides you with the
ability to quickly enter any frequency and monitor that frequency
for transmissions, or search up or down from that frequency for
activity.
To enter TUNE mode, press the TUNE key on the keypad. The
scanner displays the TUNE screen.
By default, TUNE mode is paused when first activated. Press
PAUSE to begin searching from the current frequency.
Press the or keys on the 5-way pushbutton pad to change
the search direction.
Press the FrL/O softkey to add a found frequency to the lockout
list.
Press the MODE softkey to change the receive mode (AM, FM,
NFM) from the default for the current frequency range (au).
0716 User Manual Page 73
Press STOR to create a new CONV object using the found
frequency.
Use the keypad to enter a new frequency, and press ENT to
make that the TUNE frequency.
Using FUNC TUNE from any other mode will load the last active
frequency from the other mode into TUNE. For example,
pressing FUNC TUNE while parked on a trunked radio TGRP will
load the control channel frequency into the TUNE mode if the
control channel frequency is the last frequency that the scanner
checked while scanning.
Dedicated TUNE mode will always check for the presence of
encoded squelch and digital modulation each time it finds an
active frequency. If a valid encoded squelch code is found, it will
be shown on the display, and stored automatically when you
press STOR to create a new CONV object.
Dedicated TUNE mode also displays information about trunking
control channels and trunked voice channels it finds while tuning
through the RF spectrum. The following information is displayed
for the various trunking modes:
Trunked Mode Analysis Display
Motorola 3600 baud control
channel
qq% SID:ssss Stt
where qq=decoding quality of the
control channel data, SID=System ID,
and S=Site Number
P25 9600 BPS control channel qq% Nnnn W:wwwww
Sys:sss Rrr Stt
where qq=decoding quality of the
control channel data, N=NAC,
W=WACN, SYS=System ID, R=RFSS,
and S=Site Number
EDACS control channel qq% S:ss h/H s/S a/A
where qq=decoding quality of the
control channel data, S=Site ID, h/
H=not home site/is home site, s/S=not
SCAT site/is SCAT site, a/A=not Aux
CC/is Aux CC
0716 User Manual Page 74
Trunked Mode Analysis Display
LTR home repeater HR:hh A-HH-GGG
where HR=the home repeater number
of the tuned frequency, A-HH-
GGG=the Area, Home Repeater and
Group ID of the LTR talkgroup
Motorola analog voice channel VC: lsTGID-nnnnn
where lsTGID shows the decoded
talkgroup ID data from the lowspeed
data stream
Please note that the analog lowspeed
data protocol does not provide error
correction, and some false “VC:
lsTGID” readings should be expected.
You may wish to use the 0716's Tune LED feature to obtain
a visual indication of signal strength using the tri-color LED. To
activate the Tune LED, press PGM, then the GLOB softkey. Press
the key until Tune LED: Off appears in the display.
Use the  keys to toggle Tune LED on or off, then press the
SAVE softkey to save your changes to the radios configuration
memory.
Using dedicated Limit and Service search modes
The SRCH key provides immediate access to the dedicated
search modes of your 0716. Pressing the SRCH key cycles
through each search mode in this order: Limit, Railroad, Public
Safety, Aircraft, Ham, CB, Marine, and FRS/GMRS/MURS/DOT.
LMIT Search Mode
Your scanners dedicated LMIT search mode provides you with
the ability to create a limit search with a search frequency range
between upper and lower limit frequencies that you specify and
perform the limit search directly without creating a new LMIT
object. You can then monitor that frequency range for
transmissions.
To enter LMIT mode, press the SRCH key on the keypad
repeatedly until the display indicates LMIT search as follows:
0716 User Manual Page 75
Adds found
frequency to
frequency lockout
list. When not
monitoring a
frequency, Lmts
allows changes to
the search limit
frequencies
Use the Lmts softkey to set the lower and upper frequency limits
for your limit search.
Press the or keys on the 5-way pushbutton pad to change
the search direction.
Press the MODE softkey to change the receive mode (AM, FM,
NFM) from the default for the current frequency range (au).
Press the FrL/O softkey to add a found frequency to the lockout
list.
Press the STOR softkey to create a new CONV object using the
found frequency.
Using dedicated SRVC mode
Your scanners dedicated SRVC search modes provide you with
the ability to instantly access each of the scanners service
search ranges without creating a new SRVC object.
To activate dedicated SRVC search mode, press the SRCH key
on the keypad repeatedly until the desired service search is
indicated on the display. The following service searches are
available:
Railroad - searches the Association of American Railroads
(AAR) VHF railroad frequencies used in the US and Canada
0716 User Manual Page 76
Public Safety (PubSafety) - Searches commonly used public
safety frequencies. Groups are as follows:
0: 33.4-46.5 MHz VHF Low Band
1: 151-170 MHz VHF High Band
2: 453-467 MHz UHF Band
3: 764-806 MHz 700 MHz Band
4: 851-869 MHz 800 MHz Band
Aircraft - Searches civilian and military air frequencies. Groups
are as follows:
0: 108-118 MHz Navigation
1: 118-137 MHz Civilian Voice
2: 138-150 MHz Military Voice (excludes 2m Amateur)
3: 225-400 MHz Military Voice
Ham - Searches amateur radio frequencies. Groups are as
follows:
0: 28.0-29.7 MHz 10m Band
1: 50-54 MHz 6m Band
2: 144-148 MHz 2m Band
3: 222-225 MHz 1.25cm Band
4: 420-450 MHz 70cm Band
5: 902-928 MHz 33cm Band
6: 1240-1300 MHz 23cm Band
CB - Searches the citizens band radio frequencies
Marine - Searches the VHF-FM marine radio band
FRS/GMRS/MURS/DOT/STAR (F/G/MURS) - Searches the
FRS, GMRS, MURS, DOT and STAR radio frequencies
0716 User Manual Page 77
Use the numeric keypad to toggle the sub bands on and off while
searching.
Press the or keys on the 5-way pushbutton pad to change
the search direction.
Press the FrL/O softkey to add a found frequency to the lockout
list.
Press the STOR softkey to create a new CONV object using the
found frequency.
Using Weather Modes
Your 0716 also functions as a powerful weather alert
receiver. There are three modes of weather alert operation
available to you.
NOTE: Your scanner incorporates weather alert as one of its features and is
an extremely sensitive high quality receiver on the weather
frequencies. However, the included antenna is designed for general
purpose scanning. If you use this scanner as your only means for
receiving weather alerts, please check to be sure you are receiving a
clear signal on the included antenna or switch to an external antenna
that gives you clear reception of a local NOAA weather broadcast.
0716 User Manual Page 78
Weather Radio Mode
Weather radio mode allows you to receive weather broadcasts
from your local weather service anytime of the day.
To use weather radio mode, simply press the WX button on the
keypad. The scanner will quickly scan and lock on to the first
active weather radio frequency it receives. You can use the or
keys on the 5-way pushbutton pad to force the radio to look
for other weather radio transmitters. It is generally best to select
the weather radio transmitter that provides you with the strongest
signal. You can use the signal meter to help you chose the best
weather radio transmitter for your area. While operating in
Weather Radio Mode, your scanner will alert on SAME
messages that match the SAME location codes you have
entered, or all SAME messages if you do not enter any SAME
location codes.
Weather Priority Mode
Weather Priority mode samples the specified weather frequency
periodically while scanning to see if the All Hazards 1050 Hz
Warning Alert Tone (WAT) is present. If the WAT is present, the
scanner will sound an alarm and tune to the specified weather
frequency to monitor the nature of the alert.
To activate Weather Priority Mode, follow the steps above listed
above in Weather Radio Mode to find the strongest weather
radio transmitter for your area. Once the radio is tuned to the
0716 User Manual Page 79
strongest weather radio transmitter for your location, press the
PRI key on the keypad. When in Scan Mode, the radio will check
the specified weather frequency periodically for the 1050 Hz
Warning Alert Tone (WAT). If WAT is found, the radio will sound
an alarm and monitor the weather alert audio.
SAME Standby Mode
SAME Standby Mode monitors the specified weather frequency
silently, waiting to receive a Specific Area Message Encoding
(SAME) alert that corresponds with a SAME location code that
you have previously entered. If there is a match between a sent
SAME location code and one that you have previously stored,
the scanner will sound an alarm, display the alert type, and
monitor the nature of the alert.
To activate SAME Standby Mode, first you should provide at
least one SAME location code for your city, county or state. By
default, SAME mode will alert on any SAME message received if
no SAME location codes are entered. A list of SAME location
codes can be found online at this web site:
http://www.nws.noaa.gov/nwr/indexnw.htm#sametable
In addition to the code for your location, you may wish to enter
additional codes for surrounding areas and any other areas of
interest so that you can receive advance warning of adverse or
dangerous weather that may be headed in your direction.
Unlike other weather alert radios, your scanner features a
powerful SAME wildcard feature that allows you to set the radio
to alarm on partial matches of the location code. For example,
the SAME location code for Dallas, TX is 048113, which can be
broken down as follows:
0 represents a subdivision within a county, and is typically not
used.
48 is the State code for Texas
113 is the County code for Dallas County
Entering the entire 048113 code will cause the radio to receive all
SAME alerts that match the code for Dallas County.
Suppose you wanted to receive any alert for any county in the
entire state (provided that the alert is sent by your local NWS
0716 User Manual Page 80
transmitter). Using the wildcard feature you can enter a SAME
area code as follows:
*48***
This tells the radio to alert on any SAME message with a location
code that matches 48 for the state of Texas.
Your scanner also allows you to specify the event code. The
default alert code is “***”, which is best for most general purpose
weather alert monitoring purposes. A list of event codes can be
found at this web site:
http://www.weather.gov/os/eas_codes.shtml
Each SAME location/event code storage location can be
configured for Entry ON/OFF and Lockout ON/OFF.
When a SAME location/event code storage location is set for
Entry ON, the radio will process the SAME location/event code
that is stored there. When a SAME location/event code storage
location is set for Entry OFF, that SAME location and event code
will be ignored.
When a SAME location/event code storage location is set for
Entry ON and Lockout ON, the radio will process the SAME
location/event code that is stored there, and will lock out the
specified event code. A SAME location/event code storage
location set for Entry: OFF and Lockout: ON will not be
processed, because Entry is set to OFF. In case of a conflict (i.e.,
two identical codes and events are entered, and one is locked
out), the locked out entry will take precedence.
SAME Entry Examples
Using the Dallas County, TX example above:
SAME Entry 1:
Code: 048113
Event: ***
Entry: ON
Lockout: OFF
SAME Entries 2-10:
Code: ******
Event: ***
Entry: OFF
Lockout: OFF
0716 User Manual Page 81
The above entry for 048113 will receive all SAME messages for
048113.
SAME Entry 1:
Code: 048113
Event: ***
Entry: ON
Lockout: OFF
SAME Entry 2:
Code: 048113
Event: RWT
Entry: ON
Lockout: ON
The above combination of entries for 048113 will receive all
SAME messages for 048113, except the Required Weekly Test
(RWT) message, since the second entry is ON, with lockout ON,
and with RWT in the event field.
SAME Entry 1:
Code: 048113
Event: ***
Entry: ON
Lockout: OFF
SAME Entry 2:
Code: 048113
Event: ***
Entry: ON
Lockout: ON
The above combination of entries for 048113 will not receive any
SAME messages for 048113, since the second entry is ON, with
lockout ON, and with *** (all events wildcard) in the event field.
The entry lockout feature should be used with caution such as
not to inadvertently lock out desired SAME location or event
codes.
Entering SAME Location and Event Codes
The following steps are used to create a SAME entry that
provides all weather alerts for a given location.
Press the WX key to enter Weather mode.
0716 User Manual Page 82
Press the SAME softkey to add or edit SAME entries. The
scanner display will show the following:
Use the or keys on the 5-way pushbutton pad to scroll to
the desired SAME code entry.
Press the SEL key on the 5-way pushbutton pad to edit the
selected SAME entry. The scanner display will appear as follows:
0716 User Manual Page 83
With the Entry: field selected, press on the 5-way
pushbutton pad to turn the entry on.
Scroll to the Code: field and press on the 5-way pushbutton
pad to enter a SAME location code. Use the keypad to enter a
SAME code.
NOTE: The 0716 supports entry of Extended SAME codes, which
can include numbers and letters. The text entry mode is used to
enter both numerical SAME codes and extended SAME codes. To
enter a numerical SAME code, simply precede each number in the
SAME code with “1”. For example, to enter SAME code 048113,
press 10 14 18 11 11 13.
Scroll to the Event: field. Note the current default of ***, which
will allow all messages for the specified SAME location code. We
recommend that you leave the event code with “***” to receive
all alerts.
Scroll to the Tag: field. We suggest that you enter a tag name
here that corresponds with the SAME location code that you
have entered. Press on the 5-way pushbutton pad to edit the
tag name, and use the standard text entry method to enter your
tag. Using our Dallas County example, you would enter the
following:
31 D
21 A
53 L
53 L
21 A
74 S
. <space>
23 C
63 O
82 U
62 N
81 T
93 Y
Scroll to the Alarm: field. Note that you can specify different
alarm sounds for this SAME entry. We recommend that you use
the default setting here for general purpose weather alerting.
Scroll to the Lockout: field. Note that Lockout is currently set to
off. Lockout is a special purpose parameter that can be used to
0716 User Manual Page 84
lock out individual event or area codes. We recommend that you
leave Lockout set to off for general purpose weather alerting.
When you have finished editing your SAME entry, press the
Save softkey to store the data, then press the Save softkey to
save all SAME changes and return to the Weather mode.
Activating SAME Standby Mode
After you have entered your desired SAME codes, you can
activate the SAME Standby Mode to begin standby operation.
The radio will remain silent until a SAME transmission is received
with a code that matches one that you have stored. When a
matching SAME message is received, your radio will sound a
siren alarm, then will play the audio message that follows the
Warning Alert Tone (WAT).
To activate SAME standby mode, press the WX key, use the
or keys to find the best weather radio transmitter for your
location, then press the stby softkey. The softkey will change to
STBY to indicate that SAME Standby Mode is active, and the
scanner will alert when a matching SAME message is received.
Press the STBY softkey again to exit SAME Standby Mode, or
press MAN,SCAN or PGM.
When your local NWS office activates a SAME warning that
matches a FIPS code stored in your scanner, you will hear first
hear a siren alarm and see the LED flash to alert you to the
incoming alarm. The LED flashes RED for warnings, YELLOW
for warnings, and BLUE for tests and administrative messages.
The scanner sound the siren until the NWS transmission of the
1050 Hz Warning Alert Tone (WAT) begins. Once the WAT
begins, the scanners speaker will unmute, and you will hear the
WAT play as an alert that the voice portion of the SAME warning
is about to begin. You will then hear the voice portion of the
SAME warning.
Your scanner will resume SAME Standby operation 90 seconds
after the SAME warning starts. You may reset standby mode by
pressing the STBY softkey twice at any time.
Using V-Scanner Storage
Your 0716 features two types of memory storage. Main
memory is used to store your programming that is used for
everyday monitoring and scanning. V-Scanner memory is used
0716 User Manual Page 85
to store complete copies of your scanners main memory for later
recall, including objects, global settings and dedicated search
configurations. We call this feature V-Scanner, for “Virtual
Scanner”. Your 0716 features 21 V-Scanner storage
locations, each capable of storing a copy of your scanners main
memory.
Having 21 Virtual Scanners is like having 21 scanners in one.
You can custom tailor a main memory configuration to suit your
needs for the type of scanning you do in different situations, then
store that configuration for later use. If you travel frequently, you
may want to create V-Scanners for the areas where you travel.
V-Scanners are also useful for backing up your configurations.
Once you have main memory configured the way you like it, you
can save it to a V-Scanner where it will remain untouched until
you delete, overwrite or recall it. Then, if you happen to make a
mistake while using your main memory that you cannot fix, you
can recall the backup data and start again.
NOTE: V-Scanner storage is not unlike working with a hard drive on a
personal computer. You save active scanner configurations (called
“working” or “main” memory) to a V-Scanner storage folder for later
use, and you recall stored scanner configurations from a V-Scanner
storage folder to main memory when you want to use them. If you
recall a configuration from a V-Scanner storage folder and use it in
main memory, any changes you make while using the configuration
will not automatically be transferred to the configuration data stored
in the V-Scanner storage folder. You must save your changes back to
that folder location if you want to preserve them for later use. When
you load a new configuration into main memory, the contents of main
memory are overwritten and lost, unless you save your main memory
to a V-Scanner storage folder first. Once the configuration data in
main memory has been overwritten, it cannot be recovered - there is
no “Undo” function.
V-Scanners provide a capability that is similar to having a
computer with scanner programming software available all of the
time. Instead of connecting the computer and transferring
configuration files to and from main memory, you use V-
Scanners to save or load main memory configurations in the
field. Each V-Scanner storage location is called a V-Scanner
folder. To begin V-Scanner operations, press FUNC PGM. The
scanner display will appear as follows:
0716 User Manual Page 86
Saving Main Memory To A V-Scanner Folder
To save the current contents of your scanners main memory to a
V-Scanner folder, press FUNC, then PGM to enter V-Scanner
mode, then press the Stor softkey. Use the  keys on the 5-
way pushbutton pad to scroll to the desired V-Scanner folder,
then press the Stor softkey.
If the selected V-Scanner folder already contains data, you will
be asked if you wish to overwrite the existing data with new data
from your current version of main memory. Press the YES softkey
to proceed, or the NO softkey to cancel. If you decide the
overwrite existing data, or if the selected V-Scanner folder is
already empty, the scanner will prompt you to enter a name for
the stored V-Scanner. The scanner uses the text from Line 4 of
the Welcome Screen as a default name if the folder is empty, or
the current name if the folder contains data. You can provide
your own text here without overwriting the Line 4 Welcome
Screen text. Use the standard text entry method to type the
name you wish to use, then press the OK softkey. The scanner
will write the contents of main memory to the V-Scanner folder.
This will take approximately four seconds to complete.
Loading A Stored V-Scanner Folder To Main Memory
To load the contents of a previously saved V-Scanner folder into
your scanners main memory, press FUNC, then PGM to enter V-
Scanner mode, then press the Load softkey. Use the  keys
on the 5-way pushbutton pad to scroll to the desired V-Scanner
folder, then press the Load softkey. The scanner will ask you to
confirm that you wish to overwrite the current contents of main
memory. Press the YES softkey to proceed, or the NO softkey to
abort. The data transfer takes approximately 4 seconds to
complete.
0716 User Manual Page 87
Erasing V-Scanner Folders
You can erase V-Scanner folders when you no longer need them
and wish to make the folder storage location available for other
data.
To erase the contents of a previously saved V-Scanner folder,
press FUNC, then PGM to enter V-Scanner mode, then press the
Eras softkey. Use the  keys on the 5-way pushbutton pad to
scroll to the desired V-Scanner folder, then press the Eras
softkey. The scanner will ask you to confirm that you wish to
overwrite the current contents of the selected V-Scanner folder.
memory. Press the YES softkey to proceed, or the NO softkey to
abort.
Cloning Your Radio to Another 0716 or 0715 Scanner
Your 0716 features a high speed data interface that can be
used to transfer the data from your scanner to another 0716
or 0715 scanner from GRE.
To clone your radio to another unit, use a standard stereo patch
cord terminated with 1/8” male stereo phone plugs on each end
to connect your radio (the SOURCE radio) to another radio (the
TARGET radio). Ensure that both radios are powered on. Press
the PGM key, then the GLOB softkey to enter the Global Settings
menu. Scroll to the Clone Send: option, then press the SEL
key when you are ready to send data from your SOURCE radio
to the TARGET radio. Both working memory and global settings
are transferred.
NOTE: The contents of working memory on the TARGET radio will be
overwritten immediately when SEL is pressed on the SOURCE radio.
Standard Text Entry Method and QuickText
Your 0716 features a high-contrast, backlit alphanumeric
display that provides constant feedback about what the radio is
doing while scanning and monitoring your “Scannable Objects”.
To get the most out of your scanner and this display, you will
want to name your objects as you program them into the radio.
This allows for easy identification of active objects while the radio
is scanning, and makes it easier than ever to find objects that
you wish to monitor, edit or delete using the powerful FIND
feature.
0716 User Manual Page 88
Your scanner uses a simple text entry method that allows entry of
all uppercase and lowercase letters of the alphabet, numbers,
and punctuation symbols. Your scanner also features GREs
exclusive QuickText feature, which allows you to store up to 10
commonly used text items for instant recall while editing
alphanumeric fields.
Entering and Editing Alphanumeric Information
A Standard Text Entry Method is used for entering alphanumeric
information into the radio. This method allows easy access to
each letter in the alphabet by pressing two keys that represent
the letter.
Take a moment to study the numeric keys on the keypad and you
will notice that keys 2-9 each have three or four letters silk
screened on the front panel just above each key. To enter a letter
in an alphanumeric text field, simply press the number key below
the letter you wish to type first, then press the number key that
corresponds with the position of the letter in the silk screen
group. For example, the number 2 is used to access the letters
A, B and C. To type the letter A, press 2 to select the ABC group,
then 1 to select the first letter in the group, A. Likewise, to type
the letter B, press 2 to select the ABC group, then press 2 again
to select the second letter in the group. And, to type the letter C,
simply press 2, then 3 to select the third letter in the “ABC”
group.
To enter numbers in alphanumeric text fields, press 1 first, then
the number you wish to type.
To enter punctuation, press 0 first to see the first set of
punctuation, then press the number key that corresponds with
the position of the desired punctuation mark in the set.
Press the . (period) key to enter a SPACE.
While using Standard Text Entry, the FUNC key serves as a shift
key. For letters, uppercase text is typed by default, and you can
shift to lowercase by pressing the FUNC key before entering a
character. For punctuation, the FUNC key accesses a second set
of punctuation marks.
Use the  keys to move the cursor to the desired location in
edit fields. Press FUNC or FUNC to move the cursor to the
beginning or end of an edit field, respectively. Use the CLR as a
backspace key, and press FUNC CLR to clear the entire field.
0716 User Manual Page 89
The 0716 character set and corresponding entry codes are
provided below for reference.
Char Code Char Code Char Code Char Code
A 21 O 63 3 13 ? 7
B 22 P 71 4 14 8
C 23 Q 72 5 15 9
D 31 R 73 6 16 0
E 32 S 74 7 17 . 0F1
F 33 T 81 8 18 - 0F2
G 41 U 82 9 19 # 0F3
H 42 V 83 0 10 _ 0F4
I 43 W 91 $ 1 @ 0F5
J 51 X 92 % 2 + 0F6
K 52 Y 93 ! 3 * 0F7
L 53 Z 94 ^ 4 & 0F8
M 61 1 11 ( 5 / 0F9
N 62 2 12 ) 6 , 0F0
Using QuickText
QuickText allows you to store up to 10 commonly used text items
for instant recall while editing alphanumeric fields. For example,
as you search for, store and name new CONV or TGRP objects,
you may find that you type the same words over and over, such
as POLICE, FIRE, SHERIFF, STATE, CITY, COUNTY, etc.
A few common QuickText words are provided for your
convenience. You can keep these, edit them to your preferences,
or replace them with your own custom QuickText words.
QuickText can be used while editing any alphanumeric text field.
To insert a stored QuickText item, while editing an alphanumeric
text field use the  keys to position the cursor where you what
the QuickText inserted, then press the QTXT softkey. The top row
of the display will show the available QuickText phrases. Use the
 keys to scroll through the stored QuickText phrases, and
press SEL to insert the QuickText phrase at the cursor location.
As a shortcut, you may press the number key on the numeric
0716 User Manual Page 90
keypad that corresponds with the QuickText item you wish to
use, instead of scrolling and pressing SEL.
Customizing QuickText
To edit the QuickText words, press PGM, then the GLOB softkey.
Scroll down to the QTXT section using the key on the 5-way
pushbutton pad and find the QTXT storage location that you wish
to change. Press the key to edit the QTXT entry. Use the
standard text entry method to enter your desired text. When you
use your QTXT entry in a text field, any unused spaces will be
filled with space characters. If you want to leave room for
additional text after the QTXT is loaded into a text field, include a
space after your text, then a dollar sign ($). This will place one
space after your QTXT when you use your QTXT in a text field,
and the edit cursor will be positioned just after that space where
you can continue appending text in the text field before you save
it. For example, if you use the entry SHERIFF in the QTXT
storage location, your text entry field will look like this after you
load the QTXT “SHERIFF”:
SHERIFF note that cursor is positioned at end of text field
if you use the entry SHERIFF $ in the QTXT storage location,
your text entry field will look like this after you load the QTXT
“SHERIFF”:
SHERIFF note that cursor is positioned at end of the word
Once you are finished editing your QTXT storage location, press
the SAVE softkey to save the QTXT, then press the SAVE softkey
again to save the changes you made to the GLOB menu.
Power-On Configuration Key Sequences
Your 0716 features power-on keypress sequences that are
used as shortcuts to configuration items, like attenuator settings,
backlight settings and memory information. Power-on key
sequences are also used to place your scanner into firmware
upgrade mode for CPU and DSP firmware upgrades.
The following table lists the power-on key sequences available in
the 0716. Unless otherwise specified, each sequence is
invoked by pressing and releasing each key in sequence, one at
a time. The first key must be pressed while the Welcome/Owner
screen is being displayed:
0716 User Manual Page 91
Key Sequence Function
1Shortcut to PGM>GLOB>Sound Mode
2Shortcut to PGM>GLOB>Key Beeps
3Displays Boot, CPU and DSP versions
DIM Shortcut to PGM>GLOB>Light Mode
ATT Shortcut to PGM>GLOB>Atten Mode
0, 0 Shortcut to PGM>GLOB>Memory Info
0, 1
Destructive, clears working memory and
resets all Global settings to factory
defaults. Does not affect V-Scanners.
0, 2
Destructive, resets all Global settings to
factory defaults. Does not affect working
memory or V-Scanners.
0, 5
Destructive, executes EEPROM memory
test, then clears working memory and
resets all Global settings to factory
defaults. Does not affect V-Scanners.
0, CLR Erases DSP APP Upgrade code, restores
factory DSP version
0, PGM Places radio in DSP APP firmware upgrade
mode
Hold PGM while
powering on
radio
Places radio in CPU firmware upgrade
mode
Birdie Frequencies
Every scanner has birdie frequencies. Birdies are signals created
inside the scanners receiver. These operating frequencies might
interfere with transmissions on the same frequencies. If you
program one of these frequencies, you hear only noise on that
frequency. If the interference is not severe, you might be able to
turn SQ clockwise to omit the birdie.
To find the birdies in your scanner, begin by disconnecting the
antenna and moving it away from the scanner. Make sure that no
0716 User Manual Page 92
other nearby radio or TV sets are turned on near the scanner.
Use the TUNE function and scan every frequency range from its
lowest frequency to the highest. Occasionally, the searching will
stop as if it had found a signal, often without any sound. This is a
birdie. Make a list of all the birdies in your scanner for future
reference.
Care
Keep the scanner dry; if it gets wet, wipe it dry immediately. Use
and store the scanner only in normal temperature environments.
Handle the scanner carefully; do not drop it. Keep the scanner
away from dust and dirt, and wipe it with a damp cloth
occasionally to keep it looking new.
Modifying or tampering with the scanners internal components
can cause a malfunction and might invalidate its warranty and
void your FCC authorization to operate it.
In Case of Fault
If you believe your scanner is defective, you should contact your
dealer for assistance. However, before you do so, check that the
fault was caused by an operational error. Carefully reread the
relevant section in the Owners Manual.
0716 User Manual Page 93
Troubleshooting
If you have problems with your scanner, please refer to the following chart for
some suggestions that might help you eliminate the problem. If the scanner is still
not operating correctly after trying these tips, contact the dealer where you
purchased your scanner for assistance.
Troubleshooting Chart
Problem Possible Cause Remedy
Poor reception Weak signals from distant stations Reposition radio for best
reception
A
ttenuator in use on weak signals Check performance with and
without attenuator activated, use
setting with best reception
Strong signal overload from nearby
transmitter(s)
Check performance with and
without attenuator activated, use
setting with best reception
Scanner will not power on
A
C or DC power supply not
properly connected
Check connection to AC or DC
power source
The keypad does not work The scanner may need to be
initialized
Follow steps below to initialize
the scanner
Scanner will not scan when
SCAN key is pressed
Possible “birdie” frequency
programmed
Tighten squelch, apply attenuator
or lock out the “birdie” frequency
The scanner may need to be reset
or initialized
Follow steps to reset/reinitialize
the scanner following this table
No channels programmed, or only
one channel programmed, or all
channels locked out
Ensure that the scanner has
more than one channel
programmed and enabled for
scanning
SQUELCH control is not adjusted
properly
Turn SQUELCH control
clockwise until scanning resumes
The scanner does not
receive digital
transmissions on digital
frequencies or trunking
systems
The digital channel or talkgroup is
not using APCO-25 digital
modulation
The scanner can only receive
A
PCO-25 C4FM/CQPSK IMBE
digital signals
The digital channel or talkgroup is
encrypted
The scanner will not receive
encrypted traffic
The digital channel or talkgroup is
being transmitted from a distant
location
Reposition the scanner or use an
outdoor antenna to improve
reception
Initializing Global Parameters to Factory Defaults
If your scanner does not appear to be functioning properly, you
can reset the global radio parameters to their factory state
without losing any of your programmed data. Any custom
changes you have made to the radios global parameters will be
lost.
NOTE: This procedure preserves the information you stored in the scanner s working
memory, while resetting all global radio parameters to factory defaults.
V-Scanner memory is not affected by this operation.
0716 User Manual Page 94
1. Turn off the scanner, then turn it on again. The scanner briefly
displays the DSP boot version, and then the Welcome/Owner
screen is displayed.
2. Press 0 while the scanner is displaying the Welcome/Owner
screen. The scanner displays
System Tests:
Select a Test...
Exits if no key
is pressed
3. Press 2. The scanner displays
Init GLOB data
To factory state
ENTER if APPROVE
CLEAR to EXIT
4. Press ENT. The scanner displays
GLOB EEPROM area
Initialized to
defaults.
Press any key.
5. Press any key on the keypad to proceed. The scanner will
reboot with file system and global parameters reset to factory
defaults.
Initializing the Scanner to Factory Defaults
If initializing the global parameters to factory defaults does not
resolve your problem, you may wish to initialize the entire
scanner to factory defaults. This operation will result in the
clearing of your programmed data and the loss of any custom
changes you have made to the radios global parameters. Use
this option as a last result, and, if possible, save your working
memory to a V-Scanner folder prior to performing this operation.
NOTE: This procedure clears all information you stored in the scanner s working
memory, AND resets the global parameters to factory defautls. Initialize the
scanner only when you are sure the scanner is not working properly.
V-Scanner memory is not affected when the scanner is initialized.
1. Turn off the scanner, then turn it on again. The scanner briefly
displays the DSP boot version, and then the Welcome/Owner
screen is displayed.
0716 User Manual Page 95
2. Press 0 while the scanner is displaying the Welcome/Owner
screen. The scanner displays
System Tests:
Select a Test...
Exits if no key
is pressed
3. Press 1. The scanner displays
Factory Init
Erase Memory
ENTER if APPROVE
CLEAR to EXIT
4. Press ENT. The scanner displays
Initializing the
File System
Please Wait.....
Then,
File System
Initialized to
Defaults.
Press any key.
5. Press any key on the keypad to proceed. The scanner will
next display:
GLOB EEPROM area
Initialized to
defaults.
Press any key.
6. Press any key on the keypad to proceed. The scanner will
reboot with file system and global parameters reset to factory
defaults.
0716 User Manual Page 96
Detailed Menu Reference
Your 0716 scanner uses GRE's exclusive Object Oriented
User Interface, which features a powerful menu system that is
used to configure the various Scannable Objects that your
scanner is capable of receiving. The 0716 design also
includes a Global Settings (GLOB) menu that provides
unprecedented control over the radio wide settings used
throughout your scanner. This section of the manual provides
detailed information all of the menus and menu parameters.
Each menu parameter features a Dflt softkey that can be used
to restore the value to the factory defaults. This can be very
useful if you make a change to a parameter but do not like the
result.
HINT: Remember that context sensitive help is available for every menu
parameter. Press FUNC SEL to view help for the selected
parameter. Press SEL to exit help.
HINT: It s easy to fix things if you inadvertently change a parameter and
then can t remember how to make it right again. Each parameter
includes a Dflt softkey, which, when pressed, restores the factory
default setting for that parameter.
HINT: If you think you ve really messed the Global settings up, you can
reset every global parameter back to factory defaults without altering
your programmed objects. Turn the radio off, then on again. While
the “Welcome” screen is being displayed, press and release 0, then
press and release 2. Press ENT to confirm the reset of all global
parameters to their factory defaults.
NOTE: The Special Global Settings menu (FUNC GLOB) includes
parameter settings that, if not set properly, may adversely affect the
performance of your radio. We recommend that users not change
the settings found in the FUNC GLOB menu unless instructed to in
this manual or directed to do so by GRE Technical Support
personnel. Should you experience difficulties after changing any of
the settings in the FUNC GLOB menu, you can also restore those
settings to factory defaults by pressing the Dflt softkey associated
with each menu line, or following the 0,2 global settings reset
procedure described above.
0716 User Manual Page 97
GLOB Menu Reference
The GLOB menu stores all of the radio-wide settings used by the
scanner. The GLOB menu allows you to “tweak” these settings to
your liking. The default settings will work fine for most users, but
most users will want to use the GLOB menu to personalize the
radio to suit their individual tastes. The active parameter is
always the middle parameter and is indicated by a flashing “:”.
The entire GLOB menu is shown below. Note that some GLOB
parameter changes do not take effect until the GLOB menu is
saved.
HINT: You can restore all GLOB settings to their defaults without affecting
your programmed objects or V-Scanners. Power cycle the radio, then
press 0, then 2 during the welcome message display. Press ENT to
confirm the GLOB parameter reset.
GLOB
Parameter Options Description
CONTRAST
Owner
Clone Send
Alert Mode
Sound Mode
Key Beeps
Light Mode
Light Area
1-7 Sets LCD contrast. Use  keys on 5-way
pushbutton pad.
SEL Enters sub menu to set Welcome Message text
display.
SEL Press SEL to send data using clone mode
Both, Tone, Light, Off
Controls the ALERT LED and Audible Alarm
behavior. Both allows the LED and Tone. Tone
allows the audible alarm only. Light allows the LED
only. Off deactivates the ALERT LED and Audible
Alarm feature.
Key or Stlth Controls all radio beeps.
On or Off Controls key beeps.
On, Stlth
Controls the backlight operation. On causes the
backlight to remain on all the time. Stlth (Steath)
disables the backlight.
Both, LCD, Keybd
Controls what area is illuminated when the
backlight is on. Both illuminates the LCD and the
keypad, LCD illuminates the display only. Keybd
(Keyboard) illuminates the keypad only.
0716 User Manual Page 98
GLOB
Parameter Options Description
Atten Mode
Global Atten
Clear Hits
Hit Counts
Dflt
ScanList
Priority
WxPri
Scan Lists
SRCH L/Outs
Clear FAV
Memory Info
EXPERT BELOW
Tune LED
Color 0-7
Qtxt1-0
Key Repeat
LCD BlinkOff
LCD BlinkOn
LED BlinkOff
LED BlinkOn
Pri Channels
Global or Normal
The attenuator reduces the amount of signal at the
receiver input. This helps reduce interference from
strong nearby transmitters. Global attenuator mode
applies attenuation radio-wide, regardless of
individual object settings. In Normal attenuator
mode, the attenuator follows the individual object
attenuator setting.
On or Off When the ATTEN mode is set to Global, this
controls whether the Global attenuator is on or off.
SEL Press SEL to clear all hit counters.
Yes or No Turns the hit counter feature on or off.
0-22
Sets default destination Scan Lists for new objects
and CONV Stor from Searches, Spectrum Sweeper
and Tune. Use 1-20 for “normal” Scan Lists 1-20.
Use 0 for the “ns” (not scanned) Scan List (no Scan
List mappings are specified). Use 21 for the FAV
Scan List. Use 22 for the SKYWARN Scan List.
On or Off
Turns Priority Scan On or Off. Priority Scan can
also be toggled by pressing FUNC PRI while
scanning.
On or Off Toggles Weather Priority Mode on or of. Also
accessed by pressing WX, then PRI
SEL Enters sub menu for Scan List settings and status
SEL Enters sub menu for review, editing or deletion of
search lockout frequencies
SEL Press SEL to clear the Favorites Scan List.
SEL Press SEL to see the current memory usage.
On or Off Activates Signal Strength driven LED when in
TUNE mode.
RGB value
Sets intensity of red, green and blue LEDs. Press
SEL to edit colors. Use  keys to scroll to R, G
or B LED settings. Use numeric keys to activate
preset intensity levels for each LED, or use 
keys to fine scroll intensity.
Text value Sets QTXT (QuickText) 0-9 text. Use “$” to indicate
end of text.
On or Off Toggles key repeat mode when a key is held down
1-250 x 10 mS For alternating text displays, sets the display time
for the secondary display element.
1-250 x 10 mS For alternating text displays, sets the display time
for the primary display element.
1-250 x 10 mS
When the ALERT LED setting for an object is set to
Flash, this is the amount of time the LED stays
turned off.
1-250 x 10 mS
When the ALERT LED setting for an object is set to
Flash, this is the amount of time the LED stays
turned on.
0-250
Number of priority CONV channels to check during
a priority scan sampling. “0” samples all CONV
priority channels.
0716 User Manual Page 99
GLOB
Parameter Options Description
Pri Interval
TGRP Pri Int
QuickPriRtn
Search Delay
SRCH Dig AGC
SRCH SuprTrk
TLO=FUNC L/O
DupeChecksSQ
TGID Format
TGRP Ignore
ShowCCInfo
2-100 x 100 mS Conventional frequency priority sample interval.
On or Off Toggles priority interrupt scanning during trunked
calls
On or Off
When on, does not wait for verification of correct
CTCSS, DCS or NAC when returning to an active
CONV channel after priority sampling
1-100 x 100 mS Sets wait for reply delay for all search modes
On or Off
Sets digital AGC mode on or off for all search types.
Useful to compensate for low or high digital audio
levels caused at the system.
On or Off
Alternative DSP decoding algorithm is applied to all
search types. May help reception on some
systems.
On or Off
Controls the operation of the L/OUT key. When Off,
pressing L/OUT performs a Temporary Lockout of
the selected object. When On, pressing L/OUT
performs a Permanent Lockout of the selected
object.
Yes or No
If set to Yes, dupe checking will check both the
stored frequency and any encoded squelch settings
when checking for duplicate CONV objects.
Norm, DEC or HEX Selects TGID display format
Yes or No
If set to Yes, TGRP wildcards will ignore calls on
previously stored TGRPS that are mapped to
disabled Scan Lists.
Yes or No
Displays the Control Channel List # of the active
control channel, and receive quality of the control
channel if Multisite=Off for the TSYS
0716 User Manual Page 100
CONV Menu Reference
The CONV menu is used when creating new Conventional
Channel objects, or editing existing Conventional Channel
objects. All menus are shown in the scanners display as a three
line window that can be scrolled up or down to access the
various different parameters. The active parameter is always the
middle parameter and is indicated by a flashing “:”. The entire
CONV menu is shown below:
CONV
Parameter
Scan Lists
Freq
Tag
Sq Mode
Squelch Code
L/Out
Priority
LED Mode
LED Color
Latch LED
Backlight
Options Description
On or Off for Scan Lists
1-20
Sets membership in Scan Lists. Use  keys to
scroll through Scan Lists. Use SEL key to toggle
Scan List membership. A “*” next to the Scan List
number indicates that the object is mapped to that
Scan List.
Any supported frequency in
MHz The frequency that the CONV object will use.
Alpha-numeric text
The alphanumeric display name for the CONV
channel. Use the standard text entry method or
QTXT to name the object.
Search, None, CTCSS,
DCS, P25
Sets subaudible squelch mode or Project 25
conventional digital modulation. Use Search to
automatically analyze signals to determine squelch
mode and code. Use None to ignore subaudible
squelch. Use CTCSS for tone coded squelch, DCS
for digital coded squelch, or P25 for Project 25
conventional digital operation. Used in conjunction
with Squelch Code parameter below.
CTCSS Hz, DCS Code,
P25 NAC
Sets CTCSS tone, DCS code, or P25 NAC
depending on Sq Mode setting. Use Search to
detect tone or code value for selected squelch type.
On or Off
Permanent lockout for the CONV channel. Also
accessed by pressing FUNC L/OUT while the
scanner is stopped on the CONV object.
On or Off Turns Priority Mode on or off for the CONV object.
Solid or Flash Controls whether the ALERT LED flashes or
remains on solid when the ALERT LED is used.
0-7
Sets LED color to 0-7 as defined in the GLOB
menu. By default, 0=LED Off, 1=Red, 2=Yellow,
3=Green, 4=Cyan, 5=Blue, 6=Magenta, 7=White.
On or Off
Normally the ALERT LED is active only while the
object is receiving a transmission. When Latch is
on, the ALERT LED will remain lit after the
transmission is complete, unless overridden by a
subsequent object that is also using the ALERT
LED.
On, Off or Flash Controls whether the backlight should be on, off or
flashing while the object is active.
0716 User Manual Page 101
Alarm
Fav
Skywarn
EXPERT BELOW
Modulation
Atten
Delay
Delay Time
Digital AGC
Supertrack
AudioBoost
Hit Count
None, Chirp, Hi-Lo, Alert,
Ring, 2-Chirp, Fast Hi-Lo,
DTMF#
Sets the Audible Alarm for the CONV object. When
an Audible Alarm is selected, the selected alarm will
play at the beginning of each transmission on the
CONV object, or anytime the scanner stops for
activity on the CONV object while scanning.
On or Off When On, the CONV object is a member of the
Favorites Scan List.
On or Off When On, the CONV object is a member of the
Skywarn Scan List.
AM, FM, NFM, AU
Modulation setting for the CONV channel. In most
cases AU will work fine. Use AM to override and
force AM modulation, FM to force FM modulation,
NFM to force narrow FM modulation.
On or Off
When on, applies 20 dB of attenuation to all
transmissions on the CONV channel. Useful in
areas where interference from nearby strong
signals is present.
On or Off Controls whether a Delay is used to wait for reply
traffic after a transmission on the CONV channel.
1-200
Sets the amount of time (in 100 millisecond
intervals) for the wait for reply delay if Delay is On,
e.g., 20=2 seconds.
On or Off Controls Digital AGC function for the CONV
channel
On or Off Alternative DSP decoding algorithm. May help
reception on some systems.
On or Off Applies a 6 dB boost to audio levels when the
object is active
Numeric value
Increments each time a transmission is received on
the SWPR object. Global “Hit Counts” must be set
to ON. Press the Dflt softkey to reset to 0.
0716 User Manual Page 102
TGRP Menu Reference
The TGRP menu is used when creating new Trunking Talkgroup
objects, or editing existing Trunking Talkgroup objects. All menus
are shown in the scanners display as a three line window that
can be scrolled up or down to access the various different
parameters. The active parameter is always the middle
parameter and is indicated by a flashing “:”. The entire TGRP
menu is shown below:
TGRP
Parameter
Scan Lists
TSYS
ID
Type
Tag
L/Out
Priority
LED Mode
LED Color
Latch LED
Backlight
Alarm
Options Description
On or Off for Scan Lists
1-20
Sets membership in Scan Lists. Use  keys to
scroll through Scan Lists. Use SEL key to toggle
Scan List membership. A “*” next to the Scan List
number indicates that the object is mapped to that
Scan List.
New or previously stored
trunking system object
(TSYS)
To enter a new trunking system, use the  keys
to scroll through the stored systems until NEW
appears, then press SEL to enter the parameters
for the new TSYS. To use a trunking system that
you have previously entered, use the  keys to
scroll to the desired system.
Decimal, hex or AFS
depending on TSYS type
The digital address of the talkgroup or individual
radio ID on the trunked radio system.
Group or Private Use Group for talkgroup ID, Private for individual
radio ID.
Alpha-numeric text
The alphanumeric display name for the TGRP. Use
the standard text entry method or QTXT to name
the object.
On or Off
Permanent lockout for the TGRP. Also accessed by
pressing FUNC L/OUT while the scanner is stopped
on the TGRP object.
On or Off Turns Priority Mode on or off for the TGRP object.
Solid or Flash Controls whether the ALERT LED flashes or
remains on solid when the ALERT LED is used.
0-7
Sets LED color to 0-7 as defined in the GLOB
menu. By default, 0=LED Off, 1=Red, 2=Yellow,
3=Green, 4=Cyan, 5=Blue, 6=Magenta, 7=White.
On or Off
Normally the ALERT LED is active only while the
object is receiving a transmission. When Latch is
on, the ALERT LED will remain lit after the
transmission is complete, unless overridden by a
subsequent object that is also using the ALERT
LED.
On, Off or Flash Controls whether the backlight should be on, off or
flashing while the object is active.
None, Chirp, Hi-Lo, Alert,
Ring, 2-Chirp, Fast Hi-Lo,
DTMF#
Sets the Audible Alarm for the TGRP object. When
an Audible Alarm is selected, the selected alarm will
play at the beginning of each transmission on the
TGRP object, or anytime the scanner stops for
activity on the TGRP object while scanning.
0716 User Manual Page 103
Fav
Skywarn
EXPERT BELOW
Delay
Delay Time
AudioBoost
Hit Count
On or Off When On, the TGRP object is a member of the
Favorites Scan List.
On or Off When On, the CONV object is a member of the
Skywarn Scan List.
On or Off Controls whether a Delay is used to wait for reply
traffic after a transmission on the TGRP.
1-200 x 100 mS
Sets the amount of time (in 100 millisecond
intervals) for the wait for reply delay if Delay is On,
e.g., 20=2 seconds.
On or Off Applies a 6 dB boost to audio levels when the
object is active
Numeric value
Increments each time a transmission is received on
the SWPR object. Global “Hit Counts” must be set
to ON. Press the Dflt softkey to reset to 0.
0716 User Manual Page 104
TSYS Menu Reference
The TSYS menu is used when creating new Trunking System
objects, or editing existing Trunking System objects. All menus
are shown in the scanners display as a three line window that
can be scrolled up or down to access the various different
parameters. The active parameter is always the middle
parameter and is indicated by a flashing “:”. The entire TSYS
menu is shown below:
TSYS
Parameter Options Description
Type
Tag
Frequencies
L/Out
EXPERT BELOW
Atten
Narrow FM
AudioBoost
MOT 800/900, MOT VHF/
UHF, P25 MANUAL, P25
AUTO, EDACS STD,
EDACS NAROW, LTR
Sets the trunking system type. Choose
MOT800/900 if the system is a Motorola 800 or 900
MHz analog or digital trunked radio system that
uses the 3600 baud control channel. Use P25
AUTO for most Project 25 systems that send
channel table information over the system control
channel. Use P25 MANUAL if it is necessary to
manually set the channel table information or if you
wish to use the default 800 MHz table data. Use
EDACS STD for most 800 MHz EDACS systems
using the 9600 BPS EDACS control channel. Use
EDACS NAROW for most 900 MHz and some VHF/
UHF EDACS systems using the 4800 BPS EDACS
control channel. Use LTR for Logic Trunked Radio
(LTR) systems.
Alpha-numeric text
The alphanumeric display name for the TSYS. Use
the standard text entry method or QTXT to name
the object.
SEL
Press SEL to enter trunked radio system
frequencies. Enter control channel frequencies in
any order for all Motorola and Project 25 trunking
systems. Enter system frequencies in LCN order for
all EDACS trunking systems. Enter system
frequencies in Home Repeater order for LTR
systems.
On or Off
Permanent lockout for the TSYS. When On, no
traffic will be received on any programmed TGRPs
for this TSYS.
On or Off
When on, applies 20 dB of attenuation to all
transmissions on this TSYS. Useful in areas where
interference from nearby strong signals is present.
Yes or No
Use Yes when the system is known to use Narrow
FM modulation. Most 900 MHz analog trunked
radio systems utilize NFM modulation. This setting
has no effect on digital trunked radio system
performance.
Yes or No Activates 6 dB audio level boost for all activity on
this TSYS
0716 User Manual Page 105
TSYS
Parameter Options Description
Dwell
Digital AGC
Supertrack
Multi-Site
Threshold Hi
Threshold Lo
T Tables
Fleet Map
0-200 x 100 mS
Sets the amount of time the scanner dwells on a
Motorola, P25 or EDACS system control channel
for activity on programmed talkgroups. Use 0 for
automatic mode, which uses control channel
information to determine when all current talkgroup
information has been broadcast by the system.
On or Off Controls Digital AGC function for the TSYS
On or Off Alternative DSP decoding algorithm. May help
reception on some systems.
Off, Roam or Stat
(Stationary)
Used with networked Motorola and P25 trunked
radio systems. When Multi-Site=Off, the scanner
will find the first usable control channel in the
control channel list and use it to track the system.
When Multi-Site=ROAM, the scanner will always
attempt to lock on to control channels where the
decoding quality is greater than Threshold Hi, and
will search for new control channels when the
decoding quality of a control channel drops below
Threshold Lo, and, if no control channels are
available that meet the Threshold Hi criteria, the
scanner will seek the best control channel to use,
and continue checking periodically for a new control
channel that meets the Threshold Hi criteria. When
Multi-Site=STAT, the scanner will track the system
using every usable control channel in the control
channel list.
1-99
Available When Multi-Site is set to ROAM. Sets the
control channel decode % threshold for a site to be
considered good when looking for a new site.
1-99
Available When Multi-Site is set to ROAM. Sets the
control channel decode % threshold for a site to be
considered out of range, which will begin the
process of looking for a new site.
Normal, Splinter, Custom
For Motorola and P25 systems only - sets custom
channel tables. Use ,to select option, press
SEL on Custom to enter custom table information
SEL For Motorola Type I systems only - sets fleet map
0716 User Manual Page 106
LMIT Menu Reference
The LMIT menu is used when creating new Limit Search objects,
or editing existing Limit Search objects. All menus are shown in
the scanners display as a three line window that can be scrolled
up or down to access the various different parameters. The
active parameter is always the middle parameter and is indicated
by a flashing “:”. The entire LMIT menu is shown below:
LMIT Parameter Options Description
Scan Lists
FrLO
FrHi
Tag
L/Out
LED Mode
LED Color
Latch LED
Backlight
Alarm
Fav
EXPERT BELOW
Modulation
Atten
On or Off for Scan Lists
1-20
Sets membership in Scan Lists. Use  keys to
scroll through Scan Lists. Use SEL key to toggle
Scan List membership. A “*” next to the Scan List
number indicates that the object is mapped to that
Scan List.
Any supported frequency in
MHz
A frequency that will be used as the lower limit for
the limit search range
Any supported frequency in
MHz
A frequency that will be used as the upper limit for
the limit search range
Alpha-numeric text
The alphanumeric display name for the LMIT
search. Use the standard text entry method or
QTXT to name the object.
On or Off
Permanent lockout for the LMIT channel. Also
accessed by pressing FUNC L/OUT while the
scanner is stopped on the LMIT object.
Solid or Flash Controls whether the ALERT LED flashes or
remains on solid when the ALERT LED is used.
0-7
Sets LED color to 0-7 as defined in the GLOB
menu. By default, 0=LED Off, 1=Red, 2=Yellow,
3=Green, 4=Cyan, 5=Blue, 6=Magenta, 7=White.
On or Off
Normally the ALERT LED is active only while the
object is receiving a transmission. When Latch is
on, the ALERT LED will remain lit after the
transmission is complete, unless overridden by a
subsequent object that is also using the ALERT
LED.
On, Off or Flash Controls whether the backlight should be on, off or
flashing while the object is active.
None, Chirp, Hi-Lo, Alert,
Ring, 2-Chirp, Fast Hi-Lo,
DTMF#
Sets the Audible Alarm for the LMIT object. When
an Audible Alarm is selected, the selected alarm will
play anytime the scanner stops for activity on the
LMIT object while scanning.
On or Off When On, the LMIT object is a member of the
Favorites Scan List.
AM, FM, NFM, AU
Modulation setting for the LMIT search. In most
cases AU will work fine. Use AM to override and
force AM modulation, FM to force FM modulation,
NFM to force narrow FM modulation.
On or Off
When on, applies 20 dB of attenuation to all hits
received on the LMIT search. Useful in areas where
interference from nearby strong signals is present.
0716 User Manual Page 107
LMIT Parameter Options Description
Delay
Delay Time
Zeromatic
Search Dir
Hit Count
On or Off
Controls whether a Delay is used to wait for reply
traffic after a transmission is received during the
LMIT search.
1-200
Sets the amount of time (in 100 millisecond
intervals) for the wait for reply delay if Delay is On,
e.g., 20=2 seconds.
On or Off
When on, enhances the scanners ability to lock on
to the actual center frequency of a search hit
instead of an adjacent frequency.
Up or Down Sets search direction used when LMIT object is
active.
Numeric value
Increments each time a transmission is received on
the SWPR object. Global “Hit Counts” must be set
to ON. Press the Dflt softkey to reset to 0.
0716 User Manual Page 108
SRVC Menu Reference
The SRVC menu is used when creating new Service Search
objects, or editing existing Service Search objects. All menus are
shown in the scanners display as a three line window that can
be scrolled up or down to access the various different
parameters. The active parameter is always the middle
parameter and is indicated by a flashing “:”. The entire SRVC
menu is shown below:
SRVC
Parameter Options Description
Scan Lists
Srvc
Groups
On or Off for Scan Lists
1-20
Sets membership in Scan Lists. Use  keys to
scroll through Scan Lists. Use SEL key to toggle
Scan List membership. A “*” next to the Scan List
number indicates that the object is mapped to that
Scan List.
Pub Safety, Aircraft,
Amateur, CB, Marine, FRS/
GM/MURS, Railroad
Public Safety (Pub Safety) - Searches commonly
used public safety frequencies. Groups are as
follows:
0: 33.4-46.5 MHz
1: 151-170 MHz
2: 453-467 MHz
3: 764-806 MHz
4: 851-869 MHz
Aircraft - Searches civilian and military air
frequencies. Groups are as follows:
0: 108-118 MHz
1: 118-137 MHz
2: 138-150 MHz
3: 225-400 MHz
Amateur - Searches amateur radio frequencies.
Groups are as follows:
0: 28.0-29.7 MHz
1: 50-54 MHz
2: 144-148 MHz
3: 222-225 MHz
4: 420-450 MHz
5: 902-928 MHz
6: 1240-1300 MHz
CB - Searches the citizens band radio frequencies
Marine - Searches the VHF-FM marine radio band
FRS/GMRS/MURS/DOT/STAR (F/G/MURS) -
Searches the FRS, GMRS, MURS, DOT and STAR
radio frequencies
Railroad - searches the Association of American
Railroads (AAR) VHF railroad frequencies used in
the US and Canada
 to scroll, SEL to toggle
on/off
Toggle search groups when Pub Safety, Aircraft and
Amateur service searches are used.
0716 User Manual Page 109
SRVC
Parameter Options Description
Tag
L/Out
LED Mode
LED Color
Latch LED
Backlight
Alarm
Fav
EXPERT BELOW
Modulation
Atten
Delay
Delay Time
Zeromatic
Search Dir
Hit Count
Alpha-numeric text
The alphanumeric display name for the SRVC
search. Use the standard text entry method or
QTXT to name the object.
On or Off
Permanent lockout for the SRVC object. Also
accessed by pressing FUNC L/OUT while the
scanner is stopped on the SRVC object.
Solid or Flash Controls whether the ALERT LED flashes or
remains on solid when the ALERT LED is used.
0-7
Sets LED color to 0-7 as defined in the GLOB
menu. By default, 0=LED Off, 1=Red, 2=Yellow,
3=Green, 4=Cyan, 5=Blue, 6=Magenta, 7=White.
On or Off
Normally the ALERT LED is active only while the
object is receiving a transmission. When Latch is
on, the ALERT LED will remain lit after the
transmission is complete, unless overridden by a
subsequent object that is also using the ALERT
LED.
On, Off or Flash Controls whether the backlight should be on, off or
flashing while the object is active.
None, Chirp, Hi-Lo, Alert,
Ring, 2-Chirp, Fast Hi-Lo,
DTMF#
Sets the Audible Alarm for the SRVC object. When
an Audible Alarm is selected, the selected alarm will
play anytime the scanner stops for activity on the
SRVC object while scanning.
On or Off When On, the SRVC object is a member of the
Favorites Scan List.
AM, FM, NFM, AU
Modulation setting for the SRVC search. In most
cases AU will work fine. Use AM to override and
force AM modulation, FM to force FM modulation,
NFM to force narrow FM modulation.
On or Off
When on, applies 20 dB of attenuation to all hits
received on the SRVC search. Useful in areas
where interference from nearby strong signals is
present.
On or Off Controls whether a Delay is used to wait for reply
traffic after a transmission on the SRVC search.
1-200
Sets the amount of time (in 100 millisecond
intervals) for the wait for reply delay if Delay is On,
e.g., 20=2 seconds.
On or Off
When on, enhances the scanners ability to lock on
to the actual center frequency of a search hit
instead of an adjacent frequency.
Up or Down Sets search direction used when SRVC object is
active.
Numeric value
Increments each time a transmission is received on
the SWPR object. Global “Hit Counts” must be set
to ON. Press the Dflt softkey to reset to 0.
0716 User Manual Page 110
SWPR Menu Reference
The SWPR menu is used when creating new Spectrum Sweeper
objects, or editing existing Spectrum Sweeper objects. All menus
are shown in the scanners display as a three line window that
can be scrolled up or down to access the various different
parameters. The active parameter is always the middle
parameter and is indicated by a flashing “:”. The entire SWPR
menu is shown below:
SWPR
Parameter Options Description
Scan Lists
Type
Sub-bands
Tag
L/Out
LED Mode
On or Off for Scan Lists
1-20
Sets membership in Scan Lists. Use  keys to
scroll through Scan Lists. Use SEL key to toggle
Scan List membership. A “*” next to the Scan List
number indicates that the object is mapped to that
Scan List.
All Bands or Pub Safety
Use  to select All Bands or Public Safety. All
Bands covers the entire frequency range of the
scanner. Public Safety covers frequency ranges
commonly used for public safety communications.
, SEL
Sub bands are available when using SWPR in All
Bands or Public Safety mode. In All Bands, the
sub bands are defined as follows:
0: 25-54 MHz
1: 108-137 MHz
2: 137-174 MHz
3: 216-300 MHz
4: 300-406 MHz
5: 406-470 MHz
6: 470-512 MHz
7: 764-806 MHz
8: 806-869 MHz
9: 896-1300 MHz
In Public Safety, the sub bands are defined as
follows:
0: 33.4-46.5 MHz
1: 151-170 MHz
2: 453-467 MHz
3: 764-806 MHz
4: 851-869 MHz
Alpha-numeric text
The alphanumeric display name for the SWPR
object. Use the standard text entry method or
QTXT to name the object.
On or Off
Permanent lockout for the SWPR search. Also
accessed by pressing FUNC L/OUT while the
scanner is stopped on the SWPR object.
Solid or Flash Controls whether the ALERT LED flashes or
remains on solid when the ALERT LED is used.
0716 User Manual Page 111
SWPR
Parameter Options Description
LED Color
Latch LED
Backlight
Alarm
Fav
EXPERT BELOW
Atten
Delay
Delay Time
Zeromatic
Special
Search Dir
Hit Count
0-7
Sets LED color to 0-7 as defined in the GLOB
menu. By default, 0=LED Off, 1=Red, 2=Yellow,
3=Green, 4=Cyan, 5=Blue, 6=Magenta, 7=White.
On or Off
Normally the ALERT LED is active only while the
object is receiving a transmission. When Latch is
on, the ALERT LED will remain lit after the
transmission is complete, unless overridden by a
subsequent object that is also using the ALERT
LED.
On, Off or Flash Controls whether the backlight should be on, off or
flashing while the object is active.
None, Chirp, Hi-Lo, Alert,
Ring, 2-Chirp, Fast Hi-Lo,
DTMF#
Sets the Audible Alarm for the SWPR object. When
an Audible Alarm is selected, the selected alarm will
play anytime the scanner stops for activity on the
SWPR object while scanning.
On or Off When On, the SWPR object is a member of the
Favorites Scan List.
On or Off
When on, applies 20 dB of attenuation to all hits
received on the SWPR search. Useful in areas
where interference from nearby strong signals is
present.
On or Off Controls whether a Delay is used to wait for reply
traffic after a transmission on the SWPR search.
1-200
Sets the amount of time (in 100 millisecond
intervals) for the wait for reply delay if Delay is On,
e.g., 20=2 seconds.
On or Off
When on, enhances the scanners ability to lock on
to the actual center frequency of a search hit
instead of an adjacent frequency.
On or Off
SWPR works by quickly sweeping the RF spectrum
in 1 MHz increments to find nearby strong signals.
If the 1 MHz sweep indicates that activity is present
in the 1 MHz range, SWPR sweeps that range to
find the source.
Up or Down Sets search direction used when SWPR object is
active.
Numeric value
Increments each time a transmission is received on
the SWPR object. Global “Hit Counts” must be set
to ON. Press the Dflt softkey to reset to 0.
0716 User Manual Page 112
Index
.............................................................Abbreviations, object 16
.....................................Accessories included with 0716 22
.....................................................................Alarms, audible 69
..............................................................................Alert LED 69
................................Alphanumeric Information, how to enter 89
......................................................................Audible Alarms 69
............................................AutoMove LTR home repeaters 67
................................................................Background, OOUI 10
......................................................................Base operation 27
................................................................Birdie Frequencies 92
..................................................................Browsing Objects 45
......................................................................................Care 93
.............................................................................CCDump  121
..........
Cloning Your Radio to Another 0716 or 0715 88
...............CONV (Conventional Channel), creating your first 33
......................................................CONV Menu Reference 101
.....................................................................CTCSS, about 131
....................................CTCSS, DCS and P25 NAC, about 131
.........................................................................DCS, about 132
................................................Default Scan List, how to set 64
....................................................................Deleting Objects 64
................................................Display Icons, understanding 23
.........................DUPE, how to use to speed up object entry 42
..................................................................Earphones, using 31
........................................Enabling and disabling Scan Lists 56
........................................................External antenna, using 32
.........................................................External speaker, using 31
........................................Familiarization with your 0716 20
....................................................................FCC regulations 17
..................................................................................Features 8
........................................................Filtering By Object Type 59
.......Finding Frequencies and Trunked System Information 133
....................................................Finding more information 133
......................................................................Finding objects 58
.................................................................First Time Startup 27
....................................................Five Way Pushbutton Pad 25
............................................................Front View, 0716 20
.............................................................Get LCD command 118
..........................................................Get Status command 118
......................................................................Getting Started 27
........................................................GLOB Menu Reference 98
.........................................Grouping Objects with Scan Lists 54
...............................................................Headphones, using 31
..........................................................................Hit Counters 68
0716 User Manual Page 113
.....................................................................In Case of Fault 93
................Initializing Global Parameters to Factory Defaults 94
...........................Initializing the Scanner to Factory Defaults 95
.............................................................................Introduction 7
........................................................Keypad, Understanding 23
.....................Learning About Scanning and your 0716  133
..............................................................................LED, Alert 69
.........................Limit and Service search modes, dedicated 75
...................................................Limit Search Object (LMIT) 48
.....................................................................Listening safely 31
........................................................LMIT Menu Reference 107
......................................................................Lockout, object 60
..............................................................Lockout, permanent 61
.....................................................................Lockout, search 62
.....................................Lockout, talkgroup from Wildcard hit 63
...............................................................Lockout, temporary 60
............................................LTR AutoMove home repeaters 67
.......................................................................Manual, about 16
.............................................Mapping Objects to Scan Lists 56
.............................................Memory Usage, how to display 47
........................................................Menu Reference Tables 97
......................................................Menu reference, detailed 97
....................................................................Mobile operation 28
.............................................More About Wildcard Scanning 46
...............................................................................Multi-Site 65
...................................................................Numeric Keypad 25
........................................................Object ID, direct access 46
......................................................Object Numbering, about 46
....................Object Oriented Scanning, things to remember 15
........................................Object Oriented Scanning, what is 14
.........................Object Oriented User Interface, overview of 10
...................................................Objects, how to create first 33
..........................................................Objects, how to delete 64
.....................................................................Operation Keys 25
..................................................................P25 NAC, about 132
.............................Power-On Configuration Key Sequences 91
..........................................................................Powering on 32
..........................................................................Priority Scan 67
....................................Priority Scan Mode, turning on or off 68
.............................................................Priority Scan, CONV 68
..............................................................Priority Scan, TGRP 68
......................................Priority, turning on or off for objects 67
.....................................................................Priority, weather 79
..............................................................................QuickText 90
................................................QuickText, how to customize 91
...........................................................QuickText, how to use 90
0716 User Manual Page 114
.............................................................Rear View, 0716 21
.....................................................Remote Control Protocol 117
..........................................................SAME Entry Examples 81
...................SAME Location and Event Codes, how to enter 82
............................................................SAME Standby Mode 80
......................................SAME Standby Mode, how to enter 85
.....................................Scan Lists, enabling and disabling 577
..........................................Scan Lists, how to group objects 54
.............................................Scan Lists, mapping objects to 56
..................................................................Scanning Legally 18
....................................................Scanning Operation, basic 43
......................................................search modes, dedicated 71
.............................................................Search Object Types 47
.......................................Searching For Objects Using FIND 59
............................................................Send Key command 119
................................................................................Softkeys 24
.........................Specifications, Frequency, Step and Mode 124
........................................................Specifications, general 125
.....................Spectrum Sweeper (SWPR) Mode, dedicated 71
...............SRVC (Service Search Object), creating your first 52
......................................................SRVC Menu Reference 109
..........................Standard Text Entry Method and QuickText 88
......................................................Startup Topics, advanced 45
............................................Startup Topics, more advanced 58
........SWPR (Spectrum Sweeper Object), creating your first 49
......................................................SWPR Menu Reference 111
..............................................................................Text Entry 89
....................................TGRP (Talkgroup), creating your first 37
......................................................TGRP Menu Reference 103
.........................................................................Traffic safety 31
....................................................................Troubleshooting 94
...........................................................Troubleshooting Chart 94
....................................Trunked Radio Technologies, about 128
..........................TSYS (Trunked System), creating your first 37
.......................................................TSYS Menu Reference 105
...................................................................Tune command 119
.........................................................TUNE mode, dedicated 73
.............................................................................Unpacking 27
..........................................................Using Weather Modes 78
...................V-Scanner Folder, how to load to main memory 87
..................V-Scanner Folder, how to save main memory to 87
..........................................V-Scanner Folders, how to erase 88
............................................V-Scanner Storage, how to use 85
.............................................................................Warranty 135
..........................................................Weather Priority Mode 79
............................................................Weather Radio Mode 79
0716 User Manual Page 115
Appendix A - Remote Control Protocol
NOTE: GRE provides Memory File Format, CCDump Protocol, PC/IF Clone
Protocol and Remote Control Protocol Specifications (the
"Specifications") AS IS for the convenience of scanning hobbyists
and programmers who wish to develop software applications for use
with the 0716. Use of the Specifications shall be AT YOUR OWN
RISK. GRE does not provide Memory File Format, CCDump
Protocol, PC/IF Clone Protocol and Remote Control Protocol
technical support. Should you require assistance with the
Specifications, we encourage you to visit one of the many 0716
User Group forums on the Internet. By using the Specifications, you
agree to these terms.
The 0716 includes a simple remote control interface protocol
(RCIP) that is suitable for use with a PC application designed to
provide a remote control and display capability. The ideal PC
application should provide a means by which a user can interact
with a visual representation of the scanners keypad and display.
Remote Control Mode is active at all times, and does not require
that the radio be placed in any special remote mode in order for it
to be used.
The basic remote control command/response format is as
follows:
<STX><msgCode><msgData><ETX><sum>
where:
<STX> is an ASCII “Start of Text” symbol (0x02)
<msgCode> is the code that represents the command or
response message type
<msgData> is the data that accompanies a command or a
response
<ETX> is an ASCII “End of Text” symbol (0x03)
<sum> is the sum of all bytes before sum but not including
<STX>, and is sent with every command and response for error
checking.
The following commands are supported in the RCIP:
0716 User Manual Page 116
Get Status
Command:
STX A ETX <sum>
Response:
STX A <mode> <sq> <battL> <battH> <rssiL>
<rssiH> <zmL> <zmH> <ledR> <ledG> <ledB> ETX
<sum>
sq:
bit 0: RF Squelch state
bit 1: Unmuted state
bit 2: /XF state (IMBE detect)
bit 3: HD2 state (in DG, P25 CC detect, in
CTCSS/DCS, reverse burst/turn
off code detect)
bit 4: HD5 state (CTCSS/DCS/NAC detect)
Get LCD
Command:
STX L ETX <sum>
Response:
STX L <lcd0> <lcd1> ... <lcd63> <icons1>
<icons2> ETX <sum>
NOTE: <icons1> and <icons2> are bitmapped
representations of display icon status,
as follows:
icons1:
bits 0-2: RSSI bars level, 0-5
bit 3: S icon
bit 4: Batt icon ON (N/A for 0716)
bit 5: Batt icon BLINKING (N/A for 0716)
icons2:
0716 User Manual Page 117
bit 0: 'F' icon
bit 1: 'G' icon
bit 2: 'A' icon
bit 3: 'T' icon
bit 4: up arrow icon
bit 5: down arrow icon
bit 6: LCD backlight status
Send Key
Command:
STX K <keycode> ETX <sum>
Response:
(no response)
Key codes for the Send Key command are as follows:
Key Code Key Code Key
Code
Key Code
SCAN 15 227PAUSE
6
.24
FUNC 1321
7
CLR 36
MAN 314 7
35
F2 25
WX 17TEXT 13 8
29
DIM 32
SEL 8ATT 26 9
23
SRCH 10
FAV 4434 F3
19
L/OUT 5
PRI 11 528 MODE
25
PGM 12
TUNE 16 622
9
ENT 18
133 20
30
F1 31
Tune
Command:
STX T <freq0> <freq1> <freq2> <freq3> <rxmode>
ETX SUM
Response:
0716 User Manual Page 118
(no response)
0716 User Manual Page 119
Appendix B - CCDump
NOTE: GRE provides Memory File Format, CCDump Protocol, PC/IF Clone
Protocol and Remote Control Protocol Specifications (the
"Specifications") AS IS for the convenience of scanning hobbyists
and programmers who wish to develop software applications for use
with the 0716. Use of the Specifications shall be AT YOUR OWN
RISK. GRE does not provide Memory File Format, CCDump
Protocol, PC/IF Clone Protocol and Remote Control Protocol
technical support. Should you require assistance with the
Specifications, we encourage you to visit one of the many 0716
User Group forums on the Internet. By using the Specifications, you
agree to these terms.
Your 0716 features a trunked control channel decoding utility
called CCDump. When CCDump is turned on, the scanner sends
decoded trunking control channel information and SAME weather
alert data to the PC/IF port. This data can be displayed using any
simple terminal application, or, read by third party application
software for additional analysis and decoding.
CCDump is turned off by default in the 0716. To activate
CCDump, press the PGM key, then press FUNC, then press the
GLOB softkey to access the Special Global Settings menu. Scroll
down using the key until CCDump: No is shown on the
middle line of the LCD display. Press the  keys to toggle
CCDump on or off. Press the SAVE softkey when finished to
save the change in the radios configuration memory.
To view CCDump data, connect the radio to a personal computer
using the USB PC/IF cable. Start a terminal program or your third
party application software. Configure the communications
parameters for “115200, N, 8, 1” as follows:
COM Port: The COM port number assigned to the USB
cable by your computer. If you are running a
Windows operating system, you can find this
information under “Ports” in the Device
  Manager.
Parity:  None
Baud Rate: 115,000 bits per second
Word: 8 bits
Stop Bits 1
0716 User Manual Page 120
Basic CCDump data includes the system type, the Object ID of
the TSYS object (if applicable), and the “raw” control channel
messages as they are transmitted by the system. This data is
delimited by “:” symbols. Basic CCDump data is sent to the PC/
IF port under the following conditions:
•In TUNE mode, when the radio is tuned to a trunking control
channel
•In TSYS analysis mode, when the radio is tuned to an active
control channel in the TSYS channel list
Expanded CCDump data includes all of the data that is provided
in the Basic CCDump data display, and provides additional
human-readable decoding of certain trunked control channel
messages. Expanded CCDump data is sent to the PC/IF port
under the following condition:
•When the radio is monitoring a trunked control channel while in
MAN or SCAN modes
The following describes the CCDump message format for the
supported modes:
<Msg Type>:T<xxxx>:<CC data>[:<Expanded CCDump description>]
<Msg Type>=always 3 ASCII chars:
WXS (WX SAME)
WXT (WX 1050Hz tone)
P25, M36, LTR, EDW, EDN
<xxxx> = the hexadecimal representation of the TSYS's File
System ID (for WXS and WXT, this is the current Wx
Chan 0-6, if in TUNE mode, “AAAA”)
<CC data> = the "osw" from the CC. The format necessarily
depends on the system type:
P25: <X1><X2><X3><X4><X5><X6><X7><X8><X9><XA><XB><XC>
<X1> - <XC> = 12 2-digit hexadecimal bytes
from the last msg
M36: <cmd> <dir> <id>
<cmd> = 3-digit (10-bit) hex "command" value
<dir> = direction bit
<id> = 4-digit (16-bit) hex "id" value
LTR: <RR>: <A>-<GG>-<HH>-<III>-<FF>
<RR> = repeater on which the msg was received
<A> = area
<GG> = Goto/In-Use repeater #
<HH> = Home Repeater #
<III> = Group ID
0716 User Manual Page 121
<FF> = Free Repeater #
EDW: <W>: <ccc> <ppppppp>
<W> = which of the two blocks (0 or 1) in the msg
pair this is <ccc> = command value. Represents a
variable # of bits from the received data (since
commands are variable length)
<payload> = remainder of msg, after removing the
<ccc> command value
EDN: <W>: <ccc> <ppppppp>
<W> = which of the two blocks (0 or 1) in the msg
pair this is
<ccc> = command value. Represents a variable # of
bits from the received data (since commands are
variable length)
<ppppppp> = remainder of msg, after removing the
<ccc> command value
WXS: <SAME Message> One code at a time
WXT: "1050Hz Detect"
<decoded description> =If present, how the radio SW
interpreted the msg.
0716 User Manual Page 122
Appendix C - Frequency, Step and Mode Specifications
Frequency Range Step Size Default Mode
25.0000 - 26.9600 MHz 10 kHz AM
26.9650 - 27.4050 MHz 10 kHz AM
27.4100 - 29.5050 MHz 5 kHz AM
29.5100 - 29.7000 MHz 5 kHz FM
29.7100 - 49.8300 MHz 10 kHz FM
49.8350 - 54.0000 MHz 5 kHz FM
108.000 - 136.9916 MHz 8.33 kHz AM
137.000 - 137.995 MHz 5 kHz FM
138.000 - 143.9875 MHz 12.5 kHz FM
144.000 - 147.9950 MHz 5 kHz FM
148.000 - 150.7875 MHz 12.5 kHz FM
150.800 - 150.8450 MHz 5 kHz FM
150.8525 - 154.4975 MHz 7.5 kHz FM
154.5150 - 154.6400 MHz 5 kHz FM
154.6500 - 156.2550 MHz 7.5 kHz FM
156.2750 - 157.4500 MHz 25 kHz FM
157.4700 - 161.5725 MHz 7.5 kHz FM
161.6000 - 161.9750 MHz 5 kHz FM
162.0000 - 174.0000 MHz  12.5 kHz FM
216.0025 - 219.9975 MHz 5 kHz FM
220.0000 - 224.9950 MHz 5 kHz FM
225.0000 - 379.99375 MHz 6.25 kHz AM
380.0000 - 419.987500 MHz 12.5 kHz FM
420.0000 - 450.000000 MHz 5 kHz FM
450.00625 - 469.99375 MHz 6.25 kHz FM
470.00000 - 512.00000 MHz 12.5 kHz FM
764.00000 - 766.996875 MHz 3.125 kHz FM
773.00000 - 775.996875 MHz 3.125 kHz FM
794.00000 - 796.996875 MHz 3.125 kHz FM
803.00000 - 805.996875 MHz 3.125 kHz FM
806.00000 - 823.987500 MHz 12.5 kHz FM
849.00000 - 868.987500 MHz 12.5 kHz FM
894.00000 - 901.987500 MHz 12.5 kHz FM
902.00000 - 939.987500 MHz 12.5 kHz FM
940.00000 - 960.000000 MHz 6.25 kHz FM
1240.0000 - 1300.00000 MHz 6.25 kHz FM
*Excludes frequencies utilized by the Cellular Mobile
Radiotelephone Service: 824-848.9875 MHz and 869-893.9875
MHz
0716 User Manual Page 123
Appendix D - General Specifications
Item Specification
Working Memory 1800 programmed objects using flexible "Scannable
Object" system. Program and scan conventional
channels, trunking talkgroups, limit searches, service
searches, and Spectrum Sweeper configurations as
"Scannable Objects" that are created, edited,
grouped and scanned using common user interface
conventions.
Virtual Scanners 21 Virtual Scanner (V-Scanner) folders, each capable
of holding the entire contents of working memory, for
a total storage capacity of over 37,800 objects.
Searches 7 preprogrammed dedicated service searches, 1
dedicated limit search. Any service or limit search can
be programmed and scanned as an object alongside
conventional channels and trunking talkgroups
Priority Talkgroup and conventional channel priority,
selectable priority sample rate and priority sample
during trunking talkgroup call
Conventional Receiver
Modes
AM, FM, NFM, CTCSS, DCS, P25 NAC
Trunking Receiver Modes Motorola Type I/II/Iii Analog and Digital, GE/Ericsson/
MA-COM EDACS Narrowband and Wideband, EF
Johnson LTR
Receiver System Triple conversion PLL super-heterodyne
1st IF 380.8 MHz (The 1st LO uses high side of receive
frequency range for VHF and UHF Low/T, and low
side of receive frequency range for >512 MHz)
2nd IF 21.4 MHz (The second LO uses low side of 1st IF)
3rd IF 455 kHz (The 3rd LO uses the low side of the 2nd IF)
Frequency Range VHF Low 25.00000 - 54.00000 MHz
VHF Aircraft 108.00000 - 136.99166 MHz
VHF High 137.00000 - 174.00000 MHz
216.00250 – 224.9950 MHz
225.00000 – 299.93750 MHz
UHF Low/T 300.00000 – 512.00000 MHz
UHF High 796.00000 – 960.00000 MHz*
1240 .00000 – 1300.0000 MHz
*Excludes frequencies utilized by the Cellular Mobile
Radiotelephone Service
0716 User Manual Page 124
Item Specification
Preprogrammed Service
Searches
Marine
Aircraft
CB
FRS/GMRS/MURS/DOT-STAR
Public Safety
Amateur Radio
Railroad
Weather frequencies 162.400, 162.425, 162.450, 162.475, 162.500,
162.525, 162.550 MHz
Scanning Rate Approximately 55 channels per second
Search Rate Approximately 90 steps per second
Display LCD with amber LED backlight, 4 lines of 16
characters each, plus 13 display icons
Zeromatic Automatically zeroes receiver on correct frequency
during searches
Audio Output 250 mW
Spectrum Sweeper Band
Groups
All Bands:
Group 0 (25 – 54 MHz)
Group 1 (108 – 136.99166 MHz)
Group 2 (137 – 174 MHz)
Group 3 (216.0025 – 299.9750 MHz)
Group 4 (300 – 405.9875 MHz)
Group 5 (406 – 470 MHz)
Group 6 (470.0125 – 512 MHz)
Group 7 (764-767, 773-776, 794-797, 803-806 MHz)
Group 8 (806 – 868.9875 MHz)*
Group 9 (896 – 960, 1240 – 1300 MHz)
Public Safety Bands:
Group 0 (33.4-46.5 MHz)
Group 1 (151 – 170 MHz)
Group 2 (453 – 467 MHz)
Group 3 (764-767, 773-776, 794-797, 803-806 MHz)
Group 4 (806-869 MHz)*
*Excludes frequencies utilized by the Cellular Mobile
Radiotelephone Service
Internal Speaker 64 mm 8 ohms dynamic
Operating Voltage 12-14.4 VDC, 13.8 VDC nominal, 16 VDC maximum
Dimensions Approximately 2.56(w) x 1.65(d) x 5.71(h) inches, 65
(w) x 42 (d) x 145 (h) mm
Weight Approximately 8.5 ounces, 240 grams (not including
mounting hardware and antenna)
0716 User Manual Page 125
Item Specification
Included accessories Telescoping whip antenna, CD (includes Owners
Manual, Demo Remote Control software, USB cable
drivers and V-Scanner data files), USB PC/IF cable,
DC power supply, mounting bracket/desk stand,
knurled knobs, rubber washers for mounting bracket,
rubber feet for mounting bracket, fused DC
automotive power lead
Memory backup No backup battery required, utilizes non-volatile
EEPROM memory
0716 User Manual Page 126
Appendix E - About Trunked Radio Technologies
In communications, trunking is defined as the sharing of a small
number of communications resources amongst a large number
of users. Trunking is based on the basic principle that “not all
users will need to communicate at the same time”.
The best example of trunking in communications is the typical
telephone private branch exchange, or PBX, which is used in
many businesses, hospitals, schools and other organizations to
provide desktop telephone service to the people who work at a
specific building or site.
A traditional PBX might consist of the individual telephones on
the desktops in the building, the PBX switching equipment, and
various connections to the public telephone switched network, or
PSTN.
Consider a large office facility for a company with 500
employees, each one with a telephone on their desk. Using their
telephone and the PBX, it is possible for any employee to call
another employees extension in the office building, and, it is
possible for any employee to make an outside call to any other
telephone anywhere in the world.
It would certainly be cost prohibitive for each of these employees
to have an individual outside telephone line just so they could get
dial tone and make calls to other telephones beyond the
companys PBX. This is where trunking technology is applied.
Engineers study the needs of the company and its employees to
determine the number of connections required to support the
companys requirements. In this example, a total of 50 outside
lines may be provided to support the 500 employees who work at
the site, again, based on the principle that not all users will need
to communicate at the same time. These outside lines are
shared, and assigned to users automatically by the PBX on an
as-needed basis. If the engineers have done their jobs right, the
number of outside lines that are provided will be adequate for
almost all circumstances. Rarely, if ever, should a user in the
building not have access to an outside line when needed, and
the number of lines available is not overkill, such that money is
wasted on unneeded excess capacity.
In radio, trunking works in a very similar way. Instead of each
radio user or user group having their own dedicated radio
channel, a small group of radio channels is shared amongst a
0716 User Manual Page 127
large number of radio users or user groups. In a typical trunked
radio system, 20 radio channels can support the radio
communications needs of a few thousand users.
Instead of dedicating individual radio channels to specific user
groups, trunked radio systems utilize special, temporary “virtual”
channels called talkgroups. Each talkgroup has a digital address
that identifies it on a trunked radio system. In most trunked radio
technologies, each portable or mobile radio has an individual
digital address, much like the individual telephone extensions in
a PBX system.
There are two basic types of trunked radio technologies in use
today, “centralized control” and “distributed control”.
Systems with centralized control utilize one or more specialized
computers called controllers to manage the operation of the
trunked radio system. The controller is responsible for assigning
radio channel resources to users and user groups as needed,
that is, when a user needs to speak with another user or with a
group of users. Centralized control trunked radio systems
reserve one of the system channels for use as the control
channel, and the remaining channels are used as voice or
“traffic” channels. When a user needs to place a call on a system
utilizing centralized control, they press the push-to-talk button on
their radio, which causes their radio to send a short data
message to the controller over the control channel, requesting
that a voice channel, if available, be assigned to that user or user
group for a voice call. The controller assigns an available voice
channel to the call, and sends a data message out over the
control channel signaling that user and all other members of the
users talkgroup to switch to a voice channel and proceed with
the voice communication.
Motorola, EDACS and P25 trunked radio systems all utilize
centralized control. When monitoring a centralized control
system, your scanner utilizes the data sent by the controller on
the control channel to track the voice traffic for the talkgroups
that you wish to monitor.
Systems with distributed control do not utilize a central
controller to manage the assignment of radio channel resources.
Each channel includes its own individual controller, and these
controllers are all connected to each other over a data bus, such
that every channel and controller on the system knows the status
of the other channels and controllers at any given moment. In
distributed control, there is no single dedicated control channel.
0716 User Manual Page 128
Each individual channel serves as a control channel for the users
and user groups that are “homed” to that channel by sending out
a subaudible data message simultaneously with voice traffic
when needed.
The portable and mobile radios in a distributed control trunked
radio system monitor their home channel when idle for data
messages that include commands regarding activity for their
talkgroup, and, in the event that the home channel is busy, a free
channel elsewhere on the system that is available for
communications if needed.
When a user in a distributed control system needs to speak, they
press the push-to-talk button on their radio. If the home channel
is not in use, the controller sends a data message out over the
home channel that tells the other users in the talkgroup that a
call is taking place on the home channel, and all the radios in the
talkgroup transition to voice call mode on the home channel.
If the home channel is busy, it sends subaudible data messages
over the home channel simultaneously with any voice traffic it is
carrying. These subaudible data messages include a “free
repeater” message that informs other radios homed to the
channel of the next available free repeater that is not in use.
When a user places a call by pressing the push-to-talk button in
this scenario, the new call is placed on this free repeater, and the
subaudible data message on the home is updated to include
signaling that tells other users of the talkgroup that the talkgroup
is now active on the free repeater. The other users switch to the
free repeater and the voice call proceeds there.
LTR systems operate using distributed control. Your scanner
utilizes the data sent by each controller on each channel to track
the activity on an LTR system.
0716 User Manual Page 129
Appendix F - About CTCSS, DCS and P25 NAC
CTCSS, DCS and P25 NAC are terms used to describe the
different types of selective squelch that your 0716 is
capable of utilizing with conventional, non-trunked radio
channels.
In many cases, frequencies that are assigned to licensees are
not licensed on an exclusive basis. This means that the
transmitters and receivers operated in one licensees radio
system may be close enough geographically to another licensee
that it is technically possible for the two licensees to hear radio
traffic from each others system. This is especially true for
business radio users, however, it is not all that uncommon for
different public safety licensees to be close enough to each other
for one licensees radio traffic to be heard by another licensee.
Additionally, certain radio propagation events can sometimes
allow radio signals to travel hundreds or thousands of miles
beyond a licensees service area, in some cases, making their
radio transmissions receivable on the other side of the continent.
Reception of traffic from another radio user can be an
undesirable situation, causing confusion and distraction.
Selective squelch is employed in transmitting and receiving
equipment to limit reception to only those transmitters that are
transmitting the correct encoded selective squelch signal. Much
in the same way that a radio licensee can use selective squelch
to block out foreign traffic from their radio receivers, you can use
selective squelch on your 0716 to block undesired traffic
from being received on your scanner. In addition to this basic
selective squelch capability, your 0716 can search for and
display the selective squelch type and squelch tones or codes in
use on a particular frequency.
The three types of selective squelch available in the 0716
are as follows:
CTCSS
CTCSS stands for Continuous Tone Coded Squelch System. In
CTCSS, the transmitter sends a special, low level audio tone
continuously while a transmission is in progress. This is known
as a subaudible tone - the level and frequency are such that
they are difficult or impossible to hear in a receivers speaker.
The receiver (or your scanner) will detect and decode this tone,
and if it matches the programmed tone, the speaker will be
unmuted and voice audio allowed to pass. If the tone is not
0716 User Manual Page 130
present, or an incorrect tone is found, the receiver will remain
muted. Additionally, the 0716 can detect the CTCSS tone
that is in use on a transmitter, and will allow you to store the tone
value with a CONV object when a CTCSS transmission occurs.
It is possible to hear this tone if you listen with headphones.
CTCSS sounds like a low, steady “hum” in the background of a
voice transmission.
DCS
DCS stands for Digital Coded Squelch. In DCS, the transmitter
sends a special, low level data signal continuously while a
transmission is in progress. This is known as subaudible data -
the level of the data signal is such that the data is difficult or
impossible to hear in a receivers speaker. The receiver (or your
scanner) will detect and decode this data, and if it matches the
programmed code, the speaker will be unmuted and voice audio
allowed to pass. If the DCS code is not present, or an incorrect
code is found, the receiver will remain muted. Additionally, the
0716 can detect the DCS code that is in use on a transmitter,
and will allow you to store the code value with a CONV object
when a DCS transmission occurs.
It is possible to hear this tone if you listen with headphones. DCS
sounds like a low “purring” in the background of a voice
transmission.
P25 NAC
P25 NAC stands for Project 25 Network Access Code. NAC is a
part of the APCO Project 25 digital radio standard, and works
much like CTCSS or DCS to block undesired transmissions from
a receiver. Project 25 voice information is sent as a series of data
packets, and each packet includes the NAC that has been
configured in the transmitter. A receiver can be programmed to
unmute and play a voice transmission only when the packets
from the transmitter include the correct NAC. Your scanner
operates in the same way. Like CTCSS and DCS, it can detect
the NAC that is in use on a transmitter, and will allow you to store
the code value with a CONV object when a P25 transmission
occurs.
0716 User Manual Page 131
Appendix G - Finding More Information
Learning About Scanning and your 0716
In recent years the Internet has become a powerful tool for both
experienced and novice scanning hobbyists. There are many
online discussion forums dedicated to the scanning hobby. In
these discussion forums, you will find users helping other users
with questions about radio systems, scanning receivers, antenna
setups, and frequency listings for different areas.
One of the most useful resources on the Internet are discussion
forums devoted to specific radio models. Frequently you will find
other users who are willing to answer questions or help you solve
problems with your scanning equipment.
In many cases a simple Web search using Google or other
popular Internet search tools will help you find web sites and
discussion forums where you can read more about the 0716,
ask questions, and share your experiences with other 0716
users.
For starters, we recommend www.radioreference.com, where
you will find a discussion forum dedicated to the 0716, along
with dozens of other scanning discussion forums devoted to the
scanning hobby.
We also suggest groups.yahoo.com. Search the Yahoo Groups
for 0716, and join groups that include active discussions
related to the 0716.
And, be sure to visit www.greamerica.com frequently for
important news, software updates and information about exciting
new GRE Scanning Receiver products and accessories!
Finding Frequencies and Trunked System Information
Research is an important part of the scanning hobby. Before you
can listen, you must first figure out what you want to listen to,
and then perform the research necessary to obtain the
conventional frequency or trunked radio system information
needed to program your radio.
Sometimes, a simple Web search using Google or other popular
Internet search tools is all that you need to get started. Try
searching on “<name of city or county> scanner frequencies” or
“<name of city or county> frequencies” (omitting the quotation
marks and < > symbols) to locate personal web pages with
0716 User Manual Page 132
information about scanning in the specified areas. We also
suggest www.radioreference.com, which includes an extensive
database of conventional and trunked radio system data for
locations all over the USA and the world.
0716 User Manual Page 133
Warranty
Limited Warranty
General
GRE America, Inc. warranty all parts of each new product to be of sound design, good
material and workmanship, and will repair or exchange any parts proven to be defective
under normal use at no charge for a period of 12 months from the date of sale to the end
user.
GRE America will correct defects. There will be no charge for labor for a period of 12
months from the date of original sale, except as provided below. Overtime premiums
and/or expedited handling and shipping costs must be paid by the owner.
An enclosed Warranty Card is included with each unit of purchase. We request the
Warranty card be filled and return back to GRE America to validate the Warranty of your
purchase along with Proof-of-purchase or you may also register online using the link
below.
Online Product Registration is also available at http://www.greamerica.com/register
Warranty Limitations
This warranty does not apply to equipment or parts that have been subject to accident,
abuse, incorrect service, alterations, service by non-authorized service personal, misuse.
A copy of the purchase receipt must be supplied or validated Warranty Registration must
be on GRE database either by mail or through online when requesting for service.
Equipment must be sent to GRE America at the owner or dealer’s expense and will be
returned via surface carrier at no cost to the owner.
This warranty is strictly limited to the terms indicated herein, and no other warranties or
remedies thereunder, express or implied, shall be binding on GRE America.
Warranty Returns
RETURN DEFECTIVE PRODUCTS TO YOUR DEALER OR CALL GRE AMERICA
FOR A RETURN AUTHORIZATION NUMBER (RMA). YOU SHOULD HAVE A
COPY OF YOUR ORIGINAL RECEIPT TO VERIFY DATE PURCHASE. UNIT IN
WHICH THE WARRANTY HAS EXPIRED MAY BE SERVICED AT A FIXED RATE
+ PARTS FOR FACTORY REPAIRS. RETURN SHIPPING FOR UNITS UNDER
WARRANTY WILL BE PAID BY GRE AMERICA. SHIPPING FOR UNITS OUT OF
WARRANTY WILL BE PAID BY THE SENDER IN BOTH DIRECTIONS. AN RMA#
OUTSIDE THE BOX NEXT TO THE SHIPPING ADDRESS MUST BE
ACCOMPANIED WITH ALL UNITS BEING RETURN BACK TO GRE AMERICA.
RETURNS WITHOUT RMA# WILL DELAY IN PROCESSING YOUR WARRANTY
OR NON-WARRANTY REPAIRS.
GRE America, Inc.
425 Harbor Blvd.
Belmont, CA 94002 U.S.A
Ph: (650) 501-1400 . Fax: (650) 591-2001
Website: http://www.greamerica.com
Online Registration: http://www.greamerica.com/register
0716 User Manual Page 134
