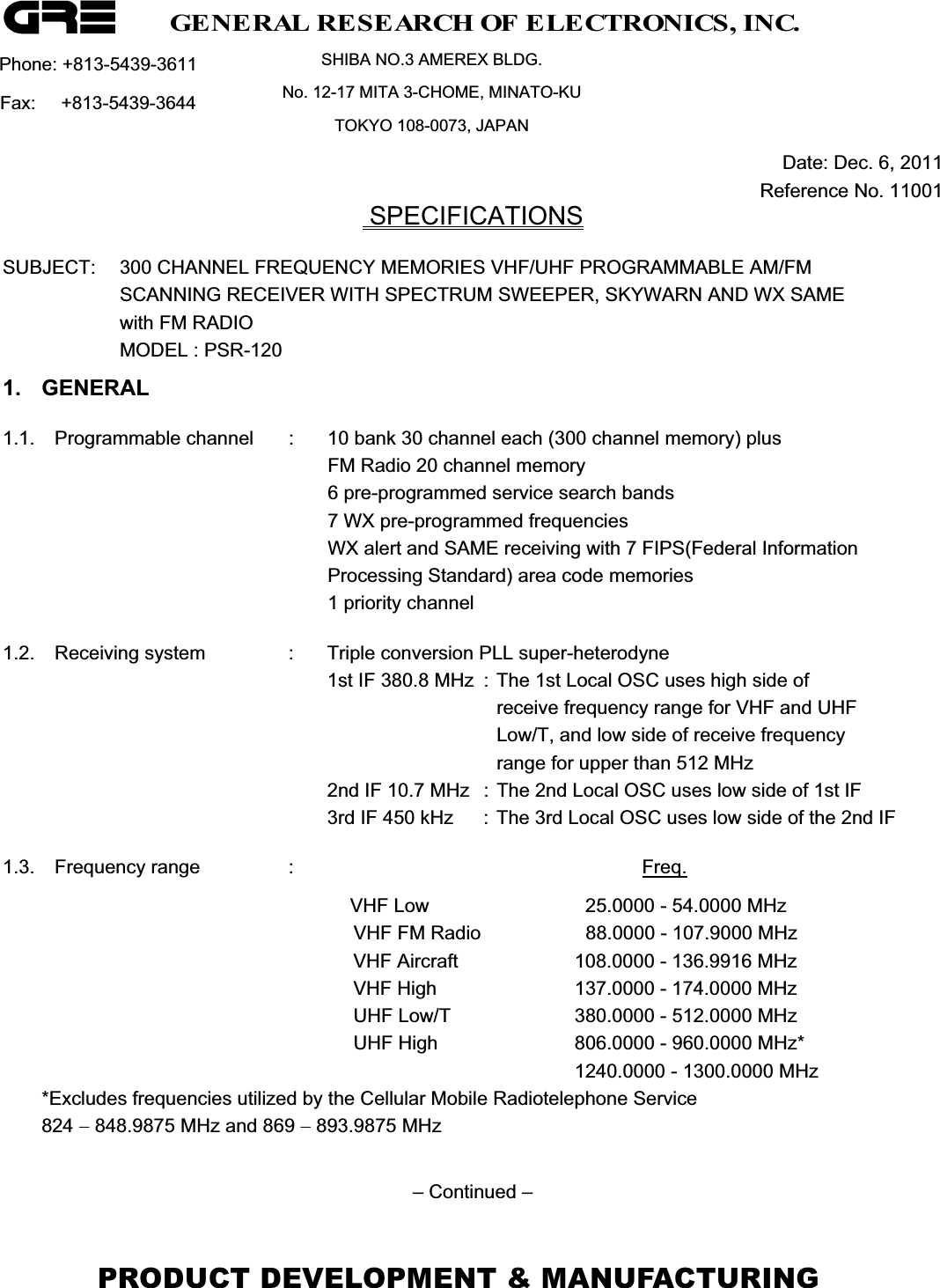

Phone: +813-5439-3611 SHIBA NO.3 AMEREX BLDG. No. 12-17 MITA 3-CHOME, MINATO-KU TOKYO 108-0073, JAPAN Fax: +813-5439-3644 Date: Dec. 6, 2011 Reference No. 11001 SPECIFICATIONSSUBJECT: 300 CHANNEL FREQUENCY MEMORIES VHF/UHF PROGRAMMABLE AM/FM SCANNING RECEIVER WITH SPECTRUM SWEEPER, SKYWARN AND WX SAME with FM RADIO MODEL : PSR-120 1. GENERAL 1.1. Programmable channel : 10 bank 30 channel each (300 channel memory) plus FM Radio 20 channel memory 6 pre-programmed service search bands 7 WX pre-programmed frequencies WX alert and SAME receiving with 7 FIPS(Federal Information Processing Standard) area code memories 1 priority channel 1.2. Receiving system : Triple conversion PLL super-heterodyne 1st IF 380.8 MHz : The 1st Local OSC uses high side of receive frequency range for VHF and UHF Low/T, and low side of receive frequency range for upper than 512 MHz 2nd IF 10.7 MHz : The 2nd Local OSC uses low side of 1st IF 3rd IF 450 kHz : The 3rd Local OSC uses low side of the 2nd IF 1.3. Frequency range : Freq.VHF Low 25.0000 - 54.0000 MHz VHF FM Radio 88.0000 - 107.9000 MHz VHF Aircraft 108.0000 - 136.9916 MHz VHF High 137.0000 - 174.0000 MHz UHF Low/T 380.0000 - 512.0000 MHz UHF High 806.0000 - 960.0000 MHz* 1240.0000 - 1300.0000 MHz *Excludes frequencies utilized by the Cellular Mobile Radiotelephone Service 824  848.9875 MHz and 869  893.9875 MHz – Continued – GENERAL RESEARCH OF ELECTRONICS, INC.PRODUCT DEVELOPMENT & MANUFACTURING

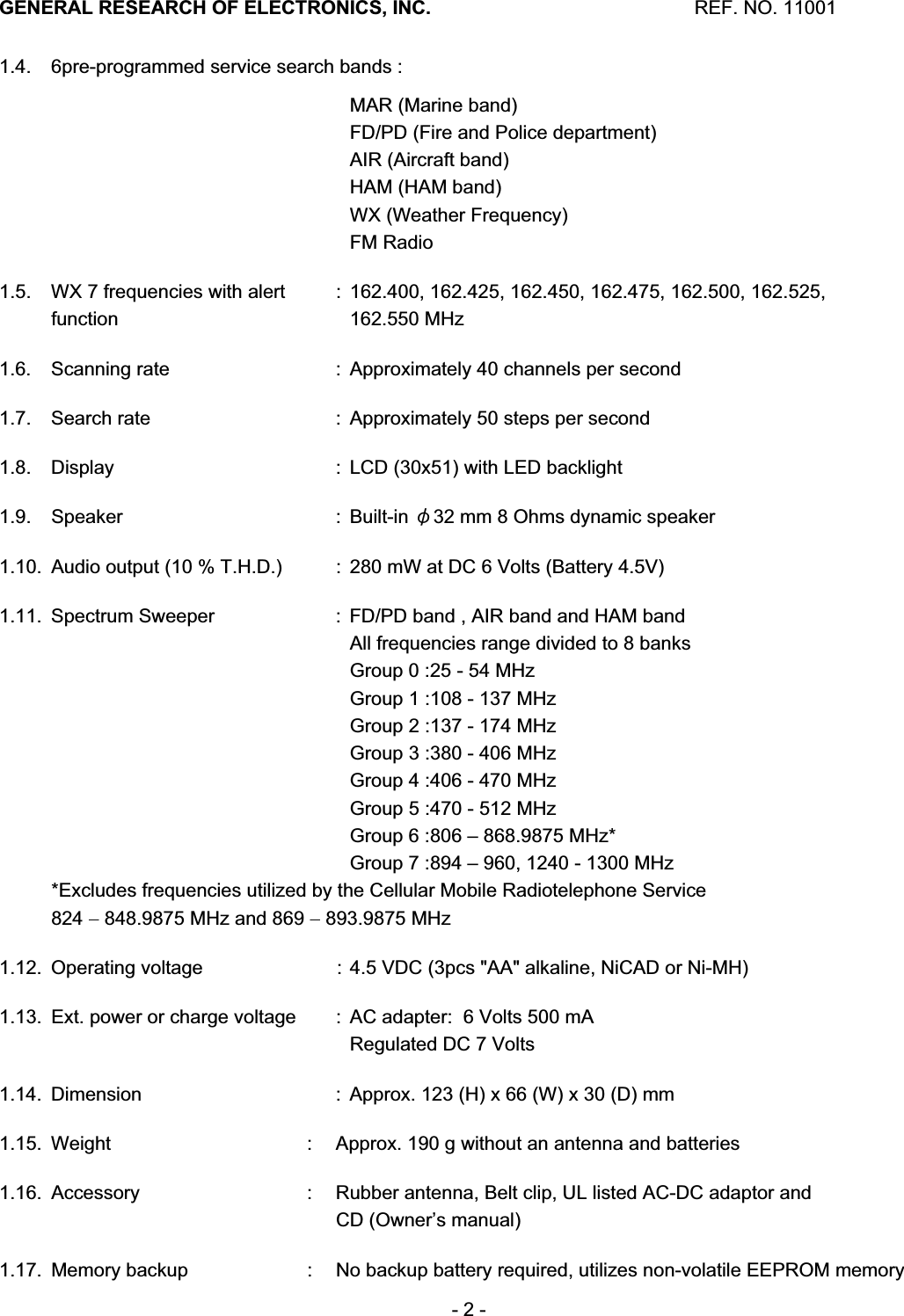

GENERAL RESEARCH OF ELECTRONICS, INC. REF. NO. 11001- 2 - 1.4. 6pre-programmed service search bands : MAR (Marine band) FD/PD (Fire and Police department) AIR (Aircraft band) HAM (HAM band) WX (Weather Frequency) FM Radio 1.5. WX 7 frequencies with alert : 162.400, 162.425, 162.450, 162.475, 162.500, 162.525, function 162.550 MHz 1.6. Scanning rate : Approximately 40 channels per second 1.7. Search rate : Approximately 50 steps per second 1.8. Display : LCD (30x51) with LED backlight 1.9. Speaker : Built-in 䃥32 mm 8 Ohms dynamic speaker 1.10. Audio output (10 % T.H.D.) : 280 mW at DC 6 Volts (Battery 4.5V) 1.11. Spectrum Sweeper : FD/PD band , AIR band and HAM band All frequencies range divided to 8 banks Group 0 :25 - 54 MHz Group 1 :108 - 137 MHz Group 2 :137 - 174 MHz Group 3 :380 - 406 MHz Group 4 :406 - 470 MHz Group 5 :470 - 512 MHz Group 6 :806 – 868.9875 MHz* Group 7 :894 – 960, 1240 - 1300 MHz *Excludes frequencies utilized by the Cellular Mobile Radiotelephone Service 824  848.9875 MHz and 869  893.9875 MHz 1.12. Operating voltage : 4.5 VDC (3pcs "AA" alkaline, NiCAD or Ni-MH) 1.13. Ext. power or charge voltage : AC adapter: 6 Volts 500 mA Regulated DC 7 Volts 1.14. Dimension : Approx. 123 (H) x 66 (W) x 30 (D) mm 1.15. Weight : Approx. 190 g without an antenna and batteries 1.16. Accessory : Rubber antenna, Belt clip, UL listed AC-DC adaptor and CD (Owner’s manual) 1.17. Memory backup : No backup battery required, utilizes non-volatile EEPROM memory

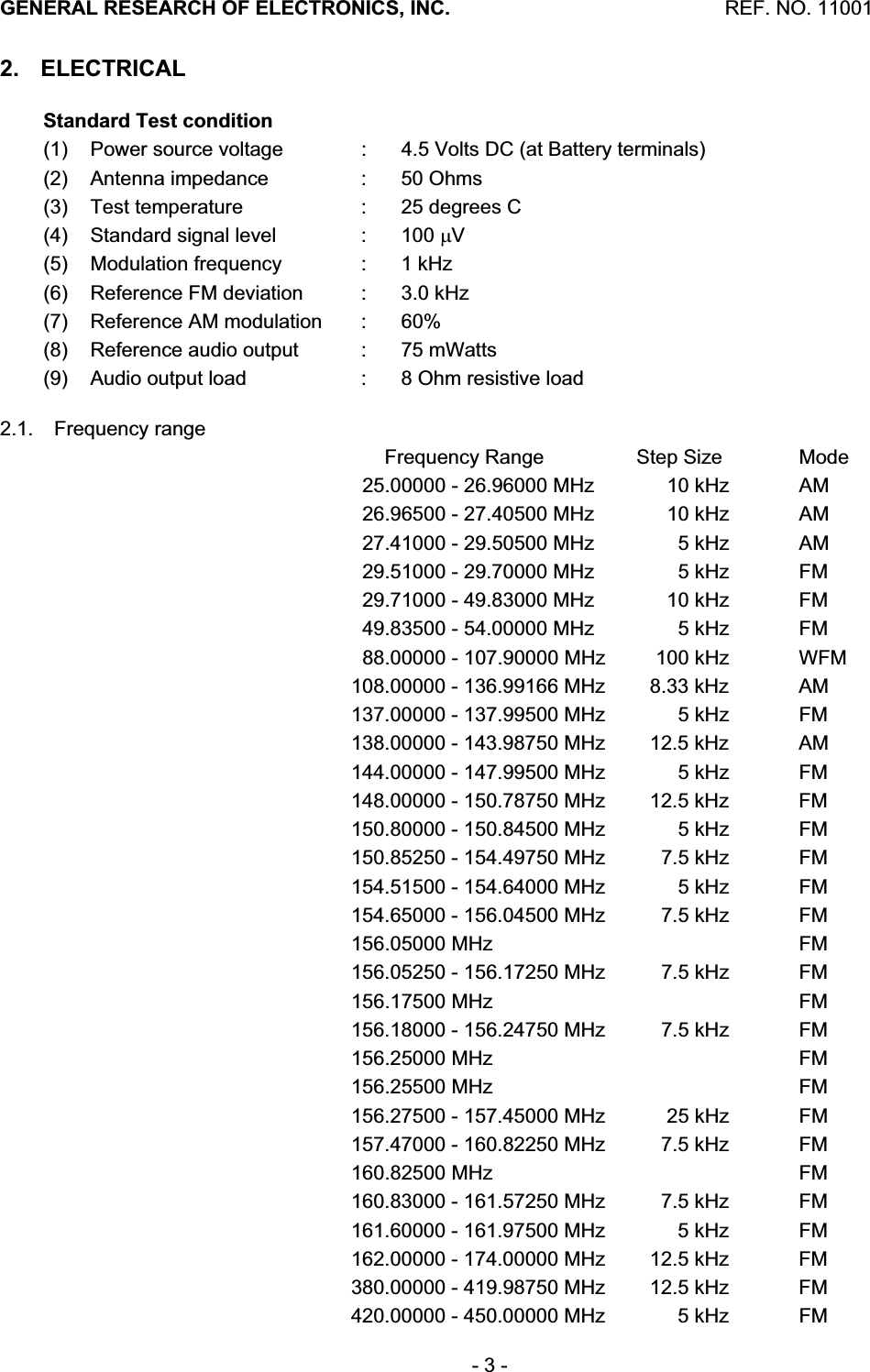

GENERAL RESEARCH OF ELECTRONICS, INC. REF. NO. 11001- 3 - 2. ELECTRICAL Standard Test condition(1) Power source voltage : 4.5 Volts DC (at Battery terminals) (2) Antenna impedance : 50 Ohms (3) Test temperature : 25 degrees C (4) Standard signal level : 100 PV(5) Modulation frequency : 1 kHz (6) Reference FM deviation : 3.0 kHz (7) Reference AM modulation : 60% (8) Reference audio output : 75 mWatts (9) Audio output load : 8 Ohm resistive load 2.1. Frequency range Frequency Range Step Size Mode 25.00000 - 26.96000 MHz 10 kHz AM 26.96500 - 27.40500 MHz 10 kHz AM 27.41000 - 29.50500 MHz 5 kHz AM 29.51000 - 29.70000 MHz 5 kHz FM 29.71000 - 49.83000 MHz 10 kHz FM 49.83500 - 54.00000 MHz 5 kHz FM 88.00000 - 107.90000 MHz 100 kHz WFM 108.00000 - 136.99166 MHz 8.33 kHz AM 137.00000 - 137.99500 MHz 5 kHz FM 138.00000 - 143.98750 MHz 12.5 kHz AM 144.00000 - 147.99500 MHz 5 kHz FM 148.00000 - 150.78750 MHz 12.5 kHz FM 150.80000 - 150.84500 MHz 5 kHz FM 150.85250 - 154.49750 MHz 7.5 kHz FM 154.51500 - 154.64000 MHz 5 kHz FM 154.65000 - 156.04500 MHz 7.5 kHz FM 156.05000 MHz FM 156.05250 - 156.17250 MHz 7.5 kHz FM 156.17500 MHz FM 156.18000 - 156.24750 MHz 7.5 kHz FM 156.25000 MHz FM 156.25500 MHz FM 156.27500 - 157.45000 MHz 25 kHz FM 157.47000 - 160.82250 MHz 7.5 kHz FM 160.82500 MHz FM 160.83000 - 161.57250 MHz 7.5 kHz FM 161.60000 - 161.97500 MHz 5 kHz FM 162.00000 - 174.00000 MHz 12.5 kHz FM 380.00000 - 419.98750 MHz 12.5 kHz FM 420.00000 - 450.00000 MHz 5 kHz FM

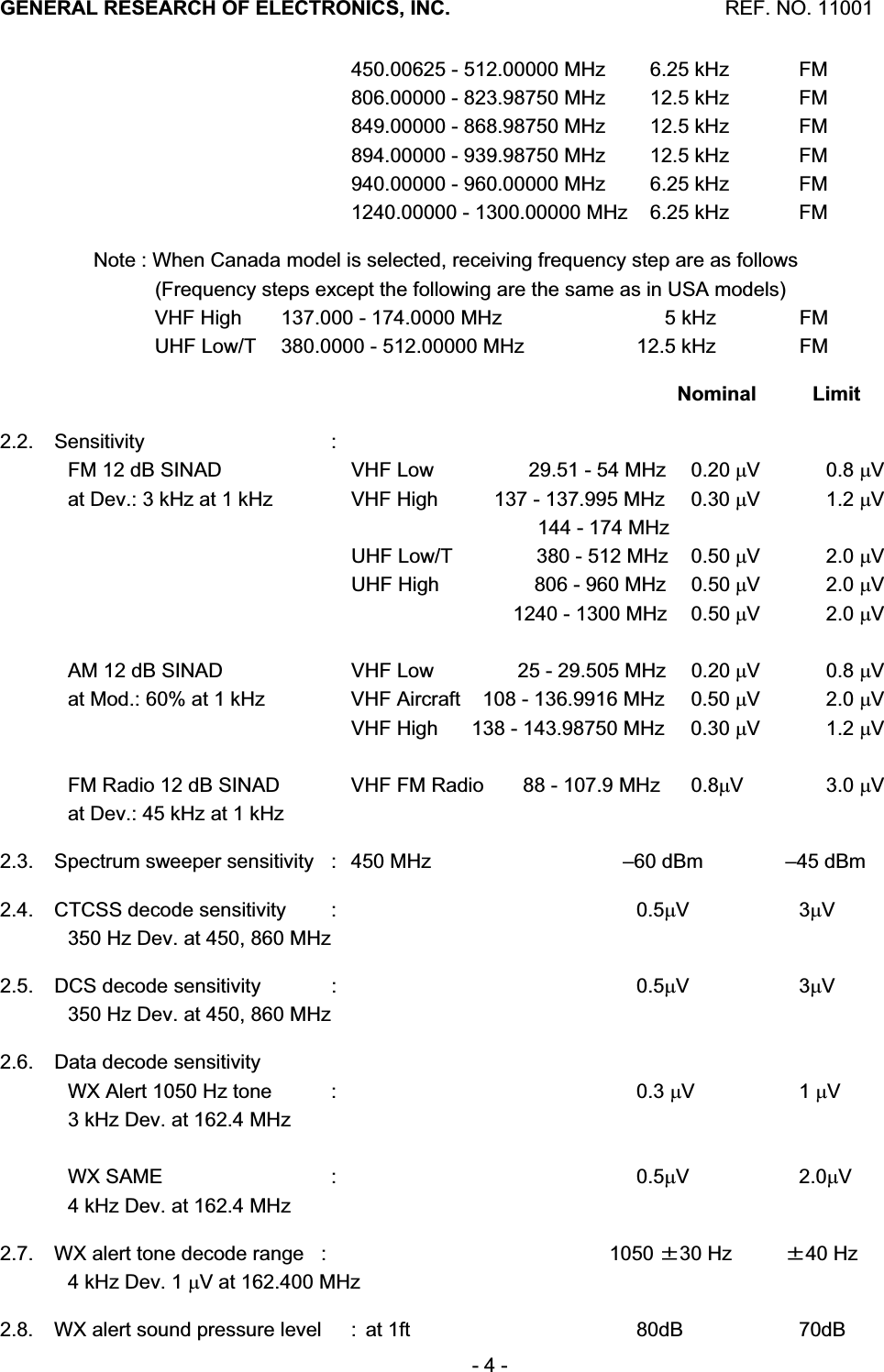

GENERAL RESEARCH OF ELECTRONICS, INC. REF. NO. 11001- 4 - 450.00625 - 512.00000 MHz 6.25 kHz FM 806.00000 - 823.98750 MHz 12.5 kHz FM 849.00000 - 868.98750 MHz 12.5 kHz FM 894.00000 - 939.98750 MHz 12.5 kHz FM 940.00000 - 960.00000 MHz 6.25 kHz FM 1240.00000 - 1300.00000 MHz 6.25 kHz FM Note : When Canada model is selected, receiving frequency step are as follows (Frequency steps except the following are the same as in USA models) VHF High 137.000 - 174.0000 MHz 5 kHz FM UHF Low/T 380.0000 - 512.00000 MHz 12.5 kHz FM Nominal Limit2.2. Sensitivity : FM 12 dB SINAD VHF Low 29.51 - 54 MHz 0.20 PV 0.8 PVat Dev.: 3 kHz at 1 kHz VHF High 137 - 137.995 MHz 0.30 PV 1.2 PV 144 - 174 MHz UHF Low/T 380 - 512 MHz 0.50 PV 2.0 PV UHF High 806 - 960 MHz 0.50 PV 2.0 PV 1240 - 1300 MHz 0.50 PV 2.0 PVAM 12 dB SINAD VHF Low 25 - 29.505 MHz 0.20 PV 0.8 PVat Mod.: 60% at 1 kHz VHF Aircraft 108 - 136.9916 MHz 0.50 PV 2.0 PV VHF High 138 - 143.98750 MHz 0.30 PV 1.2 PVFM Radio 12 dB SINAD VHF FM Radio 88 - 107.9 MHz 0.8PV 3.0 PVat Dev.: 45 kHz at 1 kHz 2.3. Spectrum sweeper sensitivity : 450 MHz –60 dBm –45 dBm 2.4. CTCSS decode sensitivity : 0.5PV 3PV350 Hz Dev. at 450, 860 MHz 2.5. DCS decode sensitivity : 0.5PV 3PV350 Hz Dev. at 450, 860 MHz 2.6. Data decode sensitivity WX Alert 1050 Hz tone : 0.3 PV 1 PV3 kHz Dev. at 162.4 MHz WX SAME : 0.5PV 2.0PV4 kHz Dev. at 162.4 MHz 2.7. WX alert tone decode range : 1050 㼼30 Hz 㼼40 Hz 4 kHz Dev. 1 PV at 162.400 MHz 2.8. WX alert sound pressure level : at 1ft 80dB 70dB

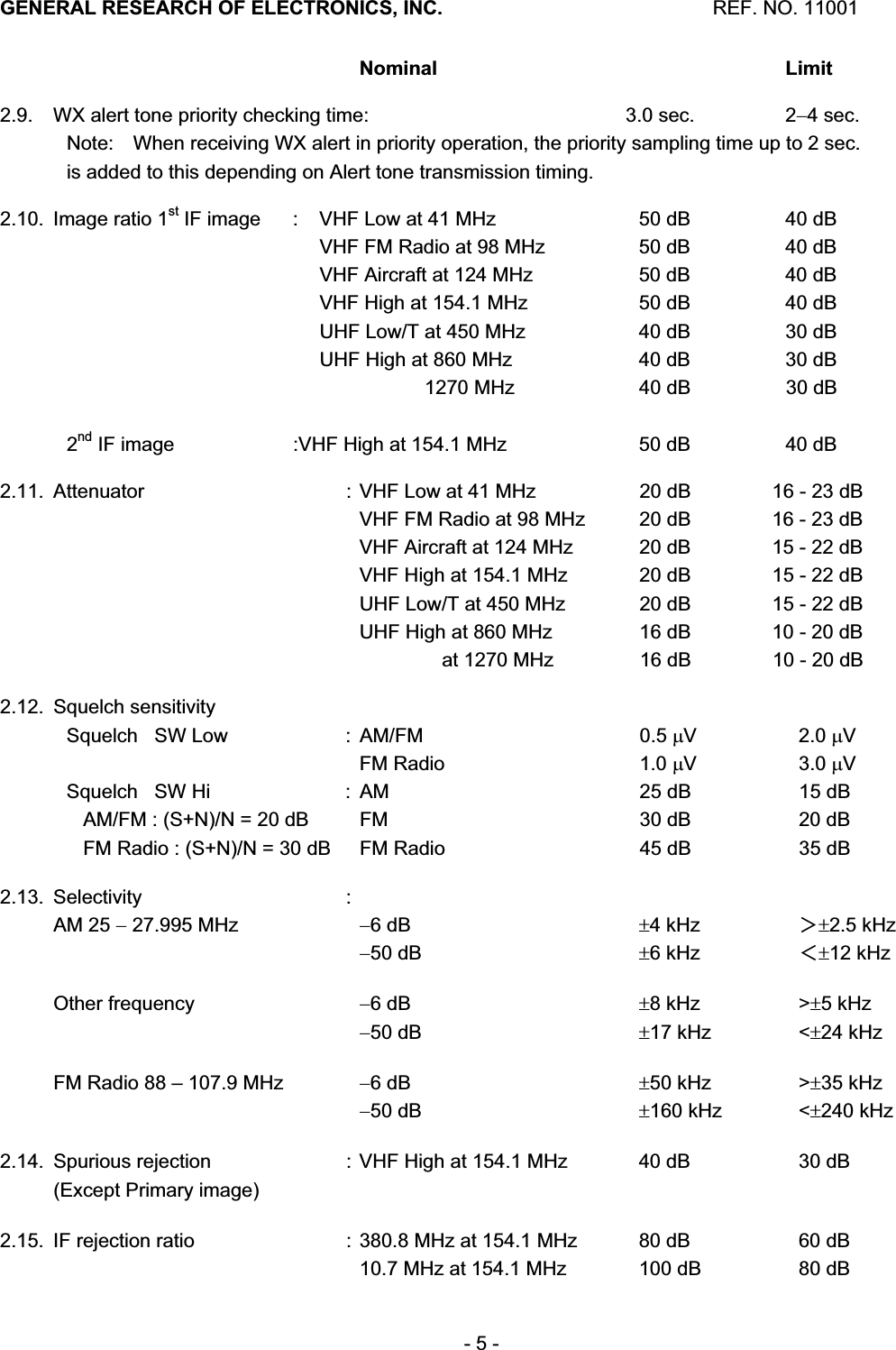

GENERAL RESEARCH OF ELECTRONICS, INC. REF. NO. 11001- 5 - Nominal Limit2.9. WX alert tone priority checking time: 3.0 sec. 24 sec. Note: When receiving WX alert in priority operation, the priority sampling time up to 2 sec. is added to this depending on Alert tone transmission timing. 2.10. Image ratio 1st IF image : VHF Low at 41 MHz 50 dB 40 dB VHF FM Radio at 98 MHz 50 dB 40 dB VHF Aircraft at 124 MHz 50 dB 40 dB VHF High at 154.1 MHz 50 dB 40 dB UHF Low/T at 450 MHz 40 dB 30 dB UHF High at 860 MHz 40 dB 30 dB 1270 MHz 40 dB 30 dB 2nd IF image :VHF High at 154.1 MHz 50 dB 40 dB 2.11. Attenuator : VHF Low at 41 MHz 20 dB 16 - 23 dB VHF FM Radio at 98 MHz 20 dB 16 - 23 dB VHF Aircraft at 124 MHz 20 dB 15 - 22 dB VHF High at 154.1 MHz 20 dB 15 - 22 dB UHF Low/T at 450 MHz 20 dB 15 - 22 dB UHF High at 860 MHz 16 dB 10 - 20 dB at 1270 MHz 16 dB 10 - 20 dB 2.12. Squelch sensitivity Squelch SW Low : AM/FM 0.5 PV 2.0 PV FM Radio 1.0 PV 3.0 PVSquelch SW Hi : AM 25 dB 15 dB AM/FM : (S+N)/N = 20 dB FM 30 dB 20 dB FM Radio : (S+N)/N = 30 dB FM Radio 45 dB 35 dB 2.13. Selectivity : AM 25  27.995 MHz 6 dB r4 kHz 䠚r2.5 kHz 50 dB r6 kHz 䠘r12 kHz Other frequency 6 dB r8 kHz >r5 kHz 50 dB r17 kHz <r24 kHz FM Radio 88 – 107.9 MHz 6 dB r50 kHz >r35 kHz 50 dB r160 kHz <r240 kHz 2.14. Spurious rejection : VHF High at 154.1 MHz 40 dB 30 dB (Except Primary image) 2.15. IF rejection ratio : 380.8 MHz at 154.1 MHz 80 dB 60 dB 10.7 MHz at 154.1 MHz 100 dB 80 dB

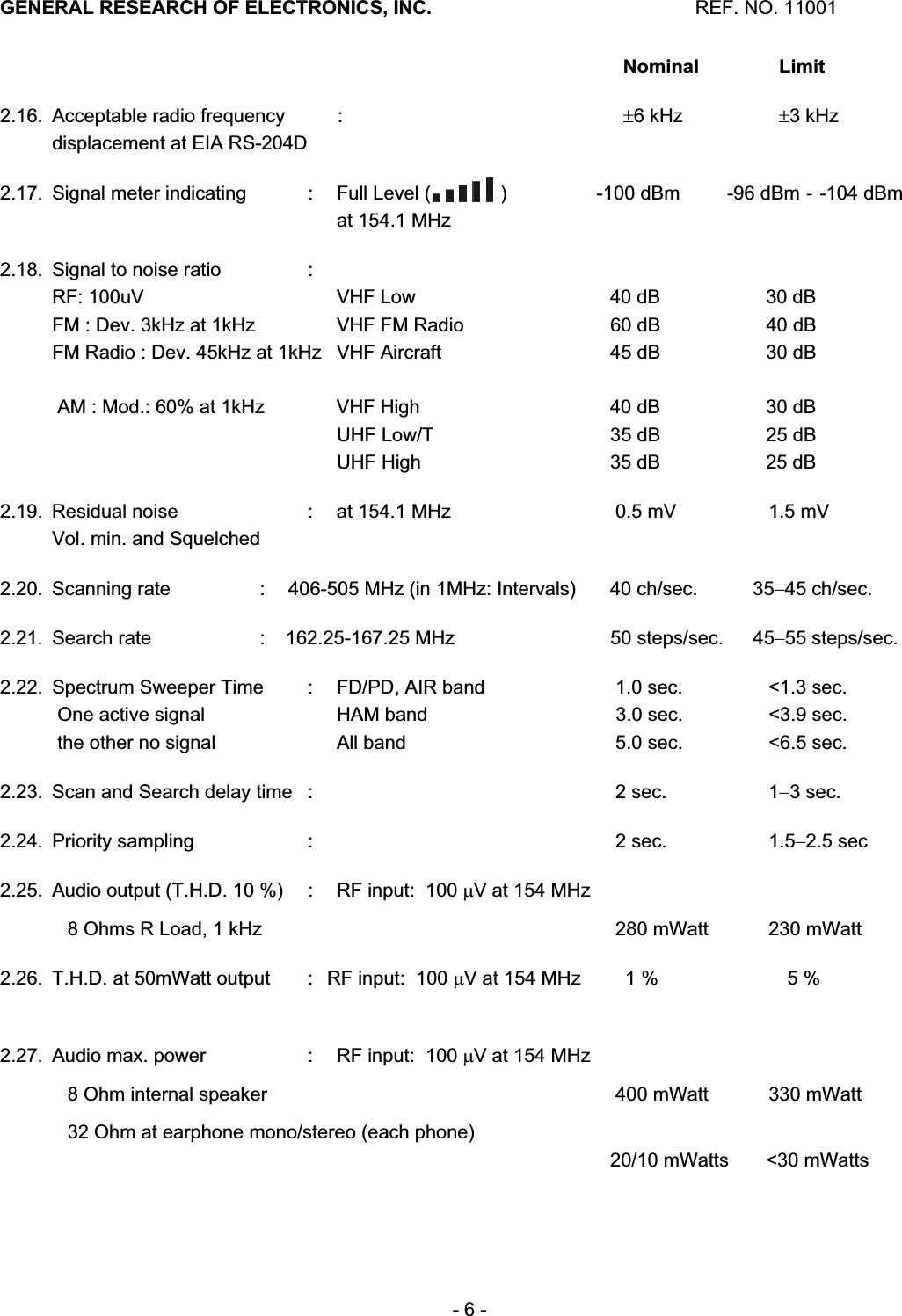

GENERAL RESEARCH OF ELECTRONICS, INC. REF. NO. 11001- 6 - Nominal Limit2.16. Acceptable radio frequency : r6 kHz r3 kHz displacement at EIA RS-204D 2.17. Signal meter indicating : Full Level ( ) -100 dBm -96 dBm 䇲 -104 dBm at 154.1 MHz 2.18. Signal to noise ratio : RF: 100uV VHF Low 40 dB 30 dB FM : Dev. 3kHz at 1kHz VHF FM Radio 60 dB 40 dB FM Radio : Dev. 45kHz at 1kHz VHF Aircraft 45 dB 30 dB AM : Mod.: 60% at 1kHz VHF High 40 dB 30 dB UHF Low/T 35 dB 25 dB UHF High 35 dB 25 dB 2.19. Residual noise : at 154.1 MHz 0.5 mV 1.5 mV Vol. min. and Squelched 2.20. Scanning rate : 406-505 MHz (in 1MHz: Intervals) 40 ch/sec. 3545 ch/sec. 2.21. Search rate : 162.25-167.25 MHz 50 steps/sec. 4555 steps/sec. 2.22. Spectrum Sweeper Time : FD/PD, AIR band 1.0 sec. <1.3 sec. One active signal HAM band 3.0 sec. <3.9 sec. the other no signal All band 5.0 sec. <6.5 sec. 2.23. Scan and Search delay time : 2 sec. 13 sec. 2.24. Priority sampling : 2 sec. 1.52.5 sec 2.25. Audio output (T.H.D. 10 %) : RF input: 100 PV at 154 MHz 8 Ohms R Load, 1 kHz 280 mWatt 230 mWatt 2.26. T.H.D. at 50mWatt output : RF input: 100 PV at 154 MHz 1 % 5 % 2.27. Audio max. power : RF input: 100 PV at 154 MHz 8 Ohm internal speaker 400 mWatt 330 mWatt 32 Ohm at earphone mono/stereo (each phone) 20/10 mWatts <30 mWatts

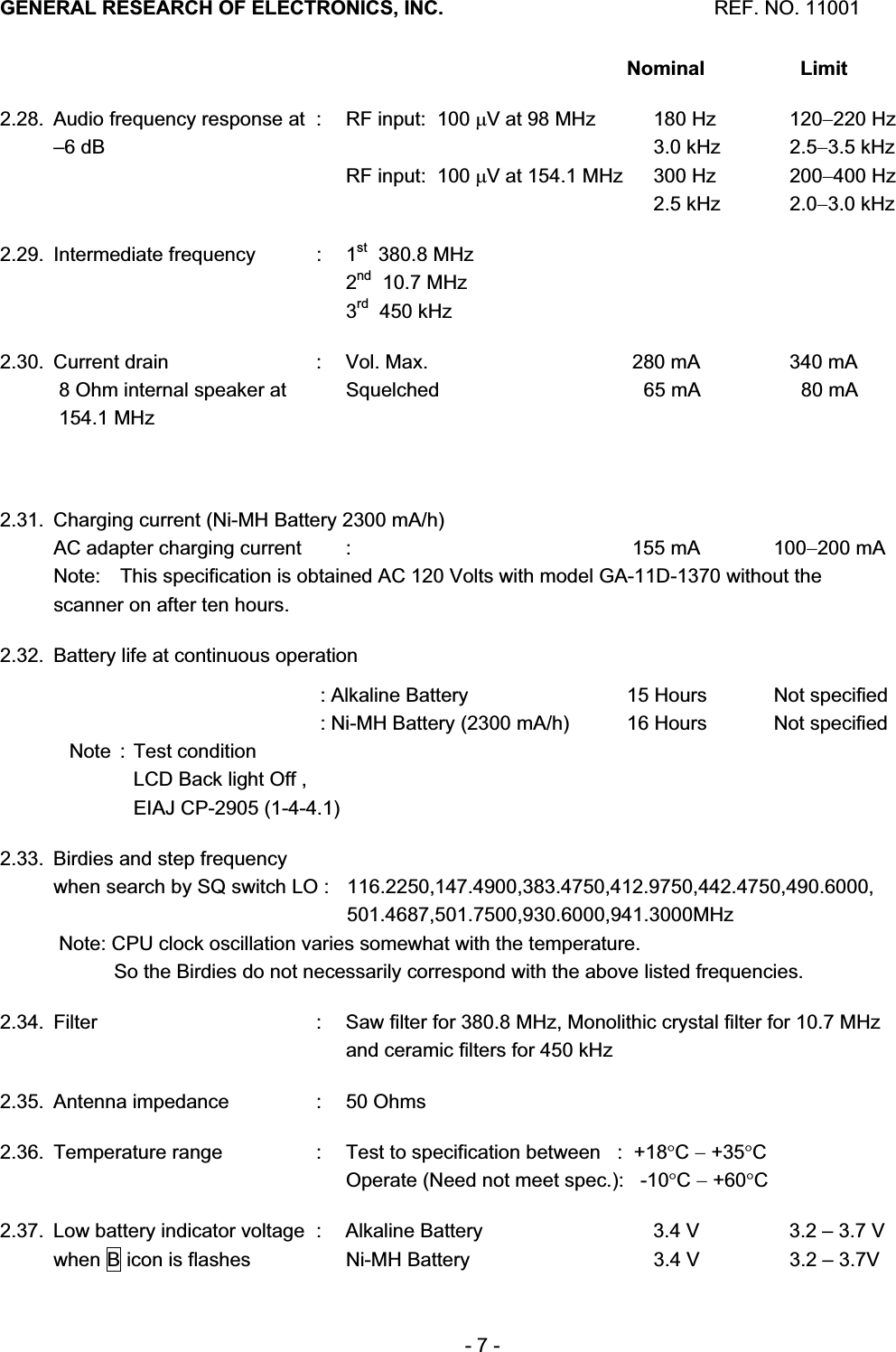

GENERAL RESEARCH OF ELECTRONICS, INC. REF. NO. 11001- 7 - Nominal Limit2.28. Audio frequency response at : RF input: 100 PV at 98 MHz 180 Hz 120220 Hz –6 dB 3.0 kHz 2.53.5 kHz RF input: 100 PV at 154.1 MHz 300 Hz 200400 Hz 2.5 kHz 2.03.0 kHz 2.29. Intermediate frequency : 1st 380.8 MHz 2nd 10.7 MHz 3rd 450 kHz 2.30. Current drain : Vol. Max. 280 mA 340 mA 8 Ohm internal speaker at Squelched 65 mA 80 mA 154.1 MHz 2.31. Charging current (Ni-MH Battery 2300 mA/h) AC adapter charging current : 155 mA 100200 mA Note: This specification is obtained AC 120 Volts with model GA-11D-1370 without the scanner on after ten hours. 2.32. Battery life at continuous operation : Alkaline Battery 15 Hours Not specified : Ni-MH Battery (2300 mA/h) 16 Hours Not specified Note : Test condition LCD Back light Off , EIAJ CP-2905 (1-4-4.1) 2.33. Birdies and step frequency when search by SQ switch LO : 116.2250,147.4900,383.4750,412.9750,442.4750,490.6000, 501.4687,501.7500,930.6000,941.3000MHz Note: CPU clock oscillation varies somewhat with the temperature. So the Birdies do not necessarily correspond with the above listed frequencies. 2.34. Filter : Saw filter for 380.8 MHz, Monolithic crystal filter for 10.7 MHz and ceramic filters for 450 kHz 2.35. Antenna impedance : 50 Ohms 2.36. Temperature range : Test to specification between : +18qC +35qC Operate (Need not meet spec.): -10qC +60qC2.37. Low battery indicator voltage : Alkaline Battery 3.4 V 3.2 – 3.7 V when B icon is flashes Ni-MH Battery 3.4 V 3.2 – 3.7V

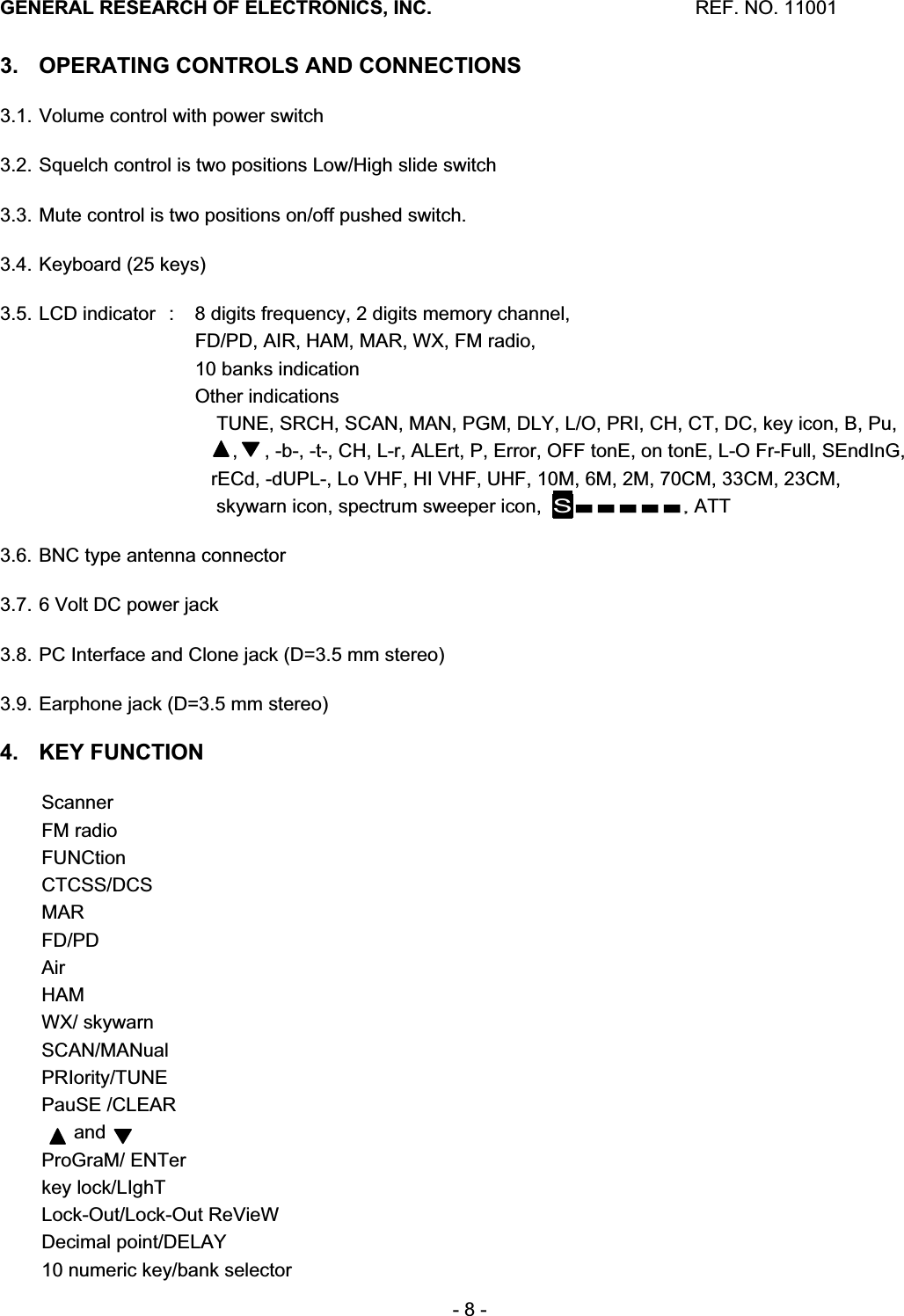

GENERAL RESEARCH OF ELECTRONICS, INC. REF. NO. 11001- 8 - 3. OPERATING CONTROLS AND CONNECTIONS 3.1. Volume control with power switch 3.2. Squelch control is two positions Low/High slide switch 3.3. Mute control is two positions on/off pushed switch. 3.4. Keyboard (25 keys) 3.5. LCD indicator : 8 digits frequency, 2 digits memory channel, FD/PD, AIR, HAM, MAR, WX, FM radio, 10 banks indication Other indications TUNE, SRCH, SCAN, MAN, PGM, DLY, L/O, PRI, CH, CT, DC, key icon, B, Pu, , , -b-, -t-, CH, L-r, ALErt, P, Error, OFF tonE, on tonE, L-O Fr-Full, SEndInG, rECd, -dUPL-, Lo VHF, HI VHF, UHF, 10M, 6M, 2M, 70CM, 33CM, 23CM, skywarn icon, spectrum sweeper icon, S䕔䕔䕔䕔䕔, ATT 3.6. BNC type antenna connector 3.7. 6 Volt DC power jack 3.8. PC Interface and Clone jack (D=3.5 mm stereo) 3.9. Earphone jack (D=3.5 mm stereo) 4. KEY FUNCTION Scanner FM radio FUNCtion CTCSS/DCSMARFD/PDAirHAMWX/ skywarn SCAN/MANualPRIority/TUNE PauSE /CLEAR and ProGraM/ ENTer key lock/LIghT Lock-Out/Lock-Out ReVieW Decimal point/DELAY 10 numeric key/bank selector

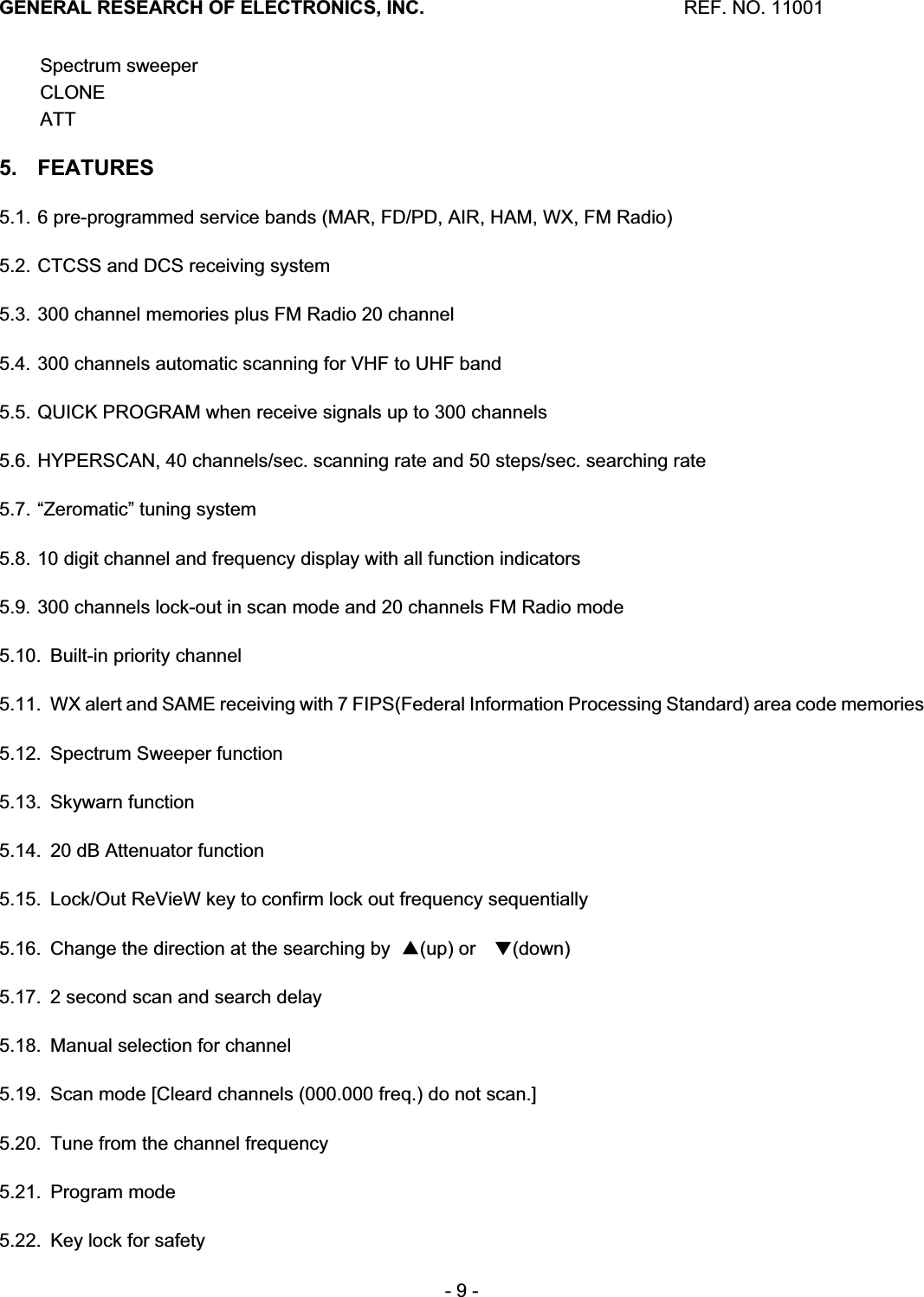

GENERAL RESEARCH OF ELECTRONICS, INC. REF. NO. 11001- 9 - Spectrum sweeper CLONE ATT5. FEATURES 5.1. 6 pre-programmed service bands (MAR, FD/PD, AIR, HAM, WX, FM Radio)5.2. CTCSS and DCS receiving system 5.3. 300 channel memories plus FM Radio 20 channel 5.4. 300 channels automatic scanning for VHF to UHF band 5.5. QUICK PROGRAM when receive signals up to 300 channels 5.6. HYPERSCAN, 40 channels/sec. scanning rate and 50 steps/sec. searching rate 5.7. “Zeromatic” tuning system 5.8. 10 digit channel and frequency display with all function indicators 5.9. 300 channels lock-out in scan mode and 20 channels FM Radio mode 5.10. Built-in priority channel 5.11. WX alert and SAME receiving with 7 FIPS(Federal Information Processing Standard) area code memories 5.12. Spectrum Sweeper function 5.13. Skywarn function 5.14. 20 dB Attenuator function 5.15. Lock/Out ReVieW key to confirm lock out frequency sequentially 5.16. Change the direction at the searching by 䕦(up) or 㻌䕰(down) 5.17. 2 second scan and search delay 5.18. Manual selection for channel 5.19. Scan mode [Cleard channels (000.000 freq.) do not scan.] 5.20. Tune from the channel frequency 5.21. Program mode 5.22. Key lock for safety

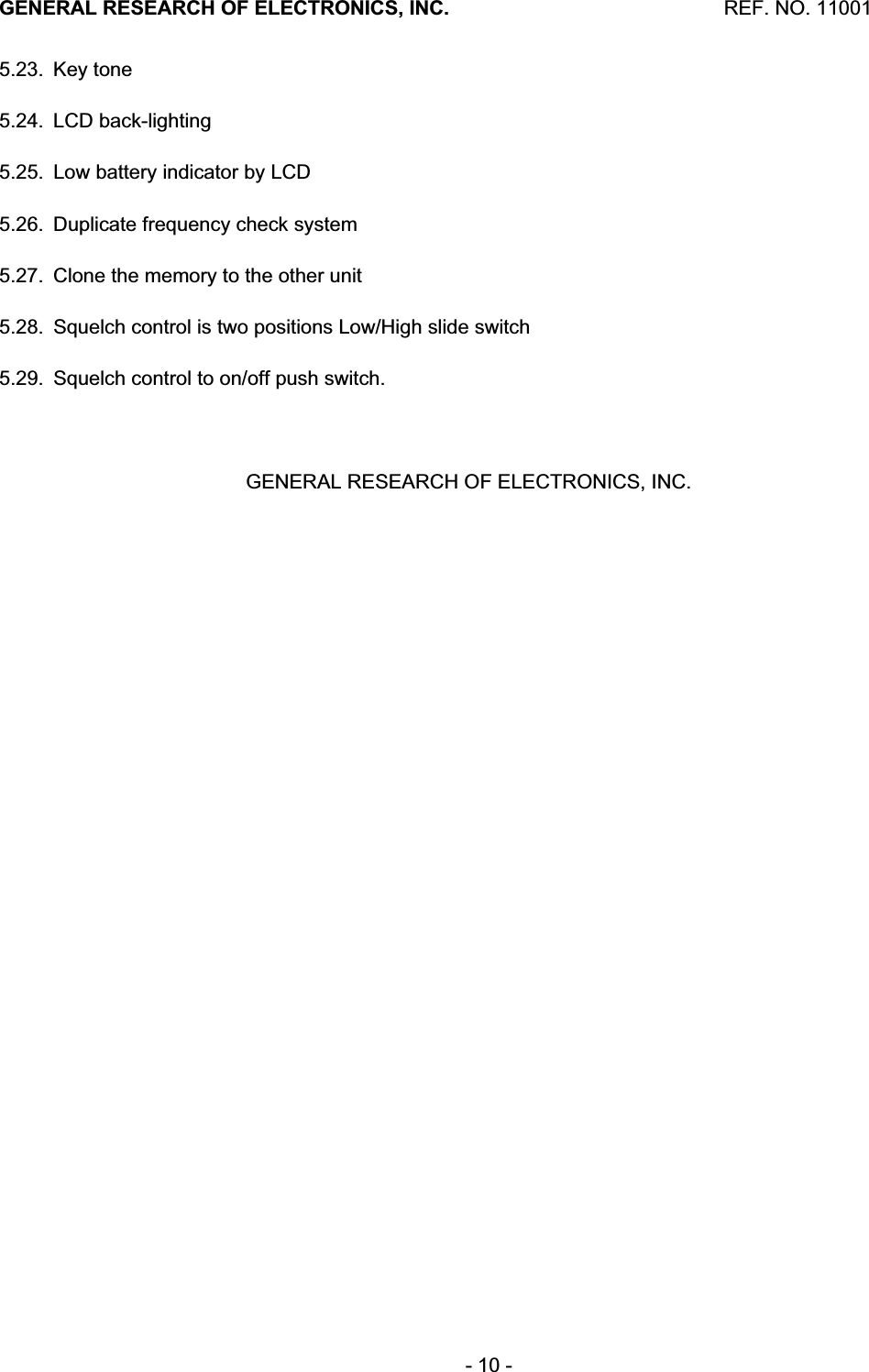

GENERAL RESEARCH OF ELECTRONICS, INC. REF. NO. 11001- 10 - 5.23. Key tone 5.24. LCD back-lighting5.25. Low battery indicator by LCD 5.26. Duplicate frequency check system 5.27. Clone the memory to the other unit 5.28. Squelch control is two positions Low/High slide switch 5.29. Squelch control to on/off push switch. GENERAL RESEARCH OF ELECTRONICS, INC.
