General Research of Electronics 2000428 Scanning Receiver User Manual

General Research of Electronics Inc Scanning Receiver

Manual

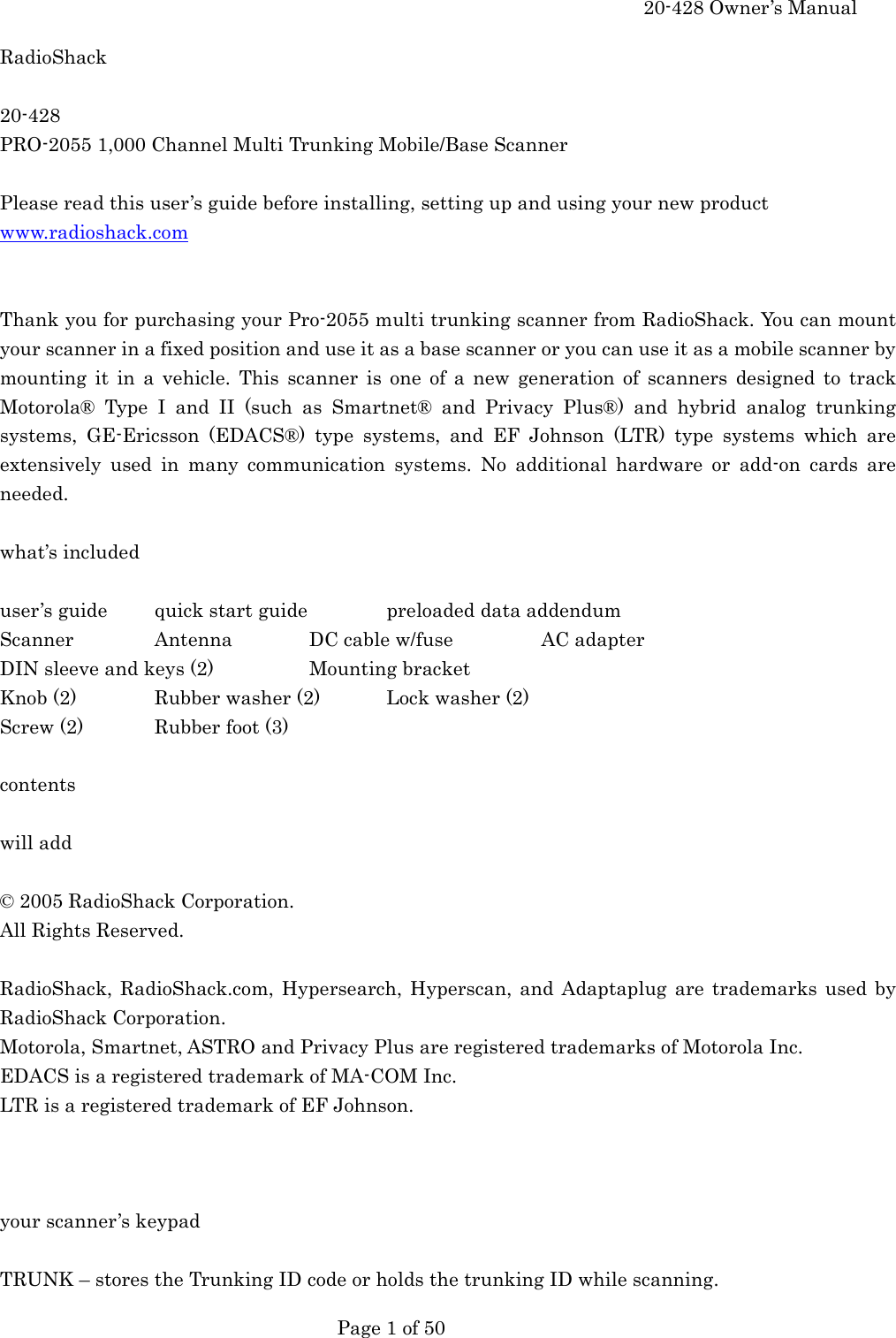

20-428 Owner’s Manual Page 1 of 50 RadioShack 20-428 PRO-2055 1,000 Channel Multi Trunking Mobile/Base Scanner Please read this user’s guide before installing, setting up and using your new product www.radioshack.com Thank you for purchasing your Pro-2055 multi trunking scanner from RadioShack. You can mount your scanner in a fixed position and use it as a base scanner or you can use it as a mobile scanner by mounting it in a vehicle. This scanner is one of a new generation of scanners designed to track Motorola® Type I and II (such as Smartnet® and Privacy Plus®) and hybrid analog trunking systems, GE-Ericsson (EDACS®) type systems, and EF Johnson (LTR) type systems which are extensively used in many communication systems. No additional hardware or add-on cards are needed. what’s included user’s guide quick start guide preloaded data addendum Scanner Antenna DC cable w/fuse AC adapter DIN sleeve and keys (2) Mounting bracket Knob (2) Rubber washer (2) Lock washer (2) Screw (2) Rubber foot (3) contents will add © 2005 RadioShack Corporation. All Rights Reserved. RadioShack, RadioShack.com, Hypersearch, Hyperscan, and Adaptaplug are trademarks used by RadioShack Corporation. Motorola, Smartnet, ASTRO and Privacy Plus are registered trademarks of Motorola Inc. EDACS is a registered trademark of MA-COM Inc. LTR is a registered trademark of EF Johnson. your scanner’s keypad TRUNK – stores the Trunking ID code or holds the trunking ID while scanning.

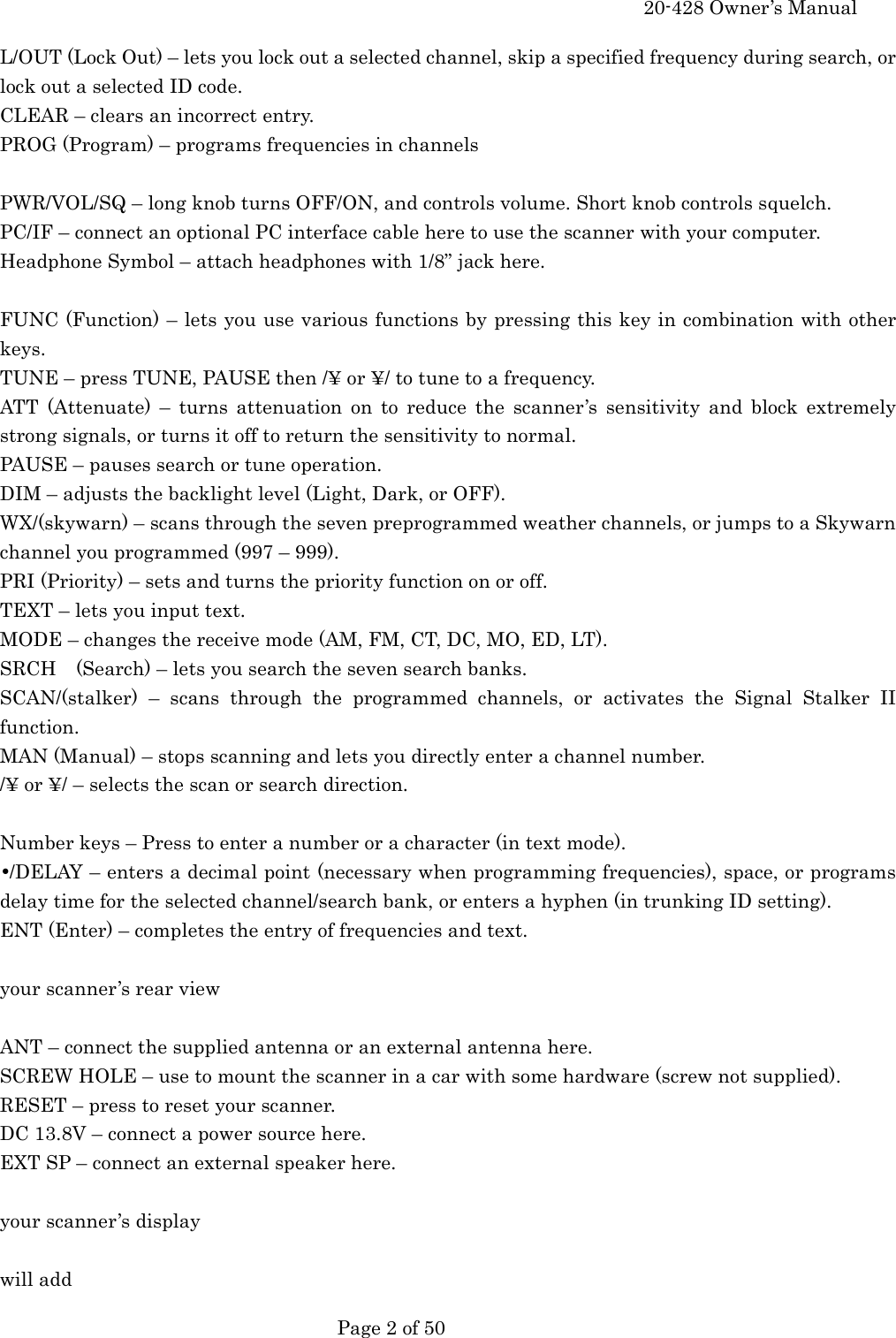

20-428 Owner’s Manual Page 2 of 50 L/OUT (Lock Out) – lets you lock out a selected channel, skip a specified frequency during search, or lock out a selected ID code. CLEAR – clears an incorrect entry. PROG (Program) – programs frequencies in channels PWR/VOL/SQ – long knob turns OFF/ON, and controls volume. Short knob controls squelch. PC/IF – connect an optional PC interface cable here to use the scanner with your computer. Headphone Symbol – attach headphones with 1/8” jack here. FUNC (Function) – lets you use various functions by pressing this key in combination with other keys. TUNE – press TUNE, PAUSE then /¥ or ¥/ to tune to a frequency. ATT (Attenuate) – turns attenuation on to reduce the scanner’s sensitivity and block extremely strong signals, or turns it off to return the sensitivity to normal. PAUSE – pauses search or tune operation. DIM – adjusts the backlight level (Light, Dark, or OFF). WX/(skywarn) – scans through the seven preprogrammed weather channels, or jumps to a Skywarn channel you programmed (997 – 999). PRI (Priority) – sets and turns the priority function on or off. TEXT – lets you input text. MODE – changes the receive mode (AM, FM, CT, DC, MO, ED, LT). SRCH (Search) – lets you search the seven search banks. SCAN/(stalker) – scans through the programmed channels, or activates the Signal Stalker II function. MAN (Manual) – stops scanning and lets you directly enter a channel number. /¥ or ¥/ – selects the scan or search direction. Number keys – Press to enter a number or a character (in text mode). •/DELAY – enters a decimal point (necessary when programming frequencies), space, or programs delay time for the selected channel/search bank, or enters a hyphen (in trunking ID setting). ENT (Enter) – completes the entry of frequencies and text. your scanner’s rear view ANT – connect the supplied antenna or an external antenna here. SCREW HOLE – use to mount the scanner in a car with some hardware (screw not supplied). RESET – press to reset your scanner. DC 13.8V – connect a power source here. EXT SP – connect an external speaker here. your scanner’s display will add

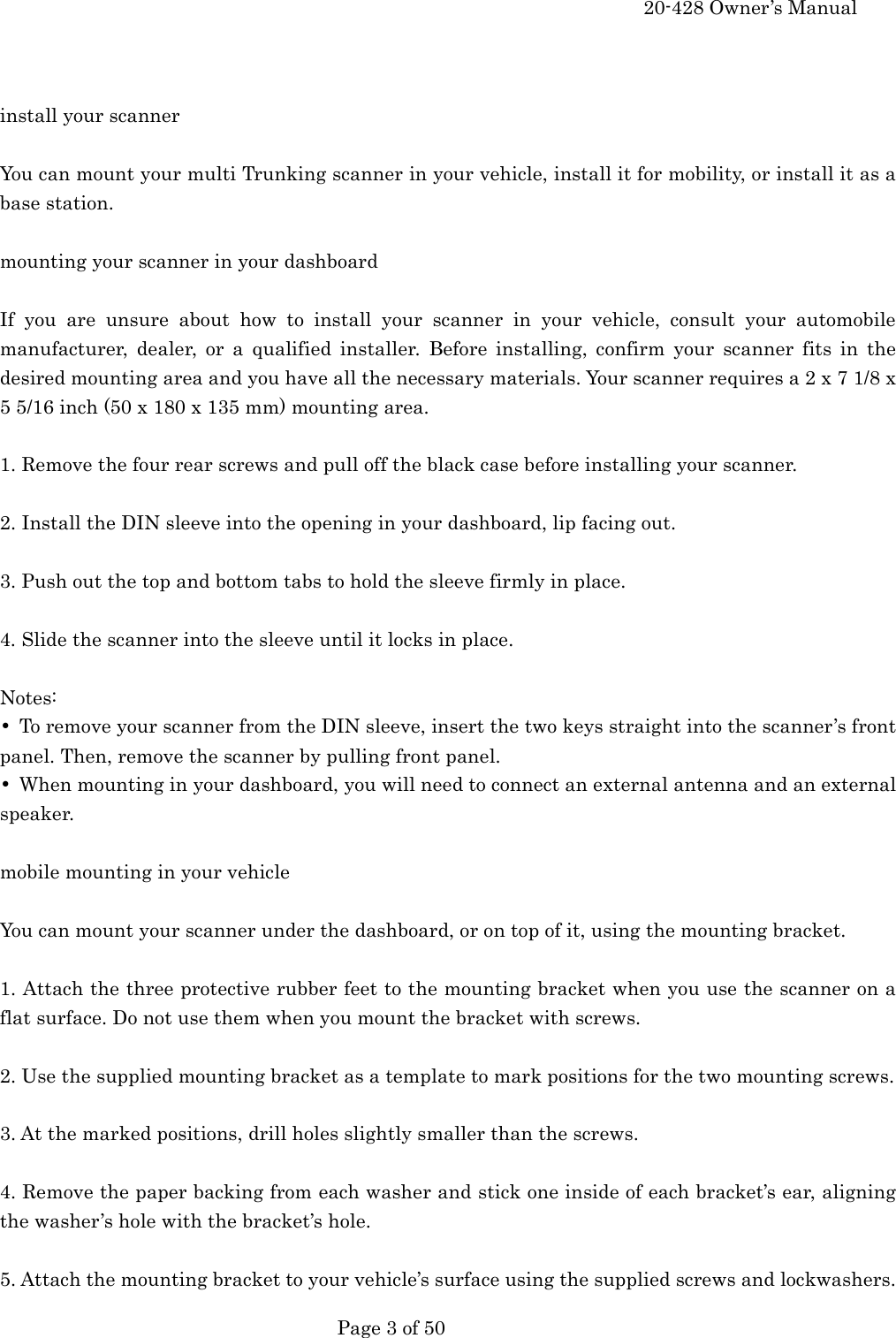

20-428 Owner’s Manual Page 3 of 50 install your scanner You can mount your multi Trunking scanner in your vehicle, install it for mobility, or install it as a base station. mounting your scanner in your dashboard If you are unsure about how to install your scanner in your vehicle, consult your automobile manufacturer, dealer, or a qualified installer. Before installing, confirm your scanner fits in the desired mounting area and you have all the necessary materials. Your scanner requires a 2 x 7 1/8 x 5 5/16 inch (50 x 180 x 135 mm) mounting area. 1. Remove the four rear screws and pull off the black case before installing your scanner. 2. Install the DIN sleeve into the opening in your dashboard, lip facing out. 3. Push out the top and bottom tabs to hold the sleeve firmly in place. 4. Slide the scanner into the sleeve until it locks in place. Notes: • To remove your scanner from the DIN sleeve, insert the two keys straight into the scanner’s front panel. Then, remove the scanner by pulling front panel. • When mounting in your dashboard, you will need to connect an external antenna and an external speaker. mobile mounting in your vehicle You can mount your scanner under the dashboard, or on top of it, using the mounting bracket. 1. Attach the three protective rubber feet to the mounting bracket when you use the scanner on a flat surface. Do not use them when you mount the bracket with screws. 2. Use the supplied mounting bracket as a template to mark positions for the two mounting screws. 3. At the marked positions, drill holes slightly smaller than the screws. 4. Remove the paper backing from each washer and stick one inside of each bracket’s ear, aligning the washer’s hole with the bracket’s hole. 5. Attach the mounting bracket to your vehicle’s surface using the supplied screws and lockwashers.

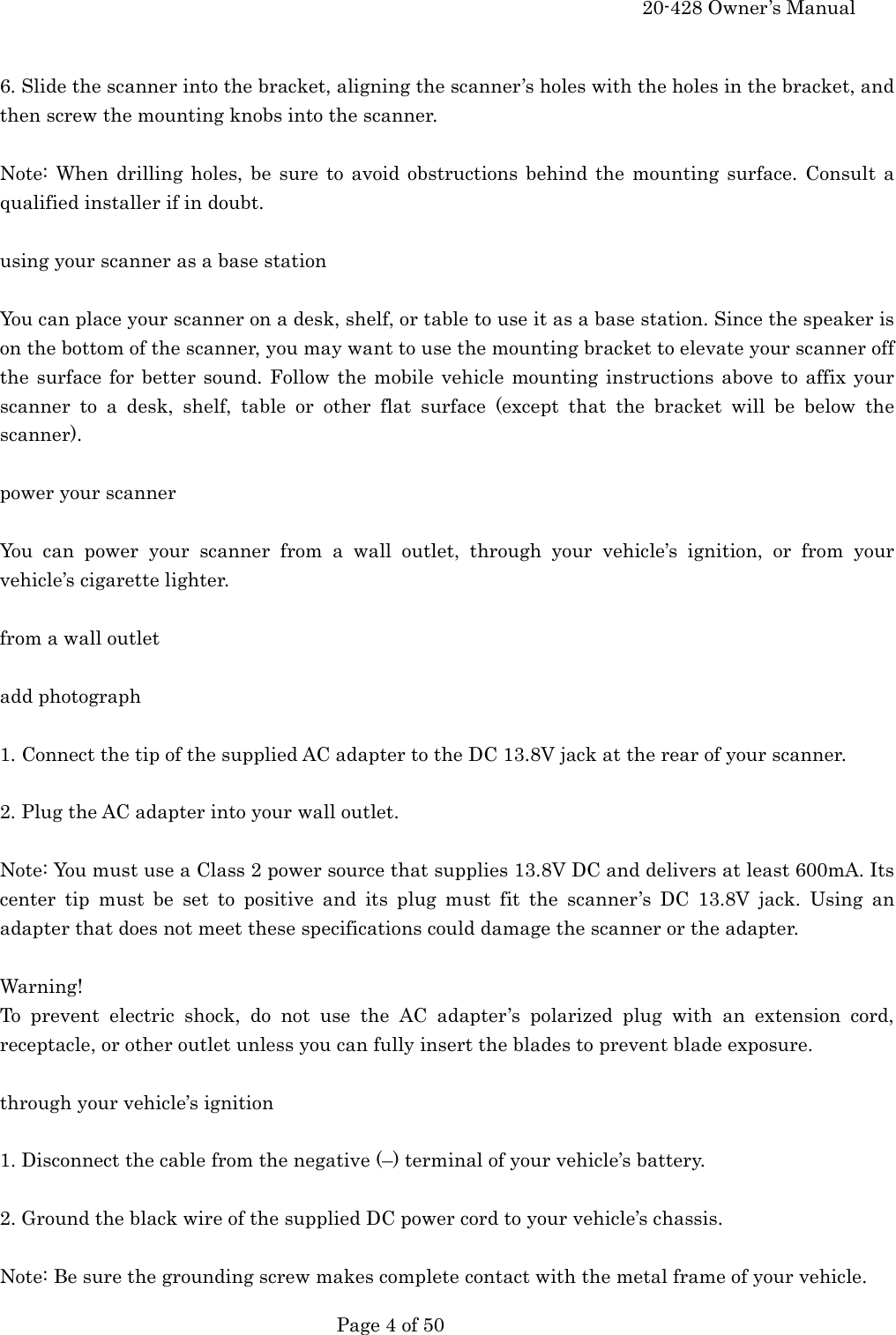

20-428 Owner’s Manual Page 4 of 50 6. Slide the scanner into the bracket, aligning the scanner’s holes with the holes in the bracket, and then screw the mounting knobs into the scanner. Note: When drilling holes, be sure to avoid obstructions behind the mounting surface. Consult a qualified installer if in doubt. using your scanner as a base station You can place your scanner on a desk, shelf, or table to use it as a base station. Since the speaker is on the bottom of the scanner, you may want to use the mounting bracket to elevate your scanner off the surface for better sound. Follow the mobile vehicle mounting instructions above to affix your scanner to a desk, shelf, table or other flat surface (except that the bracket will be below the scanner). power your scanner You can power your scanner from a wall outlet, through your vehicle’s ignition, or from your vehicle’s cigarette lighter. from a wall outlet add photograph 1. Connect the tip of the supplied AC adapter to the DC 13.8V jack at the rear of your scanner. 2. Plug the AC adapter into your wall outlet. Note: You must use a Class 2 power source that supplies 13.8V DC and delivers at least 600mA. Its center tip must be set to positive and its plug must fit the scanner’s DC 13.8V jack. Using an adapter that does not meet these specifications could damage the scanner or the adapter. Warning! To prevent electric shock, do not use the AC adapter’s polarized plug with an extension cord, receptacle, or other outlet unless you can fully insert the blades to prevent blade exposure. through your vehicle’s ignition 1. Disconnect the cable from the negative (–) terminal of your vehicle’s battery. 2. Ground the black wire of the supplied DC power cord to your vehicle’s chassis. Note: Be sure the grounding screw makes complete contact with the metal frame of your vehicle.

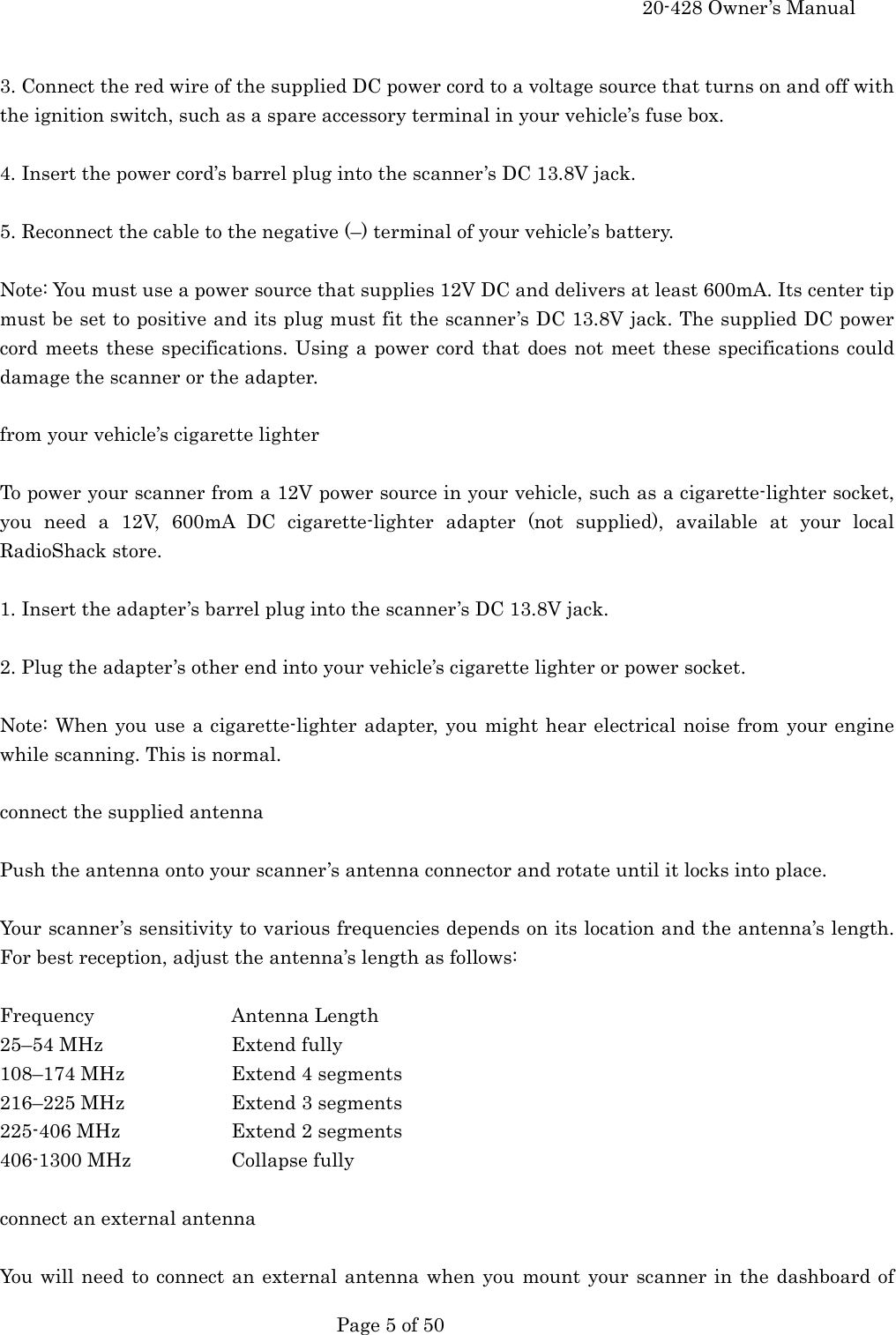

20-428 Owner’s Manual Page 5 of 50 3. Connect the red wire of the supplied DC power cord to a voltage source that turns on and off with the ignition switch, such as a spare accessory terminal in your vehicle’s fuse box. 4. Insert the power cord’s barrel plug into the scanner’s DC 13.8V jack. 5. Reconnect the cable to the negative (–) terminal of your vehicle’s battery. Note: You must use a power source that supplies 12V DC and delivers at least 600mA. Its center tip must be set to positive and its plug must fit the scanner’s DC 13.8V jack. The supplied DC power cord meets these specifications. Using a power cord that does not meet these specifications could damage the scanner or the adapter. from your vehicle’s cigarette lighter To power your scanner from a 12V power source in your vehicle, such as a cigarette-lighter socket, you need a 12V, 600mA DC cigarette-lighter adapter (not supplied), available at your local RadioShack store. 1. Insert the adapter’s barrel plug into the scanner’s DC 13.8V jack. 2. Plug the adapter’s other end into your vehicle’s cigarette lighter or power socket. Note: When you use a cigarette-lighter adapter, you might hear electrical noise from your engine while scanning. This is normal. connect the supplied antenna Push the antenna onto your scanner’s antenna connector and rotate until it locks into place. Your scanner’s sensitivity to various frequencies depends on its location and the antenna’s length. For best reception, adjust the antenna’s length as follows: Frequency Antenna Length 25–54 MHz Extend fully 108–174 MHz Extend 4 segments 216–225 MHz Extend 3 segments 225-406 MHz Extend 2 segments 406-1300 MHz Collapse fully connect an external antenna You will need to connect an external antenna when you mount your scanner in the dashboard of

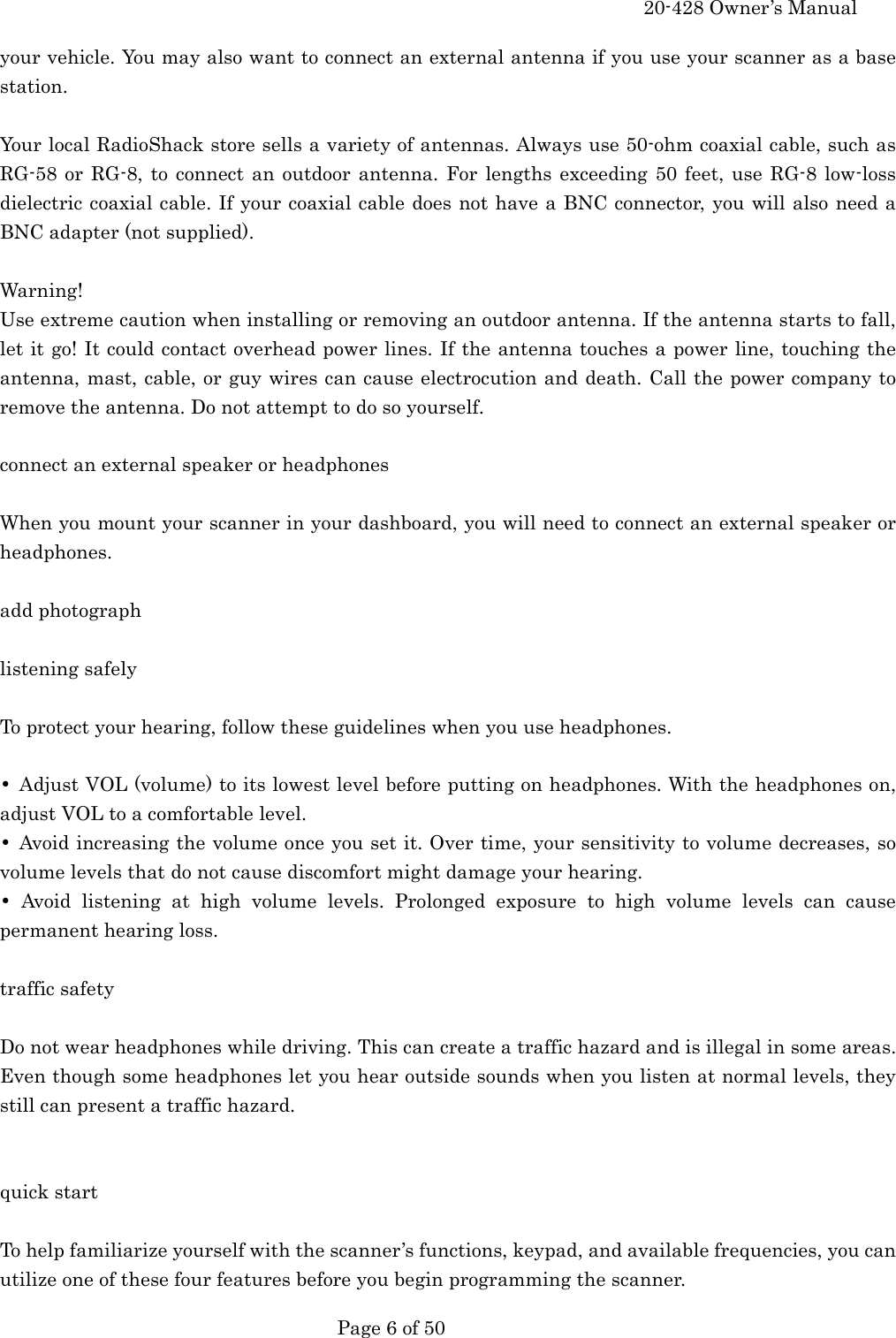

20-428 Owner’s Manual Page 6 of 50 your vehicle. You may also want to connect an external antenna if you use your scanner as a base station. Your local RadioShack store sells a variety of antennas. Always use 50-ohm coaxial cable, such as RG-58 or RG-8, to connect an outdoor antenna. For lengths exceeding 50 feet, use RG-8 low-loss dielectric coaxial cable. If your coaxial cable does not have a BNC connector, you will also need a BNC adapter (not supplied). Warning! Use extreme caution when installing or removing an outdoor antenna. If the antenna starts to fall, let it go! It could contact overhead power lines. If the antenna touches a power line, touching the antenna, mast, cable, or guy wires can cause electrocution and death. Call the power company to remove the antenna. Do not attempt to do so yourself. connect an external speaker or headphones When you mount your scanner in your dashboard, you will need to connect an external speaker or headphones. add photograph listening safely To protect your hearing, follow these guidelines when you use headphones. • Adjust VOL (volume) to its lowest level before putting on headphones. With the headphones on, adjust VOL to a comfortable level. • Avoid increasing the volume once you set it. Over time, your sensitivity to volume decreases, so volume levels that do not cause discomfort might damage your hearing. • Avoid listening at high volume levels. Prolonged exposure to high volume levels can cause permanent hearing loss. traffic safety Do not wear headphones while driving. This can create a traffic hazard and is illegal in some areas. Even though some headphones let you hear outside sounds when you listen at normal levels, they still can present a traffic hazard. quick start To help familiarize yourself with the scanner’s functions, keypad, and available frequencies, you can utilize one of these four features before you begin programming the scanner.

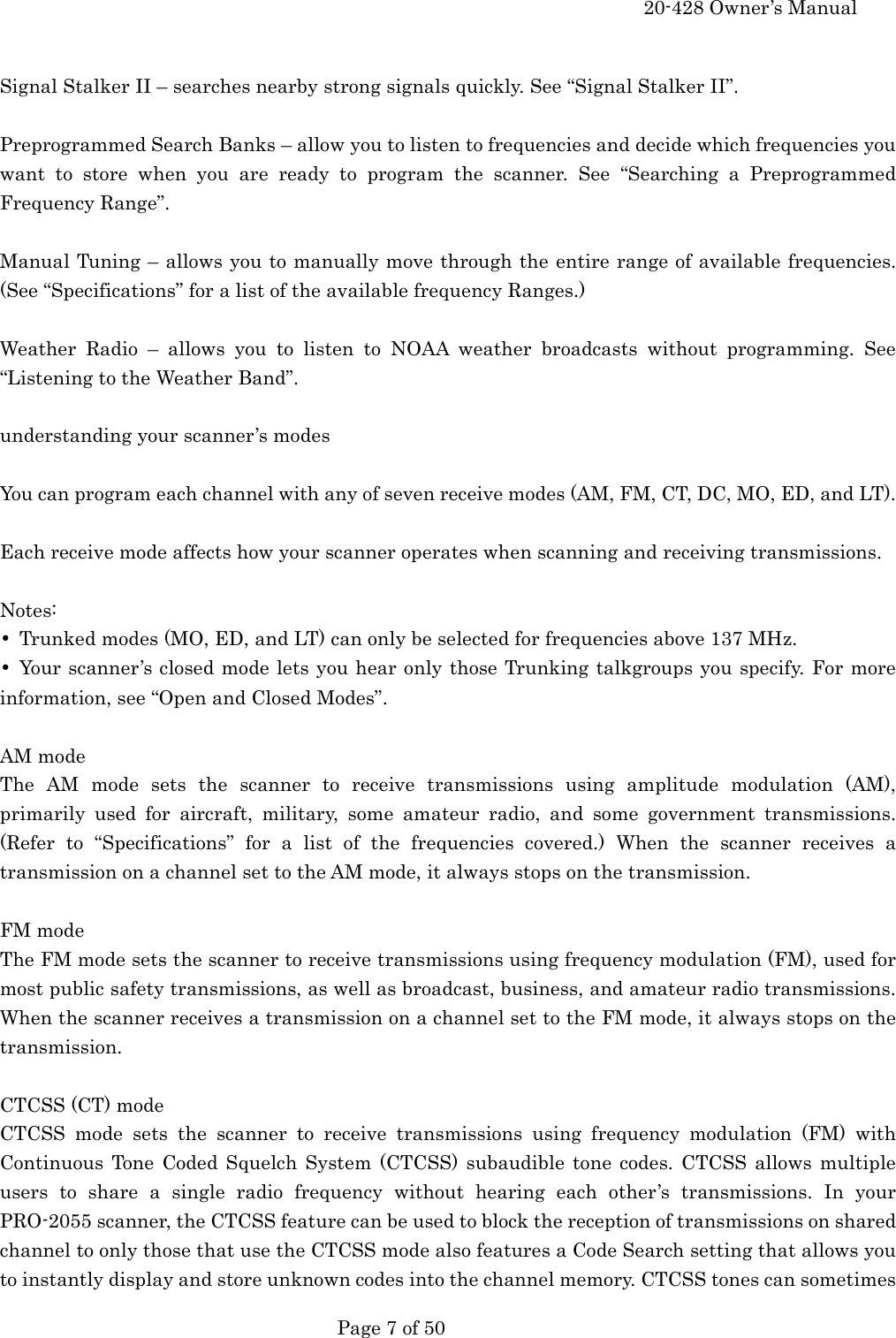

20-428 Owner’s Manual Page 7 of 50 Signal Stalker II – searches nearby strong signals quickly. See “Signal Stalker II”. Preprogrammed Search Banks – allow you to listen to frequencies and decide which frequencies you want to store when you are ready to program the scanner. See “Searching a Preprogrammed Frequency Range”. Manual Tuning – allows you to manually move through the entire range of available frequencies. (See “Specifications” for a list of the available frequency Ranges.) Weather Radio – allows you to listen to NOAA weather broadcasts without programming. See “Listening to the Weather Band”. understanding your scanner’s modes You can program each channel with any of seven receive modes (AM, FM, CT, DC, MO, ED, and LT). Each receive mode affects how your scanner operates when scanning and receiving transmissions. Notes: • Trunked modes (MO, ED, and LT) can only be selected for frequencies above 137 MHz. • Your scanner’s closed mode lets you hear only those Trunking talkgroups you specify. For more information, see “Open and Closed Modes”. AM mode The AM mode sets the scanner to receive transmissions using amplitude modulation (AM), primarily used for aircraft, military, some amateur radio, and some government transmissions. (Refer to “Specifications” for a list of the frequencies covered.) When the scanner receives a transmission on a channel set to the AM mode, it always stops on the transmission. FM mode The FM mode sets the scanner to receive transmissions using frequency modulation (FM), used for most public safety transmissions, as well as broadcast, business, and amateur radio transmissions. When the scanner receives a transmission on a channel set to the FM mode, it always stops on the transmission. CTCSS (CT) mode CTCSS mode sets the scanner to receive transmissions using frequency modulation (FM) with Continuous Tone Coded Squelch System (CTCSS) subaudible tone codes. CTCSS allows multiple users to share a single radio frequency without hearing each other’s transmissions. In your PRO-2055 scanner, the CTCSS feature can be used to block the reception of transmissions on shared channel to only those that use the CTCSS mode also features a Code Search setting that allows you to instantly display and store unknown codes into the channel memory. CTCSS tones can sometimes

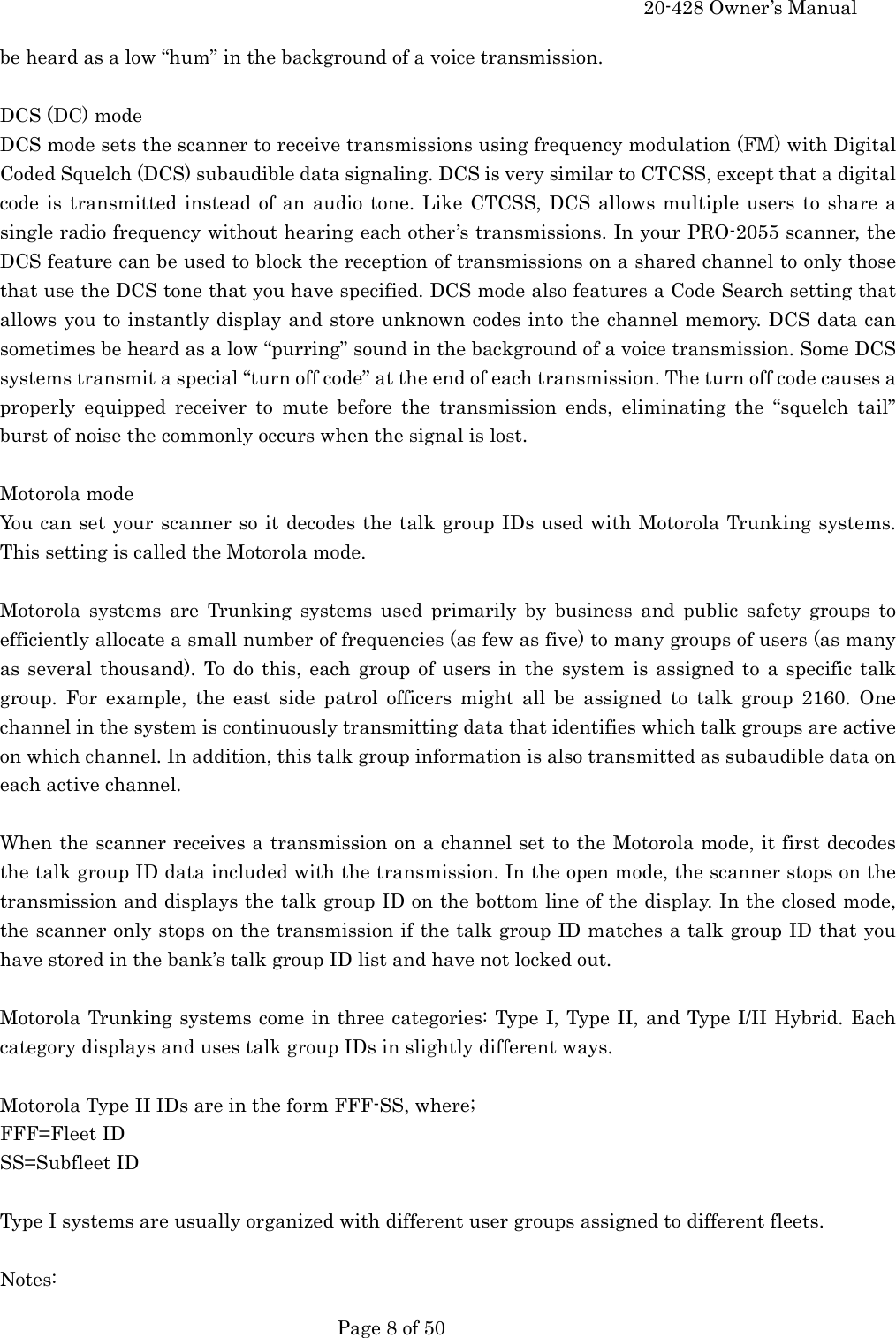

20-428 Owner’s Manual Page 8 of 50 be heard as a low “hum” in the background of a voice transmission. DCS (DC) mode DCS mode sets the scanner to receive transmissions using frequency modulation (FM) with Digital Coded Squelch (DCS) subaudible data signaling. DCS is very similar to CTCSS, except that a digital code is transmitted instead of an audio tone. Like CTCSS, DCS allows multiple users to share a single radio frequency without hearing each other’s transmissions. In your PRO-2055 scanner, the DCS feature can be used to block the reception of transmissions on a shared channel to only those that use the DCS tone that you have specified. DCS mode also features a Code Search setting that allows you to instantly display and store unknown codes into the channel memory. DCS data can sometimes be heard as a low “purring” sound in the background of a voice transmission. Some DCS systems transmit a special “turn off code” at the end of each transmission. The turn off code causes a properly equipped receiver to mute before the transmission ends, eliminating the “squelch tail” burst of noise the commonly occurs when the signal is lost. Motorola mode You can set your scanner so it decodes the talk group IDs used with Motorola Trunking systems. This setting is called the Motorola mode. Motorola systems are Trunking systems used primarily by business and public safety groups to efficiently allocate a small number of frequencies (as few as five) to many groups of users (as many as several thousand). To do this, each group of users in the system is assigned to a specific talk group. For example, the east side patrol officers might all be assigned to talk group 2160. One channel in the system is continuously transmitting data that identifies which talk groups are active on which channel. In addition, this talk group information is also transmitted as subaudible data on each active channel. When the scanner receives a transmission on a channel set to the Motorola mode, it first decodes the talk group ID data included with the transmission. In the open mode, the scanner stops on the transmission and displays the talk group ID on the bottom line of the display. In the closed mode, the scanner only stops on the transmission if the talk group ID matches a talk group ID that you have stored in the bank’s talk group ID list and have not locked out. Motorola Trunking systems come in three categories: Type I, Type II, and Type I/II Hybrid. Each category displays and uses talk group IDs in slightly different ways. Motorola Type II IDs are in the form FFF-SS, where; FFF=Fleet ID SS=Subfleet ID Type I systems are usually organized with different user groups assigned to different fleets. Notes:

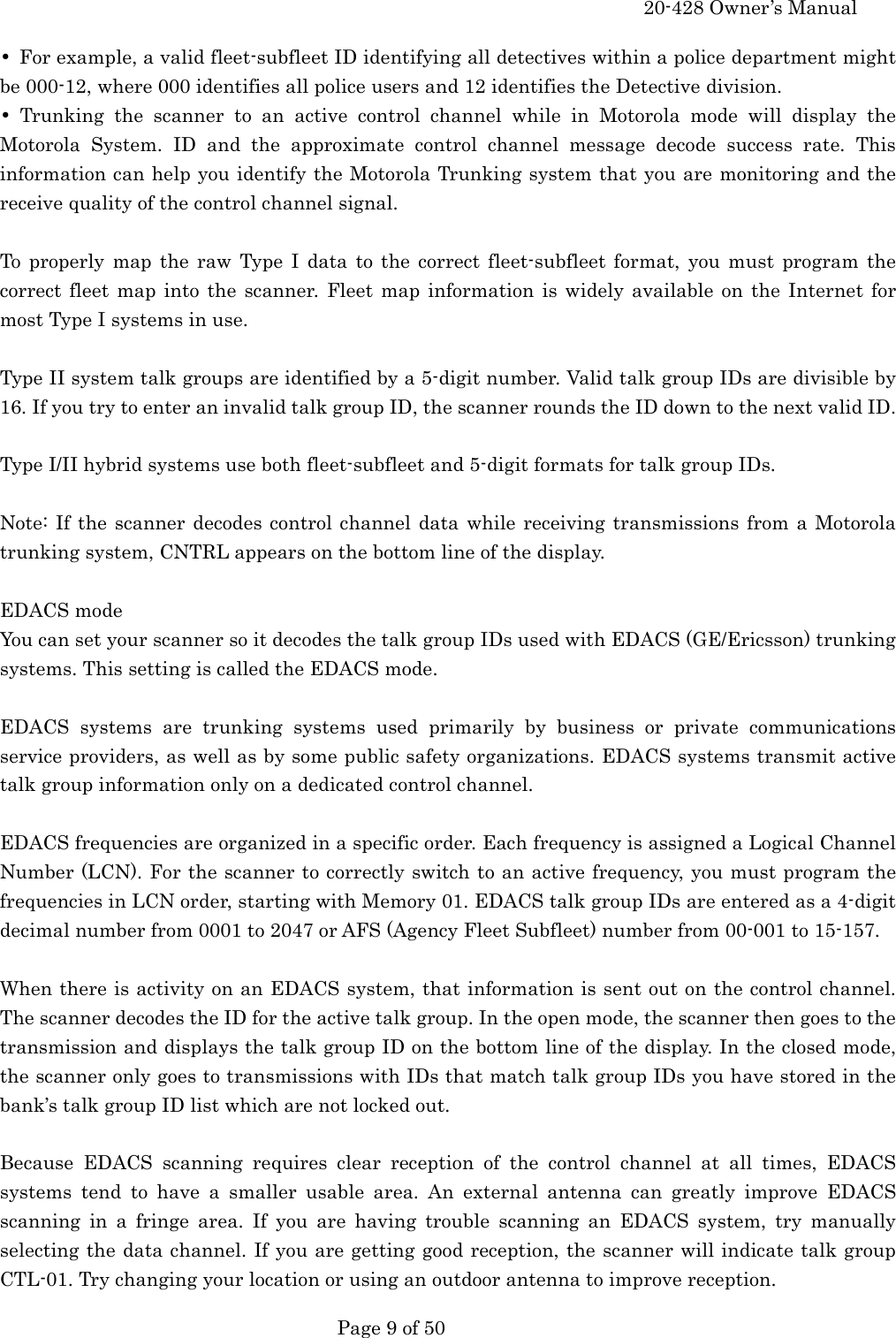

20-428 Owner’s Manual Page 9 of 50 • For example, a valid fleet-subfleet ID identifying all detectives within a police department might be 000-12, where 000 identifies all police users and 12 identifies the Detective division. • Trunking the scanner to an active control channel while in Motorola mode will display the Motorola System. ID and the approximate control channel message decode success rate. This information can help you identify the Motorola Trunking system that you are monitoring and the receive quality of the control channel signal. To properly map the raw Type I data to the correct fleet-subfleet format, you must program the correct fleet map into the scanner. Fleet map information is widely available on the Internet for most Type I systems in use. Type II system talk groups are identified by a 5-digit number. Valid talk group IDs are divisible by 16. If you try to enter an invalid talk group ID, the scanner rounds the ID down to the next valid ID. Type I/II hybrid systems use both fleet-subfleet and 5-digit formats for talk group IDs. Note: If the scanner decodes control channel data while receiving transmissions from a Motorola trunking system, CNTRL appears on the bottom line of the display. EDACS mode You can set your scanner so it decodes the talk group IDs used with EDACS (GE/Ericsson) trunking systems. This setting is called the EDACS mode. EDACS systems are trunking systems used primarily by business or private communications service providers, as well as by some public safety organizations. EDACS systems transmit active talk group information only on a dedicated control channel. EDACS frequencies are organized in a specific order. Each frequency is assigned a Logical Channel Number (LCN). For the scanner to correctly switch to an active frequency, you must program the frequencies in LCN order, starting with Memory 01. EDACS talk group IDs are entered as a 4-digit decimal number from 0001 to 2047 or AFS (Agency Fleet Subfleet) number from 00-001 to 15-157. When there is activity on an EDACS system, that information is sent out on the control channel. The scanner decodes the ID for the active talk group. In the open mode, the scanner then goes to the transmission and displays the talk group ID on the bottom line of the display. In the closed mode, the scanner only goes to transmissions with IDs that match talk group IDs you have stored in the bank’s talk group ID list which are not locked out. Because EDACS scanning requires clear reception of the control channel at all times, EDACS systems tend to have a smaller usable area. An external antenna can greatly improve EDACS scanning in a fringe area. If you are having trouble scanning an EDACS system, try manually selecting the data channel. If you are getting good reception, the scanner will indicate talk group CTL-01. Try changing your location or using an outdoor antenna to improve reception.

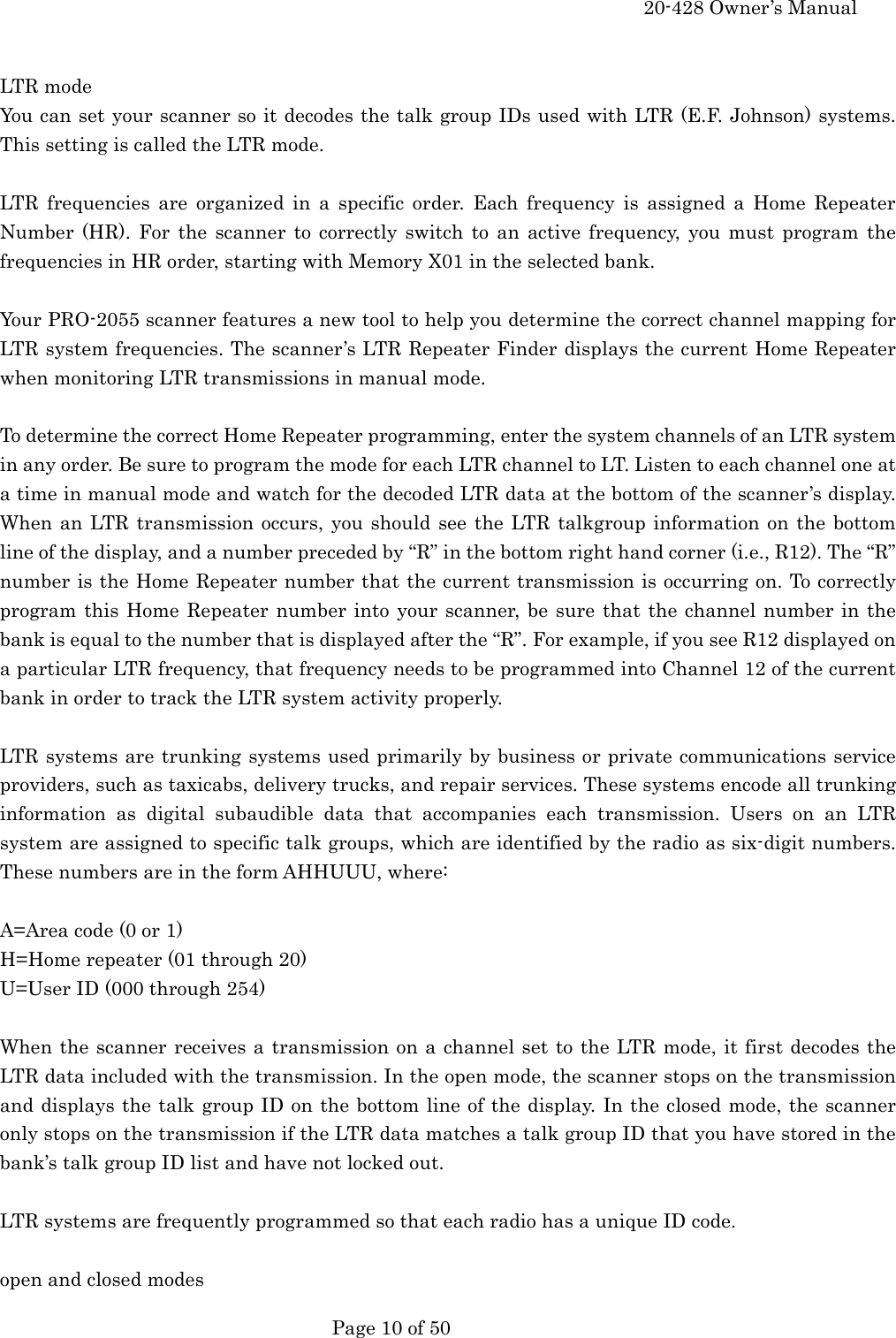

20-428 Owner’s Manual Page 10 of 50 LTR mode You can set your scanner so it decodes the talk group IDs used with LTR (E.F. Johnson) systems. This setting is called the LTR mode. LTR frequencies are organized in a specific order. Each frequency is assigned a Home Repeater Number (HR). For the scanner to correctly switch to an active frequency, you must program the frequencies in HR order, starting with Memory X01 in the selected bank. Your PRO-2055 scanner features a new tool to help you determine the correct channel mapping for LTR system frequencies. The scanner’s LTR Repeater Finder displays the current Home Repeater when monitoring LTR transmissions in manual mode. To determine the correct Home Repeater programming, enter the system channels of an LTR system in any order. Be sure to program the mode for each LTR channel to LT. Listen to each channel one at a time in manual mode and watch for the decoded LTR data at the bottom of the scanner’s display. When an LTR transmission occurs, you should see the LTR talkgroup information on the bottom line of the display, and a number preceded by “R” in the bottom right hand corner (i.e., R12). The “R” number is the Home Repeater number that the current transmission is occurring on. To correctly program this Home Repeater number into your scanner, be sure that the channel number in the bank is equal to the number that is displayed after the “R”. For example, if you see R12 displayed on a particular LTR frequency, that frequency needs to be programmed into Channel 12 of the current bank in order to track the LTR system activity properly. LTR systems are trunking systems used primarily by business or private communications service providers, such as taxicabs, delivery trucks, and repair services. These systems encode all trunking information as digital subaudible data that accompanies each transmission. Users on an LTR system are assigned to specific talk groups, which are identified by the radio as six-digit numbers. These numbers are in the form AHHUUU, where: A=Area code (0 or 1) H=Home repeater (01 through 20) U=User ID (000 through 254) When the scanner receives a transmission on a channel set to the LTR mode, it first decodes the LTR data included with the transmission. In the open mode, the scanner stops on the transmission and displays the talk group ID on the bottom line of the display. In the closed mode, the scanner only stops on the transmission if the LTR data matches a talk group ID that you have stored in the bank’s talk group ID list and have not locked out. LTR systems are frequently programmed so that each radio has a unique ID code. open and closed modes

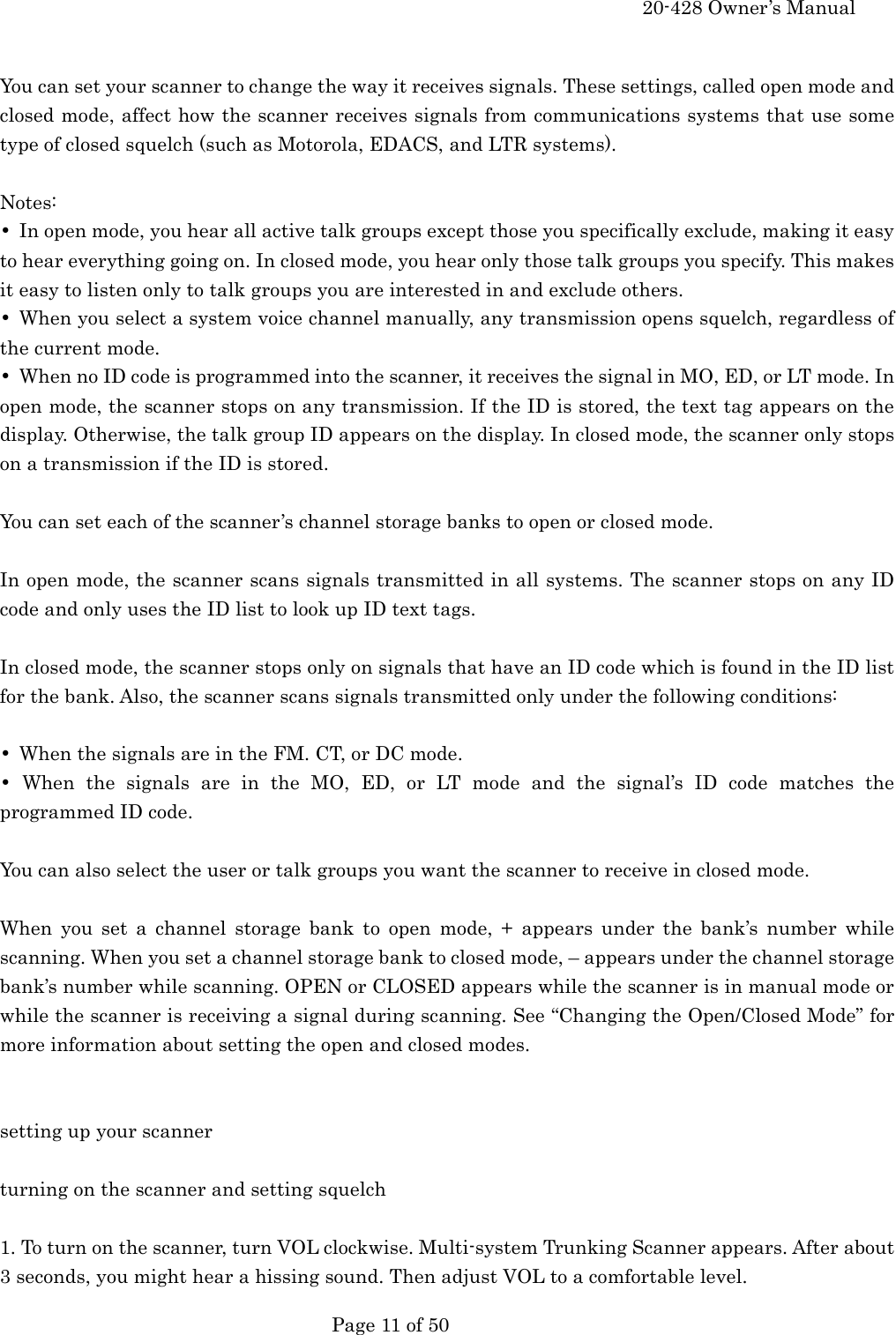

20-428 Owner’s Manual Page 11 of 50 You can set your scanner to change the way it receives signals. These settings, called open mode and closed mode, affect how the scanner receives signals from communications systems that use some type of closed squelch (such as Motorola, EDACS, and LTR systems). Notes: • In open mode, you hear all active talk groups except those you specifically exclude, making it easy to hear everything going on. In closed mode, you hear only those talk groups you specify. This makes it easy to listen only to talk groups you are interested in and exclude others. • When you select a system voice channel manually, any transmission opens squelch, regardless of the current mode. • When no ID code is programmed into the scanner, it receives the signal in MO, ED, or LT mode. In open mode, the scanner stops on any transmission. If the ID is stored, the text tag appears on the display. Otherwise, the talk group ID appears on the display. In closed mode, the scanner only stops on a transmission if the ID is stored. You can set each of the scanner’s channel storage banks to open or closed mode. In open mode, the scanner scans signals transmitted in all systems. The scanner stops on any ID code and only uses the ID list to look up ID text tags. In closed mode, the scanner stops only on signals that have an ID code which is found in the ID list for the bank. Also, the scanner scans signals transmitted only under the following conditions: • When the signals are in the FM. CT, or DC mode. • When the signals are in the MO, ED, or LT mode and the signal’s ID code matches the programmed ID code. You can also select the user or talk groups you want the scanner to receive in closed mode. When you set a channel storage bank to open mode, + appears under the bank’s number while scanning. When you set a channel storage bank to closed mode, – appears under the channel storage bank’s number while scanning. OPEN or CLOSED appears while the scanner is in manual mode or while the scanner is receiving a signal during scanning. See “Changing the Open/Closed Mode” for more information about setting the open and closed modes. setting up your scanner turning on the scanner and setting squelch 1. To turn on the scanner, turn VOL clockwise. Multi-system Trunking Scanner appears. After about 3 seconds, you might hear a hissing sound. Then adjust VOL to a comfortable level.

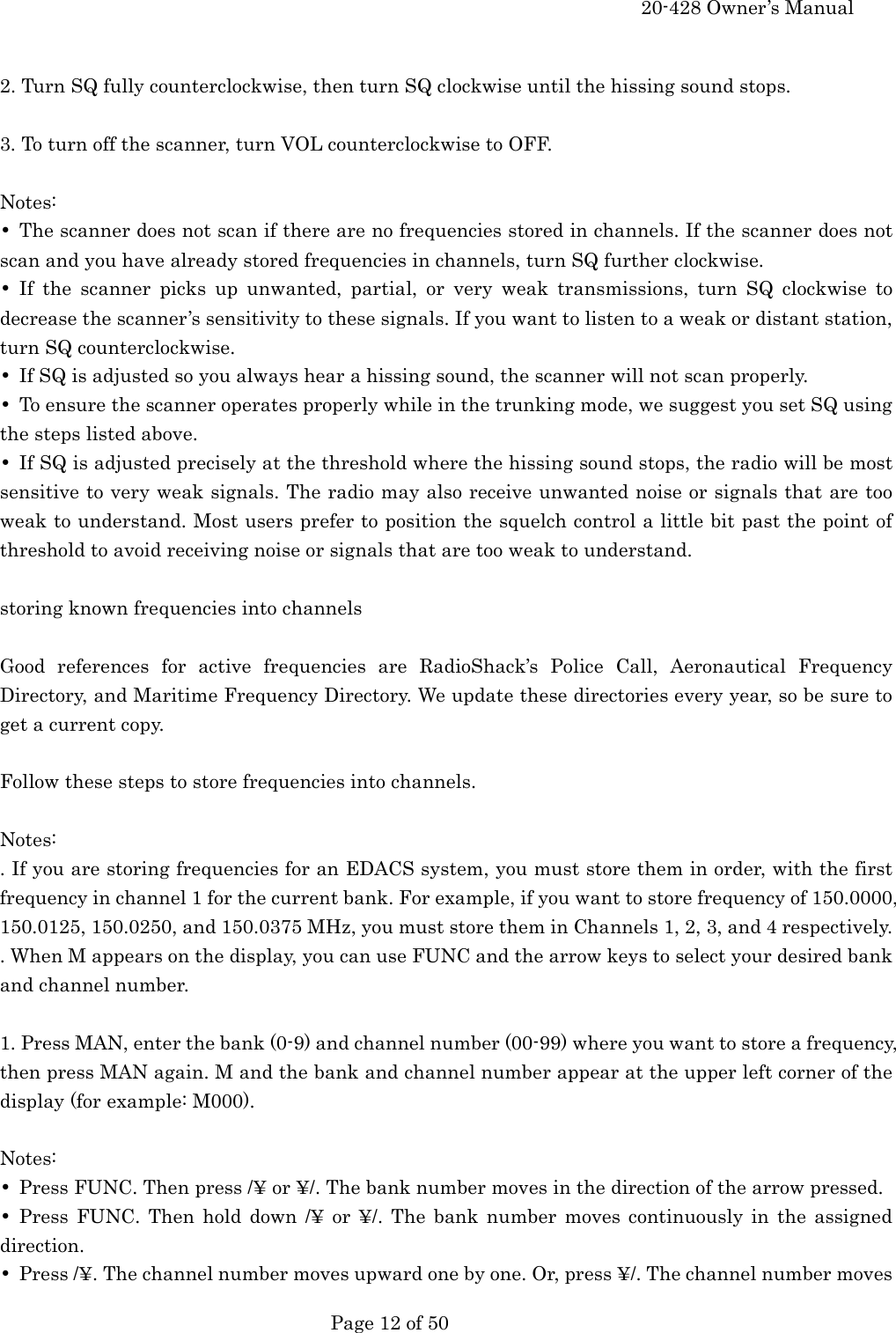

20-428 Owner’s Manual Page 12 of 50 2. Turn SQ fully counterclockwise, then turn SQ clockwise until the hissing sound stops. 3. To turn off the scanner, turn VOL counterclockwise to OFF. Notes: • The scanner does not scan if there are no frequencies stored in channels. If the scanner does not scan and you have already stored frequencies in channels, turn SQ further clockwise. • If the scanner picks up unwanted, partial, or very weak transmissions, turn SQ clockwise to decrease the scanner’s sensitivity to these signals. If you want to listen to a weak or distant station, turn SQ counterclockwise. • If SQ is adjusted so you always hear a hissing sound, the scanner will not scan properly. • To ensure the scanner operates properly while in the trunking mode, we suggest you set SQ using the steps listed above. • If SQ is adjusted precisely at the threshold where the hissing sound stops, the radio will be most sensitive to very weak signals. The radio may also receive unwanted noise or signals that are too weak to understand. Most users prefer to position the squelch control a little bit past the point of threshold to avoid receiving noise or signals that are too weak to understand. storing known frequencies into channels Good references for active frequencies are RadioShack’s Police Call, Aeronautical Frequency Directory, and Maritime Frequency Directory. We update these directories every year, so be sure to get a current copy. Follow these steps to store frequencies into channels. Notes: . If you are storing frequencies for an EDACS system, you must store them in order, with the first frequency in channel 1 for the current bank. For example, if you want to store frequency of 150.0000, 150.0125, 150.0250, and 150.0375 MHz, you must store them in Channels 1, 2, 3, and 4 respectively. . When M appears on the display, you can use FUNC and the arrow keys to select your desired bank and channel number. 1. Press MAN, enter the bank (0-9) and channel number (00-99) where you want to store a frequency, then press MAN again. M and the bank and channel number appear at the upper left corner of the display (for example: M000). Notes: • Press FUNC. Then press /¥ or ¥/. The bank number moves in the direction of the arrow pressed. • Press FUNC. Then hold down /¥ or ¥/. The bank number moves continuously in the assigned direction. • Press /¥. The channel number moves upward one by one. Or, press ¥/. The channel number moves

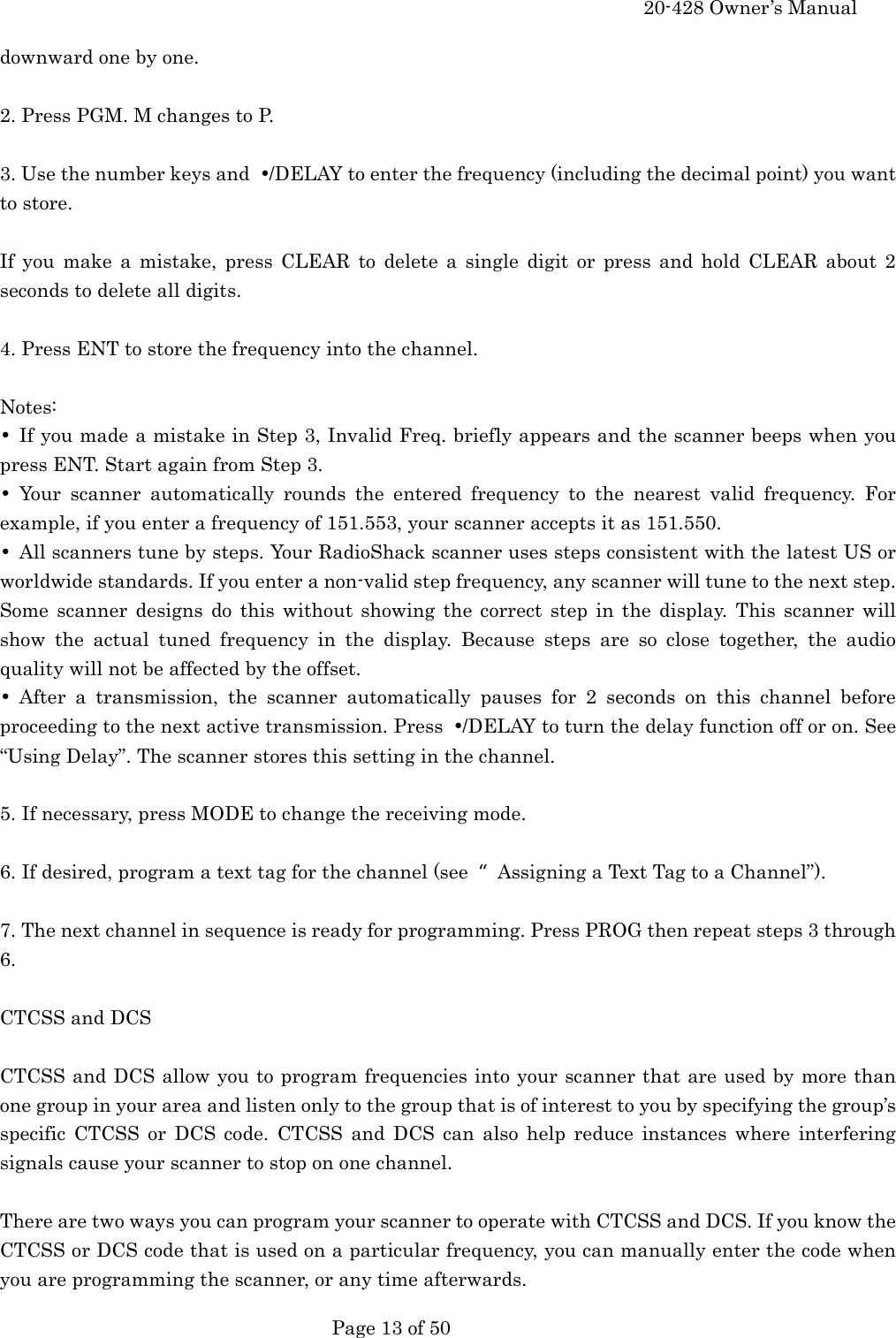

20-428 Owner’s Manual Page 13 of 50 downward one by one. 2. Press PGM. M changes to P. 3. Use the number keys and •/DELAY to enter the frequency (including the decimal point) you want to store. If you make a mistake, press CLEAR to delete a single digit or press and hold CLEAR about 2 seconds to delete all digits. 4. Press ENT to store the frequency into the channel. Notes: • If you made a mistake in Step 3, Invalid Freq. briefly appears and the scanner beeps when you press ENT. Start again from Step 3. • Your scanner automatically rounds the entered frequency to the nearest valid frequency. For example, if you enter a frequency of 151.553, your scanner accepts it as 151.550. • All scanners tune by steps. Your RadioShack scanner uses steps consistent with the latest US or worldwide standards. If you enter a non-valid step frequency, any scanner will tune to the next step. Some scanner designs do this without showing the correct step in the display. This scanner will show the actual tuned frequency in the display. Because steps are so close together, the audio quality will not be affected by the offset. • After a transmission, the scanner automatically pauses for 2 seconds on this channel before proceeding to the next active transmission. Press •/DELAY to turn the delay function off or on. See “Using Delay”. The scanner stores this setting in the channel. 5. If necessary, press MODE to change the receiving mode. 6. If desired, program a text tag for the channel (see Assigning a Text Tag to a Channel”). 7. The next channel in sequence is ready for programming. Press PROG then repeat steps 3 through 6. CTCSS and DCS CTCSS and DCS allow you to program frequencies into your scanner that are used by more than one group in your area and listen only to the group that is of interest to you by specifying the group’s specific CTCSS or DCS code. CTCSS and DCS can also help reduce instances where interfering signals cause your scanner to stop on one channel. There are two ways you can program your scanner to operate with CTCSS and DCS. If you know the CTCSS or DCS code that is used on a particular frequency, you can manually enter the code when you are programming the scanner, or any time afterwards.

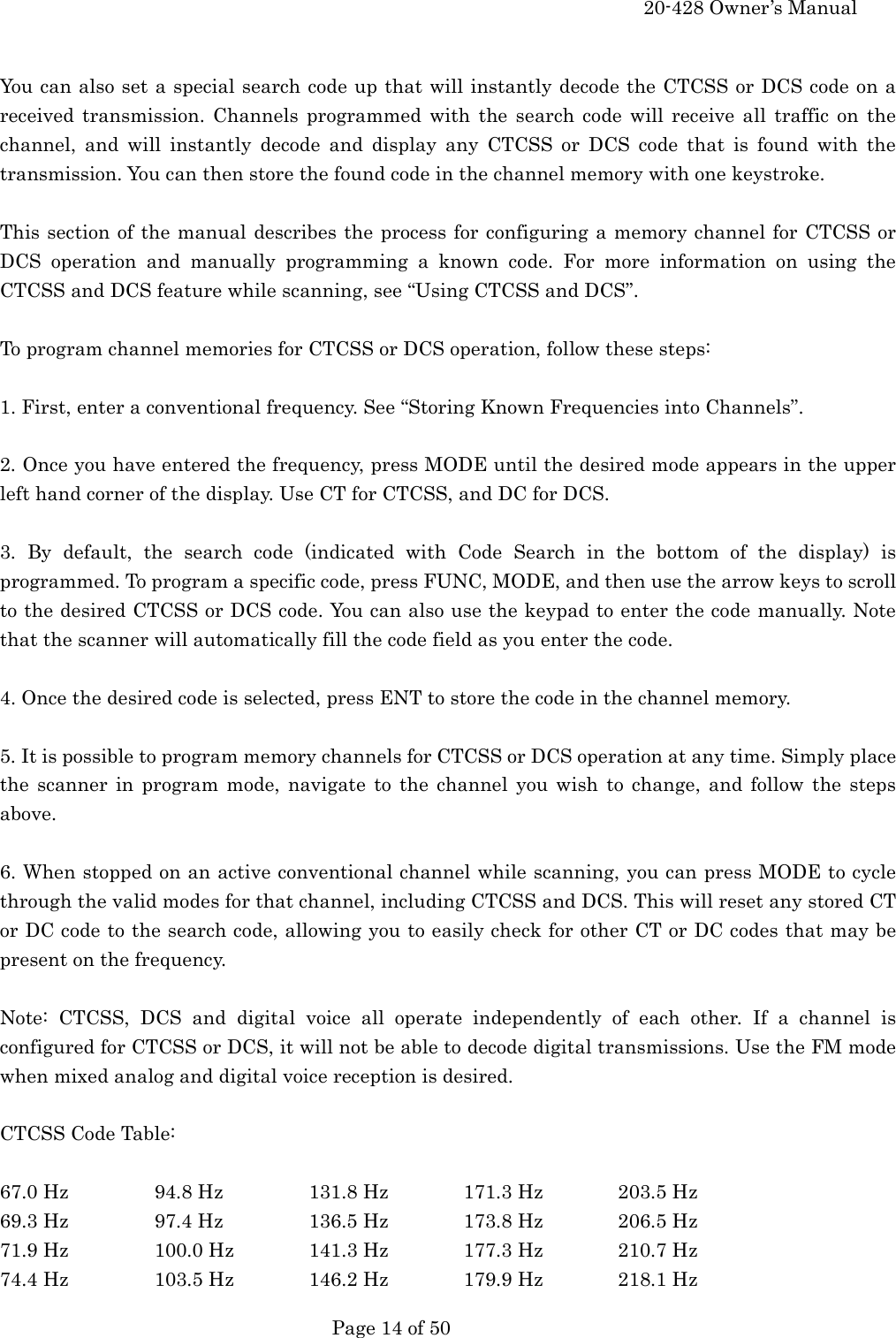

20-428 Owner’s Manual Page 14 of 50 You can also set a special search code up that will instantly decode the CTCSS or DCS code on a received transmission. Channels programmed with the search code will receive all traffic on the channel, and will instantly decode and display any CTCSS or DCS code that is found with the transmission. You can then store the found code in the channel memory with one keystroke. This section of the manual describes the process for configuring a memory channel for CTCSS or DCS operation and manually programming a known code. For more information on using the CTCSS and DCS feature while scanning, see “Using CTCSS and DCS”. To program channel memories for CTCSS or DCS operation, follow these steps: 1. First, enter a conventional frequency. See “Storing Known Frequencies into Channels”. 2. Once you have entered the frequency, press MODE until the desired mode appears in the upper left hand corner of the display. Use CT for CTCSS, and DC for DCS. 3. By default, the search code (indicated with Code Search in the bottom of the display) is programmed. To program a specific code, press FUNC, MODE, and then use the arrow keys to scroll to the desired CTCSS or DCS code. You can also use the keypad to enter the code manually. Note that the scanner will automatically fill the code field as you enter the code. 4. Once the desired code is selected, press ENT to store the code in the channel memory. 5. It is possible to program memory channels for CTCSS or DCS operation at any time. Simply place the scanner in program mode, navigate to the channel you wish to change, and follow the steps above. 6. When stopped on an active conventional channel while scanning, you can press MODE to cycle through the valid modes for that channel, including CTCSS and DCS. This will reset any stored CT or DC code to the search code, allowing you to easily check for other CT or DC codes that may be present on the frequency. Note: CTCSS, DCS and digital voice all operate independently of each other. If a channel is configured for CTCSS or DCS, it will not be able to decode digital transmissions. Use the FM mode when mixed analog and digital voice reception is desired. CTCSS Code Table: 67.0 Hz 94.8 Hz 131.8 Hz 171.3 Hz 203.5 Hz 69.3 Hz 97.4 Hz 136.5 Hz 173.8 Hz 206.5 Hz 71.9 Hz 100.0 Hz 141.3 Hz 177.3 Hz 210.7 Hz 74.4 Hz 103.5 Hz 146.2 Hz 179.9 Hz 218.1 Hz

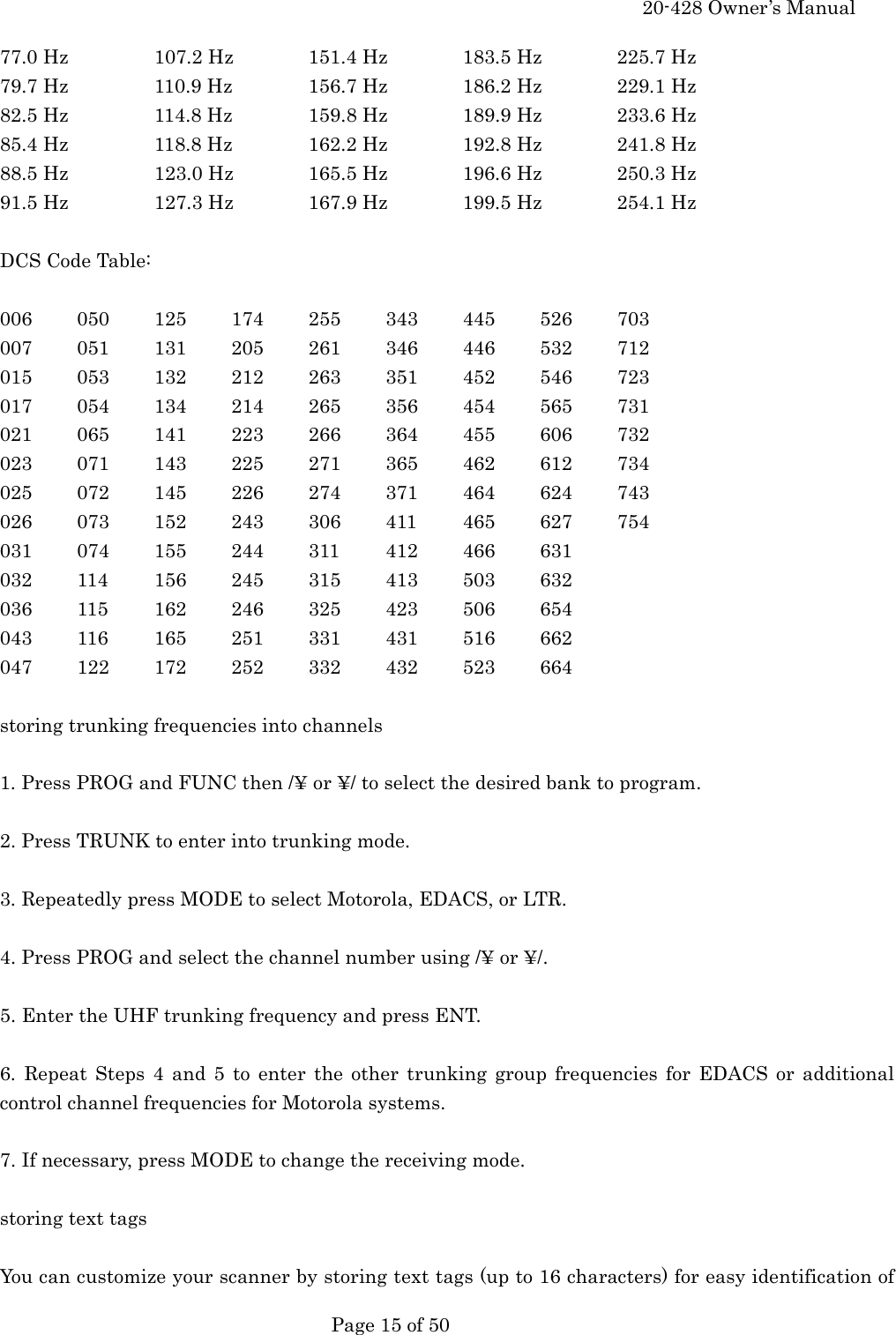

20-428 Owner’s Manual Page 15 of 50 77.0 Hz 107.2 Hz 151.4 Hz 183.5 Hz 225.7 Hz 79.7 Hz 110.9 Hz 156.7 Hz 186.2 Hz 229.1 Hz 82.5 Hz 114.8 Hz 159.8 Hz 189.9 Hz 233.6 Hz 85.4 Hz 118.8 Hz 162.2 Hz 192.8 Hz 241.8 Hz 88.5 Hz 123.0 Hz 165.5 Hz 196.6 Hz 250.3 Hz 91.5 Hz 127.3 Hz 167.9 Hz 199.5 Hz 254.1 Hz DCS Code Table: 006 050 125 174 255 343 445 526 703 007 051 131 205 261 346 446 532 712 015 053 132 212 263 351 452 546 723 017 054 134 214 265 356 454 565 731 021 065 141 223 266 364 455 606 732 023 071 143 225 271 365 462 612 734 025 072 145 226 274 371 464 624 743 026 073 152 243 306 411 465 627 754 031 074 155 244 311 412 466 631 032 114 156 245 315 413 503 632 036 115 162 246 325 423 506 654 043 116 165 251 331 431 516 662 047 122 172 252 332 432 523 664 storing trunking frequencies into channels 1. Press PROG and FUNC then /¥ or ¥/ to select the desired bank to program. 2. Press TRUNK to enter into trunking mode. 3. Repeatedly press MODE to select Motorola, EDACS, or LTR. 4. Press PROG and select the channel number using /¥ or ¥/. 5. Enter the UHF trunking frequency and press ENT. 6. Repeat Steps 4 and 5 to enter the other trunking group frequencies for EDACS or additional control channel frequencies for Motorola systems. 7. If necessary, press MODE to change the receiving mode. storing text tags You can customize your scanner by storing text tags (up to 16 characters) for easy identification of

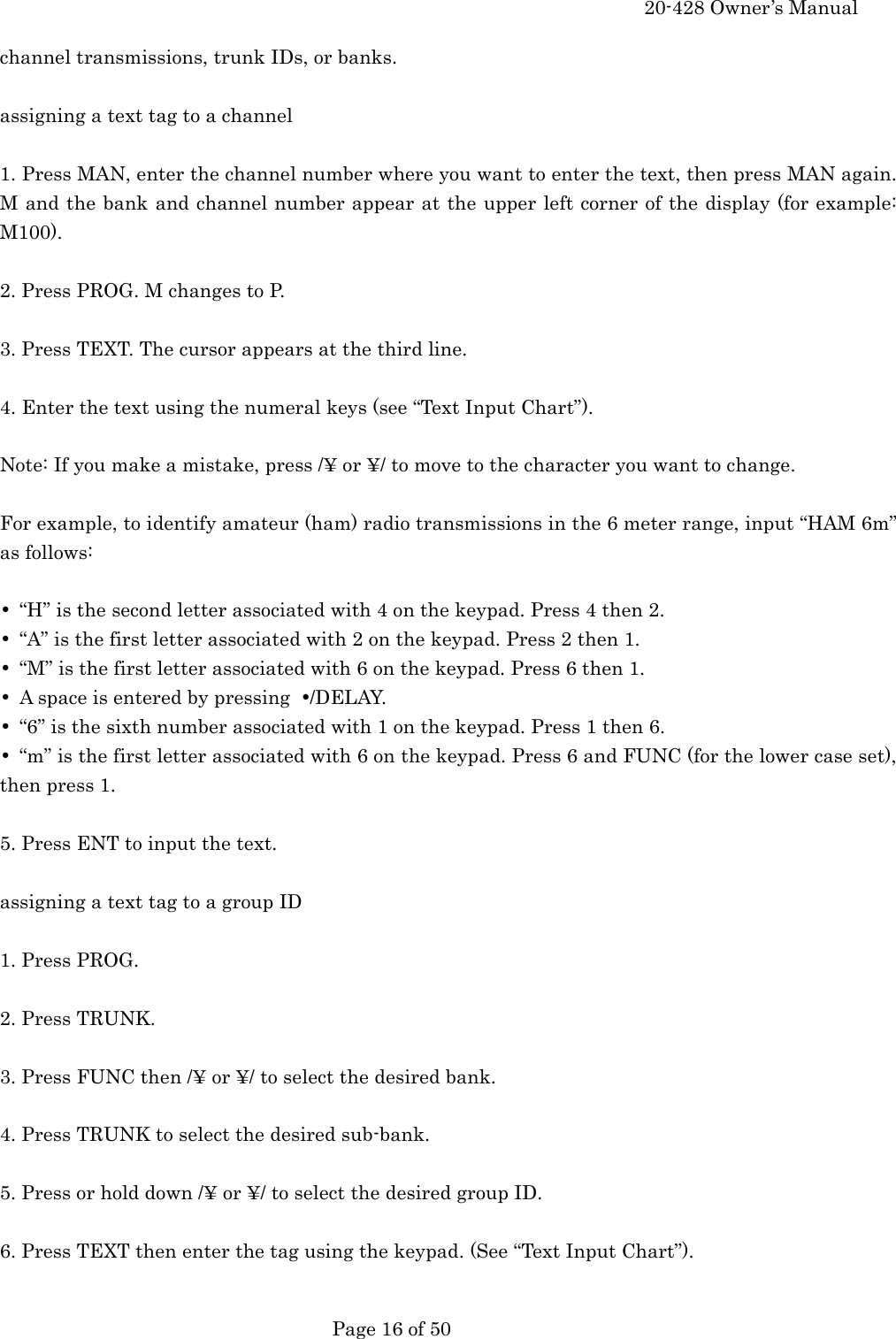

20-428 Owner’s Manual Page 16 of 50 channel transmissions, trunk IDs, or banks. assigning a text tag to a channel 1. Press MAN, enter the channel number where you want to enter the text, then press MAN again. M and the bank and channel number appear at the upper left corner of the display (for example: M100). 2. Press PROG. M changes to P. 3. Press TEXT. The cursor appears at the third line. 4. Enter the text using the numeral keys (see “Text Input Chart”). Note: If you make a mistake, press /¥ or ¥/ to move to the character you want to change. For example, to identify amateur (ham) radio transmissions in the 6 meter range, input “HAM 6m” as follows: • “H” is the second letter associated with 4 on the keypad. Press 4 then 2. • “A” is the first letter associated with 2 on the keypad. Press 2 then 1. • “M” is the first letter associated with 6 on the keypad. Press 6 then 1. • A space is entered by pressing •/DELAY. • “6” is the sixth number associated with 1 on the keypad. Press 1 then 6. • “m” is the first letter associated with 6 on the keypad. Press 6 and FUNC (for the lower case set), then press 1. 5. Press ENT to input the text. assigning a text tag to a group ID 1. Press PROG. 2. Press TRUNK. 3. Press FUNC then /¥ or ¥/ to select the desired bank. 4. Press TRUNK to select the desired sub-bank. 5. Press or hold down /¥ or ¥/ to select the desired group ID. 6. Press TEXT then enter the tag using the keypad. (See “Text Input Chart”).

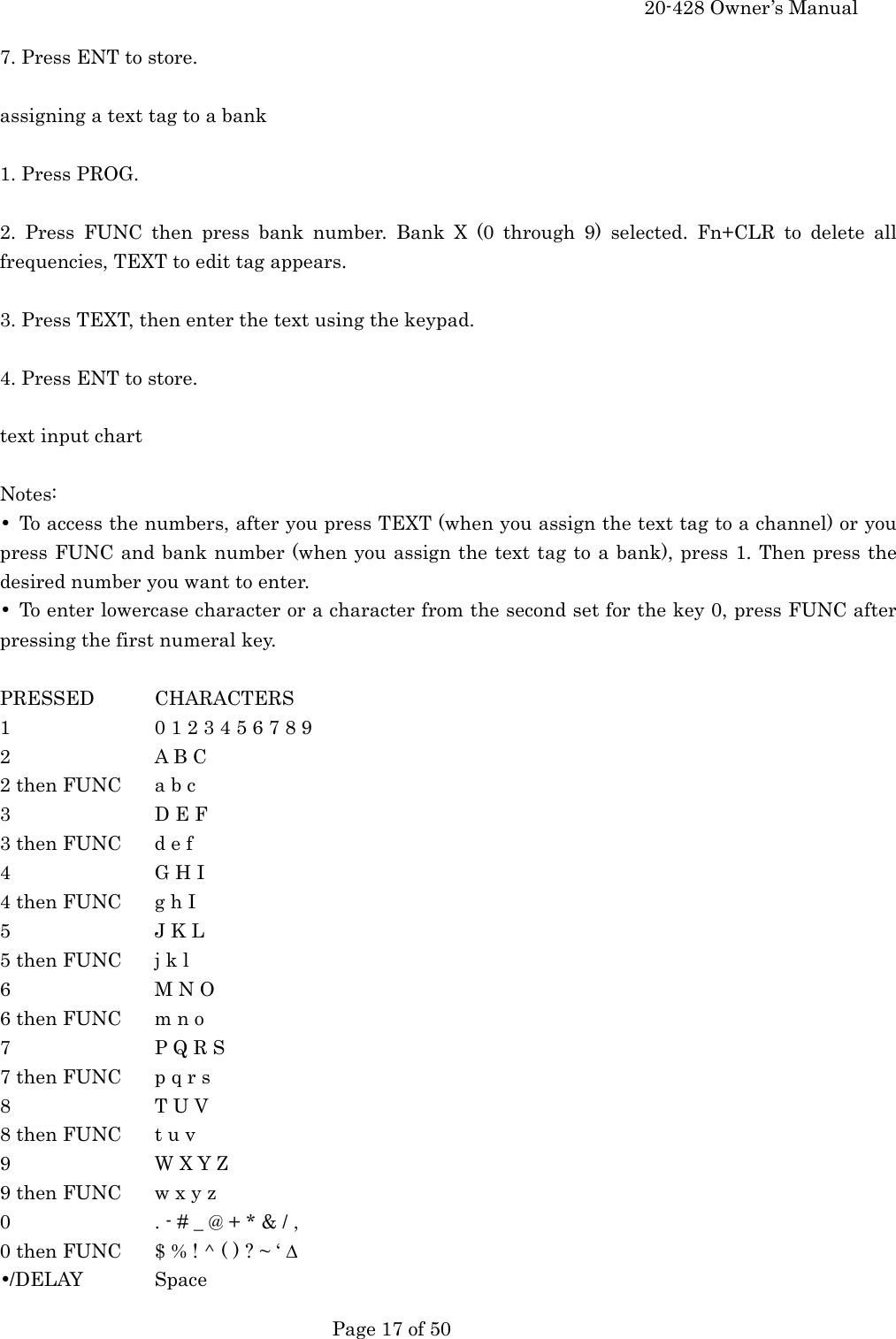

20-428 Owner’s Manual Page 17 of 50 7. Press ENT to store. assigning a text tag to a bank 1. Press PROG. 2. Press FUNC then press bank number. Bank X (0 through 9) selected. Fn+CLR to delete all frequencies, TEXT to edit tag appears. 3. Press TEXT, then enter the text using the keypad. 4. Press ENT to store. text input chart Notes: • To access the numbers, after you press TEXT (when you assign the text tag to a channel) or you press FUNC and bank number (when you assign the text tag to a bank), press 1. Then press the desired number you want to enter. • To enter lowercase character or a character from the second set for the key 0, press FUNC after pressing the first numeral key. PRESSED CHARACTERS 1 0 1 2 3 4 5 6 7 8 9 2 A B C 2 then FUNC a b c 3 D E F 3 then FUNC d e f 4 G H I 4 then FUNC g h I 5 J K L 5 then FUNC j k l 6 M N O 6 then FUNC m n o 7 P Q R S 7 then FUNC p q r s 8 T U V 8 then FUNC t u v 9 W X Y Z 9 then FUNC w x y z 0 . - # _ @ + * & / , 0 then FUNC $ % ! ^ ( ) ? ~ ‘ ∆ •/DELAY Space

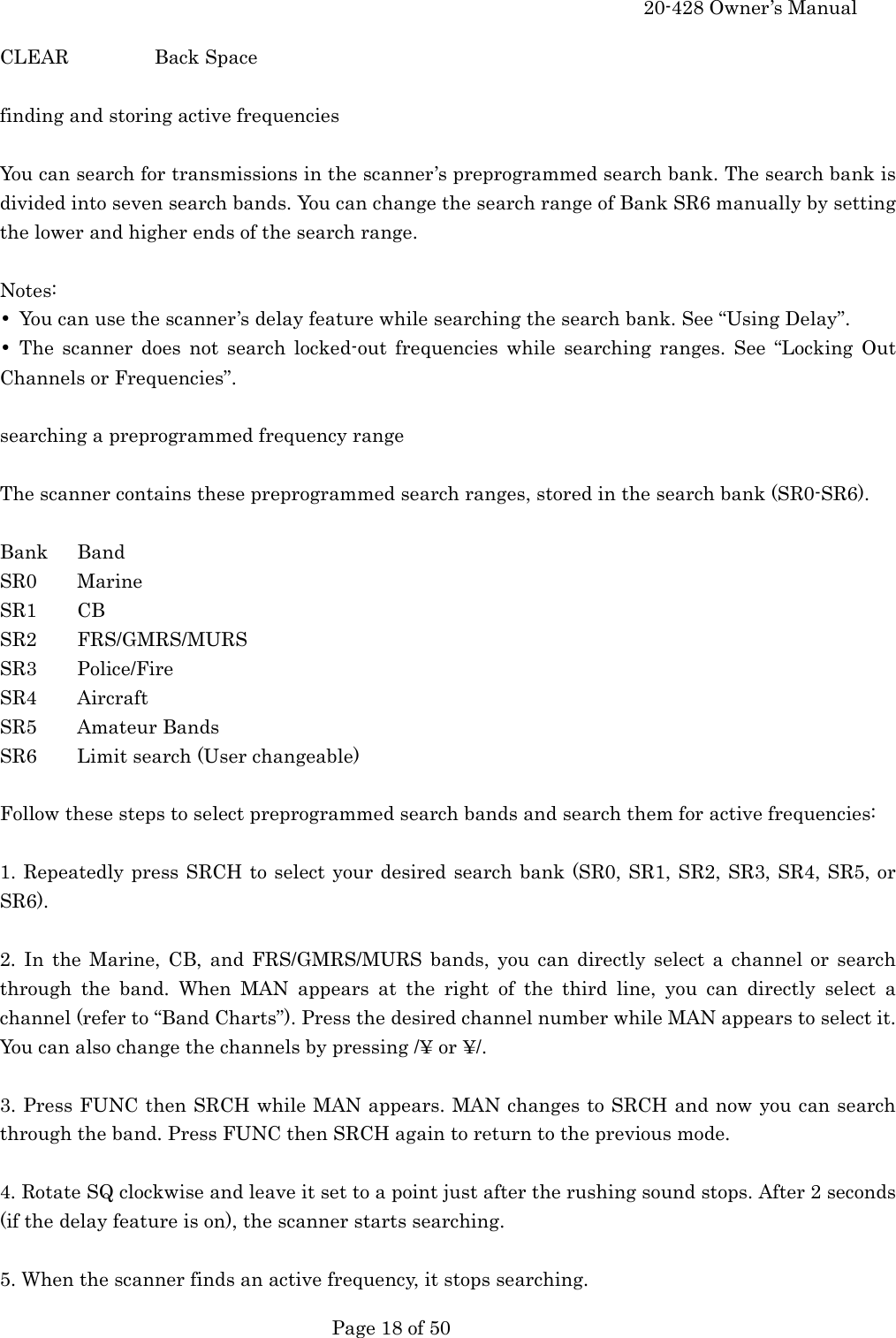

20-428 Owner’s Manual Page 18 of 50 CLEAR Back Space finding and storing active frequencies You can search for transmissions in the scanner’s preprogrammed search bank. The search bank is divided into seven search bands. You can change the search range of Bank SR6 manually by setting the lower and higher ends of the search range. Notes: • You can use the scanner’s delay feature while searching the search bank. See “Using Delay”. • The scanner does not search locked-out frequencies while searching ranges. See “Locking Out Channels or Frequencies”. searching a preprogrammed frequency range The scanner contains these preprogrammed search ranges, stored in the search bank (SR0-SR6). Bank Band SR0 Marine SR1 CB SR2 FRS/GMRS/MURS SR3 Police/Fire SR4 Aircraft SR5 Amateur Bands SR6 Limit search (User changeable) Follow these steps to select preprogrammed search bands and search them for active frequencies: 1. Repeatedly press SRCH to select your desired search bank (SR0, SR1, SR2, SR3, SR4, SR5, or SR6). 2. In the Marine, CB, and FRS/GMRS/MURS bands, you can directly select a channel or search through the band. When MAN appears at the right of the third line, you can directly select a channel (refer to “Band Charts”). Press the desired channel number while MAN appears to select it. You can also change the channels by pressing /¥ or ¥/. 3. Press FUNC then SRCH while MAN appears. MAN changes to SRCH and now you can search through the band. Press FUNC then SRCH again to return to the previous mode. 4. Rotate SQ clockwise and leave it set to a point just after the rushing sound stops. After 2 seconds (if the delay feature is on), the scanner starts searching. 5. When the scanner finds an active frequency, it stops searching.

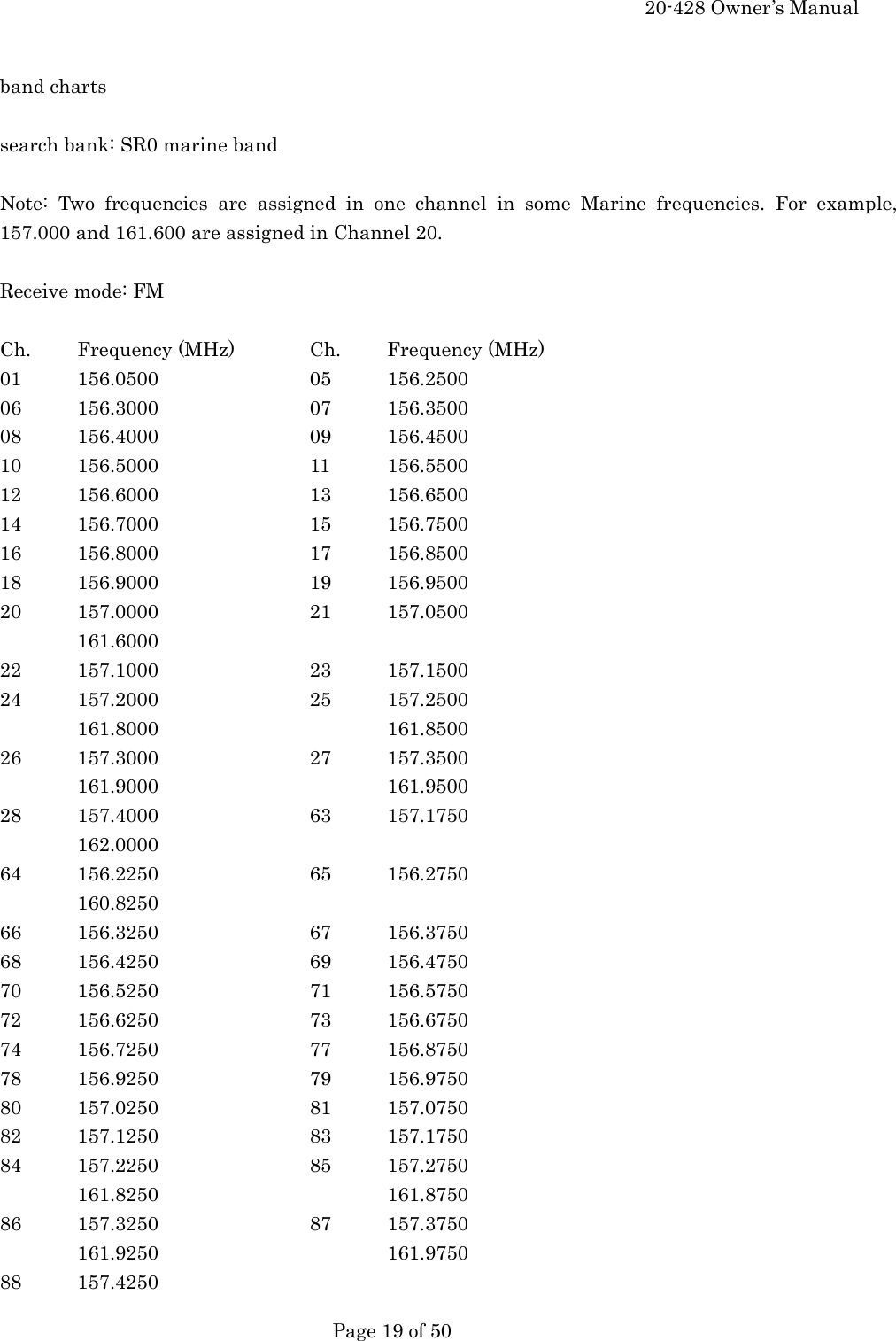

20-428 Owner’s Manual Page 19 of 50 band charts search bank: SR0 marine band Note: Two frequencies are assigned in one channel in some Marine frequencies. For example, 157.000 and 161.600 are assigned in Channel 20. Receive mode: FM Ch. Frequency (MHz) Ch. Frequency (MHz) 01 156.0500 05 156.2500 06 156.3000 07 156.3500 08 156.4000 09 156.4500 10 156.5000 11 156.5500 12 156.6000 13 156.6500 14 156.7000 15 156.7500 16 156.8000 17 156.8500 18 156.9000 19 156.9500 20 157.0000 21 157.0500 161.6000 22 157.1000 23 157.1500 24 157.2000 25 157.2500 161.8000 161.8500 26 157.3000 27 157.3500 161.9000 161.9500 28 157.4000 63 157.1750 162.0000 64 156.2250 65 156.2750 160.8250 66 156.3250 67 156.3750 68 156.4250 69 156.4750 70 156.5250 71 156.5750 72 156.6250 73 156.6750 74 156.7250 77 156.8750 78 156.9250 79 156.9750 80 157.0250 81 157.0750 82 157.1250 83 157.1750 84 157.2250 85 157.2750 161.8250 161.8750 86 157.3250 87 157.3750 161.9250 161.9750 88 157.4250

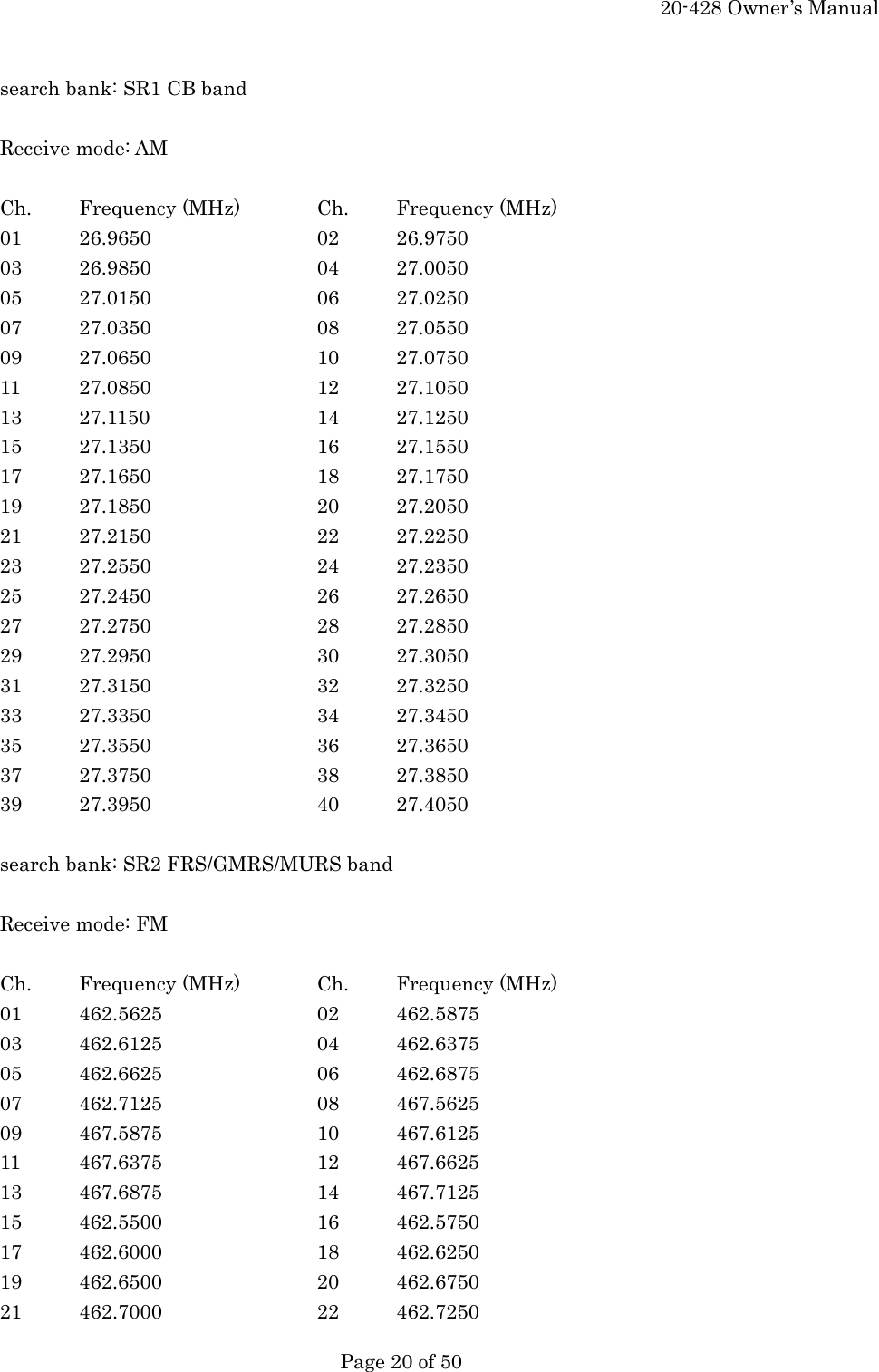

20-428 Owner’s Manual Page 20 of 50 search bank: SR1 CB band Receive mode: AM Ch. Frequency (MHz) Ch. Frequency (MHz) 01 26.9650 02 26.9750 03 26.9850 04 27.0050 05 27.0150 06 27.0250 07 27.0350 08 27.0550 09 27.0650 10 27.0750 11 27.0850 12 27.1050 13 27.1150 14 27.1250 15 27.1350 16 27.1550 17 27.1650 18 27.1750 19 27.1850 20 27.2050 21 27.2150 22 27.2250 23 27.2550 24 27.2350 25 27.2450 26 27.2650 27 27.2750 28 27.2850 29 27.2950 30 27.3050 31 27.3150 32 27.3250 33 27.3350 34 27.3450 35 27.3550 36 27.3650 37 27.3750 38 27.3850 39 27.3950 40 27.4050 search bank: SR2 FRS/GMRS/MURS band Receive mode: FM Ch. Frequency (MHz) Ch. Frequency (MHz) 01 462.5625 02 462.5875 03 462.6125 04 462.6375 05 462.6625 06 462.6875 07 462.7125 08 467.5625 09 467.5875 10 467.6125 11 467.6375 12 467.6625 13 467.6875 14 467.7125 15 462.5500 16 462.5750 17 462.6000 18 462.6250 19 462.6500 20 462.6750 21 462.7000 22 462.7250

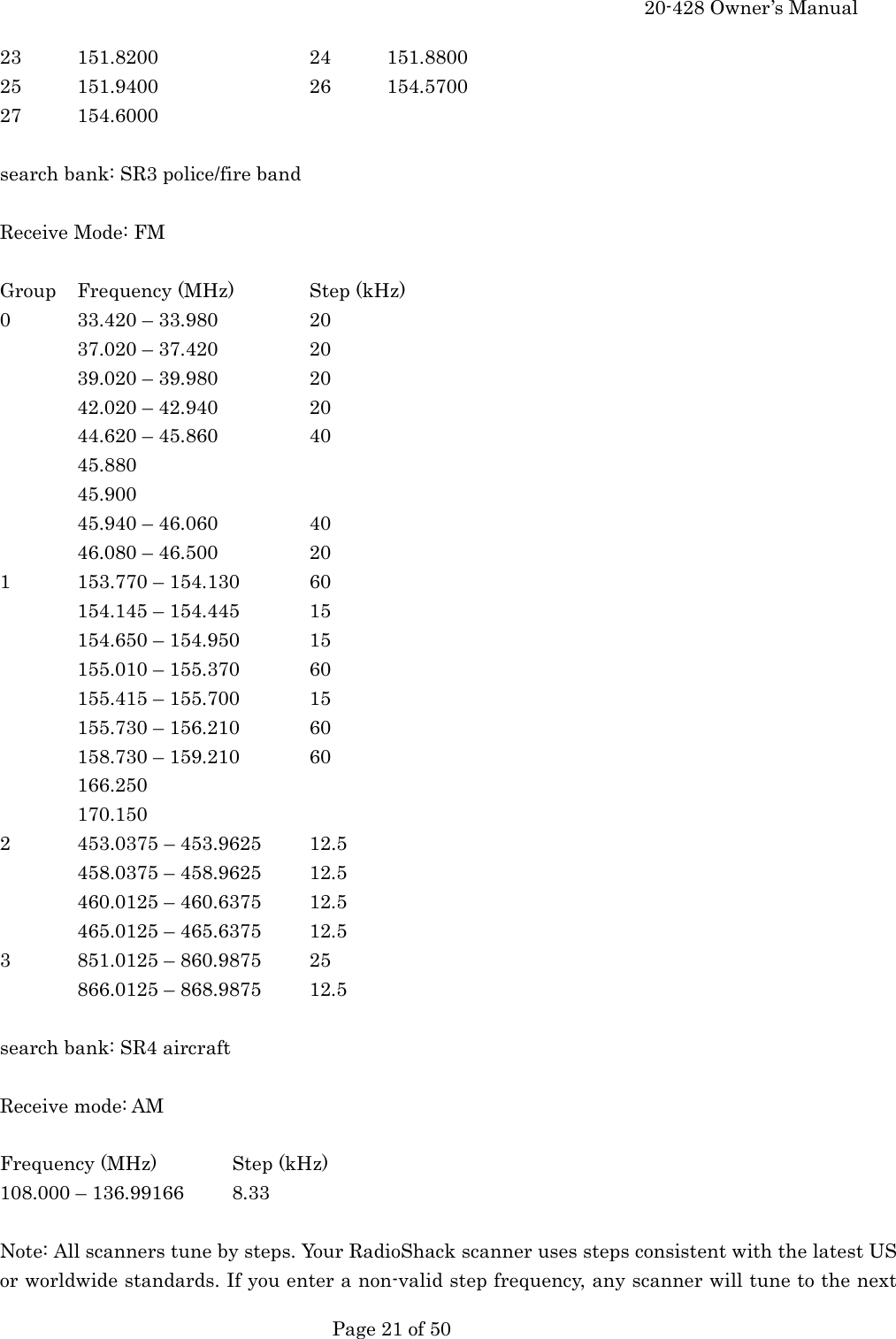

20-428 Owner’s Manual Page 21 of 50 23 151.8200 24 151.8800 25 151.9400 26 154.5700 27 154.6000 search bank: SR3 police/fire band Receive Mode: FM Group Frequency (MHz) Step (kHz) 0 33.420 – 33.980 20 37.020 – 37.420 20 39.020 – 39.980 20 42.020 – 42.940 20 44.620 – 45.860 40 45.880 45.900 45.940 – 46.060 40 46.080 – 46.500 20 1 153.770 – 154.130 60 154.145 – 154.445 15 154.650 – 154.950 15 155.010 – 155.370 60 155.415 – 155.700 15 155.730 – 156.210 60 158.730 – 159.210 60 166.250 170.150 2 453.0375 – 453.9625 12.5 458.0375 – 458.9625 12.5 460.0125 – 460.6375 12.5 465.0125 – 465.6375 12.5 3 851.0125 – 860.9875 25 866.0125 – 868.9875 12.5 search bank: SR4 aircraft Receive mode: AM Frequency (MHz) Step (kHz) 108.000 – 136.99166 8.33 Note: All scanners tune by steps. Your RadioShack scanner uses steps consistent with the latest US or worldwide standards. If you enter a non-valid step frequency, any scanner will tune to the next

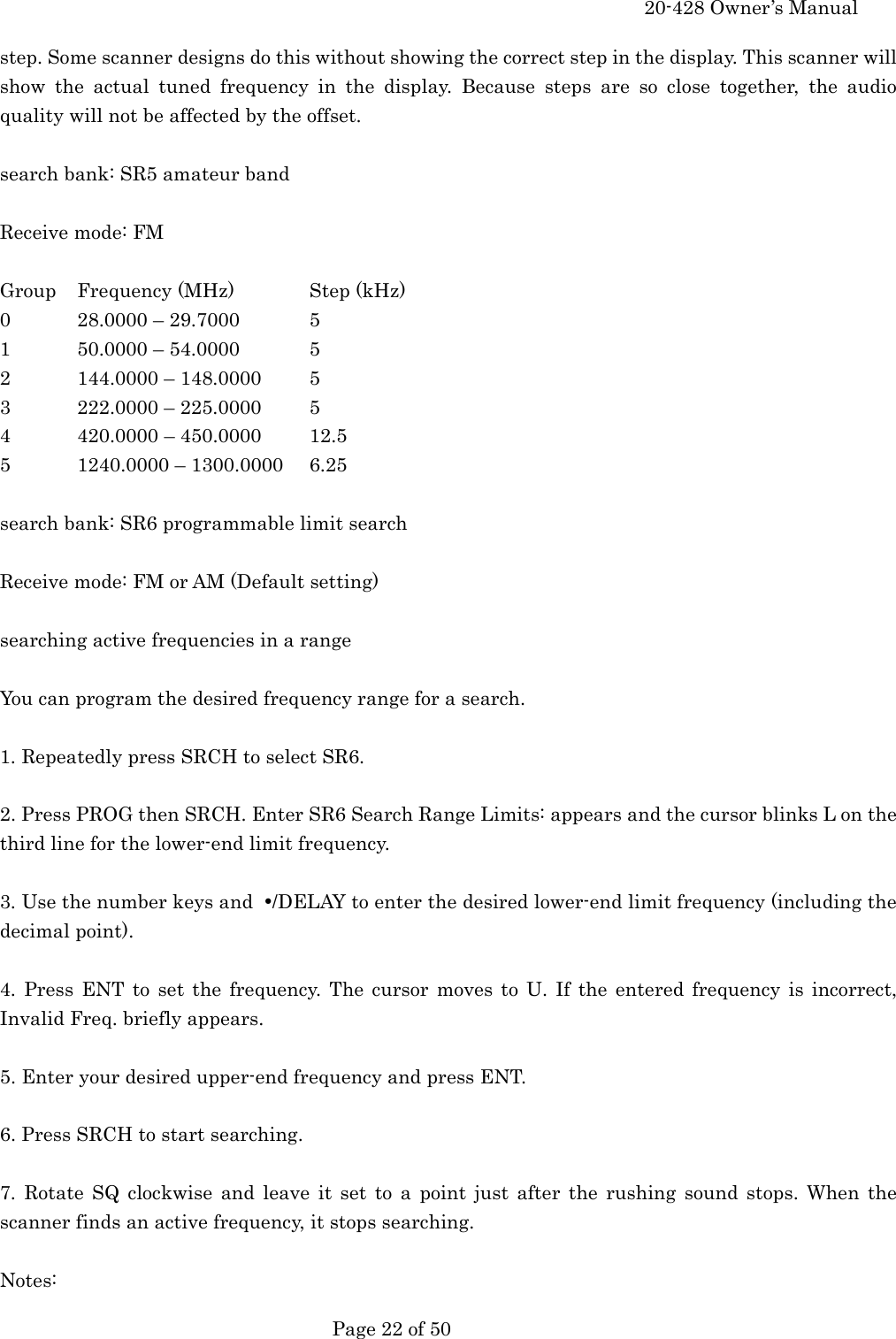

20-428 Owner’s Manual Page 22 of 50 step. Some scanner designs do this without showing the correct step in the display. This scanner will show the actual tuned frequency in the display. Because steps are so close together, the audio quality will not be affected by the offset. search bank: SR5 amateur band Receive mode: FM Group Frequency (MHz) Step (kHz) 0 28.0000 – 29.7000 5 1 50.0000 – 54.0000 5 2 144.0000 – 148.0000 5 3 222.0000 – 225.0000 5 4 420.0000 – 450.0000 12.5 5 1240.0000 – 1300.0000 6.25 search bank: SR6 programmable limit search Receive mode: FM or AM (Default setting) searching active frequencies in a range You can program the desired frequency range for a search. 1. Repeatedly press SRCH to select SR6. 2. Press PROG then SRCH. Enter SR6 Search Range Limits: appears and the cursor blinks L on the third line for the lower-end limit frequency. 3. Use the number keys and •/DELAY to enter the desired lower-end limit frequency (including the decimal point). 4. Press ENT to set the frequency. The cursor moves to U. If the entered frequency is incorrect, Invalid Freq. briefly appears. 5. Enter your desired upper-end frequency and press ENT. 6. Press SRCH to start searching. 7. Rotate SQ clockwise and leave it set to a point just after the rushing sound stops. When the scanner finds an active frequency, it stops searching. Notes:

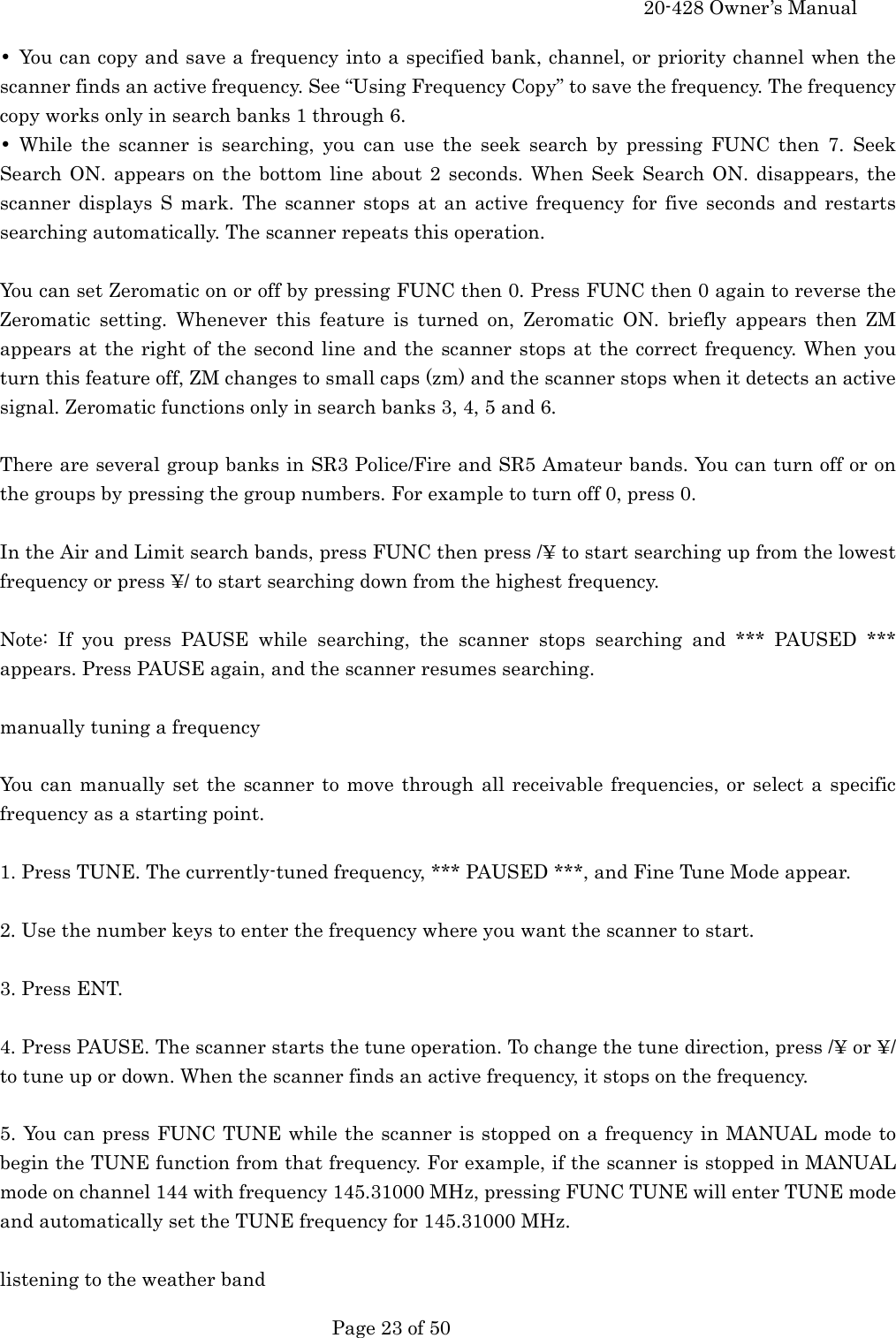

20-428 Owner’s Manual Page 23 of 50 • You can copy and save a frequency into a specified bank, channel, or priority channel when the scanner finds an active frequency. See “Using Frequency Copy” to save the frequency. The frequency copy works only in search banks 1 through 6. • While the scanner is searching, you can use the seek search by pressing FUNC then 7. Seek Search ON. appears on the bottom line about 2 seconds. When Seek Search ON. disappears, the scanner displays S mark. The scanner stops at an active frequency for five seconds and restarts searching automatically. The scanner repeats this operation. You can set Zeromatic on or off by pressing FUNC then 0. Press FUNC then 0 again to reverse the Zeromatic setting. Whenever this feature is turned on, Zeromatic ON. briefly appears then ZM appears at the right of the second line and the scanner stops at the correct frequency. When you turn this feature off, ZM changes to small caps (zm) and the scanner stops when it detects an active signal. Zeromatic functions only in search banks 3, 4, 5 and 6. There are several group banks in SR3 Police/Fire and SR5 Amateur bands. You can turn off or on the groups by pressing the group numbers. For example to turn off 0, press 0. In the Air and Limit search bands, press FUNC then press /¥ to start searching up from the lowest frequency or press ¥/ to start searching down from the highest frequency. Note: If you press PAUSE while searching, the scanner stops searching and *** PAUSED *** appears. Press PAUSE again, and the scanner resumes searching. manually tuning a frequency You can manually set the scanner to move through all receivable frequencies, or select a specific frequency as a starting point. 1. Press TUNE. The currently-tuned frequency, *** PAUSED ***, and Fine Tune Mode appear. 2. Use the number keys to enter the frequency where you want the scanner to start. 3. Press ENT. 4. Press PAUSE. The scanner starts the tune operation. To change the tune direction, press /¥ or ¥/ to tune up or down. When the scanner finds an active frequency, it stops on the frequency. 5. You can press FUNC TUNE while the scanner is stopped on a frequency in MANUAL mode to begin the TUNE function from that frequency. For example, if the scanner is stopped in MANUAL mode on channel 144 with frequency 145.31000 MHz, pressing FUNC TUNE will enter TUNE mode and automatically set the TUNE frequency for 145.31000 MHz. listening to the weather band

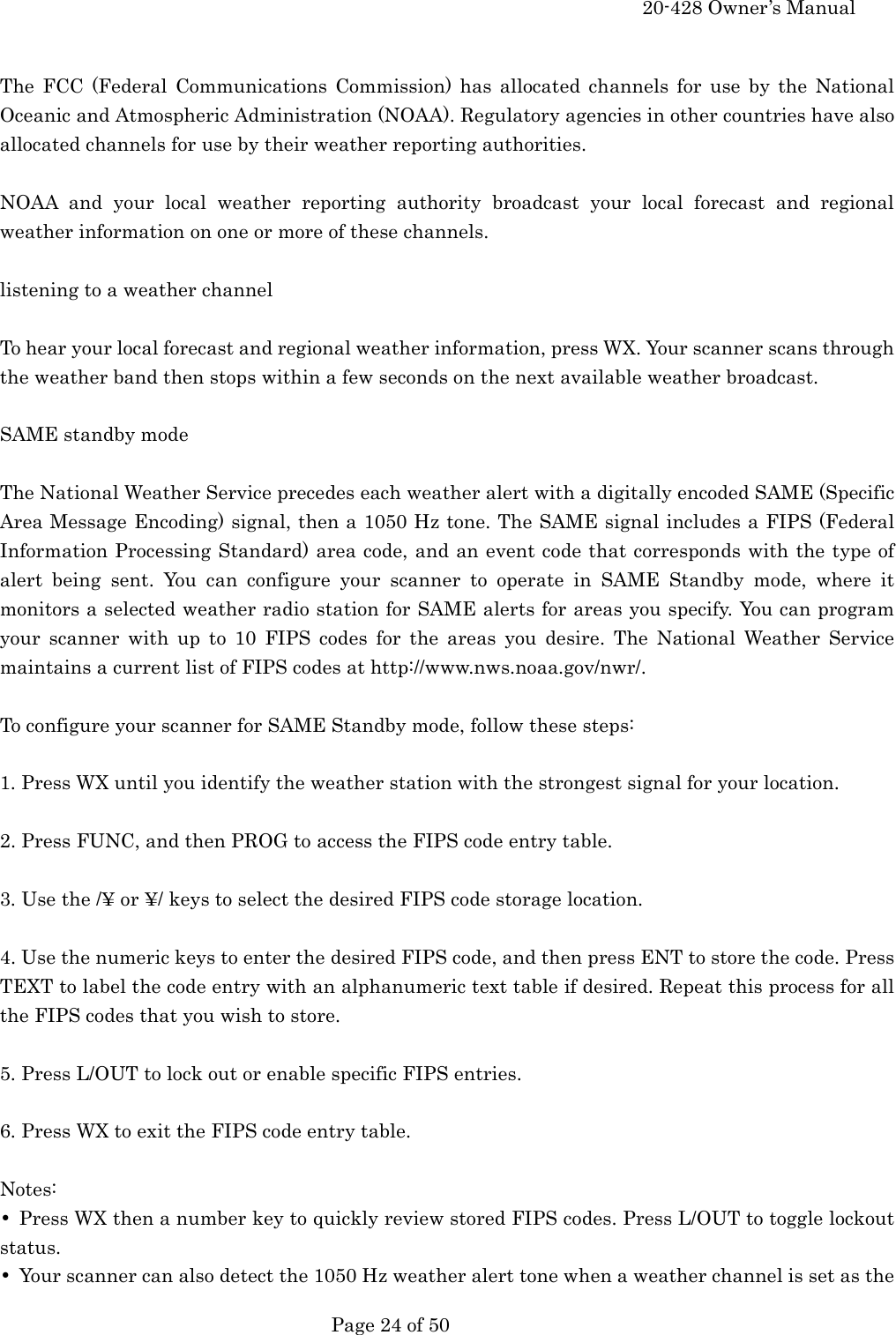

20-428 Owner’s Manual Page 24 of 50 The FCC (Federal Communications Commission) has allocated channels for use by the National Oceanic and Atmospheric Administration (NOAA). Regulatory agencies in other countries have also allocated channels for use by their weather reporting authorities. NOAA and your local weather reporting authority broadcast your local forecast and regional weather information on one or more of these channels. listening to a weather channel To hear your local forecast and regional weather information, press WX. Your scanner scans through the weather band then stops within a few seconds on the next available weather broadcast. SAME standby mode The National Weather Service precedes each weather alert with a digitally encoded SAME (Specific Area Message Encoding) signal, then a 1050 Hz tone. The SAME signal includes a FIPS (Federal Information Processing Standard) area code, and an event code that corresponds with the type of alert being sent. You can configure your scanner to operate in SAME Standby mode, where it monitors a selected weather radio station for SAME alerts for areas you specify. You can program your scanner with up to 10 FIPS codes for the areas you desire. The National Weather Service maintains a current list of FIPS codes at http://www.nws.noaa.gov/nwr/. To configure your scanner for SAME Standby mode, follow these steps: 1. Press WX until you identify the weather station with the strongest signal for your location. 2. Press FUNC, and then PROG to access the FIPS code entry table. 3. Use the /¥ or ¥/ keys to select the desired FIPS code storage location. 4. Use the numeric keys to enter the desired FIPS code, and then press ENT to store the code. Press TEXT to label the code entry with an alphanumeric text table if desired. Repeat this process for all the FIPS codes that you wish to store. 5. Press L/OUT to lock out or enable specific FIPS entries. 6. Press WX to exit the FIPS code entry table. Notes: • Press WX then a number key to quickly review stored FIPS codes. Press L/OUT to toggle lockout status. • Your scanner can also detect the 1050 Hz weather alert tone when a weather channel is set as the

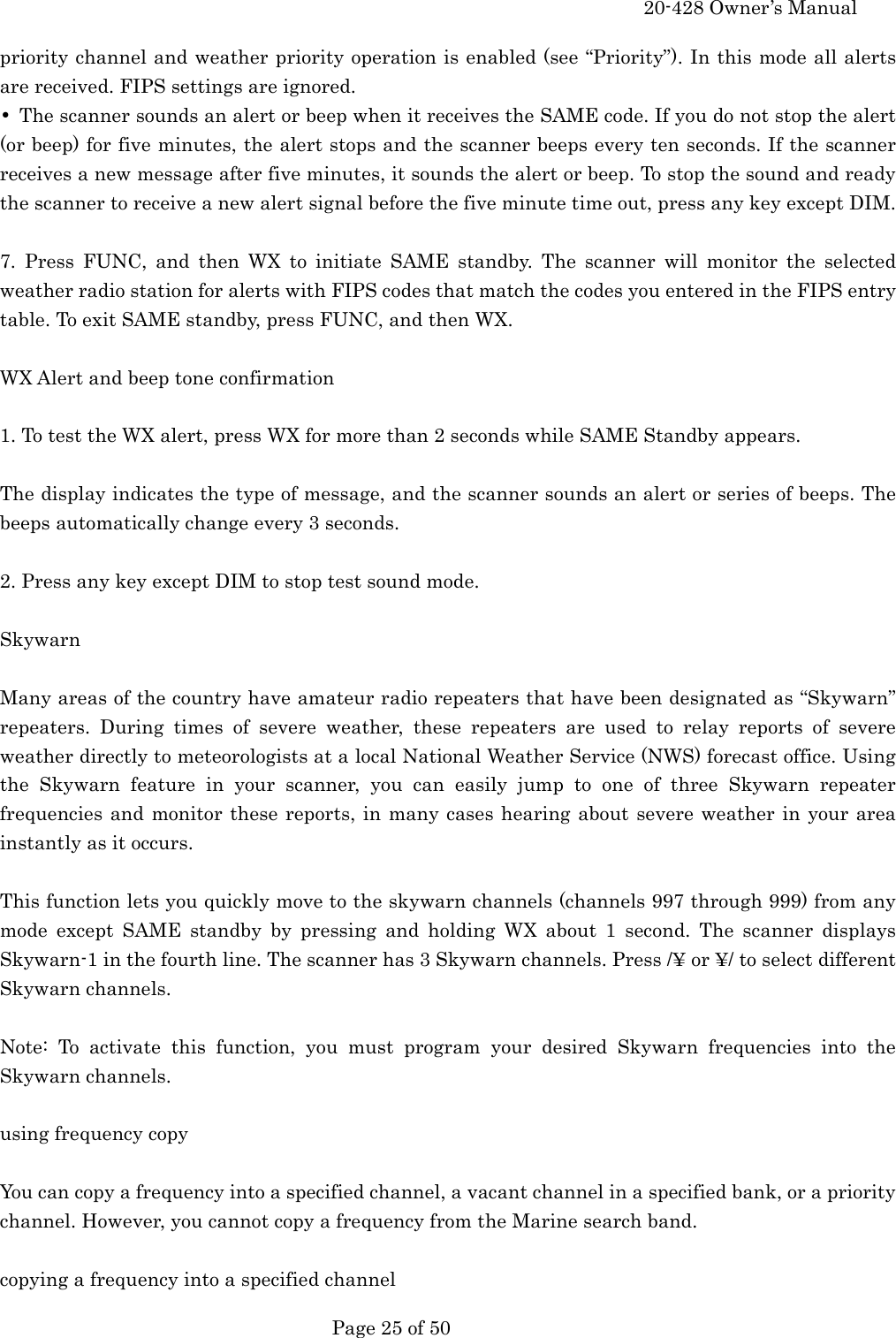

20-428 Owner’s Manual Page 25 of 50 priority channel and weather priority operation is enabled (see “Priority”). In this mode all alerts are received. FIPS settings are ignored. • The scanner sounds an alert or beep when it receives the SAME code. If you do not stop the alert (or beep) for five minutes, the alert stops and the scanner beeps every ten seconds. If the scanner receives a new message after five minutes, it sounds the alert or beep. To stop the sound and ready the scanner to receive a new alert signal before the five minute time out, press any key except DIM. 7. Press FUNC, and then WX to initiate SAME standby. The scanner will monitor the selected weather radio station for alerts with FIPS codes that match the codes you entered in the FIPS entry table. To exit SAME standby, press FUNC, and then WX. WX Alert and beep tone confirmation 1. To test the WX alert, press WX for more than 2 seconds while SAME Standby appears. The display indicates the type of message, and the scanner sounds an alert or series of beeps. The beeps automatically change every 3 seconds. 2. Press any key except DIM to stop test sound mode. Skywarn Many areas of the country have amateur radio repeaters that have been designated as “Skywarn” repeaters. During times of severe weather, these repeaters are used to relay reports of severe weather directly to meteorologists at a local National Weather Service (NWS) forecast office. Using the Skywarn feature in your scanner, you can easily jump to one of three Skywarn repeater frequencies and monitor these reports, in many cases hearing about severe weather in your area instantly as it occurs. This function lets you quickly move to the skywarn channels (channels 997 through 999) from any mode except SAME standby by pressing and holding WX about 1 second. The scanner displays Skywarn-1 in the fourth line. The scanner has 3 Skywarn channels. Press /¥ or ¥/ to select different Skywarn channels. Note: To activate this function, you must program your desired Skywarn frequencies into the Skywarn channels. using frequency copy You can copy a frequency into a specified channel, a vacant channel in a specified bank, or a priority channel. However, you cannot copy a frequency from the Marine search band. copying a frequency into a specified channel

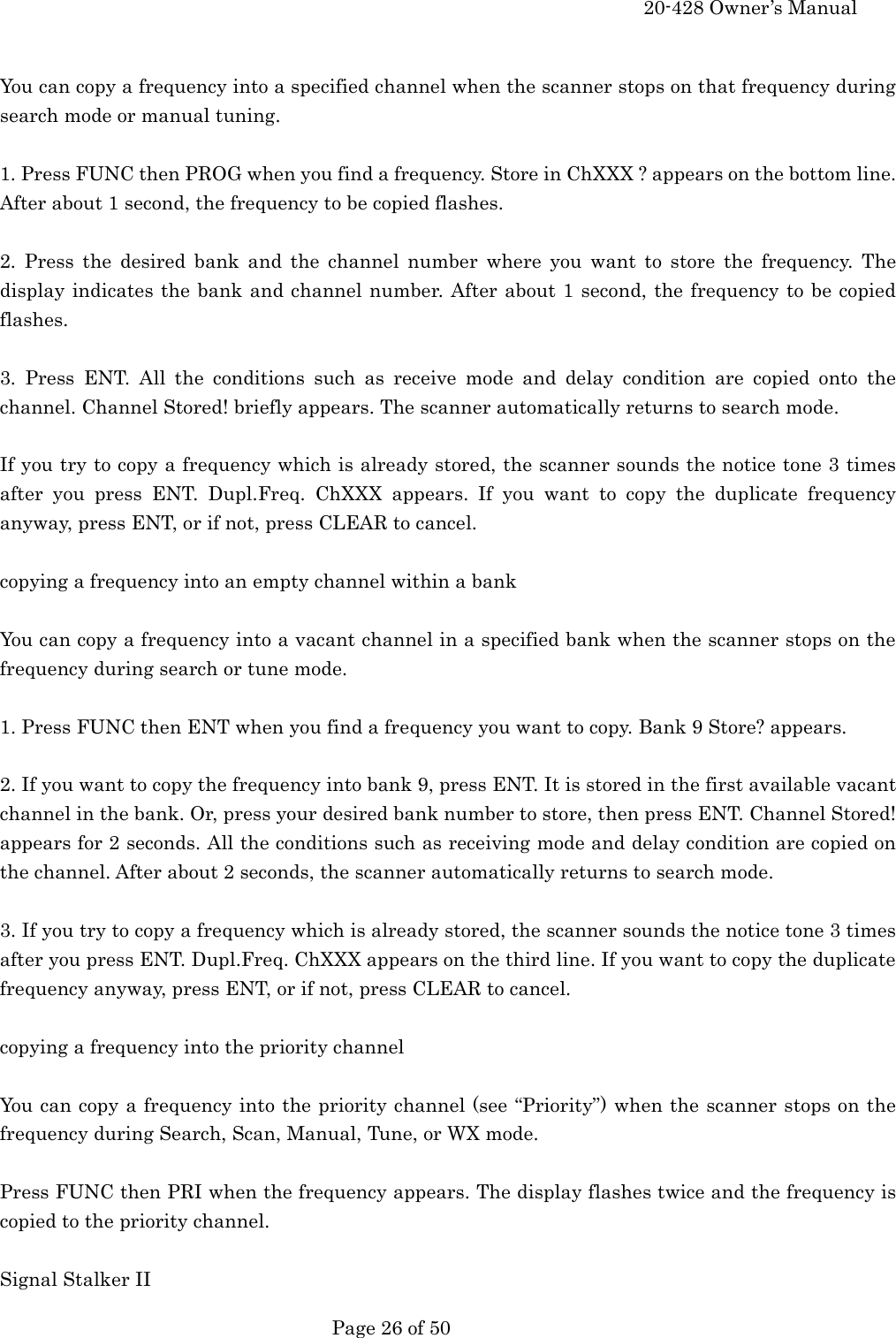

20-428 Owner’s Manual Page 26 of 50 You can copy a frequency into a specified channel when the scanner stops on that frequency during search mode or manual tuning. 1. Press FUNC then PROG when you find a frequency. Store in ChXXX ? appears on the bottom line. After about 1 second, the frequency to be copied flashes. 2. Press the desired bank and the channel number where you want to store the frequency. The display indicates the bank and channel number. After about 1 second, the frequency to be copied flashes. 3. Press ENT. All the conditions such as receive mode and delay condition are copied onto the channel. Channel Stored! briefly appears. The scanner automatically returns to search mode. If you try to copy a frequency which is already stored, the scanner sounds the notice tone 3 times after you press ENT. Dupl.Freq. ChXXX appears. If you want to copy the duplicate frequency anyway, press ENT, or if not, press CLEAR to cancel. copying a frequency into an empty channel within a bank You can copy a frequency into a vacant channel in a specified bank when the scanner stops on the frequency during search or tune mode. 1. Press FUNC then ENT when you find a frequency you want to copy. Bank 9 Store? appears. 2. If you want to copy the frequency into bank 9, press ENT. It is stored in the first available vacant channel in the bank. Or, press your desired bank number to store, then press ENT. Channel Stored! appears for 2 seconds. All the conditions such as receiving mode and delay condition are copied on the channel. After about 2 seconds, the scanner automatically returns to search mode. 3. If you try to copy a frequency which is already stored, the scanner sounds the notice tone 3 times after you press ENT. Dupl.Freq. ChXXX appears on the third line. If you want to copy the duplicate frequency anyway, press ENT, or if not, press CLEAR to cancel. copying a frequency into the priority channel You can copy a frequency into the priority channel (see “Priority”) when the scanner stops on the frequency during Search, Scan, Manual, Tune, or WX mode. Press FUNC then PRI when the frequency appears. The display flashes twice and the frequency is copied to the priority channel. Signal Stalker II

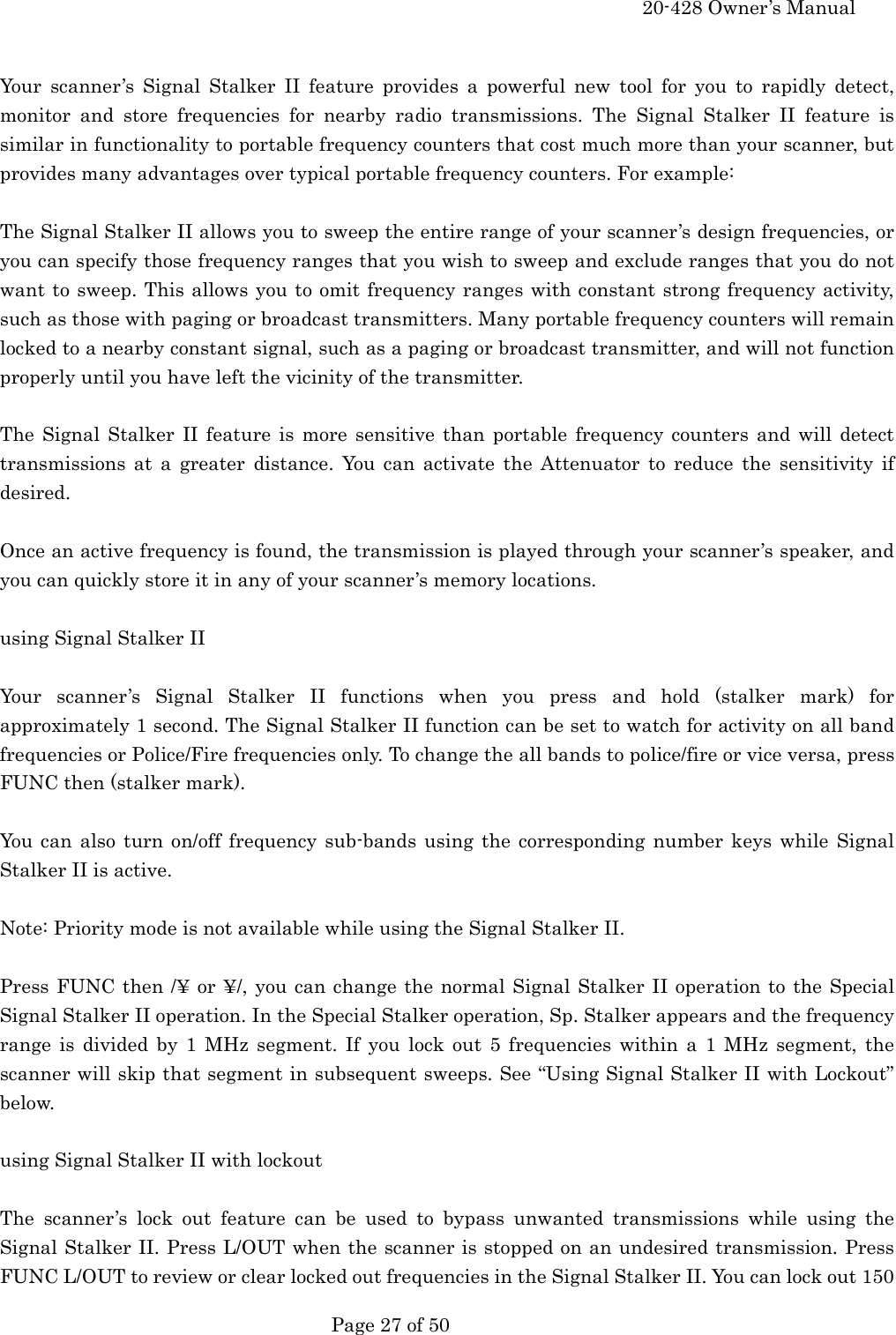

20-428 Owner’s Manual Page 27 of 50 Your scanner’s Signal Stalker II feature provides a powerful new tool for you to rapidly detect, monitor and store frequencies for nearby radio transmissions. The Signal Stalker II feature is similar in functionality to portable frequency counters that cost much more than your scanner, but provides many advantages over typical portable frequency counters. For example: The Signal Stalker II allows you to sweep the entire range of your scanner’s design frequencies, or you can specify those frequency ranges that you wish to sweep and exclude ranges that you do not want to sweep. This allows you to omit frequency ranges with constant strong frequency activity, such as those with paging or broadcast transmitters. Many portable frequency counters will remain locked to a nearby constant signal, such as a paging or broadcast transmitter, and will not function properly until you have left the vicinity of the transmitter. The Signal Stalker II feature is more sensitive than portable frequency counters and will detect transmissions at a greater distance. You can activate the Attenuator to reduce the sensitivity if desired. Once an active frequency is found, the transmission is played through your scanner’s speaker, and you can quickly store it in any of your scanner’s memory locations. using Signal Stalker II Your scanner’s Signal Stalker II functions when you press and hold (stalker mark) for approximately 1 second. The Signal Stalker II function can be set to watch for activity on all band frequencies or Police/Fire frequencies only. To change the all bands to police/fire or vice versa, press FUNC then (stalker mark). You can also turn on/off frequency sub-bands using the corresponding number keys while Signal Stalker II is active. Note: Priority mode is not available while using the Signal Stalker II. Press FUNC then /¥ or ¥/, you can change the normal Signal Stalker II operation to the Special Signal Stalker II operation. In the Special Stalker operation, Sp. Stalker appears and the frequency range is divided by 1 MHz segment. If you lock out 5 frequencies within a 1 MHz segment, the scanner will skip that segment in subsequent sweeps. See “Using Signal Stalker II with Lockout” below. using Signal Stalker II with lockout The scanner’s lock out feature can be used to bypass unwanted transmissions while using the Signal Stalker II. Press L/OUT when the scanner is stopped on an undesired transmission. Press FUNC L/OUT to review or clear locked out frequencies in the Signal Stalker II. You can lock out 150

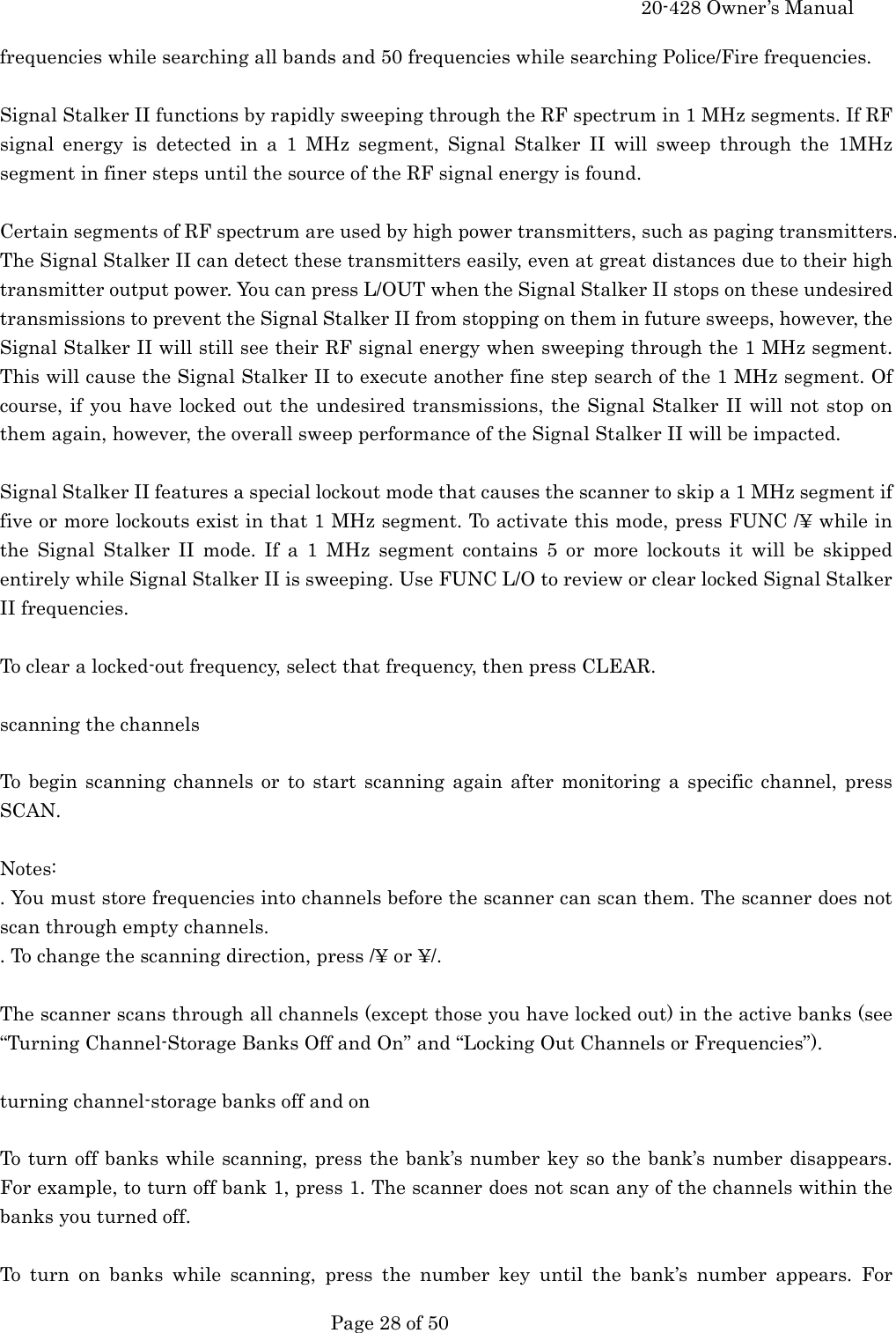

20-428 Owner’s Manual Page 28 of 50 frequencies while searching all bands and 50 frequencies while searching Police/Fire frequencies. Signal Stalker II functions by rapidly sweeping through the RF spectrum in 1 MHz segments. If RF signal energy is detected in a 1 MHz segment, Signal Stalker II will sweep through the 1MHz segment in finer steps until the source of the RF signal energy is found. Certain segments of RF spectrum are used by high power transmitters, such as paging transmitters. The Signal Stalker II can detect these transmitters easily, even at great distances due to their high transmitter output power. You can press L/OUT when the Signal Stalker II stops on these undesired transmissions to prevent the Signal Stalker II from stopping on them in future sweeps, however, the Signal Stalker II will still see their RF signal energy when sweeping through the 1 MHz segment. This will cause the Signal Stalker II to execute another fine step search of the 1 MHz segment. Of course, if you have locked out the undesired transmissions, the Signal Stalker II will not stop on them again, however, the overall sweep performance of the Signal Stalker II will be impacted. Signal Stalker II features a special lockout mode that causes the scanner to skip a 1 MHz segment if five or more lockouts exist in that 1 MHz segment. To activate this mode, press FUNC /¥ while in the Signal Stalker II mode. If a 1 MHz segment contains 5 or more lockouts it will be skipped entirely while Signal Stalker II is sweeping. Use FUNC L/O to review or clear locked Signal Stalker II frequencies. To clear a locked-out frequency, select that frequency, then press CLEAR. scanning the channels To begin scanning channels or to start scanning again after monitoring a specific channel, press SCAN. Notes: . You must store frequencies into channels before the scanner can scan them. The scanner does not scan through empty channels. . To change the scanning direction, press /¥ or ¥/. The scanner scans through all channels (except those you have locked out) in the active banks (see “Turning Channel-Storage Banks Off and On” and “Locking Out Channels or Frequencies”). turning channel-storage banks off and on To turn off banks while scanning, press the bank’s number key so the bank’s number disappears. For example, to turn off bank 1, press 1. The scanner does not scan any of the channels within the banks you turned off. To turn on banks while scanning, press the number key until the bank’s number appears. For

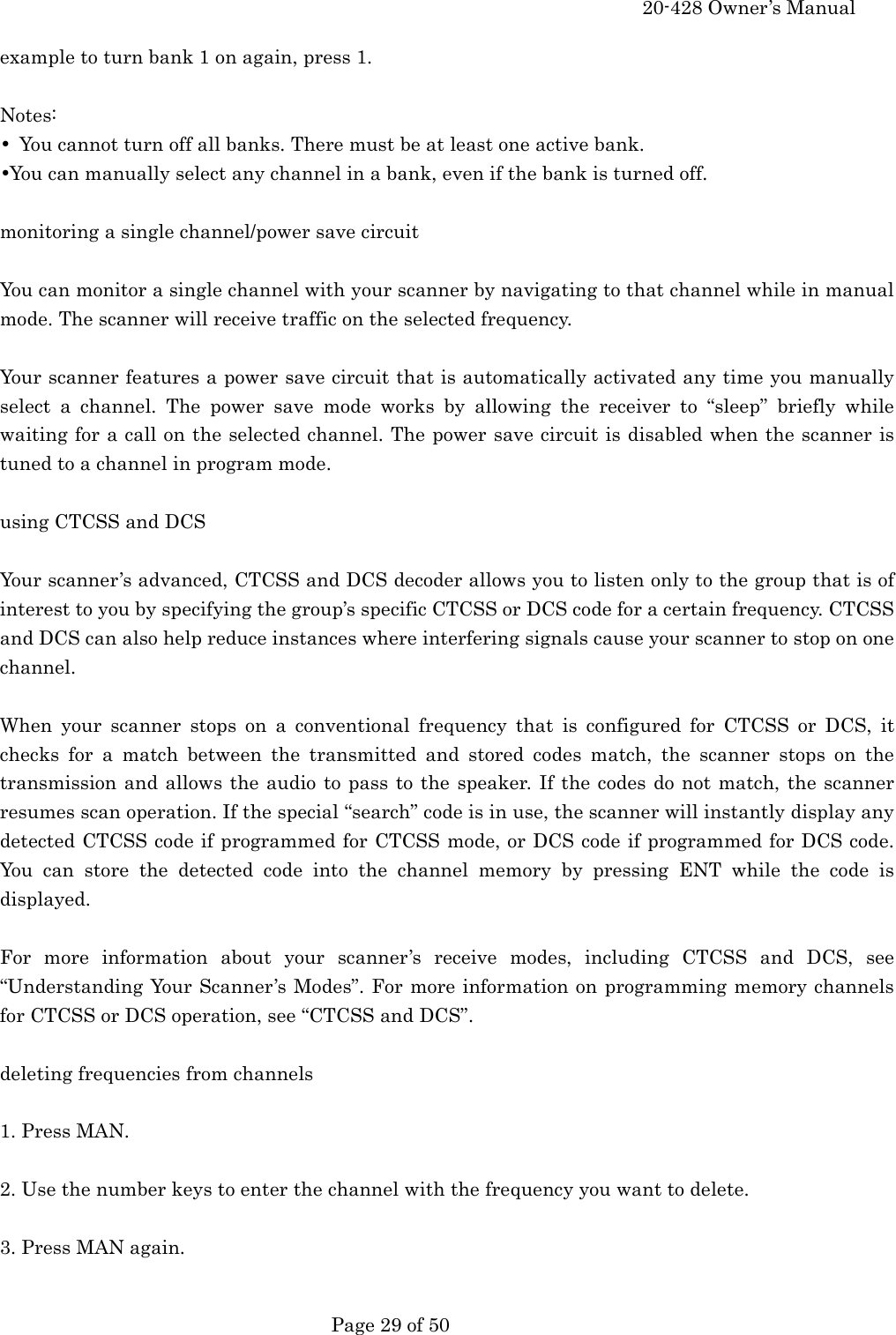

20-428 Owner’s Manual Page 29 of 50 example to turn bank 1 on again, press 1. Notes: • You cannot turn off all banks. There must be at least one active bank. •You can manually select any channel in a bank, even if the bank is turned off. monitoring a single channel/power save circuit You can monitor a single channel with your scanner by navigating to that channel while in manual mode. The scanner will receive traffic on the selected frequency. Your scanner features a power save circuit that is automatically activated any time you manually select a channel. The power save mode works by allowing the receiver to “sleep” briefly while waiting for a call on the selected channel. The power save circuit is disabled when the scanner is tuned to a channel in program mode. using CTCSS and DCS Your scanner’s advanced, CTCSS and DCS decoder allows you to listen only to the group that is of interest to you by specifying the group’s specific CTCSS or DCS code for a certain frequency. CTCSS and DCS can also help reduce instances where interfering signals cause your scanner to stop on one channel. When your scanner stops on a conventional frequency that is configured for CTCSS or DCS, it checks for a match between the transmitted and stored codes match, the scanner stops on the transmission and allows the audio to pass to the speaker. If the codes do not match, the scanner resumes scan operation. If the special “search” code is in use, the scanner will instantly display any detected CTCSS code if programmed for CTCSS mode, or DCS code if programmed for DCS code. You can store the detected code into the channel memory by pressing ENT while the code is displayed. For more information about your scanner’s receive modes, including CTCSS and DCS, see “Understanding Your Scanner’s Modes”. For more information on programming memory channels for CTCSS or DCS operation, see “CTCSS and DCS”. deleting frequencies from channels 1. Press MAN. 2. Use the number keys to enter the channel with the frequency you want to delete. 3. Press MAN again.

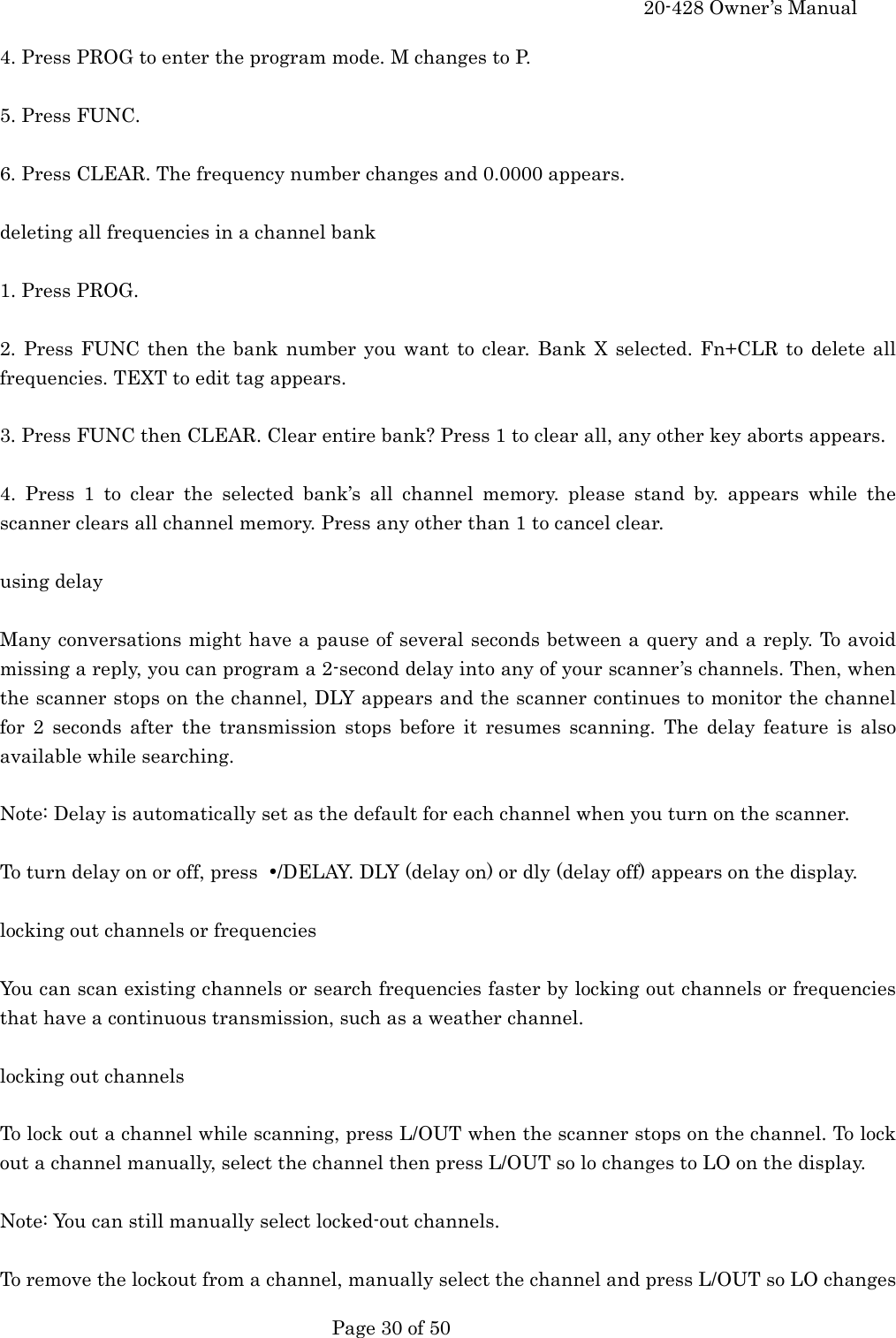

20-428 Owner’s Manual Page 30 of 50 4. Press PROG to enter the program mode. M changes to P. 5. Press FUNC. 6. Press CLEAR. The frequency number changes and 0.0000 appears. deleting all frequencies in a channel bank 1. Press PROG. 2. Press FUNC then the bank number you want to clear. Bank X selected. Fn+CLR to delete all frequencies. TEXT to edit tag appears. 3. Press FUNC then CLEAR. Clear entire bank? Press 1 to clear all, any other key aborts appears. 4. Press 1 to clear the selected bank’s all channel memory. please stand by. appears while the scanner clears all channel memory. Press any other than 1 to cancel clear. using delay Many conversations might have a pause of several seconds between a query and a reply. To avoid missing a reply, you can program a 2-second delay into any of your scanner’s channels. Then, when the scanner stops on the channel, DLY appears and the scanner continues to monitor the channel for 2 seconds after the transmission stops before it resumes scanning. The delay feature is also available while searching. Note: Delay is automatically set as the default for each channel when you turn on the scanner. To turn delay on or off, press •/DELAY. DLY (delay on) or dly (delay off) appears on the display. locking out channels or frequencies You can scan existing channels or search frequencies faster by locking out channels or frequencies that have a continuous transmission, such as a weather channel. locking out channels To lock out a channel while scanning, press L/OUT when the scanner stops on the channel. To lock out a channel manually, select the channel then press L/OUT so lo changes to LO on the display. Note: You can still manually select locked-out channels. To remove the lockout from a channel, manually select the channel and press L/OUT so LO changes

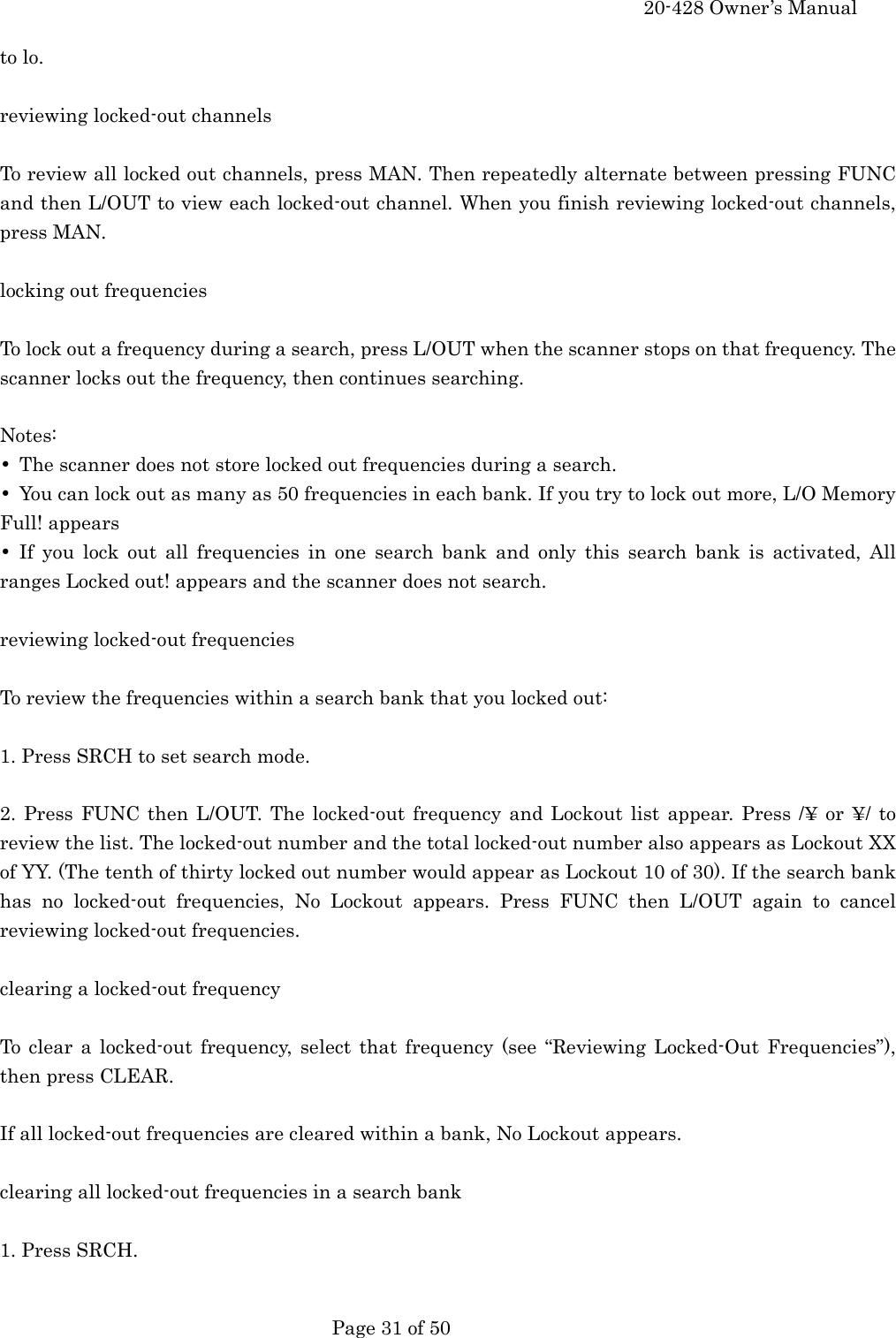

20-428 Owner’s Manual Page 31 of 50 to lo. reviewing locked-out channels To review all locked out channels, press MAN. Then repeatedly alternate between pressing FUNC and then L/OUT to view each locked-out channel. When you finish reviewing locked-out channels, press MAN. locking out frequencies To lock out a frequency during a search, press L/OUT when the scanner stops on that frequency. The scanner locks out the frequency, then continues searching. Notes: • The scanner does not store locked out frequencies during a search. • You can lock out as many as 50 frequencies in each bank. If you try to lock out more, L/O Memory Full! appears • If you lock out all frequencies in one search bank and only this search bank is activated, All ranges Locked out! appears and the scanner does not search. reviewing locked-out frequencies To review the frequencies within a search bank that you locked out: 1. Press SRCH to set search mode. 2. Press FUNC then L/OUT. The locked-out frequency and Lockout list appear. Press /¥ or ¥/ to review the list. The locked-out number and the total locked-out number also appears as Lockout XX of YY. (The tenth of thirty locked out number would appear as Lockout 10 of 30). If the search bank has no locked-out frequencies, No Lockout appears. Press FUNC then L/OUT again to cancel reviewing locked-out frequencies. clearing a locked-out frequency To clear a locked-out frequency, select that frequency (see “Reviewing Locked-Out Frequencies”), then press CLEAR. If all locked-out frequencies are cleared within a bank, No Lockout appears. clearing all locked-out frequencies in a search bank 1. Press SRCH.

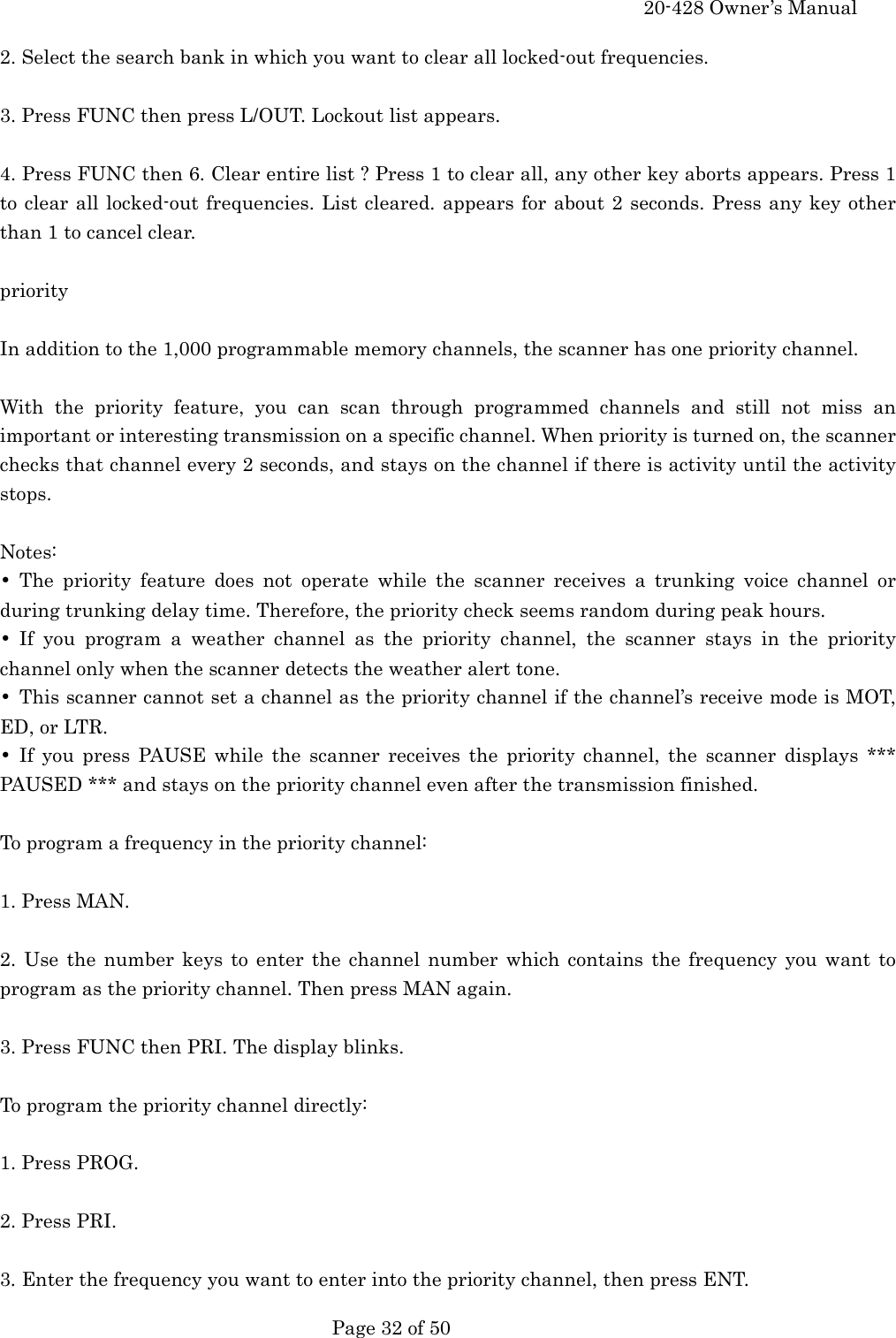

20-428 Owner’s Manual Page 32 of 50 2. Select the search bank in which you want to clear all locked-out frequencies. 3. Press FUNC then press L/OUT. Lockout list appears. 4. Press FUNC then 6. Clear entire list ? Press 1 to clear all, any other key aborts appears. Press 1 to clear all locked-out frequencies. List cleared. appears for about 2 seconds. Press any key other than 1 to cancel clear. priority In addition to the 1,000 programmable memory channels, the scanner has one priority channel. With the priority feature, you can scan through programmed channels and still not miss an important or interesting transmission on a specific channel. When priority is turned on, the scanner checks that channel every 2 seconds, and stays on the channel if there is activity until the activity stops. Notes: • The priority feature does not operate while the scanner receives a trunking voice channel or during trunking delay time. Therefore, the priority check seems random during peak hours. • If you program a weather channel as the priority channel, the scanner stays in the priority channel only when the scanner detects the weather alert tone. • This scanner cannot set a channel as the priority channel if the channel’s receive mode is MOT, ED, or LTR. • If you press PAUSE while the scanner receives the priority channel, the scanner displays *** PAUSED *** and stays on the priority channel even after the transmission finished. To program a frequency in the priority channel: 1. Press MAN. 2. Use the number keys to enter the channel number which contains the frequency you want to program as the priority channel. Then press MAN again. 3. Press FUNC then PRI. The display blinks. To program the priority channel directly: 1. Press PROG. 2. Press PRI. 3. Enter the frequency you want to enter into the priority channel, then press ENT.

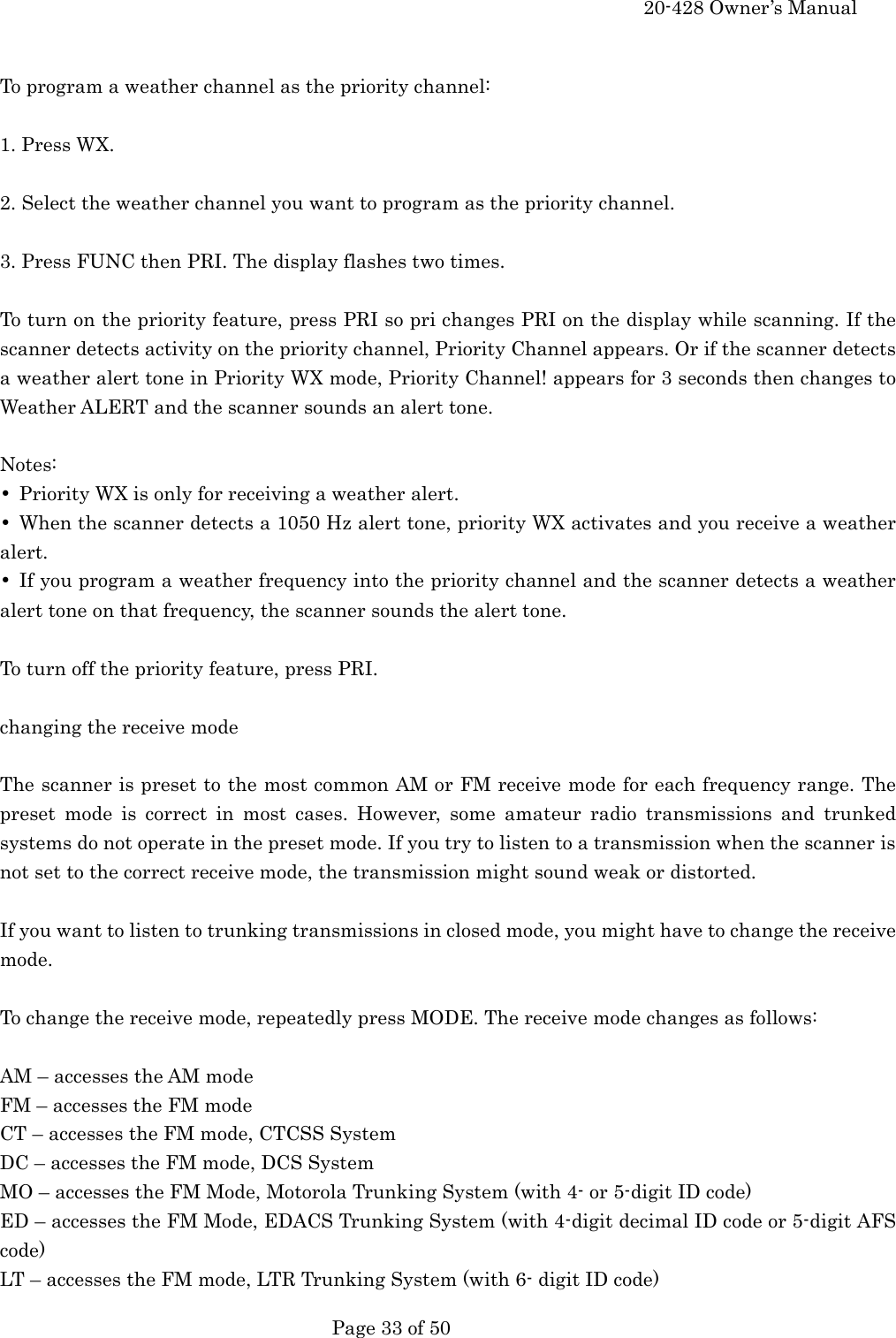

20-428 Owner’s Manual Page 33 of 50 To program a weather channel as the priority channel: 1. Press WX. 2. Select the weather channel you want to program as the priority channel. 3. Press FUNC then PRI. The display flashes two times. To turn on the priority feature, press PRI so pri changes PRI on the display while scanning. If the scanner detects activity on the priority channel, Priority Channel appears. Or if the scanner detects a weather alert tone in Priority WX mode, Priority Channel! appears for 3 seconds then changes to Weather ALERT and the scanner sounds an alert tone. Notes: • Priority WX is only for receiving a weather alert. • When the scanner detects a 1050 Hz alert tone, priority WX activates and you receive a weather alert. • If you program a weather frequency into the priority channel and the scanner detects a weather alert tone on that frequency, the scanner sounds the alert tone. To turn off the priority feature, press PRI. changing the receive mode The scanner is preset to the most common AM or FM receive mode for each frequency range. The preset mode is correct in most cases. However, some amateur radio transmissions and trunked systems do not operate in the preset mode. If you try to listen to a transmission when the scanner is not set to the correct receive mode, the transmission might sound weak or distorted. If you want to listen to trunking transmissions in closed mode, you might have to change the receive mode. To change the receive mode, repeatedly press MODE. The receive mode changes as follows: AM – accesses the AM mode FM – accesses the FM mode CT – accesses the FM mode, CTCSS System DC – accesses the FM mode, DCS System MO – accesses the FM Mode, Motorola Trunking System (with 4- or 5-digit ID code) ED – accesses the FM Mode, EDACS Trunking System (with 4-digit decimal ID code or 5-digit AFS code) LT – accesses the FM mode, LTR Trunking System (with 6- digit ID code)

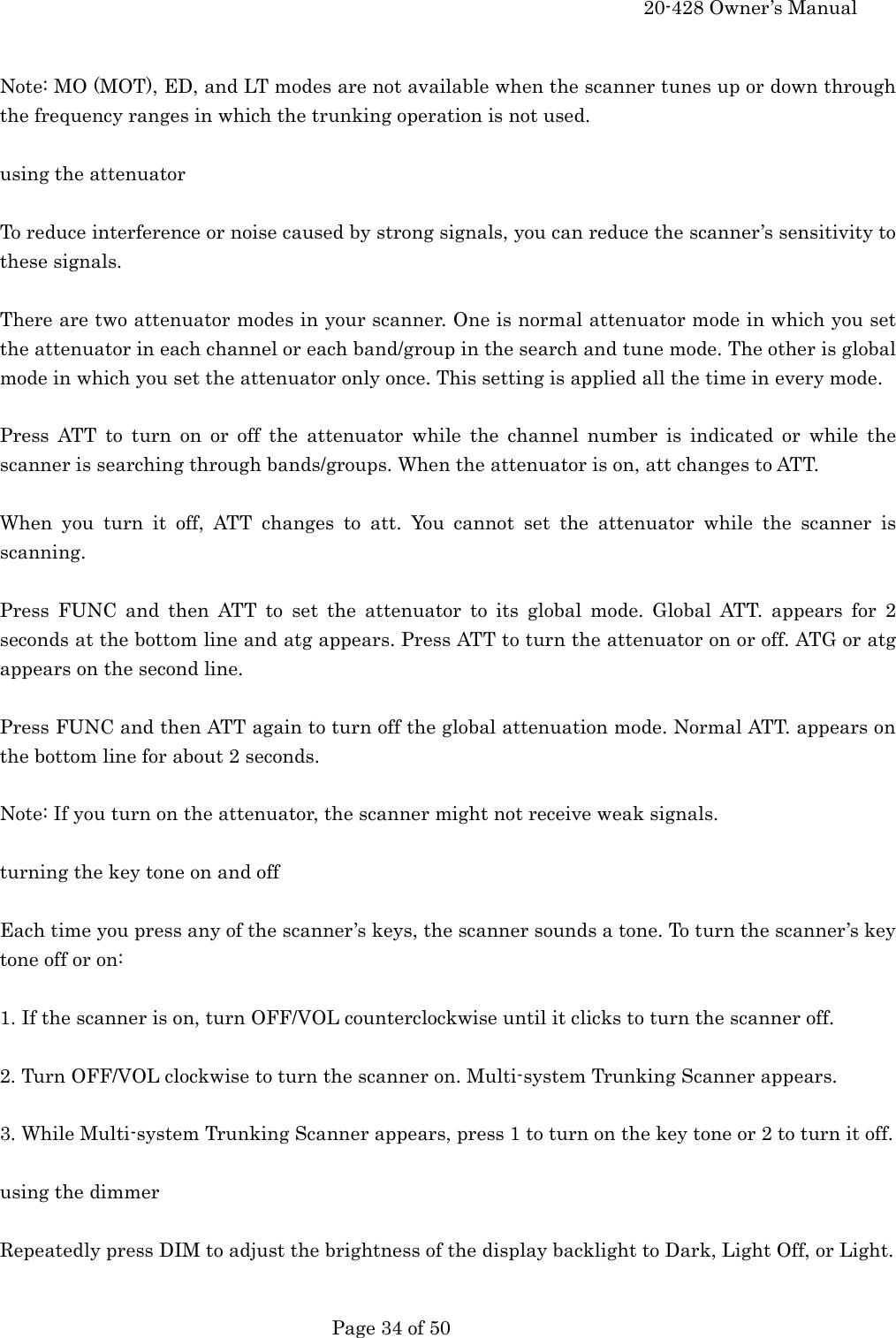

20-428 Owner’s Manual Page 34 of 50 Note: MO (MOT), ED, and LT modes are not available when the scanner tunes up or down through the frequency ranges in which the trunking operation is not used. using the attenuator To reduce interference or noise caused by strong signals, you can reduce the scanner’s sensitivity to these signals. There are two attenuator modes in your scanner. One is normal attenuator mode in which you set the attenuator in each channel or each band/group in the search and tune mode. The other is global mode in which you set the attenuator only once. This setting is applied all the time in every mode. Press ATT to turn on or off the attenuator while the channel number is indicated or while the scanner is searching through bands/groups. When the attenuator is on, att changes to ATT. When you turn it off, ATT changes to att. You cannot set the attenuator while the scanner is scanning. Press FUNC and then ATT to set the attenuator to its global mode. Global ATT. appears for 2 seconds at the bottom line and atg appears. Press ATT to turn the attenuator on or off. ATG or atg appears on the second line. Press FUNC and then ATT again to turn off the global attenuation mode. Normal ATT. appears on the bottom line for about 2 seconds. Note: If you turn on the attenuator, the scanner might not receive weak signals. turning the key tone on and off Each time you press any of the scanner’s keys, the scanner sounds a tone. To turn the scanner’s key tone off or on: 1. If the scanner is on, turn OFF/VOL counterclockwise until it clicks to turn the scanner off. 2. Turn OFF/VOL clockwise to turn the scanner on. Multi-system Trunking Scanner appears. 3. While Multi-system Trunking Scanner appears, press 1 to turn on the key tone or 2 to turn it off. using the dimmer Repeatedly press DIM to adjust the brightness of the display backlight to Dark, Light Off, or Light.

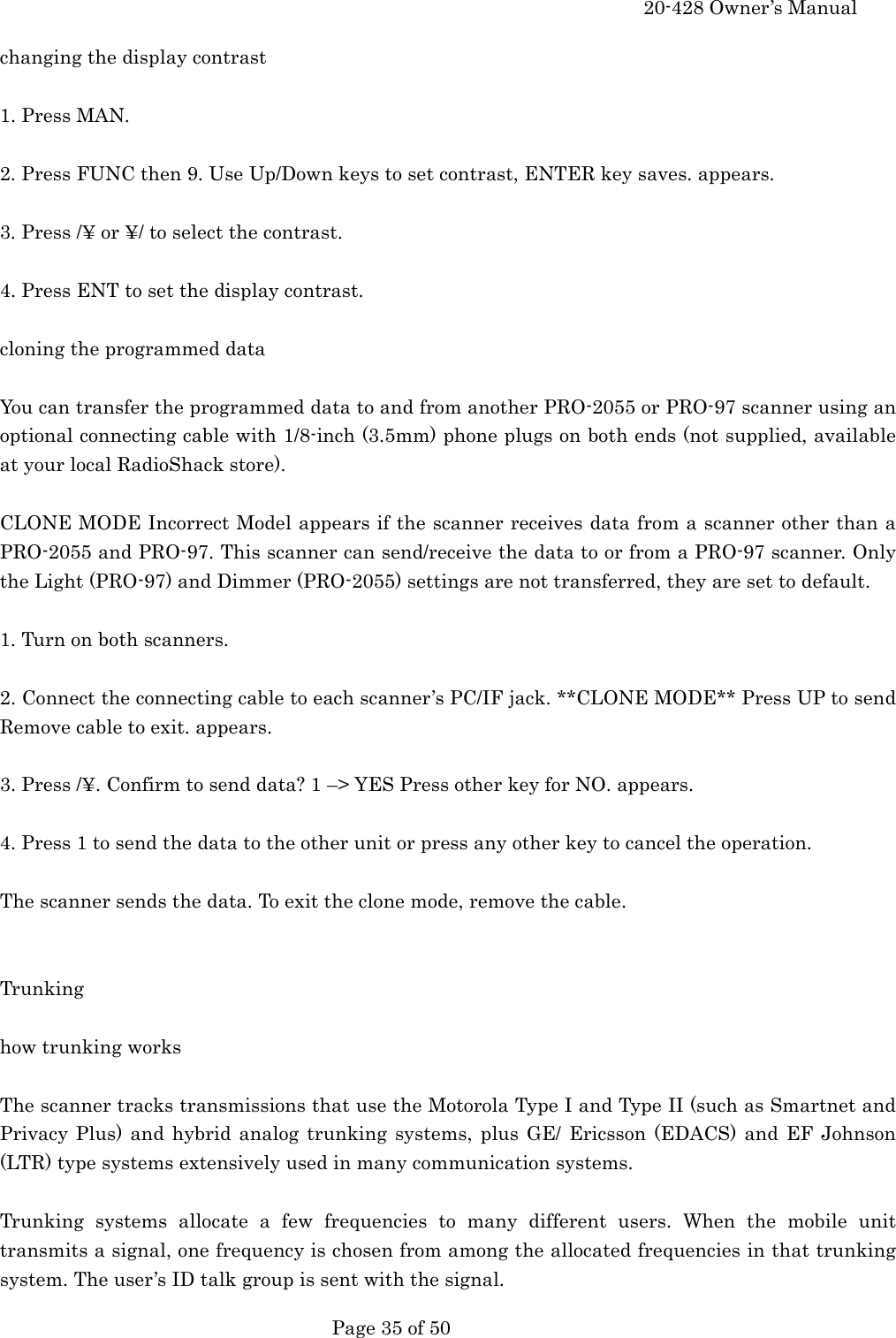

20-428 Owner’s Manual Page 35 of 50 changing the display contrast 1. Press MAN. 2. Press FUNC then 9. Use Up/Down keys to set contrast, ENTER key saves. appears. 3. Press /¥ or ¥/ to select the contrast. 4. Press ENT to set the display contrast. cloning the programmed data You can transfer the programmed data to and from another PRO-2055 or PRO-97 scanner using an optional connecting cable with 1/8-inch (3.5mm) phone plugs on both ends (not supplied, available at your local RadioShack store). CLONE MODE Incorrect Model appears if the scanner receives data from a scanner other than a PRO-2055 and PRO-97. This scanner can send/receive the data to or from a PRO-97 scanner. Only the Light (PRO-97) and Dimmer (PRO-2055) settings are not transferred, they are set to default. 1. Turn on both scanners. 2. Connect the connecting cable to each scanner’s PC/IF jack. **CLONE MODE** Press UP to send Remove cable to exit. appears. 3. Press /¥. Confirm to send data? 1 –> YES Press other key for NO. appears. 4. Press 1 to send the data to the other unit or press any other key to cancel the operation. The scanner sends the data. To exit the clone mode, remove the cable. Trunking how trunking works The scanner tracks transmissions that use the Motorola Type I and Type II (such as Smartnet and Privacy Plus) and hybrid analog trunking systems, plus GE/ Ericsson (EDACS) and EF Johnson (LTR) type systems extensively used in many communication systems. Trunking systems allocate a few frequencies to many different users. When the mobile unit transmits a signal, one frequency is chosen from among the allocated frequencies in that trunking system. The user’s ID talk group is sent with the signal.

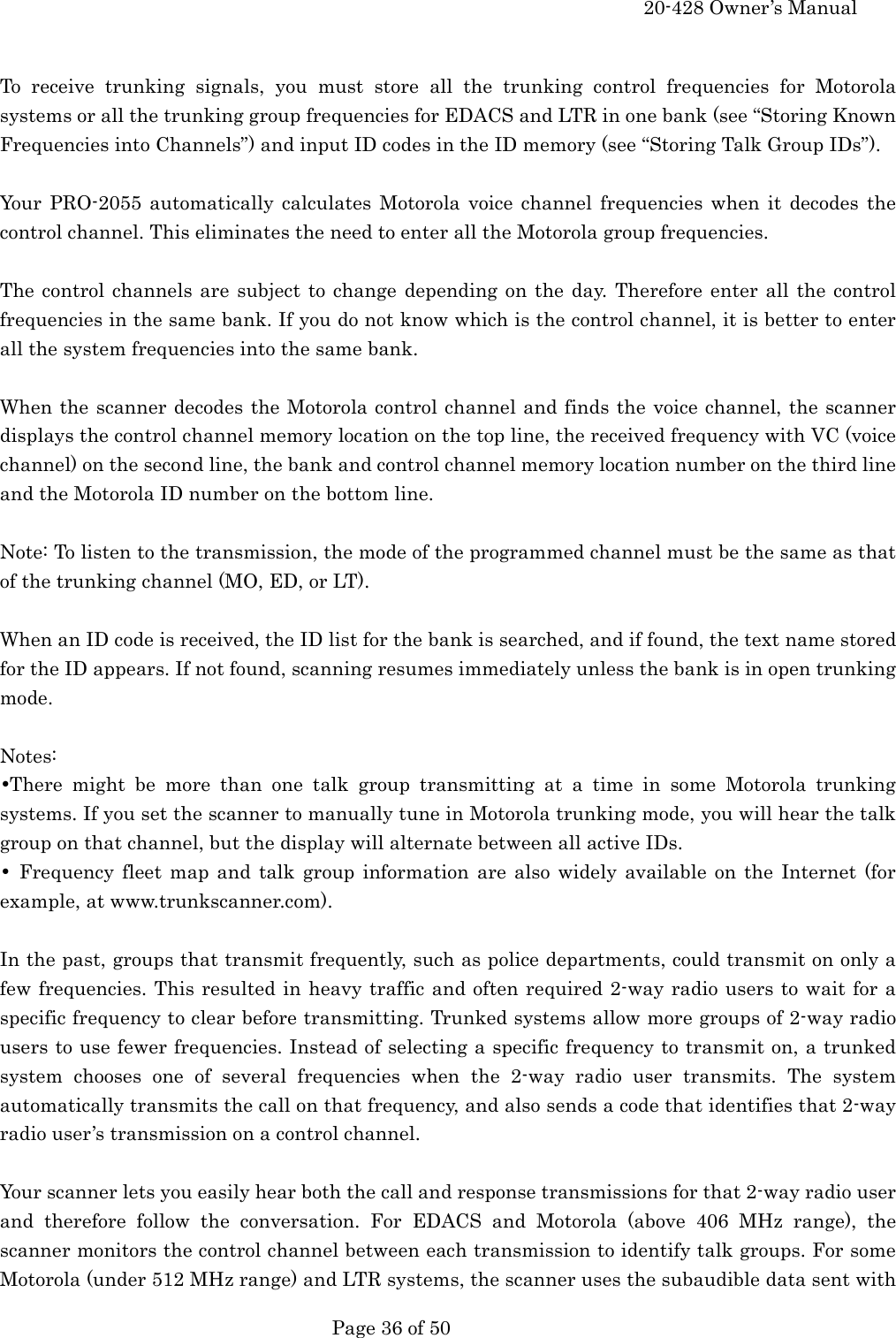

20-428 Owner’s Manual Page 36 of 50 To receive trunking signals, you must store all the trunking control frequencies for Motorola systems or all the trunking group frequencies for EDACS and LTR in one bank (see “Storing Known Frequencies into Channels”) and input ID codes in the ID memory (see “Storing Talk Group IDs”). Your PRO-2055 automatically calculates Motorola voice channel frequencies when it decodes the control channel. This eliminates the need to enter all the Motorola group frequencies. The control channels are subject to change depending on the day. Therefore enter all the control frequencies in the same bank. If you do not know which is the control channel, it is better to enter all the system frequencies into the same bank. When the scanner decodes the Motorola control channel and finds the voice channel, the scanner displays the control channel memory location on the top line, the received frequency with VC (voice channel) on the second line, the bank and control channel memory location number on the third line and the Motorola ID number on the bottom line. Note: To listen to the transmission, the mode of the programmed channel must be the same as that of the trunking channel (MO, ED, or LT). When an ID code is received, the ID list for the bank is searched, and if found, the text name stored for the ID appears. If not found, scanning resumes immediately unless the bank is in open trunking mode. Notes: •There might be more than one talk group transmitting at a time in some Motorola trunking systems. If you set the scanner to manually tune in Motorola trunking mode, you will hear the talk group on that channel, but the display will alternate between all active IDs. • Frequency fleet map and talk group information are also widely available on the Internet (for example, at www.trunkscanner.com). In the past, groups that transmit frequently, such as police departments, could transmit on only a few frequencies. This resulted in heavy traffic and often required 2-way radio users to wait for a specific frequency to clear before transmitting. Trunked systems allow more groups of 2-way radio users to use fewer frequencies. Instead of selecting a specific frequency to transmit on, a trunked system chooses one of several frequencies when the 2-way radio user transmits. The system automatically transmits the call on that frequency, and also sends a code that identifies that 2-way radio user’s transmission on a control channel. Your scanner lets you easily hear both the call and response transmissions for that 2-way radio user and therefore follow the conversation. For EDACS and Motorola (above 406 MHz range), the scanner monitors the control channel between each transmission to identify talk groups. For some Motorola (under 512 MHz range) and LTR systems, the scanner uses the subaudible data sent with

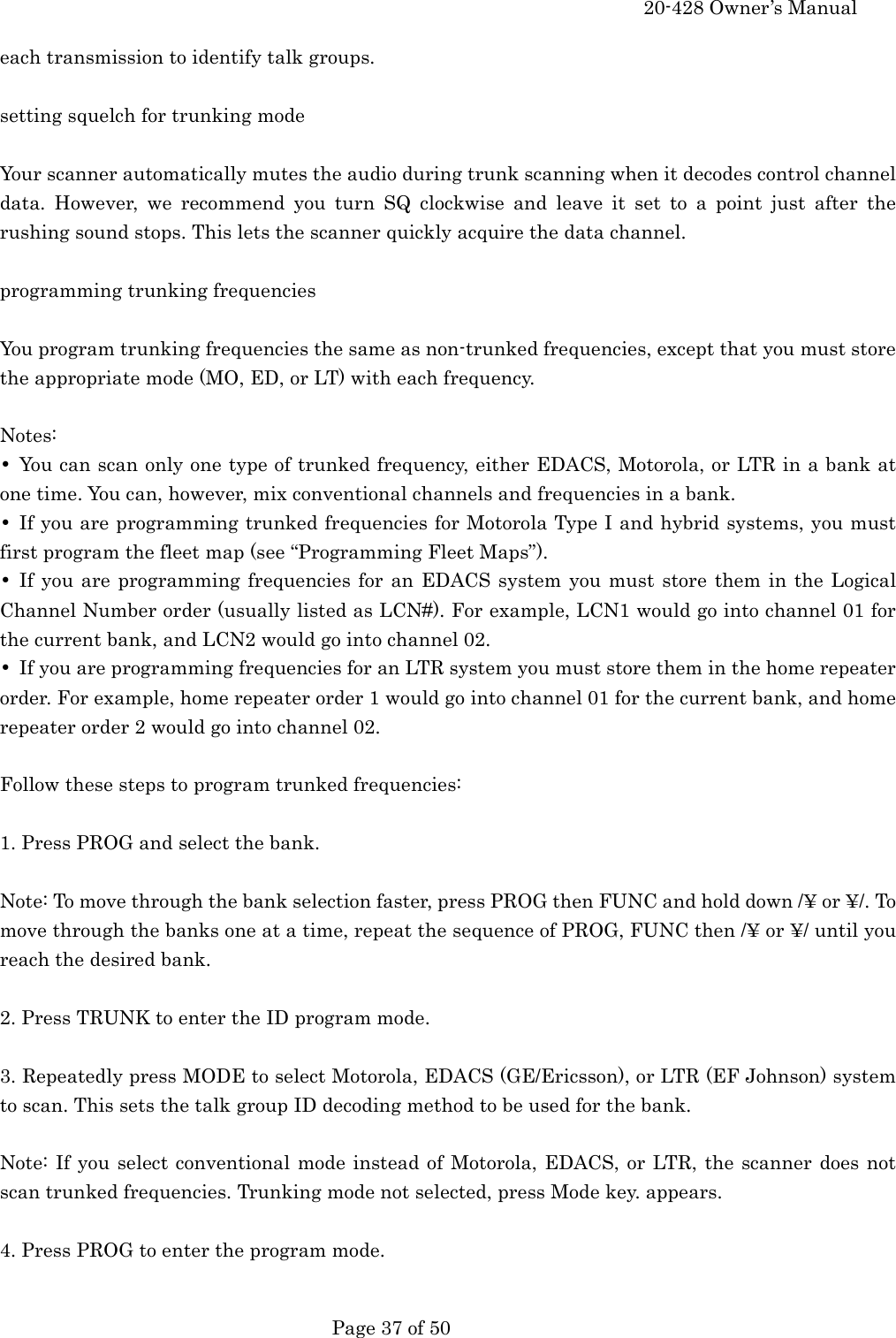

20-428 Owner’s Manual Page 37 of 50 each transmission to identify talk groups. setting squelch for trunking mode Your scanner automatically mutes the audio during trunk scanning when it decodes control channel data. However, we recommend you turn SQ clockwise and leave it set to a point just after the rushing sound stops. This lets the scanner quickly acquire the data channel. programming trunking frequencies You program trunking frequencies the same as non-trunked frequencies, except that you must store the appropriate mode (MO, ED, or LT) with each frequency. Notes: • You can scan only one type of trunked frequency, either EDACS, Motorola, or LTR in a bank at one time. You can, however, mix conventional channels and frequencies in a bank. • If you are programming trunked frequencies for Motorola Type I and hybrid systems, you must first program the fleet map (see “Programming Fleet Maps”). • If you are programming frequencies for an EDACS system you must store them in the Logical Channel Number order (usually listed as LCN#). For example, LCN1 would go into channel 01 for the current bank, and LCN2 would go into channel 02. • If you are programming frequencies for an LTR system you must store them in the home repeater order. For example, home repeater order 1 would go into channel 01 for the current bank, and home repeater order 2 would go into channel 02. Follow these steps to program trunked frequencies: 1. Press PROG and select the bank. Note: To move through the bank selection faster, press PROG then FUNC and hold down /¥ or ¥/. To move through the banks one at a time, repeat the sequence of PROG, FUNC then /¥ or ¥/ until you reach the desired bank. 2. Press TRUNK to enter the ID program mode. 3. Repeatedly press MODE to select Motorola, EDACS (GE/Ericsson), or LTR (EF Johnson) system to scan. This sets the talk group ID decoding method to be used for the bank. Note: If you select conventional mode instead of Motorola, EDACS, or LTR, the scanner does not scan trunked frequencies. Trunking mode not selected, press Mode key. appears. 4. Press PROG to enter the program mode.

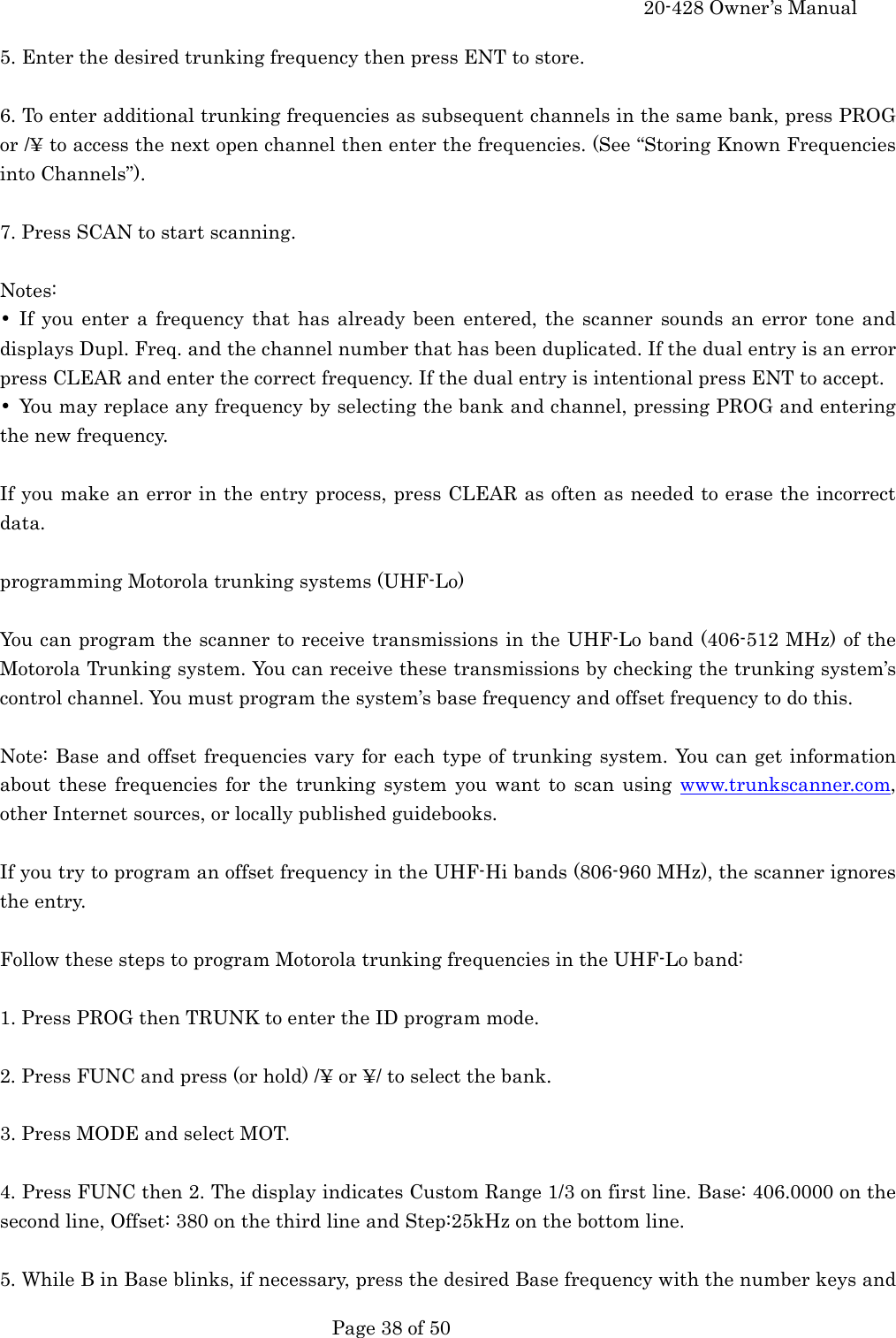

20-428 Owner’s Manual Page 38 of 50 5. Enter the desired trunking frequency then press ENT to store. 6. To enter additional trunking frequencies as subsequent channels in the same bank, press PROG or /¥ to access the next open channel then enter the frequencies. (See “Storing Known Frequencies into Channels”). 7. Press SCAN to start scanning. Notes: • If you enter a frequency that has already been entered, the scanner sounds an error tone and displays Dupl. Freq. and the channel number that has been duplicated. If the dual entry is an error press CLEAR and enter the correct frequency. If the dual entry is intentional press ENT to accept. • You may replace any frequency by selecting the bank and channel, pressing PROG and entering the new frequency. If you make an error in the entry process, press CLEAR as often as needed to erase the incorrect data. programming Motorola trunking systems (UHF-Lo) You can program the scanner to receive transmissions in the UHF-Lo band (406-512 MHz) of the Motorola Trunking system. You can receive these transmissions by checking the trunking system’s control channel. You must program the system’s base frequency and offset frequency to do this. Note: Base and offset frequencies vary for each type of trunking system. You can get information about these frequencies for the trunking system you want to scan using www.trunkscanner.com, other Internet sources, or locally published guidebooks. If you try to program an offset frequency in the UHF-Hi bands (806-960 MHz), the scanner ignores the entry. Follow these steps to program Motorola trunking frequencies in the UHF-Lo band: 1. Press PROG then TRUNK to enter the ID program mode. 2. Press FUNC and press (or hold) /¥ or ¥/ to select the bank. 3. Press MODE and select MOT. 4. Press FUNC then 2. The display indicates Custom Range 1/3 on first line. Base: 406.0000 on the second line, Offset: 380 on the third line and Step:25kHz on the bottom line. 5. While B in Base blinks, if necessary, press the desired Base frequency with the number keys and

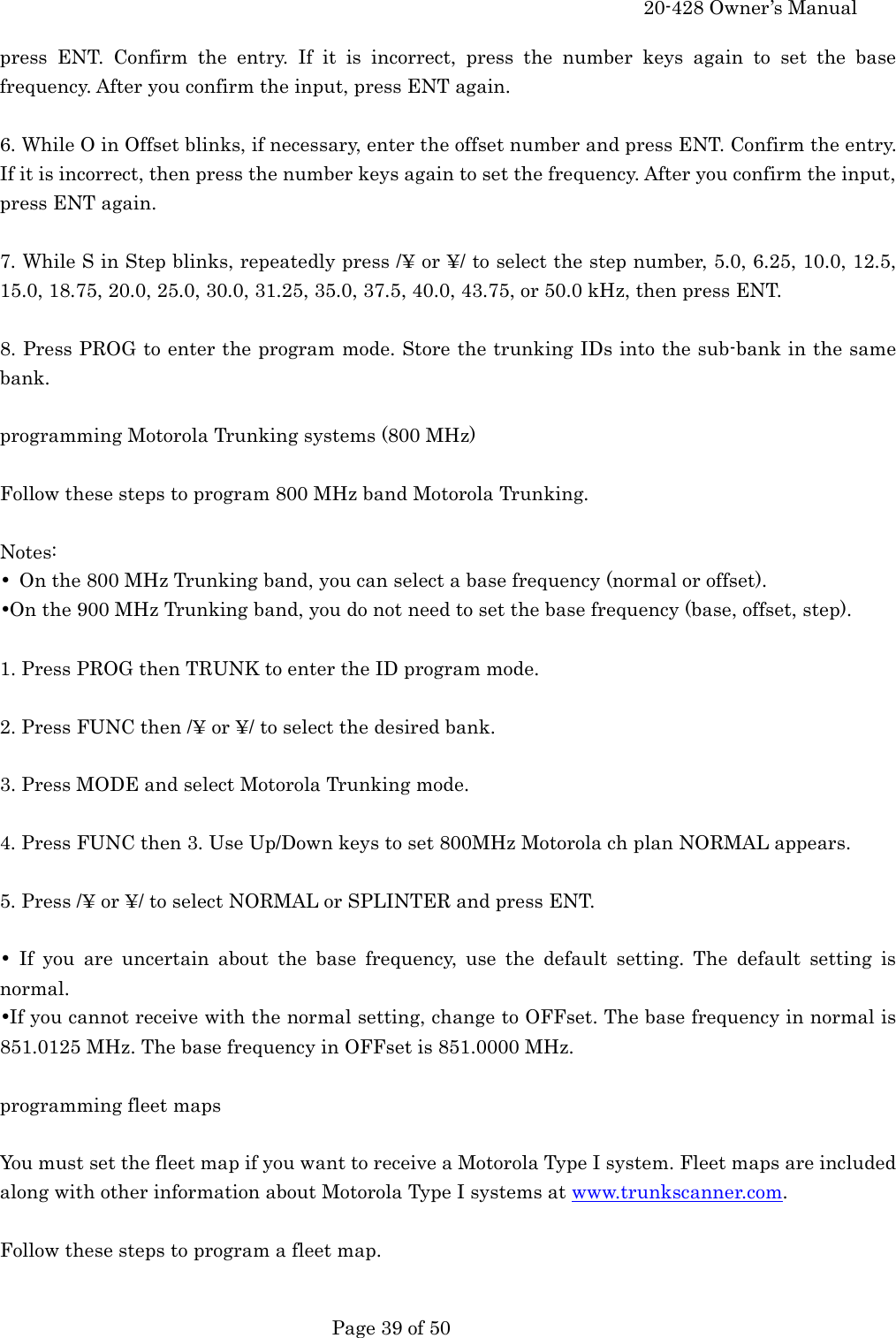

20-428 Owner’s Manual Page 39 of 50 press ENT. Confirm the entry. If it is incorrect, press the number keys again to set the base frequency. After you confirm the input, press ENT again. 6. While O in Offset blinks, if necessary, enter the offset number and press ENT. Confirm the entry. If it is incorrect, then press the number keys again to set the frequency. After you confirm the input, press ENT again. 7. While S in Step blinks, repeatedly press /¥ or ¥/ to select the step number, 5.0, 6.25, 10.0, 12.5, 15.0, 18.75, 20.0, 25.0, 30.0, 31.25, 35.0, 37.5, 40.0, 43.75, or 50.0 kHz, then press ENT. 8. Press PROG to enter the program mode. Store the trunking IDs into the sub-bank in the same bank. programming Motorola Trunking systems (800 MHz) Follow these steps to program 800 MHz band Motorola Trunking. Notes: • On the 800 MHz Trunking band, you can select a base frequency (normal or offset). •On the 900 MHz Trunking band, you do not need to set the base frequency (base, offset, step). 1. Press PROG then TRUNK to enter the ID program mode. 2. Press FUNC then /¥ or ¥/ to select the desired bank. 3. Press MODE and select Motorola Trunking mode. 4. Press FUNC then 3. Use Up/Down keys to set 800MHz Motorola ch plan NORMAL appears. 5. Press /¥ or ¥/ to select NORMAL or SPLINTER and press ENT. • If you are uncertain about the base frequency, use the default setting. The default setting is normal. •If you cannot receive with the normal setting, change to OFFset. The base frequency in normal is 851.0125 MHz. The base frequency in OFFset is 851.0000 MHz. programming fleet maps You must set the fleet map if you want to receive a Motorola Type I system. Fleet maps are included along with other information about Motorola Type I systems at www.trunkscanner.com. Follow these steps to program a fleet map.

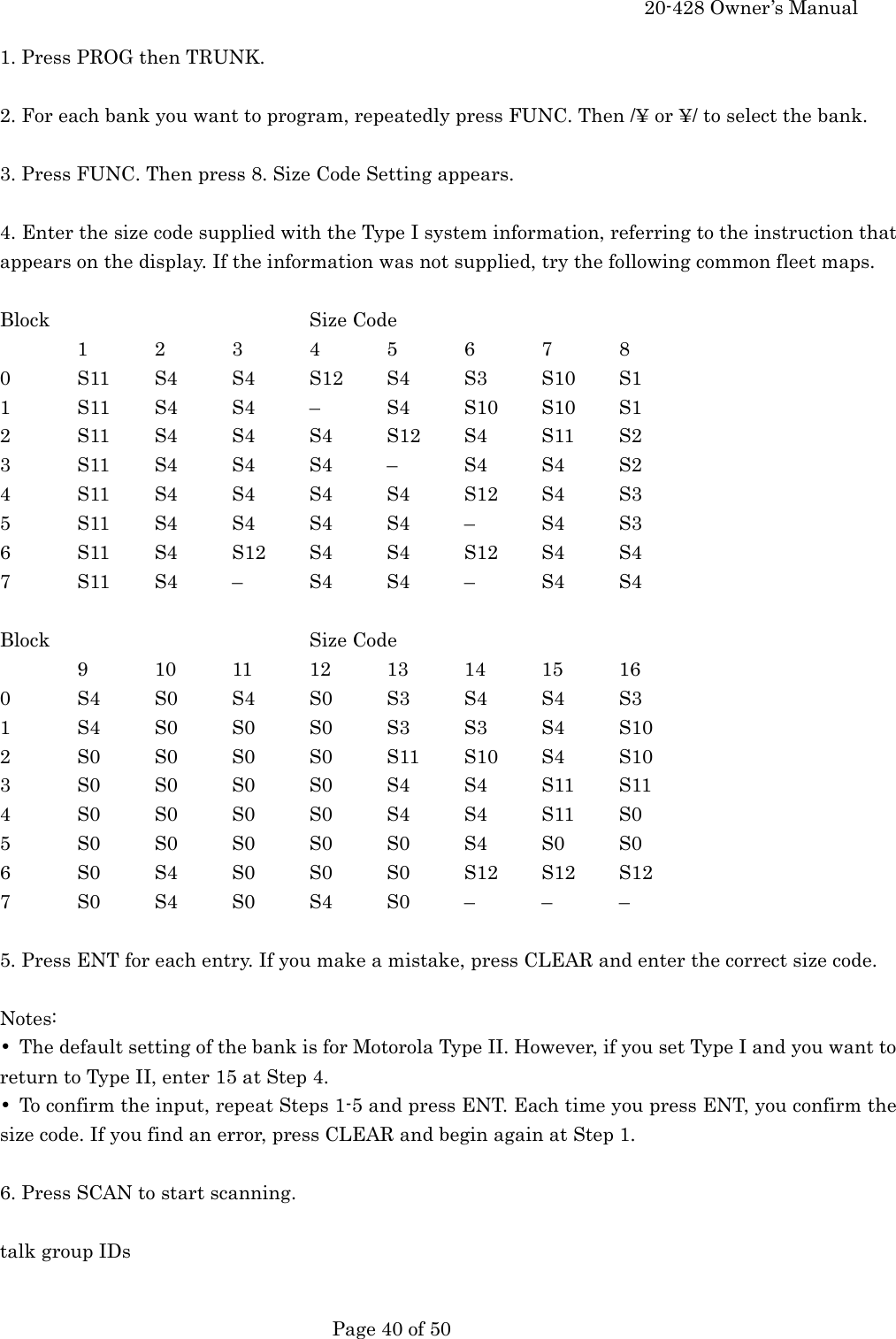

20-428 Owner’s Manual Page 40 of 50 1. Press PROG then TRUNK. 2. For each bank you want to program, repeatedly press FUNC. Then /¥ or ¥/ to select the bank. 3. Press FUNC. Then press 8. Size Code Setting appears. 4. Enter the size code supplied with the Type I system information, referring to the instruction that appears on the display. If the information was not supplied, try the following common fleet maps. Block Size Code 1 2 3 4 5 6 7 8 0 S11 S4 S4 S12 S4 S3 S10 S1 1 S11 S4 S4 – S4 S10 S10 S1 2 S11 S4 S4 S4 S12 S4 S11 S2 3 S11 S4 S4 S4 – S4 S4 S2 4 S11 S4 S4 S4 S4 S12 S4 S3 5 S11 S4 S4 S4 S4 – S4 S3 6 S11 S4 S12 S4 S4 S12 S4 S4 7 S11 S4 – S4 S4 – S4 S4 Block Size Code 9 10 11 12 13 14 15 16 0 S4 S0 S4 S0 S3 S4 S4 S3 1 S4 S0 S0 S0 S3 S3 S4 S10 2 S0 S0 S0 S0 S11 S10 S4 S10 3 S0 S0 S0 S0 S4 S4 S11 S11 4 S0 S0 S0 S0 S4 S4 S11 S0 5 S0 S0 S0 S0 S0 S4 S0 S0 6 S0 S4 S0 S0 S0 S12 S12 S12 7 S0 S4 S0 S4 S0 – – – 5. Press ENT for each entry. If you make a mistake, press CLEAR and enter the correct size code. Notes: • The default setting of the bank is for Motorola Type II. However, if you set Type I and you want to return to Type II, enter 15 at Step 4. • To confirm the input, repeat Steps 1-5 and press ENT. Each time you press ENT, you confirm the size code. If you find an error, press CLEAR and begin again at Step 1. 6. Press SCAN to start scanning. talk group IDs

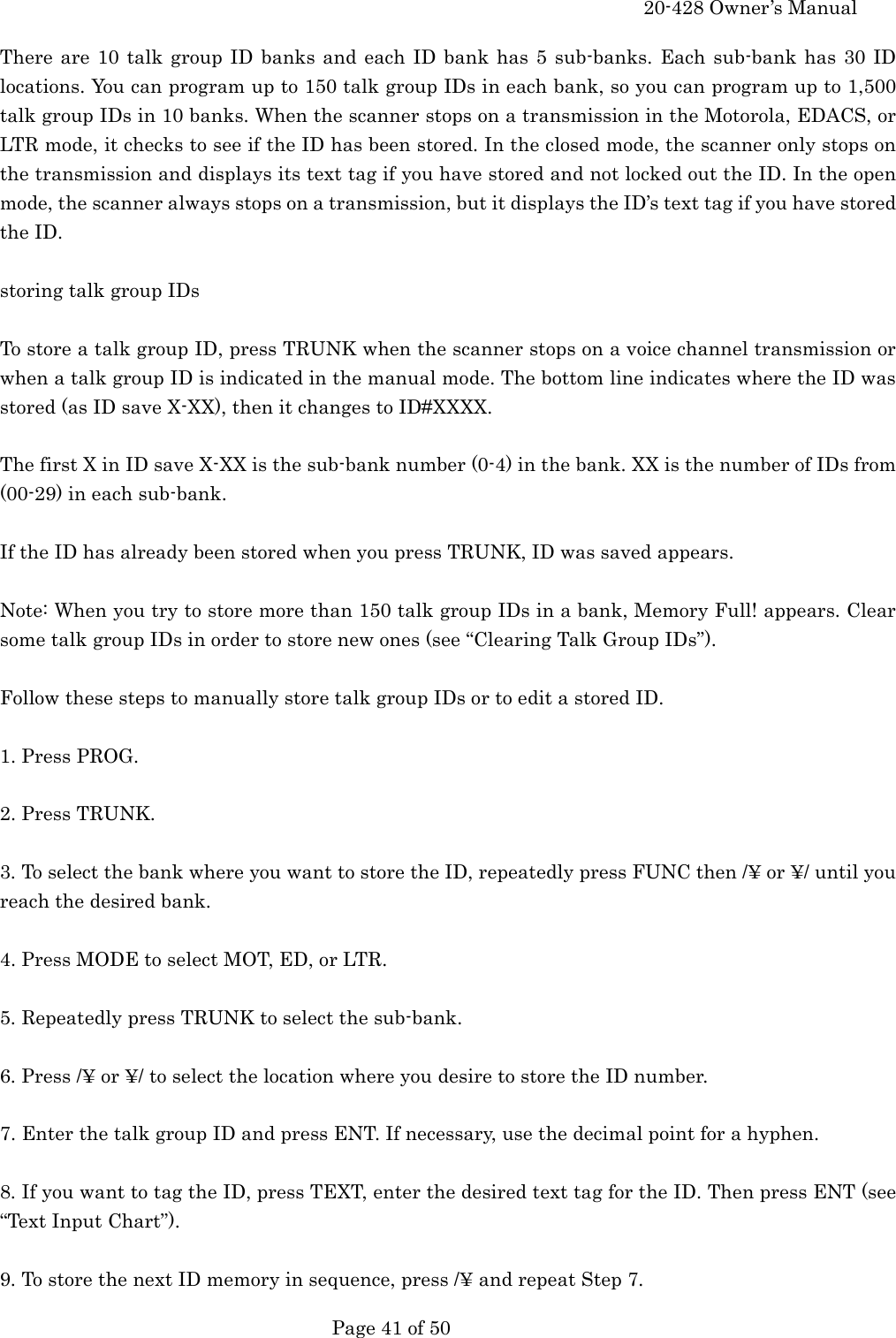

20-428 Owner’s Manual Page 41 of 50 There are 10 talk group ID banks and each ID bank has 5 sub-banks. Each sub-bank has 30 ID locations. You can program up to 150 talk group IDs in each bank, so you can program up to 1,500 talk group IDs in 10 banks. When the scanner stops on a transmission in the Motorola, EDACS, or LTR mode, it checks to see if the ID has been stored. In the closed mode, the scanner only stops on the transmission and displays its text tag if you have stored and not locked out the ID. In the open mode, the scanner always stops on a transmission, but it displays the ID’s text tag if you have stored the ID. storing talk group IDs To store a talk group ID, press TRUNK when the scanner stops on a voice channel transmission or when a talk group ID is indicated in the manual mode. The bottom line indicates where the ID was stored (as ID save X-XX), then it changes to ID#XXXX. The first X in ID save X-XX is the sub-bank number (0-4) in the bank. XX is the number of IDs from (00-29) in each sub-bank. If the ID has already been stored when you press TRUNK, ID was saved appears. Note: When you try to store more than 150 talk group IDs in a bank, Memory Full! appears. Clear some talk group IDs in order to store new ones (see “Clearing Talk Group IDs”). Follow these steps to manually store talk group IDs or to edit a stored ID. 1. Press PROG. 2. Press TRUNK. 3. To select the bank where you want to store the ID, repeatedly press FUNC then /¥ or ¥/ until you reach the desired bank. 4. Press MODE to select MOT, ED, or LTR. 5. Repeatedly press TRUNK to select the sub-bank. 6. Press /¥ or ¥/ to select the location where you desire to store the ID number. 7. Enter the talk group ID and press ENT. If necessary, use the decimal point for a hyphen. 8. If you want to tag the ID, press TEXT, enter the desired text tag for the ID. Then press ENT (see “Text Input Chart”). 9. To store the next ID memory in sequence, press /¥ and repeat Step 7.

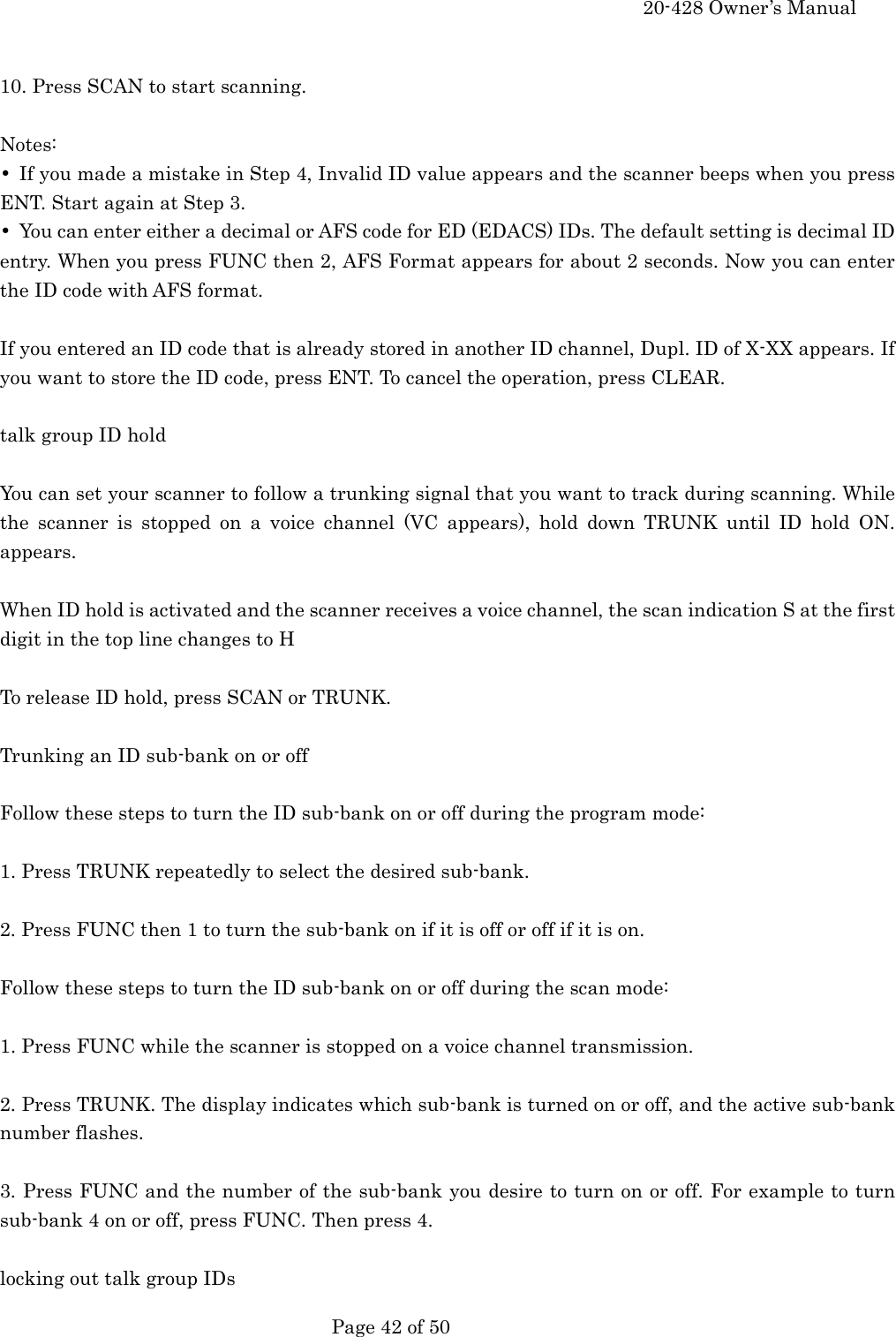

20-428 Owner’s Manual Page 42 of 50 10. Press SCAN to start scanning. Notes: • If you made a mistake in Step 4, Invalid ID value appears and the scanner beeps when you press ENT. Start again at Step 3. • You can enter either a decimal or AFS code for ED (EDACS) IDs. The default setting is decimal ID entry. When you press FUNC then 2, AFS Format appears for about 2 seconds. Now you can enter the ID code with AFS format. If you entered an ID code that is already stored in another ID channel, Dupl. ID of X-XX appears. If you want to store the ID code, press ENT. To cancel the operation, press CLEAR. talk group ID hold You can set your scanner to follow a trunking signal that you want to track during scanning. While the scanner is stopped on a voice channel (VC appears), hold down TRUNK until ID hold ON. appears. When ID hold is activated and the scanner receives a voice channel, the scan indication S at the first digit in the top line changes to H To release ID hold, press SCAN or TRUNK. Trunking an ID sub-bank on or off Follow these steps to turn the ID sub-bank on or off during the program mode: 1. Press TRUNK repeatedly to select the desired sub-bank. 2. Press FUNC then 1 to turn the sub-bank on if it is off or off if it is on. Follow these steps to turn the ID sub-bank on or off during the scan mode: 1. Press FUNC while the scanner is stopped on a voice channel transmission. 2. Press TRUNK. The display indicates which sub-bank is turned on or off, and the active sub-bank number flashes. 3. Press FUNC and the number of the sub-bank you desire to turn on or off. For example to turn sub-bank 4 on or off, press FUNC. Then press 4. locking out talk group IDs

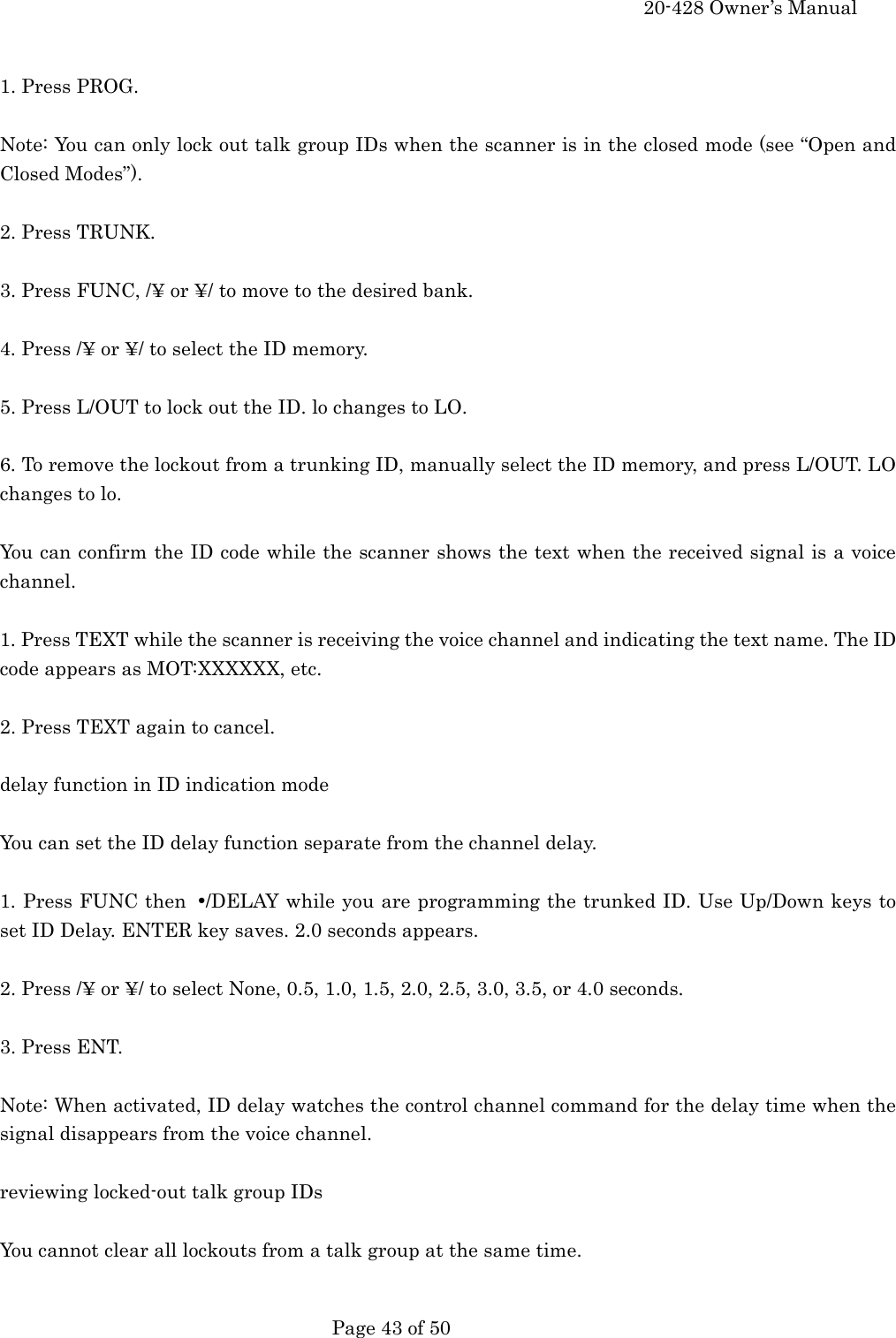

20-428 Owner’s Manual Page 43 of 50 1. Press PROG. Note: You can only lock out talk group IDs when the scanner is in the closed mode (see “Open and Closed Modes”). 2. Press TRUNK. 3. Press FUNC, /¥ or ¥/ to move to the desired bank. 4. Press /¥ or ¥/ to select the ID memory. 5. Press L/OUT to lock out the ID. lo changes to LO. 6. To remove the lockout from a trunking ID, manually select the ID memory, and press L/OUT. LO changes to lo. You can confirm the ID code while the scanner shows the text when the received signal is a voice channel. 1. Press TEXT while the scanner is receiving the voice channel and indicating the text name. The ID code appears as MOT:XXXXXX, etc. 2. Press TEXT again to cancel. delay function in ID indication mode You can set the ID delay function separate from the channel delay. 1. Press FUNC then •/DELAY while you are programming the trunked ID. Use Up/Down keys to set ID Delay. ENTER key saves. 2.0 seconds appears. 2. Press /¥ or ¥/ to select None, 0.5, 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, or 4.0 seconds. 3. Press ENT. Note: When activated, ID delay watches the control channel command for the delay time when the signal disappears from the voice channel. reviewing locked-out talk group IDs You cannot clear all lockouts from a talk group at the same time.

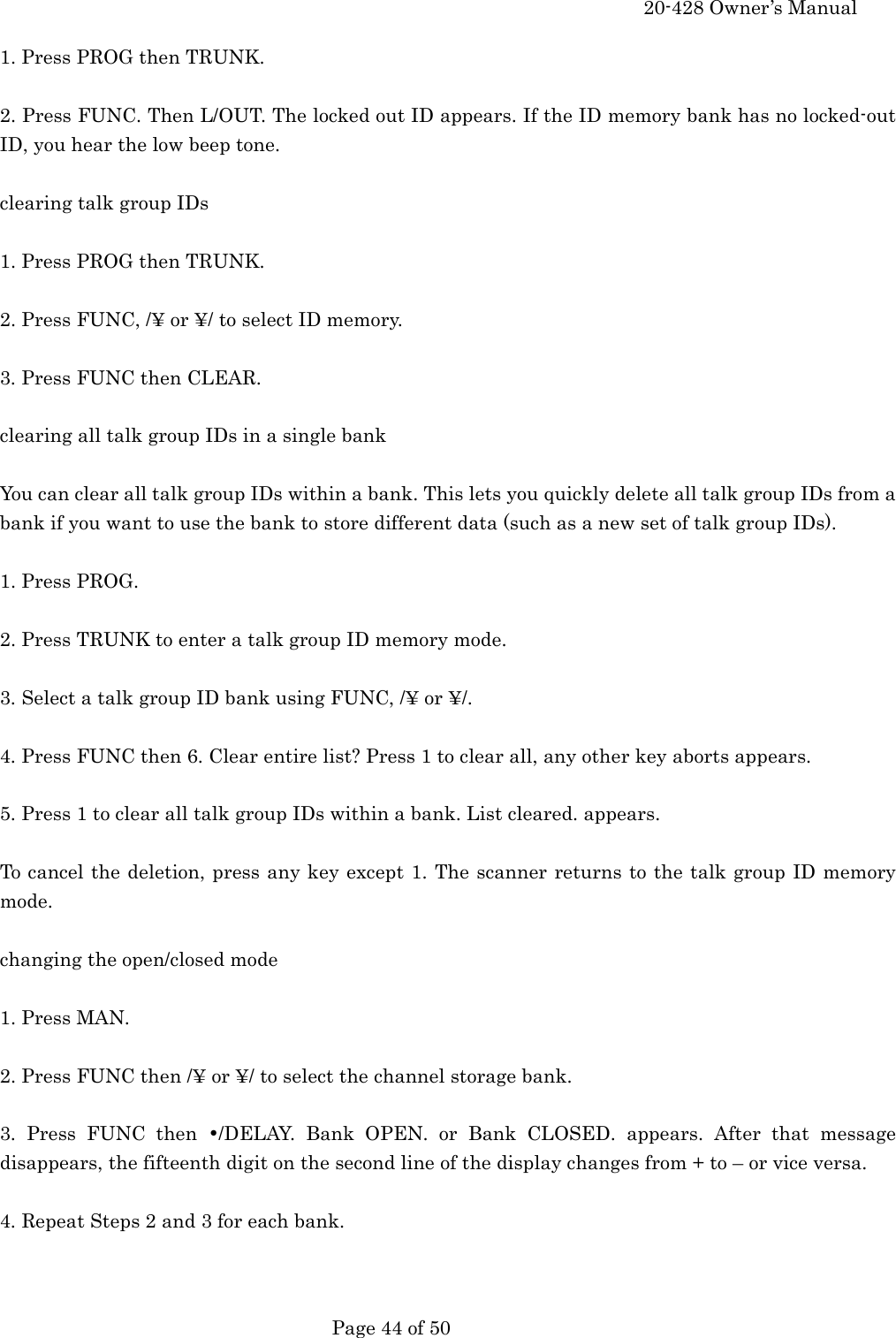

20-428 Owner’s Manual Page 44 of 50 1. Press PROG then TRUNK. 2. Press FUNC. Then L/OUT. The locked out ID appears. If the ID memory bank has no locked-out ID, you hear the low beep tone. clearing talk group IDs 1. Press PROG then TRUNK. 2. Press FUNC, /¥ or ¥/ to select ID memory. 3. Press FUNC then CLEAR. clearing all talk group IDs in a single bank You can clear all talk group IDs within a bank. This lets you quickly delete all talk group IDs from a bank if you want to use the bank to store different data (such as a new set of talk group IDs). 1. Press PROG. 2. Press TRUNK to enter a talk group ID memory mode. 3. Select a talk group ID bank using FUNC, /¥ or ¥/. 4. Press FUNC then 6. Clear entire list? Press 1 to clear all, any other key aborts appears. 5. Press 1 to clear all talk group IDs within a bank. List cleared. appears. To cancel the deletion, press any key except 1. The scanner returns to the talk group ID memory mode. changing the open/closed mode 1. Press MAN. 2. Press FUNC then /¥ or ¥/ to select the channel storage bank. 3. Press FUNC then •/DELAY. Bank OPEN. or Bank CLOSED. appears. After that message disappears, the fifteenth digit on the second line of the display changes from + to – or vice versa. 4. Repeat Steps 2 and 3 for each bank.

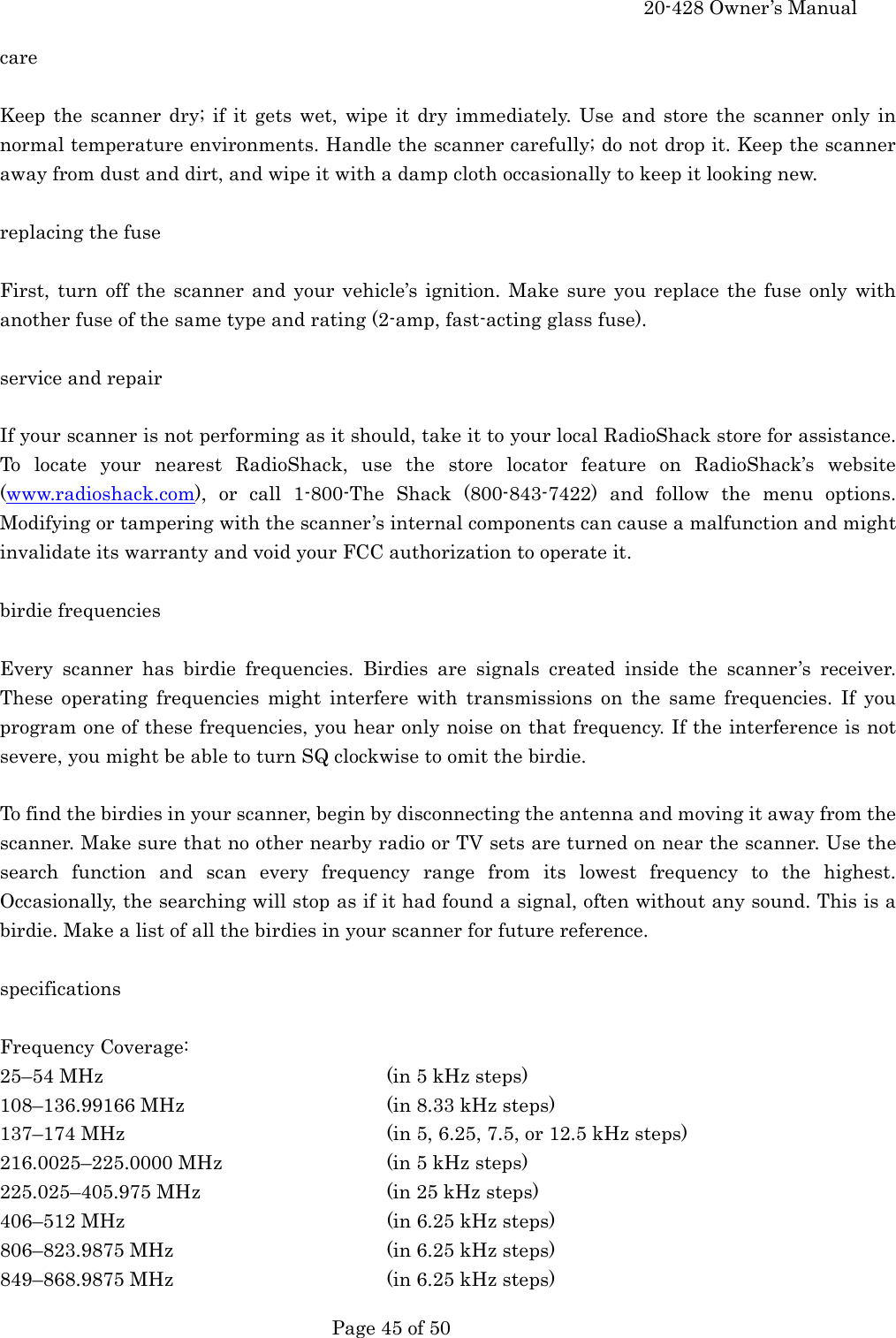

20-428 Owner’s Manual Page 45 of 50 care Keep the scanner dry; if it gets wet, wipe it dry immediately. Use and store the scanner only in normal temperature environments. Handle the scanner carefully; do not drop it. Keep the scanner away from dust and dirt, and wipe it with a damp cloth occasionally to keep it looking new. replacing the fuse First, turn off the scanner and your vehicle’s ignition. Make sure you replace the fuse only with another fuse of the same type and rating (2-amp, fast-acting glass fuse). service and repair If your scanner is not performing as it should, take it to your local RadioShack store for assistance. To locate your nearest RadioShack, use the store locator feature on RadioShack’s website (www.radioshack.com), or call 1-800-The Shack (800-843-7422) and follow the menu options. Modifying or tampering with the scanner’s internal components can cause a malfunction and might invalidate its warranty and void your FCC authorization to operate it. birdie frequencies Every scanner has birdie frequencies. Birdies are signals created inside the scanner’s receiver. These operating frequencies might interfere with transmissions on the same frequencies. If you program one of these frequencies, you hear only noise on that frequency. If the interference is not severe, you might be able to turn SQ clockwise to omit the birdie. To find the birdies in your scanner, begin by disconnecting the antenna and moving it away from the scanner. Make sure that no other nearby radio or TV sets are turned on near the scanner. Use the search function and scan every frequency range from its lowest frequency to the highest. Occasionally, the searching will stop as if it had found a signal, often without any sound. This is a birdie. Make a list of all the birdies in your scanner for future reference. specifications Frequency Coverage: 25–54 MHz (in 5 kHz steps) 108–136.99166 MHz (in 8.33 kHz steps) 137–174 MHz (in 5, 6.25, 7.5, or 12.5 kHz steps) 216.0025–225.0000 MHz (in 5 kHz steps) 225.025–405.975 MHz (in 25 kHz steps) 406–512 MHz (in 6.25 kHz steps) 806–823.9875 MHz (in 6.25 kHz steps) 849–868.9875 MHz (in 6.25 kHz steps)

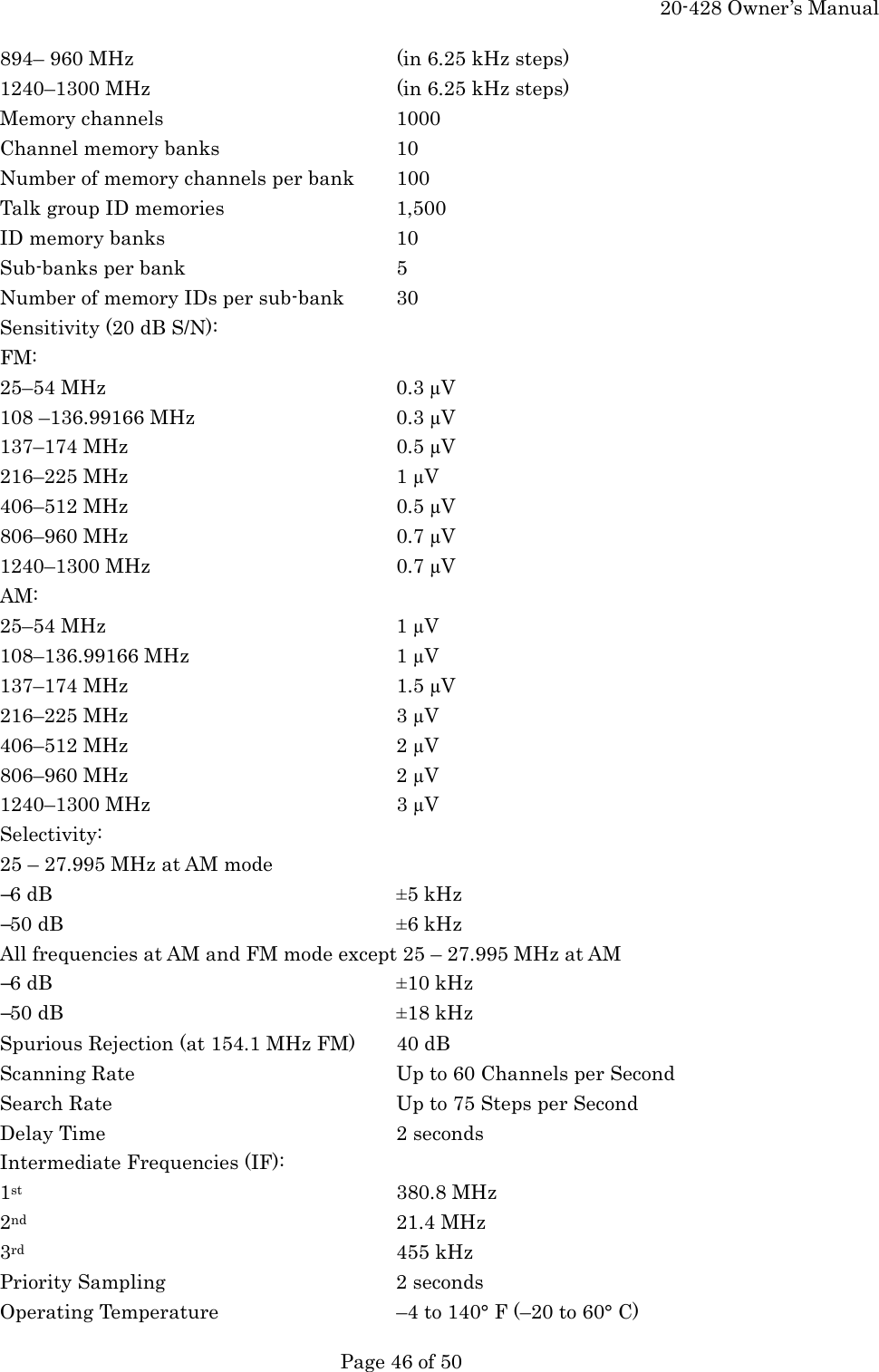

20-428 Owner’s Manual Page 46 of 50 894– 960 MHz (in 6.25 kHz steps) 1240–1300 MHz (in 6.25 kHz steps) Memory channels 1000 Channel memory banks 10 Number of memory channels per bank 100 Talk group ID memories 1,500 ID memory banks 10 Sub-banks per bank 5 Number of memory IDs per sub-bank 30 Sensitivity (20 dB S/N): FM: 25–54 MHz 0.3 µV 108 –136.99166 MHz 0.3 µV 137–174 MHz 0.5 µV 216–225 MHz 1 µV 406–512 MHz 0.5 µV 806–960 MHz 0.7 µV 1240–1300 MHz 0.7 µV AM: 25–54 MHz 1 µV 108–136.99166 MHz 1 µV 137–174 MHz 1.5 µV 216–225 MHz 3 µV 406–512 MHz 2 µV 806–960 MHz 2 µV 1240–1300 MHz 3 µV Selectivity: 25 – 27.995 MHz at AM mode ‒6 dB ±5 kHz ‒50 dB ±6 kHz All frequencies at AM and FM mode except 25 – 27.995 MHz at AM ‒6 dB ±10 kHz ‒50 dB ±18 kHz Spurious Rejection (at 154.1 MHz FM) 40 dB Scanning Rate Up to 60 Channels per Second Search Rate Up to 75 Steps per Second Delay Time 2 seconds Intermediate Frequencies (IF): 1st 380.8 MHz 2nd 21.4 MHz 3rd 455 kHz Priority Sampling 2 seconds Operating Temperature –4 to 140° F (–20 to 60° C)

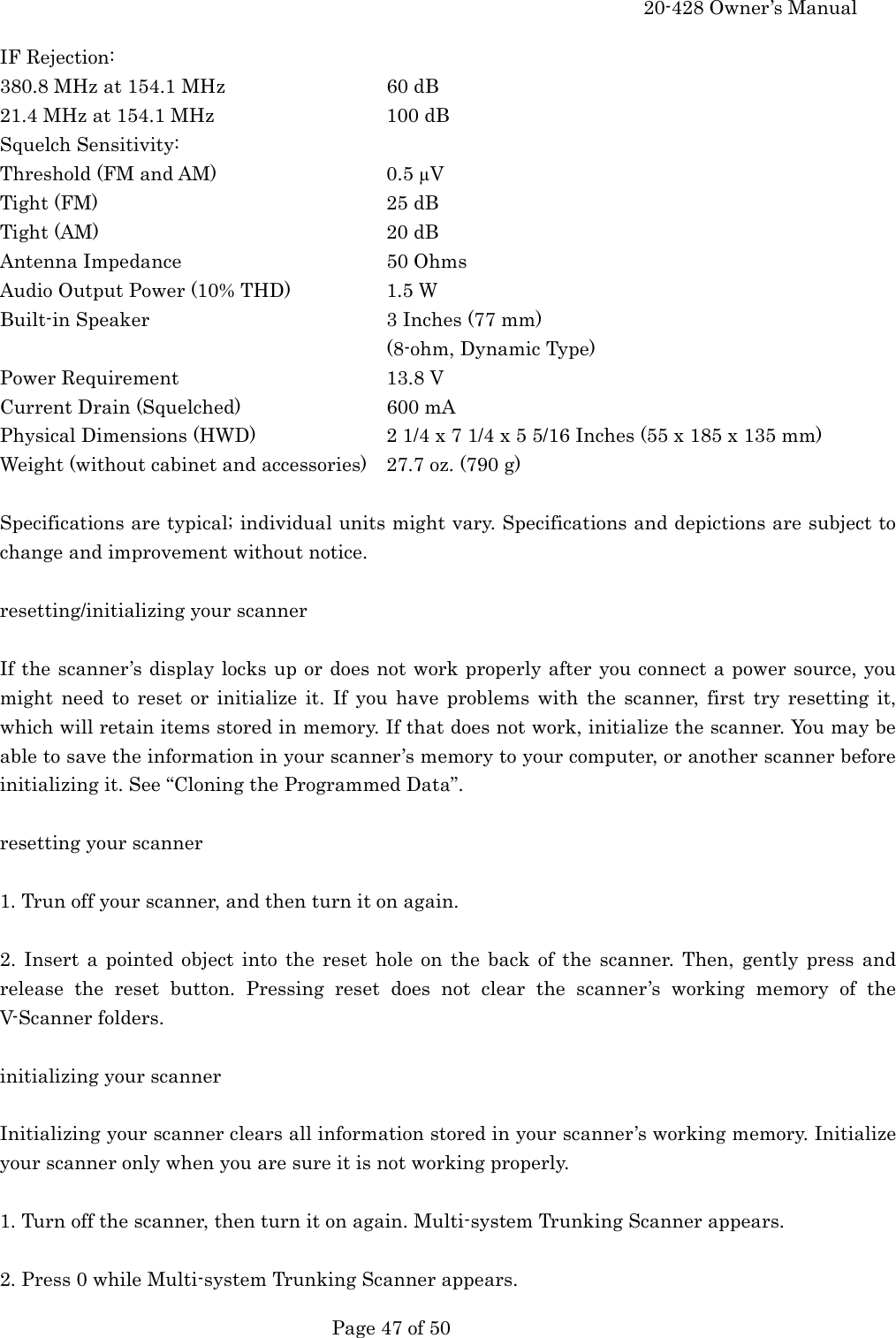

20-428 Owner’s Manual Page 47 of 50 IF Rejection: 380.8 MHz at 154.1 MHz 60 dB 21.4 MHz at 154.1 MHz 100 dB Squelch Sensitivity: Threshold (FM and AM) 0.5 µV Tight (FM) 25 dB Tight (AM) 20 dB Antenna Impedance 50 Ohms Audio Output Power (10% THD) 1.5 W Built-in Speaker 3 Inches (77 mm) (8-ohm, Dynamic Type) Power Requirement 13.8 V Current Drain (Squelched) 600 mA Physical Dimensions (HWD) 2 1/4 x 7 1/4 x 5 5/16 Inches (55 x 185 x 135 mm) Weight (without cabinet and accessories) 27.7 oz. (790 g) Specifications are typical; individual units might vary. Specifications and depictions are subject to change and improvement without notice. resetting/initializing your scanner If the scanner’s display locks up or does not work properly after you connect a power source, you might need to reset or initialize it. If you have problems with the scanner, first try resetting it, which will retain items stored in memory. If that does not work, initialize the scanner. You may be able to save the information in your scanner’s memory to your computer, or another scanner before initializing it. See “Cloning the Programmed Data”. resetting your scanner 1. Trun off your scanner, and then turn it on again. 2. Insert a pointed object into the reset hole on the back of the scanner. Then, gently press and release the reset button. Pressing reset does not clear the scanner’s working memory of the V-Scanner folders. initializing your scanner Initializing your scanner clears all information stored in your scanner’s working memory. Initialize your scanner only when you are sure it is not working properly. 1. Turn off the scanner, then turn it on again. Multi-system Trunking Scanner appears. 2. Press 0 while Multi-system Trunking Scanner appears.

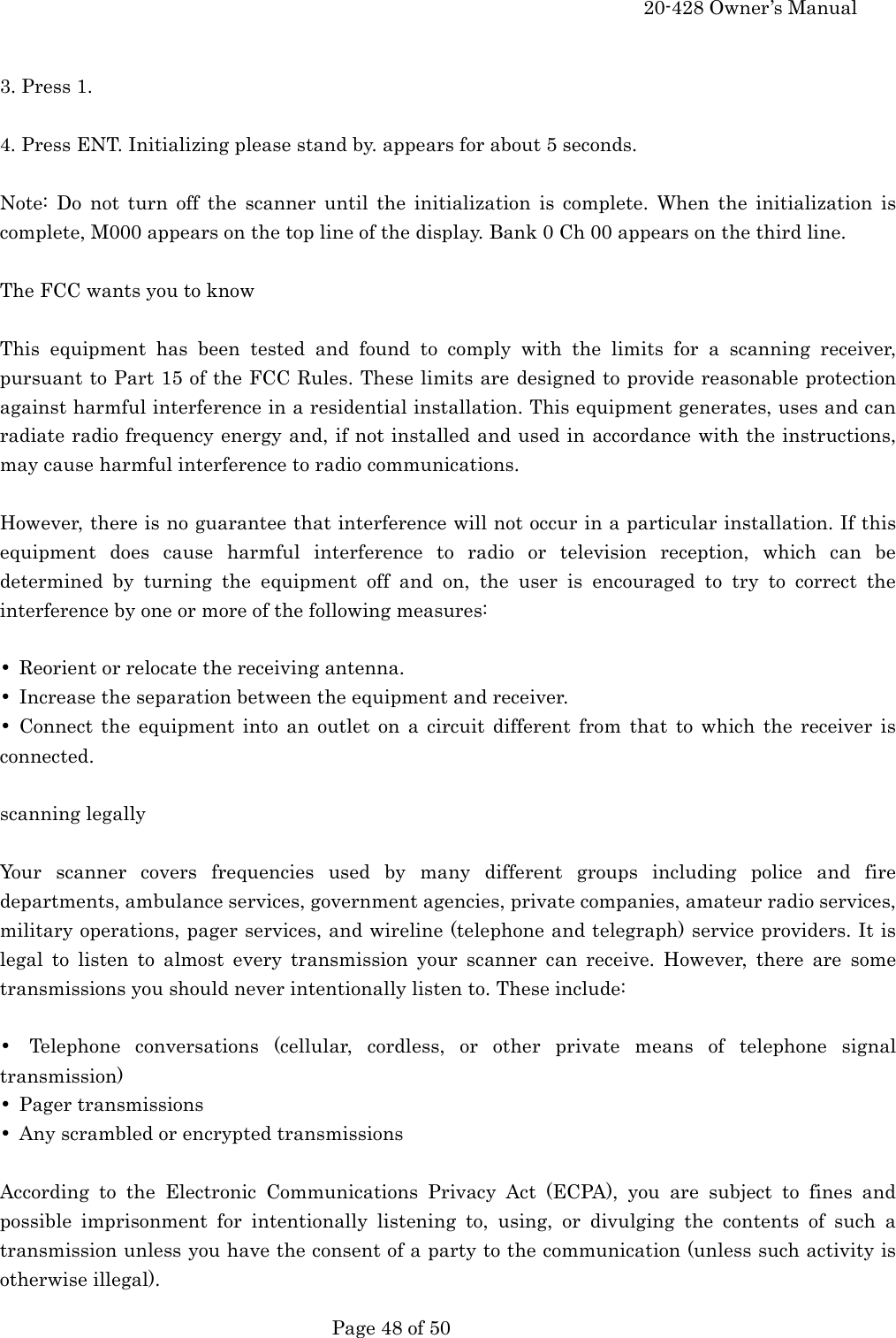

20-428 Owner’s Manual Page 48 of 50 3. Press 1. 4. Press ENT. Initializing please stand by. appears for about 5 seconds. Note: Do not turn off the scanner until the initialization is complete. When the initialization is complete, M000 appears on the top line of the display. Bank 0 Ch 00 appears on the third line. The FCC wants you to know This equipment has been tested and found to comply with the limits for a scanning receiver, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. scanning legally Your scanner covers frequencies used by many different groups including police and fire departments, ambulance services, government agencies, private companies, amateur radio services, military operations, pager services, and wireline (telephone and telegraph) service providers. It is legal to listen to almost every transmission your scanner can receive. However, there are some transmissions you should never intentionally listen to. These include: • Telephone conversations (cellular, cordless, or other private means of telephone signal transmission) • Pager transmissions • Any scrambled or encrypted transmissions According to the Electronic Communications Privacy Act (ECPA), you are subject to fines and possible imprisonment for intentionally listening to, using, or divulging the contents of such a transmission unless you have the consent of a party to the communication (unless such activity is otherwise illegal).

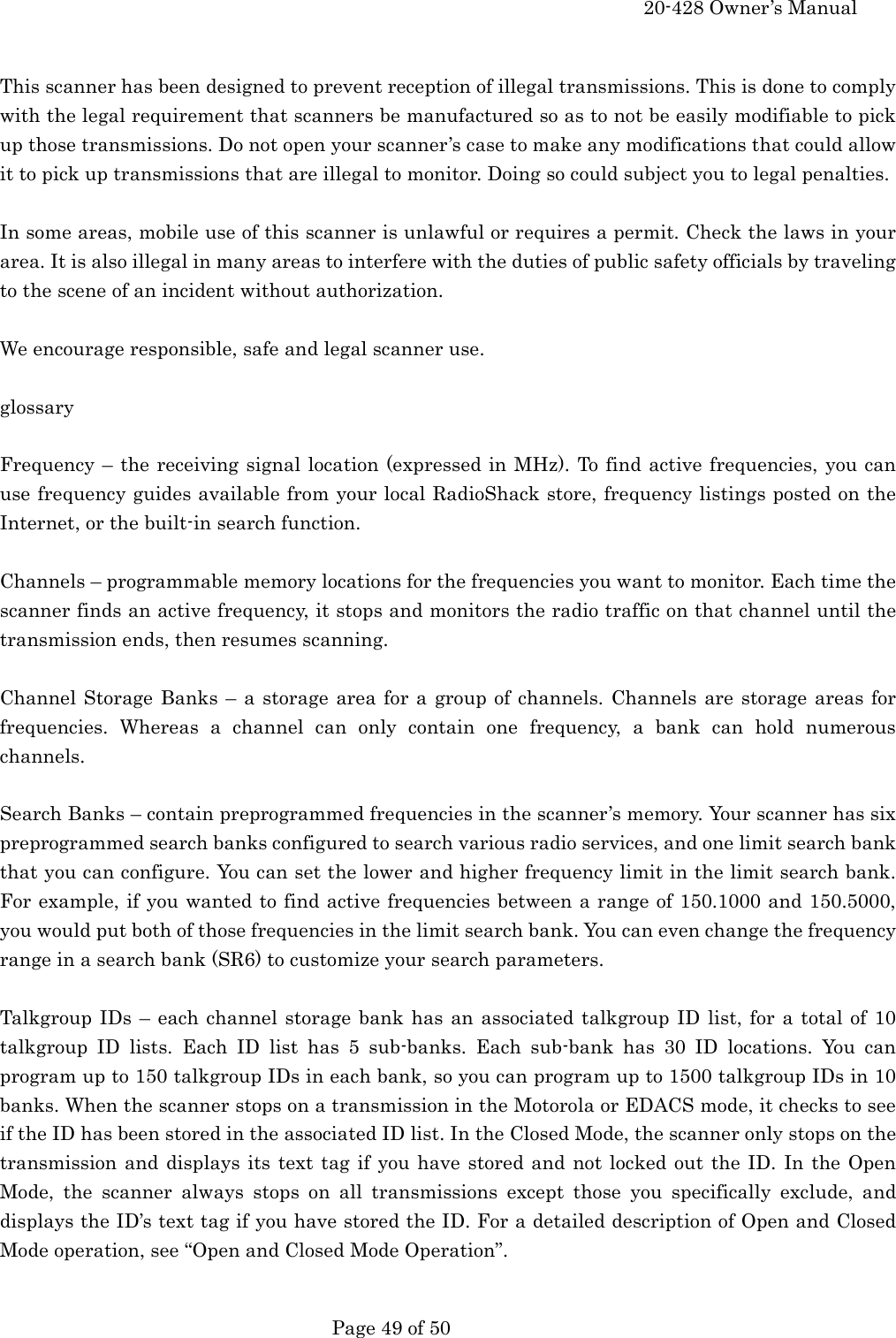

20-428 Owner’s Manual Page 49 of 50 This scanner has been designed to prevent reception of illegal transmissions. This is done to comply with the legal requirement that scanners be manufactured so as to not be easily modifiable to pick up those transmissions. Do not open your scanner’s case to make any modifications that could allow it to pick up transmissions that are illegal to monitor. Doing so could subject you to legal penalties. In some areas, mobile use of this scanner is unlawful or requires a permit. Check the laws in your area. It is also illegal in many areas to interfere with the duties of public safety officials by traveling to the scene of an incident without authorization. We encourage responsible, safe and legal scanner use. glossary Frequency – the receiving signal location (expressed in MHz). To find active frequencies, you can use frequency guides available from your local RadioShack store, frequency listings posted on the Internet, or the built-in search function. Channels – programmable memory locations for the frequencies you want to monitor. Each time the scanner finds an active frequency, it stops and monitors the radio traffic on that channel until the transmission ends, then resumes scanning. Channel Storage Banks – a storage area for a group of channels. Channels are storage areas for frequencies. Whereas a channel can only contain one frequency, a bank can hold numerous channels. Search Banks – contain preprogrammed frequencies in the scanner’s memory. Your scanner has six preprogrammed search banks configured to search various radio services, and one limit search bank that you can configure. You can set the lower and higher frequency limit in the limit search bank. For example, if you wanted to find active frequencies between a range of 150.1000 and 150.5000, you would put both of those frequencies in the limit search bank. You can even change the frequency range in a search bank (SR6) to customize your search parameters. Talkgroup IDs – each channel storage bank has an associated talkgroup ID list, for a total of 10 talkgroup ID lists. Each ID list has 5 sub-banks. Each sub-bank has 30 ID locations. You can program up to 150 talkgroup IDs in each bank, so you can program up to 1500 talkgroup IDs in 10 banks. When the scanner stops on a transmission in the Motorola or EDACS mode, it checks to see if the ID has been stored in the associated ID list. In the Closed Mode, the scanner only stops on the transmission and displays its text tag if you have stored and not locked out the ID. In the Open Mode, the scanner always stops on all transmissions except those you specifically exclude, and displays the ID’s text tag if you have stored the ID. For a detailed description of Open and Closed Mode operation, see “Open and Closed Mode Operation”.

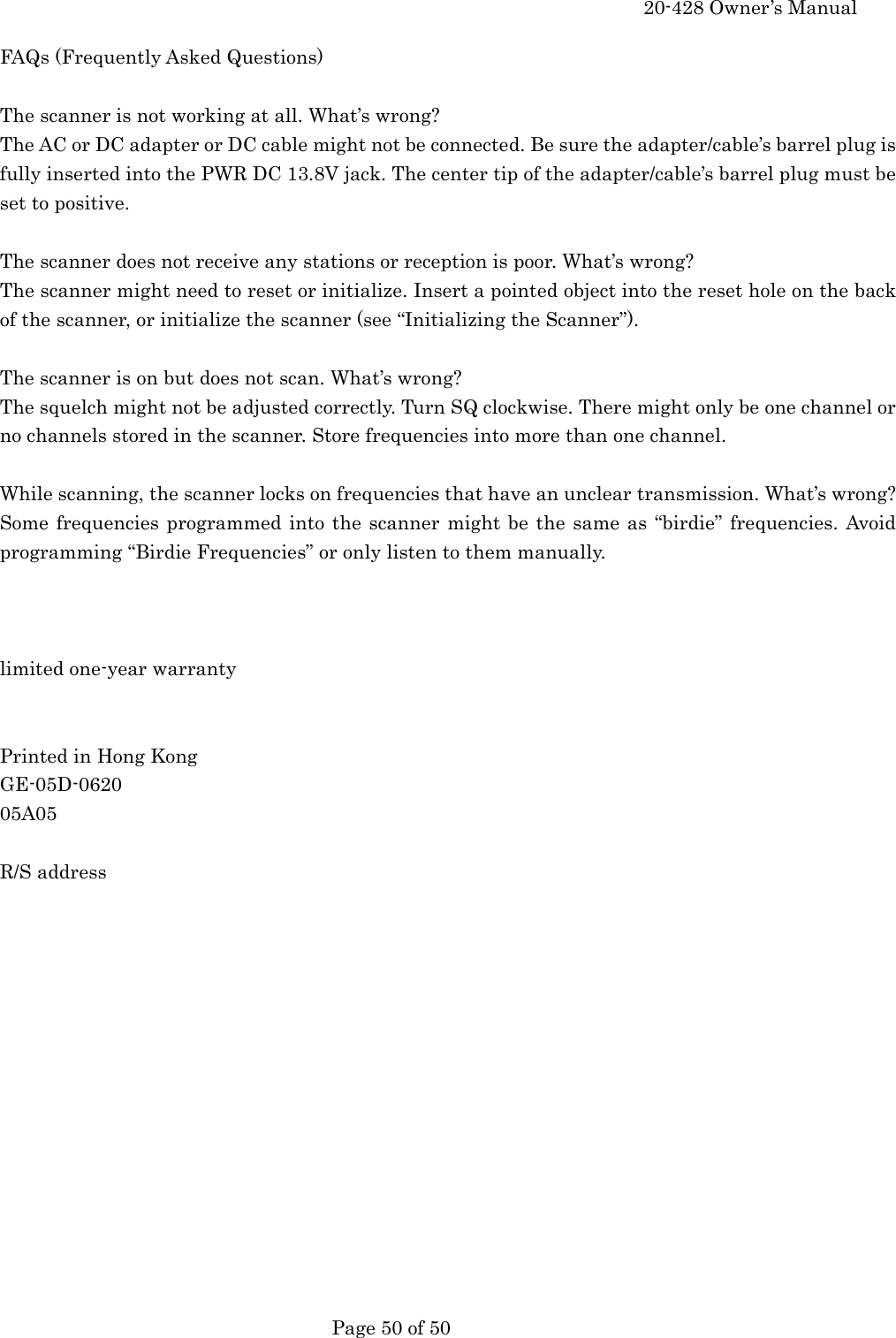

20-428 Owner’s Manual Page 50 of 50 FAQs (Frequently Asked Questions) The scanner is not working at all. What’s wrong? The AC or DC adapter or DC cable might not be connected. Be sure the adapter/cable’s barrel plug is fully inserted into the PWR DC 13.8V jack. The center tip of the adapter/cable’s barrel plug must be set to positive. The scanner does not receive any stations or reception is poor. What’s wrong? The scanner might need to reset or initialize. Insert a pointed object into the reset hole on the back of the scanner, or initialize the scanner (see “Initializing the Scanner”). The scanner is on but does not scan. What’s wrong? The squelch might not be adjusted correctly. Turn SQ clockwise. There might only be one channel or no channels stored in the scanner. Store frequencies into more than one channel. While scanning, the scanner locks on frequencies that have an unclear transmission. What’s wrong? Some frequencies programmed into the scanner might be the same as “birdie” frequencies. Avoid programming “Birdie Frequencies” or only listen to them manually. limited one-year warranty Printed in Hong Kong GE-05D-0620 05A05 R/S address
