How MedSense Works
MedSense is a combination of four easy-to-use wireless devices that
monitor and record compliance performance at point-of-care areas.
These devices take advantage of low-power wireless communication
and the latest web technologies to offer you a simple, powerful, and
accurate hand hygiene compliance monitoring solution.

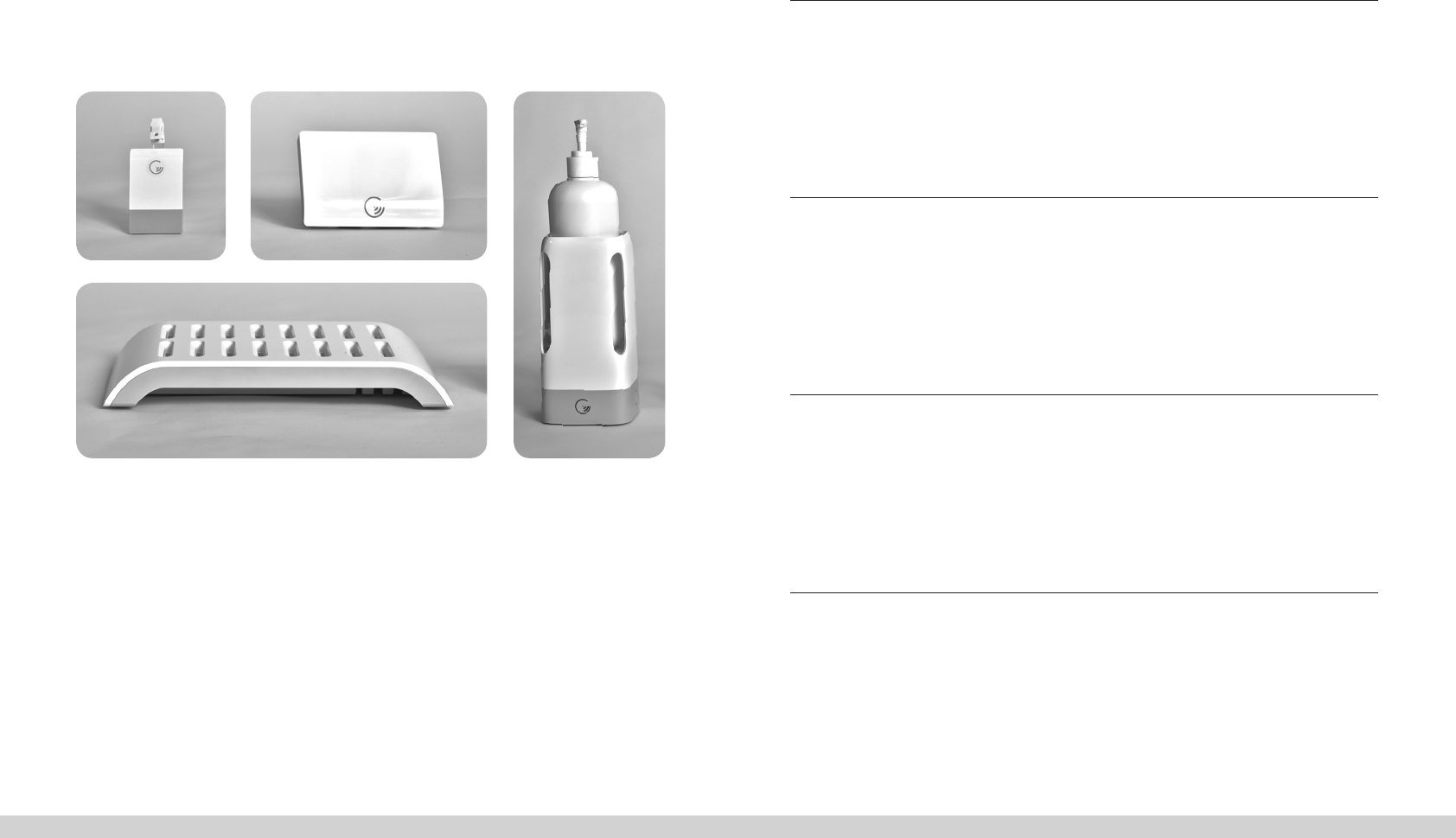

1. 2. 3.
4.
1. The MedSense Badge
The MedSense Badge, worn like an identity card, collects hand hygiene
compliance data as the healthcare worker delivers care around the
hospital.
2. The MedSense Beacon
The MedSense Beacon is a low-prole, battery-powered device that
is placed above a patient bed or other point of care with a semi-
permanent adhesive backing. The Beacon establishes a wireless patient
zone that allows the Badge to identify hand hygiene opportunities.
3. The MedSense Dispenser Monitor
The MedSense Dispenser Monitor acts as a holster for sanitizer
bottles. When a healthcare worker uses a sanitizer bottle, the
Dispenser Monitor signals the user’s Badge, which in turn records a
hand hygiene action.
4. The MedSense Base
The MedSense Base functions as a wireless base station through
which Badges upload compliance data to MedSense HQ. The Base also
functions as a battery charger for the Badge, capable of charging up to
sixteen Badge batteries to full capacity in two hours.
The MedSense HQ
MedSense HQ, General Sensing’s cloud-based web application, is what
ties all four devices together.
6 7
Setting Up the MedSense Base
• Locate the Base centrally, such as on a nursing station. Keep the Base
away from metal structures, as this may cause connection problems.
• The Base can be mounted on either a tabletop or on the wall, using
the screws provided.
• Connect the Base to the Ethernet port using the Ethernet cable
provided.
• The Base is connected once the light turns green.
MedSense Base
Router
Internet Ethernet Cable
Using the MedSense Base
CHARGING BATTERIES
The Base can charge up to sixteen Badge batteries to full capacity
in two hours. Individual indicator lights on each battery slot indicate
charging status. A pulsing blue light means a battery is charging, with a
solid blue light indicating a fully charged battery.
BASE CONNECTION STATUS
Refer to the status LED connected next to the Ethernet port on
the side of the Base.
1. 2.
Insert battery into base.
4.
BLINKING
RED
Remove battery from badge.
BLUE
Solid blue light indicates a fully charged battery. Insert charged battery into badge.
3.
Base Online .......................................................................................Green, Solid
Base Attempting to Connect .......................................................Amber, Solid
User Attention Required ..........................................................Green, Blinking
Base Station Internal Error .....................................................Amber, Blinking
TROUBLESHOOTING
LED State: Solid Amber
Status: Base Station Attempting to Connect
Explanation: Your Base is trying to connect to MedSense HQ. The
Base will go through this step during normal operation, but it should
transition to Online (solid green) after about 8 seconds.
If the solid amber state persists, then there is a problem.
8 9
Steps to correct:
1. Check to make sure that the router is properly connected to
the network. You can do this by checking the status lights on
your router or by trying to bring up a web page on a computer
connected to the network through the same router.
2. If your router IS NOT properly connected to the Internet, contact
the MedSense support team.
3. If your router IS properly connected to the Internet, make sure that
your Base is connected as specied in the typical network diagram
on p. 7.
If you are still experiencing this error after executing the
troubleshooting steps above, contact the MedSense support team.
LED State: Blinking Green*
Status: User Attention Required
Explanation: Ethernet cable is plugged in, but Base cannot get an IP
address.
Steps to correct:
1. Check that router is functioning normally. If your router is
functioning normally, reset the Base by disconnecting the power
source for 10 seconds and then reconnecting.
2. The Base may need advanced Ethernet conguration to run on your
network. Contact the MedSense support team to congure your Base.
If you are still experiencing this error after executing the
troubleshooting steps above, contact the MedSense support team.
LED State: Blinking Amber*
Status: Internal error
Explanation: An internal error has occurred.
Step to correct:
1. Reset your Base by disconnecting the power source. Wait 5
seconds, and then reconnect the power source.
If you are still experiencing this error after executing the
troubleshooting steps above, contact the MedSense support team.
*Your Base will attempt to restart itself after 10 seconds in this state.
CARE INSTRUCTIONS
Wipe down in place with a damp cloth.
POWER
The Base should only be used with the included power supply. Please
contact the MedSense support team for further information.
1110
