Genex Telecom FRS300 Family Radio Service 500 mW transceiver User Manual 300Manual

Genex Telecom Co., Ltd. Family Radio Service 500 mW transceiver 300Manual

User Manual

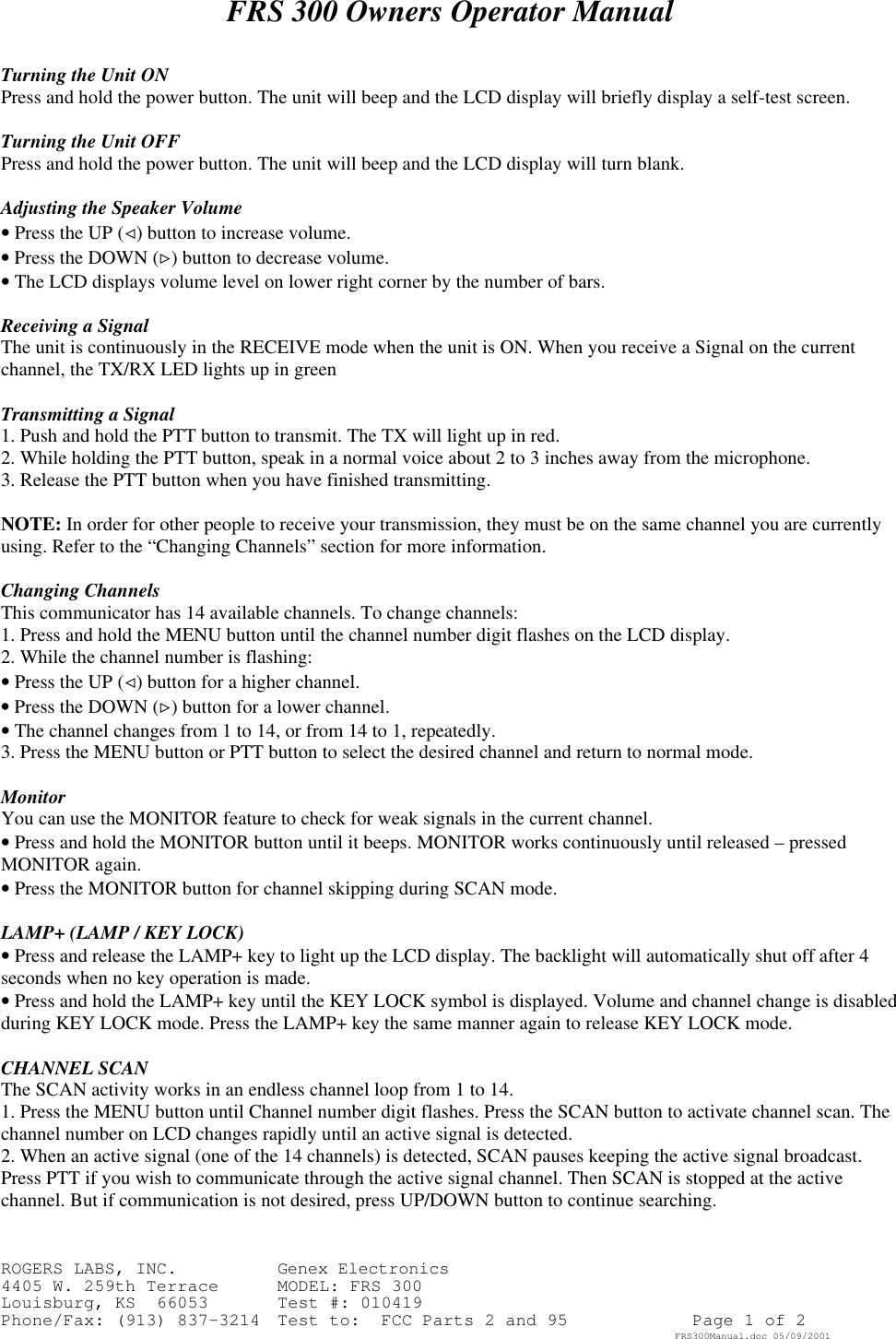

ROGERS LABS, INC. Genex Electronics4405 W. 259th Terrace MODEL: FRS 300Louisburg, KS  66053 Test #: 010419Phone/Fax: (913) 837-3214 Test to:  FCC Parts 2 and 95 Page 1 of 2FRS300Manual.doc 05/09/2001FRS 300 Owners Operator ManualTurning the Unit ONPress and hold the power button. The unit will beep and the LCD display will briefly display a self-test screen.Turning the Unit OFFPress and hold the power button. The unit will beep and the LCD display will turn blank.Adjusting the Speaker Volume• Press the UP (<) button to increase volume.• Press the DOWN (>) button to decrease volume.• The LCD displays volume level on lower right corner by the number of bars.Receiving a SignalThe unit is continuously in the RECEIVE mode when the unit is ON. When you receive a Signal on the currentchannel, the TX/RX LED lights up in greenTransmitting a Signal1. Push and hold the PTT button to transmit. The TX will light up in red.2. While holding the PTT button, speak in a normal voice about 2 to 3 inches away from the microphone.3. Release the PTT button when you have finished transmitting.NOTE: In order for other people to receive your transmission, they must be on the same channel you are currentlyusing. Refer to the “Changing Channels” section for more information.Changing ChannelsThis communicator has 14 available channels. To change channels:1. Press and hold the MENU button until the channel number digit flashes on the LCD display.2. While the channel number is flashing:• Press the UP (<) button for a higher channel.• Press the DOWN (>) button for a lower channel.• The channel changes from 1 to 14, or from 14 to 1, repeatedly.3. Press the MENU button or PTT button to select the desired channel and return to normal mode.MonitorYou can use the MONITOR feature to check for weak signals in the current channel.• Press and hold the MONITOR button until it beeps. MONITOR works continuously until released – pressedMONITOR again.• Press the MONITOR button for channel skipping during SCAN mode.LAMP+ (LAMP / KEY LOCK)• Press and release the LAMP+ key to light up the LCD display. The backlight will automatically shut off after 4seconds when no key operation is made.• Press and hold the LAMP+ key until the KEY LOCK symbol is displayed. Volume and channel change is disabledduring KEY LOCK mode. Press the LAMP+ key the same manner again to release KEY LOCK mode.CHANNEL SCANThe SCAN activity works in an endless channel loop from 1 to 14.1. Press the MENU button until Channel number digit flashes. Press the SCAN button to activate channel scan. Thechannel number on LCD changes rapidly until an active signal is detected.2. When an active signal (one of the 14 channels) is detected, SCAN pauses keeping the active signal broadcast.Press PTT if you wish to communicate through the active signal channel. Then SCAN is stopped at the activechannel. But if communication is not desired, press UP/DOWN button to continue searching.

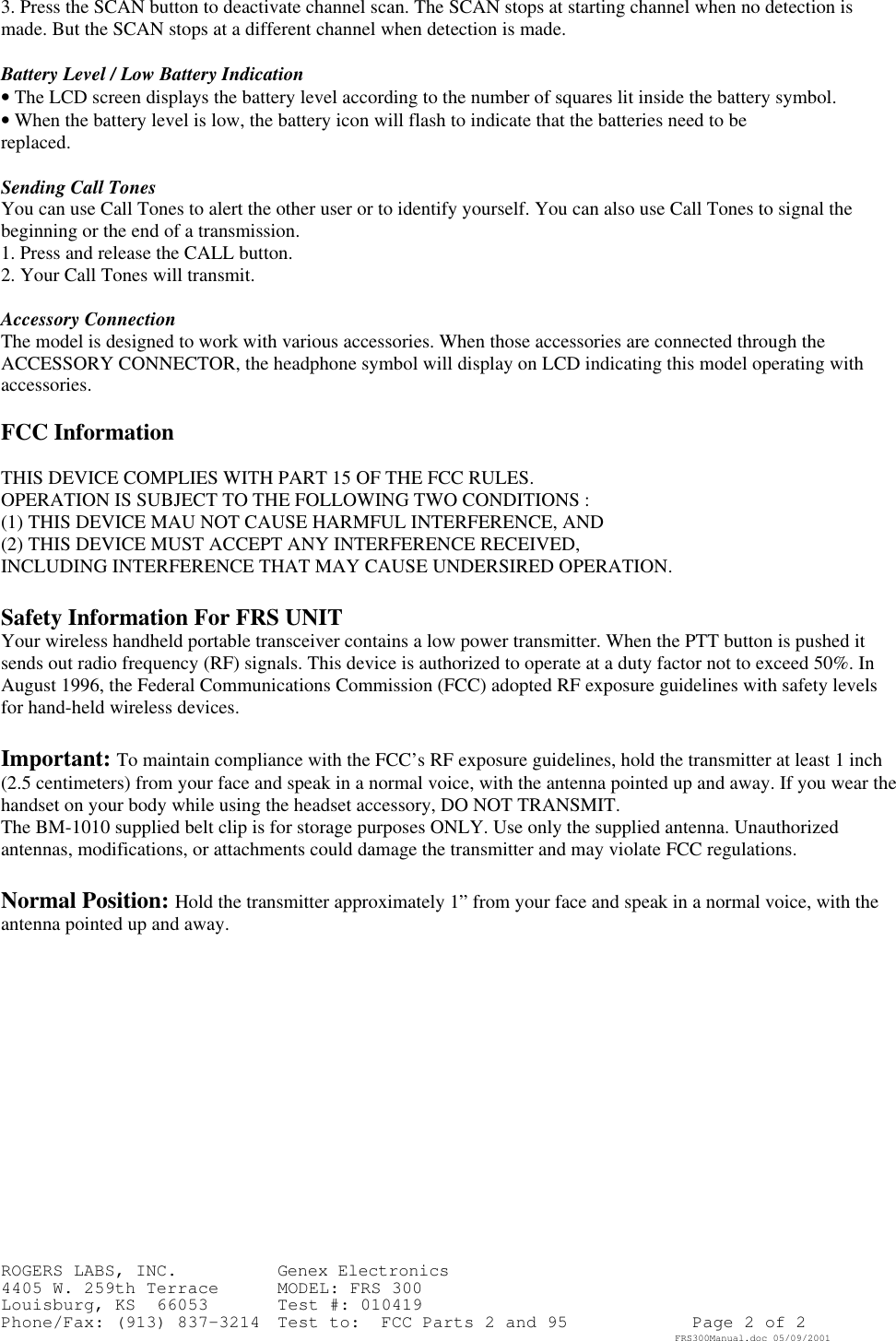

ROGERS LABS, INC. Genex Electronics4405 W. 259th Terrace MODEL: FRS 300Louisburg, KS  66053 Test #: 010419Phone/Fax: (913) 837-3214 Test to:  FCC Parts 2 and 95 Page 2 of 2FRS300Manual.doc 05/09/20013. Press the SCAN button to deactivate channel scan. The SCAN stops at starting channel when no detection ismade. But the SCAN stops at a different channel when detection is made.Battery Level / Low Battery Indication• The LCD screen displays the battery level according to the number of squares lit inside the battery symbol.• When the battery level is low, the battery icon will flash to indicate that the batteries need to bereplaced.Sending Call TonesYou can use Call Tones to alert the other user or to identify yourself. You can also use Call Tones to signal thebeginning or the end of a transmission.1. Press and release the CALL button.2. Your Call Tones will transmit.Accessory ConnectionThe model is designed to work with various accessories. When those accessories are connected through theACCESSORY CONNECTOR, the headphone symbol will display on LCD indicating this model operating withaccessories.FCC InformationTHIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS :(1) THIS DEVICE MAU NOT CAUSE HARMFUL INTERFERENCE, AND(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,INCLUDING INTERFERENCE THAT MAY CAUSE UNDERSIRED OPERATION.Safety Information For FRS UNITYour wireless handheld portable transceiver contains a low power transmitter. When the PTT button is pushed itsends out radio frequency (RF) signals. This device is authorized to operate at a duty factor not to exceed 50%. InAugust 1996, the Federal Communications Commission (FCC) adopted RF exposure guidelines with safety levelsfor hand-held wireless devices.Important: To maintain compliance with the FCC’s RF exposure guidelines, hold the transmitter at least 1 inch(2.5 centimeters) from your face and speak in a normal voice, with the antenna pointed up and away. If you wear thehandset on your body while using the headset accessory, DO NOT TRANSMIT.The BM-1010 supplied belt clip is for storage purposes ONLY. Use only the supplied antenna. Unauthorizedantennas, modifications, or attachments could damage the transmitter and may violate FCC regulations.Normal Position: Hold the transmitter approximately 1” from your face and speak in a normal voice, with theantenna pointed up and away.
